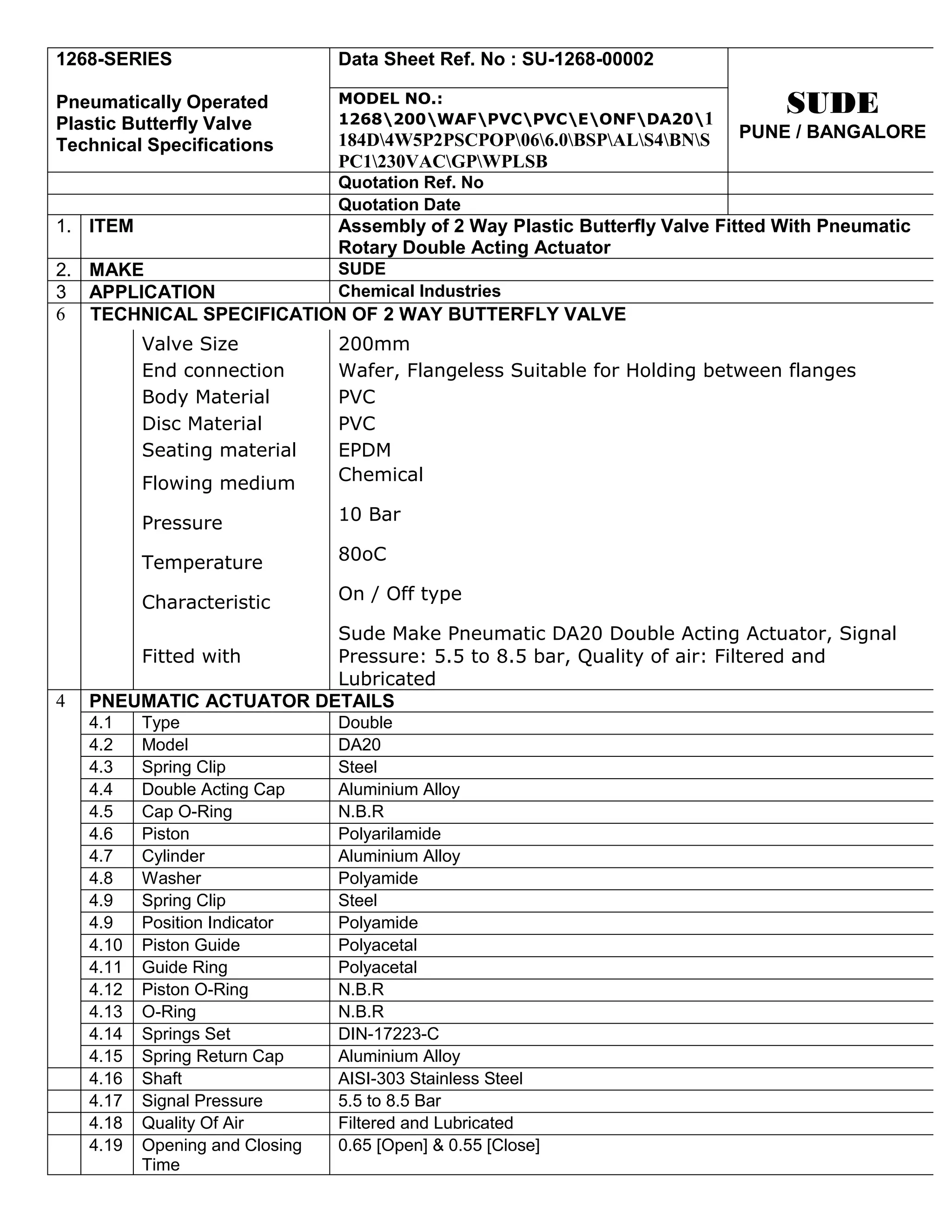

1. 1268-SERIES Data Sheet Ref. No : SU-1268-00002
Pneumatically Operated MODEL NO.:
1268200WAFPVCPVCEONFDA201
SUDE
Plastic Butterfly Valve PUNE / BANGALORE
Technical Specifications 184D4W5P2PSCPOP066.0BSPALS4BNS
PC1230VACGPWPLSB
Quotation Ref. No
Quotation Date
1. ITEM Assembly of 2 Way Plastic Butterfly Valve Fitted With Pneumatic
Rotary Double Acting Actuator
2. MAKE SUDE
3 APPLICATION Chemical Industries
6 TECHNICAL SPECIFICATION OF 2 WAY BUTTERFLY VALVE
Valve Size 200mm
End connection Wafer, Flangeless Suitable for Holding between flanges
Body Material PVC
Disc Material PVC
Seating material EPDM
Flowing medium Chemical
Pressure 10 Bar
Temperature 80oC
Characteristic On / Off type
Sude Make Pneumatic DA20 Double Acting Actuator, Signal
Fitted with Pressure: 5.5 to 8.5 bar, Quality of air: Filtered and
Lubricated
4 PNEUMATIC ACTUATOR DETAILS
4.1 Type Double
4.2 Model DA20
4.3 Spring Clip Steel
4.4 Double Acting Cap Aluminium Alloy
4.5 Cap O-Ring N.B.R
4.6 Piston Polyarilamide
4.7 Cylinder Aluminium Alloy
4.8 Washer Polyamide
4.9 Spring Clip Steel
4.9 Position Indicator Polyamide
4.10 Piston Guide Polyacetal
4.11 Guide Ring Polyacetal
4.12 Piston O-Ring N.B.R
4.13 O-Ring N.B.R
4.14 Springs Set DIN-17223-C
4.15 Spring Return Cap Aluminium Alloy
4.16 Shaft AISI-303 Stainless Steel
4.17 Signal Pressure 5.5 to 8.5 Bar
4.18 Quality Of Air Filtered and Lubricated
4.19 Opening and Closing 0.65 [Open] & 0.55 [Close]
Time
2. 5 OPTIONAL
ACCESSORIES
5.1 4 Way 5 Port Of ¼” size having Aluminum body with Coil voltage Provided
Single coil 2 of 230 V AC Supply
position poppet
type solenoid
valve
5.2 Weather Proof Consisting of 2 nos micro switches having 1 NO + 1 Provided
Limit switch box NC contacts for sensing end position of the valve
6 GENERAL POINTS
6.1 Inspection By Customer at our works
6.2 T. C.& Manuals 2 Sets with unit
6.3 Warranty 18 months from the date of supply or 12 months from the date of installation
which ever is earlier.
6.4 Packing Thermo cool Packing Housed in corrugated Box
SPECIAL NOTE :
