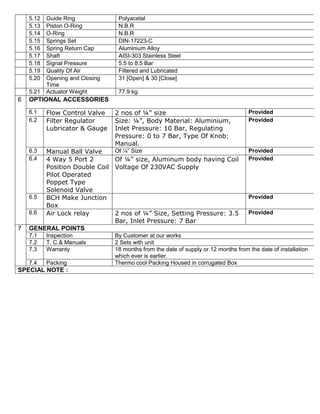

![5.12 Guide Ring Polyacetal
5.13 Piston O-Ring N.B.R
5.14 O-Ring N.B.R
5.15 Springs Set DIN-17223-C
5.16 Spring Return Cap Aluminium Alloy
5.17 Shaft AISI-303 Stainless Steel
5.18 Signal Pressure 5.5 to 8.5 Bar
5.19 Quality Of Air Filtered and Lubricated
5.20 Opening and Closing 31 [Open] & 30 [Close]
Time
5.21 Actuator Weight 77.9 kg.
6 OPTIONAL ACCESSORIES
6.1 Flow Control Valve 2 nos of ¼” size Provided
6.2 Filter Regulator Size: ¼”, Body Material: Aluminium, Provided
Lubricator & Gauge Inlet Pressure: 10 Bar, Regulating
Pressure: 0 to 7 Bar, Type Of Knob:
Manual.
6.3 Manual Ball Valve Of ¼” Size Provided
6.4 4 Way 5 Port 2 Of ¼” size, Aluminum body having Coil Provided
Position Double Coil Voltage Of 230VAC Supply
Pilot Operated
Poppet Type
Solenoid Valve
6.5 BCH Make Junction Provided
Box
6.6 Air Lock relay 2 nos of ¼” Size, Setting Pressure: 3.5 Provided
Bar, Inlet Pressure: 7 Bar
7 GENERAL POINTS
7.1 Inspection By Customer at our works
7.2 T. C.& Manuals 2 Sets with unit
7.3 Warranty 18 months from the date of supply or 12 months from the date of installation
which ever is earlier.
7.4 Packing Thermo cool Packing Housed in corrugated Box
SPECIAL NOTE :](https://image.slidesharecdn.com/1962-onfbfdbutterflydamper-110530230135-phpapp01/85/1962-onf-bfd-butterfly-damper-2-320.jpg)
More Related Content
Similar to 1962 onf bfd (butterfly damper)
1962 onf bfd (butterfly damper)
- 1. 1962BFD-SERIES Data Sheet Ref. No : SU-1962-00002 PNEUMATICALLY OPERATED 1962BFD3000x350IS2062BIS2062B 101075x162CFONFDA70FCV06 SUDE BUTTERFLY DAMPER PUNE / BANGALORE 2FRL061300MBV06JB1184D4W TECHNICAL SPECIFICATION 5P2PDCPOP066.0BSPALS4BNSPC DETAILS 1230VACGP2ALR Quotation Ref. No Quotation Date 1. ITEM SUDE OFFERS THE ASSEMBLY OF BUTTERFLY DAMPER FITTED WITH PNEUMATIC DOUBLE ACTING ACTUATOR 2. MAKE SUDE 3 APPLICATION 4 TECHNICAL SPECIFICATION OF BUTTERFLY DAMPER 4.1 Damper Size 3000mm 4.2 Damper Length 350mm 4.3 Housing MOC IS2062’B’ 4.4 Flap Material IS2062’B’ 4.5 Housing Thickness 10mm 4.6 Flap Thickness 10mm 4.7 Flange Details 75x16mm 4.8 Counter Flanges 2 NO. Counter Flange 4.9 Flowing medium Air 4.10 Temperature Ambient 4.11 Characteristic On / Off type 4.12 Sude Make DA70 Pneumatic Rotary Double Acting Actuator, Fitted with Signal Pressure:5.5 to 8.5 bar, Quality of Air: Filtered & Lubricated. 5 PNEUMATIC ACTUATOR DETAILS 5.1 Type Double 5.2 Model DA70 5.3 Spring Clip Steel 5.4 Double Acting Cap Aluminium Alloy 5.5 Cap O-Ring N.B.R 5.6 Piston Polyarilamide 5.7 Cylinder Aluminium Alloy 5.8 Washer Polyamide 5.9 Spring Clip Steel 5.10 Position Indicator Polyamide 5.11 Piston Guide Polyacetal
- 2. 5.12 Guide Ring Polyacetal 5.13 Piston O-Ring N.B.R 5.14 O-Ring N.B.R 5.15 Springs Set DIN-17223-C 5.16 Spring Return Cap Aluminium Alloy 5.17 Shaft AISI-303 Stainless Steel 5.18 Signal Pressure 5.5 to 8.5 Bar 5.19 Quality Of Air Filtered and Lubricated 5.20 Opening and Closing 31 [Open] & 30 [Close] Time 5.21 Actuator Weight 77.9 kg. 6 OPTIONAL ACCESSORIES 6.1 Flow Control Valve 2 nos of ¼” size Provided 6.2 Filter Regulator Size: ¼”, Body Material: Aluminium, Provided Lubricator & Gauge Inlet Pressure: 10 Bar, Regulating Pressure: 0 to 7 Bar, Type Of Knob: Manual. 6.3 Manual Ball Valve Of ¼” Size Provided 6.4 4 Way 5 Port 2 Of ¼” size, Aluminum body having Coil Provided Position Double Coil Voltage Of 230VAC Supply Pilot Operated Poppet Type Solenoid Valve 6.5 BCH Make Junction Provided Box 6.6 Air Lock relay 2 nos of ¼” Size, Setting Pressure: 3.5 Provided Bar, Inlet Pressure: 7 Bar 7 GENERAL POINTS 7.1 Inspection By Customer at our works 7.2 T. C.& Manuals 2 Sets with unit 7.3 Warranty 18 months from the date of supply or 12 months from the date of installation which ever is earlier. 7.4 Packing Thermo cool Packing Housed in corrugated Box SPECIAL NOTE :
