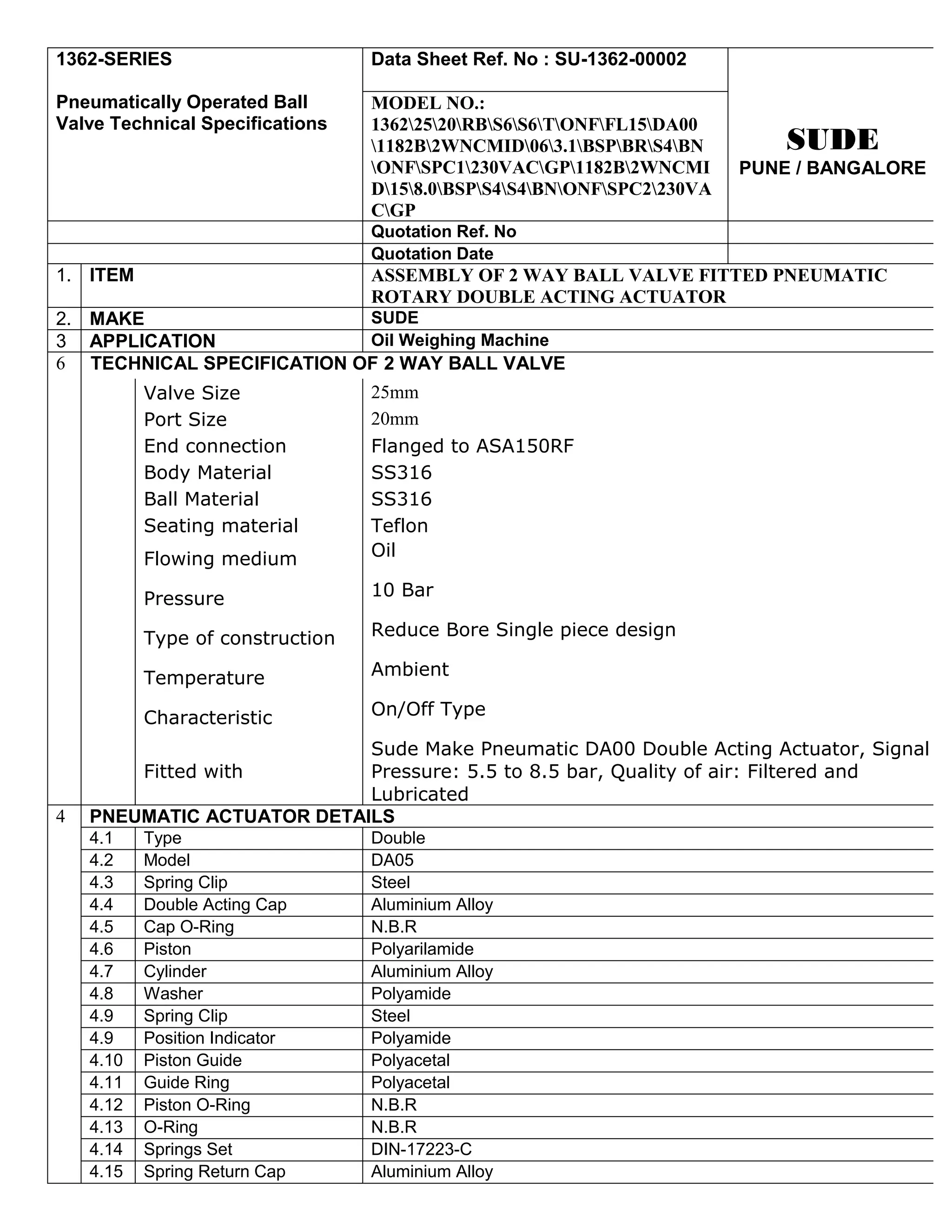

- 1. 1362-SERIES Data Sheet Ref. No : SU-1362-00002 Pneumatically Operated Ball MODEL NO.: Valve Technical Specifications 13622520RBS6S6TONFFL15DA00 1182B2WNCMID063.1BSPBRS4BN SUDE ONFSPC1230VACGP1182B2WNCMI PUNE / BANGALORE D158.0BSPS4S4BNONFSPC2230VA CGP Quotation Ref. No Quotation Date 1. ITEM ASSEMBLY OF 2 WAY BALL VALVE FITTED PNEUMATIC ROTARY DOUBLE ACTING ACTUATOR 2. MAKE SUDE 3 APPLICATION Oil Weighing Machine 6 TECHNICAL SPECIFICATION OF 2 WAY BALL VALVE Valve Size 25mm Port Size 20mm End connection Flanged to ASA150RF Body Material SS316 Ball Material SS316 Seating material Teflon Flowing medium Oil Pressure 10 Bar Type of construction Reduce Bore Single piece design Temperature Ambient Characteristic On/Off Type Sude Make Pneumatic DA00 Double Acting Actuator, Signal Fitted with Pressure: 5.5 to 8.5 bar, Quality of air: Filtered and Lubricated 4 PNEUMATIC ACTUATOR DETAILS 4.1 Type Double 4.2 Model DA05 4.3 Spring Clip Steel 4.4 Double Acting Cap Aluminium Alloy 4.5 Cap O-Ring N.B.R 4.6 Piston Polyarilamide 4.7 Cylinder Aluminium Alloy 4.8 Washer Polyamide 4.9 Spring Clip Steel 4.9 Position Indicator Polyamide 4.10 Piston Guide Polyacetal 4.11 Guide Ring Polyacetal 4.12 Piston O-Ring N.B.R 4.13 O-Ring N.B.R 4.14 Springs Set DIN-17223-C 4.15 Spring Return Cap Aluminium Alloy

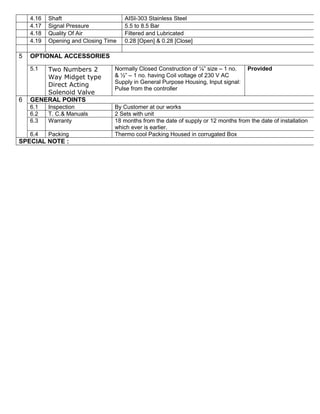

- 2. 4.16 Shaft AISI-303 Stainless Steel 4.17 Signal Pressure 5.5 to 8.5 Bar 4.18 Quality Of Air Filtered and Lubricated 4.19 Opening and Closing Time 0.28 [Open] & 0.28 [Close] 5 OPTIONAL ACCESSORIES 5.1 Two Numbers 2 Normally Closed Construction of ¼” size – 1 no. Provided Way Midget type & ½” – 1 no. having Coil voltage of 230 V AC Supply in General Purpose Housing, Input signal: Direct Acting Pulse from the controller Solenoid Valve 6 GENERAL POINTS 6.1 Inspection By Customer at our works 6.2 T. C.& Manuals 2 Sets with unit 6.3 Warranty 18 months from the date of supply or 12 months from the date of installation which ever is earlier. 6.4 Packing Thermo cool Packing Housed in corrugated Box SPECIAL NOTE :
