This document provides specifications for a 2 way normally closed angle type piston operated cylinder control valve. Key details include that it has a 25mm size and orifice, BSP screwed end connections, an SS304 body and plug material, and is rated for temperatures up to 180°C and pressures of 10 bar. It also comes with optional accessories like a 3 way normally closed midget solenoid valve and LED.

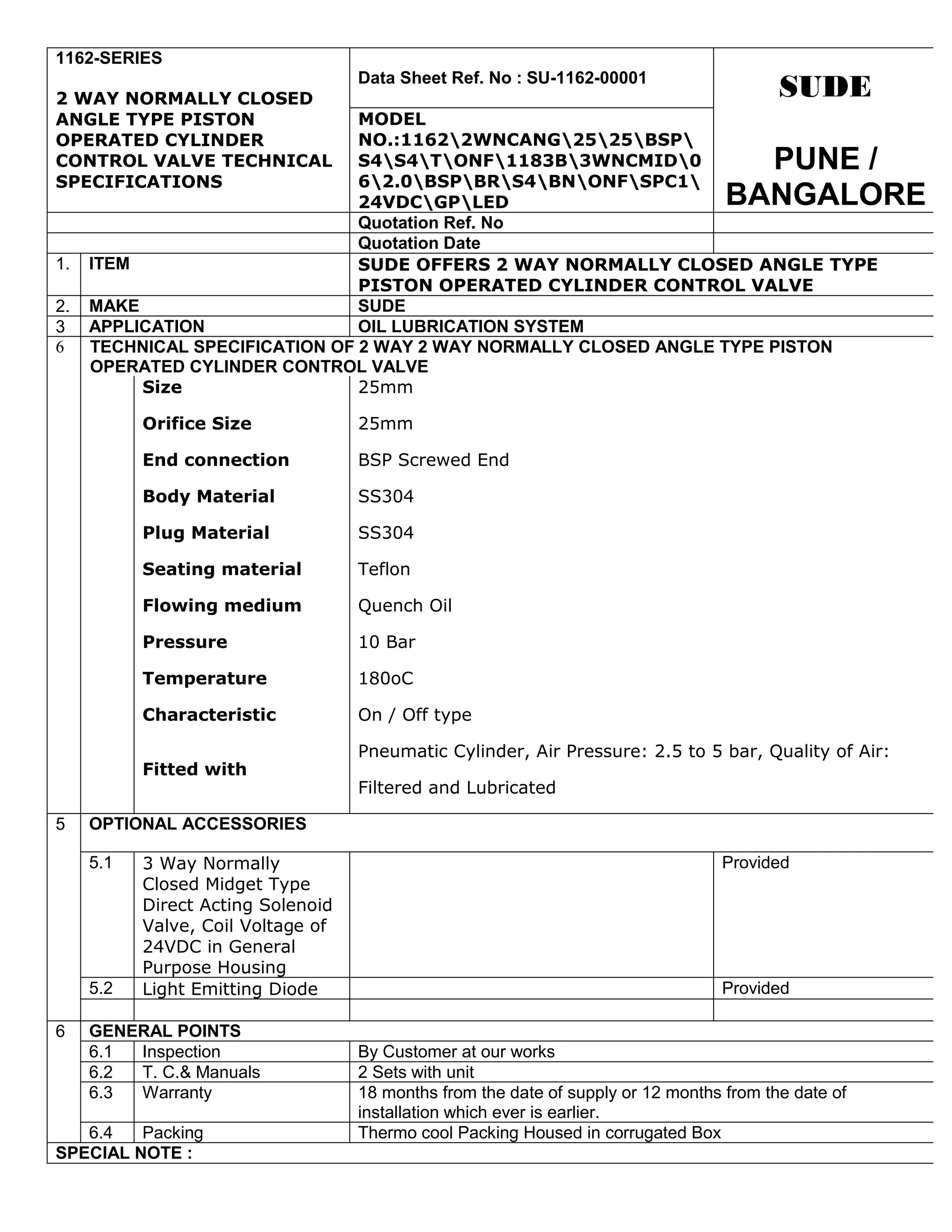

1. 1162-SERIES
Data Sheet Ref. No : SU-1162-00001
2 WAY NORMALLY CLOSED SUDE
ANGLE TYPE PISTON MODEL
OPERATED CYLINDER NO.:11622WNCANG2525BSP
CONTROL VALVE TECHNICAL S4S4TONF1183B3WNCMID0 PUNE /
SPECIFICATIONS 62.0BSPBRS4BNONFSPC1
24VDCGPLED BANGALORE
Quotation Ref. No
Quotation Date
1. ITEM SUDE OFFERS 2 WAY NORMALLY CLOSED ANGLE TYPE
PISTON OPERATED CYLINDER CONTROL VALVE
2. MAKE SUDE
3 APPLICATION OIL LUBRICATION SYSTEM
6 TECHNICAL SPECIFICATION OF 2 WAY 2 WAY NORMALLY CLOSED ANGLE TYPE PISTON
OPERATED CYLINDER CONTROL VALVE
Size 25mm
Orifice Size 25mm
End connection BSP Screwed End
Body Material SS304
Plug Material SS304
Seating material Teflon
Flowing medium Quench Oil
Pressure 10 Bar
Temperature 180oC
Characteristic On / Off type
Pneumatic Cylinder, Air Pressure: 2.5 to 5 bar, Quality of Air:
Fitted with
Filtered and Lubricated
5 OPTIONAL ACCESSORIES
5.1 3 Way Normally Provided
Closed Midget Type
Direct Acting Solenoid
Valve, Coil Voltage of
24VDC in General
Purpose Housing
5.2 Light Emitting Diode Provided
6 GENERAL POINTS
6.1 Inspection By Customer at our works
6.2 T. C.& Manuals 2 Sets with unit
6.3 Warranty 18 months from the date of supply or 12 months from the date of
installation which ever is earlier.
6.4 Packing Thermo cool Packing Housed in corrugated Box
SPECIAL NOTE :
