This document discusses the transformation of IT backup and recovery due to trends in data growth and regulations. It presents EMC's backup solutions including Data Domain for disk-based backup with deduplication, Avamar for fast VMware backups, and NetWorker for centralized backup management. These solutions provide faster backups, recovery and scalability compared to traditional tape-based systems. Case studies show customers achieving up to 98% data reduction, replacing tapes completely and saving over $200k annually with EMC's backup products.

1. © Copyright 2012 EMC Corporation. All rights reserved. 1

2. 引領 IT 備份與復原
的轉型
Transforming Backup And
Recovery
Kevin Lan / 藍基能
資深技術顧問
EMC Taiwan
© Copyright 2012 EMC Corporation. All rights reserved. 2

3. 唯一的不變就是變
THE JOURNEY
CONTINUES
© Copyright 2012 EMC Corporation. All rights reserved. 3

4. IT 資料備份的壓力與挑戰
持續不斷的累積中
2009 2020
0.8 Zettabytes 35.2 Zettabytes
壞軌、卡帶等問題
BIG DATA 的到來 磁帶的效能無法應付BIG DATA
Transformation
基礎架構的移轉 個資法對現行備份作業的影響
© Copyright 2012 EMC Corporation. All rights reserved. 4

5. 磁碟 Deduplication A Must Have
Backup Appliances Everywhere
持續的取代磁帶，
成為備份主流媒體 Software Unlocking Disk Power
© Copyright 2012 EMC Corporation. All rights reserved. 5

6. 超過
1,000
客戶
已採用無磁帶備份
TAPELESS
© Copyright 2012 EMC Corporation. All rights reserved. 6

7. $8.2B $12.2B
新趨勢 100%
專為
90%
Data
備份
80% Protection
70% CAGR:5.6% and Recovery
Software
60%
而創建的設備
50% Purpose Built
Backup
40% Appliances
30% CAGR:21.4%
CAGR:21.4%
20%
Tape
10% Automation
CAGR:–0.7%
CAGR:–0.7%
0%
2011 2012 2013 2014 2015
© Copyright 2012 EMC Corporation. All rights reserved. 7

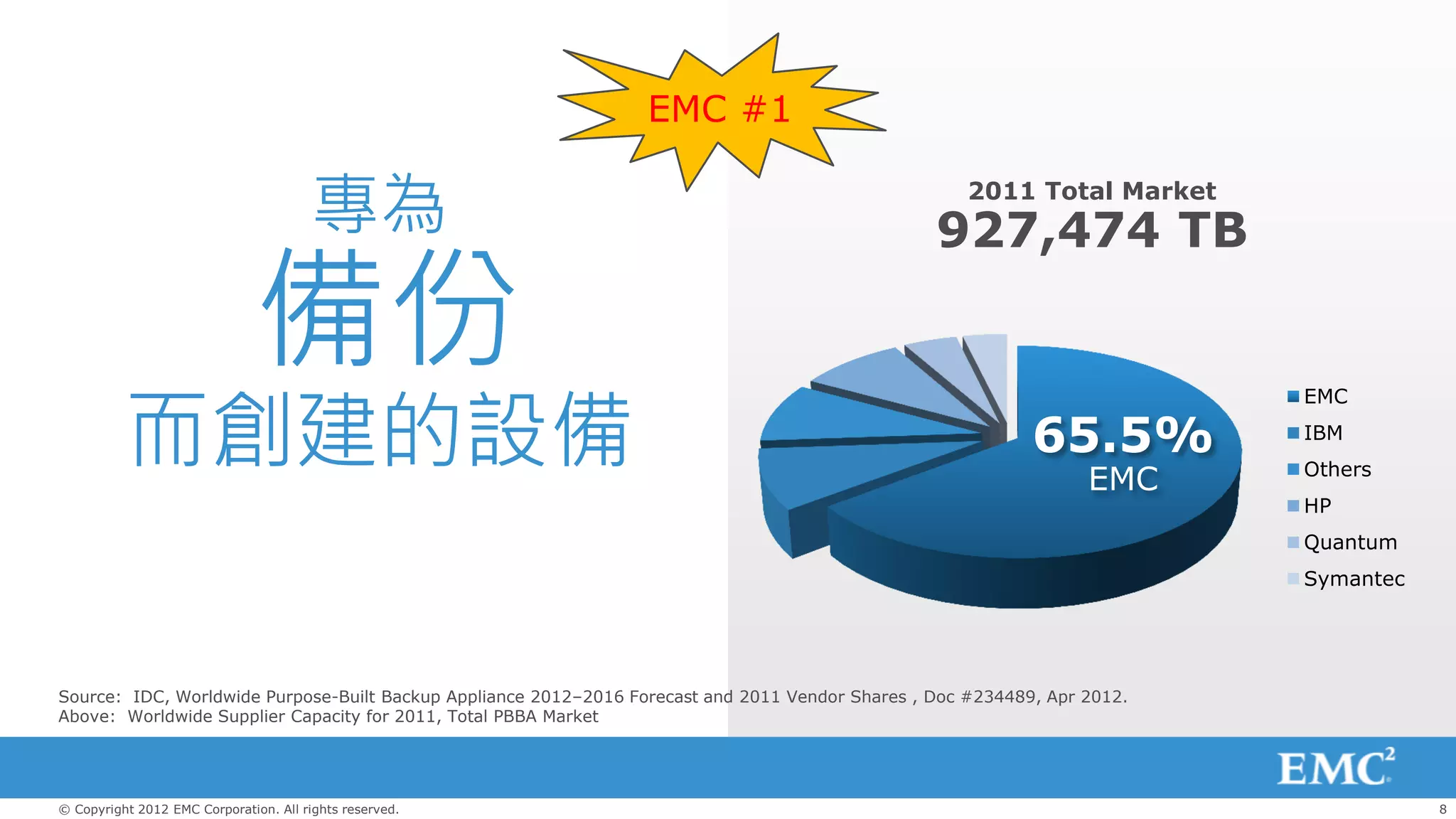

8. EMC #1
專為 2011 Total Market
927,474 TB
備份
而創建的設備
EMC
65.5% IBM
Others
EMC
HP
Quantum
Symantec
Source: IDC, Worldwide Purpose-Built Backup Appliance 2012–2016 Forecast and 2011 Vendor Shares , Doc #234489, Apr 2012.
Above: Worldwide Supplier Capacity for 2011, Total PBBA Market
© Copyright 2012 EMC Corporation. All rights reserved. 8

9. EMC #1 Data Protection & Recovery Software
備份
Purpose-built Backup Appliances
Tape Automation
2500
2000
& 回復
$ MILLIONS
1500
市場領導者
1000
500
2011 Revenues 0
Source: IDC, Worldwide Purpose-Built Backup Appliance 2012–2016 Forecast and 2011 Vendor Shares , Doc #234489 , Apr 2012,
IDC, Worldwide Storage Software Overview, March 2012
© Copyright 2012 EMC Corporation. All rights reserved. 9

10. EMC #1
全球 10 Of The Top 10 Banks
行業領先群
9 Of The Top 10 Telecoms
9 Of The Top 10 Airlines
備份的領導者 8 Of The Top 10 Hospitals
© Copyright 2012 EMC Corporation. All rights reserved. 10

11. © Copyright 2012 EMC Corporation. All rights reserved. 11

12. DD990
全球速度最快的
資料去重複儲存系統
© Copyright 2012 EMC Corporation. All rights reserved. 12

13.  Extends Performance
And Scale
 Backup 248 TB
DD990 In 8 Hours
 Up To 1.3 PB Usable
3 倍速度 Capacity
3 倍容量  Consolidate 270
Remote Sites
 Simple Installation
© Copyright 2012 EMC Corporation. All rights reserved. 13

14. Data Domain Boost
備份加速器、Source De-duplication
• New For EMC Greenplum,
Oracle and Quest
• Enhancements For Avamar
And NetWorker
 Client Direct
• Improved Support For
Symantec
© Copyright 2012 EMC Corporation. All rights reserved. 14

15. DD Retention Lock Compliance Edition
專為法規導循而設計 (WORM) 的歸檔儲存系統
 Secure Data Retention For
File/Email Archive Data
 Meets US and International
Standards
 Simultaneous Support For
Governance And Compliance
© Copyright 2012 EMC Corporation. All rights reserved. 15

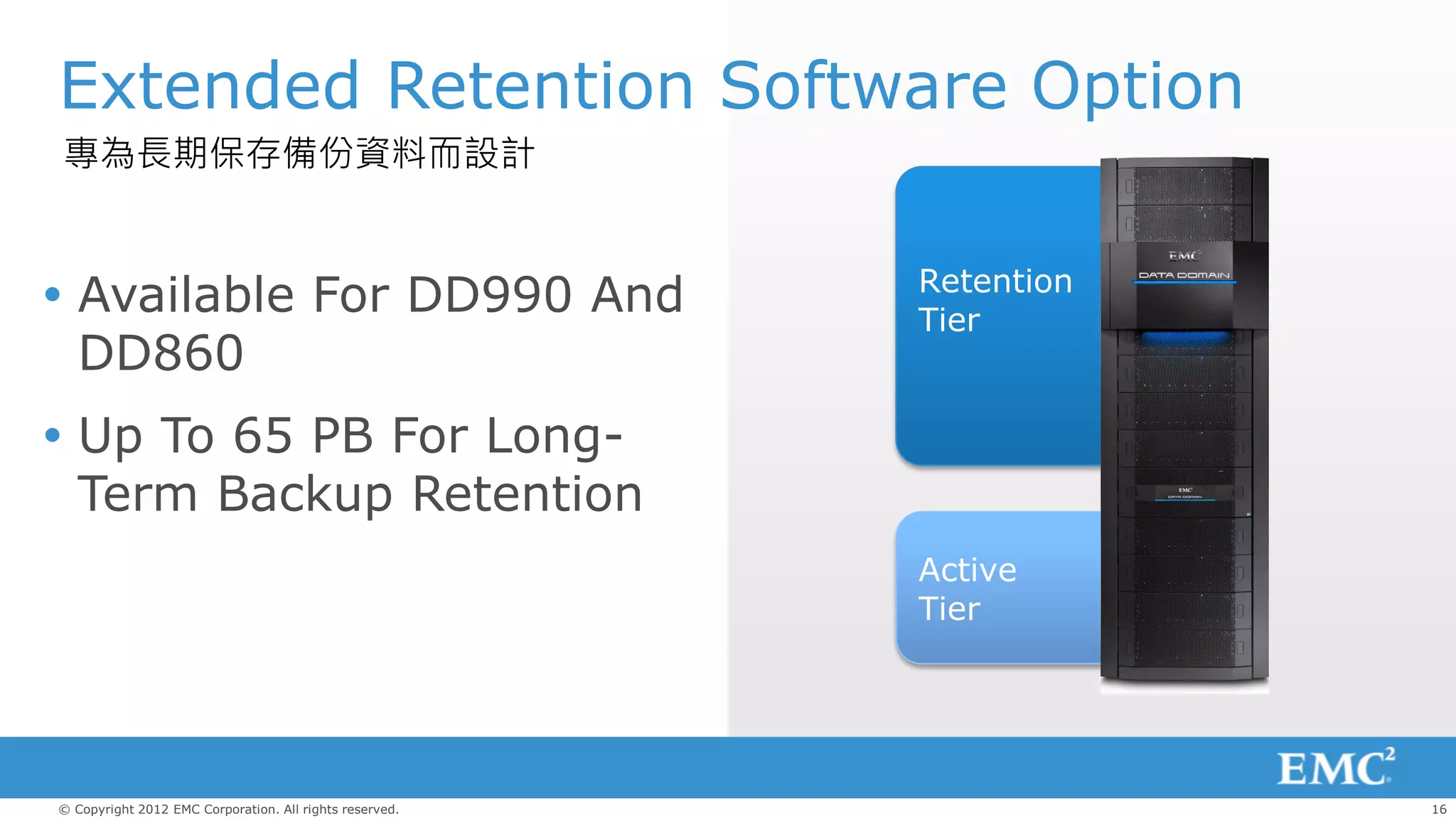

16. Extended Retention Software Option
專為長期保存備份資料而設計
Retention
 Available For DD990 And Tier
DD860
 Up To 65 PB For Long-
Term Backup Retention
Active
Tier
© Copyright 2012 EMC Corporation. All rights reserved. 16

17. Data Domain 確保資料可回復性的架構
Data Invulnerability Architecture
BAD THINGS Write
Error
Read
Error
Metadata Drive
Corruption Corruption
Backup And Archive
WITH CONFIDENCE CAN HAPPEN
without you knowing
Data • End To End Verification
Invulnerability • Fault Avoidance And
Architecture Containment
• Fault Detection And
Containment
• Data Scrubbing
Data Will Always
BE RECOVERABLE CONTINUOUS PROTECTION
© Copyright 2012 EMC Corporation. All rights reserved. 17

18. Avamar 6.1
全球最快的
VMware 備份及回復系統
© Copyright 2012 EMC Corporation. All rights reserved. 18

19. Avamar For VMware
最快速的VMware備份及回復方案
3X
FASTER BACKUP
30X
FASTER RECOVERY
Source: EMC Internal Testing
© Copyright 2012 EMC Corporation. All rights reserved. 19

20. 虛擬、實體及各種應用系統全面的資料保護
Avamar for Enterprise Application
 New Support For SAP,
Sybase And SQL 2012
 New Features For Oracle
 Up To 4X Faster Backup
For Applications
© Copyright 2012 EMC Corporation. All rights reserved. 20

21. Avamar 完全虛擬化的最佳資料保護方案
 New vSphere features
Linux File-Level Recovery
Disk-Level Granularity
Thin Provisioning Support
 New Hyper-V And Hyper-V R2
Full Virtual Server Protection
Guest- And Image-Level Backup
Granular Level Recovery
© Copyright 2012 EMC Corporation. All rights reserved. 21

22. NetWorker 8
轉化您的備份方案
更快、更彈性、更具效率
© Copyright 2012 EMC Corporation. All rights reserved. 22

23. 備份效能及彈性架構的進一步提升
 New Server Architecture
– Improves Efficiency
– Lowers Processing
– Reduces I/O
– Increases Scalability
 Backup To Disk Enhancements
– Client Direct
© Copyright 2012 EMC Corporation. All rights reserved. 23

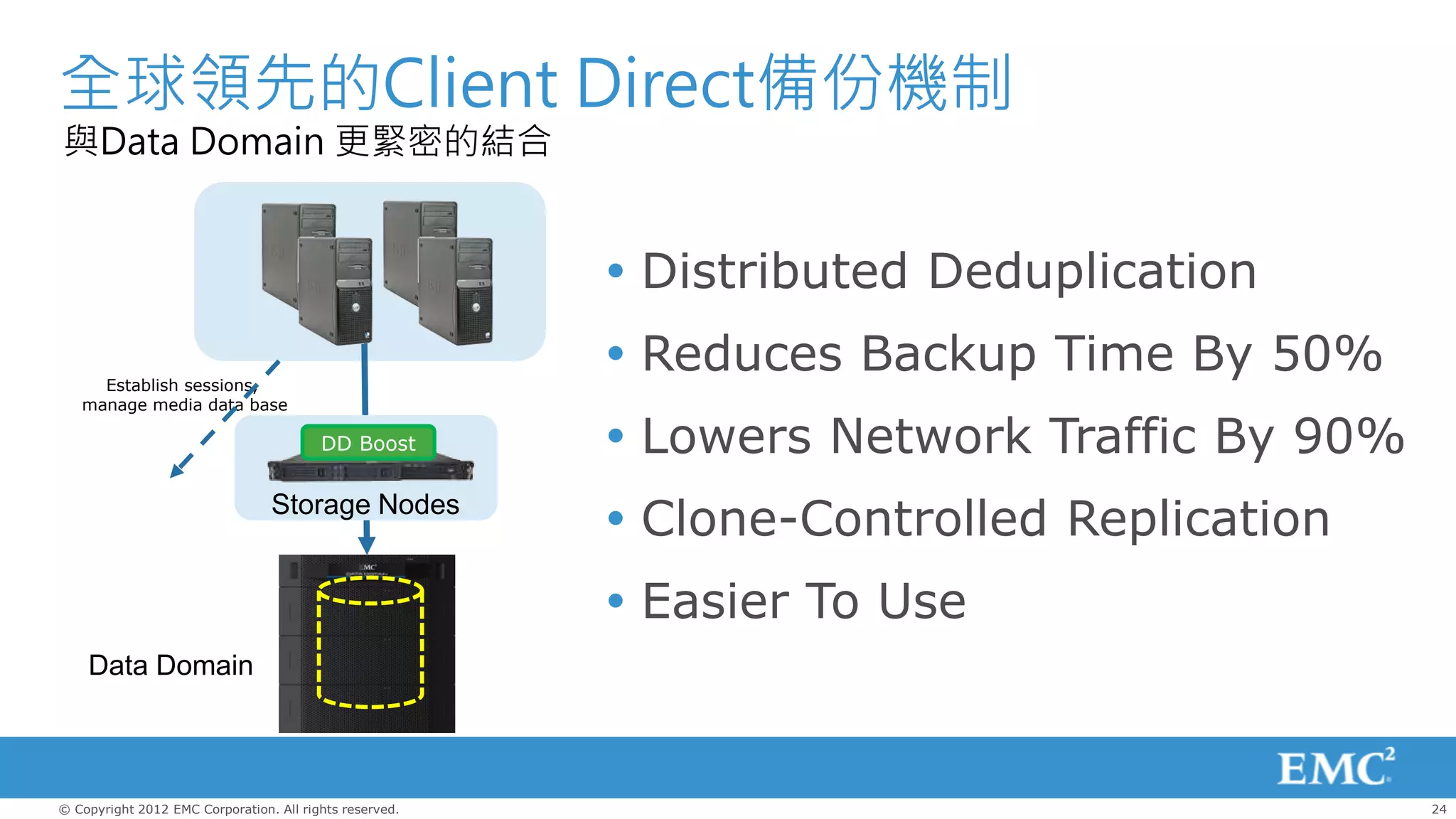

24. 全球領先的Client Direct備份機制
與Data Domain 更緊密的結合
 Distributed Deduplication
Establish sessions,
 Reduces Backup Time By 50%
manage media data base
DD Boost  Lowers Network Traffic By 90%
Storage Nodes
 Clone-Controlled Replication
 Easier To Use
Data Domain
© Copyright 2012 EMC Corporation. All rights reserved. 24

25. 更快的備份及回復效能
更緊密的整合
更簡化的集中化控管
© Copyright 2012 EMC Corporation. All rights reserved. 25

26. End-to-End 集中化備份管理
EMC Data Protection Advisor
Discover Analyze Verify
© Copyright 2012 EMC Corporation. All rights reserved. 26

27. IT 備份與復原的轉型
© Copyright 2012 EMC Corporation. All rights reserved. 27

28. 趨勢導引變革
備份及回復的時間壓力驅策創新
專為備份而設計的設備正大量的取代磁帶
每個管理者都要能見度
© Copyright 2012 EMC Corporation. All rights reserved. 28

29. 備份的演化 – 過去
TAPE CENTRIC BACKUP
Backup Server
Backup
Client
Media Server
© Copyright 2012 EMC Corporation. All rights reserved. 29

30. 備份的演化 – 現在
TAPE CENTRIC BACKUP
WITH DEDUPLICATED DISK
Backup Server
Backup
Client
Replication
Media Server
© Copyright 2012 EMC Corporation. All rights reserved. 30

31. 磁帶便宜嗎?
没有您想像中的便宜
速度緩慢，影響整體 磁帶不是可靠的媒體，
系統效能及生產力 76%的客戶都曾發生
資料不可回復
如何避免磁帶遺失，
以免資料外洩及誤 三測五轉，世代交
觸法規 替，管理成本大
成功率持續下降，
管理不易、風險高 總體服務水平低
© Copyright 2012 EMC Corporation. All rights reserved. 31

32. 為什麼EMC領先新世代的備份方案
全力的擁抱市場的趨勢
完全中立的整合方案，
可與客戶既有環境整合
可支援各種環境，徹底解決您所面臨的問題
© Copyright 2012 EMC Corporation. All rights reserved. 32

33. Backup Transformation
Avamar for VMware
98% Deduplication Of VMware Backup Data
1 Day Avamar Installed And Operational
15 min. Bare Metal Recovery Of VM
$200K Annual Savings From Tape Elimination
© Copyright 2012 EMC Corporation. All rights reserved. 33

34. Backup Transformation
Data Domain 取代磁帶
24 Month Payback Across Solutions
232% Increase In Backup Performance
99% Deduplication Of VMware Backup Data
ALL Tapes Eliminated Across Critical Systems
© Copyright 2012 EMC Corporation. All rights reserved. 34
