KUKA System Technology
KUKA.OptionalNetworkInterface 1.0
For KUKA System Software 8.3
For VW System Software 8.3
KUKA Roboter GmbH
Issued: 29.08.2017
Version: KUKA.OptionalNetworkInterface 1.0 V1
KUKA.Option-
alNetworkIn-
terface 1.0

2 / 25 Issued: 29.08.2017 Version: KUKA.OptionalNetworkInterface 1.0 V1
© Copyright 2017
KUKA Roboter GmbH
Zugspitzstraße 140
D-86165 Augsburg
Germany
This documentation or excerpts therefrom may not be reproduced or disclosed to third parties without
the express permission of KUKA Roboter GmbH.
Other functions not described in this documentation may be operable in the controller. The user has
no claims to these functions, however, in the case of a replacement or service work.
We have checked the content of this documentation for conformity with the hardware and software
described. Nevertheless, discrepancies cannot be precluded, for which reason we are not able to
guarantee total conformity. The information in this documentation is checked on a regular basis, how-
ever, and necessary corrections will be incorporated in the subsequent edition.
Subject to technical alterations without an effect on the function.
Translation of the original documentation
KIM-PS5-DOC
Publication: Pub KUKA.OptionalNetworkInterface 1.0 (PDF) en
Book structure: KUKA.OptionalNetworkInterface 1.0 V1.4
Version: KUKA.OptionalNetworkInterface 1.0 V1

3 / 25Issued: 29.08.2017 Version: KUKA.OptionalNetworkInterface 1.0 V1
Contents
1 Introduction .................................................................................................. 5
1.1 Target group .............................................................................................................. 5
1.2 Industrial robot documentation ................................................................................... 5
1.3 Representation of warnings and notes ...................................................................... 5
1.4 Terms used ................................................................................................................ 6
1.5 Trademarks ................................................................................................................ 6
1.6 Licenses ..................................................................................................................... 6
2 Product description ..................................................................................... 7
2.1 Overview of KUKA.OptionalNetworkInterface 1.0 ...................................................... 7
2.2 Intended use .............................................................................................................. 7
3 Installation .................................................................................................... 9
3.1 System requirements ................................................................................................. 9
3.2 Installing KUKA.OptionalNetworkInterface 1.0 .......................................................... 9
3.3 Uninstalling KUKA.OptionalNetworkInterface 1.0 ...................................................... 10
4 Configuration ............................................................................................... 11
4.1 Configuring the Windows interface ............................................................................ 11
4.2 Displaying or modifying filters .................................................................................... 12
4.3 Displaying ports of the Windows interface or enabling an additional port .................. 12
4.4 Error display in the Address and Subnet boxes ......................................................... 13
5 KUKA Service .............................................................................................. 15
5.1 Requesting support .................................................................................................... 15
5.2 KUKA Customer Support ........................................................................................... 15
Index ............................................................................................................. 23
Contents

1 Introduction
1 Introduction
1.1 Target group
This documentation is aimed at users with the following knowledge and skills:
 Advanced knowledge of the robot controller system
 Advanced knowledge of networks
1.2 Industrial robot documentation
The industrial robot documentation consists of the following parts:
 Documentation for the manipulator
 Documentation for the robot controller
 Operating and programming instructions for the System Software
 Instructions for options and accessories
 Parts catalog on storage medium
Each of these sets of instructions is a separate document.
1.3 Representation of warnings and notes
Safety These warnings are relevant to safety and must be observed.
This warning draws attention to procedures which serve to prevent or remedy
emergencies or malfunctions:
Procedures marked with this warning must be followed exactly.
Notices These notices serve to make your work easier or contain references to further
information.
t
t
For optimal use of our products, we recommend that our customers
take part in a course of training at KUKA College. Information about
the training program can be found at www.kuka.com or can be ob-
tained directly from our subsidiaries.
These warnings mean that it is certain or highly probable
that death or severe injuries will occur, if no precautions
are taken.
These warnings mean that death or severe injuries may
occur, if no precautions are taken.
These warnings mean that minor injuries may occur, if
no precautions are taken.
These warnings mean that damage to property may oc-
cur, if no precautions are taken.
These warnings contain references to safety-relevant information or
general safety measures.
These warnings do not refer to individual hazards or individual pre-
cautionary measures.
The following procedure must be followed exactly!

1.4 Terms used
1.5 Trademarks
Windows is a trademark of Microsoft Corporation.
1.6 Licenses
The KUKA license conditions and the license conditions of the open-source
software used can be found in the following folders:
 Under .LICENSE on the data storage medium with the installation files of
the KUKA software
 Under D:KUKA_OPTOption package nameLICENSE after installation on
the robot controller
Tip to make your work easier or reference to further information.
Term Description
KLI KUKA Line Interface
Ethernet interface of the robot controller for real-time
communication to and from the outside world
 The KLI is a physical interface and can contain
multiple virtual interfaces.
 The KLI is suitable, for example, for exchanging
projects between the robot controller and
WorkVisual.
KONI KUKA.OptionalNetworkInterface
Interface of the robot controller for non-real-time
communication to and from the outside world
 The KONI is a physical interface.
 The KONI is suitable, for example, for creating or
loading backups.
Further information about open-source licenses can be requested
from the following address: opensource@kuka.com

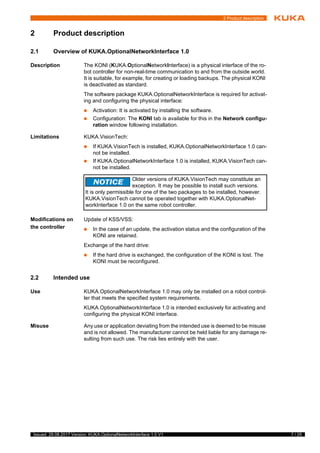

2 Product description
2 Product description
2.1 Overview of KUKA.OptionalNetworkInterface 1.0
Description The KONI (KUKA.OptionalNetworkInterface) is a physical interface of the ro-
bot controller for non-real-time communication to and from the outside world.
It is suitable, for example, for creating or loading backups. The physical KONI
is deactivated as standard.
The software package KUKA.OptionalNetworkInterface is required for activat-
ing and configuring the physical interface:
 Activation: It is activated by installing the software.
 Configuration: The KONI tab is available for this in the Network configu-
ration window following installation.
Limitations KUKA.VisionTech:
 If KUKA.VisionTech is installed, KUKA.OptionalNetworkInterface 1.0 can-
not be installed.
 If KUKA.OptionalNetworkInterface 1.0 is installed, KUKA.VisionTech can-
not be installed.
Modifications on
the controller
Update of KSS/VSS:
 In the case of an update, the activation status and the configuration of the
KONI are retained.
Exchange of the hard drive:
 If the hard drive is exchanged, the configuration of the KONI is lost. The
KONI must be reconfigured.
2.2 Intended use
Use KUKA.OptionalNetworkInterface 1.0 may only be installed on a robot control-
ler that meets the specified system requirements.
KUKA.OptionalNetworkInterface 1.0 is intended exclusively for activating and
configuring the physical KONI interface.
Misuse Any use or application deviating from the intended use is deemed to be misuse
and is not allowed. The manufacturer cannot be held liable for any damage re-
sulting from such use. The risk lies entirely with the user.
2
t
s
Older versions of KUKA.VisionTech may constitute an
exception. It may be possible to install such versions.
It is only permissible for one of the two packages to be installed, however.
KUKA.VisionTech cannot be operated together with KUKA.OptionalNet-
workInterface 1.0 on the same robot controller.

3 Installation
3 Installation
3.1 System requirements
Hardware  KR C4 robot controller with motherboard with KONI interface
Software  KUKA System Software 8.3
Or VW System Software 8.3
 KUKA.VisionTech is not installed on the robot controller.
3.2 Installing KUKA.OptionalNetworkInterface 1.0
Precondition  User group “Expert”
 T1 or T2 mode
 No program is selected.
 USB stick with the software to be installed
 ZIP files must be unzipped.
 There must be no other files in the directory in which the individual files
are located.
Procedure 1. Connect the USB stick to the robot controller or smartPAD.
2. In the main menu, select Start-up > Additional software.
3. Press New software: The entry OptionalNetworkInterface must be dis-
played in the Name column and drive E: or K: in the Path column.
If not, press Refresh.
4. If the specified entries are now displayed, continue with step 5.
Otherwise, the path from which the software is to be installed must be con-
figured first:
a. Press the Configure button.
b. Select a line in the Installation paths for options area.
Note: If the line already contains a path, this path will be overwritten.
c. Press Path selection. The available drives are displayed.
d. If the stick is connected to the robot controller: On E:, select the direc-
tory in which the software is located.
If the stick is connected to the smartPAD: K: instead of E:
e. Press Save. The Installation paths for options area is displayed
again. It now contains the new path.
f. Mark the line with the new path and press Save again.
5. Select the entry OptionalNetworkInterface and press Install. Answer the
request for confirmation with Yes.
6. Confirm the reboot prompt with OK.
7. Remove the stick.
s
t
t
The robot controller documentation specifies whether the mother-
board has a KONI interface.
It is advisable to archive all relevant data before updating a software
package.
We recommend using a KUKA USB stick. Data may be
lost if a stick from a different manufacturer is used.

8. Press the Restart button.
LOG file A LOG file is created under C:KRCROBOTERLOG.
3.3 Uninstalling KUKA.OptionalNetworkInterface 1.0
 Operating mode T1, T2
Procedure 1. In the main menu, select Start-up > Additional software.
2. Select the entry OptionalNetworkInterface and press Uninstall. Answer
the request for confirmation with Yes. Uninstallation is prepared.
3. Reboot the robot controller. Uninstallation is resumed and completed.
LOG file A LOG file is created under C:KRCROBOTERLOG.
It is advisable to archive all relevant data before uninstalling a soft-
ware package.

4 Configuration
4 Configuration
4.1 Configuring the Windows interface
Description The Windows interface is the virtual interface of the KONI. It has a preconfig-
ured static IP address:
 IP address: 192.168.1.10
 Subnet mask: 255.255.255.0
These values can be modified by the user. If required, it is also possible to
switch to dynamic address assignment. Similarly, it is also possible to switch
back from a dynamic address to a static address.
Precondition  If the address type Dynamic IP address is to be selected: There is a
DHCP server present in the network.
 User group “Expert”
 T1 or T2 mode
Procedure 1. In the main menu, select Start-up > Network configuration. The Net-
work configuration window opens.
2. Select the KONI tab. The active Windows interface is displayed. (Default:
“virtual20”)
3. Select the desired type in the Address type: box: Dynamic IP address
or Fixed IP address
4. Only for Dynamic IP address:
The boxes IP address: and Subnet mask: are deactivated, as the values
are automatically assigned by the DHCP server.
5. Only for Fixed IP address: Fill out the following boxes:
 IP address: Enter the IP address of the robot controller.
 Subnet mask:: The selected subnet mask must match the IP network.
6. Press Save.
7. Reboot the robot controller so that the change takes effect.
4
f
t
The following address ranges are used by default by the robot con-
troller for internal purposes. IP addresses from this range cannot
therefore be assigned by the user via the smartHMI. The system in-
dicates an error.
 169.254.0.0 … 169.254.255.255
 172.16.0.0 … 172.16.255.255
 172.17.0.0 … 172.17.255.255
 192.168.0.0 … 192.168.0.255
If the address type Dynamic IP address is set for both the KLI and
the KONI: The standard gateway most recently received from a
DHCP server is applied. The same applies to additional information,
such as DNS server and domain name.
The other types in this box (e.g. Real-time IP address) must not be
selected.

4.2 Displaying or modifying filters
 T1 or T2 mode
2. Select the KONI tab.
3. Press Advanced.... The window for advanced network configuration
opens.
4. Select the User-defined filters tab.
5. If modifications are required: Carry these out and press Save.
6. Close the Network configuration window using the Close icon.
7. If modifications have been made: Reboot the robot controller with the set-
ting Reload files.
4.3 Displaying ports of the Windows interface or enabling an additional port
Fig. 4-1: Example: Fixed IP address
It is not generally necessary to modify the filters. If this is nevertheless
to be done, KUKA Roboter GmbH must be contacted beforehand.
It is not generally necessary to enable additional ports. If this is nev-
ertheless to be done, KUKA Roboter GmbH must be contacted be-
forehand.

4 Configuration
 T1 or T2 mode
2. Select the KONI tab.
3. Press Advanced.... The window for advanced network configuration
opens.
4. Select the NAT tab. A list of all the enabled ports of the Windows interface
is displayed in the Available ports: area.
5. If a port is to be enabled:
a. Press Add port. A new port with the number “0” is added to the list.
b. Complete the boxes Port number: and Permitted protocols:.
c. Press Save.
A maximum total of 40 ports can be enabled.
6. Close the Network configuration window using the Close icon.
7. If modifications have been made: Reboot the robot controller with the set-
ting Reload files.
4.4 Error display in the Address and Subnet boxes
Description The Address and Subnet boxes may be displayed with a red frame. This indi-
cates an error and may have the following causes:
Example Example of an entry that is not system-compliant:
In the binary display, subnet masks may only contain closed groups of leading
ones.
 The subnet mask “255.255.208.0” is entered.
The ports enabled by KUKA by default must not be re-
moved. Doing so may result in the loss of functions of the
robot controller.
Cause Possible remedy
The entry does not conform to the
IP system.
Example: The number ranges of the
IP address and subnet do not
match.
Check the box with the red frame
and correct it.
The red frame disappears.
This address is already used in one
of the internal subnets.
In this case, both the address and
the corresponding box on the Inter-
nal subnets tab are displayed with
a red frame.
 Change the actual address.
 Or, only after consultation with
KUKA: change the address of
the internal subnet.
The red frame disappears.
The subnet configuration of the robot controller may be
modified only in consultation with KUKA Roboter GmbH.
Modifications carried out without consultation may result in the loss of func-
tions of the robot controller.

 The box is now displayed with a red frame.
Reason: the binary representation of “208” corresponds to “11010000”
and is thus not a valid entry.
 Possible remedy: Enter 255.255.240.0.
The binary representation of “240” corresponds to “11110000” and is thus
a valid entry.

5 KUKA Service
5 KUKA Service
5.1 Requesting support
Introduction This documentation provides information on operation and operator control,
and provides assistance with troubleshooting. For further assistance, please
contact your local KUKA subsidiary.
Information The following information is required for processing a support request:
 Description of the problem, including information about the duration and
frequency of the fault
 As comprehensive information as possible about the hardware and soft-
ware components of the overall system
The following list gives an indication of the information which is relevant in
many cases:
 Model and serial number of the kinematic system, e.g. the manipulator
 Model and serial number of the controller
 Model and serial number of the energy supply system
 Designation and version of the system software
 Designations and versions of other software components or modifica-
tions
 Diagnostic package KRCDiag
Additionally for KUKA Sunrise: Existing projects including applications
For versions of KUKA System Software older than V8: Archive of the
software (KRCDiag is not yet available here.)
 Application used
 External axes used
5.2 KUKA Customer Support
Availability KUKA Customer Support is available in many countries. Please do not hesi-
tate to contact us if you have any questions.
Argentina Ruben Costantini S.A. (Agency)
Luis Angel Huergo 13 20
Parque Industrial
2400 San Francisco (CBA)
Argentina
Tel. +54 3564 421033
Fax +54 3564 428877
ventas@costantini-sa.com
Australia KUKA Robotics Australia Pty Ltd
45 Fennell Street
Port Melbourne VIC 3207
Australia
Tel. +61 3 9939 9656
info@kuka-robotics.com.au
www.kuka-robotics.com.au
A
v

Belgium KUKA Automatisering + Robots N.V.
Centrum Zuid 1031
3530 Houthalen
Belgium
Tel. +32 11 516160
Fax +32 11 526794
info@kuka.be
www.kuka.be
Brazil KUKA Roboter do Brasil Ltda.
Travessa Claudio Armando, nº 171
Bloco 5 - Galpões 51/52
Bairro Assunção
CEP 09861-7630 São Bernardo do Campo - SP
Brazil
Tel. +55 11 4942-8299
Fax +55 11 2201-7883
info@kuka-roboter.com.br
www.kuka-roboter.com.br
Chile Robotec S.A. (Agency)
Santiago de Chile
Chile
Tel. +56 2 331-5951
Fax +56 2 331-5952
robotec@robotec.cl
www.robotec.cl
China KUKA Robotics China Co., Ltd.
No. 889 Kungang Road
Xiaokunshan Town
Songjiang District
201614 Shanghai
P. R. China
Tel. +86 21 5707 2688
Fax +86 21 5707 2603
info@kuka-robotics.cn
www.kuka-robotics.com
Germany KUKA Roboter GmbH
Zugspitzstr. 140
86165 Augsburg
Germany
Tel. +49 821 797-1926
Fax +49 821 797-41 1926
Hotline.robotics.de@kuka.com
www.kuka-roboter.de

5 KUKA Service
France KUKA Automatisme + Robotique SAS
Techvallée
6, Avenue du Parc
91140 Villebon S/Yvette
France
Tel. +33 1 6931660-0
Fax +33 1 6931660-1
commercial@kuka.fr
www.kuka.fr
India KUKA Robotics India Pvt. Ltd.
Office Number-7, German Centre,
Level 12, Building No. - 9B
DLF Cyber City Phase III
122 002 Gurgaon
Haryana
India
Tel. +91 124 4635774
Fax +91 124 4635773
info@kuka.in
www.kuka.in
Italy KUKA Roboter Italia S.p.A.
Via Pavia 9/a - int.6
10098 Rivoli (TO)
Italy
Tel. +39 011 959-5013
Fax +39 011 959-5141
kuka@kuka.it
www.kuka.it
Japan KUKA Robotics Japan K.K.
YBP Technical Center
134 Godo-cho, Hodogaya-ku
Yokohama, Kanagawa
240 0005
Japan
Tel. +81 45 744 7691
Fax +81 45 744 7696
info@kuka.co.jp
Canada KUKA Robotics Canada Ltd.
6710 Maritz Drive - Unit 4
Mississauga
L5W 0A1
Ontario
Canada
Tel. +1 905 670-8600
Fax +1 905 670-8604
info@kukarobotics.com
www.kuka-robotics.com/canada

Korea KUKA Robotics Korea Co. Ltd.
RIT Center 306, Gyeonggi Technopark
1271-11 Sa 3-dong, Sangnok-gu
Ansan City, Gyeonggi Do
426-901
Korea
Tel. +82 31 501-1451
Fax +82 31 501-1461
info@kukakorea.com
Malaysia KUKA Robot Automation (M) Sdn Bhd
South East Asia Regional Office
No. 7, Jalan TPP 6/6
Taman Perindustrian Puchong
47100 Puchong
Selangor
Malaysia
Tel. +60 (03) 8063-1792
Fax +60 (03) 8060-7386
info@kuka.com.my
Mexico KUKA de México S. de R.L. de C.V.
Progreso #8
Col. Centro Industrial Puente de Vigas
Tlalnepantla de Baz
54020 Estado de México
Mexico
Tel. +52 55 5203-8407
Fax +52 55 5203-8148
info@kuka.com.mx
www.kuka-robotics.com/mexico
Norway KUKA Sveiseanlegg + Roboter
Sentrumsvegen 5
2867 Hov
Norway
Tel. +47 61 18 91 30
Fax +47 61 18 62 00
info@kuka.no
Austria KUKA Roboter CEE GmbH
Gruberstraße 2-4
4020 Linz
Austria
Tel. +43 7 32 78 47 52
Fax +43 7 32 79 38 80
office@kuka-roboter.at
www.kuka.at

5 KUKA Service
Poland KUKA Roboter CEE GmbH Poland
Spółka z ograniczoną odpowiedzialnością
Oddział w Polsce
Ul. Porcelanowa 10
40-246 Katowice
Poland
Tel. +48 327 30 32 13 or -14
Fax +48 327 30 32 26
ServicePL@kuka-roboter.de
Portugal KUKA Robots IBÉRICA, S.A.
Rua do Alto da Guerra n° 50
Armazém 04
2910 011 Setúbal
Portugal
Tel. +351 265 729 780
Fax +351 265 729 782
info.portugal@kukapt.com
www.kuka.com
Russia KUKA Robotics RUS
Werbnaja ul. 8A
107143 Moskau
Russia
Tel. +7 495 781-31-20
Fax +7 495 781-31-19
info@kuka-robotics.ru
www.kuka-robotics.ru
Sweden KUKA Svetsanläggningar + Robotar AB
A. Odhners gata 15
421 30 Västra Frölunda
Sweden
Tel. +46 31 7266-200
Fax +46 31 7266-201
info@kuka.se
Switzerland KUKA Roboter Schweiz AG
Industriestr. 9
5432 Neuenhof
Switzerland
Tel. +41 44 74490-90
Fax +41 44 74490-91
info@kuka-roboter.ch
www.kuka-roboter.ch

Spain KUKA Robots Ibérica, S.A.
Pol. Industrial
Torrent de la Pastera
Carrer del Bages s/n
08800 Vilanova i la Geltrú (Barcelona)
Spain
Tel. +34 93 8142-353
comercial@kukarob.es
South Africa Jendamark Automation LTD (Agency)
76a York Road
North End
6000 Port Elizabeth
South Africa
Tel. +27 41 391 4700
Fax +27 41 373 3869
www.jendamark.co.za
Taiwan KUKA Robot Automation Taiwan Co., Ltd.
No. 249 Pujong Road
Jungli City, Taoyuan County 320
Taiwan, R. O. C.
Tel. +886 3 4331988
Fax +886 3 4331948
info@kuka.com.tw
www.kuka.com.tw
Thailand KUKA Robot Automation (M)SdnBhd
Thailand Office
c/o Maccall System Co. Ltd.
49/9-10 Soi Kingkaew 30 Kingkaew Road
Tt. Rachatheva, A. Bangpli
Samutprakarn
10540 Thailand
Tel. +66 2 7502737
Fax +66 2 6612355
atika@ji-net.com
www.kuka-roboter.de
Czech Republic KUKA Roboter Austria GmbH
Organisation Tschechien und Slowakei
Sezemická 2757/2
193 00 Praha
Horní Počernice
Czech Republic
Tel. +420 22 62 12 27 2
Fax +420 22 62 12 27 0
support@kuka.cz

5 KUKA Service

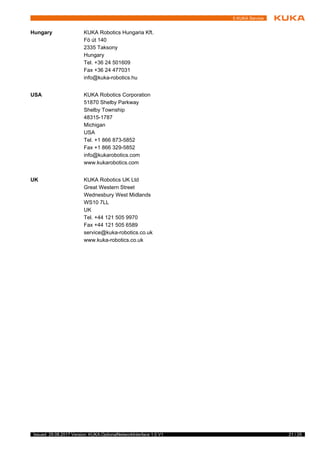

Hungary KUKA Robotics Hungaria Kft.
Fö út 140
2335 Taksony
Hungary
Tel. +36 24 501609
Fax +36 24 477031
info@kuka-robotics.hu
USA KUKA Robotics Corporation
51870 Shelby Parkway
Shelby Township
48315-1787
Michigan
USA
Tel. +1 866 873-5852
Fax +1 866 329-5852
info@kukarobotics.com
www.kukarobotics.com
UK KUKA Robotics UK Ltd
Great Western Street
Wednesbury West Midlands
WS10 7LL
UK
Tel. +44 121 505 9970
Fax +44 121 505 6589
service@kuka-robotics.co.uk
www.kuka-robotics.co.uk

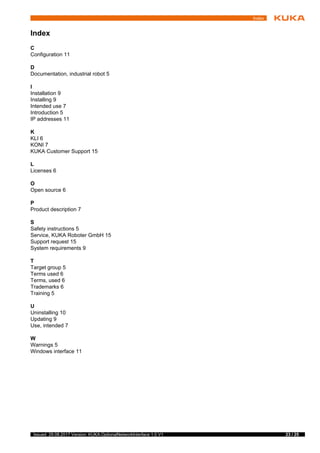

Index
Index
C
Configuration 11
D
Documentation, industrial robot 5
I
Installation 9
Installing 9
Intended use 7
Introduction 5
IP addresses 11
K
KLI 6
KONI 7
KUKA Customer Support 15
L
Licenses 6
O
Open source 6
P
Product description 7
S
Safety instructions 5
Service, KUKA Roboter GmbH 15
Support request 15
System requirements 9
T
Target group 5
Terms used 6
Terms, used 6
Trademarks 6
Training 5
U
Uninstalling 10
Updating 9
Use, intended 7
W
Warnings 5
Windows interface 11

0c13ca75 8cb1-11e7-973d-6cae8b4eb554.data

More Related Content

What's hot

Similar to 0c13ca75 8cb1-11e7-973d-6cae8b4eb554.data

More from Edson Silva

Recently uploaded

0c13ca75 8cb1-11e7-973d-6cae8b4eb554.data
