The document discusses inheritance in object-oriented programming. Inheritance allows a class to inherit features from a base class and extend them by adding its own features. There are different types of inheritance like single, multiple, multi-level and hierarchical inheritance. A derived class inherits members from the base class depending on whether the inheritance is public, private or protected.
2. Rising Technologies, Jalna (MH). + 91 9423156065, http://www.RisingTechnologies.in 2

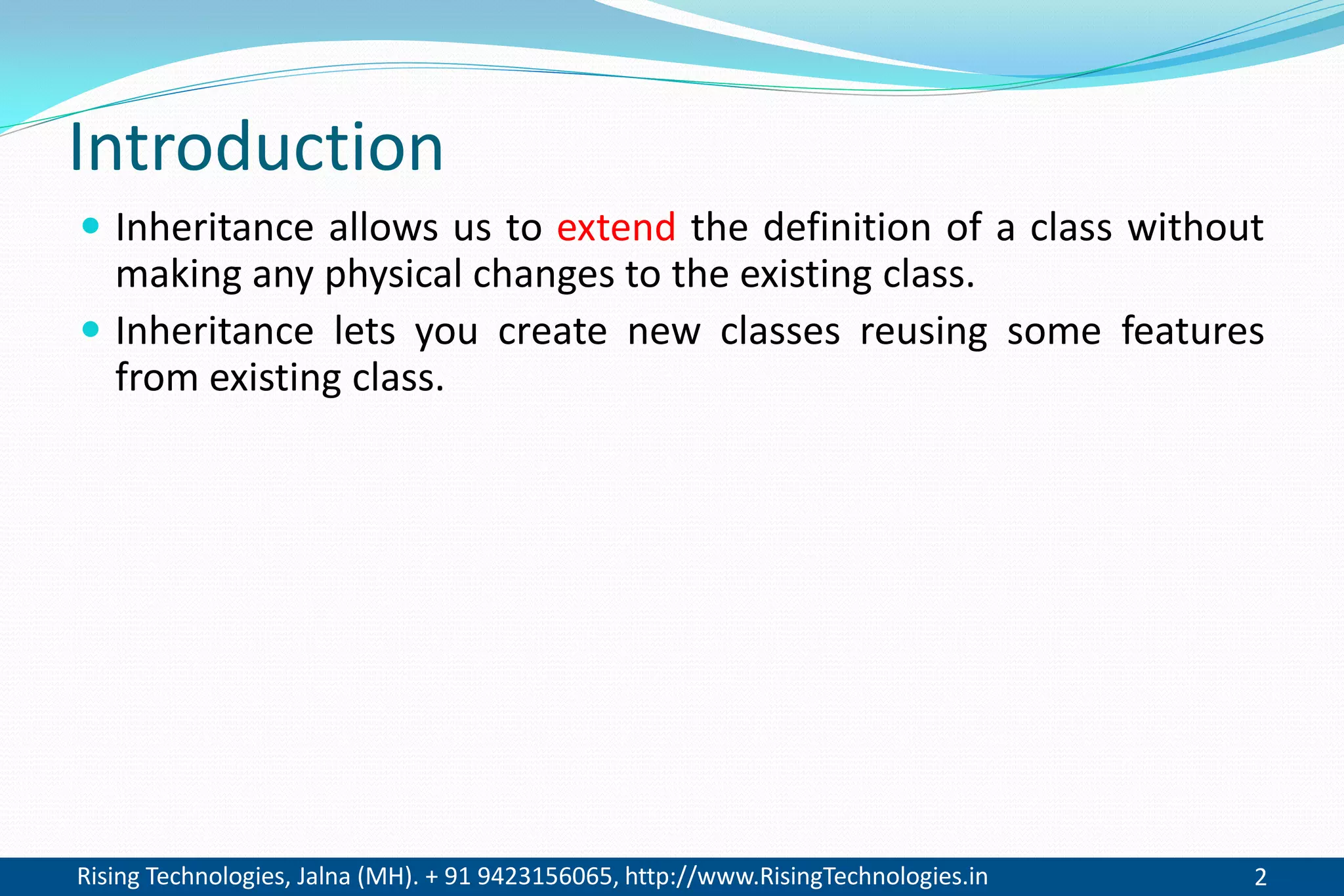

Introduction
Inheritance allows us to extend the definition of a class without
making any physical changes to the existing class.
Inheritance lets you create new classes reusing some features
from existing class.
3. Rising Technologies, Jalna (MH). + 91 9423156065, http://www.RisingTechnologies.in 3

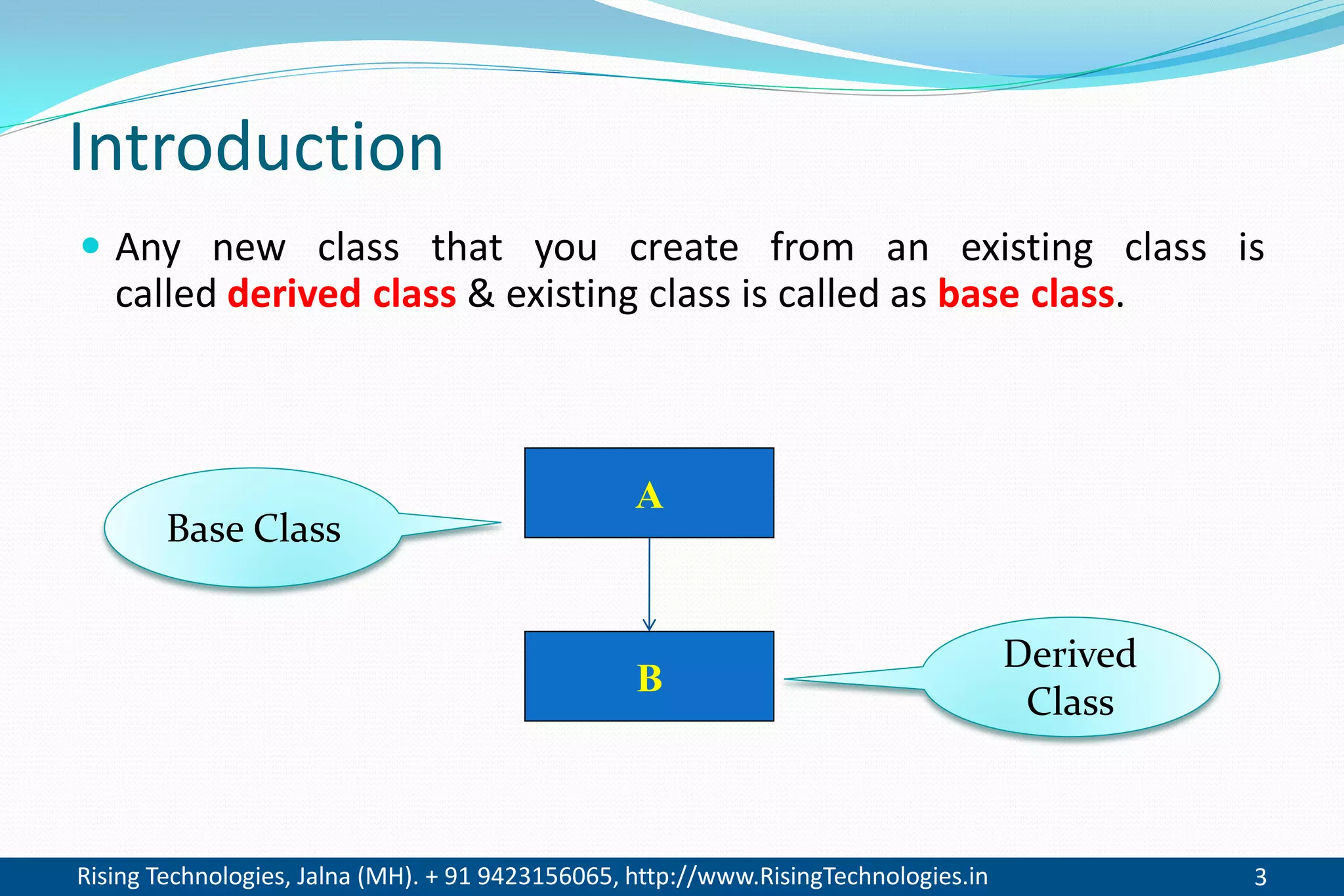

Introduction
Any new class that you create from an existing class is
called derived class & existing class is called as base class.
A
B
Base Class
Derived
Class
4. Rising Technologies, Jalna (MH). + 91 9423156065, http://www.RisingTechnologies.in 4

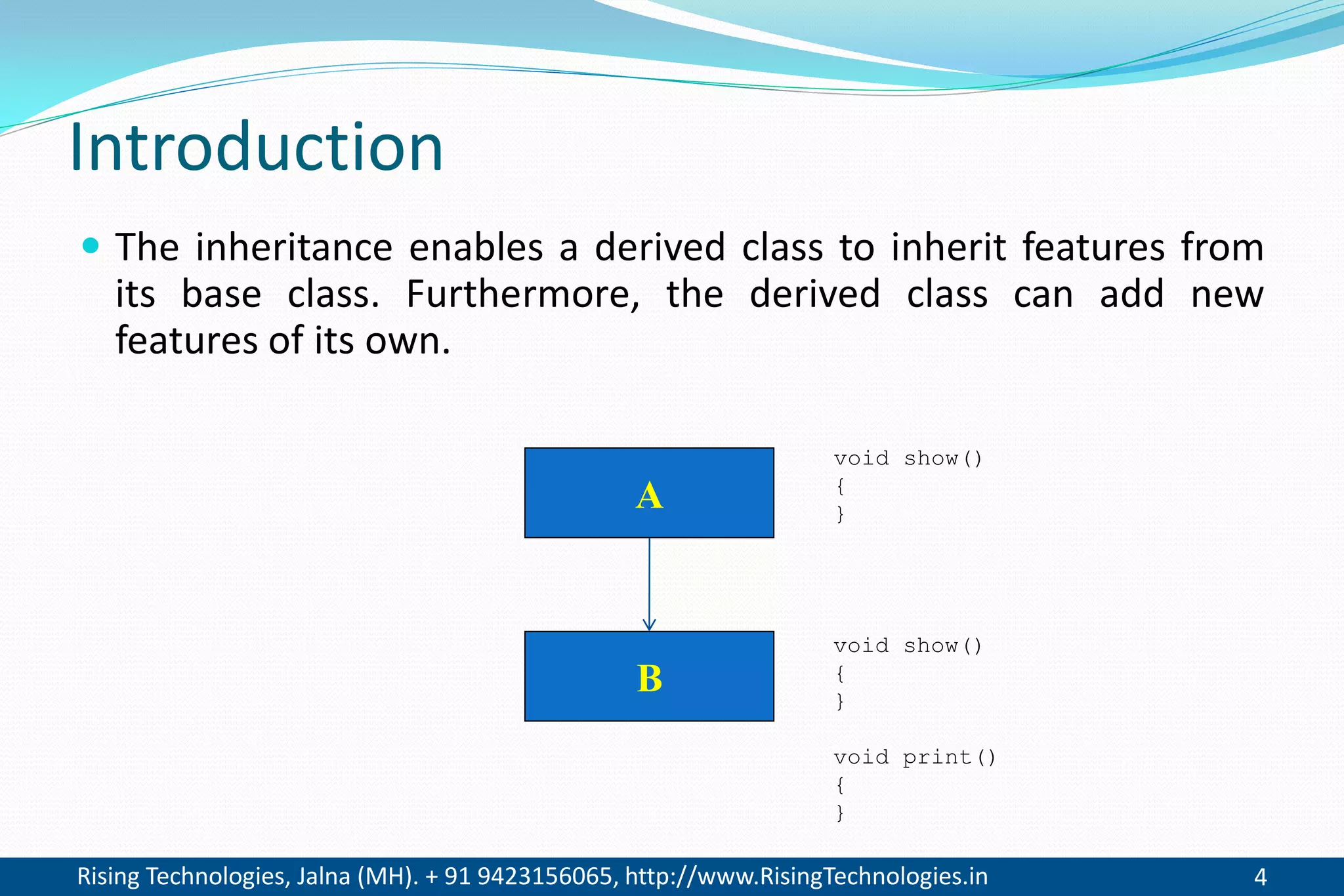

Introduction
The inheritance enables a derived class to inherit features from
its base class. Furthermore, the derived class can add new
features of its own.
A
B
void show()
{
}
void show()
{
}
void print()
{
}
5. Rising Technologies, Jalna (MH). + 91 9423156065, http://www.RisingTechnologies.in 5

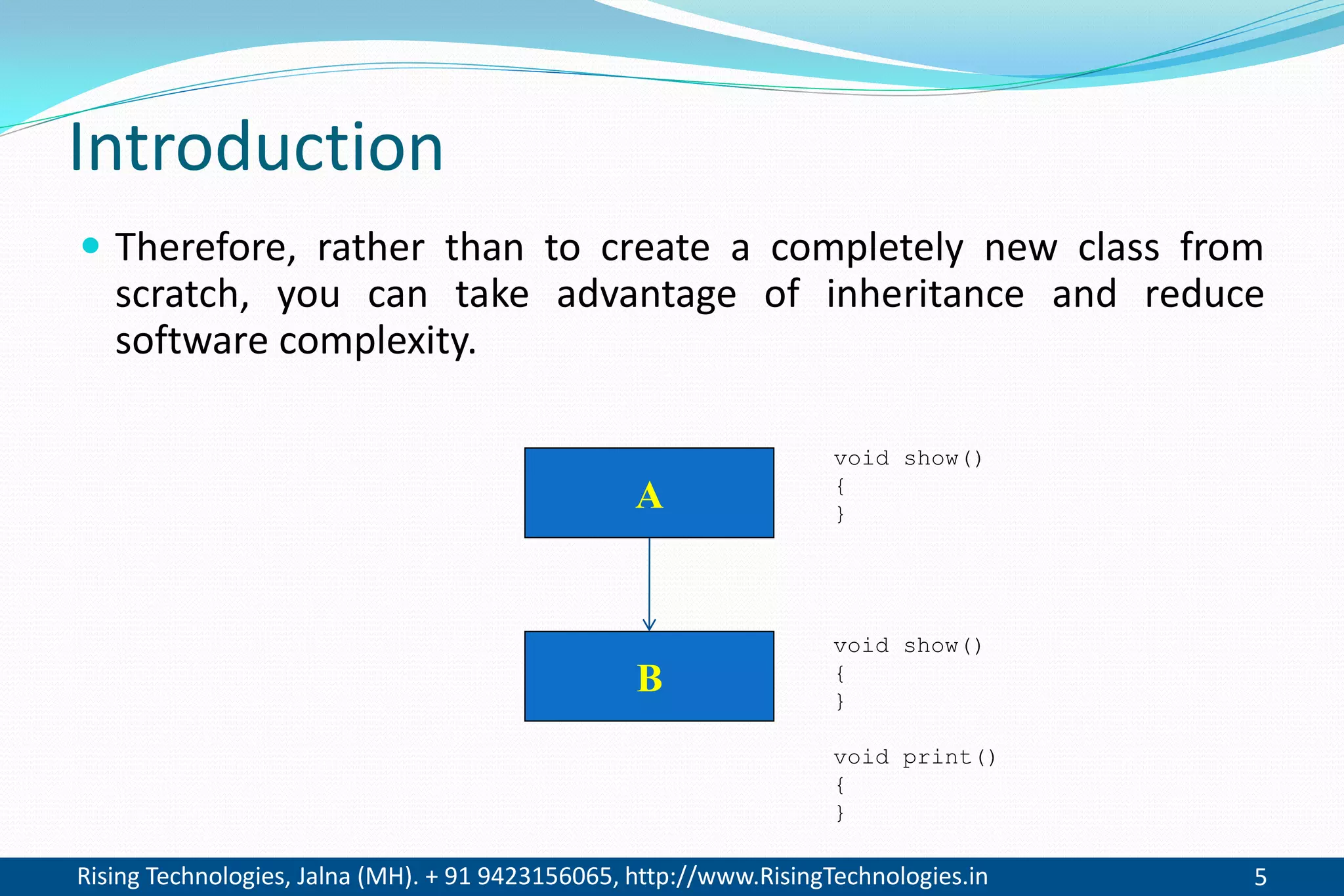

Introduction
Therefore, rather than to create a completely new class from
scratch, you can take advantage of inheritance and reduce
software complexity.
A
B
void show()
{
}
void show()
{
}
void print()
{
}
6. Rising Technologies, Jalna (MH). + 91 9423156065, http://www.RisingTechnologies.in 6

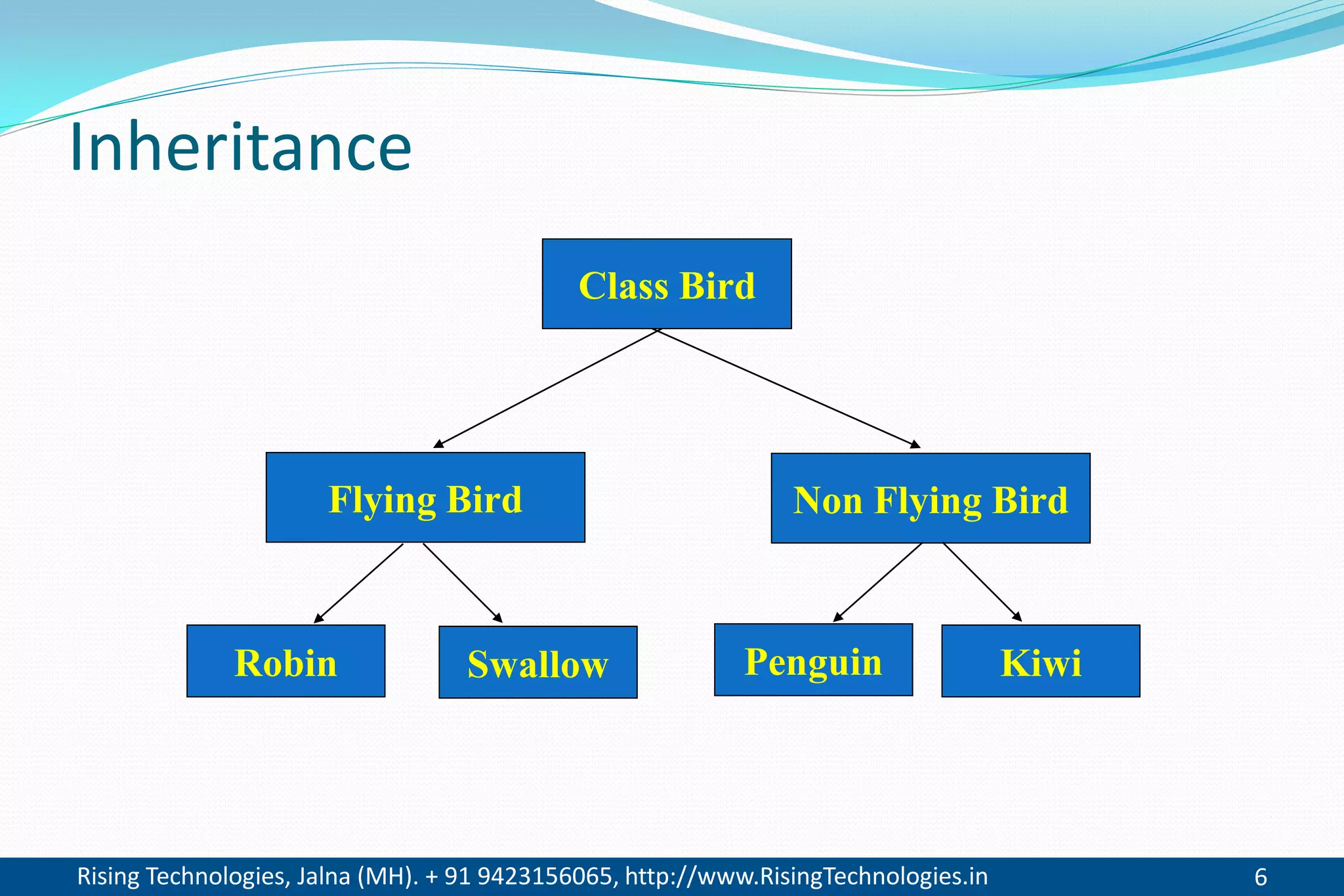

Inheritance
Class Bird
Non Flying BirdFlying Bird
Robin Swallow Penguin Kiwi
7. Rising Technologies, Jalna (MH). + 91 9423156065, http://www.RisingTechnologies.in 7

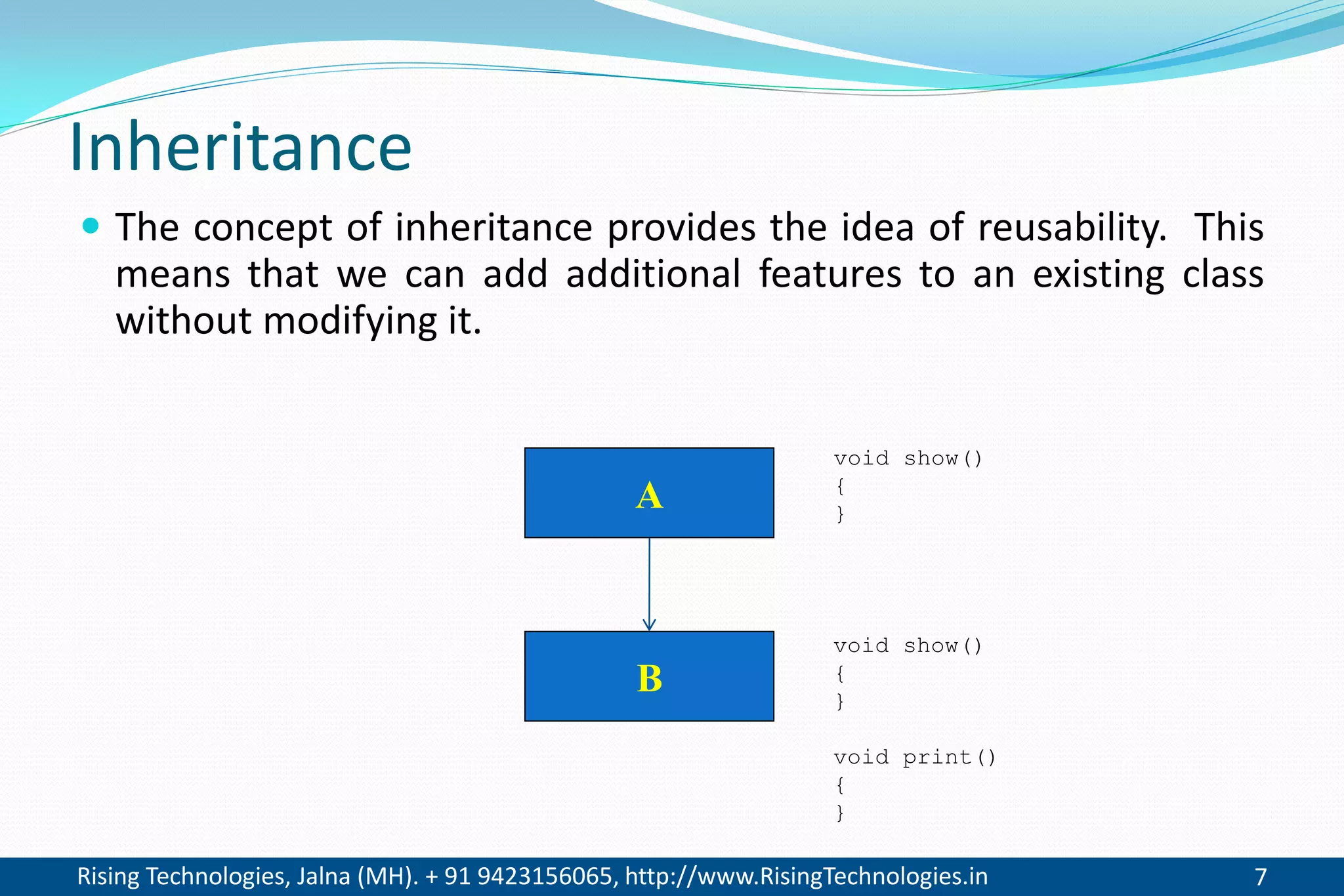

Inheritance
The concept of inheritance provides the idea of reusability. This
means that we can add additional features to an existing class
without modifying it.
A
B
void show()
{
}
void show()
{
}
void print()
{
}
8. Rising Technologies, Jalna (MH). + 91 9423156065, http://www.RisingTechnologies.in 8

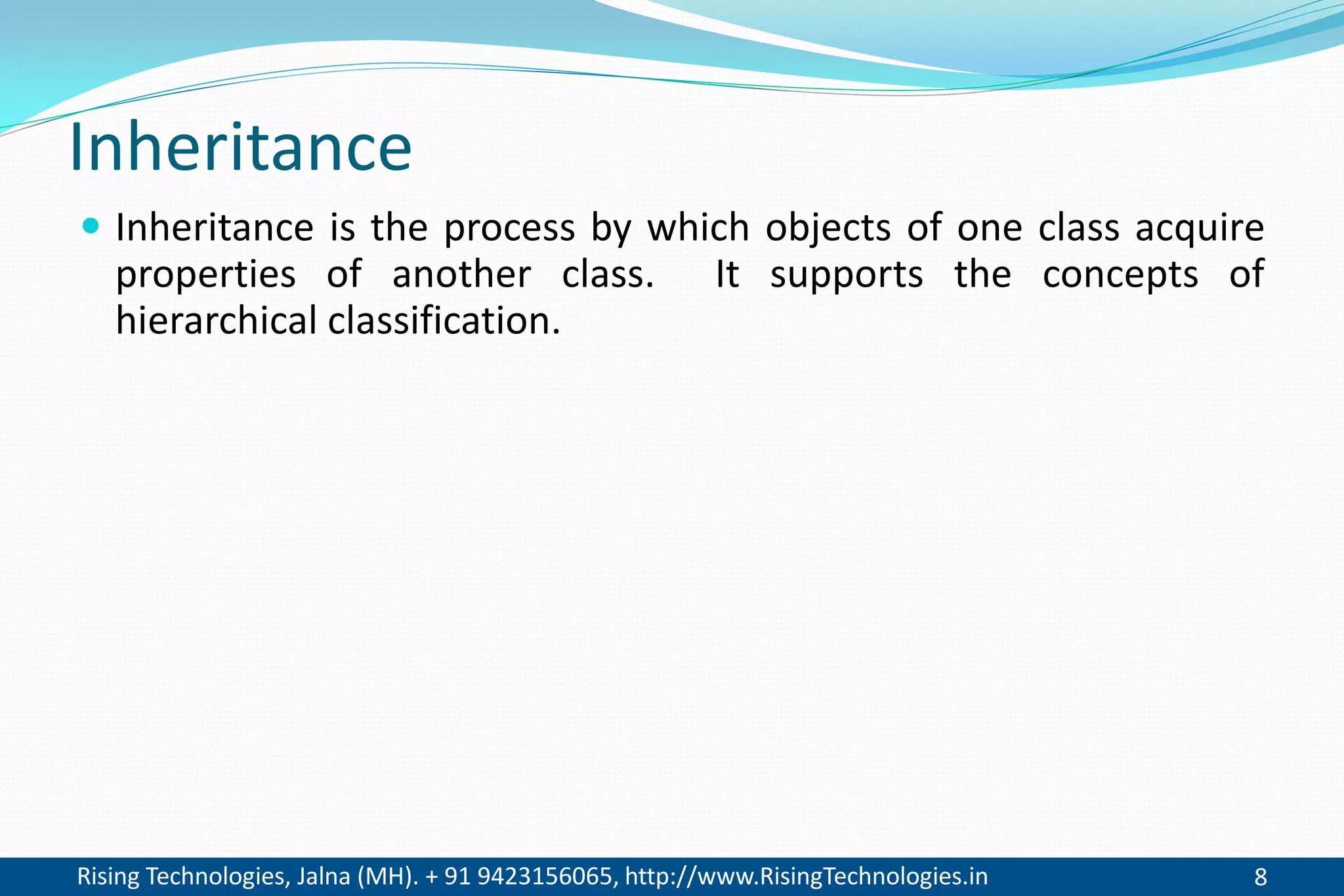

Inheritance
Inheritance is the process by which objects of one class acquire
properties of another class. It supports the concepts of
hierarchical classification.
10. Rising Technologies, Jalna (MH). + 91 9423156065, http://www.RisingTechnologies.in 10

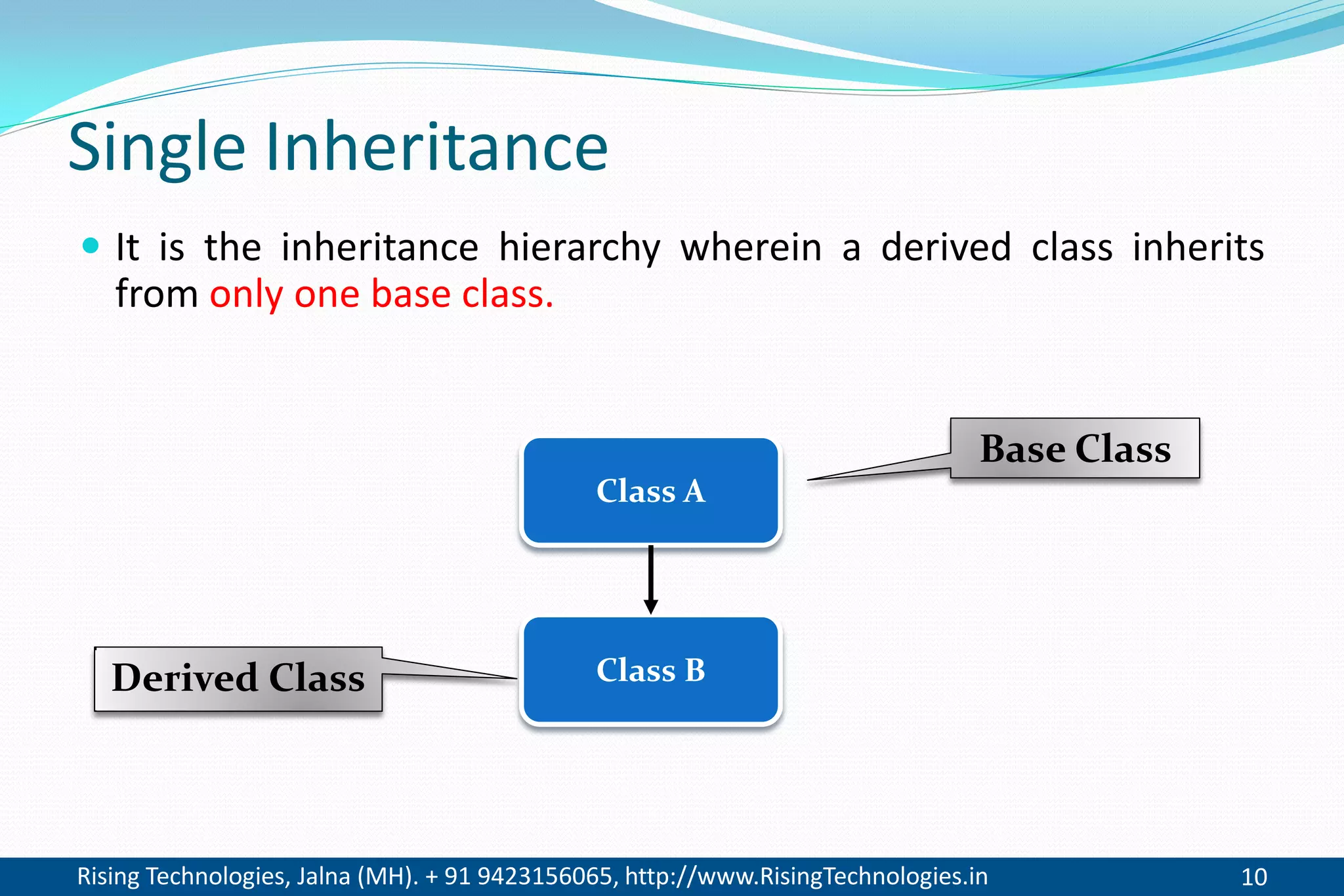

Single Inheritance
It is the inheritance hierarchy wherein a derived class inherits
from only one base class.
Class A
Class B
Base Class
Derived Class
11. Rising Technologies, Jalna (MH). + 91 9423156065, http://www.RisingTechnologies.in 11

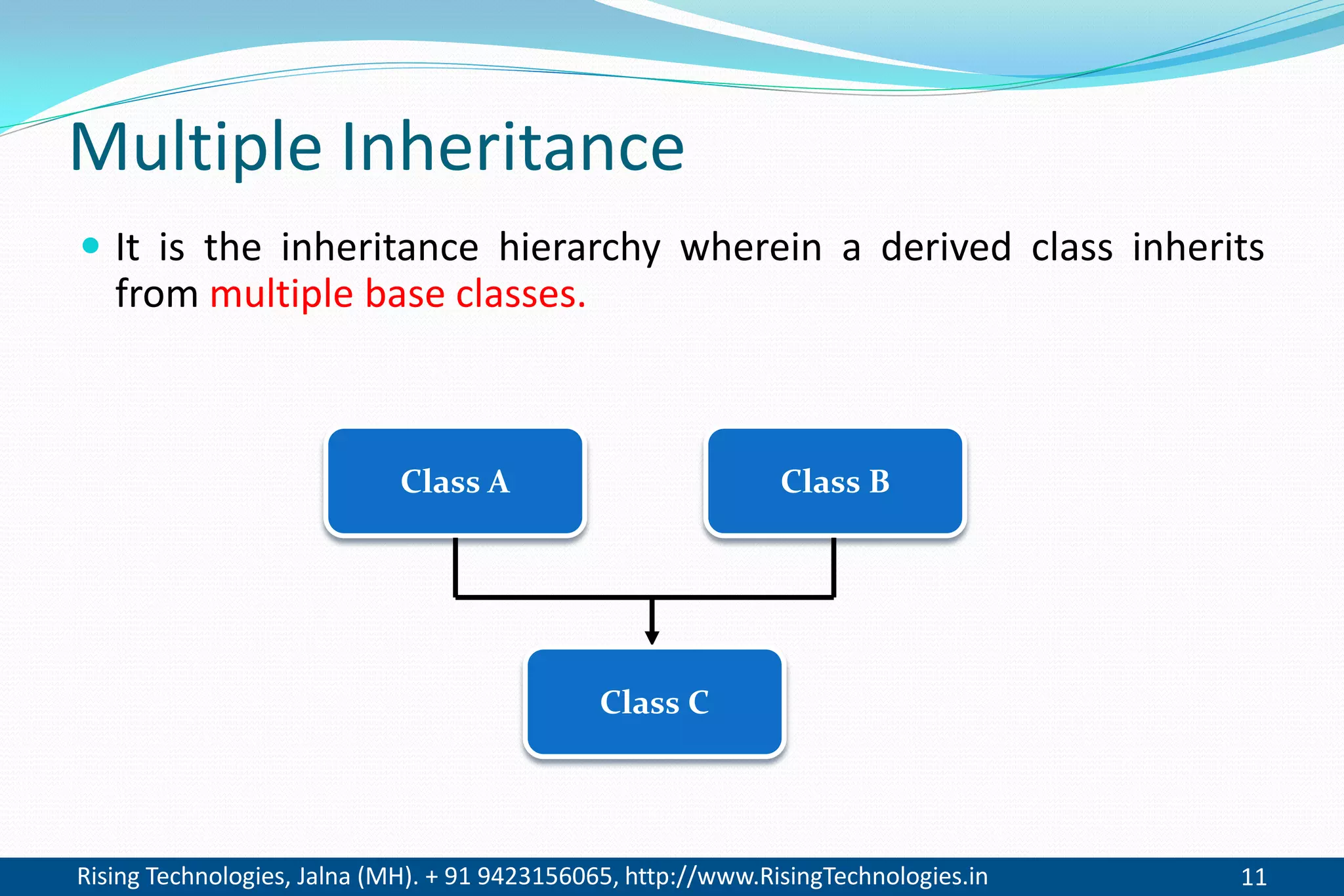

Multiple Inheritance
It is the inheritance hierarchy wherein a derived class inherits
from multiple base classes.
Class BClass A
Class C
12. Rising Technologies, Jalna (MH). + 91 9423156065, http://www.RisingTechnologies.in 12

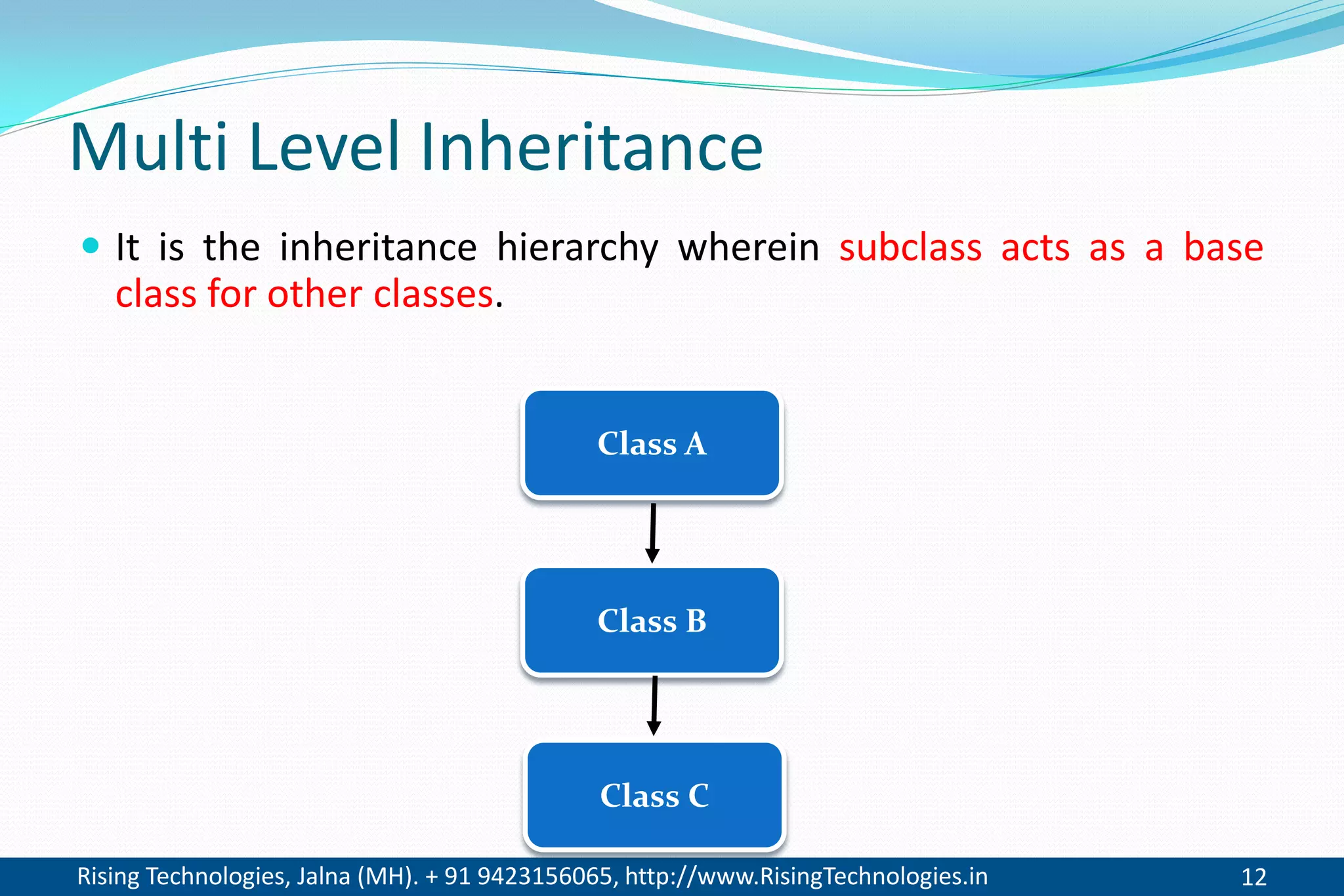

Multi Level Inheritance
It is the inheritance hierarchy wherein subclass acts as a base
class for other classes.
Class B
Class A
Class C
13. Rising Technologies, Jalna (MH). + 91 9423156065, http://www.RisingTechnologies.in 13

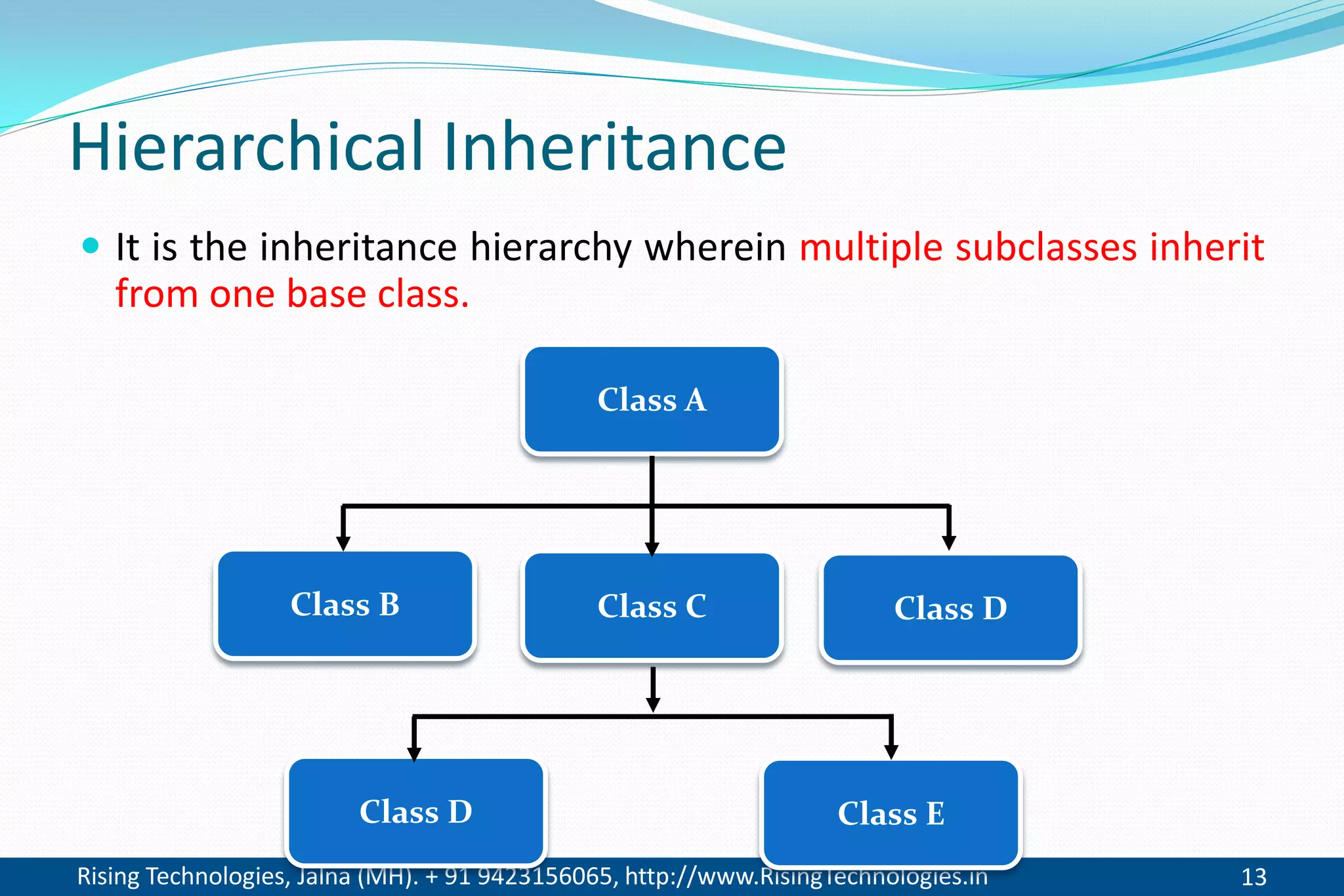

Hierarchical Inheritance
It is the inheritance hierarchy wherein multiple subclasses inherit
from one base class.
Class B
Class A
Class C
Class D Class E
Class D
14. Rising Technologies, Jalna (MH). + 91 9423156065, http://www.RisingTechnologies.in 14

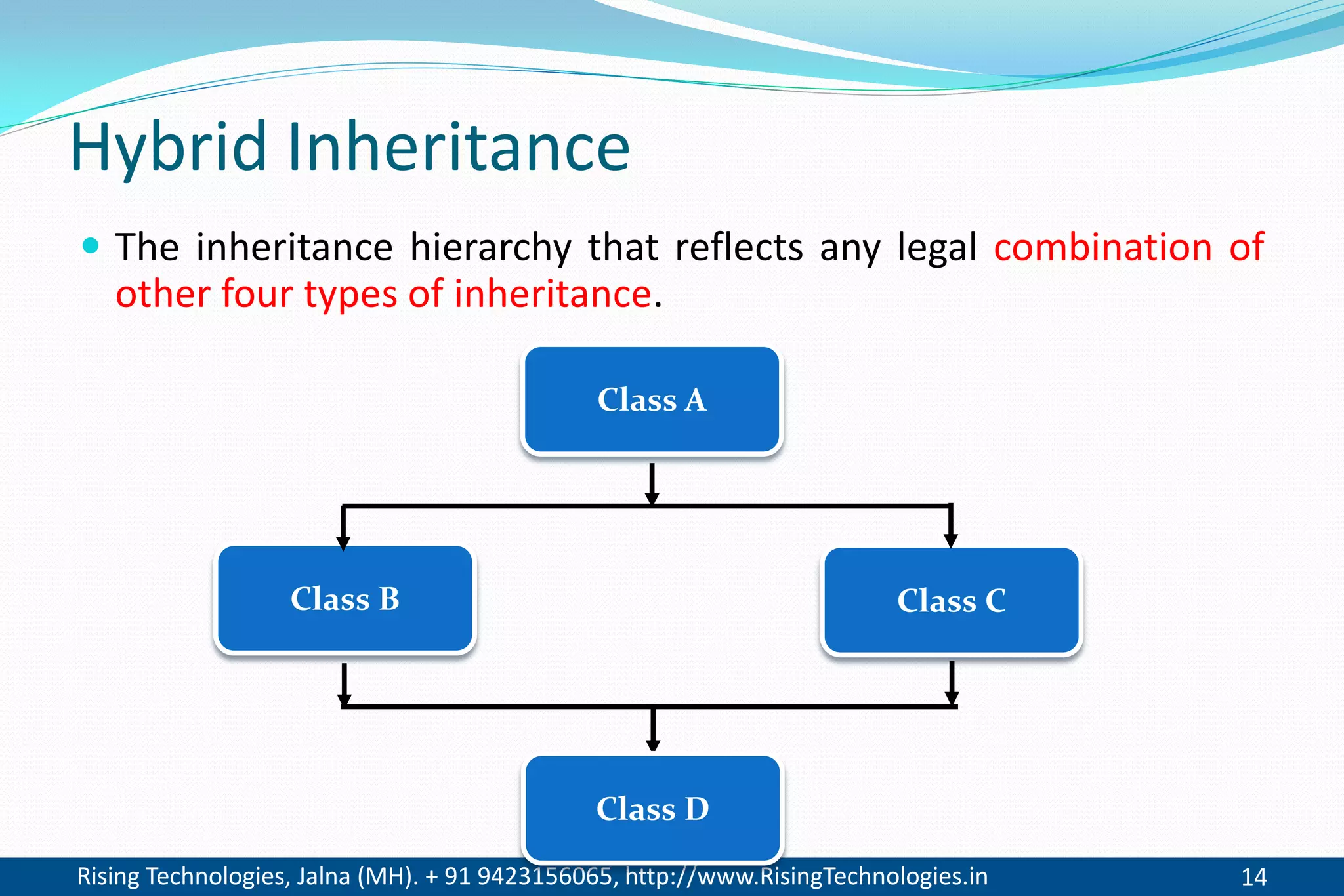

Hybrid Inheritance
The inheritance hierarchy that reflects any legal combination of
other four types of inheritance.
Class B
Class A
Class C
Class D
15. Rising Technologies, Jalna (MH). + 91 9423156065, http://www.RisingTechnologies.in 15

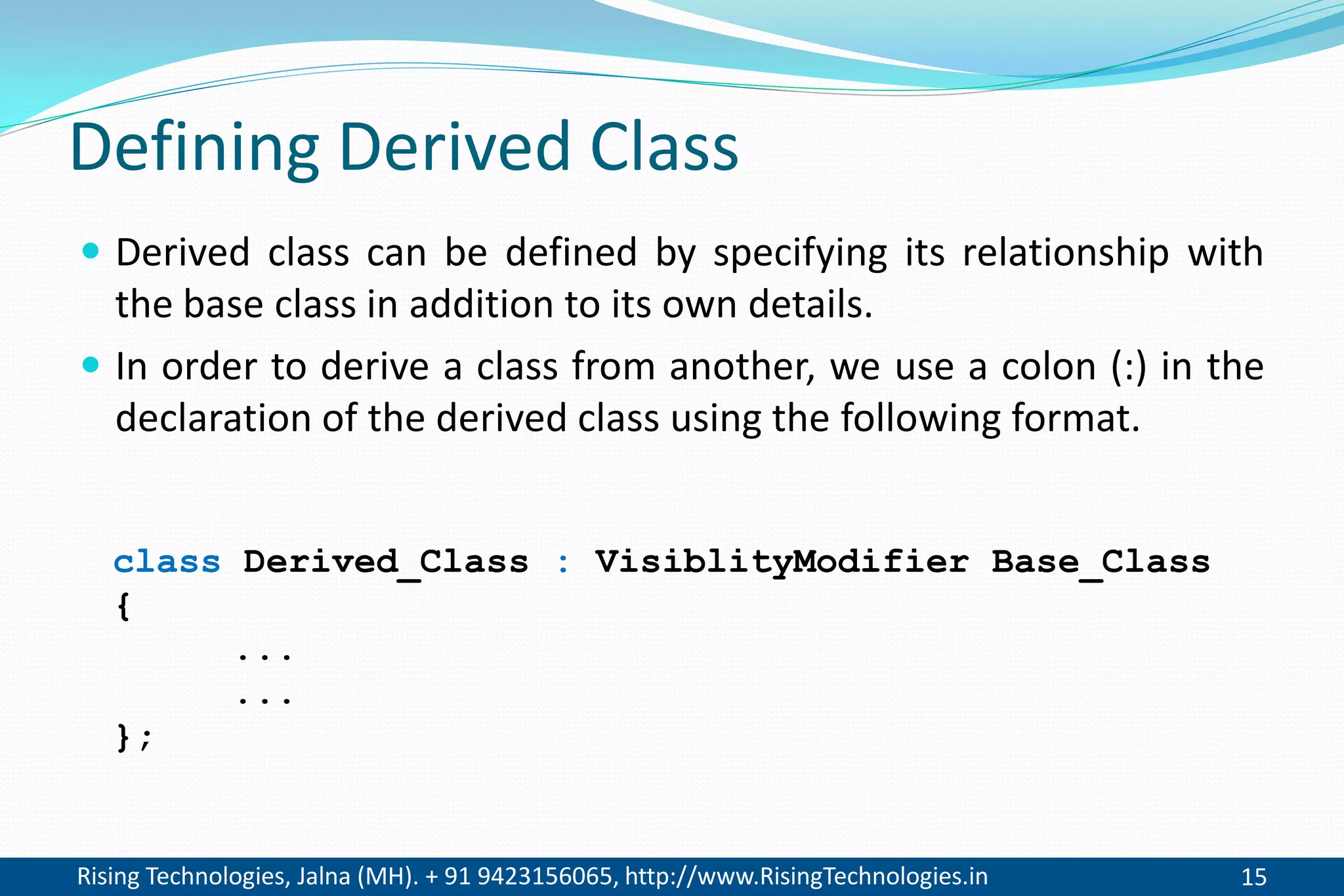

Defining Derived Class
Derived class can be defined by specifying its relationship with
the base class in addition to its own details.
In order to derive a class from another, we use a colon (:) in the
declaration of the derived class using the following format.
class Derived_Class : VisiblityModifier Base_Class
{
...
...
};
16. Rising Technologies, Jalna (MH). + 91 9423156065, http://www.RisingTechnologies.in 16

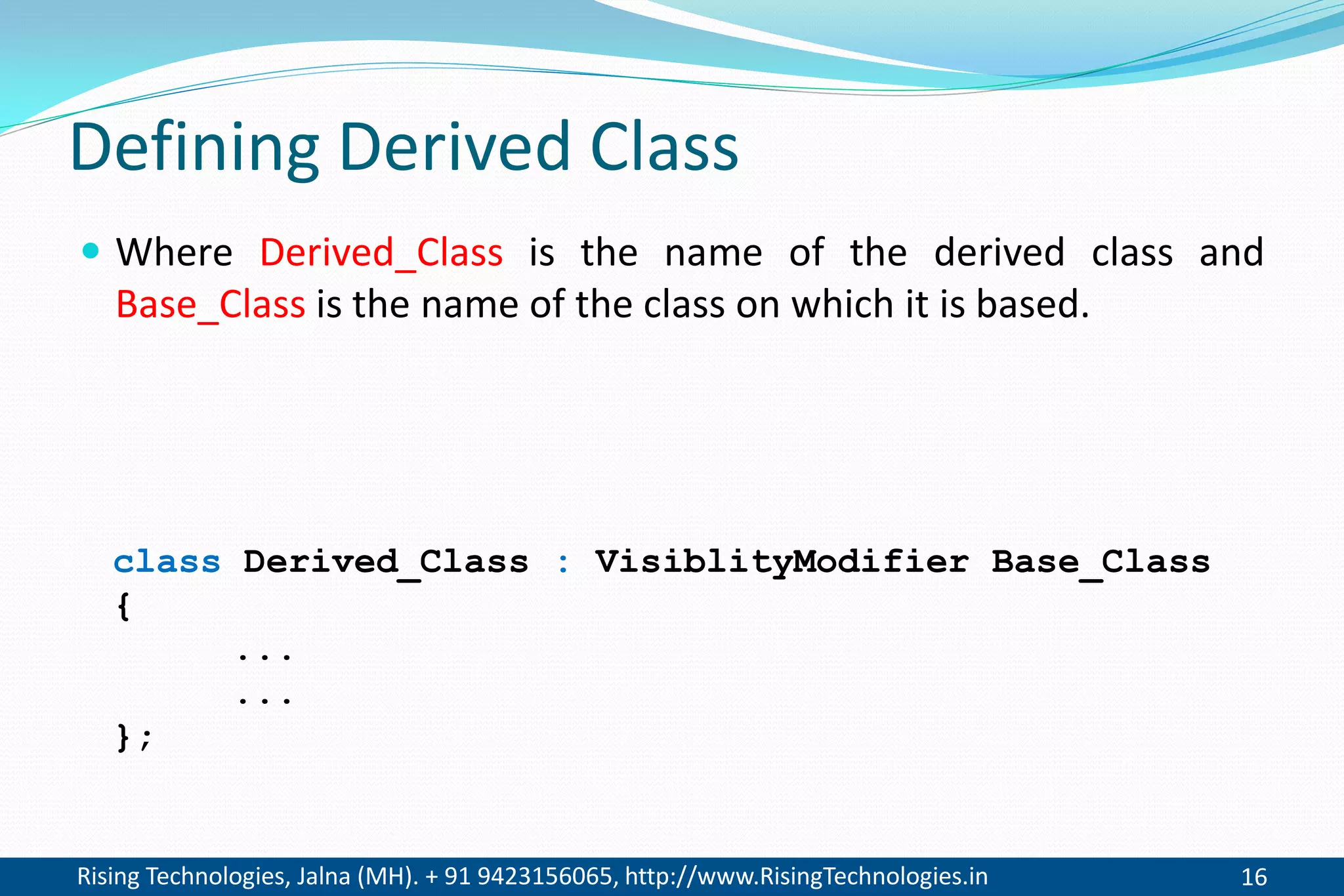

Defining Derived Class
Where Derived_Class is the name of the derived class and
Base_Class is the name of the class on which it is based.
class Derived_Class : VisiblityModifier Base_Class
{
...
...
};
17. Rising Technologies, Jalna (MH). + 91 9423156065, http://www.RisingTechnologies.in 17

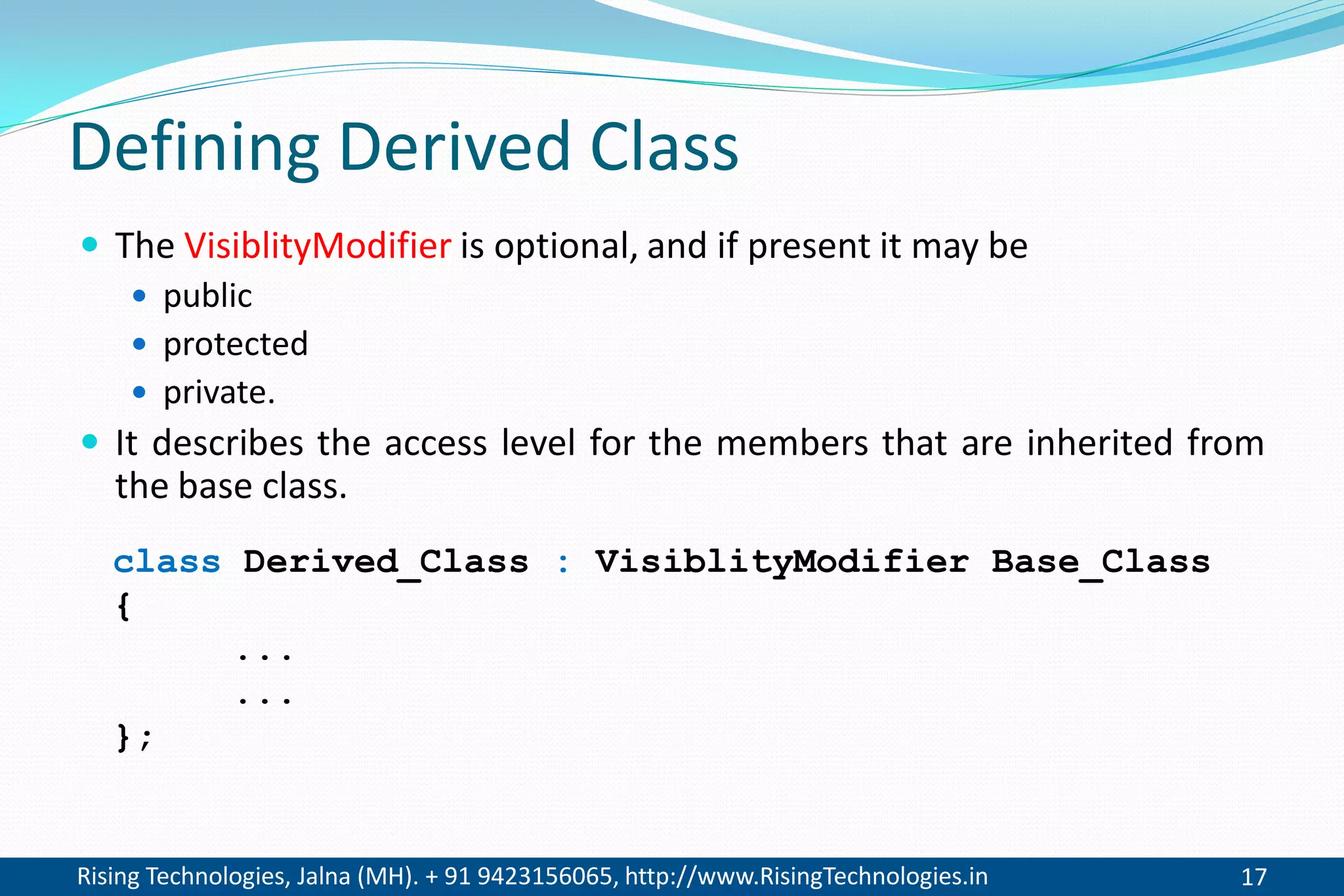

Defining Derived Class
The VisiblityModifier is optional, and if present it may be
public
protected
private.
It describes the access level for the members that are inherited from
the base class.
class Derived_Class : VisiblityModifier Base_Class
{
...
...
};
18. Rising Technologies, Jalna (MH). + 91 9423156065, http://www.RisingTechnologies.in 18

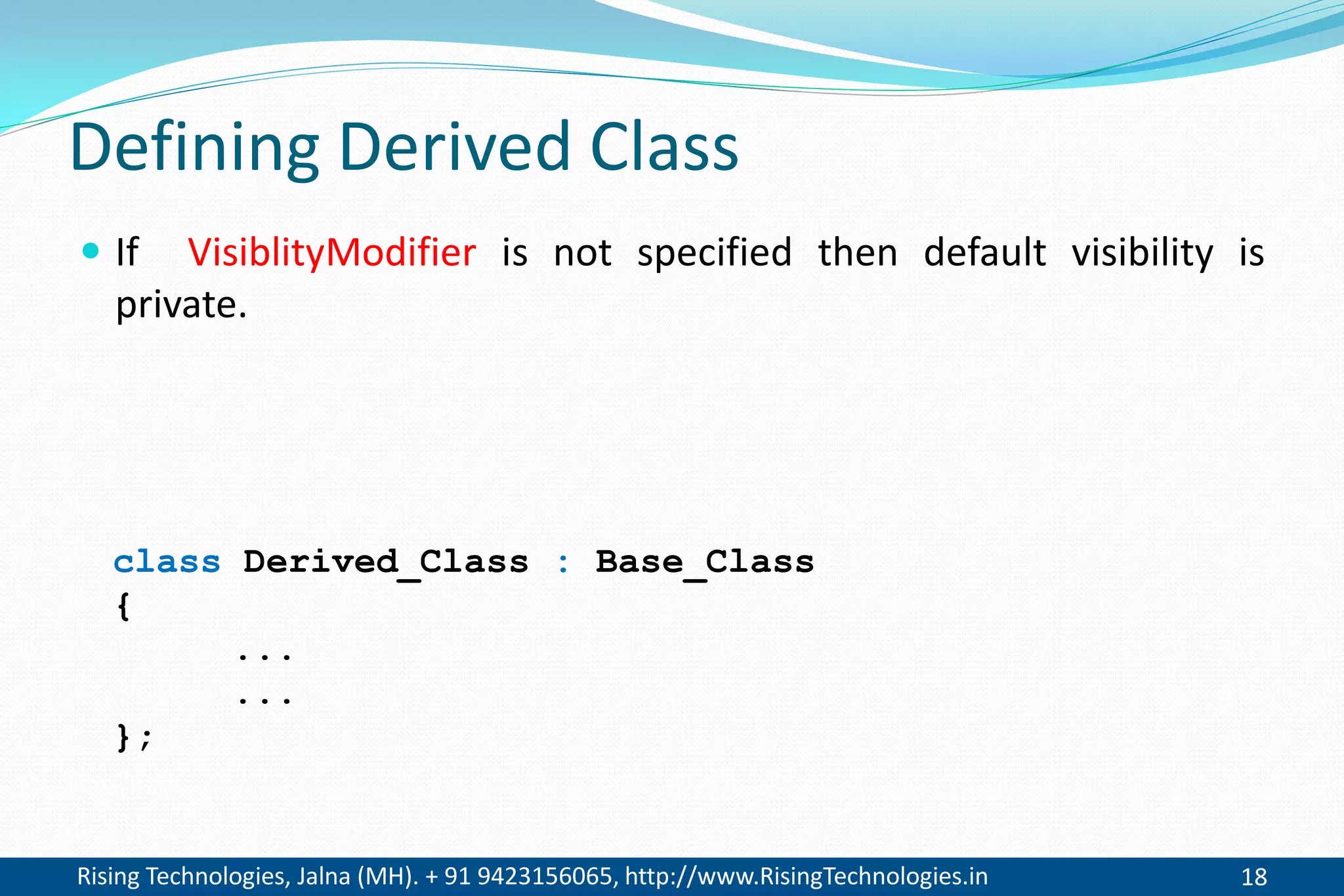

Defining Derived Class
If VisiblityModifier is not specified then default visibility is
private.
class Derived_Class : Base_Class
{
...
...
};
19. Rising Technologies, Jalna (MH). + 91 9423156065, http://www.RisingTechnologies.in 19

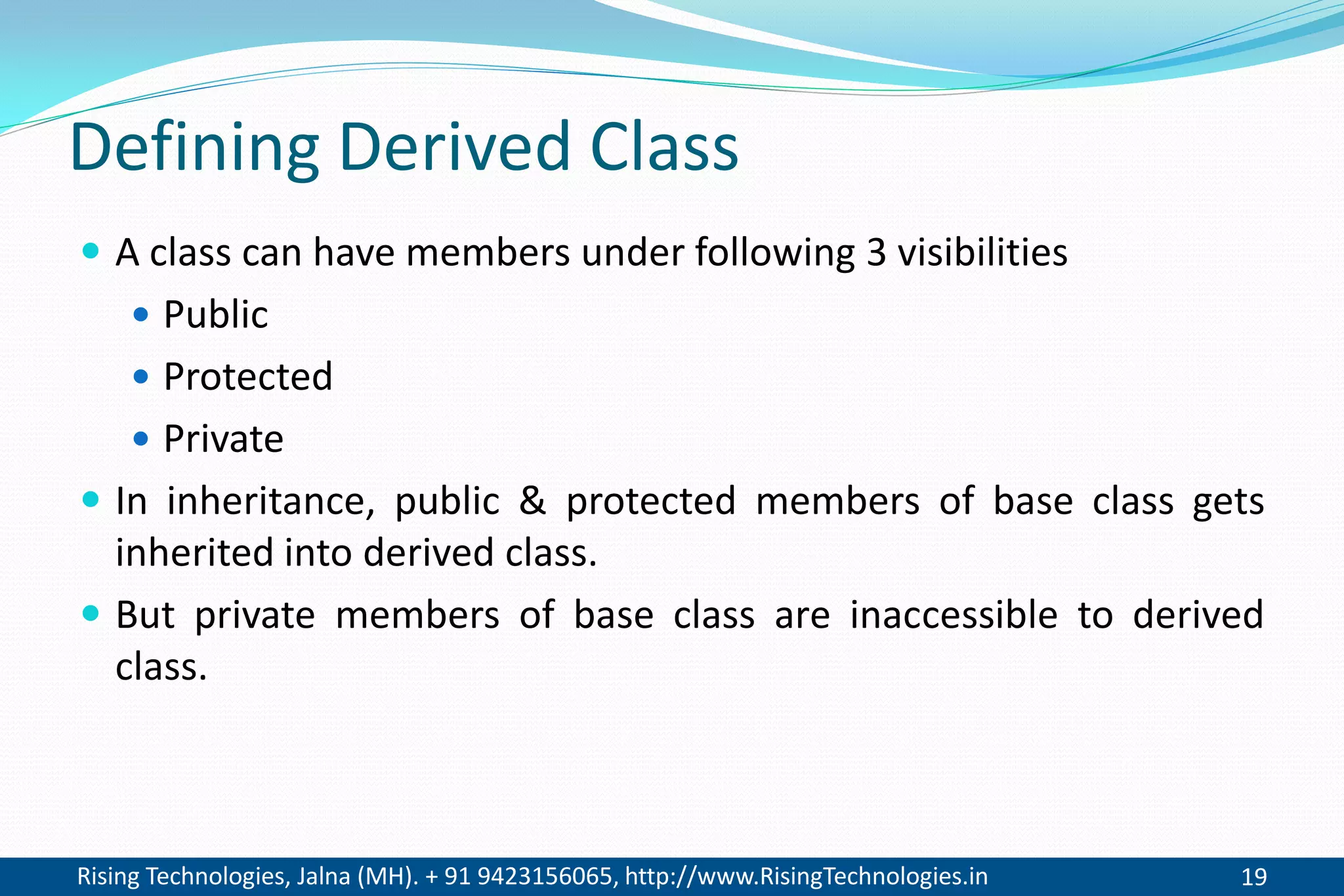

Defining Derived Class
A class can have members under following 3 visibilities
Public
Protected
Private
In inheritance, public & protected members of base class gets
inherited into derived class.
But private members of base class are inaccessible to derived
class.
20. Rising Technologies, Jalna (MH). + 91 9423156065, http://www.RisingTechnologies.in 20

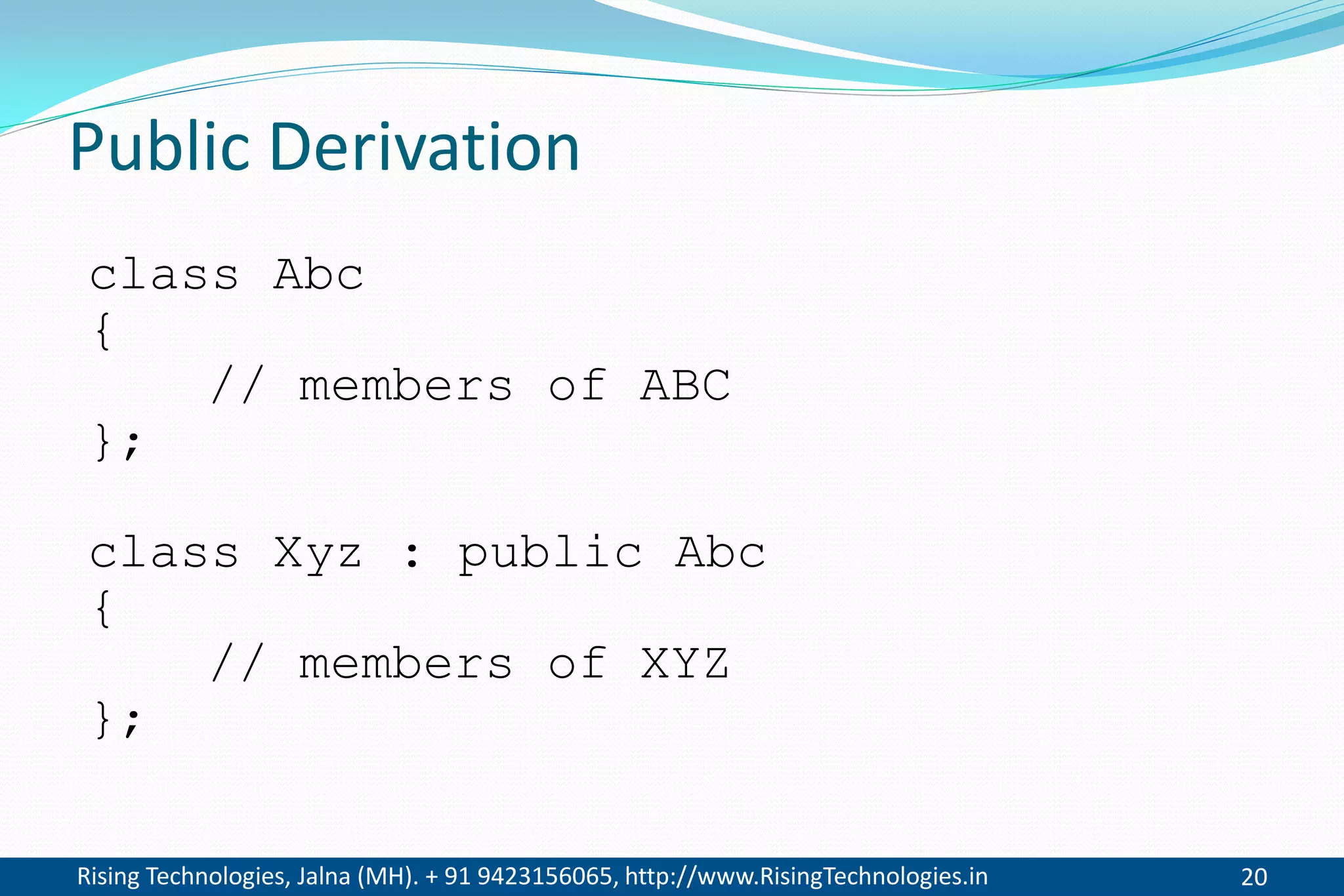

Public Derivation
class Abc
{
// members of ABC
};
class Xyz : public Abc
{
// members of XYZ
};
21. Rising Technologies, Jalna (MH). + 91 9423156065, http://www.RisingTechnologies.in 21

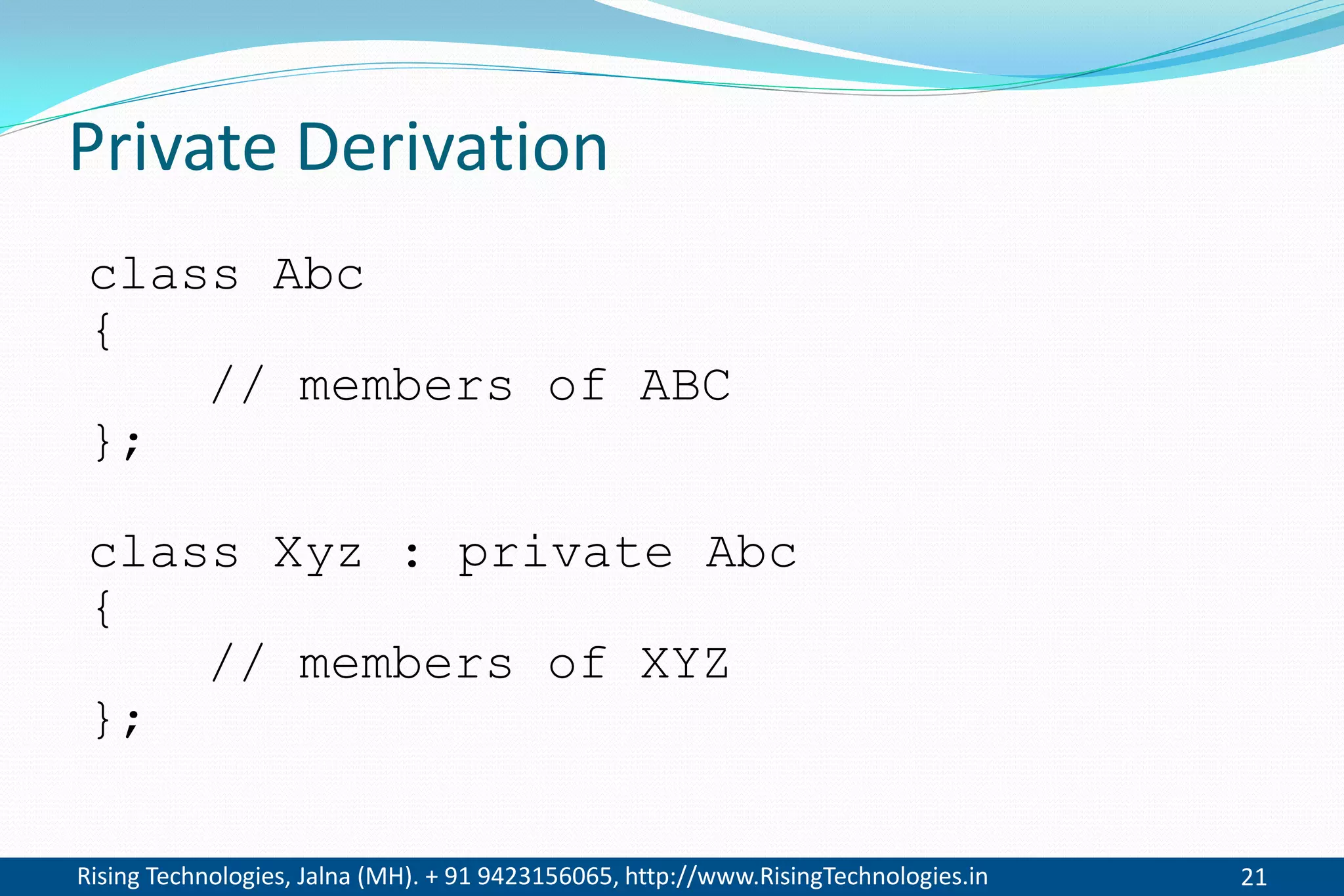

Private Derivation
class Abc
{
// members of ABC
};
class Xyz : private Abc
{
// members of XYZ
};
22. Rising Technologies, Jalna (MH). + 91 9423156065, http://www.RisingTechnologies.in 22

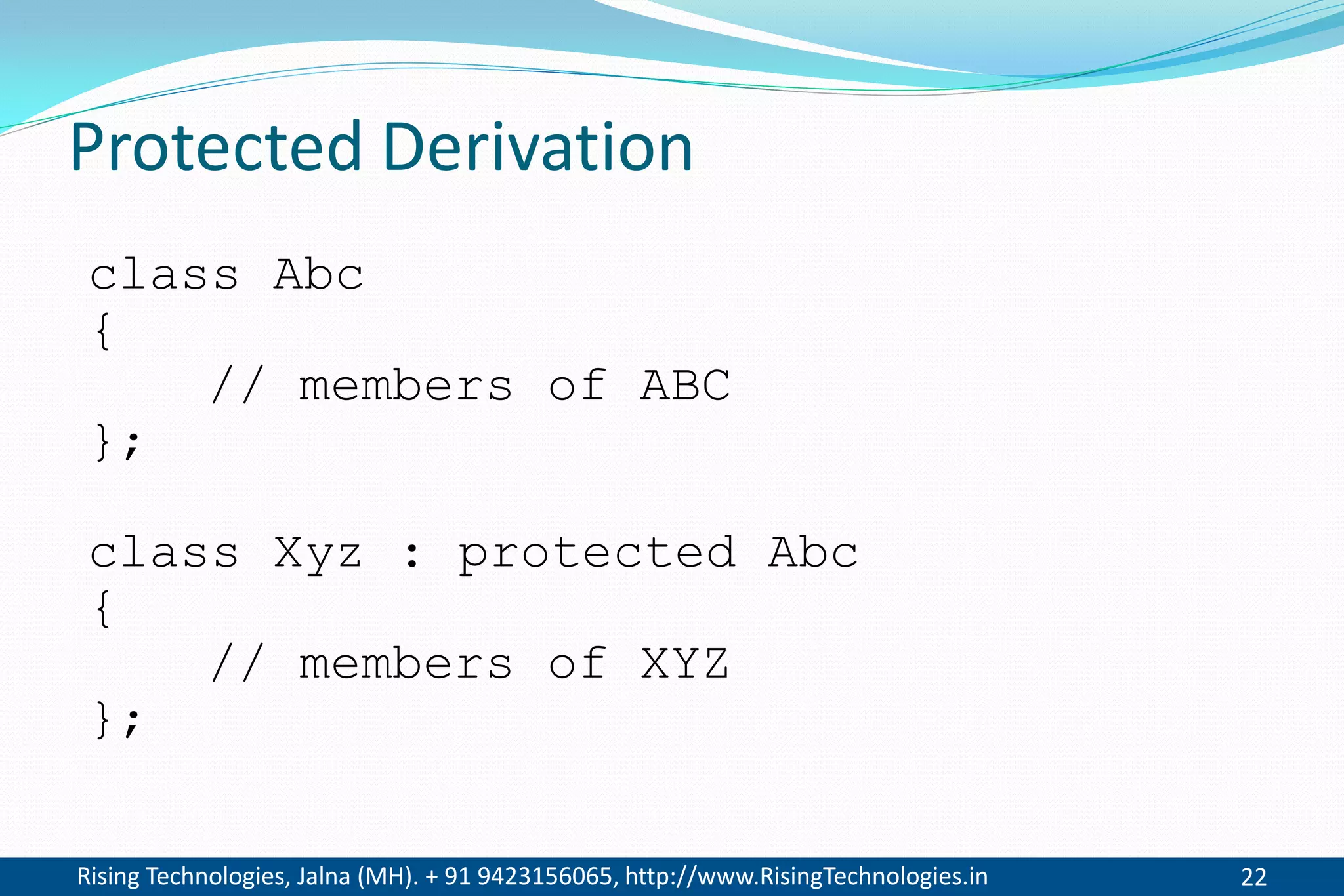

Protected Derivation
class Abc
{
// members of ABC
};
class Xyz : protected Abc
{
// members of XYZ
};
23. Rising Technologies, Jalna (MH). + 91 9423156065, http://www.RisingTechnologies.in 23
Default Private Derivation
class Abc
{
// members of ABC
};
class Xyz : Abc
{
// members of XYZ
};
24. Rising Technologies, Jalna (MH). + 91 9423156065, http://www.RisingTechnologies.in 24

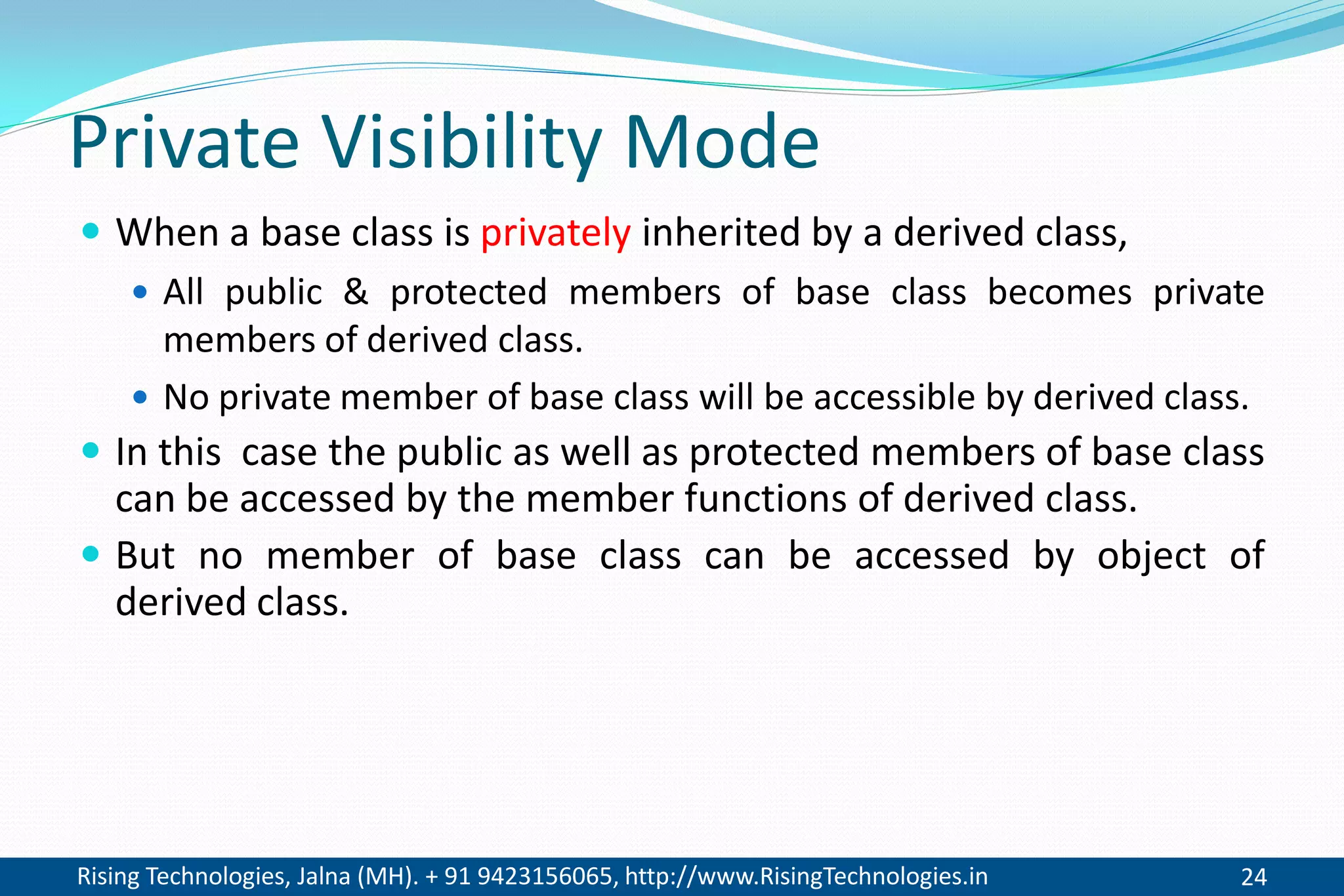

Private Visibility Mode
When a base class is privately inherited by a derived class,
All public & protected members of base class becomes private
members of derived class.
No private member of base class will be accessible by derived class.
In this case the public as well as protected members of base class
can be accessed by the member functions of derived class.
But no member of base class can be accessed by object of
derived class.
25. Rising Technologies, Jalna (MH). + 91 9423156065, http://www.RisingTechnologies.in 25

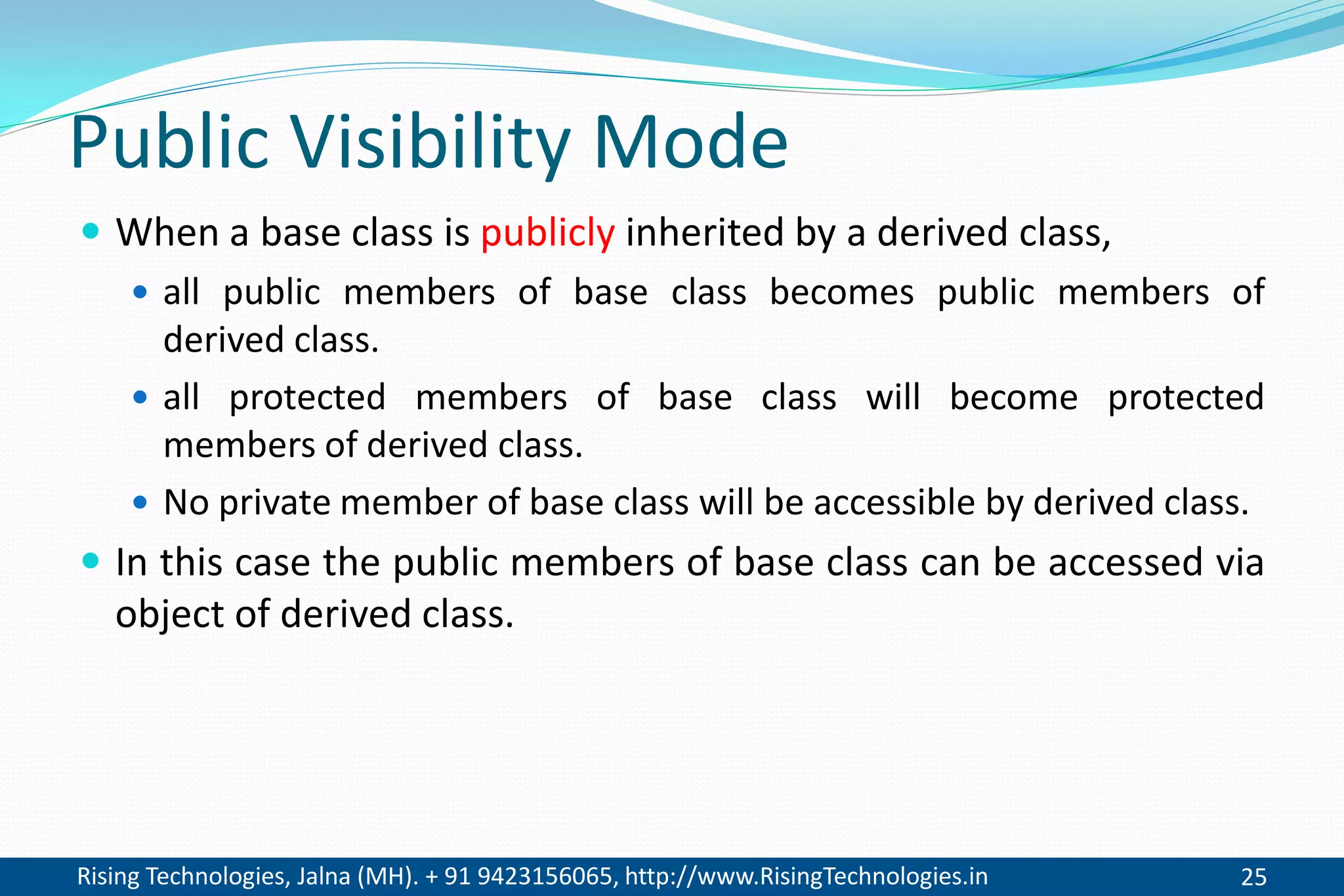

Public Visibility Mode
When a base class is publicly inherited by a derived class,
all public members of base class becomes public members of
derived class.
all protected members of base class will become protected
members of derived class.
No private member of base class will be accessible by derived class.
In this case the public members of base class can be accessed via
object of derived class.
26. Rising Technologies, Jalna (MH). + 91 9423156065, http://www.RisingTechnologies.in 26

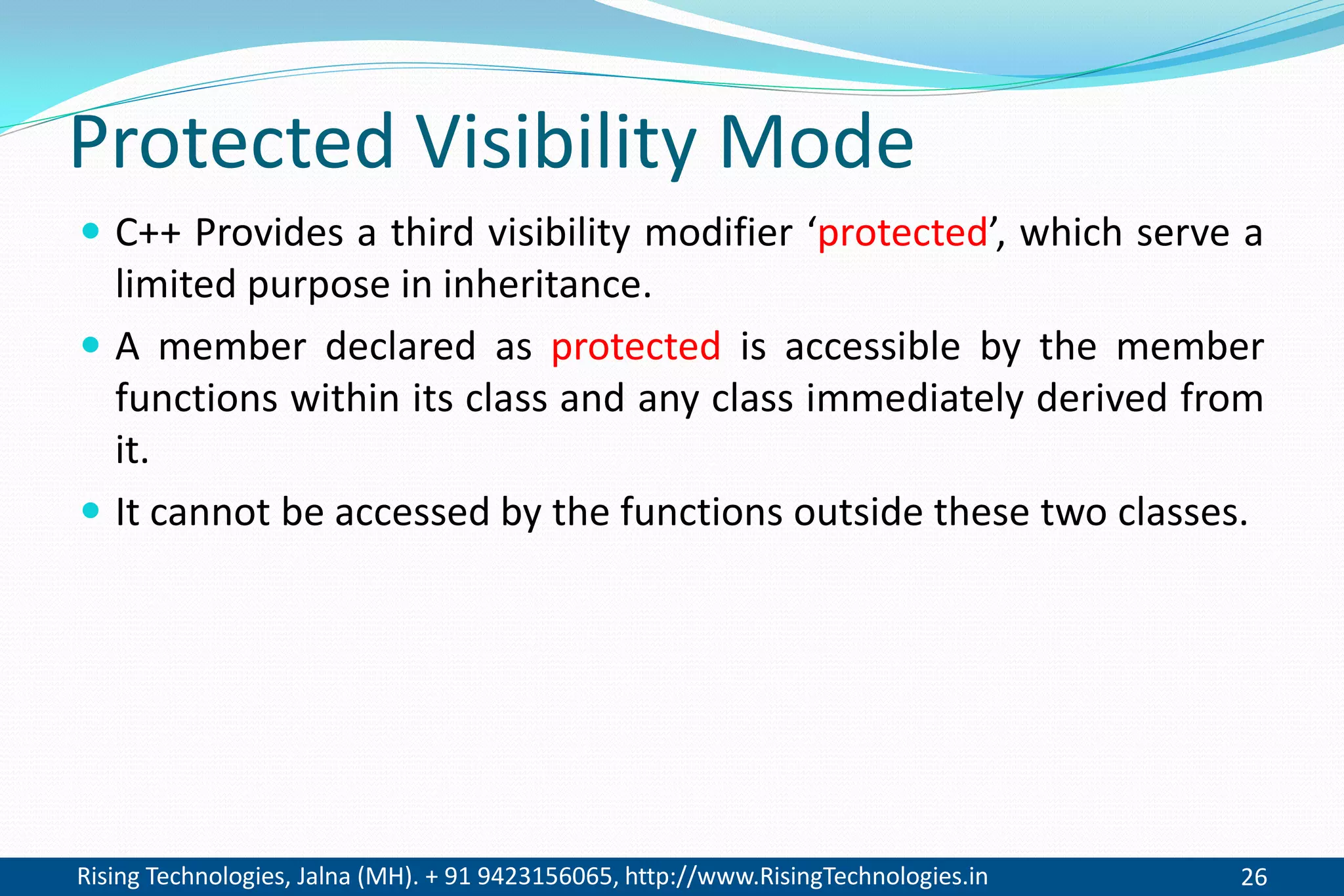

Protected Visibility Mode
C++ Provides a third visibility modifier ‘protected’, which serve a
limited purpose in inheritance.
A member declared as protected is accessible by the member
functions within its class and any class immediately derived from
it.
It cannot be accessed by the functions outside these two classes.
27. Rising Technologies, Jalna (MH). + 91 9423156065, http://www.RisingTechnologies.in 27

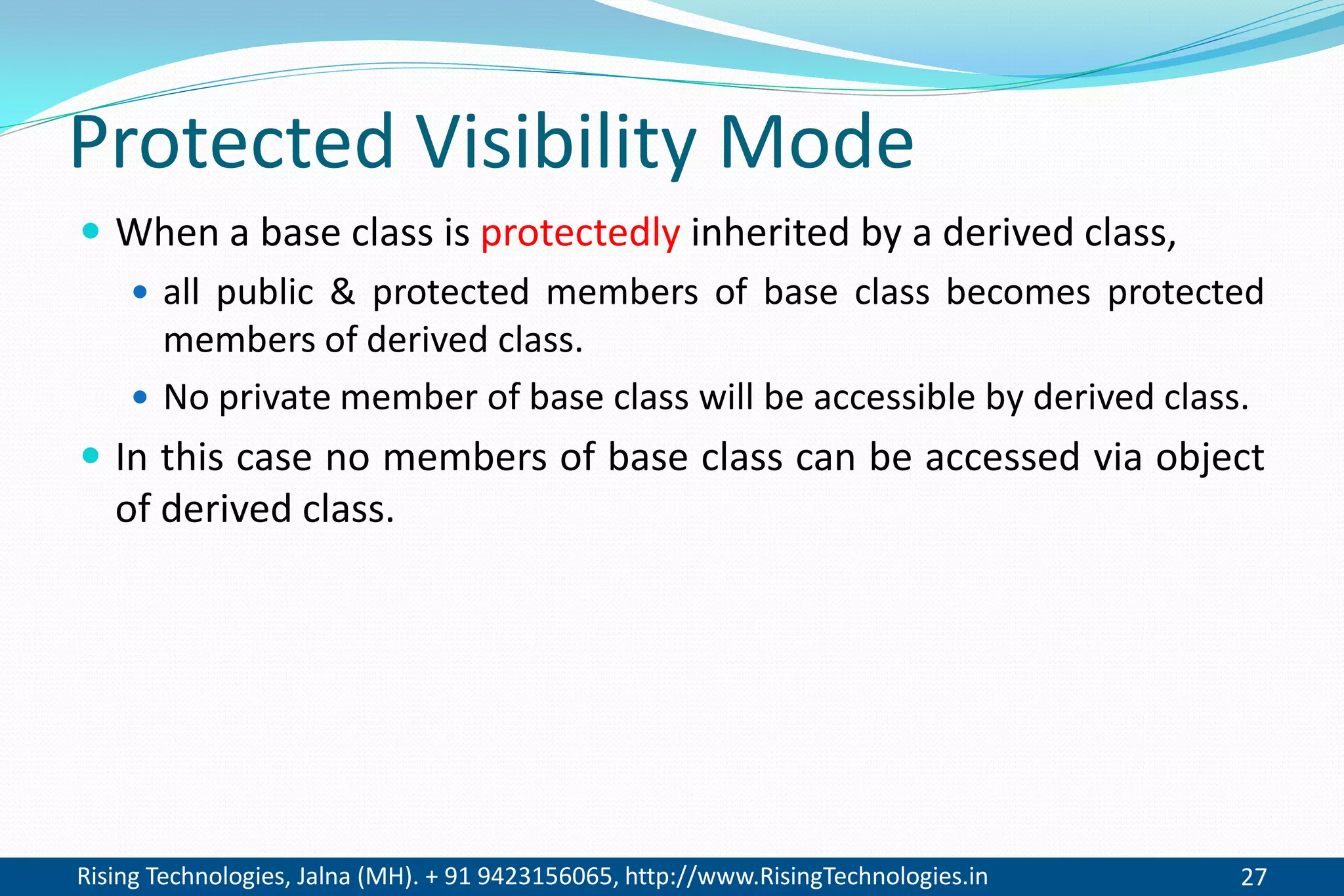

Protected Visibility Mode
When a base class is protectedly inherited by a derived class,
all public & protected members of base class becomes protected
members of derived class.
No private member of base class will be accessible by derived class.
In this case no members of base class can be accessed via object
of derived class.
28. Rising Technologies, Jalna (MH). + 91 9423156065, http://www.RisingTechnologies.in 28

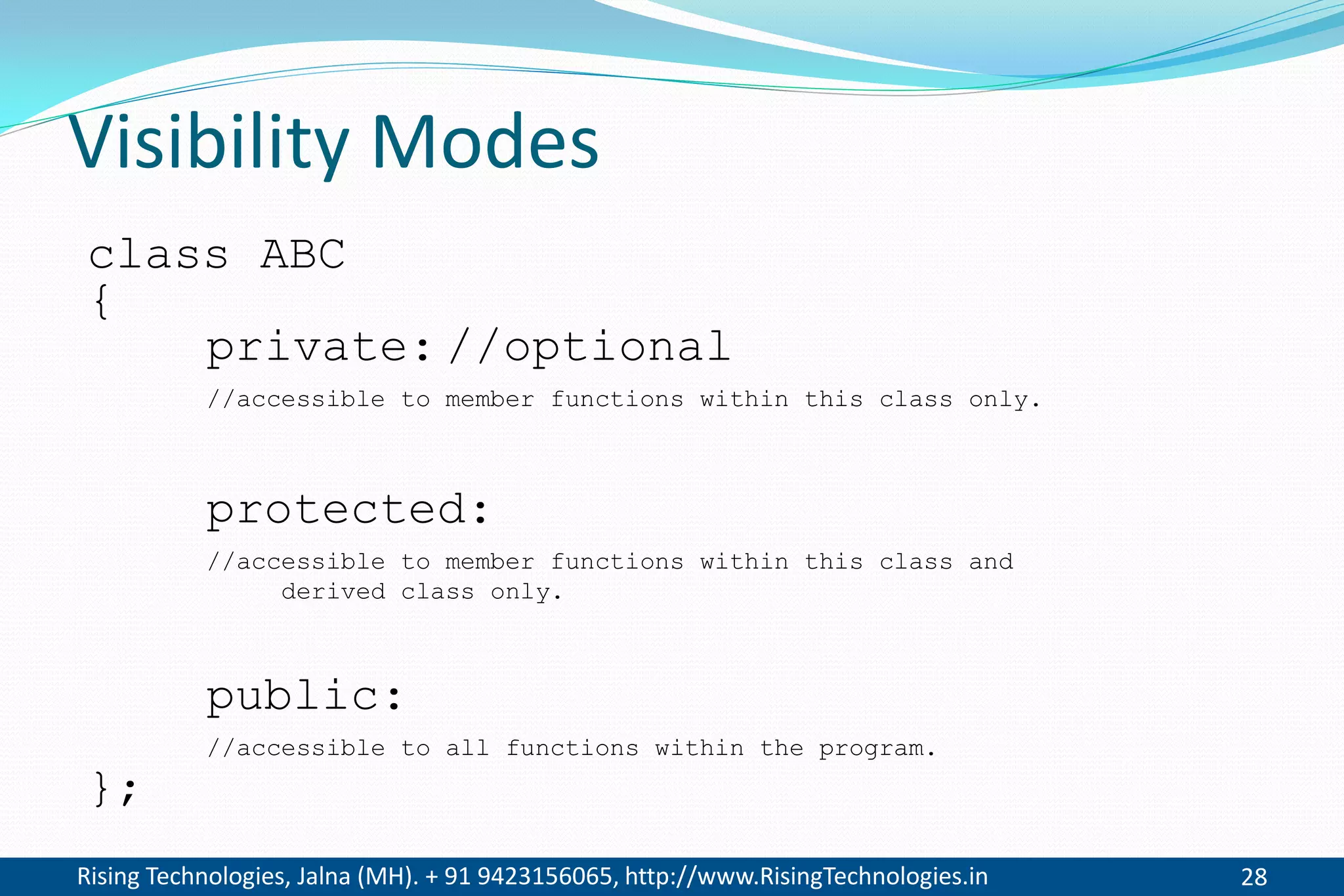

Visibility Modes
class ABC
{
private: //optional
//accessible to member functions within this class only.
protected:
//accessible to member functions within this class and
derived class only.
public:
//accessible to all functions within the program.
};

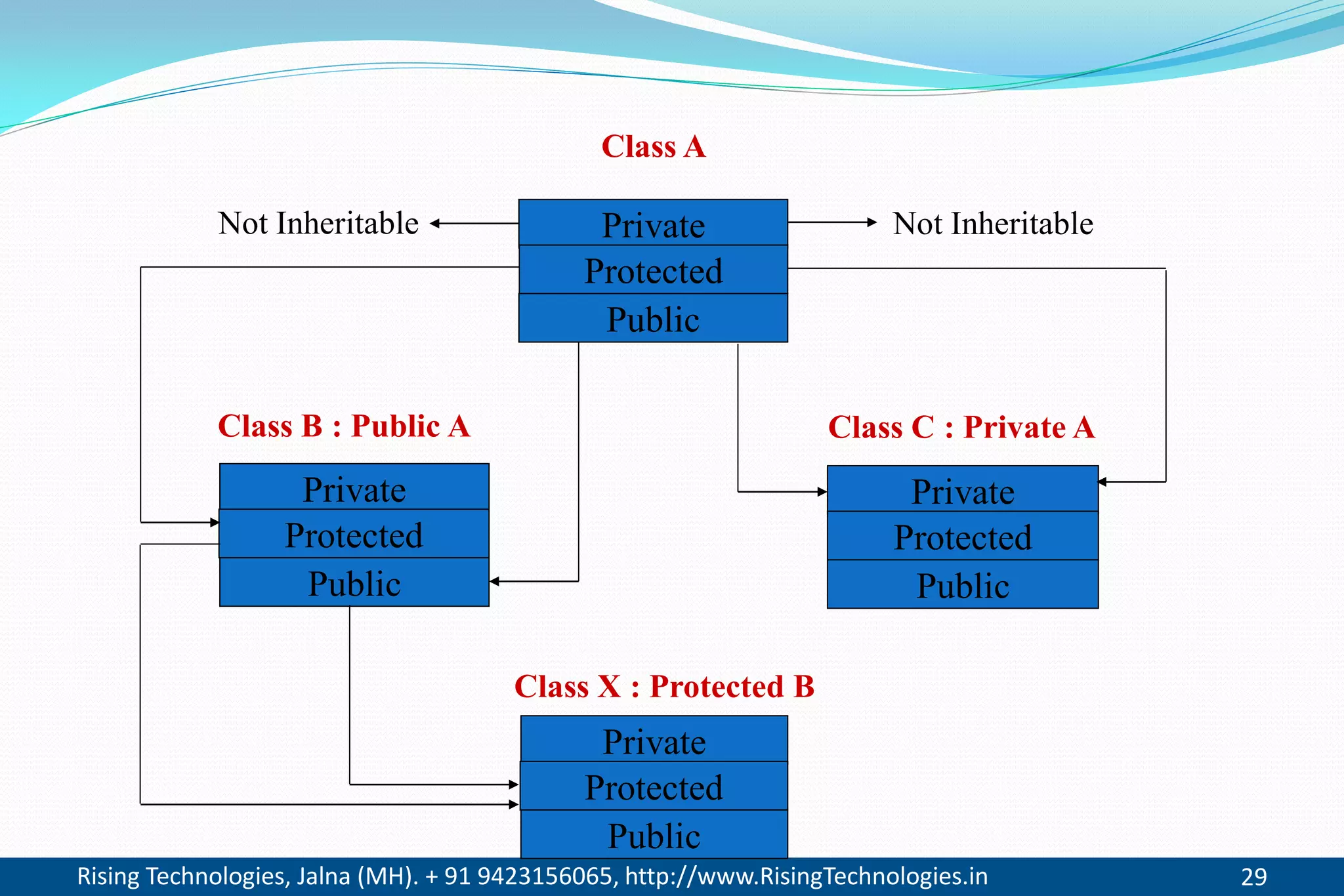

29. Rising Technologies, Jalna (MH). + 91 9423156065, http://www.RisingTechnologies.in 29
Private
Protected
Public
Private
Protected
Public
Private
Protected
Public
Private
Protected
Public
Not InheritableNot Inheritable
Class B : Public A
Class A
Class C : Private A
Class X : Protected B
