1. Document Object Model

2. Back to the DOM…

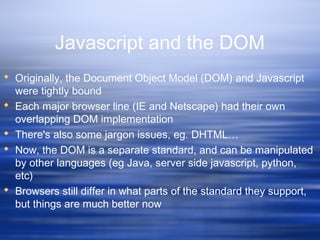

3. Javascript and the DOM
 Originally, the Document Object Model (DOM) and Javascript
were tightly bound
 Each major browser line (IE and Netscape) had their own
overlapping DOM implementation
 There's also some jargon issues, eg. DHTML…
 Now, the DOM is a separate standard, and can be manipulated
by other languages (eg Java, server side javascript, python,
etc)
 Browsers still differ in what parts of the standard they support,
but things are much better now

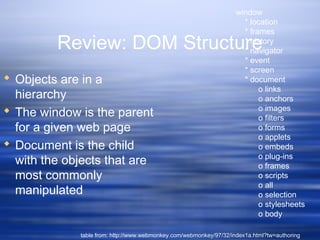

4. Review: DOM Structure
 Objects are in a
hierarchy
 The window is the parent
for a given web page
 Document is the child
with the objects that are
most commonly
manipulated
window
* location
* frames
* history
* navigator
* event
* screen
* document
o links
o anchors
o images
o filters
o forms
o applets
o embeds
o plug-ins
o frames
o scripts
o all
o selection
o stylesheets
o body
table from: http://www.webmonkey.com/webmonkey/97/32/index1a.html?tw=authoring

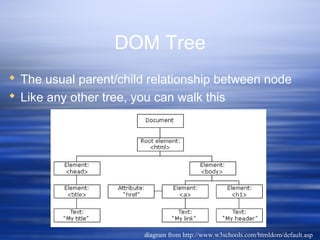

5. DOM Tree
 The usual parent/child relationship between node
 Like any other tree, you can walk this
diagram from http://www.w3schools.com/htmldom/default.asp

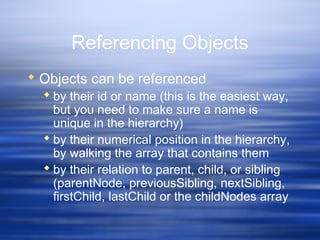

6. Referencing Objects
 Objects can be referenced
 by their id or name (this is the easiest way,
but you need to make sure a name is
unique in the hierarchy)
 by their numerical position in the hierarchy,
by walking the array that contains them
 by their relation to parent, child, or sibling
(parentNode, previousSibling, nextSibling,
firstChild, lastChild or the childNodes array

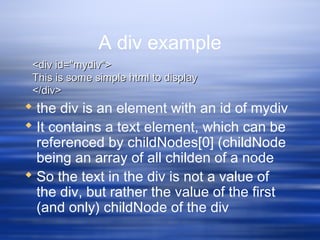

7. A div example
 the div is an element with an id of mydiv
 It contains a text element, which can be
referenced by childNodes[0] (childNode
being an array of all childen of a node
 So the text in the div is not a value of
the div, but rather the value of the first
(and only) childNode of the div
<div id="mydiv"><div id="mydiv">
This is some simple html to displayThis is some simple html to display
</div></div>

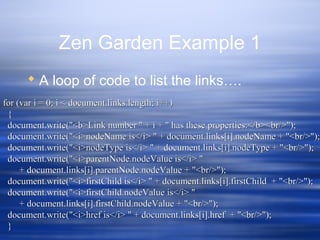

8. Zen Garden Example 1
 A loop of code to list the links….
for (var i = 0; i < document.links.length; i++)for (var i = 0; i < document.links.length; i++)
{{
document.write("<b>Link number " + i + " has these properties:</b><br/>");document.write("<b>Link number " + i + " has these properties:</b><br/>");
document.write("<i>nodeName is</i> " + document.links[i].nodeName + "<br/>");document.write("<i>nodeName is</i> " + document.links[i].nodeName + "<br/>");
document.write("<i>nodeType is</i> " + document.links[i].nodeType + "<br/>");document.write("<i>nodeType is</i> " + document.links[i].nodeType + "<br/>");
document.write("<i>parentNode.nodeValue is</i> "document.write("<i>parentNode.nodeValue is</i> "
+ document.links[i].parentNode.nodeValue + "<br/>");+ document.links[i].parentNode.nodeValue + "<br/>");
document.write("<i>firstChild is</i> " + document.links[i].firstChild + "<br/>");document.write("<i>firstChild is</i> " + document.links[i].firstChild + "<br/>");
document.write("<i>firstChild.nodeValue is</i> "document.write("<i>firstChild.nodeValue is</i> "
+ document.links[i].firstChild.nodeValue + "<br/>");+ document.links[i].firstChild.nodeValue + "<br/>");
document.write("<i>href is</i> " + document.links[i].href + "<br/>");document.write("<i>href is</i> " + document.links[i].href + "<br/>");
}}

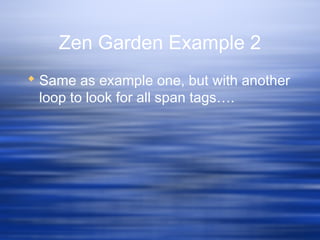

9. Zen Garden Example 2
 Same as example one, but with another
loop to look for all span tags….

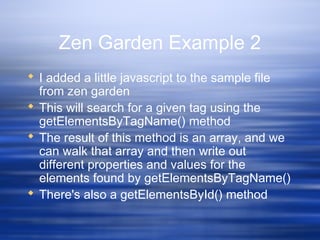

10. Zen Garden Example 2
 I added a little javascript to the sample file
from zen garden
 This will search for a given tag using the
getElementsByTagName() method
 The result of this method is an array, and we
can walk that array and then write out
different properties and values for the
elements found by getElementsByTagName()
 There's also a getElementsById() method

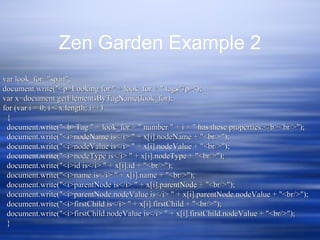

11. Zen Garden Example 2
var look_for="span";var look_for="span";
document.write("<p>Looking for " + look_for + " tags</p>");document.write("<p>Looking for " + look_for + " tags</p>");
var x=document.getElementsByTagName(look_for);var x=document.getElementsByTagName(look_for);
for (var i = 0; i < x.length; i++)for (var i = 0; i < x.length; i++)
{{
document.write("<b>Tag " + look_for + " number " + i + " has these properties:</b><br/>");document.write("<b>Tag " + look_for + " number " + i + " has these properties:</b><br/>");
document.write("<i>nodeName is</i> " + x[i].nodeName + "<br/>");document.write("<i>nodeName is</i> " + x[i].nodeName + "<br/>");
document.write("<i>nodeValue is</i> " + x[i].nodeValue + "<br/>");document.write("<i>nodeValue is</i> " + x[i].nodeValue + "<br/>");
document.write("<i>nodeType is</i> " + x[i].nodeType + "<br/>");document.write("<i>nodeType is</i> " + x[i].nodeType + "<br/>");
document.write("<i>id is</i> " + x[i].id + "<br/>");document.write("<i>id is</i> " + x[i].id + "<br/>");
document.write("<i>name is</i> " + x[i].name + "<br/>");document.write("<i>name is</i> " + x[i].name + "<br/>");
document.write("<i>parentNode is</i> " + x[i].parentNode + "<br/>");document.write("<i>parentNode is</i> " + x[i].parentNode + "<br/>");
document.write("<i>parentNode.nodeValue is</i> " + x[i].parentNode.nodeValue + "<br/>");document.write("<i>parentNode.nodeValue is</i> " + x[i].parentNode.nodeValue + "<br/>");
document.write("<i>firstChild is</i> " + x[i].firstChild + "<br/>");document.write("<i>firstChild is</i> " + x[i].firstChild + "<br/>");
document.write("<i>firstChild.nodeValue is</i> " + x[i].firstChild.nodeValue + "<br/>");document.write("<i>firstChild.nodeValue is</i> " + x[i].firstChild.nodeValue + "<br/>");
}}

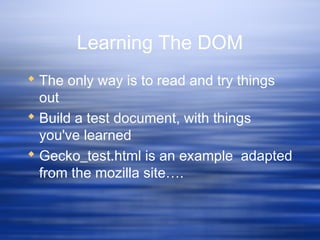

12. Learning The DOM
 The only way is to read and try things
out
 Build a test document, with things
you've learned
 Gecko_test.html is an example adapted
from the mozilla site….

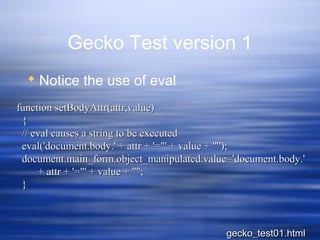

13. Gecko Test version 1
 Notice the use of eval
function setBodyAttr(attr,value)function setBodyAttr(attr,value)
{{
// eval causes a string to be executed// eval causes a string to be executed
eval('document.body.' + attr + '="' + value + '"');eval('document.body.' + attr + '="' + value + '"');
document.main_form.object_manipulated.value='document.body.'document.main_form.object_manipulated.value='document.body.'
+ attr + '="' + value + '"';+ attr + '="' + value + '"';
}}
gecko_test01.htmlgecko_test01.html

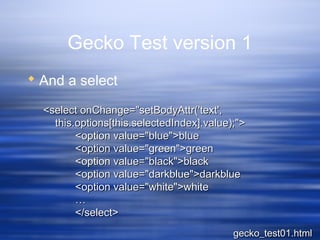

14. Gecko Test version 1
 And a select
<select onChange="setBodyAttr('text',<select onChange="setBodyAttr('text',
this.options[this.selectedIndex].value);">this.options[this.selectedIndex].value);">
<option value="blue">blue<option value="blue">blue
<option value="green">green<option value="green">green
<option value="black">black<option value="black">black
<option value="darkblue">darkblue<option value="darkblue">darkblue
<option value="white">white<option value="white">white
……
</select></select>
gecko_test01.htmlgecko_test01.html

15. Gecko Test version 1
 What's wrong with this? (hint: I'm
violating a basic rule of coding…)
gecko_test01.htmlgecko_test01.html

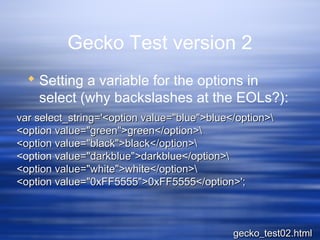

16. Gecko Test version 2
 Setting a variable for the options in
select (why backslashes at the EOLs?):
var select_string='<option value="blue">blue</option>var select_string='<option value="blue">blue</option>
<option value="green">green</option><option value="green">green</option>
<option value="black">black</option><option value="black">black</option>
<option value="darkblue">darkblue</option><option value="darkblue">darkblue</option>
<option value="white">white</option><option value="white">white</option>
<option value="0xFF5555">0xFF5555</option>';<option value="0xFF5555">0xFF5555</option>';
gecko_test02.htmlgecko_test02.html

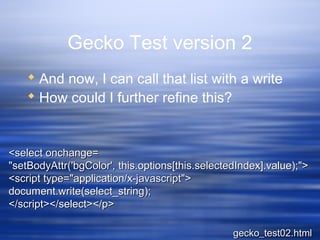

17. Gecko Test version 2
 And now, I can call that list with a write
 How could I further refine this?
<select onchange=<select onchange=
"setBodyAttr('bgColor', this.options[this.selectedIndex].value);">"setBodyAttr('bgColor', this.options[this.selectedIndex].value);">
<script type="application/x-javascript"><script type="application/x-javascript">
document.write(select_string);document.write(select_string);
</script></select></p></script></select></p>
gecko_test02.htmlgecko_test02.html

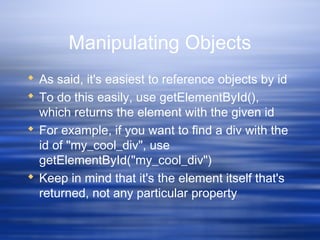

18. Manipulating Objects
 As said, it's easiest to reference objects by id
 To do this easily, use getElementById(),
which returns the element with the given id
 For example, if you want to find a div with the
id of "my_cool_div", use
getElementById("my_cool_div")
 Keep in mind that it's the element itself that's
returned, not any particular property

19. Using divs
 Div properties can be dynamically
manipulated
 You can use this to make menus more
dynamic

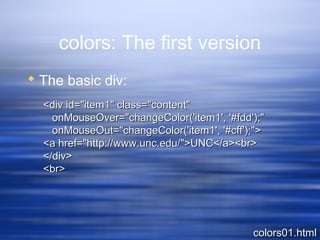

20. colors: The first version
 The basic div:
colors01.htmlcolors01.html
<div id="item1" class="content"<div id="item1" class="content"
onMouseOver="changeColor('item1', '#fdd');"onMouseOver="changeColor('item1', '#fdd');"
onMouseOut="changeColor('item1', '#cff');">onMouseOut="changeColor('item1', '#cff');">
<a href="http://www.unc.edu/">UNC</a><br><a href="http://www.unc.edu/">UNC</a><br>
</div></div>
<br><br>

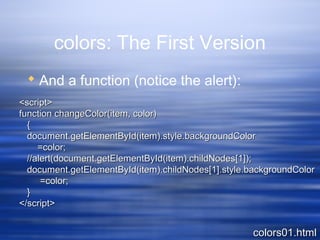

21. colors: The First Version
 And a function (notice the alert):
<script><script>
function changeColor(item, color)function changeColor(item, color)
{{
document.getElementById(item).style.backgroundColordocument.getElementById(item).style.backgroundColor
=color;=color;
//alert(document.getElementById(item).childNodes[1]);//alert(document.getElementById(item).childNodes[1]);
document.getElementById(item).childNodes[1].style.backgroundColordocument.getElementById(item).childNodes[1].style.backgroundColor
=color;=color;
}}
</script></script>
colors01.htmlcolors01.html

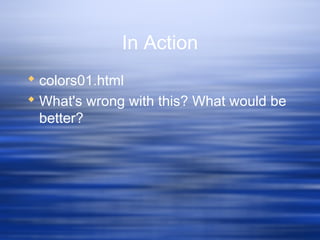

22. In Action
 colors01.html
 What's wrong with this? What would be
better?

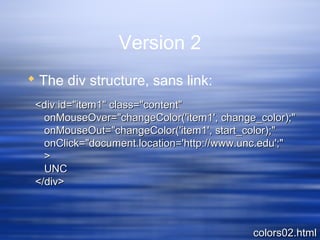

23. Version 2
 The div structure, sans link:
colors02.htmlcolors02.html
<div id="item1" class="content"<div id="item1" class="content"
onMouseOver="changeColor('item1', change_color);"onMouseOver="changeColor('item1', change_color);"
onMouseOut="changeColor('item1', start_color);"onMouseOut="changeColor('item1', start_color);"
onClick="document.location='http://www.unc.edu';"onClick="document.location='http://www.unc.edu';"
>>
UNCUNC
</div></div>

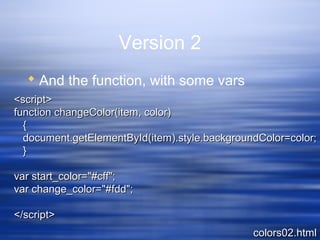

24. Version 2
 And the function, with some vars
colors02.htmlcolors02.html
<script><script>
function changeColor(item, color)function changeColor(item, color)
{{
document.getElementById(item).style.backgroundColor=color;document.getElementById(item).style.backgroundColor=color;
}}
var start_color="#cff";var start_color="#cff";
var change_color="#fdd";var change_color="#fdd";
</script></script>

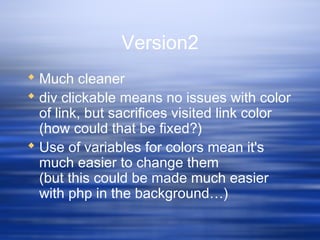

25. Version2
 Much cleaner
 div clickable means no issues with color
of link, but sacrifices visited link color
(how could that be fixed?)
 Use of variables for colors mean it's
much easier to change them
(but this could be made much easier
with php in the background…)

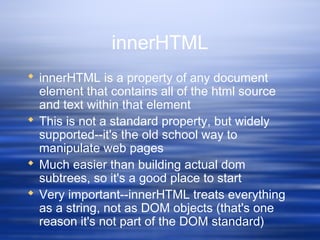

26. innerHTML
 innerHTML is a property of any document
element that contains all of the html source
and text within that element
 This is not a standard property, but widely
supported--it's the old school way to
manipulate web pages
 Much easier than building actual dom
subtrees, so it's a good place to start
 Very important--innerHTML treats everything
as a string, not as DOM objects (that's one
reason it's not part of the DOM standard)

27. Using These….
 You can reference any named element
with getElementById()
 You can read from or write to that
element with innerHTML
 For example:
getElementById("mydiv").innerHTML
="new text string";

28. A Simple DOM example
<div id="mydiv"><div id="mydiv">
<p><p>
This some <i>simple</i> html to displayThis some <i>simple</i> html to display
</p></p>
</div></div>
<form id="myform"><form id="myform">
<input type="button" value="Alert innerHTML of mydiv"<input type="button" value="Alert innerHTML of mydiv"
onclick="onclick="
alert(getElementById('mydiv').innerHTML)alert(getElementById('mydiv').innerHTML)
" />" />
</form></form>
simple_dom_example.htmlsimple_dom_example.html

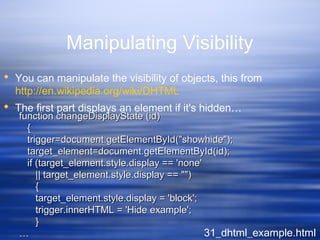

29. Manipulating Visibility
 You can manipulate the visibility of objects, this from
http://en.wikipedia.org/wiki/DHTML
 The first part displays an element if it's hidden…
31_dhtml_example.html
function changeDisplayState (id)function changeDisplayState (id)
{{
trigger=document.getElementById("showhide");trigger=document.getElementById("showhide");
target_element=document.getElementById(id);target_element=document.getElementById(id);
if (target_element.style.display == 'none'if (target_element.style.display == 'none'
|| target_element.style.display == "")|| target_element.style.display == "")
{{
target_element.style.display = 'block';target_element.style.display = 'block';
trigger.innerHTML = 'Hide example';trigger.innerHTML = 'Hide example';
}}
……

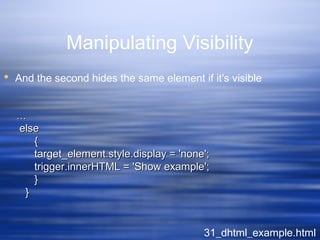

30. Manipulating Visibility
 And the second hides the same element if it's visible
31_dhtml_example.html
……
elseelse
{{
target_element.style.display = 'none';target_element.style.display = 'none';
trigger.innerHTML = 'Show example';trigger.innerHTML = 'Show example';
}}
}}

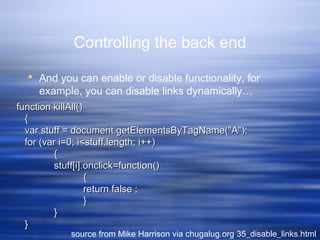

31. Controlling the back end
 And you can enable or disable functionality, for
example, you can disable links dynamically…
source from Mike Harrison via chugalug.org 35_disable_links.html
function killAll()function killAll()
{{
var stuff = document.getElementsByTagName("A");var stuff = document.getElementsByTagName("A");
for (var i=0; i<stuff.length; i++)for (var i=0; i<stuff.length; i++)
{{
stuff[i].onclick=function()stuff[i].onclick=function()
{{
return false ;return false ;
}}
}}
}}

32. Controlling the back end
 …and reenable them…
source from Mike Harrison via chugalug.org 35_disable_links.html
function resurrectAll()function resurrectAll()
{{
var stuff = document.getElementsByTagName("A");var stuff = document.getElementsByTagName("A");
for (var i=0; i<stuff.length; i++)for (var i=0; i<stuff.length; i++)
{{
stuff[i].onclick=function()stuff[i].onclick=function()
{{
return true ;return true ;
}}
}}
}}

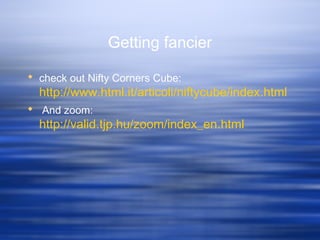

33. Getting fancier
 check out Nifty Corners Cube:
http://www.html.it/articoli/niftycube/index.html
 And zoom:
http://valid.tjp.hu/zoom/index_en.html

34. What else can you do?
 Ant

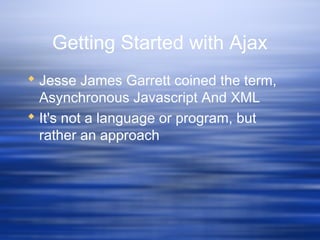

35. Getting Started with Ajax
 Jesse James Garrett coined the term,
Asynchronous Javascript And XML
 It's not a language or program, but
rather an approach

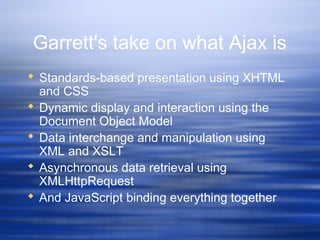

36. Garrett's take on what Ajax is
 Standards-based presentation using XHTML
and CSS
 Dynamic display and interaction using the
Document Object Model
 Data interchange and manipulation using
XML and XSLT
 Asynchronous data retrieval using
XMLHttpRequest
 And JavaScript binding everything together

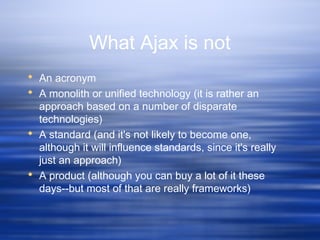

37. What Ajax is not
 An acronym
 A monolith or unified technology (it is rather an
approach based on a number of disparate
technologies)
 A standard (and it's not likely to become one,
although it will influence standards, since it's really
just an approach)
 A product (although you can buy a lot of it these
days--but most of that are really frameworks)

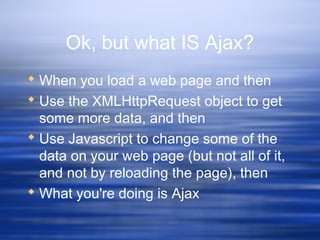

38. Ok, but what IS Ajax?
 When you load a web page and then
 Use the XMLHttpRequest object to get
some more data, and then
 Use Javascript to change some of the
data on your web page (but not all of it,
and not by reloading the page), then
 What you're doing is Ajax

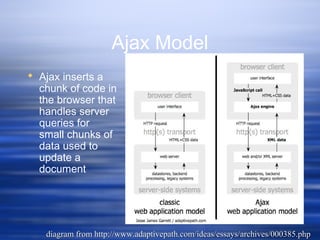

39. Ajax Model
 Ajax inserts a
chunk of code in
the browser that
handles server
queries for
small chunks of
data used to
update a
document
diagram from http://www.adaptivepath.com/ideas/essays/archives/000385.phpdiagram from http://www.adaptivepath.com/ideas/essays/archives/000385.php

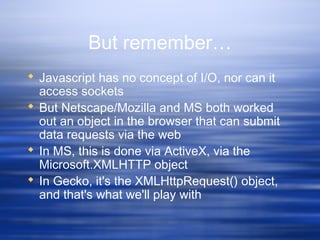

40. But remember…
 Javascript has no concept of I/O, nor can it
access sockets
 But Netscape/Mozilla and MS both worked
out an object in the browser that can submit
data requests via the web
 In MS, this is done via ActiveX, via the
Microsoft.XMLHTTP object
 In Gecko, it's the XMLHttpRequest() object,
and that's what we'll play with

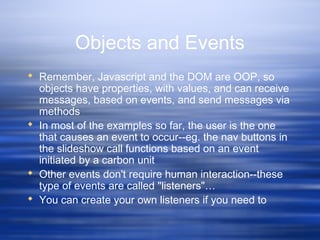

41. Objects and Events
 Remember, Javascript and the DOM are OOP, so
objects have properties, with values, and can receive
messages, based on events, and send messages via
methods
 In most of the examples so far, the user is the one
that causes an event to occur--eg. the nav buttons in
the slideshow call functions based on an event
initiated by a carbon unit
 Other events don't require human interaction--these
type of events are called "listeners"…
 You can create your own listeners if you need to

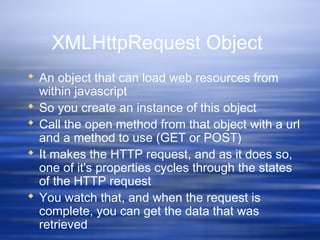

42. XMLHttpRequest Object
 An object that can load web resources from
within javascript
 So you create an instance of this object
 Call the open method from that object with a url
and a method to use (GET or POST)
 It makes the HTTP request, and as it does so,
one of it's properties cycles through the states
of the HTTP request
 You watch that, and when the request is
complete, you can get the data that was
retrieved

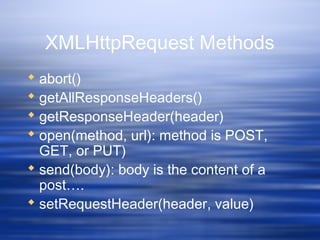

43. XMLHttpRequest Methods
 abort()
 getAllResponseHeaders()
 getResponseHeader(header)
 open(method, url): method is POST,
GET, or PUT)
 send(body): body is the content of a
post….
 setRequestHeader(header, value)

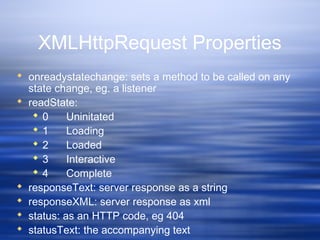

44. XMLHttpRequest Properties
 onreadystatechange: sets a method to be called on any
state change, eg. a listener
 readState:
 0 Uninitated
 1 Loading
 2 Loaded
 3 Interactive
 4 Complete
 responseText: server response as a string
 responseXML: server response as xml
 status: as an HTTP code, eg 404
 statusText: the accompanying text

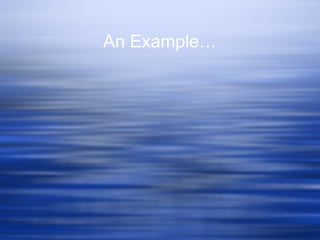

45. An Example…

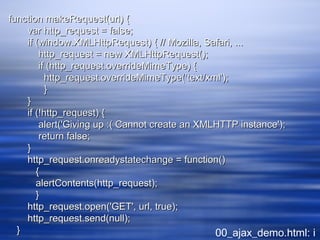

46. function makeRequest(url) {function makeRequest(url) {
var http_request = false;var http_request = false;
if (window.XMLHttpRequest) { // Mozilla, Safari, ...if (window.XMLHttpRequest) { // Mozilla, Safari, ...
http_request = new XMLHttpRequest();http_request = new XMLHttpRequest();
if (http_request.overrideMimeType) {if (http_request.overrideMimeType) {
http_request.overrideMimeType('text/xml');http_request.overrideMimeType('text/xml');
}}
}}
if (!http_request) {if (!http_request) {
alert('Giving up :( Cannot create an XMLHTTP instance');alert('Giving up :( Cannot create an XMLHTTP instance');
return false;return false;
}}
http_request.onreadystatechange = function()http_request.onreadystatechange = function()
{{
alertContents(http_request);alertContents(http_request);
}}
http_request.open('GET', url, true);http_request.open('GET', url, true);
http_request.send(null);http_request.send(null);
}} 00_ajax_demo.html: i

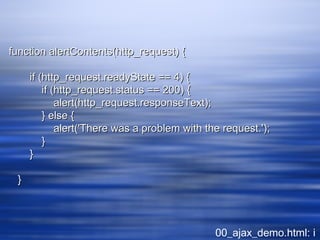

47. function alertContents(http_request) {function alertContents(http_request) {
if (http_request.readyState == 4) {if (http_request.readyState == 4) {
if (http_request.status == 200) {if (http_request.status == 200) {
alert(http_request.responseText);alert(http_request.responseText);
} else {} else {
alert('There was a problem with the request.');alert('There was a problem with the request.');
}}
}}
}}
00_ajax_demo.html: i

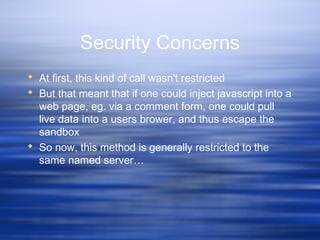

48. Security Concerns
 At first, this kind of call wasn't restricted
 But that meant that if one could inject javascript into a
web page, eg. via a comment form, one could pull
live data into a users brower, and thus escape the
sandbox
 So now, this method is generally restricted to the
same named server…

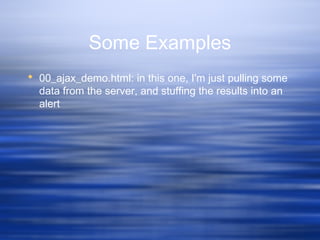

49. Some Examples
 00_ajax_demo.html: in this one, I'm just pulling some
data from the server, and stuffing the results into an
alert

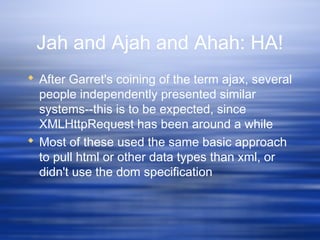

50. Jah and Ajah and Ahah: HA!
 After Garret's coining of the term ajax, several
people independently presented similar
systems--this is to be expected, since
XMLHttpRequest has been around a while
 Most of these used the same basic approach
to pull html or other data types than xml, or
didn't use the dom specification

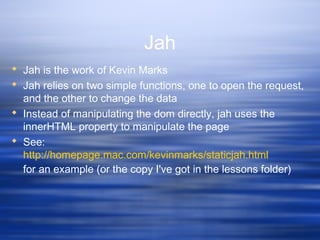

51. Jah
 Jah is the work of Kevin Marks
 Jah relies on two simple functions, one to open the request,
and the other to change the data
 Instead of manipulating the dom directly, jah uses the
innerHTML property to manipulate the page
 See:
http://homepage.mac.com/kevinmarks/staticjah.html
for an example (or the copy I've got in the lessons folder)

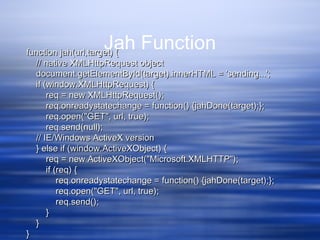

52. Jah Functionfunction jah(url,target) {function jah(url,target) {
// native XMLHttpRequest object// native XMLHttpRequest object
document.getElementById(target).innerHTML = 'sending...';document.getElementById(target).innerHTML = 'sending...';
if (window.XMLHttpRequest) {if (window.XMLHttpRequest) {
req = new XMLHttpRequest();req = new XMLHttpRequest();
req.onreadystatechange = function() {jahDone(target);};req.onreadystatechange = function() {jahDone(target);};
req.open("GET", url, true);req.open("GET", url, true);
req.send(null);req.send(null);
// IE/Windows ActiveX version// IE/Windows ActiveX version
} else if (window.ActiveXObject) {} else if (window.ActiveXObject) {
req = new ActiveXObject("Microsoft.XMLHTTP");req = new ActiveXObject("Microsoft.XMLHTTP");
if (req) {if (req) {
req.onreadystatechange = function() {jahDone(target);};req.onreadystatechange = function() {jahDone(target);};
req.open("GET", url, true);req.open("GET", url, true);
req.send();req.send();
}}
}}
}}

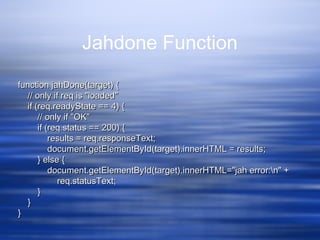

53. Jahdone Function
function jahDone(target) {function jahDone(target) {
// only if req is "loaded"// only if req is "loaded"
if (req.readyState == 4) {if (req.readyState == 4) {
// only if "OK"// only if "OK"
if (req.status == 200) {if (req.status == 200) {
results = req.responseText;results = req.responseText;
document.getElementById(target).innerHTML = results;document.getElementById(target).innerHTML = results;
} else {} else {
document.getElementById(target).innerHTML="jah error:n" +document.getElementById(target).innerHTML="jah error:n" +
req.statusText;req.statusText;
}}
}}
}}

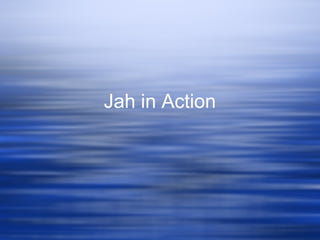

54. Jah in Action

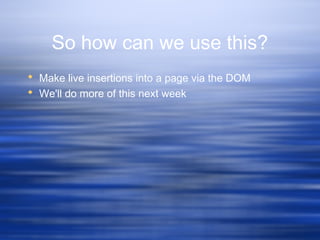

55. So how can we use this?
 Make live insertions into a page via the DOM
 We'll do more of this next week
