1. WinRT App
29 April 2014
Building Apps for Windows Phone 8.1 Jump Start

2. Getting started building Windows Runtime XAML apps…

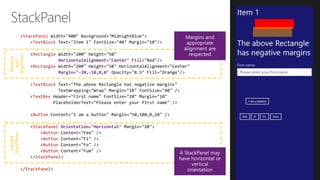

11. StackPanel
TextBlock
Rectangle
HorizontalAlignment="Center"
Rectangle
Margin="-20,-10,0,0"
TextBlock
TextBox
Button
StackPanel Orientation="Horizontal"
Button
Button
Button
Button
StackPanel
StackPanel
Nested
StackPanel
Margins
and
Alignment

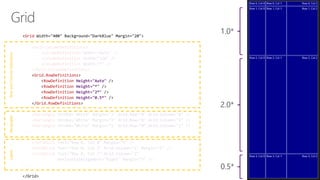

12. Grid
Grid.ColumnDefinitions
ColumnDefinition Width="Auto"
ColumnDefinition Width="120"
ColumnDefinition Width="*"
Grid.ColumnDefinitions
Grid.RowDefinitions
RowDefinition Height="Auto"
RowDefinition Height="*"
RowDefinition Height="2*"
RowDefinition Height="0.5*"
Grid.RowDefinitions
Rectangle Grid.Row="0" Grid.Column="0"
Rectangle Grid.Row="0" Grid.Column="1"
Rectangle Grid.Row="0" Grid.Column="2"
TextBlock
TextBlock Grid.Column="1"
TextBlock Grid.Column="2"
HorizontalAlignment="Right"
RectanglesRowandColumnDefinitionsLabels

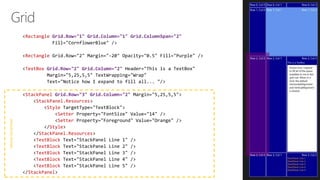

13. Rectangle Grid.Row="1" Grid.Column="1" Grid.ColumnSpan="2"
Rectangle
TextBox Grid.Row="2" Grid.Column="2"
StackPanel Grid.Row="3" Grid.Column="2"
StackPanel.Resources
Style
Setter
Setter
Style
StackPanel.Resources
TextBlock
TextBlock
TextBlock
TextBlock
TextBlock
StackPanel
NestedStackPanel

15. 15

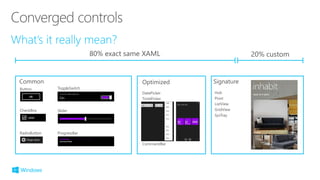

16. 80% exact same XAML 20% custom
Common SignatureOptimized

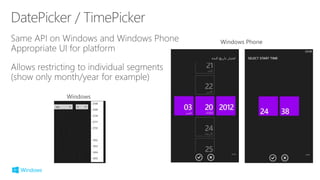

DatePicker
TimePicker
CommandBar
Button
CheckBox
RadioButton ProgressBar
Slider
ToggleSwitch
Hub
Pivot
ListView
GridView
SysTray

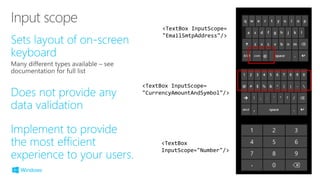

19. <TextBox InputScope=
"EmailSmtpAddress"/>
<TextBox InputScope=
"CurrencyAmountAndSymbol"/>
<TextBox
InputScope="Number"/>

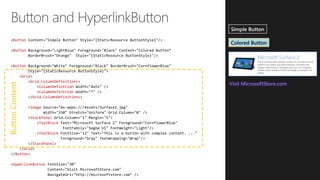

20. ButtonContent
Button
Button
Button
Grid
Grid.ColumnDefinitions
ColumnDefinition
ColumnDefinition
Grid.ColumnDefinitions
StackPanel
TextBlock
TextBlock
StackPanel
Grid
Button
HyperlinkButton

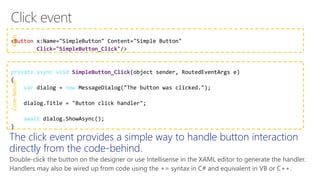

21. XAMLCode-Behind
Button
Click="SimpleButton_Click"
private async void SimpleButton_Click
var new
await
The click event provides a simple way to handle button interaction
directly from the code-behind.
Double-click the button on the designer or use Intellisense in the XAML editor to generate the handler.
Handlers may also be wired up from code using the += syntax in C# and equivalent in VB or C++.

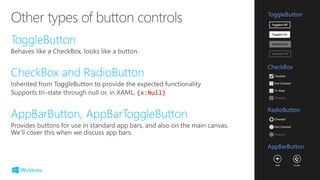

22. {x:Null}

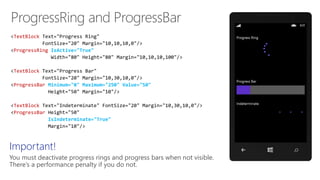

23. TextBlock
ProgressRing IsActive="True"
TextBlock
ProgressBar Minimum="0" Maximum="250" Value="50"
TextBlock
ProgressBar
IsIndeterminate="True"
Important!
You must deactivate progress rings and progress bars when not visible.
There’s a performance penalty if you do not.

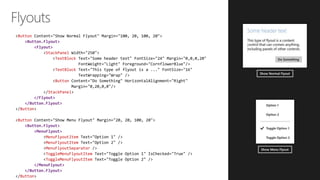

27. Button
<Button.Flyout>
<Flyout>
StackPanel
TextBlock
TextBlock
Button
StackPanel
</Flyout>
</Button.Flyout>
Button
Button
<Button.Flyout>
<MenuFlyout>
MenuFlyoutItem
MenuFlyoutItem
MenuFlyoutSeparator
ToggleMenuFlyoutItem
ToggleMenuFlyoutItem
</MenuFlyout>
</Button.Flyout>
Button

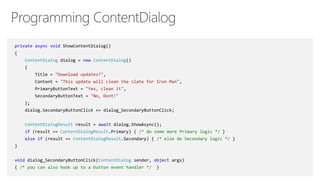

29. private async void ShowContentDialog()
{
ContentDialog dialog = new ContentDialog()
{
Title = "Download updates?",
Content = "This update will clean the slate for Iron Man",
PrimaryButtonText = "Yes, clean it",
SecondaryButtonText = "No, Dont!"
};
dialog.SecondaryButtonClick += dialog_SecondaryButtonClick;
ContentDialogResult result = await dialog.ShowAsync();
if (result == ContentDialogResult.Primary) { /* do some more Primary logic */ }
else if (result == ContentDialogResult.Secondary) { /* else do Secondary logic */ }
}
void dialog_SecondaryButtonClick(ContentDialog sender, object args)
{ /* you can also hook up to a button event handler */ }

30. AboutMessage myDialog =
new AboutMessage();
ContentDialogResult result =
await myDialog.ShowAsync();

34. <Page.BottomAppBar>
<CommandBar x:Name="commandBar">
<CommandBar.PrimaryCommands>
<AppBarButton Label="edit" Icon="Edit" />
<AppBarButton Label="favorite" Icon="Favorite" />
<AppBarSeparator />
<AppBarToggleButton Label="play" Icon="Play" />
</CommandBar.PrimaryCommands>
<CommandBar.SecondaryCommands>
<AppBarButton Label="help" Icon="Question" />
</CommandBar.SecondaryCommands>
</CommandBar>
</Page.BottomAppBar>
34

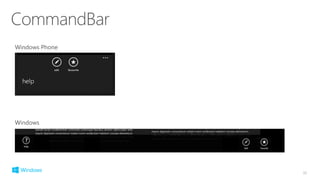

35. 35
Windows Phone
Windows

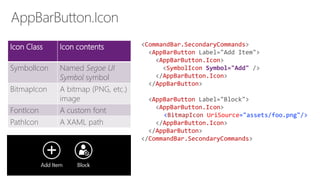

37. Icon Class Icon contents
SymbolIcon Named Segoe UI
Symbol symbol
BitmapIcon A bitmap (PNG, etc.)
FontIcon A custom font
PathIcon A XAML path
<CommandBar.SecondaryCommands>
<AppBarButton Label="Add Item">
<AppBarButton.Icon>
<SymbolIcon Symbol="Add" />
</AppBarButton.Icon>
</AppBarButton>
<AppBarButton Label="Block">
<AppBarButton.Icon>
<BitmapIcon UriSource="assets/foo.png"/>
</AppBarButton.Icon>
</AppBarButton>
</CommandBar.SecondaryCommands>

38. <Page.BottomAppBar>
<CommandBar>
<AppBarButton x:Name="btnBrag" Icon="Camera" Label="brag">
<AppBarButton.Flyout>
<MenuFlyout>
<MenuFlyoutItem x:Name="menuPhoto" Text="Photo"
Click="menuPhoto_Click"/>
<MenuFlyoutItem x:Name="menuVideo" Text="Video"
Click="menuVideo_Click"/>
</MenuFlyout>
</AppBarButton.Flyout>
</AppBarButton>
<AppBarButton x:Name="btnPinToStart" Icon="Pin"
Click="btnPinToStart_Click" Label="Like"/>
</CommandBar>
</Page.BottomAppBar>

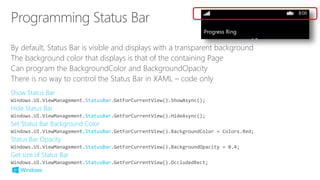

39. By default, Status Bar is visible and displays with a transparent background
The background color that displays is that of the containing Page
Can program the BackgroundColor and BackgroundOpacity
There is no way to control the Status Bar in XAML – code only
StatusBar
StatusBar
StatusBar
StatusBar
StatusBar

40. StatusBar
var StatusBar

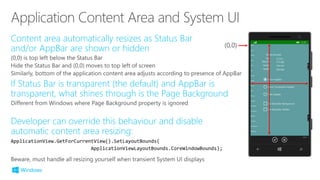

41. ApplicationView.GetForCurrentView().SetLayoutBounds(
ApplicationViewLayoutBounds.CoreWindowBounds);

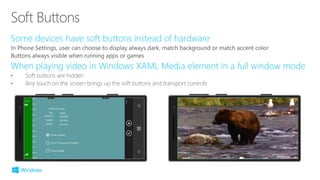

42. • Soft buttons are hidden
• Any touch on the screen brings up the soft buttons and transport controls

46. Color="{ThemeResource SystemColorControlAccentColor}"
"{StaticResource PhoneAccentBrush}"
SystemColorControlAccentColor

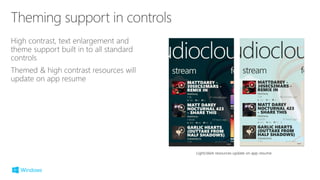

48. Light/dark resources update on app resume

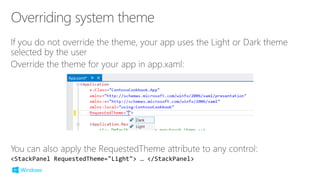

50. <StackPanel RequestedTheme="Light"> … </StackPanel>
