The document provides guidance on building Windows Phone 8.1 apps, focusing on handling application states such as launching, suspending, and resuming. It includes code snippets demonstrating how to manage application lifecycle events, including deferrals during suspension and actions on resumption. Additionally, it emphasizes the importance of preserving data and the current state when transitioning between different application states.

1. WinRT Apps
Building Apps for Windows Phone 8.1 Jump Start

6. NotRunning Running

7. sealed partial class App : Application
{
/// <summary>
/// Invoked when the application is launched normally by the end user.
/// </summary>
/// <param name="e">Details about the launch request and process.</param>
protected override async void OnLaunched(LaunchActivatedEventArgs e)
{
// How did the app exit the last time it was run (if at all)
ApplicationExecutionState previousState = e.PreviousExecutionState;
// What kind of launch is this?
ActivationKind activationKind = e.Kind;
// ...
NotRunning
Running
Suspended
Terminated
ClosedByUser
Launch
File
Protocol
VoiceCommand
Etc.

8. App is suspended
All code stopped
No timers tick
No events fire
Process still alive and in memory
Code has a chance to respond
(next slide)

9. sealed partial class App : Application
{
public App()
{
this.InitializeComponent();
this.Suspending += OnSuspending;
}
private async void OnSuspending(object sender, SuspendingEventArgs e)
{
// Ask for a deferral if you need to do async work
var deferral = e.SuspendingOperation.GetDeferral();
// TODO: whatever async work you need to do when suspending
deferral.Complete(); // Then mark the deferral complete
}

10. Same app is resumed
Same process, same
memory so values of
variables are intact
All code runs
Code has a chance to
respond...
Launch Back Switcher

11. sealed partial class App : Application
{
public App()
{
this.InitializeComponent();
this.Suspending += OnSuspending;
this.Resuming += OnResuming;
}
private void OnResuming(object sender, object e)
{
// TODO: whatever you need to do to resume your app
}

13. http://bit.ly/w8Resuming

14. Running

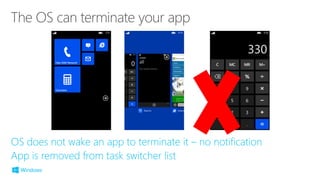

17. Terminated

21. App Data Local Folder
(or roaming folder for Data)
12:38
12:38
Jim Jones
Tel: 0111 222 333
Bob Brown
Tel: 0444 555 666
Arthur Abbott
Tel: 0777 888 999
CONTACTS
all 12:38
12:38
Work
Tel: 0111 222 333
Home
Tel: 0444 555 666
Email
jim@jones.com
CONTACTS
Jim Jones
12:38
CONTACTS
Add Phone
Mobile Phone
Phone type
Phone number
0888 777
State
Data

24. 24

25. 25

26. 26
LoadState(
Parameter,
null /* dictionary */
);

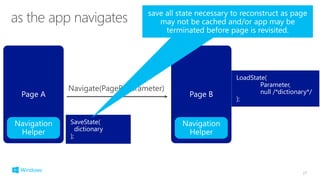

27. 27
SaveState(
dictionary
);
LoadState(
Parameter,
null /*dictionary*/
);

28. 28
SaveState(
dictionary
);
LoadState(
parameter,
dictionary
);

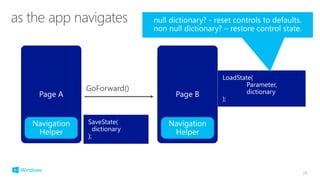

29. 29
SaveState(
dictionary
);
LoadState(
Parameter,
dictionary
);

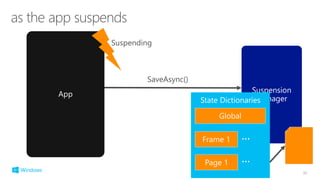

30. 30
...
...

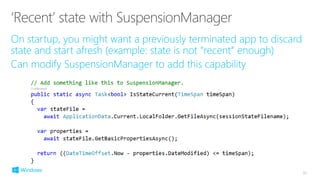

31. 31

33. http://aka.ms/Tsatr4
