WinRT Apps
+Silverlight 8.1
30 April 2014
Building Apps for Windows Phone 8.1 Jump Start
2
4
5
6

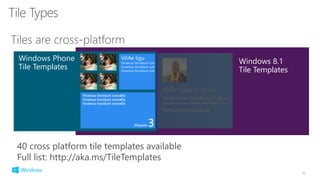

40 cross platform tile templates available
Full list: http://aka.ms/TileTemplates
Windows 8.1
Tile Templates
Windows Phone
Tile Templates

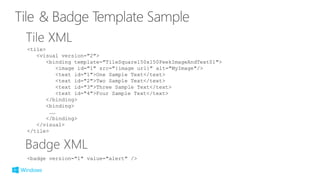

<tile>
<visual version="2">
<binding template="TileSquare150x150PeekImageAndText01">
<image id="1" src="{image url}" alt="MyImage"/>
<text id="1">One Sample Text</text>
<text id="2">Two Sample Text</text>
<text id="3">Three Sample Text</text>
<text id="4">Four Sample Text</text>
</binding>
<binding>
……
</binding>
</visual>
</tile>
<badge version="1" value="alert" />
13

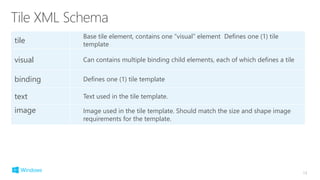

tile
Base tile element, contains one “visual” element Defines one (1) tile
template
visual Can contains multiple binding child elements, each of which defines a tile
binding Defines one (1) tile template
text Text used in the tile template.
image Image used in the tile template. Should match the size and shape image
requirements for the template.

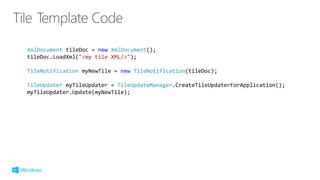

XmlDocument tileDoc = new XmlDocument();
tileDoc.LoadXml("<my tile XML/>");
TileNotification myNewTile = new TileNotification(tileDoc);
TileUpdater myTileUpdater = TileUpdateManager.CreateTileUpdaterForApplication();
myTileUpdater.Update(myNewTile);

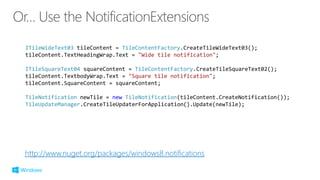

http://www.nuget.org/packages/windows8.notifications
ITileWideText03 tileContent = TileContentFactory.CreateTileWideText03();
tileContent.TextHeadingWrap.Text = "Wide tile notification";
ITileSquareText04 squareContent = TileContentFactory.CreateTileSquareText02();
tileContent.TextbodyWrap.Text = "Square tile notification";
tileContent.SquareContent = squareContent;
TileNotification newTile = new TileNotification(tileContent.CreateNotification());
TileUpdateManager.CreateTileUpdaterForApplication().Update(newTile);
18

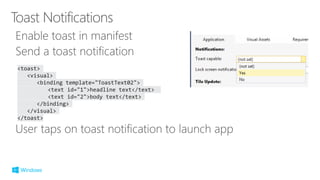

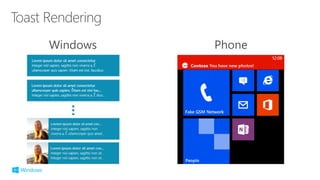

<toast>
<visual>
<binding template="ToastText02">
<text id="1">headline text</text>
<text id="2">body text</text>
</binding>
</visual>
</toast>

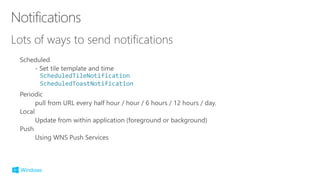

ScheduledTileNotification
ScheduledToastNotification

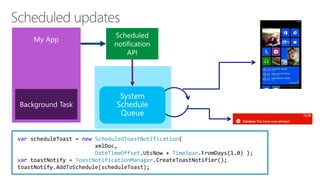

var scheduleToast = new ScheduledToastNotification(
xmlDoc,
DateTimeOffset.UtcNow + TimeSpan.FromDays(1.0) );
var toastNotify = ToastNotificationManager.CreateToastNotifier();
toastNotify.AddToSchedule(scheduleToast);

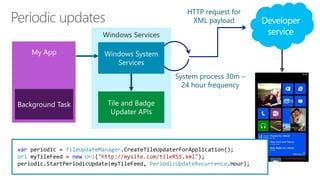

HTTP request for
XML payload
Windows Services
System process 30m –
24 hour frequency

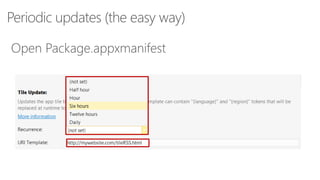

var periodic = TileUpdateManager.CreateTileUpdaterForApplication();
Uri myTileFeed = new Uri("http://mysite.com/tileRSS.xml");
periodic.StartPeriodicUpdate(myTileFeed, PeriodicUpdateRecurrence.Hour);

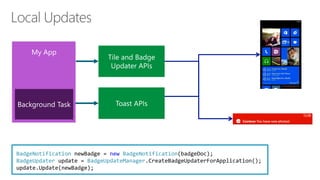

BadgeNotification newBadge = new BadgeNotification(badgeDoc);
BadgeUpdater update = BadgeUpdateManager.CreateBadgeUpdaterForApplication();
update.Update(newBadge);

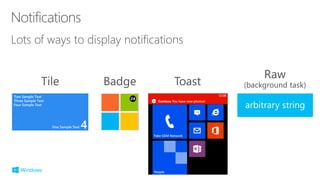

Notification
type
Scheduled Local Periodic Push
29

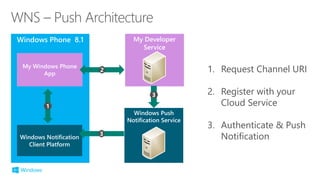

1. Request Channel URI
2. Register with your
Cloud Service
3. Authenticate & Push
Notification
My Developer
Service
Windows Push
Notification Service

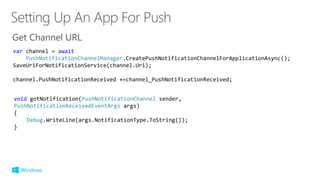

Get Channel URL
void gotNotification(PushNotificationChannel sender,
PushNotificationReceivedEventArgs args)
{
Debug.WriteLine(args.NotificationType.ToString());
}
var channel = await
PushNotificationChannelManager.CreatePushNotificationChannelForApplicationAsync();
SaveUriForNotificationService(channel.Uri);
channel.PushNotificationReceived +=channel_PushNotificationReceived;

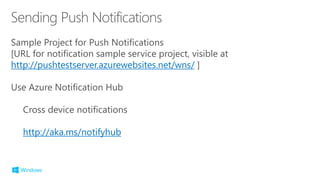

Sample Project for Push Notifications
[URL for notification sample service project, visible at
http://pushtestserver.azurewebsites.net/wns/ ]
Use Azure Notification Hub
Cross device notifications
http://aka.ms/notifyhub
40

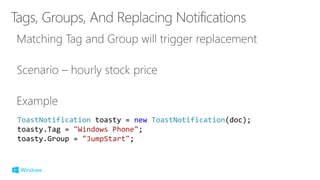

ToastNotification toasty = new ToastNotification(doc);
toasty.Tag = "Windows Phone";
toasty.Group = "JumpStart";

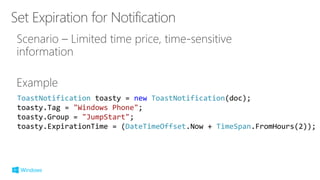

ToastNotification toasty = new ToastNotification(doc);
toasty.Tag = "Windows Phone";
toasty.Group = "JumpStart";
toasty.ExpirationTime = (DateTimeOffset.Now + TimeSpan.FromHours(2));
ToastNotificationHistory tnh = ToastNotificationManager.History;
tnh.Remove("WindowsPhone");
tnh.RemoveGroup("JumpStart");
ToastNotification toasty = new ToastNotification(doc);
toasty.Tag = "Windows Phone";
toasty.Group = "JumpStart";
toasty.ExpirationTime = (DateTimeOffset.Now + TimeSpan.FromHours(2));
toasty.SuppressPopup = true;
48
