1. 204111 Computers and Programming อนันต์ ผลเพิ่ม Anan Phonphoem http://www.cpe.ku.ac.th/~anan [email_address]

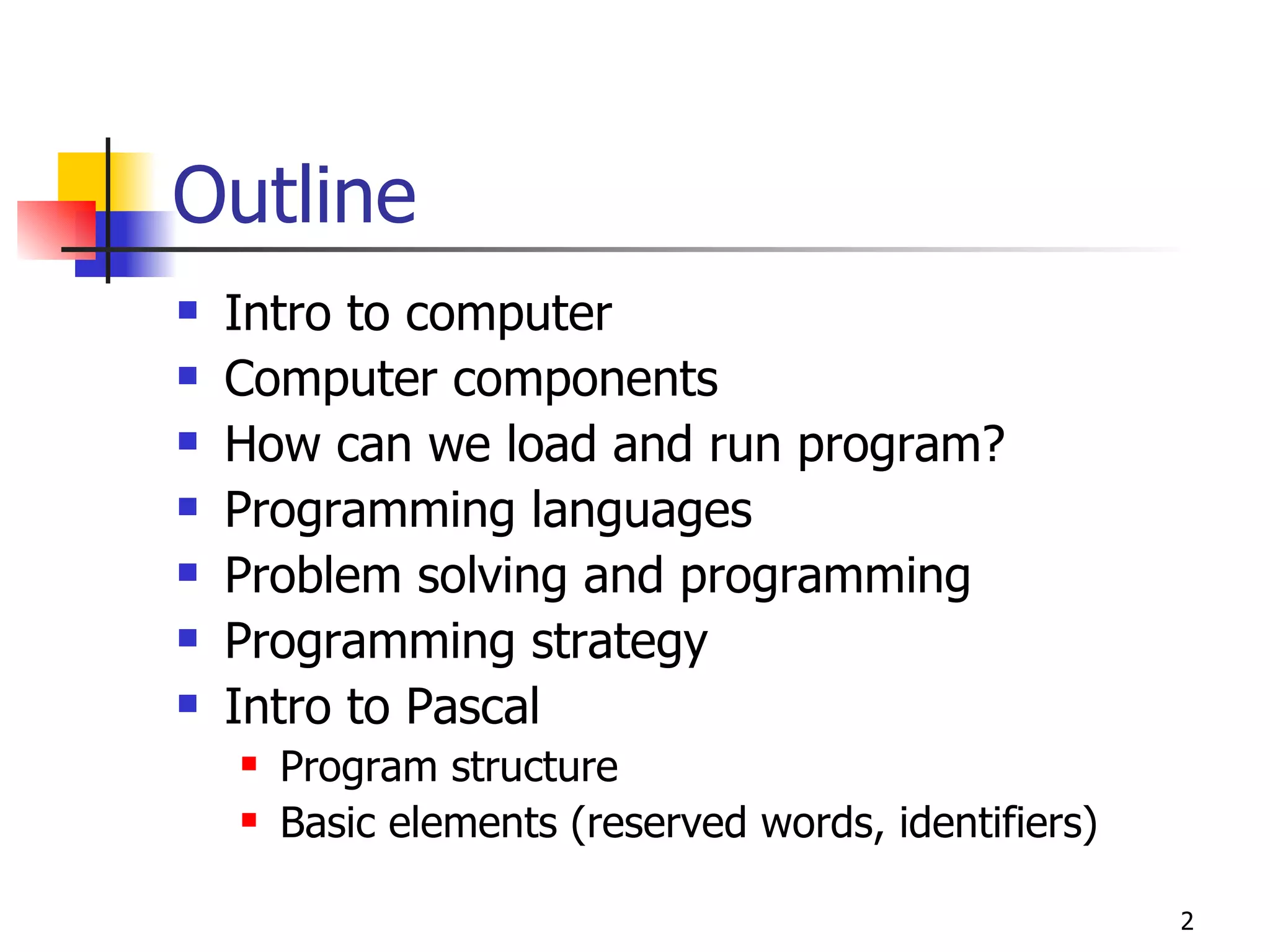

2. Outline Intro to computer Computer components How can we load and run program? Programming languages Problem solving and programming Programming strategy Intro to Pascal Program structure Basic elements (reserved words, identifiers)

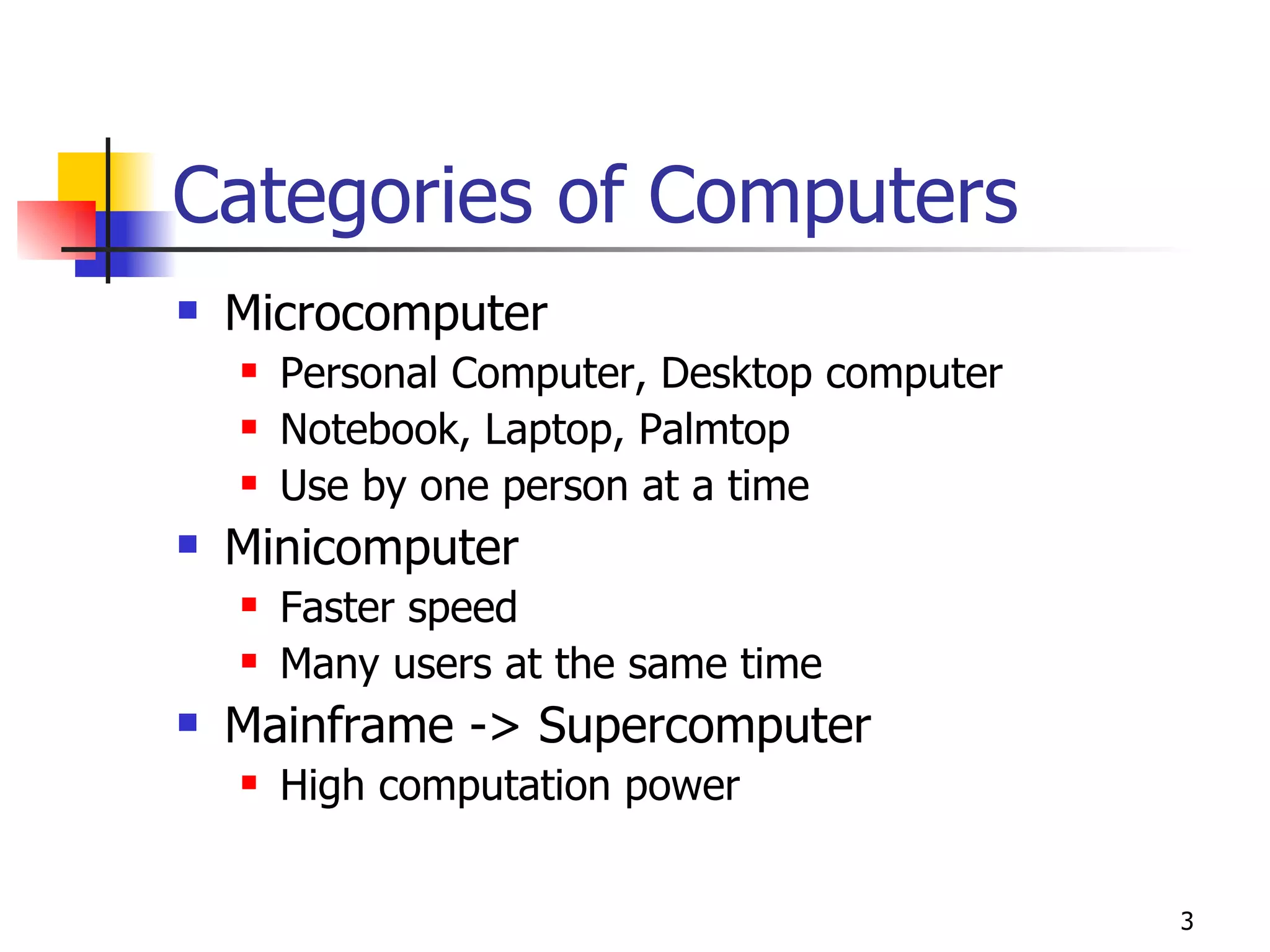

3. Categories of Computers Microcomputer Personal Computer, Desktop computer Notebook, Laptop, Palmtop Use by one person at a time Minicomputer Faster speed Many users at the same time Mainframe -> Supercomputer High computation power

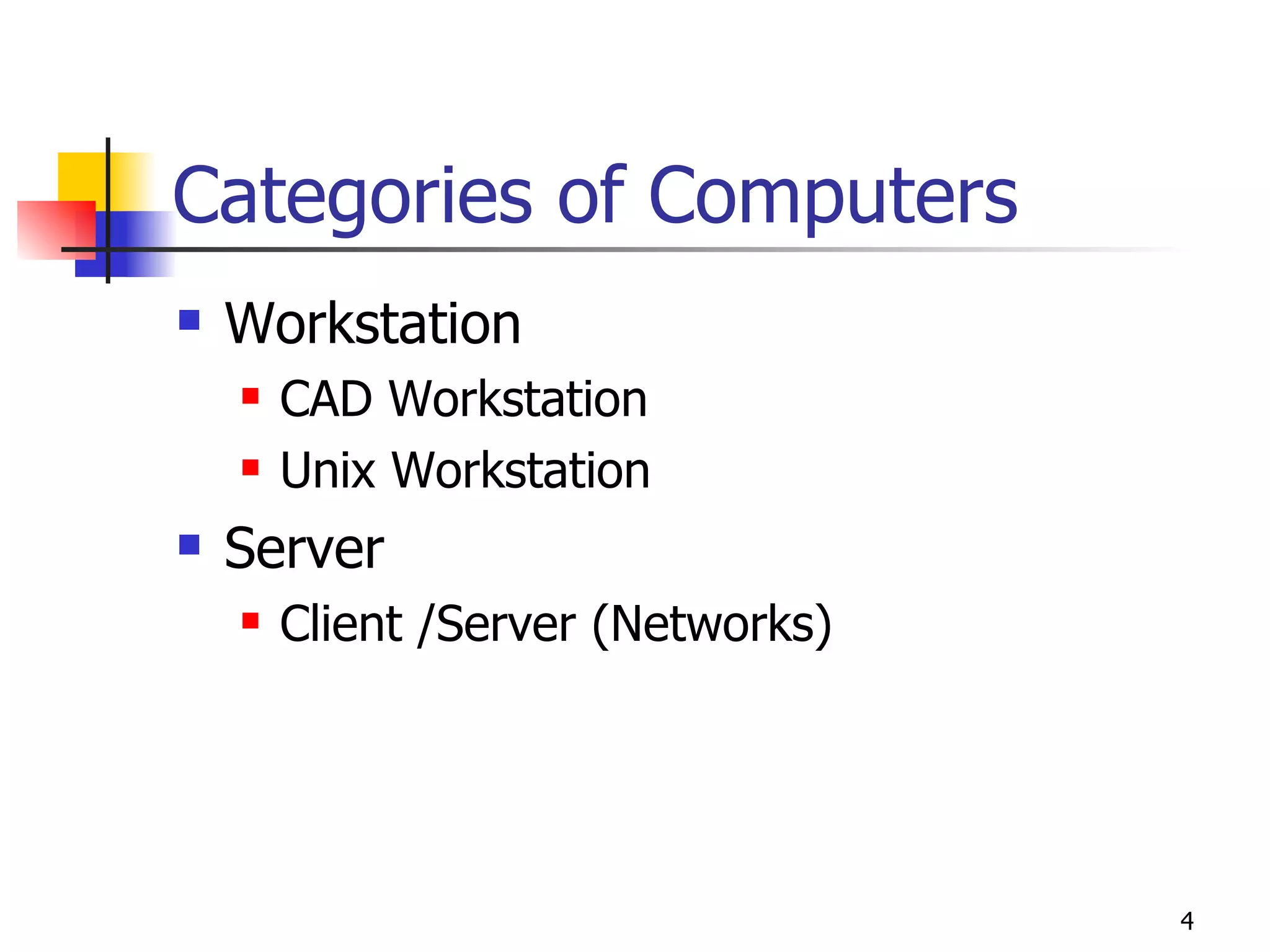

4. Categories of Computers Workstation CAD Workstation Unix Workstation Server Client /Server (Networks)

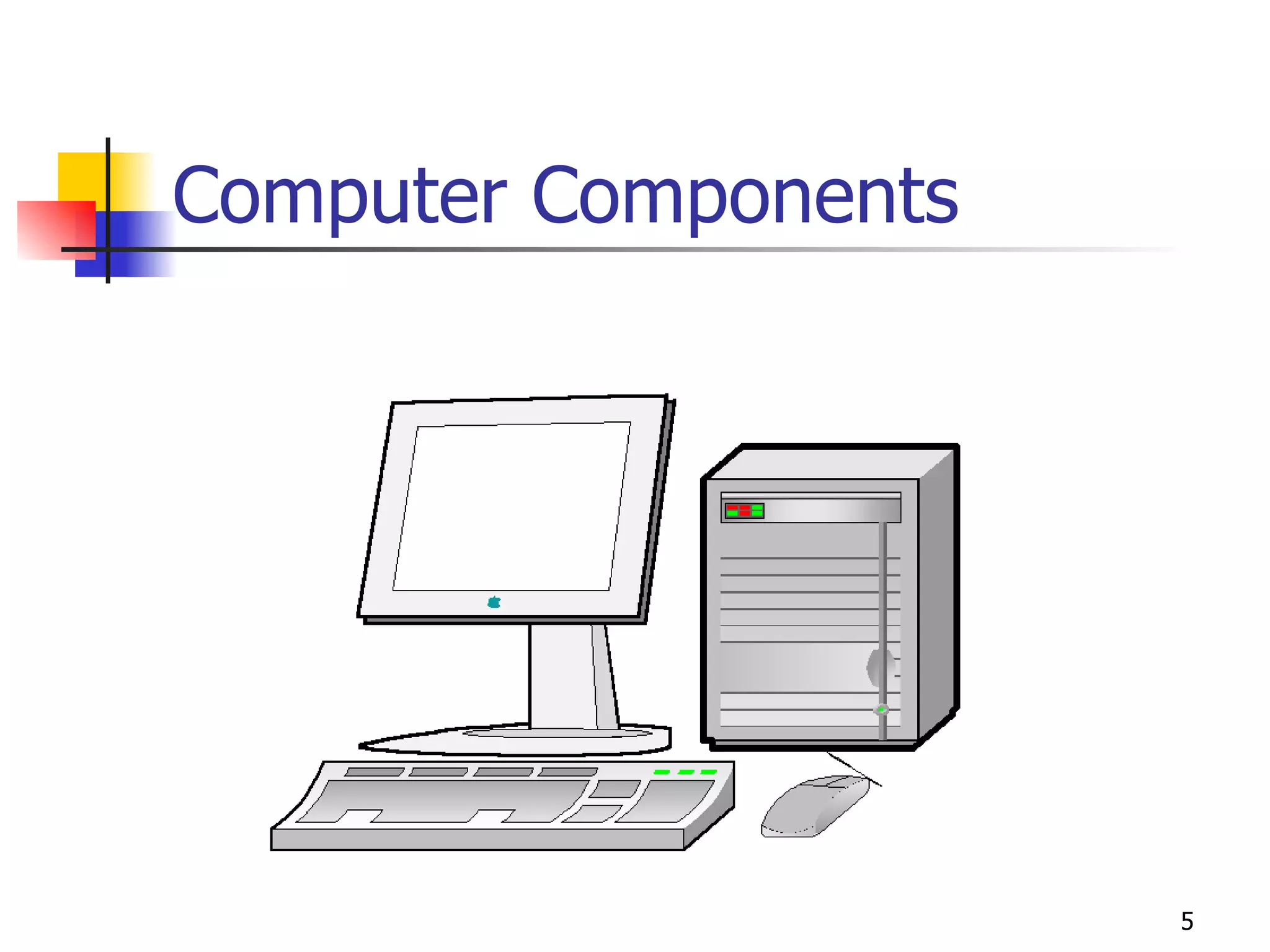

5. Computer Components

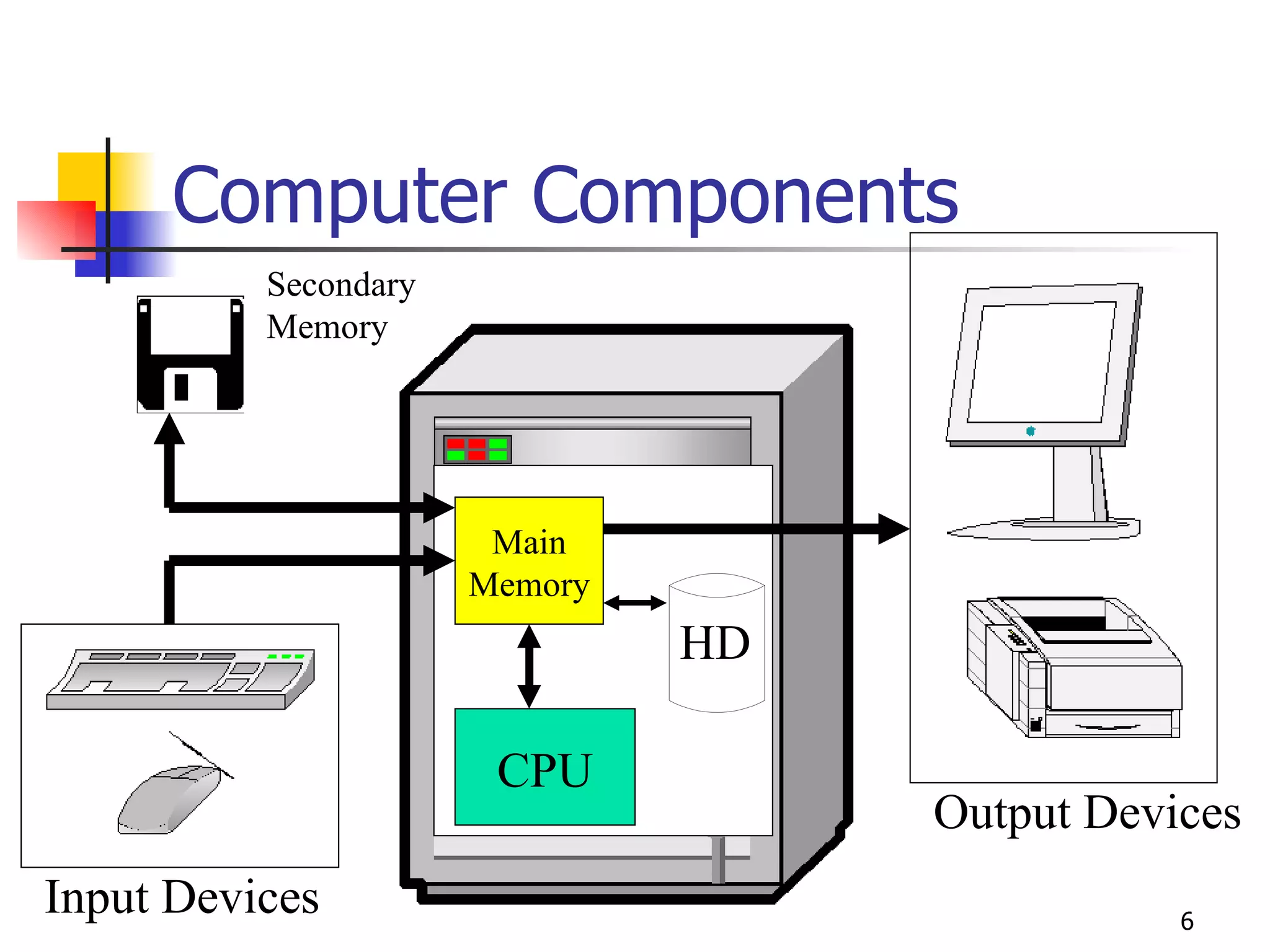

6. Computer Components HD CPU Main Memory Secondary Memory Input Devices Output Devices

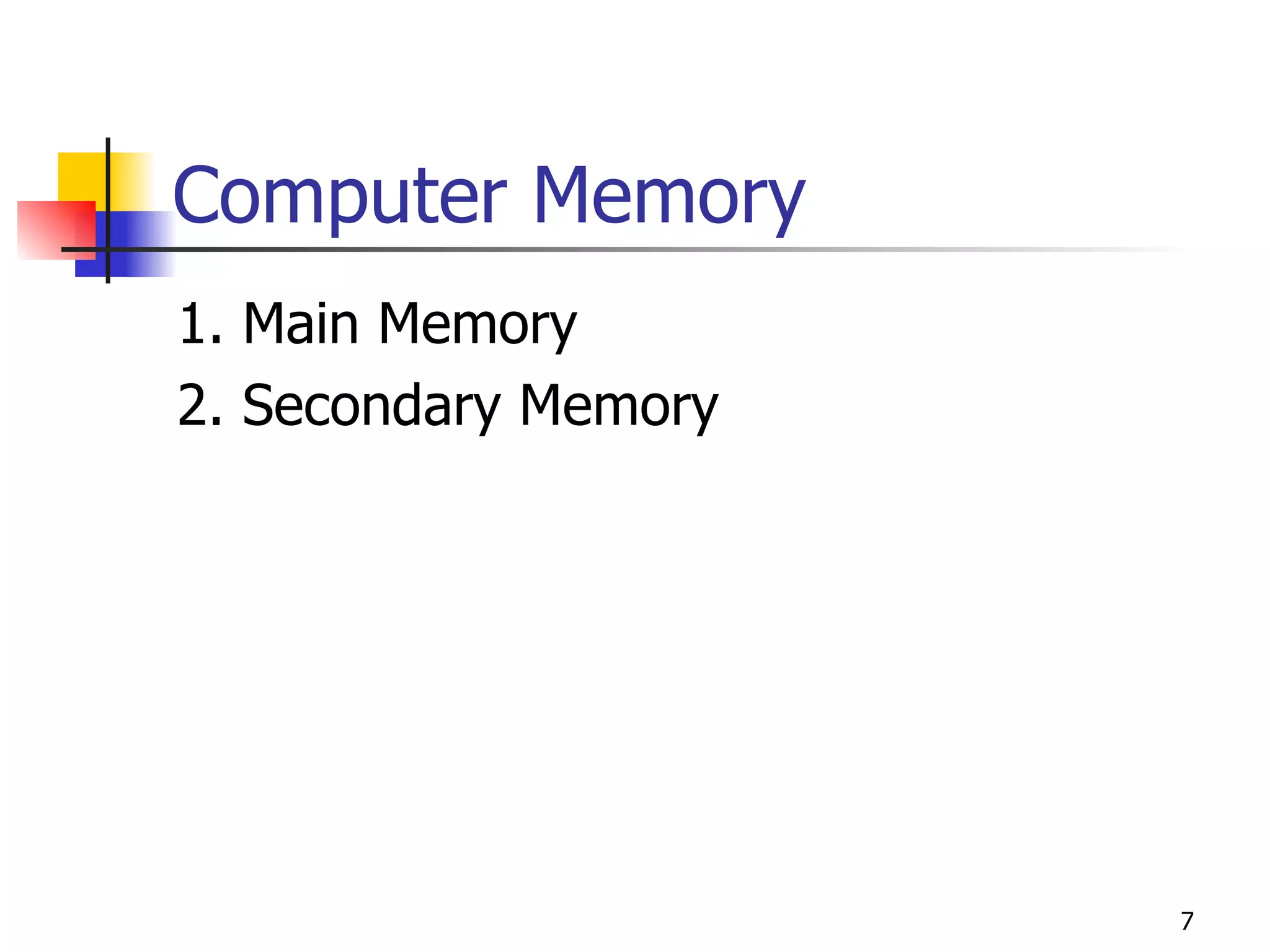

7. Computer Memory 1. Main Memory 2. Secondary Memory

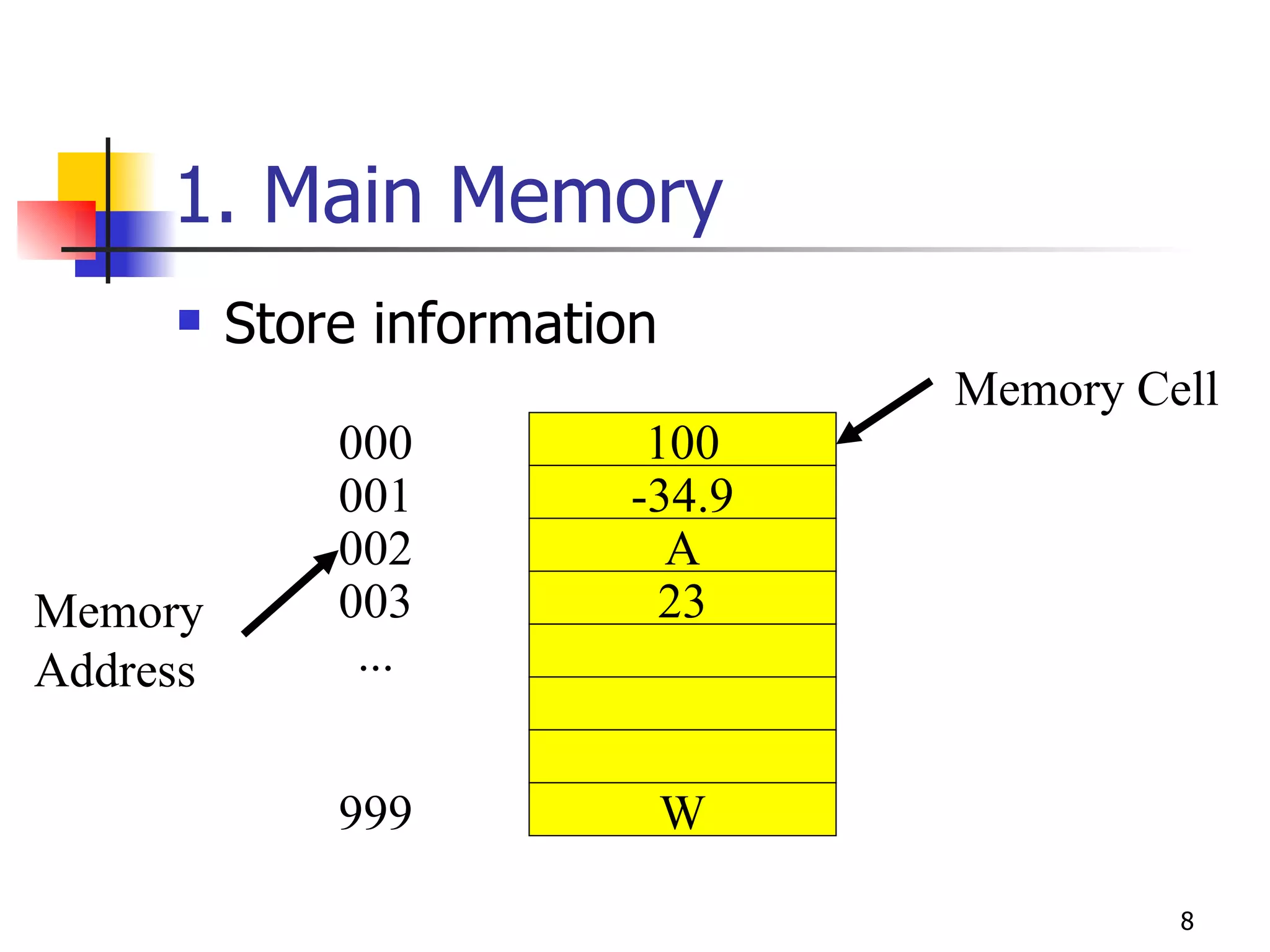

8. 1. Main Memory Store information 100 -34.9 A 23 W 000 001 002 003 ... 999 Memory Cell Memory Address

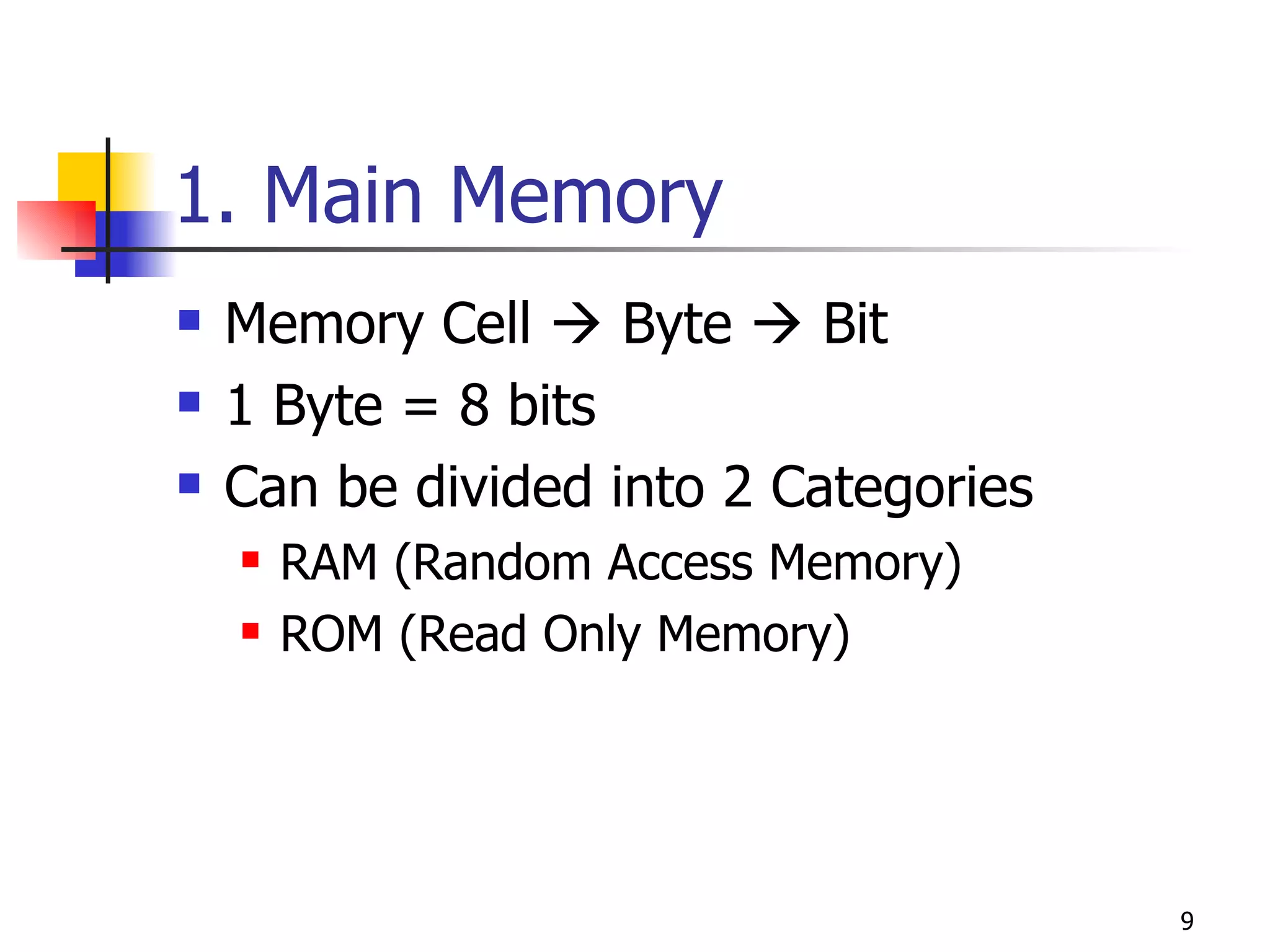

9. 1. Main Memory Memory Cell  Byte  Bit 1 Byte = 8 bits Can be divided into 2 Categories RAM (Random Access Memory) ROM (Read Only Memory)

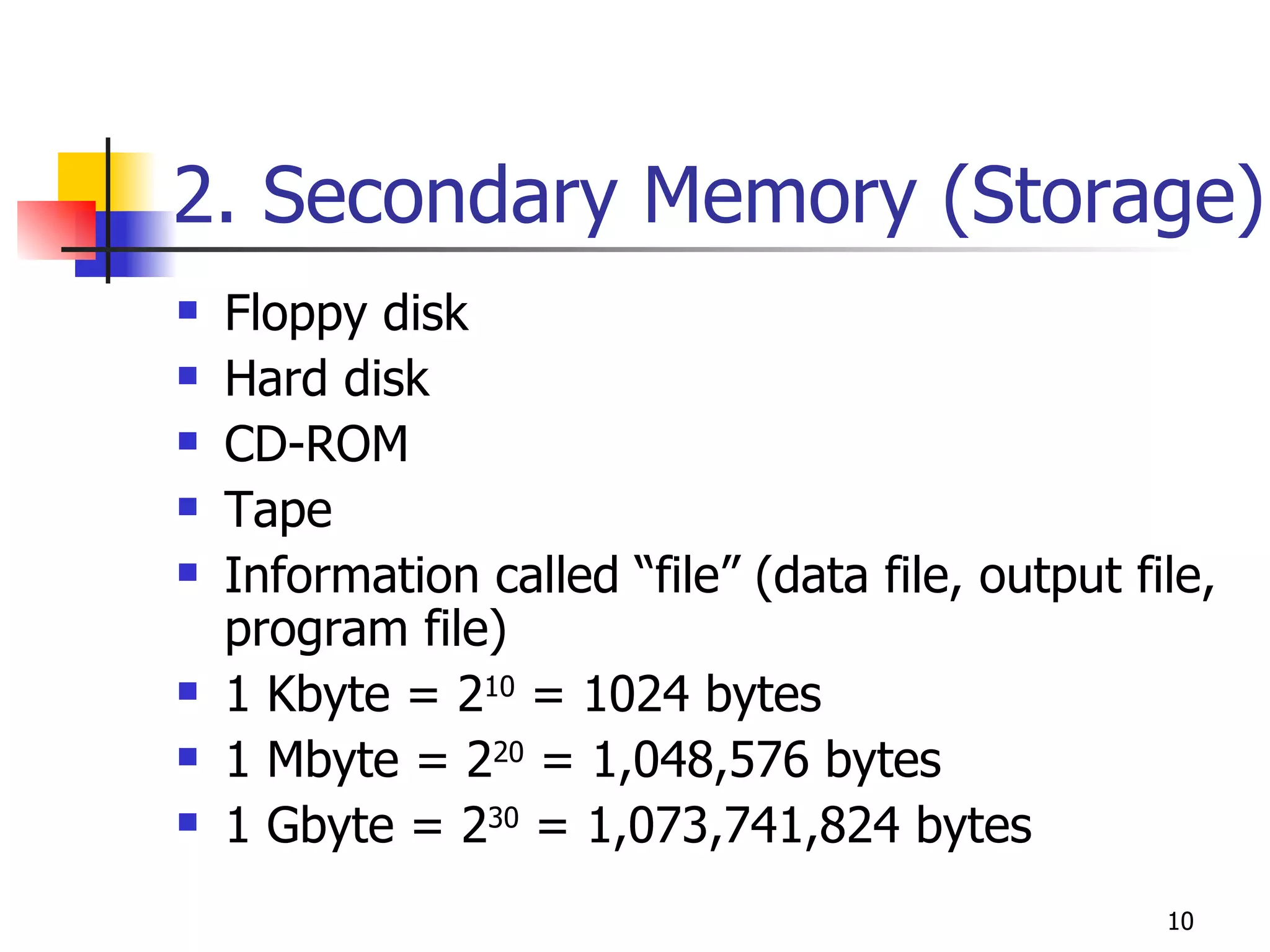

10. 2. Secondary Memory (Storage) Floppy disk Hard disk CD-ROM Tape Information called “file” (data file, output file, program file) 1 Kbyte = 2 10 = 1024 bytes 1 Mbyte = 2 20 = 1,048,576 bytes 1 Gbyte = 2 30 = 1,073,741,824 bytes

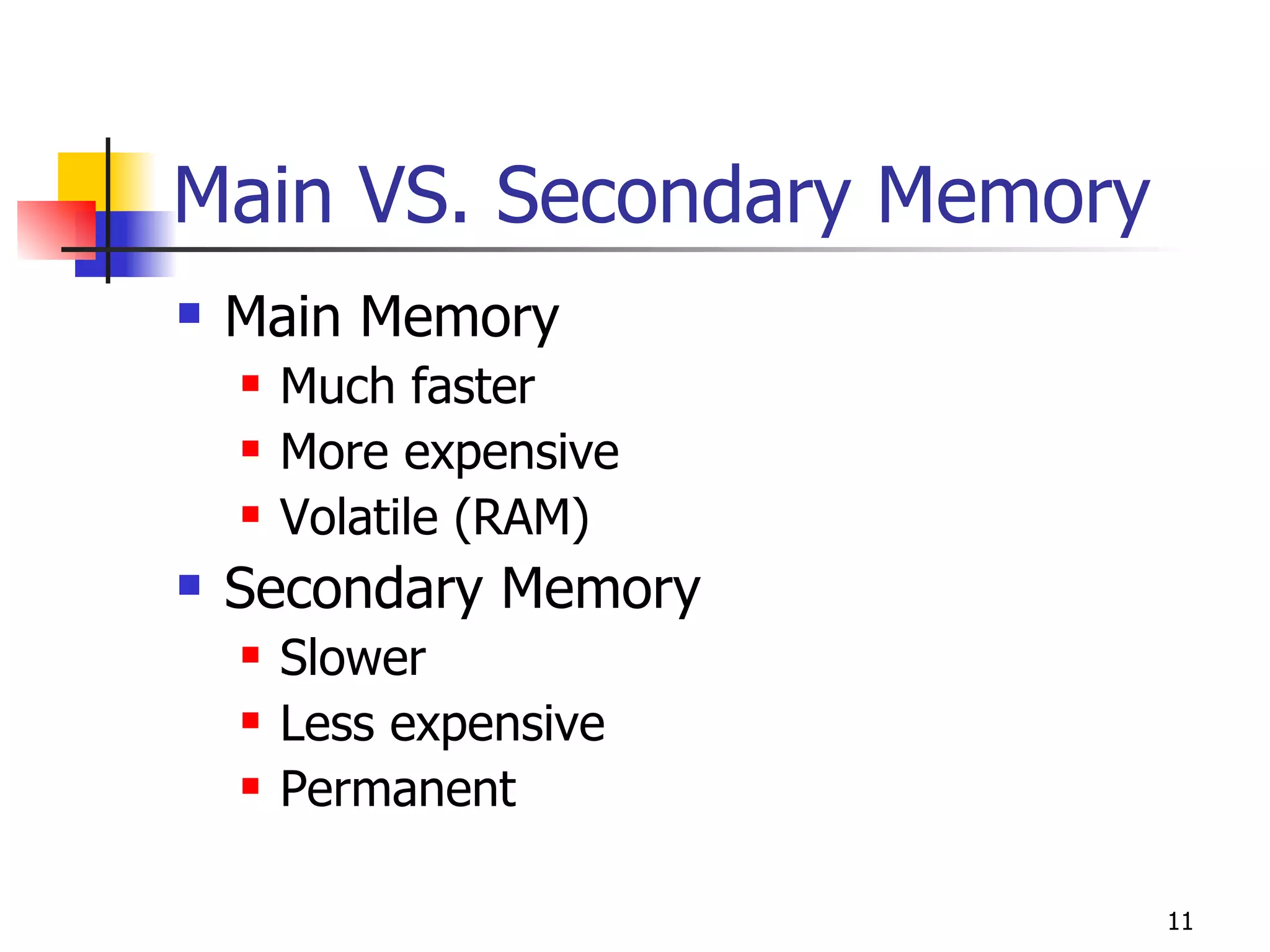

11. Main VS. Secondary Memory Main Memory Much faster More expensive Volatile (RAM) Secondary Memory Slower Less expensive Permanent

12. Computer Components HD CPU Main Memory Secondary Memory Input Devices Output Devices

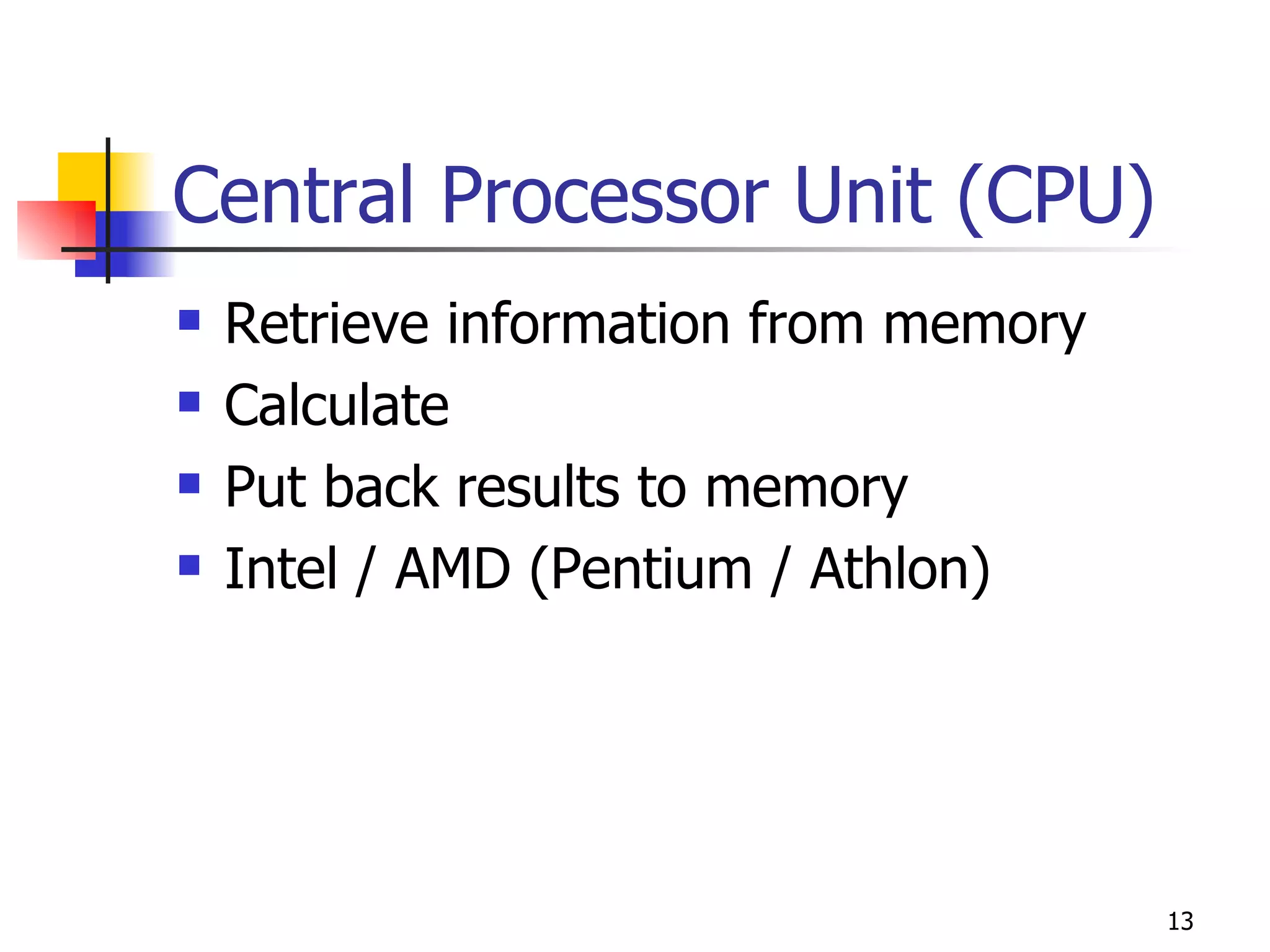

13. Central Processor Unit (CPU) Retrieve information from memory Calculate Put back results to memory Intel / AMD (Pentium / Athlon)

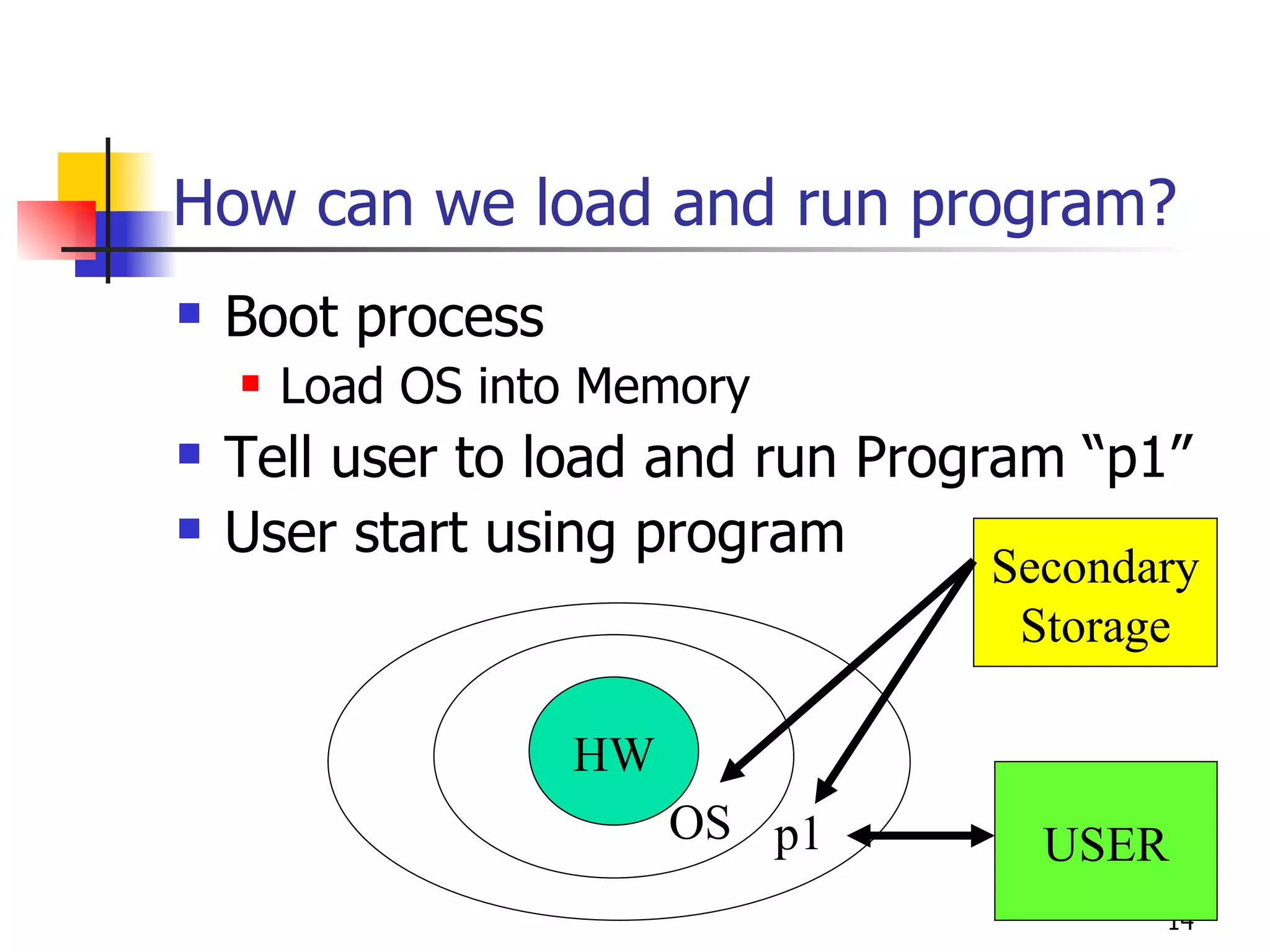

14. How can we load and run program? Boot process Load OS into Memory Tell user to load and run Program “p1” User start using program HW OS Secondary Storage p1 USER

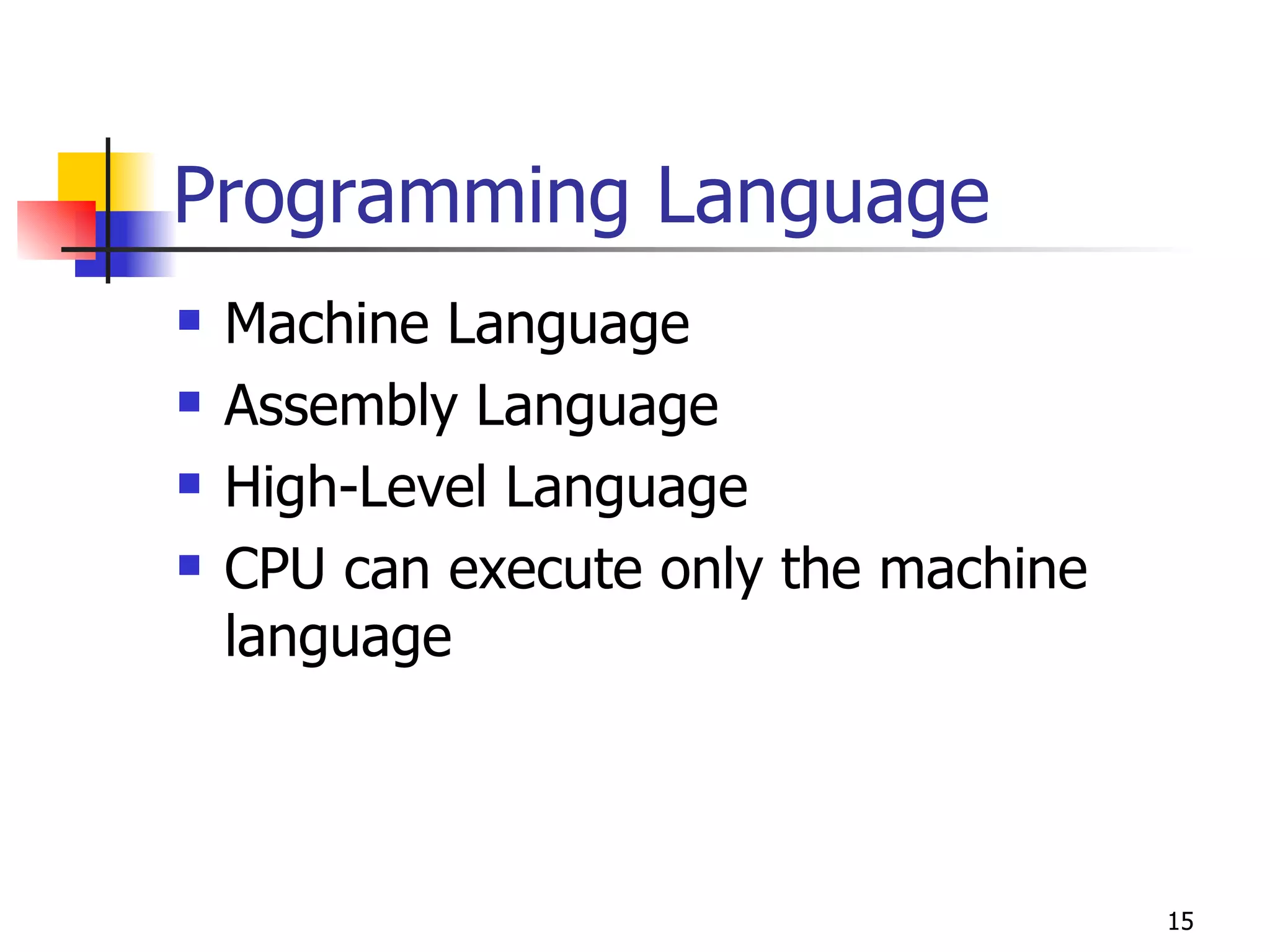

15. Programming Language Machine Language Assembly Language High-Level Language CPU can execute only the machine language

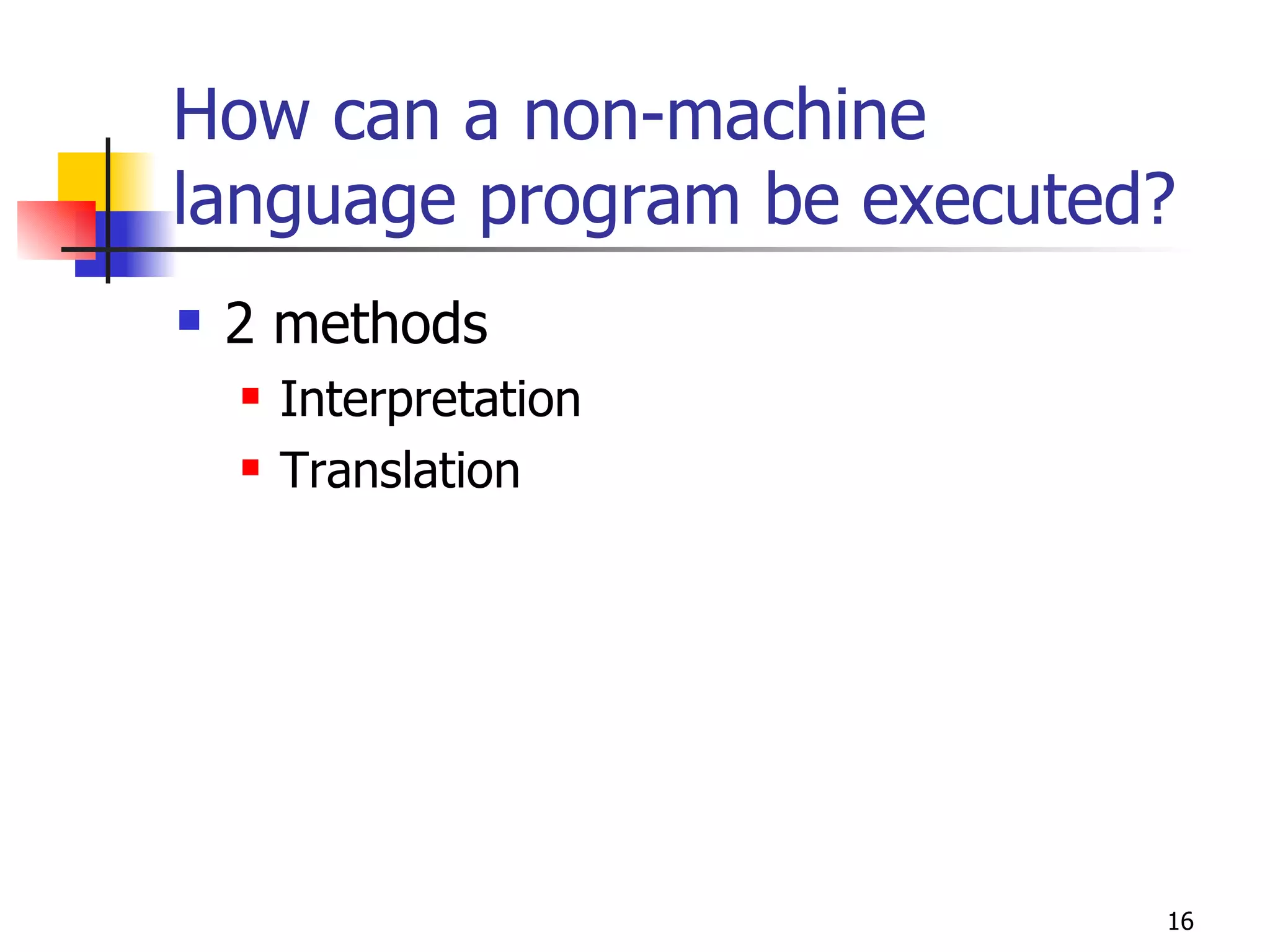

16. How can a non-machine language program be executed? 2 methods Interpretation Translation

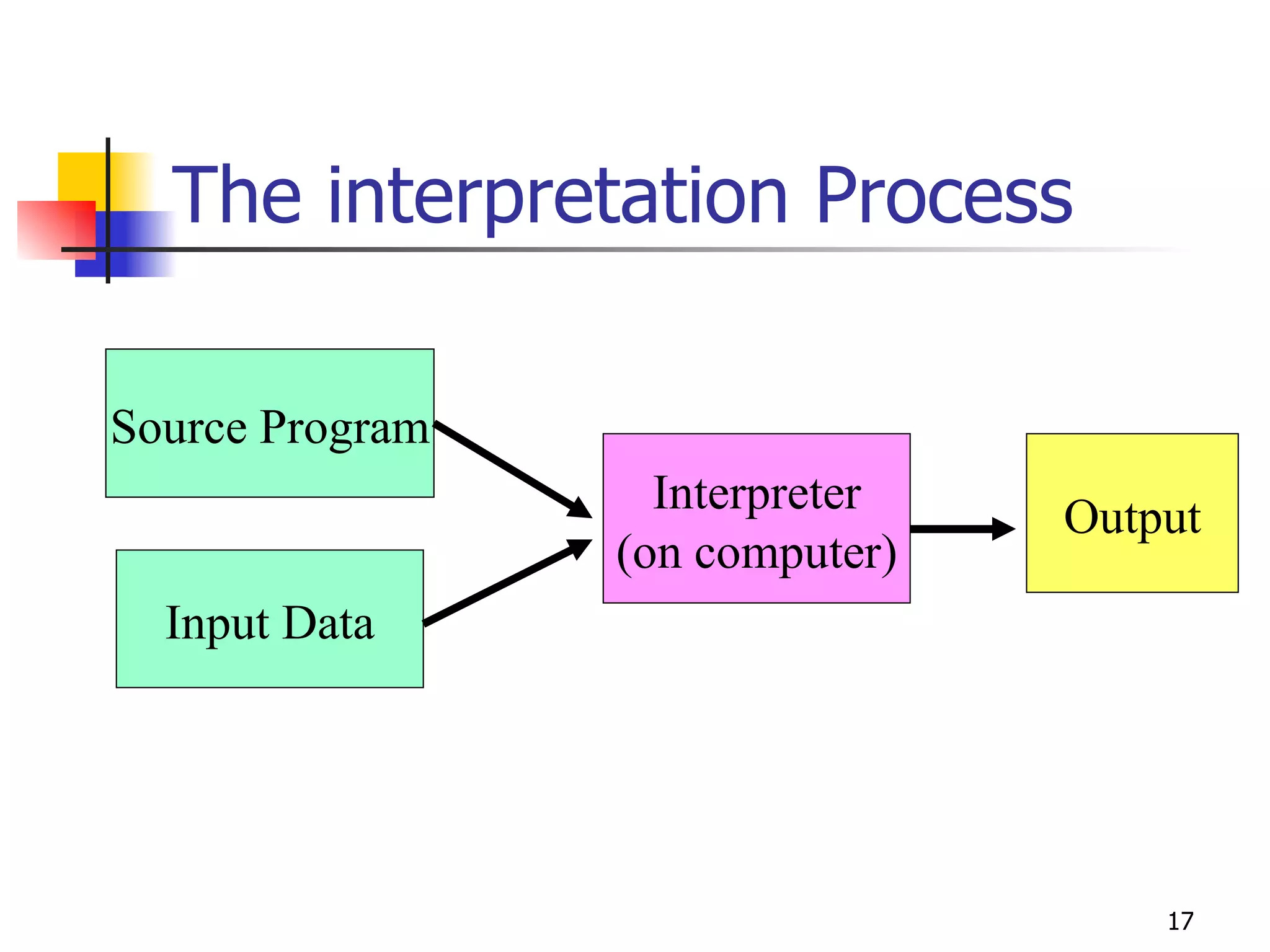

17. The interpretation Process Source Program Input Data Interpreter (on computer) Output

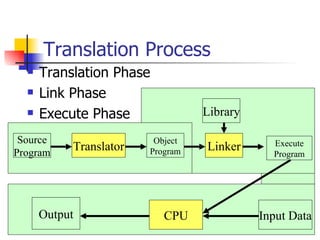

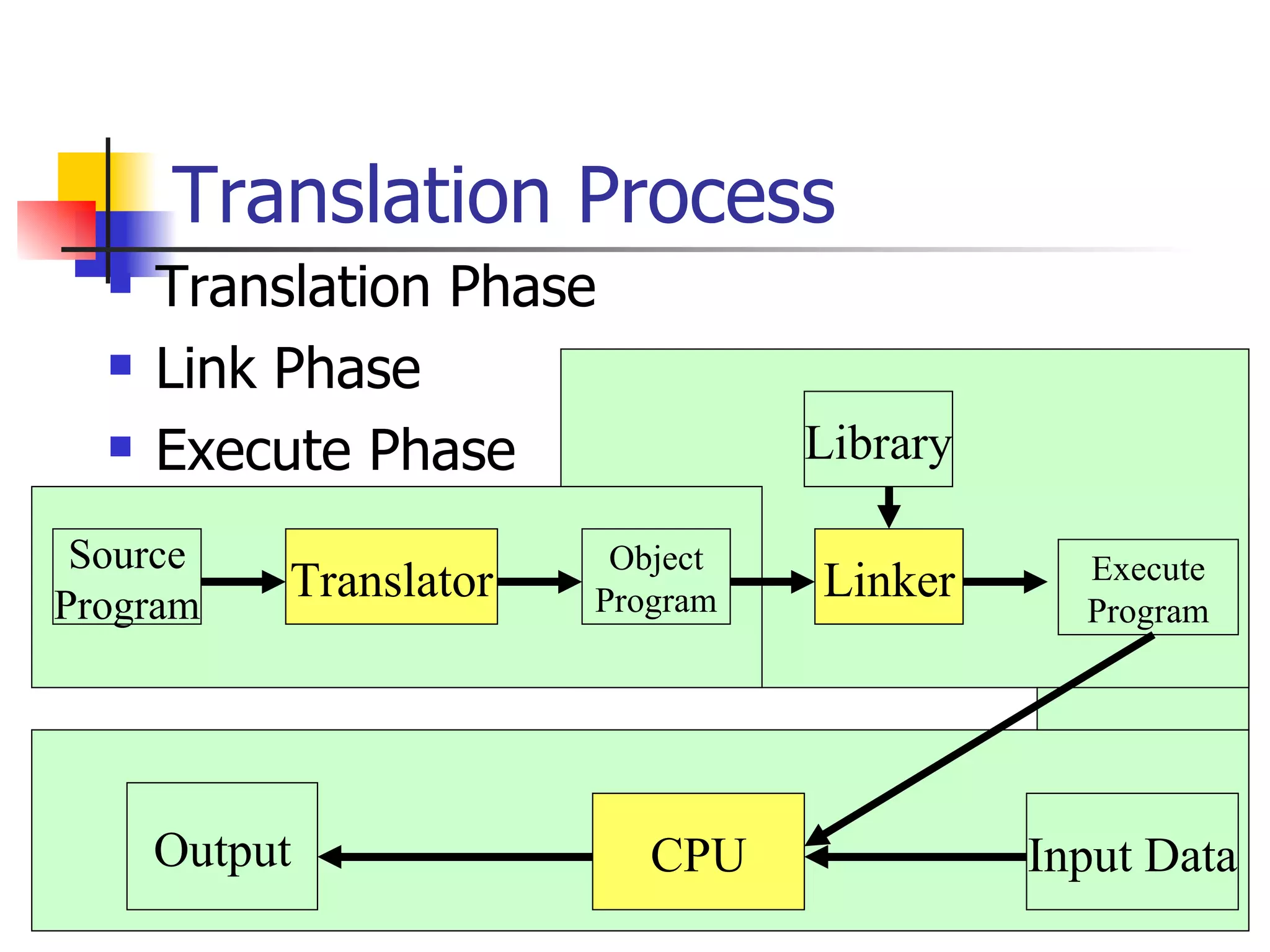

18. Translation Process Translation Phase Link Phase Execute Phase Source Program Translator Object Program Library Linker Execute Program Output CPU Input Data

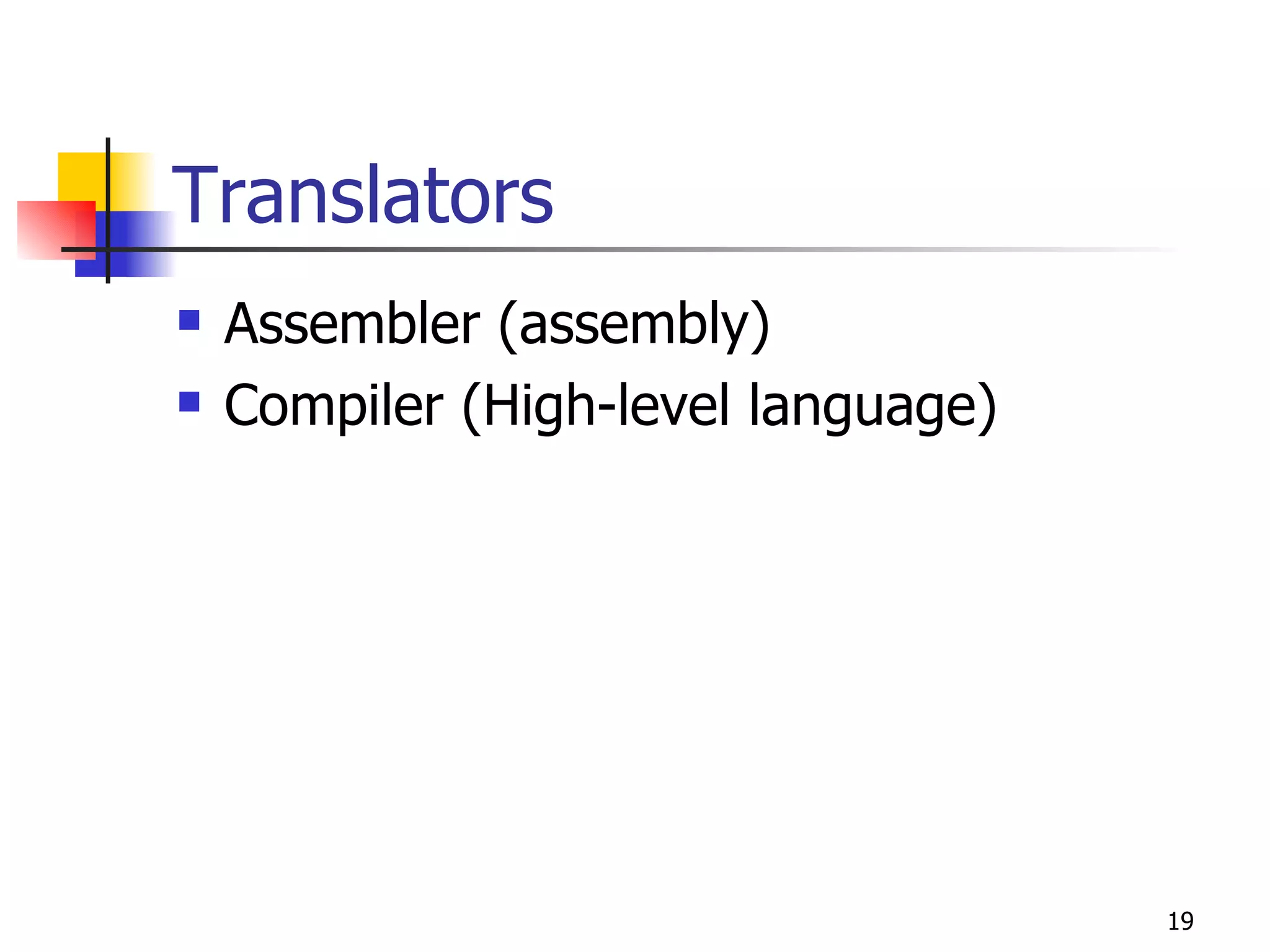

19. Translators Assembler (assembly) Compiler (High-level language)

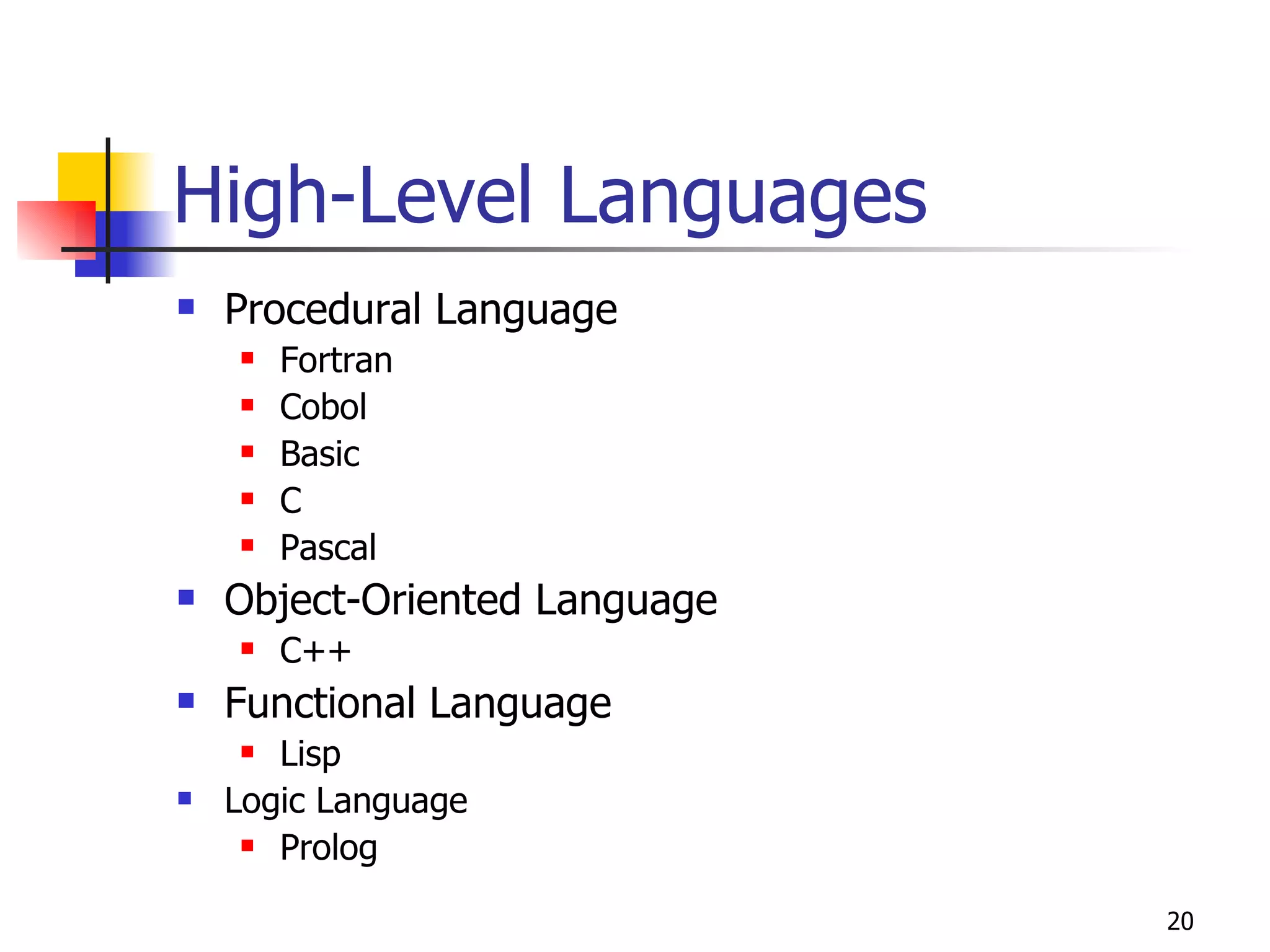

20. High-Level Languages Procedural Language Fortran Cobol Basic C Pascal Object-Oriented Language C++ Functional Language Lisp Logic Language Prolog

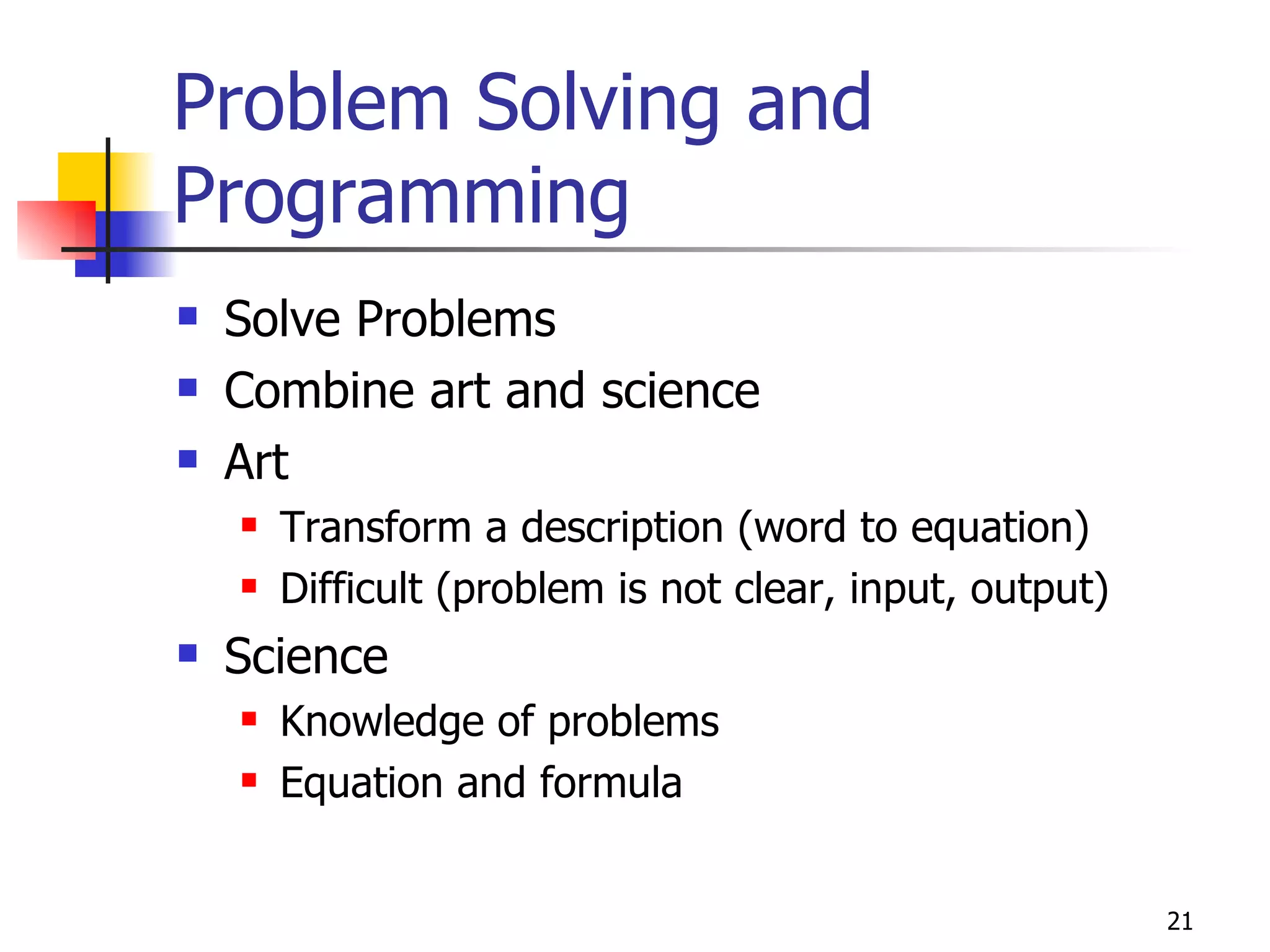

21. Problem Solving and Programming Solve Problems Combine art and science Art Transform a description (word to equation) Difficult (problem is not clear, input, output) Science Knowledge of problems Equation and formula

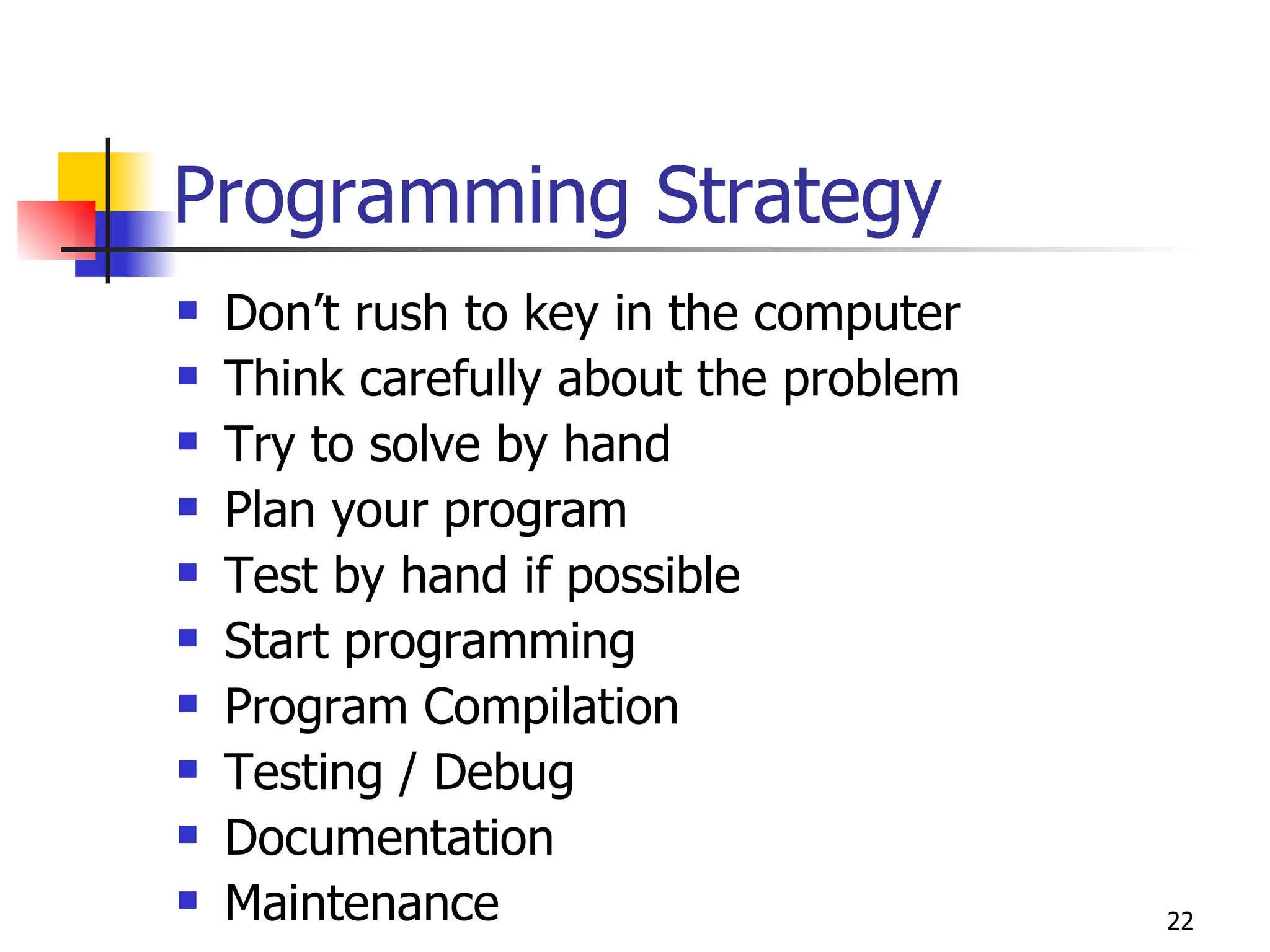

22. Programming Strategy Don’t rush to key in the computer Think carefully about the problem Try to solve by hand Plan your program Test by hand if possible Start programming Program Compilation Testing / Debug Documentation Maintenance

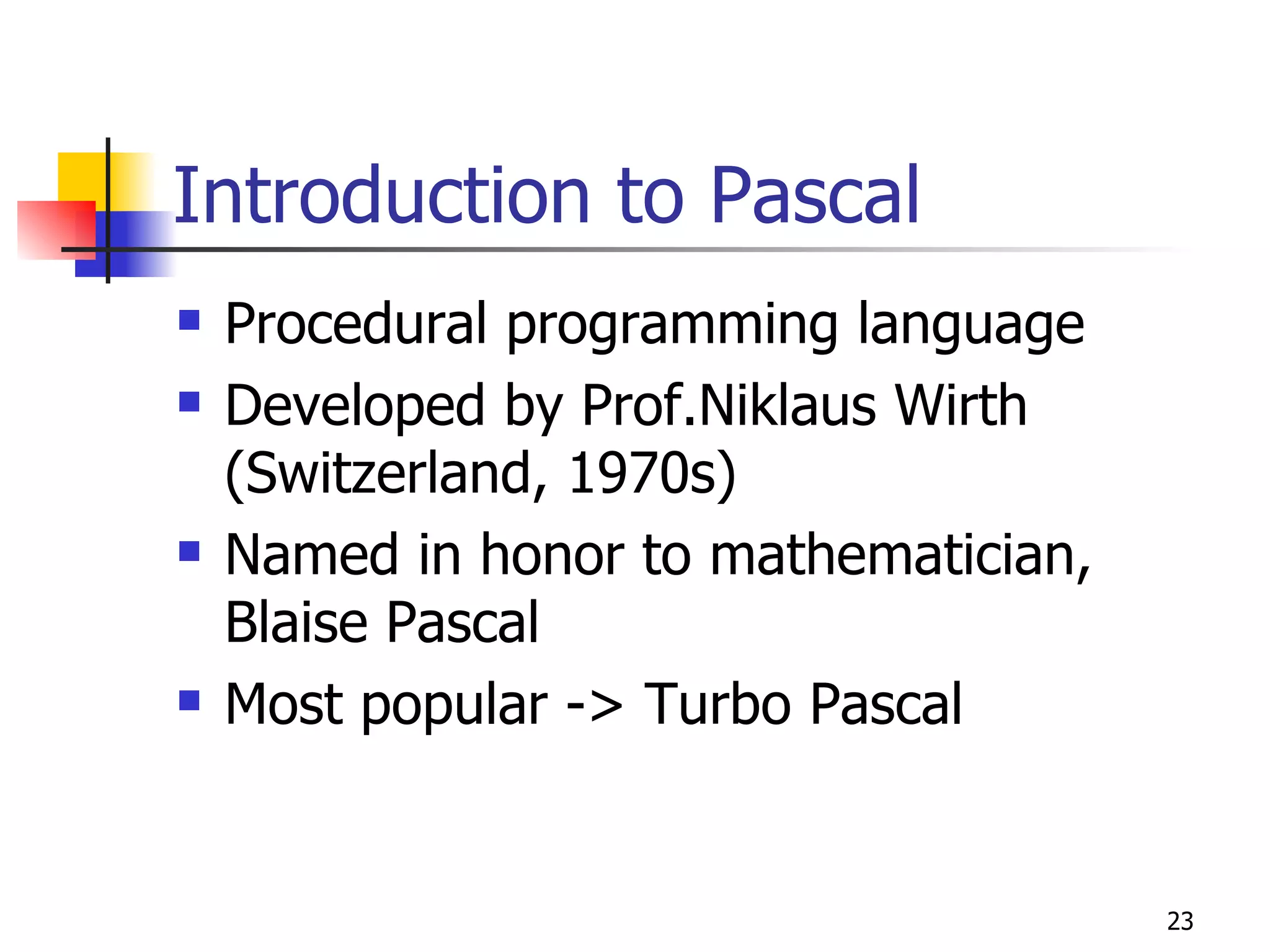

23. Introduction to Pascal Procedural programming language Developed by Prof.Niklaus Wirth (Switzerland, 1970s) Named in honor to mathematician, Blaise Pascal Most popular -> Turbo Pascal

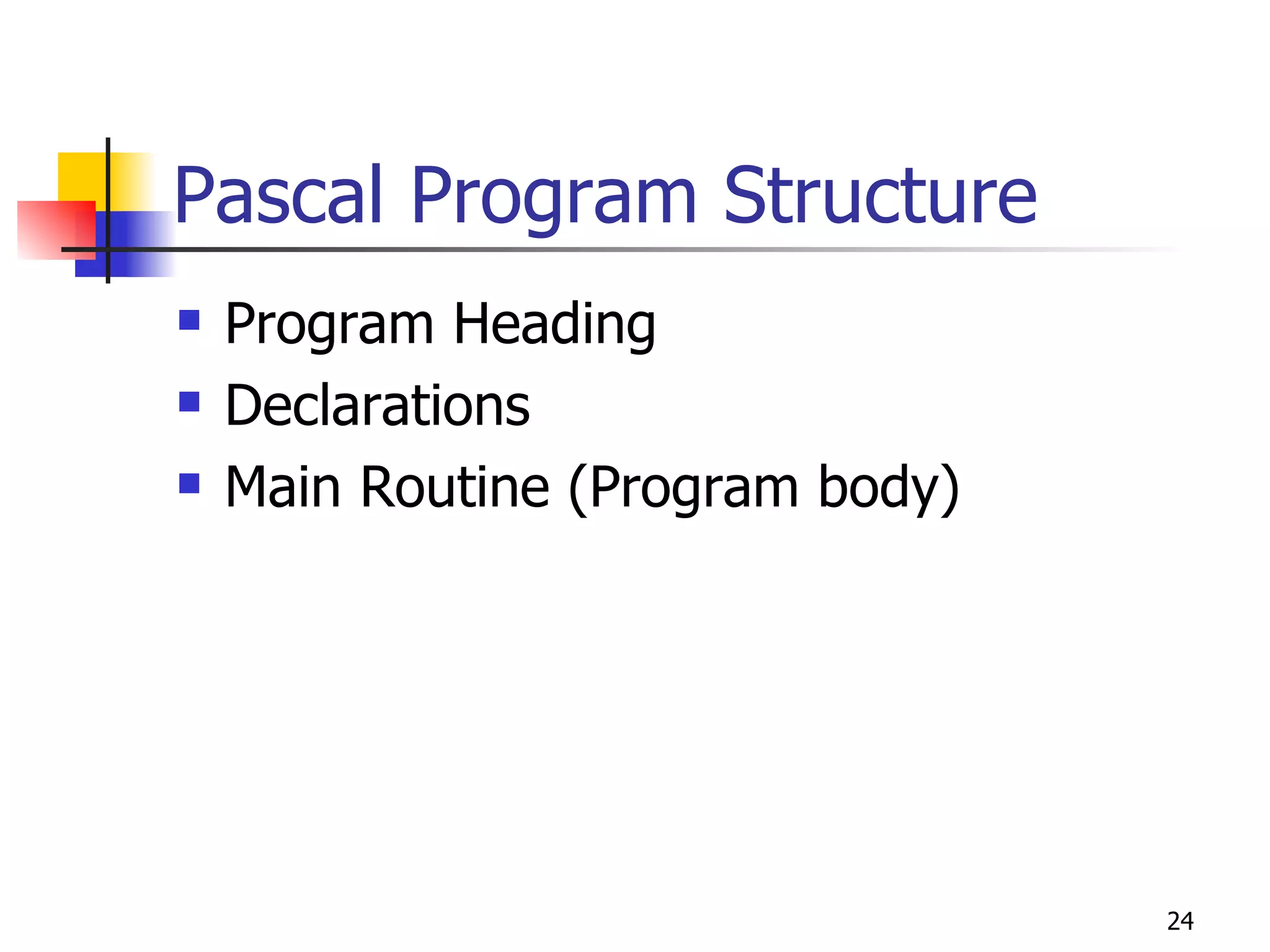

24. Pascal Program Structure Program Heading Declarations Main Routine (Program body)

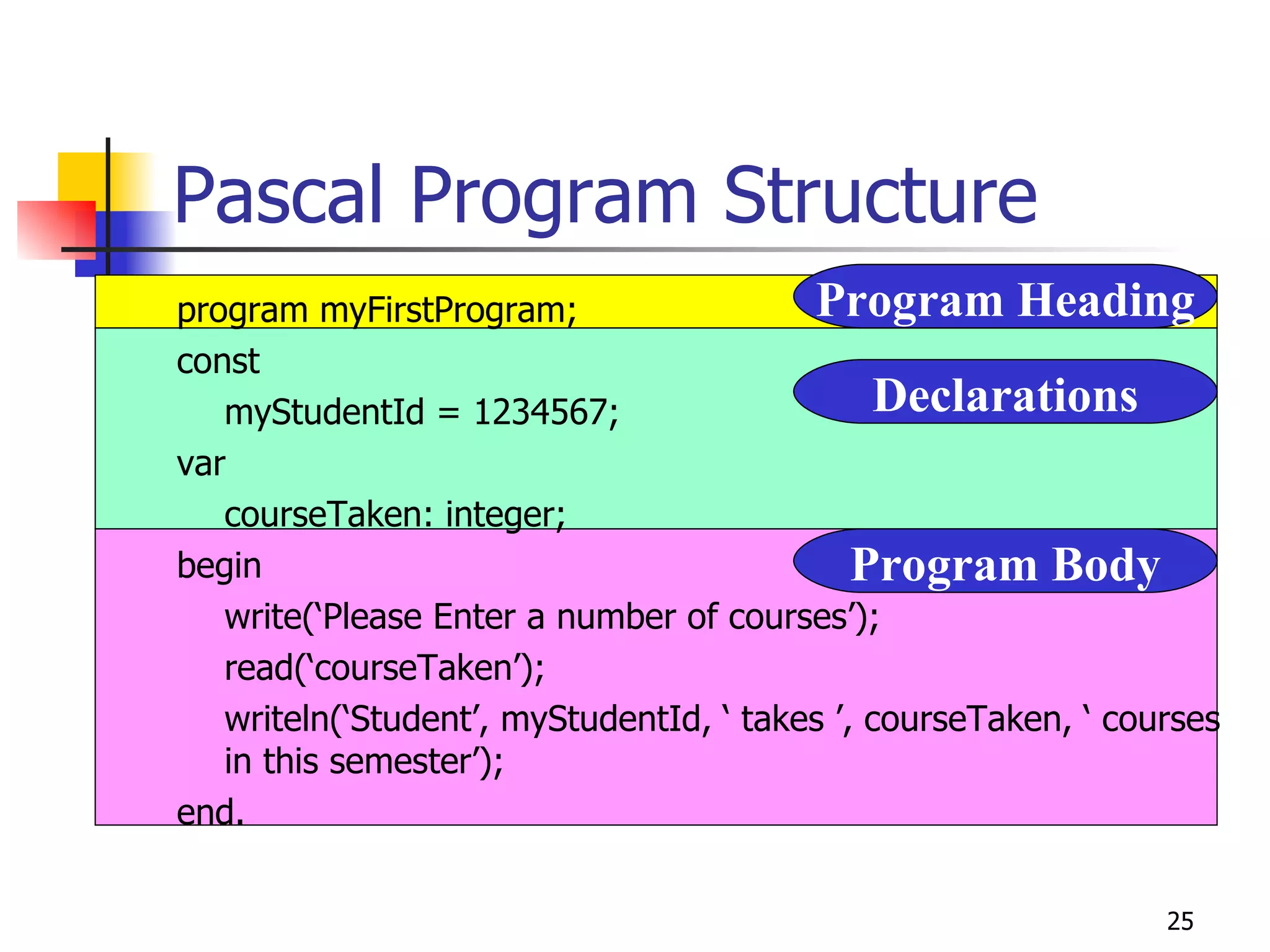

25. Pascal Program Structure program myFirstProgram; const myStudentId = 1234567; var courseTaken: integer; begin write(‘Please Enter a number of courses’); read(‘courseTaken’); writeln(‘Student’, myStudentId, ‘ takes ’, courseTaken, ‘ courses in this semester’); end. Program Heading Declarations Program Body

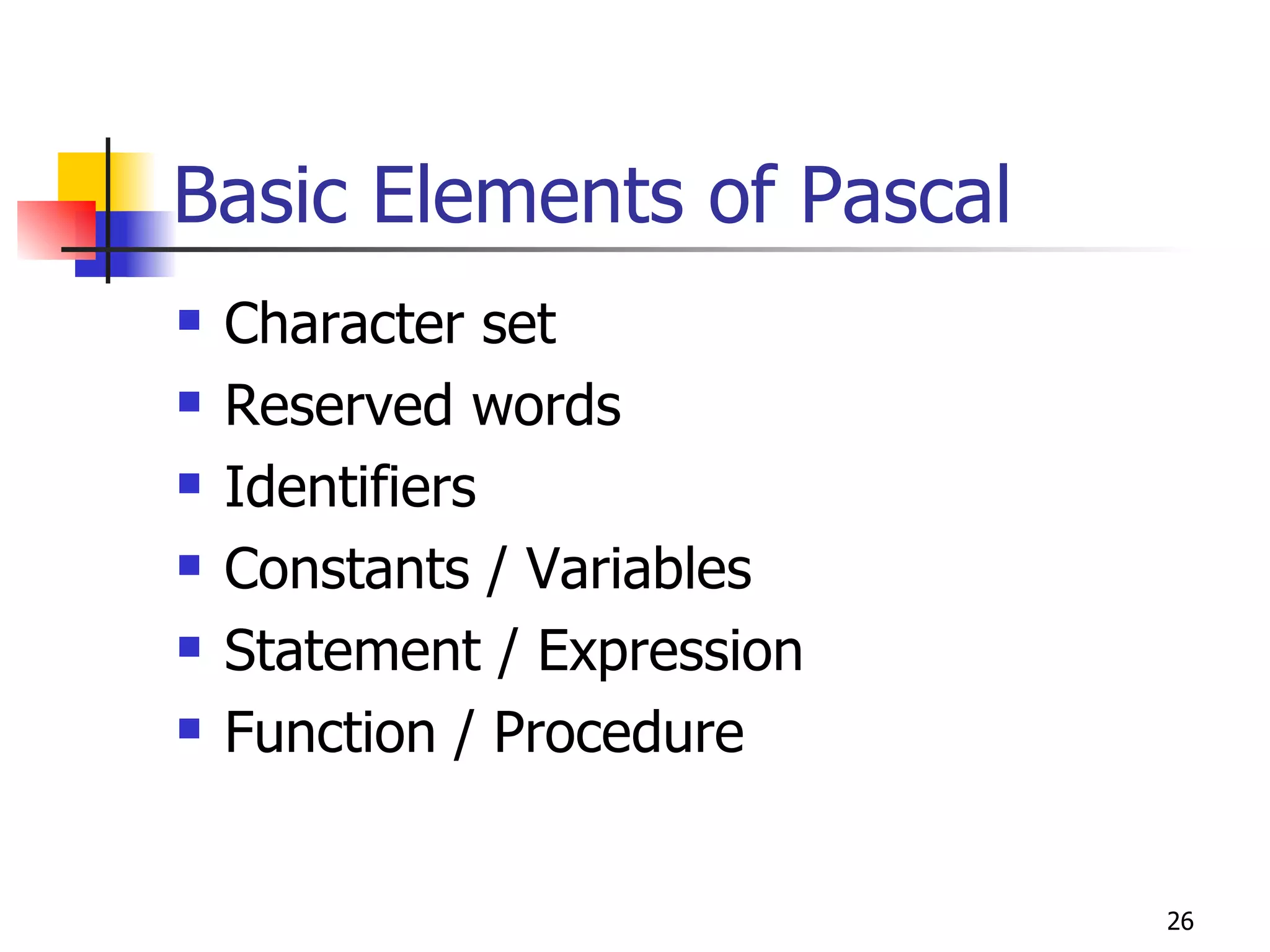

26. Basic Elements of Pascal Character set Reserved words Identifiers Constants / Variables Statement / Expression Function / Procedure

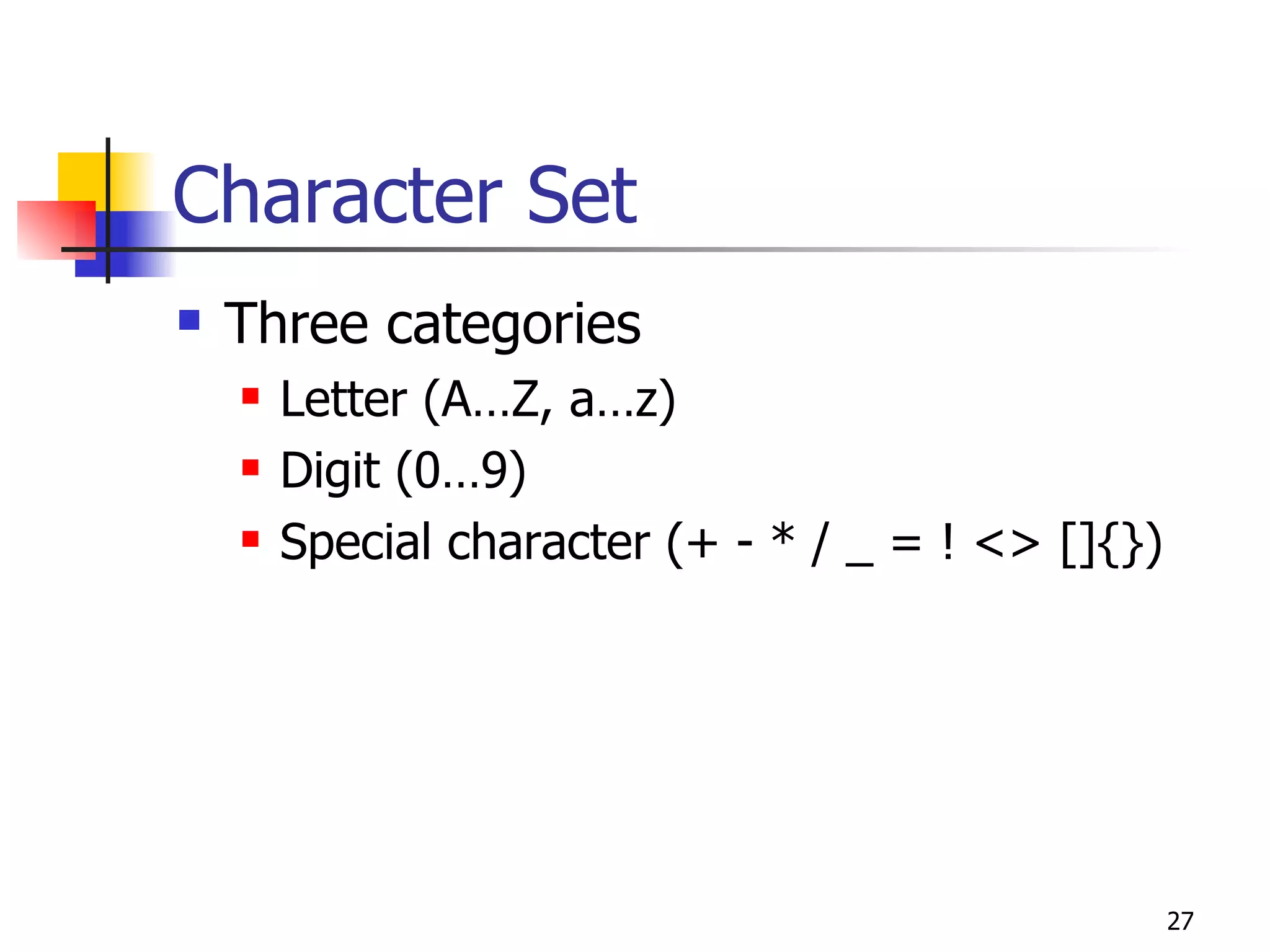

27. Character Set Three categories Letter (A…Z, a…z) Digit (0…9) Special character (+ - * / _ = ! <> []{})

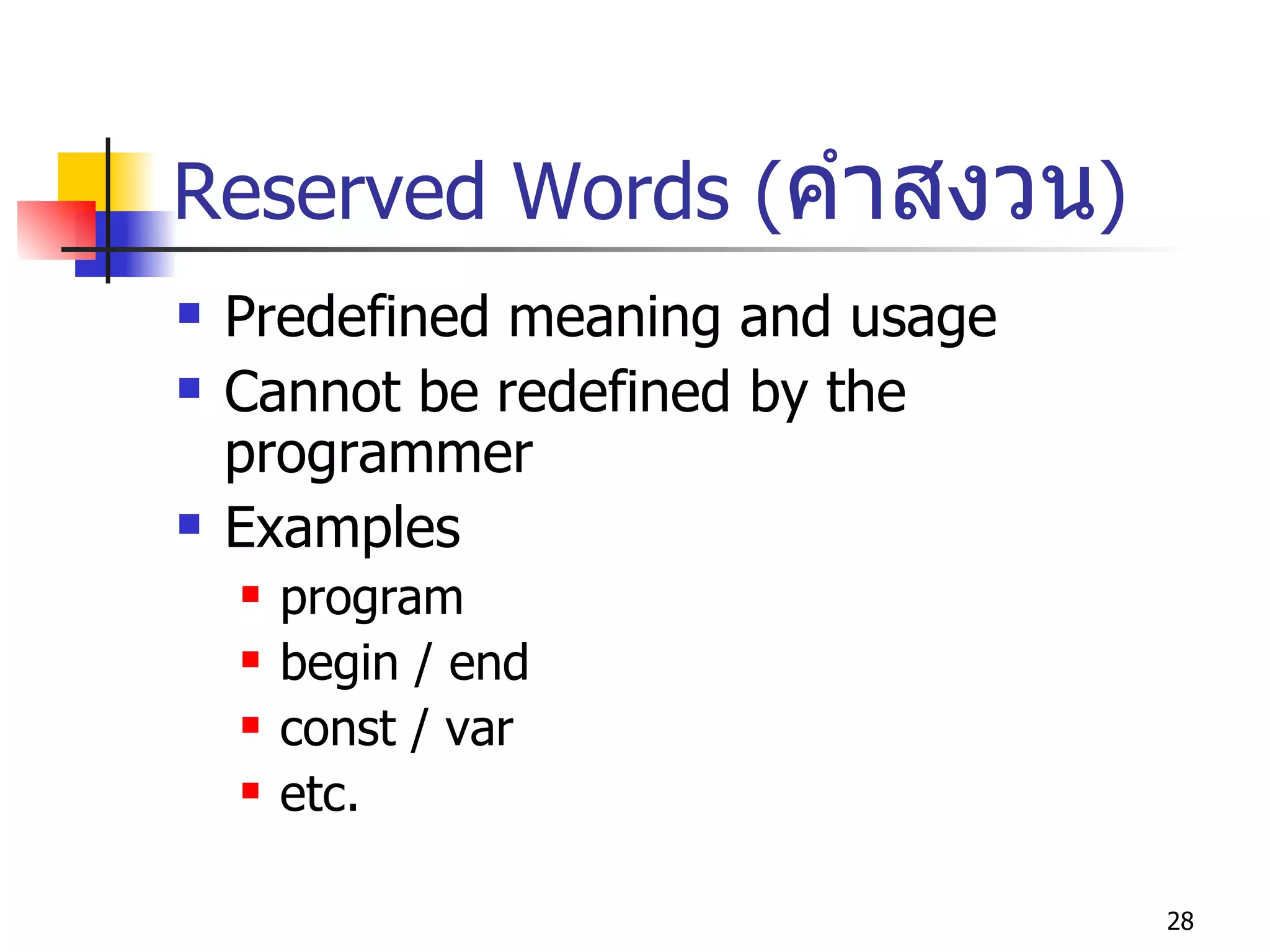

28. Reserved Words ( คำสงวน ) Predefined meaning and usage Cannot be redefined by the programmer Examples program begin / end const / var etc.

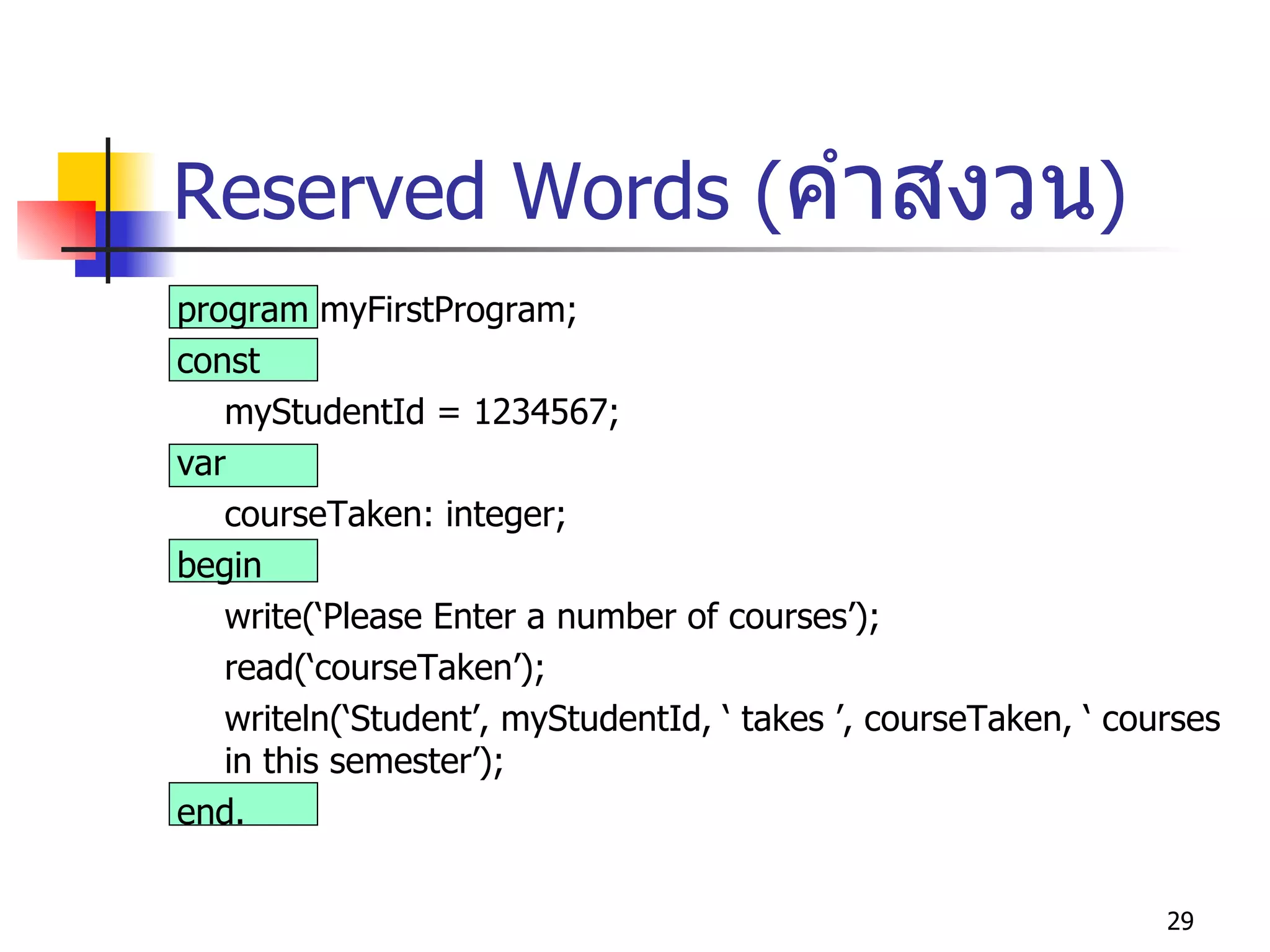

29. Reserved Words ( คำสงวน ) program myFirstProgram; const myStudentId = 1234567; var courseTaken: integer; begin write(‘Please Enter a number of courses’); read(‘courseTaken’); writeln(‘Student’, myStudentId, ‘ takes ’, courseTaken, ‘ courses in this semester’); end.

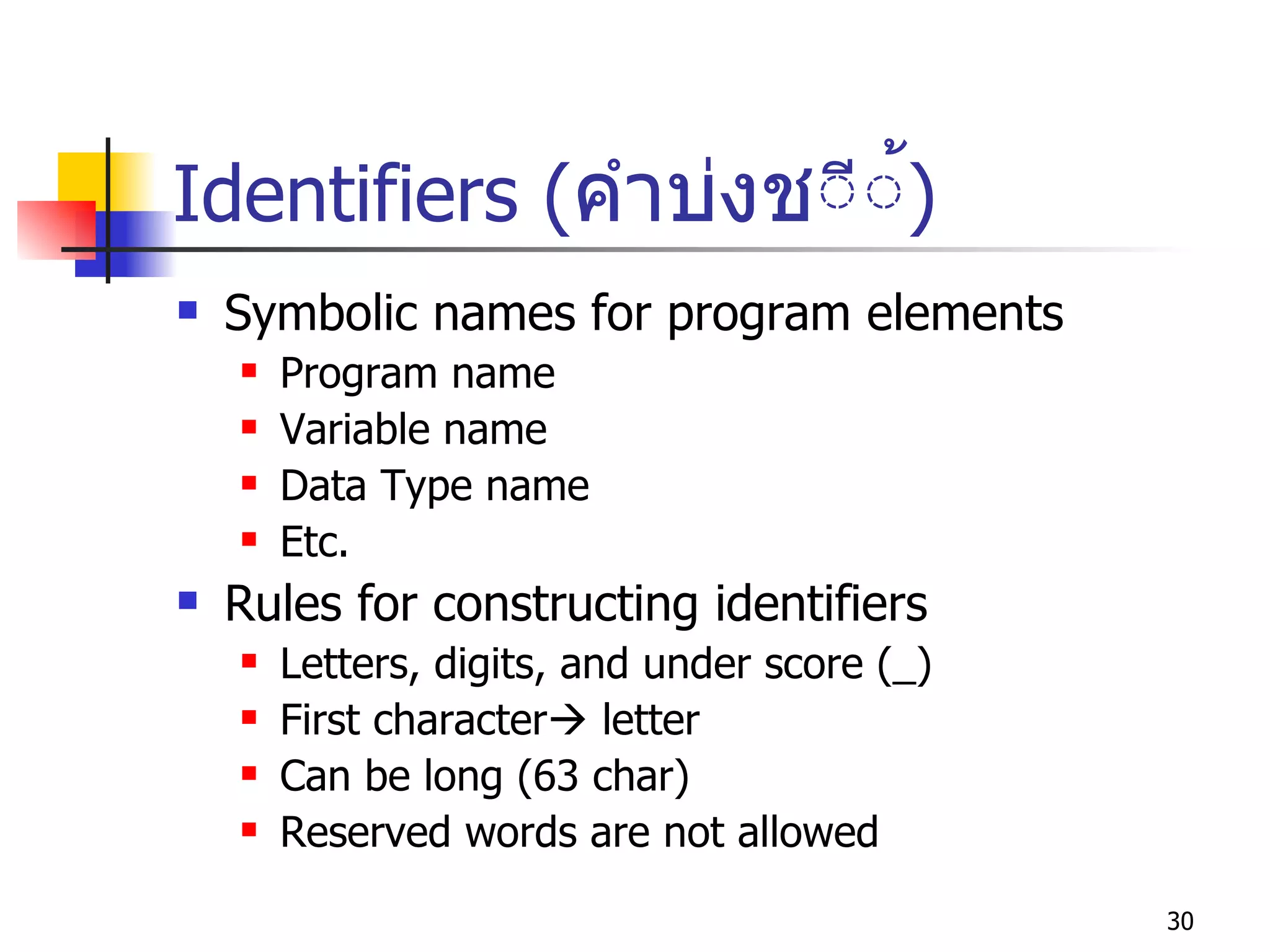

30. Identifiers ( คำบ่งช ี้ ) Symbolic names for program elements Program name Variable name Data Type name Etc. Rules for constructing identifiers Letters, digits, and under score (_) First character  letter Can be long (63 char) Reserved words are not allowed

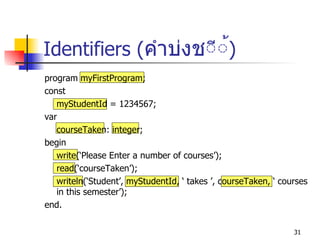

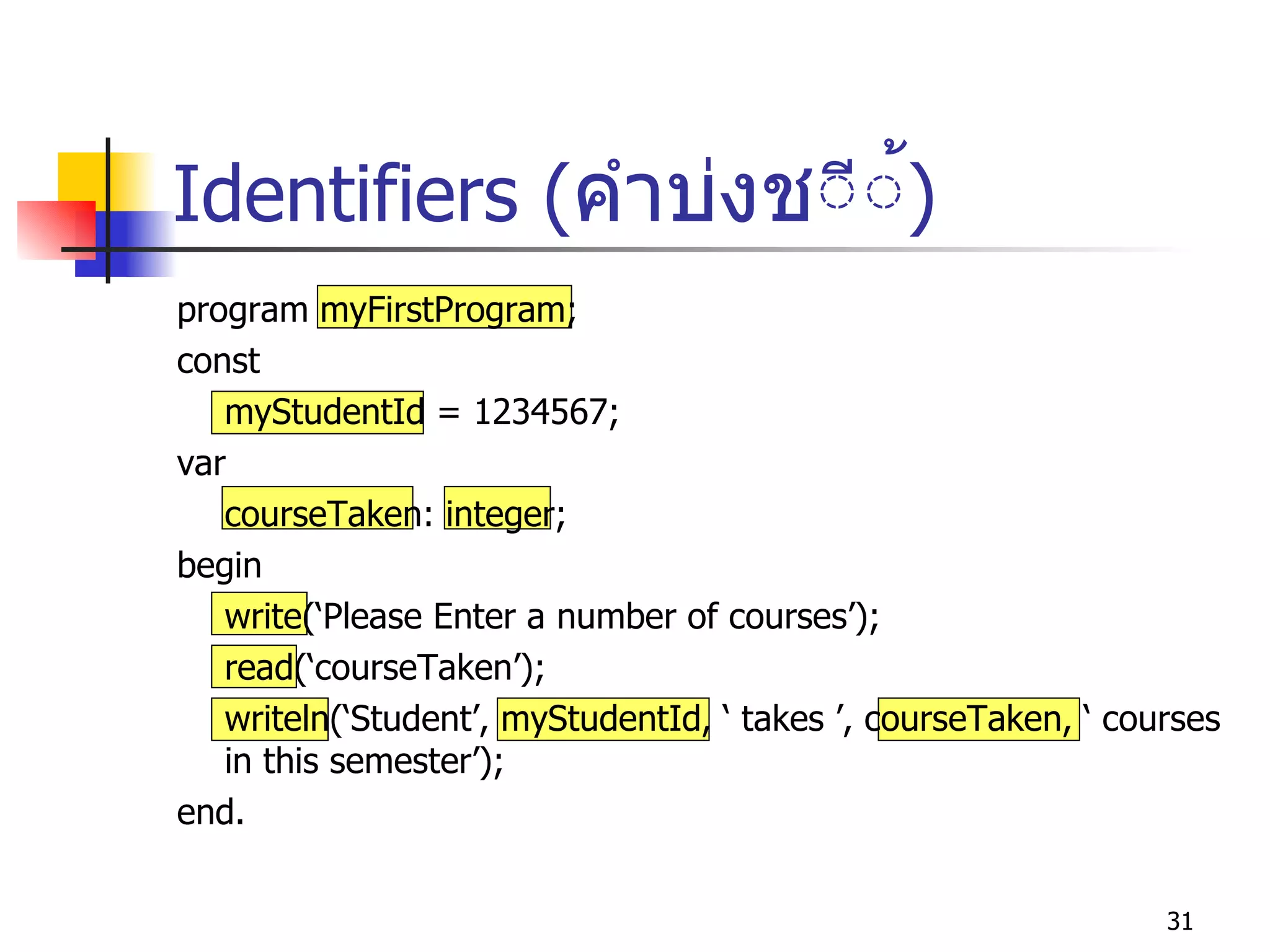

31. Identifiers ( คำบ่งช ี้ ) program myFirstProgram; const myStudentId = 1234567; var courseTaken: integer; begin write(‘Please Enter a number of courses’); read(‘courseTaken’); writeln(‘Student’, myStudentId, ‘ takes ’, courseTaken, ‘ courses in this semester’); end.

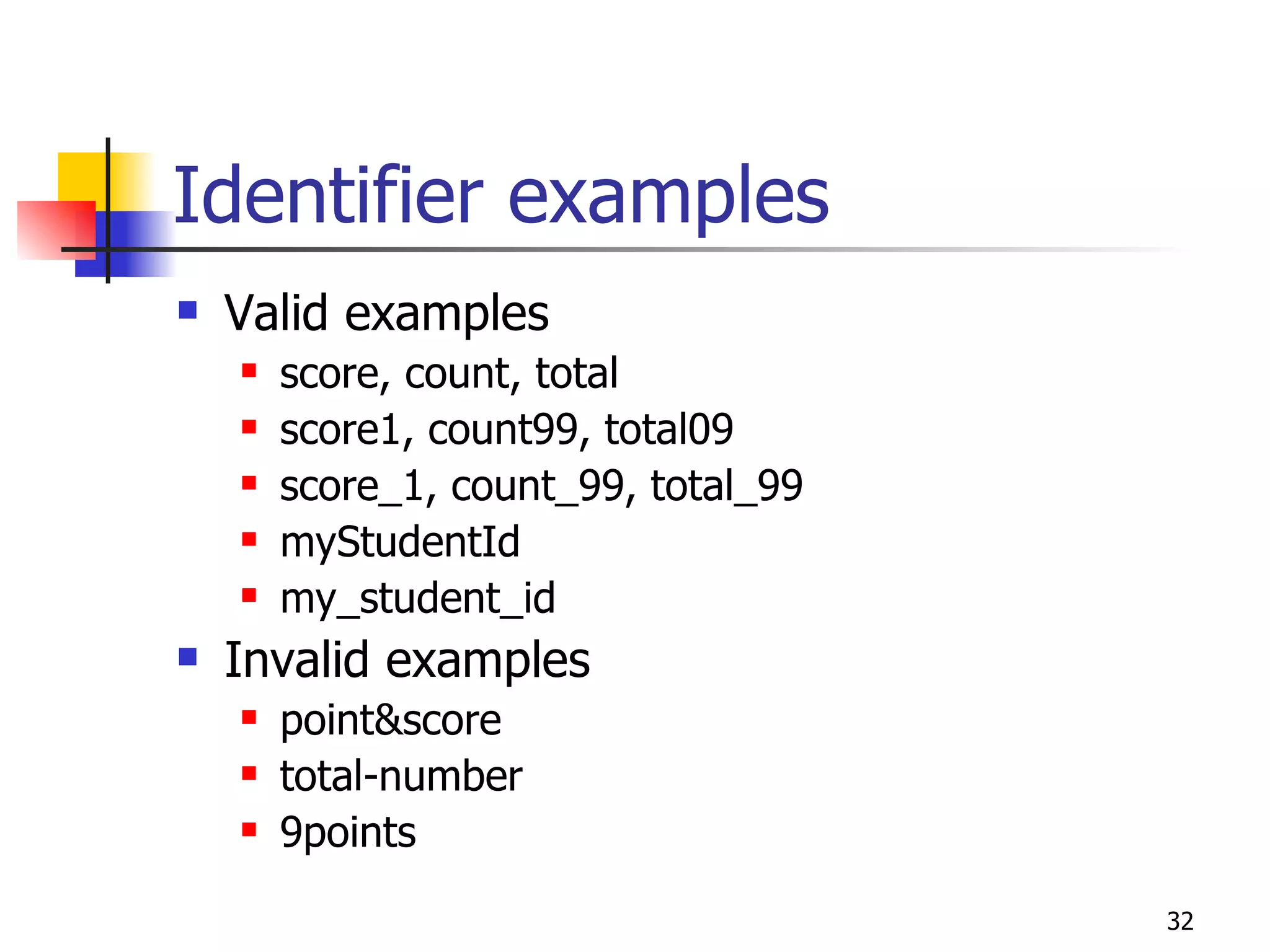

32. Identifier examples Valid examples score, count, total score1, count99, total09 score_1, count_99, total_99 myStudentId my_student_id Invalid examples point&score total-number 9points

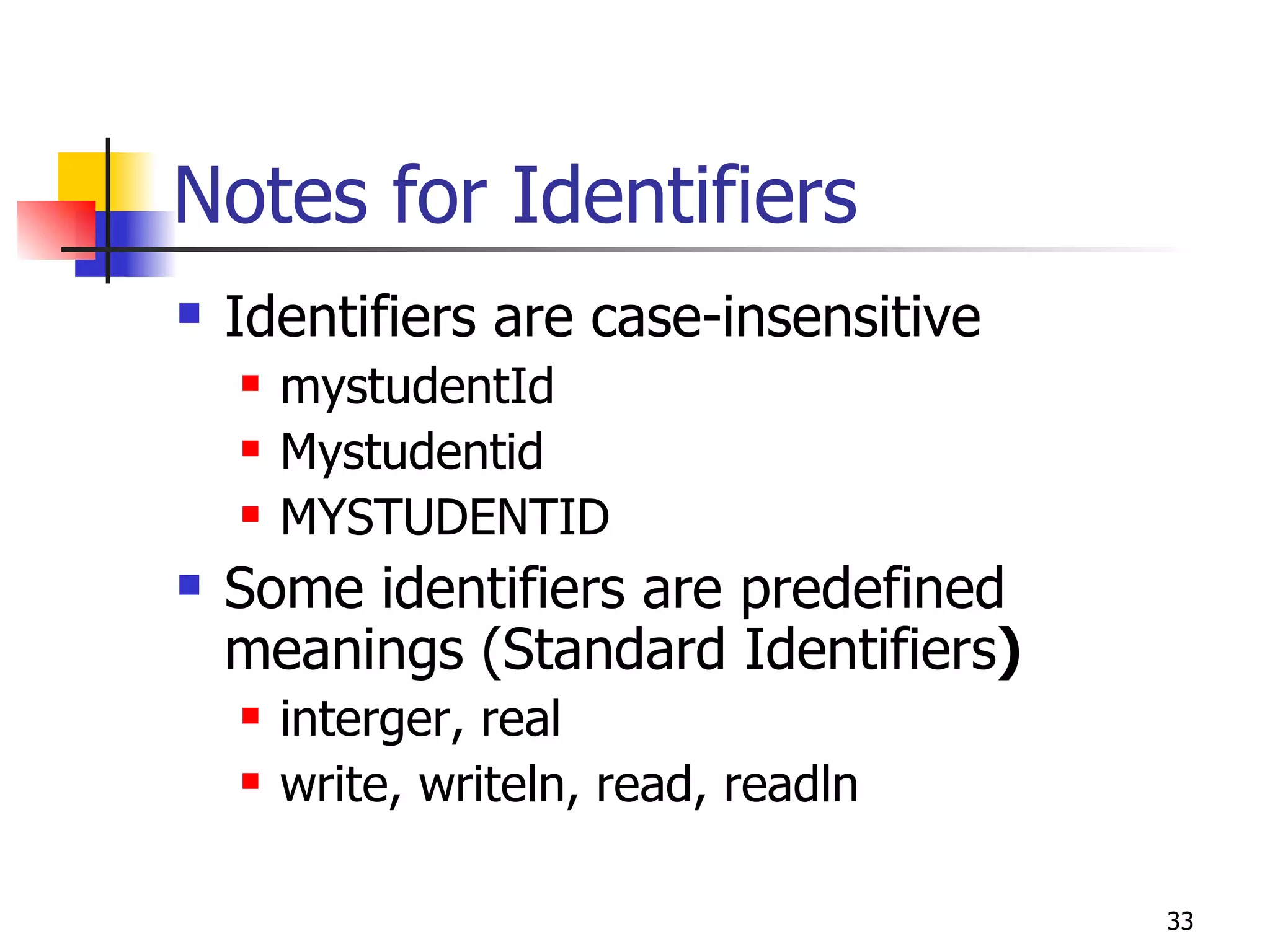

33. Notes for Identifiers Identifiers are case-insensitive mystudentId Mystudentid MYSTUDENTID Some identifiers are predefined meanings (Standard Identifiers ) interger, real write, writeln, read, readln

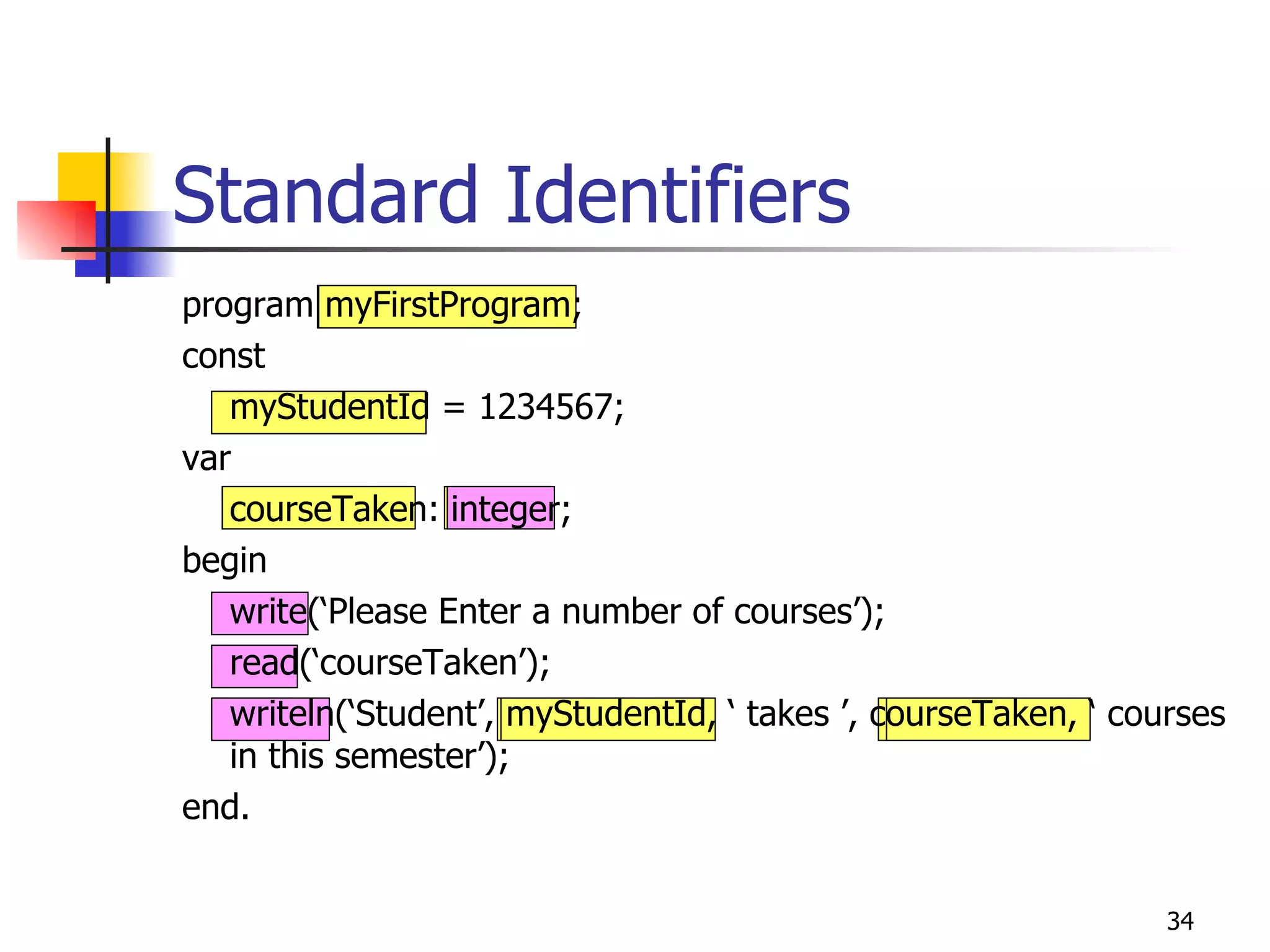

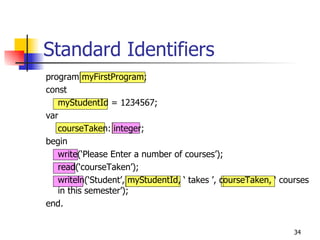

34. Standard Identifiers program myFirstProgram; const myStudentId = 1234567; var courseTaken: integer; begin write(‘Please Enter a number of courses’); read(‘courseTaken’); writeln(‘Student’, myStudentId, ‘ takes ’, courseTaken, ‘ courses in this semester’); end.
