Mobile Network Attack Evolution

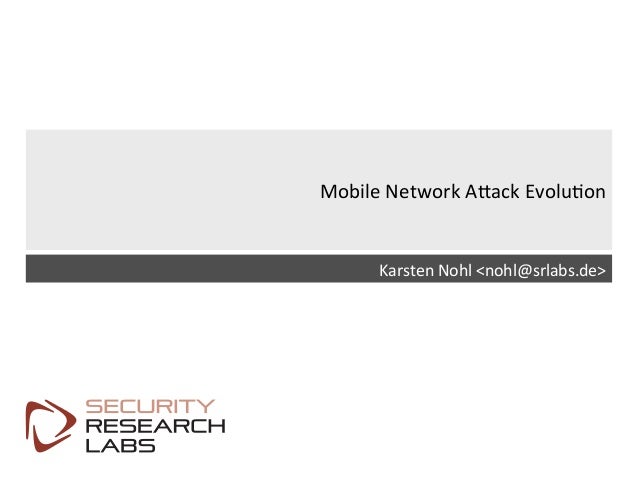

  1. 1. SRLabs  Template  v12   Mobile  Network  A9ack  Evolu=on   Karsten  Nohl  <nohl@srlabs.de>

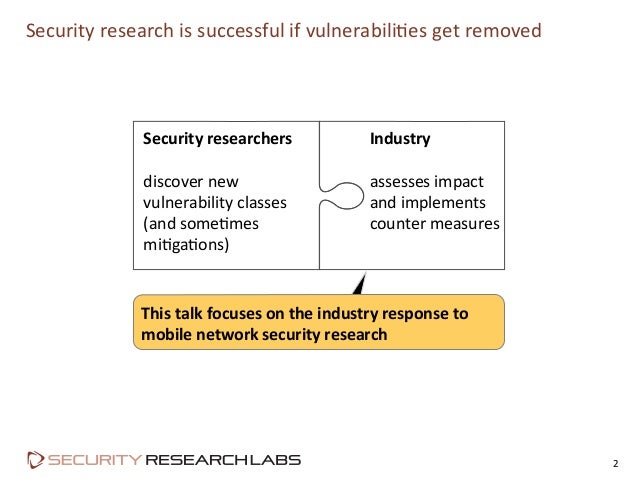

  2. 2. Security  research  is  successful  if  vulnerabili=es  get  removed   2   Industry       assesses  impact   and  implements   counter  measures   Security  researchers       discover  new   vulnerability  classes   (and  some=mes   mi=ga=ons)   This  talk  focuses  on  the  industry  response  to   mobile  network  security  research
  3. 3. Agenda   3   §  Advanced  SIM  card  a<acks   §  Advanced  GSM  intercept   §  Keeping  network  operators  honest

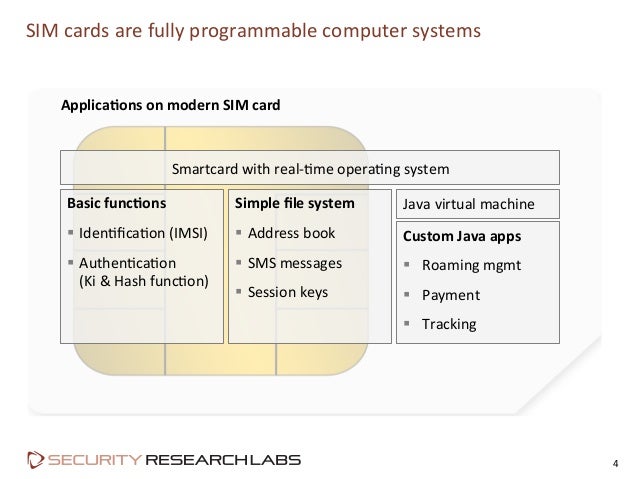

  4. 4. SIM  cards  are  fully  programmable  computer  systems   4   Applica=ons  on  modern  SIM  card   Basic  func=ons   §  Iden=fica=on  (IMSI)   §  Authen=ca=on     (Ki  &  Hash  func=on)   Simple  file  system   §  Address  book   §  SMS  messages   §  Session  keys   Custom  Java  apps     §  Roaming  mgmt   §  Payment   §  Tracking   Java  virtual  machine   Smartcard  with  real-­‐=me  opera=ng  system

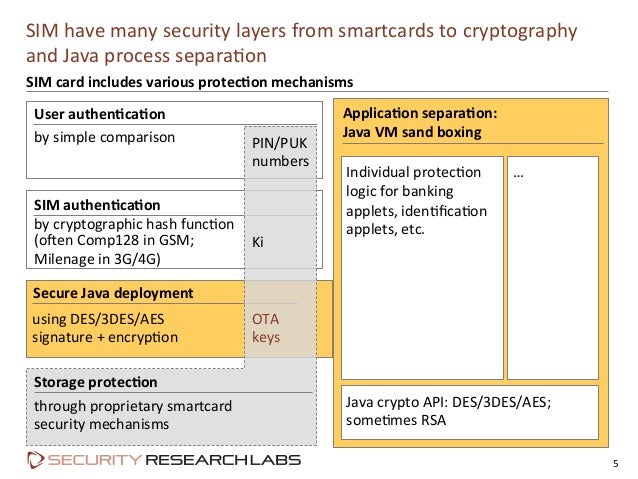

  5. 5. SIM  have  many  security  layers  from  smartcards  to  cryptography   and  Java  process  separa=on   5   by  cryptographic  hash  func=on   (oVen  Comp128  in  GSM;     Milenage  in  3G/4G)   User  authen=ca=on   by  simple  comparison        Secure  Java  deployment   using  DES/3DES/AES   signature  +  encryp=on   SIM  authen=ca=on   Individual  protec=on   logic  for  banking   applets,  iden=fica=on   applets,  etc.   …   Java  crypto  API:  DES/3DES/AES;   some=mes  RSA   Applica=on  separa=on:     Java  VM  sand  boxing   SIM  card  includes  various  protec=on  mechanisms   Ki   PIN/PUK   numbers   OTA   keys   through  proprietary  smartcard   security  mechanisms   Storage  protec=on

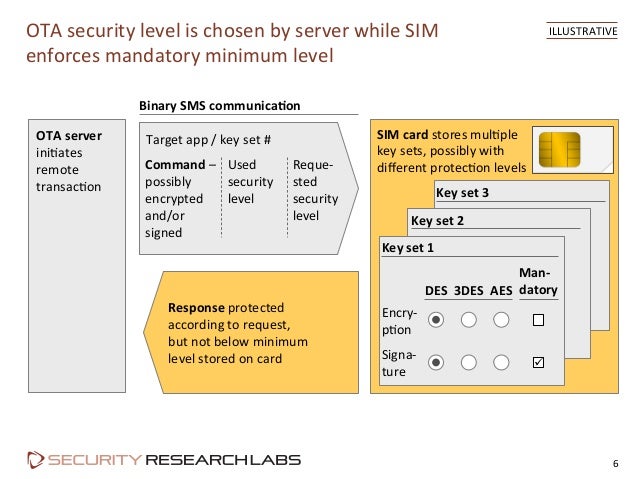

  6. 6. OTA  security  level  is  chosen  by  server  while  SIM   enforces  mandatory  minimum  level   6   ILLUSTRATIVE   OTA  server   ini=ates   remote   transac=on   Binary  SMS  communica=on   Response  protected   according  to  request,   but  not  below  minimum   level  stored  on  card   SIM  card  stores  mul=ple     key  sets,  possibly  with     different  protec=on  levels   Key  set  1   Key  set  2   Key  set  3   Encry-­‐   p=on   Signa-­‐   ture   DES   3DES   AES   Man-­‐   datory   ü     Command  –   possibly   encrypted   and/or   signed   Used   security   level   Reque-­‐ sted   security   level   Target  app  /  key  set  #

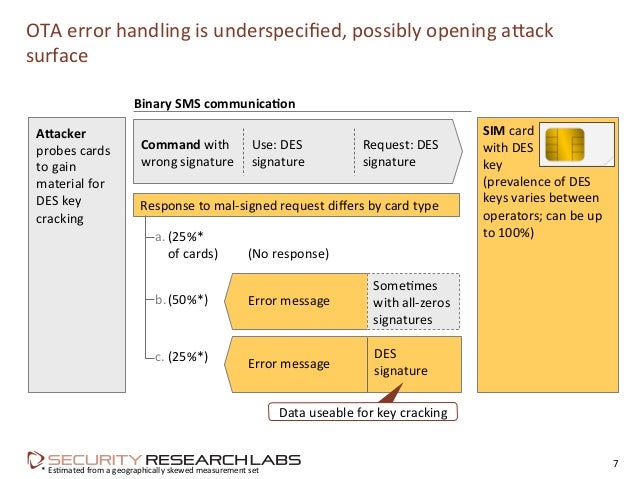

  7. 7. OTA  error  handling  is  underspecified,  possibly  opening  a9ack   surface   7   A<acker   probes  cards   to  gain   material  for   DES  key   cracking     SIM  card     with  DES     key     (prevalence  of  DES   keys  varies  between   operators;  can  be  up   to  100%)   Binary  SMS  communica=on   Command  with   wrong  signature   Use:  DES   signature   Request:  DES   signature   Response  to  mal-­‐signed  request  differs  by  card  type   c. (25%*)   b. (50%*)   a. (25%*     of  cards)   (No  response)   Error  message   DES   signature   Error  message   Some=mes   with  all-­‐zeros   signatures   Data  useable  for  key  cracking    *  Es=mated  from  a  geographically  skewed  measurement  set
  8. 8. OTA  DES  do  not  withstand  key  cracking   8   Challenge:  Derive  56  bit  DES  key  from  OTA  response  signature   Cracking  strategies   Investment   Cracking  =me   Be  pa=ent   Brute  force  on  GPU   EUR  1.000   6  months   Throw  money  at  it   Brute  force  on  FPGA  cluster   EUR  50.000   1  day   Ride  the  rainbow   Time-­‐memory  trade-­‐off   using  large  hard  disks  &  GPU   EUR  1.500  +     1  year  pre-­‐computa=on   1  minute     (but  <100%  success  rate)   Only  possible  when  OTA   response  is  fully  predictable

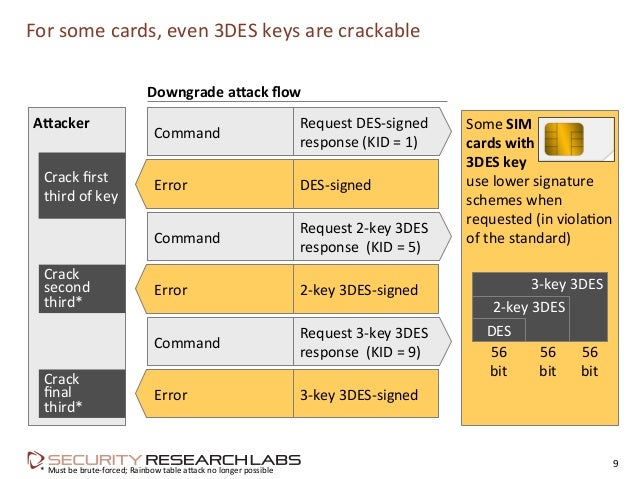

  9. 9. For  some  cards,  even  3DES  keys  are  crackable   9   Downgrade  a<ack  flow   Some  SIM     cards  with     3DES  key     use  lower  signature   schemes  when   requested  (in  viola=on   of  the  standard)    *  Must  be  brute-­‐forced;  Rainbow  table  a9ack  no  longer  possible   A<acker   Command   Request  DES-­‐signed   response  (KID  =  1)      Error   DES-­‐signed   Command   Request  2-­‐key  3DES   response    (KID  =  5)      Error   2-­‐key  3DES-­‐signed   Command   Request  3-­‐key  3DES   response    (KID  =  9)      Error   3-­‐key  3DES-­‐signed   56   bit   56   bit   56   bit   Crack  first   third  of  key   Crack   second   third*   Crack     final   third*   3-­‐key  3DES   2-­‐key  3DES   DES

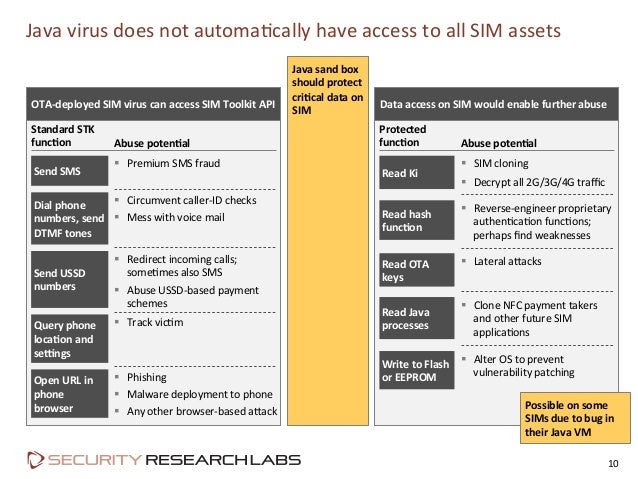

  10. 10. Java  virus  does  not  automa=cally  have  access  to  all  SIM  assets   10   Java  sand  box   should  protect   cri=cal  data  on   SIM  OTA-­‐deployed  SIM  virus  can  access  SIM  Toolkit  API   Standard  STK   func=on   Abuse  poten=al   Send  SMS   §  Premium  SMS  fraud   Dial  phone   numbers,  send   DTMF  tones   §  Circumvent  caller-­‐ID  checks   §  Mess  with  voice  mail   Send  USSD   numbers   §  Redirect  incoming  calls;   some=mes  also  SMS   §  Abuse  USSD-­‐based  payment   schemes   Query  phone   loca=on  and   seUngs   §  Track  vic=m   Open  URL  in   phone   browser   §  Phishing   §  Malware  deployment  to  phone   §  Any  other  browser-­‐based  a9ack   Data  access  on  SIM  would  enable  further  abuse   Protected   func=on   Read  Ki   Read  OTA   keys   Read  Java   processes   Write  to  Flash     or  EEPROM   Abuse  poten=al   §  SIM  cloning   §  Decrypt  all  2G/3G/4G  traffic   §  Lateral  a9acks   §  Clone  NFC  payment  takers   and  other  future  SIM   applica=ons   §  Alter  OS  to  prevent   vulnerability  patching   Read  hash   func=on   §  Reverse-­‐engineer  proprietary   authen=ca=on  func=ons;   perhaps  find  weaknesses   Possible  on  some   SIMs  due  to  bug  in   their  Java  VM

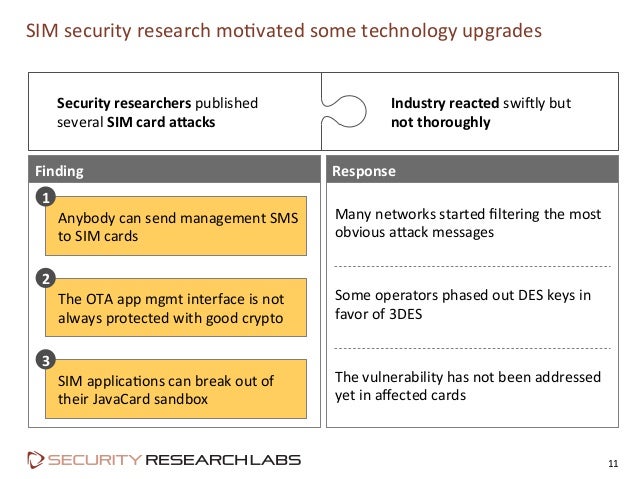

  11. 11. SIM  security  research  mo=vated  some  technology  upgrades   11   Security  researchers  published   several  SIM  card  a<acks   Industry  reacted  swiVly  but   not  thoroughly   Finding   Anybody  can  send  management  SMS   to  SIM  cards   1   Many  networks  started  filtering  the  most   obvious  a9ack  messages   The  OTA  app  mgmt  interface  is  not   always  protected  with  good  crypto   2   Some  operators  phased  out  DES  keys  in   favor  of  3DES   SIM  applica=ons  can  break  out  of   their  JavaCard  sandbox   3   The  vulnerability  has  not  been  addressed   yet  in  affected  cards   Response

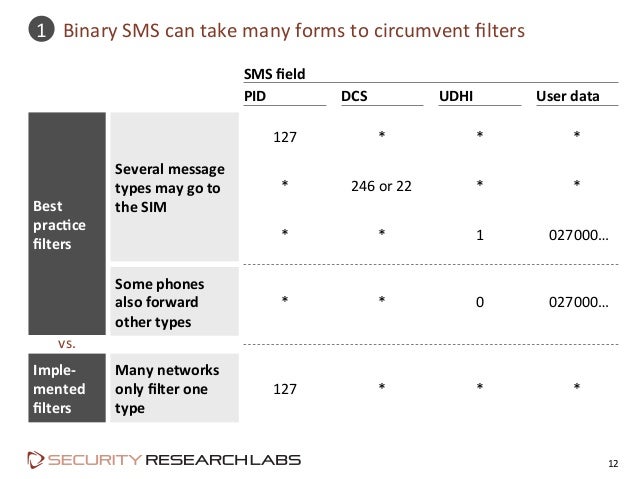

  12. 12. 12   1   Best   prac=ce   filters   Imple-­‐   mented   filters   Several  message   types  may  go  to   the  SIM   Some  phones   also  forward   other  types   Many  networks   only  filter  one   type   Binary  SMS  can  take  many  forms  to  circumvent  filters   SMS  field   PID   DCS   UDHI   User  data   127   *   *   *   *   246  or  22   *   *   *   *   1   027000…   127   *   *   *   *   *   0   027000…   vs.
  13. 13. Misconfigura=ons  in  SIMs  go  well  beyond  DES  keys   13   ILLUSTRATIVE  2   2.  Verify  that  all  SIM  applica=ons  enforce  cryptography   1.  Verify   that  all   keys  are   3DES  or   AES   Applica=on  (TAR)   Keyset   1:  3DES     2:  3DES   …   16:  DES   Sign  +  encrypt     Sign  +  encrypt     Sign   000000   Unprotected   (MSL=0)   Sign     Sign   000001   FFFFFF   …     …     …   …   SIM  configura=ons   need  to  be  assessed   in  two  dimensions

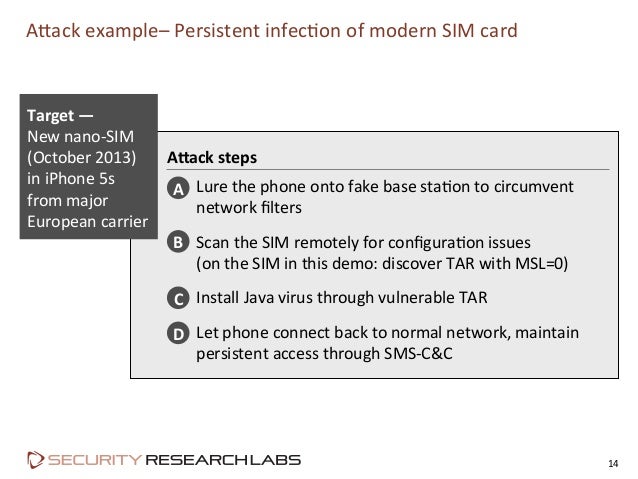

  14. 14. A9ack  example–  Persistent  infec=on  of  modern  SIM  card   14   Target  —   New  nano-­‐SIM   (October  2013)   in  iPhone  5s   from  major   European  carrier   A<ack  steps   A   B   D   C   Lure  the  phone  onto  fake  base  sta=on  to  circumvent   network  filters   Scan  the  SIM  remotely  for  configura=on  issues     (on  the  SIM  in  this  demo:  discover  TAR  with  MSL=0)   Install  Java  virus  through  vulnerable  TAR   Let  phone  connect  back  to  normal  network,  maintain   persistent  access  through  SMS-­‐C&C

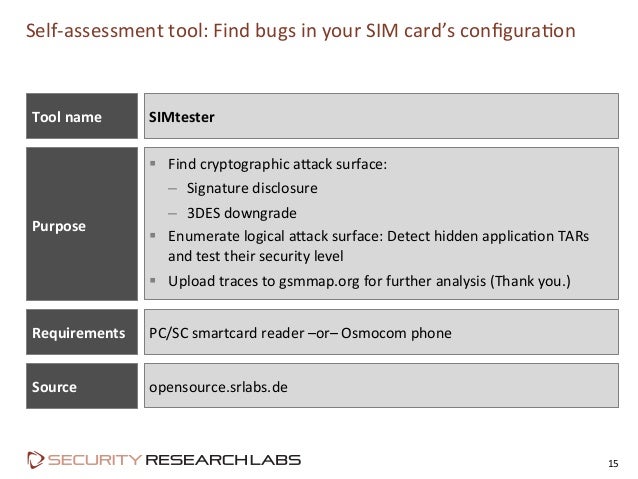

  15. 15. Self-­‐assessment  tool:  Find  bugs  in  your  SIM  card’s  configura=on   15   §  Find  cryptographic  a9ack  surface:   –  Signature  disclosure   –  3DES  downgrade   §  Enumerate  logical  a9ack  surface:  Detect  hidden  applica=on  TARs   and  test  their  security  level   §  Upload  traces  to  gsmmap.org  for  further  analysis  (Thank  you.)   Tool  name   Purpose   Requirements   Source   SIMtester   PC/SC  smartcard  reader  –or–  Osmocom  phone   opensource.srlabs.de

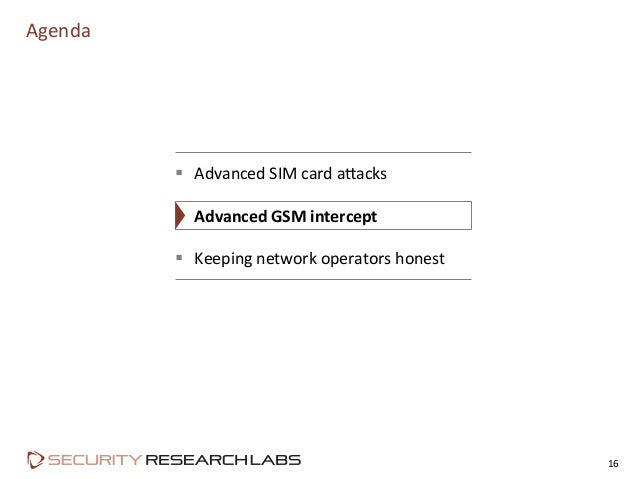

  16. 16. Agenda   16   §  Advanced  SIM  card  a9acks   §  Advanced  GSM  intercept   §  Keeping  network  operators  honest

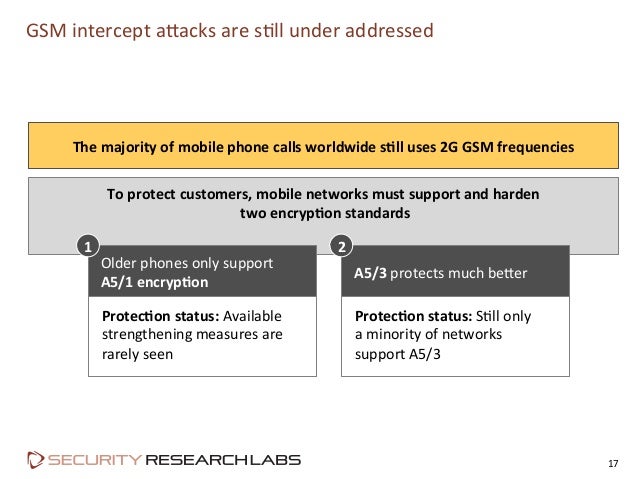

  17. 17. GSM  intercept  a9acks  are  s=ll  under  addressed     17   To  protect  customers,  mobile  networks  must  support  and  harden    two  encryp=on  standards   The  majority  of  mobile  phone  calls  worldwide  s=ll  uses  2G  GSM  frequencies   Older  phones  only  support     A5/1  encryp=on   Protec=on  status:  Available   strengthening  measures  are   rarely  seen   1   A5/3  protects  much  be9er   Protec=on  status:  S=ll  only   a  minority  of  networks   support  A5/3   2

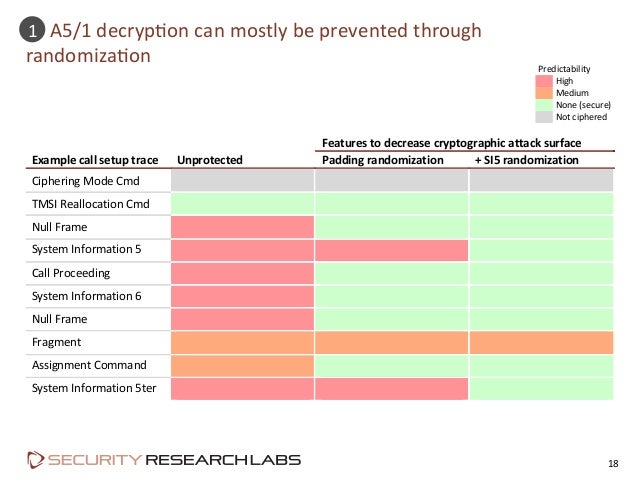

  18. 18.          A5/1  decryp=on  can  mostly  be  prevented  through   randomiza=on   ! ! Features!to!decrease!cryptographic!attack!surface! Example!call!setup!trace! Unprotected!! Padding!randomization! +!SI5!randomization! Ciphering)Mode)Cmd) ) ) ) TMSI)Reallocation)Cmd) ) ) ) Null)Frame) ) ) ) System)Information)5) ) ) ) Call)Proceeding) ) ) ) System)Information)6) ) ) ) Null)Frame) ) ) ) Fragment) ) ) ) Assignment)Command) ) ) ) System)Information)5ter) ) ) ) ) Predictability, , High, , Medium, , None,(secure), , Not,ciphered, , 18   1

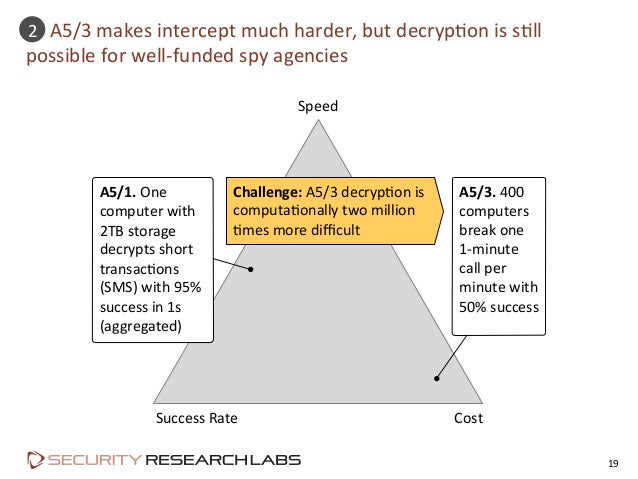

  19. 19.          A5/3  makes  intercept  much  harder,  but  decryp=on  is  s=ll   possible  for  well-­‐funded  spy  agencies   19   Speed   Success  Rate   Cost   A5/1.  One   computer  with   2TB  storage   decrypts  short   transac=ons   (SMS)  with  95%   success  in  1s   (aggregated)   A5/3.  400   computers   break  one     1-­‐minute   call  per   minute  with   50%  success   Challenge:  A5/3  decryp=on  is   computa=onally  two  million   =mes  more  difficult   2
  20. 20. Agenda   20   §  Advanced  SIM  card  a9acks   §  Advanced  GSM  intercept   §  Keeping  network  operators  honest

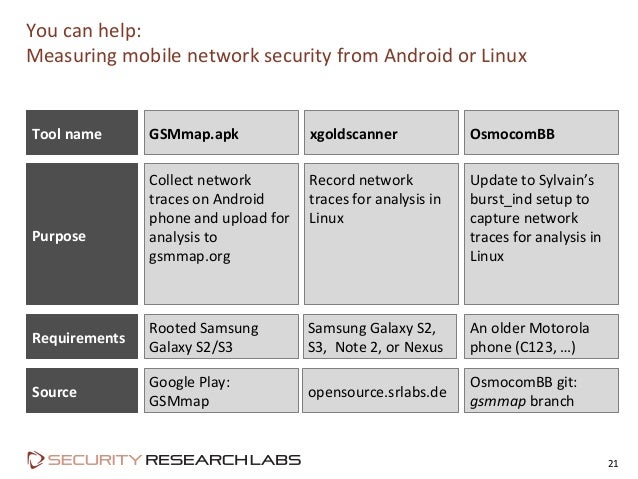

  21. 21. You  can  help:   Measuring  mobile  network  security  from  Android  or  Linux   21   Tool  name   GSMmap.apk   xgoldscanner   OsmocomBB   Purpose   Collect  network   traces  on  Android   phone  and  upload  for   analysis  to   gsmmap.org   Record  network   traces  for  analysis  in   Linux   Update  to  Sylvain’s   burst_ind  setup  to   capture  network   traces  for  analysis  in   Linux   Requirements   Rooted  Samsung   Galaxy  S2/S3   An  older  Motorola   phone  (C123,  …)   Samsung  Galaxy  S2,   S3,    Note  2,  or  Nexus   Source   opensource.srlabs.de   OsmocomBB  git:   gsmmap  branch   Google  Play:     GSMmap

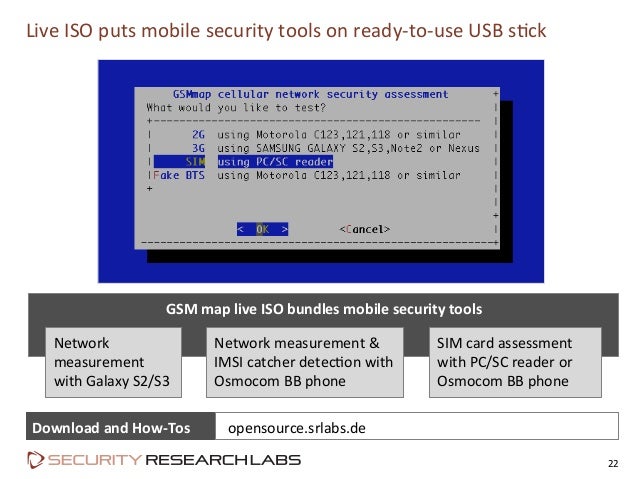

  22. 22. Live  ISO  puts  mobile  security  tools  on  ready-­‐to-­‐use  USB  s=ck   22   GSM  map  live  ISO  bundles  mobile  security  tools   Network   measurement   with  Galaxy  S2/S3   Network  measurement  &   IMSI  catcher  detec=on  with   Osmocom  BB  phone   SIM  card  assessment   with  PC/SC  reader  or   Osmocom  BB  phone   Download  and  How-­‐Tos      opensource.srlabs.de

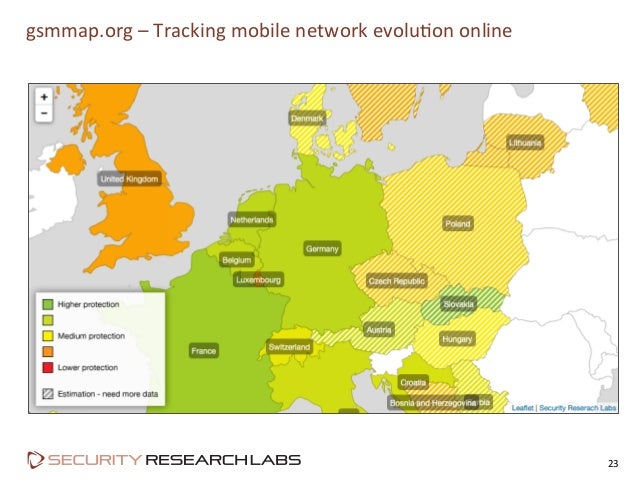

  23. 23. gsmmap.org  –  Tracking  mobile  network  evolu=on  online     23
  24. 24. Thank  you!   Ques=ons?   24   Karsten  Nohl  <nohl@srlabs.de>   Many  thanks  to  Lukas  Kuzmiak,  Luca   Mele<e,  and    Linus  Neumann  for  crea=ng   and  suppor=ng  our  research  tools!   Research  supported  by

×
