This document discusses special forming applications and solutions for deburring and punching thick materials. It provides examples of rollerball deburring, straight line deburring, double and special bridge designs, large extrusions, double lance and form tools, pre-punching smaller squares to reduce tonnage for bigger holes, Z-shape bending tools, and special forming applications with two 90 degree bends or other complex shapes. The goal is to eliminate secondary deburring operations and provide custom tools for complex forming needs.

1. SPECIAL FORMING
APPLICATIONS
FOR YOUR INSPIRATION
1All images copyright Mate Precision Tooling, Inc.

2. 1. Rollerball Deburr™
2. Straight Line
Deburr
Eliminate secondary
deburring operations
2
Note: Machine must be able to work
in ram down mode.
DEBURRING SOLUTIONS

3. 3

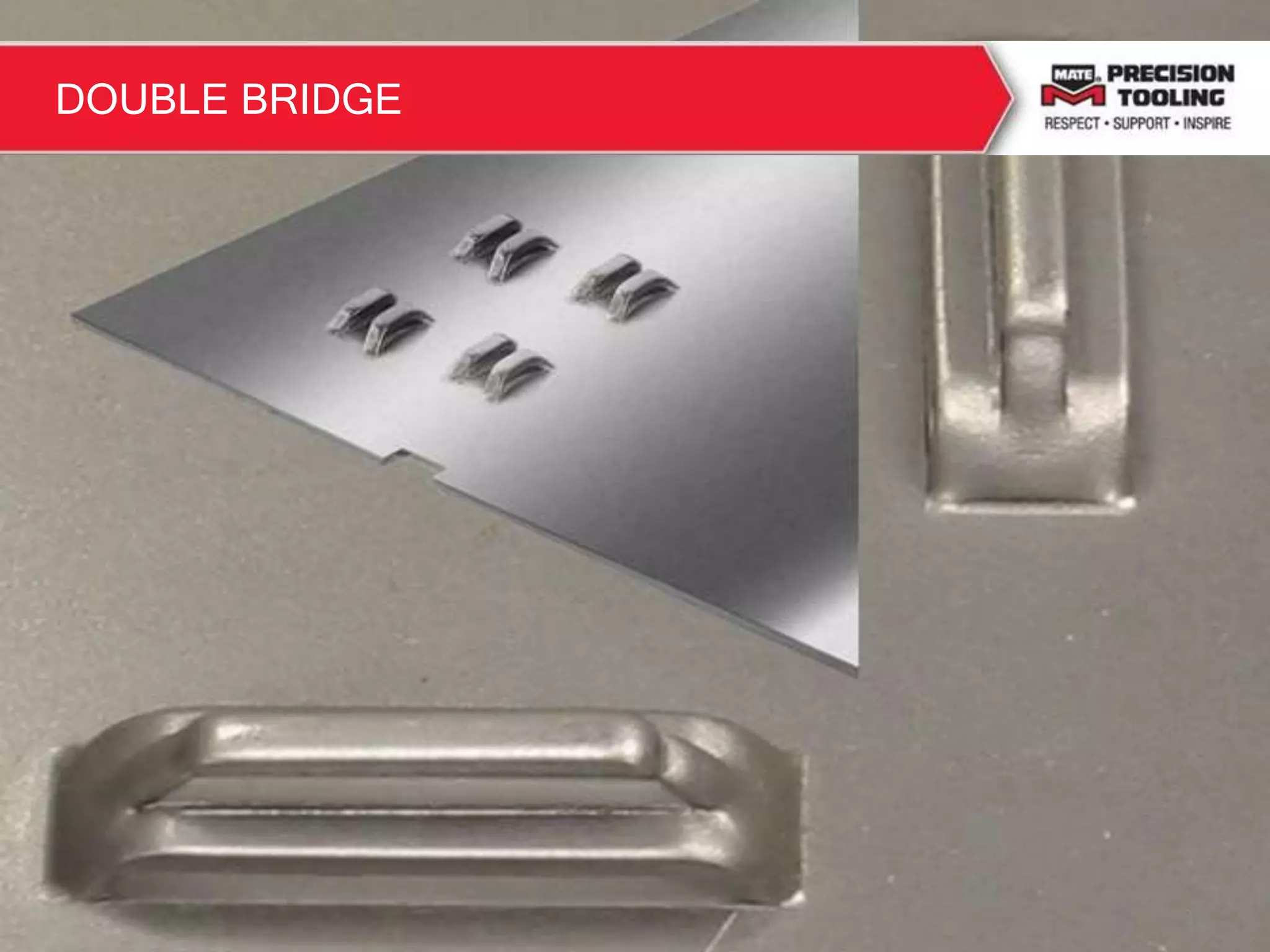

DOUBLE BRIDGE

4. Single bridge at dedicated
angle with special reliefs for
closer spacing Etch: 11168237)
4
SPECIAL BRIDGE

5. Multiple bridges
as card guide solution
5
BRIDGE CLUSTER

6. 6
CROSS SHAPED BRIDGE

7. 7

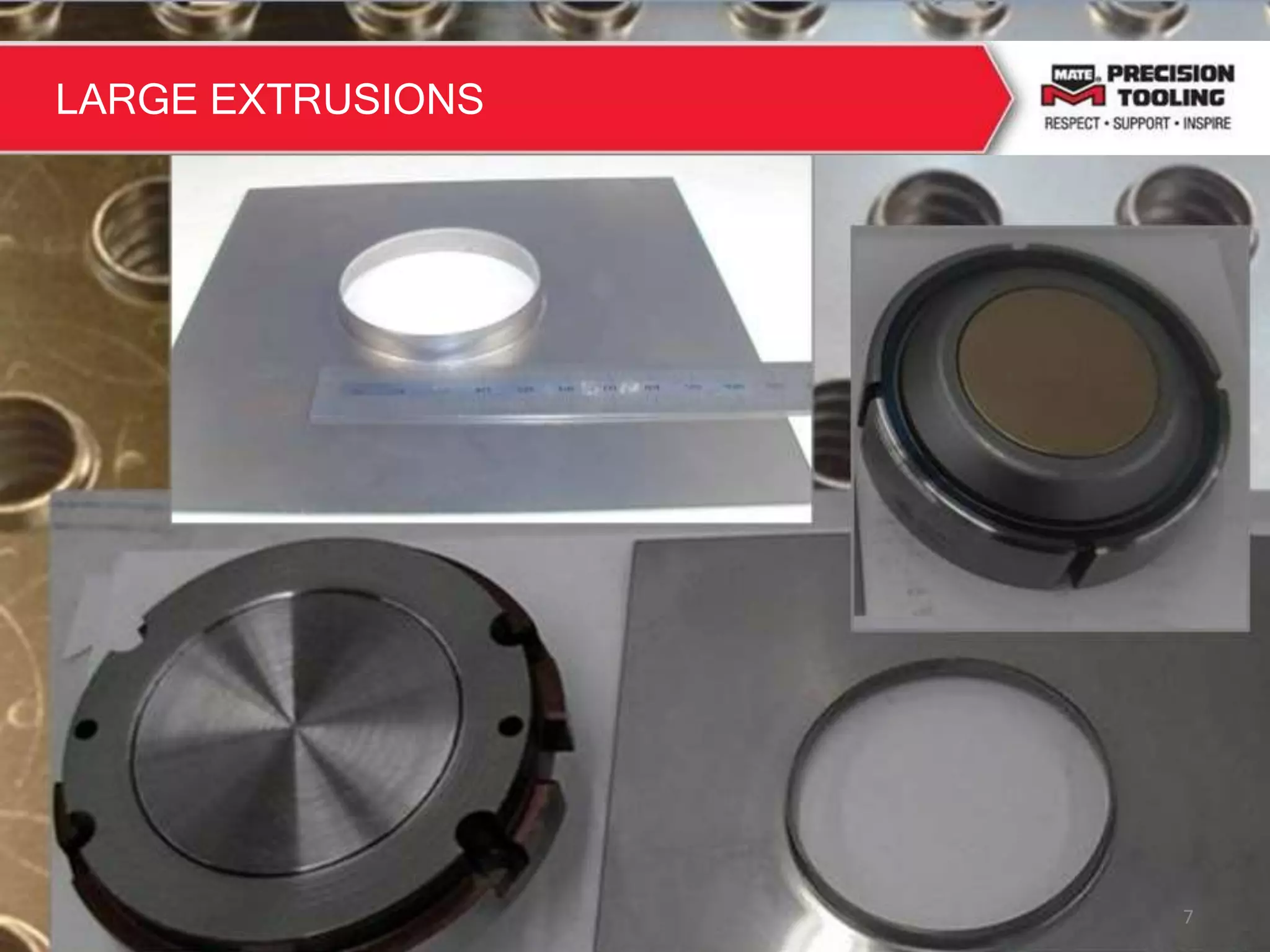

LARGE EXTRUSIONS

8. 8
DOUBLE LANCE & FORM

9. 9
DOUBLE LANCE & FORM

10. 10
Pre-punching of smaller
squares can reduce the
required tonnage for bigger
holes
‘Bridge hitting’ on the contour
centralizes the punch load
PUNCHING THICK MATERIAL

11. 11
Special shape bridge with
7 to 9mm air gap in
3.5mm thick stainless
steel
SPECIAL SHAPE BRIDGES

12. 12

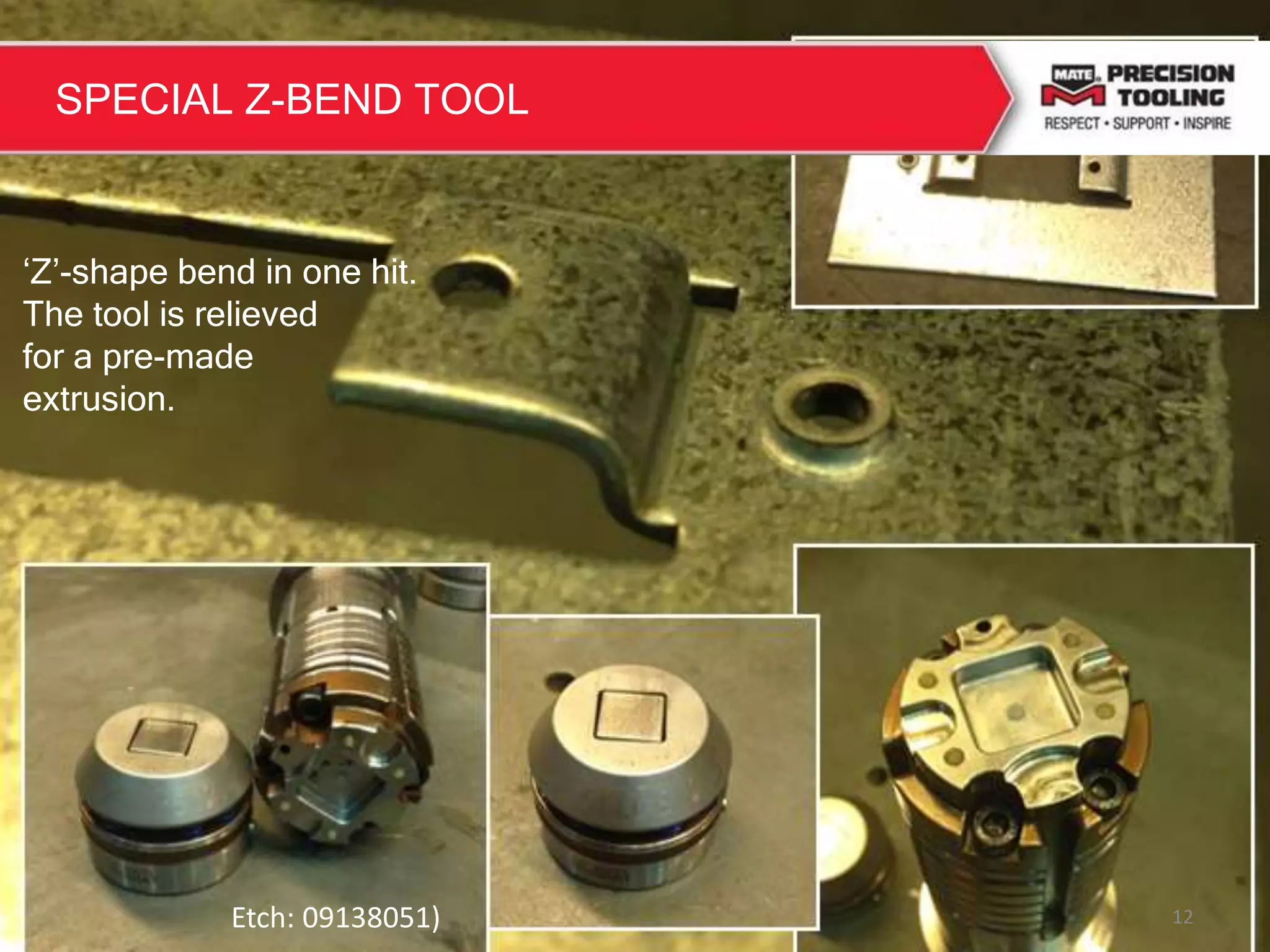

‘Z’-shape bend in one hit.
The tool is relieved
for a pre-made
extrusion.
Etch: 09138051)
SPECIAL Z-BEND TOOL

13. Special forming with
two 90° bends
(left and right side of the part in
separate forming operations)
13
Etch: 06164146
SPECIAL Z-BEND TOOL

14. 14
(etch 01079179)
SPECIAL FORMING APPLICATION

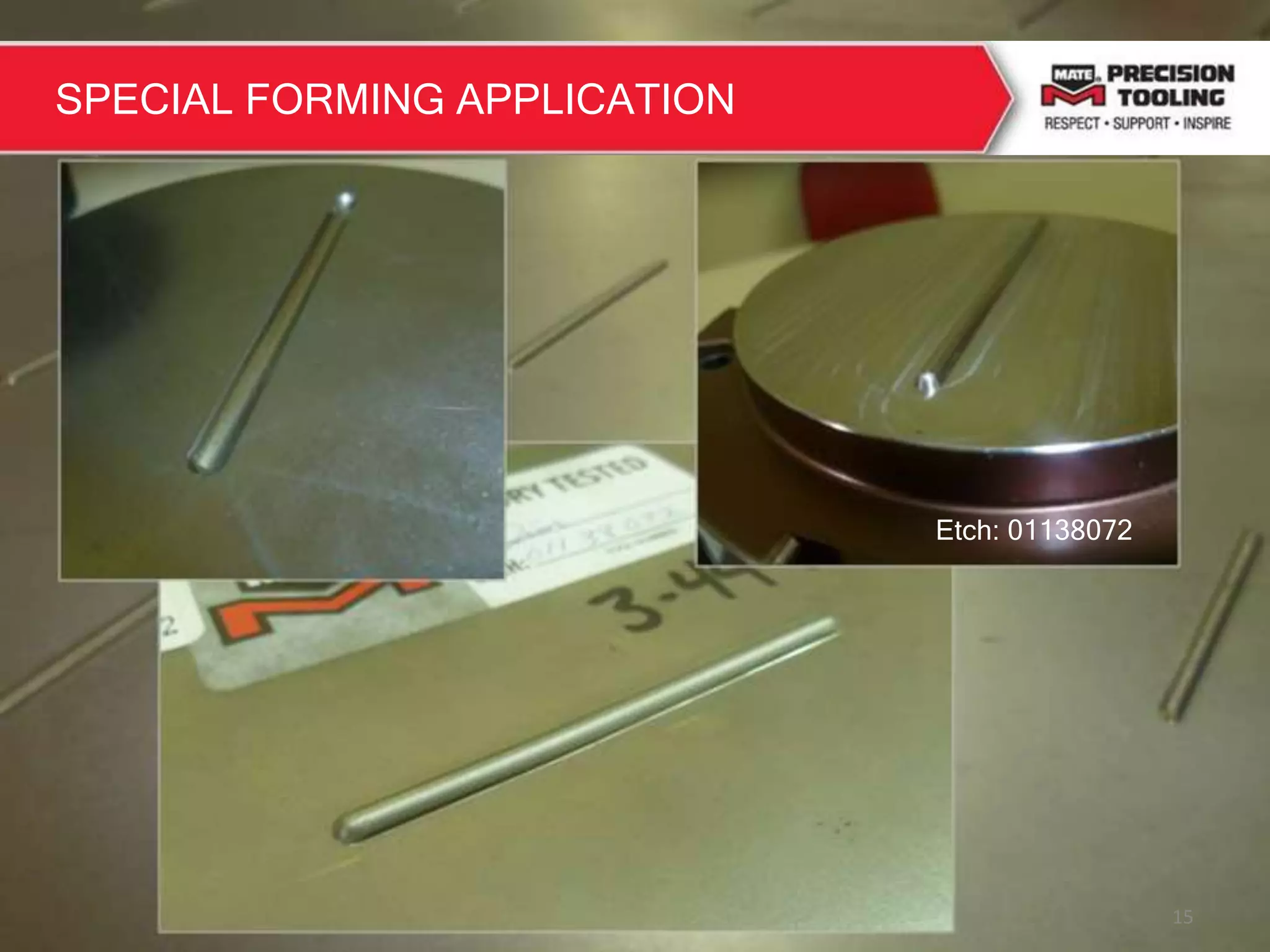

15. 15
Etch: 01138072
SPECIAL FORMING APPLICATION
