A few weeks into your tenure as a software engineer at the Ministry of Truth you are assigned your first real feature request: write a context manager that can make “2 + 2” equal 5 at runtime. Your solution should be written only in Python (for maximum portability). Absurd? Perhaps, but you know better than to ask questions. You are no thought-criminal. In this talk I walk through the steps I took to modify the value of two plus two in CPython at runtime—using only Python and the ctypes module. What began for me as a silly and frivolous side project became an education in how the python data model works behind the scenes and how CPython compiles, optimizes, and executes python code. The goal of this talk is to provide an introduction to CPython internals while walking through the steps needed to monkeypatch integer addition to make “2 + 2” equal 5. The audience should come away with a better understanding of how python objects and types are represented in memory, how references are counted, and how python scripts are transformed into abstract syntax trees, compiled into code objects, and then executed by the CPython virtual stack machine. And because I’ve limited myself to using ctypes, these topics can be explored without familiarity with C as a prerequisite.

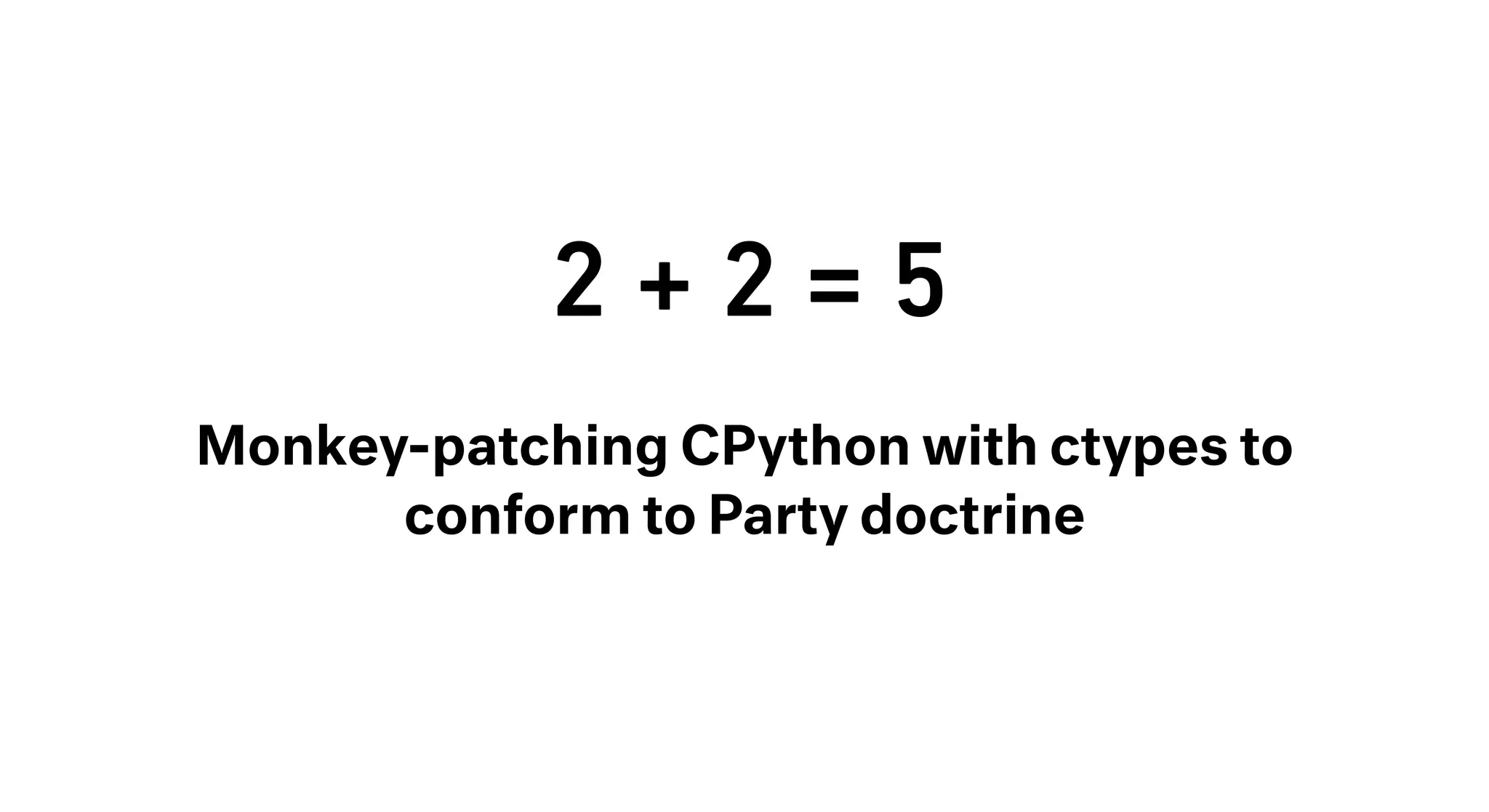

1. 2 + 2 = 5
Monkey-patching CPython with ctypes to
conform to Party doctrine

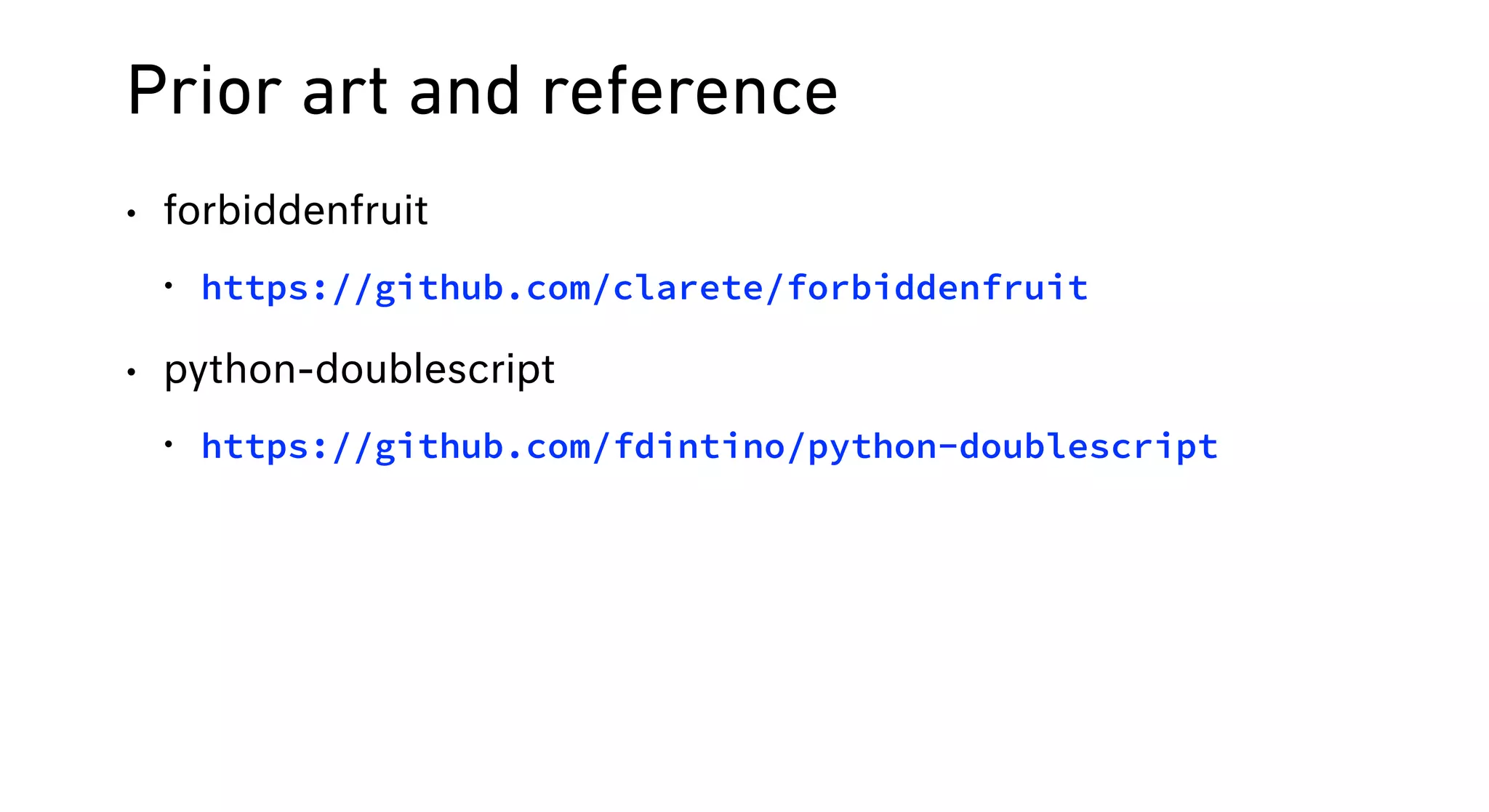

2. Prior art and reference
• forbiddenfruit
• https://github.com/clarete/forbiddenfruit
• python-doublescript
• https://github.com/fdintino/python-doublescript

3. Test-driven development
class TwoPlusTwoTestCase(TestCase):
def test_two_plus_two(self):
with two_plus_two_equals(5):
self.assertEqual(2 + 2, 5)

4. Naive approach
old_int_add = int.__add__
def int_add(a, b):
if a == b == 2:
return 5
else:
return old_int_add(a, b)
int.__add__ = int_add
int.__dict__['__add__'] = int_add
TypeError: can't set attributes of built-in/extension type 'int'
TypeError: 'dictproxy' object does not support item assignment

5. ctypes crash course
from ctypes import (
pythonapi, Structure, c_char_p, CFUNCTYPE)

6. ctypes.pythonapi
>>> from ctypes import pythonapi, c_char_p
>>> pythonapi.Py_GetVersion.restype = c_char_p
>>> pythonapi.Py_GetVersion()
2.7.13 (default, Feb 23 2017, 08:50:00)
[GCC 4.2.1 Compatible Apple LLVM 8.0.0 (clang-800.0.42.1)]

7. ctypes.py_object
from ctypes import pythonapi, py_object
PyNumber_Absolute = pythonapi.PyNumber_Absolute
PyNumber_Absolute.argtypes = [py_object]
PyNumber_Absolute.restype = py_object
PyNumber_Absolute(-3) # 3

8. ctypes.Structure
class PyObject(Structure):
_fields_ = [
('ob_refcnt', Py_ssize_t),
('ob_type', py_object),
]

9. _CData.from_address(), POINTER
class PyObject(Structure):
_fields_ = [
('ob_refcnt', Py_ssize_t),
('ob_type', py_object)]
py_object_p = ctypes.POINTER(py_object) # We will use this later
foo = "foo"
pyobj = PyObject.from_address(id(foo))
print(pyobj.ob_refcnt) # 7
print(sys.getrefcount(foo)) # 8

10. Overriding int.__add__
>>> print type(int.__dict__)
<type 'dictproxy'>
# Python 3
>>> print(type(int.__dict__))
<class 'mappingproxy'>

11. Overriding int.__add__
typedef struct {
PyObject_HEAD
PyObject *dict;
} proxyobject;

12. Overriding int.__add__
class DictProxy(PyObject):
_fields_ = [
('dict', ctypes.POINTER(PyObject)),
]

13. Overriding int.__add__
def mutable_class_dict(cls):
dp = DictProxy.from_address(id(cls.__dict__))
temp = {}
pythonapi.PyDict_SetItem(
py_object(temp),
py_object(None),
dp.dict)
return temp[None]

14. Overriding int.__add__
old_int_add = int.__add__
def int_add(a, b):
if a == b == 2:
return 5
else:
return old_int_add(a, b)
int_dict = mutable_class_dict(int)
int_dict['__add__'] = int_add

15. Overriding int.__add__
>>> 2 + 2
4
>>> (2).__add__(2)
5

16. Why doesn’t overriding __add__ suffice?
PyObject *
PyNumber_Add(PyObject *v, PyObject *w)
{
PyObject *result = binary_op1(v, w, NB_SLOT(nb_add));
if (result == Py_NotImplemented) { /* ... */ }
return result;
}

17. /* object.h */
typedef struct _typeobject {
PyObject_VAR_HEAD
const char *tp_name; /* For printing, in format "<module>.<name>" */
Py_ssize_t tp_basicsize, tp_itemsize; /* For allocation */
/* Methods to implement standard operations */
destructor tp_dealloc;
printfunc tp_print;
getattrfunc tp_getattr;
/* ... */
/* Method suites for standard classes */
PySequenceMethods *tp_as_sequence;
PyMappingMethods *tp_as_mapping;
/* ... */
} PyTypeObject;
PyNumberMethods *tp_as_number;

18. /* object.h */
typedef PyObject * (*binaryfunc)(PyObject *, PyObject *);
typedef struct {
binaryfunc nb_add;
binaryfunc nb_subtract;
binaryfunc nb_multiply;
/* ... */
} PyNumberMethods;
• binaryfunc: a pointer to a function that takes two PyObject pointers as
arguments and returns a pointer to a PyObject
• Use ctypes.CFUNCTYPE(return_type, *arg_types)
binaryfunc = ctypes.CFUNCTYPE(py_object_p, py_object_p, py_object_p)
typedef PyObject * (*binaryfunc)(PyObject *, PyObject *);

19. /* object.h */
typedef PyObject * (*binaryfunc)(PyObject *, PyObject *);
typedef struct {
binaryfunc nb_add;
binaryfunc nb_subtract;
binaryfunc nb_multiply;
/* ... */
} PyNumberMethods;
• Use ctypes.Structure to represent the PyNumberMethods struct:
class PyNumberMethods(Structure):
_fields_ = [
('nb_add', binaryfunc),
('nb_subtract', binaryfunc),
('nb_multiply', binaryfunc),
# ...
]
typedef struct {
binaryfunc nb_add;
binaryfunc nb_subtract;
binaryfunc nb_multiply;
/* ... */
} PyNumberMethods;

20. class PyTypeObject(PyObject):
_fields_ = [
('ob_size', Py_ssize_t),
('tp_name', c_char_p),
('tp_basicsize', Py_ssize_t),
('tp_itemsize', Py_ssize_t),
('...', c_void_p * 6), # skip 6 functions, like tp_repr, for brevity
('tp_as_number', POINTER(PyNumberMethods)),
# ...
]
PyInt_Type = PyTypeObject.from_address(id(int))
>>> PyInt_Type.tp_as_number.contents.nb_add(2, 2)
4

21. def get_pointer_addr(cdata):
tmp_pointer = ctypes.cast(ctypes.byref(cdata), POINTER(c_void_p))
return tmp_pointer.contents.value
@contextlib.contextmanager
def two_plus_two_equals(new_sum):
old_nb_add_addr = get_pointer_addr(
Py_IntType.tp_as_number.contents.nb_add)
old_nb_add = binaryfunc(old_nb_add_addr)
def int_add(a, b):
if a == b == 2:
return new_sum
else:
return old_nb_add(a, b)
nb_add = binaryfunc(int_add)
Py_IntType.tp_as_number.contents.nb_add = nb_add
yield
Py_IntType.tp_as_number.contents.nb_add = old_nb_add

22. >>> with two_plus_two_equals(5):
... print(2 + 2)
4
>>> with two_plus_two_equals(5):
... print(eval("2 + 2"))
5
"2 + 2"

23. Using the dis module to see what’s going on
import dis
two = 2
def add_two_plus_two():
return two + two
>>> dis.dis(add_two_plus_two)
2 0 LOAD_GLOBAL 0 (two)
3 LOAD_GLOBAL 0 (two)
6 BINARY_ADD
7 RETURN_VALUE

24. The BINARY_ADD instruction opcode
/* ceval.c: PyEval_EvalFrameEx */
TARGET_NOARG(BINARY_ADD) {
w = POP();
v = TOP();
if (PyInt_CheckExact(v) && PyInt_CheckExact(w)) {
/* INLINE: int + int */
register long a, b, i;
a = PyInt_AS_LONG(v);
b = PyInt_AS_LONG(w);
i = (long)((unsigned long)a + b);
x = PyInt_FromLong(i);
}
/* ... */
}
PyInt_CheckExact(v) PyInt_CheckExact(w)

25. class int2(int):
def __add__(self, other):
if self == other == 2:
return 5
else:
return int.__add__(self, other)
>>> (2).__class__ = int2
Solution: change (2).__class__ to something
other than int
TypeError: __class__ assignment: only for heap types

26. def set_type(obj, new_type):
old_type = obj.__class__
new_c_typeobj = PyTypeObject.from_address(id(new_type))
if new_c_typeobj.tp_flags & Py_TPFLAGS.HEAPTYPE:
Py_INCREF(new_type)
c_obj = PyObject.from_address(id(obj))
c_obj.ob_type = new_type
old_c_typeobj = PyTypeObject.from_address(id(old_type))
if old_c_typeobj.tp_flags & Py_TPFLAGS.HEAPTYPE:
Py_DECREF(old_type)
@contextlib.contextmanager
def override_type(obj, new_type):
old_type = obj.__class__
set_type(obj, new_type)
yield
set_type(obj, old_type)

27. >>> with override_type(2, int2):
... print(eval("2 + 2"))
5
>>> two = 2
>>> with override_type(2, int2):
... print(two + two)
5
>>> with override_type(2, int2):
... print(2 + 2)
4

28. Final obstacle: peephole optimization
• When we disassembled the bytecode earlier, we used a
variable two rather than a literal 2:
import dis
two = 2
def add_two_plus_two():
return two + two
>>> dis.dis(add_two_plus_two)
2 0 LOAD_GLOBAL 0 (two)
3 LOAD_GLOBAL 0 (two)
6 BINARY_ADD
7 RETURN_VALUE

29. Final obstacle
• What happens if we use a literal 2?
import dis
def add_two_plus_two():
return 2 + 2
>>> dis.dis(add_two_plus_two)
4 0 LOAD_CONST 2 (4)
3 RETURN_VALUE
?!

30. What’s going on?
• peephole optimization: an optimization technique in compilers
where certain recognized instructions are replaced with
shorter or faster versions.
• In CPython, performed by the C function PyCode_Optimize
• Does not occur in an eval, hence why eval("2 + 2") works.

31. PyCode_Optimize
007d0850 PUSH R15
007d0852 PUSH R14
007d0854 MOV R14, RSI
007d0857 PUSH R13
...
NoOp_PyCode_Optimize
00ccc010 MOV R11, 0x...beee
00ccc01a MOV R10, 0x...2010
00ccc024 CLC
00ccc025 JMP R11
...
PyCode_Optimize
007d0850 JMP 0xbb7000
007d0856 NOP
007d0857 PUSH R13
...
007d0850 JMP 0xbb7000
007d0856 NOP
Disabling with a trampoline function

32. Success!
class TwoPlusTwoTestCase(TestCase):
def test_two_plus_two(self):
with two_plus_two_equals(5):
self.assertEqual(2 + 2, 5)
$ python runtests.py
.
----------------------------------------------------------------------
Ran 1 test in 0.187s
OK

33. We’re hiring

34. github.com/fdintino/python-doublescript
@frankiedintino
frankie@theatlantic.com
