For enterprise projects, maintaining automation tests suite is always a challenge.
* Detailed walkthru of automation pyramid containing different types of specification driven tests layer.
* Framework built using RSpec, Spinach, Cucumber, webkit and Webdriver with examples
* Process of evolving and building specification tests
* Tips to maintain test suite and minimize test run durations

Published in: Technology

Specifications test automation pyramid public

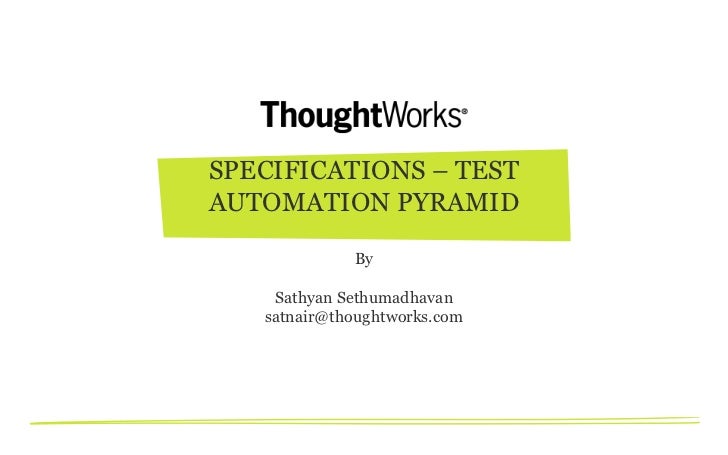

  1. 1. SPECIFICATIONS – TESTAUTOMATION PYRAMID By Sathyan Sethumadhavan satnair@thoughtworks.com

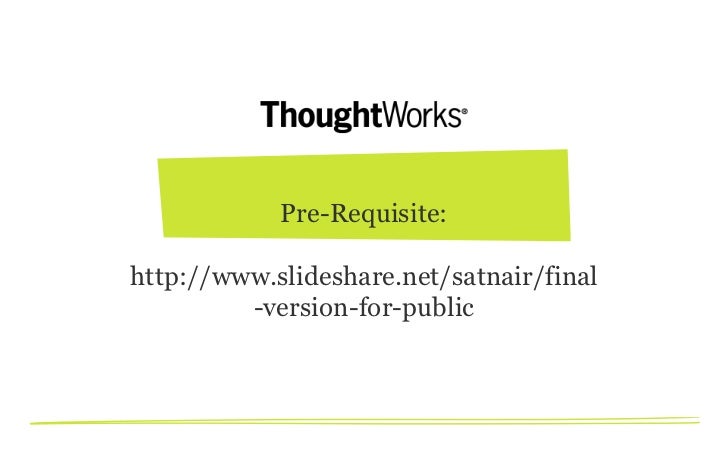

  2. 2. Pre-Requisite:http://www.slideshare.net/satnair/final -version-for-public

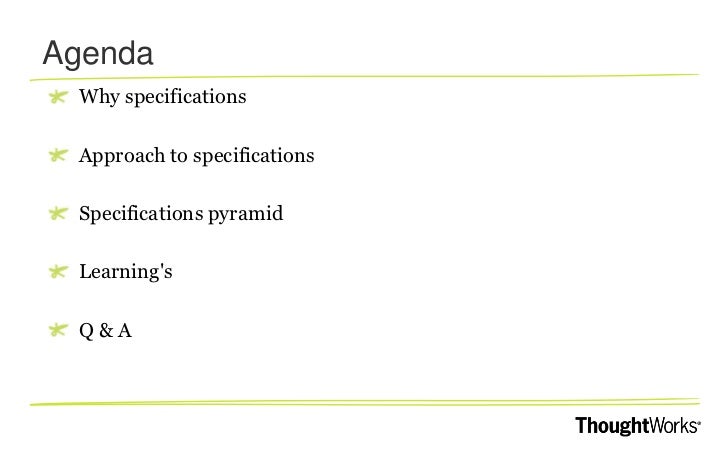

  3. 3. Agenda Why specifications Approach to specifications Specifications pyramid Learnings Q&A

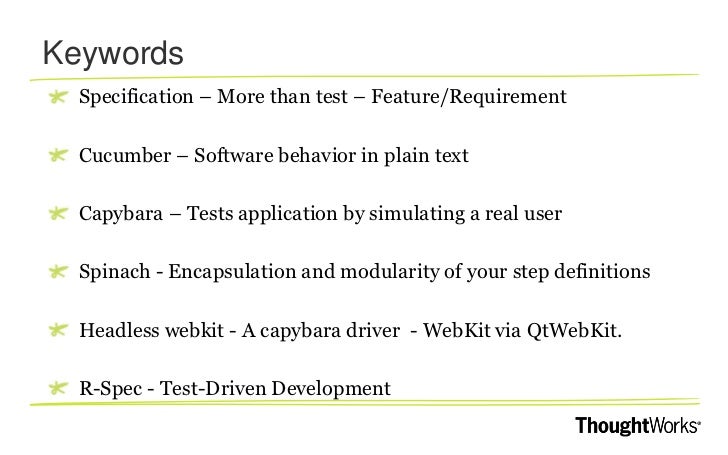

  4. 4. Keywords Specification – More than test – Feature/Requirement Cucumber – Software behavior in plain text Capybara – Tests application by simulating a real user Spinach - Encapsulation and modularity of your step definitions Headless webkit - A capybara driver - WebKit via QtWebKit. R-Spec - Test-Driven Development
  5. 5. Let’s talk about Why specifications Approach to specifications Specifications pyramid Learnings Q&A
  6. 6. Trying to solve these challenges? Defects leakage - missing Requirements Tests and requirements Frequent changes - documents becomes stale breaks existing functionalities Long Regression Spends more time on defect Cycles management and triage Less confidence - Existing test coverage
  7. 7. Trying to solve these challenges? Defects leakage - missing Requirements Less confidence - Existing test coverage

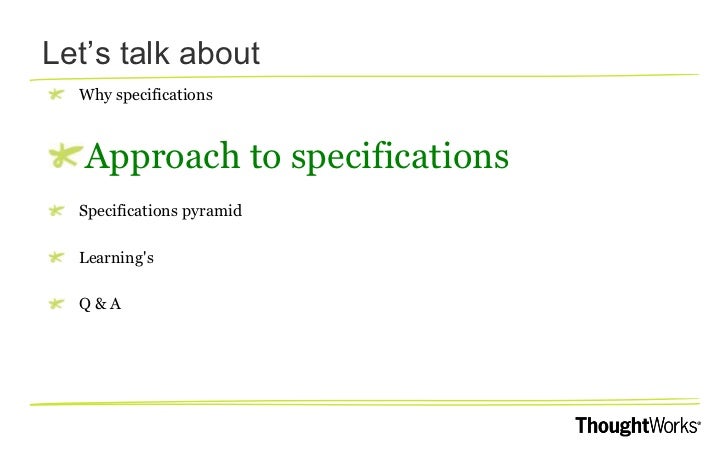

  8. 8. Let’s talk about Why specifications Approach to specifications Specifications pyramid Learnings Q&A
  9. 9. Specifications Maintaining Specifications Executing Specifications Implementing Specifications Evolving Specifications

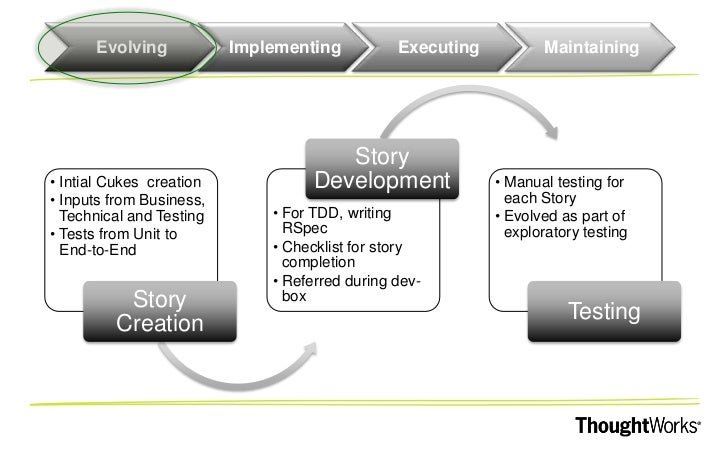

  10. 10. Evolving Implementing Executing Maintaining Story• Intial Cukes creation Development • Manual testing for• Inputs from Business, each Story Technical and Testing • For TDD, writing • Evolved as part of• Tests from Unit to RSpec exploratory testing End-to-End • Checklist for story completion • Referred during dev- Story box Testing Creation
  11. 11. Evolving Implementing Executing Maintaining Story• Intial Cukes creation Development • Manual testing for• Inputs from Business, each Story Technical and Testing • For TDD, writing • Evolved as part of• Tests from Unit to RSpec exploratory testing End-to-End • Checklist for story completion • Referred during dev- Story box Testing Creation
  12. 12. Evolving Implementing Executing Maintaining Story• Intial Cukes creation Development • Manual testing for• Inputs from each Story Business, Technical • For TDD, writing • Evolved as part of and Testing RSpec exploratory testing• Tests from Unit to • Checklist for story End-to-End completion • Referred during dev- Story box Testing Creation

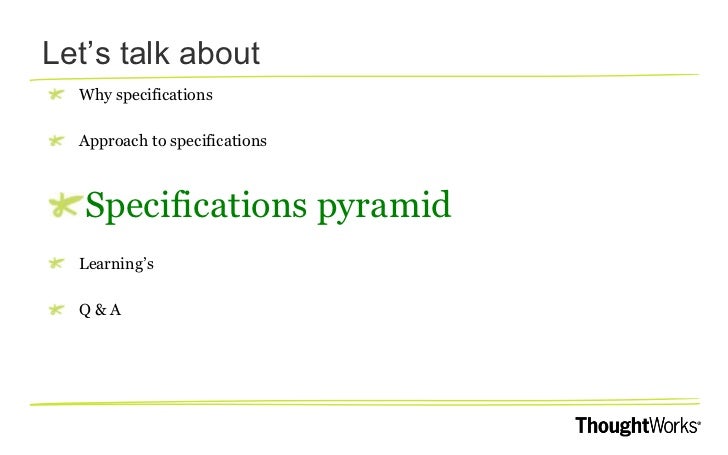

  13. 13. Let’s talk about Why specifications Approach to specifications Specifications pyramid Learning’s Q&A

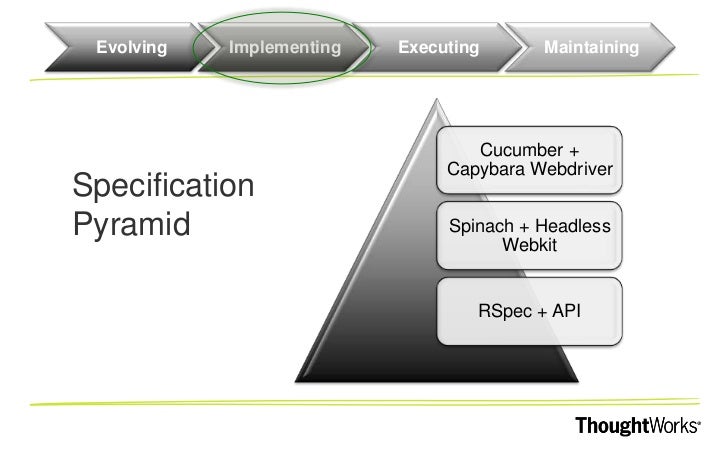

  14. 14. Evolving Implementing Executing Maintaining Cucumber + Capybara WebdriverSpecificationPyramid Spinach + Headless Webkit RSpec + API

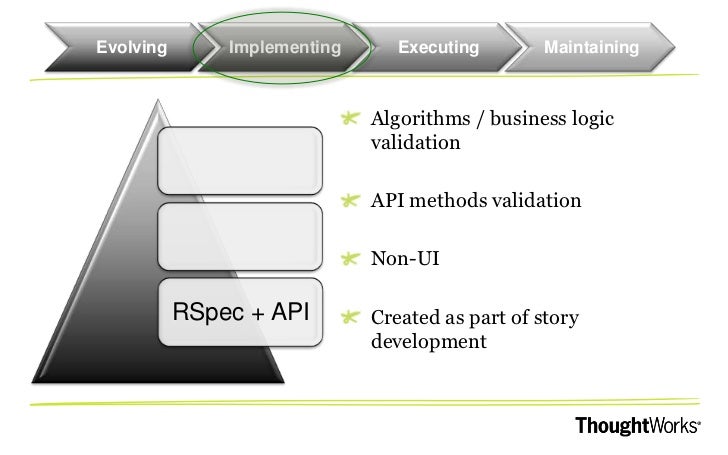

  15. 15. Evolving Implementing Executing Maintaining Algorithms / business logic validation API methods validation Non-UI RSpec + API Created as part of story development
  16. 16. Evolving Implementing Executing Maintaining Algorithms / business logic validation API methods validation Non-UI RSpec + API Created as part of story development
  17. 17. Evolving Implementing Executing Maintaining Presentation layer validations Story level validations Spinach + Jobs related functionalities Headless Webkit Created after story development RSpec + API complete (QA’s / Dev’s)
  18. 18. Evolving Implementing Executing Maintaining Presentation layer validations Story level validations Spinach + Jobs related functionalities Headless Webkit Created after story development RSpec + API complete (QA’s / Dev’s)
  19. 19. Evolving Implementing Executing Maintaining End user entry and exit scenarios Cucumber + Capybara Webdriver Story level UI validations Spinach + Headless End-To-End business scenarios Webkit Created after story development RSpec + API complete (QA’s / Dev’s)
  20. 20. Evolving Implementing Executing Maintaining End user entry and exit scenarios Cucumber + Capybara Webdriver Story level UI validations Spinach + Headless End-To-End business scenarios Webkit Created after story development RSpec + API complete (QA’s / Dev’s)

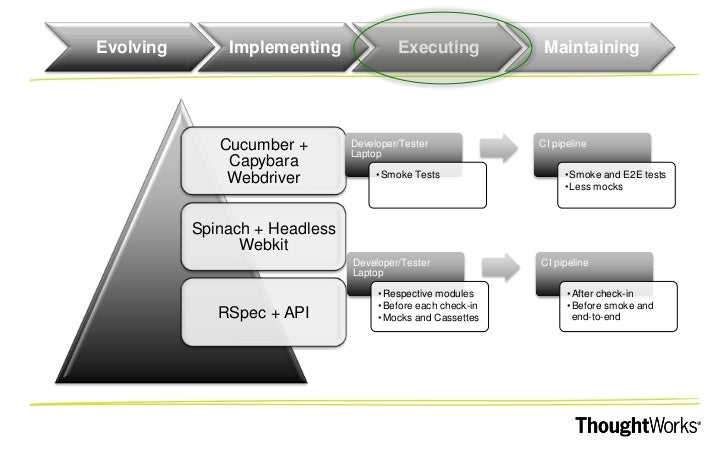

  21. 21. Evolving Implementing Executing Maintaining Cucumber + Developer/Tester Laptop CI pipeline Capybara • Smoke Tests • Smoke and E2E tests Webdriver • Less mocks Spinach + Headless Webkit Developer/Tester CI pipeline Laptop • Respective modules • After check-in • Before each check-in • Before smoke and RSpec + API • Mocks and Cassettes end-to-end

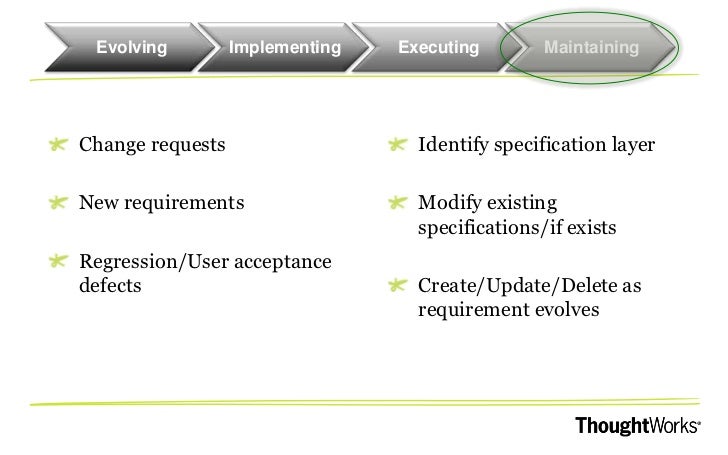

  22. 22. Evolving Implementing Executing MaintainingChange requests Identify specification layerNew requirements Modify existing specifications/if existsRegression/User acceptancedefects Create/Update/Delete as requirement evolves

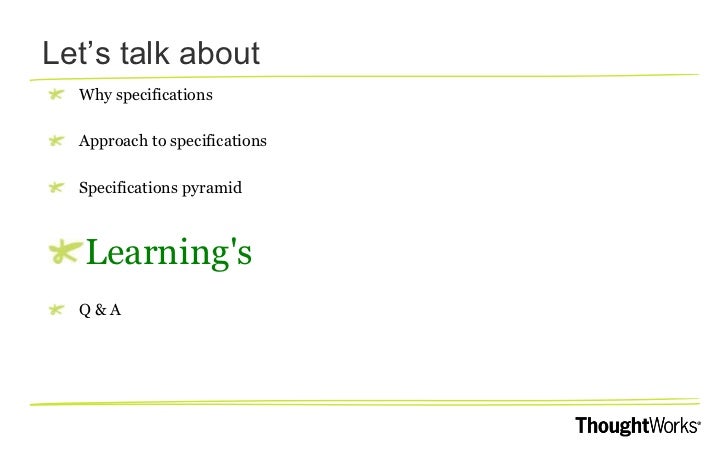

  23. 23. Let’s talk about Why specifications Approach to specifications Specifications pyramid Learnings Q&A

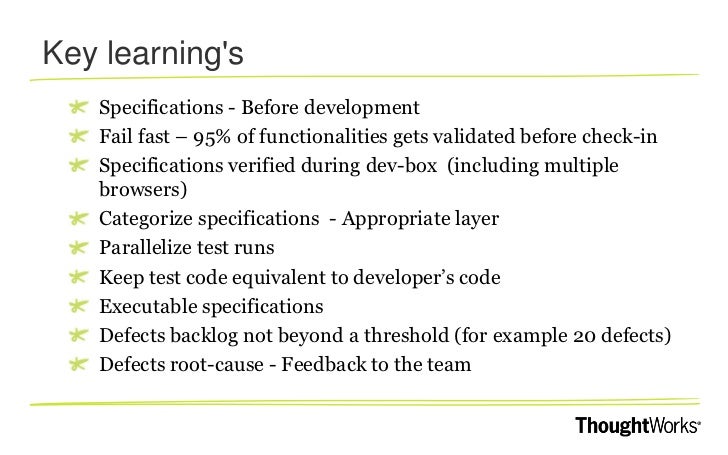

  24. 24. Key learnings Specifications - Before development Fail fast – 95% of functionalities gets validated before check-in Specifications verified during dev-box (including multiple browsers) Categorize specifications - Appropriate layer Parallelize test runs Keep test code equivalent to developer’s code Executable specifications Defects backlog not beyond a threshold (for example 20 defects) Defects root-cause - Feedback to the team

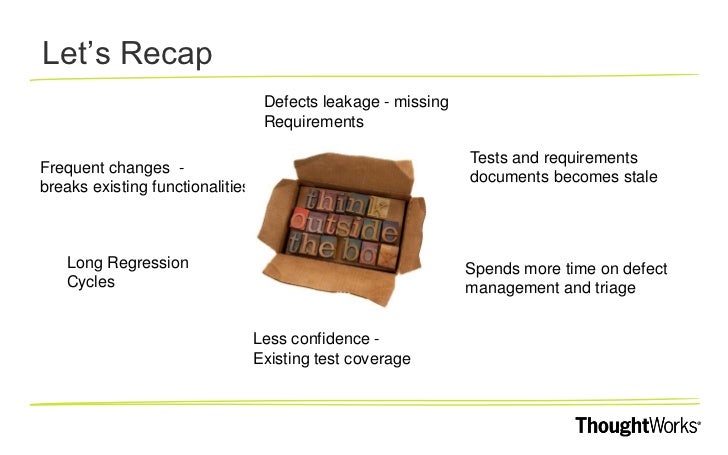

  25. 25. Let’s Recap Defects leakage - missing Requirements Tests and requirementsFrequent changes - documents becomes stalebreaks existing functionalities Long Regression Spends more time on defect Cycles management and triage Less confidence - Existing test coverage

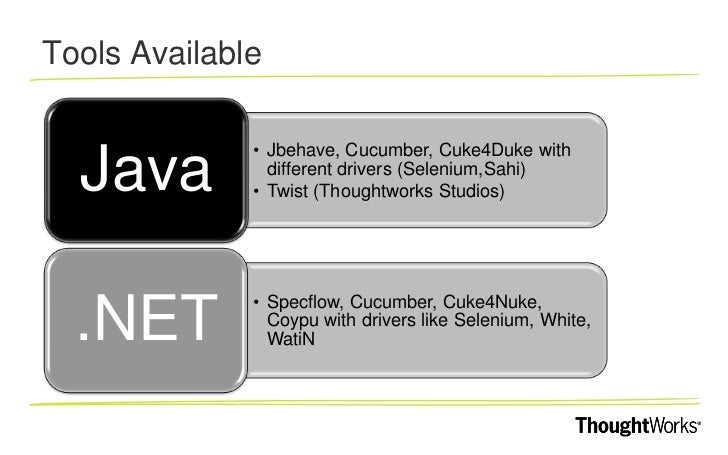

  26. 26. Tools Available • Jbehave, Cucumber, Cuke4Duke with Java different drivers (Selenium,Sahi) • Twist (Thoughtworks Studios) • Specflow, Cucumber, Cuke4Nuke, .NET Coypu with drivers like Selenium, White, WatiN

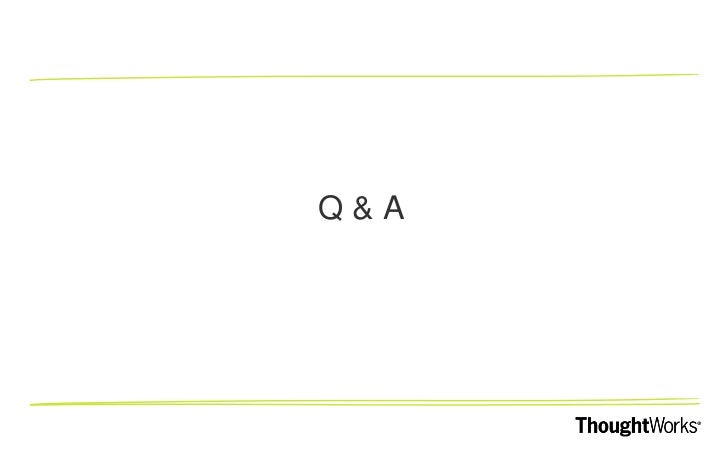

  27. 27. Q&A
