This document discusses code quality and testing tools from Micro Focus including DevPartner Studio, SilkTest, and Silk Central Test Manager. It summarizes the capabilities of these tools such as source code review, security scanning, debugging, performance analysis, test automation, requirements management, and deployment. The document emphasizes that these tools can help achieve better software faster through a proactive approach to continuous integration, testing, and analysis.

1. Marcel Jankie
Solution Architect Code Quality
“Better Software Faster”
International Region

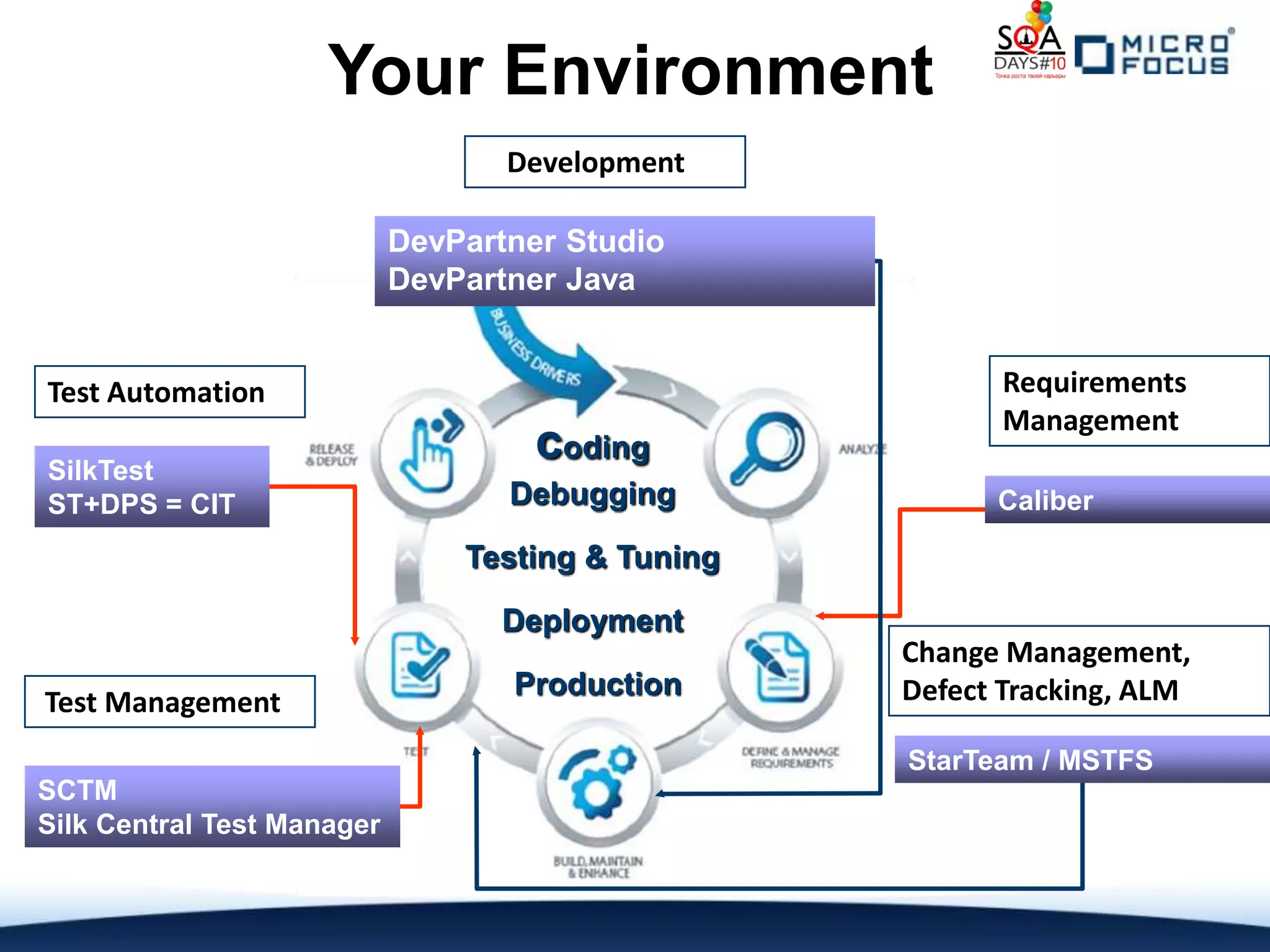

2. Your Environment
Development
DevPartner Studio
DevPartner Java
Test Automation Requirements
Management
SilkTest
coding
ST+DPS = CIT Debugging Caliber
Testing & Tuning
Deployment
Change Management,
Production Defect Tracking, ALM
Test Management
StarTeam / MSTFS
SCTM
Silk Central Test Manager

3. DevPartner
– Source Code Review .NET
– Security Scanning .NET
– Memory Analysis .NET
– Debugging and Analysis (BC) .NET / C++
– Performance Analysis / Compare .NET / C++
– Performance Expert .NET
– Coverage Analysis .NET / C++
– DPJ (All the above ++ in separate pack) Java
– Compare Facility
– XML Reporting / Code Quality Reports
– Distributed Applications – One end-to-end view

4. Detect  Track  Neutralize
Clean Code
5

5. Next to MSTS
• Full 64 bits support
• In Depth Source Code Level Info: 851 rules
• Structured Call Graph Information
• Extreme Powerful Debugger (BoundsChecker)
• .NET Memory Leak Detection
• Well written Expertise in defect reports
• In depth visibility in Memory Management CLR
• DiskIO and NetworkIO
• System Compare
• Technologies evolved over the last 25 years
• XML Export and Management Reporting
• Distributed Capabilities
• Real Agile (TP / Silk / DPS)

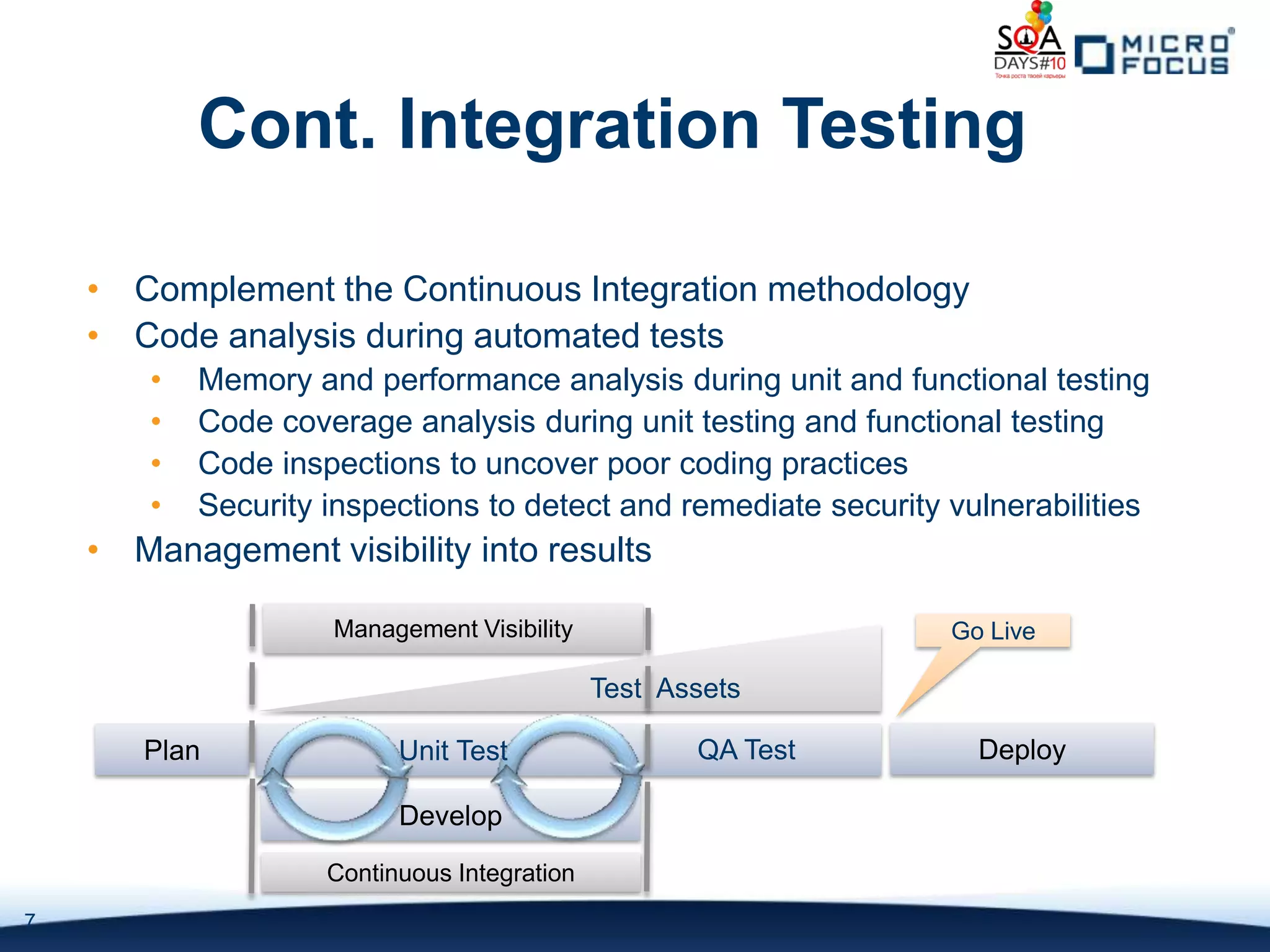

6. Cont. Integration Testing
• Complement the Continuous Integration methodology
• Code analysis during automated tests
• Memory and performance analysis during unit and functional testing
• Code coverage analysis during unit testing and functional testing
• Code inspections to uncover poor coding practices
• Security inspections to detect and remediate security vulnerabilities
• Management visibility into results
Management Visibility Go Live
Test Assets
Plan Unit Test QA Test Deploy
Develop
Continuous Integration
7

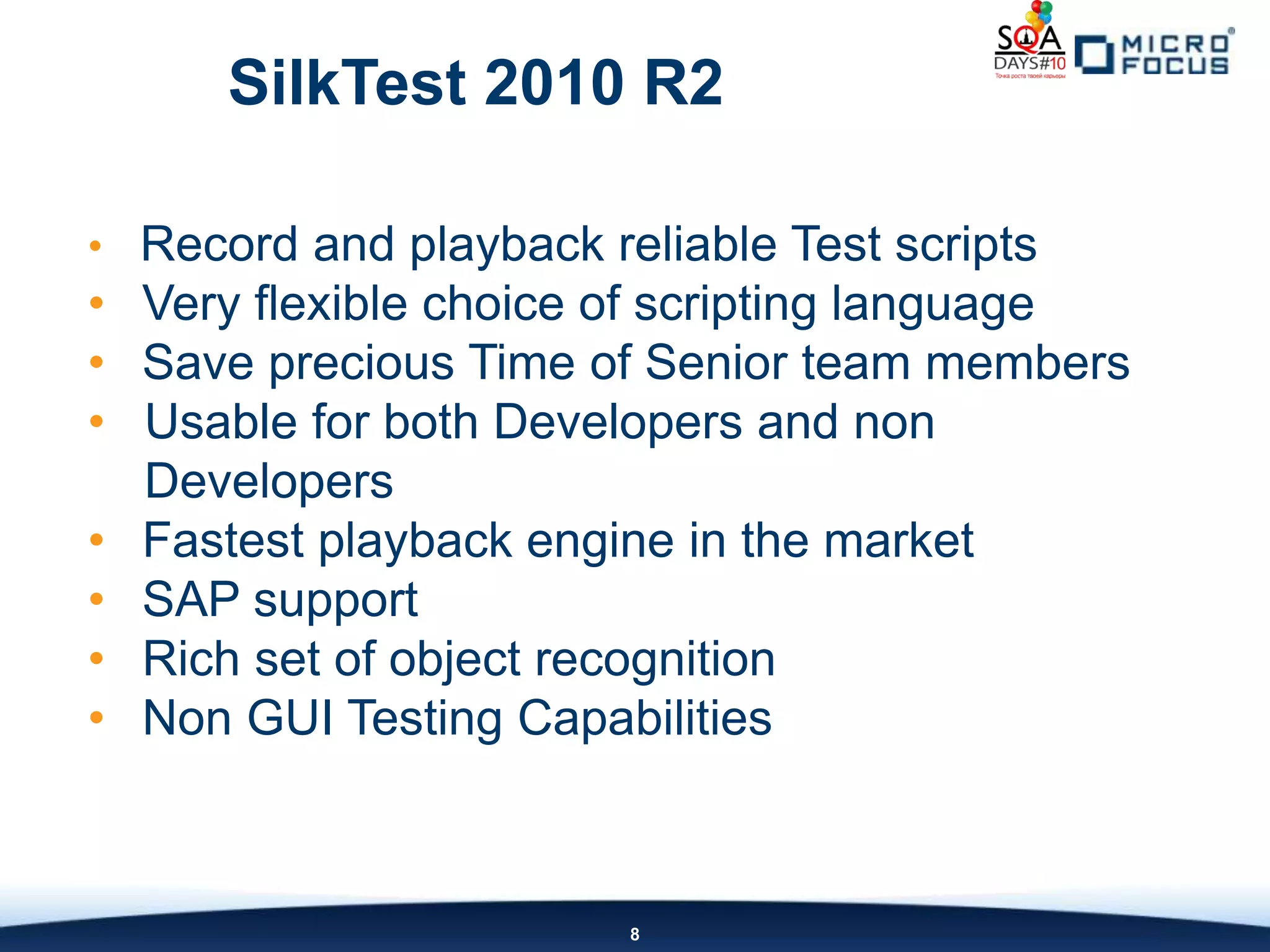

7. SilkTest 2010 R2
• Record and playback reliable Test scripts
• Very flexible choice of scripting language
• Save precious Time of Senior team members
• Usable for both Developers and non
Developers
• Fastest playback engine in the market
• SAP support
• Rich set of object recognition
• Non GUI Testing Capabilities
8

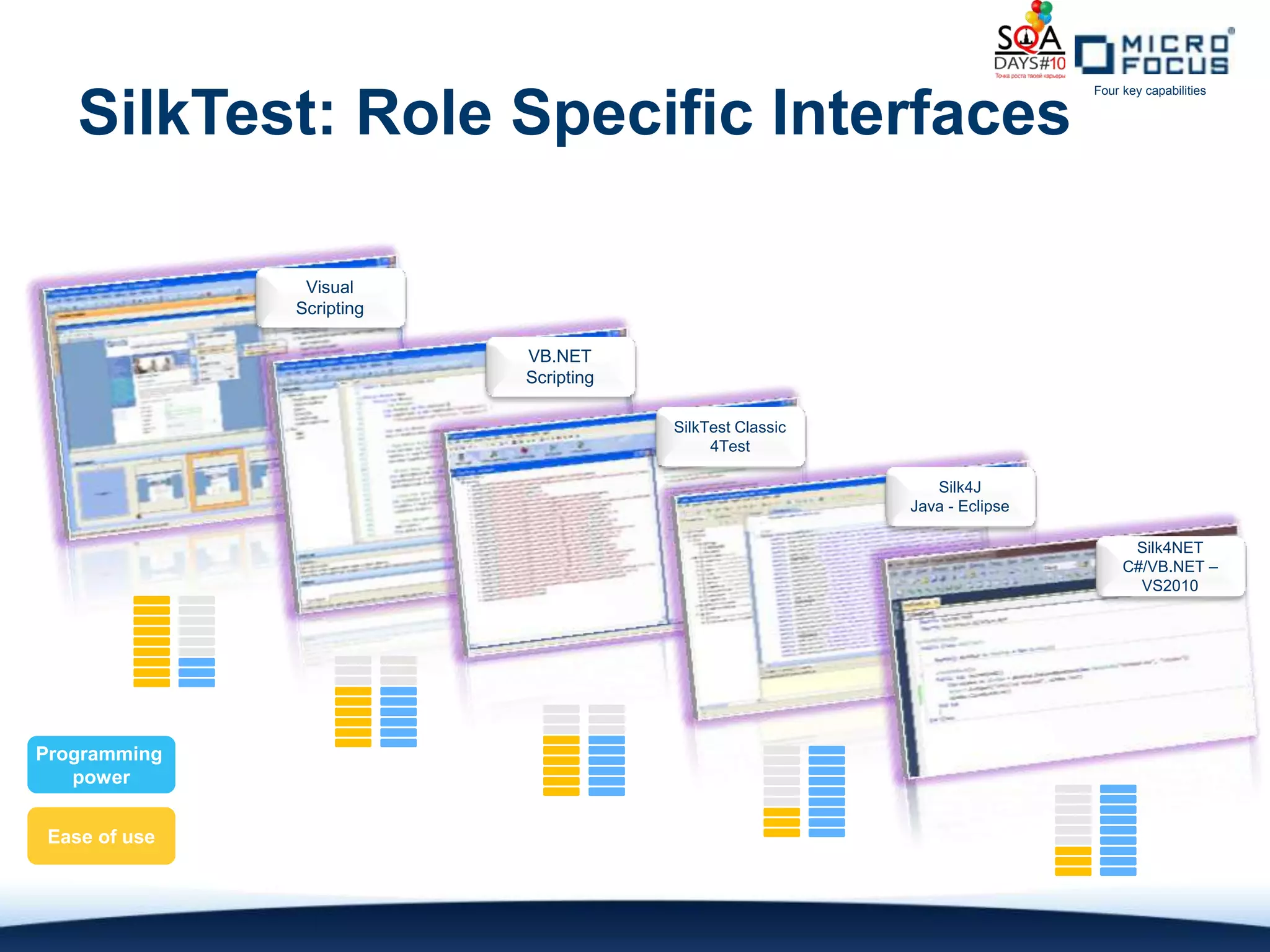

8. Four key capabilities
SilkTest: Role Specific Interfaces
Visual
Scripting
VB.NET
Scripting
SilkTest Classic
4Test
Silk4J
Java - Eclipse
Silk4NET
C#/VB.NET –
VS2010
Programming
power
Ease of use

9. 10

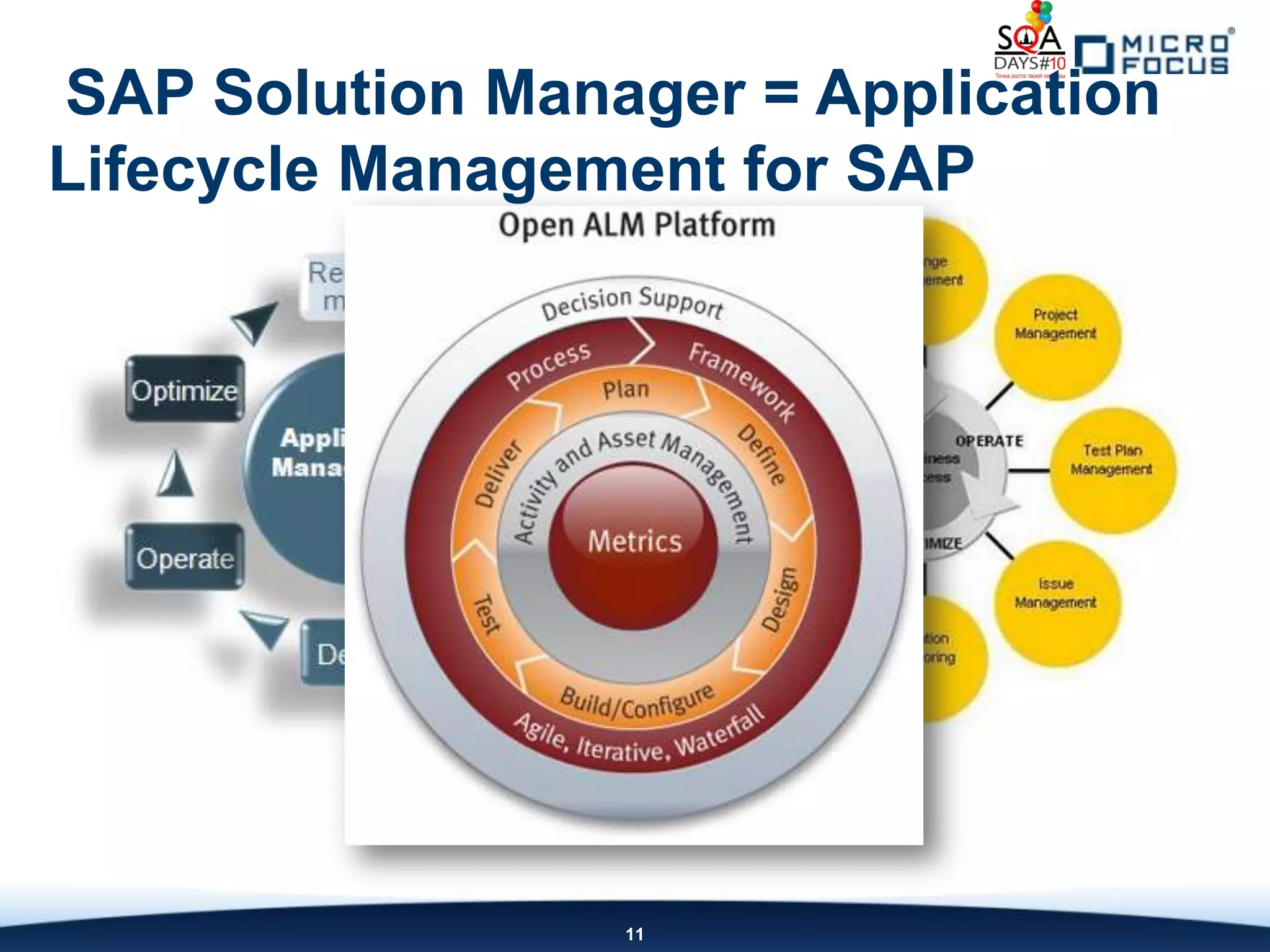

10. SAP Solution Manager = Application
Lifecycle Management for SAP
11

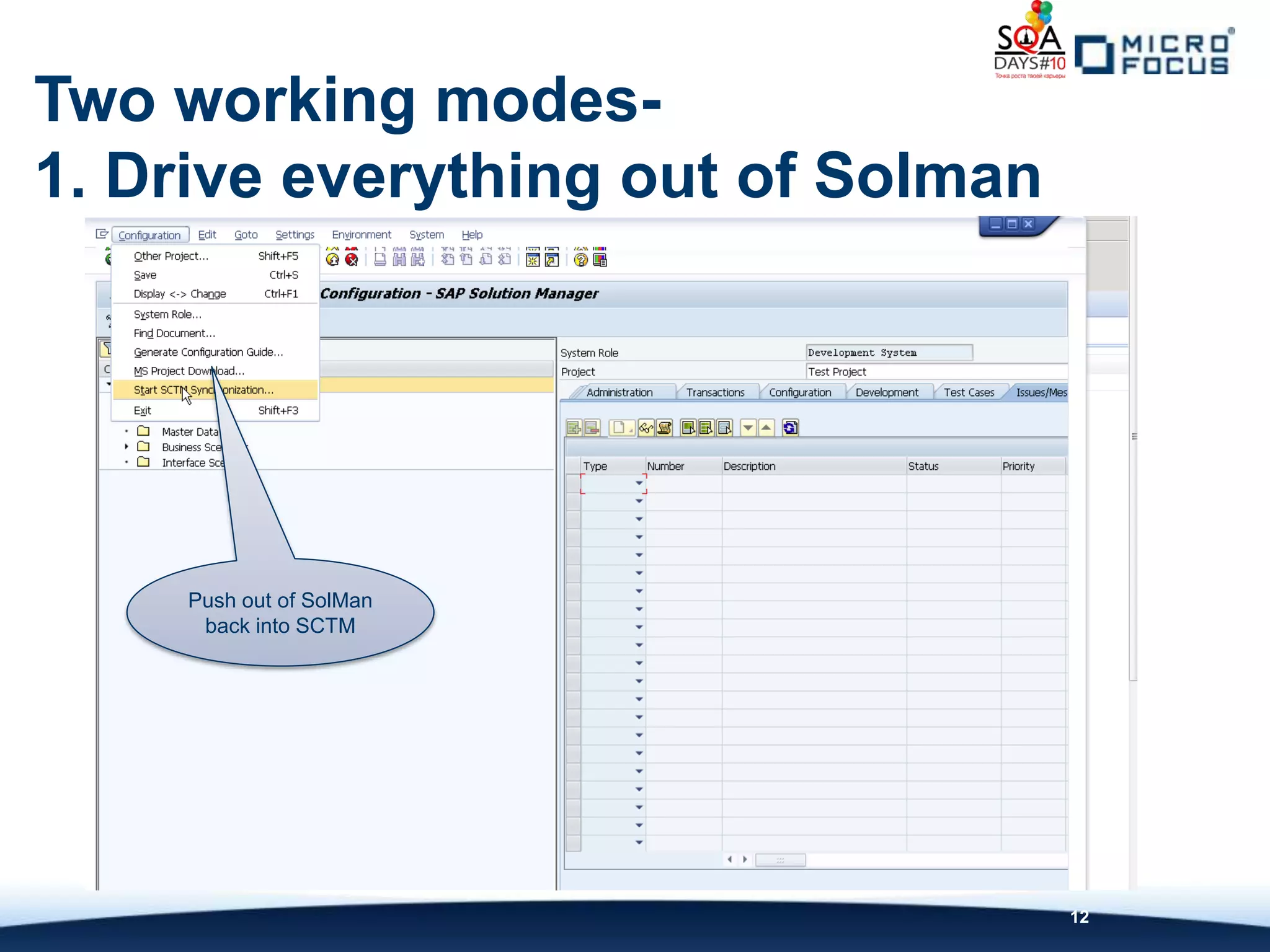

11. Two working modes-
1. Drive everything out of Solman
Push out of SolMan
back into SCTM
12

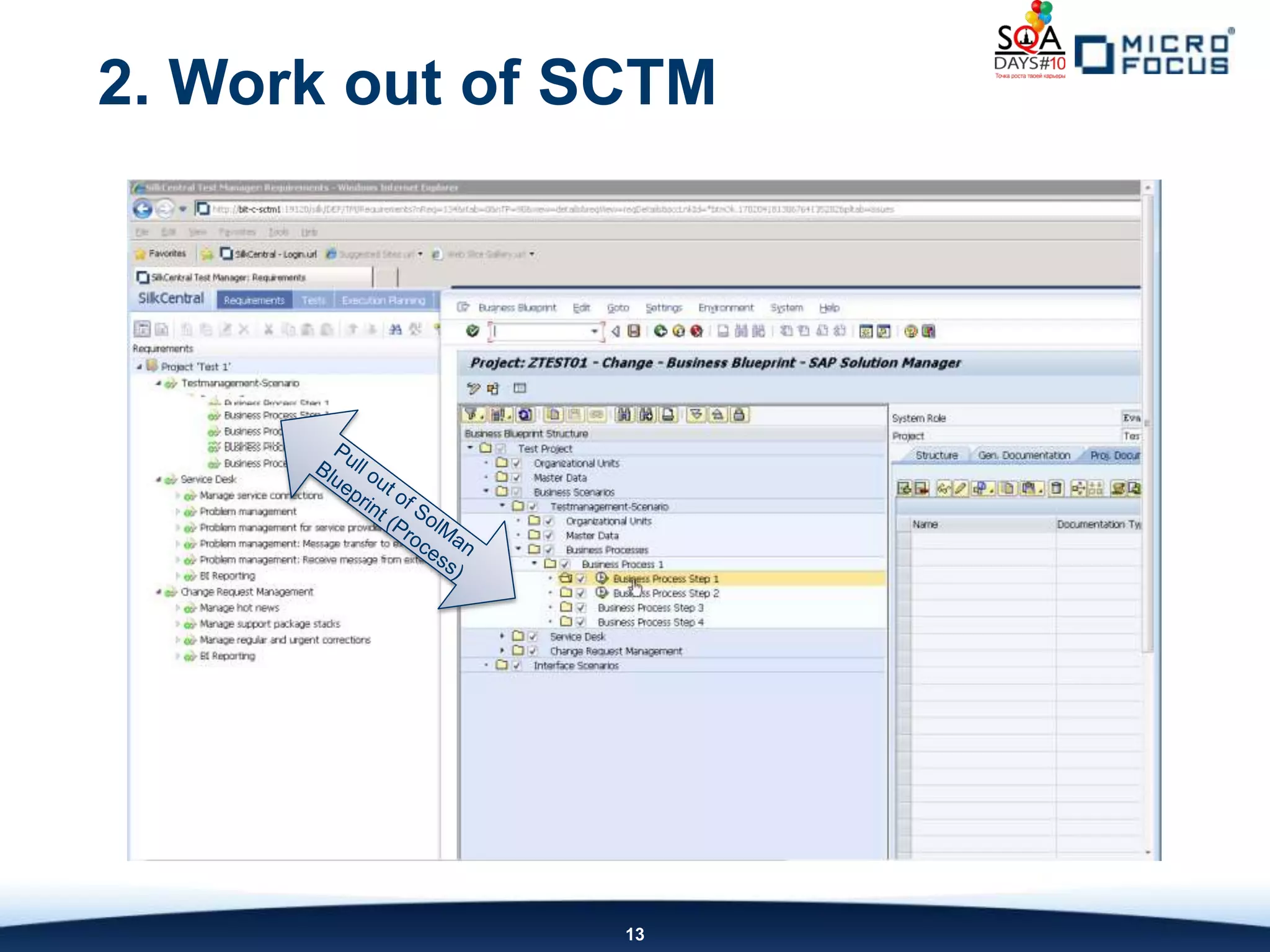

12. 2. Work out of SCTM
13

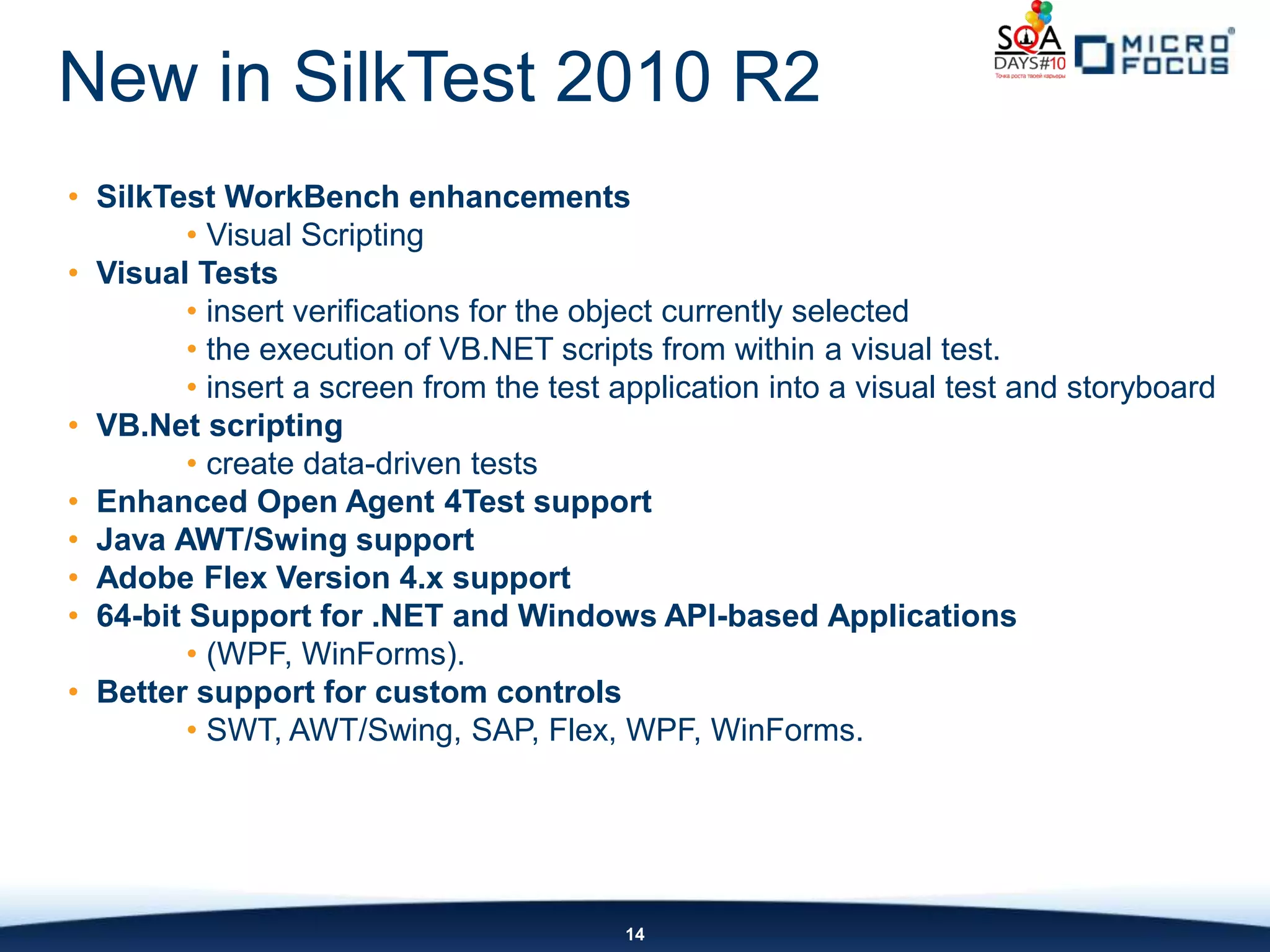

13. New in SilkTest 2010 R2
• SilkTest WorkBench enhancements
• Visual Scripting
• Visual Tests
• insert verifications for the object currently selected
• the execution of VB.NET scripts from within a visual test.
• insert a screen from the test application into a visual test and storyboard
• VB.Net scripting
• create data-driven tests
• Enhanced Open Agent 4Test support
• Java AWT/Swing support
• Adobe Flex Version 4.x support
• 64-bit Support for .NET and Windows API-based Applications
• (WPF, WinForms).
• Better support for custom controls
• SWT, AWT/Swing, SAP, Flex, WPF, WinForms.
14

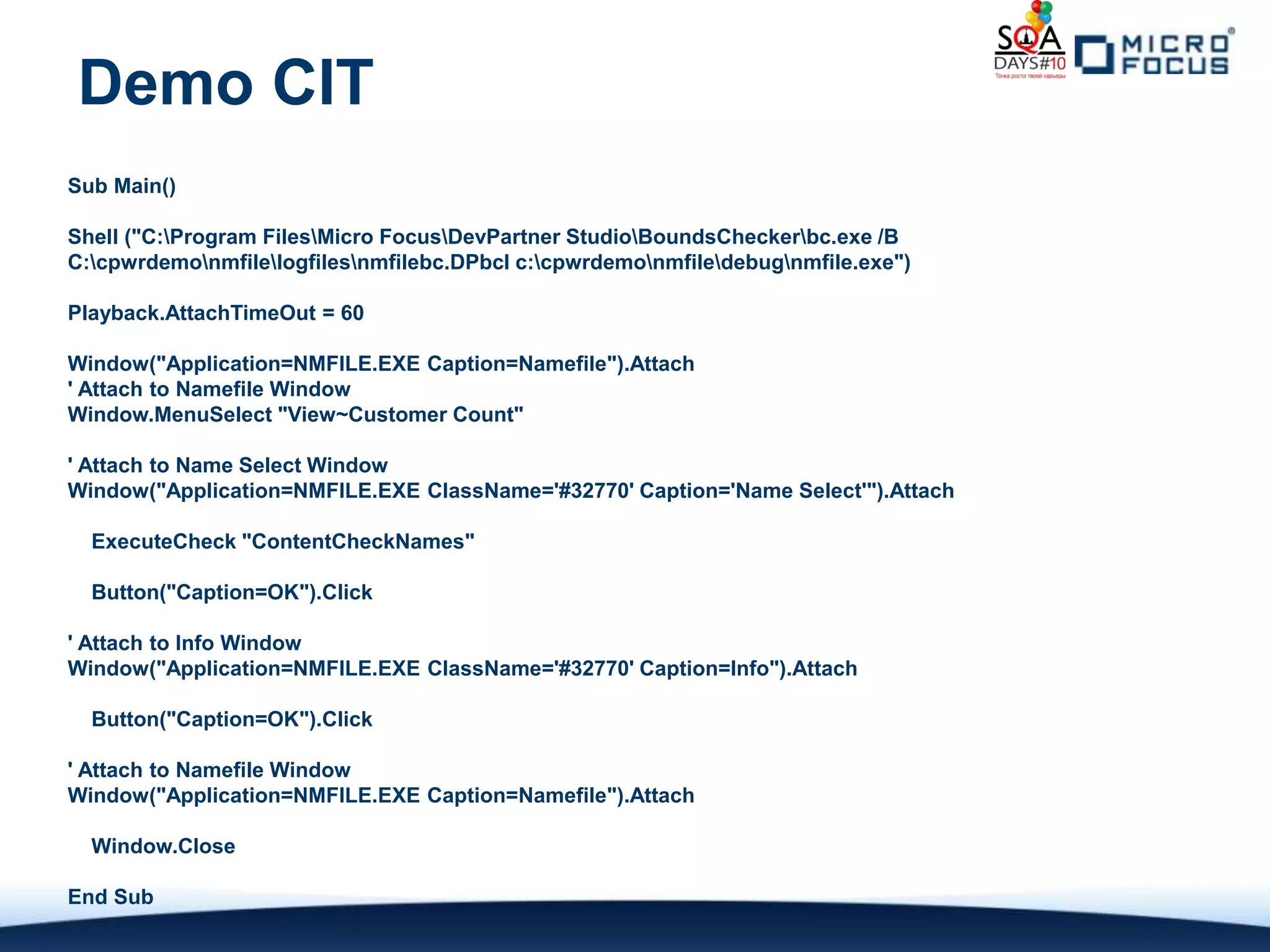

14. Demo CIT
Sub Main()
Shell ("C:Program FilesMicro FocusDevPartner StudioBoundsCheckerbc.exe /B
C:cpwrdemonmfilelogfilesnmfilebc.DPbcl c:cpwrdemonmfiledebugnmfile.exe")
Playback.AttachTimeOut = 60
Window("Application=NMFILE.EXE Caption=Namefile").Attach
' Attach to Namefile Window
Window.MenuSelect "View~Customer Count"
' Attach to Name Select Window
Window("Application=NMFILE.EXE ClassName='#32770' Caption='Name Select'").Attach
ExecuteCheck "ContentCheckNames"
Button("Caption=OK").Click
' Attach to Info Window
Window("Application=NMFILE.EXE ClassName='#32770' Caption=Info").Attach
Button("Caption=OK").Click
' Attach to Namefile Window
Window("Application=NMFILE.EXE Caption=Namefile").Attach
Window.Close
End Sub

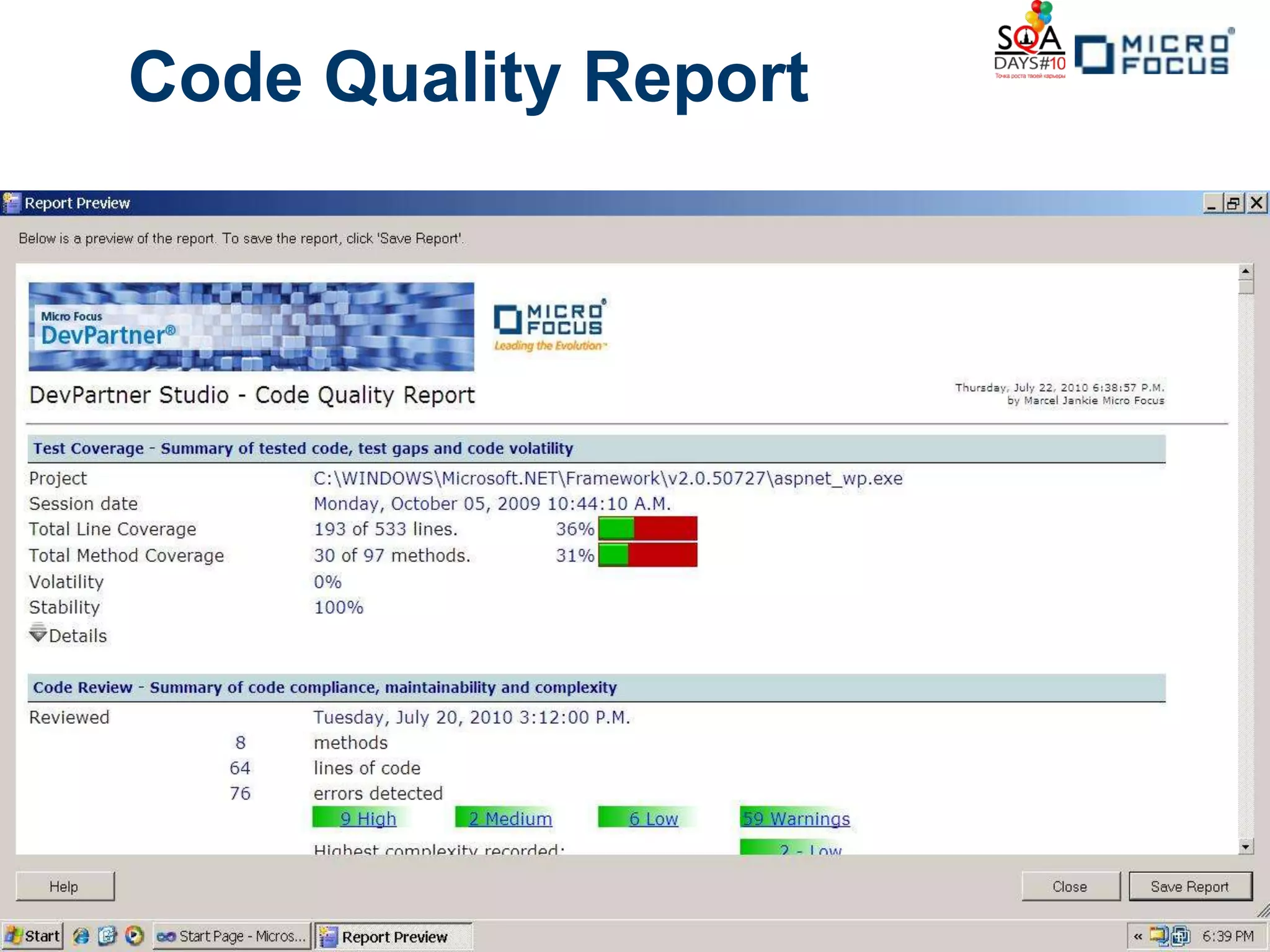

15. Code Quality Report

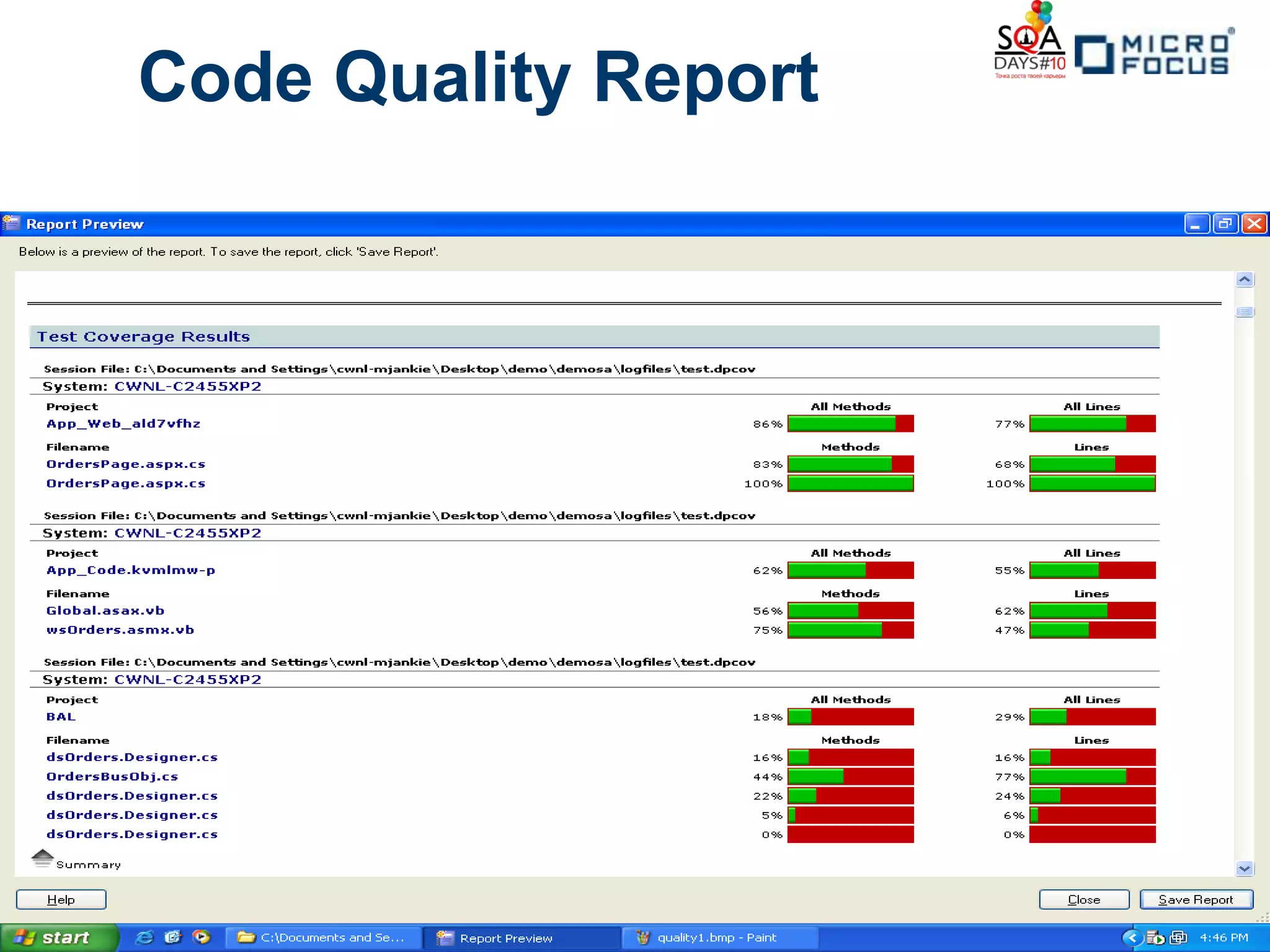

16. Code Quality Report

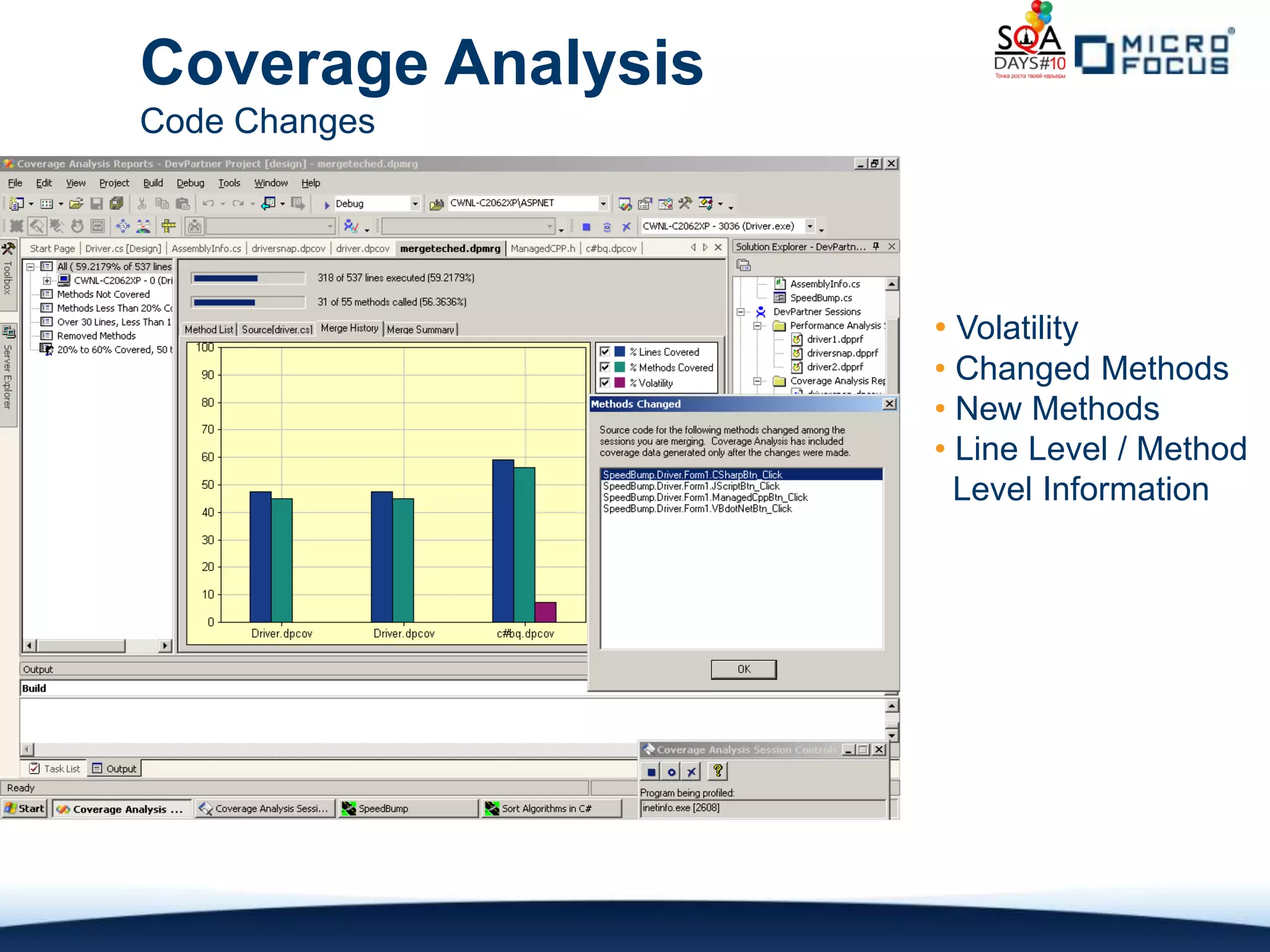

17. Coverage Analysis
Code Changes
• Volatility
• Changed Methods
• New Methods
• Line Level / Method
Level Information

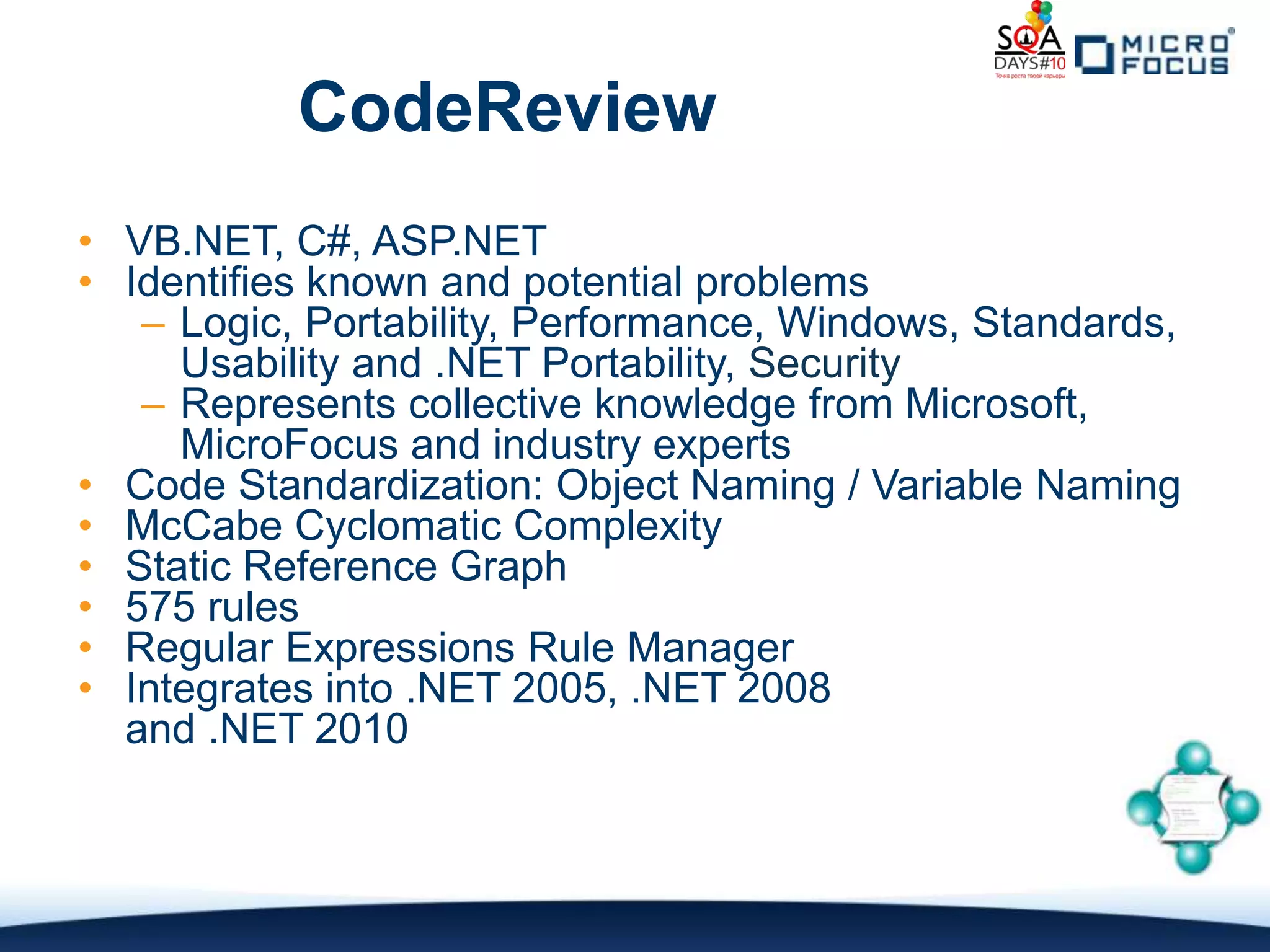

18. CodeReview
• VB.NET, C#, ASP.NET
• Identifies known and potential problems
– Logic, Portability, Performance, Windows, Standards,
Usability and .NET Portability, Security
– Represents collective knowledge from Microsoft,
MicroFocus and industry experts
• Code Standardization: Object Naming / Variable Naming
• McCabe Cyclomatic Complexity
• Static Reference Graph
• 575 rules
• Regular Expressions Rule Manager
• Integrates into .NET 2005, .NET 2008
and .NET 2010

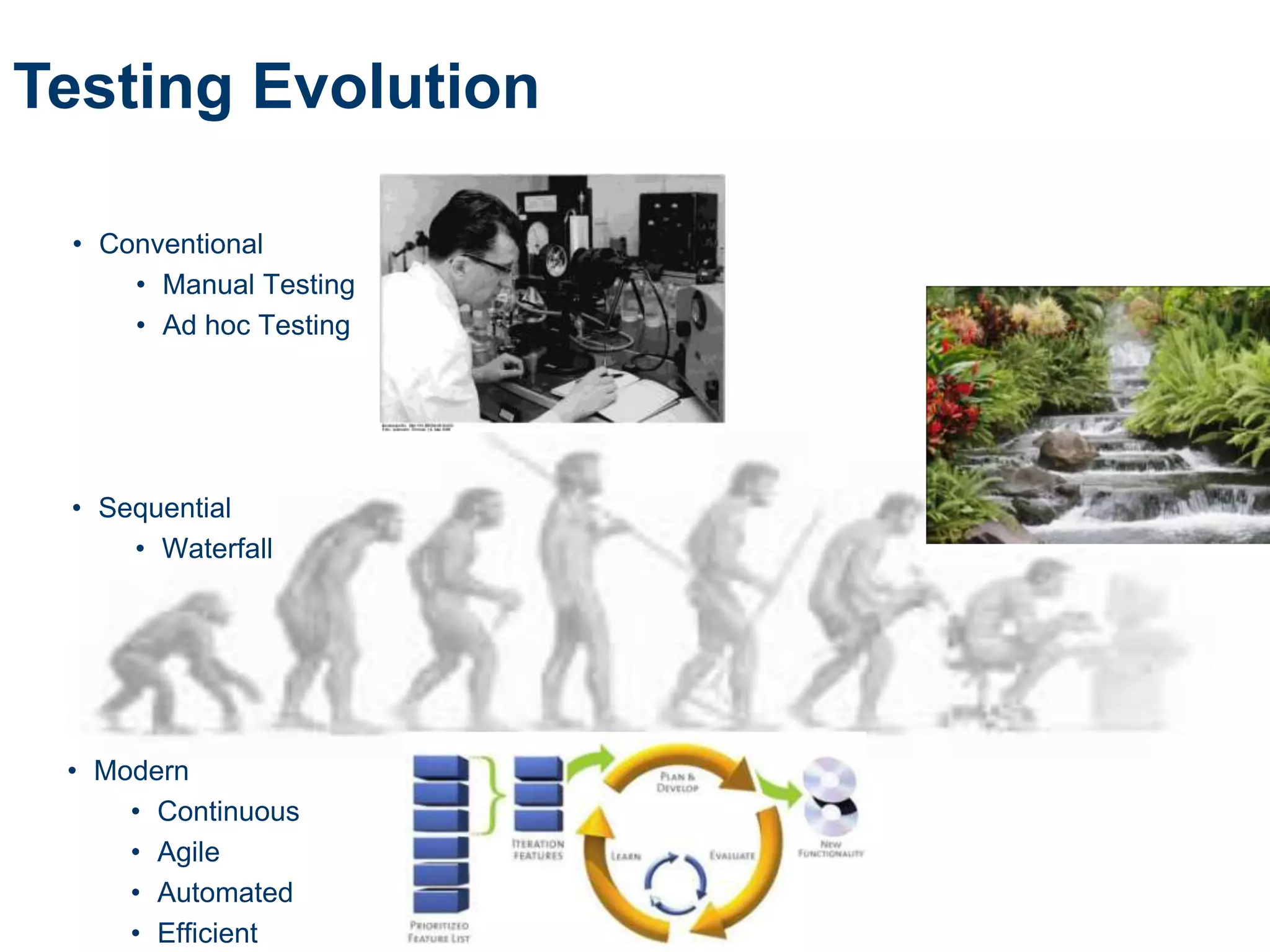

19. Testing Evolution
• Conventional
• Manual Testing
• Ad hoc Testing
• Sequential
• Waterfall
• Modern
• Continuous
• Agile
• Automated
• Efficient

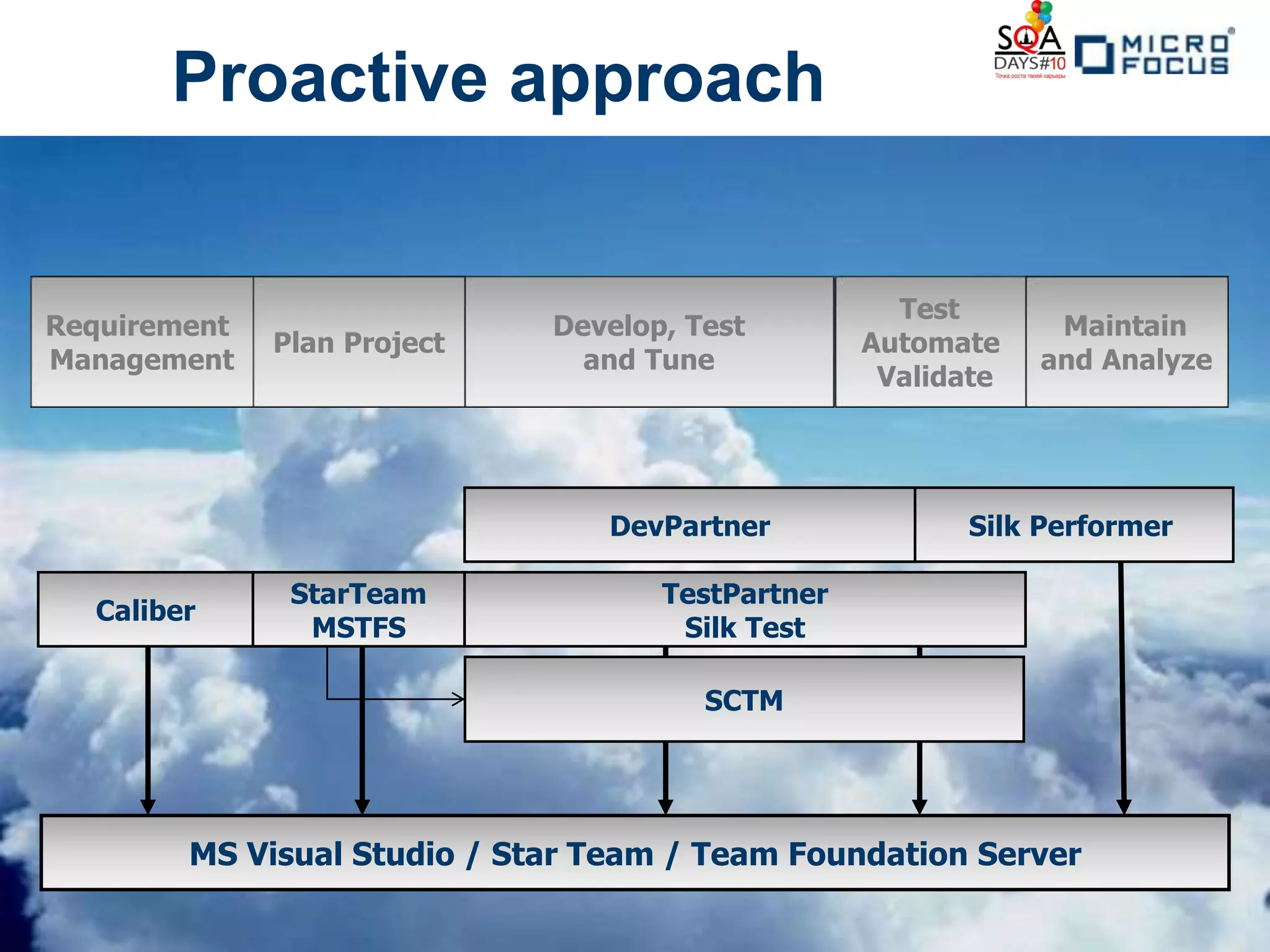

20. Proactive approach
Test
Requirement Develop, Test Maintain
Plan Project Automate
Management and Tune and Analyze
Validate
DevPartner Silk Performer
StarTeam TestPartner
Caliber
MSTFS Silk Test
SCTM
MS Visual Studio / Star Team / Team Foundation Server

21. •
Marcel Jankie
Domain Specialist Code Quality
Marcel.Jankie@MicroFocus.com
Direct : +31 (23) 5 66 01 79
Fax : +31 (23) 5 54 06 49
Mobile : +31 (6) 23 94 96 87

22. 23
