This document discusses mutation testing as a way to thoroughly test code. Mutation testing works by automatically making small changes or "mutations" to code and seeing if tests can detect the changes. It can find bugs in test code that simple code coverage misses. The document explains how to implement mutation testing with the PIT tool, which can generate mutants, run tests against mutant code, and produce reports. Mutation testing improves test quality but requires more computing resources than basic testing.

1. KILL THE MUTANTS
a better way to test your tests

2. ABOUT ME
• Roy van Rijn
• Mutants:
• Nora
• Lucas
• Works for

3. let's do a
SHOW OF HANDS

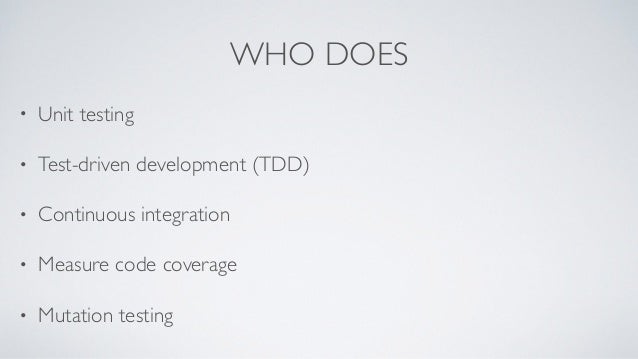

4. WHO DOES
• Unit testing
• Test-driven development (TDD)
• Continuous integration
• Measure code coverage
• Mutation testing

5. UNIT TESTING
• Prove your code works
• Instant regression tests
• Improve code design
• Has become a mainstream practise over the last 10 years

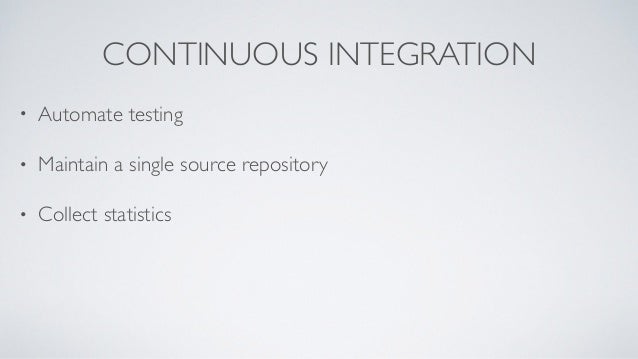

6. CONTINUOUS INTEGRATION
• Automate testing
• Maintain a single source repository
• Collect statistics

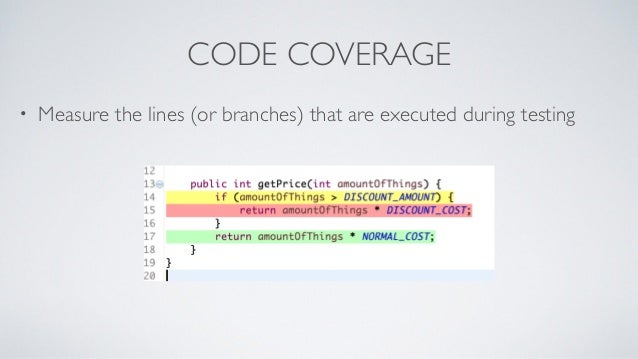

7. CODE COVERAGE
• Measure the lines (or branches) that are executed during testing

8. CODE COVERAGE
• How did they test your car?

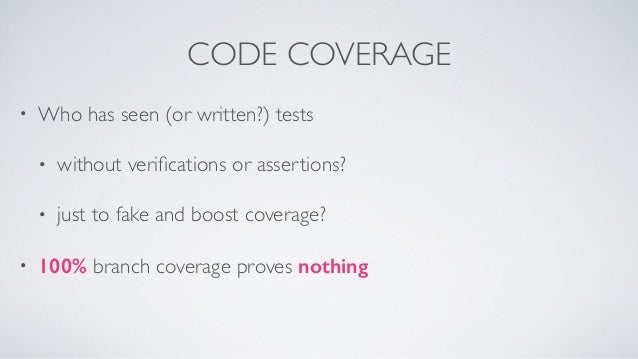

9. CODE COVERAGE
• Who has seen (or written?) tests
• without verifications or assertions?
• just to fake and boost coverage?
• 100% branch coverage proves nothing

10. QUIS CUSTODIET IPSOS CUSTODES?
Who watches the watchmen?

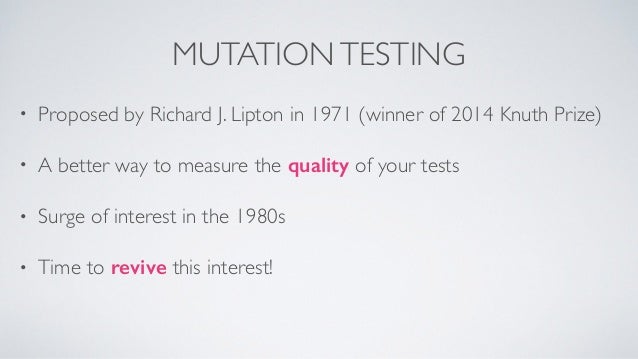

11. MUTATION TESTING
• Proposed by Richard J. Lipton in 1971 (winner of 2014 Knuth Prize)
• A better way to measure the quality of your tests
• Surge of interest in the 1980s
• Time to revive this interest!

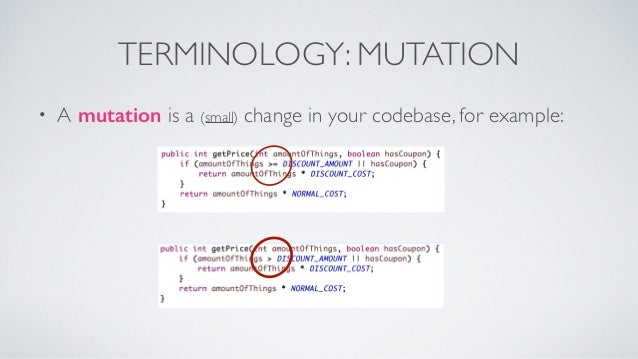

12. TERMINOLOGY: MUTATION
• A mutation is a (small) change in your codebase, for example:

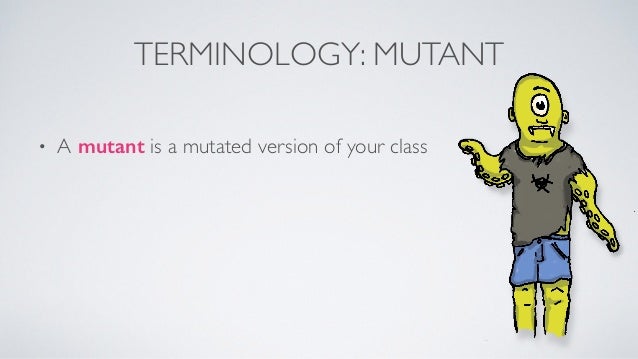

13. TERMINOLOGY: MUTANT
• A mutant is a mutated version of your class

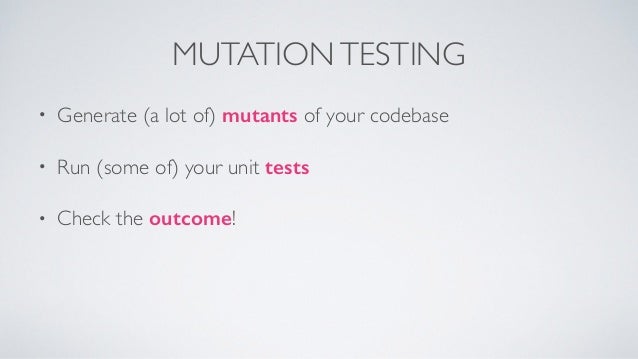

14. MUTATION TESTING
• Generate (a lot of) mutants of your codebase
• Run (some of) your unit tests
• Check the outcome!

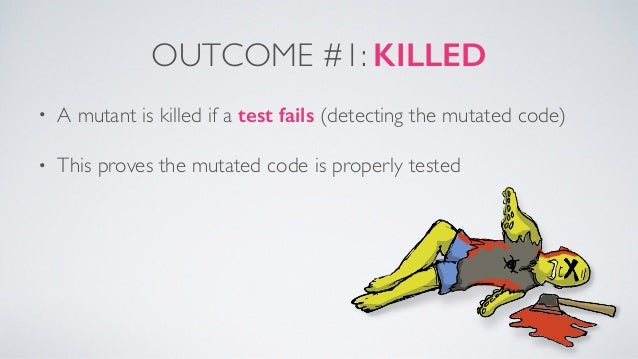

15. OUTCOME #1: KILLED
• A mutant is killed if a test fails (detecting the mutated code)
• This proves the mutated code is properly tested

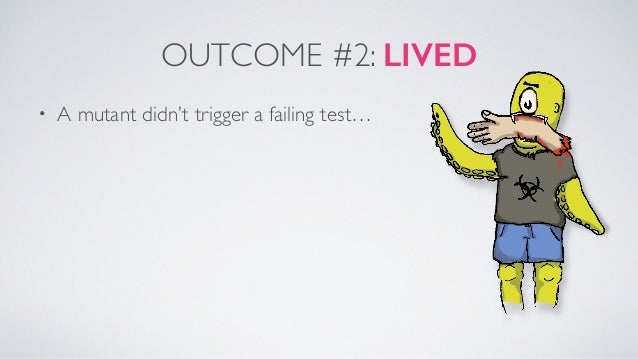

16. OUTCOME #2: LIVED
• A mutant didn’t trigger a failing test…

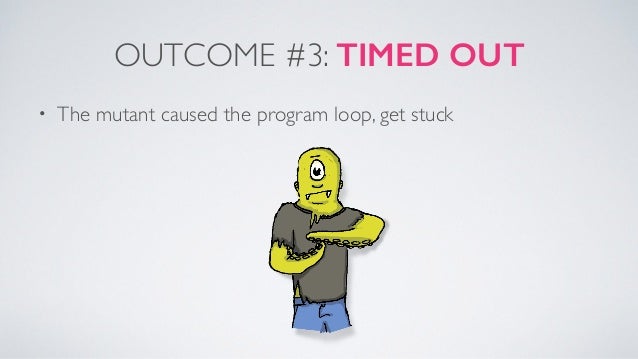

17. OUTCOME #3: TIMED OUT
• The mutant caused the program loop, get stuck

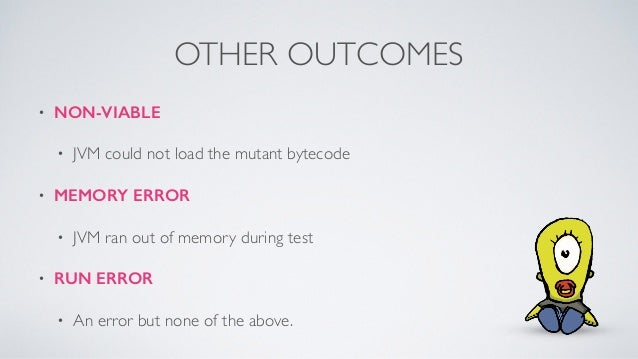

18. OTHER OUTCOMES
• NON-VIABLE
• JVM could not load the mutant bytecode
• MEMORY ERROR
• JVM ran out of memory during test
• RUN ERROR
• An error but none of the above.

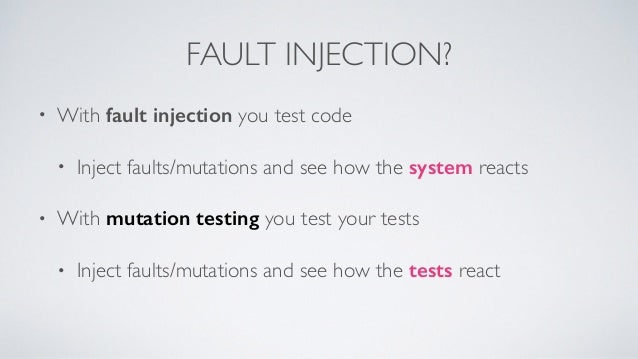

19. FAULT INJECTION?
• With fault injection you test code
• Inject faults/mutations and see how the system reacts
• With mutation testing you test your tests
• Inject faults/mutations and see how the tests react

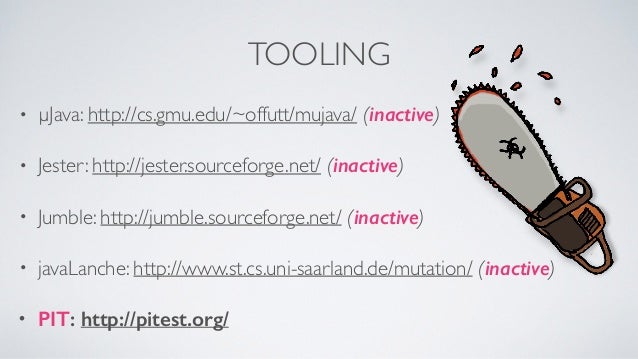

20. TOOLING
• μJava: http://cs.gmu.edu/~offutt/mujava/ (inactive)
• Jester: http://jester.sourceforge.net/ (inactive)
• Jumble: http://jumble.sourceforge.net/ (inactive)
• javaLanche: http://www.st.cs.uni-saarland.de/mutation/ (inactive)
• PIT: http://pitest.org/

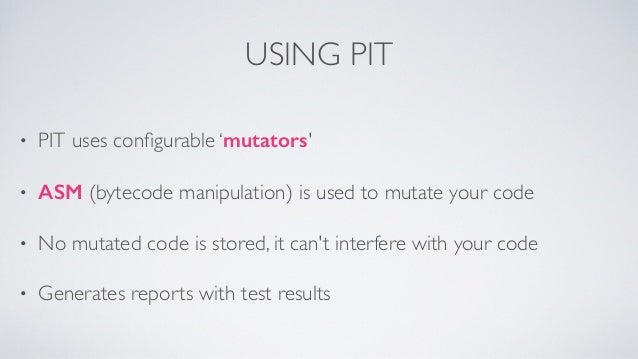

21. USING PIT
• PIT uses configurable ‘mutators'
• ASM (bytecode manipulation) is used to mutate your code
• No mutated code is stored, it can't interfere with your code
• Generates reports with test results

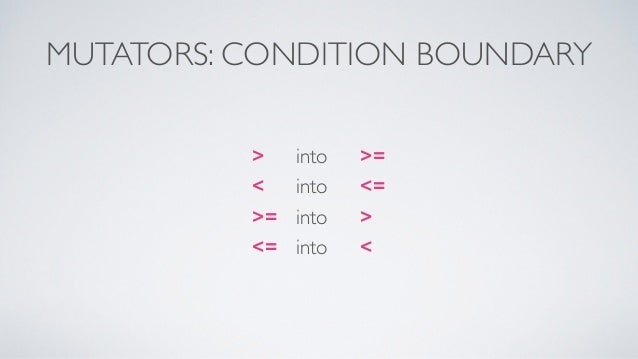

22. MUTATORS: CONDITION BOUNDARY
> into >=
< into <=
>= into >
<= into <

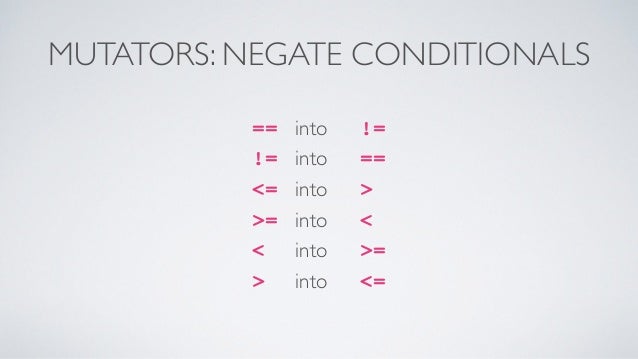

23. MUTATORS: NEGATE CONDITIONALS
== into !=
!= into ==
<= into >
>= into <
< into >=
> into <=

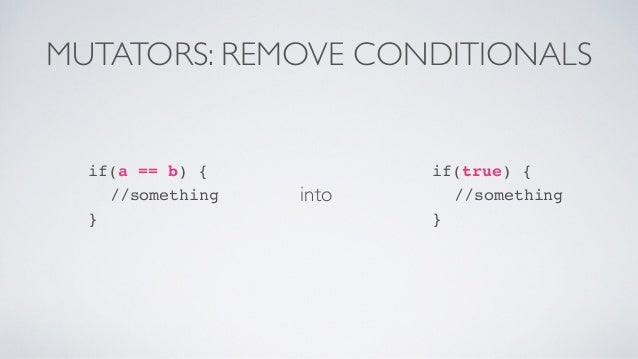

24. MUTATORS: REMOVE CONDITIONALS
into
if(true) {
//something
}
if(a == b) {
//something
}

25. MUTATORS: MATH
+ into -
- into +
* into /
/ into *
% into *
& into |
<< into >>
>> into <<
>>> into <<<
a++ into a--
a-- into a++

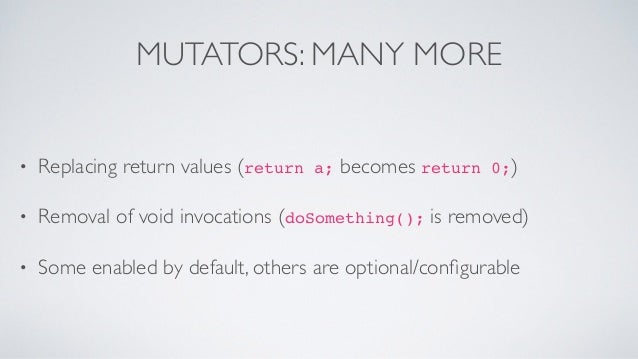

26. MUTATORS: MANY MORE
• Replacing return values (return a; becomes return 0;)
• Removal of void invocations (doSomething(); is removed)
• Some enabled by default, others are optional/configurable

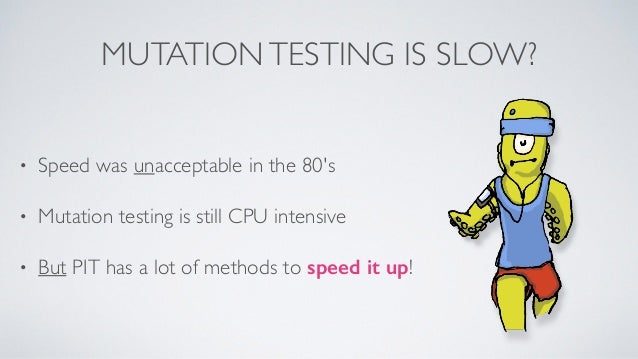

27. MUTATION TESTING IS SLOW?
• Speed was unacceptable in the 80's
• Mutation testing is still CPU intensive
• But PIT has a lot of methods to speed it up!

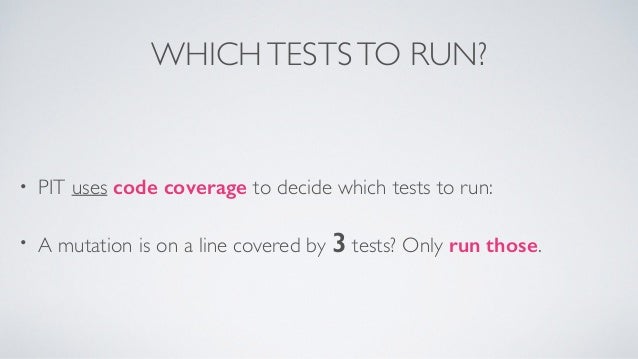

28. WHICH TESTS TO RUN?
• PIT uses code coverage to decide which tests to run:
• A mutation is on a line covered by 3 tests? Only run those.

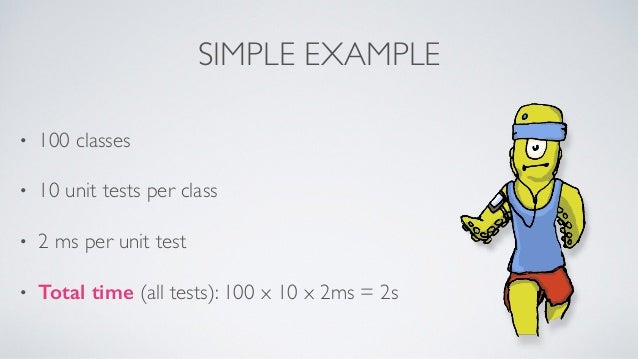

29. SIMPLE EXAMPLE
• 100 classes
• 10 unit tests per class
• 2 ms per unit test
• Total time (all tests): 100 x 10 x 2ms = 2s

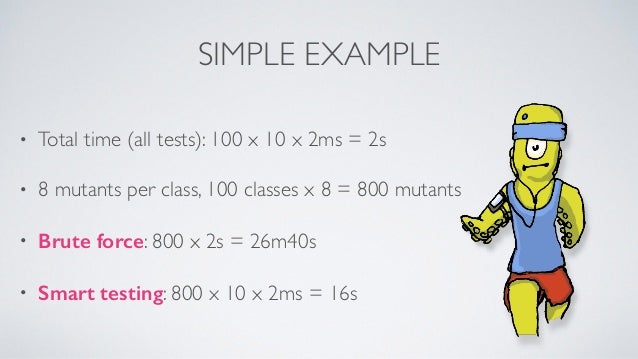

30. SIMPLE EXAMPLE
• Total time (all tests): 100 x 10 x 2ms = 2s
• 8 mutants per class, 100 classes x 8 = 800 mutants
• Brute force: 800 x 2s = 26m40s
• Smart testing: 800 x 10 x 2ms = 16s

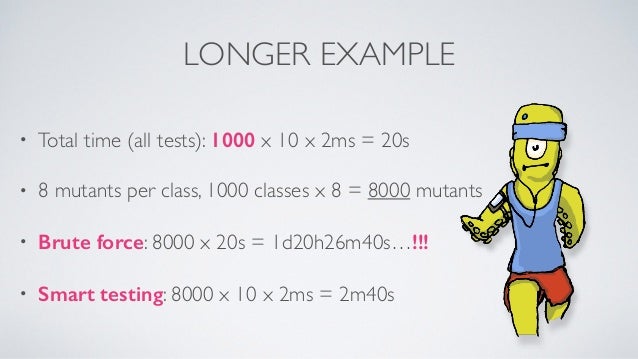

31. LONGER EXAMPLE
• Total time (all tests): 1000 x 10 x 2ms = 20s
• 8 mutants per class, 1000 classes x 8 = 8000 mutants
• Brute force: 8000 x 20s = 1d20h26m40s…!!!
• Smart testing: 8000 x 10 x 2ms = 2m40s

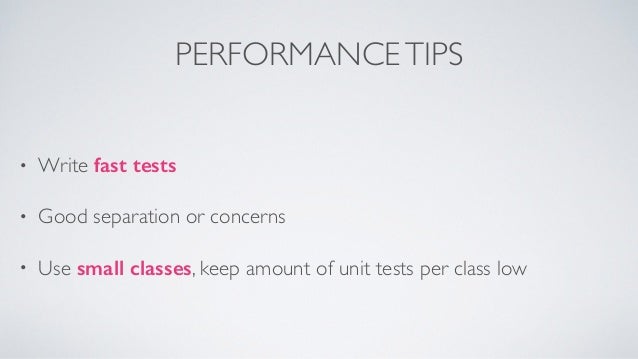

32. PERFORMANCE TIPS
• Write fast tests
• Good separation or concerns
• Use small classes, keep amount of unit tests per class low

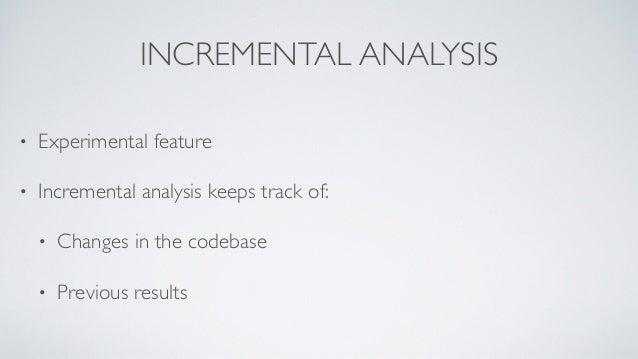

33. INCREMENTAL ANALYSIS
• Experimental feature
• Incremental analysis keeps track of:
• Changes in the codebase
• Previous results

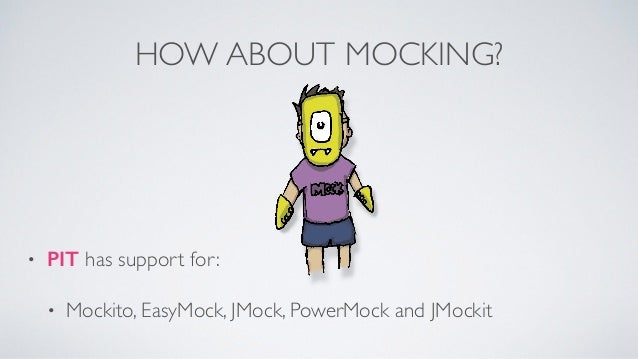

34. HOW ABOUT MOCKING?
• PIT has support for:
• Mockito, EasyMock, JMock, PowerMock and JMockit

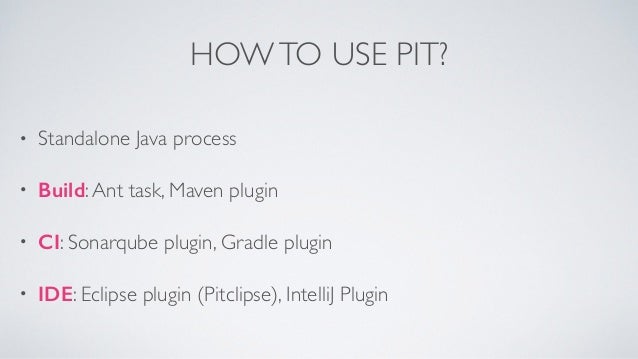

35. HOW TO USE PIT?
• Standalone Java process
• Build: Ant task, Maven plugin
• CI: Sonarqube plugin, Gradle plugin
• IDE: Eclipse plugin (Pitclipse), IntelliJ Plugin

36. STANDALONE JAVA
java -cp <your classpath including pit jar and dependencies>
org.pitest.mutationtest.commandline.MutationCoverageReport
--reportDir /somePath/
--targetClasses com.your.package.tobemutated*
--targetTests com.your.package.*
--sourceDirs /sourcePath/

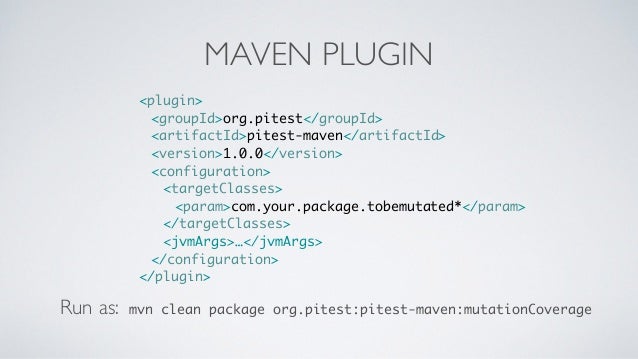

37. MAVEN PLUGIN
<plugin>
<groupId>org.pitest</groupId>
<artifactId>pitest-maven</artifactId>
<version>1.0.0</version>
<configuration>
<targetClasses>
<param>com.your.package.tobemutated*</param>
</targetClasses>
<jvmArgs>…</jvmArgs>
</configuration>
</plugin>
Run as: mvn clean package org.pitest:pitest-maven:mutationCoverage

38. EXAMPLE
Let’s kill some mutants… or be killed.

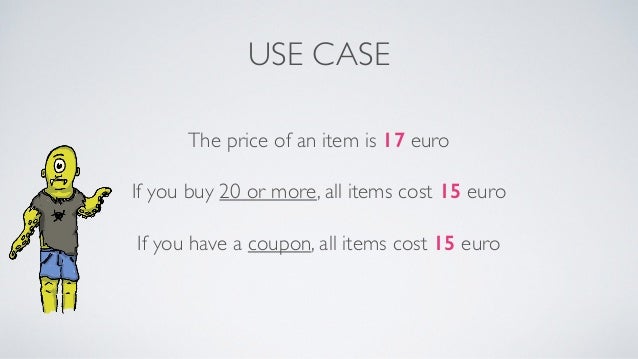

39. USE CASE
The price of an item is 17 euro
If you buy 20 or more, all items cost 15 euro
If you have a coupon, all items cost 15 euro

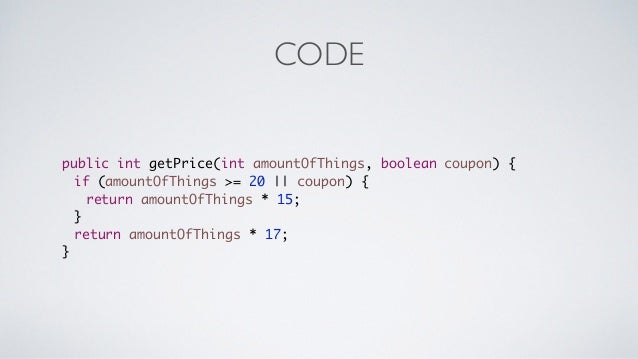

40. CODE
public int getPrice(int amountOfThings, boolean coupon) {
if (amountOfThings >= 20 || coupon) {
return amountOfThings * 15;
}
return amountOfThings * 17;
}

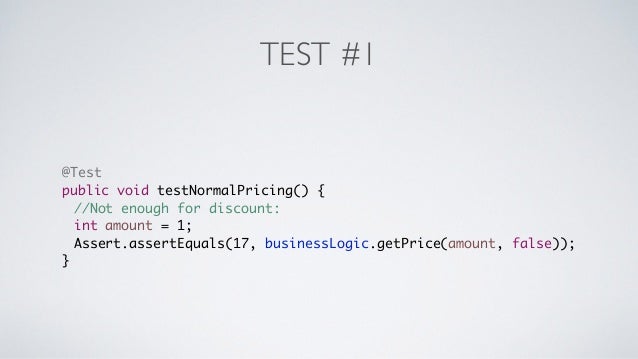

41. TEST #1
@Test
public void testNormalPricing() {
//Not enough for discount:
int amount = 1;
Assert.assertEquals(17, businessLogic.getPrice(amount, false));
}

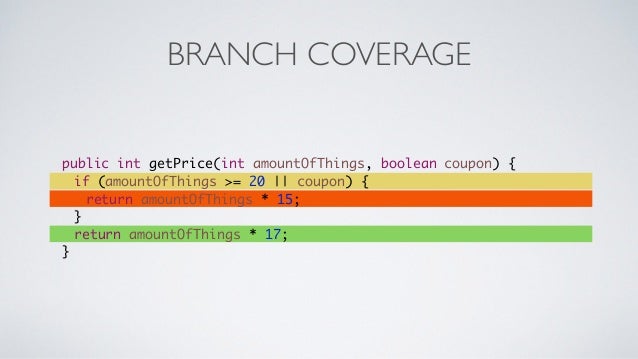

42. BRANCH COVERAGE
public int getPrice(int amountOfThings, boolean coupon) {
if (amountOfThings >= 20 || coupon) {
return amountOfThings * 15;
}
return amountOfThings * 17;
}

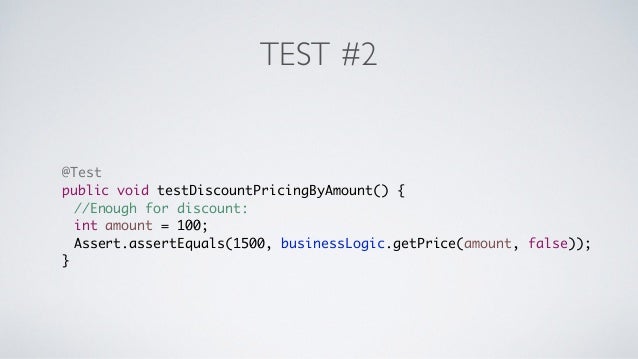

43. TEST #2
@Test
public void testDiscountPricingByAmount() {
//Enough for discount:
int amount = 100;
Assert.assertEquals(1500, businessLogic.getPrice(amount, false));
}

44. BRANCH COVERAGE
public int getPrice(int amountOfThings, boolean coupon) {
if (amountOfThings >= 20 || coupon) {
return amountOfThings * 15;
}
return amountOfThings * 17;
}

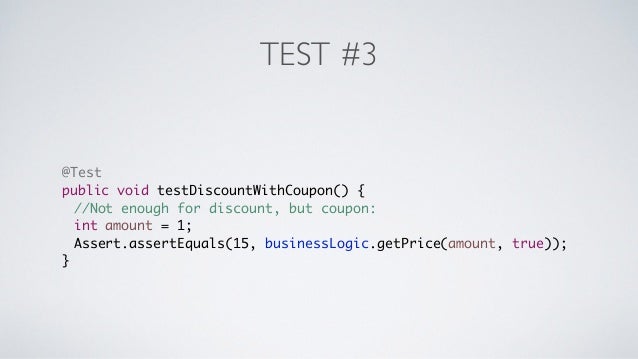

45. TEST #3
@Test
public void testDiscountWithCoupon() {
//Not enough for discount, but coupon:
int amount = 1;
Assert.assertEquals(15, businessLogic.getPrice(amount, true));
}

46. BRANCH COVERAGE
public int getPrice(int amountOfThings, boolean coupon) {
if (amountOfThings >= 20 || coupon) {
return amountOfThings * 15;
}
return amountOfThings * 17;
}

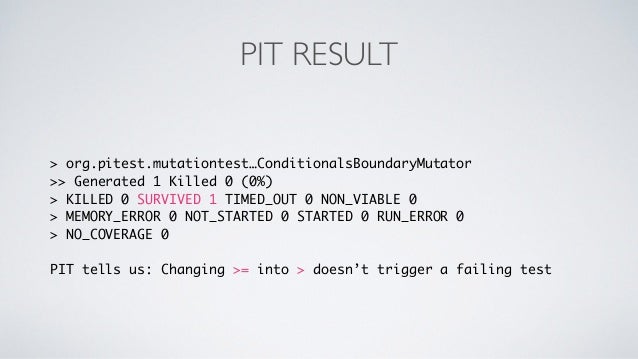

47. PIT RESULT

48. PIT RESULT
> org.pitest.mutationtest…ConditionalsBoundaryMutator
>> Generated 1 Killed 0 (0%)
> KILLED 0 SURVIVED 1 TIMED_OUT 0 NON_VIABLE 0
> MEMORY_ERROR 0 NOT_STARTED 0 STARTED 0 RUN_ERROR 0
> NO_COVERAGE 0
PIT tells us: Changing >= into > doesn’t trigger a failing test

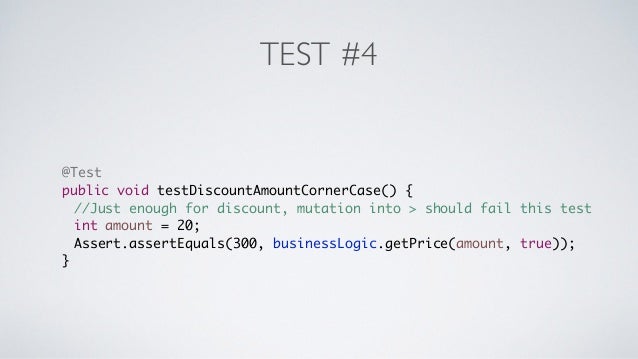

49. TEST #4
@Test
public void testDiscountAmountCornerCase() {
//Just enough for discount, mutation into > should fail this test
int amount = 20;
Assert.assertEquals(300, businessLogic.getPrice(amount, true));
}

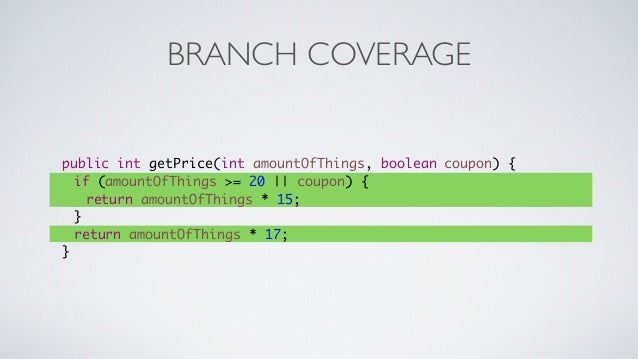

50. BRANCH COVERAGE
public int getPrice(int amountOfThings, boolean coupon) {
if (amountOfThings >= 20 || coupon) {
return amountOfThings * 15;
}
return amountOfThings * 17;
}

51. PIT RESULT

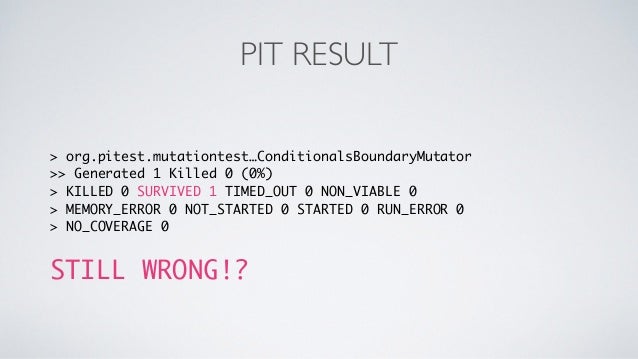

52. PIT RESULT
> org.pitest.mutationtest…ConditionalsBoundaryMutator
>> Generated 1 Killed 0 (0%)
> KILLED 0 SURVIVED 1 TIMED_OUT 0 NON_VIABLE 0
> MEMORY_ERROR 0 NOT_STARTED 0 STARTED 0 RUN_ERROR 0
> NO_COVERAGE 0
STILL WRONG!?

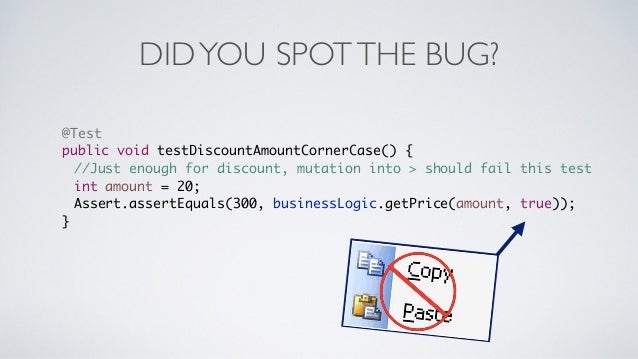

53. DID YOU SPOT THE BUG?
@Test
public void testDiscountAmountCornerCase() {
//Just enough for discount, mutation into > should fail this test
int amount = 20;
Assert.assertEquals(300, businessLogic.getPrice(amount, true));
}

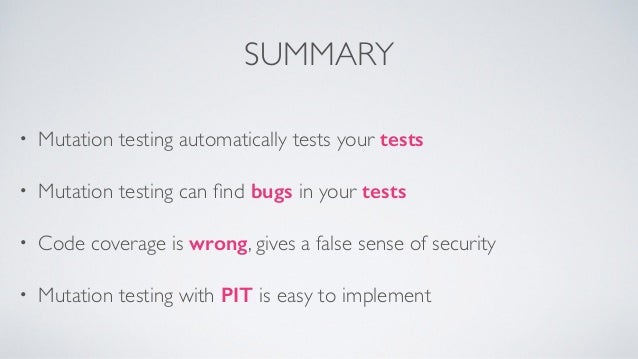

54. SUMMARY
• Mutation testing automatically tests your tests
• Mutation testing can find bugs in your tests
• Code coverage is wrong, gives a false sense of security
• Mutation testing with PIT is easy to implement

55. QUESTIONS?
