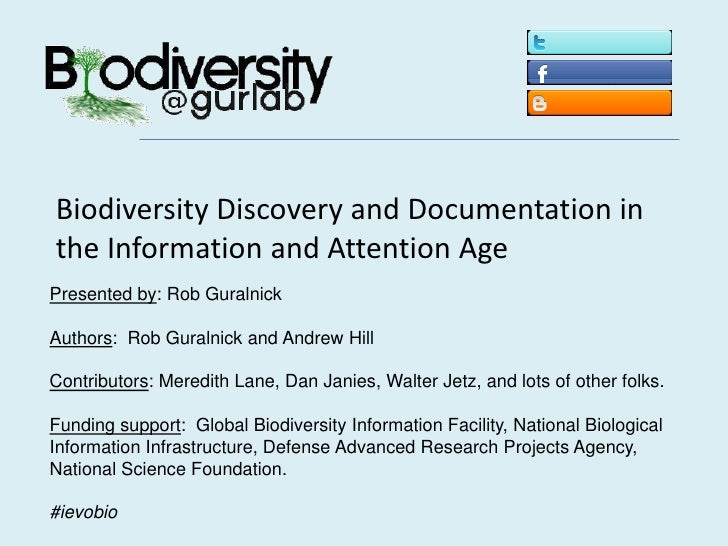

Biodiversity Discovery and Documentation in the Information and Attention Age<br />Presented by: Rob Guralnick<br />Author...
WHAT IS BIODIVERSITY DISCOVERY AND DOCUMENTATION?<br />IMPEDIMENTS<br />ACTION<br />Linnean shortfall (too few taxonomists...
app<br />Pace of Species Description and Documentation for 2008<br />Approx. 1.922 million named species (all taxa)<br />~...
Pace of Species Description and Documentation for 2008<br />Assuming a relatively conservative number <br />(eg. 10 millio...
State and Scale of Knowledge in Environmental Sciences<br />Slide from Walter Jetz (thanks Walter) <br />
90 meter<br />resolution <br />SRTM <br />elevation<br />data for a <br />Portion of <br />Colorado<br />A view of the<br ...
Distribution Knowledge Is Scattered<br /><ul><li> Points are from GBIF</li></ul>   data portal<br /><ul><li> Expert opinio...
Documenting our <br />biodiversity matters<br />because it is under<br />increasing threat.  <br />
“Overall, we are locked into a race.  We must hurry to acquire the knowledge on which a wise policy of conservation and de...
HOW DO WE DO THIS?  <br />DEVELOP KNOWLEDGEBASES OF SPECIES <br />DISTRIBUTIONS AND SPECIES RELATIONSHIPS.  <br />PROVIDE ...
Phylo-, Biodiversity and <br />Ecological Informatics<br />Analytical Methods<br />means to summarize data & select hypoth...
Growing data <br />Repositories,  formats<br />Growing  Toolbox<br />Concepts and ideas<br />Paup, Phyml/Raxml, MrBayes, <...
The Interconnected Nature of Biodiversity Ideas, Outputs, Repositories <br />From Peterson et al. In Press Systematics and...
DECOUPLING SPECIES DISCOVERY AND DOCUMENTATION<br />(OR GET IT OUT THERE FOR OTHERS TO USE AND REPURPOSE)<br />(OR CLAIM N...
TAKE HOME MESSAGE 1:<br />We need to use the web as a collaborative work environment for biodiversity knowledge generation...
What about monitoring an evolving Earth System?<br />Tracking the spread of disease lineages with known important mutation...
How did drug resistance arise in the H5N1 population?
Are mutations that give rise to drug resistance in H5N1 under positive selection?
Can we provide ways for researchers and the general public to near real-time track this spread?</li></ul>Hosts and strains...
Methods:<br /><ul><li>Collect public genome data for H5N1 avian </li></ul>  	influenza (676 full genomes).<br /><ul><li>Us...
Make GoogleEarthTMvizualizations available</li></ul>.<br />
Global View of Spread of H5N1 (blue branches are lineages with mutation for higher transmissibility among mammals) <br />
Resistant mutant found at position 31 of the M2 protein – colored red below<br />Altitude of node X = a+ [(n− 1) ×b]<br />
Dn/ds measurements across the M2 protein (high Dn/ds ratios (>1) suggest that more non-synonymous substitutions are occurr...
Table 2Amantadine use in chicken farms in Northern China in 1 year (from October 2004 to September 2005)<br />From He, 200...
So What Did We Find Out?<br /><ul><li> Drug resistance to adamantanes is under positive selection </li></ul>  for at least...
 Emergence of drug resistance has been through mutation not </li></ul>  recombination and hitch-hiking (results not shown)...
TAKE HOME MESSAGES 2:<br /><ul><li>  It is possible to not just develop observing systems of species but of </li></ul>    ...
   Developing such a system means creating automated workflows. </li></li></ul><li>
WHAT ABOUT ALLOWING OTHERS TO MAKE THEIR OWN GEOPHYLOGENY?<br />http:// geophylo.appspot.com/<br />Hill and Guralnick, in ...
GeoPhylo Engine -   Written in Python, open source, <br />and deployed on Google App Engine.  <br />Advantages of cloud-ba...
All versioning kept intact so developers can easily link to latest and greatest
Storage of persistent KMLs for users who want to share and modify their KMLs.
Easily deployable as a web service </li></li></ul><li>TAKE HOME MESSAGES 3:<br />Geophylogenies provide rich visualization...
Can We Really Track Distributions of Lineages Through Space and Time?<br />
Map of Life Will:<br /><ul><li>Provide expert opinion range maps for almost all terrestrial vertebrates (and means to accu...
Provide means for the community to annotate those maps
Assemble point occurences, habitat preference data and environmental data (e.g. climate, landcover, soil, etc)
Provide a modeling approach to generate much finer scale distribution models (on the order of a kilometer resolution)</li>...
