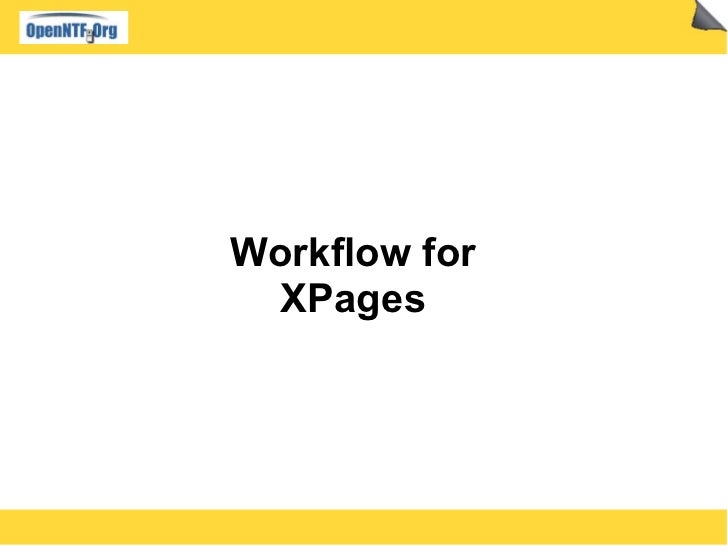

  1. 1. Workflow for XPages
  2. 2. Agenda● Objectives● Workflow Types● Design Goal● Architecture● Introduce to sample application● Guide to setup sample application● How to run the sample application● How to use the workflow engine● How to setup development environment 2
  3. 3. Objectives● Promote a common Workflow capability across products ▬ Make it platform agnostic with drivers that encapsulate the platform differences ▬ Full based on top of Java/OSGi ▬ Come with a robust implementation dedicated to the Domino platform ▬ Allow the move to a more robust architecture, like Lombardi● Increase the Domino Application Development capability by providing an easy to use Workflow capability ▬ Increase the value of Domino as an application development platform ▬ Better compete with Microsoft Sharepoint, and .NET ▬ Workflow is one of the Domino app dev selling point, so make it real! 3
  4. 4. Workflow Types● Different types of workflows are available ▬ Ad hoc workflows, for simple, no administration workflows ▬ Defined as part of the forms, using simple components ● Similar to the Workflow sub form ▬ Changing a process means opening Domino Designer and editing an XPage component ▬ Actions are happening synchronously ▬ Managed Workflows ▬ Defined outside of the form, generally is external databases ▬ Actions are happening asynchronously, using a background router● Workflow context abstraction ▬ The workflow is accessed the same way, regardless of the underlying implementation● XPages common controls ▬ Comes with a set of ready to use controls (action bar, display history...), connected to the worklow context 4
  5. 5. Design Goals● Make the workflow engine easy to use and integrate for the simple cases ▬ Predefined Workflow templates ▬ Simple approval... ▬ Easy to parameterize ▬ Connects to the existing infrastructure (directory, ...) ▬ Built-in drivers ▬ Ready to go set of XPages controls/API● Make the engine customizable for more complex cases ▬ Custom workflow templates ▬ Requires some custom Java/XPages custom development● Developer can use similar API to access workflow data regardless of the workflow type ▬ A workflow context object exposes the current state of the workflow and allows actions to be triggered● Ensure that nothing is “hard coded” but provided through pluggable services ▬ From an XPages standpoint, the services will be available through Complex types 5
  6. 6. Architecture Lotus XPage Connection Profile Connector Common Workflow API Social Profile Connector Workflow People Engine Adapter Adapter Lotus Workflow Org Connector Simple Lotus Lombadi BPM Workflow .... ...Workflow Connector Engine Connector 6
  7. 7. Introduction to the Sample Application The sample application is called: End of Year Review. It is an application to help evaluating employees work in a year. It contains the following workflow: 1. At the beginning of year, employee create an objective for a year 2. Manager approve/reject employees objective 3. At the end of a year, employee create a self assessment for the year 4. Manager evaluate employees assessment and give a evaluation result. Create an Create selfEmployee objective assessment reject approve reject End submit submit approve Evaluate EvaluateManager objective assessment 7
  8. 8. Guide to Setup Sample Application1. Install XPage Extension Library first;2. Unzip the xflow.zip and get com.ibm.xsp.xflow.updatesite.zip. Install the update site to Domino.3. Copy the Sample NSF(EmployeeReview.nsf) to domino data folder. The default user has manager authority, please change access control if needed.4. Sign the design elements5. Access Admin Page ("http://yourDominoServer/EmployeeReview.nsf/WebAdmin.xsp"), input 3 Notes users in your Domino server, press “Create Sample data set” button to generate sample data, including Employee Data and Review Data(These three users will be added to the demo workflow system).6. If you want to create more employee, you can create them with Employee form in Notes client(see explanation of Employee field in page 10). 8
  9. 9. Guide to Setup Sample Application (cont)7. The Navigation List on Admin Page(Home page) has entries to access “Create Review”, "WebMyReviews.xsp", "WebMyEmployees.xsp", "WebMyTodo.xsp", ▬ in "WebMyReviews.xsp" page, user can choose one employee to view his/her review process, if the review process is not finished, you can edit it. ▬ in "WebMyEmployees.xsp" page, manager can view all the review process in the tree structure of Manager and his/her managed people, if the review process is not finished, you can edit it. (Only manager or XFlow_admin role can view this page)8. In "WebEditReview.xsp", you can see the sample usage of "xe:simpleWorkflow". We can define a simple workflow with it. 9
  10. 10. Employee Form ID to identify user in workflow system Corresponding Notes ID for workflow user Users manager id Users second line manager id and users manager id All managed people ids, separated with comma. 10
  11. 11. How to Run the Sample Application1.Login the sample application with an admin user(with Manager authority),and press "Setup" button 11
  12. 12. How to Run the Sample Application2.In setup page, input 3 valid Notes Ids of your Domino server: one foremployee, one for first line manager, one for second line manager. Click"Create Sample Data Set" will generate sample data for you. 12
  13. 13. How to Run the Sample Application2.In setup page, input 3 valid Notes Ids of your Domino server: one foremployee, one for first line manager, one for second line manager. Click"Create Sample Data Set" will generate sample data for you. 13
  14. 14. How to Run the Sample Application3.Login with employee Notes Id. In "My Reviews", you will see 3 yearsreviews. For current year, if it is still in "Objectives to be submitted", you canclick on "Edit". 14
  15. 15. How to Run the Sample Application4.The employee can input this years objective and submit it. 15
  16. 16. How to Run the Sample Application5.Login as first line manager id and in the "Pending Tasks" view, you cansee all current tasks including the Objective submitted by previousemployee. You can click "Edit" view detail information of the objective. 16
  17. 17. How to Run the Sample Application5.Login as first line manager id and in the "Pending Tasks" view, you cansee all current tasks including the Objective submitted by previousemployee. You can click "Edit" view detail information of the objective. 17
  18. 18. How to Run the Sample Application6.As manager, you can input objective comments and Approve/Rejectemployees objective. Once approved, the document will return to employeeto input assessment. 18
  19. 19. How to Run the Sample Application7.Login as employee and input self assessment and submit. 19
  20. 20. How to Run the Sample Application8.Login as first line manager, you can find employees assessment in“Pending Tasks”. You can input manager assessment and select aevaluation result. 20
  21. 21. How to Run the Sample Application8.Login as first line manager, you can find employees assessment in“Pending Tasks”. You can input manager assessment and select aevaluation result. 21
  22. 22. How to Run the Sample Application9.As first line manager, you can also view all employees reviews in "MyEmployees" view. 22
  23. 23. How to Use the Workflow Engine:● For simple ad hoc workflow applications ● You can use the workflow engine directly in this distribution(called SimpleWorkflow) ● In your XPage, you can use workflowContext to access the workflow engine data● For complex workflow applications ● You can implement your own workflow custom control to integrate third party workflow engine ● In your XPage, you can use workflowContext to access the workflow engine data 23
  24. 24. Use Simple Workflow Engine● For simple ad hoc workflow application, you can use the workflow engine in this distribution ▬ In Application Properties → Advanced tab, add required libraries: com.ibm.xsp.extlib.library and com.ibm.xsp.xflow.library ▬ Drag the SimpleWorkflow control to your Xpage ▬ Define your workflow process in SimpleWorkflows “Process” property ▬ Design your form in the XPage as usual ▬ Access workflow data through data bean workflowContext in Xpage ▬ Use custom control wkWorkflowActions to show workflow action bar 24
  25. 25. How to Setup Development Environment1. Install Domino server and Eclipse 3.6 or 3.4 above2. Download XPage Extension Library3. Install XPage Extension Library to Domino server: unzip the XPageExtensionLibrary.zip and get the updatesite.zip; Unzip the updatesite.zip, copy the unzipped folder into Dominodatadominoworkspaceapplicationseclipse4. Follow this guide to setup debug env: http://www.openntf.org/Projects/pmt.nsf/6EA1D2D26DF8D5BC862577D00055BB21/%24fil e/Lotus%20Domino%20Debug%20Plugin.pdf(Use the JVM installed in dominon directory <Domino Install Directory>Dominojvm)5. Import XFlow source code to Eclipse workspace, set the target platform to Dominoosgircpeclipse, Dominoosgisharedeclipse, Dominodatadominoworkspaceapplicationseclipse6. Copy the sample NSF(EmployeeReview.nsf) to your Domino data directory7. In Domino Designer there maybe errors, you also need install updatesite.zip to domino designer. You also need to install update site "com.ibm.xsp.xflow.updatesite.zip" into Designer. 25
  26. 26. Backup 26
  27. 27. Demo app snapshot: Admin page to create sample data 27
  28. 28. Demo app snapshot: employee creates "End of Year Review" 28
  29. 29. Demo app snapshot: manager list all employees "End of Year Review" 29
  1. A particular slide catching your eye?
