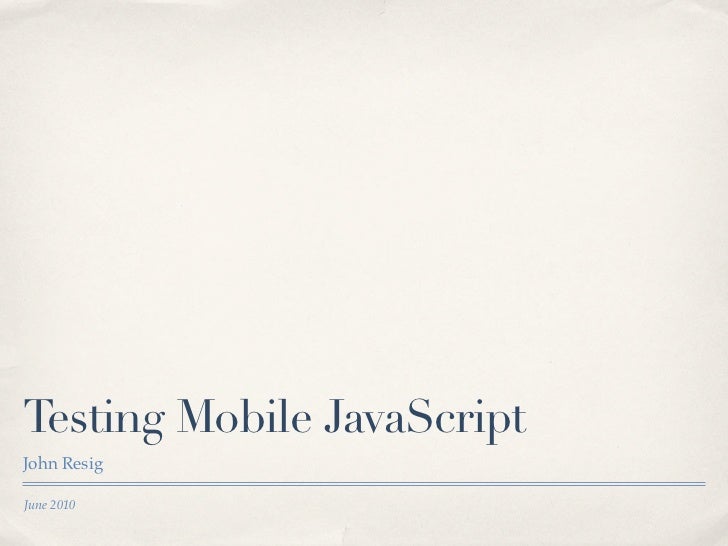

Testing Mobile JavaScript
John Resig

June 2010
I’ve been researching and trying to make
         sense of the mobile space recently.
Started preparations in 2009 (with t...
Cross-browser mobile web development is crazy.
         (...but not nearly as crazy as it use to be.)




                ...
A Simple Goal



✤   Started with a simple goal:

    ✤   To make sure that jQuery works on the most popular mobile
      ...
Questions: Answered

✤   Three questions that need to be answered before doing mobile
    development:

    ✤   What platf...
Best Stats?

✤   Who has the best statistics on the mobile market?

✤   StatCounter and Gartner seem to be tops.

    ✤   ...
Lack of Information

✤   Right now finding this information is a challenge.

✤   As a result, developers develop for what’s...
Platforms
Platform Sales
Hard Question



✤   What versions of those platforms are popular?
    ✤   No one seems to know, or isn’t talking about it.
Browsers
Hard Question

✤   What versions of those browsers are popular?
    ✤   No one seems to know, or isn’t talking about it.
✤...
Testing Strategy



✤   Draw a line in the sand

✤   Buy Devices, Download Simulators

✤   Automate testing (TestSwarm!)
Drawing a Line


✤   Yahoo!s Graded Browser Support technique is optimal.

✤   Qualify which browsers you will support (ac...
My God... it’s full of browsers...




Mobile Graded Browser Support: Market share + Browser quality
Testing Browsers

✤   Two options:

    ✤   Buy devices and/or

    ✤   Download simulators

✤   Simulators are good for m...
Simulators


✤   Simulators are available for most platforms and browsers.

    ✤   Most simulators require Windows to run...
Automated Testing

✤   Once you have simulators (or physical devices) up and running you’ll
    want to interact with them...
Platforms

✤   Symbian (S60 / UIQ)

✤   iPhone OS

✤   Blackberry OS

✤   Android

✤   Windows Mobile

✤   WebOS

✤   Maem...
Symbian
Symbian S60

✤   The most popular mobile OS - heavily used by Nokia.

✤   v5.0 is for touch screen devices (Equiv. to Safa...
Symbian S60




                  B
              A       B?
Symbian UIQ


✤   A now-dead implementation of the Symbian OS last released in 2008.

✤   Appears to still be in use, some...
Symbian UIQ




         C    C
iPhone OS

✤   Apple’s super-popular mobile OS

✤   Apple is very good about pushing
    updates, almost all users are on ...
iPhone Simulator

                     No 2.x
                   simulator!
                       B




                 ...
Blackberry OS

✤   Blackberry continues to be enormously popular - and growing
    rapidly.

✤   Ships with a custom brows...
Blackberry OS




      B


                B

                    B
Android

✤   Rapidly growing OS from Google.

    ✤   Tons of manufacturers are
        modifying and shipping it.

    ✤ ...
Android




     A
          A

              A
Windows Mobile

✤   Windows Mobile 6.5 is the current release.

    ✤   Uses IE 6 as its rendering engine.

✤   Window Mob...
Windows Mobile




                     7.0? :-(

     F
                 B
WebOS

✤   Palm’s (HP’s?) Mobile OS

    ✤   Has a minimal amount of traction.

✤   Built off of WebKit, easy to support.
...
Maemo / Meego

✤   Linux-based OS used for tablets (and
    potentially phones). Used by Nokia.

    ✤   Not very popular....
Platform-Independent Browsers

✤   A number of browsers target multiple platforms. Some work directly
    with carriers (O...
Opera Mobile and Opera Mini

✤   Hugely popular mobile browser (especially Mini).

    ✤   Available on a large number of ...
Opera Mobile and Opera Mini



          C




                                       A
                C
                ...
Fennec


✤   Codename for Firefox on mobile
    devices

✤   Released for Maemo, alpha release
    out for Android (watch ...
Netfront


✤   Used on Playstation and N-Gage

    ✤   Download available for Windows Mobile.

✤   Highly crippled, custom...
Phonegap

✤   Not a browser, a way to
    develop cross-platform
    applications.

✤   Uses WebKit as the rendering
    e...
Other Browsers


✤   Not worth the time for such small market share.

    ✤   Ozone (Uses WebKit)

    ✤   Openwave (Dead)...
Summary

✤   What do we need to support? Roughly:

    ✤   Opera 9.5, 10

    ✤   Internet Explorer 6, 7

    ✤   Firefox ...
What Devices to Buy?

✤   For A level:

    ✤   1 iPhone 3GS: Latest running 3.x (* Watch for new 4.x iPhone)

    ✤   1 i...
A   -Grade Costs

✤   $315 - iPhone 3GS

✤   $499 - iPad

✤   $370 - Nokia N97

✤   $399 - Palm Pre

✤   $349 - HTC Magic
...
What Devices to Buy?


✤   For B level (in addition to A level):

    ✤   1 1st Gen iPhone: Running 2.x

    ✤   1 Nokia N...
B   -Grade Costs

✤   $315 - 1st Gen iPhone

✤   $360 - Nokia N96

✤   $310 - Curve 8900

✤   $350 x 2 - Tour 9630

✤   $6...
More Information

✤   Coming Soon at:

    ✤   http://jquerymobile.com/

✤   See also:

    ✤   http://testswarm.com/ and
...
Testing Mobile JavaScript
Testing Mobile JavaScript
Upcoming SlideShare
Loading in...5
×

Testing Mobile JavaScript

1,064,665

Published on

A talk that I gave at Texas JavaScript and Web Directions @Media on my current work into testing mobile JavaScript code.

5 Comments
101 Likes
Statistics
Notes
No Downloads
Views
Total Views
1,064,665
On Slideshare
0
From Embeds
0
Number of Embeds
70
Actions
Shares
0
Downloads
1,167
Comments
5
Likes
101
Embeds 0
No embeds

No notes for slide

Transcript of "Testing Mobile JavaScript"

  1. 1. Testing Mobile JavaScript John Resig June 2010
  2. 2. I’ve been researching and trying to make sense of the mobile space recently. Started preparations in 2009 (with the creation of TestSwarm).
  3. 3. Cross-browser mobile web development is crazy. (...but not nearly as crazy as it use to be.) I’ve seen things...
  4. 4. A Simple Goal ✤ Started with a simple goal: ✤ To make sure that jQuery works on the most popular mobile platforms and browsers. ✤ As it turns out, it’s really hard to define the scope of the problem.
  5. 5. Questions: Answered ✤ Three questions that need to be answered before doing mobile development: ✤ What platforms and browsers are popular? ✤ What browsers are capable of supporting modern scripting? ✤ What devices and simulators do I acquire to test with? ✤ To answer those questions we need good data.
  6. 6. Best Stats? ✤ Who has the best statistics on the mobile market? ✤ StatCounter and Gartner seem to be tops. ✤ StatCounter covers billions of hits per month. ✤ Gartner is well-respected and knows sale information well. ✤ AdMob is decent for specific platforms (iPhone, Android). ✤ That being said: Very little actually-useful information leaks out.
  7. 7. Lack of Information ✤ Right now finding this information is a challenge. ✤ As a result, developers develop for what’s in front of them:
  8. 8. Platforms
  9. 9. Platform Sales
  10. 10. Hard Question ✤ What versions of those platforms are popular? ✤ No one seems to know, or isn’t talking about it.
  11. 11. Browsers
  12. 12. Hard Question ✤ What versions of those browsers are popular? ✤ No one seems to know, or isn’t talking about it. ✤ Supposedly Yahoo is going to be releasing some information soon, we’ll see. ✤ Right now it’s considered to be a competitive advantage to keep it private.
  13. 13. Testing Strategy ✤ Draw a line in the sand ✤ Buy Devices, Download Simulators ✤ Automate testing (TestSwarm!)
  14. 14. Drawing a Line ✤ Yahoo!s Graded Browser Support technique is optimal. ✤ Qualify which browsers you will support (actively test against) and give them a grade. ✤ A = Full support, C = Fall back to old site, Other = Assume full support.
  15. 15. My God... it’s full of browsers... Mobile Graded Browser Support: Market share + Browser quality
  16. 16. Testing Browsers ✤ Two options: ✤ Buy devices and/or ✤ Download simulators ✤ Simulators are good for most automated testing. ✤ Any sort of interaction testing you’ll want to do on a physical device. ✤ Always good to do a sanity check on a physical device before going live.
  17. 17. Simulators ✤ Simulators are available for most platforms and browsers. ✤ Most simulators require Windows to run (some require Perl or Java) ✤ Some browsers even provide standalone executables (Opera, Fennec). ✤ Getting the simulators running can be a real bear.
  18. 18. Automated Testing ✤ Once you have simulators (or physical devices) up and running you’ll want to interact with them as little as possible. ✤ Automated test execution will be really important. ✤ TestSwarm was developed for this express purpose: Make it easy to push tests out to a large number of clients (even mobile).
  19. 19. Platforms ✤ Symbian (S60 / UIQ) ✤ iPhone OS ✤ Blackberry OS ✤ Android ✤ Windows Mobile ✤ WebOS ✤ Maemo / Meego
  20. 20. Symbian
  21. 21. Symbian S60 ✤ The most popular mobile OS - heavily used by Nokia. ✤ v5.0 is for touch screen devices (Equiv. to Safari 3.1) ✤ v3.0 is the latest for ‘regular’ devices (Equiv. to Safari 2.0) ✤ 2 ‘feature packs’ have been released ✤ The oldest, active, mobile browser that should be supported. ✤ Simulators available on Nokia.com.
  22. 22. Symbian S60 B A B?
  23. 23. Symbian UIQ ✤ A now-dead implementation of the Symbian OS last released in 2008. ✤ Appears to still be in use, some what, but quickly becoming irrelevant. ✤ Uses Opera Mobile (8.6, 8.65) as its built-in browser. ✤ UIQ is dead and Nokia doesn’t distribute the simulator any more. I found a guy in Russia that has some extra copies (totally legit, heh).
  24. 24. Symbian UIQ C C
  25. 25. iPhone OS ✤ Apple’s super-popular mobile OS ✤ Apple is very good about pushing updates, almost all users are on the latest OS version. ✤ Current with Safari 4 ✤ A gotchya: Does not have fixed position support (making it difficult to implement toolbars). Recommend: TouchScroll library. ✤ Simulator is part of the iPhone SDK.
  26. 26. iPhone Simulator No 2.x simulator! B A A
  27. 27. Blackberry OS ✤ Blackberry continues to be enormously popular - and growing rapidly. ✤ Ships with a custom browser, will be switching to a WebKit-based one in 6.0. ✤ Anything older than Blackberry 4.6 is really frightening. ✤ Andrew Dupont calls 4.6 the “rubicon”. ✤ 4.6/4.7 have some strange quirks, 5.0 is pretty decent. ✤ Blackberry provides simulator downloads on their dev site.
  28. 28. Blackberry OS B B B
  29. 29. Android ✤ Rapidly growing OS from Google. ✤ Tons of manufacturers are modifying and shipping it. ✤ Expect Android to grow drastically over the next couple years. ✤ Lack of control has yielded extreme version fracturing. ✤ Simulators are an easy download.
  30. 30. Android A A A
  31. 31. Windows Mobile ✤ Windows Mobile 6.5 is the current release. ✤ Uses IE 6 as its rendering engine. ✤ Window Mobile 7.0 is coming soon. ✤ Uses IE 7 as its rendering engine. :-( :-( :-( :,( ✤ Window Mobile 6.1 is still relatively popular but is based off of IE 4.0 - this is a non-starter. ✤ Windows Mobile 6.5 simulator is an easy download.
  32. 32. Windows Mobile 7.0? :-( F B
  33. 33. WebOS ✤ Palm’s (HP’s?) Mobile OS ✤ Has a minimal amount of traction. ✤ Built off of WebKit, easy to support. ✤ 1.4 simulator ships with 1.3 browser (wtf!?) ✤ I’m testing using a physical Palm Pre. ✤ Palm Pre simulator is an easy download. A
  34. 34. Maemo / Meego ✤ Linux-based OS used for tablets (and potentially phones). Used by Nokia. ✤ Not very popular. ✤ Has a browser called ‘MicroB’ that C uses Gecko. ✤ Mostly interesting as Fennec is capable of running on it. ✤ Simulator requires Linux to run - haven’t figured it out yet.
  35. 35. Platform-Independent Browsers ✤ A number of browsers target multiple platforms. Some work directly with carriers (Opera, Netfront) whereas others provide downloads (Opera, Fennec). ✤ Opera ✤ Fennec ✤ Netfront ✤ Phonegap (App Platform)
  36. 36. Opera Mobile and Opera Mini ✤ Hugely popular mobile browser (especially Mini). ✤ Available on a large number of platforms. ✤ Even ships as the default browser on some. ✤ Opera Mobile and Opera Mini couldn’t be more different. ✤ Mobile is a full-featured browser. ✤ Mini is a glorified bitmap viewer. ✤ Pulls from a proxy, no JS executing on client.
  37. 37. Opera Mobile and Opera Mini C A C Simulator is awesome!
  38. 38. Fennec ✤ Codename for Firefox on mobile devices ✤ Released for Maemo, alpha release out for Android (watch this!) A B ✤ Equivalent to the latest releases of Firefox Simulator is awesome!
  39. 39. Netfront ✤ Used on Playstation and N-Gage ✤ Download available for Windows Mobile. ✤ Highly crippled, custom, browser. ✤ Not worth supporting. C ✤ Compatibility can be a real pain.
  40. 40. Phonegap ✤ Not a browser, a way to develop cross-platform applications. ✤ Uses WebKit as the rendering engine. ✤ Use HTML/CSS/JS to develop deployable apps. A ✤ Quite popular, easy to support.
  41. 41. Other Browsers ✤ Not worth the time for such small market share. ✤ Ozone (Uses WebKit) ✤ Openwave (Dead) ✤ Bolt (Uses WebKit) C ✤ JIL (Uses WebKit, Widget Platform)
  42. 42. Summary ✤ What do we need to support? Roughly: ✤ Opera 9.5, 10 ✤ Internet Explorer 6, 7 ✤ Firefox 3.5+ ✤ Safari 2, 3, 4 ✤ (and Blackberry... weeee...) ✤ Don’t assume it’ll work, download the simulators and test!
  43. 43. What Devices to Buy? ✤ For A level: ✤ 1 iPhone 3GS: Latest running 3.x (* Watch for new 4.x iPhone) ✤ 1 iPad: Running 3.2 ✤ 1 Nokia N97 Running S60v5 ✤ 1 Palm Pre: Running 1.4 ✤ 2 Android Phones: HTC Magic (1.5/1.6), Droid Incredible (2.1) (* Watch for new 2.2 Android) ✤ And download the Opera and Fennec Simulators and Phonegap
  44. 44. A -Grade Costs ✤ $315 - iPhone 3GS ✤ $499 - iPad ✤ $370 - Nokia N97 ✤ $399 - Palm Pre ✤ $349 - HTC Magic ✤ $637 - Droid Incredible ✤ Total: $2569
  45. 45. What Devices to Buy? ✤ For B level (in addition to A level): ✤ 1 1st Gen iPhone: Running 2.x ✤ 1 Nokia N96: Running 3.0v2 ✤ 3 Blackberry Devices: Curve 8900 (4.6), 2x Tour 9630 (4.7 and 5.0) ✤ 1 HTC HD2: Running Windows Mobile 6.5
  46. 46. B -Grade Costs ✤ $315 - 1st Gen iPhone ✤ $360 - Nokia N96 ✤ $310 - Curve 8900 ✤ $350 x 2 - Tour 9630 ✤ $600 - HTC HD2 ✤ Total: $2285 ✤ A -Grade + B -Grade: $4854
  47. 47. More Information ✤ Coming Soon at: ✤ http://jquerymobile.com/ ✤ See also: ✤ http://testswarm.com/ and ✤ http://swarm.jquery.org/ ✤ And: ✤ http://quirksmode.org/m/
