Zero to the Cloud with @NetflixOSS
- 1. Zero to the Cloud with @NetflixOSS Mike McGarr mmcgarr@netflix.com @SonOfGarr http://www.MikeMcGarr.com
- 2. about me • J. Michael (Mike) McGarr • Engineering Manager, Netflix Build Tools • Founder, DC Continuous Delivery Meetup • Former Director of DevOps, Blackboard • Excella Consulting • Booz Allen Hamilton 11/17/14 @SonOfGarr 2

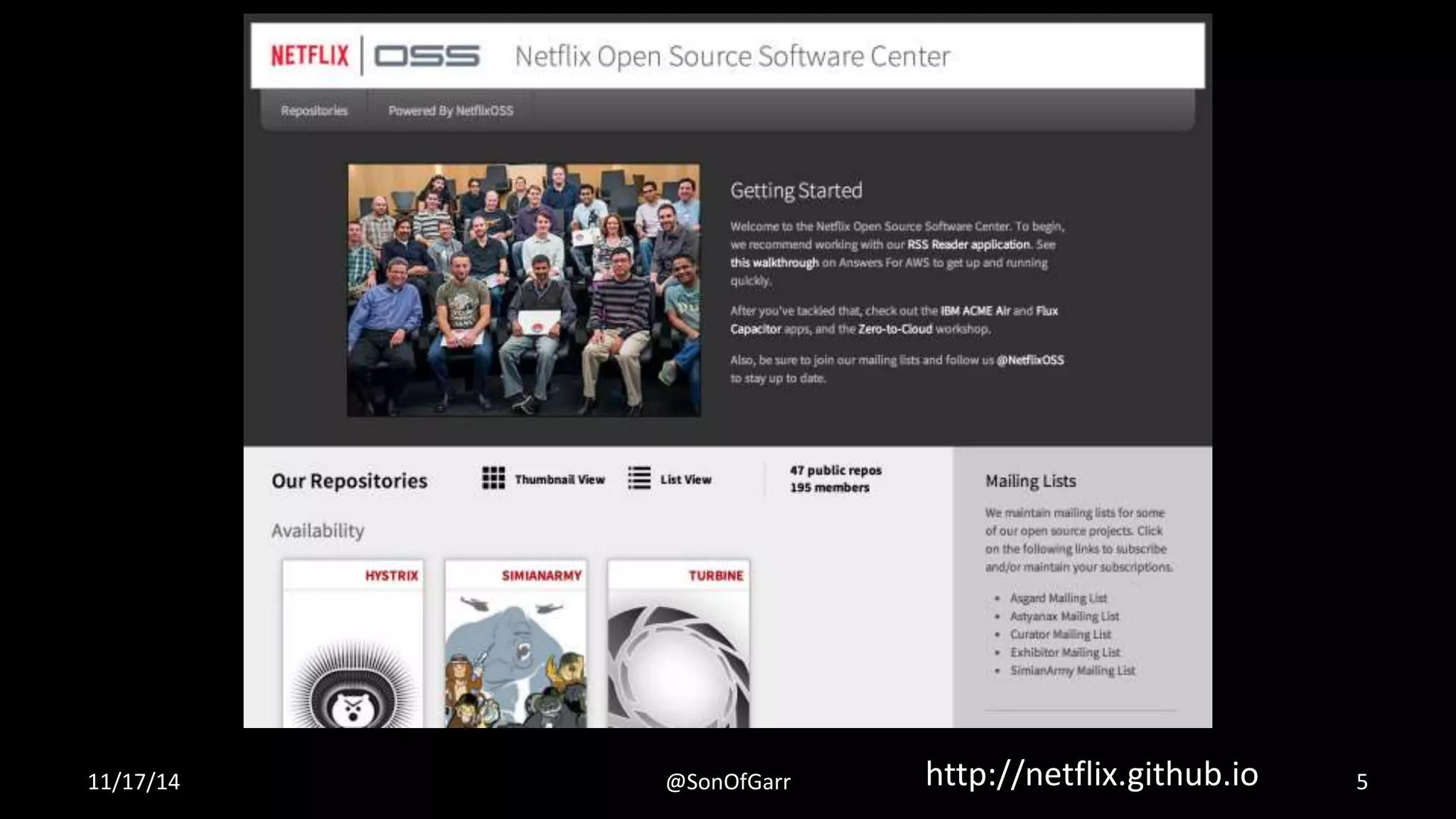

- 5. @NetflixOSS 11/17/14 @SonOfGarr http://netflix.github.io 5

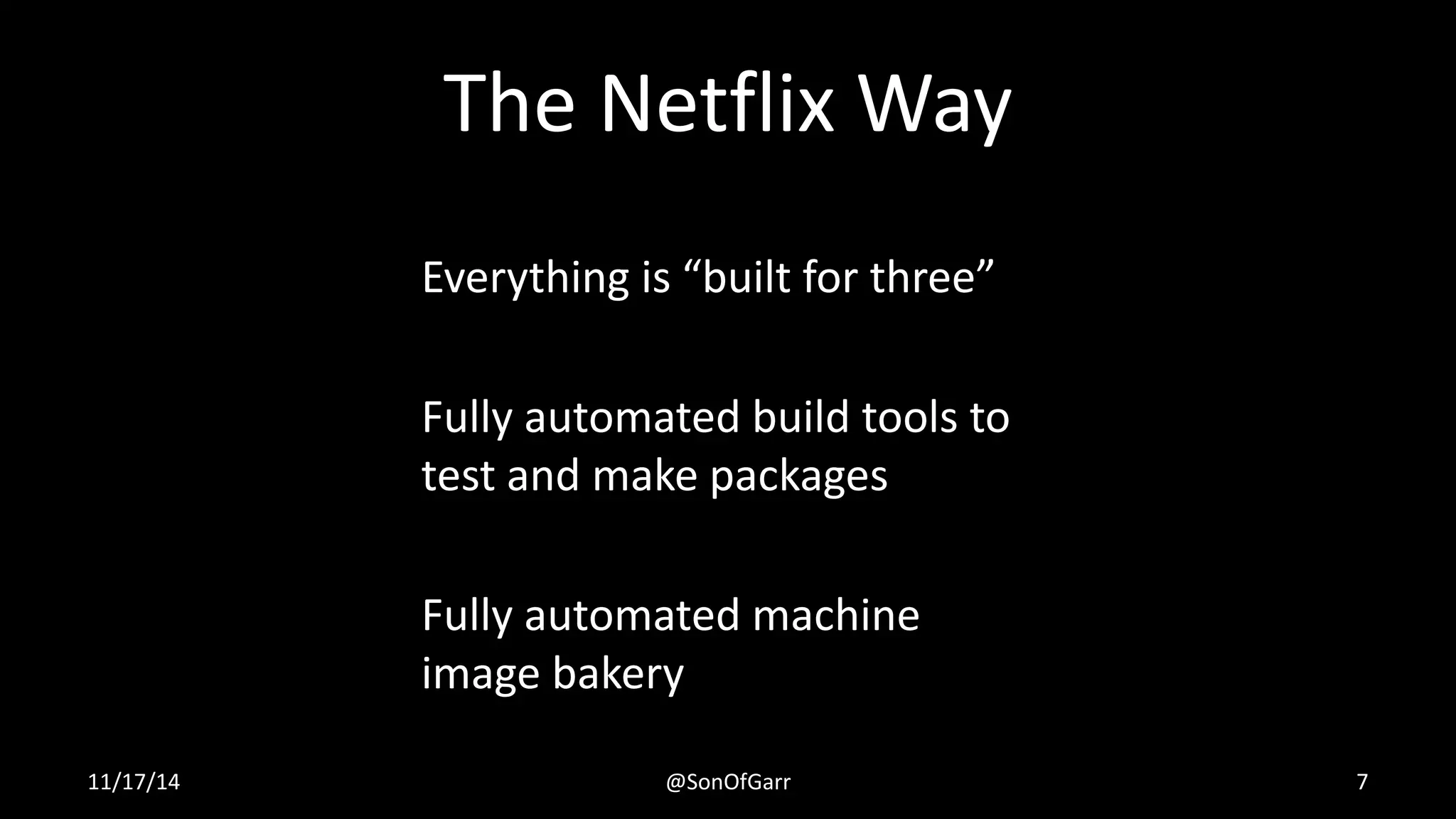

- 7. The Netflix Way Everything is “built for three” Fully automated build tools to test and make packages Fully automated machine image bakery 11/17/14 @SonOfGarr 7
- 8. The Netflix Way Fully automated image deployment Service teams responsible for both “Dev” and “Ops” Redundancy through multi-region deployment 11/17/14 @SonOfGarr 8
- 9. cloud native 11/17/14 @SonOfGarr 9
- 10. microservices (soa) 11/17/14 @SonOfGarr 10

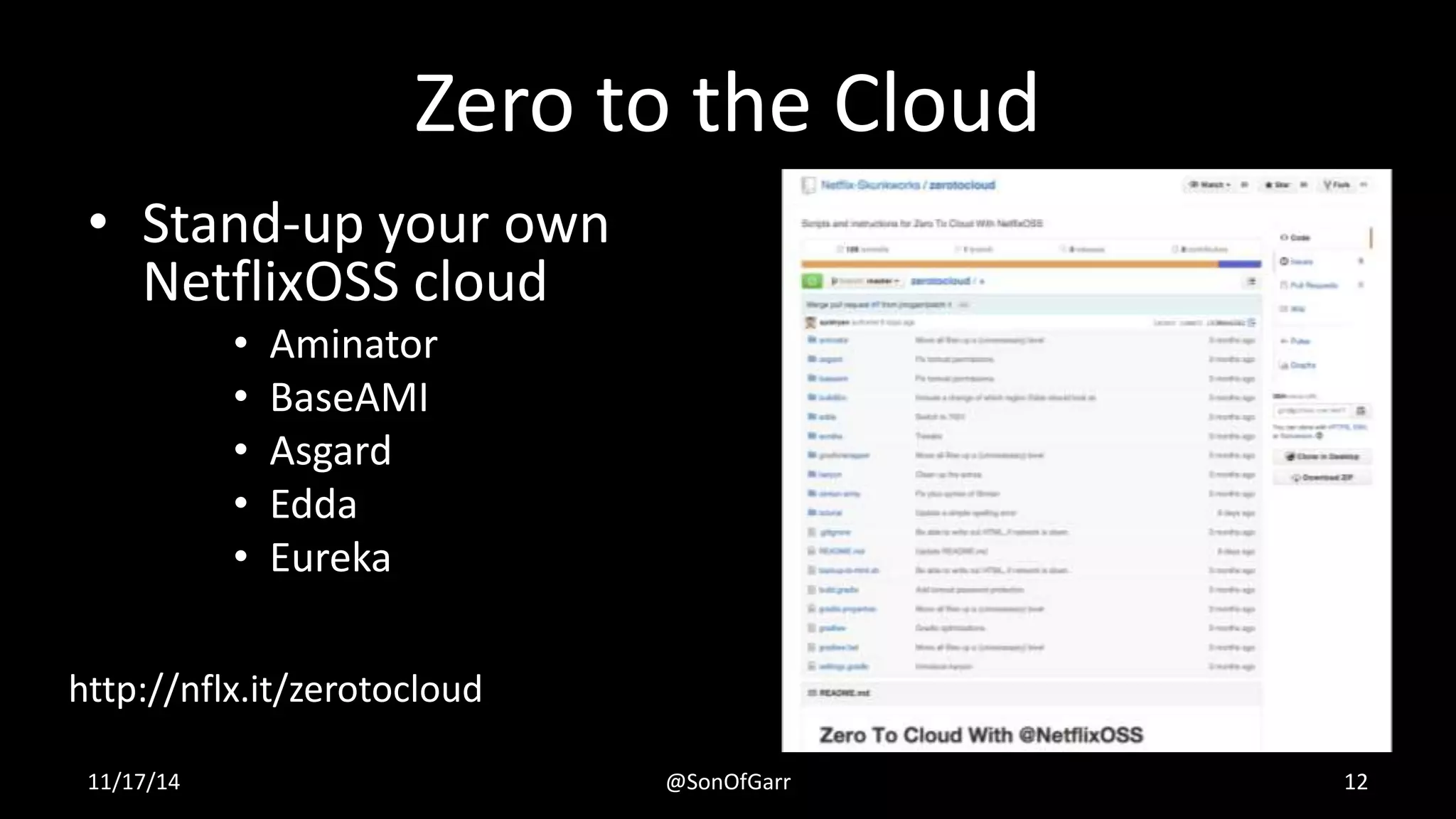

- 12. Zero to the Cloud • Stand-up your own NetflixOSS cloud • Aminator • BaseAMI • Asgard • Edda • Eureka http://nflx.it/zerotocloud 11/17/14 @SonOfGarr 12

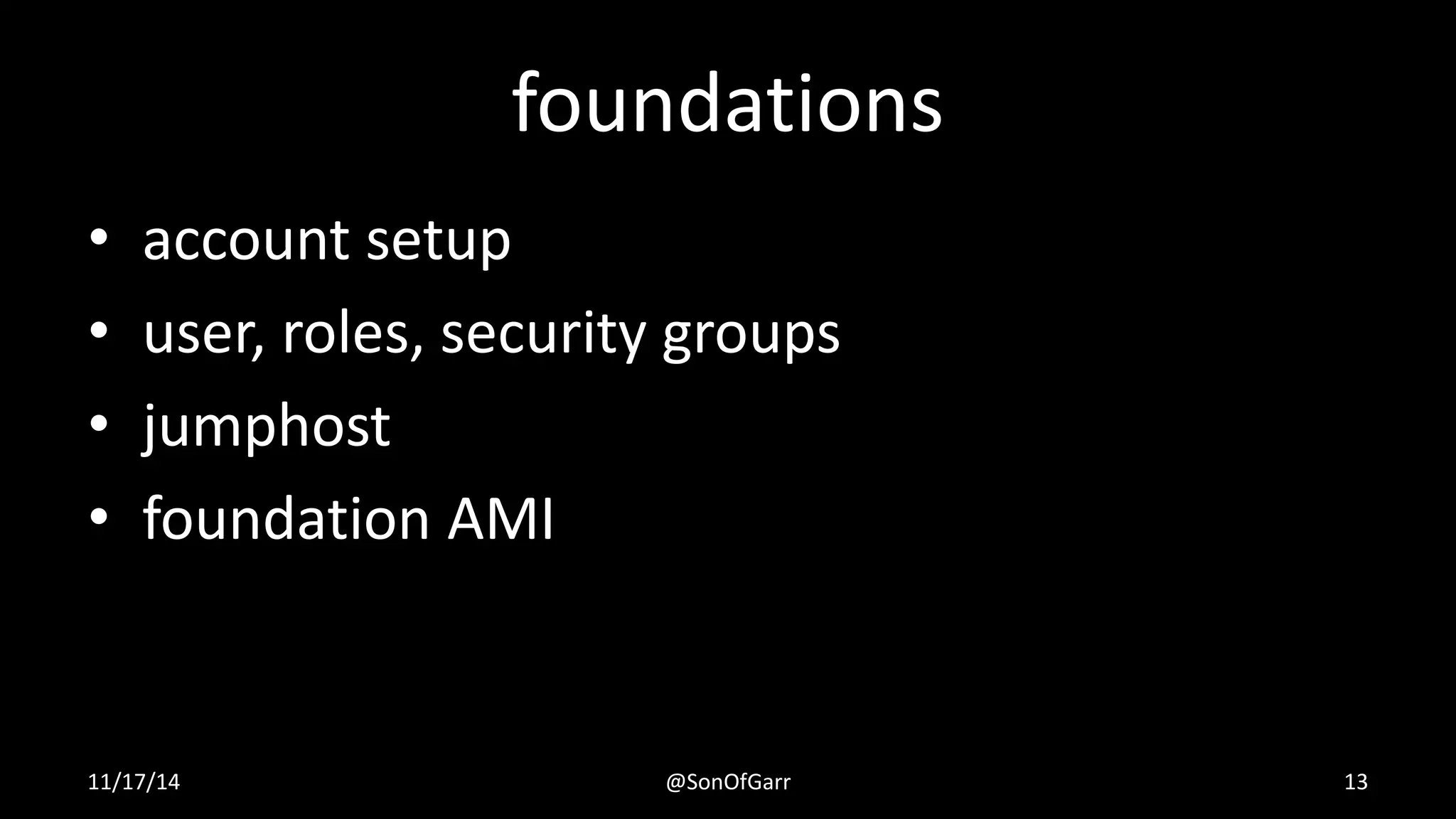

- 13. foundations • account setup • user, roles, security groups • jumphost • foundation AMI 11/17/14 @SonOfGarr 13

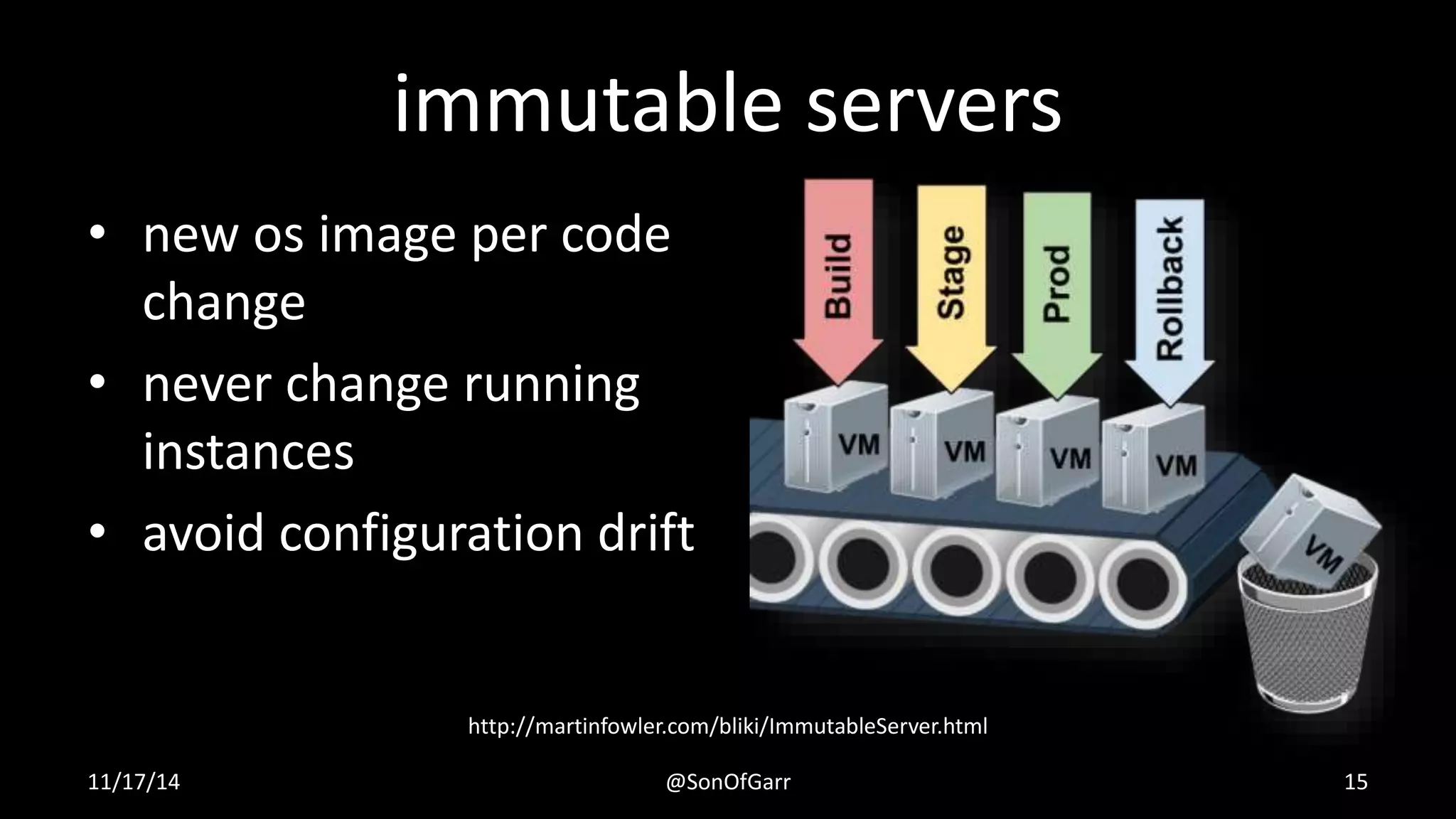

- 15. immutable servers • new os image per code change • never change running instances • avoid configuration drift http://martinfowler.com/bliki/ImmutableServer.html 11/17/14 @SonOfGarr 15

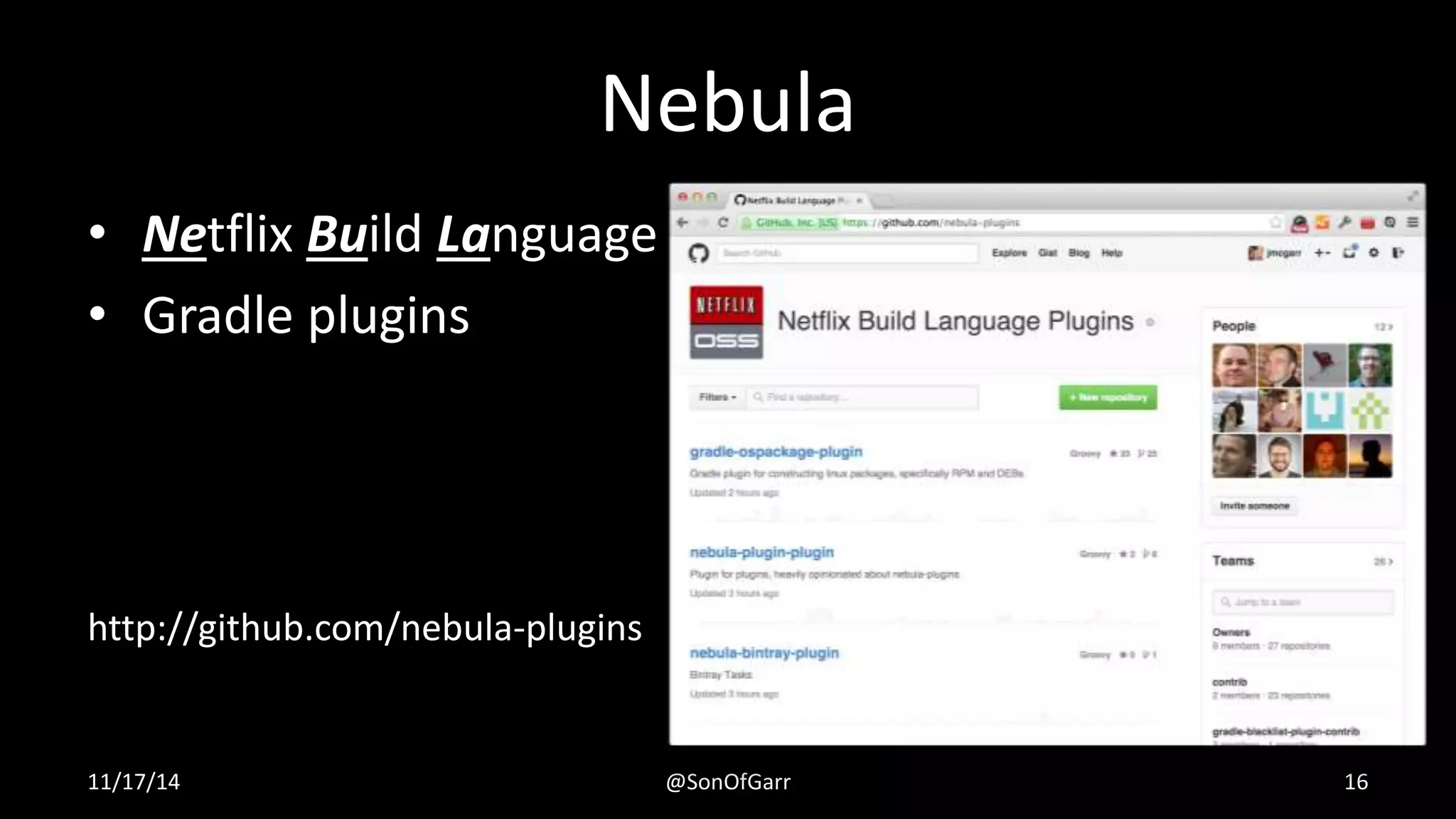

- 16. Nebula • Netflix Build Language • Gradle plugins http://github.com/nebula-plugins 11/17/14 @SonOfGarr 16

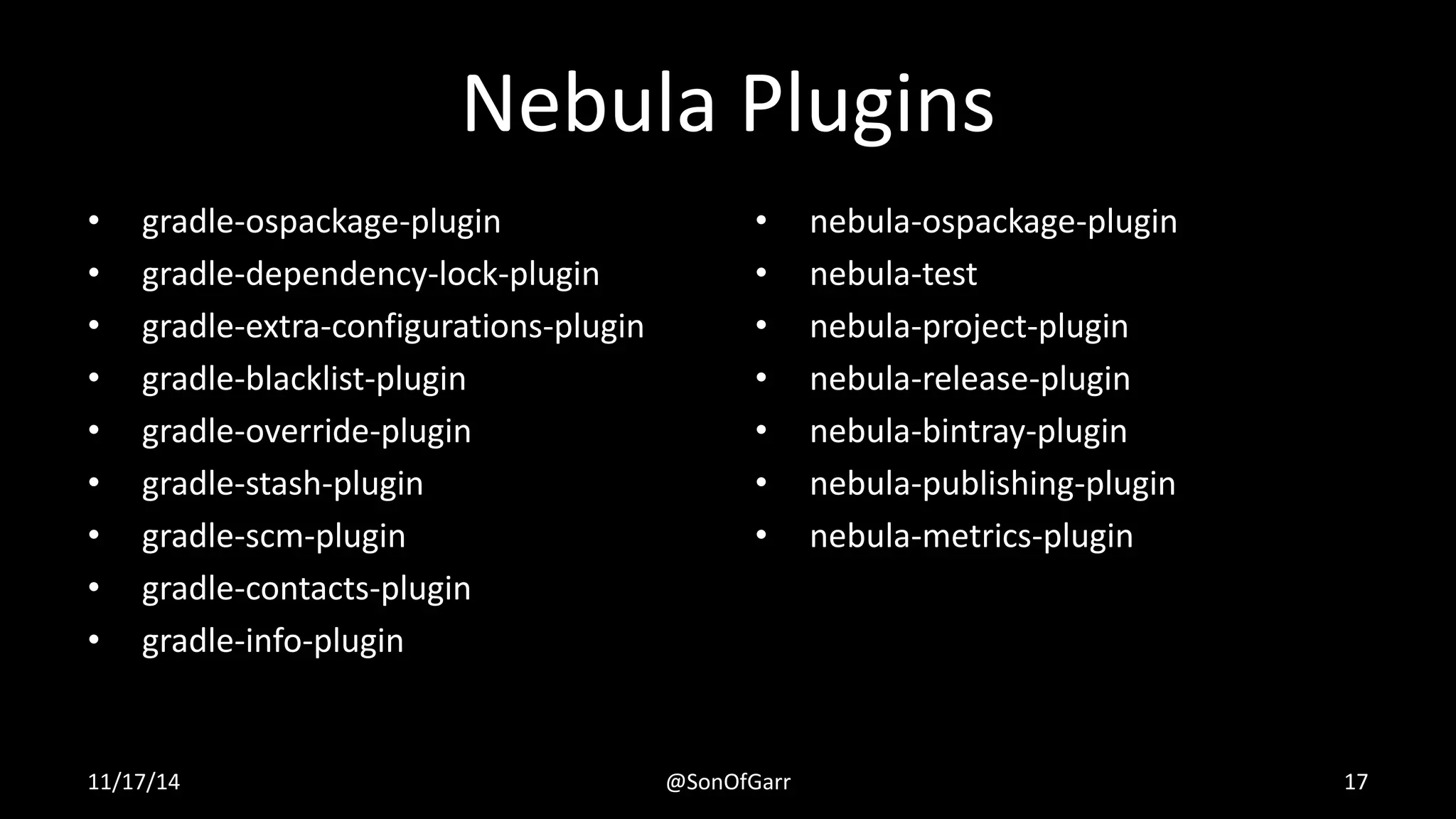

- 17. Nebula Plugins • gradle-ospackage-plugin • gradle-dependency-lock-plugin • gradle-extra-configurations-plugin • gradle-blacklist-plugin • gradle-override-plugin • gradle-stash-plugin • gradle-scm-plugin • gradle-contacts-plugin • gradle-info-plugin • nebula-ospackage-plugin • nebula-test • nebula-project-plugin • nebula-release-plugin • nebula-bintray-plugin • nebula-publishing-plugin • nebula-metrics-plugin 11/17/14 @SonOfGarr 17

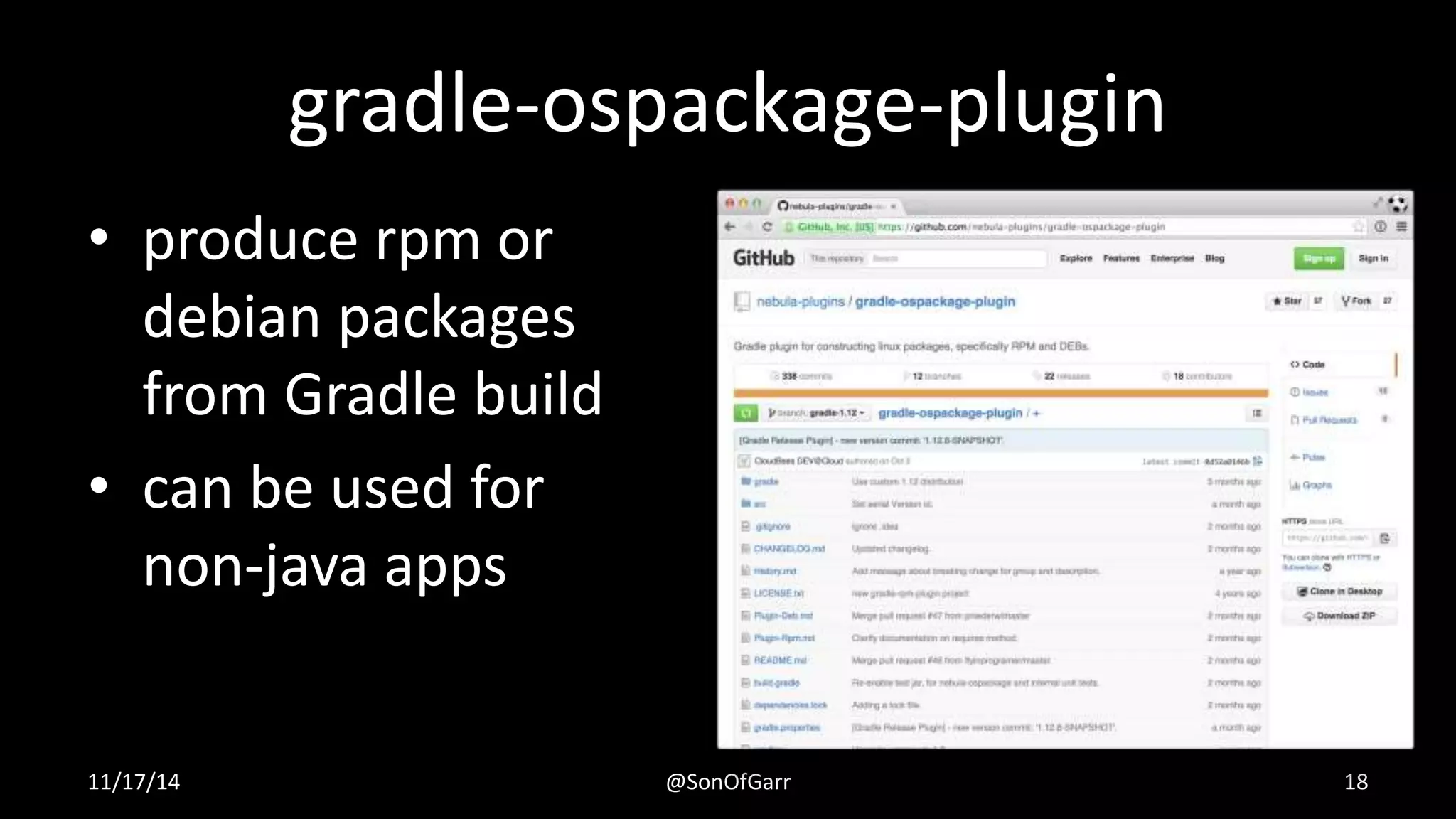

- 18. gradle-ospackage-plugin • produce rpm or debian packages from Gradle build • can be used for non-java apps 11/17/14 @SonOfGarr 18

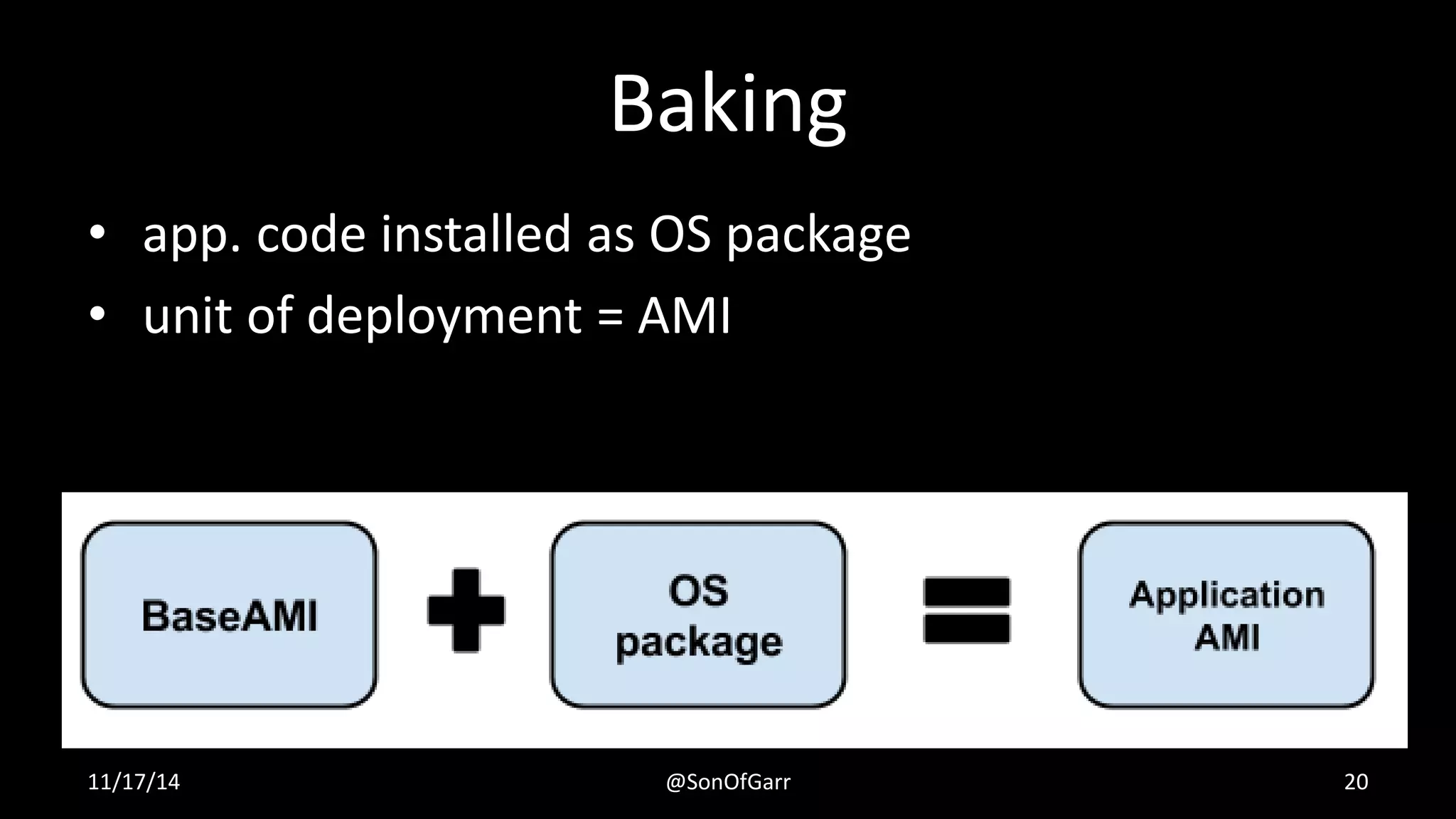

- 20. Baking • app. code installed as OS package • unit of deployment = AMI 11/17/14 @SonOfGarr 20

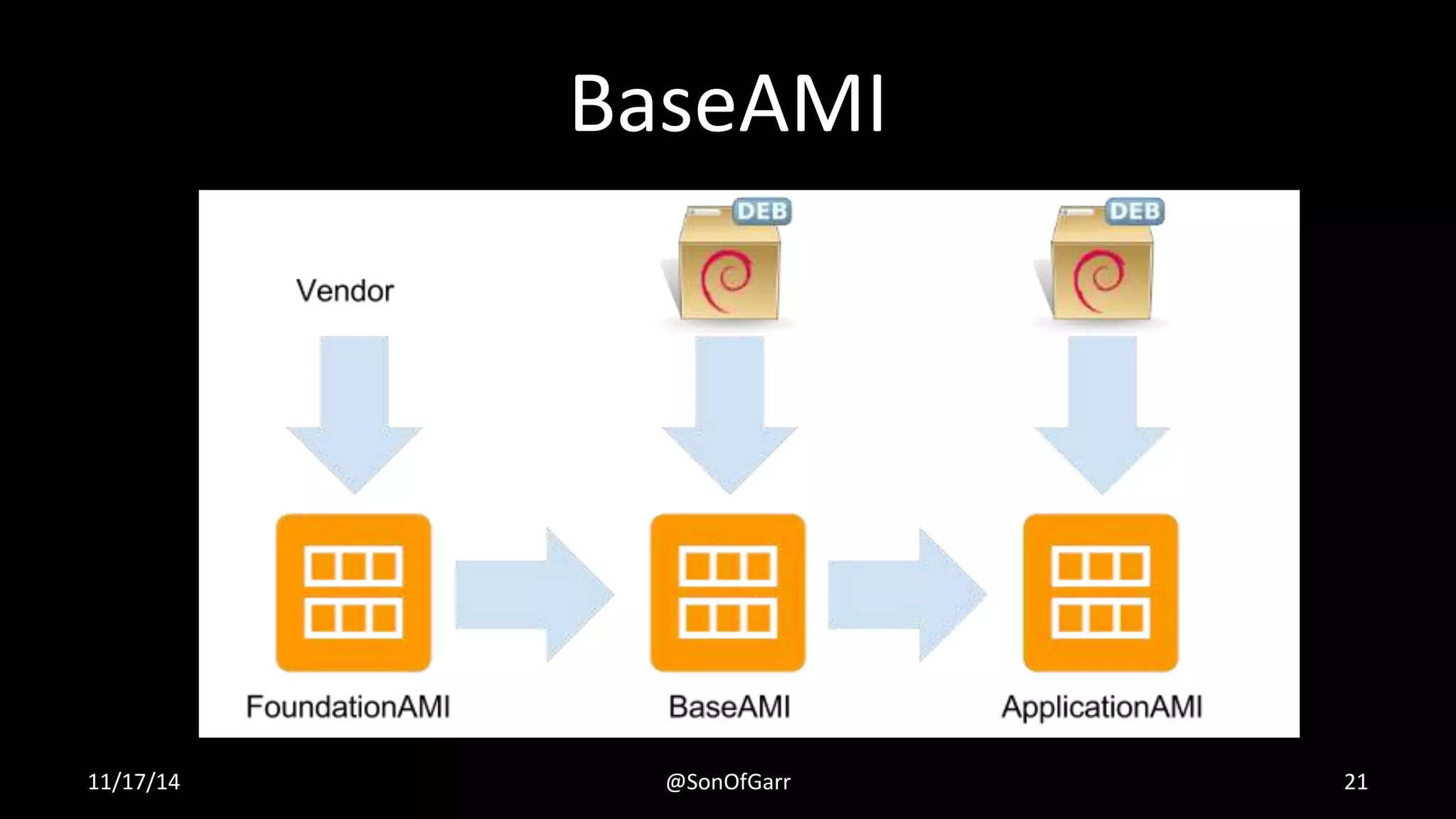

- 21. BaseAMI 11/17/14 @SonOfGarr 21

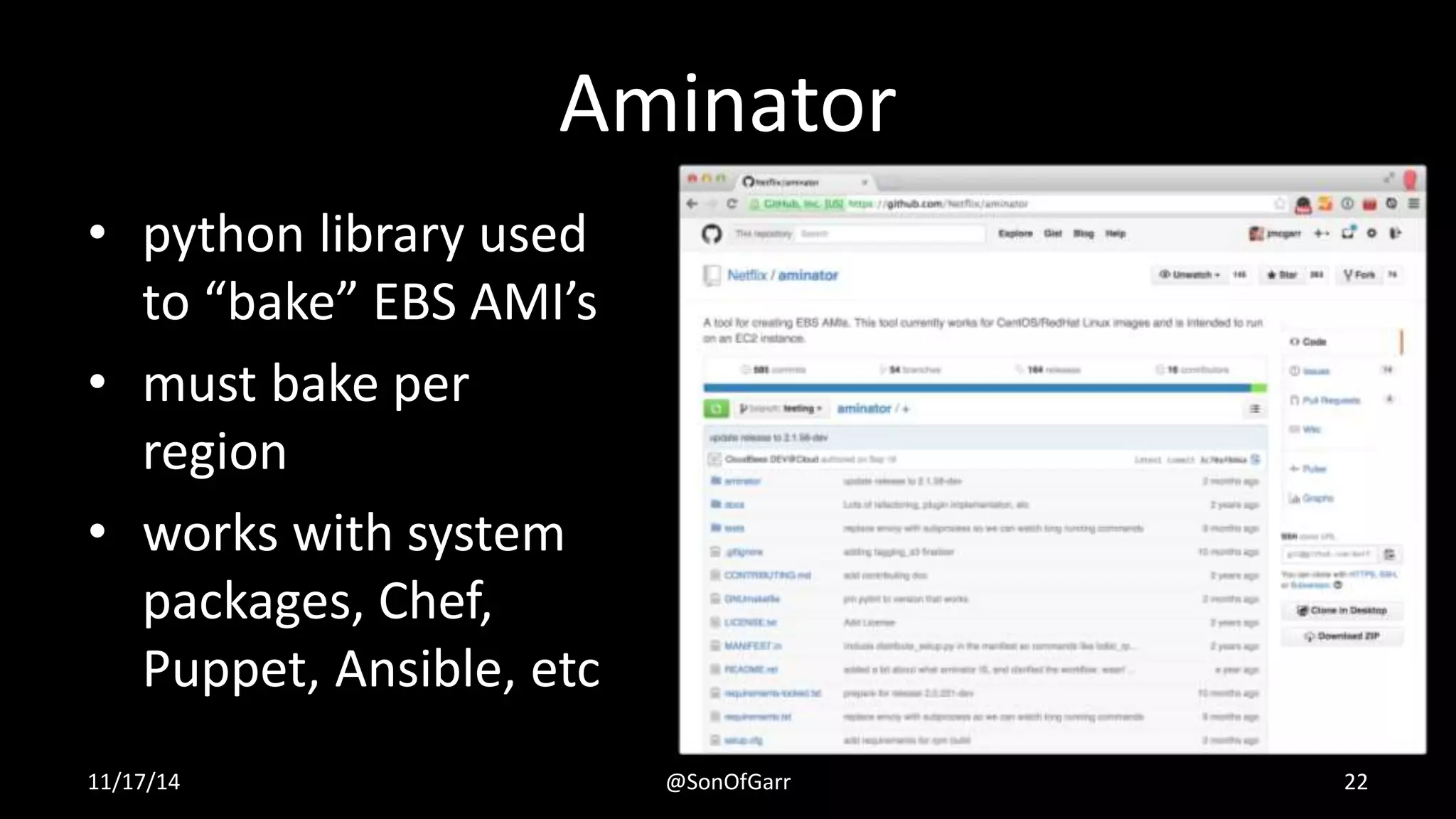

- 22. Aminator • python library used to “bake” EBS AMI’s • must bake per region • works with system packages, Chef, Puppet, Ansible, etc 11/17/14 @SonOfGarr 22

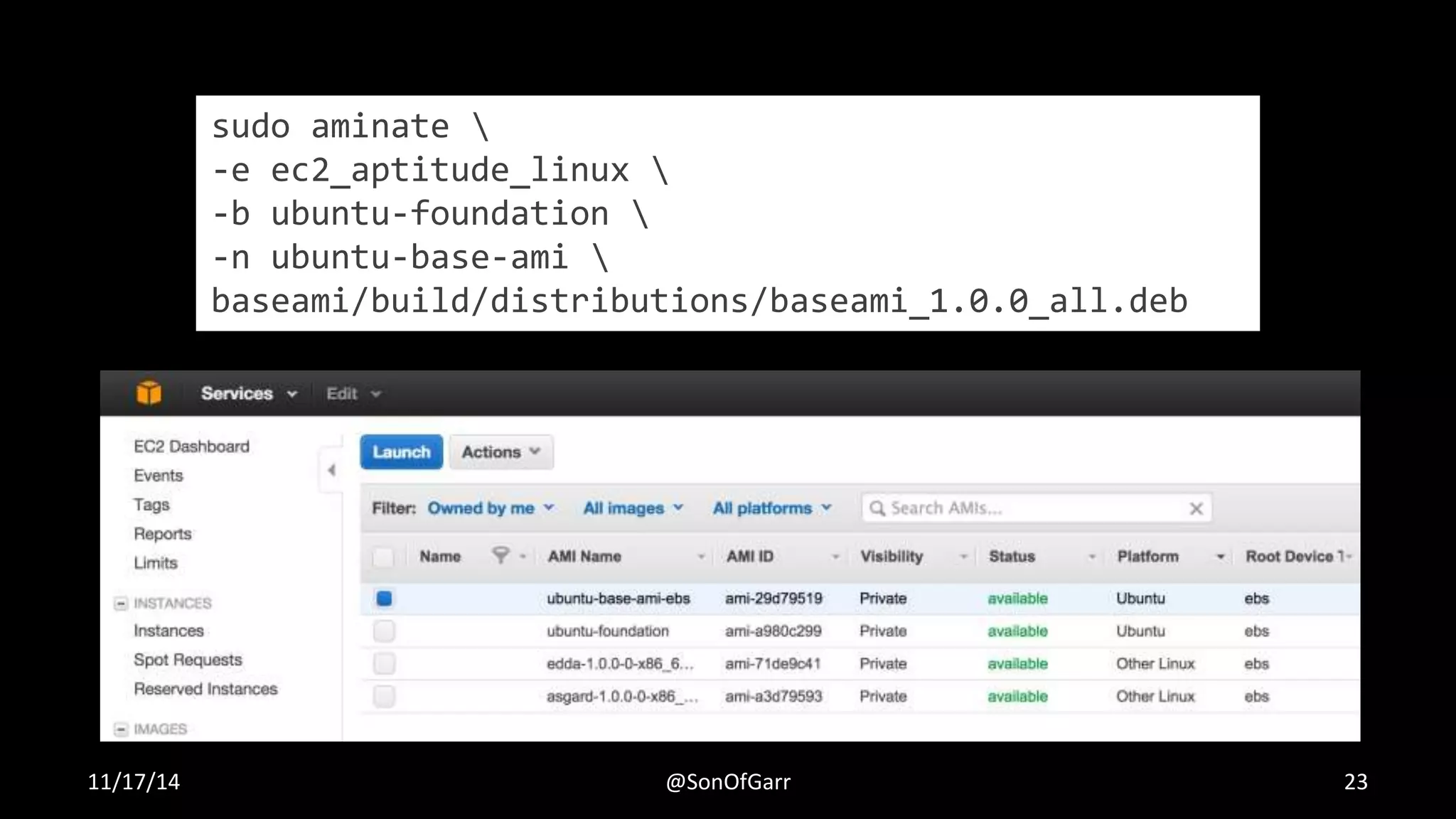

- 23. sudo aminate -e ec2_aptitude_linux -b ubuntu-foundation -n ubuntu-base-ami baseami/build/distributions/baseami_1.0.0_all.deb 11/17/14 @SonOfGarr 23

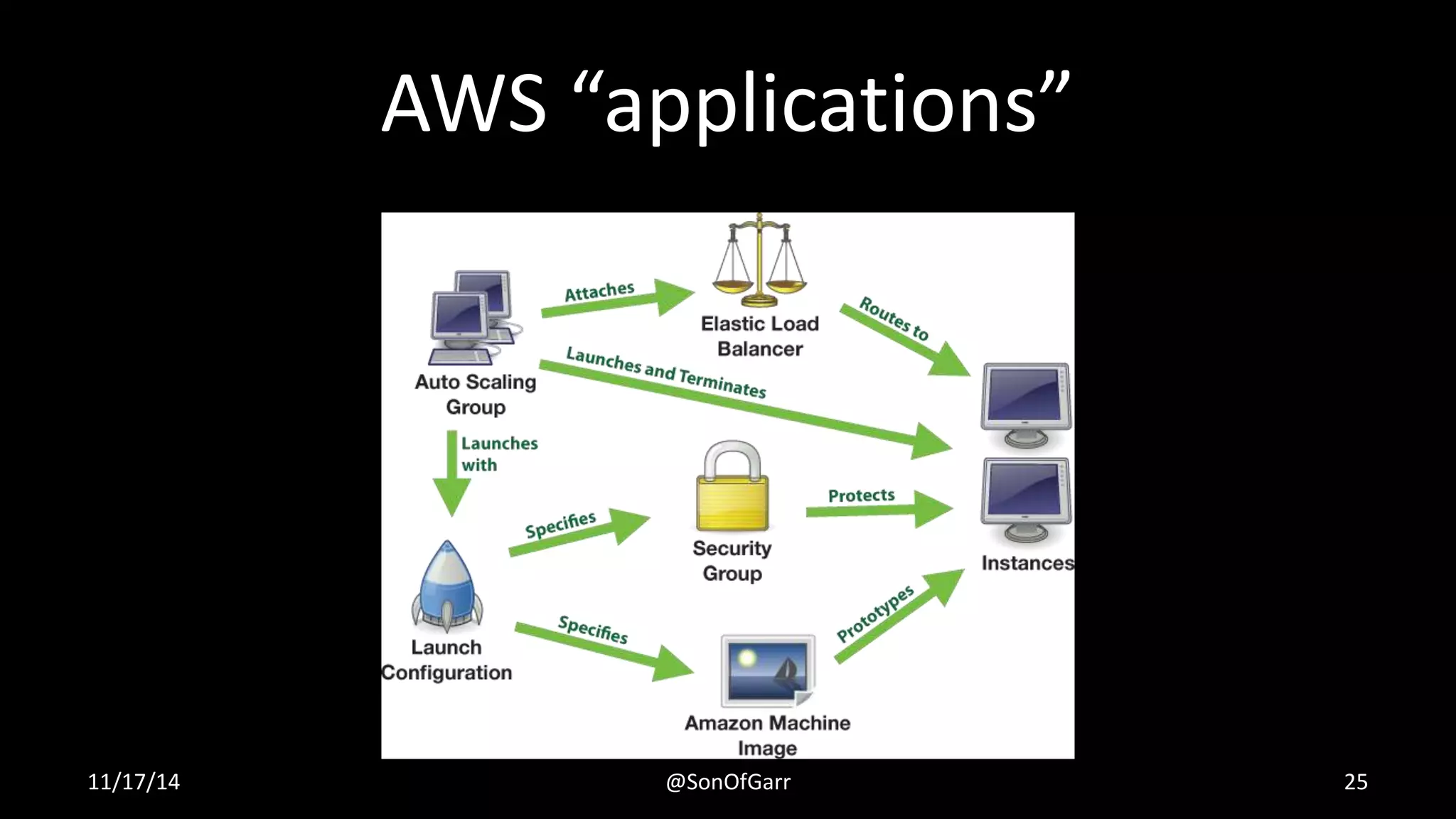

- 25. AWS “applications” 11/17/14 @SonOfGarr 25

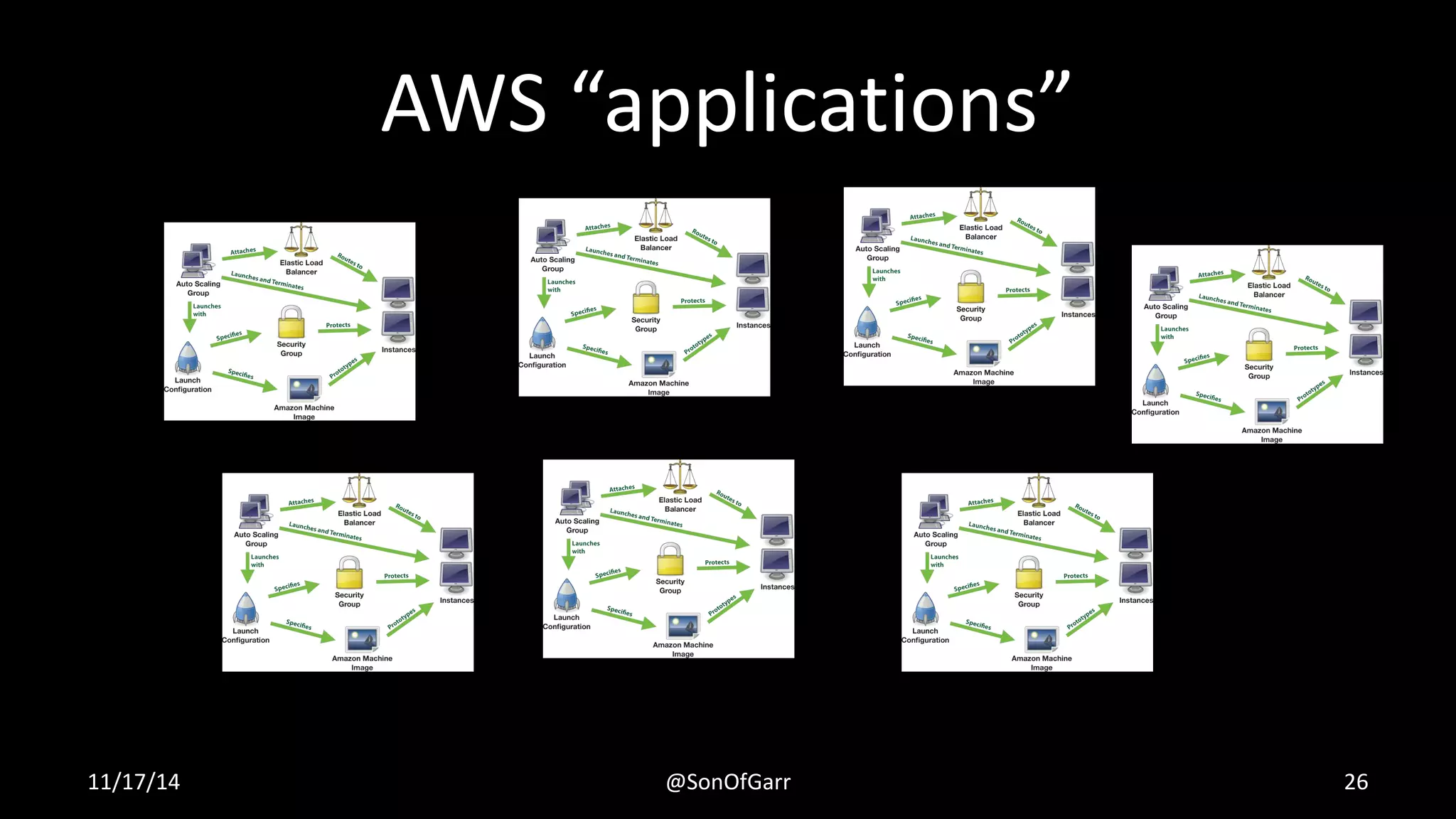

- 26. AWS “applications” 11/17/14 @SonOfGarr 26

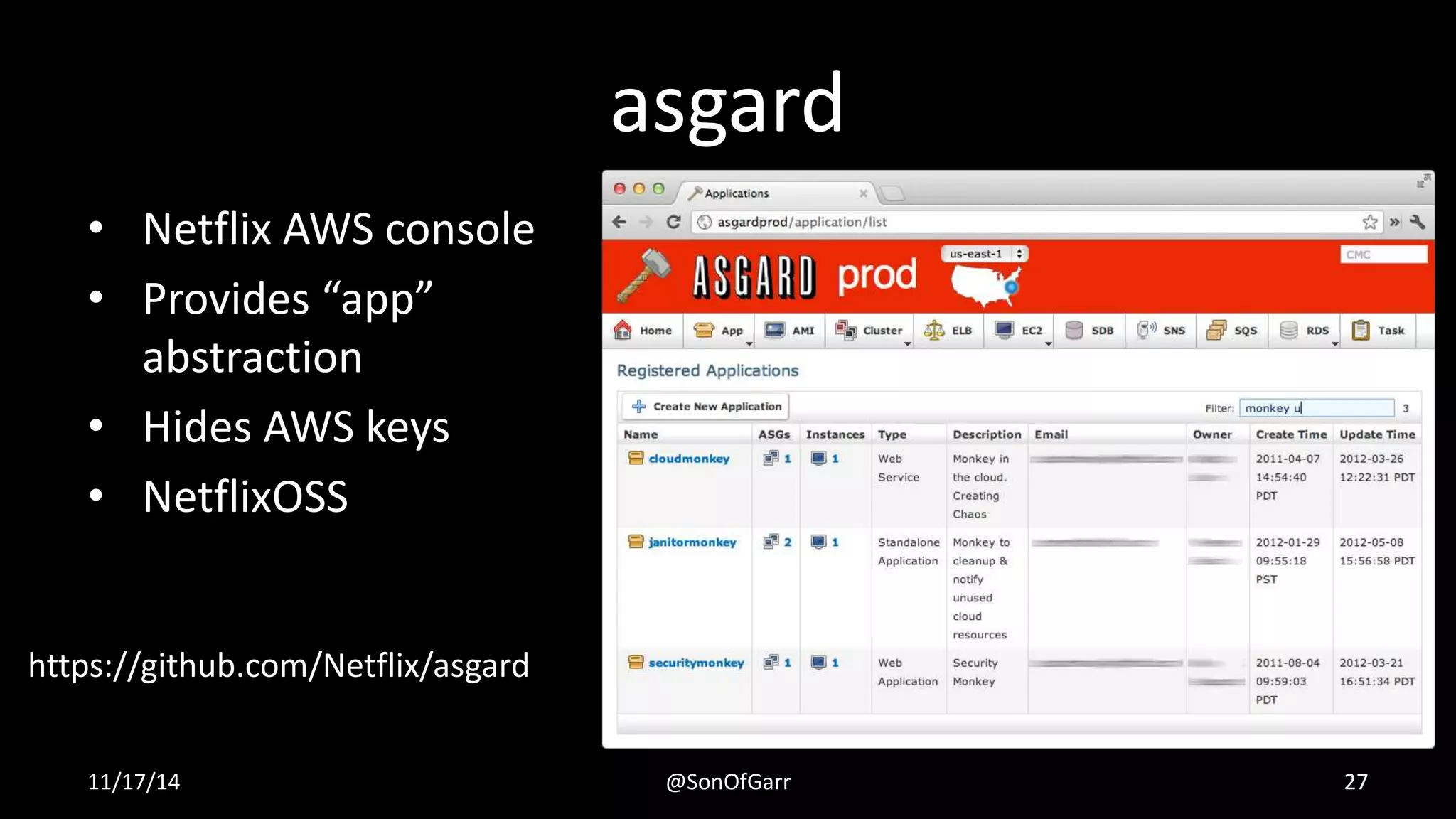

- 27. asgard • Netflix AWS console • Provides “app” abstraction • Hides AWS keys • NetflixOSS https://github.com/Netflix/asgard 11/17/14 @SonOfGarr 27

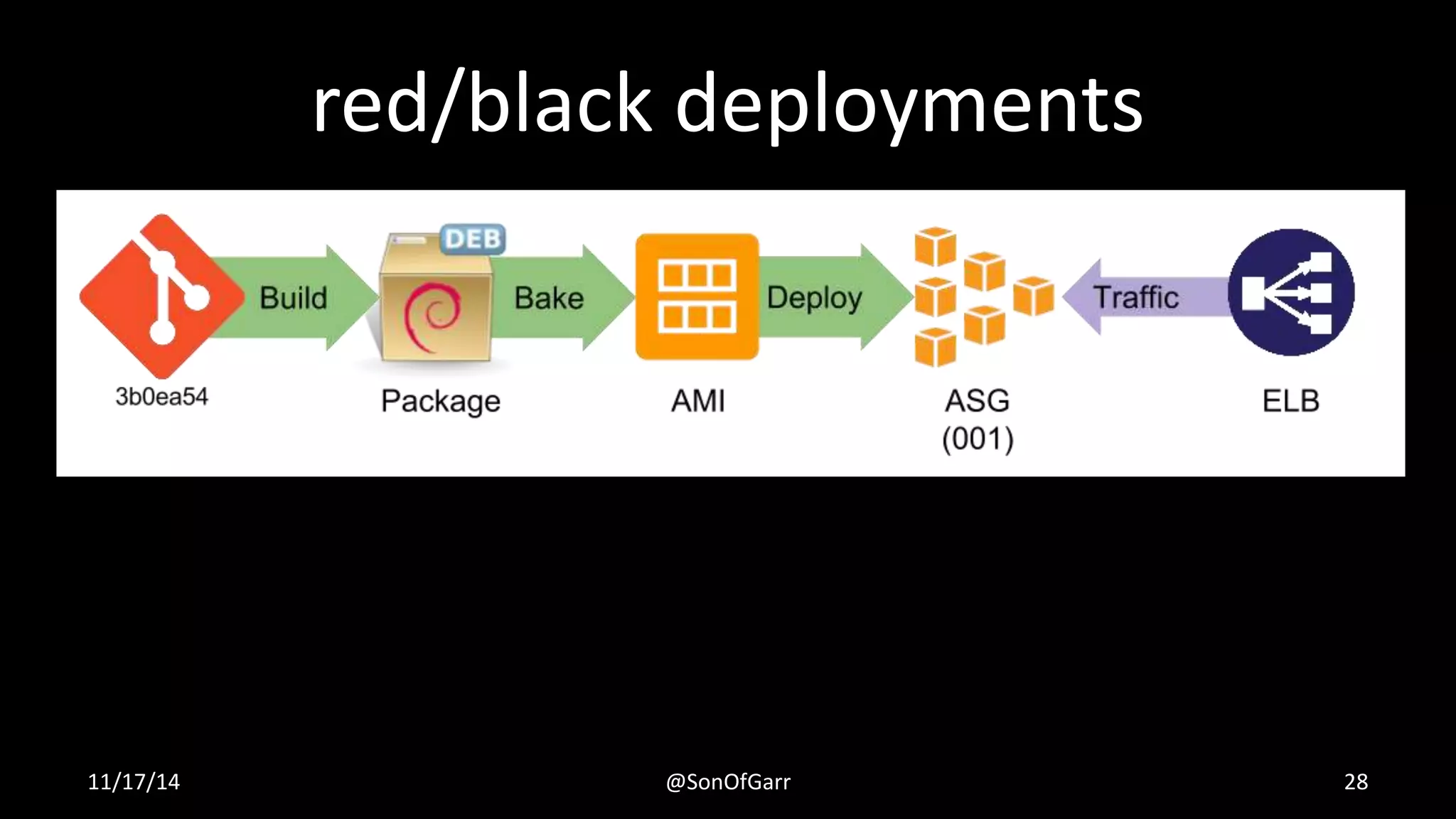

- 28. red/black deployments 11/17/14 @SonOfGarr 28

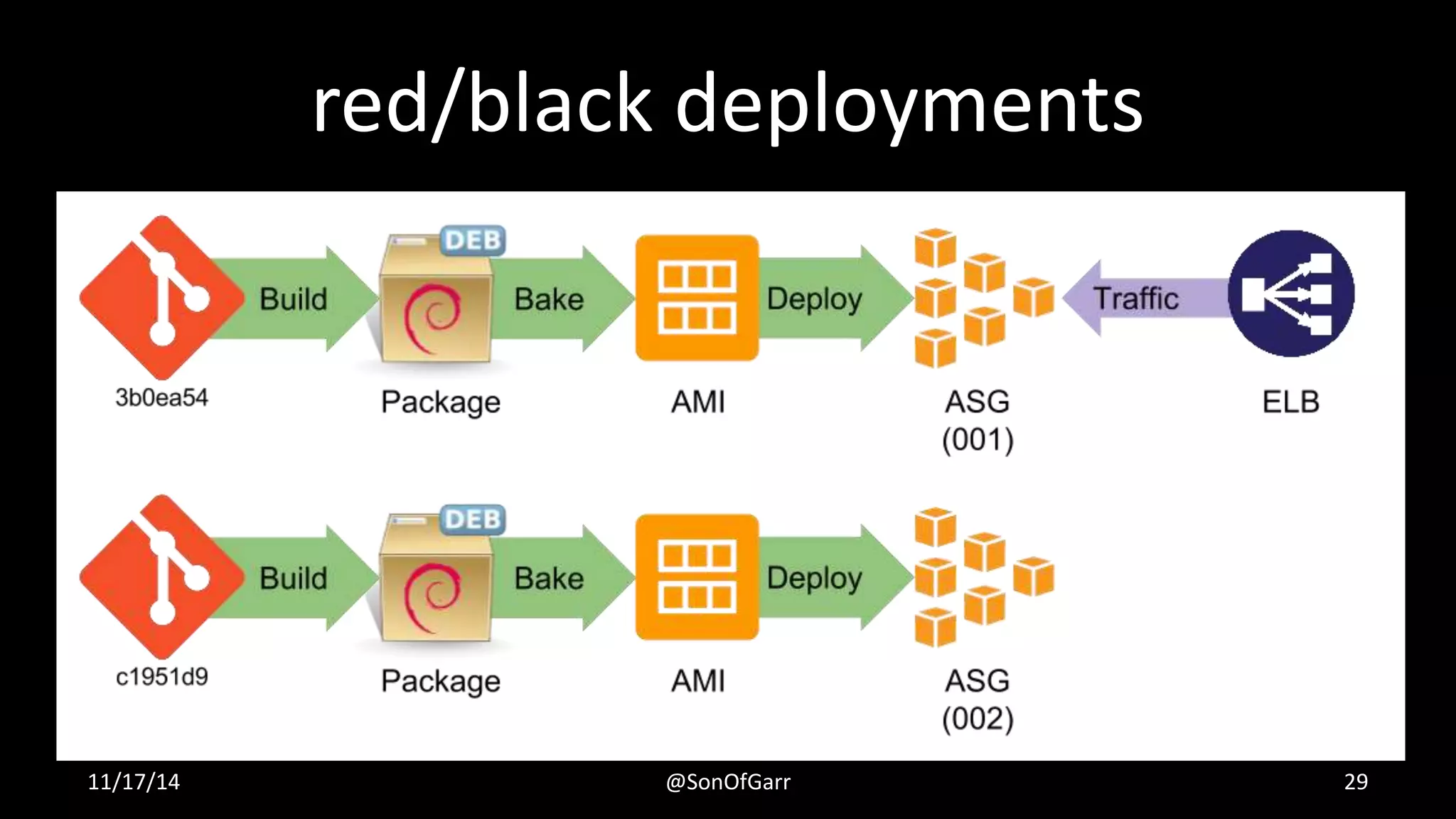

- 29. red/black deployments 11/17/14 @SonOfGarr 29

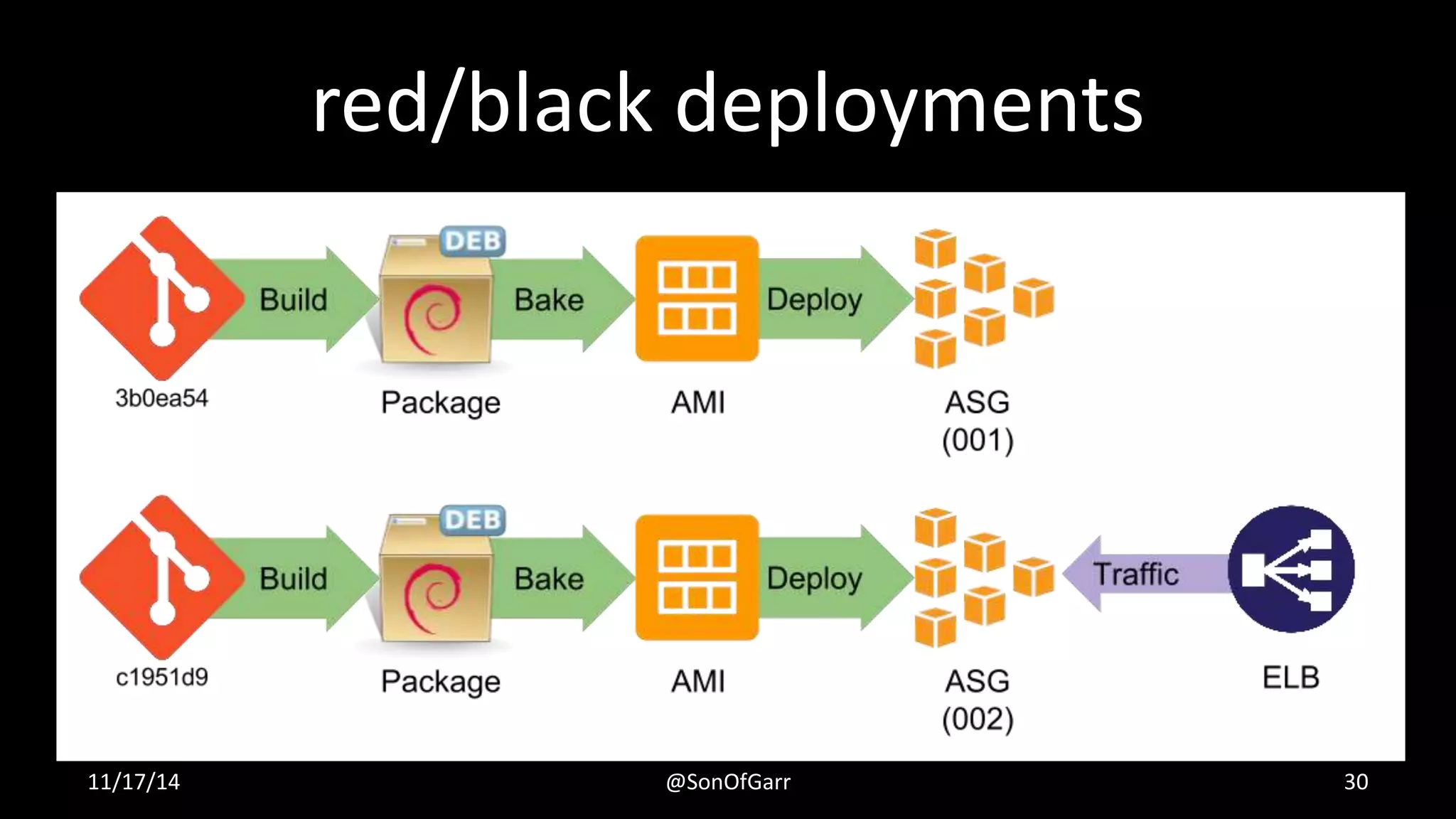

- 30. red/black deployments 11/17/14 @SonOfGarr 30

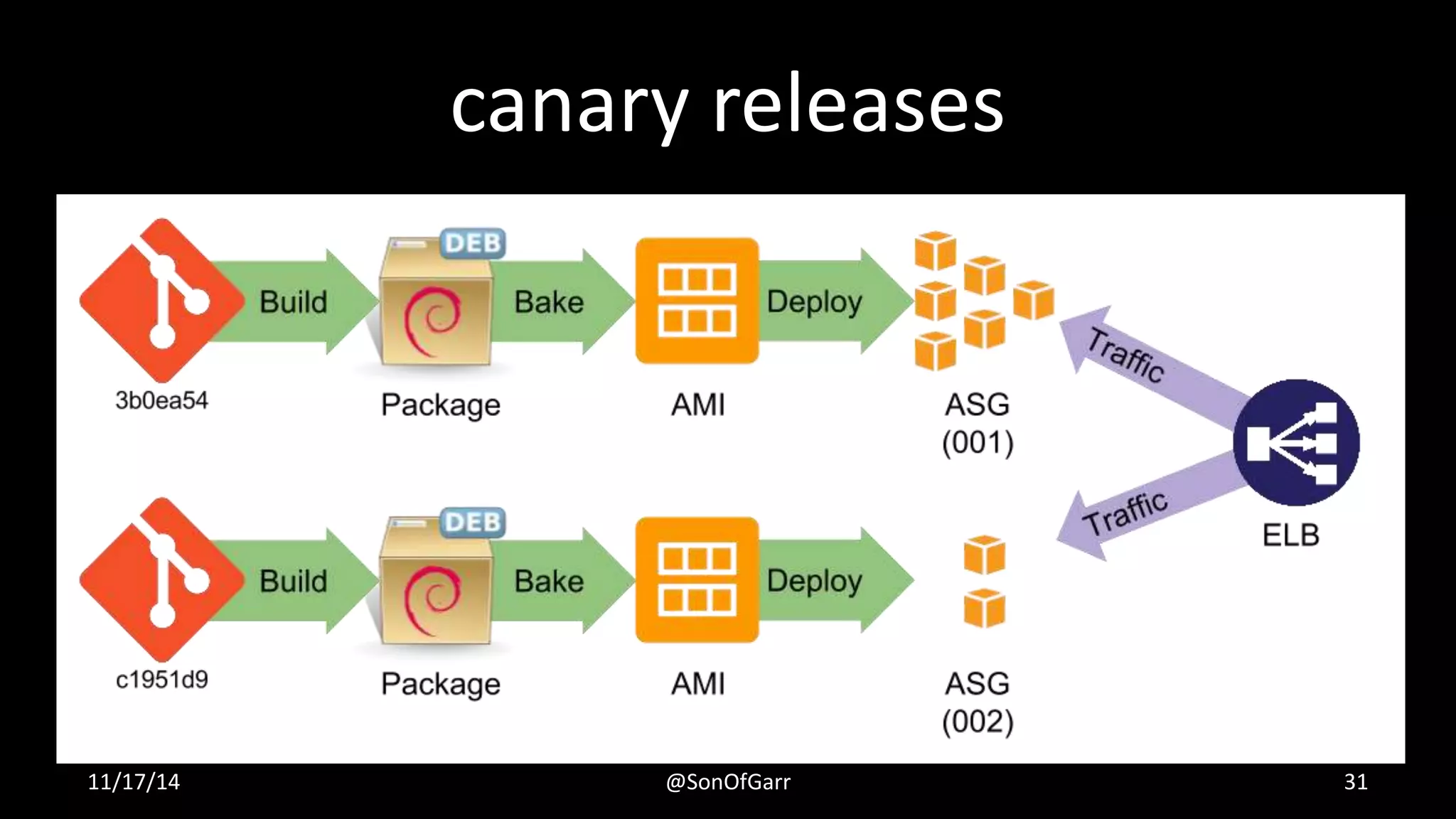

- 31. canary releases 11/17/14 @SonOfGarr 31

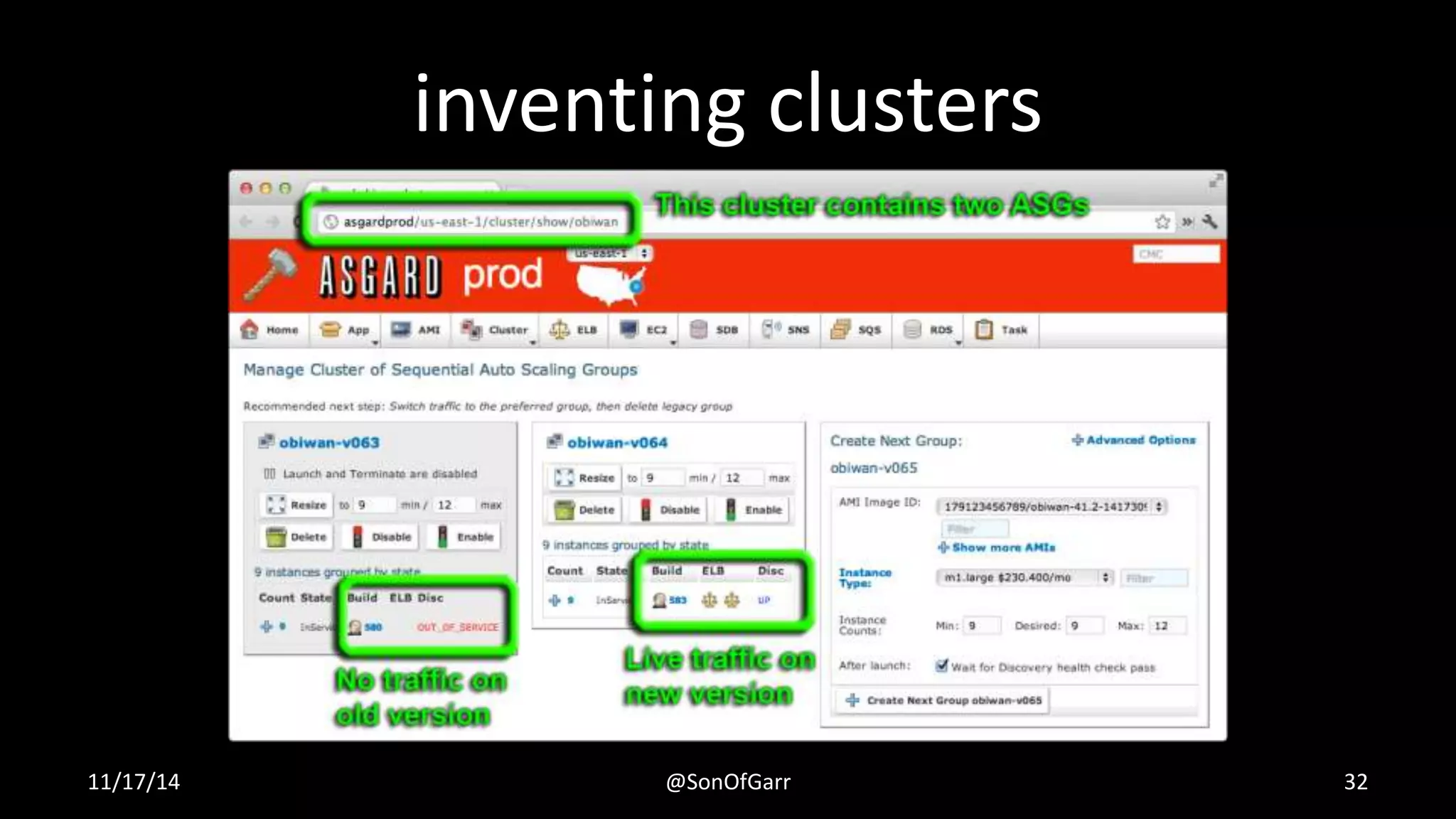

- 32. inventing clusters 11/17/14 @SonOfGarr 32

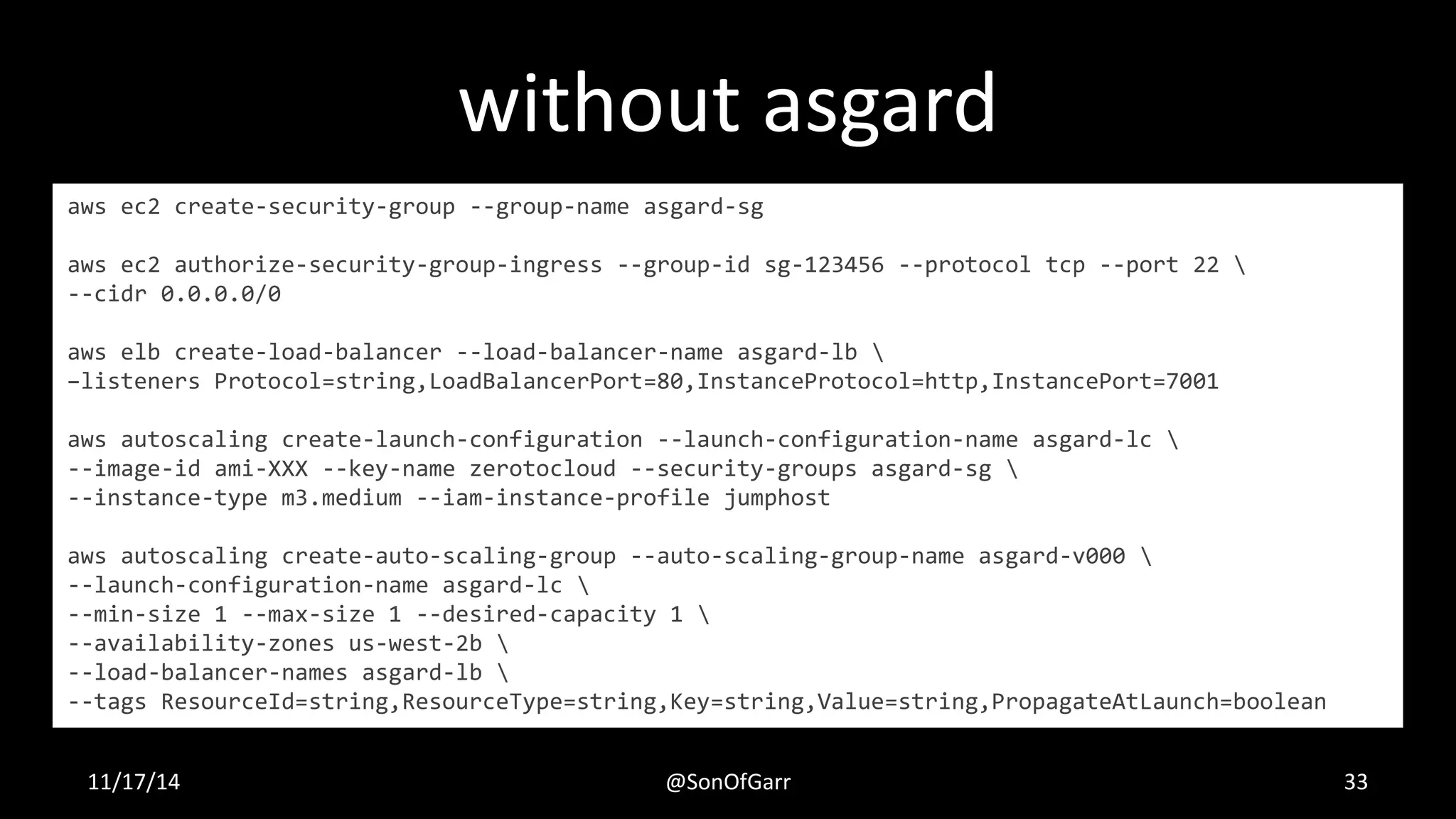

- 33. without asgard aws ec2 create-security-group --group-name asgard-sg aws ec2 authorize-security-group-ingress --group-id sg-123456 --protocol tcp --port 22 --cidr 0.0.0.0/0 aws elb create-load-balancer --load-balancer-name asgard-lb –listeners Protocol=string,LoadBalancerPort=80,InstanceProtocol=http,InstancePort=7001 aws autoscaling create-launch-configuration --launch-configuration-name asgard-lc --image-id ami-XXX --key-name zerotocloud --security-groups asgard-sg --instance-type m3.medium --iam-instance-profile jumphost aws autoscaling create-auto-scaling-group --auto-scaling-group-name asgard-v000 --launch-configuration-name asgard-lc --min-size 1 --max-size 1 --desired-capacity 1 --availability-zones us-west-2b --load-balancer-names asgard-lb --tags ResourceId=string,ResourceType=string,Key=string,Value=string,PropagateAtLaunch=boolean 11/17/14 @SonOfGarr 33

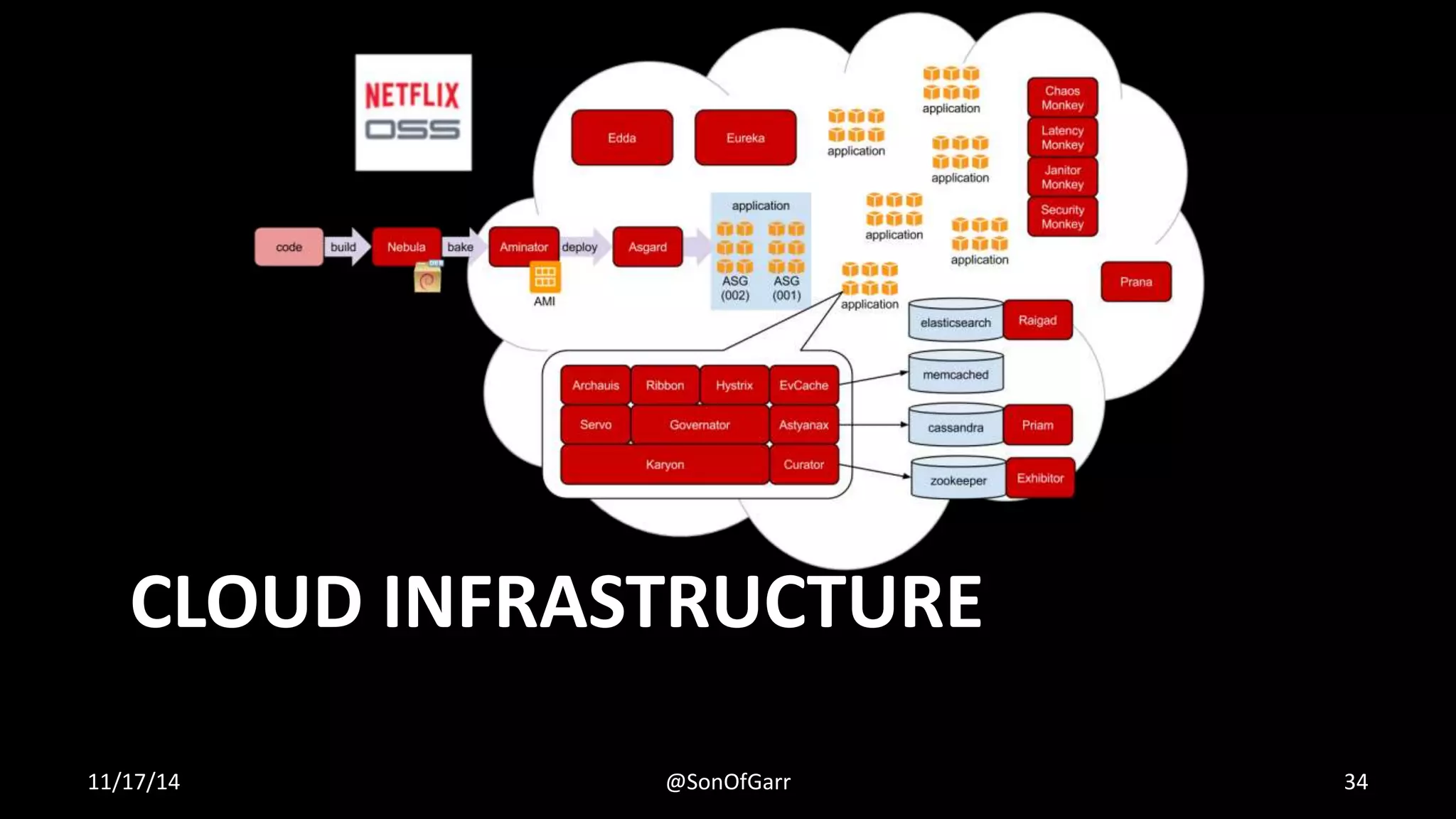

- 34. CLOUD INFRASTRUCTURE 11/17/14 @SonOfGarr 34

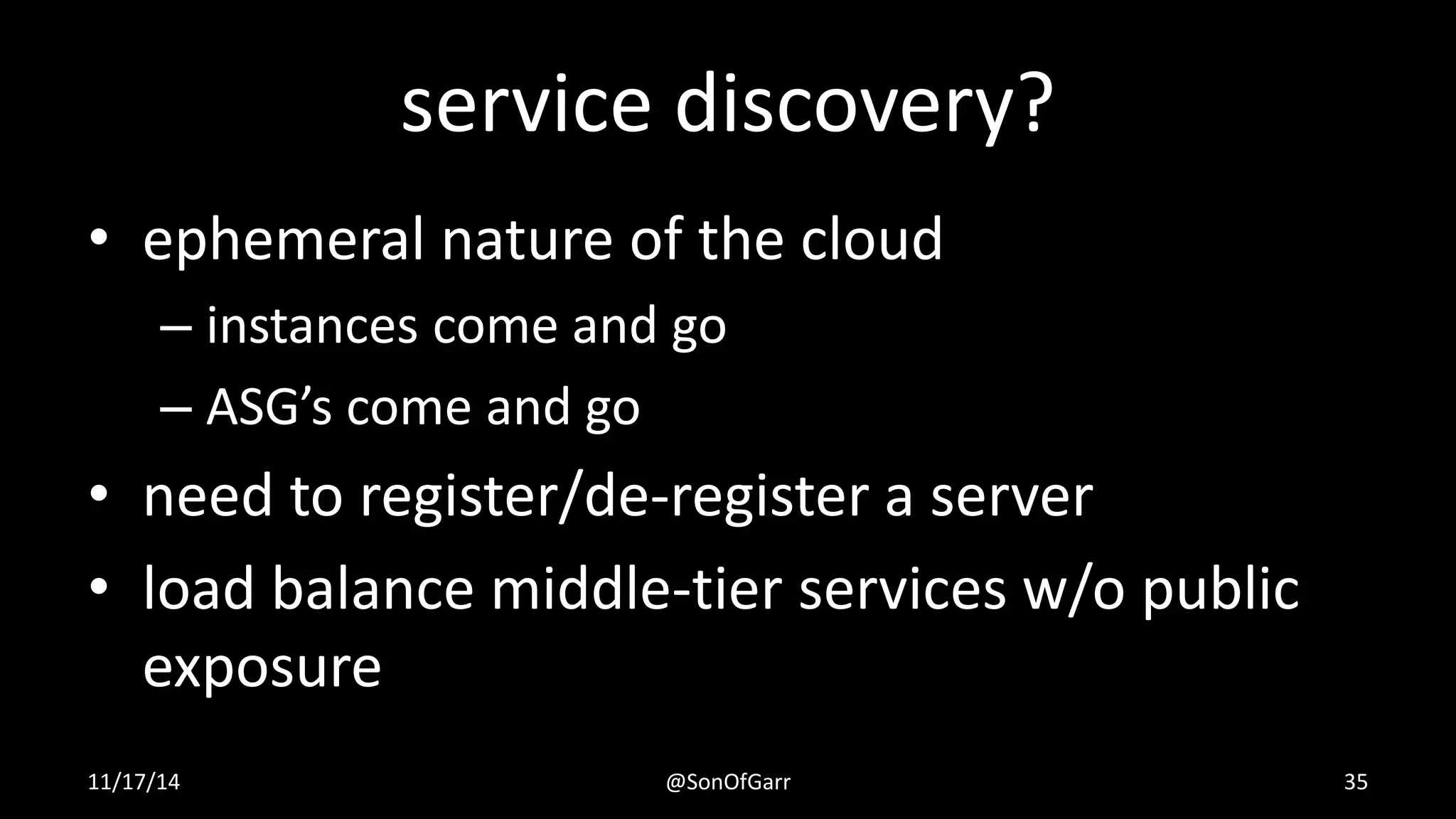

- 35. service discovery? • ephemeral nature of the cloud – instances come and go – ASG’s come and go • need to register/de-register a server • load balance middle-tier services w/o public exposure 11/17/14 @SonOfGarr 35

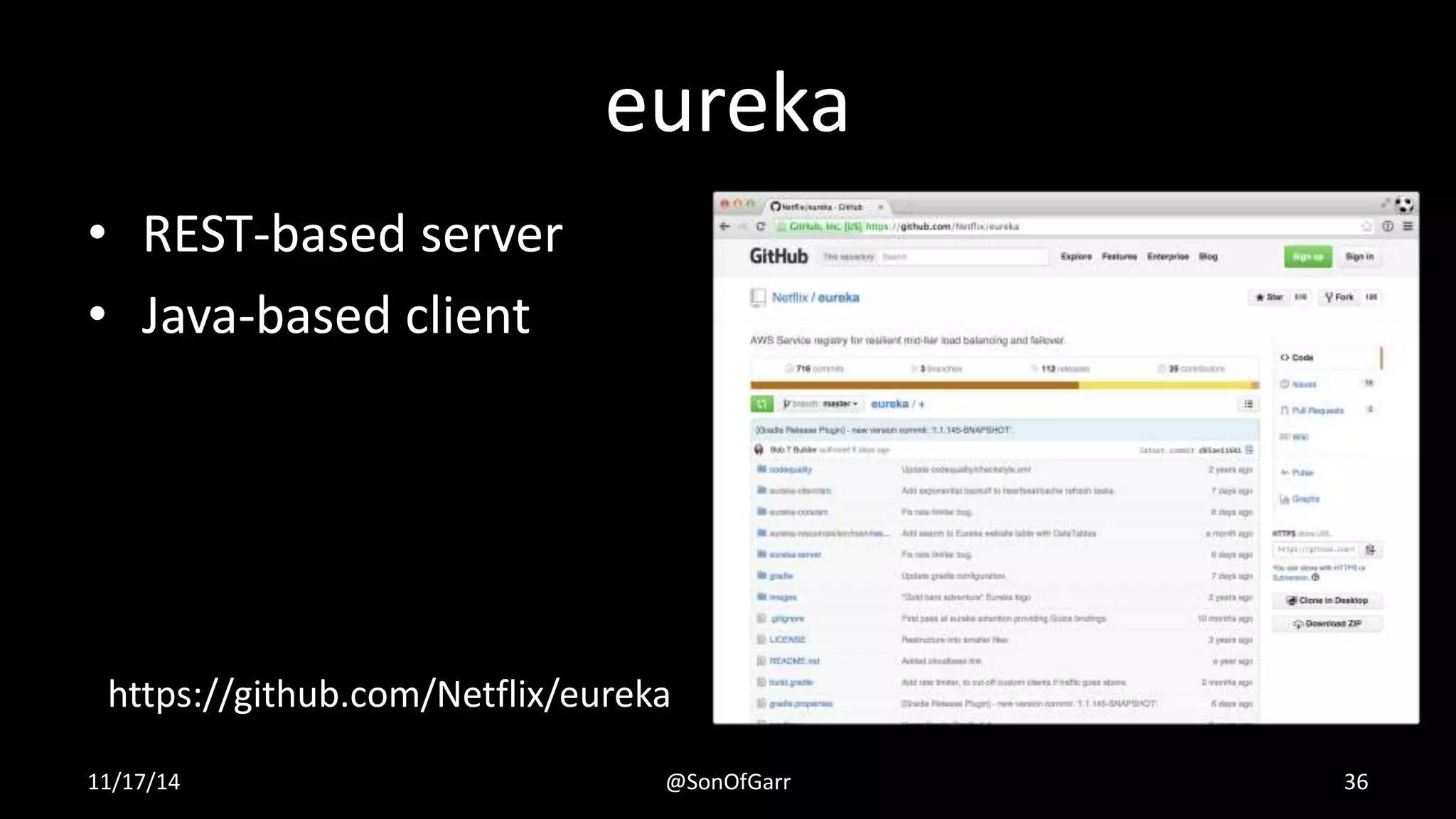

- 36. eureka • REST-based server • Java-based client https://github.com/Netflix/eureka 11/17/14 @SonOfGarr 36

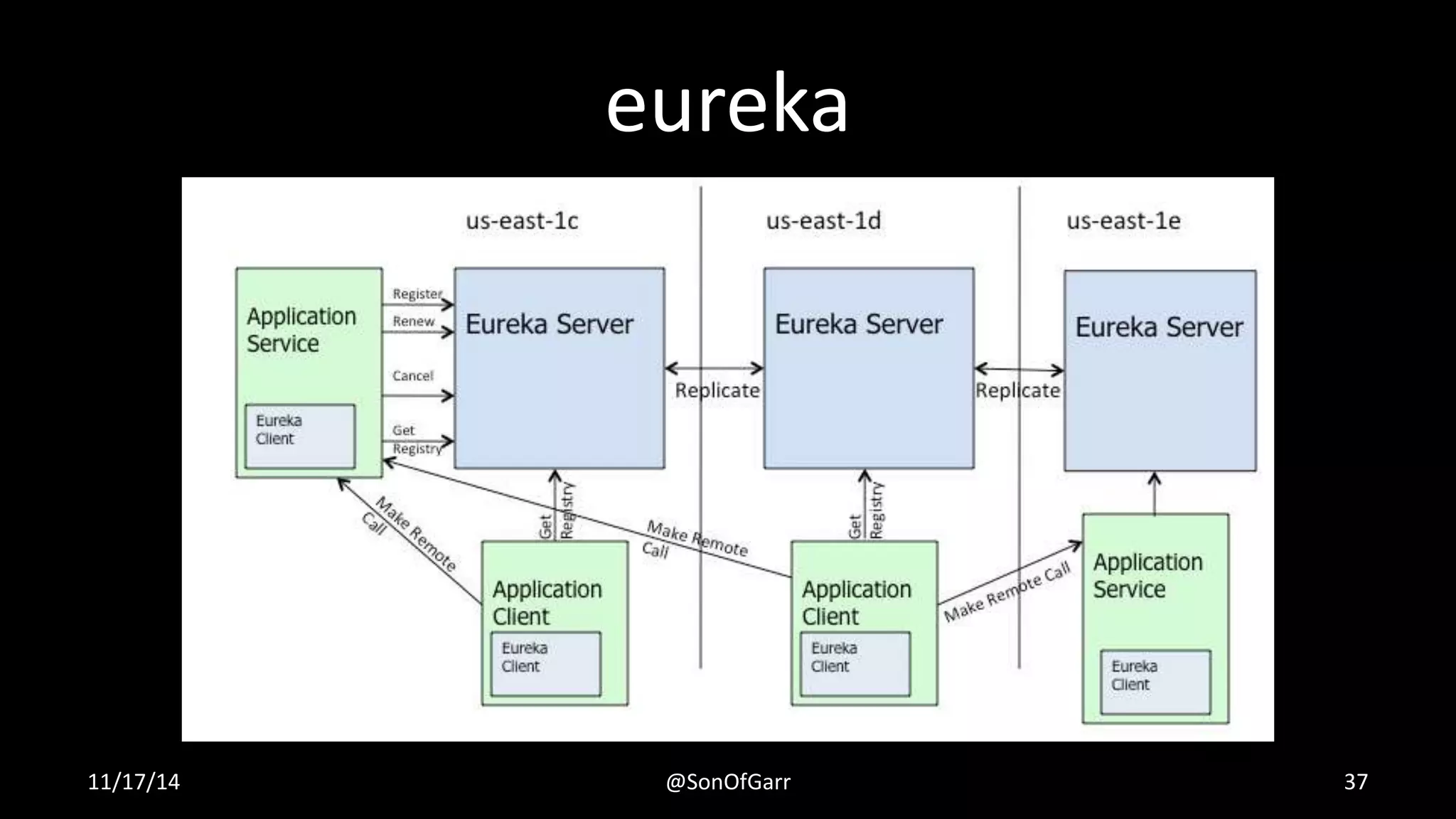

- 37. eureka 11/17/14 @SonOfGarr 37

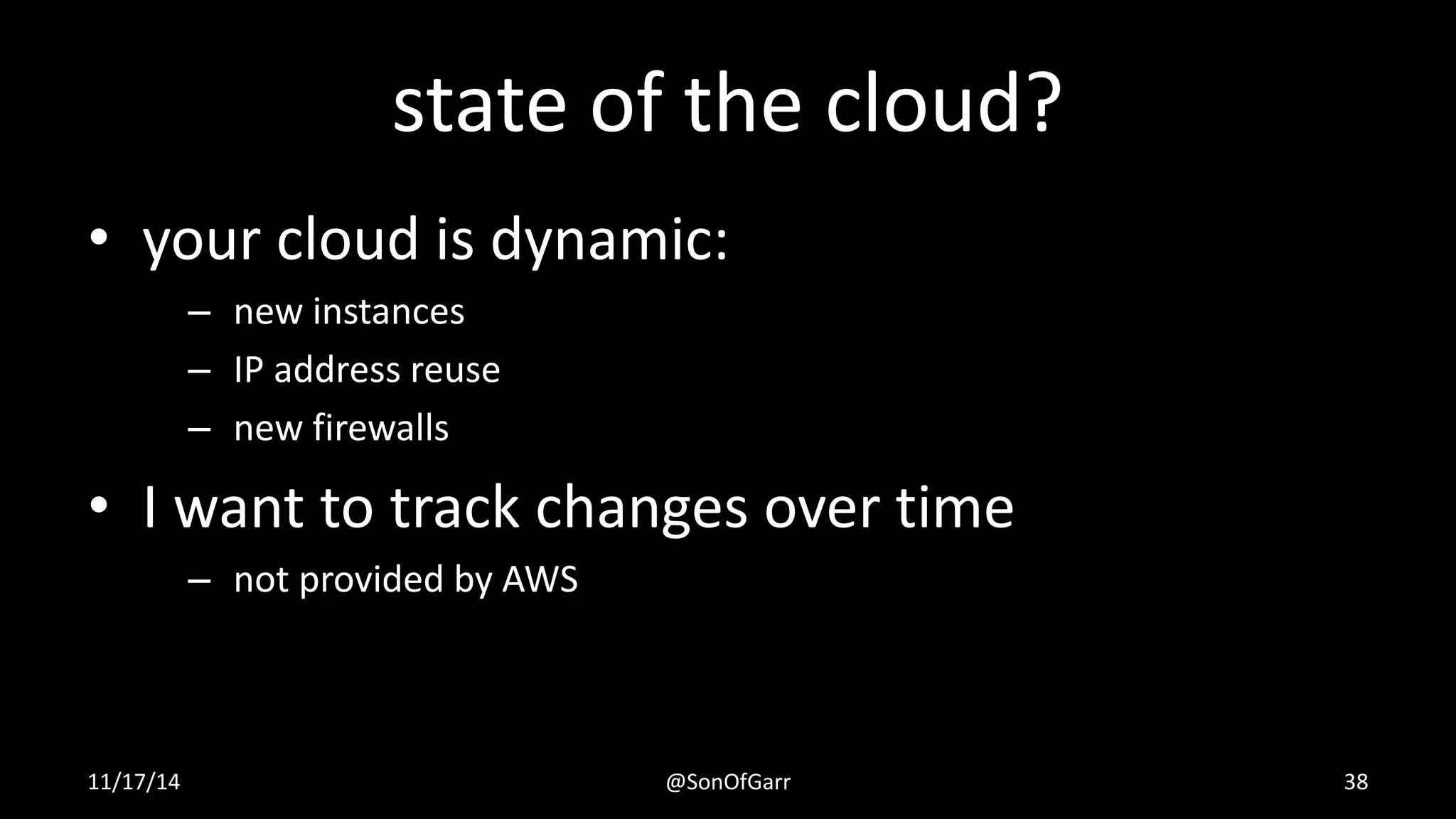

- 38. state of the cloud? • your cloud is dynamic: – new instances – IP address reuse – new firewalls • I want to track changes over time – not provided by AWS 11/17/14 @SonOfGarr 38

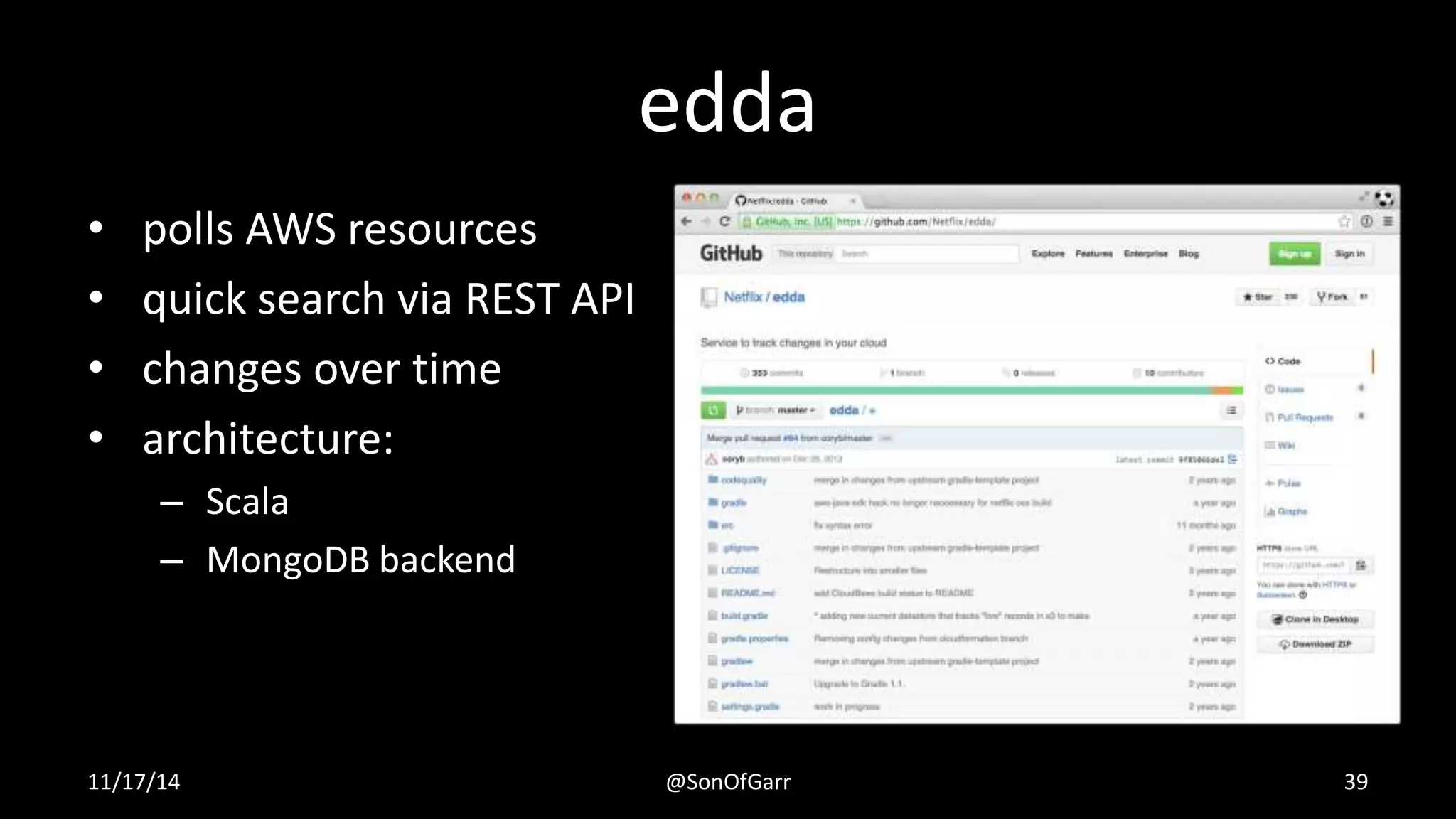

- 39. edda • polls AWS resources • quick search via REST API • changes over time • architecture: – Scala – MongoDB backend 11/17/14 @SonOfGarr 39

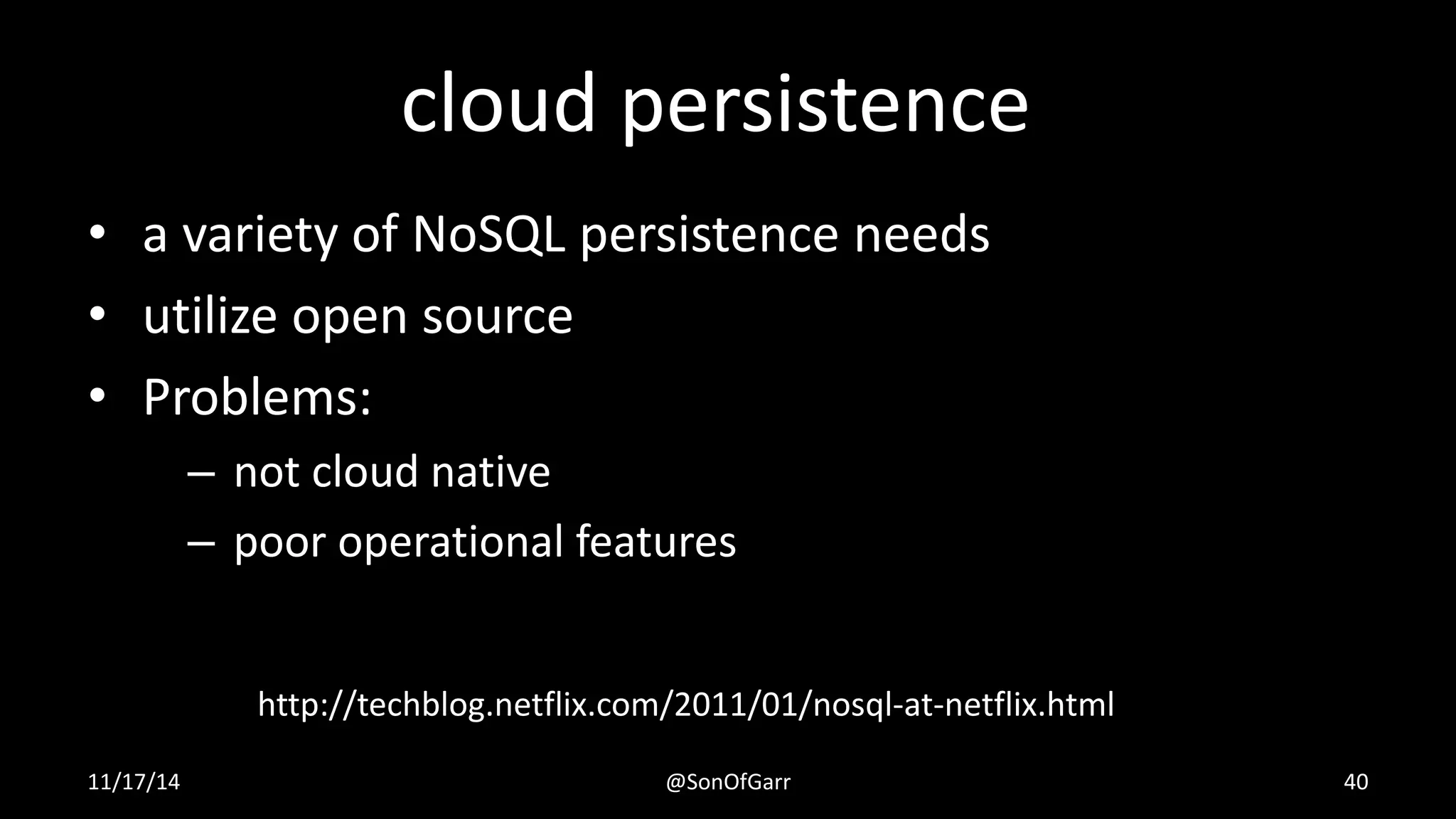

- 40. cloud persistence • a variety of NoSQL persistence needs • utilize open source • Problems: – not cloud native – poor operational features http://techblog.netflix.com/2011/01/nosql-at-netflix.html 11/17/14 @SonOfGarr 40
- 41. sidecar 11/17/14 @SonOfGarr 41
- 42. priam Cassandra instance sidecar – backup and recovery – token management – Seed discovery – Configuration – Support AWS environment https://github.com/Netflix/priam 11/17/14 @SonOfGarr 42

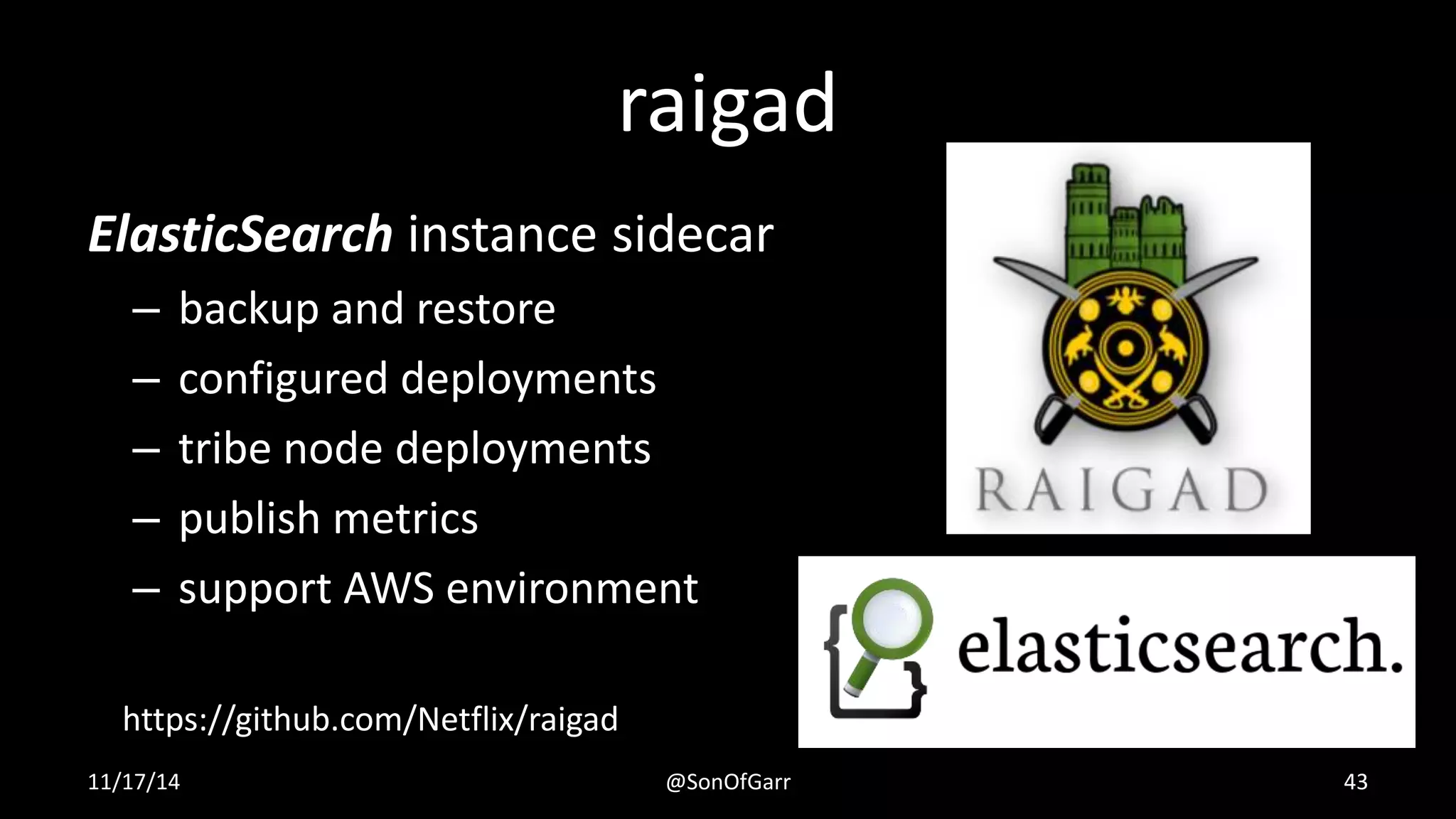

- 43. raigad ElasticSearch instance sidecar – backup and restore – configured deployments – tribe node deployments – publish metrics – support AWS environment https://github.com/Netflix/raigad 11/17/14 @SonOfGarr 43
- 44. exhibitor ZooKeeper instance sidecar – Performs periodic backups – Perform periodic cleaning of ZK log directory – A GUI explorer for viewing ZK nodes – A rich REST API 11/17/14 @SonOfGarr 44

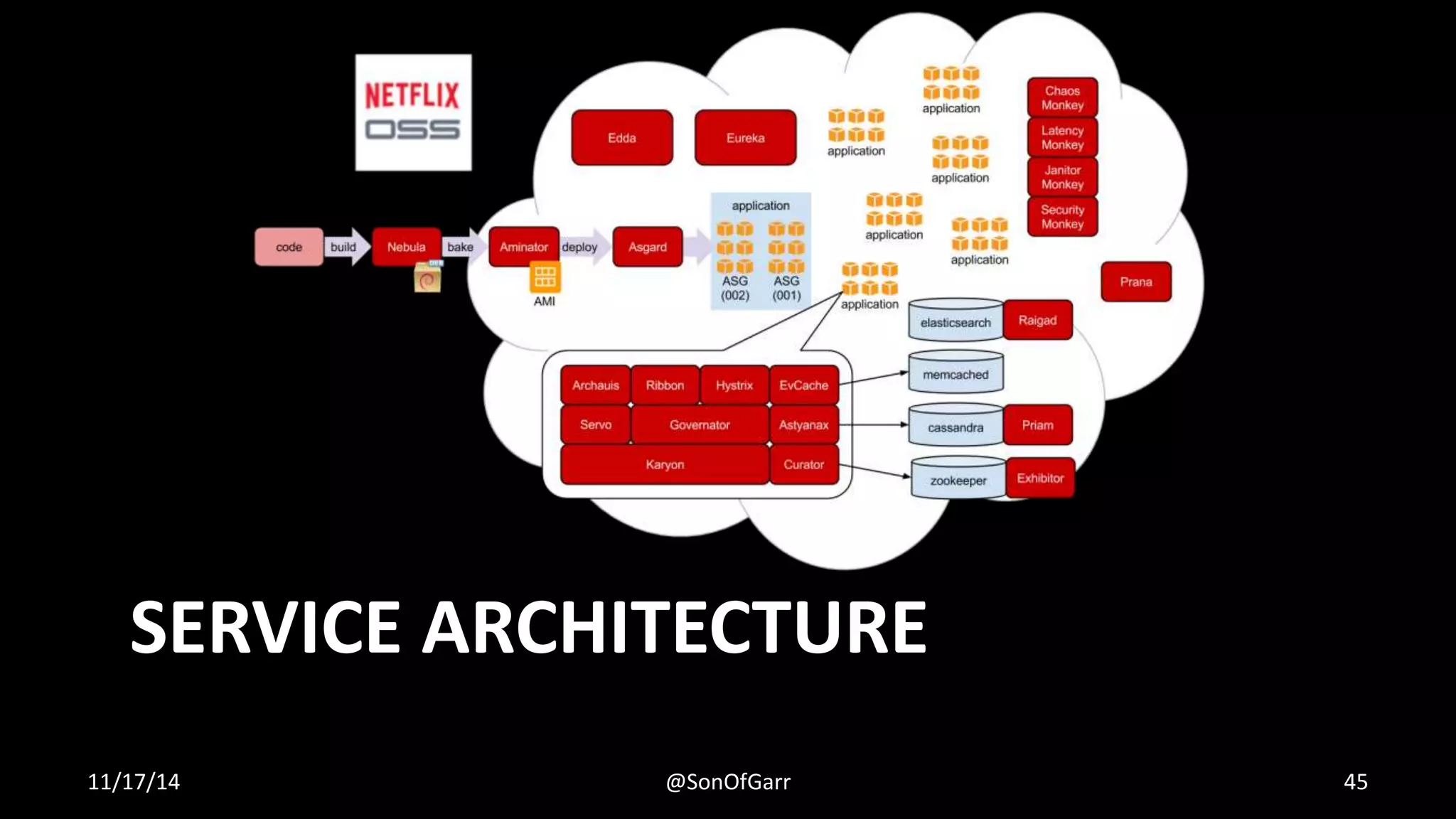

- 45. SERVICE ARCHITECTURE 11/17/14 @SonOfGarr 45
- 46. Java microservices 11/17/14 @SonOfGarr 46

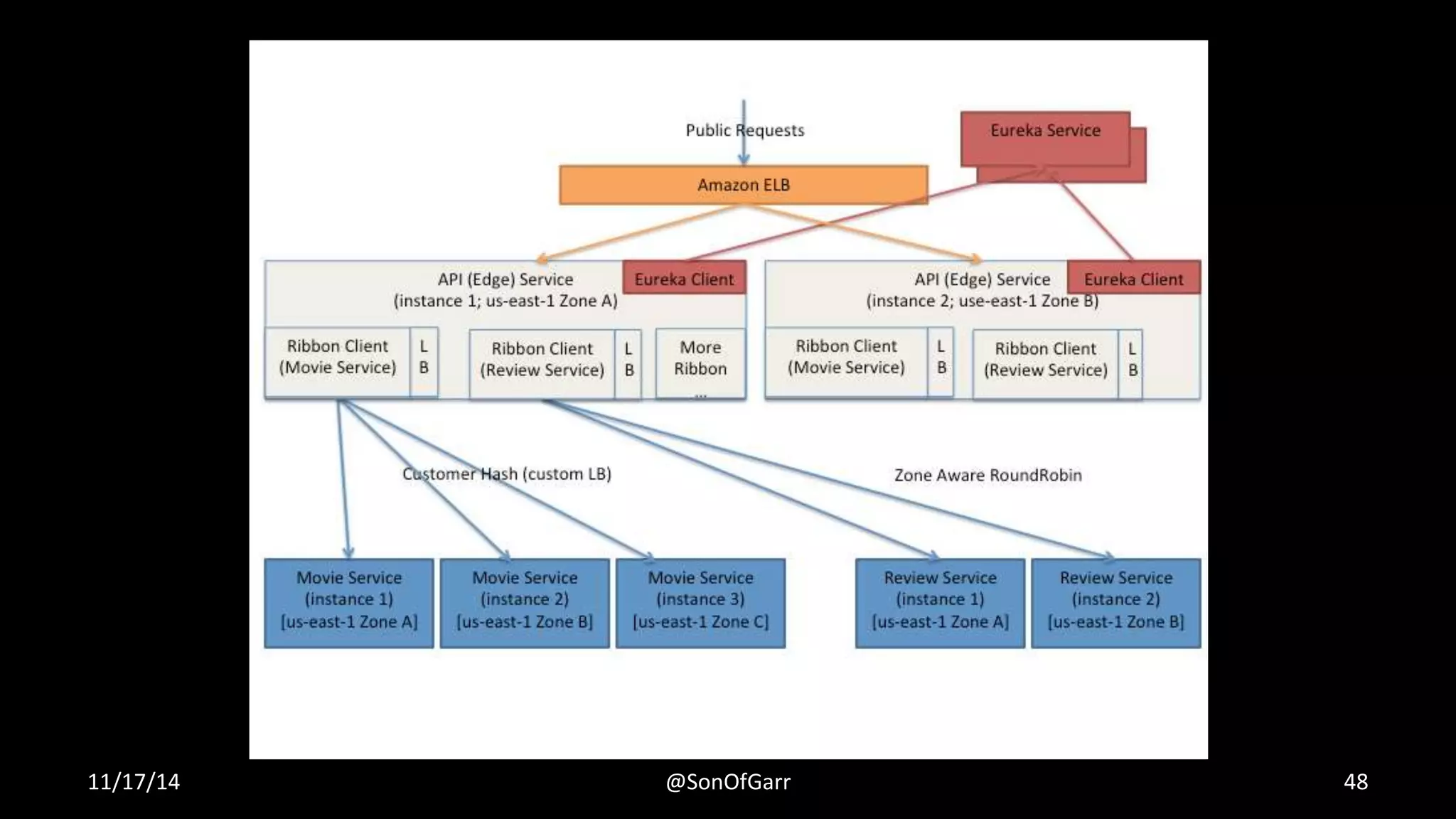

- 47. ribbon • cloud IPC library – pluggable load balancing rules – eureka integration – archauis integration – cloud enabled https://github.com/Netflix/ribbon 11/17/14 @SonOfGarr 47

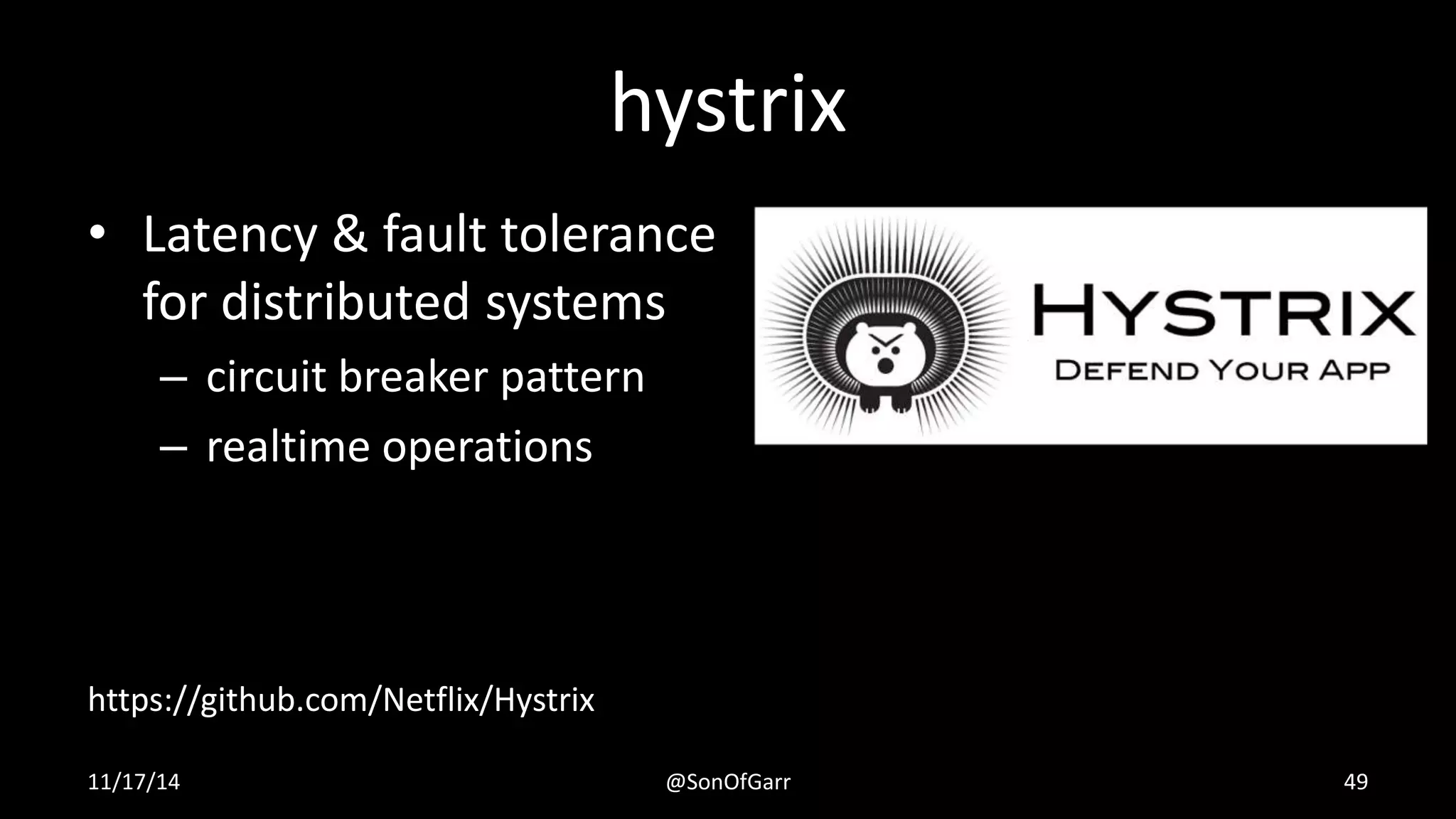

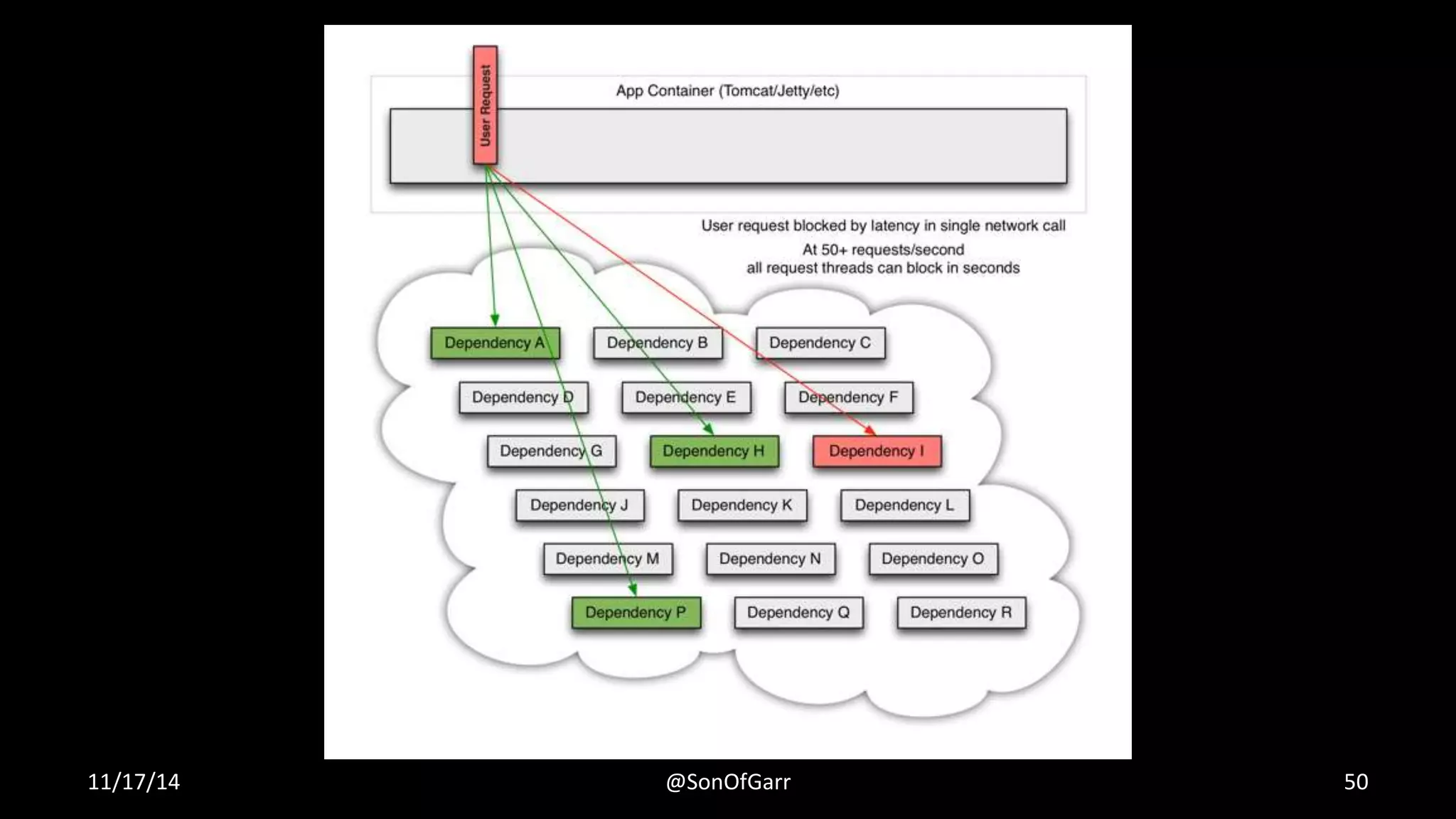

- 49. hystrix • Latency & fault tolerance for distributed systems – circuit breaker pattern – realtime operations https://github.com/Netflix/Hystrix 11/17/14 @SonOfGarr 49

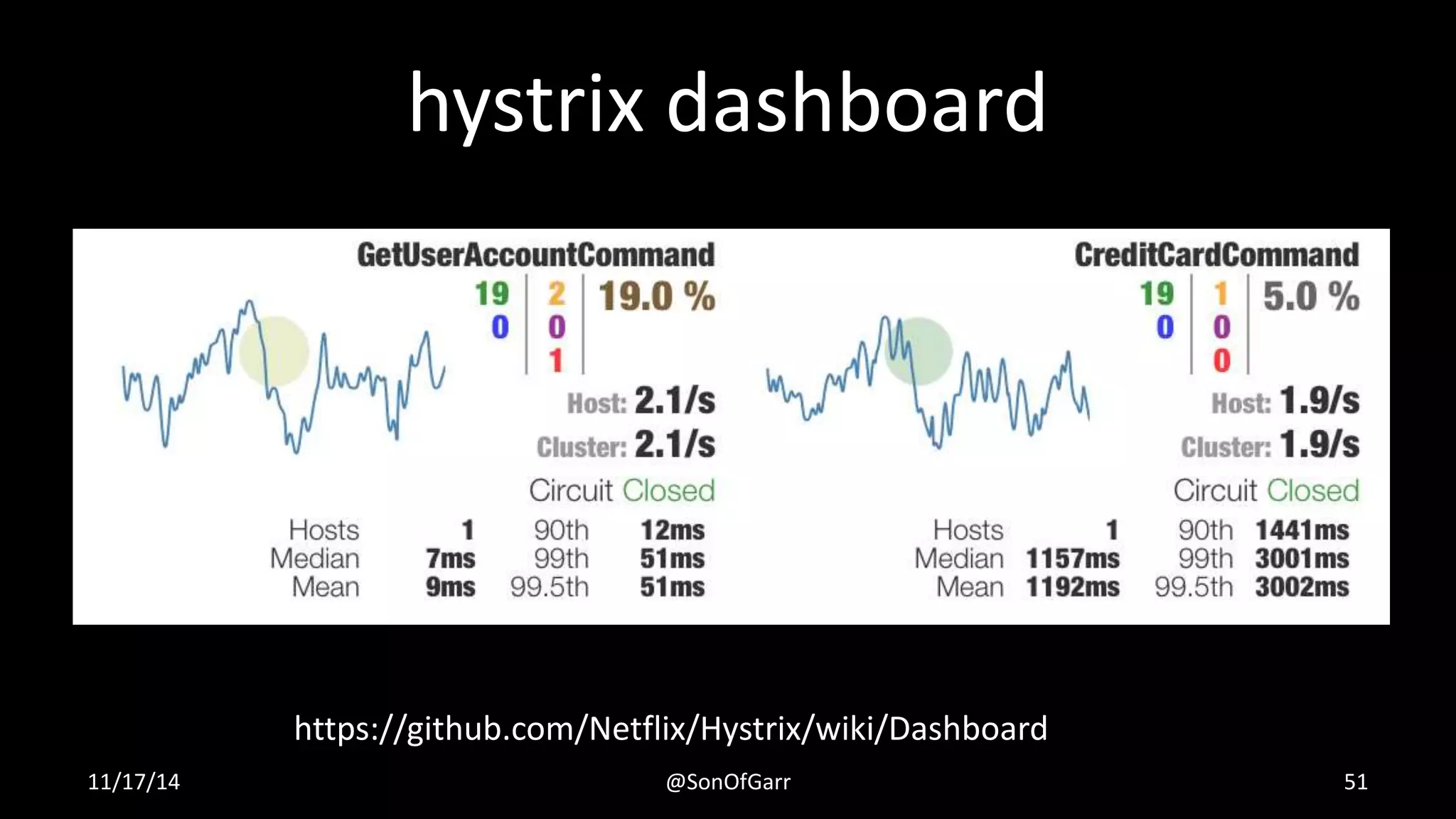

- 51. hystrix dashboard https://github.com/Netflix/Hystrix/wiki/Dashboard 11/17/14 @SonOfGarr 51

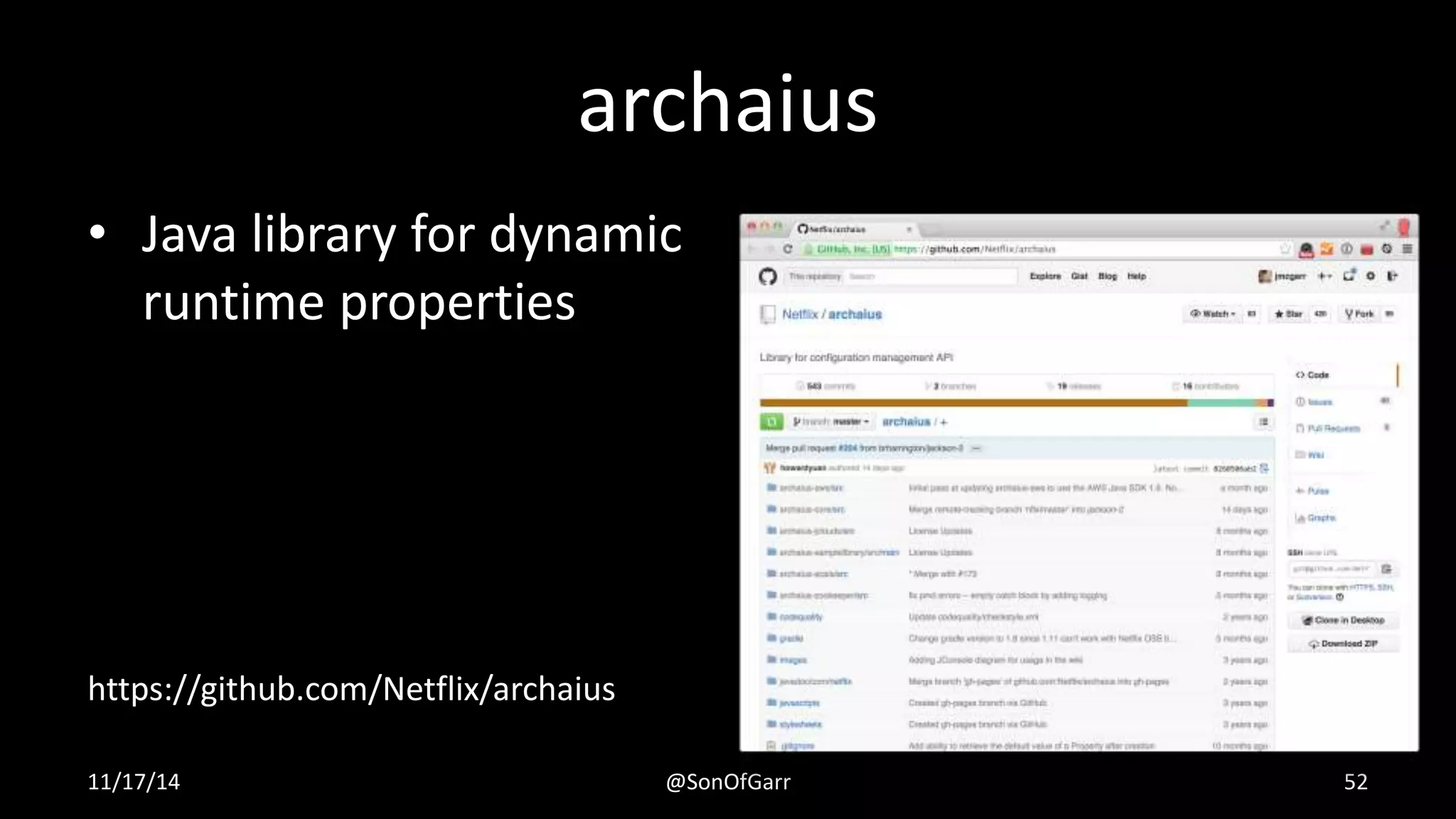

- 52. archaius • Java library for dynamic runtime properties https://github.com/Netflix/archaius 11/17/14 @SonOfGarr 52

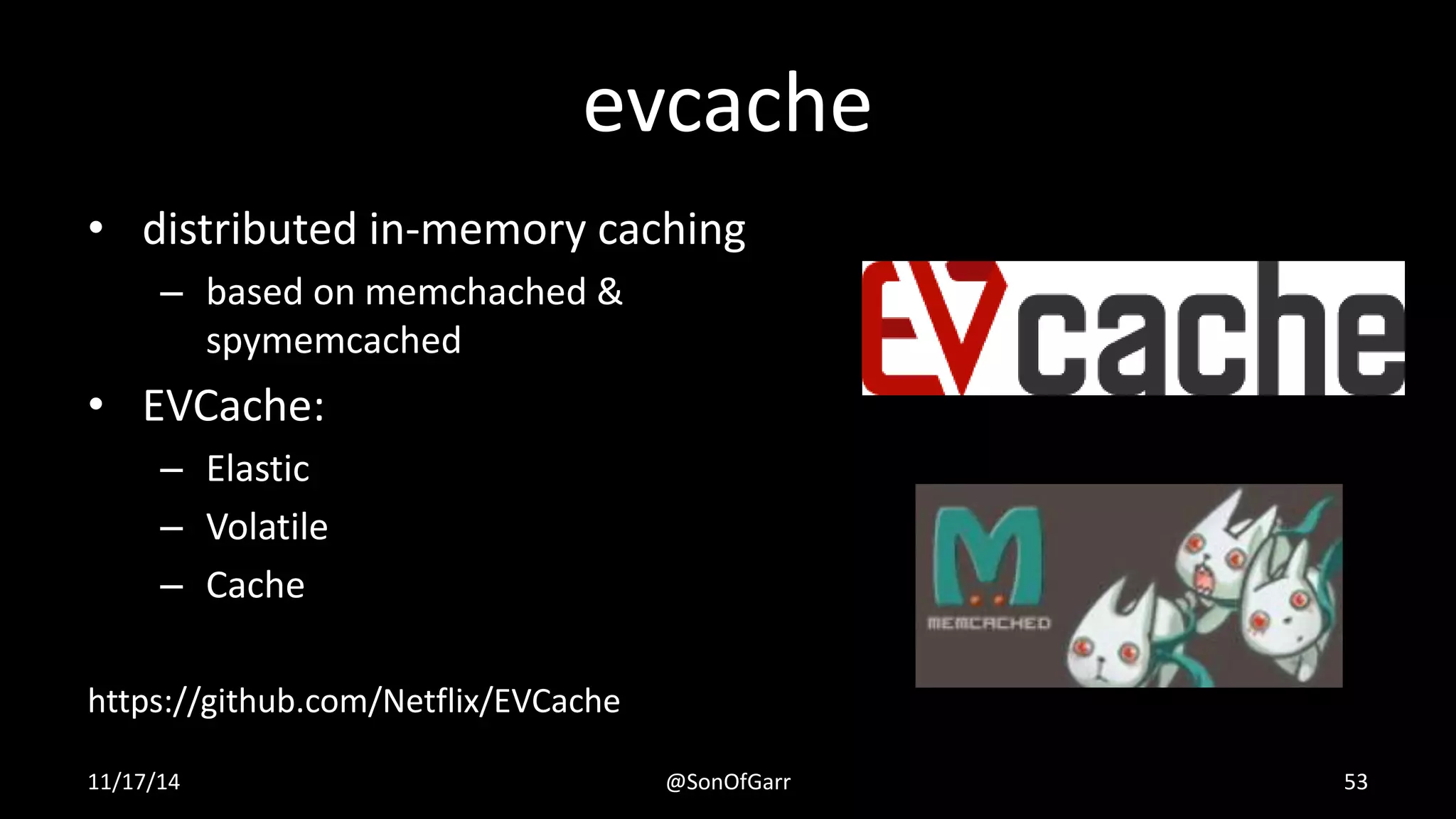

- 53. evcache • distributed in-memory caching – based on memchached & spymemcached • EVCache: – Elastic – Volatile – Cache https://github.com/Netflix/EVCache 11/17/14 @SonOfGarr 53

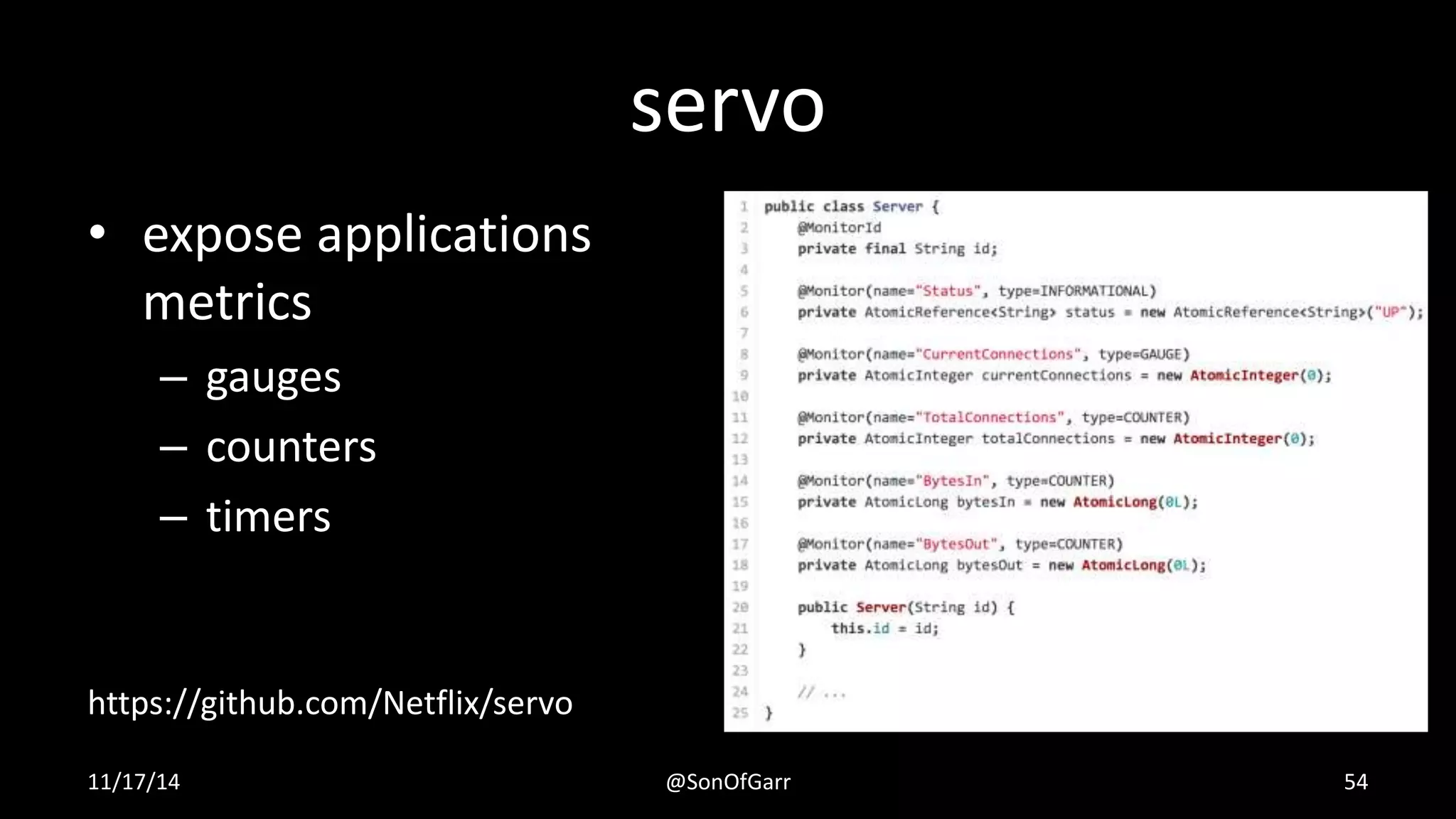

- 54. servo • expose applications metrics – gauges – counters – timers https://github.com/Netflix/servo 11/17/14 @SonOfGarr 54

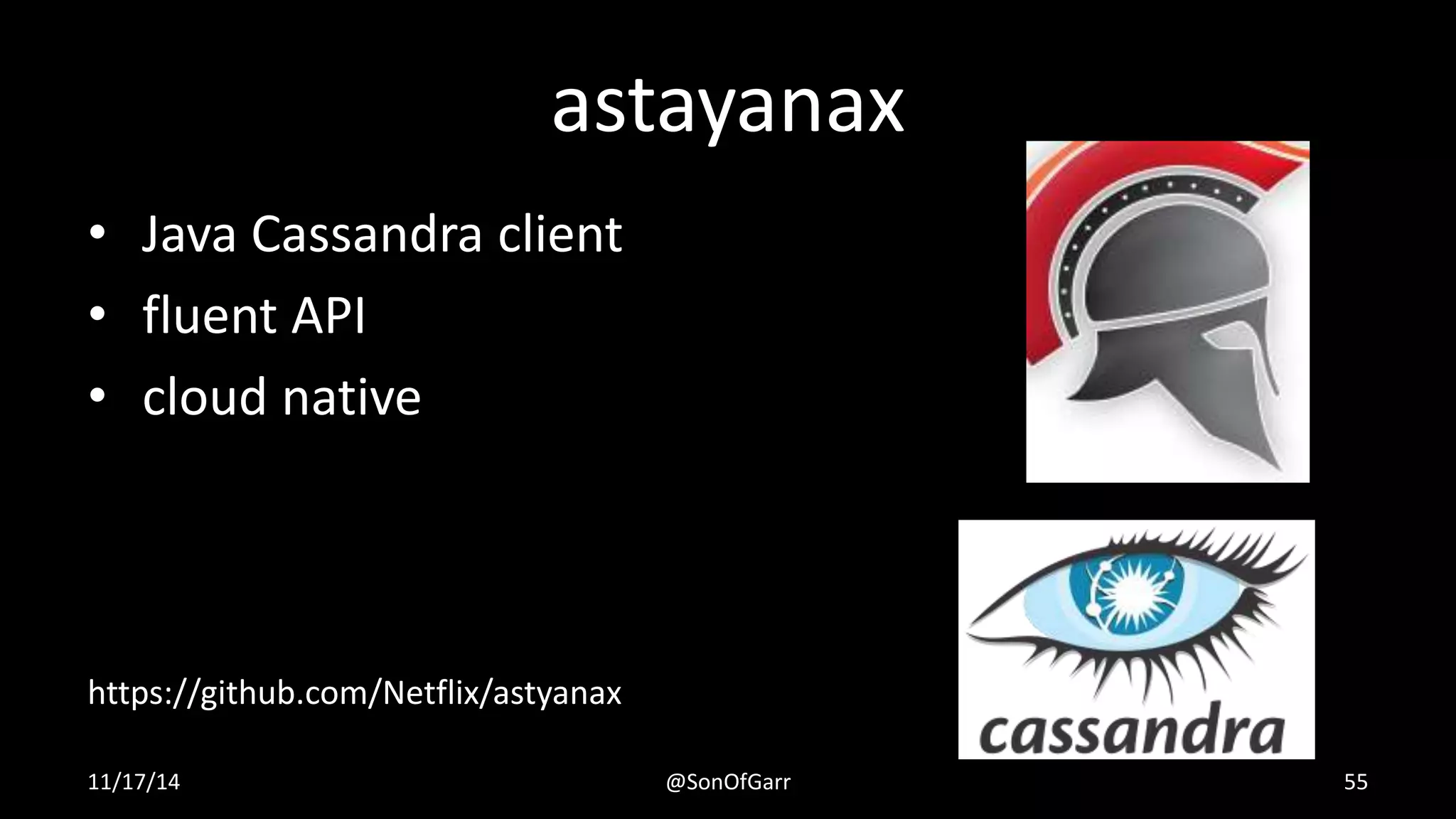

- 55. astayanax • Java Cassandra client • fluent API • cloud native https://github.com/Netflix/astyanax 11/17/14 @SonOfGarr 55
- 56. governator • Google Guice extensions – classpath scanning – lifecycle management – field validation – lazy singleton https://github.com/netflix/Governator 11/17/14 @SonOfGarr 56
- 57. karyon • nucleus of Netflix platform – governator bootstrap – admin console – health checks – discovery https://github.com/Netflix/karyon 11/17/14 @SonOfGarr 57

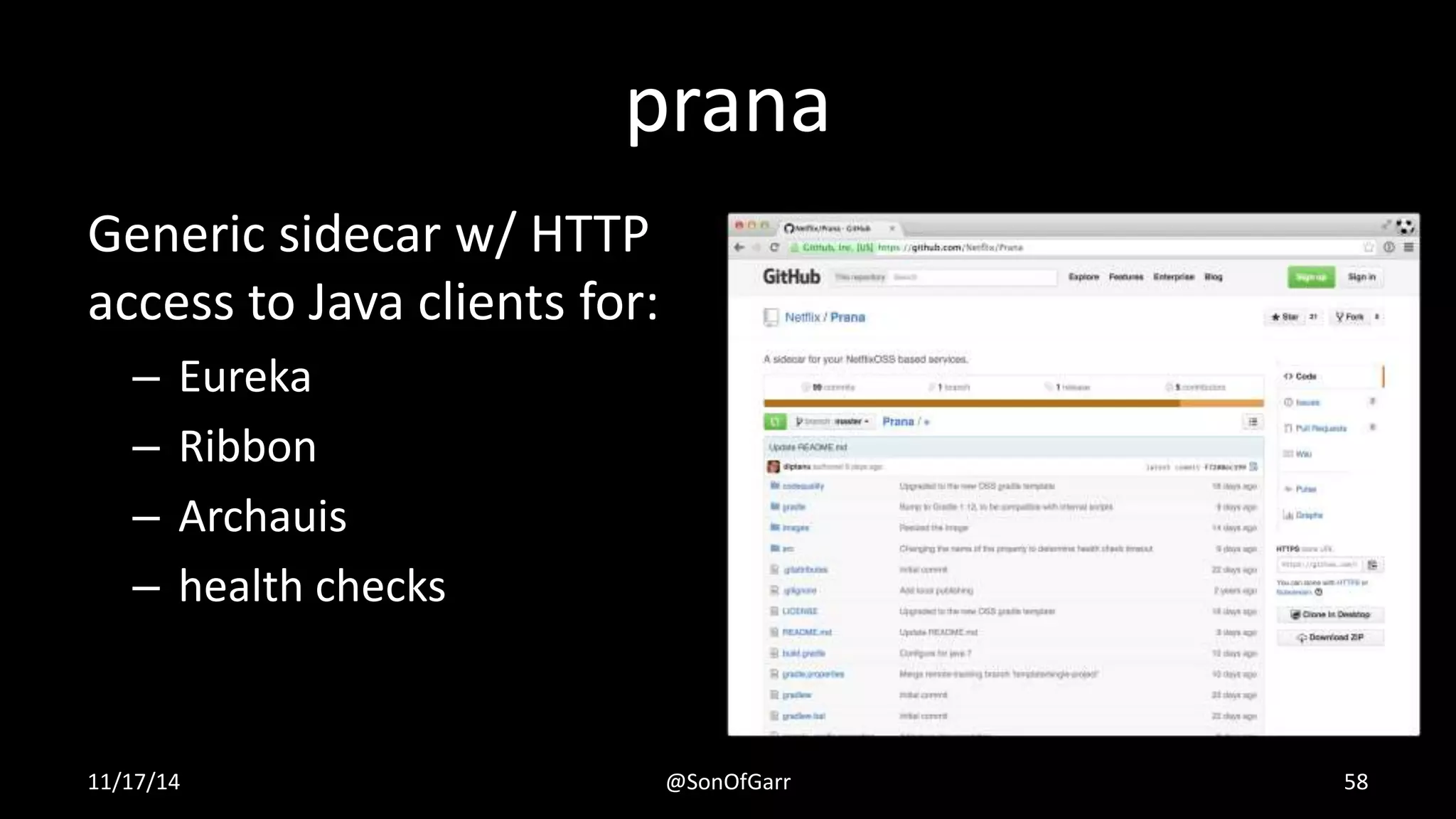

- 58. prana Generic sidecar w/ HTTP access to Java clients for: – Eureka – Ribbon – Archauis – health checks 11/17/14 @SonOfGarr 58

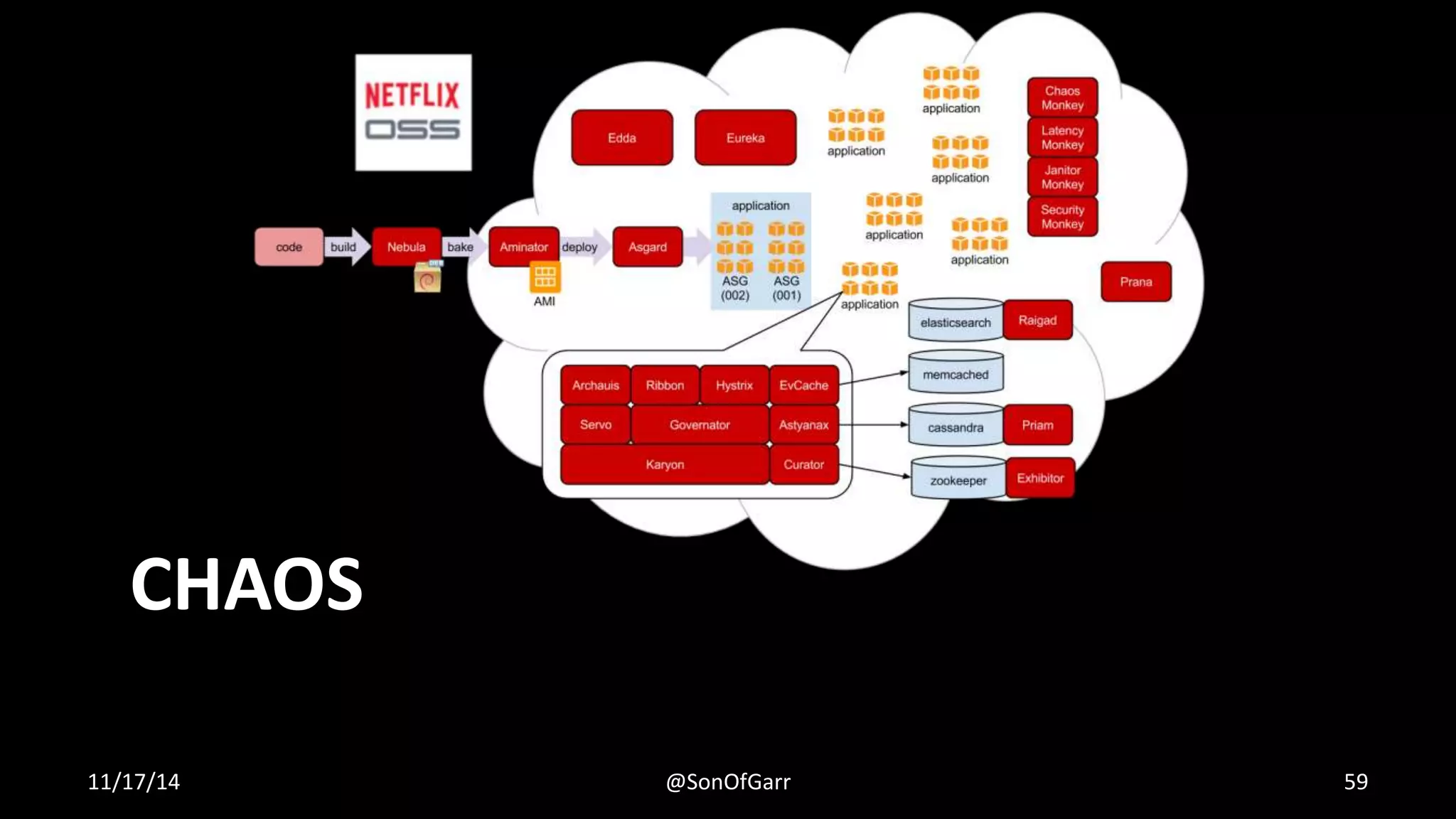

- 59. CHAOS 11/17/14 @SonOfGarr 59
- 60. chaos monkey 11/17/14 @SonOfGarr 60
- 61. simian army • chaos monkey • janitor monkey • compliance monkey • security monkey https://github.com/Netflix/SimianArmy 11/17/14 @SonOfGarr 61
- 64. We are Hiring! Senior Cloud Tools Engineer http://nflx.it/140BnJN Senior Tooling Integration Engineer Mike McGarr mmcgarr@netflix.com @SonOfGarr http://www.mikemcgarr.com http://nflx.it/1xyhkeD 11/17/14 @SonOfGarr 64
Editor's Notes
- ----- Meeting Notes (10/9/14 12:28) ----- voice track here
- 47 repos
- ----- Meeting Notes (11/17/14 13:47) ----- redraw as two separate Amis
- -e = environment -b = starting AMI -n = use a named image aminator adds the –ebs to the AMI name
- problems: ZK statically configured limited tools to manage the ensemble backup/restore visualization periodic cleanup
- Ephemeral - The data stored is for a short duration as specified by its TTL(Time To Live). Volatile - The data can disappear any time (Evicted). Cache – An in-memory key-value store.
