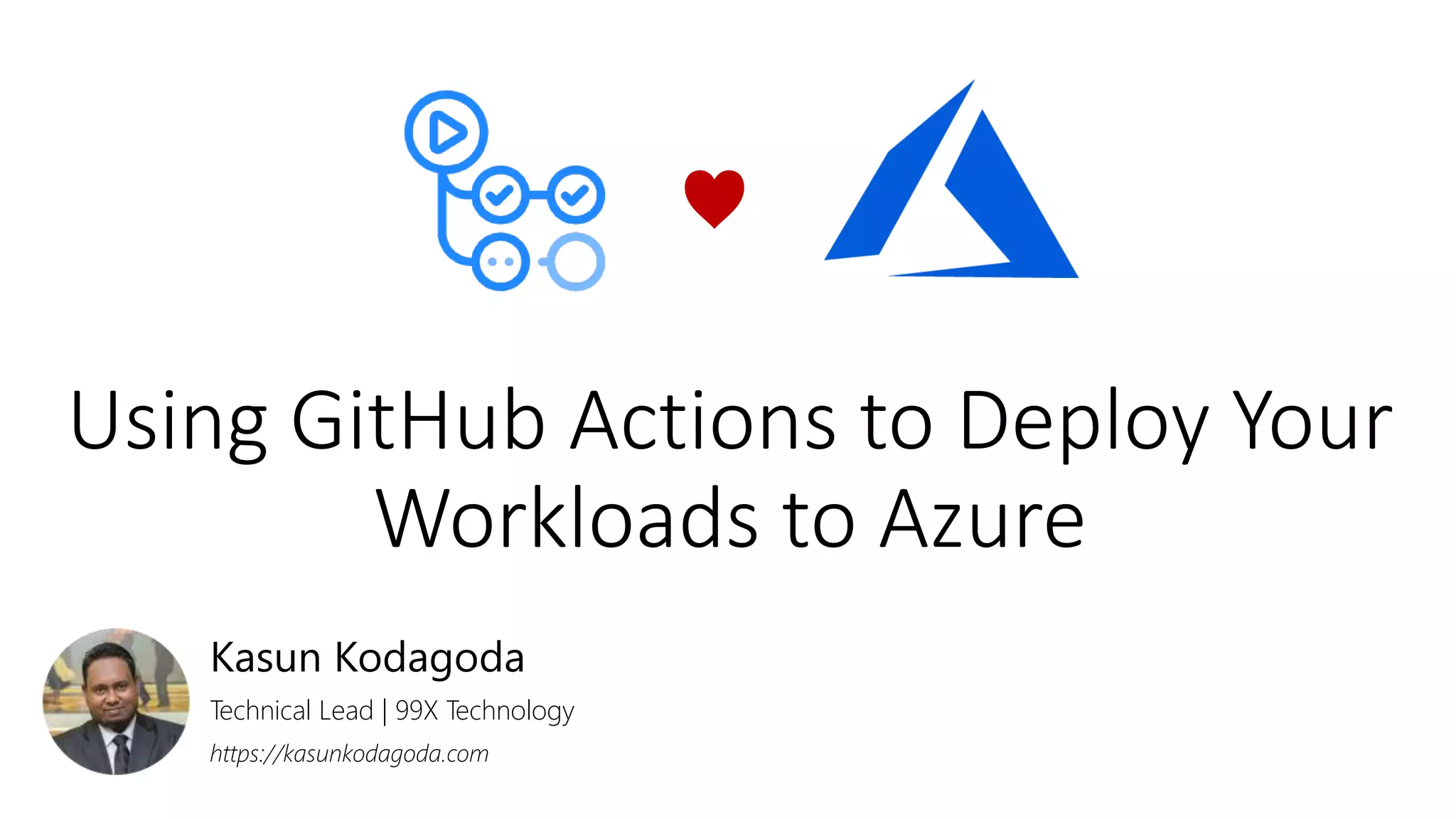

1. Using GitHub Actions to Deploy Your
Workloads to Azure
Kasun Kodagoda
Technical Lead | 99X Technology
https://kasunkodagoda.com
♥

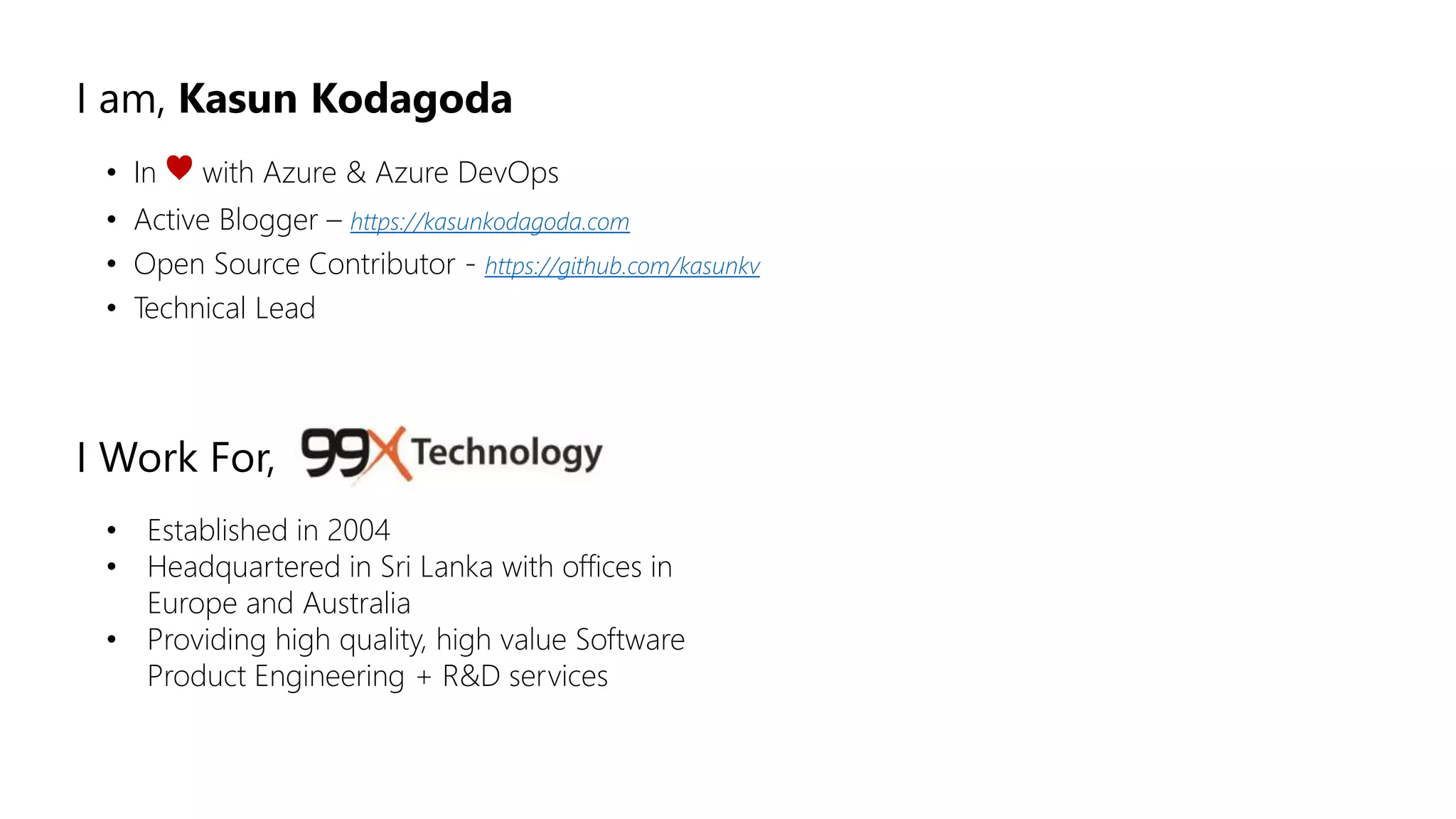

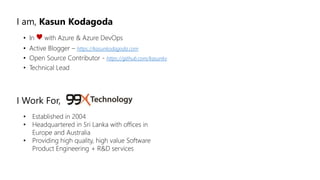

2. I am, Kasun Kodagoda
• In ♥ with Azure & Azure DevOps
• Active Blogger – https://kasunkodagoda.com
• Open Source Contributor - https://github.com/kasunkv
• Technical Lead
I Work For,
• Established in 2004
• Headquartered in Sri Lanka with offices in
Europe and Australia
• Providing high quality, high value Software
Product Engineering + R&D services

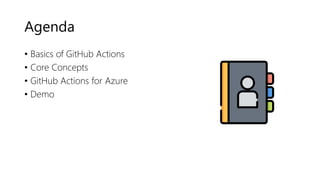

3. Agenda
• Basics of GitHub Actions
• Core Concepts
• GitHub Actions for Azure
• Demo

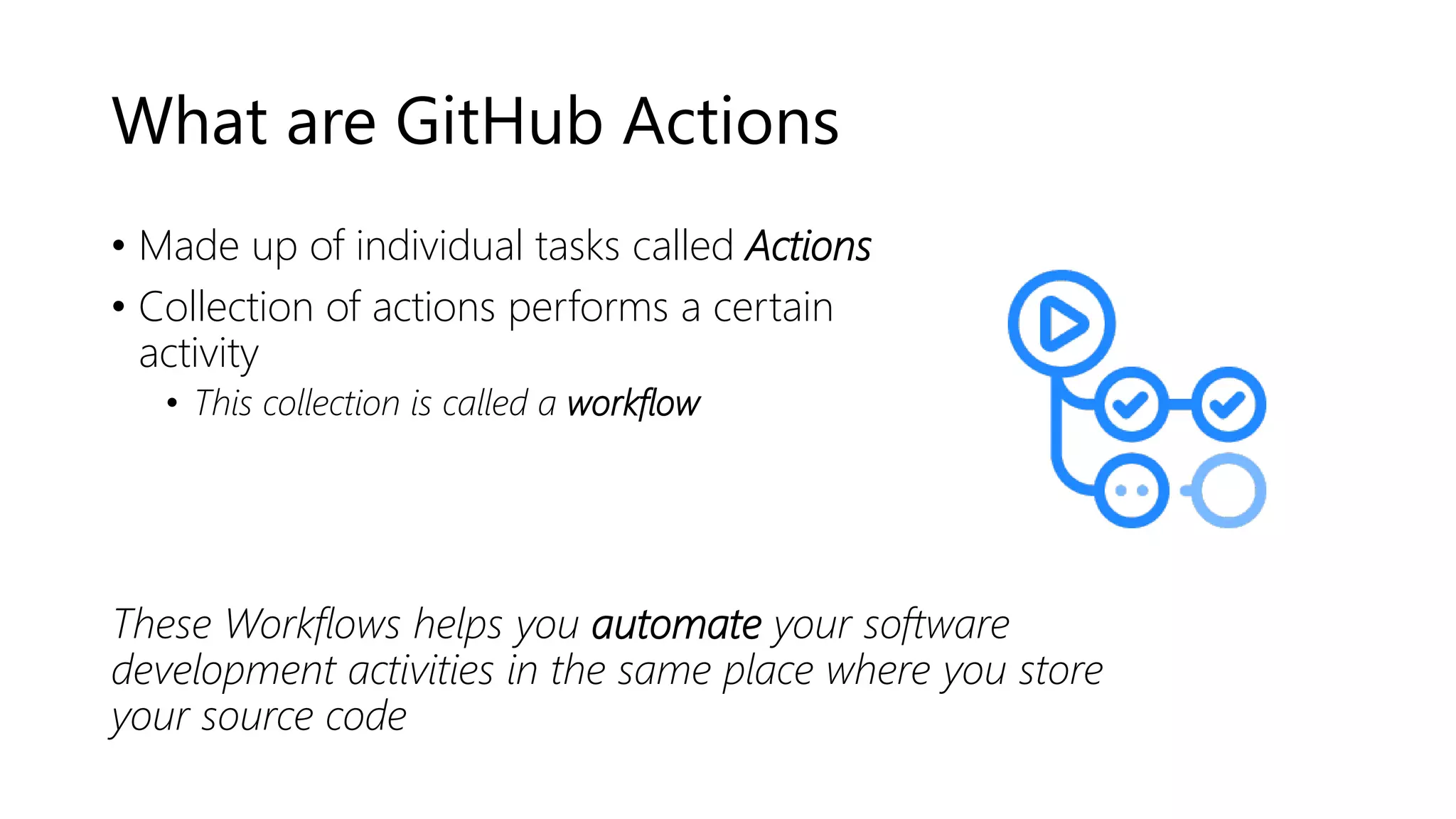

4. What are GitHub Actions
• Made up of individual tasks called Actions
• Collection of actions performs a certain
activity
• This collection is called a workflow
These Workflows helps you automate your software
development activities in the same place where you store
your source code

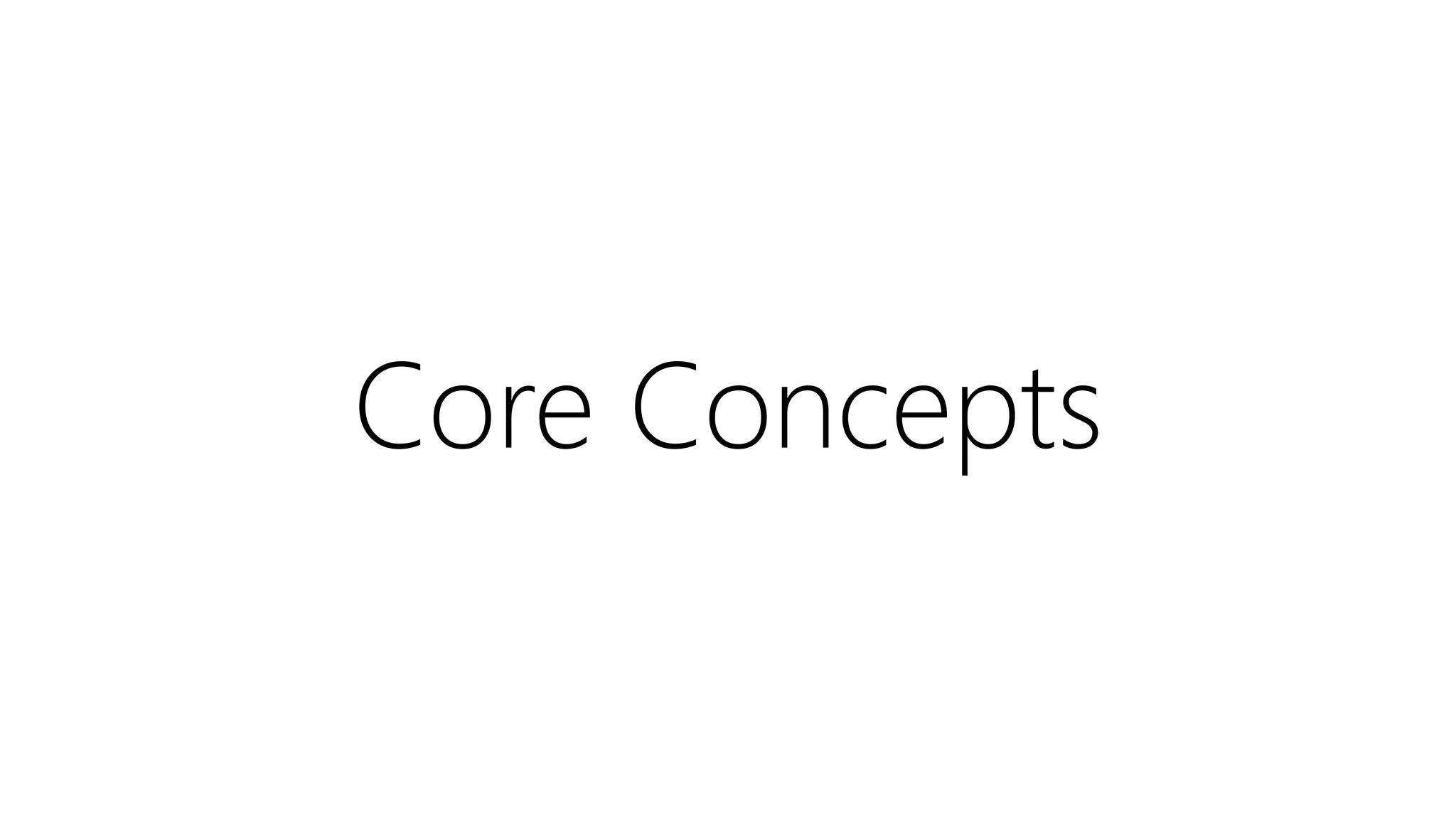

5. Core Concepts

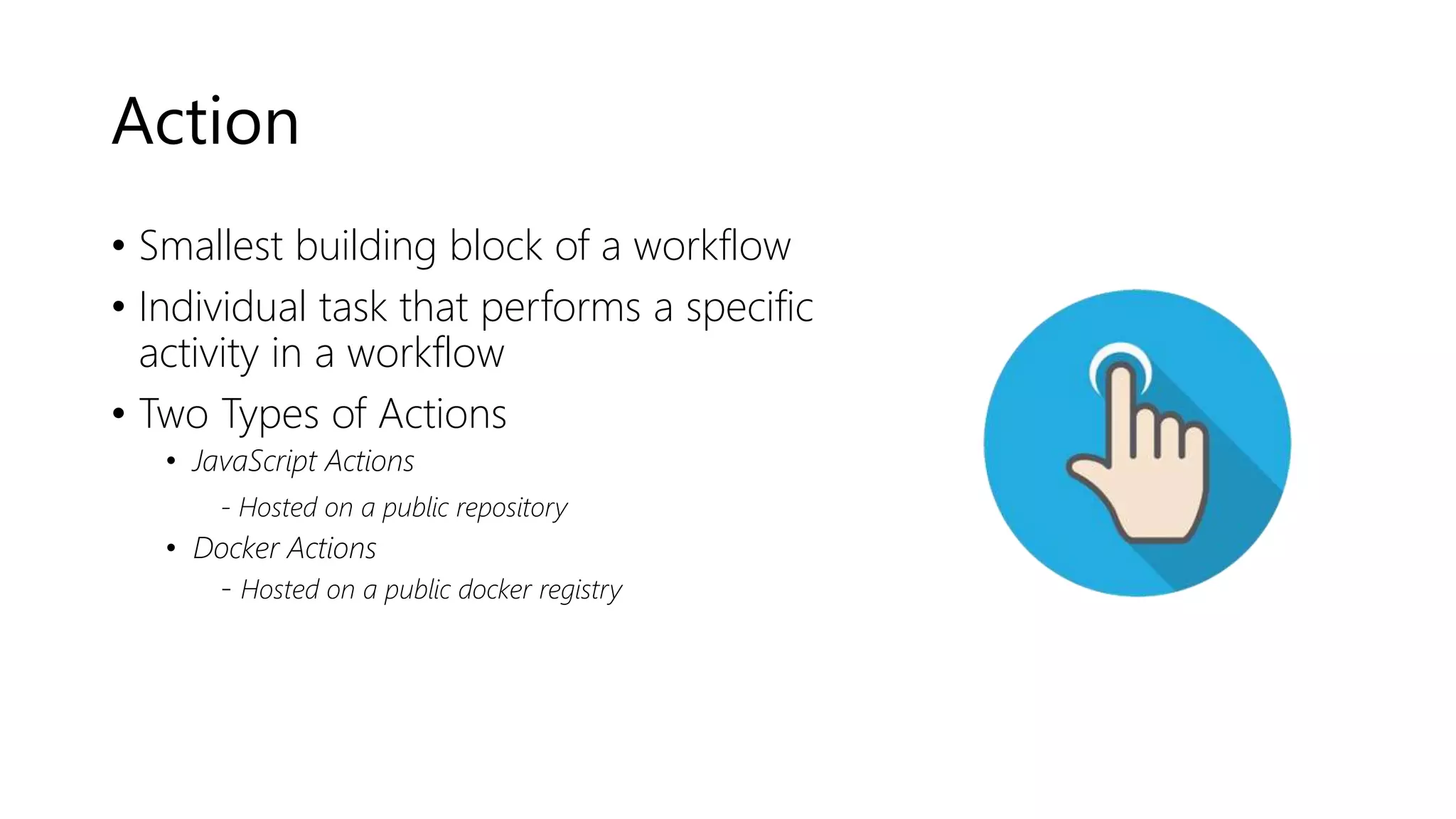

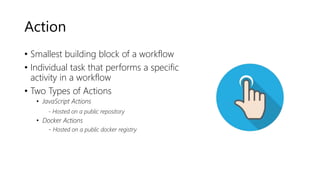

6. Action
• Smallest building block of a workflow
• Individual task that performs a specific
activity in a workflow
• Two Types of Actions
• JavaScript Actions
- Hosted on a public repository
• Docker Actions
- Hosted on a public docker registry

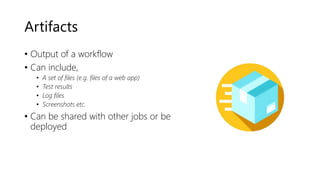

7. Artifacts
• Output of a workflow
• Can include,
• A set of files (e.g. files of a web app)
• Test results
• Log files
• Screenshots etc.
• Can be shared with other jobs or be
deployed

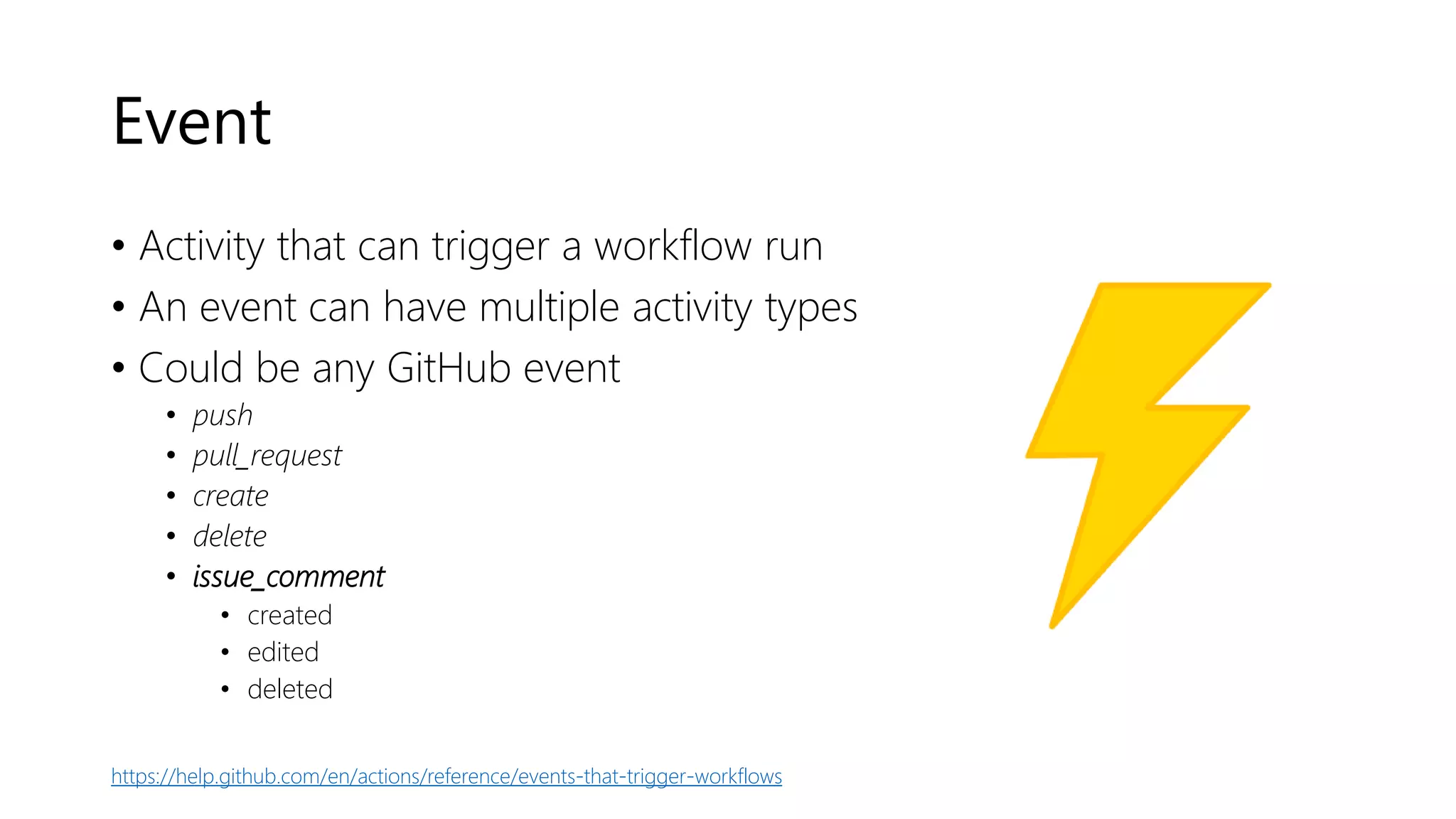

8. Event
• Activity that can trigger a workflow run
• An event can have multiple activity types
• Could be any GitHub event
• push
• pull_request
• create
• delete
• issue_comment
• created
• edited
• deleted
https://help.github.com/en/actions/reference/events-that-trigger-workflows

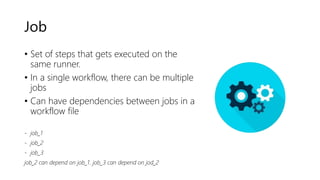

9. Job
• Set of steps that gets executed on the
same runner.
• In a single workflow, there can be multiple
jobs
• Can have dependencies between jobs in a
workflow file
- job_1
- job_2
- job_3
job_2 can depend on job_1. job_3 can depend on jod_2

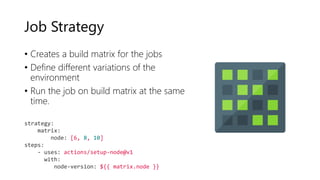

10. Job Strategy
• Creates a build matrix for the jobs
• Define different variations of the
environment
• Run the job on build matrix at the same
time.
strategy:
matrix:
node: [6, 8, 10]
steps:
- uses: actions/setup-node@v1
with:
node-version: ${{ matrix.node }}

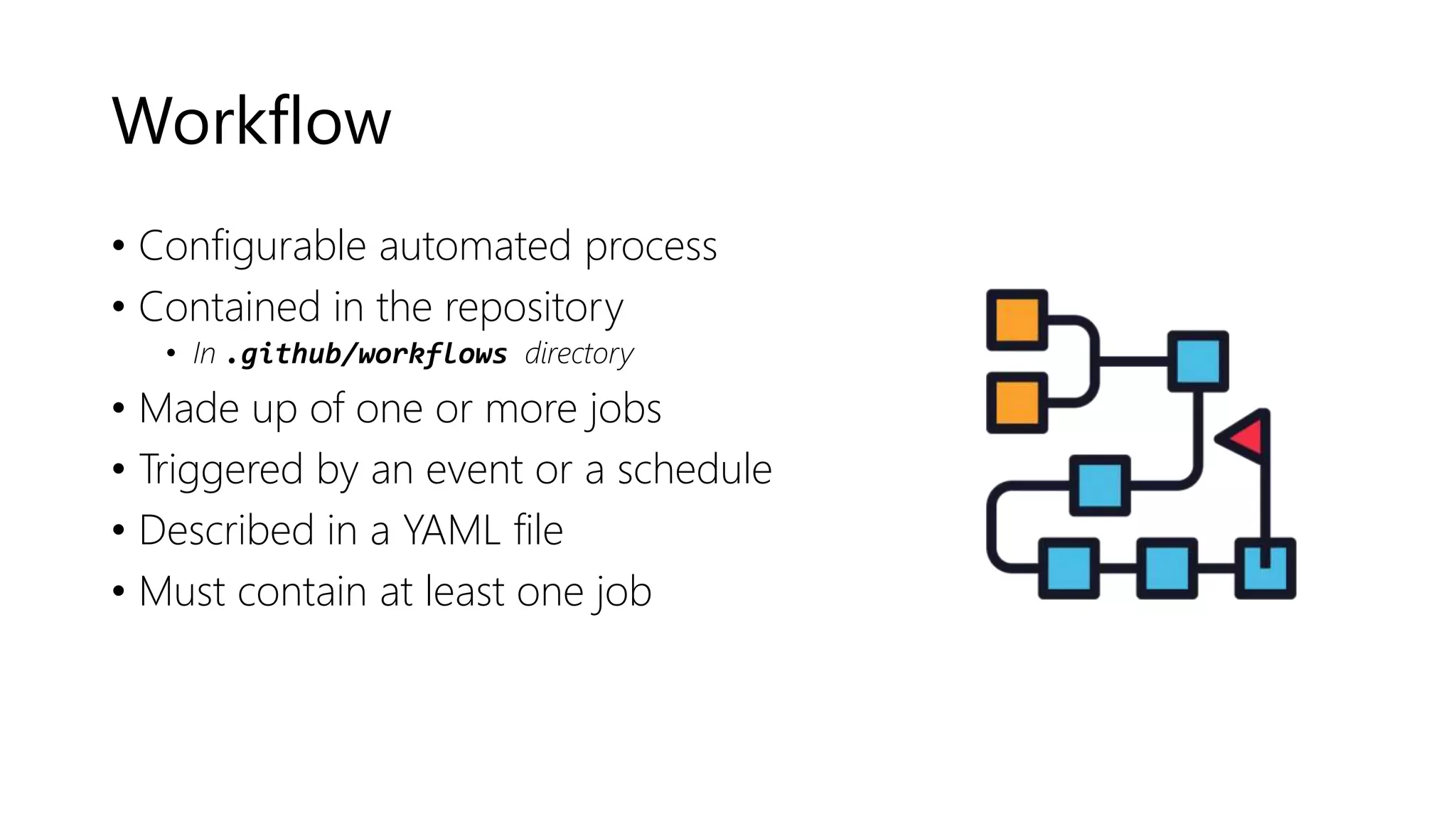

11. Workflow
• Configurable automated process
• Contained in the repository
• In .github/workflows directory
• Made up of one or more jobs
• Triggered by an event or a schedule
• Described in a YAML file
• Must contain at least one job

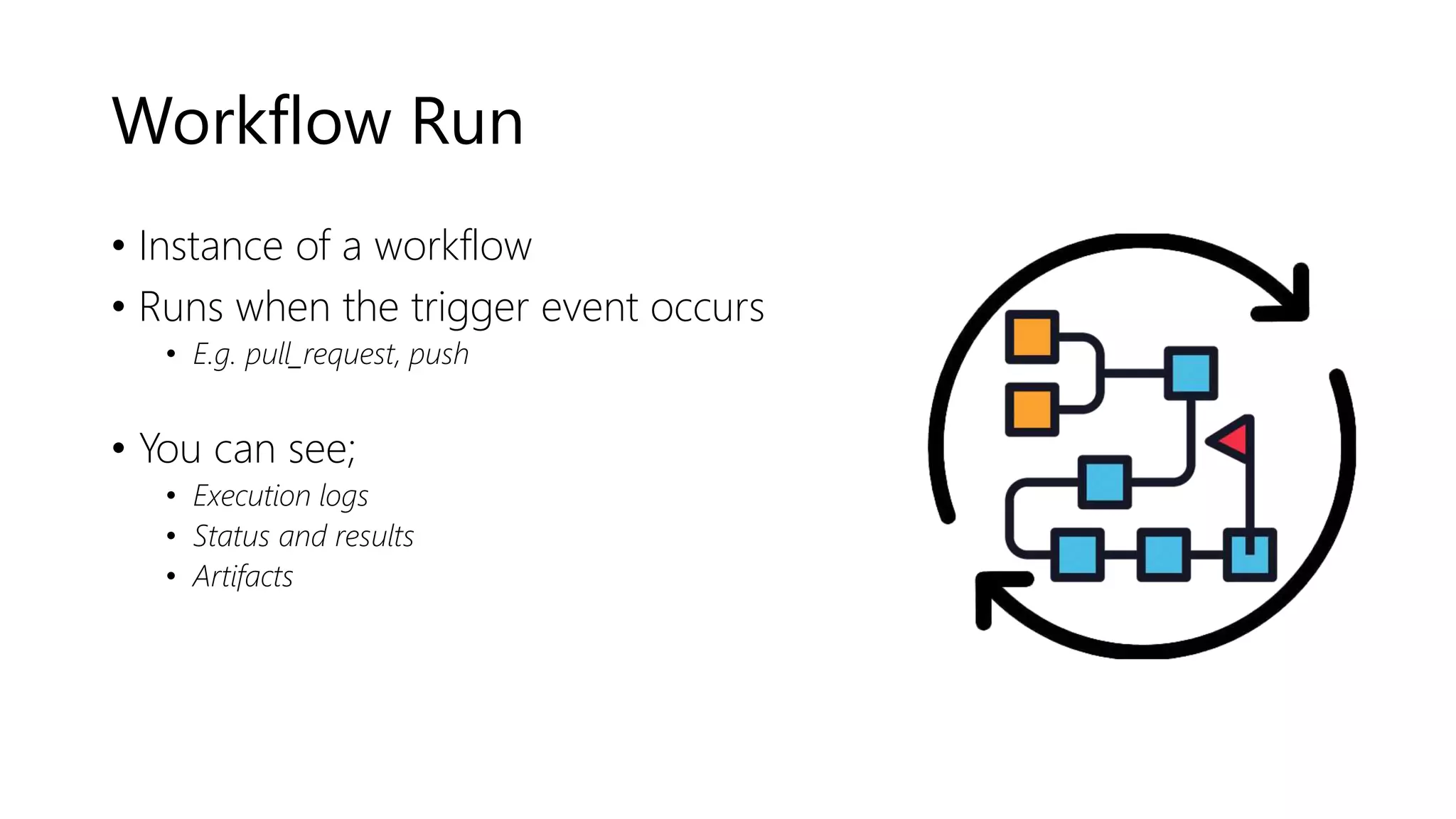

12. Workflow Run
• Instance of a workflow
• Runs when the trigger event occurs
• E.g. pull_request, push
• You can see;
• Execution logs
• Status and results
• Artifacts

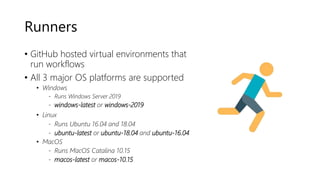

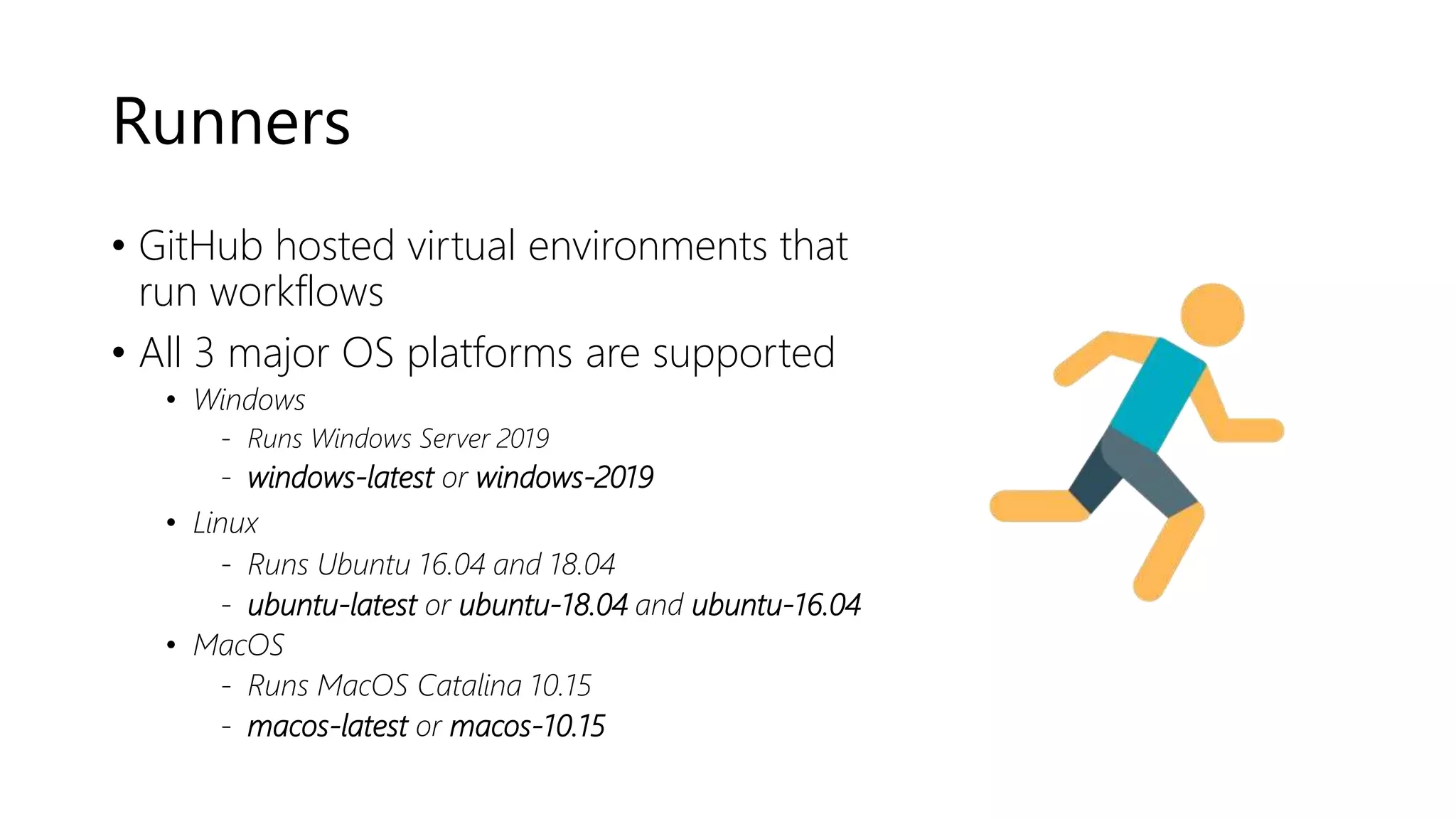

13. Runners
• GitHub hosted virtual environments that
run workflows
• All 3 major OS platforms are supported
• Windows
- Runs Windows Server 2019
- windows-latest or windows-2019
• Linux
- Runs Ubuntu 16.04 and 18.04
- ubuntu-latest or ubuntu-18.04 and ubuntu-16.04
• MacOS
- Runs MacOS Catalina 10.15
- macos-latest or macos-10.15

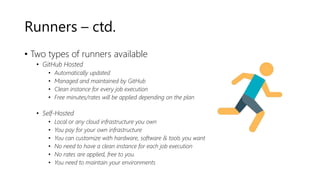

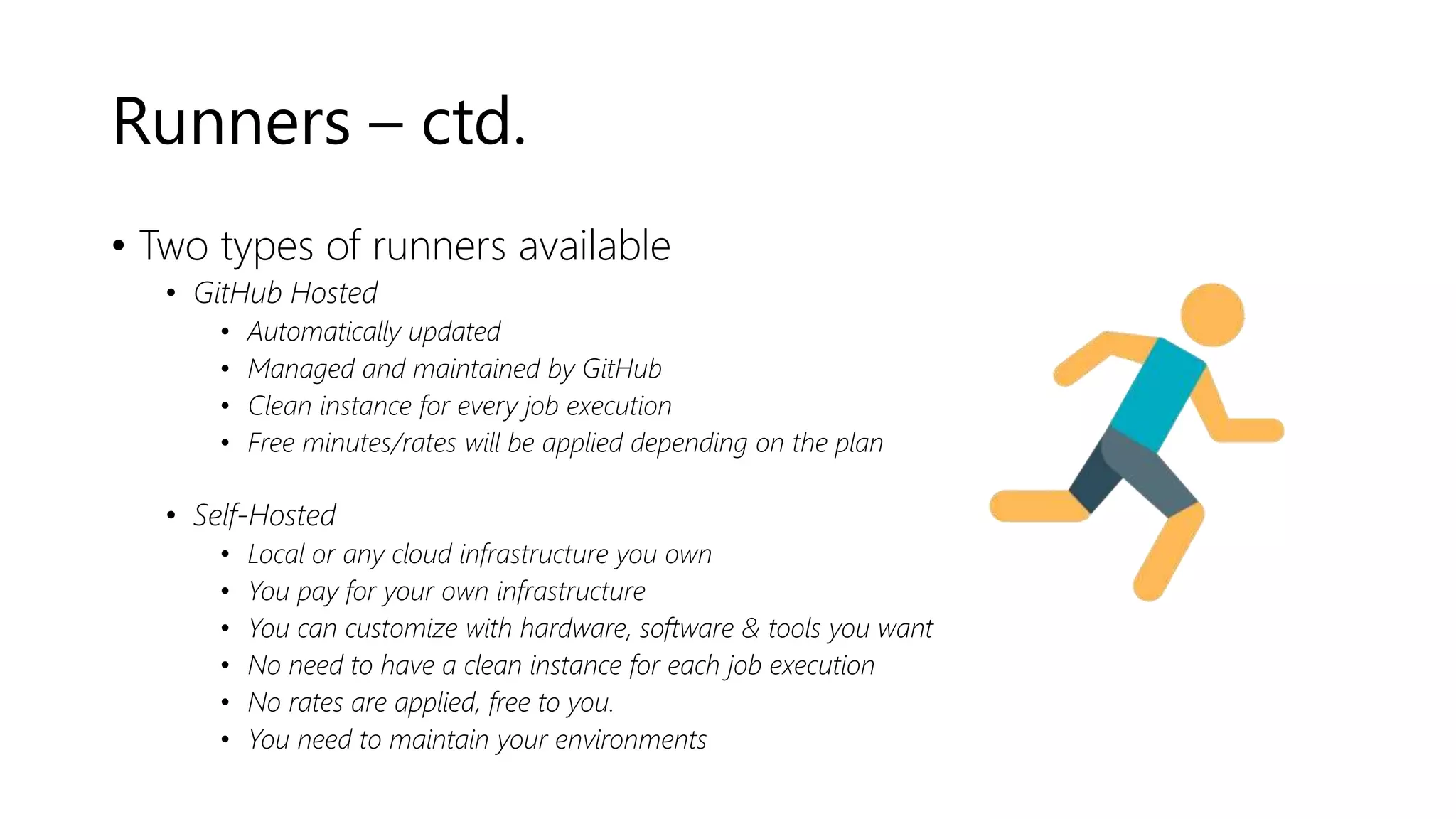

14. Runners – ctd.
• Two types of runners available
• GitHub Hosted
• Automatically updated
• Managed and maintained by GitHub
• Clean instance for every job execution
• Free minutes/rates will be applied depending on the plan
• Self-Hosted
• Local or any cloud infrastructure you own
• You pay for your own infrastructure
• You can customize with hardware, software & tools you want
• No need to have a clean instance for each job execution
• No rates are applied, free to you.
• You need to maintain your environments

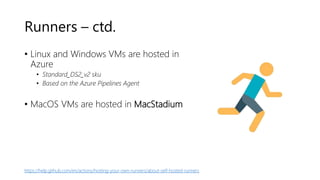

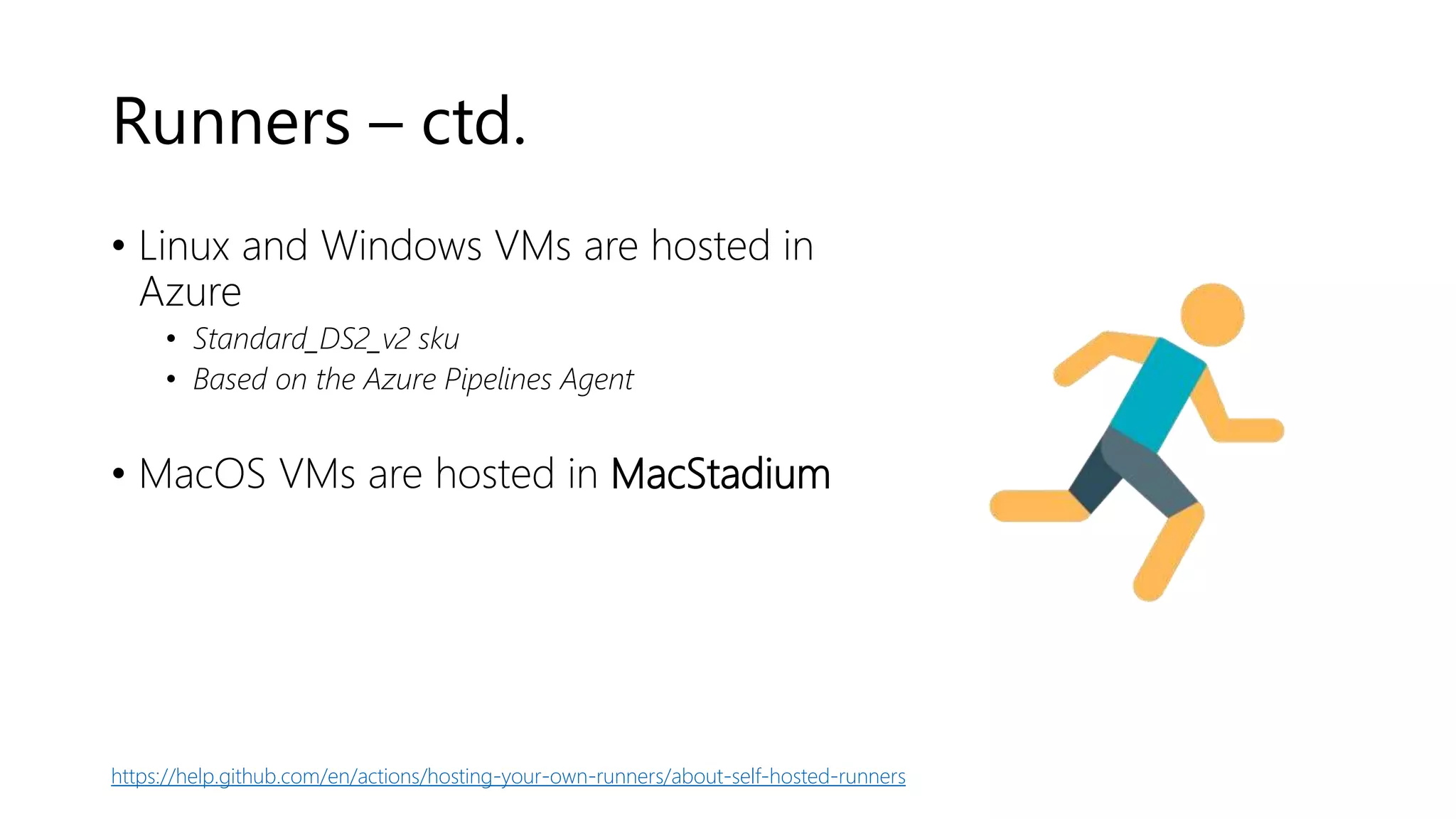

15. Runners – ctd.
• Linux and Windows VMs are hosted in
Azure
• Standard_DS2_v2 sku
• Based on the Azure Pipelines Agent
• MacOS VMs are hosted in MacStadium
https://help.github.com/en/actions/hosting-your-own-runners/about-self-hosted-runners

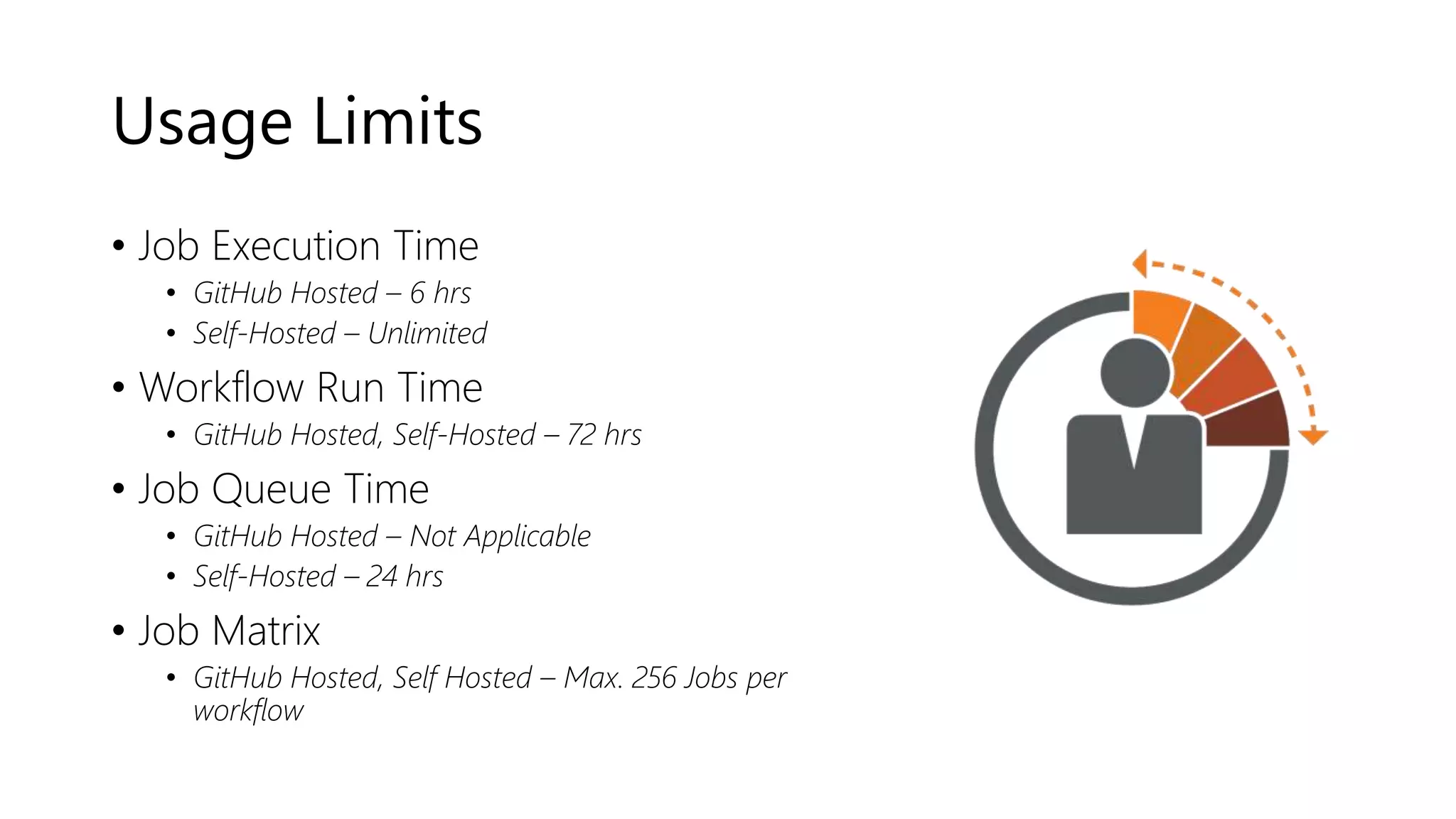

16. Usage Limits
• Job Execution Time
• GitHub Hosted – 6 hrs
• Self-Hosted – Unlimited
• Workflow Run Time
• GitHub Hosted, Self-Hosted – 72 hrs
• Job Queue Time
• GitHub Hosted – Not Applicable
• Self-Hosted – 24 hrs
• Job Matrix
• GitHub Hosted, Self Hosted – Max. 256 Jobs per
workflow

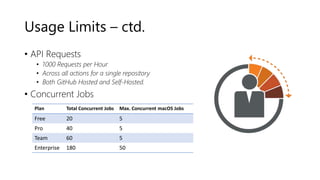

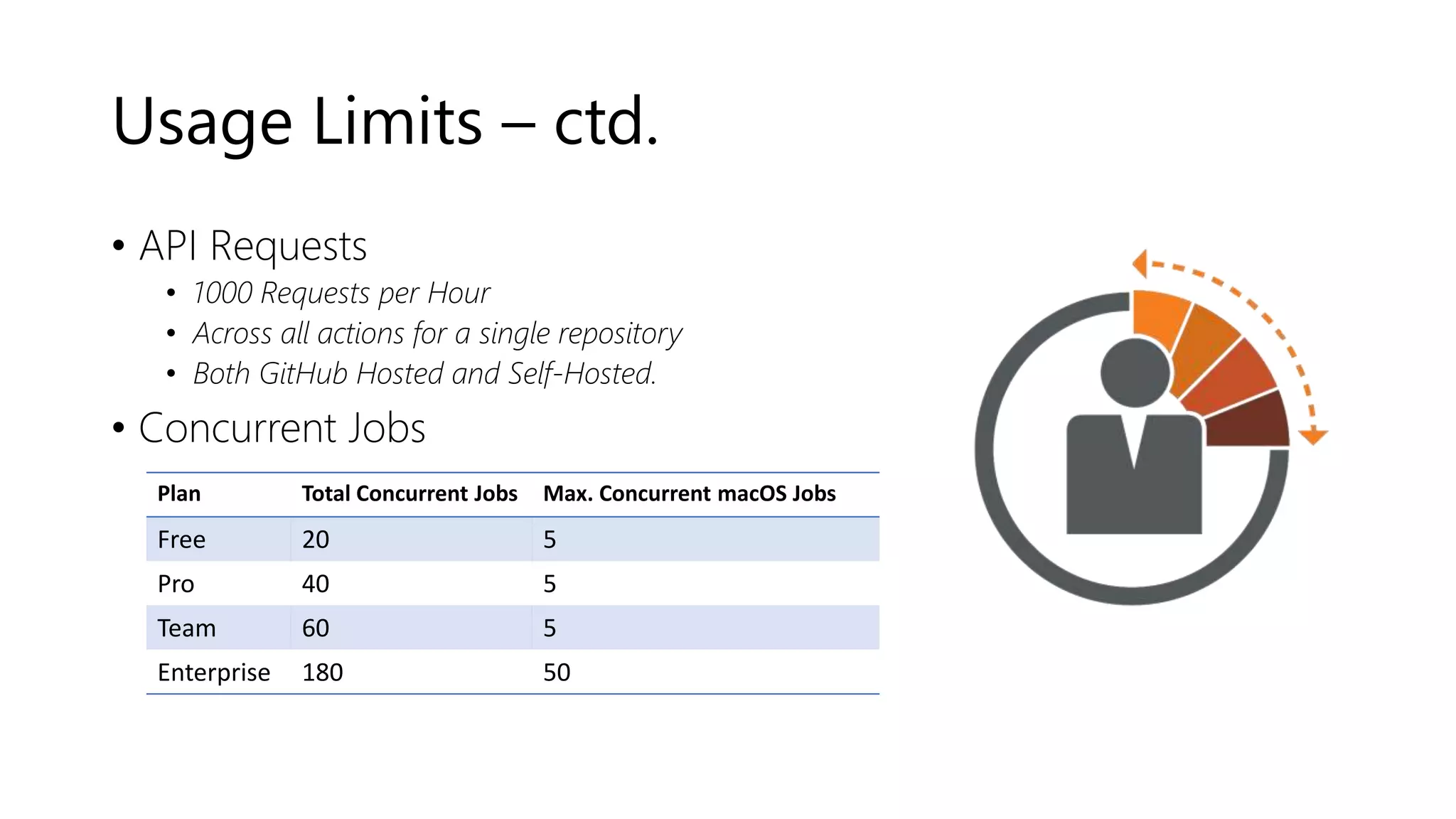

17. Usage Limits – ctd.
• API Requests
• 1000 Requests per Hour
• Across all actions for a single repository
• Both GitHub Hosted and Self-Hosted.
• Concurrent Jobs
Plan Total Concurrent Jobs Max. Concurrent macOS Jobs
Free 20 5
Pro 40 5
Team 60 5
Enterprise 180 50

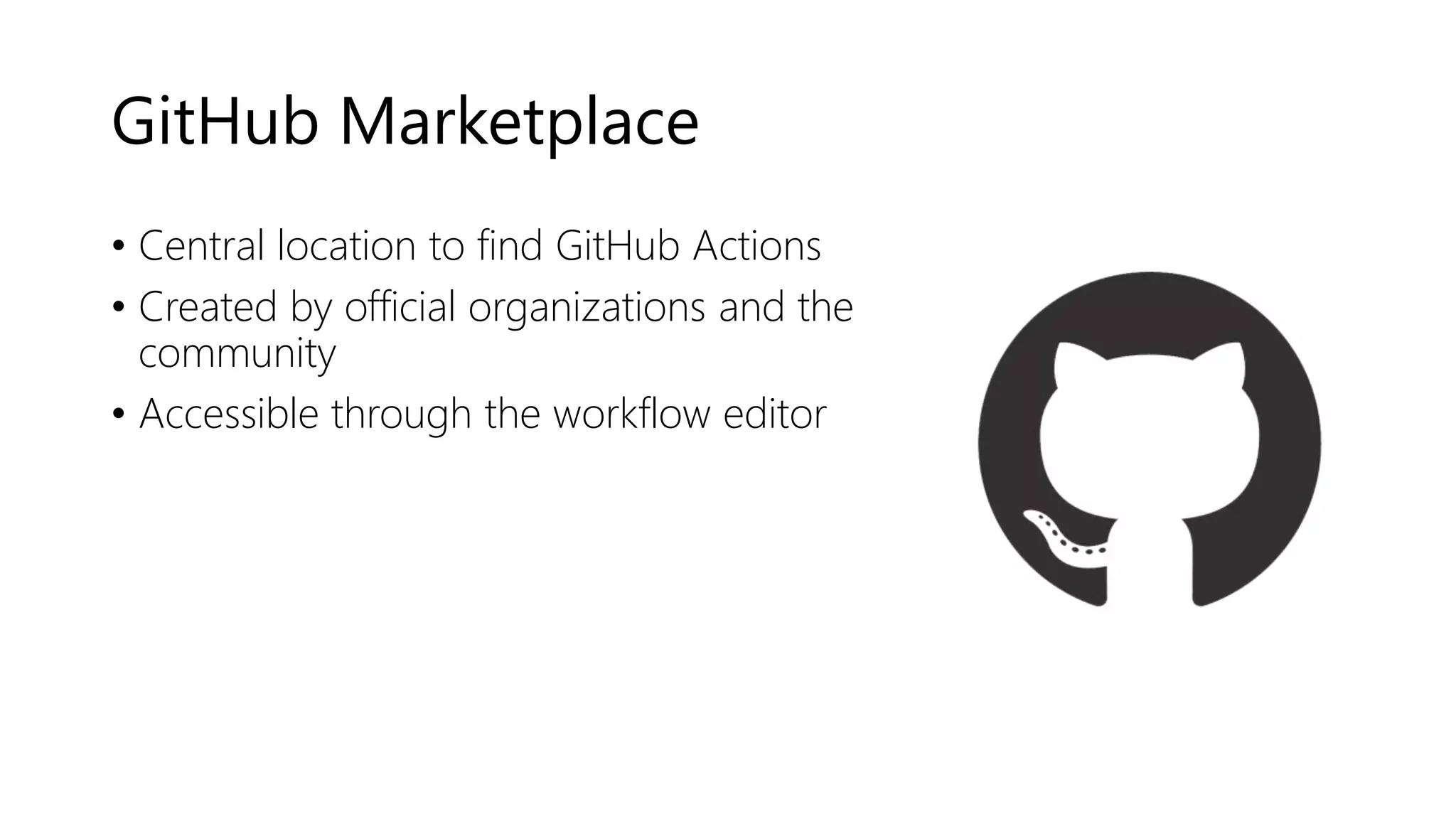

18. GitHub Marketplace
• Central location to find GitHub Actions
• Created by official organizations and the
community
• Accessible through the workflow editor

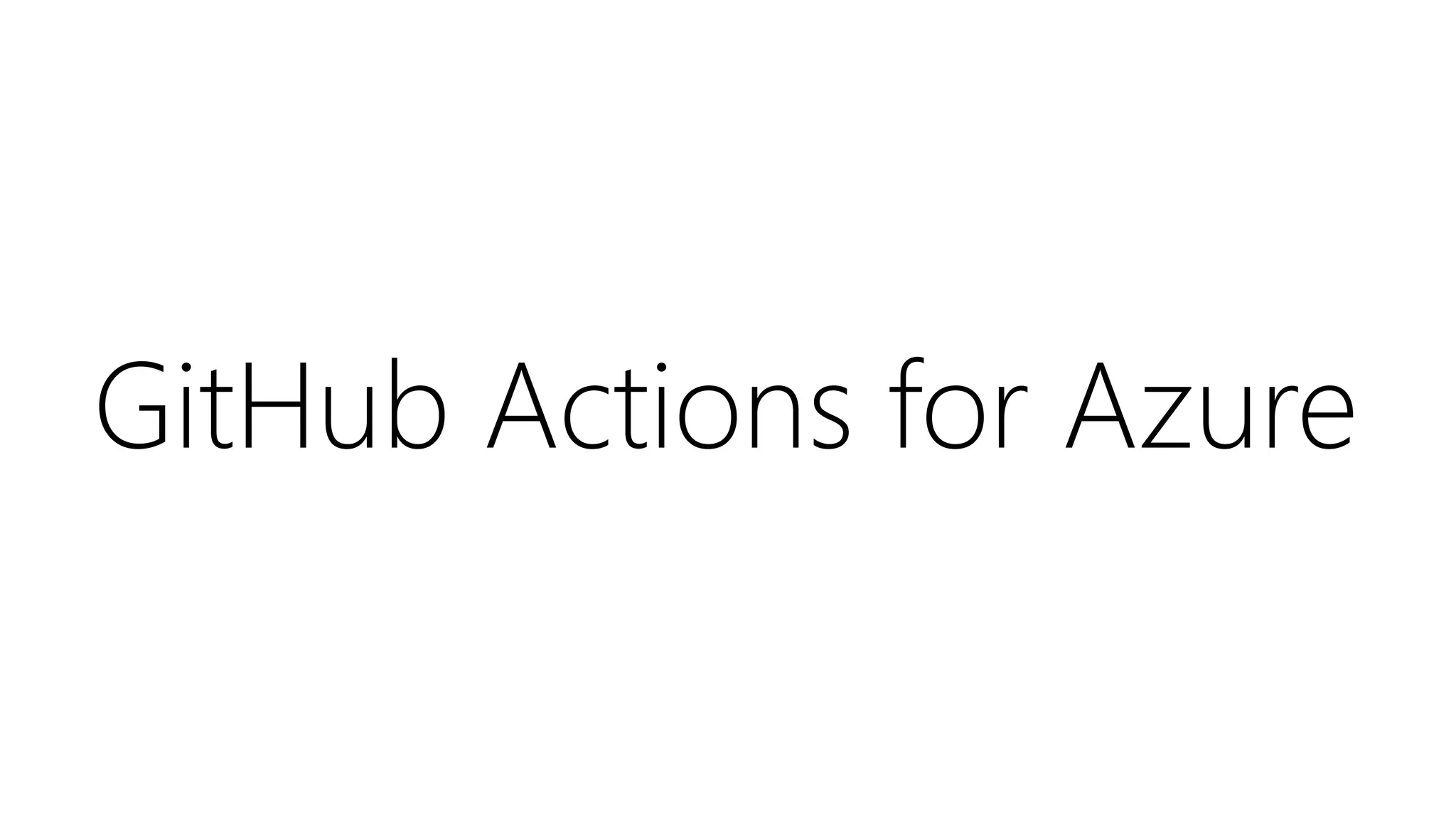

19. GitHub Actions for Azure

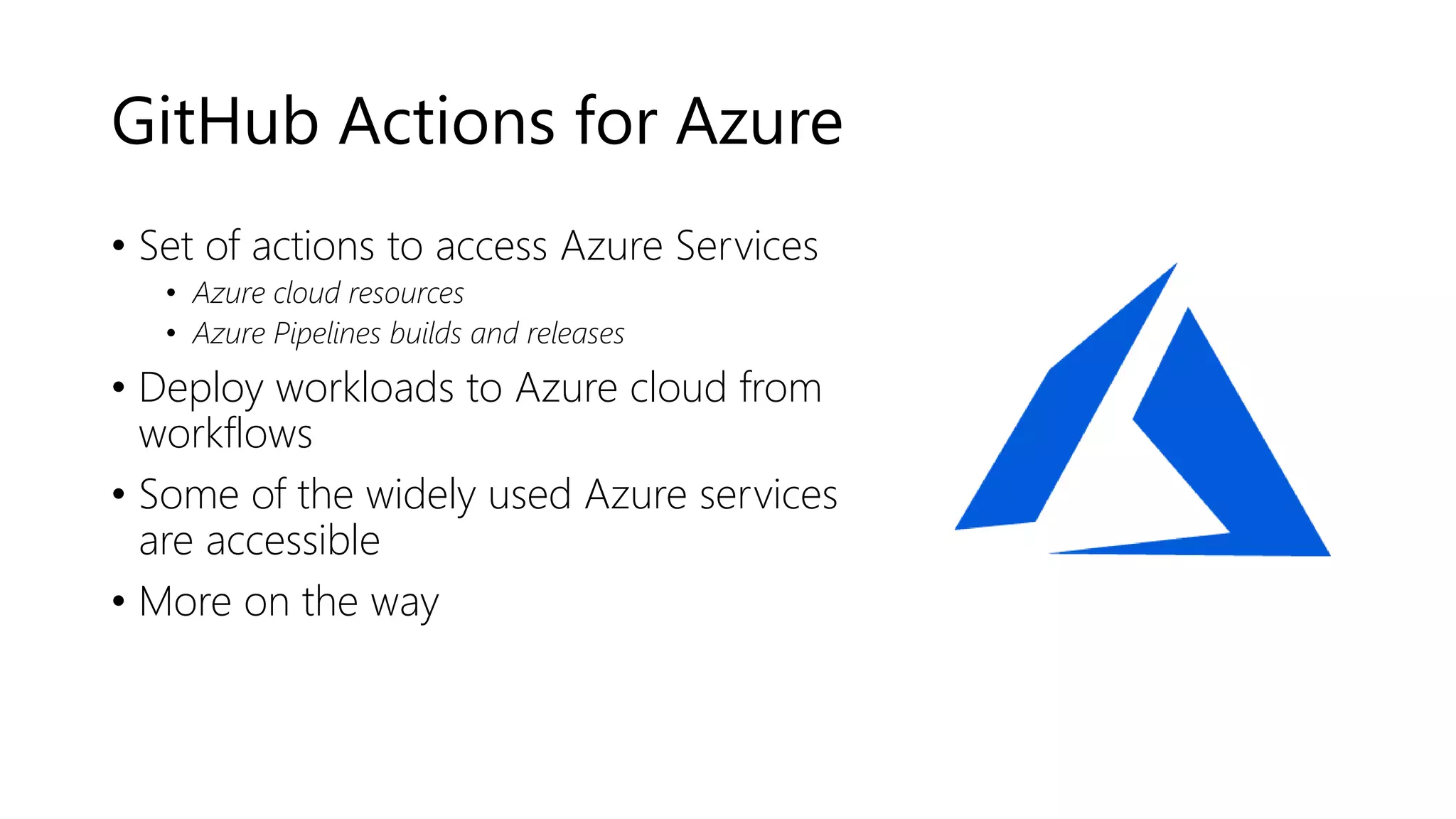

20. GitHub Actions for Azure
• Set of actions to access Azure Services
• Azure cloud resources
• Azure Pipelines builds and releases
• Deploy workloads to Azure cloud from
workflows
• Some of the widely used Azure services
are accessible
• More on the way

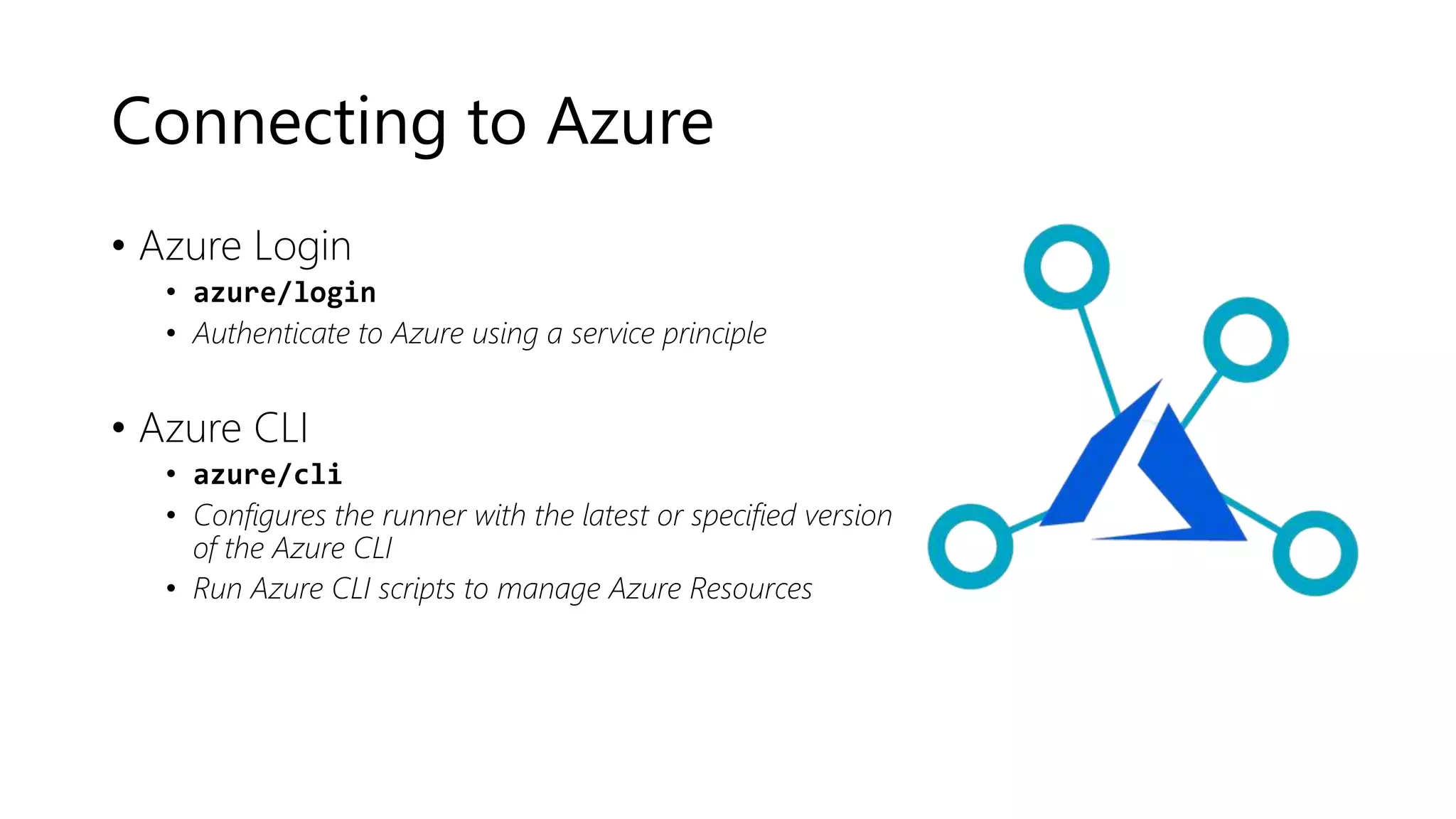

21. Connecting to Azure
• Azure Login
• azure/login
• Authenticate to Azure using a service principle
• Azure CLI
• azure/cli
• Configures the runner with the latest or specified version
of the Azure CLI
• Run Azure CLI scripts to manage Azure Resources

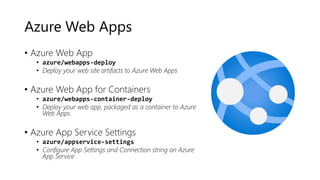

22. Azure Web Apps
• Azure Web App
• azure/webapps-deploy
• Deploy your web site artifacts to Azure Web Apps
• Azure Web App for Containers
• azure/webapps-container-deploy
• Deploy your web app, packaged as a container to Azure
Web Apps.
• Azure App Service Settings
• azure/appservice-settings
• Configure App Settings and Connection string on Azure
App Service .

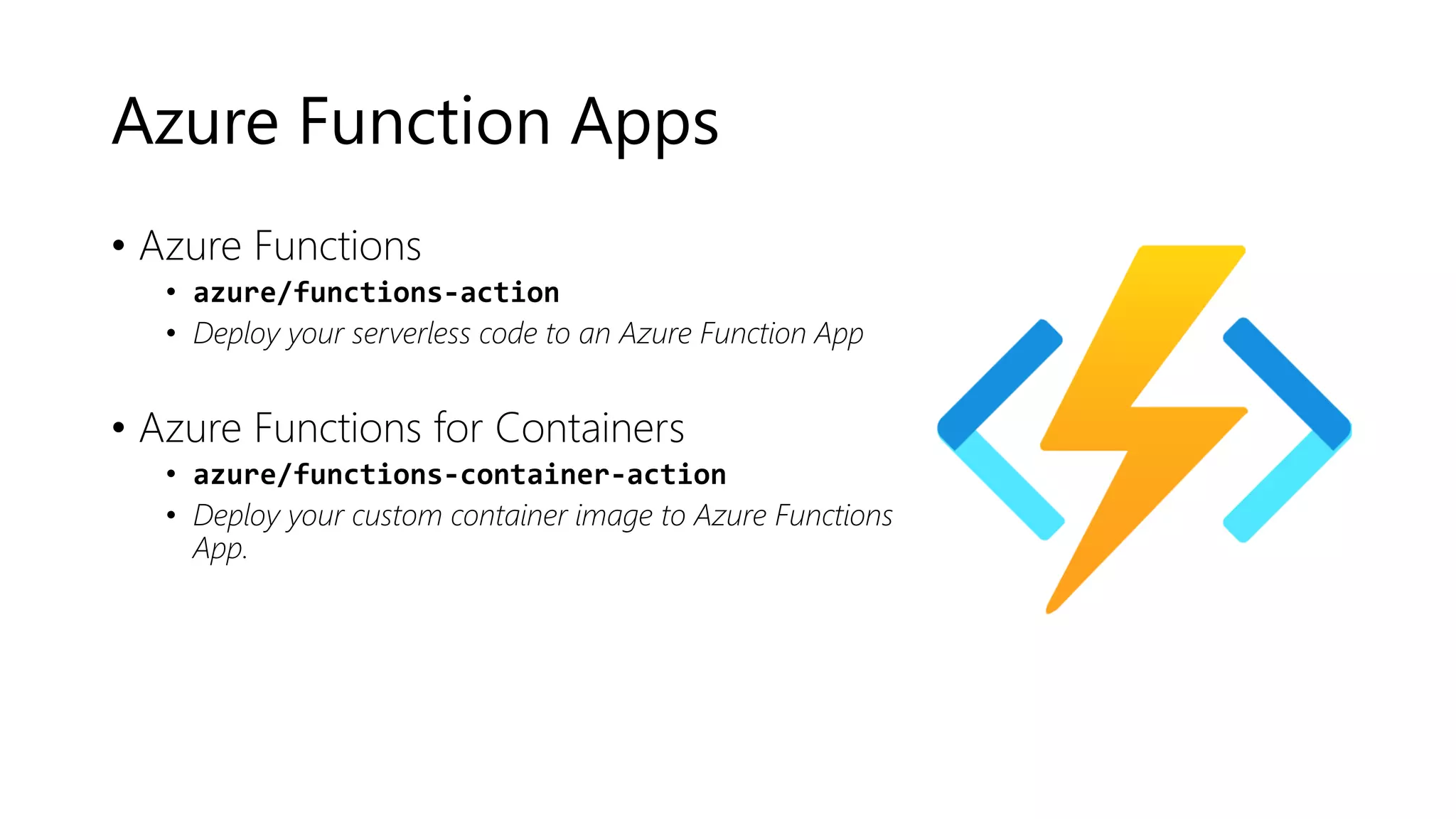

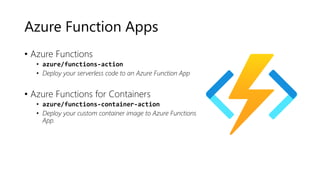

23. Azure Function Apps
• Azure Functions
• azure/functions-action
• Deploy your serverless code to an Azure Function App
• Azure Functions for Containers
• azure/functions-container-action
• Deploy your custom container image to Azure Functions
App.

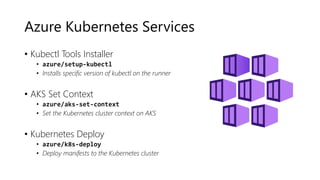

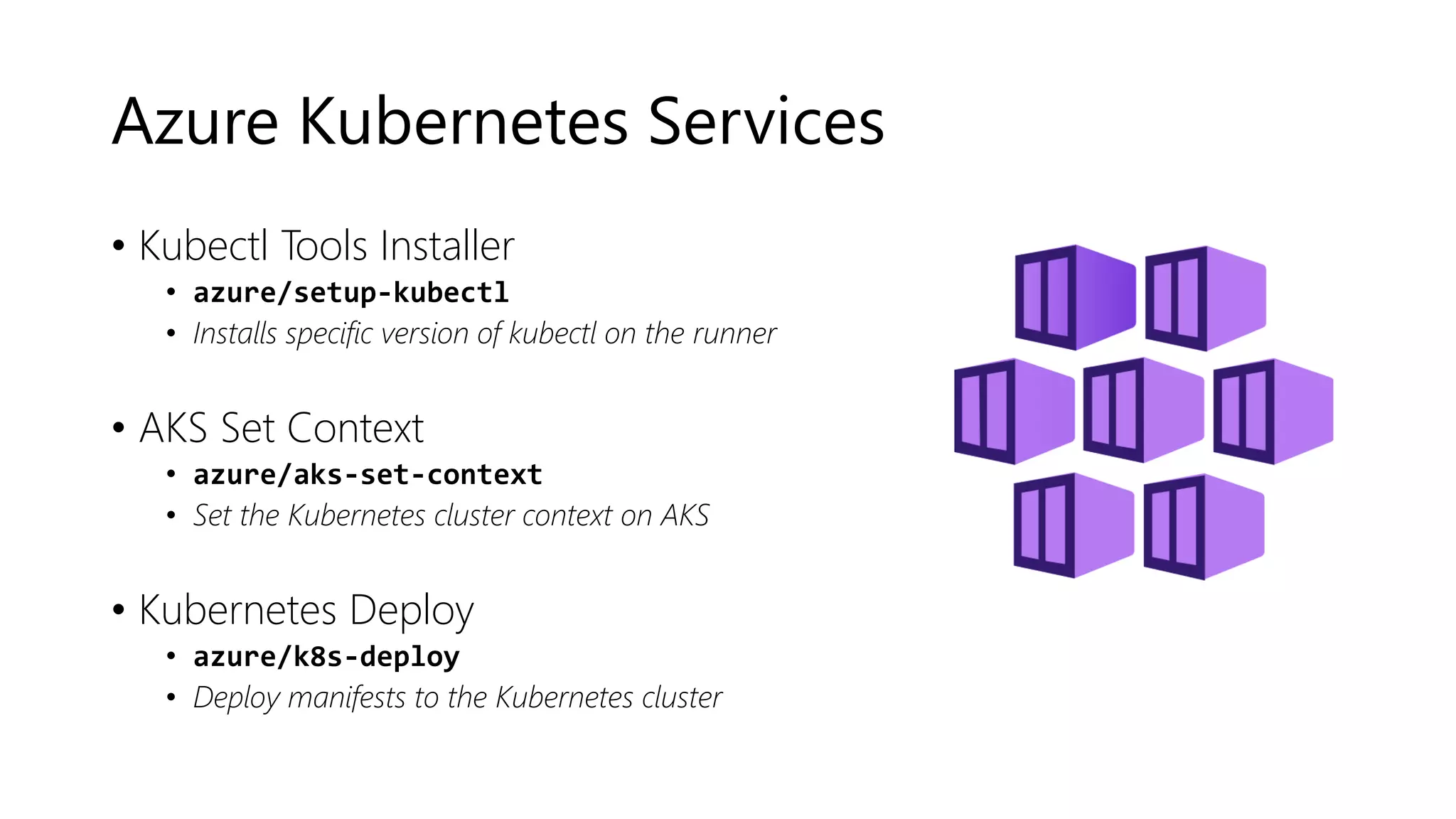

24. Azure Kubernetes Services
• Kubectl Tools Installer
• azure/setup-kubectl
• Installs specific version of kubectl on the runner
• AKS Set Context
• azure/aks-set-context
• Set the Kubernetes cluster context on AKS
• Kubernetes Deploy
• azure/k8s-deploy
• Deploy manifests to the Kubernetes cluster

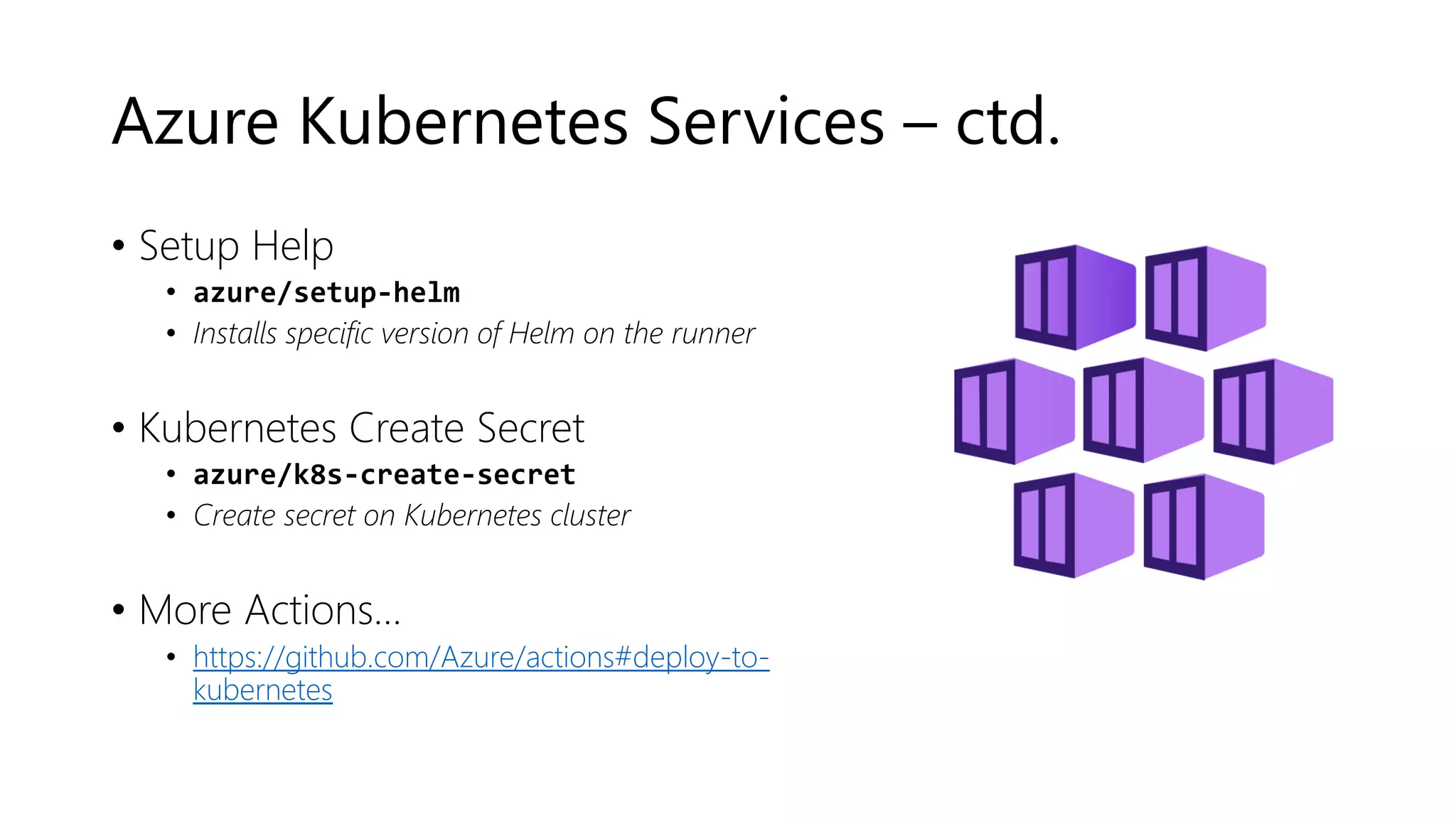

25. Azure Kubernetes Services – ctd.
• Setup Help
• azure/setup-helm
• Installs specific version of Helm on the runner
• Kubernetes Create Secret
• azure/k8s-create-secret
• Create secret on Kubernetes cluster
• More Actions…
• https://github.com/Azure/actions#deploy-to-
kubernetes

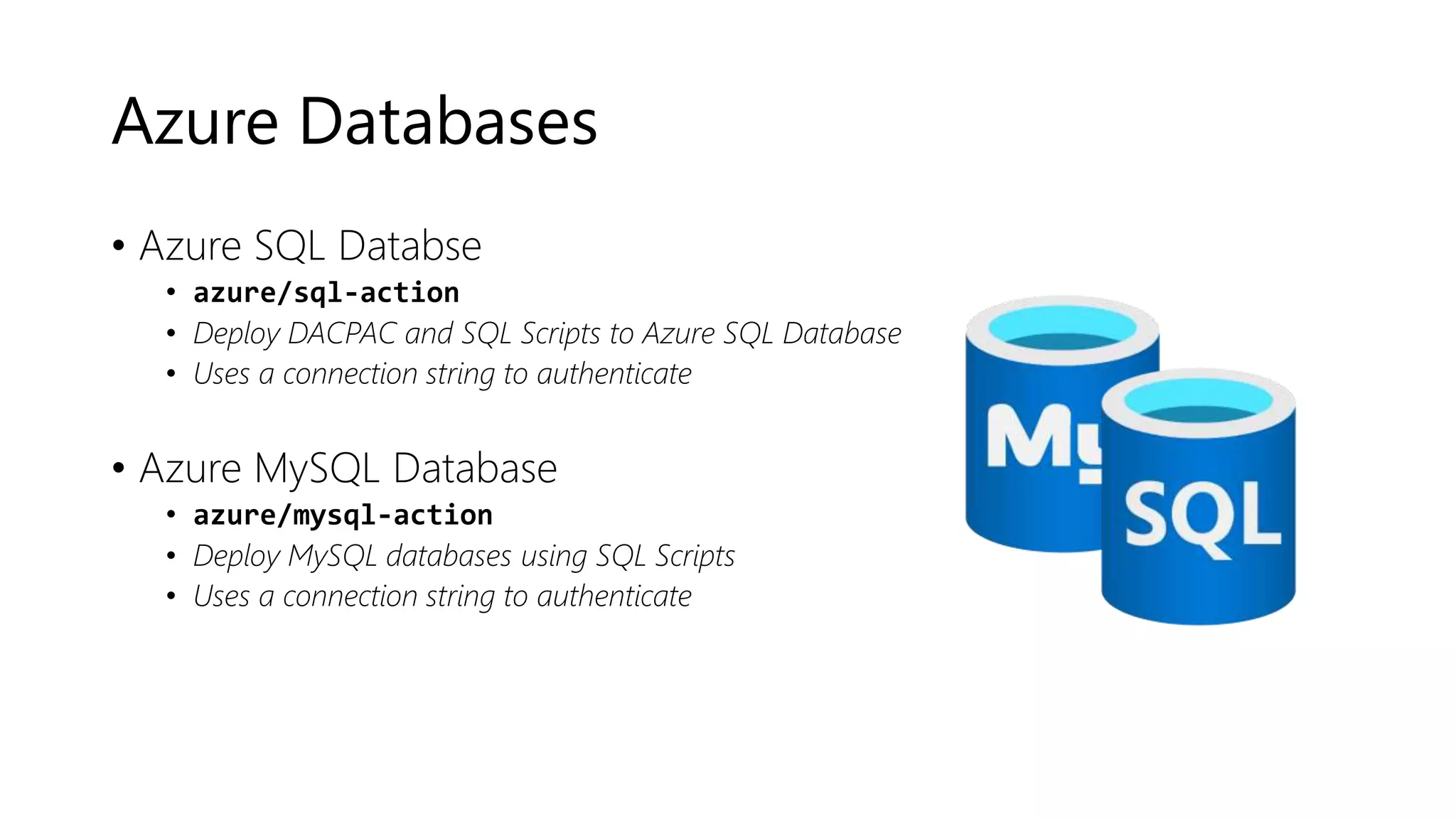

26. Azure Databases
• Azure SQL Databse
• azure/sql-action
• Deploy DACPAC and SQL Scripts to Azure SQL Database
• Uses a connection string to authenticate
• Azure MySQL Database
• azure/mysql-action
• Deploy MySQL databases using SQL Scripts
• Uses a connection string to authenticate

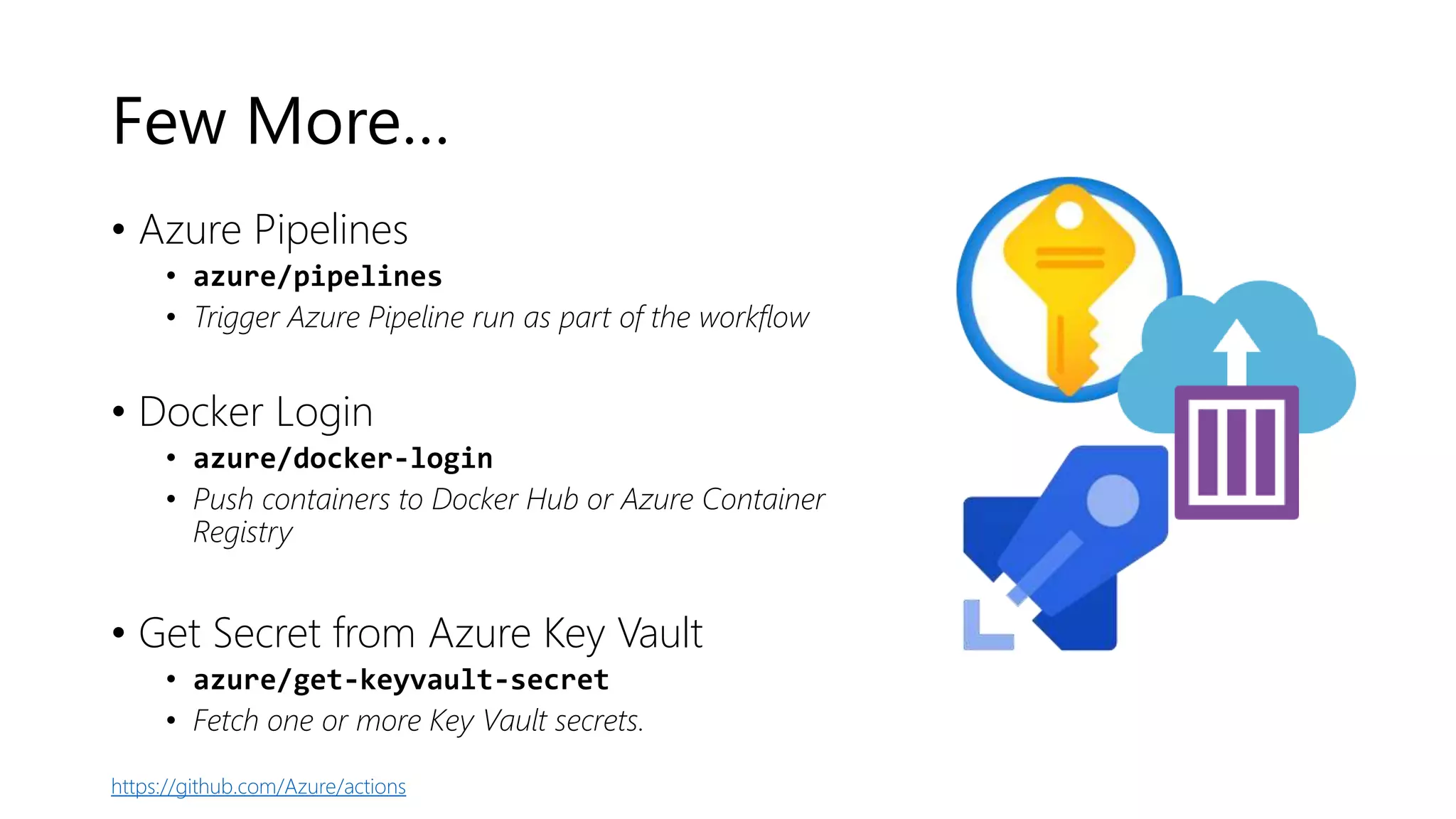

27. Few More…
• Azure Pipelines
• azure/pipelines
• Trigger Azure Pipeline run as part of the workflow
• Docker Login
• azure/docker-login
• Push containers to Docker Hub or Azure Container
Registry
• Get Secret from Azure Key Vault
• azure/get-keyvault-secret
• Fetch one or more Key Vault secrets.
https://github.com/Azure/actions

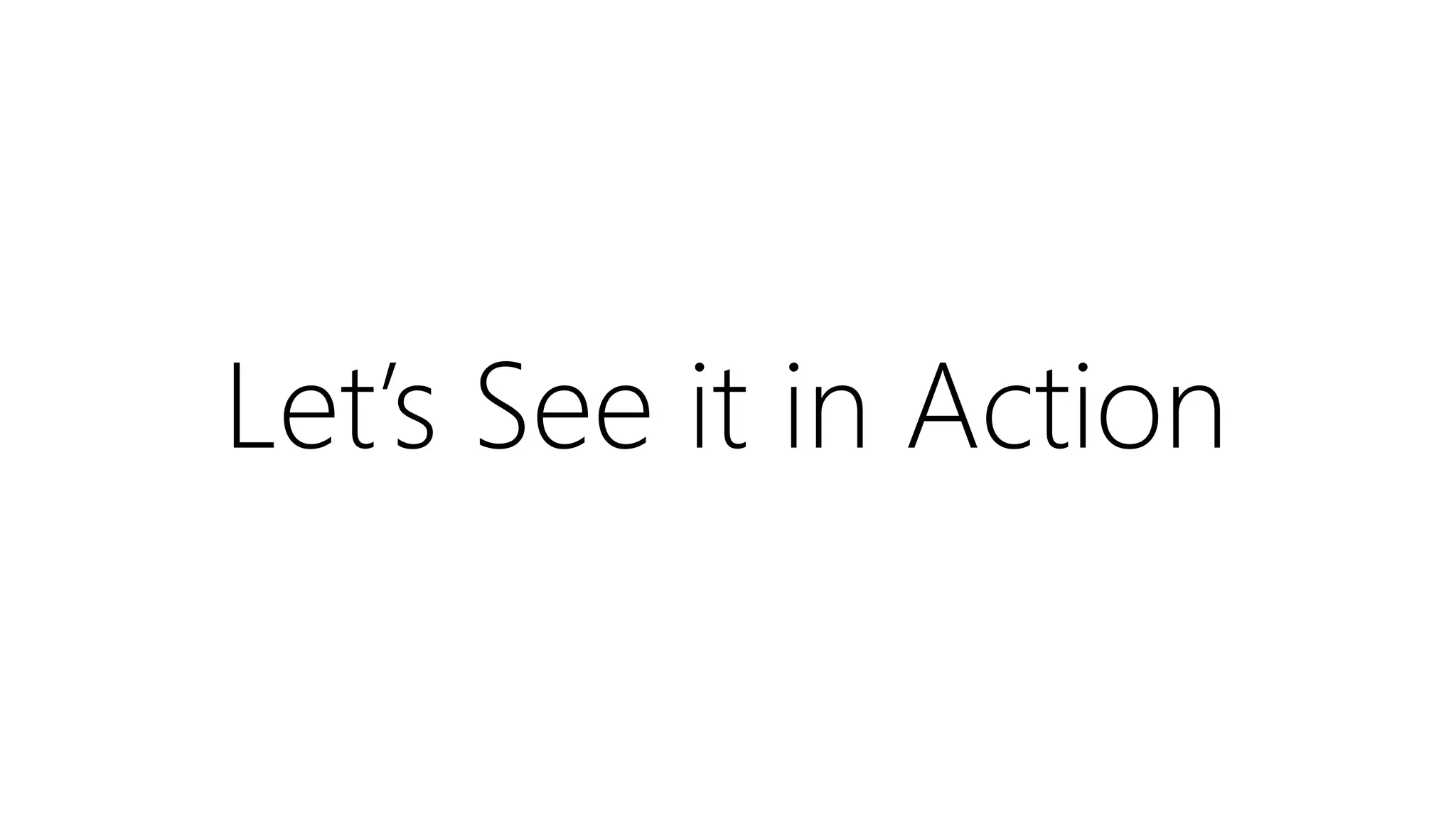

28. Let’s See it in Action

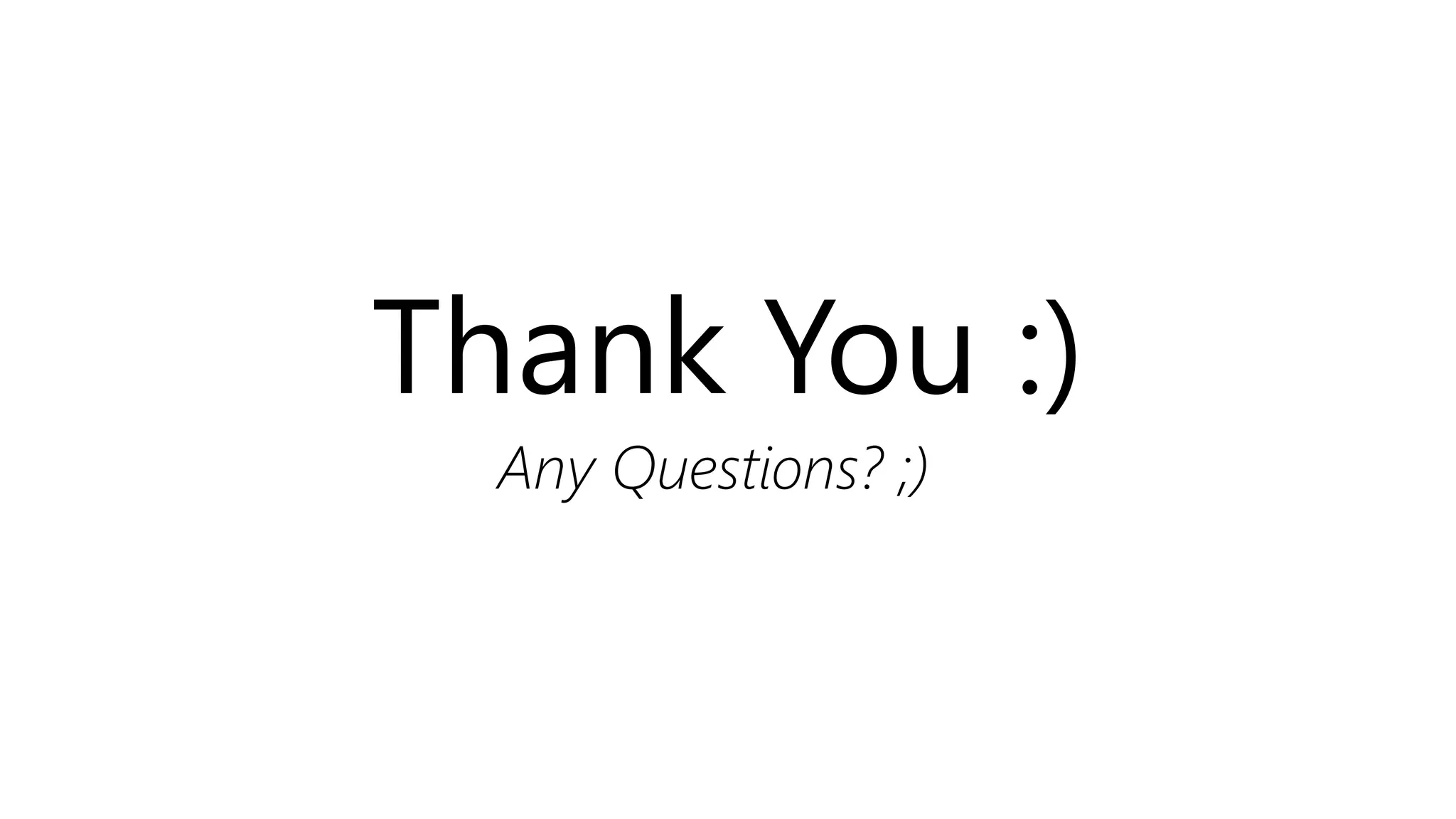

29. Thank You :)
Any Questions? ;)

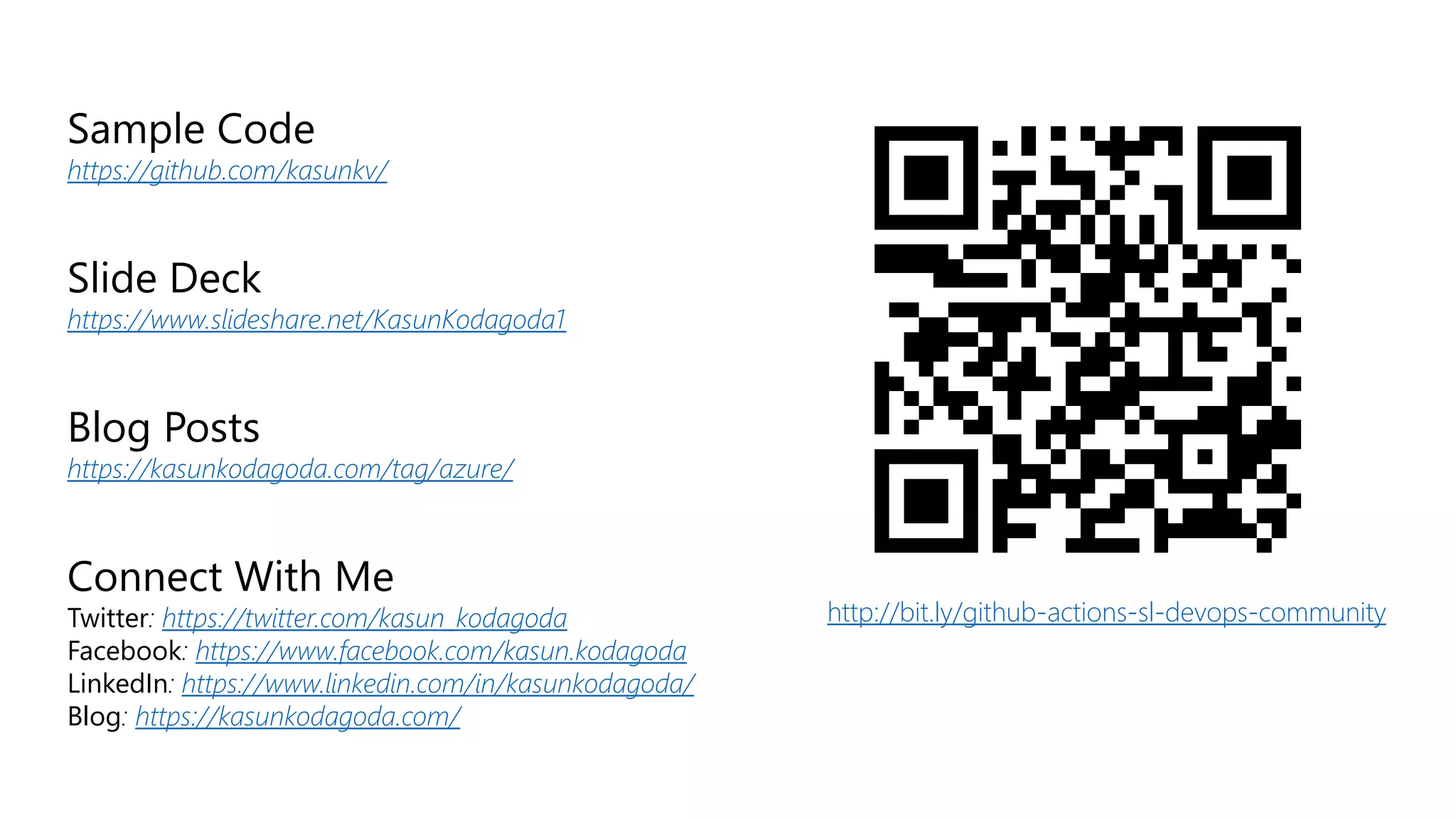

30. Sample Code
https://github.com/kasunkv/
Slide Deck
https://www.slideshare.net/KasunKodagoda1
Blog Posts
https://kasunkodagoda.com/tag/azure/
Connect With Me
Twitter: https://twitter.com/kasun_kodagoda
Facebook: https://www.facebook.com/kasun.kodagoda
LinkedIn: https://www.linkedin.com/in/kasunkodagoda/
Blog: https://kasunkodagoda.com/
http://bit.ly/github-actions-sl-devops-community
