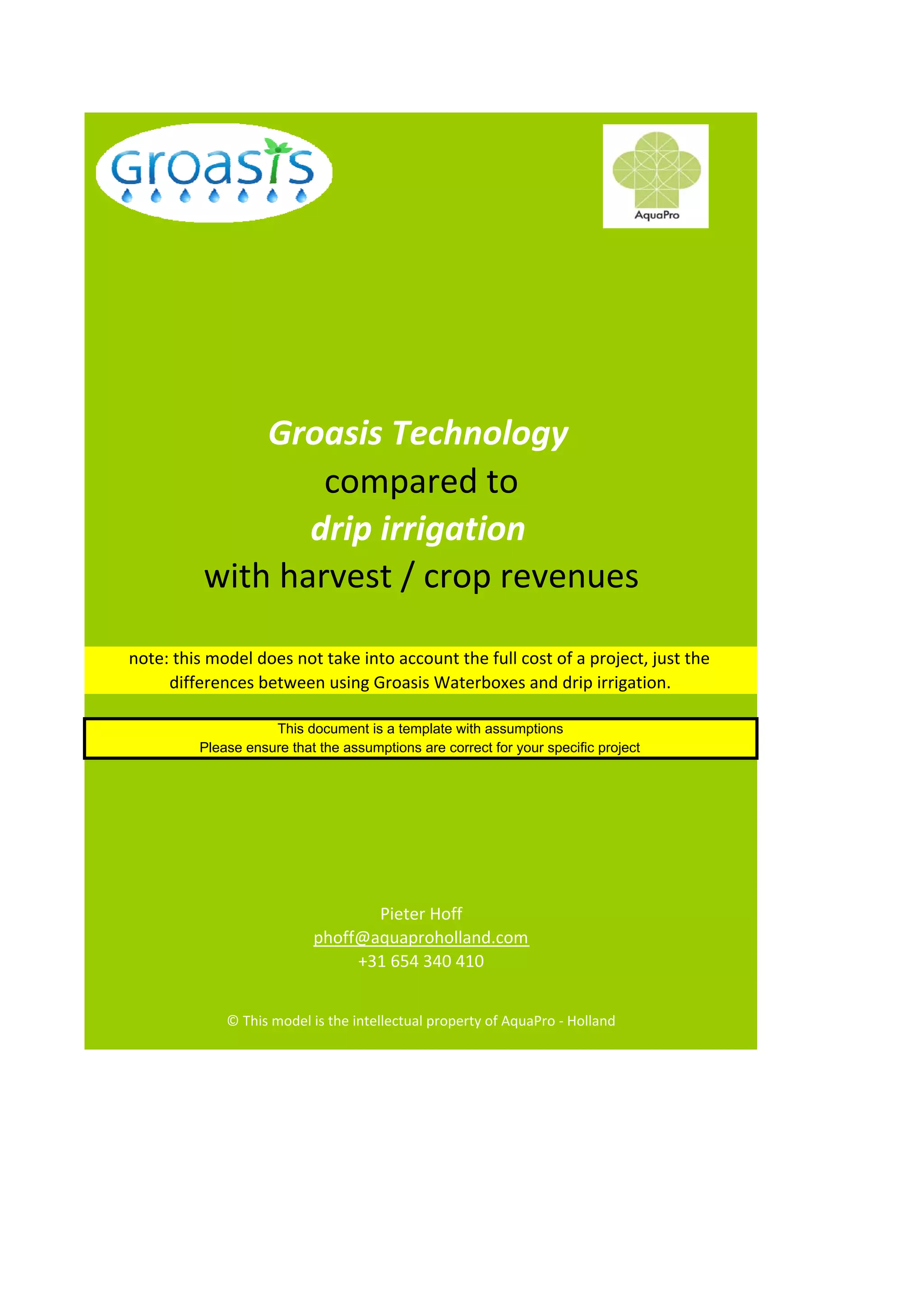

Groasis Technology is compared to drip irrigation over a 50-year project for a 500-hectare tree plantation. Key financial indicators show that using Groasis Waterboxes results in a higher net present value (NPV) of €26.62 million compared to €21.15 million for drip irrigation, and a slightly higher internal rate of return (IRR) of 22.1% versus 23.4% for drip irrigation. Waterboxx also has a longer payback period of 7 years compared to 5 years for drip irrigation. The document provides assumptions and calculations for costs and revenues for both systems over the 50-year period.

1. Groasis Technology
compared to
drip irrigation
with harvest / crop revenues
note: this model does not take into account the full cost of a project, just the
differences between using Groasis Waterboxes and drip irrigation.
This document is a template with assumptions
Please ensure that the assumptions are correct for your specific project
Pieter Hoff
phoff@aquaproholland.com
+31 654 340 410
© This model is the intellectual property of AquaPro ‐ Holland

2. Remarks
Groasis Technology in comparison with drip irrigation
The project duration is 50 years as treeprojects (vines, olives,avocados, dates, etc.) always are longterm projects
All costs independent from use of Groasis waterboxx or drip irrigation that are equal have not been accounted in this document, so
this document does not show all costs of tree plantations
As an example: the cost for a warehouse is not calculated, as for both systems one needs a warehouse
This means that this document cannot be used as a template for tree planting calculations. It focuses only on the financial
differences caused by the use of the Groasis Technology compared to drip irrigation
Note: if column C in tab 'assumptions' states 1/0, complete calculation tab lines as following: Yes = 1, No = 0

3. Input unit single value
PROJECT GENERICS
Project duration years 50
Project size ha 500
Number of trees per hectare trees/ha 625
Cost of land (at start of project) EUR/ha 5,000
Value of land of drygrowing (at end of project) EUR/ha 25,000
Value of land of drip irrigated (at end of project) EUR/ha 20,000
inflation rate (cost only) % 3%
starting year 2011
PROJECT PREPARATION
costs of well per meter depth EUR/m 100
depth of well m 100
how many hectares per well ha/well 500
costs of digging grooves for main tube per meter EUR/m 1
meters groove per ha m/ha 100
costs of main tube per meter incl. connection to electric valves EUR/m 10
drip irrigation tube costs per meter EUR/m 1
number of tubes per hectare tubes/ha 25
length of tubes per ha m/ha 2,500
liters of water per tree per year l/tree/yr 1,500
price of water per liter EUR/l 0.001
price of pump incl. installation for 500 ha EUR 20,000
electricity network per 500 ha incl. installation EUR 50,000
electric valves incl. installation per ha EUR/ha 250
rows per electric valve per ha rows/valve/ha 5
rows per ha rows/ha 25
computer system incl. tools EUR 25,000
hectares per computer ha/computer 500
size of water pump kW 50
water pump costprice per kW EUR/kW 0.10
pump hours per year for 500ha hrs/yr 2,000
Tractor hours to install drip irrigation per ha hrs/ha 2
capillary drill cost EUR 35,000
costs of spraying machine EUR 50,000
Asset replacement info
drip irrigation tube life yrs 12.5
drip irrigation tubes to be replaced in years 13, 26, 38
electric valve life yrs 12.5
electric valves to be replaced in years 13, 26, 38
water pump life yrs 25
pump to be replaced in years 26
computer system life yrs 25
computersystems to be replaced in years 26
main tube system life yrs 50
main tube system to be replaced in years ‐
Number of planting holes per capillary drill over life time holes/drill 1,000,000
Number of planting holes in project holes 312,500
Number of additional capillary drills needed drills 0
number of hectares of use of spraying machine ha 50,000
number of hectares spraying over project duration with waterboxx ha 250,000
number of hectares spraying over project duration with drip irrigation ha 500,000
number of spraying machine needed over project lifetime (waterboxx) machines 5
number of spraying machine needed over project lifetime (drip irrigation) machines 10
PROJECT PLANTING
life time of planting with waterboxx yrs 50
number of replanting with waterboxx over project lifetime ‐
life time of planting with drip irrigation yrs 25
number of replanting with drip irrigation over project lifetime 1
tractor cost incl. driver for drilling planting holes EUR/hr 50
planting holes per hour 120
costs per man hour EUR/hr 10
planting minutes per tree including assembling waterboxx min/tree 3
planting minutes per tree drip irrigation min/tree 2
man hours to install drip irrigation tubes per row hr/row 2
man hours to install electric valves per row hr/row 1
minutes per tree removing waterboxx after one year min/tree 2

4. Input unit single value
Groasis waterbox ownership model lease
Costs of waterboxx EUR/box 5
Residual value of waterbox % 90%
Number of years to use the waterboxx yrs 10
planting material selected for project seed
costs of planting material for waterboxx from seed EUR/seed 0.20
costs of planting material for waterboxx from cutling EUR/cutling 0.30
costs of planting material for waterboxx from cutling plus graft EUR/cutling+graft 1.00
costs of planting material for drip irrigation from seed EUR/seed 0.75
costs of planting material for drip irrigation from cutling EUR/cutling 1.00
costs of planting material for drip irrigationfrom cutling plus graft EUR/cutling+graft 2.00
first time planting with waterboxx year 1
first time planting with drip irrigation year 1
amount of water put in waterboxx after planting l/waterboxx 20
ANNUAL MAINTENANCE
man hours of maintenance of drip irrigation tubes hr/ha/yr 10
Cost of fungicide to control root diseases EUR/kg 25
fungicide to control root diseases with waterboxx kg/ha/yr ‐
fungicide to control root diseases with drip irrigation kg/ha/yr 20
Cost of fungicide to control leaf diseases EUR/kg 25
fungicide to control leaf diseases with waterboxx kg/ha/yr 10
fungicide to control leaf diseases with drip irrigation kg/ha/yr 20
fertilizer requirements (drip irrigation only) kg/ha/yr 500
Cost of fertilizer EUR/kg 0.5
mycorrhizae requirements (waterboxx only) kg/ha/yr 10
Cost of mycorrhizae EUR/kg 25
tractor hours of treating funguses of leaves hours/ha/treatment 1
fungus treatments per year with waterboxx 10
fungus treatments per year with drip irrigation 20
HARVESTING
duration of non productivity after replanting with waterboxx yrs 5
duration of of non productivity after replanting with drip irrigation yrs 3
duration of of non productivity with waterboxx over project lifetime yrs 5
duration of non productivity with drip irrigation over project lifetime yrs 6
duration of productivity with waterboxx over project lifetime yrs 45
duration of productivity with drip irrigation over project lifetime yrs 44
harvestable production with waterboxx kg/ha/yr 4,000
harvestable production with drip irrigation kg/ha/yr 6,000
harvesting costs EUR/kg 0.20
harvest revenue with waterboxx (Y=1) EUR/kg 2.20
harvest revenue with drip irrigation (Y=1) EUR/kg 2.00
inflation rate of revenues % 1.00%
FINANCIAL STRUCTURE
Cost of capital % 7%

5. Key financial indicators Waterboxx Drip Irrigation
Net Present Value (NPV) million EUR 26.62 21.15
Internal Rate of Return (IRR) % 22.1% 23.4%
Capital employed million EUR (4.64) (5.50)
Payback (break even) years 7 5
Key charts
Net present value (NPV) is the total present value of a time series of cash flows; it measures the excess or shortfall of cash flows, in present value
terms, once financing charges are met. NPV is an indicator of how much value an investment or project adds for the investor; it is an indicator of
the value or magnitude of an investment.
The internal rate of return (IRR) is a rate of return used to measure and compare the profitability of investments. The internal rate of return on an
investment is the annualized effective compounded return rate that can be earned on the invested capital; it is the interest rate at which the costs
of the investment lead to the benefits of the investment. This means that all gains from the investment are inherent to the time value of money
and that the investment has a zero net present value at this interest rate. IRR is an indicator of the efficiency, quality, or yield of an investment.
Capital employed represents the capital investment necessary for the project.
Payback period refers to the period of time required for the return on an investment to "repay" the sum of the original investment (capital
employed).
Comparison of annual costs
-14,000,000
-12,000,000
-10,000,000
-8,000,000
-6,000,000
-4,000,000
-2,000,000
0
2011
2012
2013
2014
2015
2016
2017
2018
2019
2020
2021
2022
2023
2024
2025
2026
2027
2028
2029
2030
2031
2032
2033
2034
2035
2036
2037
2038
2039
2040
2041
2042
2043
2044
2045
2046
2047
2048
2049
2050
2051
2052
2053
2054
2055
2056
2057
2058
2059
2060
Year
Costs(EUR/yr)
Waterbox annual costs Drip irrigation annual costs
Comparison of annual revenues
0
5,000,000
10,000,000
15,000,000
20,000,000
25,000,000
2011
2012
2013
2014
2015
2016
2017
2018
2019
2020
2021
2022
2023
2024
2025
2026
2027
2028
2029
2030
2031
2032
2033
2034
2035
2036
2037
2038
2039
2040
2041
2042
2043
2044
2045
2046
2047
2048
2049
2050
2051
2052
2053
2054
2055
2056
2057
2058
2059
2060
Year
Revenues(EUR/yr)
Waterbox annual revenues Drip irrigation annual revenues
Comparison of cumulative free cash flow
-20,000,000
0
20,000,000
40,000,000
60,000,000
80,000,000
100,000,000
120,000,000
140,000,000
160,000,000
180,000,000
2011
2012
2013
2014
2015
2016
2017
2018
2019
2020
2021
2022
2023
2024
2025
2026
2027
2028
2029
2030
2031
2032
2033
2034
2035
2036
2037
2038
2039
2040
2041
2042
2043
2044
2045
2046
2047
2048
2049
2050
2051
2052
2053
2054
2055
2056
2057
2058
2059
2060
Year
Cumulativefreecashflow(EUR)
Waterbox cumulative free cash flow Drip irrigation cumulative free cash flow
Comparison of discounted free cash flow
-8,000,000
-6,000,000
-4,000,000
-2,000,000
0
2,000,000
4,000,000
2011
2012
2013
2014
2015
2016
2017
2018
2019
2020
2021
2022
2023
2024
2025
2026
2027
2028
2029
2030
2031
2032
2033
2034
2035
2036
2037
2038
2039
2040
2041
2042
2043
2044
2045
2046
2047
2048
2049
2050
2051
2052
2053
2054
2055
2056
2057
2058
2059
2060
Year
Discountedfreecashflow(EUR)
Waterbox free cash flow (discounted) Drip irrigation free cash flow (discounted)

6. WATERBOXX SCENARIO
annual inflation (costs) 1.030 1.061 1.093 1.126 1.159 1.194 1.230 1.267 1.305 1.344 1.384 1.426 1.469
annual inflation (revenues) 1.010 1.020 1.030 1.041 1.051 1.062 1.072 1.083 1.094 1.105 1.116 1.127 1.138
project active yes/no 1 1 1 1 1 1 1 1 1 1 1 1 1
year of operation 1 2 3 4 5 6 7 8 9 10 11 12 13
Units Total 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023
Cash flow
PROJECT PREPARATION COSTS
costs of land purchase EUR 2,575,000 2,575,000
capillary drill cost EUR 36,050 36,050
spraying machine cost EUR 51,500 51,500
capillary drill replaced? Yes/No 0 0 0 0 0 0 0 0 0 0 0 0 0
replacement of capillary drill EUR ‐ 0 0 0 0 0 0 0 0 0 0 0 0 0
spraying machine replaced? Yes/No 0 0 0 0 0 0 0 0 0 0 1 0 0
replacement of spraying machine EUR 455,225 0 0 0 0 0 0 0 0 0 0 69,212 0 0
PROJECT PLANTING COSTS
waterboxx planting? Yes/No 1 0 0 0 0 0 0 0 0 0 0 0 0
tractor cost incl. driver for planting holes EUR 134,115 134,115 0 0 0 0 0 0 0 0 0 0 0 0
tree planting cost including assembling waterboxx EUR 160,938 160,938 0 0 0 0 0 0 0 0 0 0 0 0
Costs of waterboxx EUR 1,609,375 1,609,375 0 0 0 0 0 0 0 0 0 0 0 0
costs of planting material for waterboxx EUR 64,375 64,375 0 0 0 0 0 0 0 0 0 0 0 0
price of water for initial water in boxes EUR 6,438 6,438 0 0 0 0 0 0 0 0 0 0 0 0
waterboxx removal? Yes/No 0 1 0 0 0 0 0 0 0 0 0 0 0
cost of removing waterboxx after one year EUR 110,510 0 110,510 0 0 0 0 0 0 0 0 0 0 0
ANNUAL MAINTENANCE COSTS
Cost of fungicide to control leaf diseases EUR 29,045,193 257,500 265,225 273,182 281,377 289,819 298,513 307,468 316,693 326,193 335,979 346,058 356,440 367,133
Cost of mycorrhizae EUR 14,522,597 128,750 132,613 136,591 140,689 144,909 149,257 153,734 158,346 163,097 167,990 173,029 178,220 183,567
Cost of tractor for treating funguses of leaves EUR 29,045,193 257,500 265,225 273,182 281,377 289,819 298,513 307,468 316,693 326,193 335,979 346,058 356,440 367,133
HARVESTING COSTS
Harvesting? Yes/No 0 0 0 0 0 1 1 1 1 1 1 1 1
harvesting costs EUR 44,284,945 0 0 0 0 0 477,621 491,950 506,708 521,909 537,567 553,694 570,304 587,413
TOTAL COSTS EUR 122,101,454‐ -5,281,540 -773,573 -682,954 -703,443 -724,546 -1,223,904 -1,260,621 -1,298,439 -1,337,393 -1,377,514 -1,488,051 -1,461,405 -1,505,247
REVENUES
sale of used capillary drill EUR 21,000 0 21,000 0 0 0 0 0 0 0 0 0 0 0
sale of used waterboxxes (if purchase option selected) EUR ‐ 0 0 0 0 0 0 0 0 0 0 0 0 0
harvest revenue with waterboxx EUR 263,805,515 0 0 0 0 0 4,670,689 4,717,396 4,764,570 4,812,215 4,860,337 4,908,941 4,958,030 5,007,610
project end land value EUR 12,500,000
TOTAL REVENUES EUR 276,326,515 0 21,000 0 0 0 4,670,689 4,717,396 4,764,570 4,812,215 4,860,337 4,908,941 4,958,030 5,007,610
FREE CASH FLOW EUR 154,225,061 -5,281,540 -752,573 -682,954 -703,443 -724,546 3,446,785 3,456,775 3,466,130 3,474,823 3,482,823 3,420,889 3,496,625 3,502,363
DISCOUNTED FREE CASH FLOW EUR 26,618,461 -4,936,018 -657,326 -557,494 -536,653 -516,591 2,296,738 2,152,706 2,017,319 1,890,073 1,770,491 1,625,240 1,552,543 1,453,356
CUMULATIVE FREE CASH FLOW EUR 154,225,061 -5,281,540 -6,034,113 -6,717,067 -7,420,510 -8,145,056 -4,698,271 -1,241,496 2,224,634 5,699,457 9,182,280 12,603,169 16,099,794 19,602,158

7. 1.513 1.558 1.605 1.653 1.702 1.754 1.806 1.860 1.916 1.974 2.033 2.094 2.157 2.221 2.288 2.357 2.427 2.500 2.575 2.652
1.149 1.161 1.173 1.184 1.196 1.208 1.220 1.232 1.245 1.257 1.270 1.282 1.295 1.308 1.321 1.335 1.348 1.361 1.375 1.389
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33
2024 2025 2026 2027 2028 2029 2030 2031 2032 2033 2034 2035 2036 2037 2038 2039 2040 2041 2042 2043
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 1 0 0
0 0 0 0 0 0 0 93,015 0 0 0 0 0 0 0 0 0 125,004 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
378,147 389,492 401,177 413,212 425,608 438,377 451,528 465,074 479,026 493,397 508,199 523,444 539,148 555,322 571,982 589,141 606,816 625,020 643,771 663,084
189,074 194,746 200,588 206,606 212,804 219,188 225,764 232,537 239,513 246,698 254,099 261,722 269,574 277,661 285,991 294,571 303,408 312,510 321,885 331,542
378,147 389,492 401,177 413,212 425,608 438,377 451,528 465,074 479,026 493,397 508,199 523,444 539,148 555,322 571,982 589,141 606,816 625,020 643,771 663,084
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
605,036 623,187 641,883 661,139 680,973 701,402 722,444 744,118 766,441 789,435 813,118 837,511 862,637 888,516 915,171 942,626 970,905 1,000,032 1,030,033 1,060,934
-1,550,404 -1,596,917 -1,644,824 -1,694,169 -1,744,994 -1,797,344 -1,851,264 -1,999,817 -1,964,006 -2,022,926 -2,083,614 -2,146,122 -2,210,506 -2,276,821 -2,345,126 -2,415,480 -2,487,944 -2,687,586 -2,639,460 -2,718,644
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
5,057,687 5,108,263 5,159,346 5,210,939 5,263,049 5,315,679 5,368,836 5,422,525 5,476,750 5,531,517 5,586,832 5,642,701 5,699,128 5,756,119 5,813,680 5,871,817 5,930,535 5,989,841 6,049,739 6,110,236
5,057,687 5,108,263 5,159,346 5,210,939 5,263,049 5,315,679 5,368,836 5,422,525 5,476,750 5,531,517 5,586,832 5,642,701 5,699,128 5,756,119 5,813,680 5,871,817 5,930,535 5,989,841 6,049,739 6,110,236
3,507,282 3,511,347 3,514,522 3,516,771 3,518,055 3,518,336 3,517,572 3,422,708 3,512,744 3,508,591 3,503,218 3,496,578 3,488,622 3,479,298 3,468,554 3,456,337 3,442,591 3,302,254 3,410,279 3,391,593
1,360,184 1,272,674 1,190,490 1,113,320 1,040,866 972,849 909,007 826,629 792,873 740,126 690,648 644,242 600,725 559,925 521,678 485,833 452,243 405,428 391,299 363,696
23,109,440 26,620,786 30,135,308 33,652,079 37,170,134 40,688,470 44,206,042 47,628,750 51,141,494 54,650,085 58,153,303 61,649,882 65,138,503 68,617,801 72,086,356 75,542,693 78,985,284 82,287,538 85,697,817 89,089,410

8. 2.732 2.814 2.898 2.985 3.075 3.167 3.262 3.360 3.461 3.565 3.671 3.782 3.895 4.012 4.132 4.256 4.384
1.403 1.417 1.431 1.445 1.460 1.474 1.489 1.504 1.519 1.534 1.549 1.565 1.580 1.596 1.612 1.628 1.645
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
2044 2045 2046 2047 2048 2049 2050 2051 2052 2053 2054 2055 2056 2057 2058 2059 2060
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 167,995 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
682,976 703,466 724,570 746,307 768,696 791,757 815,509 839,975 865,174 891,129 917,863 945,399 973,761 1,002,974 1,033,063 1,064,055 1,095,977
341,488 351,733 362,285 373,153 384,348 395,878 407,755 419,987 432,587 445,565 458,932 472,699 486,880 501,487 516,531 532,027 547,988
682,976 703,466 724,570 746,307 768,696 791,757 815,509 839,975 865,174 891,129 917,863 945,399 973,761 1,002,974 1,033,063 1,064,055 1,095,977
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
1,092,762 1,125,545 1,159,311 1,194,091 1,229,913 1,266,811 1,304,815 1,343,960 1,384,278 1,425,807 1,468,581 1,512,638 1,558,017 1,604,758 1,652,901 1,702,488 1,753,562
-2,800,203 -2,884,209 -2,970,735 -3,059,857 -3,151,653 -3,246,203 -3,343,589 -3,611,891 -3,547,213 -3,653,630 -3,763,239 -3,876,136 -3,992,420 -4,112,192 -4,235,558 -4,362,625 -4,493,504
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
6,171,339 6,233,052 6,295,383 6,358,336 6,421,920 6,486,139 6,551,000 6,616,510 6,682,676 6,749,502 6,816,997 6,885,167 6,954,019 7,023,559 7,093,795 7,164,733 7,236,380
12,500,000
6,171,339 6,233,052 6,295,383 6,358,336 6,421,920 6,486,139 6,551,000 6,616,510 6,682,676 6,749,502 6,816,997 6,885,167 6,954,019 7,023,559 7,093,795 7,164,733 19,736,380
3,371,136 3,348,843 3,324,647 3,298,479 3,270,267 3,239,936 3,207,412 3,004,619 3,135,462 3,095,873 3,053,759 3,009,032 2,961,599 2,911,367 2,858,237 2,802,108 15,242,876
337,853 313,662 291,025 269,845 250,034 231,510 214,192 187,523 182,887 168,764 155,578 143,270 131,787 121,076 111,090 101,784 517,461
92,460,546 95,809,389 99,134,037 102,432,516 105,702,782 108,942,719 112,150,130 115,154,750 118,290,212 121,386,084 124,439,843 127,448,875 130,410,474 133,321,841 136,180,077 138,982,185 154,225,061

9. DRIP IRRIGATION SCENARIO
annual inflation 1.0300 1.0609 1.0927 1.1255 1.1593 1.1941 1.2299 1.2668 1.3048 1.3439 1.3842 1.4258 1.4685 1.5126 1.5580
annual inflation (revenues) 1.010 1.020 1.030 1.041 1.051 1.062 1.072 1.083 1.094 1.105 1.116 1.127 1.138 1.149 1.161
project active yes/no 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
year of operation 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Units Total 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024 2025
Cash flow
PROJECT PREPARATION COSTS
costs of land purchase EUR 2,575,000 2,575,000
costs of well EUR 10,300 10,300
costs of digging grooves EUR 51,500 51,500
costs of main tubes EUR 515,000 515,000
drip irrigation tube costs EUR 1,287,500 1,287,500
price of pump EUR 20,600 20,600
cost of electricity network EUR 51,500 51,500
cost of electric valves EUR 128,750 128,750
computer system incl. tools EUR 25,750 25,750
Tractor hours to install drip irrigation EUR 51,500 51,500
costs of spraying machine EUR 51,500 51,500
Drip irrigation tubes replaced? Yes/No 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0
Cost for replacement of drip irrigation tubes EUR 10,384,858 0 0 0 0 0 0 0 0 0 0 0 0 2,276,227 0 0
Electrical valves replaced? Yes/No 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0
Cost for replacement of electric valves EUR 1,674,977 0 0 0 0 0 0 0 0 0 0 0 0 367,133 0 0
Pumps replaced? Yes/No 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Cost for replacement of pumps EUR 43,132 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Computer system replaced? Yes/No 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Cost for replacement of computersystems EUR 53,915 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Main tube system replaced? Yes/No 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Cost for replacement of main tube system EUR ‐ 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
spraying machine replaced? Yes/No 0 0 0 0 0 1 0 0 0 0 1 0 0 0 0
Cost for replacement of spraying machine EUR 1,042,659 0 0 0 0 0 59,703 0 0 0 0 69,212 0 0 0 0
PROJECT PLANTING COSTS
Planting? Yes/No 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0
tree planting cost drip irrigation EUR 331,937 107,292 0 0 0 0 0 0 0 0 0 0 0 0 0 0
man hours to install drip irrigation tubes EUR 796,648 257,500 0 0 0 0 0 0 0 0 0 0 0 0 0 0
man hours to install electric valves EUR 398,324 128,750 0 0 0 0 0 0 0 0 0 0 0 0 0 0
costs of planting material for drip irrigation EUR 746,857 241,406 0 0 0 0 0 0 0 0 0 0 0 0 0 0
ANNUAL MAINTENANCE COSTS
price of water for drip irrigation EUR 54,459,737 482,813 497,297 512,216 527,582 543,410 559,712 576,503 593,798 611,612 629,961 648,860 668,325 688,375 709,026 730,297
cost of electricity for pump EUR 1,161,808 10,300 10,609 10,927 11,255 11,593 11,941 12,299 12,668 13,048 13,439 13,842 14,258 14,685 15,126 15,580
cost of maintenance of drip irrigation tubes EUR 5,809,039 51,500 53,045 54,636 56,275 57,964 59,703 61,494 63,339 65,239 67,196 69,212 71,288 73,427 75,629 77,898
Cost of fungicide to control root diseases EUR 29,045,193 257,500 265,225 273,182 281,377 289,819 298,513 307,468 316,693 326,193 335,979 346,058 356,440 367,133 378,147 389,492
Cost of fungicide to control leaf diseases EUR 29,045,193 257,500 265,225 273,182 281,377 289,819 298,513 307,468 316,693 326,193 335,979 346,058 356,440 367,133 378,147 389,492
Cost of fertilizer EUR 14,522,597 128,750 132,613 136,591 140,689 144,909 149,257 153,734 158,346 163,097 167,990 173,029 178,220 183,567 189,074 194,746
Cost of tractor for treating funguses of leaves EUR 58,090,387 515,000 530,450 546,364 562,754 579,637 597,026 614,937 633,385 652,387 671,958 692,117 712,880 734,267 756,295 778,984
HARVESTING COSTS
Harvesting? Yes/No 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1
harvesting costs EUR 63,678,818 0 0 0 675,305 695,564 716,431 737,924 760,062 782,864 806,350 830,540 855,457 881,120 907,554 934,780
TOTAL COSTS EUR 276,054,979‐ -7,207,210 -1,754,463 -1,807,097 -2,536,615 -2,612,714 -2,750,798 -2,771,828 -2,854,983 -2,940,633 -3,028,852 -3,188,929 -3,213,309 -5,953,069 -3,408,999 -3,511,269
REVENUES
harvest revenue with drip irrigation EUR 348,500,456 0 0 0 6,243,624 6,306,060 6,369,121 6,432,812 6,497,140 6,562,112 6,627,733 6,694,010 6,760,950 6,828,560 6,896,845 6,965,814
project end land value EUR 10,000,000
TOTAL REVENUES EUR 358,500,456 0 0 0 6,243,624 6,306,060 6,369,121 6,432,812 6,497,140 6,562,112 6,627,733 6,694,010 6,760,950 6,828,560 6,896,845 6,965,814
FREE CASH FLOW EUR 82,445,477 -7,207,210 -1,754,463 -1,807,097 3,707,009 3,693,346 3,618,323 3,660,984 3,642,157 3,621,479 3,598,881 3,505,081 3,547,642 875,491 3,487,846 3,454,545
DISCOUNTED FREE CASH FLOW EUR 21,152,948 -6,735,711 -1,532,416 -1,475,130 2,828,059 2,633,305 2,411,041 2,279,877 2,119,769 1,969,845 1,829,489 1,665,239 1,575,195 363,298 1,352,647 1,252,086
CUMULATIVE FREE CASH FLOW EUR 82,445,477 -7,207,210 -8,961,674 -10,768,771 -7,061,762 -3,368,416 249,907 3,910,891 7,553,048 11,174,527 14,773,408 18,278,489 21,826,131 22,701,622 26,189,468 29,644,013

10. 1.6047 1.6528 1.7024 1.7535 1.8061 1.8603 1.9161 1.9736 2.0328 2.0938 2.1566 2.2213 2.2879 2.3566 2.4273 2.5001 2.5751 2.6523 2.7319 2.8139 2.8983 2.9852
1.173 1.184 1.196 1.208 1.220 1.232 1.245 1.257 1.270 1.282 1.295 1.308 1.321 1.335 1.348 1.361 1.375 1.389 1.403 1.417 1.431 1.445
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37
2026 2027 2028 2029 2030 2031 2032 2033 2034 2035 2036 2037 2038 2039 2040 2041 2042 2043 2044 2045 2046 2047
0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 3,342,716 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 539,148 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 43,132 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 53,915 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 1 0 0 0 0 1 0 0 0 0 1 0 0 0 0 1 0
80,235 0 0 0 0 93,015 0 0 0 0 107,830 0 0 0 0 125,004 0 0 0 0 144,914 0
0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 224,645 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 539,148 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 269,574 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 505,451 0 0 0 0 0 0 0 0 0 0 0
752,206 774,772 798,015 821,956 846,615 872,013 898,173 925,119 952,872 981,458 1,010,902 1,041,229 1,072,466 1,104,640 1,137,779 1,171,913 1,207,070 1,243,282 1,280,581 1,318,998 1,358,568 1,399,325
16,047 16,528 17,024 17,535 18,061 18,603 19,161 19,736 20,328 20,938 21,566 22,213 22,879 23,566 24,273 25,001 25,751 26,523 27,319 28,139 28,983 29,852
80,235 82,642 85,122 87,675 90,306 93,015 95,805 98,679 101,640 104,689 107,830 111,064 114,396 117,828 121,363 125,004 128,754 132,617 136,595 140,693 144,914 149,261
401,177 413,212 425,608 438,377 451,528 465,074 479,026 493,397 508,199 523,444 539,148 555,322 571,982 589,141 606,816 625,020 643,771 663,084 682,976 703,466 724,570 746,307
401,177 413,212 425,608 438,377 451,528 465,074 479,026 493,397 508,199 523,444 539,148 555,322 571,982 589,141 606,816 625,020 643,771 663,084 682,976 703,466 724,570 746,307
200,588 206,606 212,804 219,188 225,764 232,537 239,513 246,698 254,099 261,722 269,574 277,661 285,991 294,571 303,408 312,510 321,885 331,542 341,488 351,733 362,285 373,153
802,353 826,424 851,217 876,753 903,056 930,147 958,052 986,793 1,016,397 1,046,889 1,078,296 1,110,645 1,143,964 1,178,283 1,213,631 1,250,040 1,287,541 1,326,168 1,365,953 1,406,931 1,449,139 1,492,613
1 1 1 1 1 1 1 1 1 1 1 0 0 0 1 1 1 1 1 1 1 1
962,824 991,709 1,021,460 1,052,104 1,083,667 1,116,177 1,149,662 1,184,152 1,219,676 1,256,267 1,293,955 0 0 0 1,456,357 1,500,048 1,545,050 1,591,401 1,639,143 1,688,317 1,738,967 1,791,136
-3,696,842 -3,725,105 -3,836,859 -3,951,964 -4,070,523 -4,285,654 -4,318,418 -4,447,971 -4,581,410 -4,718,852 -10,485,976 -3,673,457 -3,783,660 -3,897,170 -5,470,443 -5,759,560 -5,803,593 -5,977,701 -6,157,032 -6,341,743 -6,676,909 -6,727,955
7,035,472 7,105,827 7,176,885 7,248,654 7,321,140 7,394,352 7,468,295 7,542,978 7,618,408 7,694,592 7,771,538 0 0 0 8,087,093 8,167,964 8,249,644 8,332,141 8,415,462 8,499,617 8,584,613 8,670,459
7,035,472 7,105,827 7,176,885 7,248,654 7,321,140 7,394,352 7,468,295 7,542,978 7,618,408 7,694,592 7,771,538 0 0 0 8,087,093 8,167,964 8,249,644 8,332,141 8,415,462 8,499,617 8,584,613 8,670,459
3,338,629 3,380,721 3,340,026 3,296,689 3,250,617 3,108,698 3,149,877 3,095,008 3,036,998 2,975,740 -2,714,438 -3,673,457 -3,783,660 -3,897,170 2,616,651 2,408,404 2,446,051 2,354,440 2,258,430 2,157,874 1,907,704 1,942,504
1,130,909 1,070,250 988,193 911,562 840,021 750,791 710,969 652,882 598,734 548,278 -467,414 -591,171 -569,071 -547,797 343,742 295,687 280,663 252,478 226,338 202,113 166,992 158,914
32,982,642 36,363,364 39,703,390 43,000,079 46,250,696 49,359,395 52,509,272 55,604,279 58,641,277 61,617,017 58,902,579 55,229,123 51,445,462 47,548,292 50,164,943 52,573,347 55,019,398 57,373,838 59,632,269 61,790,143 63,697,847 65,640,351

11. 3.0748 3.1670 3.2620 3.3599 3.4607 3.5645 3.6715 3.7816 3.8950 4.0119 4.1323 4.2562 4.3839
1.460 1.474 1.489 1.504 1.519 1.534 1.549 1.565 1.580 1.596 1.612 1.628 1.645
1 1 1 1 1 1 1 1 1 1 1 1 1
38 39 40 41 42 43 44 45 46 47 48 49 50
2048 2049 2050 2051 2052 2053 2054 2055 2056 2057 2058 2059 2060
1 0 0 0 0 0 0 0 0 0 0 0 0
4,765,914 0 0 0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0 0 0 0
768,696 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 1 0 0 0 0 1 0 0 0 0
0 0 0 167,995 0 0 0 0 194,752 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0
1,441,305 1,484,544 1,529,080 1,574,953 1,622,201 1,670,867 1,720,993 1,772,623 1,825,802 1,880,576 1,936,993 1,995,103 2,054,956
30,748 31,670 32,620 33,599 34,607 35,645 36,715 37,816 38,950 40,119 41,323 42,562 43,839
153,739 158,351 163,102 167,995 173,035 178,226 183,573 189,080 194,752 200,595 206,613 212,811 219,195
768,696 791,757 815,509 839,975 865,174 891,129 917,863 945,399 973,761 1,002,974 1,033,063 1,064,055 1,095,977
768,696 791,757 815,509 839,975 865,174 891,129 917,863 945,399 973,761 1,002,974 1,033,063 1,064,055 1,095,977
384,348 395,878 407,755 419,987 432,587 445,565 458,932 472,699 486,880 501,487 516,531 532,027 547,988
1,537,392 1,583,513 1,631,019 1,679,949 1,730,348 1,782,258 1,835,726 1,890,798 1,947,522 2,005,948 2,066,126 2,128,110 2,191,953
1 1 1 1 1 1 1 1 1 1 1 1 1
1,844,870 1,900,216 1,957,223 2,015,939 2,076,418 2,138,710 2,202,871 2,268,958 2,337,026 2,407,137 2,479,351 2,553,732 2,630,344
-12,464,404 -7,137,687 -7,351,818 -7,740,367 -7,799,543 -8,033,530 -8,274,536 -8,522,772 -8,973,207 -9,041,808 -9,313,063 -9,592,455 -9,880,228
8,757,163 8,844,735 8,933,182 9,022,514 9,112,739 9,203,867 9,295,905 9,388,864 9,482,753 9,577,581 9,673,356 9,770,090 9,867,791
10,000,000
8,757,163 8,844,735 8,933,182 9,022,514 9,112,739 9,203,867 9,295,905 9,388,864 9,482,753 9,577,581 9,673,356 9,770,090 19,867,791
-3,707,240 1,707,048 1,581,365 1,282,147 1,313,196 1,170,337 1,021,370 866,093 509,546 535,772 360,294 177,635 9,987,563
-283,444 121,977 105,604 80,021 76,597 63,798 52,035 41,238 22,674 22,281 14,003 6,452 339,055
61,933,111 63,640,159 65,221,524 66,503,671 67,816,867 68,987,204 70,008,574 70,874,666 71,384,213 71,919,985 72,280,279 72,457,914 82,445,477

12. Risk analysis
Groasis Technology Drip irrigation
if growing on rocks lower investment in soil higher investment in soil
if growing on rocks lower interest costs on capital investment in soil higher capital costs
No inflation of costs risk inflation of costs risk
no risk of higher costs for energy risk of higher energy cost
no risk of lack of availability of ground water risk of lack of groundwater
no risk caused by political decisions risk of political decisions
no risk on ban on use of groundwater risk on ban on use of groundwater if cities have lack of water during periods of drought
no risk on brackish water problems heavy use of drip irrigation may lead to brackish groundwater, already many areas world wide have been left for this reason
no risk on losing crop if use of groundwater is banned
risk of losing crop if irrigation is banned, this might happen with a severe drought when cities get priority. This might happen in the coming 100
years as a cause of climate change
no risk of rising prices of irrigation water
water price per liter will rise considerably, when price rises from 0,001 euro to 0,01 euro per liter (cost comparison cel J15) the cost of water rises to
625,000 euro (cost comparison cel G9). Drip irrigation production will then give a loss
No risk on soil salination
if irrigation water contains minerals and/or salt, over time the soil will be polluted and also too salted to produce and turn into unusable eternally.
This is undoubtedly the case with water from natural sources with high mineral levels, from cleaned sewage water sources of produced from
seawater through the reversed osmosis technology. Several formerly fertile zones in California have now been abandoned for this reason. Many
cities in the Middle East start to replace the soil where trees are dying as raising the water gift doesn't help anymore. The certain capital loss
caused by this reason is unimaginable high and cannot be solved others than by higher water gifts until the conductivity of the soil is higher than
that of the roots. Once this level has been reached the plants will die because of draught even if the roots are surrounded by water.See photo.

13. Other capacities
Groasis Technology Drip irrigation
growing on rocks possible growing on rocks not possible
sustainable - only in the first year water is used between 20 to 100 liters depending from the growing
place
not sustainable - plants are eternally irrigated with scarce goundwater or expensive filtered water through reversed osmosis. Trees in
cities in Middle East receive daily 60 to 100 liters per day. This is average 2,920,000 liters in 100 years. Vines receive between 800 to
1,400 liters per year per plant. This is average 110,000 liters per plant in 100 years. As soon as water is priced, this way of producing is
outdated.
less fungicide use = less risk for personel high fungicide use = higher risk for personel
higher product quality level lower product quality level
higher sales price for the product because of better internal and external quality lower sales price
eco label possible eco label not possible
less complicated management complicated management
less crop means less wear of machinery/ less use of energy/ less packing material/ lower
transportcosts/ etc. / these differences in lower costs are not taken into account in this template
double crop means double wear of machinery/ double use of energy in warehouses/ double packing material/ double transportcosts/
etc. / these differences in higher costs are not taken into account in this template
less crop means necessity of smaller buildings and smaller refrigidator / these differences in costs
are not taken into account double crop means necessity of bigger buildings and bigger refrigidator / these differences in costs are not taken into account
applying waterboxx can be done with low educated people and as the work itself is light, with
possibly with females
applying computerized high tech irrigation demands higher educated personel, so less chances for low educated people As applying
the technology is heavy work, this work is less appropriate for females

14. Legend
25 trees per row
25 rows
625 trees total
Planting scheme (the grid below represents 1ha, 100m x 100m)
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
Potential planting scheme for 1 ha
