This document describes a mobile application design for an airline notification system. The application would provide passengers with flight and travel information organized into categories like passenger name, flight details, location information, time details, and luggage status. It includes wireframes of sample screens displaying welcome messages, flight status updates, and interactive elements like entering ticket/birthdate details and viewing maps. The overall goal is to keep passengers informed with their travel itinerary and status through a simple, organized mobile interface.

1. YIRAN LI
DESIGN
RESEARCH
EVALUTAION
Mobile: +1(404)-680-0262 | Email: yiranee@gmail.com
FOR PORTFOLIO USE ONLY

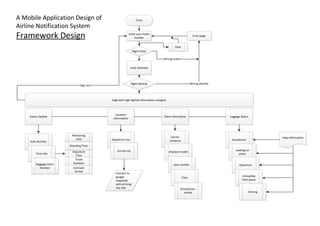

4. Entry
Enter your ticket
number
Enter birthday
Clear
Right identity
Page with high lighted information category
Status Update
Location
information
Gate Number
Time info
Departure city
Arrival city
Plane information
Carrier
company
Airplane model
Connect to
google
map/yelp
with arriving
city info
Baggage Claim
Number
Seat number
Class
Luggage Status
Acceptance
Loading on
plane
Departure
Unloading
from plane
Arriving
Departure
Time
Travel
Duration
Boarding Time
Estimate
Arrival
Remaining
time
Smoke/non-
smoke
Help information
A Mobile Application Design of
Airline Notification System
Framework Design
Sign out
Error page
Wrong identity
Right ticket
Wrong ticket

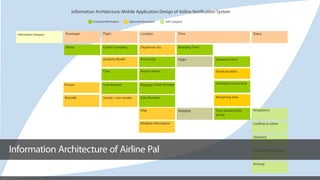

5. Information Architecture: Mobile Application Design of Airline Notification System
Information Category Passenger Flight Location
Name
Departure city
Arrival city
Carrier Company
Airplane Model
Gate Number
Baggage Claim Number
Class
Seat Number
Time
Departure time
Travel duration
Estimated arrival time
Status
Smoke / non-smoke
Flight
Baggage Time remained for
arrival
Acceptance
Loading on plane
Depature
Unloading from plane
Airport Name
Arriving
Remaining time
Boarding Time
Map
Weather information
Barcode
Essential Information Optional Information Sub-category
Information Architecture of Airline Pal

6. Please enter your 10-digit
ticket number
Airline Pal
QQ WW EE RR TT YY UU II OO
AA SS DD FF GG HH JJ
ZZ XX
.. // .com.com GoGo@123@123
CC VV BB NN MM
KK LL
PP
ContinueClear
Airline Pal
Sorry!
This ticket does not exist
please try again.
Back
Airline Pal
Please enter your birthday
(MM/DD/YY)
Month Day Year
1975
1974
1973
1972
ContinueClear Back
Airline Pal
Welcomeaboard,Mrs.Lee!
Arrival Airport
Plane Info
Time
Depature 3:20PM
OCT 20 2010
3A
Seat Number
D
Class Boarding Gate
E
Luggage Tracking
ACTY5132T Flight Status: Normal
Airline Pal
Welcomeaboard,Mrs.Lee!
Arrival Airport
Plane Info
Deparure Time
Luggage Tracking
ORD
Chicago O'Hare
International Airport
ACTY5132T Flight Status: Normal
3A
Seat Number
D
Class Boarding Gate
E
55°F
Airline Pal
Welcomeaboard,Mrs.Lee!
Arrival Airport
Plane Info
Deparure Time
Luggage Tracking
ACTY5132T Flight Status: Normal
3A
Seat Number
D
Class Boarding Gate
E
Carrier Model
KL
2232
Airline Pal
Welcomeaboard,Mrs.Lee!
Arrival Airport
Plane Info
Time
Arrival5:10PM
OCT 20 2010
3A
Seat Number
D
Class Boarding Gate
E
Luggage Tracking
ACTY5132T Flight Status: Normal
Airline Pal
Welcomeaboard,Mrs.Lee!
Arrival Airport
Plane Info
Deparure Time
Luggage Tracking
ACTY5132T Flight Status: Normal
3A
Seat Number
D
Class Boarding Gate
E
Accepted
Airline Pal
Welcomeaboard,Mrs.Lee!
Arrival Airport
Plane Info
Time
Arrival6:10PM
OCT 20 2010
3A
Seat Number
8
Class Baggage Claim
E
Luggage Tracking
ACTY5132T Flight Status: Delayed
Airline Pal
Welcomeaboard,Mrs.Lee!
Arrival Airport
Plane Info
Time
Depature 3:20PM
OCT 20 2010
3A
Seat Number
D
Class Boarding Gate
E
Luggage Tracking
ACTY5132T Flight Status: Normal
Mobile Application Design for Airline Nofitication System

7. P O R T A L
something about connection
YIRANLI|MID11’
RYANHANSER|MID11’
GEORGIAINSTITUTEOFTECHNOLOGY

8. This project is based on a very broad term “con-
nection”, allowing the designer to express whatever
idea relating to any kind of connection/communi-
cation. In this project, the idea finally comes out in
the form of web-based media. The design is also
deploying the future of ubiquitous computing which
may be an inspiration for the development of the
“Inch-foot-yard” track of interactive design.
Making physical interaction in remote spaces.
Connecting remote individuals to inspire creatiivity.
STORYBOARD VIDEO PROTOTYPE EVALUATION
PORTAL something about connection
PROJECT DESCRIPTION
1 2
Introduction

9. STORYBOARD VIDEO PROTOTYPE EVALUATION
PORTAL something about connection
PROJECT DESCRIPTION
21
community physical
culture emotionalinformation mobile
computing ubiquitous
Technology Social Society
Modern connection
exists everywhere,
peopel change
there communica-
tion method fre-
quently.
Content of com-
munication is in
constent evolution.
Is there any way
to make people
make their expres-
sion in various
forms?

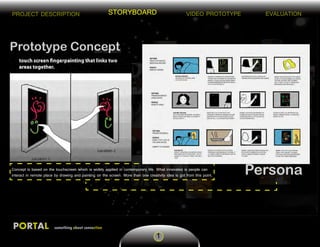

10. STORYBOARD VIDEO PROTOTYPE EVALUATION
PORTAL something about connection
PROJECT DESCRIPTION
Prototype Concept
Concept is based on the touchscreen which is widely applied in contemporary life. What innovates is people can
interact in remote place by drawing and painting on the screen. More than one creativity idea is got from this point. Persona
1

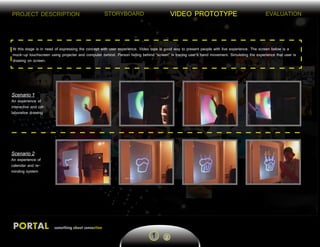

11. STORYBOARD VIDEO PROTOTYPE EVALUATION
PORTAL something about connection
PROJECT DESCRIPTION
1 2
At this stage is in need of expressing the concept with user experience. Video tape is good way to present people with live experience. The screen below is a
mock-up touchscreen using projecter and computer behind. Person hiding behind “screen” is tracing user’s hand movement. Simulating the experience that user is
drawing on screen.
Scenario 1
An experience of
interactive and col-
laborative drawing
Scenario 2
An experience of
calendar and re-
minding system

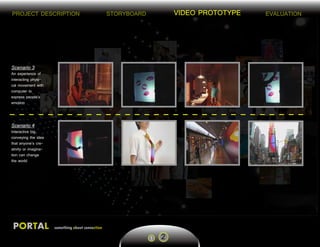

12. STORYBOARD VIDEO PROTOTYPE EVALUATION
PORTAL something about connection
PROJECT DESCRIPTION
21
Scenario 3
An experience of
interacting physi-
cal movement with
computer to
express people’s
emotion
Scenario 4
Interactive big,
conveying the idea
that anyone’s cre-
ativity or imagina-
tion can change
the world
