XINTscope is software for testing devices using communication protocols. It allows for fast development, execution and analysis of tests. Tests are optimized for device and functional testing using protocol-based testing implemented in both hardware and software. Tests can be easily generated using the integrated development environment and debugged during execution. Test results can be analyzed using integrated data analysis tools or exported to third party tools.

1. XINTscope
software based testing
•
•
•
Fast development-execution-analysis cycle
Reduced engineering effort
Improved cost of ownership

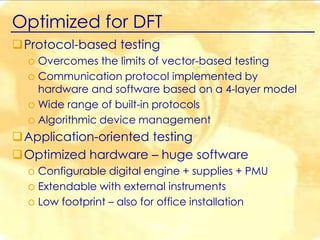

2. Optimized for DFT
Protocol-based testing
o Overcomes the limits of vector-based testing
o Communication protocol implemented by
hardware and software based on a 4-layer model
o Wide range of built-in protocols
o Algorithmic device management
Application-oriented testing
Optimized hardware – huge software
o Configurable digital engine + supplies + PMU
o Extendable with external instruments
o Low footprint – also for office installation

3. Straightforward Test Generation
Application of high-productivity tools
o Test program implementation, debug and analysis in
the same environment
o Full potential of the C++ or C# language and IDE
o Debug during test execution
o Strong library support
Protocol definition based on the “Protocol
Definition Language”
o Low layers compiled to hardware
Integration with third-party tools for device
code debug

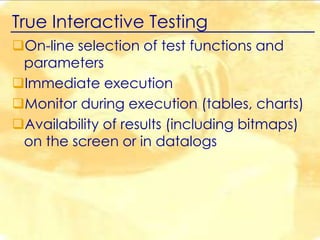

4. True Interactive Testing
On-line selection of test functions and
parameters
Immediate execution
Monitor during execution (tables, charts)
Availability of results (including bitmaps)
on the screen or in datalogs

5. Integration with Data Analysis
Test result generation
o Datalog files (XML, STDF)
o Custom-format files
o Direct transfer to BARNIE
BARNIE Test Data Analysis Suite
o Bitmap view and processing
o BIST result post-processing
o Generic datalog analysis (histograms, pareto, wafermaps, …)

6. NplusT
would like to thank you
for your time and consideration
for further information: info@n-plus-t.com
