Xephon K A Time series database with multiple backends
Xephon-k is a lightweight time series database (TSDB) primarily written in Go and uses Cassandra as its main backend, focusing on simplicity and performance. The document discusses its design, implementation, evaluation against other databases like InfluxDB and KairosDB, and lessons learned during development. It concludes with thoughts on the nature of time series data and future enhancements planned for the project.
More Related Content
Similar to Xephon K A Time series database with multiple backends
Xephon K A Time series database with multiple backends
- 1. Xephon-K A lightweight TSDBwith multiple backends Pinglei Guo https://github.com/xephonhq/xephon-k

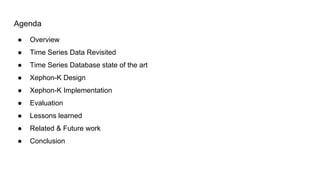

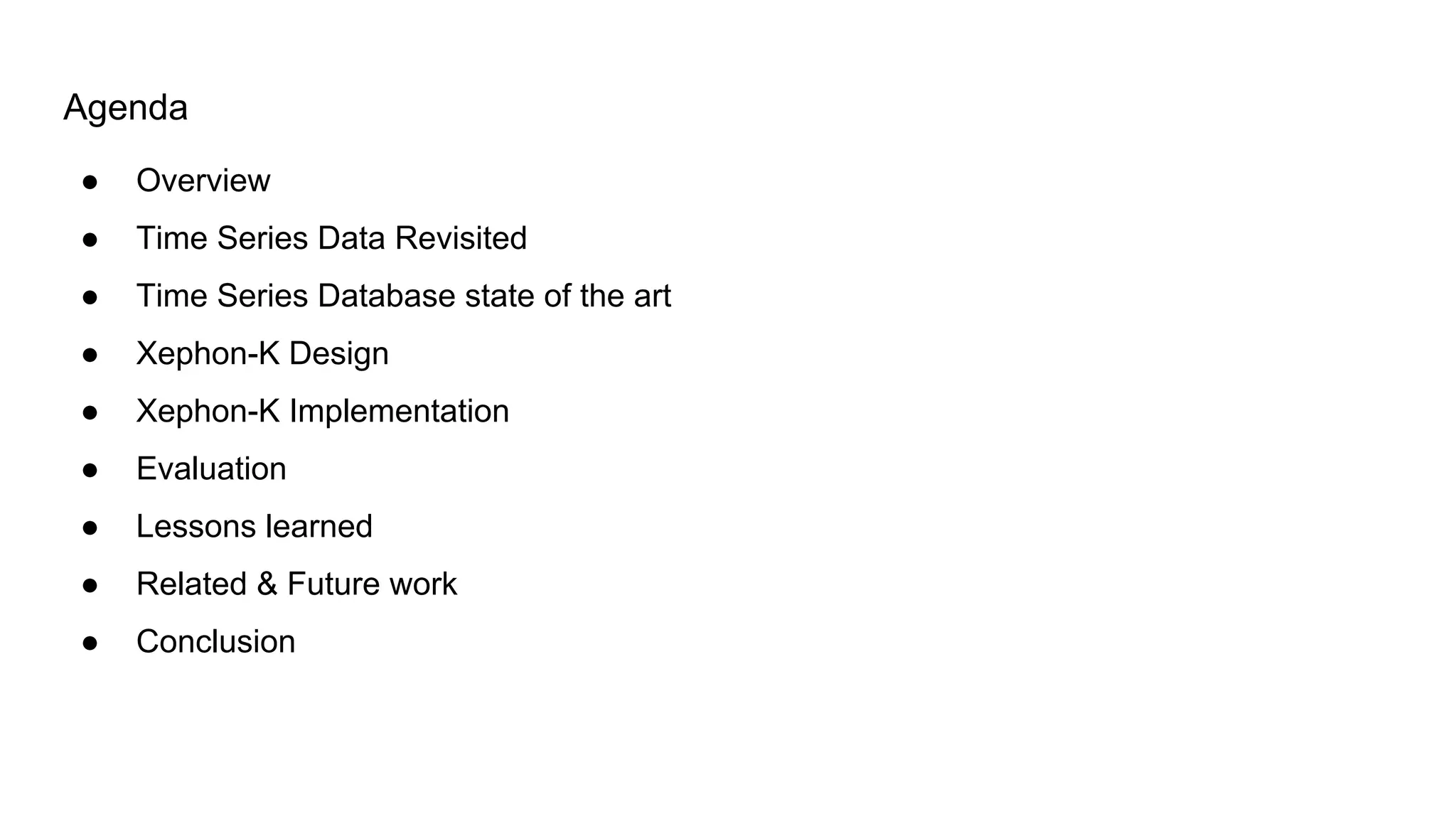

- 2. Agenda ● Overview ● TimeSeries Data Revisited ● Time Series Database state of the art ● Xephon-K Design ● Xephon-K Implementation ● Evaluation ● Lessons learned ● Related & Future work ● Conclusion

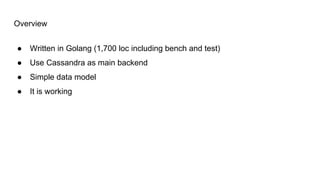

- 3. Overview ● Written inGolang (1,700 loc including bench and test) ● Use Cassandra as main backend ● Simple data model ● It is working
- 4. Time Series DataRevisited NOT just data with timestamp ‘What happened, happened and couldn’t have happened another way’ - The Matrix
- 5. Time Series DataRevisited Name Saving Update time Rabbit $100 2017/03/20 :12:59:33 Tiger $250 2017/03/20 :12:59:33 Name Daily Transaction Date Rabbit +$100, 000 2017/03/19 Rabbit -$99, 900 2017/03/20 Tiger +$125 2017/03/19 Tiger +$125 2017/03/20 Single record, update in place, tell current state A series of events, immutable, tell the history
- 6. Time Series Databasestate of the art Xephon-K Cassandra Yes Golang at15 N/A 1 Full list on: https://github.com/xephonhq/awesome-time-series-database

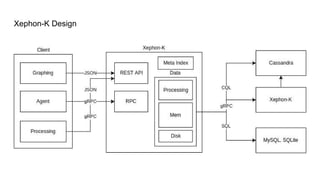

- 7.

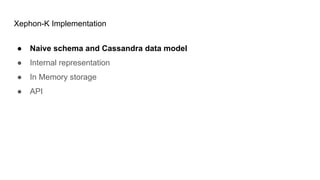

- 8. Xephon-K Implementation ● Naiveschema and Cassandra data model ● Internal representation ● In Memory storage ● API
- 9. Xephon-K Implementation -Naive schema metric_name metric_timestamp value cpu 2017/03/17:13:24:00:20 10.2 cpu 2017/03/17:13:25:00:00 3.3 cpu 2017/03/17:13:26:00:00 5.6 mem 2017/03/17:13:24:00:20 80.3 mem 2017/03/17:13:25:00:00 60.2 mem 2017/03/17:13:26:00:00 90.3 cqlsh> SELECT * FROM metrics
- 10. Xephon-K Implementation -Naive schema name metric_timestamp val cpu 2017/03/17:13:24:00:20 10.2 cpu 2017/03/17:13:25:00:00 3.3 cpu 2017/03/17:13:26:00:00 5.6 mem 2017/03/17:13:24:00:20 80.3 mem 2017/03/17:13:25:00:00 60.2 mem 2017/03/17:13:26:00:00 90.3 The table is an abstraction of underlying map
- 11. Xephon-K Implementation ● Naiveschema and Cassandra data model ● Internal representation ● In Memory storage ● API

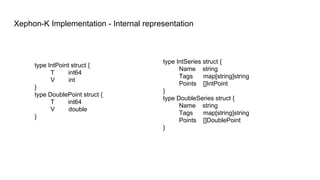

- 12. Xephon-K Implementation -Internal representation type IntPoint struct { T int64 V int } type DoublePoint struct { T int64 V double } type IntSeries struct { Name string Tags map[string]string Points []IntPoint } type DoubleSeries struct { Name string Tags map[string]string Points []DoublePoint }

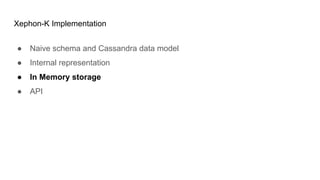

- 13. Xephon-K Implementation ● Naiveschema and Cassandra data model ● Internal representation ● In Memory storage ● API
- 14. Xephon-K Implementation -In Memory storage type Data map[SeriesID]*IntSeriesStore type IntSeriesStore struct { mu sync.RWMutex series common.IntSeries length int } type Index []IndexRow type IndexRow struct { key string value string seriesID SeriesID }
- 15. Xephon-K Implementation ● Naiveschema and Cassandra data model ● Internal representation ● In Memory storage ● API

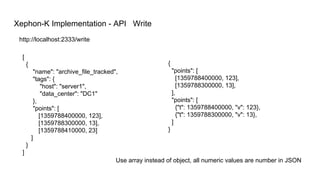

- 16. Xephon-K Implementation -API Write [ { "name": "archive_file_tracked", "tags": { "host": "server1", "data_center": "DC1" }, "points": [ [1359788400000, 123], [1359788300000, 13], [1359788410000, 23] ] } ] http://localhost:2333/write { "points": [ [1359788400000, 123], [1359788300000, 13], ], "points": [ {"t": 1359788400000, "v": 123}, {"t": 1359788300000, "v": 13}, ] } Use array instead of object, all numeric values are number in JSON
- 17. Evaluation Environment Setup ●i7-6700 CPU @ 3.40GHz 32 GB RAM HDD Ubuntu 16.10 ( kernel 4.8.0-39 ) ● Docker 1.13 without resource limits on container ● InfluxDB 1.2 ● KairosDB 1.12 + Cassandra 2.2 ● Xephon-K (Go 1.7.4) + Cassandra 3.10 ● Write to one series with one tag `cpi{agent:xephon-bench}` with fixed value ● Batch size 100 points, client timeout 30 seconds ● No QPS limit, No retry, No backoff
- 18.
- 19. Evaluation - Throughput DatabaseTotal Requests XKM 12327 XKC 7931 KairosDB 15561 InfluxDB 118 5 seconds, 10 workers ● InfluxDB performance is extremely poor (my bad?) ● KairosDB outperformed Xephon-K (K is from KairosDB …) ● Prometheus can’t be benchmarked (no HTTP API)
- 20. Evaluation Analysis Q: WhyInfluxDB is so slow ? A: Good question, I am still figuring it out (see #15), you can’t blame docker, run it locally results the same Q: Why KairosDB is faster, Java > Golang ? ● lock ● Buffer (batch size) Q: That’s it? A: Bingo! But https://github.com/xephonhq/xephon-k/tree/master/doc/bench has bunch of results I didn’t dealt with Q: The chart looks good, what are you using? A: echarts3 http://echarts.baidu.com/ (One JavaScript a day, Keep Microsoft Excel away)
- 21. Lessons learned ● Writeugly code and make things work ● Hardware improve productivity, double the monitor, double the Loc/hr ● Source code is your bestfriend, don’t blindly believe what people say in the doc, blog, conference, paper, twitter, stackoverflow

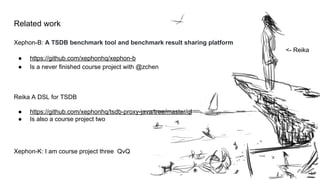

- 22. Related work Xephon-B: ATSDB benchmark tool and benchmark result sharing platform ● https://github.com/xephonhq/xephon-b ● Is a never finished course project with @zchen Reika A DSL for TSDB ● https://github.com/xephonhq/tsdb-proxy-java/tree/master/ql ● Is also a course project two Xephon-K: I am course project three QvQ <- Reika
- 23. Future work ● Refactor(everyday I am blaming the code of yesterday) ● Storage without Cassandra (yeah, this is course project four) ● Dashboard ● Benchmark driven development using Xephon-B
- 24. Acknowledgement ● Zheyuan Chenand Prof. Peter Alvaro for Xephon-B ● Chujiao Hou for Reika

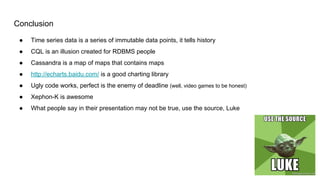

- 25. Conclusion ● Time seriesdata is a series of immutable data points, it tells history ● CQL is an illusion created for RDBMS people ● Cassandra is a map of maps that contains maps ● http://echarts.baidu.com/ is a good charting library ● Ugly code works, perfect is the enemy of deadline (well, video games to be honest) ● Xephon-K is awesome ● What people say in their presentation may not be true, use the source, Luke
- 26. Thank You! No question,please, just let me go.
