WT-4071, GPU accelerated 3D graphics for Java, by Kevin Rushforth, Chien Yang, John Yoon and Nicolas Lorain

AMD Developer Summit
Session: WT-4071
GPU Accelerated 3D Graphics for Java
Kevin Rushforth & Chien Yang
Oracle Corporation

1

Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

Insert Information Protection Policy Classification from Slide 13

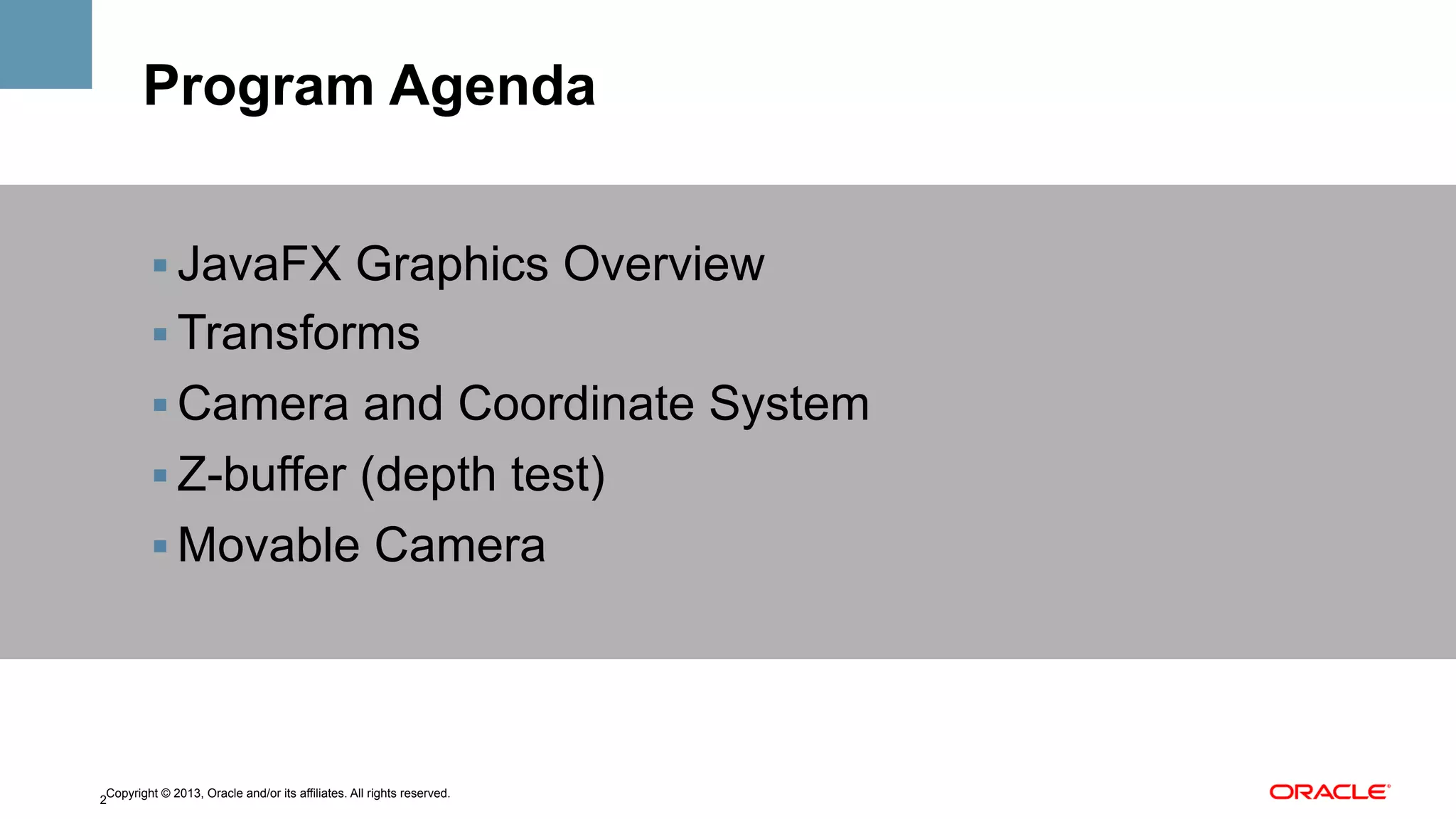

Program Agenda
!  JavaFX Graphics Overview
!  Transforms
!  Camera and Coordinate System
!  Z-buffer (depth test)
!  Movable Camera

2

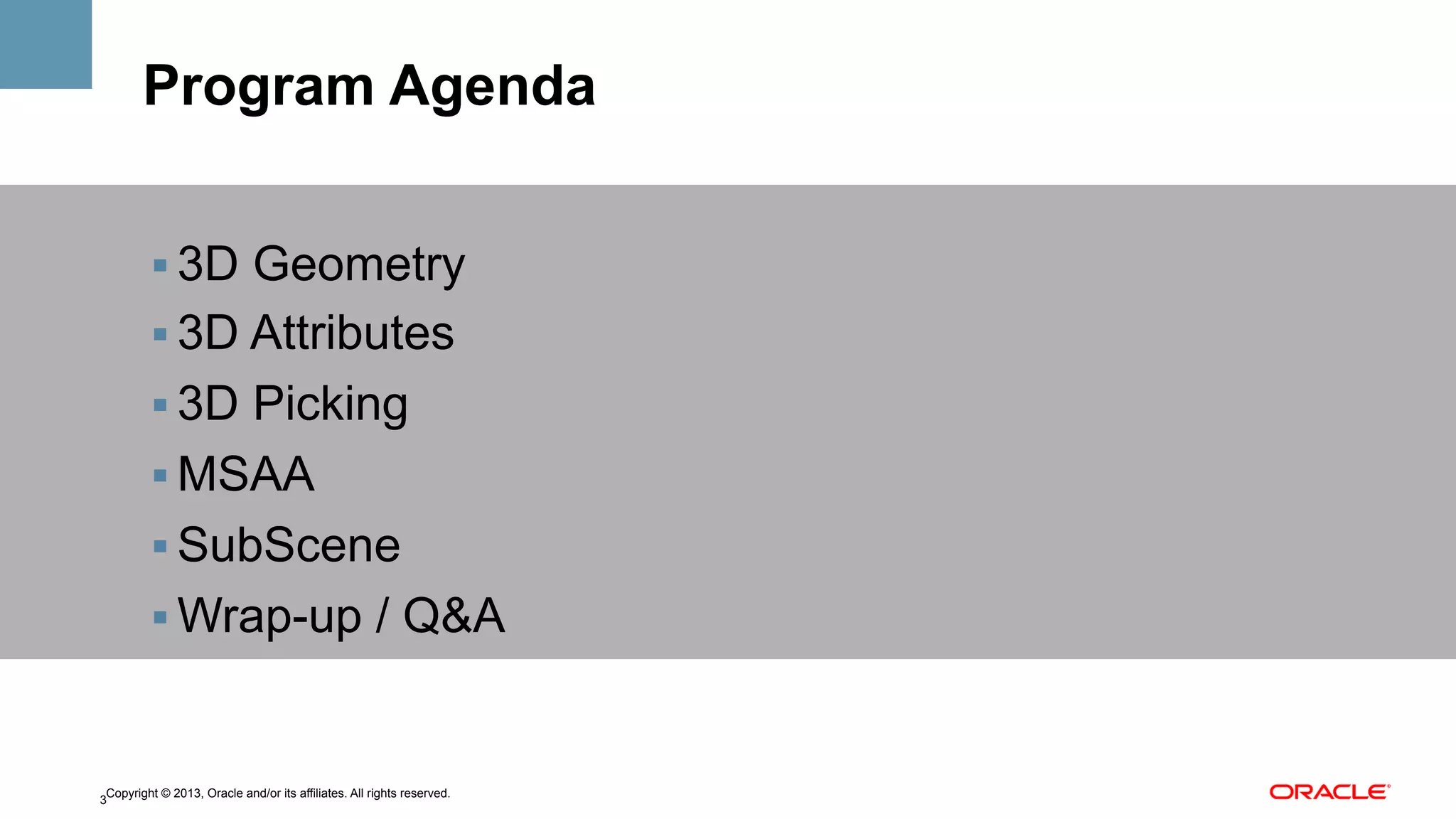

Program Agenda
!  3D Geometry
!  3D Attributes
!  3D Picking
!  MSAA
!  SubScene
!  Wrap-up / Q&A

3

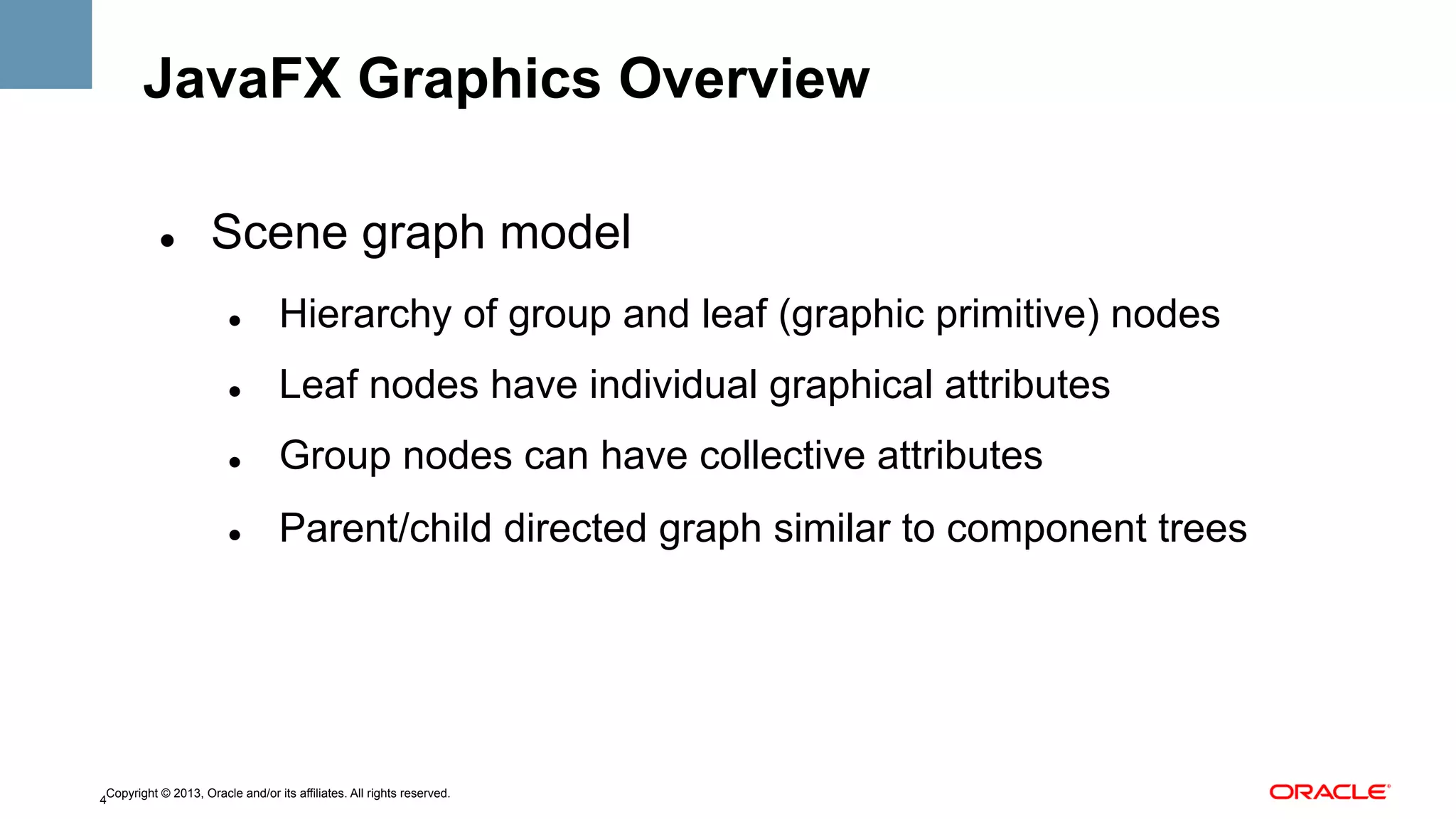

JavaFX Graphics Overview
" 

Scene graph model
" 

Hierarchy of group and leaf (graphic primitive) nodes

" 

Leaf nodes have individual graphical attributes

" 

Group nodes can have collective attributes

" 

Parent/child directed graph similar to component trees

4

" 

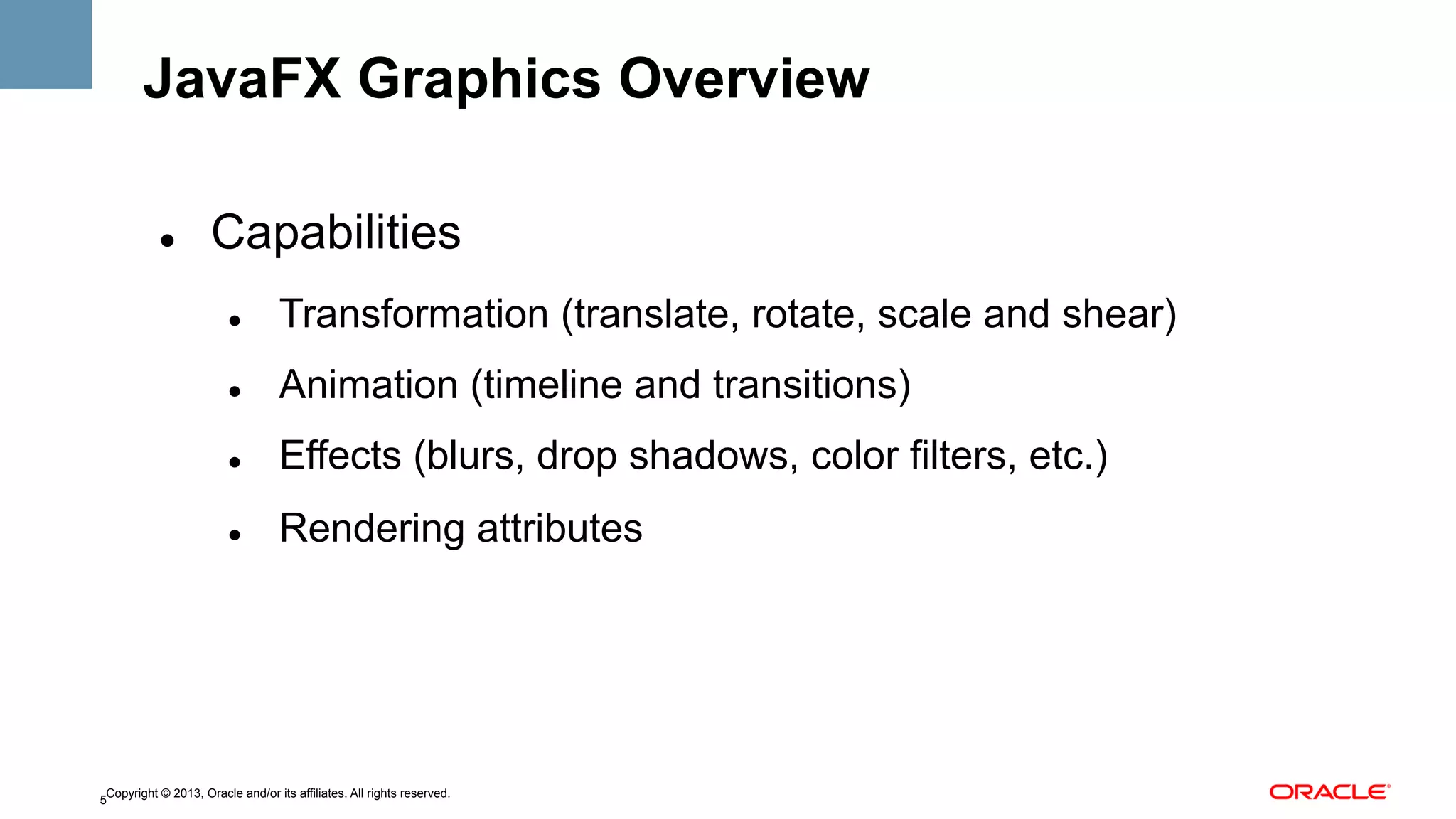

Capabilities
" 

Transformation (translate, rotate, scale and shear)

" 

Animation (timeline and transitions)

" 

Effects (blurs, drop shadows, color filters, etc.)

" 

Rendering attributes

5

" 

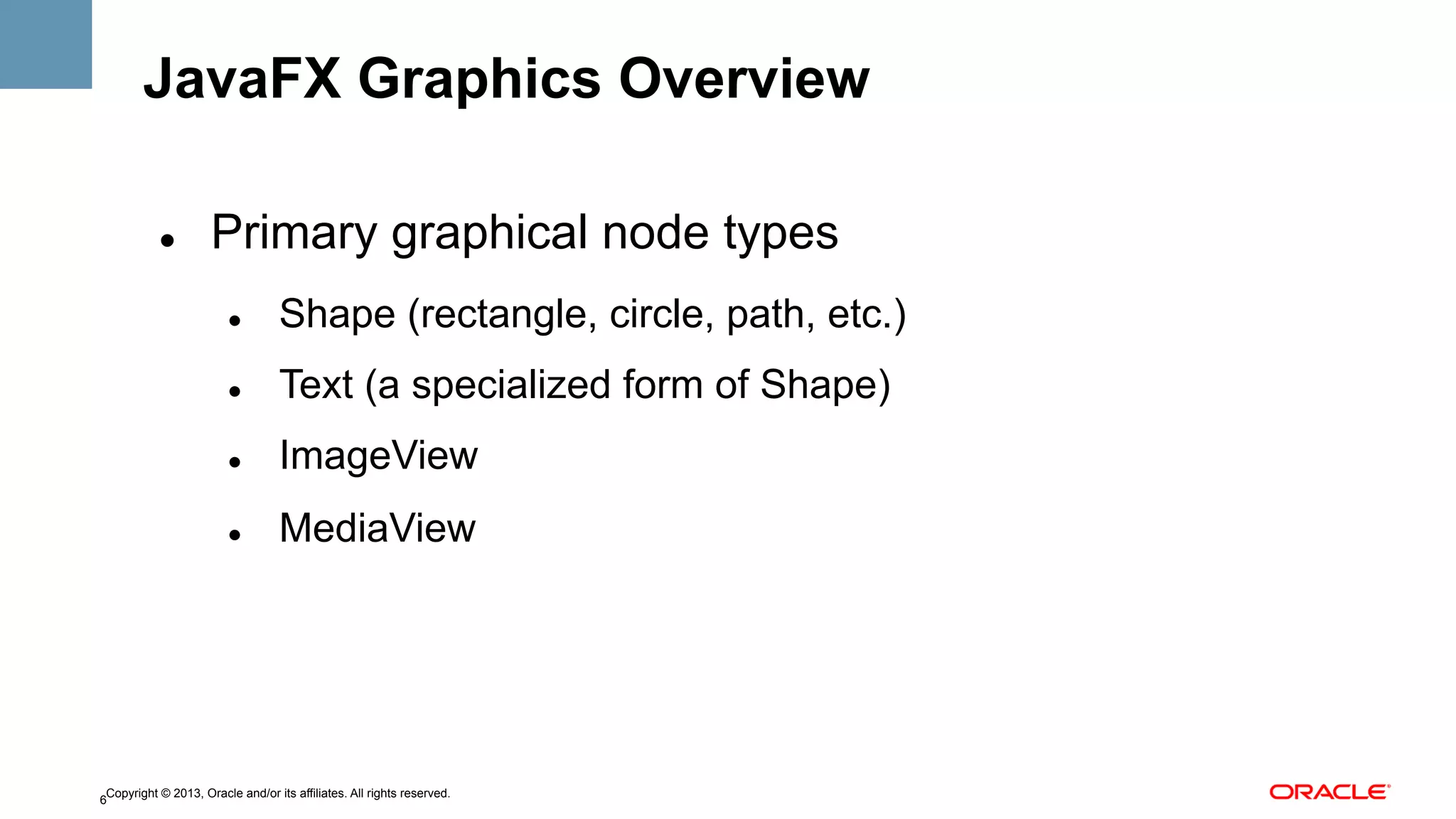

Primary graphical node types
" 

Shape (rectangle, circle, path, etc.)

" 

Text (a specialized form of Shape)

" 

ImageView

" 

MediaView

6

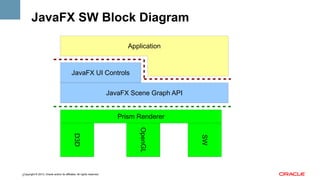

JavaFX SW Block Diagram
Application

JavaFX UI Controls
JavaFX Scene Graph API
Prism Renderer
SW

OpenGL

D3D
7

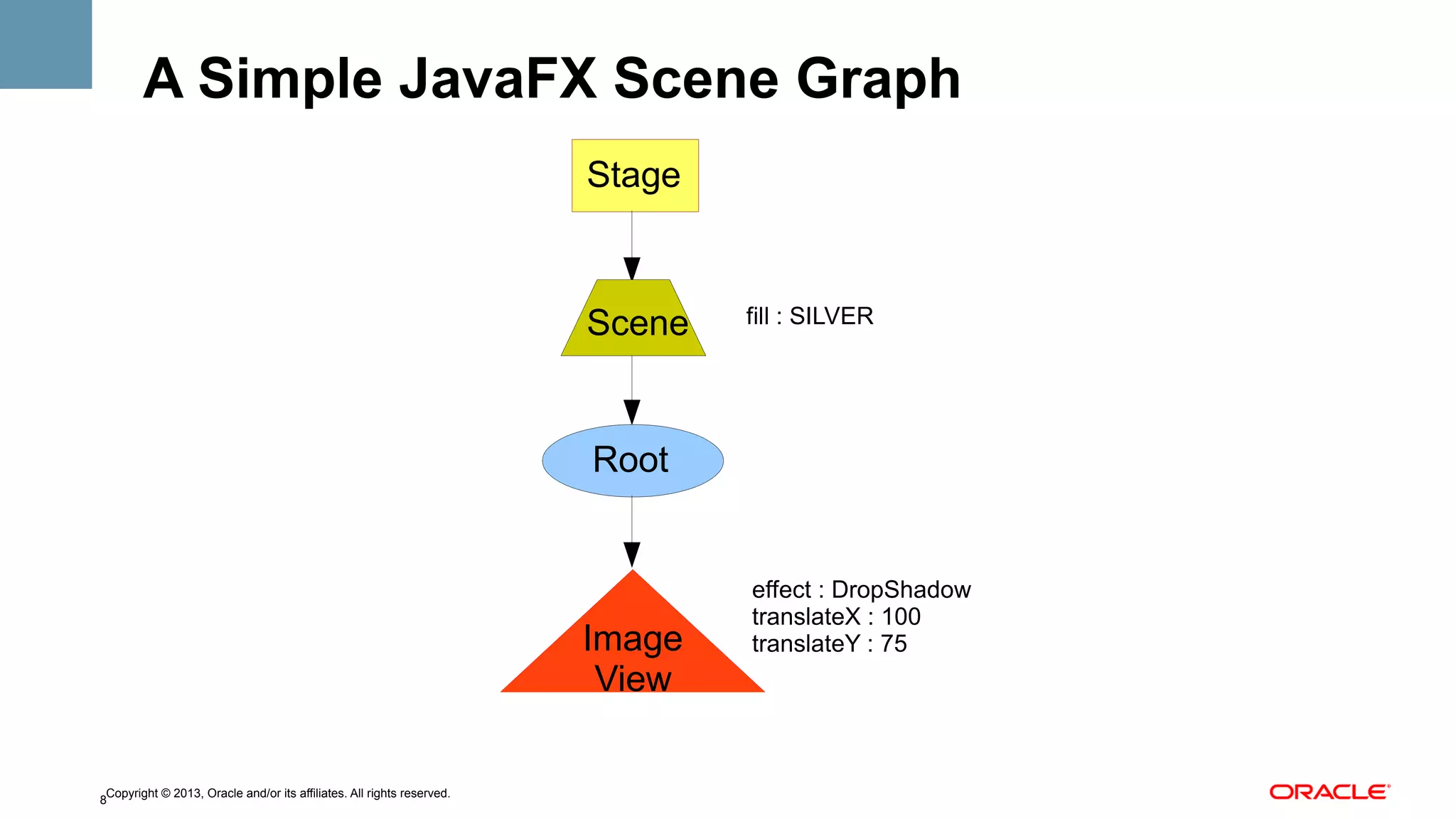

A Simple JavaFX Scene Graph
Stage

Scene

fill : SILVER

Root

View
8

effect : DropShadow
translateX : 100
translateY : 75

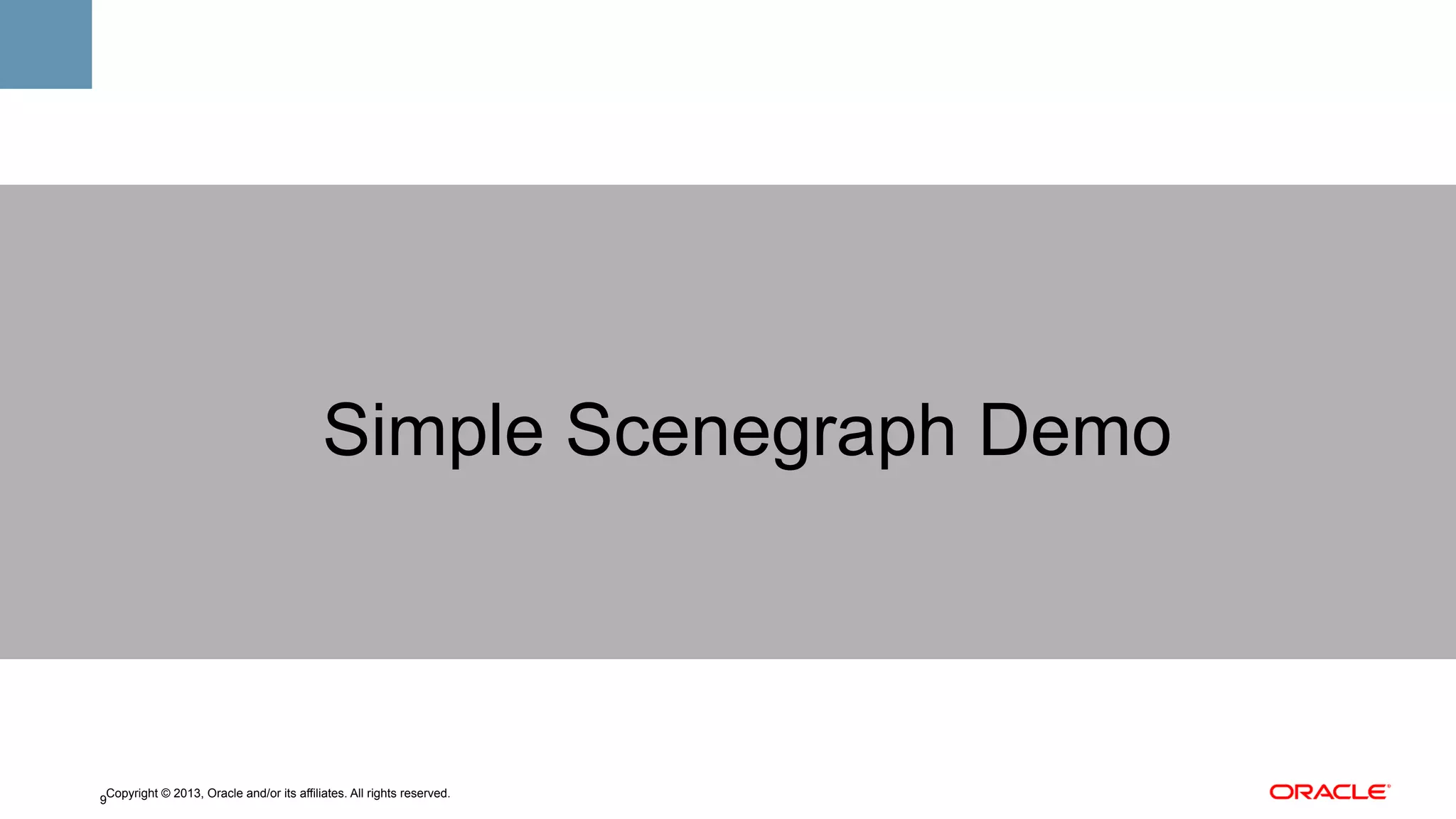

Simple Scenegraph Demo

9

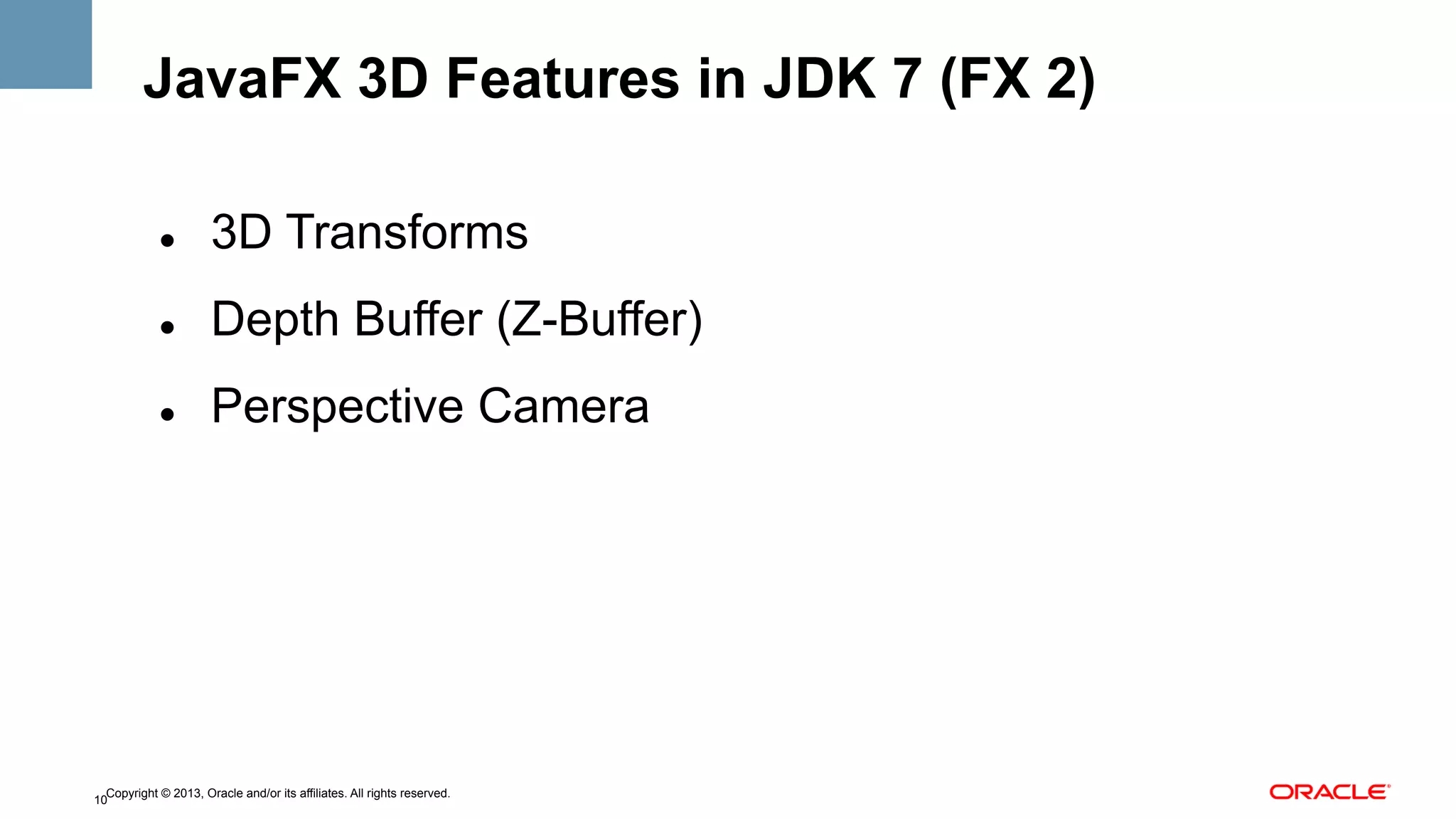

JavaFX 3D Features in JDK 7 (FX 2)
" 

3D Transforms

" 

Depth Buffer (Z-Buffer)

" 

Perspective Camera

10

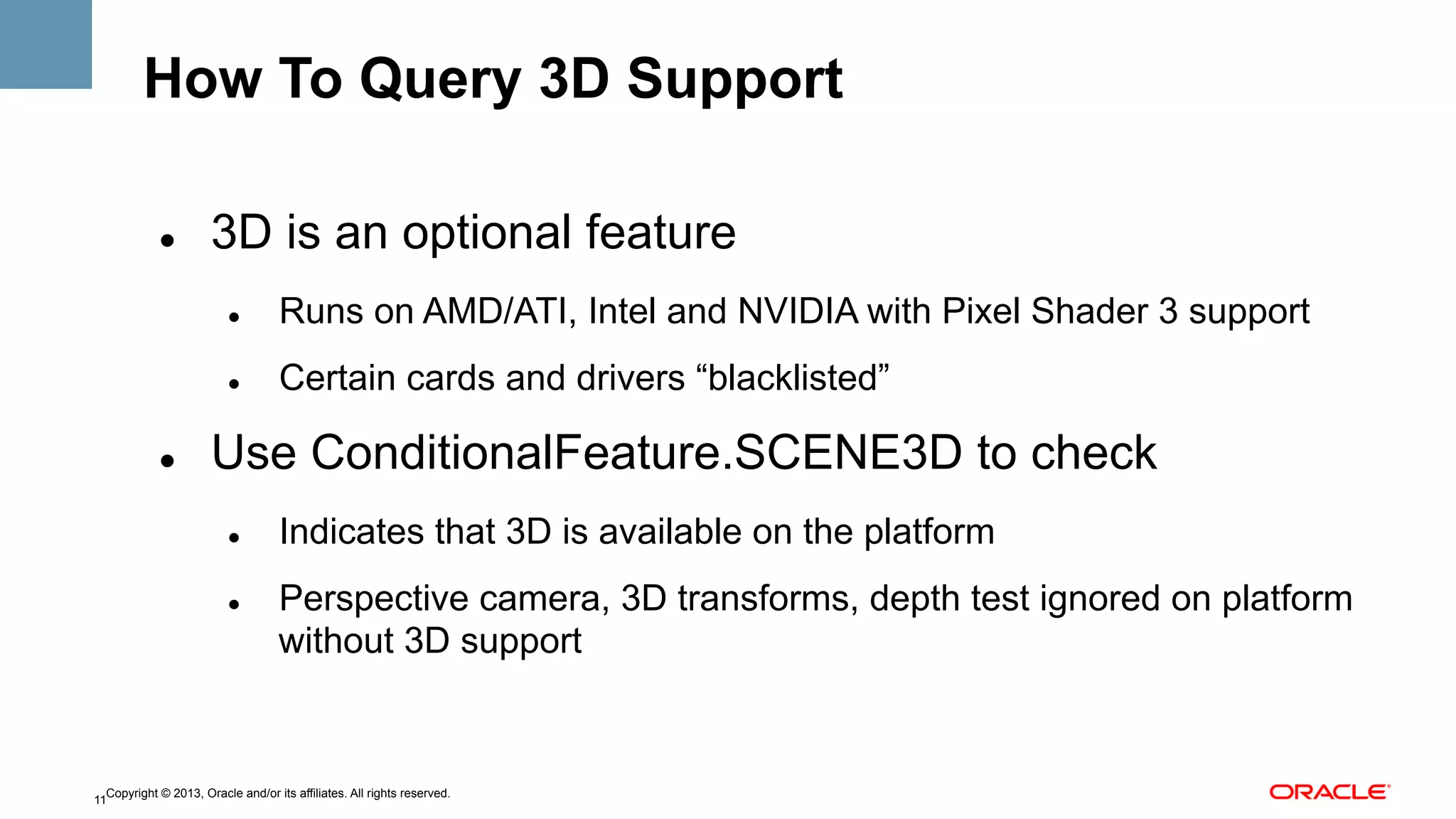

How To Query 3D Support
" 

3D is an optional feature
" 

" 

" 

Runs on AMD/ATI, Intel and NVIDIA with Pixel Shader 3 support
Certain cards and drivers “blacklisted”

Use ConditionalFeature.SCENE3D to check
" 

" 

Indicates that 3D is available on the platform
Perspective camera, 3D transforms, depth test ignored on platform
without 3D support

11

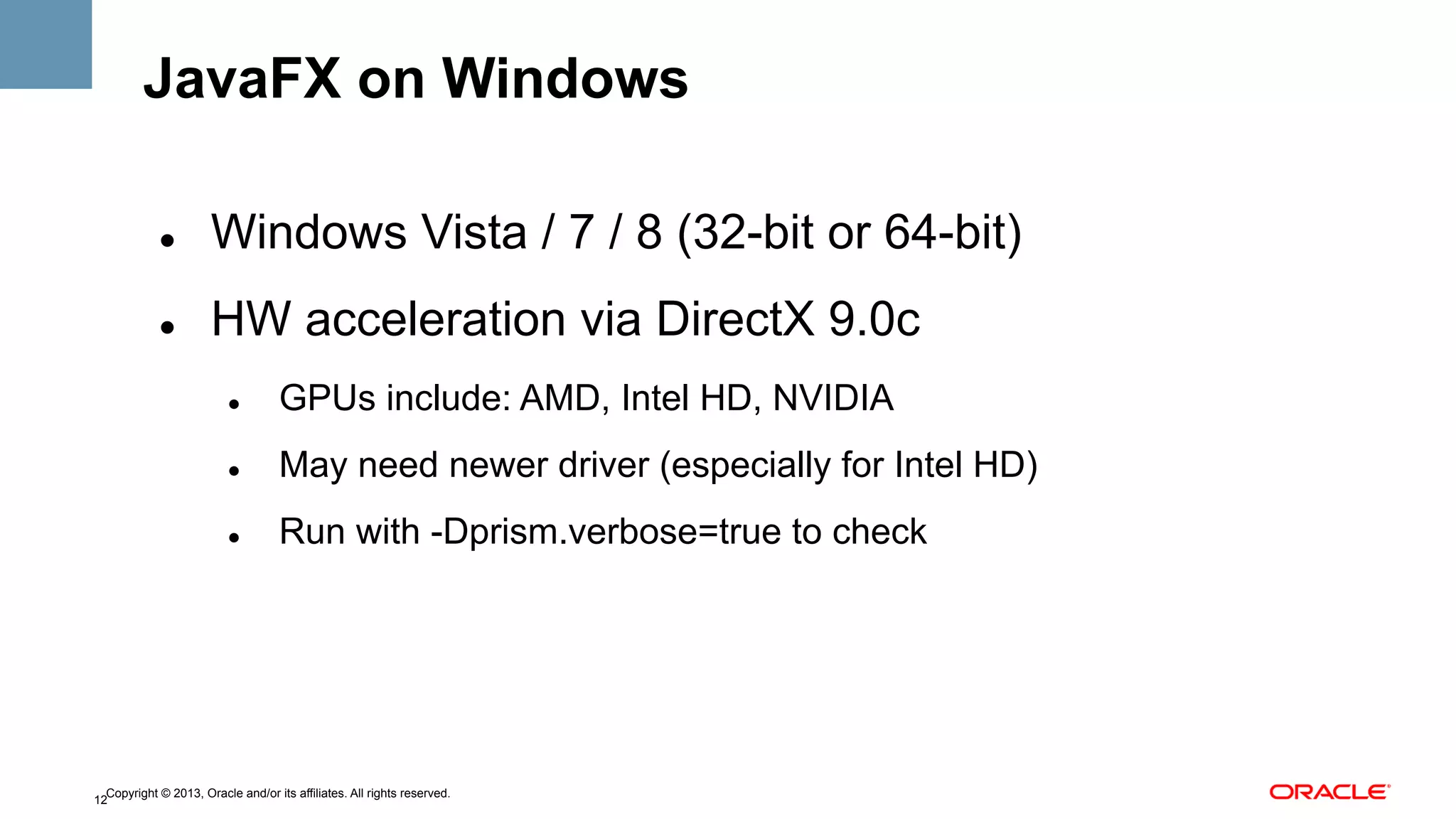

JavaFX on Windows
" 

Windows Vista / 7 / 8 (32-bit or 64-bit)

" 

HW acceleration via DirectX 9.0c
" 

GPUs include: AMD, Intel HD, NVIDIA

" 

May need newer driver (especially for Intel HD)

" 

Run with -Dprism.verbose=true to check

12

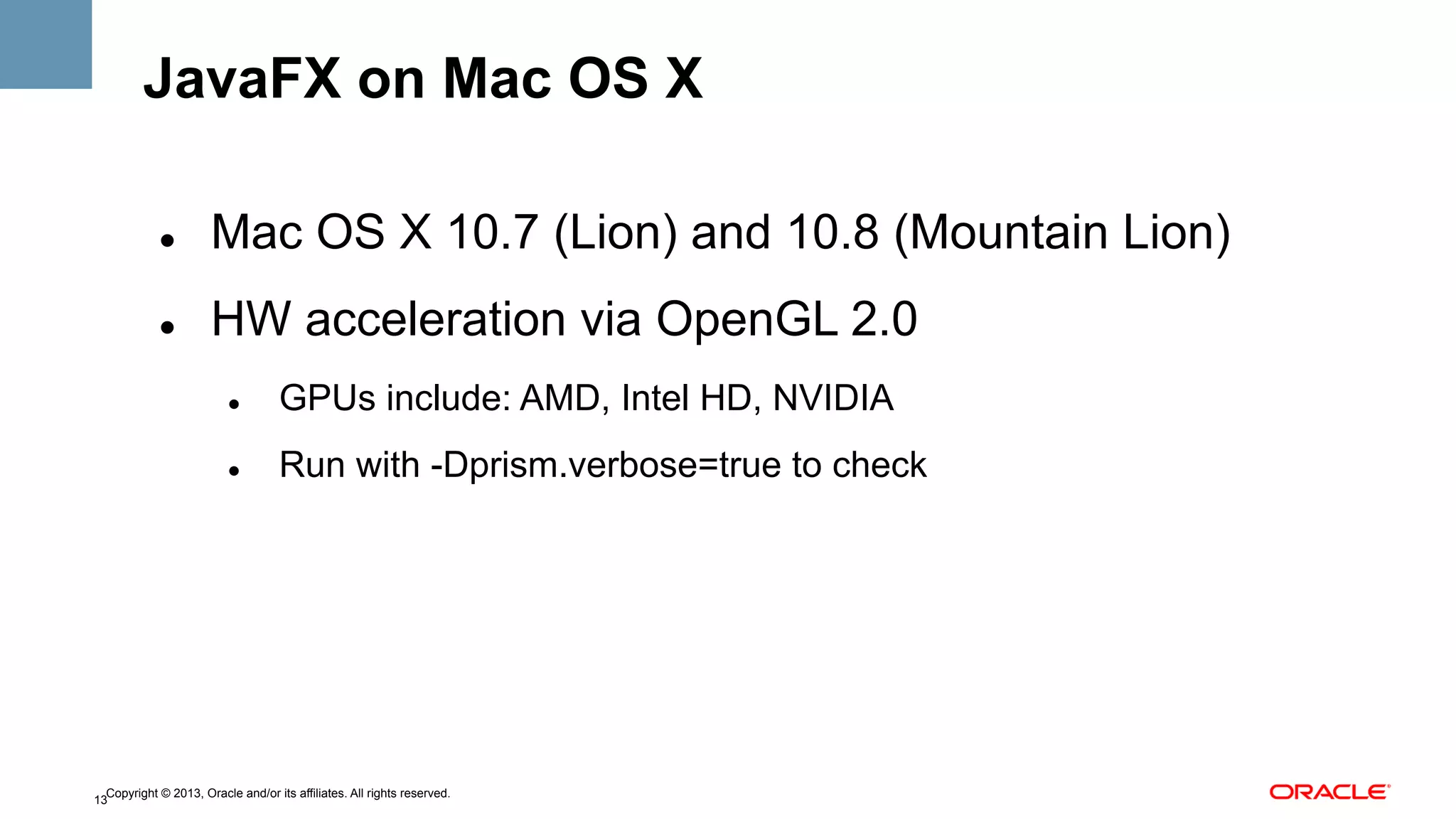

JavaFX on Mac OS X
" 

Mac OS X 10.7 (Lion) and 10.8 (Mountain Lion)

" 

HW acceleration via OpenGL 2.0
" 

GPUs include: AMD, Intel HD, NVIDIA

" 


13

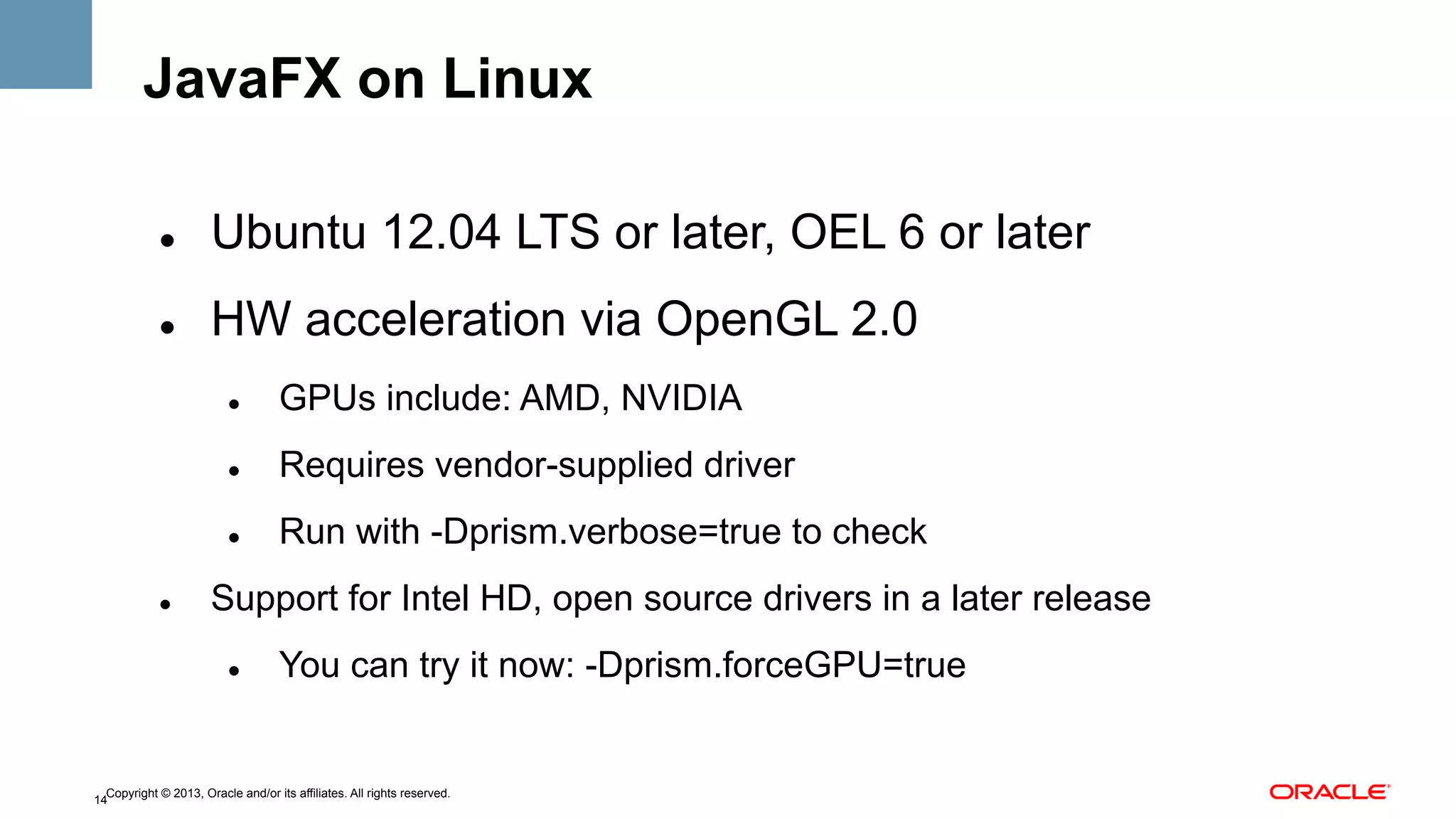

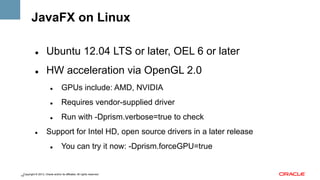

JavaFX on Linux
" 

Ubuntu 12.04 LTS or later, OEL 6 or later

" 

HW acceleration via OpenGL 2.0
" 

" 

Requires vendor-supplied driver

" 

" 

GPUs include: AMD, NVIDIA


Support for Intel HD, open source drivers in a later release
" 

You can try it now: -Dprism.forceGPU=true

14

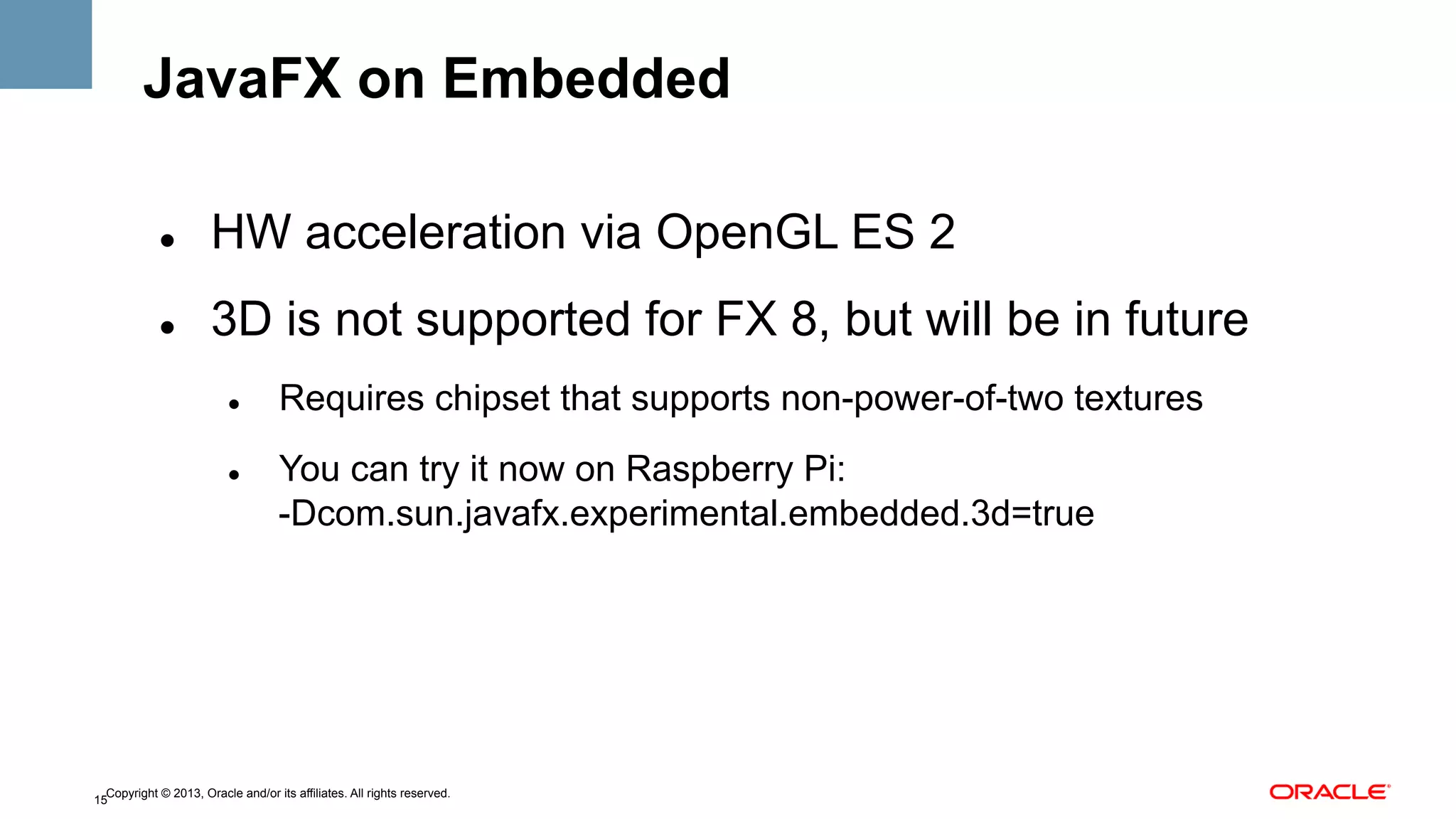

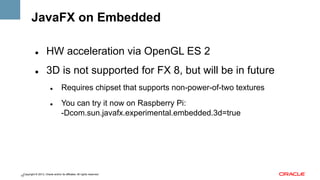

JavaFX on Embedded
" 

HW acceleration via OpenGL ES 2

" 

3D is not supported for FX 8, but will be in future
" 

" 

Requires chipset that supports non-power-of-two textures
You can try it now on Raspberry Pi:
-Dcom.sun.javafx.experimental.embedded.3d=true

15

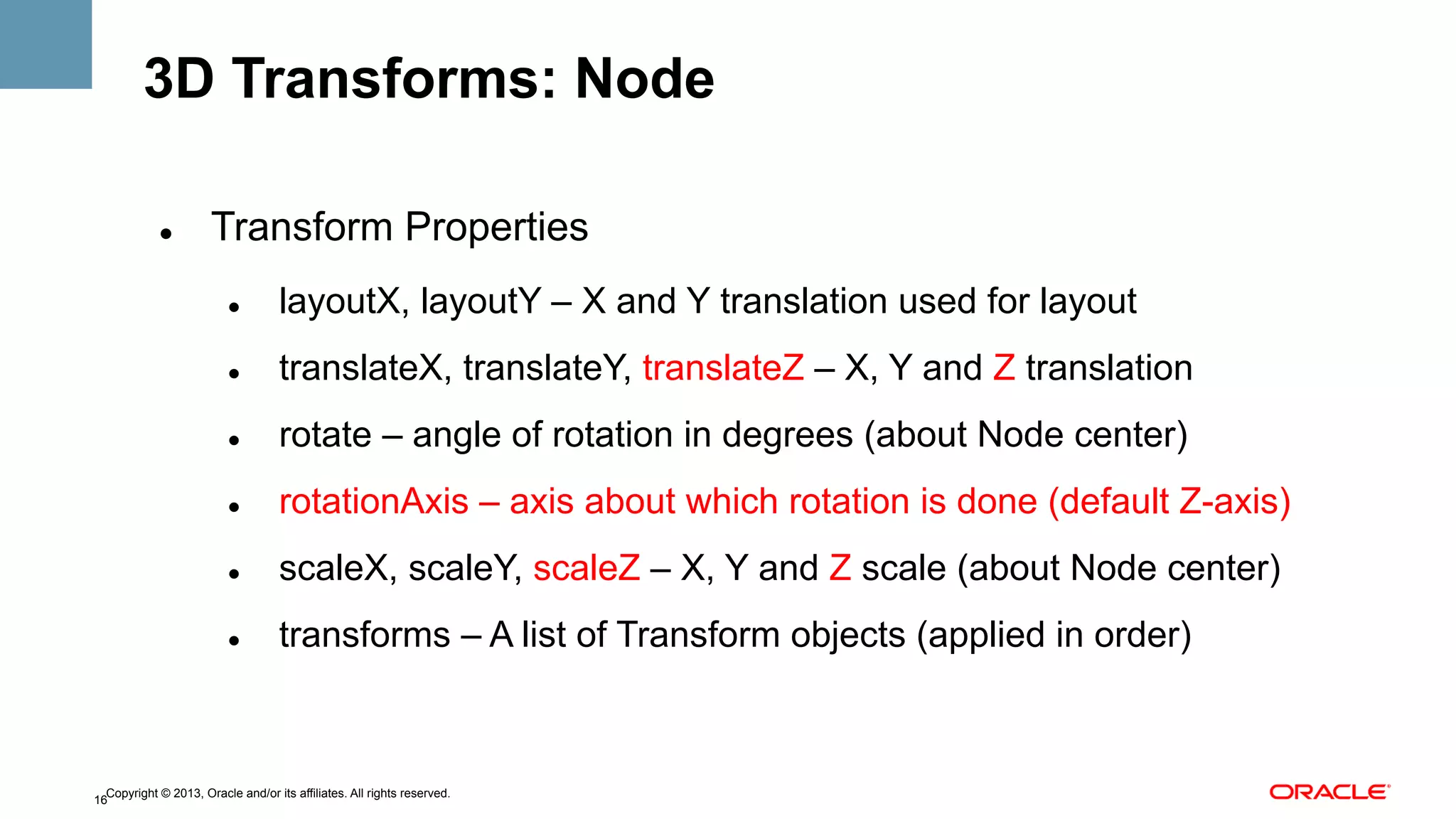

3D Transforms: Node
" 

Transform Properties
" 

layoutX, layoutY – X and Y translation used for layout

" 

translateX, translateY, translateZ – X, Y and Z translation

" 

rotate – angle of rotation in degrees (about Node center)

" 

rotationAxis – axis about which rotation is done (default Z-axis)

" 

scaleX, scaleY, scaleZ – X, Y and Z scale (about Node center)

" 

transforms – A list of Transform objects (applied in order)

16

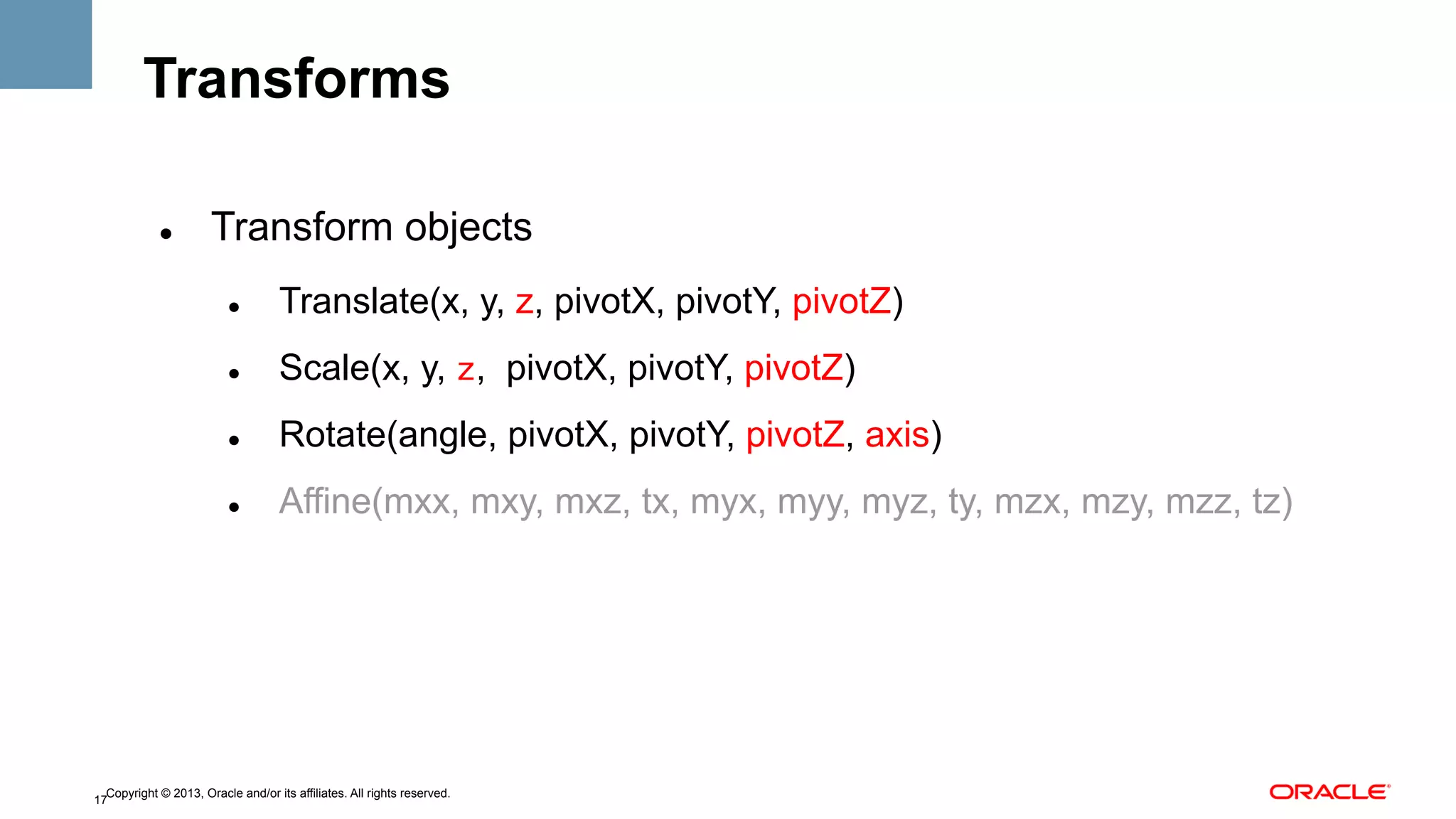

Transforms
" 

Transform objects
" 

Translate(x, y, z, pivotX, pivotY, pivotZ)

" 

Scale(x, y, z, pivotX, pivotY, pivotZ)

" 

Rotate(angle, pivotX, pivotY, pivotZ, axis)

" 

Affine(mxx, mxy, mxz, tx, myx, myy, myz, ty, mzx, mzy, mzz, tz)

17

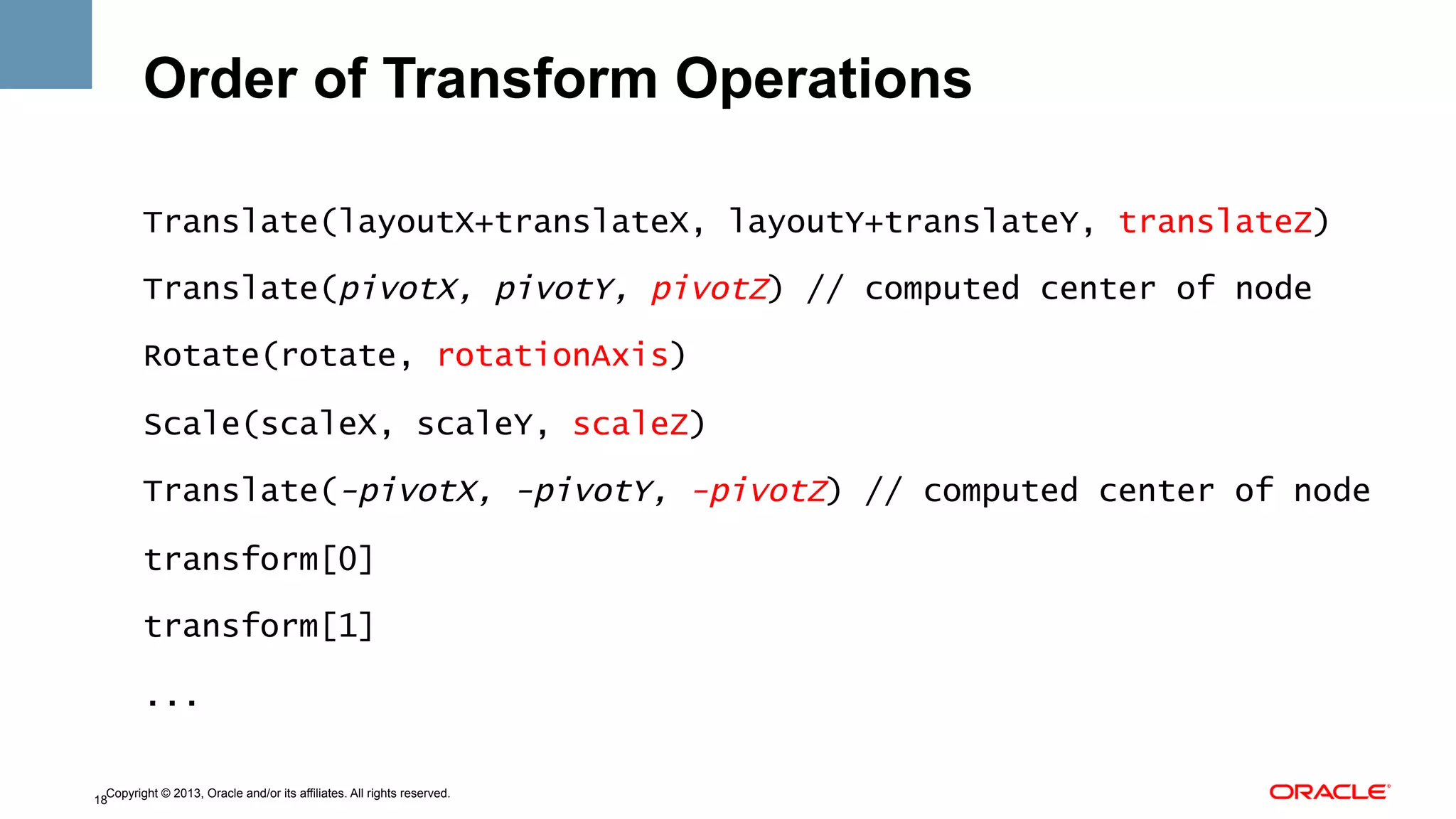

Order of Transform Operations
Translate(layoutX+translateX, layoutY+translateY, translateZ)
Translate(pivotX, pivotY, pivotZ) // computed center of node
Rotate(rotate, rotationAxis)
Scale(scaleX, scaleY, scaleZ)
Translate(-pivotX, -pivotY, -pivotZ) // computed center of node
transform[0]
transform[1]
...
18

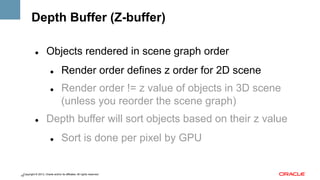

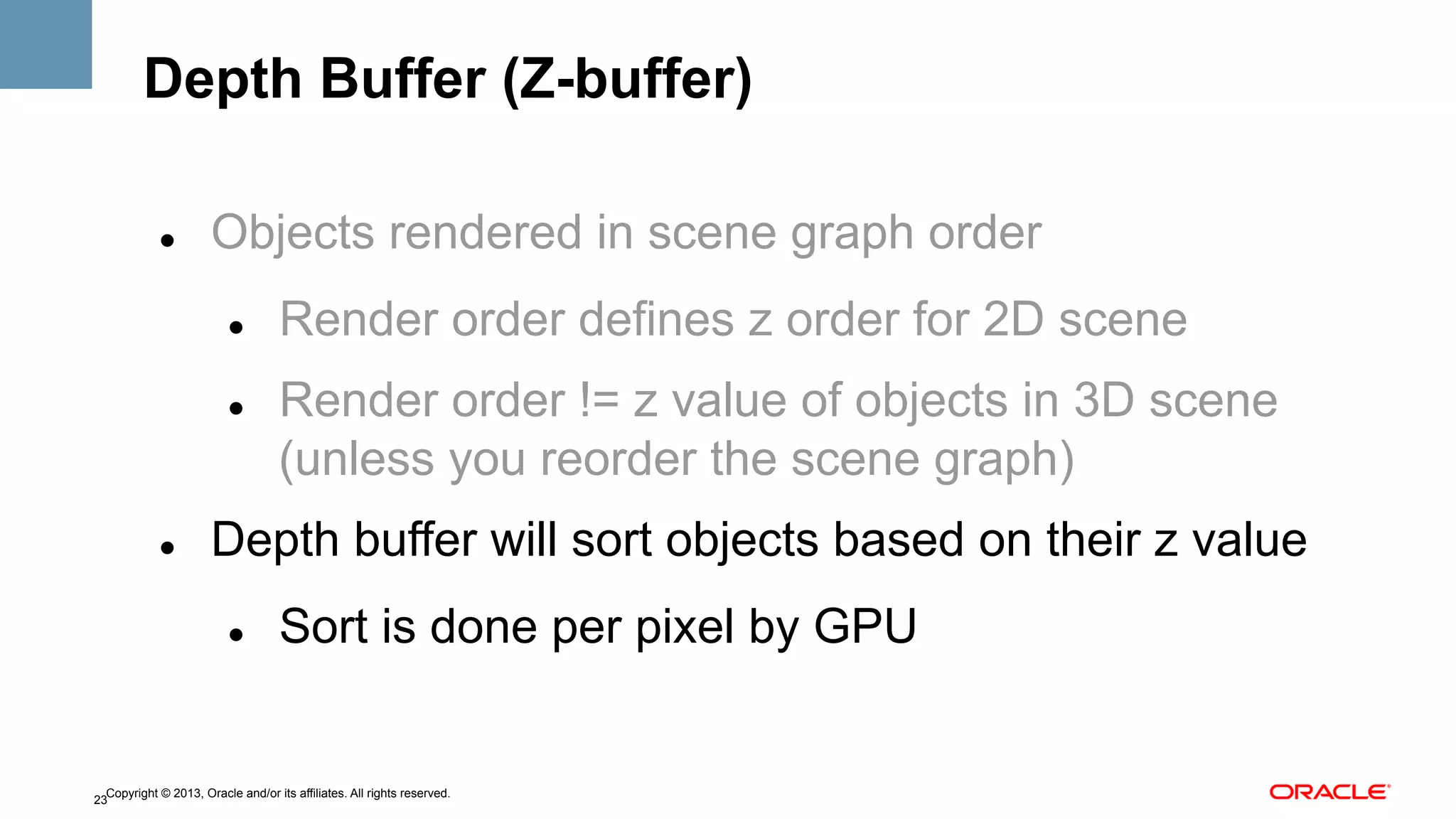

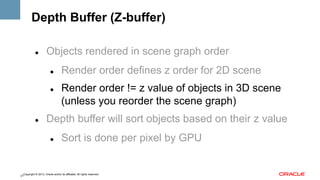

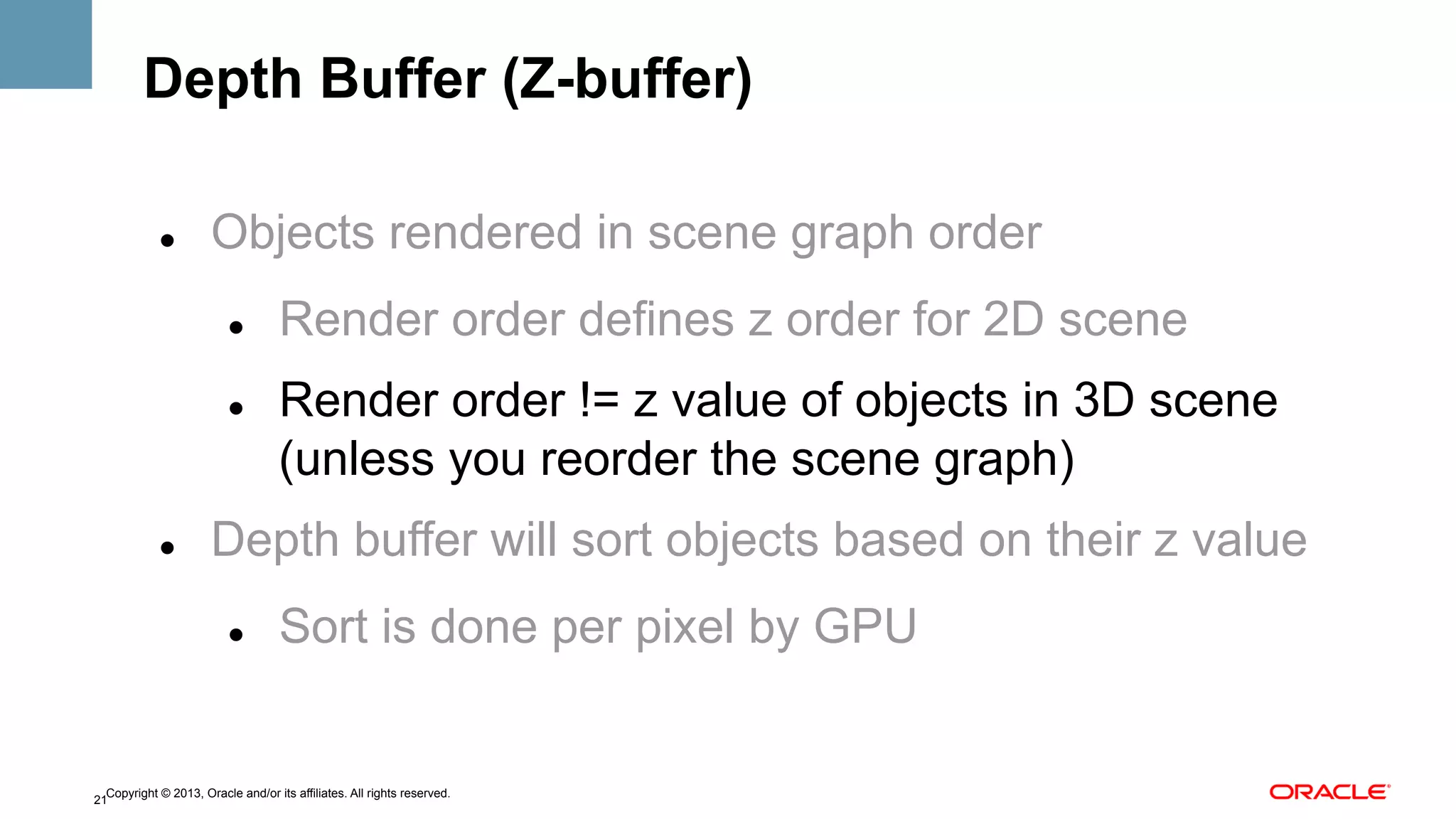

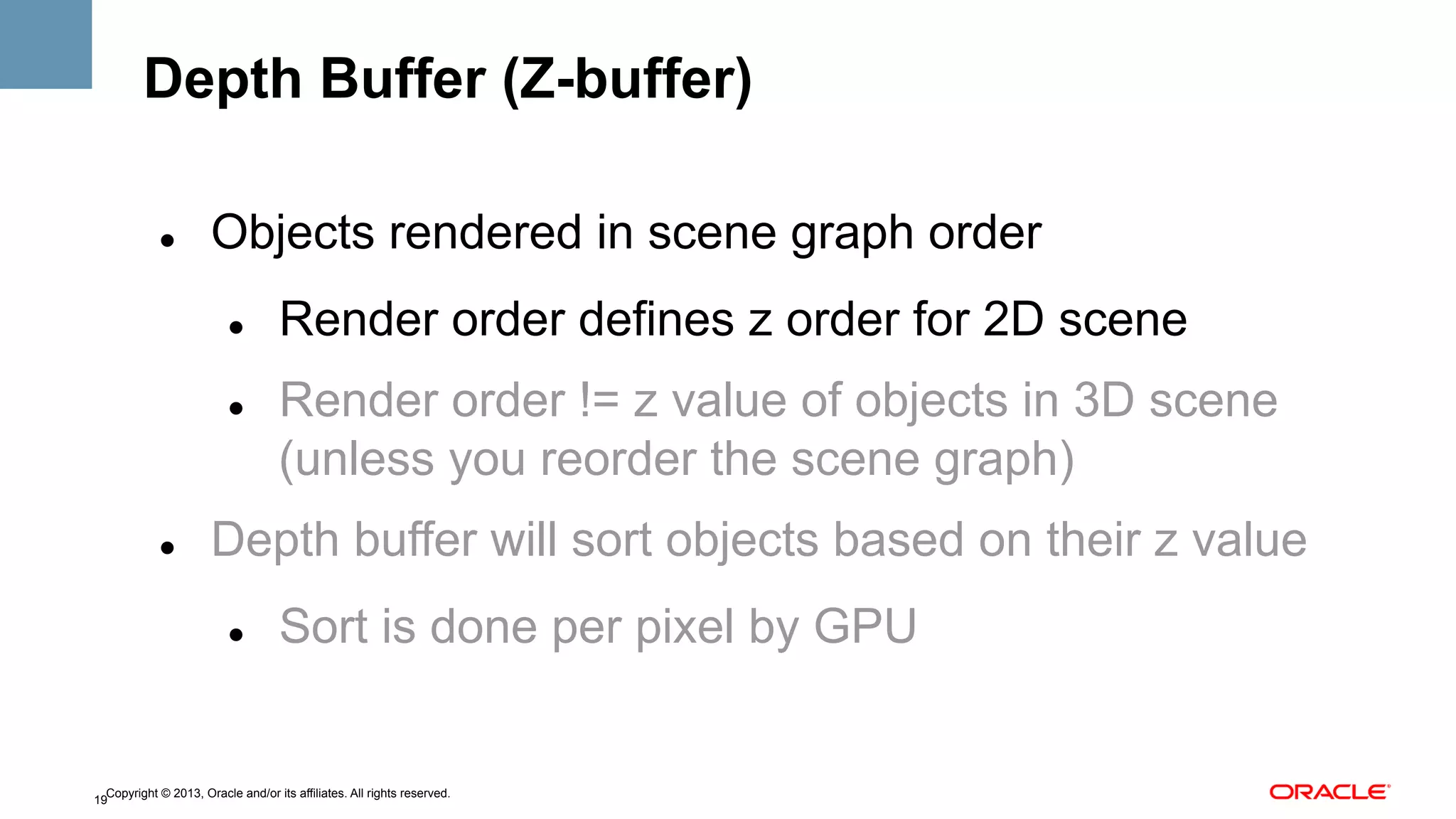

Depth Buffer (Z-buffer)
" 

Objects rendered in scene graph order
" 

" 

" 

Render order defines z order for 2D scene
Render order != z value of objects in 3D scene
(unless you reorder the scene graph)

Depth buffer will sort objects based on their z value
" 

Sort is done per pixel by GPU

19

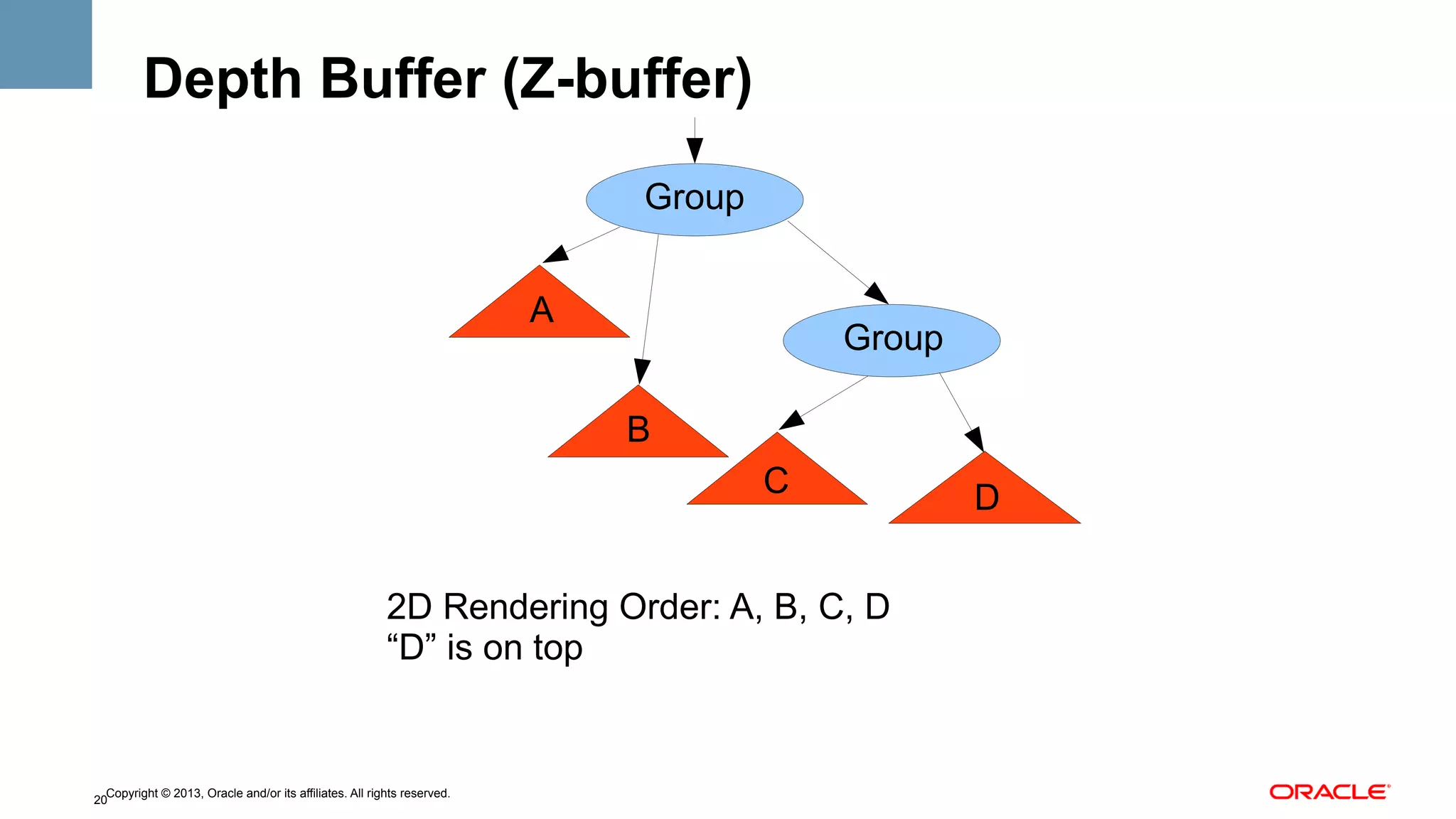

Group
A

Group
B
C

2D Rendering Order: A, B, C, D
“D” is on top

20

D

" 

" 

" 

" 


" 


21

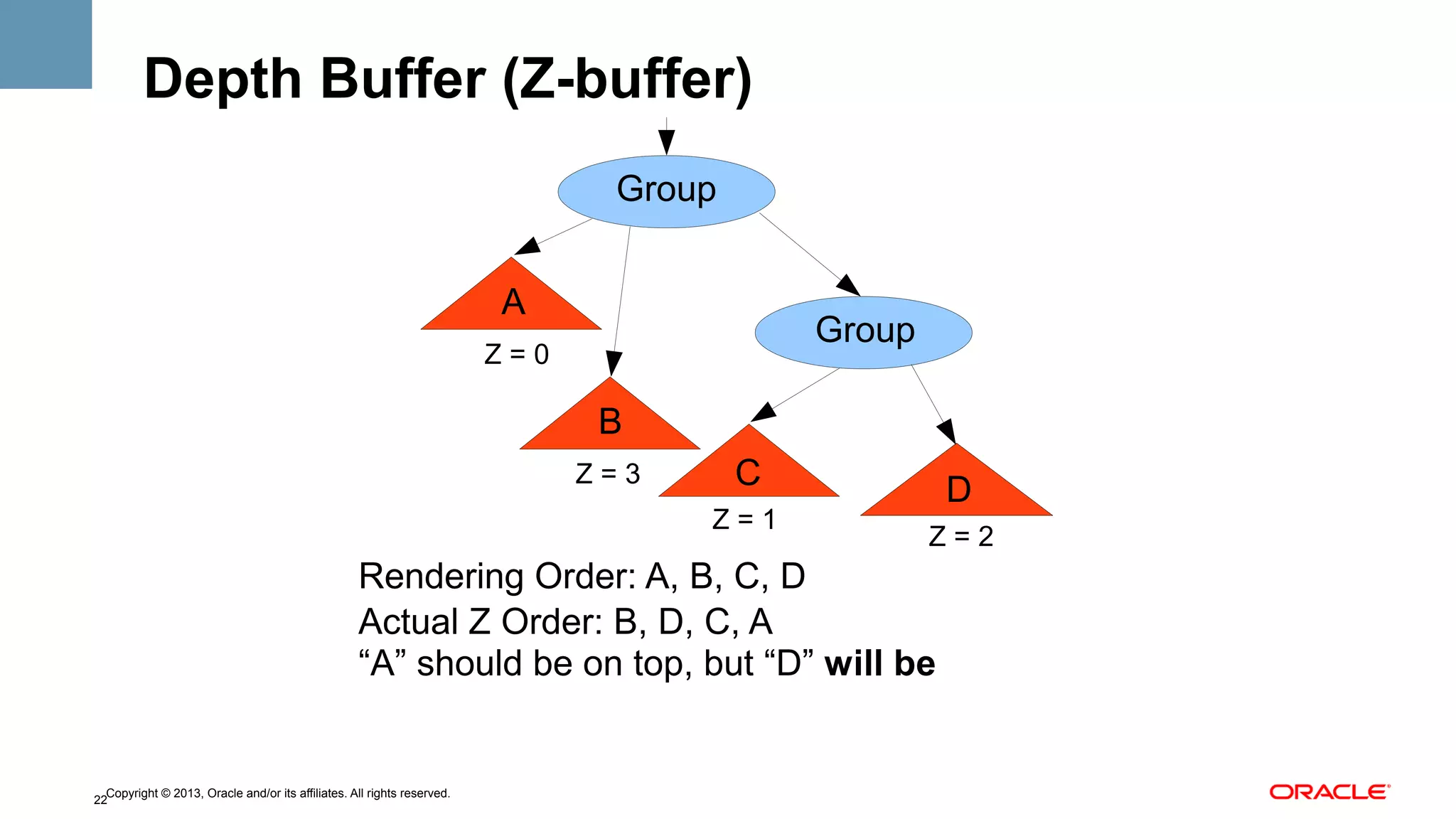

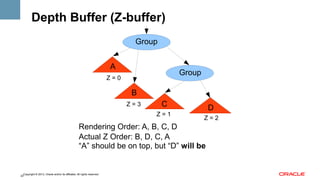

Group
A

Group

Z=0

B
Z=3

C
Z=1

D
Z=2

Rendering Order: A, B, C, D
Actual Z Order: B, D, C, A
“A” should be on top, but “D” will be

22

" 

" 

" 

" 


" 


23

" 

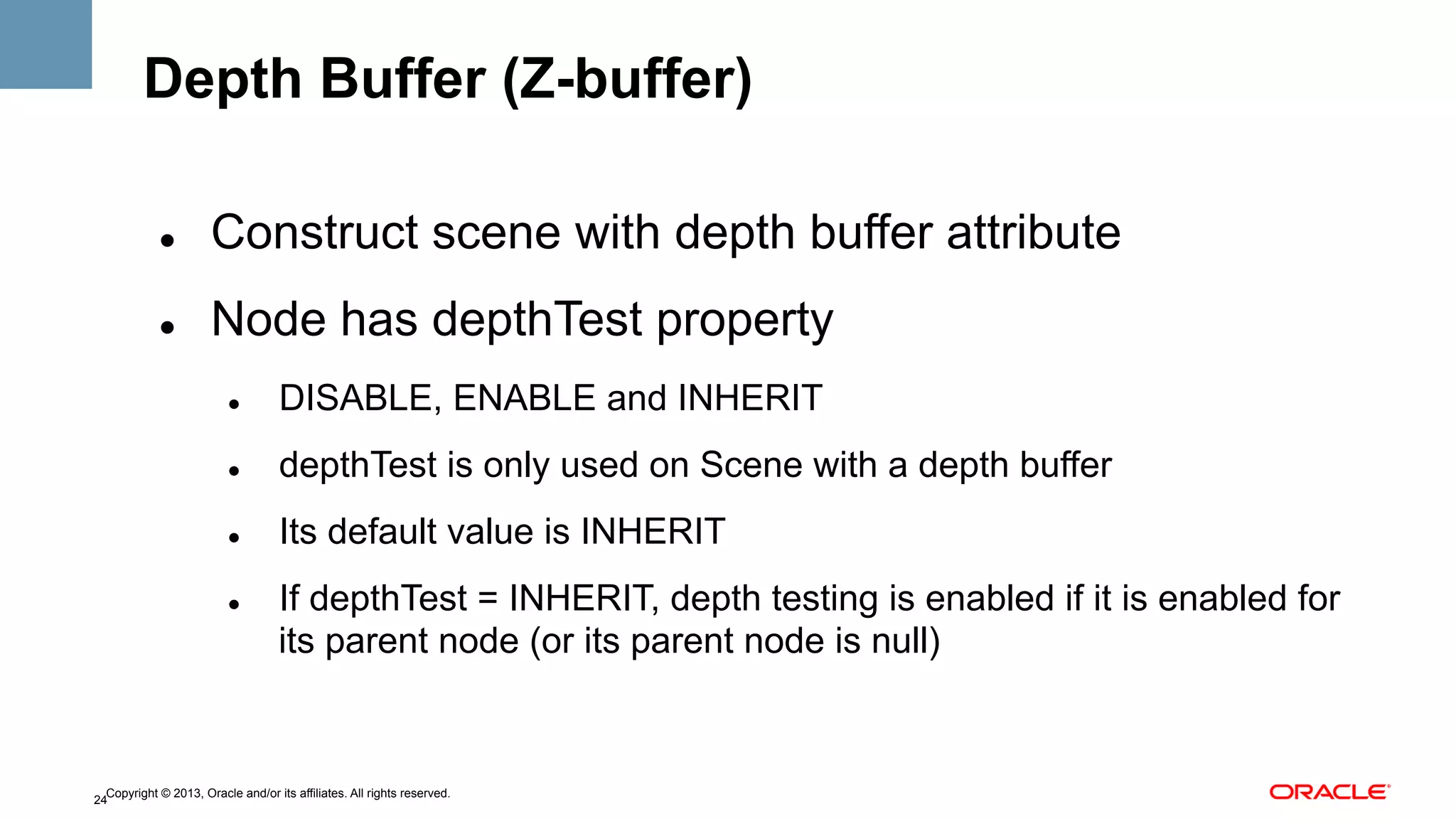

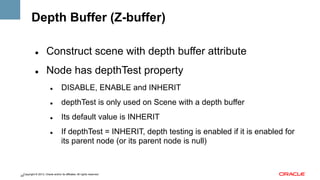

Construct scene with depth buffer attribute

" 

Node has depthTest property
" 

DISABLE, ENABLE and INHERIT

" 

depthTest is only used on Scene with a depth buffer

" 

Its default value is INHERIT

" 

If depthTest = INHERIT, depth testing is enabled if it is enabled for
its parent node (or its parent node is null)

24

Depth Test Demo

25

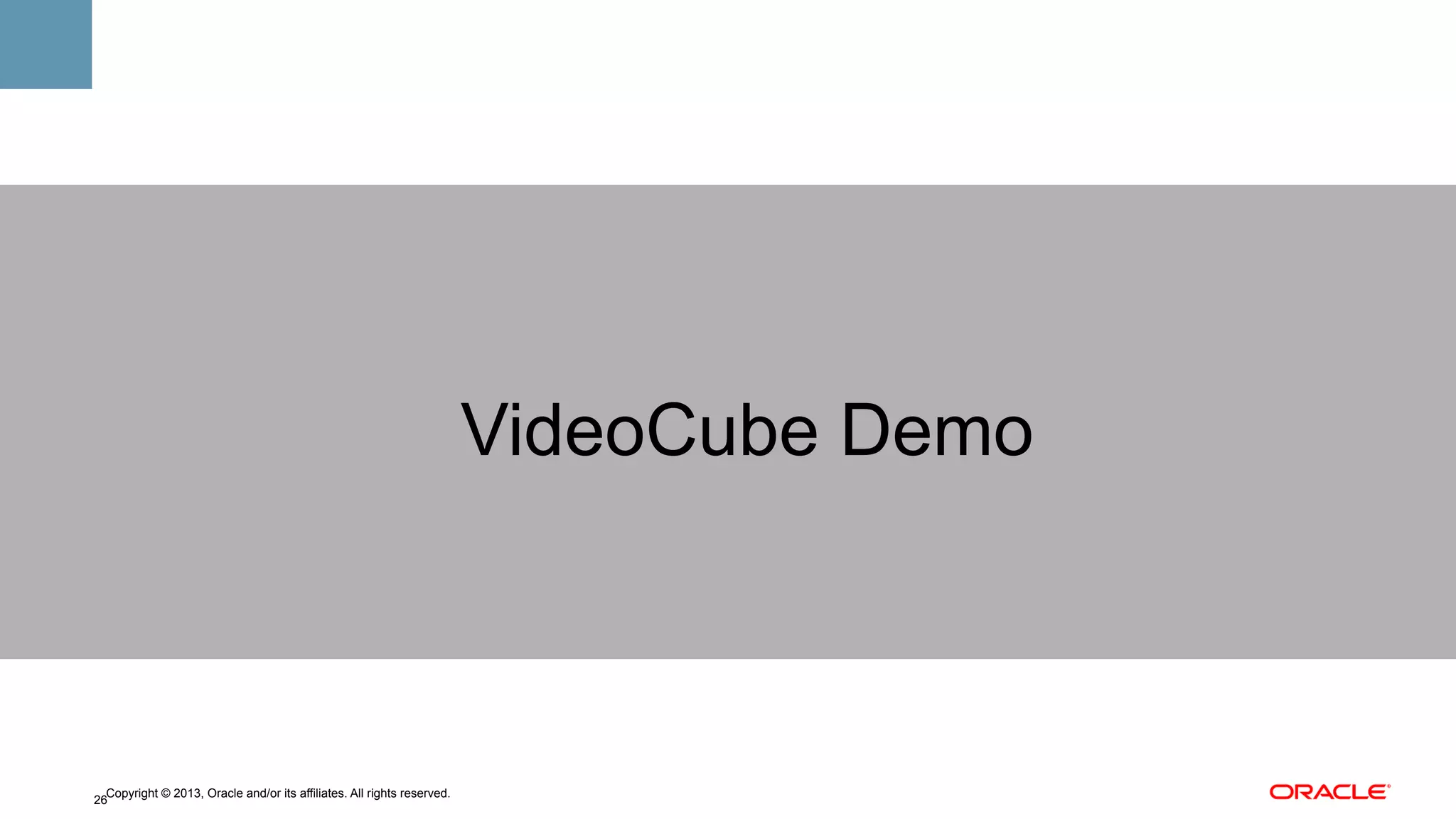

VideoCube Demo

26

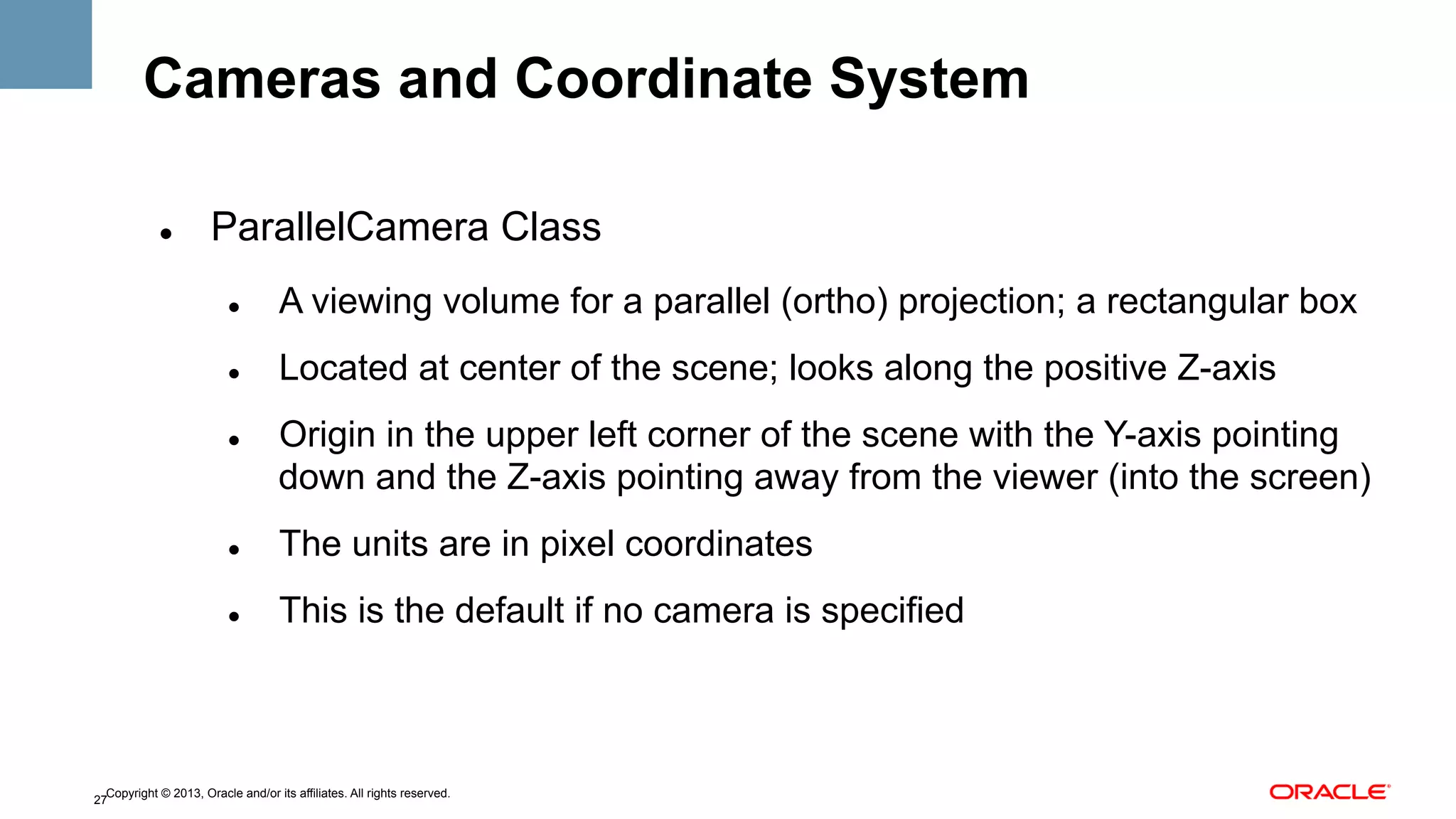

Cameras and Coordinate System
" 

ParallelCamera Class
" 

A viewing volume for a parallel (ortho) projection; a rectangular box

" 

Located at center of the scene; looks along the positive Z-axis

" 

Origin in the upper left corner of the scene with the Y-axis pointing
down and the Z-axis pointing away from the viewer (into the screen)

" 

The units are in pixel coordinates

" 

This is the default if no camera is specified

27

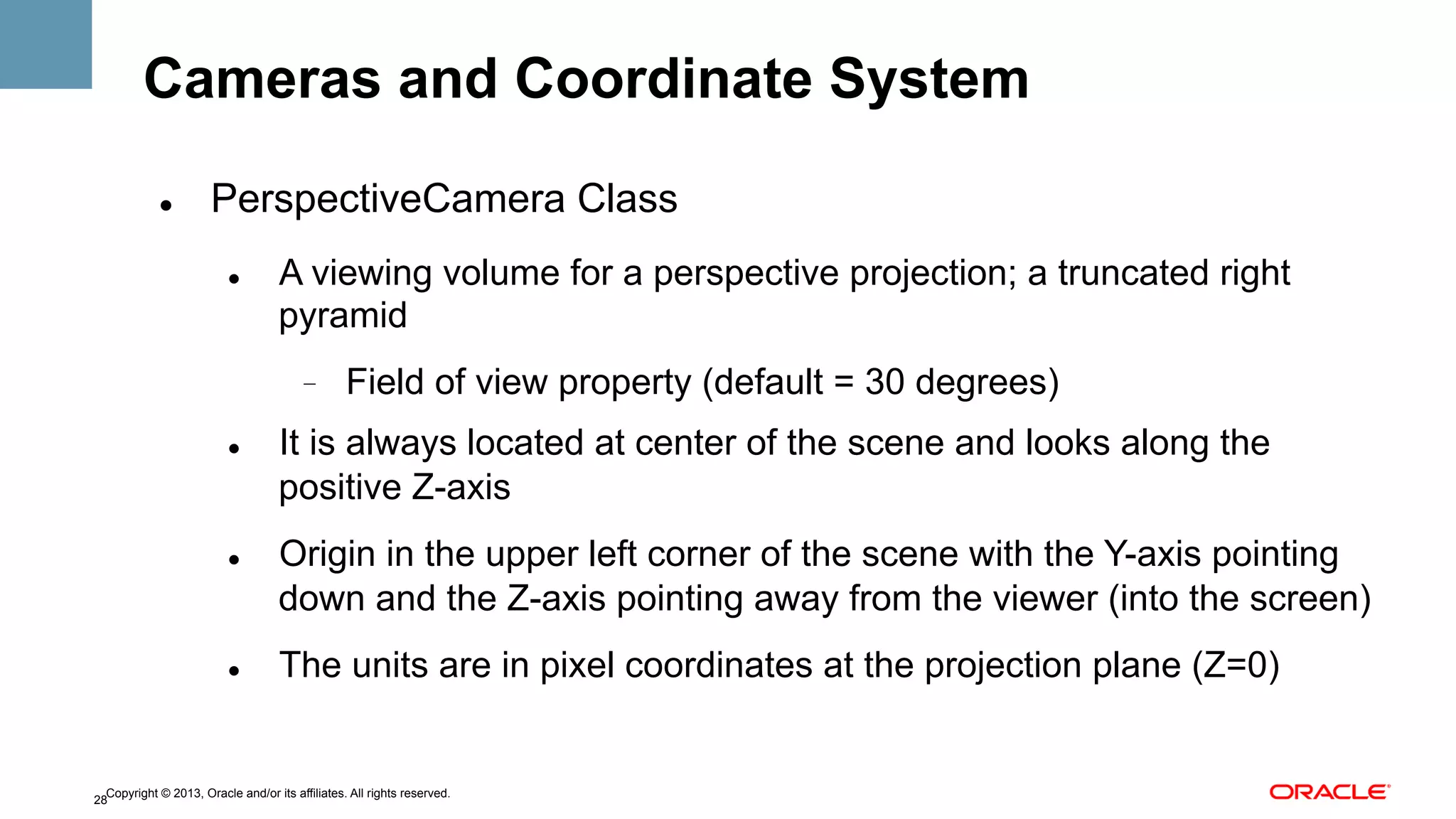

Cameras and Coordinate System
" 

PerspectiveCamera Class
" 

A viewing volume for a perspective projection; a truncated right
pyramid
- 

" 

" 

" 

Field of view property (default = 30 degrees)

It is always located at center of the scene and looks along the
positive Z-axis
Origin in the upper left corner of the scene with the Y-axis pointing
down and the Z-axis pointing away from the viewer (into the screen)
The units are in pixel coordinates at the projection plane (Z=0)

28

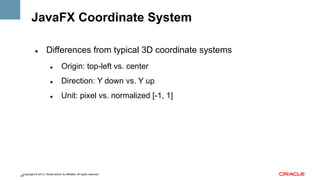

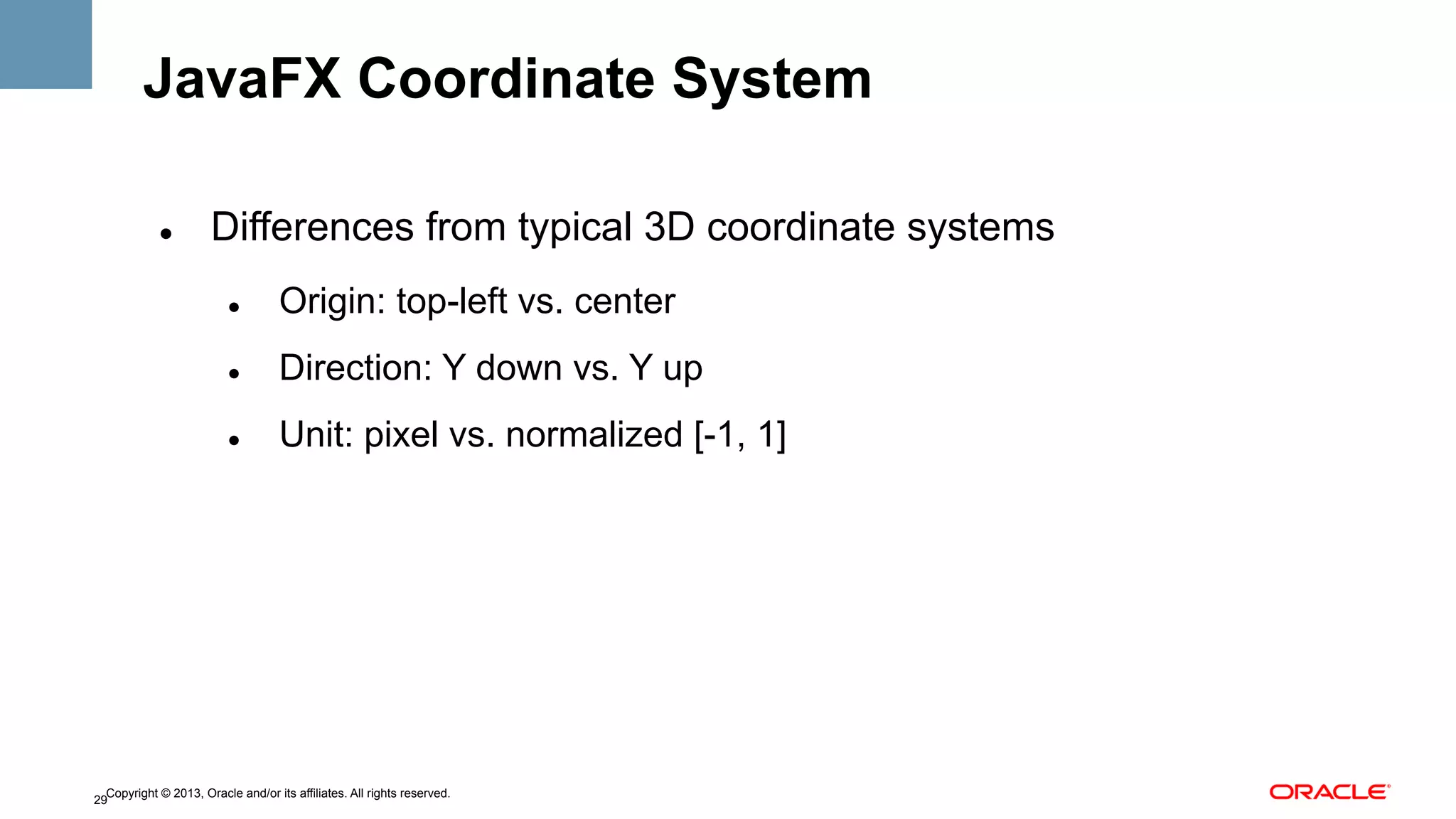

JavaFX Coordinate System
" 

Differences from typical 3D coordinate systems
" 

Origin: top-left vs. center

" 

Direction: Y down vs. Y up

" 

Unit: pixel vs. normalized [-1, 1]

29

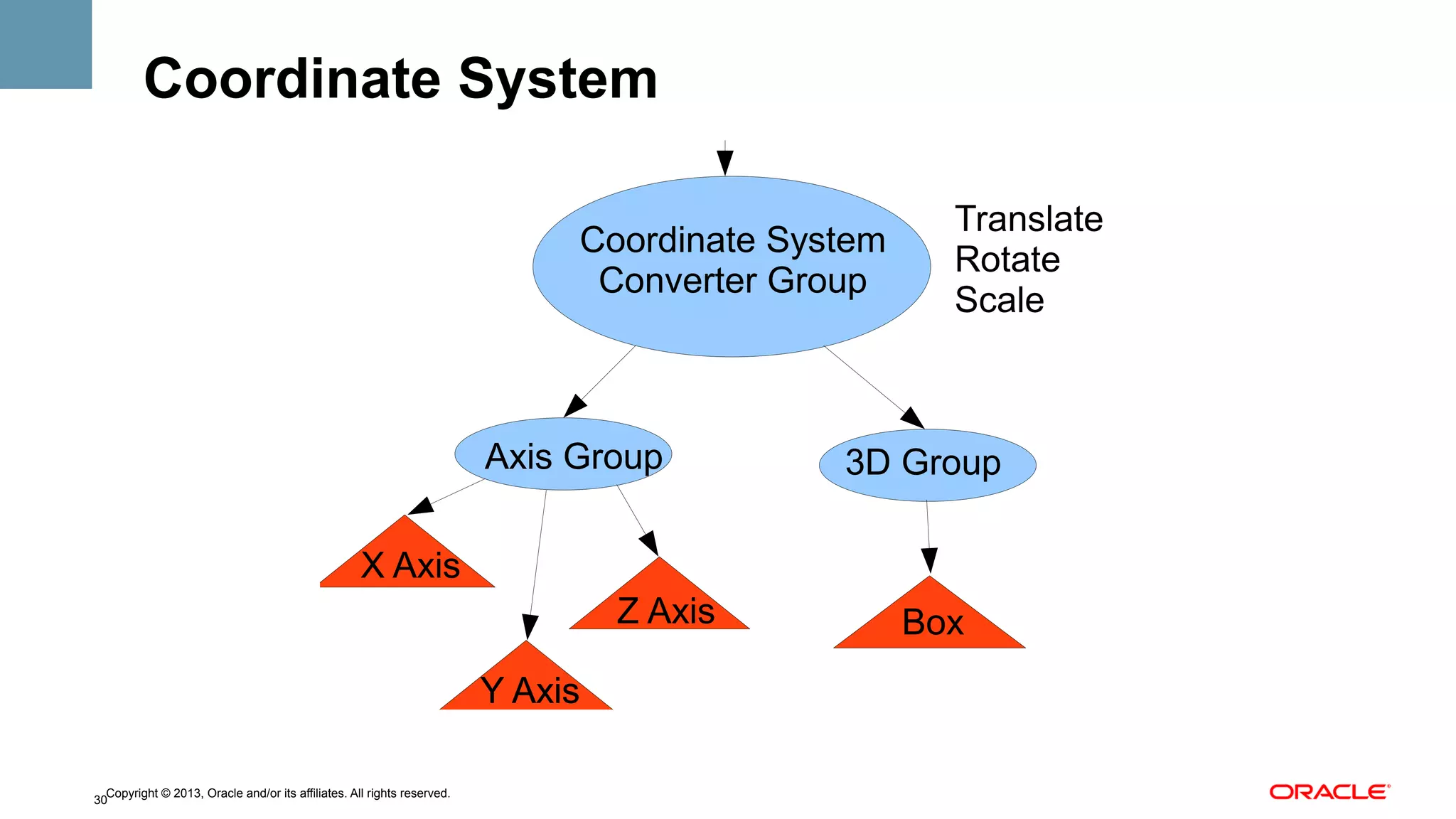

Coordinate System
Coordinate System
Converter Group

Axis Group

Translate
Rotate
Scale

3D Group

X Axis
Z Axis
Y Axis
30

Box

Coordinate System Demo

31

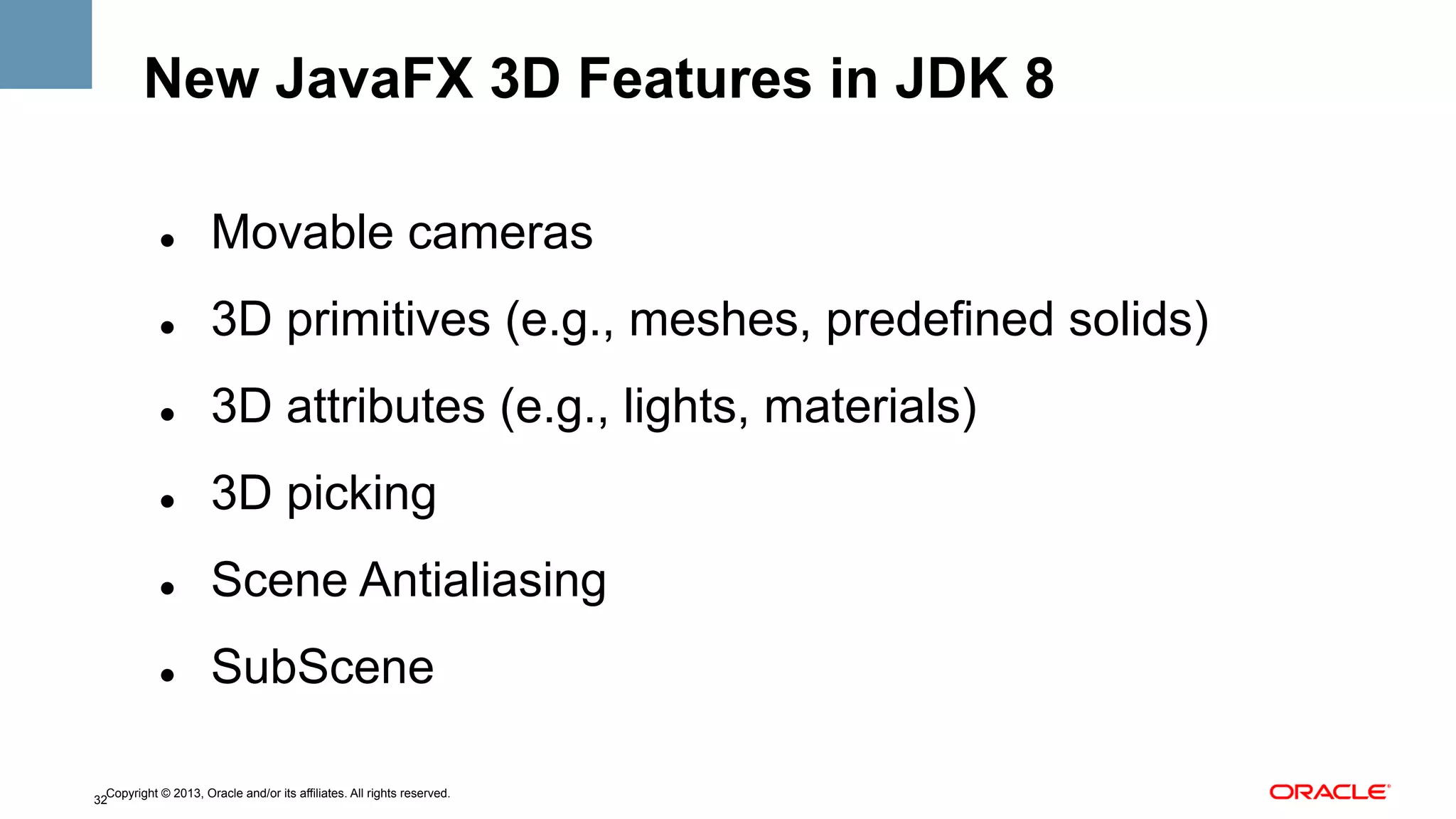

New JavaFX 3D Features in JDK 8
" 

Movable cameras

" 

3D primitives (e.g., meshes, predefined solids)

" 

3D attributes (e.g., lights, materials)

" 

3D picking

" 

Scene Antialiasing

" 

SubScene

32

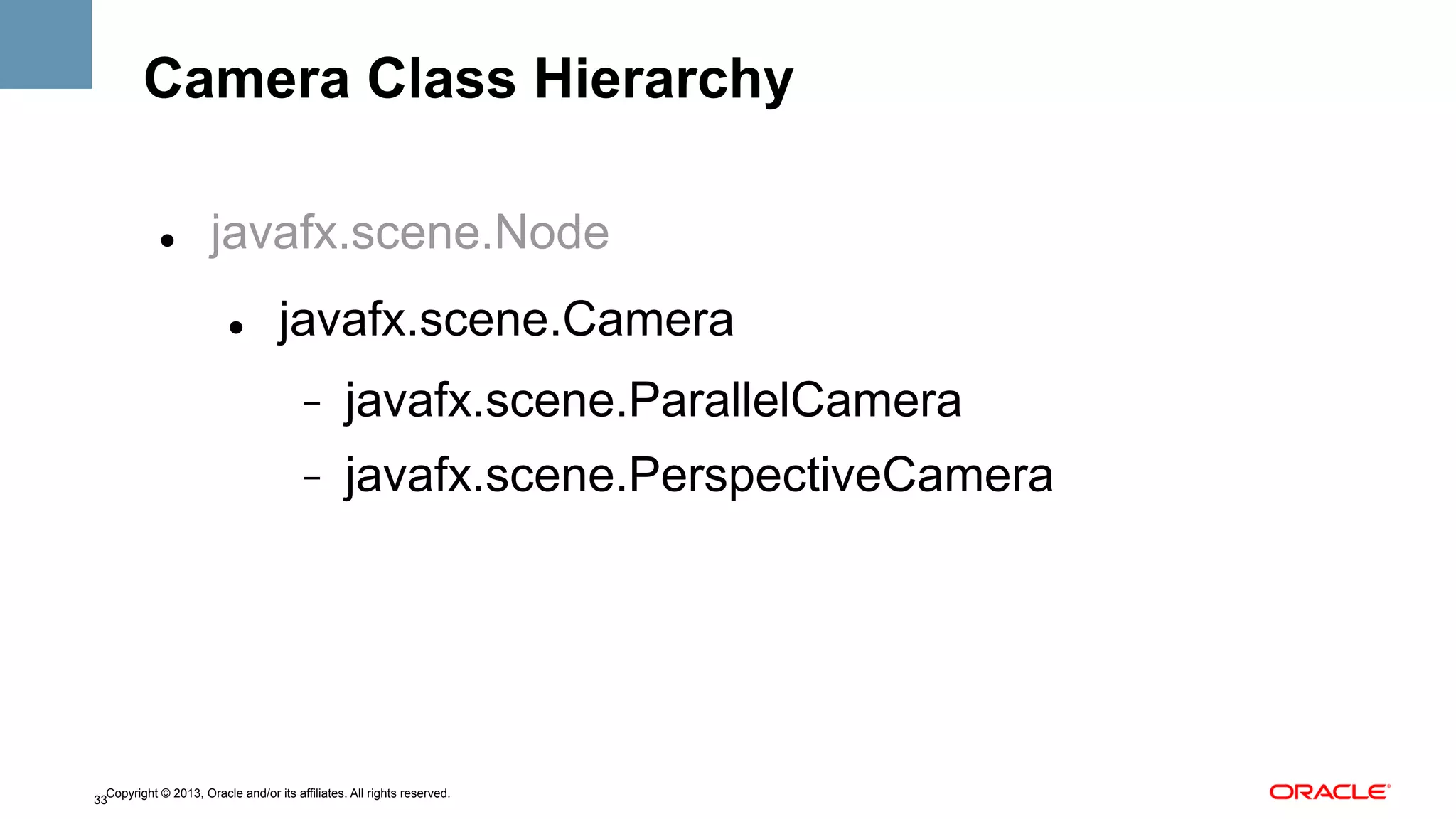

Camera Class Hierarchy
" 

javafx.scene.Node
" 

javafx.scene.Camera
- 

javafx.scene.ParallelCamera

- 

javafx.scene.PerspectiveCamera

33

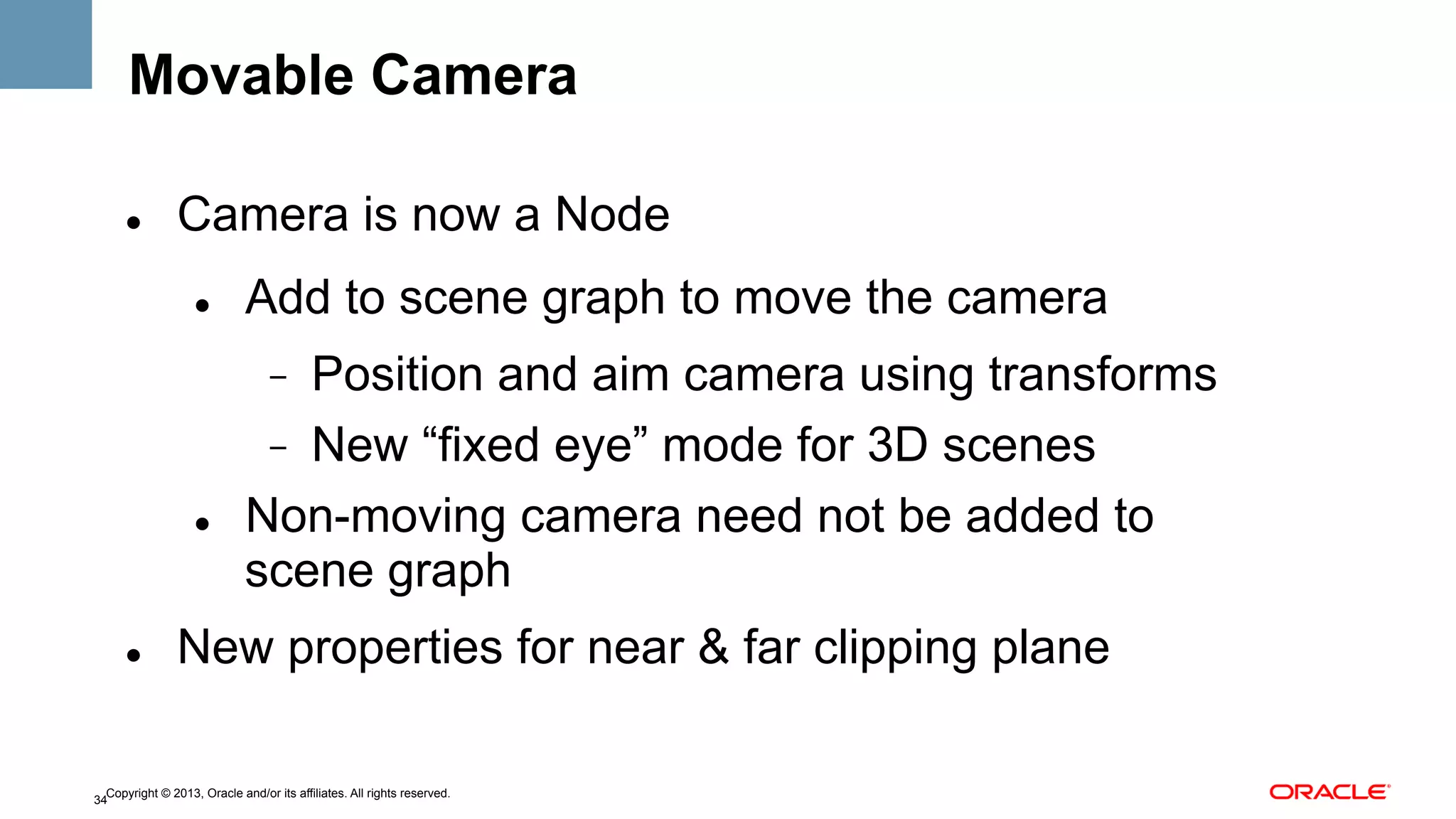

Movable Camera
" 

Camera is now a Node
" 

Add to scene graph to move the camera
Position and aim camera using transforms
-  New “fixed eye” mode for 3D scenes
Non-moving camera need not be added to
scene graph
- 

" 

" 

New properties for near & far clipping plane

34

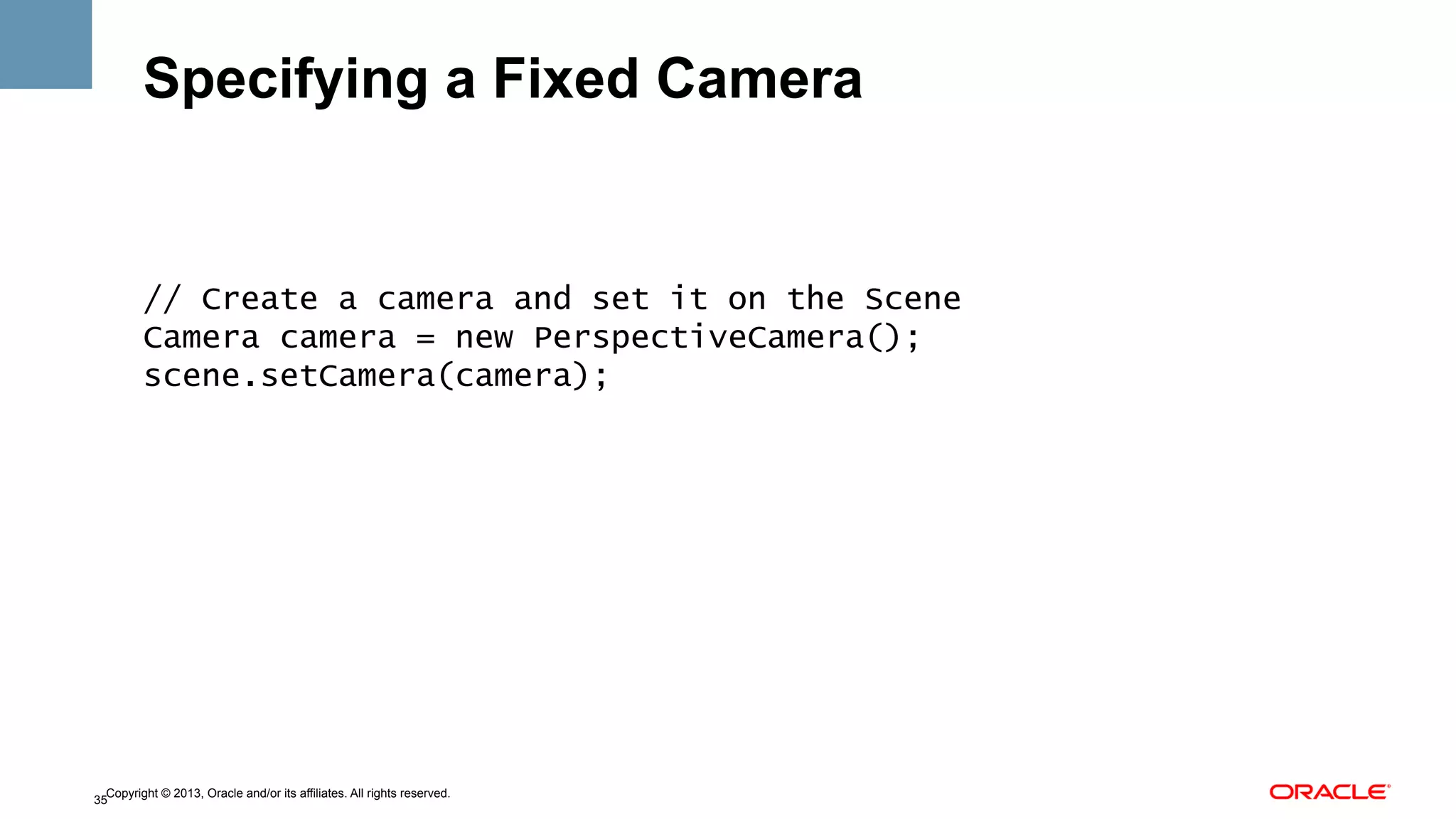

Specifying a Fixed Camera

// Create a camera and set it on the Scene
Camera camera = new PerspectiveCamera();
scene.setCamera(camera);

35

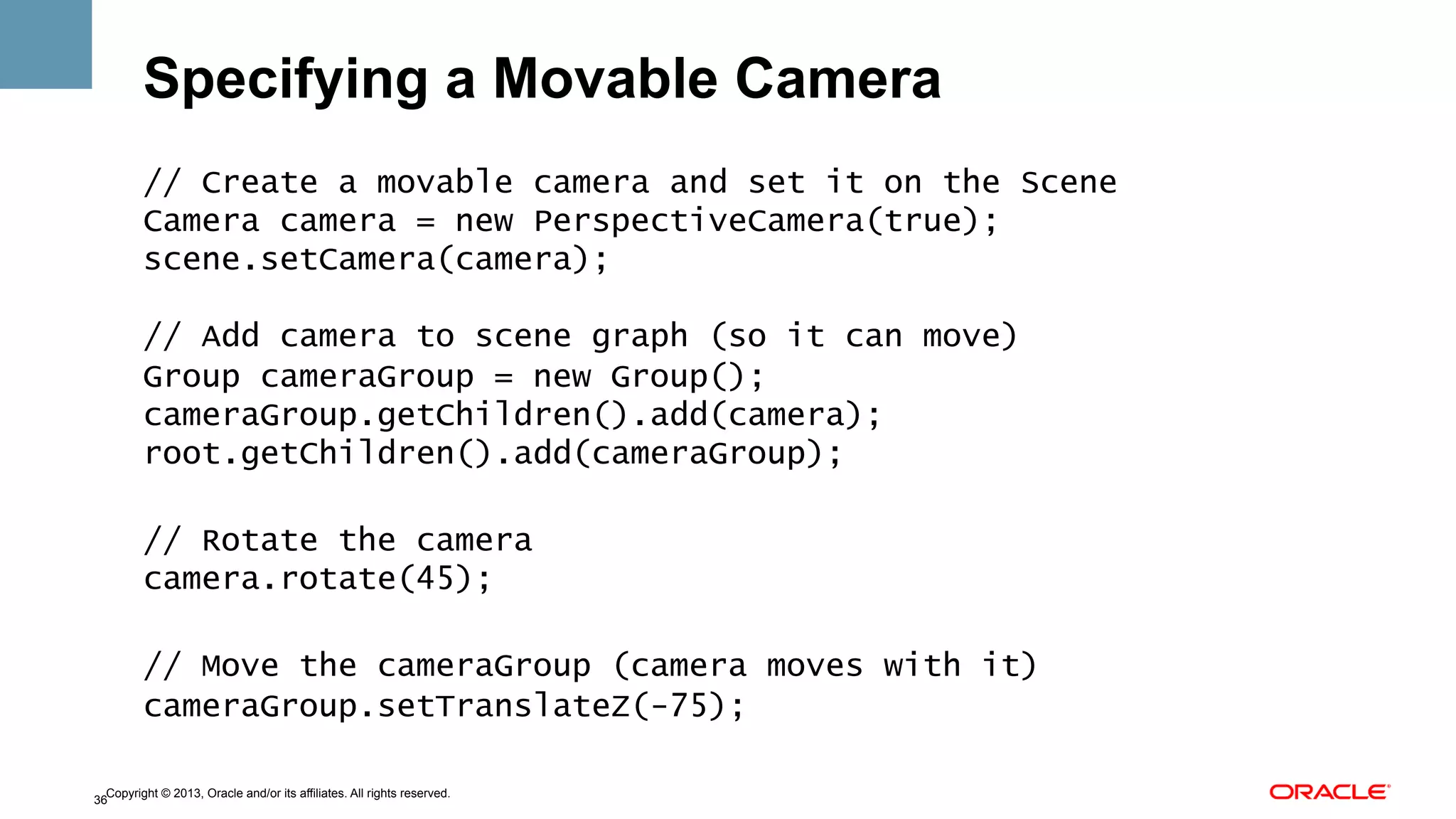

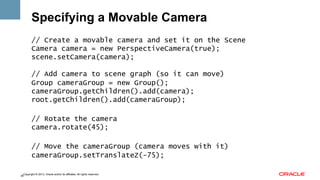

Specifying a Movable Camera
// Create a movable camera and set it on the Scene
Camera camera = new PerspectiveCamera(true);
scene.setCamera(camera);
// Add camera to scene graph (so it can move)
Group cameraGroup = new Group();
cameraGroup.getChildren().add(camera);
root.getChildren().add(cameraGroup);
// Rotate the camera
camera.rotate(45);
// Move the cameraGroup (camera moves with it)
cameraGroup.setTranslateZ(-75);
36

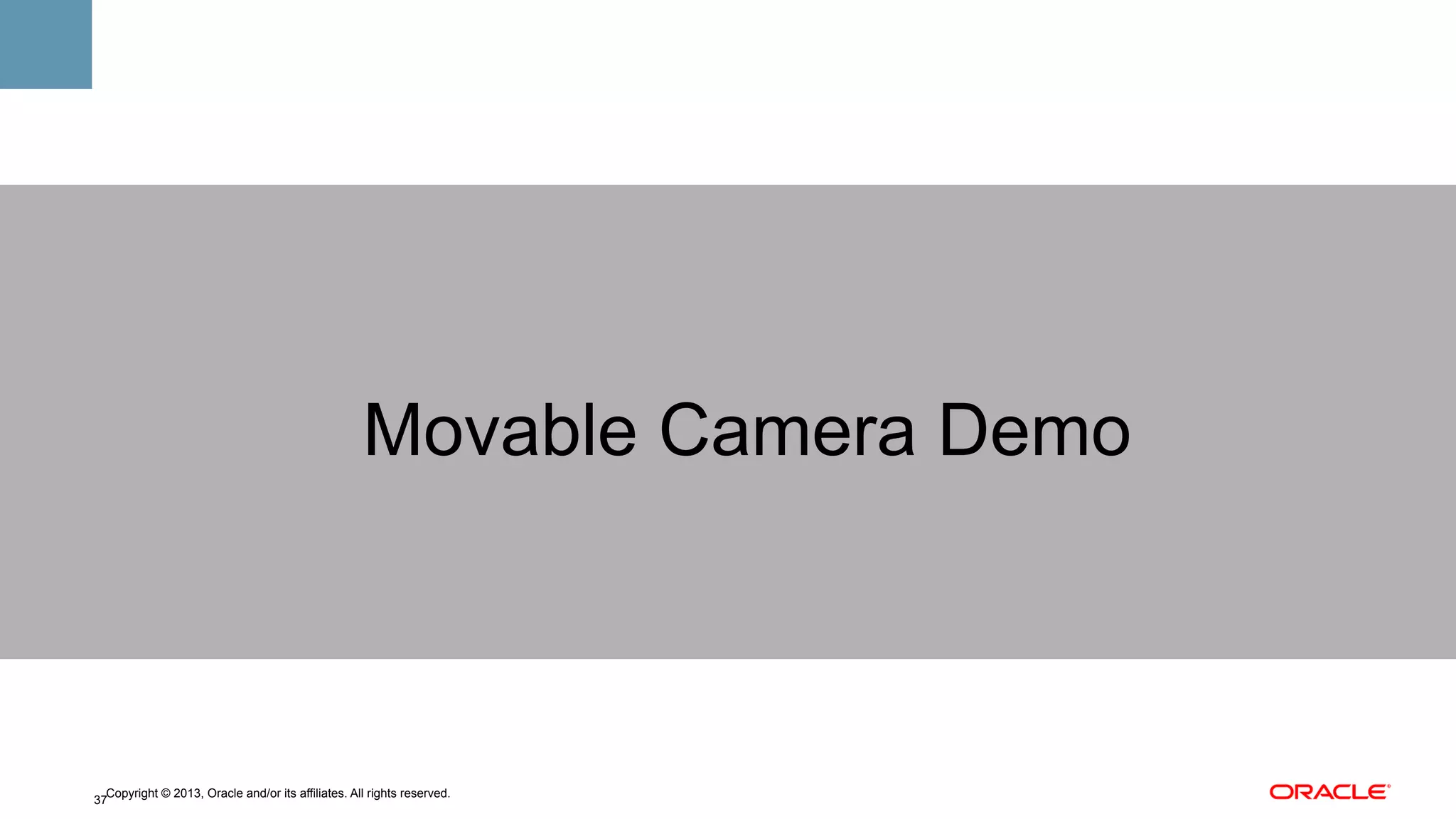

Movable Camera Demo

37

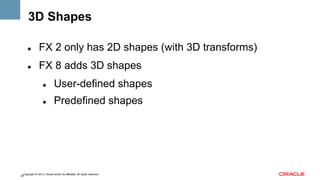

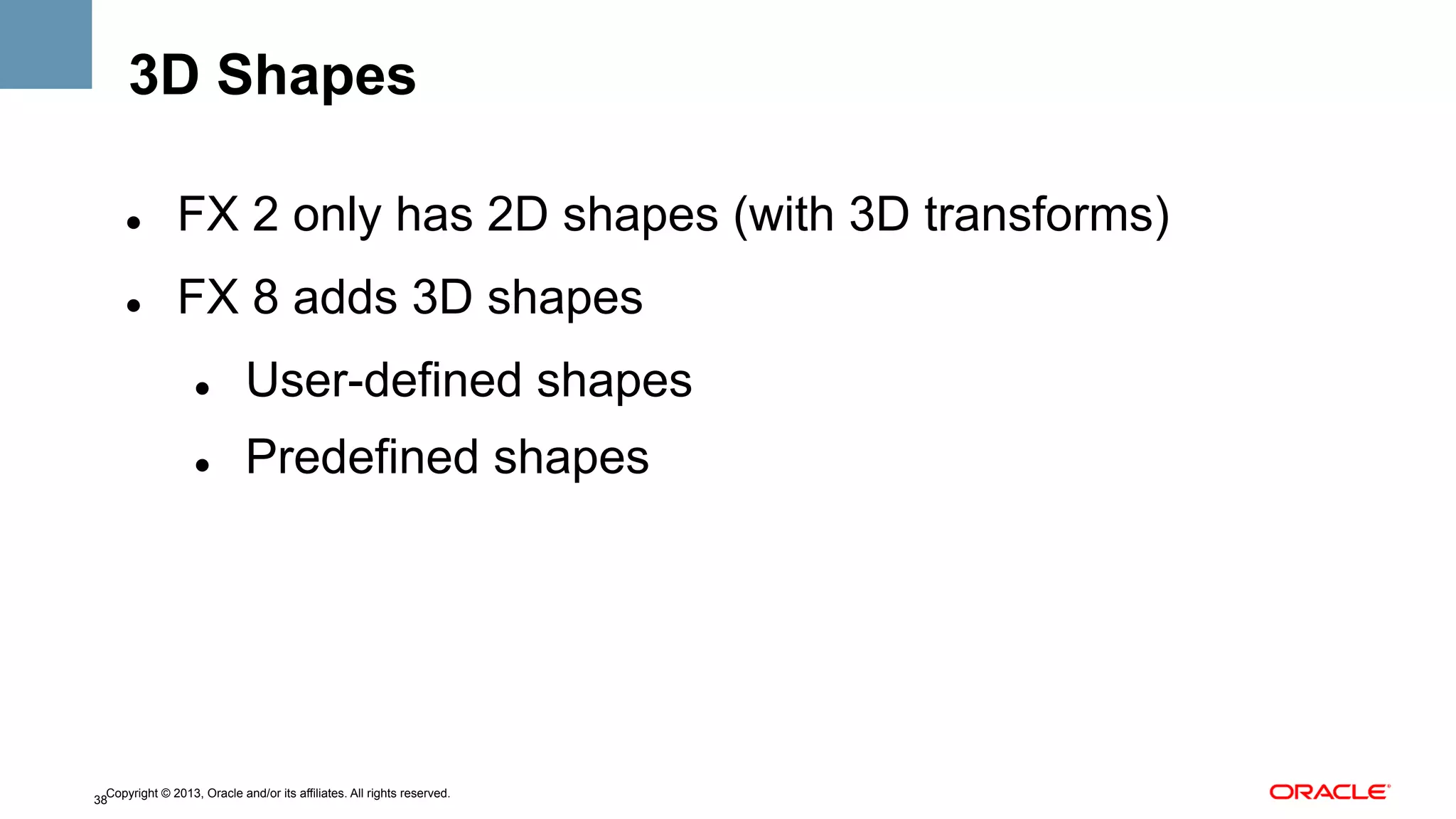

3D Shapes
" 

FX 2 only has 2D shapes (with 3D transforms)

" 

FX 8 adds 3D shapes
" 

User-defined shapes

" 

Predefined shapes

38

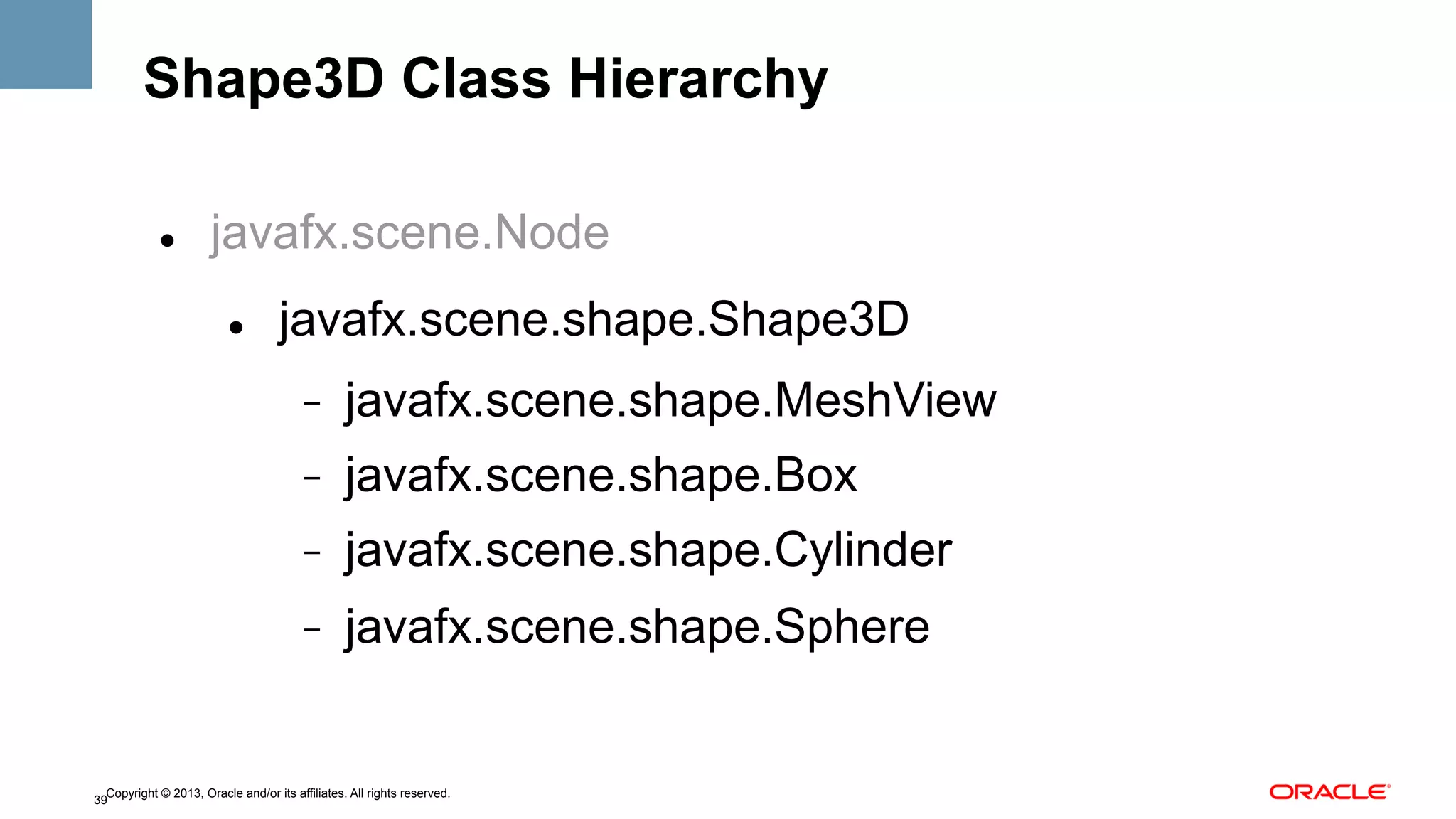

Shape3D Class Hierarchy
" 

javafx.scene.Node
" 

javafx.scene.shape.Shape3D
- 

javafx.scene.shape.MeshView

- 

javafx.scene.shape.Box

- 

javafx.scene.shape.Cylinder

- 

javafx.scene.shape.Sphere

39

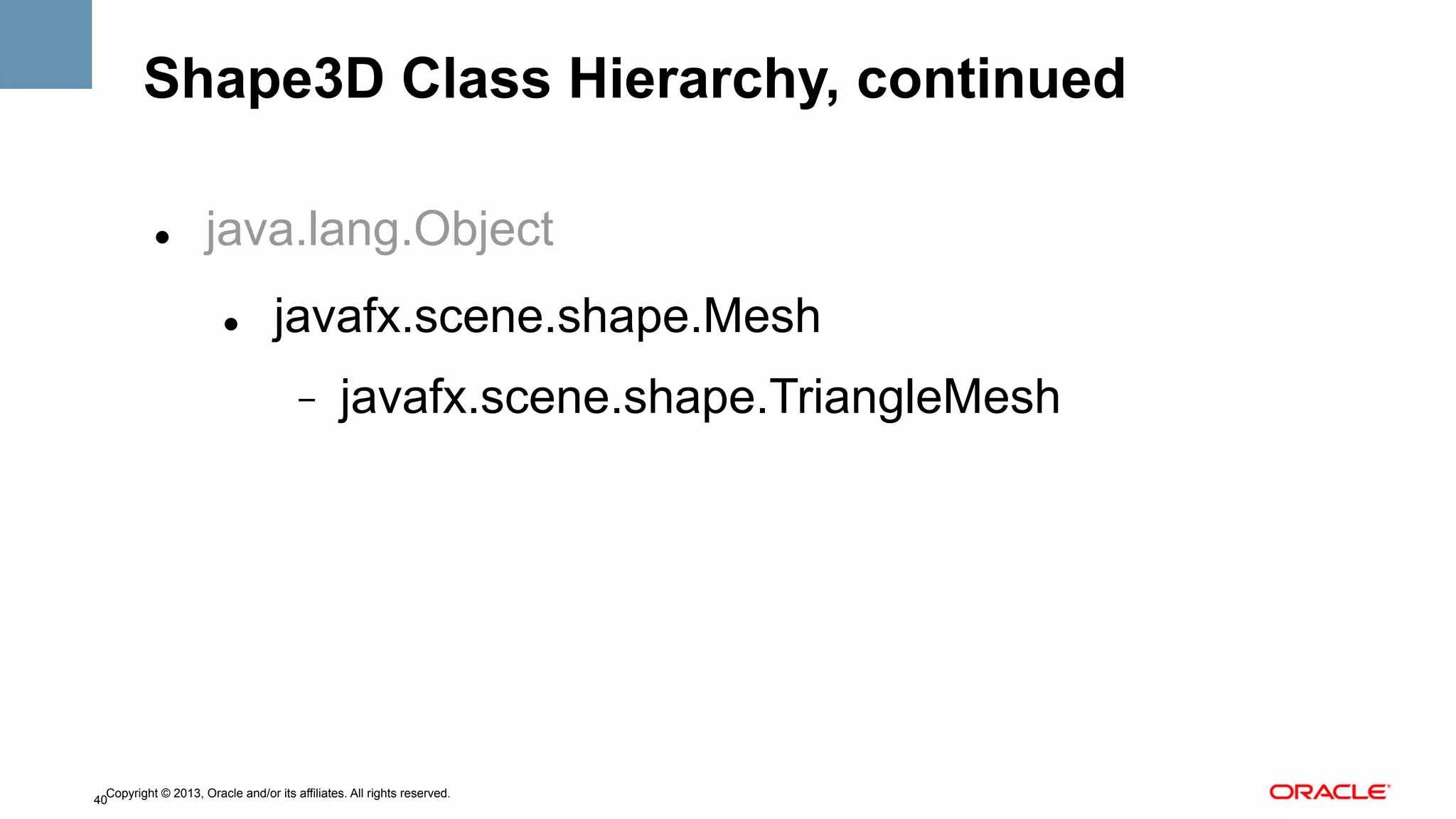

Shape3D Class Hierarchy, continued
" 

java.lang.Object
" 

javafx.scene.shape.Mesh
- 

javafx.scene.shape.TriangleMesh

40

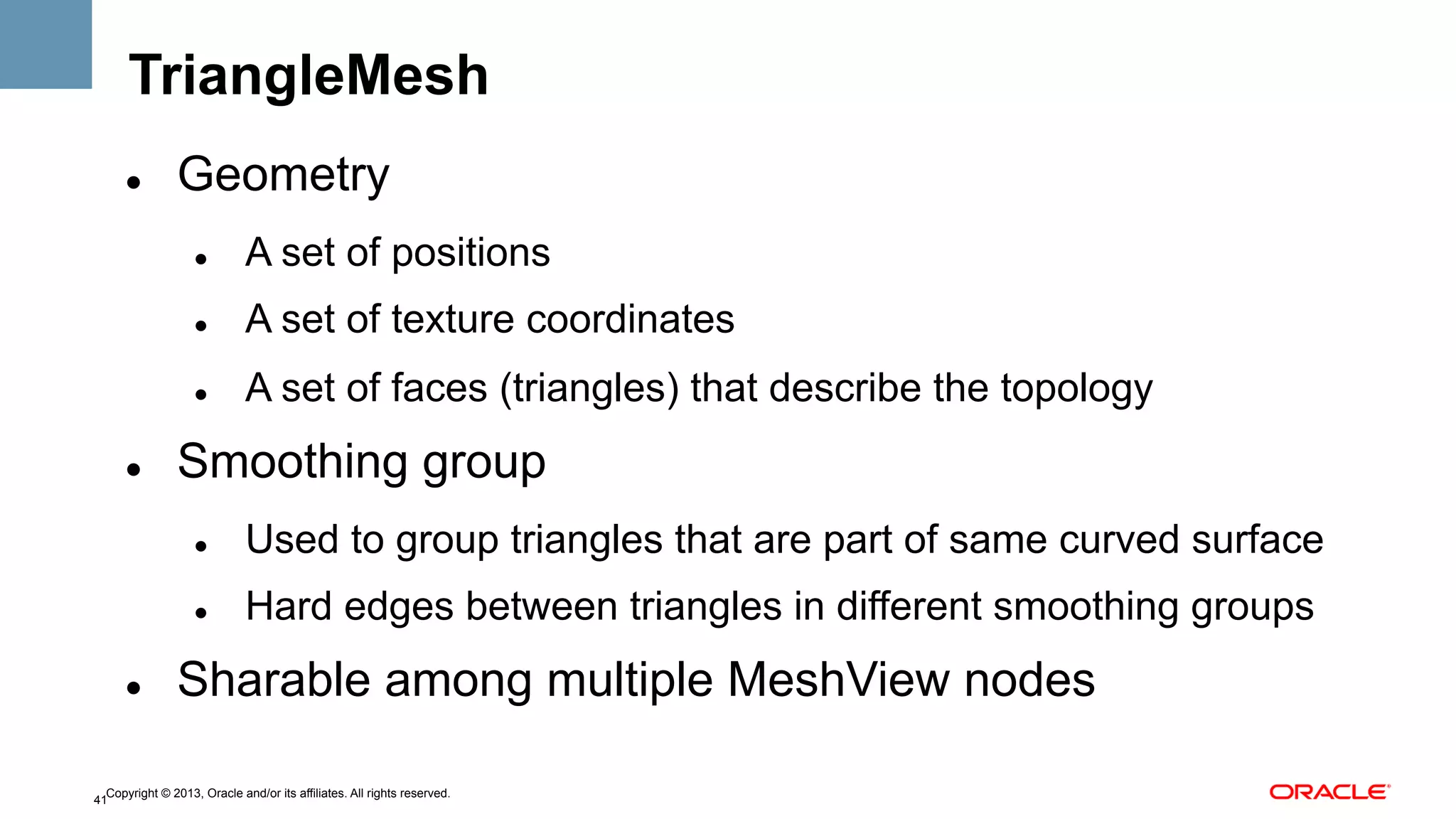

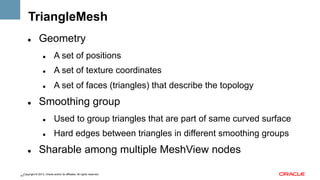

TriangleMesh
" 

Geometry
" 

" 

A set of texture coordinates

" 

" 

A set of positions
A set of faces (triangles) that describe the topology

Smoothing group
" 

" 

" 

Used to group triangles that are part of same curved surface
Hard edges between triangles in different smoothing groups

Sharable among multiple MeshView nodes

41

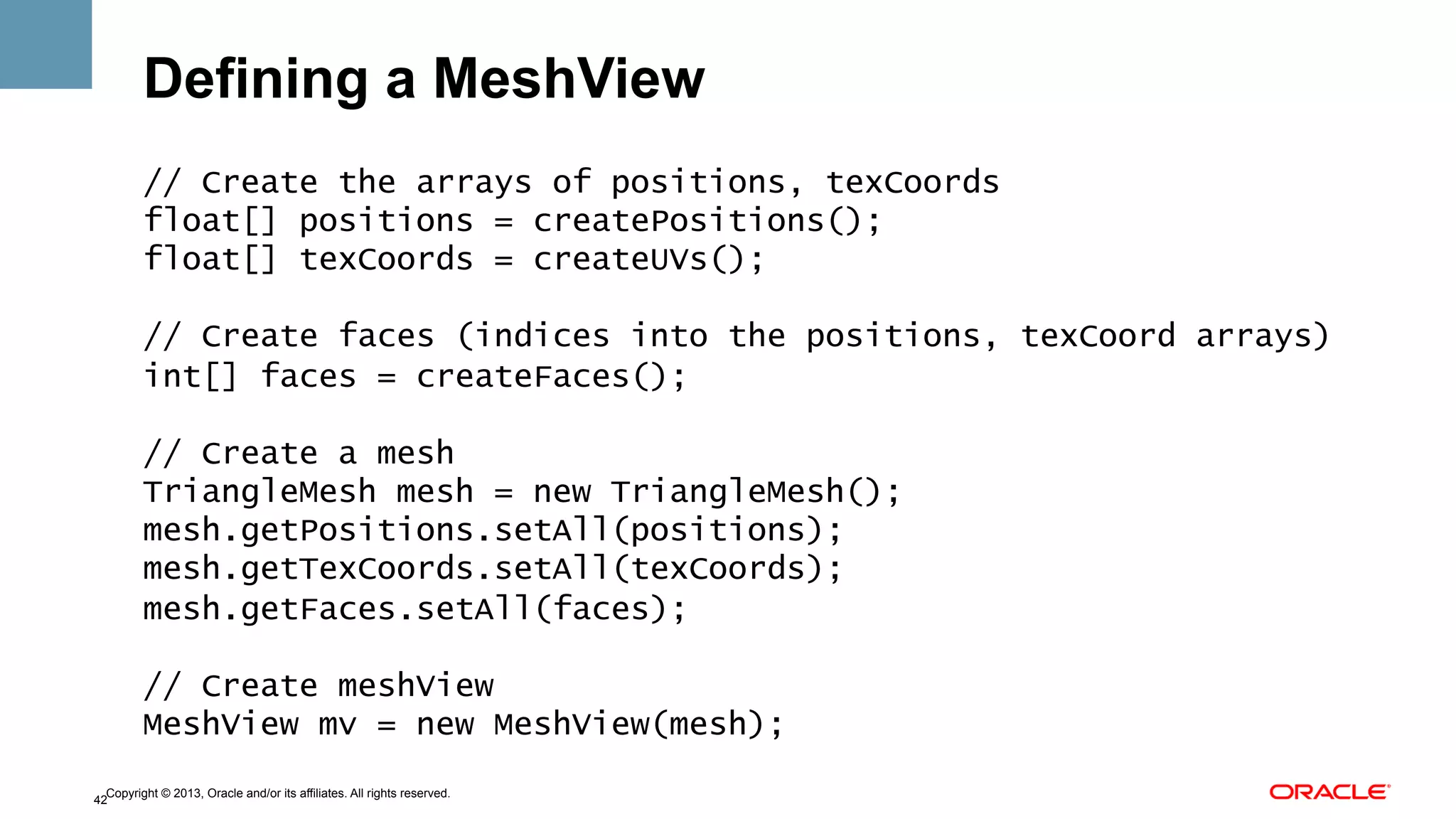

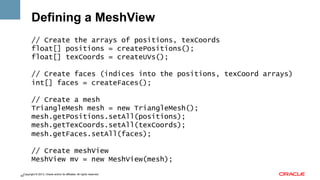

Defining a MeshView
// Create the arrays of positions, texCoords
float[] positions = createPositions();
float[] texCoords = createUVs();
// Create faces (indices into the positions, texCoord arrays)
int[] faces = createFaces();
// Create a mesh
TriangleMesh mesh = new TriangleMesh();
mesh.getPositions.setAll(positions);
mesh.getTexCoords.setAll(texCoords);
mesh.getFaces.setAll(faces);
// Create meshView
MeshView mv = new MeshView(mesh);
42

MeshView Demo

43

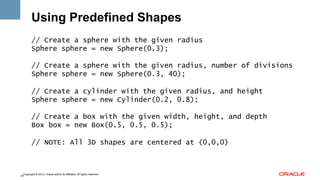

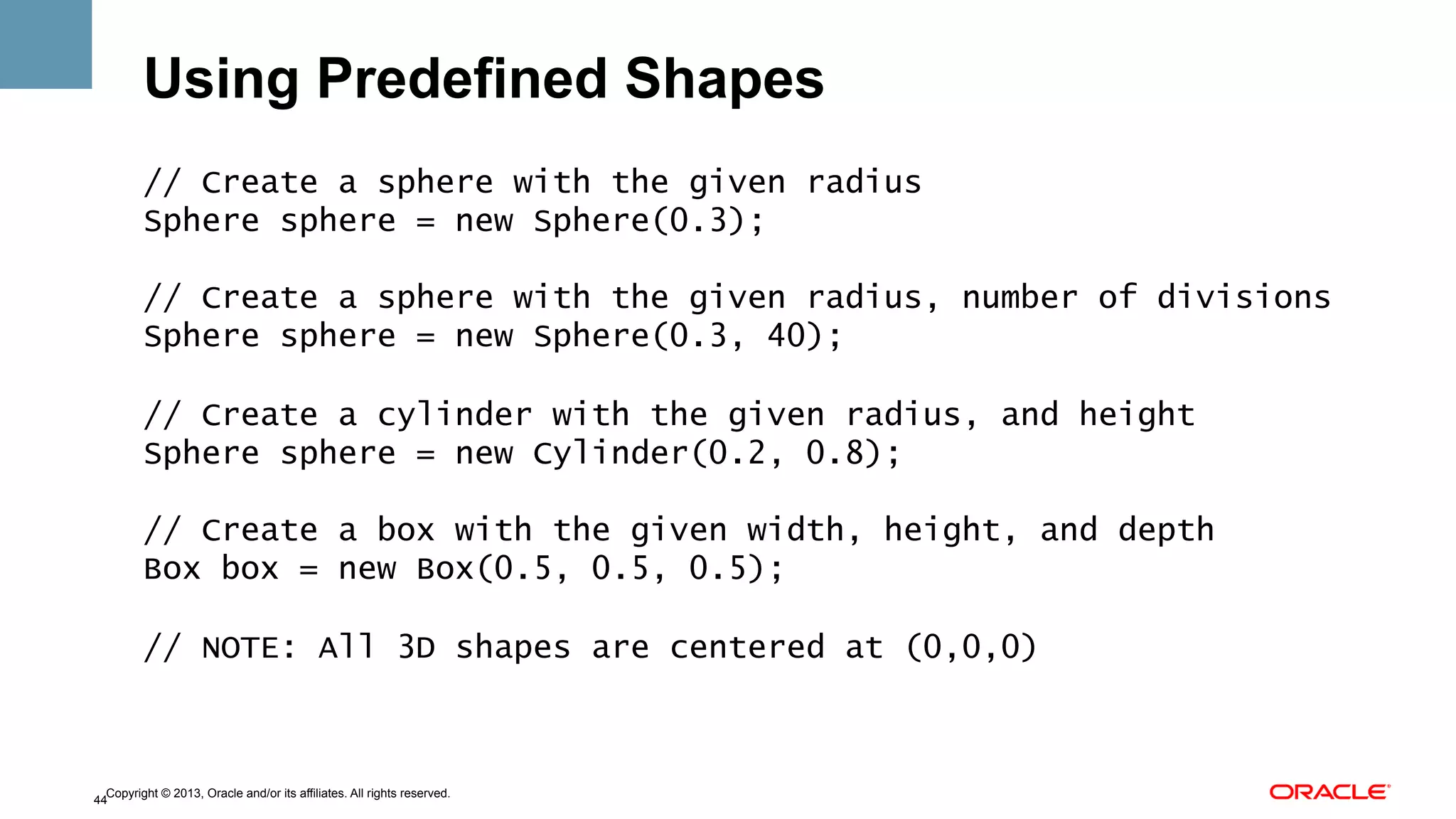

Using Predefined Shapes
// Create a sphere with the given radius
Sphere sphere = new Sphere(0.3);
// Create a sphere with the given radius, number of divisions
Sphere sphere = new Sphere(0.3, 40);
// Create a cylinder with the given radius, and height
Sphere sphere = new Cylinder(0.2, 0.8);
// Create a box with the given width, height, and depth
Box box = new Box(0.5, 0.5, 0.5);
// NOTE: All 3D shapes are centered at (0,0,0)

44

Predefined Shapes Demo

45

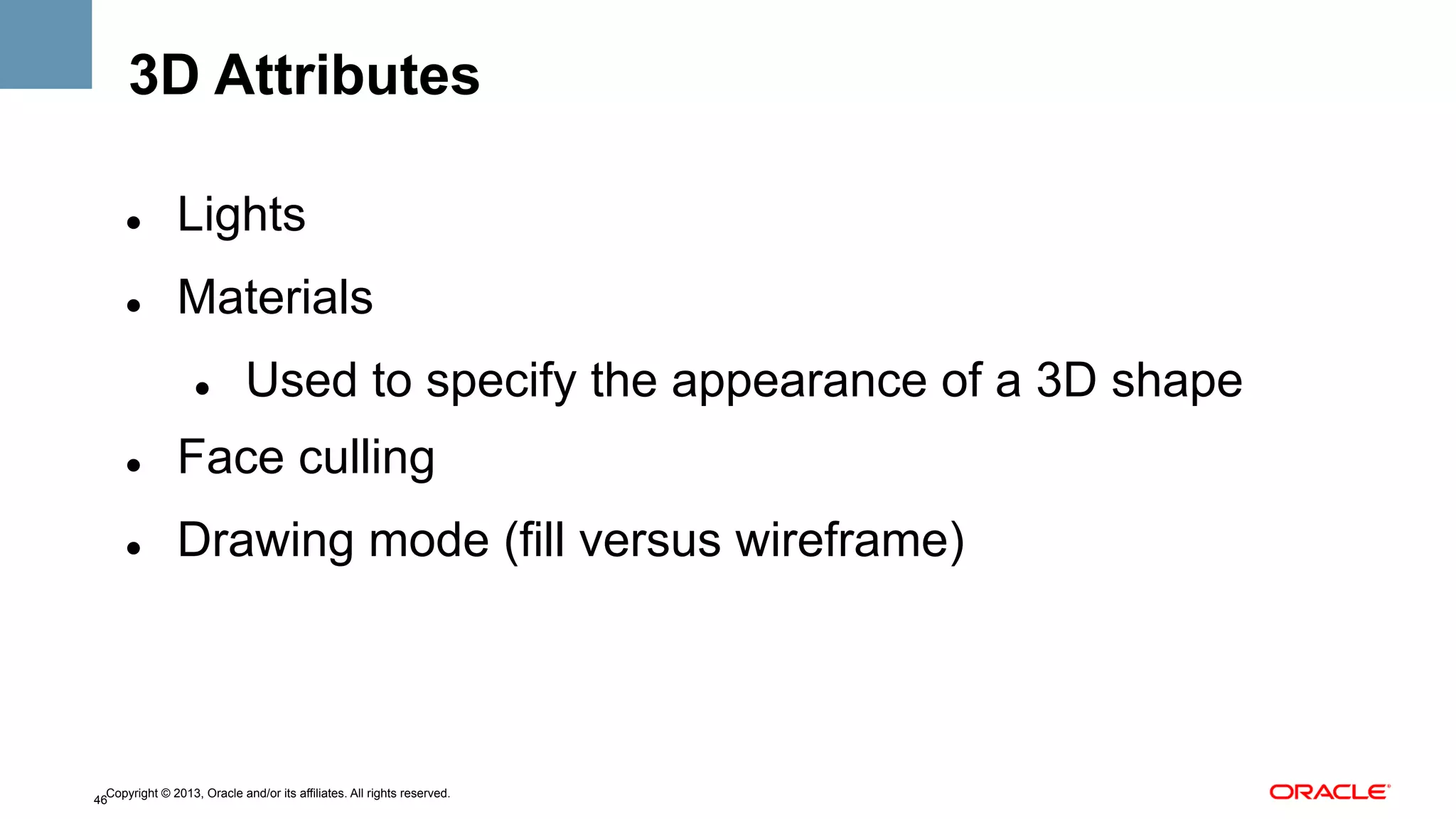

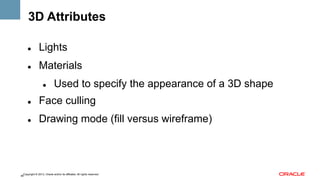

3D Attributes
" 

Lights

" 

Materials
" 

Used to specify the appearance of a 3D shape

" 

Face culling

" 

Drawing mode (fill versus wireframe)

46

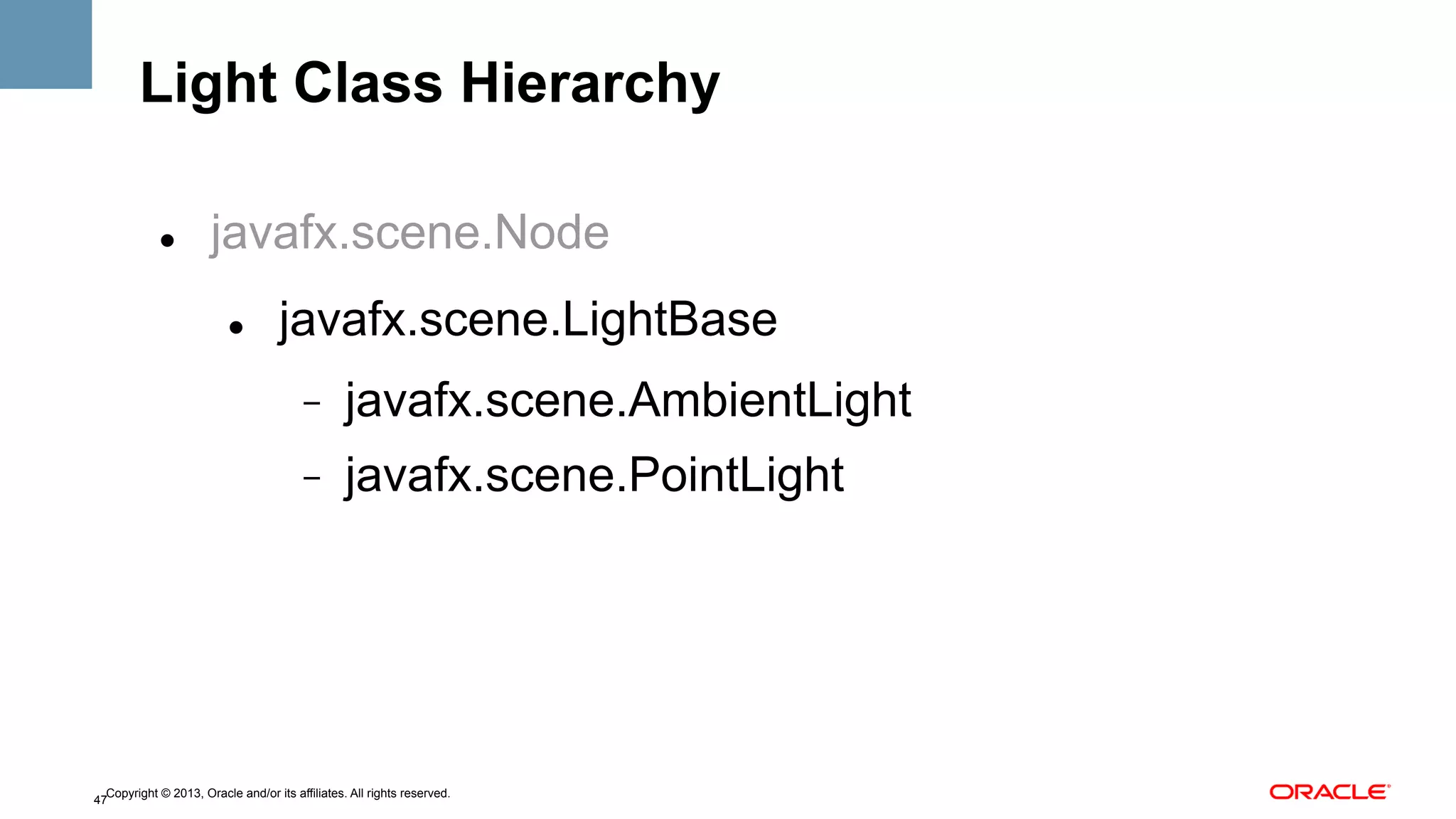

Light Class Hierarchy
" 

javafx.scene.Node
" 

javafx.scene.LightBase
- 

javafx.scene.AmbientLight

- 

javafx.scene.PointLight

47

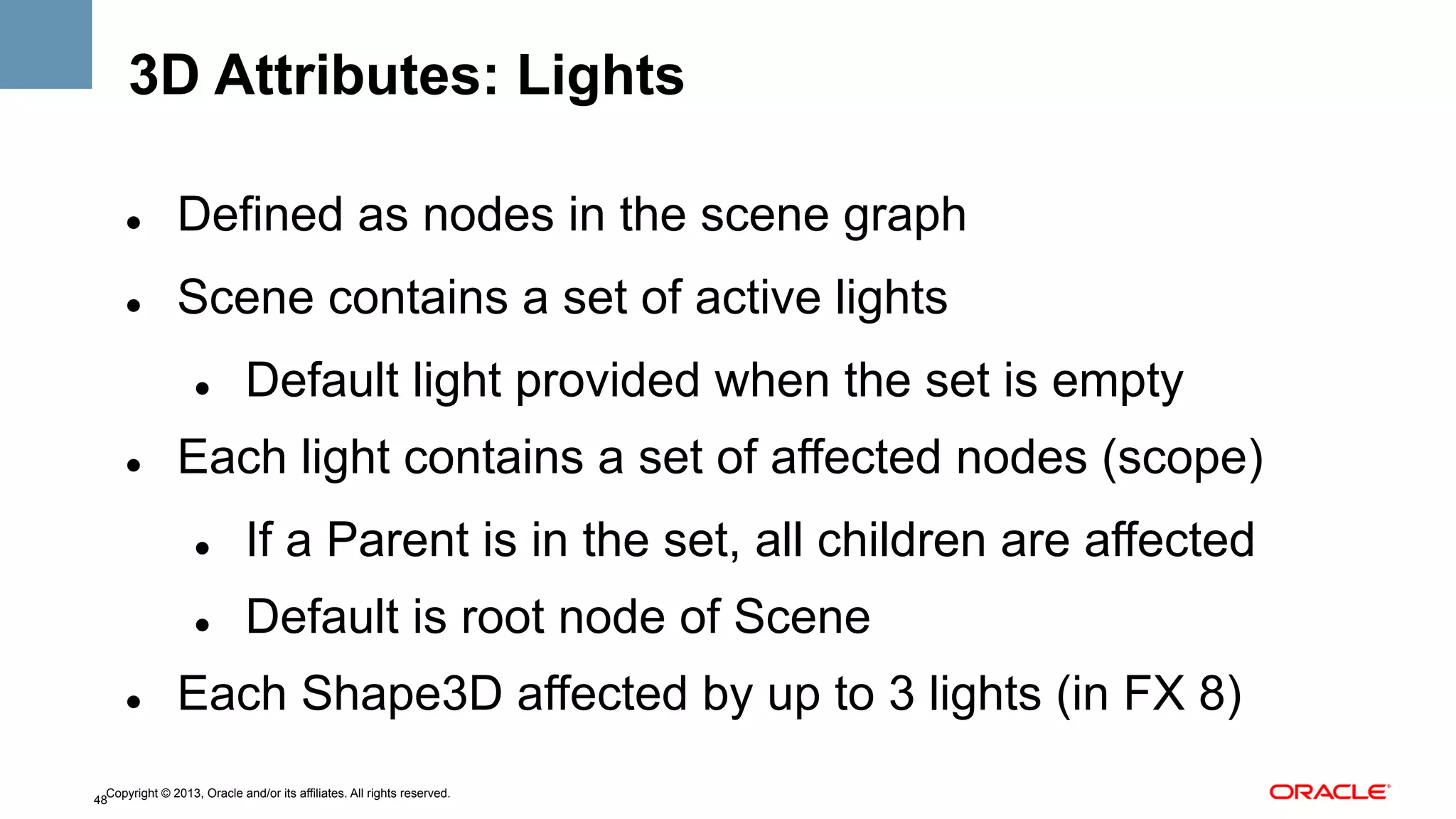

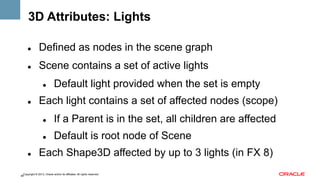

3D Attributes: Lights
" 

Defined as nodes in the scene graph

" 

Scene contains a set of active lights
" 

" 

Default light provided when the set is empty

Each light contains a set of affected nodes (scope)
" 
" 

" 

If a Parent is in the set, all children are affected
Default is root node of Scene

Each Shape3D affected by up to 3 lights (in FX 8)

48

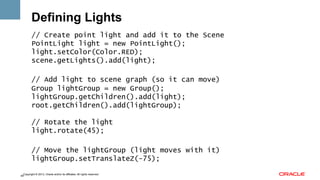

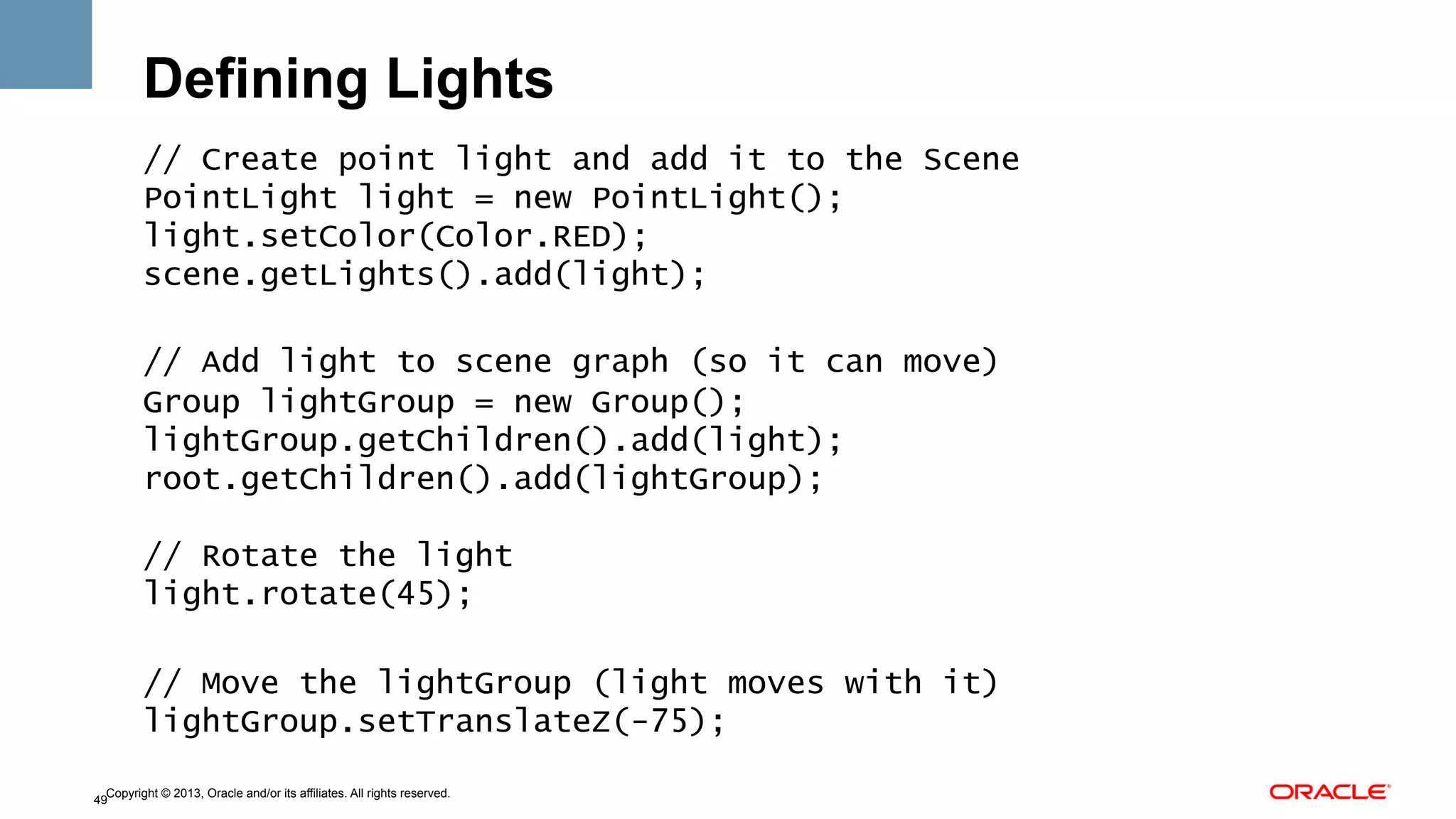

Defining Lights
// Create point light and add it to the Scene
PointLight light = new PointLight();
light.setColor(Color.RED);
scene.getLights().add(light);
// Add light to scene graph (so it can move)
Group lightGroup = new Group();
lightGroup.getChildren().add(light);
root.getChildren().add(lightGroup);
// Rotate the light
light.rotate(45);
// Move the lightGroup (light moves with it)
lightGroup.setTranslateZ(-75);
49

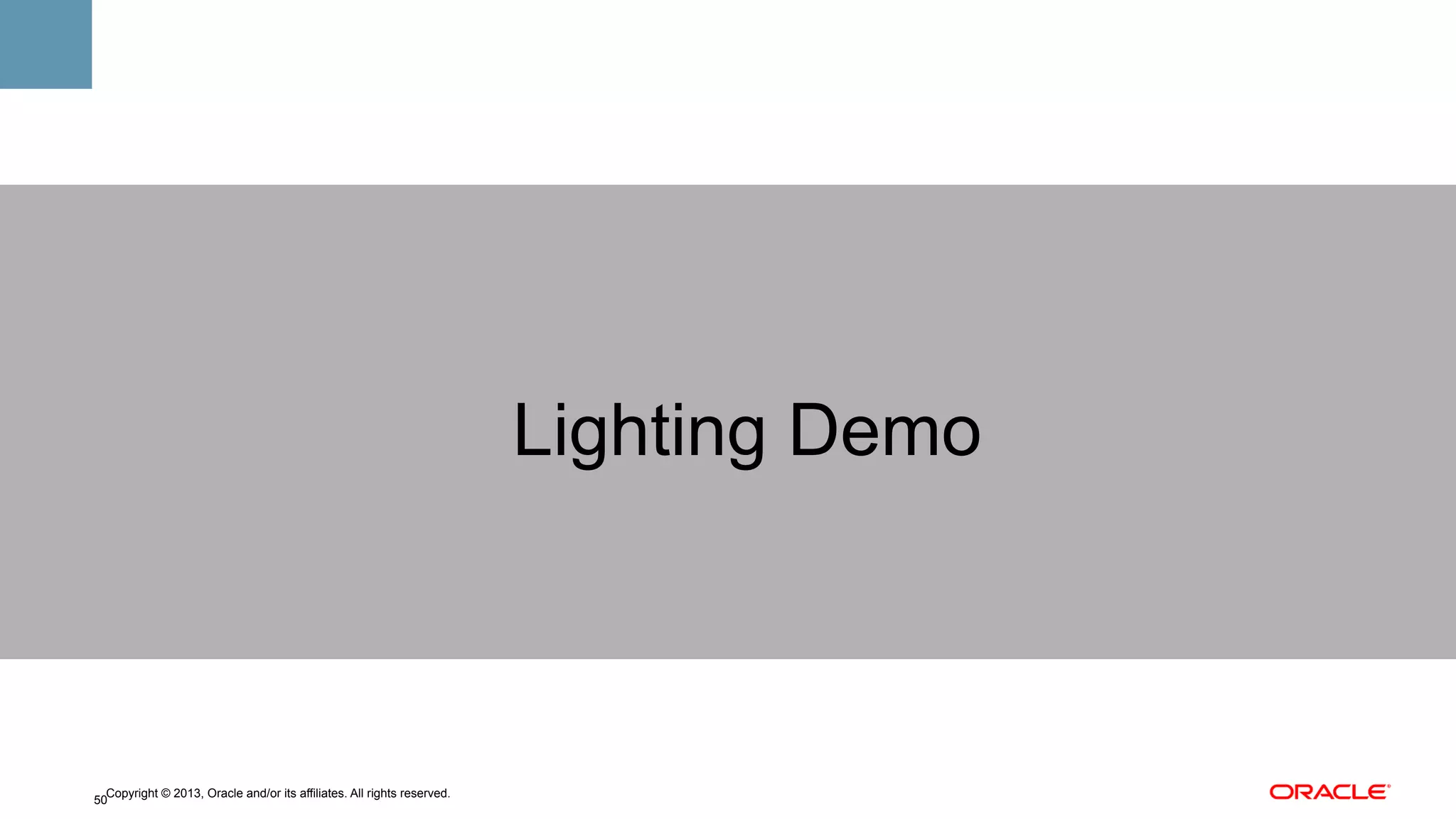

Lighting Demo

50

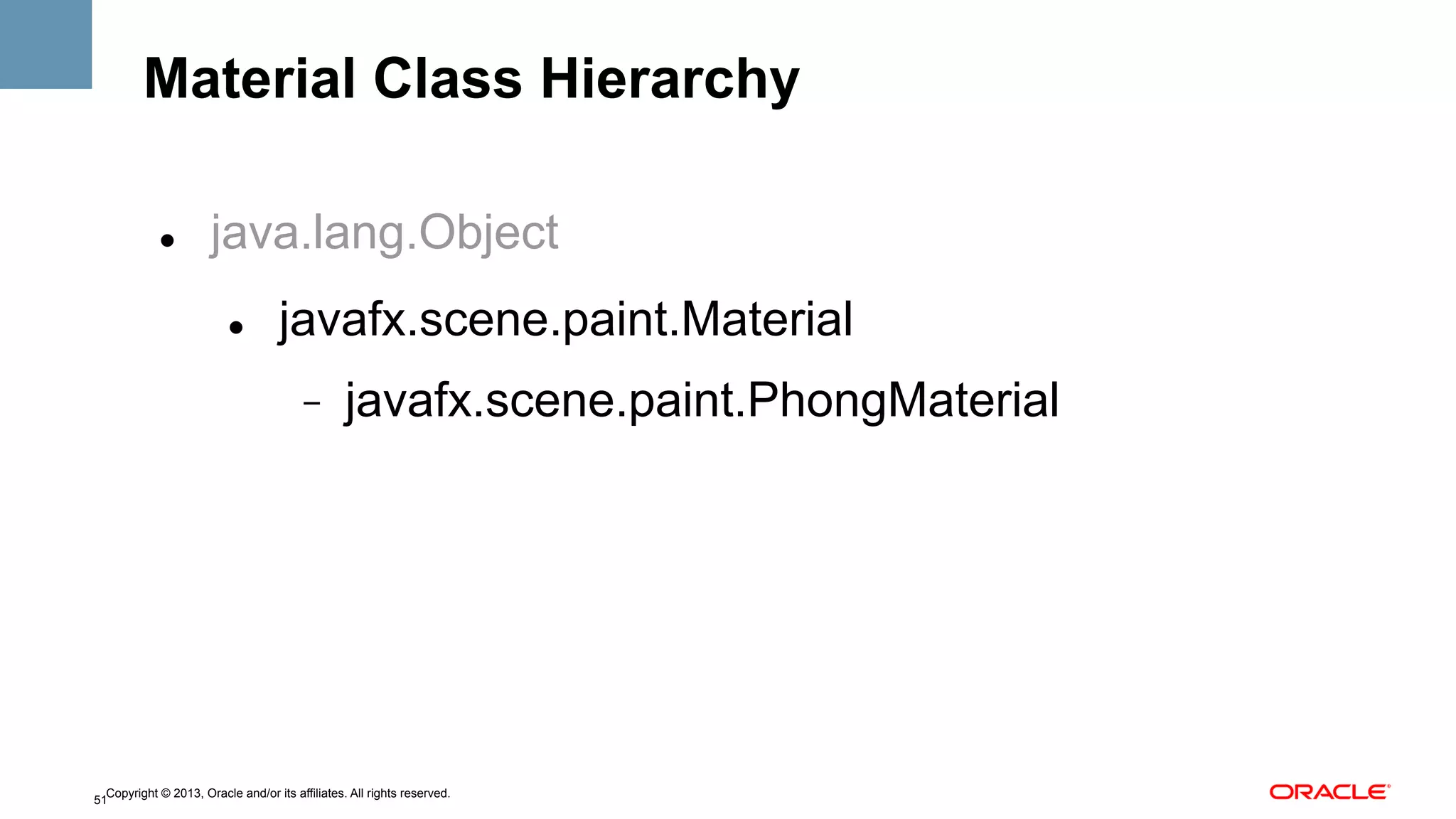

Material Class Hierarchy
" 

java.lang.Object
" 

javafx.scene.paint.Material
- 

javafx.scene.paint.PhongMaterial

51

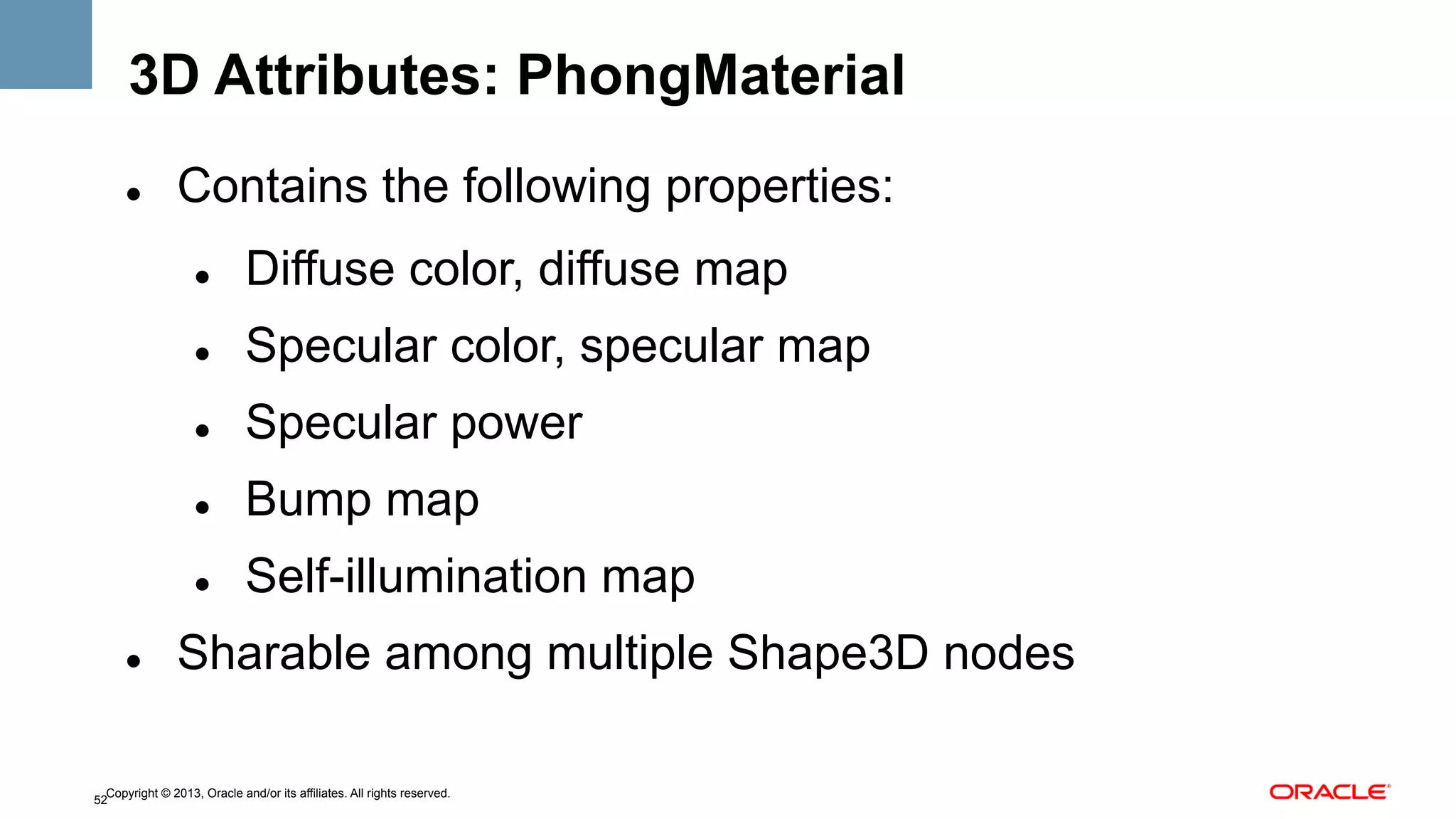

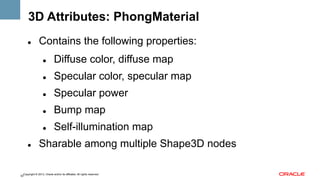

3D Attributes: PhongMaterial
" 

Contains the following properties:
" 
" 

Specular color, specular map

" 

Specular power

" 

Bump map

" 
" 

Diffuse color, diffuse map

Self-illumination map

Sharable among multiple Shape3D nodes

52

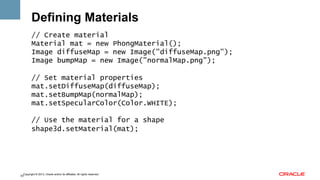

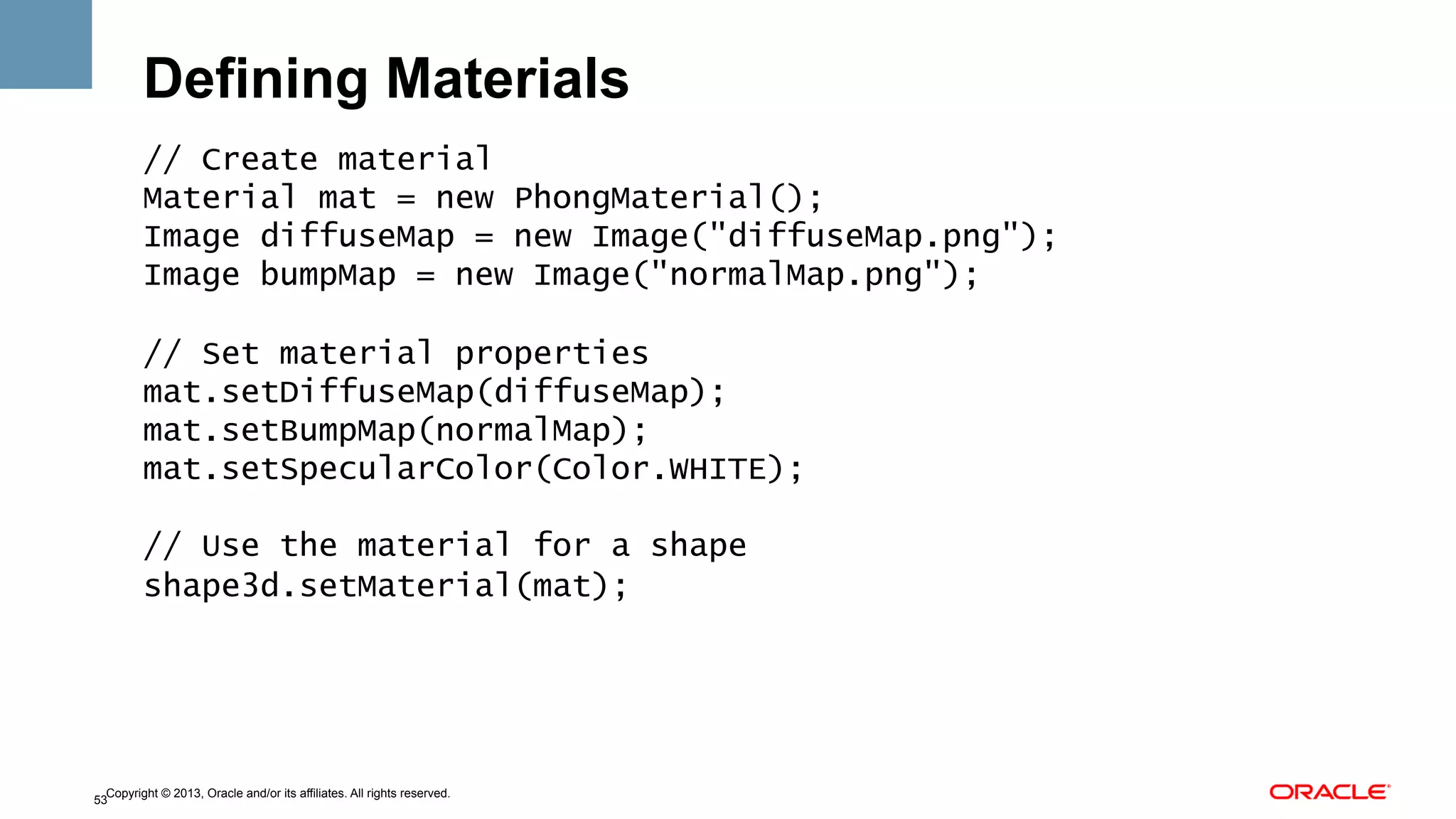

Defining Materials
// Create material
Material mat = new PhongMaterial();
Image diffuseMap = new Image("diffuseMap.png");
Image bumpMap = new Image("normalMap.png");
// Set material properties
mat.setDiffuseMap(diffuseMap);
mat.setBumpMap(normalMap);
mat.setSpecularColor(Color.WHITE);
// Use the material for a shape
shape3d.setMaterial(mat);

53

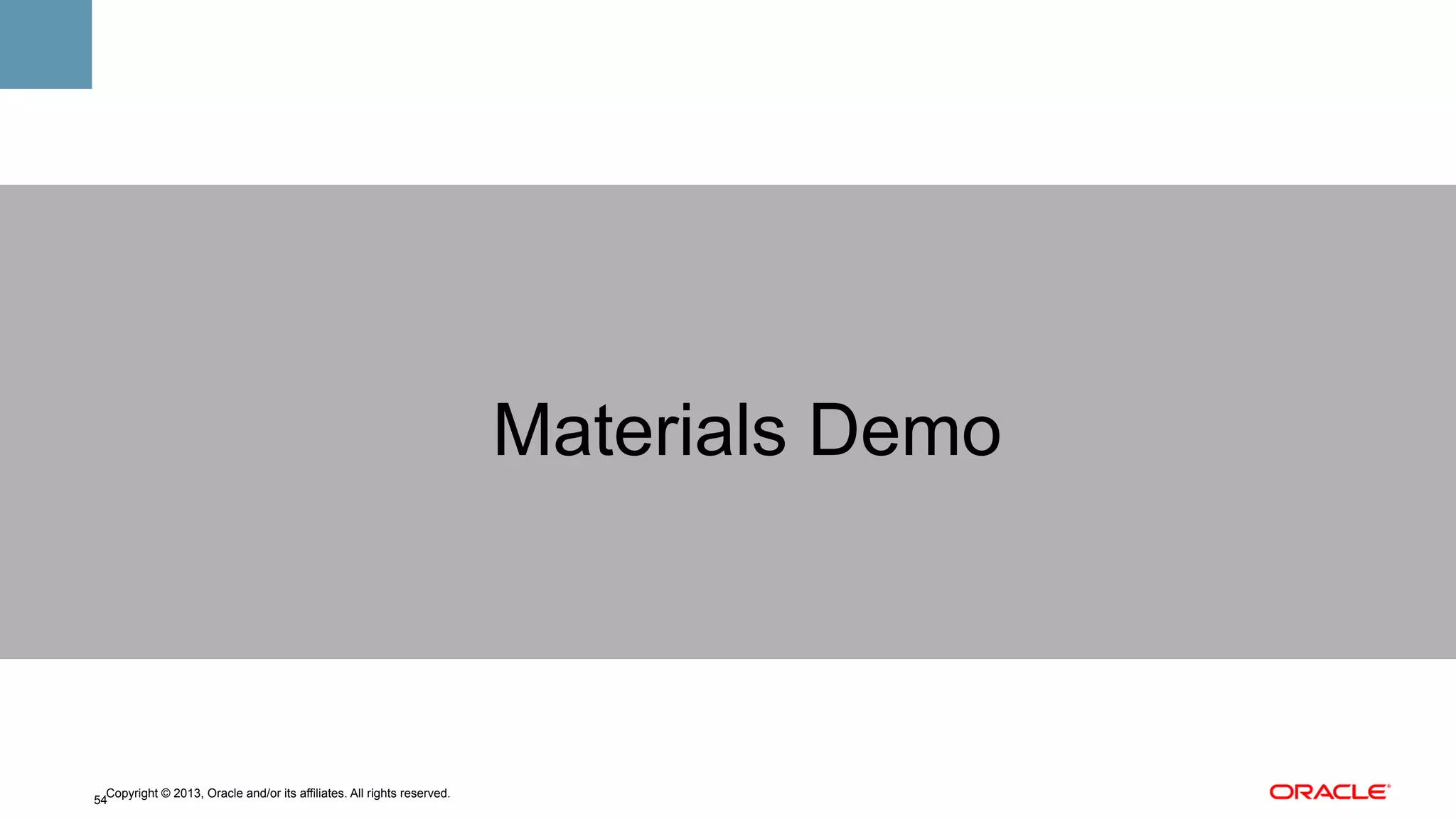

Materials Demo

54

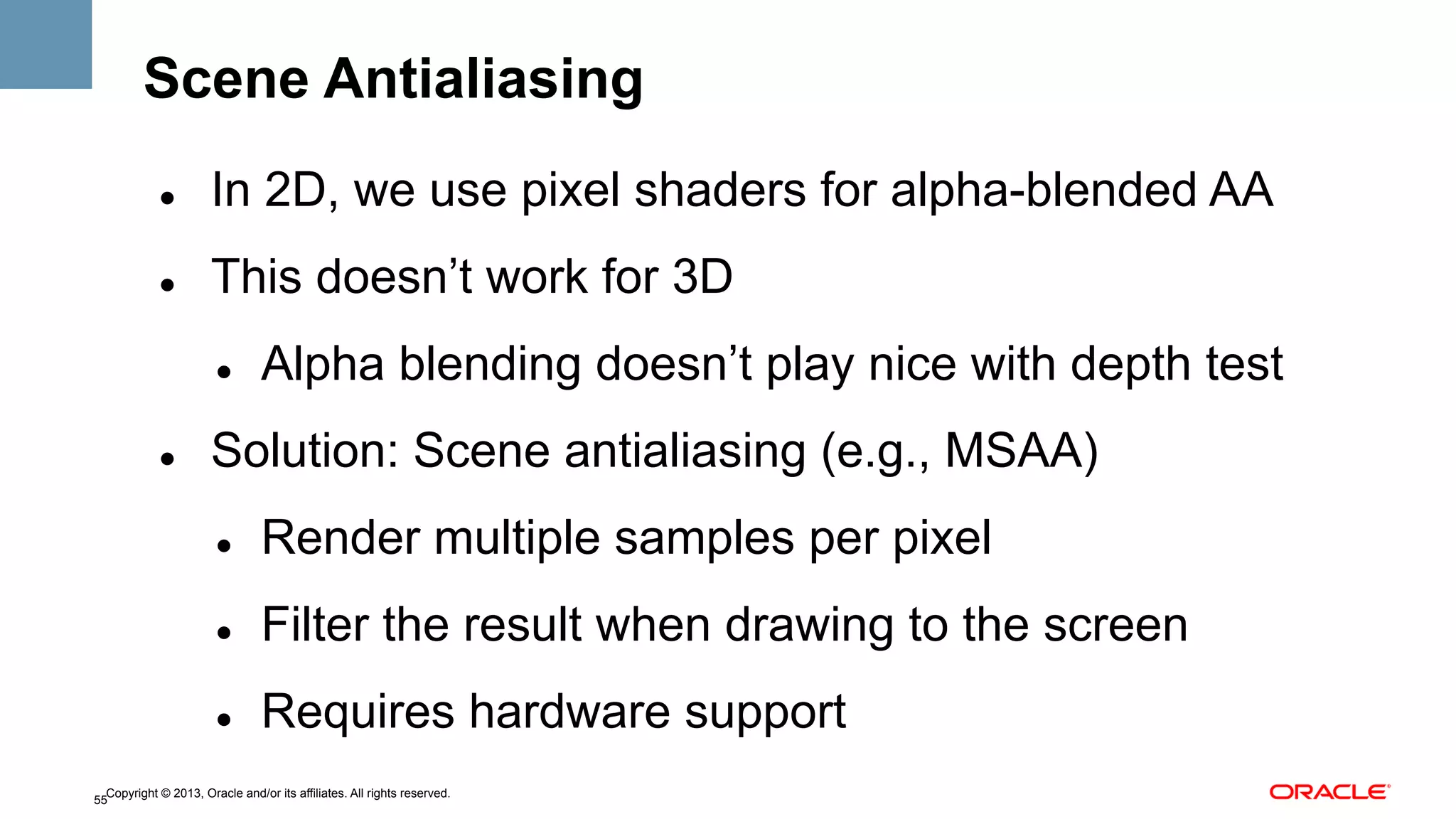

Scene Antialiasing
" 

In 2D, we use pixel shaders for alpha-blended AA

" 

This doesn’t work for 3D
" 

" 

Alpha blending doesn’t play nice with depth test

Solution: Scene antialiasing (e.g., MSAA)
" 

Render multiple samples per pixel

" 

Filter the result when drawing to the screen

" 

Requires hardware support

55

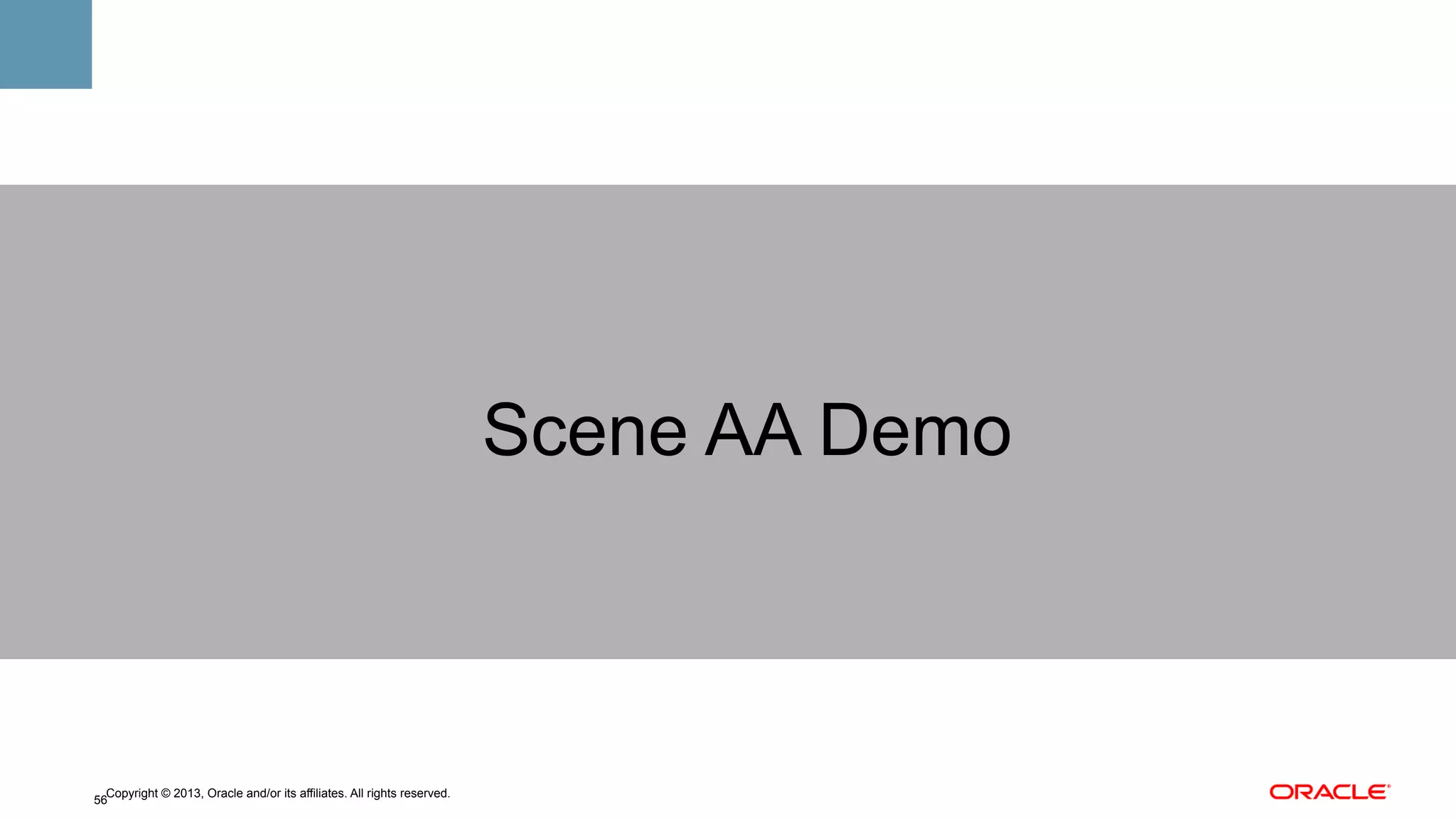

Scene AA Demo

56

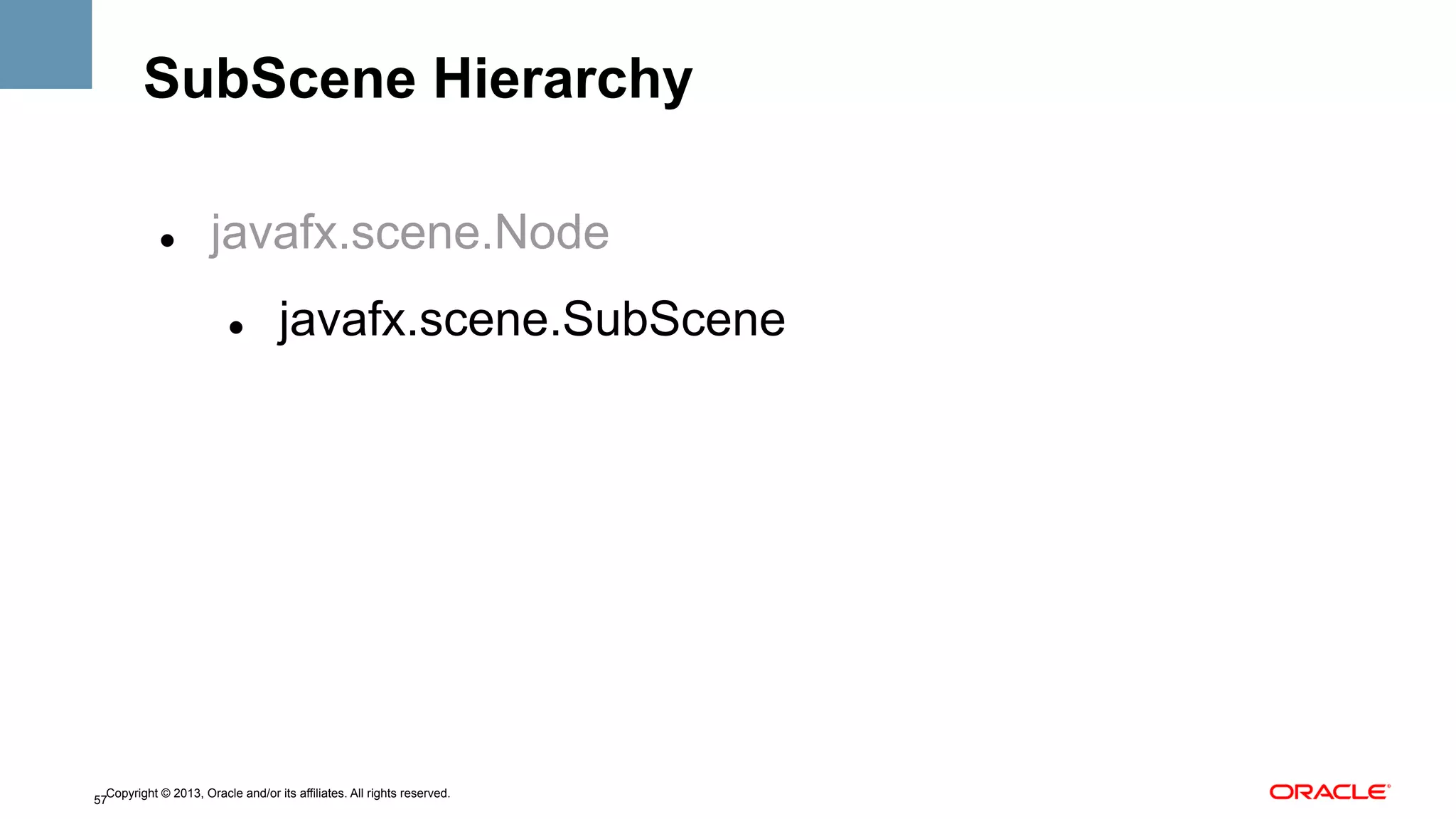

SubScene Hierarchy
" 

javafx.scene.Node
" 

javafx.scene.SubScene

57

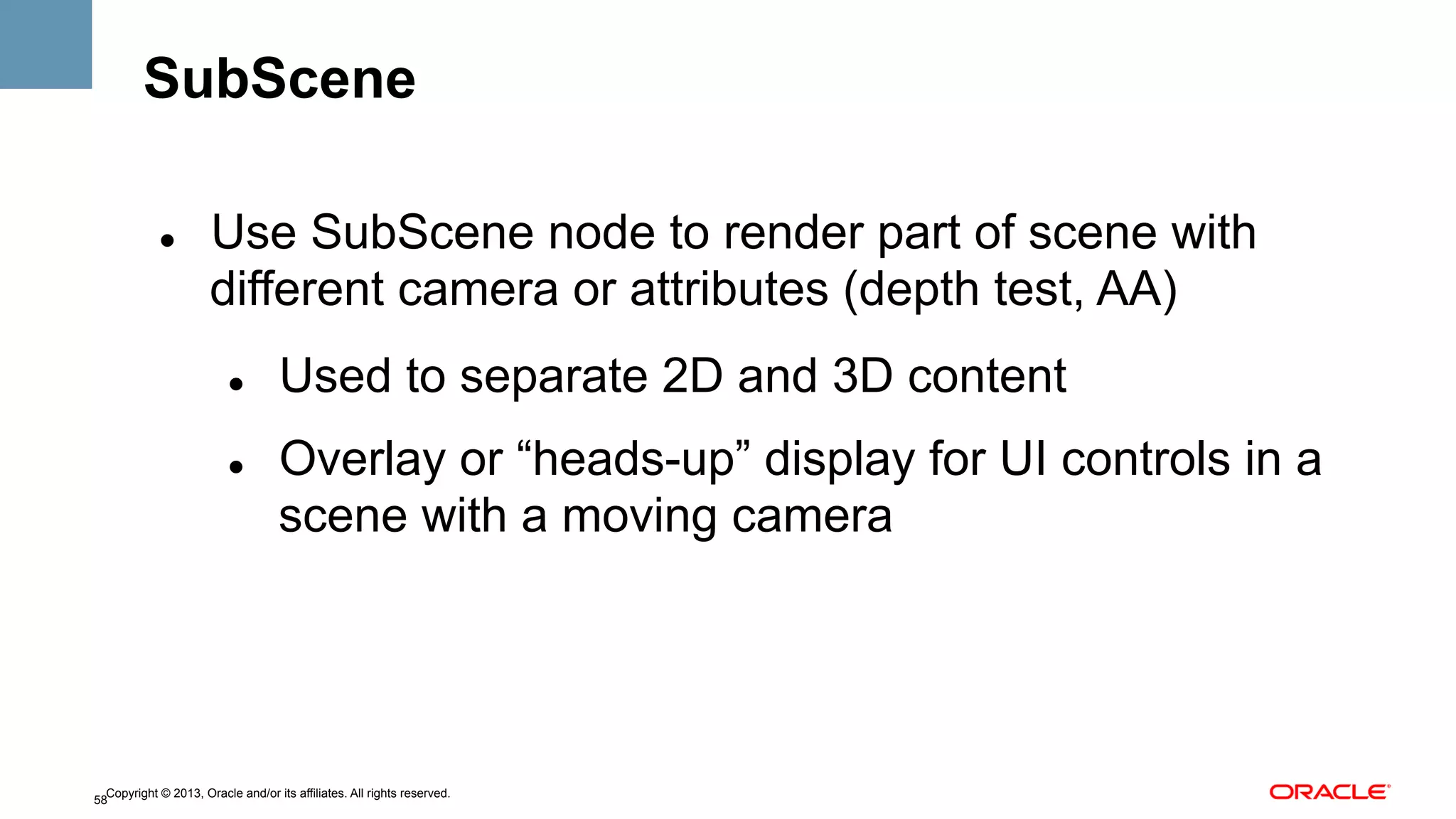

SubScene
" 

Use SubScene node to render part of scene with
different camera or attributes (depth test, AA)
" 

" 

Used to separate 2D and 3D content
Overlay or “heads-up” display for UI controls in a
scene with a moving camera

58

SubScene Demo

59

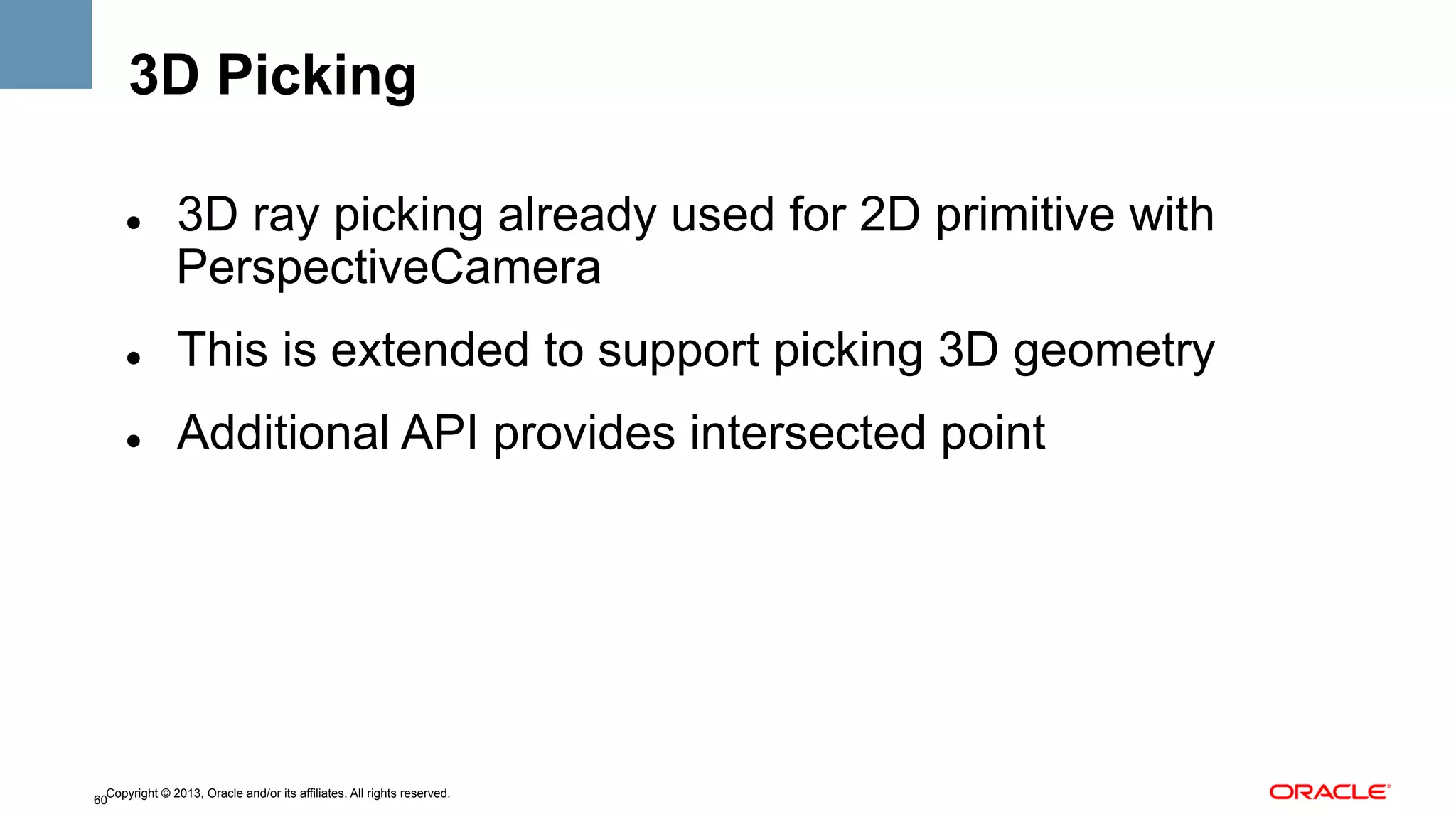

3D Picking
" 

3D ray picking already used for 2D primitive with
PerspectiveCamera

" 

This is extended to support picking 3D geometry

" 

Additional API provides intersected point

60

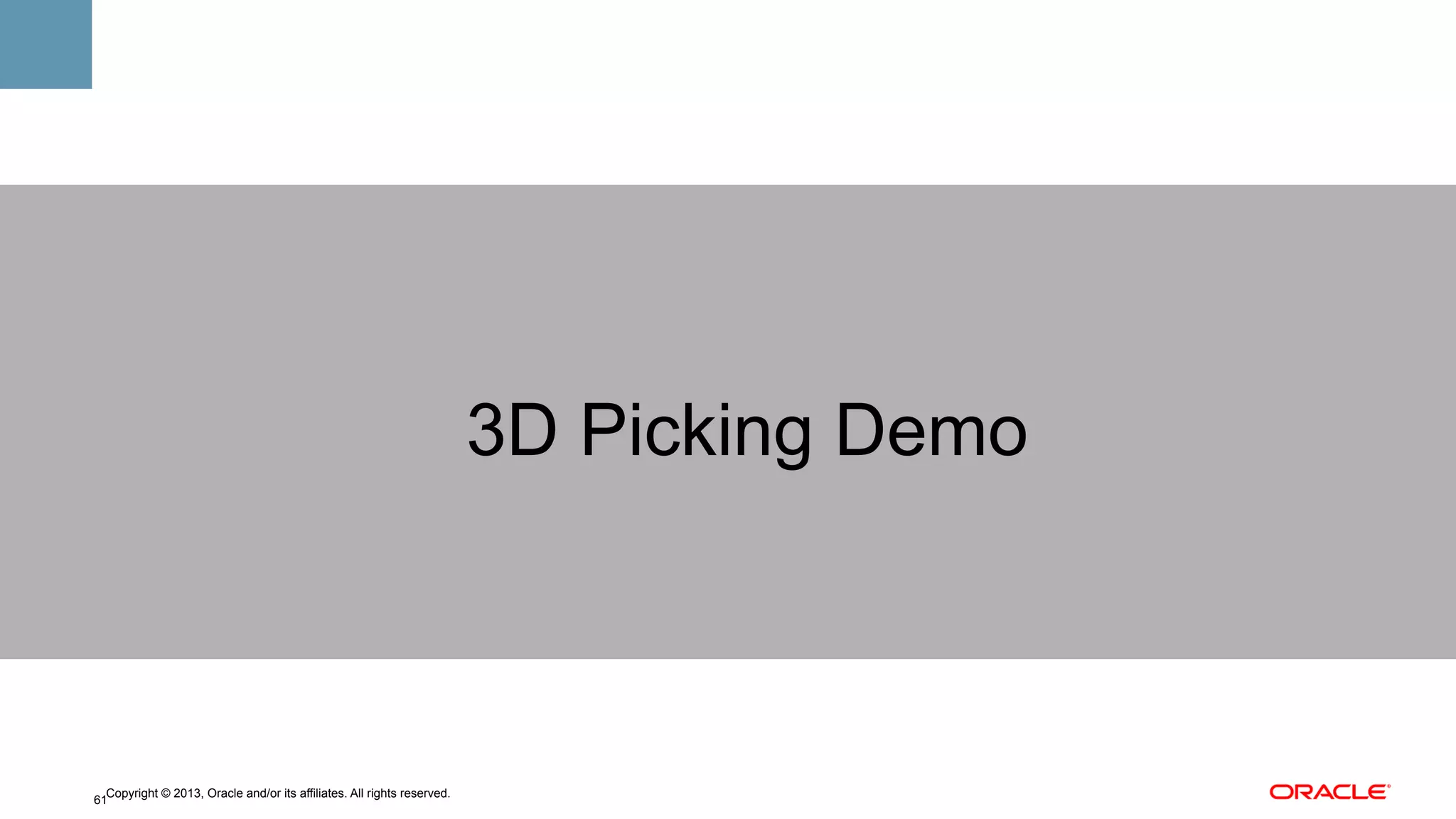

3D Picking Demo

61

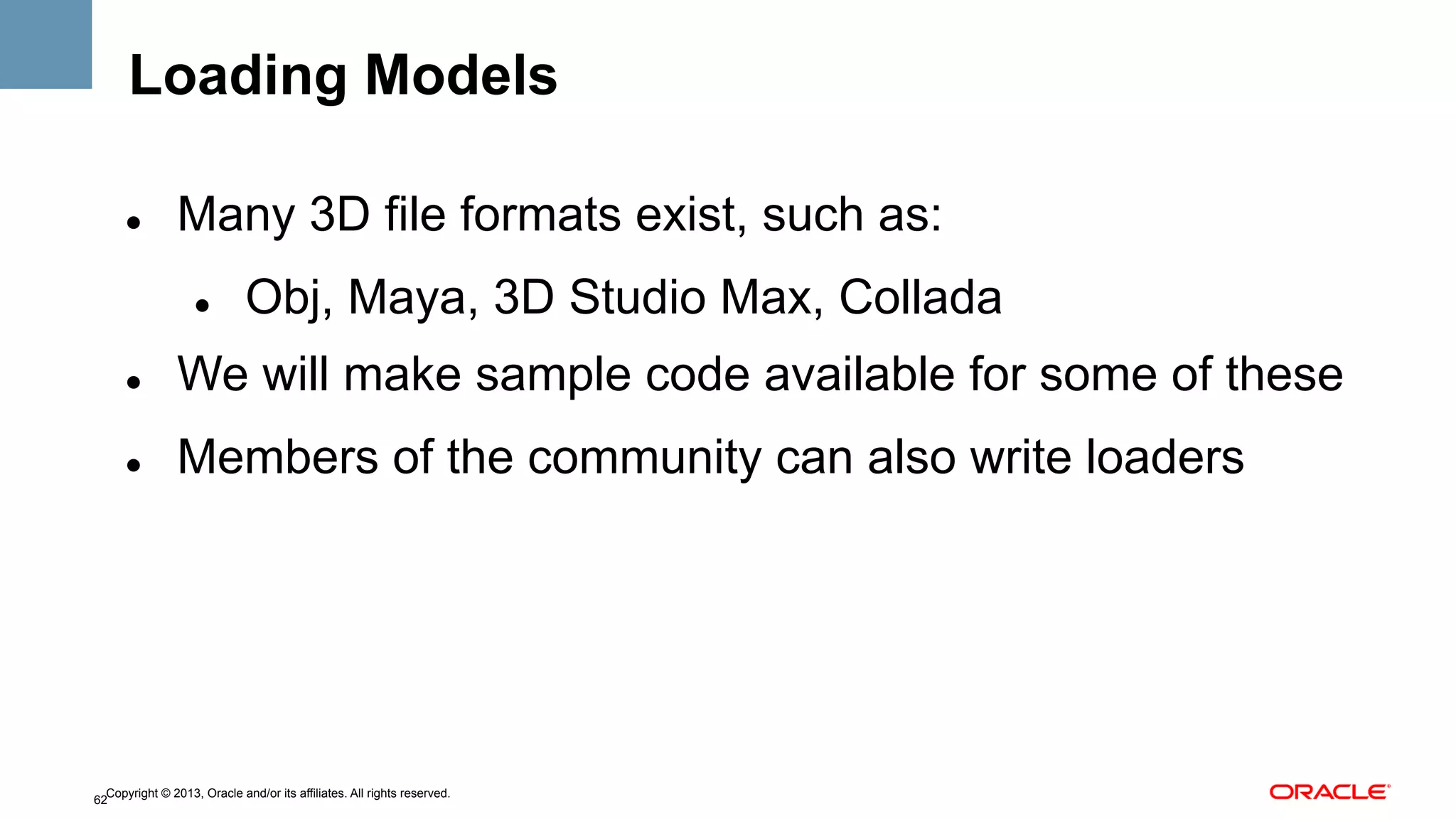

Loading Models
" 

Many 3D file formats exist, such as:
" 

Obj, Maya, 3D Studio Max, Collada

" 

We will make sample code available for some of these

" 

Members of the community can also write loaders

62

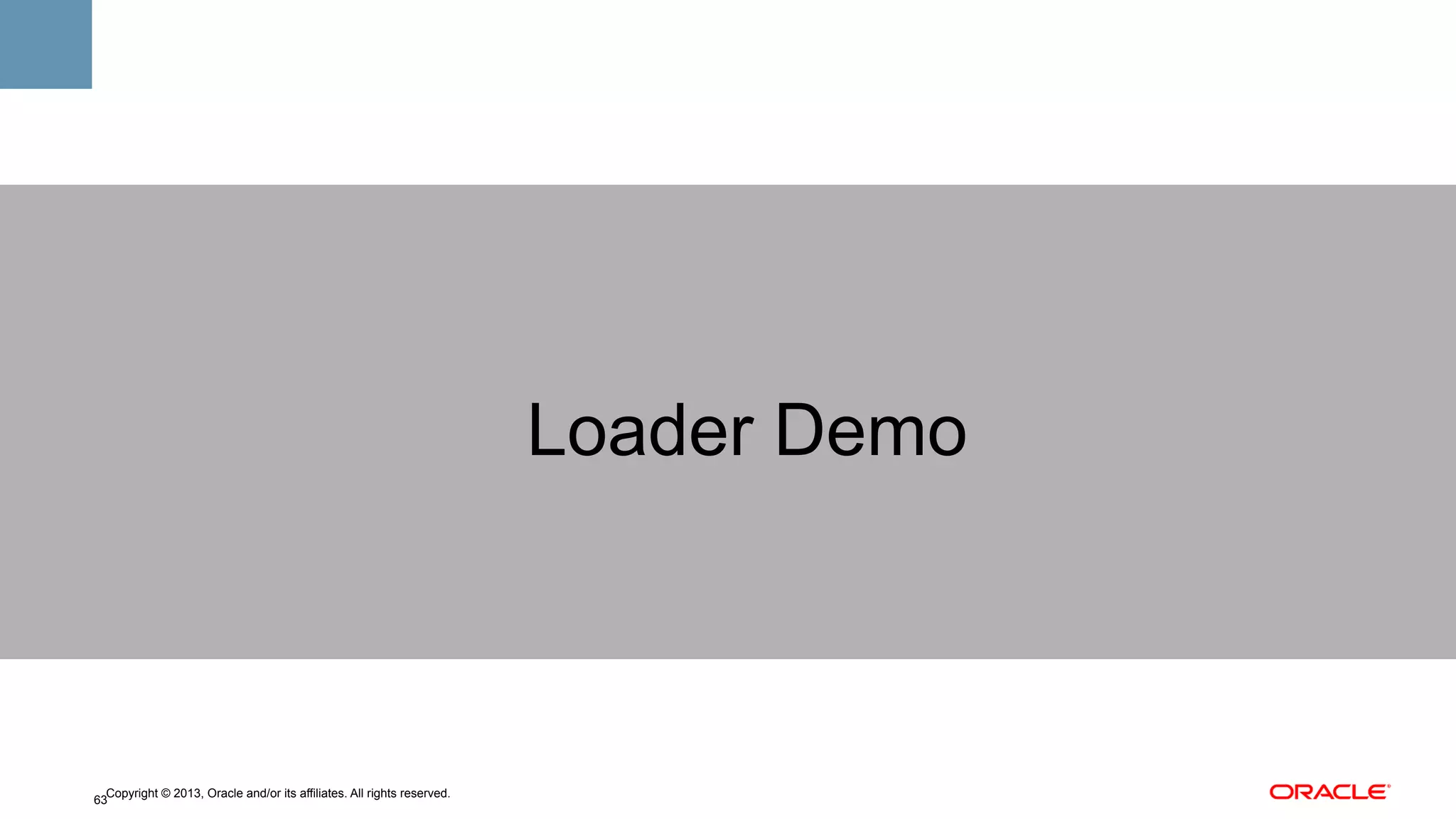

Loader Demo

63

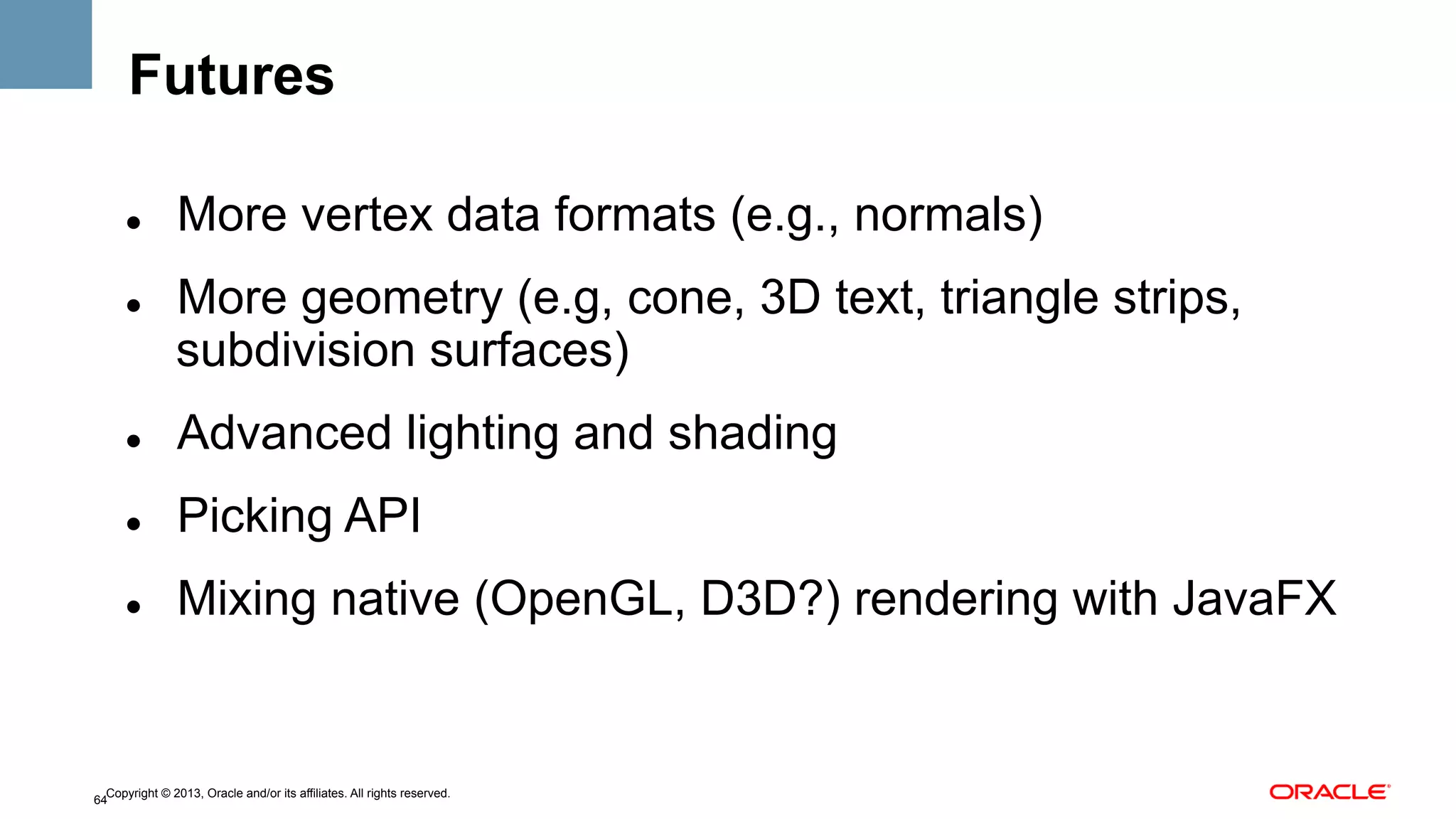

Futures
" 

" 

More vertex data formats (e.g., normals)
More geometry (e.g, cone, 3D text, triangle strips,
subdivision surfaces)

" 

Advanced lighting and shading

" 

Picking API

" 

Mixing native (OpenGL, D3D?) rendering with JavaFX

64

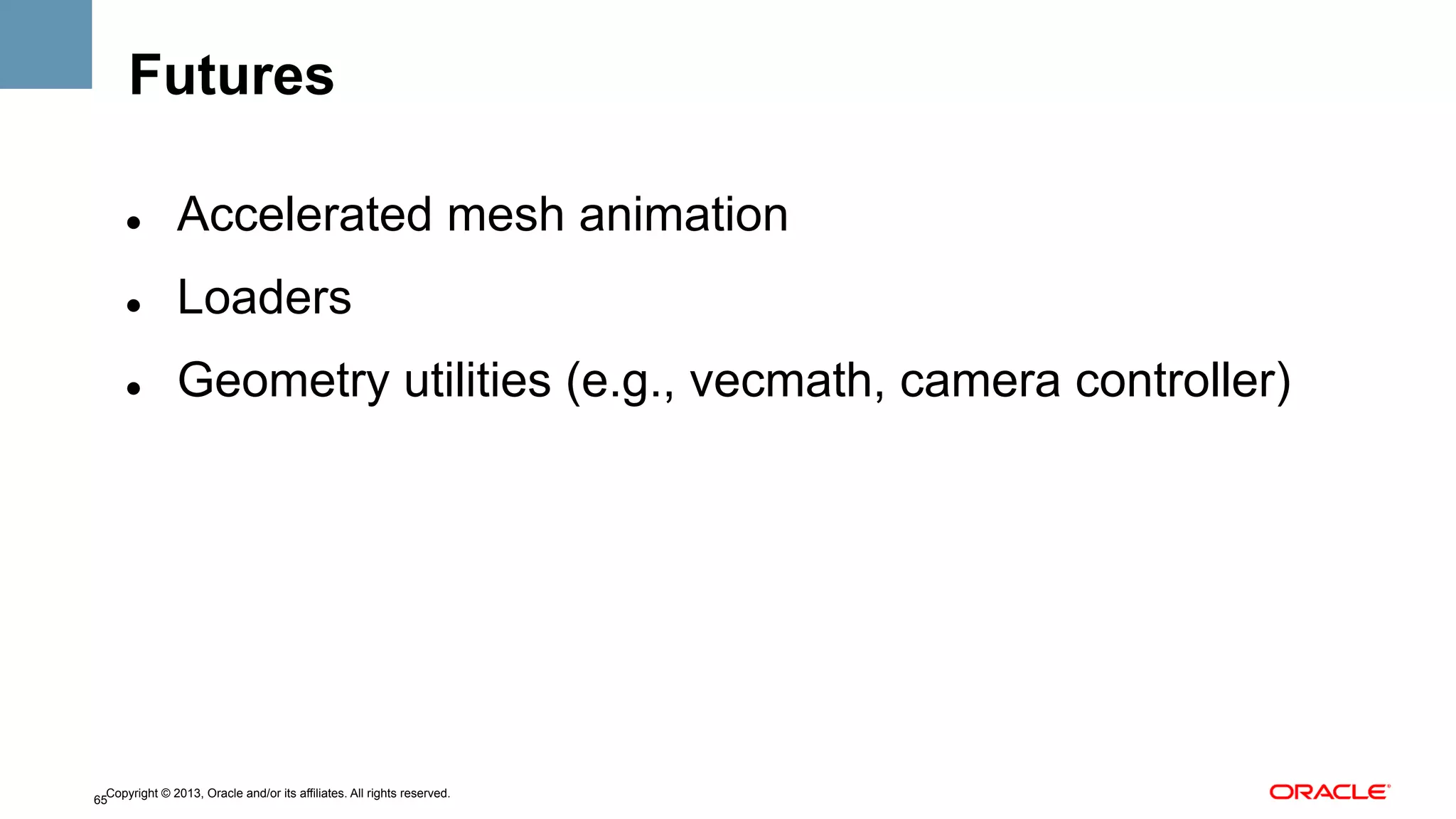

Futures
" 

Accelerated mesh animation

" 

Loaders

" 

Geometry utilities (e.g., vecmath, camera controller)

65

3D Demo

66

Q&A

67

WT-4071, GPU accelerated 3D graphics for Java, by Kevin Rushforth, Chien Yang, John Yoon and Nicolas Lorain

More Related Content

What's hot

Similar to WT-4071, GPU accelerated 3D graphics for Java, by Kevin Rushforth, Chien Yang, John Yoon and Nicolas Lorain

More from AMD Developer Central

Recently uploaded

WT-4071, GPU accelerated 3D graphics for Java, by Kevin Rushforth, Chien Yang, John Yoon and Nicolas Lorain
