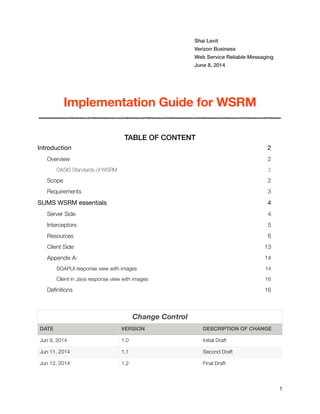

1. Shai Levit
Verizon Business
Web Service Reliable Messaging
June 8, 2014
Implementation Guide for WSRM
TABLE OF CONTENT
Introduction 2
Overview 2
OASIS Standards of WSRM 2
Scope 2
Requirements 3
SUMS WSRM essentials 4
Server Side 4
Interceptors 5
Resources 6
Client Side 13
Appendix A: 14

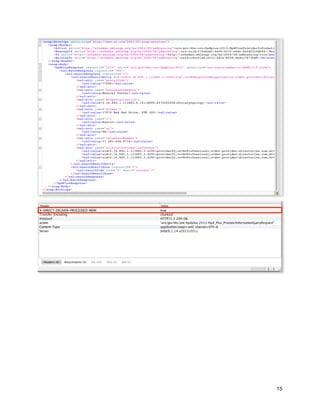

SOAPUI response view with images 14
Client in Java response view with images 16
Definitions 16
Change Control
DATE VERSION DESCRIPTION OF CHANGE
Jun 9, 2014 1.0 Initial Draft
Jun 11, 2014 1.1 Second Draft
Jun 12, 2014 1.2 Final Draft
1

2. Introduction
Overview
The Apache CXF Web Service Reliable Messaging (WSRM) establishes the standard protocols,
along with message formats and processing requirements for communication between two
web service message exchanges.
WSRM specification allows two systems to send messages between each other reliably. The
aim of this is to ensure that messages are transferred properly from the sender to the receiver.
WSRM provides a level of guarantee for XML messaging by composing with existing SOAP-
based systems whilst being transparent to the existing applications. The handlers that sit
inside the client's and server's SOAP processing engines transfer messages, handle retries and
do delivery, but aren’t necessarily visible at the application level. Simply, they ensure that the
messages get re-transmitted if lost or undelivered.
OASIS Standards of WSRM
Many errors can interrupt a conversation. Messages can be lost, duplicated or reordered. Further the
host systems can experience failures and lose volatile state.
The WS-ReliableMessaging specification defines an interoperable protocol that enables a Reliable
Messaging (RM) Source to accurately determine the disposition of each message it Transmits as
perceived by the RM Destination, so as to allow it to resolve any in-doubt status regarding receipt of the
message Transmitted. The protocol also enables an RM Destination to efficiently determine which of
those messages it Receives have been previously Received, enabling it to filter out duplicate message
transmissions caused by the retransmission, by the RM Source, of an unacknowledged message. It also
enables an RM Destination to Deliver the messages it Receives to the Application Destination in the order
in which they were sent by an Application Source, in the event that they are Received out of order. Note
that this specification places no restriction on the scope of the RM Source or RM Destination entities. For
example, either can span multiple WSDL Ports or Endpoints.
The protocol enables the implementation of a broad range of reliability features which include ordered
Delivery, duplicate elimination, and guaranteed receipt. The protocol can also be implemented with a
range of robustness characteristics ranging from in-memory persistence that is scoped to a single
process lifetime, to replicated durable storage that is recoverable in all but the most extreme
circumstances. It is expected that the Endpoints will implement as many or as few of these reliability
characteristics as necessary for the correct operation of the application using the protocol. Regardless of
which of the reliability features is enabled, the wire protocol does not change.
Scope
This guide details options and setup of WS-Reliable Messaging for the HISP to HISP communication in
the Verizon SUMS environment. At its simplest level, JMS sends messages between servers and clients.
The format of these messages is quite flexible and can include ordinary text messages (including raw
text, SOAP, and XML), entire Java objects, and "empty" messages that are suitable for basic
communication. This document specifies preferred mechanisms that can be used and leveraged for
better and secure communication between two HISP systems, utilizing SOAP / XML type messaging.
2

3. Requirements
To make a message exchange between two endpoints reliable, you need to ensure the presence of the
RM Interceptors on the respective Interceptor Chain is invoked and (as WS-Reliable Messaging has a
dependency on WS-Addressing) the addressing interceptors are added to the interceptor chains. This
will ensure and enable the CreateSequence request and the CreateSequenceResponse response to
initialize and handle the messaging chain. In addition, RM Interceptors are responsible for adding the
Sequence headers to the application messages, and on the destination side, extracting them from the
message. This means that no changes to application code are required to make the message exchange
reliable. Furthermore, A Policy with an RMAssertion element is attached to the wsdl:service element (or
any other wsdl element that according to the rules for WS-Policy Attachment is an attachment point for
Policy or PolicyReference elements). The assertion attributes control the behavior of the source/
destination.
Interceptors are the fundamental processing unit which is native in Apache CXF. Basically they are Java
classes that intercept your message to provide or apply certain core services to it. Interceptors are
invoked in chain and organized in phases. When a CXF client invokes a CXF server, there is an outgoing
interceptor chain for the client and an incoming chain for the server. When the server sends the response
back to the client, there is an outgoing chain for the server and an incoming one for the client.
Additionally, in the case of SOAPFaults, a CXF web service will create a separate outbound error
handling chain and the client will create an inbound error handling chain.
3

4. SUMS WSRM essentials
The mechanism for obtaining a successful delivery notification across an XDR Edge scenario and
including a HISP to HISP transaction is to use WS-ReliableMessaging.
The Direct HISP MUST implement the Reliable Messaging Destination requirements of WS-
ReliableMessaging 1.2 Protocol.
A Direct HISP SHALL support a SOAP header named support X-DIRECT-FINAL-DESTINATION-
DELIVERY. The X-DIRECT-FINAL-DESTINATION-DELIVERY header SHALL have a value of “true”.
A Direct HISP MUST conform to Implementation Guide for Delivery Notification in Direct v1.0 to
implement the necessary tracking mechanisms.
The client and server both use interceptor configuration to install the WS-RM interceptors, comprising
logical interceptors (RMInInterceptor/RMOutInterceptor) responsible for managing the reliability
properties of the current message.
Server Side
The Apache CXF Server setup constitutes the following:
• Java Webservice classes
• Annotations for Interceptors
• Annotations for the Policy
• Annotations for Addressing
• Java Server Class
• Endpoint definitions
• JAXB configuration
• Interceptor Logging
• Custom Interceptors
• In / Out and Fault
• Message Handlers
• Soap header message handler
• Resources
• Policy
• WSDL
Messages coming and leaving the Server are packaged and tracked using the CXF Interceptors and their
respective phases, within the interceptor chain. Interceptors are used with both CXF clients and CXF
servers. When a CXF client invokes a CXF server, there is an outgoing interceptor chain for the client and
an incoming chain for the server. When the server sends the response back to the client, there is an
outgoing chain for the server and an incoming one for the client. Additionally, in the case of SOAPFaults,
a CXF web service will create a separate outbound error handling chain and the client will create an
inbound error handling chain.
4

5. Interceptors
The main four Interceptors (the OutInterceptors, InInterceptors and both FaultInterceptors) reliably
assure that all messages are handled correctly and in the order specified, in accordance to their
respective phase order. Customizing the Interceptors, avails the server to manage specific tasks either
prior or post message sending/receiving and in addition to the default Interceptors processes. Handling
the messages, including sending and reading headers / content, are all invoked and processed by the
AbstractPhaseInterceptor <SoapMessage> class extension. In addition, the specified phases in the
constructor manages the process within the chain of Interceptors.
An example of the custom PhaseInInterceptor:
public class PhaseInInterceptor extends AbstractPhaseInterceptor<SoapMessage> {
public PhaseInInterceptor(){
super(Phase.INVOKE); //Invocation of the service
Phase.READ.contains(getId());
Phase.RECEIVE.contains(getPhase());
}
public void handleMessage(SoapMessage msg) throws Fault {
String contentType = (String) msg.get(Message.CONTENT_TYPE);
msg.getInterceptorChain();
msg.getDestination().getAddress();
msg.getHeaders();
if (contentType != null && contentType.toLowerCase().indexOf("multipart/related") != -1) {
AttachmentDeserializer ad = new AttachmentDeserializer(msg);
try {
ad.initializeAttachments();
} catch (IOException e) {
throw new Fault(e);
}
}
}
}
For the customization of the outgoing message headers, in response to the client’s request, the custom
PhaseOutInterceptor class extends the SoapActionOutInterceptor class, as is dictated in the
requirements for the HISP to HISP communication. The marshal phase of this Interceptor specifies the
custom header back to the client. Note that the constructor assures that this process happens before
the final PhaseOutInterceptor send phase is invoked.
public SoapActionOutInterceptor(String msg){
super(Phase.MARSHAL);
addBefore(PhaseOutInterceptor.class.getName());
}
public void handleMessage(SoapMessage msg) throws SoapFault {
//Creating HTTP headers
MultivaluedMap<String, Object> headers = new MetadataMap<String, Object>();
headers.putSingle("X-DIRECT-DELIVER-PROCESSED-MDN", "true");
msg.put(SoapMessage.PROTOCOL_HEADERS, headers);
if (!(msg == msg.getExchange().getInMessage())) {
setSoapAction(msg);
5

6. Finally, the PhaseOutInterceptor’s constructor and handle message manages the final send phase of the
SOAP message.
public PhaseOutInterceptor(){
super(Phase.SEND); //Sends the message and closes the transport stream.
addAfter(SoapActionOutInterceptor.class.getName());
}
Resources
A Policy XML file containing the RMAssertions and the required URI’s provide the needed support to
create and terminate the communication sequences, as well as define the allotted time frame of
retransmission, duplication and error handling.
A Policy with an RMAssertion element is attached to the wsdl:service element (or any other wsdl
element that according to the rules for WS-Policy Attachment is an attachment point for Policy
or PolicyReference elements).
The CXF WS-Policy Framework is enabled via the Annotations in the implementation class as:
@Policy(uri="resources/policy.xml", includeInWSDL=true)
the RM interceptors will be automatically added to their respective interceptor chains by the policy
framework. The assertion attributes control the behavior of the source/destination.
The Policy:
<wsp:Policy xmlns:wsrm="http://schemas.xmlsoap.org/ws/2005/02/rm"
xmlns:wsp="http://schemas.xmlsoap.org/ws/2005/02/policy"
xmlns:beapolicy="http://www.bea.com/wsrm/policy">
<wsp:ExactlyOne>
<wsp:All>
<wsrmp10:RMAssertion
xmlns:wsrmp10="http://schemas.xmlsoap.org/ws/2005/02/rm/policy">
<wsrmp10:InactivityTimeout Milliseconds="600000"/>
<wsrmp10:BaseRetransmissionInterval Milliseconds="6000"/>
<wsrmp10:ExponentialBackoff/>
<wsrmp10:AcknowledgementInterval Milliseconds="200"/>
</wsrmp10:RMAssertion>
</wsp:All>
<wsp:All>
<wsp:IncludeTimestamp />
<wsrmp:RMAssertion
xmlns:wsrmp="http://schemas.xmlsoap.org/ws/2005/02/rm">
<wsrmp:InactivityTimeout Milliseconds="600000" />
<wsrmp:BaseRetransmissionInterval Milliseconds="3000" />
<wsrmp:ExponentialBackoff />
<wsrmp:AcknowledgementInterval Milliseconds="200" />
<beapolicy:QOS QOS="ExactlyOnce InOrder" />
</wsrmp:RMAssertion>
</wsp:All>
</wsp:ExactlyOne>
</wsp:Policy>
The Policy framework attributes describe the processes, configure additional parameters such as
sequence creation and termination and contribute to the persistence. Note the deliveryAssurance, and
Assertion attributes of timeout, retransmission and acknowledgement.
6

7. The WSDL:
Upon starting the server, the client can point their browser to the associated address to consume the
WSDL of the service. This produces the boilerplate template for the requirements of services expected
to communicate with the server. Note the output towards the end of the WSDL as to the exact match of
the Policy that is invoked from the resource via the implementation class.

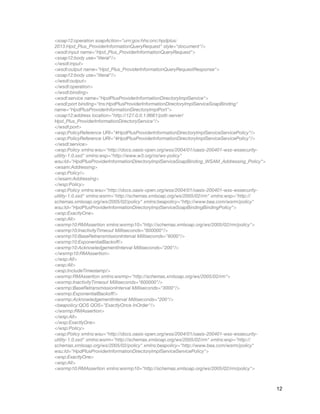

Example of the WSDL:
This XML file does not appear to have any style information associated with it. The document tree is shown
below.
<wsdl:definitions xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:wsp="http://
schemas.xmlsoap.org/ws/2005/02/policy" xmlns:wsdl="http://schemas.xmlsoap.org/wsdl/"
xmlns:wsaw="http://www.w3.org/2006/05/addressing/wsdl" xmlns:wsam="http://www.w3.org/2007/05/
addressing/metadata" xmlns:tns="urn:gov:hhs:onc:hpdplus:2013" xmlns:soap12="http://
schemas.xmlsoap.org/wsdl/soap12/" xmlns:ns1="http://schemas.xmlsoap.org/soap/http"
name="HpdPlusProviderInformationDirectoryImplService" targetNamespace="urn:gov:hhs:onc:hpdplus:
2013">
<wsdl:types>
<xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema" xmlns:tns="urn:oasis:names:tc:DSML:
2:0:core" elementFormDefault="qualified" targetNamespace="urn:oasis:names:tc:DSML:2:0:core"
version="1.0">
<xs:element name="batchRequest" type="tns:BatchRequest"/>
<xs:element name="batchResponse" type="tns:BatchResponse"/>
<xs:complexType name="BatchRequest">
<xs:sequence>
<xs:element minOccurs="0" name="authRequest" type="tns:AuthRequest"/>
<xs:choice maxOccurs="unbounded" minOccurs="0">
<xs:element name="searchRequest" type="tns:SearchRequest"/>
<xs:element name="modifyRequest" type="tns:ModifyRequest"/>
<xs:element name="addRequest" type="tns:AddRequest"/>
<xs:element name="delRequest" type="tns:DelRequest"/>
<xs:element name="modDNRequest" type="tns:ModifyDNRequest"/>
<xs:element name="compareRequest" type="tns:CompareRequest"/>
<xs:element name="abandonRequest" type="tns:AbandonRequest"/>
<xs:element name="extendedRequest" type="tns:ExtendedRequest"/>
</xs:choice>
</xs:sequence>
<xs:attribute name="requestID" type="xs:string"/>
<xs:attribute name="processing" type="xs:string"/>
<xs:attribute name="responseOrder" type="xs:string"/>
<xs:attribute name="onError" type="xs:string"/>
</xs:complexType>
<xs:complexType name="AuthRequest">
<xs:complexContent>
<xs:extension base="tns:DsmlMessage">
<xs:sequence/>
<xs:attribute name="principal" type="xs:string" use="required"/>
</xs:extension>
</xs:complexContent>
</xs:complexType>
<xs:complexType name="DsmlMessage">
<xs:sequence>
<xs:element maxOccurs="unbounded" minOccurs="0" name="control" nillable="true" type="tns:Control"/>
</xs:sequence>
<xs:attribute name="requestID" type="xs:string"/>
</xs:complexType>
<xs:complexType name="Control">
<xs:sequence>
<xs:element minOccurs="0" name="controlValue" type="xs:anyType"/>
7

8. </xs:sequence>
<xs:complexType name="FilterSet">
<xs:sequence>
<xs:choice maxOccurs="unbounded" minOccurs="0">
<xs:element name="greaterOrEqual" type="tns:AttributeValueAssertion"/>
<xs:element name="equalityMatch" type="tns:AttributeValueAssertion"/>
<xs:element name="or" type="tns:FilterSet"/>
<xs:element name="not" type="tns:Filter"/>
<xs:element name="and" type="tns:FilterSet"/>
<xs:element name="lessOrEqual" type="tns:AttributeValueAssertion"/>
<xs:element name="extensibleMatch" type="tns:MatchingRuleAssertion"/>
<xs:element name="substrings" type="tns:SubstringFilter"/>
<xs:element name="approxMatch" type="tns:AttributeValueAssertion"/>
<xs:element name="present" type="tns:AttributeDescription"/>
</xs:choice>
</xs:sequence>
</xs:complexType>
<xs:complexType name="AttributeValueAssertion">
<xs:sequence>
<xs:element name="value" type="xs:string"/>
</xs:sequence>
<xs:attribute name="name" type="xs:string" use="required"/>
</xs:complexType>
<xs:complexType name="AttributeDescription">
<xs:sequence/>
<xs:attribute name="name" type="xs:string" use="required"/>
</xs:complexType>
<xs:complexType name="MatchingRuleAssertion">
<xs:sequence>
<xs:element name="value" type="xs:string"/>
</xs:sequence>
<xs:attribute name="dnAttributes" type="xs:boolean"/>
<xs:attribute name="matchingRule" type="xs:string"/>
<xs:attribute name="name" type="xs:string"/>
</xs:complexType>
<xs:complexType name="ExtendedRequest">
<xs:complexContent>
<xs:extension base="tns:DsmlMessage">
<xs:sequence>
<xs:element name="requestName" type="xs:string"/>
<xs:element minOccurs="0" name="requestValue" type="xs:anyType"/>
</xs:sequence>
</xs:extension>
</xs:complexContent>
</xs:complexType>
<xs:complexType name="AbandonRequest">
<xs:complexContent>
<xs:extension base="tns:DsmlMessage">
<xs:sequence/>
<xs:attribute name="abandonID" type="xs:string" use="required"/>
</xs:extension>
</xs:complexContent>
</xs:complexType>
<xs:complexType name="DelRequest">
<xs:complexContent>
<xs:extension base="tns:DsmlMessage">
<xs:sequence/>
<xs:attribute name="dn" type="xs:string" use="required"/>
8

9. </xs:extension>
</xs:complexContent>
</xs:complexType>
<xs:simpleType name="LDAPResultCode">
<xs:restriction base="xs:string">
<xs:enumeration value="success"/>
<xs:enumeration value="operationsError"/>
<xs:enumeration value="protocolError"/>
<xs:enumeration value="timeLimitExceeded"/>
<xs:enumeration value="sizeLimitExceeded"/>
<xs:enumeration value="compareFalse"/>
<xs:enumeration value="compareTrue"/>
<xs:enumeration value="authMethodNotSupported"/>
<xs:enumeration value="strongAuthRequired"/>
<xs:enumeration value="referral"/>
<xs:enumeration value="adminLimitExceeded"/>
<xs:enumeration value="unavailableCriticalExtension"/>
<xs:enumeration value="confidentialityRequired"/>
<xs:enumeration value="saslBindInProgress"/>
<xs:enumeration value="noSuchAttribute"/>
<xs:enumeration value="undefinedAttributeType"/>
<xs:enumeration value="inappropriateMatching"/>
<xs:enumeration value="constraintViolation"/>
<xs:enumeration value="attributeOrValueExists"/>
<xs:enumeration value="invalidAttributeSyntax"/>
<xs:enumeration value="noSuchObject"/>
<xs:enumeration value="aliasProblem"/>
<xs:enumeration value="invalidDNSyntax"/>
<xs:enumeration value="aliasDerefencingProblem"/>
<xs:enumeration value="inappropriateAuthentication"/>
<xs:enumeration value="invalidCredentials"/>
<xs:enumeration value="insufficientAccessRights"/>
<xs:enumeration value="busy"/>
<xs:enumeration value="unavailable"/>
<xs:enumeration value="unwillingToPerform"/>
<xs:enumeration value="loopDetect"/>
<xs:enumeration value="namingViolation"/>
<xs:enumeration value="objectClassViolation"/>
<xs:enumeration value="notAllowedOnNonLeaf"/>
<xs:enumeration value="notAllowedOnRDN"/>
<xs:enumeration value="entryAlreadyExists"/>
<xs:enumeration value="objectClassModsProhibited"/>
<xs:enumeration value="affectMultipleDSAs"/>
<xs:enumeration value="other"/>
</xs:restriction>
</xs:simpleType>
</xs:schema>
<xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema" xmlns:tns="urn:gov:hhs:onc:hpdplus:2013"
xmlns:ns1="urn:oasis:names:tc:DSML:2:0:core" elementFormDefault="qualified"
targetNamespace="urn:gov:hhs:onc:hpdplus:2013" version="1.0">
<xs:import namespace="urn:oasis:names:tc:DSML:2:0:core"/>
<xs:element name="hpdPlusRequest" type="tns:HpdPlusRequest"/>
<xs:element name="hpdPlusResponse" type="tns:HpdPlusResponse"/>
<xs:complexType name="HpdPlusRequest">
<xs:sequence>
<xs:element minOccurs="0" name="requestMetadata" type="tns:HpdPlusRequestMetadata"/>
<xs:element minOccurs="0" name="batchRequest" type="ns1:BatchRequest"/>
</xs:sequence>
9

10. <xs:attribute name="directoryID" type="xs:string"/>
<xs:attribute name="requestID" type="xs:string" use="required"/>
</xs:complexType>
<xs:complexType name="HpdPlusRequestMetadata">
<xs:complexContent>
<xs:extension base="tns:HpdPlusMetadata">
<xs:sequence/>
</xs:extension>
</xs:complexContent>
</xs:complexType>
<xs:complexType abstract="true" name="HpdPlusMetadata">
<xs:sequence>
<xs:element minOccurs="0" name="properties" type="tns:HpdPlusMetadataProperties"/>
</xs:sequence>
</xs:complexType>
<xs:complexType name="HpdPlusMetadataProperties">
<xs:sequence>
<xs:element maxOccurs="unbounded" minOccurs="0" name="property" nillable="true"
type="tns:HpdPlusMetadataProperty"/>
</xs:sequence>
</xs:complexType>
<xs:complexType name="HpdPlusMetadataProperty">
<xs:simpleContent>
<xs:extension base="xs:string">
<xs:attribute name="name" type="tns:HpdPlusMetadataPropertyName" use="required"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
<xs:complexType name="HpdPlusResponseMetadata">
<xs:complexContent>
<xs:extension base="tns:HpdPlusMetadata">
<xs:sequence>
<xs:element minOccurs="0" name="requestMetadata" type="tns:HpdPlusRequestMetadata"/>
</xs:sequence>
</xs:extension>
</xs:complexContent>
</xs:complexType>
<xs:complexType name="HpdPlusResponse">
<xs:sequence>
<xs:element minOccurs="0" name="responseMetadata" type="tns:HpdPlusResponseMetadata"/>
<xs:element maxOccurs="unbounded" minOccurs="0" name="hpdPlusError" nillable="true"
type="tns:HpdPlusError"/>
<xs:choice maxOccurs="unbounded" minOccurs="0">
<xs:element ref="ns1:batchResponse"/>
<xs:element name="hpdPlusResponse" type="tns:HpdPlusResponse"/>
</xs:choice>
</xs:sequence>
<xs:attribute name="directoryID" type="xs:string" use="required"/>
<xs:attribute name="requestID" type="xs:string" use="required"/>
<xs:attribute name="directoryUri" type="xs:anyURI"/>
</xs:complexType>
<xs:complexType name="HpdPlusError">
<xs:sequence>
<xs:element minOccurs="0" name="message" type="xs:token"/>
<xs:element minOccurs="0" name="detail" type="tns:HpdPlusErrorDetail"/>
</xs:sequence>
<xs:attribute name="directoryID" type="xs:string" use="required"/>
<xs:attribute name="requestID" type="xs:string" use="required"/>
10

11. <xs:attribute name="type" type="tns:HpdPlusErrorType"/>
</xs:complexType>
<xs:complexType name="HpdPlusErrorDetail">
<xs:sequence>
<xs:any namespace="##other" processContents="lax"/>
</xs:sequence>
</xs:complexType>
<xs:simpleType name="HpdPlusMetadataPropertyName">
<xs:restriction base="xs:string">
<xs:enumeration value="doNotFederate"/>
<xs:enumeration value="flattenResponse"/>
</xs:restriction>
</xs:simpleType>
<xs:simpleType name="HpdPlusErrorType">
<xs:restriction base="xs:string">
<xs:enumeration value="notAttempted"/>
<xs:enumeration value="couldNotConnect"/>
<xs:enumeration value="connectionClosed"/>
<xs:enumeration value="malformedRequest"/>
<xs:enumeration value="gatewayInternalError"/>
<xs:enumeration value="authenticationFailed"/>
<xs:enumeration value="unresolvableURI"/>
<xs:enumeration value="other"/>
<xs:enumeration value="duplicateRequestId"/>
<xs:enumeration value="organizationalQueryRulesViolation"/>
</xs:restriction>
</xs:simpleType>
</xs:schema>
</wsdl:types>
<wsdl:message name="Hpd_Plus_ProviderInformationQueryRequestResponse">
<wsdl:part element="tns:hpdPlusResponse" name="queryResponse"></wsdl:part>
</wsdl:message>
<wsdl:message name="Hpd_Plus_ProviderInformationQueryRequest">
<wsdl:part element="tns:hpdPlusRequest" name="queryRequest"></wsdl:part>
</wsdl:message>
<wsdl:portType name="HpdPlusProviderInformationDirectoryImpl">
<wsdl:operation name="Hpd_Plus_ProviderInformationQueryRequest">
<wsdl:input message="tns:Hpd_Plus_ProviderInformationQueryRequest"
name="Hpd_Plus_ProviderInformationQueryRequest" wsam:Action="urn:gov:hhs:onc:hpdplus:
2013:Hpd_Plus_ProviderInformationQueryRequest" wsaw:Action="urn:gov:hhs:onc:hpdplus:
2013:Hpd_Plus_ProviderInformationQueryRequest"></wsdl:input>
<wsdl:output message="tns:Hpd_Plus_ProviderInformationQueryRequestResponse"
name="Hpd_Plus_ProviderInformationQueryRequestResponse" wsam:Action="urn:gov:hhs:onc:hpdplus:
2013:HpdPlusProviderInformationDirectoryImpl:Hpd_Plus_ProviderInformationQueryRequestResponse"
wsaw:Action="urn:gov:hhs:onc:hpdplus:
2013:HpdPlusProviderInformationDirectoryImpl:Hpd_Plus_ProviderInformationQueryRequestResponse"></
wsdl:output>
</wsdl:operation>
</wsdl:portType>
<wsdl:binding name="HpdPlusProviderInformationDirectoryImplServiceSoapBinding"
type="tns:HpdPlusProviderInformationDirectoryImpl">
<soap12:binding style="document" transport="http://schemas.xmlsoap.org/soap/http"/>
<wsaw:UsingAddressing wsdl:required="true"/>
<wsp:PolicyReference xmlns:wsp="http://www.w3.org/ns/ws-policy"
URI="#HpdPlusProviderInformationDirectoryImplServiceSoapBinding_WSAM_Addressing_Policy"/>
<wsp:PolicyReference URI="#HpdPlusProviderInformationDirectoryImplServiceSoapBindingBindingPolicy"/
>
<wsdl:operation name="Hpd_Plus_ProviderInformationQueryRequest">
11

12. <soap12:operation soapAction="urn:gov:hhs:onc:hpdplus:
2013:Hpd_Plus_ProviderInformationQueryRequest" style="document"/>
<wsdl:input name="Hpd_Plus_ProviderInformationQueryRequest">
<soap12:body use="literal"/>
</wsdl:input>
<wsdl:output name="Hpd_Plus_ProviderInformationQueryRequestResponse">
<soap12:body use="literal"/>
</wsdl:output>
</wsdl:operation>
</wsdl:binding>
<wsdl:service name="HpdPlusProviderInformationDirectoryImplService">
<wsdl:port binding="tns:HpdPlusProviderInformationDirectoryImplServiceSoapBinding"
name="HpdPlusProviderInformationDirectoryImplPort">
<soap12:address location="http://127.0.0.1:8661/pdti-server/
Hpd_Plus_ProviderInformationDirectoryService"/>
</wsdl:port>
<wsp:PolicyReference URI="#HpdPlusProviderInformationDirectoryImplServiceServicePolicy"/>
<wsp:PolicyReference URI="#HpdPlusProviderInformationDirectoryImplServiceServicePolicy"/>
</wsdl:service>
<wsp:Policy xmlns:wsu="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-
utility-1.0.xsd" xmlns:wsp="http://www.w3.org/ns/ws-policy"
wsu:Id="HpdPlusProviderInformationDirectoryImplServiceSoapBinding_WSAM_Addressing_Policy">
<wsam:Addressing>
<wsp:Policy/>
</wsam:Addressing>
</wsp:Policy>
<wsp:Policy xmlns:wsu="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-
utility-1.0.xsd" xmlns:wsrm="http://schemas.xmlsoap.org/ws/2005/02/rm" xmlns:wsp="http://
schemas.xmlsoap.org/ws/2005/02/policy" xmlns:beapolicy="http://www.bea.com/wsrm/policy"
wsu:Id="HpdPlusProviderInformationDirectoryImplServiceSoapBindingBindingPolicy">
<wsp:ExactlyOne>
<wsp:All>
<wsrmp10:RMAssertion xmlns:wsrmp10="http://schemas.xmlsoap.org/ws/2005/02/rm/policy">
<wsrmp10:InactivityTimeout Milliseconds="600000"/>
<wsrmp10:BaseRetransmissionInterval Milliseconds="6000"/>
<wsrmp10:ExponentialBackoff/>
<wsrmp10:AcknowledgementInterval Milliseconds="200"/>
</wsrmp10:RMAssertion>
</wsp:All>
<wsp:All>
<wsp:IncludeTimestamp/>
<wsrmp:RMAssertion xmlns:wsrmp="http://schemas.xmlsoap.org/ws/2005/02/rm">
<wsrmp:InactivityTimeout Milliseconds="600000"/>
<wsrmp:BaseRetransmissionInterval Milliseconds="3000"/>
<wsrmp:ExponentialBackoff/>
<wsrmp:AcknowledgementInterval Milliseconds="200"/>
<beapolicy:QOS QOS="ExactlyOnce InOrder"/>
</wsrmp:RMAssertion>
</wsp:All>
</wsp:ExactlyOne>
</wsp:Policy>
<wsp:Policy xmlns:wsu="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-
utility-1.0.xsd" xmlns:wsrm="http://schemas.xmlsoap.org/ws/2005/02/rm" xmlns:wsp="http://
schemas.xmlsoap.org/ws/2005/02/policy" xmlns:beapolicy="http://www.bea.com/wsrm/policy"
wsu:Id="HpdPlusProviderInformationDirectoryImplServiceServicePolicy">
<wsp:ExactlyOne>
<wsp:All>
<wsrmp10:RMAssertion xmlns:wsrmp10="http://schemas.xmlsoap.org/ws/2005/02/rm/policy">
12

13. <wsrmp10:InactivityTimeout Milliseconds="600000"/>
<wsrmp10:BaseRetransmissionInterval Milliseconds="6000"/>
<wsrmp10:ExponentialBackoff/>
<wsrmp10:AcknowledgementInterval Milliseconds="200"/>
</wsrmp10:RMAssertion>
</wsp:All>
<wsp:All>
<wsp:IncludeTimestamp/>
<wsrmp:RMAssertion xmlns:wsrmp="http://schemas.xmlsoap.org/ws/2005/02/rm">
<wsrmp:InactivityTimeout Milliseconds="600000"/>
<wsrmp:BaseRetransmissionInterval Milliseconds="3000"/>
<wsrmp:ExponentialBackoff/>
<wsrmp:AcknowledgementInterval Milliseconds="200"/>
<beapolicy:QOS QOS="ExactlyOnce InOrder"/>
</wsrmp:RMAssertion>
</wsp:All>
</wsp:ExactlyOne>
</wsp:Policy>
</wsdl:definitions>
Running the WSDL will also result in a console output as follows (if logging is enabled):
INFO: Inbound Message
----------------------------
ID: 1
Address: http://127.0.0.1:8661/pdti-server/Hpd_Plus_ProviderInformationDirectoryService?wsdl
Http-Method: GET
Content-Type:
Headers: {Accept=[text/html,application/xhtml+xml,application/xml;q=0.9,image/webp,*/
*;q=0.8], accept-encoding=[gzip,deflate,lzma,sdch], Accept-Language=[en-US,en;q=0.8], Cache-
Control=[max-age=0], connection=[keep-alive], Content-Type=[null], Host=[127.0.0.1:8661],
User-Agent=[Mozilla/5.0 (Macintosh; Intel Mac OS X 10_9_3) AppleWebKit/537.36 (KHTML, like
Gecko) Chrome/35.0.1916.114 Safari/537.36 OPR/22.0.1471.50]}
--------------------------------------
Client Side
To test the communication process between the Server and Client and assure that the respective
headers and messages are being utilized appropriately and all errors handled in the appropriate
Interceptor Chains, the use of the software SOAPUI as well as constructing a separate client service via
the WSDL stub was extensively used and tested.
SOAPUI:
SOAPUI provides a convenient client testing environment and provides several conveniences in assuring
that WS-RM and WS-A are addressed, as well as the version control of the WS-RM. Using the SOAP
Envelop XML query, one has to select both the WS-RM and WS-A settings to assure that the WS-
Reliable Messaging is advocated (see Appendix A for images and explanation).
Java Client:
Creating the Java Client side was managed by using the WSDL stub output compilation. This created
the necessary classes and packages needed to support the web services for the client. In addition, one
needed to include the policy.xml file, and a client class. To read back the header, the client has to
implement the Java utility of Map<String, Object> responseContext and JAXB marshal to assure the headers
can be read successfully.
13

14. LoggingOutInterceptor used on both the client- and server-side to log the outbound SOAP messages
and display these to the console.
Appendix A:
SOAPUI response view with images
Using the WSDL output one can create a Soap Envelope request for sending a query to the
LDAP. Assuring that the WS-A and the WS-RM properties are checked to adhere to the
Server’s requested component for a secure exchange via Reliable Messaging. The process and
result are visualized in the images below. Note the customized header that is invoked via the
customized OutInterceptors within the code.
14

15. 15

16. Client in Java response view with images
Definitions
WS-ReliableMessaging—A protocol that allows messages to be delivered reliably between distributed
applications in the presence of software component, system, or network failures.
WS-Addressing—A framework to identify Web service endpoints and to ensure end-to-end endpoint
identification in messages.
WSDL—A set of constructs to specify Web service interfaces and bindings for endpoints.
WS-Policy—A base set of constructs that can be used and extended by other Web services
specifications to describe a broad range of requirements, preferences, and capabilities of service
interfaces.
WS-Transactions and WS-Coordination—A set of Web service interface definitions and protocols that
support participant control and agreement on the outcome of distributed, multi-party interactions.
WS-EndpointResolution—A set of Web service mechanisms that support selecting a specific endpoint
for an operation or message from a set of allowed candidates. This is particularly useful in server farms
and mobile environments.
16

17. WS-MetadataExchange—A set of Web service mechanisms to exchange policies, WSDL and potentially
other metadata between two or more parties.
The WS-Security Roadmap protocols—In April 2002, IBM and Microsoft published a roadmap for Web
service security [WS-Security Roadmap] that supports, integrates and unifies several popular security
models, mechanisms, and technologies.
WS-TransmissionControl—A set of constructs for controlling the exchange of messages between
services to improve reliability by preventing message loss due to service unavailability, overloading
queues and other causes.
17
