The document discusses API-centric and cell-based architecture patterns presented by Asanka Abeysinghe at the Integration Summit 2019. It emphasizes the need for agility in enterprise systems, proposing the concept of cell-based architecture that consists of independently deployable components. The presentation highlights the evolution of microservices and outlines the technical definitions of services and microservices within the context of modern application development.

1. INTEGRATION SUMMIT 2019
Emerging Architecture Patterns
API-centric & Cell-based
INTEGRATION
Asanka Abeysinghe
Deputy CTO & VP, Architecture - CTO Office

2. Objectives
#1 look at: API-centric
#2 introduce: Cell-based
architecture

3. picture credit: https://www.flickr.com/

4. Motivation

5. Centralized & Layered
picture credit: https://www.flickr.com/photos/kaktuslampa/

6. Not enough support for Agility

7. picture credit: https://www.flickr.com/photos/69929929@N06/
Powerpoint Architects

8. picture credit: https://www.flickr.com/photos/johnerlandsen/
Reality of the Enterprise

9. Brownfield > Greenfield
picture credit: https://www.apstra.com/home/landscape-of-meadow-field-with-the-changing-environment-2/
Legacy, monolithic Microservices, sprawl

10. Reference Implementations
picture credit: https://www.marinersmuseum.org/

11. picture credit: http://unlocked.footlocker.com/
Underutilization of the Technology

12. Gap: architecture | development | deployment
picture credit: https://www.flickr.com/photos/28994379@N02/

13. picture credit: https://www.solarpowerworldonline.com/2017/07/georgia-contractor-sells-farmers-solar-tough-market/
Dependency management

14. picture credit: https://www.flickr.com/photos/tiocfaidh_ar_la_1916/
Architecture Patterns

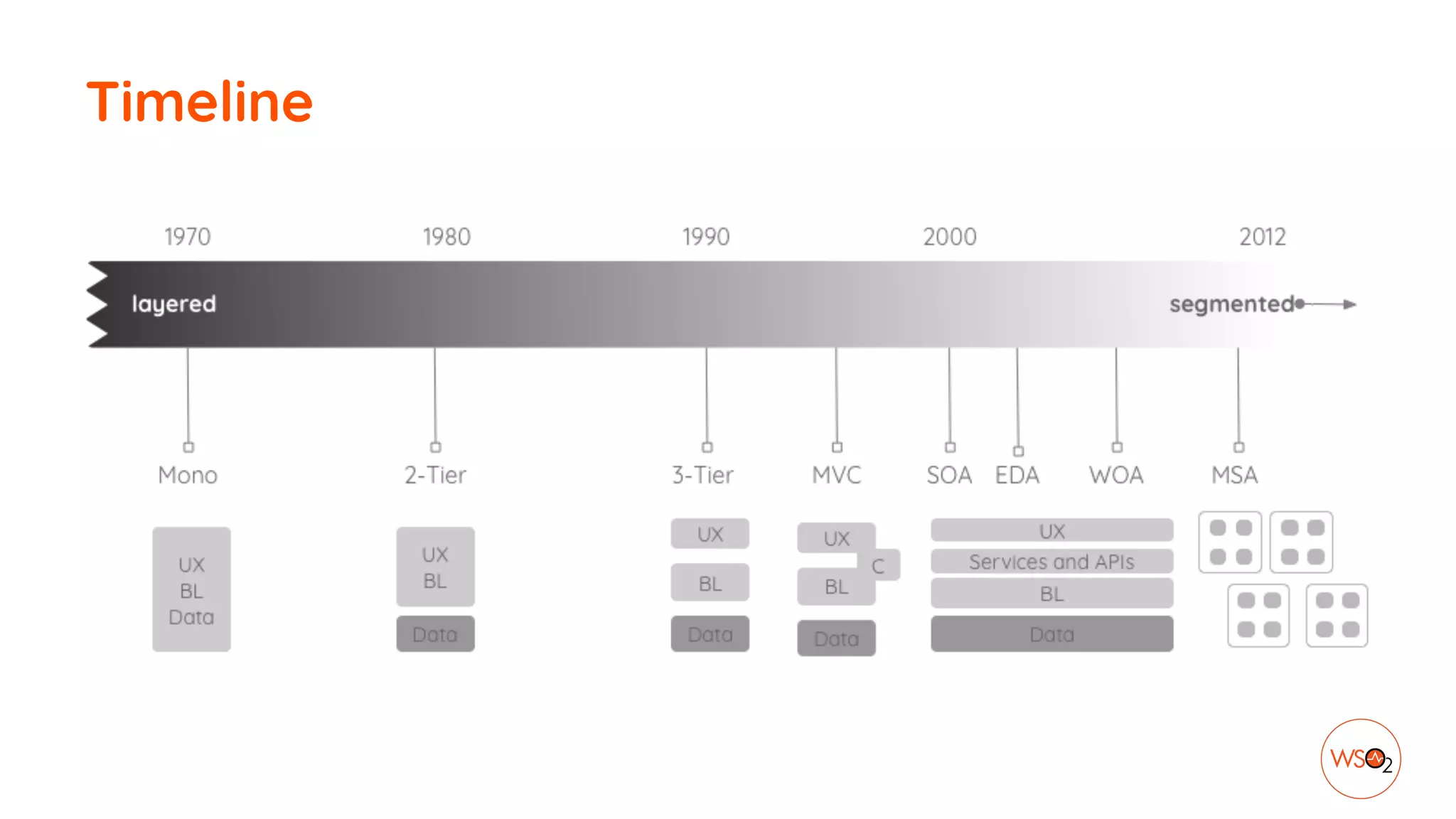

15. Timeline

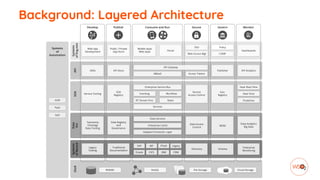

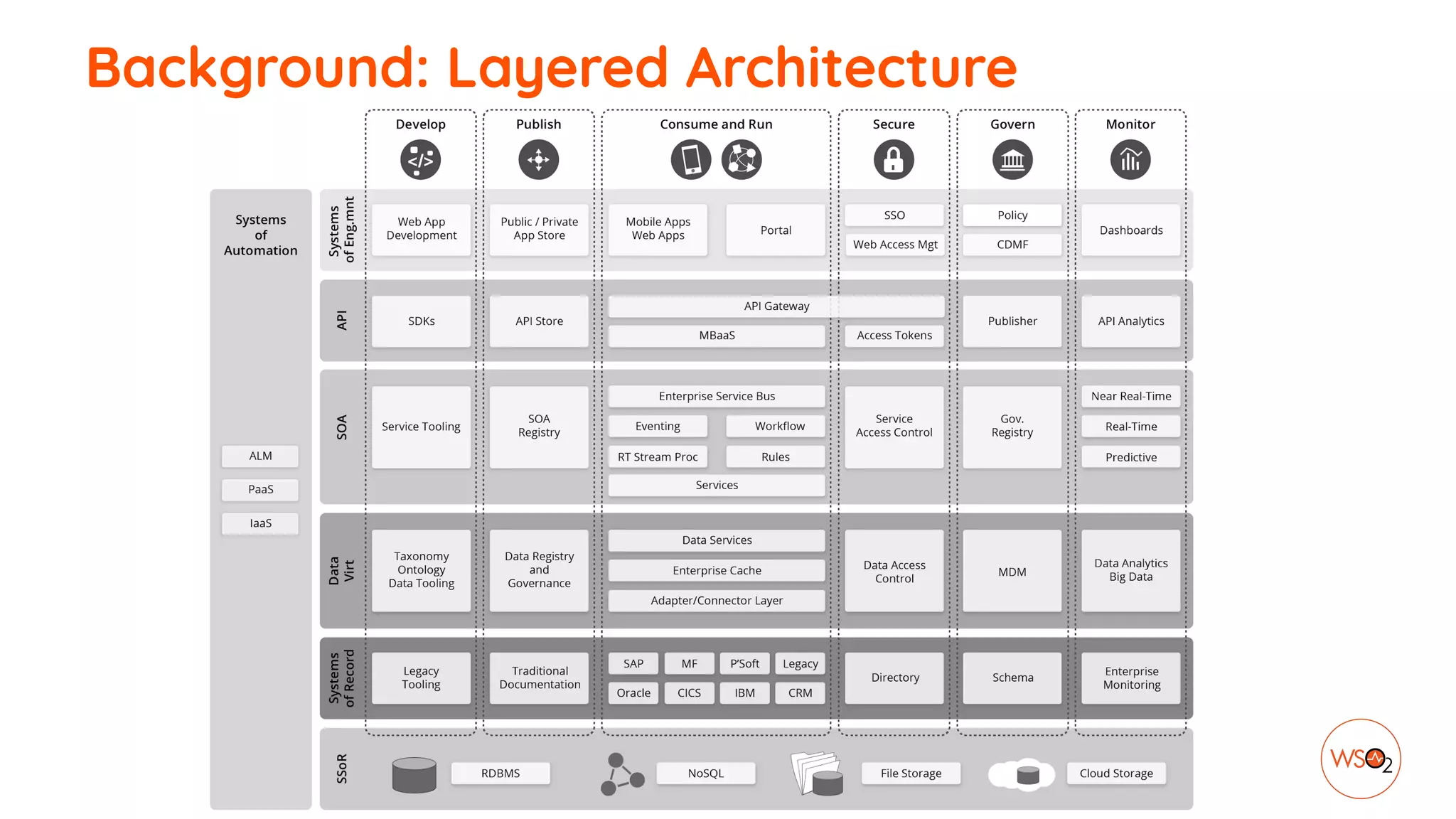

16. Background: Layered Architecture

17. picture credit: https://www.flickr.com/photos/23119666@N03/
A platform with an agile team
100 APIs, 60 message flows, 80 services, n DBs
Multi-tenanted, 3 active tenants
First release after 3 years

18. picture credit: https://www.flickr.com/photos/imcountingufoz/
Rise of Microservices

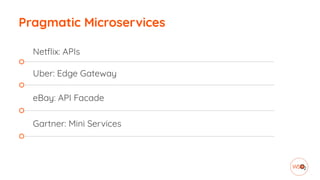

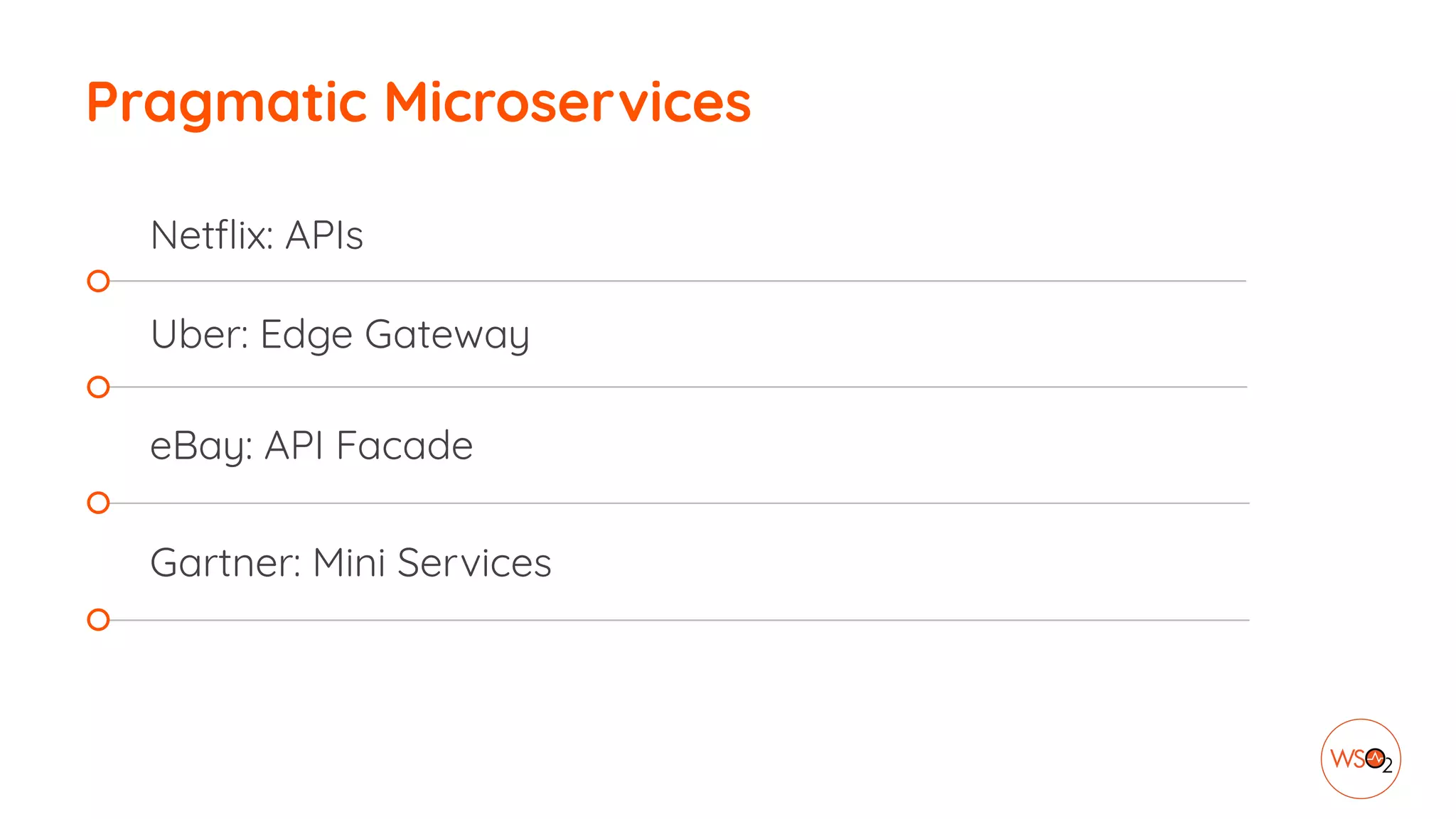

19. Pragmatic Microservices
Netflix: APIs
Uber: Edge Gateway
eBay: API Facade
Gartner: Mini Services

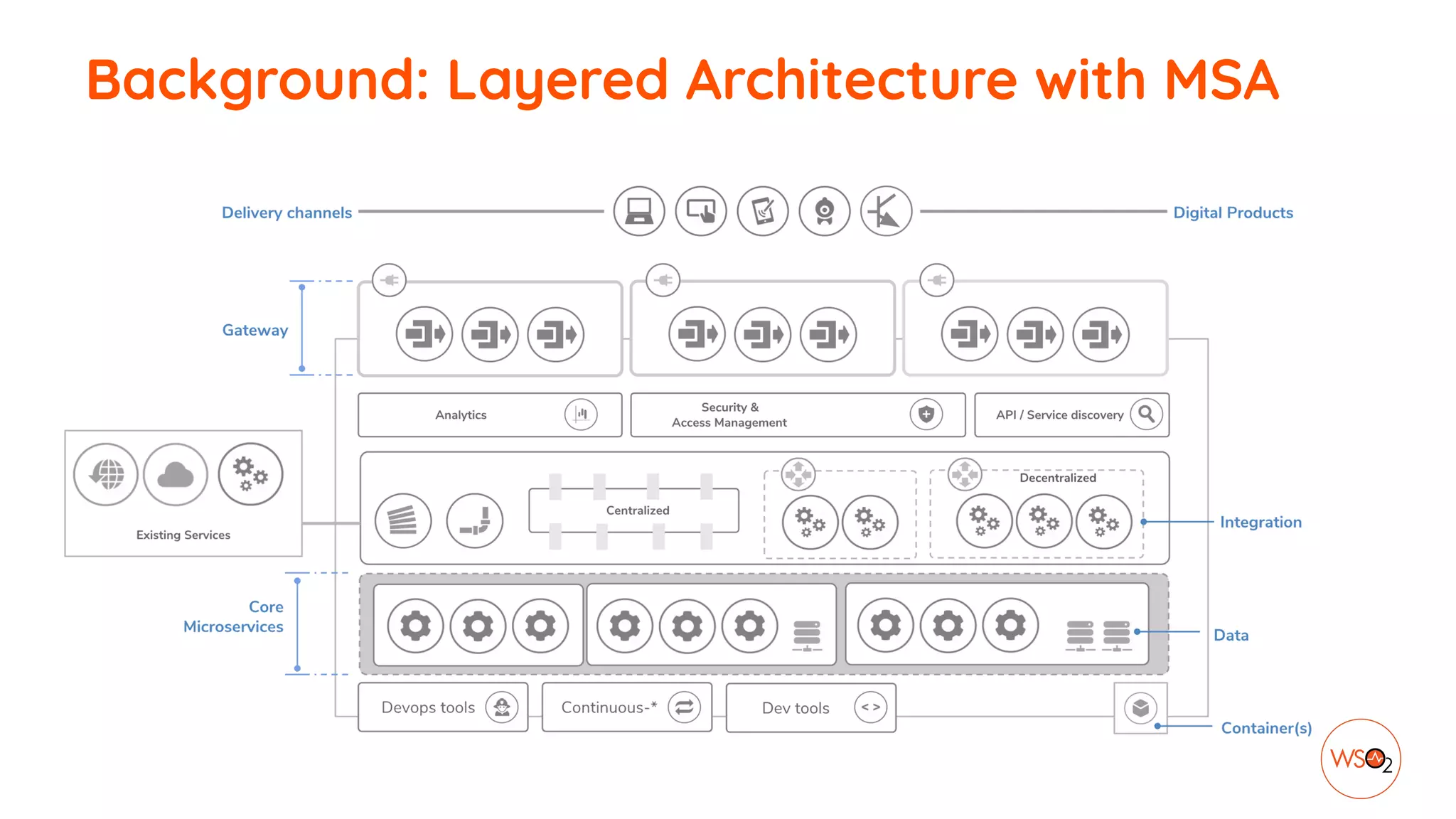

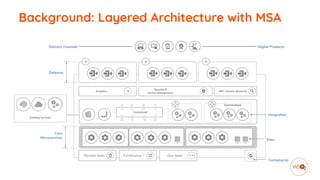

20. Background: Layered Architecture with MSA

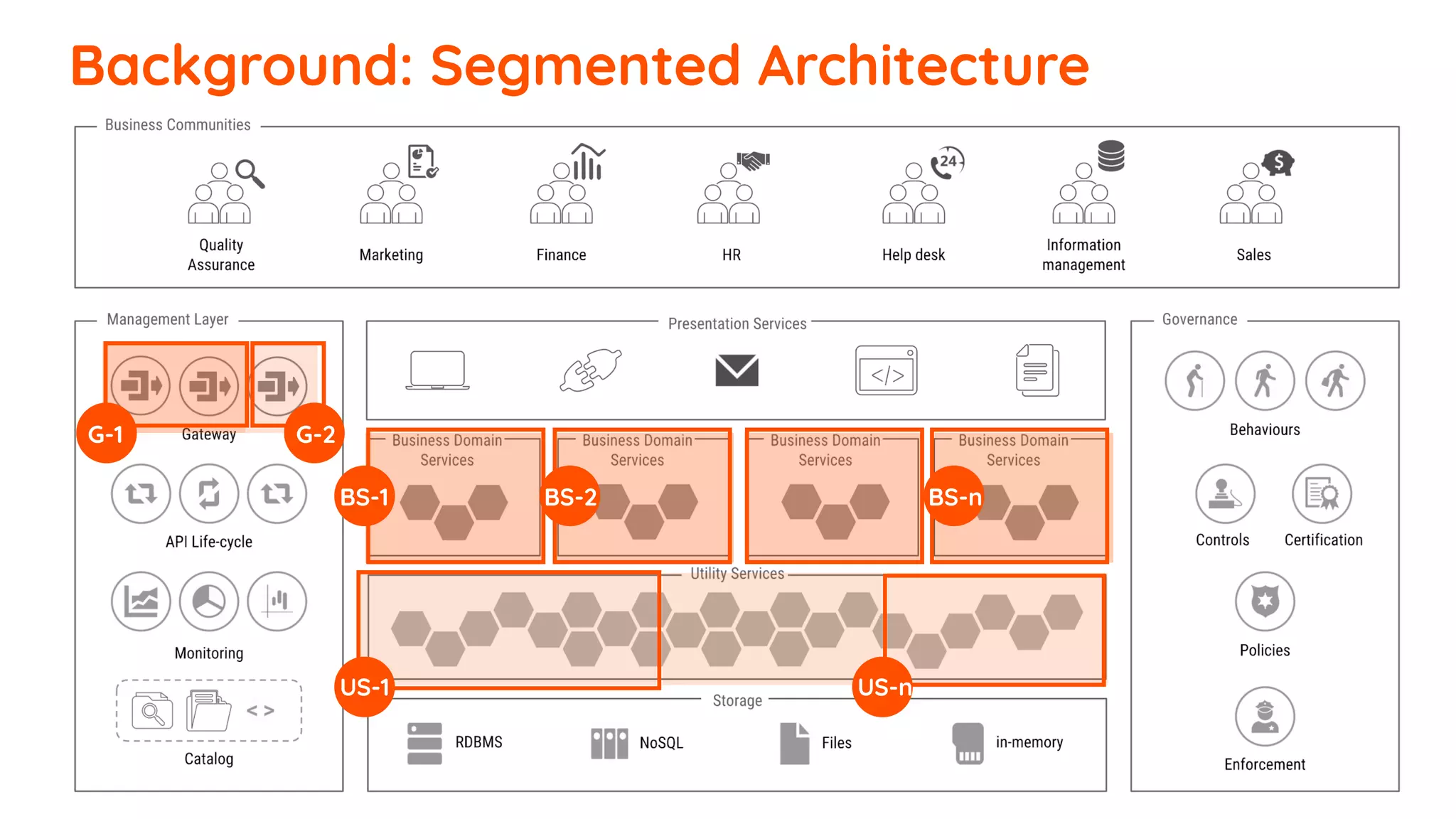

21. Background: Segmented Architecture
BS-1 BS-2 BS-n
G-1 G-2
US-1 US-n

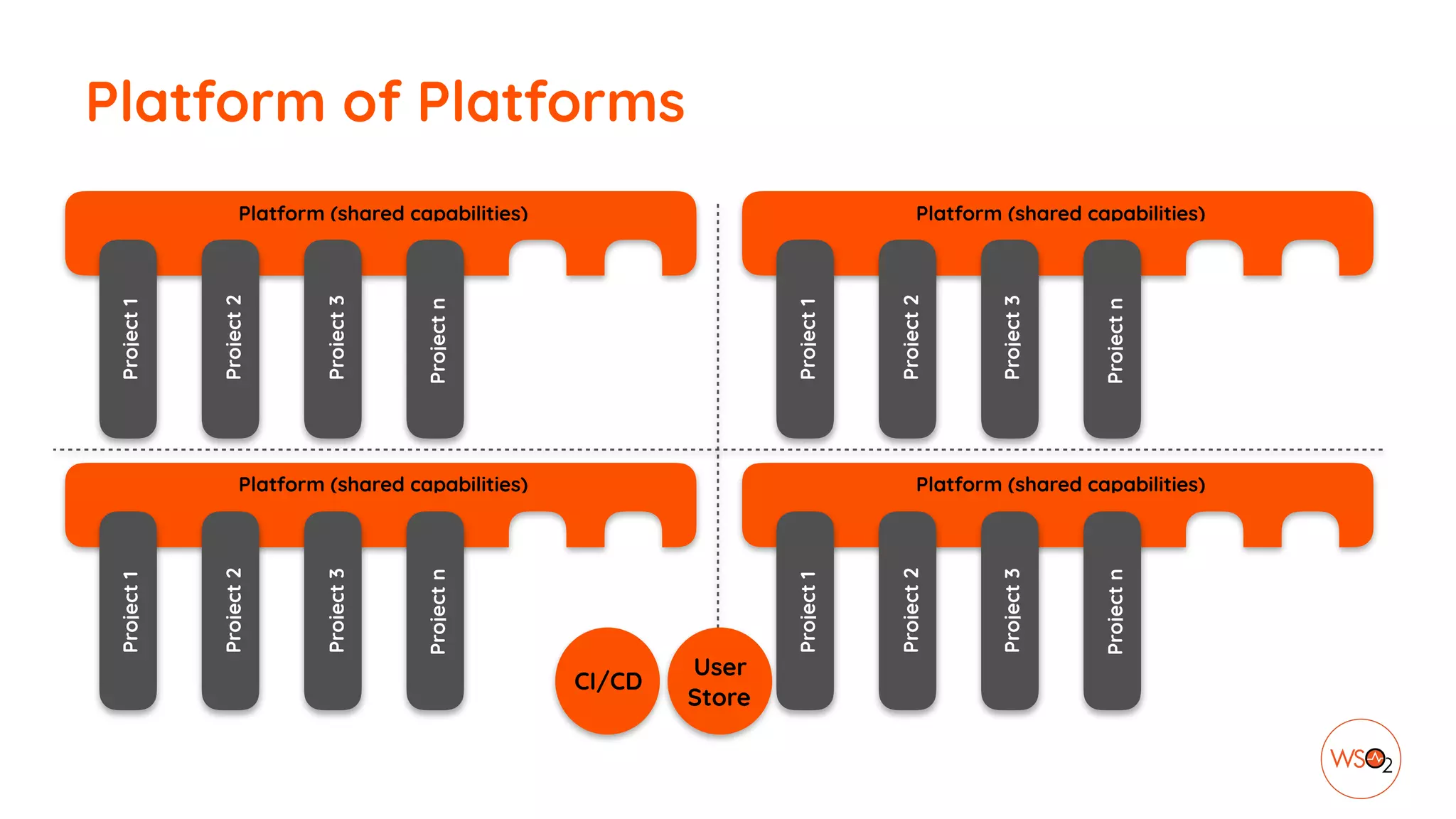

22. Platform of Platforms
Platform (shared capabilities)
Project1
Project2
Project3
Projectn
Platform (shared capabilities)
Project1
Project2
Project3
Projectn
Platform (shared capabilities)
Project1
Project2
Project3
Projectn
Platform (shared capabilities)
Project1
Project2
Project3
Projectn
CI/CD
User
Store

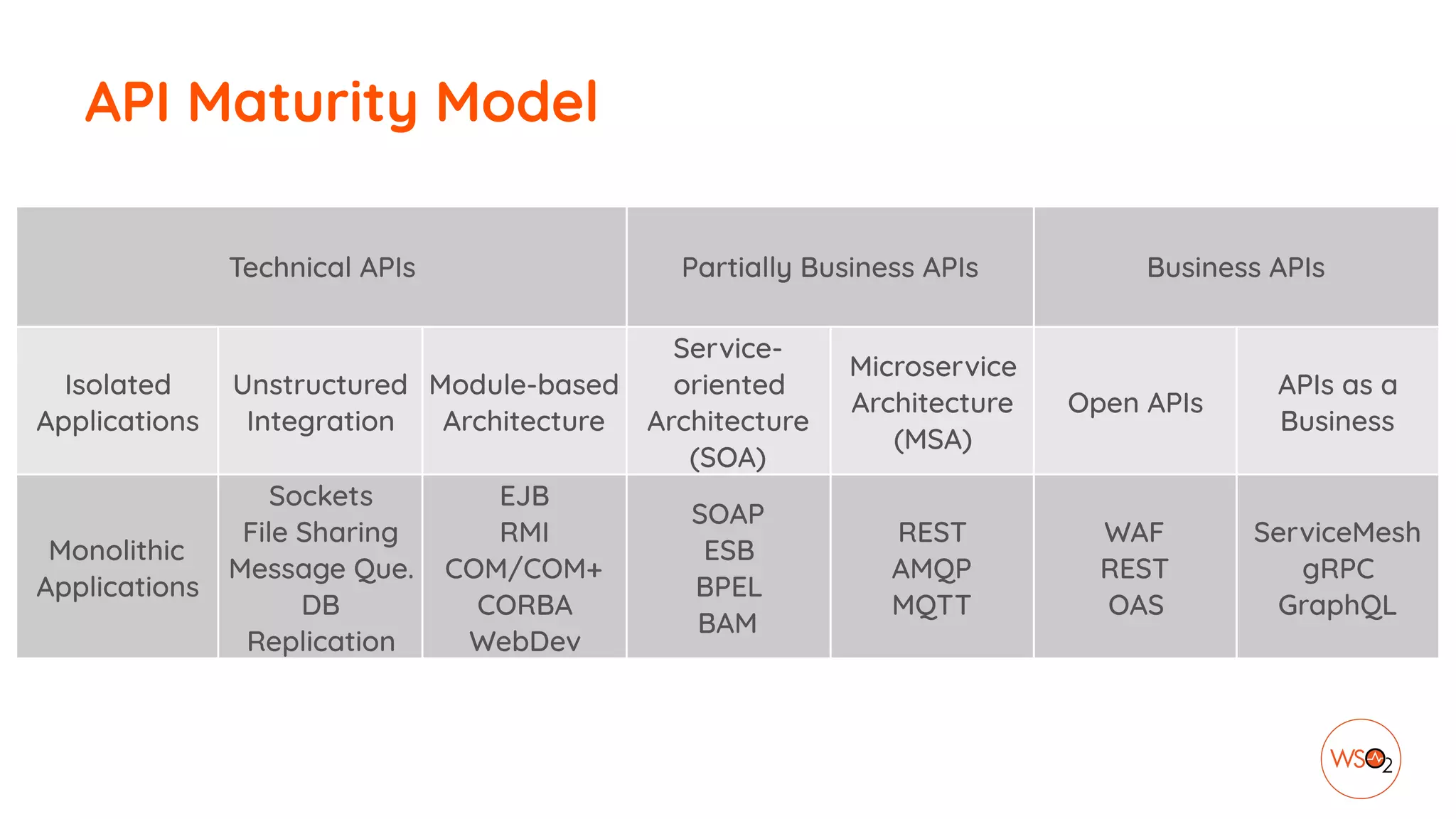

23. API Maturity Model
Technical APIs Partially Business APIs Business APIs
Isolated
Applications
Unstructured
Integration
Module-based
Architecture
Service-
oriented
Architecture
(SOA)
Microservice
Architecture
(MSA)
Open APIs
APIs as a
Business
Monolithic
Applications
Sockets
File Sharing
Message Que.
DB
Replication
EJB
RMI
COM/COM+
CORBA
WebDev
SOAP
ESB
BPEL
BAM
REST
AMQP
MQTT
WAF
REST
OAS
ServiceMesh
gRPC
GraphQL

24. picture credit: https://www.flickr.com/photos/ableman/

25. Making of……
picture credit: https://commons.wikimedia.org/wiki/User:Frank_Schulenburg CC BY 3.0

26. picture credit: https://www.cricindex.com/john-buchanan-cricket-coach/

27. 2014
2018

29. Building the
Concept

30. Business vs technical services
picture credit: https://www.flickr.com/photos/arpadlukacs/

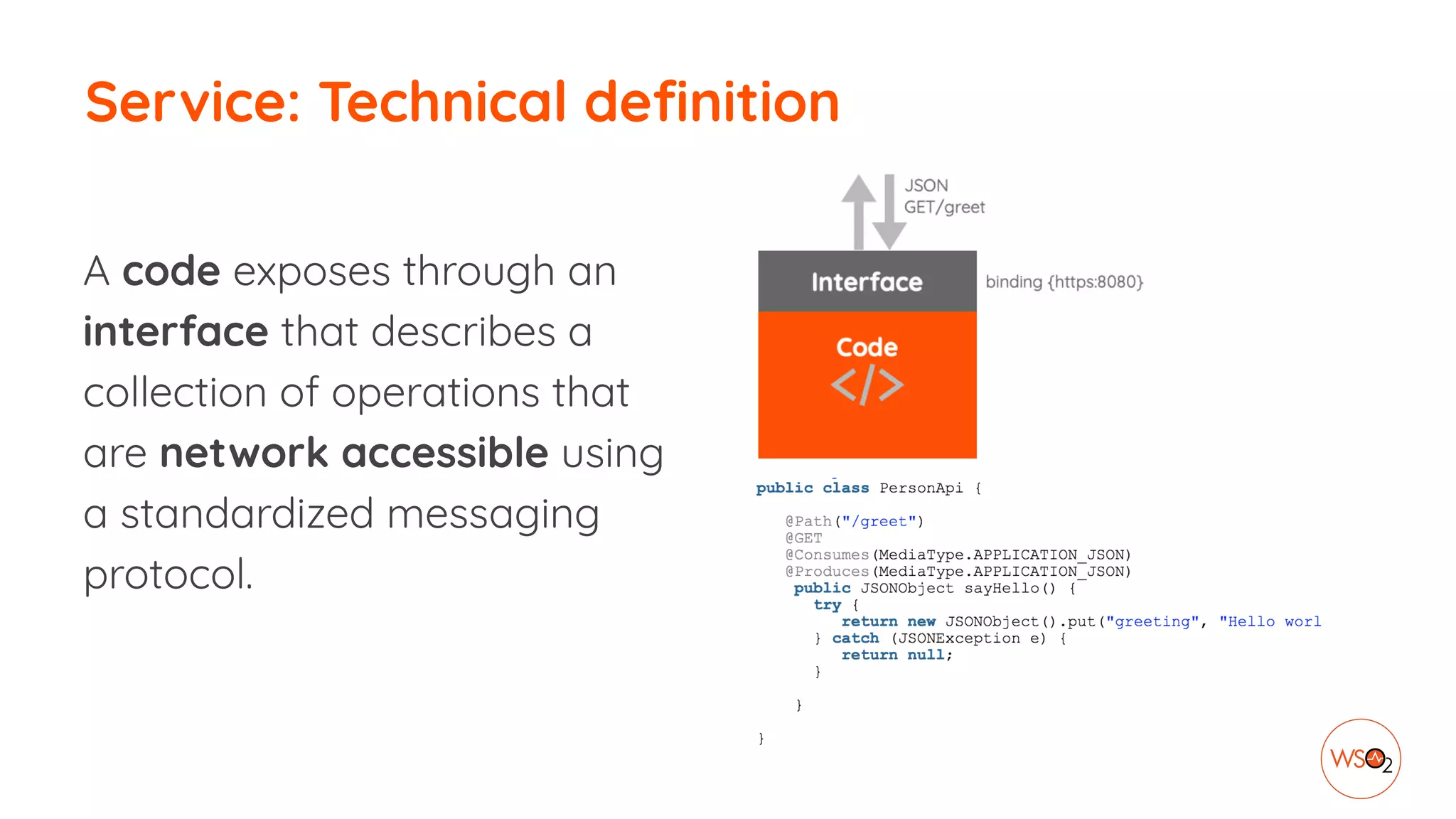

31. Service: Technical definition
A code exposes through an
interface that describes a
collection of operations that
are network accessible using
a standardized messaging
protocol.

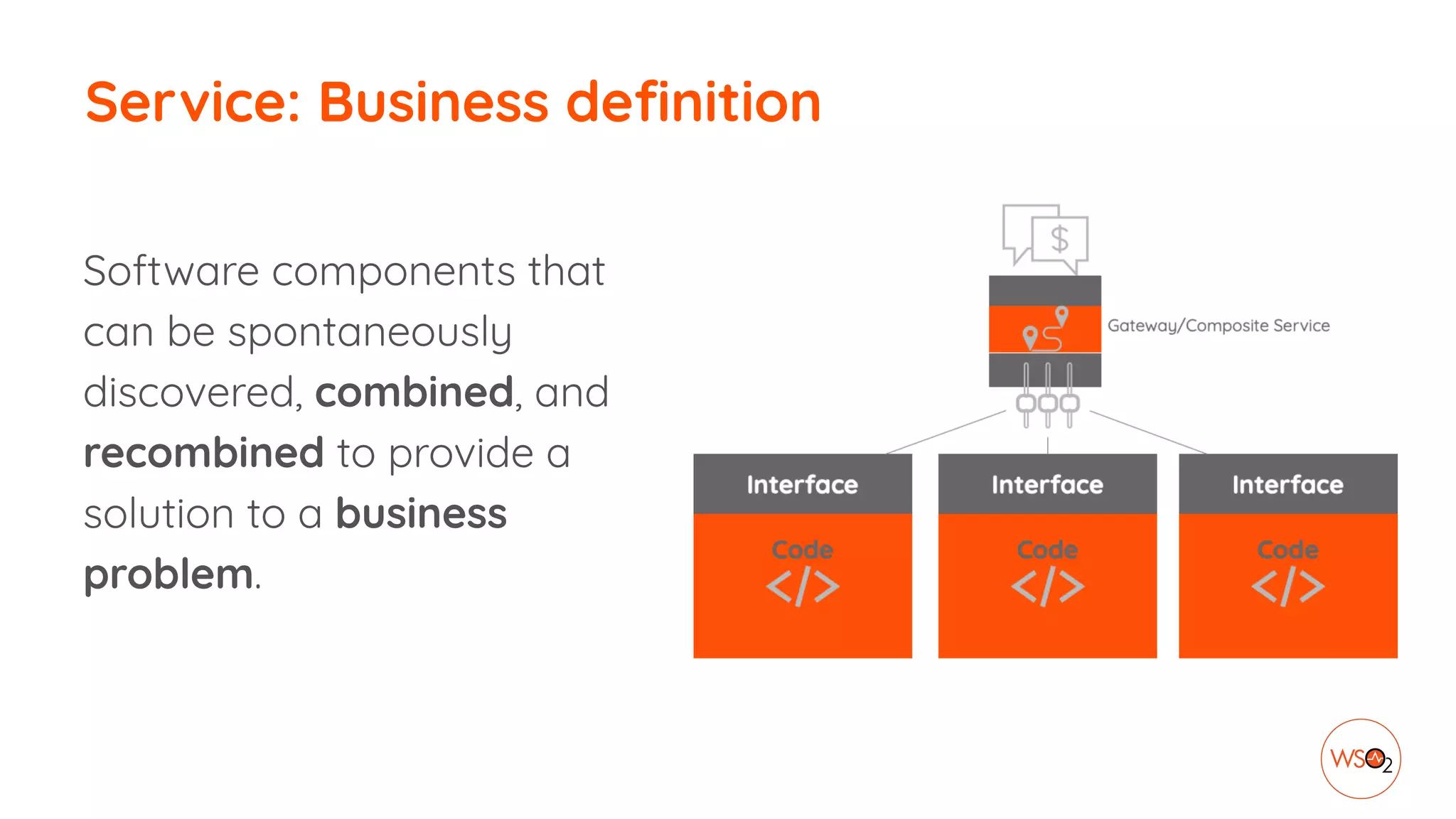

32. Service: Business definition
Software components that
can be spontaneously
discovered, combined, and
recombined to provide a
solution to a business
problem.

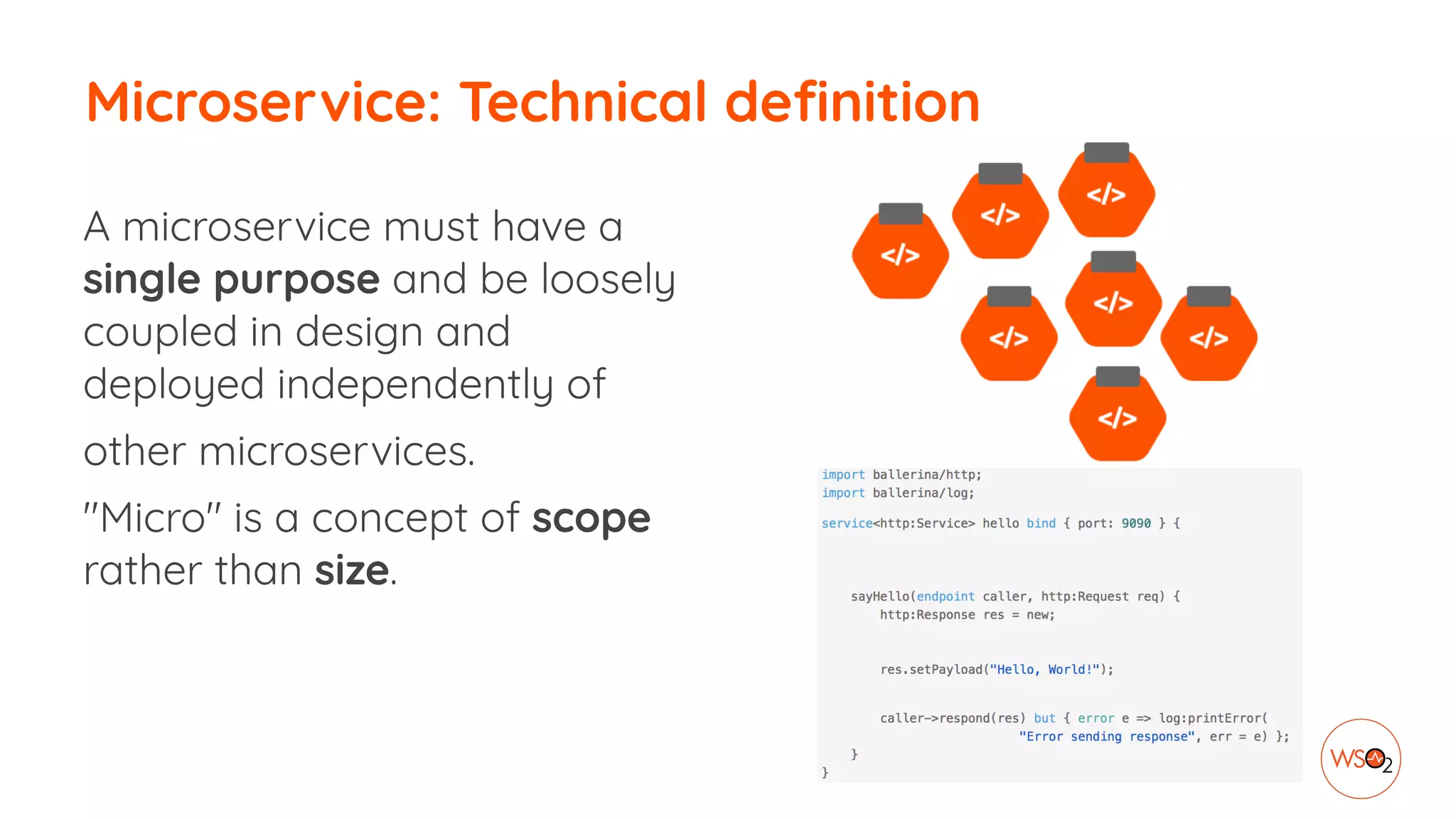

33. Microservice: Technical definition
A microservice must have a
single purpose and be loosely
coupled in design and
deployed independently of
other microservices.
"Micro" is a concept of scope
rather than size.

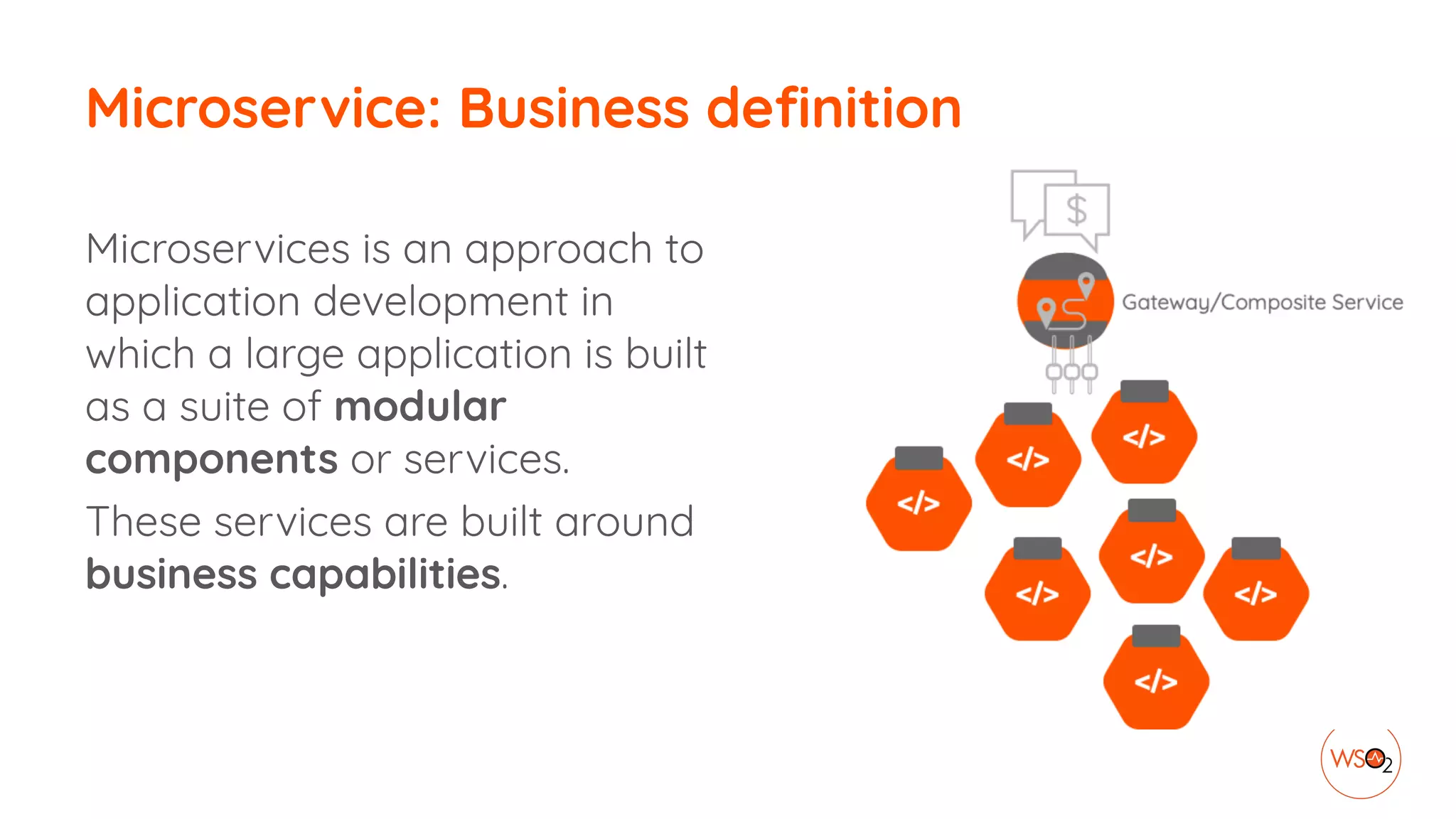

34. Microservice: Business definition
Microservices is an approach to
application development in
which a large application is built
as a suite of modular
components or services.
These services are built around
business capabilities.

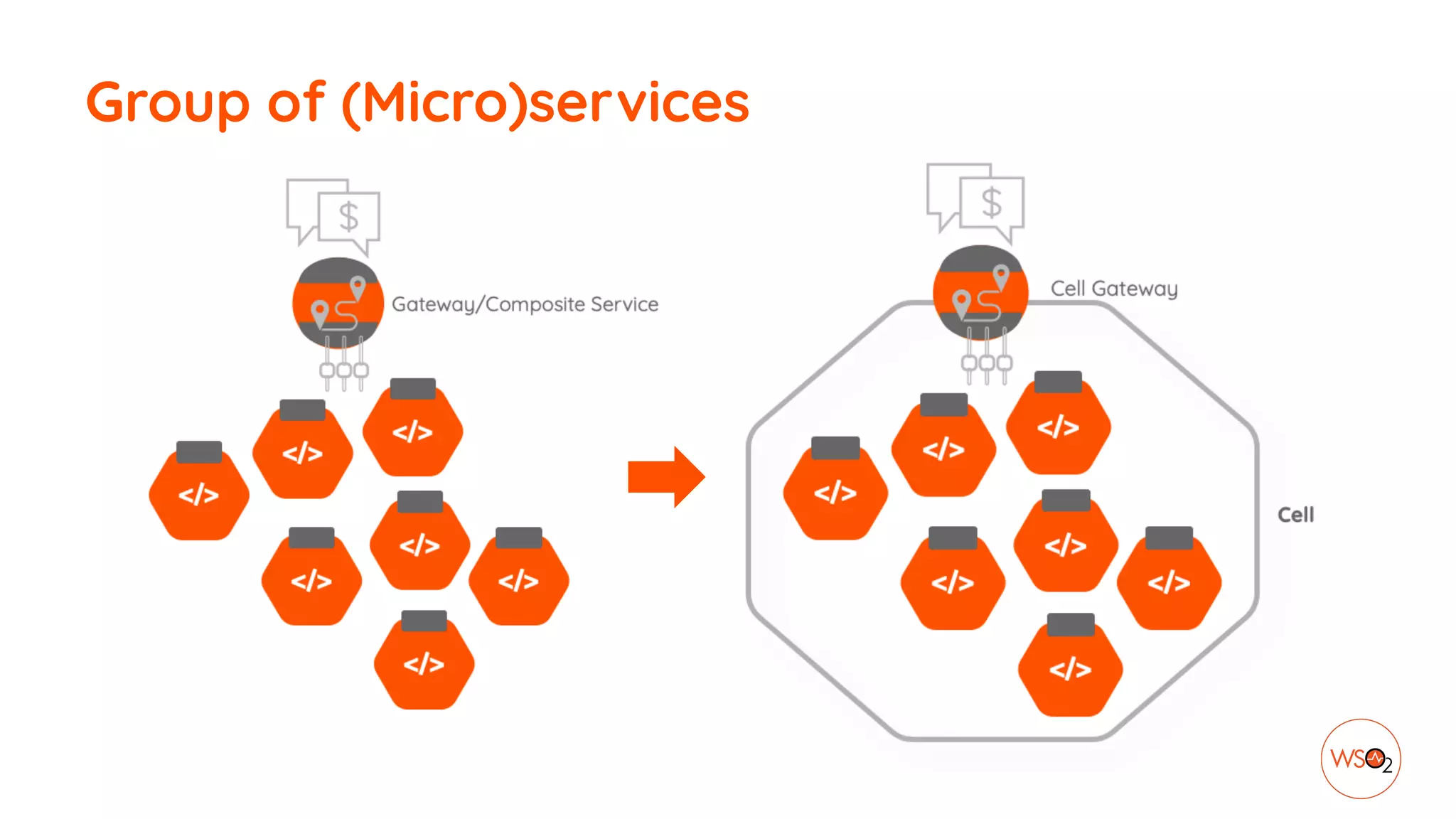

35. Group of (Micro)services

36. The cell is the basic structural,
functional, and
biological unit of all known
living organisms

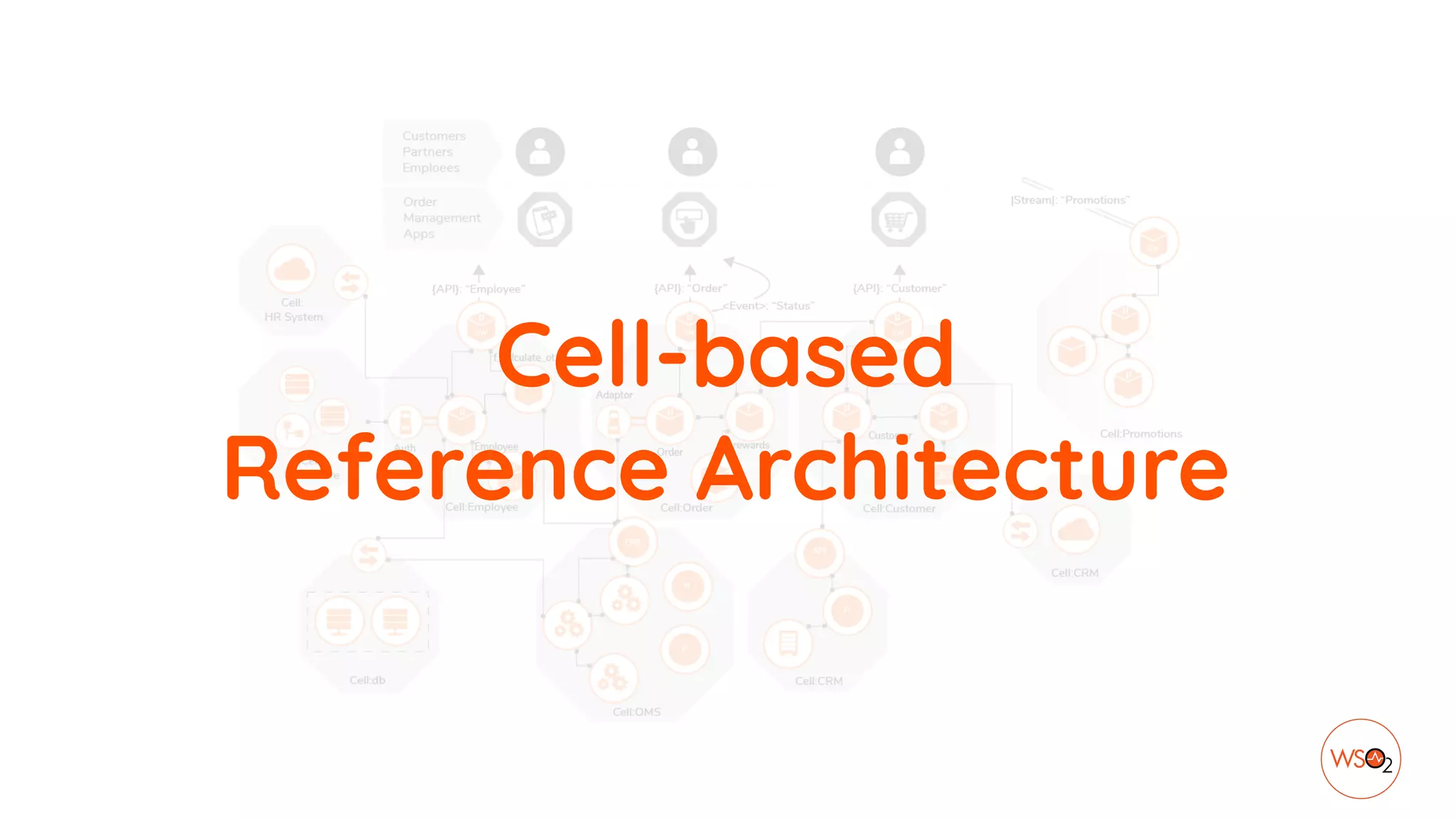

37. Cell-based
Reference Architecture

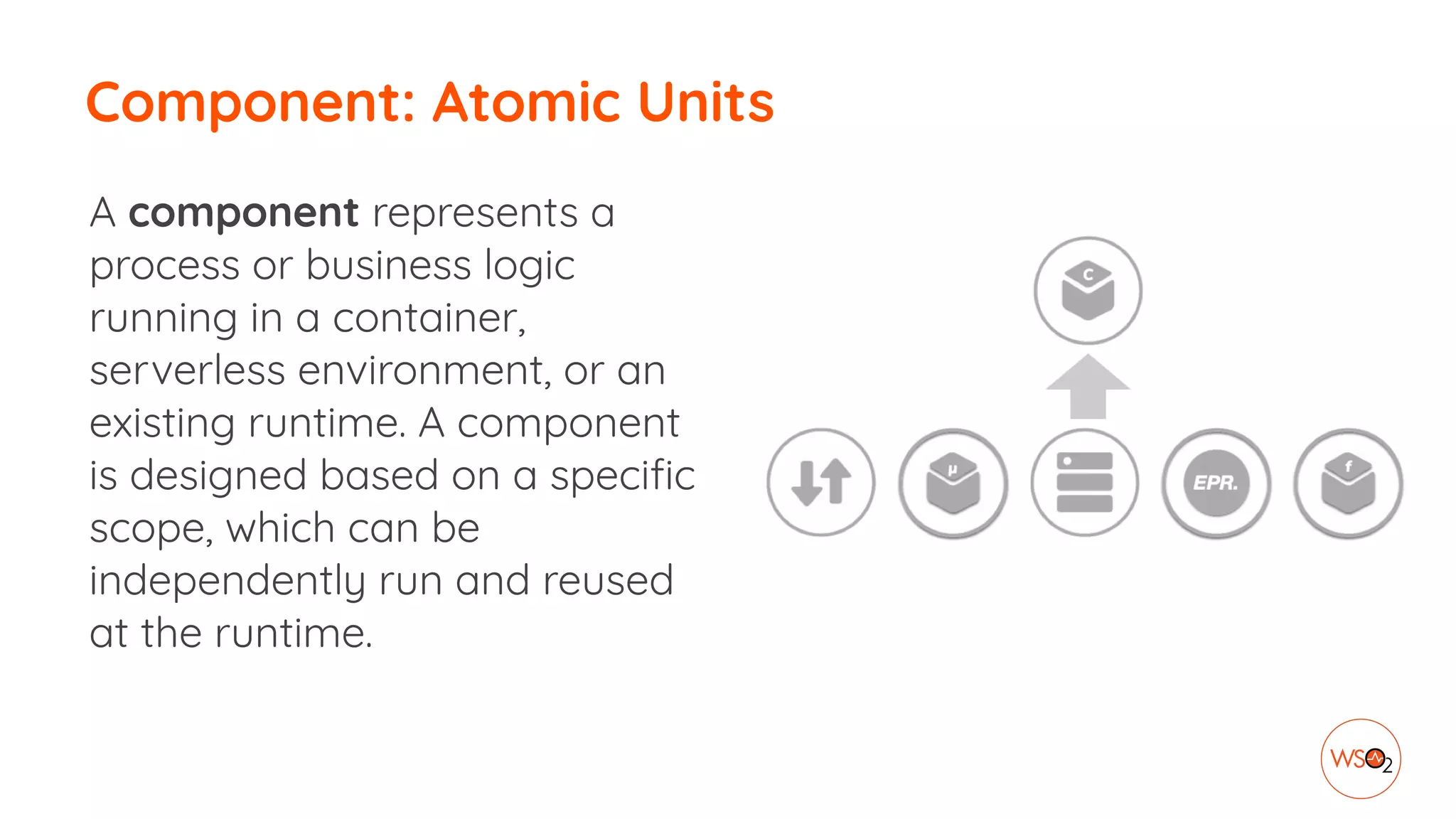

38. Component: Atomic Units
A component represents a
process or business logic
running in a container,
serverless environment, or an
existing runtime. A component
is designed based on a specific
scope, which can be
independently run and reused
at the runtime.

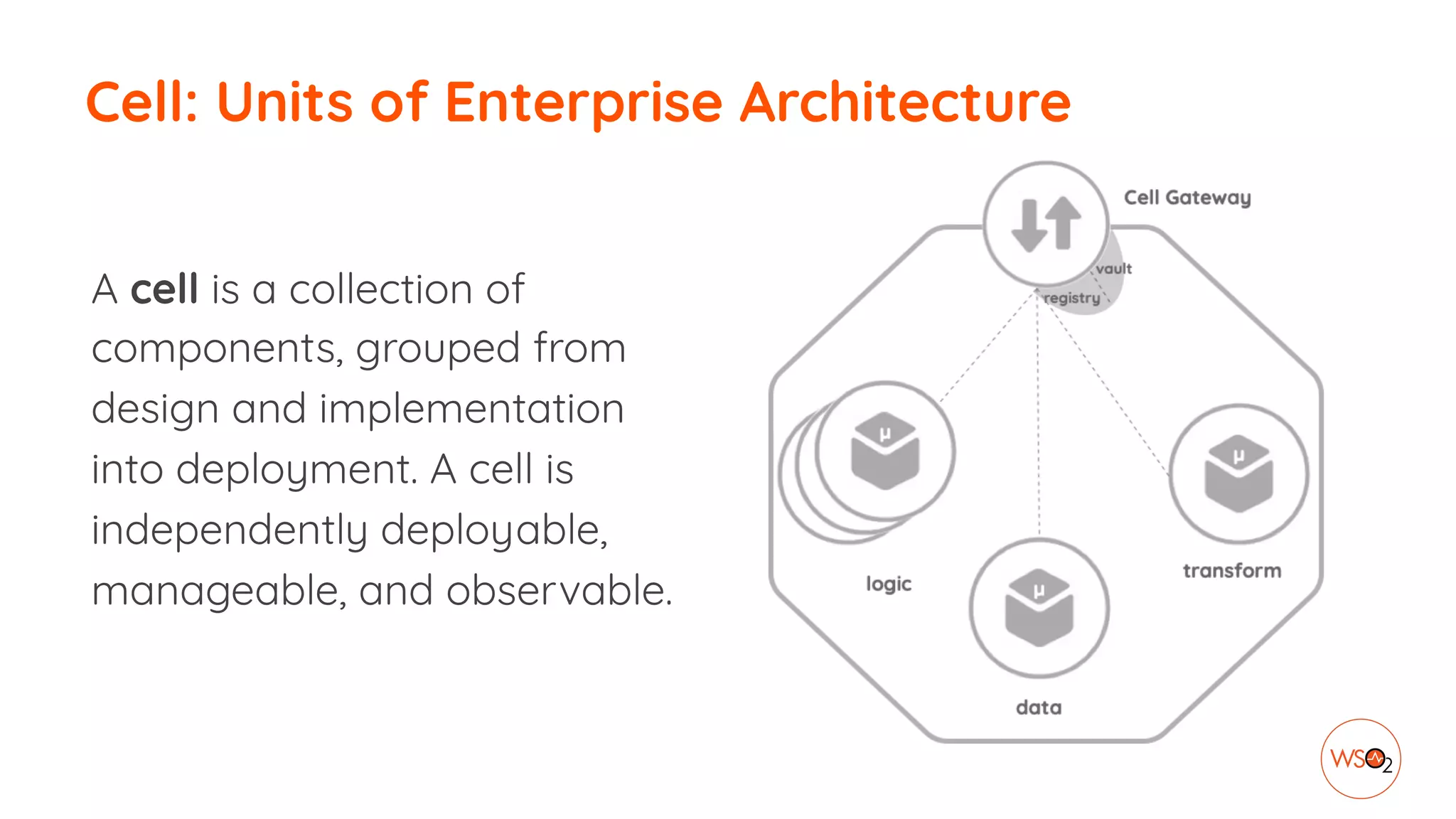

39. Cell: Units of Enterprise Architecture
A cell is a collection of
components, grouped from
design and implementation
into deployment. A cell is
independently deployable,
manageable, and observable.

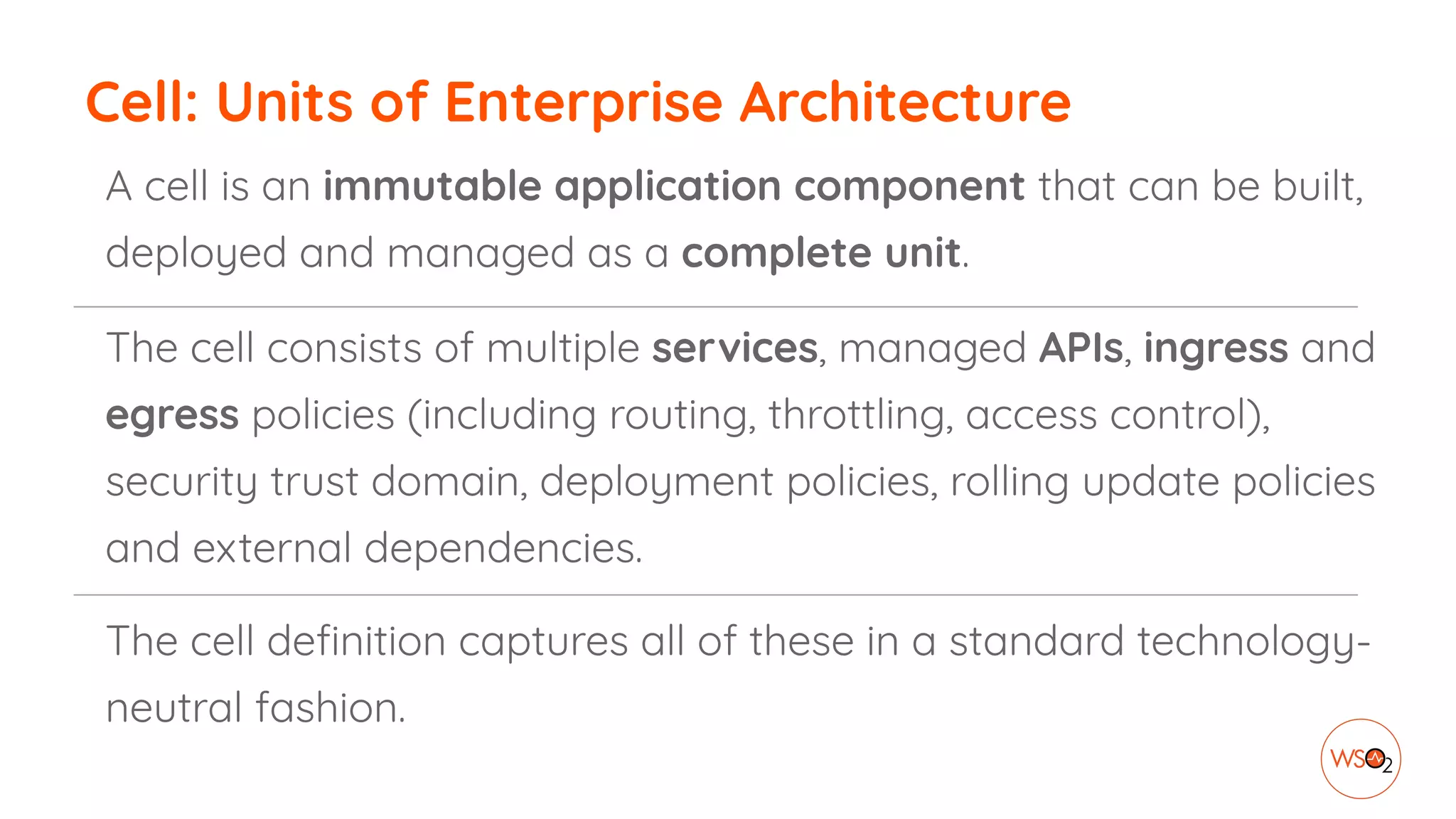

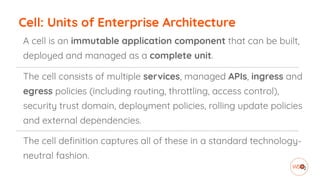

40. Cell: Units of Enterprise Architecture
A cell is an immutable application component that can be built,
deployed and managed as a complete unit.
The cell consists of multiple services, managed APIs, ingress and
egress policies (including routing, throttling, access control),
security trust domain, deployment policies, rolling update policies
and external dependencies.
The cell definition captures all of these in a standard technology-
neutral fashion.

41. Cell:Component
1:M
1:1

42. Connected Cells
picture credit: https://www.medicalnewstoday.com/

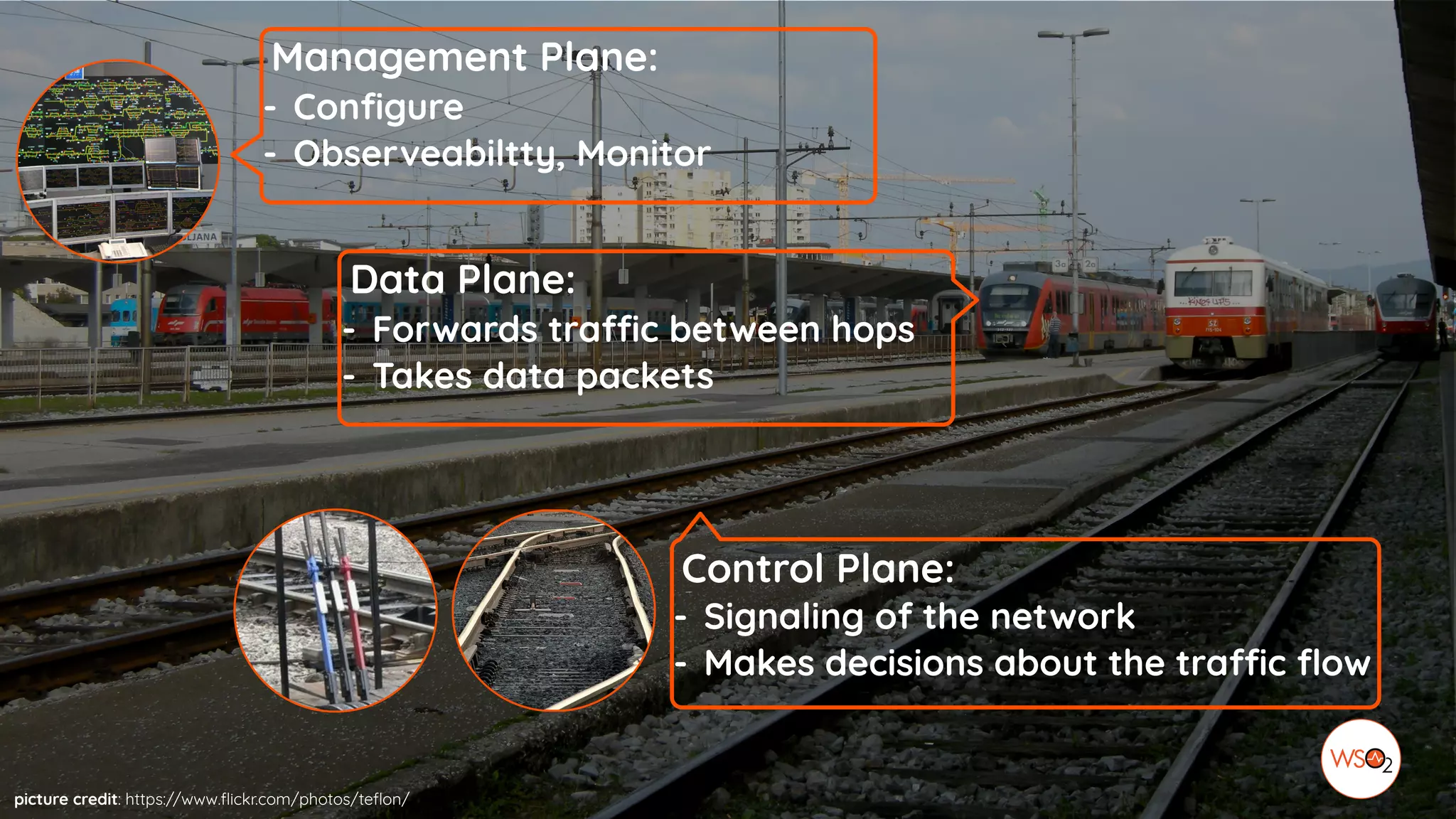

43. Control Plane:
- Signaling of the network
- Makes decisions about the traffic flow
Data Plane:
- Forwards traffic between hops
- Takes data packets
picture credit: https://www.flickr.com/photos/teflon/
Management Plane:
- Configure
- Observeabiltty, Monitor

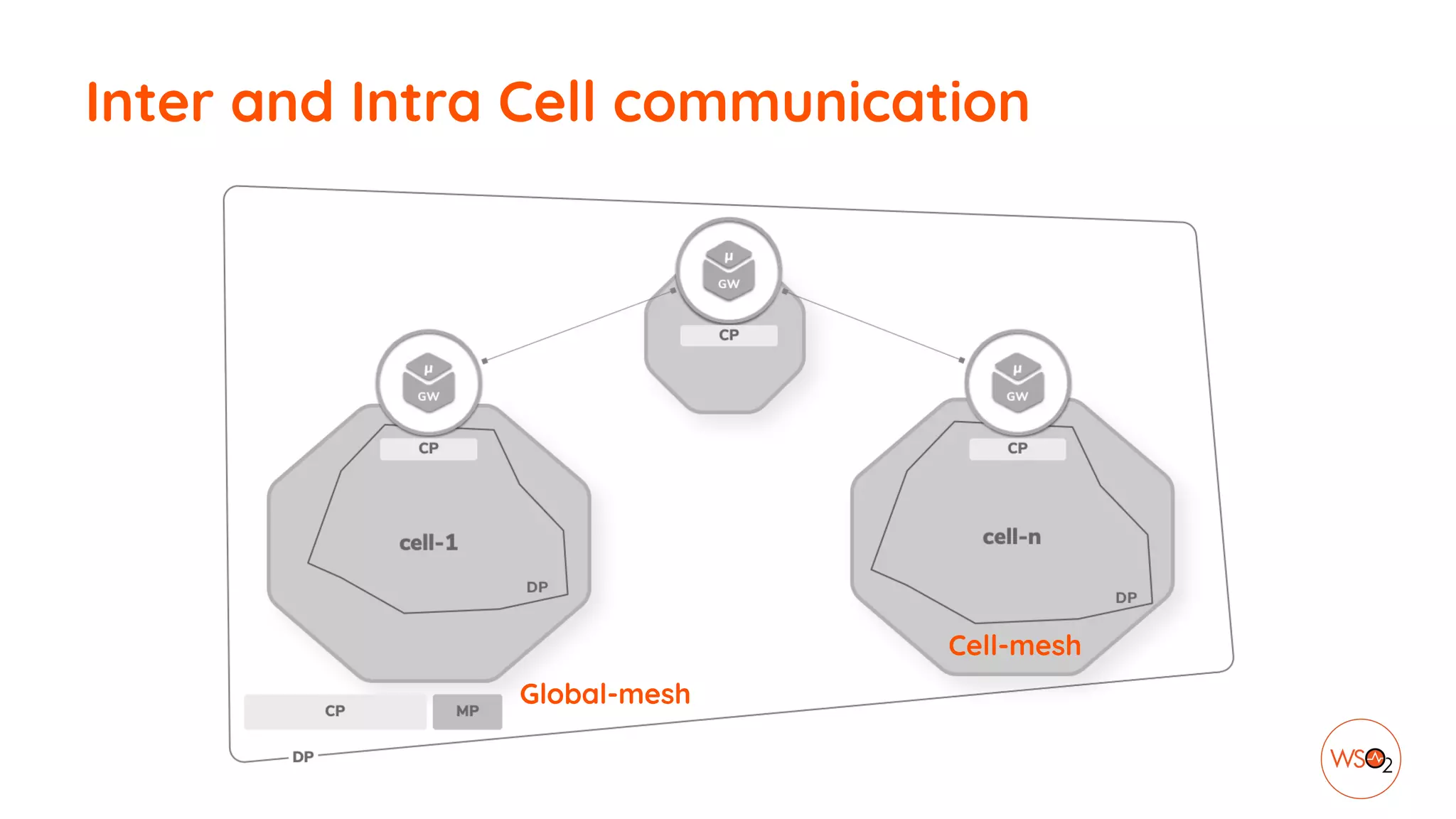

44. Inter and Intra Cell communication
Cell-mesh
Global-mesh

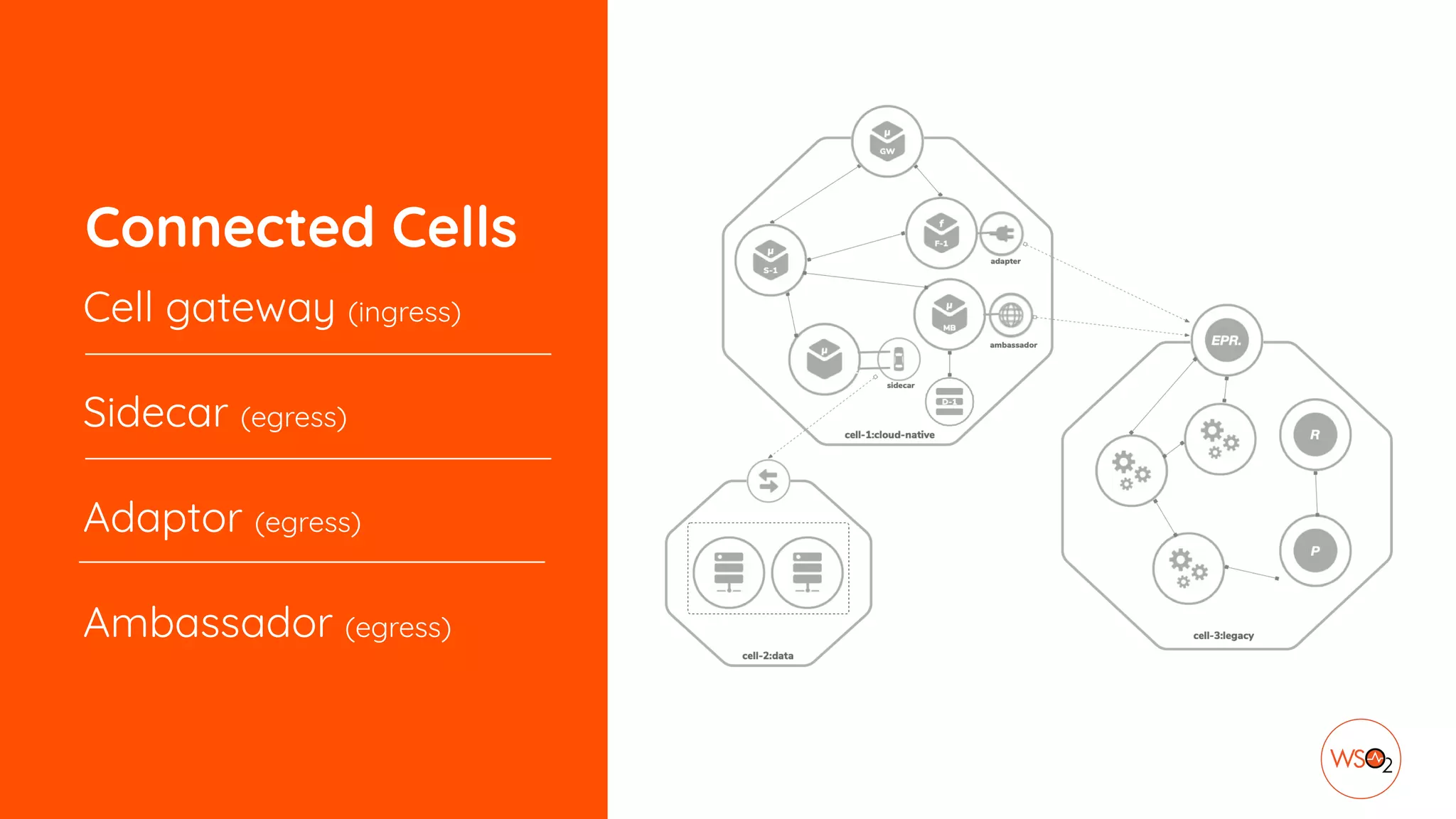

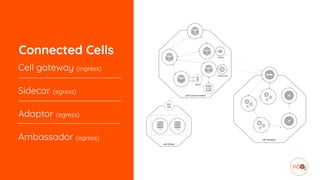

45. Connected Cells
Cell gateway (ingress)
Sidecar (egress)
Adaptor (egress)
Ambassador (egress)

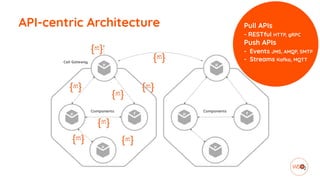

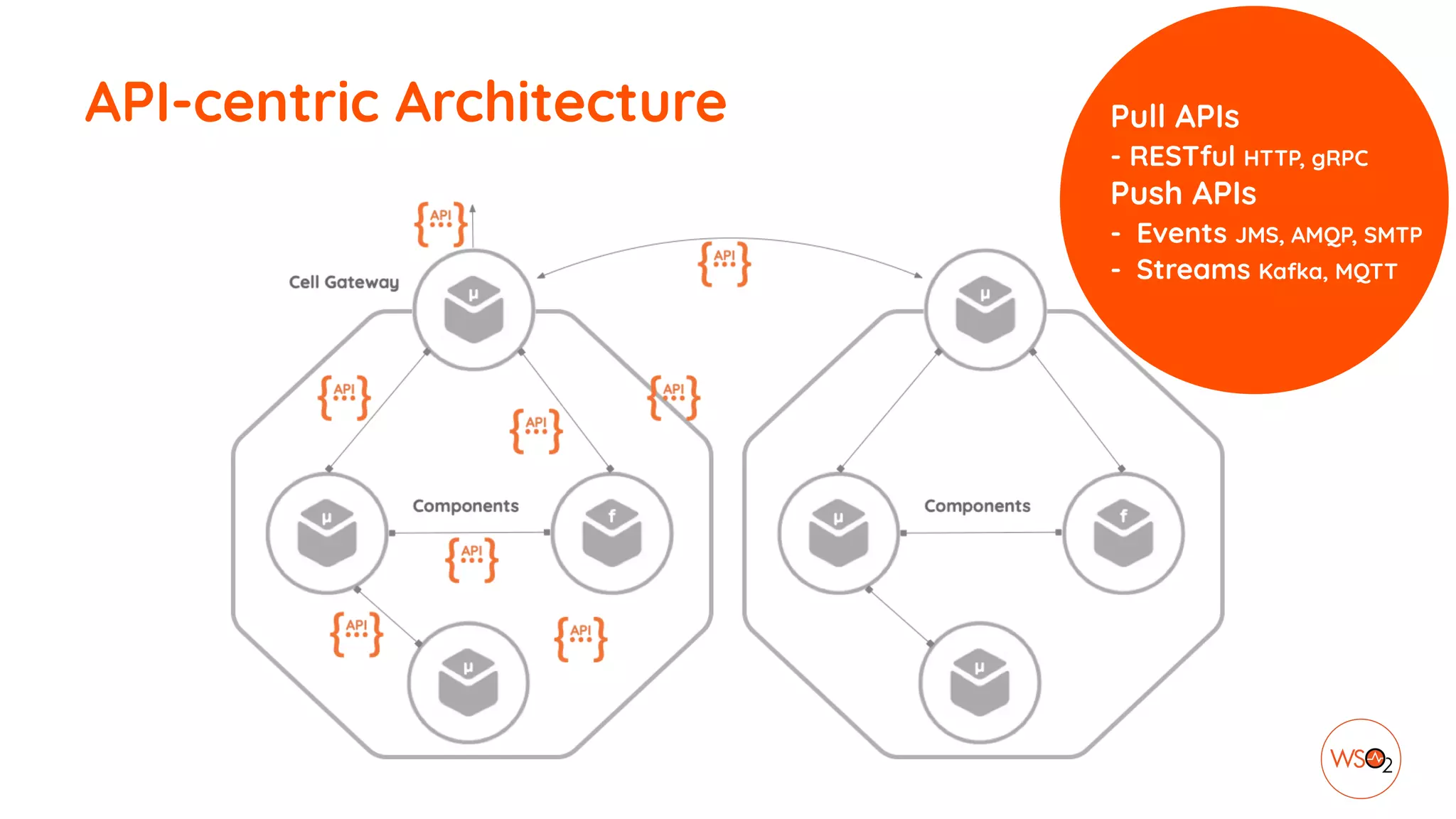

46. API-centric Architecture Pull APIs
- RESTful HTTP, gRPC
Push APIs
- Events JMS, AMQP, SMTP
- Streams Kafka, MQTT

47. Gateway Pattern
picture credit: https://www.flickr.com/photos/ell-r-brown/

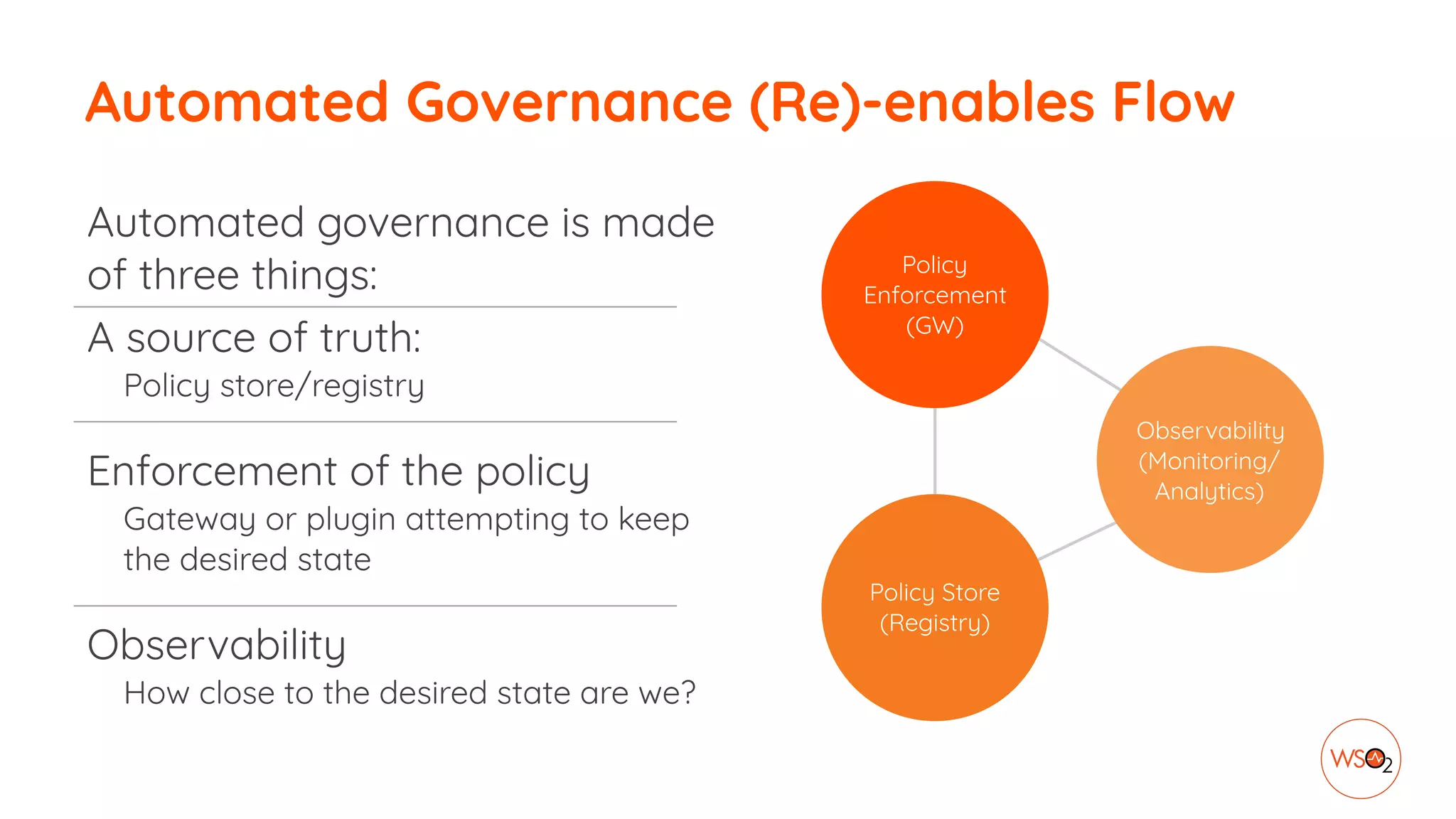

48. Automated Governance (Re)-enables Flow
Policy Store
(Registry)
Observability
(Monitoring/
Analytics)
Policy
Enforcement
(GW)
Automated governance is made
of three things:
A source of truth:
Policy store/registry
Enforcement of the policy
Gateway or plugin attempting to keep
the desired state
Observability
How close to the desired state are we?

49. Security of Cells
picture credit: https://www.flickr.com/photos/laurelfan/ https://www.flickr.com/photos/sahdblunders/

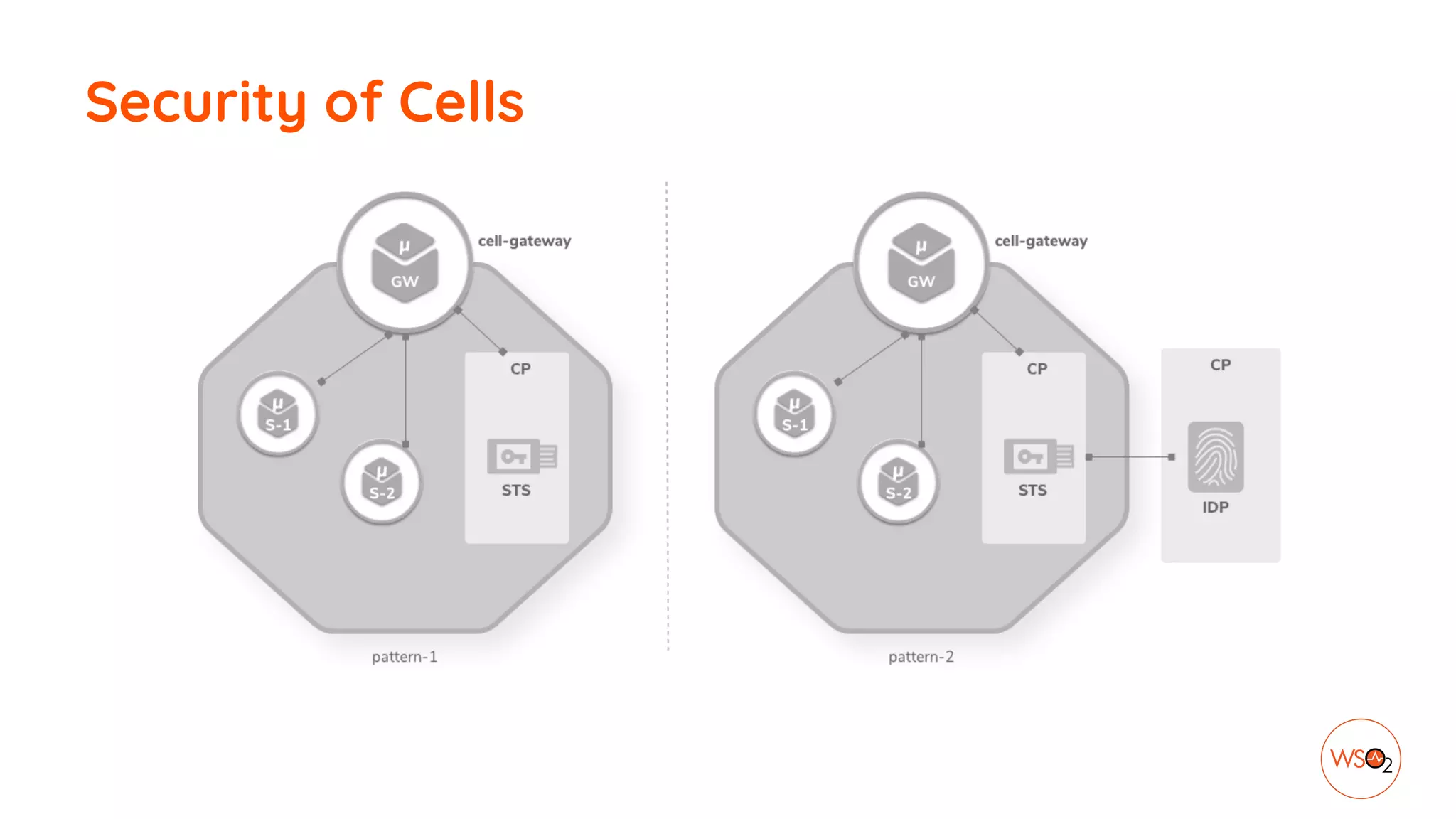

50. Security of Cells

51. Developer Experience (DX)
of a Cell

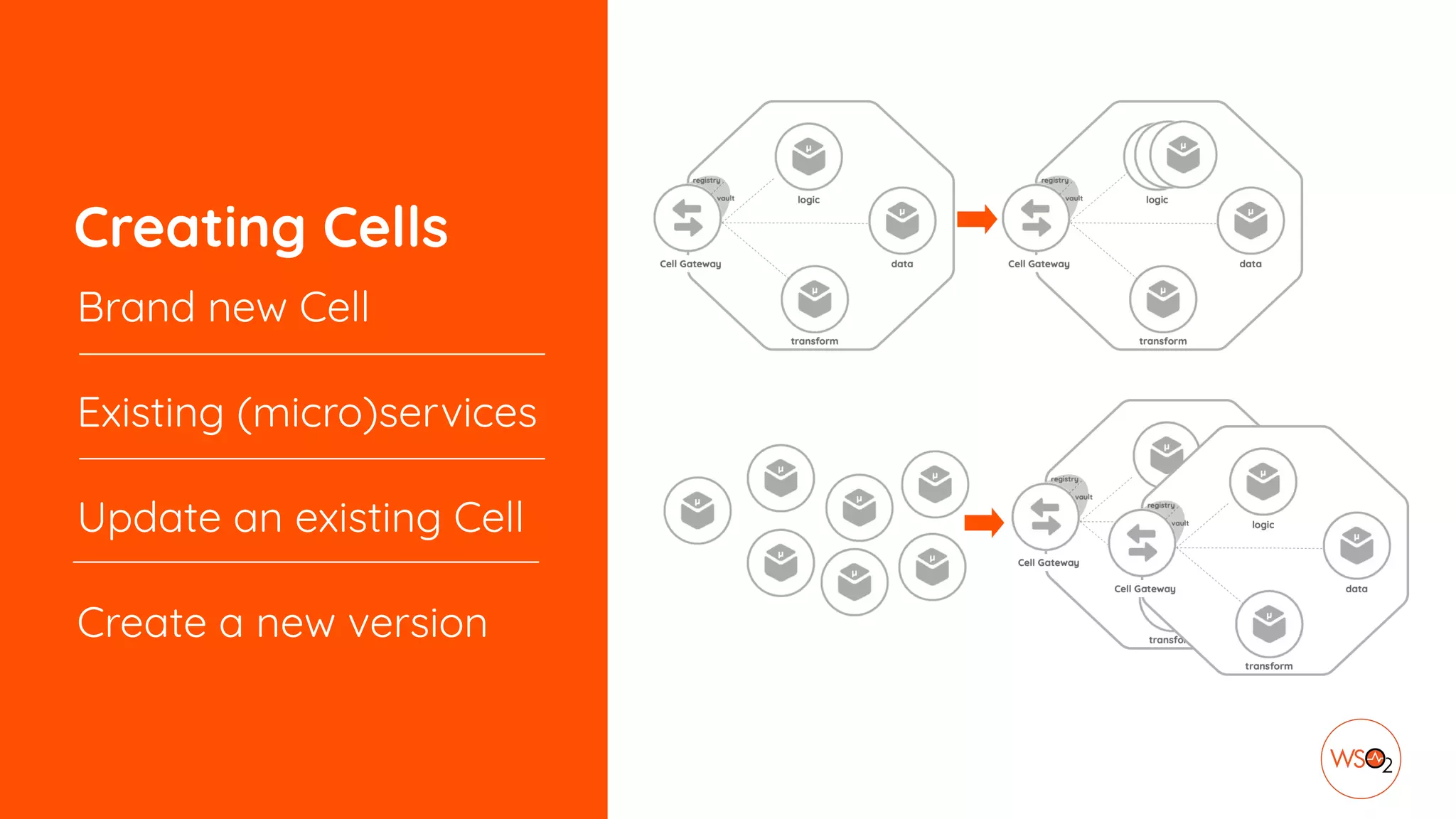

52. Creating Cells
Brand new Cell
Existing (micro)services
Update an existing Cell
Create a new version

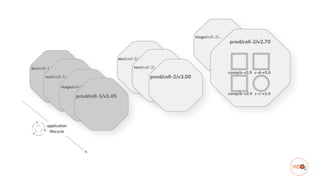

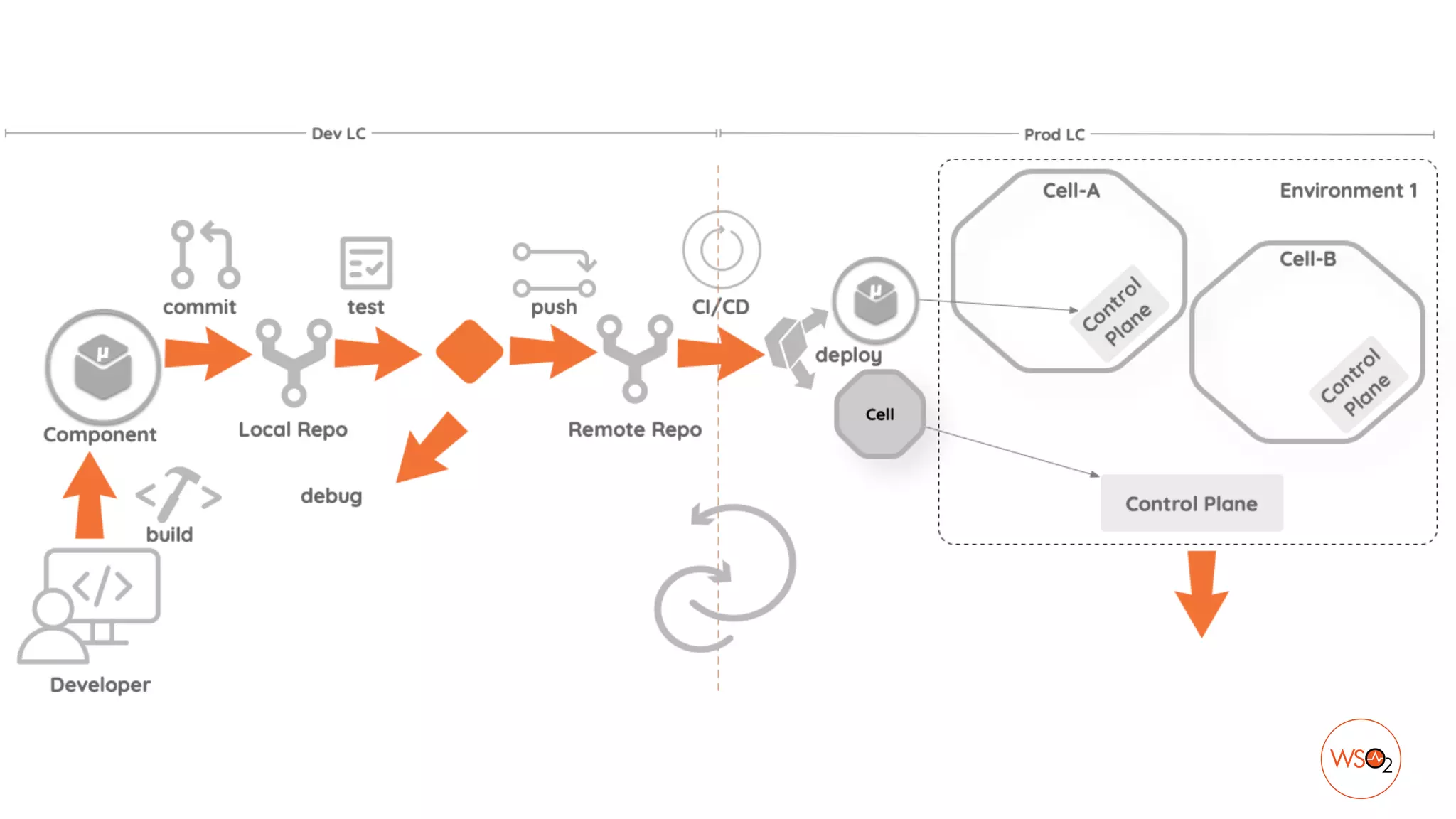

54. Lifecycle of a Cell

56. picture credit: https://www.flickr.com/photos/rincon_de_lula/

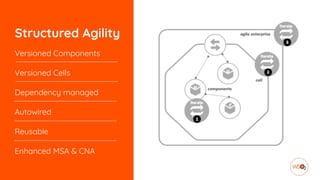

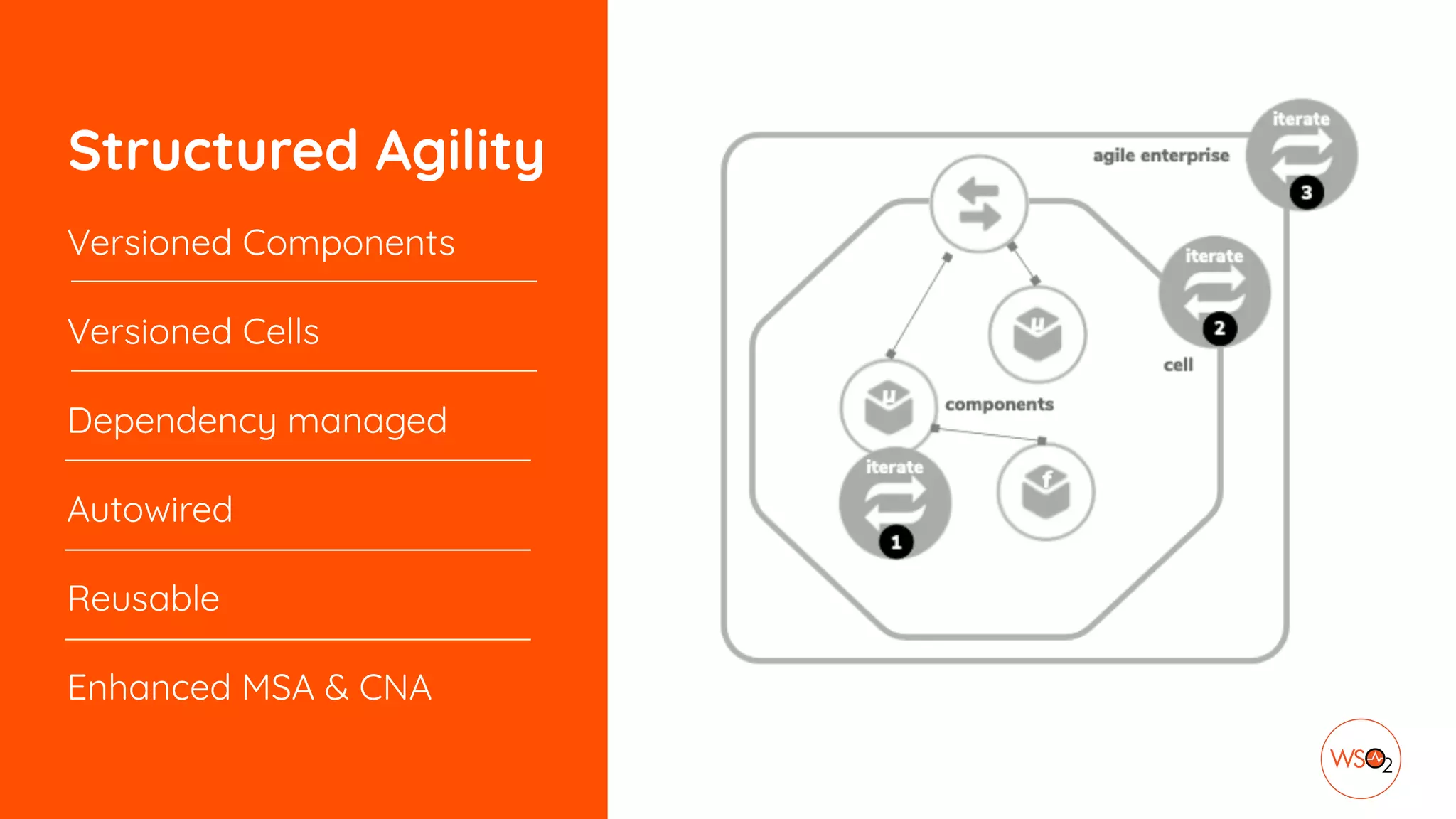

57. Structured Agility
Versioned Components
Versioned Cells
Dependency managed
Autowired
Reusable
Enhanced MSA & CNA

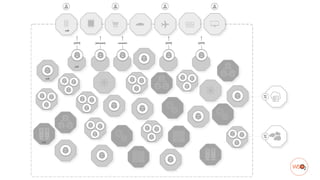

58. Cell-based Enterprise
Architecture

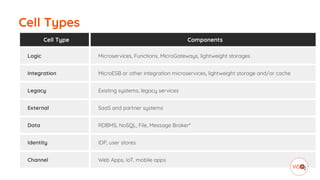

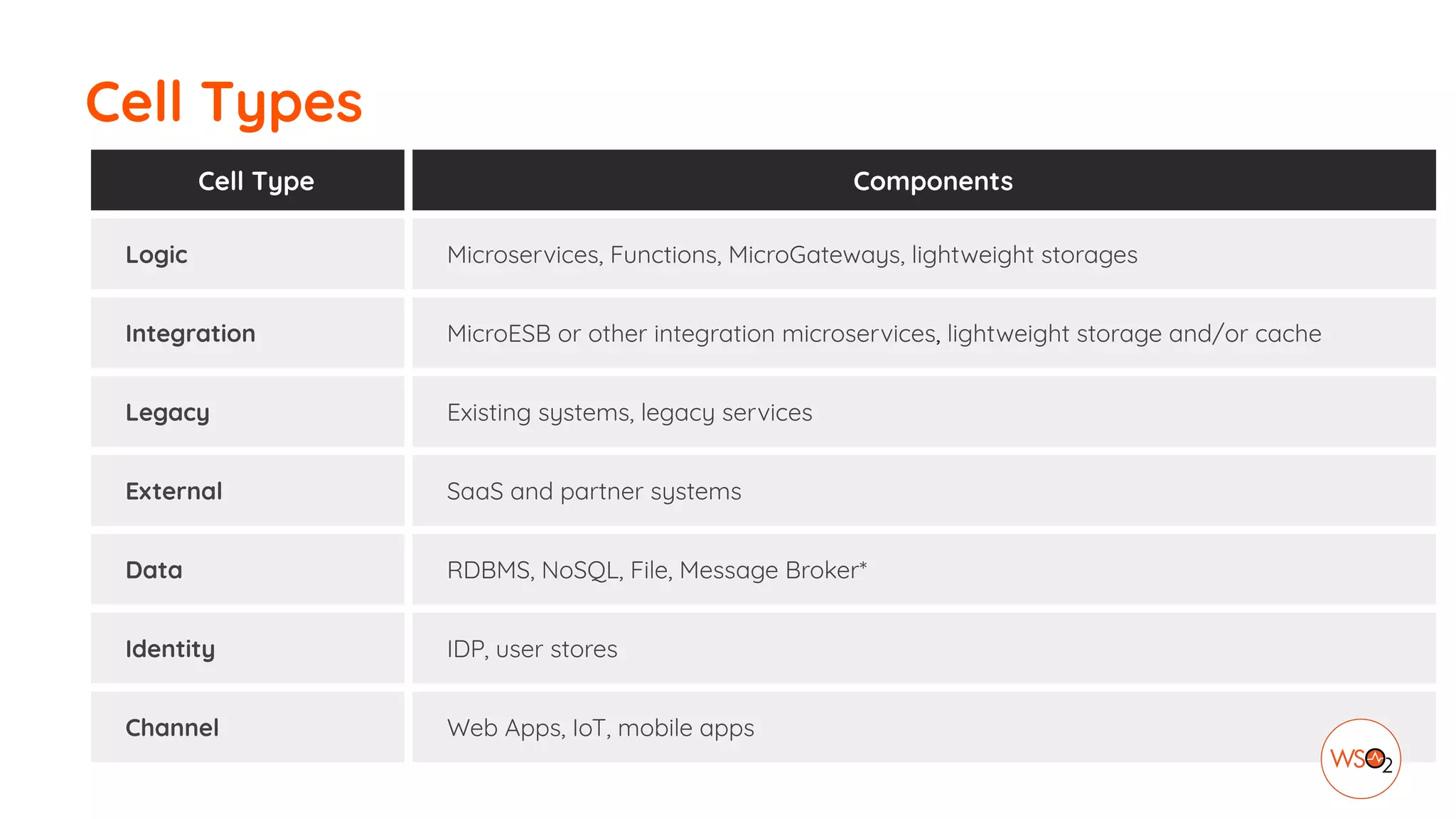

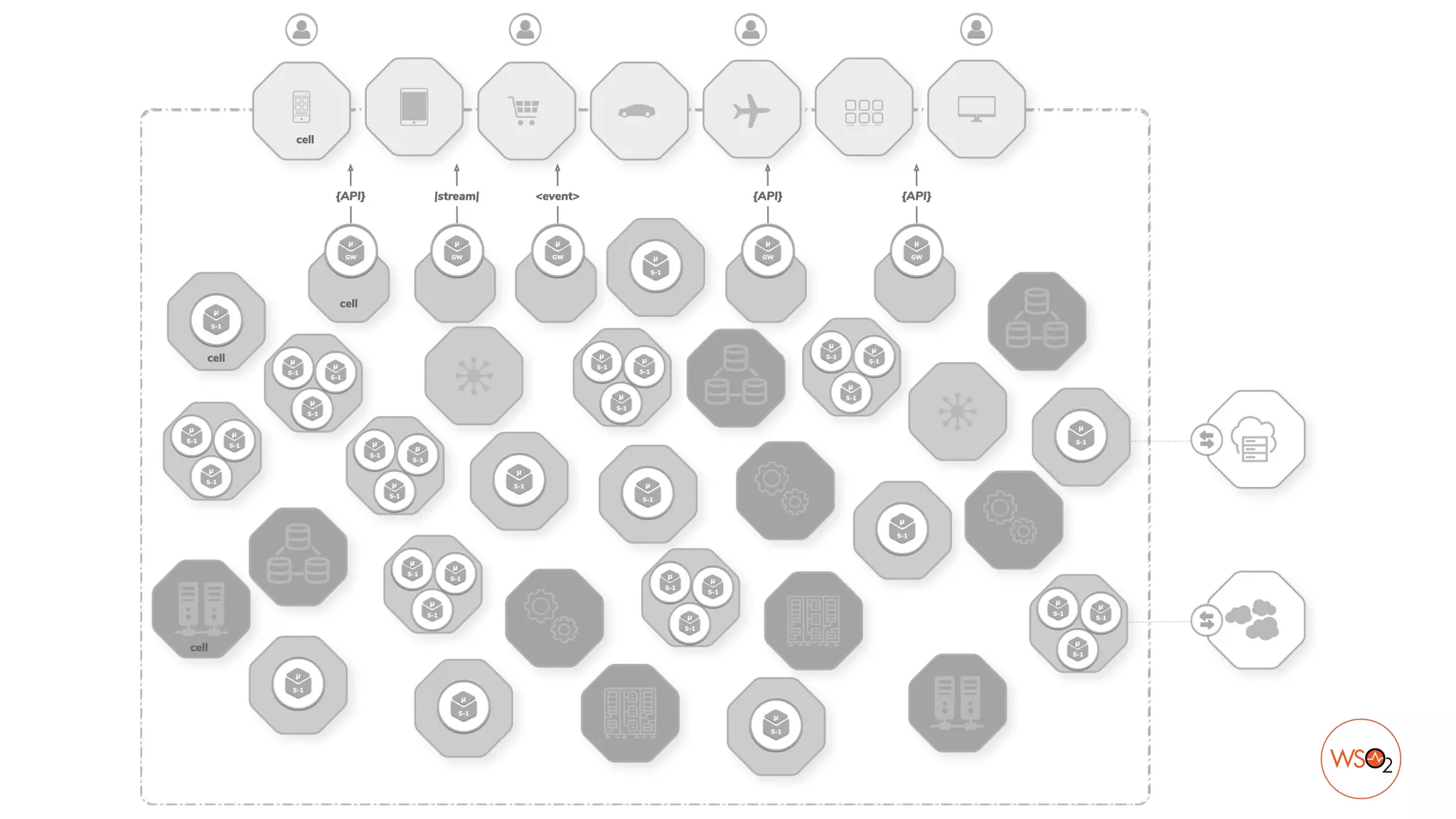

60. Cell Types
Cell Type Components
Logic Microservices, Functions, MicroGateways, lightweight storages
Integration MicroESB or other integration microservices, lightweight storage and/or cache
Legacy Existing systems, legacy services
External SaaS and partner systems
Data RDBMS, NoSQL, File, Message Broker*
Identity IDP, user stores
Channel Web Apps, IoT, mobile apps

61. Reference Implementation L0

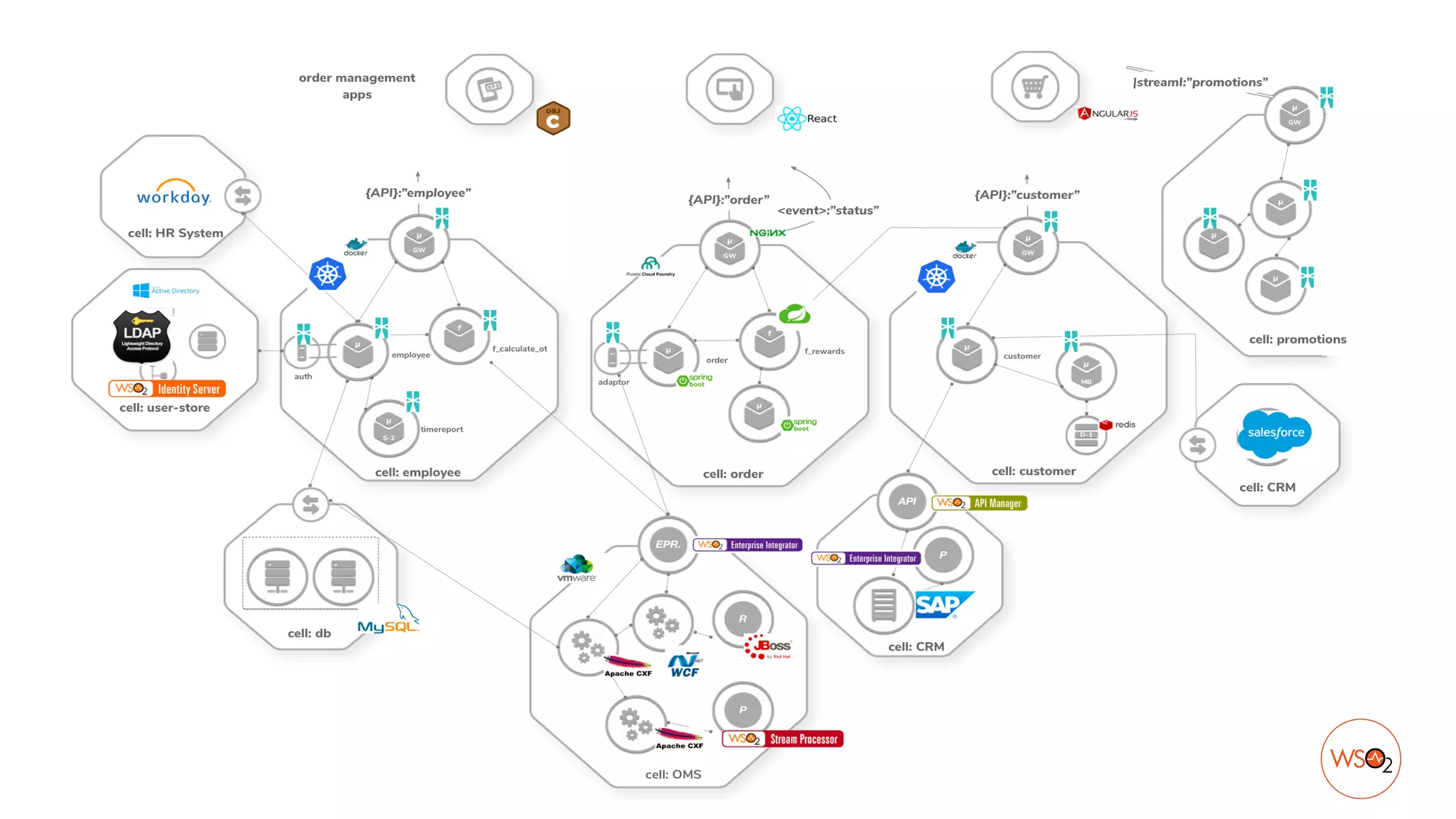

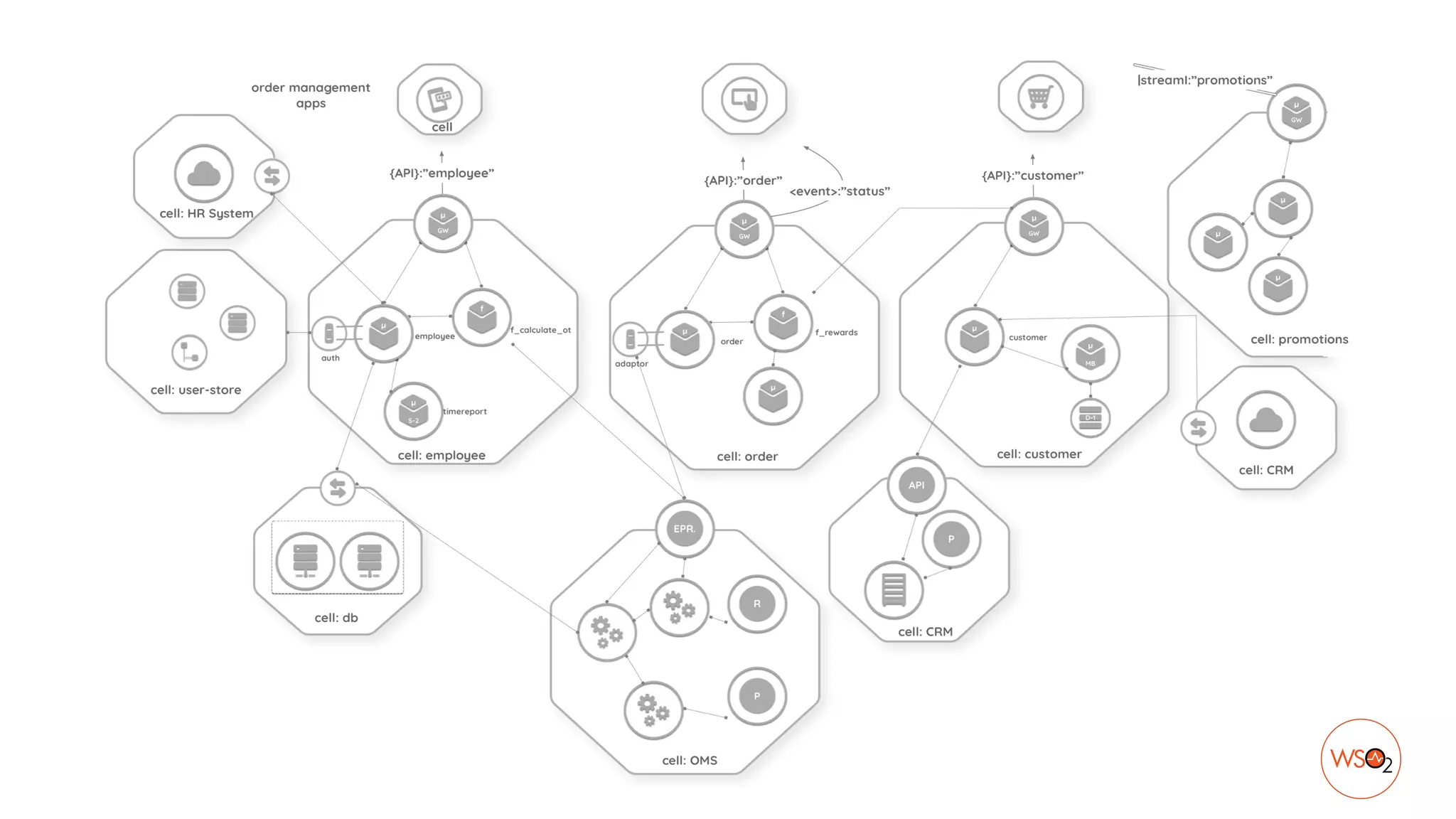

63. Reference Implementation L1

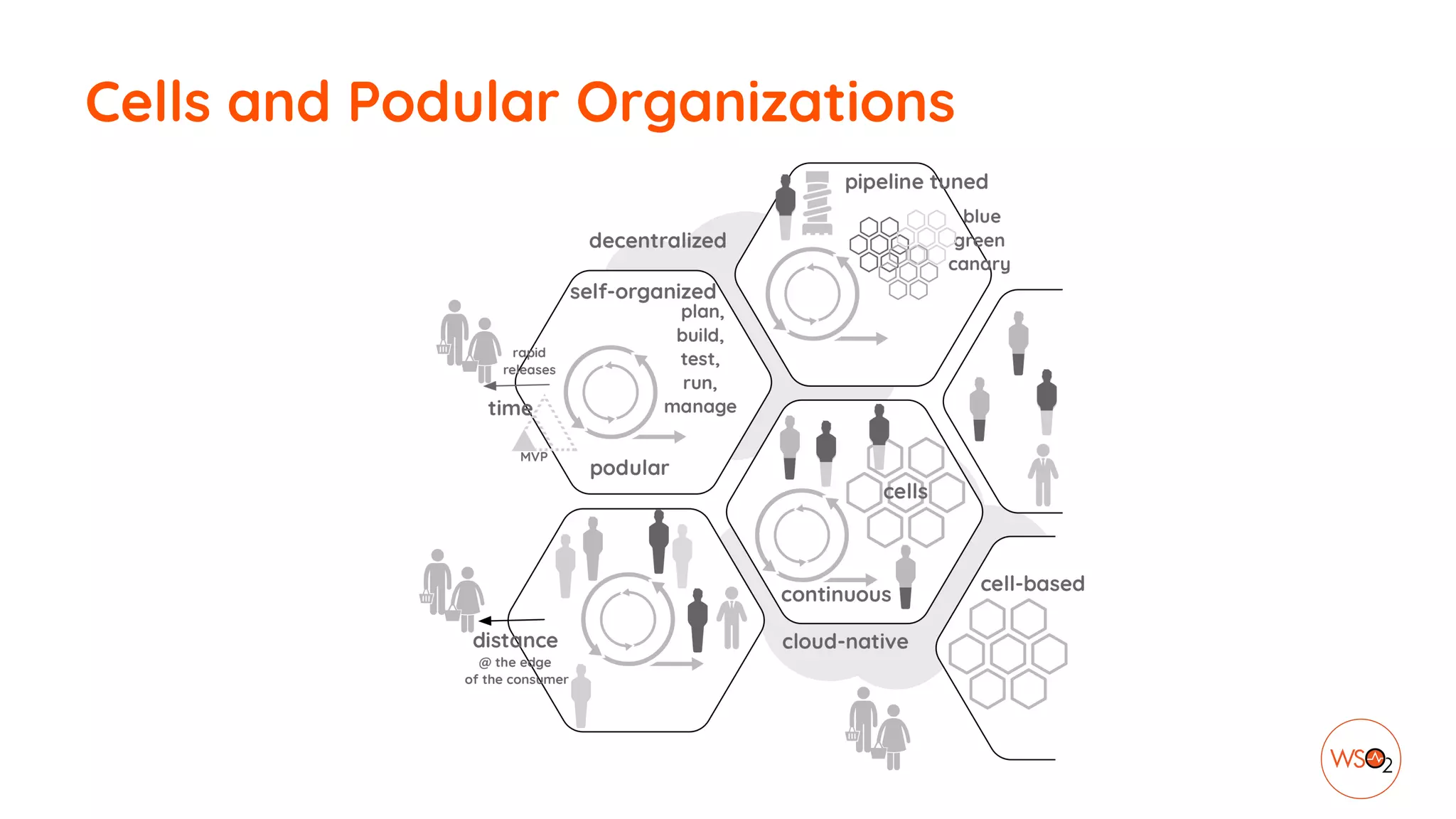

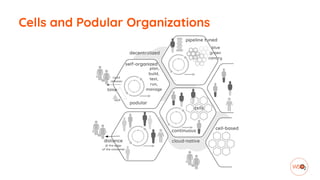

65. Cells and Podular Organizations

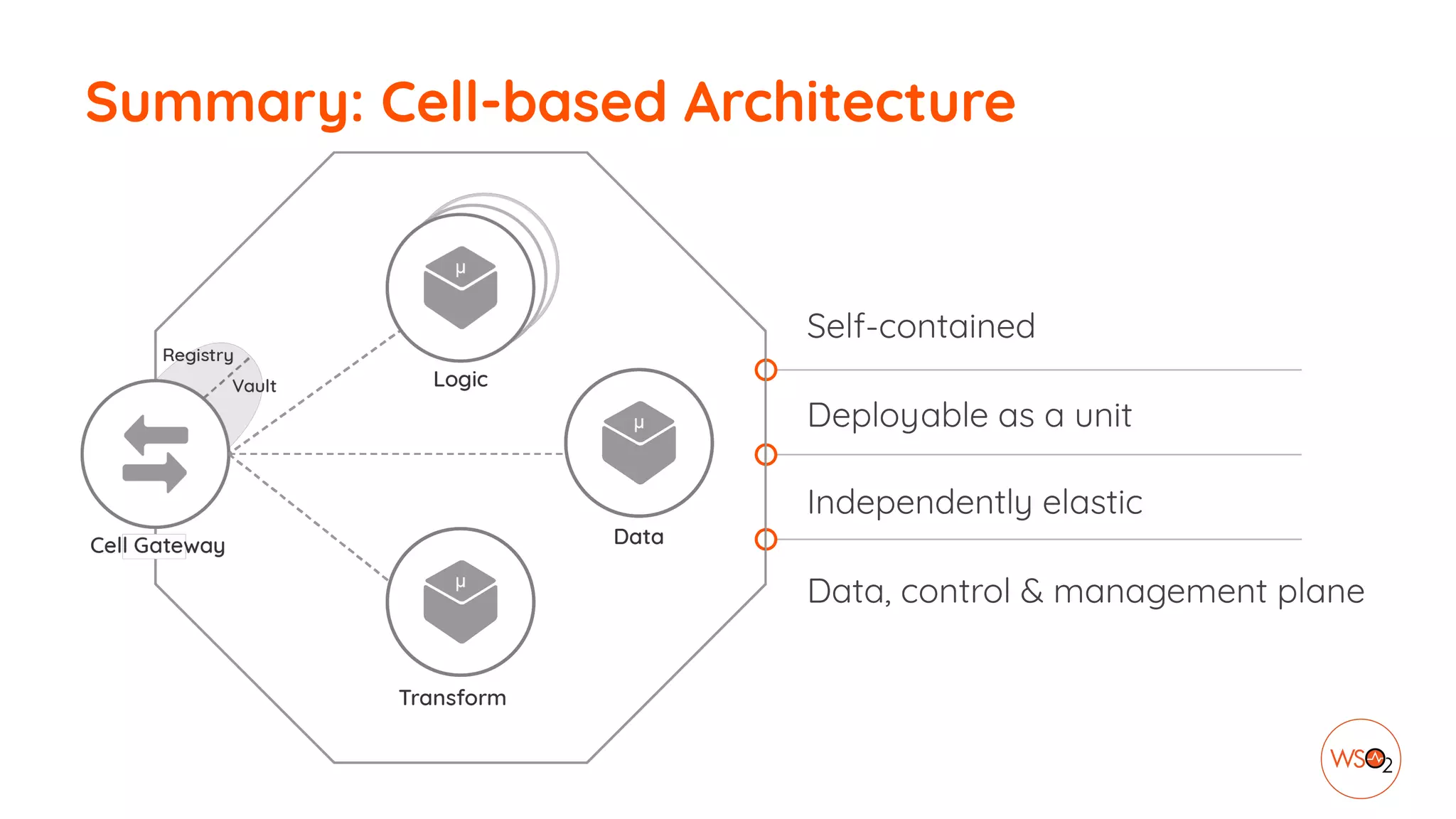

66. Self-contained
Deployable as a unit
Independently elastic
Data, control & management plane
Summary: Cell-based Architecture

67. picture credit: https://www.flickr.com/photos/josephmorris/
Just a (steady) start
https://github.com/wso2/reference-architecture

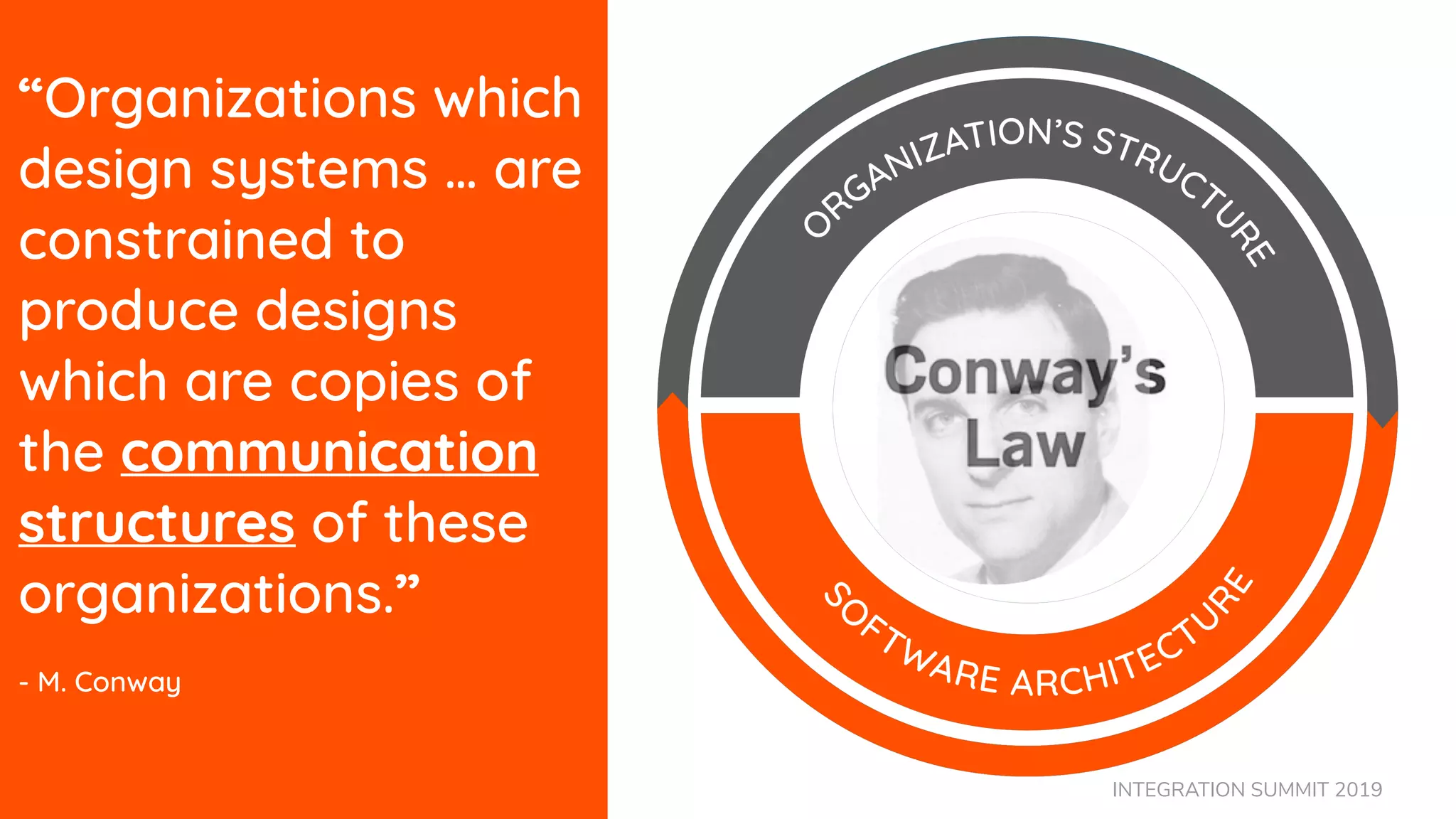

68. INTEGRATION SUMMIT 2019
“Organizations which
design systems … are
constrained to
produce designs
which are copies of
the communication
structures of these
organizations.”
- M. Conway

69. INTEGRATION SUMMIT 2019
THANK YOU
wso2.com
@asankama
