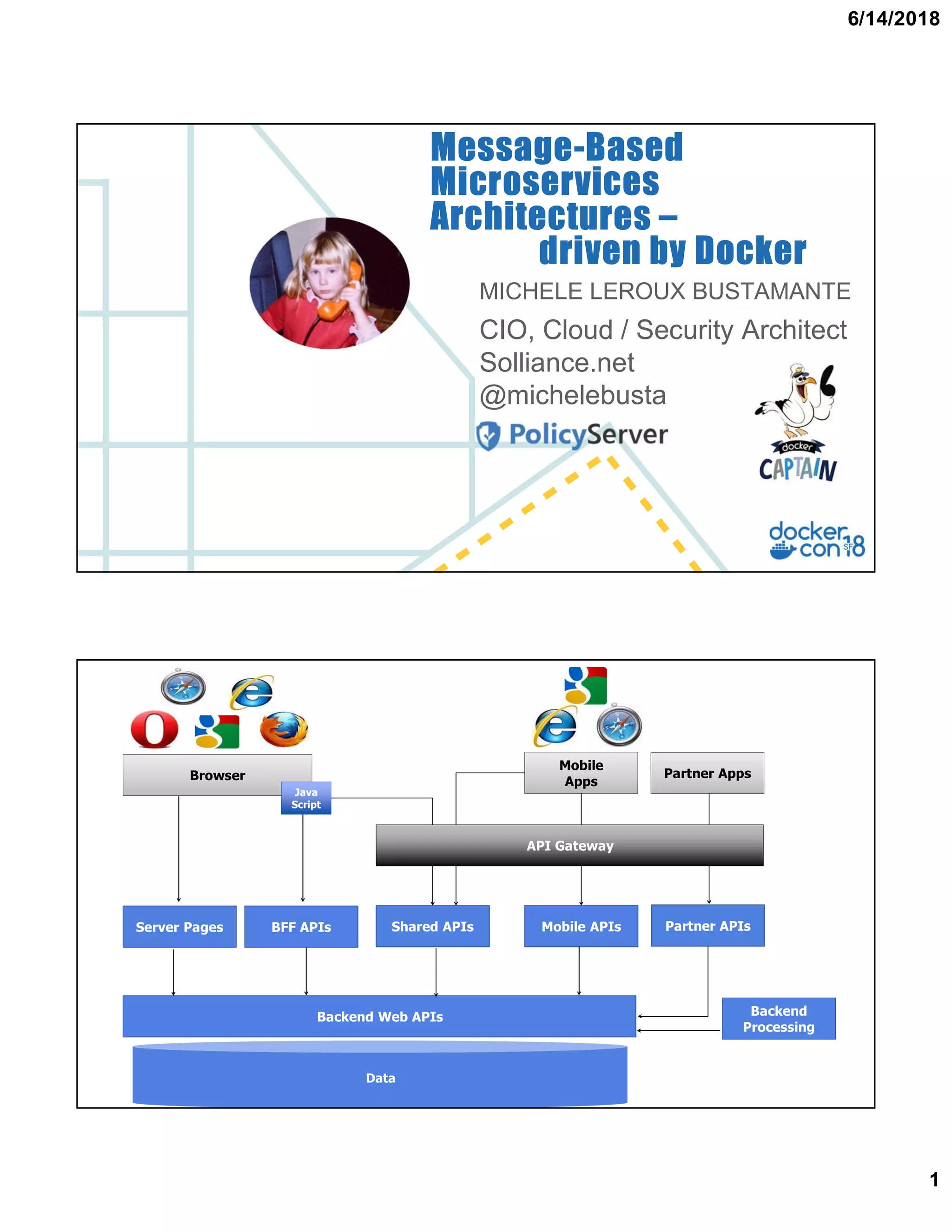

- 1. 6/14/2018 1 MICHELE LEROUX BUSTAMANTE CIO,Cloud / Security Architect Solliance.net @michelebusta Message-Based Microservices Architectures – driven by Docker Backend Web APIs Browser Java Script Server Pages BFF APIs Backend Processing Mobile Apps Mobile APIs Partner APIsShared APIs Partner Apps API Gateway Data

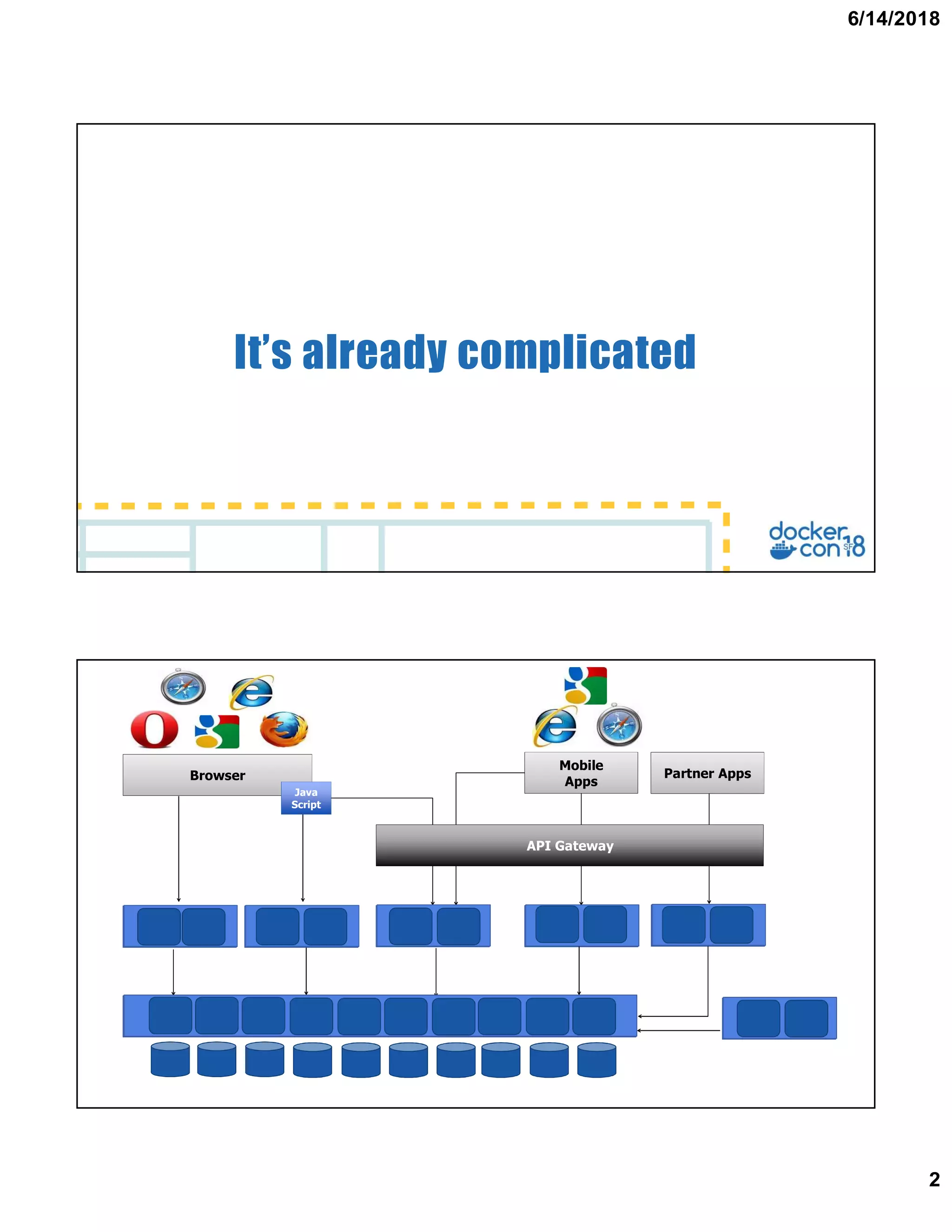

- 2. 6/14/2018 2 It’s already complicated BackendWeb APIs Browser Java Script Server Pages BFF APIs Backend Processing Mobile Apps Mobile APIs Partner APIsShared APIs Partner Apps API Gateway

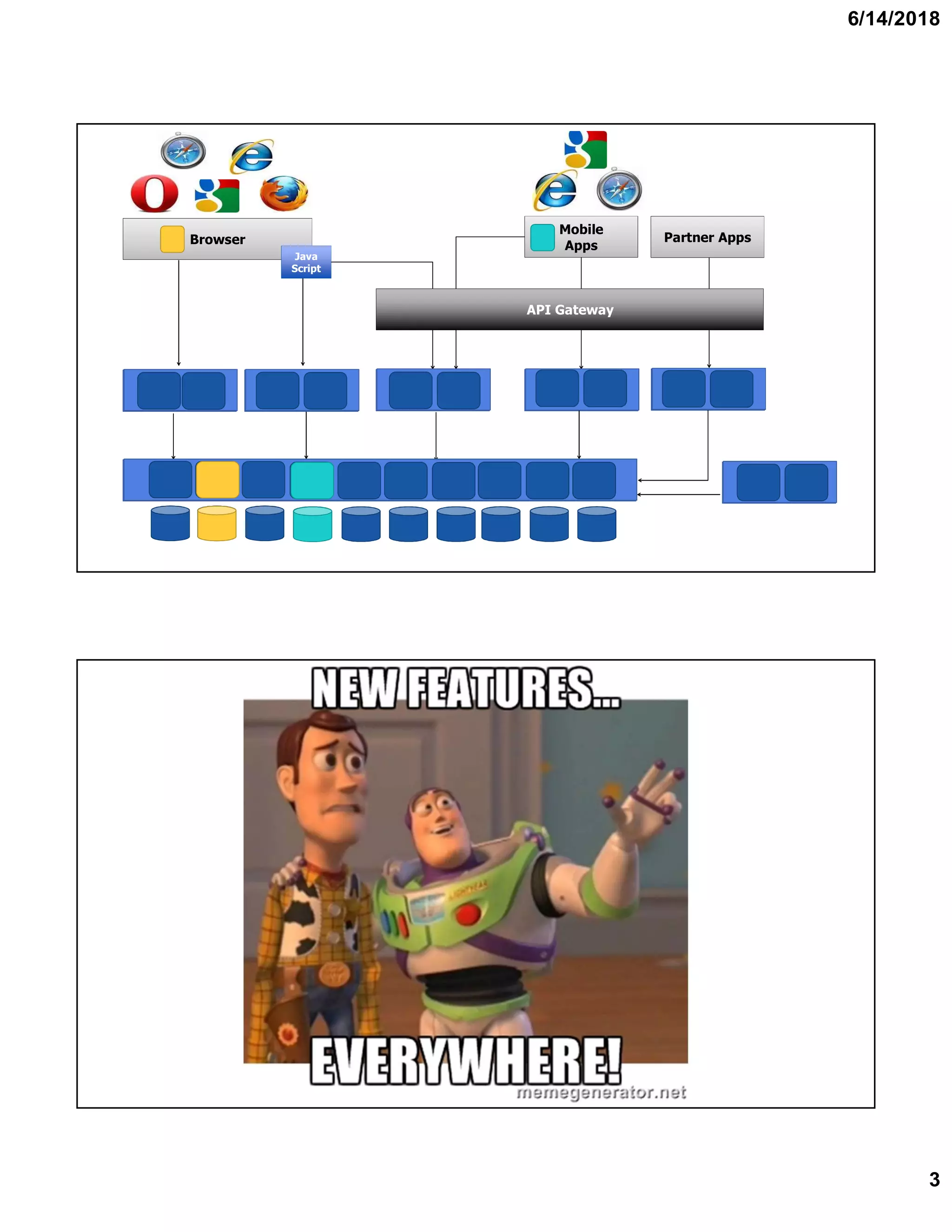

- 3. 6/14/2018 3 Backend Web APIs Browser Java Script ServerPages BFF APIs Backend Processing Mobile Apps Mobile APIs Partner APIsShared APIs Partner Apps API Gateway

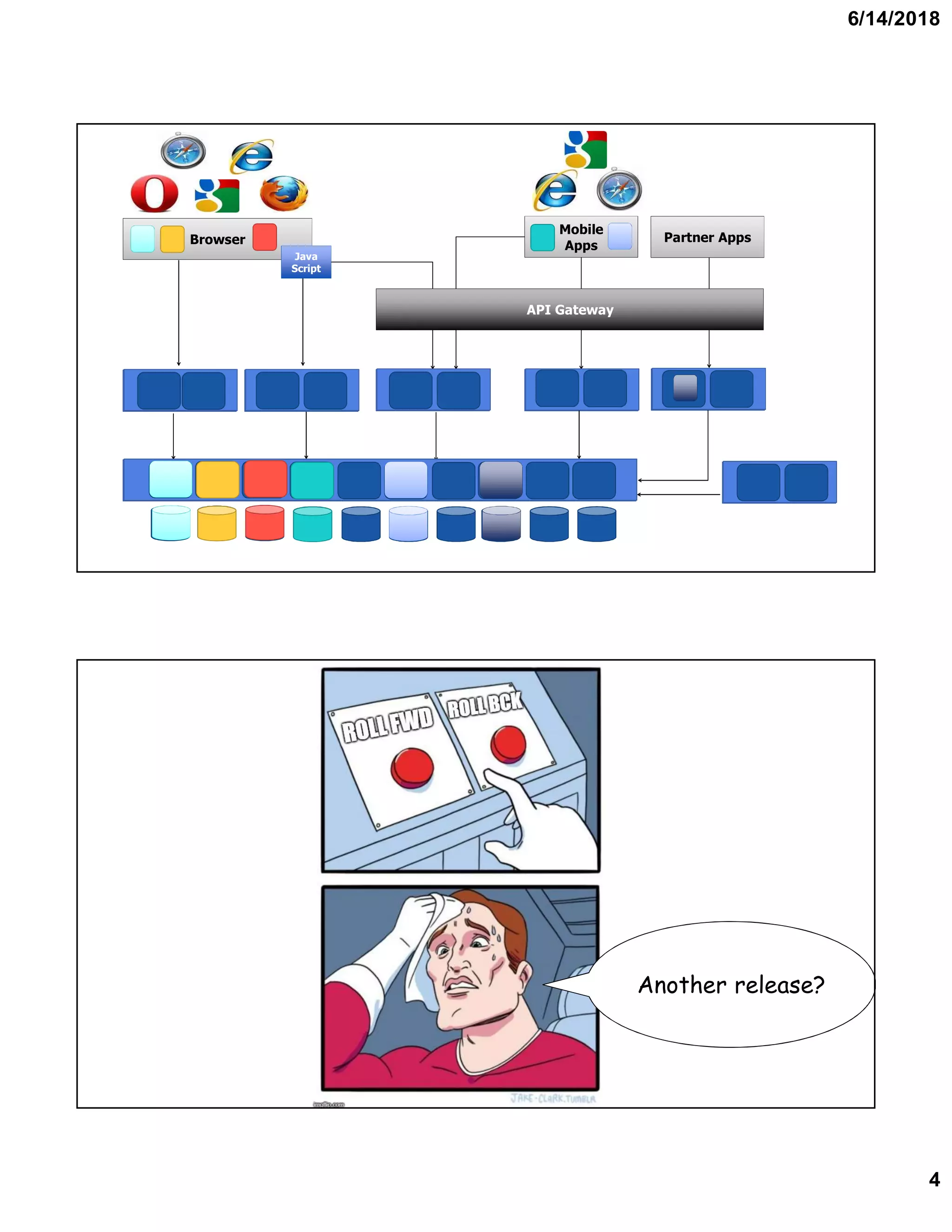

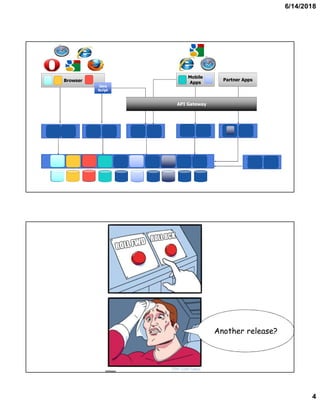

- 4. 6/14/2018 4 Backend Web APIs Browser Java Script ServerPages BFF APIs Backend Processing Mobile Apps Mobile APIs Partner APIsShared APIs Partner Apps API Gateway Another release?
- 5. 6/14/2018 5 Backend Web APIs Browser Java Script ServerPages BFF APIs Backend Processing Mobile Apps Mobile APIs Partner APIsShared APIs Partner Apps API Gateway

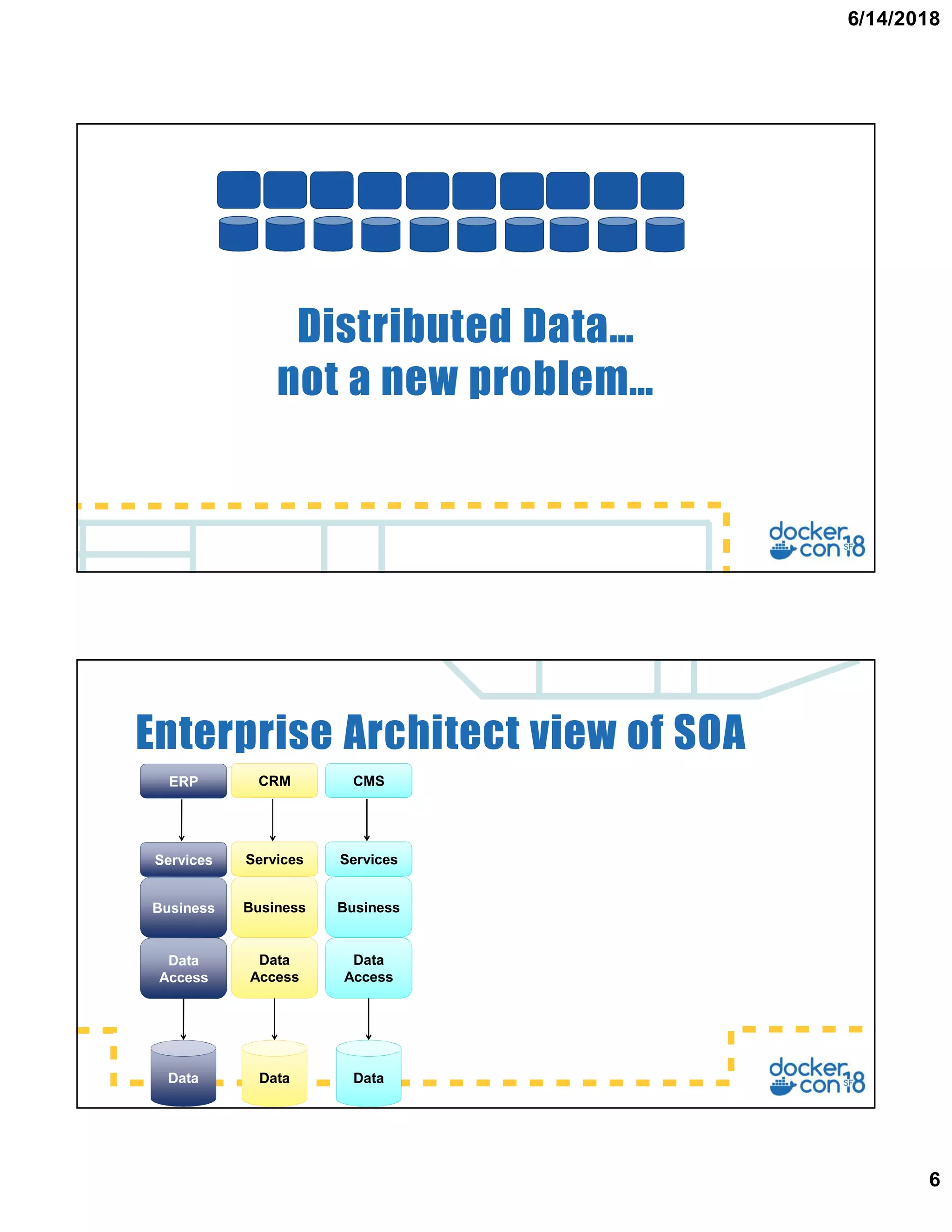

- 6. 6/14/2018 6 Distributed Data… not anew problem… Enterprise Architect view of SOA Business Data BusinessBusiness DataData Services ServicesServices Data Access Data Access Data Access CRM CMSERP

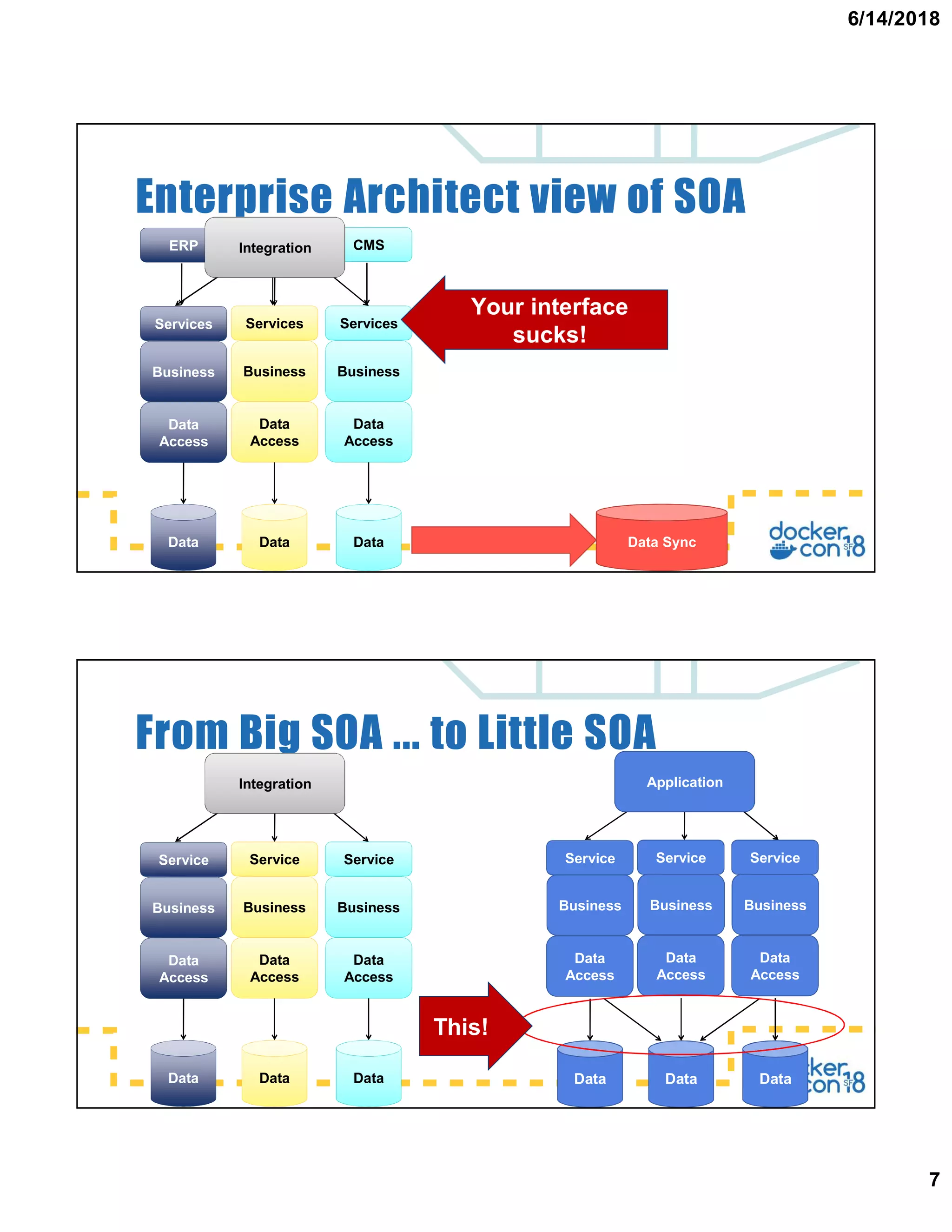

- 7. 6/14/2018 7 Business Data BusinessBusiness DataData Services ServicesServices Data Access Data Access Data Access CRM CMSERPIntegration Enterprise Architect view of SOA Data Sync Your interface sucks! From Big SOA ... to Little SOA Business Data BusinessBusiness DataData Service ServiceService Business Data BusinessBusiness DataData Service ServiceService Integration Application Data Access Data Access Data Access Data Access Data Access Data Access This!

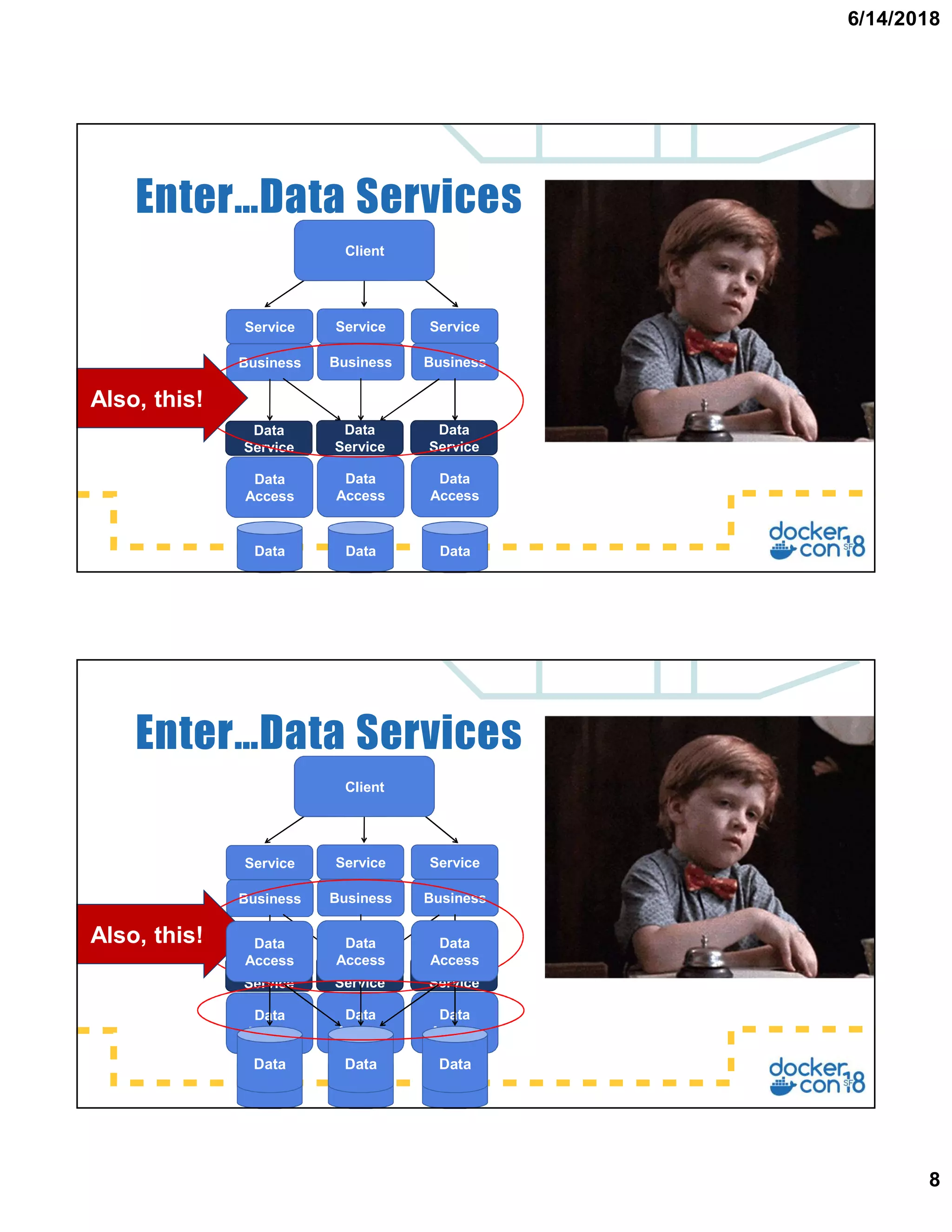

- 8. 6/14/2018 8 Business Data BusinessBusiness DataData Service ServiceService Client Data Access Data Access Data Access Data Service Data Service Data Service Enter…Data Services Also,this! Business Data BusinessBusiness DataData Service ServiceService Client Data Access Data Access Data Access Data Service Data Service Data Service Enter…Data Services Also, this! Data DataData Data Access Data Access Data Access

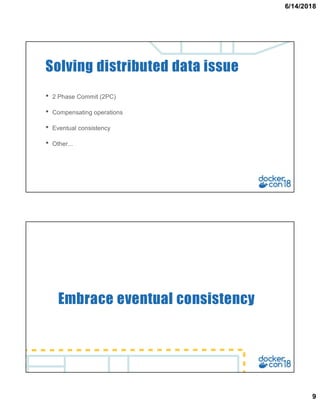

- 9. 6/14/2018 9 Solving distributed dataissue • 2 Phase Commit (2PC) • Compensating operations • Eventual consistency • Other... Embrace eventual consistency

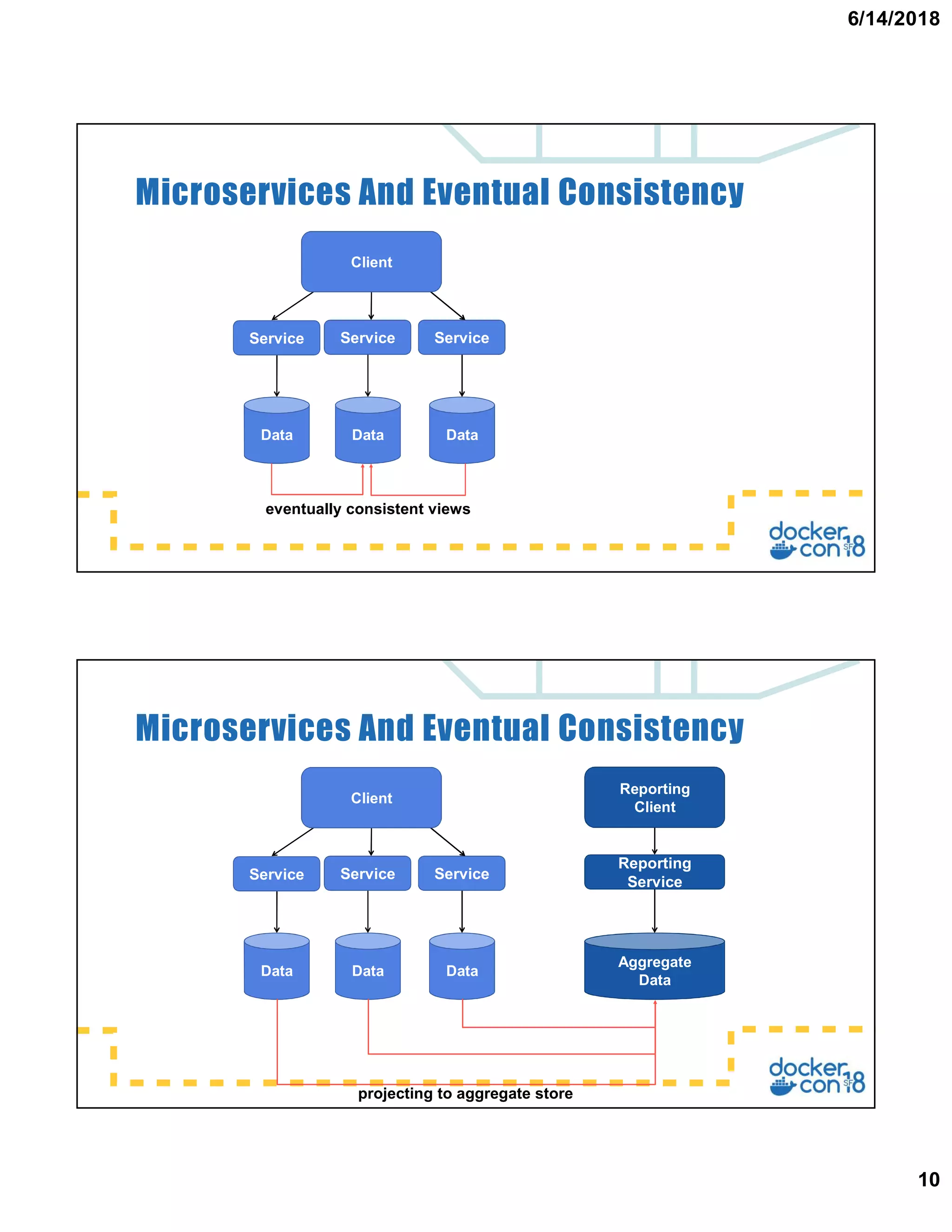

- 10. 6/14/2018 10 Data DataData Service ServiceService Client eventuallyconsistent views Microservices And Eventual Consistency Data DataData Service ServiceService Client Aggregate Data Reporting Service Reporting Client projecting to aggregate store Microservices And Eventual Consistency

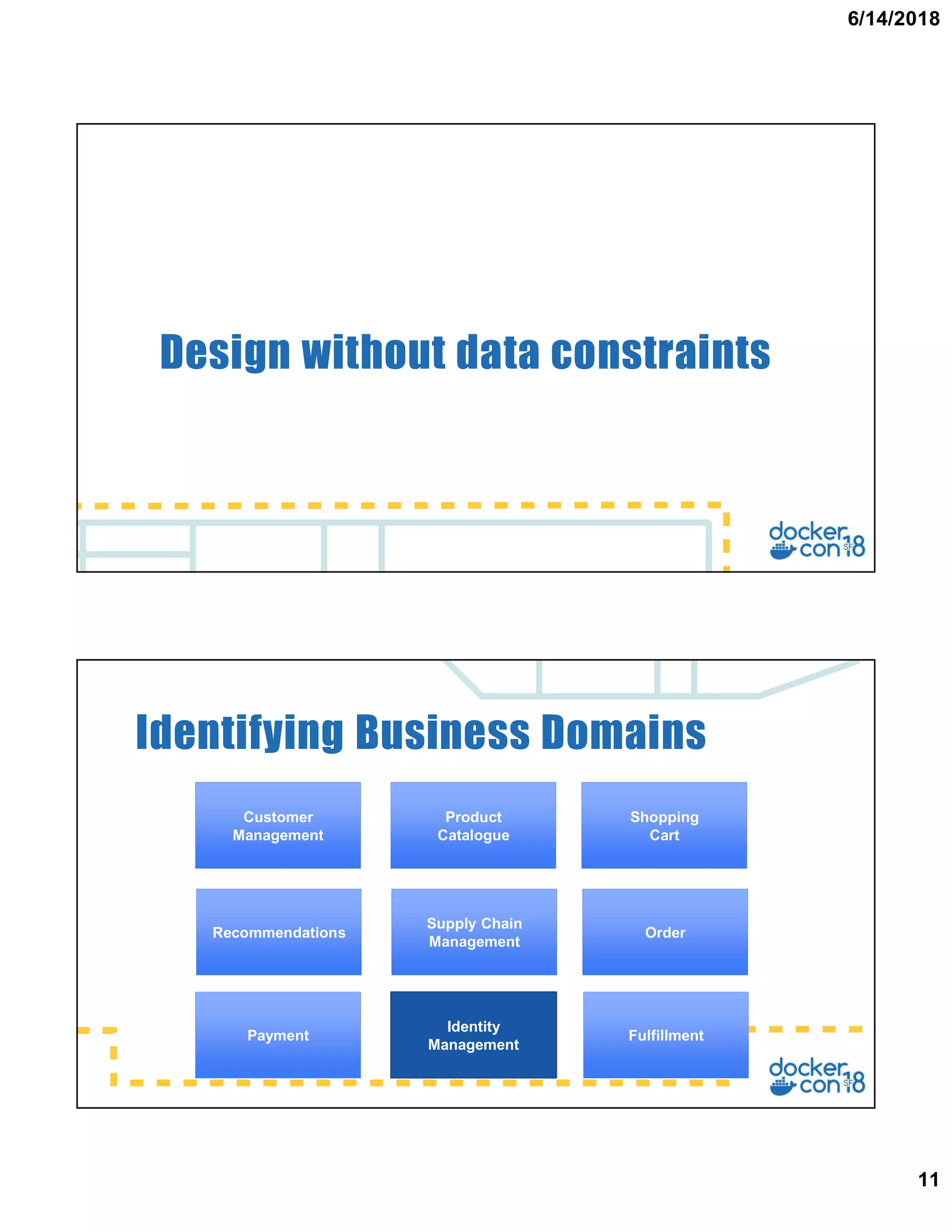

- 11. 6/14/2018 11 Design without dataconstraints Identifying Business Domains Customer Management Product Catalogue Shopping Cart Recommendations Supply Chain Management Order Fulfillment Identity Management Payment Identity Management

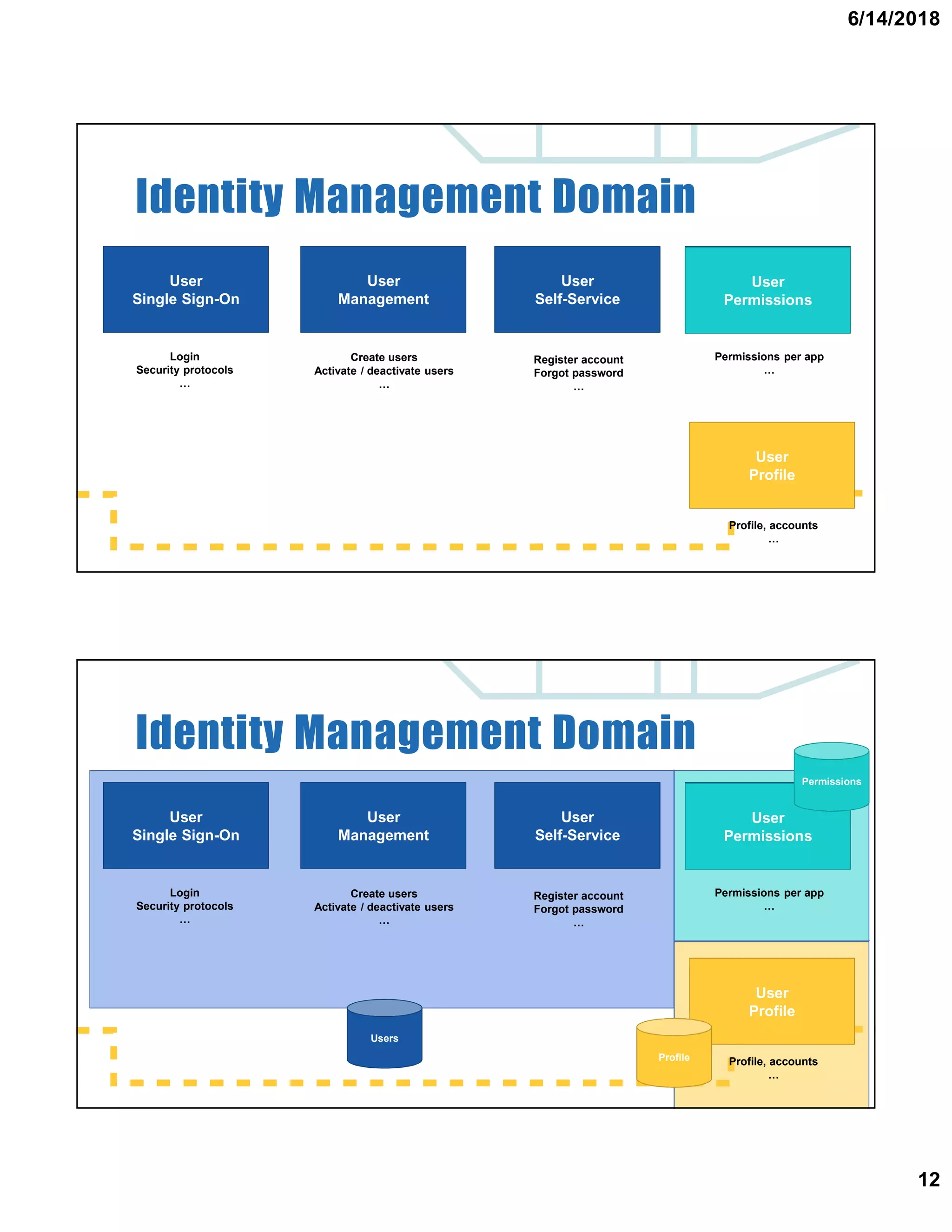

- 12. 6/14/2018 12 Identity Management Domain User Self-Service User Management User SingleSign-On User Permissions Login Security protocols … Create users Activate / deactivate users … Register account Forgot password … Permissions per app … User Permissions User Profile Profile, accounts … Identity Management Domain User Self-Service User Management User Single Sign-On User Permissions Login Security protocols … Create users Activate / deactivate users … Register account Forgot password … Permissions per app … User Permissions User Profile Profile, accounts … Users Profile Permissions

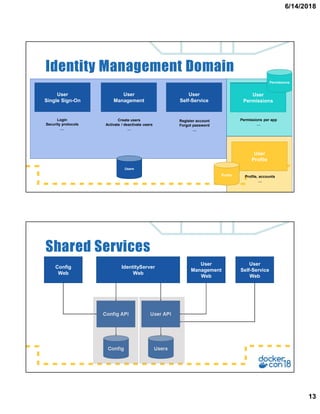

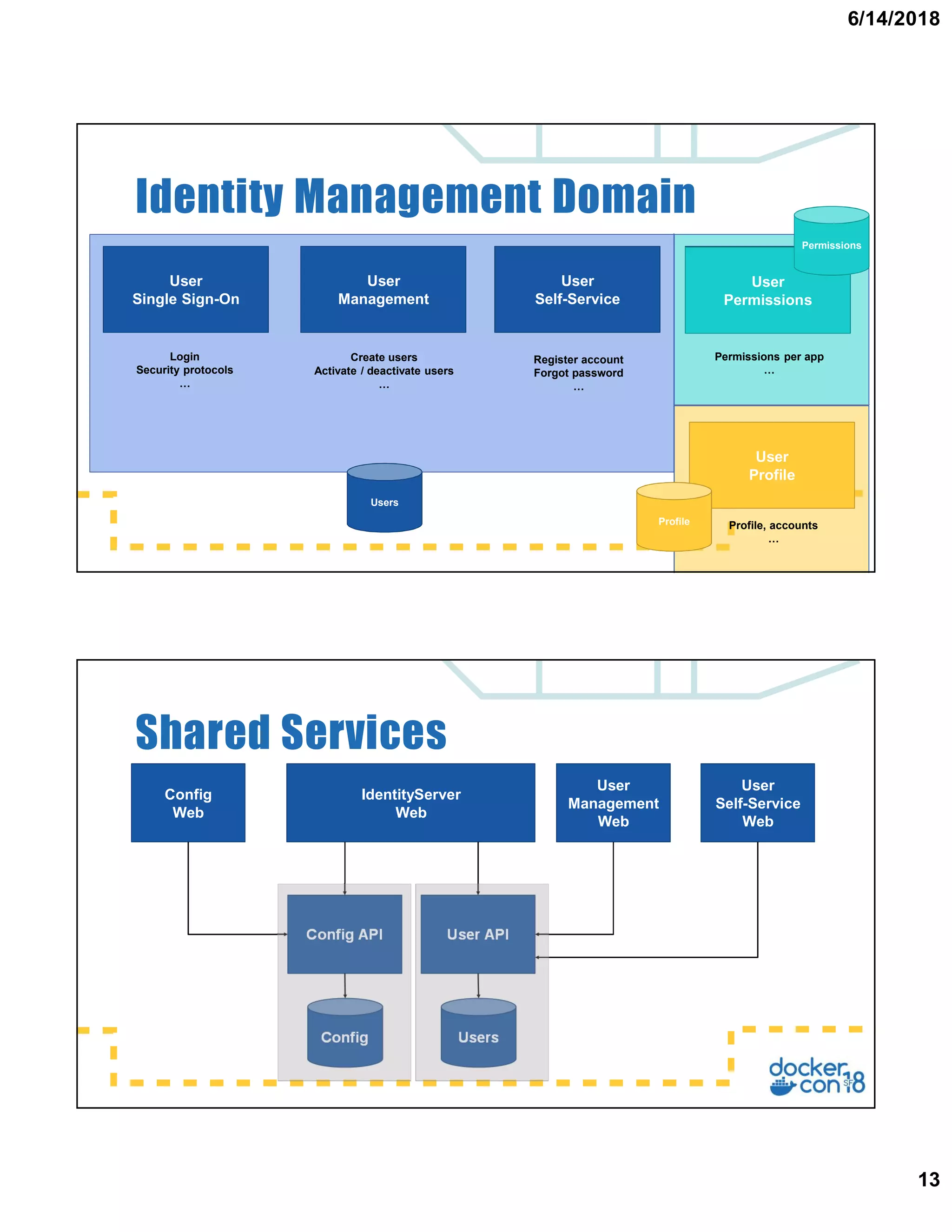

- 13. 6/14/2018 13 Identity Management Domain User Self-Service User Management User SingleSign-On User Permissions Login Security protocols … Create users Activate / deactivate users … Register account Forgot password … Permissions per app … User Permissions User Profile Profile, accounts … Users Profile Permissions IdentityServer Web Config API User API UsersConfig User Management Web Config Web User Self-Service Web Shared Services

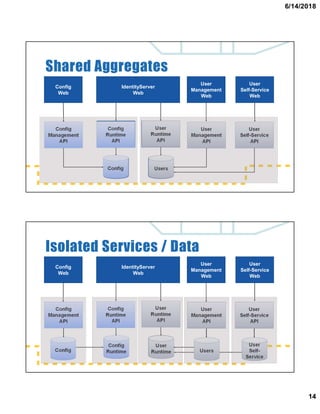

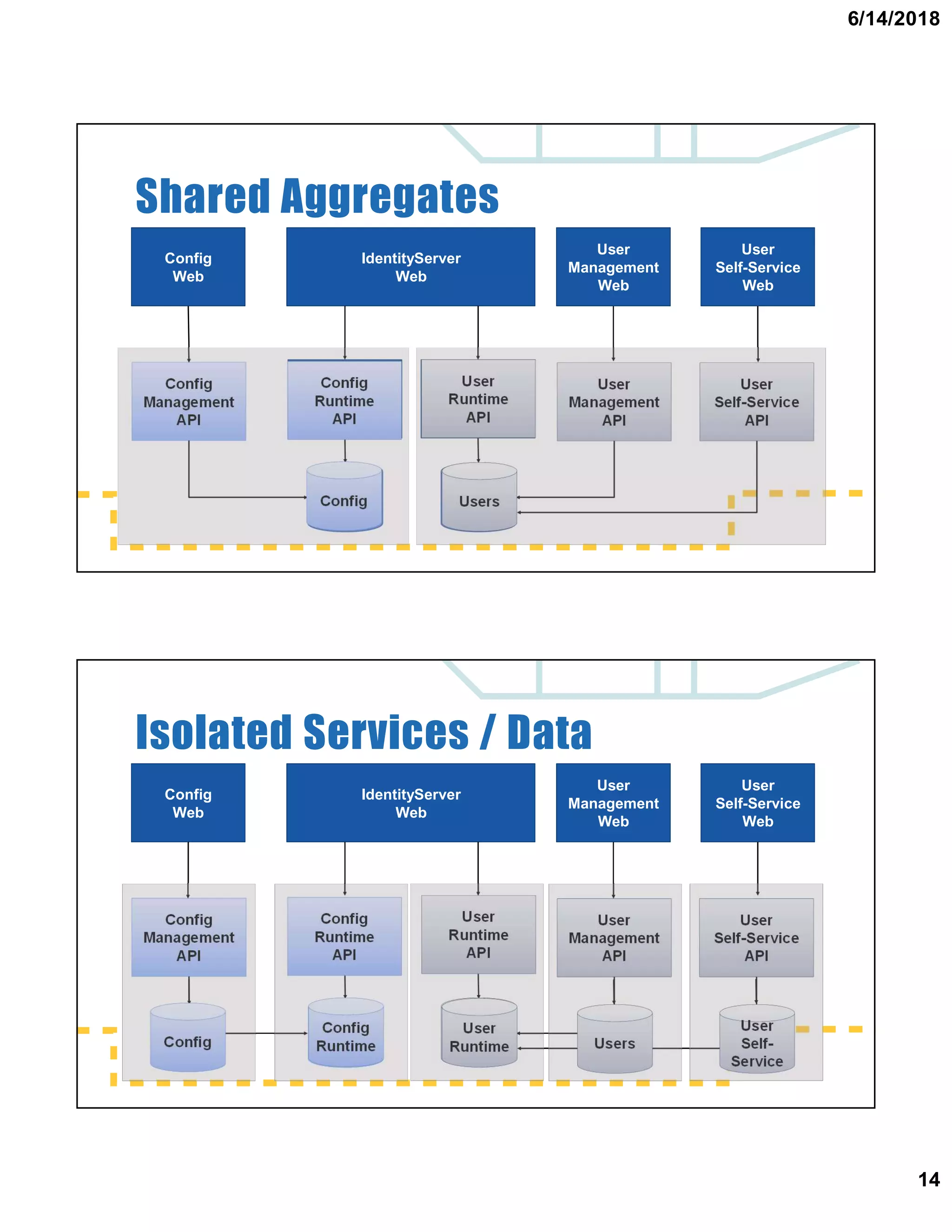

- 14. 6/14/2018 14 IdentityServer Web Config API UserAPI UsersConfig User Management Web Config Web User Self-Service Web Config Management API User Management API User Self-Service API Shared Aggregates Config Runtime API User Runtime API UsersConfig IdentityServer Web User Management Web Config Web User Self-Service Web Config Management API User Management API User Self-Service API Isolated Services / Data Config Runtime API User Runtime API UsersConfigConfig Config Runtime User Runtime Users User Self- Service

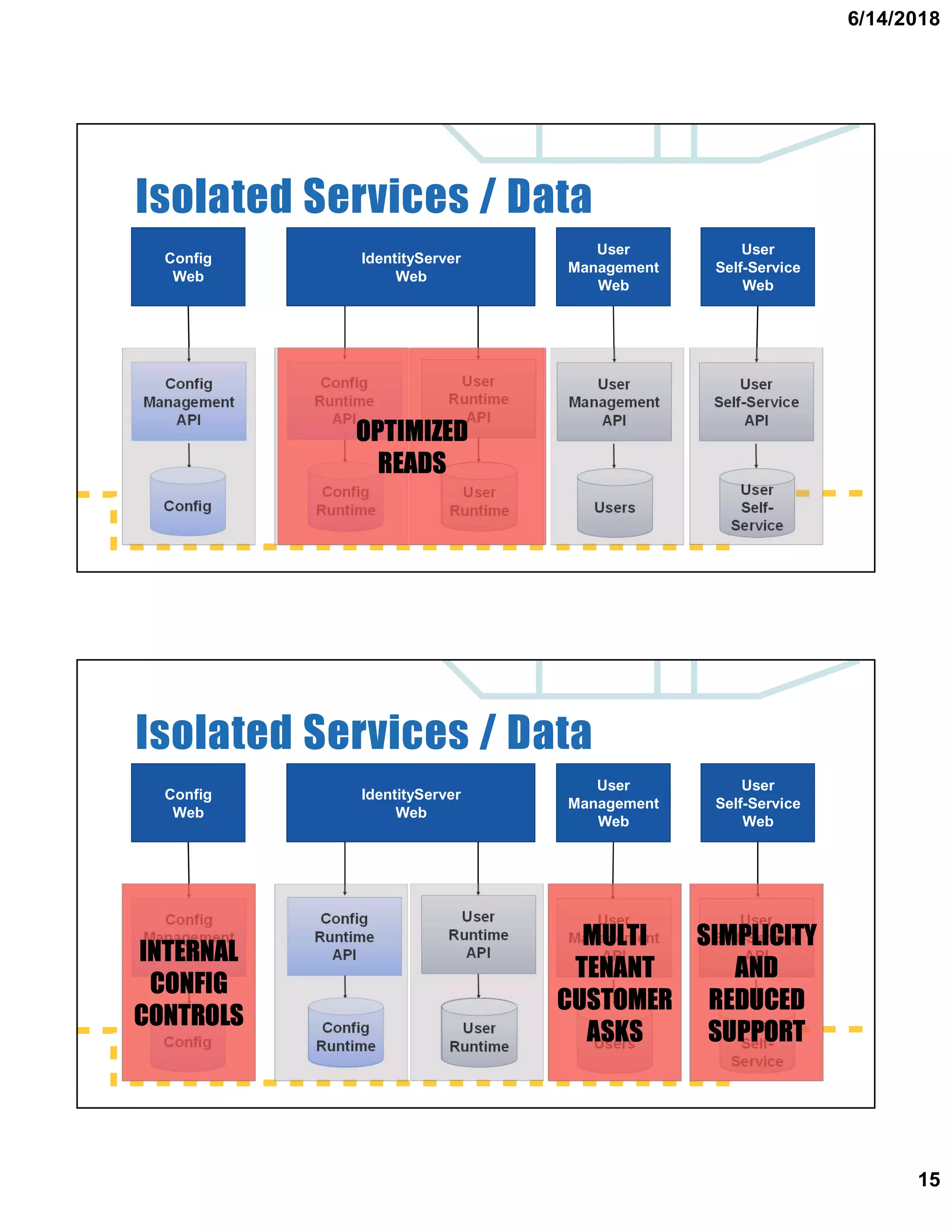

- 15. 6/14/2018 15 IdentityServer Web User Management Web Config Web User Self-Service Web Config Management API User Management API User Self-Service API Isolated Services /Data Config Runtime API User Runtime API UsersConfigConfig Config Runtime User Runtime Users User Self- Service OPTIMIZED READS IdentityServer Web User Management Web Config Web User Self-Service Web Config Management API User Management API User Self-Service API Isolated Services / Data Config Runtime API User Runtime API UsersConfigConfig Config Runtime User Runtime Users User Self- Service INTERNAL CONFIG CONTROLS MULTI TENANT CUSTOMER ASKS SIMPLICITY AND REDUCED SUPPORT

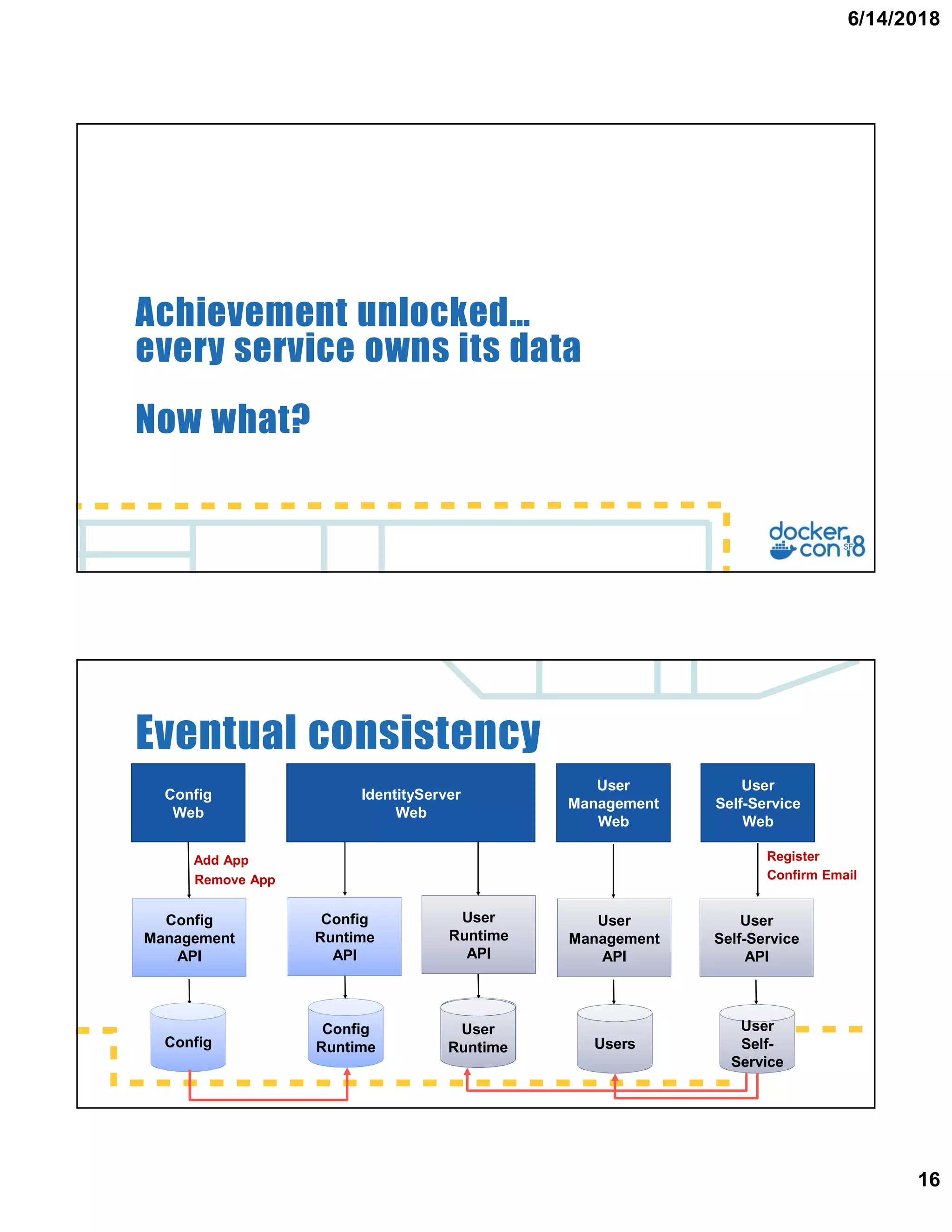

- 16. 6/14/2018 16 Achievement unlocked… every serviceowns its data Now what? IdentityServer Web User Management Web Config Web User Self-Service Web Config Management API User Management API User Self-Service API Eventual consistency Config Runtime API User Runtime API Users DB Config DBConfig Config Runtime User Runtime Users User Self- Service Add App Remove App Register Confirm Email

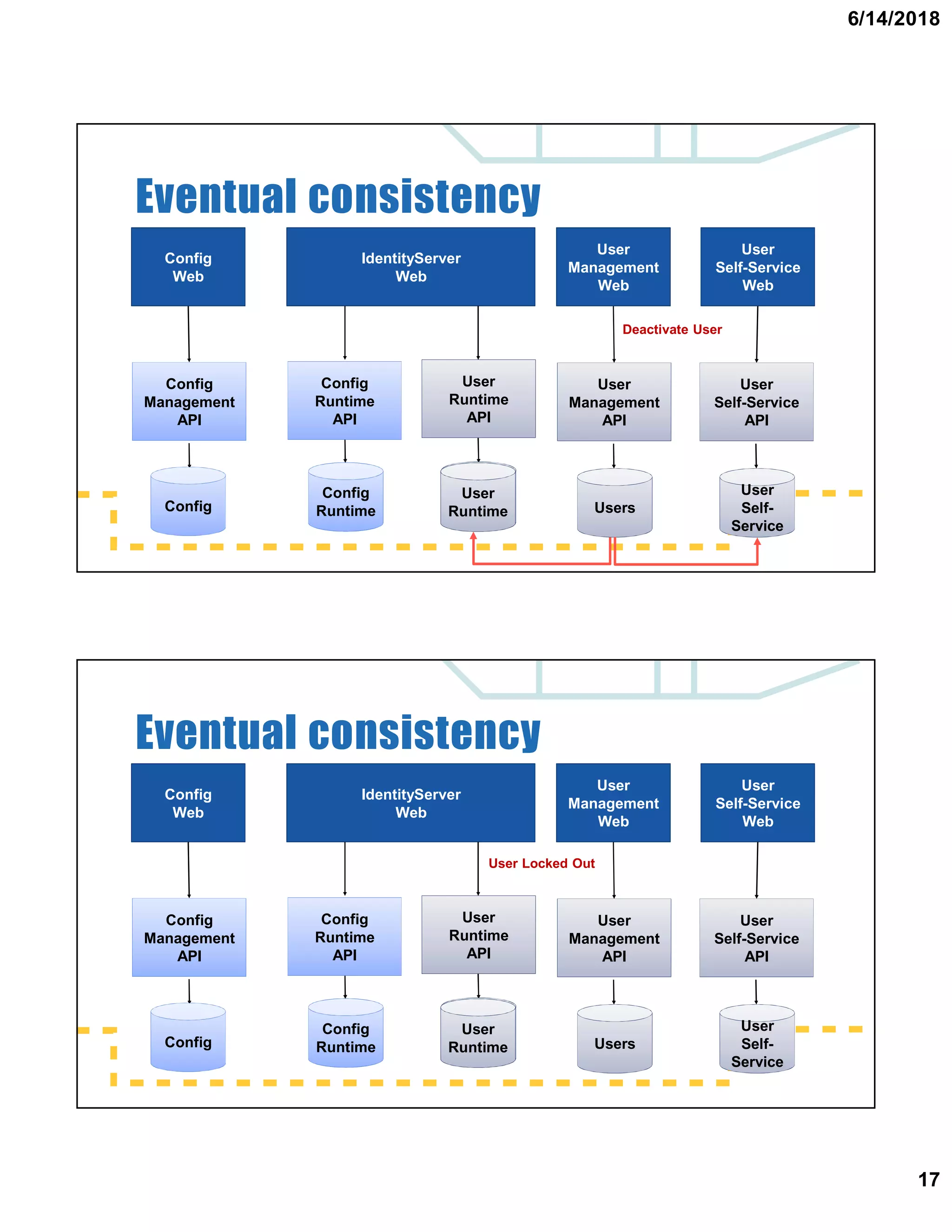

- 17. 6/14/2018 17 IdentityServer Web User Management Web Config Web User Self-Service Web Config Management API User Management API User Self-Service API Eventual consistency Config Runtime API User Runtime API Users DB Config DBConfig Config Runtime User RuntimeUsers User Self- Service Deactivate User IdentityServer Web User Management Web Config Web User Self-Service Web Config Management API User Management API User Self-Service API Eventual consistency Config Runtime API User Runtime API Users DB Config DBConfig Config Runtime User Runtime Users User Self- Service User Locked Out

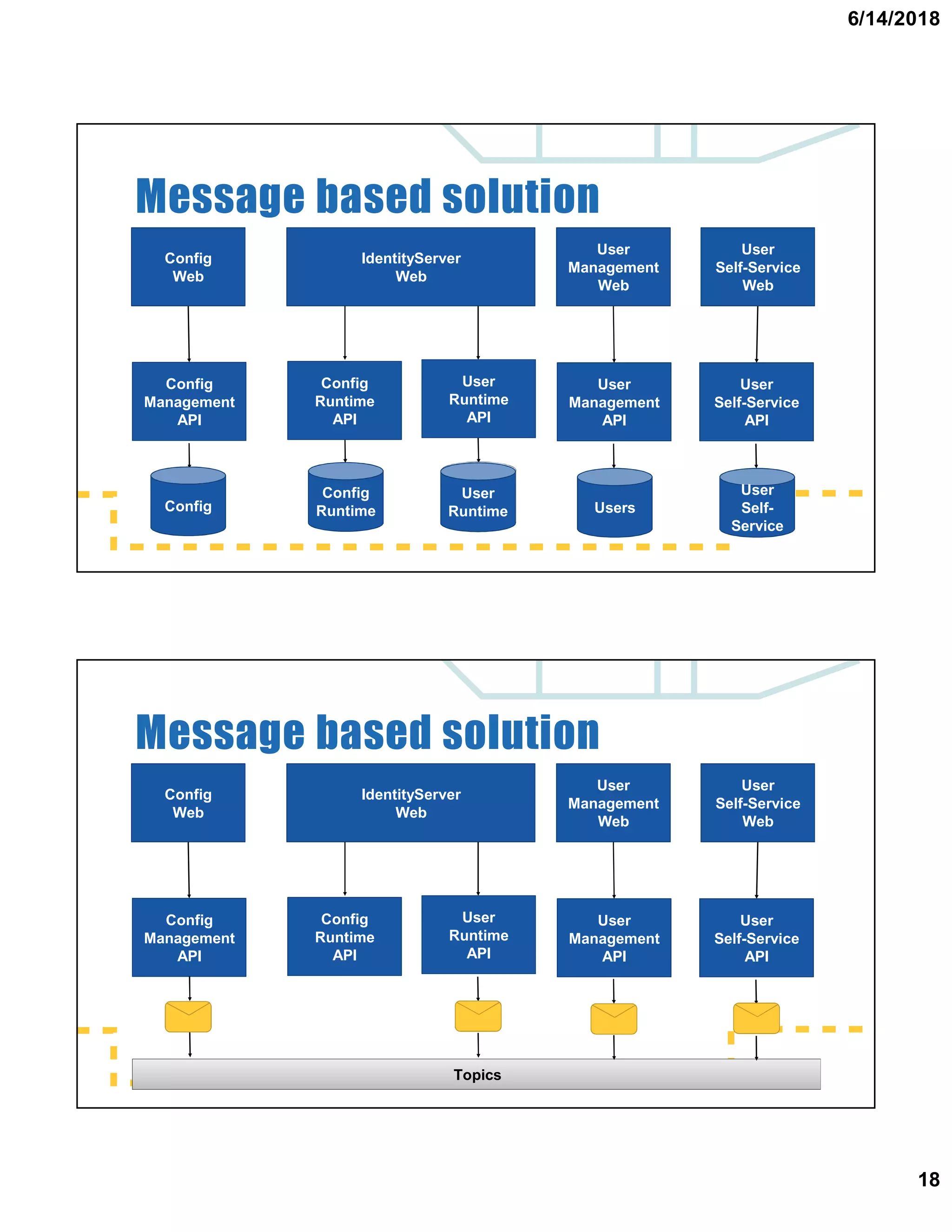

- 18. 6/14/2018 18 IdentityServer Web User Management Web Config Web User Self-Service Web Config Management API User Management API User Self-Service API Message based solution Config Runtime API User Runtime API UsersDB Config DBConfig Config Runtime User Runtime Users User Self- Service IdentityServer Web User Management Web Config Web User Self-Service Web Config Management API User Management API User Self-Service API Message based solution Config Runtime API User Runtime API Topics

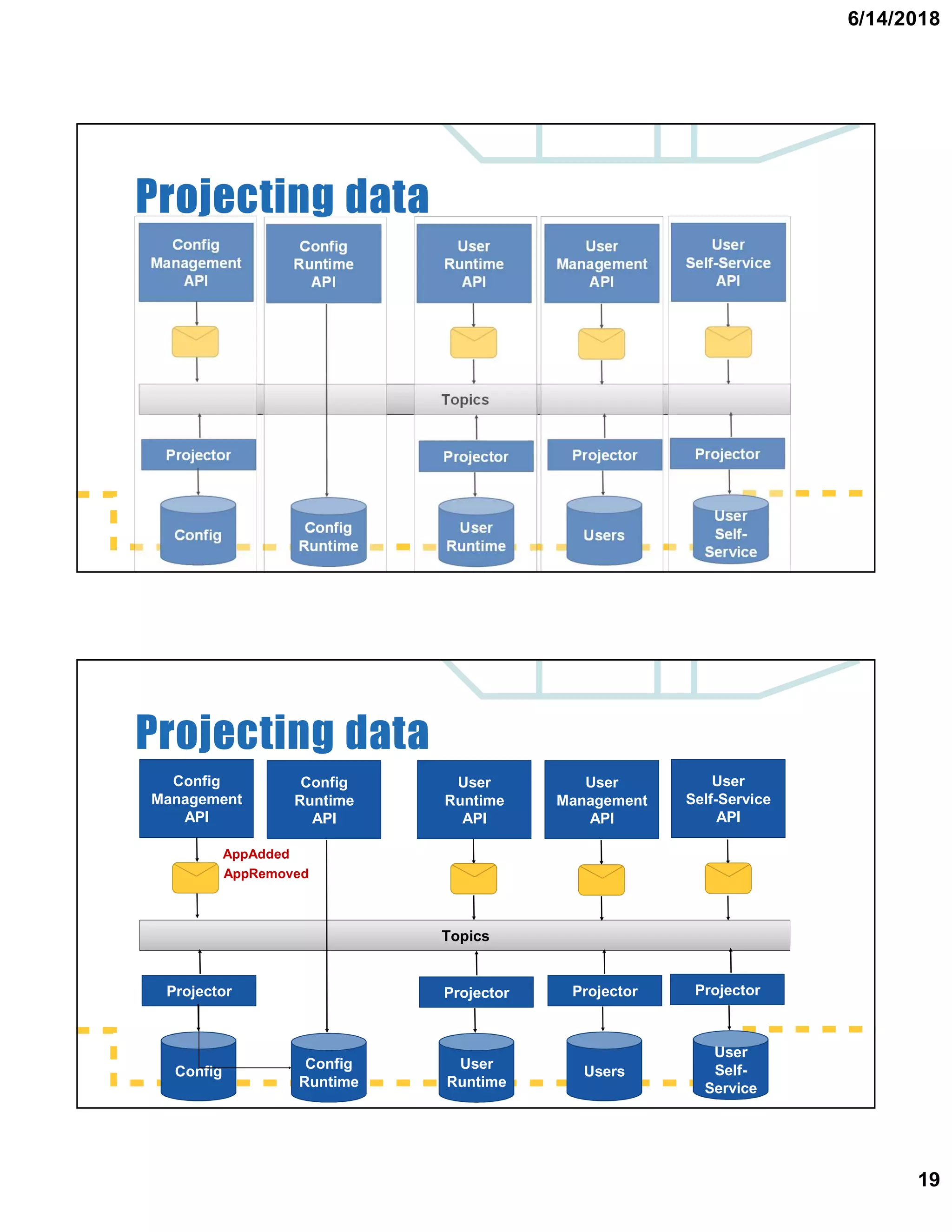

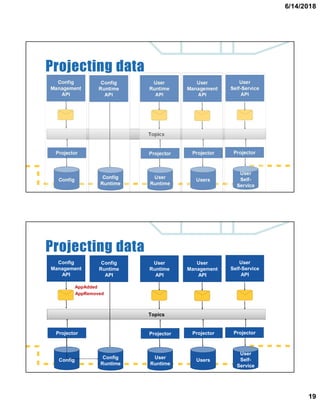

- 19. 6/14/2018 19 Projecting data Config Runtime API Config Management API User Runtime API User Management API User Self-Service API Topics Projector ProjectorProjector Projector Config DB Config Config Runtime User Runtime Users User Self- Service Projecting data Config Runtime API Config Management API User Runtime API User Management API User Self-Service API Topics Projector Projector Projector Projector Config Config Runtime User Runtime Users User Self- Service AppAdded AppRemoved

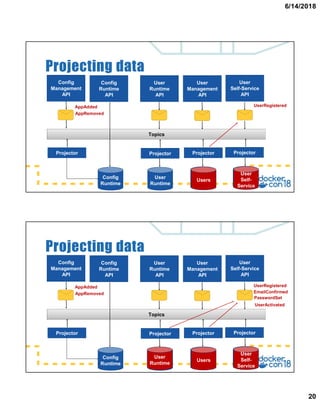

- 20. 6/14/2018 20 Projecting data Config Runtime API Config Management API User Runtime API User Management API User Self-Service API Topics Projector ProjectorProjector Projector Config Runtime User Runtime Users User Self- Service AppAdded AppRemoved UserRegistered Users User Self- Service Projecting data Config Runtime API Config Management API User Runtime API User Management API User Self-Service API Topics Projector Projector Projector Projector Config Runtime User Runtime Users User Self- Service AppAdded AppRemoved UserRegistered Users User Self- Service EmailConfirmed PasswordSet UserActivated User Runtime

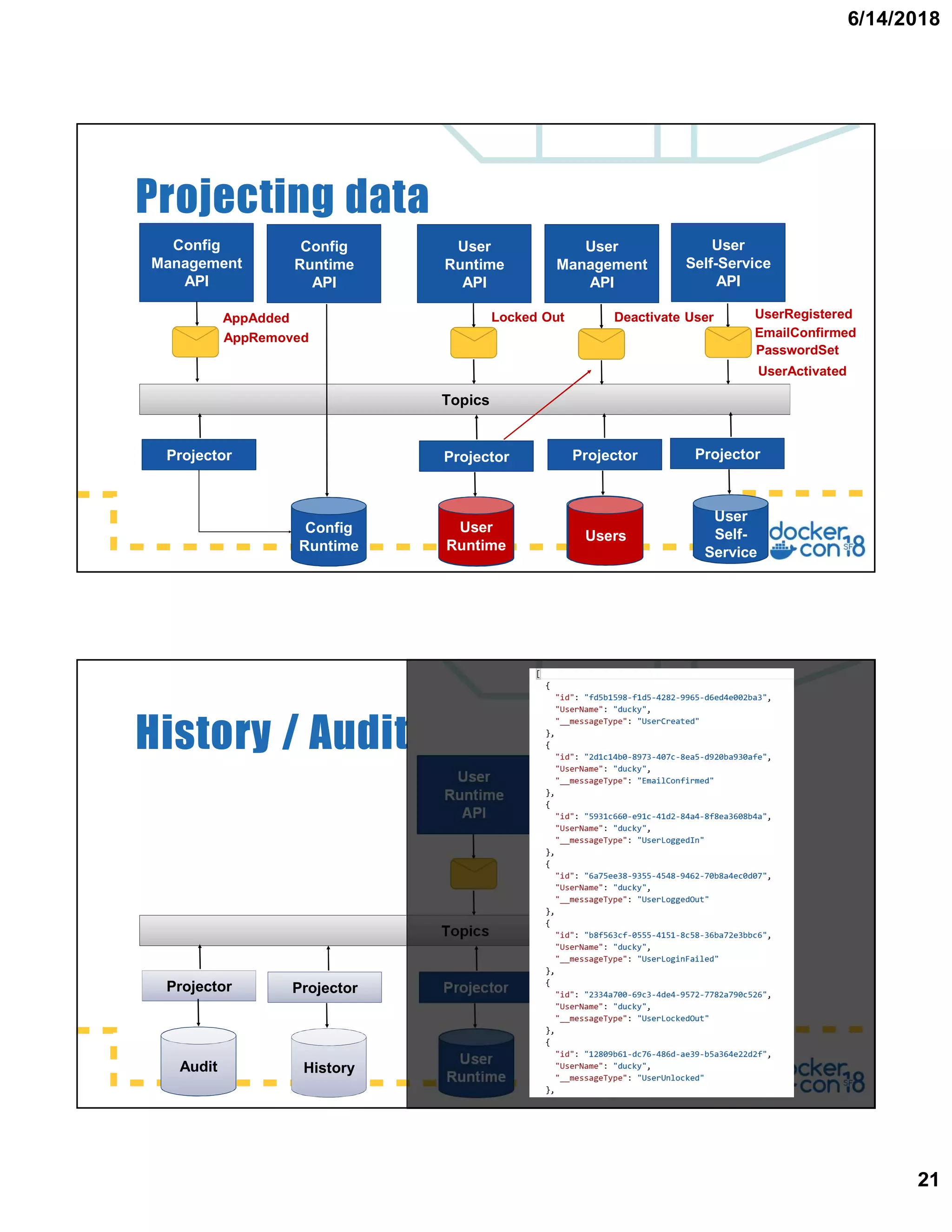

- 21. 6/14/2018 21 Projecting data Config Runtime API Config Management API User Runtime API User Management API User Self-Service API Topics Projector ProjectorProjector Projector Config Runtime User Runtime Users User Self- Service AppAdded AppRemoved UserRegistered Users EmailConfirmed PasswordSet UserActivated Locked Out Deactivate User User Runtime History / Audit User Runtime API User Management API User Self-Service API Topics Projector Projector Projector Projector Projector Config DB Audit History User Runtime Users User Self- Service

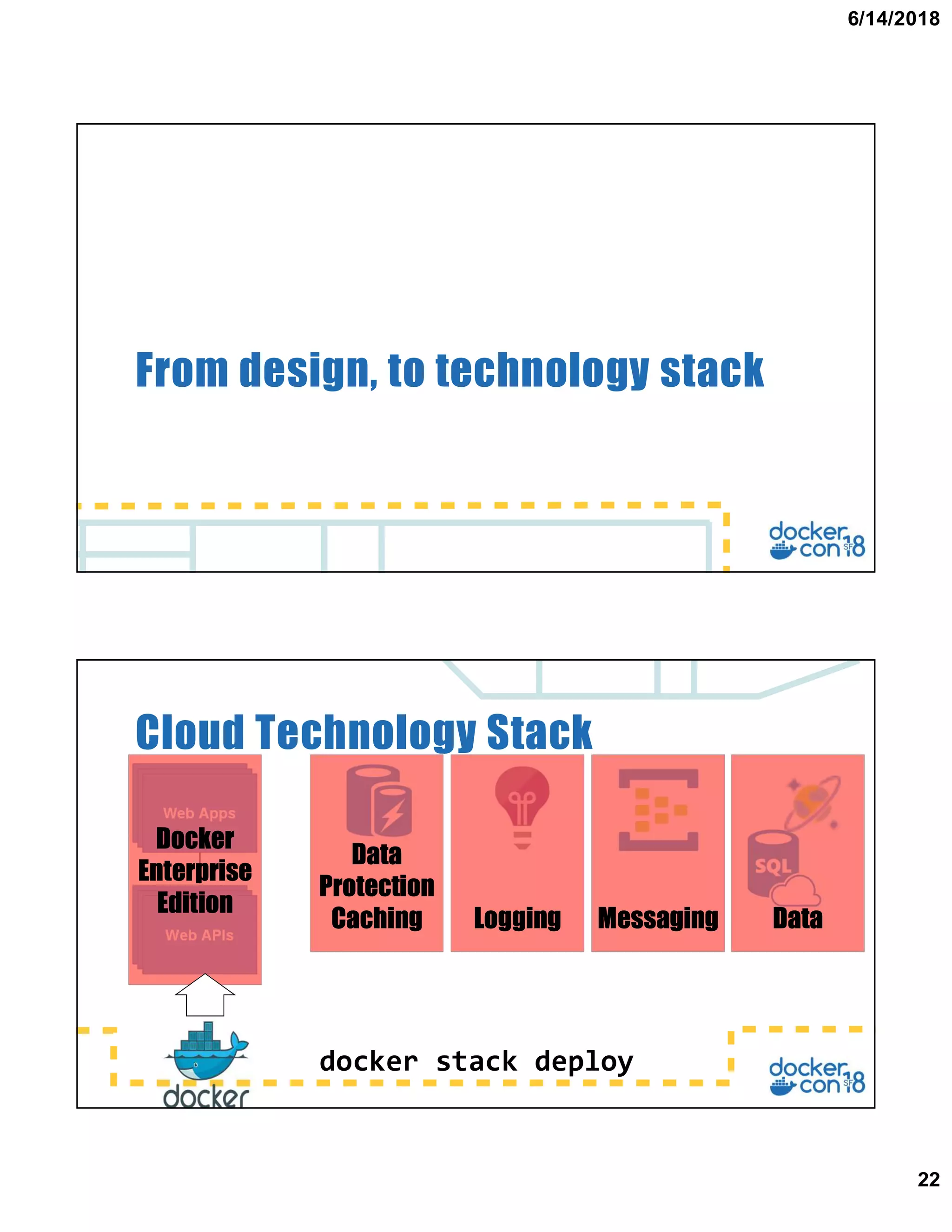

- 22. 6/14/2018 22 From design, totechnology stack Cloud Technology Stack Web AppsWeb AppsWeb Apps Web AppsWeb AppsWeb APIs docker stack deploy Data Protection Caching Logging Messaging Data Docker Enterprise Edition

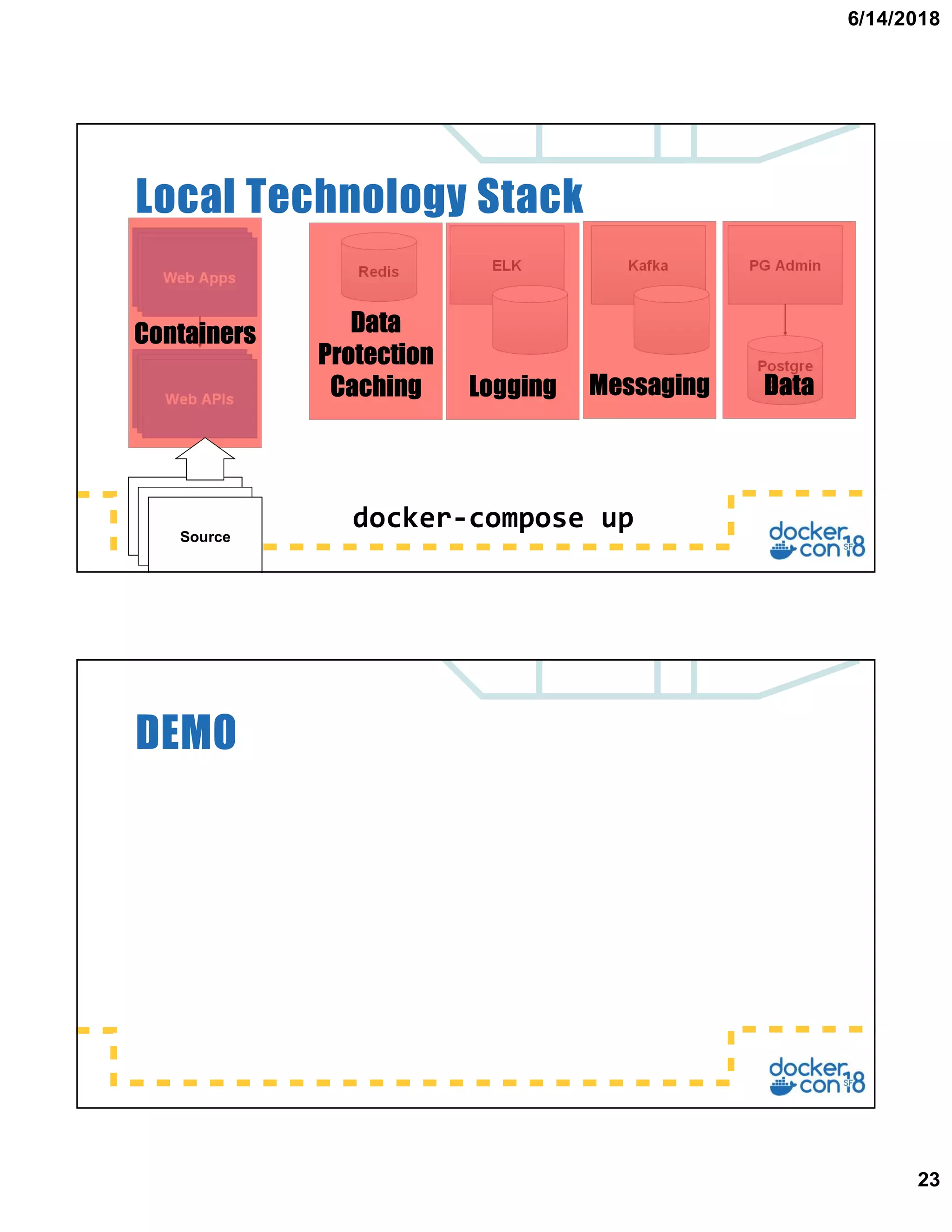

- 23. 6/14/2018 23 Local Technology Stack PGAdmin Postgre SQL KafkaELKRedisWeb AppsWeb AppsWeb Apps Web AppsWeb AppsWeb APIs Source Source Source docker-compose up Data Protection Caching Logging Messaging Data Containers DEMO

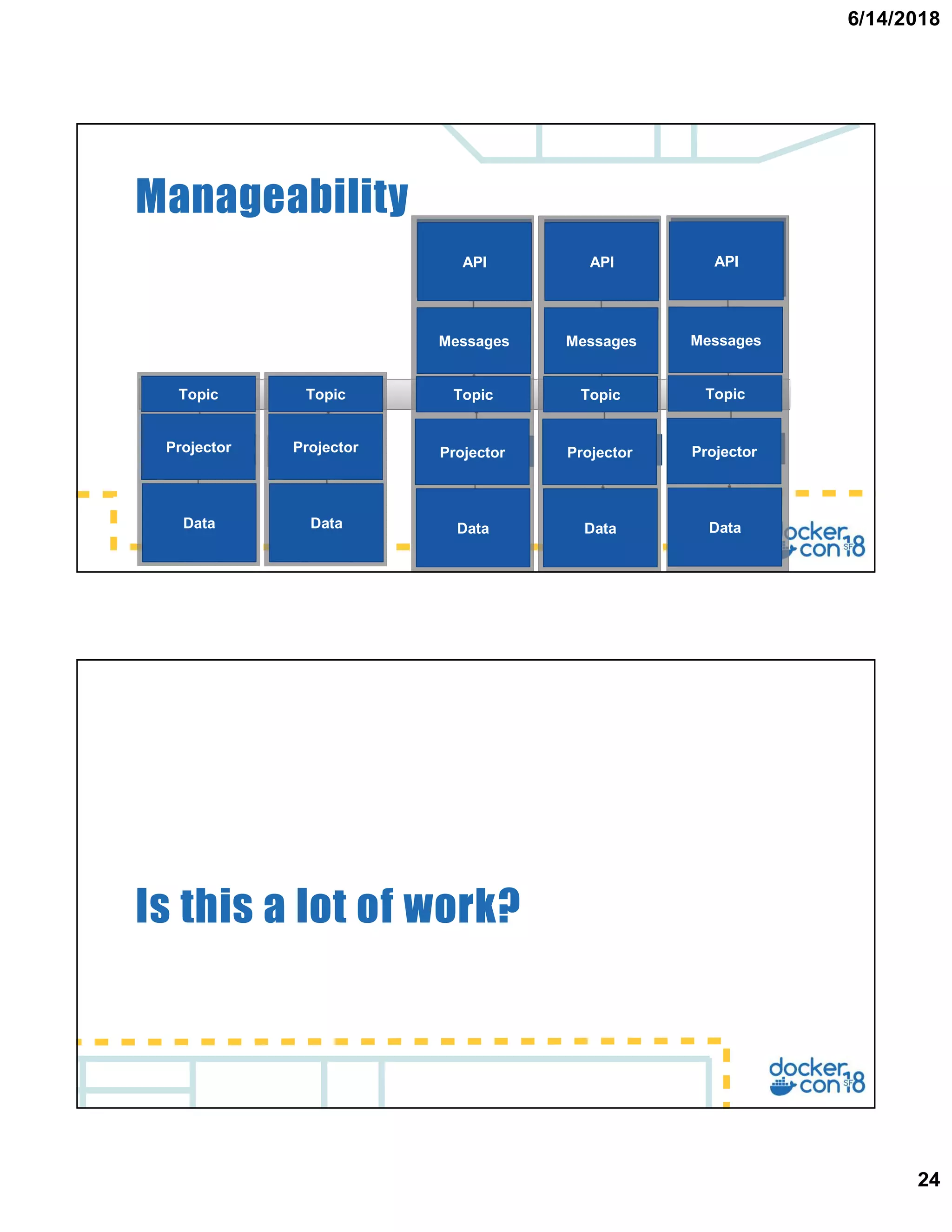

- 24. 6/14/2018 24 Manageability User Runtime API User Management API User Self-Service API Topics Projector Projector ProjectorProjector Projector Config DB Audit History User Runtime Users User Self- Service API Messages Topic Projector Data API Messages Topic Projector Data API Messages Topic Projector Data Projector Data Projector Data Topic Topic Is this a lot of work?
