1. Asanka Abeysinghe
Cell-based Architecture
Decentralized Architecture Pattern for Cloud-native Applications
Chief Technology Evangelist (former Deputy CTO)
WSO2 Inc.

2. 2019
1997 2003
Architect
2012
VP Solutions
Architecture
2001 2008
Director
Solutions
Architecture
Deputy CTO
Open Source
Distributed Computing
Programmer
COBOL
OLE, OLE2
COM, COM+
DCOM
CORBA
Java Developer
J2EE
MMS286-DX4
Eventing
FIX
HL7
CONNECT-health
Global architecture team
500+ customers
Champions program
Chief
Architect2005
QSP
AR
Trusted advocate
Game hacker
C++ programmer
Age-16
Hedge fund tools
Ref. Architecture
Ref. Methodology
Evangelize
2018
Middleware Developer/Architect
Entrepreneur
Chief Technology
Evangelist
2020
Connecting humans & technology
Architecting the transformation

3. Objectives
#1 why: a new pattern
#2 how: created the pattern
#3 what: is Cell-based architecture

4. picture credit: https://www.flickr.com/

5. Motivation

6. Centralized & Layered
picture credit: https://www.flickr.com/photos/kaktuslampa/

7. picture credit: https://www.flickr.com/photos/69929929@N06/
Powerpoint Architects

8. picture credit: https://www.flickr.com/photos/johnerlandsen/
Reality of the Enterprise

9. Brownfield > Greenfield
picture credit: https://www.apstra.com/home/landscape-of-meadow-field-with-the-changing-environment-2/
Legacy, monolithic
Microservices, sprawl

10. Reference Implementations
picture credit: https://www.marinersmuseum.org/

11. picture credit: http://unlocked.footlocker.com/
Underutilization of the Technology

12. Gap: architecture | development | deployment
picture credit: https://www.flickr.com/photos/28994379@N02/

13. picture credit: https://www.flickr.com/photos/tiocfaidh_ar_la_1916/
Architecture Patterns

14. Timeline

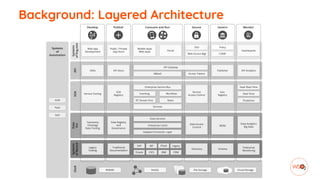

15. Background: Layered Architecture

16. picture credit: https://www.flickr.com/photos/23119666@N03/
A platform with an agile team
100 APIs, 60 message flows, 80 services, n DBs
Multi-tenanted, 3 active tenants
First release after 3 years

17. picture credit: https://www.flickr.com/photos/imcountingufoz/
Rise of Microservices

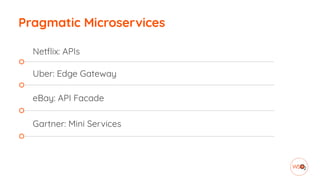

18. Pragmatic Microservices
Netflix: APIs
Uber: Edge Gateway
eBay: API Facade
Gartner: Mini Services

19. Business vs technical services
picture credit: https://www.flickr.com/photos/arpadlukacs/

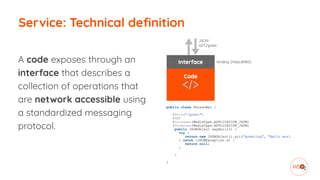

20. Service: Technical definition
A code exposes through an
interface that describes a
collection of operations that
are network accessible using
a standardized messaging
protocol.

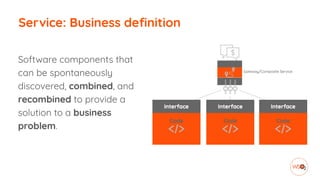

21. Service: Business definition
Software components that
can be spontaneously
discovered, combined, and
recombined to provide a
solution to a business
problem.

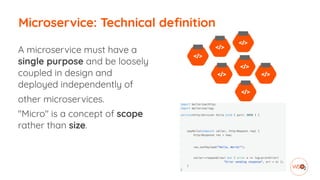

22. Microservice: Technical definition
A microservice must have a
single purpose and be loosely
coupled in design and
deployed independently of
other microservices.
"Micro" is a concept of scope
rather than size.

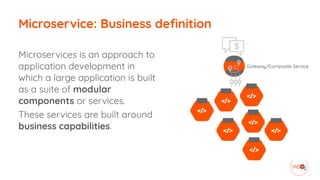

23. Microservice: Business definition
Microservices is an approach to
application development in
which a large application is built
as a suite of modular
components or services.
These services are built around
business capabilities.

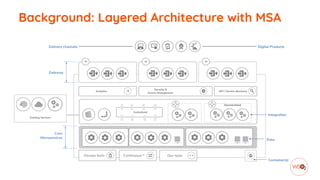

24. Background: Layered Architecture with MSA

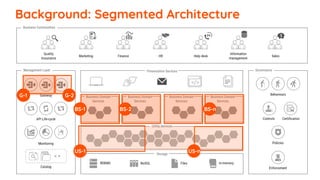

25. Background: Segmented Architecture
BS-1 BS-2 BS-n
G-1 G-2
US-1 US-n

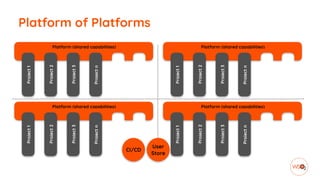

26. Platform of Platforms
Platform (shared capabilities)
Project1
Project2
Project3
Projectn
Platform (shared capabilities)
Project1
Project2
Project3
Projectn
Platform (shared capabilities)
Project1
Project2
Project3
Projectn
Platform (shared capabilities)
Project1
Project2
Project3
Projectn
CI/CD
User
Store

27. picture credit: https://www.flickr.com/photos/ableman/

28. Building the
Concept

29. The cell is the basic structural,
functional, and
biological unit of all known
living organisms

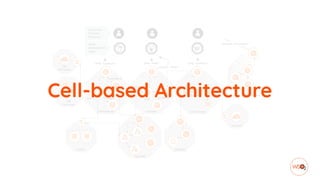

30. Cell-based Architecture

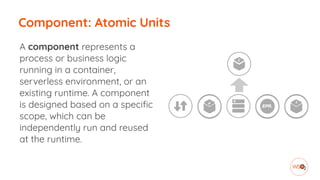

31. Component: Atomic Units
A component represents a
process or business logic
running in a container,
serverless environment, or an
existing runtime. A component
is designed based on a specific
scope, which can be
independently run and reused
at the runtime.

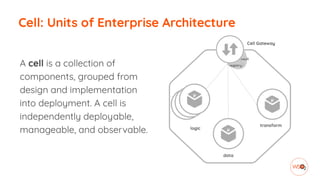

32. Cell: Units of Enterprise Architecture
A cell is a collection of
components, grouped from
design and implementation
into deployment. A cell is
independently deployable,
manageable, and observable.

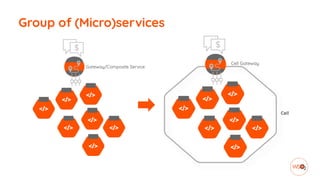

33. Group of (Micro)services

34. Cell:Component
1:M
1:1

35. Connected Cells
picture credit: https://www.medicalnewstoday.com/

36. Control Plane:
- Signaling of the network
- Makes decisions about the traffic flow
Data Plane:
- Forwards traffic between hops
- Takes data packets
picture credit: https://www.flickr.com/photos/teflon/
Management Plane:
- Configure
- Observeabiltty, Monitor

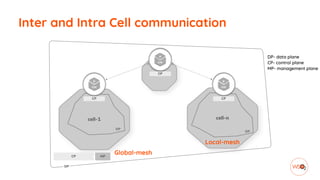

37. Inter and Intra Cell communication
Local-mesh
Global-mesh
DP- data plane
CP- control plane
MP- management plane

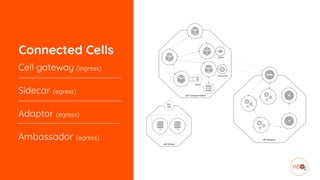

38. Connected Cells
Cell gateway (ingress)
Sidecar (egress)
Adaptor (egress)
Ambassador (egress)

39. API-first Architecture
picture credit: https://www.flickr.com/photos/hugh_nelson/

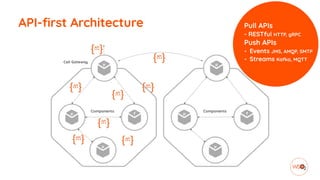

40. API-first Architecture Pull APIs
- RESTful HTTP, gRPC
Push APIs
- Events JMS, AMQP, SMTP
- Streams Kafka, MQTT

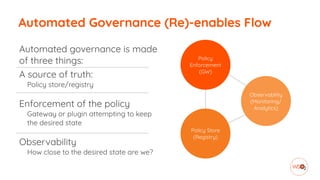

41. Automated Governance (Re)-enables Flow
Policy Store
(Registry)
Observability
(Monitoring/
Analytics)
Policy
Enforcement
(GW)
Automated governance is made
of three things:
A source of truth:
Policy store/registry
Enforcement of the policy
Gateway or plugin attempting to keep
the desired state
Observability
How close to the desired state are we?

42. Security of Cells

43. Developer Experience (DX)
of a Cell

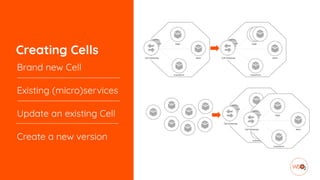

44. Creating Cells
Brand new Cell
Existing (micro)services
Update an existing Cell
Create a new version

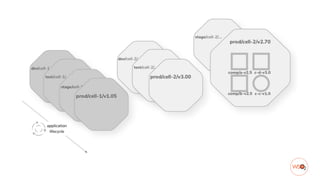

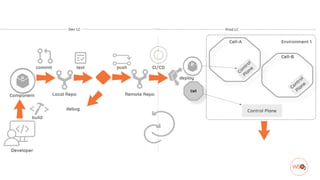

46. Lifecycle of a Cell

48. Structured Agility
Versioned Components
Versioned Cells
Dependency managed
Autowired
Reusable
Enhanced MSA & CNA

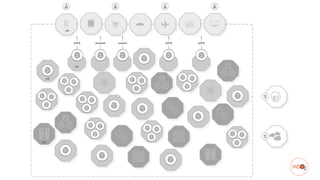

49. Cell-based Enterprise
Architecture

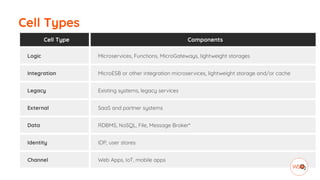

51. Cell Types
Cell Type Components
Logic Microservices, Functions, MicroGateways, lightweight storages
Integration MicroESB or other integration microservices, lightweight storage and/or cache
Legacy Existing systems, legacy services
External SaaS and partner systems
Data RDBMS, NoSQL, File, Message Broker*
Identity IDP, user stores
Channel Web Apps, IoT, mobile apps

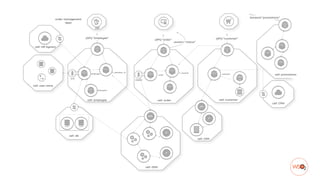

52. Reference Implementation L0

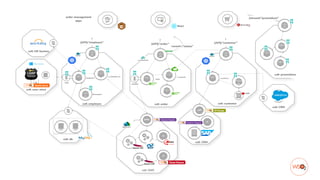

54. Reference Implementation L1

56. Human-centric Architecture
picture credit: https://www.vertoanalytics.com/human-vs-data-centric-marketing/

57. Cells and Cellular Organizations
https://www.forbes.com/sites/forbestechcouncil/2020/06/29/the-cellular-enterprise/

58. Measure the success
picture credit: https://www.marketingdonut.co.uk/direct-marketing/running-a-direct-mail-campaign/getting-the-measure-of-your-marketing

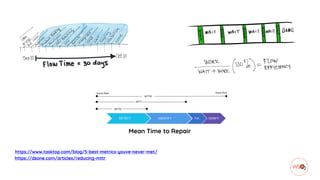

59. https://www.tasktop.com/blog/5-best-metrics-youve-never-met/
https://dzone.com/articles/reducing-mttr
Mean Time to Repair

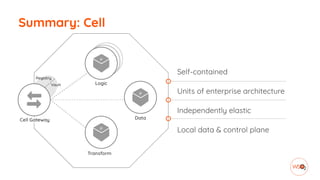

60. Self-contained
Units of enterprise architecture
Independently elastic
Local data & control plane
Summary: Cell

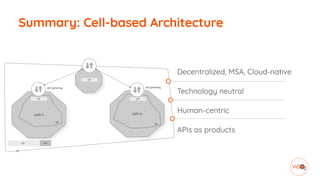

61. Decentralized, MSA, Cloud-native
Technology neutral
Human-centric
APIs as products
Summary: Cell-based Architecture

62. Contribution: walk the talk
picture credit: https://www.omgubuntu.co.uk/2018/06/microsoft-buying-github

63. picture credit: https://www.flickr.com/photos/infomatique/
Invitation to consume and contribute
https://github.com/wso2/reference-architecture
https://github.com/wso2/reference-methodology
https://ballerina.io
http://wso2.com
http://cellery.io

64. AbcLet’s connect
