A guild to setup a fb bot in python3

1. Write a Facebook
messenger bot in Python3
Jim

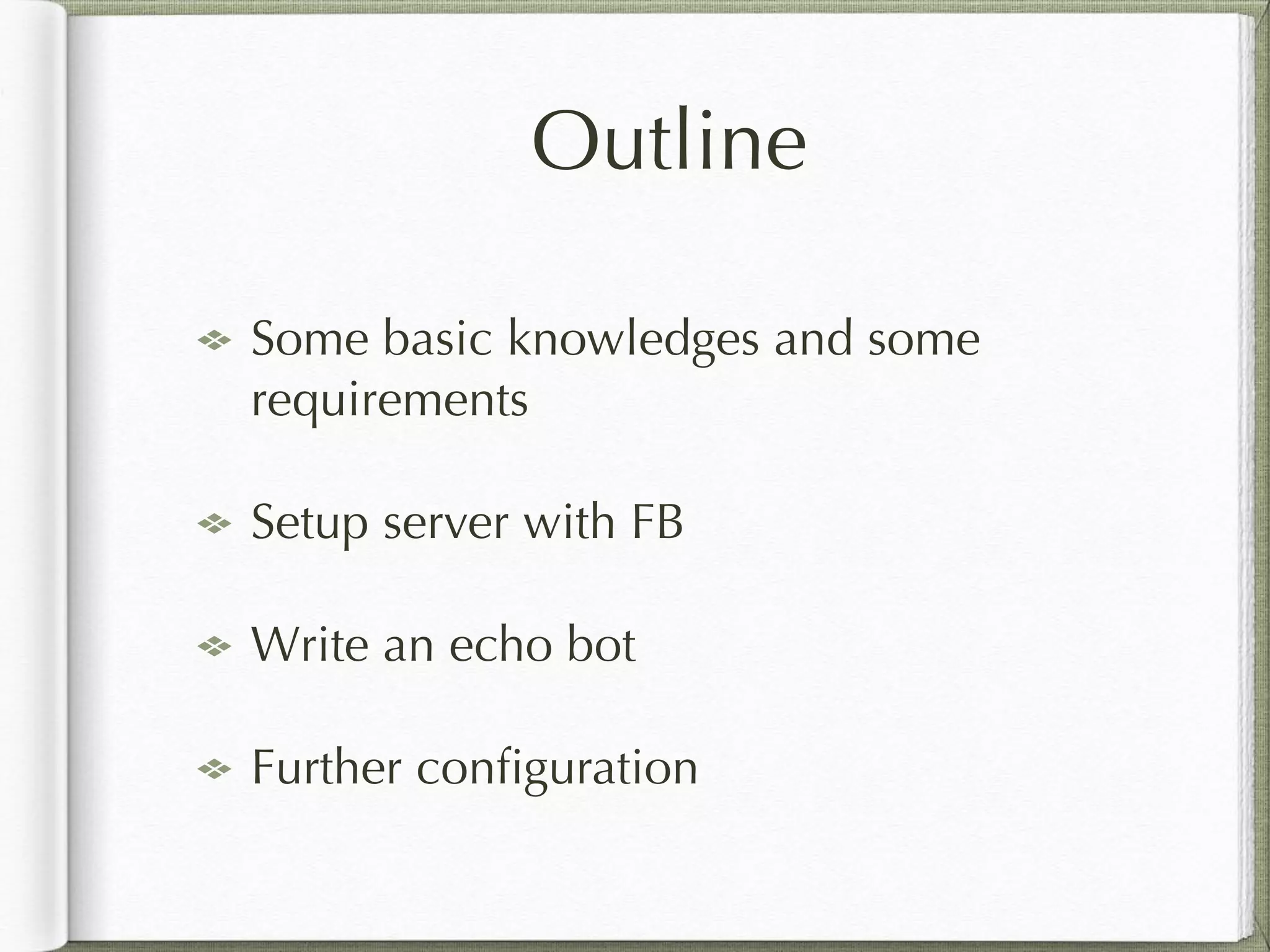

2. Outline
Some basic knowledges and some
requirements
Setup server with FB
Write an echo bot
Further configuration

3. Communicate with FB
FB Server

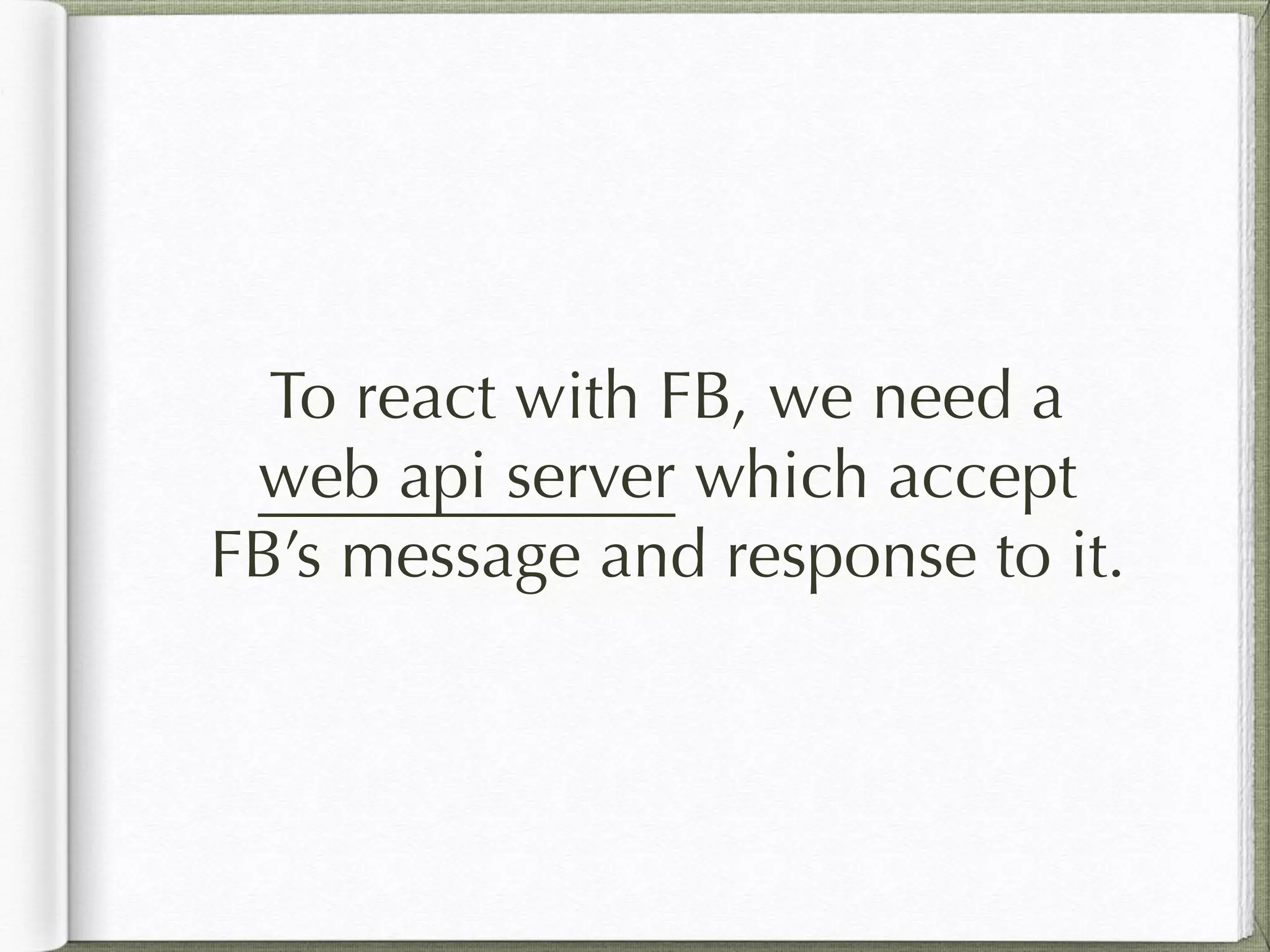

4. To react with FB, we need a
web api server which accept
FB’s message and response to it.

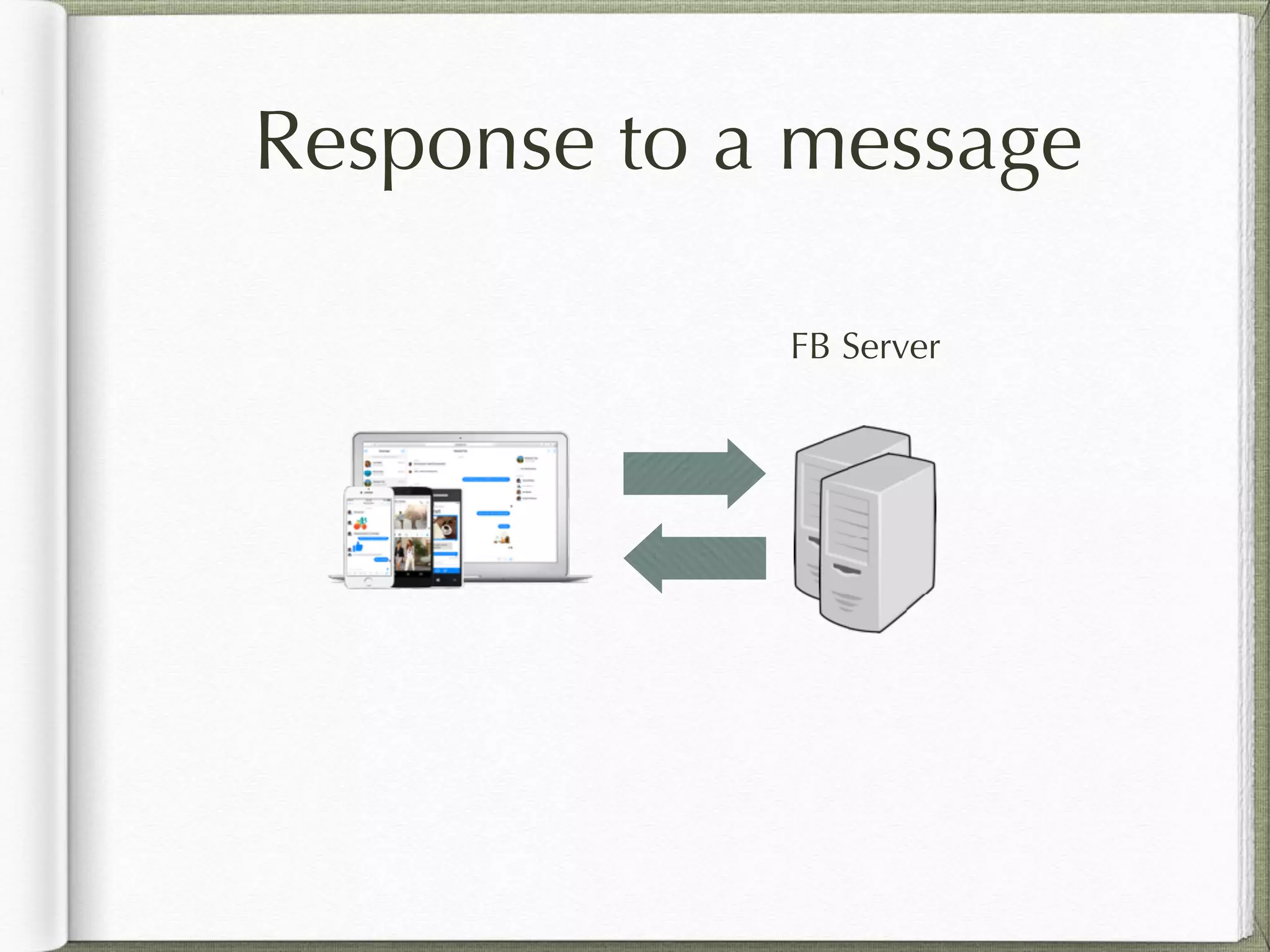

5. Response to a message
FB Server

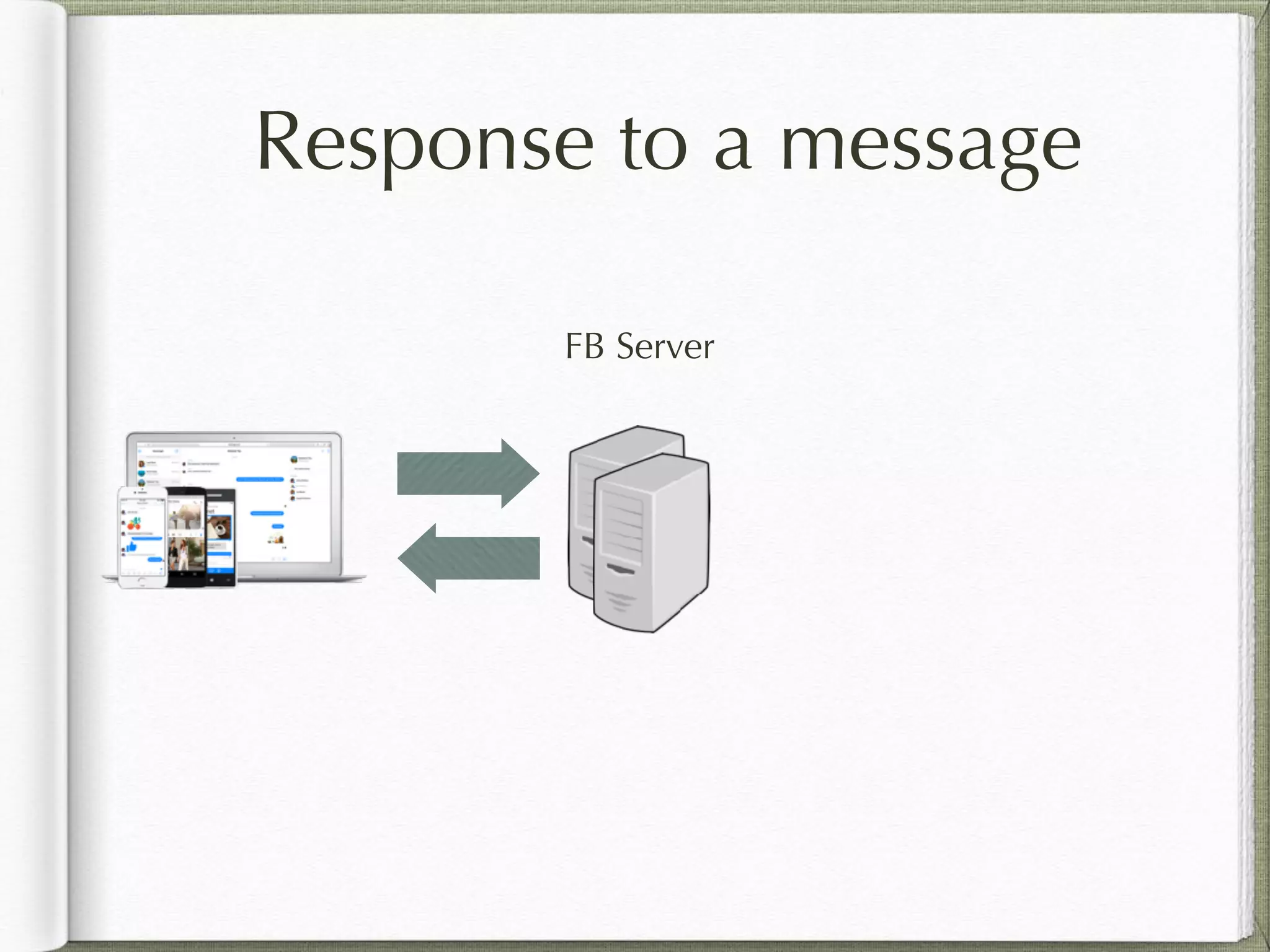

6. Response to a message
FB Server

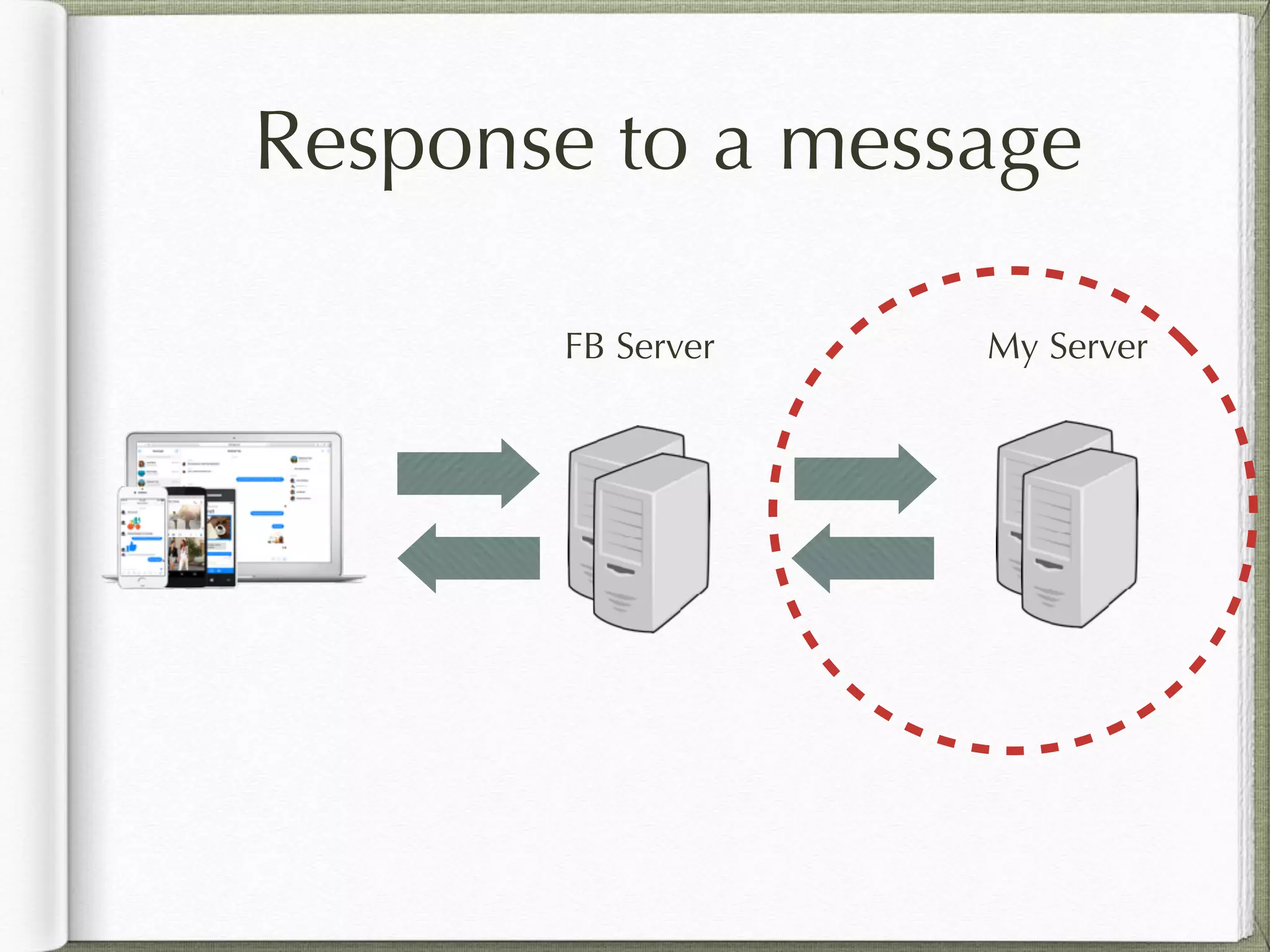

7. Response to a message
FB Server My Server

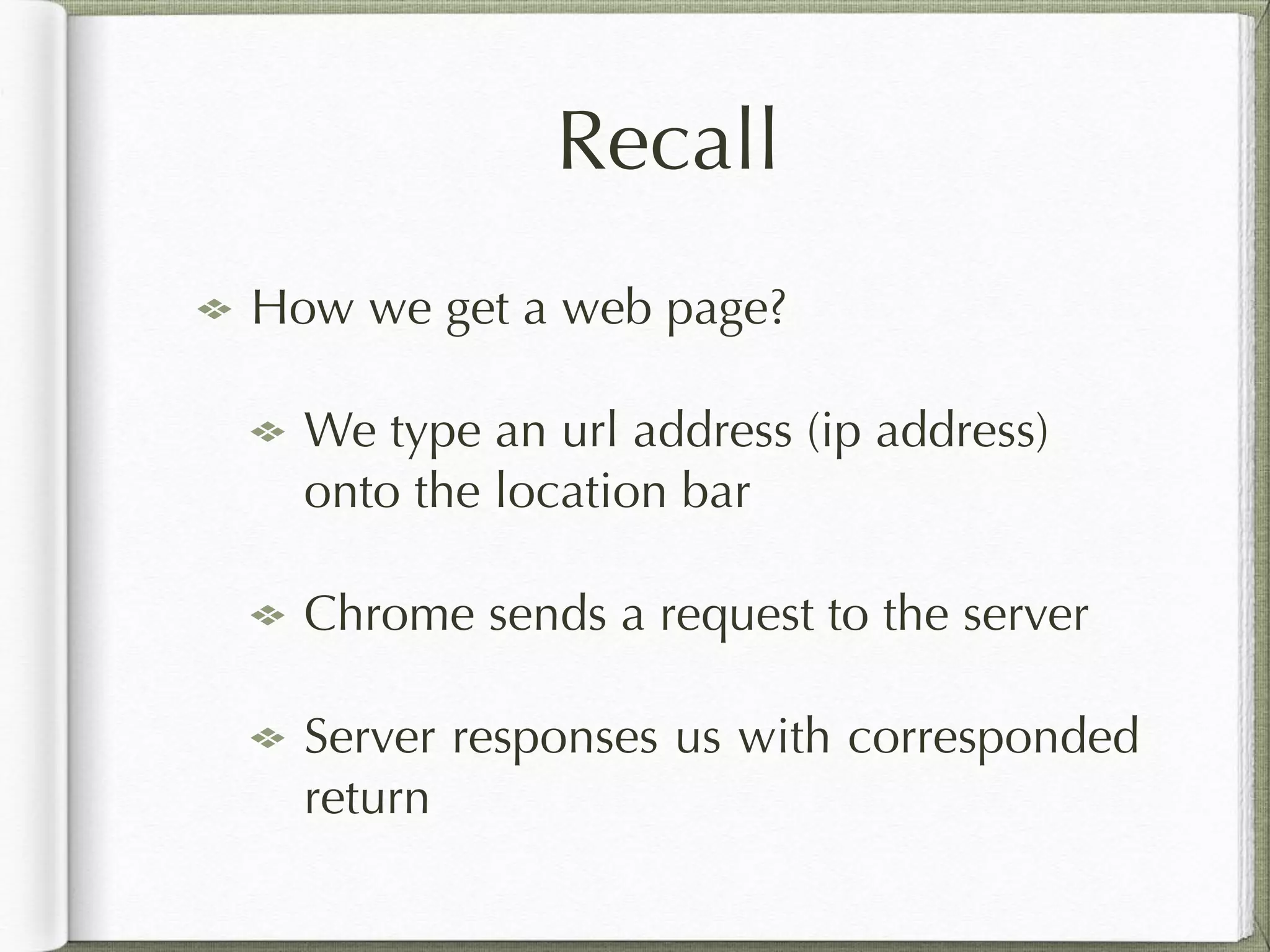

8. Recall
How we get a web page?
We type an url address (ip address)
onto the location bar
Chrome sends a request to the server
Server responses us with corresponded
return

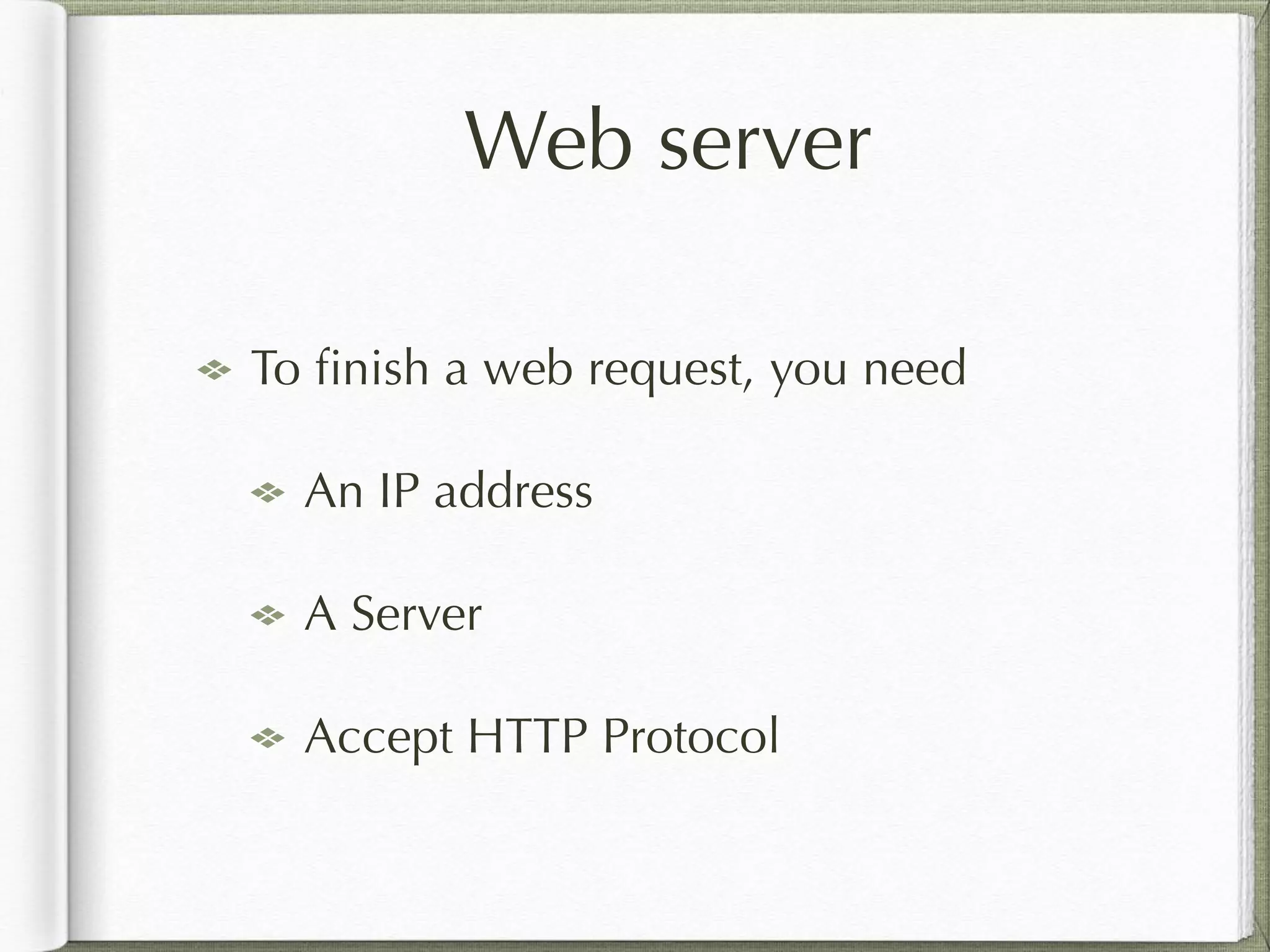

9. Web server
To finish a web request, you need
An IP address
A Server
Accept HTTP Protocol

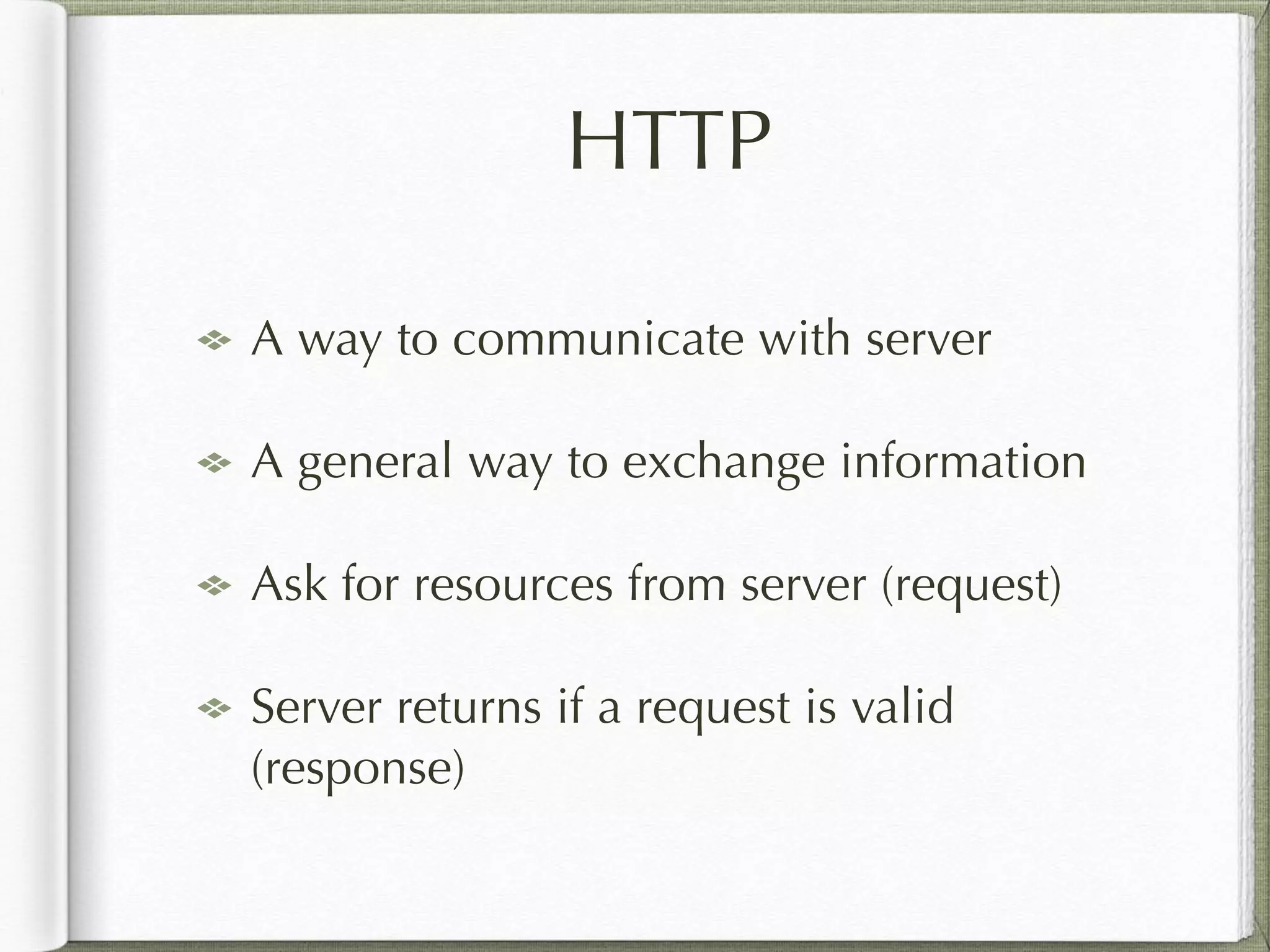

10. HTTP
A way to communicate with server
A general way to exchange information
Ask for resources from server (request)
Server returns if a request is valid
(response)

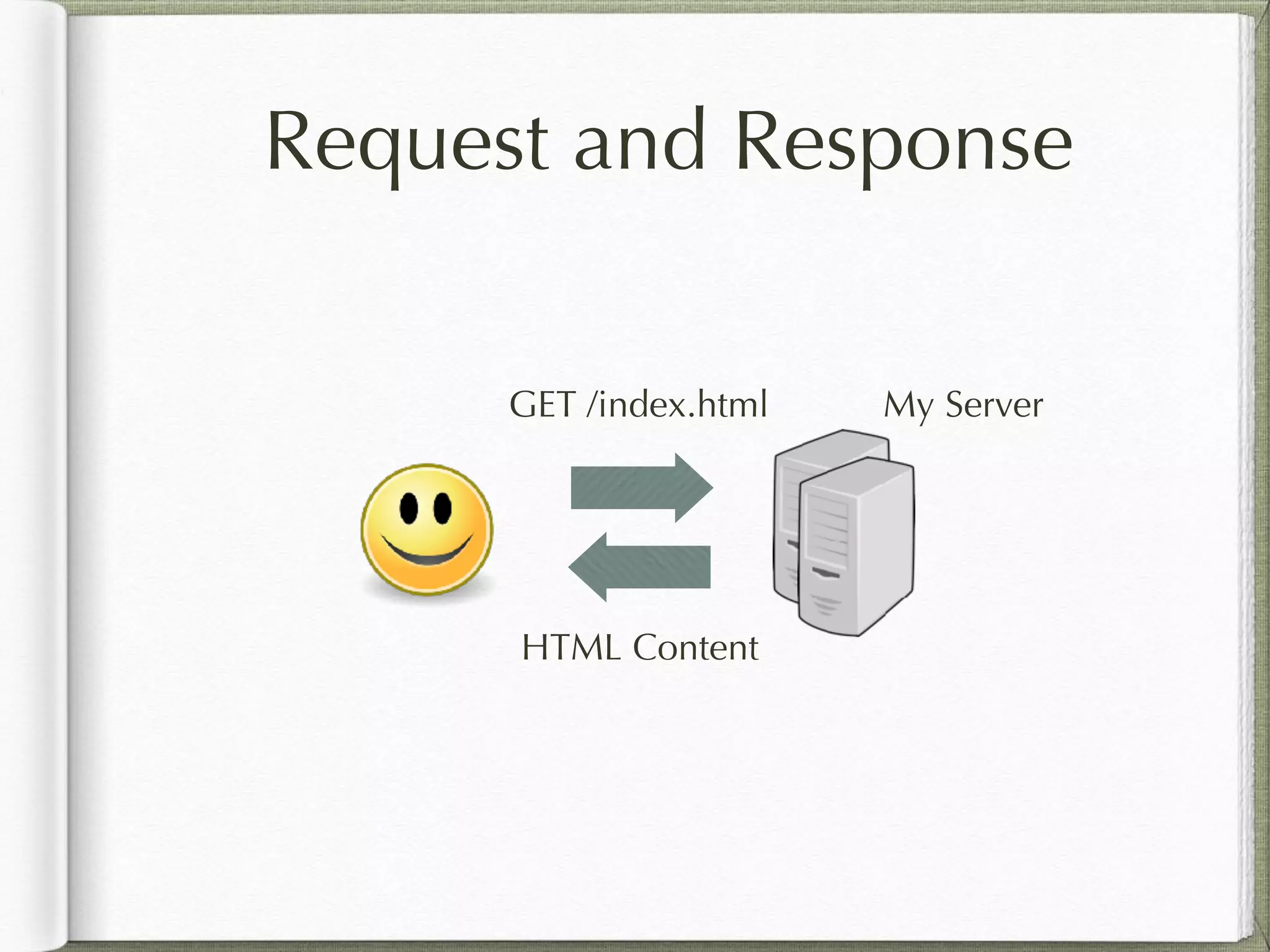

11. Request and Response
My ServerGET /index.html
HTML Content

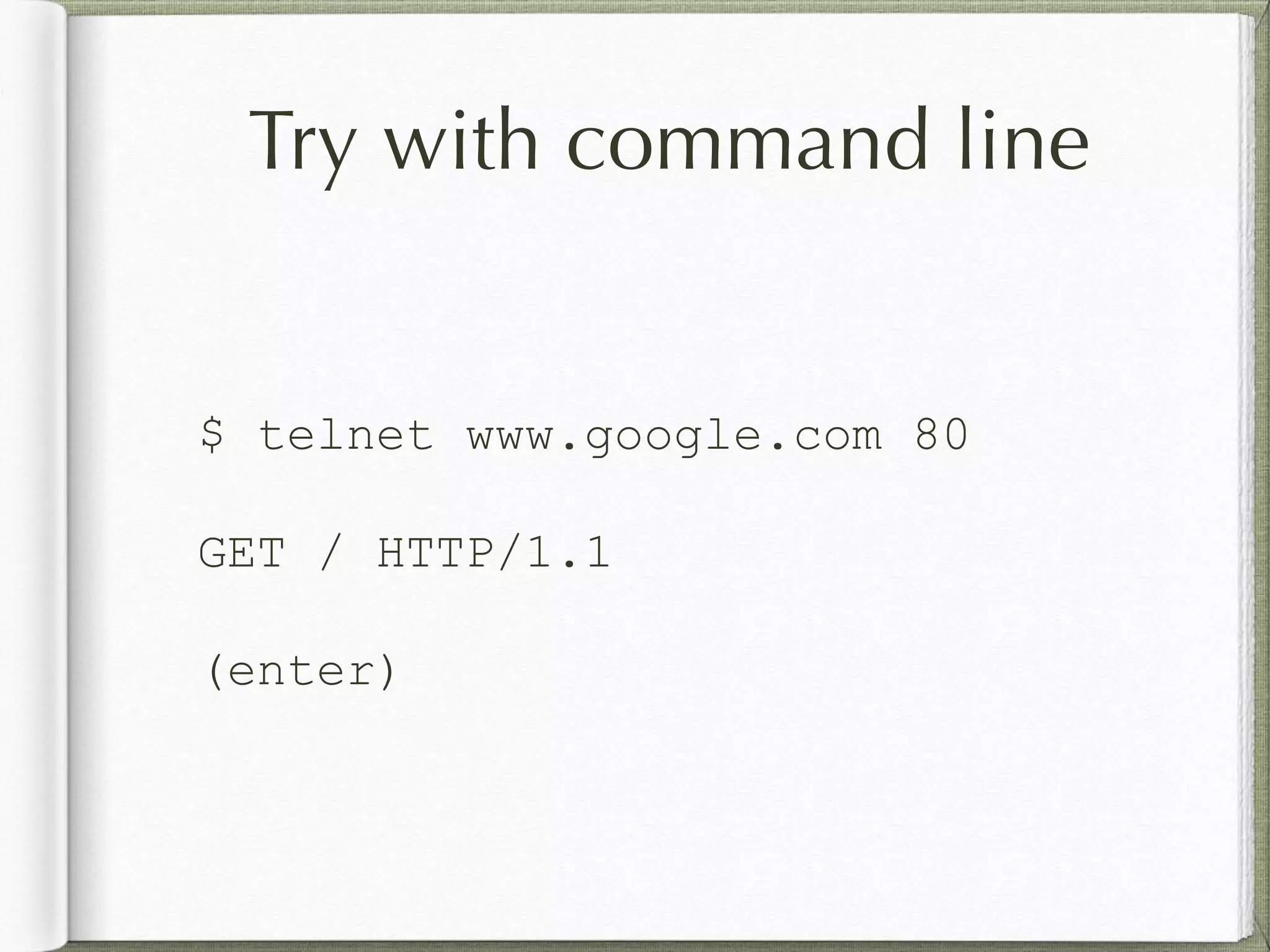

12. Try with command line
$ telnet www.google.com 80
GET / HTTP/1.1
(enter)

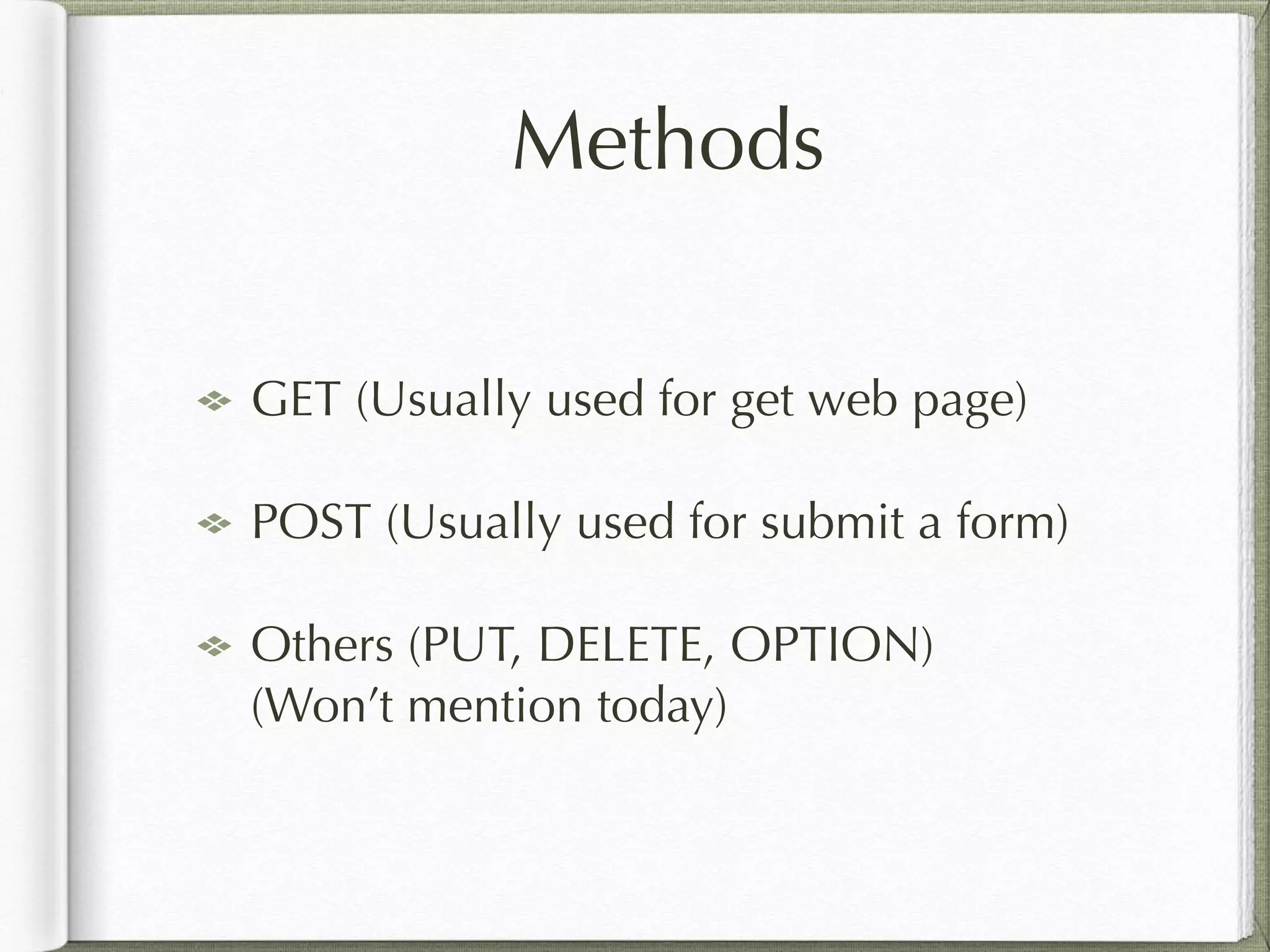

13. Methods
GET (Usually used for get web page)
POST (Usually used for submit a form)
Others (PUT, DELETE, OPTION)
(Won’t mention today)

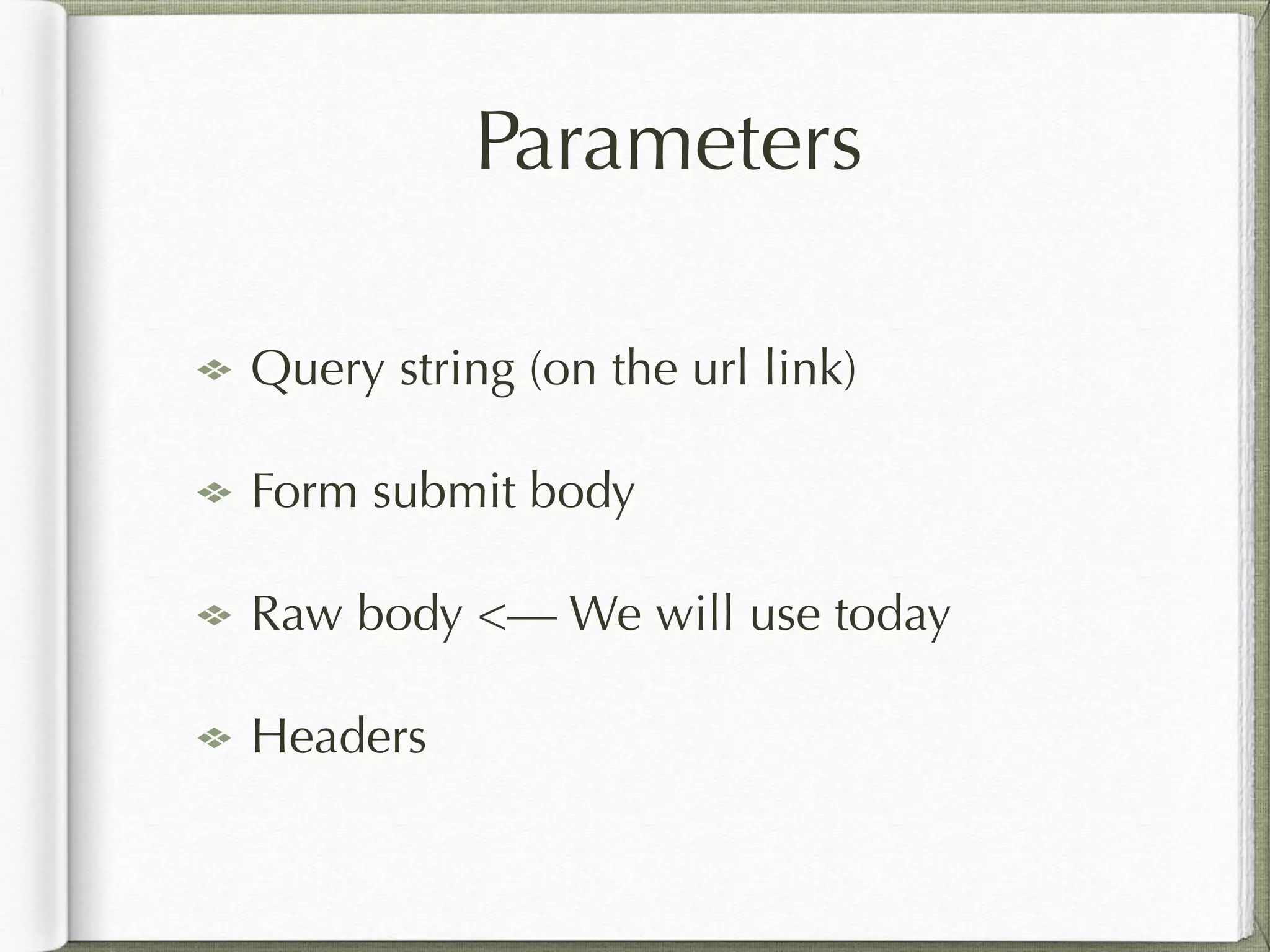

14. Parameters
Query string (on the url link)
Form submit body
Raw body <— We will use today
Headers

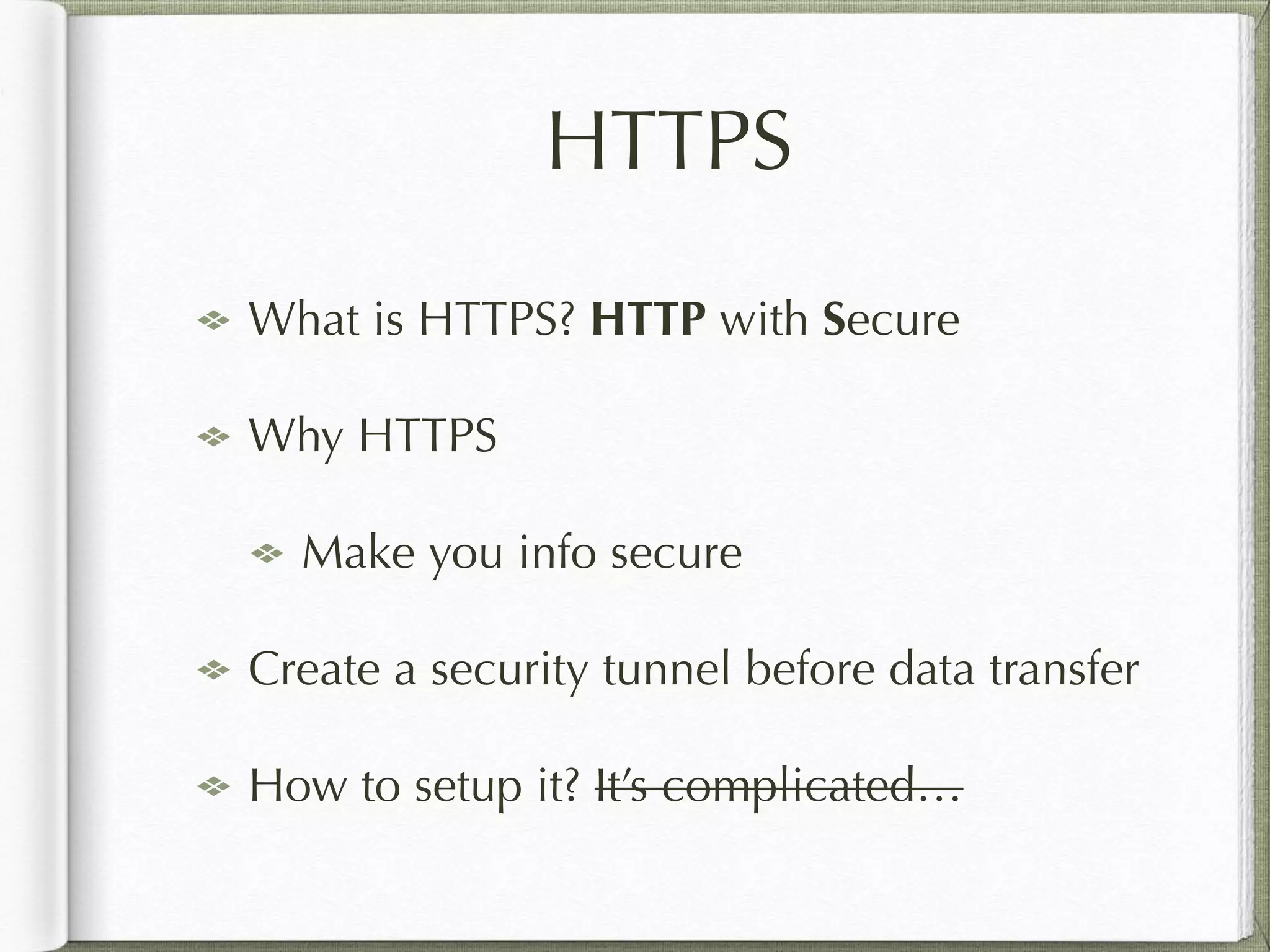

15. HTTPS
What is HTTPS? HTTP with Secure
Why HTTPS
Make you info secure
Create a security tunnel before data transfer
How to setup it? It’s complicated…

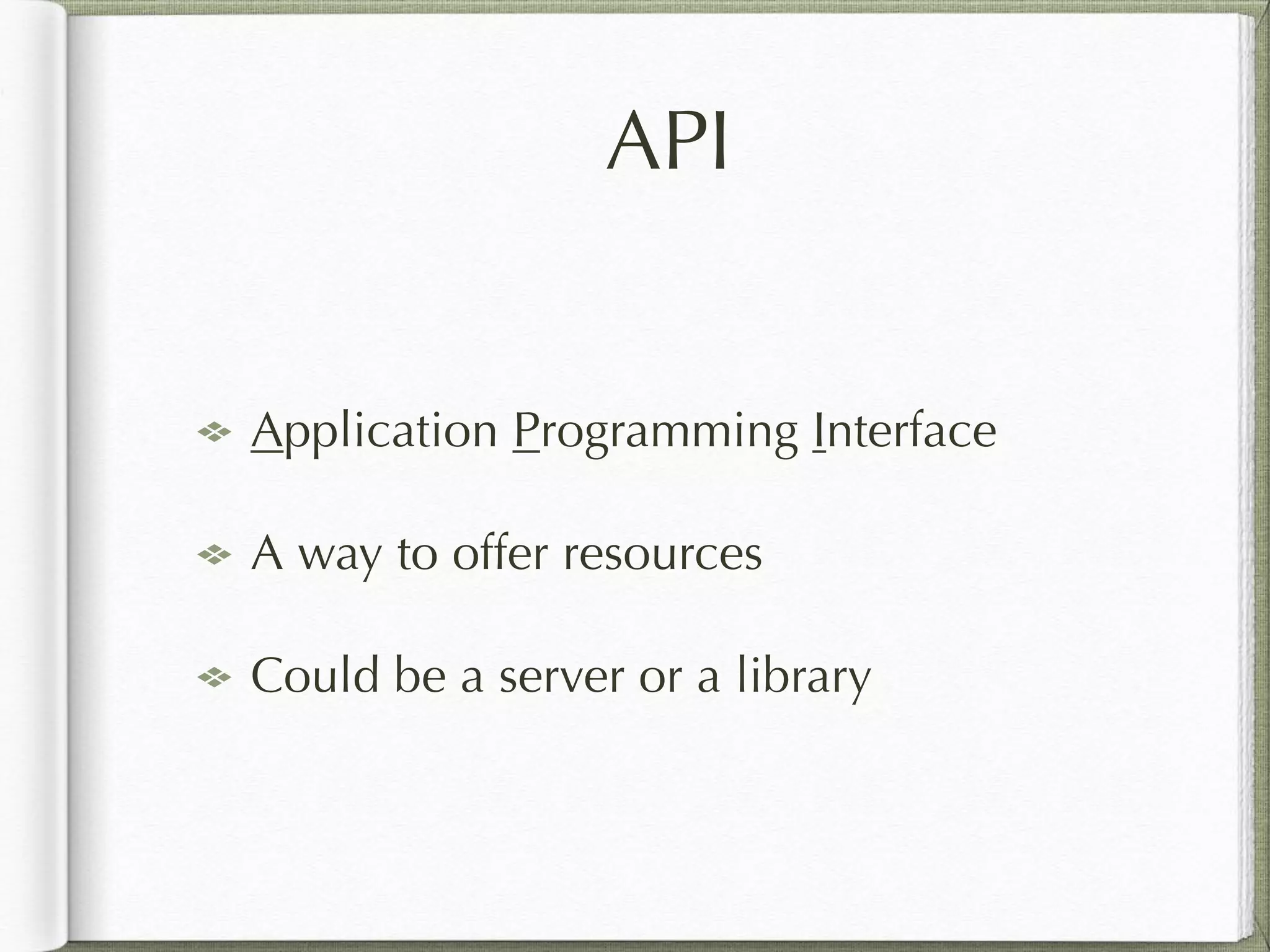

16. API
Application Programming Interface
A way to offer resources
Could be a server or a library

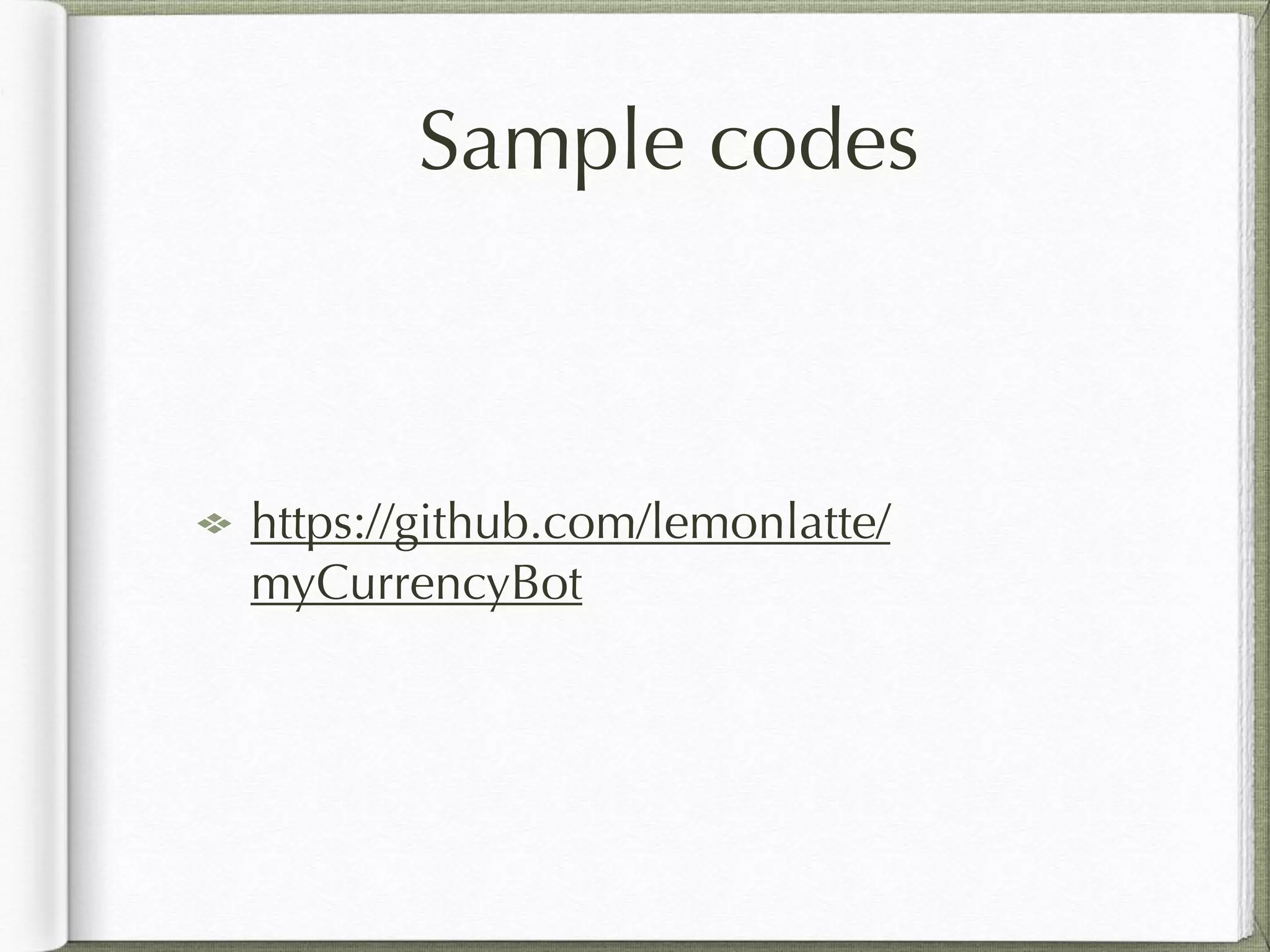

17. Sample codes
https://github.com/lemonlatte/
myCurrencyBot

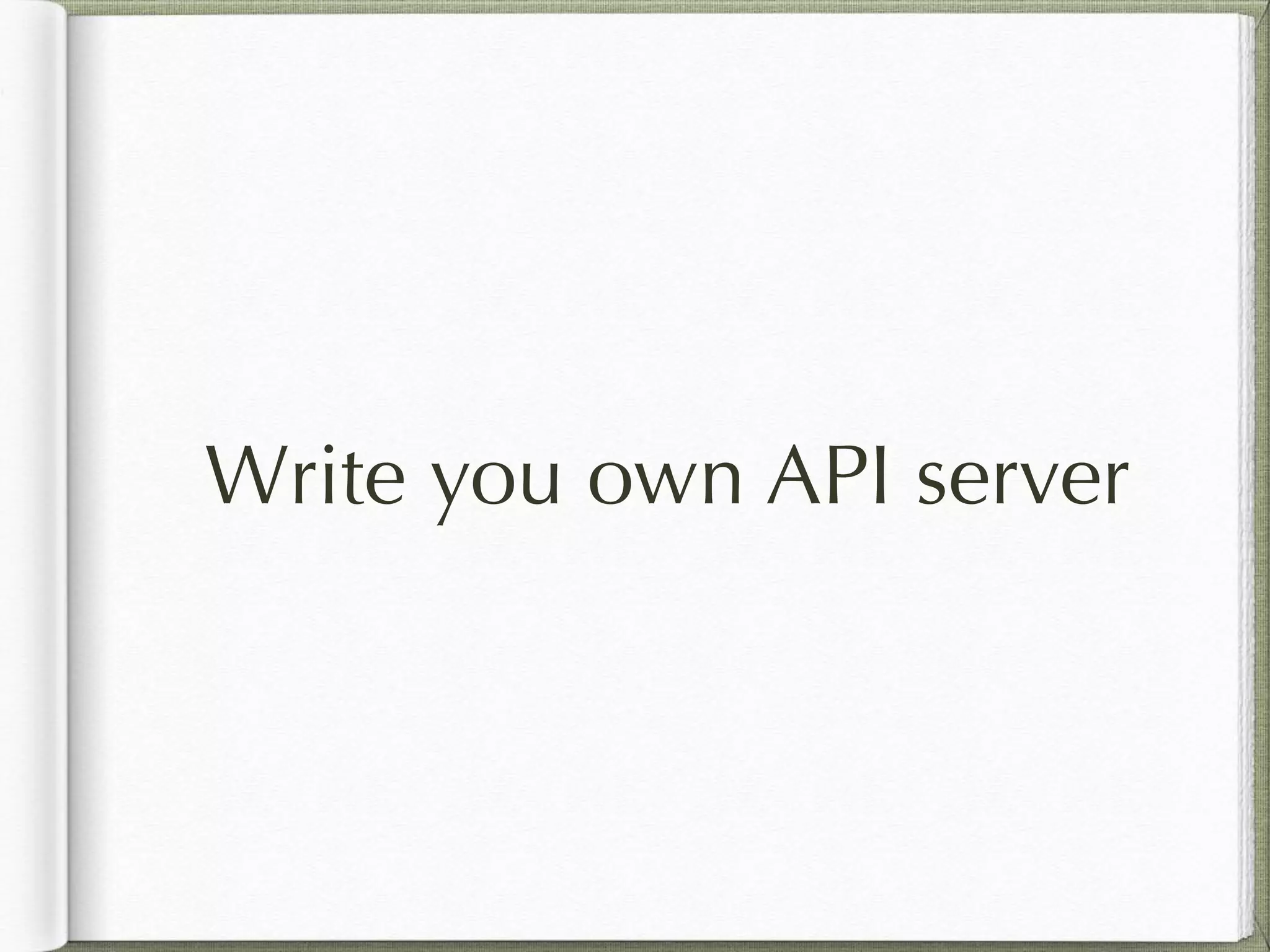

18. Write you own API server

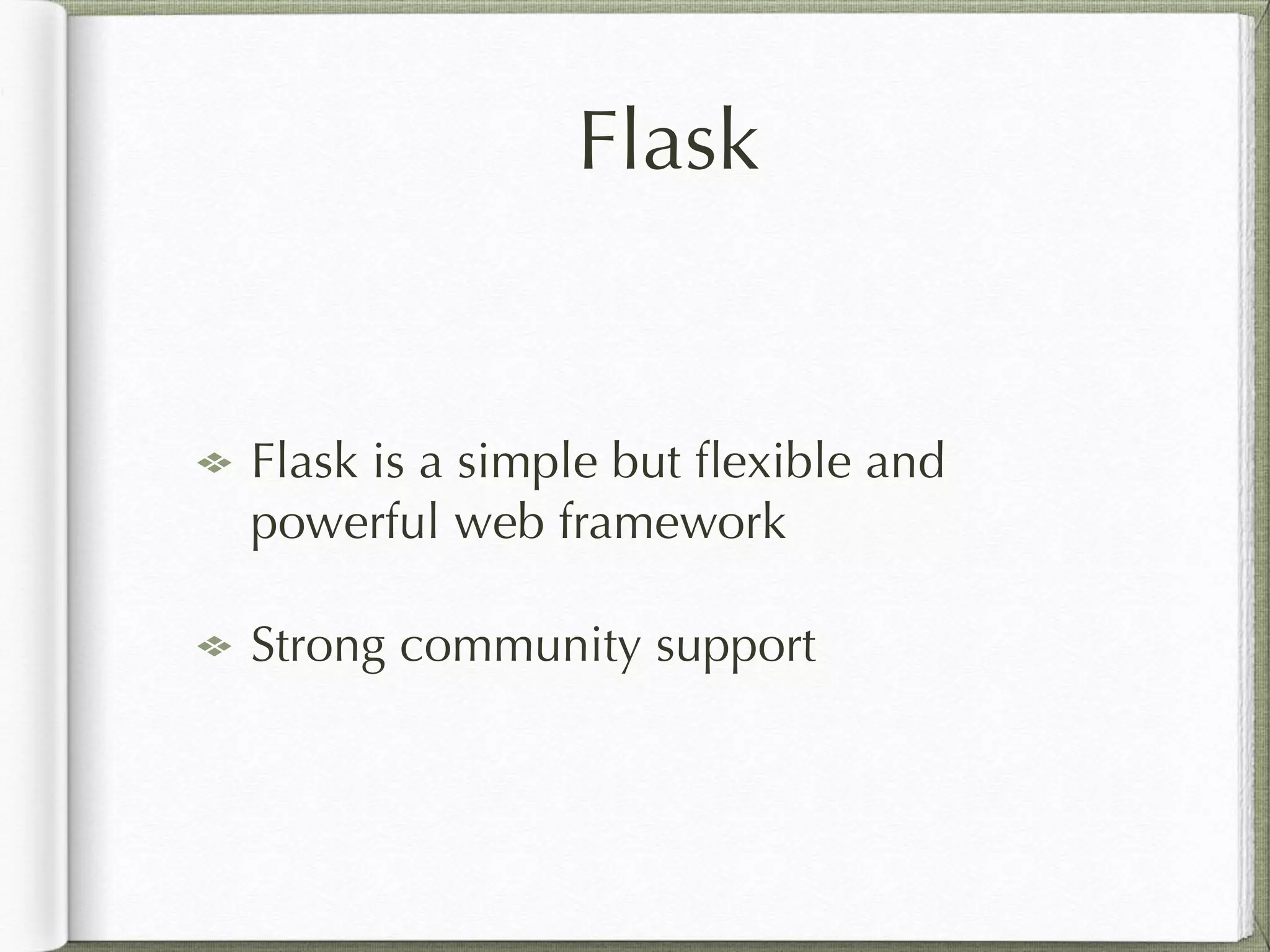

19. Flask
Flask is a simple but flexible and
powerful web framework
Strong community support

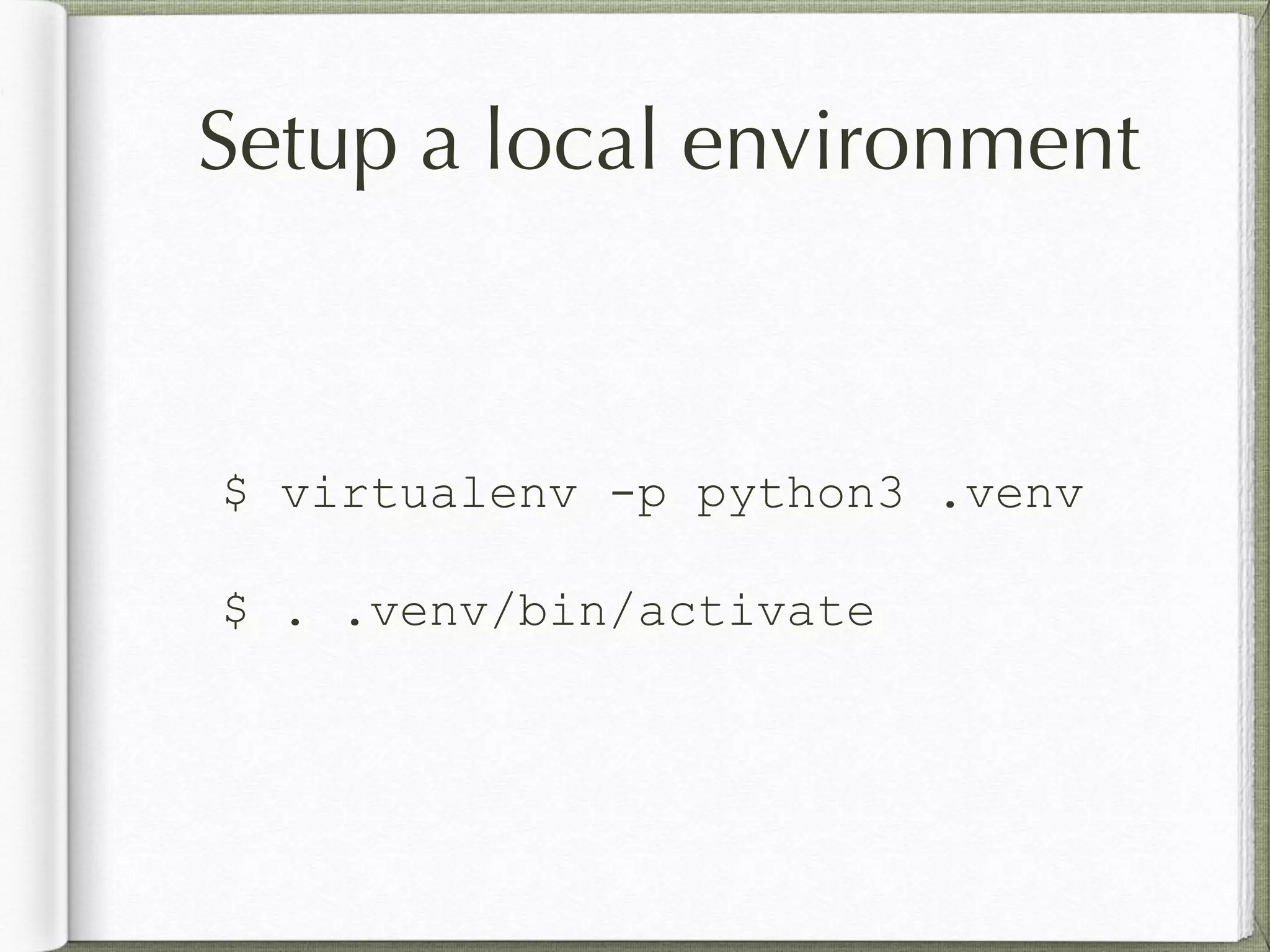

20. Setup a local environment
$ virtualenv -p python3 .venv
$ . .venv/bin/activate

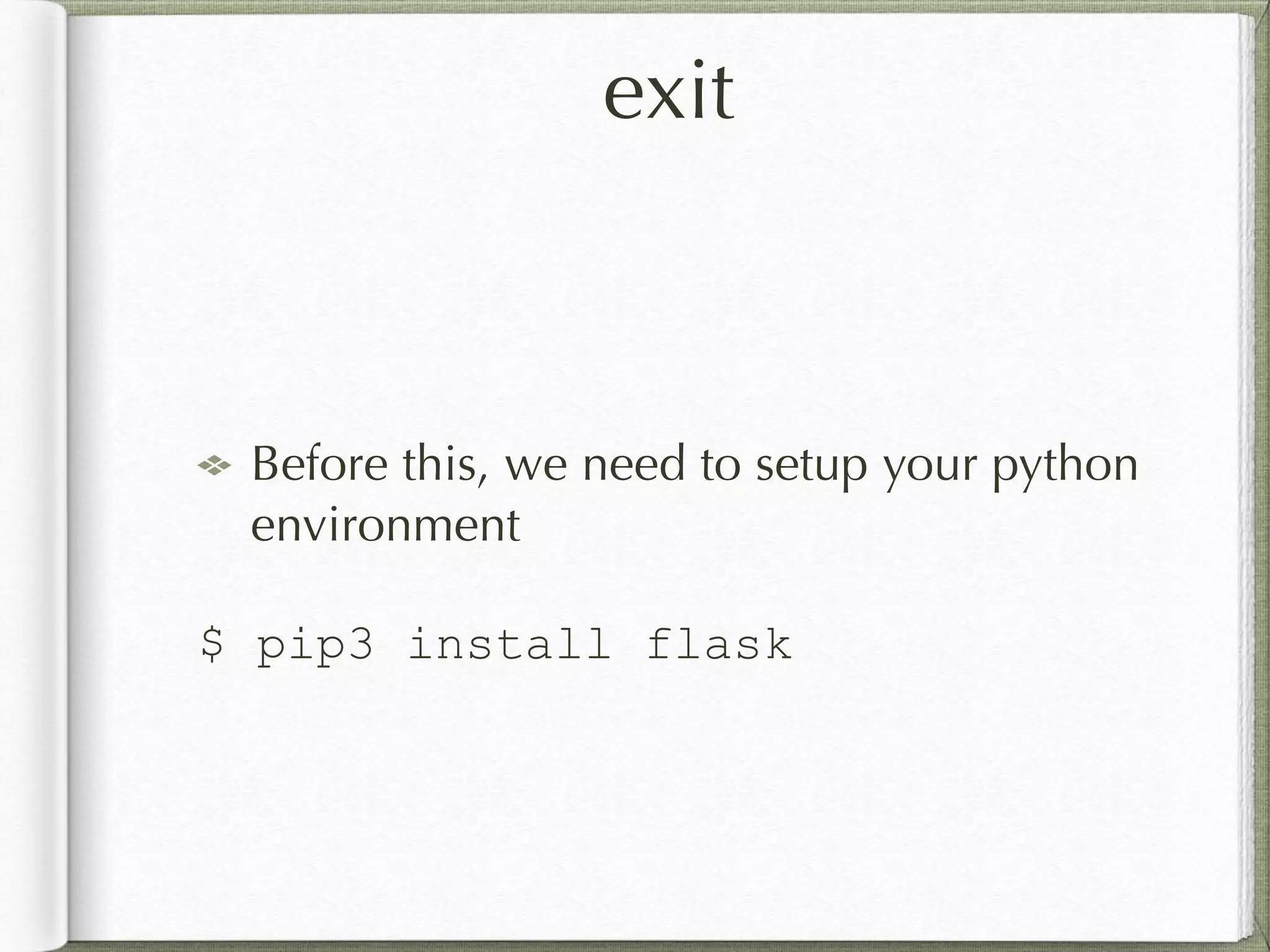

21. exit
Before this, we need to setup your python
environment
$ pip3 install flask

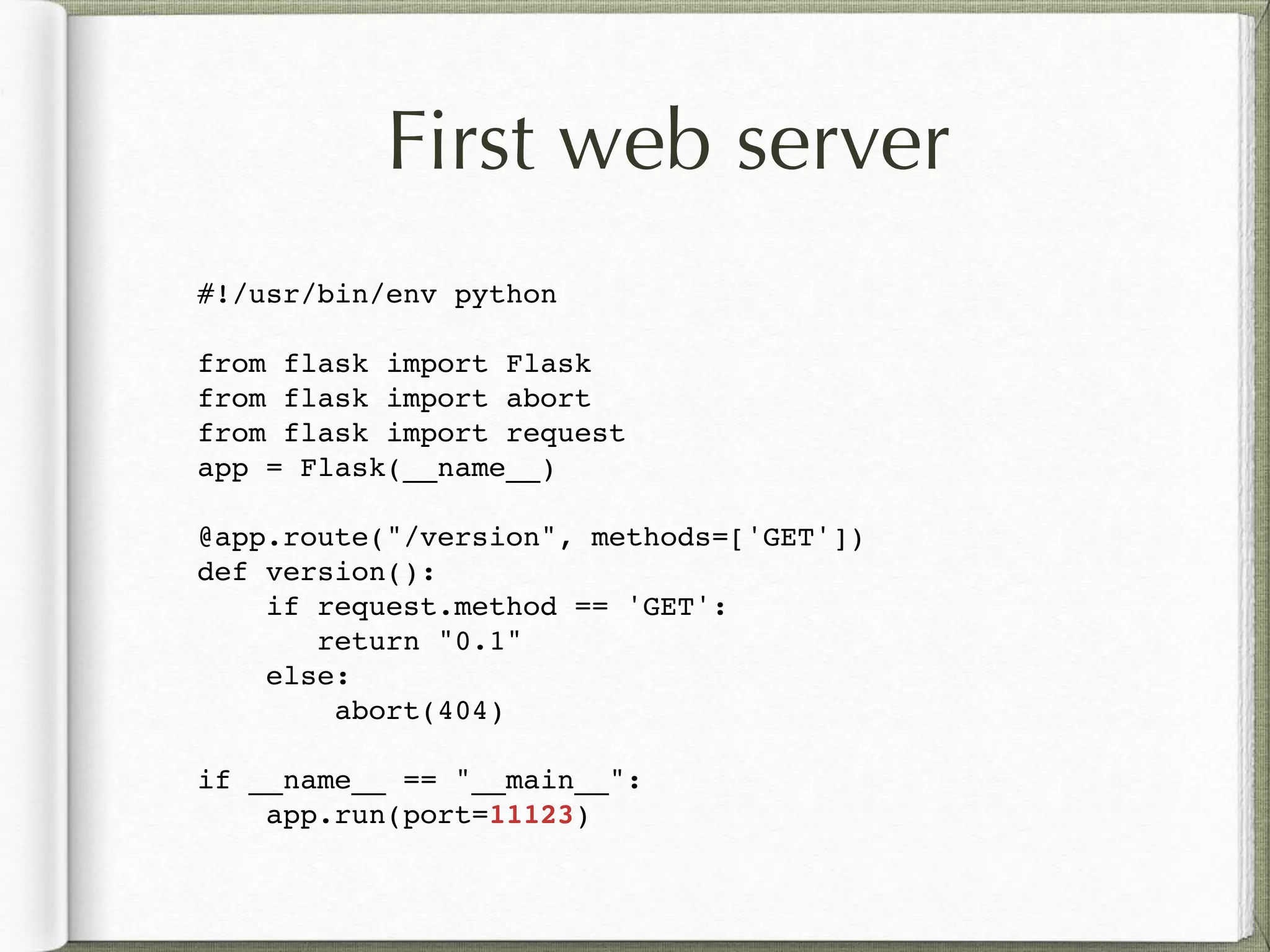

22. First web server
#!/usr/bin/env python
from flask import Flask
from flask import abort
from flask import request
app = Flask(__name__)
@app.route("/version", methods=['GET'])
def version():
if request.method == 'GET':
return "0.1"
else:
abort(404)
if __name__ == "__main__":
app.run(port=11123)

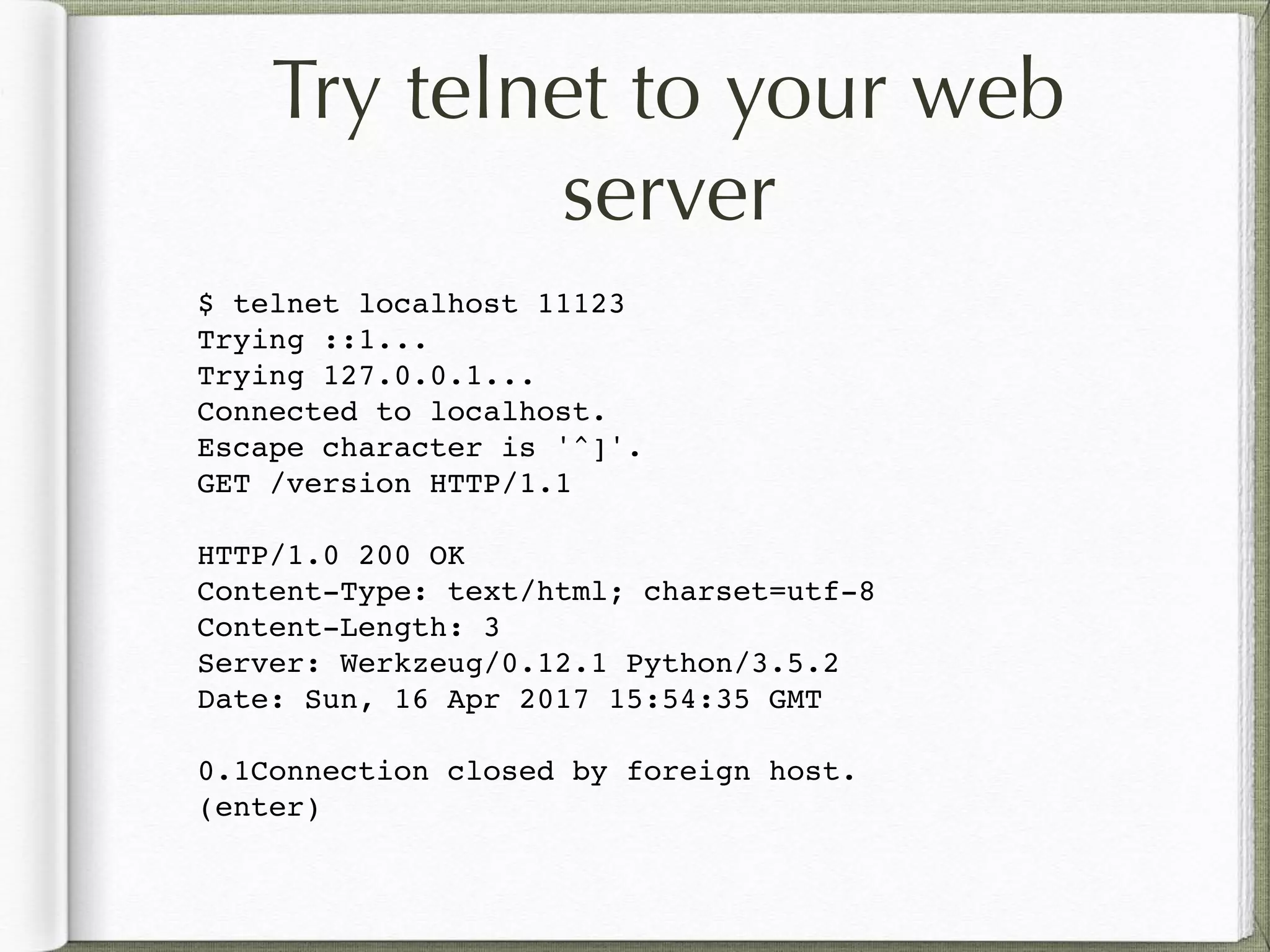

23. Try telnet to your web
server
$ telnet localhost 11123
Trying ::1...
Trying 127.0.0.1...
Connected to localhost.
Escape character is '^]'.
GET /version HTTP/1.1
HTTP/1.0 200 OK
Content-Type: text/html; charset=utf-8
Content-Length: 3
Server: Werkzeug/0.12.1 Python/3.5.2
Date: Sun, 16 Apr 2017 15:54:35 GMT
0.1Connection closed by foreign host.
(enter)

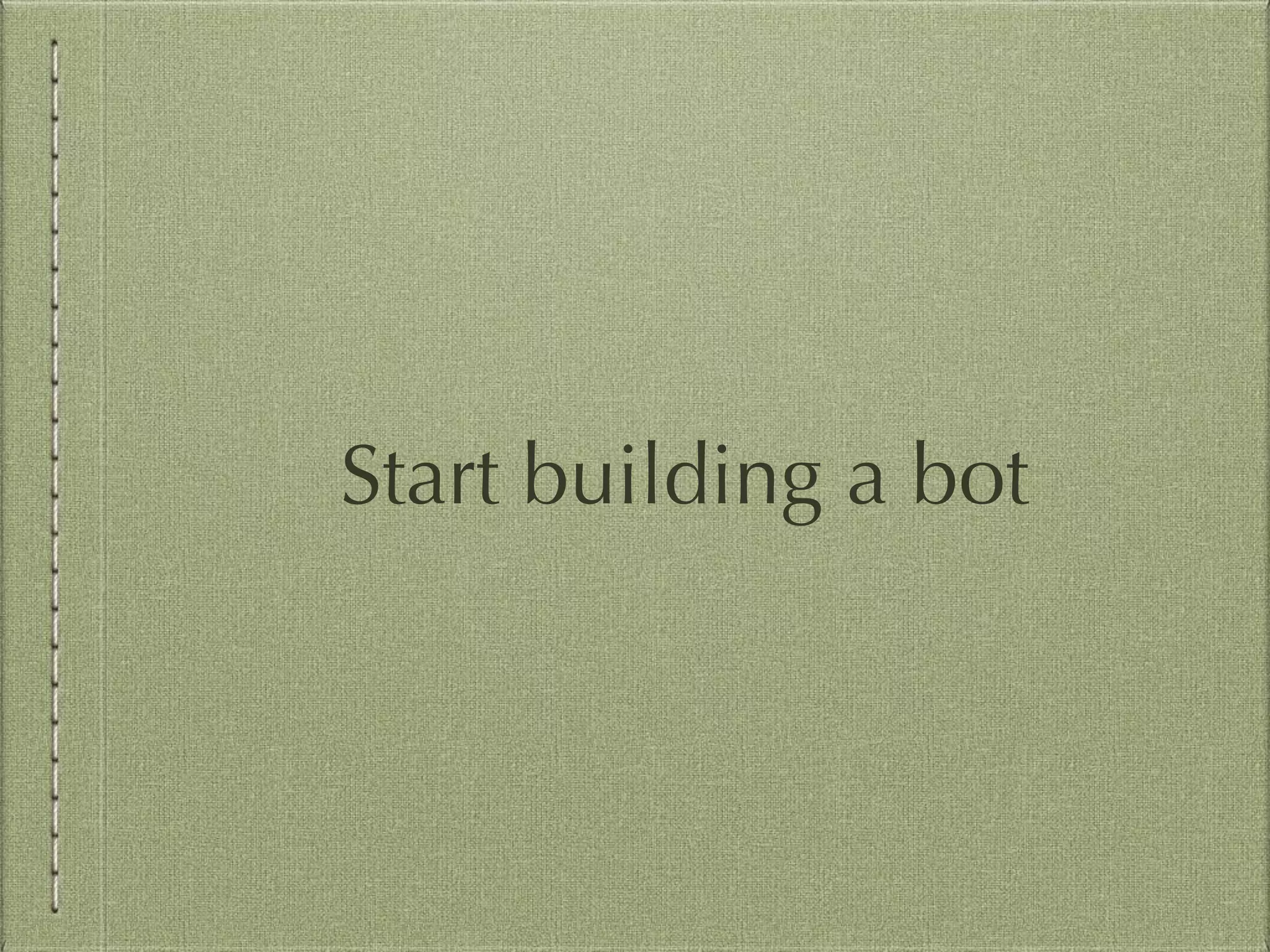

24. Start building a bot

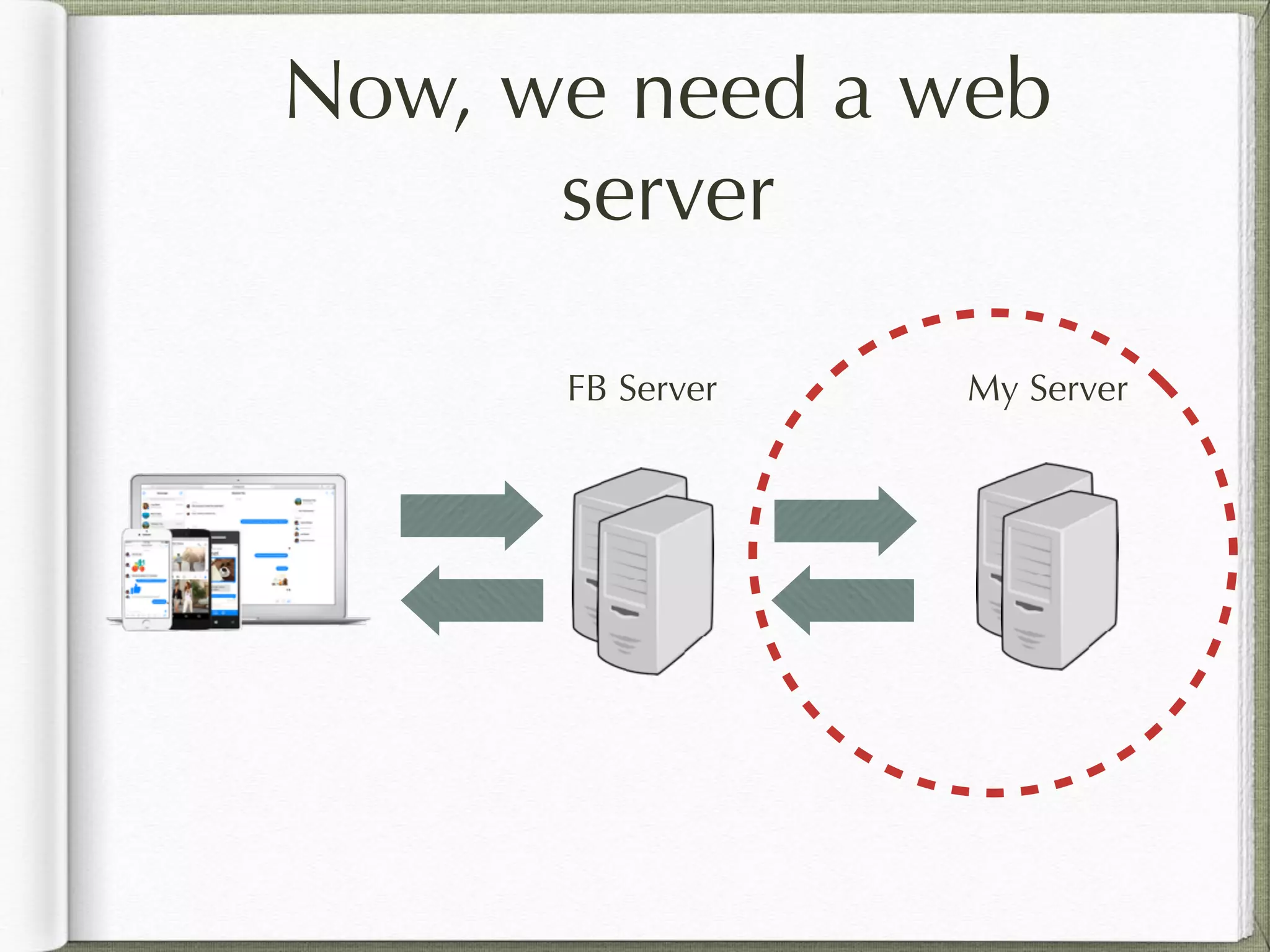

25. Now, we need a web
server
FB Server My Server

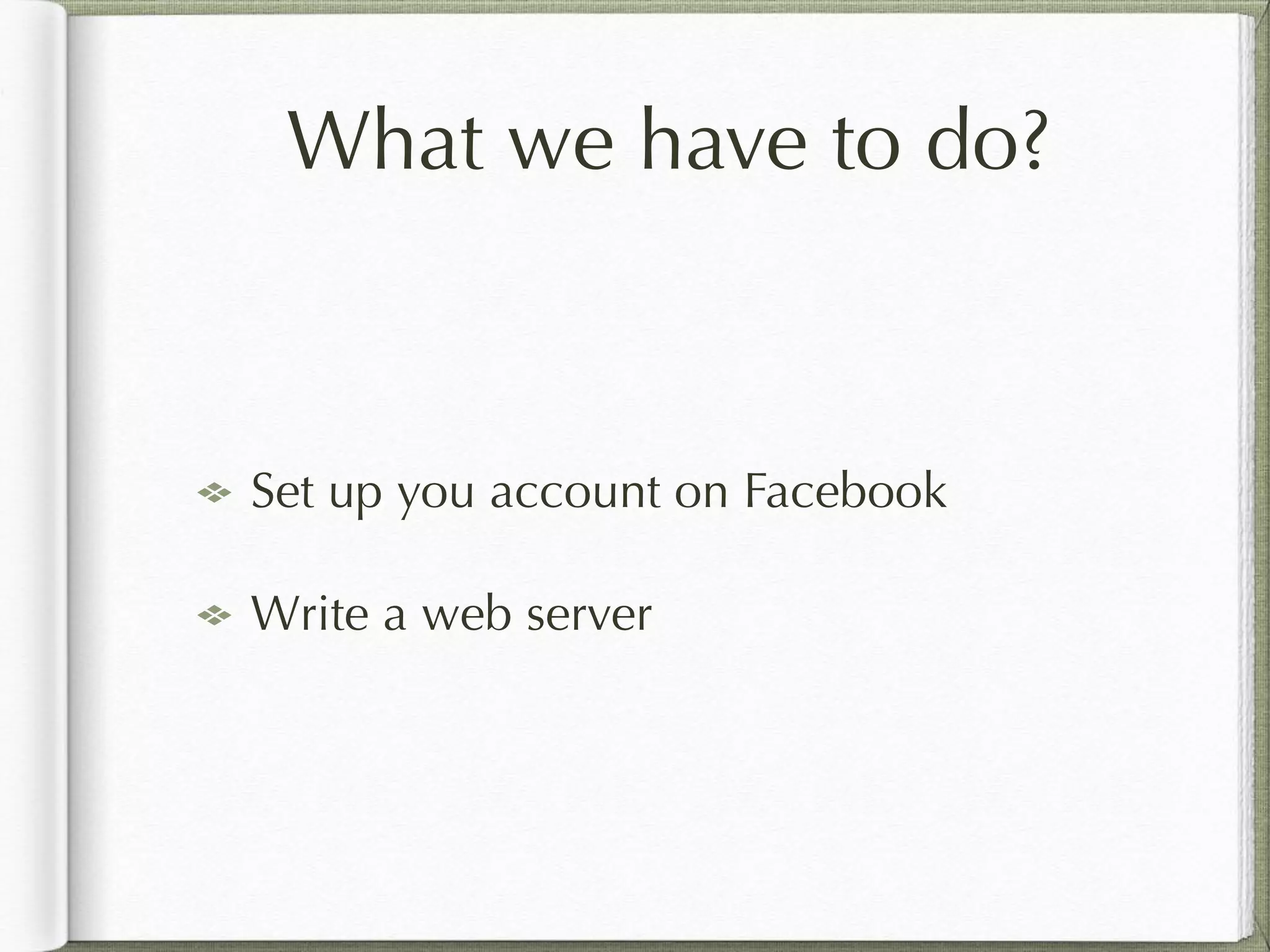

26. What we have to do?
Set up you account on Facebook
Write a web server

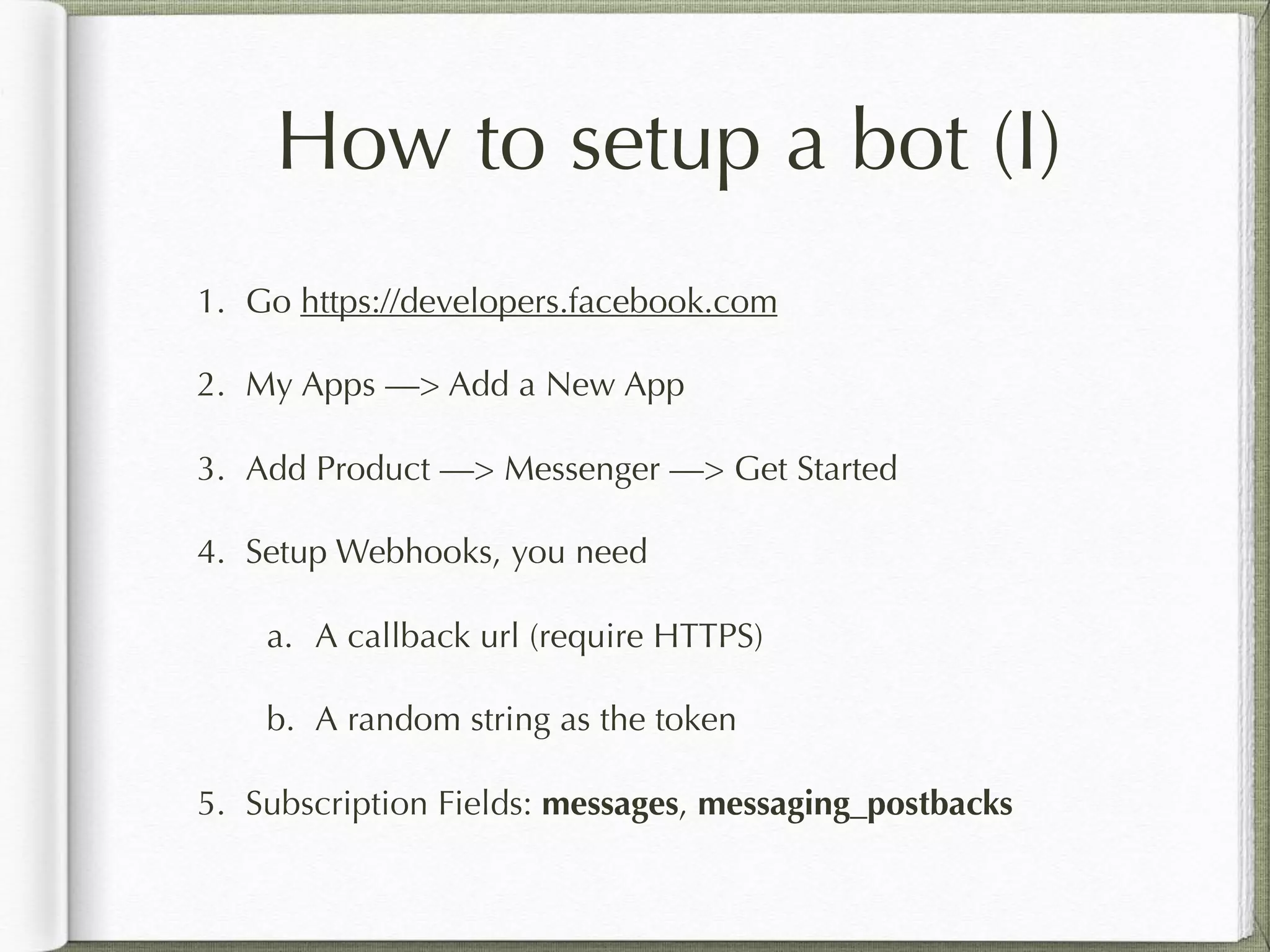

27. 1. Go https://developers.facebook.com
2. My Apps —> Add a New App
3. Add Product —> Messenger —> Get Started
4. Setup Webhooks, you need
a. A callback url (require HTTPS)
b. A random string as the token
5. Subscription Fields: messages, messaging_postbacks
How to setup a bot (I)

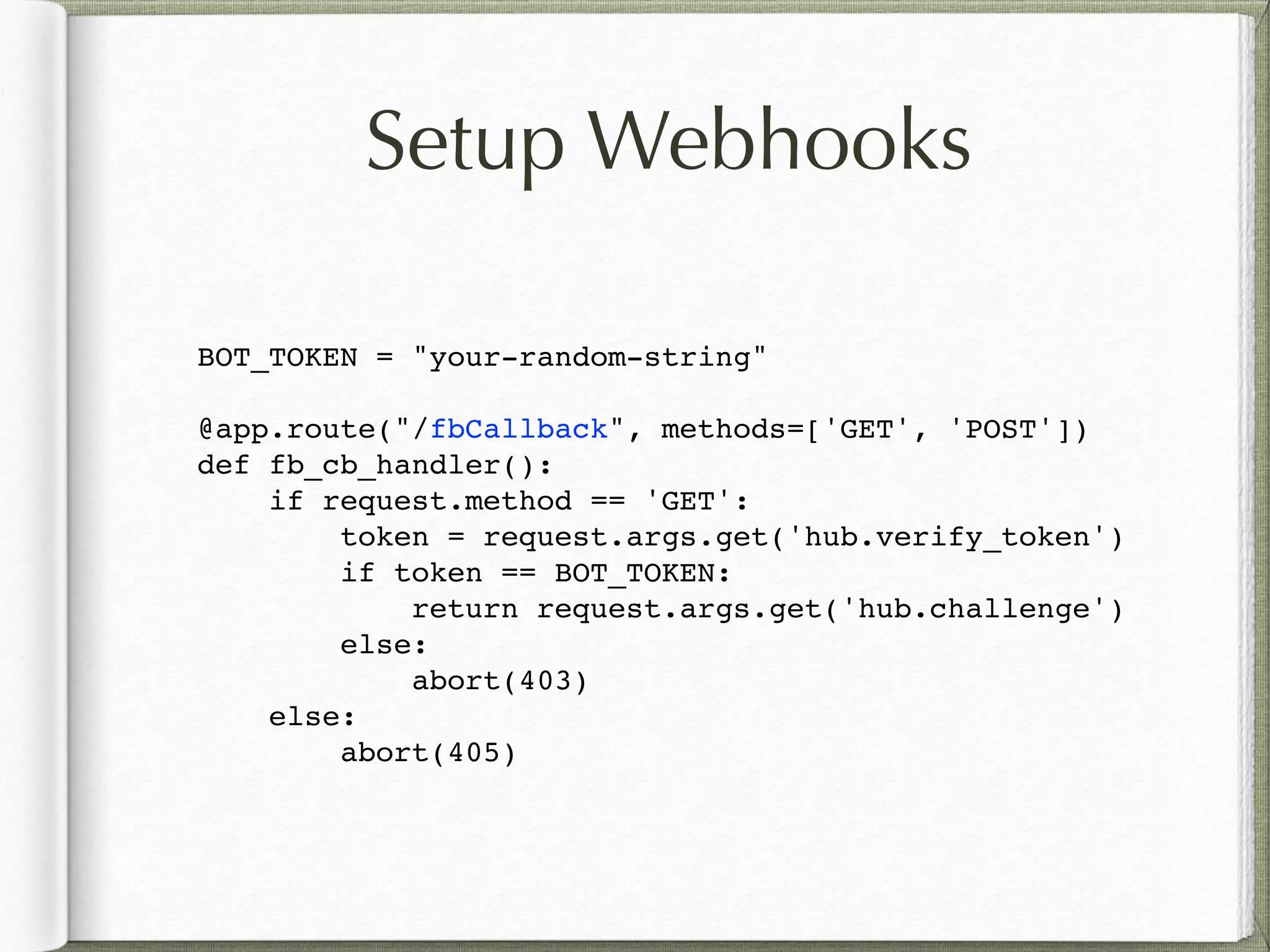

28. Setup Webhooks
BOT_TOKEN = "your-random-string"
@app.route("/fbCallback", methods=['GET', 'POST'])
def fb_cb_handler():
if request.method == 'GET':
token = request.args.get('hub.verify_token')
if token == BOT_TOKEN:
return request.args.get('hub.challenge')
else:
abort(403)
else:
abort(405)

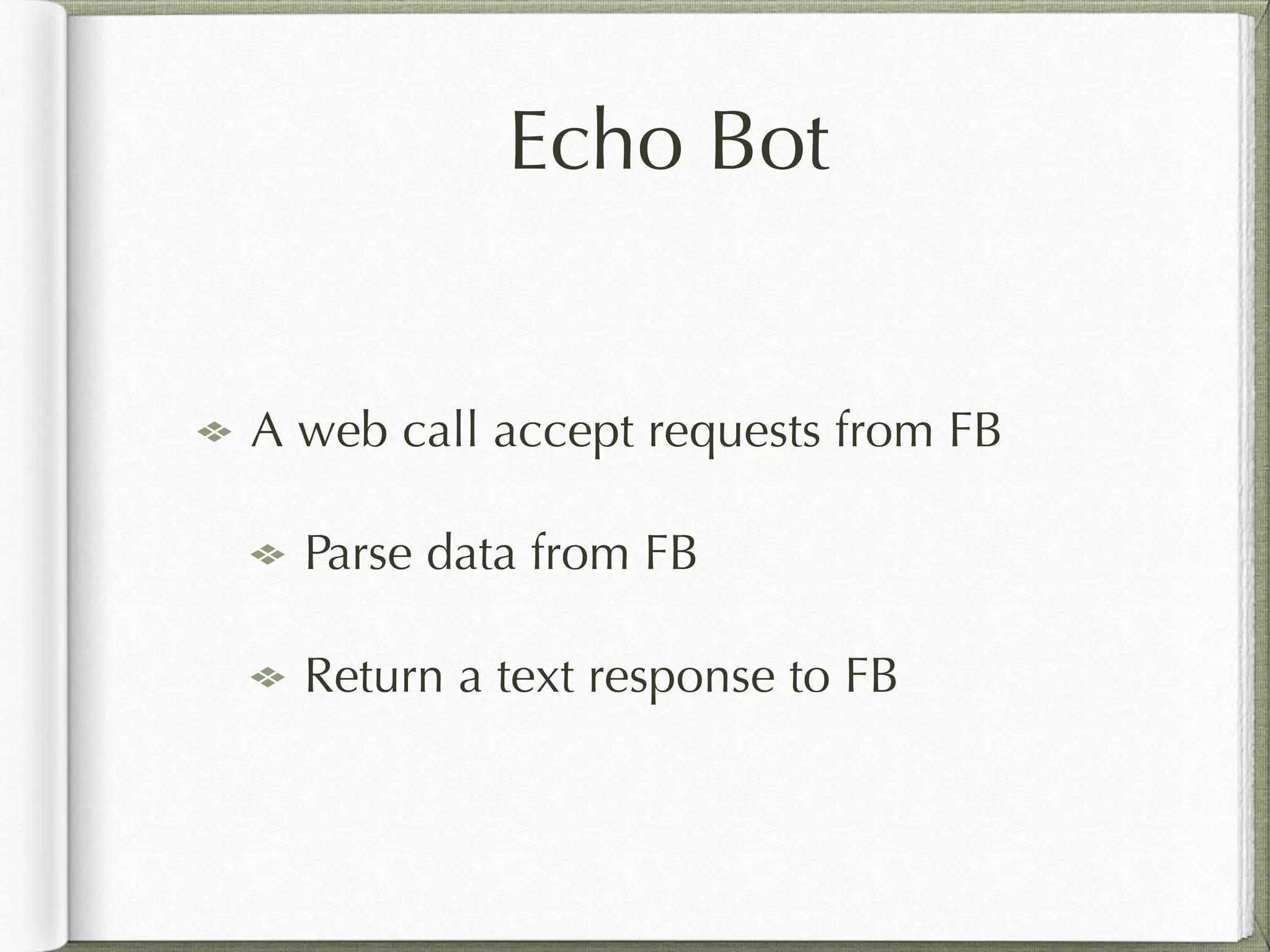

29. Echo Bot
A web call accept requests from FB
Parse data from FB
Return a text response to FB

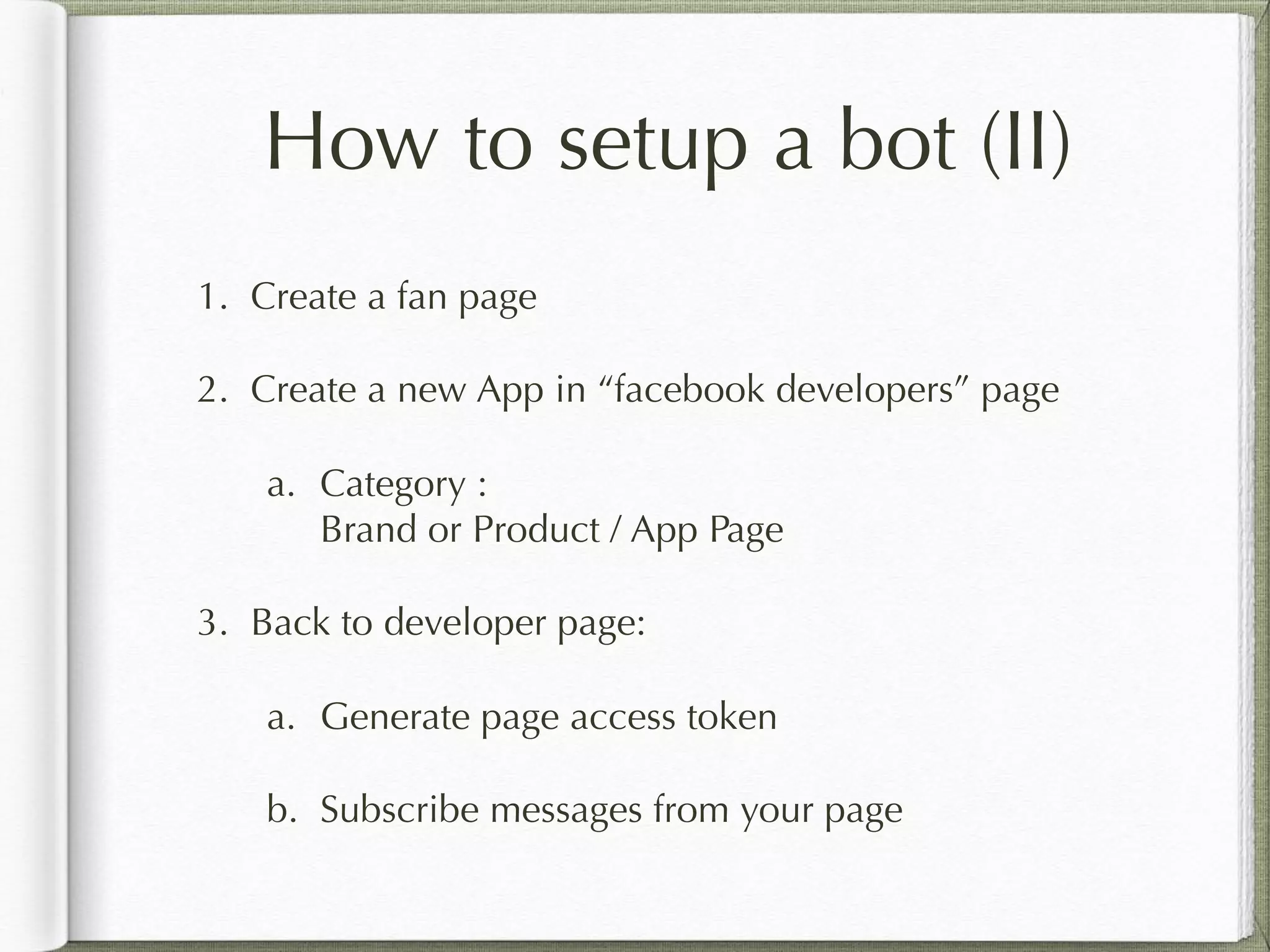

30. How to setup a bot (II)
1. Create a fan page
2. Create a new App in “facebook developers” page
a. Category :
Brand or Product / App Page
3. Back to developer page:
a. Generate page access token
b. Subscribe messages from your page

31. Get messages

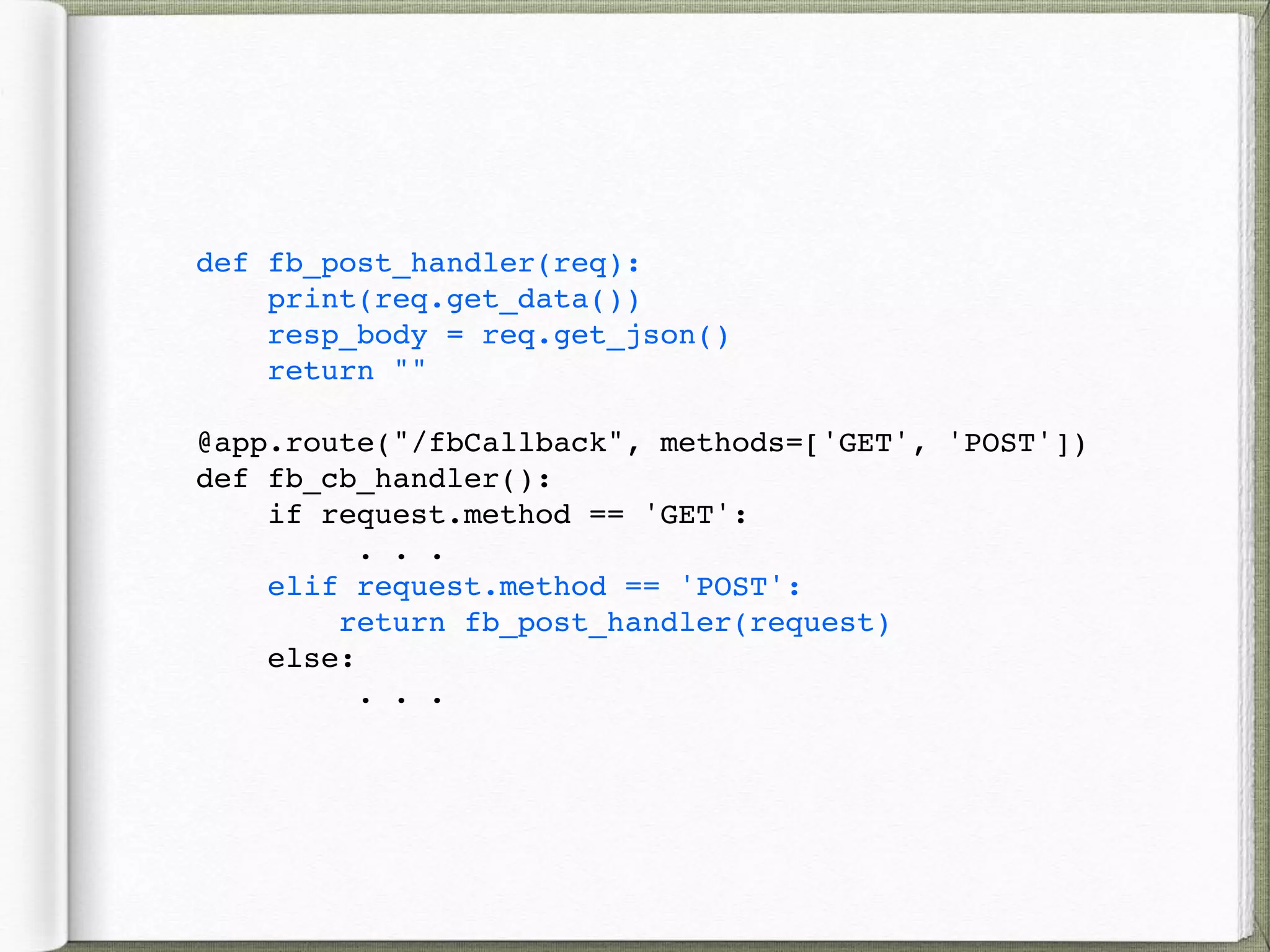

32. def fb_post_handler(req):
print(req.get_data())
resp_body = req.get_json()
return ""
@app.route("/fbCallback", methods=['GET', 'POST'])
def fb_cb_handler():
if request.method == 'GET':
. . .
elif request.method == 'POST':
return fb_post_handler(request)
else:
. . .

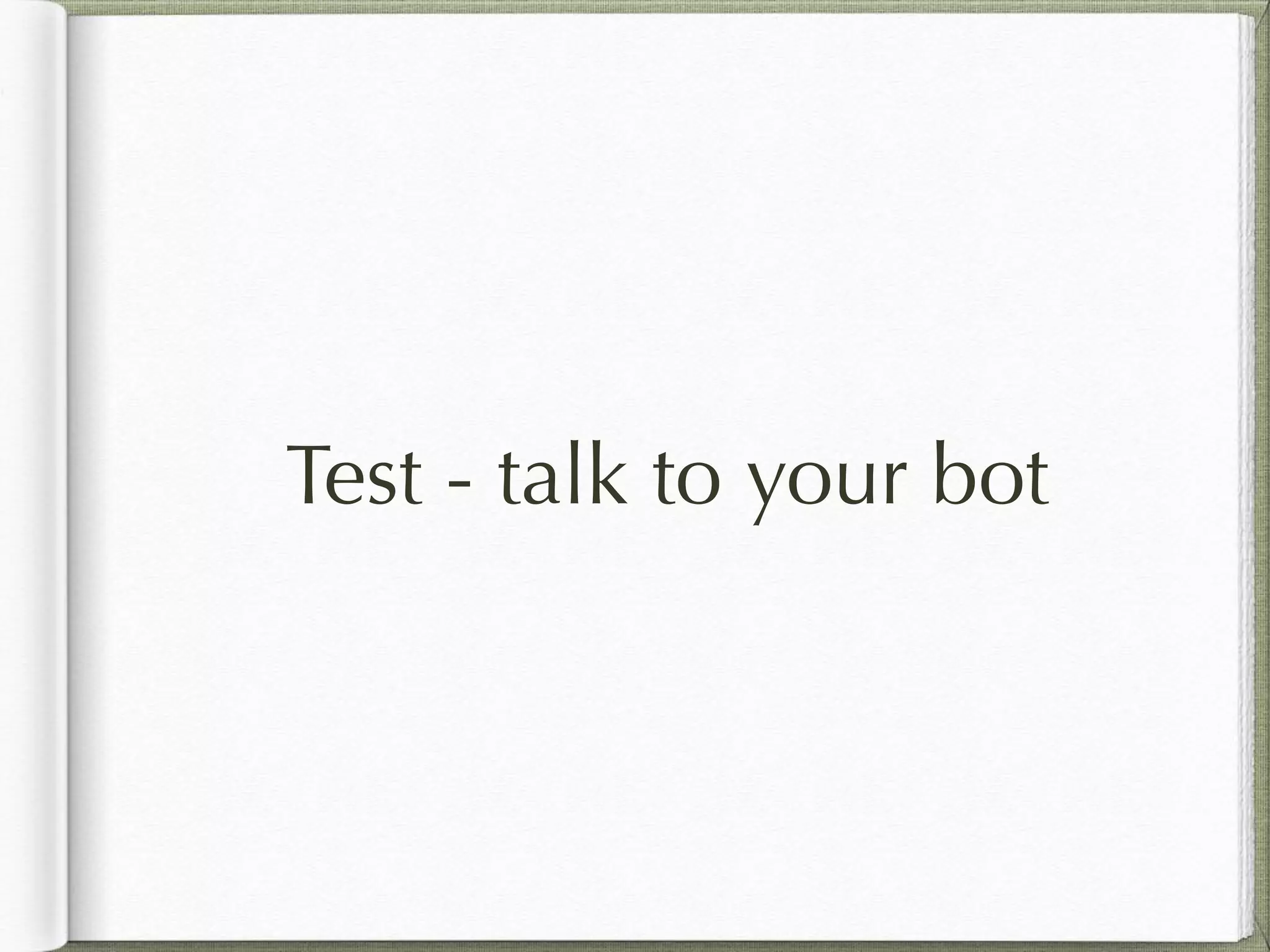

33. Test - talk to your bot

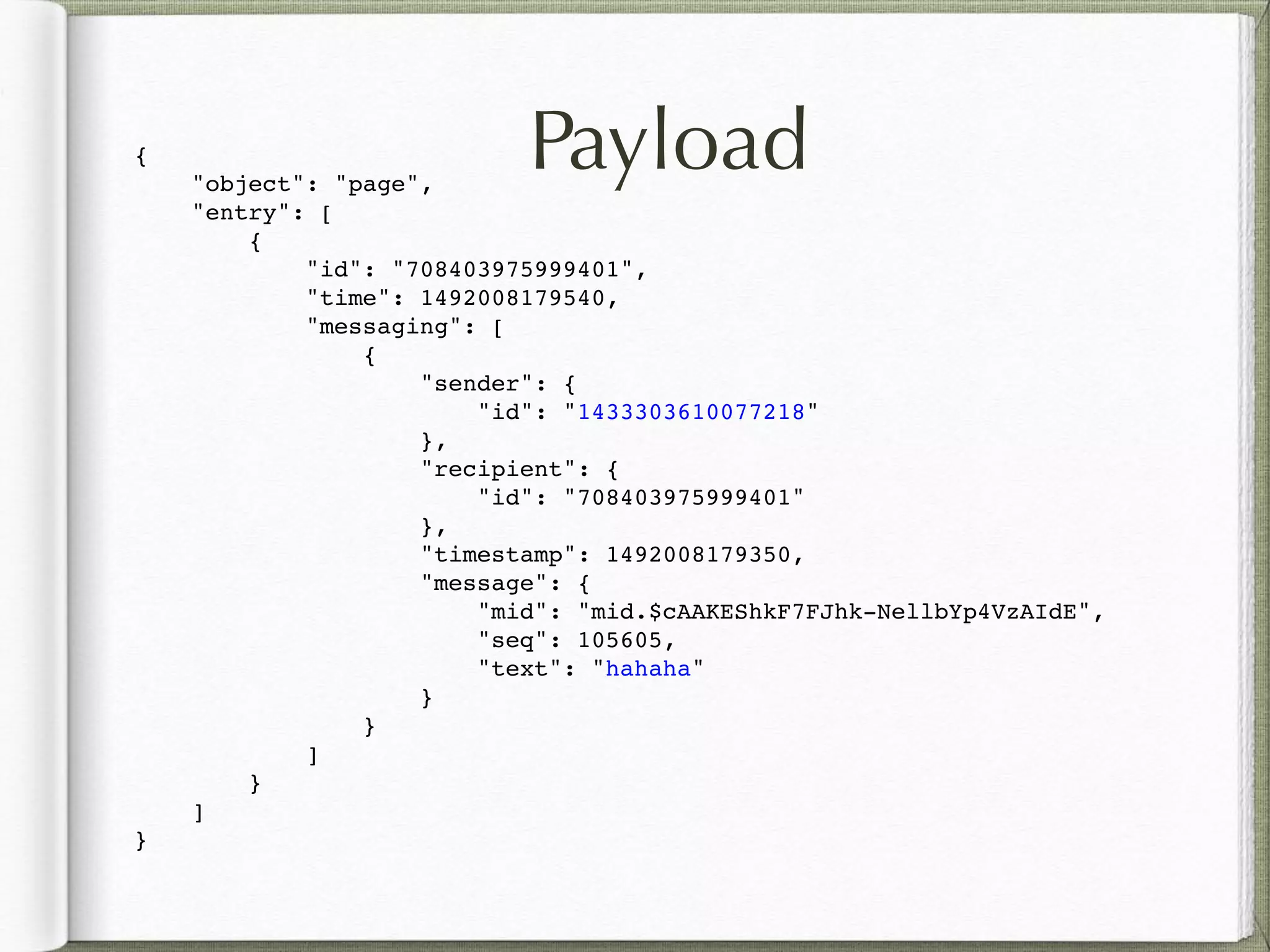

34. Payload{
"object": "page",
"entry": [
{
"id": "708403975999401",
"time": 1492008179540,
"messaging": [
{
"sender": {
"id": "1433303610077218"
},
"recipient": {
"id": "708403975999401"
},
"timestamp": 1492008179350,
"message": {
"mid": "mid.$cAAKEShkF7FJhk-NellbYp4VzAIdE",
"seq": 105605,
"text": "hahaha"
}
}
]
}
]
}

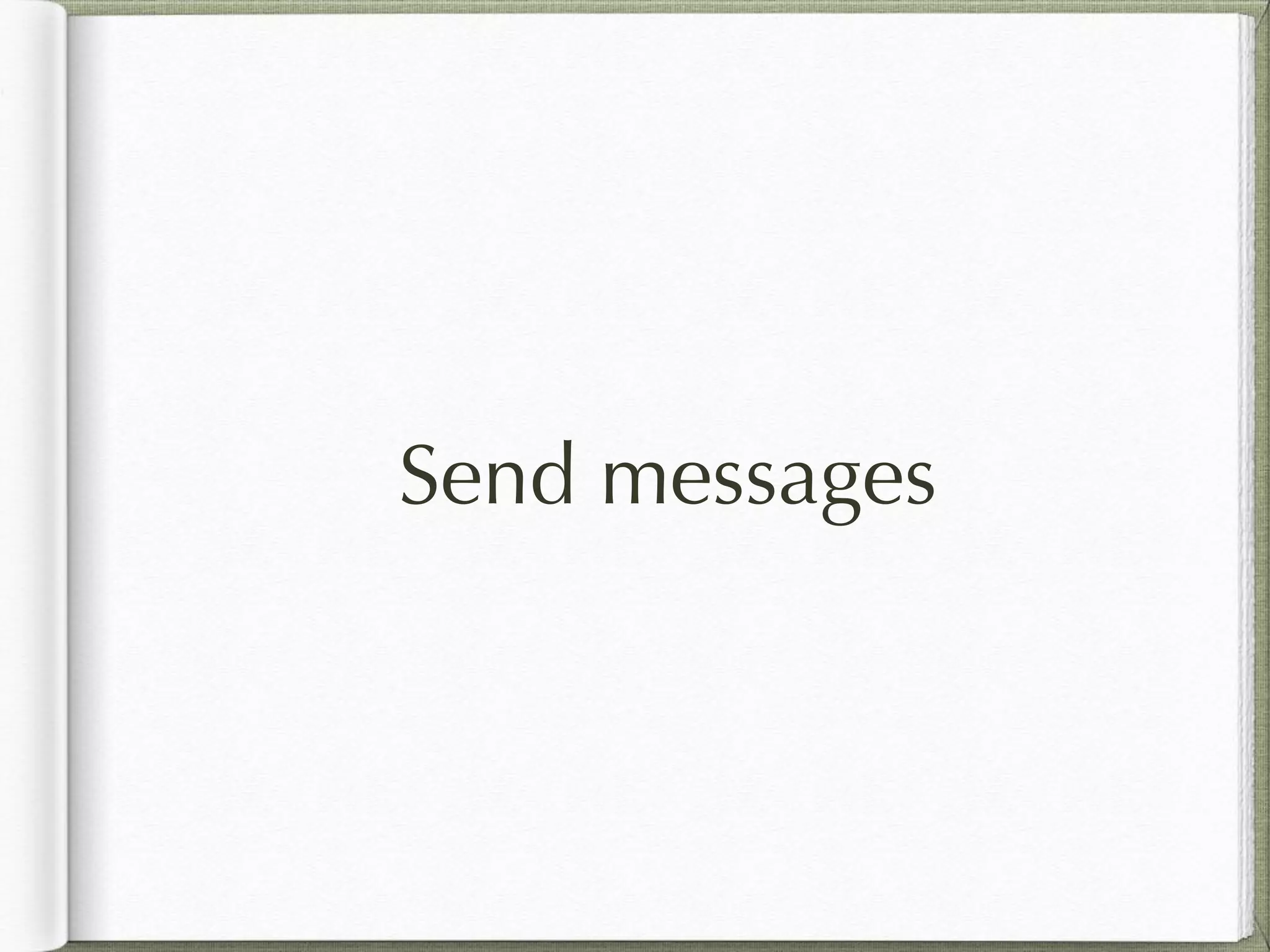

35. Send messages

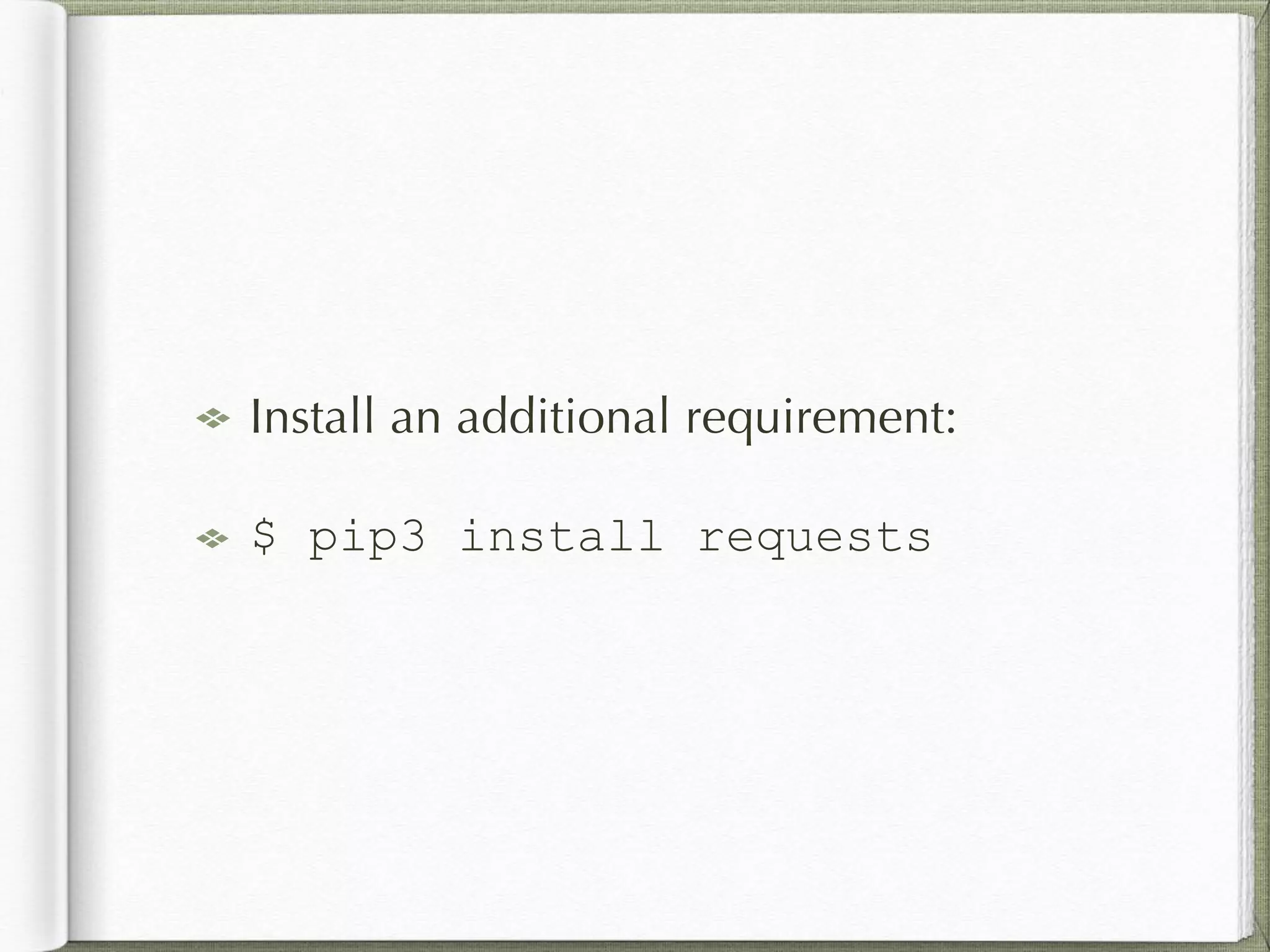

36. Install an additional requirement:
$ pip3 install requests

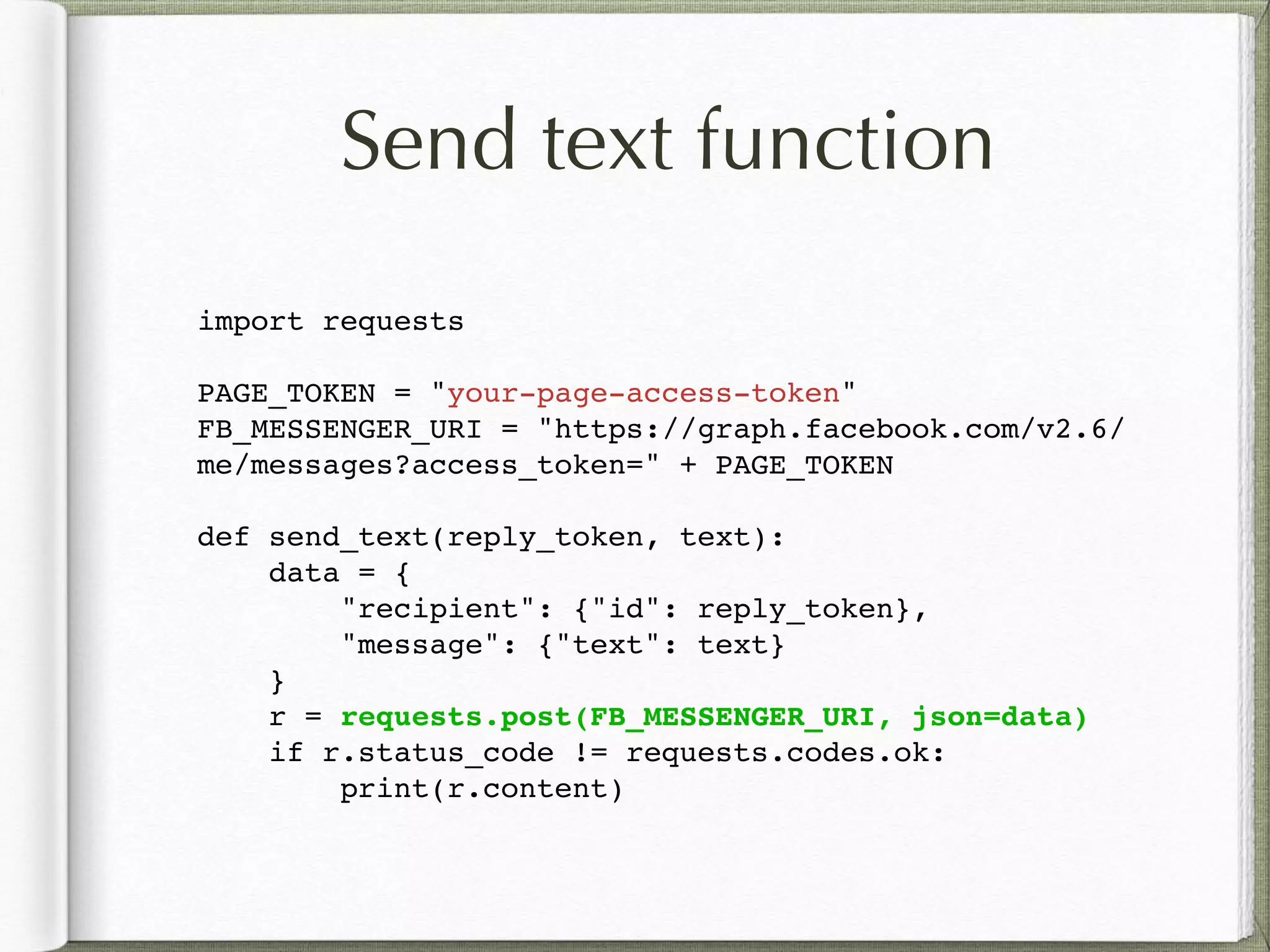

37. Send text function
import requests
PAGE_TOKEN = "your-page-access-token"
FB_MESSENGER_URI = "https://graph.facebook.com/v2.6/
me/messages?access_token=" + PAGE_TOKEN
def send_text(reply_token, text):
data = {
"recipient": {"id": reply_token},
"message": {"text": text}
}
r = requests.post(FB_MESSENGER_URI, json=data)
if r.status_code != requests.codes.ok:
print(r.content)

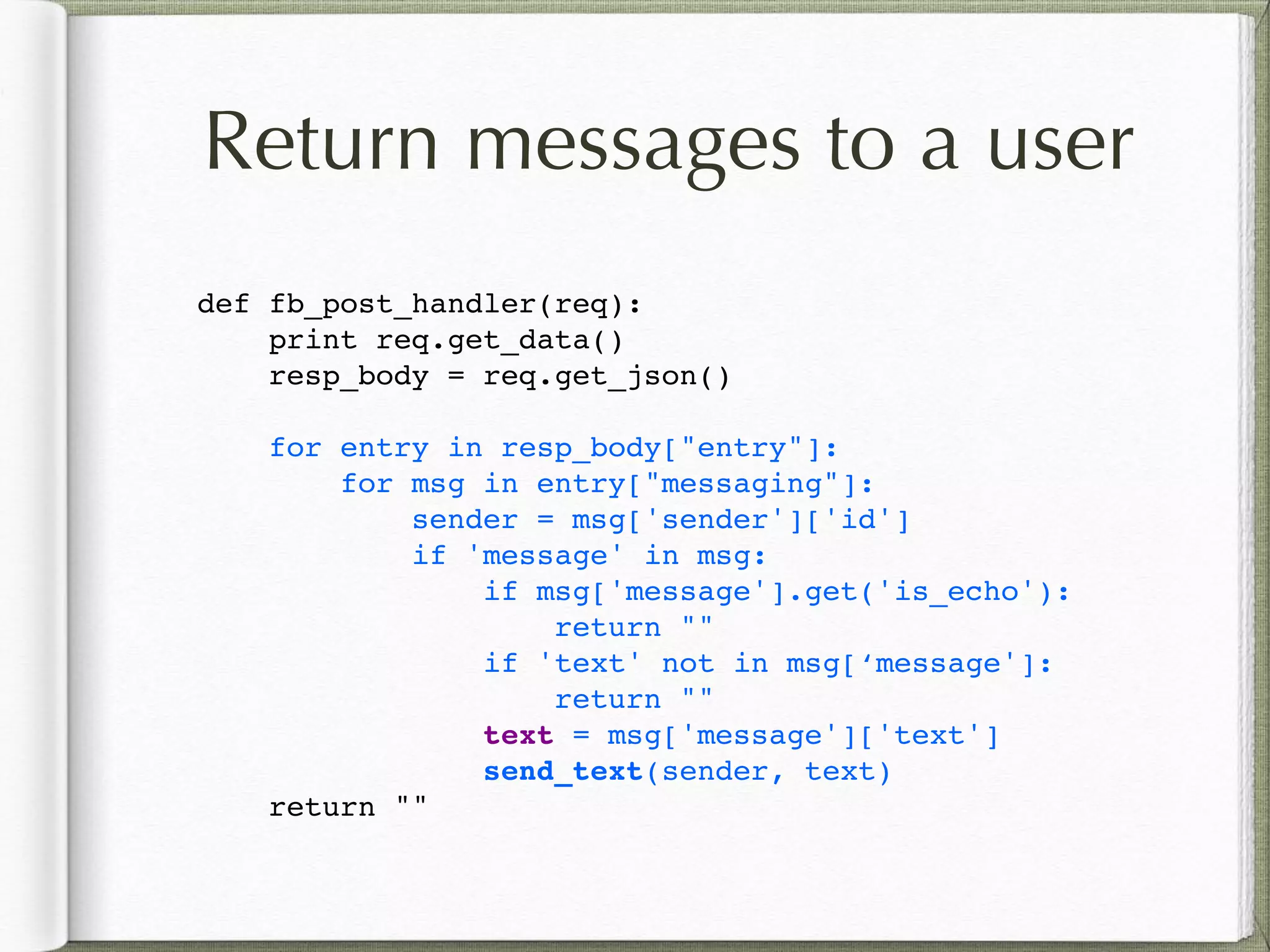

38. Return messages to a user
def fb_post_handler(req):
print req.get_data()
resp_body = req.get_json()
for entry in resp_body["entry"]:
for msg in entry["messaging"]:
sender = msg['sender']['id']
if 'message' in msg:
if msg['message'].get('is_echo'):
return ""
if 'text' not in msg[‘message']:
return ""
text = msg['message']['text']
send_text(sender, text)
return ""

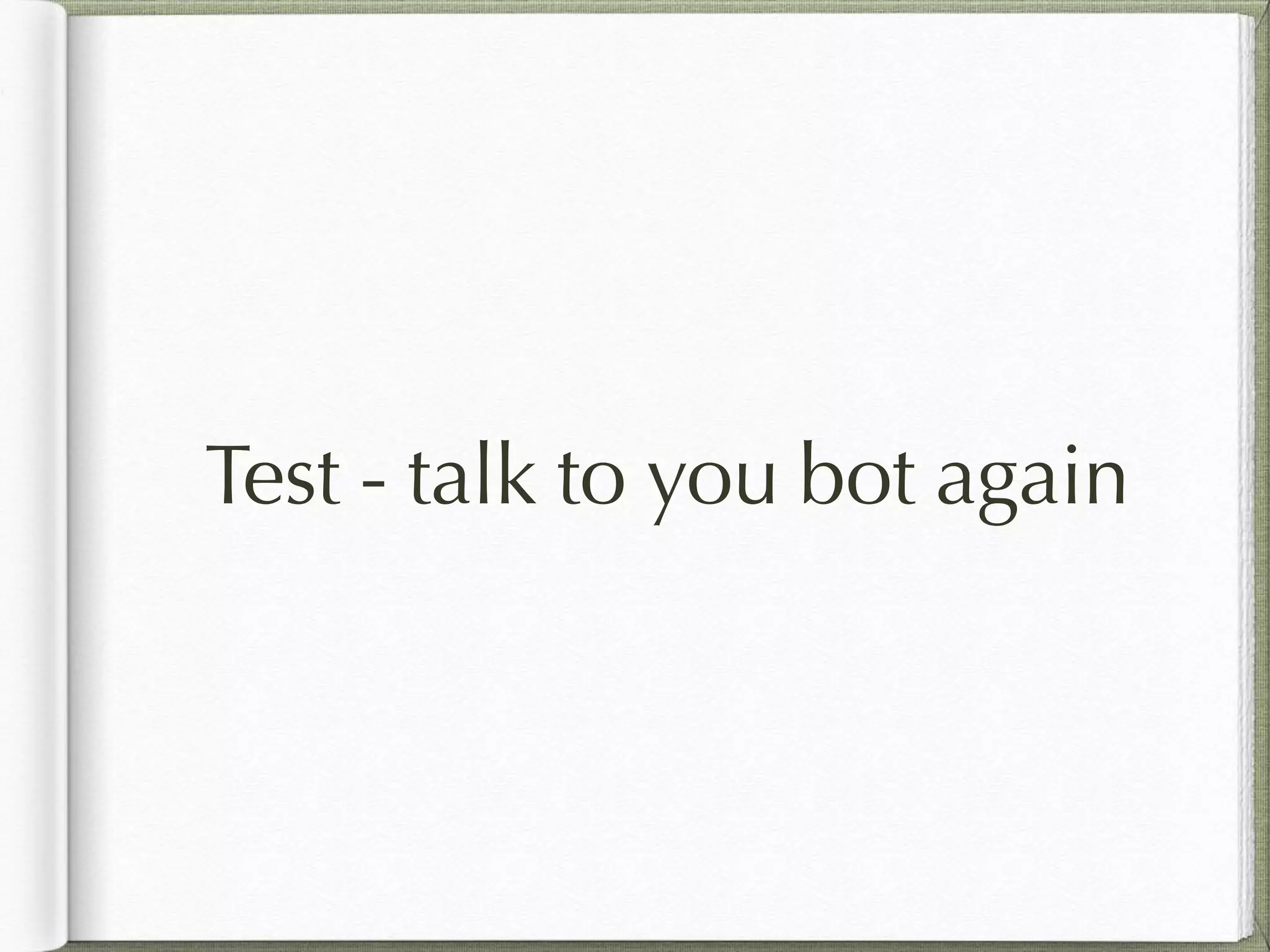

39. Test - talk to you bot again

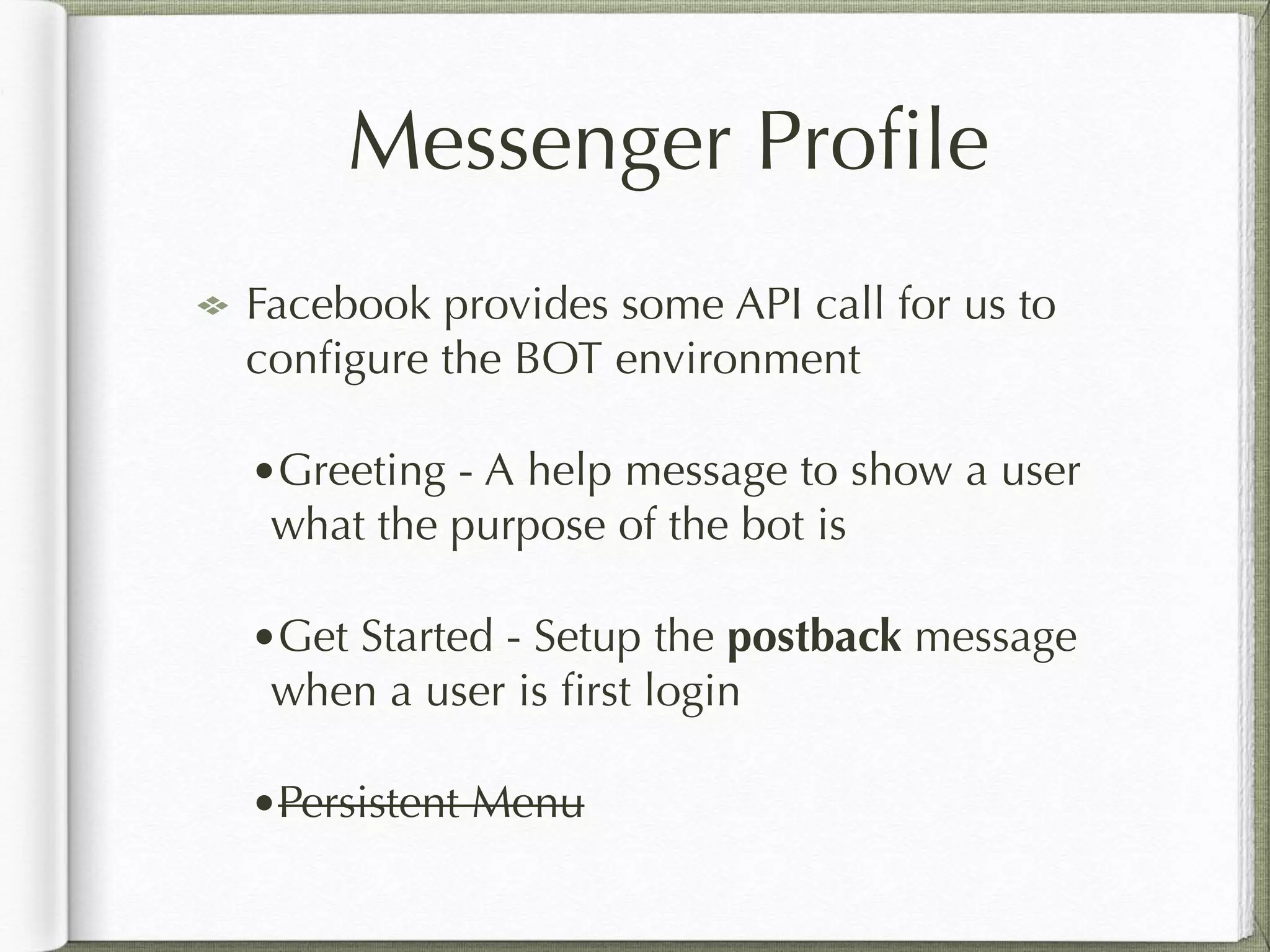

40. Messenger Profile
Facebook provides some API call for us to
configure the BOT environment
•Greeting - A help message to show a user
what the purpose of the bot is
•Get Started - Setup the postback message
when a user is first login
•Persistent Menu

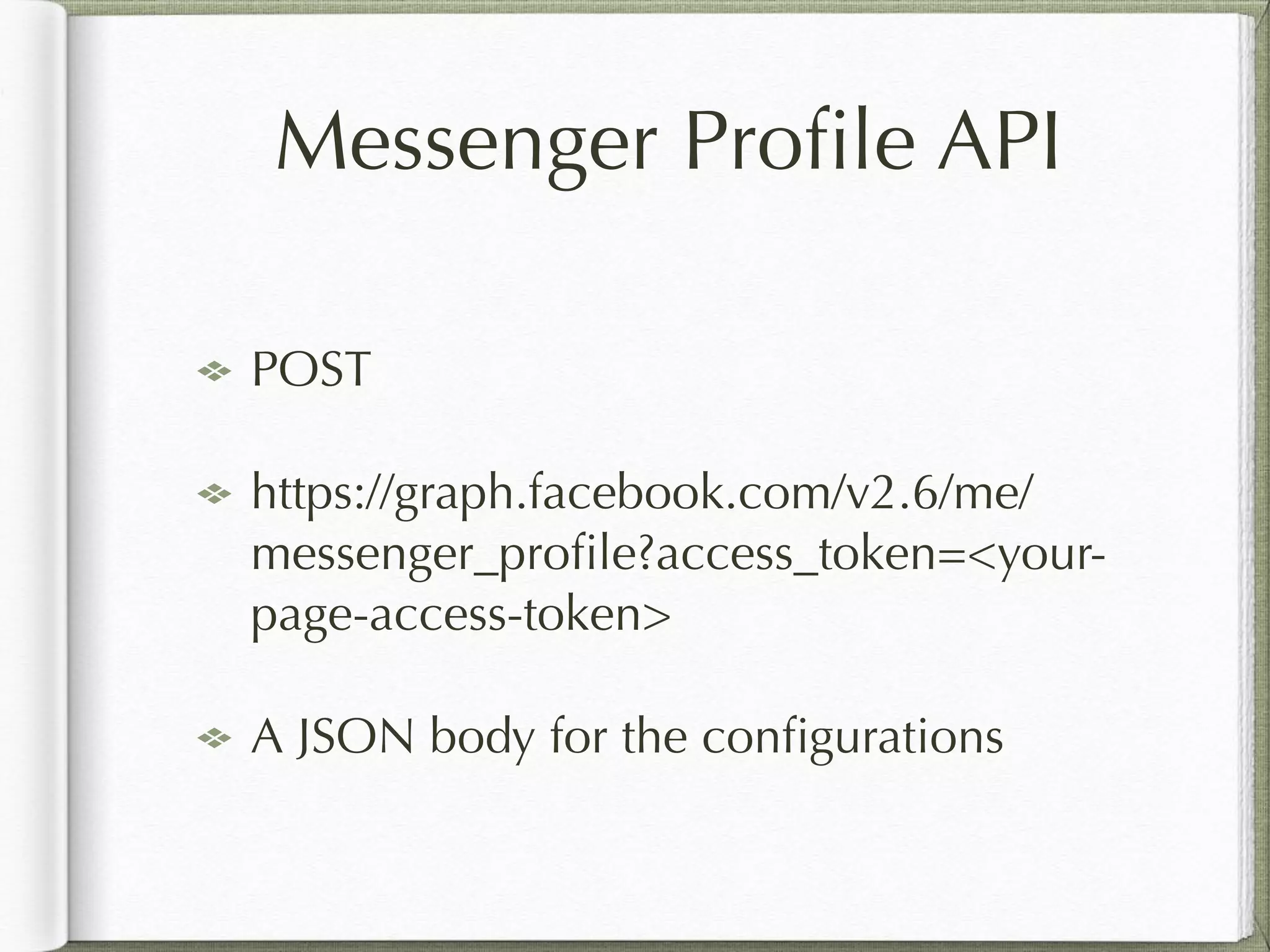

41. Messenger Profile API
POST
https://graph.facebook.com/v2.6/me/
messenger_profile?access_token=<your-
page-access-token>
A JSON body for the configurations

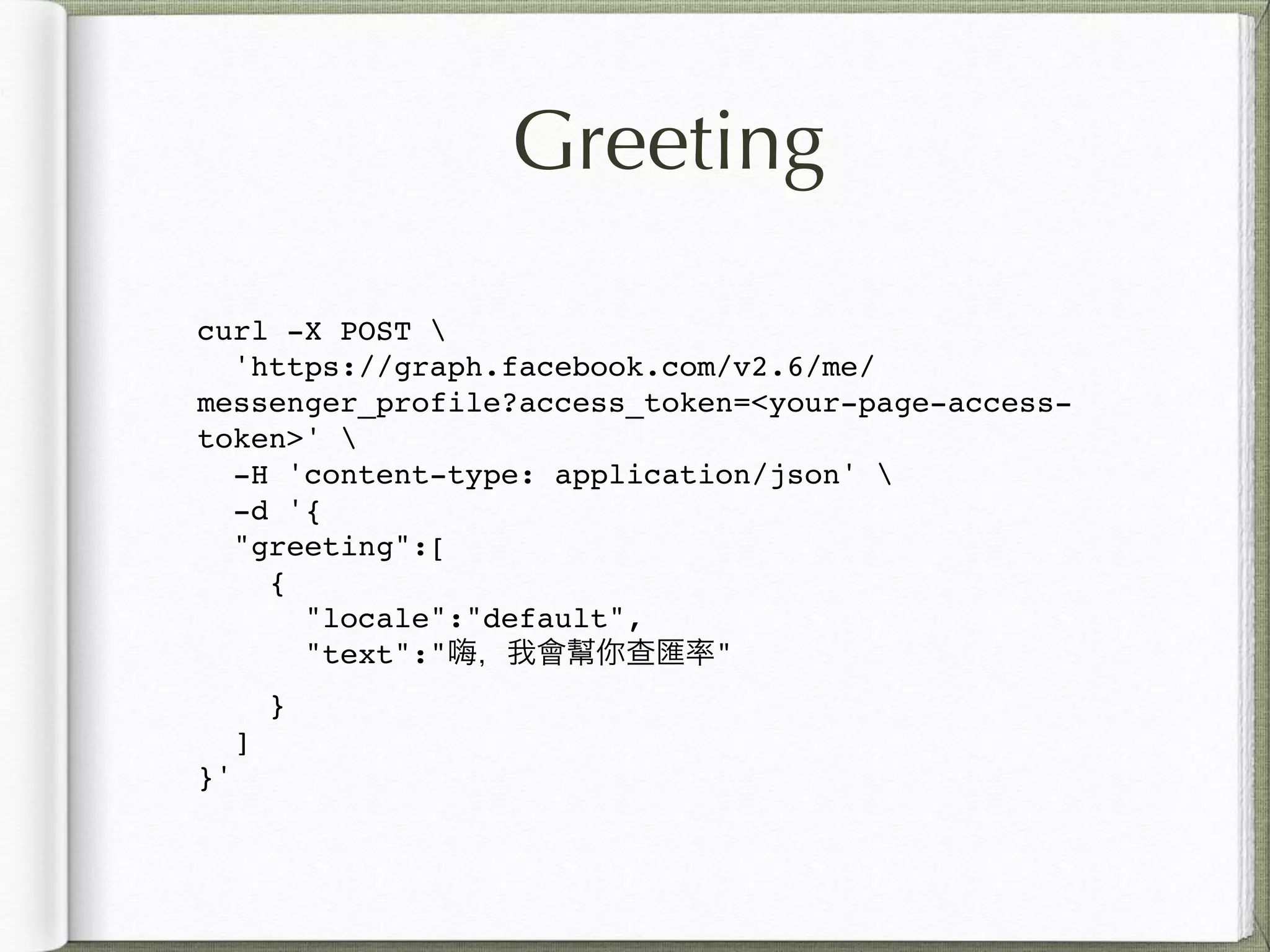

42. Greeting
curl -X POST
'https://graph.facebook.com/v2.6/me/
messenger_profile?access_token=<your-page-access-
token>'
-H 'content-type: application/json'
-d '{
"greeting":[
{
"locale":"default",
"text":"嗨，我會幫你查匯率"
}
]
}'

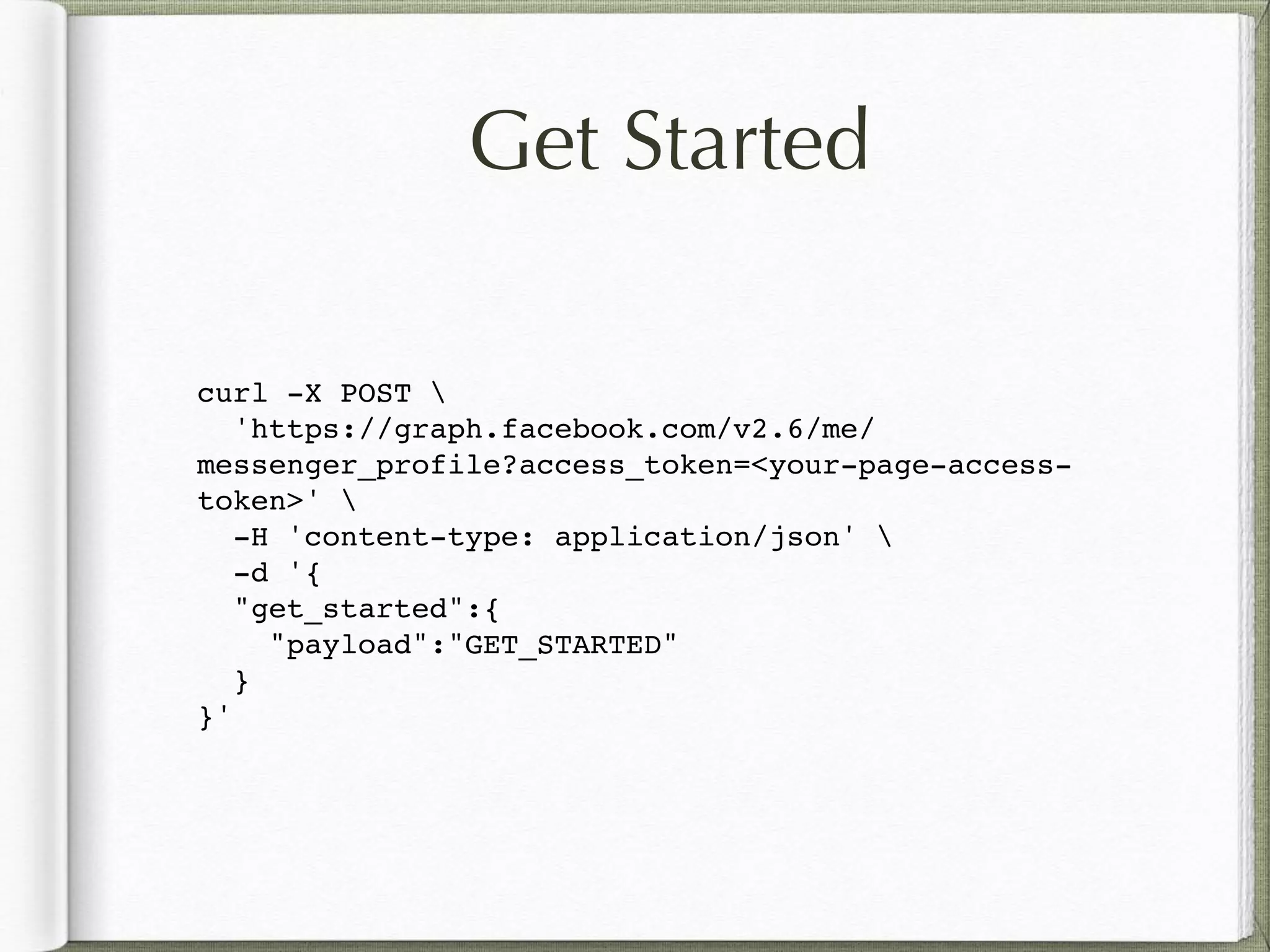

43. Get Started
curl -X POST
'https://graph.facebook.com/v2.6/me/
messenger_profile?access_token=<your-page-access-
token>'
-H 'content-type: application/json'
-d '{
"get_started":{
"payload":"GET_STARTED"
}
}'

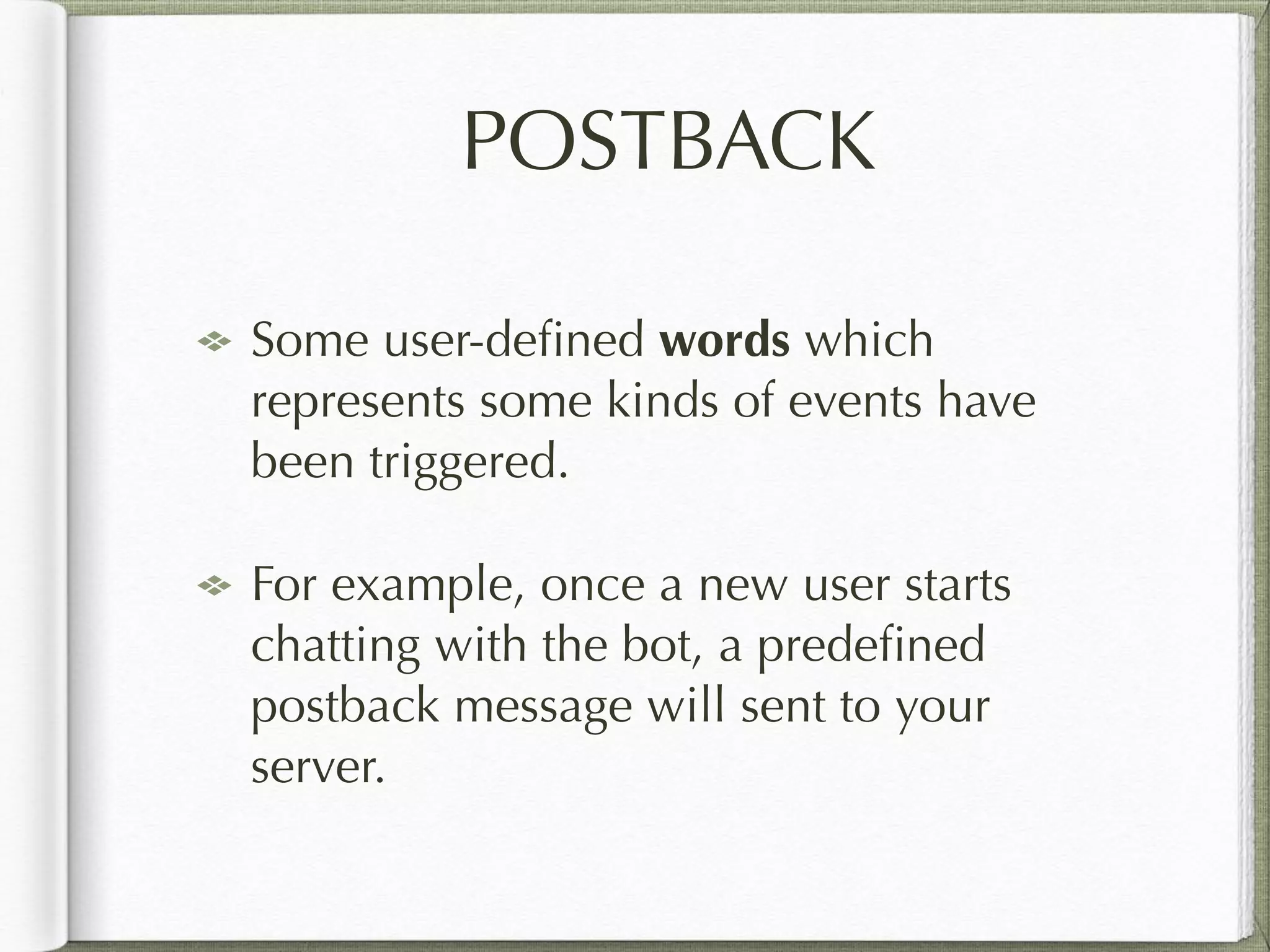

44. POSTBACK
Some user-defined words which
represents some kinds of events have
been triggered.
For example, once a new user starts
chatting with the bot, a predefined
postback message will sent to your
server.

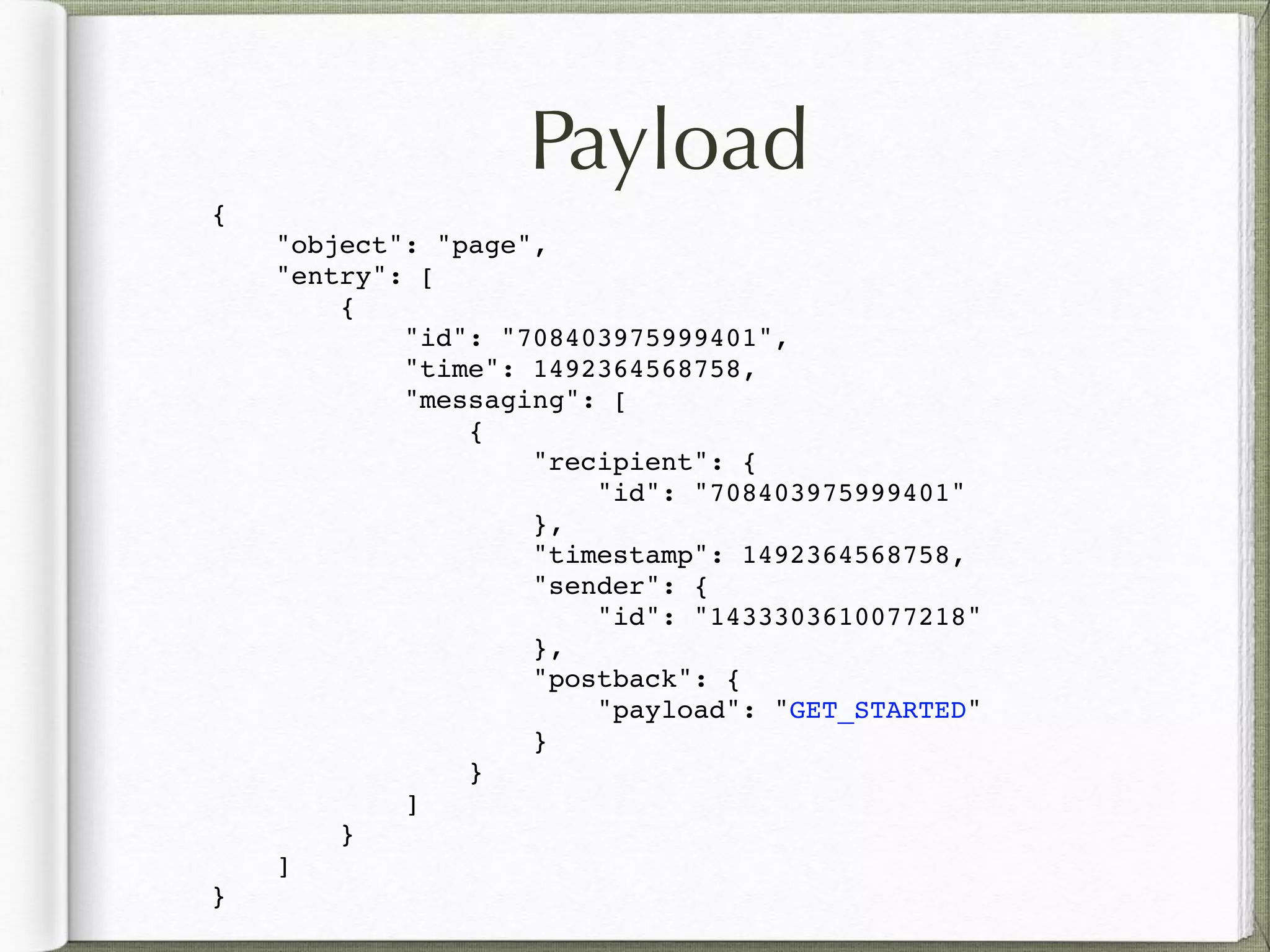

45. Payload
{
"object": "page",
"entry": [
{
"id": "708403975999401",
"time": 1492364568758,
"messaging": [
{
"recipient": {
"id": "708403975999401"
},
"timestamp": 1492364568758,
"sender": {
"id": "1433303610077218"
},
"postback": {
"payload": "GET_STARTED"
}
}
]
}
]
}

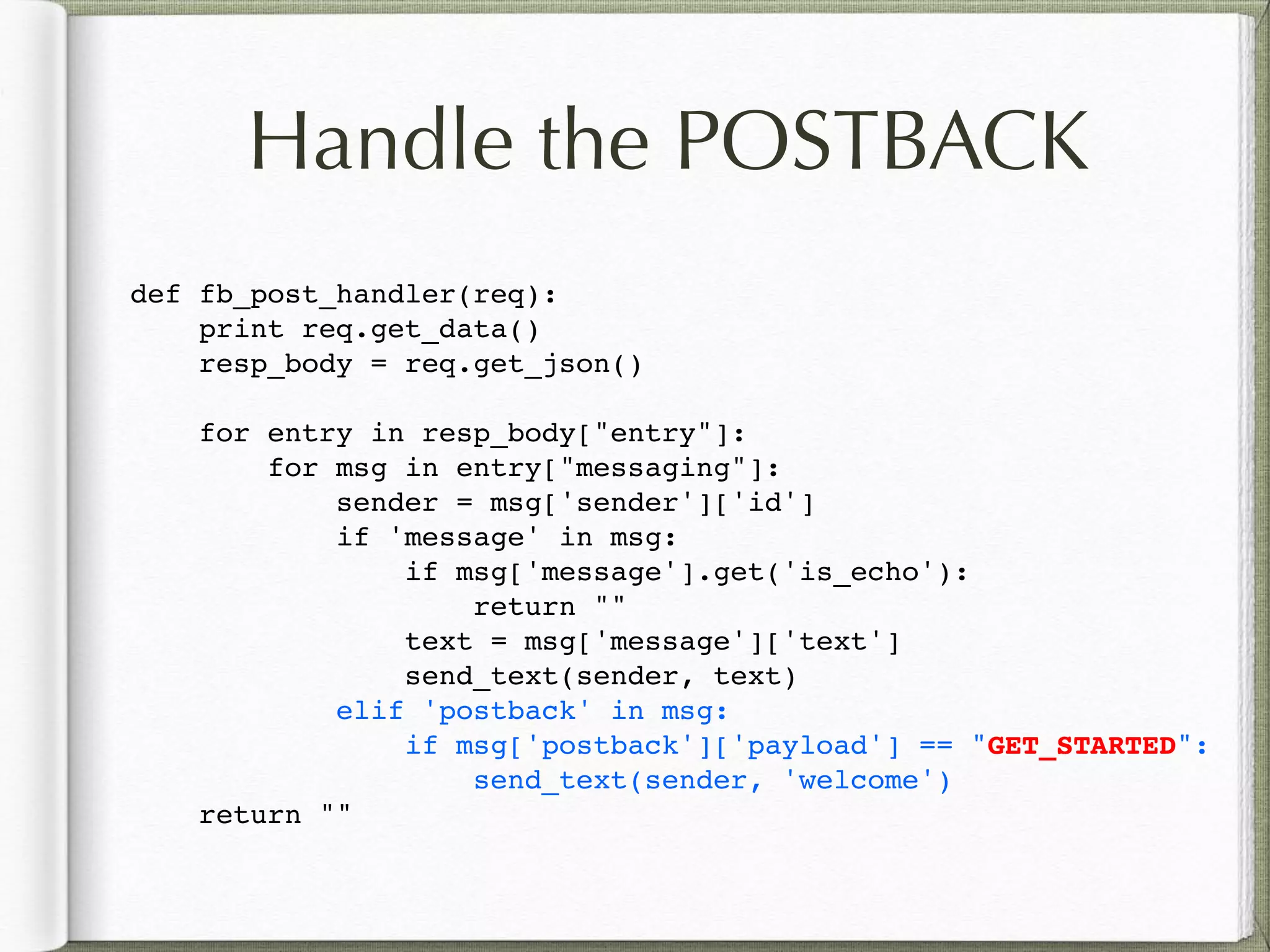

46. Handle the POSTBACK
def fb_post_handler(req):
print req.get_data()
resp_body = req.get_json()
for entry in resp_body["entry"]:
for msg in entry["messaging"]:
sender = msg['sender']['id']
if 'message' in msg:
if msg['message'].get('is_echo'):
return ""
text = msg['message']['text']
send_text(sender, text)
elif 'postback' in msg:
if msg['postback']['payload'] == "GET_STARTED":
send_text(sender, 'welcome')
return ""

47. Send More

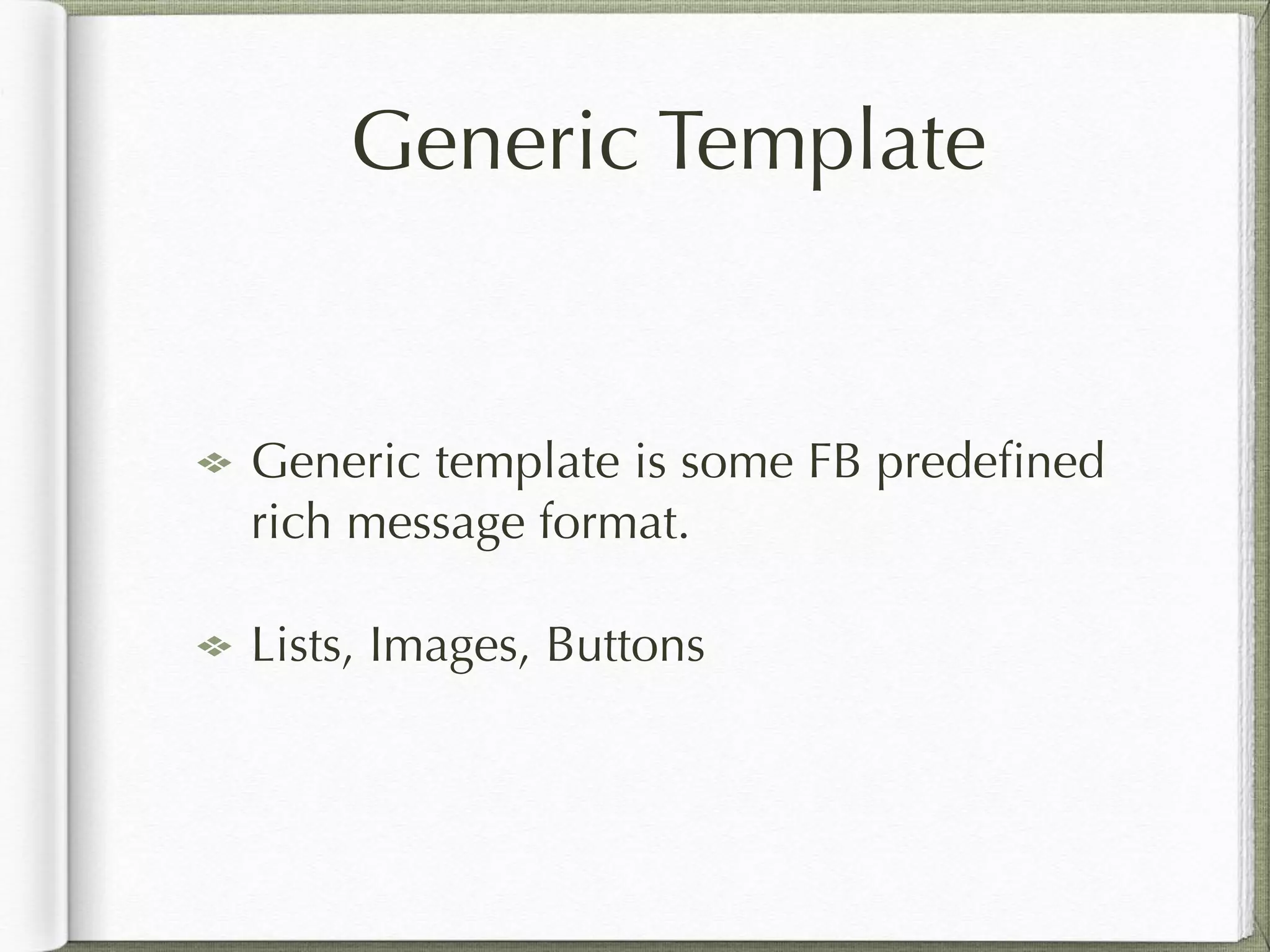

48. Generic Template
Generic template is some FB predefined
rich message format.
Lists, Images, Buttons

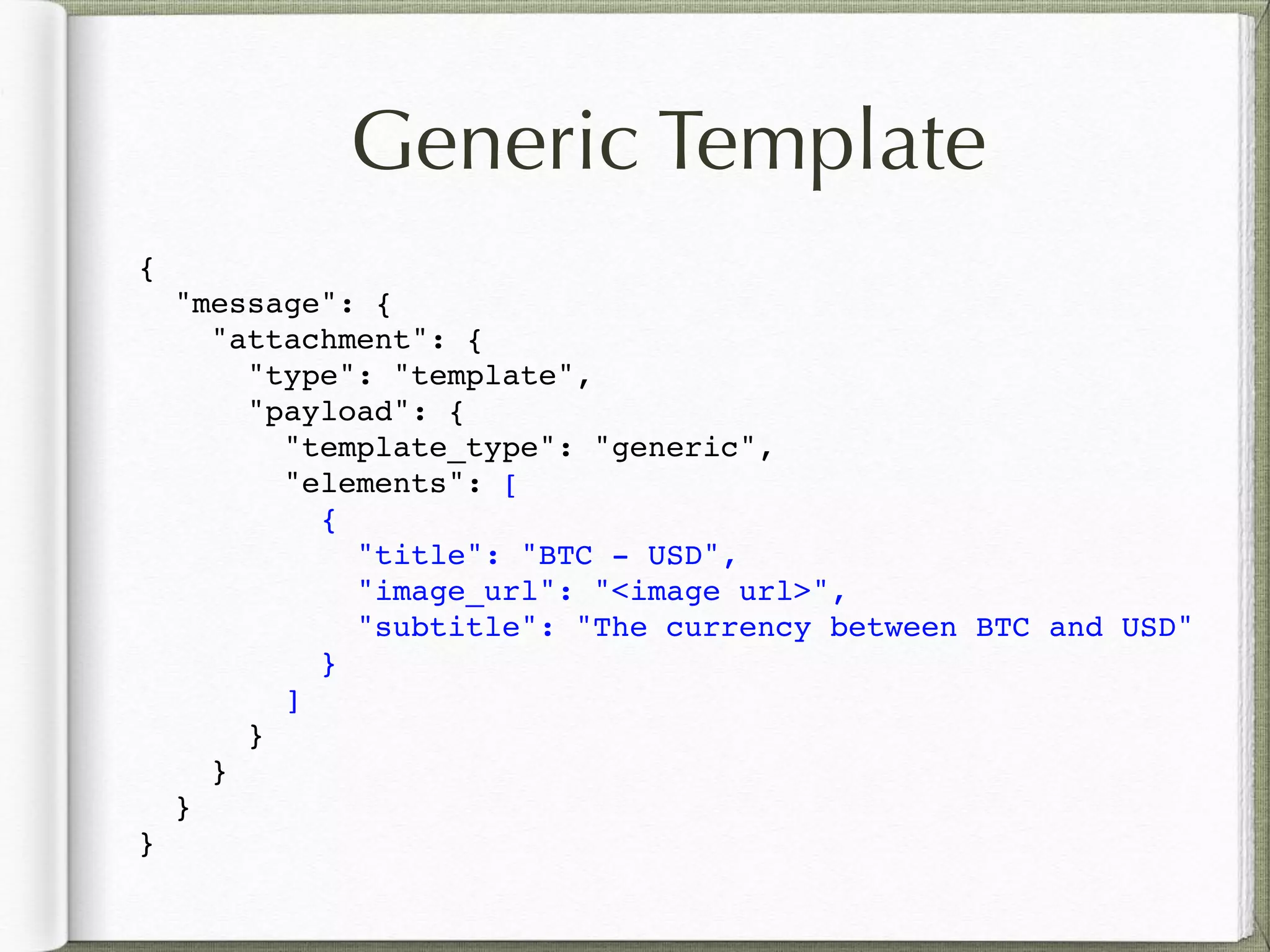

49. Generic Template
{
"message": {
"attachment": {
"type": "template",
"payload": {
"template_type": "generic",
"elements": [
{
"title": "BTC - USD",
"image_url": "<image url>",
"subtitle": "The currency between BTC and USD"
}
]
}
}
}
}

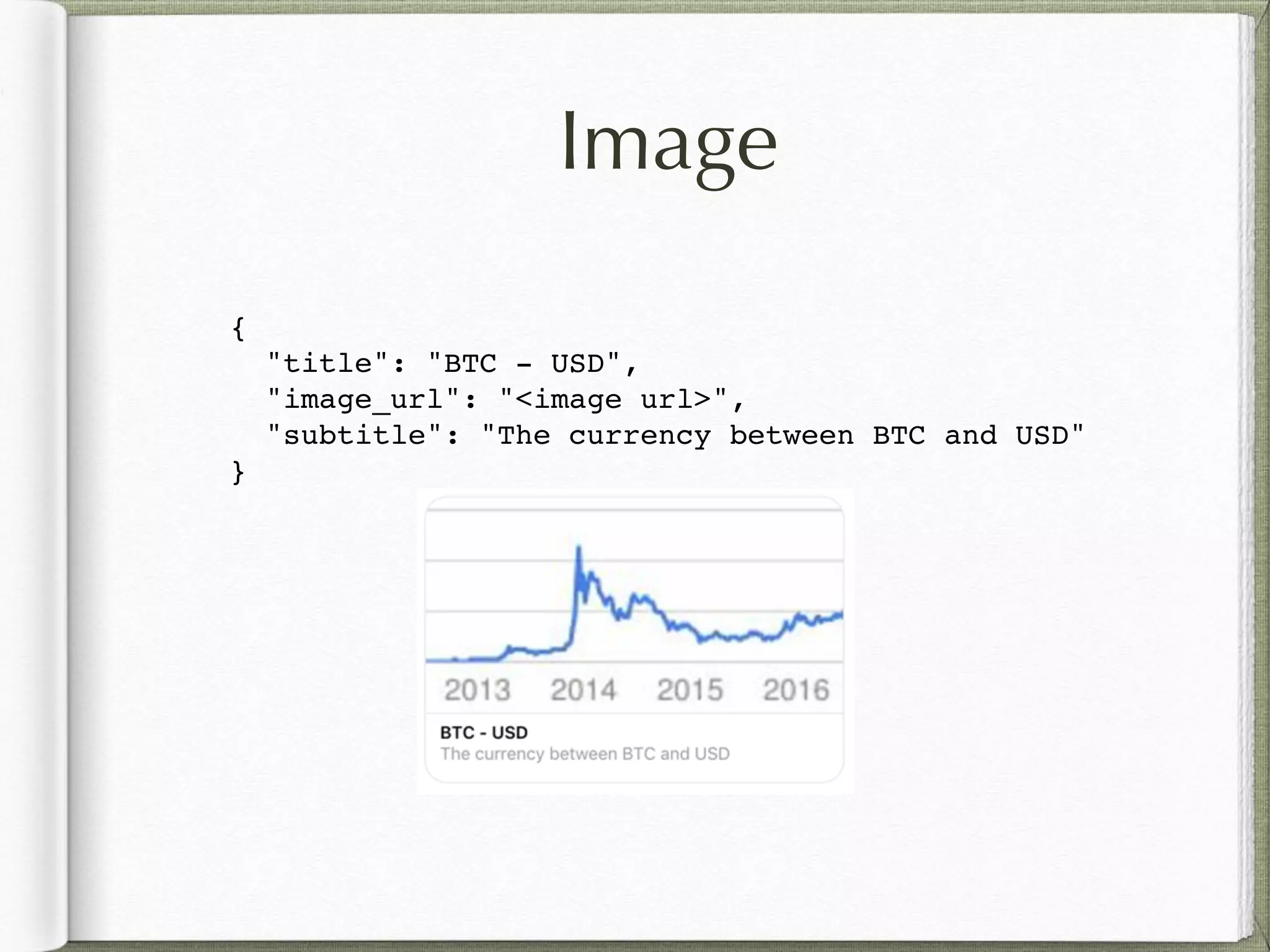

50. Image
{
"title": "BTC - USD",
"image_url": "<image url>",
"subtitle": "The currency between BTC and USD"
}

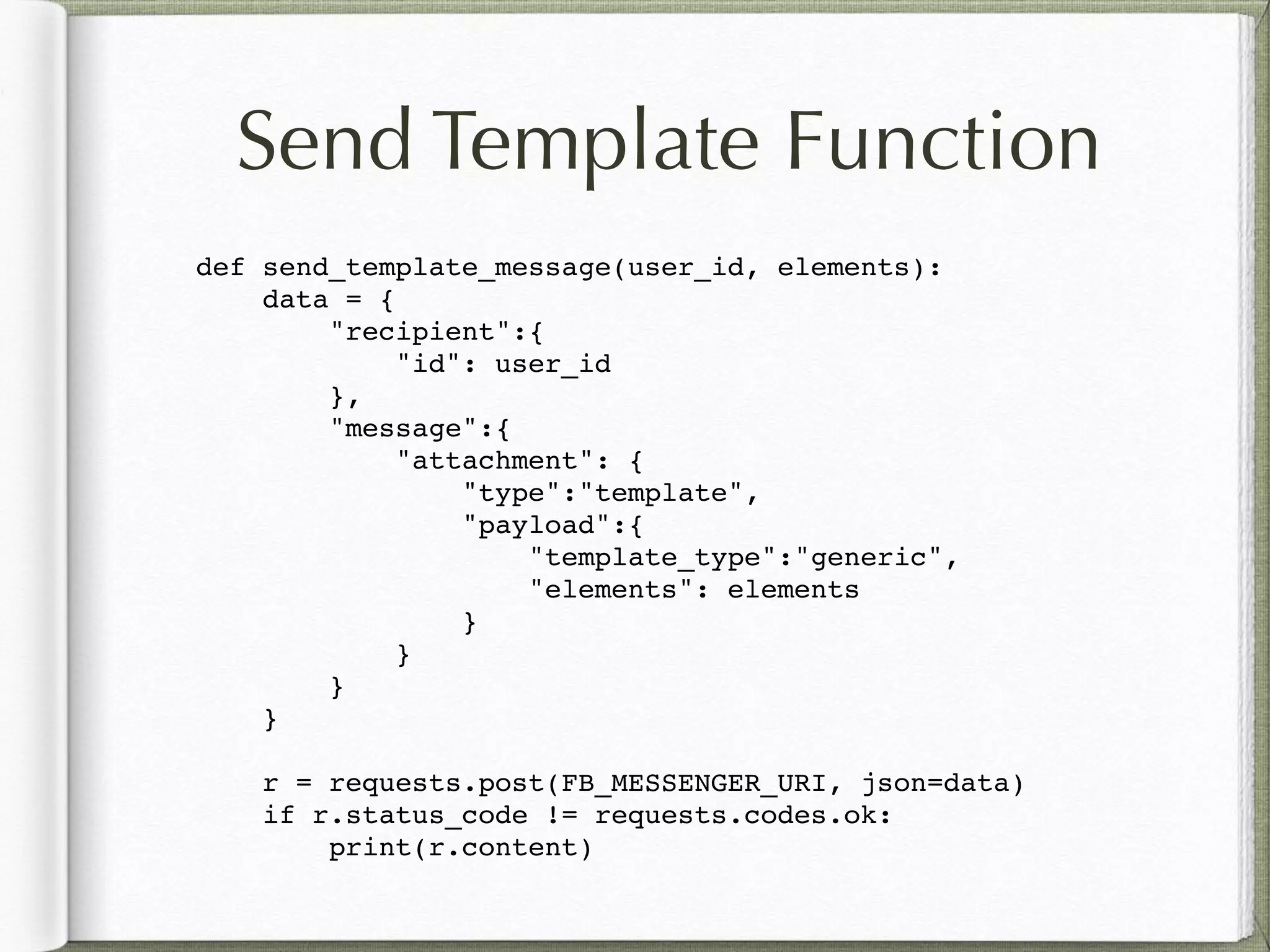

51. Send Template Function
def send_template_message(user_id, elements):
data = {
"recipient":{
"id": user_id
},
"message":{
"attachment": {
"type":"template",
"payload":{
"template_type":"generic",
"elements": elements
}
}
}
}
r = requests.post(FB_MESSENGER_URI, json=data)
if r.status_code != requests.codes.ok:
print(r.content)

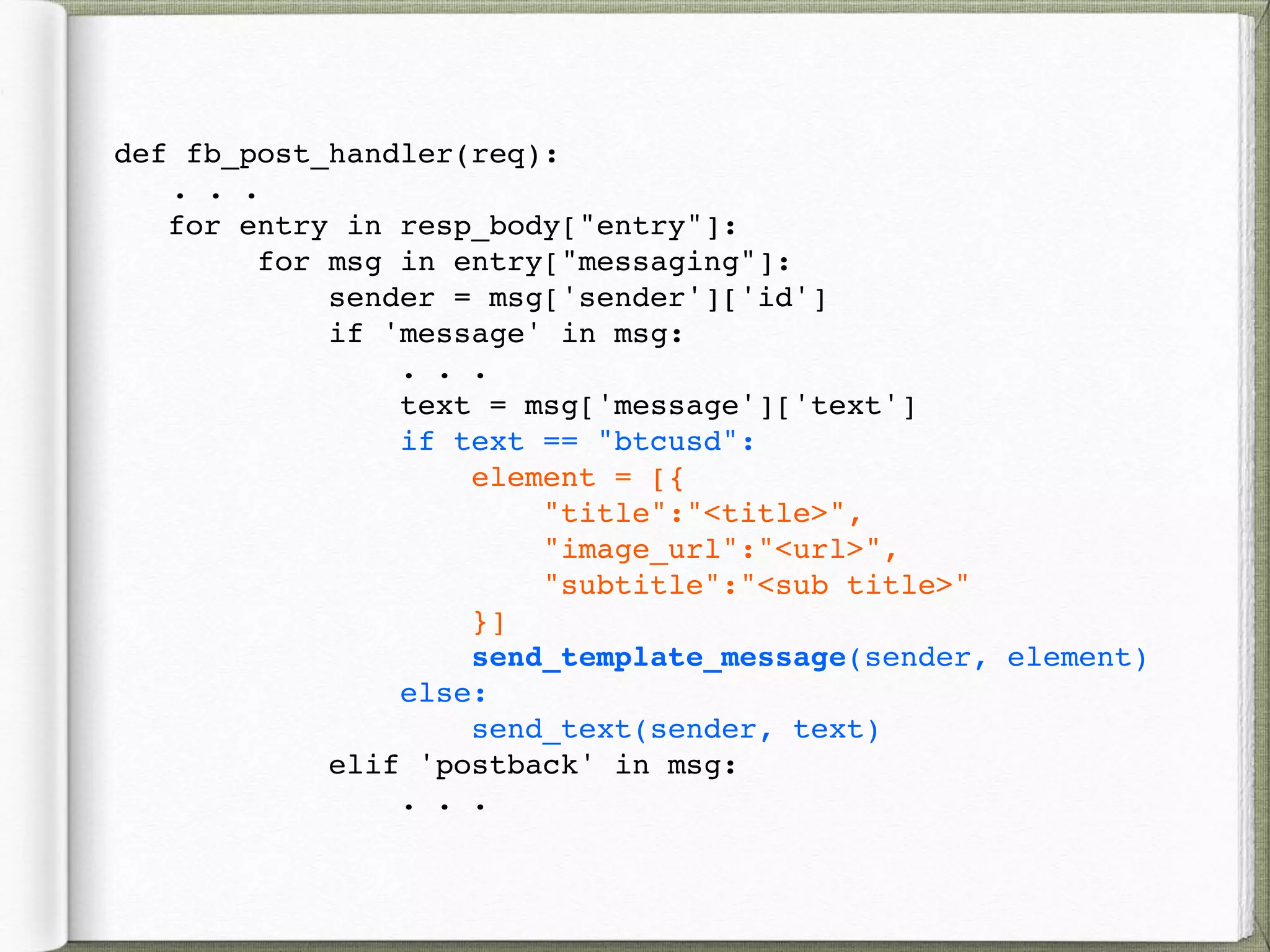

52. def fb_post_handler(req):
. . .
for entry in resp_body["entry"]:
for msg in entry["messaging"]:
sender = msg['sender']['id']
if 'message' in msg:
. . .
text = msg['message']['text']
if text == "btcusd":
element = [{
"title":"<title>",
"image_url":"<url>",
"subtitle":"<sub title>"
}]
send_template_message(sender, element)
else:
send_text(sender, text)
elif 'postback' in msg:
. . .

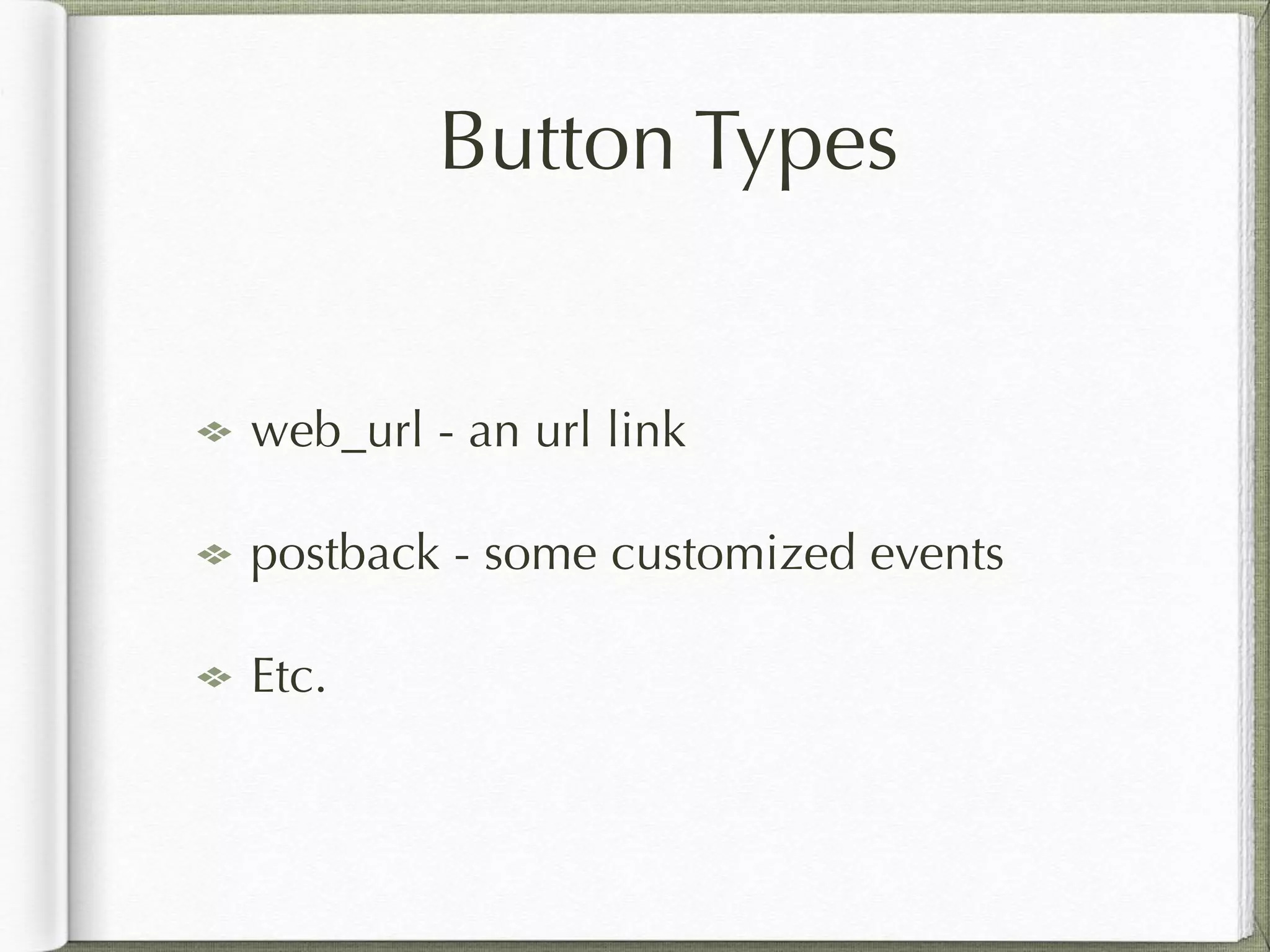

53. Button Types
web_url - an url link
postback - some customized events
Etc.

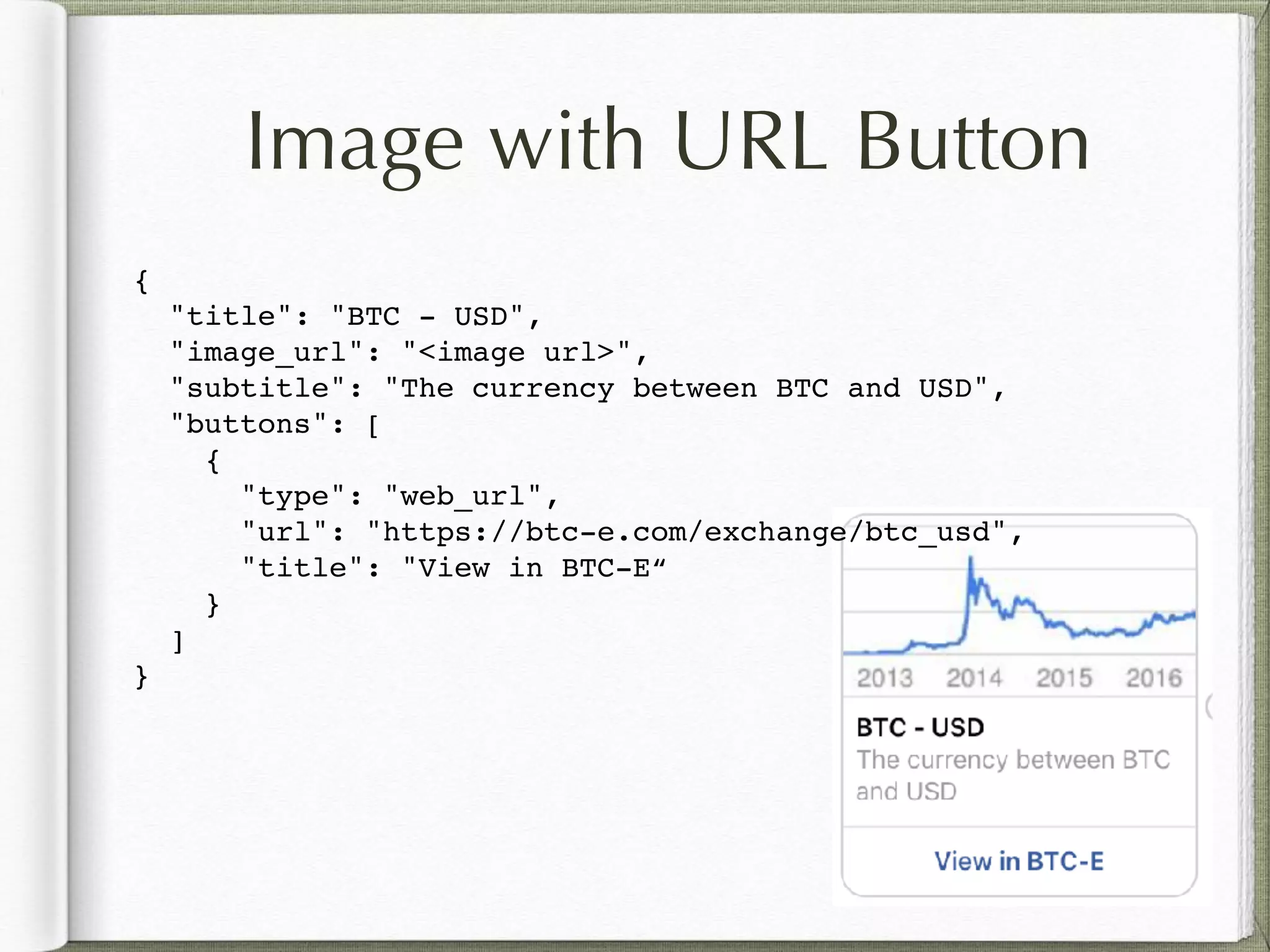

54. Image with URL Button
{
"title": "BTC - USD",
"image_url": "<image url>",
"subtitle": "The currency between BTC and USD",
"buttons": [
{
"type": "web_url",
"url": "https://btc-e.com/exchange/btc_usd",
"title": "View in BTC-E“
}
]
}

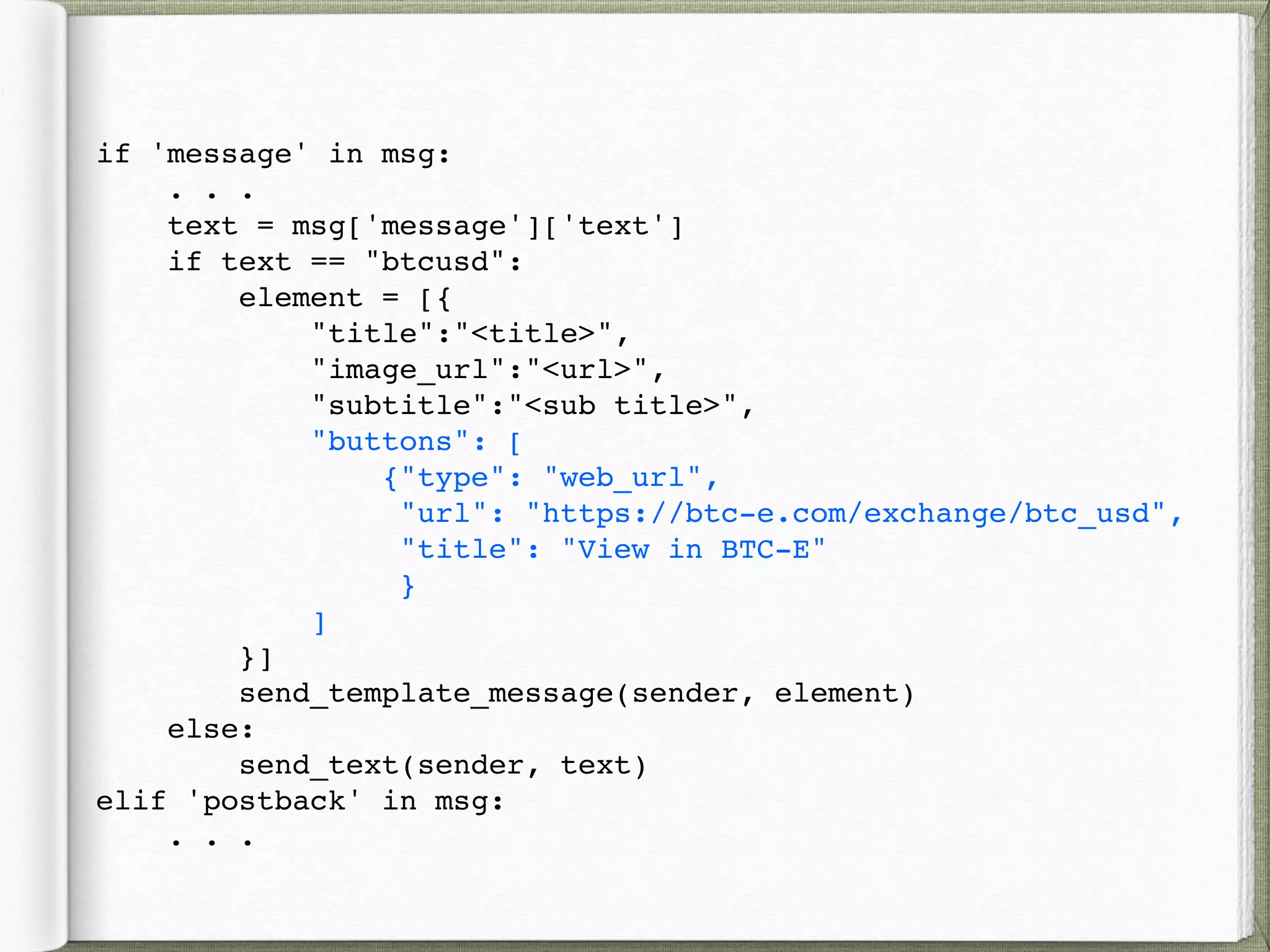

55. if 'message' in msg:
. . .
text = msg['message']['text']
if text == "btcusd":
element = [{
"title":"<title>",
"image_url":"<url>",
"subtitle":"<sub title>",
"buttons": [
{"type": "web_url",
"url": "https://btc-e.com/exchange/btc_usd",
"title": "View in BTC-E"
}
]
}]
send_template_message(sender, element)
else:
send_text(sender, text)
elif 'postback' in msg:
. . .

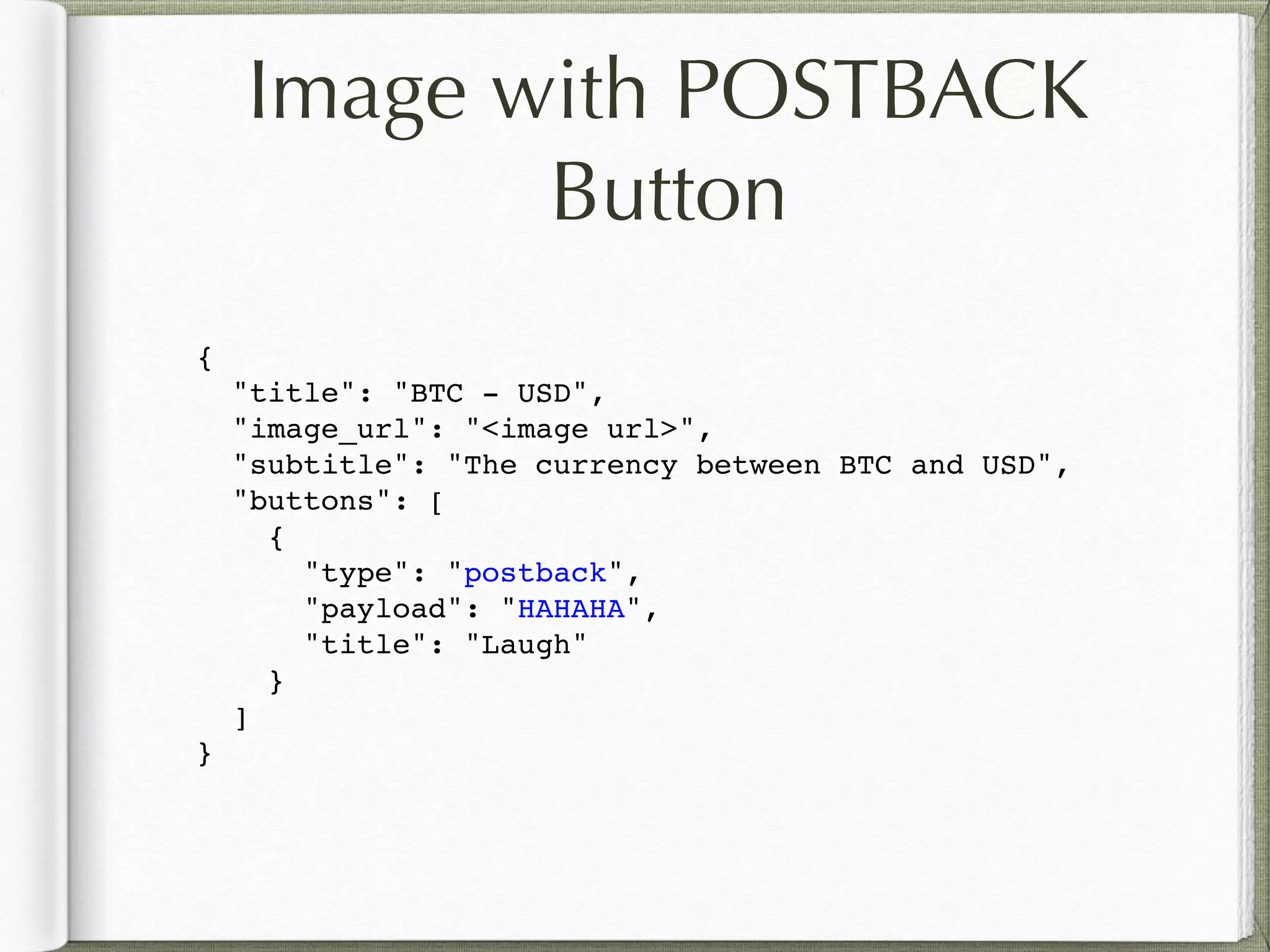

56. Image with POSTBACK
Button
{
"title": "BTC - USD",
"image_url": "<image url>",
"subtitle": "The currency between BTC and USD",
"buttons": [
{
"type": "postback",
"payload": "HAHAHA",
"title": "Laugh"
}
]
}

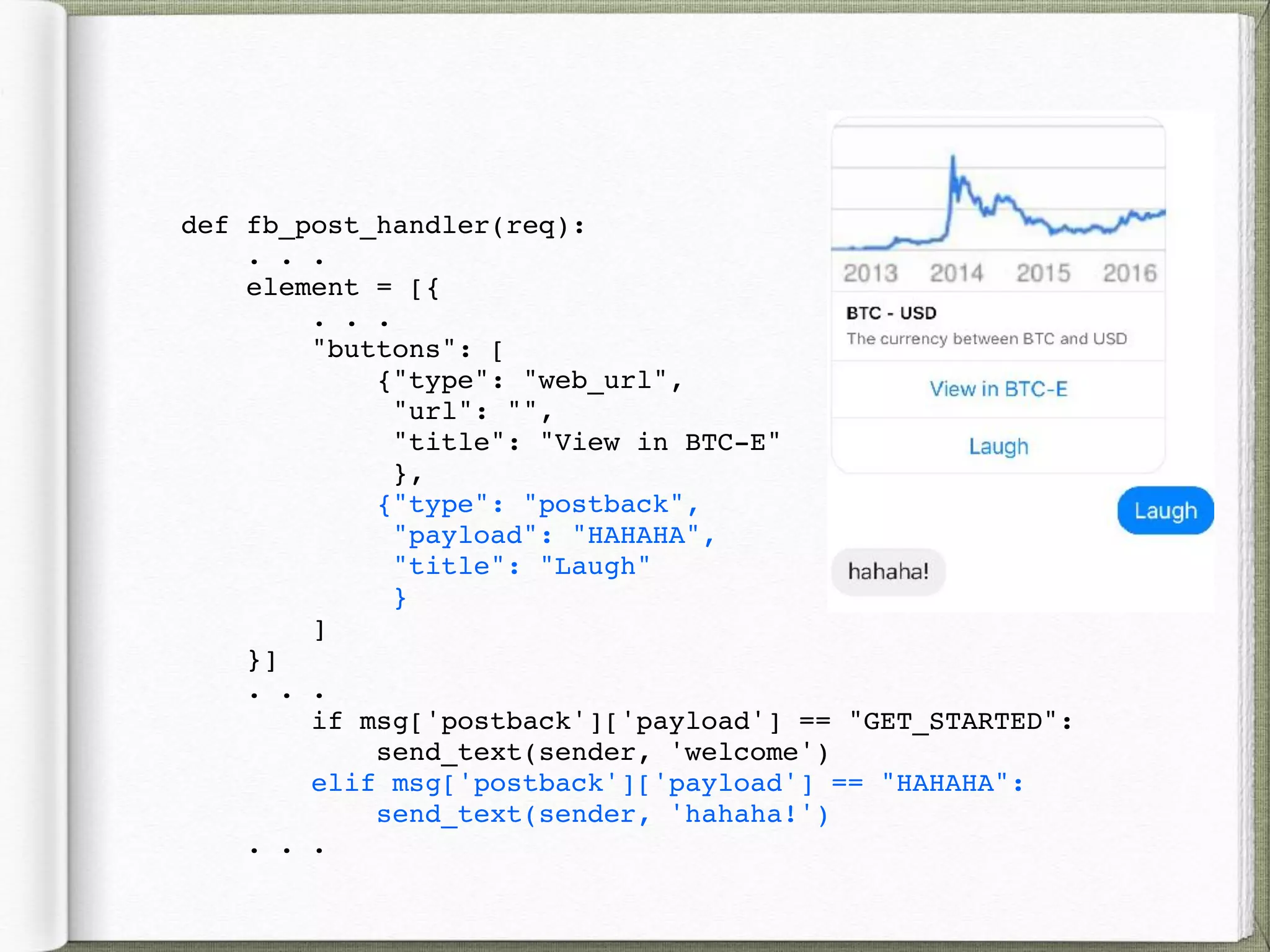

57. def fb_post_handler(req):
. . .
element = [{
. . .
"buttons": [
{"type": "web_url",
"url": "",
"title": "View in BTC-E"
},
{"type": "postback",
"payload": "HAHAHA",
"title": "Laugh"
}
]
}]
. . .
if msg['postback']['payload'] == "GET_STARTED":
send_text(sender, 'welcome')
elif msg['postback']['payload'] == "HAHAHA":
send_text(sender, 'hahaha!')
. . .

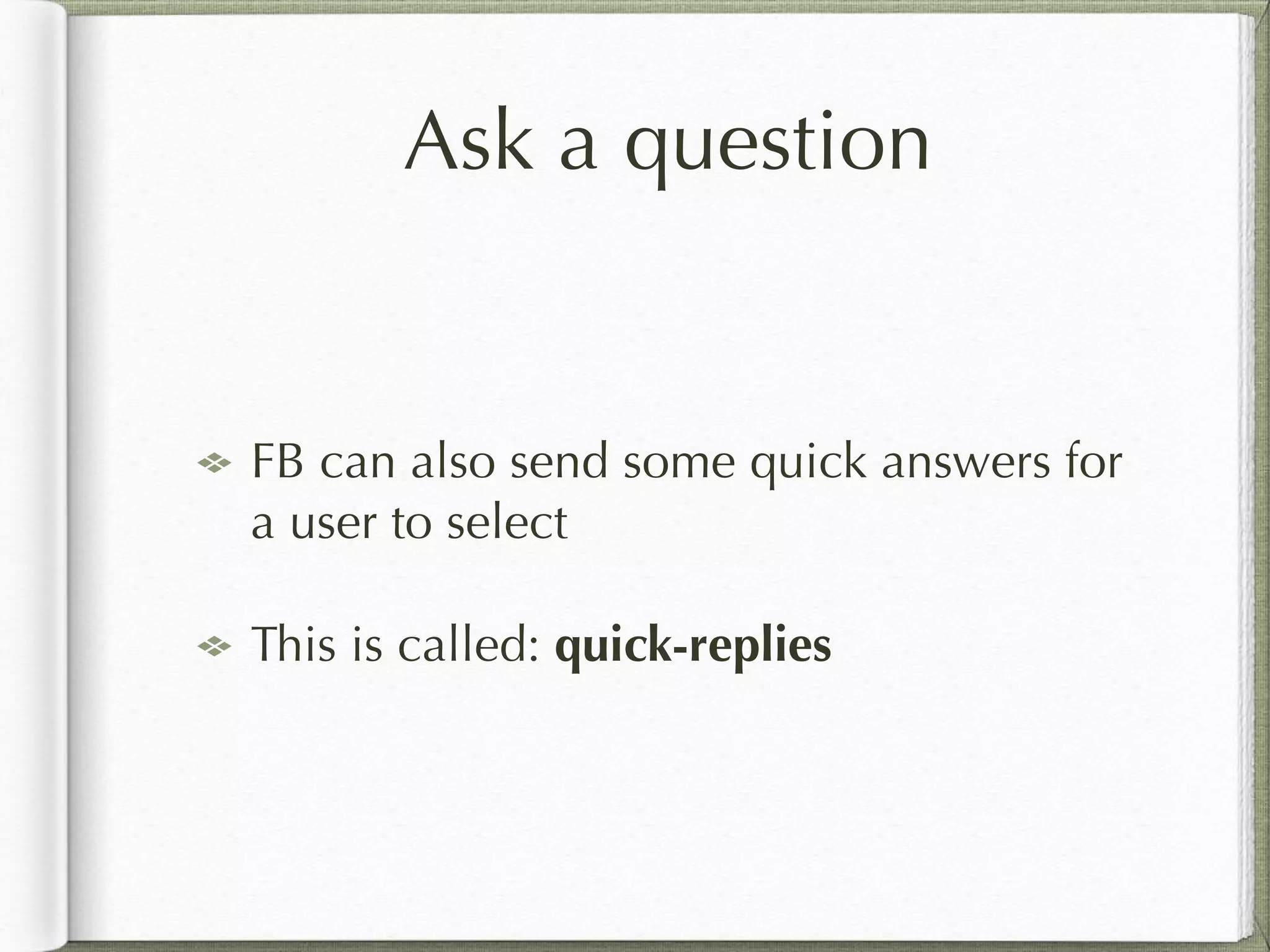

58. Ask a question
FB can also send some quick answers for
a user to select
This is called: quick-replies

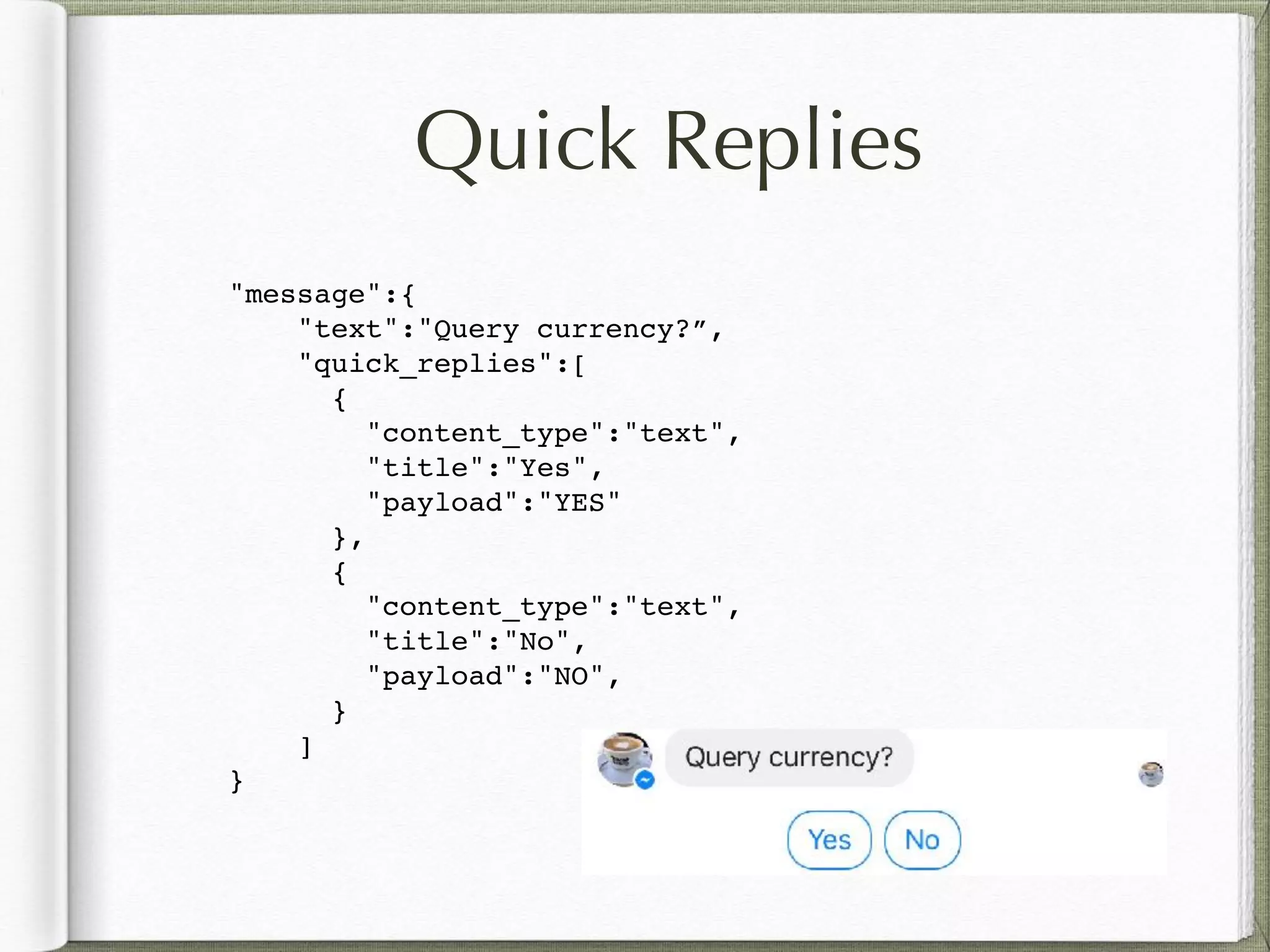

59. Quick Replies
"message":{
"text":"Query currency?”,
"quick_replies":[
{
"content_type":"text",
"title":"Yes",
"payload":"YES"
},
{
"content_type":"text",
"title":"No",
"payload":"NO",
}
]
}

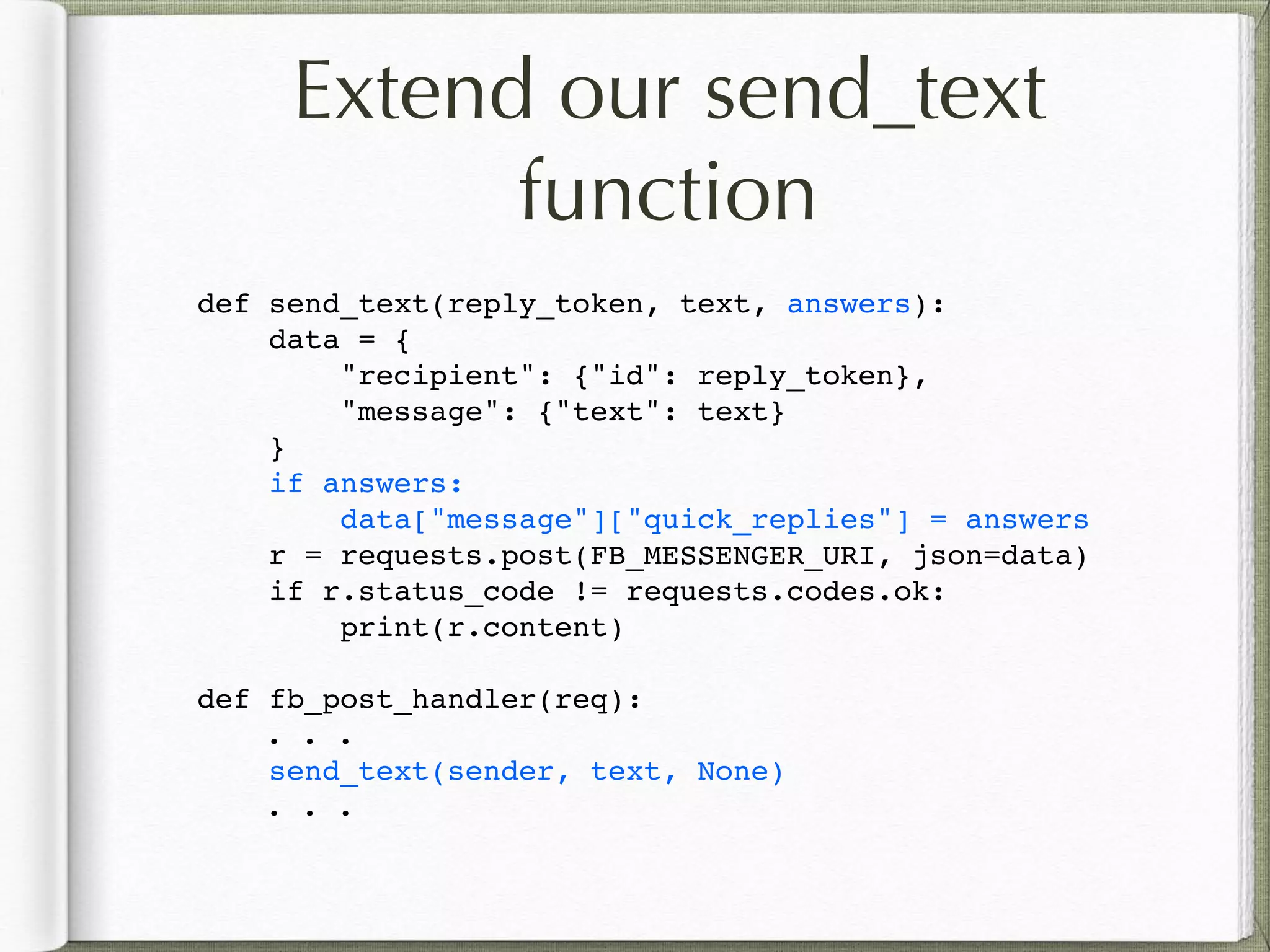

60. Extend our send_text
function
def send_text(reply_token, text, answers):
data = {
"recipient": {"id": reply_token},
"message": {"text": text}
}
if answers:
data["message"]["quick_replies"] = answers
r = requests.post(FB_MESSENGER_URI, json=data)
if r.status_code != requests.codes.ok:
print(r.content)
def fb_post_handler(req):
. . .
send_text(sender, text, None)
. . .

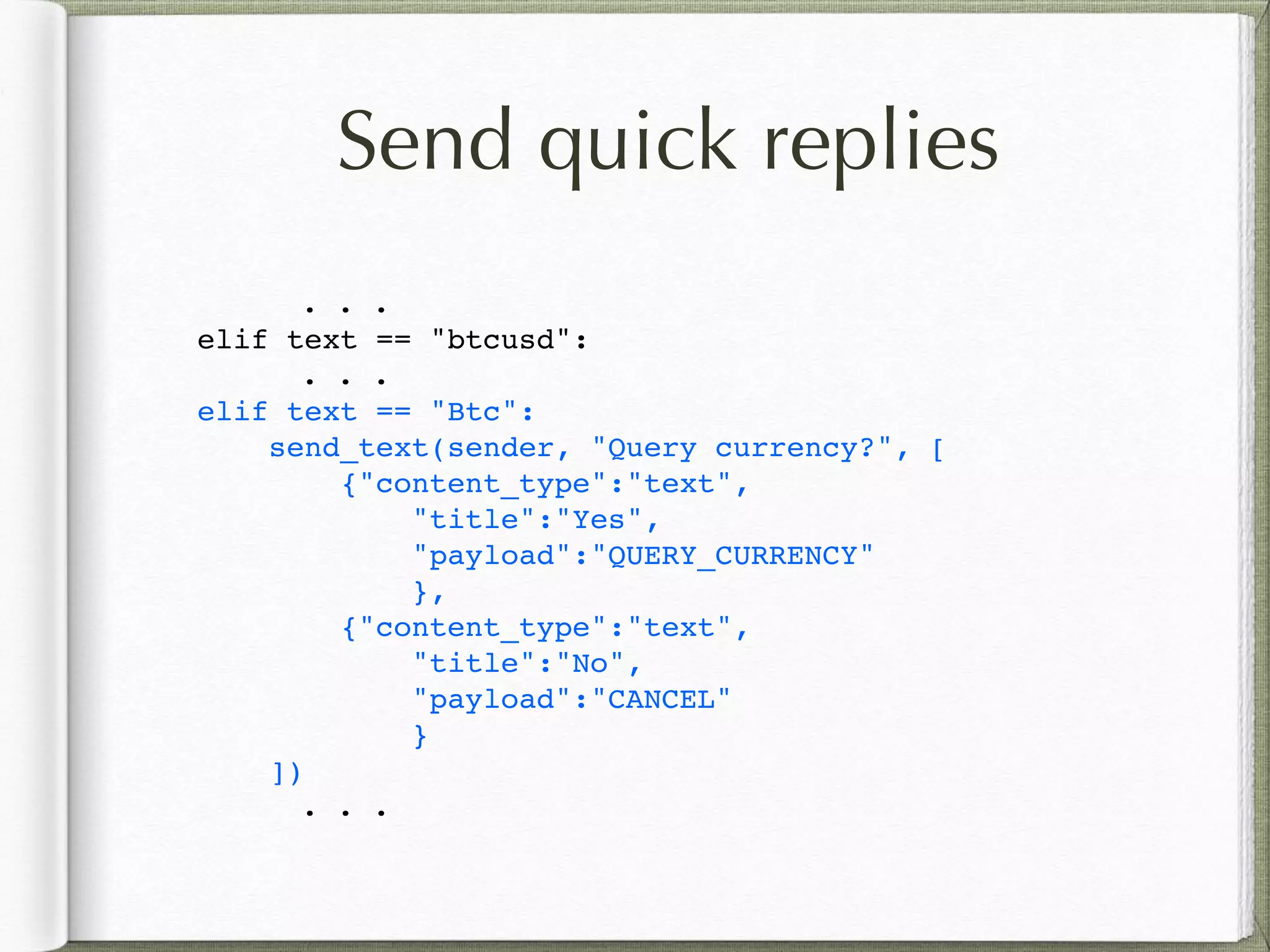

61. Send quick replies
. . .
elif text == "btcusd":
. . .
elif text == "Btc":
send_text(sender, "Query currency?", [
{"content_type":"text",
"title":"Yes",
"payload":"QUERY_CURRENCY"
},
{"content_type":"text",
"title":"No",
"payload":"CANCEL"
}
])
. . .

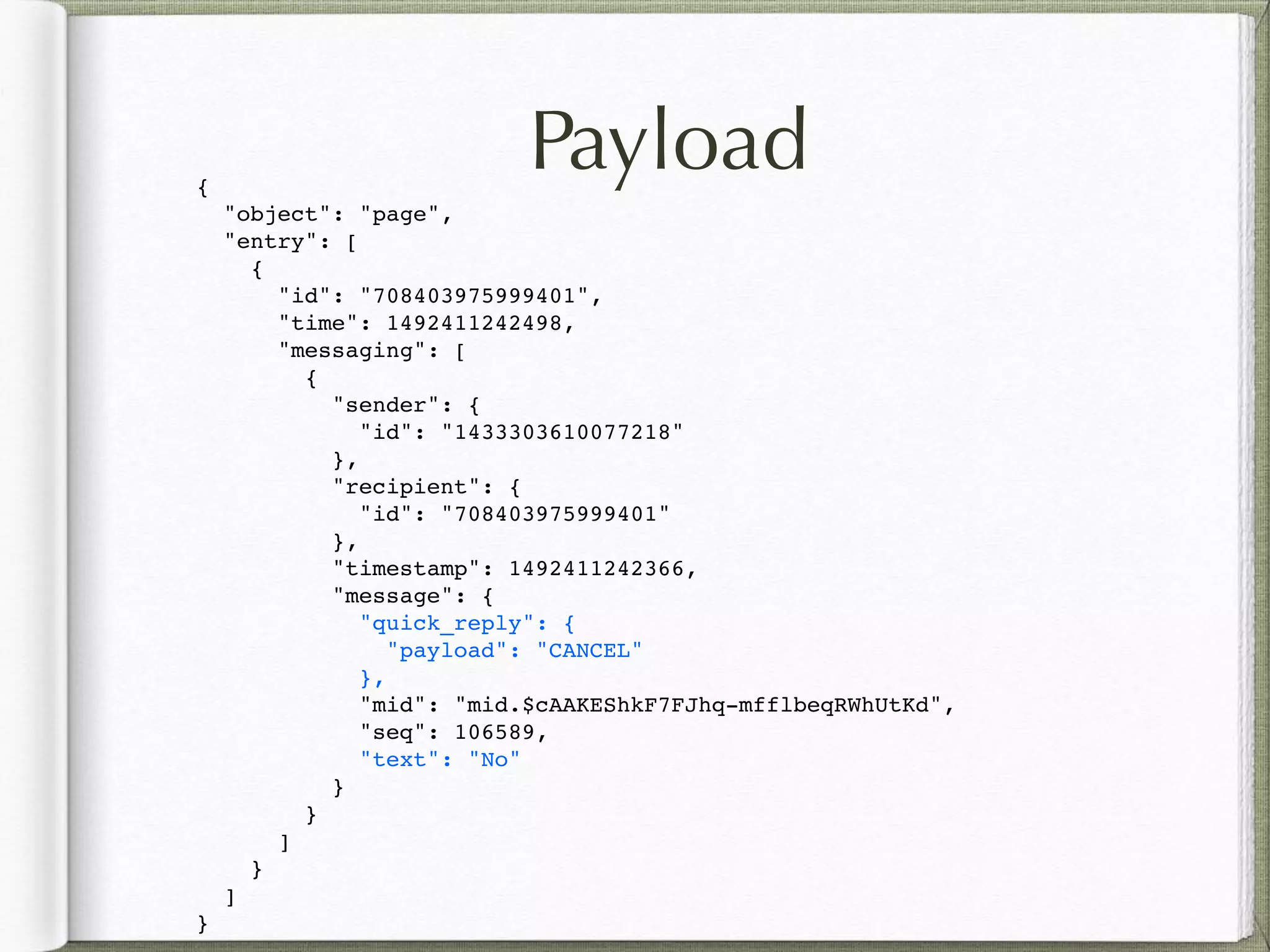

62. Payload{
"object": "page",
"entry": [
{
"id": "708403975999401",
"time": 1492411242498,
"messaging": [
{
"sender": {
"id": "1433303610077218"
},
"recipient": {
"id": "708403975999401"
},
"timestamp": 1492411242366,
"message": {
"quick_reply": {
"payload": "CANCEL"
},
"mid": "mid.$cAAKEShkF7FJhq-mfflbeqRWhUtKd",
"seq": 106589,
"text": "No"
}
}
]
}
]
}

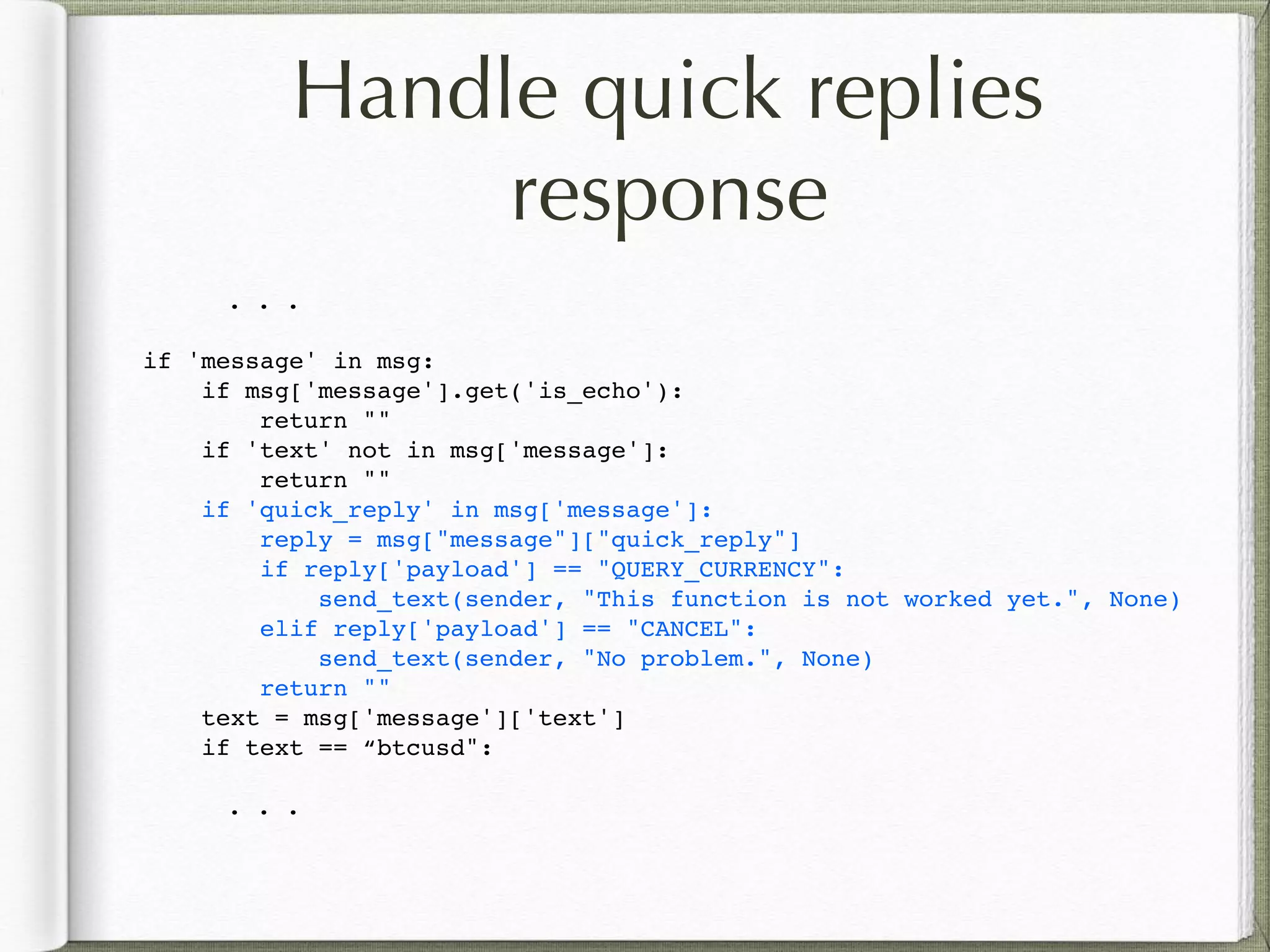

63. Handle quick replies
response
. . .
if 'message' in msg:
if msg['message'].get('is_echo'):
return ""
if 'text' not in msg['message']:
return ""
if 'quick_reply' in msg['message']:
reply = msg["message"]["quick_reply"]
if reply['payload'] == "QUERY_CURRENCY":
send_text(sender, "This function is not worked yet.", None)
elif reply['payload'] == "CANCEL":
send_text(sender, "No problem.", None)
return ""
text = msg['message']['text']
if text == “btcusd":
. . .

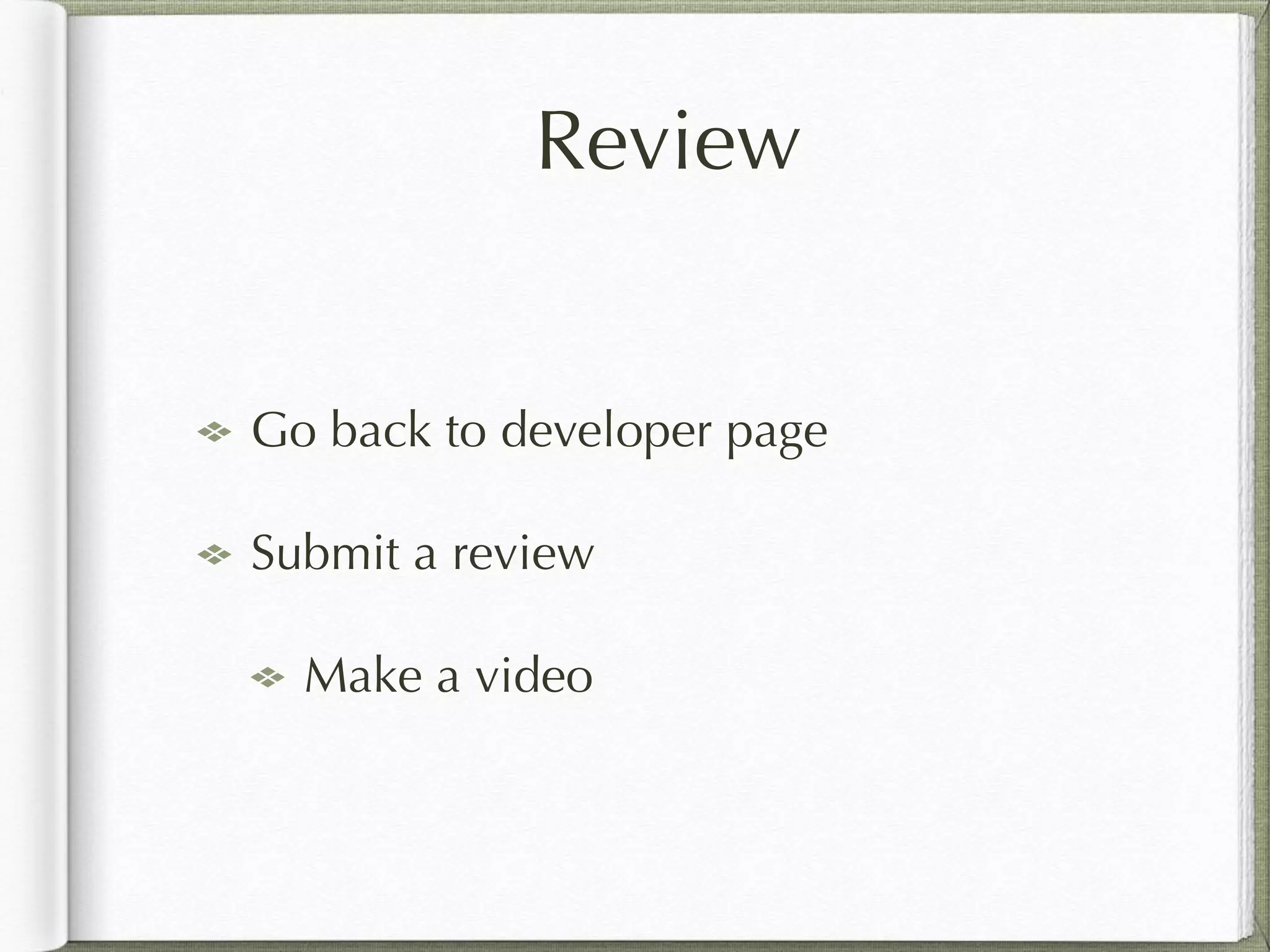

64. Review
Go back to developer page
Submit a review
Make a video

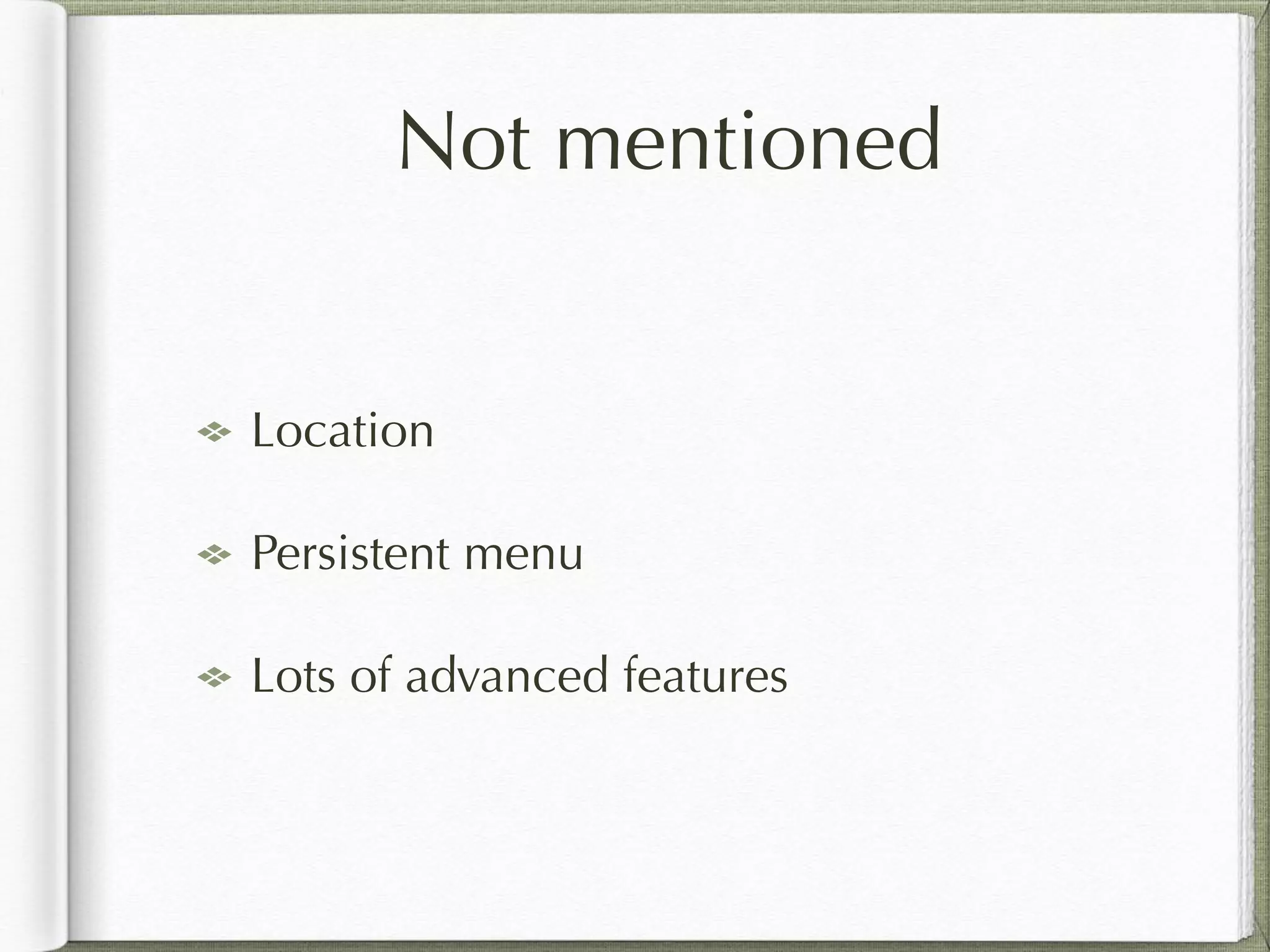

65. Not mentioned
Location
Persistent menu
Lots of advanced features

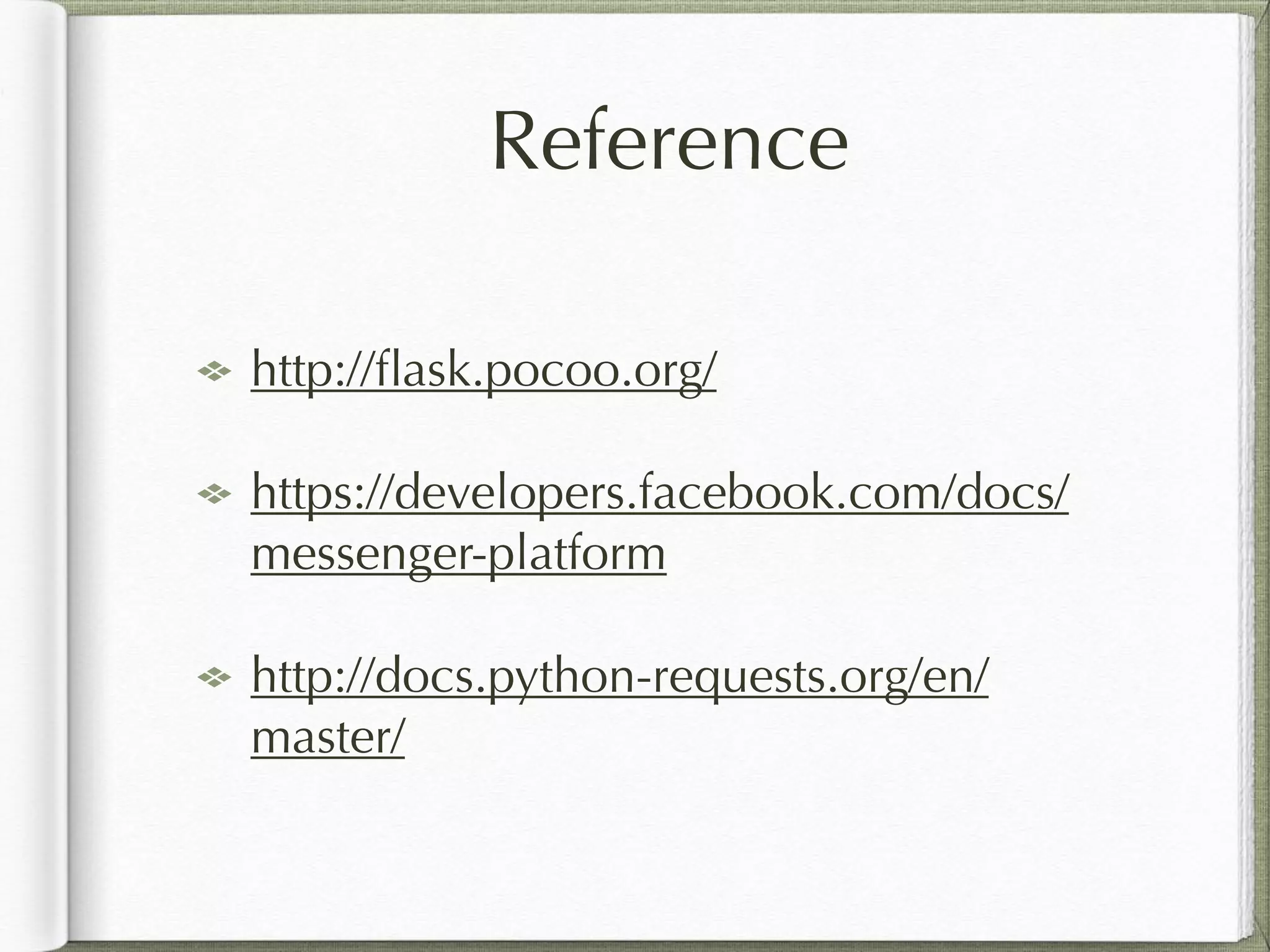

66. Reference
http://flask.pocoo.org/
https://developers.facebook.com/docs/
messenger-platform
http://docs.python-requests.org/en/
master/

67. Q & A
