1) The document discusses a pilot project in Indonesia that aims to evaluate using idle TV spectrum and cognitive radio technology to provide rural broadband connectivity. 2) It involves testing networks in areas with limited and vacant TV spectrum to understand regulatory and technical implications. 3) The project brings together various Indonesian government agencies and organizations like USAID to test equipment from companies like Microsoft and 6Harmonics.

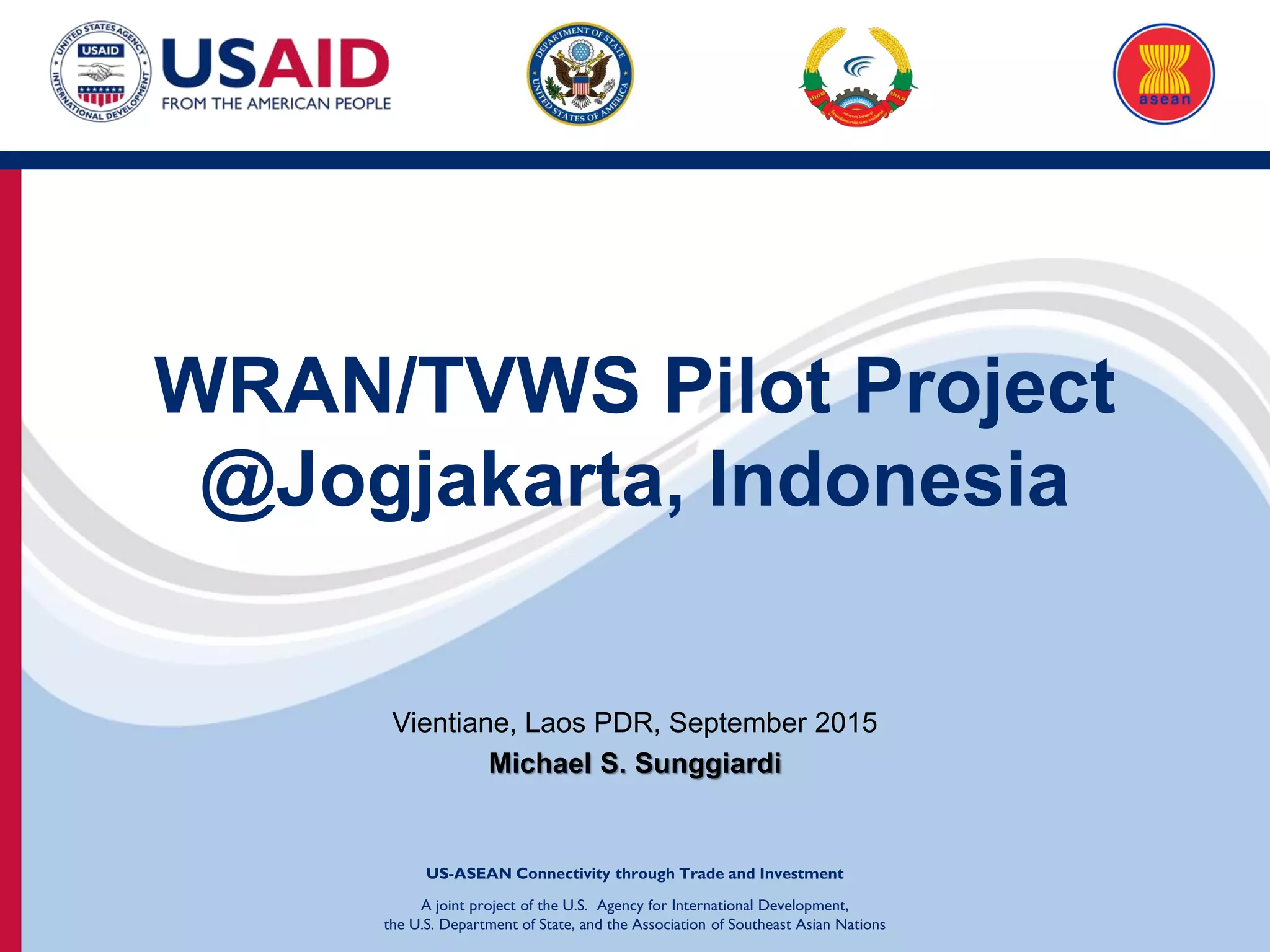

1. A joint project of the U.S. Agency for International Development,
the U.S. Department of State, and the Association of Southeast Asian Nations
US-ASEAN Connectivity through Trade and Investment
WRAN/TVWS Pilot Project
@Jogjakarta, Indonesia
Vientiane, Laos PDR, September 2015
Michael S. Sunggiardi

2. US-ASEAN Connectivity through Trade and Investment
Executive Team Trials Technology in
the Context of the Implementation
of Broadband Wireless Flagship
Indonesia Broadband Plan

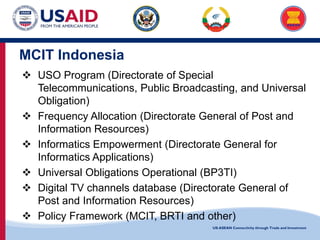

3. US-ASEAN Connectivity through Trade and Investment
MCIT Indonesia
 USO Program (Directorate of Special
Telecommunications, Public Broadcasting, and Universal
Obligation)
 Frequency Allocation (Directorate General of Post and
Information Resources)
 Informatics Empowerment (Directorate General for
Informatics Applications)
 Universal Obligations Operational (BP3TI)
 Digital TV channels database (Directorate General of
Post and Information Resources)
 Policy Framework (MCIT, BRTI and other)

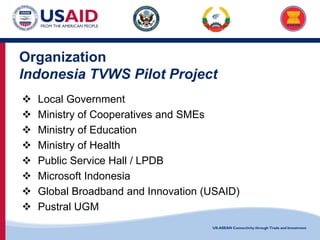

4. US-ASEAN Connectivity through Trade and Investment
Organization
Indonesia TVWS Pilot Project
 Local Government
 Ministry of Cooperatives and SMEs
 Ministry of Education
 Ministry of Health
 Public Service Hall / LPDB
 Microsoft Indonesia
 Global Broadband and Innovation (USAID)
 Pustral UGM

5. US-ASEAN Connectivity through Trade and Investment
Objectives
Indonesia WRAN/TVWS Pilot Project
To conduct pilot for terestrial wireless broadband
connectivity by means optimizing idle spectrum with
cognitive radio technology in rural area. In specific the
pilot aims to evaluate three aspect of rural terrestrial
wireless broadband deployment, first technical and
operation, financial and economic, business model, and
policy & regulation

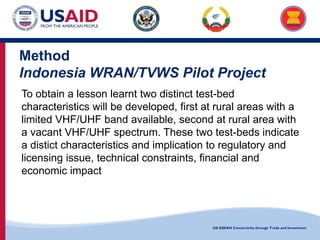

6. US-ASEAN Connectivity through Trade and Investment
Method
Indonesia WRAN/TVWS Pilot Project
To obtain a lesson learnt two distinct test-bed
characteristics will be developed, first at rural areas with a
limited VHF/UHF band available, second at rural area with
a vacant VHF/UHF spectrum. These two test-beds indicate
a distict characteristics and implication to regulatory and
licensing issue, technical constraints, financial and
economic impact

7. US-ASEAN Connectivity through Trade and Investment

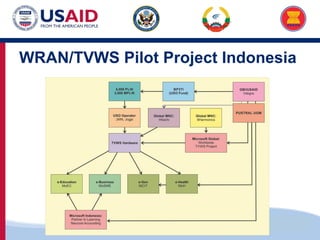

WRAN/TVWS Pilot Project Indonesia

8. US-ASEAN Connectivity through Trade and Investment

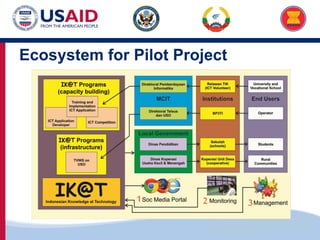

Ecosystem for Pilot Project

9. US-ASEAN Connectivity through Trade and Investment
Frequency Allocation for TVWS

10. US-ASEAN Connectivity through Trade and Investment
192 MHz
TV Analog
Fix Receipt Free To Air (FTA)
478 806 MHz
328 MHz
112 MHz

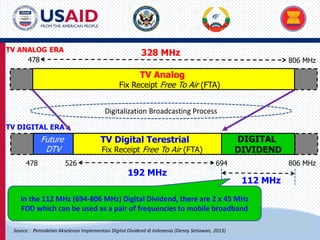

Digitalization Broadcasting Process
TV ANALOG ERA
TV Digital Terestrial
Fix Receipt Free To Air (FTA)
526 694
Future
DTV
DIGITAL
DIVIDEND
478 806 MHz
TV DIGITAL ERA
In the 112 MHz (694-806 MHz) Digital Dividend, there are 2 x 45 MHz
FDD which can be used as a pair of frequencies to mobile broadband
Source : Pemodelan Akselerasi Implementasi Digital Dividend di Indonesia (Denny Setiawan, 2013)

11. US-ASEAN Connectivity through Trade and Investment

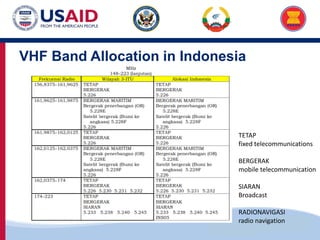

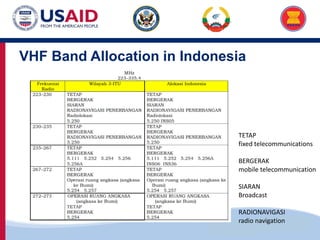

VHF Band Allocation in Indonesia
TETAP
fixed telecommunications
BERGERAK
mobile telecommunication
SIARAN
Broadcast
RADIONAVIGASI
radio navigation

12. US-ASEAN Connectivity through Trade and Investment
VHF Band Allocation in Indonesia
TETAP
fixed telecommunications
BERGERAK
mobile telecommunication
SIARAN
Broadcast
RADIONAVIGASI
radio navigation

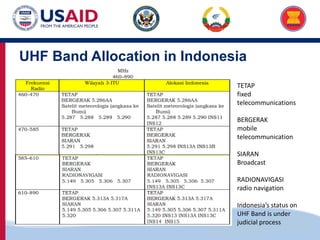

13. US-ASEAN Connectivity through Trade and Investment
UHF Band Allocation in Indonesia
TETAP
fixed
telecommunications
BERGERAK
mobile
telecommunication
SIARAN
Broadcast
RADIONAVIGASI
radio navigation
Indonesia’s status on
UHF Band is under
judicial process

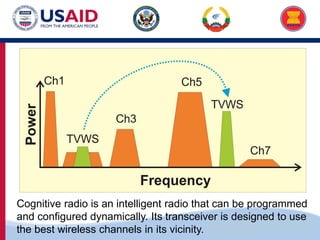

14. US-ASEAN Connectivity through Trade and Investment
Cognitive radio is an intelligent radio that can be programmed
and configured dynamically. Its transceiver is designed to use
the best wireless channels in its vicinity.

15. US-ASEAN Connectivity through Trade and Investment

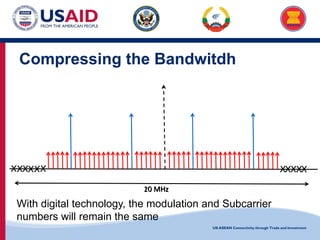

Compressing the Bandwitdh
20 MHz10 MHz
With digital technology, the modulation and Subcarrier
numbers will remain the same

16. US-ASEAN Connectivity through Trade and Investment

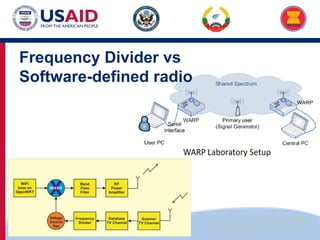

Frequency Divider vs
Software-defined radio

17. US-ASEAN Connectivity through Trade and Investment

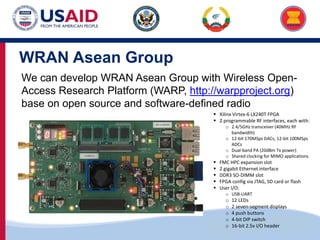

WRAN Asean Group
We can develop WRAN Asean Group with Wireless Open-
Access Research Platform (WARP, http://warpproject.org)
base on open source and software-defined radio
 Xilinx Virtex-6 LX240T FPGA
 2 programmable RF interfaces, each with:
o 2.4/5GHz transceiver (40MHz RF
bandwidth)
o 12-bit 170MSps DACs, 12-bit 100MSps
ADCs
o Dual-band PA (20dBm Tx power)
o Shared clocking for MIMO applications
 FMC HPC expansion slot
 2 gigabit Ethernet interface
 DDR3 SO-DIMM slot
 FPGA config via JTAG, SD card or flash
 User I/O:
o USB-UART
o 12 LEDs
o 2 seven-segment displays
o 4 push buttons
o 4-bit DIP switch
o 16-bit 2.5v I/O header

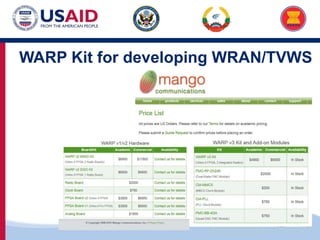

18. US-ASEAN Connectivity through Trade and Investment
WARP Kit for developing WRAN/TVWS

19. US-ASEAN Connectivity through Trade and Investment
High Gain Antenna for WRAN/TVWS

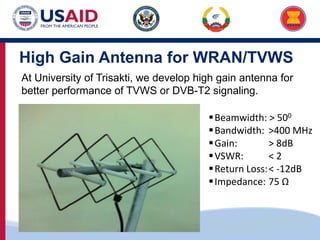

At University of Trisakti, we develop high gain antenna for
better performance of TVWS or DVB-T2 signaling.
Beamwidth: > 500
Bandwidth: >400 MHz
Gain: > 8dB
VSWR: < 2
Return Loss:< -12dB
Impedance: 75 Ω

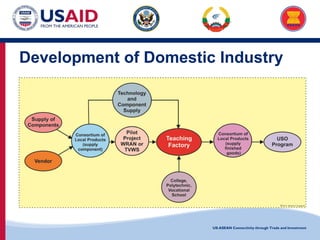

20. US-ASEAN Connectivity through Trade and Investment
Development of Domestic Industry

21. US-ASEAN Connectivity through Trade and Investment

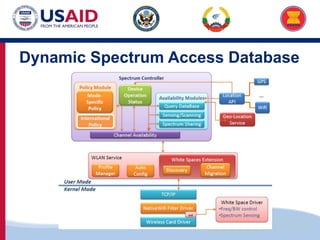

Dynamic Spectrum Access Database

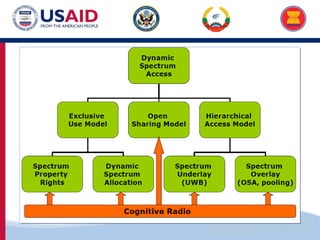

22. US-ASEAN Connectivity through Trade and Investment
Sub-title and body of presentation

23. US-ASEAN Connectivity through Trade and Investment

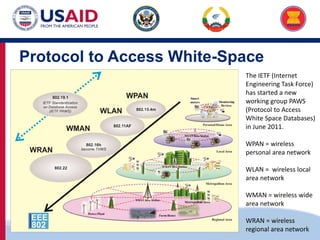

Protocol to Access White-Space
The IETF (Internet
Engineering Task Force)
has started a new
working group PAWS
(Protocol to Access
White Space Databases)
in June 2011.
WPAN = wireless
personal area network
WLAN = wireless local
area network
WMAN = wireless wide
area network
WRAN = wireless
regional area network

24. US-ASEAN Connectivity through Trade and Investment
Connection for Rural Area

25. US-ASEAN Connectivity through Trade and Investment

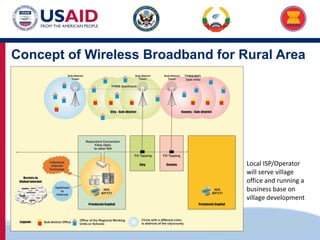

Concept of Wireless Broadband for Rural Area
Local ISP/Operator
will serve village
office and running a
business base on
village development

26. US-ASEAN Connectivity through Trade and Investment

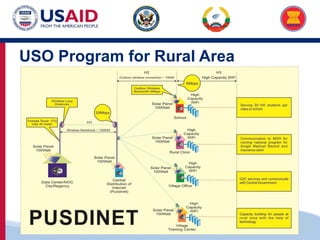

USO Program for Rural Area

27. US-ASEAN Connectivity through Trade and Investment

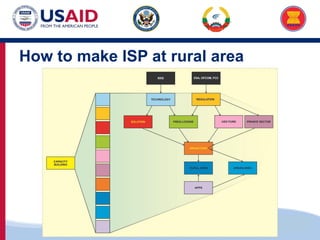

How to make ISP at rural area

28. US-ASEAN Connectivity through Trade and Investment
Killer Apps for AEC

29. US-ASEAN Connectivity through Trade and Investment

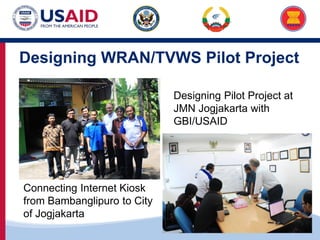

Designing WRAN/TVWS Pilot Project
Connecting Internet Kiosk
from Bambanglipuro to City
of Jogjakarta
Designing Pilot Project at
JMN Jogjakarta with
GBI/USAID

30. US-ASEAN Connectivity through Trade and Investment

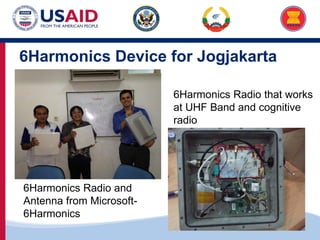

6Harmonics Device for Jogjakarta
6Harmonics Radio and
Antenna from Microsoft-
6Harmonics
6Harmonics Radio that works
at UHF Band and cognitive
radio

31. US-ASEAN Connectivity through Trade and Investment
Hitachi and GBI/USAID for
WRAN/TVWS Pilot Project in Jogja
GBI/USAID Team meet
with Director of USO
Program at 2013
Hitachi Team meet with Director
of USO Program at 2014

32. US-ASEAN Connectivity through Trade and Investment

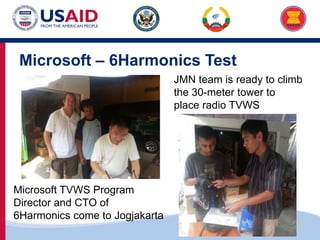

Microsoft – 6Harmonics Test
Microsoft TVWS Program
Director and CTO of
6Harmonics come to Jogjakarta
JMN team is ready to climb
the 30-meter tower to
place radio TVWS

33. US-ASEAN Connectivity through Trade and Investment

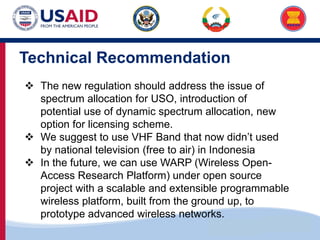

Technical Recommendation
 The new regulation should address the issue of
spectrum allocation for USO, introduction of
potential use of dynamic spectrum allocation, new
option for licensing scheme.
 We suggest to use VHF Band that now didn’t used
by national television (free to air) in Indonesia
 In the future, we can use WARP (Wireless Open-
Access Research Platform) under open source
project with a scalable and extensible programmable
wireless platform, built from the ground up, to
prototype advanced wireless networks.

34. US-ASEAN Connectivity through Trade and Investment
