1. jakarta, sep 29, 2011
work with Windows Azure
from mobile platforms
Andri Yadi
andri (at) dycode (dot) com
@andri_yadi

2. about me

3. 4 years in a row

4. start my own company & code for food

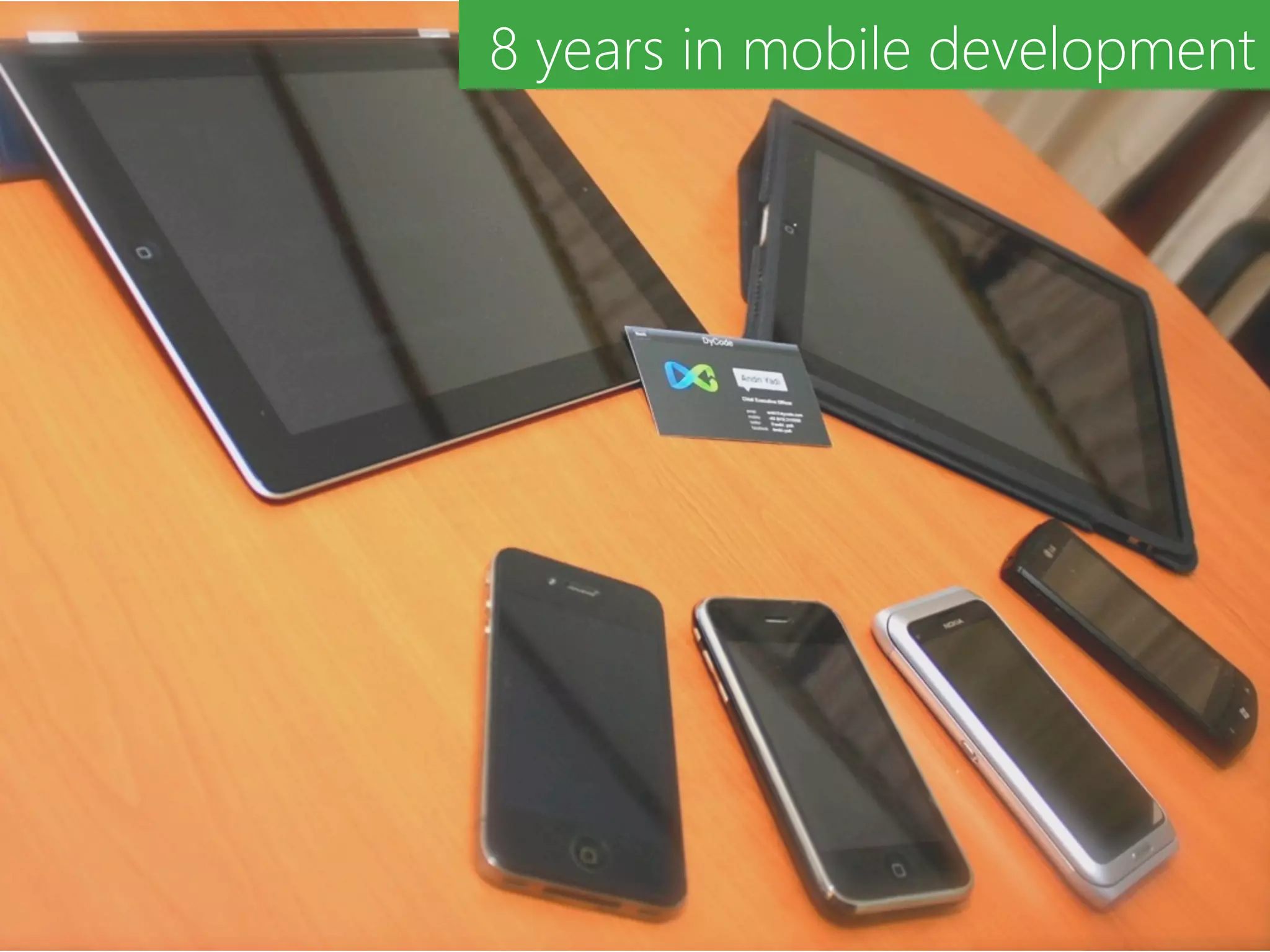

5. 8 years in mobile development

6. a movie freak

7. the ceo of

8. i won’t talk much about Azure,
but mostly on client side

9. azure?

10. use cloud as storage
(blob + structured data)
access web applications
hosted in azure
receive notifications

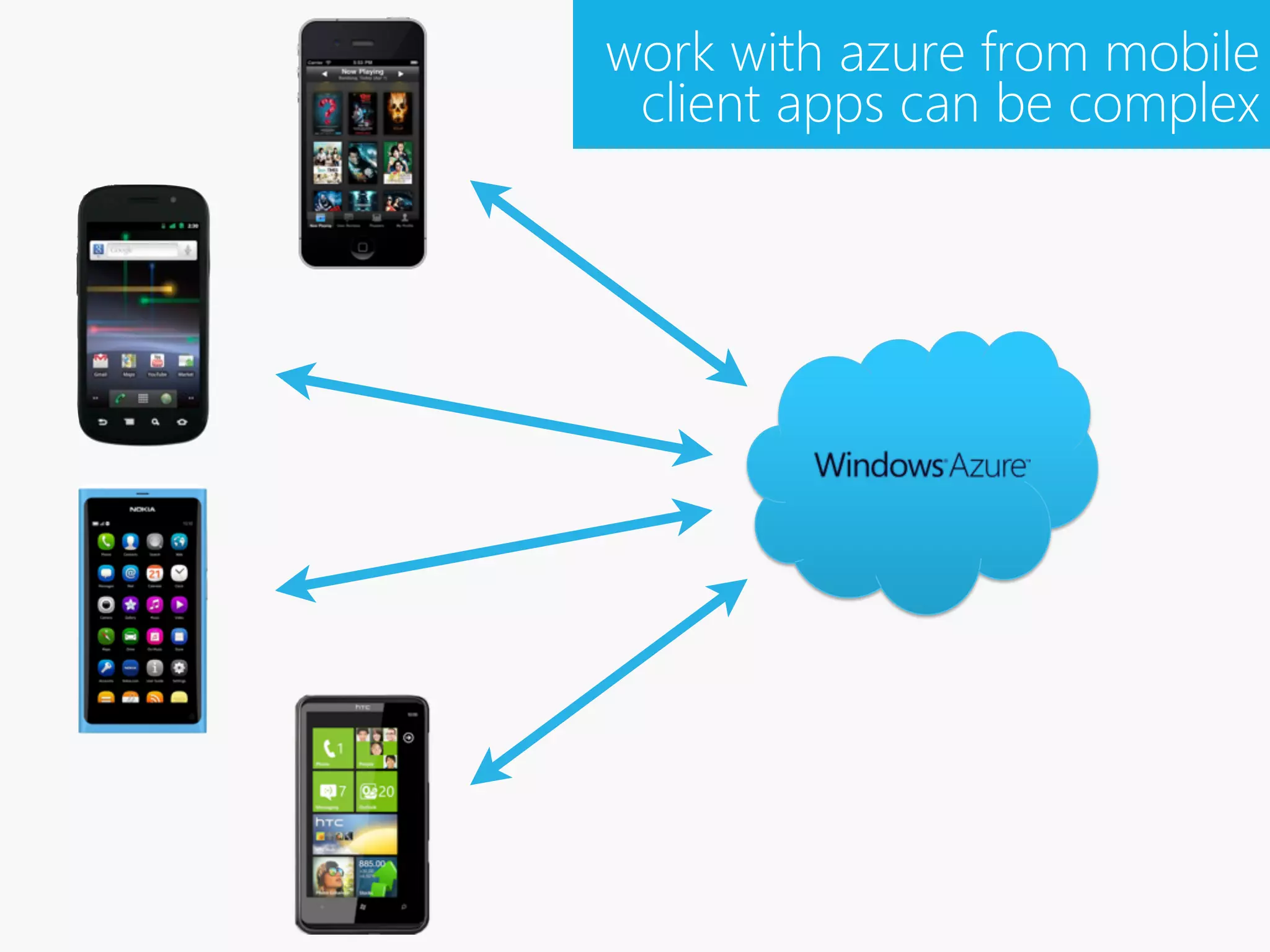

11. work with azure from mobile
client apps can be complex

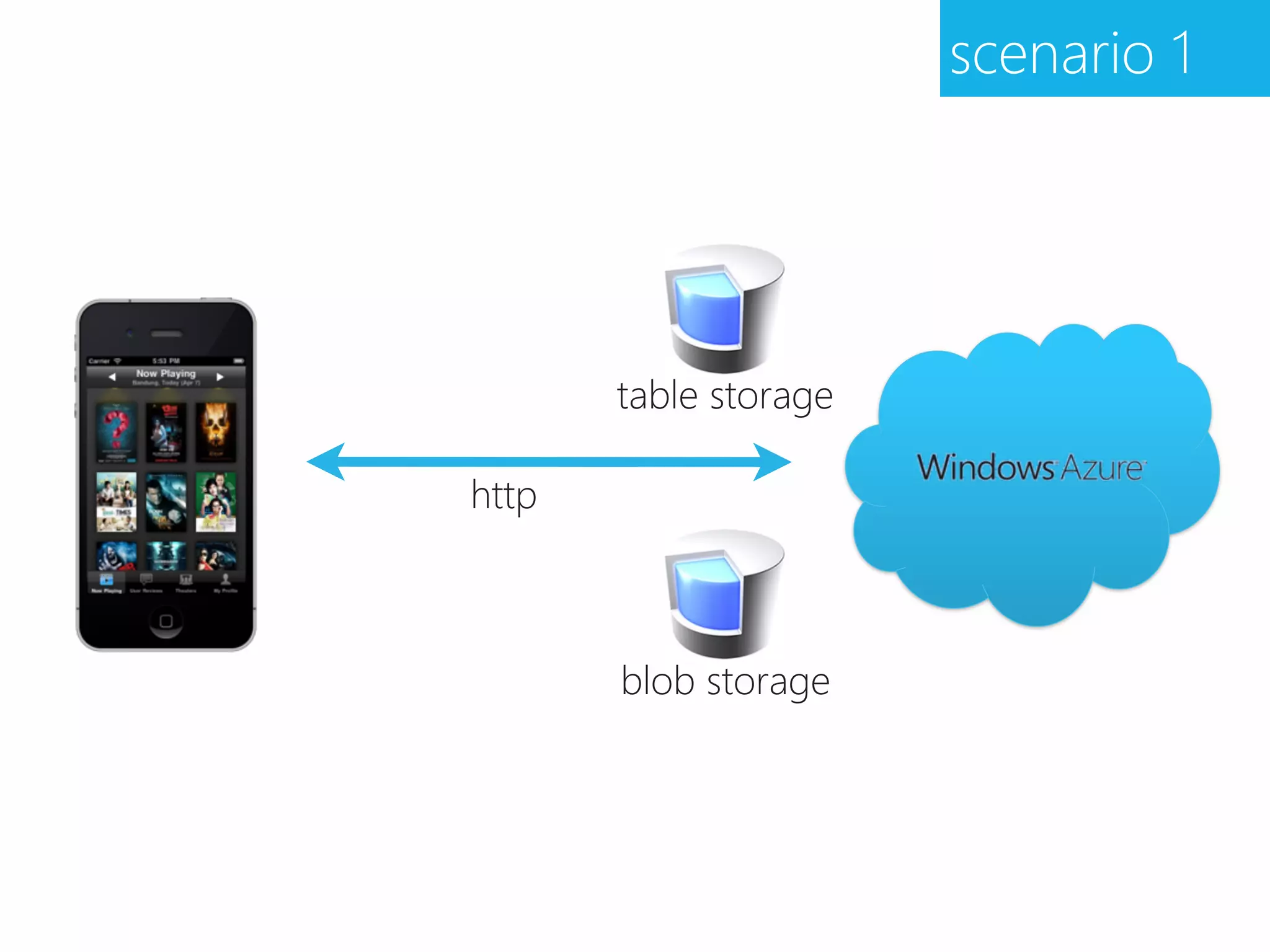

12. scenario 1
table storage
http
blob storage

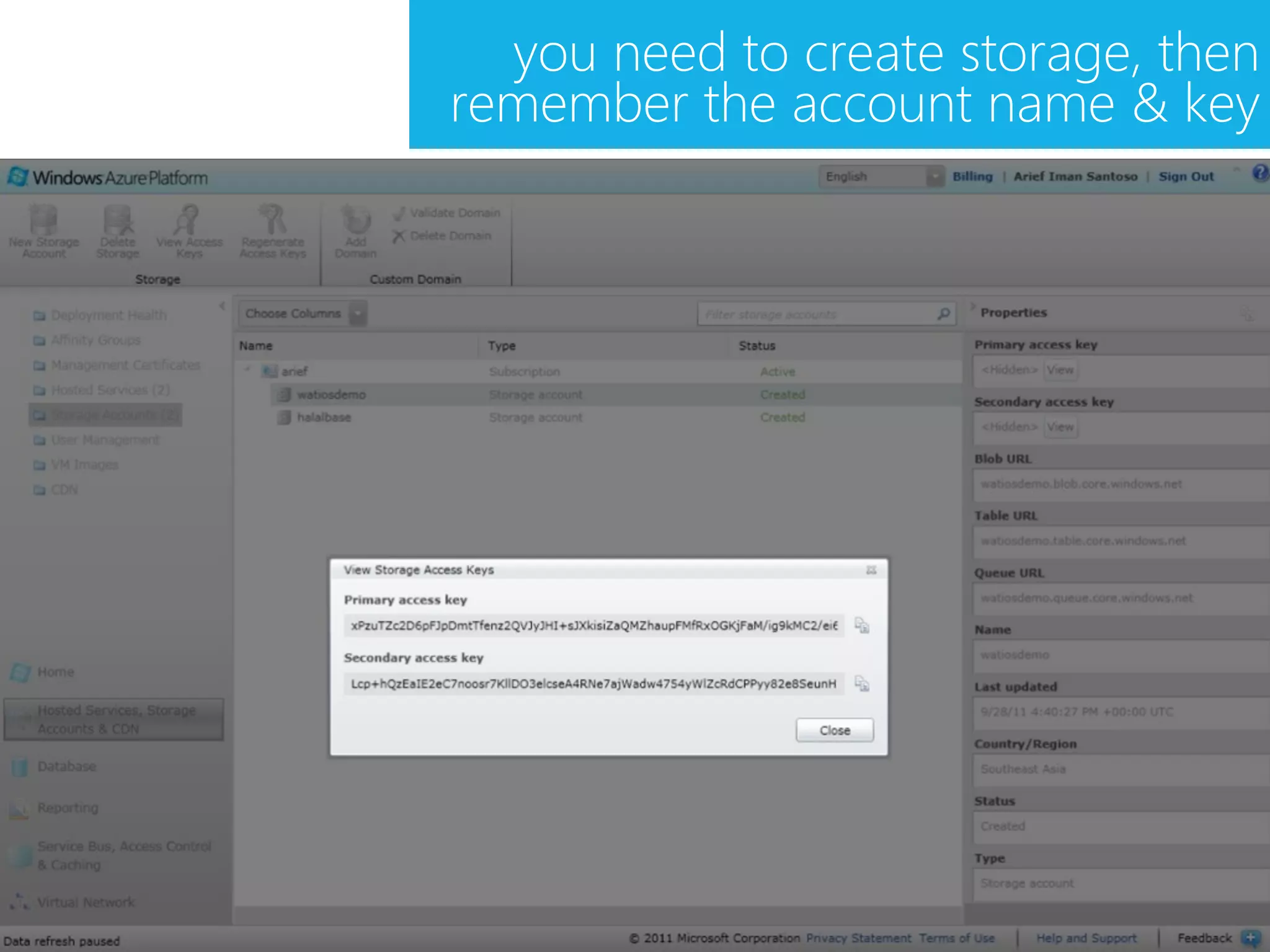

13. you need to create storage, then
remember the account name & key

14. REST Endpoint:
http://[account].blob.core.windows.net
•List, Create, and Delete Containers
•List, Put, Get, Delete Blobs
blob storage

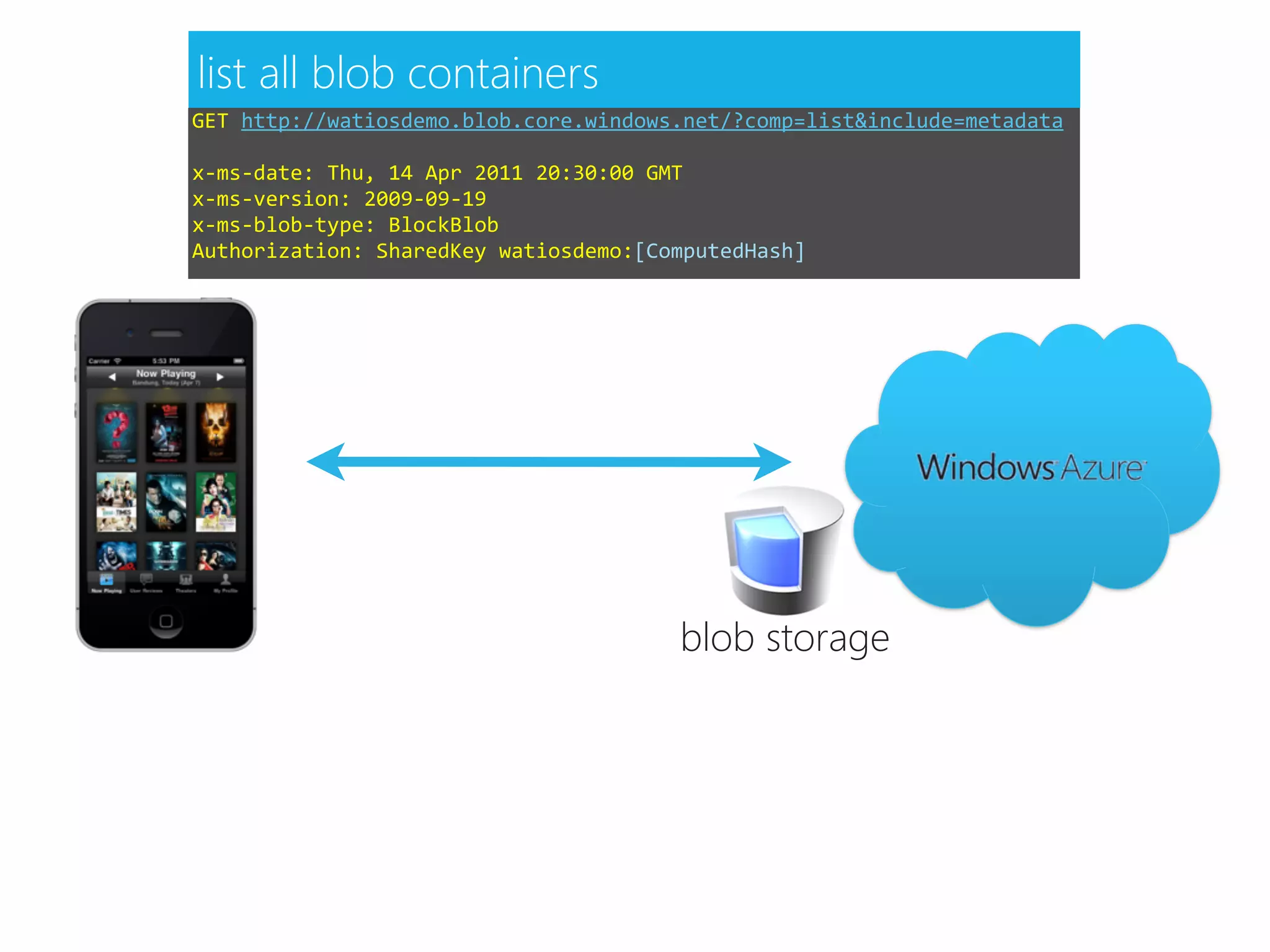

15. list all blob containers
GET
http://watiosdemo.blob.core.windows.net/?comp=list&include=metadata
x-­‐ms-­‐date:
Thu,
14
Apr
2011
20:30:00
GMT
x-­‐ms-­‐version:
2009-­‐09-­‐19
x-­‐ms-­‐blob-­‐type:
BlockBlob
Authorization:
SharedKey
watiosdemo:[ComputedHash]
blob storage

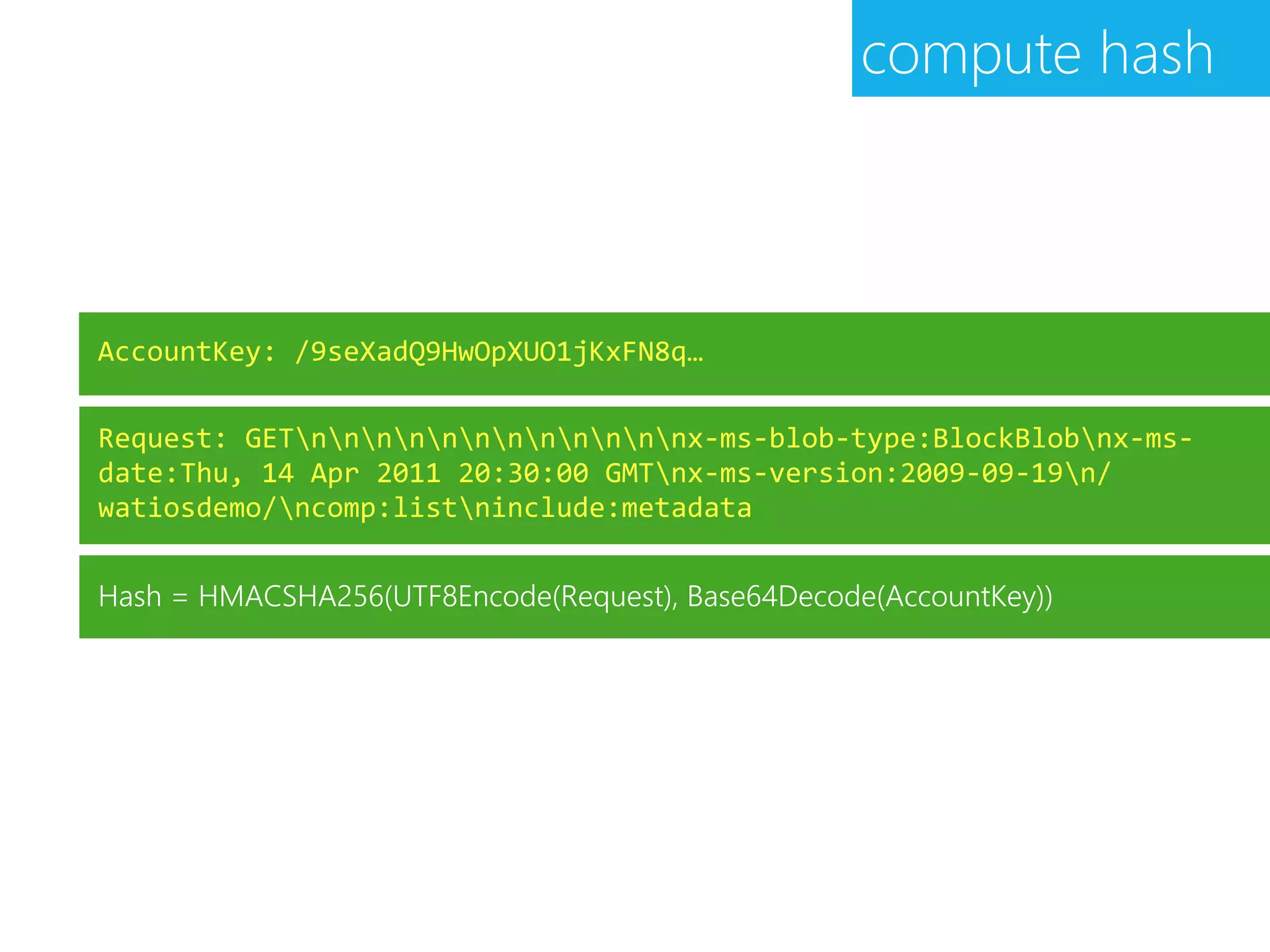

16. compute hash
AccountKey:
/9seXadQ9HwOpXUO1jKxFN8q…
Request:
GETnnnnnnnnnnnnx-­‐ms-­‐blob-­‐type:BlockBlobnx-­‐ms-­‐
date:Thu,
14
Apr
2011
20:30:00
GMTnx-­‐ms-­‐version:2009-­‐09-­‐19n/
watiosdemo/ncomp:listninclude:metadata
Hash = HMACSHA256(UTF8Encode(Request), Base64Decode(AccountKey))

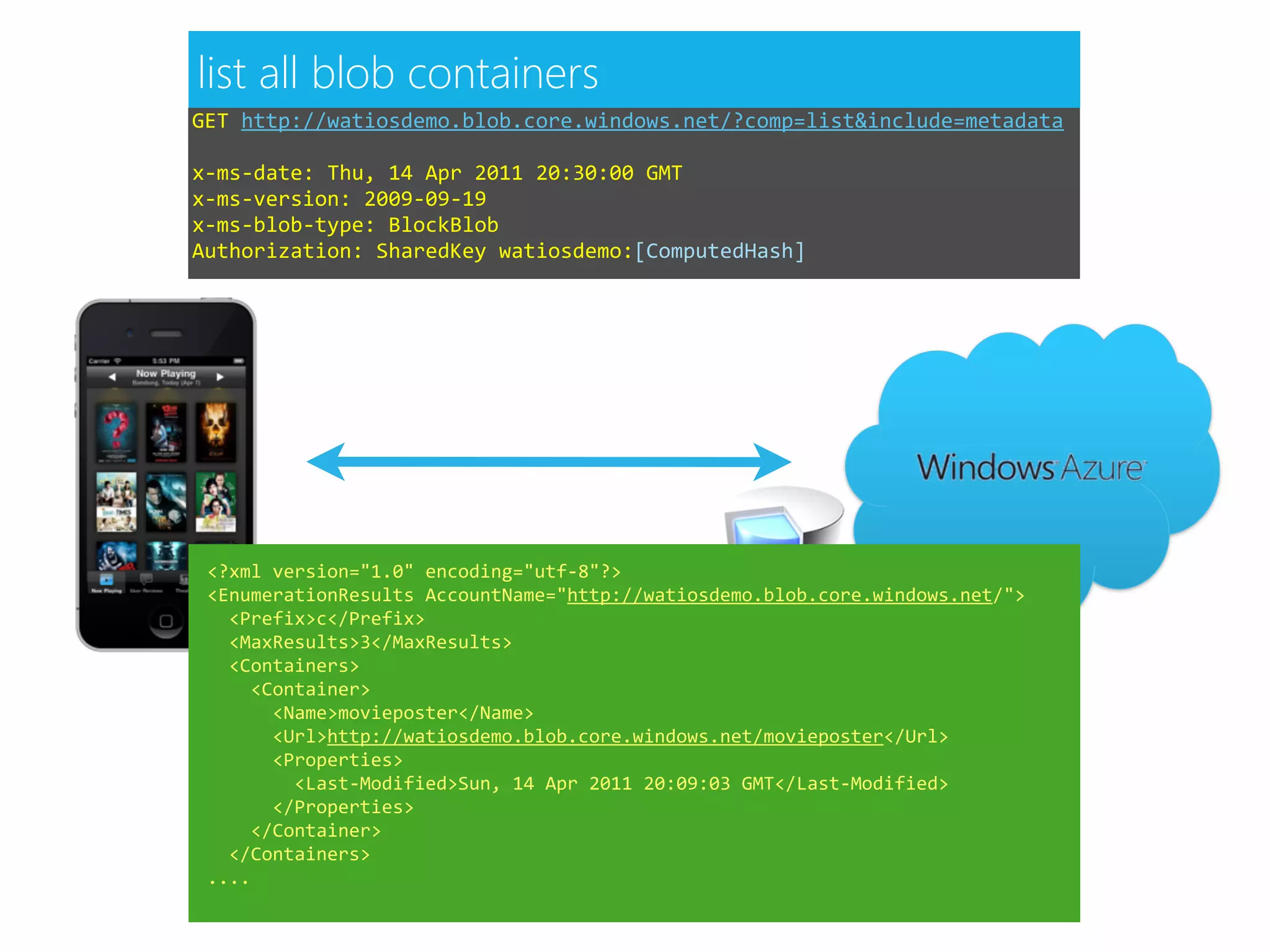

17. list all blob containers
GET
http://watiosdemo.blob.core.windows.net/?comp=list&include=metadata
x-­‐ms-­‐date:
Thu,
14
Apr
2011
20:30:00
GMT
x-­‐ms-­‐version:
2009-­‐09-­‐19
x-­‐ms-­‐blob-­‐type:
BlockBlob
Authorization:
SharedKey
watiosdemo:[ComputedHash]
<?xml
version="1.0"
encoding="utf-­‐8"?>
<EnumerationResults
AccountName="http://watiosdemo.blob.core.windows.net/">
blob storage
<Prefix>c</Prefix>
<MaxResults>3</MaxResults>
<Containers>
<Container>
<Name>movieposter</Name>
<Url>http://watiosdemo.blob.core.windows.net/movieposter</Url>
<Properties>
<Last-­‐Modified>Sun,
14
Apr
2011
20:09:03
GMT</Last-­‐Modified>
</Properties>
</Container>
</Containers>
....

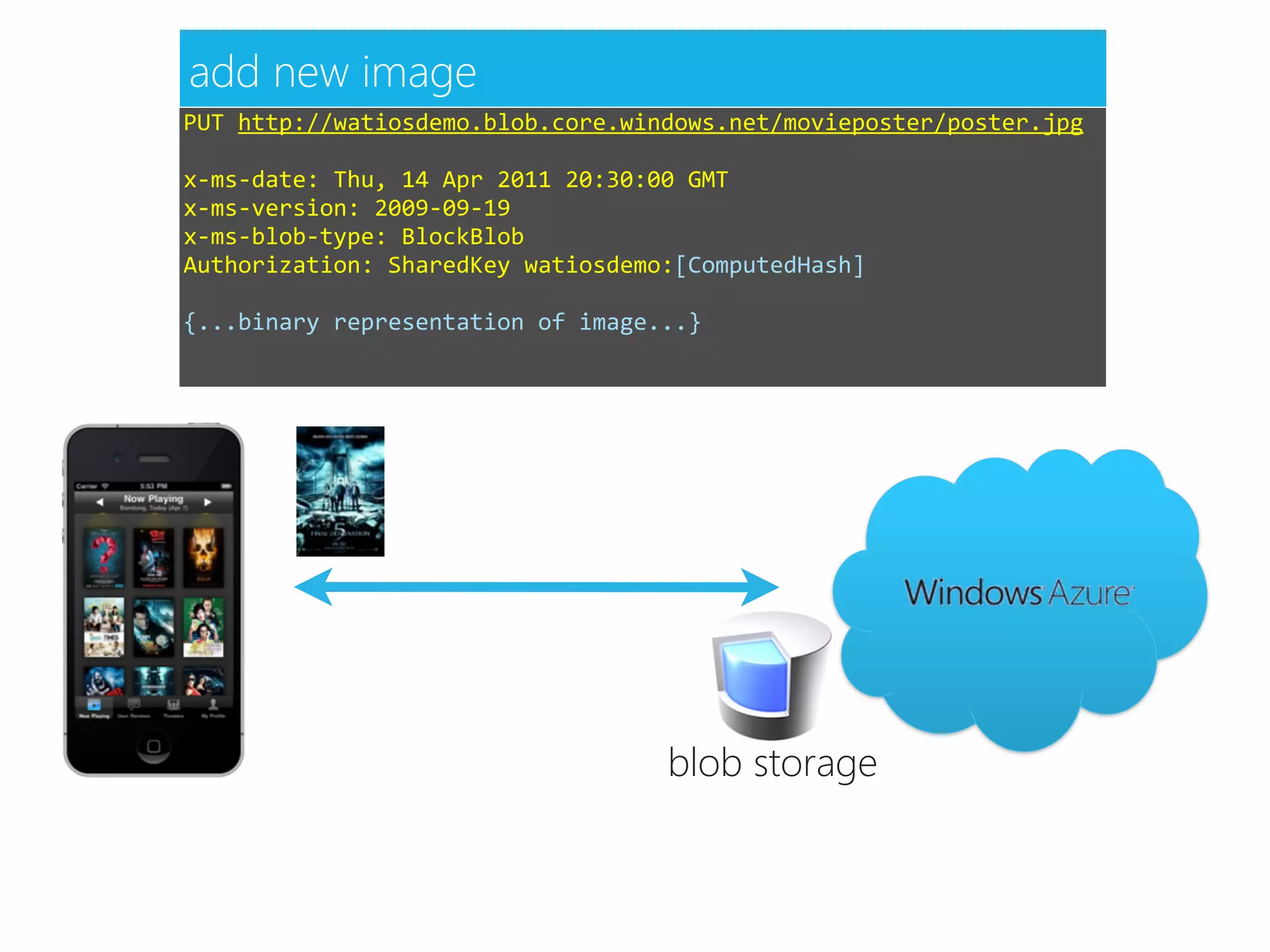

18. add new image
PUT
http://watiosdemo.blob.core.windows.net/movieposter/poster.jpg
x-­‐ms-­‐date:
Thu,
14
Apr
2011
20:30:00
GMT
x-­‐ms-­‐version:
2009-­‐09-­‐19
x-­‐ms-­‐blob-­‐type:
BlockBlob
Authorization:
SharedKey
watiosdemo:[ComputedHash]
{...binary
representation
of
image...}
blob storage

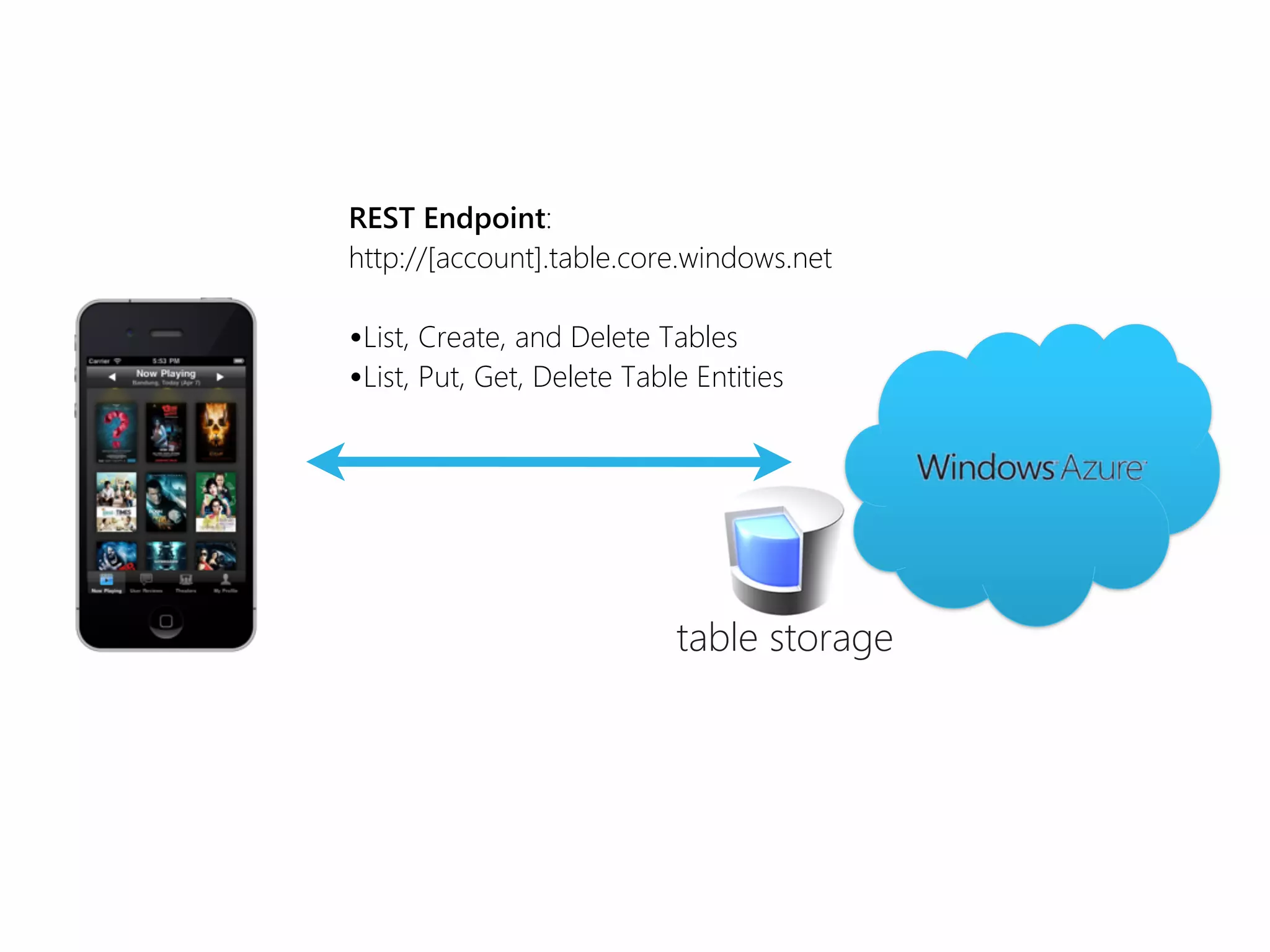

19. REST Endpoint:
http://[account].table.core.windows.net
•List, Create, and Delete Tables
•List, Put, Get, Delete Table Entities
table storage

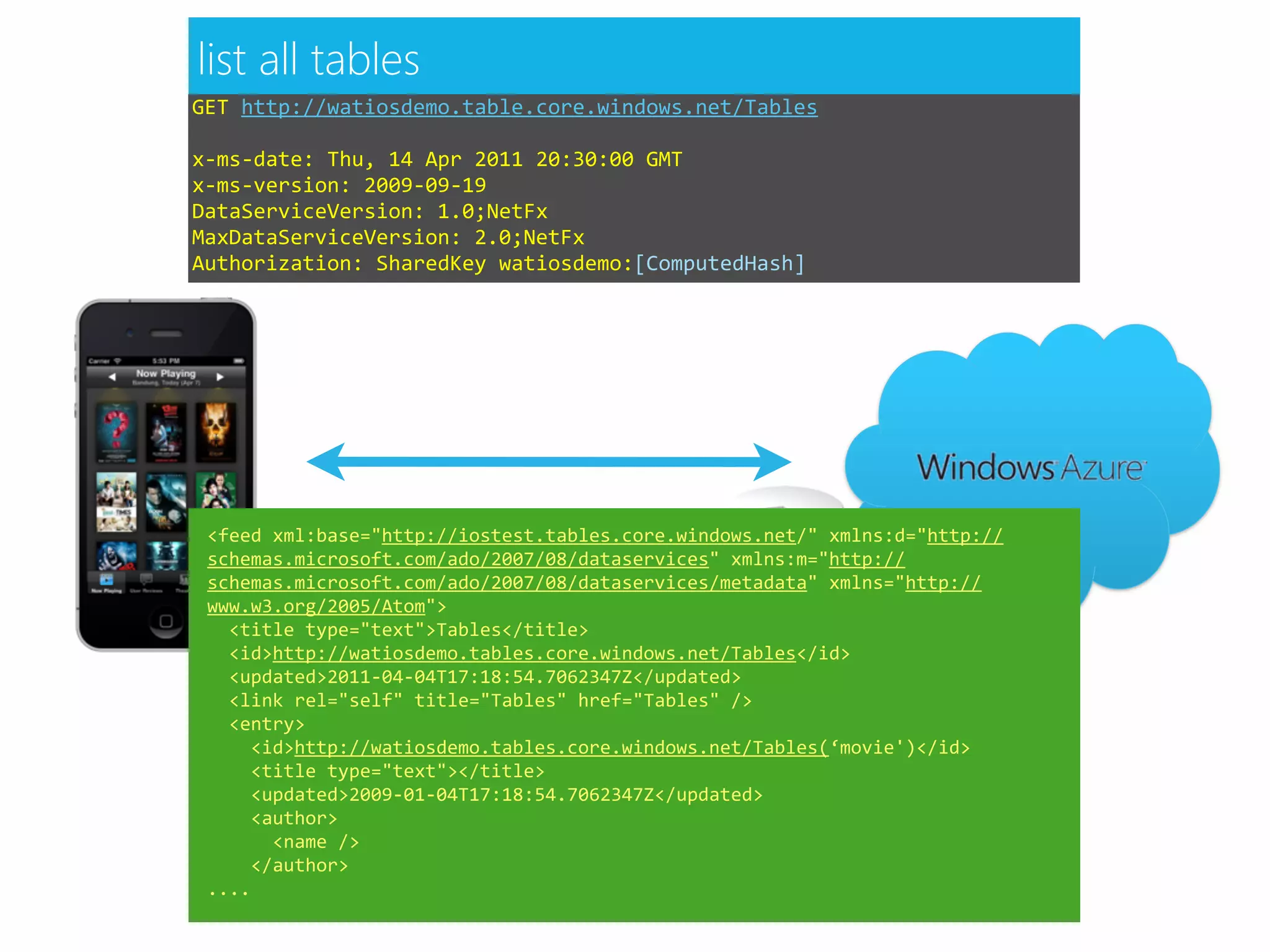

20. list all tables
GET
http://watiosdemo.table.core.windows.net/Tables
x-­‐ms-­‐date:
Thu,
14
Apr
2011
20:30:00
GMT
x-­‐ms-­‐version:
2009-­‐09-­‐19
DataServiceVersion:
1.0;NetFx
MaxDataServiceVersion:
2.0;NetFx
Authorization:
SharedKey
watiosdemo:[ComputedHash]
<feed
xml:base="http://iostest.tables.core.windows.net/"
xmlns:d="http://
schemas.microsoft.com/ado/2007/08/dataservices"
xmlns:m="http://
schemas.microsoft.com/ado/2007/08/dataservices/metadata"
xmlns="http://
www.w3.org/2005/Atom">
<title
type="text">Tables</title>
blob storage
<id>http://watiosdemo.tables.core.windows.net/Tables</id>
<updated>2011-­‐04-­‐04T17:18:54.7062347Z</updated>
<link
rel="self"
title="Tables"
href="Tables"
/>
<entry>
<id>http://watiosdemo.tables.core.windows.net/Tables(‘movie')</id>
<title
type="text"></title>
<updated>2009-­‐01-­‐04T17:18:54.7062347Z</updated>
<author>
<name
/>
</author>
....

21. it’s hard, right?
luckily...

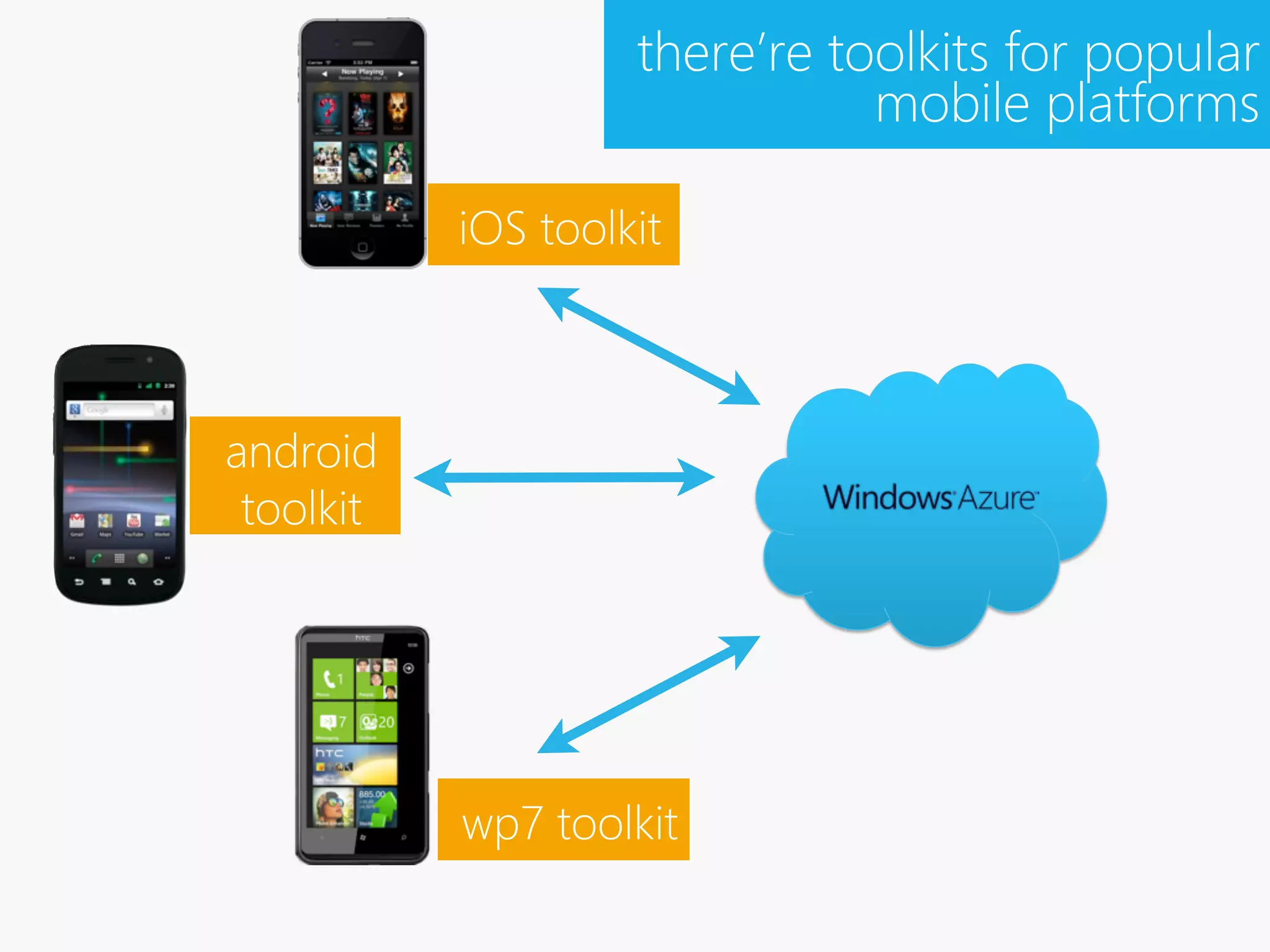

22. there’re toolkits for popular
mobile platforms
iOS toolkit
android
toolkit
wp7 toolkit

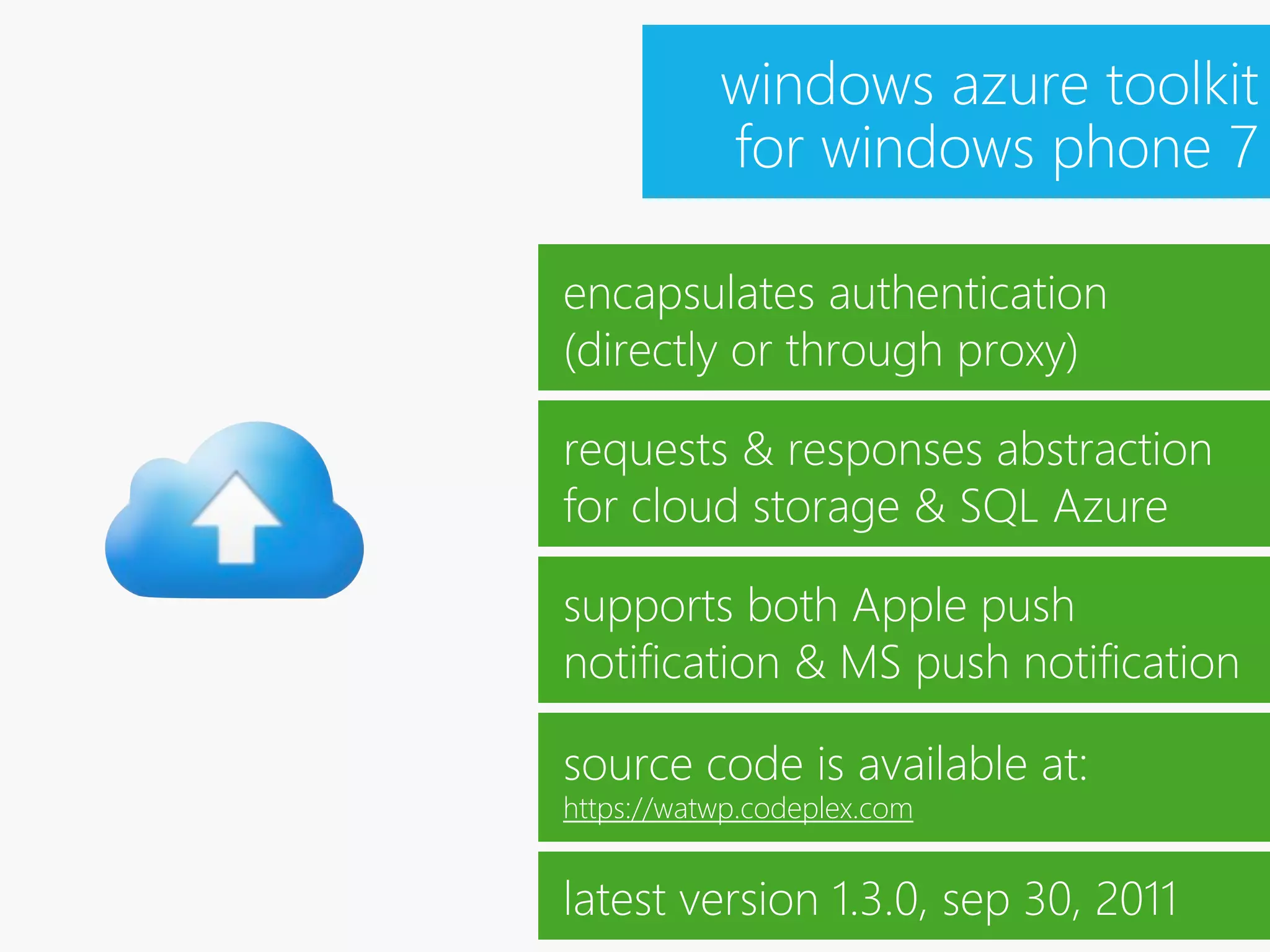

23. windows azure toolkit
for windows phone 7
encapsulates authentication
(directly or through proxy)
requests & responses abstraction
for cloud storage & SQL Azure
supports both Apple push
notification & MS push notification
source code is available at:
https://watwp.codeplex.com
latest version 1.3.0, sep 30, 2011

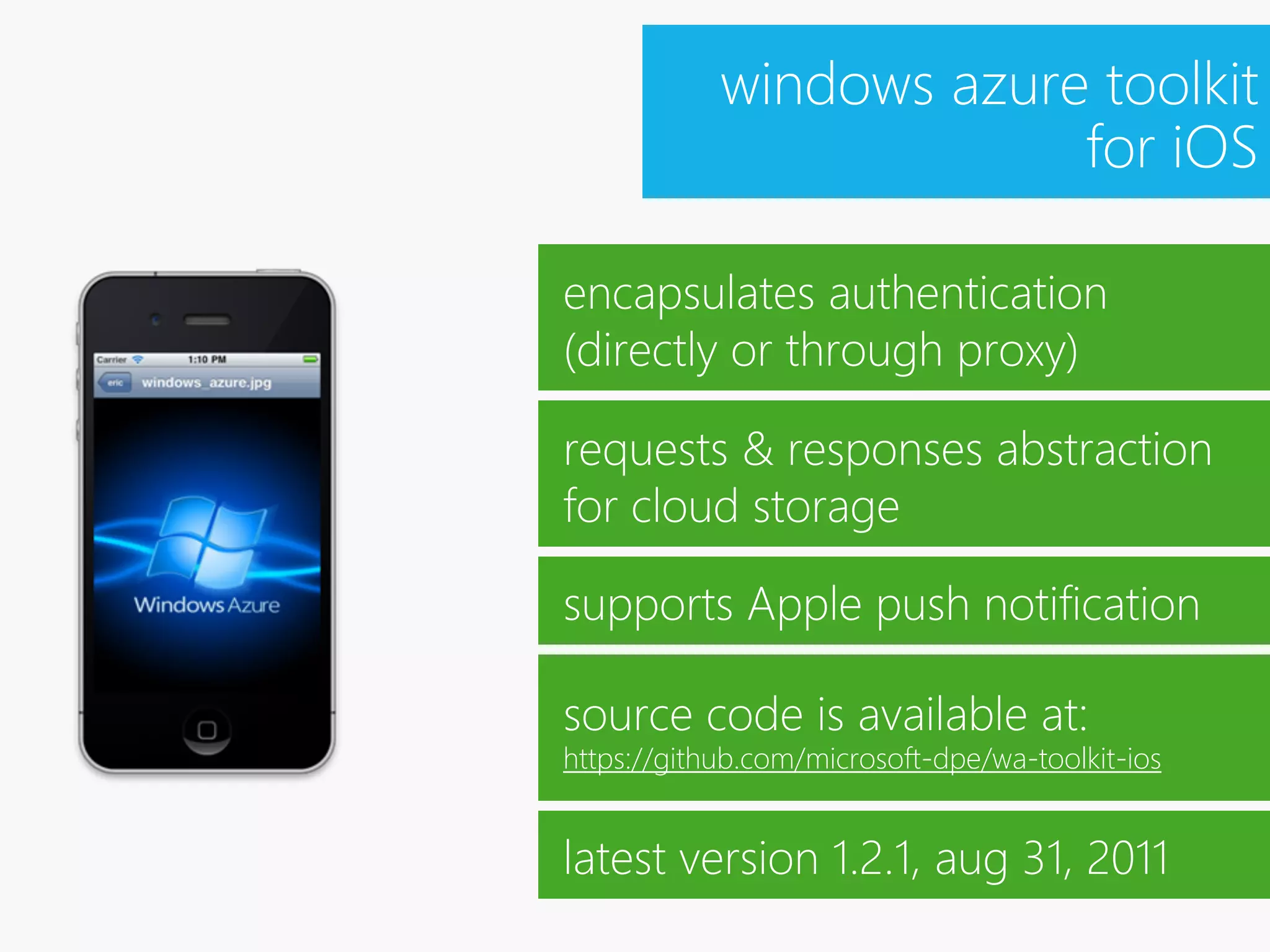

24. windows azure toolkit
for iOS
encapsulates authentication
(directly or through proxy)
requests & responses abstraction
for cloud storage
supports Apple push notification
source code is available at:
https://github.com/microsoft-dpe/wa-toolkit-ios
latest version 1.2.1, aug 31, 2011

25. windows azure toolkit
for android
encapsulates authentication
(directly or through proxy)
requests & responses abstraction
for cloud storage
source code is available at:
https://github.com/microsoft-dpe/wa-toolkit-android
latest version 0.8, aug 31, 2011

26. demo

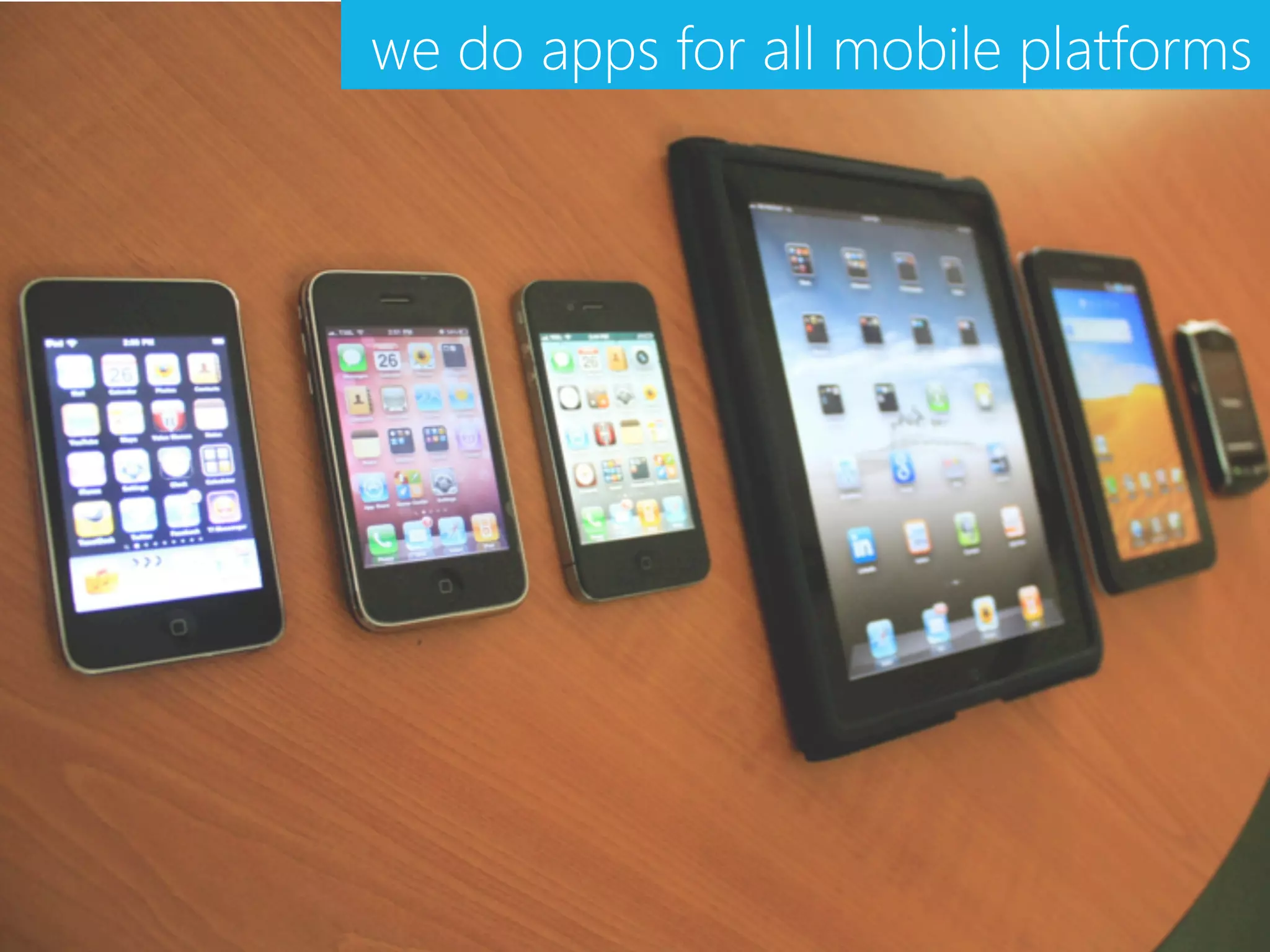

28. we do apps for all mobile platforms

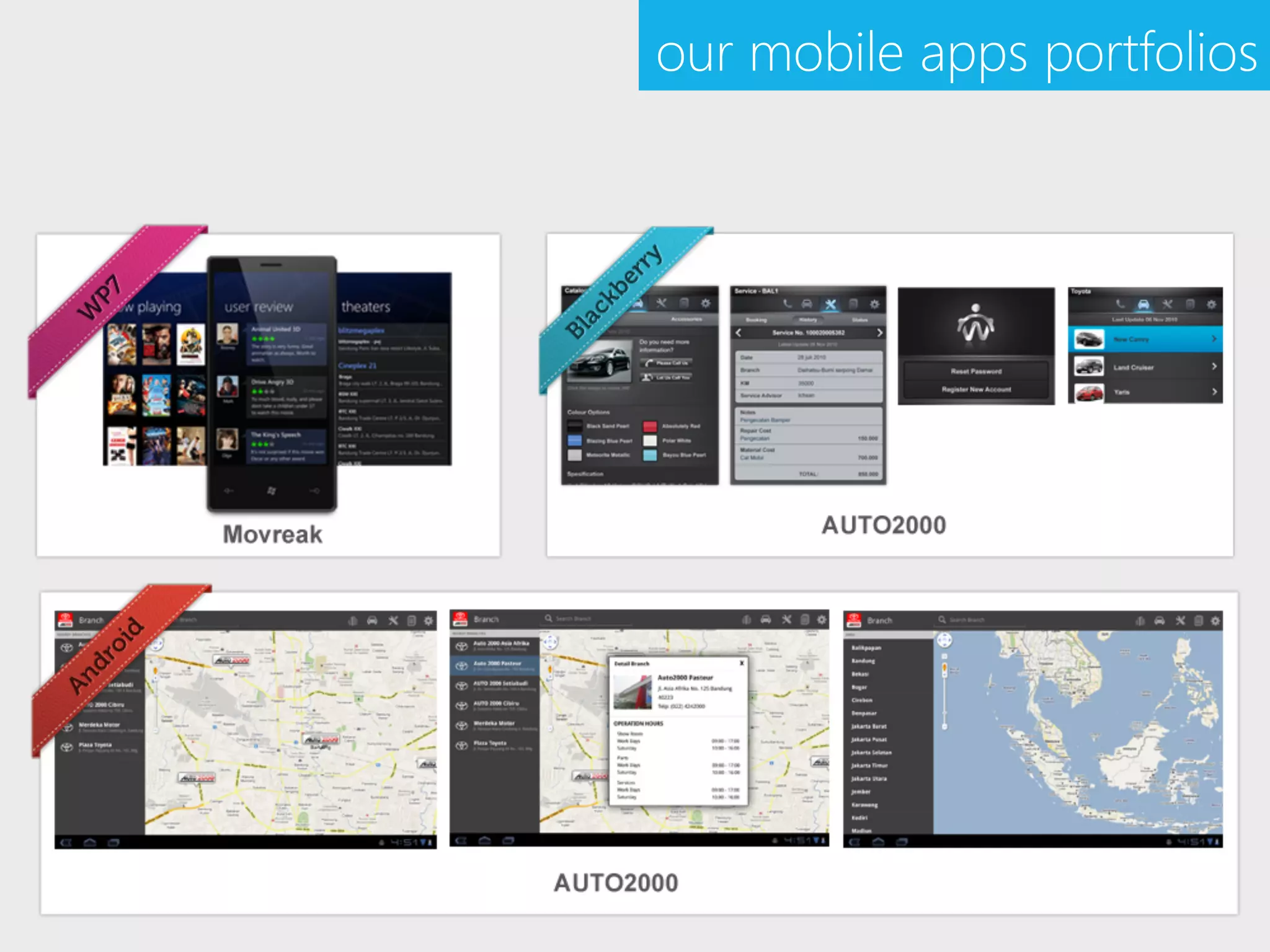

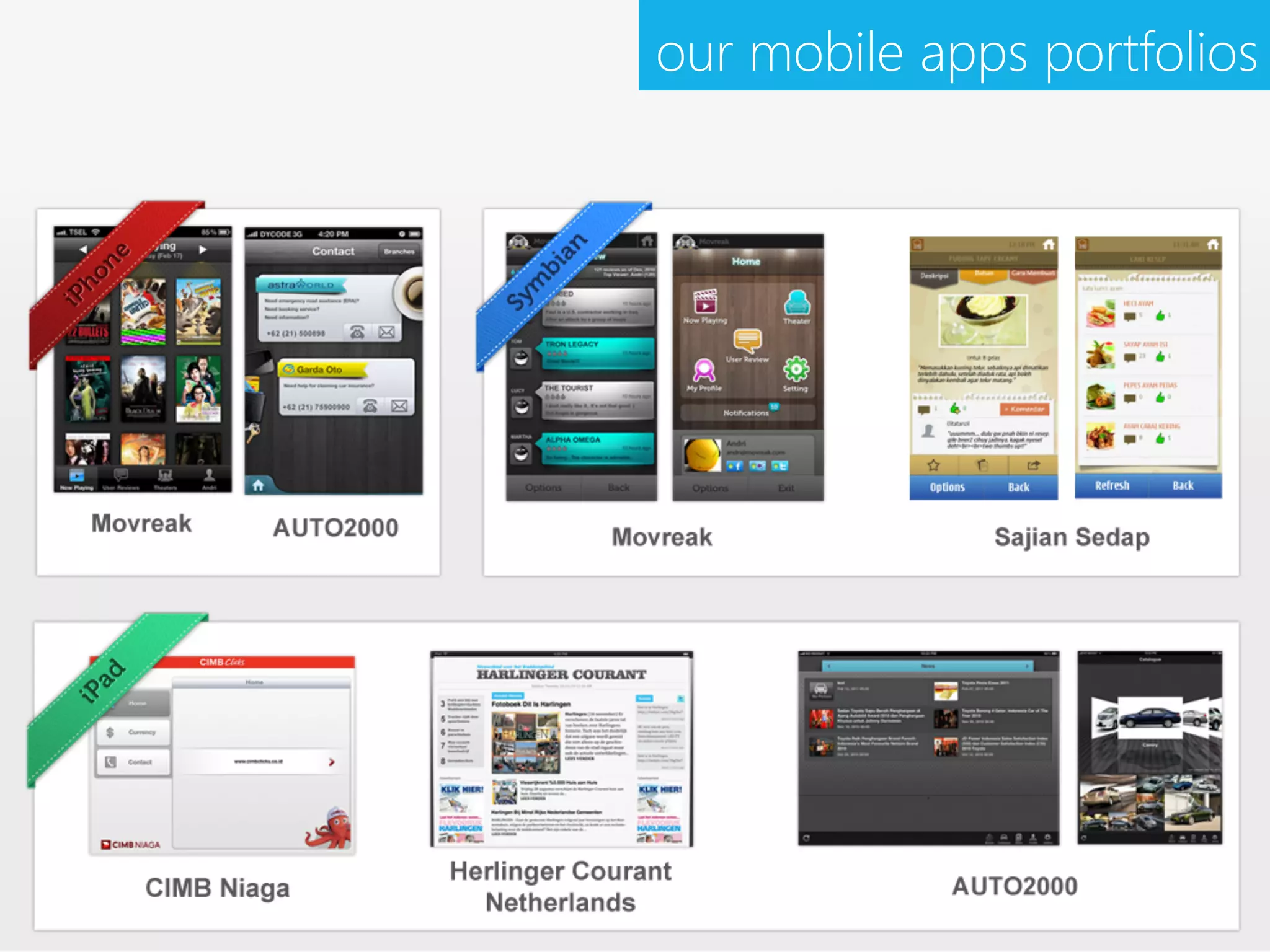

29. our mobile apps portfolios
