AMP1-S8-3G             8-CHANNEL 3G MULTI-FORMAT AUDIO MONITOR




                                                   AES 3.0 Gb/s 8Ch
                                                   EBU HD Audio SDI




Description

The AMP1-S8-3G monitor is an exceptionally high-             The unique design provides optimally focused sound
quality audio monitor systems offering premium               for operators in an ultra near-field (1 to 3 ft.) working
quality 8-channel analog, AES/EBU, 3G/HD/SD-SDI              environment and offers performance comparable to
multi-channel audio monitoring and conversion as             that of many separate monitor pairs, without the
well as professional level metering. These units             installation hassles, awkward speaker placements
contain 3 audiophile-quality drivers and three power         and “added-on” look. This provides for a higher SPL
amplifiers; 3 speakers and amplifiers reproduce              for the operator while reducing overall ambient sound
midrange and high frequency information in stereo,           and adjacent bay crosstalk. Extended HF response
while the third amp/driver combination handles               reveals potential problems with audio whine or hiss
summed LF information below the 500 Hz crossover             and electronic rather than acoustic cancellation of
point.                                                       bass frequencies provides positive audible detection
                                                             of out-of-phase (reversed polarity) audio feeds. A
These units feature eight 26-segment high-                   headphone jack is provided on the front panel that
resolution, tri-color LED level meters showing               automatically mutes the speakers.
simultaneous VU and PPM for superior level-
metering. The front panel features an innovative LCD         These units are ideally suited for use in space-critical
display of phase/polarity relationships. Output limiter      environments such as TV facilities, studios, VTR bays,
circuits are incorporated to protect the speakers, and       mobile production vehicles, satellite links and indeed,
extensive magnetic shielding allows placement                any rack mount environment where multi-channel
immediately adjacent to video monitors with no color         audio monitoring is required.
impurities.


Features

Eight 26-segment tri-color LED bar graphs displaying         Premium quality drivers and power amplifiers
simultaneous VU and PPM
                                                             Audible indications of phase/polarity problems
Headphone jack (mutes speakers)
                                                             Phase-correlation display of selected channels
Front panel summing of any combination of up to 8
channels to the left and/or right speakers and               Output limiter protected speakers
selected




Order Part Number
AMP1-S8-3G:     8101-0090
AMP1-S8-3G       8-CHANNEL 3G MULTI-FORMAT AUDIO MONITOR




Benefits

Thorough magnetic shielding prevents interference       Focused sound, reduces adjacent bay crosstalk
from nearby equipment.
                                                        Ultra near-field offers exceptional monitoring
Electronic cancellation provides detection of out-of-   performance.
phase (reversed polarity) audio feeds.
                                                        Small rack space requirements make them perfectly
Excellent frequency response and low distortion         suited for use in space-critical environments

Rear Panels




Selected Pin-Outs




                                                                     Balanced AES In/Loop Out

                XLR Female




                                                                   Balanced AES Out from SDI




                 XLR Male

                                                                 Analog In and Metered Analog Out
AMP1-S8-3G              8-CHANNEL 3G MULTI-FORMAT AUDIO MONITOR




Physical Specifications

Dimensions (H x W x D)           1RU Units: 1.75” x 19” x 11” (4.5 mm x 483 mm x 279 mm)
Shipping weight                  1 RU Units: 13 lbs (5.9 kg)
Space requirements               1 RU in a standard 19” rack
Supplied accessories             AC external power unit/cord
                                 Attached external power unit plugs into standard U.S. outlet. Alternate power
Power Connector
                                 cables are available.
Power Requirements               Power to the unit is 100 to 240 V AC ± 10%, 50/60Hz.
Power Consumption                60 W



Technical Specifications

                                 8 balanced analog (DB-25)
                                 8 balanced AES/EBU pair (DB-25)
Inputs                           4 AES pair (4 BNCs)
                                 2 RS-232 (DB-9)
                                 2 3G/HD/SD-SDI (2 BNCs) (Level A only)
                                 1 3G/HD/SD-SDI re-clocked (BNC) (3G models only)
                                 8 balanced AES loop out (DB-25)
                                 1 CVBS from SDI (3G models only)
Outputs
                                 8 unbalanced AES out from SDI (HD-15) (3G models only) or
                                 Option: 8 balanced AES out from SDI (DB-25) (3G models only)
                                 8 balanced metered analog out (DB-25)
Other rear panel connectors      1 Remote (DB-9) (reserved for future use)
Level meters                     8 26-segment
Level meter scale                0 to -66 dB
Level meter threshold            0, +4, +6 or +8 dBv, switch selectable
Level meter dynamics             simultaneous VU and PPM
Midscale resolution              1 dB
Peak acoustic output at 2 feet   104 dB SPL
                                 Electrical: <0.15% at any level below limit threshold
Distortion                       Acoustic:     6% or less worst case frequencies above 140 Hz including cabinet
                                               resonance, typically <1.5%
Magnetic shielding               <0.8 gauss any adjacent surface
AMP1-S8-3G                                      8-CHANNEL 3G MULTI-FORMAT AUDIO MONITOR

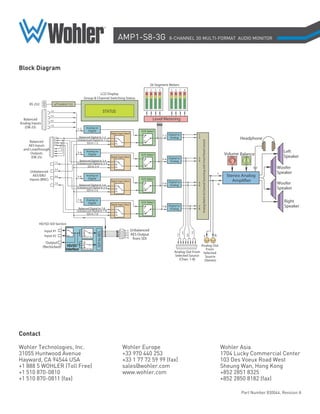

Block Diagram

                                                                                                              26-Segment Meters
                                                                                                          1   2    3   4         5   6   7   8
                                                          LCD Display
                                                Group & Channel Switching Status
     RS 232           uP Control / U.I.




  Balanced                                                                                                        Level Metering
Analog Inputs
   (DB-25)                                1-2    Analog to
                                                  Digital                                           D/A Select
                                                                        Digital Input Select
                                                                                                                           1-2 Digital to          1
                      1-2                  Balanced Digital In 1-2          1                         A                         Analog             2                                                                          Headphone
                      3-4                 Unbalanced Digital In 1-2         2




                                                                                                                                                       Analog Matrix & Channel Summing with Front Panel Control
      Balanced        5-6                                                                             D
                      7-8
                                                 SDI In 1-2                 3
     AES Inputs
  and Loopthrough
      Outputs                             3-4    Analog to                                                                                                                                                                                         Left
                                                  Digital                                           D/A Select                                                                                                         Volume Balance
       (DB-25)                                                          Digital Input Select                                                                                                                                                       Speaker
                                                                                                                           3-4 Digital to          3
                                           Balanced Digital In 3-4          1                         A                         Analog             4
                                          Unbalanced Digital In 3-4         2                         D
                                                 SDI In 3-4                 3
                                                                                                                                                                                                                                               Woofer
      Unbalanced                                                                                                                                                                                                                               Speaker
        AES/EBU                           5-6    Analog to                                                                                                                                                              Stereo Analog
      Inputs (BNC)                                Digital                                           D/A Select
                                                                        Digital Input Select                                                                                                                               Amplifier
                                                                                                                           5-6 Digital to          5                                                                                           Woofer
                                           Balanced Digital In 5-6          1                         A                         Analog             6
                                          Unbalanced Digital In 5-6
                                                 SDI In 5-6
                                                                            2
                                                                            3
                                                                                                      D                                                                                                                                        Speaker

                                          7-8    Analog to
                                                  Digital                                           D/A Select                                                                                                                                     Right
                                                                        Digital Input Select
                                                                                                      A                    7-8 Digital to          7                                                                                               Speaker
                                           Balanced Digital In 7-8          1                                                   Analog             8
                                          Unbalanced Digital In 7-8         2                         D
                                                 SDI In 7-8                 3



           HD/SD-SDI Section

                Input #1                                                                       Unbalanced
                                                           SDI to AES




                Input #2                                                                       AES Output                                                                       L                                 R
                                                                                                from SDI
                  Output
                (Reclocked)      HD/SD                                                                                                               Analog Out
                                Interface                                                                                                              From
                                                                                                                                     Analog Out From Selected
                                                                                                                                     Selected Source   Source
                                                                                                                                       (Chan. 1-8)    (Stereo)




Contact

Wohler Technologies, Inc.                                                           Wohler Europe                                                                                                                     Wohler Asia
31055 Huntwood Avenue                                                               +33 970 440 253                                                                                                                   1704 Lucky Commercial Center
Hayward, CA 94544 USA                                                               +33 1 77 72 59 99 (fax)                                                                                                           103 Des Voeux Road West
+1 888 5 WOHLER (Toll Free)                                                         sales@wohler.com                                                                                                                  Sheung Wan, Hong Kong
+1 510 870-0810                                                                     www.wohler.com                                                                                                                    +852 2851 8325
+1 510 870-0811 (fax)                                                                                                                                                                                                 +852 2850 8182 (fax)

                                                                                                                                                                                                                              Part Number 830044, Revision A
