This document discusses making PHP applications more reactive and asynchronous using ReactPHP principles. It covers: 1. The benefits of using a reactive programming approach with ReactPHP including increased performance from non-blocking I/O. 2. How to build a reactive Symfony application using ReactPHP by splitting the application into asynchronous framework, server, and domain layers. 3. The Symfony Async Kernel and ReactPHP Symfony server packages that facilitate building reactive Symfony applications on ReactPHP. 4. Benchmarks showing the ReactPHP approach outperforming traditional PHP and PHP-PM implementations for concurrent requests.

1. When Symfony
met Promises

2. Hello!
I am Marc Morera
Owner of Apisearch and
php.coach
You can find me at:
@mmoreram
2

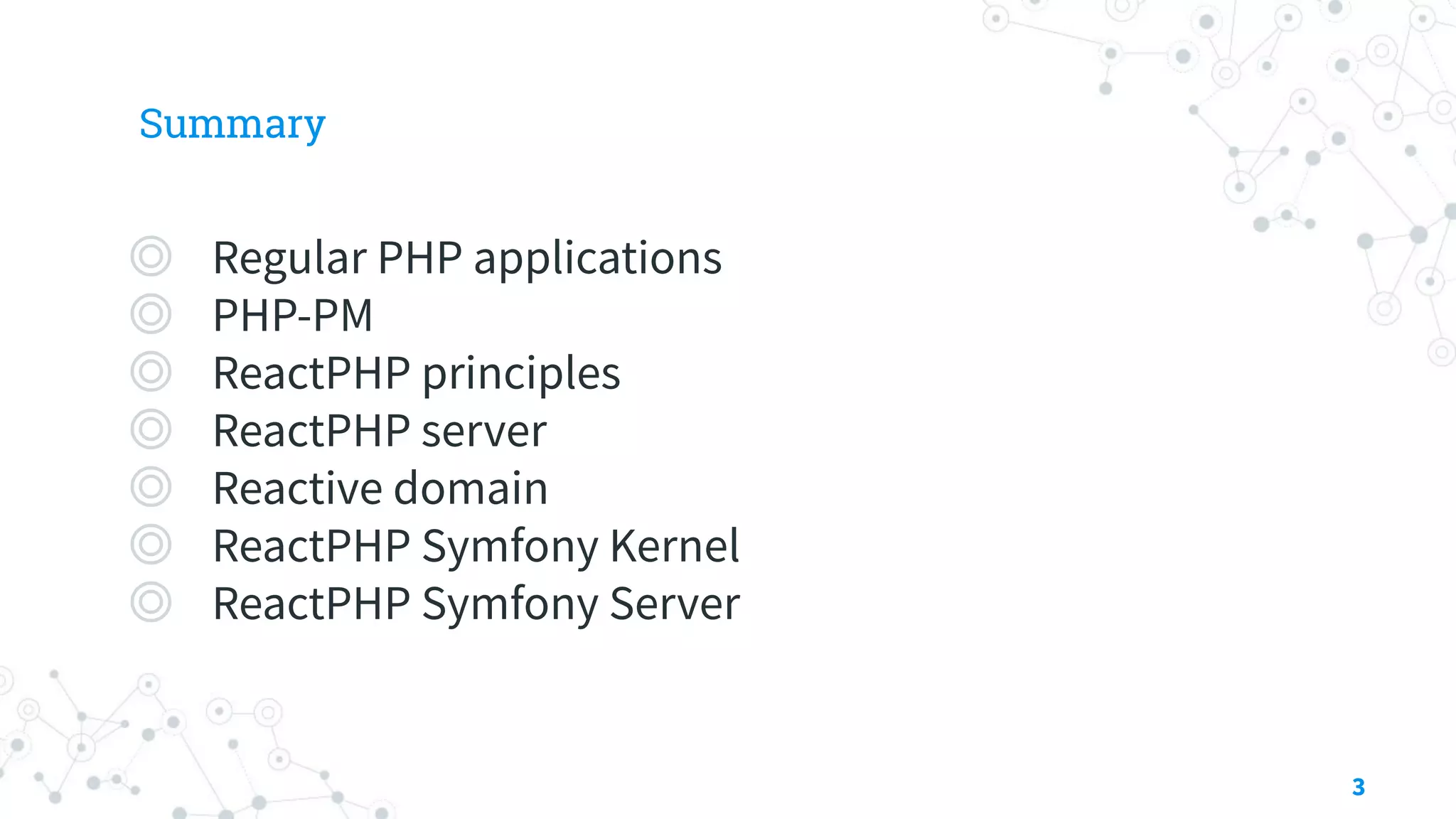

3. Summary
◎ Regular PHP applications
◎ PHP-PM
◎ ReactPHP principles
◎ ReactPHP server
◎ Reactive domain
◎ ReactPHP Symfony Kernel
◎ ReactPHP Symfony Server
3

4. 1.
Regular PHP
applications
… until now
4

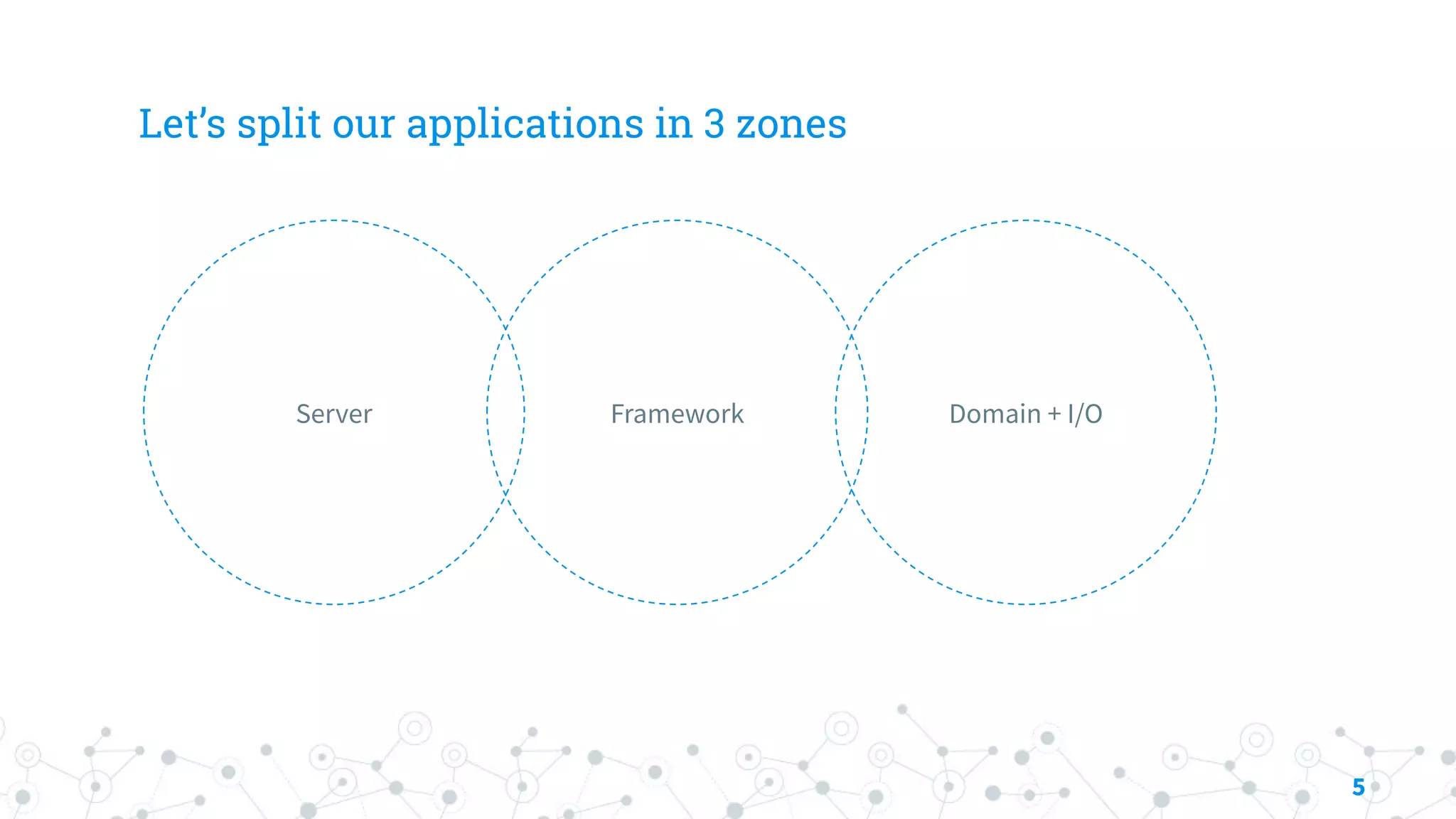

5. Let’s split our applications in 3 zones
FrameworkServer Domain + I/O
5

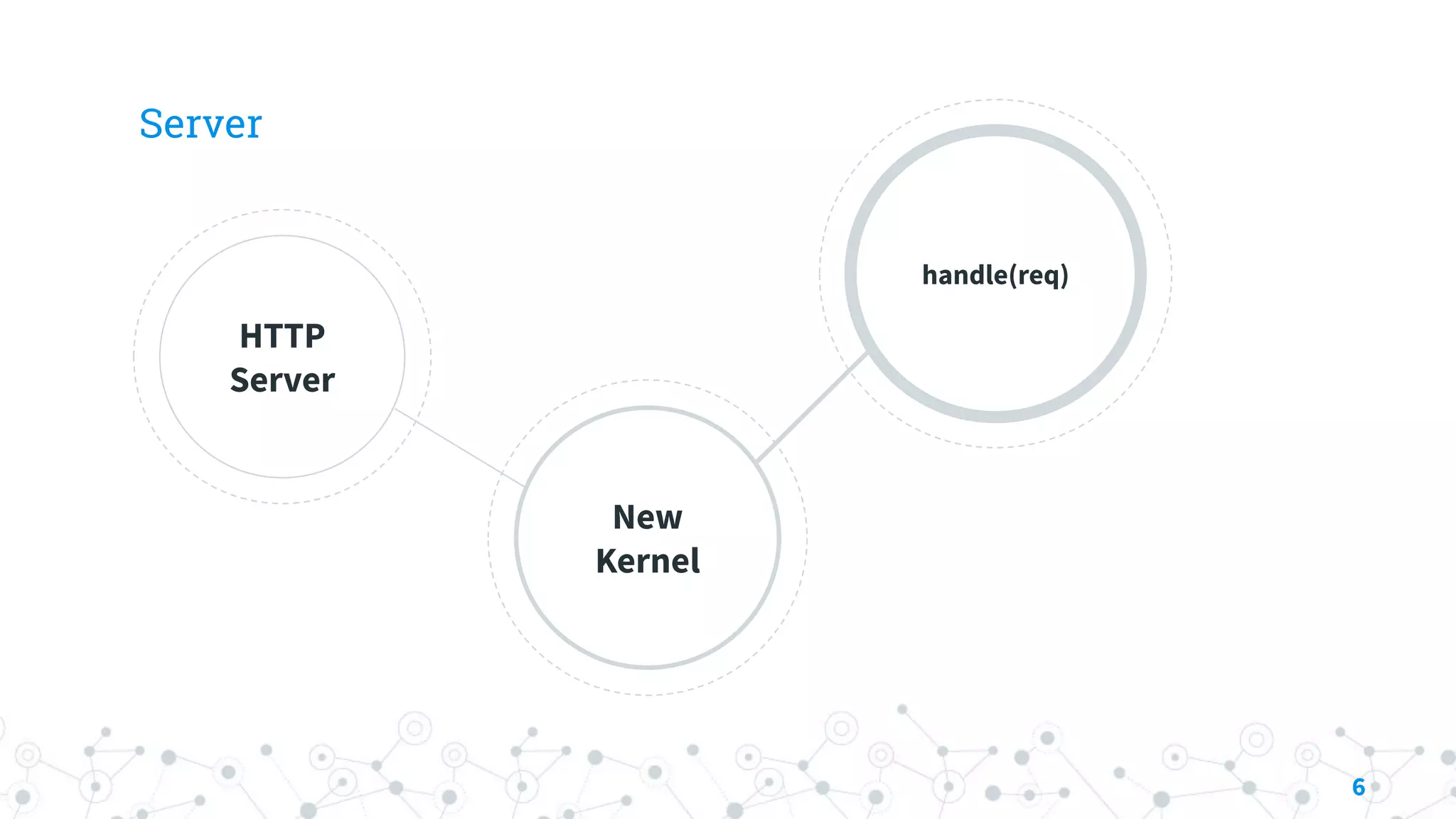

6. Server
HTTP
Server
New
Kernel
handle(req)
6

7. Server
An HTTP server take one
HTTP request, we instance
a new Kernel, and handle
a transformed PSR
request. We return an
HTTP Response
7

8. Server
An HTTP server take one
HTTP request, we
instance a new Kernel,
and handle a transformed
PSR request. We return an
HTTP Response
8

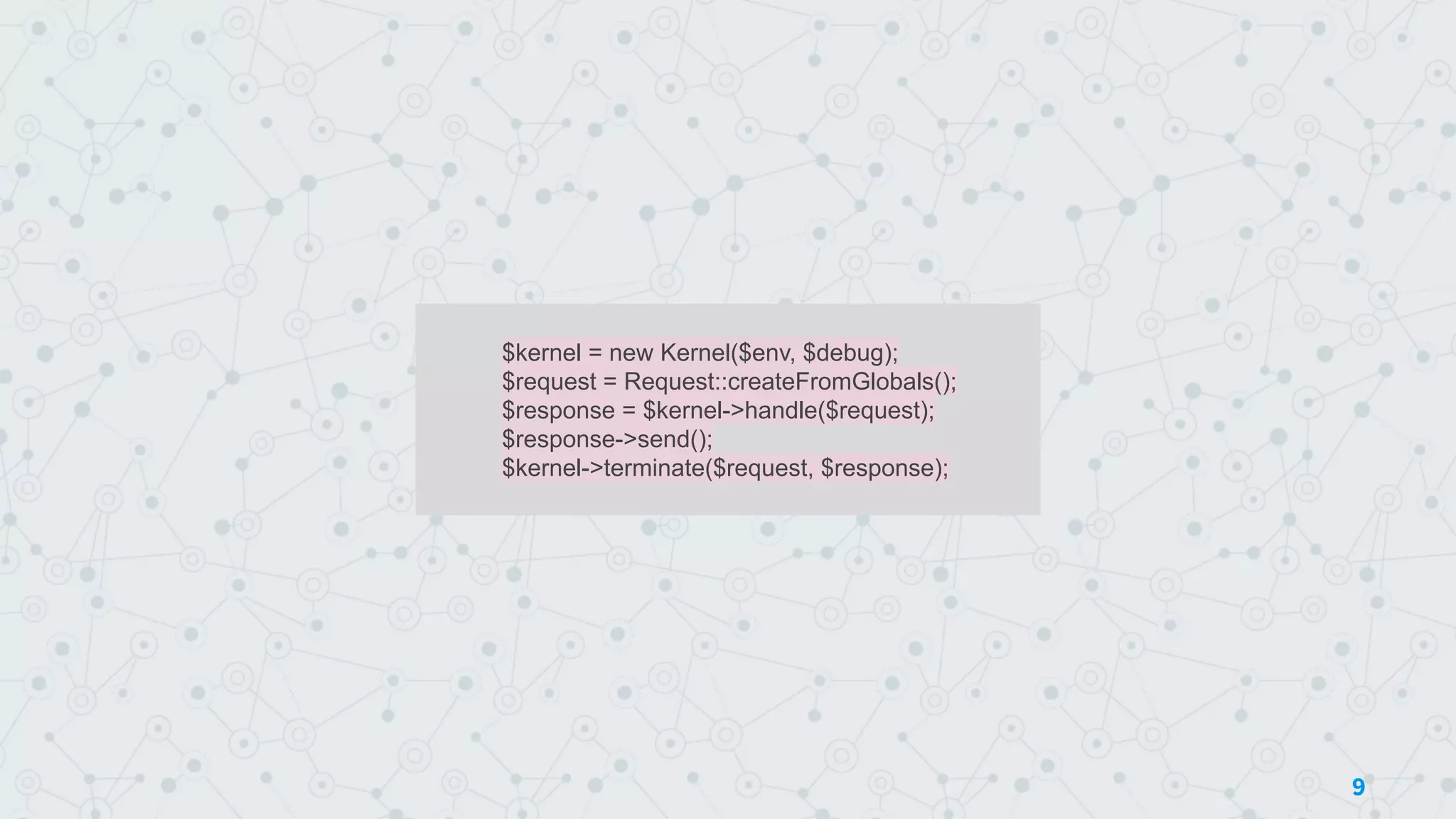

9. $kernel = new Kernel($env, $debug);
$request = Request::createFromGlobals();
$response = $kernel->handle($request);
$response->send();
$kernel->terminate($request, $response);
9

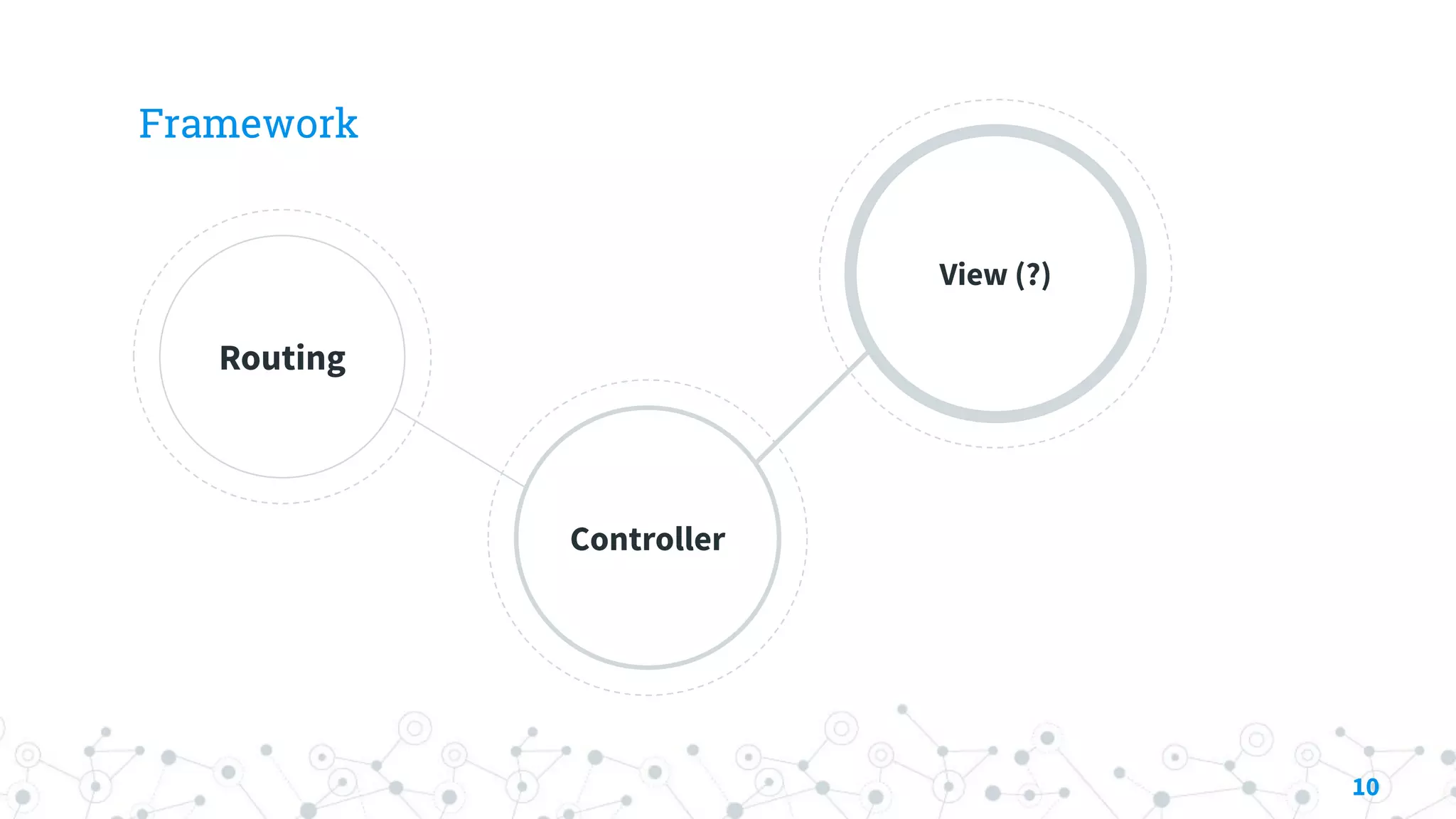

10. Framework
Routing
Controller
View (?)
10

11. Framework
The framework decides
what controller should be
executed given a route,
and what view should
render, given a controller.
11

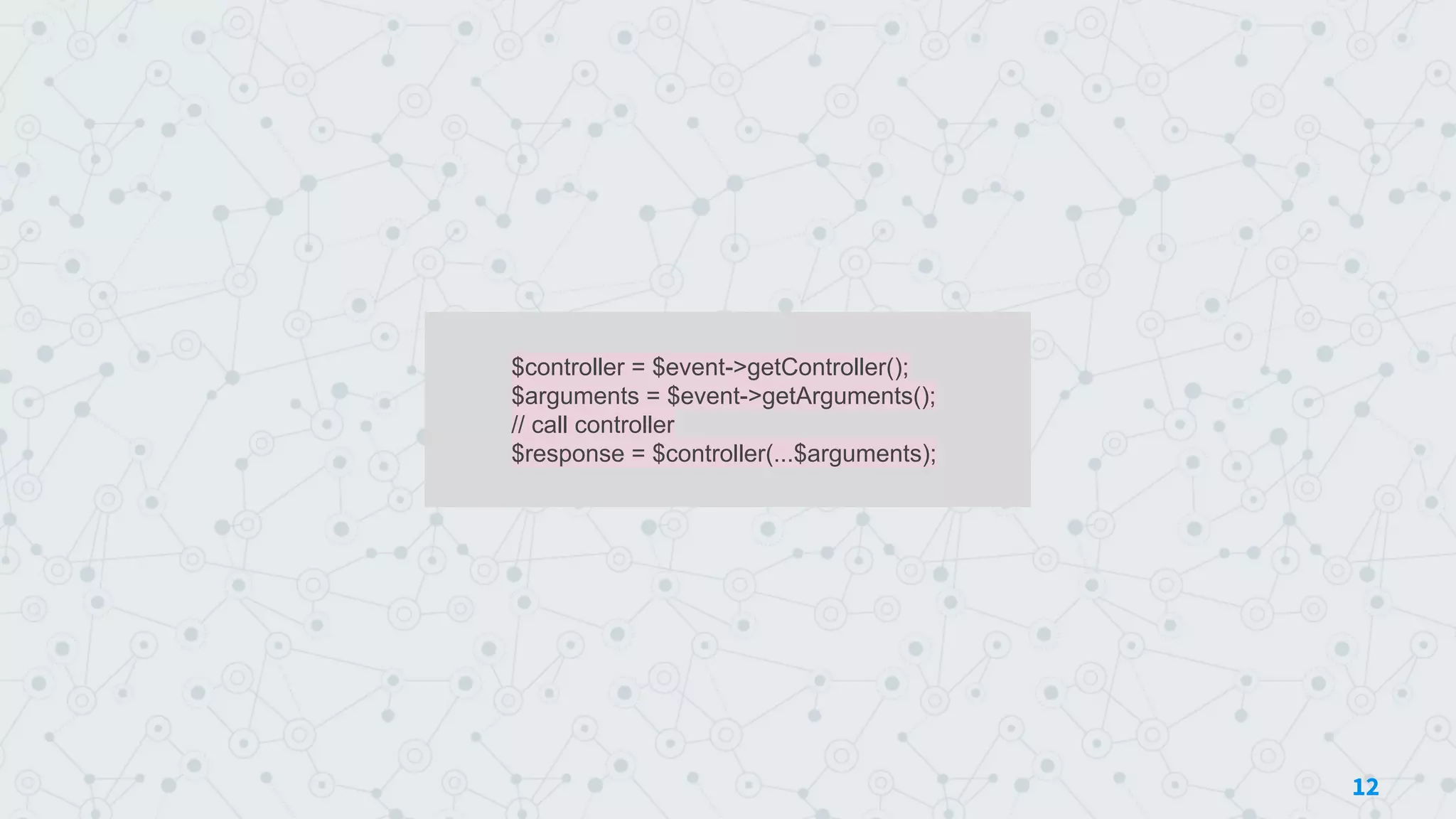

12. $controller = $event->getController();
$arguments = $event->getArguments();
// call controller
$response = $controller(...$arguments);
12

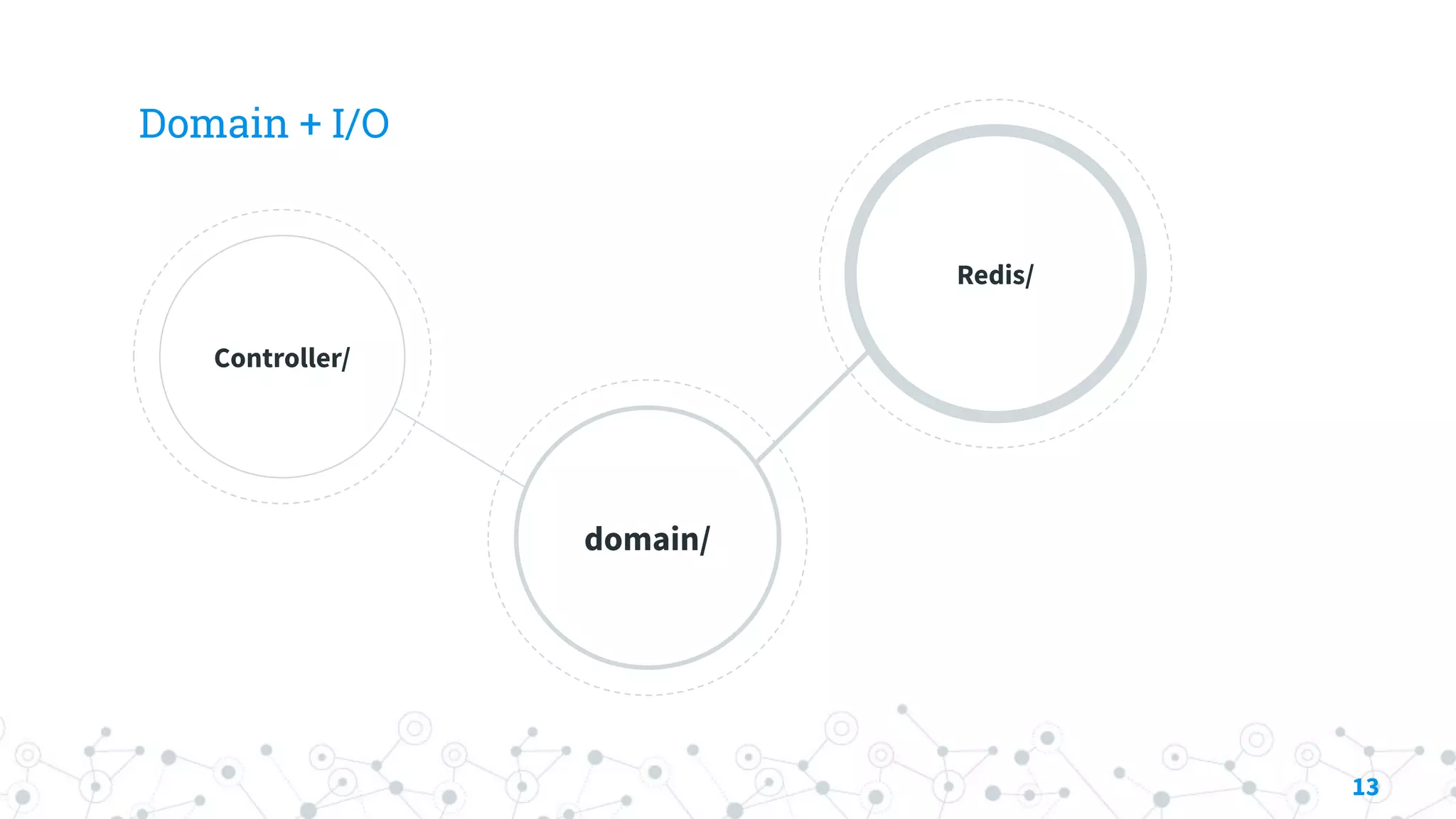

13. Domain + I/O
Controller/
domain/
Redis/
13

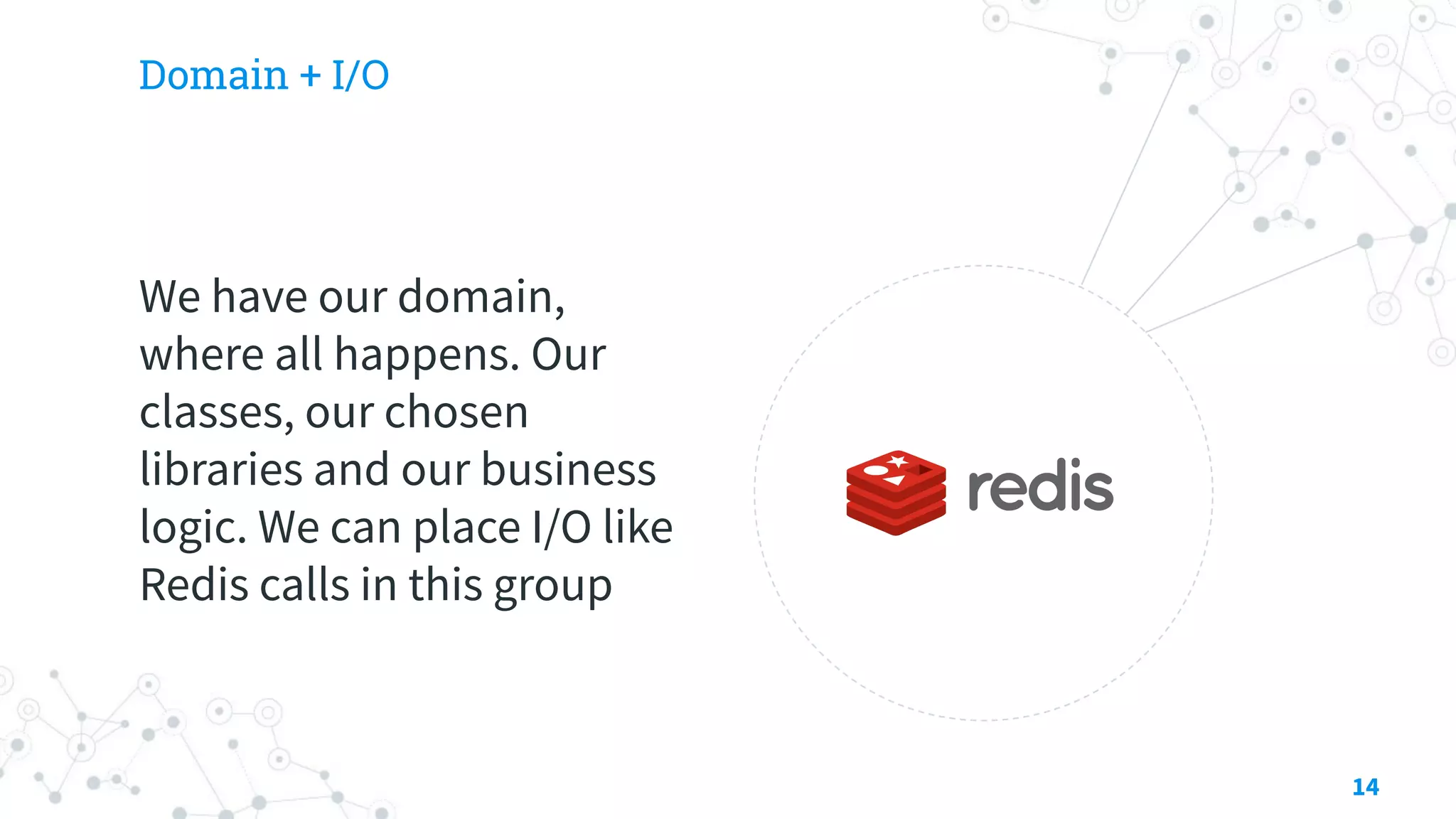

14. Domain + I/O
We have our domain,
where all happens. Our
classes, our chosen
libraries and our business
logic. We can place I/O like
Redis calls in this group
14

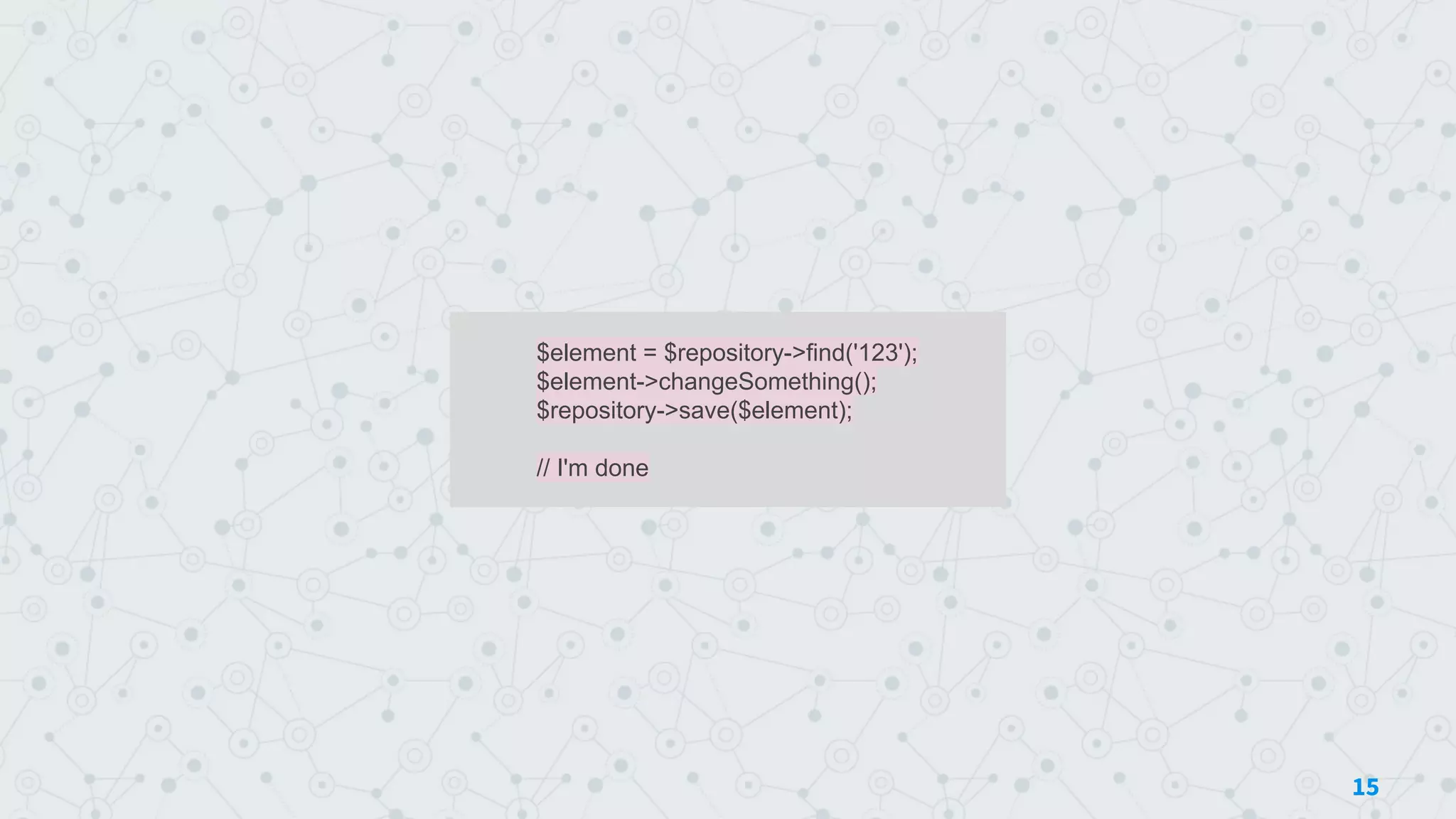

15. $element = $repository->find('123');
$element->changeSomething();
$repository->save($element);
// I'm done
15

16. PHP
Is a slow, A very slow, an
extremely slow language.
16

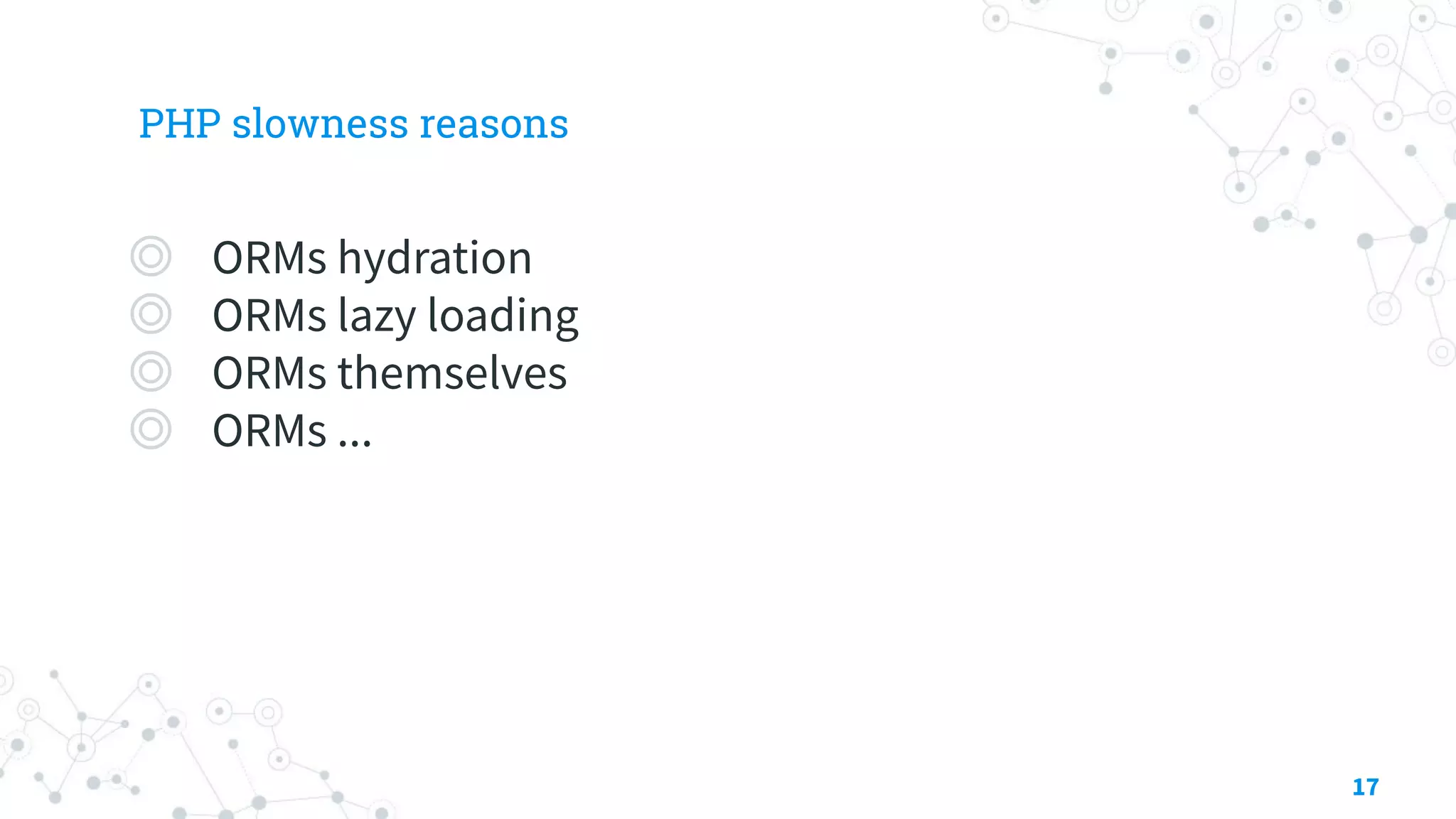

17. PHP slowness reasons
◎ ORMs hydration
◎ ORMs lazy loading
◎ ORMs themselves
◎ ORMs ...
17

18. PHP slowness reasons
◎ ORMs hydration
◎ ORMs lazy loading
◎ ORMs themselves
◎ ORMs …
◎ Kernel recreation
18

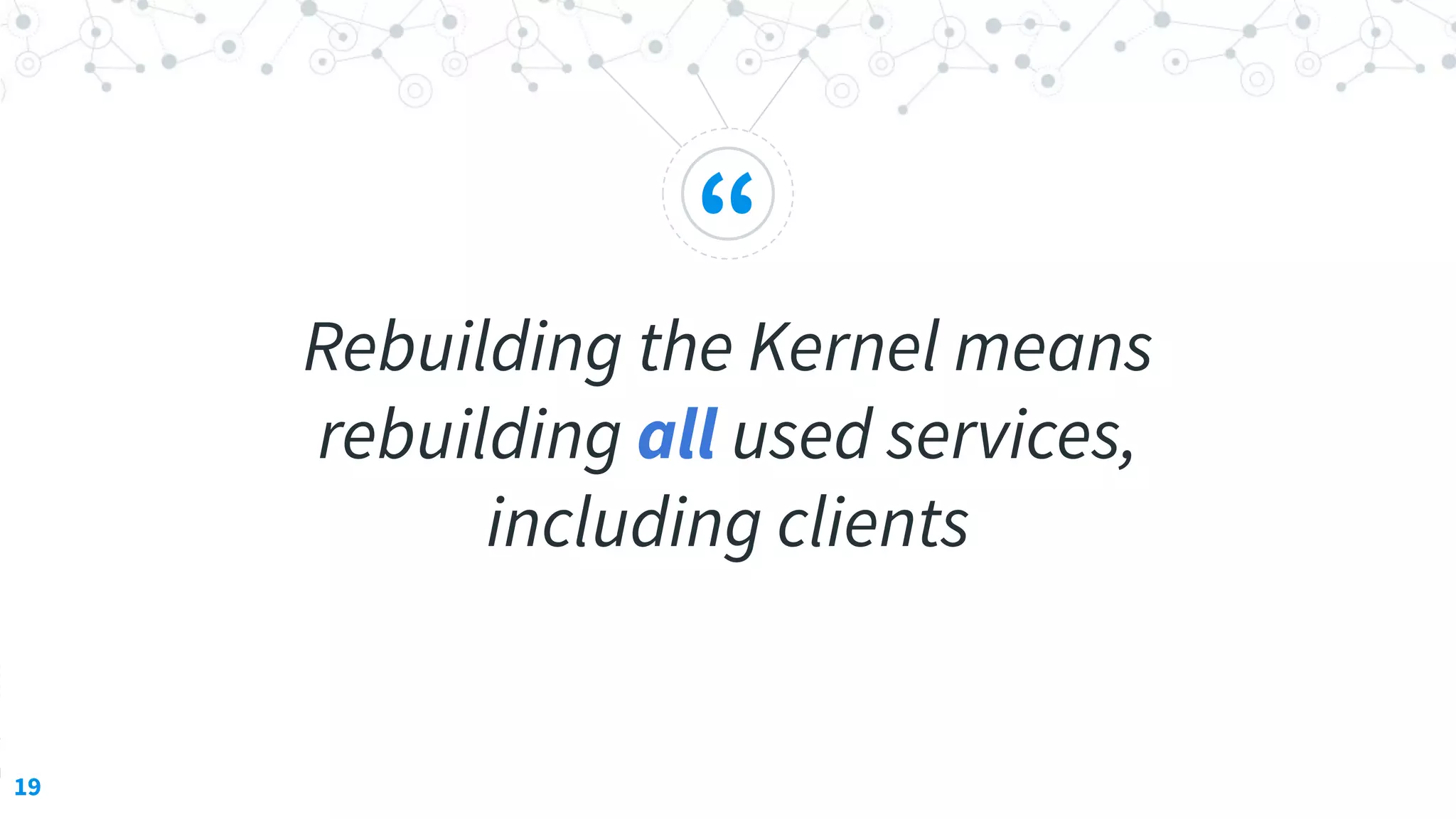

19. “
Rebuilding the Kernel means
rebuilding all used services,
including clients
19

20. ~10ms
Nginx 1.10 + PHP7.3-FPM
// 100 reqs / sec / thread
20

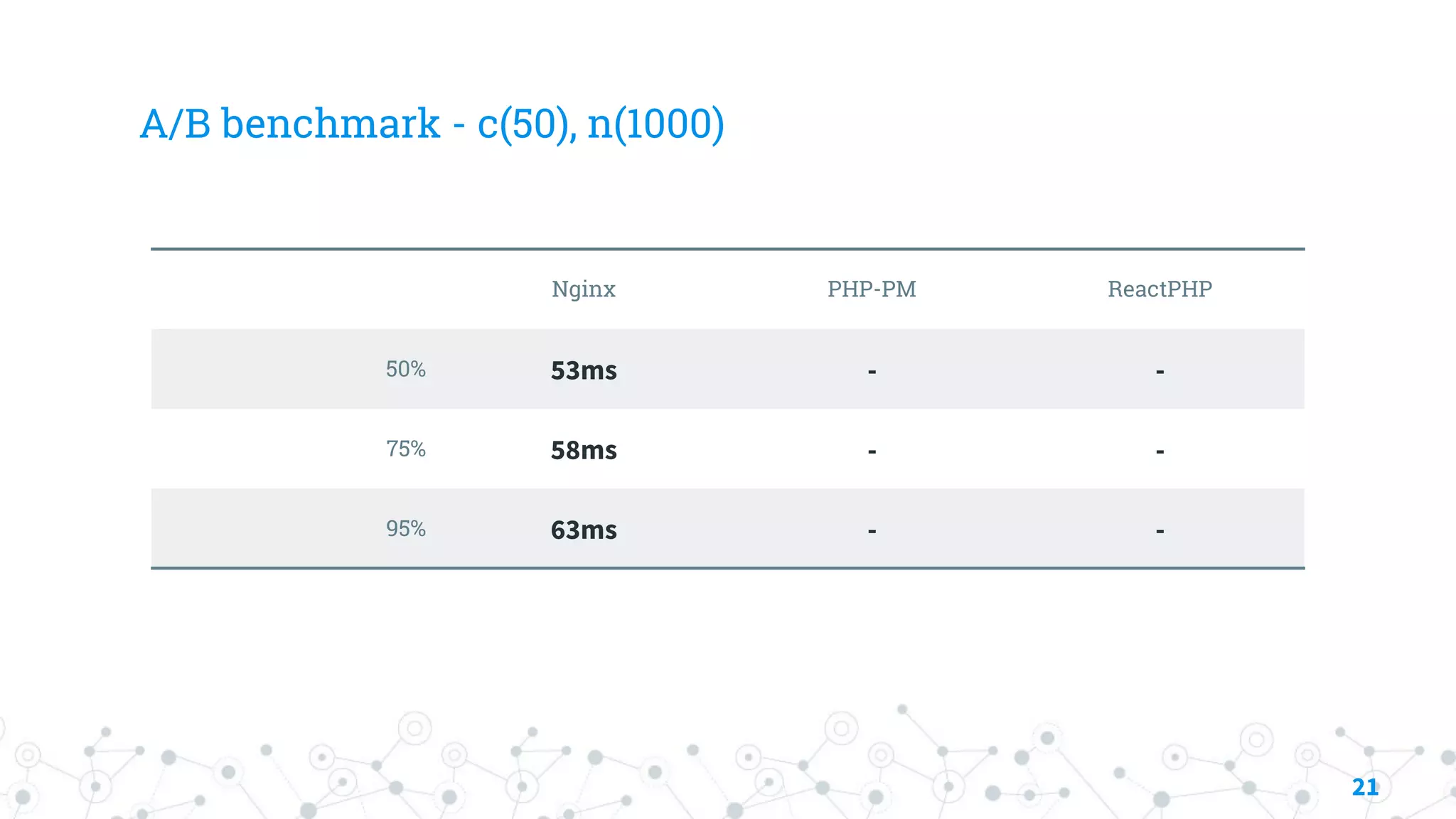

21. A/B benchmark - c(50), n(1000)
Nginx PHP-PM ReactPHP
50% 53ms - -
75% 58ms - -
95% 63ms - -
21

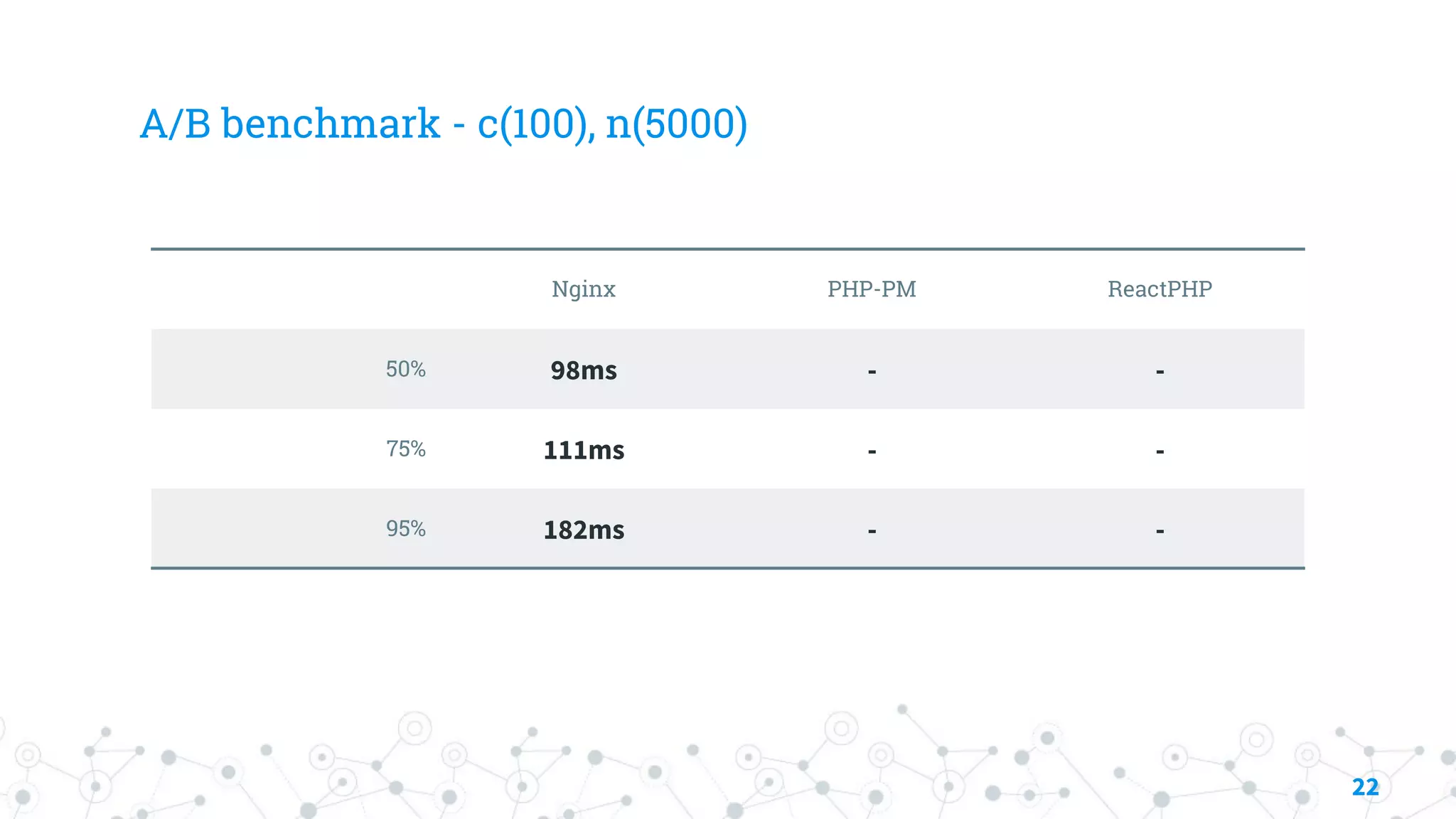

22. A/B benchmark - c(100), n(5000)
Nginx PHP-PM ReactPHP
50% 98ms - -
75% 111ms - -
95% 182ms - -
22

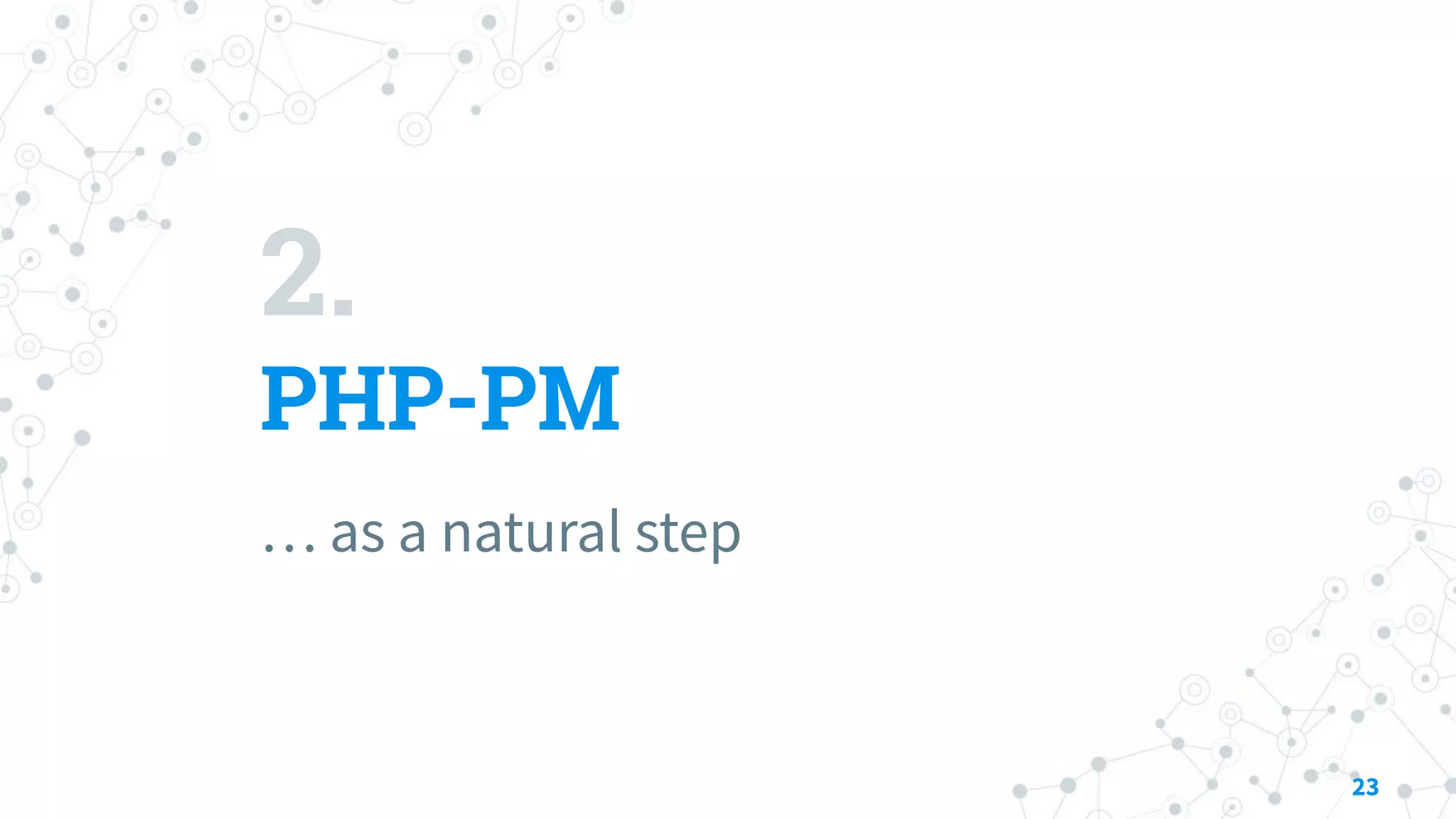

23. 2.
PHP-PM
… as a natural step
23

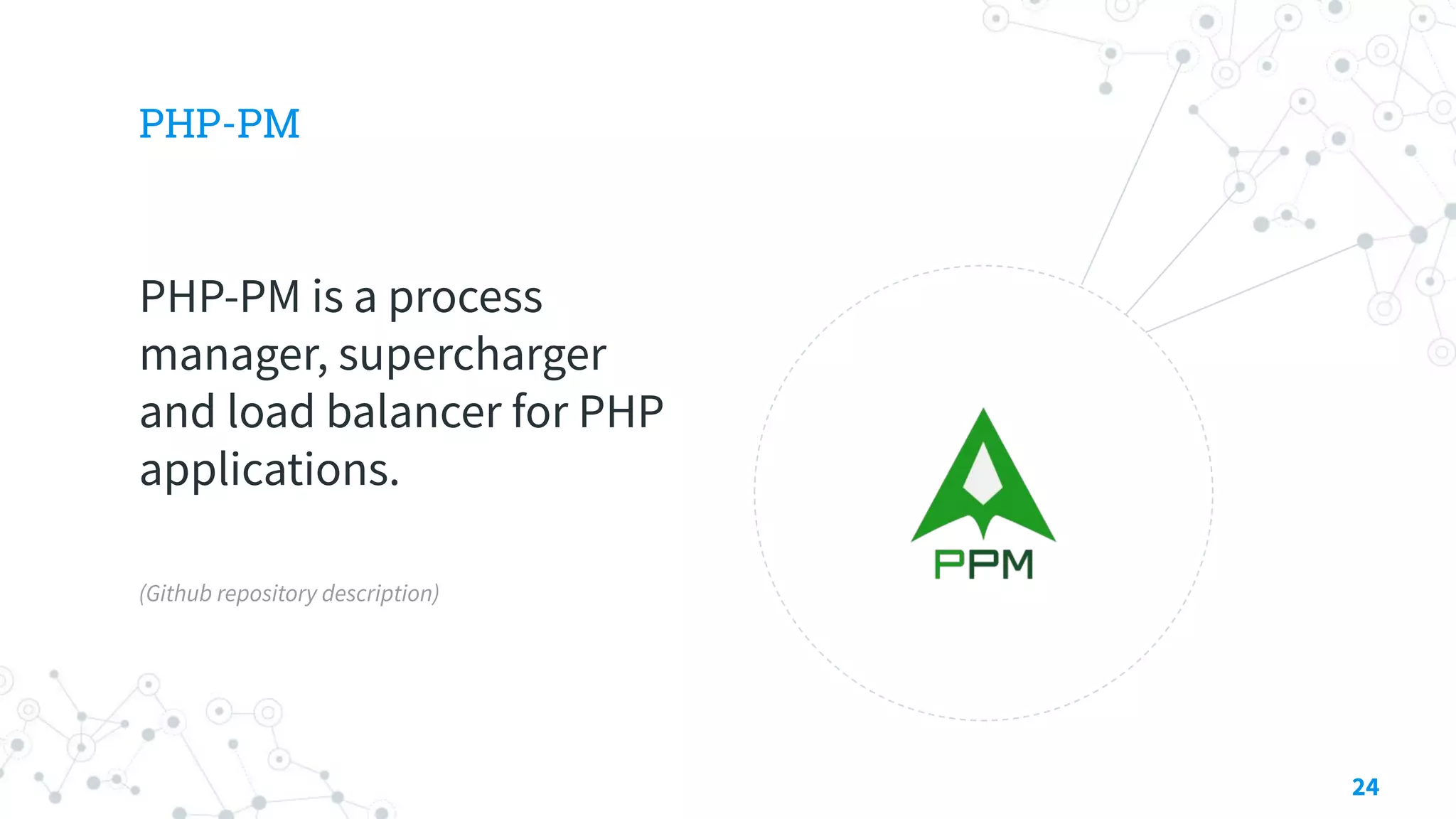

24. PHP-PM
PHP-PM is a process
manager, supercharger
and load balancer for PHP
applications.
(Github repository description)
24

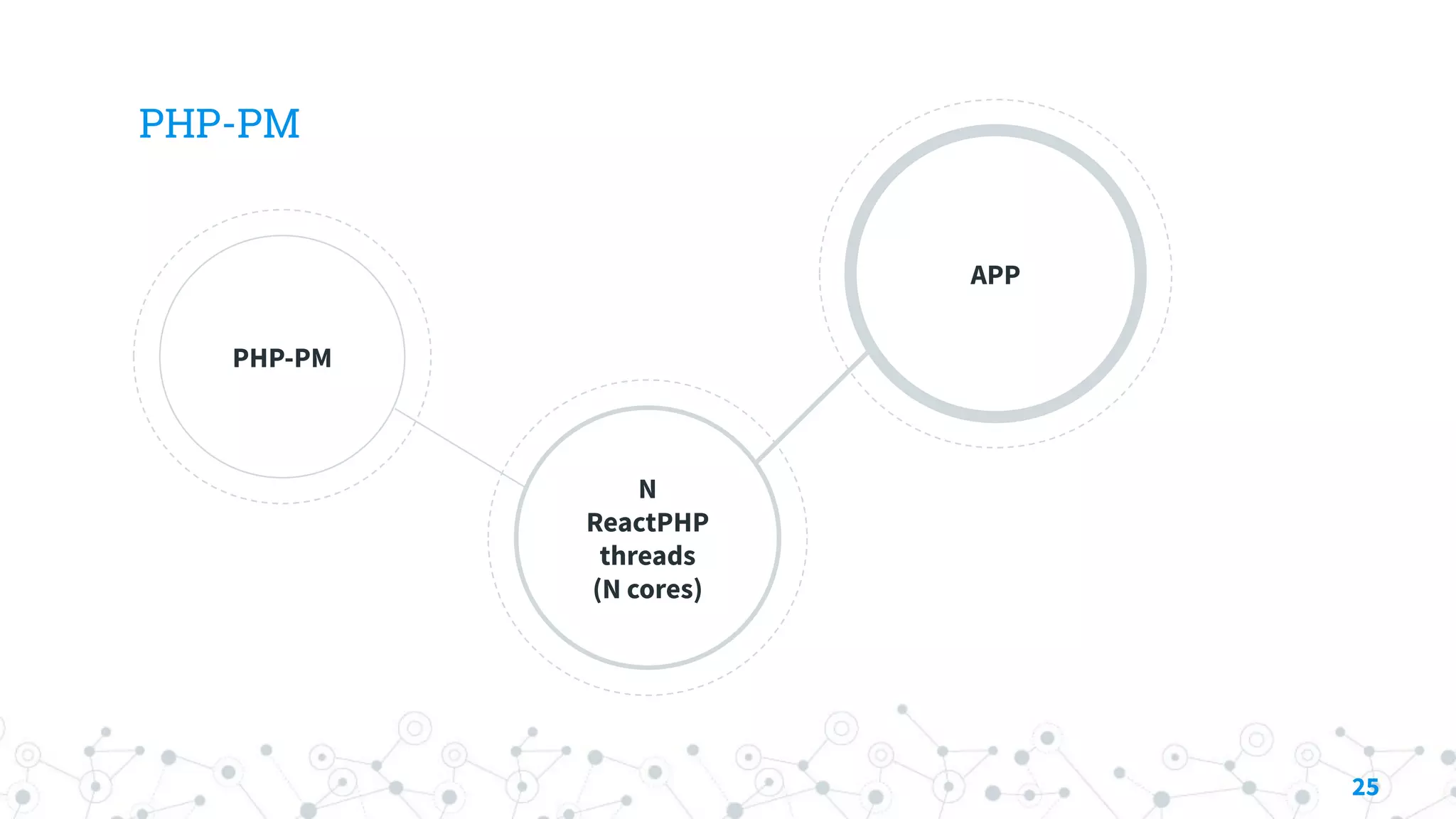

25. PHP-PM
PHP-PM
N
ReactPHP
threads
(N cores)
APP
25

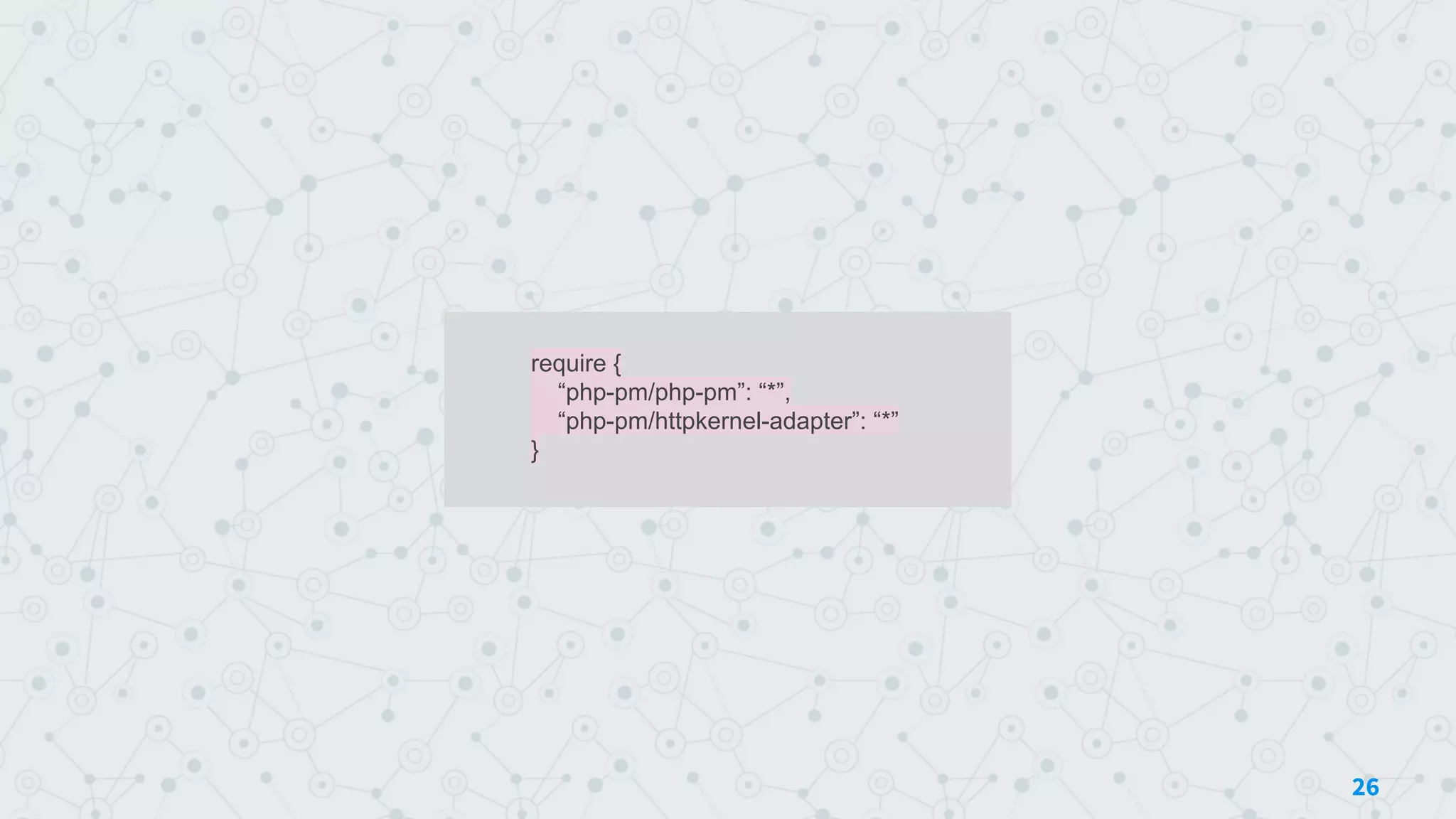

26. require {
“php-pm/php-pm”: “*”,
“php-pm/httpkernel-adapter”: “*”
}
26

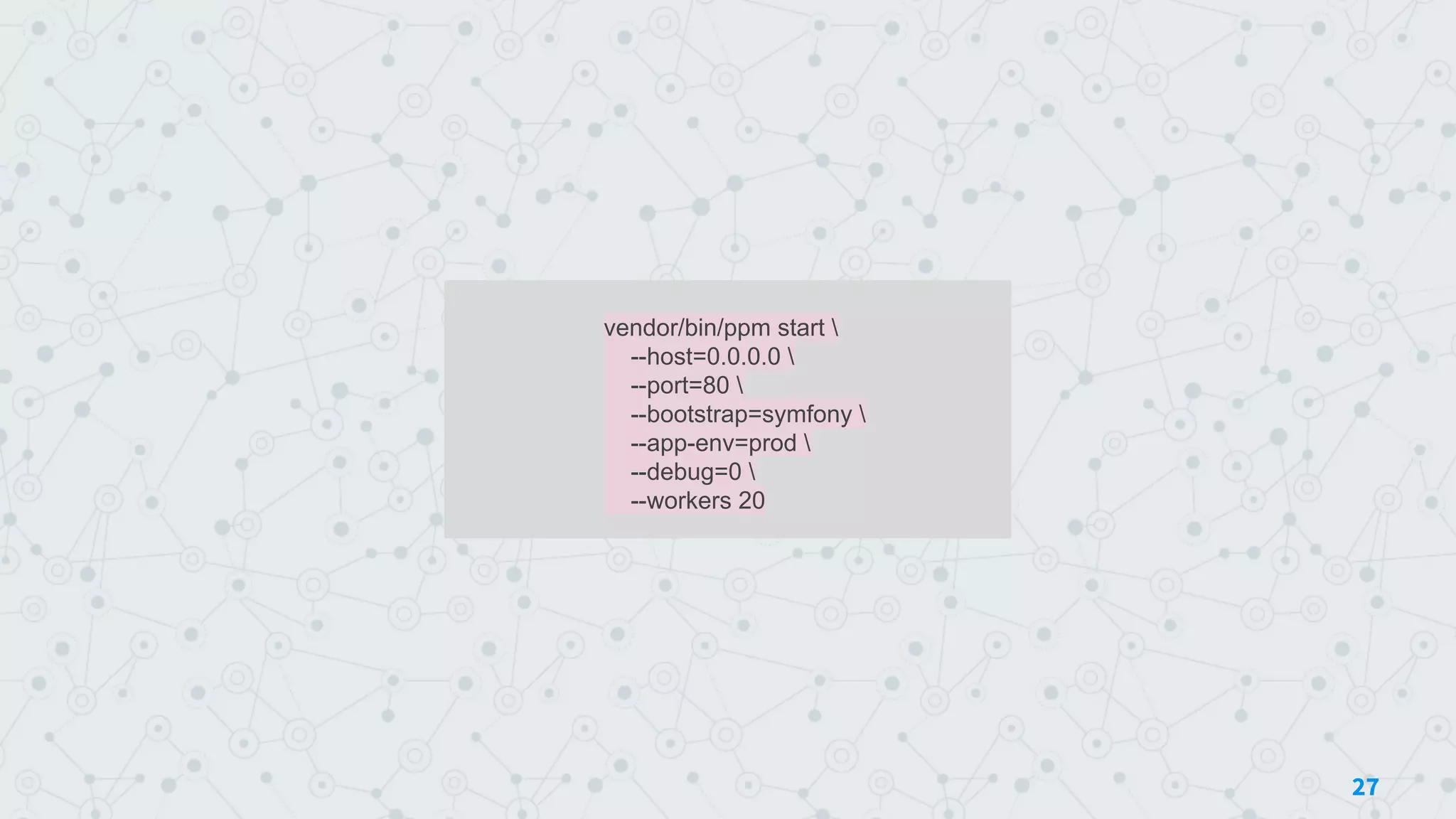

27. vendor/bin/ppm start
--host=0.0.0.0
--port=80
--bootstrap=symfony
--app-env=prod
--debug=0
--workers 20
27

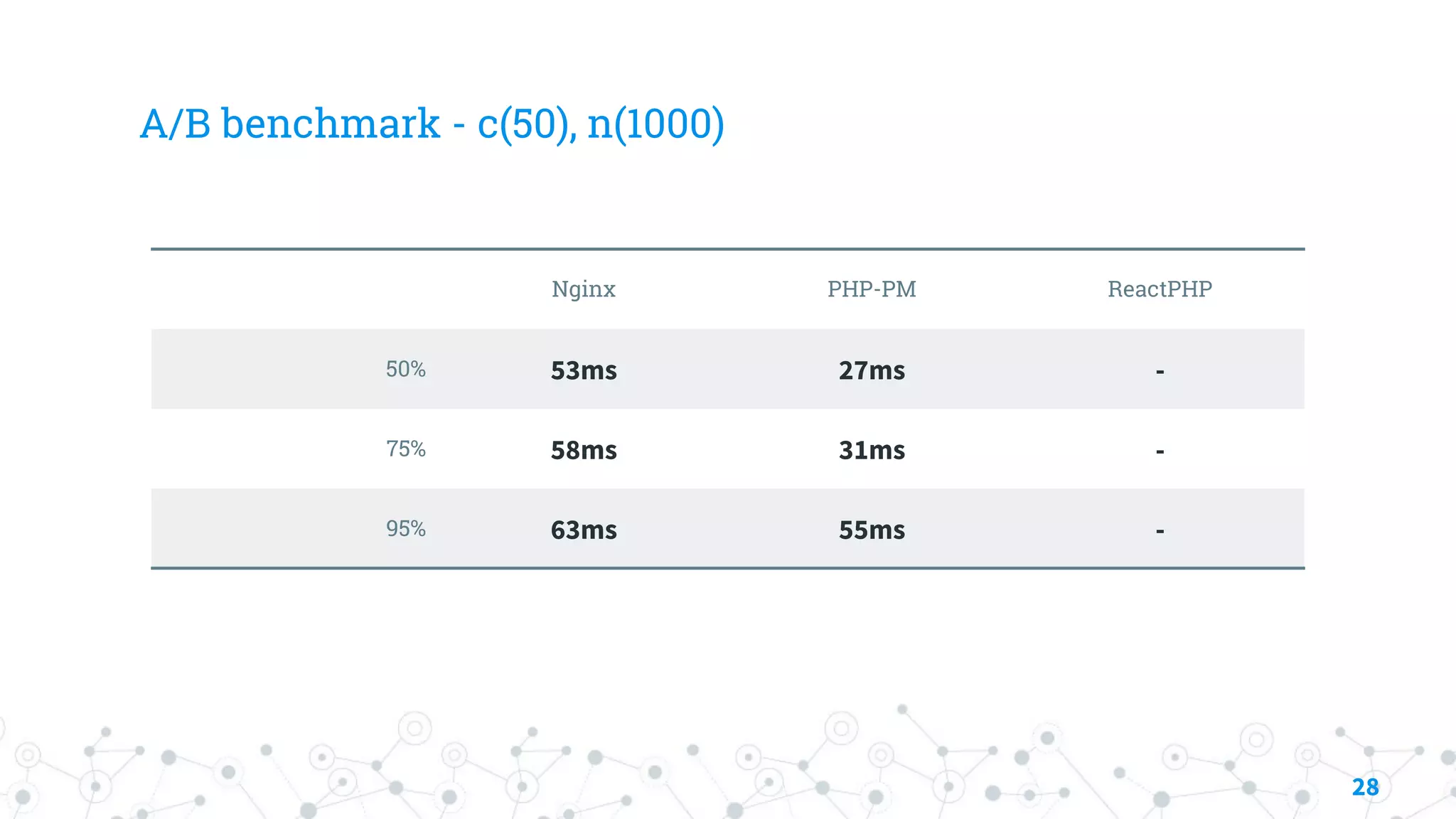

28. A/B benchmark - c(50), n(1000)
Nginx PHP-PM ReactPHP
50% 53ms 27ms -
75% 58ms 31ms -
95% 63ms 55ms -
28

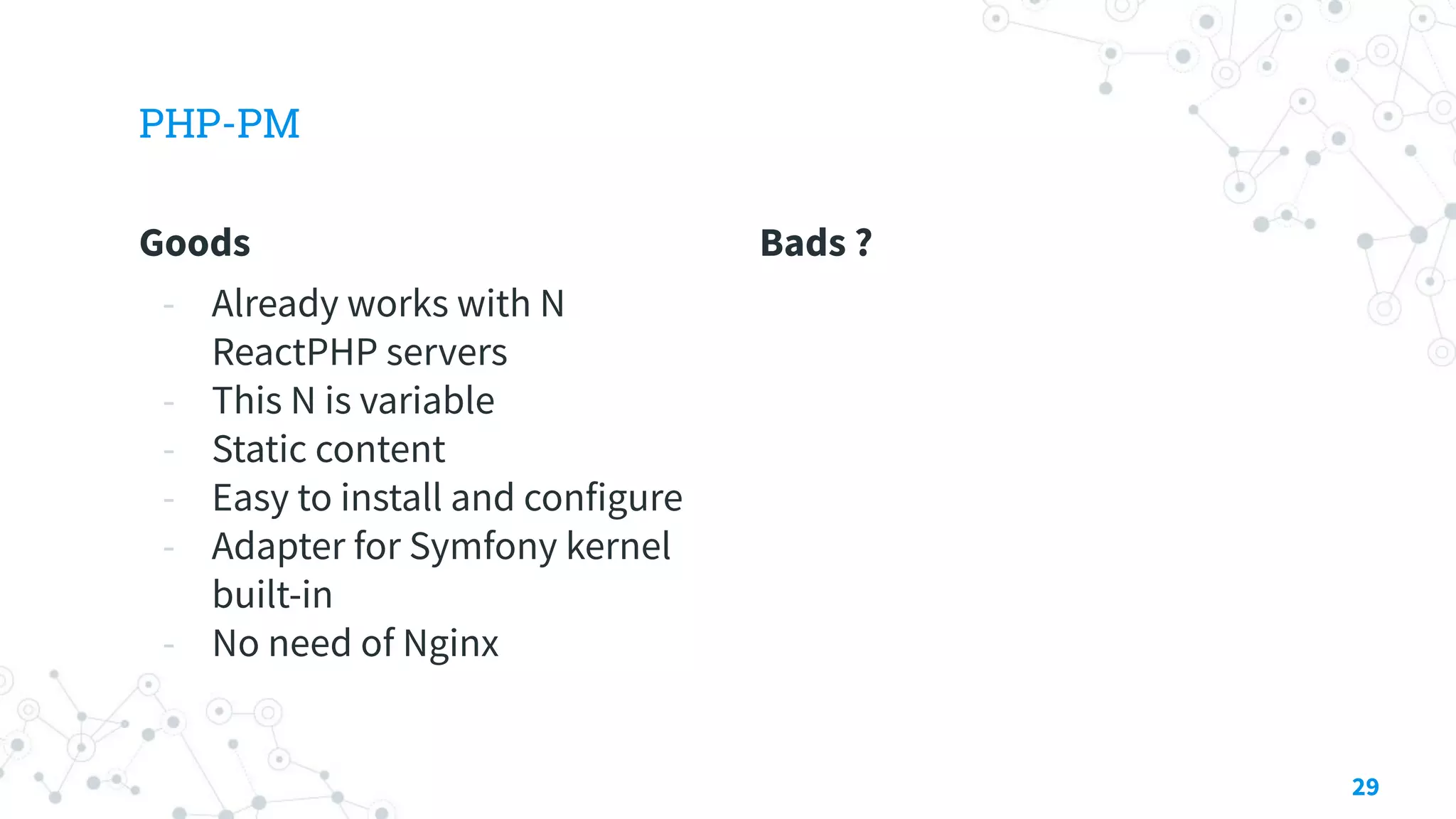

29. Goods
- Already works with N
ReactPHP servers
- This N is variable
- Static content
- Easy to install and configure
- Adapter for Symfony kernel
built-in
- No need of Nginx
PHP-PM
Bads ?
29

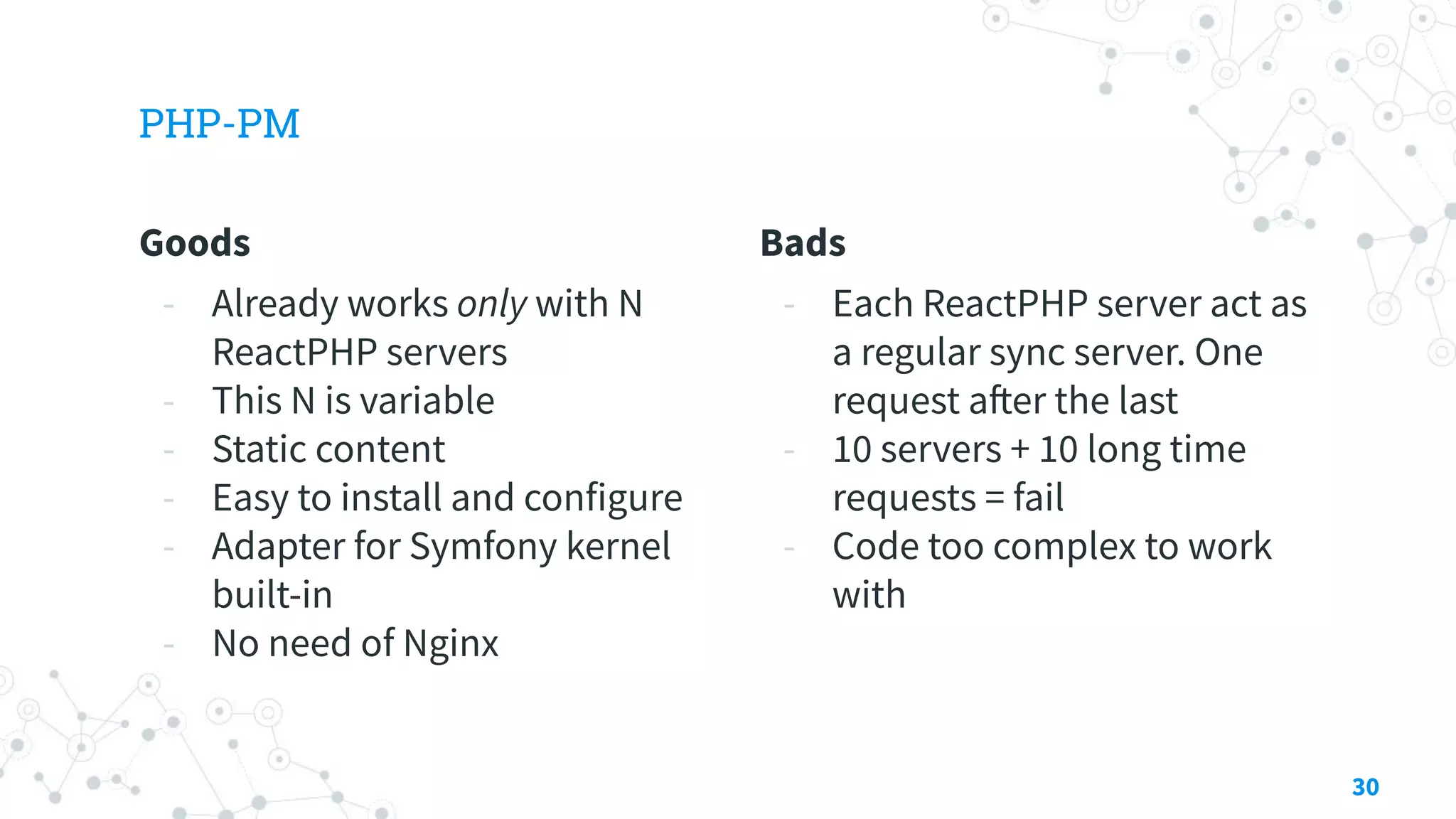

30. Goods
- Already works only with N
ReactPHP servers
- This N is variable
- Static content
- Easy to install and configure
- Adapter for Symfony kernel
built-in
- No need of Nginx
PHP-PM
Bads
- Each ReactPHP server act as
a regular sync server. One
request after the last
- 10 servers + 10 long time
requests = fail
- Code too complex to work
with
30

31. 3.
ReactPHP principles
… as a change of paradigm
31

32. 32

33. Async
Your code that includes,
somewhere, a result of an
I/O operation, will return
something. Eventually.
33

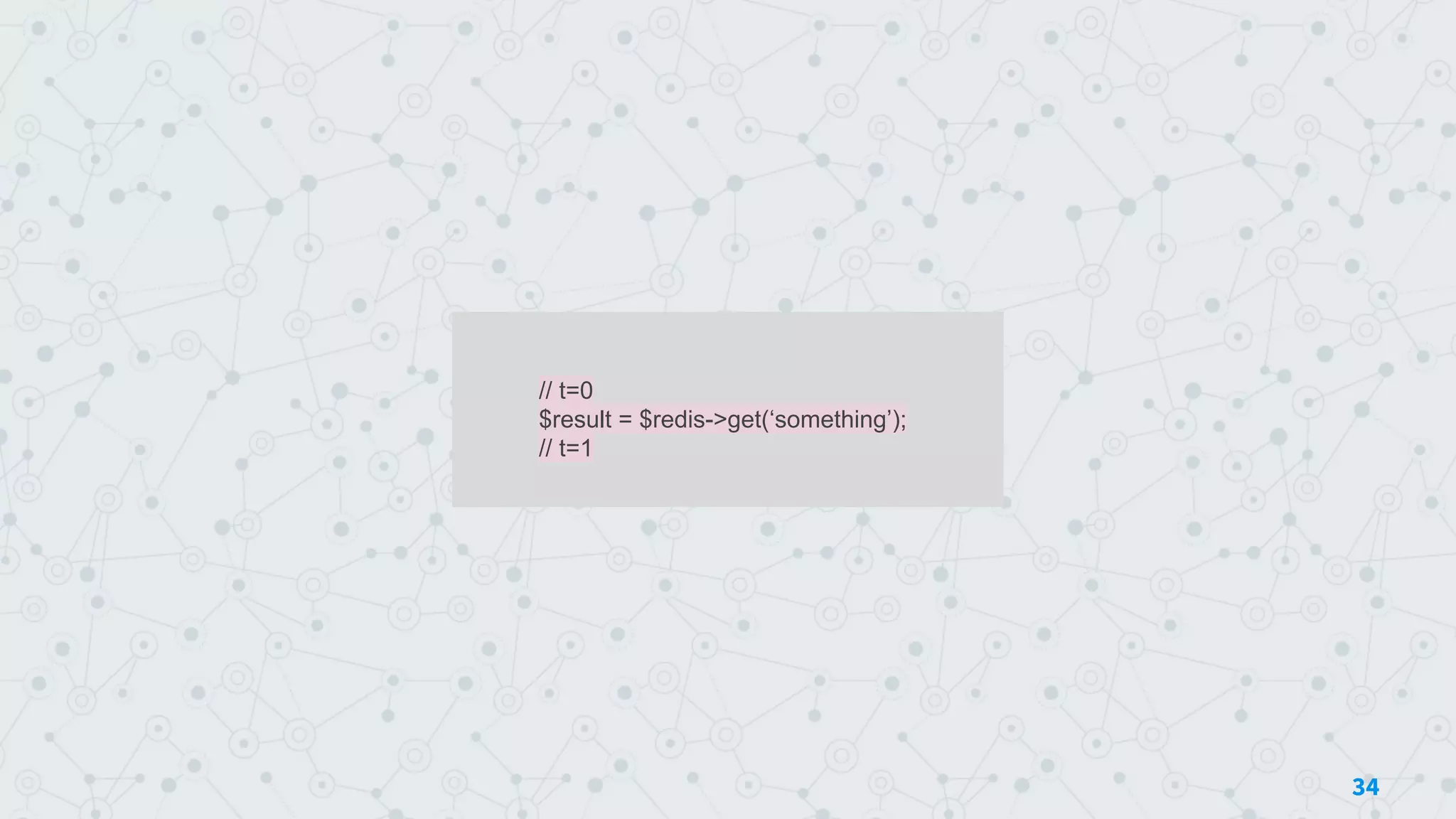

34. // t=0
$result = $redis->get(‘something’);
// t=1
34

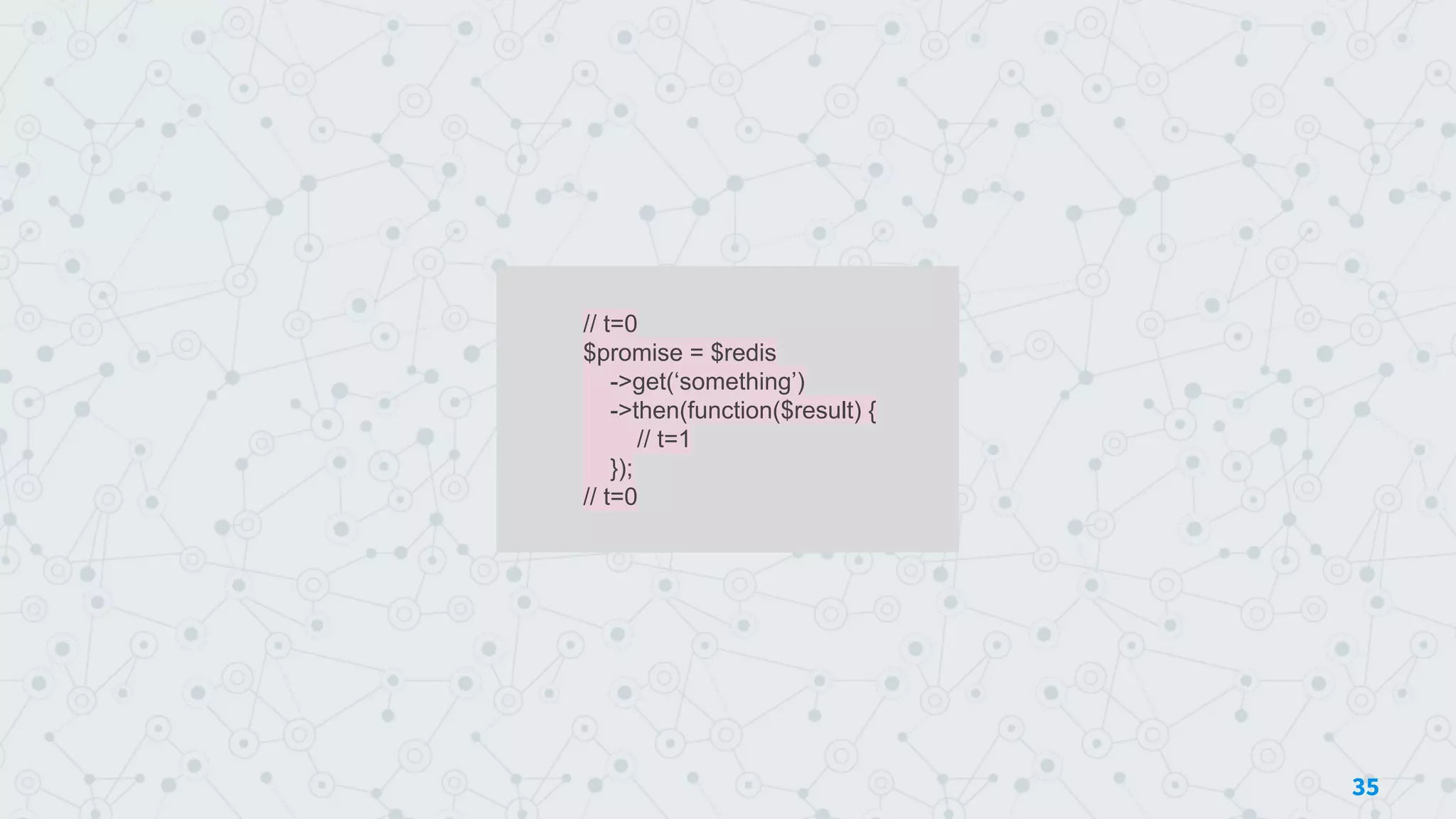

35. // t=0
$promise = $redis
->get(‘something’)
->then(function($result) {
// t=1
});
// t=0
35

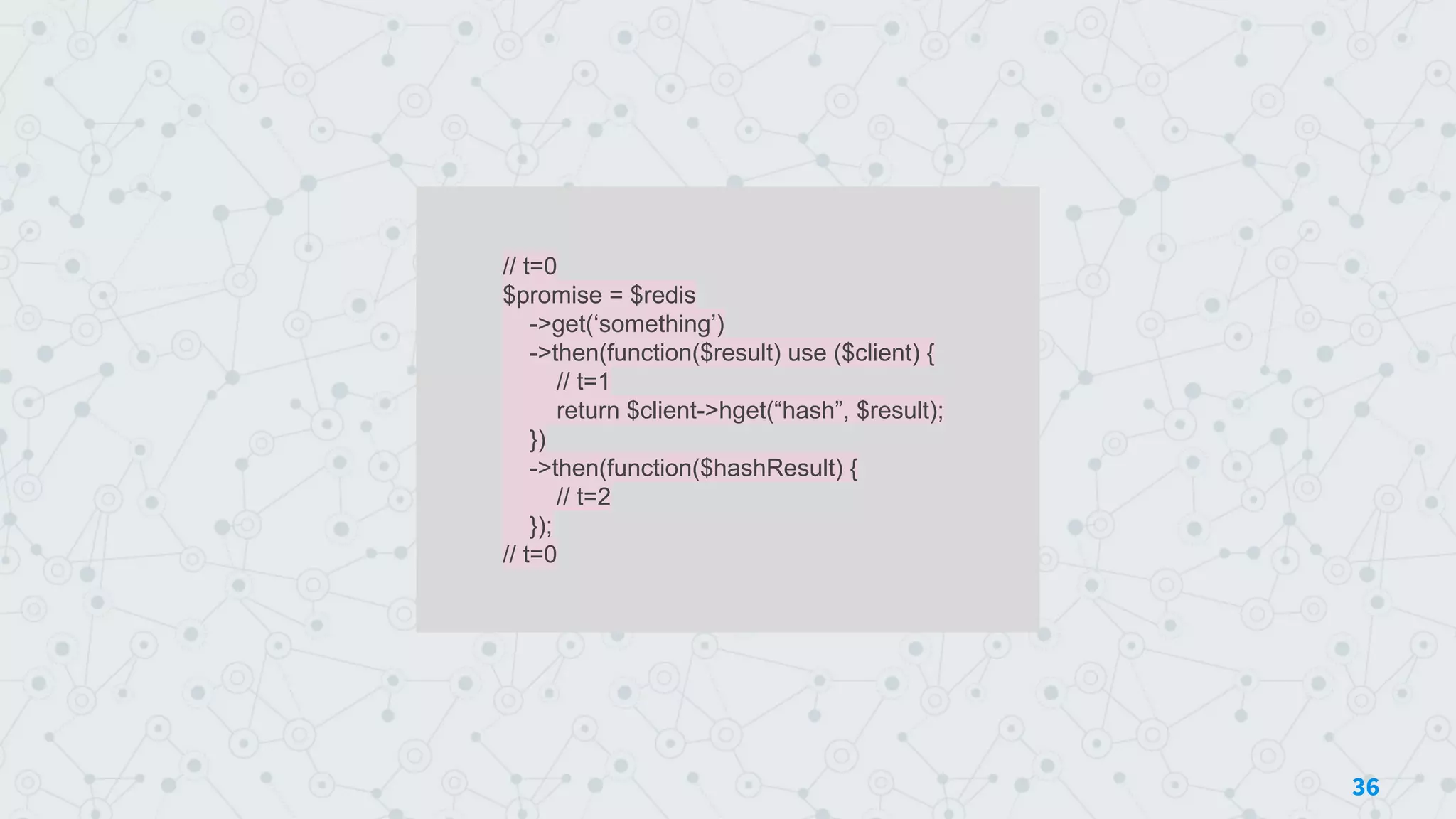

36. // t=0
$promise = $redis
->get(‘something’)
->then(function($result) use ($client) {
// t=1
return $client->hget(“hash”, $result);
})
->then(function($hashResult) {
// t=2
});
// t=0
36

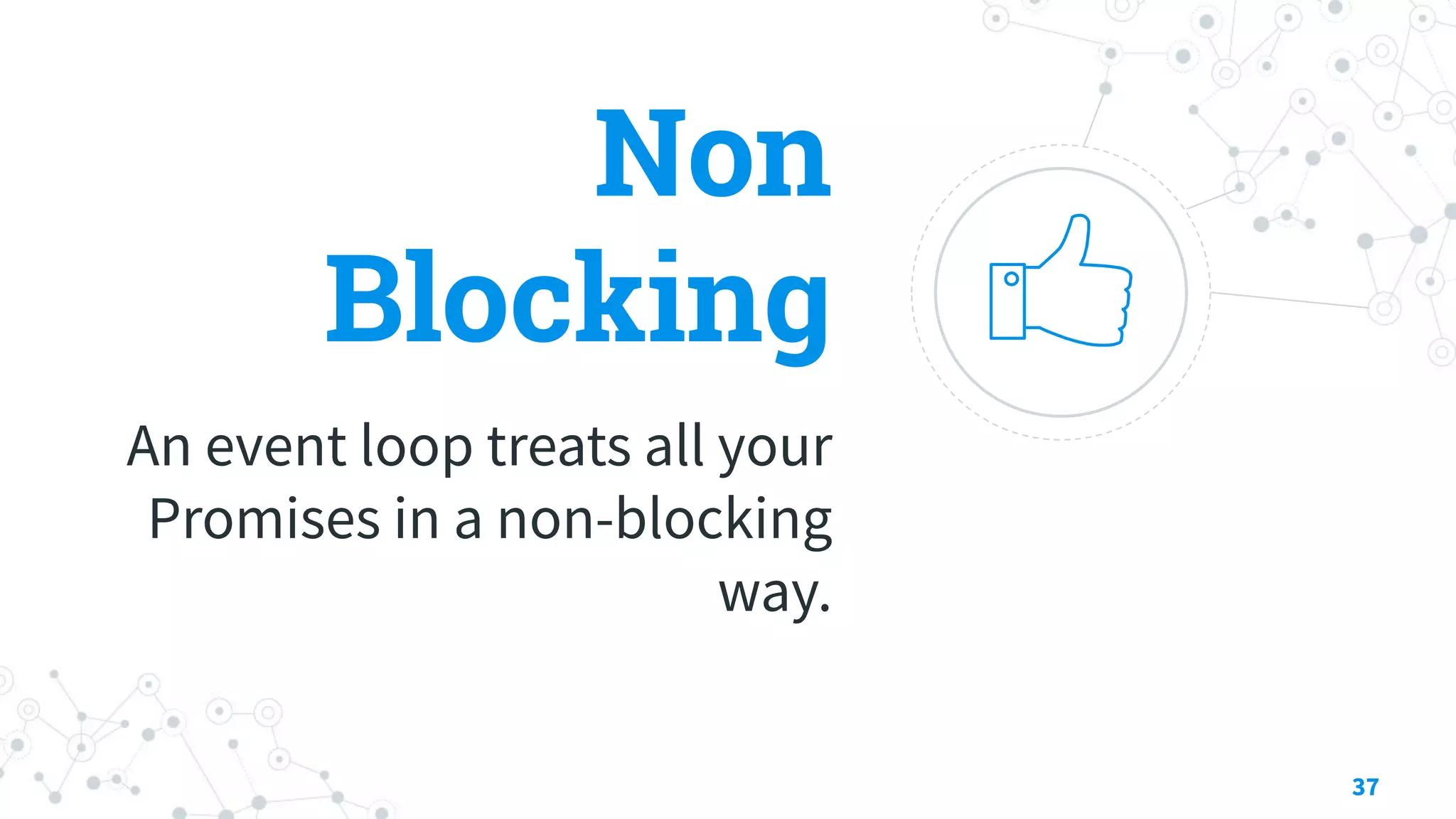

37. Non
Blocking
An event loop treats all your
Promises in a non-blocking
way.
37

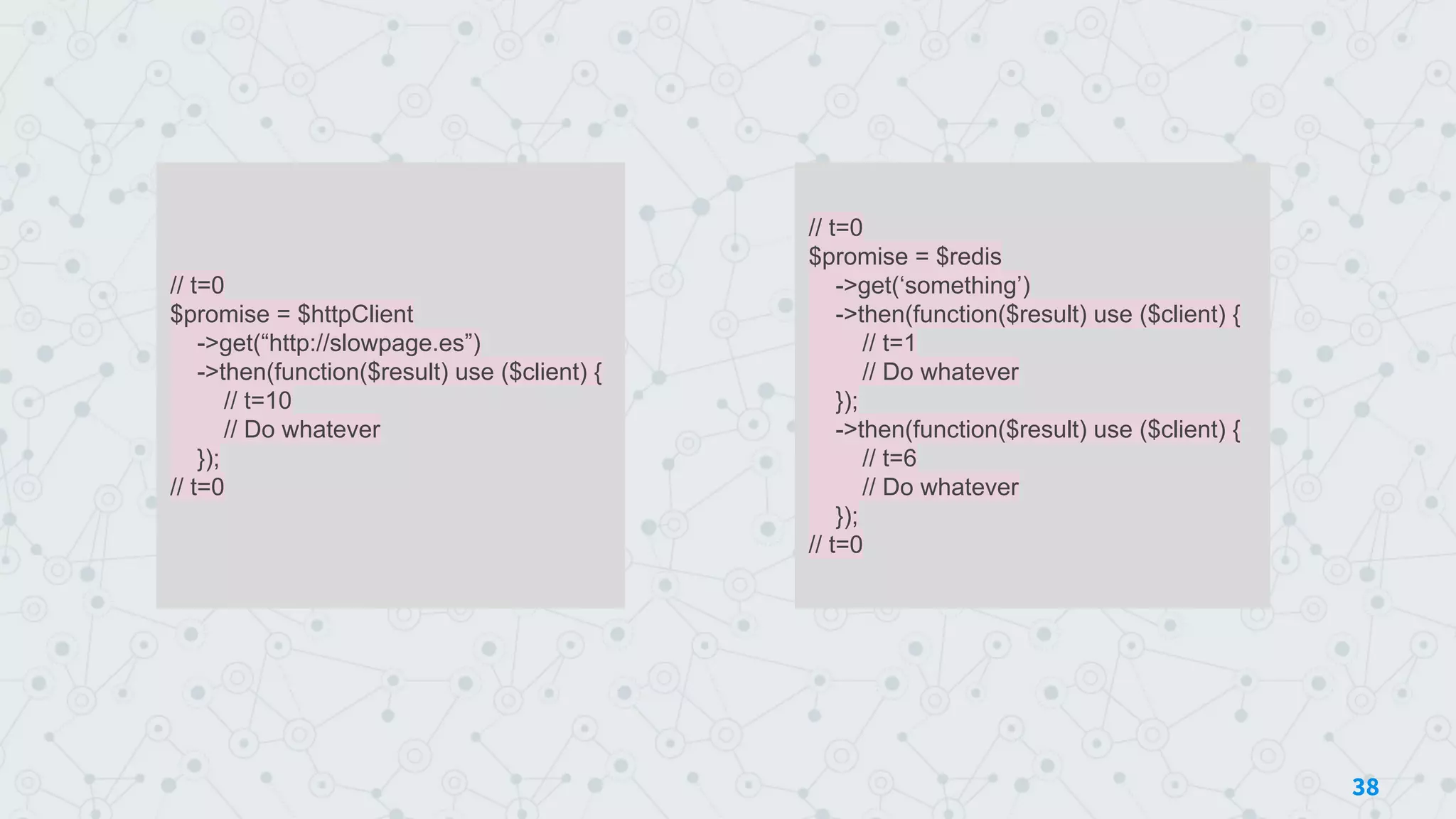

38. // t=0
$promise = $httpClient
->get(“http://slowpage.es”)
->then(function($result) use ($client) {
// t=10
// Do whatever
});
// t=0
38
// t=0
$promise = $redis
->get(‘something’)
->then(function($result) use ($client) {
// t=1
// Do whatever
});
->then(function($result) use ($client) {
// t=6
// Do whatever
});
// t=0

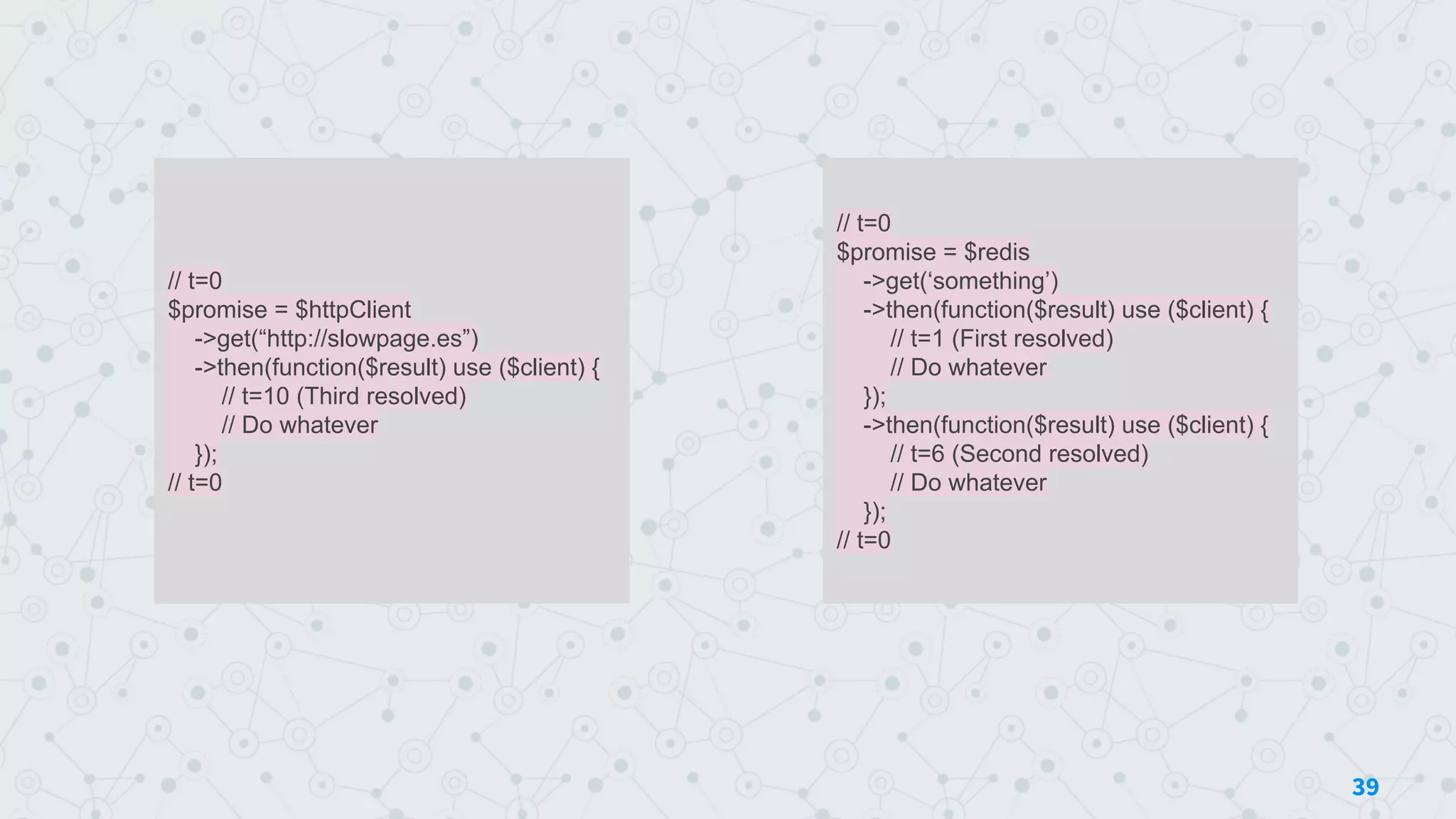

39. // t=0
$promise = $httpClient
->get(“http://slowpage.es”)
->then(function($result) use ($client) {
// t=10 (Third resolved)
// Do whatever
});
// t=0
39
// t=0
$promise = $redis
->get(‘something’)
->then(function($result) use ($client) {
// t=1 (First resolved)
// Do whatever
});
->then(function($result) use ($client) {
// t=6 (Second resolved)
// Do whatever
});
// t=0

40. Promise
A class that can be fulfilled
(value?) or rejected
(Exception)
40

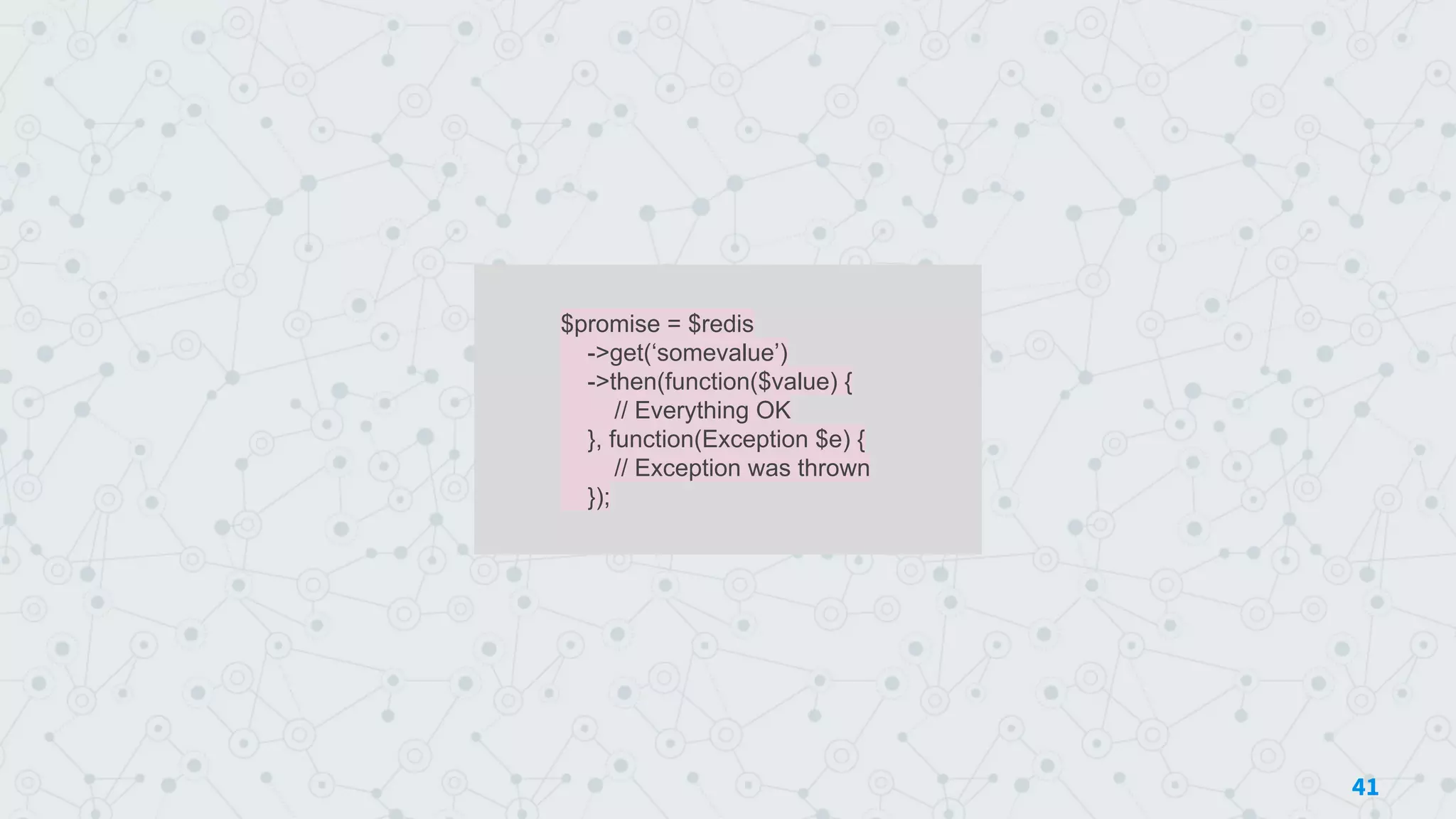

41. $promise = $redis
->get(‘somevalue’)
->then(function($value) {
// Everything OK
}, function(Exception $e) {
// Exception was thrown
});
41

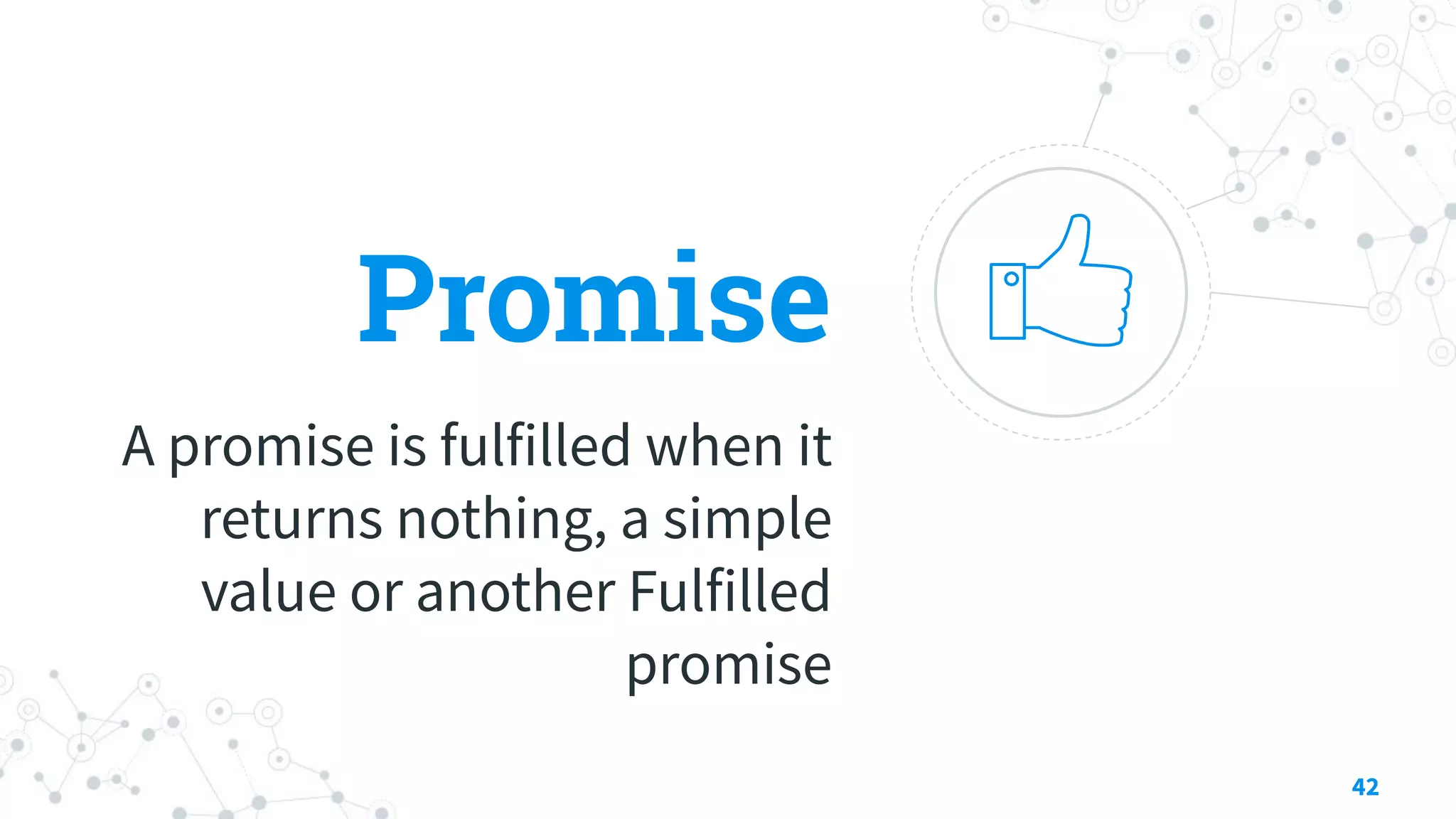

42. Promise
A promise is fulfilled when it
returns nothing, a simple
value or another Fulfilled
promise
42

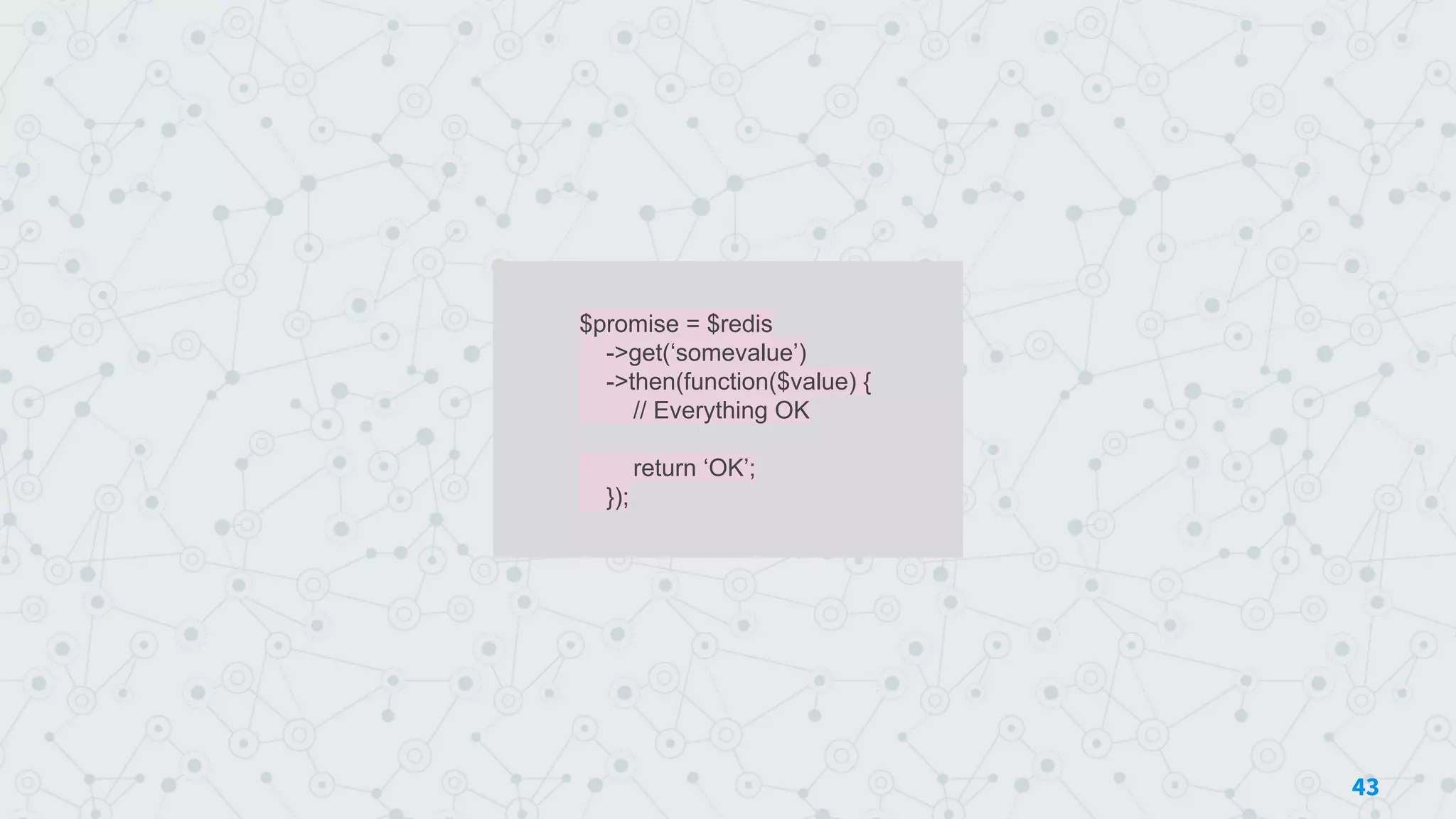

43. $promise = $redis
->get(‘somevalue’)
->then(function($value) {
// Everything OK
return ‘OK’;
});
43

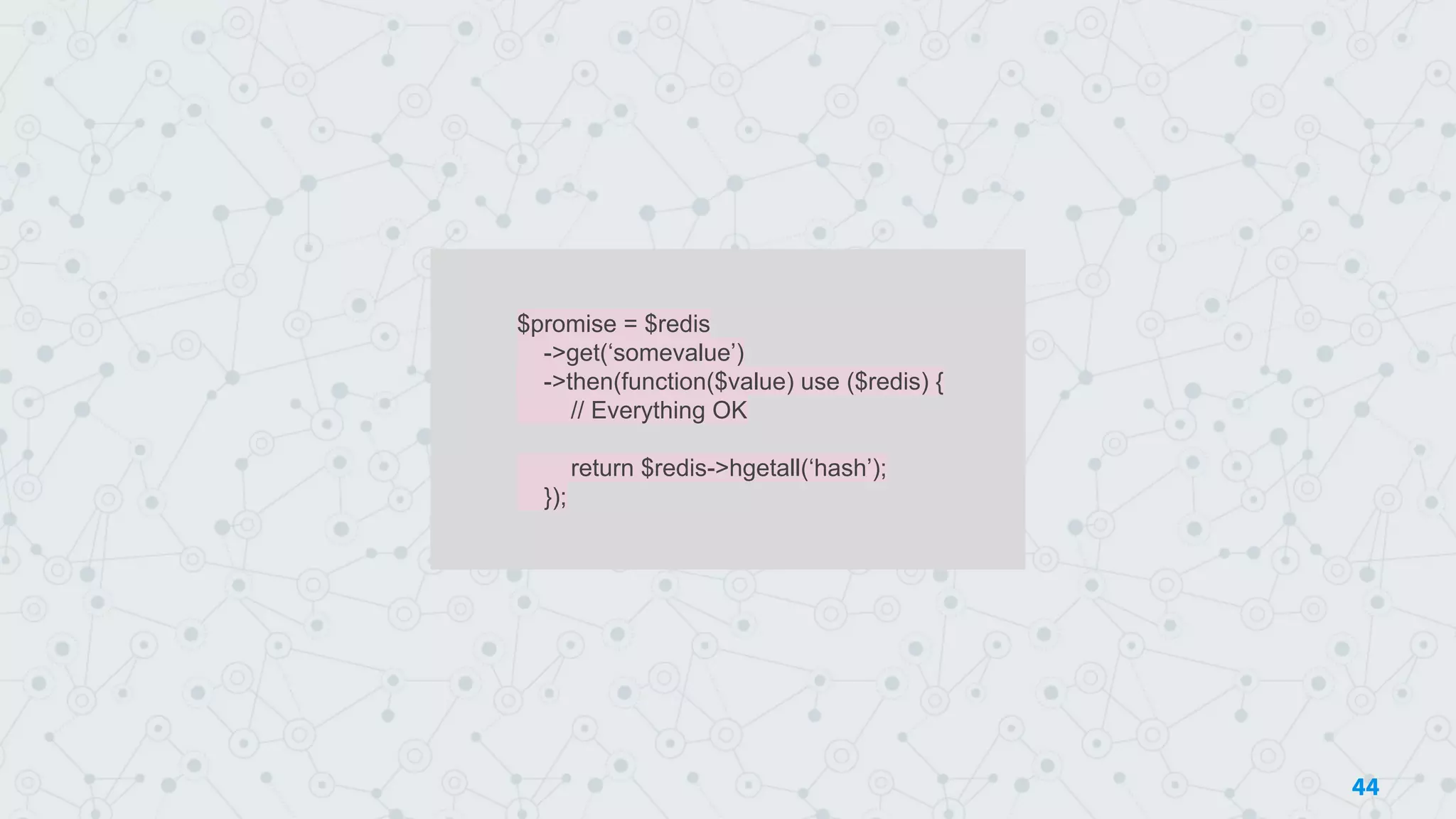

44. $promise = $redis
->get(‘somevalue’)
->then(function($value) use ($redis) {
// Everything OK
return $redis->hgetall(‘hash’);
});
44

45. Promise
You can concat Promises in
order to make your code
pretty easy to read
45

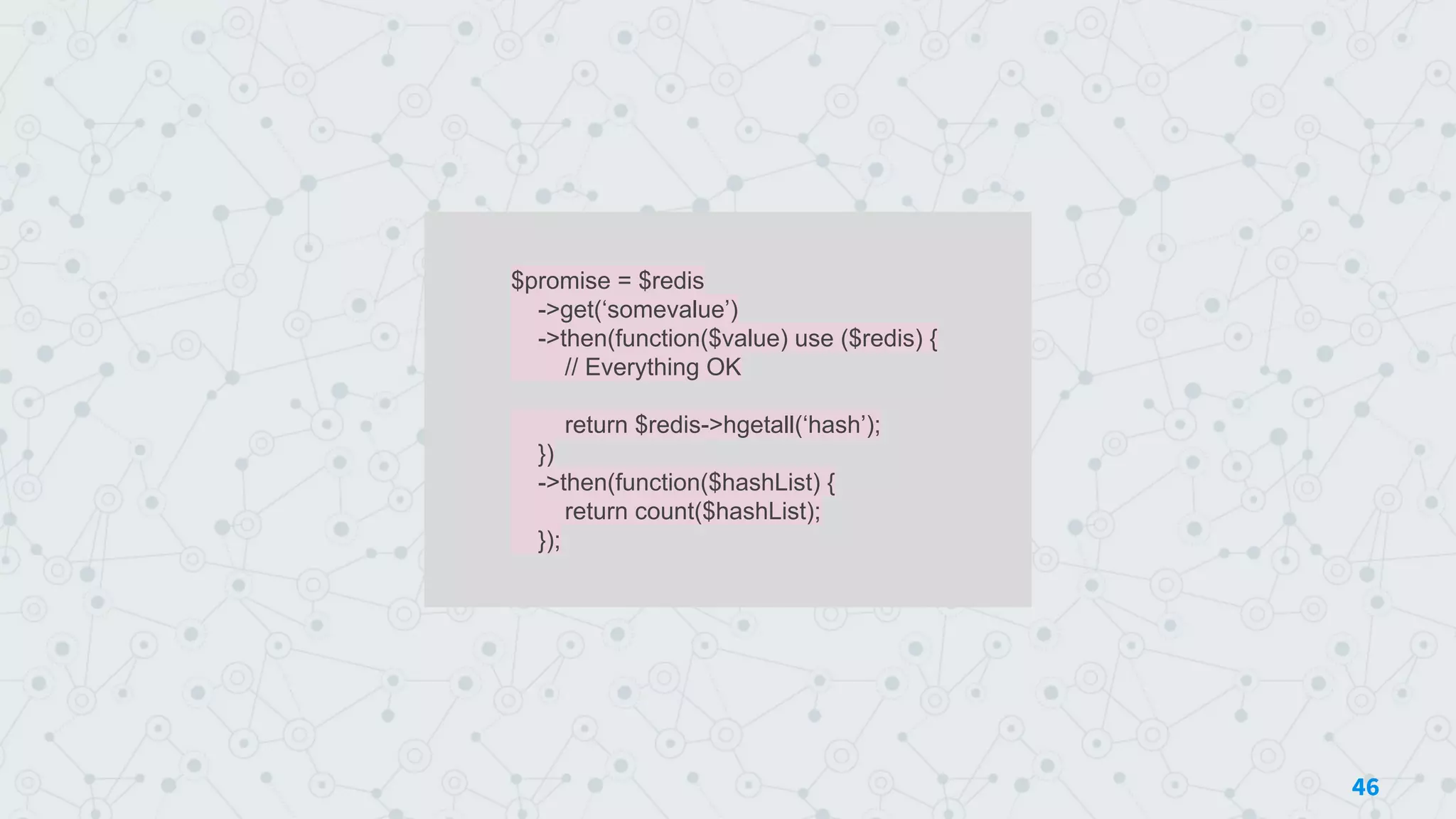

46. $promise = $redis
->get(‘somevalue’)
->then(function($value) use ($redis) {
// Everything OK
return $redis->hgetall(‘hash’);
})
->then(function($hashList) {
return count($hashList);
});
46

47. Event Loop
The loop can manage as
many promises as you can,
even generated from other
libraries (Redis, Mysql...)
47

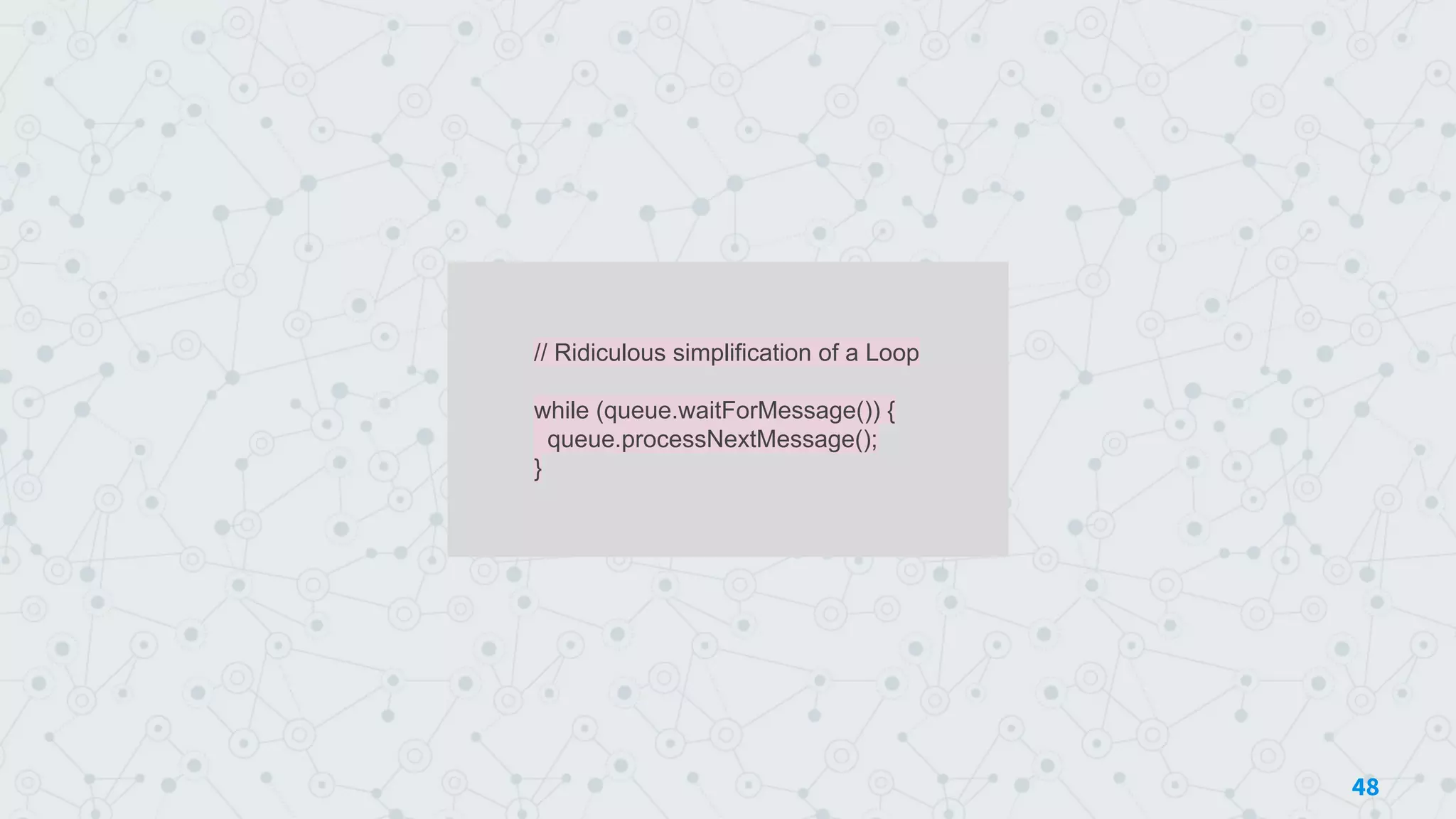

48. // Ridiculous simplification of a Loop
while (queue.waitForMessage()) {
queue.processNextMessage();
}
48

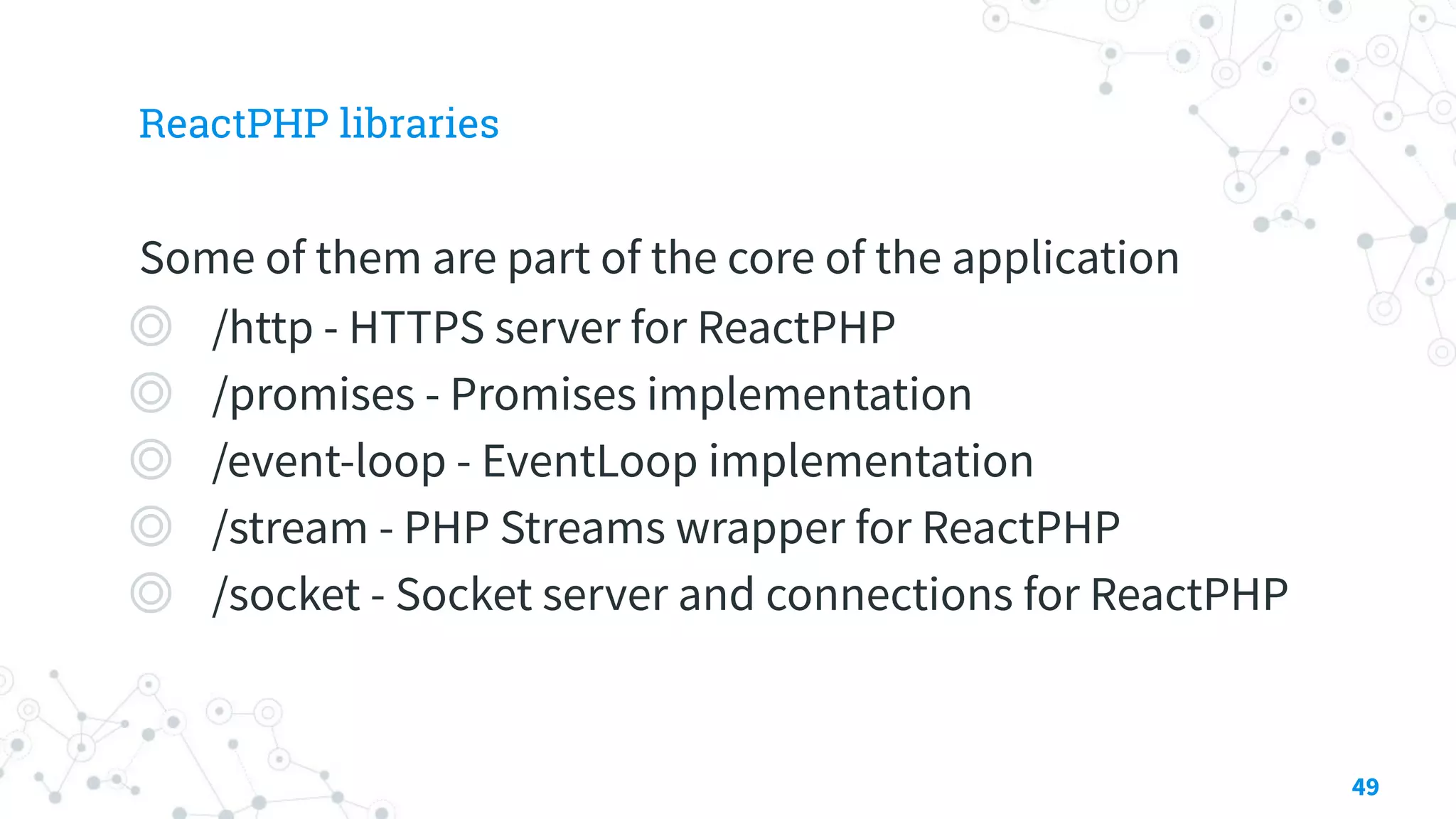

49. ReactPHP libraries
Some of them are part of the core of the application
◎ /http - HTTPS server for ReactPHP
◎ /promises - Promises implementation
◎ /event-loop - EventLoop implementation
◎ /stream - PHP Streams wrapper for ReactPHP
◎ /socket - Socket server and connections for ReactPHP
49

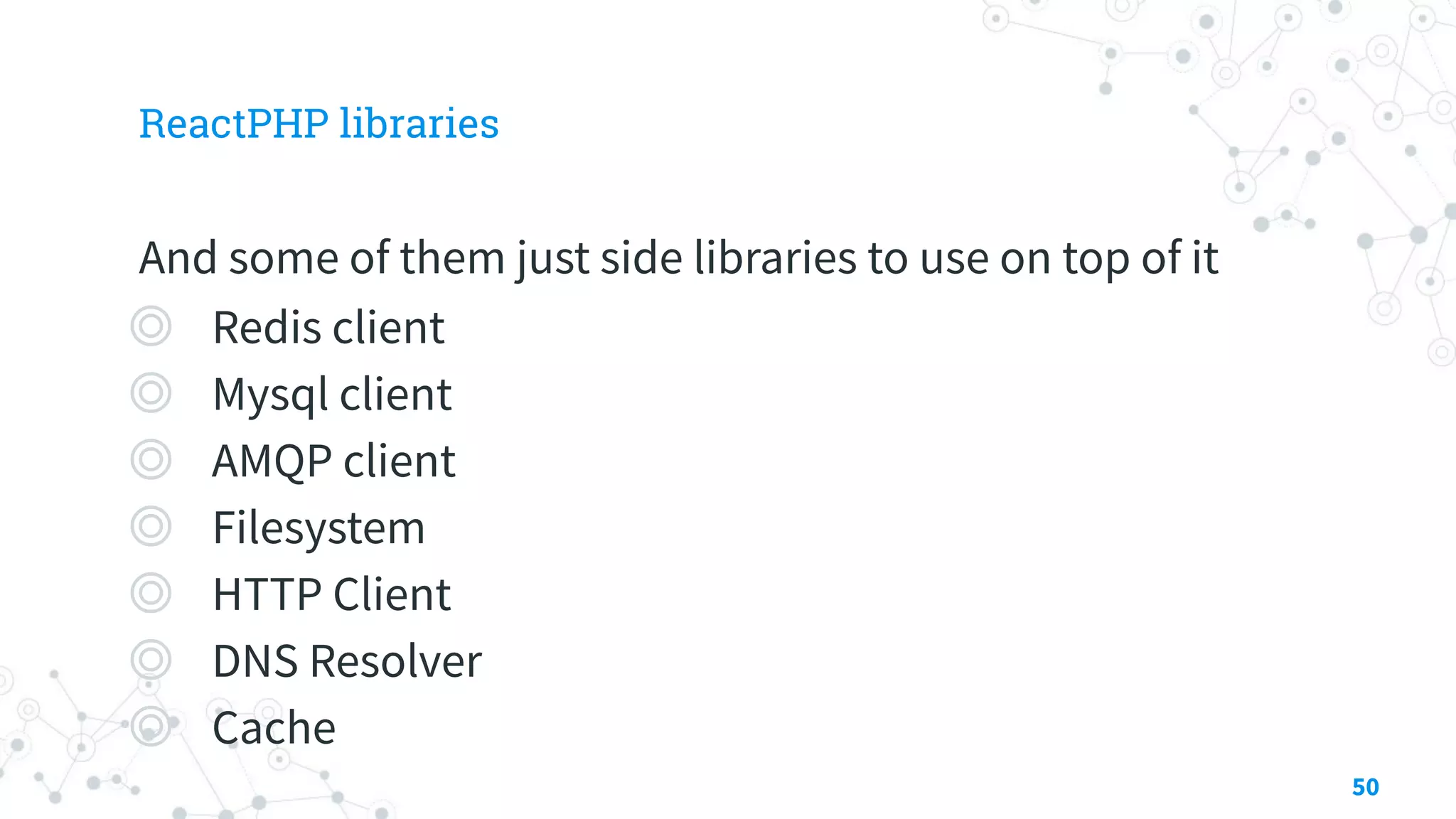

50. ReactPHP libraries
And some of them just side libraries to use on top of it
◎ Redis client
◎ Mysql client
◎ AMQP client
◎ Filesystem
◎ HTTP Client
◎ DNS Resolver
◎ Cache
50

51. 4.
ReactPHP server
… as a reduction of the solution
51

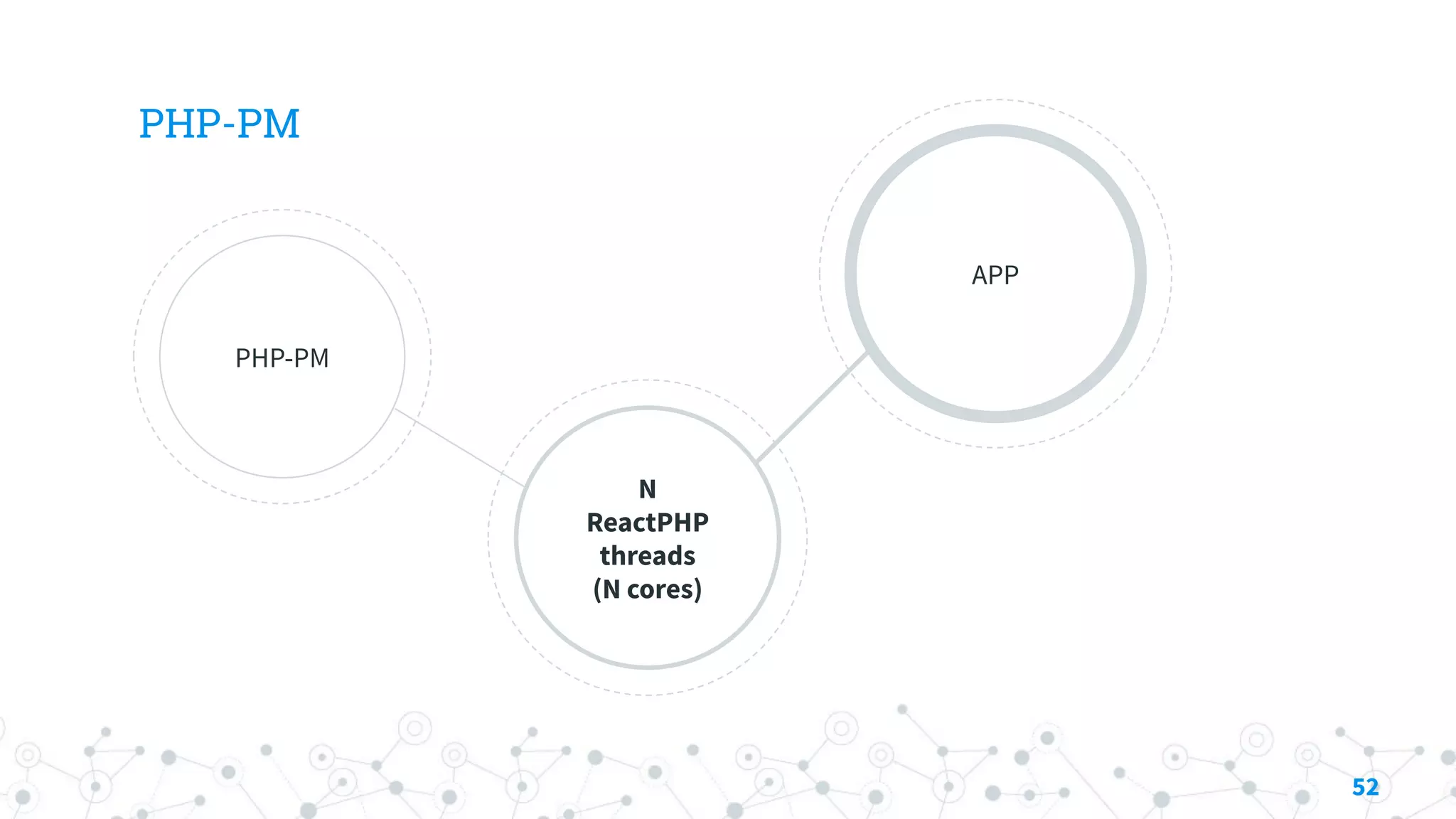

52. PHP-PM
PHP-PM
N
ReactPHP
threads
(N cores)
APP
52

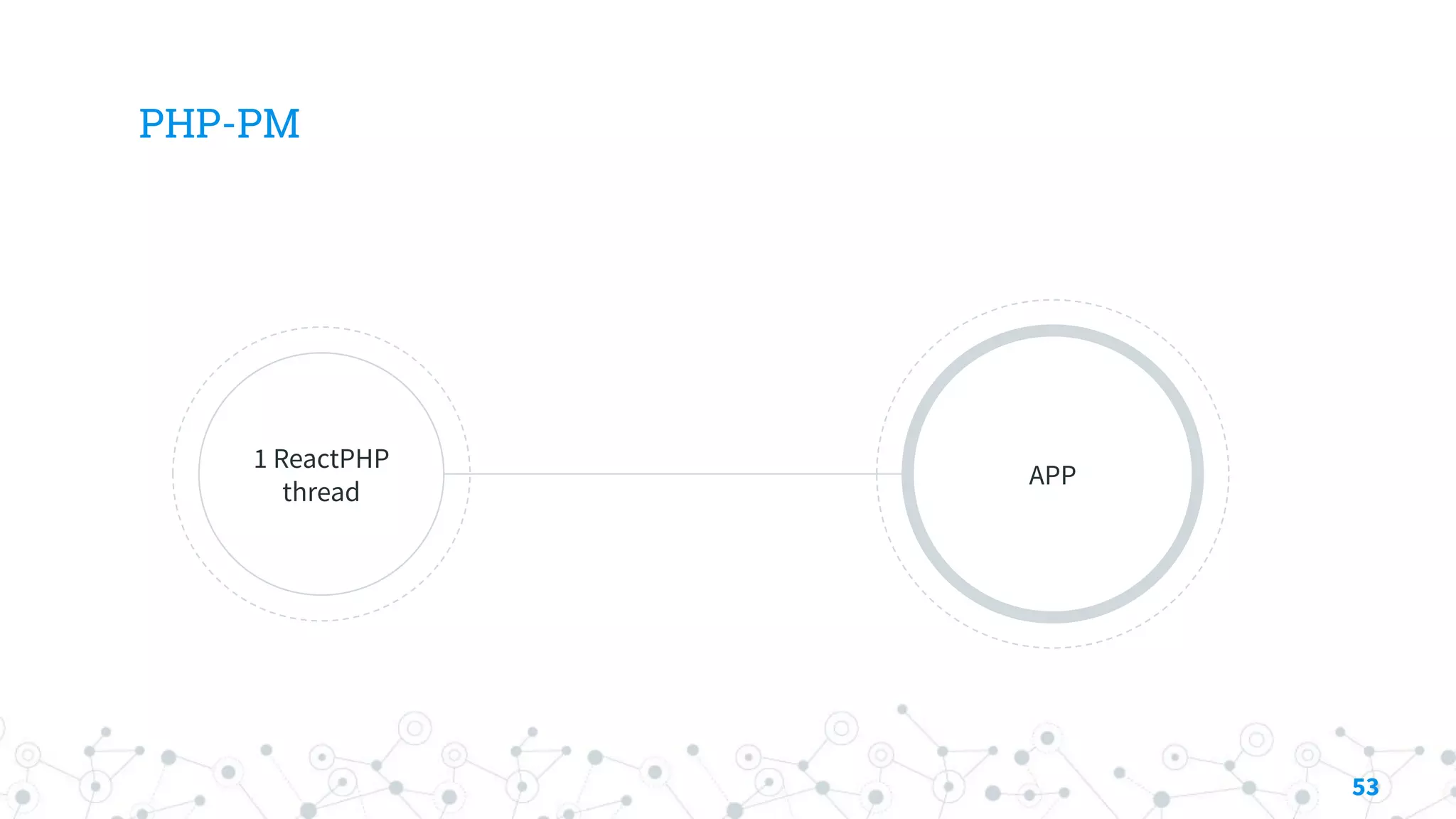

53. PHP-PM
1 ReactPHP
thread
APP
53

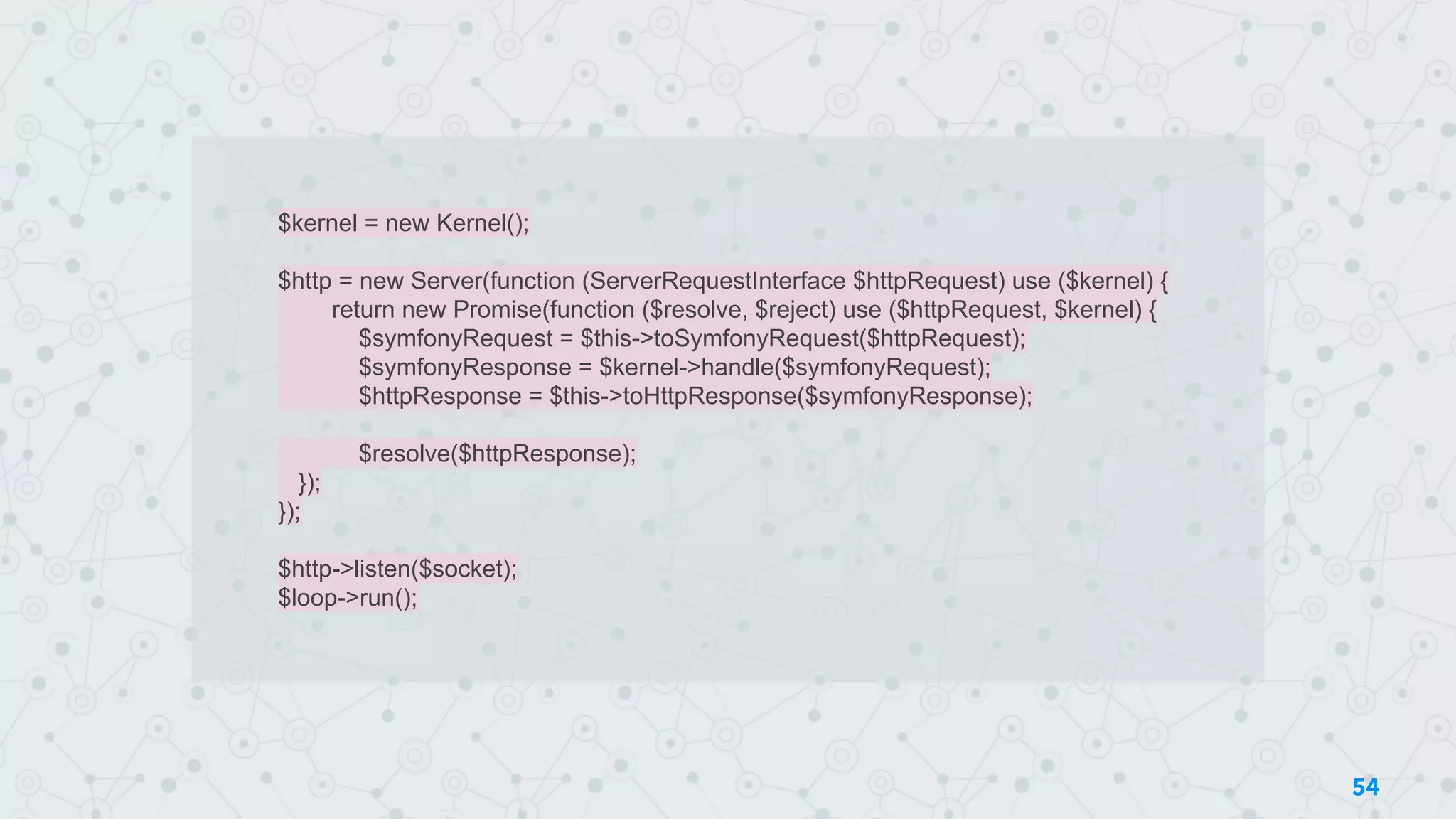

54. $kernel = new Kernel();
$http = new Server(function (ServerRequestInterface $httpRequest) use ($kernel) {
return new Promise(function ($resolve, $reject) use ($httpRequest, $kernel) {
$symfonyRequest = $this->toSymfonyRequest($httpRequest);
$symfonyResponse = $kernel->handle($symfonyRequest);
$httpResponse = $this->toHttpResponse($symfonyResponse);
$resolve($httpResponse);
});
});
$http->listen($socket);
$loop->run();
54

55. $kernel = new Kernel();
$http = new Server(function (ServerRequestInterface $httpRequest) use ($kernel) {
return new Promise(function ($resolve, $reject) use ($httpRequest, $kernel) {
$symfonyRequest = $this->toSymfonyRequest($httpRequest);
$symfonyResponse = $kernel->handle($symfonyRequest);
$httpResponse = $this->toHttpResponse($symfonyResponse);
$resolve($httpResponse);
});
});
$http->listen($socket);
$loop->run();
55

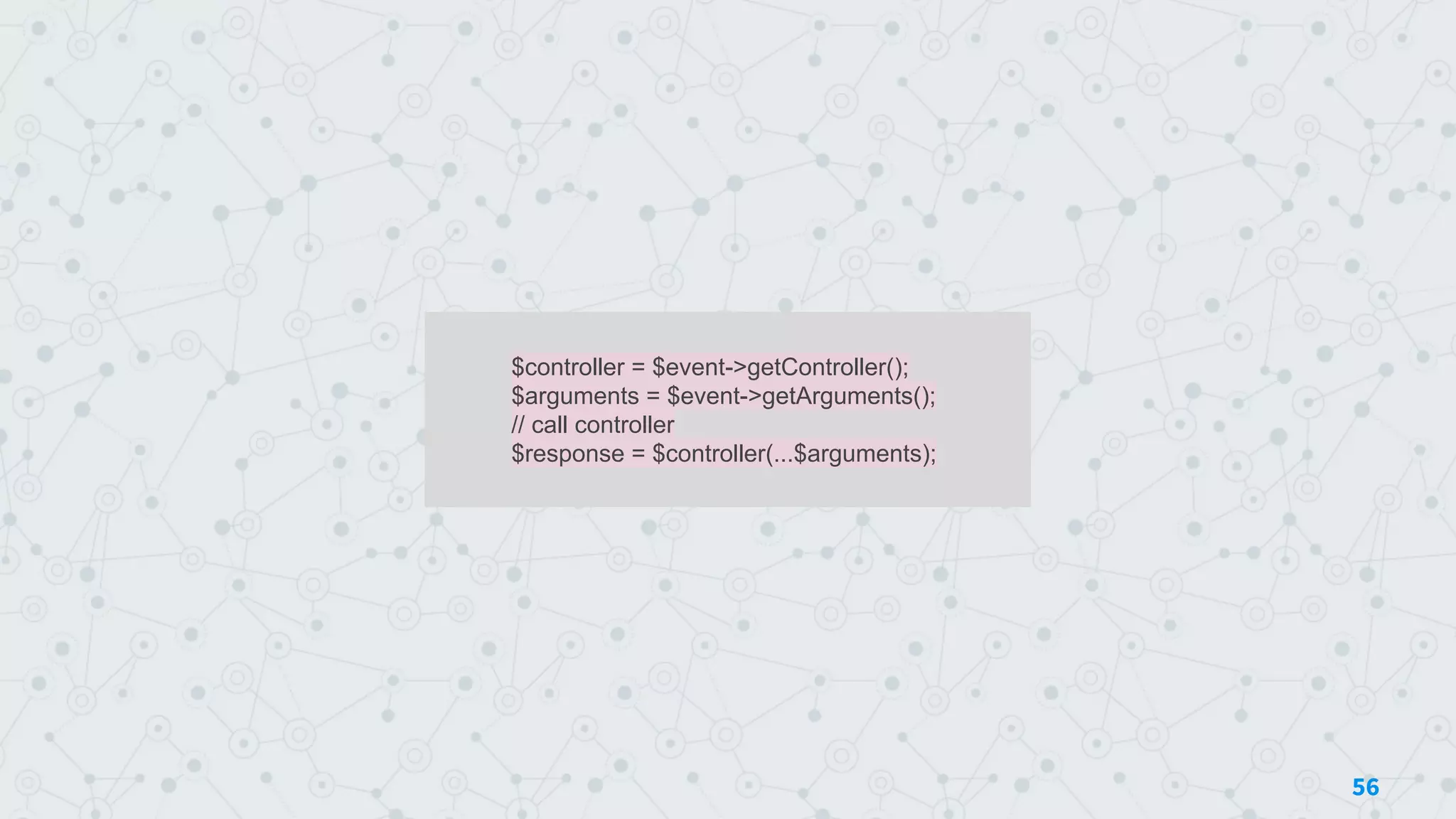

56. $controller = $event->getController();
$arguments = $event->getArguments();
// call controller
$response = $controller(...$arguments);
56

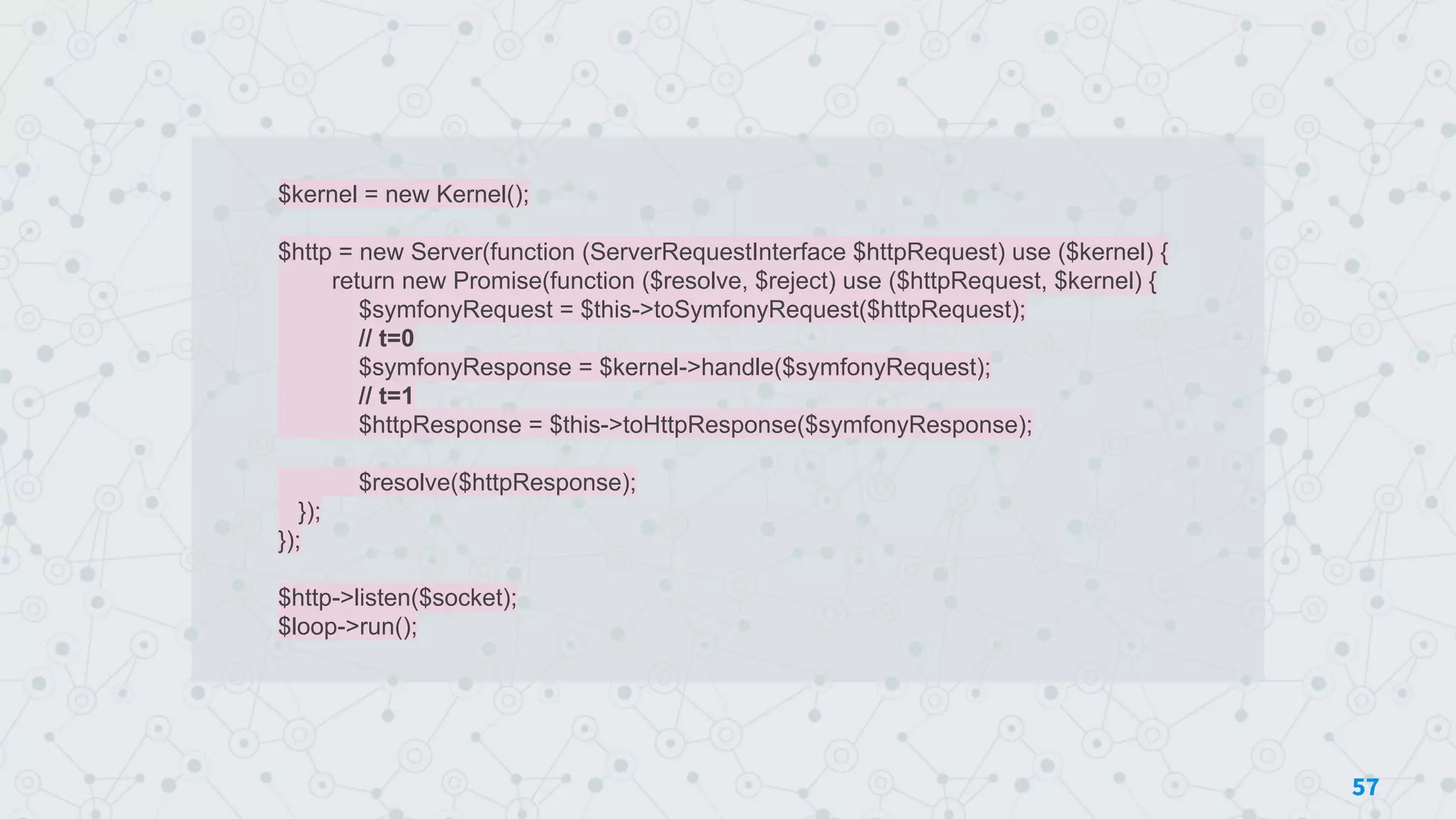

57. $kernel = new Kernel();
$http = new Server(function (ServerRequestInterface $httpRequest) use ($kernel) {
return new Promise(function ($resolve, $reject) use ($httpRequest, $kernel) {
$symfonyRequest = $this->toSymfonyRequest($httpRequest);
// t=0
$symfonyResponse = $kernel->handle($symfonyRequest);
// t=1
$httpResponse = $this->toHttpResponse($symfonyResponse);
$resolve($httpResponse);
});
});
$http->listen($socket);
$loop->run();
57

58. 5.
Reactive domain
… as our first BIG change
58

59. Some
changes
Let’ see how we can turn our
domain a little bit reactive.
This is a slow step by step
process
59

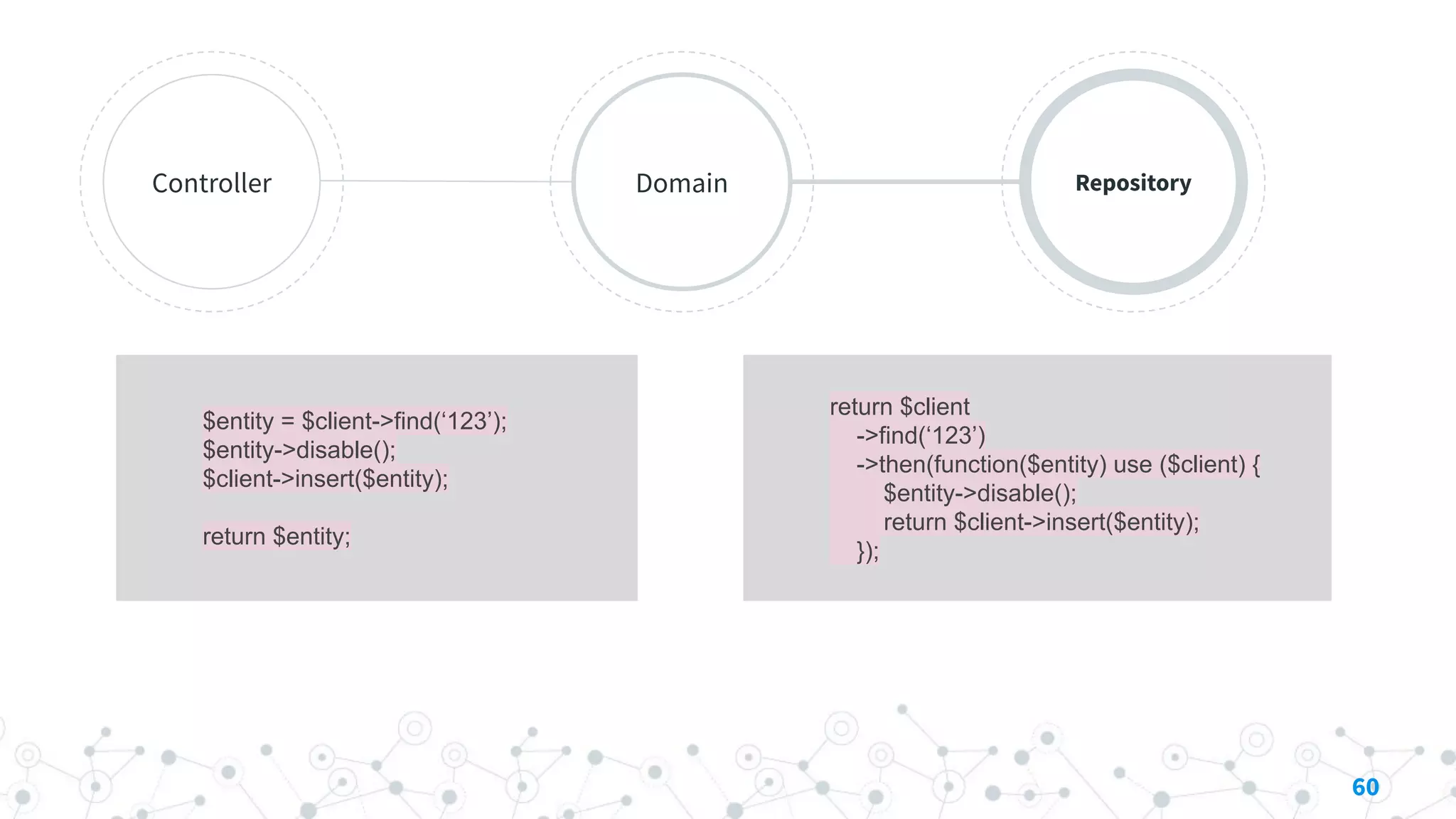

60. Controller Domain Repository
60
$entity = $client->find(‘123’);
$entity->disable();
$client->insert($entity);
return $entity;
return $client
->find(‘123’)
->then(function($entity) use ($client) {
$entity->disable();
return $client->insert($entity);
});

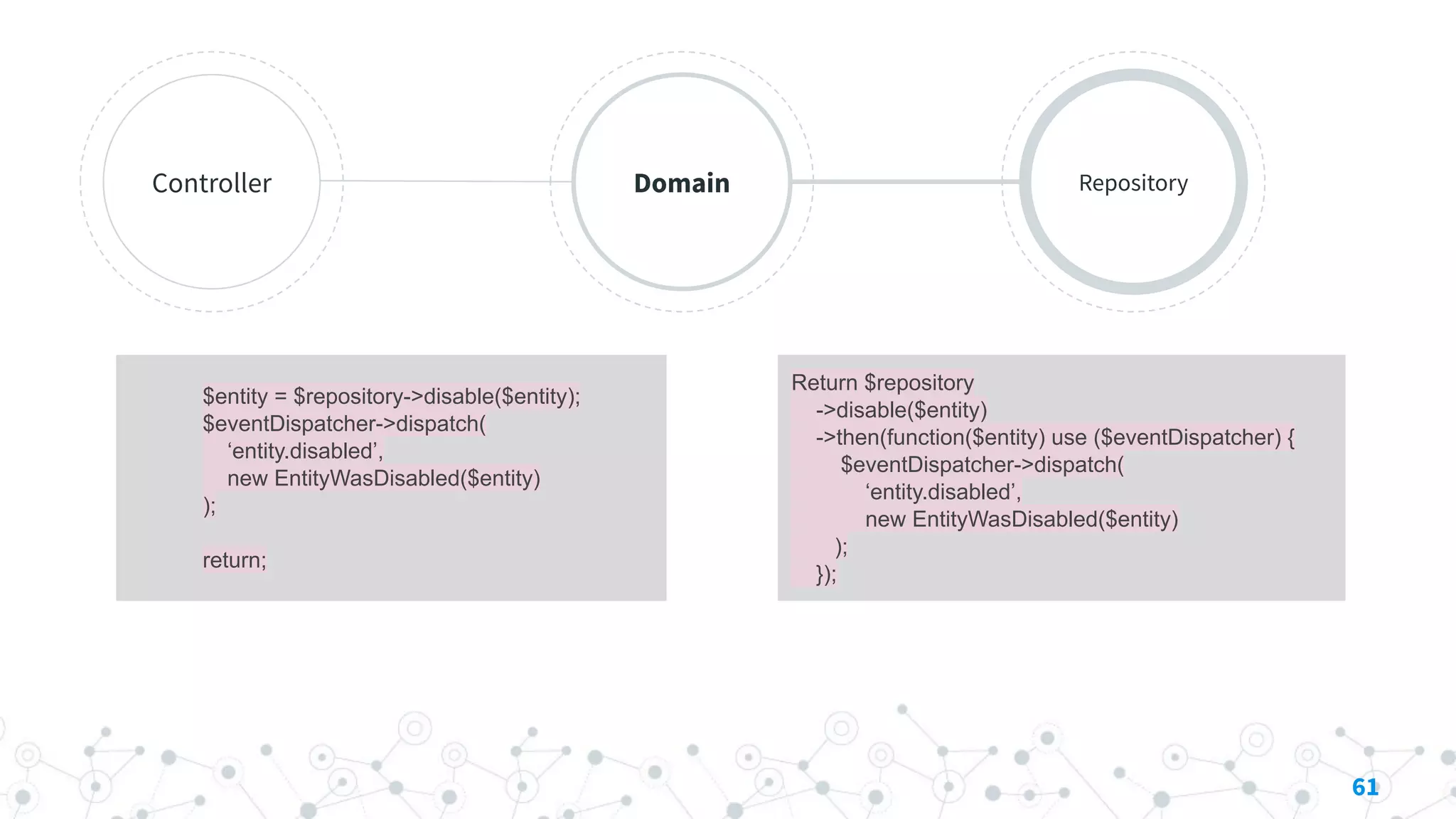

61. Controller Domain Repository
61
$entity = $repository->disable($entity);
$eventDispatcher->dispatch(
‘entity.disabled’,
new EntityWasDisabled($entity)
);
return;
Return $repository
->disable($entity)
->then(function($entity) use ($eventDispatcher) {
$eventDispatcher->dispatch(
‘entity.disabled’,
new EntityWasDisabled($entity)
);
});

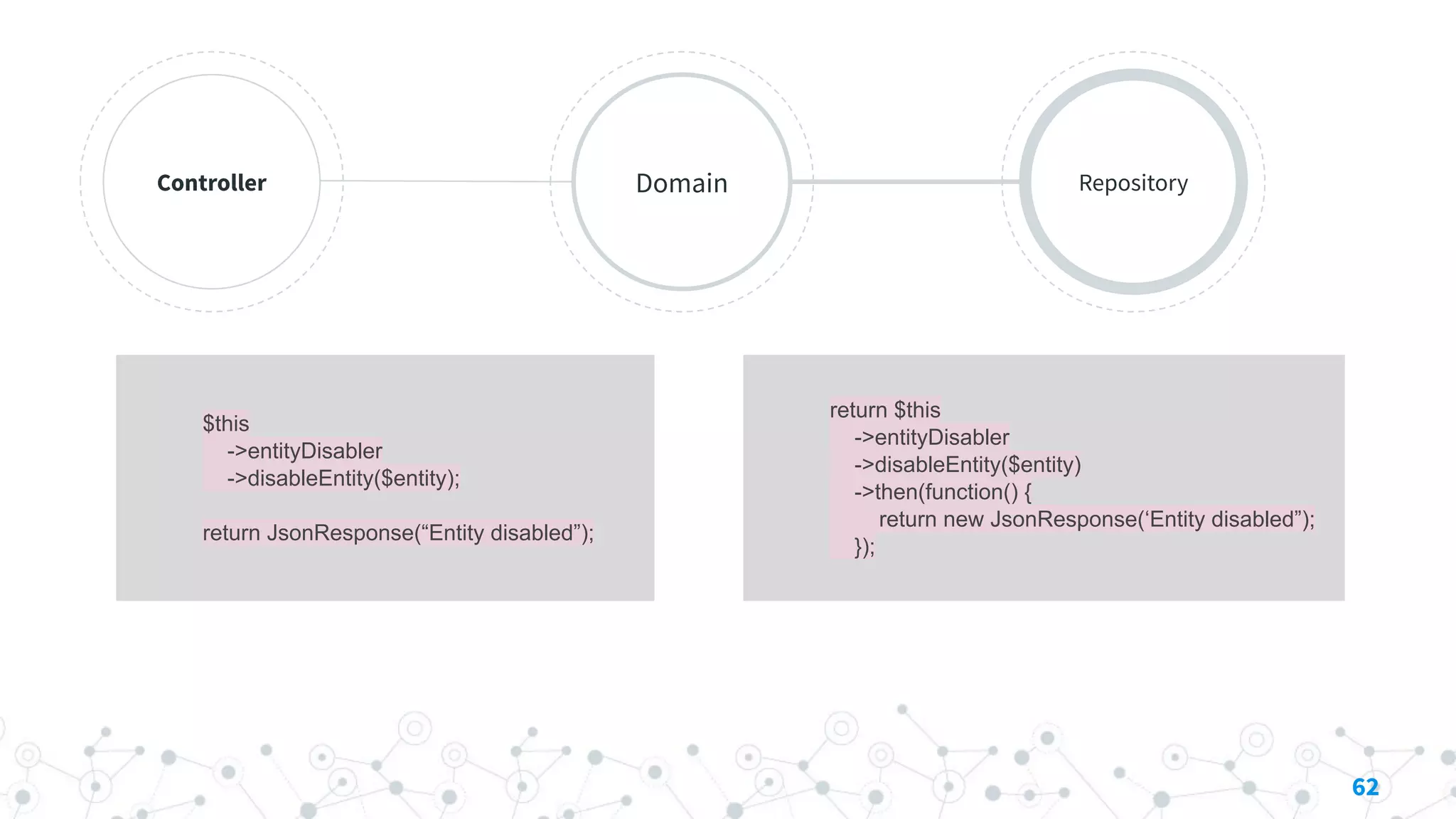

62. Controller Domain Repository
62
$this
->entityDisabler
->disableEntity($entity);
return JsonResponse(“Entity disabled”);
return $this
->entityDisabler
->disableEntity($entity)
->then(function() {
return new JsonResponse(‘Entity disabled”);
});

63. “
Controller in Symfony must return
a Response object or an array if
you use Twig
63

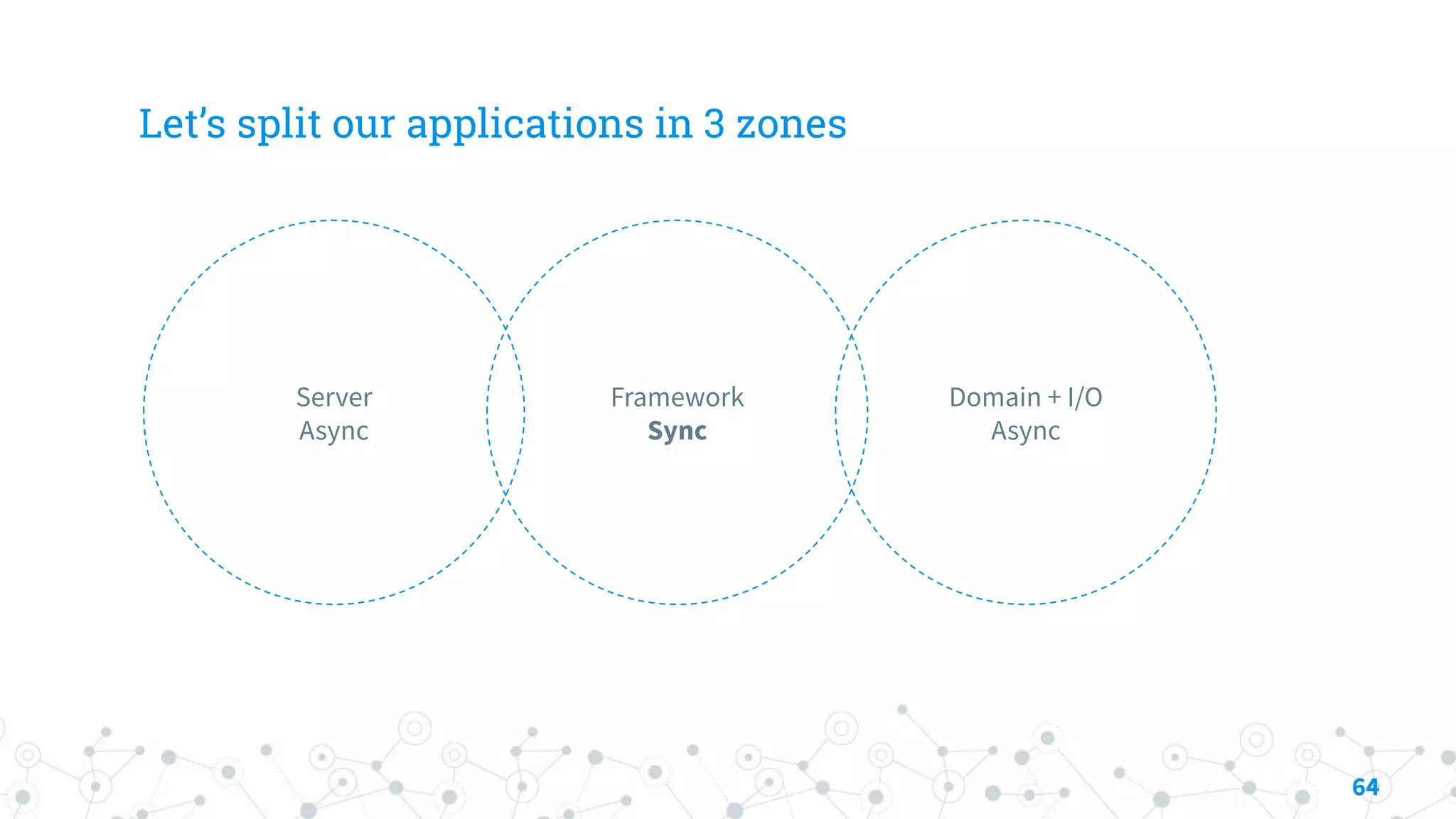

64. Let’s split our applications in 3 zones
Framework
Sync
Server
Async
Domain + I/O
Async
64

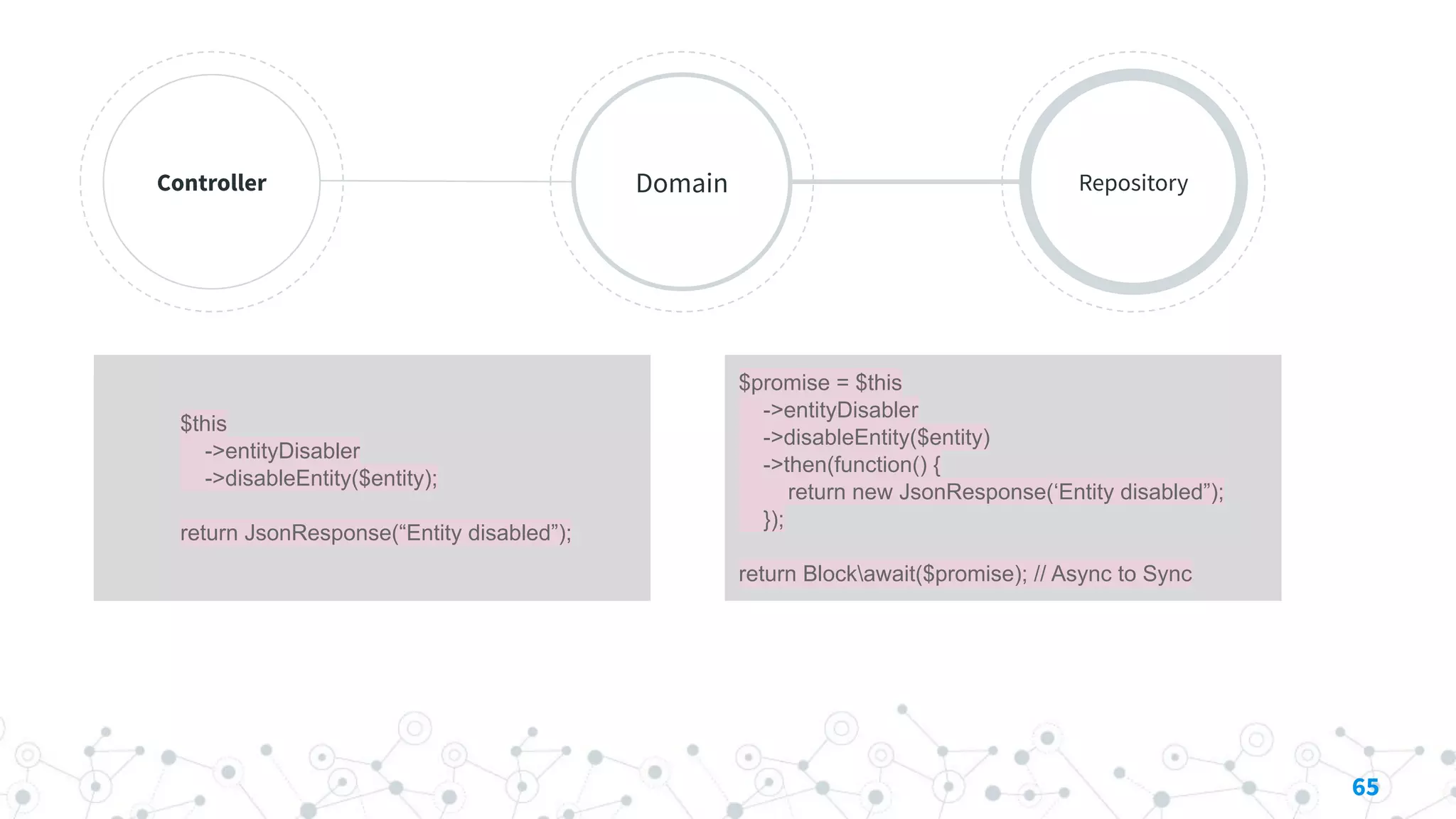

65. Controller Domain Repository
65
$this
->entityDisabler
->disableEntity($entity);
return JsonResponse(“Entity disabled”);
$promise = $this
->entityDisabler
->disableEntity($entity)
->then(function() {
return new JsonResponse(‘Entity disabled”);
});
return Blockawait($promise); // Async to Sync

66. 6.
ReactPHP Symfony
Kernel
… as the solution
66

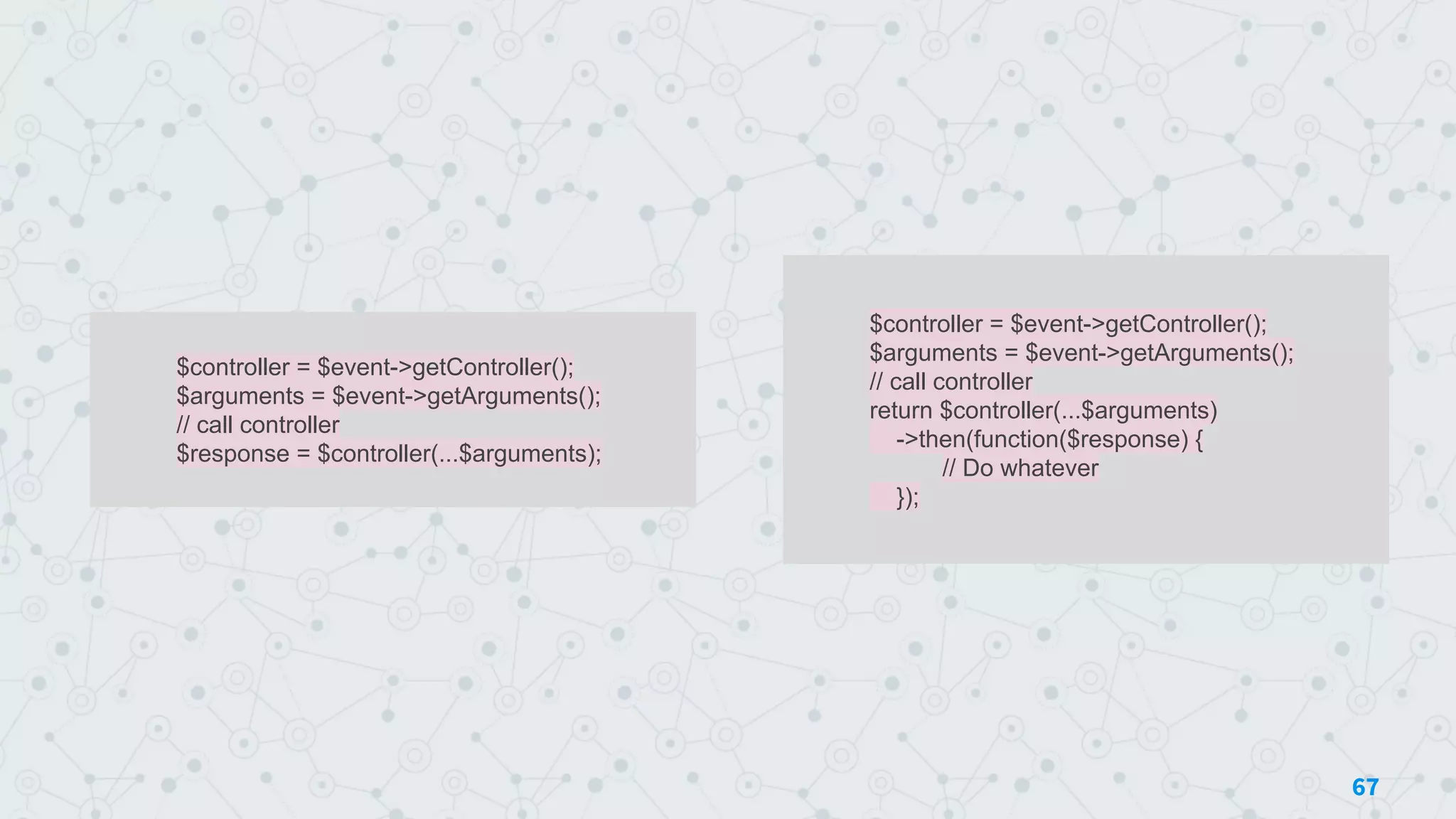

67. $controller = $event->getController();
$arguments = $event->getArguments();
// call controller
$response = $controller(...$arguments);
67
$controller = $event->getController();
$arguments = $event->getArguments();
// call controller
return $controller(...$arguments)
->then(function($response) {
// Do whatever
});

68. Symfony
Async
Kernel
Working with an async
kernel in Symfony mean
some specific changes
68

69. Let’s split our applications in 3 zones
Framework
Async
Server
Async
Domain + I/O
Async
69

70. “
Controllers must return a Promise,
which eventually will return a
Response or an Array
70

71. “
Event listeners can return a
Promise as part of your domain.
Check inside and outside the
Promise effects
71

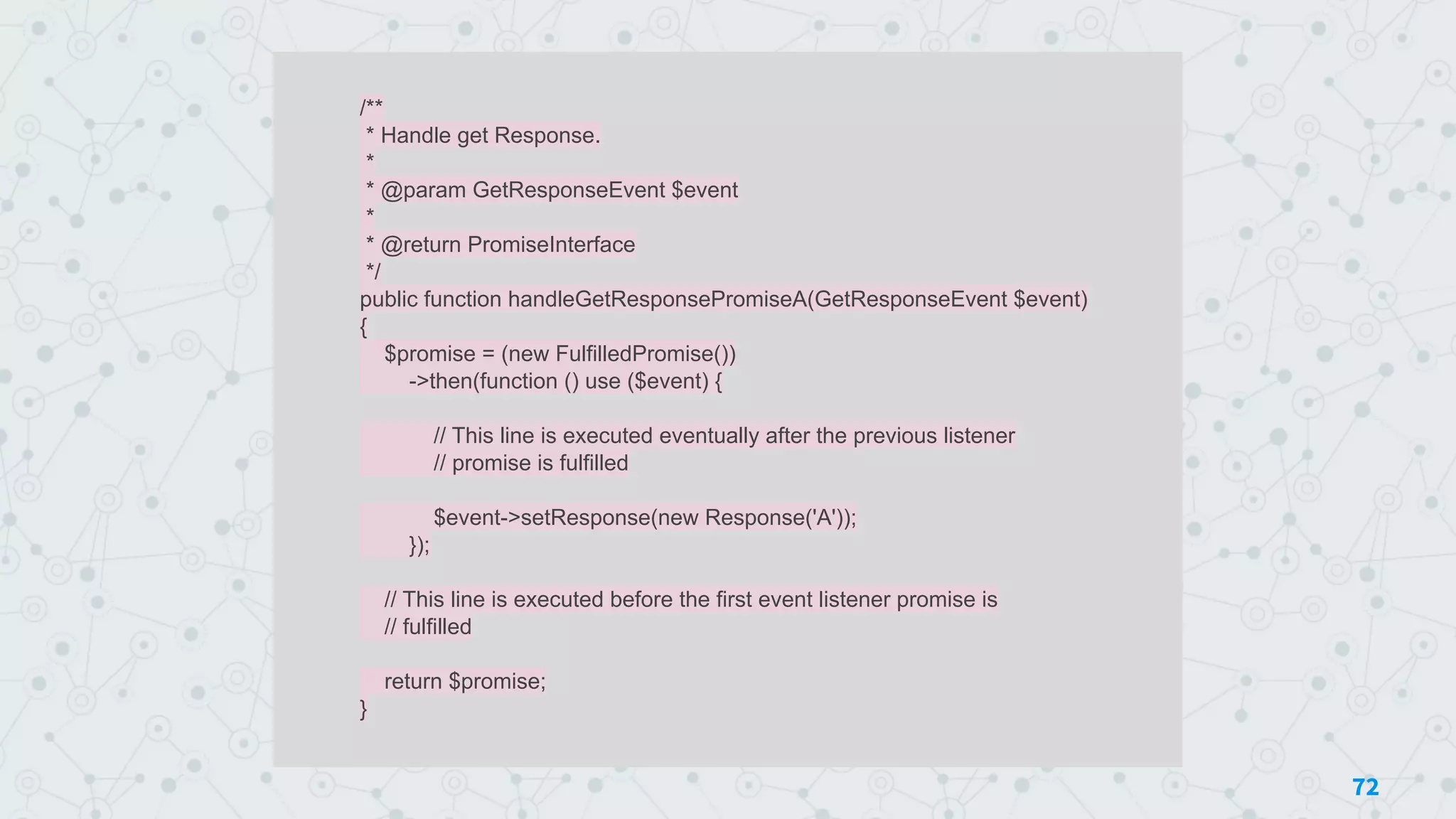

72. /**
* Handle get Response.
*
* @param GetResponseEvent $event
*
* @return PromiseInterface
*/
public function handleGetResponsePromiseA(GetResponseEvent $event)
{
$promise = (new FulfilledPromise())
->then(function () use ($event) {
// This line is executed eventually after the previous listener
// promise is fulfilled
$event->setResponse(new Response('A'));
});
// This line is executed before the first event listener promise is
// fulfilled
return $promise;
}
72

73. “
Each I/O operation must be
performed by using Reactive
libraries (filesystem, Redis, Http
requests, Mysql, RabbitMQ...)
73

74. “
A single sync I/O operation will
make your whole application sync
74

75. Symfony
Async
Kernel
https://github.com/apisearch-io/symfony-async-kernel
https://github.com/apisearch-io/symfony-react-demo
75

76. 7.
ReactPHP Symfony
server
… as the main server
76

77. Let’s split our applications in 3 zones
Framework
Async
Server
Async
Domain + I/O
Async
77

78. Async
Server
https://github.com/apisearch-io/symfony-react-server
78

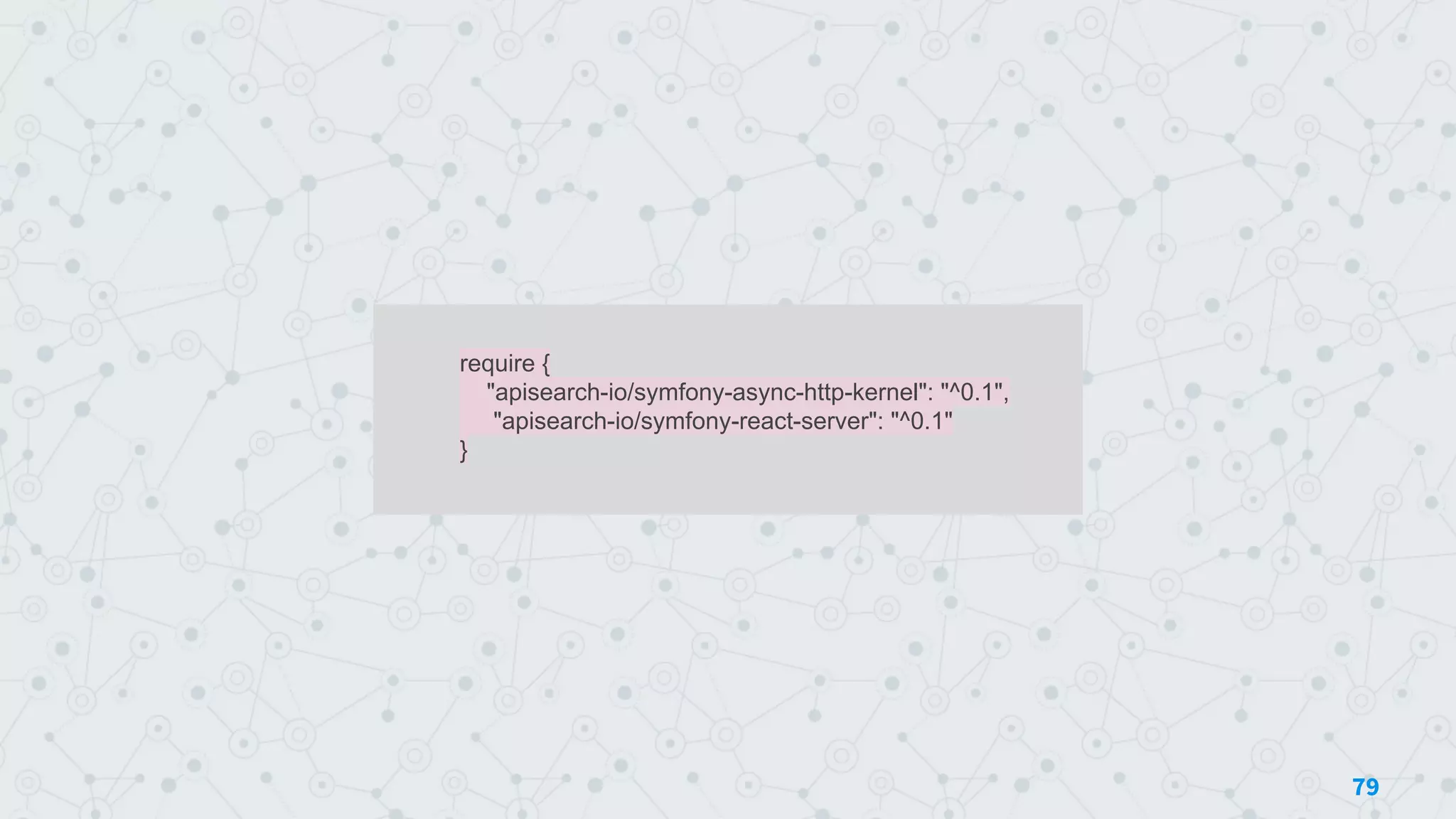

79. require {
"apisearch-io/symfony-async-http-kernel": "^0.1",
"apisearch-io/symfony-react-server": "^0.1"
}
79

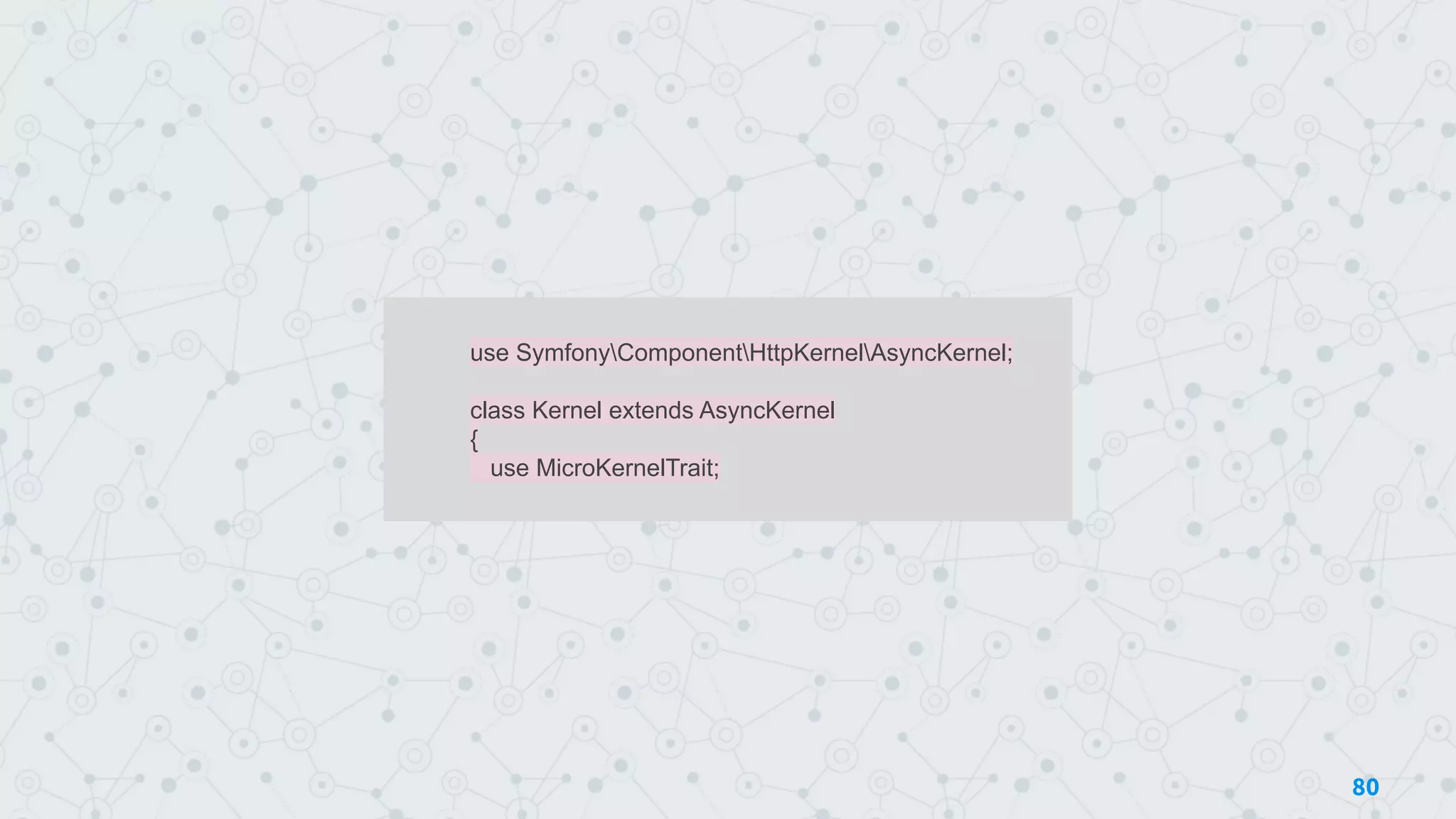

80. use SymfonyComponentHttpKernelAsyncKernel;
class Kernel extends AsyncKernel
{
use MicroKernelTrait;
80

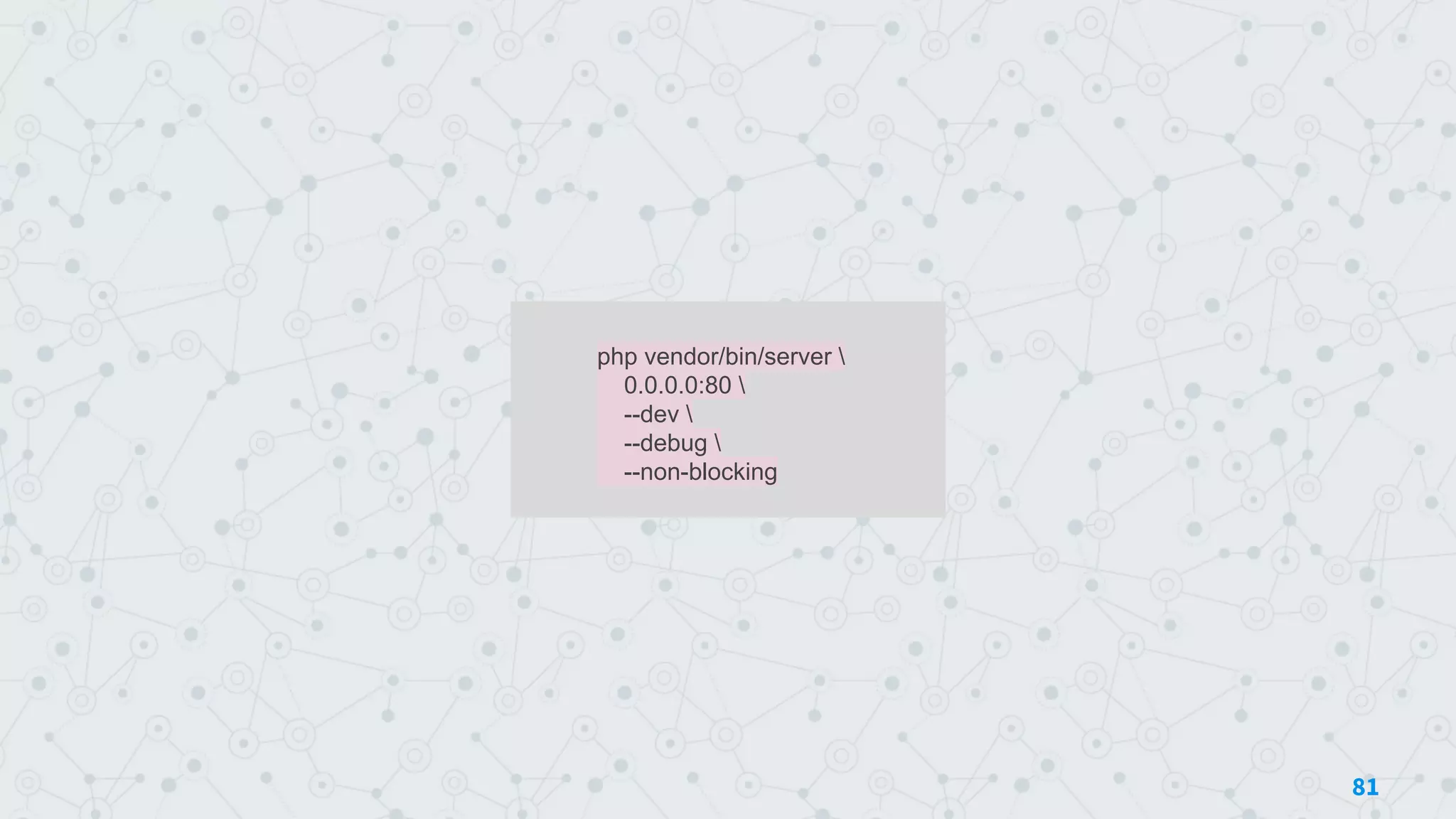

81. php vendor/bin/server
0.0.0.0:80
--dev
--debug
--non-blocking
81

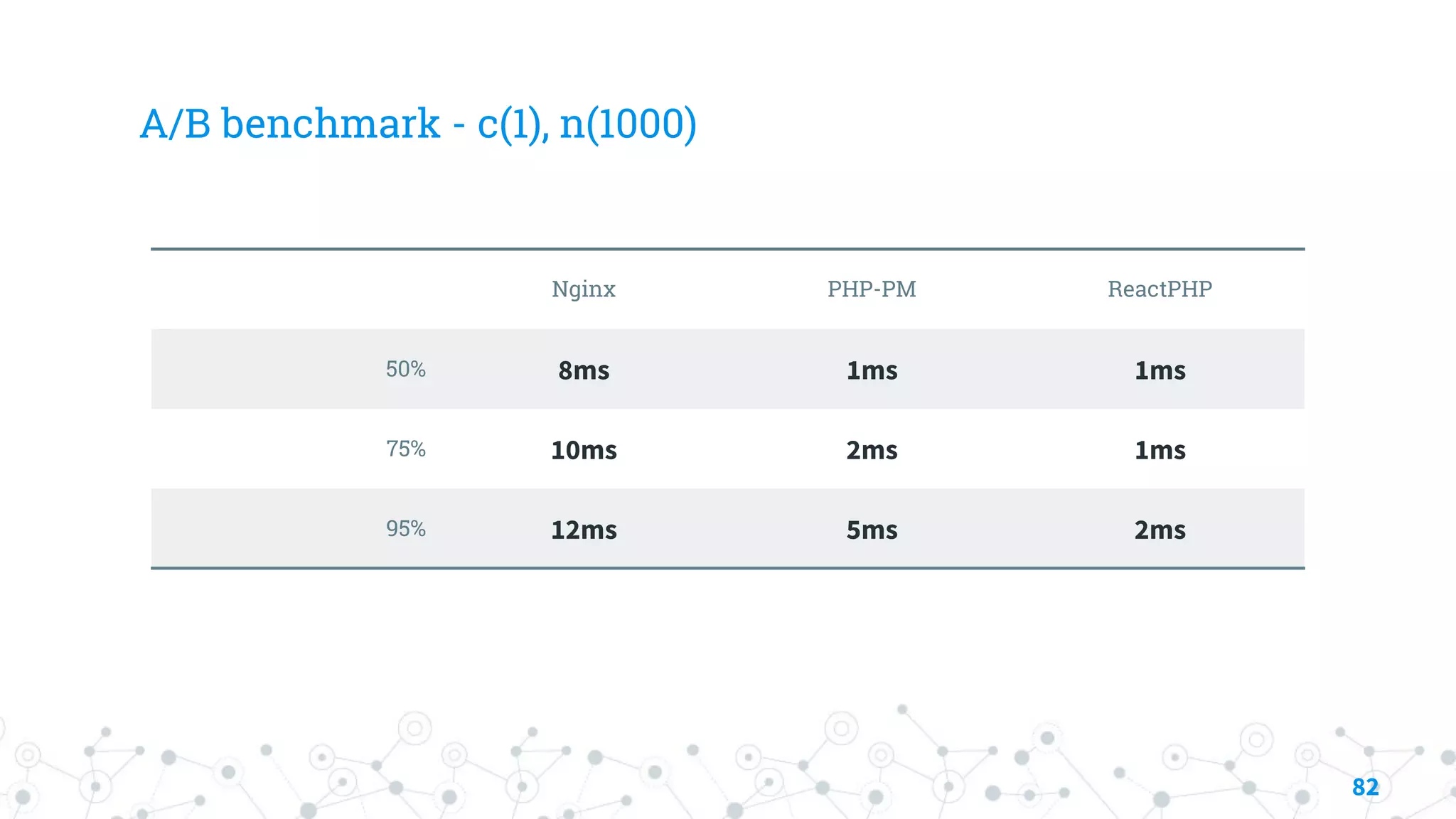

82. A/B benchmark - c(1), n(1000)
Nginx PHP-PM ReactPHP
50% 8ms 1ms 1ms
75% 10ms 2ms 1ms
95% 12ms 5ms 2ms
82

83. A/B benchmark - c(20), n(1000)
Nginx PHP-PM ReactPHP
50% 19ms 17ms 14ms
75% 23ms 20ms 16ms
95% 34ms 23ms 18ms
83

84. A/B benchmark - c(50), n(1000)
Nginx PHP-PM ReactPHP
50% 85ms 37ms 22ms
75% 90ms 45ms 23ms
95% 107ms ~1s 25ms
84

85. A/B benchmark - c(200), n(10000)
Nginx PHP-PM ReactPHP
50% - 45ms 23ms
75% - 53ms 27ms
95% - 65ms 31ms
85

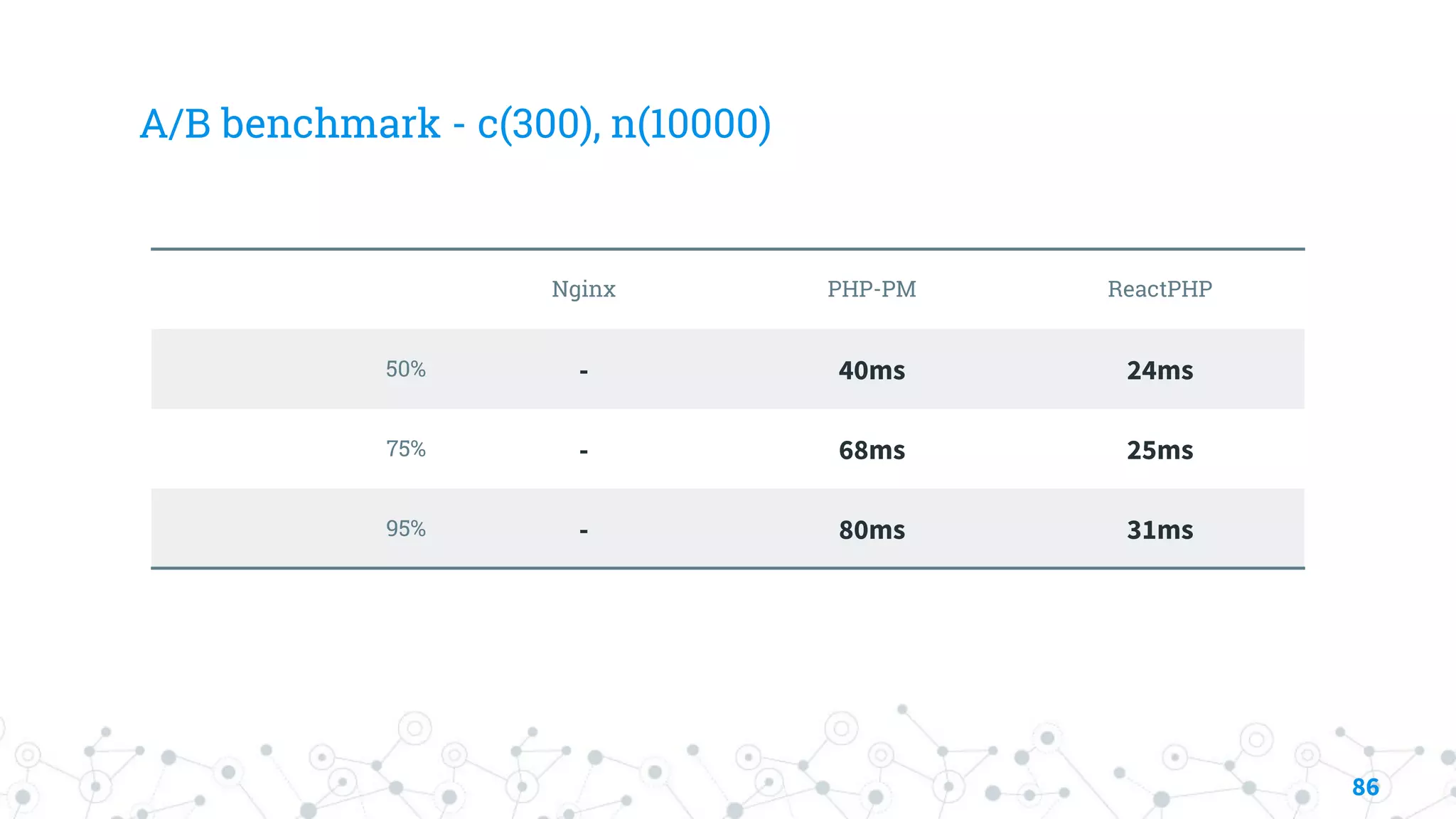

86. A/B benchmark - c(300), n(10000)
Nginx PHP-PM ReactPHP
50% - 40ms 24ms
75% - 68ms 25ms
95% - 80ms 31ms
86

87. Next steps
The future of PHP will be async, so you better be ready for
that
◎ Work for a Promises PSR. Let frameworks depend on
an interface instead of an implementation
◎ Start doing some serious stuff with Promises in PHP
◎ We should start seeing some live projects on top of
ReactPHP - Apisearch soon!
87

88. Next steps
◎ Some libraries should be adapted to Reactive
programming, or we should create new (DBAL, Logger,
Elasticsearch client…)
◎ Start talking a little bit more about this, because a
language is not it’s code, but how far his community
can go.
88

89. Thanks!
Any questions?
You can find me at:
@mmoreram &
yuhu@mmoreram.com
89
