What's new in Xamarin.Forms
- Xamarin allows building native mobile apps with shared C# code for iOS, Android, and Windows. It uses C# and Xamarin.Forms for cross-platform UI while providing access to full native APIs. - Xamarin.Forms provides common UI controls and layouts that can be shared across platforms. It allows building user interfaces once that render natively on each device. - Xamarin continues improving performance, adding new features like layout compression, and supporting additional platforms like macOS. It focuses on high code sharing, native experiences, and an active open source community.
What's new in Xamarin.Forms
- 3.
- 5. Native User InterfacesNative API Access Native Performance

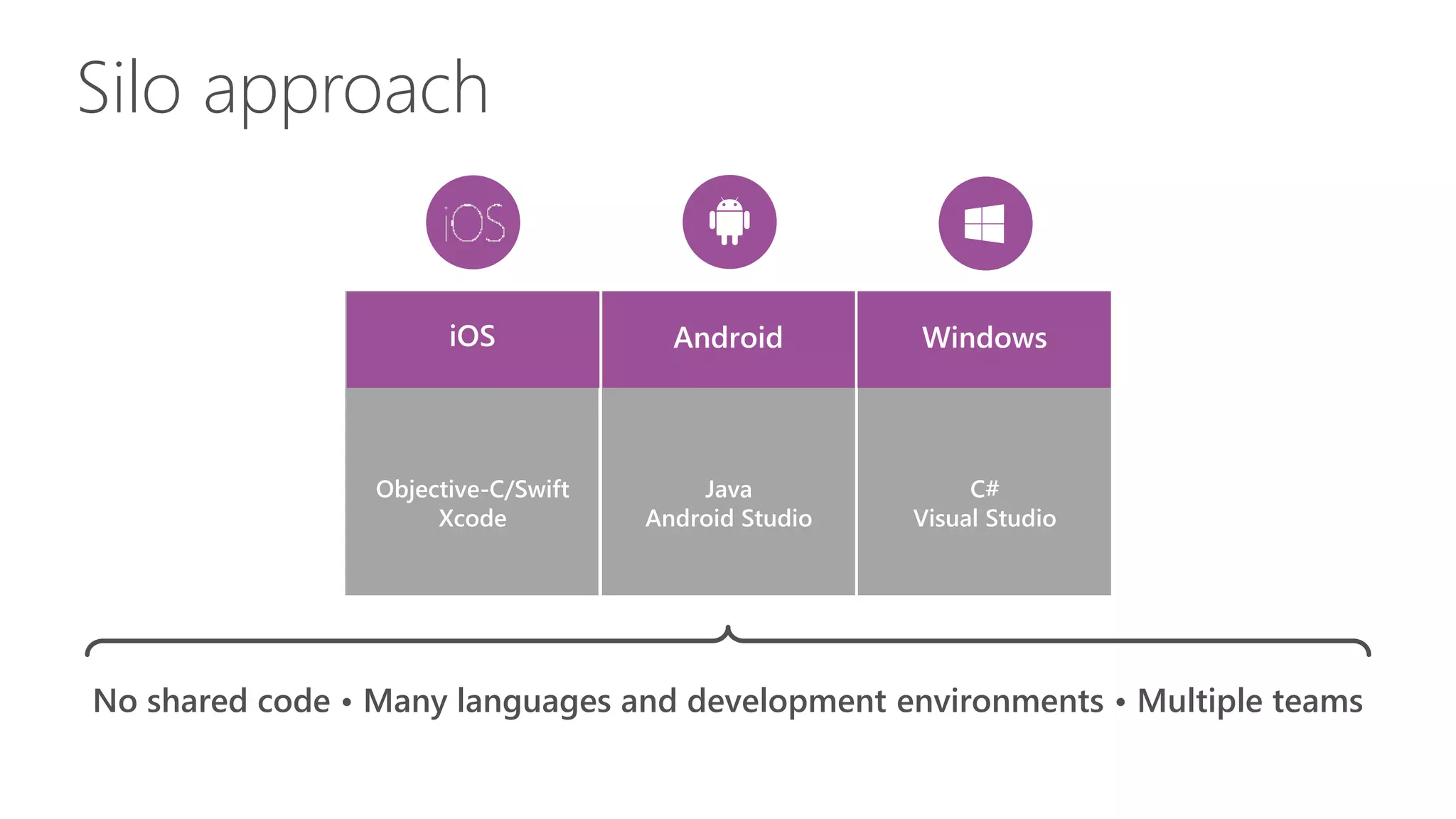

- 7. Silo approach iOS WindowsAndroid Objective-C/Swift Xcode C# VisualStudio Java Android Studio No shared code • Many languages and development environments • Multiple teams

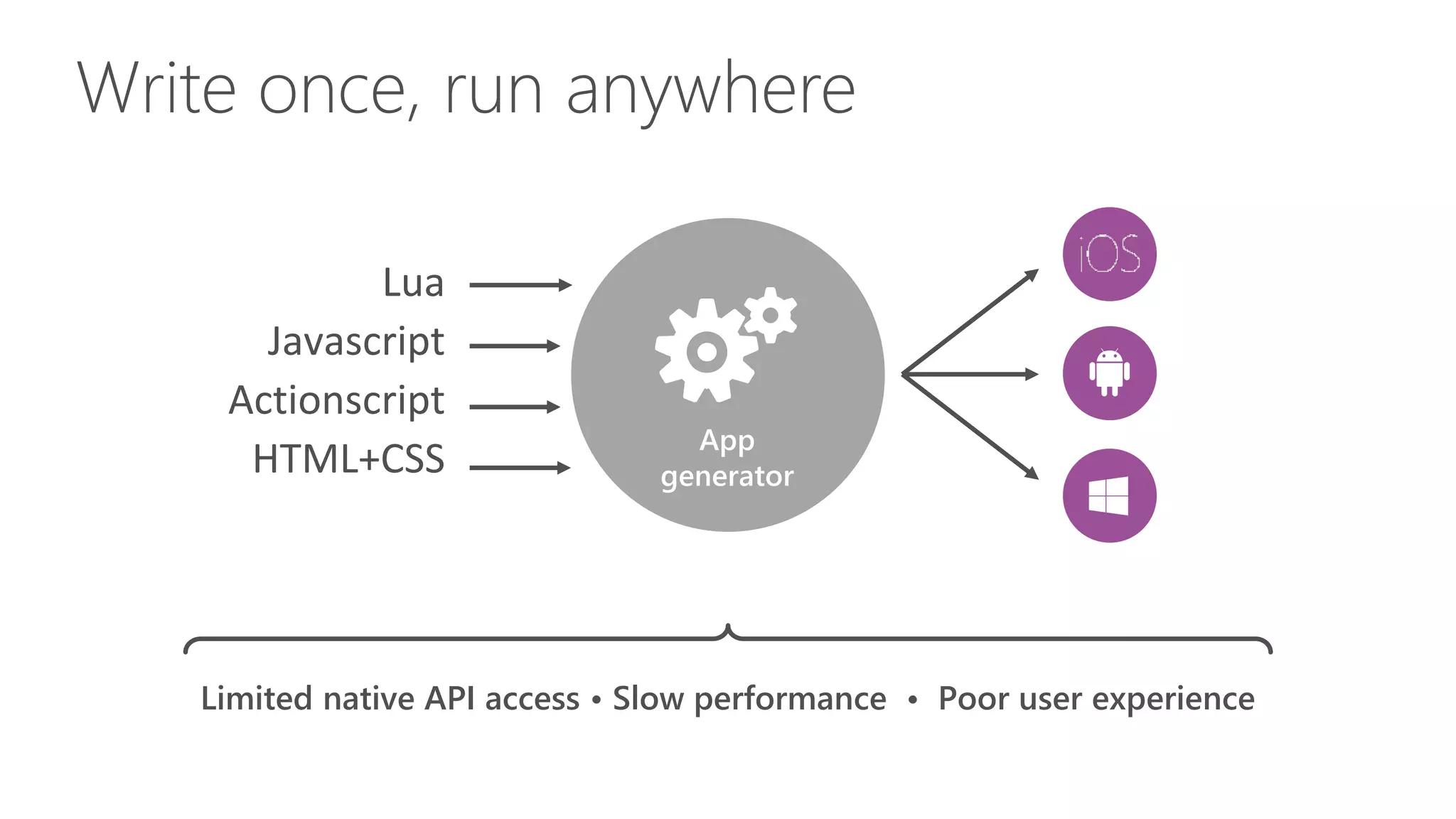

- 8. Write once, runanywhere Lua Javascript Actionscript HTML+CSS Limited native API access • Slow performance • Poor user experience App generator

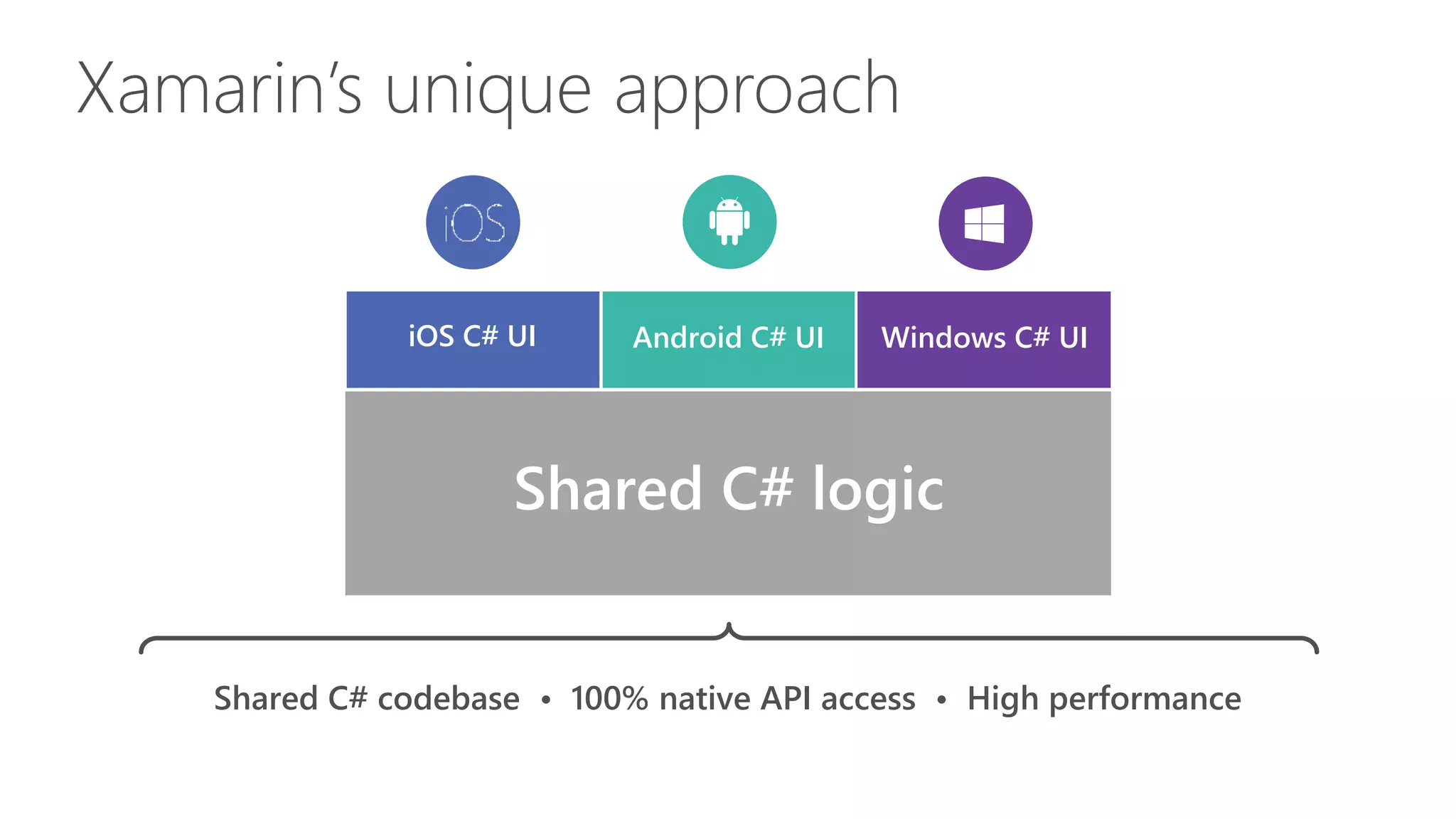

- 9. iOS C# UIWindows C# UIAndroid C# UI Shared C# logic Xamarin’s unique approach Shared C# codebase • 100% native API access • High performance

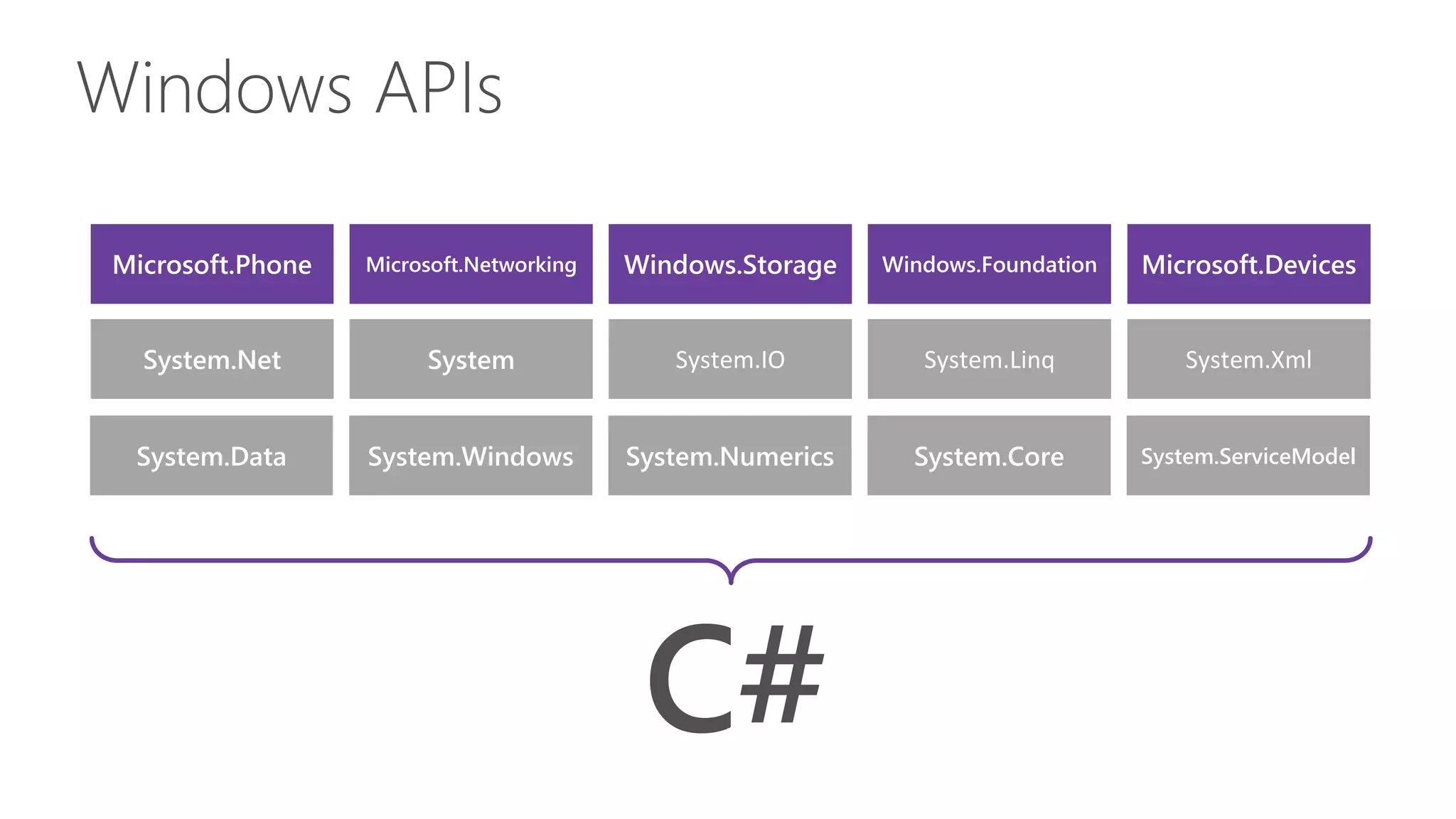

- 11. Windows APIs Microsoft.Phone Microsoft.NetworkingWindows.Storage Windows.Foundation Microsoft.Devices System.Data System.Windows System.Numerics System.Core System.ServiceModel System.Net System System.IO System.Linq System.Xml C#

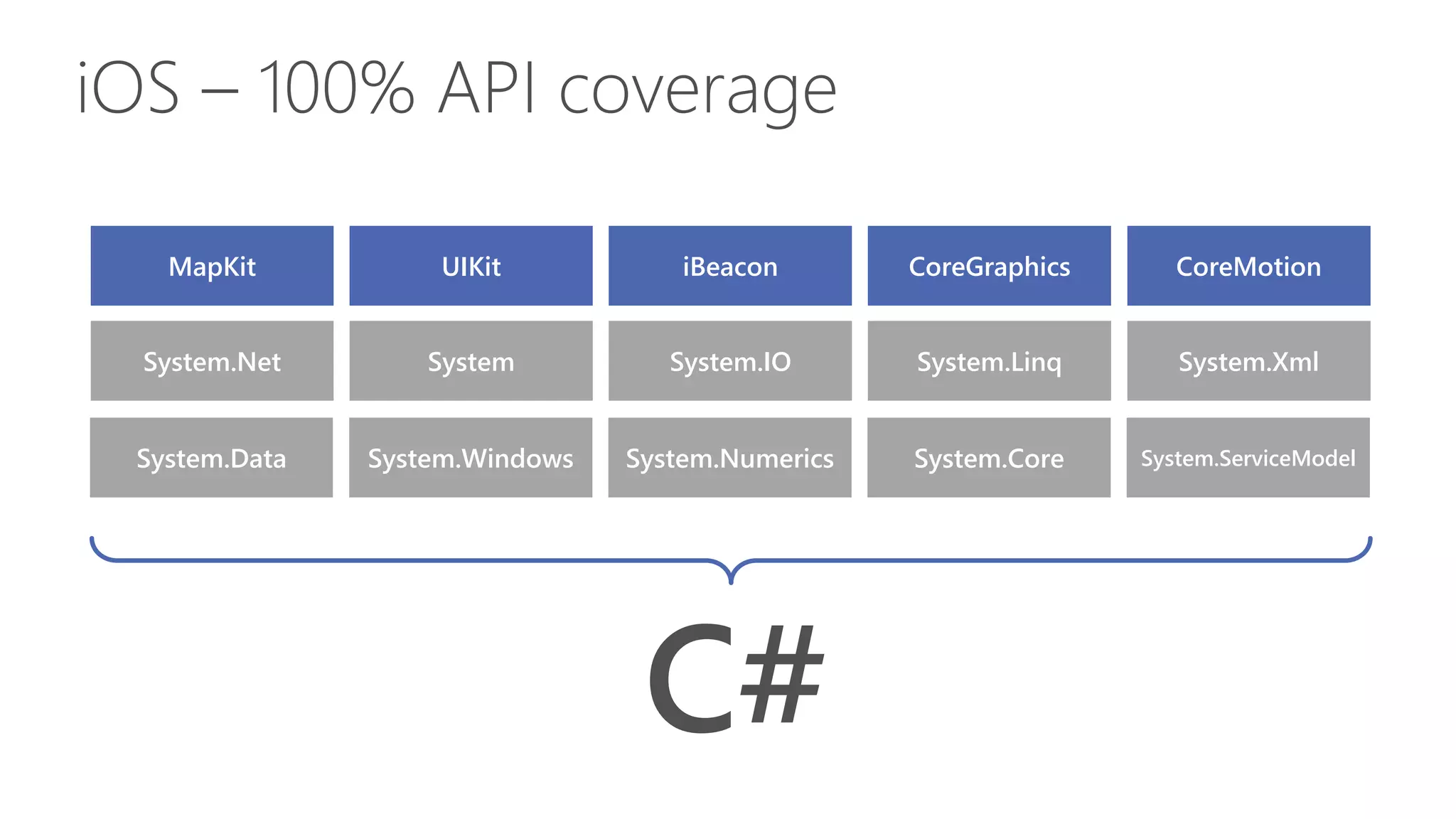

- 12. iOS – 100%API coverage MapKit UIKit iBeacon CoreGraphics CoreMotion System.Data System.Windows System.Numerics System.Core System.ServiceModel System.Net System System.IO System.Linq System.Xml C#

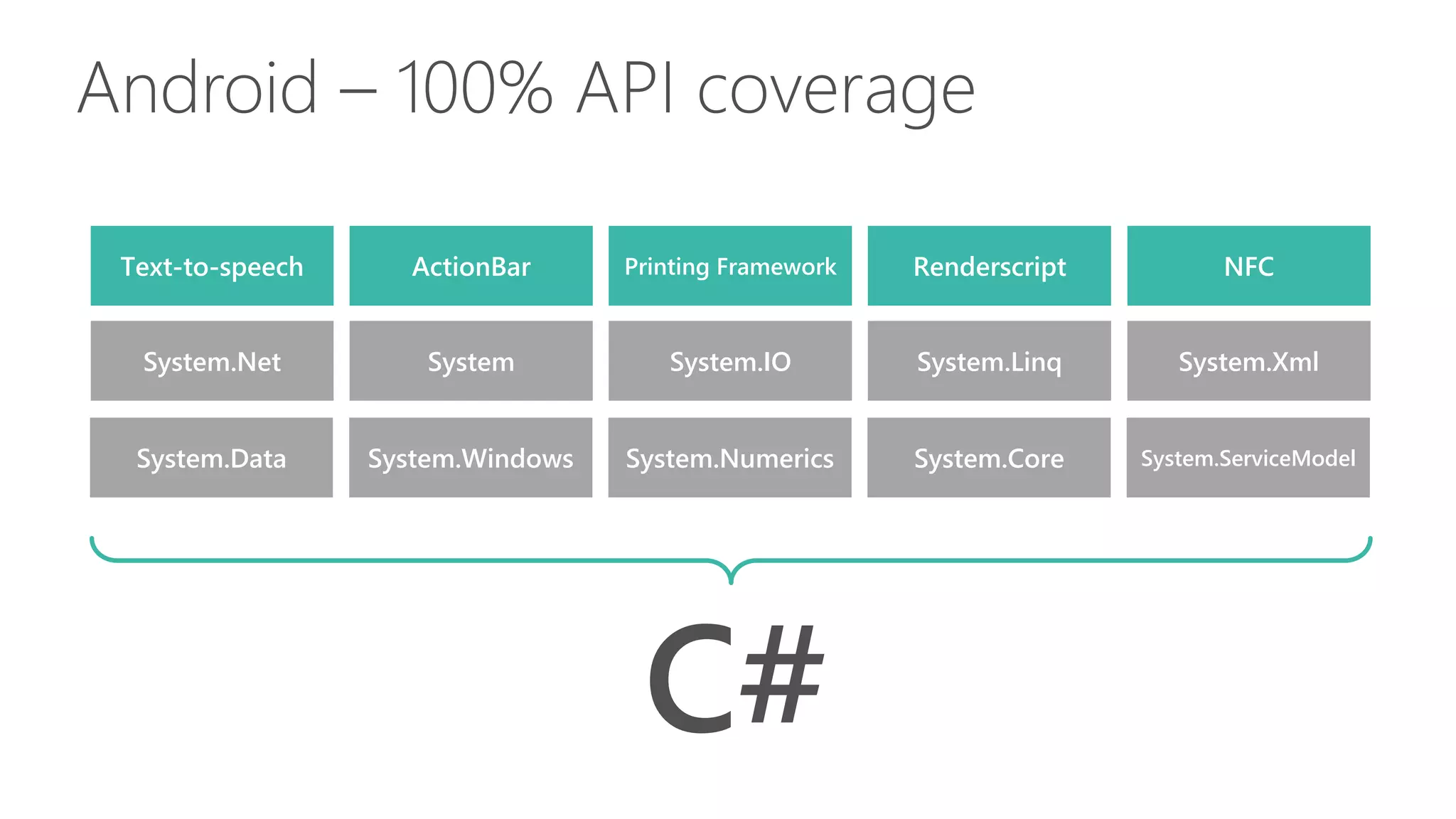

- 13. Android – 100%API coverage Text-to-speech ActionBar Printing Framework Renderscript NFC System.Data System.Windows System.Numerics System.Core System.ServiceModel System.Net System System.IO System.Linq System.Xml C#

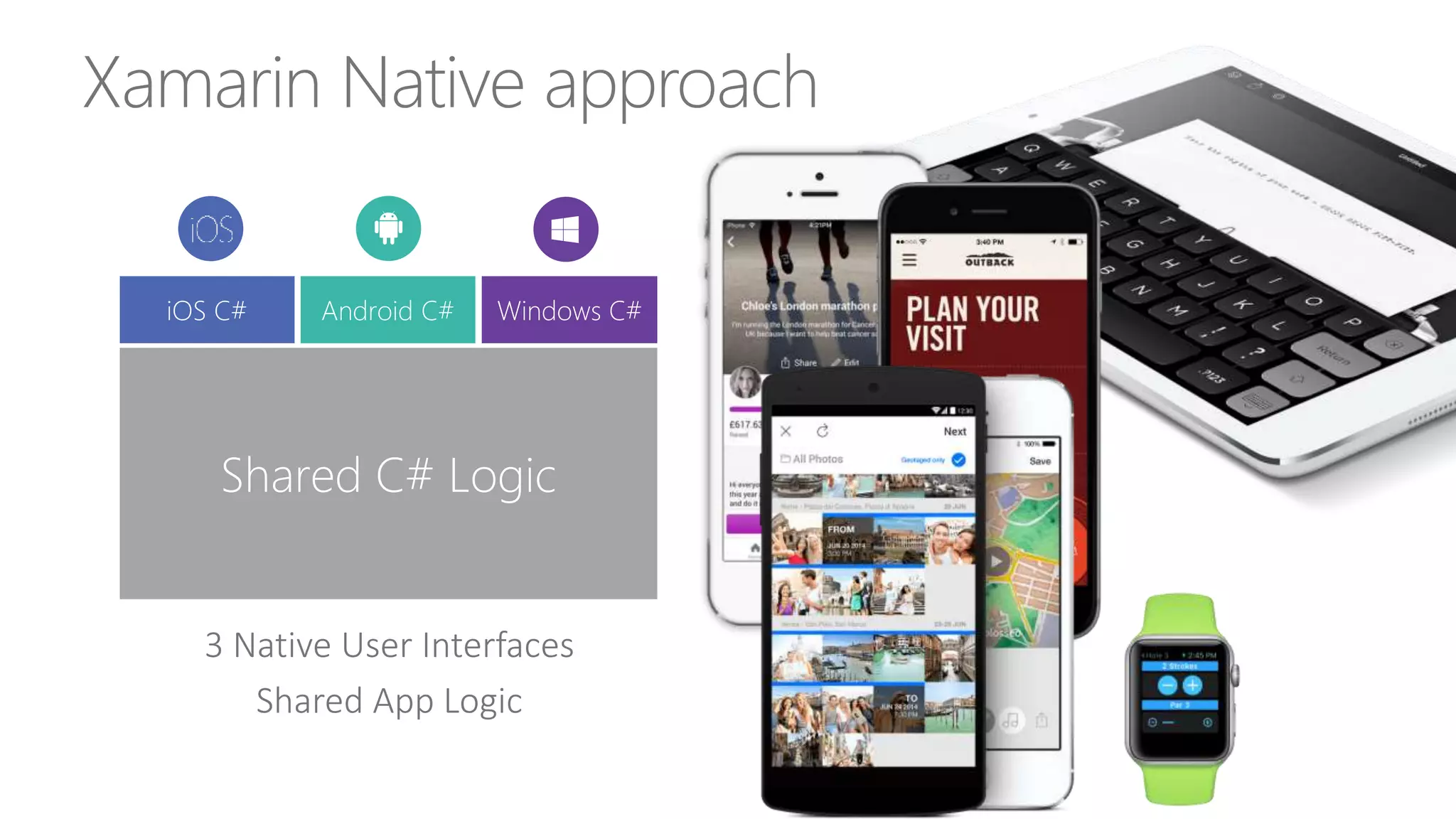

- 15. Xamarin Native approach 3Native User Interfaces Shared App Logic Shared C# Logic Windows C#Android C#iOS C#

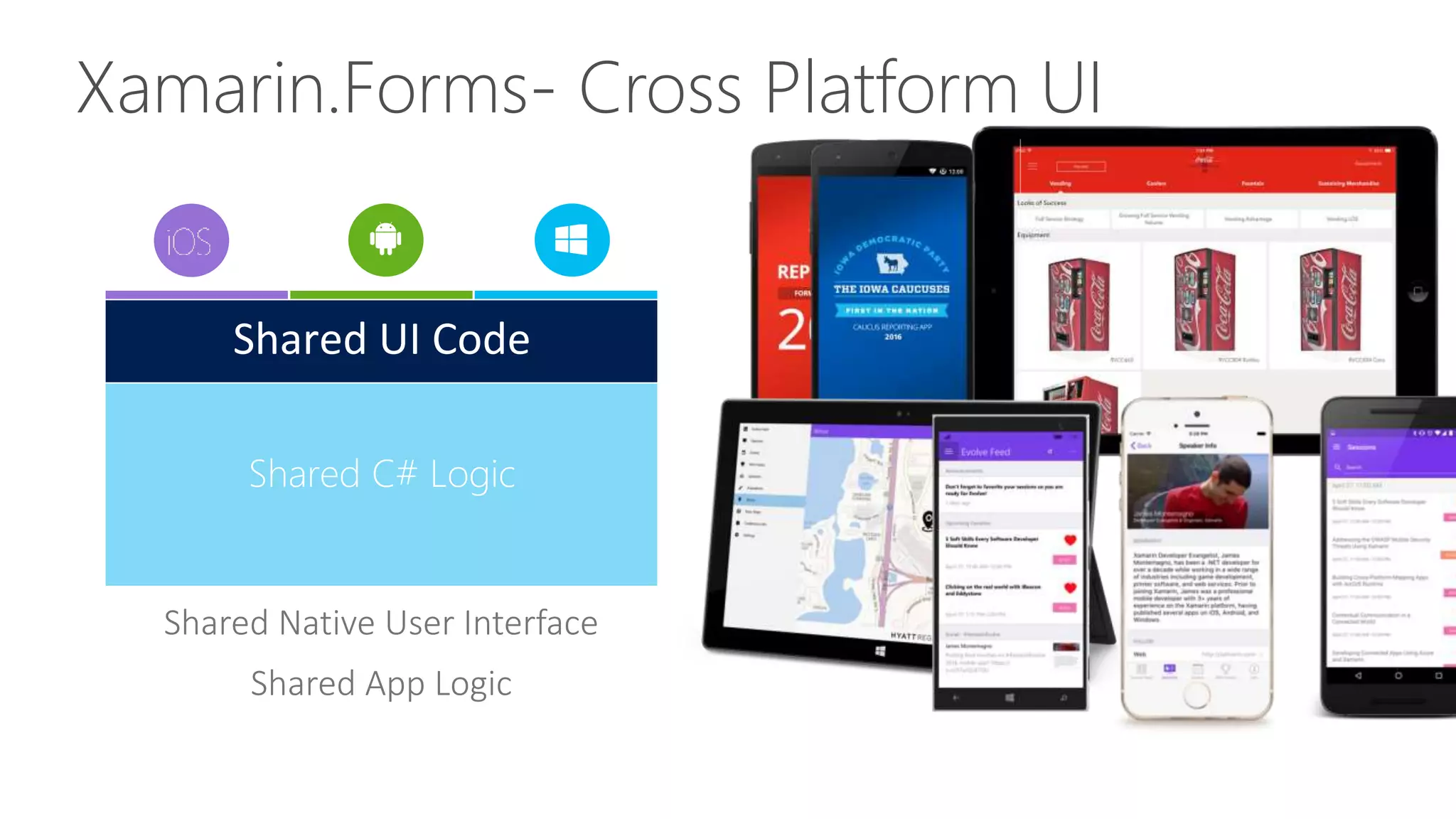

- 16. Xamarin.Forms- Cross PlatformUI Shared Native User Interface Shared App Logic Shared C# Logic Shared UI Code

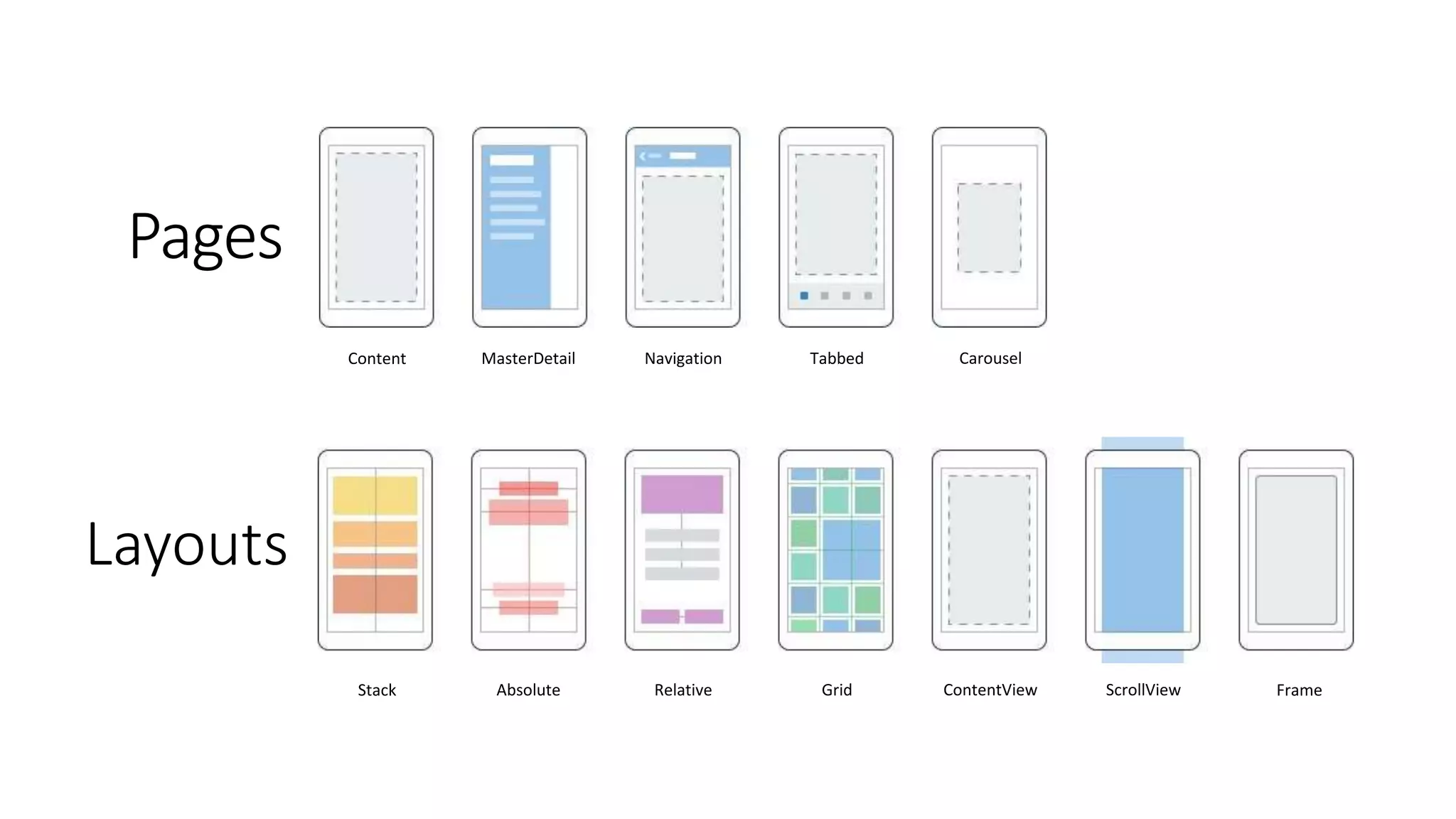

- 17. Layouts Pages Stack Absolute RelativeGrid ContentView ScrollView Frame Content MasterDetail Navigation Tabbed Carousel

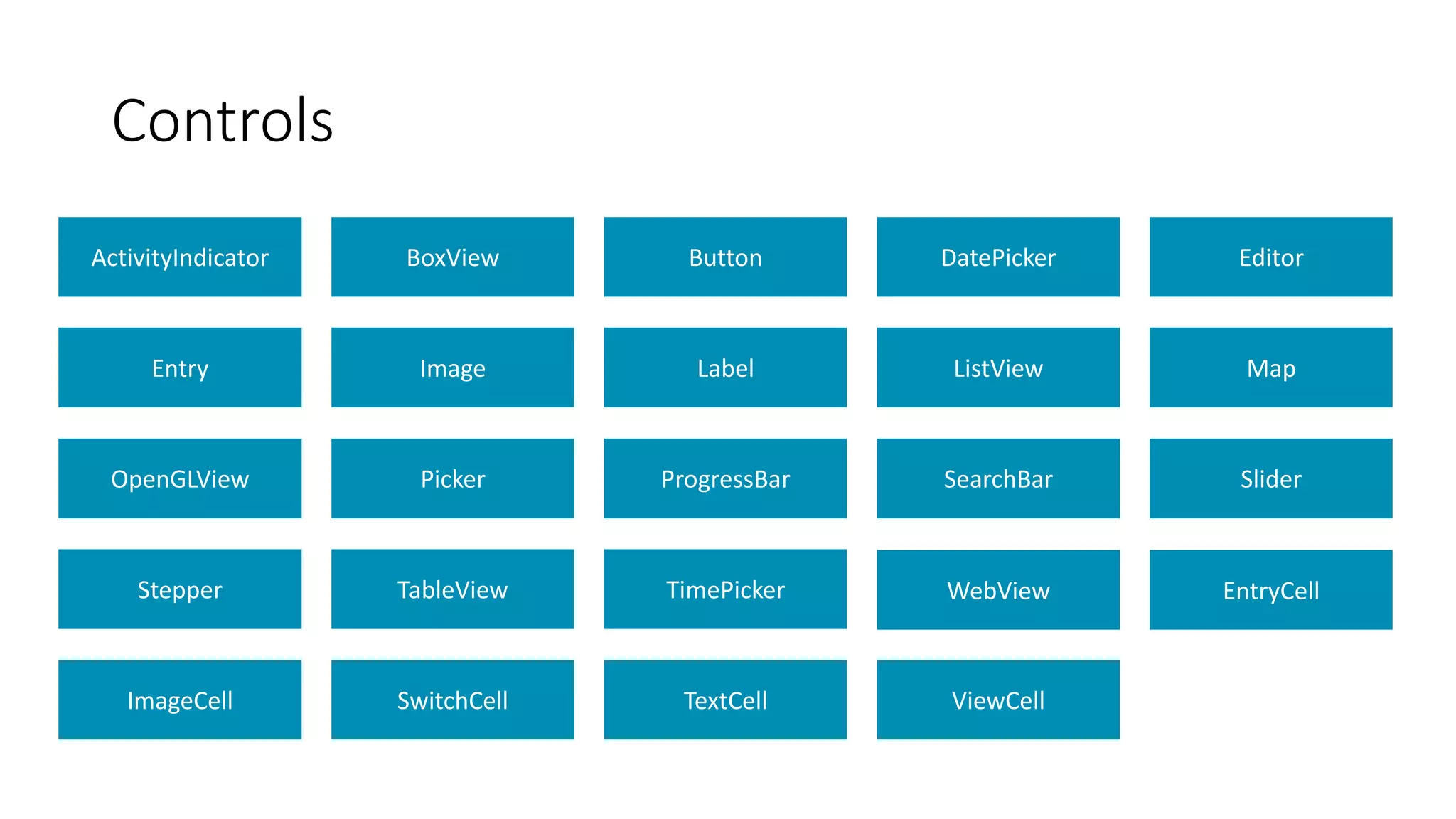

- 18. ActivityIndicator BoxView ButtonDatePicker Editor Entry Image Label ListView Map OpenGLView Picker ProgressBar SearchBar Slider Stepper TableView TimePicker WebView EntryCell ImageCell SwitchCell TextCell ViewCell Controls

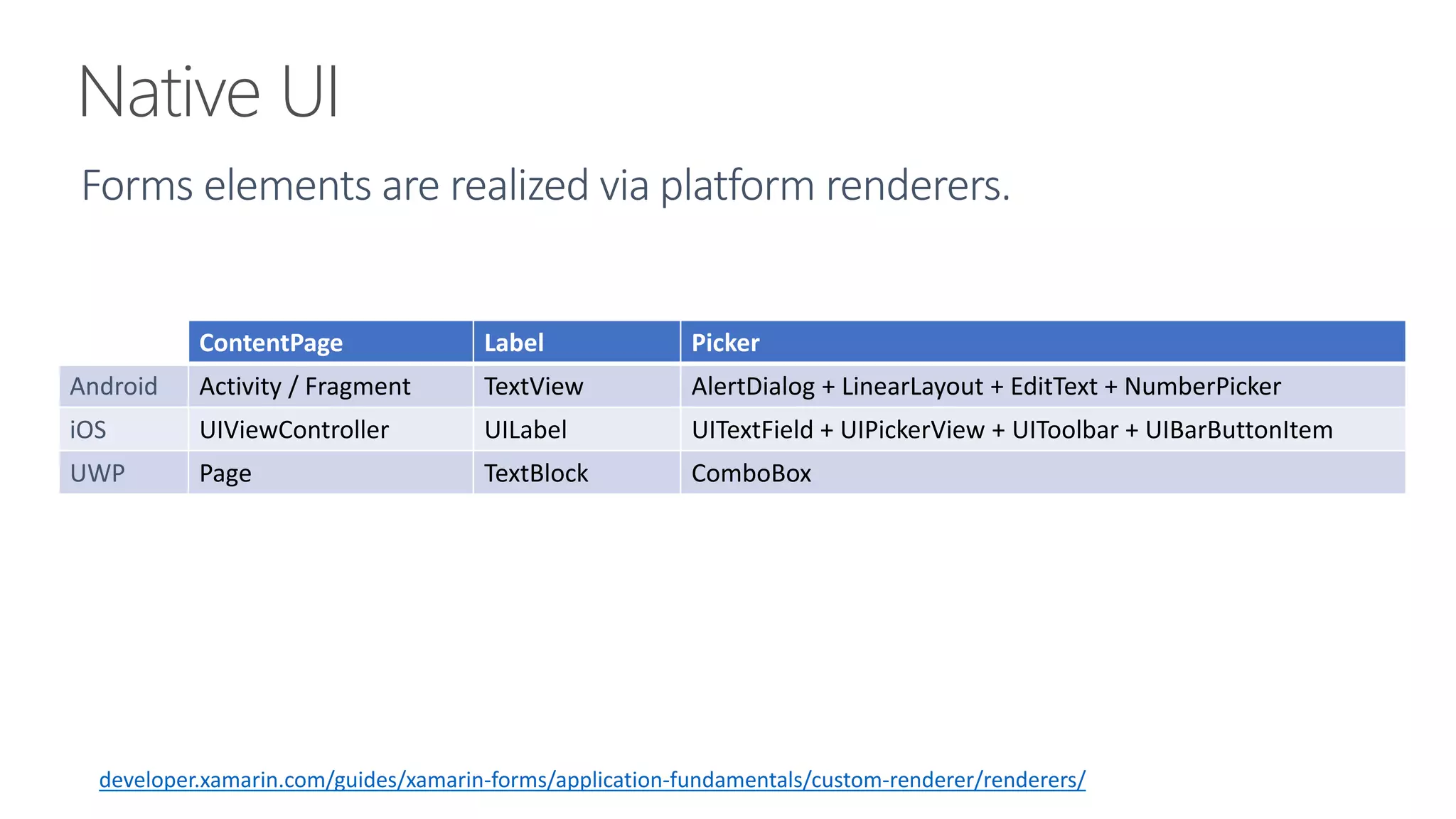

- 19. Native UI ContentPage LabelPicker Android Activity / Fragment TextView AlertDialog + LinearLayout + EditText + NumberPicker iOS UIViewController UILabel UITextField + UIPickerView + UIToolbar + UIBarButtonItem UWP Page TextBlock ComboBox developer.xamarin.com/guides/xamarin-forms/application-fundamentals/custom-renderer/renderers/

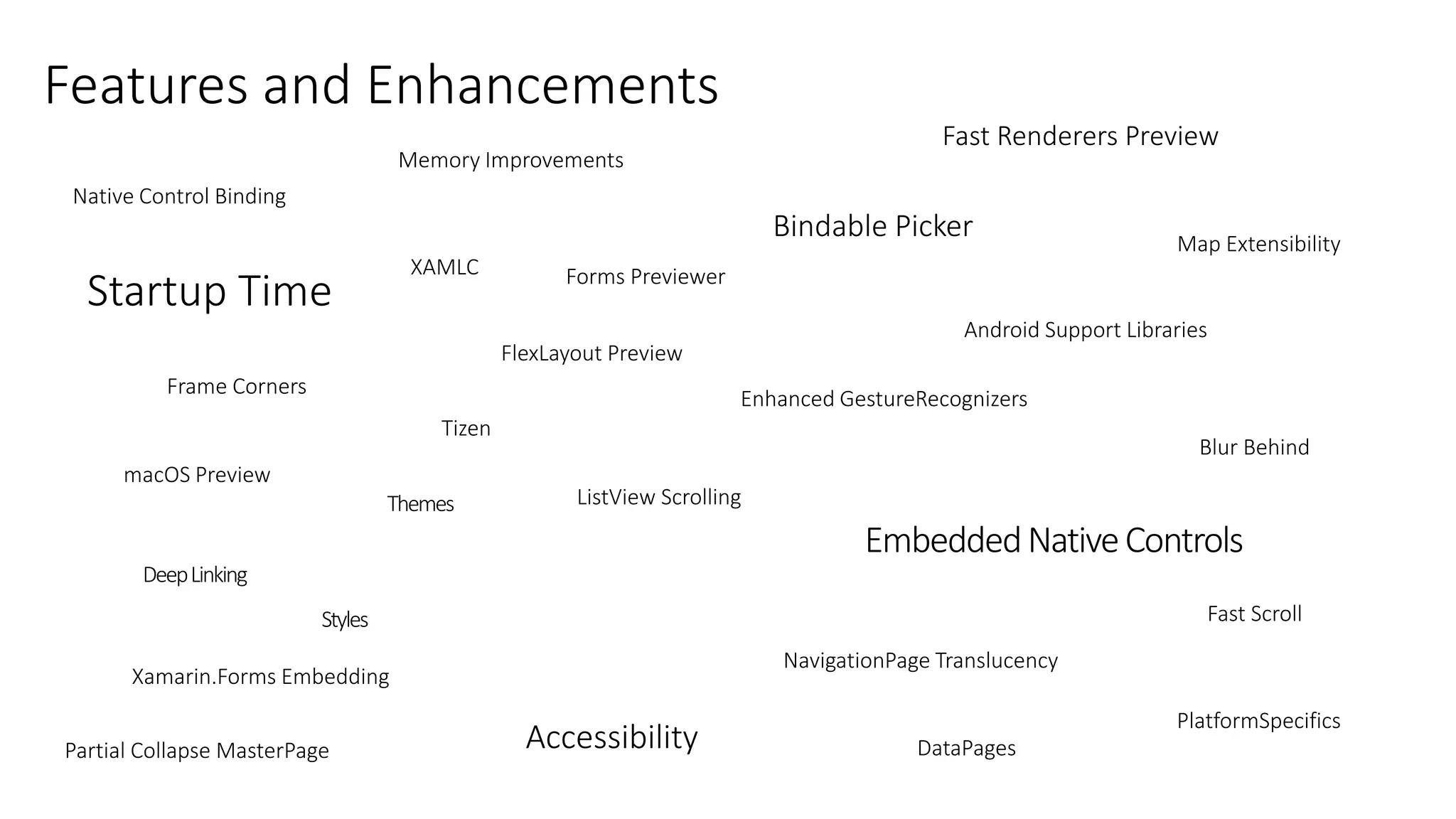

- 20. macOS Preview Enhanced GestureRecognizers AndroidSupport Libraries PlatformSpecifics Fast Scroll NavigationPage Translucency Blur Behind .netstandard support Partial Collapse MasterPage Native Control Binding Map Extensibility Fast Renderers Preview Startup Time ListView Scrolling Memory Improvements XAMLC Bindable Picker Frame Corners Tizen Forms Previewer FlexLayout Preview Xamarin.Forms Embedding DataPages

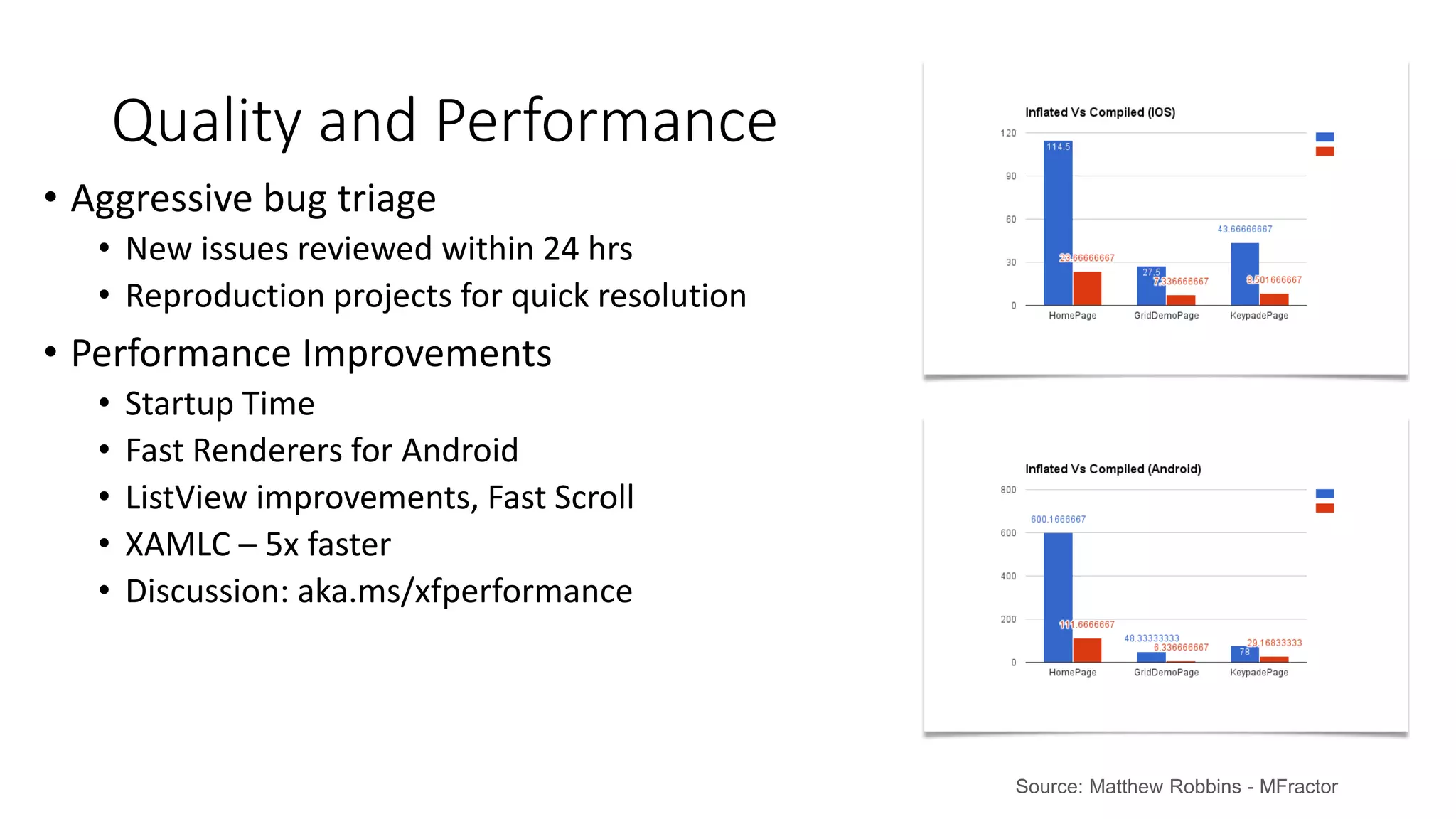

- 21. • Aggressive bugtriage • New issues reviewed within 24 hrs • Reproduction projects for quick resolution • Performance Improvements • Startup Time • Fast Renderers for Android • ListView improvements, Fast Scroll • XAMLC – 5x faster • Discussion: aka.ms/xfperformance Quality and Performance Source: Matthew Robbins - MFractor

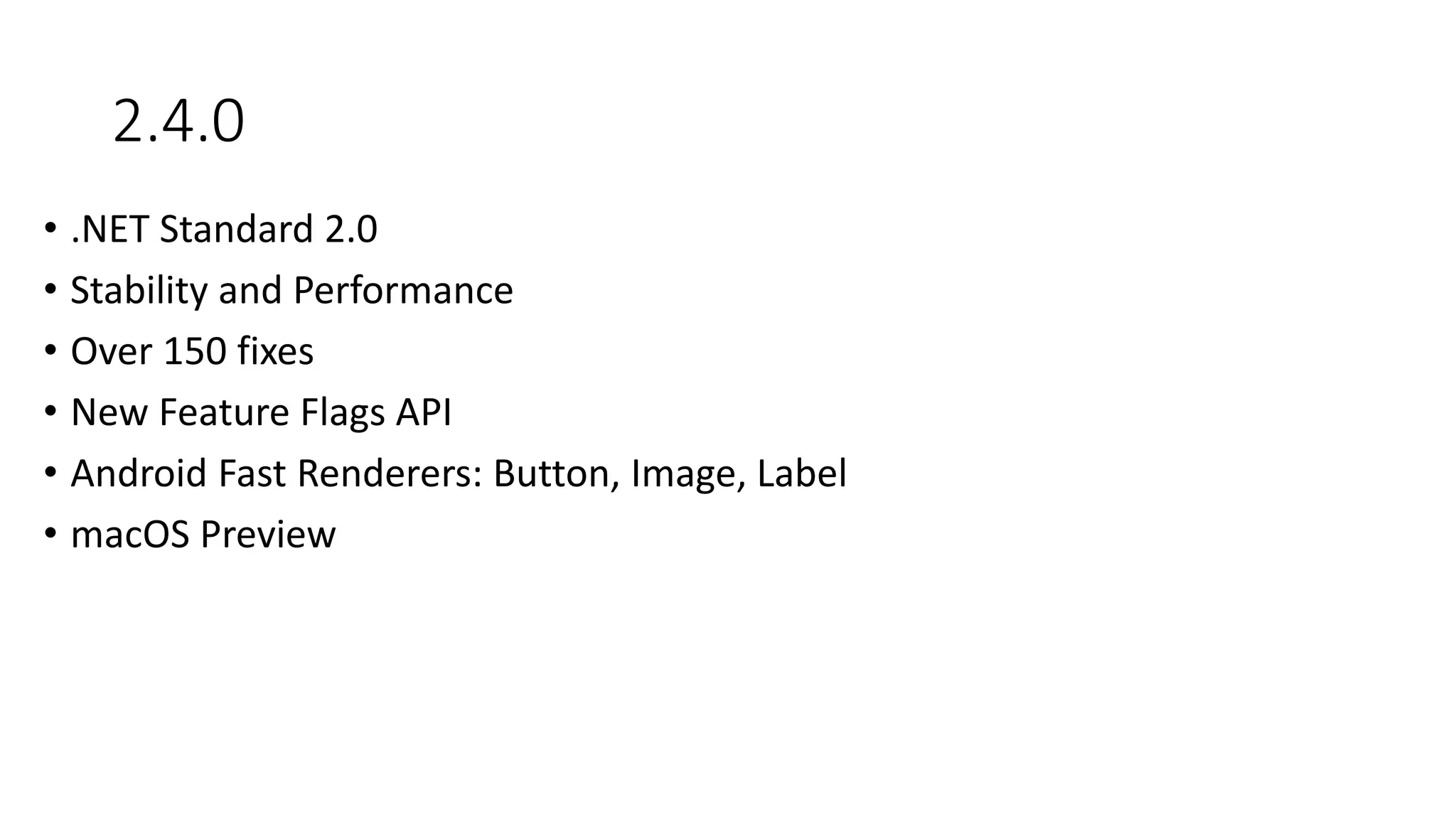

- 23. 2.4.0 • .NET Standard2.0 • Stability and Performance • Over 150 fixes • New Feature Flags API • Android Fast Renderers: Button, Image, Label • macOS Preview

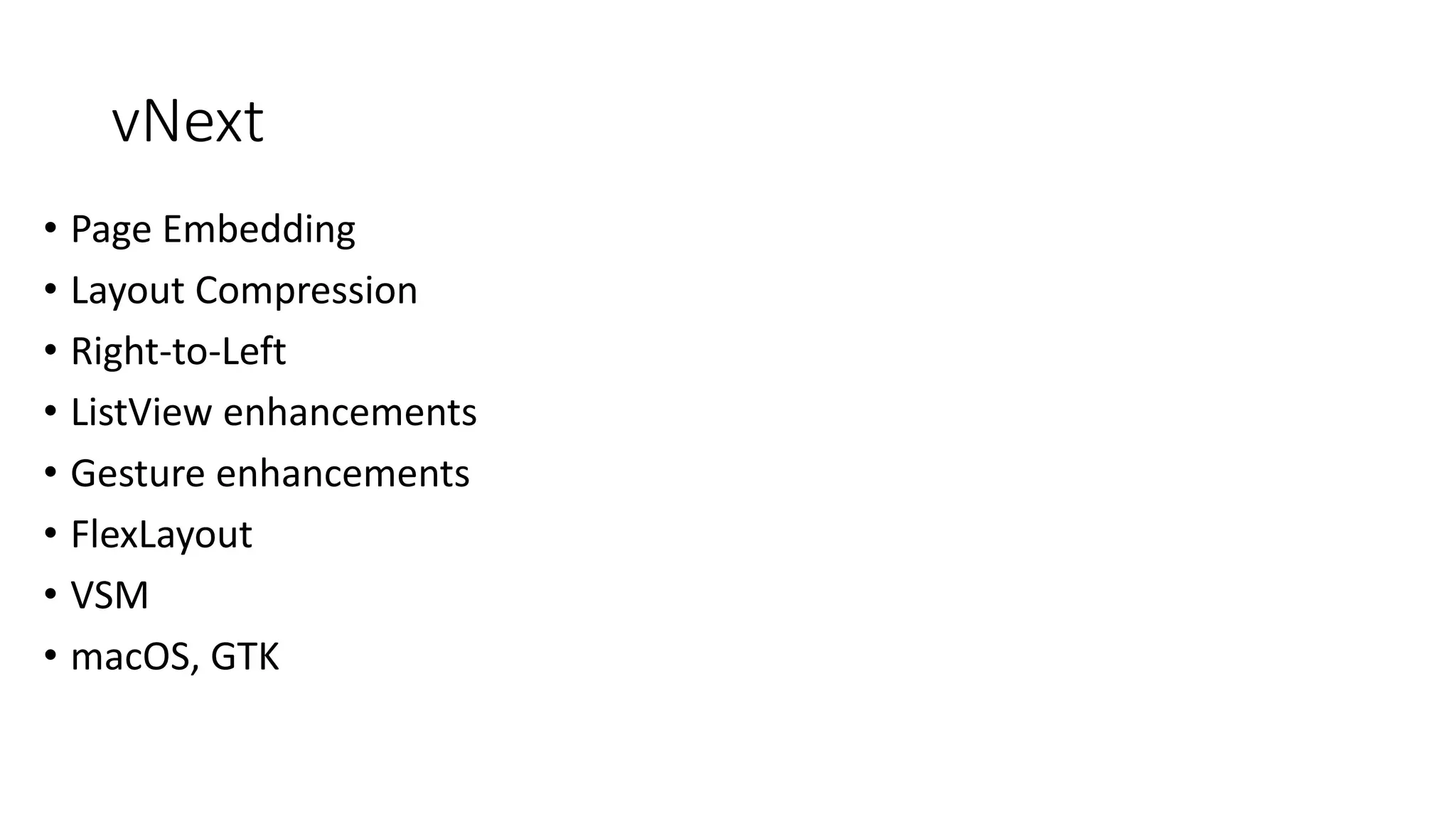

- 24. vNext • Page Embedding •Layout Compression • Right-to-Left • ListView enhancements • Gesture enhancements • FlexLayout • VSM • macOS, GTK

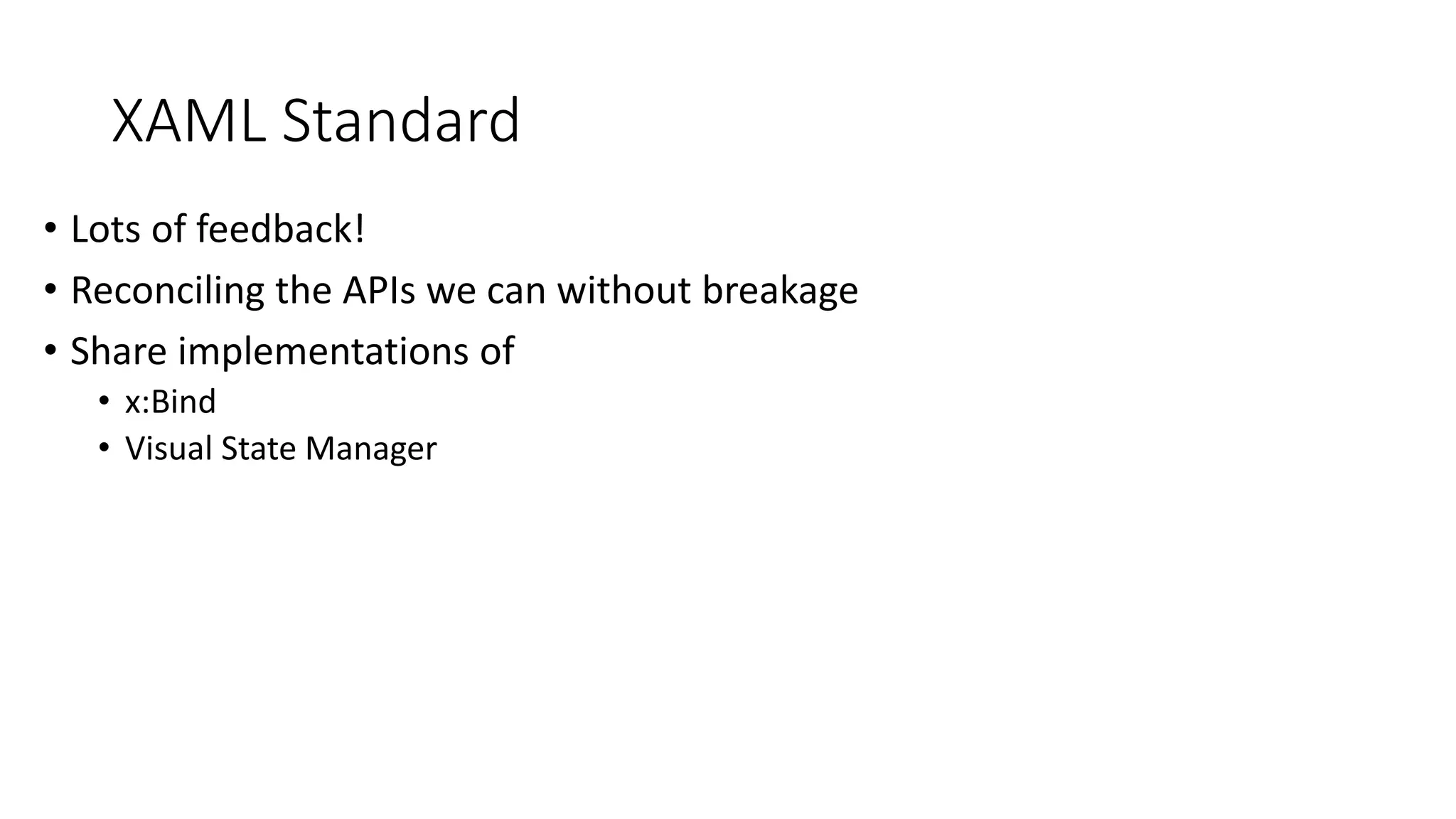

- 25. XAML Standard • Lotsof feedback! • Reconciling the APIs we can without breakage • Share implementations of • x:Bind • Visual State Manager

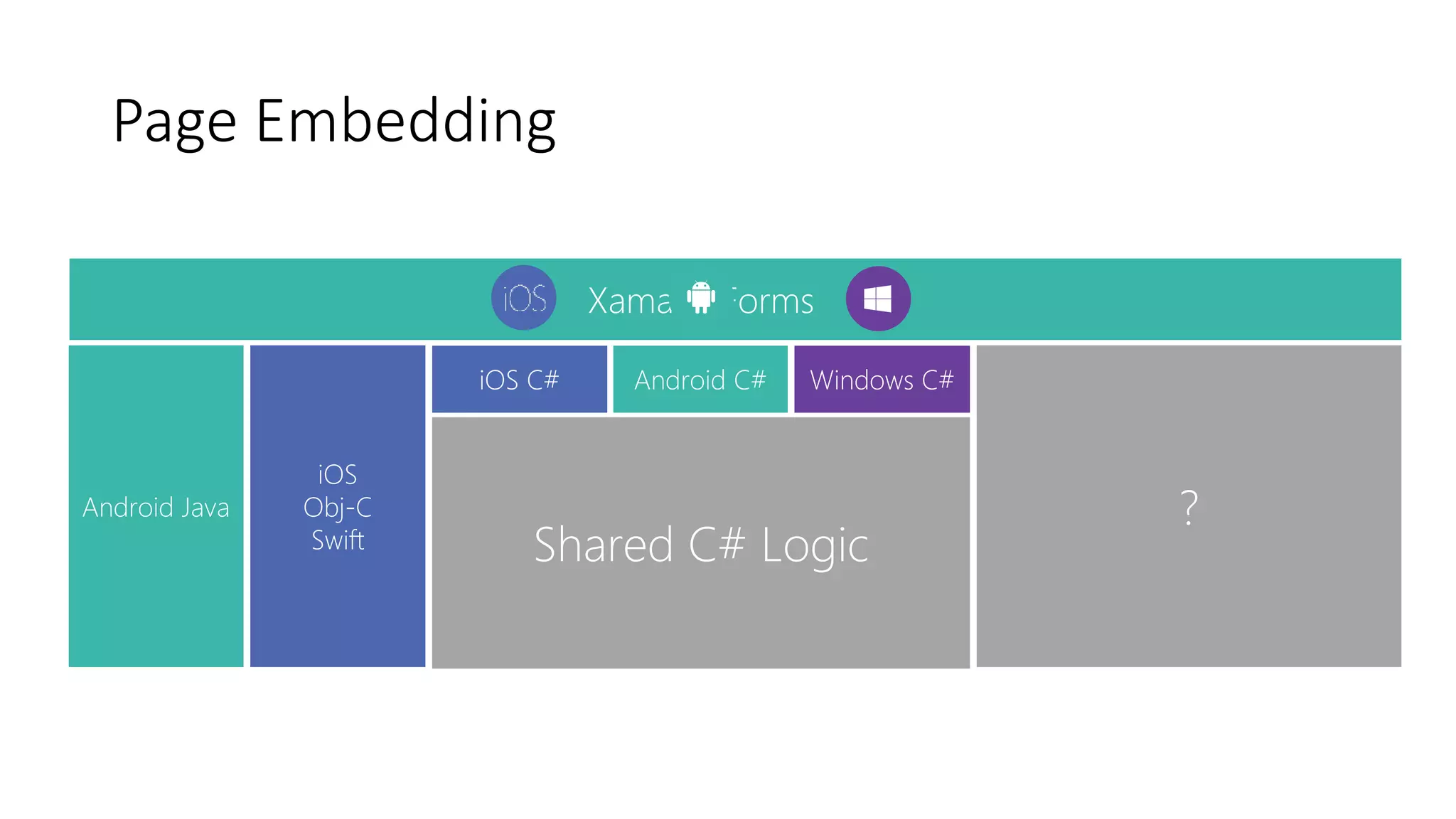

- 27. Xamarin.Forms Page Embedding Shared C#Logic Windows C#Android C#iOS C# iOS Obj-C Swift Android Java ?

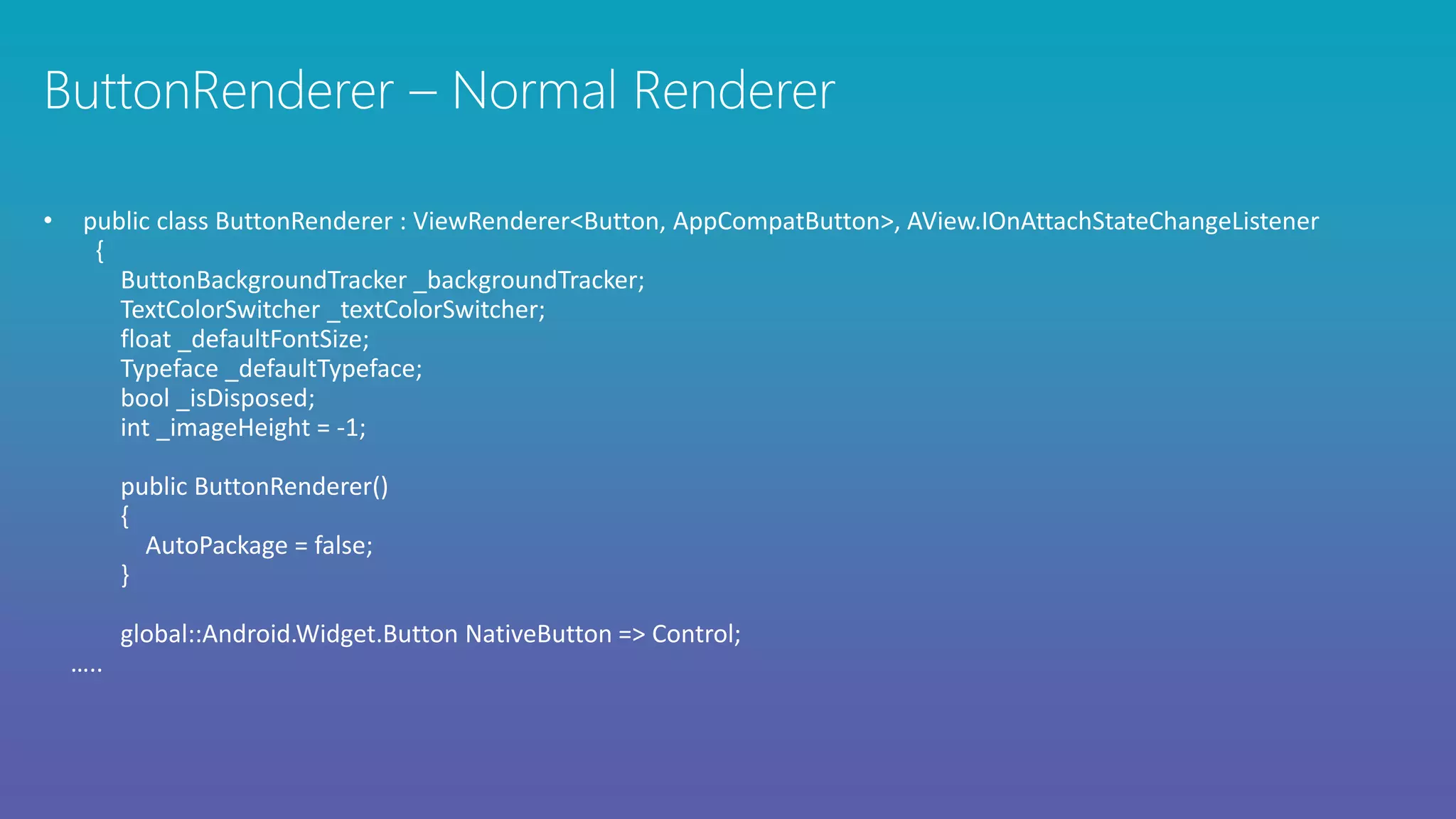

- 30. • public classButtonRenderer : ViewRenderer<Button, AppCompatButton>, AView.IOnAttachStateChangeListener { ButtonBackgroundTracker _backgroundTracker; TextColorSwitcher _textColorSwitcher; float _defaultFontSize; Typeface _defaultTypeface; bool _isDisposed; int _imageHeight = -1; public ButtonRenderer() { AutoPackage = false; } global::Android.Widget.Button NativeButton => Control; …..

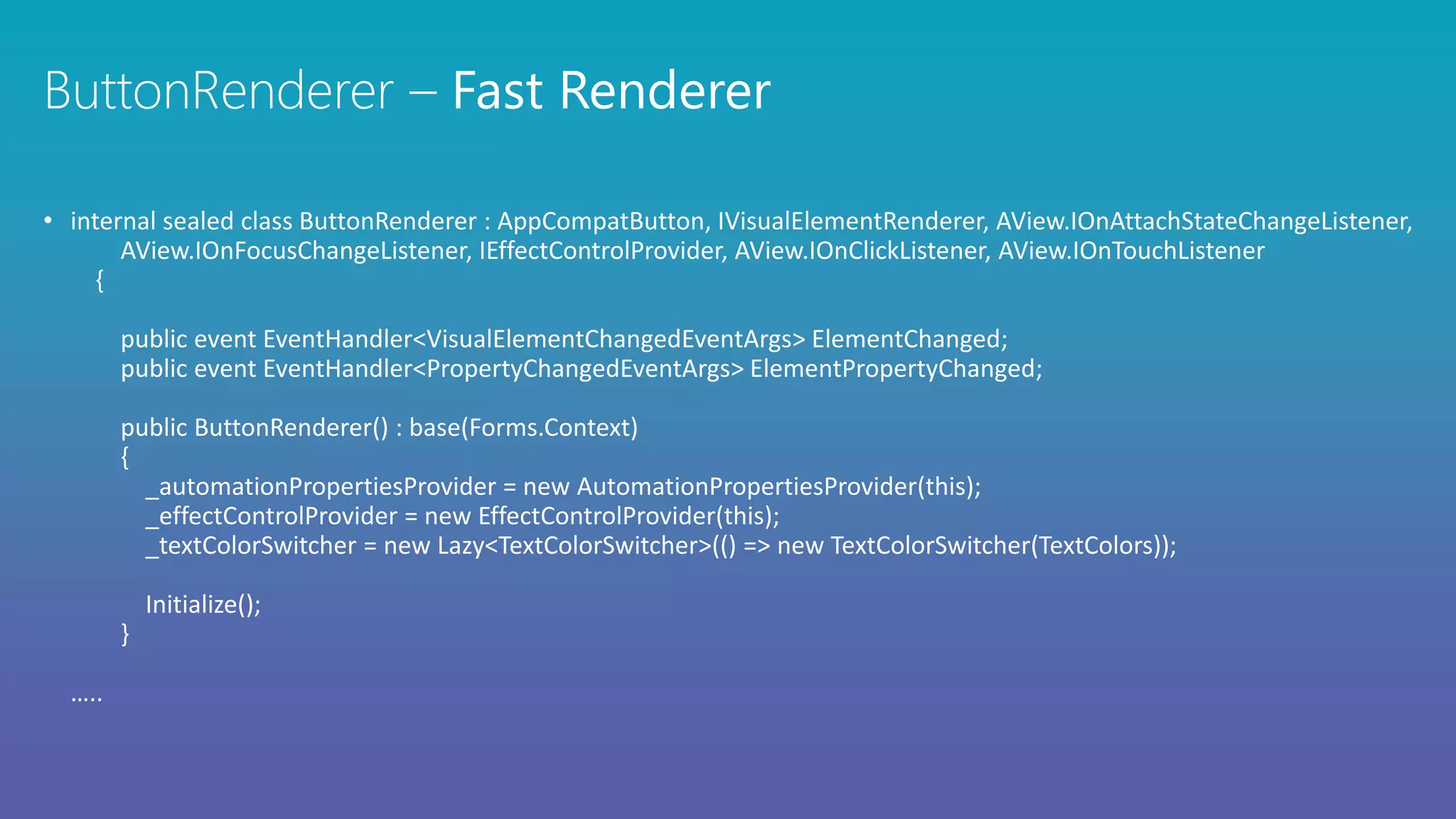

- 31. • internal sealedclass ButtonRenderer : AppCompatButton, IVisualElementRenderer, AView.IOnAttachStateChangeListener, AView.IOnFocusChangeListener, IEffectControlProvider, AView.IOnClickListener, AView.IOnTouchListener { public event EventHandler<VisualElementChangedEventArgs> ElementChanged; public event EventHandler<PropertyChangedEventArgs> ElementPropertyChanged; public ButtonRenderer() : base(Forms.Context) { _automationPropertiesProvider = new AutomationPropertiesProvider(this); _effectControlProvider = new EffectControlProvider(this); _textColorSwitcher = new Lazy<TextColorSwitcher>(() => new TextColorSwitcher(TextColors)); Initialize(); } …..

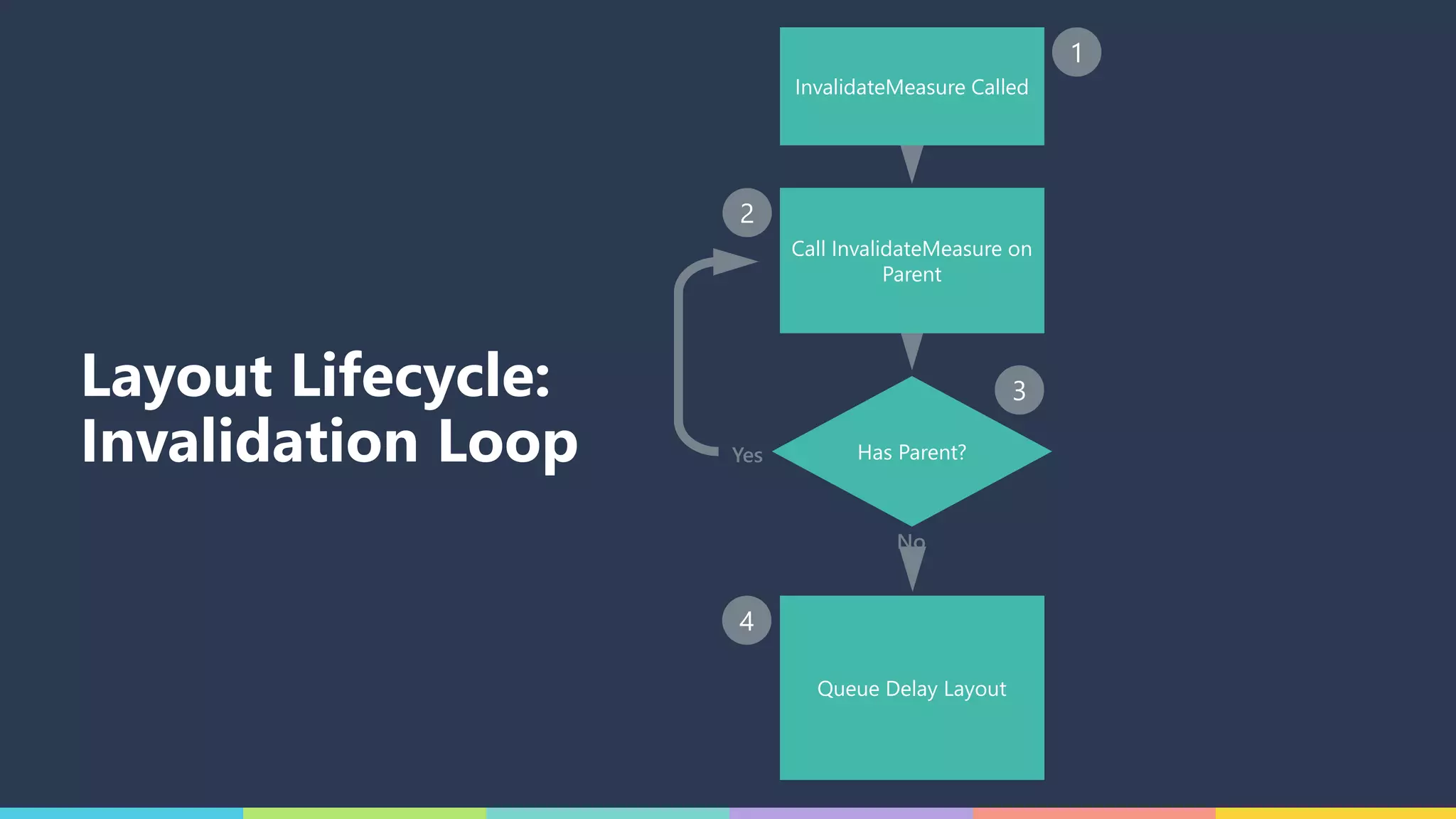

- 36. Layout Lifecycle: Invalidation LoopHas Parent? InvalidateMeasure Called Call InvalidateMeasure on Parent Queue Delay Layout Yes No 1 2 3 4

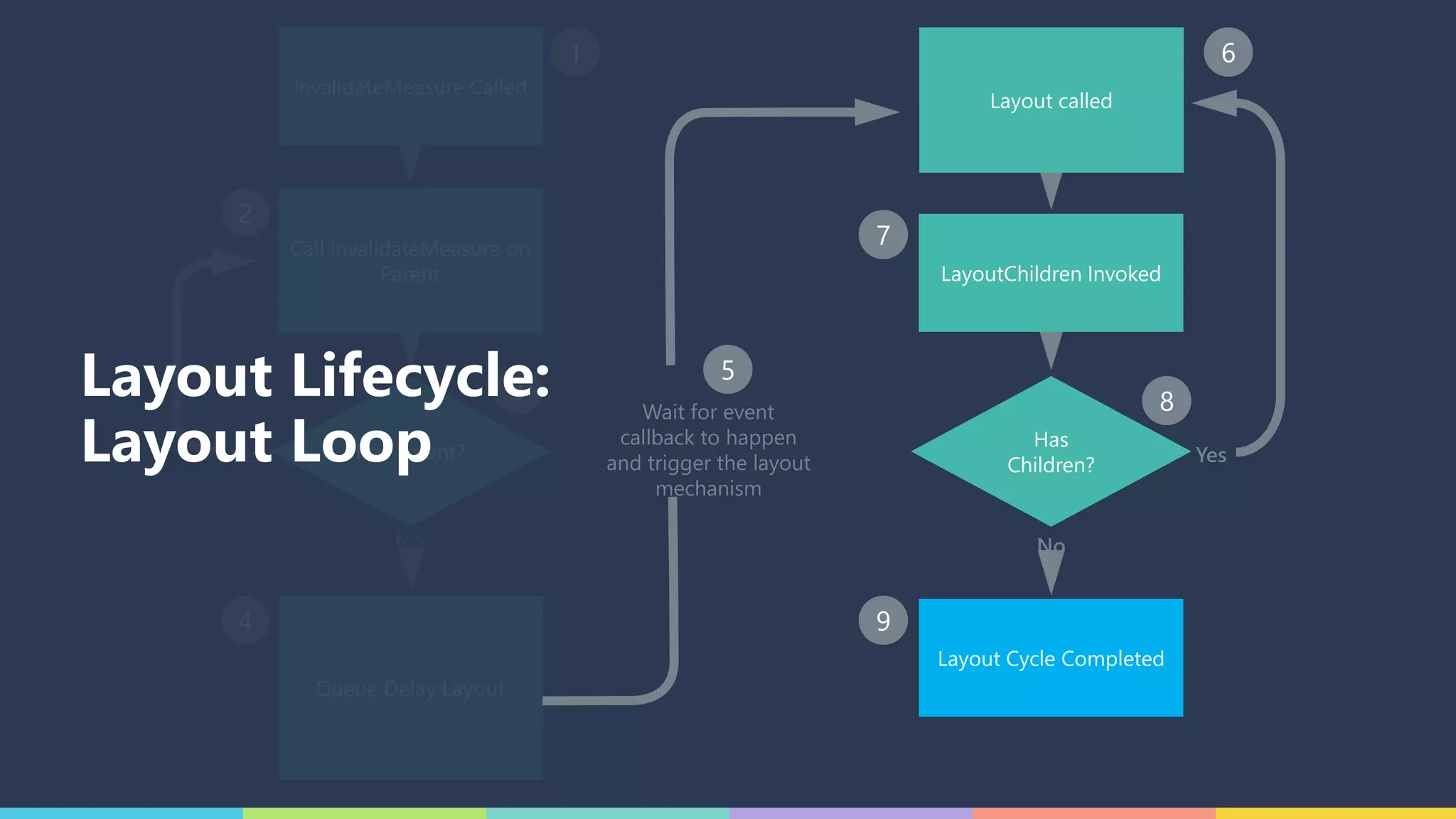

- 37. Has Parent? InvalidateMeasure Called CallInvalidateMeasure on Parent Queue Delay Layout Yes No 1 2 3 4 Wait for event callback to happen and trigger the layout mechanism 5 Has Children? LayoutChildren Invoked Layout called 6 7 8 Yes No Layout Cycle Completed 9 Layout Lifecycle: Layout Loop

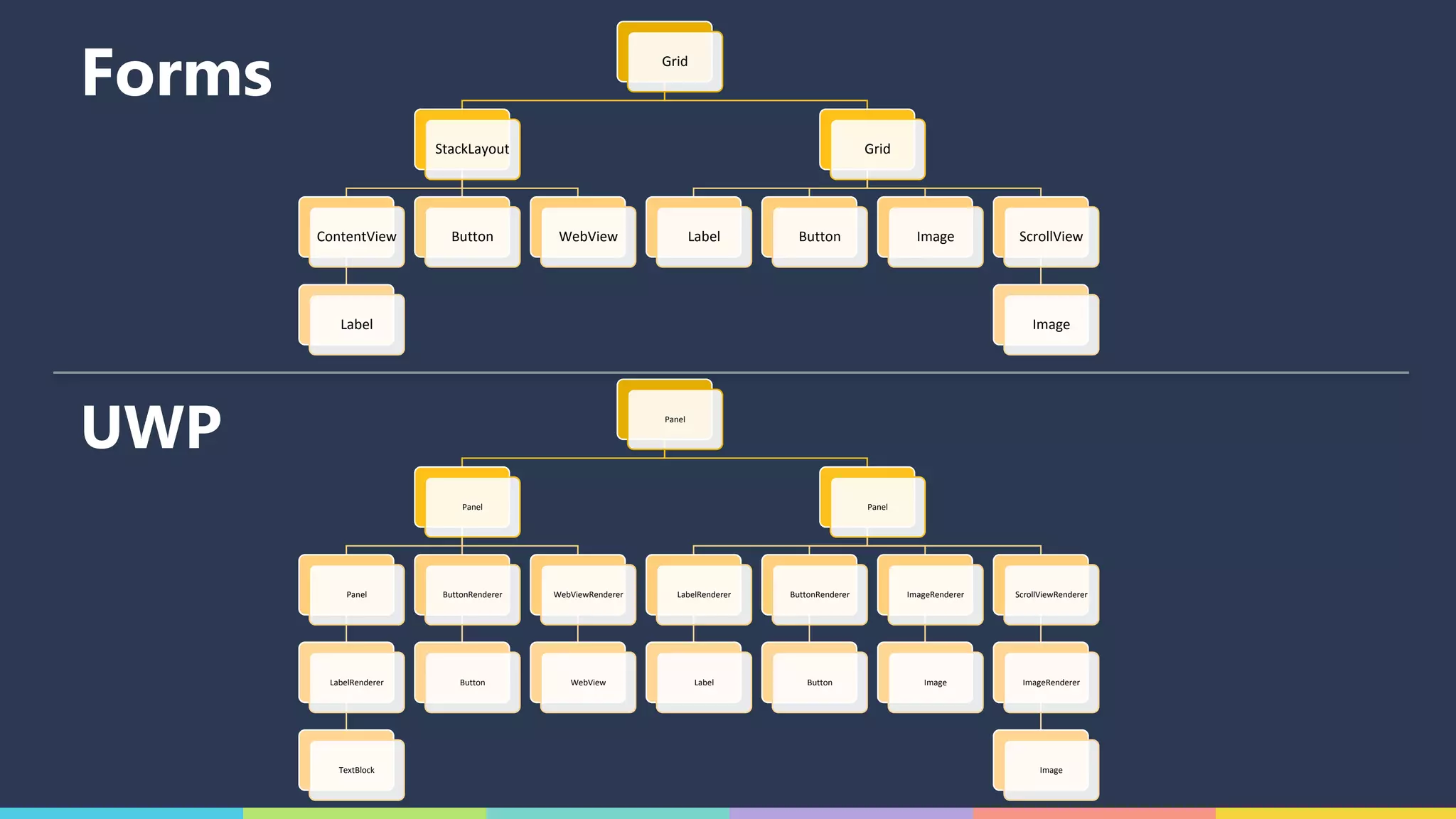

- 38. Grid StackLayout ContentView Label Button WebView Grid Label ButtonImage ScrollView Image Panel Panel Panel LabelRenderer TextBlock ButtonRenderer Button WebViewRenderer WebView Panel LabelRenderer Label ButtonRenderer Button ImageRenderer Image ScrollViewRenderer ImageRenderer Image Forms UWP

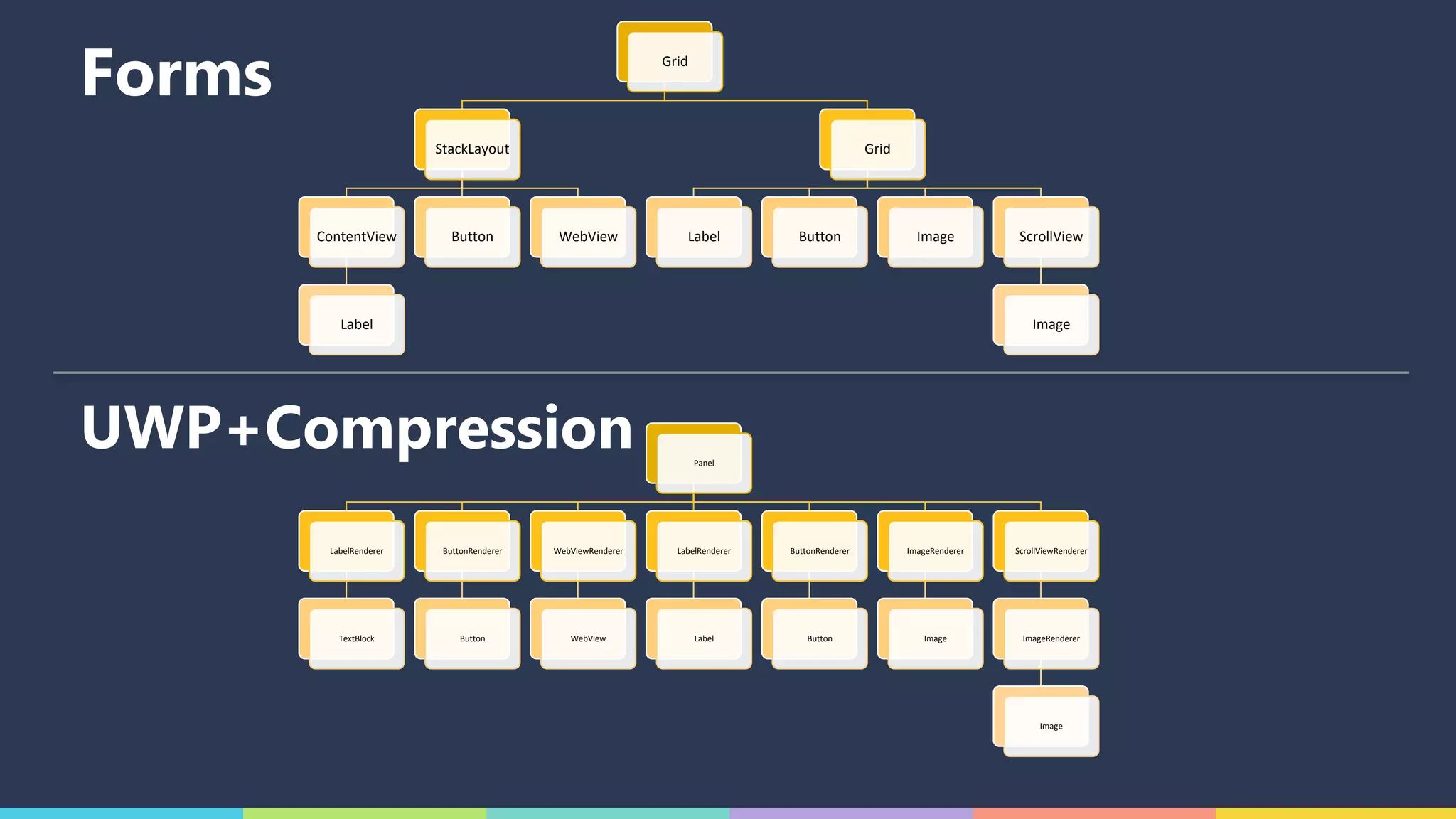

- 39. Grid StackLayout ContentView Label Button WebView Grid Label ButtonImage ScrollView Image Panel LabelRenderer TextBlock ButtonRenderer Button WebViewRenderer WebView LabelRenderer Label ButtonRenderer Button ImageRenderer Image ScrollViewRenderer ImageRenderer Image Forms UWP+Compression

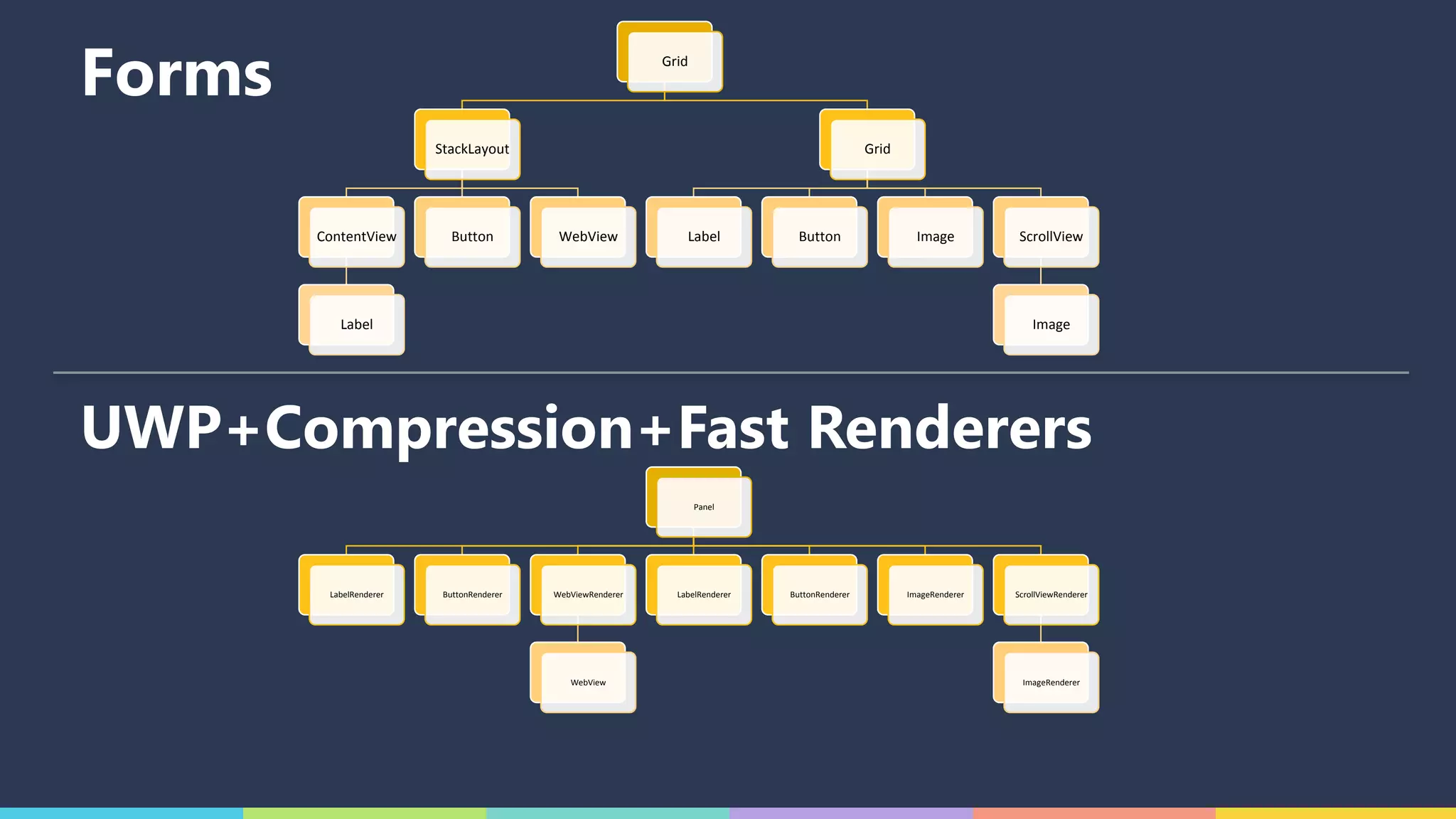

- 40. Grid StackLayout ContentView Label Button WebView Grid Label ButtonImage ScrollView Image Panel LabelRenderer ButtonRenderer WebViewRenderer WebView LabelRenderer ButtonRenderer ImageRenderer ScrollViewRenderer ImageRenderer Forms UWP+Compression+Fast Renderers
- 41. Pros: less renderers tocreate, manage and dispose less UI elements on screen Cons: compressed layouts can't have BG colors, gesture recognizers no transformation

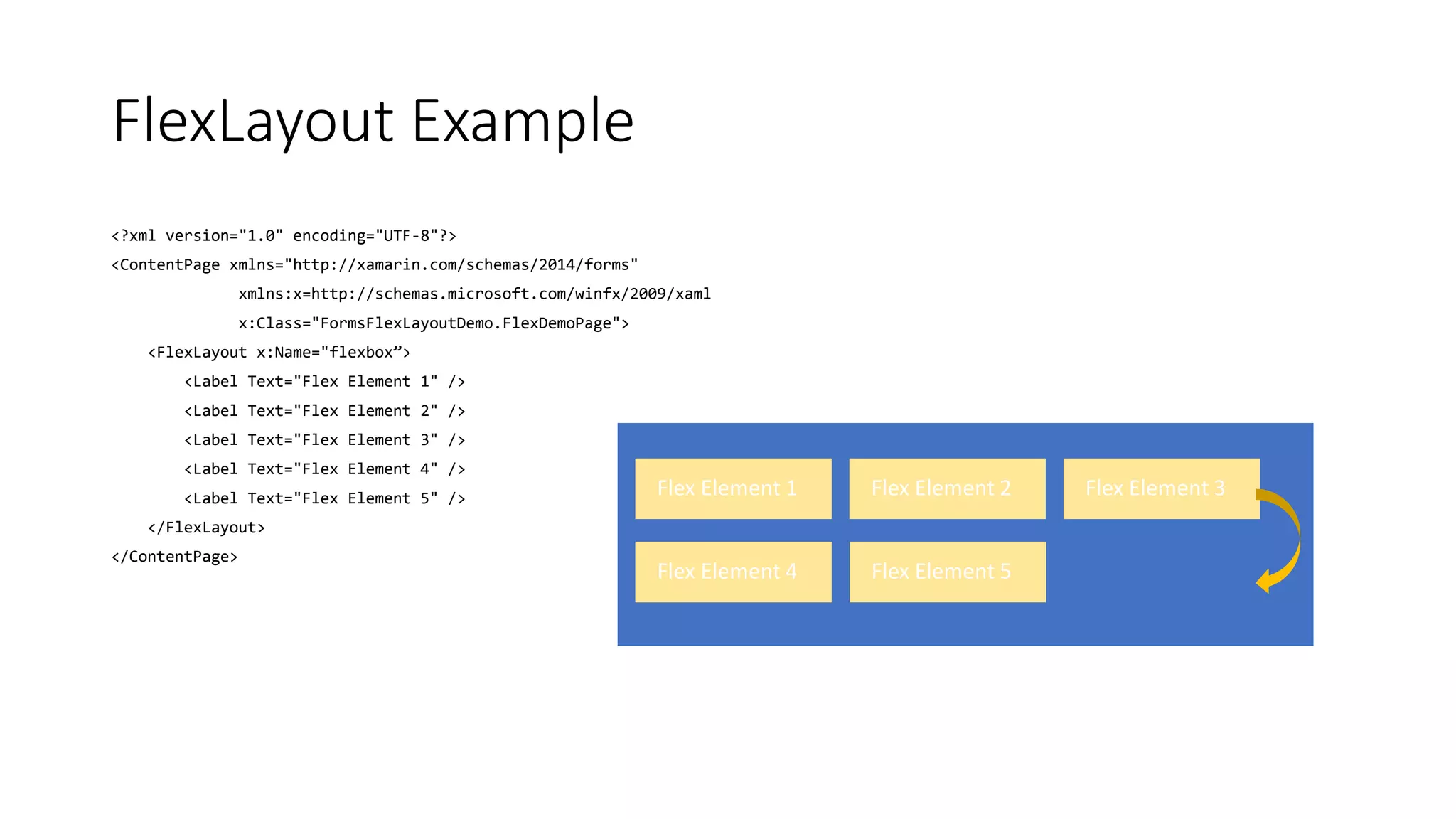

- 48. FlexLayout Example <?xml version="1.0"encoding="UTF-8"?> <ContentPage xmlns="http://xamarin.com/schemas/2014/forms" xmlns:x=http://schemas.microsoft.com/winfx/2009/xaml x:Class="FormsFlexLayoutDemo.FlexDemoPage"> <FlexLayout x:Name="flexbox”> <Label Text="Flex Element 1" /> <Label Text="Flex Element 2" /> <Label Text="Flex Element 3" /> <Label Text="Flex Element 4" /> <Label Text="Flex Element 5" /> </FlexLayout> </ContentPage> Flex Element 1 Flex Element 2 Flex Element 3 Flex Element 4 Flex Element 5

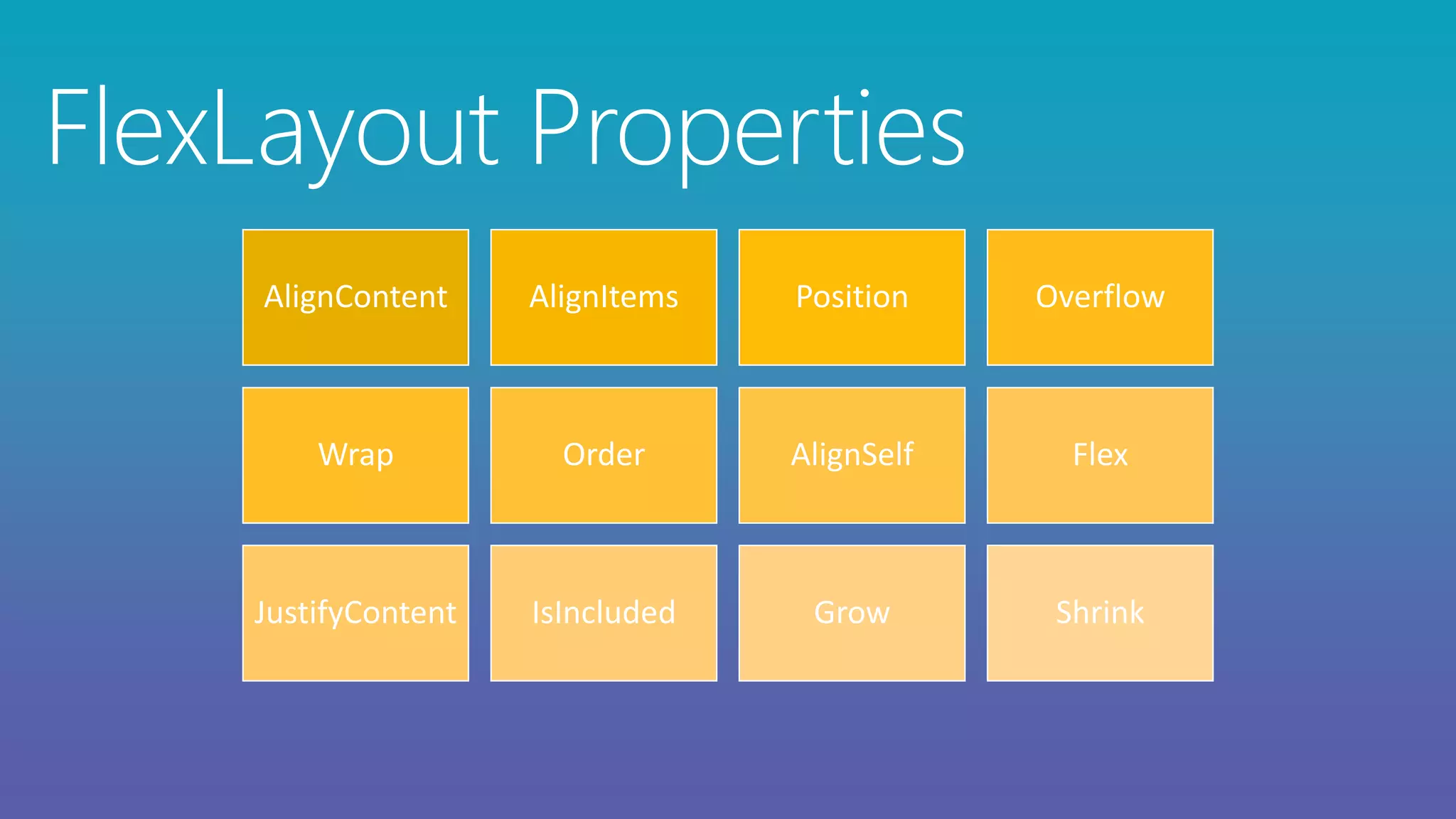

- 49. AlignContent AlignItems PositionOverflow Wrap Order AlignSelf Flex JustifyContent IsIncluded Grow Shrink FlexLayout Properties

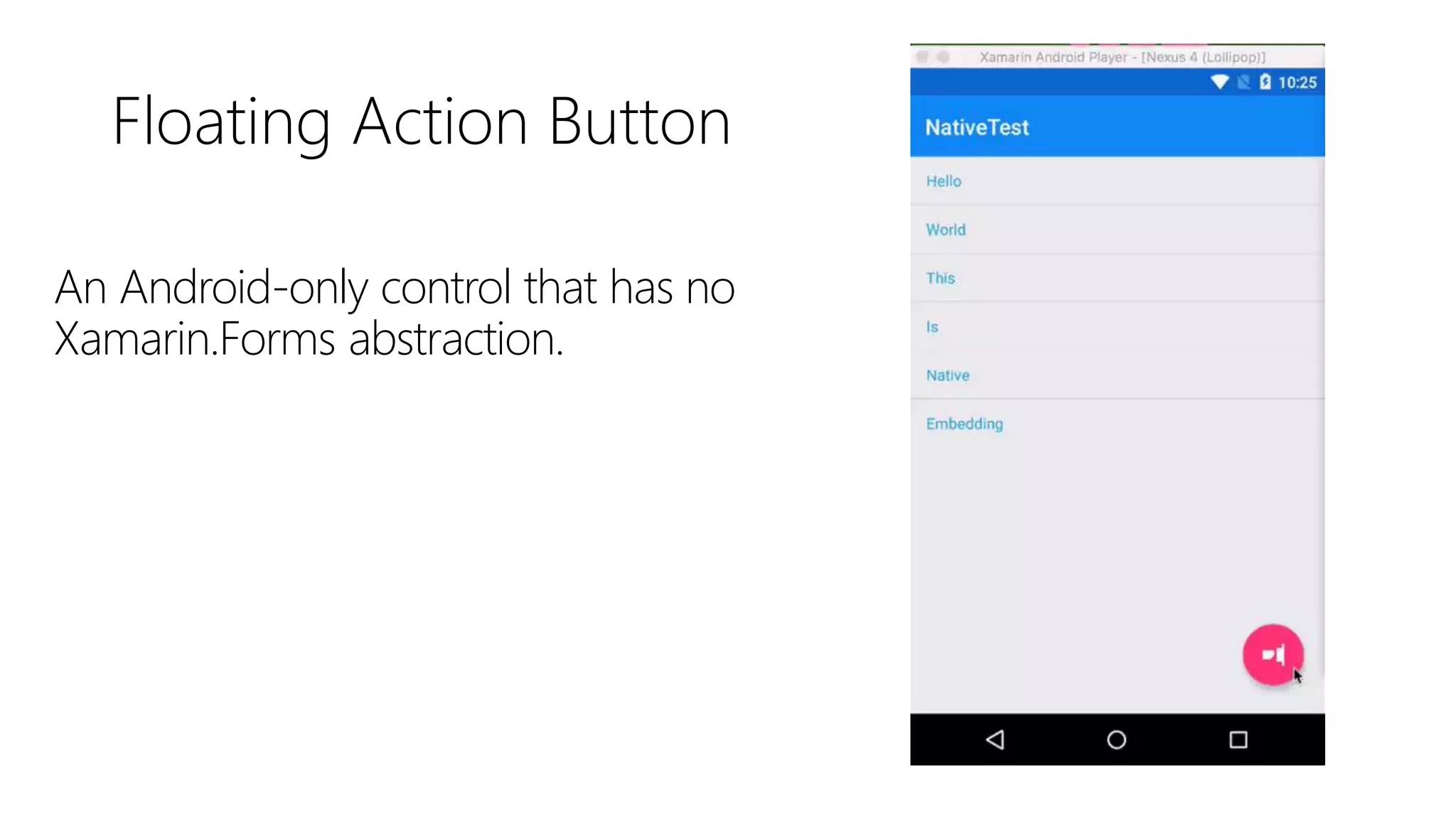

- 51. Floating Action Button AnAndroid-only control that has no Xamarin.Forms abstraction.

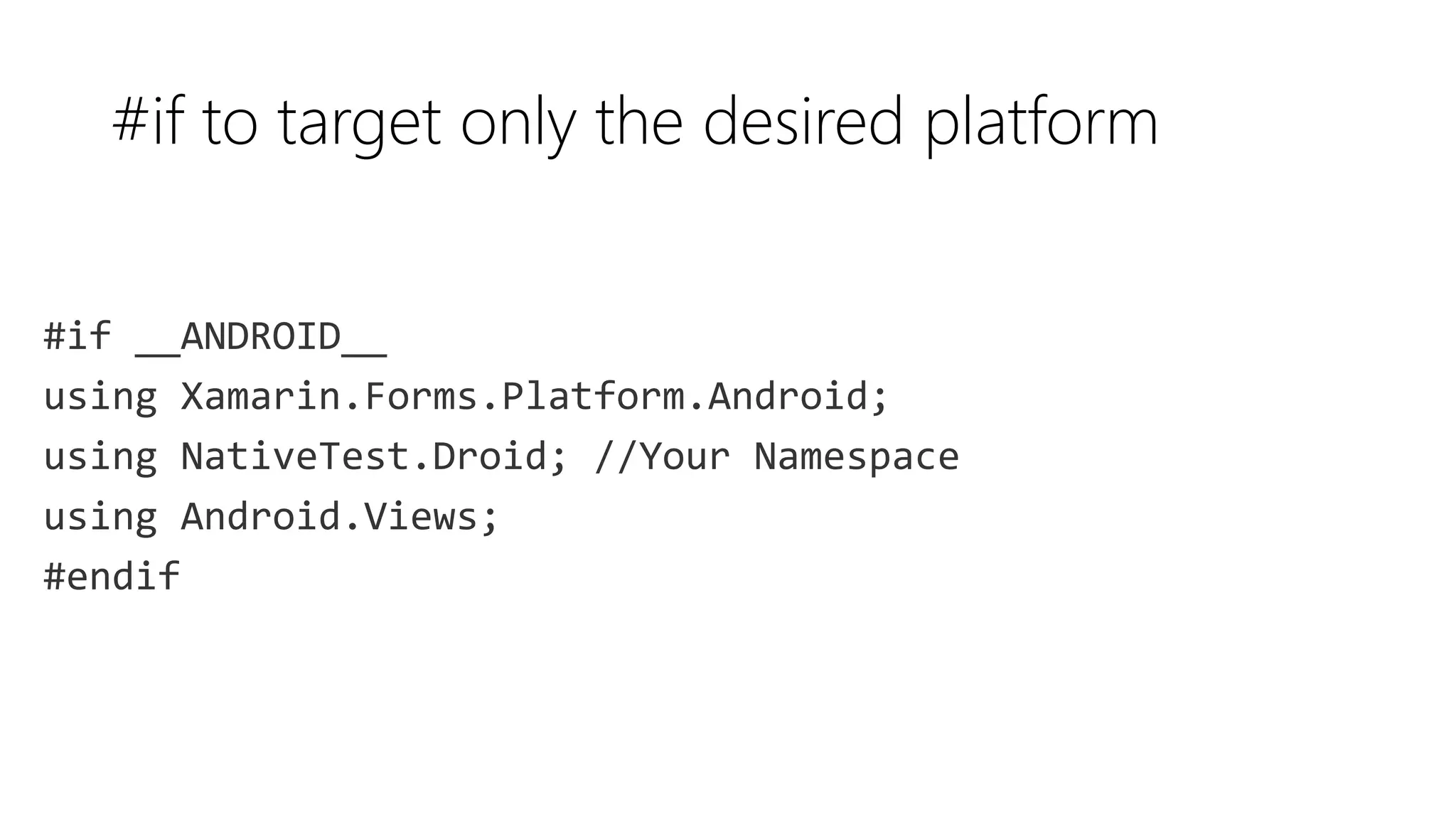

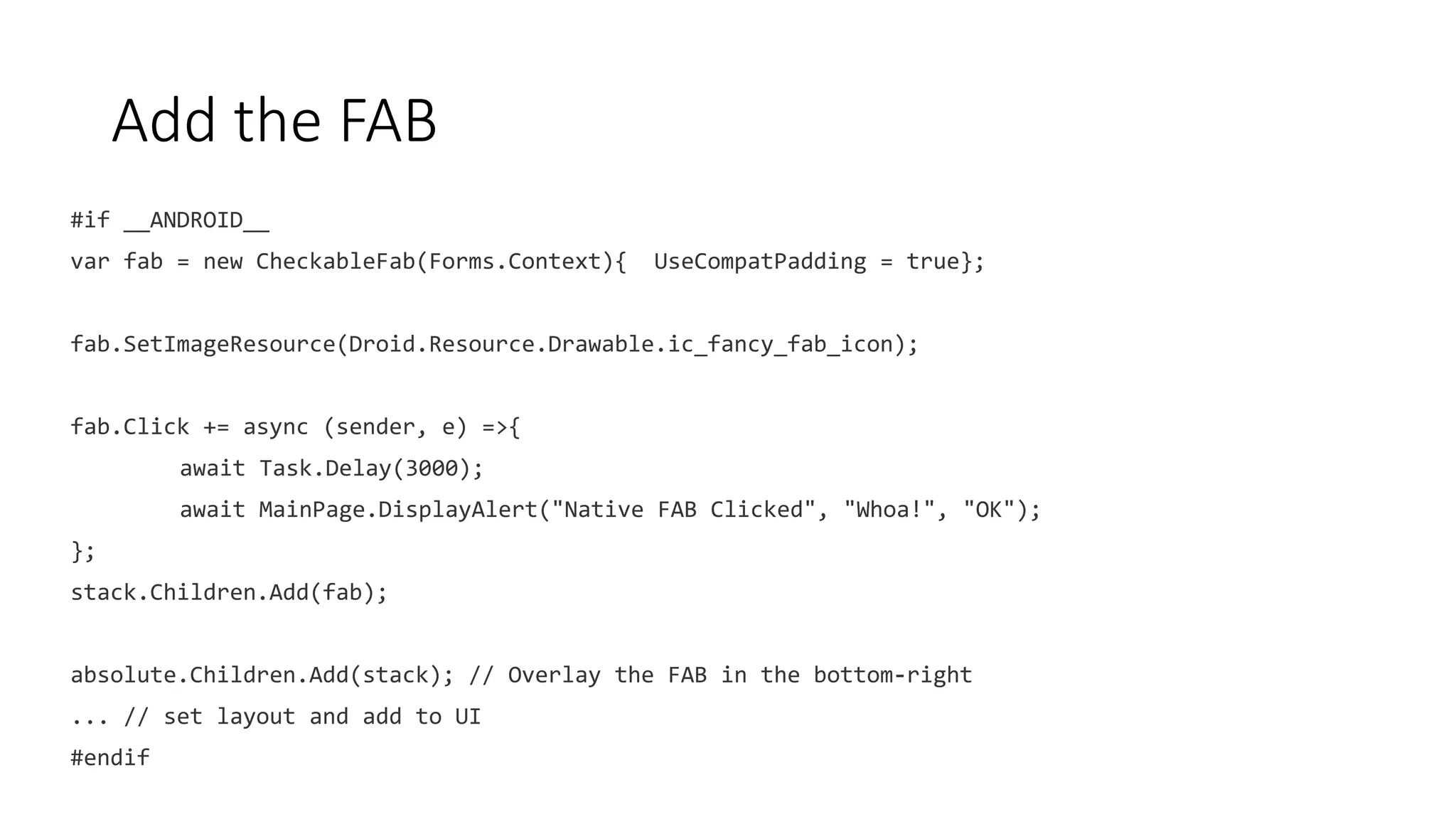

- 52. #if to targetonly the desired platform
- 53.
- 54. • Continuously deploy& debug apps Xamarin Live Player

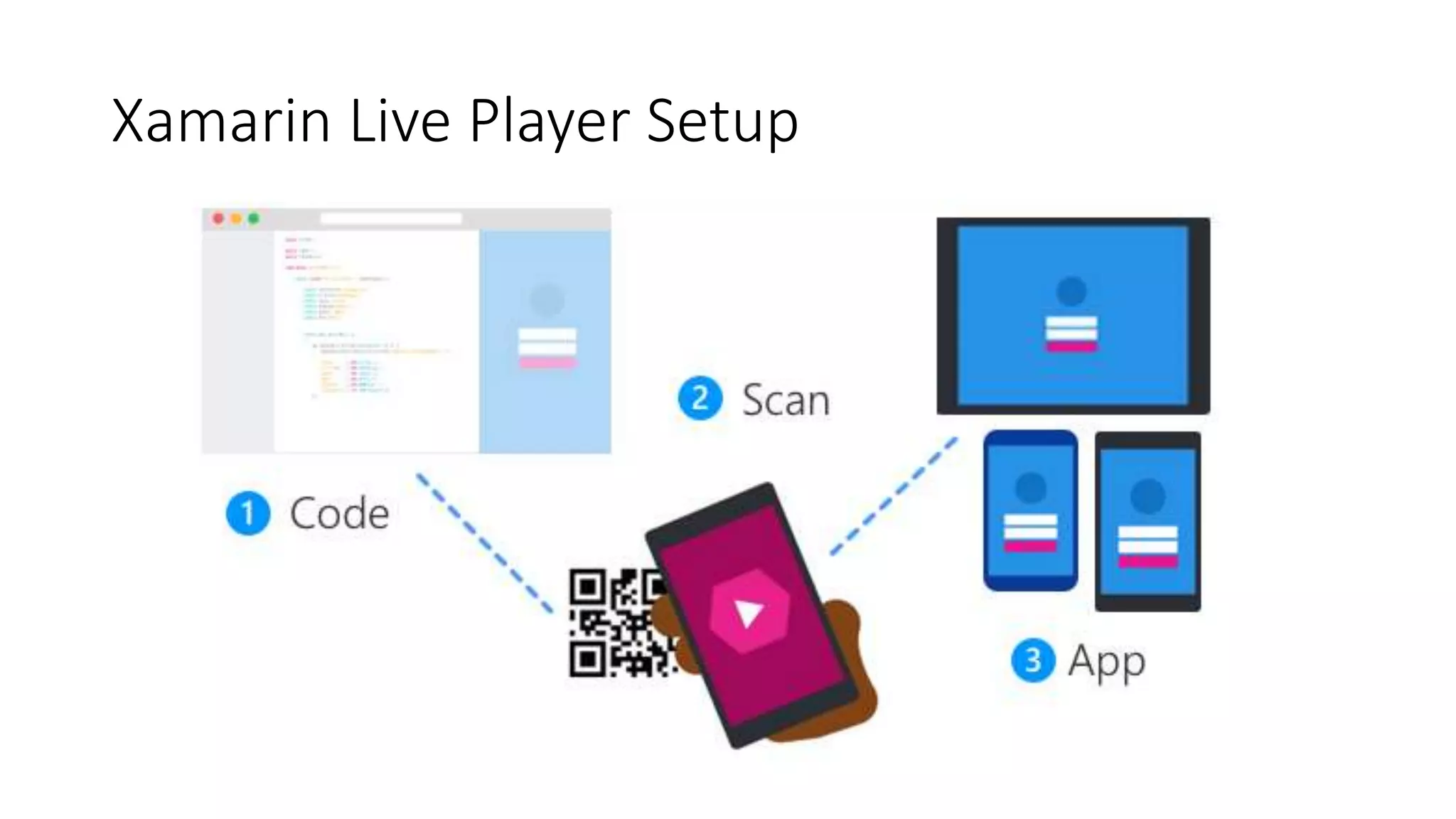

- 55. Xamarin Live PlayerSetup

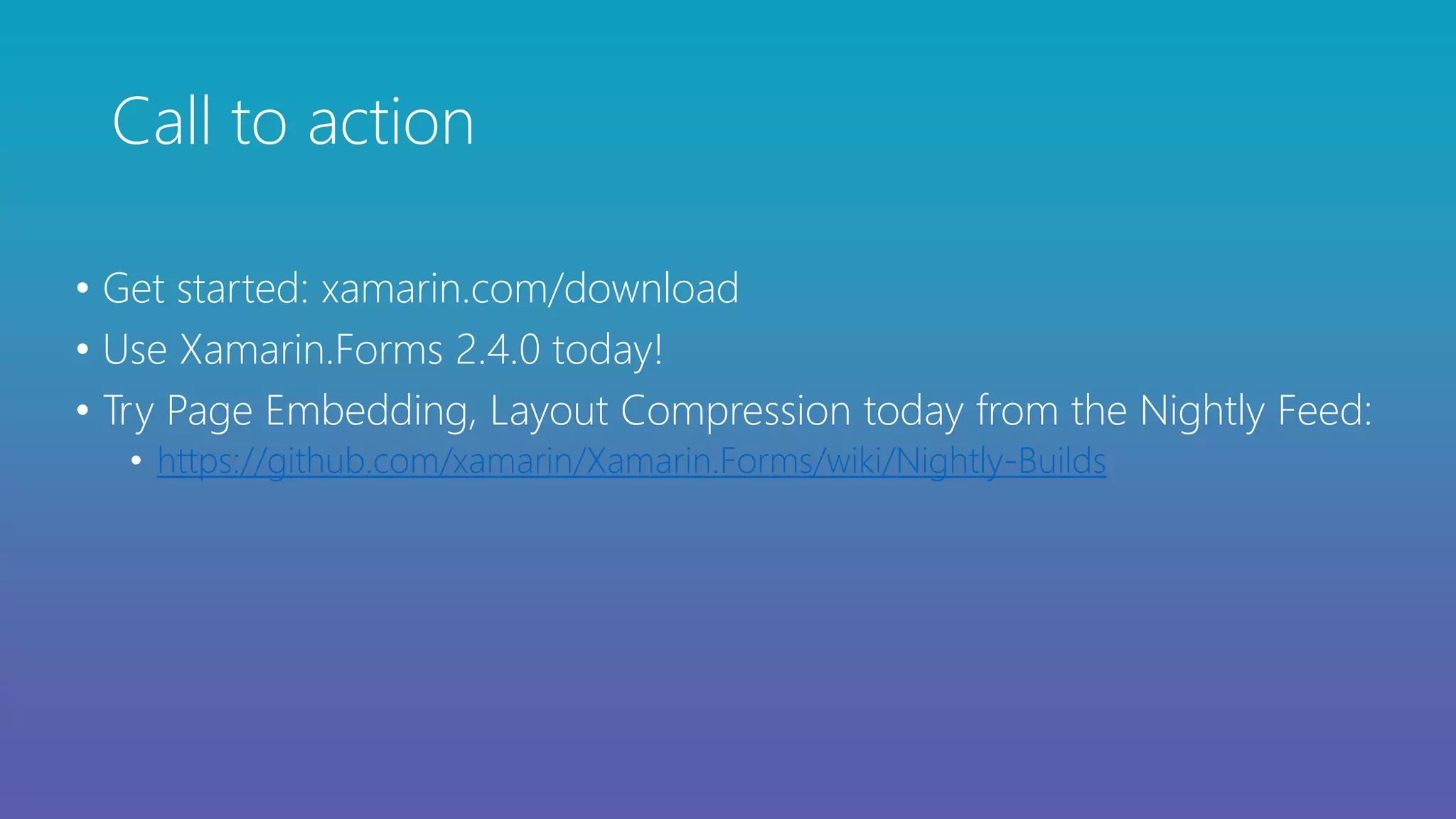

- 57. Call to action •Get started: xamarin.com/download • Use Xamarin.Forms 2.4.0 today! • Try Page Embedding, Layout Compression today from the Nightly Feed: • https://github.com/xamarin/Xamarin.Forms/wiki/Nightly-Builds
- 58. Open Source –open.xamarin.com
- 59.
- 60. Thank you. Questions? Rui Marinho SoftwareEngineer, Xamarin Forms, Mobile Developer Tools @ruiespinho
Editor's Notes
- #2 https://github.com/jsuarezruiz/xamarin-forms-goodlooking-UI
- #4 Specially xaml and .net platforms
- #8 Multiple Teams Multiple Code Bases Expensive & Slow Positive = Great apps delivered to user’s platform Negative = Development hampered by multiple code bases & fragmentation
- #18 Inside of a page are layouts A lot of options from something simple like a stack panel to complex and powerful grids
- #19 You have more than 40 controls, layouts, and pages to mix and match from. These are all of the controls you have out of the box, you can of course create your own. What is unique is you get the native control and have access to it. Consider an Entry Field On iOS it is mapped to UITextField Android it is EditText Windows Phoen it is a TextBox
- #22 Screenshots of app UI tested. Maybe graph the improvement.
- #23 Kick off File > New with Live Player running What do we want to cover about building an app?
- #25 Listview - get rid xamarin of viewcells.. Add insert methods…
- #27 Kick off File > New with Live Player running What do we want to cover about building an app?
- #28 Possible embedding in Android or native Obj-C apps Navigate a Native level New Possibilities .. Just bring what you need to iOS or Android
- #36 Been working on layout compression for a while Initial testing is showing very positive results Will be a slow burn to get it fully implemented
- #37 2 key parts of the layout lifecycle to know about First is invalidation loop Kicked off whenever a child calls invalidate measure The child will then begin chaining the call up to its parents, over and over This chart is of course an over-simplification and there are optimizations that can prevent this chaining from happening.
- #38 Second is the layout loop Occurs some undefined time AFTER the invalidation loop, may be immediate, not required to be Layout is called on a View View then calls Layout on all children, who then recurse into this Completes when all Layout cycles are finished
- #39 They are duplicate..
- #40 Pros: less renderers to create, manage and dispose less UI elements on screen Cons: compressed layouts can't have BG colors, gesture recognizers no transformation ...
- #44 Kick off File > New with Live Player running What do we want to cover about building an app?

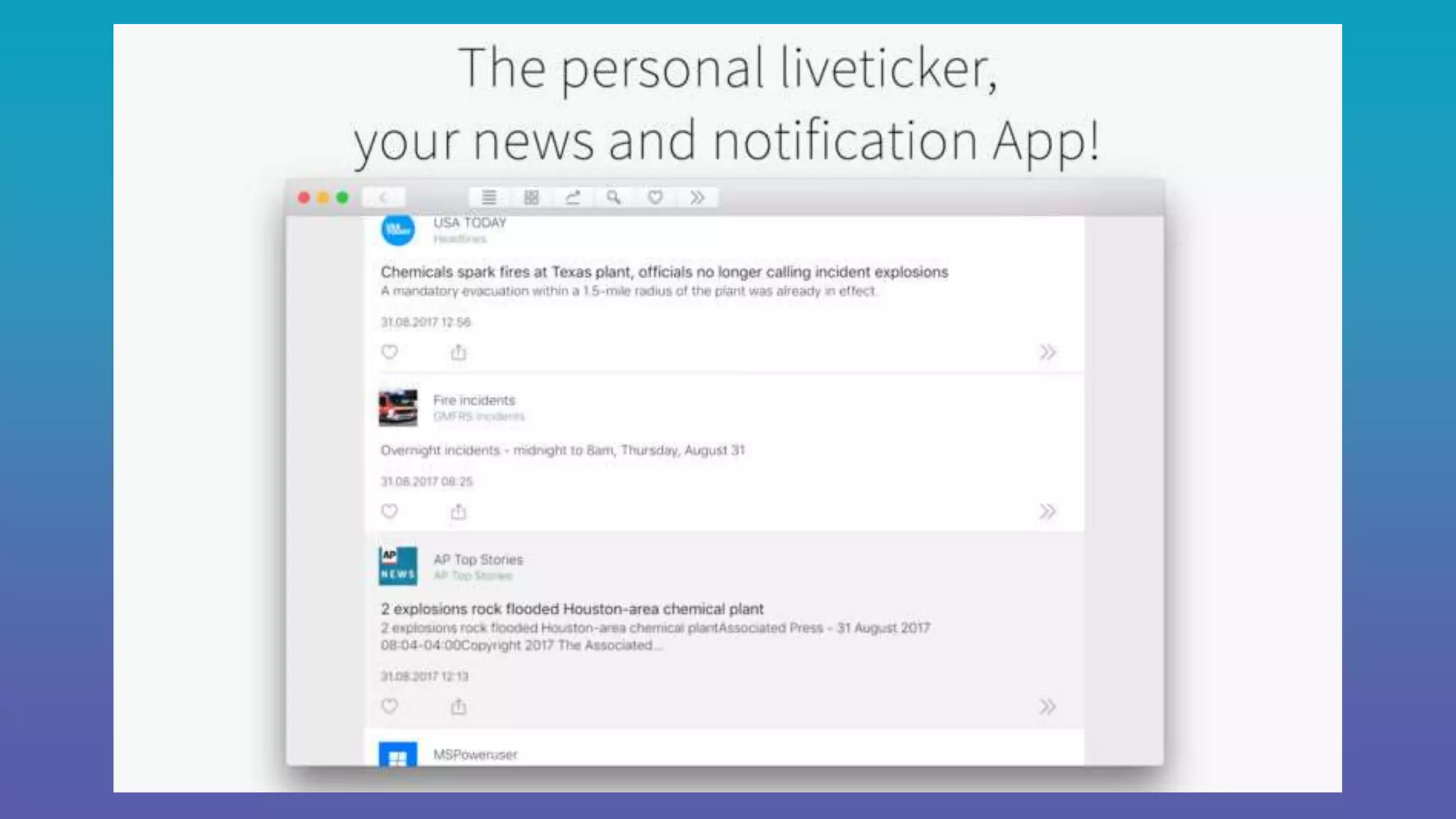

- #45 https://itunes.apple.com/app/tickers/id1259870423?mt=12

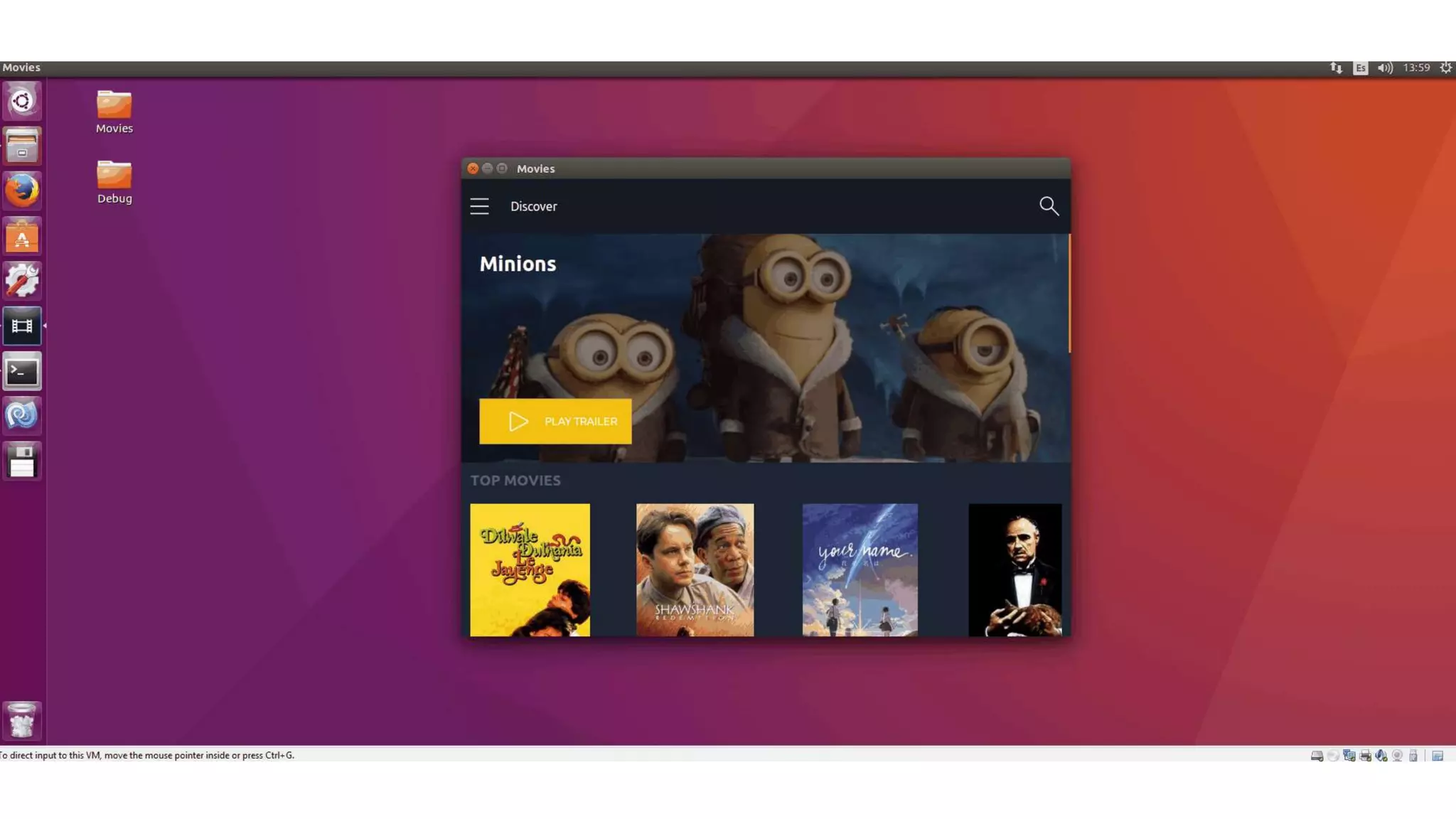

- #46 Gtk# is a Graphical User Interface Toolkit for mono and .Net. The project binds the gtk+ toolkit and assorted GNOME libraries, enabling fully native graphical Gnome application development using the Mono and .Net development frameworks

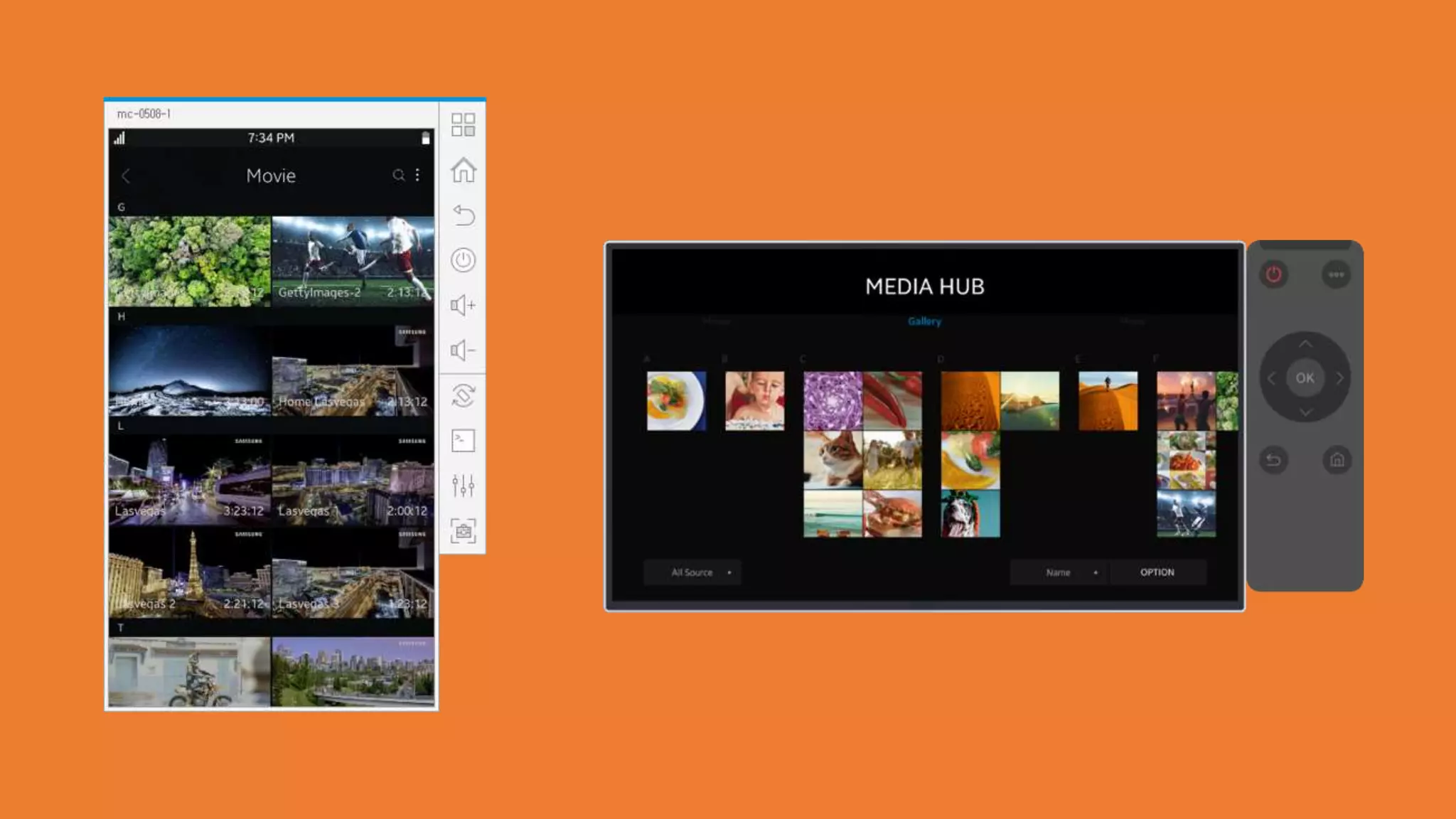

- #47 Really beautiful, isn’t it. The talented people over at Samsung have done an incredible job.
- #48 Kick off File > New with Live Player running What do we want to cover about building an app?
- #51 Kick off File > New with Live Player running What do we want to cover about building an app?
- #52 https://github.com/rmarinho/XFNativeMix
- #53 https://developer.xamarin.com/guides/xamarin-forms/platform-features/platform-specifics/creating/
- #54 CheckableFab is a button implementation from Jeremie Laval https://blog.xamarin.com/embedding-native-controls-into-xamarin-forms/
