What’s new in VS 2015 and ALM 2015

Enterprise Software Development
Join the Conversation #VS2015 @AdamCogan
V18.1

@AdamCogan | Chief Architect @ SSW | Microsoft Regional Director
What’s new in Visual
Studio 2015

A trip down memory lane (Taylor Square – Oxford St Sydney)

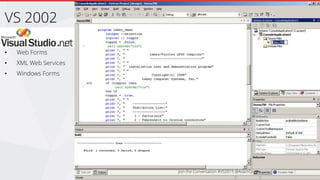

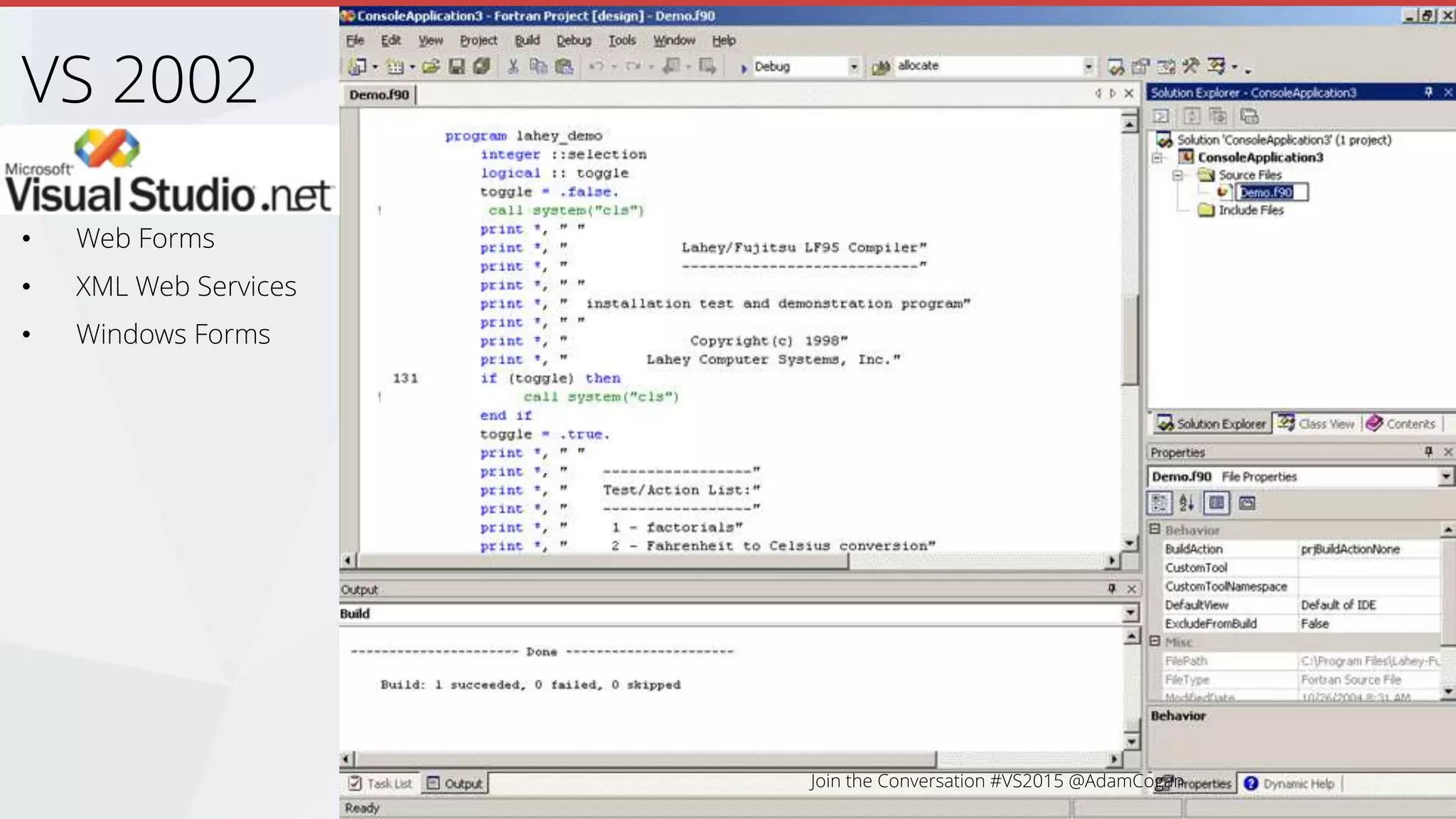

• Web Forms
• XML Web Services
• Windows Forms

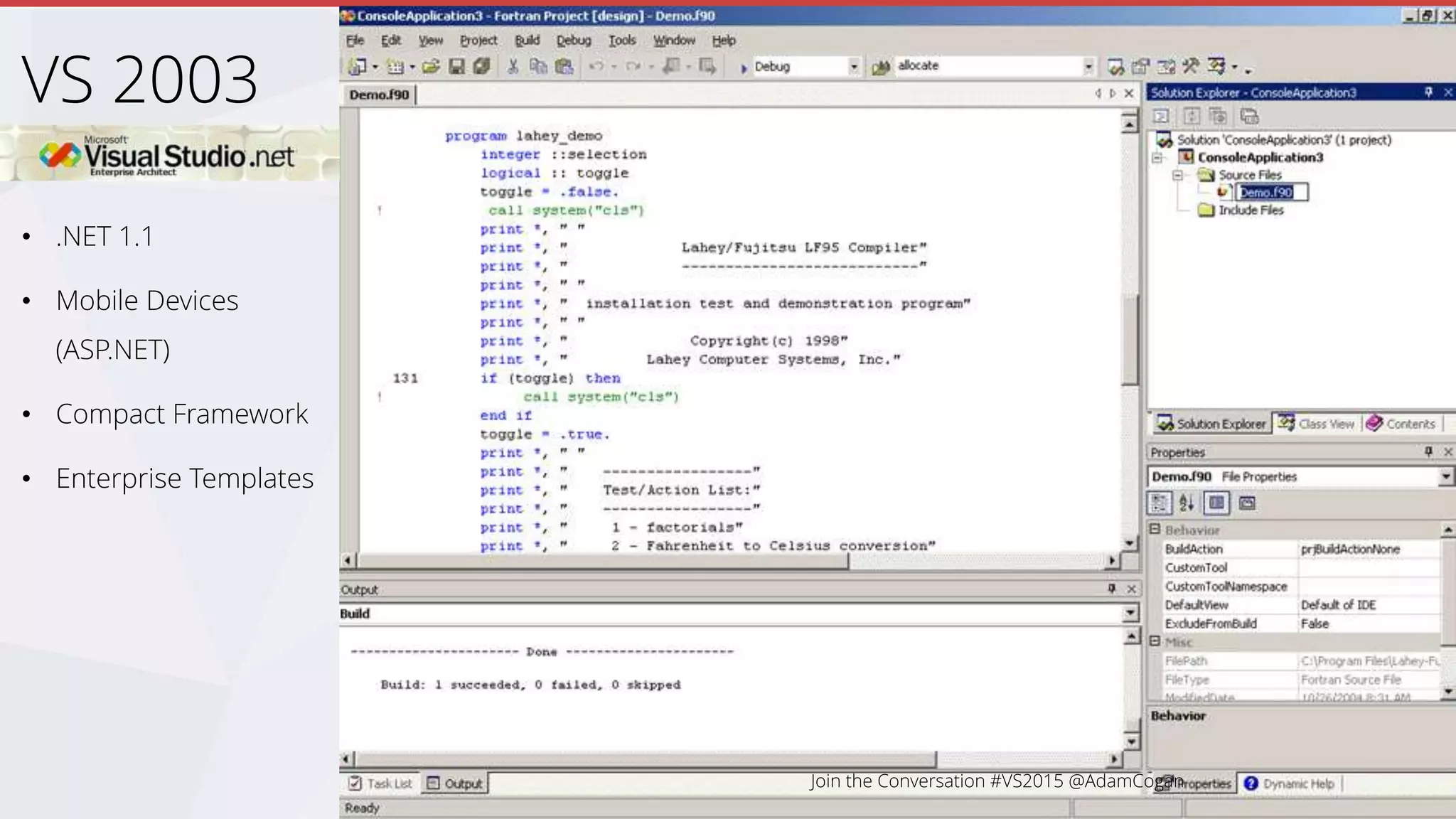

VS 2002

• .NET 1.1
• Mobile Devices
(ASP.NET)
• Compact Framework
• Enterprise Templates
VS 2003

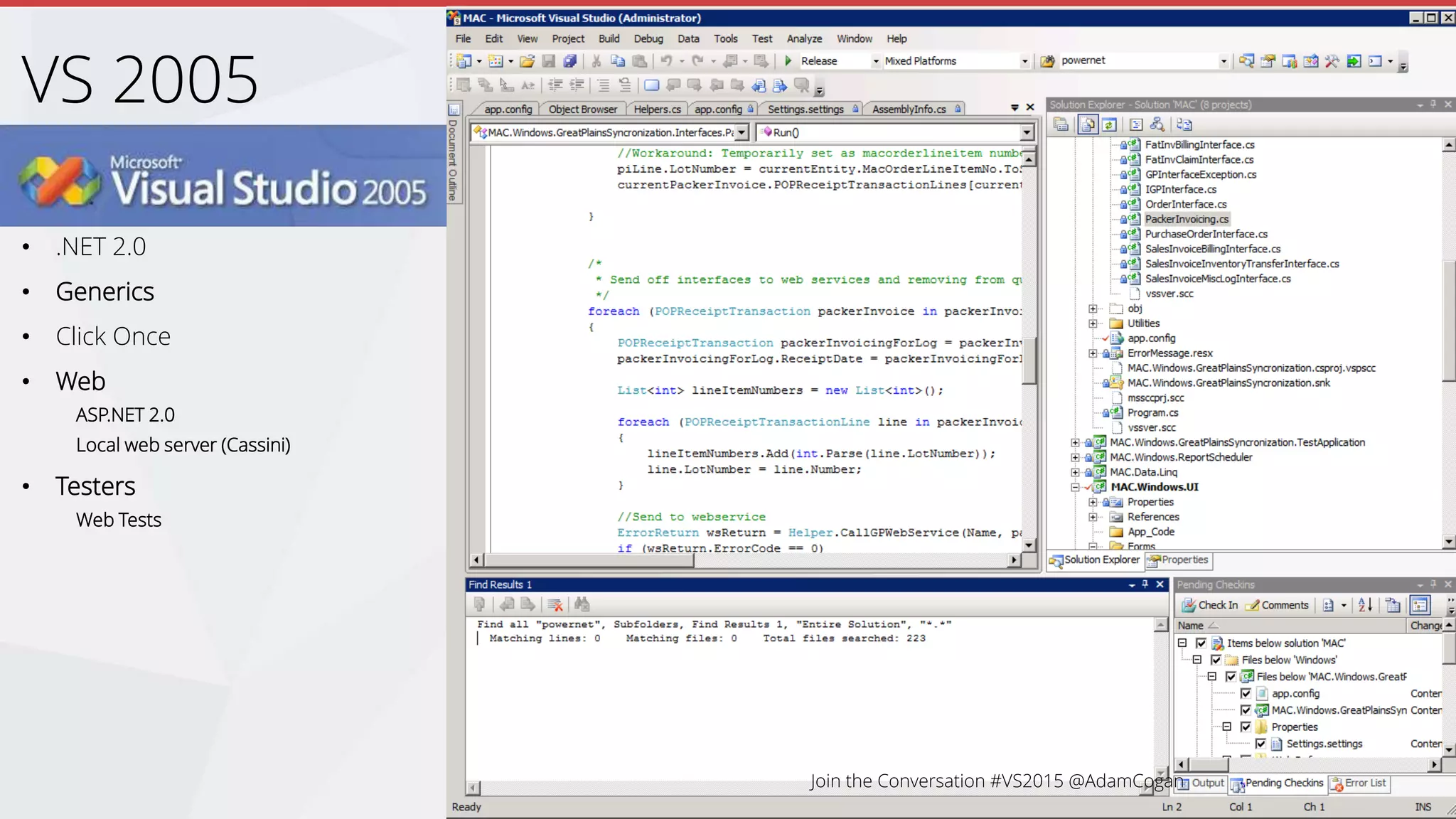

• .NET 2.0
• Generics
• Click Once
• Web
ASP.NET 2.0
Local web server (Cassini)
• Testers
Web Tests
VS 2005

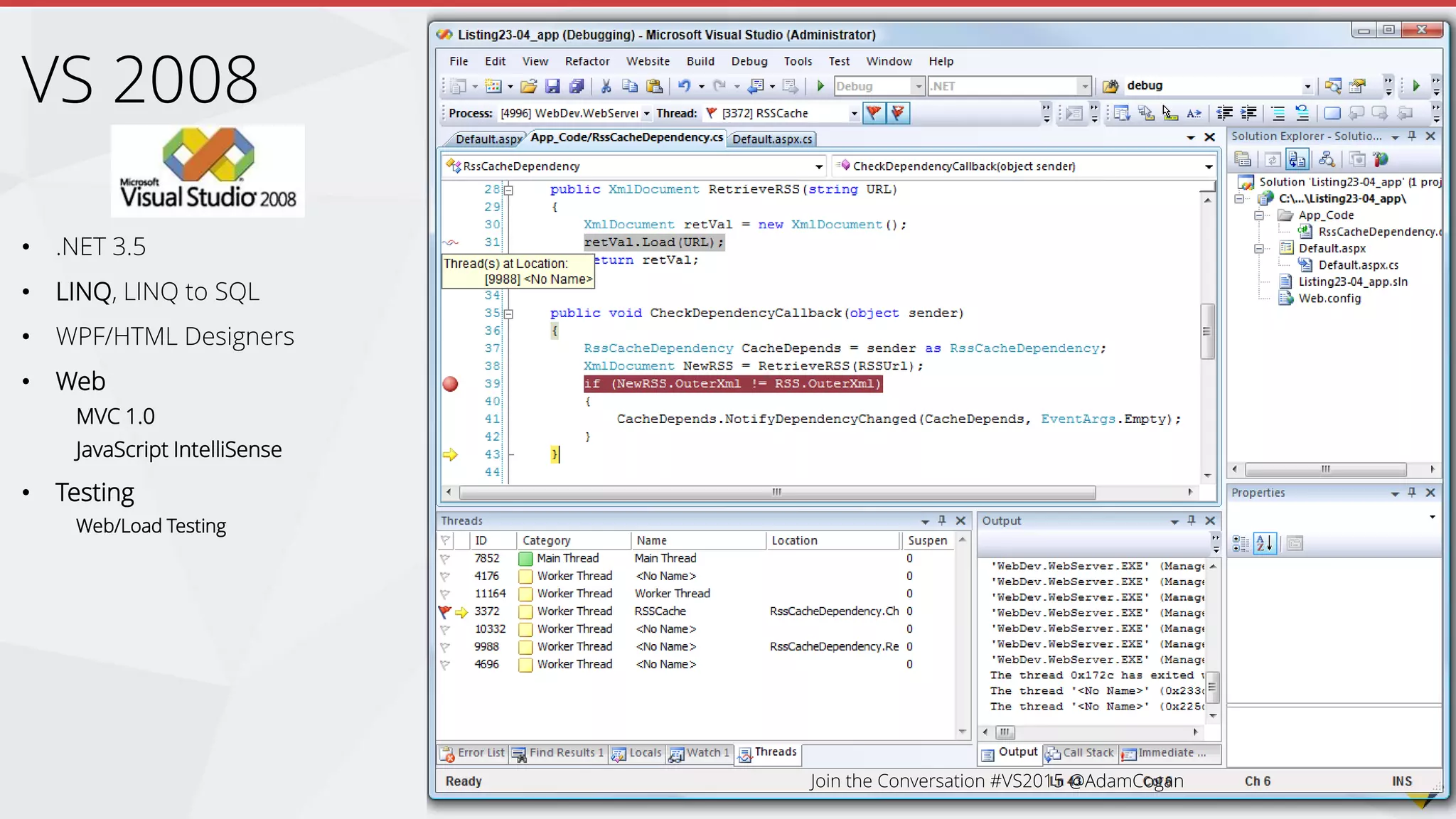

• .NET 3.5
• LINQ, LINQ to SQL
• WPF/HTML Designers
• Web
MVC 1.0
JavaScript IntelliSense
• Testing
Web/Load Testing
VS 2008

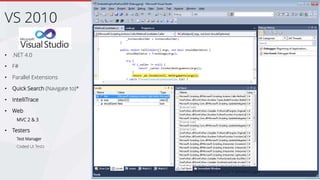

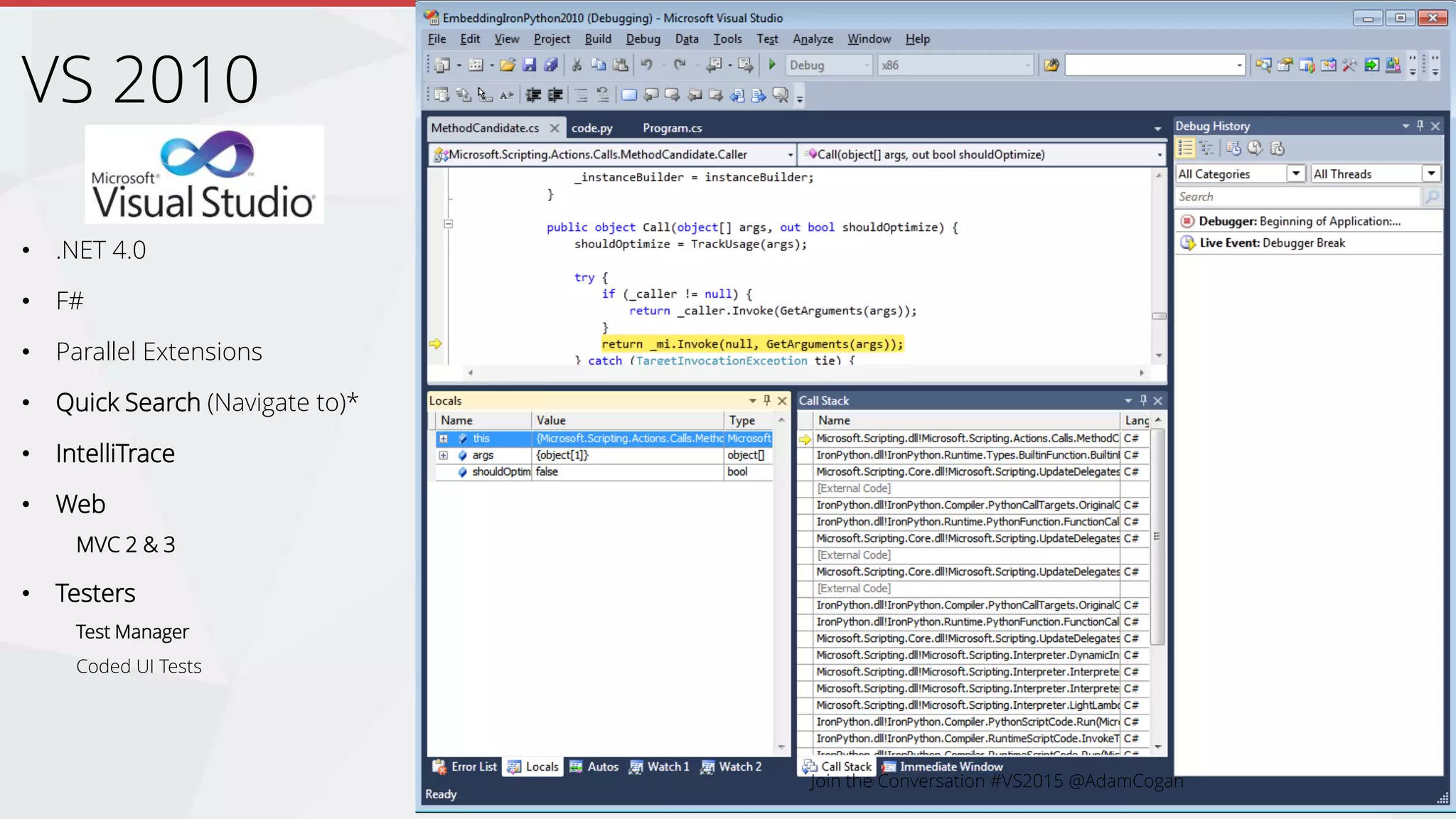

• .NET 4.0
• F#
• Parallel Extensions
• Quick Search (Navigate to)*
• IntelliTrace
• Web
MVC 2 & 3
• Testers
Test Manager
Coded UI Tests
VS 2010

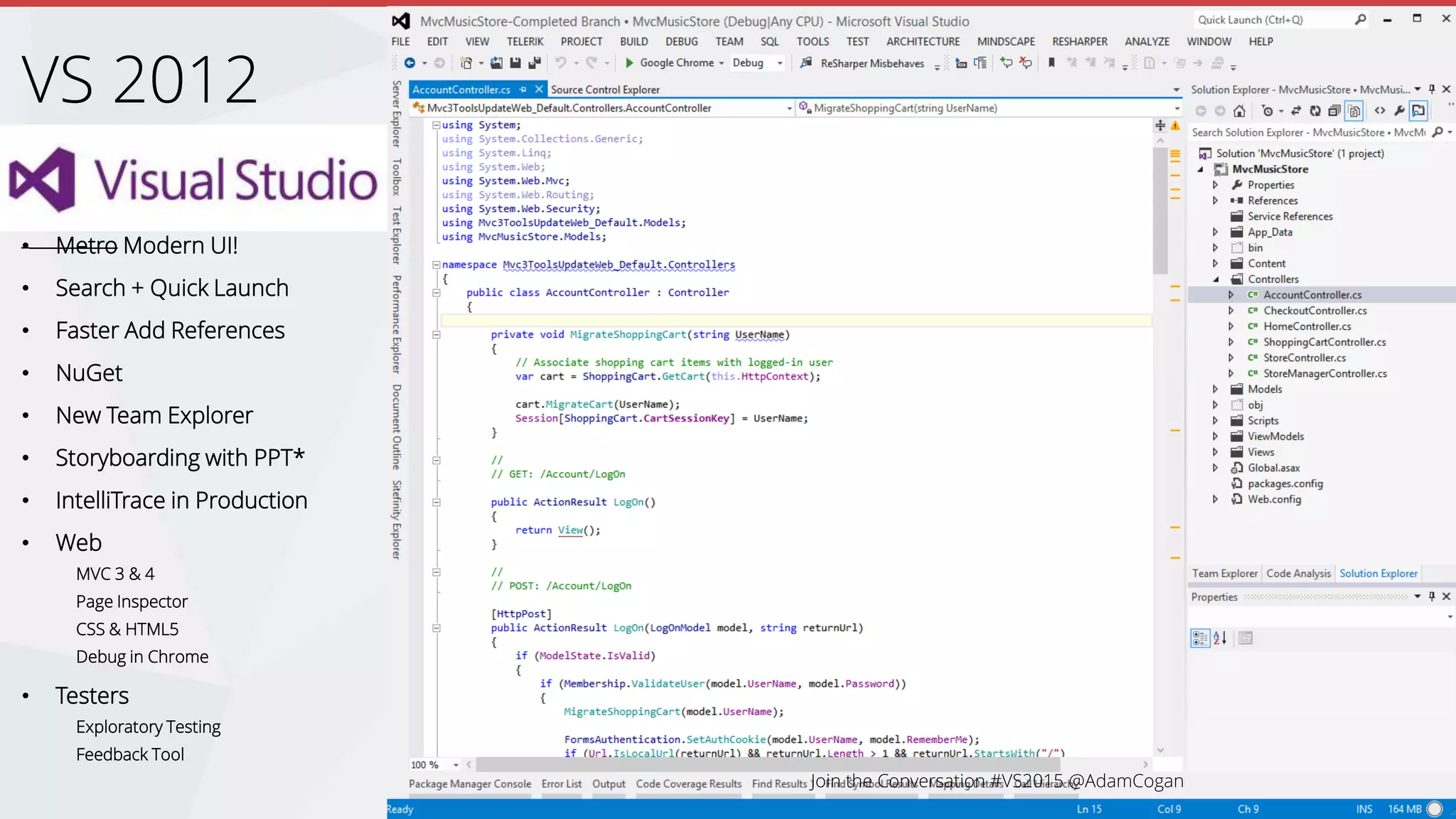

• Metro Modern UI!
• Search + Quick Launch
• Faster Add References
• NuGet
• New Team Explorer
• Storyboarding with PPT*
• IntelliTrace in Production
• Web
MVC 3 & 4
Page Inspector
CSS & HTML5
Debug in Chrome
• Testers
Exploratory Testing
Feedback Tool
VS 2012

• VisualStudio.com
• Visual Studio Community*
• Git Support
• TypeScript
• Web
MVC 5 + WebAPIs
Browser Link*
Twitter Bootstrap
OAuth
• 64 bit Edit & Continue
• CTRL + ,
• Peek, Code Lens,
CodeMap
• Sync Preferences
VS 2013

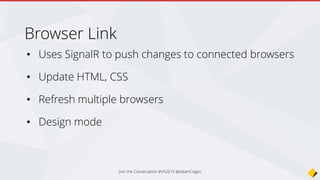

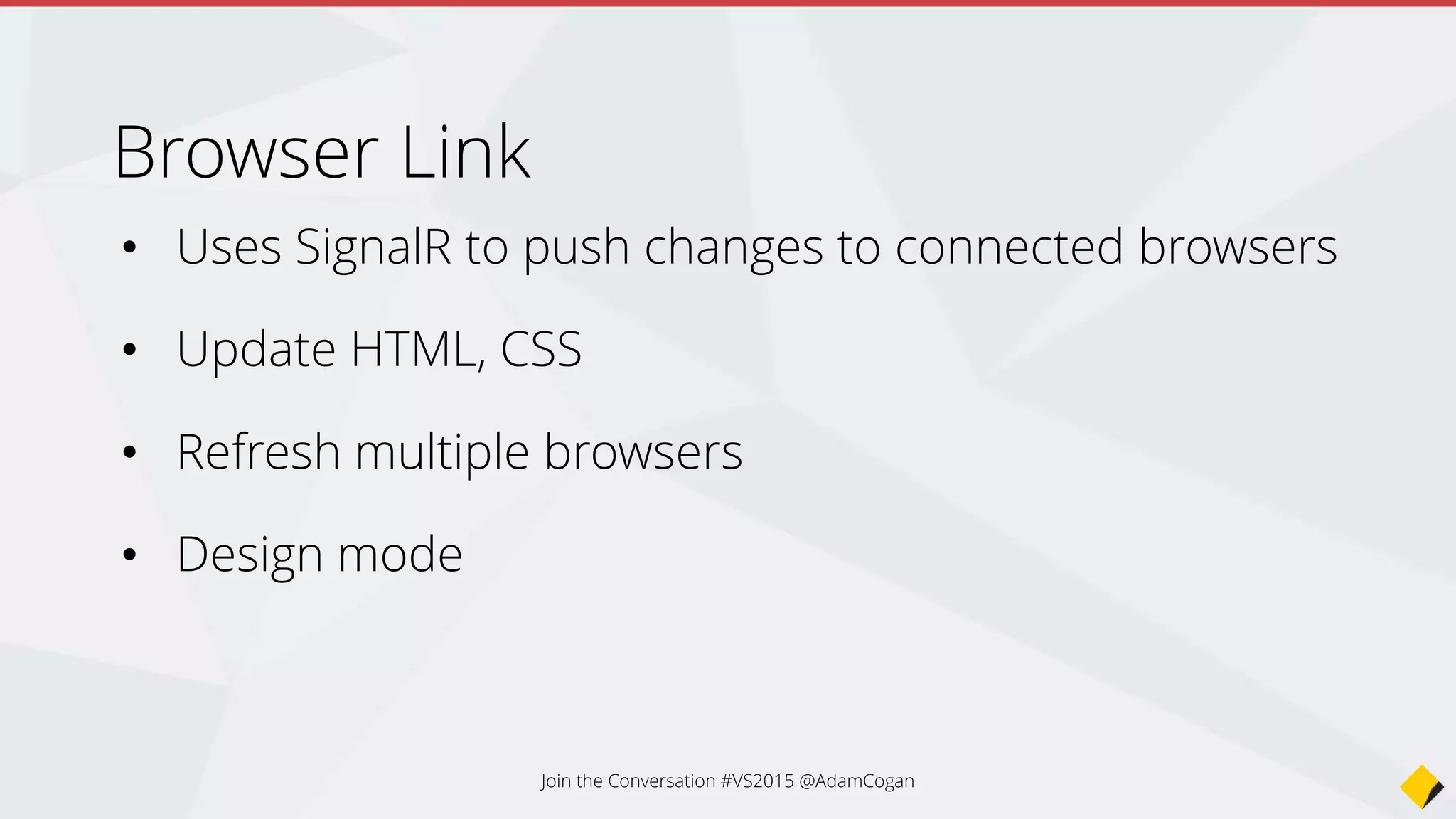

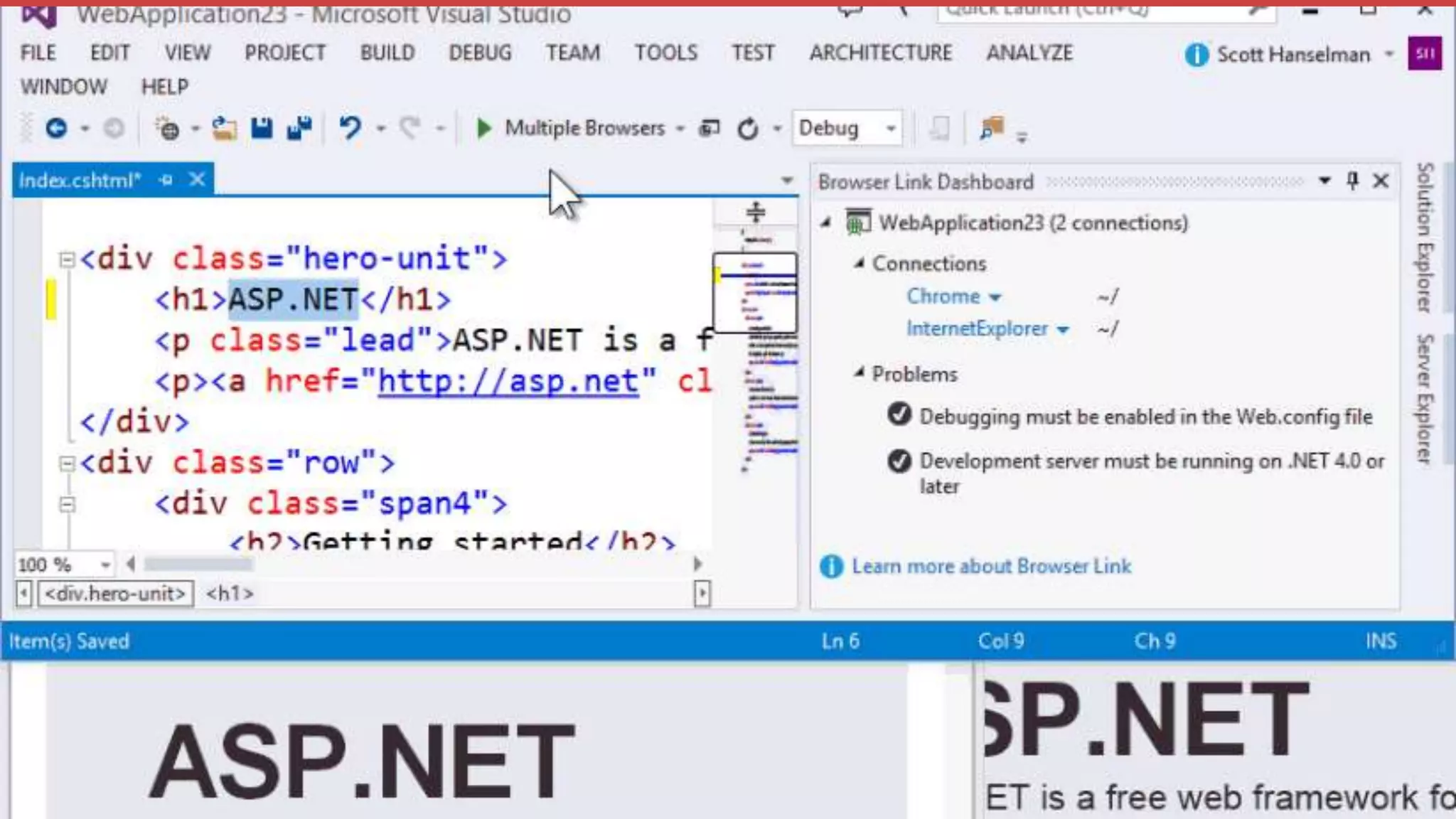

• Uses SignalR to push changes to connected browsers
• Update HTML, CSS
• Refresh multiple browsers
• Design mode

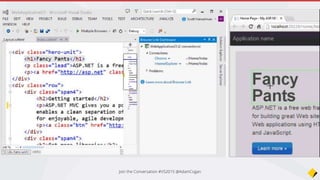

Browser Link

Browser Link + Web Essentials
• Make changes in the browsers dev tools, save back to
VS
• Find unused CSS
• http://vswebessentials.com/features/browserlink

A trip down memory lane

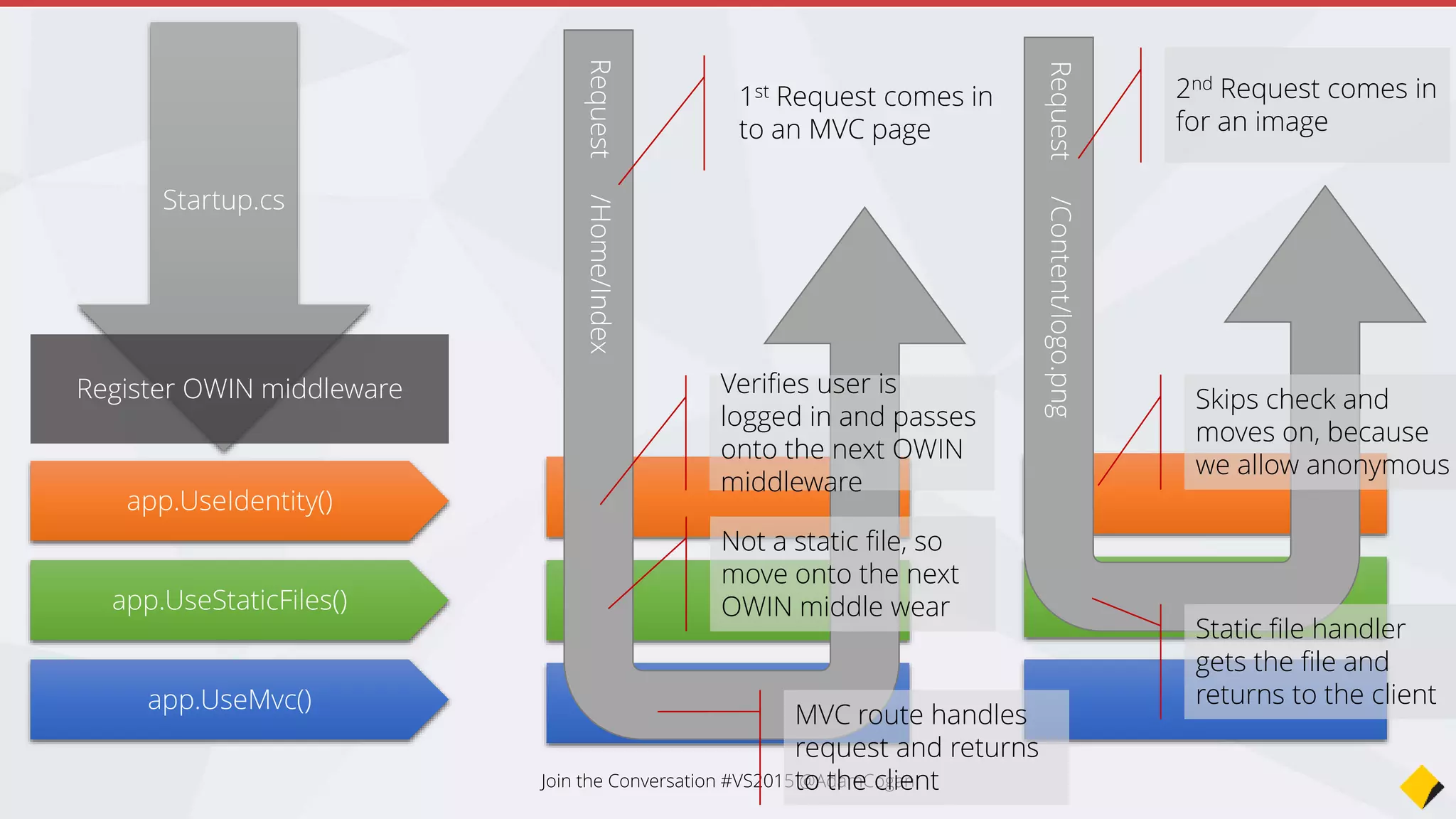

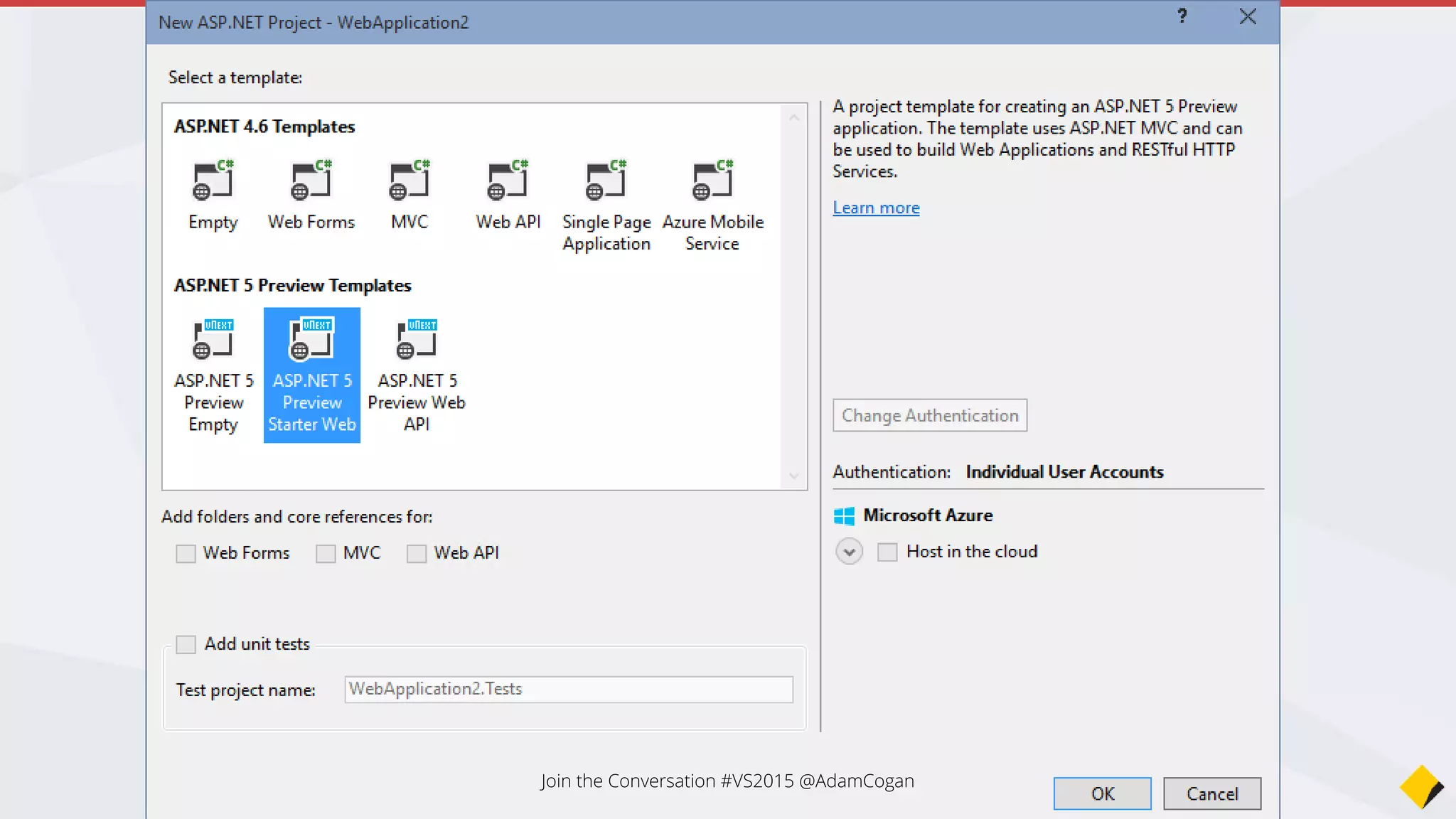

ASP.NET 5 (was vNext)

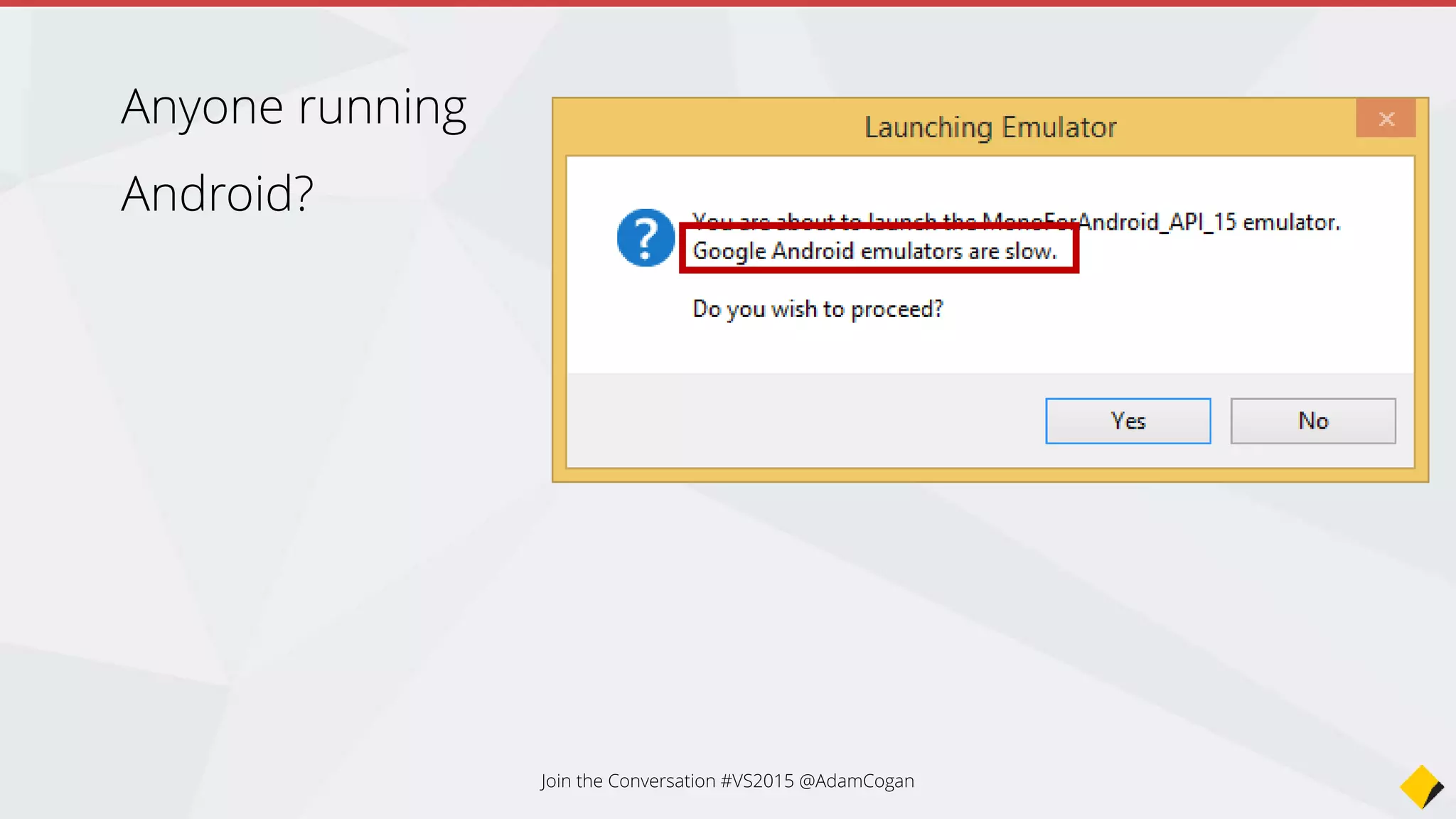

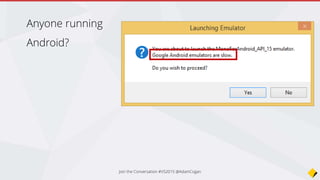

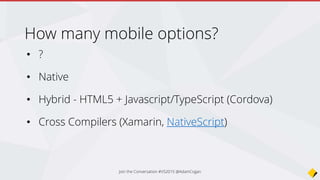

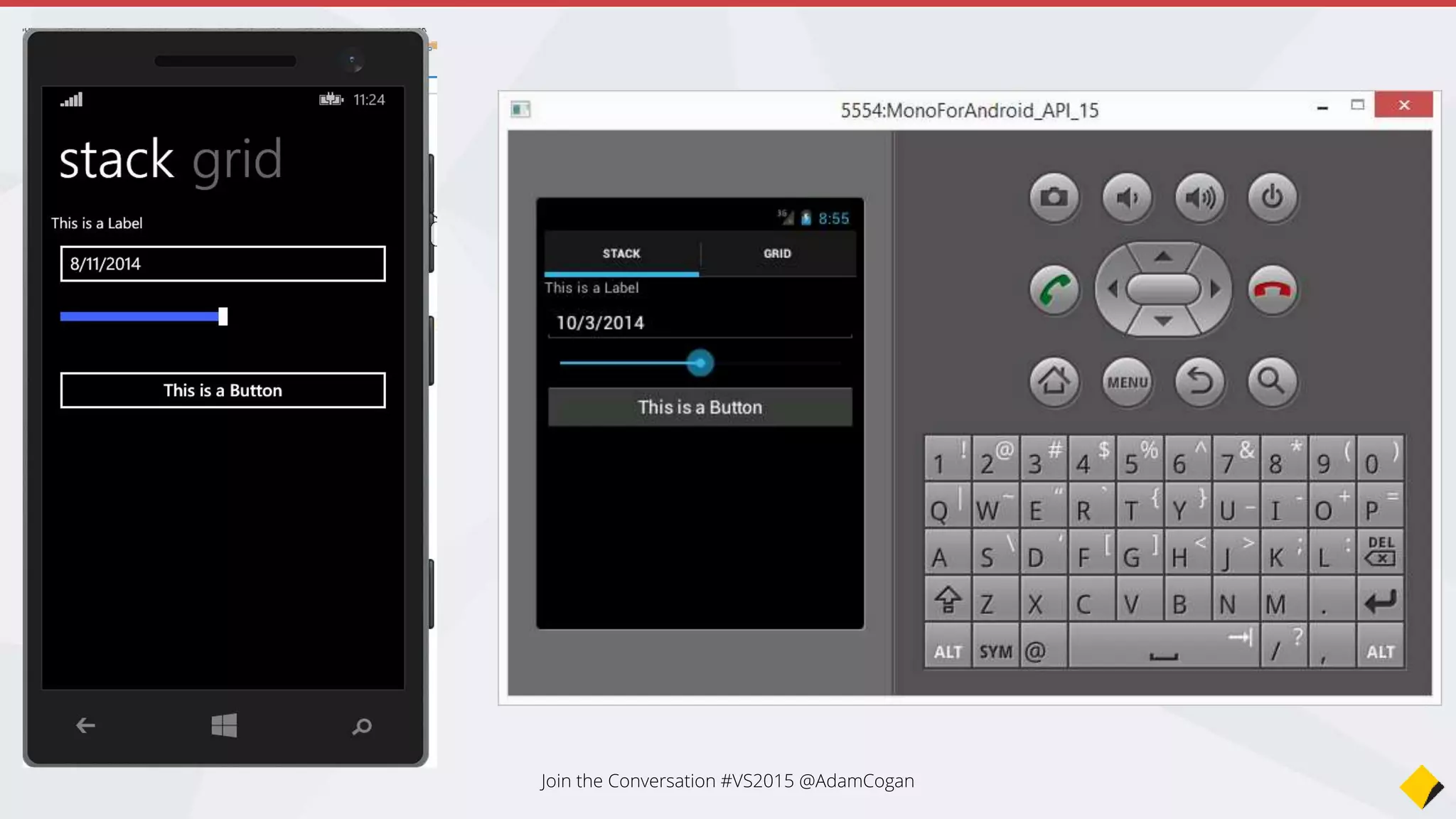

Mobile Development
Azure
Summary
What’s New (2014 + 2015)
Agenda

The Coganator
Adam Cogan
@AdamCogan
 Chief Architect at SSW
 Developing custom solutions
 Perform Software Audits
 Microsoft Gold Partner
 Microsoft Regional Director
 ASP Insider
 ALM MVP

What’s New
In the 2013 Updates

• Better support for IE <
10
• Bug fixes
VS 2013.1
http://support.microsoft.com/kb/2911573

Visual Studio
• SQL 2014 support
• Testing
Cloud load testing + App Insights
integration
Coded UI + Unit Tests for WinPhone 8.1
• Git improvements (blame)
TFS
• Add charts to project portal
• Work Item Tagging
• Import from VSO
• Web
• Improved JSON/Sass/Less
editors
• TypeScript 1.0
• Backlog management
improvements
Non-working days
Performance
VS 2013.2
http://support.microsoft.com/kb/2927432/en-us

Visual Studio
• CodeLens for Git
• App Insights bundled in
• Azure Mobile Service
project

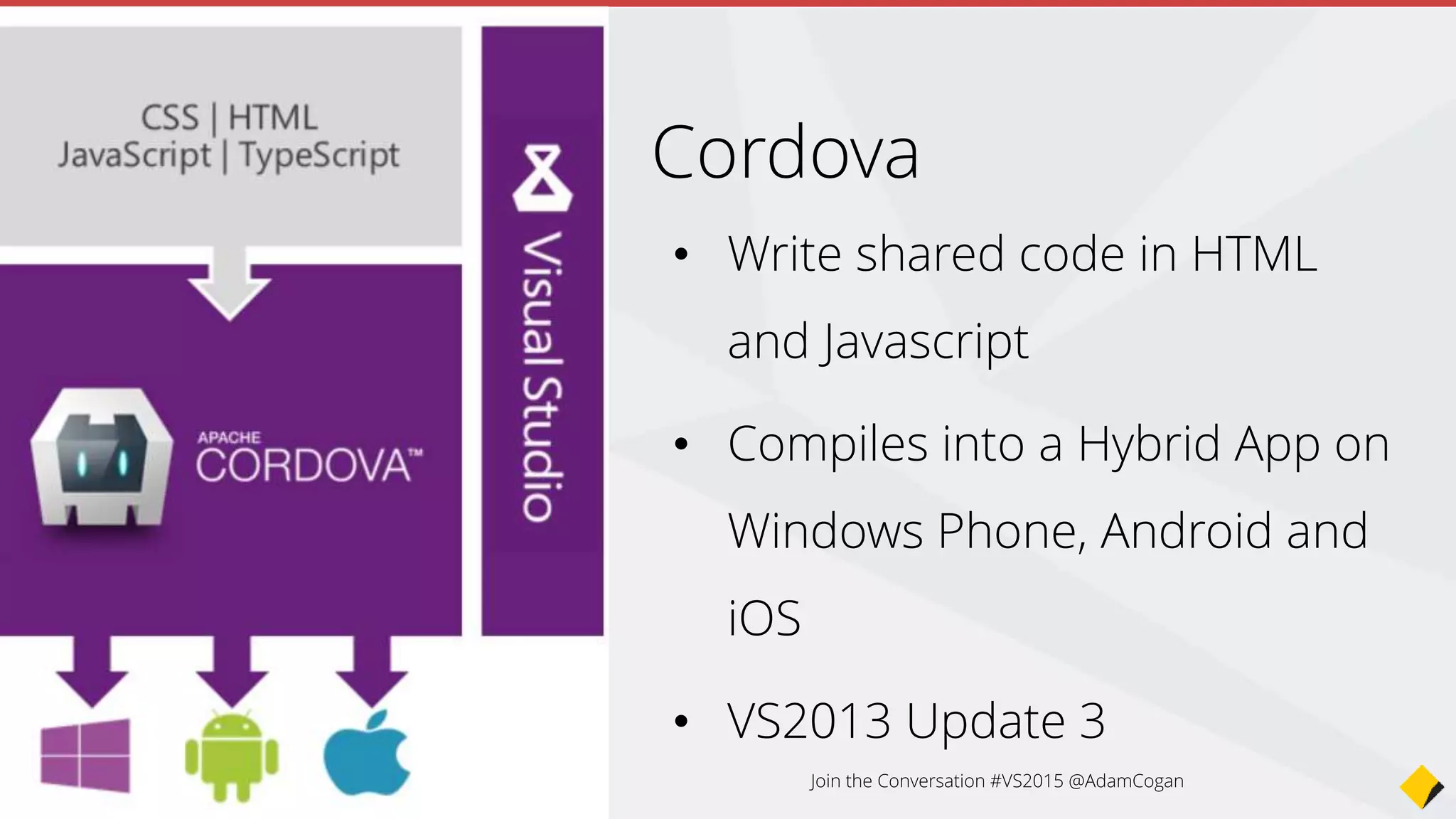

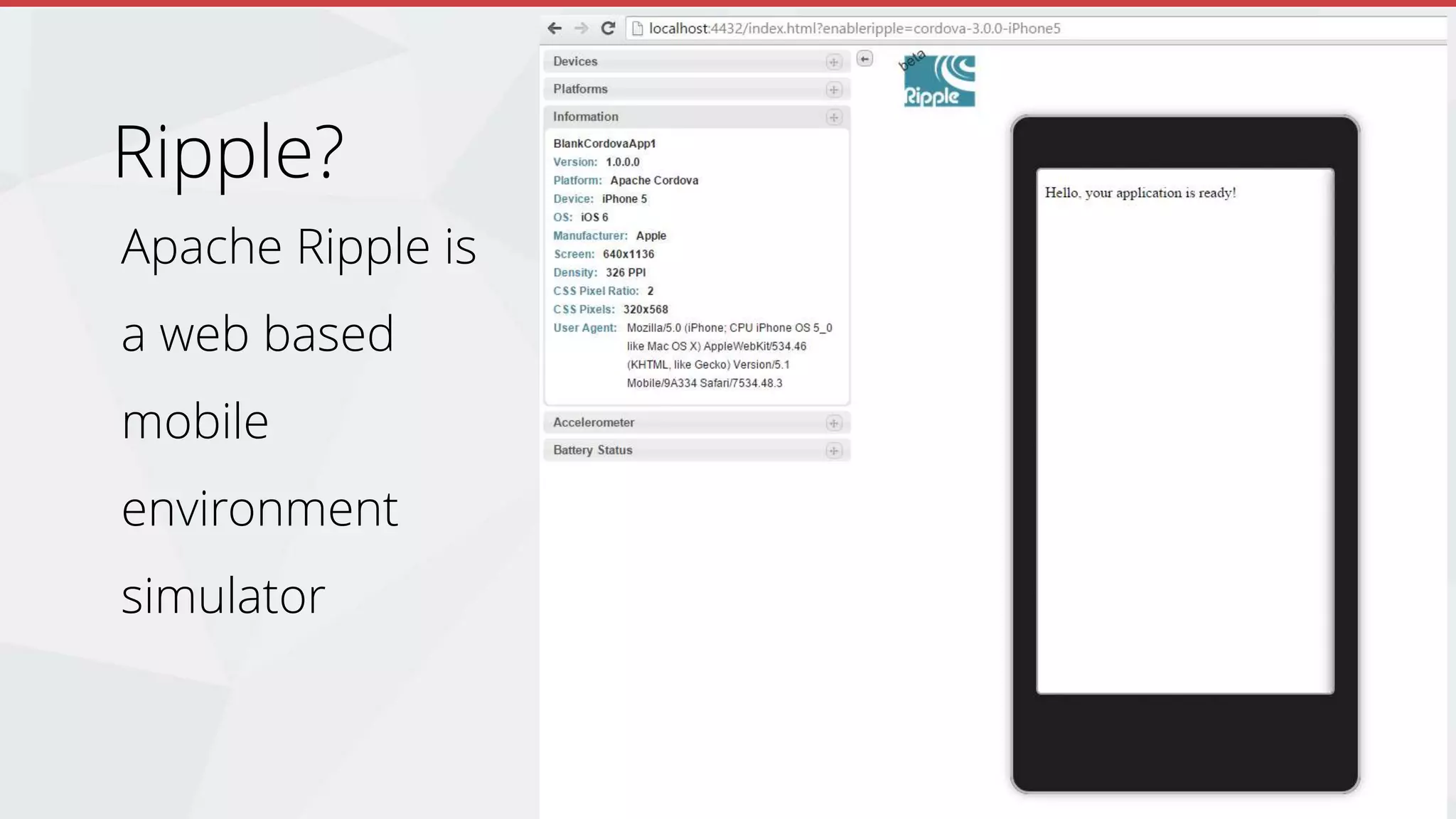

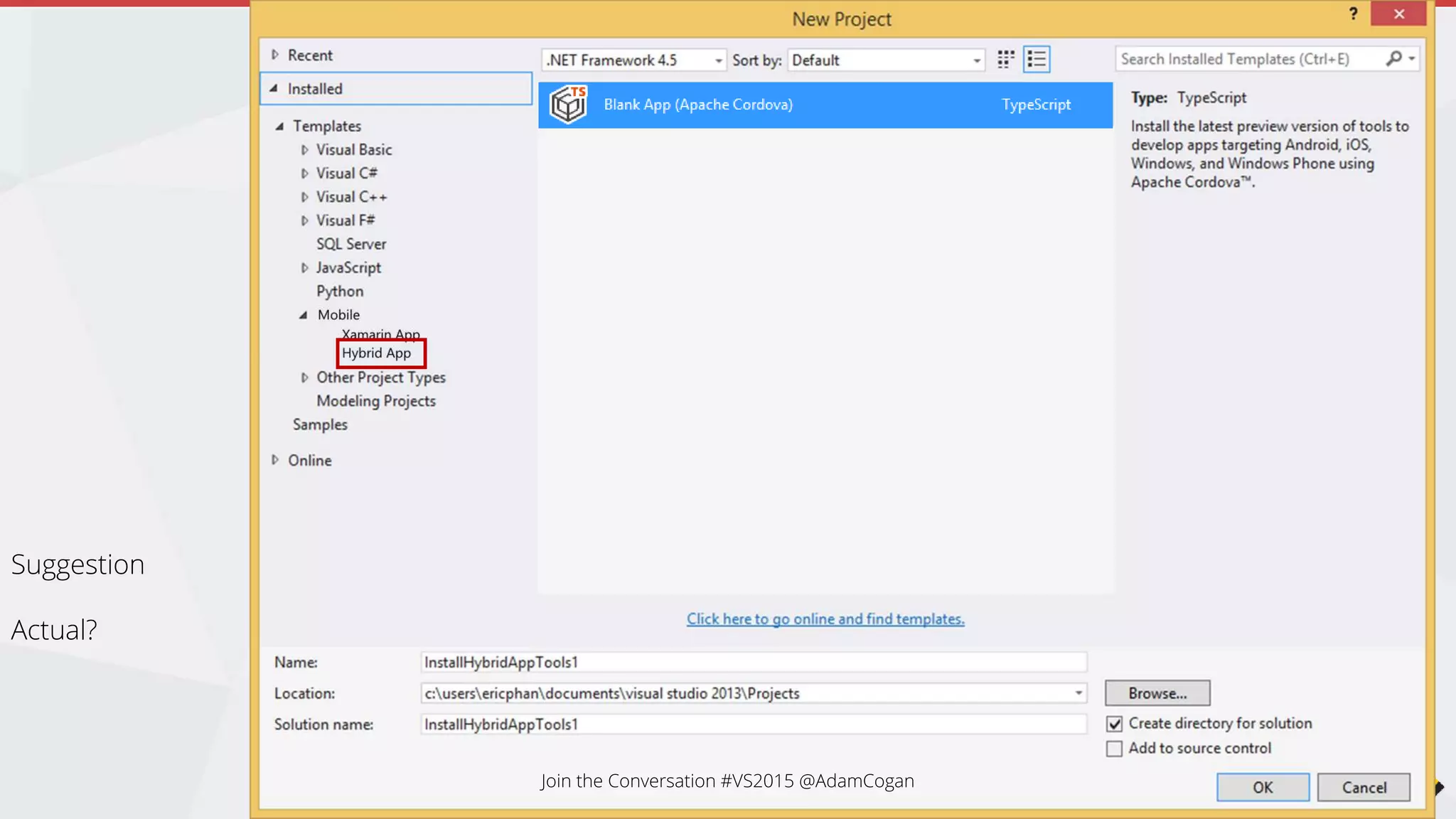

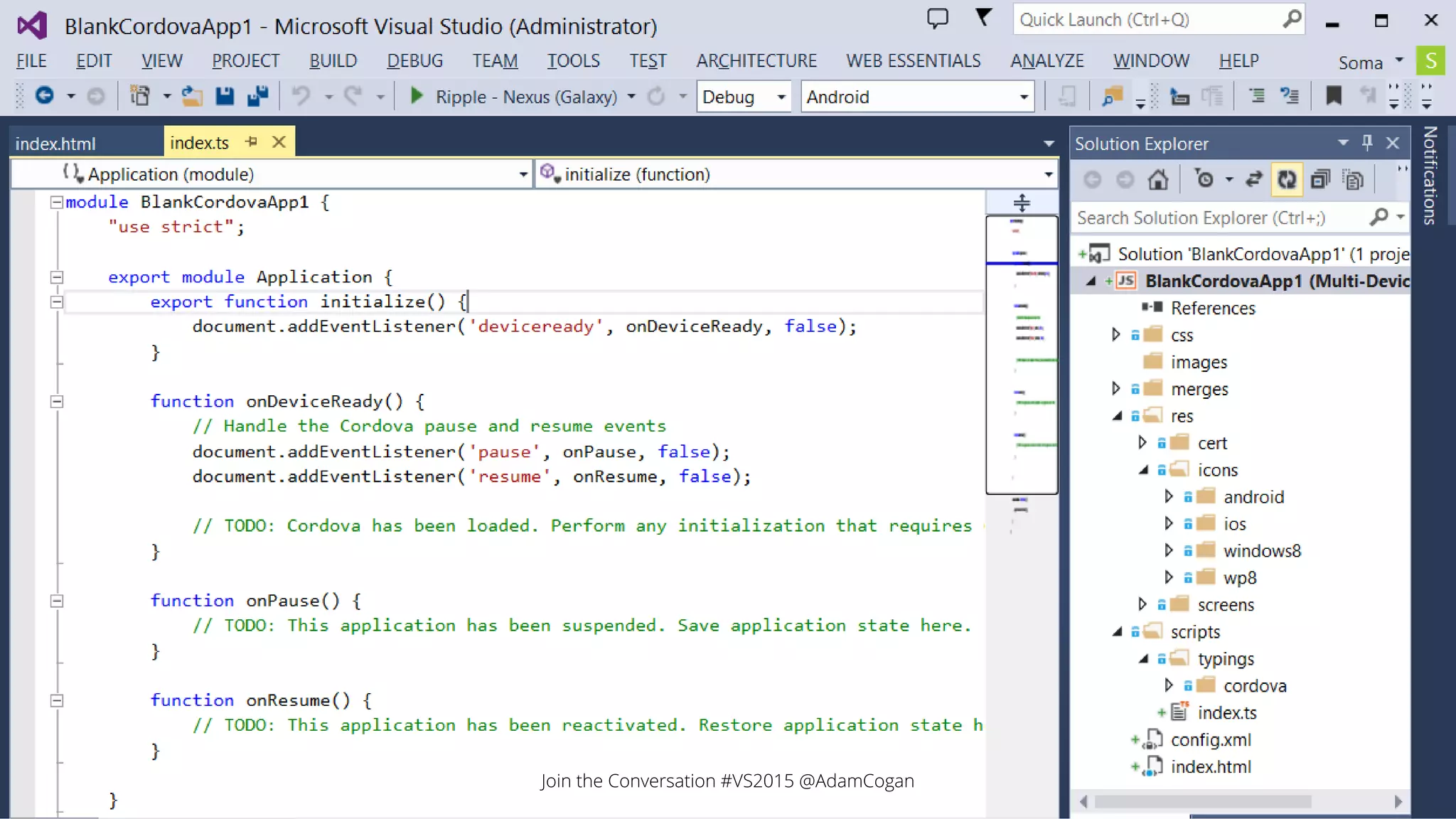

• Cordova tooling
TFS
• Configurable display on
‘in progress’ items on the
backlog
VS 2013.3
http://support.microsoft.com/kb/2933779

Visual Studio
• CodeLens improvements
TFS
• Testing
• Charts
• Filtering
• Tagging
• Release Management
VS 2013.4
http://www.visualstudio.com/en-
us/news/vs2013-update4-rtm-vs.aspx

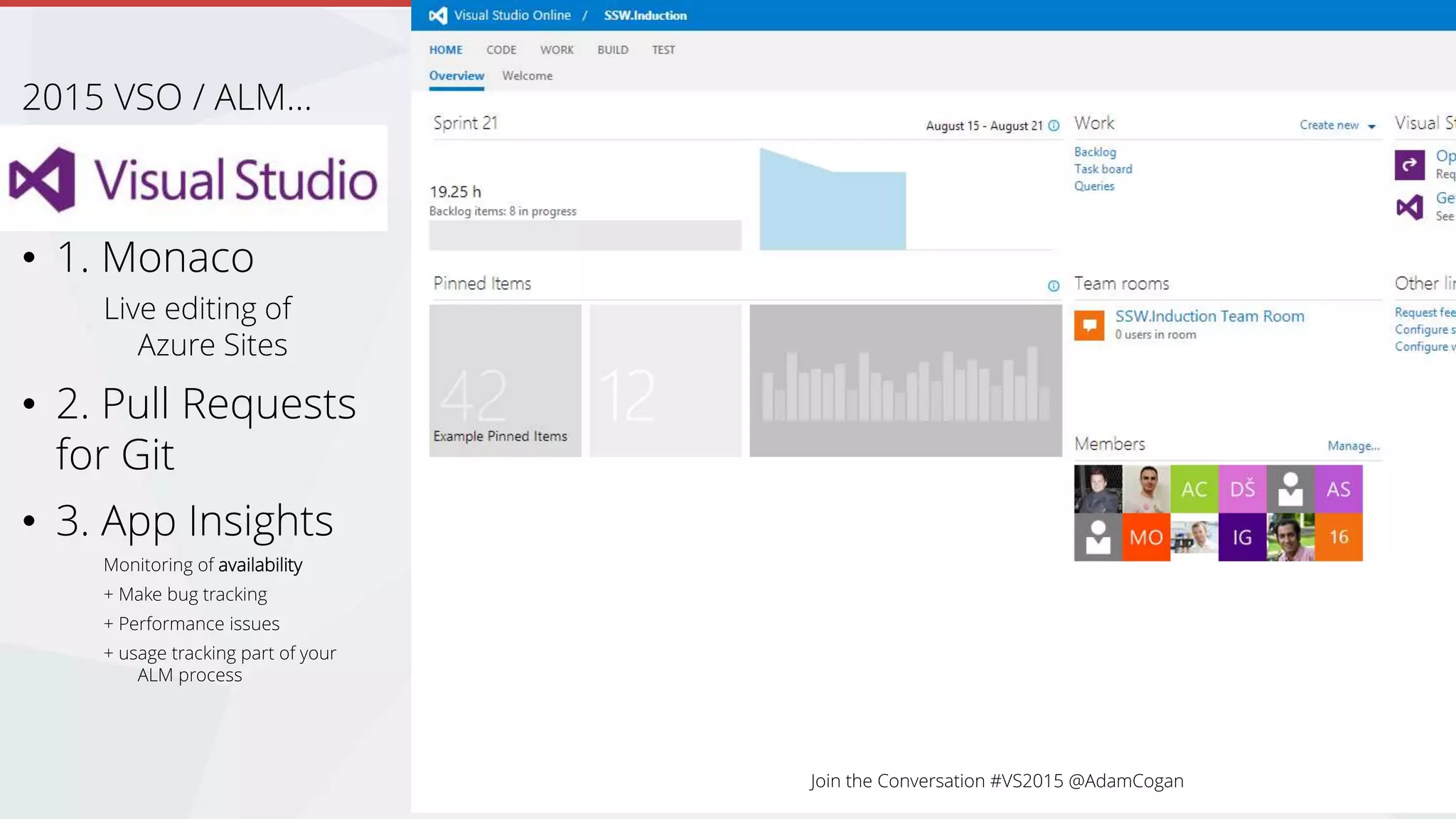

3 Cools things on
VisualStudio.com

• 1. Monaco
Live editing of
Azure Sites
• 2. Pull Requests
for Git
• 3. App Insights
Monitoring of availability
+ Make bug tracking
+ Performance issues
+ usage tracking part of your
ALM process
2015 VSO / ALM…

• ? LinqPad
• Git Client
• Code Editor
• Almost as good as VS (desktop)
Intellisense
Highlight references/usage

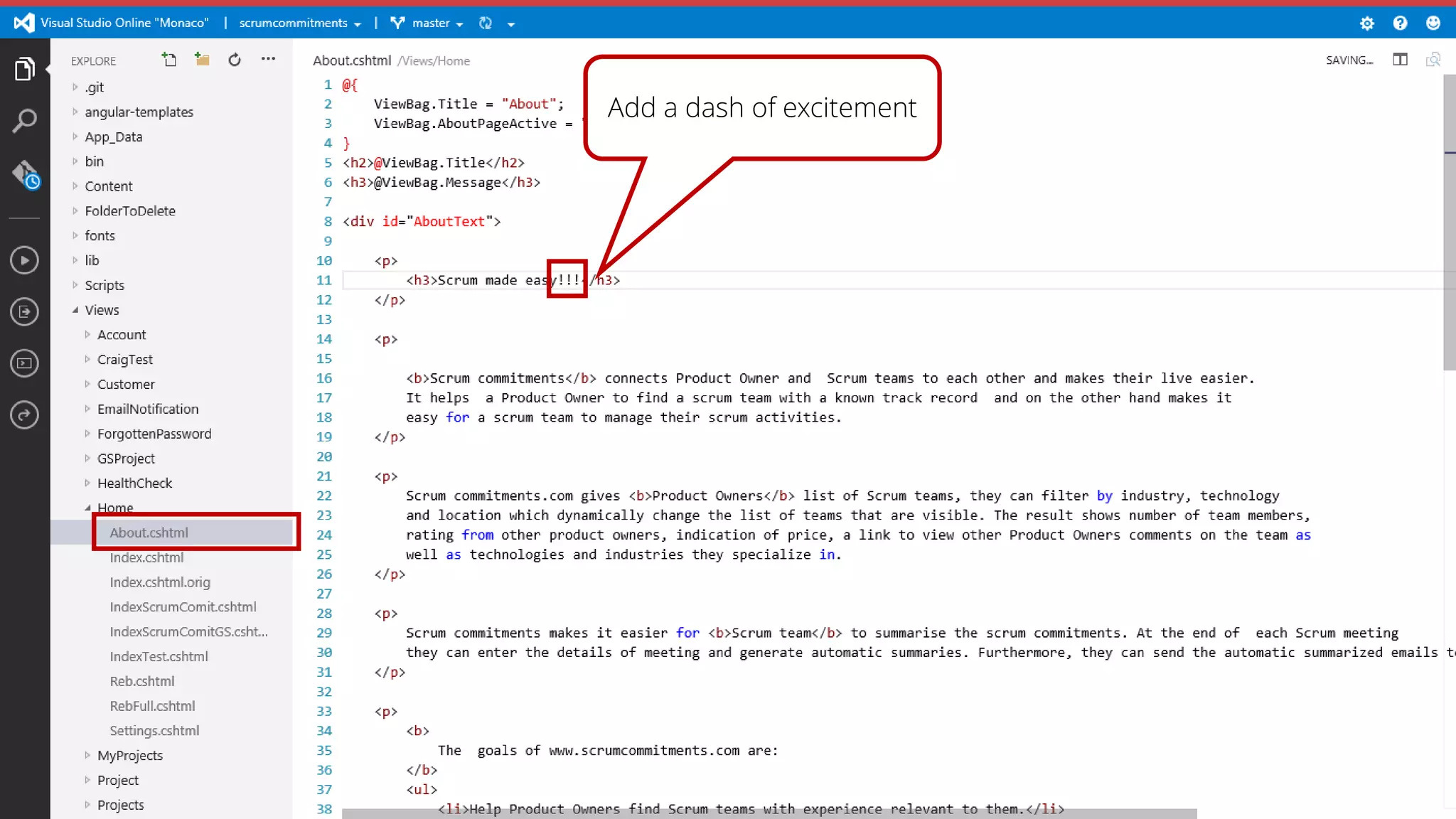

1. Monaco Editor for VS Online

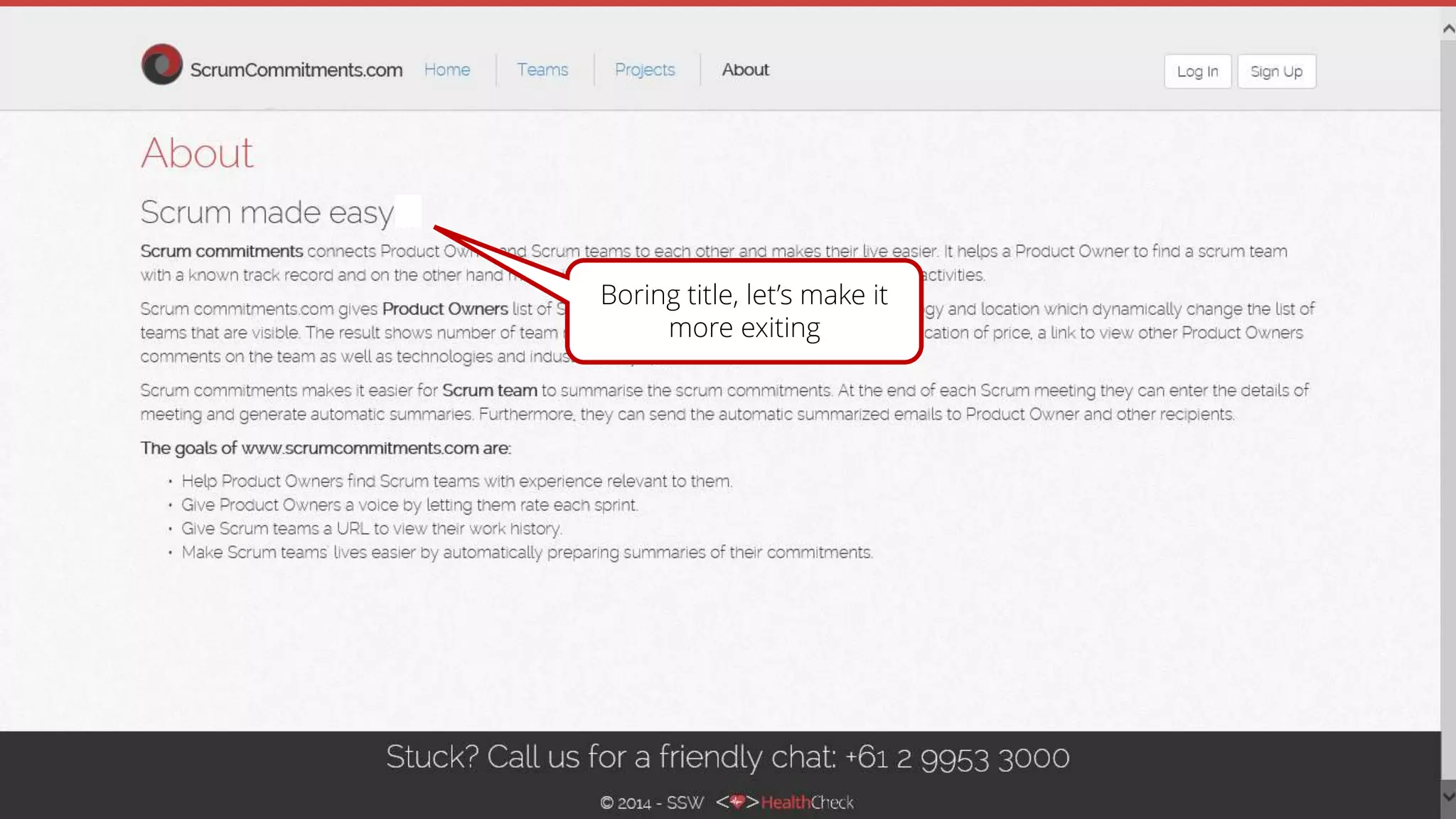

Boring title, let’s make it
more exiting

• TFS History ?
• Annotate (and Blame) rock
• Git Pull Requests give code review abilities
• http://blogs.msdn.com/b/visualstudioalm/archive/201
4/06/10/git-pull-request-visual-studio-online.aspx
Git Pull Requests

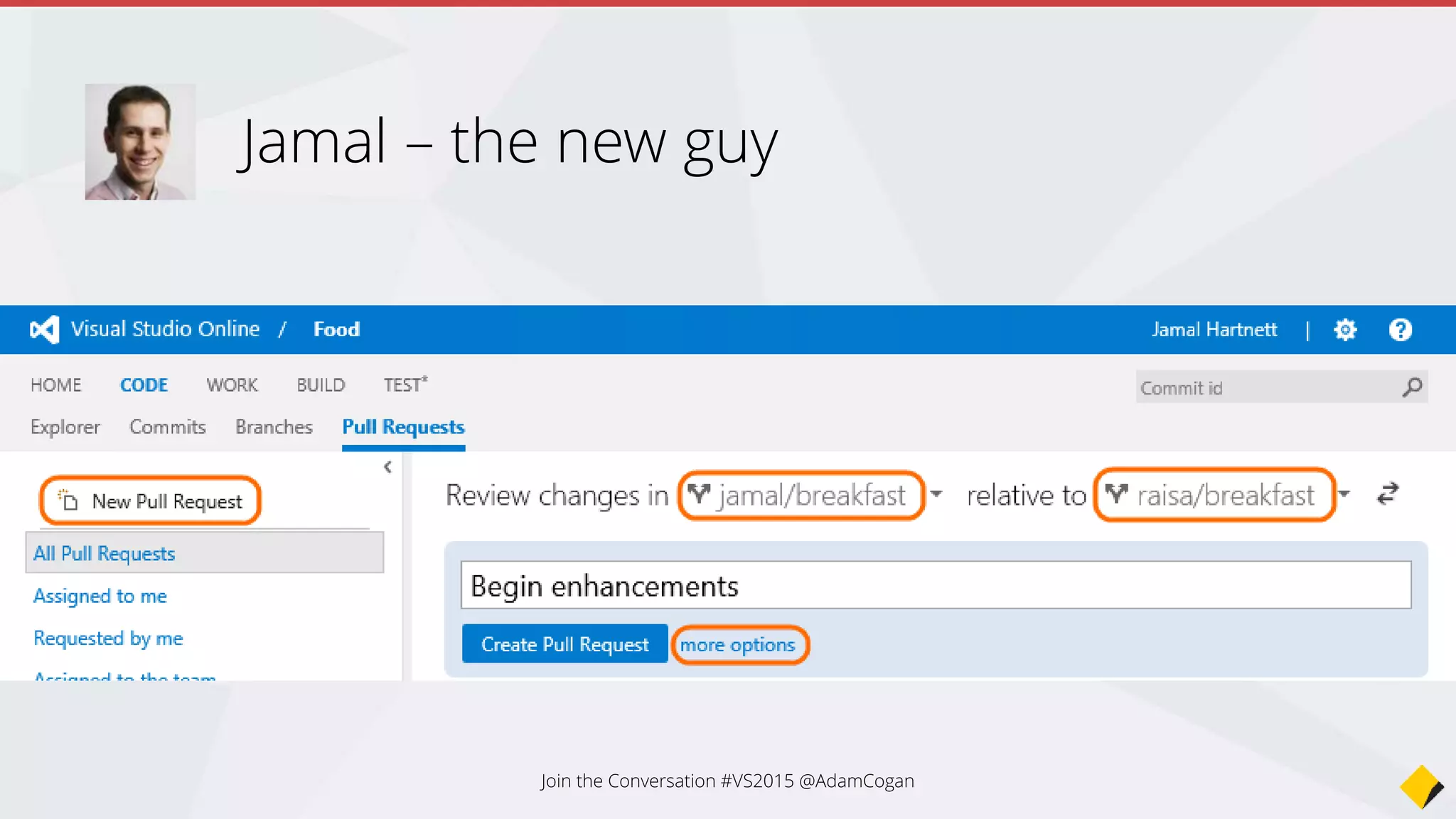

Jamal – the new guy

Adam - What did Jamal change?
Review the pull request
Adam Cogan

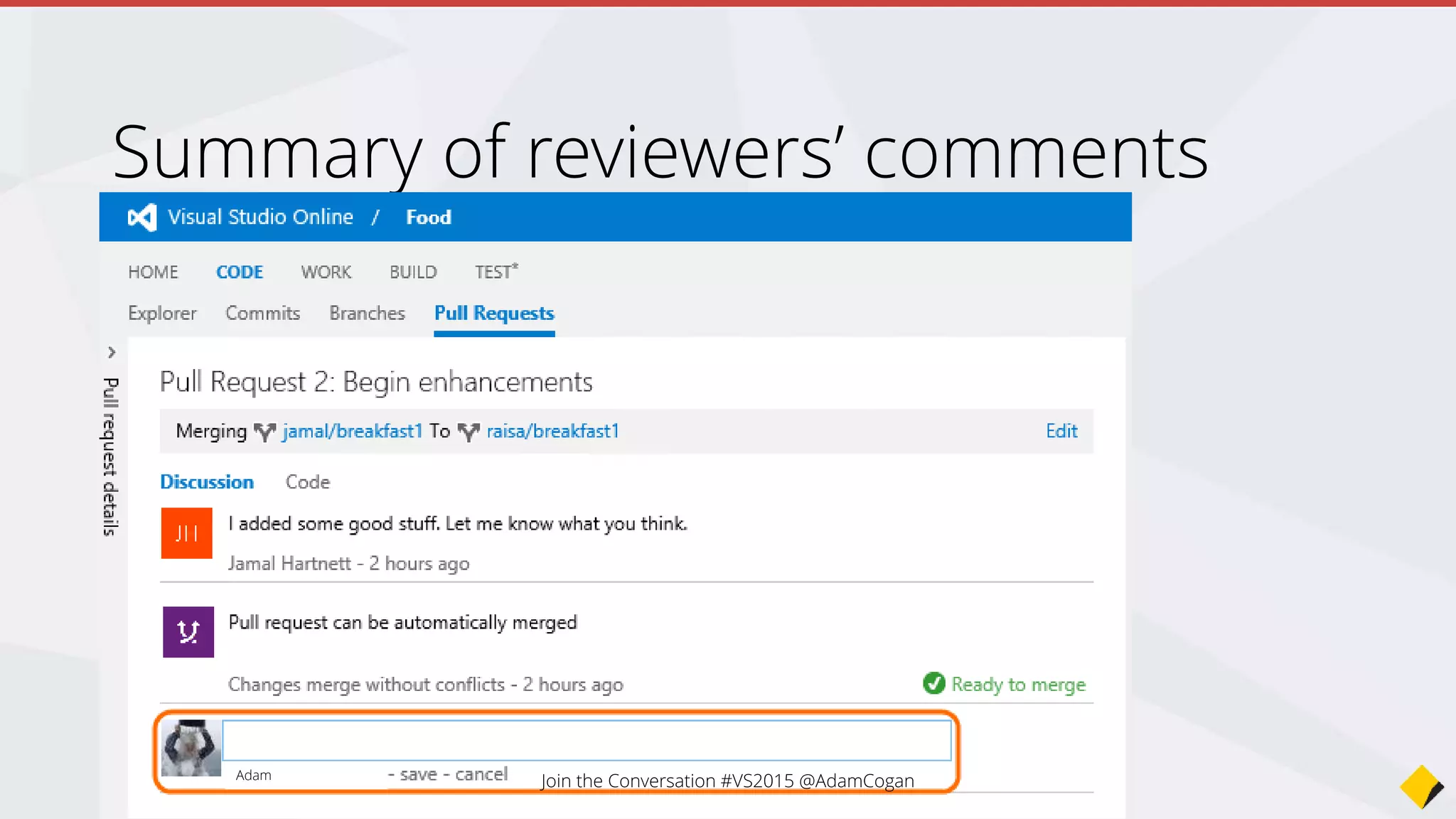

Summary of reviewers’ comments
Adam Cogan

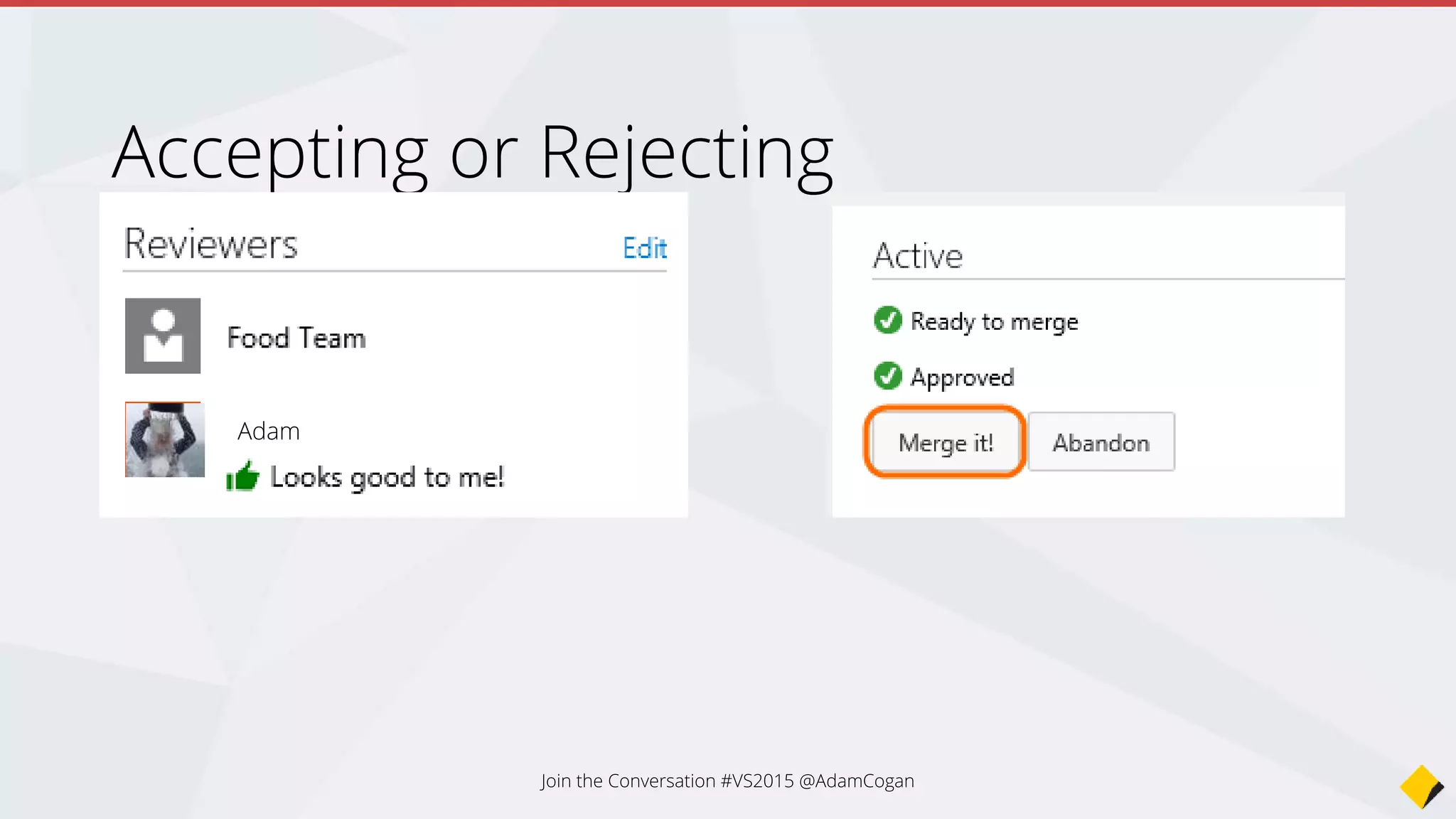

Accepting or Rejecting
Adam Cogan

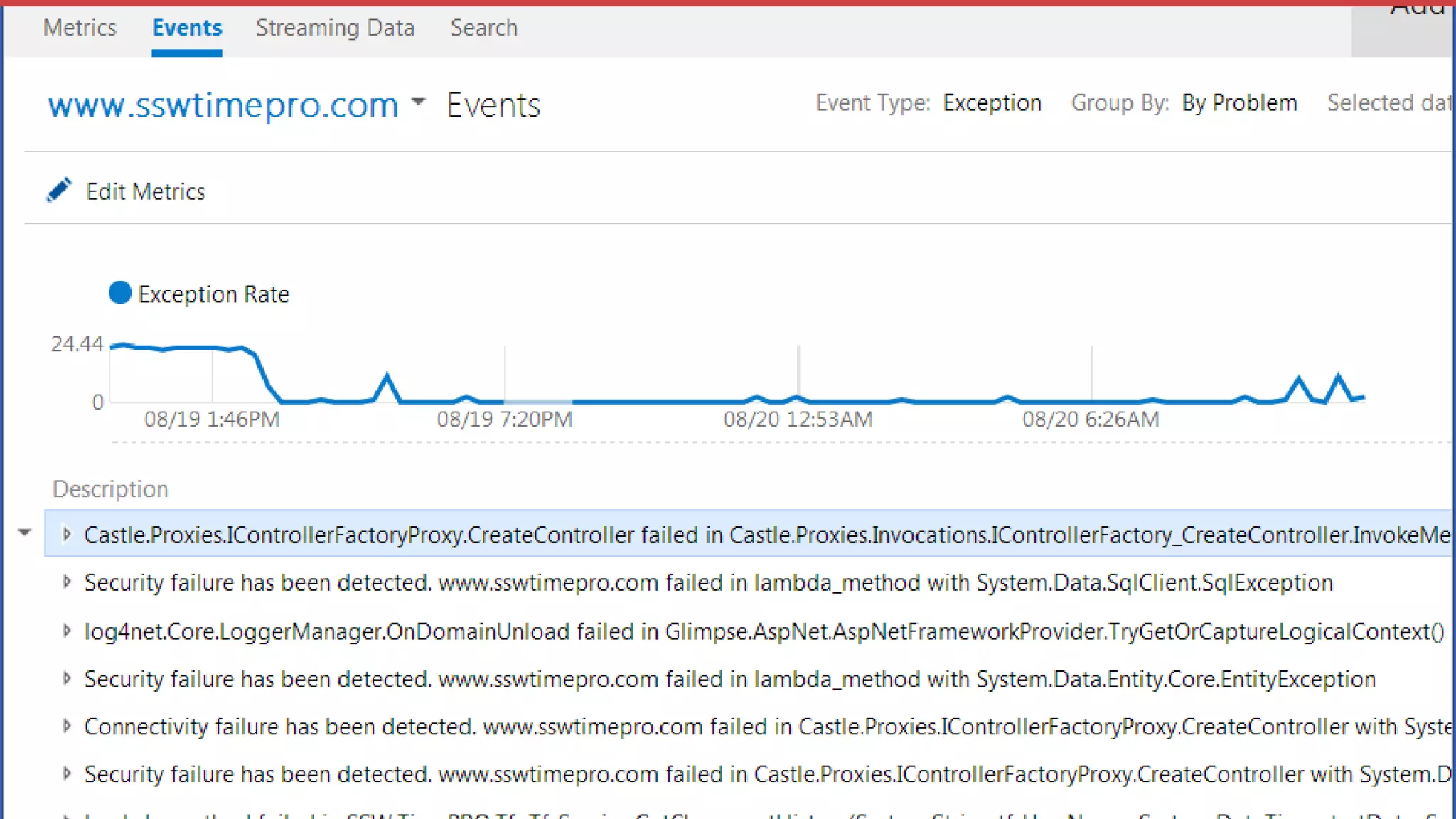

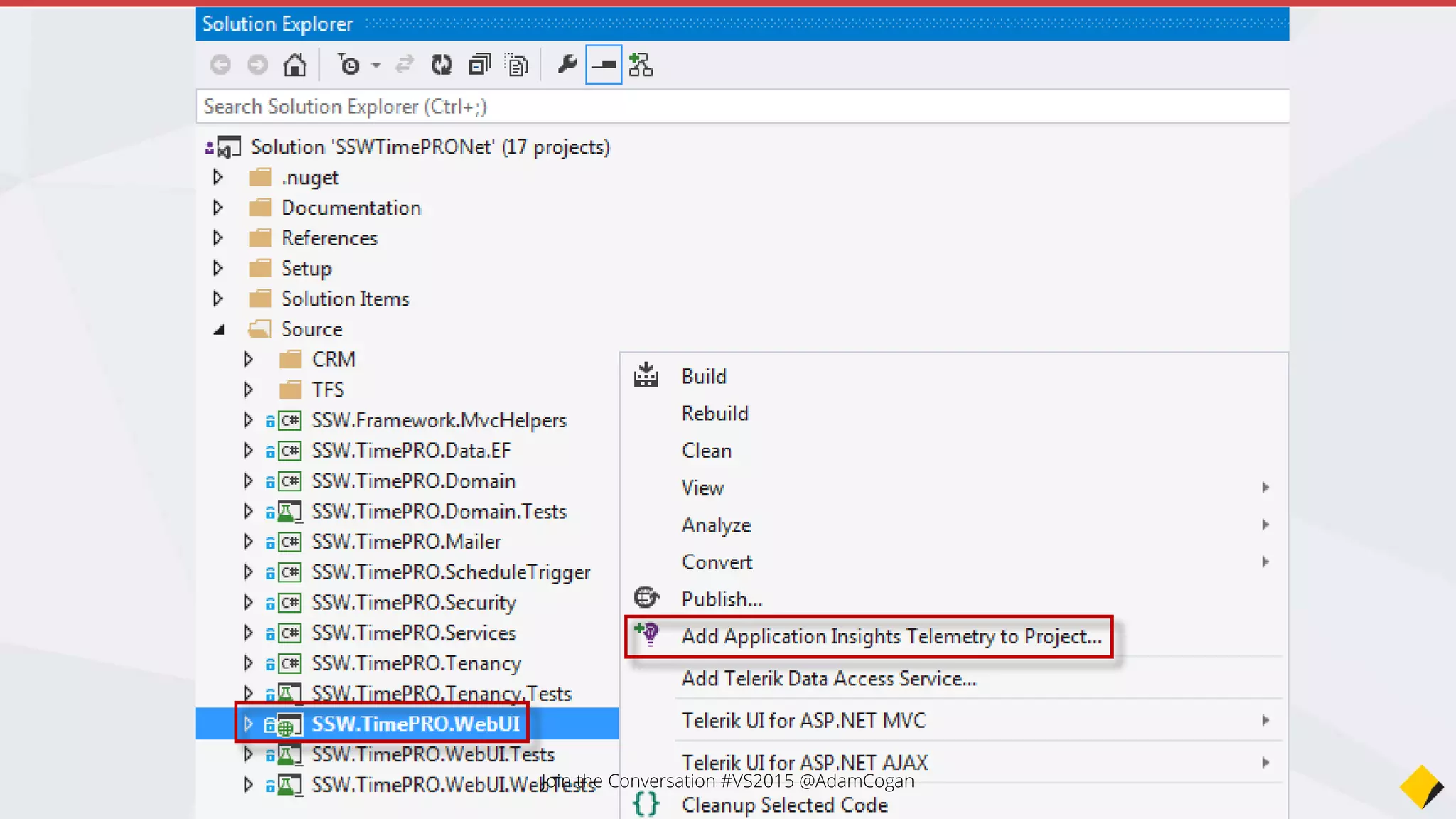

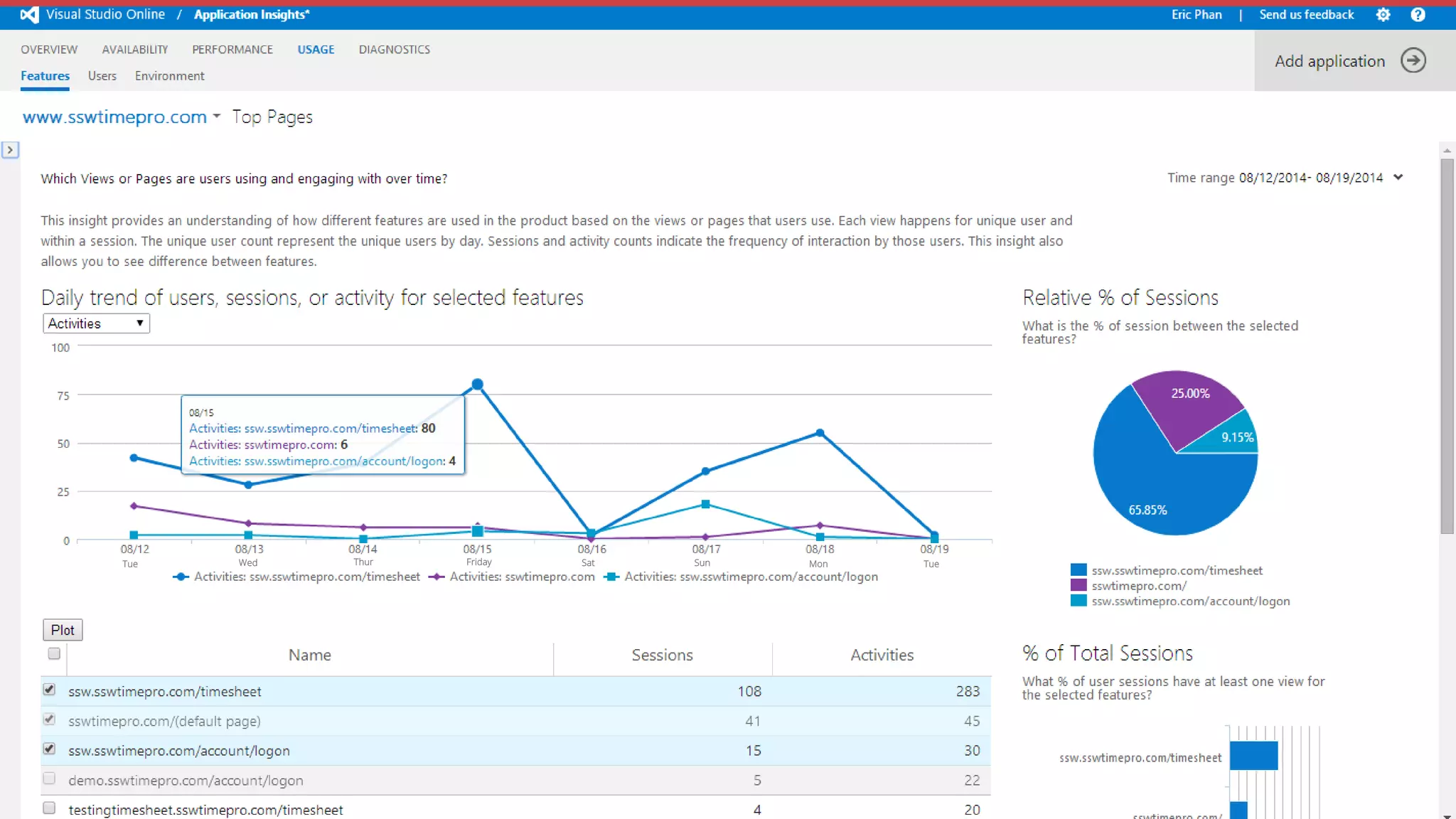

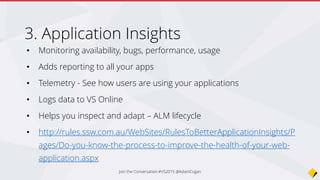

• Monitoring availability, bugs, performance, usage
• Adds reporting to all your apps
• Telemetry - See how users are using your applications
• Logs data to VS Online
• Helps you inspect and adapt – ALM lifecycle
• http://rules.ssw.com.au/WebSites/RulesToBetterApplicationInsights/P
ages/Do-you-know-the-process-to-improve-the-health-of-your-web-
application.aspx

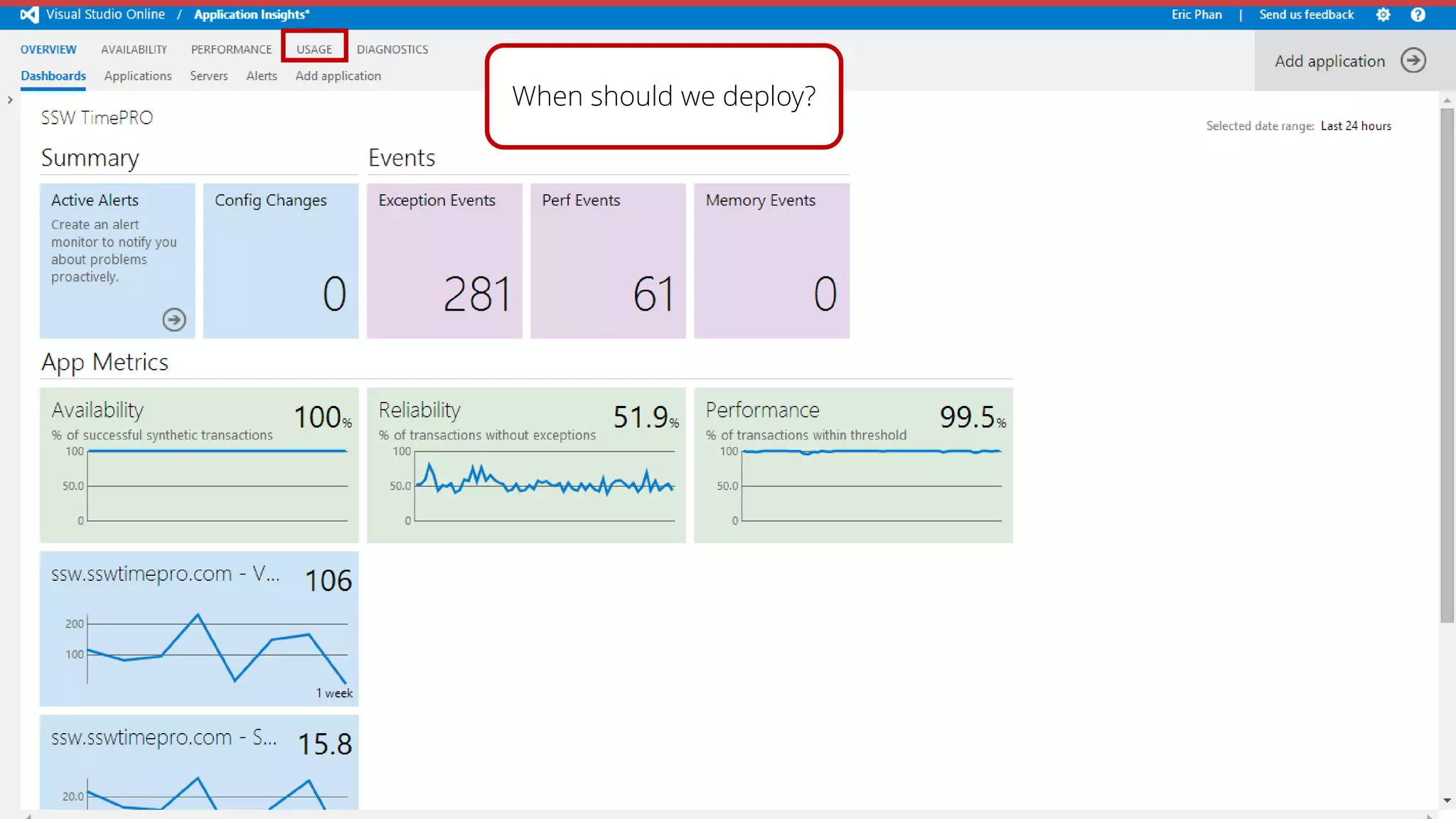

Application Insights

Friday SatThurWedTue Sun Mon Tue

What’s New
In Visual Studio 2015

https://visualstudio.uservoice.com/forums/121579-visual-studio/suggestions/2837384-change-all-caps-menu-in-vs-2012-to-vs-beta-format
“Change All CAPS Menu in VS 2012 to VS Beta format:
File Edit Instead of FILE EDIT” (3056 votes)
https://visualstudio.uservoice.com/forums/121579-visual-studio/suggestions/2628203-remove-all-caps
“Remove ALL CAPS” (2072 votes)

VS 2015

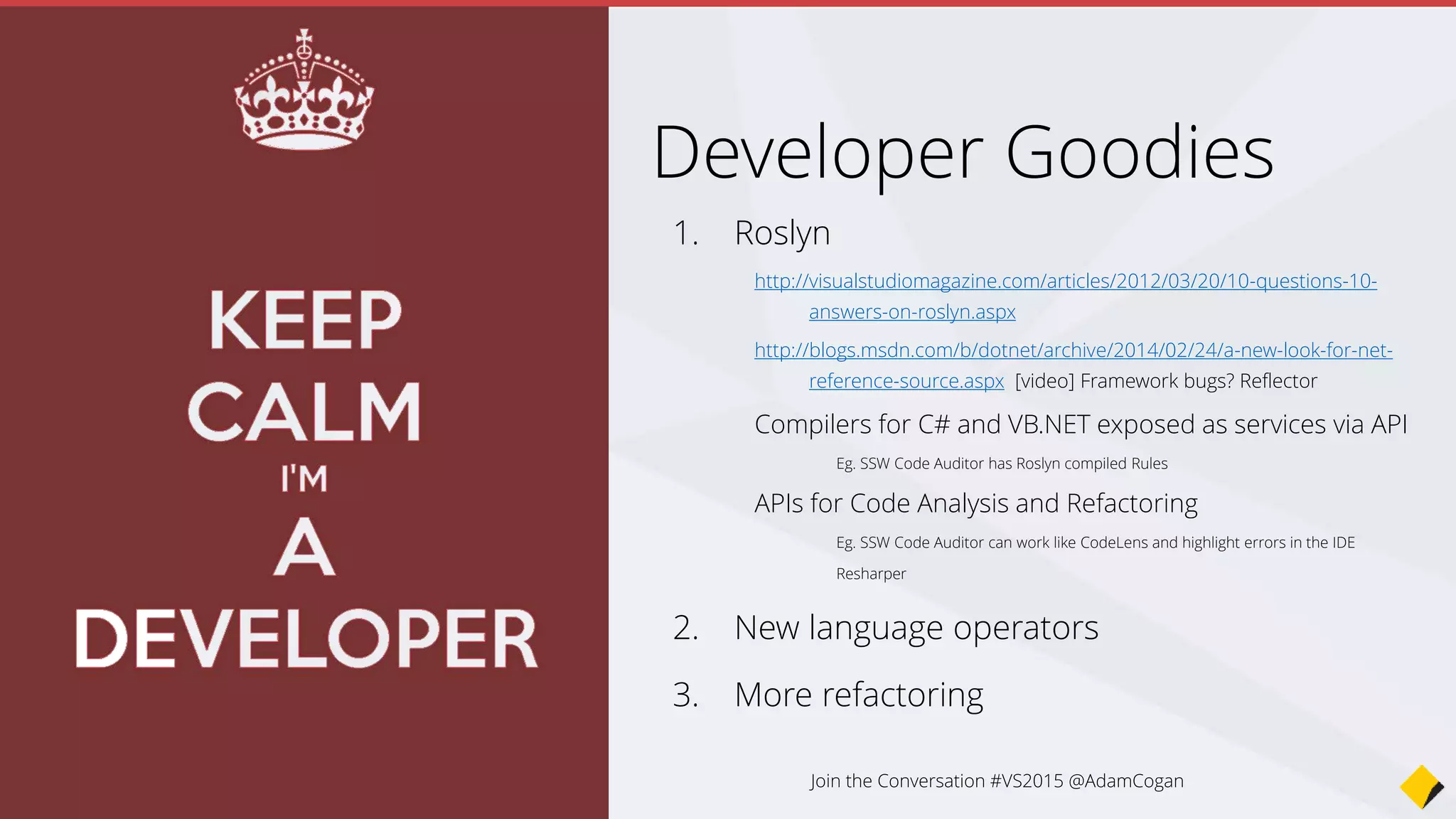

1. Roslyn
http://visualstudiomagazine.com/articles/2012/03/20/10-questions-10-
answers-on-roslyn.aspx
http://blogs.msdn.com/b/dotnet/archive/2014/02/24/a-new-look-for-net-
reference-source.aspx [video] Framework bugs? Reflector
Compilers for C# and VB.NET exposed as services via API
Eg. SSW Code Auditor has Roslyn compiled Rules
APIs for Code Analysis and Refactoring
Eg. SSW Code Auditor can work like CodeLens and highlight errors in the IDE
Resharper
2. New language operators
3. More refactoring
Developer Goodies

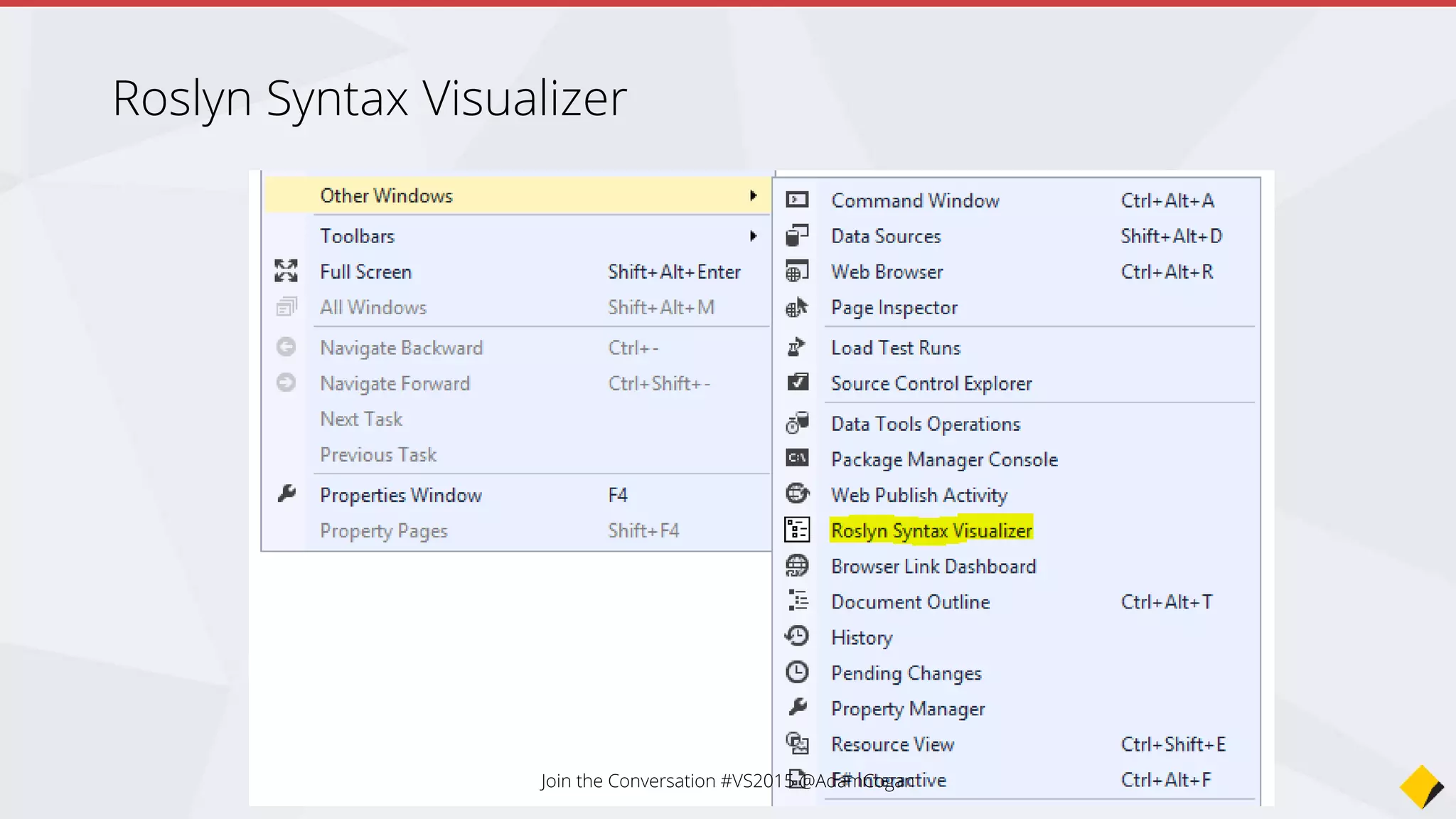

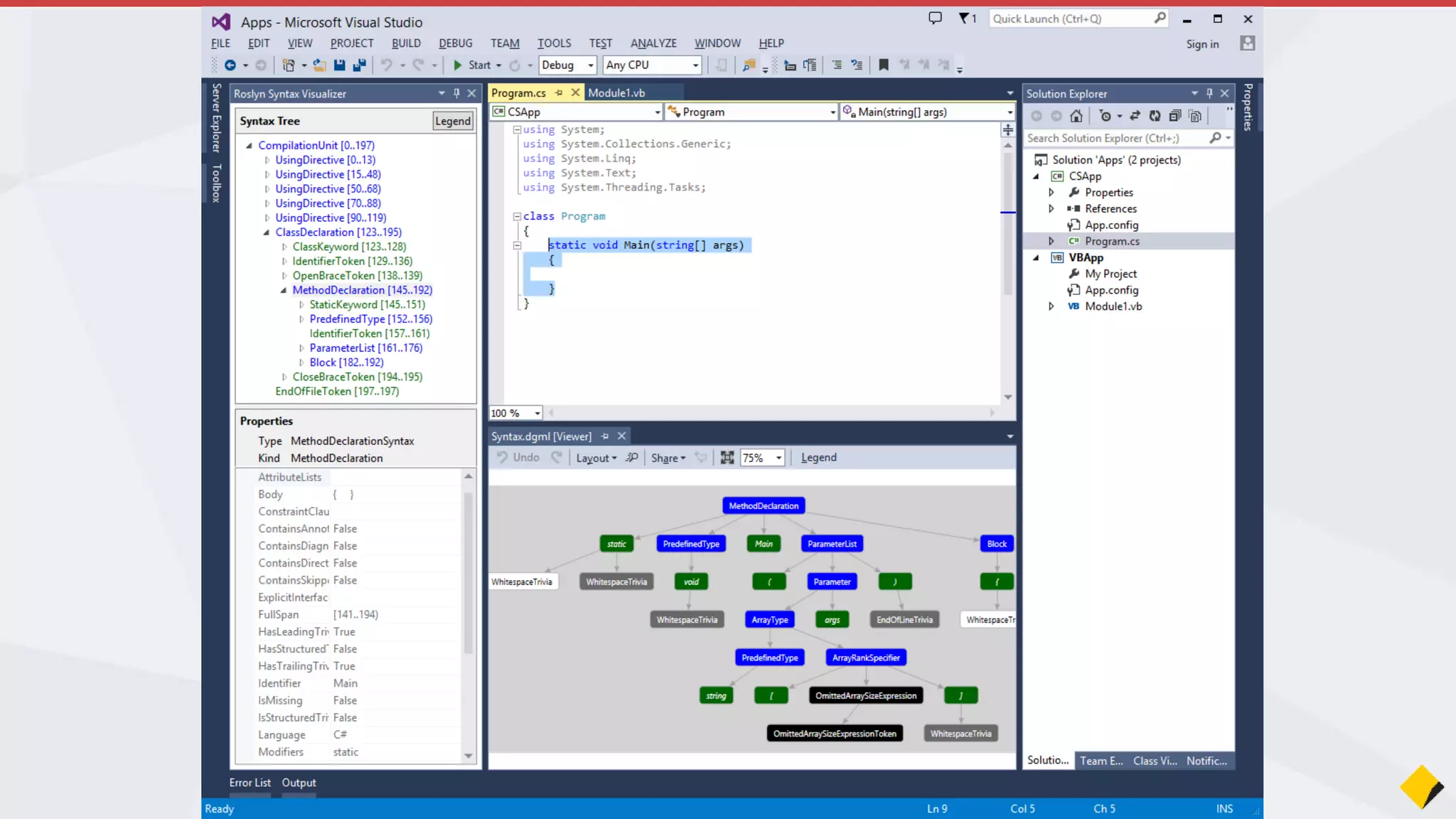

What is Roslyn?
• New C# and VB.NET compiler
• Exposes modules for syntactic (lexical) analysis of code
• Letting you write plugins for Code Analysis and Refactoring
• Dynamic Compilation
• Fast!
• E.g. Code Lens, SSW Code Auditor…

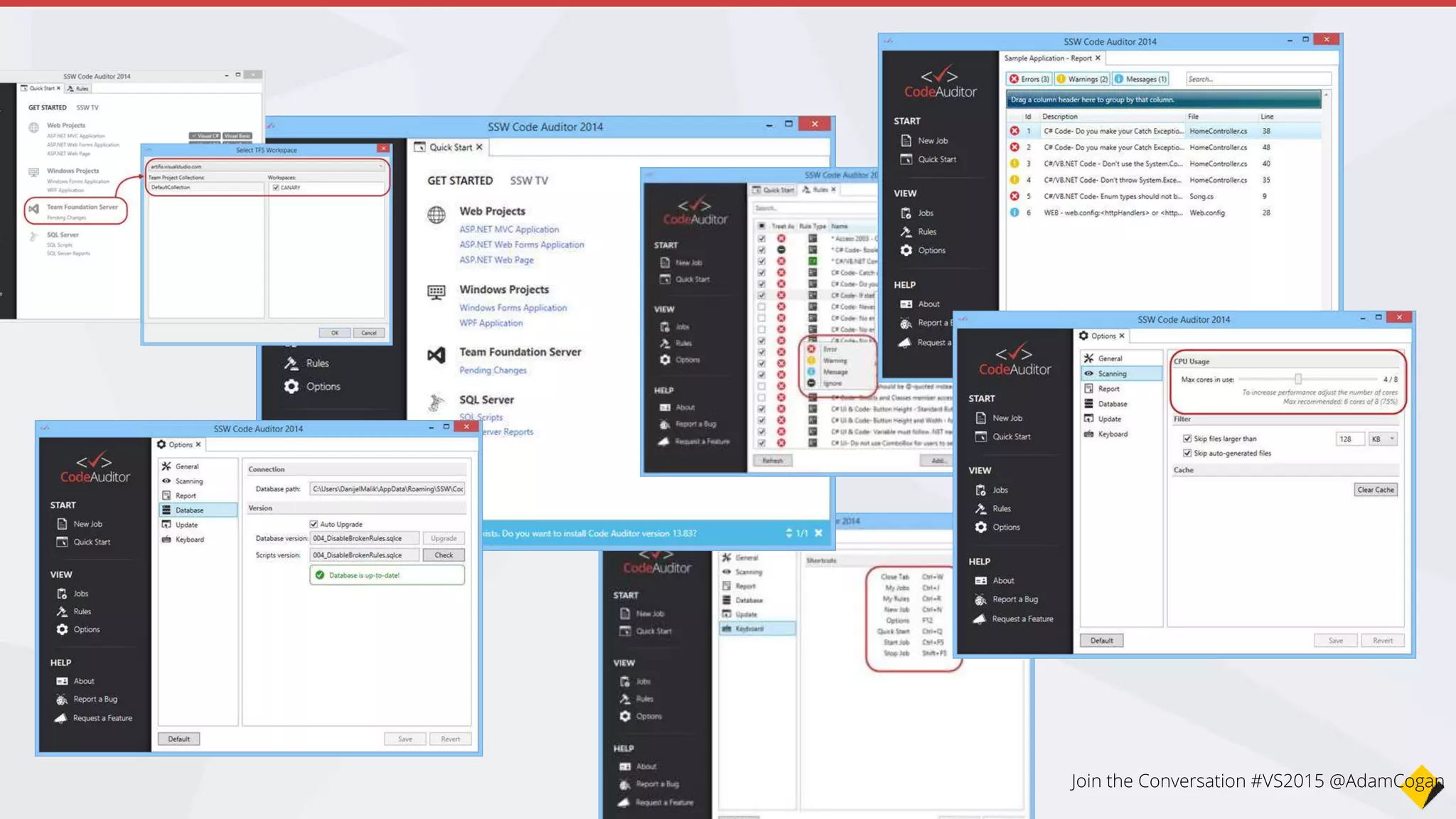

Old Regex Rule in Code Auditor

New C# Rules in Code Auditor using Roslyn

It’s still beta
It doesn’t support other
languages e.g. HTML, JavaScript,
etc.
Scripting API was removed 
Lack of documentation
Out of the box Parser & Lexer
Allows code fixes
Accurate
It can be used in Standalone
product
Used throughout VS 2015
Reporting Services

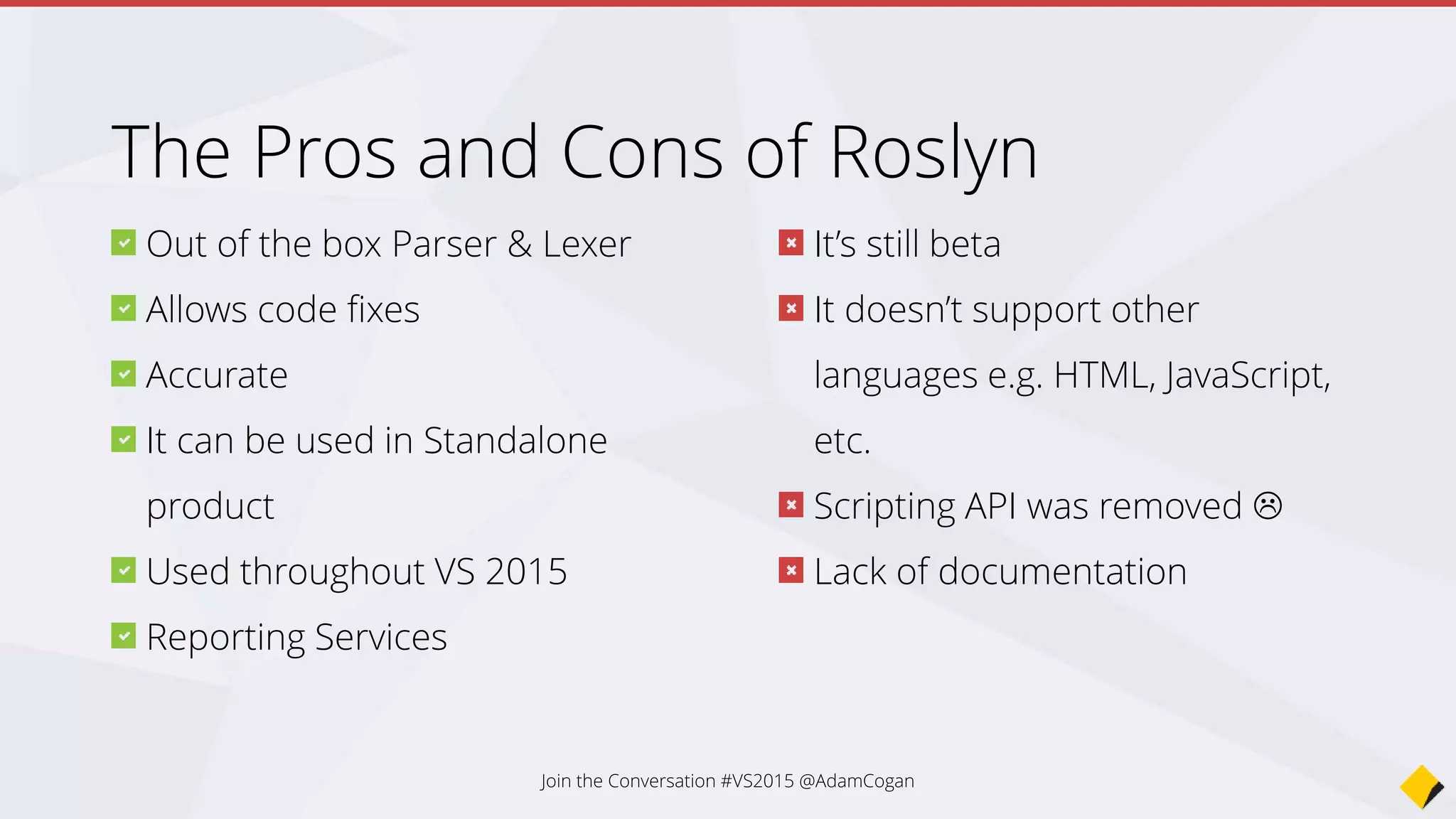

The Pros and Cons of Roslyn

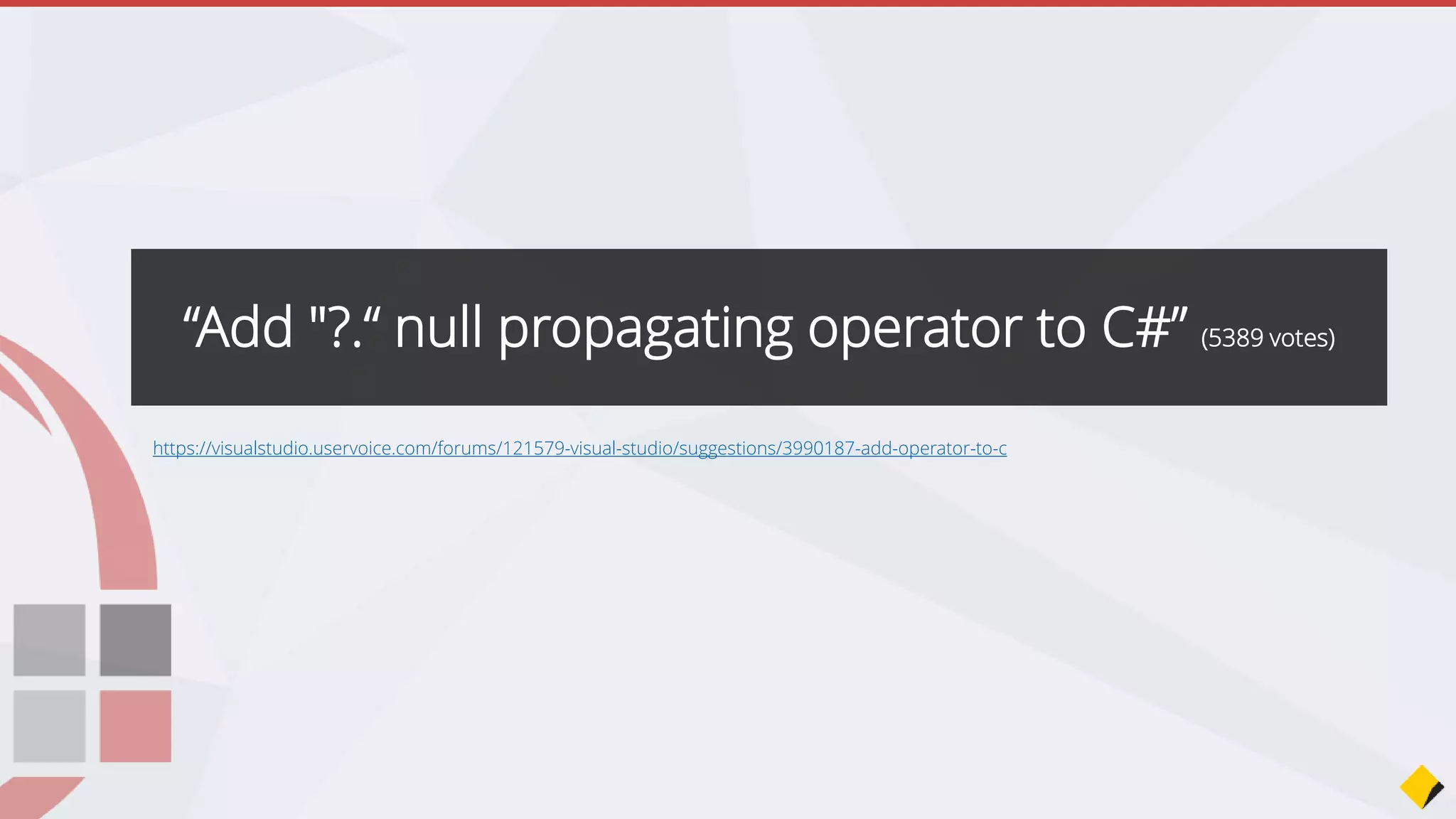

https://visualstudio.uservoice.com/forums/121579-visual-studio/suggestions/3990187-add-operator-to-c
“Add "?.“ null propagating operator to C#” (5389 votes)

VS 2013
if (a != null)
{
a.Dispose();
}
VS 2015
a?.Dispose();
event EventHandler OnDoStuff;
void DoStuff()
{
if (OnDoStuff != null)
{
OnDoStuff.Invoke(this, new EventArgs());
}
}
event EventHandler OnDoStuff;
void DoStuff()
{
OnDoStuff?.Invoke(this, new EventArgs());
}
? = if it’s not null

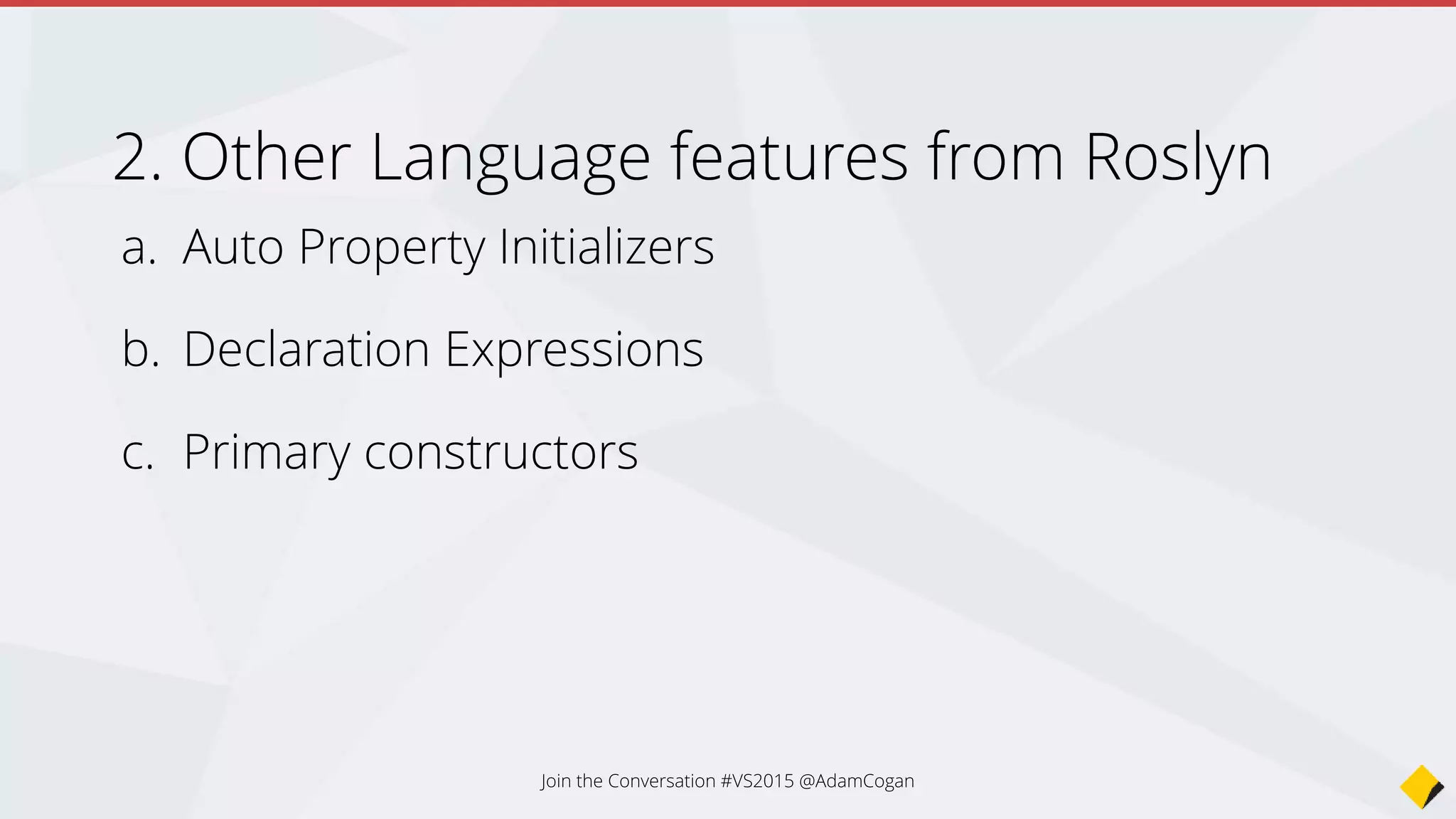

Other Language features from Roslyn
a. Auto Property Initializers
b. Declaration Expressions
c. Primary constructors

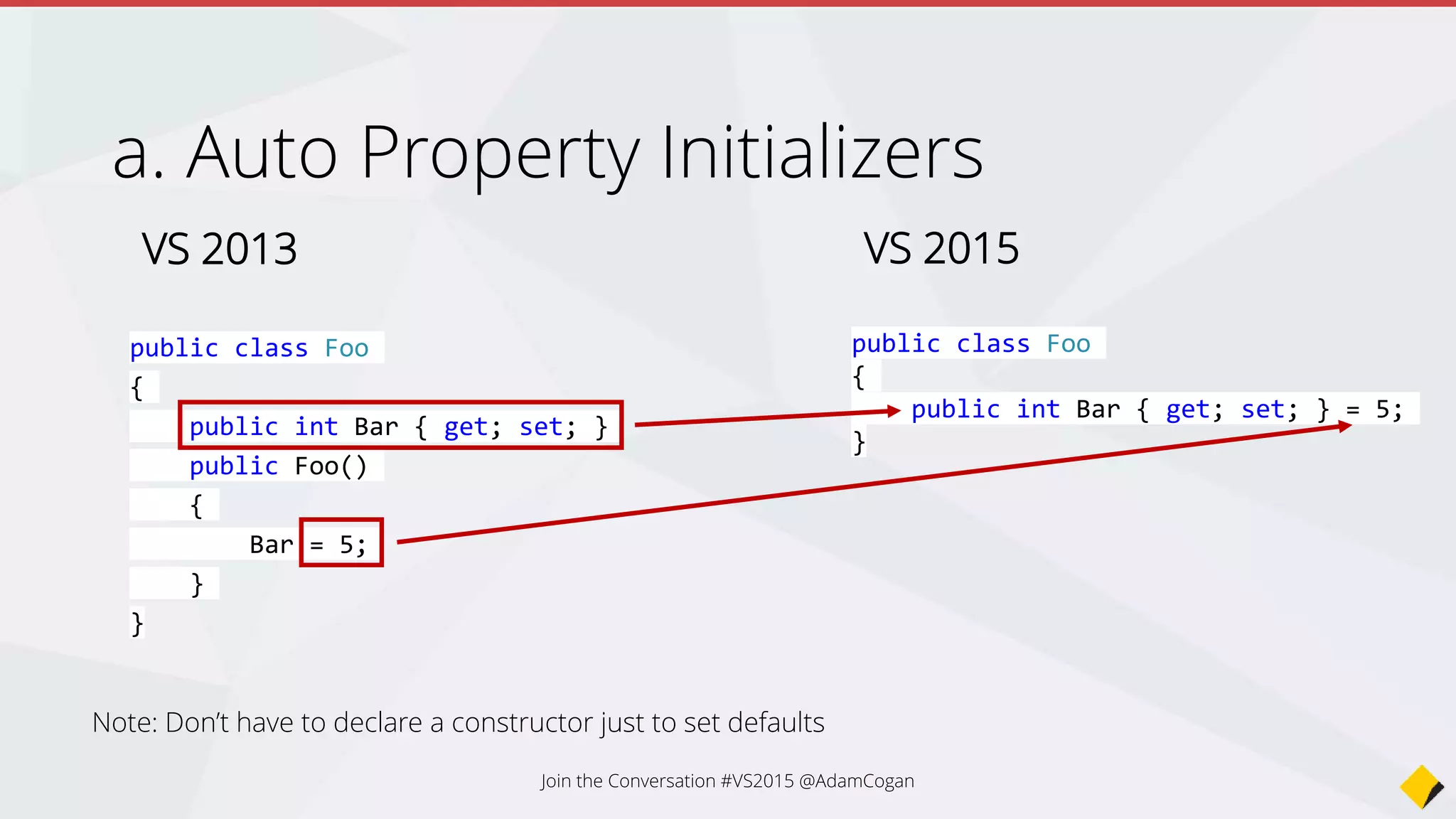

Auto Property Initializers
VS 2013
public class Foo
{
public int Bar { get; set; }
public Foo()
{
Bar = 5;
}
}
VS 2015
public class Foo
{
public int Bar { get; set; } = 5;
}
Note: Don’t have to declare a constructor just to set defaults

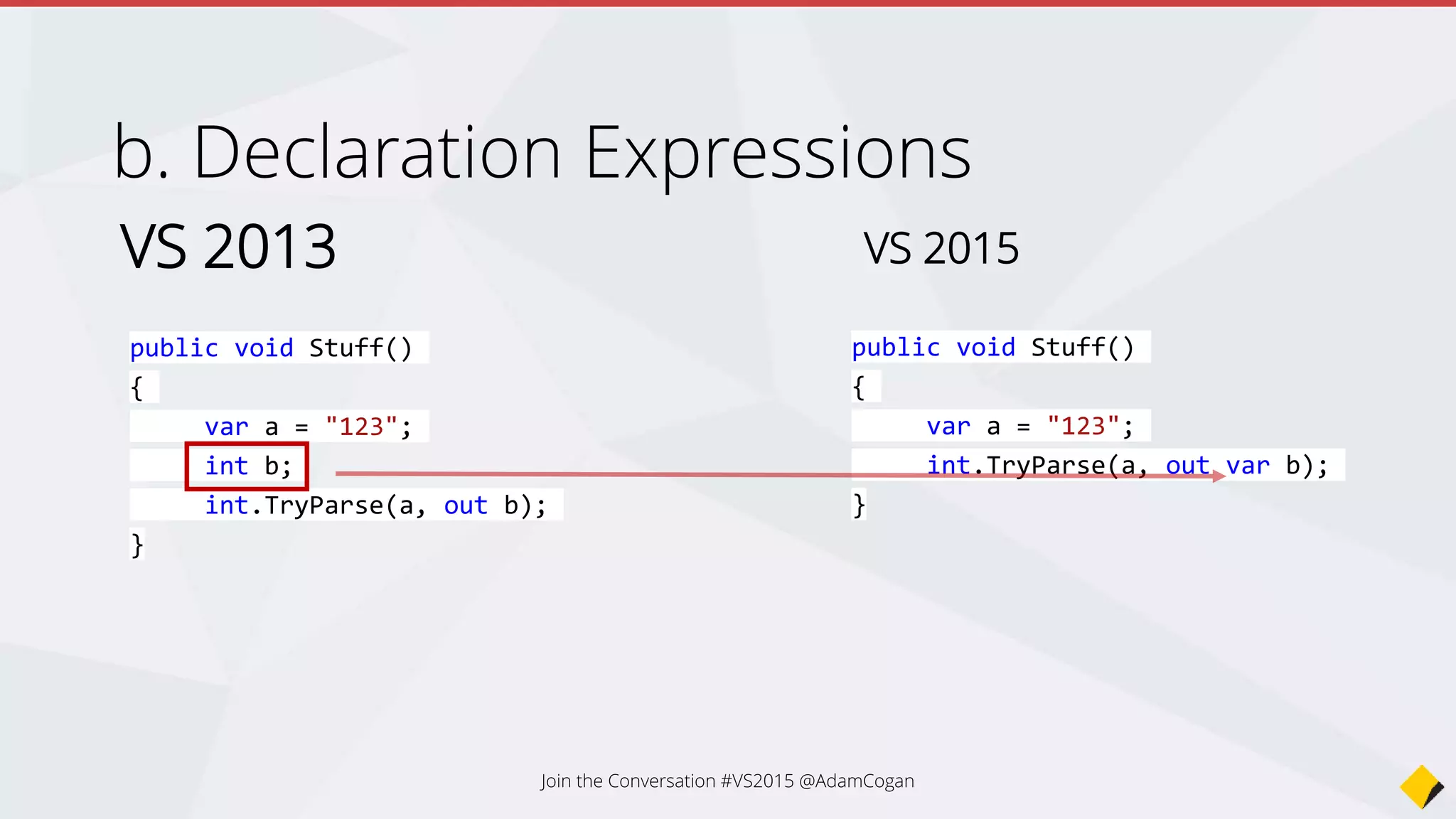

Declaration Expressions
VS 2013
public void Stuff()
{
var a = "123";
int b;
int.TryParse(a, out b);
}
VS 2015
public void Stuff()
{
var a = "123";
int.TryParse(a, out var b);
}

c. Primary Constructors
VS 2013
public class FooBar
{
public int X { get; set; }
public int Y { get; set; }
public FooBar (int x, int y)
{
X = x;
Y = y;
}
}
VS 2015
public class FooBar(int x, int y)
{
public int X { get; set; } = x;
public int Y { get; set; } = y;
}
Auto Property Initializers

One of the best language features in .NET…
• In 2008 we got LINQ
• In 2014 the java guys got LINQ in Java 8
• But…

In VS2013.4

In VS2015

Other Language features from Roslyn
• For a full list see
• https://roslyn.codeplex.com/wikipage?title=Language%20Feature%20Status&r
eferringTitle=Home
String interpolation
"{0} {1} is {2} years old.“, p.First, p.Last, p.Age
"{p.First} {p.Last} is {p.Age} years old."
• You can write the same thing with 50% less code
• Now developers are now 50% more efficient.
• Bosses will now ask us to ship 50% faster ;)

Warning: You need to modify the project file to enable
these new language features (in 2013)
<OutputPath>binDebug</OutputPath>
<DefineConstants>DEBUG;TRACE</DefineConstants>
<ErrorReport>prompt</ErrorReport>
<WarningLevel>4</WarningLevel>
<LangVersion>experimental</LangVersion>

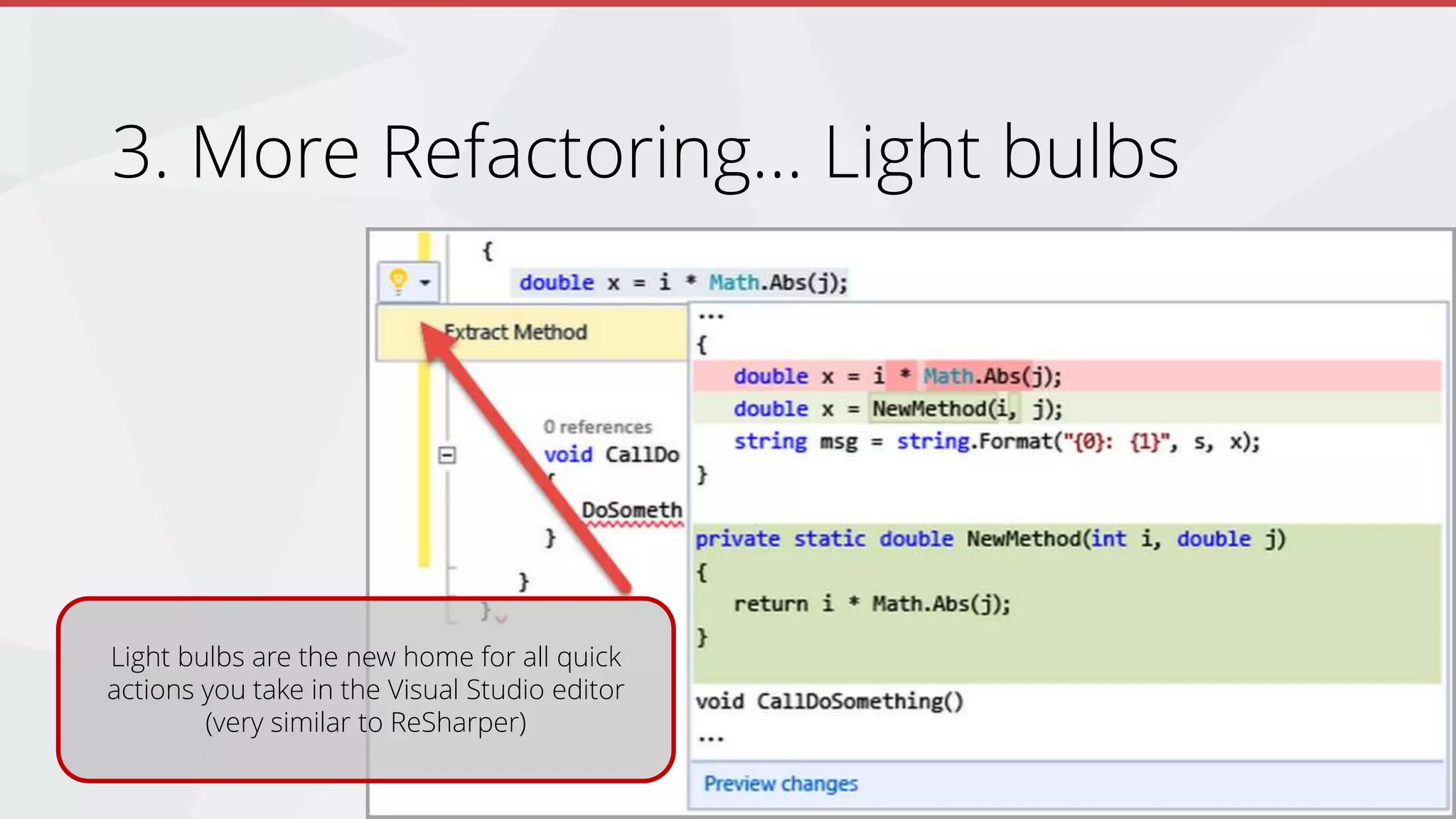

More Refactoring… Light bulbs
Light bulbs are the new home for all quick
actions you take in the Visual Studio editor
(very similar to ReSharper)

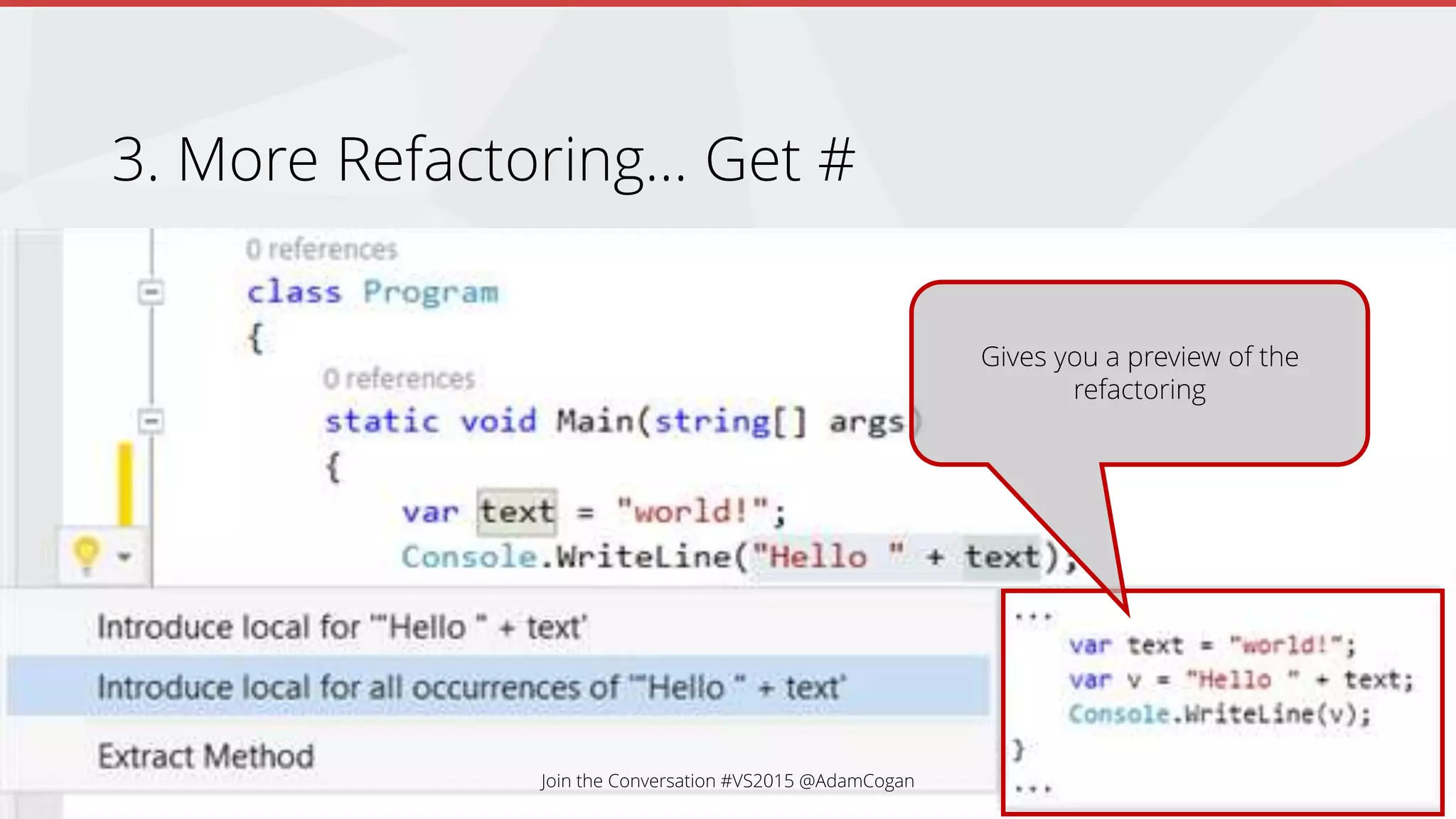

More Refactoring… Get #
Gives you a preview of the
refactoring

Code Previews…
Gives you a preview of the code
changes Visual Studio will make

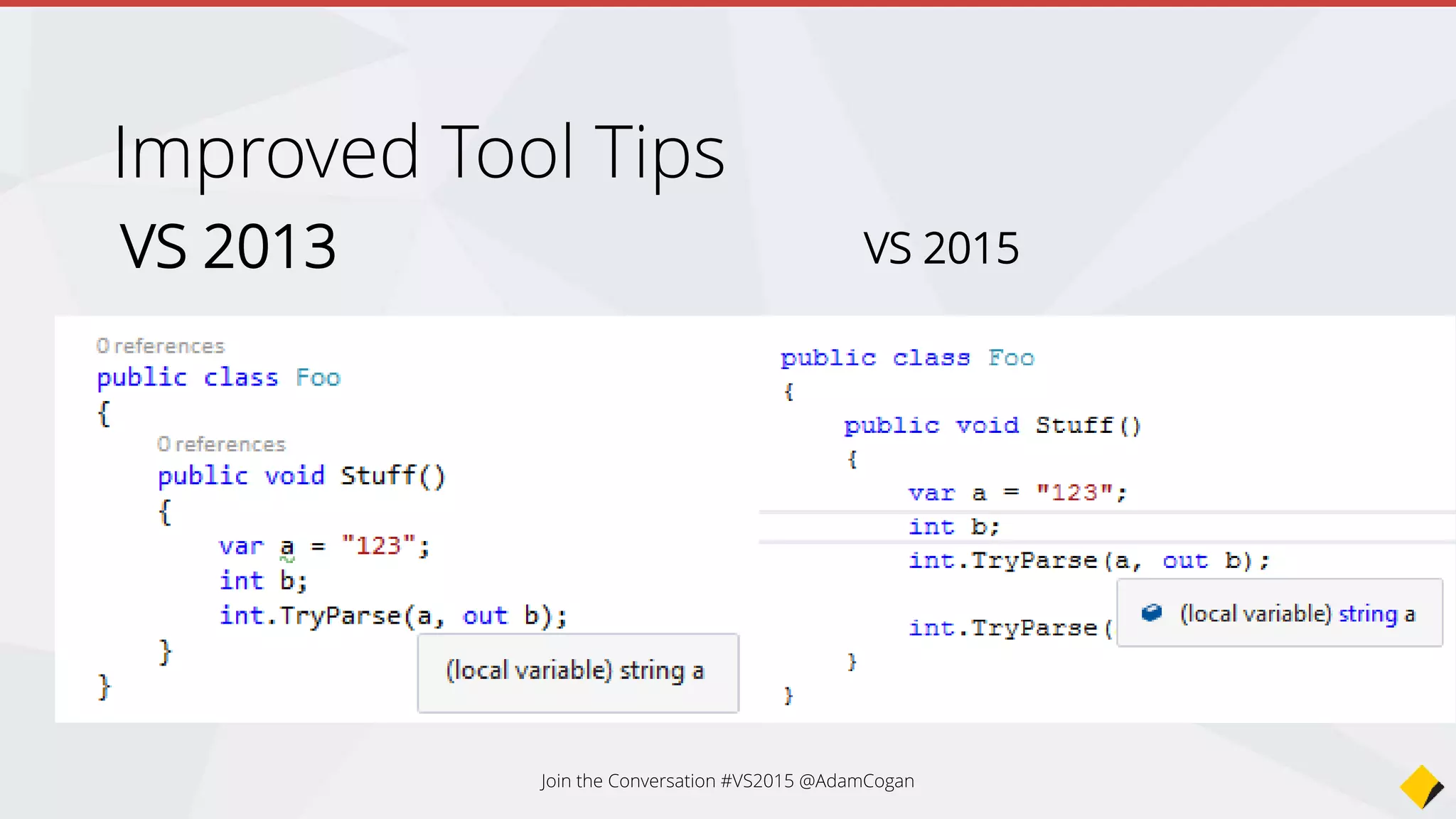

Improved Tool Tips
VS 2013 VS 2015

Code Lens

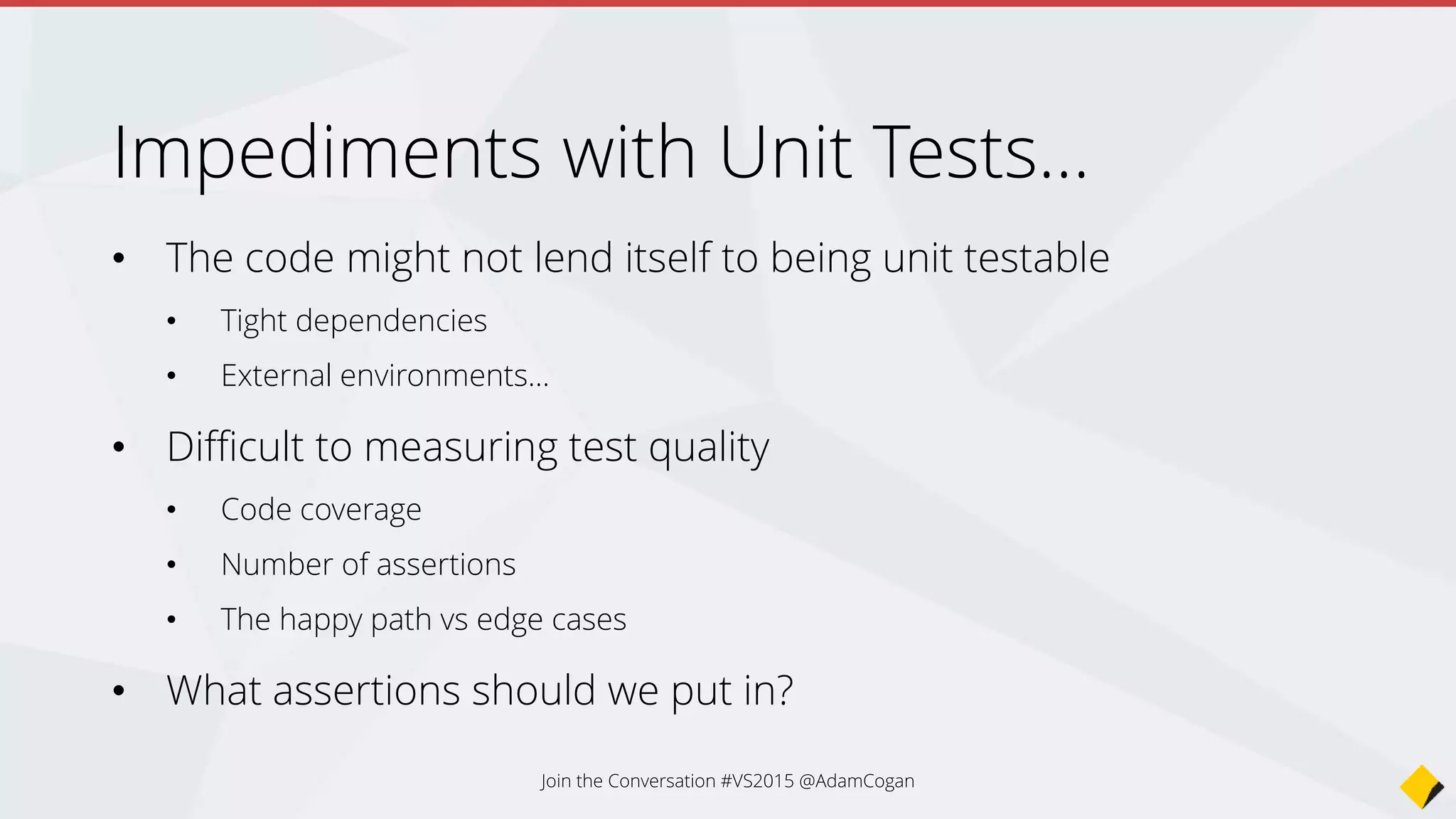

Impediments with Unit Tests…
• The code might not lend itself to being unit testable
• Tight dependencies
• External environments…
• Difficult to measuring test quality
• Code coverage
• Number of assertions
• The happy path vs edge cases
• What assertions should we put in?

Smart Unit Tests…
• Address these impediments.
• Goes through the code, finding all of the possible
code paths
• Generates unit tests for each scenario it finds

What’s
wrong with
this code?

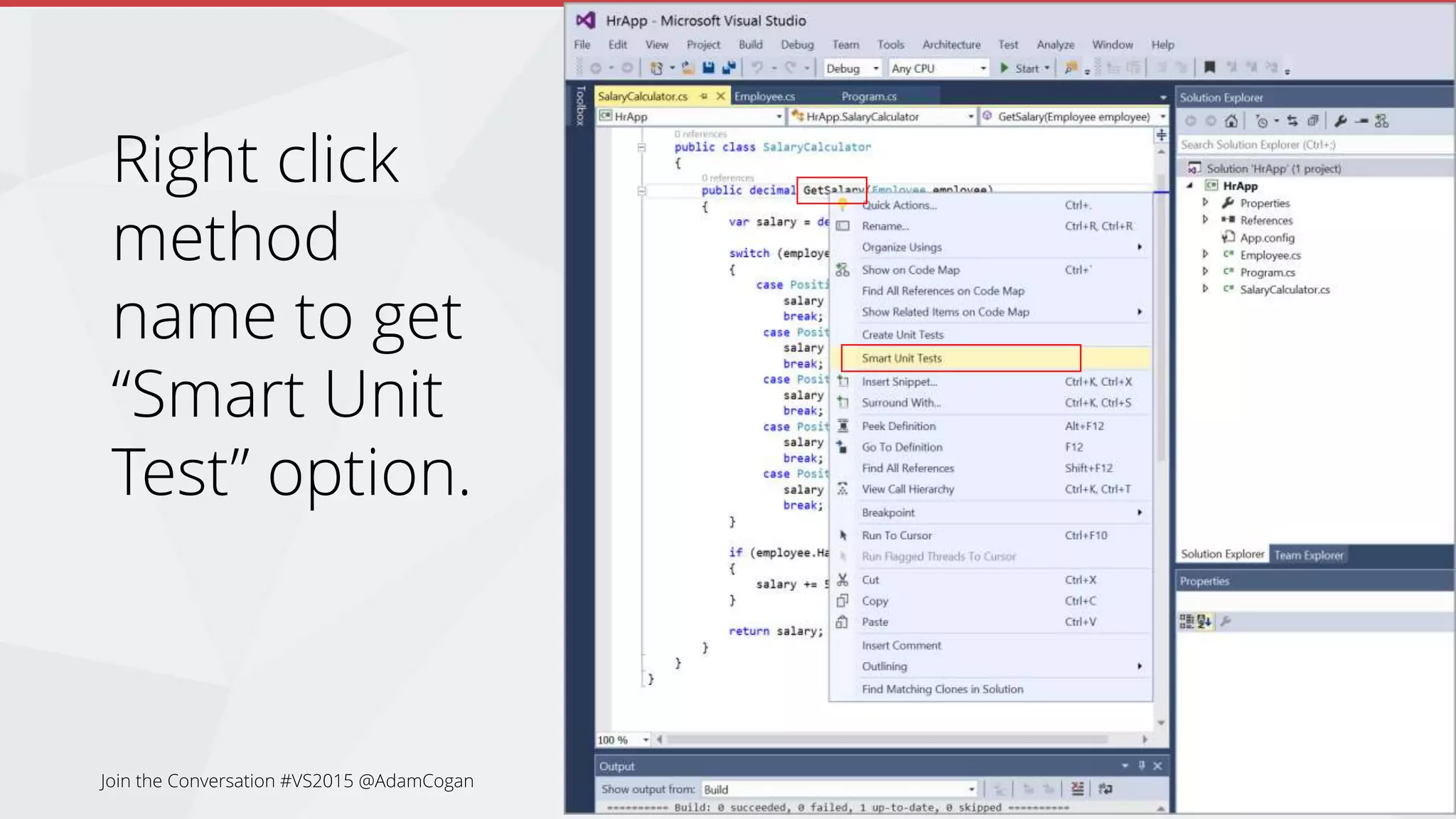

Right click
method
name to get
“Smart Unit
Test” option.

Automatically
created unit
tests.

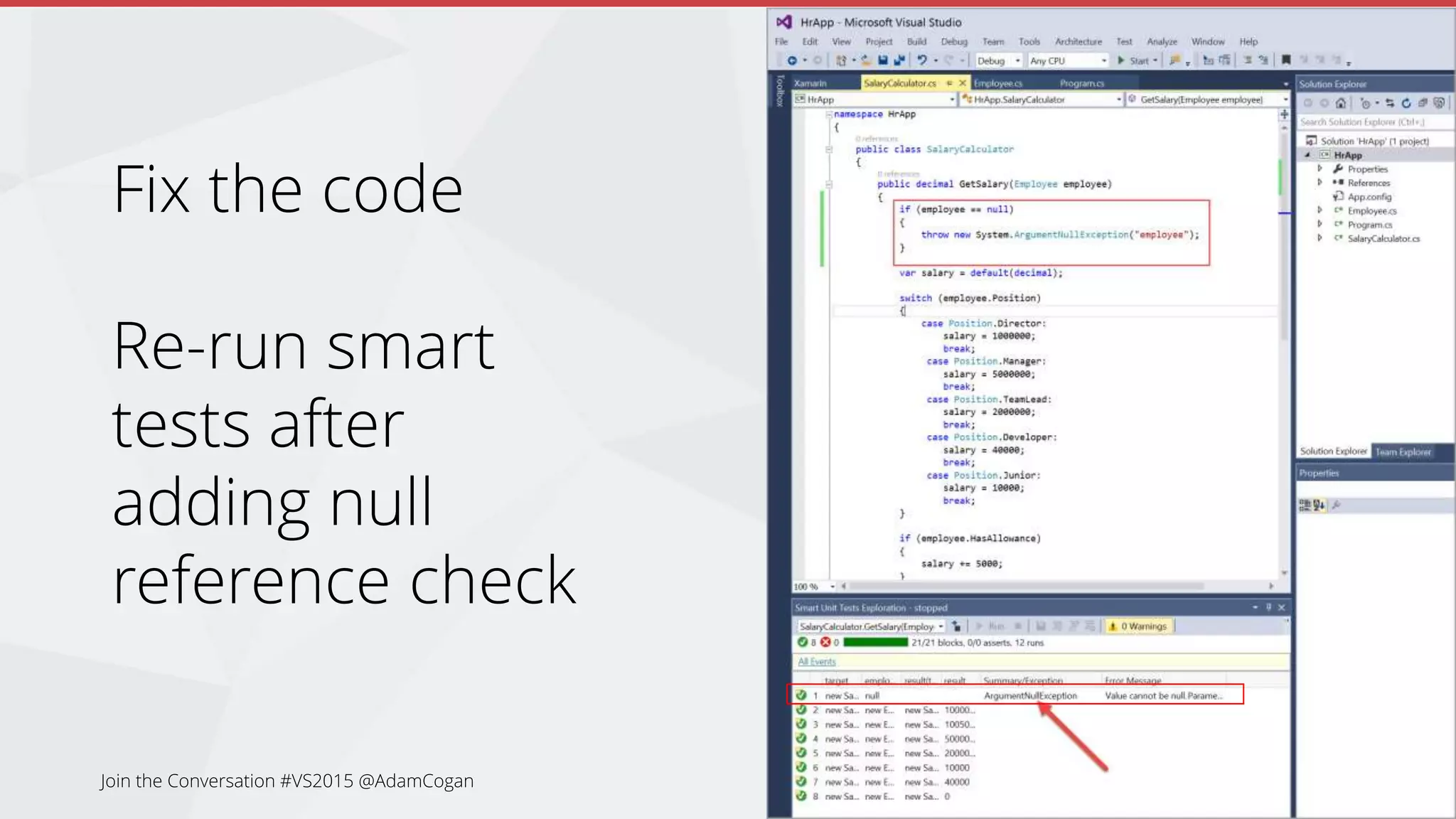

Fix the code
Re-run smart
tests after
adding null
reference check

Smart Unit tests are not an excuse not to write
Unit Tests!

Blend…

Windows 10 will be HUGE
It will be a FREE upgrade for anyone on Win 7/8/8.1 for the first 12 months
It can be run on small devices, such as Raspberry Pi 2 (Headless)
It will be easy to develop solutions targeting more stuff, such as Xbox One and
new Augmented Reality headset (Holo Lens -
https://www.youtube.com/watch?v=aThCr0PsyuA)
Cortana (i.e. Siri or Google Voice) is coming pre-installed in Windows 10
Spartan web browser are coming to Windows 10. It is exciting.

NET has gone Open Source on GitHub
Microsoft is providing the full .NET server stack in open source, including
- ASP.NET,
- the .NET compiler,
- the .NET Core Runtime,
- Framework and Libraries
Will enable developers to build with .NET across Windows, Mac or Linux.

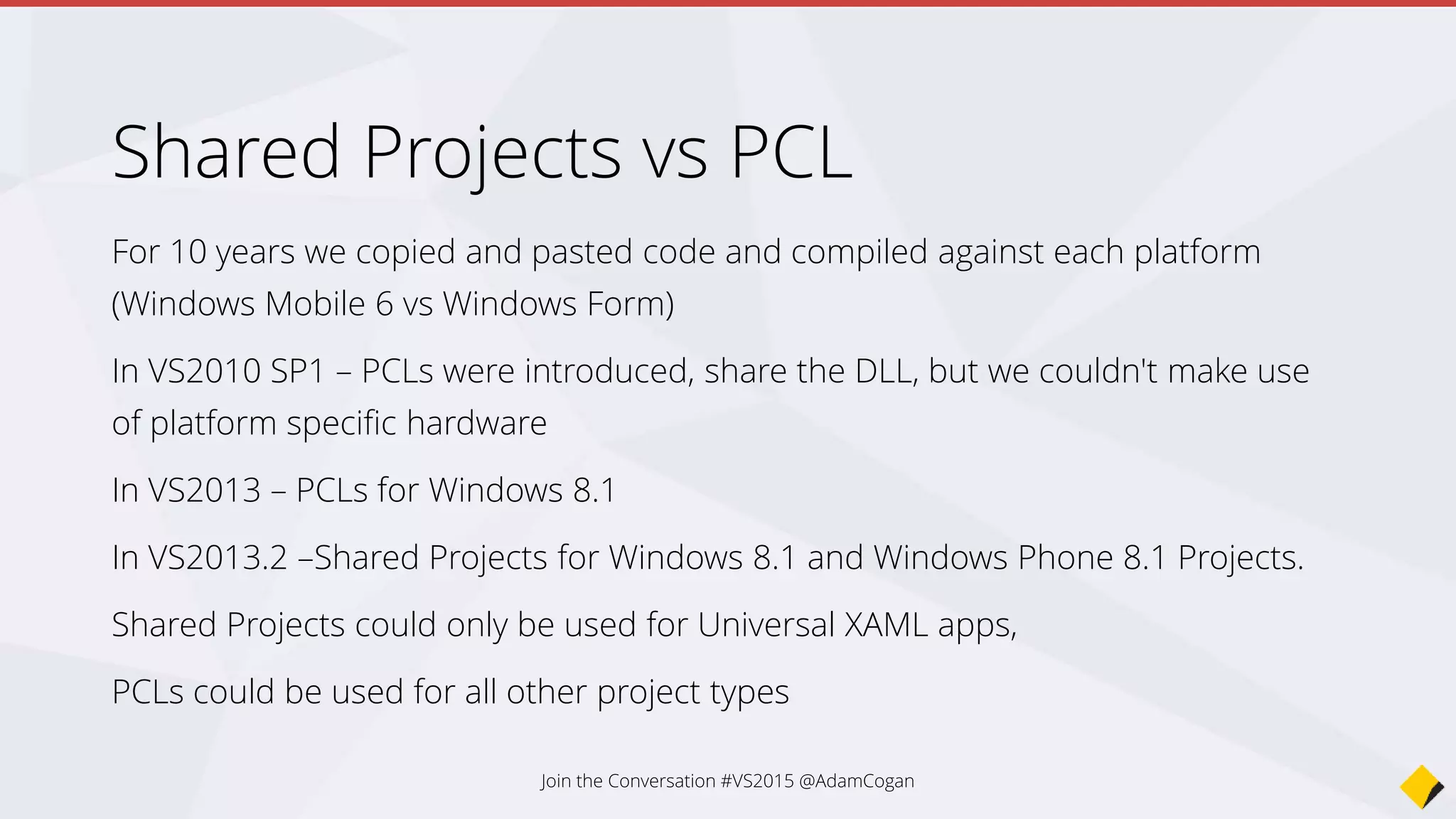

Shared Projects vs PCL
For 10 years we copied and pasted code and compiled against each platform
(Windows Mobile 6 vs Windows Form)
In VS2010 SP1 – PCLs were introduced, share the DLL, but we couldn't make use
of platform specific hardware
In VS2013 – PCLs for Windows 8.1
In VS2013.2 –Shared Projects for Windows 8.1 and Windows Phone 8.1 Projects.
Shared Projects could only be used for Universal XAML apps,
PCLs could be used for all other project types

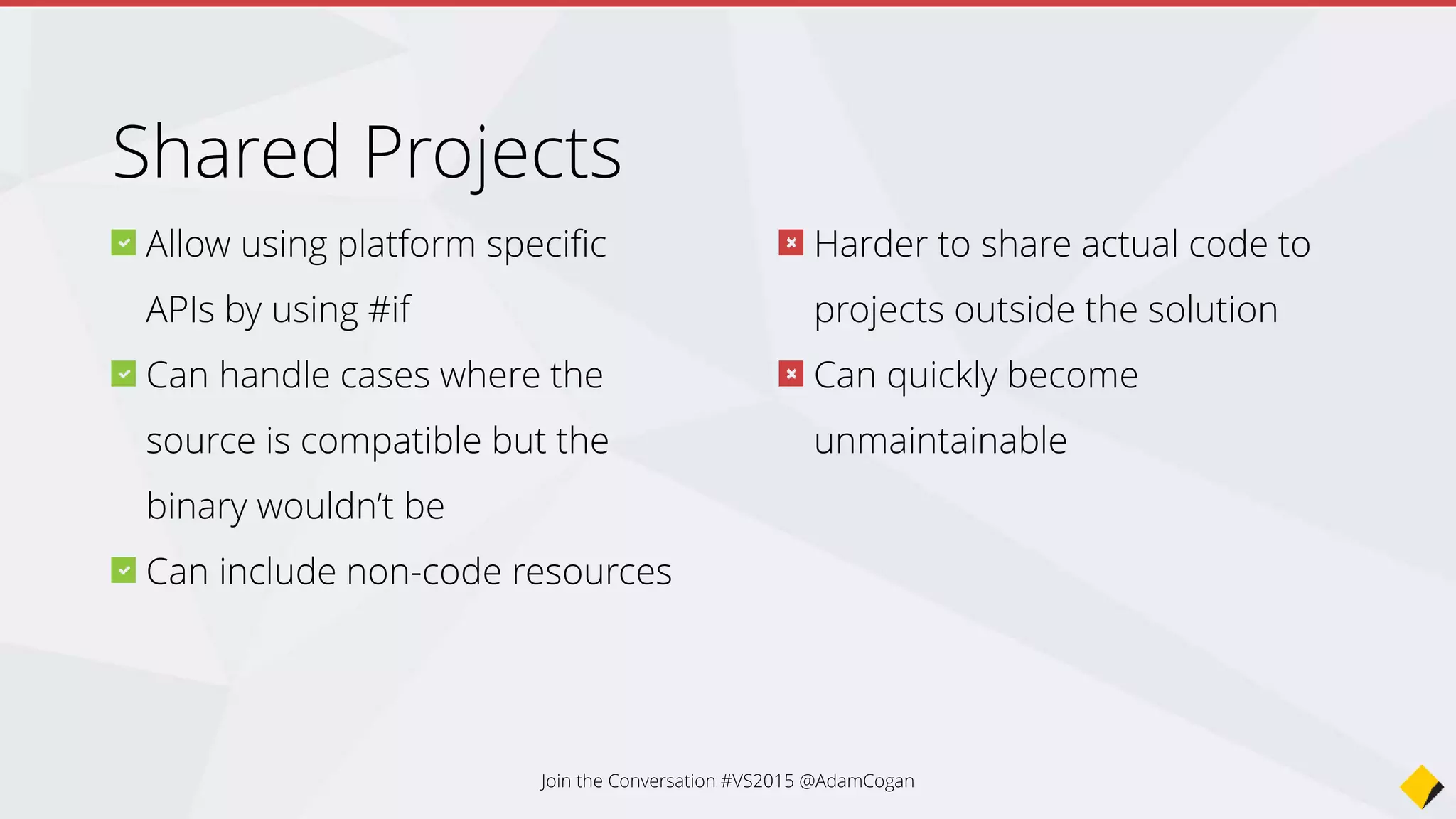

Shared Projects
Think of code existing in a Shared Project as actually
belonging to the project that references it
It produces no DLLs so you can’t Unit Test shared
projects directly

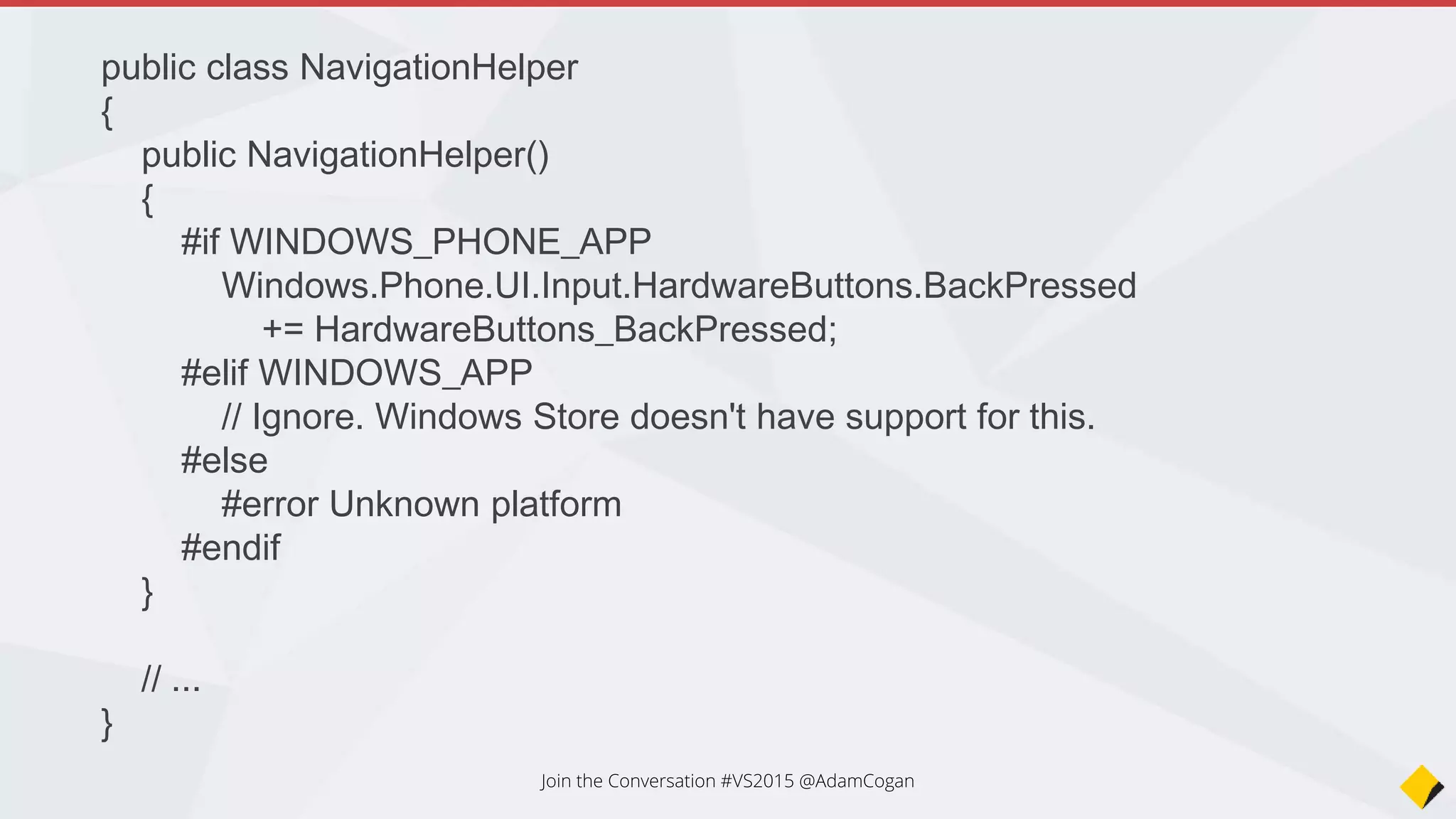

public class NavigationHelper
{
public NavigationHelper()
{
#if WINDOWS_PHONE_APP
Windows.Phone.UI.Input.HardwareButtons.BackPressed
+= HardwareButtons_BackPressed;
#elif WINDOWS_APP
// Ignore. Windows Store doesn't have support for this.
#else
#error Unknown platform
#endif
}
// ...
}

VS 2015
Can used Shared Projects for all projects
(MVC, WinForms)

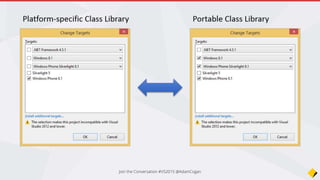

Portable Class Libraries
Is the minimum .NET Framework that runs across different
platforms
Good cross platform development
Produces a DLL that can be referenced by other projects
Unit Testable

Harder to share actual code to
projects outside the solution
Can quickly become
unmaintainable
Allow using platform specific
APIs by using #if
Can handle cases where the
source is compatible but the
binary wouldn’t be
Can include non-code resources
Shared Projects

You get the minimum set of
classes/features across the different
platforms
Harder to make use of platform
specific functionality within the logic of
the PCL
E.g. PCL handles grabbing information
from the device’s sensors, can’t get
something new like developer’s coffee
intake, but just what’s common (GPS,
direction)
Can share code via NuGet
packages
Can specify which platforms the
PCL will target
Portable Class Libraries

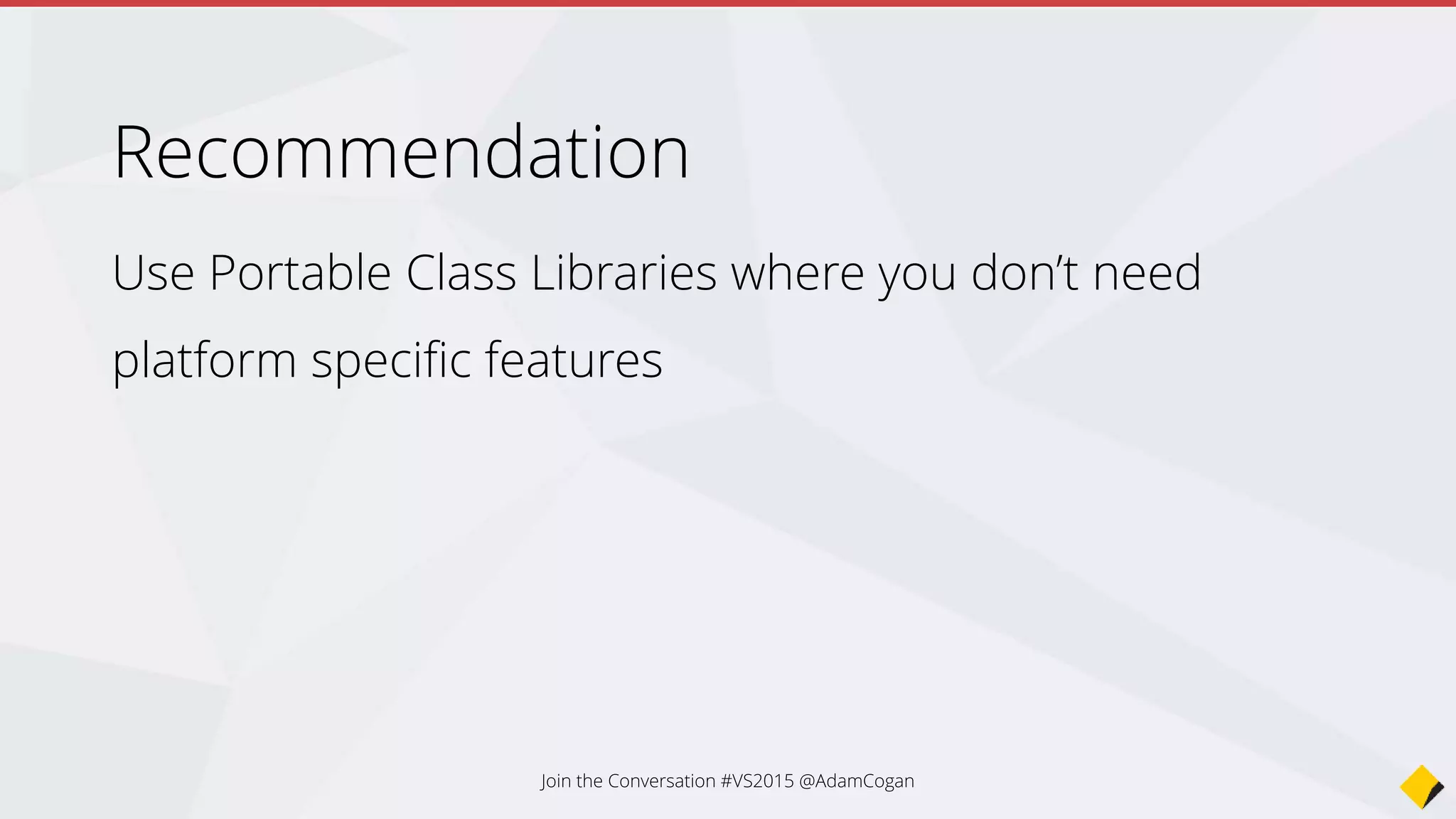

Recommendation
Use Portable Class Libraries where you don’t need
platform specific features

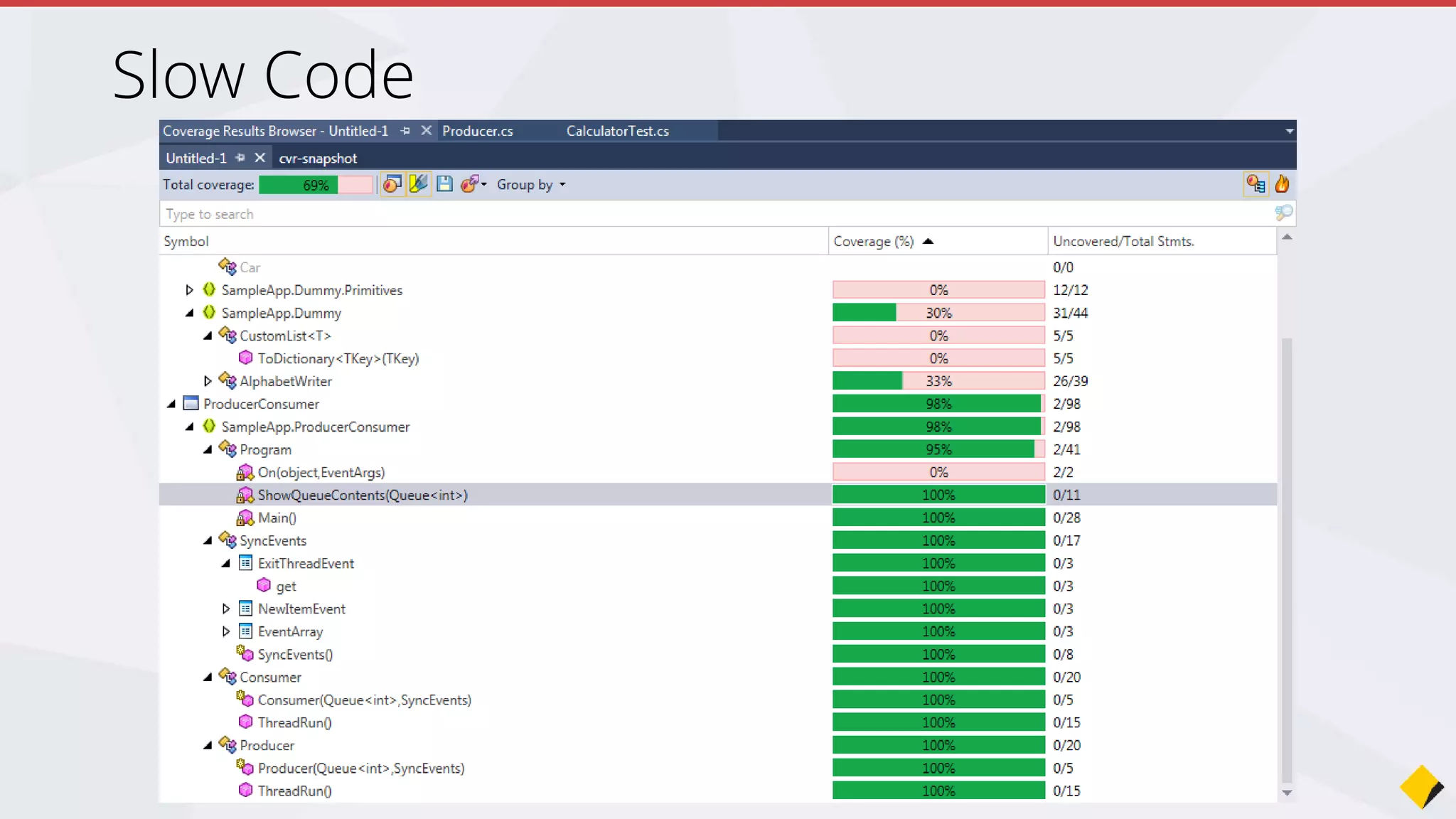

Slow Code

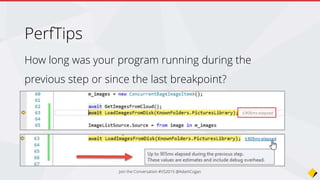

PerfTips
How long was your program running during the
previous step or since the last breakpoint?

Debugging made easier
IntelliTrace?

IntelliTrace in VS2015
Faster
More Stats while debugging

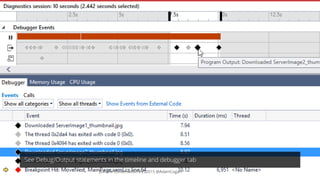

Zoom in on the timeline and see breakpoints and exceptions

See Debug/Output statements in the timeline and debugger tab

Mobile Development
Azure
Summary
What’s New
Agenda

Mobile Development
With Xamarin Forms

Developers!
Developers!
Developers!

Mobile First!
Mobile First!
Mobile First!
+ Cloud First!

• ?
• Native
• Hybrid - HTML5 + Javascript/TypeScript (Cordova)
• Cross Compilers (Xamarin, NativeScript)
How many mobile options?

• Write shared code in HTML
and Javascript
• Compiles into a Hybrid App on
Windows Phone, Android and
iOS
• VS2013 Update 3
Cordova

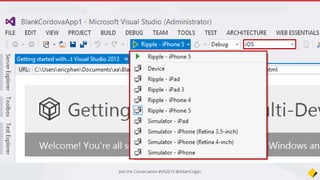

Ripple?
Apache Ripple is
a web based
mobile
environment
simulator

• ?
• When it’s sucky and clunky
• See if they are using native UI elements
E.g. Gmail when you swipe to delete it’s a different style button
• Show me a Hybrid app as good as Runkeeper and I’ll
switch

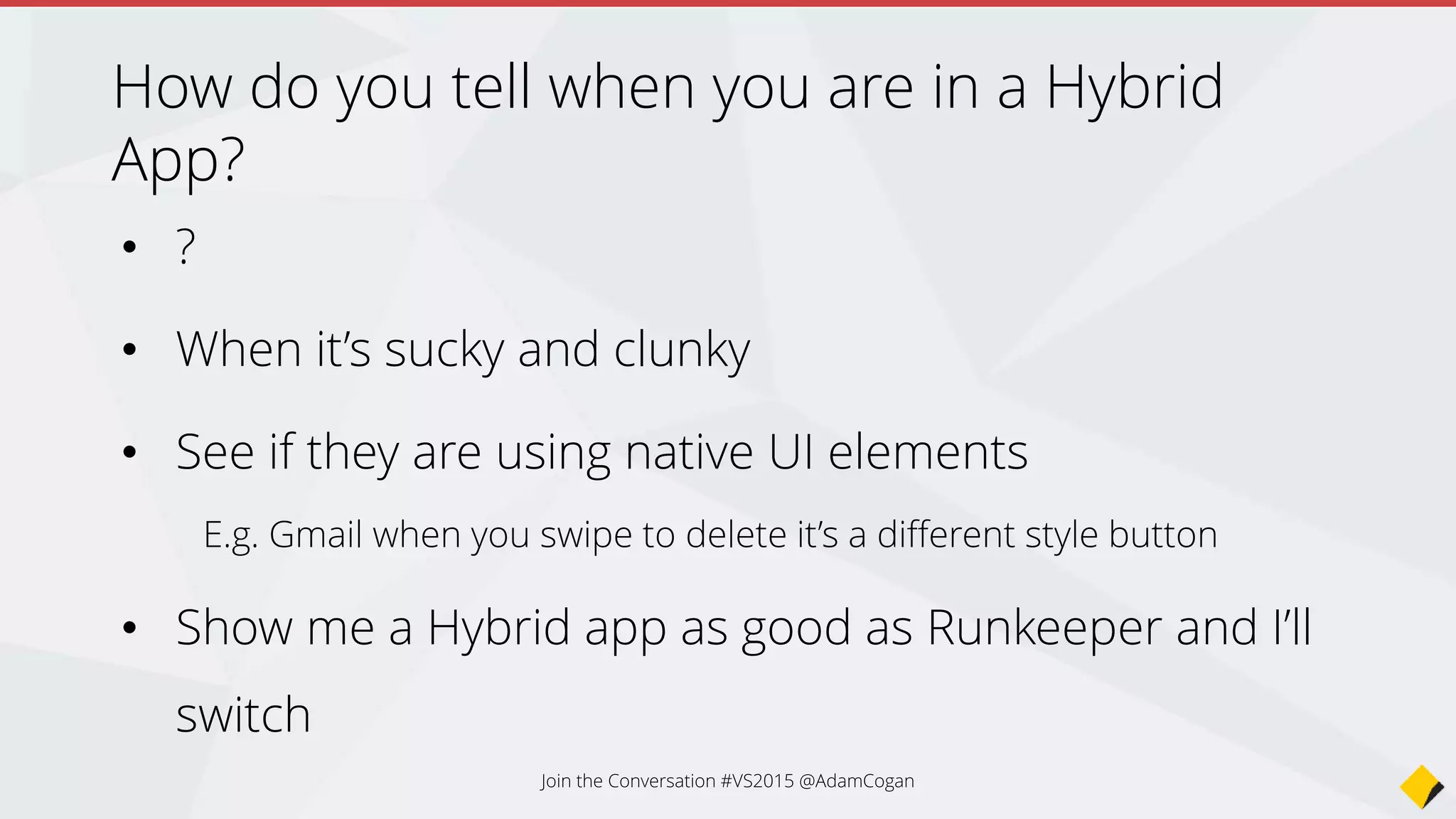

How do you tell when you are in a Hybrid
App?

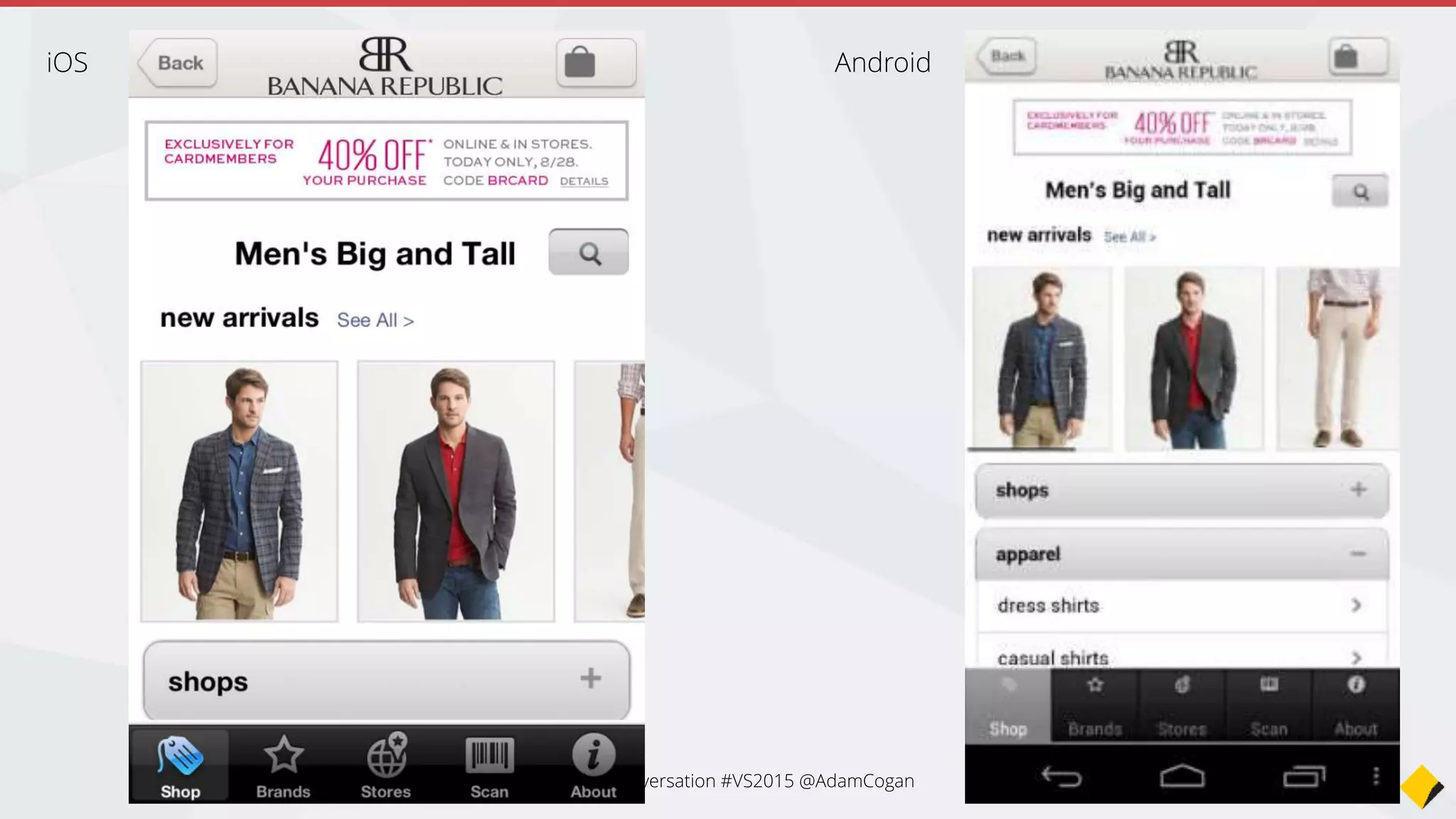

Spot the hybrid app

@AdamCogan
“There’s two kinds of mobile developers:
Those developing native apps
& those that wish they were.”

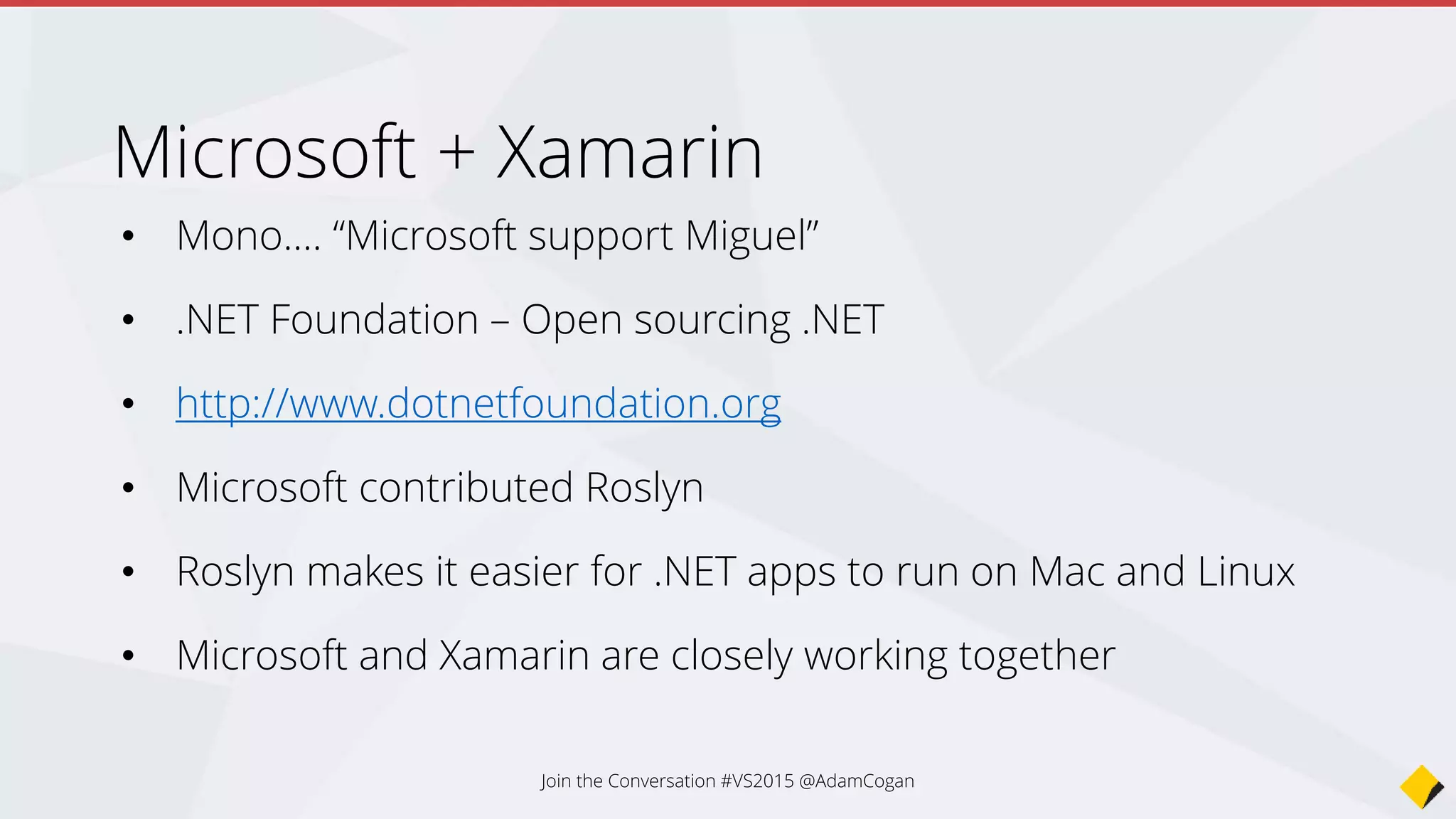

• Mono…. “Microsoft support Miguel”
• .NET Foundation – Open sourcing .NET
• http://www.dotnetfoundation.org
• Microsoft contributed Roslyn
• Roslyn makes it easier for .NET apps to run on Mac and Linux
• Microsoft and Xamarin are closely working together
Microsoft + Xamarin

• ? Write C#
• Build native mobile apps
• 3 apps - Learn the Xamarin API, deploy to many devices
• Less learning - Provides an abstraction over the native APIs
• Goal is to use the lowest common denominator
• Not limited - Still lets you directly call the native APIs
• Still need to code the UI natively for each platform

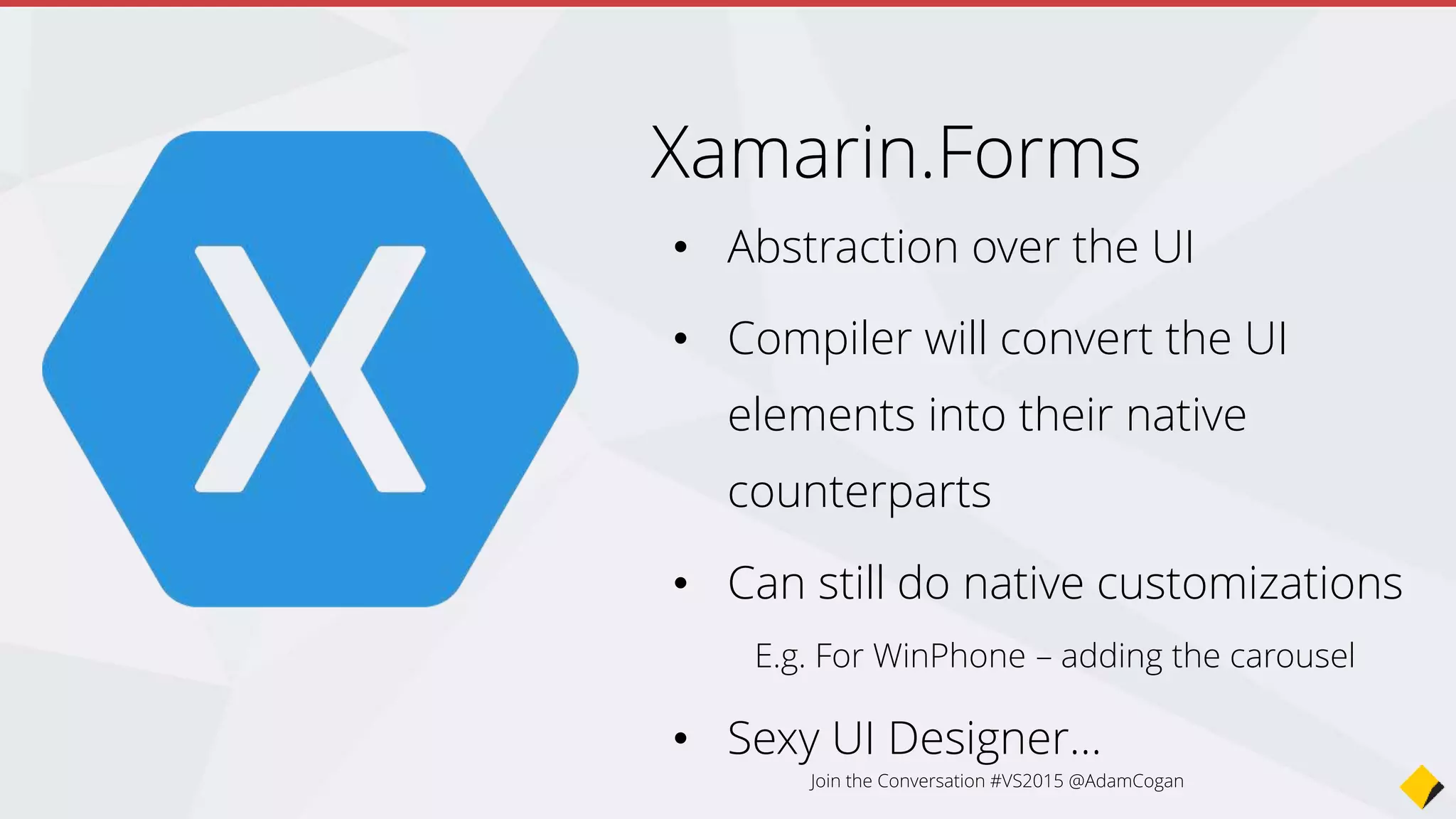

Xamarin is cool because…

• Abstraction over the UI
• Compiler will convert the UI
elements into their native
counterparts
• Can still do native customizations
E.g. For WinPhone – adding the carousel
• Sexy UI Designer…
Xamarin.Forms

Sexy UI designer…
var profilePage = new ContentPage {
Title = "Profile",
Icon = "Profile.png",
Content = new StackLayout {
Spacing = 20, Padding = 50,
VerticalOptions = LayoutOptions.Center,
Children = {
new Entry { Placeholder = "Username" },
new Entry { Placeholder = "Password", IsPassword = true },
new Button {
Text = "Login",
TextColor = Color.White,
BackgroundColor = Color.FromHex("77D065") }}}
};
var settingsPage = new ContentPage {
Title = "Settings",
Icon = "Settings.png",
(...)
};
var mainPage = new TabbedPage { Children = { profilePage, settingsPage } };

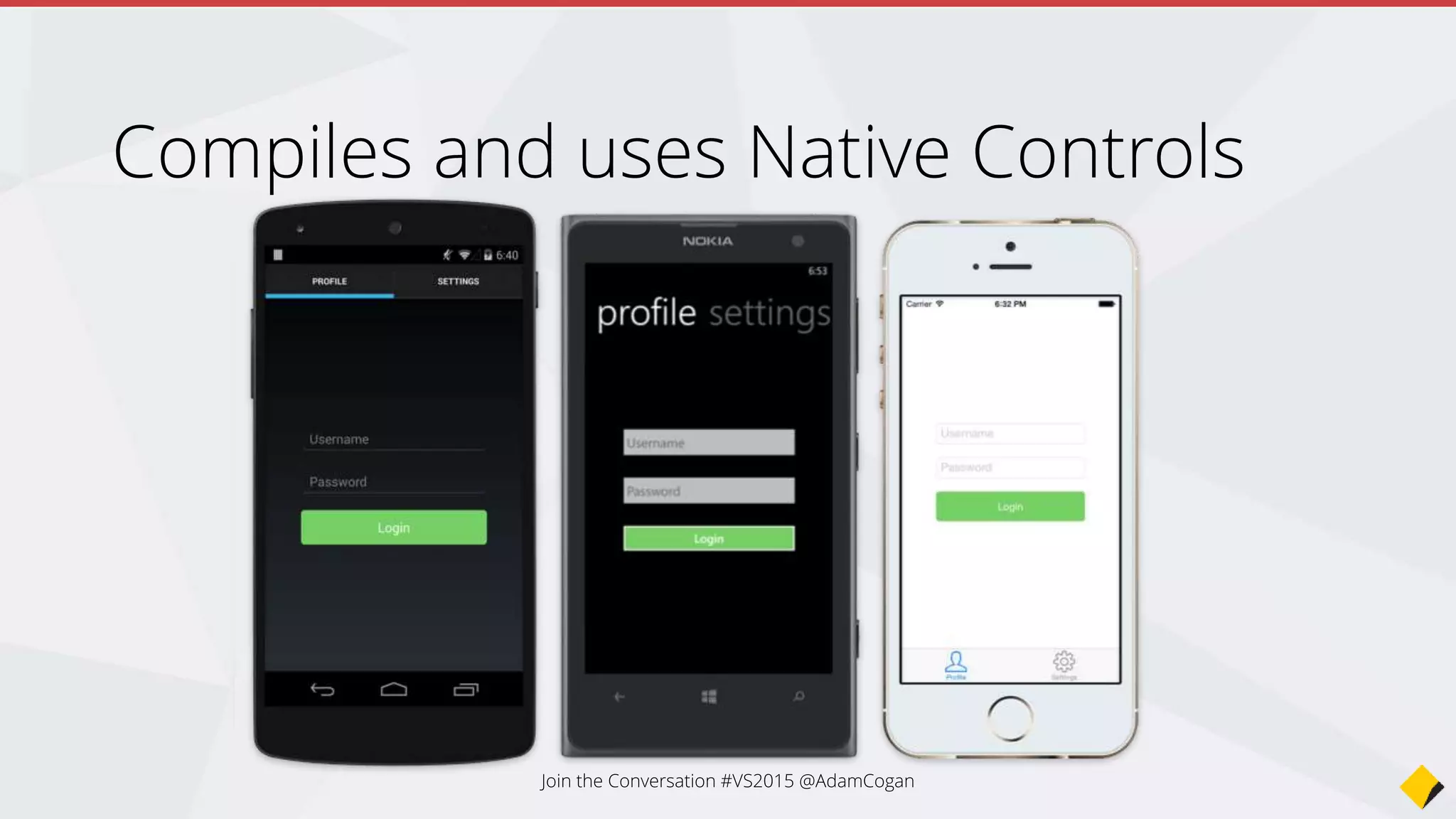

Compiles and uses Native Controls

You can either use:
• C#
• XAML (no designer, no intellisense)

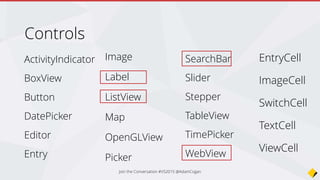

Sexy UI designer…

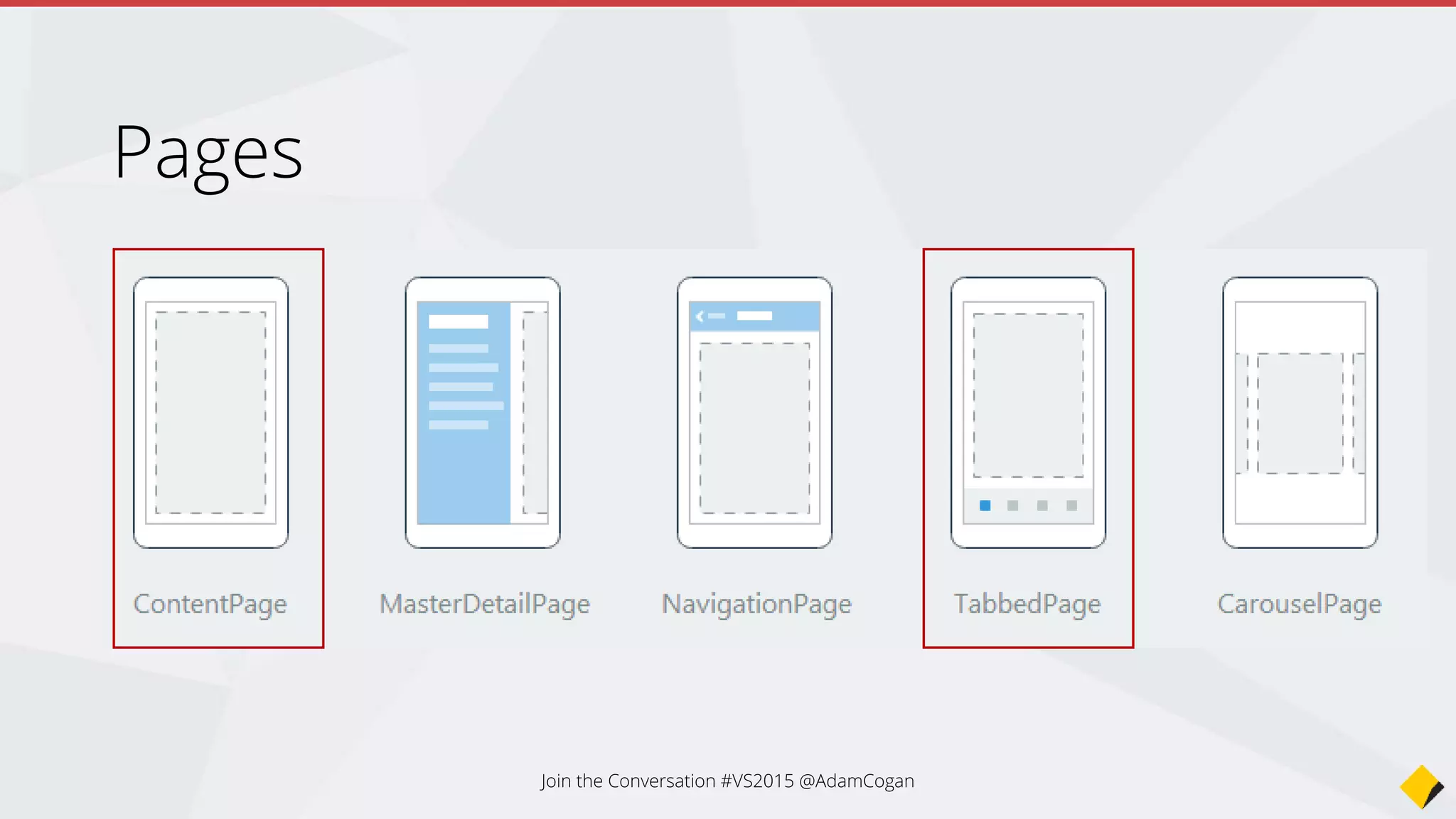

Pages

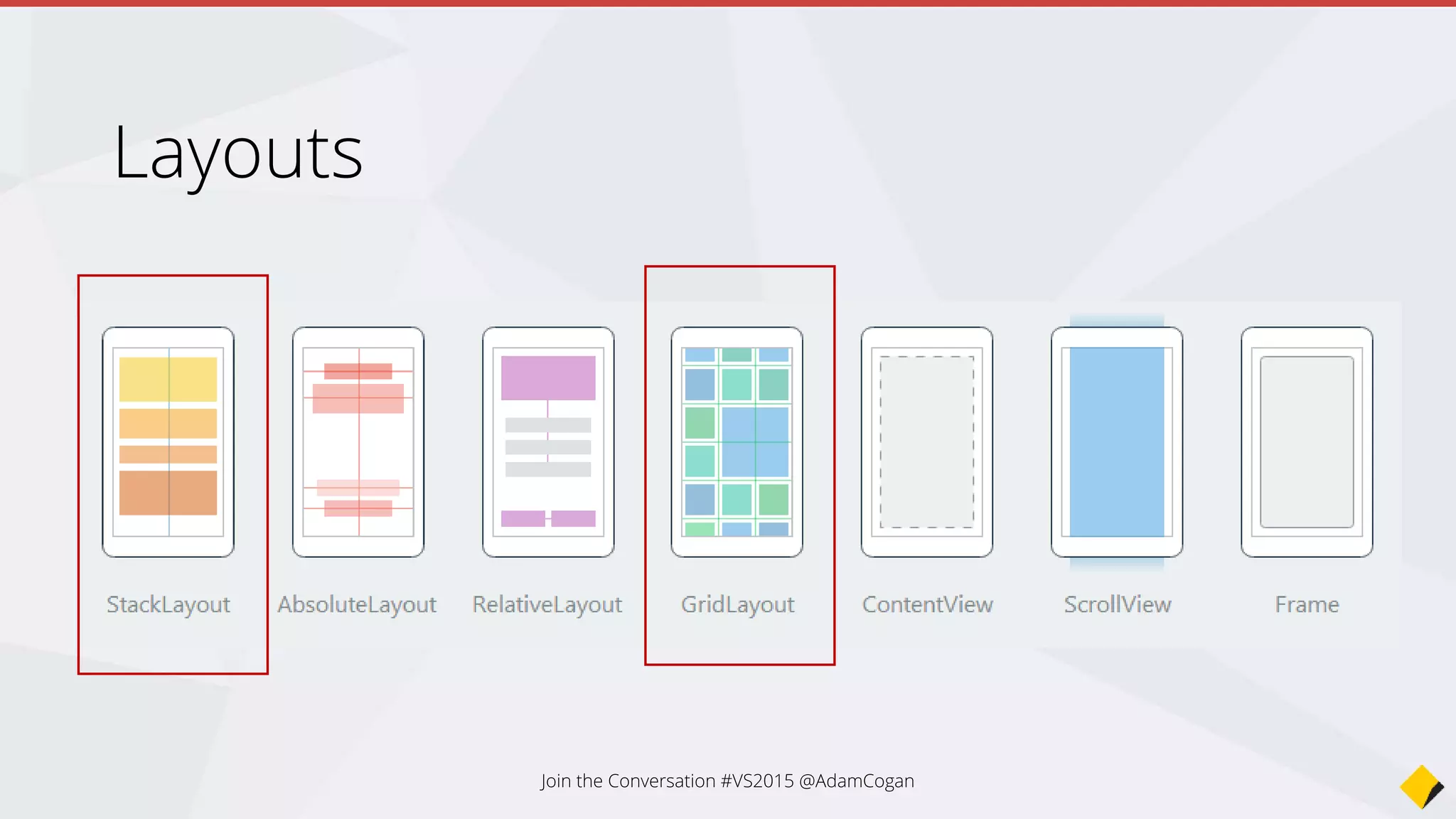

Layouts

Label
ListView
Map
OpenGLView
Picker
Controls
SearchBar
Slider
Stepper
TableView
TimePicker
WebView
ActivityIndicator
BoxView
Button
DatePicker
Editor
Entry
EntryCell
ImageCell
SwitchCell
TextCell
ViewCell

http://rules.ssw.com.au/
• Category
Sub Category
Rules
Building a mobile app for SSW Rules

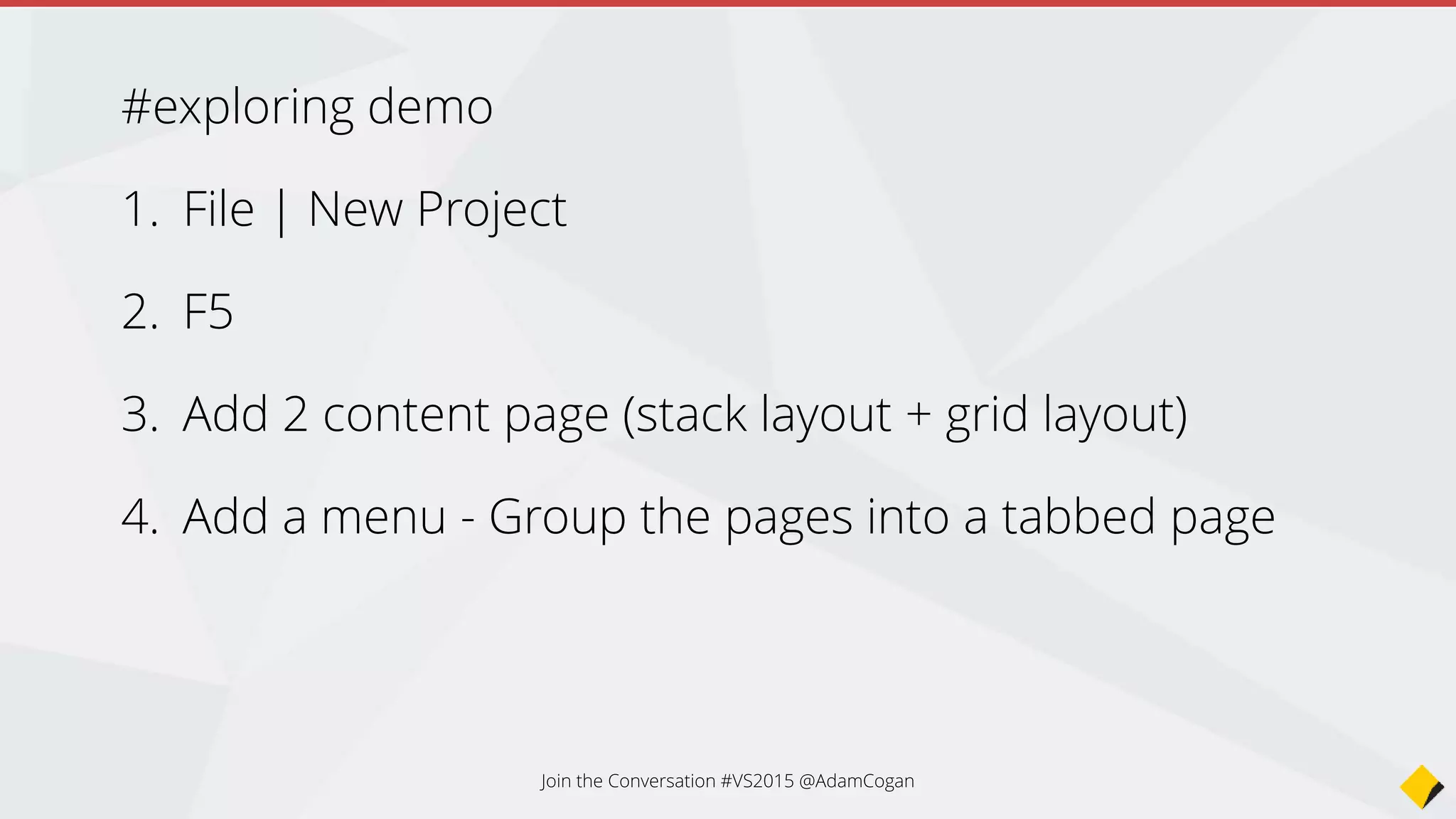

#exploring demo

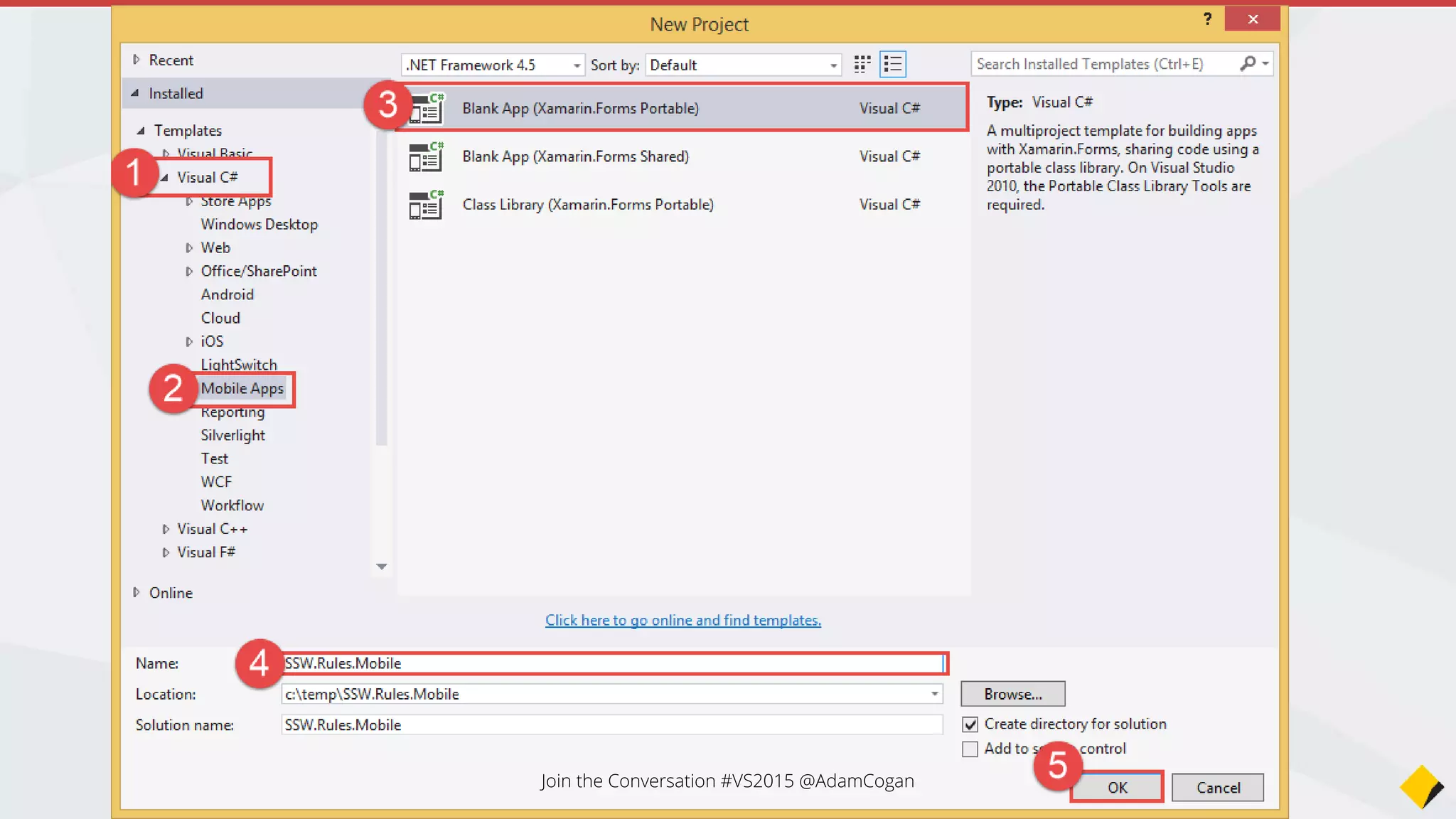

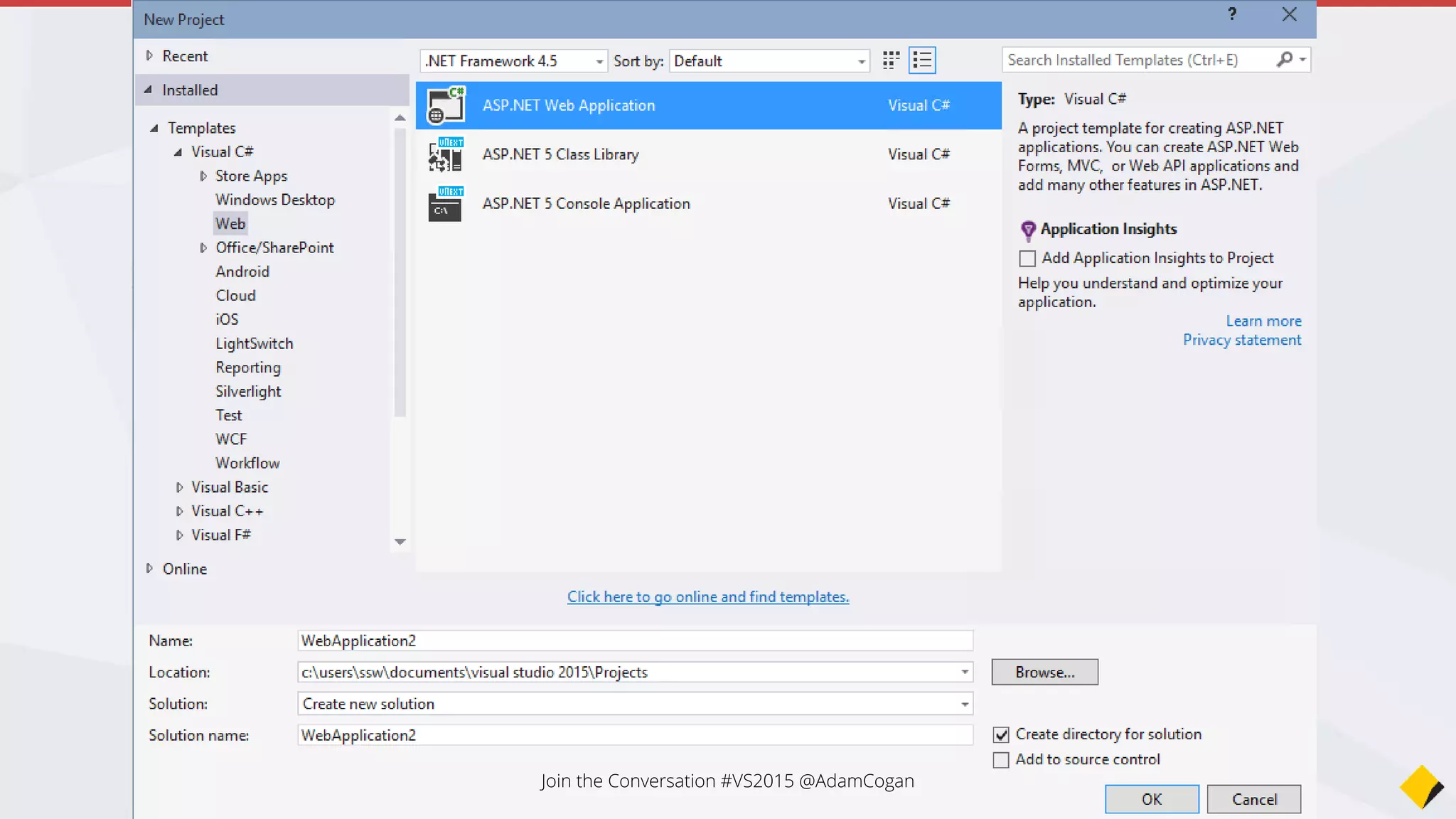

1. File | New Project
2. F5
3. Add 2 content page (stack layout + grid layout)
4. Add a menu - Group the pages into a tabbed page

If you have a Mac on
the network you can
install the Build host
to build the iOS
project

Shared Project
Android
iOS
Windows Phone

F5 – Start testing on the two biggest mobile platforms

Anyone running
Android?

Use the emulator
Bad Android devs think they have 1
option

• Use a device
• Use genymotion.com (but you have to give up Hyper-V
and the Windows Phone emulator)
• Or Hyper-V haxm (open GL drivers and x86 optimization
for the android emulator)
• VS2015 bundles a emulator for Android (Lollipop API
Level 21)
The good Android devs know

And the 2nd major
mobile platform…

Windows Phone emulator uses
Hyper-V

Demo #2
Showing off the
controls – Stack
Layout

Stack Layout with 4 controls

Demo #3
Showing off the
controls – Grid Layout

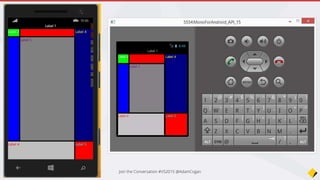

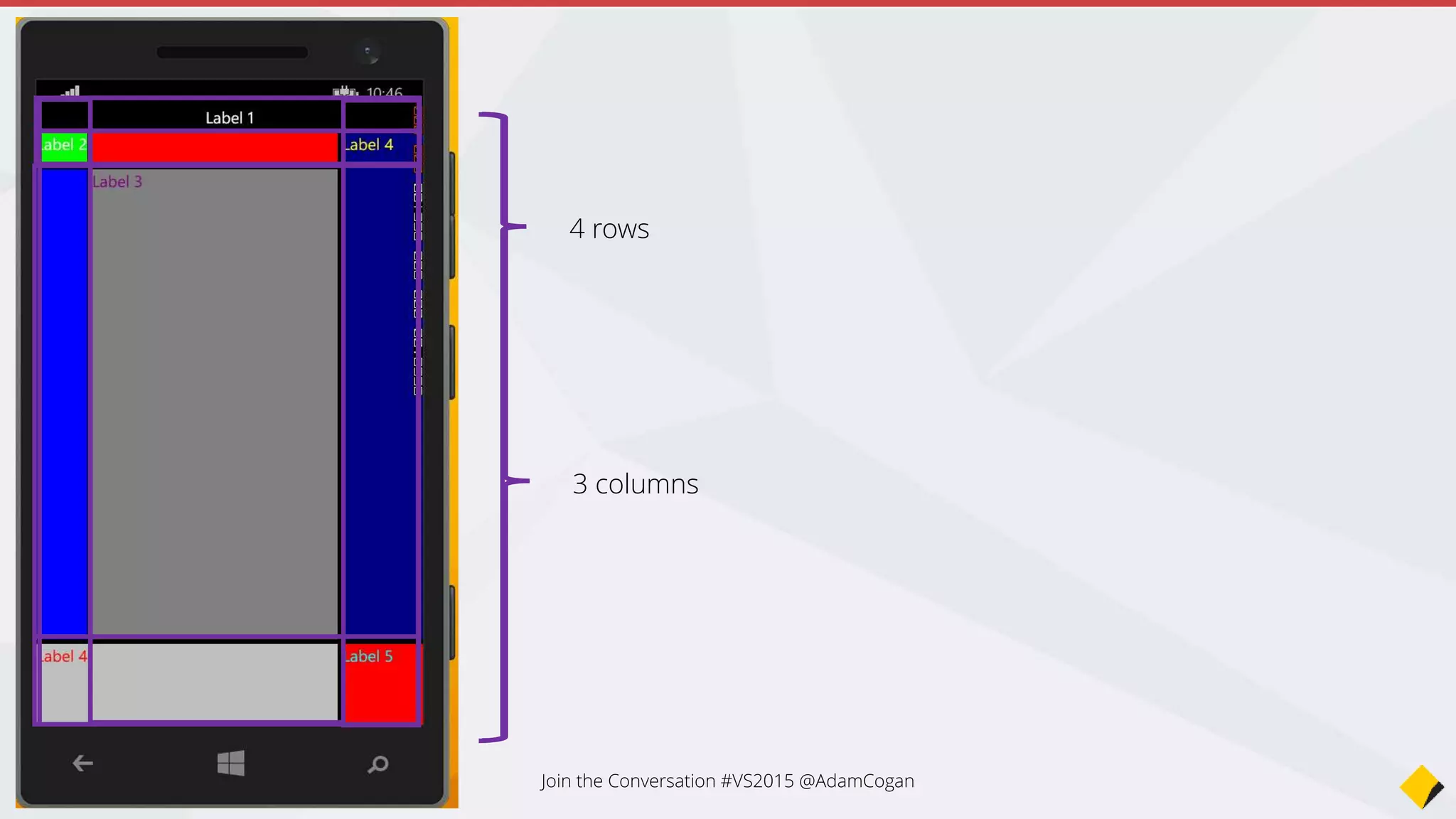

Grid Layout with 4 rows and 3 columns

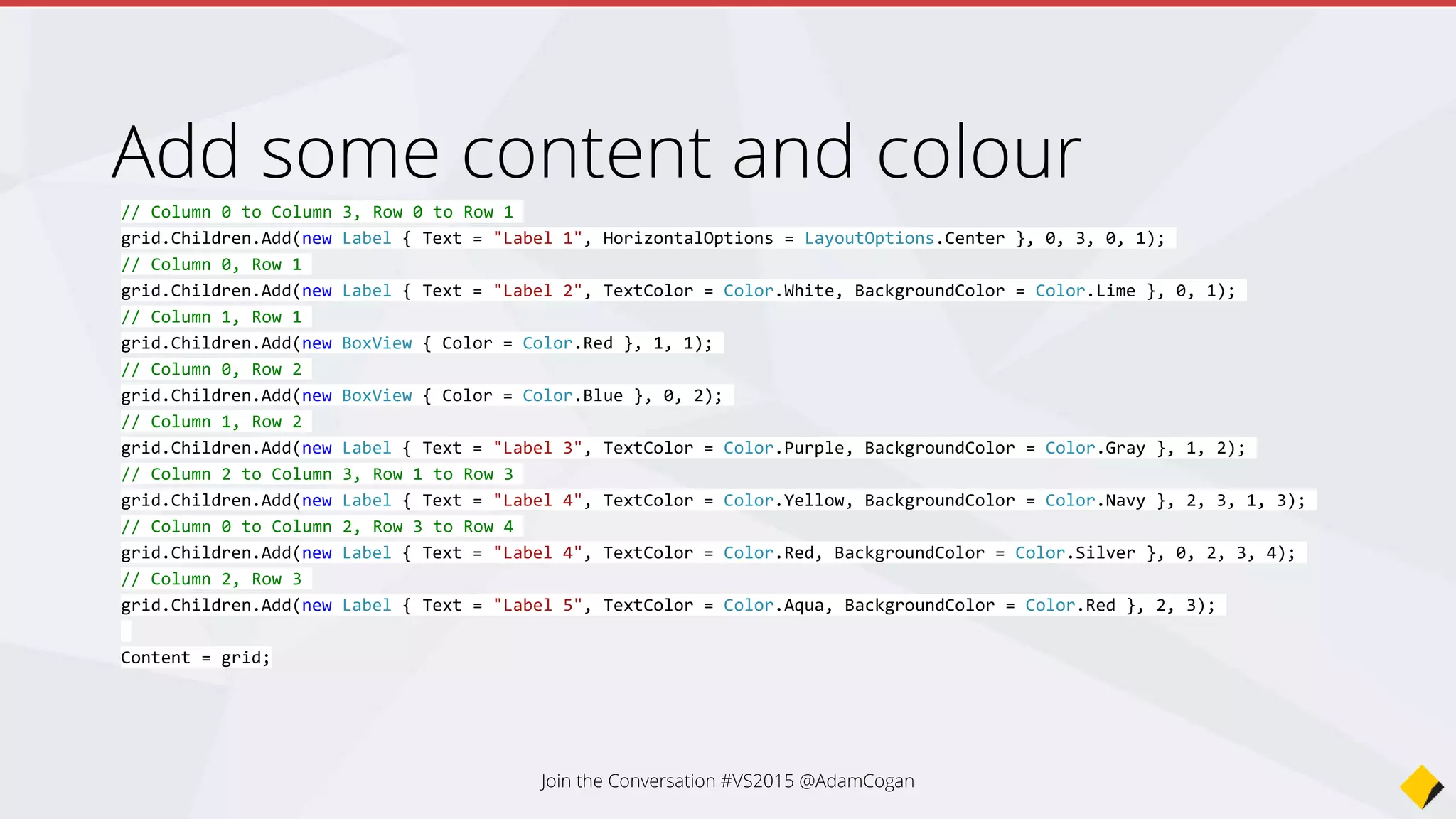

Add some content and colour
// Column 0 to Column 3, Row 0 to Row 1
grid.Children.Add(new Label { Text = "Label 1", HorizontalOptions = LayoutOptions.Center }, 0, 3, 0, 1);
// Column 0, Row 1
grid.Children.Add(new Label { Text = "Label 2", TextColor = Color.White, BackgroundColor = Color.Lime }, 0, 1);
// Column 1, Row 1
grid.Children.Add(new BoxView { Color = Color.Red }, 1, 1);
// Column 0, Row 2
grid.Children.Add(new BoxView { Color = Color.Blue }, 0, 2);
// Column 1, Row 2
grid.Children.Add(new Label { Text = "Label 3", TextColor = Color.Purple, BackgroundColor = Color.Gray }, 1, 2);
grid.Children.Add(new Label { Text = "Label 4", TextColor = Color.Yellow, BackgroundColor = Color.Navy }, 2, 3, 1, 3);
grid.Children.Add(new Label { Text = "Label 4", TextColor = Color.Red, BackgroundColor = Color.Silver }, 0, 2, 3, 4);
// Column 2, Row 3
grid.Children.Add(new Label { Text = "Label 5", TextColor = Color.Aqua, BackgroundColor = Color.Red }, 2, 3);
Content = grid;

4 rows
3 columns

Demo #4
Showing off the
controls – Add a
Tabbed Page

public static Page GetMainPage()
{
return new TabbedPage
{
Children =
{
new StackLayoutPage { Title = "Stack" },
new GridLayoutPage { Title = "Grid"}
}
};
}
Tabbed Page showing our Stack and Grid

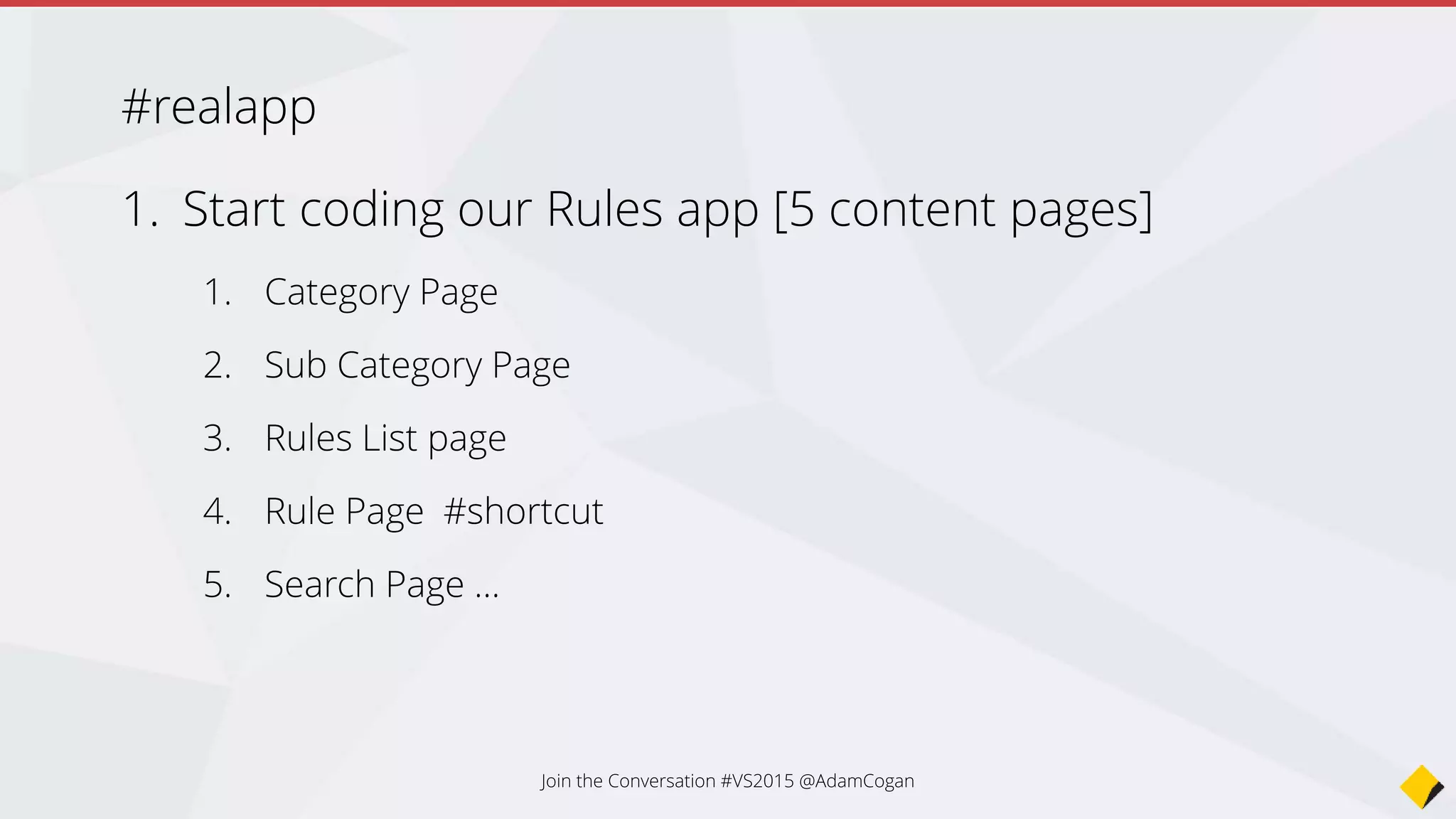

#realapp
1. Start coding our Rules app [5 content pages]
1. Category Page
2. Sub Category Page
3. Rules List page
4. Rule Page #shortcut
5. Search Page …

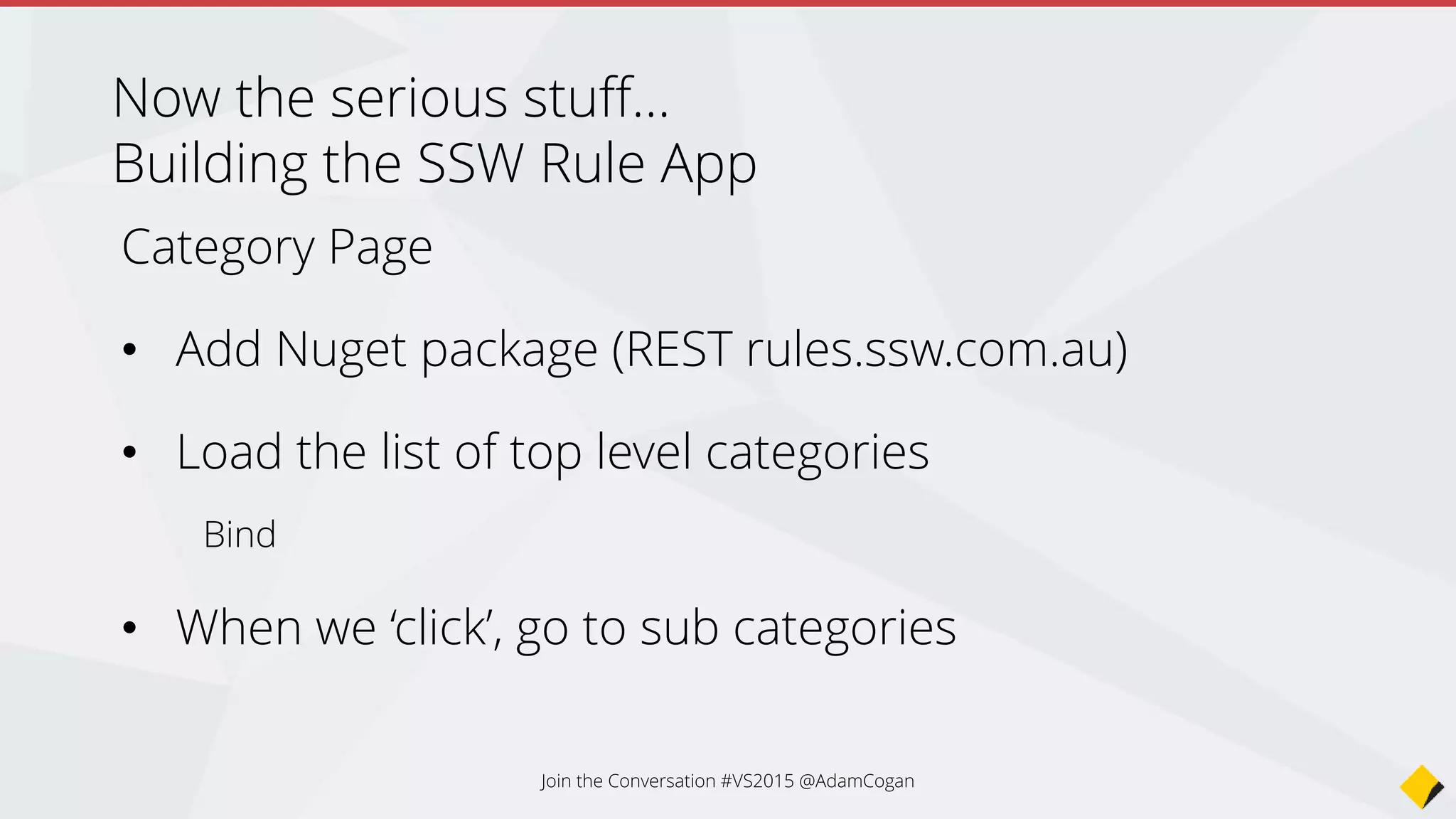

Category Page
• Add Nuget package (REST rules.ssw.com.au)
• Load the list of top level categories
Bind
• When we ‘click’, go to sub categories
Now the serious stuff…
Building the SSW Rule App

public RuleCategoryPage(string url)
{
Title = "SSW Rules";
BaseUrl = url;
ListView = new ListView();
// Create a template for out list view
var cell = new DataTemplate(typeof(TextCell));
cell.SetBinding(TextCell.TextProperty, "Title");
ListView.ItemTemplate = cell;
Content = new StackLayout()
{
VerticalOptions = LayoutOptions.FillAndExpand,
Children = { ListView }
};
Create a template for the list view
Create a DataTemplate
for the ListView,
bind the Text property to
“Title” in our data

protected override async void OnAppearing()
{
base.OnAppearing();
// Create our sharepoint rules client
var client = new SswSharePointRulesClient();
// Get a list of toplevel categories
var categoryResult = client.GetRuleCategories(BaseUrl);
var categories = await categoryResult;
ViewModel = new RuleCategoryViewModel()
{
Categories = new ObservableCollection<RuleCategoryModel>(categories)
};
// Bind out results to the list view
ListView.ItemsSource = ViewModel.Categories;
}
Load categories, bind on load
Call SharePoint REST API
to grab our categories
Bind results to our list
view

public RuleCategoryPage(string url)
{
Title = "SSW Rules";
BaseUrl = url;
ListView = new ListView();
// Create a template for out list view
var cell = new DataTemplate(typeof(TextCell));
cell.SetBinding(TextCell.TextProperty, "Title");
ListView.ItemTemplate = cell;
Content = new StackLayout()
{
VerticalOptions = LayoutOptions.FillAndExpand,
Children = { ListView }
};
ListView.ItemSelected += OnListViewOnItemSelected;
}
protected virtual void OnListViewOnItemSelected(object sender, SelectedItemChangedEventArgs args)
{
var category = (RuleCategoryModel)args.SelectedItem;
var subCategoryPage = new RuleSubCategoryPage(category.Url);
Navigation.PushAsync(subCategoryPage);
}
Add event handlers – Item Selected
Attach an event handler to
the ItemSelected event
Instantiate the
RuleSubCategory page with
the Url of the category
Change the current page

<?xml version="1.0" encoding="utf-8" ?>
<ContentPage xmlns="http://xamarin.com/schemas/2014/forms"
xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
x:Class="SSW.Rules.Mobile.RuleContentXamlPage" >
<WebView VerticalOptions="FillAndExpand" HorizontalOptions="FillAndExpand"
Source="{Binding Url}" />
</ContentPage>

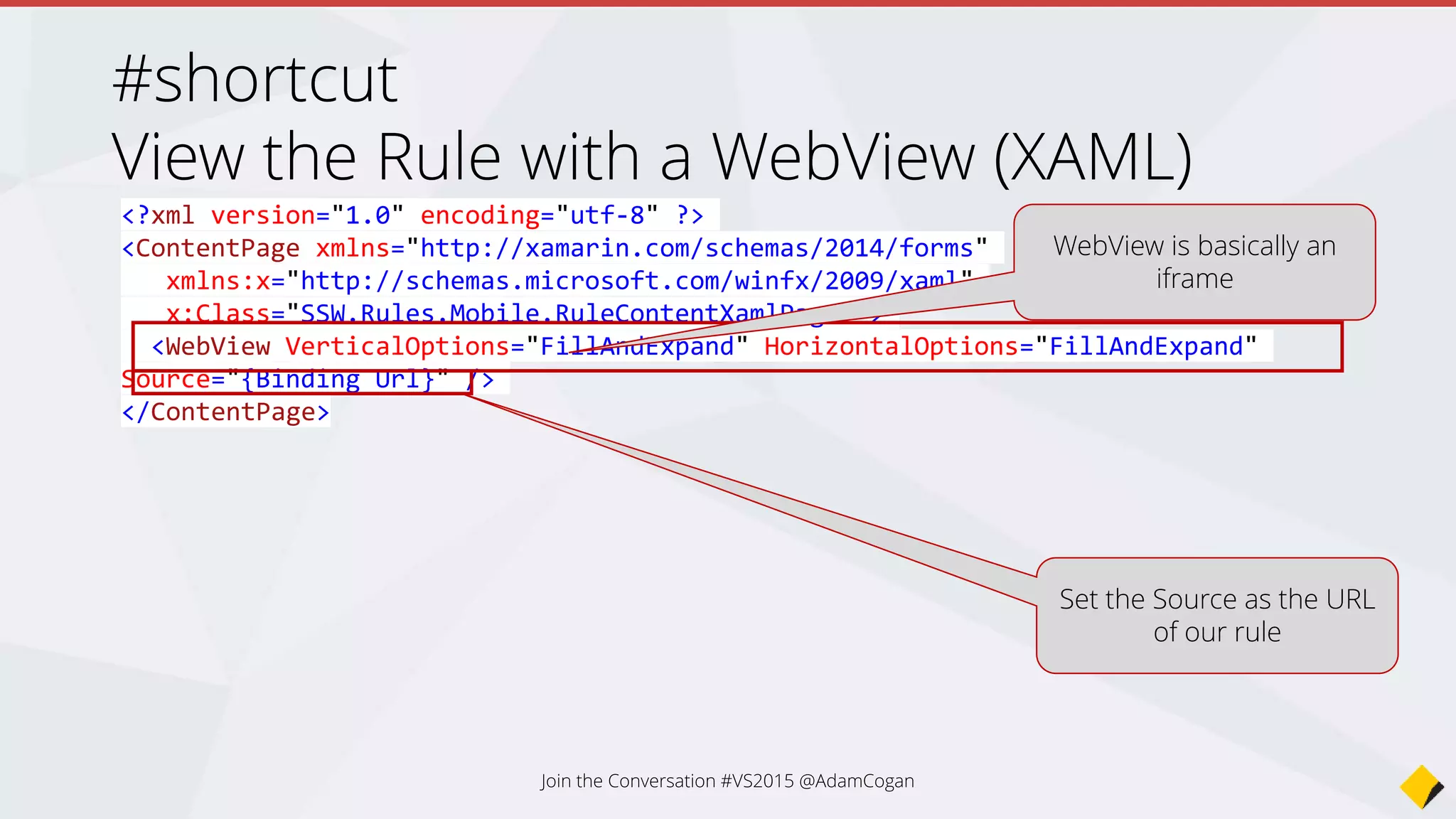

#shortcut
View the Rule with a WebView (XAML)
WebView is basically an
iframe
Set the Source as the URL
of our rule

• SearchBar
• Label for result count
• ListView to show the results

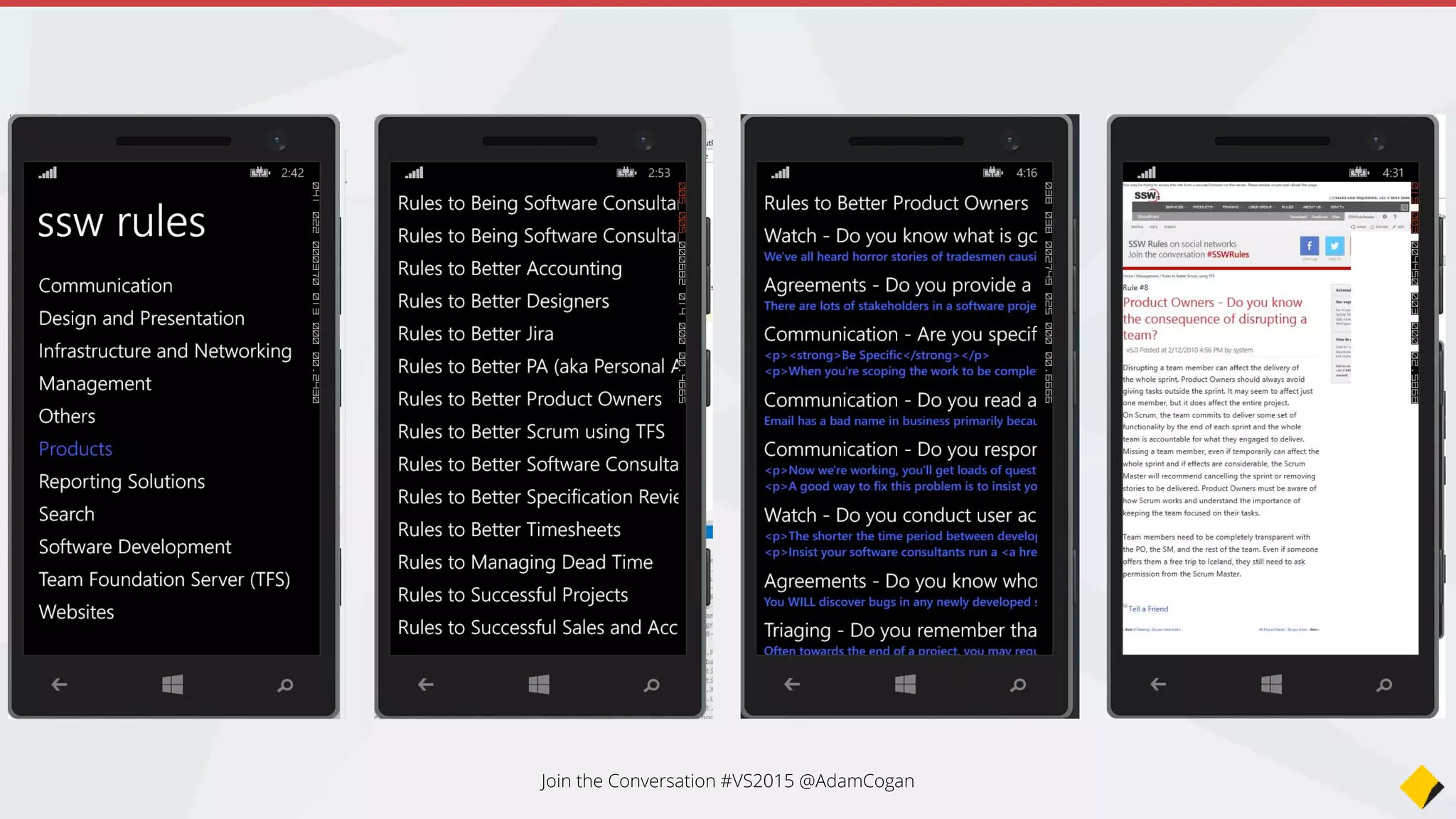

Create a Search Page

• TFS - https://tfsodata.visualstudio.com/ (bad ODATA – read only)
• TFS -https://visualstudio.com/integrate (good REST)
• REST APIs rock
https://developers.google.com/
https://developers.facebook.com/
https://dev.twitter.com/
https://developer.nokia.com/
https://developer.github.com/
http://developer.xamarin.com/
https://Developer.visualstudio.com

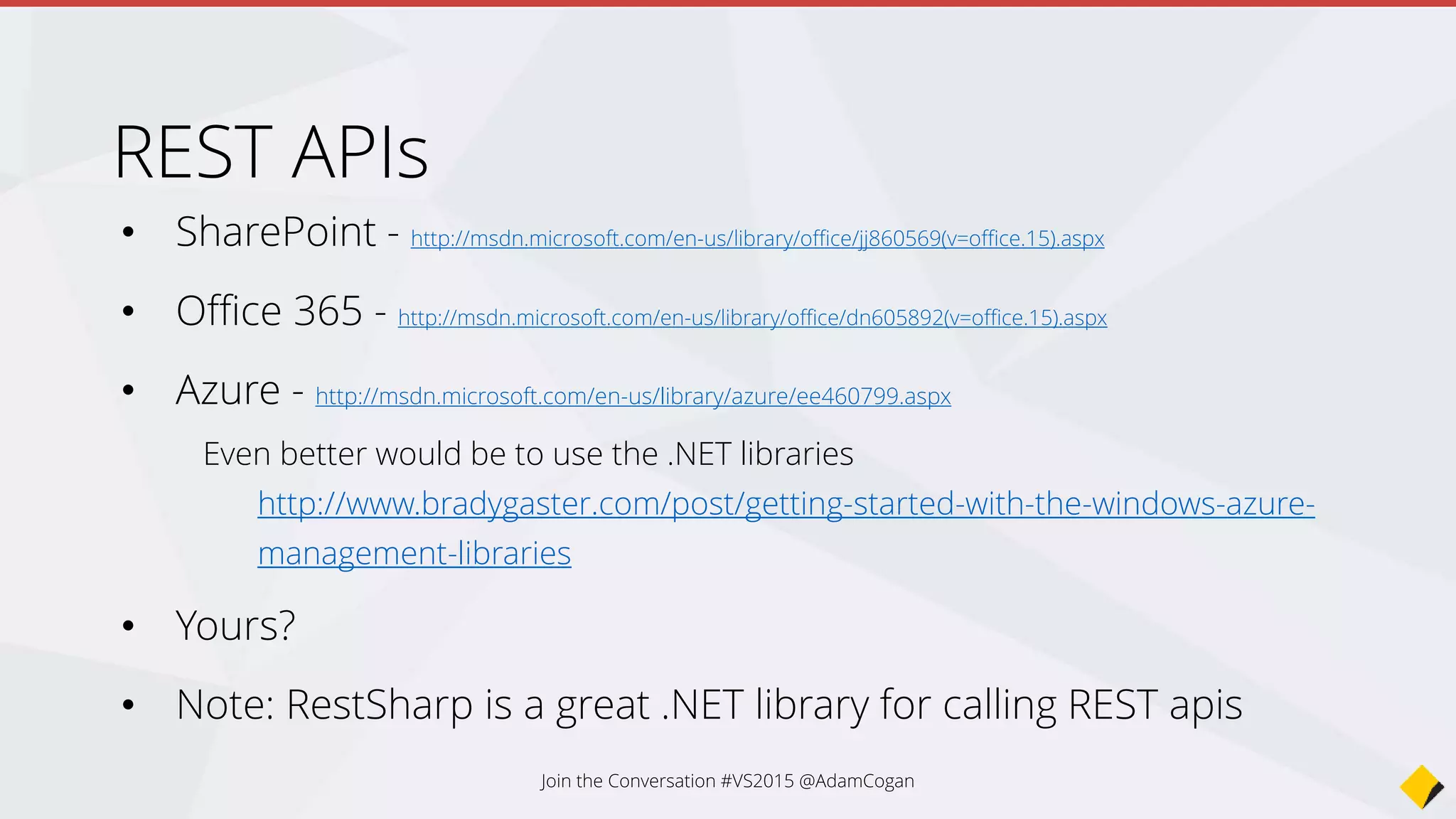

REST APIs

• SharePoint - http://msdn.microsoft.com/en-us/library/office/jj860569(v=office.15).aspx
• Office 365 - http://msdn.microsoft.com/en-us/library/office/dn605892(v=office.15).aspx
• Azure - http://msdn.microsoft.com/en-us/library/azure/ee460799.aspx
Even better would be to use the .NET libraries
http://www.bradygaster.com/post/getting-started-with-the-windows-azure-
management-libraries
• Yours?
• Note: RestSharp is a great .NET library for calling REST apis
REST APIs

https://github.com/glennstephens/xfTemplates
Hot Tip – Resharper templates for
Xamarin.Forms

Express
• October 2005 - Microsoft releases a free IDE
• Limited version Professional edition
• No licensing restrictions for applications
• No Extensions (No ReSharper / Web Essentials…)

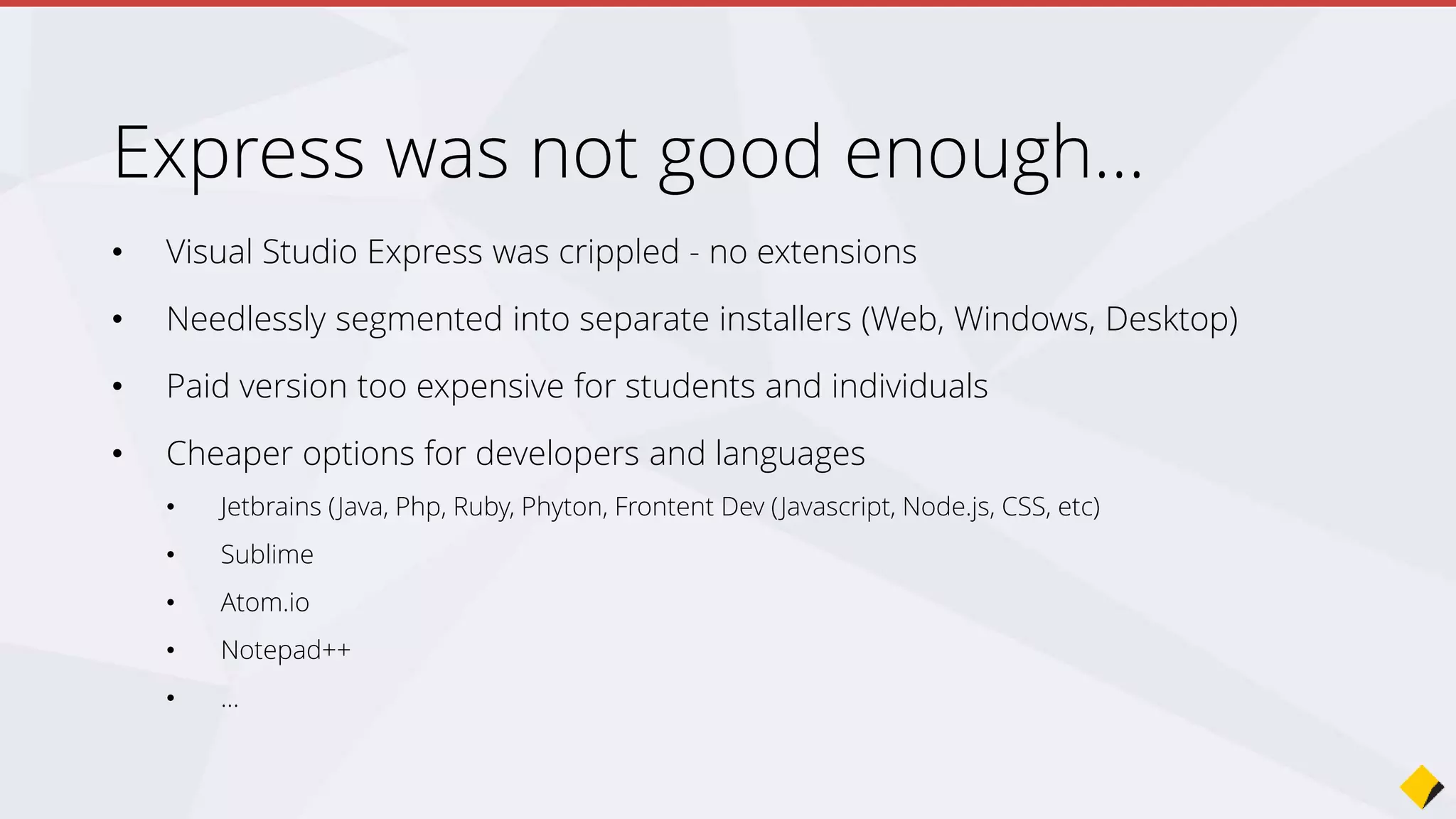

Express was not good enough…
• Visual Studio Express was crippled - no extensions
• Needlessly segmented into separate installers (Web, Windows, Desktop)
• Paid version too expensive for students and individuals
• Cheaper options for developers and languages
• Jetbrains (Java, Php, Ruby, Phyton, Frontent Dev (Javascript, Node.js, CSS, etc)
• Sublime
• Atom.io
• Notepad++
• …

“Visual Studio is universally praised, but if you talk to a developer in
college or straight out of college, they don’t want to pay,”
“We want to eliminate that friction and enable more developers to
use it on a day-to-day basis.”
Scott Guthrie, Microsoft

Goodbye Express, welcome Visual Studio
2013 Community...
• November 2014 - Microsoft finally releases a *decent* free IDE
• *All* the great functionality of Visual Studio Professional 2013
• Any individual developer can use it to create their own free or
paid apps.
• Unlimited number of users within an organization for learning,
academic research, or for contributing to open source projects
• Choose from thousands of extensions for Visual Studio

What will change?
• Today for VS 2013 there are 2020 extensions
• Web Essentials
• Package Intellisense (NPM)
• Grunt Launcher
• PHP Tools for Visual Studio
• NTVS (Node.js Tools for Visual Studio) this is a plugin
• Python Tools for Visual Studio
• But…

What will change?
6 kinds of developers
1. HTML and JS devs
2. Node.js devs
3. PHP devs
4. Python devs
5. Non windows devs
6. VS devs (Express and Professional)
7. Administrators

1. HTML and JS devs
• will jump on the bandwagon
• will love Bower support

2. Node.js devs
• will grow slowly, stay niche... but will jump
• will love NPM package support (non .NET server side)
• will love the new grunt support (especially the task
runner)

3. PHP devs
• will not move because
• they require a better PC than a 486
• find copy and paste too slow
• they would hate the 3 hour download and install

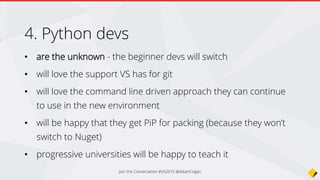

4. Python devs
• are the unknown - the beginner devs will switch
• will love the support VS has for git
• will love the command line driven approach they can continue
to use in the new environment
• will be happy that they get PiP for packing (because they won’t
switch to Nuget)
• progressive universities will be happy to teach it

5. Non windows devs
We can only hope they find http://www.omnisharp.net
(it is a cross platform plugin for a number of editors –
Sublime, Atom, Emacs, Brackets, Vim - that allow you to
develop .net)

6. VS devs (Express and Professional)
(not specifically related to the community edition but)
• The majority of Microsoft devs will be shocked at the
amount of change in 2015.
• Most wont like that VS is even more complex.
• They will have to deal with it and grow.

7. Administrators
- Want to run ASP.NET on Linux
- Today ASP.NET runs on Mono on Linux and Mac
- Tomorrow ASP.NET will run on the new .NET Core on
Linux and Mac (and be supported)

Conclusion
new open source .Net Core
+
free VS Community
=
A lot of potential unlocked…
E.g. Develop self contained website for free, Docker deploy to an IoT device
(Win10 or Linux embedded e.g RaspberryPi).

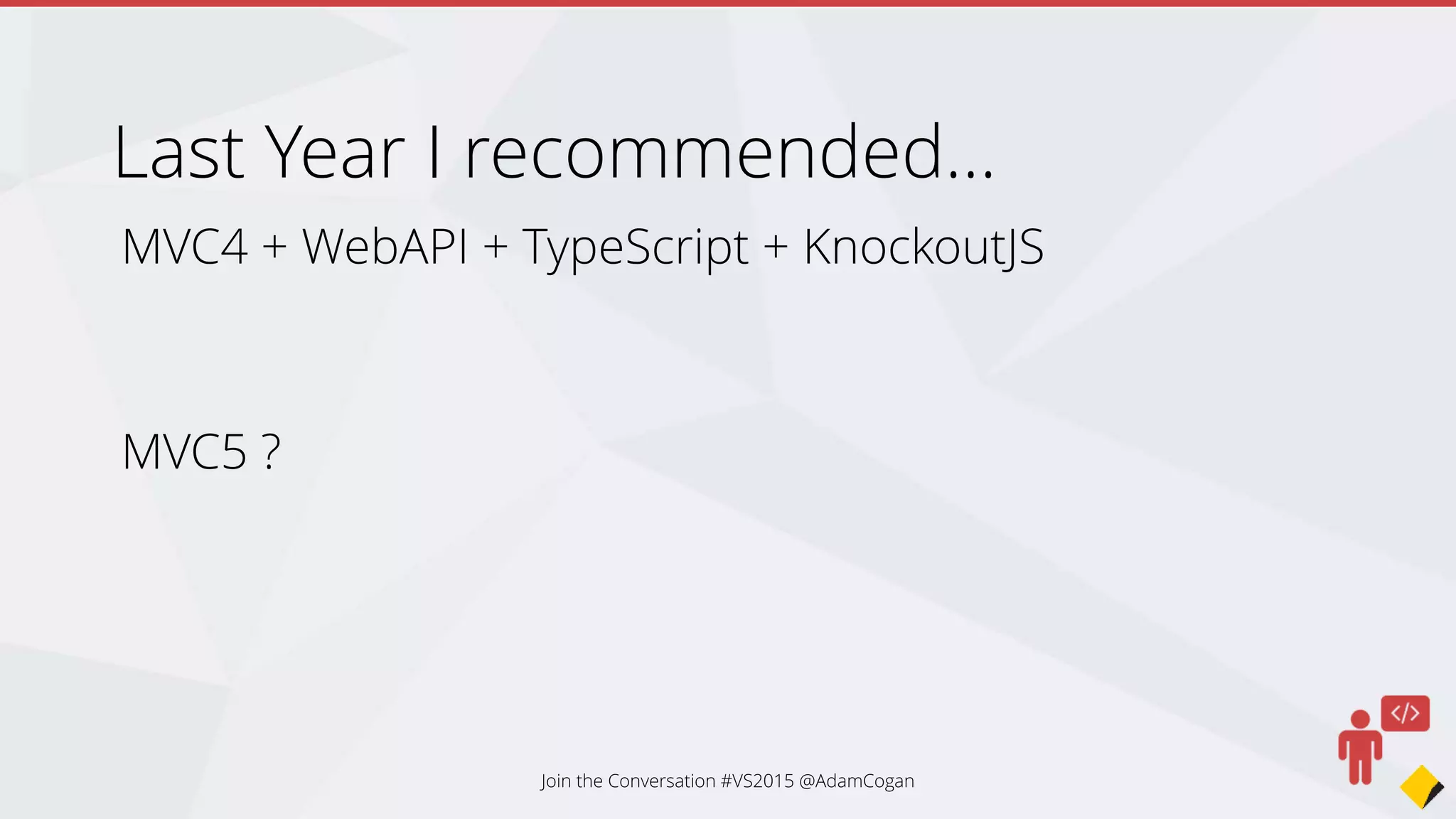

State of the Web

MVC4 + WebAPI + TypeScript + KnockoutJS
MVC5 ?
Last Year I recommended…

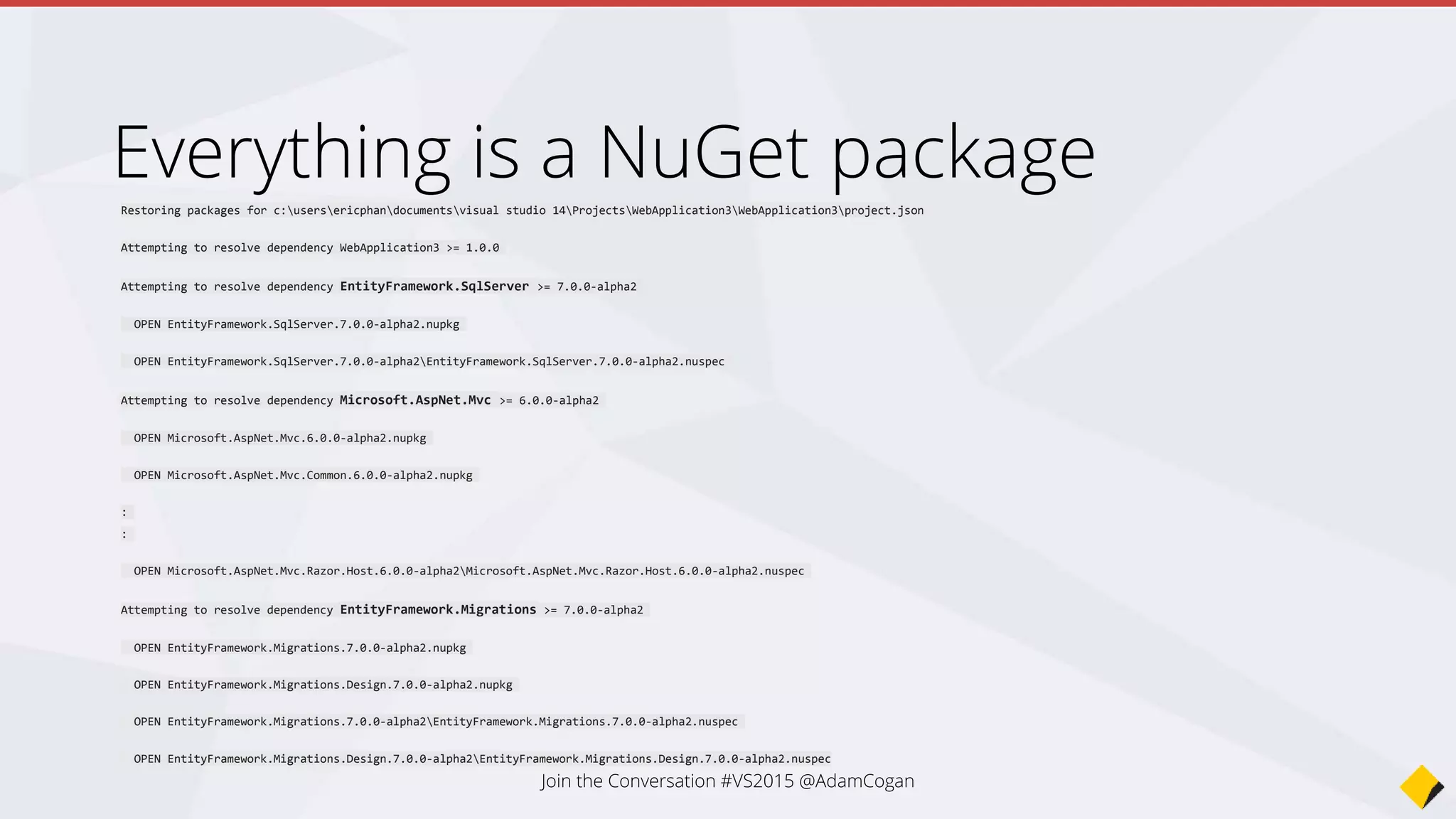

Restoring packages for c:usersericphandocumentsvisual studio 14ProjectsWebApplication3WebApplication3project.json
Attempting to resolve dependency WebApplication3 >= 1.0.0
Attempting to resolve dependency EntityFramework.SqlServer >= 7.0.0-alpha2
OPEN EntityFramework.SqlServer.7.0.0-alpha2.nupkg
OPEN EntityFramework.SqlServer.7.0.0-alpha2EntityFramework.SqlServer.7.0.0-alpha2.nuspec
Attempting to resolve dependency Microsoft.AspNet.Mvc >= 6.0.0-alpha2
OPEN Microsoft.AspNet.Mvc.6.0.0-alpha2.nupkg
OPEN Microsoft.AspNet.Mvc.Common.6.0.0-alpha2.nupkg
:
:
OPEN Microsoft.AspNet.Mvc.Razor.Host.6.0.0-alpha2Microsoft.AspNet.Mvc.Razor.Host.6.0.0-alpha2.nuspec
Attempting to resolve dependency EntityFramework.Migrations >= 7.0.0-alpha2
OPEN EntityFramework.Migrations.7.0.0-alpha2.nupkg
OPEN EntityFramework.Migrations.Design.7.0.0-alpha2.nupkg
OPEN EntityFramework.Migrations.7.0.0-alpha2EntityFramework.Migrations.7.0.0-alpha2.nuspec
OPEN EntityFramework.Migrations.Design.7.0.0-alpha2EntityFramework.Migrations.Design.7.0.0-alpha2.nuspec
Everything is a NuGet package

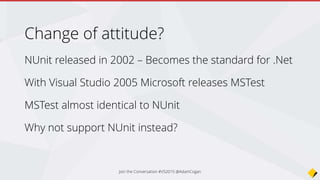

Change of attitude?
NUnit released in 2002 – Becomes the standard for .Net
With Visual Studio 2005 Microsoft releases MSTest
MSTest almost identical to NUnit
Why not support NUnit instead?

New terms for the .NET Developer
• Bower
• Grunt
• NPM
• OWIN
<Next PBI – create a cool logo>

• project.json
• config.json
• package.json
• bower.json
• gruntfile.js

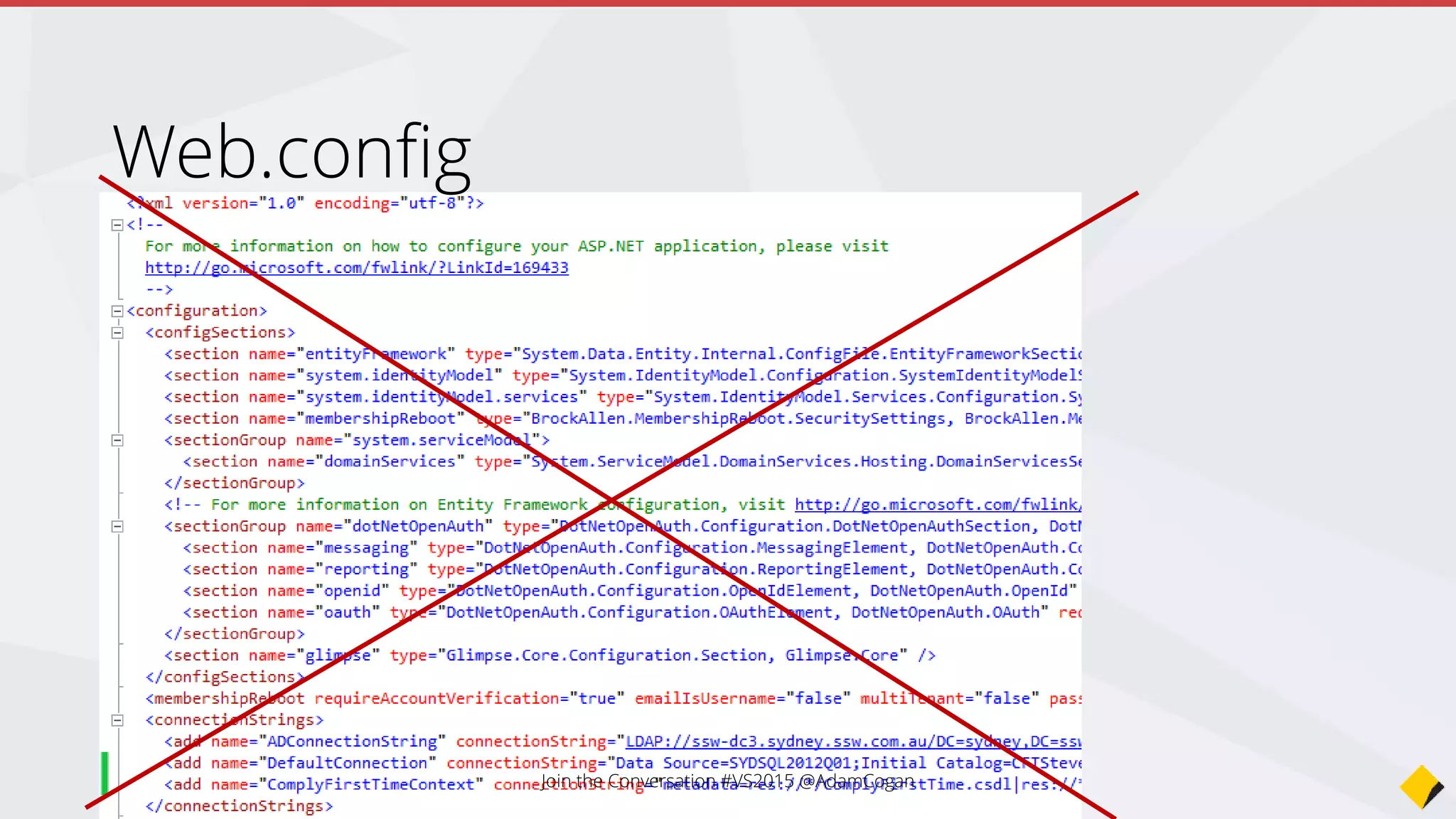

No more web.config
No more csproj

• Add references to NuGet packages here
• Full intellisense
• IIS/Hosting configuration
project.json

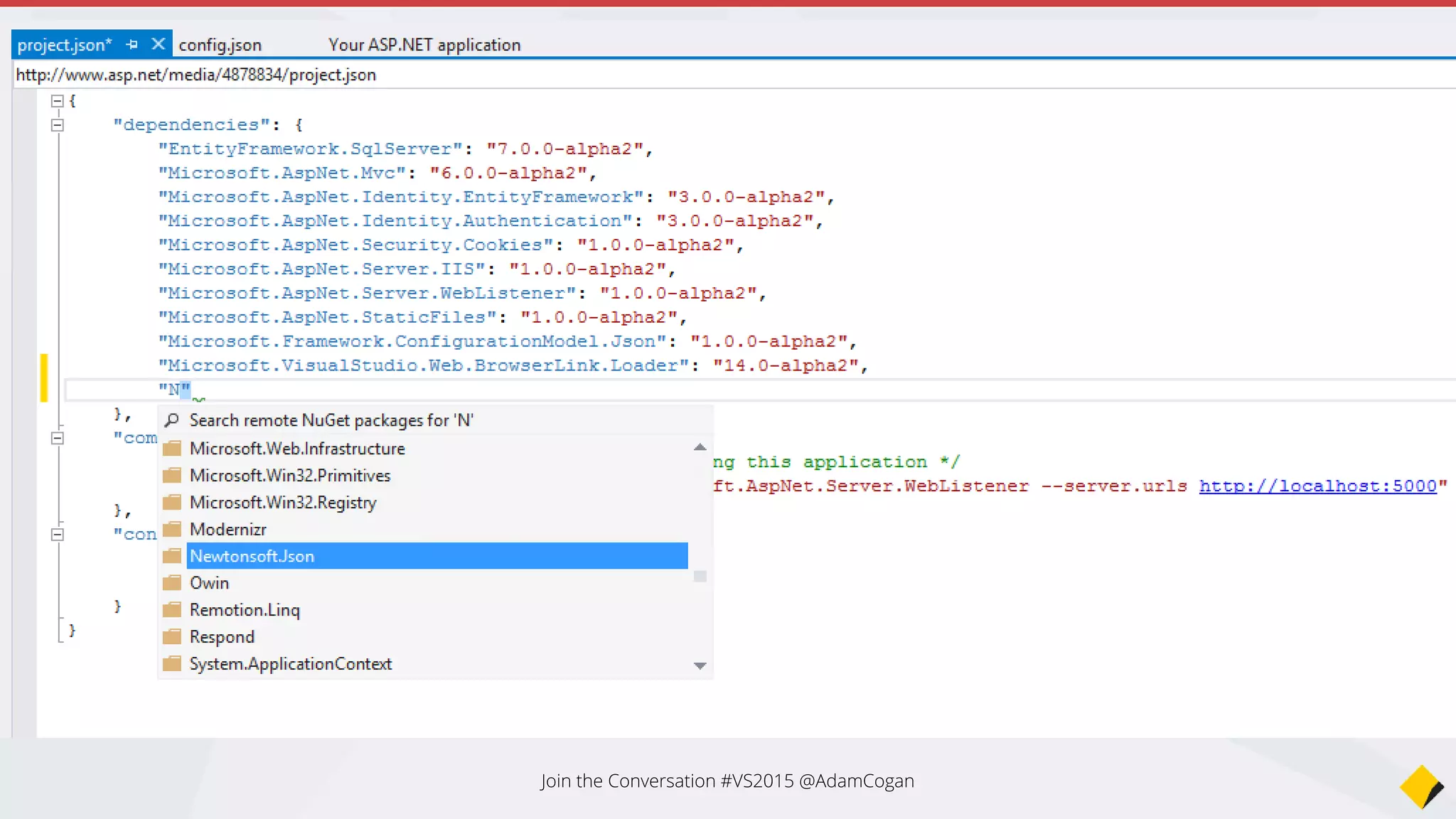

Do we have to manually type in NuGet
Packages into project.json?

New NuGet Package Manager
• Looks nicer
• Makes it easier to install other version of NuGet
packages

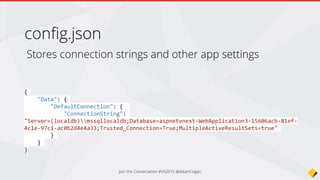

Stores connection strings and other app settings
config.json
{
"Data": {
"DefaultConnection": {
"ConnectionString":
"Server=(localdb)mssqllocaldb;Database=aspnetvnext-WebApplication3-15606acb-81ef-
4c1e-97c1-ac0b2d4e4a33;Trusted_Connection=True;MultipleActiveResultSets=true"
}
}
}

• List if NPM (Node Package Manager) packages
• NPM is a javascript package manager for
development tasks (e.g. minification, bundling, image
optimization)
package.json
package.json
{
"version": "0.0.0",
"name": "",
"devDependencies": {
"grunt": "0.4.5",
"grunt-bower-task": "0.4.0"
}
}

Bower is a front end javascript package manager
(created by Twitter)
bower.json
bower.json
{
"name": "WebApplication",
"private": true,
"dependencies": {
"bootstrap": "3.0.0",
"jquery": "1.10.2",
"jquery-validation": "1.11.1",
"jquery-validation-unobtrusive": "3.2.2",
"hammer.js": "2.0.4",
"bootstrap-touch-carousel": "0.8.0"
},
"exportsOverride": {
"bootstrap": {
"js": "dist/js/*.*",
"css": "dist/css/*.*",
"fonts": "dist/fonts/*.*"
},
:
}

• A javascript task runner (also an npm package)
• Use it to process your js and css files
gruntfile.js
gruntfile.js
module.exports = function (grunt) {
grunt.initConfig({
bower: {
install: {
options: {
targetDir: "wwwroot/lib",
layout: "byComponent",
cleanTargetDir: false
}
}
}
});
grunt.registerTask("default", ["bower:install"]);
grunt.loadNpmTasks("grunt-bower-task");
};

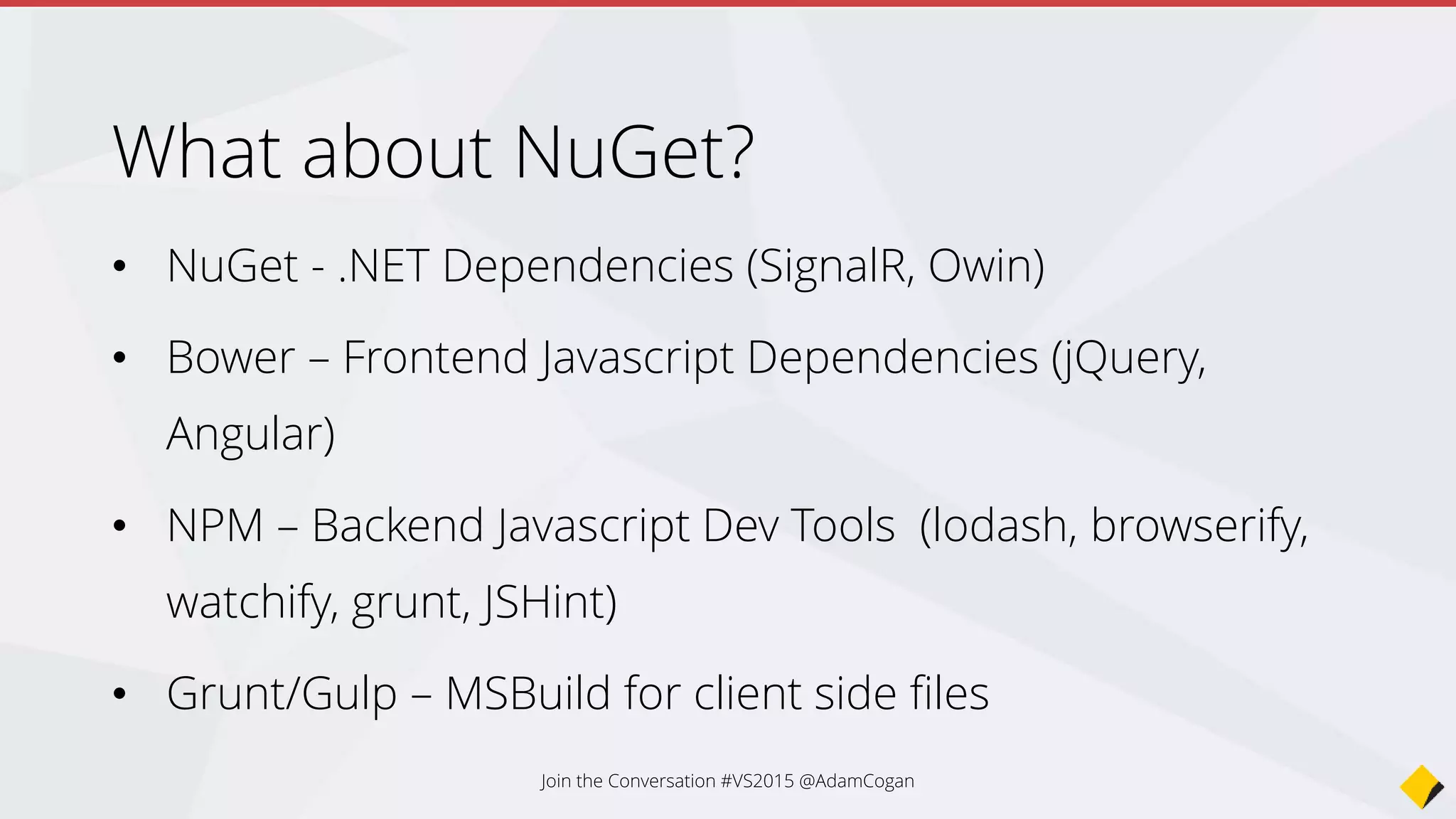

What about NuGet?
• NuGet - .NET Dependencies (SignalR, Owin)
• Bower – Frontend Javascript Dependencies (jQuery,
Angular)
• NPM – Backend Javascript Dev Tools (lodash, browserify,
watchify, grunt, JSHint)
• Grunt/Gulp – MSBuild for client side files

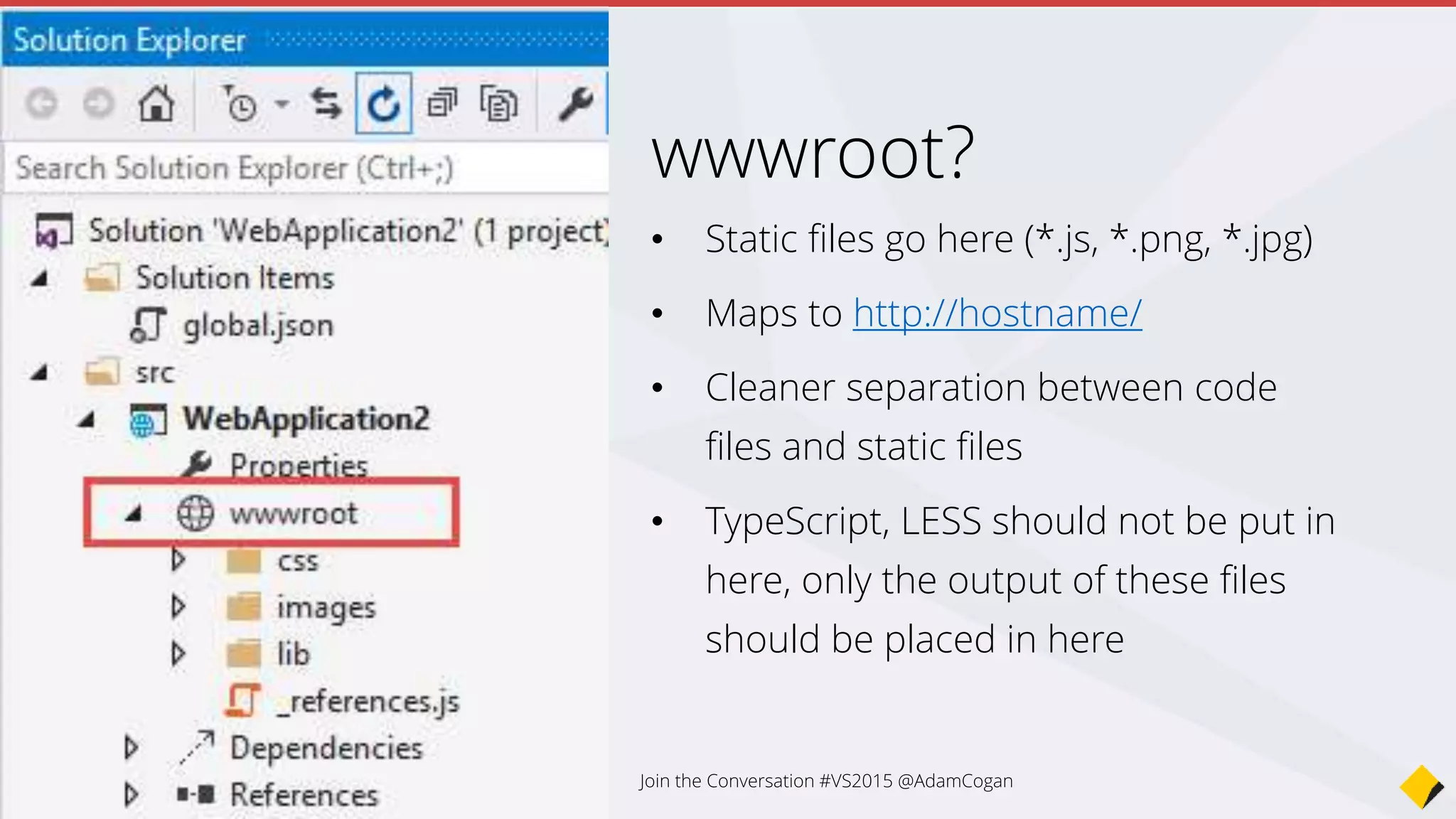

wwwroot?
• Static files go here (*.js, *.png, *.jpg)
• Maps to http://hostname/
• Cleaner separation between code
files and static files
• TypeScript, LESS should not be put in
here, only the output of these files
should be placed in here

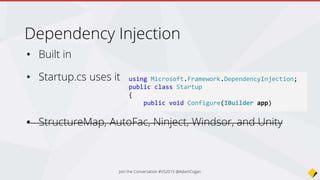

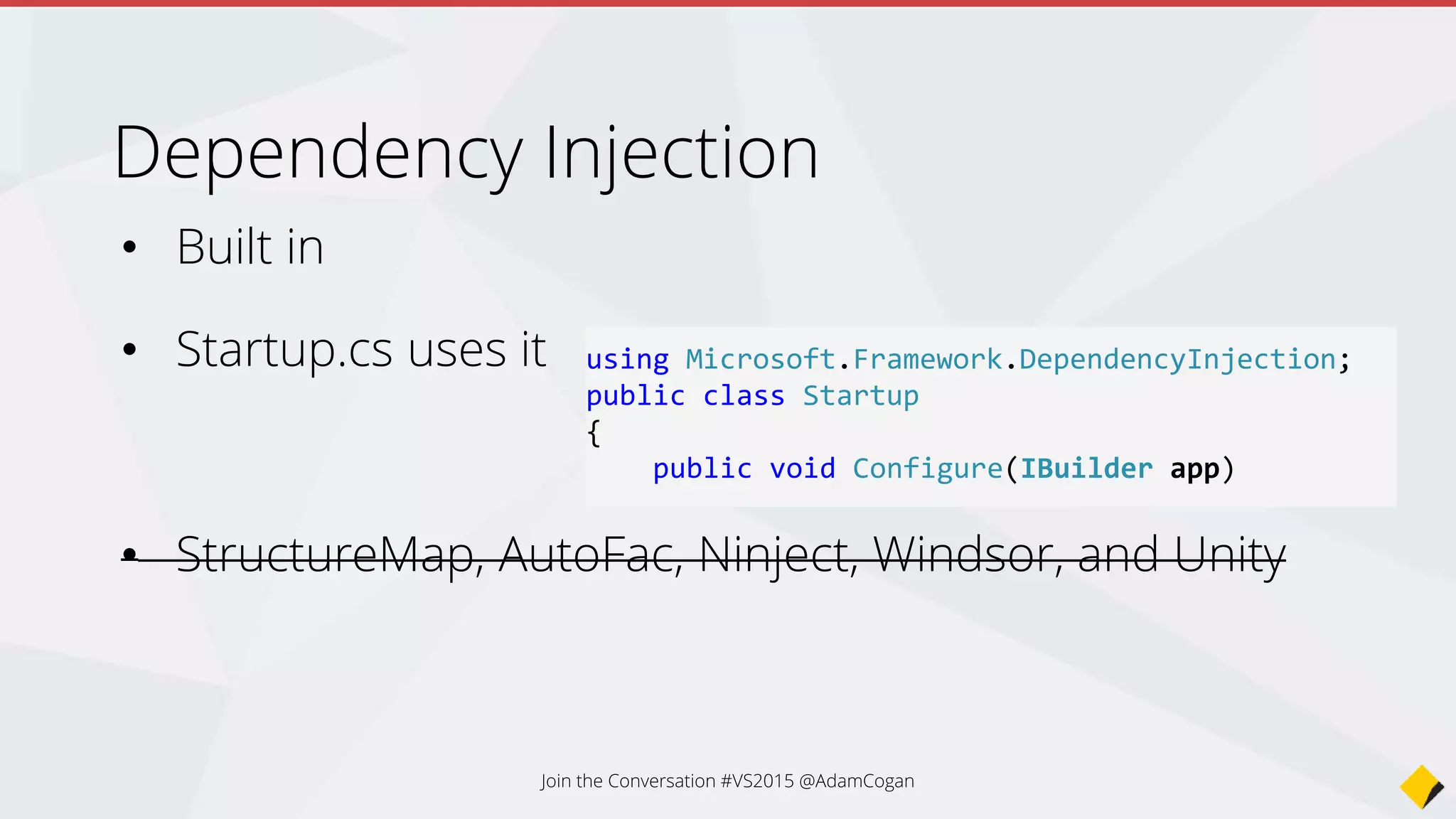

• Built in
• Startup.cs uses it
• StructureMap, AutoFac, Ninject, Windsor, and Unity
Dependency Injection
using Microsoft.Framework.DependencyInjection;
public class Startup
{
public void Configure(IBuilder app)

Dependency Inject
• Can use it in Razor page too
@using WebApplication23
@inject TimeService TimeSvc
<h3>@ViewBag.Message</h3>
<h3>
@TimeSvc.Ticks From Razor
</h3>

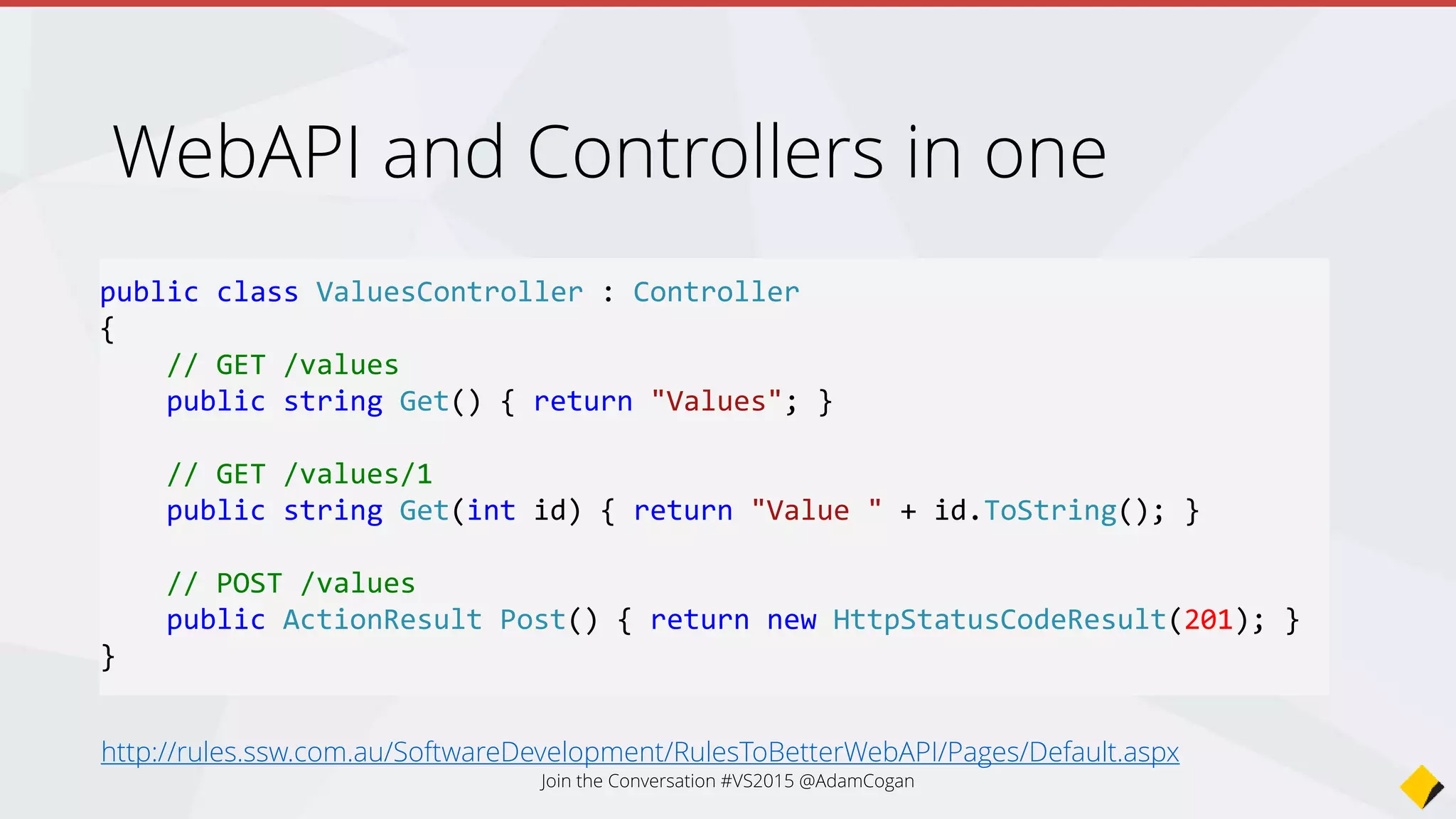

WebAPI and Controllers in one
public class ValuesController : Controller
{
// GET /values
public string Get() { return "Values"; }
// GET /values/1
public string Get(int id) { return "Value " + id.ToString(); }
// POST /values
public ActionResult Post() { return new HttpStatusCodeResult(201); }
}
http://rules.ssw.com.au/SoftwareDevelopment/RulesToBetterWebAPI/Pages/Default.aspx

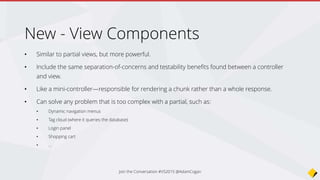

New - View Components
• Similar to partial views, but more powerful.
• Include the same separation-of-concerns and testability benefits found between a controller
and view.
• Like a mini-controller—responsible for rendering a chunk rather than a whole response.
• Can solve any problem that is too complex with a partial, such as:
• Dynamic navigation menus
• Tag cloud (where it queries the database)
• Login panel
• Shopping cart
• …

• Define what services and features this app will be using via Owin
• Services
EF
MVC
• Routes
• Features
BrowserLink
Static Files
• Authentication
Startup.cs

Tip - What can
you do to make
IIS Faster?
Disable Modules

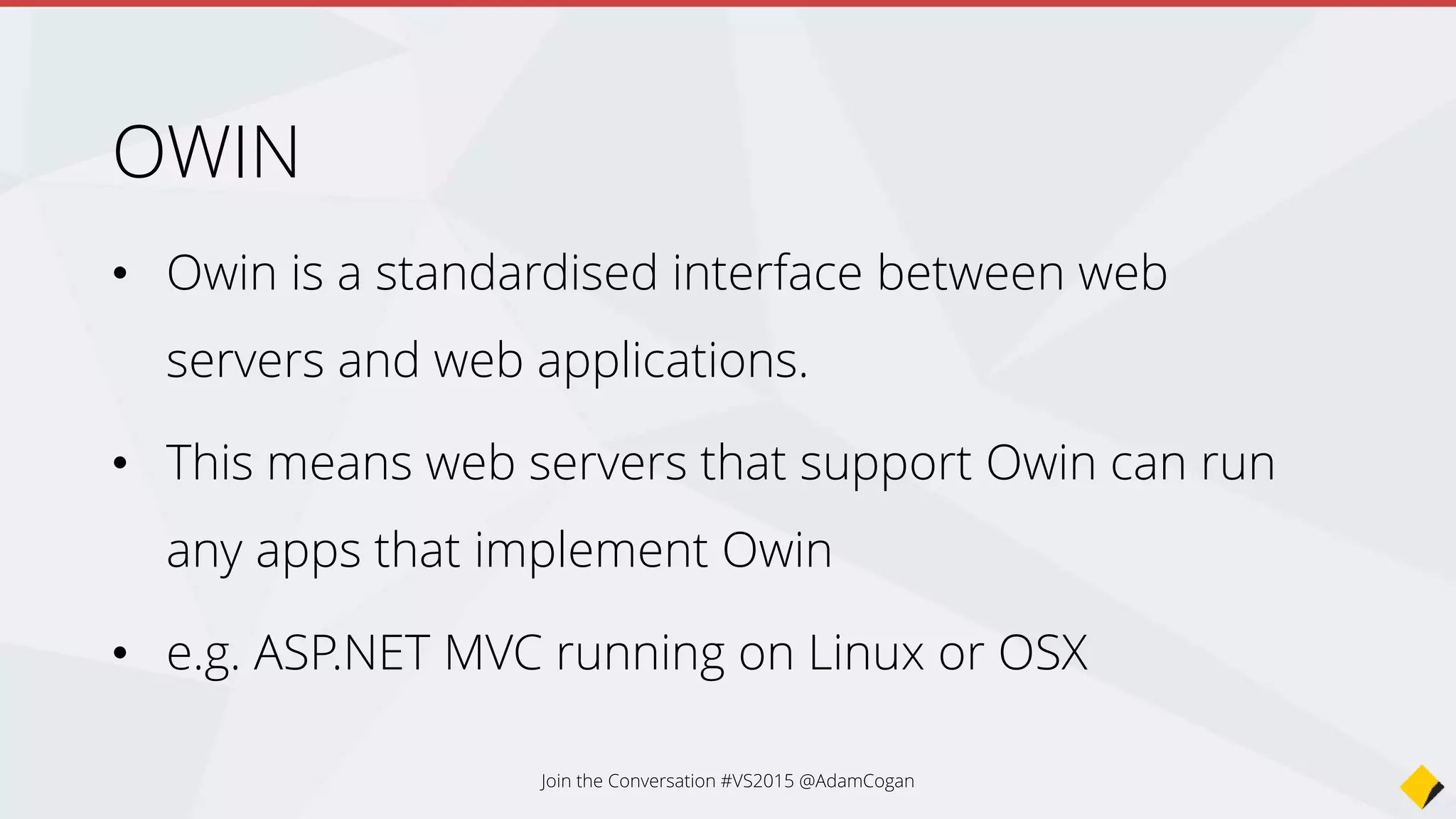

OWIN
• Owin is a standardised interface between web
servers and web applications.
• This means web servers that support Owin can run
any apps that implement Owin
• e.g. ASP.NET MVC running on Linux or OSX

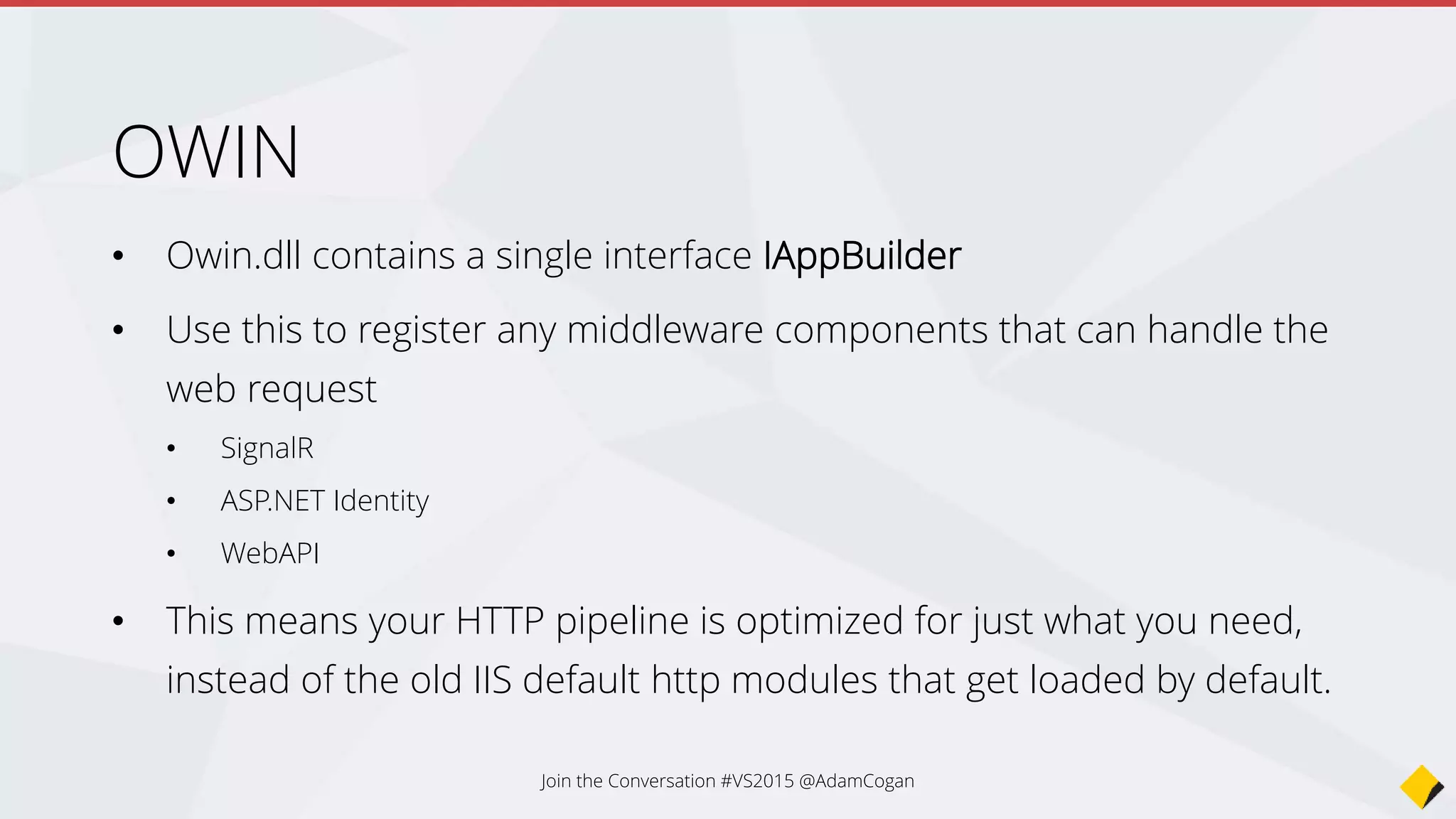

OWIN
• Owin.dll contains a single interface IAppBuilder
• Use this to register any middleware components that can handle the
web request
• SignalR
• ASP.NET Identity
• WebAPI
• This means your HTTP pipeline is optimized for just what you need,
instead of the old IIS default http modules that get loaded by default.

Startup.cs
app.UseIdentity()
app.UseStaticFiles()
app.UseMvc()
Request/Home/Index
Request/Content/logo.png
Register OWIN middleware
1st Request comes in
to an MVC page
Verifies user is
logged in and passes
onto the next OWIN
middleware
Not a static file, so
move onto the next
OWIN middle wear
MVC route handles
request and returns
to the client
2nd Request comes in
for an image
Skips check and
moves on, because
we allow anonymous
Static file handler
gets the file and
returns to the client

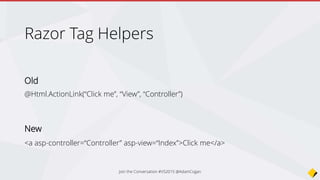

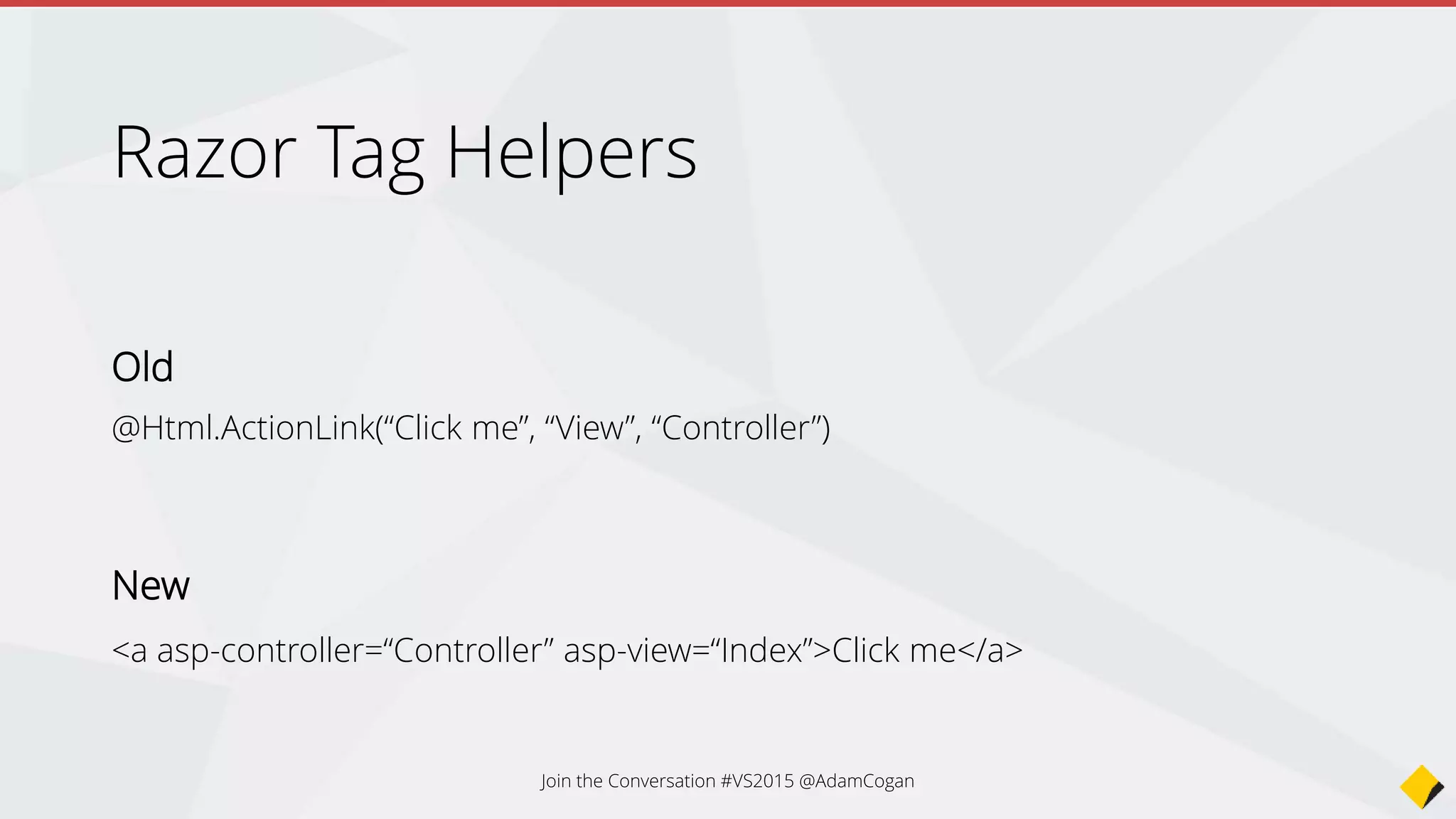

Old
@Html.ActionLink(“Click me”, “View”, “Controller”)
New
<a asp-controller=“Controller” asp-view=“Index”>Click me</a>
Razor Tag Helpers

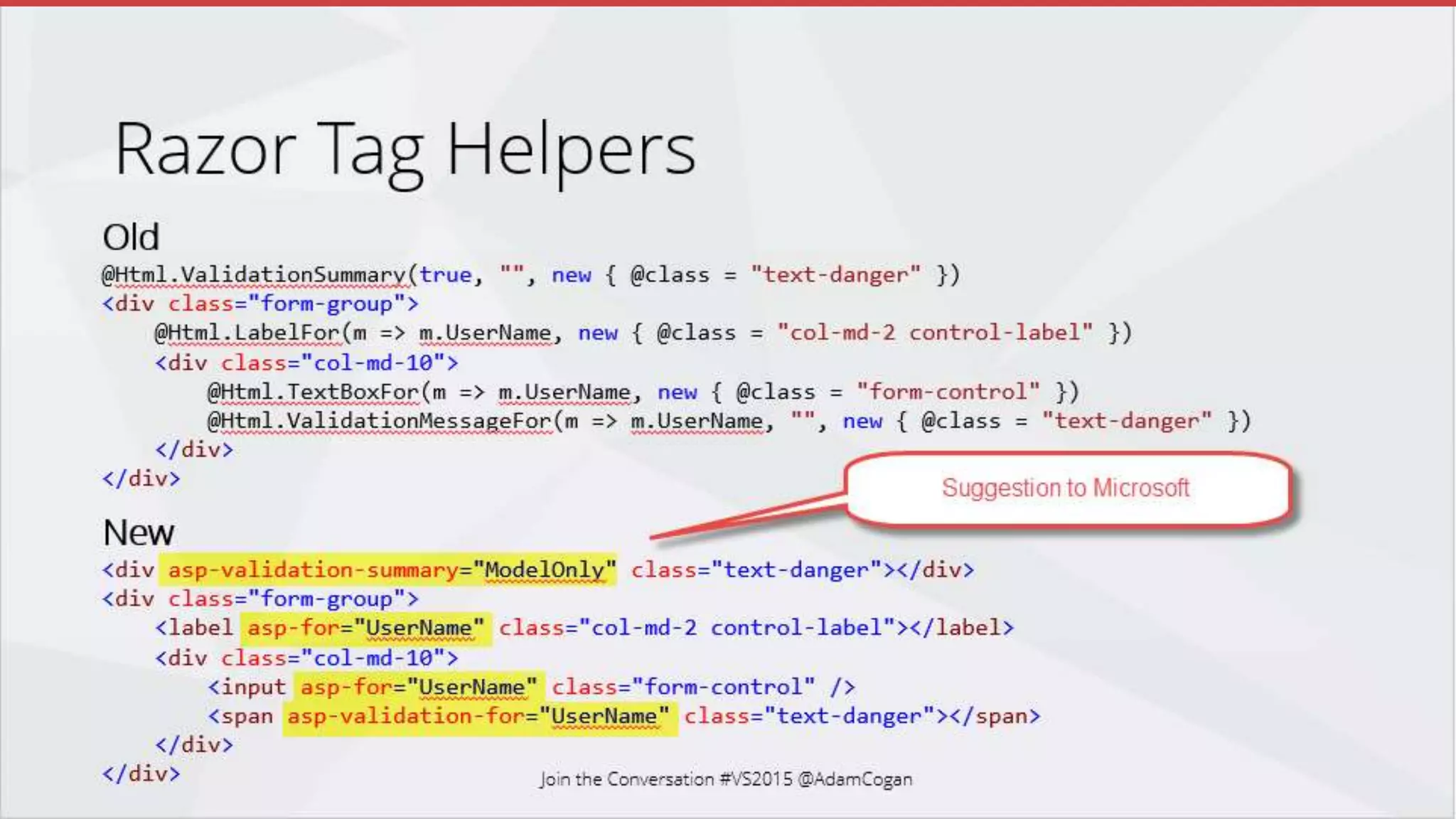

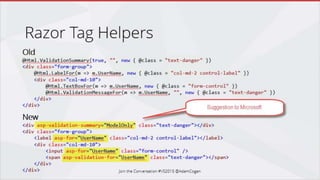

Razor Tag Helpers
Old
@Html.ValidationSummary(true, "", new { @class = "text-danger" })
<div class="form-group">
@Html.LabelFor(m => m.UserName, new { @class = "col-md-2 control-label" })
<div class="col-md-10">
@Html.TextBoxFor(m => m.UserName, new { @class = "form-control" })
@Html.ValidationMessageFor(m => m.UserName, "", new { @class = "text-danger" })
</div>
</div>
New
<div asp-validation-summary="ModelOnly" class="text-danger"></div>
<div class="form-group">
<label asp-for="UserName" class="col-md-2 control-label"></label>
<div class="col-md-10">
<input asp-for="UserName" class="form-control" />
<span asp-validation-for="UserName" class="text-danger"></span>
</div>
</div>

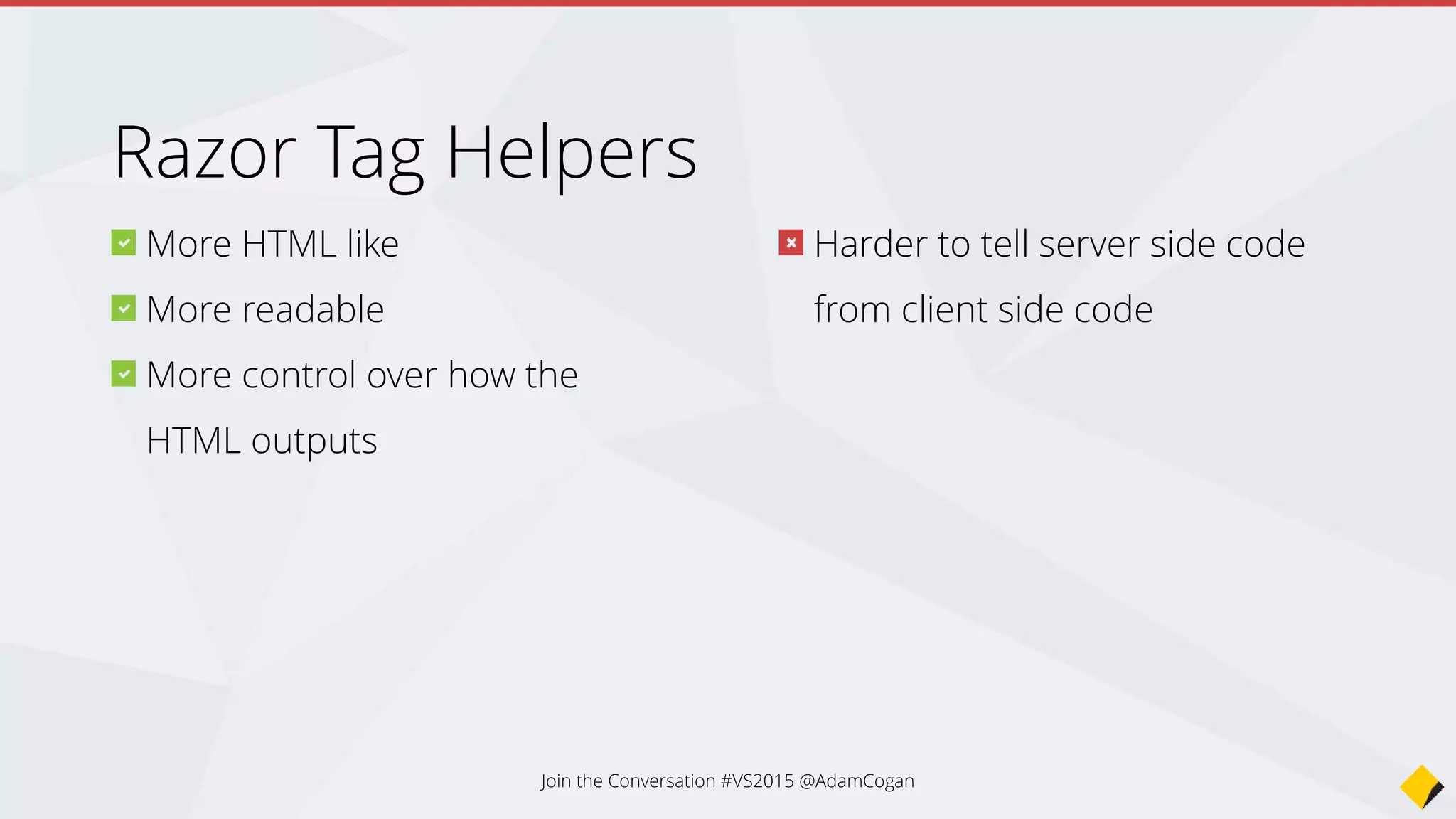

Harder to tell server side code
from client side code
More HTML like
More readable
More control over how the
HTML outputs
Razor Tag Helpers

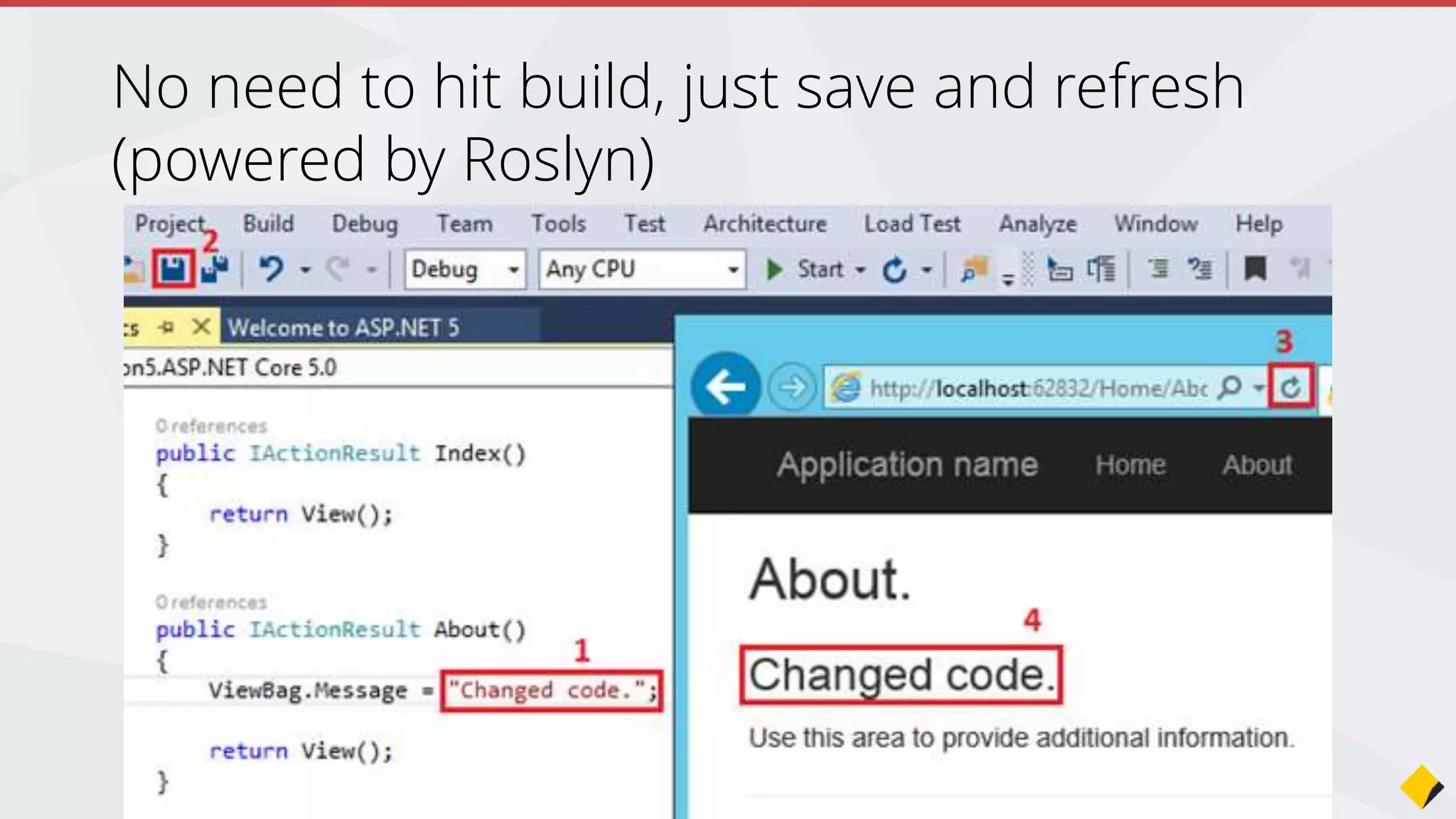

No need to hit build, just save and refresh
(powered by Roslyn)

AngularJS

AngularJS
http://www.adamcogan.com/2014/11/13/why-ssw-is-moving-to-angularjs/
https://github.com/johnpapa/angularjs-styleguide
http://www.ssw.com.au/ssw/Events/Webinars/DevSuperpowers-AngularJS-with-TypeScript.aspx
http://tv.ssw.com/5682/how-to-make-web-applications-with-angularjs-and-asp-net-mvc-dev-
superpowers-episode-7
http://tv.ssw.com/5818/angularjs-with-dan-wahlin

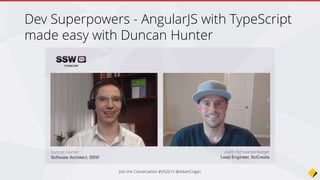

Dev Superpowers - AngularJS with TypeScript
made easy with Duncan Hunter

How to make web applications with AngularJS and
ASP.NET MVC | Dev SuperPowers Episode 7

The future of AngularJS: an interview with
Dan Wahlin

AngularJS + VS2015
Built in templates to create
• Controller
• Service
• Directive
• Factory
• Module

AngularJS + VS2015 - Suggestion
Make these create TypeScript files instead of JavaScript
files
News – Angular 2.0 is to be written using TypeScript

SignalR
• Add via the NuGet package
• Real time communication between clients
• Good for:
• Showing progress on long running tasks
• Interactive apps
• Team collaboration

SignalR in action
https://sswhealthcheck.com/
https://sugarlearning.com/Public/healthcheck
https://sswlinkauditor.com/
Visual Studio BrowserLink

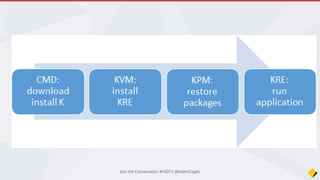

ASP.NET 5 - KRE, KVM, KPM
• KRE – K Runtime Environment
• Code required to bootstrap and run an ASP.NET 5 application.
• KVM – K Version Manager
• Updating and installing different versions of KRE. KVM is also used to set
default KRE version.
• KPM – K Package Manager
• Manages packages needed by applications to run (NuGet)

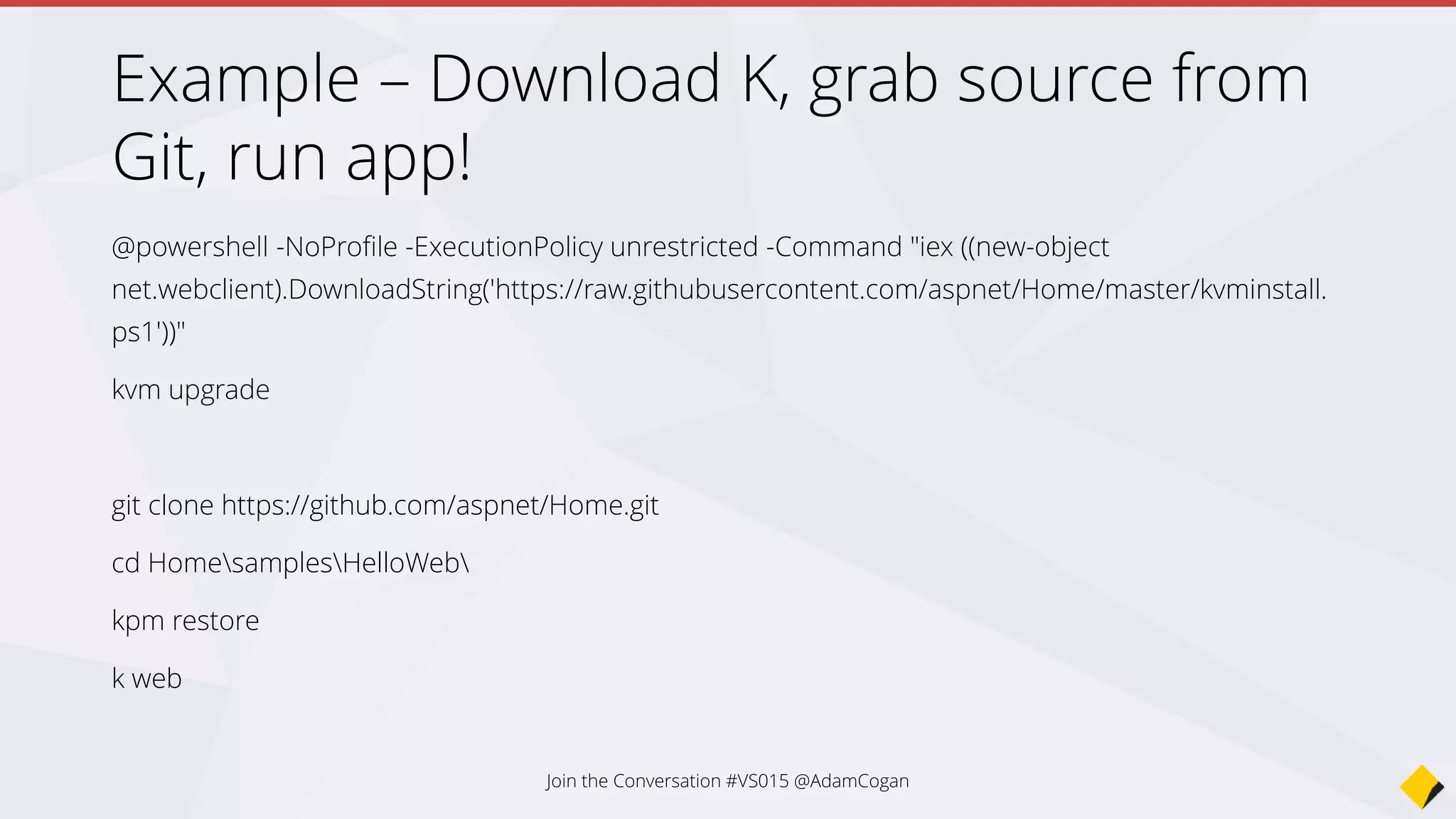

Example – Download K, grab source from
Git, run app!
@powershell -NoProfile -ExecutionPolicy unrestricted -Command "iex ((new-object
net.webclient).DownloadString('https://raw.githubusercontent.com/aspnet/Home/master/kvminstall.
ps1'))"
kvm upgrade
git clone https://github.com/aspnet/Home.git
cd HomesamplesHelloWeb
kpm restore
k web

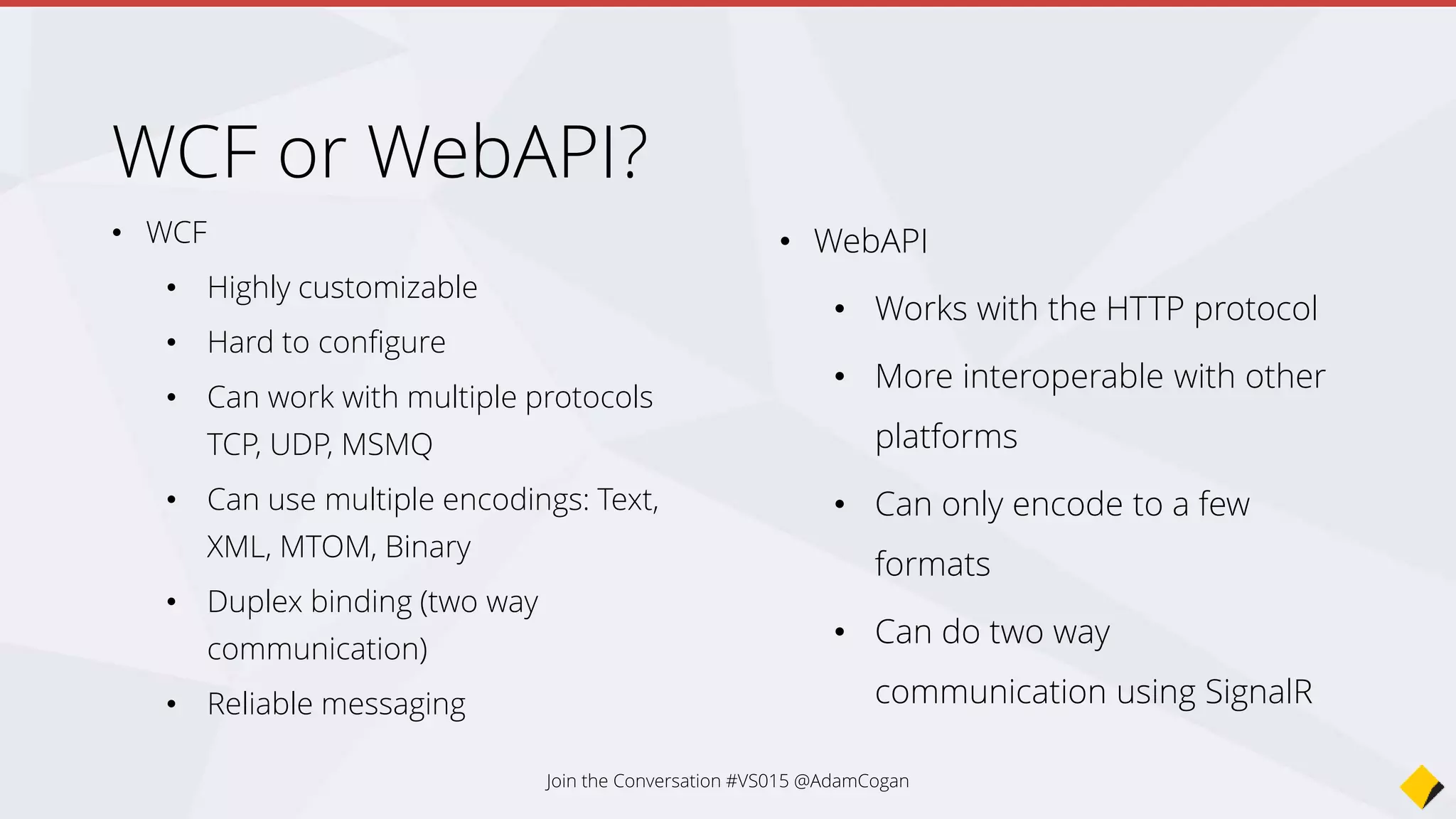

• WCF
• Highly customizable
• Hard to configure
• Can work with multiple protocols
TCP, UDP, MSMQ
• Can use multiple encodings: Text,
XML, MTOM, Binary
• Duplex binding (two way
communication)
• Reliable messaging
• WebAPI
• Works with the HTTP protocol
• More interoperable with other
platforms
• Can only encode to a few
formats
• Can do two way
communication using SignalR
WCF or WebAPI?

ECMA Script 6
• LINQ in javascript!
• But… Browser compatibility
• http://kangax.github.io/compat-table/es6/
// Old Way
[1,2,3].map(function (x) {
return x * x;
});
// New Way
[1,2,3].map(x => x * x);

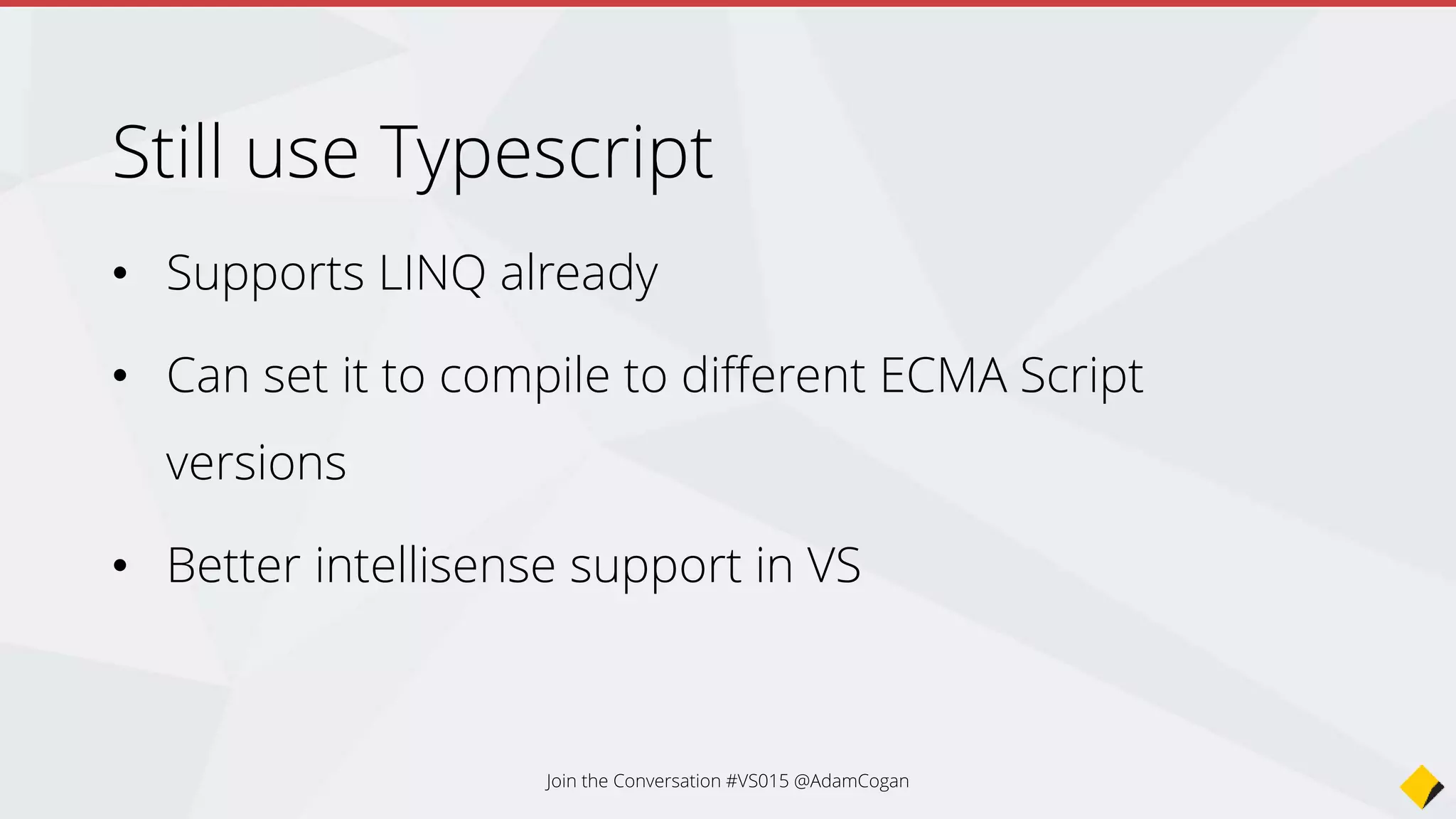

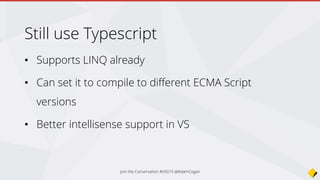

Still use Typescript
• Supports LINQ already
• Can set it to compile to different ECMA Script
versions
• Better intellisense support in VS

Say goodbye…
- ASP.NET 4
- ASP.NET 5
- No Web Forms
- No VB.NET
- Faster
- Cheaper hosting (Linux, Mac)

• project.json (was dependencies)
• config.json (was web.config)
• Javascript package managers and builders (NPM, Bower, Grunt)
• Dependency Injection included
• ApiController is Controller
• Startup class using OWIN (was App_Start + global.asax)
• Razor Tag Helpers
• Compile ahead of time, no need to compile to see changes
• More love for Angular
• No
• + …
Summary - What’s changed in ASP.NET 5?

Mobile Development
Azure + Continuous Deployment + Testing
Summary
What’s New
Agenda

What are Azure Deployment Slots?
Auto Swap
Swapping
Testing in Production
Continuous Deploy to Deployment Slots
Azure +
Continuous
Deployment +
Testing

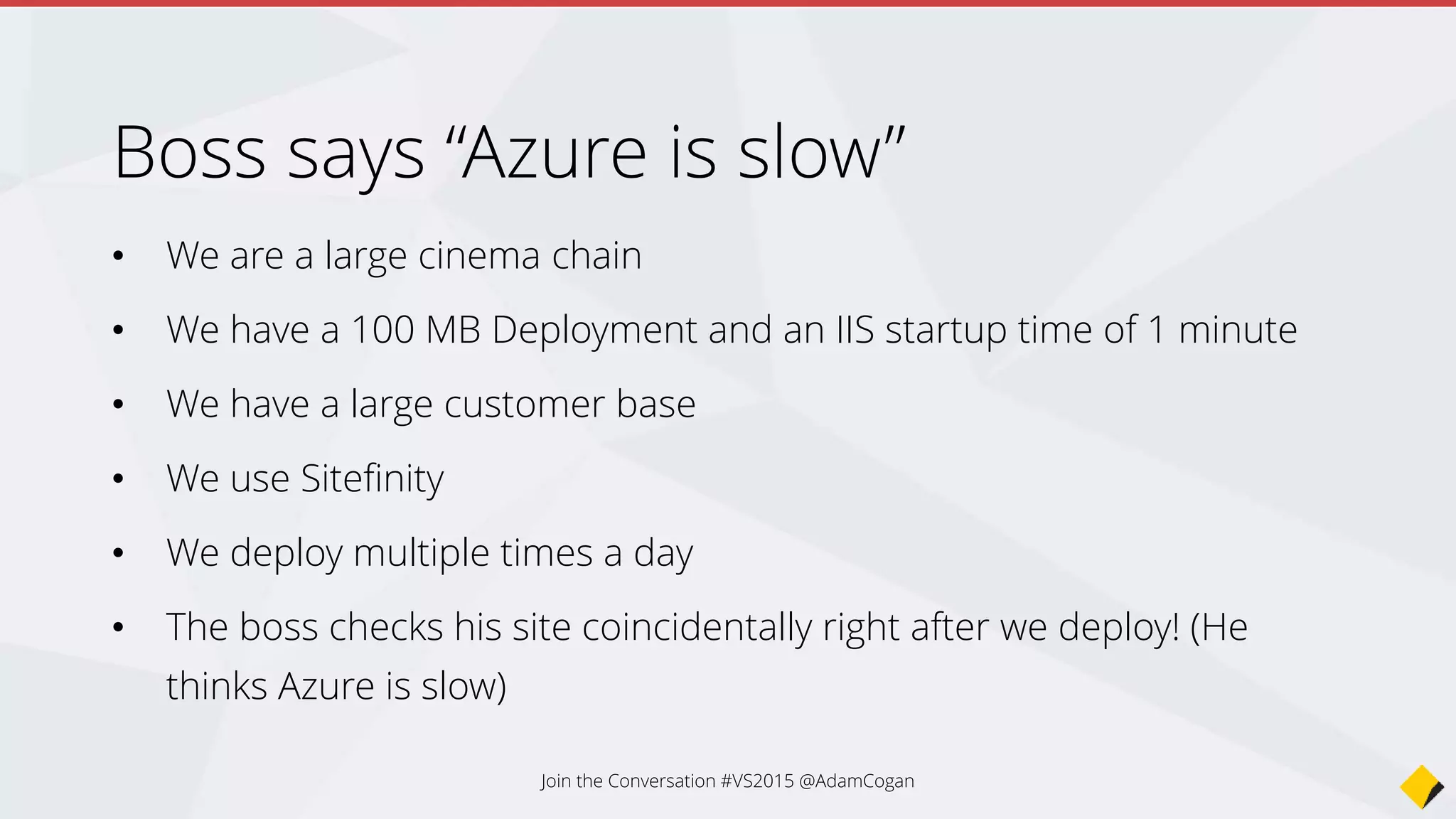

Boss says “Azure is slow”
• We are a large cinema chain
• We have a 100 MB Deployment and an IIS startup time of 1 minute
• We have a large customer base
• We use Sitefinity
• We deploy multiple times a day
• The boss checks his site coincidentally right after we deploy! (He
thinks Azure is slow)

A:
Deploy less often
Or
Learn about Azure Deployment Slots
(they can make your downtime 0)

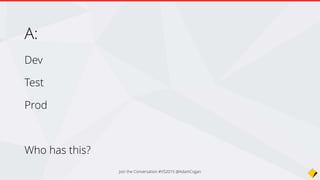

A:
Dev
Test
Prod
Who has this?

A:
Dev
Test / QA
UAT
Staging / Preprod
Prod / Live
www.northwind.com (1+2 Azure Deployment Slots)
Prod1 - www1.northwind.com Azure Deployment Slot #1 (Make Live) aka Swap
Prod2 – www2.northwind.com Azure Deployment Slot #2

Good example - Do you use Azure
Deployment Slots on production?

Configure
Deployment
Slots

Deploy to
pre-prod
• Deploy a version of your website to the
pre-production slot
• Use Azure Continuous Deployment or
any of your favourite deployment tools

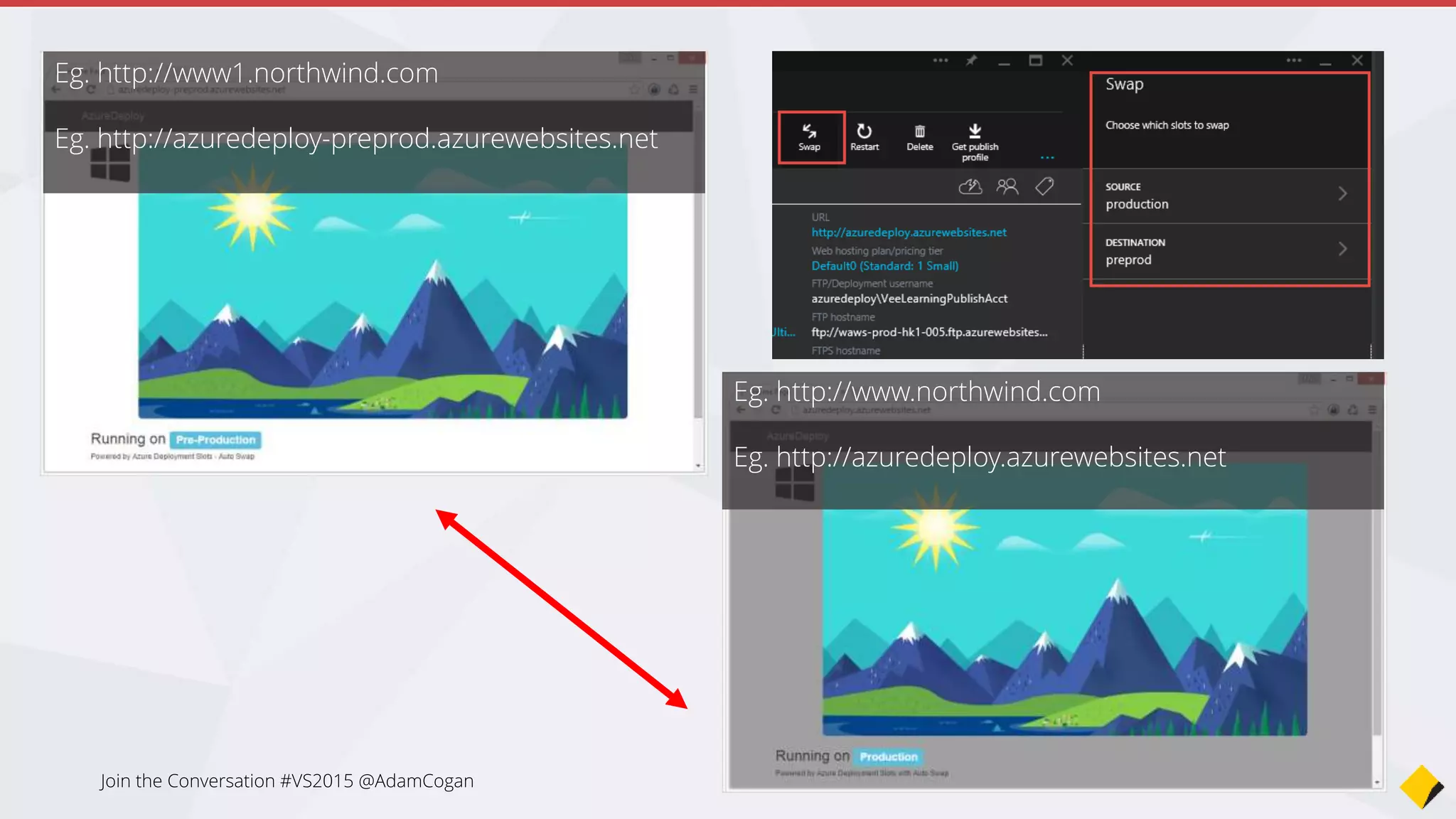

The beauty of “Swap”
• No cold start
• The swap will simply switch pointers
• Changes can be rolled back by reversing the swap

Deployment Slots
• Available on Standard Plan
• Up to 4 deployment slots for 1 production slot
• Scaling is not available for non-production slots.
• Shares the same resources as your production slots (sites)
and runs on the same VMs

Eg. http://www1.northwind.com
Eg. http://azuredeploy-preprod.azurewebsites.net
Eg. http://www.northwind.com
Eg. http://azuredeploy.azurewebsites.net

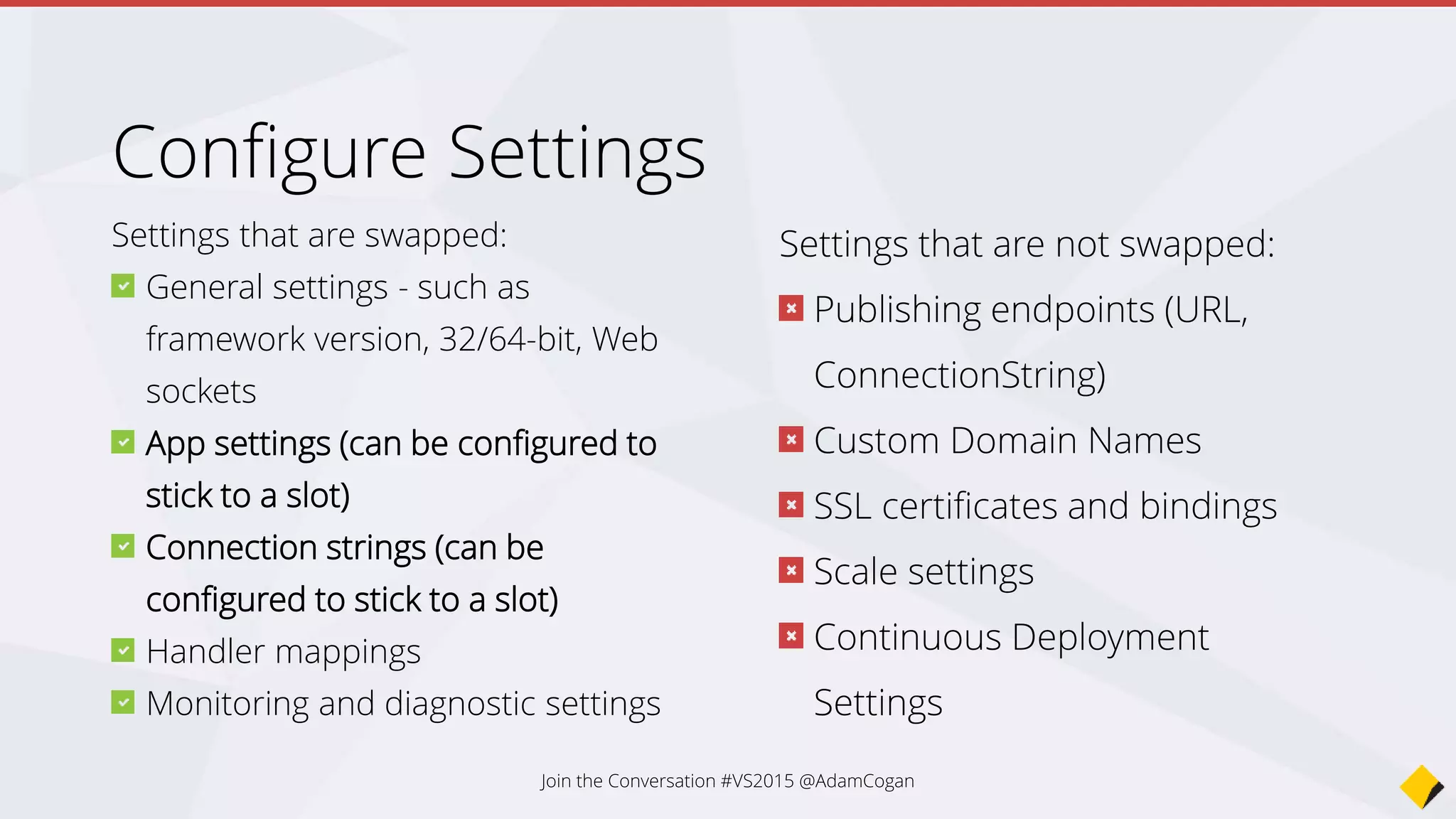

Settings that are not swapped:
Publishing endpoints (URL,
ConnectionString)
Custom Domain Names
SSL certificates and bindings
Scale settings
Continuous Deployment
Settings
Settings that are swapped:
General settings - such as
framework version, 32/64-bit, Web
sockets
App settings (can be configured to
stick to a slot)
Connection strings (can be
configured to stick to a slot)
Handler mappings
Monitoring and diagnostic settings

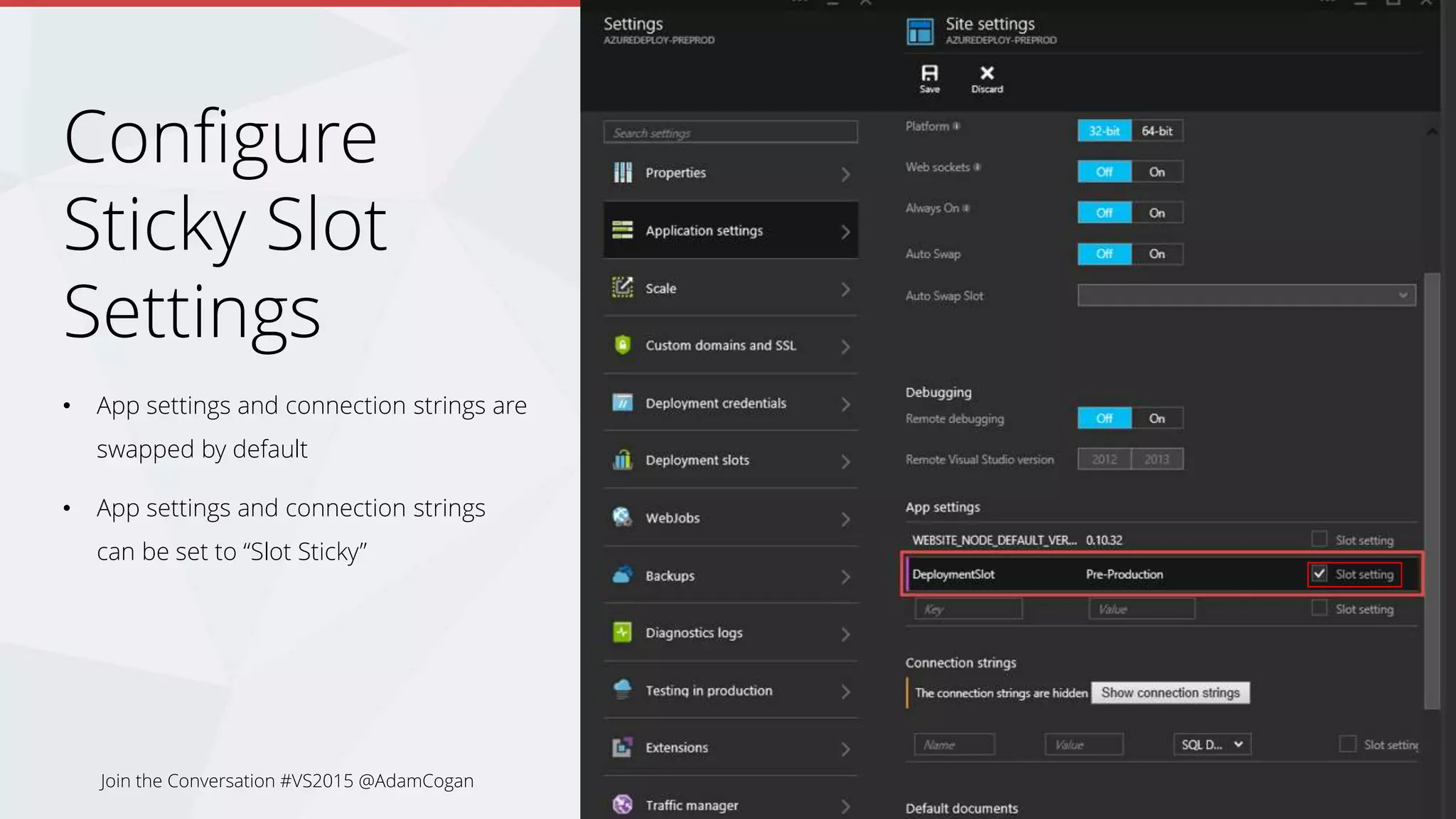

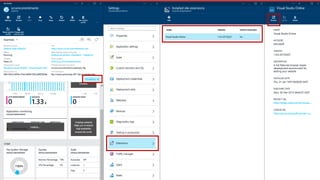

Configure Settings

Configure
Sticky Slot
Settings
• App settings and connection strings are
swapped by default
• App settings and connection strings
can be set to “Slot Sticky”

Testing in
production
• A/B/N Testing
• Similar to Google Content Experiments
• Use App Insights to measure results
• ? 50/50 vs 33/33/33
• Using Production users as Testers
• Route traffic between your deployment
slots based on percentage of the traffic
• Use App Insights to check for problems

20%80%

Why should I use Testing in Production
• Measure effectiveness of different implementations of a
feature
• Test which site leads to a decrease in bounce rate, or to
the greatest increase in revenue or session duration
• Testing new features without affecting all users
(Making your disaster less of a disaster)

Auto Swap
• Addresses the “cold start” issue
• When you deploy your code changes, a
swap will automatically take place once
the deployment is complete

When deployment is finished, a
swap will automatically take place
Eg. http://www1.northwind.com
Eg. http://azuredeploy-preprod.azurewebsites.net

Do you know how to find bad smells in code?

The state of testing
• Code
• VS Unit Tests (recommended)
• Nunit Tests
• UI
• Coded UI Tests with MTM
• Selenium + Chutzpah (recommended)
• Javascript
• JSUnit
• Qunit (made by the jQuery team)
• Mocha (new comer)
• Jasmine + Chutzpah (recommended)

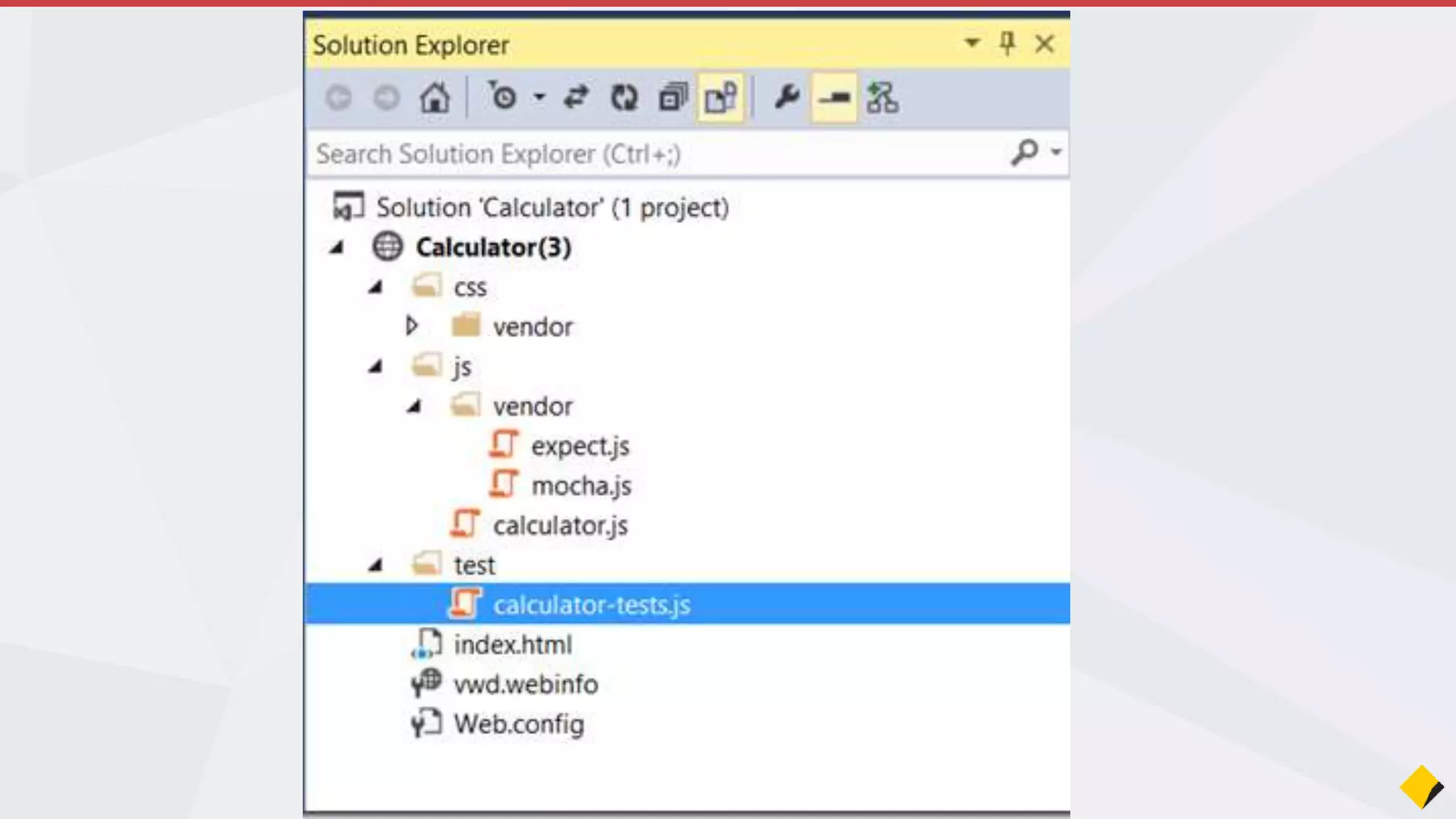

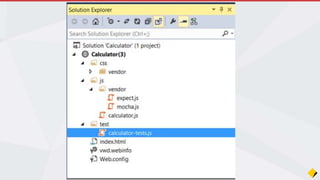

Chutzpah
Lets you run Javascript unit tests in Visual Studio
1. Write your unit tests in your favourite framework
(Jasmine, Mocha)
2. Get the Chutzpah VS extension

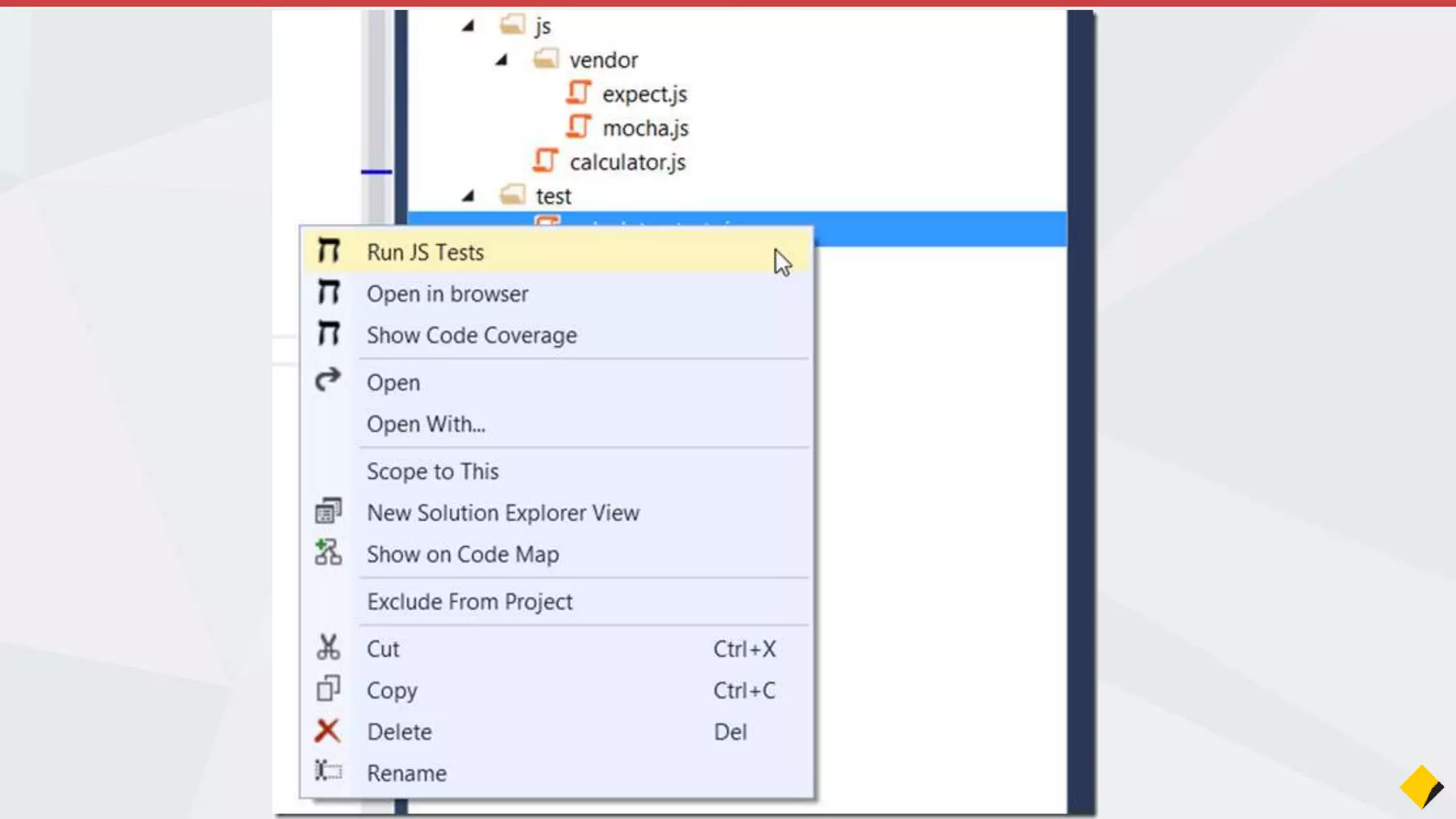

3. Right click run tests!

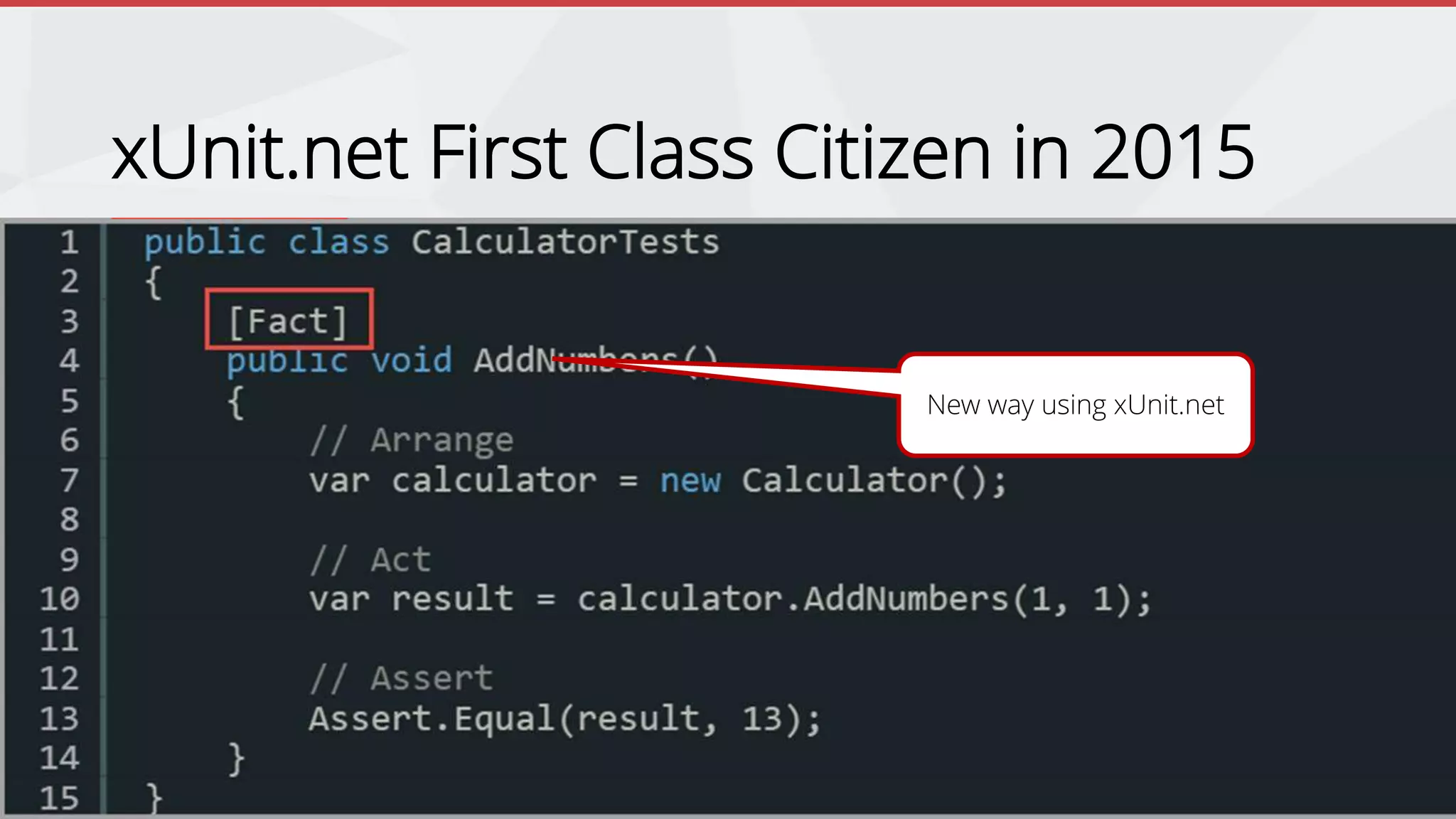

xUnit.net First Class Citizen in 2015
Old way using MSTest
New way using xUnit.net

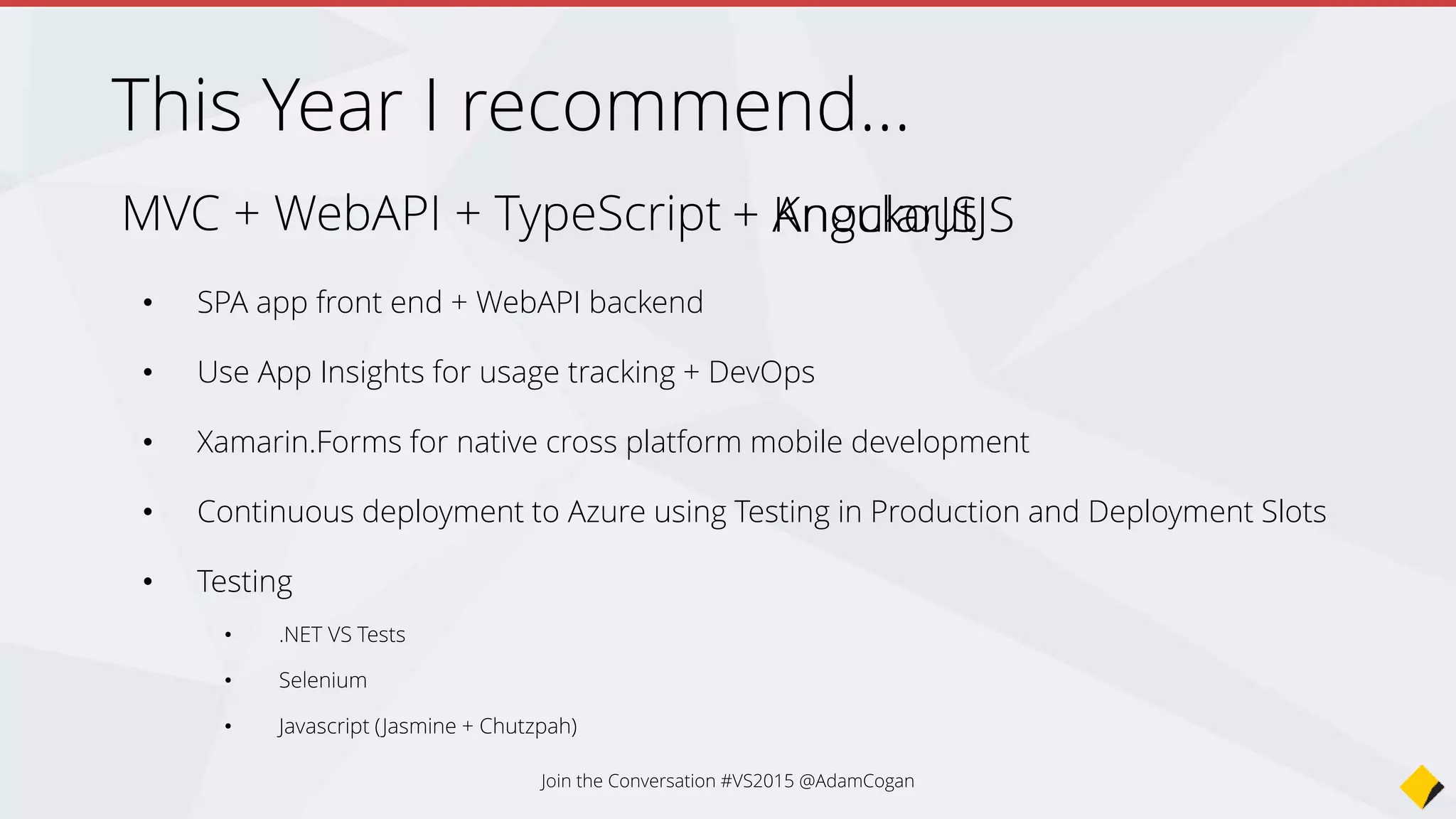

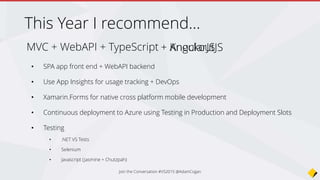

MVC + WebAPI + TypeScript + KnockoutJS + AngularJS
This Year I recommend…
• SPA app front end + WebAPI backend
• Use App Insights for usage tracking + DevOps
• Xamarin.Forms for native cross platform mobile development
• Continuous deployment to Azure using Testing in Production and Deployment Slots
• Testing
• .NET VS Tests
• Selenium
• Javascript (Jasmine + Chutzpah)

Mobile Development
Azure + Continuous Deployment
Summary
What’s New
Agenda

@AdamCogan #NetUG
Tweet your favourite feature

Tweet your favourite video @SSWTV
Check out tv.ssw.com

Thank you!
info@ssw.com.au
www.ssw.com.au
Sydney | Melbourne | Brisbane | Adelaide

find me on slideshare:
http://www.slideshare.net/SSWconsulting/

What’s new in VS 2015 and ALM 2015

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to What’s new in VS 2015 and ALM 2015

Similar to What’s new in VS 2015 and ALM 2015 (20)

More from SSW

More from SSW (6)

Recently uploaded

Recently uploaded (20)

What’s new in VS 2015 and ALM 2015

Editor's Notes
