1. Measure and increase developer
productivity with the help of Serverless
Vadym Kazulkin, ip.labs
November 13, 2020
Bay Area

2. Contact
Vadym Kazulkin
ip.labs GmbH Bonn, Germany
Co-Organizer of the Java User Group Bonn
and Serverless Bonn Meetup
v.kazulkin@gmail.com
@VKazulkin
https://www.linkedin.com/in/vadymkazulkin/
https://www.iplabs.de/

3. Ip.labs GmbH
https://www.iplabs.de/

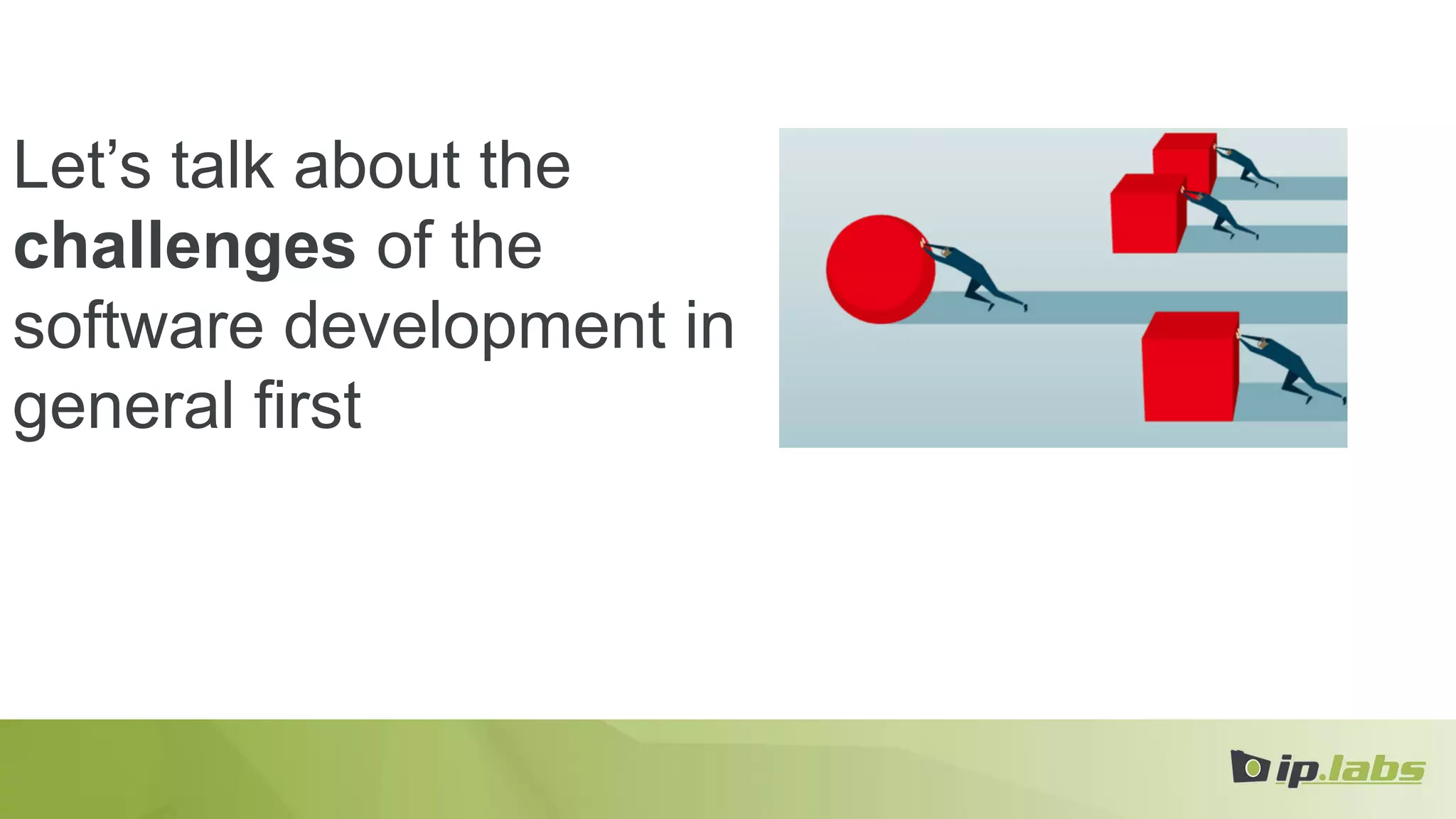

4. Let’s talk about the
challenges of the
software development in
general first

5. Cognitive Load –
the total amount of mental effort
being used in the working memory
• Intrinsic
• Extraneous
• Germane
https://teamtopologies.com/

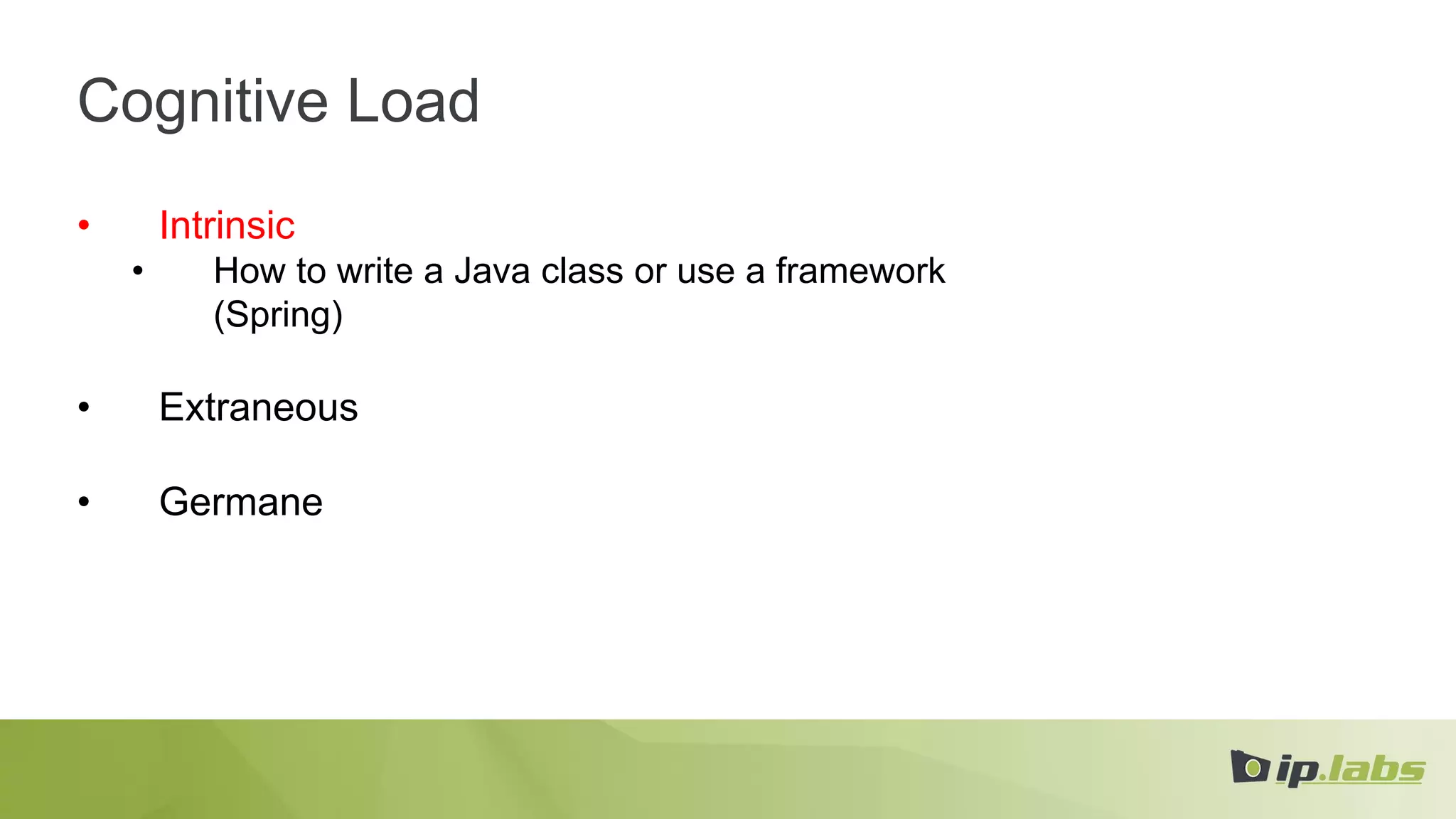

6. Cognitive Load
• Intrinsic
• How to write a Java class or use a framework
(Spring)
• Extraneous
• Germane

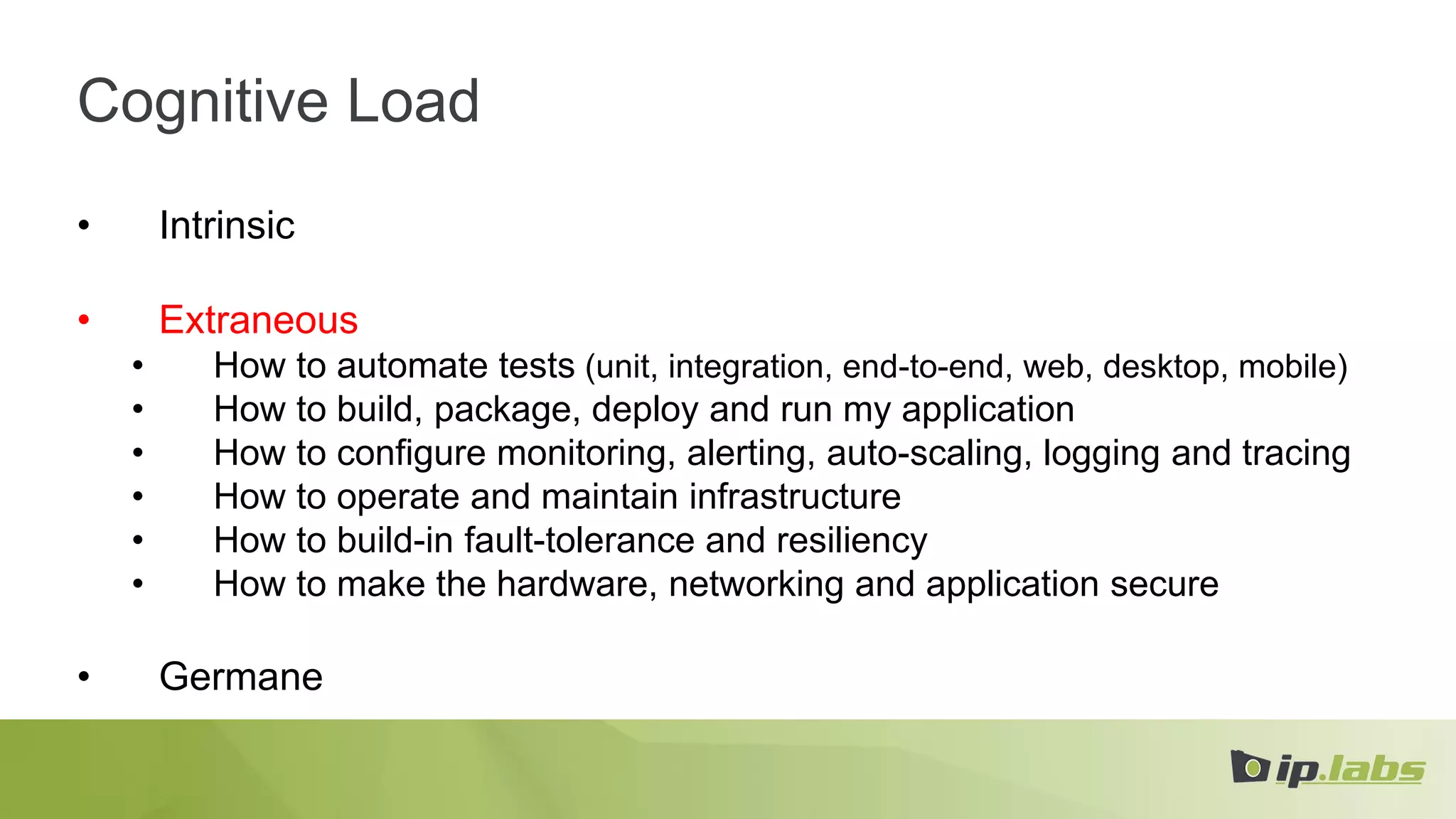

7. Cognitive Load
• Intrinsic
• Extraneous
• How to automate tests (unit, integration, end-to-end, web, desktop, mobile)
• How to build, package, deploy and run my application
• How to configure monitoring, alerting, auto-scaling, logging and tracing
• How to operate and maintain infrastructure
• How to build-in fault-tolerance and resiliency
• How to make the hardware, networking and application secure
• Germane

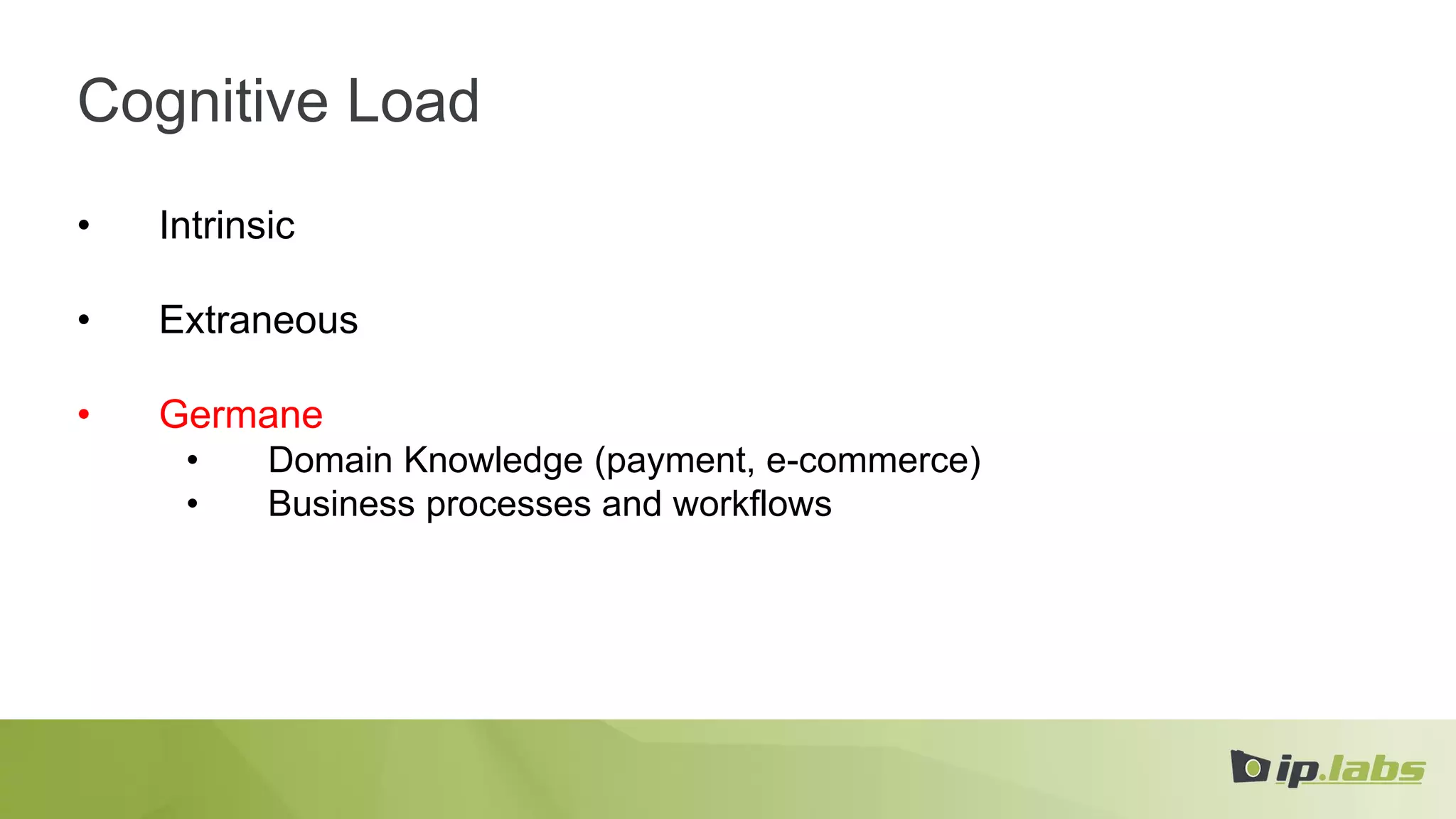

8. Cognitive Load
• Intrinsic
• Extraneous
• Germane
• Domain Knowledge (payment, e-commerce)
• Business processes and workflows

9. Cognitive Load
• Intrinsic ->
become fluent in it
• Extraneous ->
minimize amount of what we
implement/operate/support/own by ourselves
• Germane ->
minimize amount of what we have to implement
by ourselves

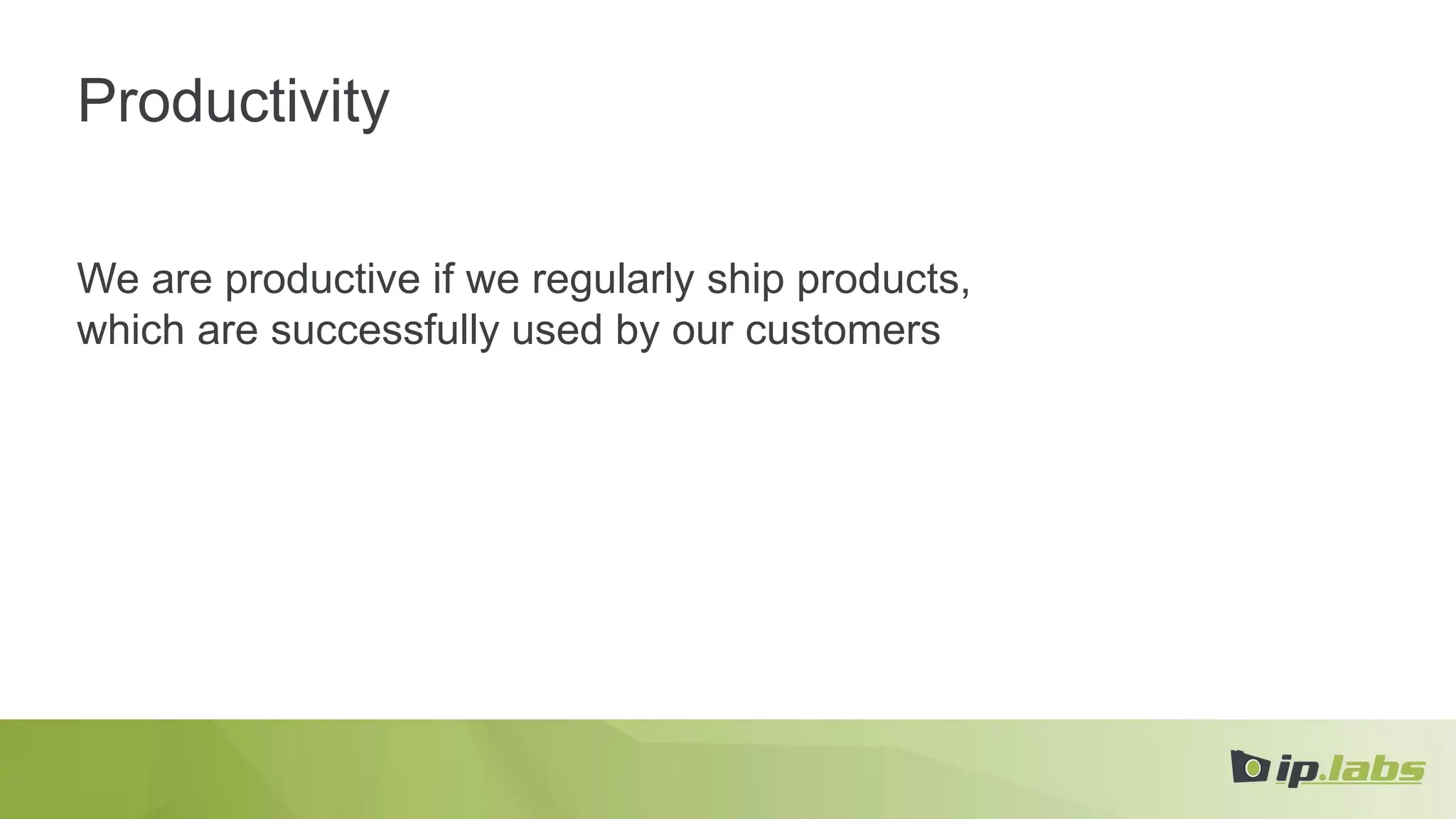

10. Productivity
We are productive if we regularly ship products,
which are successfully used by our customers

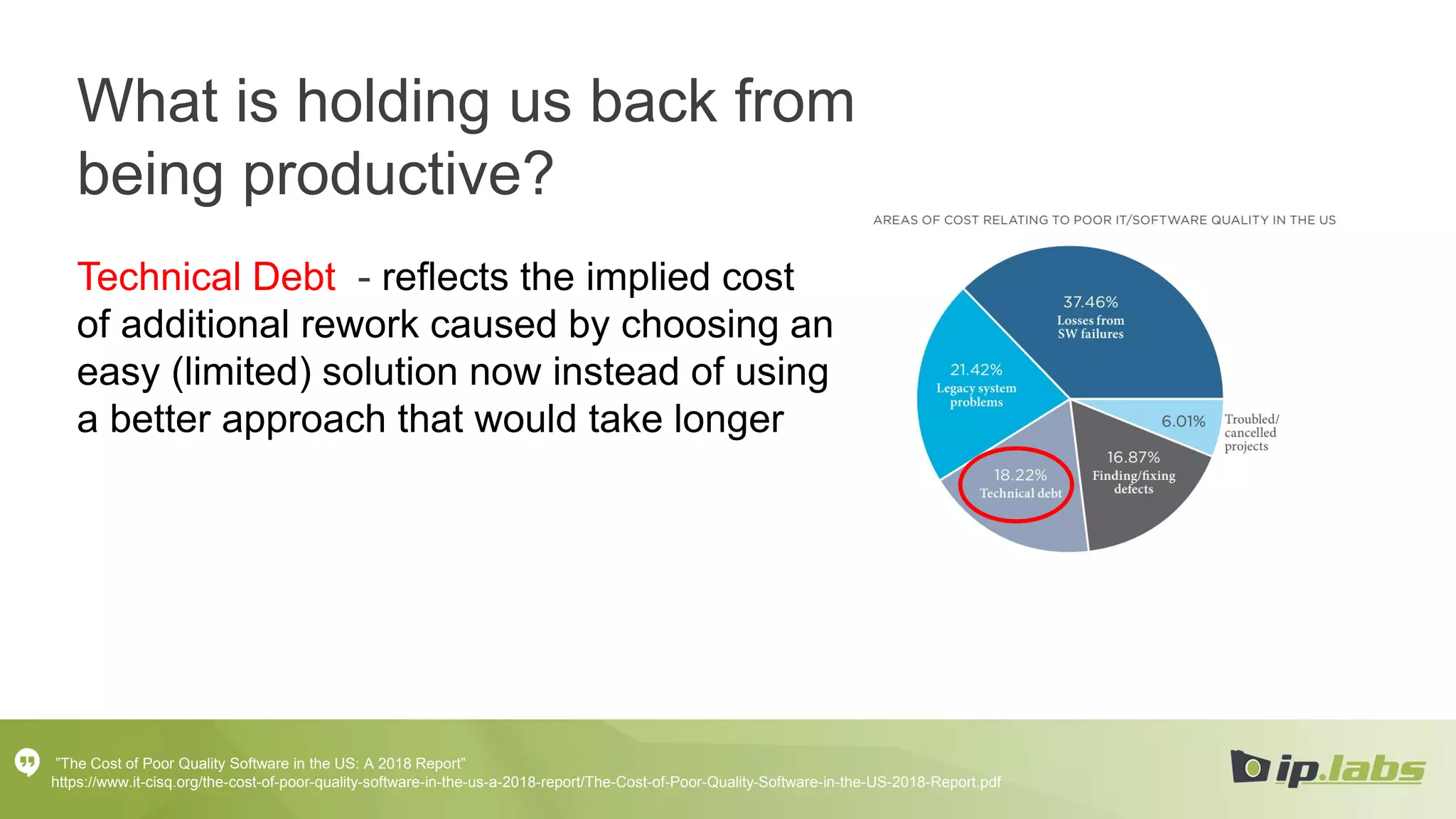

11. What is holding us back from
being productive?
Technical Debt - reflects the implied cost
of additional rework caused by choosing an
easy (limited) solution now instead of using
a better approach that would take longer
”The Cost of Poor Quality Software in the US: A 2018 Report”
https://www.it-cisq.org/the-cost-of-poor-quality-software-in-the-us-a-2018-report/The-Cost-of-Poor-Quality-Software-in-the-US-2018-Report.pdf

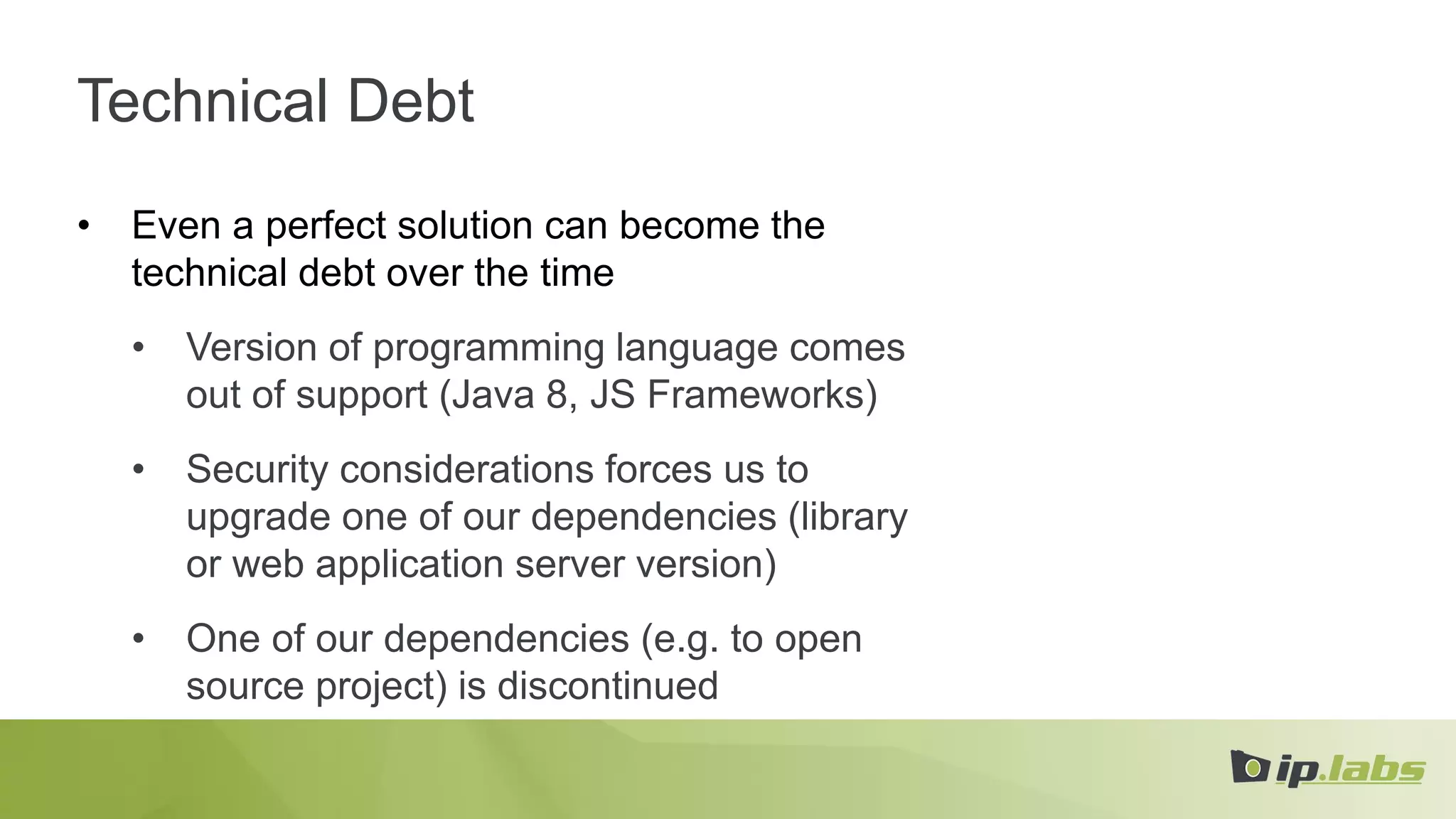

12. Technical Debt
• Even a perfect solution can become the
technical debt over the time
• Version of programming language comes
out of support (Java 8, JS Frameworks)
• Security considerations forces us to
upgrade one of our dependencies (library
or web application server version)
• One of our dependencies (e.g. to open
source project) is discontinued

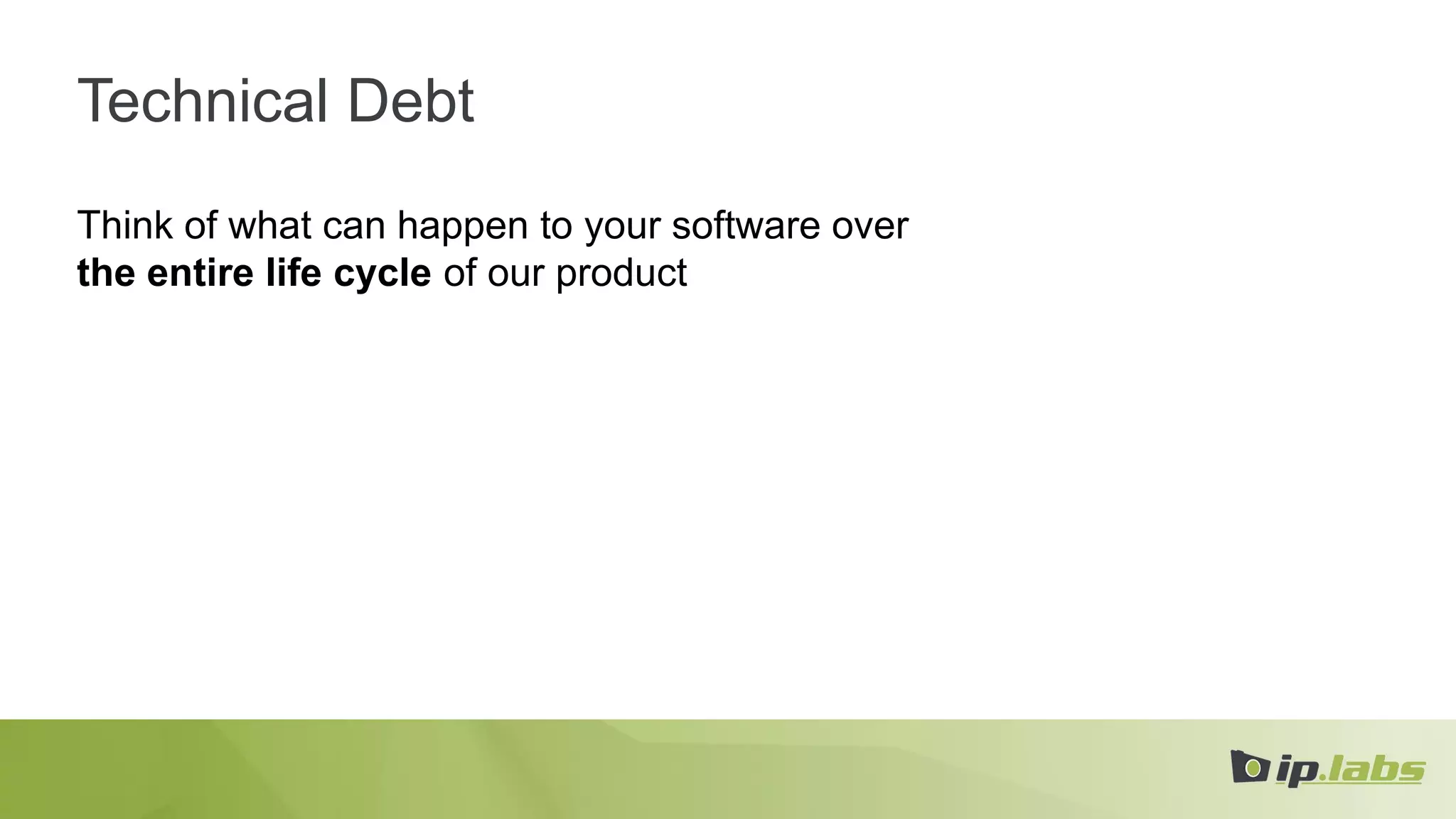

13. Technical Debt
Think of what can happen to your software over
the entire life cycle of our product

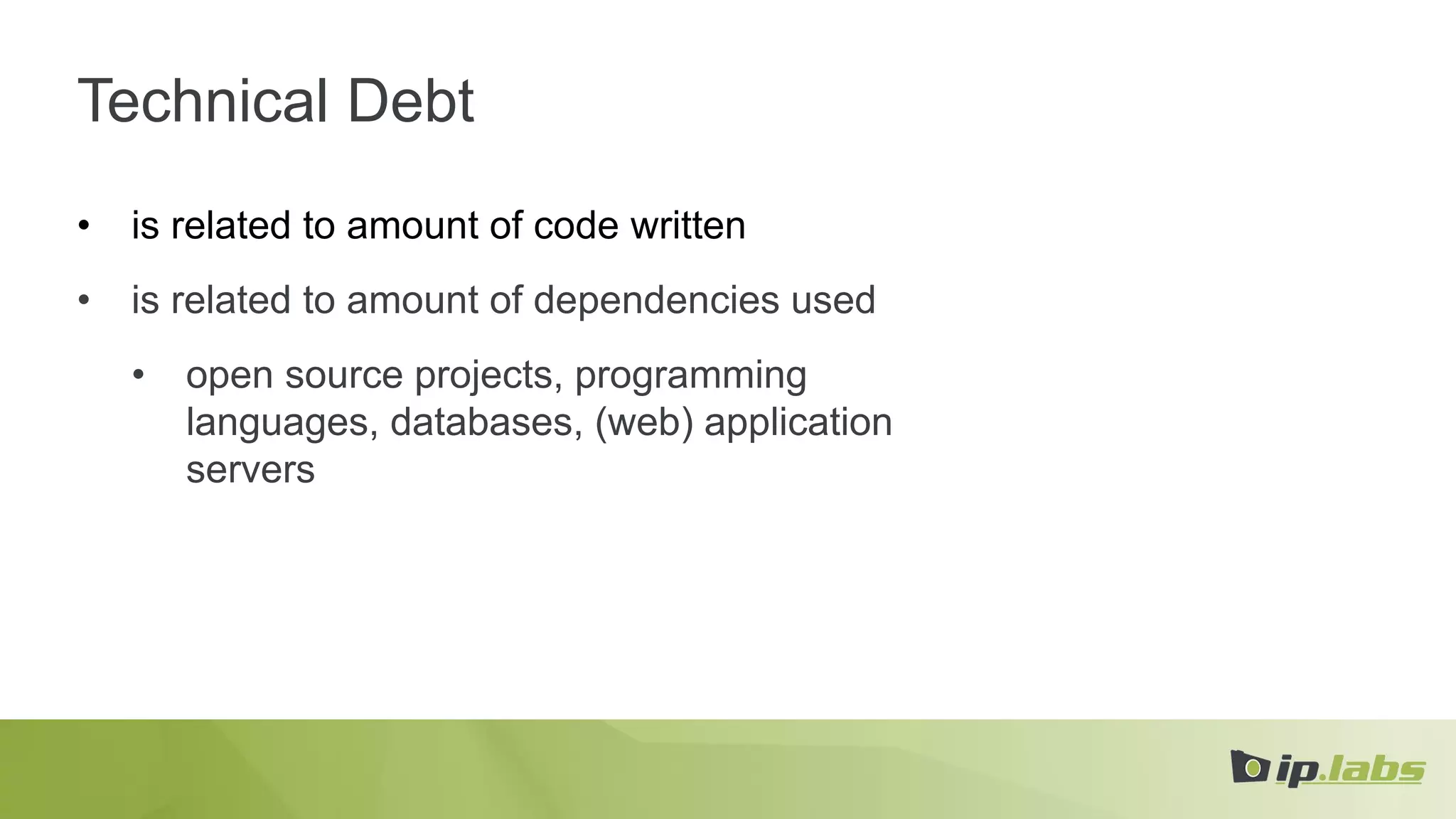

14. Technical Debt
• is related to amount of code written
• is related to amount of dependencies used
• open source projects, programming
languages, databases, (web) application
servers

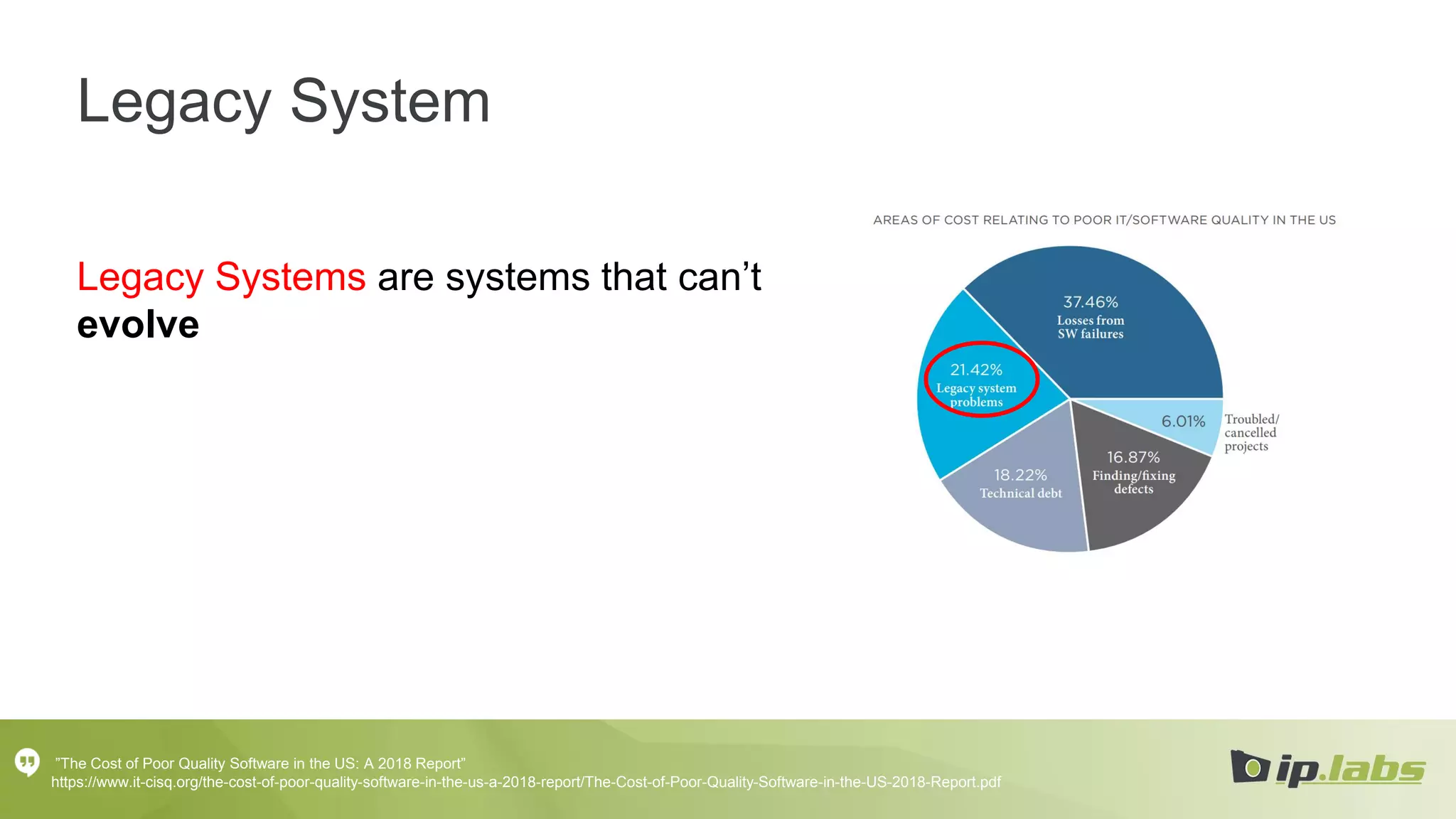

15. Legacy Systems are systems that can’t
evolve
”The Cost of Poor Quality Software in the US: A 2018 Report”
https://www.it-cisq.org/the-cost-of-poor-quality-software-in-the-us-a-2018-report/The-Cost-of-Poor-Quality-Software-in-the-US-2018-Report.pdf
Legacy System

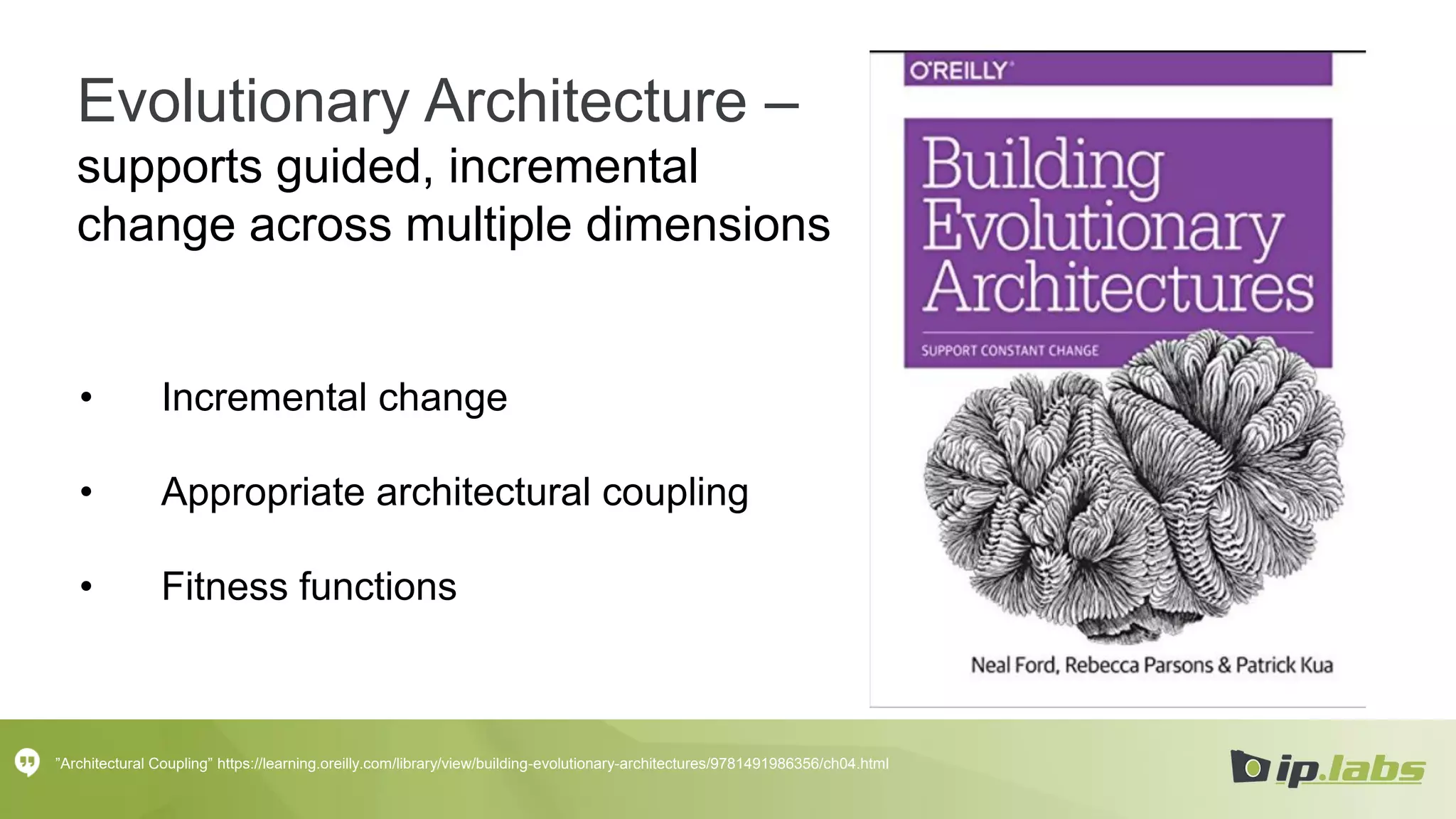

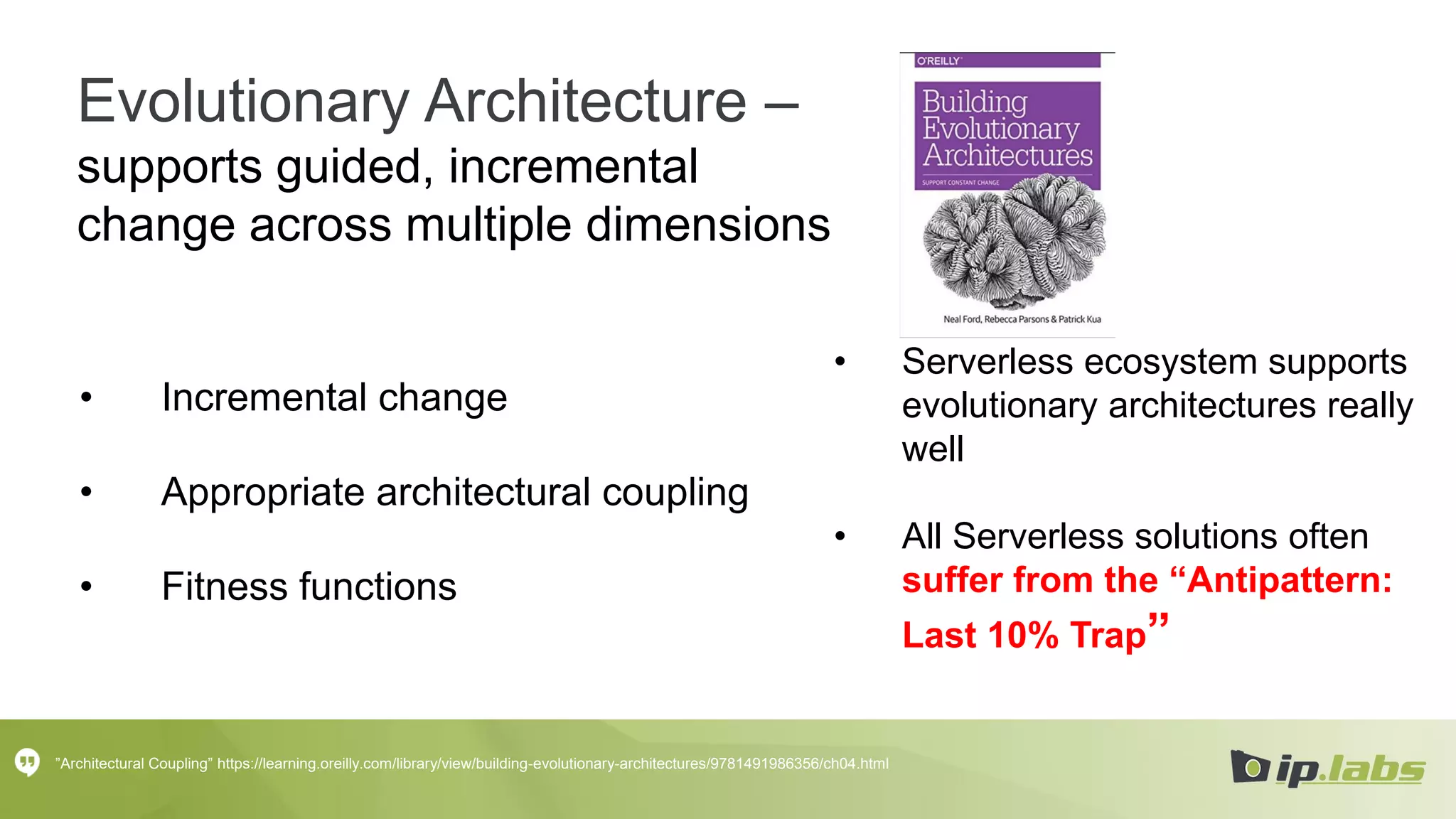

16. Evolutionary Architecture –
supports guided, incremental
change across multiple dimensions
• Incremental change
• Appropriate architectural coupling
• Fitness functions
”Architectural Coupling” https://learning.oreilly.com/library/view/building-evolutionary-architectures/9781491986356/ch04.html

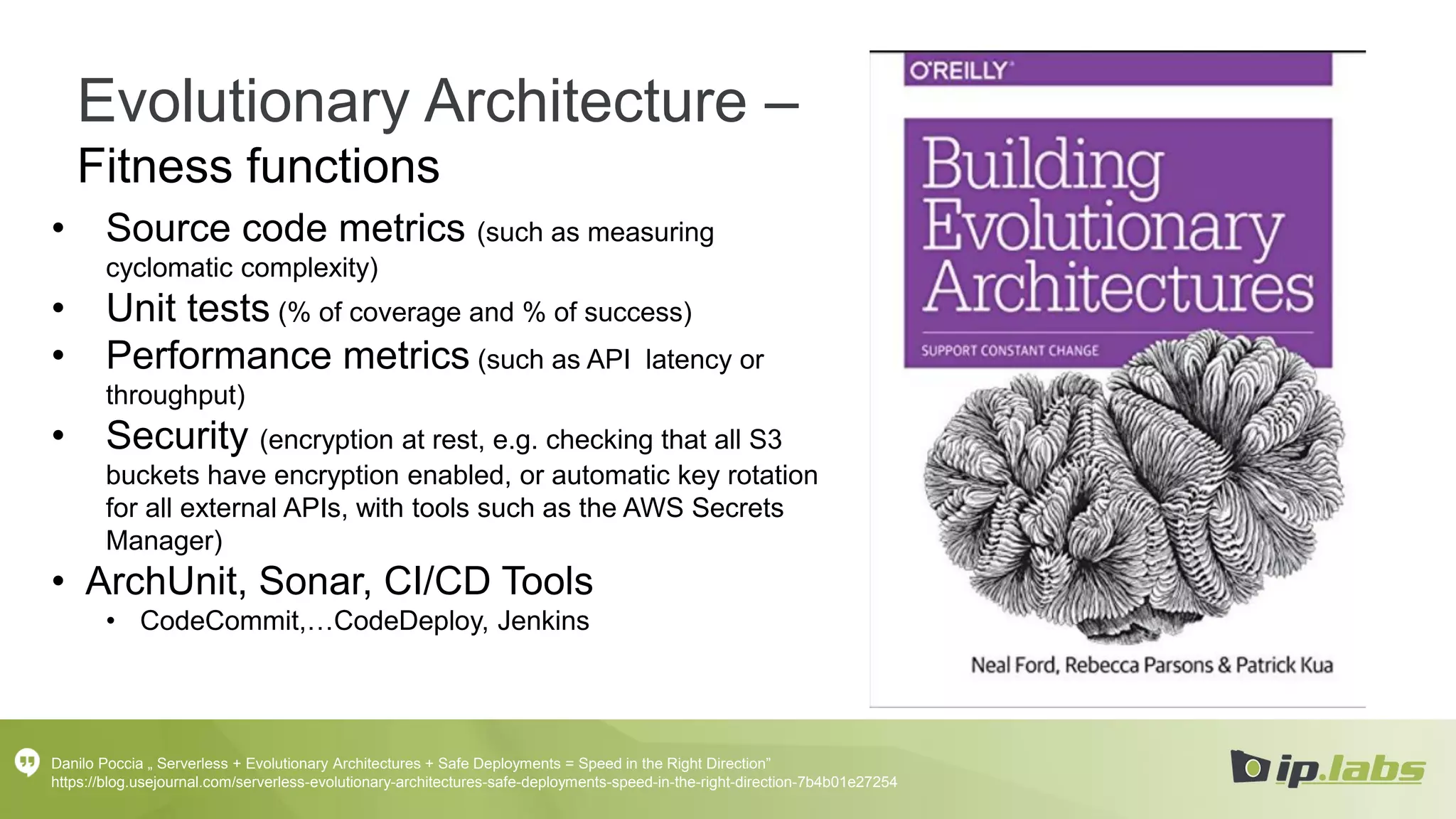

17. Evolutionary Architecture –
Fitness functions
• Source code metrics (such as measuring
cyclomatic complexity)
• Unit tests (% of coverage and % of success)
• Performance metrics (such as API latency or
throughput)
• Security (encryption at rest, e.g. checking that all S3
buckets have encryption enabled, or automatic key rotation
for all external APIs, with tools such as the AWS Secrets
Manager)
• ArchUnit, Sonar, CI/CD Tools
• CodeCommit,…CodeDeploy, Jenkins
Danilo Poccia „ Serverless + Evolutionary Architectures + Safe Deployments = Speed in the Right Direction”
https://blog.usejournal.com/serverless-evolutionary-architectures-safe-deployments-speed-in-the-right-direction-7b4b01e27254

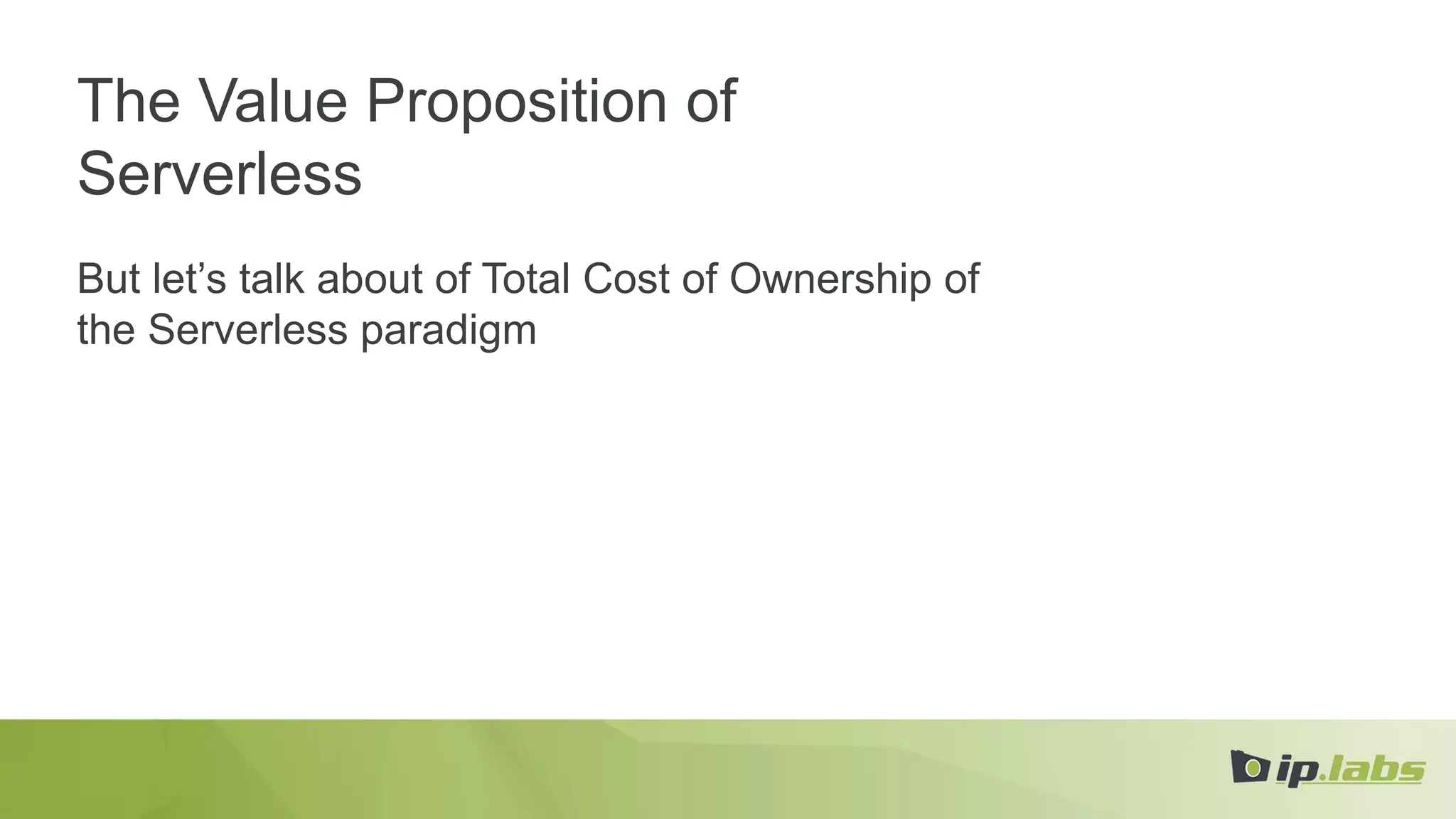

18. The Value Proposition of
Serverless
But let’s talk about of Total Cost of Ownership of
the Serverless paradigm

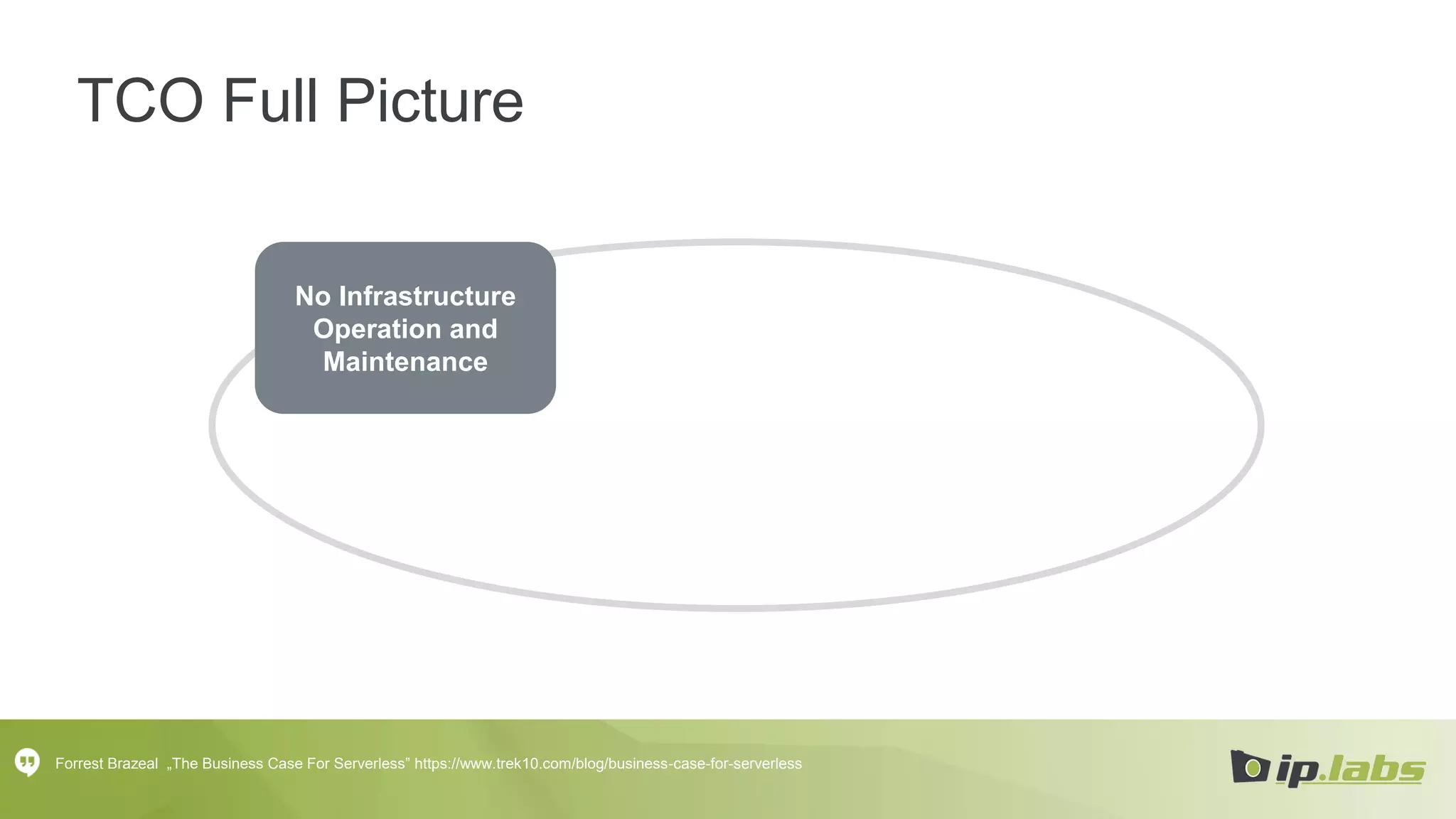

19. TCO Full Picture
No Infrastructure
Operation and
Maintenance
Forrest Brazeal „The Business Case For Serverless” https://www.trek10.com/blog/business-case-for-serverless

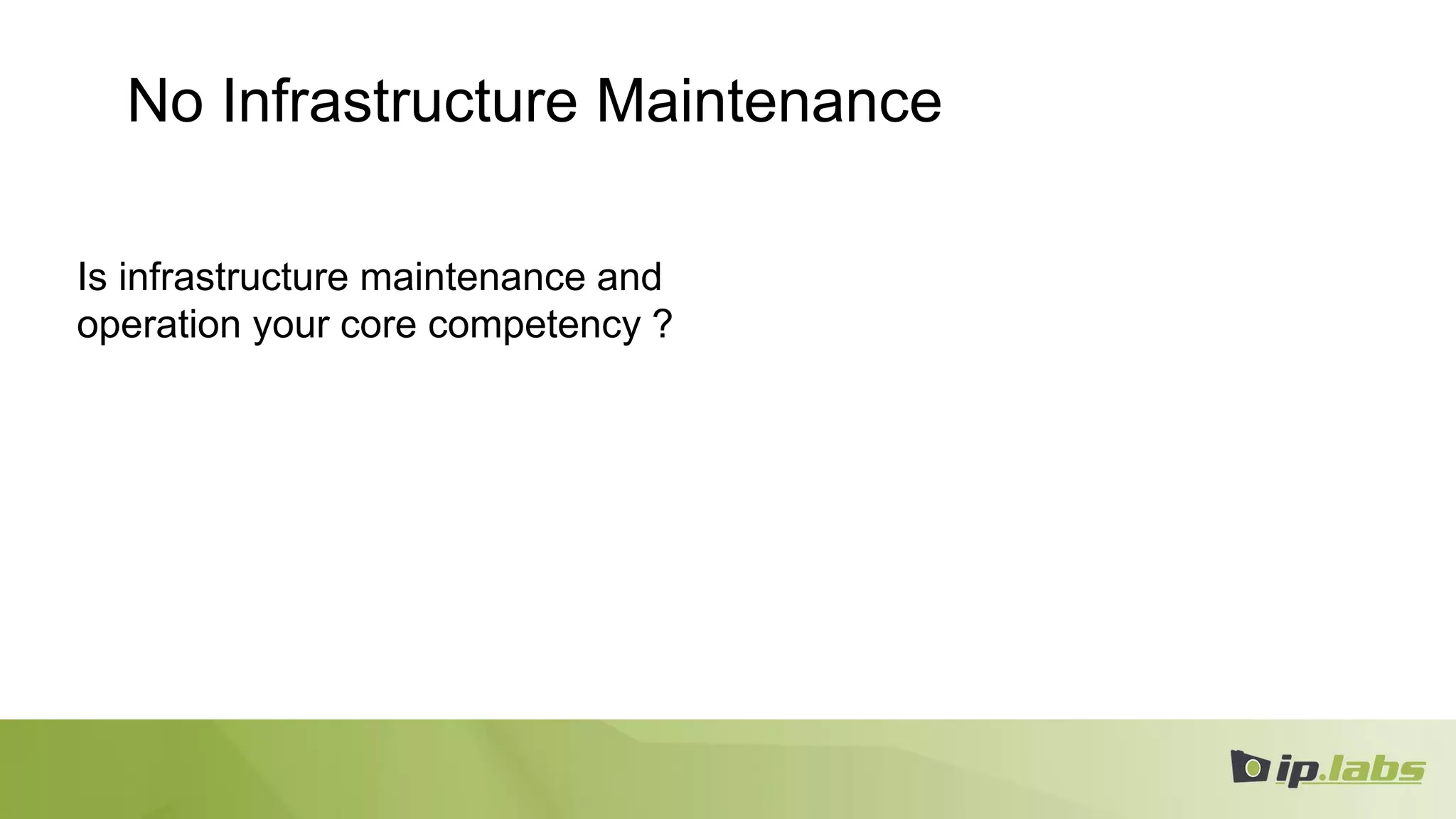

20. No Infrastructure Maintenance
Is infrastructure maintenance and
operation your core competency ?

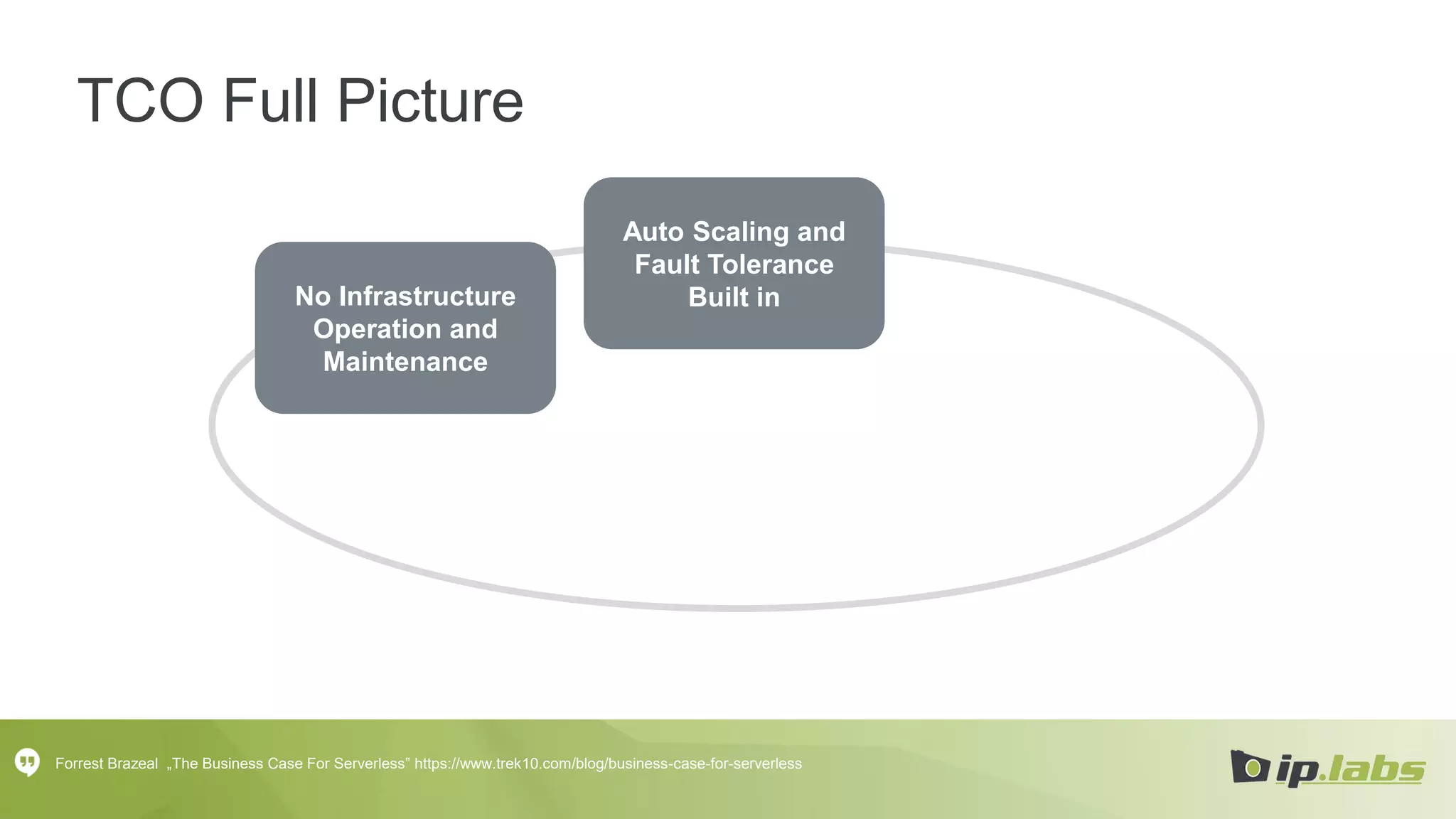

21. TCO Full Picture
No Infrastructure
Operation and
Maintenance
Auto Scaling and
Fault Tolerance
Built in
Forrest Brazeal „The Business Case For Serverless” https://www.trek10.com/blog/business-case-for-serverless

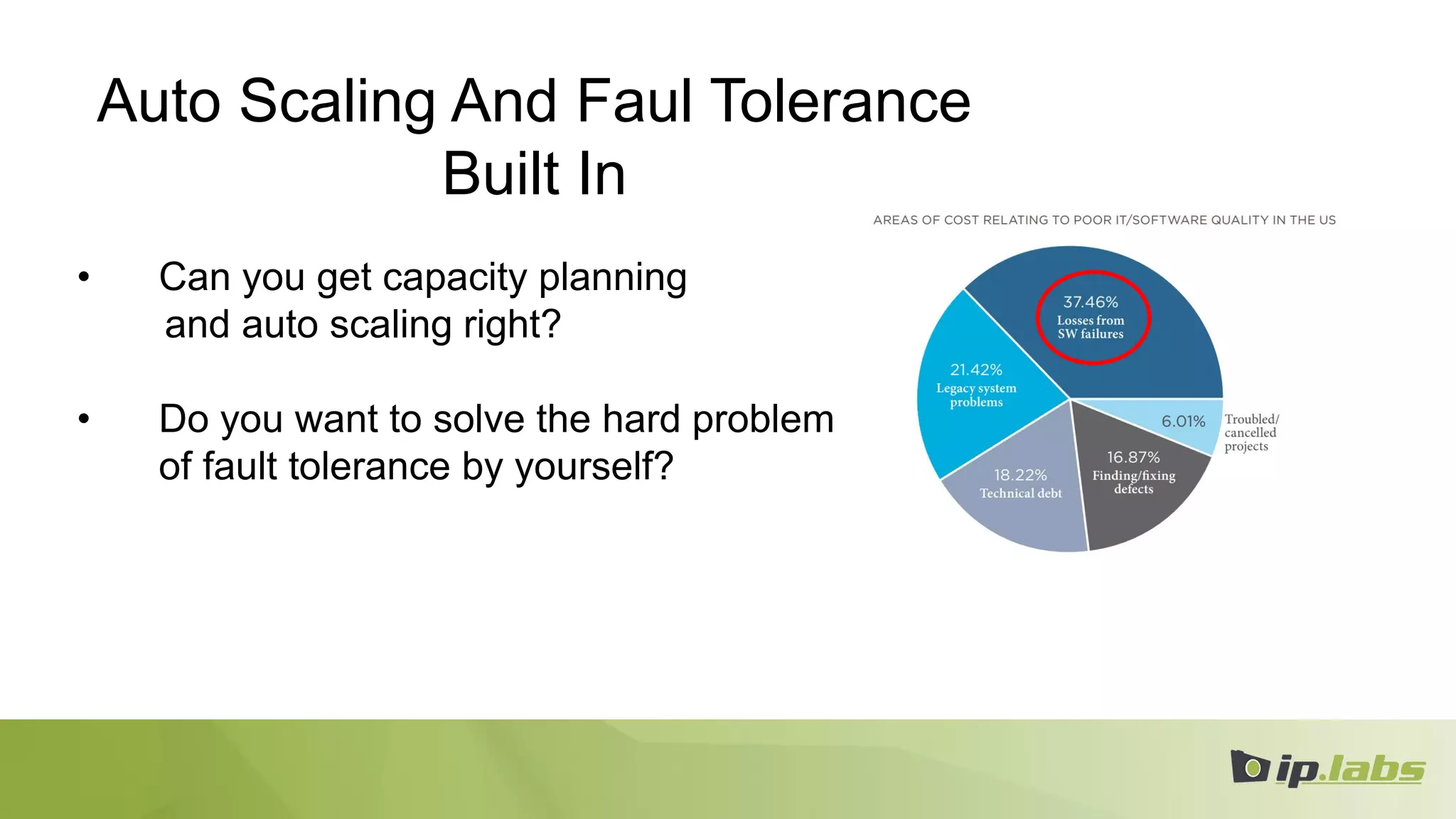

22. Auto Scaling And Faul Tolerance
Built In
• Can you get capacity planning
and auto scaling right?
• Do you want to solve the hard problem
of fault tolerance by yourself?

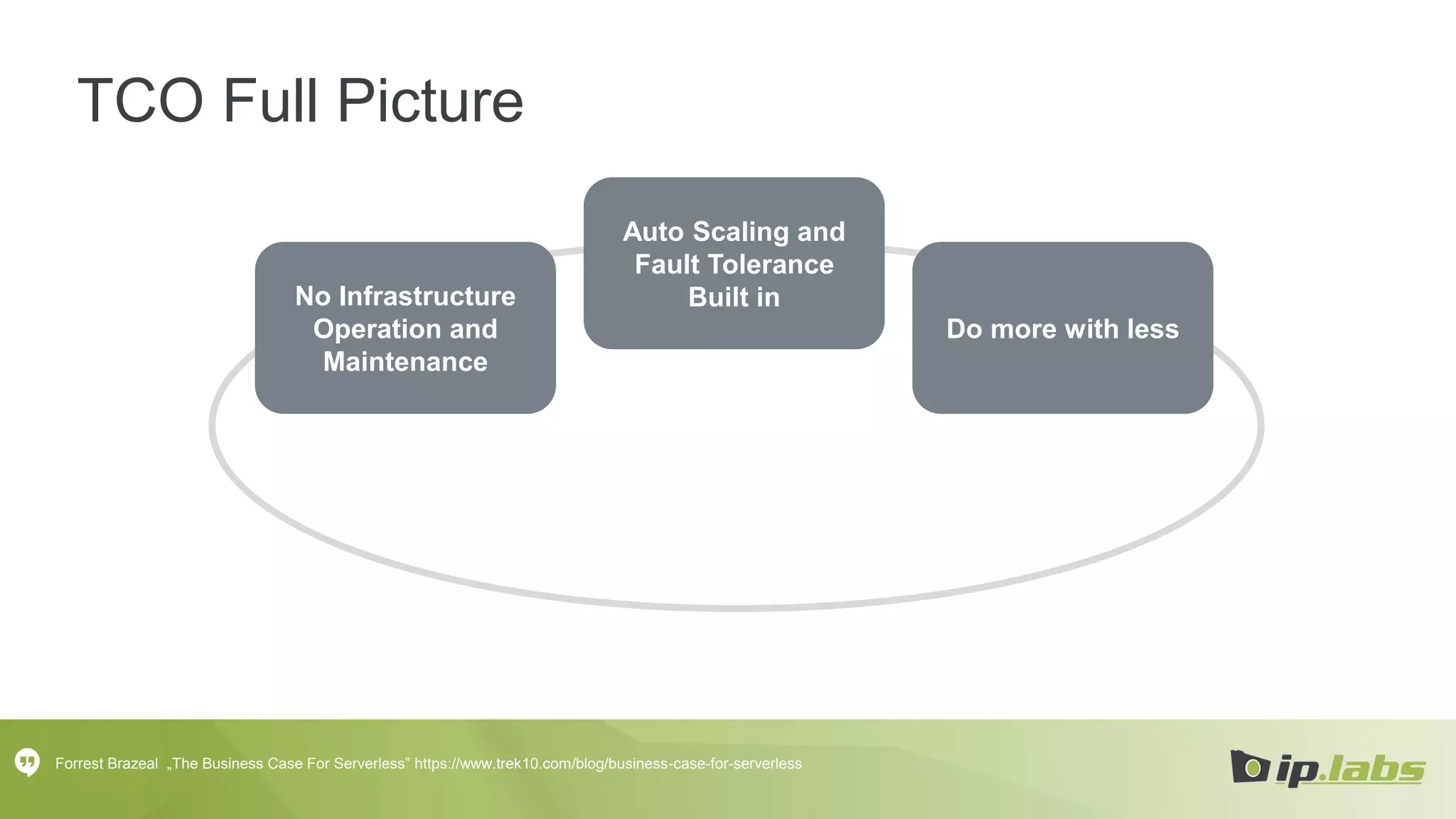

23. TCO Full Picture
No Infrastructure
Operation and
Maintenance
Auto Scaling and
Fault Tolerance
Built in
Do more with less
Forrest Brazeal „The Business Case For Serverless” https://www.trek10.com/blog/business-case-for-serverless

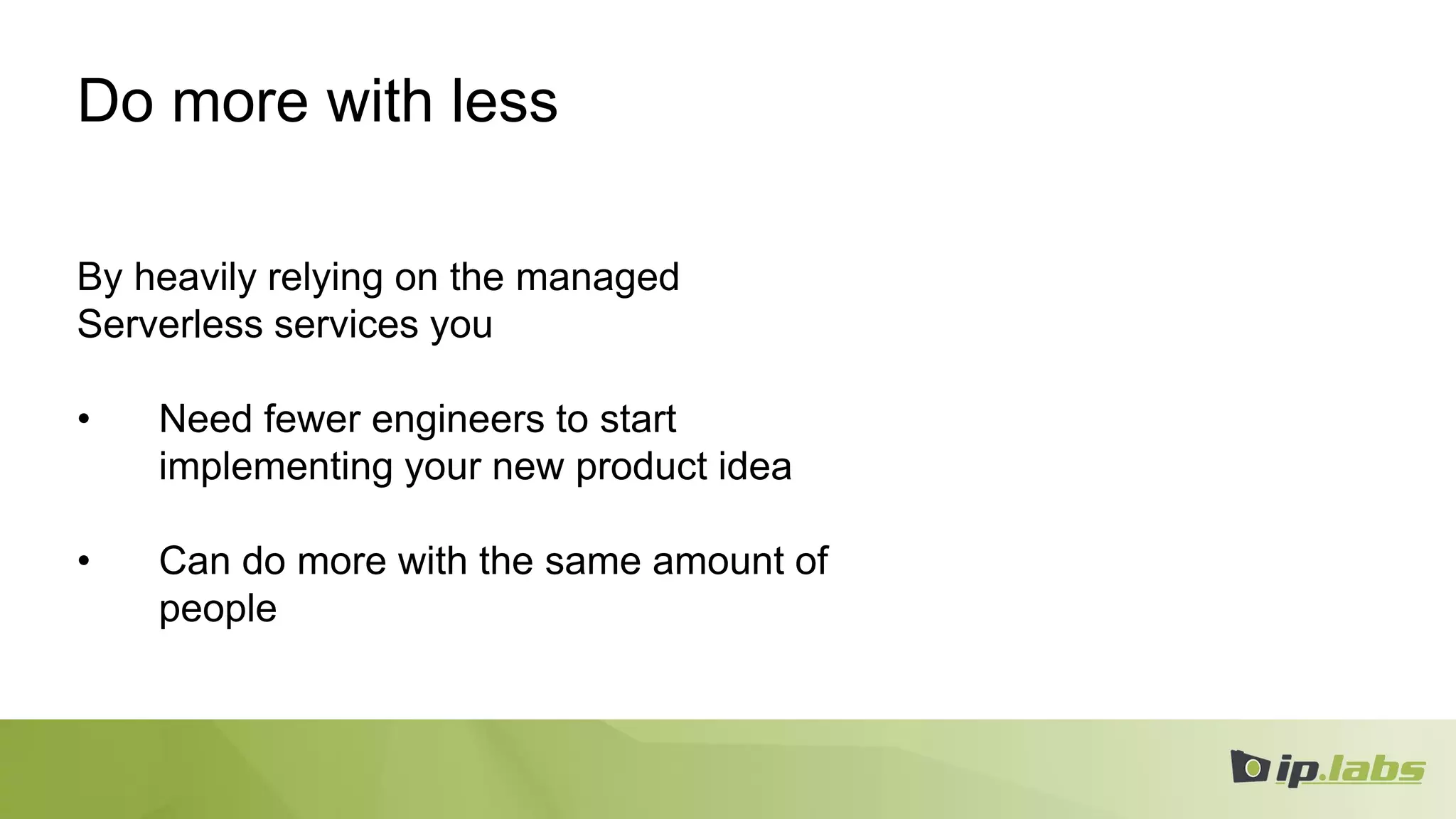

24. Do more with less
By heavily relying on the managed
Serverless services you
• Need fewer engineers to start
implementing your new product idea
• Can do more with the same amount of
people

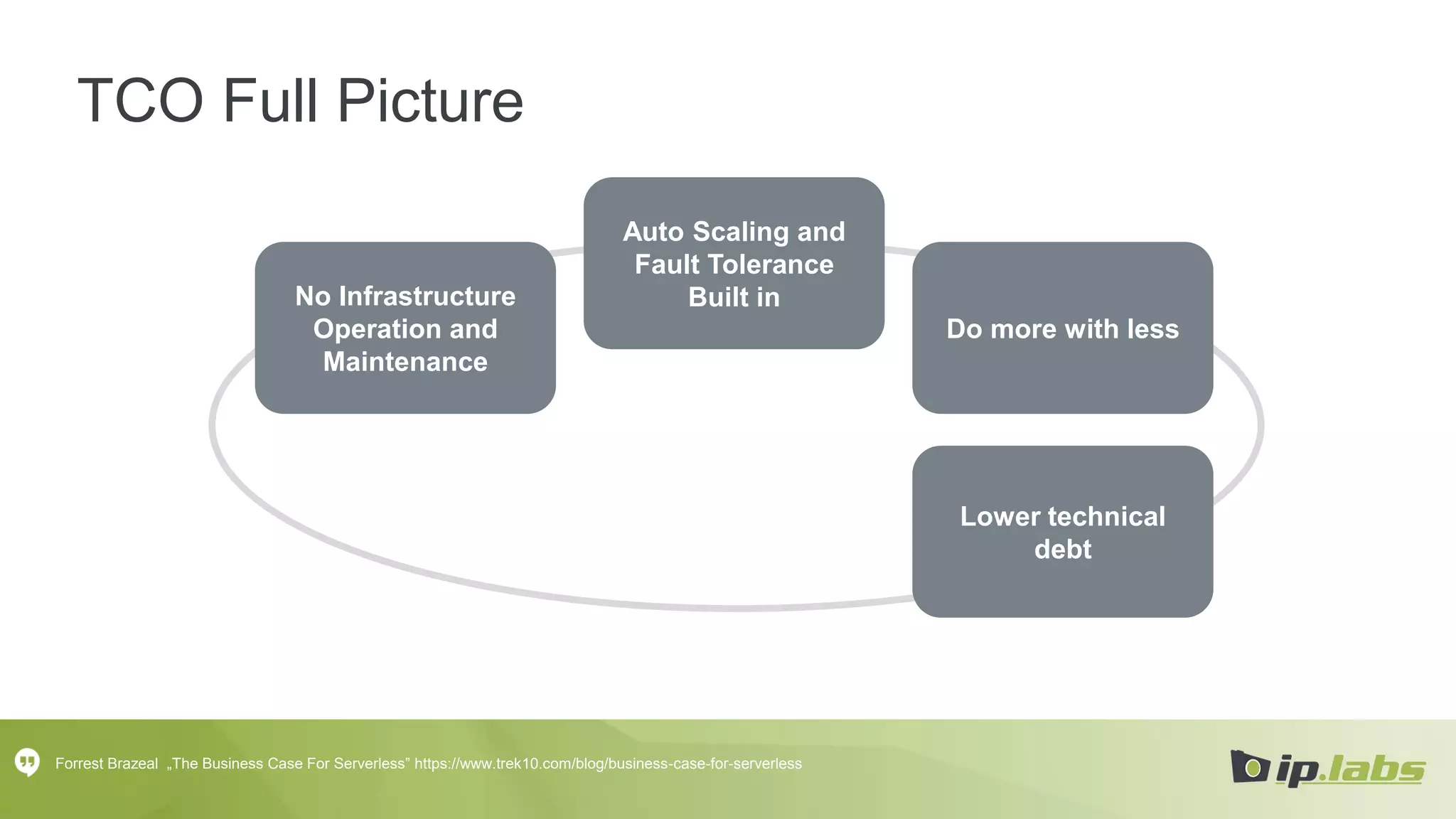

25. TCO Full Picture
No Infrastructure
Operation and
Maintenance
Auto Scaling and
Fault Tolerance
Built in
Do more with less
Lower technical
debt
Forrest Brazeal „The Business Case For Serverless” https://www.trek10.com/blog/business-case-for-serverless

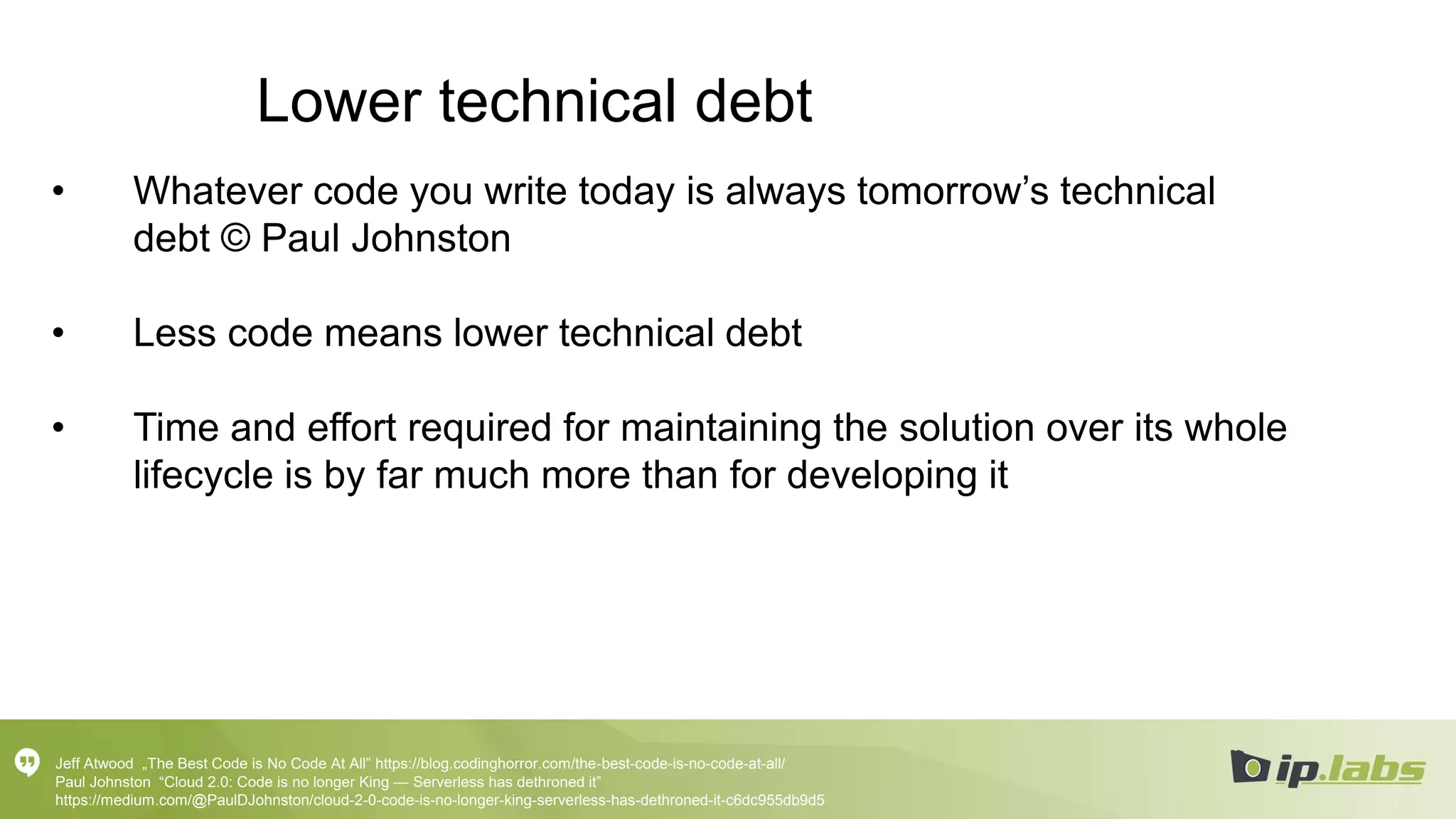

26. Lower technical debt
• Whatever code you write today is always tomorrow’s technical
debt © Paul Johnston
• Less code means lower technical debt
• Time and effort required for maintaining the solution over its whole
lifecycle is by far much more than for developing it
Jeff Atwood „The Best Code is No Code At All” https://blog.codinghorror.com/the-best-code-is-no-code-at-all/
Paul Johnston “Cloud 2.0: Code is no longer King — Serverless has dethroned it”
https://medium.com/@PaulDJohnston/cloud-2-0-code-is-no-longer-king-serverless-has-dethroned-it-c6dc955db9d5

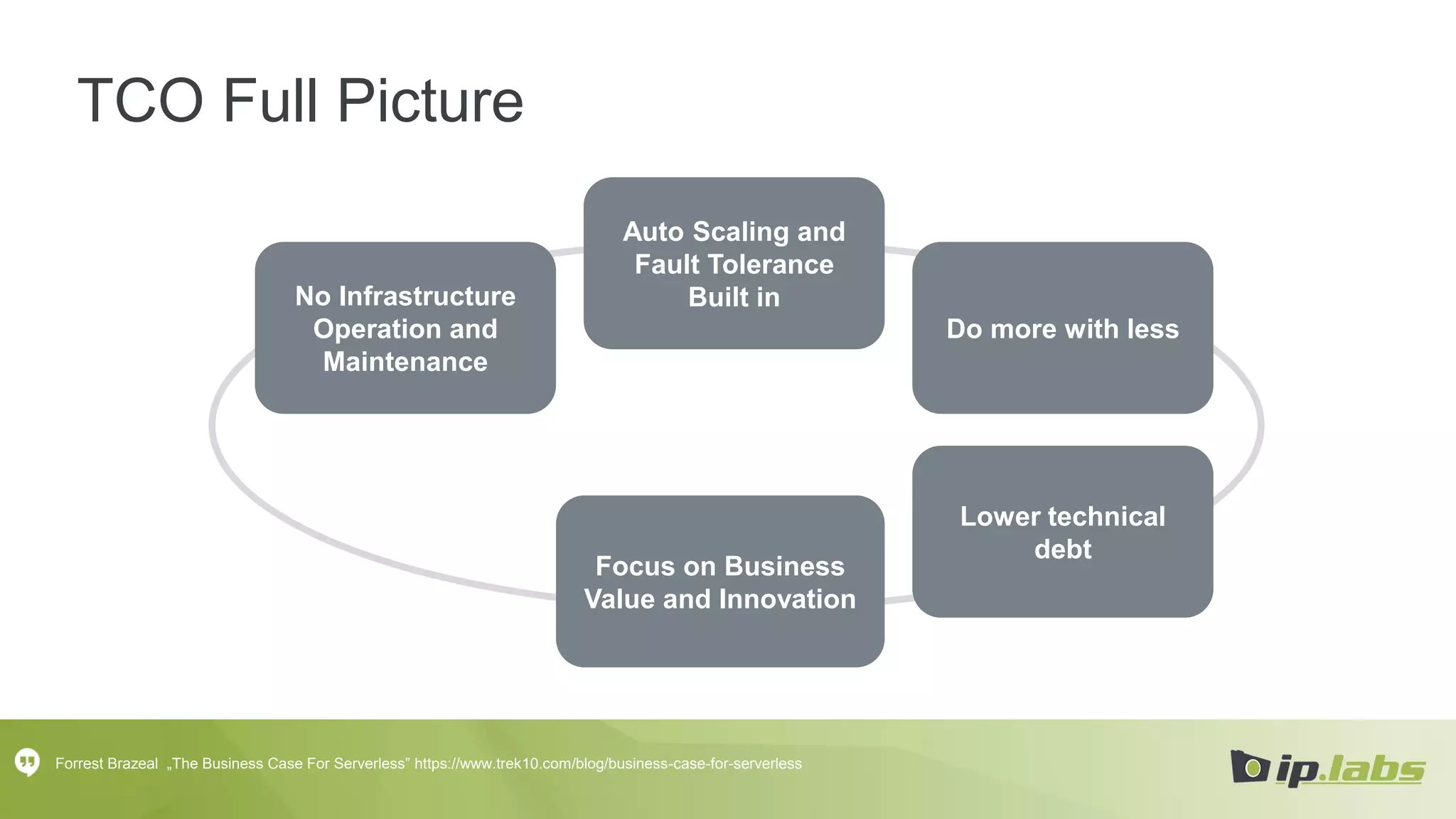

27. TCO Full Picture
No Infrastructure
Operation and
Maintenance
Auto Scaling and
Fault Tolerance
Built in
Do more with less
Lower technical
debt
Focus on Business
Value and Innovation
Forrest Brazeal „The Business Case For Serverless” https://www.trek10.com/blog/business-case-for-serverless

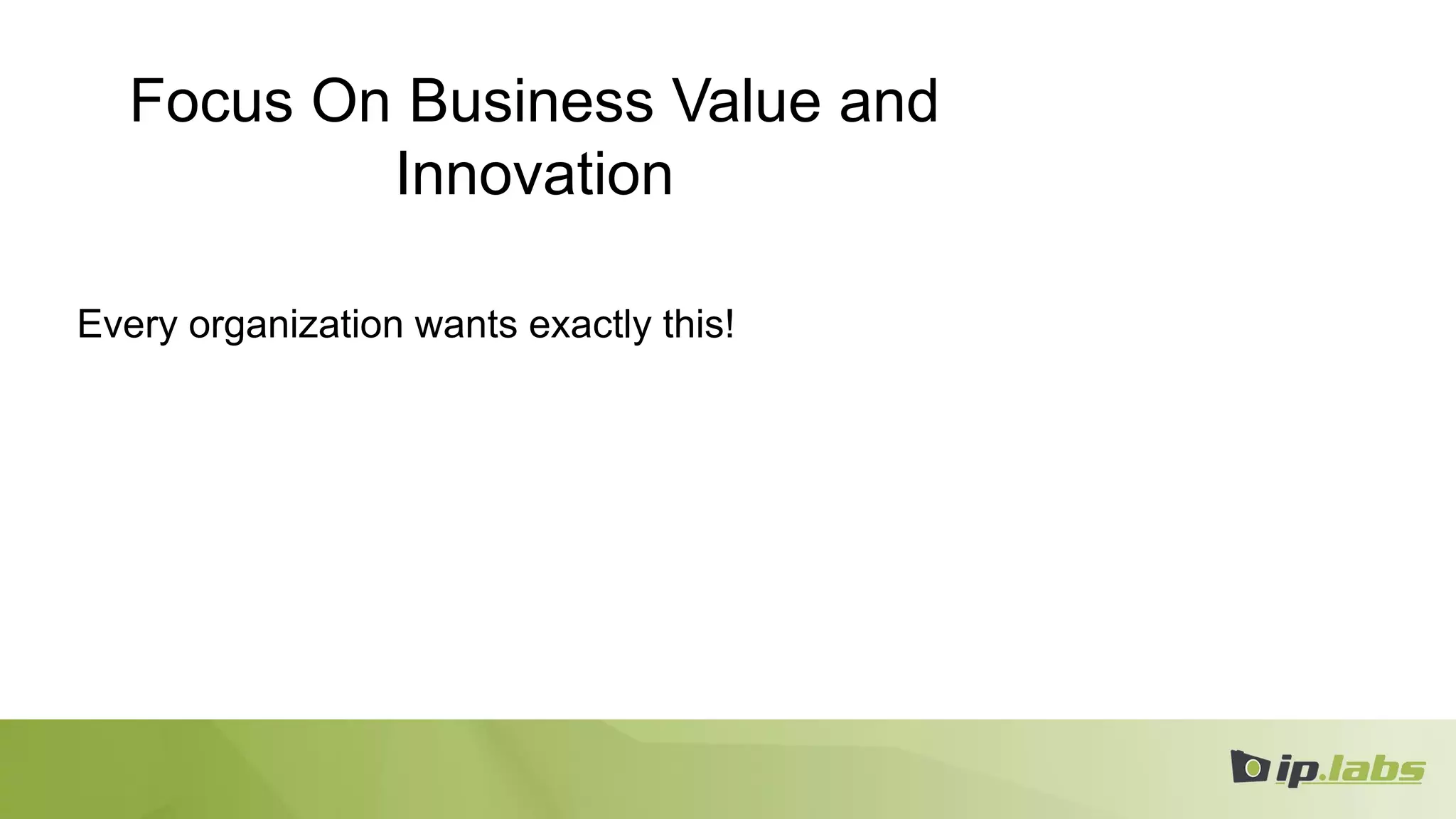

28. Focus On Business Value and
Innovation
Every organization wants exactly this!

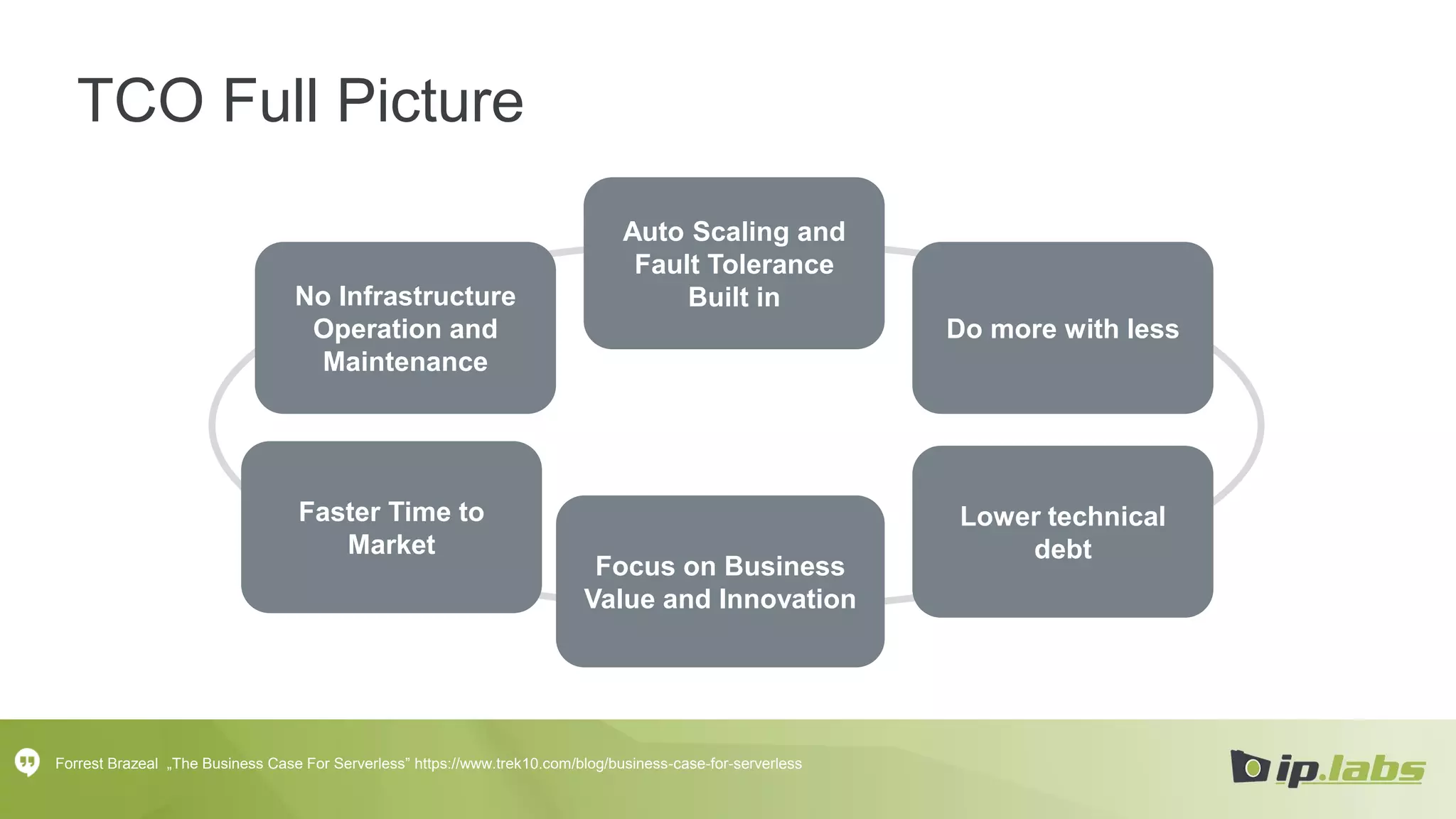

29. TCO Full Picture
No Infrastructure
Operation and
Maintenance
Auto Scaling and
Fault Tolerance
Built in
Do more with less
Lower technical
debt
Faster Time to
Market
Forrest Brazeal „The Business Case For Serverless” https://www.trek10.com/blog/business-case-for-serverless
Focus on Business
Value and Innovation

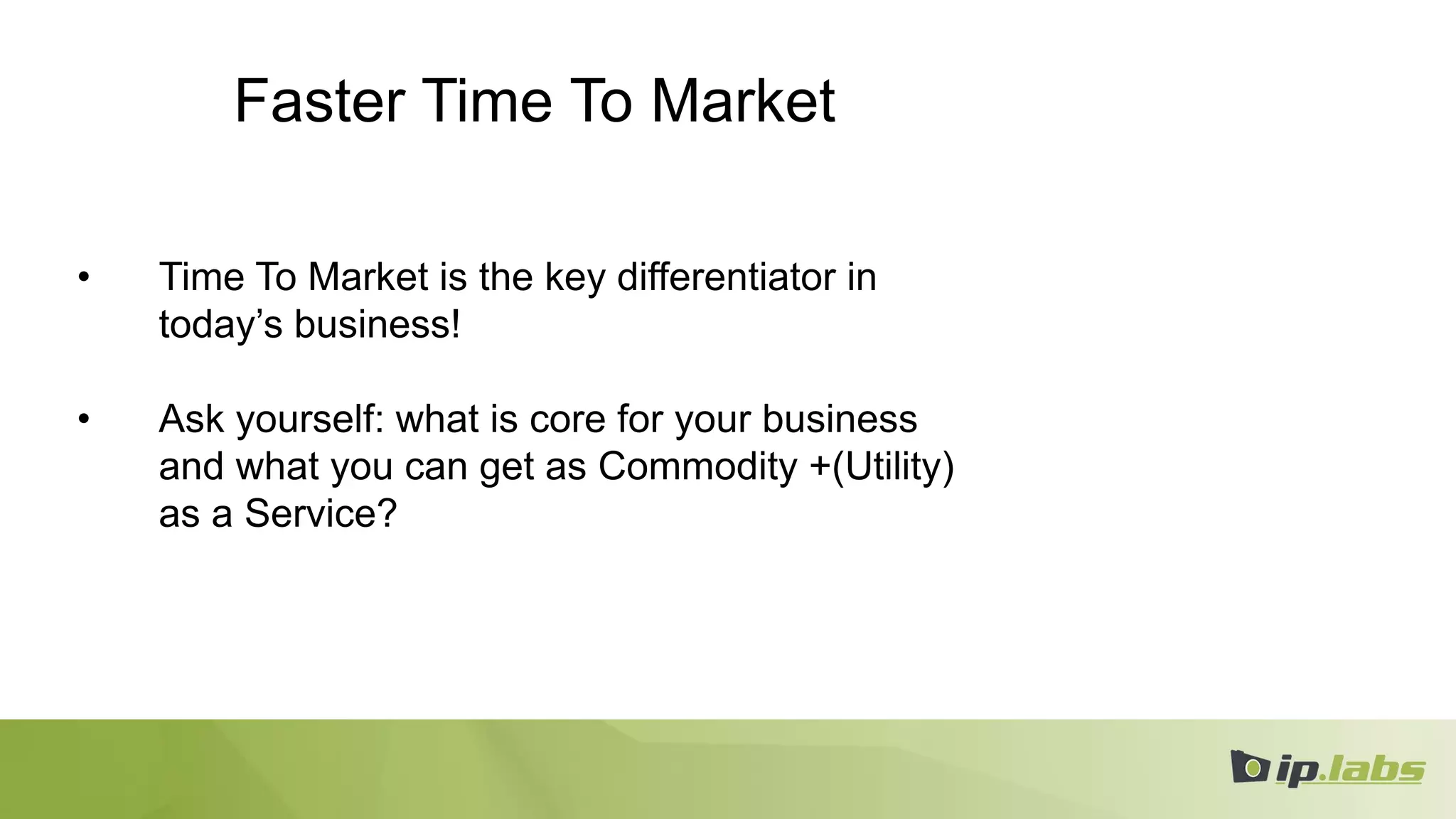

30. Faster Time To Market
• Time To Market is the key differentiator in
today’s business!
• Ask yourself: what is core for your business
and what you can get as Commodity +(Utility)
as a Service?

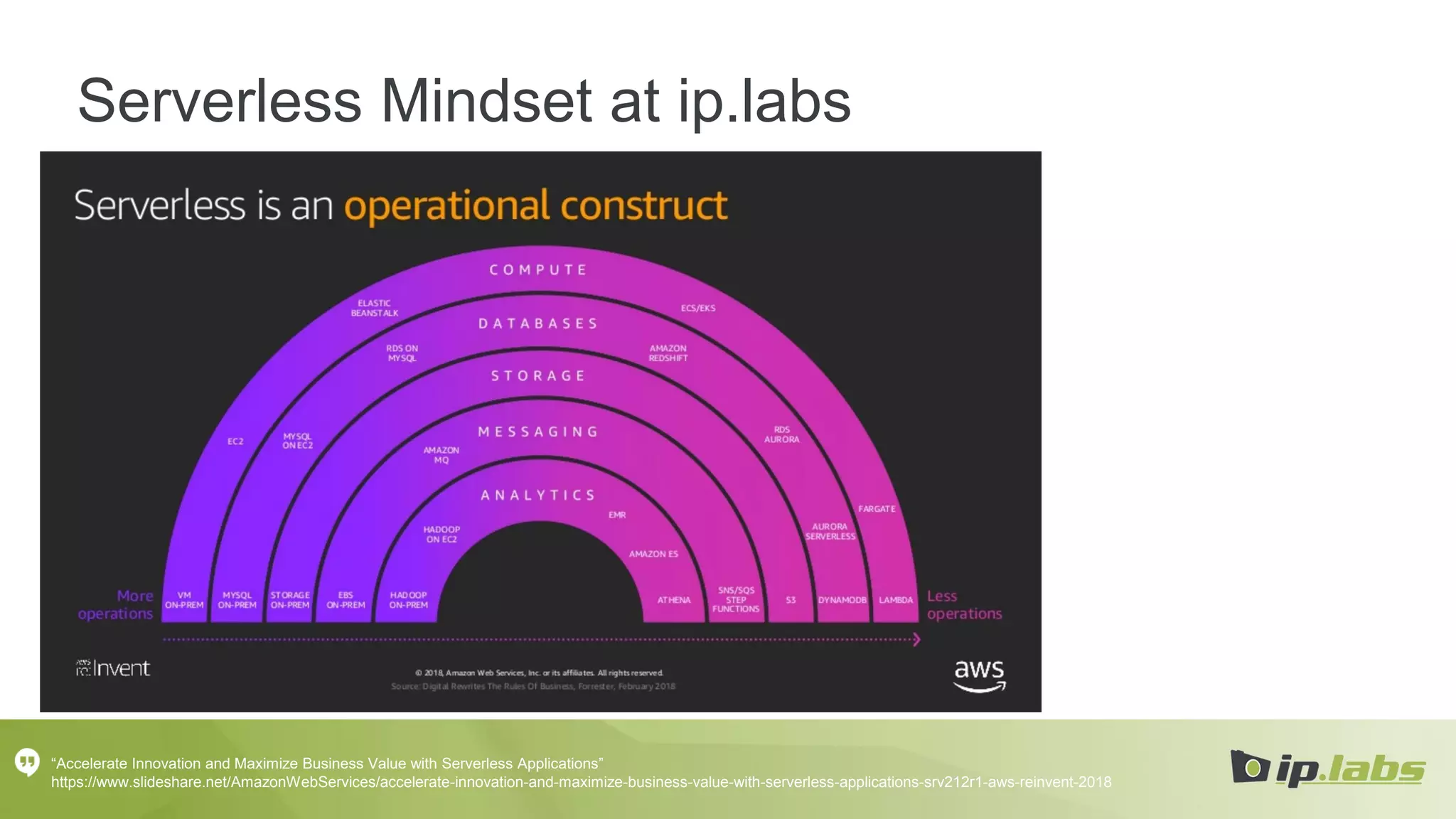

31. Serverless Mindset at ip.labs
“Accelerate Innovation and Maximize Business Value with Serverless Applications”
https://www.slideshare.net/AmazonWebServices/accelerate-innovation-and-maximize-business-value-with-serverless-applications-srv212r1-aws-reinvent-2018

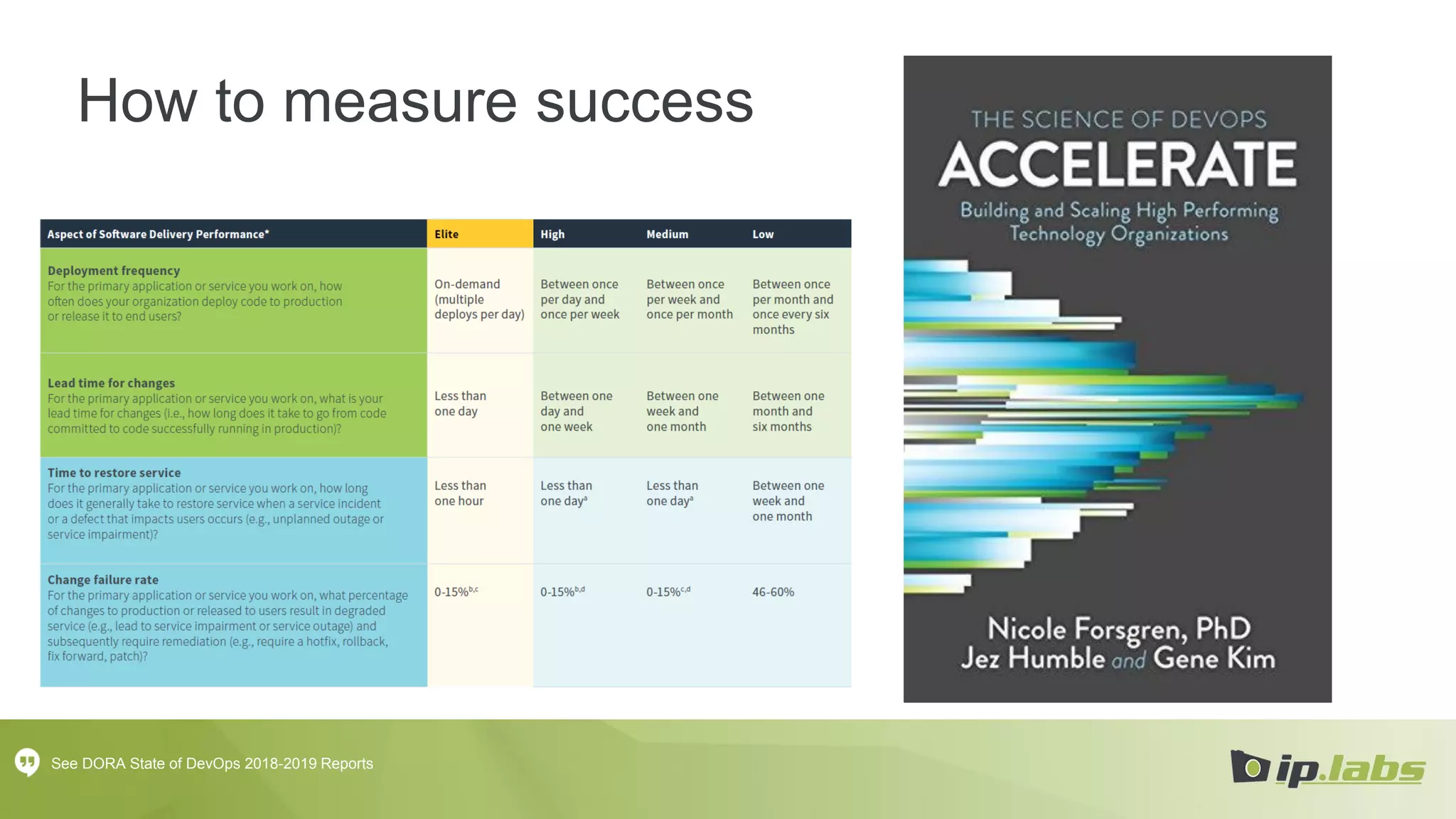

32. How to measure success
See DORA State of DevOps 2018-2019 Reports

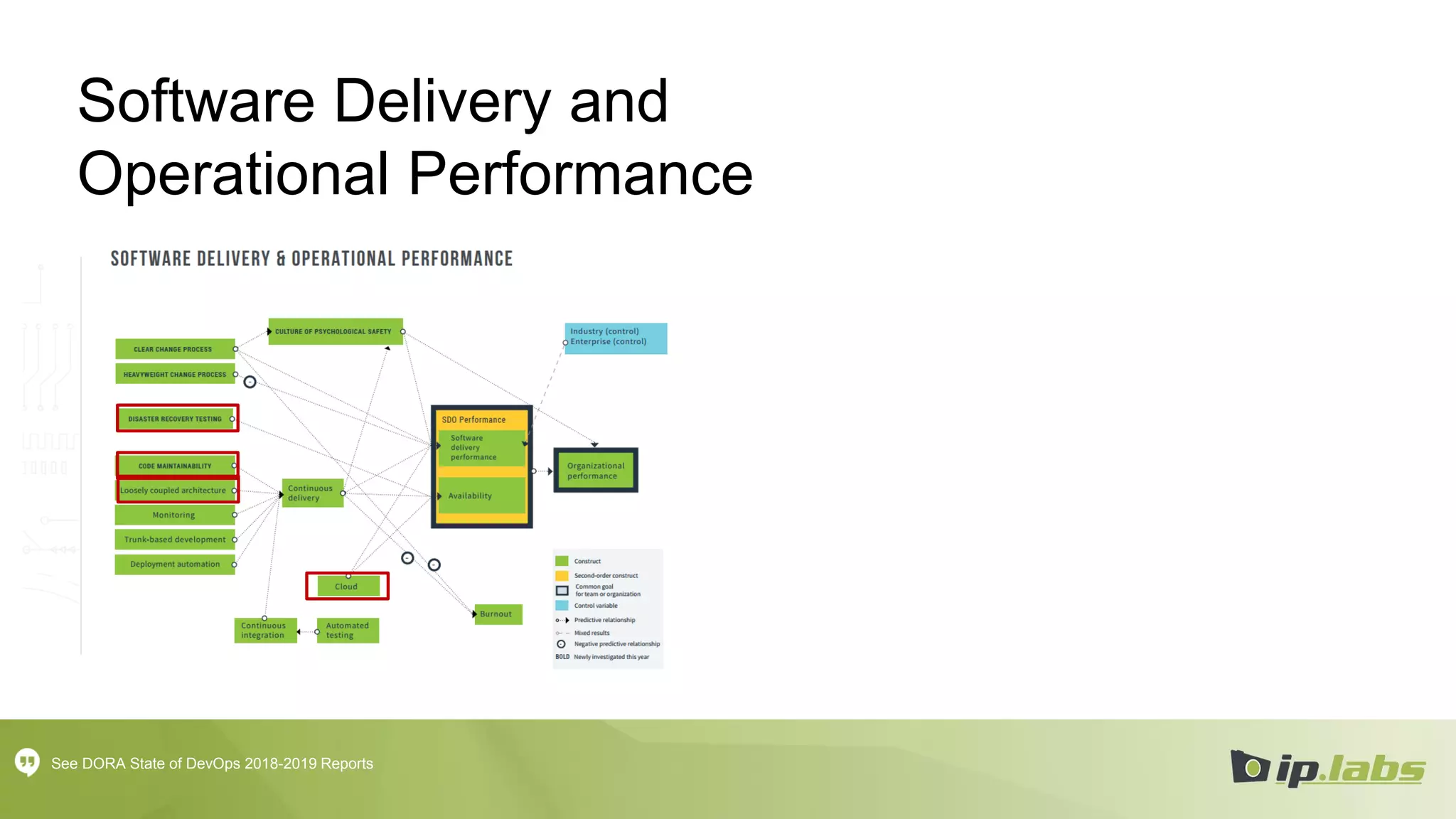

33. Software Delivery and
Operational Performance
See DORA State of DevOps 2018-2019 Reports

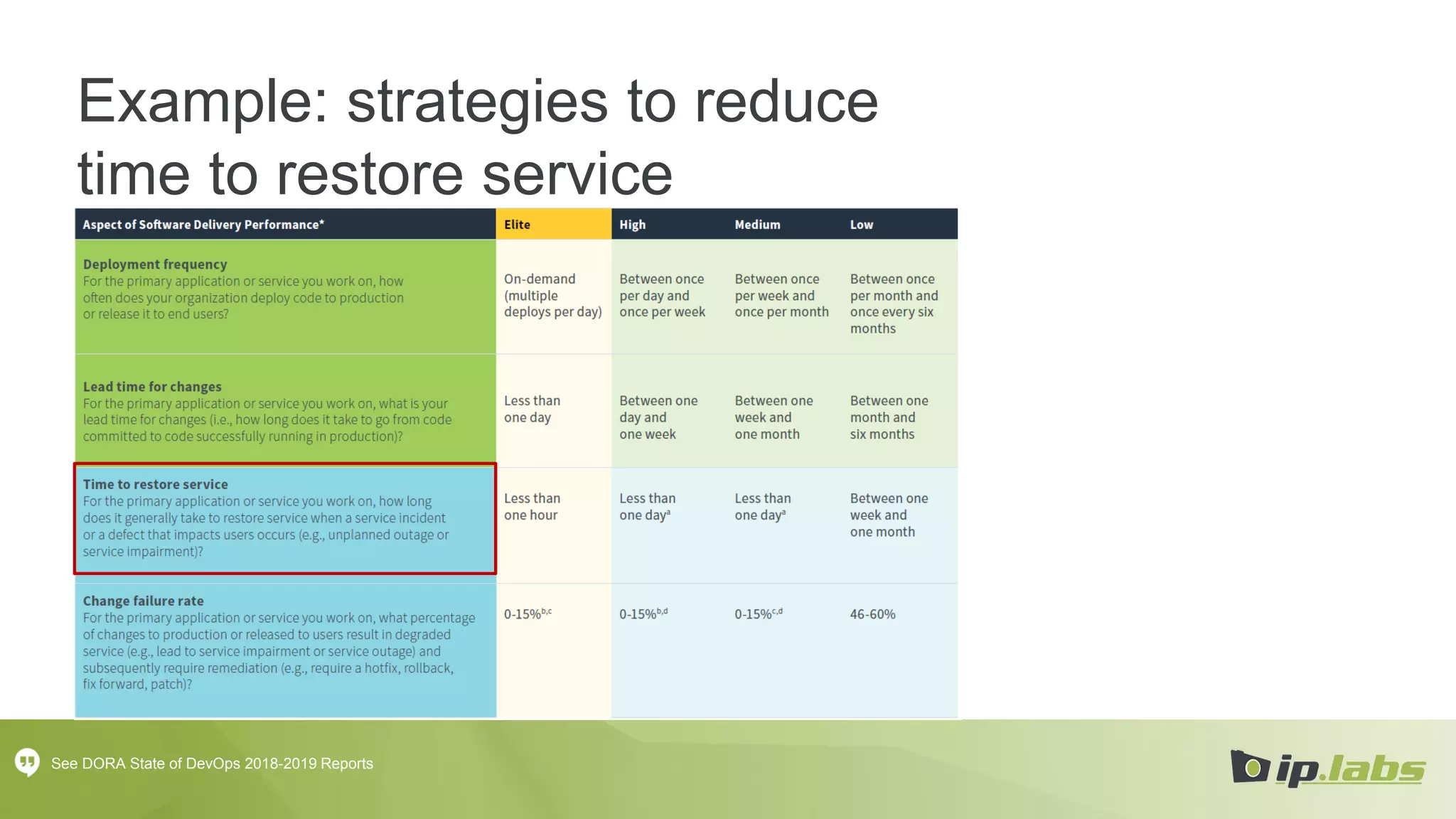

34. Example: strategies to reduce
time to restore service
See DORA State of DevOps 2018-2019 Reports

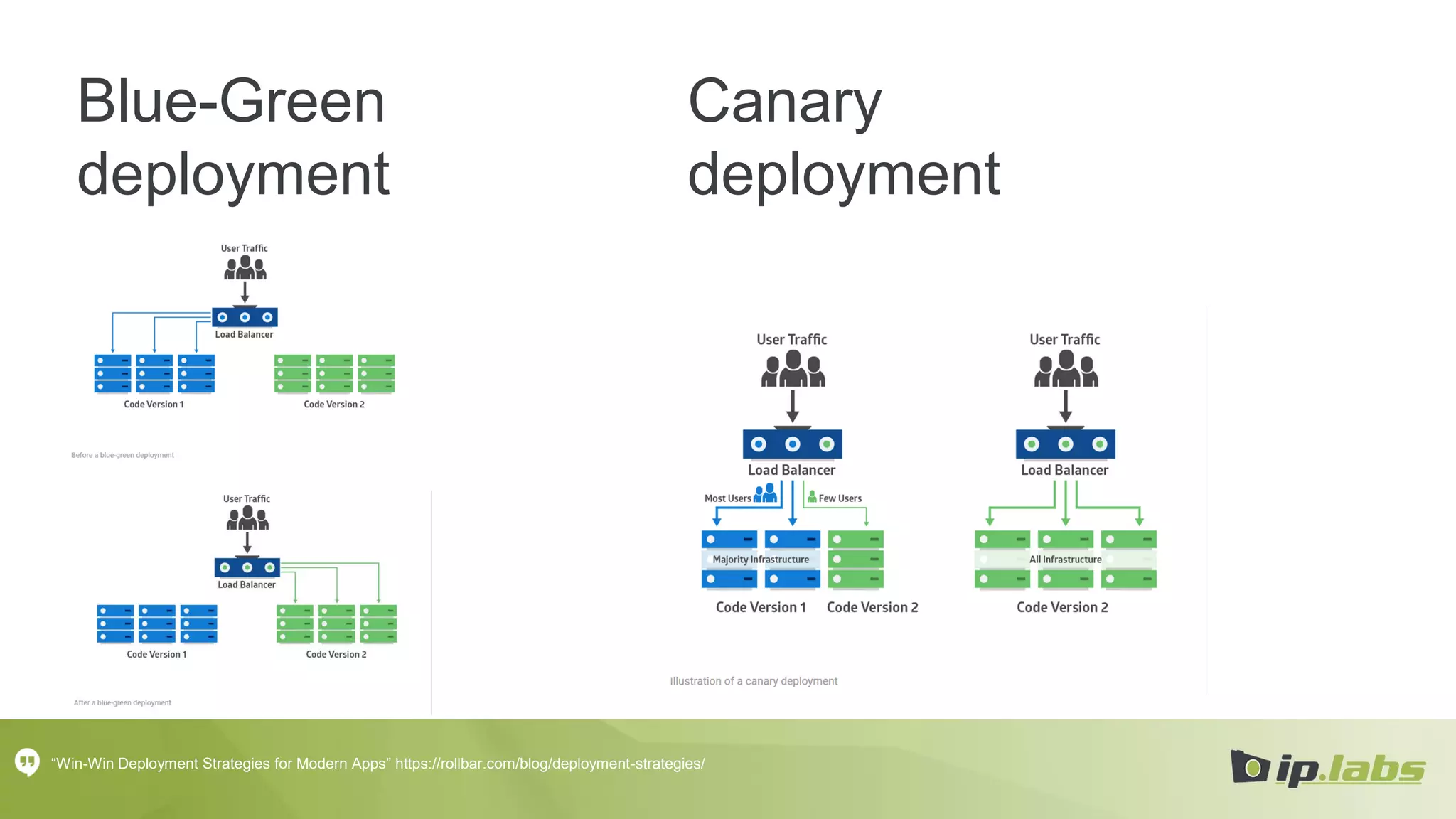

35. Blue-Green
deployment
“Win-Win Deployment Strategies for Modern Apps” https://rollbar.com/blog/deployment-strategies/
Canary
deployment

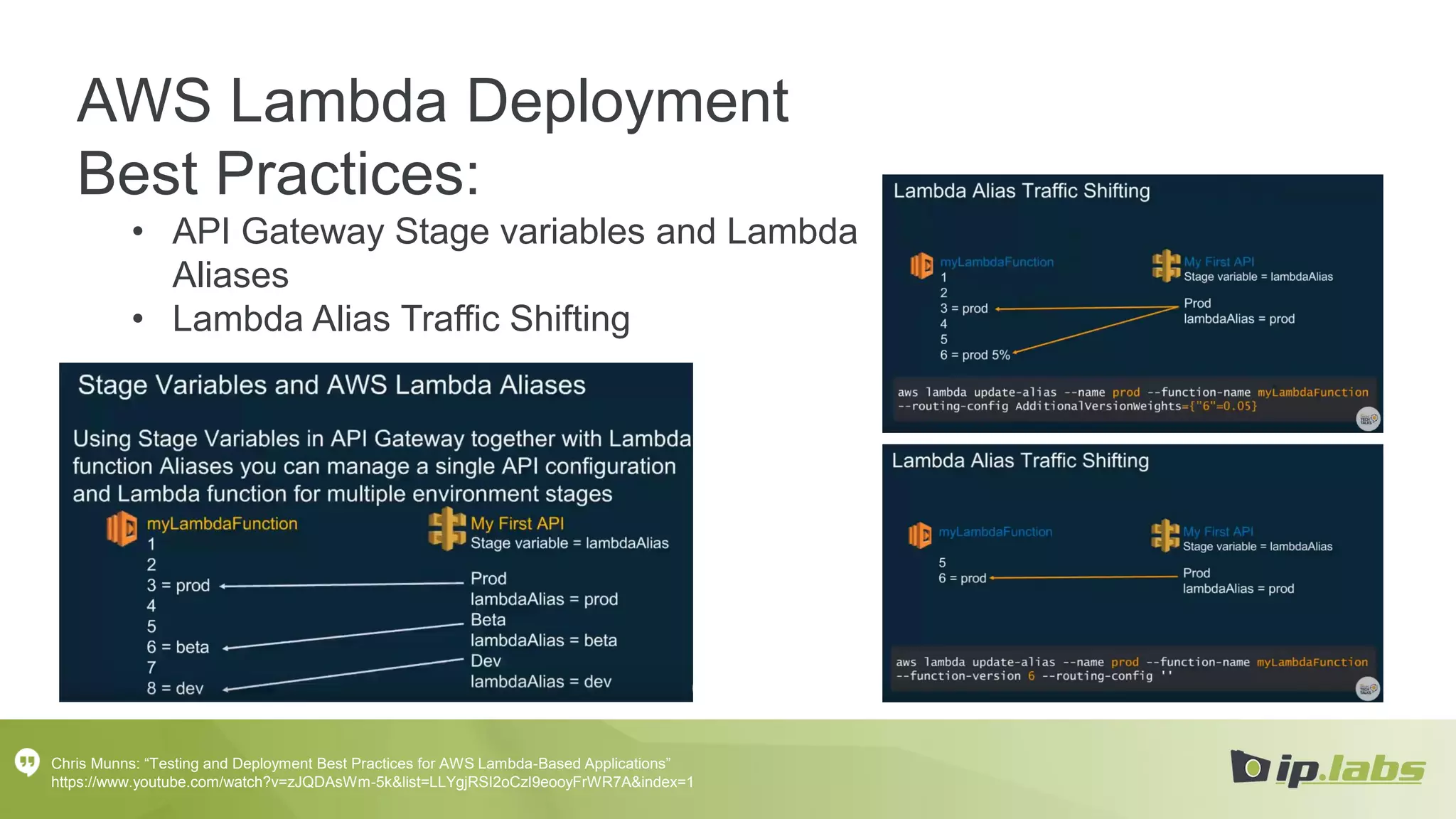

36. AWS Lambda Deployment
Best Practices:
• API Gateway Stage variables and Lambda
Aliases
• Lambda Alias Traffic Shifting
Chris Munns: “Testing and Deployment Best Practices for AWS Lambda-Based Applications”
https://www.youtube.com/watch?v=zJQDAsWm-5k&list=LLYgjRSI2oCzI9eooyFrWR7A&index=1

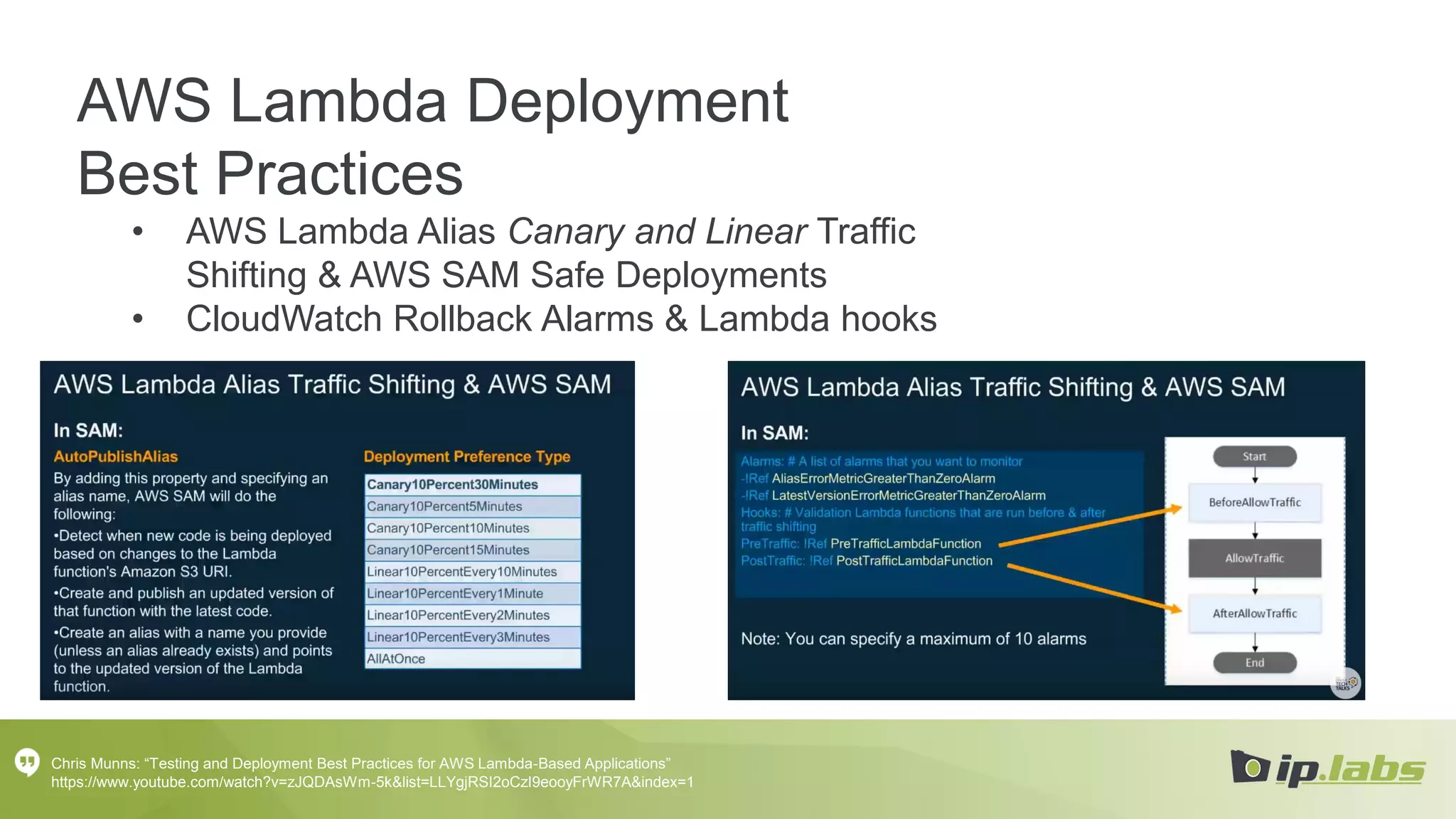

37. AWS Lambda Deployment
Best Practices
• AWS Lambda Alias Canary and Linear Traffic
Shifting & AWS SAM Safe Deployments
• CloudWatch Rollback Alarms & Lambda hooks
Chris Munns: “Testing and Deployment Best Practices for AWS Lambda-Based Applications”
https://www.youtube.com/watch?v=zJQDAsWm-5k&list=LLYgjRSI2oCzI9eooyFrWR7A&index=1

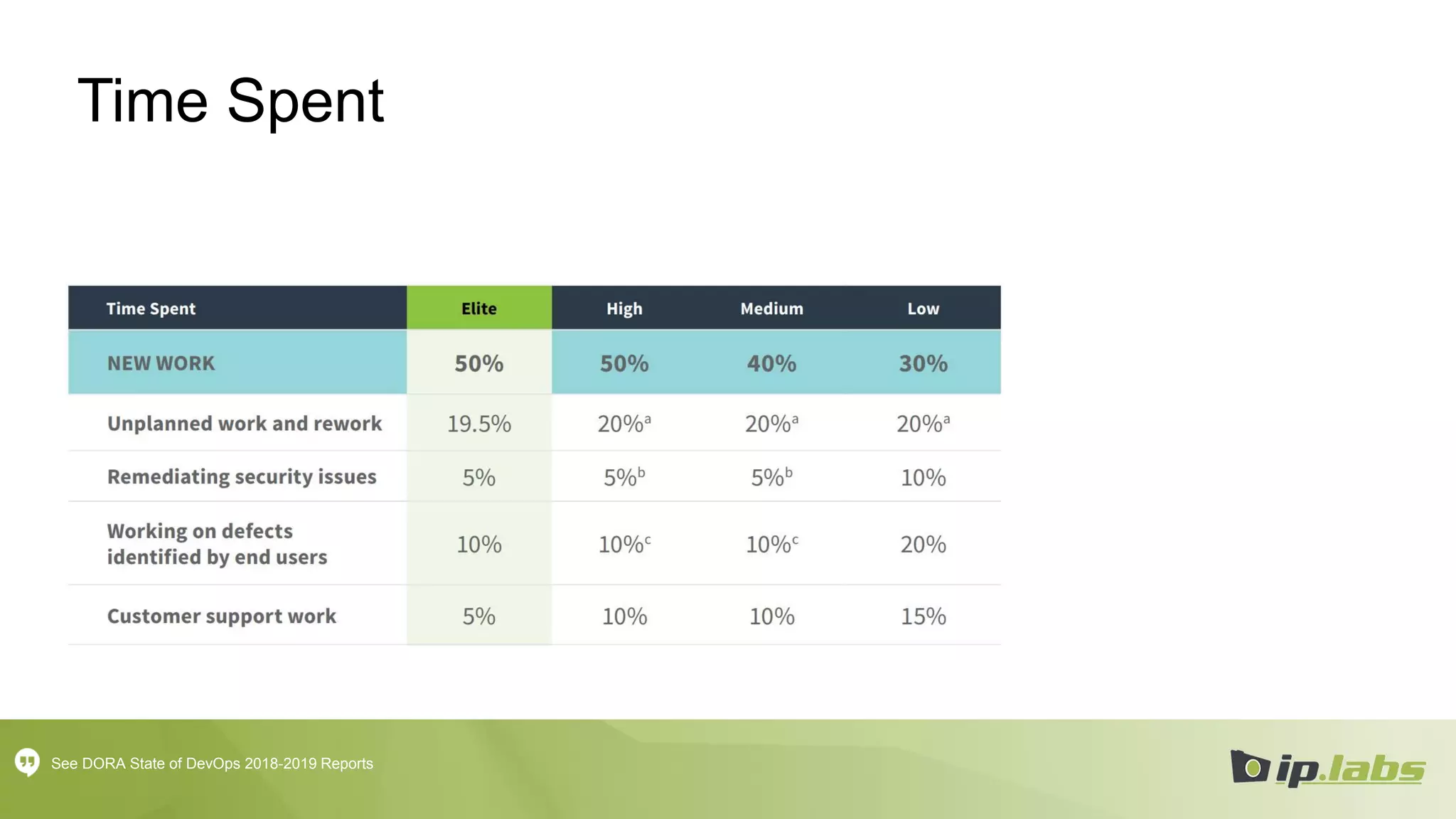

38. Time Spent
See DORA State of DevOps 2018-2019 Reports

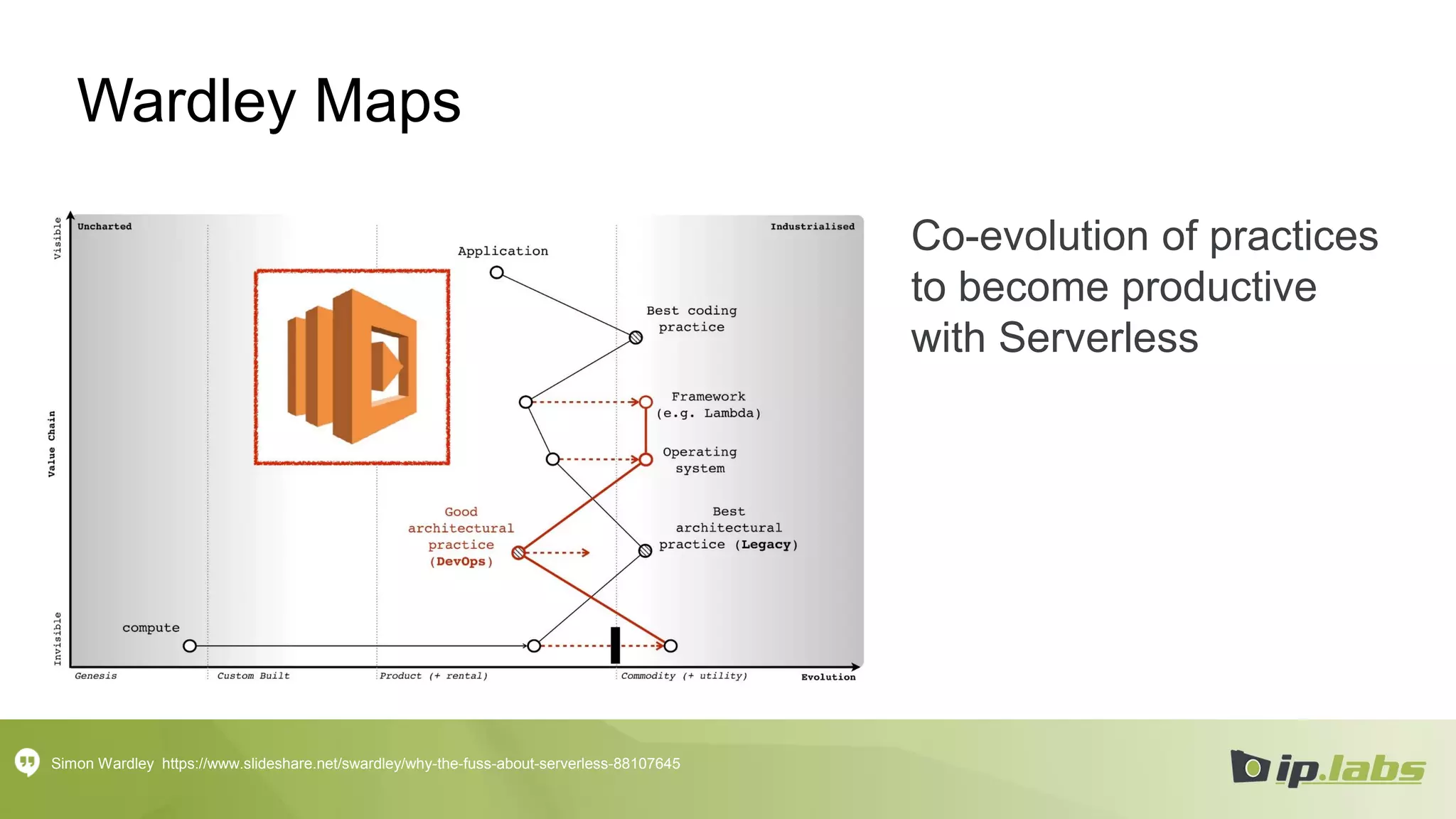

39. Wardley Maps
Simon Wardley https://www.slideshare.net/swardley/why-the-fuss-about-serverless-88107645
Co-evolution of practices
to become productive
with Serverless

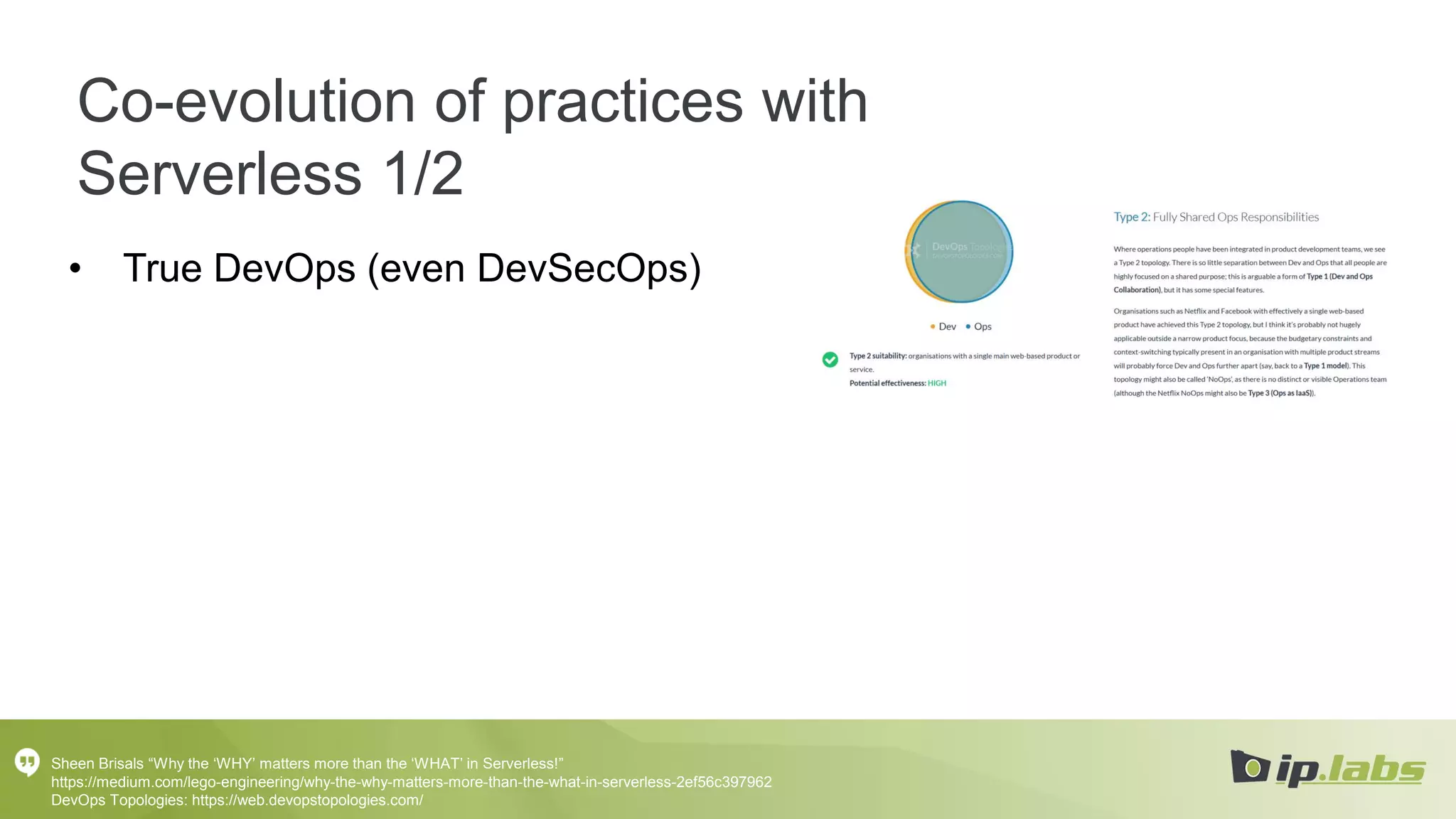

40. Co-evolution of practices with
Serverless 1/2
• True DevOps (even DevSecOps)
Sheen Brisals “Why the ‘WHY’ matters more than the ‘WHAT’ in Serverless!”
https://medium.com/lego-engineering/why-the-why-matters-more-than-the-what-in-serverless-2ef56c397962
DevOps Topologies: https://web.devopstopologies.com/

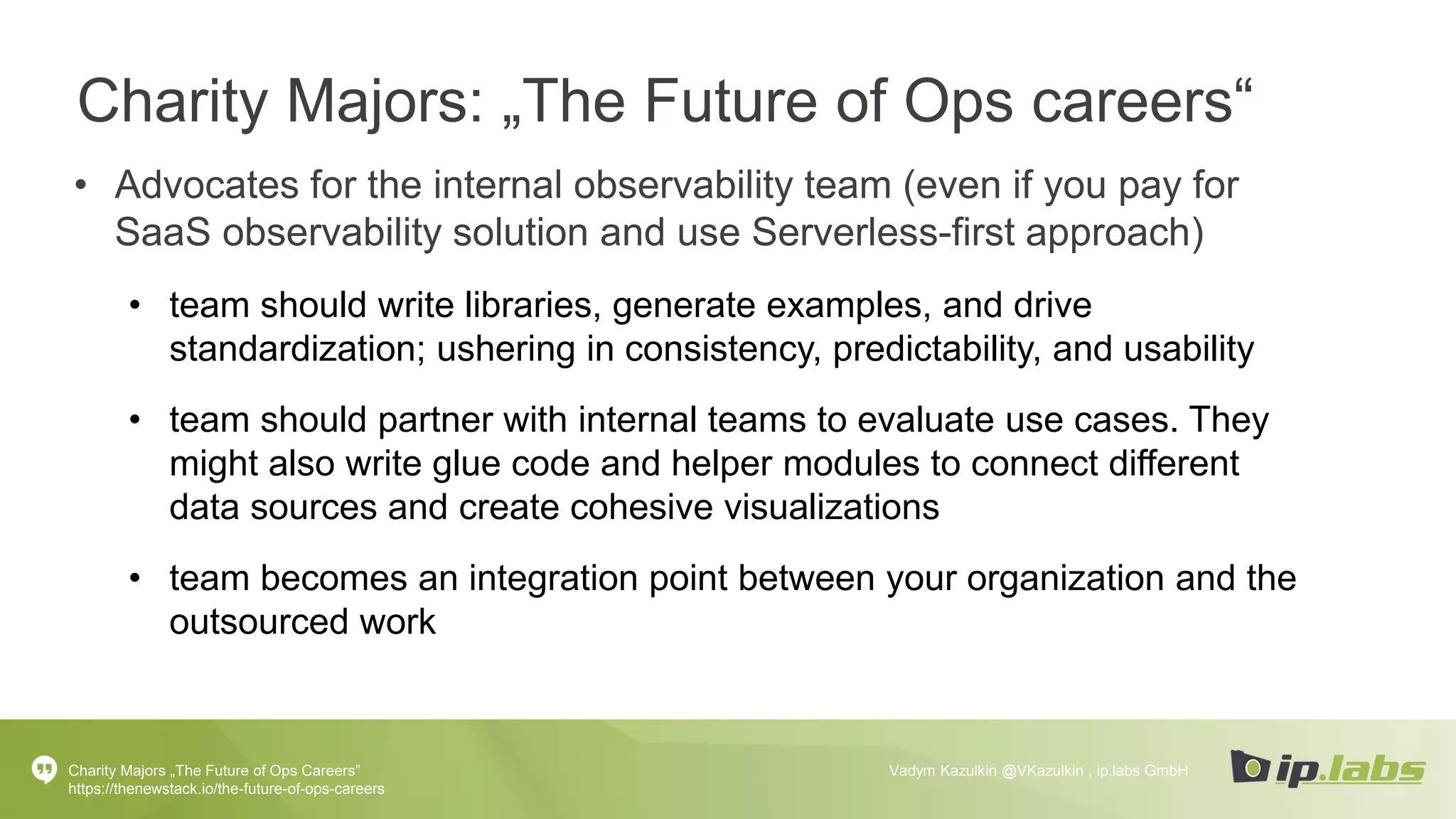

41. Charity Majors: „The Future of Ops careers“
• Advocates for the internal observability team (even if you pay for
SaaS observability solution and use Serverless-first approach)
• team should write libraries, generate examples, and drive
standardization; ushering in consistency, predictability, and usability
• team should partner with internal teams to evaluate use cases. They
might also write glue code and helper modules to connect different
data sources and create cohesive visualizations
• team becomes an integration point between your organization and the
outsourced work
Charity Majors „The Future of Ops Careers”
https://thenewstack.io/the-future-of-ops-careers
Vadym Kazulkin @VKazulkin , ip.labs GmbH

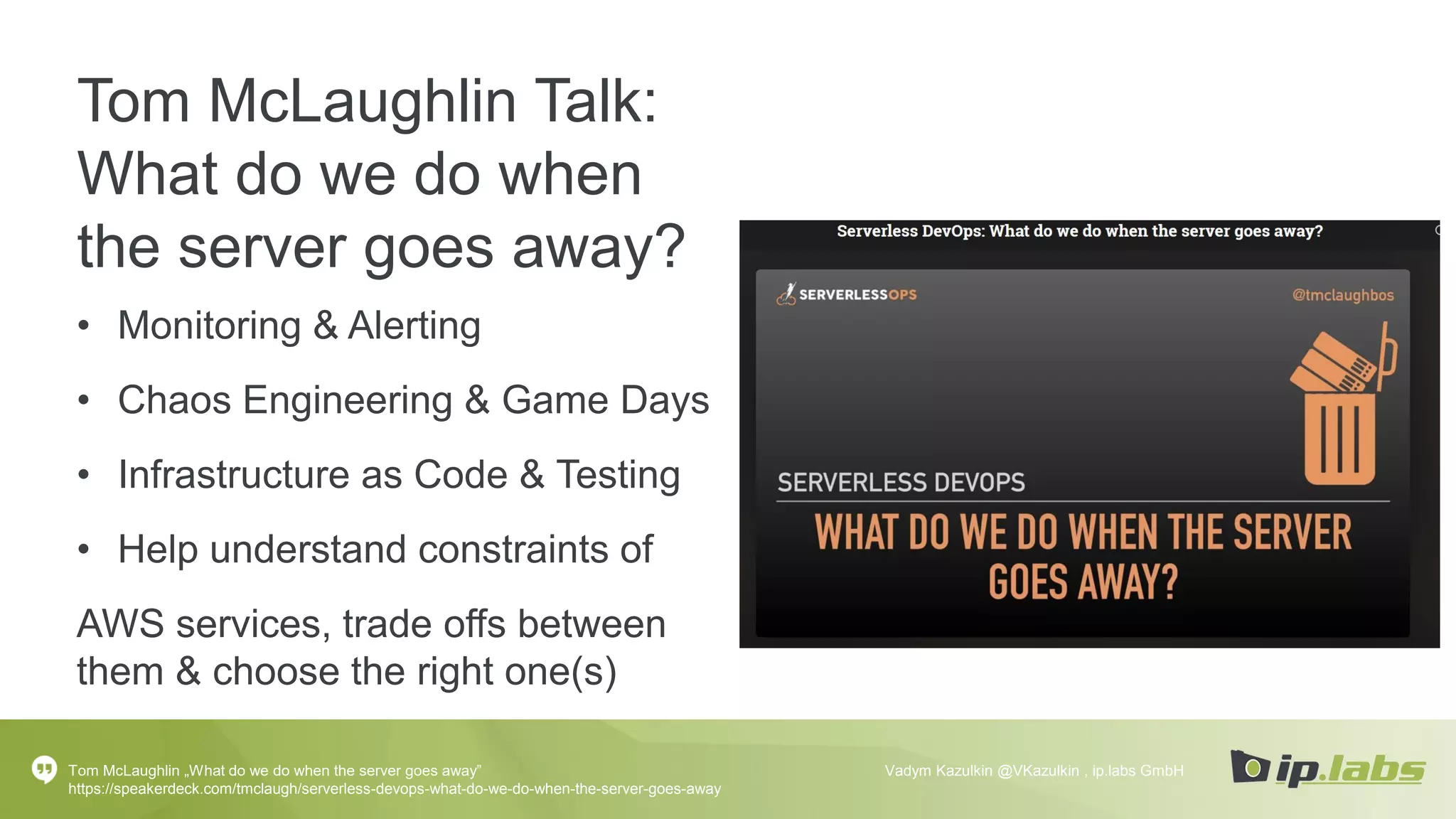

42. Tom McLaughlin Talk:
What do we do when
the server goes away?
• Monitoring & Alerting
• Chaos Engineering & Game Days
• Infrastructure as Code & Testing
• Help understand constraints of
AWS services, trade offs between
them & choose the right one(s)
Tom McLaughlin „What do we do when the server goes away”
https://speakerdeck.com/tmclaugh/serverless-devops-what-do-we-do-when-the-server-goes-away
Vadym Kazulkin @VKazulkin , ip.labs GmbH

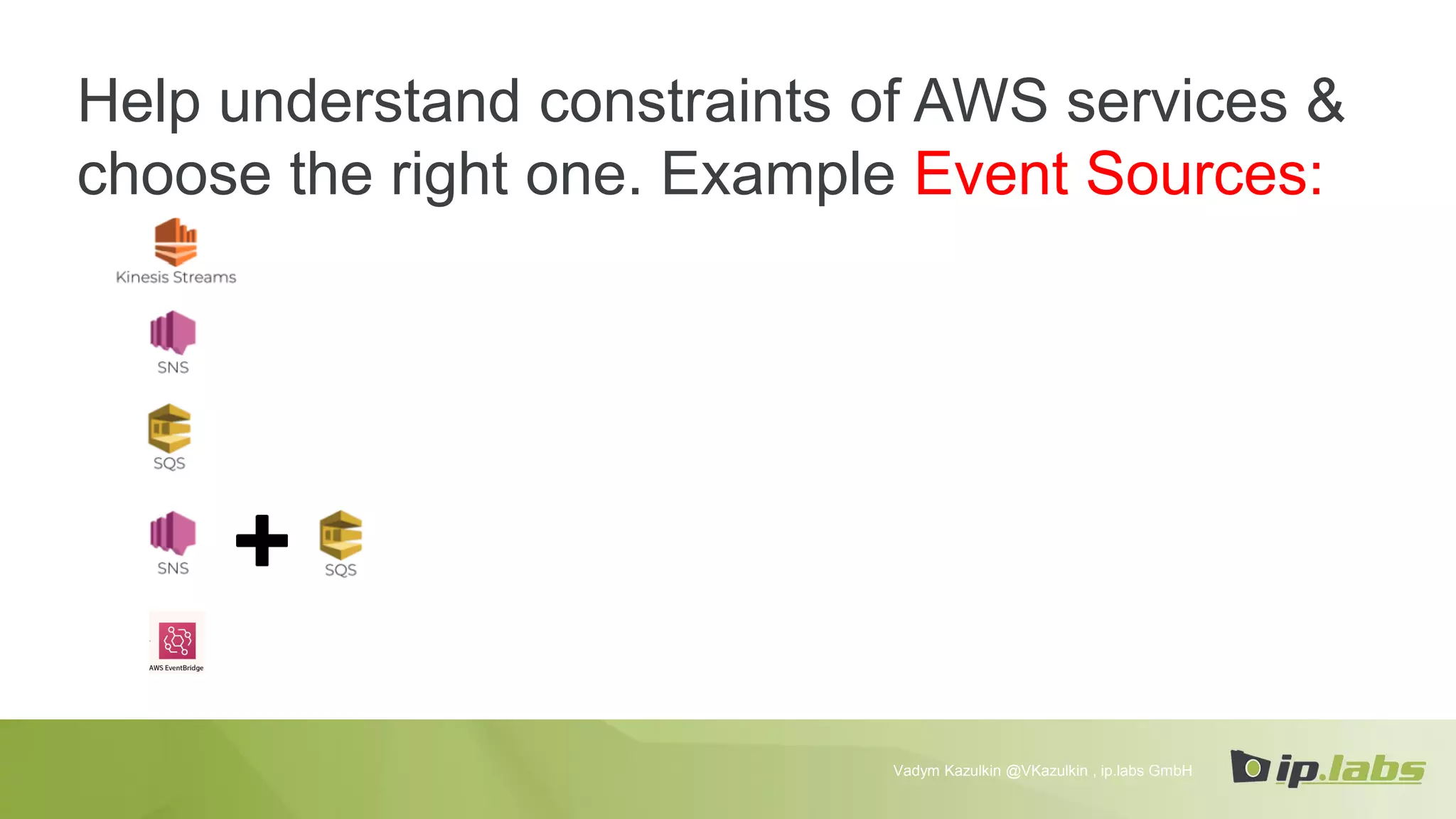

43. Help understand constraints of AWS services &
choose the right one. Example Event Sources:
Vadym Kazulkin @VKazulkin , ip.labs GmbH

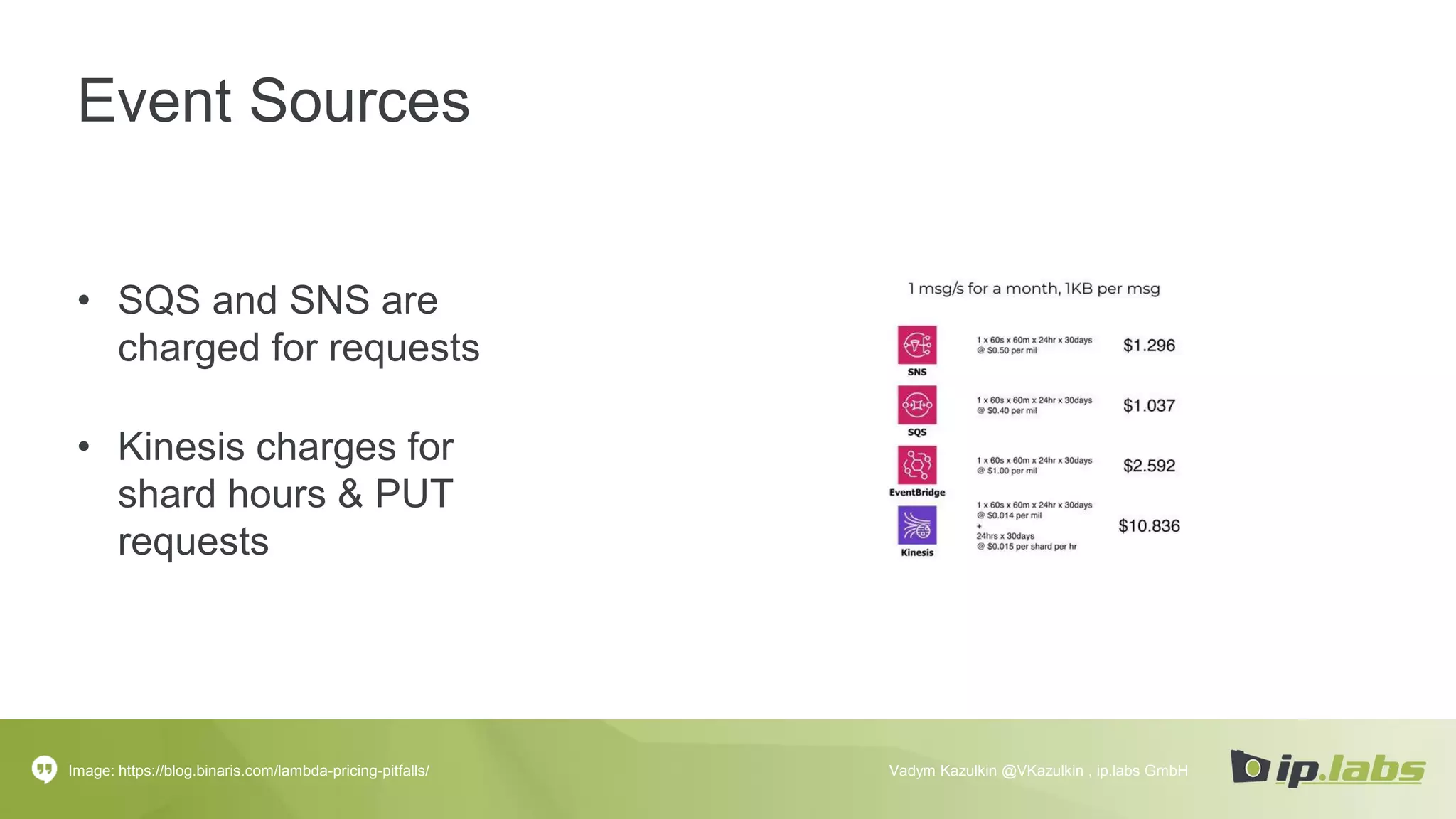

44. Event Sources
• SQS and SNS are
charged for requests
• Kinesis charges for
shard hours & PUT
requests
Image: https://blog.binaris.com/lambda-pricing-pitfalls/ Vadym Kazulkin @VKazulkin , ip.labs GmbH

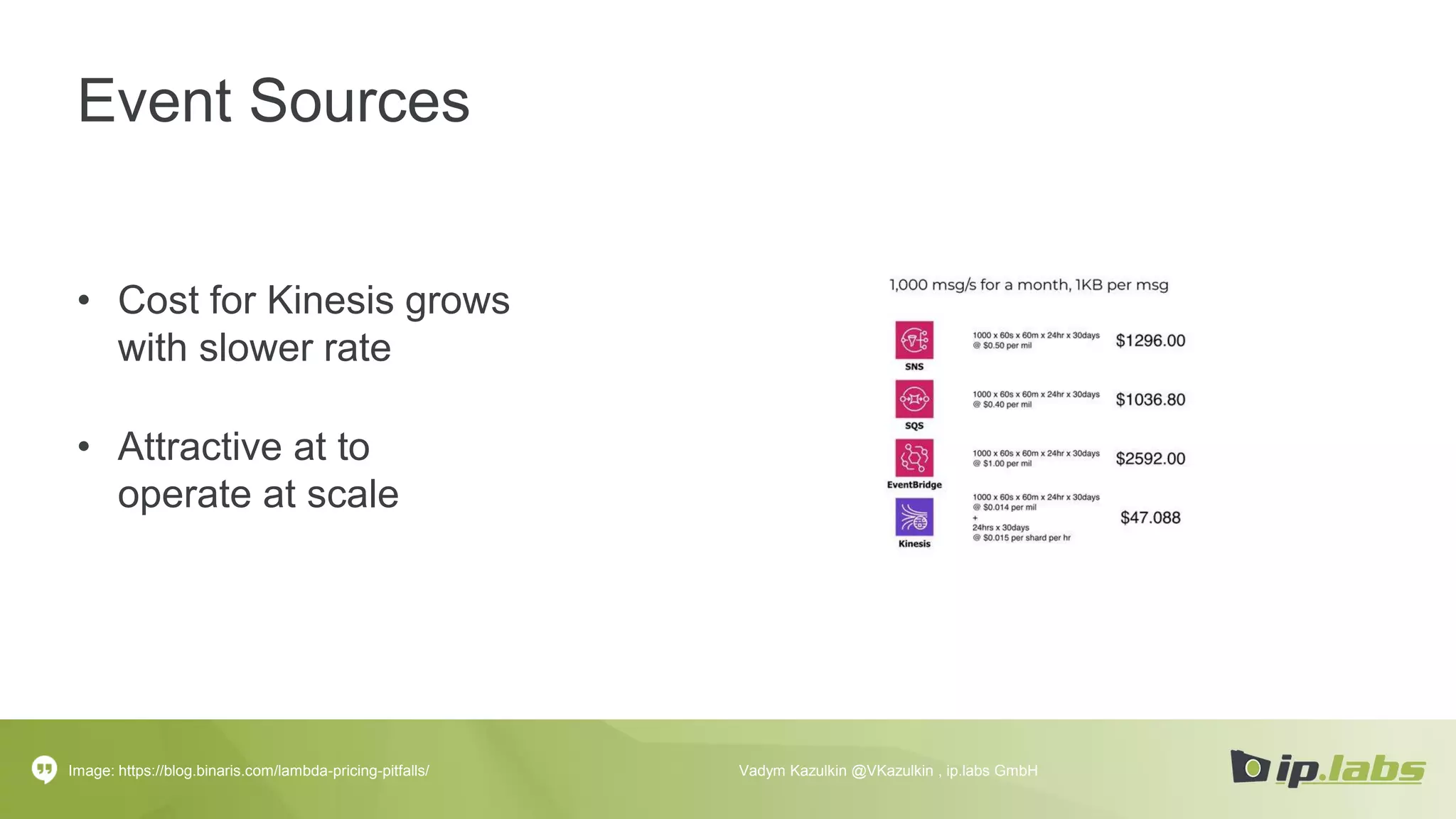

45. Event Sources
• Cost for Kinesis grows
with slower rate
• Attractive at to
operate at scale
Image: https://blog.binaris.com/lambda-pricing-pitfalls/ Vadym Kazulkin @VKazulkin , ip.labs GmbH

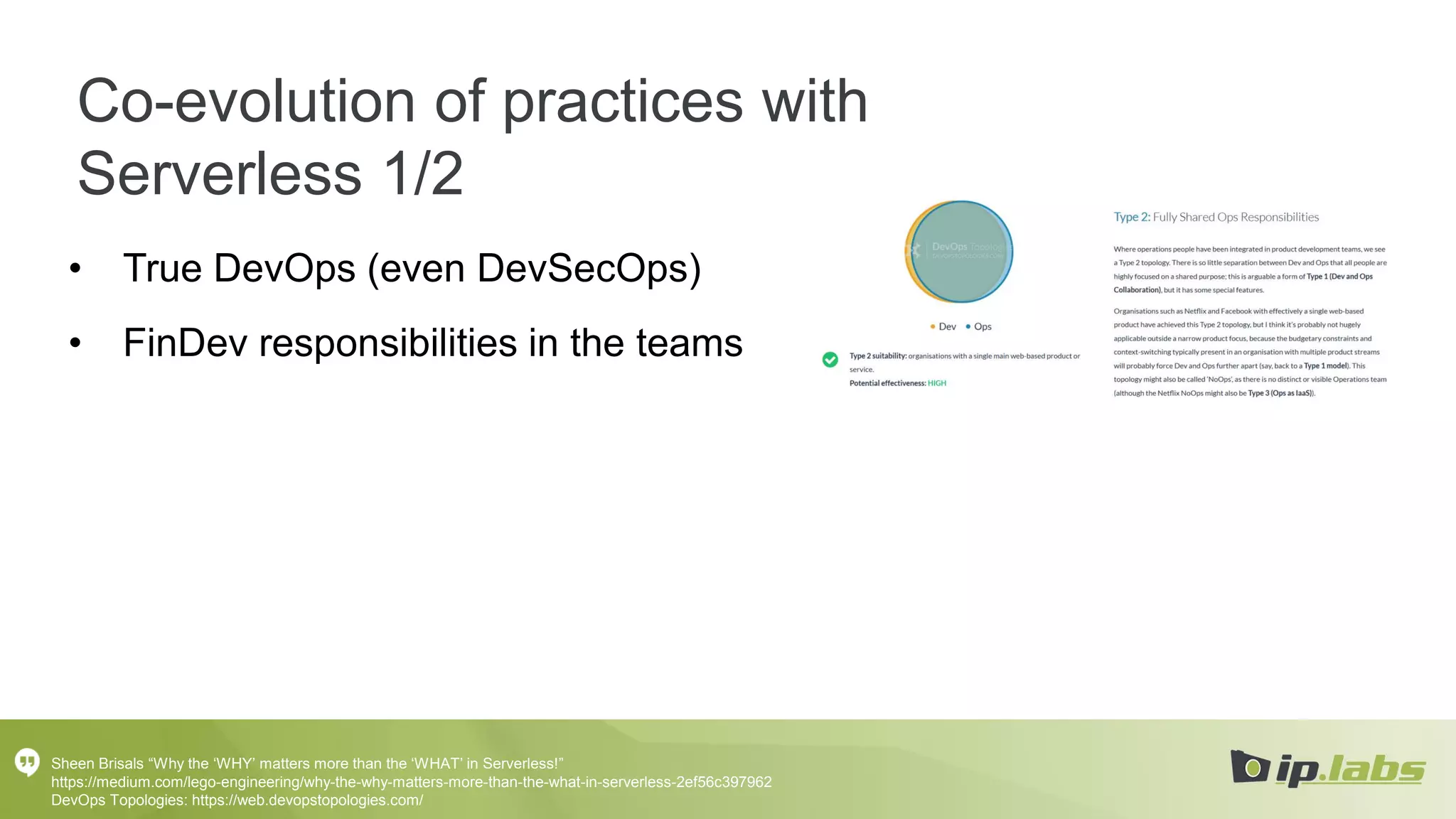

46. Co-evolution of practices with
Serverless 1/2
• True DevOps (even DevSecOps)
• FinDev responsibilities in the teams
Sheen Brisals “Why the ‘WHY’ matters more than the ‘WHAT’ in Serverless!”
https://medium.com/lego-engineering/why-the-why-matters-more-than-the-what-in-serverless-2ef56c397962
DevOps Topologies: https://web.devopstopologies.com/

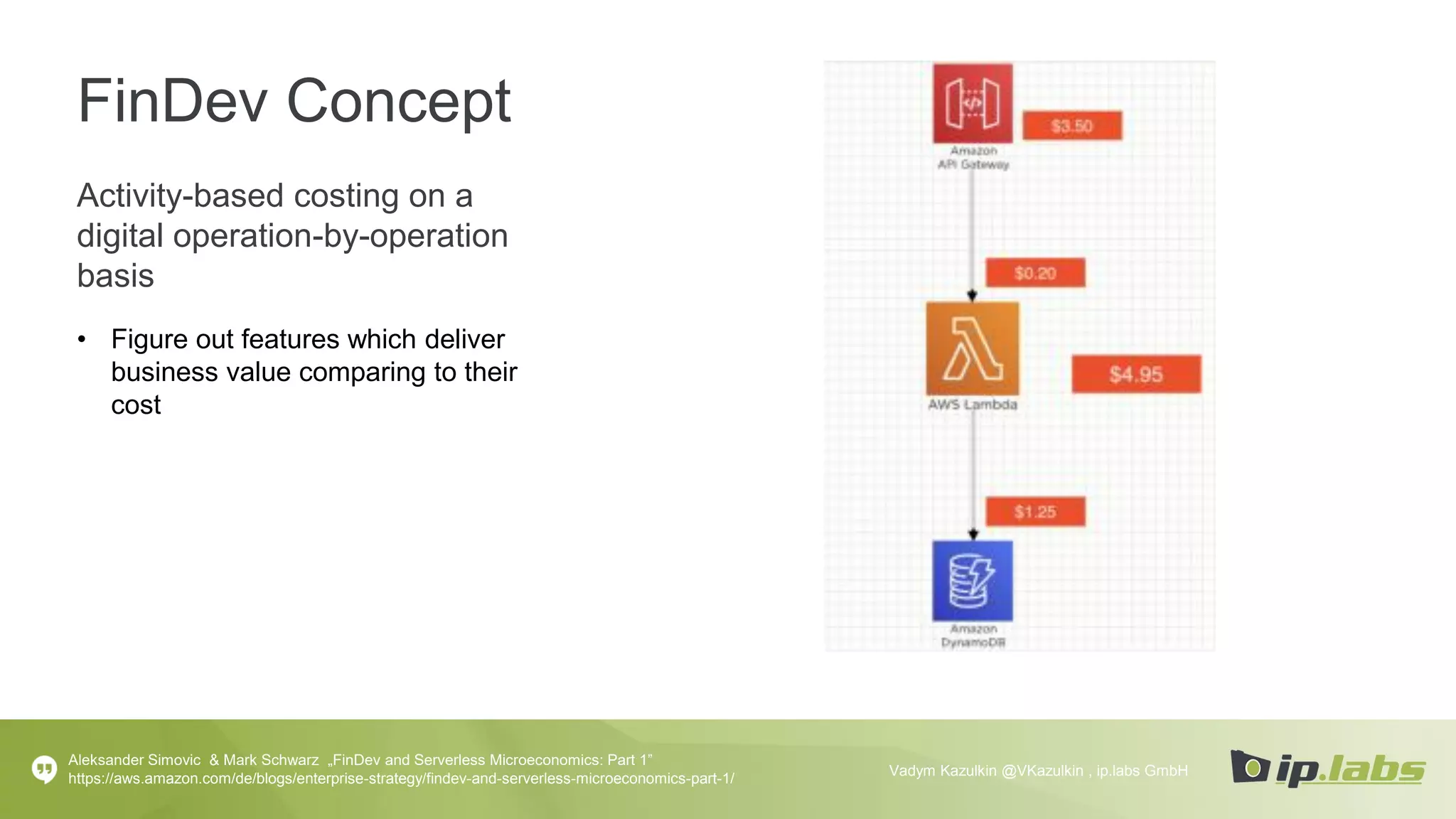

47. FinDev Concept
Activity-based costing on a
digital operation-by-operation
basis
• Figure out features which deliver
business value comparing to their
cost
Aleksander Simovic & Mark Schwarz „FinDev and Serverless Microeconomics: Part 1”
https://aws.amazon.com/de/blogs/enterprise-strategy/findev-and-serverless-microeconomics-part-1/
Vadym Kazulkin @VKazulkin , ip.labs GmbH

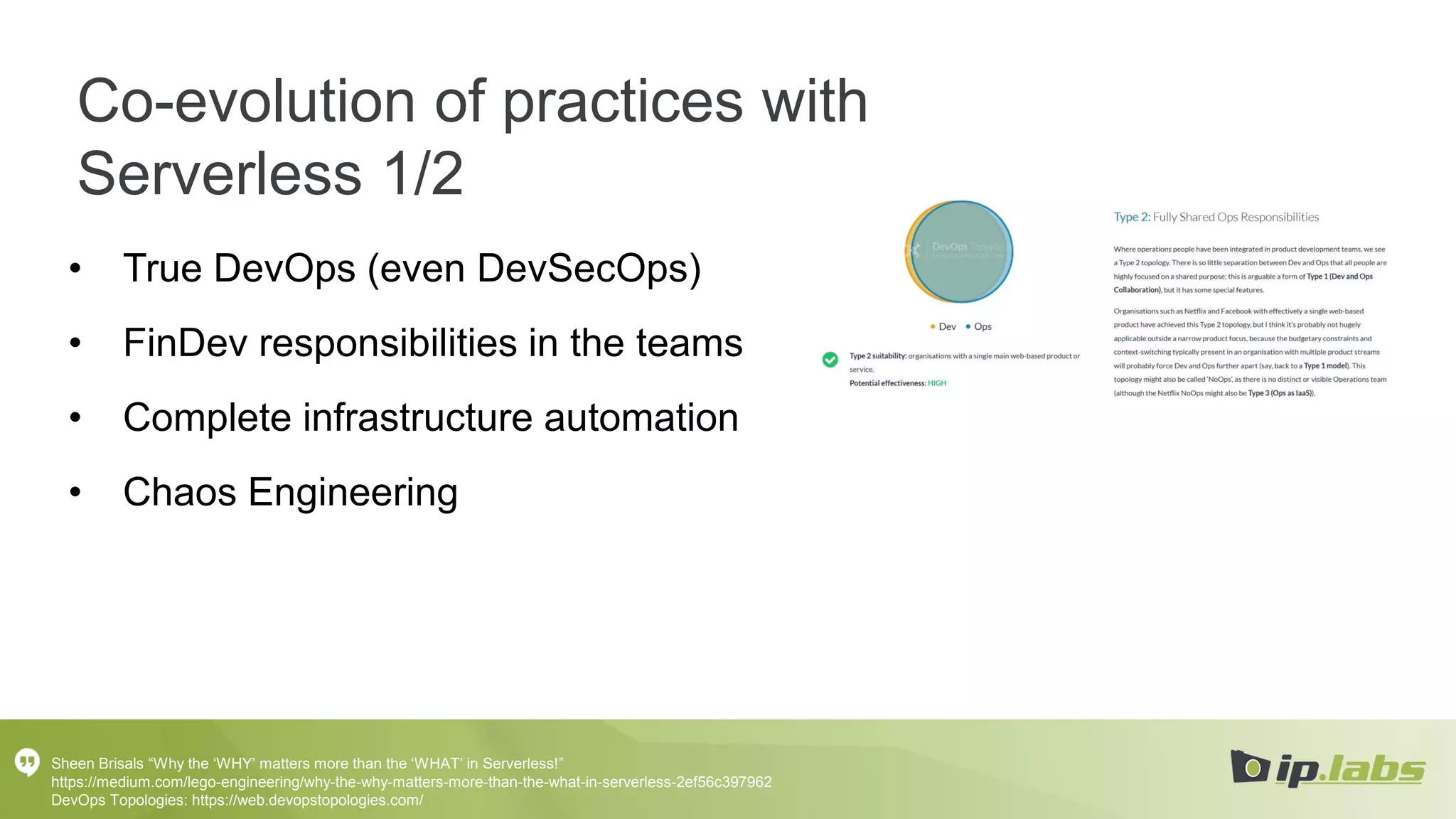

48. Co-evolution of practices with
Serverless 1/2
• True DevOps (even DevSecOps)
• FinDev responsibilities in the teams
• Complete infrastructure automation
• Chaos Engineering
Sheen Brisals “Why the ‘WHY’ matters more than the ‘WHAT’ in Serverless!”
https://medium.com/lego-engineering/why-the-why-matters-more-than-the-what-in-serverless-2ef56c397962
DevOps Topologies: https://web.devopstopologies.com/

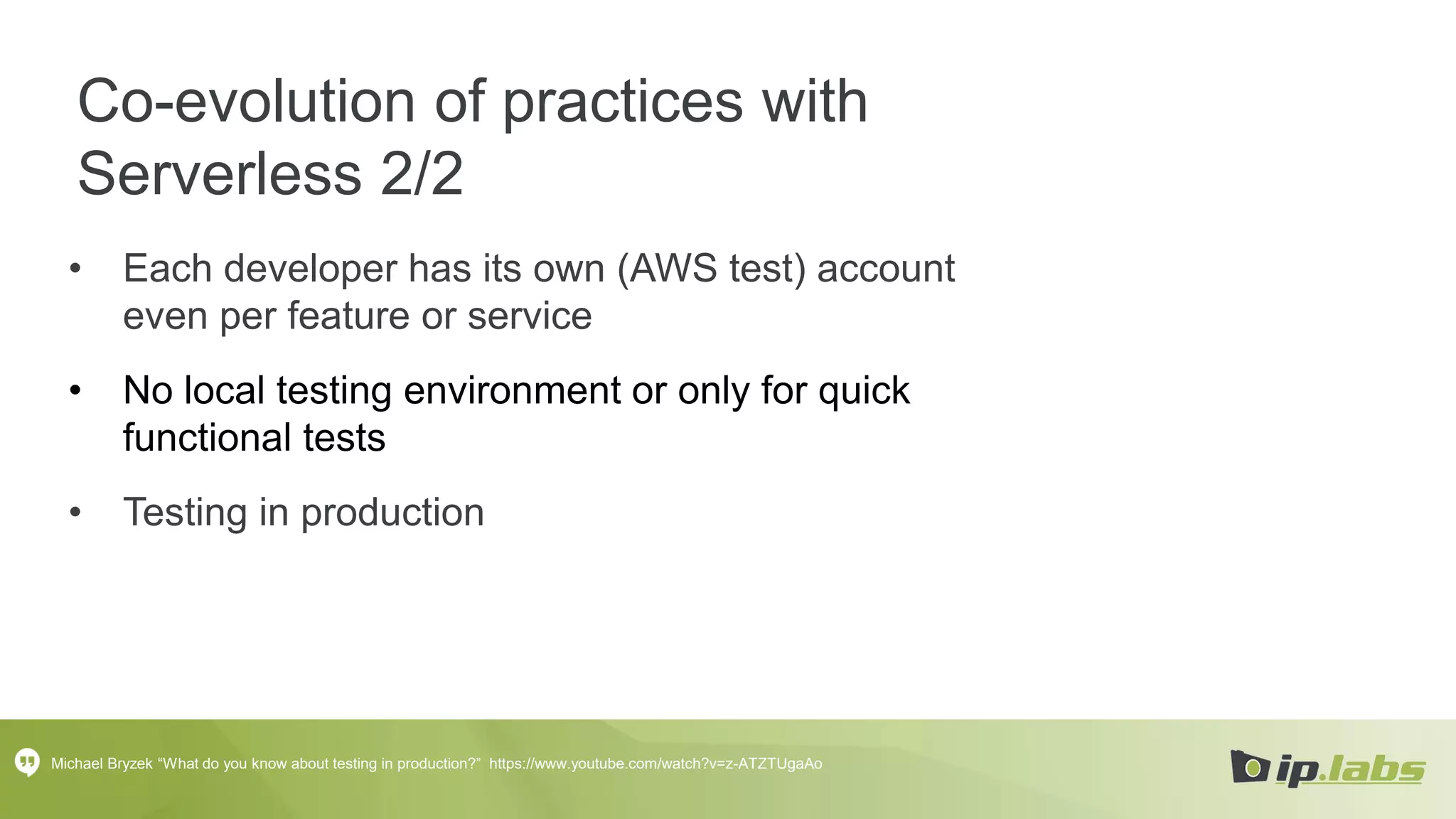

49. Co-evolution of practices with
Serverless 2/2
• Each developer has its own (AWS test) account
even per feature or service
• No local testing environment or only for quick
functional tests
• Testing in production
Michael Bryzek “What do you know about testing in production?” https://www.youtube.com/watch?v=z-ATZTUgaAo

50. Using Serverless ecosystem
with the right engineering practices in place will
significantly reduce
• extraneous and germane cognitive load
• amount of dependencies (i.e. no execution runtime
and web application server to take care of)
• the amount of code written

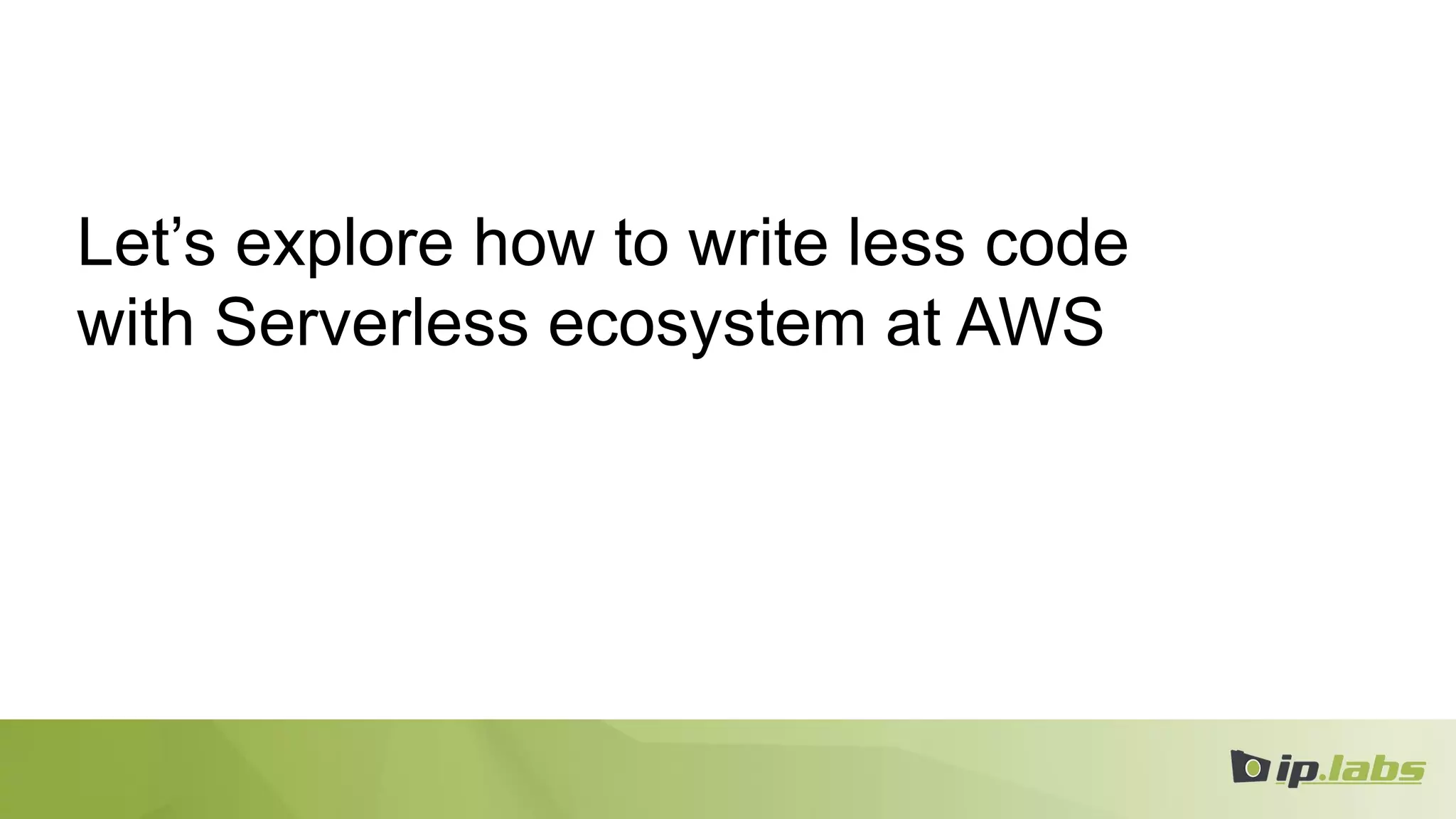

51. Let’s explore how to write less code
with Serverless ecosystem at AWS

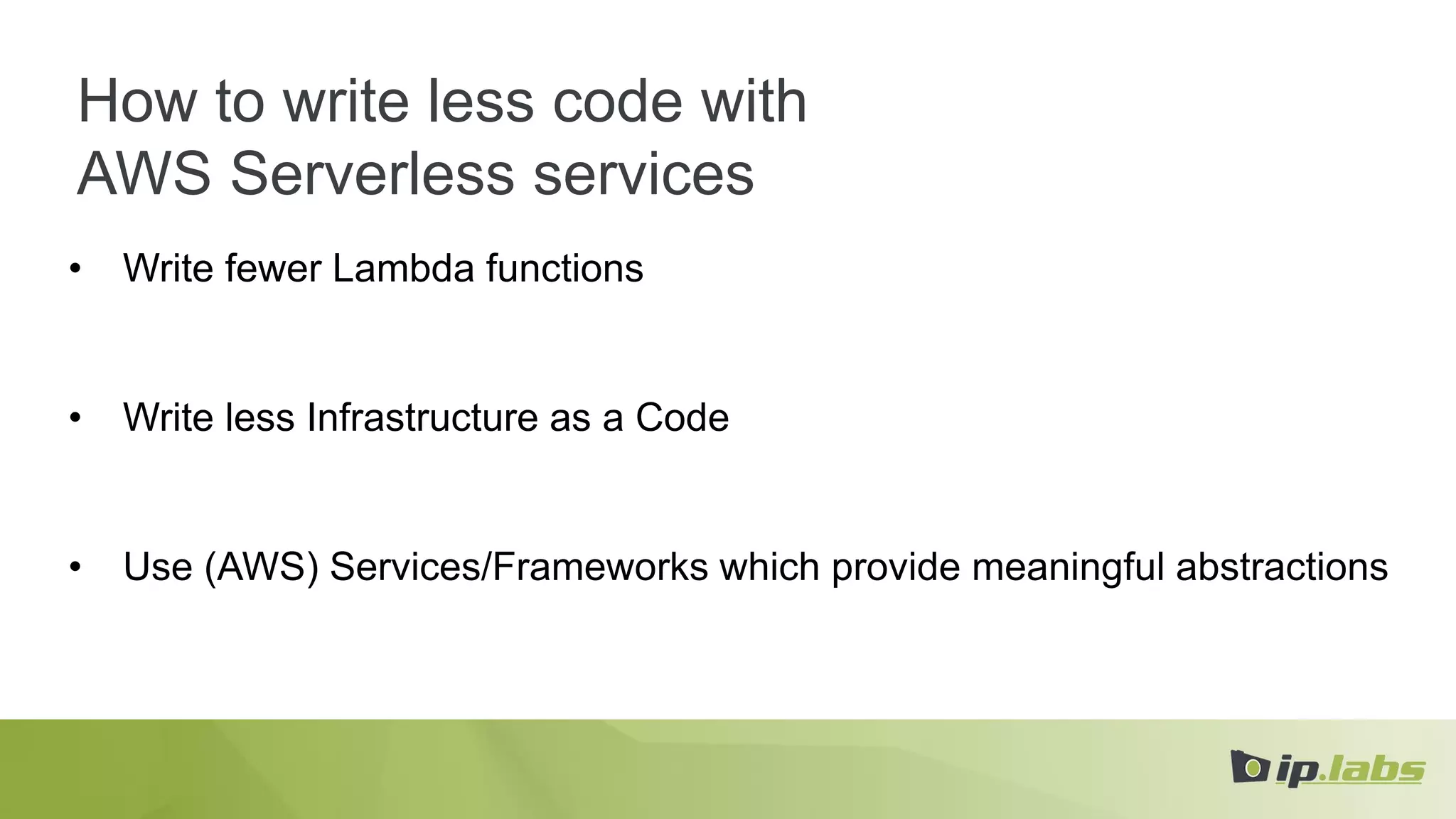

52. How to write less code with
AWS Serverless services
• Write fewer Lambda functions
• Write less Infrastructure as a Code
• Use (AWS) Services/Frameworks which provide meaningful abstractions

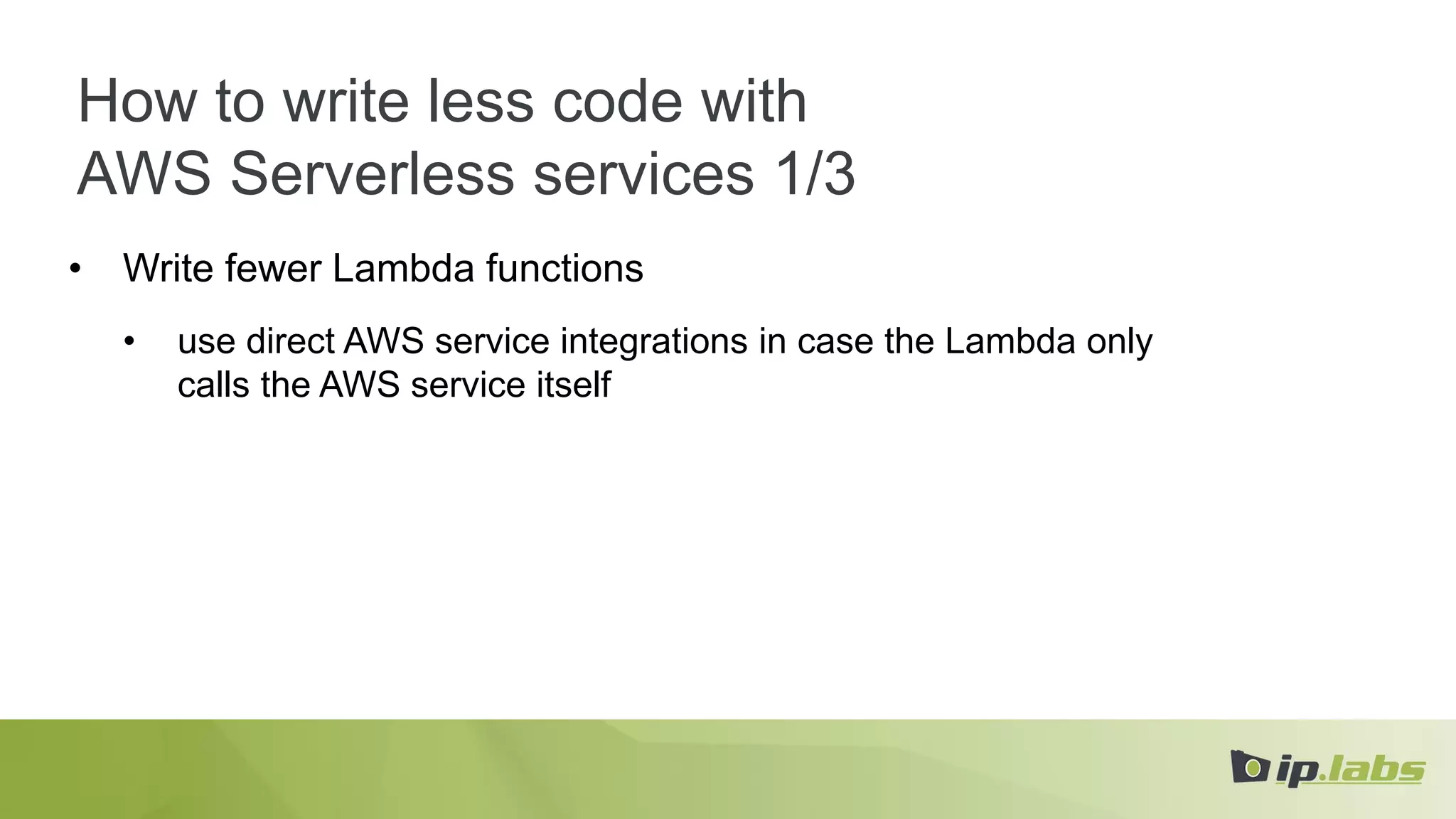

53. How to write less code with
AWS Serverless services 1/3
• Write fewer Lambda functions
• use direct AWS service integrations in case the Lambda only
calls the AWS service itself

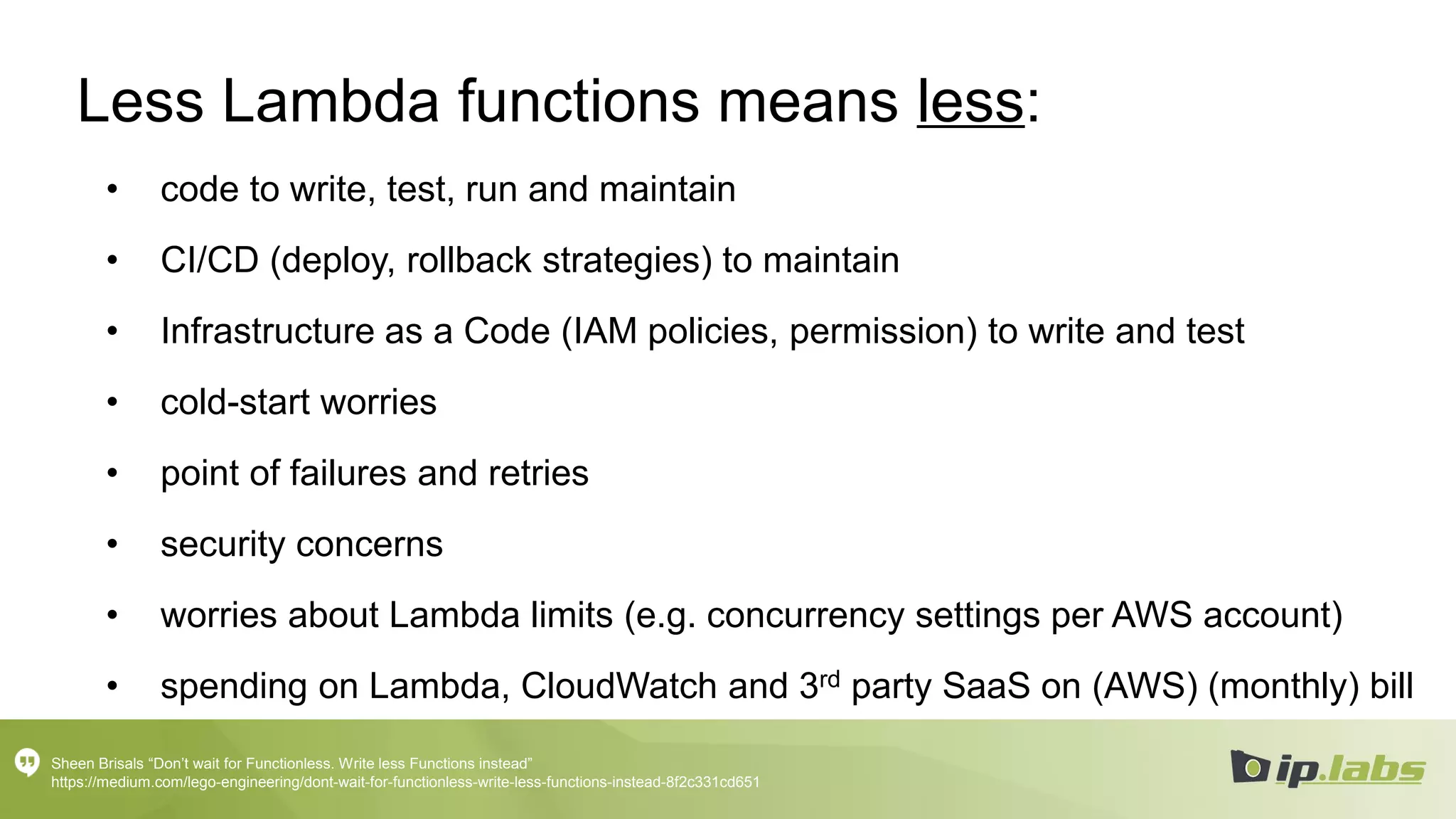

54. Less Lambda functions means less:
• code to write, test, run and maintain
• CI/CD (deploy, rollback strategies) to maintain
• Infrastructure as a Code (IAM policies, permission) to write and test
• cold-start worries
• point of failures and retries
• security concerns
• worries about Lambda limits (e.g. concurrency settings per AWS account)
• spending on Lambda, CloudWatch and 3rd party SaaS on (AWS) (monthly) bill
Sheen Brisals “Don’t wait for Functionless. Write less Functions instead”
https://medium.com/lego-engineering/dont-wait-for-functionless-write-less-functions-instead-8f2c331cd651

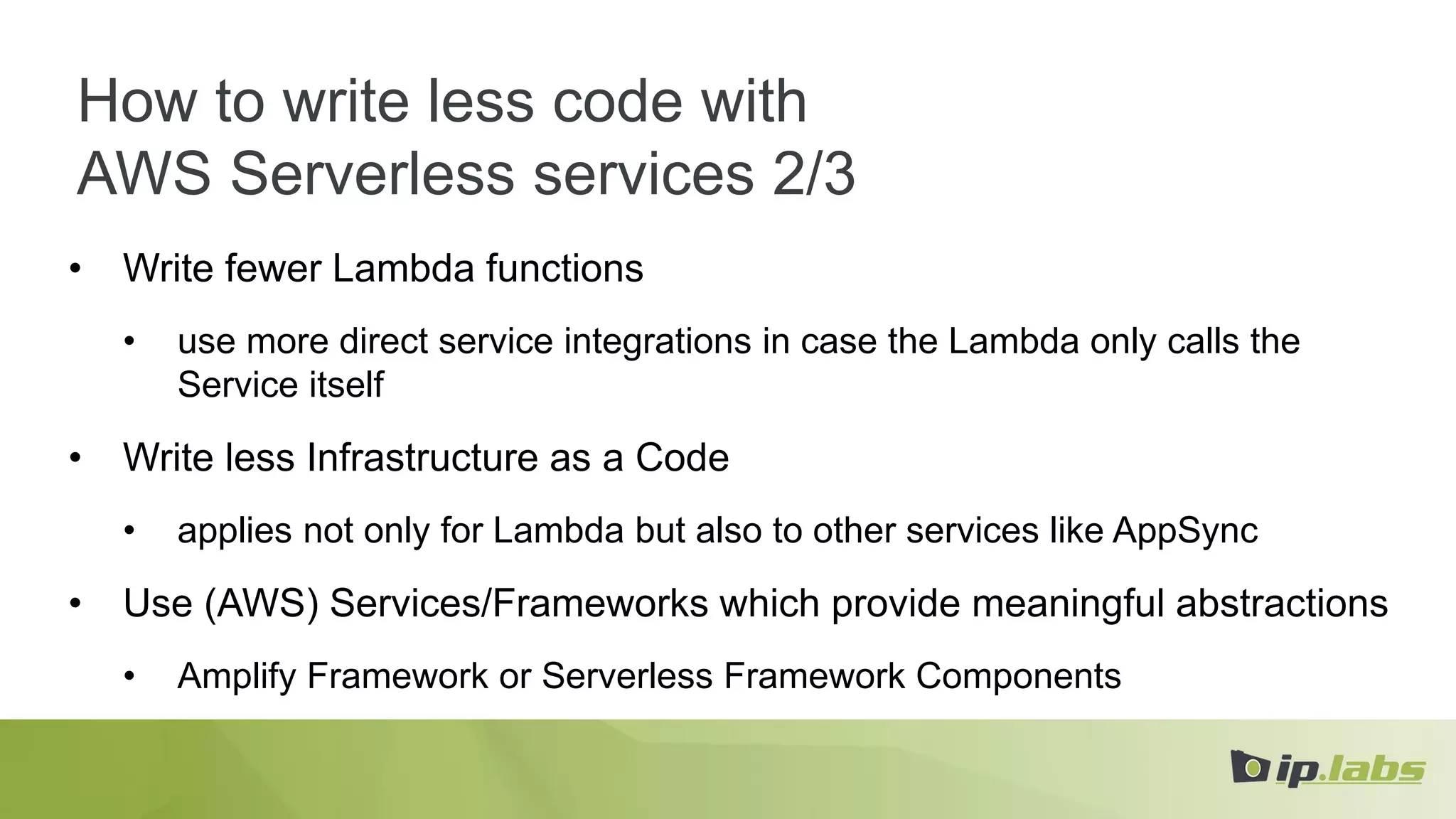

55. How to write less code with
AWS Serverless services 2/3
• Write fewer Lambda functions
• use more direct service integrations in case the Lambda only calls the
Service itself
• Write less Infrastructure as a Code
• applies not only for Lambda but also to other services like AppSync
• Use (AWS) Services/Frameworks which provide meaningful abstractions
• Amplify Framework or Serverless Framework Components

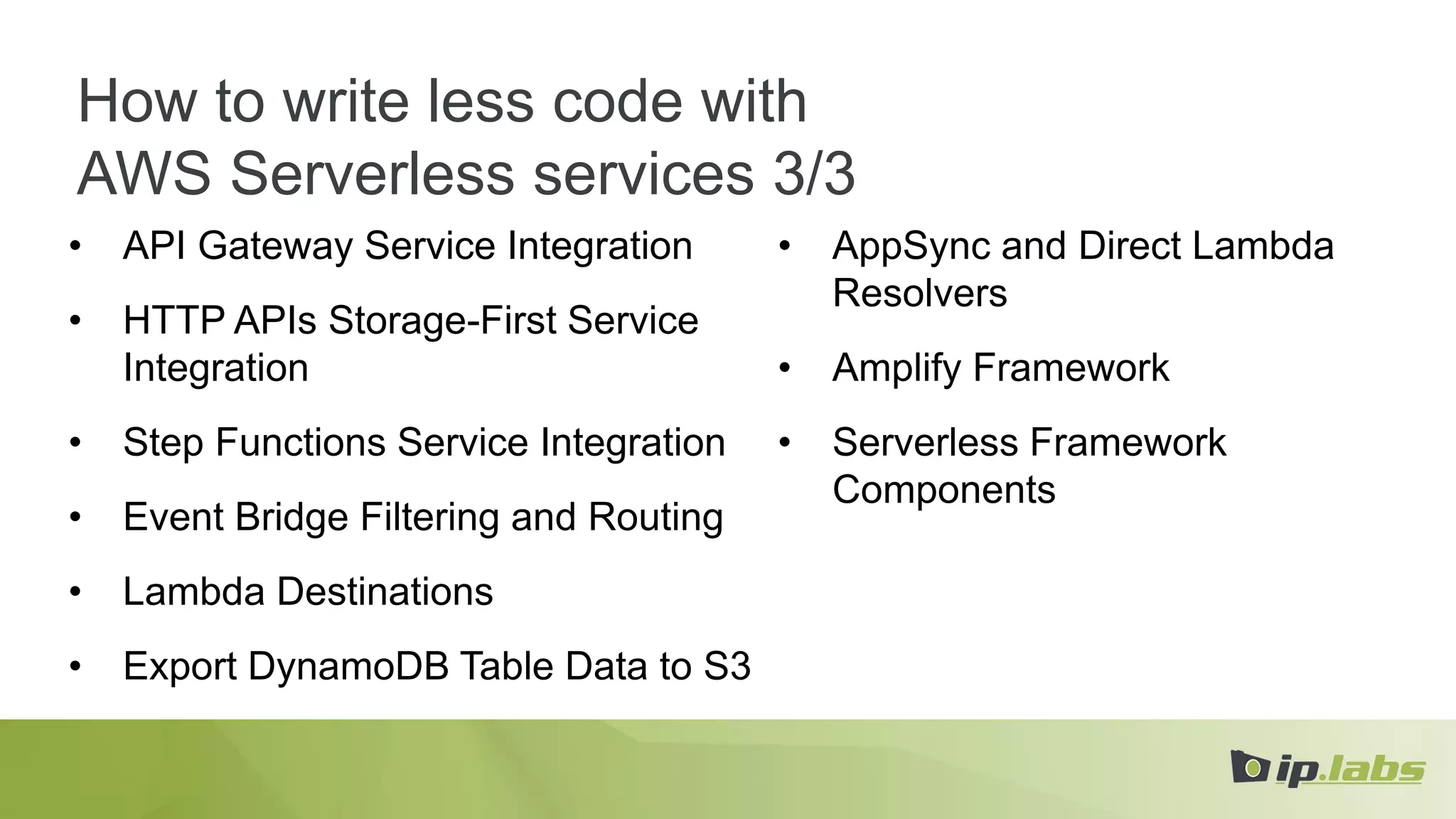

56. How to write less code with
AWS Serverless services 3/3
• API Gateway Service Integration
• HTTP APIs Storage-First Service
Integration
• Step Functions Service Integration
• Event Bridge Filtering and Routing
• Lambda Destinations
• Export DynamoDB Table Data to S3
• AppSync and Direct Lambda
Resolvers
• Amplify Framework
• Serverless Framework
Components

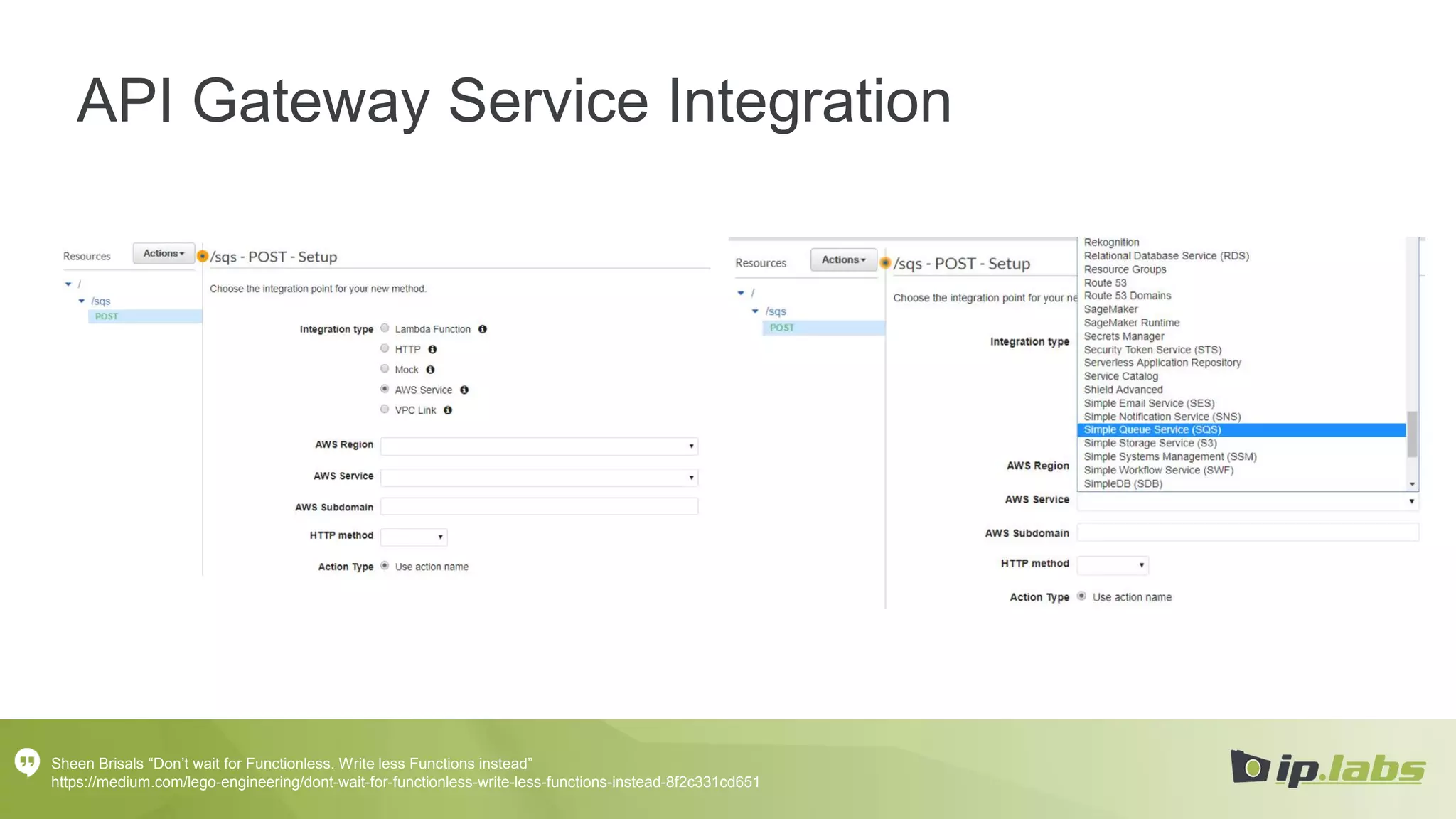

57. Sheen Brisals “Don’t wait for Functionless. Write less Functions instead”
https://medium.com/lego-engineering/dont-wait-for-functionless-write-less-functions-instead-8f2c331cd651
API Gateway Service Integration

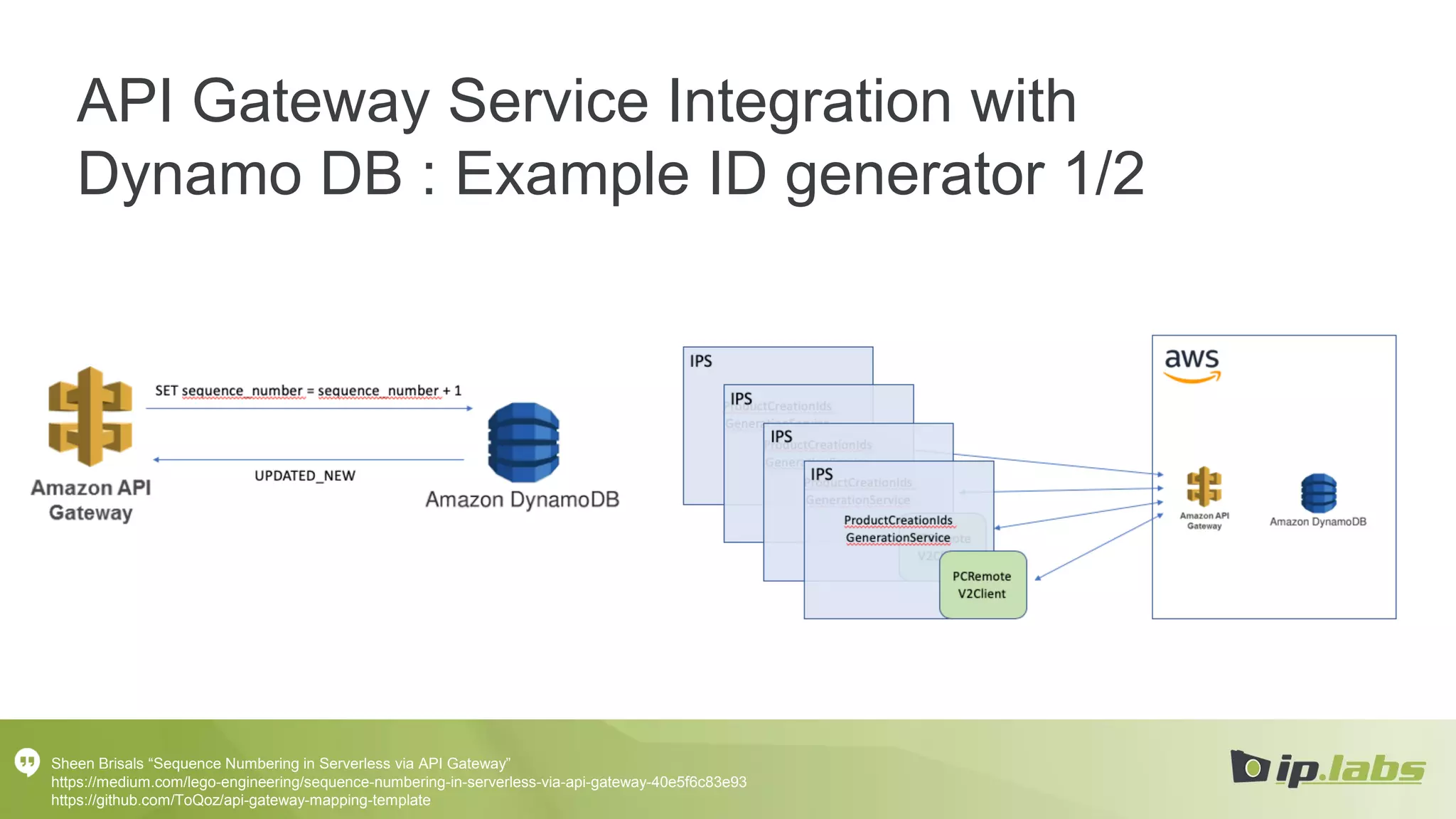

58. API Gateway Service Integration with
Dynamo DB : Example ID generator 1/2
Sheen Brisals “Sequence Numbering in Serverless via API Gateway”
https://medium.com/lego-engineering/sequence-numbering-in-serverless-via-api-gateway-40e5f6c83e93
https://github.com/ToQoz/api-gateway-mapping-template

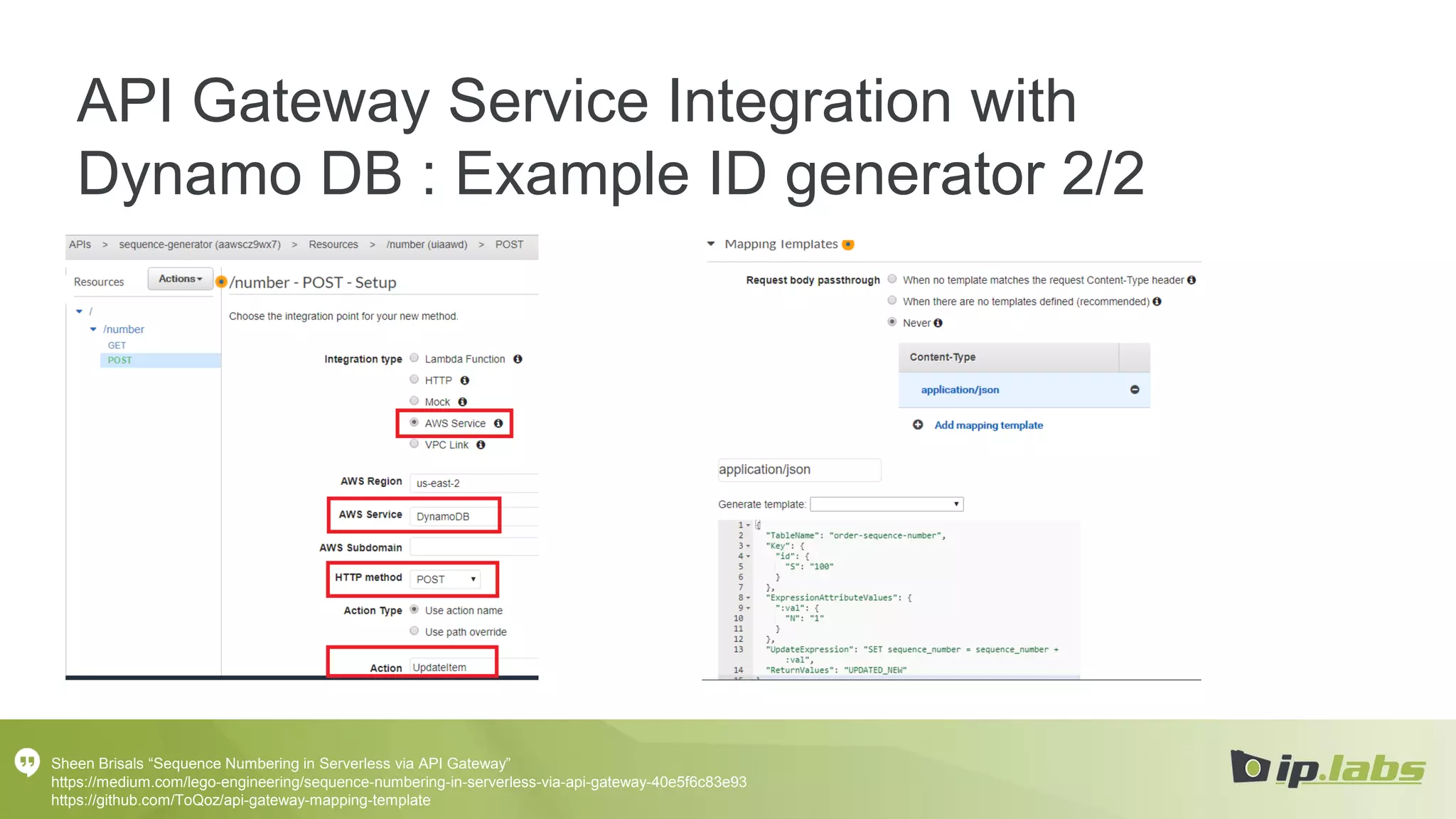

59. API Gateway Service Integration with
Dynamo DB : Example ID generator 2/2
Sheen Brisals “Sequence Numbering in Serverless via API Gateway”
https://medium.com/lego-engineering/sequence-numbering-in-serverless-via-api-gateway-40e5f6c83e93
https://github.com/ToQoz/api-gateway-mapping-template

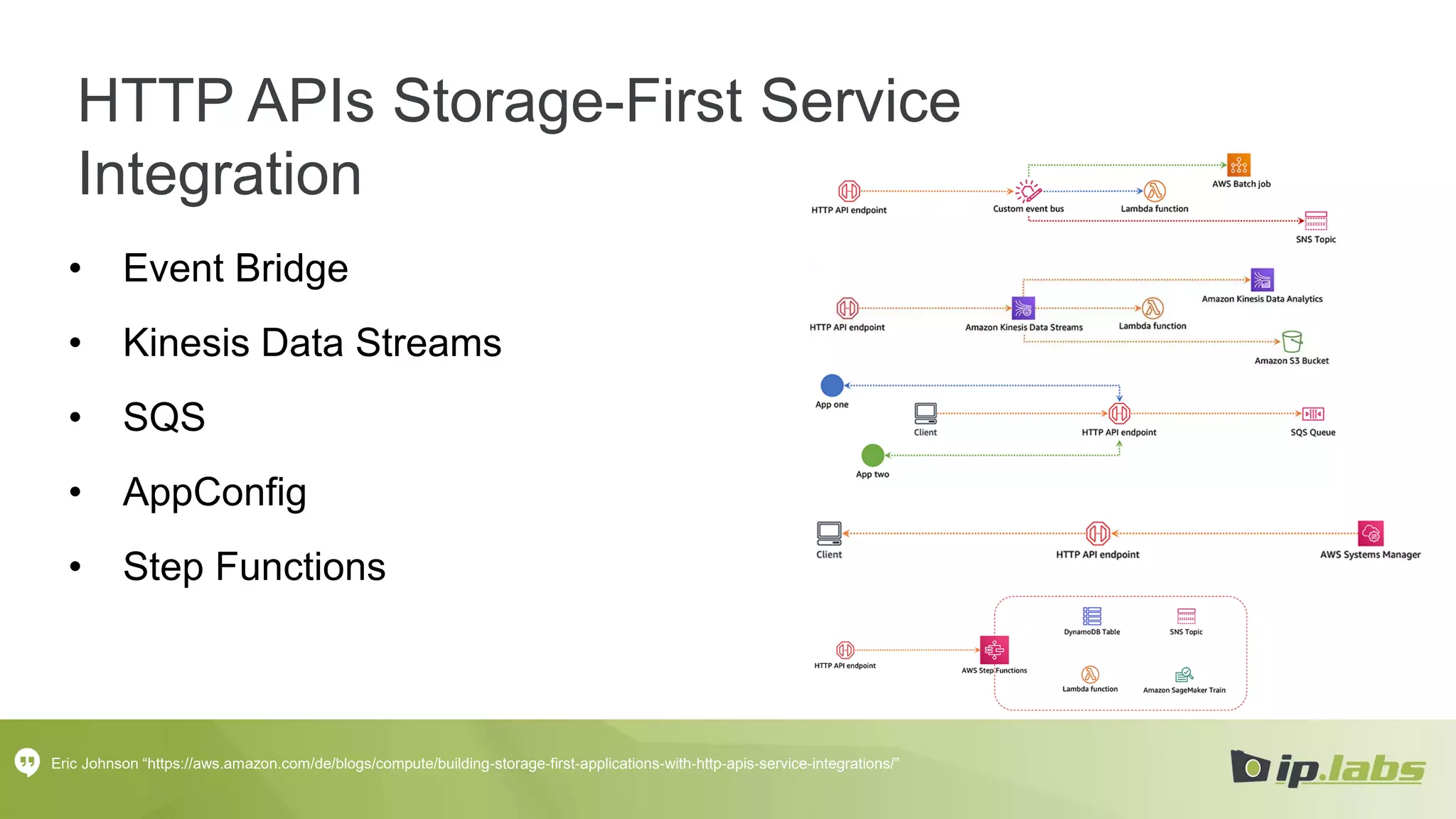

60. Eric Johnson “https://aws.amazon.com/de/blogs/compute/building-storage-first-applications-with-http-apis-service-integrations/”
HTTP APIs Storage-First Service
Integration
• Event Bridge
• Kinesis Data Streams
• SQS
• AppConfig
• Step Functions

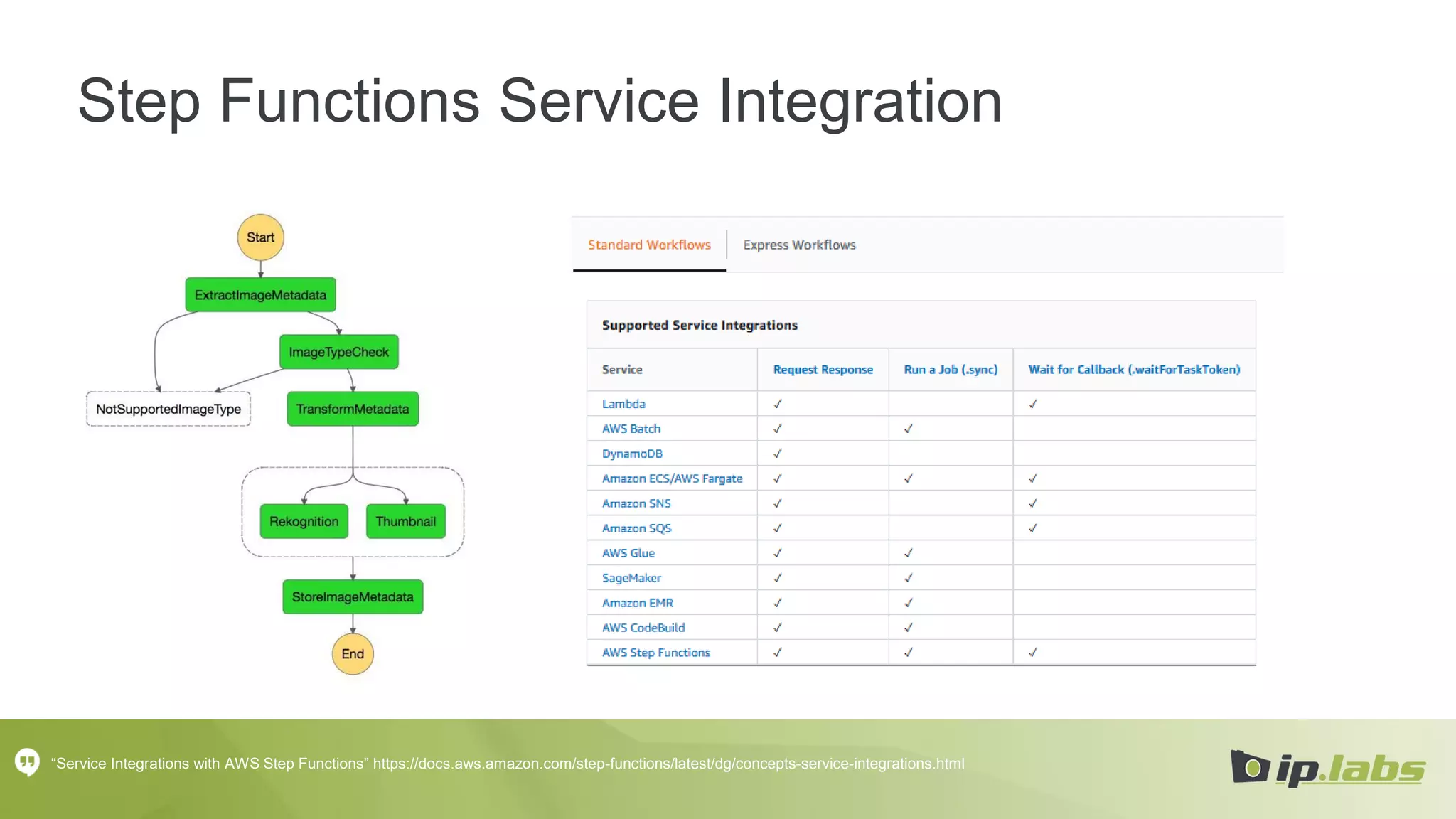

61. Step Functions Service Integration
“Service Integrations with AWS Step Functions” https://docs.aws.amazon.com/step-functions/latest/dg/concepts-service-integrations.html

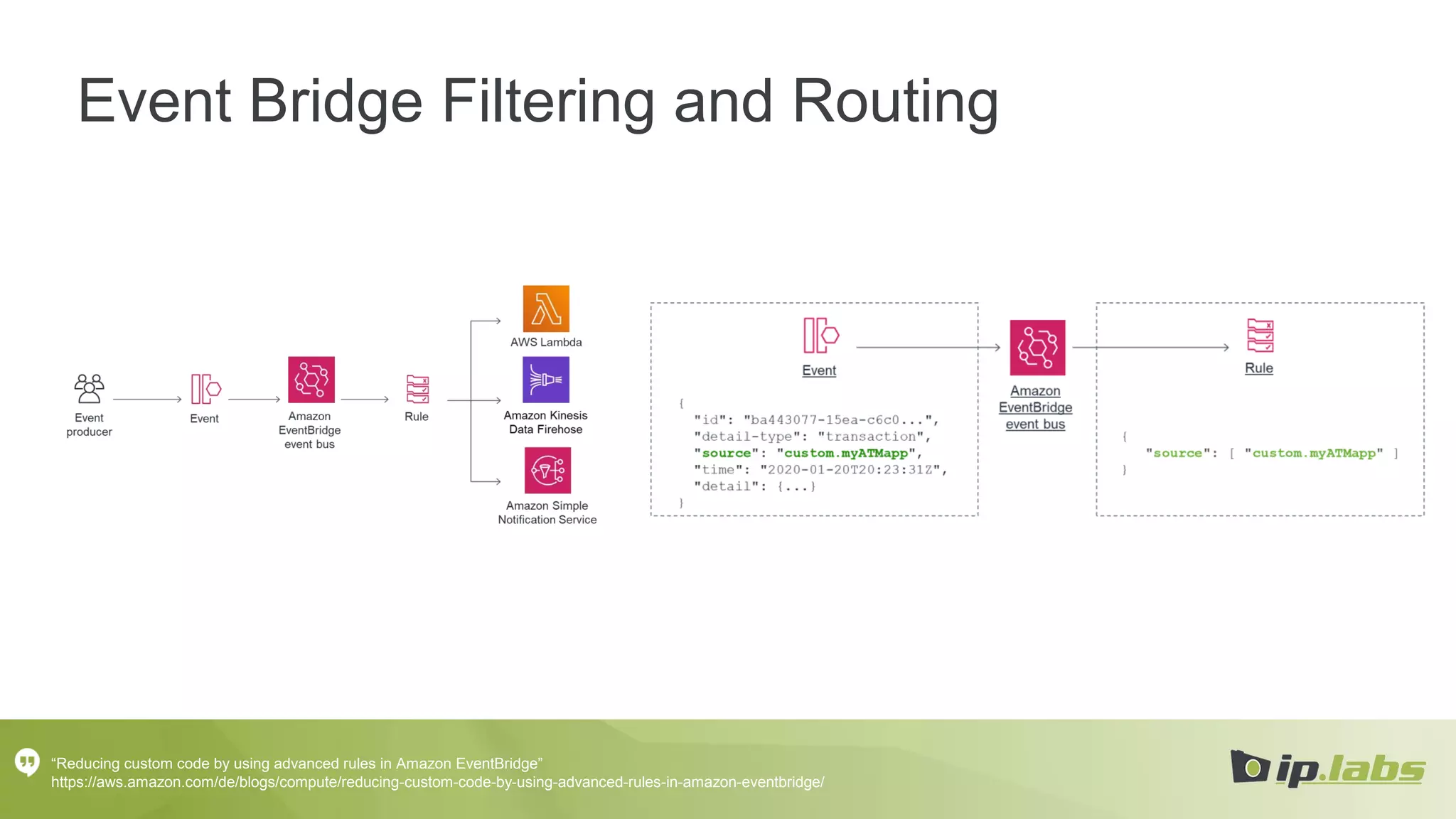

62. Event Bridge Filtering and Routing
“Reducing custom code by using advanced rules in Amazon EventBridge”
https://aws.amazon.com/de/blogs/compute/reducing-custom-code-by-using-advanced-rules-in-amazon-eventbridge/

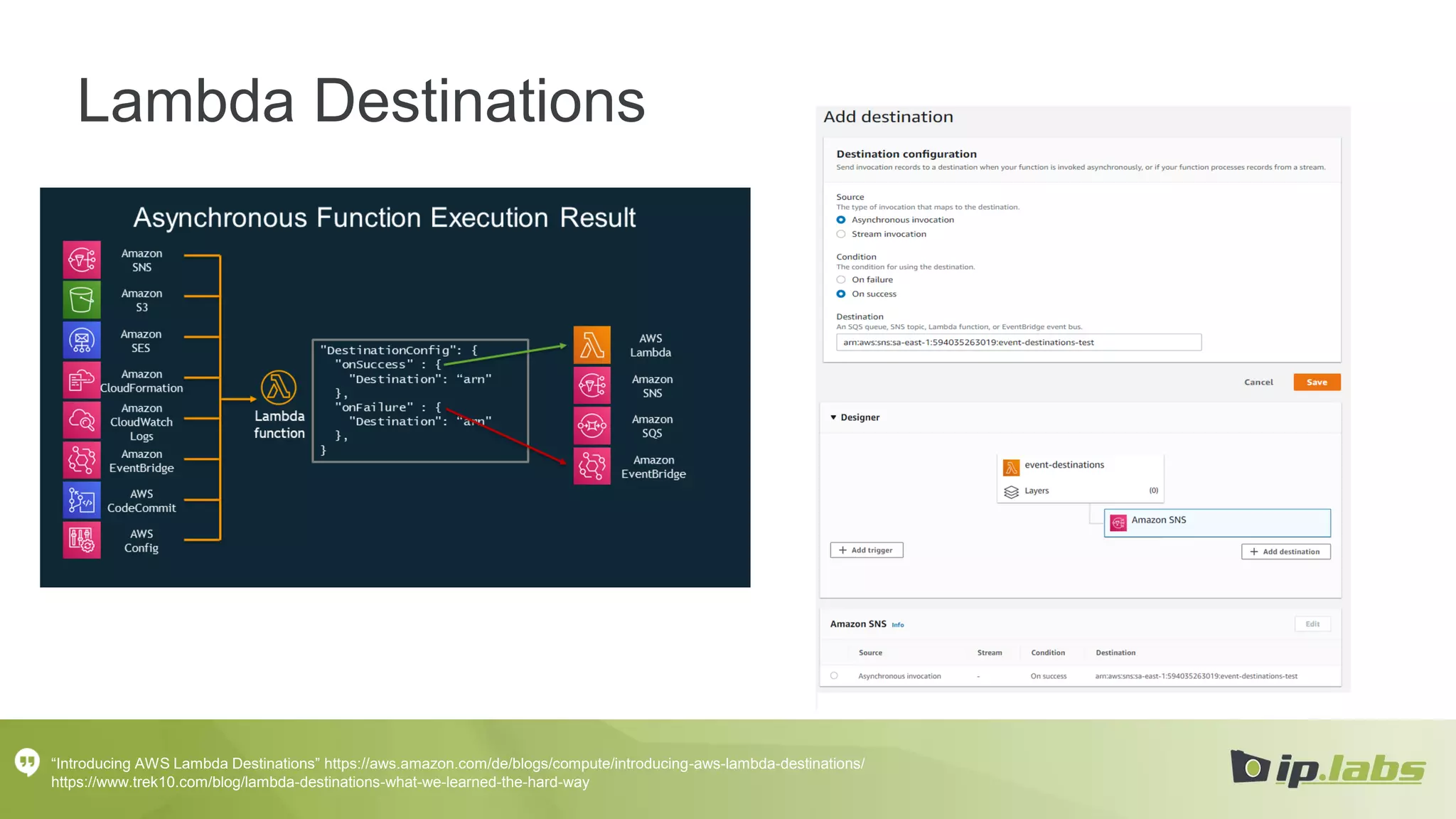

63. Lambda Destinations
“Introducing AWS Lambda Destinations” https://aws.amazon.com/de/blogs/compute/introducing-aws-lambda-destinations/
https://www.trek10.com/blog/lambda-destinations-what-we-learned-the-hard-way

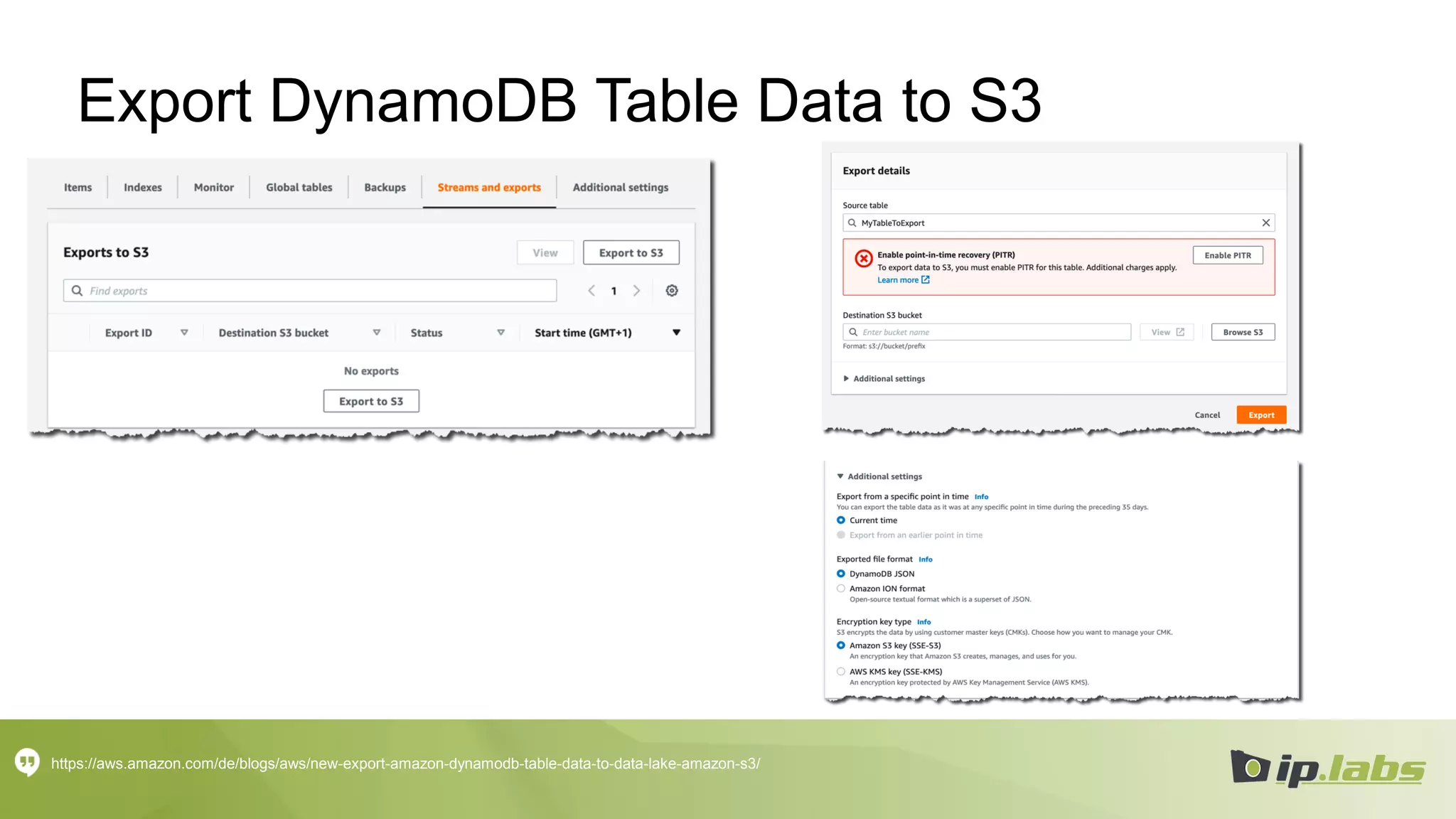

64. Export DynamoDB Table Data to S3
https://aws.amazon.com/de/blogs/aws/new-export-amazon-dynamodb-table-data-to-data-lake-amazon-s3/

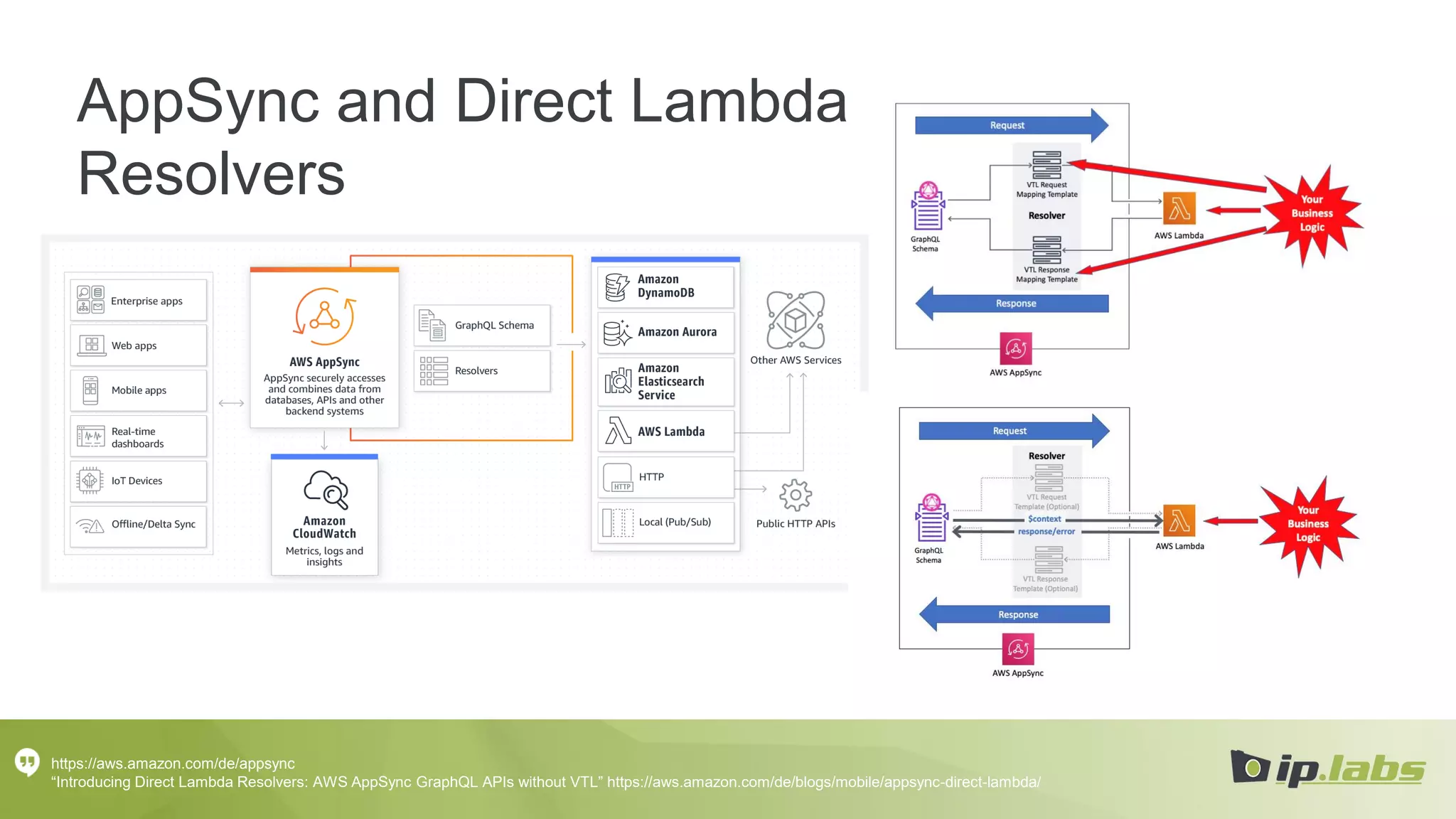

65. AppSync and Direct Lambda
Resolvers
https://aws.amazon.com/de/appsync
“Introducing Direct Lambda Resolvers: AWS AppSync GraphQL APIs without VTL” https://aws.amazon.com/de/blogs/mobile/appsync-direct-lambda/

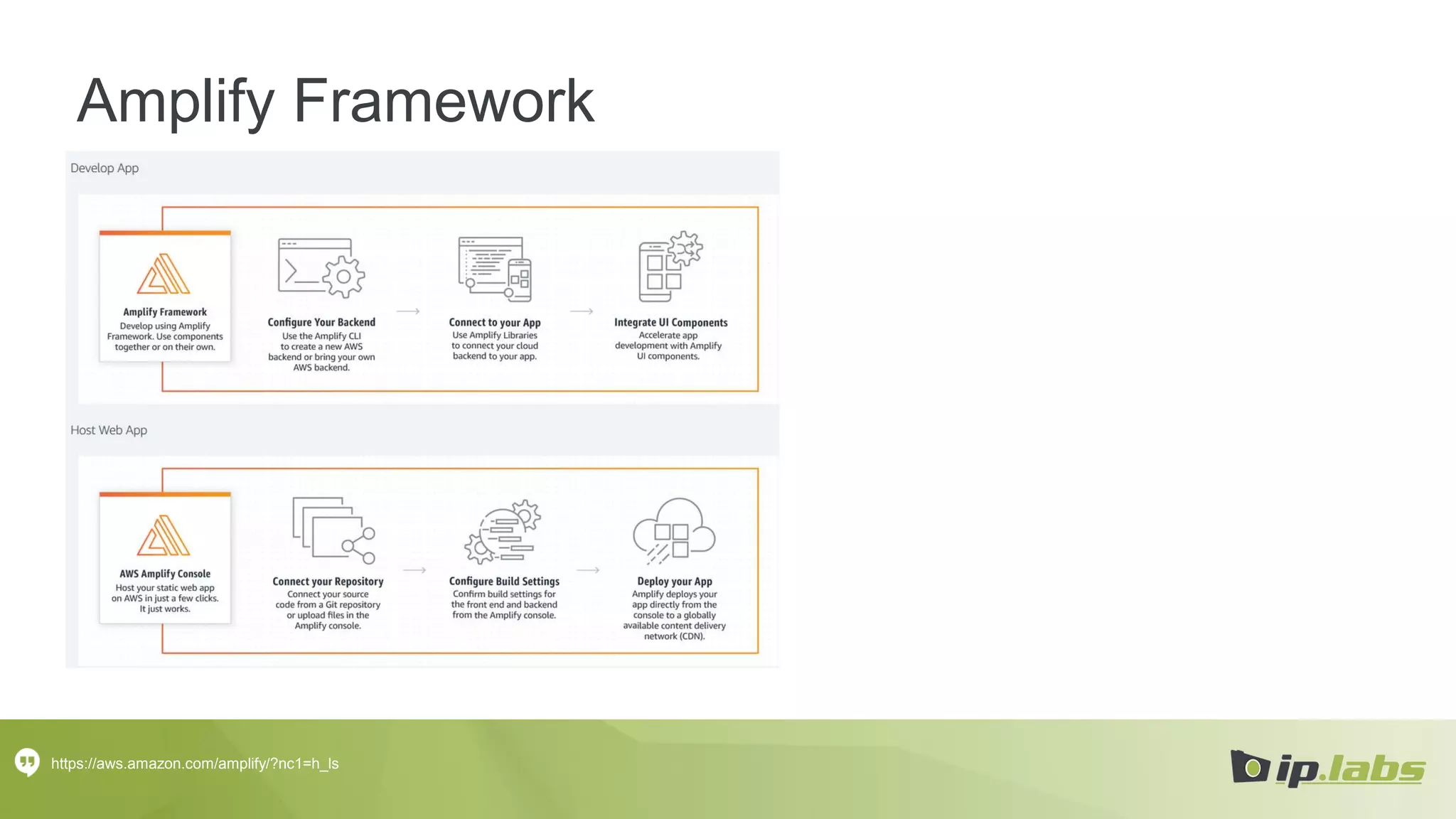

66. Amplify Framework
https://aws.amazon.com/amplify/?nc1=h_ls

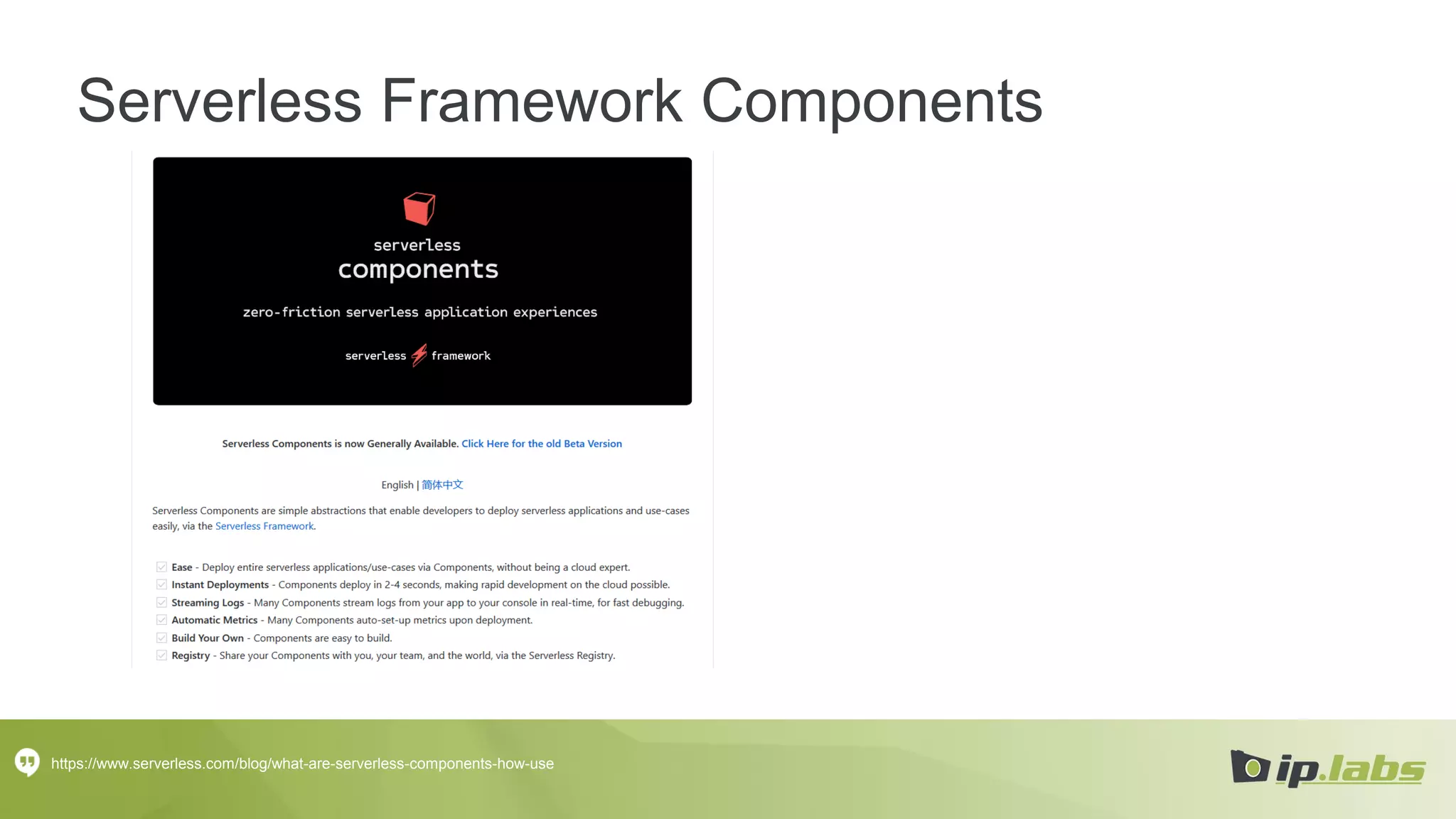

67. Serverless Framework Components
https://www.serverless.com/blog/what-are-serverless-components-how-use

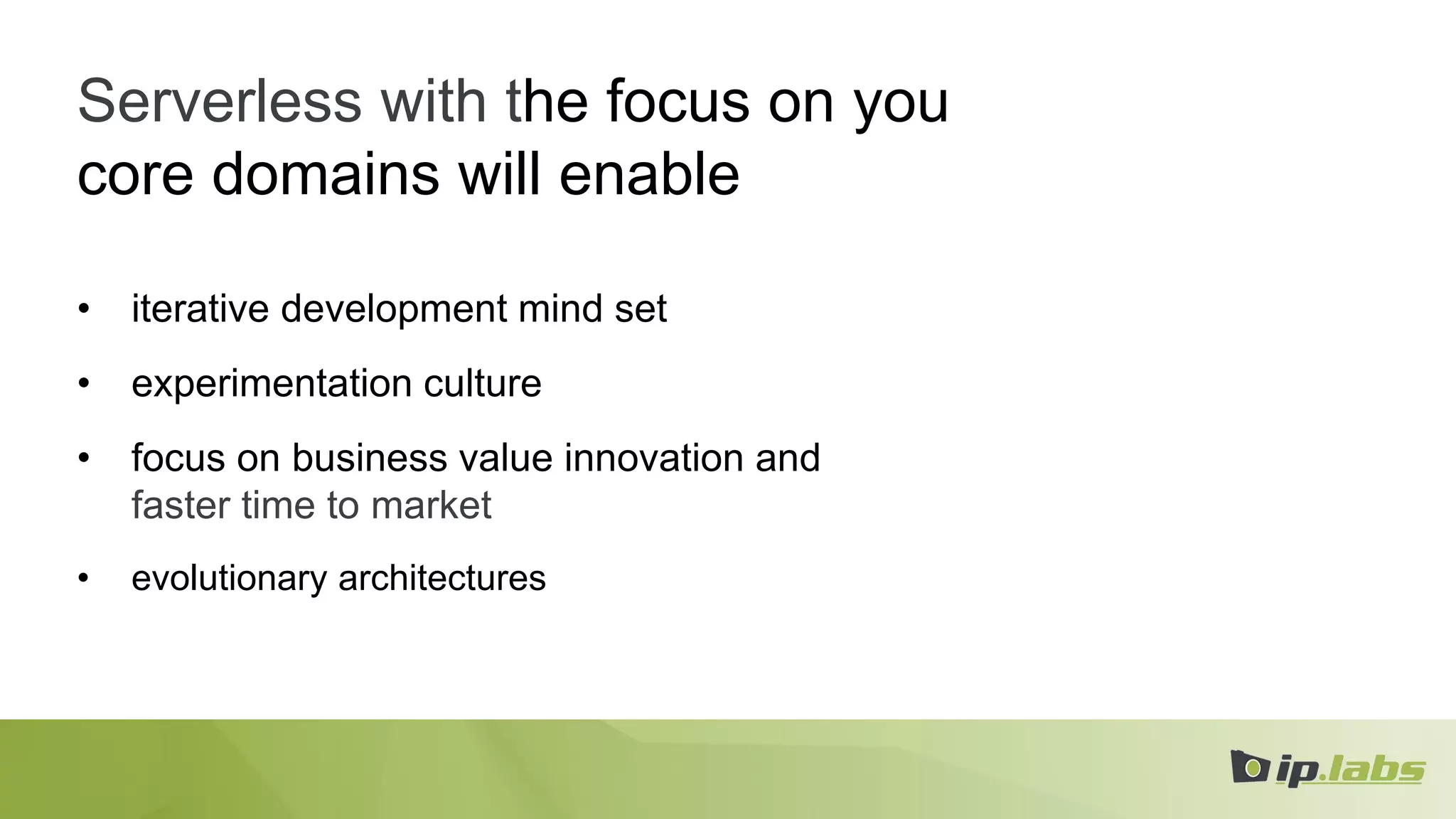

68. Serverless with the focus on you
core domains will enable
• iterative development mind set
• experimentation culture
• focus on business value innovation and
faster time to market
• evolutionary architectures

69. Evolutionary Architecture –
supports guided, incremental
change across multiple dimensions
• Incremental change
• Appropriate architectural coupling
• Fitness functions
”Architectural Coupling” https://learning.oreilly.com/library/view/building-evolutionary-architectures/9781491986356/ch04.html
• Serverless ecosystem supports
evolutionary architectures really
well
• All Serverless solutions often
suffer from the “Antipattern:
Last 10% Trap”

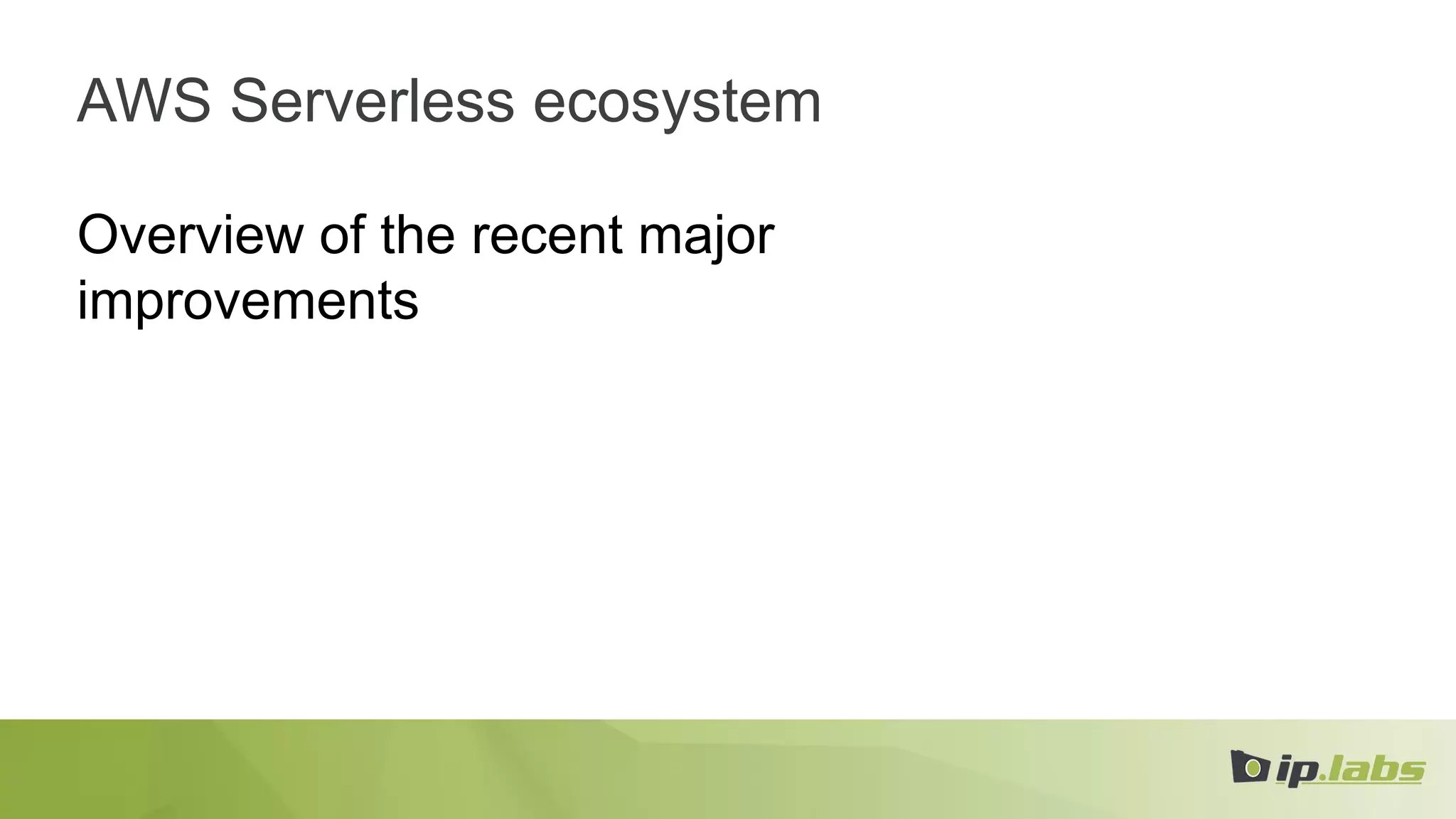

70. AWS Serverless ecosystem
Overview of the recent major
improvements

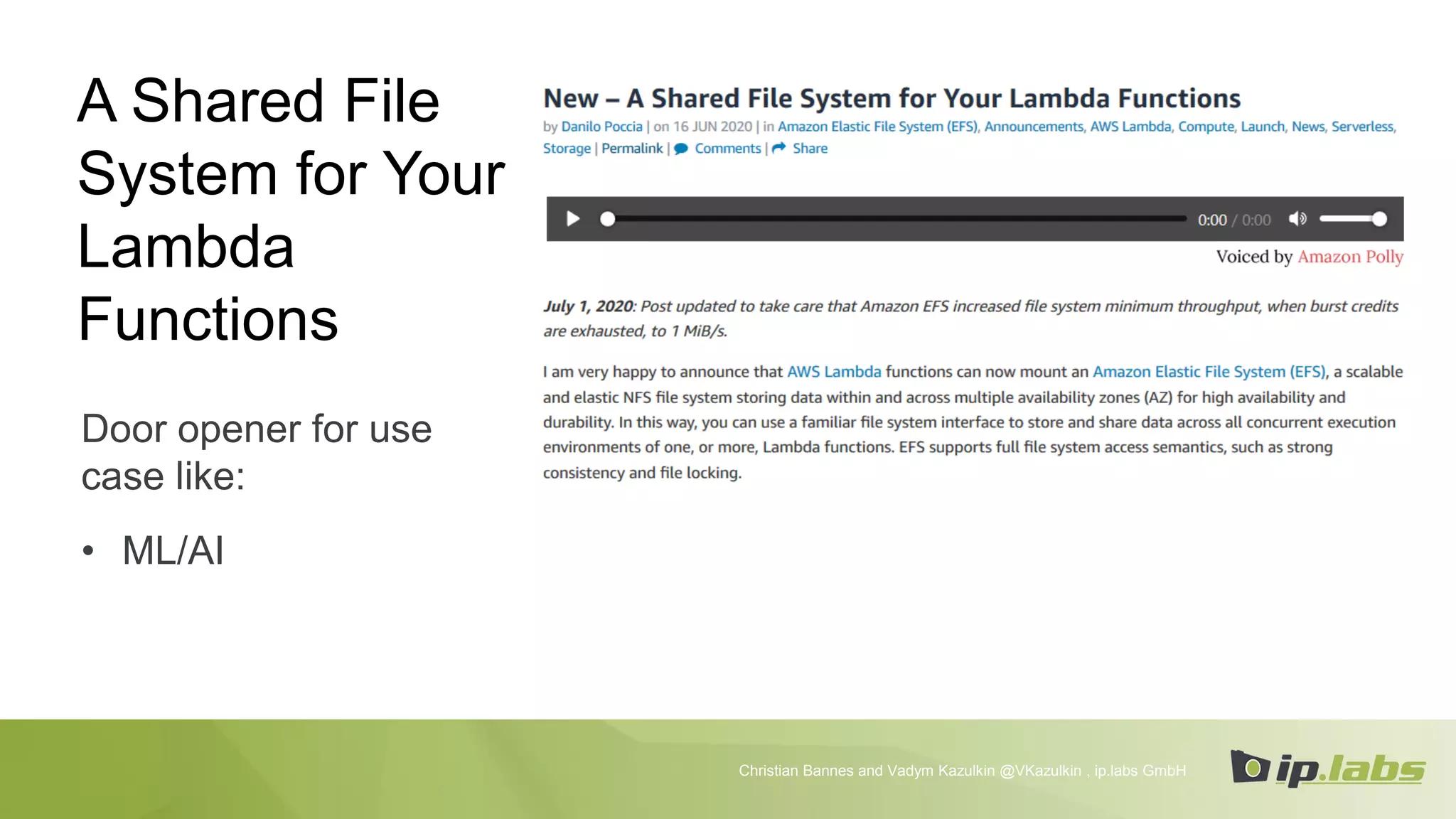

71. A Shared File
System for Your
Lambda
Functions
Door opener for use
case like:
• ML/AI
Christian Bannes and Vadym Kazulkin @VKazulkin , ip.labs GmbH

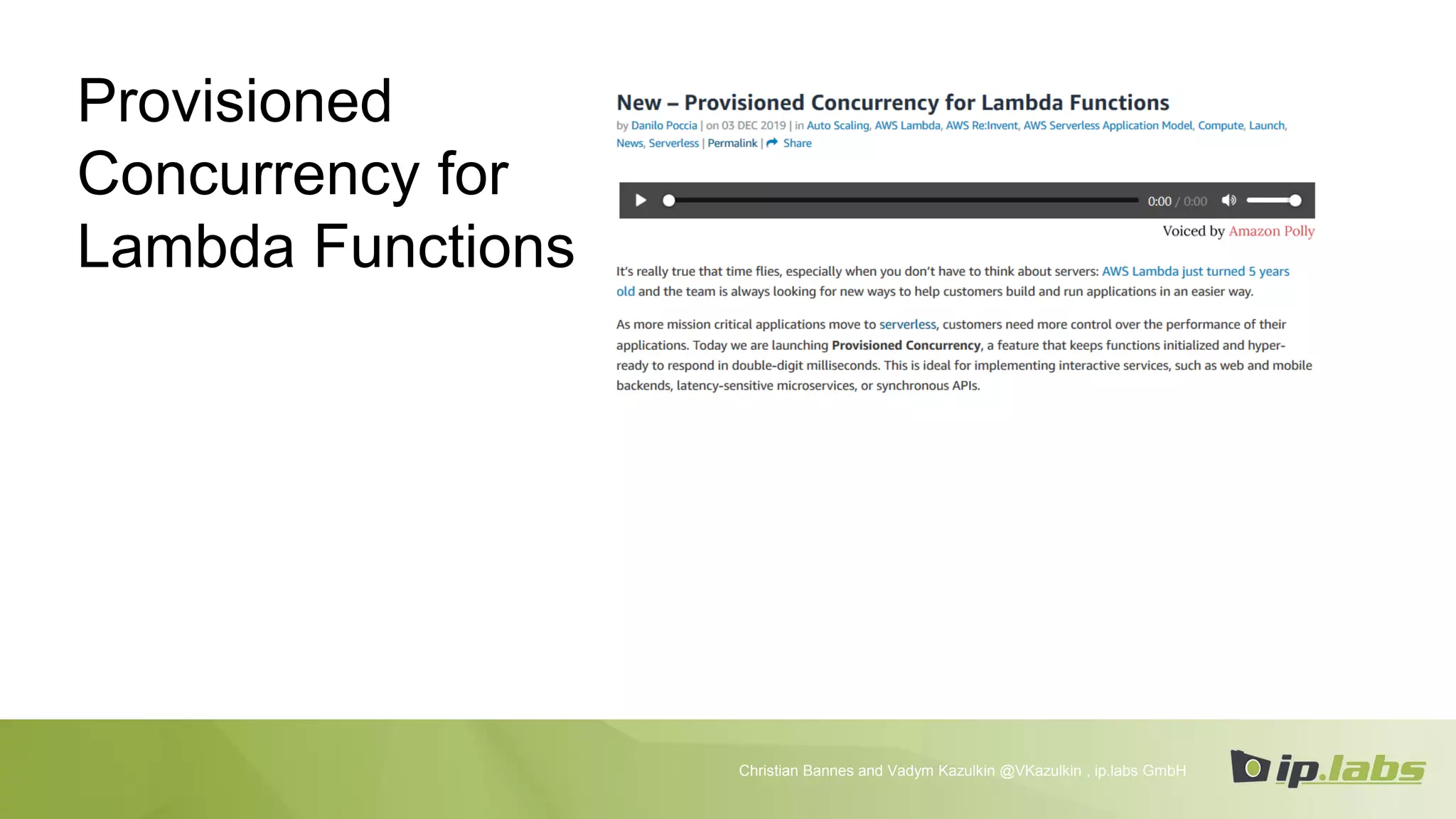

72. Provisioned
Concurrency for
Lambda Functions
Christian Bannes and Vadym Kazulkin @VKazulkin , ip.labs GmbH

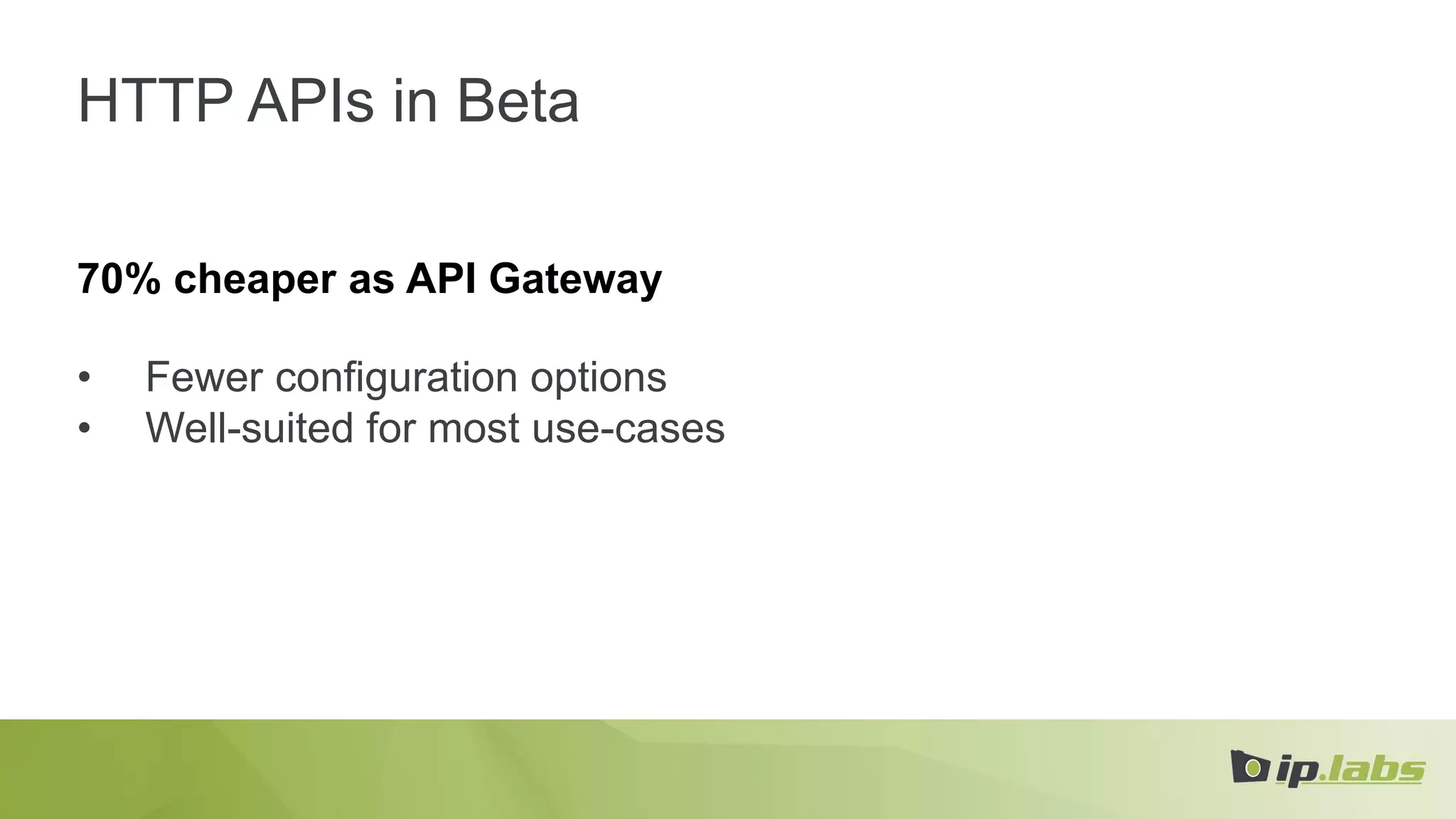

73. HTTP APIs in Beta
70% cheaper as API Gateway
• Fewer configuration options
• Well-suited for most use-cases

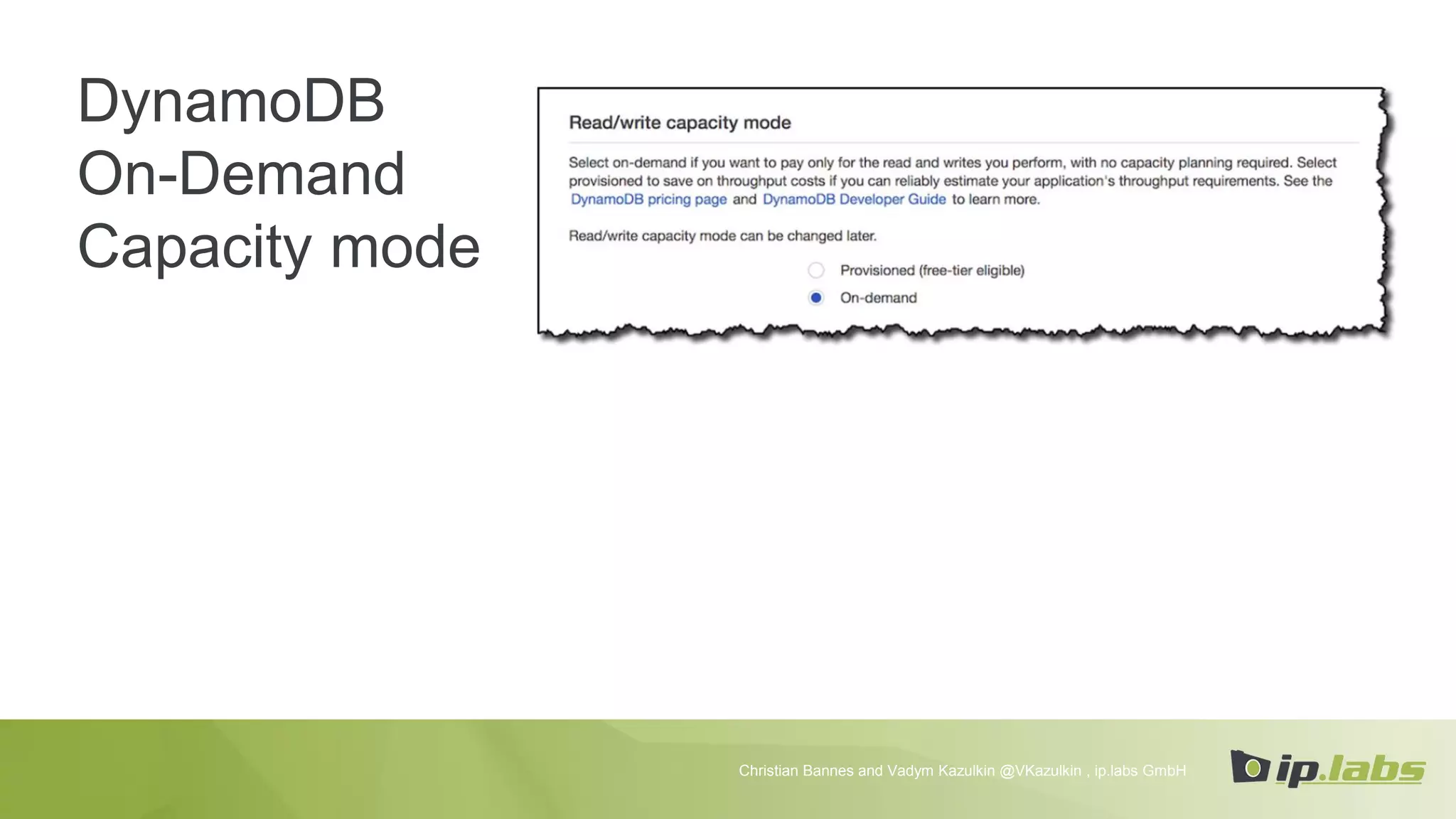

74. DynamoDB
On-Demand
Capacity mode
Christian Bannes and Vadym Kazulkin @VKazulkin , ip.labs GmbH

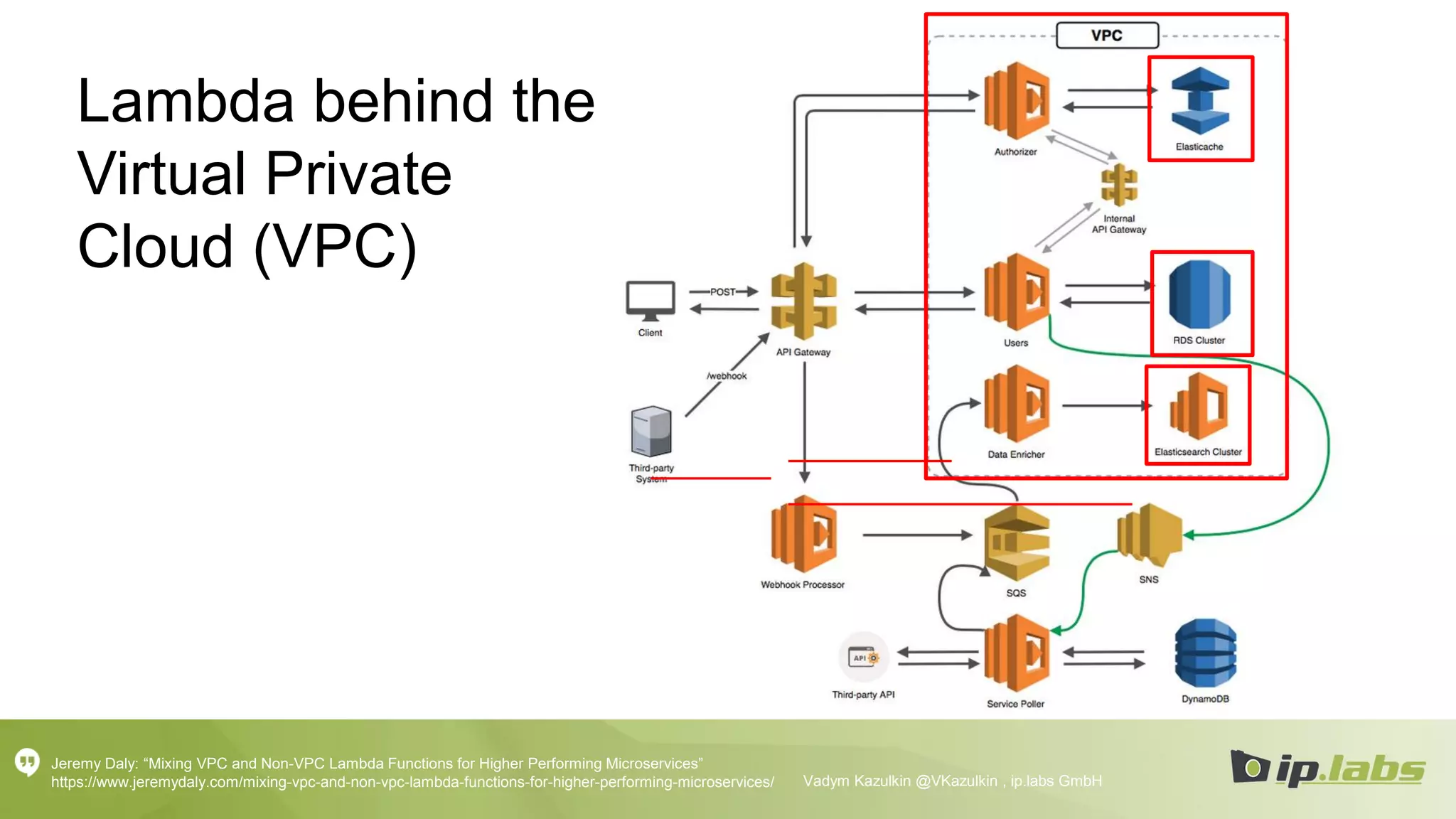

75. Jeremy Daly: “Mixing VPC and Non-VPC Lambda Functions for Higher Performing Microservices”
https://www.jeremydaly.com/mixing-vpc-and-non-vpc-lambda-functions-for-higher-performing-microservices/ Vadym Kazulkin @VKazulkin , ip.labs GmbH
Lambda behind the
Virtual Private
Cloud (VPC)

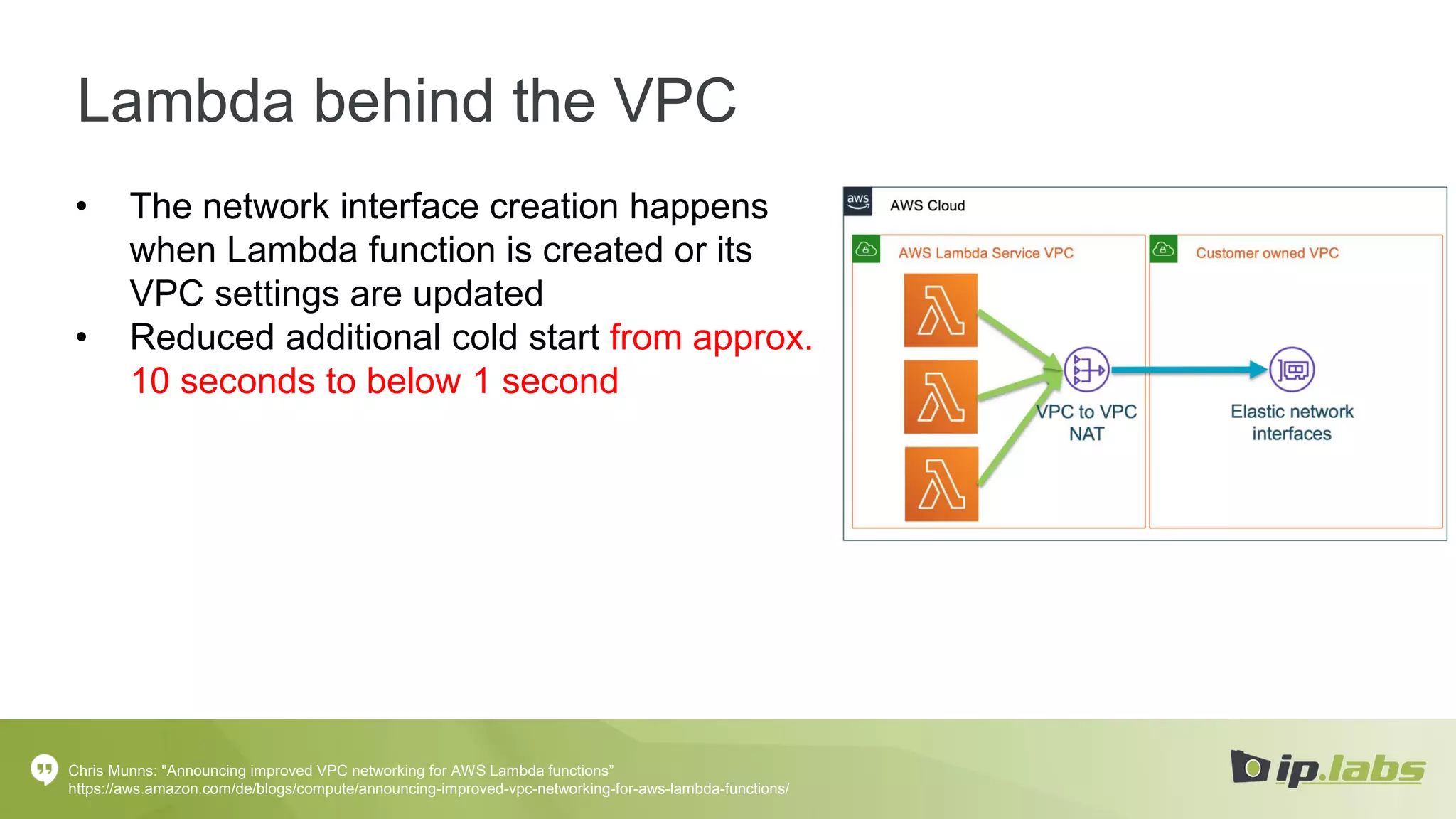

76. Lambda behind the VPC
• The network interface creation happens
when Lambda function is created or its
VPC settings are updated
• Reduced additional cold start from approx.
10 seconds to below 1 second
Chris Munns: "Announcing improved VPC networking for AWS Lambda functions”
https://aws.amazon.com/de/blogs/compute/announcing-improved-vpc-networking-for-aws-lambda-functions/

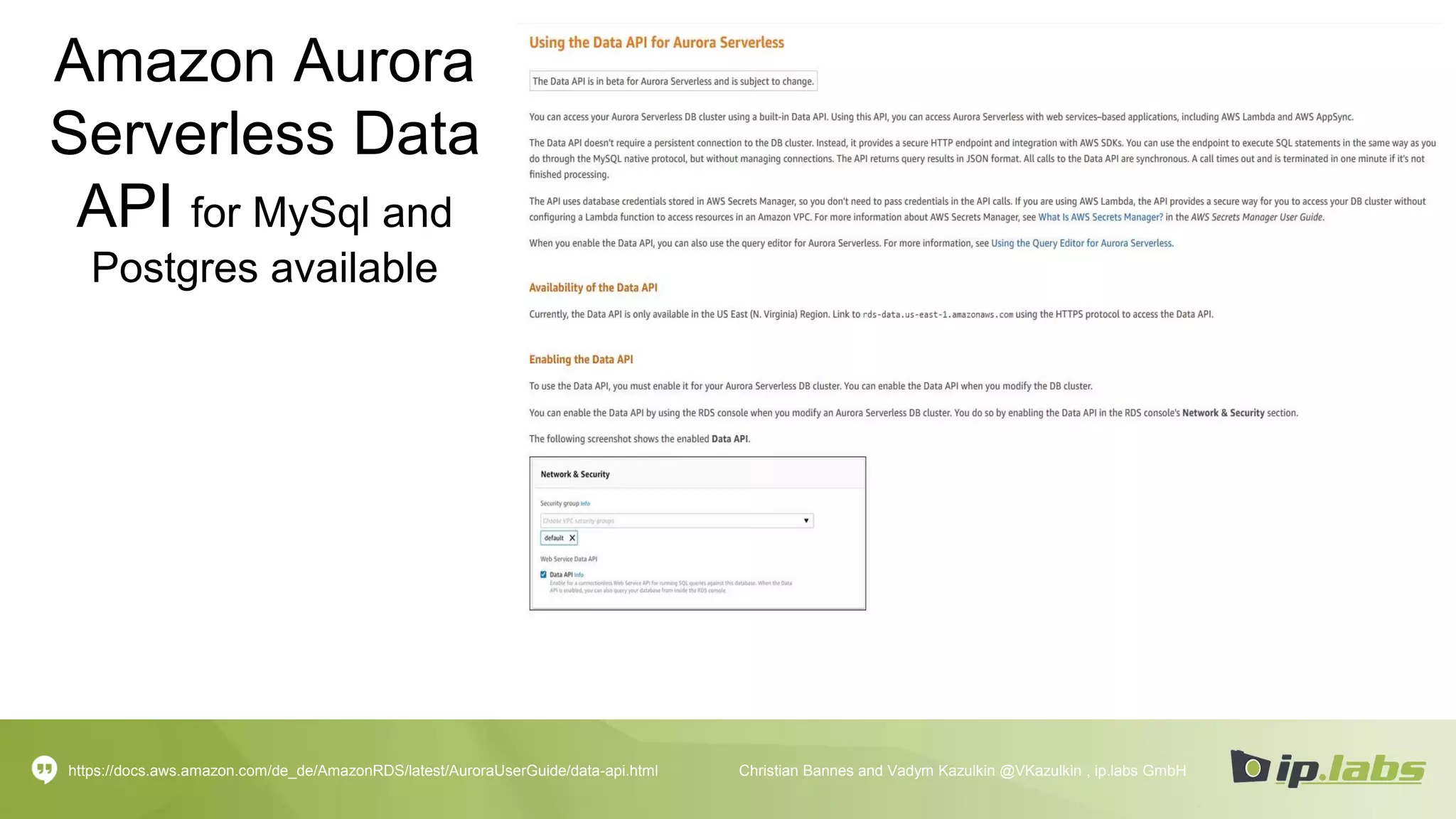

77. Amazon Aurora
Serverless Data
API for MySql and
Postgres available
https://docs.aws.amazon.com/de_de/AmazonRDS/latest/AuroraUserGuide/data-api.html Christian Bannes and Vadym Kazulkin @VKazulkin , ip.labs GmbH

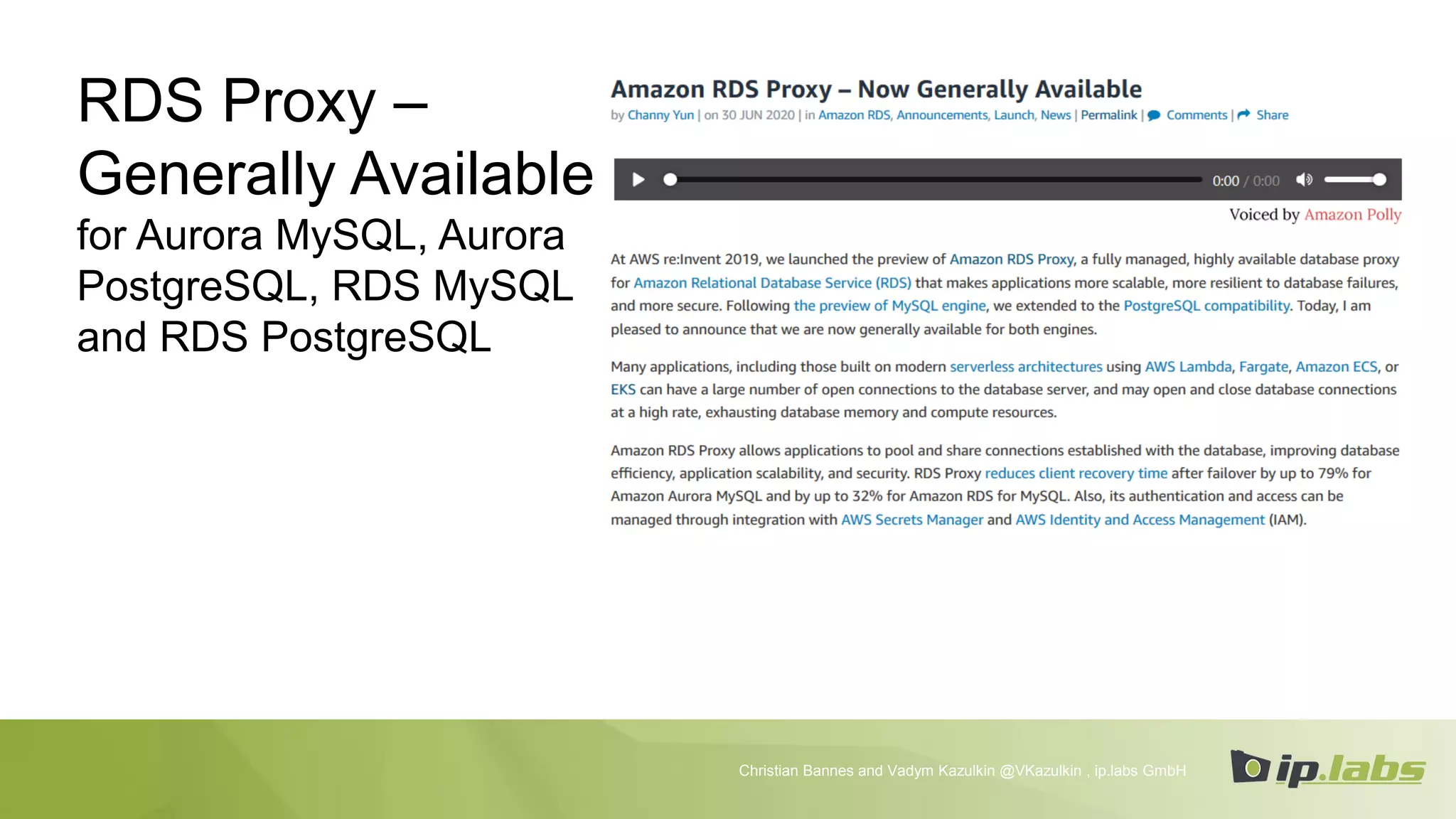

78. RDS Proxy –
Generally Available
for Aurora MySQL, Aurora
PostgreSQL, RDS MySQL
and RDS PostgreSQL
Christian Bannes and Vadym Kazulkin @VKazulkin , ip.labs GmbH

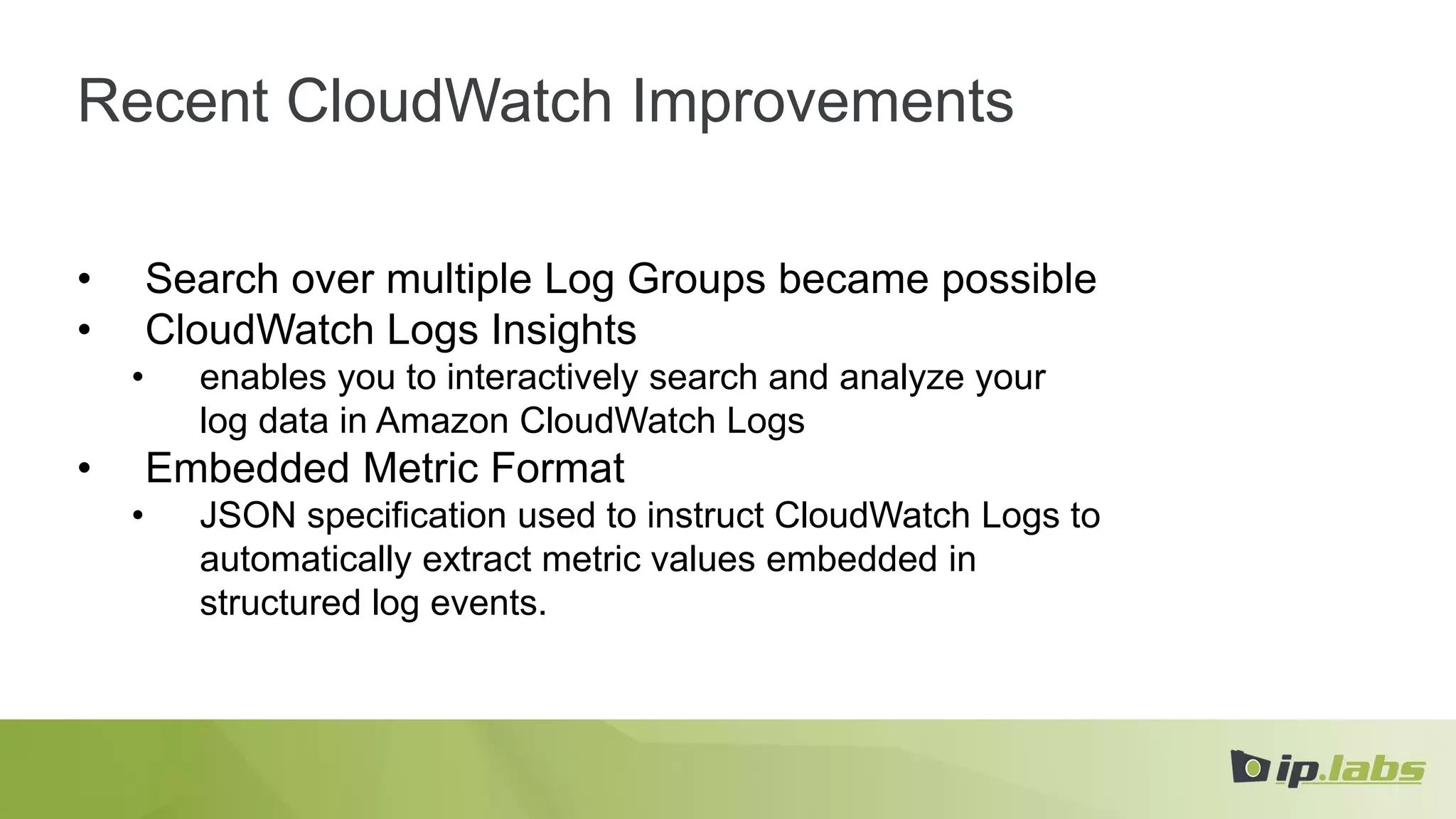

79. Recent CloudWatch Improvements
• Search over multiple Log Groups became possible
• CloudWatch Logs Insights
• enables you to interactively search and analyze your
log data in Amazon CloudWatch Logs
• Embedded Metric Format
• JSON specification used to instruct CloudWatch Logs to
automatically extract metric values embedded in
structured log events.

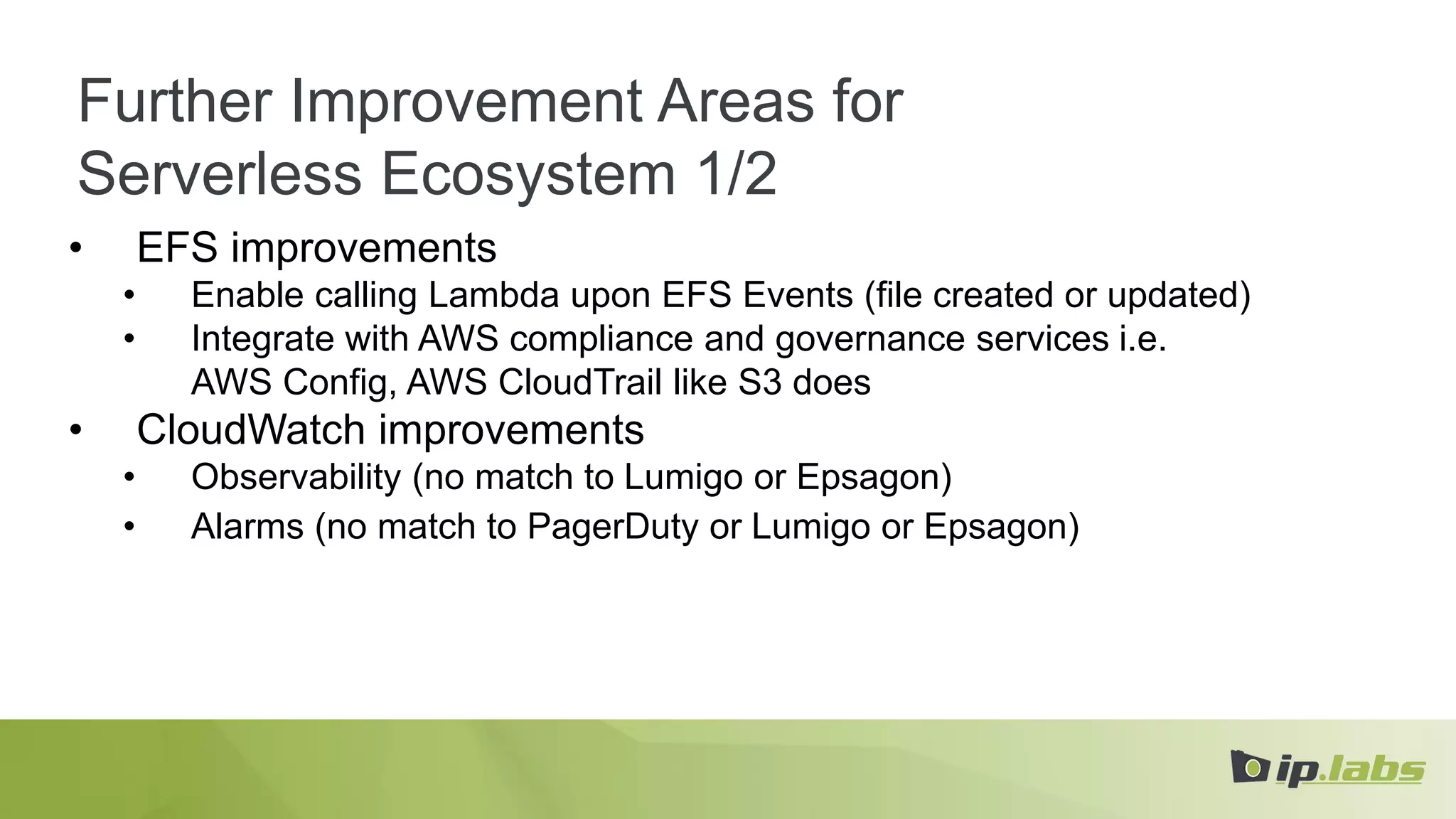

80. Further Improvement Areas for
Serverless Ecosystem 1/2
• EFS improvements
• Enable calling Lambda upon EFS Events (file created or updated)
• Integrate with AWS compliance and governance services i.e.
AWS Config, AWS CloudTrail like S3 does
• CloudWatch improvements
• Observability (no match to Lumigo or Epsagon)
• Alarms (no match to PagerDuty or Lumigo or Epsagon)

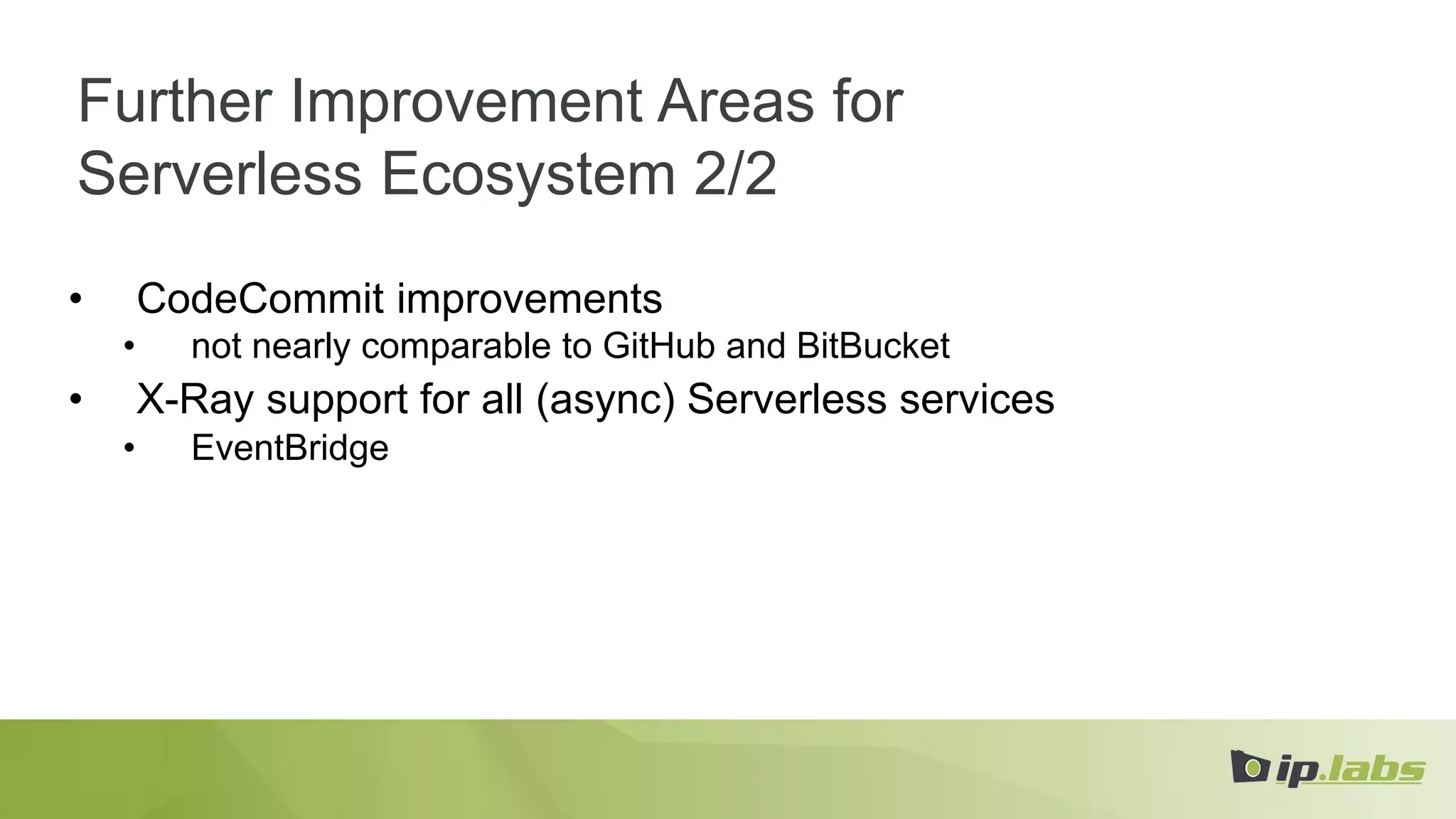

81. Further Improvement Areas for
Serverless Ecosystem 2/2
• CodeCommit improvements
• not nearly comparable to GitHub and BitBucket
• X-Ray support for all (async) Serverless services
• EventBridge

83. Thank You!
