Webinar slides: Introduction to Database Proxies (for MySQL)
- 1. The MySQL Availability Company INTRODUCTION TO DATABASE PROXIES Why do we need Proxy in the First Place? Smarter Proxies are Better! Gilles Rayrat
- 2. About the Presenter Gilles Rayrat VP of Engineering Co-author and main developer of the Tungsten Connector

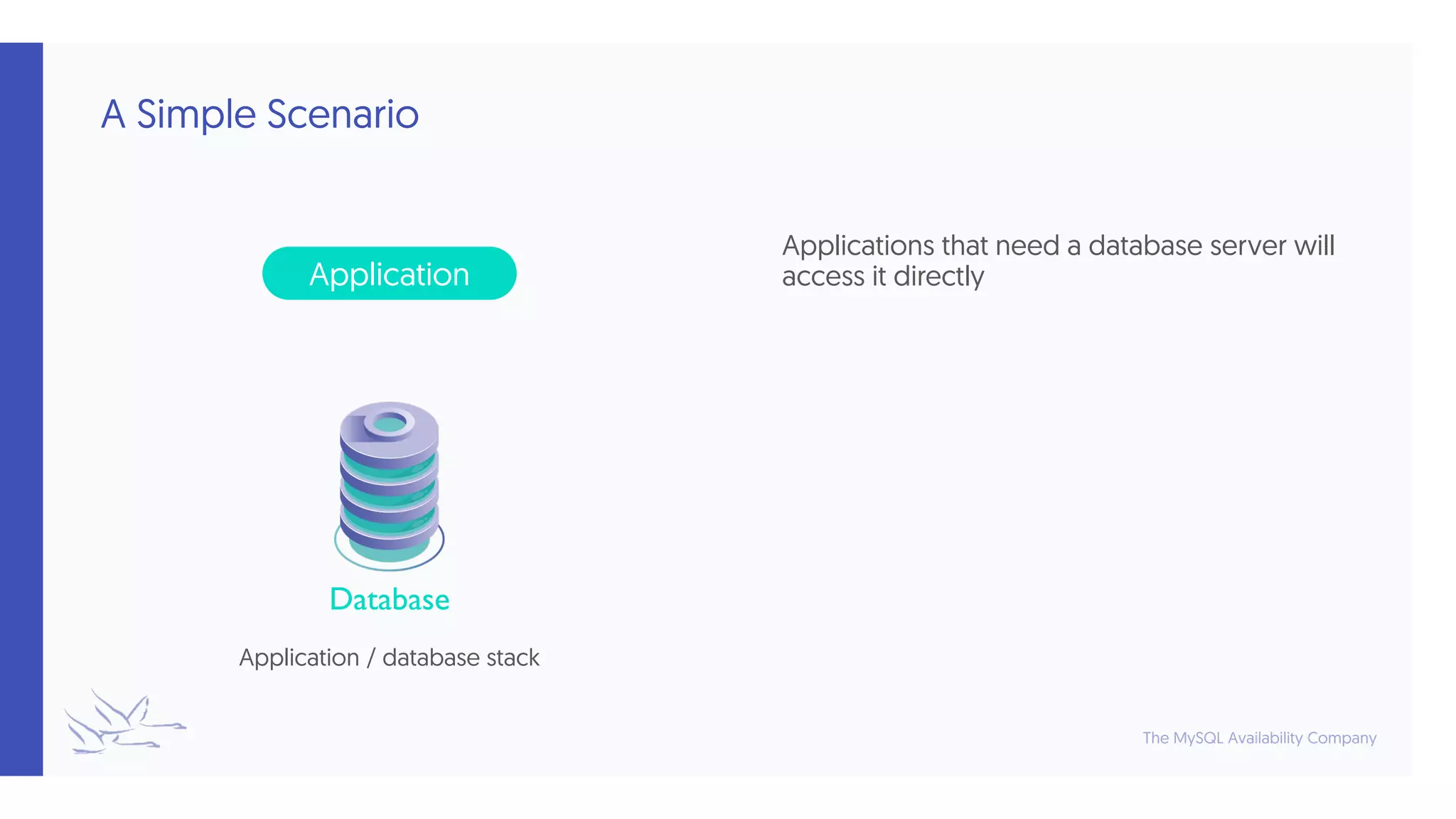

- 4. A Simple Scenario Applications that need a database server will access it directly Application / database stack Application Database
- 5. A Simple Scenario Applications that need a database server will access it directly • Read and Writes are going to the same node Application

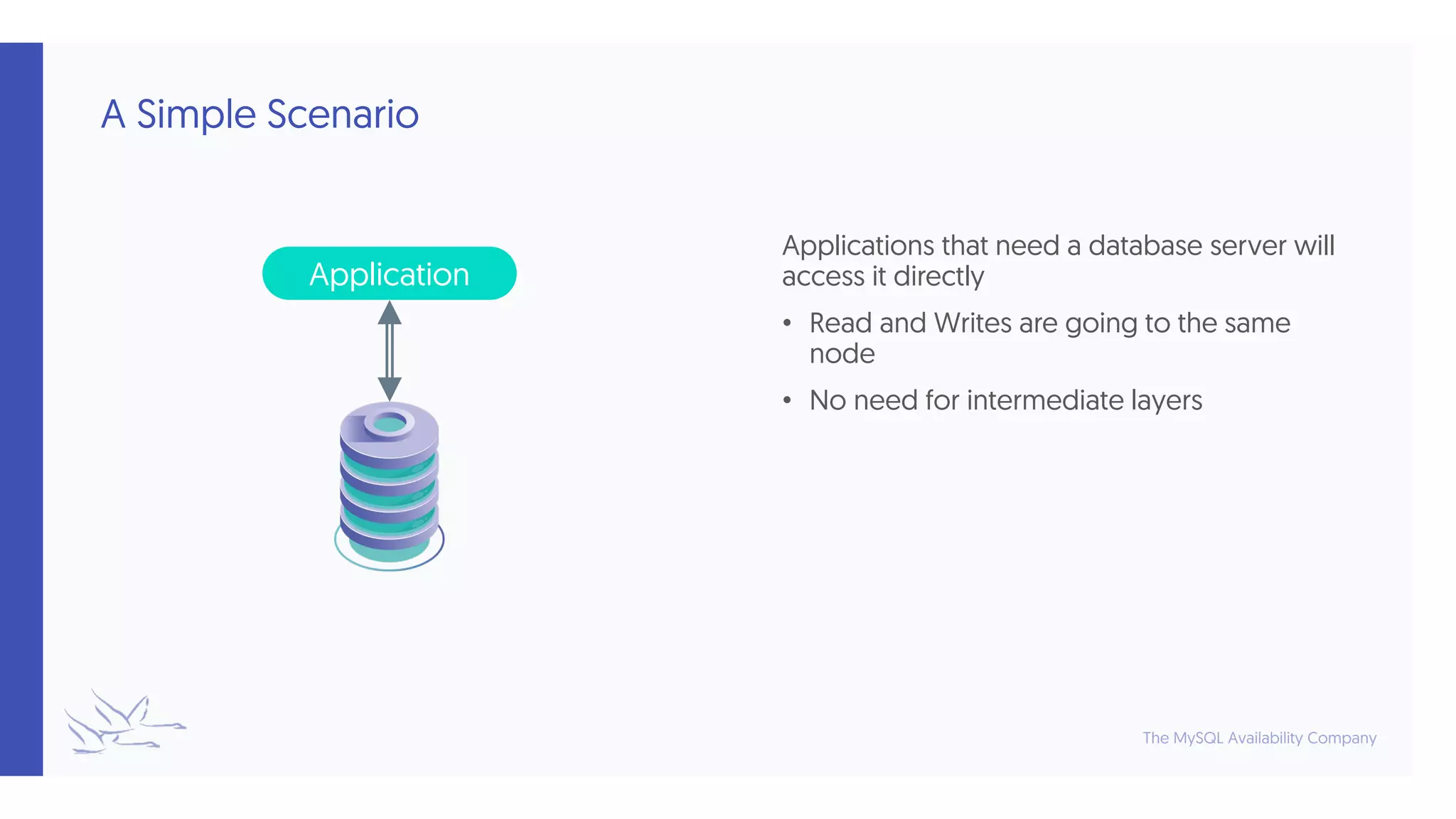

- 6. A Simple Scenario Applications that need a database server will access it directly • Read and Writes are going to the same node • No need for intermediate layers Application

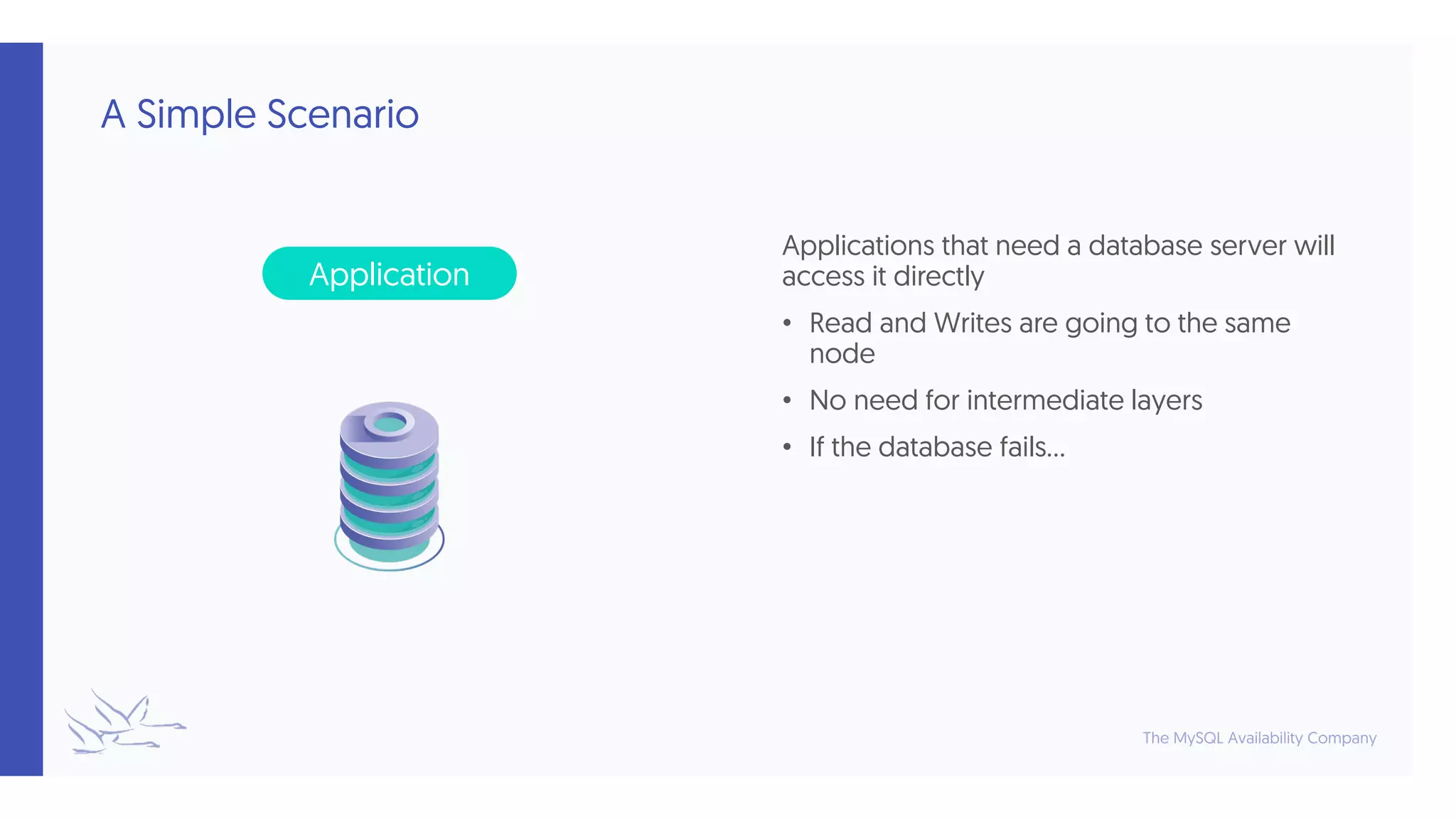

- 7. A Simple Scenario Applications that need a database server will access it directly • Read and Writes are going to the same node • No need for intermediate layers • If the database fails… Application
- 8. Failure in a Simple Scenario Applications that need a database server will access it directly • Read and Writes are going to the same node • No need for intermediate layers • If the database fails… the application breaks Application
- 10. A Clustered Database With a cluster of databases, there is at least one master and some slaves Application
- 11. A Clustered Database With a cluster of databases, there is at least one master and some slaves • Simple applications will access a unique database instance: the master Application

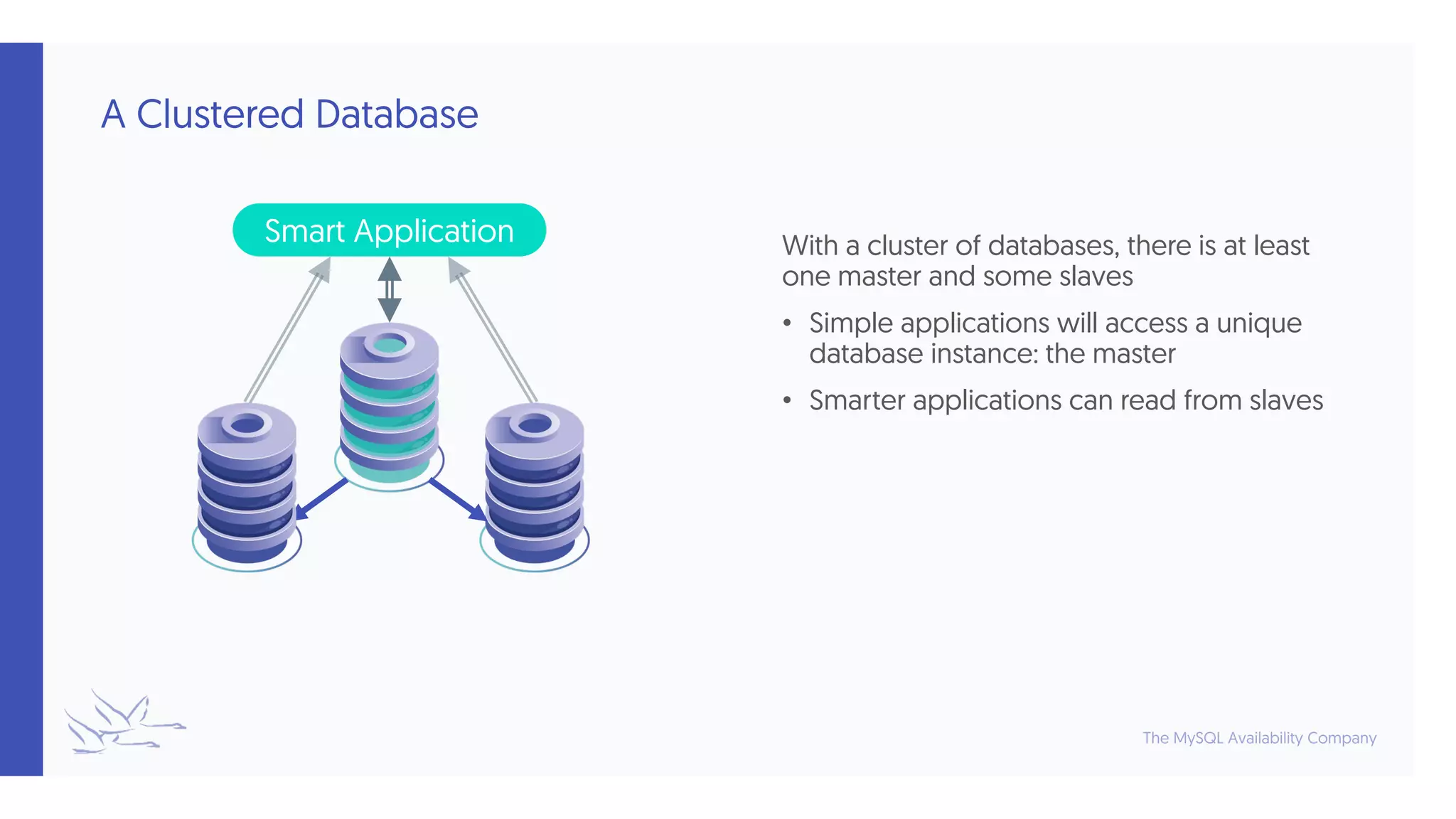

- 12. A Clustered Database With a cluster of databases, there is at least one master and some slaves • Simple applications will access a unique database instance: the master • Smarter applications can read from slaves Smart Application
- 13. Failure in a Clustered Database Clusters are designed to survive failuresApplication

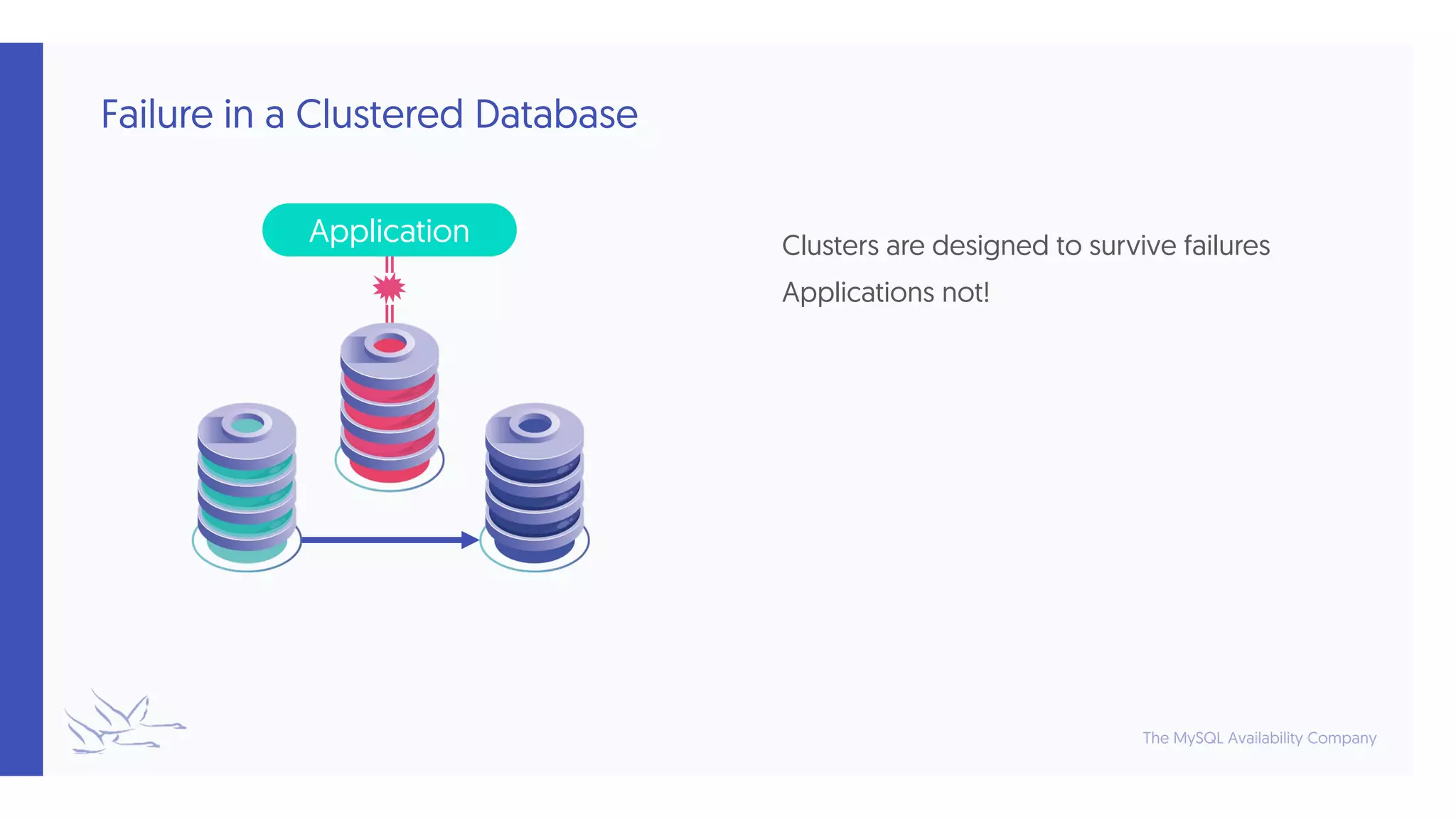

- 14. Failure in a Clustered Database Clusters are designed to survive failures Applications not! Application

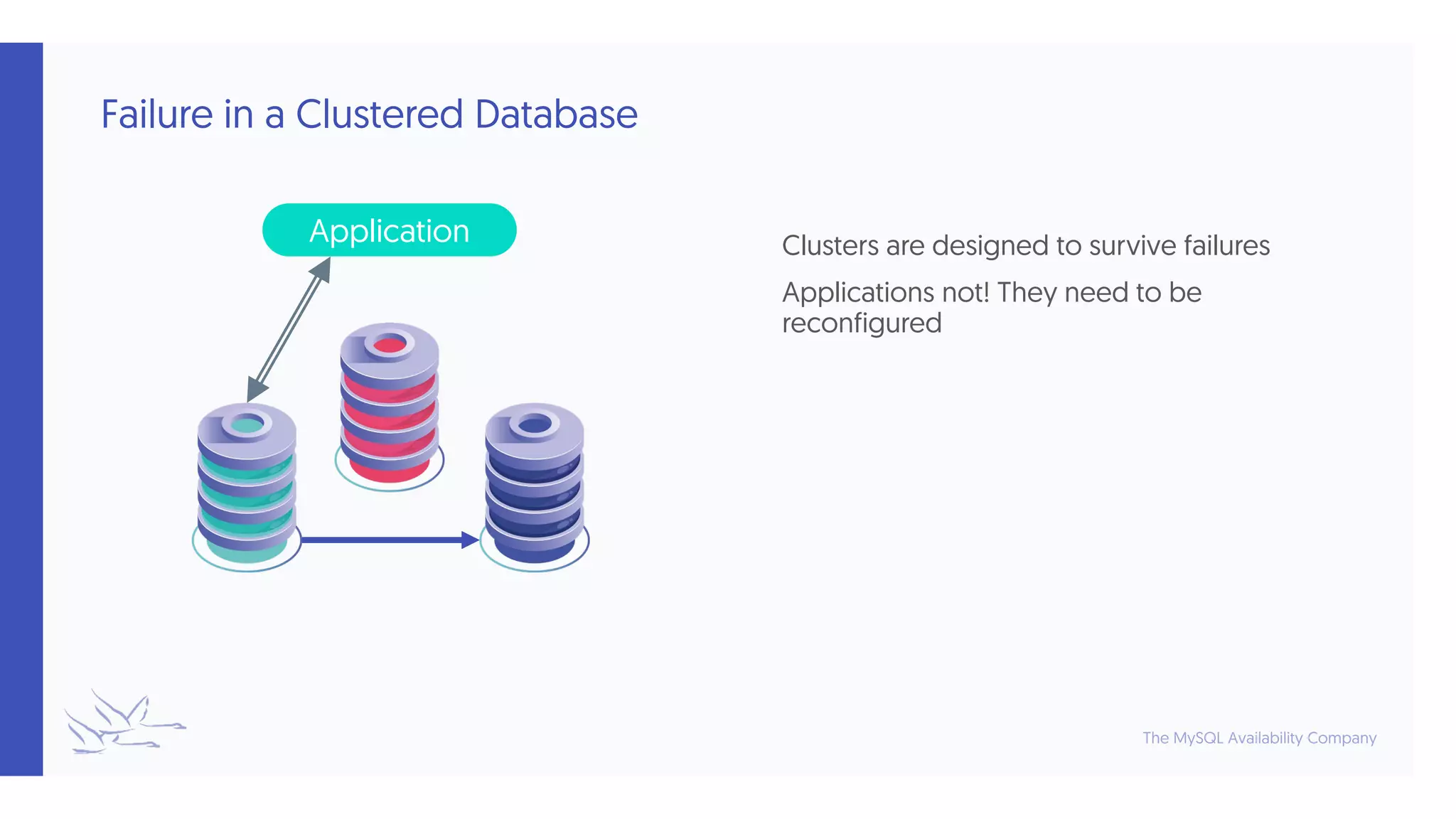

- 15. Failure in a Clustered Database Clusters are designed to survive failures Applications not! They need to be reconfigured Application

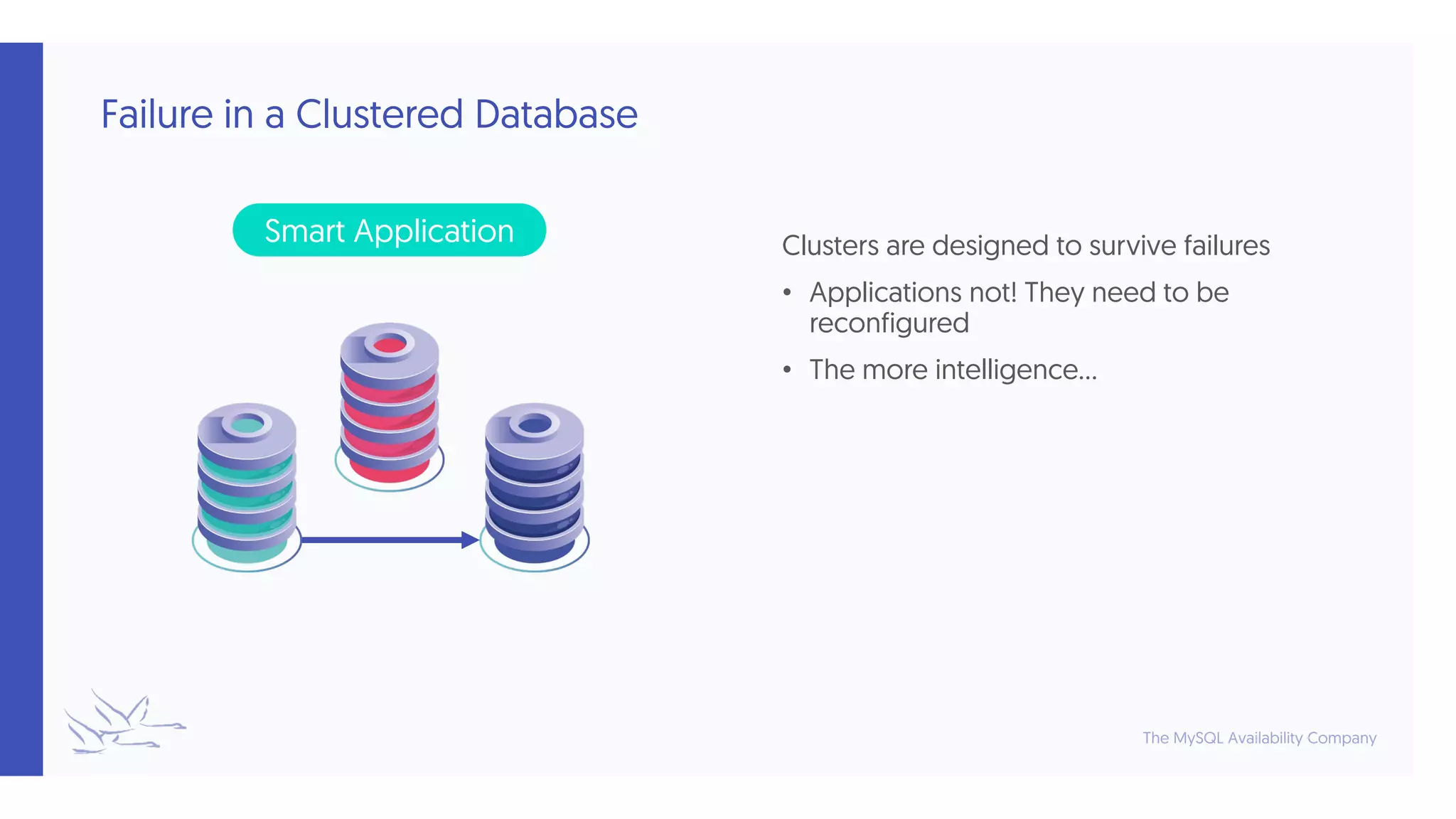

- 16. Failure in a Clustered Database Clusters are designed to survive failures • Applications not! They need to be reconfigured • The more intelligence… Smart Application
- 17. Failure in a Clustered Database Clusters are designed to survive failures • Applications not! They need to be reconfigured • The more intelligence… the more difficulties Smart Application

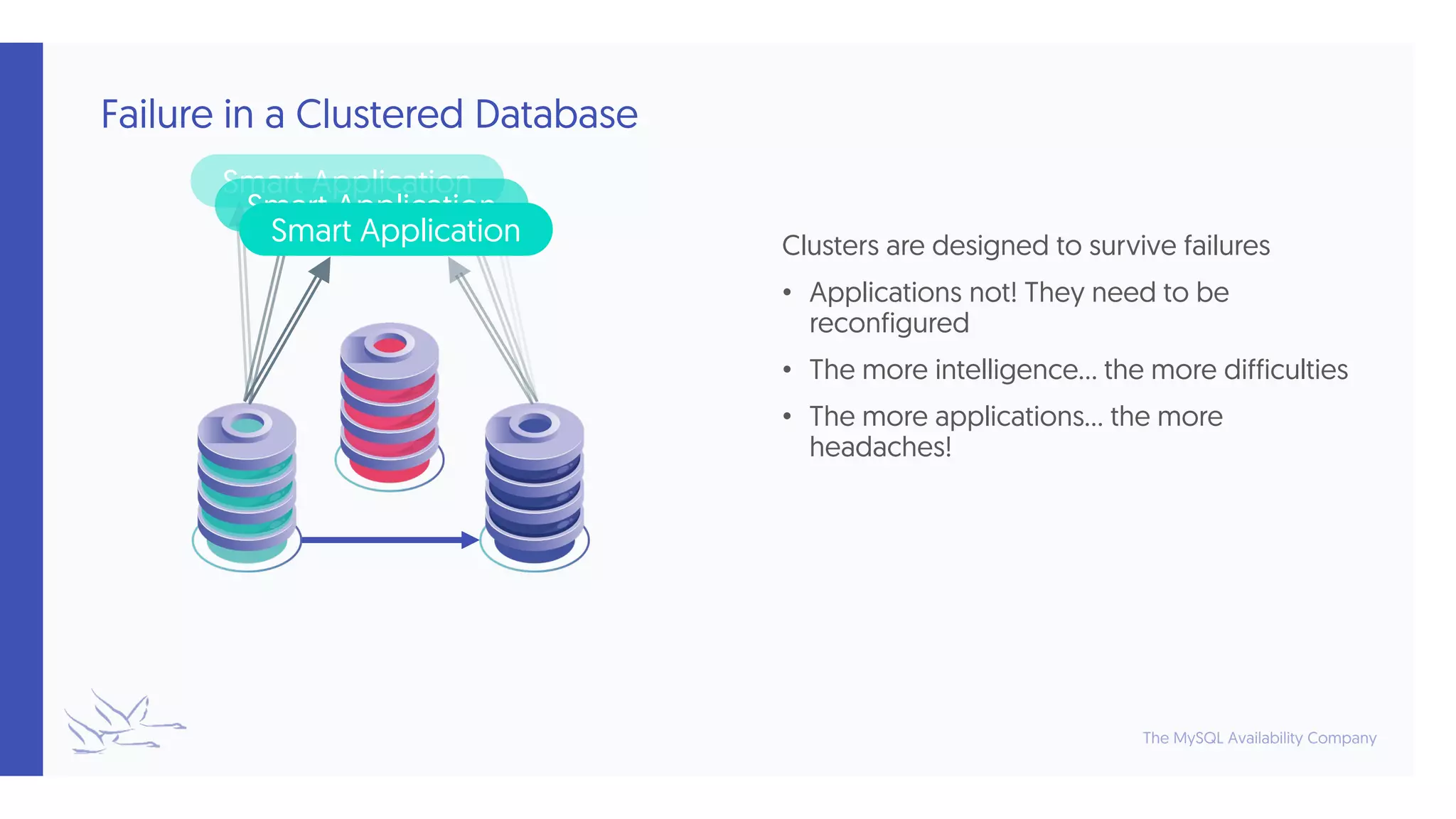

- 18. Failure in a Clustered Database Clusters are designed to survive failures • Applications not! They need to be reconfigured • The more intelligence… the more difficulties • The more applications… the more headaches! Smart Application Smart Application Smart Application

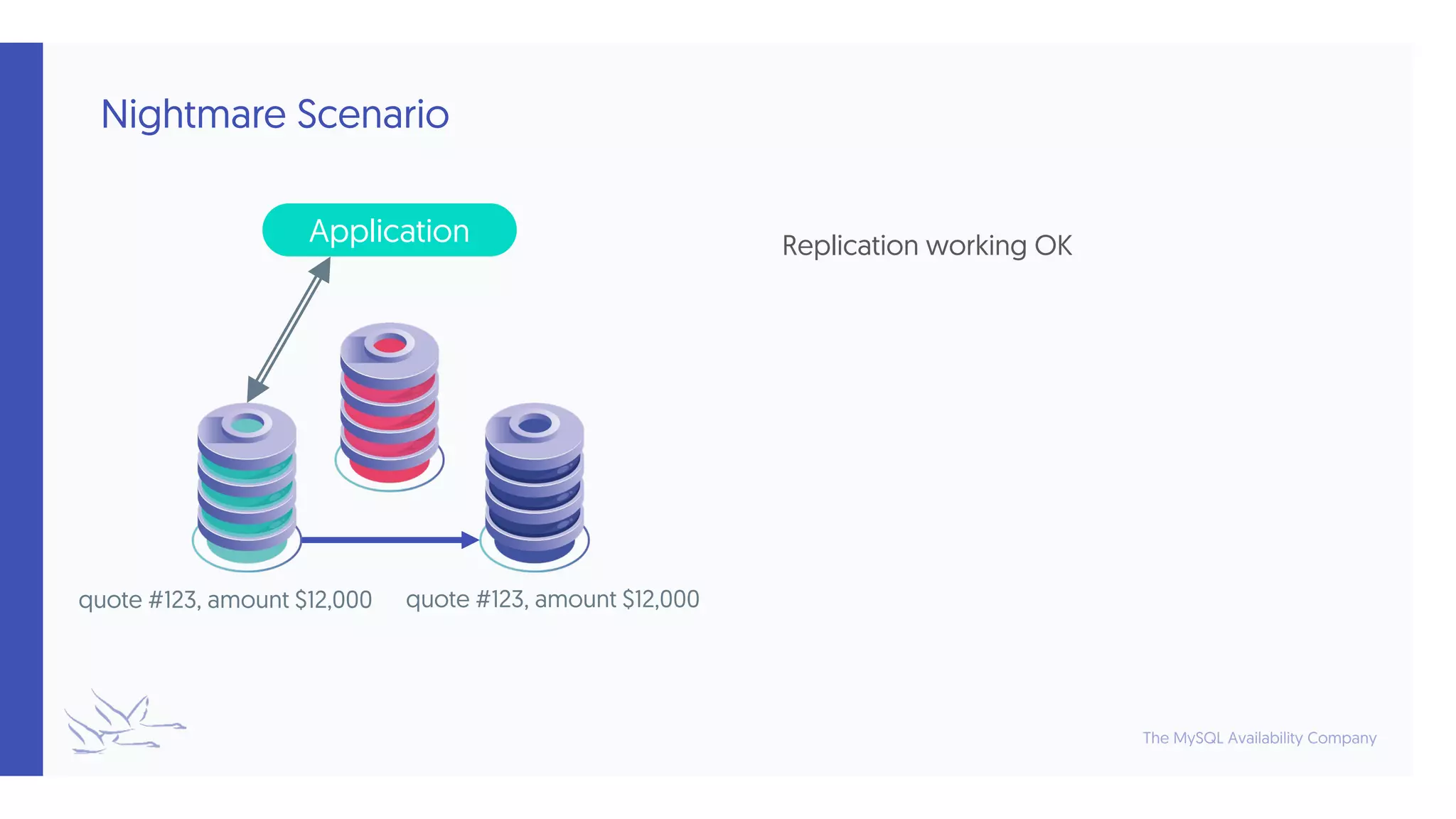

- 19. Nightmare Scenario Replication working OK quote #123, amount $12,000 quote #123, amount $12,000 Application

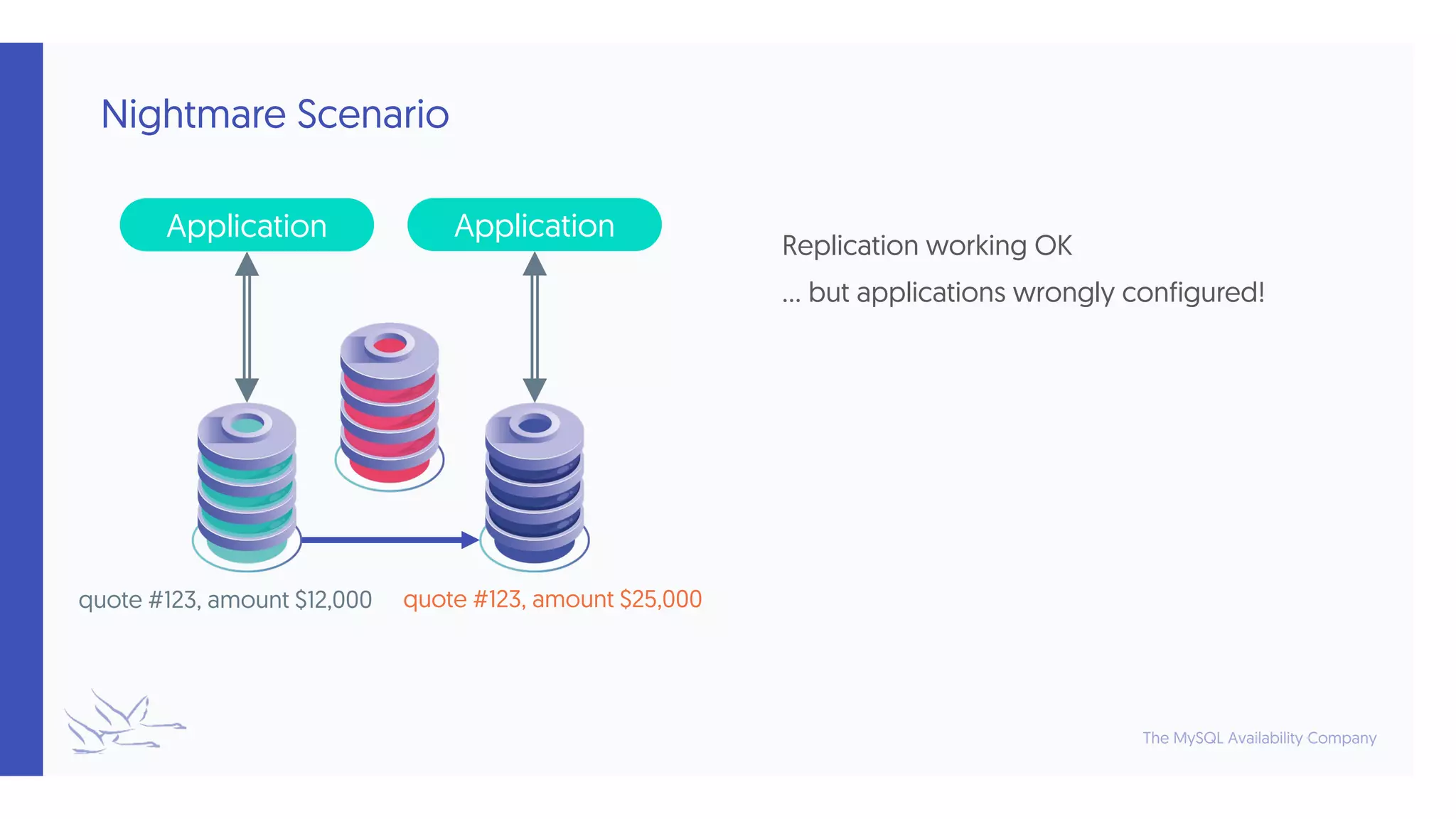

- 20. Nightmare Scenario Replication working OK … but applications wrongly configured! Application Application quote #123, amount $12,000 quote #123, amount $25,000
- 21. Nightmare Scenario Replication working OK … but applications wrongly configured! Imagine millions of records like this!!! Application Application quote #123, amount $12,000 quote #123, amount $25,000

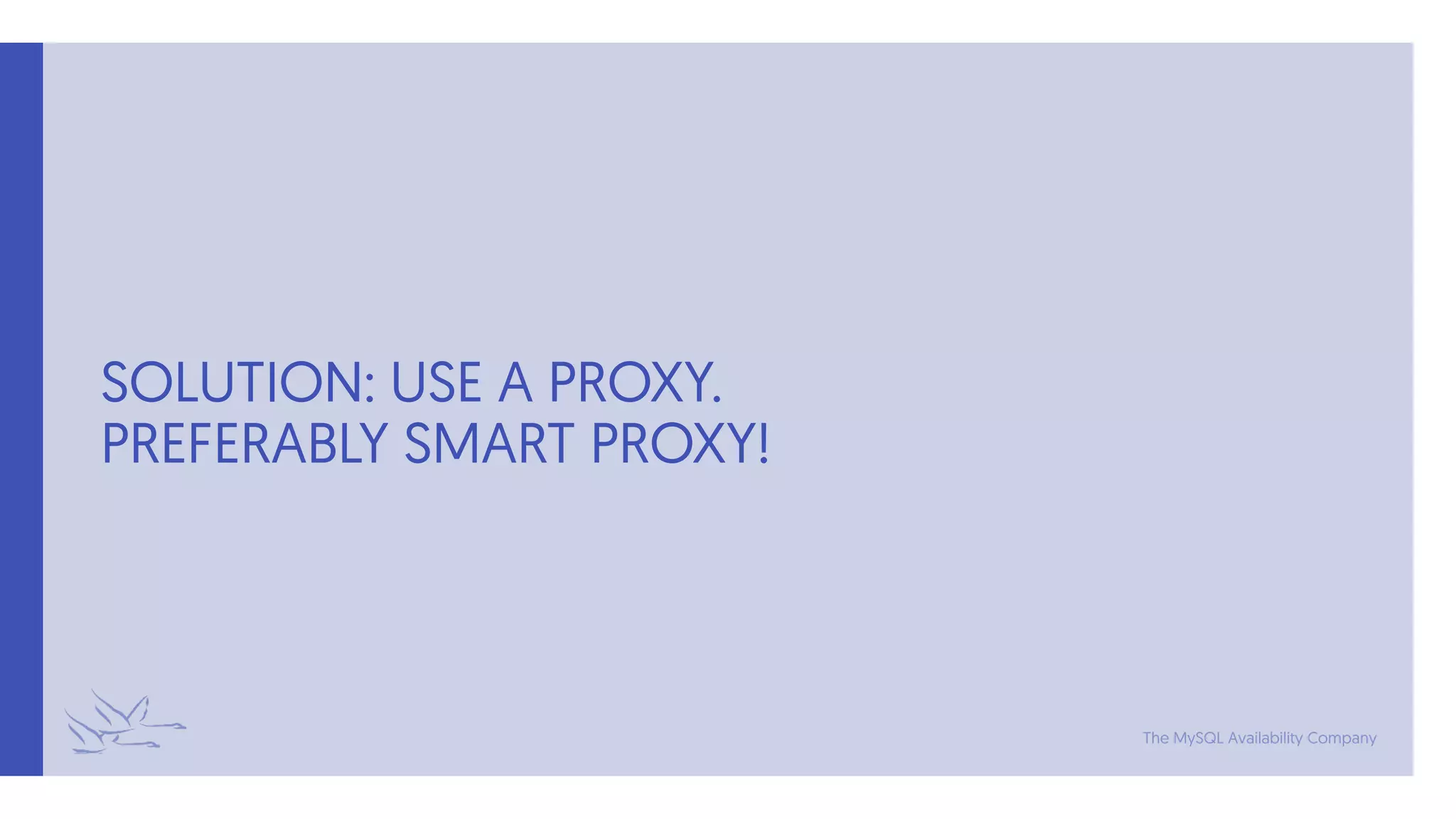

- 22. SOLUTION: USE A PROXY. PREFERABLY SMART PROXY!

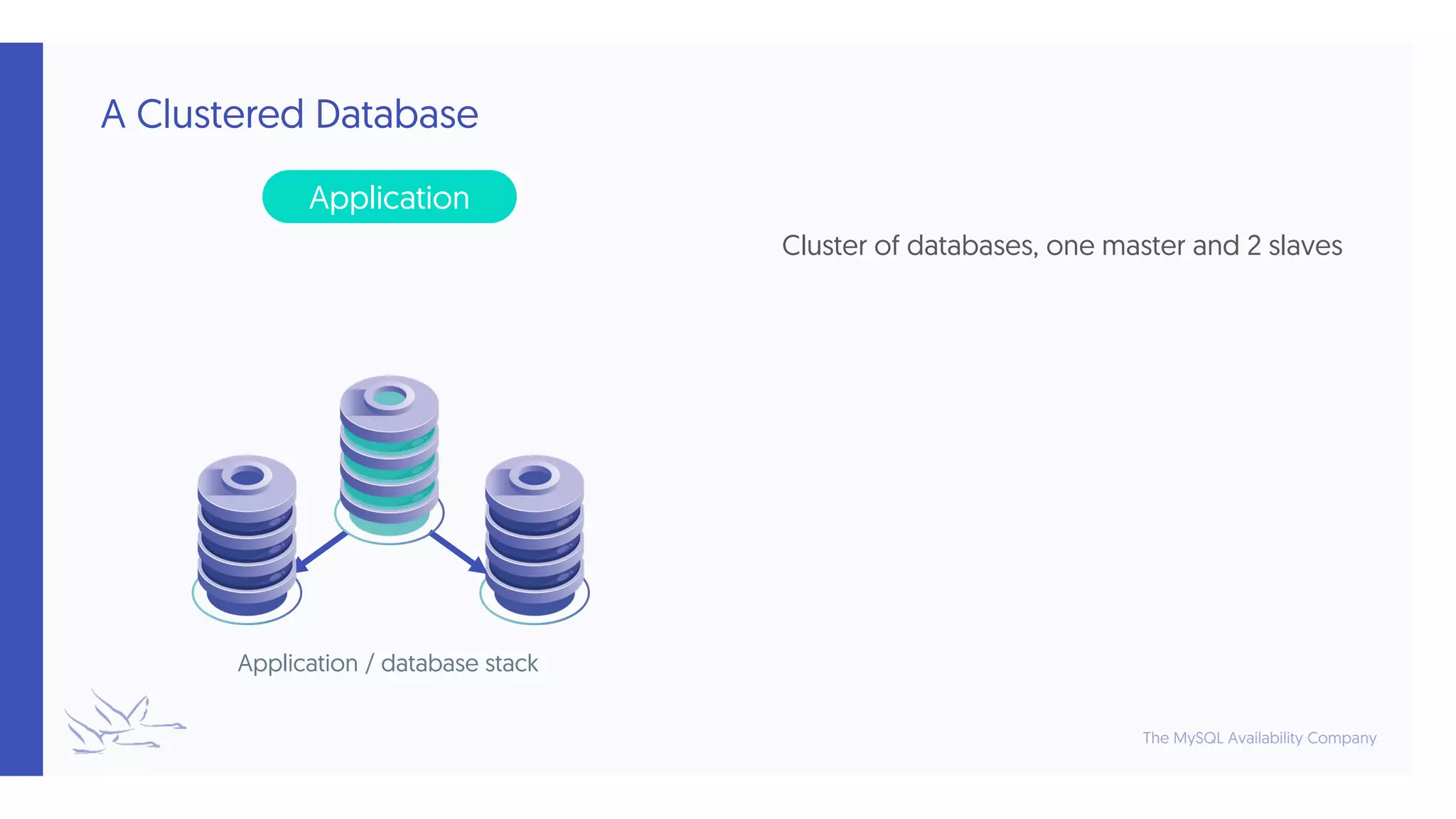

- 23. A Clustered Database Cluster of databases, one master and 2 slaves Application / database stack Application

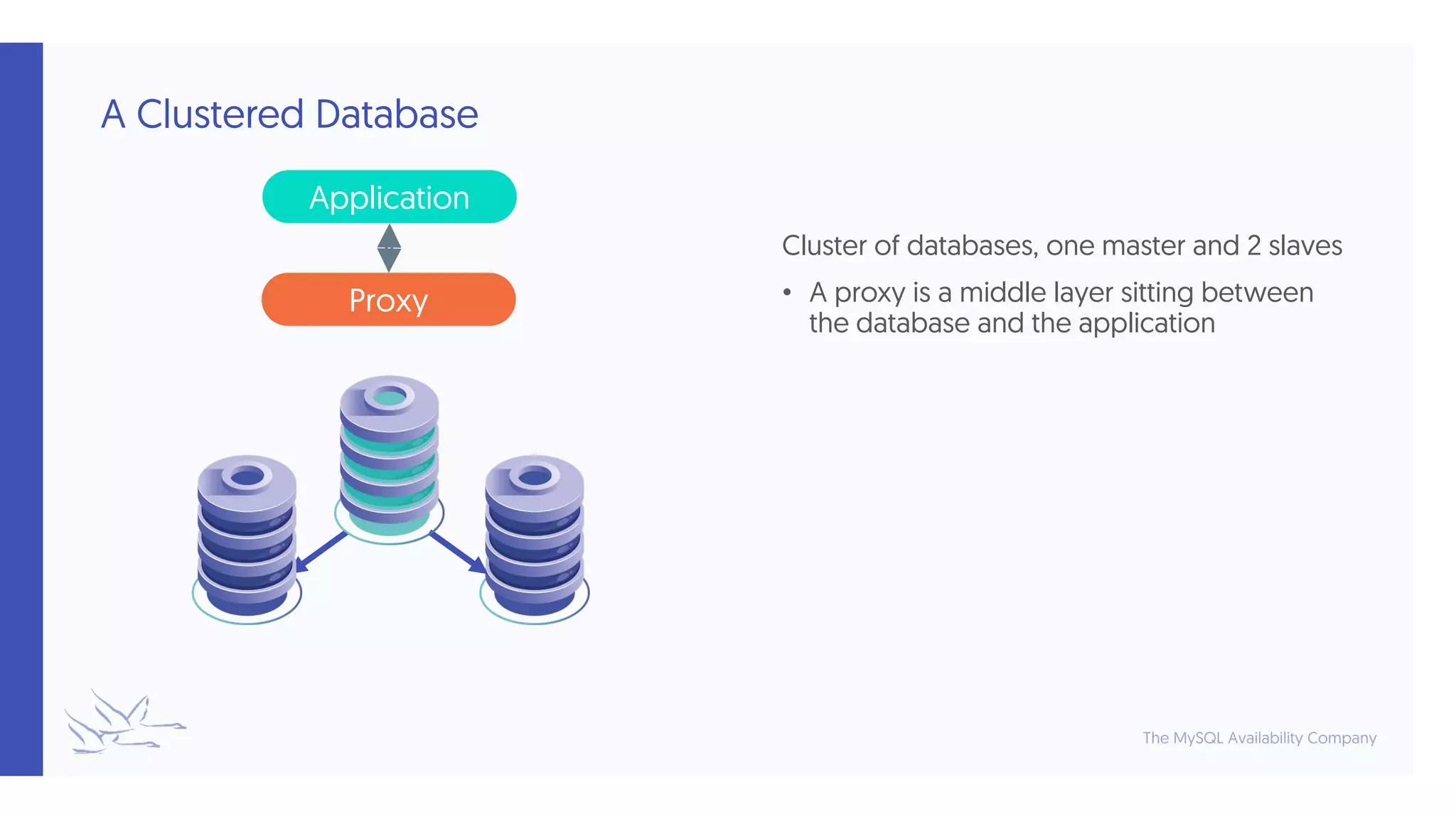

- 24. A Clustered Database Cluster of databases, one master and 2 slaves • A proxy is a middle layer sitting between the database and the application Application Proxy

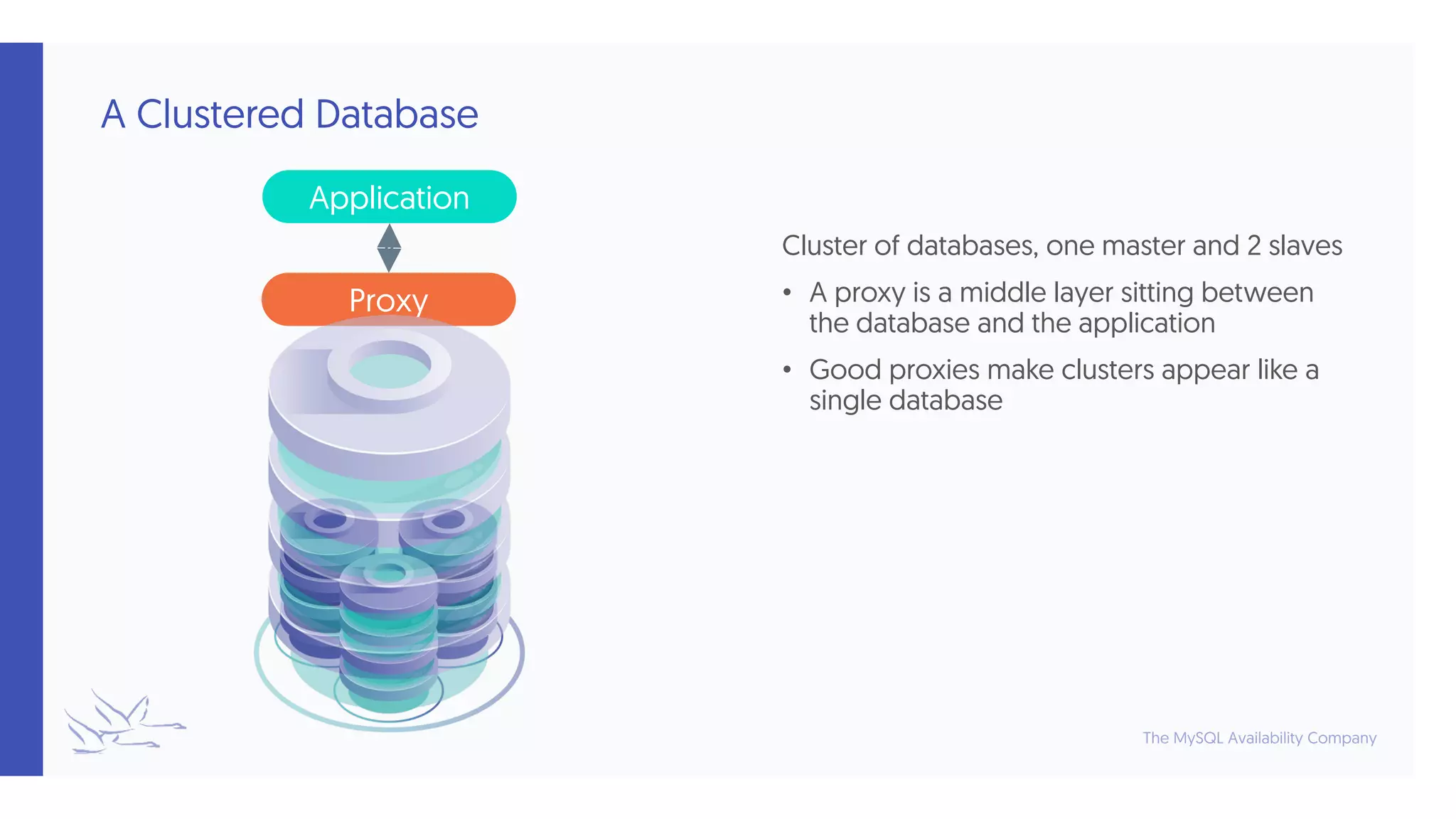

- 25. Proxy A Clustered Database Cluster of databases, one master and 2 slaves • A proxy is a middle layer sitting between the database and the application • Good proxies make clusters appear like a single database Application
- 26. A Clustered Database Cluster of databases, one master and 2 slaves • A proxy is a middle layer sitting between the database and the application • Good proxies make clusters appear like a single database • The plumbing behind is hidden to the application Application Proxy

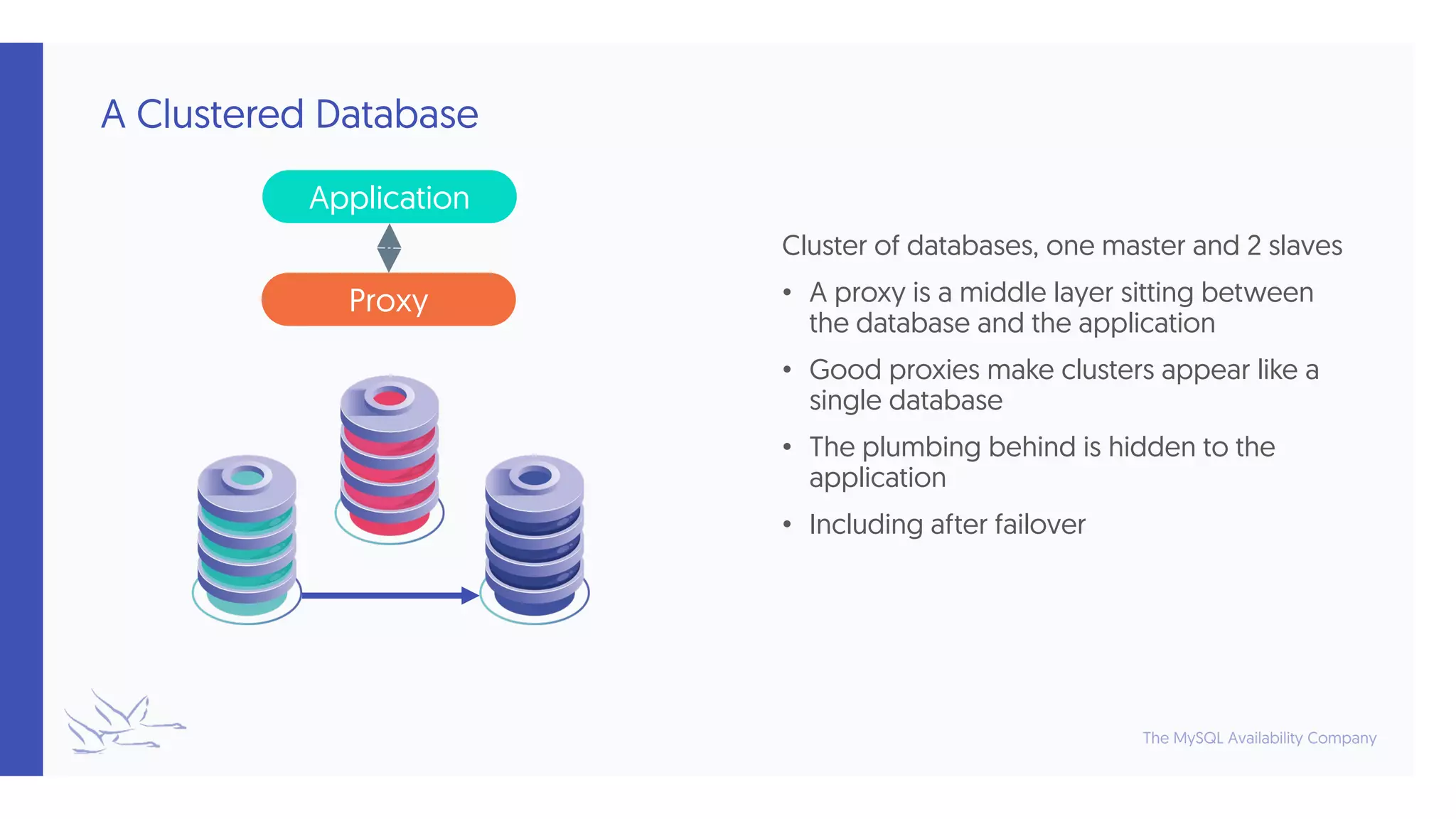

- 27. A Clustered Database Cluster of databases, one master and 2 slaves • A proxy is a middle layer sitting between the database and the application • Good proxies make clusters appear like a single database • The plumbing behind is hidden to the application • Including after failover Application Proxy

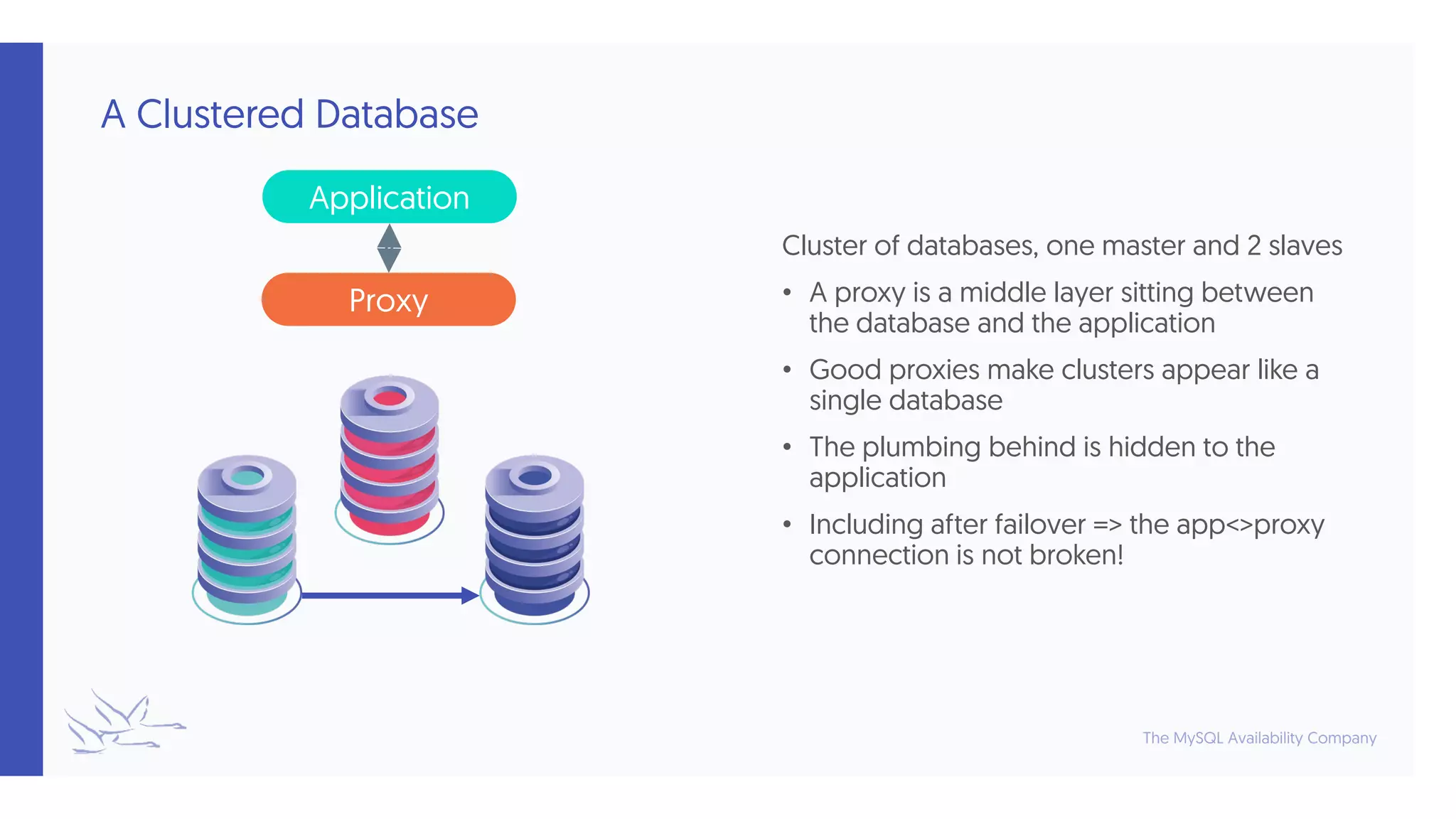

- 28. A Clustered Database Cluster of databases, one master and 2 slaves • A proxy is a middle layer sitting between the database and the application • Good proxies make clusters appear like a single database • The plumbing behind is hidden to the application • Including after failover => the app<>proxy connection is not broken! Application Proxy

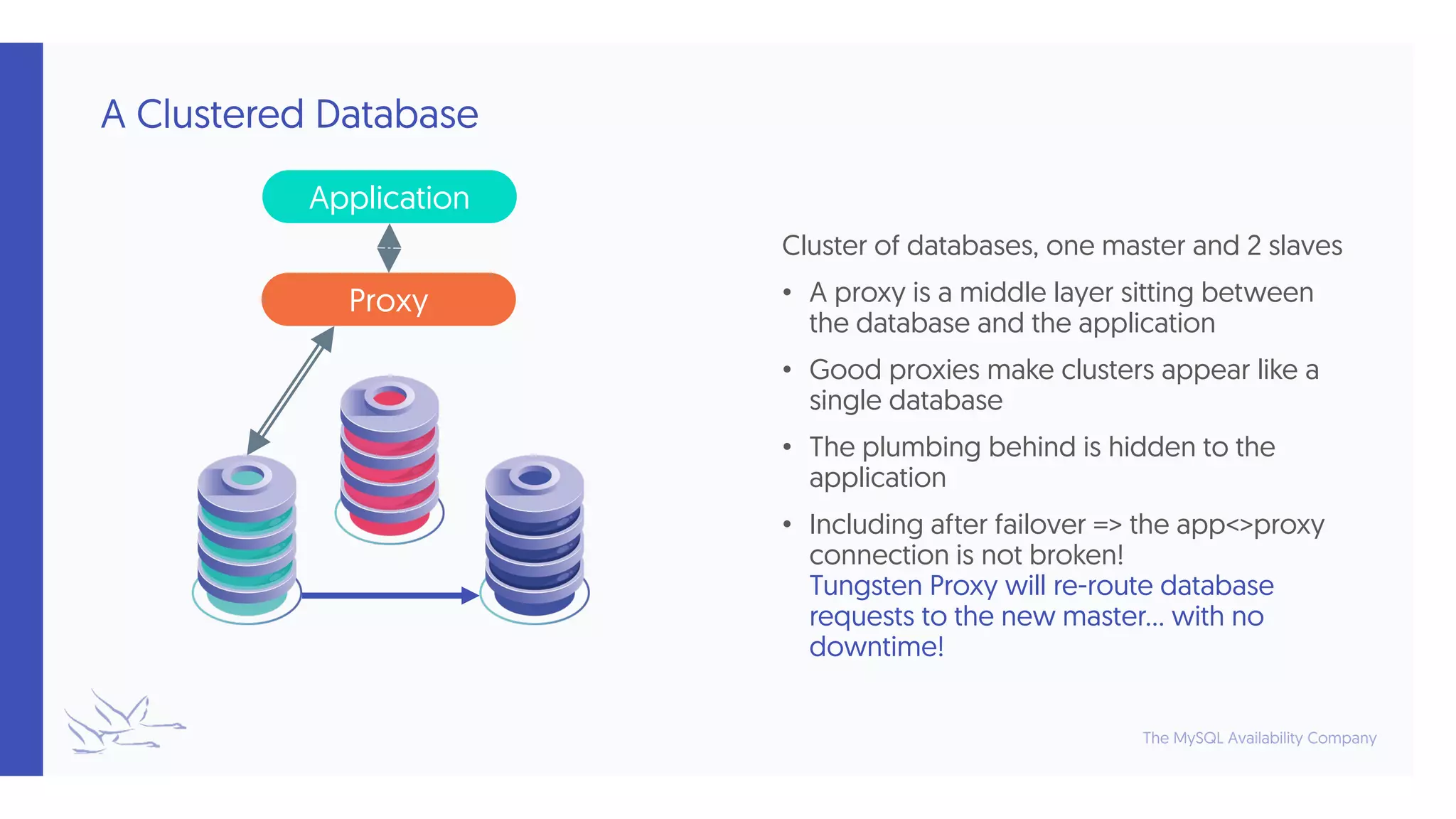

- 29. A Clustered Database Cluster of databases, one master and 2 slaves • A proxy is a middle layer sitting between the database and the application • Good proxies make clusters appear like a single database • The plumbing behind is hidden to the application • Including after failover => the app<>proxy connection is not broken! Tungsten Proxy will re-route database requests to the new master… with no downtime! Application Proxy

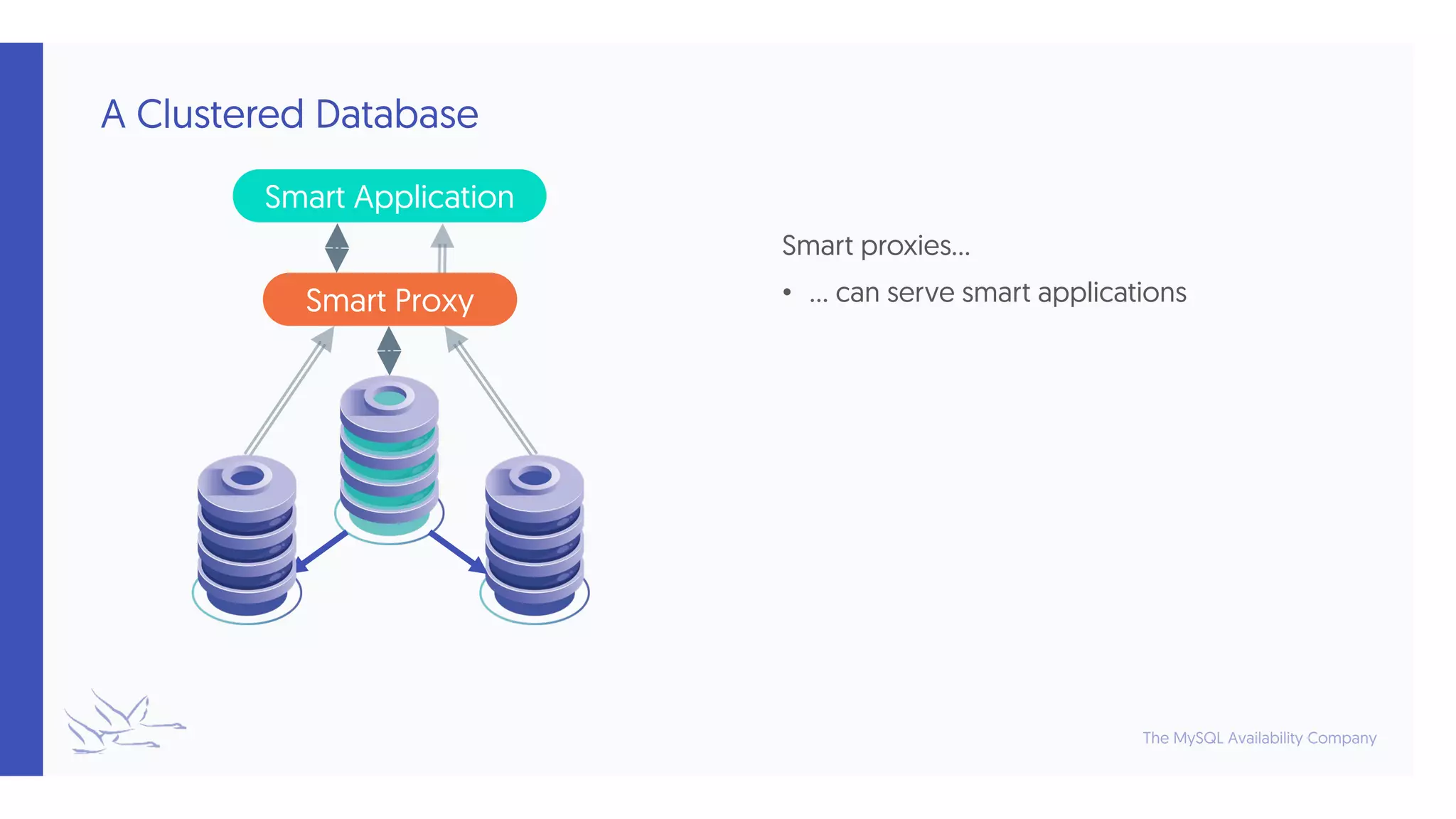

- 30. A Clustered Database Smart proxies… • … can serve smart applications Smart Application Smart Proxy

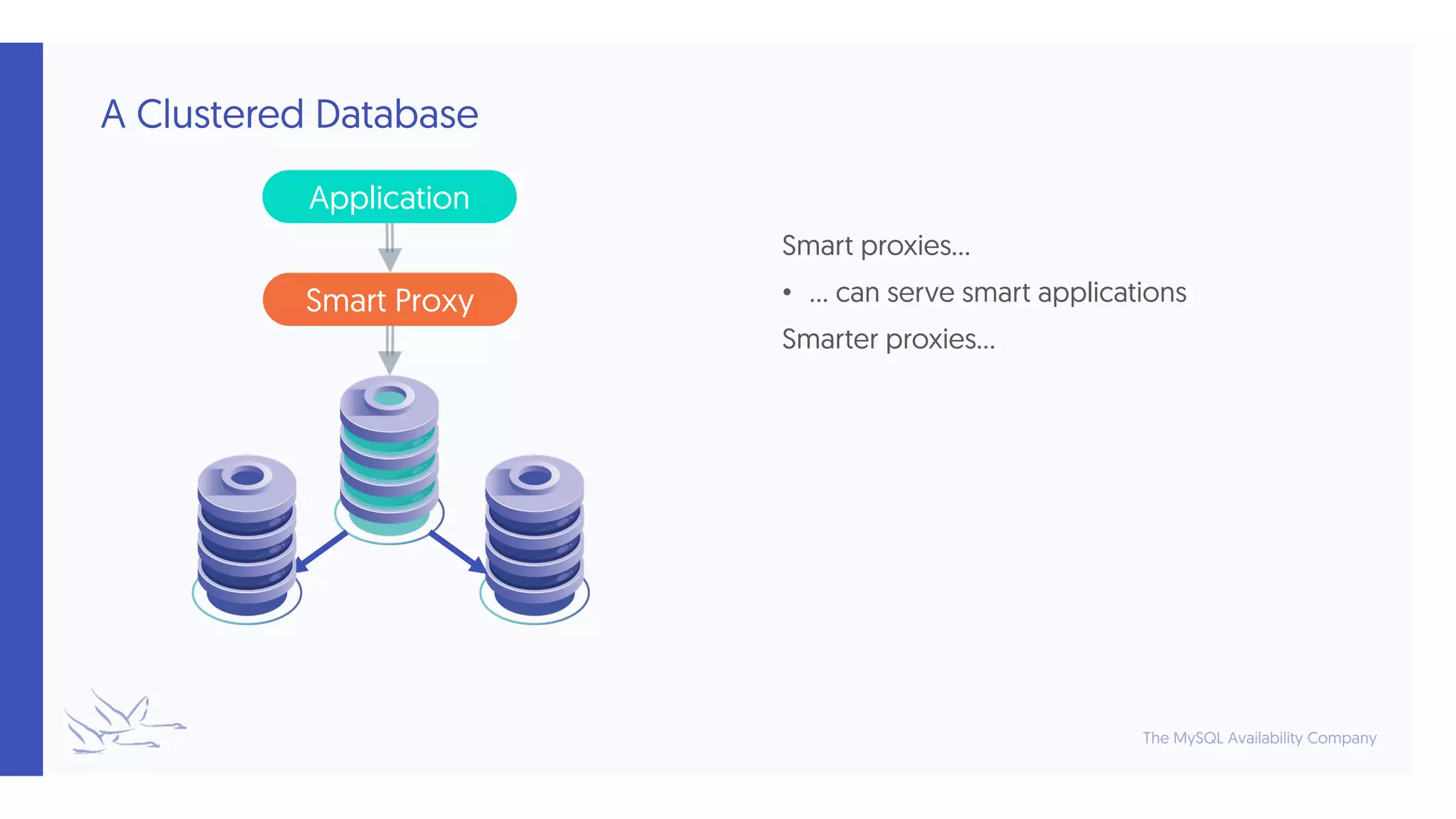

- 31. A Clustered Database Smart proxies… • … can serve smart applications Smarter proxies… Application Smart Proxy

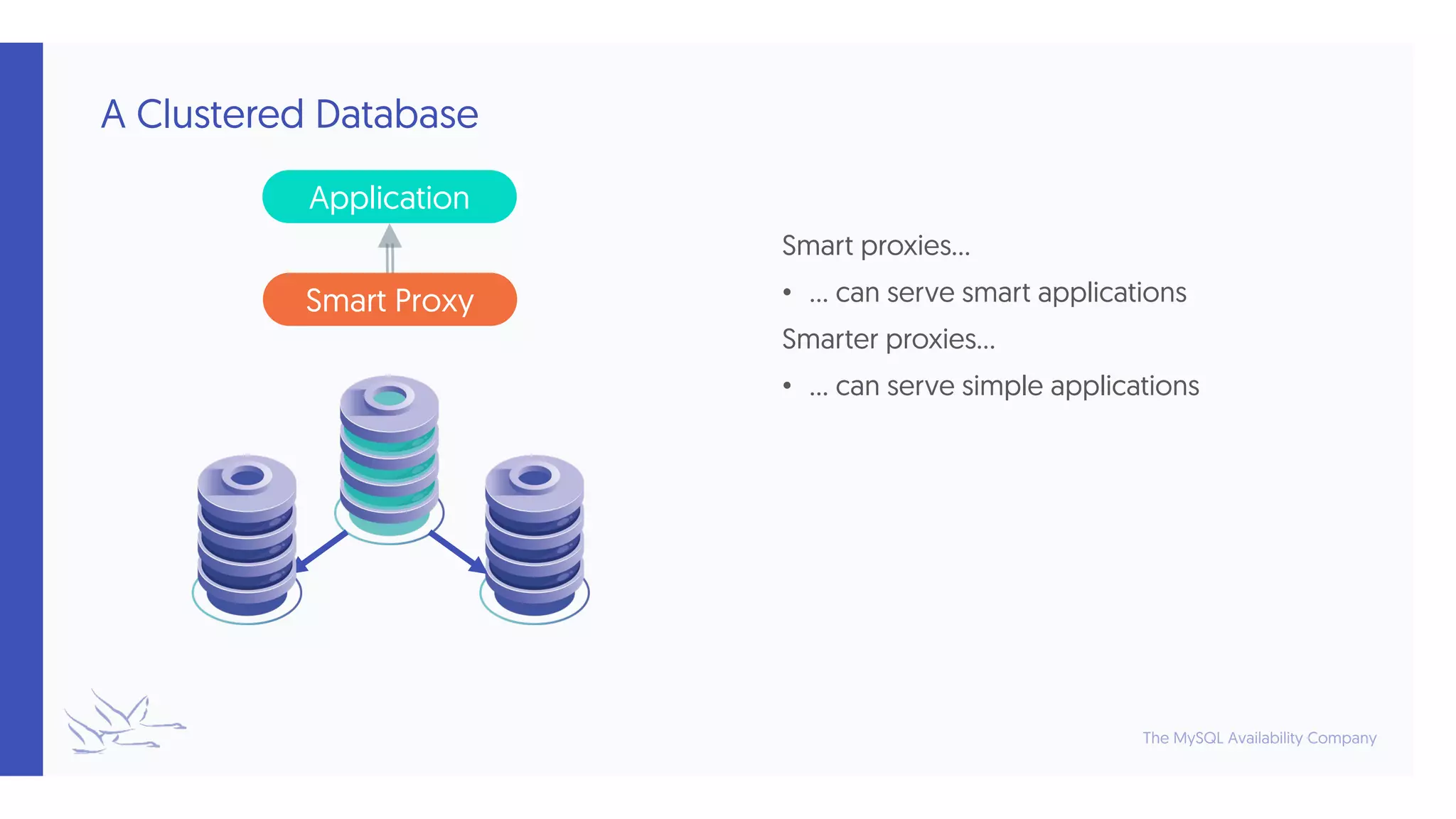

- 32. A Clustered Database Smart proxies… • … can serve smart applications Smarter proxies… • … can serve simple applications Application Smart Proxy

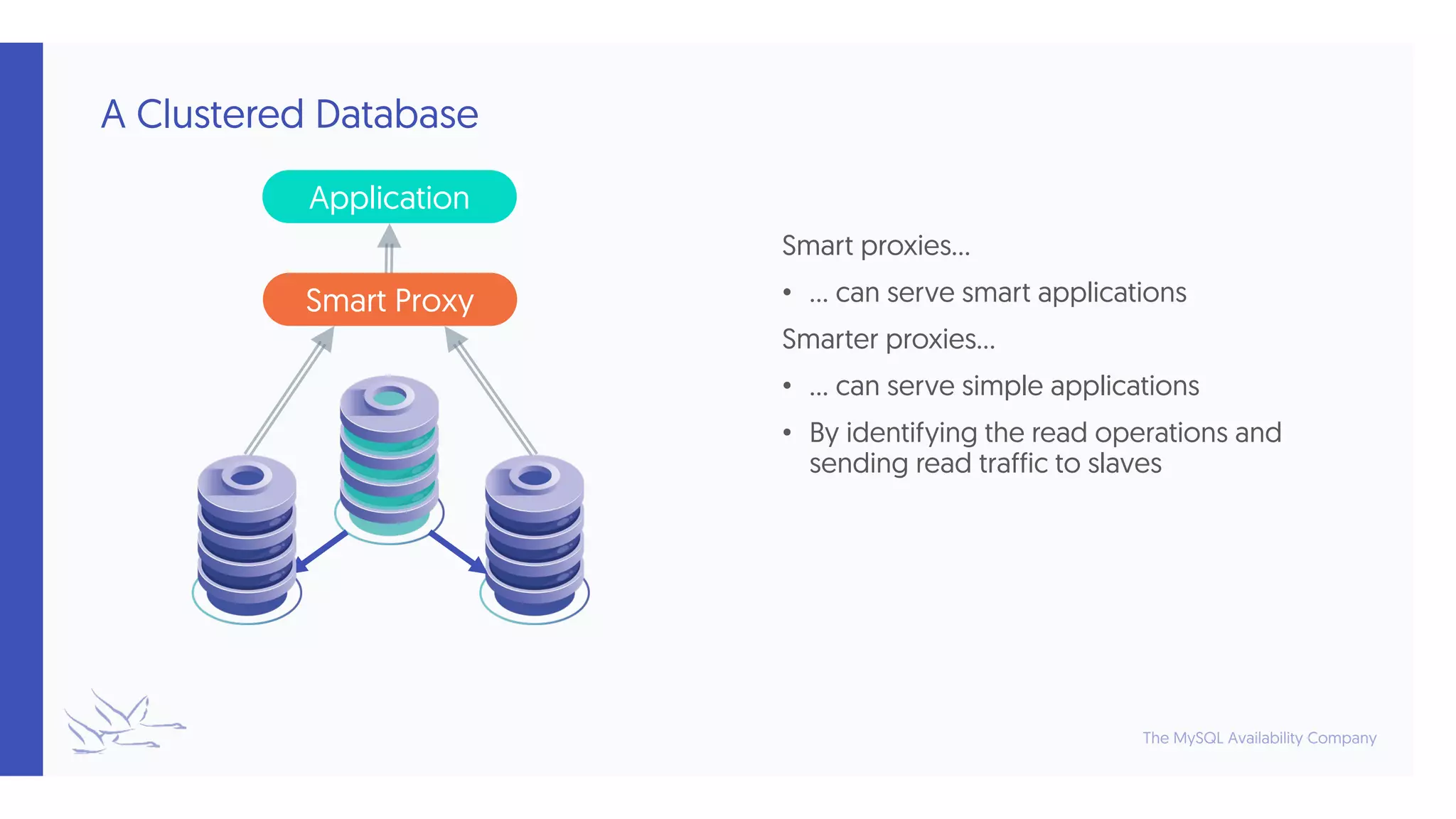

- 33. A Clustered Database Smart proxies… • … can serve smart applications Smarter proxies… • … can serve simple applications • By identifying the read operations and sending read traffic to slaves Application Smart Proxy
- 34. ADVANCED DATABASE CONNECTIVITY SETUPS

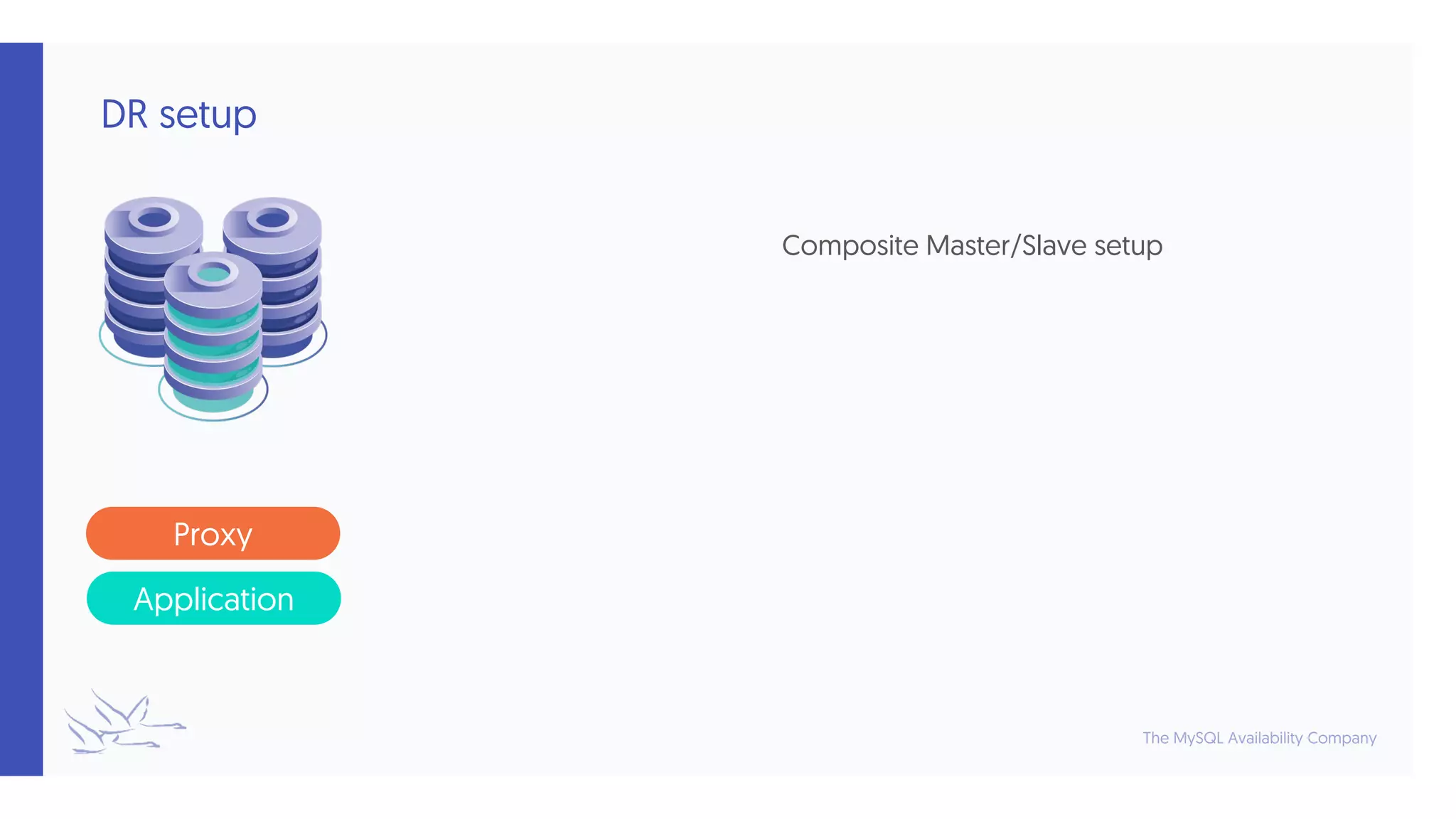

- 35. DR setup Composite Master/Slave setup Application Proxy

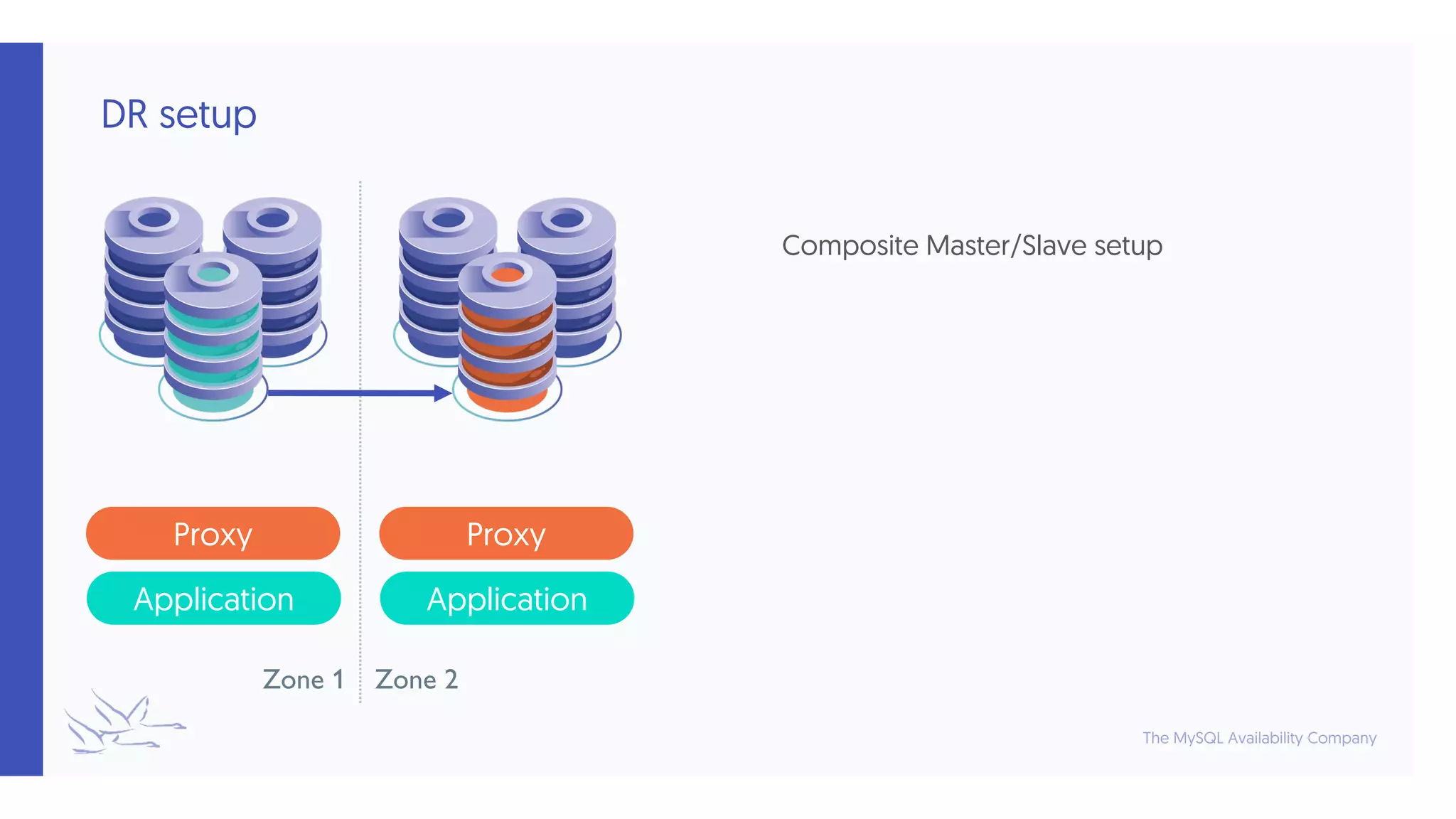

- 36. DR setup Composite Master/Slave setup Application Proxy Application Proxy Zone 1 Zone 2

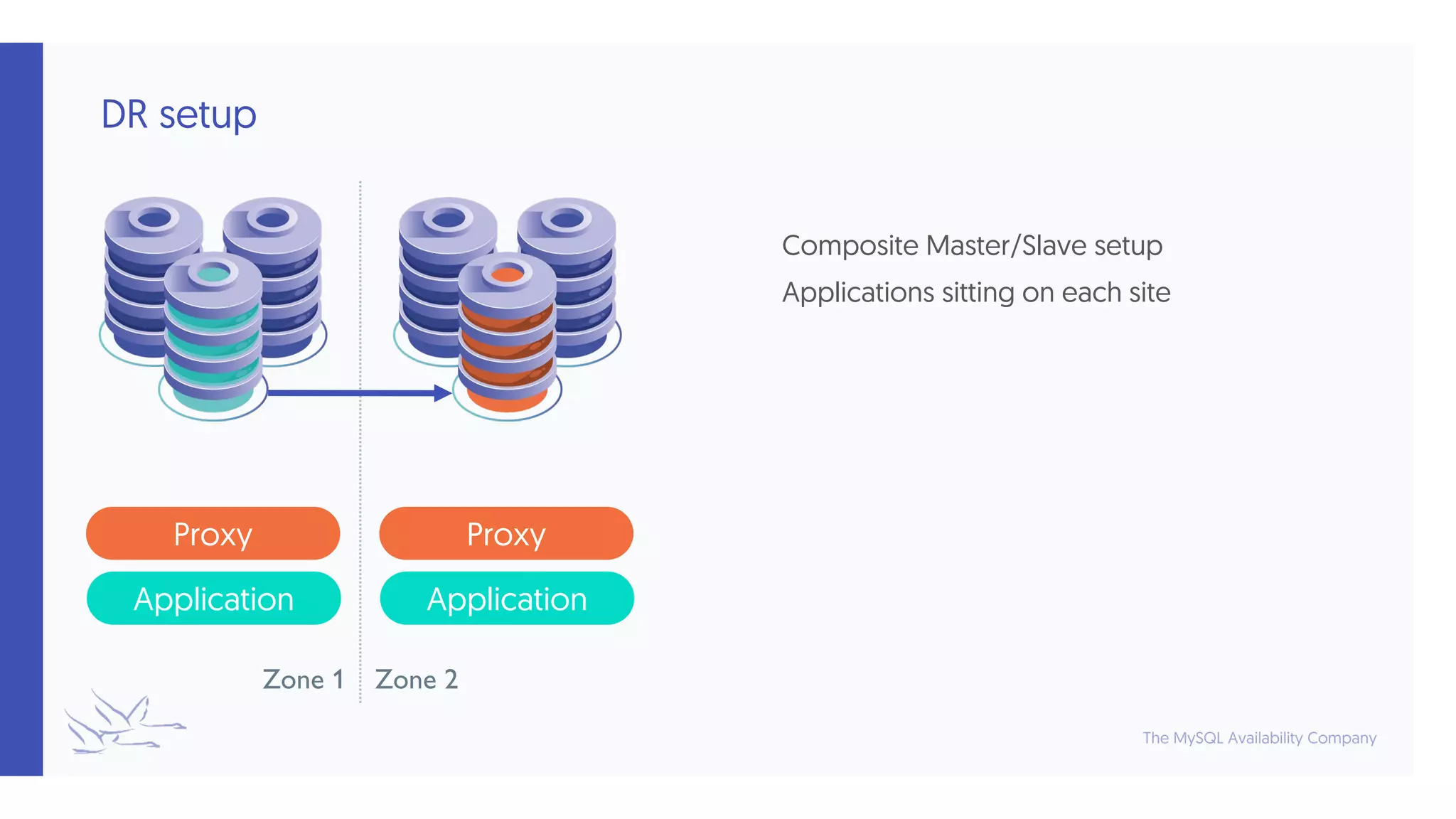

- 37. DR setup Composite Master/Slave setup Applications sitting on each site Application Proxy Application Proxy Zone 1 Zone 2

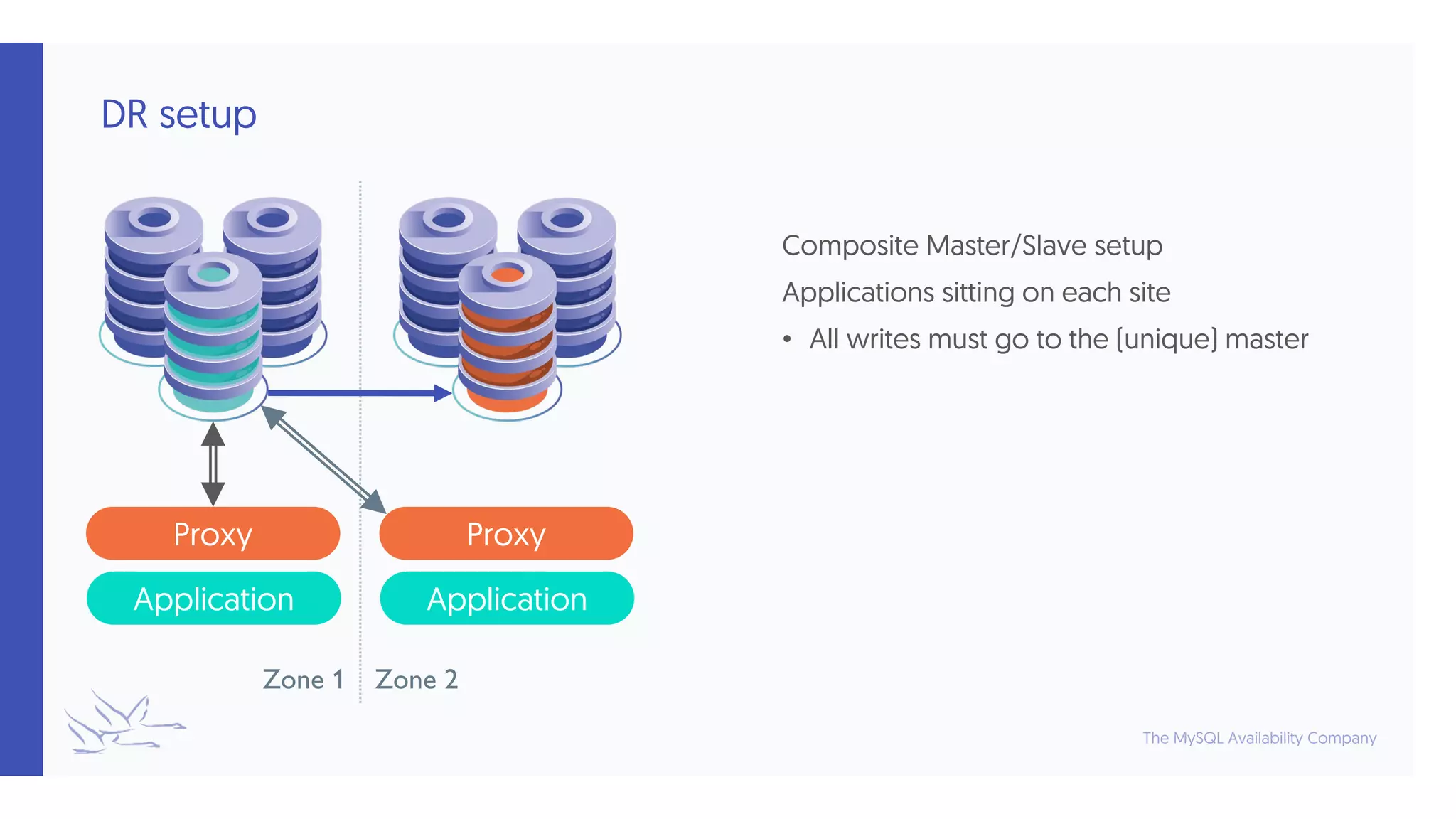

- 38. DR setup Composite Master/Slave setup Applications sitting on each site • All writes must go to the (unique) master Application Proxy Application Proxy Zone 1 Zone 2

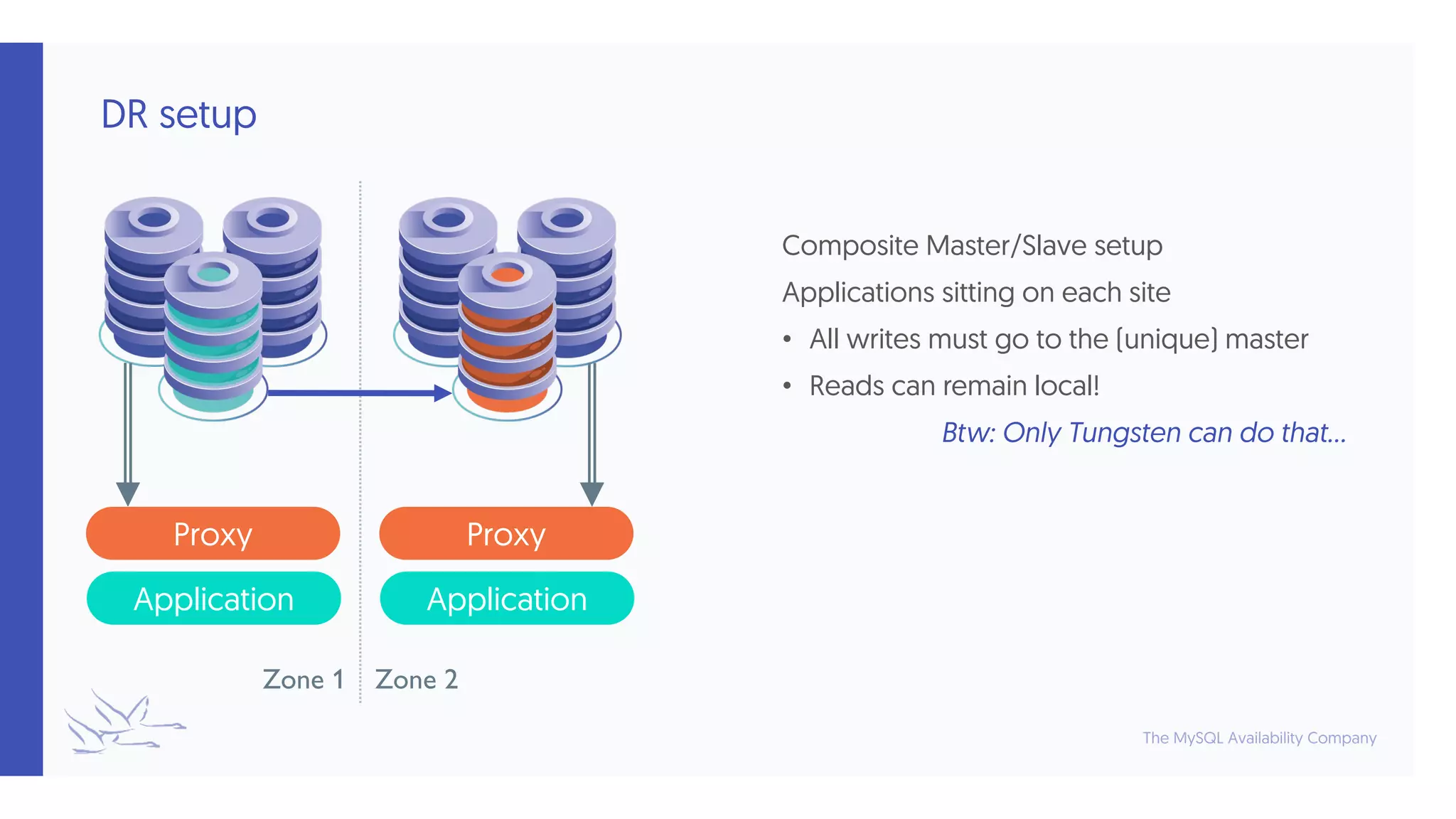

- 39. DR setup Composite Master/Slave setup Applications sitting on each site • All writes must go to the (unique) master • Reads can remain local! Btw: Only Tungsten can do that… Application Proxy Application Proxy Zone 1 Zone 2
- 41. Multi-Master Composite Multi-Master setup • Writes go to the local master Application Proxy Application Proxy Zone 1 Zone 2

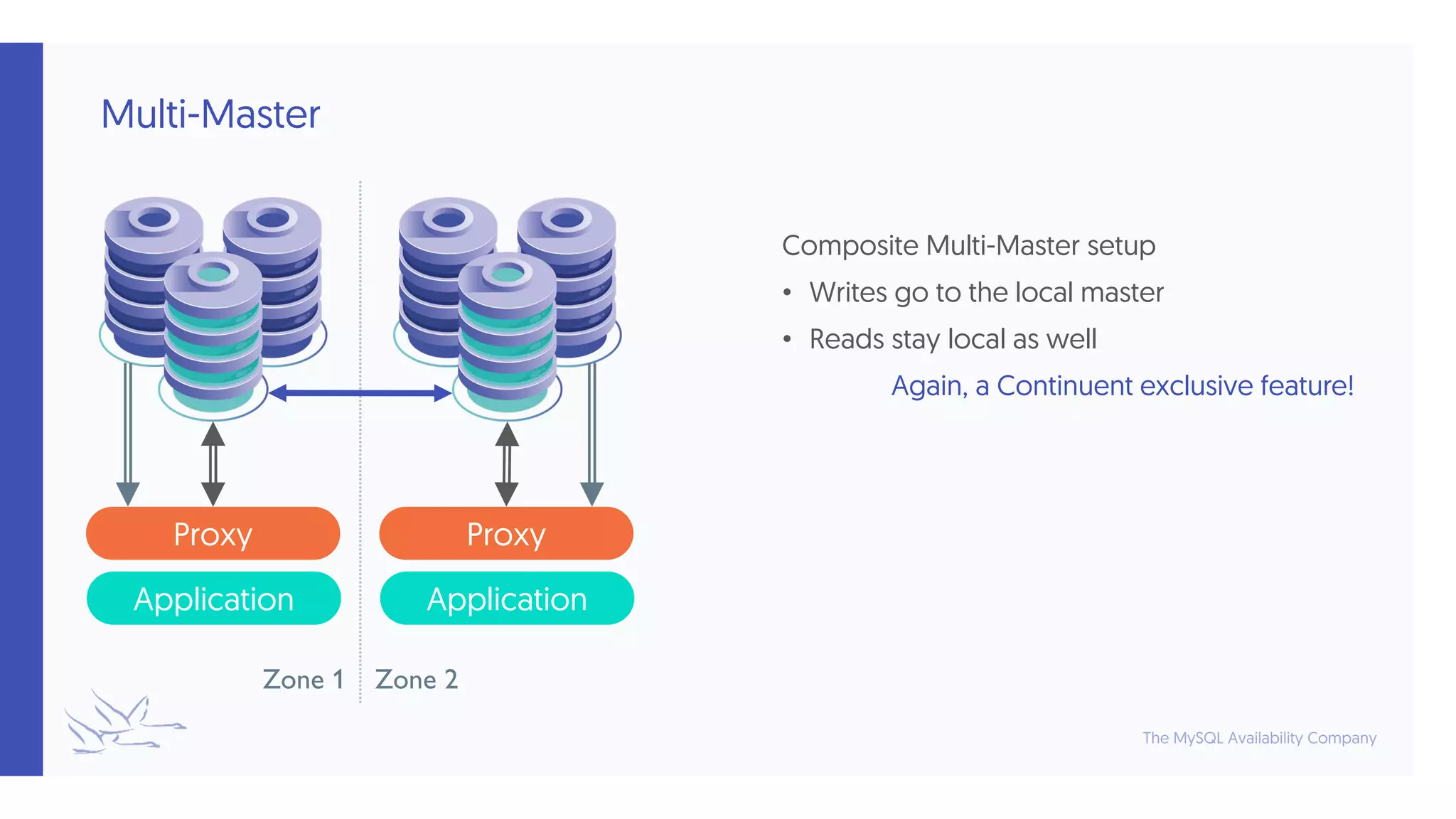

- 42. Multi-Master Composite Multi-Master setup • Writes go to the local master • Reads stay local as well Again, a Continuent exclusive feature! Application Proxy Application Proxy Zone 1 Zone 2

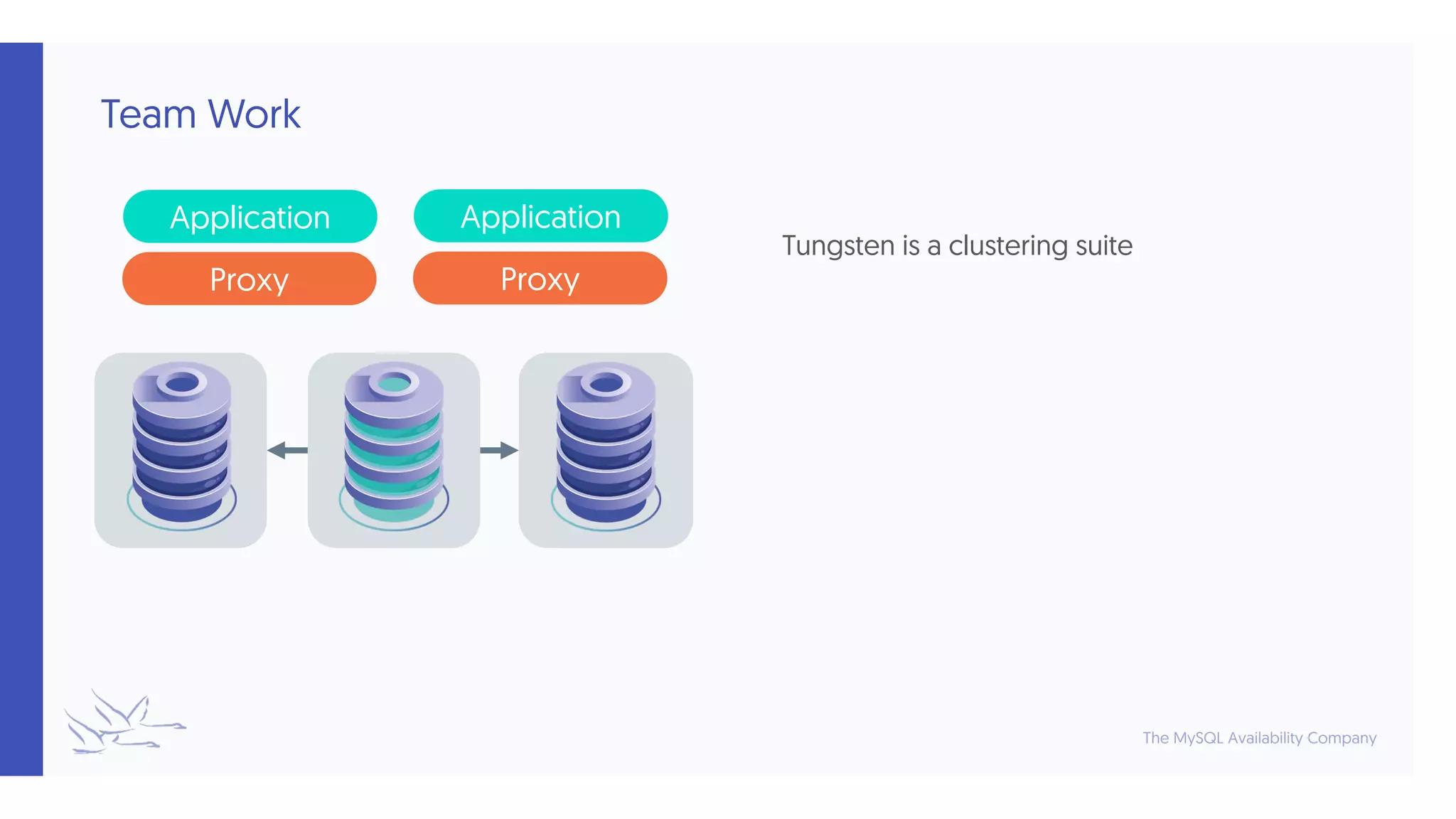

- 44. Team Work Tungsten is a clustering suite Application Proxy Application Proxy

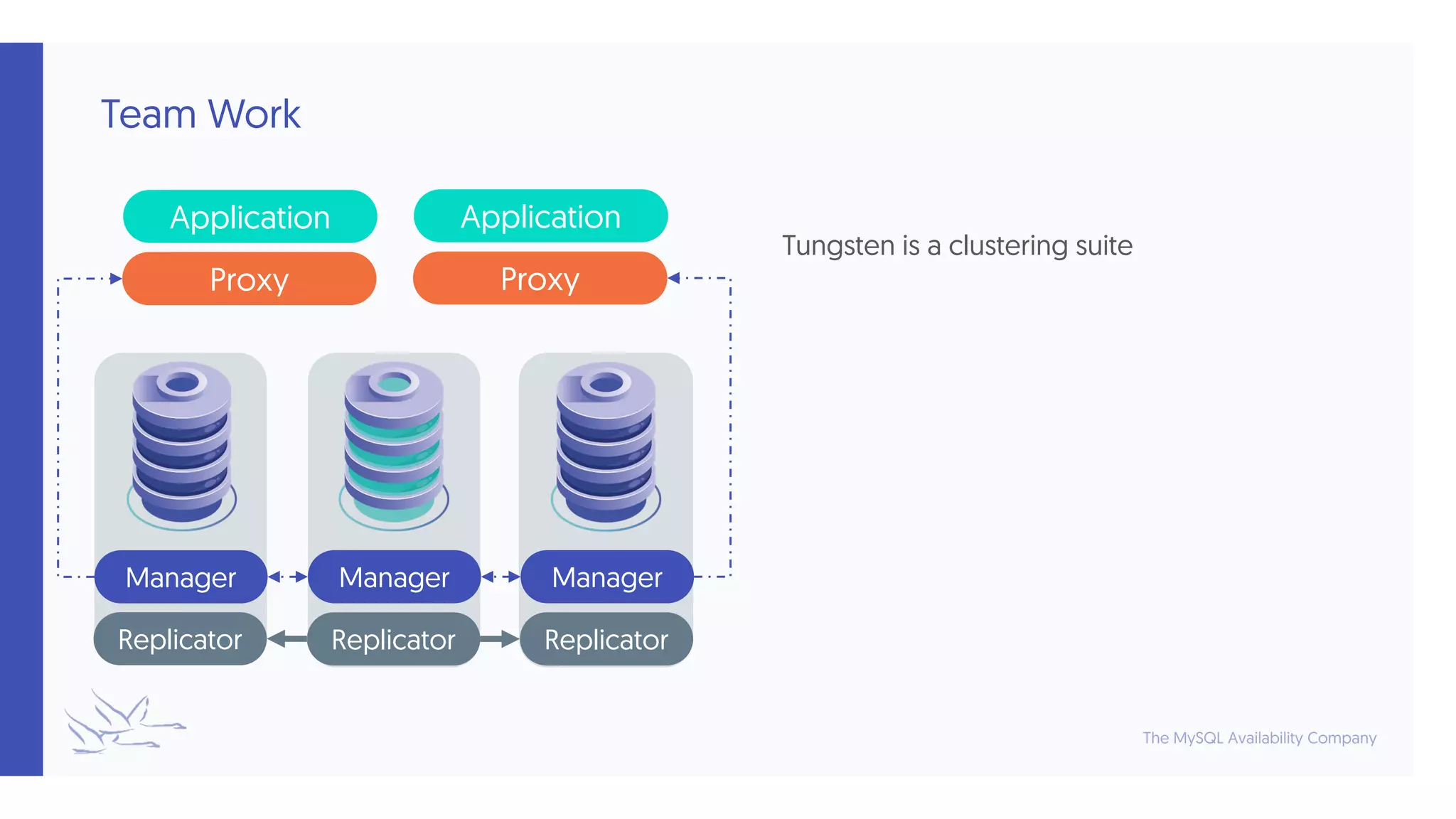

- 45. Team Work Tungsten is a clustering suite Application Proxy Application Proxy Manager Replicator Manager Replicator Manager Replicator

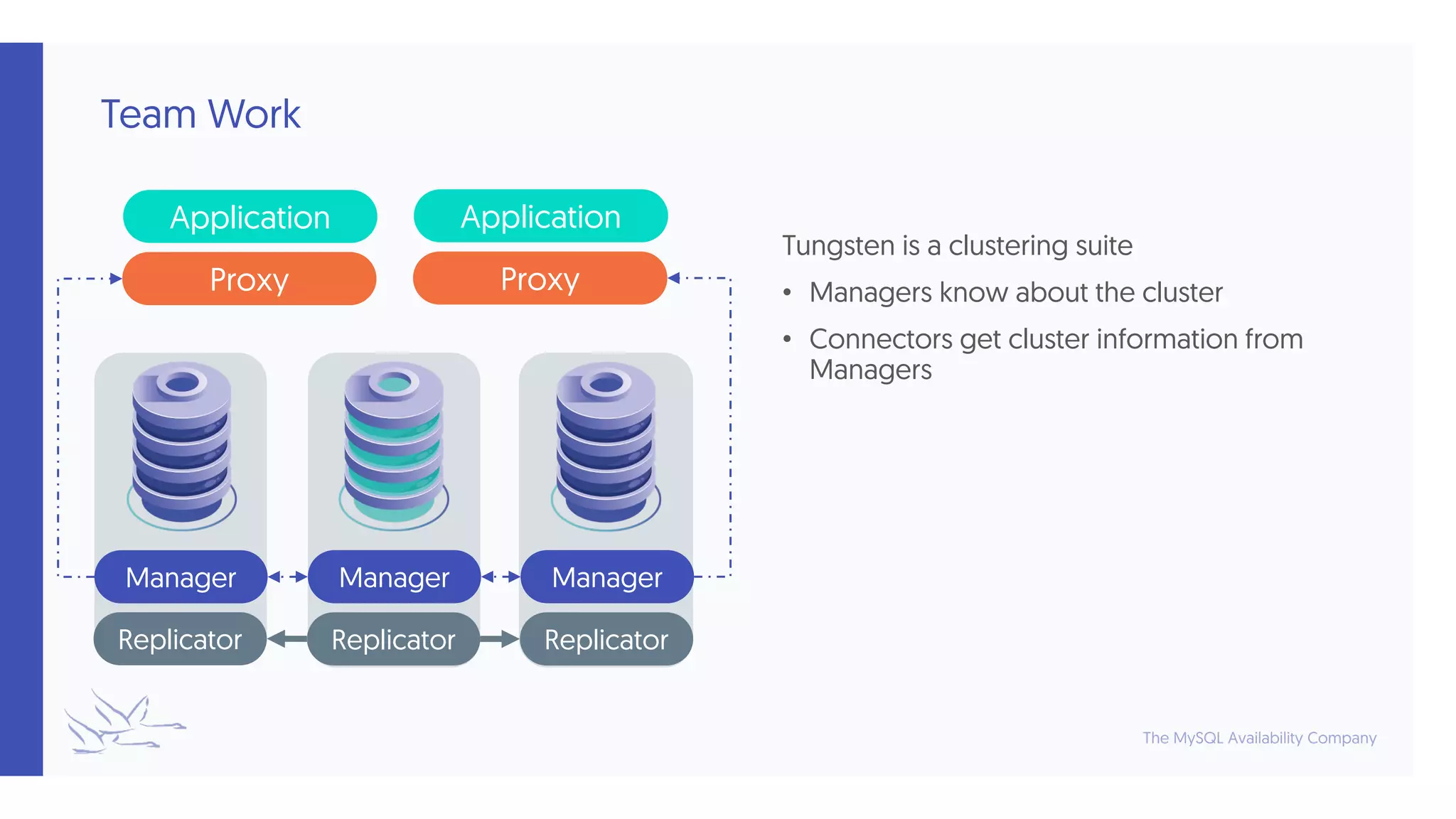

- 46. Team Work Tungsten is a clustering suite • Managers know about the cluster • Connectors get cluster information from Managers Application Proxy Application Proxy Manager Replicator Manager Replicator Manager Replicator

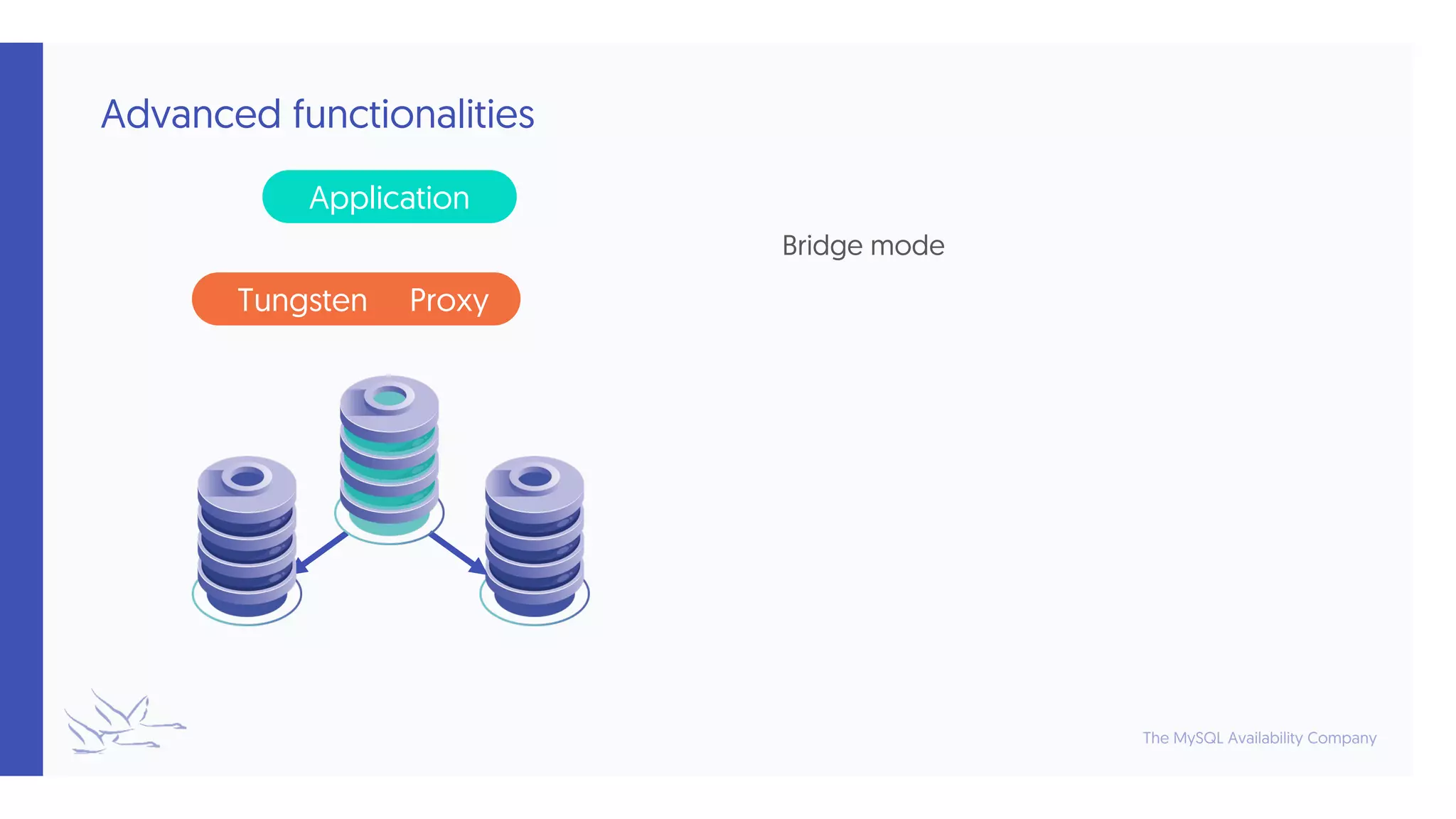

- 48. Advanced functionalities Bridge mode • Provides access to “the master” or “a slave” Application Tungsten Proxy

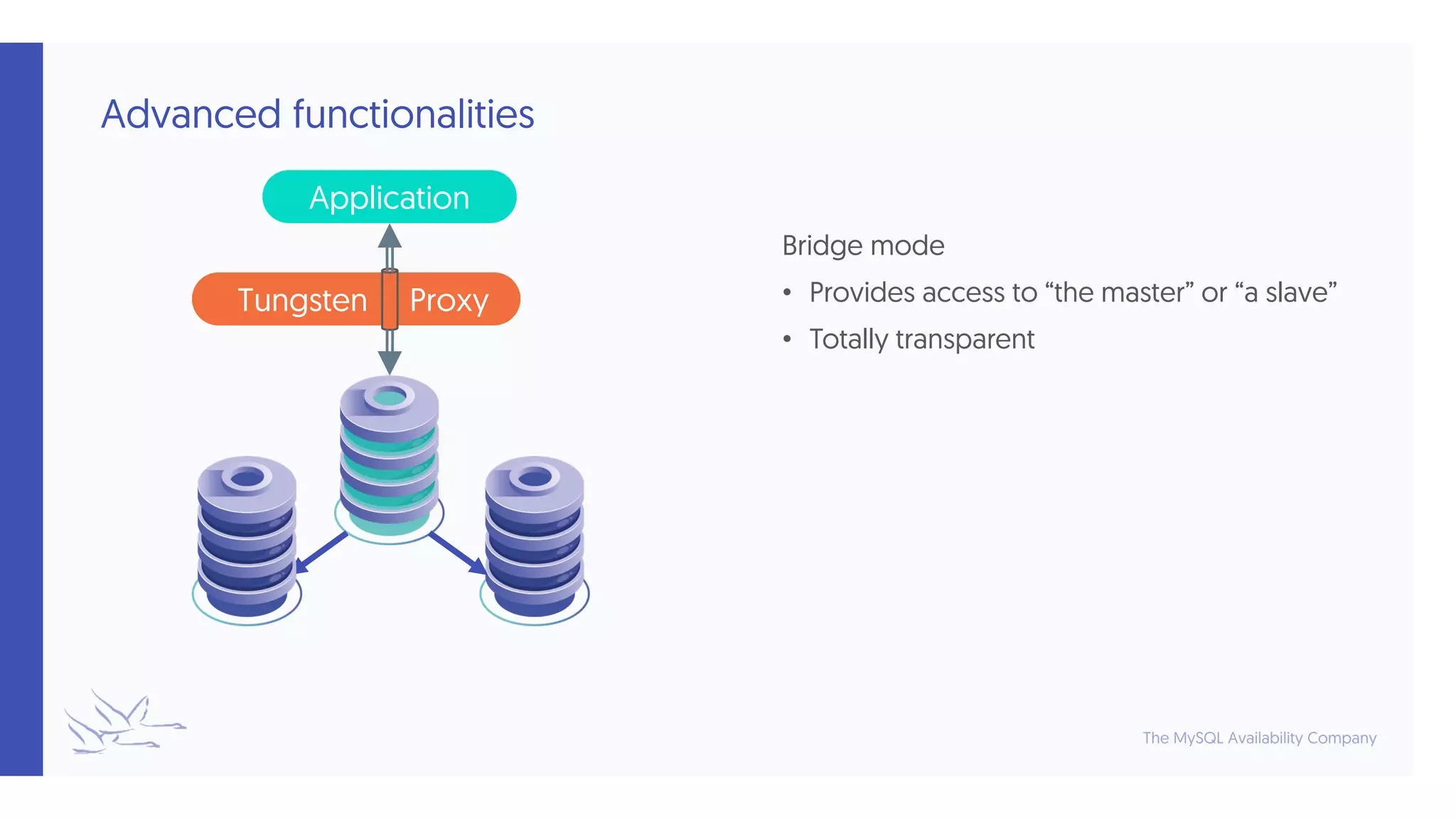

- 49. Tungsten Proxy Advanced functionalities Bridge mode • Provides access to “the master” or “a slave” • Totally transparent Application

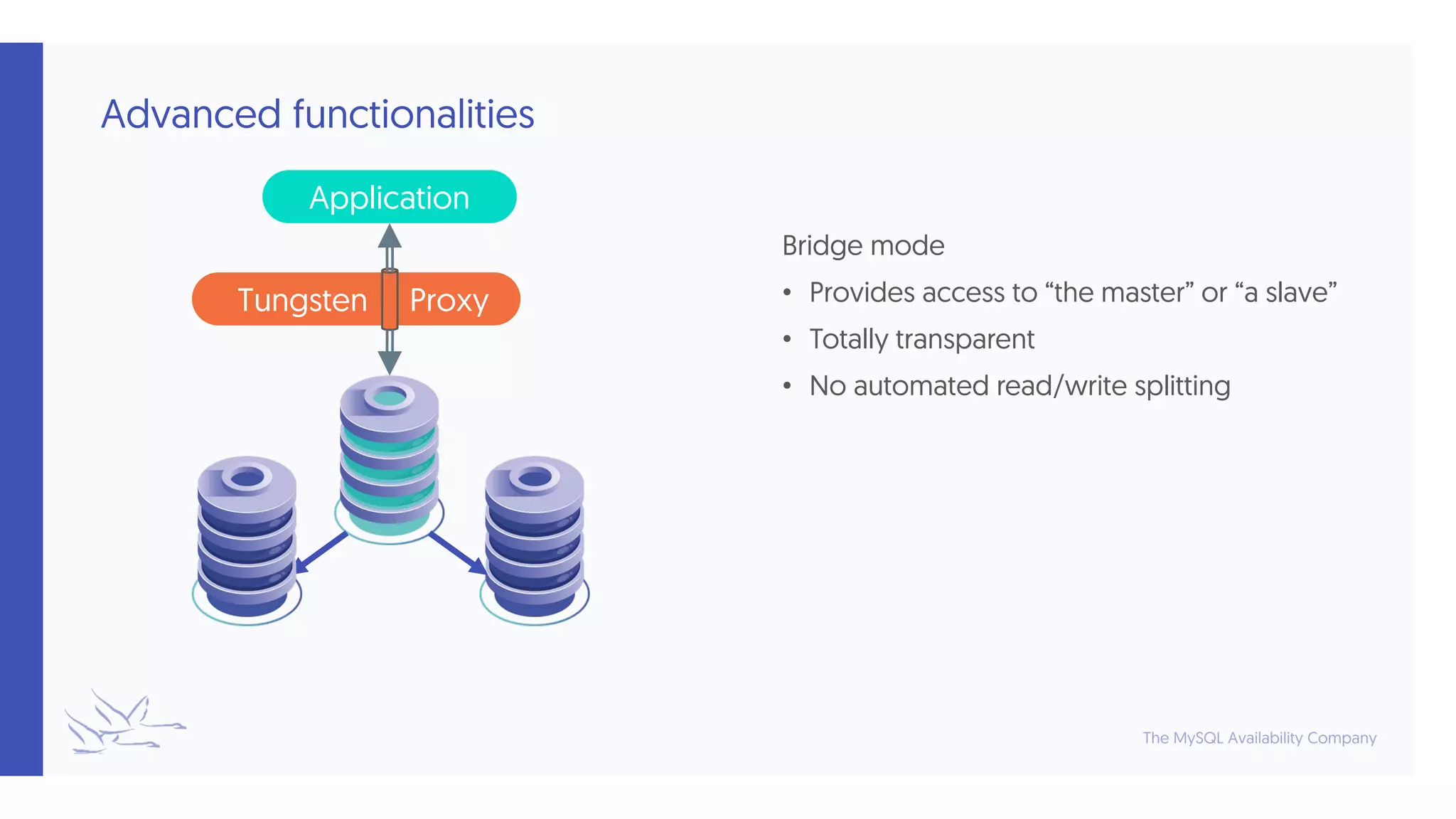

- 50. Tungsten Proxy Advanced functionalities Bridge mode • Provides access to “the master” or “a slave” • Totally transparent • No automated read/write splitting Application
- 51. Tungsten Proxy Advanced functionalities Bridge mode • Provides access to “the master” or “a slave” • Totally transparent • No automated read/write splitting • Error appear to the application upon failure Application

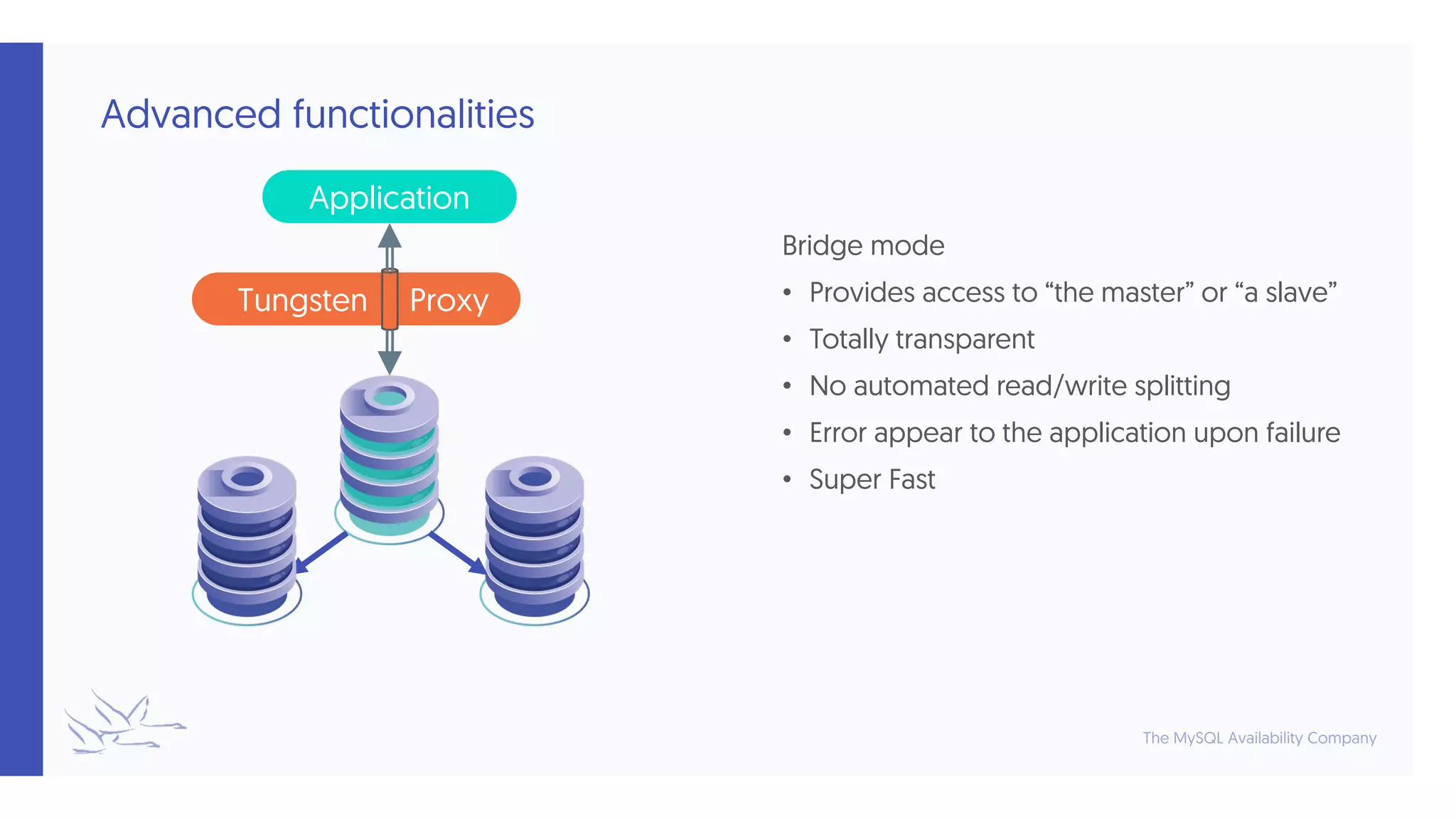

- 52. Tungsten Proxy Advanced functionalities Bridge mode • Provides access to “the master” or “a slave” • Totally transparent • No automated read/write splitting • Error appear to the application upon failure • Super Fast Application

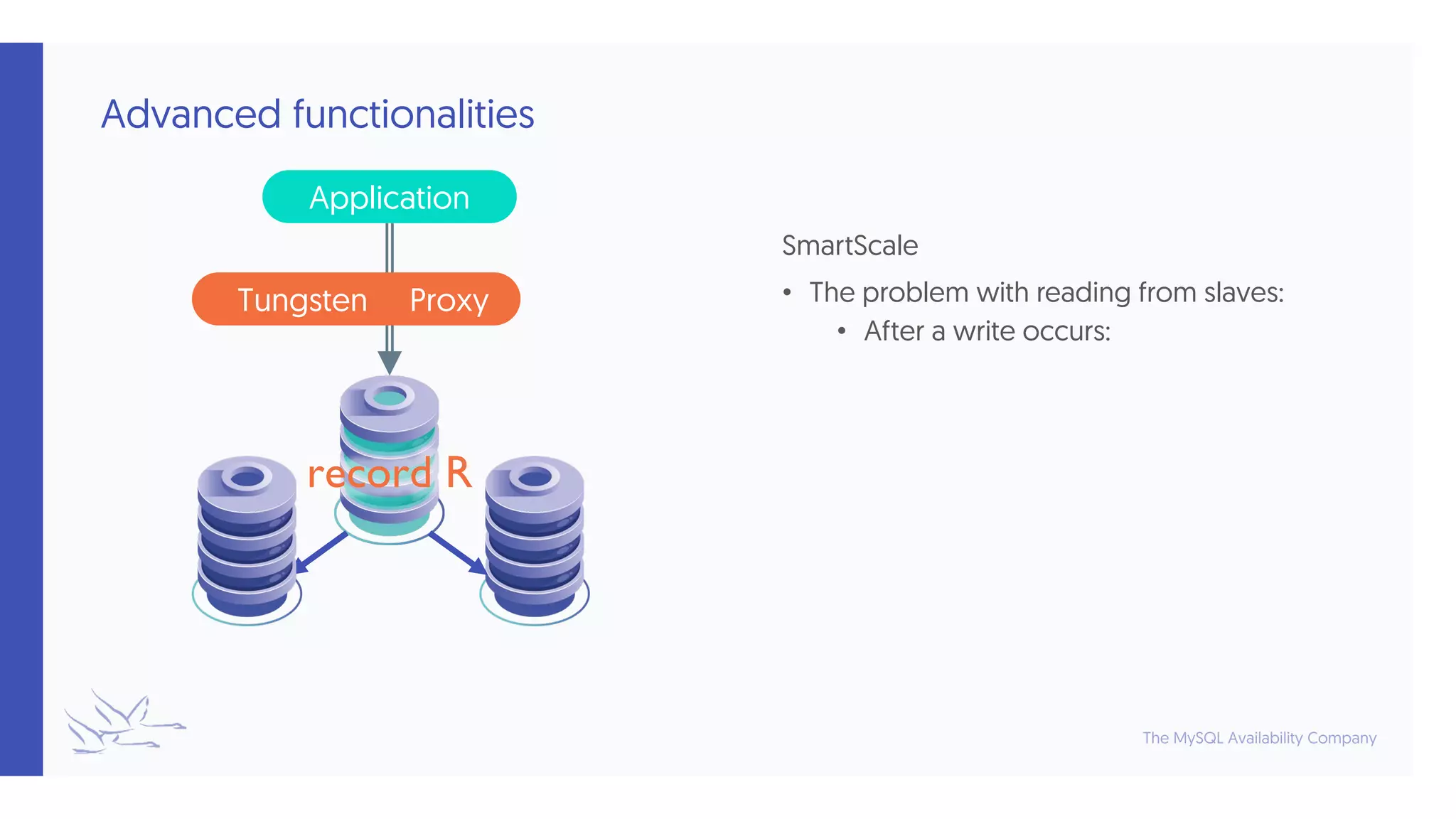

- 54. Advanced functionalities SmartScale • The problem with reading from slaves: • After a write occurs: Application record R Tungsten Proxy

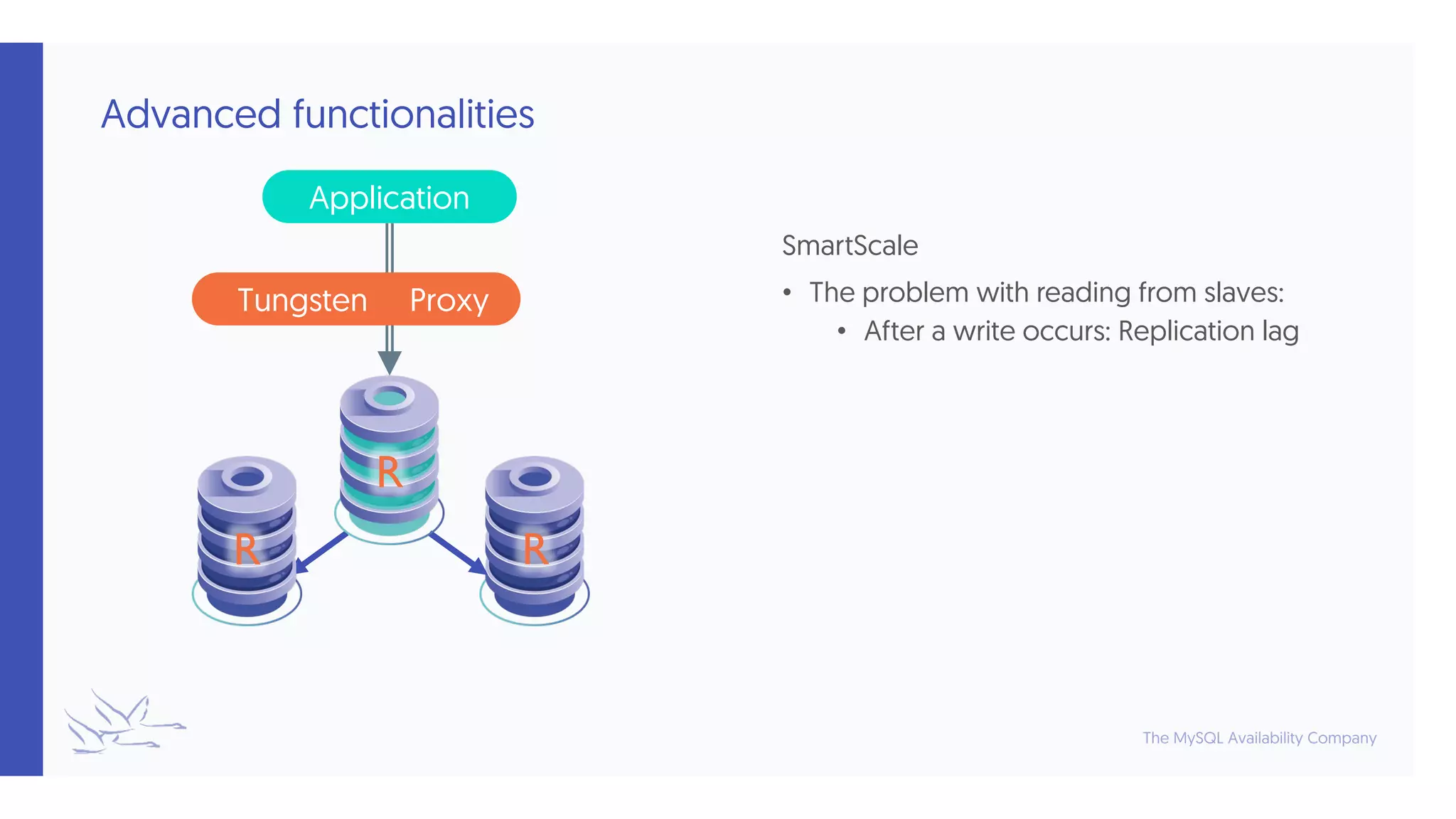

- 55. Advanced functionalities SmartScale • The problem with reading from slaves: • After a write occurs: Replication lag Application R R R Tungsten Proxy
- 56. Advanced functionalities SmartScale • The problem with reading from slaves: • After a write occurs: Replication lag • Smart scale makes sure the data written by the application is available on the slave Application R Tungsten Proxy
- 57. Advanced functionalities SmartScale • The problem with reading from slaves: • After a write occurs: Replication lag • Smart scale makes sure the data written by the application is available on the slave Application R R? Tungsten Proxy

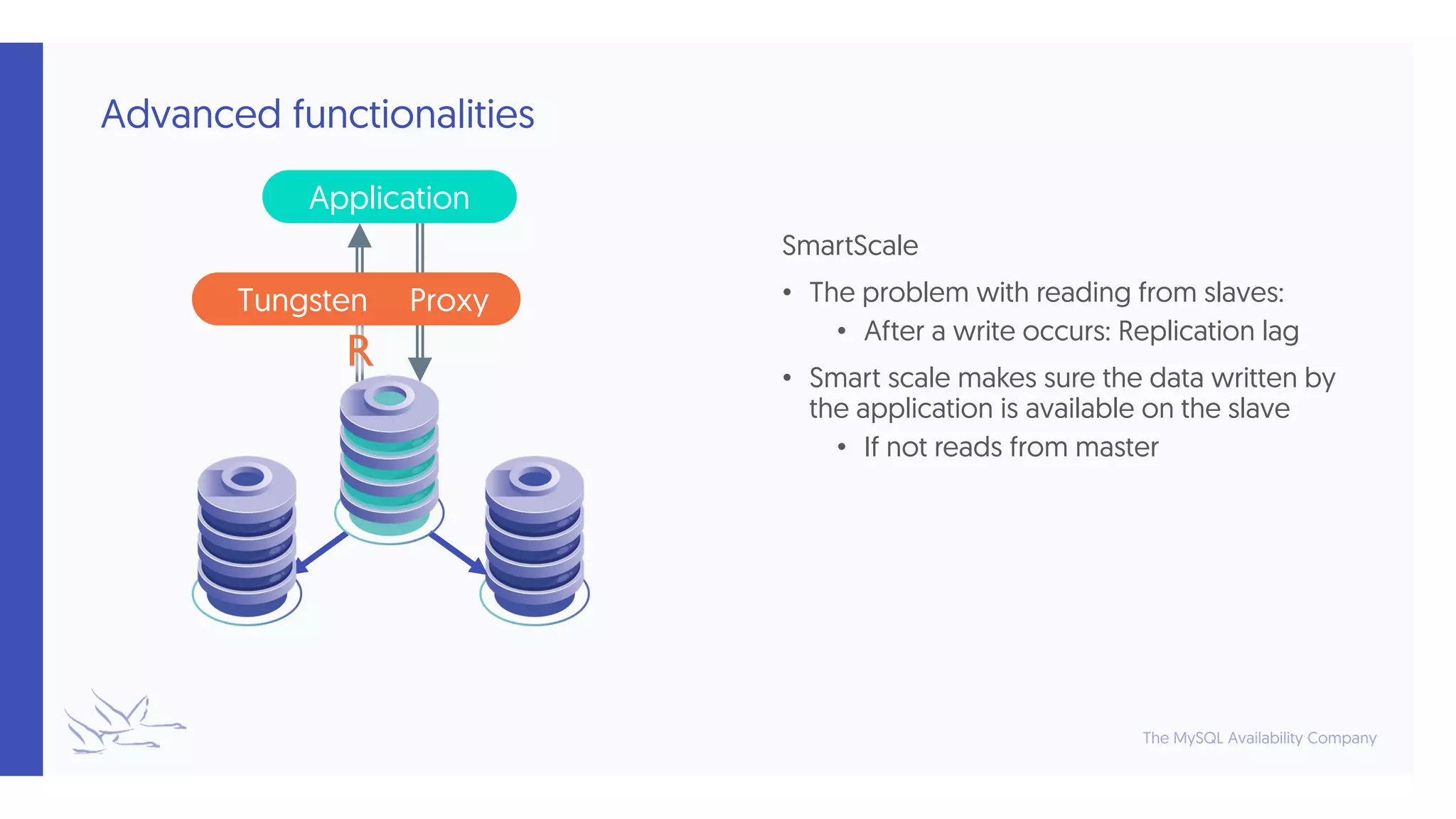

- 58. Advanced functionalities SmartScale • The problem with reading from slaves: • After a write occurs: Replication lag • Smart scale makes sure the data written by the application is available on the slave • If not reads from master Application R R Tungsten Proxy
- 59. RECAP

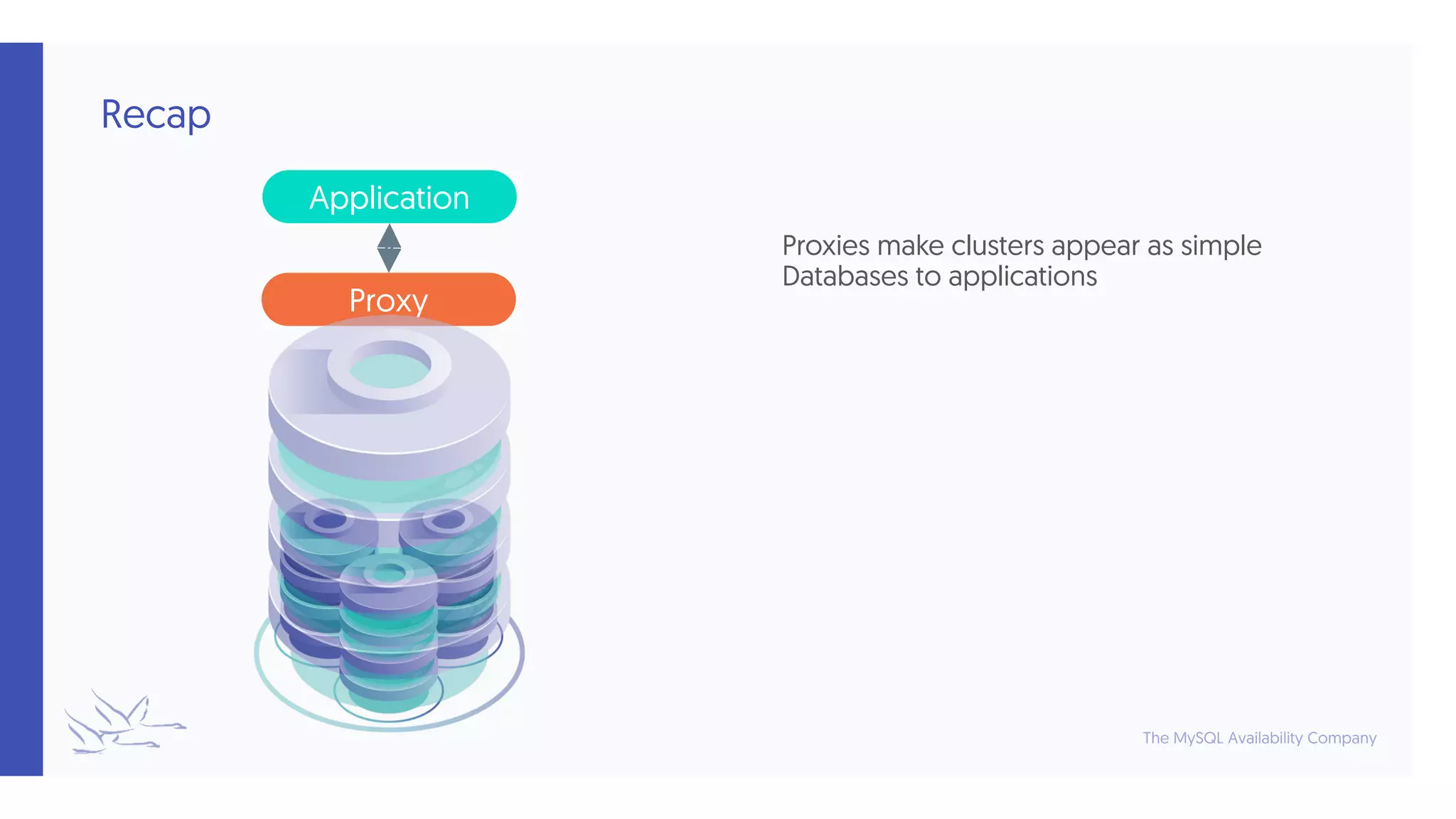

- 60. Recap Proxies make clusters appear as simple Databases to applications Application Proxy

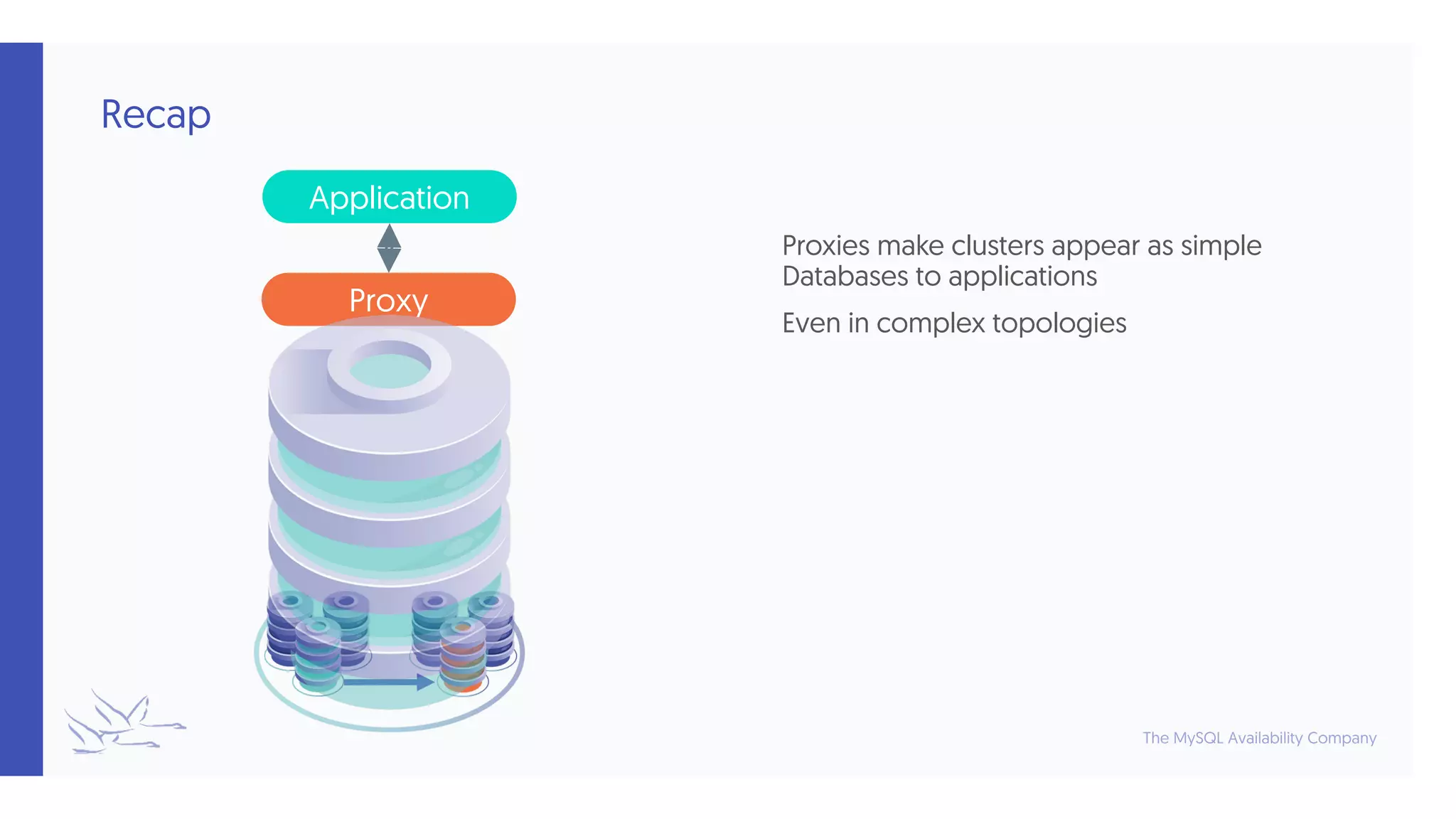

- 61. Recap Proxies make clusters appear as simple Databases to applications Even in complex topologies Application Proxy

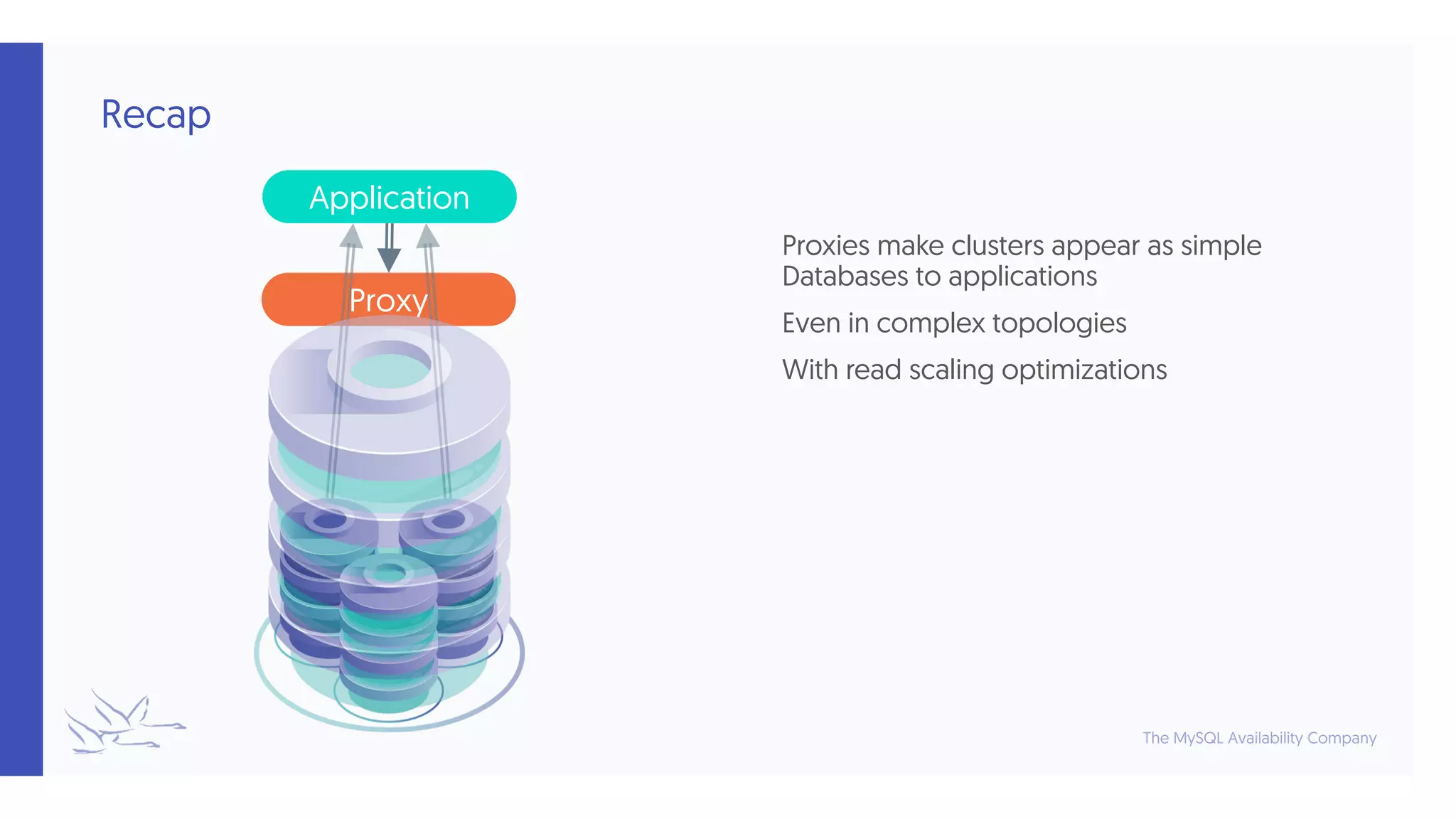

- 62. Recap Proxies make clusters appear as simple Databases to applications Even in complex topologies With read scaling optimizations Application Proxy
- 63. For More Info… Product and General Information: info@continuent.com Sales Requests: sales@continuent.com
- 64. THANK YOU FOR LISTENING continuent.com The MySQL Availability Company Gilles Rayrat
