1. ProSafe
Smart Switch
Caratteristiche e Funzionalità
Formazione Online
Andrea Rossi
Senior System Engineer
arossi@netgear.com

2. Smarter products for today's business.
Today’s business climate consists of real-time communications, cloud-based applications, and a dynamic
mobile workforce. Organisations must stay connected to remain one step ahead.
From reliable switches, to secure WiFi, to application aware firewalls, to network storage that continuously
protects data, NETGEAR business products are purposely designed to meet the needs of this ever
changing environment and keep organisations connected and moving at full speed.
Simply, reliably and affordably.
2

3. The NETGEAR Difference
3
Reliable Affordable Easy To Use
Best in class warranties
Next Business Day
Replacement
Providing Network Solutions
for businesses since 1996
A fraction of the cost of
traditional Big IT Vendors
Scales as your business grows
Reduce operating expenses
Easy installation
No extra training or
additional IT staff required
Easy Network Management

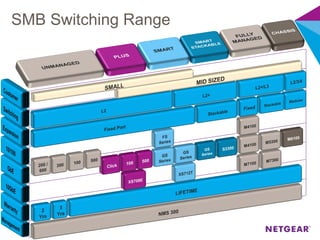

4. SMB Switching Range

5. Switch Type Definitions
5
Unmanaged Plus Smart Smart Stackable Fully Managed
IP Address No Yes Yes Yes Yes
Physical layer L2 L2 L2/L2+ L2/L2+ L2+/L3/L4
Plug and Play Yes Yes Yes Yes Yes**
Discoverability MAC address MAC / IP address MAC / IP address MAC / IP address MAC / IP address
Quality of Service (Qos) No Yes, Limited Yes Yes Yes
Virtual LAN (VLAN) No Yes, Limited Yes Yes Yes
Browser interface
management
No Web browser / PC Utility* Yes Yes Yes
SNMP No No Yes Yes Yes
Stacking options No No No Yes Yes
Command Line Interface
(CLI) management
No No No No Yes
Telnet No No No No Yes
SSH No No No No Yes
Main Switch type
connectivity: Fibre or
Copper
Copper Copper Copper Copper, Fibre uplinks Fibre and Copper
Speeds FE and GbE FE, GbE and 10GbE FE, GbE and 10GbE*** FE, GbE and 10GbE uplinks FE, GbE and 10GbE
PoE Capability PoE on select models PoE on select models
PoE/PoE+ /PoE Pass through
models available
PoE/PoE+ models available
PoE/PoE+/PoE Pass through
models available
Warranty LIFETIME on ProSAFE Brand
* PC Utility only ProSAFE XS708E
** Plug and Play on a Managed switch applies where a DHCP server is used to allow integration into a network without manual configuration, i.e. accept factory default switch settings
*** 10GbE and full PoE+ capability in a Smart Stackable switch is unique to NETGEAR

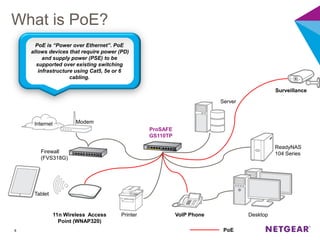

6. What is PoE?
6
PoE is “Power over Ethernet”. PoE
allows devices that require power (PD)
and supply power (PSE) to be
supported over existing switching
infrastructure using Cat5, 5e or 6
cabling.
6
ProSAFE
GS110TP
Desktop
Tablet
ReadyNAS
104 Series
Internet
Firewall
(FVS318G)
Modem
11n Wireless Access
Point (WNAP320)
Surveillance
PoE
VoIP Phone
Server
Printer

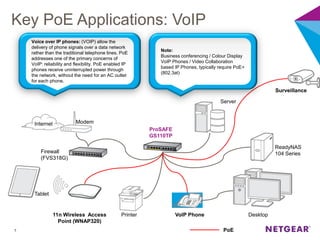

7. Key PoE Applications: VoIP
77
Desktop
Tablet
ReadyNAS
104 Series
Internet
Firewall
(FVS318G)
Modem
11n Wireless Access
Point (WNAP320)
Surveillance
PoE
VoIP Phone
Server
Printer
Voice over IP phones: (VOIP) allow the
delivery of phone signals over a data network
rather than the traditional telephone lines. PoE
addresses one of the primary concerns of
VoIP: reliability and flexibility. PoE enabled IP
phones receive uninterrupted power through
the network, without the need for an AC outlet
for each phone.
Note:
Business conferencing / Colour Display
VoIP Phones / Video Collaboration
based IP Phones, typically require PoE+
(802.3at)
ProSAFE
GS110TP

8. Key PoE Applications: Surveillance
88
Desktop
Tablet
ReadyNAS
104 Series
Internet
Firewall
(FVS318G)
Modem
11n Wireless Access
Point (WNAP320)
Surveillance
PoE
VoIP Phone
Server
Printer
IP Security Cameras and Devices: Security
cameras are traditionally located near
electrical outlets limiting their effectiveness.
Utilising the switching network to mount
cameras and access control devices on
ceilings, hallways, outdoor or reception areas
is significantly less expensive.
Note:
PTZ cameras require 802.3at (PoE+)
Network cameras offer the following
advantages over Analog (or CCTV)
Simple: single cable for power and
video recording. Plus, no more tapes
Standards: use IP and Ethernet to send
traffic. Portable!
ProSAFE
GS110TP

9. Key PoE Applications: Wireless LAN
99
Desktop
Tablet
ReadyNAS
104 Series
Internet
Firewall
(FVS318G)
Modem
11n Wireless Access
Point (WNAP320)
Surveillance
PoE
VoIP Phone
Server
Printer
Wireless LAN: Placement of Access Points is
key to delivering an effective wireless network.
PoE supported APs can be placed in strategic
locations – such as ceilings – out of reach of
electrical AC outlets. Deployments can save
on installation costs when PoE capable
switches are leveraged.
Note:
Wireless (Dual Band IEEE802.11n) APs
with bandwidth up to 900Mbps require
PoE+ (802.3at) that supports up to 25W
per port
ProSAFE
GS110TP

10. When stacking makes sense

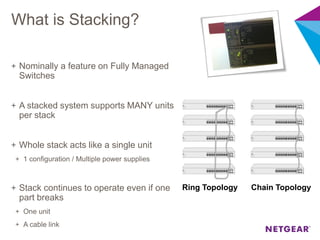

11. Ring Topology Chain Topology
What is Stacking?
+ Nominally a feature on Fully Managed
Switches
+ A stacked system supports MANY units
per stack
+ Whole stack acts like a single unit
+ 1 configuration / Multiple power supplies
+ Stack continues to operate even if one
part breaks
+ One unit
+ A cable link

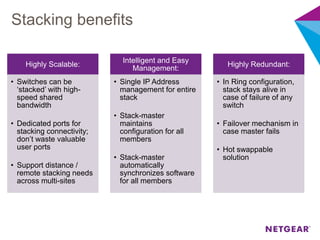

12. Stacking benefits
Highly Scalable:
• Switches can be
‘stacked’ with high-
speed shared
bandwidth
• Dedicated ports for
stacking connectivity;
don’t waste valuable
user ports
• Support distance /
remote stacking needs
across multi-sites
Intelligent and Easy
Management:
• Single IP Address
management for entire
stack
• Stack-master
maintains
configuration for all
members
• Stack-master
automatically
synchronizes software
for all members
Highly Redundant:
• In Ring configuration,
stack stays alive in
case of failure of any
switch
• Failover mechanism in
case master fails
• Hot swappable
solution

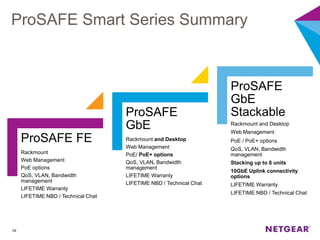

13. ProSAFE Smart Series Summary
13
ProSAFE FE
Rackmount
Web Management
PoE options
QoS, VLAN, Bandwidth
management
LIFETIME Warranty
LIFETIME NBD / Technical Chat
ProSAFE
GbE
Rackmount and Desktop
Web Management
PoE/ PoE+ options
QoS, VLAN, Bandwidth
management
LIFETIME Warranty
LIFETIME NBD / Technical Chat
ProSAFE
GbE
Stackable
Rackmount and Desktop
Web Management
PoE / PoE+ options
QoS, VLAN, Bandwidth
management
Stacking up to 6 units
10GbE Uplink connectivity
options
LIFETIME Warranty
LIFETIME NBD / Technical Chat

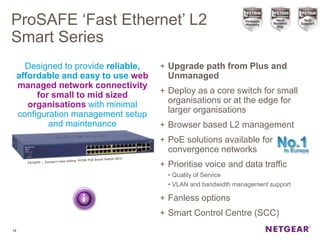

14. ProSAFE ‘Fast Ethernet’ L2
Smart Series
Designed to provide reliable,
affordable and easy to use web
managed network connectivity
for small to mid sized
organisations with minimal
configuration management setup
and maintenance
14
+ Upgrade path from Plus and
Unmanaged
+ Deploy as a core switch for small
organisations or at the edge for
larger organisations
+ Browser based L2 management
+ PoE solutions available for
convergence networks
+ Prioritise voice and data traffic
• Quality of Service
• VLAN and bandwidth management support
+ Fanless options
+ Smart Control Centre (SCC)

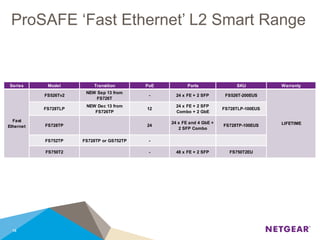

15. ProSAFE ‘Fast Ethernet’ L2 Smart Range
15
Series Model Transition PoE Ports SKU Warranty
FS728TP 24
24 x FE and 4 GbE +
2 SFP Combo
FS728TP-100EUS
FS752TP FS728TP or GS752TP -
FS750T2 - 48 x FE + 2 SFP FS750T2EU
Fast
Ethernet
LIFETIME
FS728TLP
NEW Dec 13 from
FS726TP
12
24 x FE + 2 SFP
Combo + 2 GbE
FS728TLP-100EUS
FS526Tv2
NEW Sep 13 from
FS726T
- 24 x FE + 2 SFP FS526T-200EUS

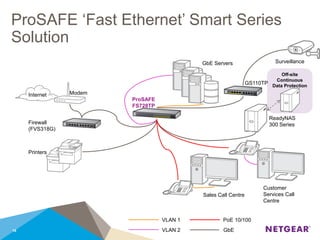

16. ProSAFE ‘Fast Ethernet’ Smart Series
Solution
16
ProSAFE
FS728TP
Sales Call Centre
ReadyNAS
300 Series
Internet
Firewall
(FVS318G)
Modem
Surveillance
GbE
GbE Servers
Printers
Off-site
Continuous
Data Protection
PoE 10/100
VLAN 2
VLAN 1
GS110TP
Customer
Services Call
Centre

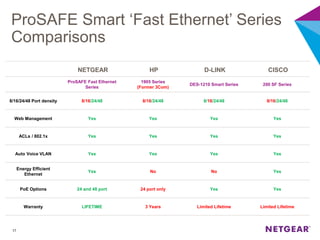

17. ProSAFE Smart ‘Fast Ethernet’ Series
Comparisons
17
NETGEAR HP D-LINK CISCO
ProSAFE Fast Ethernet
Series
1905 Series
(Former 3Com)
DES-1210 Smart Series 200 SF Series
8/16/24/48 Port density 8/16/24/48 8/16/24/48 8/16/24/48 8/16/24/48
Web Management Yes Yes Yes Yes
ACLs / 802.1x Yes Yes Yes Yes
Auto Voice VLAN Yes Yes Yes Yes
Energy Efficient
Ethernet
Yes No No Yes
PoE Options 24 and 48 port 24 port only Yes Yes
Warranty LIFETIME 3 Years Limited Lifetime Limited Lifetime

18. ProSAFE Gigabit L2 Smart Series
Designed to provide high
performance, reliable, affordable
and easy to use web managed
network connectivity for small to
mid sized organisations with
minimal configuration management
setup and maintenance
18
+ Upgrade path from Plus Series
+ Browser based L2 management
+ PoE / PoE+ solutions for
convergence networks
+ Prioritise voice and data traffic
• Quality of Service
• VLAN and bandwidth management support
+ Fanless options for busy, but
confined office spaces
• GS108T and GS110TP

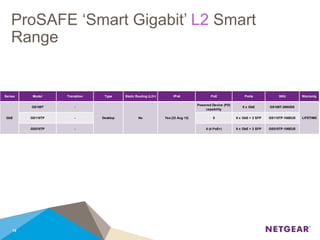

19. ProSAFE ‘Smart Gigabit’ L2 Smart
Range
19
Series Model Transition Type Static Routing (L2+) IPv6 PoE Ports SKU Warranty
GS108T -
Powered Device (PD)
capability
8 x GbE GS108T-200GES
GS110TP - 8 8 x GbE + 2 SFP GS110TP-100EUS
GS510TP - 8 (4 PoE+) 8 x GbE + 2 SFP GS510TP-100EUS
GbE Desktop No Yes (23 Aug 13) LIFETIME

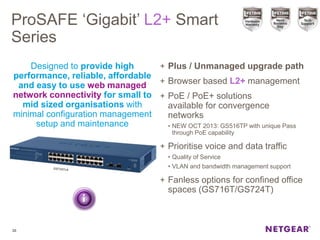

20. ProSAFE ‘Gigabit’ L2+ Smart
Series
Designed to provide high
performance, reliable, affordable
and easy to use web managed
network connectivity for small to
mid sized organisations with
minimal configuration management
setup and maintenance
20
+ Plus / Unmanaged upgrade path
+ Browser based L2+ management
+ PoE / PoE+ solutions
available for convergence
networks
• NEW OCT 2013: GS516TP with unique Pass
through PoE capability
+ Prioritise voice and data traffic
• Quality of Service
• VLAN and bandwidth management support
+ Fanless options for confined office
spaces (GS716T/GS724T)

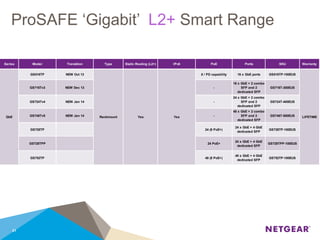

21. ProSAFE ‘Gigabit’ L2+ Smart Range
21
Series Model Transition Type Static Routing (L2+) IPv6 PoE Ports SKU Warranty
GS516TP NEW Oct 13 8 / PD capability 16 x GbE ports GS516TP-100EUS
GS716Tv3 NEW Dec 13 -
16 x GbE + 2 combo
SFP and 2
dedicated SFP
GS716T-300EUS
GS724Tv4 NEW Jan 14 -
24 x GbE + 2 combo
SFP and 2
dedicated SFP
GS724T-400EUS
GS748Tv5 NEW Jan 14 -
48 x GbE + 2 combo
SFP and 2
dedicated SFP
GS748T-500EUS
GS728TP 24 (8 PoE+)
24 x GbE + 4 GbE
dedicated SFP
GS728TP-100EUS
GS728TPP 24 PoE+
24 x GbE + 4 GbE
dedicated SFP
GS728TPP-100EUS
GS752TP 48 (8 PoE+)
48 x GbE + 4 GbE
dedicated SFP
GS752TP-100EUS
GbE Rackmount Yes Yes LIFETIME

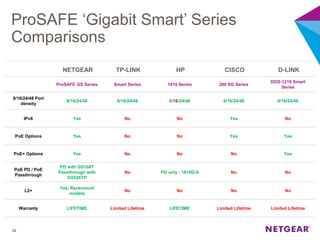

22. ProSAFE ‘Gigabit Smart’ Series
Comparisons
22
NETGEAR TP-LINK HP CISCO D-LINK
ProSAFE GS Series Smart Series 1810 Series 200 SG Series
DGS-1210 Smart
Series
8/16/24/48 Port
density
8/16/24/48 8/16/24/48 8/16/24/48 8/16/24/48 8/16/24/48
IPv6 Yes No No Yes No
PoE Options Yes No No Yes Yes
PoE+ Options Yes No No No Yes
PoE PD / PoE
Passthrough
PD with GS108T
Passthrough with
GS526TP
No PD only - 1810G-8 No No
L2+
Yes, Rackmount
models
No No No No
Warranty LIFETIME Limited Lifetime LIFETIME Limited Lifetime Limited Lifetime

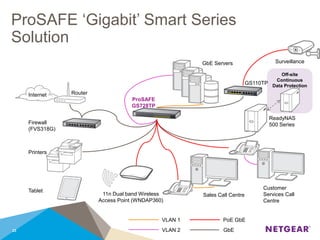

23. ProSAFE ‘Gigabit’ Smart Series
Solution
23
ProSAFE
GS728TP
Sales Call Centre
ReadyNAS
500 Series
Internet
Firewall
(FVS318G)
Router
Surveillance
GbE
GbE Servers
Printers
Off-site
Continuous
Data Protection
PoE GbE
VLAN 2
VLAN 1
GS110TP
Customer
Services Call
Centre
Tablet
11n Dual band Wireless
Access Point (WNDAP360)

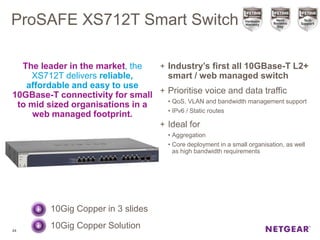

24. ProSAFE XS712T Smart Switch
The leader in the market, the
XS712T delivers reliable,
affordable and easy to use
10GBase-T connectivity for small
to mid sized organisations in a
web managed footprint.
24
+ Industry’s first all 10GBase-T L2+
smart / web managed switch
+ Prioritise voice and data traffic
• QoS, VLAN and bandwidth management support
• IPv6 / Static routes
+ Ideal for
• Aggregation
• Core deployment in a small organisation, as well
as high bandwidth requirements
10Gig Copper in 3 slides
10Gig Copper Solution

25. ProSAFE Plus Series XS712T
10GBase-T Solution
25
ProSAFE
XS712T
Workgroups
ReadyNAS
4220X
Internet
SRX5308
Modem
Surveillance
GbE
Servers
Printers
Off-site
Continuous
Data Protection
PoE GbE
GS724T
VLAN 2
VLAN 1
GS110TP
10GbE

26. ProSAFE Smart Series Summary
26
ProSAFE FE
Rackmount
Web Management
PoE options
QoS, VLAN, Bandwidth
management
LIFETIME Warranty
LIFETIME NBD / Technical Chat
ProSAFE
GbE
Rackmount and Desktop
Web Management
PoE/ PoE+ options
QoS, VLAN, Bandwidth
management
LIFETIME Warranty
LIFETIME NBD / Technical Chat
ProSAFE
GbE
Stackable
Rackmount and Desktop
Web Management
PoE / PoE+ options
QoS, VLAN, Bandwidth
management
Stacking up to 6 units
10GbE Uplink connectivity
options
LIFETIME Warranty
LIFETIME NBD / Technical Chat

27. ProSAFE S3300 Gigabit Stackable Smart
Switch Series
Stackable Smart series
designed to provide SMBs with
an advanced scalable, high
performance and resilient
networking solution without
the complexity of Big IT
27
+ Upgrade path from standalone
Smart Managed switching
+ Browser based L2+ management
+ Virtually stack up to 6 units
+ Choice of 4 models
• 24 or 48 port PoE+
• 24 or 48 port Non PoE
+ Dedicated 10GbE as standard
• 2 x dedicated 10GBase-T for uplinks / stacking
• 2 x dedicated SFP+ for uplinks / stacking
+ Support up to 40Gbps dual
stacking ring backplane
+ PoE+ on all ports (optional)
ProSAFE S3300 Smart Gigabit Stackable Series
Product Detail
What is smart stacking?

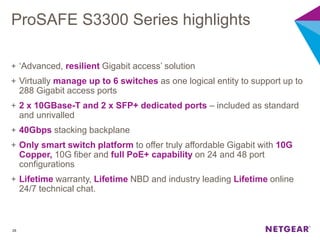

28. ProSAFE S3300 Series highlights
+ ‘Advanced, resilient Gigabit access’ solution
+ Virtually manage up to 6 switches as one logical entity to support up to
288 Gigabit access ports
+ 2 x 10GBase-T and 2 x SFP+ dedicated ports – included as standard
and unrivalled
+ 40Gbps stacking backplane
+ Only smart switch platform to offer truly affordable Gigabit with 10G
Copper, 10G fiber and full PoE+ capability on 24 and 48 port
configurations
+ Lifetime warranty, Lifetime NBD and industry leading Lifetime online
24/7 technical chat.
28

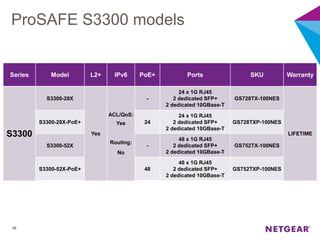

29. ProSAFE S3300 models
29
Series Model L2+ IPv6 PoE+ Ports SKU Warranty
S3300
S3300-28X
Yes
ACL/QoS:
Yes
Routing:
No
-
24 x 1G RJ45
2 dedicated SFP+
2 dedicated 10GBase-T
GS728TX-100NES
LIFETIME
S3300-28X-PoE+ 24
24 x 1G RJ45
2 dedicated SFP+
2 dedicated 10GBase-T
GS728TXP-100NES
S3300-52X -
48 x 1G RJ45
2 dedicated SFP+
2 dedicated 10GBase-T
GS752TX-100NES
S3300-52X-PoE+ 48
48 x 1G RJ45
2 dedicated SFP+
2 dedicated 10GBase-T
GS752TXP-100NES

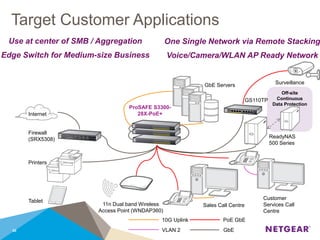

30. Target Customer Applications
30
ProSAFE S3300-
28X-PoE+
Sales Call Centre
ReadyNAS
500 Series
Internet
Firewall
(SRX5308)
Surveillance
GbE
GbE Servers
Printers
Off-site
Continuous
Data Protection
PoE GbE
VLAN 2
10G Uplink
GS110TP
Customer
Services Call
Centre
Tablet
11n Dual band Wireless
Access Point (WNDAP360)
Use at center of SMB / Aggregation
Edge Switch for Medium-size Business
One Single Network via Remote Stacking
Voice/Camera/WLAN AP Ready Network

31. ProSAFE S3300 Smart Stackable
Series Comparisons
31
NETGEAR ZyXEL HP CISCO D-LINK
S3300 Series XGS Series 1920 Series 220 SG Series
DGS-1510 Smart
Pro Series
Port density 24/48 24/48 8/16/24/48 24/48 16/24/48
Stacking
Yes, True
Stacking
Single IP
management only
Single IP
management only
No Yes
IPv6 ACL/QoS Yes Yes Yes Yes Yes
10G
SFP+
10GBASE-T
SFP+ No No SFP+
PoE / PoE+
Versions
Yes / Yes No Yes / Yes Yes / Yes
Yes / Yes (not on
every port)
L2+ Yes No Yes Yes Yes
Warranty LIFETIME Limited Lifetime LIFETIME Limited Lifetime Limited Lifetime

32. ProSAFE ‘Gigabit’ L2+ Smart
Stackable Series
Unique to NETGEAR, Smart
Stackable switches are designed
to provide SMB’s with scalable,
high performance and resilient
networking without the cost
associated with Fully Managed
switching
32
+ Upgrade path from Smart
Managed switching
+ Browser based L2+ management
+ 10GbE SFP+ Uplinks on TXS
models
• Support up to 40Gbps dual stacking ring
backplane
• Gigabit only models support up to 10Gbps
+ Deliver a virtual stack up to 6 units
+ Prioritise voice and data traffic
+ PoE / PoE+ solutions
available
+ Smart Control Centre (SCC)
Product Detail
What is smart stacking?

33. ProSAFE ‘Gigabit’ L2+ Smart
Stackable Range
33
Series Model Notes Type Static Routing (L2+) IPv6 PoE Ports SKU Warranty
GS728TSB
Incl. 1 x AGC761
stacking cable
-
24 x GbE and 2
Combo SFP and 4
GbE dedicated SFP
GS728TSB-100EUS
GS728TPSB
Incl. 1 x AGC761
stacking cable
24 (8 PoE+)
24 x GbE and 2
Combo SFP and 4
GbE dedicated SFP
GS728TPSB-100EUS
GS752TSB
Incl. 1 x AGC761
stacking cable
-
48 x GbE and 2
Combo and 4 GbE
dedicated SFP
GS752TSB-100EUS
GS752TPSB
Incl. 1 x AGC761
stacking cable
48 (8 PoE+)
48 x GbE and 2
Combo and 4 GbE
dedicated SFP
GS752TPSB-100EUS
GS728TXS
EOS Feb 15 - migrate
to S3300-28X or
GS752TXS
-
24 x GbE and 4
SFP+
GS728TXS-100NES
GS752TXS - -
48 x GbE and 4
SFP+
GS752TXS-100EUS
GS752TXSB
Incl. 2 x 10GbE
SFP+DAC AXC761
cables
-
48 x GbE and 4
SFP+
GS752TXSB-100EUS
LIFETIMEYesRackmount YesGbE

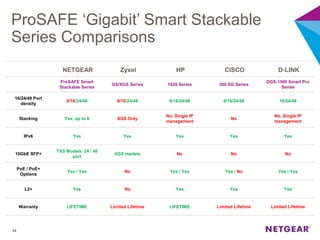

34. ProSAFE ‘Gigabit’ Smart Stackable
Series Comparisons
34
NETGEAR Zyxel HP CISCO D-LINK
ProSAFE Smart
Stackable Series
GS/XGS Series 1920 Series 300 SG Series
DGS-1500 Smart Pro
Series
16/24/48 Port
density
8/16/24/48 8/16/24/48 8/16/24/48 8/16/24/48 16/24/48
Stacking Yes, up to 6 XGS Only
No, Single IP
management
No
No, Single IP
management
IPv6 Yes Yes Yes Yes Yes
10GbE SFP+
TXS Models 24 / 48
port
XGS models No No No
PoE / PoE+
Options
Yes / Yes No Yes / Yes Yes / No Yes / Yes
L2+ Yes No Yes Yes Yes
Warranty LIFETIME Limited Lifetime LIFETIME Limited Lifetime Limited Lifetime

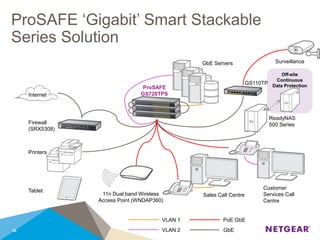

35. ProSAFE ‘Gigabit’ Smart Stackable
Series Solution
35
ProSAFE
GS728TPS
Sales Call Centre
ReadyNAS
500 Series
Internet
Firewall
(SRX5308)
Surveillance
GbE
GbE Servers
Printers
Off-site
Continuous
Data Protection
PoE GbE
VLAN 2
VLAN 1
GS110TP
Customer
Services Call
Centre
Tablet
11n Dual band Wireless
Access Point (WNDAP360)
