This document discusses Infinidat's InfiniGuard data protection solution. It summarizes that InfiniGuard leverages Infinidat's high performance InfiniBox storage system to provide fast backup and restore speeds. Typical backup solutions have poor restore performance, but InfiniGuard addresses this issue through the use of its high performance underlying storage. The document also outlines some of InfiniGuard's key features like deduplication, encryption, monitoring and resiliency.

1. © 2019 Infinidat — All Rights Reserved 1┃ SCALE TO WIN
SCALE TO WIN
Rostislav Gemrot
ARROW ECS
Protect Mission Critical
Data with InfiniGuard

2. © 2019 Infinidat — All Rights Reserved 2┃ SCALE TO WIN

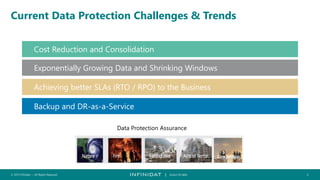

Current Data Protection Challenges & Trends
Exponentially Growing Data and Shrinking Windows
Backup and DR-as-a-Service
Achieving better SLAs (RTO / RPO) to the Business
Data Protection Assurance
Cost Reduction and Consolidation

3. © 2019 Infinidat — All Rights Reserved 3┃ SCALE TO WIN

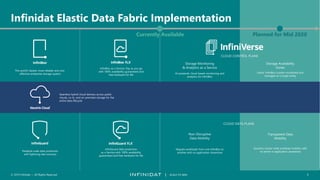

Infinidat Elastic Data Fabric Implementation
The world’s fastest, most reliable and cost-
effective enterprise storage system
InfiniBox as a Service. Pay as you go
with 100% availability guaranteed and
free hardware for life
Petabyte scale data protection
with lightning-fast recovery
InfiniGuard data protection
as a Service with 100% availability
guaranteed and free hardware for life
Migrate workloads from one InfiniBox to
another with no application downtime
Non-Disruptive
Data Mobility
CLOUD DATA PLANE
Transparent Data
Mobility
Dynamic cluster-wide workload mobility with
no server or application awareness
Seamless hybrid cloud delivery across public
clouds, co-lo, and on-premises storage for the
entire data lifecycle
Currently Available Planned for Mid 2020
Elastic InfiniBox clusters monitored and
managed as a single entity
Storage Availability
Zones
AI-powered, cloud-based monitoring and
analytics for InfiniBox
Storage Monitoring
& Analytics as a Service
CLOUD CONTROL PLANE

4. © 2019 Infinidat — All Rights Reserved 4┃ SCALE TO WIN

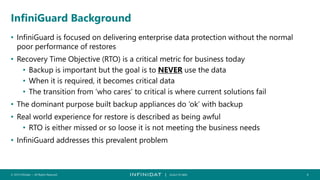

InfiniGuard Background
• InfiniGuard is focused on delivering enterprise data protection without the normal
poor performance of restores
• Recovery Time Objective (RTO) is a critical metric for business today
• Backup is important but the goal is to NEVER use the data
• When it is required, it becomes critical data
• The transition from ‘who cares’ to critical is where current solutions fail
• The dominant purpose built backup appliances do ‘ok’ with backup
• Real world experience for restore is described as being awful
• RTO is either missed or so loose it is not meeting the business needs
• InfiniGuard addresses this prevalent problem

5. © 2019 Infinidat — All Rights Reserved 5┃ SCALE TO WIN
InfiniGuard – Restore Problem Solver
• InfiniGuard leverages InfiniBox technology to achieve RTO expectations
or establish more aggressive goals
• Enterprise customers are no longer willing to accept mediocrity in a
Business Continuity situation – improved RTO is demanded
• Deduplication is wrongly blamed for poor restore performance
• This is broadly accepted as reality and deduplication is wrongly
‘blamed’
• The underlying storage that is at fault
• But what makes us different?
The quality of the underlying storage system matters – even for backup

6. © 2019 Infinidat — All Rights Reserved 6┃ SCALE TO WIN
InfiniGuard
• Based on the InfiniBox
• Exceptional Partner Integrations
• Unique Service Reliability (built-in)
• Leveraging InfiniBox Value Points
• Powerful Competitive $ Value
• Storage backend offering
• Faster than all-flash performance
• Seven nines reliability on Storage
• PB-scale (massive space
Reduction)
• Lowest TCO in Class
• Zero Compromises
Replication
Site A Site B
Deduplicated
Encrypted
NetBoost
Source-Side Dedupe
NFS, SMB, VTL (FC), OST,
Oracle RMAN

7. © 2019 Infinidat — All Rights Reserved 7┃ SCALE TO WIN

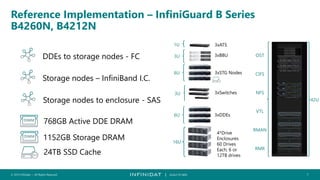

CIFS
3U
6U
1U 3xATS
3xBBU
3xSTG Nodes
4*Drive
Enclosures
60 Drives
Each, 6 or
12TB drives
16U
DDEs to storage nodes - FC
Storage nodes – InfiniBand I.C.
768GB Active DDE DRAM
24TB SSD Cache
6U 3xDDEs
3U 3xSwitches
Storage nodes to enclosure - SAS
1152GB Storage DRAM
Reference Implementation – InfiniGuard B Series
B4260N, B4212N
42U
OST
NFS
VTL
RMAN
RMR

8. © 2019 Infinidat — All Rights Reserved 8┃ SCALE TO WIN

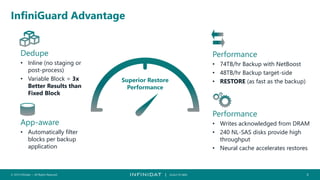

InfiniGuard Advantage
App-aware
• Automatically filter
blocks per backup
application
Performance
• 74TB/hr Backup with NetBoost
• 48TB/hr Backup target-side
• RESTORE (as fast as the backup)
Dedupe
• Inline (no staging or
post-process)
• Variable Block = 3x
Better Results than
Fixed Block
Performance
• Writes acknowledged from DRAM
• 240 NL-SAS disks provide high
throughput
• Neural cache accelerates restores
Superior Restore
Performance

9. © 2019 Infinidat — All Rights Reserved 9┃ SCALE TO WIN
0-15 minute data-aware rebuilds
System can lose up to 6 drives without capacity or
performance impact
FASTEST REBUILD-TIME IN THE
INDUSTRY
Protection against “Lost-Writes” & “Silent Data Corruption”
Dual-parity data protection – Dispersed data layout
END-TO-END DATA
PROTECTION
In-flight and at-rest Encryption with NetBoost
Built-in key management
DATA ENCRYPTION
01
03
02
Self monitoring for all system components
Issues are automatically reported to support engineers
COMPREHENSIVE PROACTIVE MONITORING
04
05
06
All data is stored on the underlying InfiniBox
Engine replacement in less than 15 minutes
DDEs ARE STATELESS
Full redundancy to all key components
Seven Nines reliability at InfiniBox subsystem
NO SINGLE POINT OF FAILURE
Resiliency

10. © 2019 Infinidat — All Rights Reserved 11┃ SCALE TO WIN

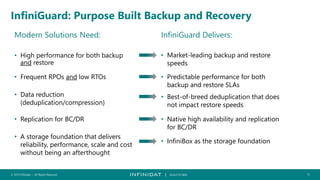

InfiniGuard: Purpose Built Backup and Recovery
• High performance for both backup
and restore
• Market-leading backup and restore
speeds
Modern Solutions Need: InfiniGuard Delivers:
• Replication for BC/DR • Native high availability and replication
for BC/DR
• Frequent RPOs and low RTOs • Predictable performance for both
backup and restore SLAs
• A storage foundation that delivers
reliability, performance, scale and cost
without being an afterthought
• InfiniBox as the storage foundation
• Data reduction
(deduplication/compression)
• Best-of-breed deduplication that does
not impact restore speeds

11. © 2019 Infinidat — All Rights Reserved 12┃ SCALE TO WIN

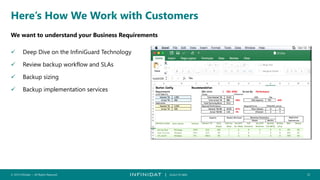

Here’s How We Work with Customers
We want to understand your Business Requirements
✓ Deep Dive on the InfiniGuard Technology
✓ Review backup workflow and SLAs
✓ Backup sizing
✓ Backup implementation services

12. © 2019 Infinidat — All Rights Reserved 13┃ SCALE TO WIN
THANK YOU!
SCALE TO WIN
