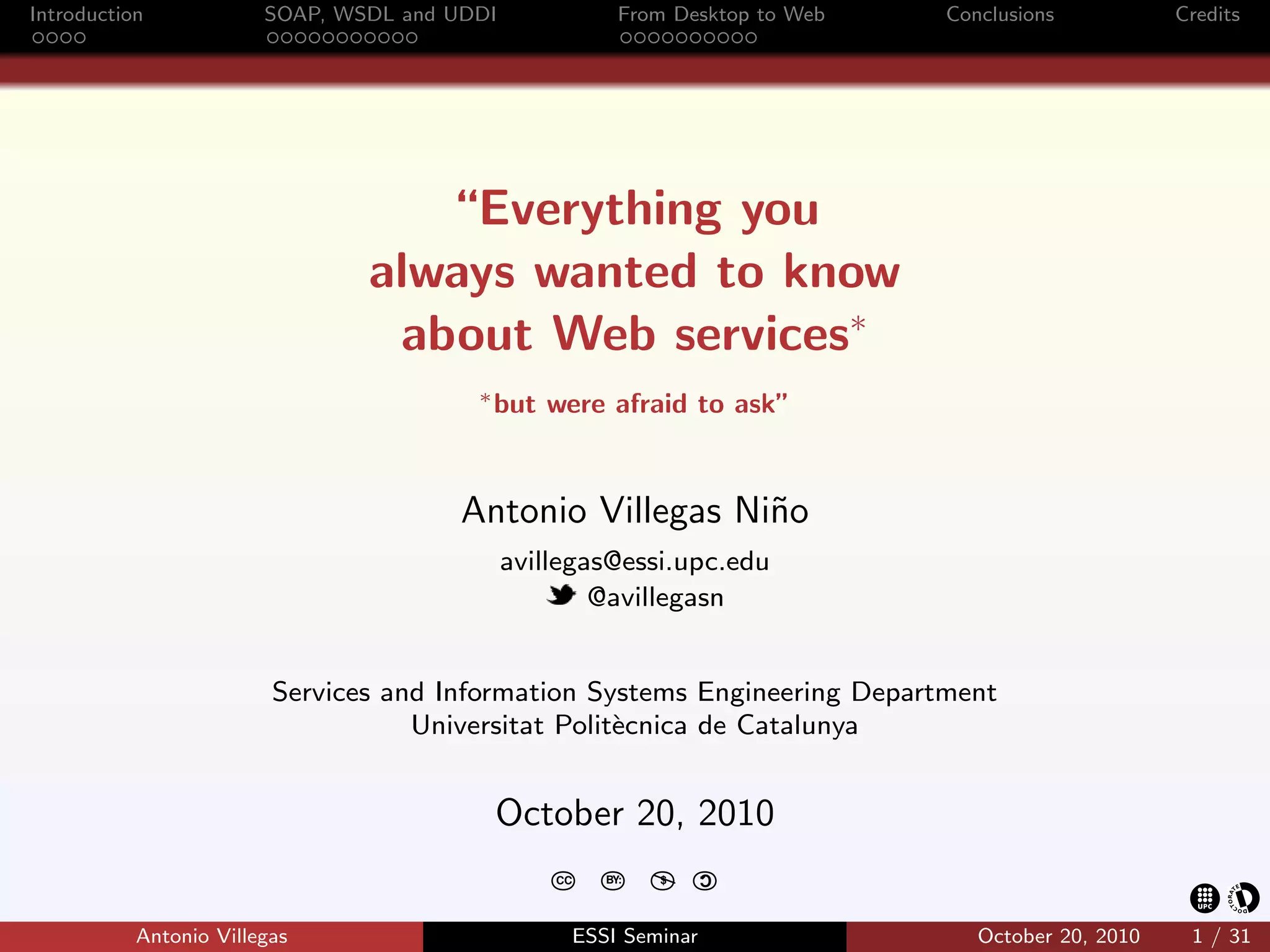

Introduction SOAP, WSDL and UDDI From Desktop to Web Conclusions Credits “Everything you always wanted to know about Web services∗ ∗ but were afraid to ask” Antonio Villegas Ni˜o n avillegas@essi.upc.edu @avillegasn Services and Information Systems Engineering Department Universitat Polit`cnica de Catalunya e October 20, 2010 C CC BY: $ Antonio Villegas ESSI Seminar October 20, 2010 1 / 31

2.

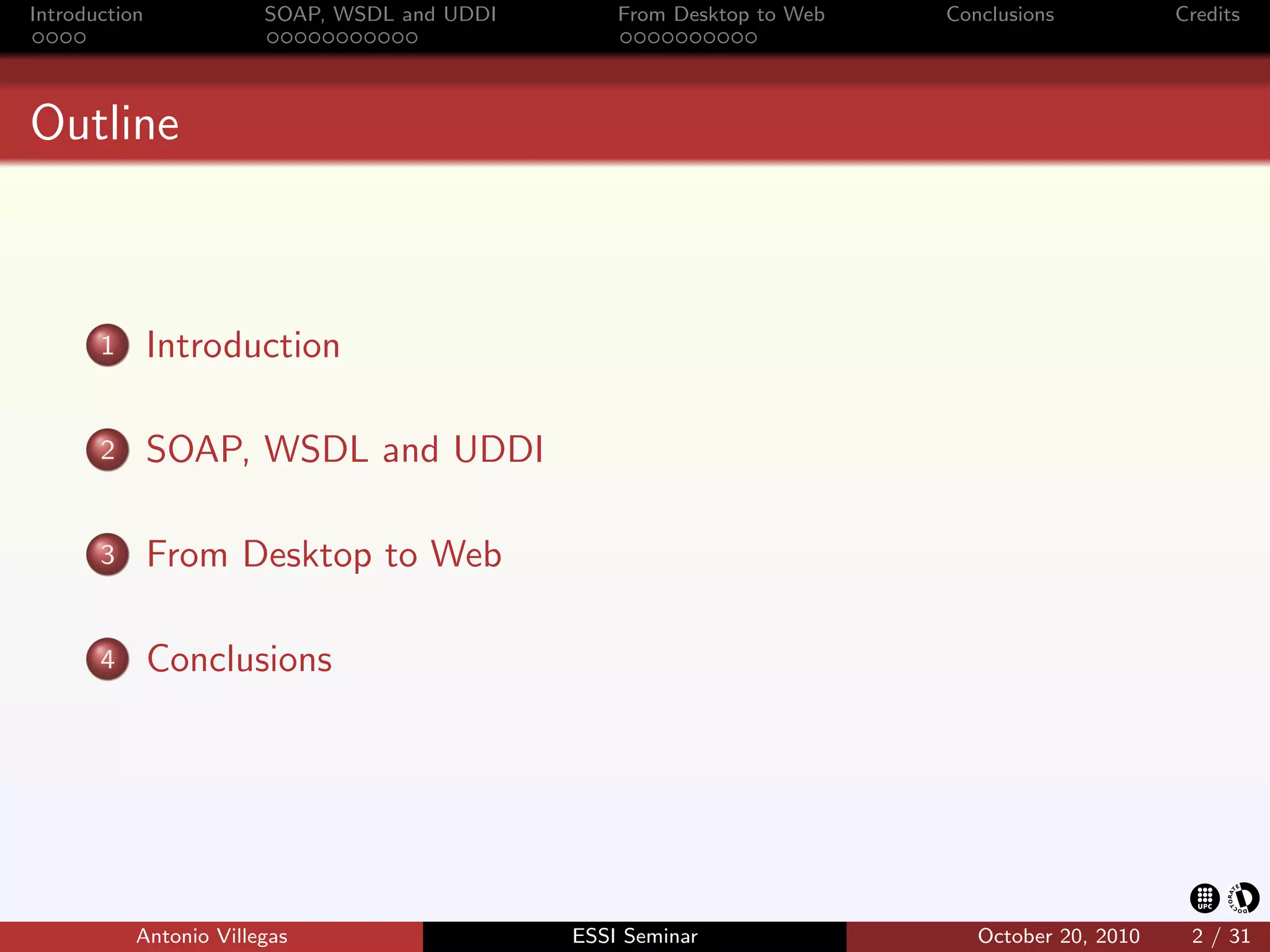

Introduction SOAP, WSDL and UDDI From Desktop to Web Conclusions Credits Outline 1 Introduction 2 SOAP, WSDL and UDDI 3 From Desktop to Web 4 Conclusions Antonio Villegas ESSI Seminar October 20, 2010 2 / 31

3.

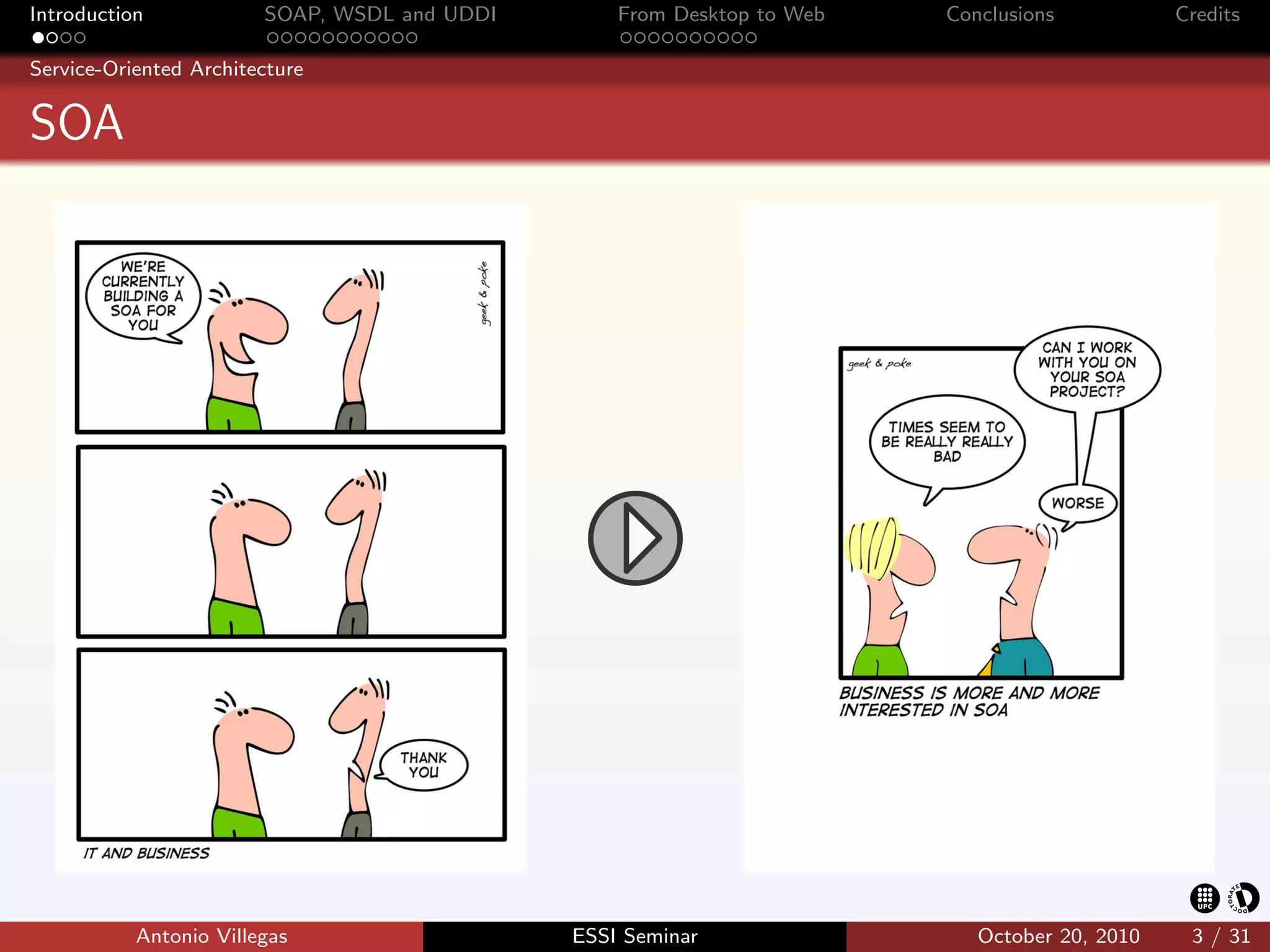

Introduction SOAP, WSDL and UDDI From Desktop to Web Conclusions Credits Service-Oriented Architecture SOA Antonio Villegas ESSI Seminar October 20, 2010 3 / 31

4.

5.

6.
Introduction SOAP, WSDL and UDDI From Desktop to Web Conclusions Credits Service-Oriented Architecture SOA = Web services Antonio Villegas ESSI Seminar October 20, 2010 4 / 31

7.

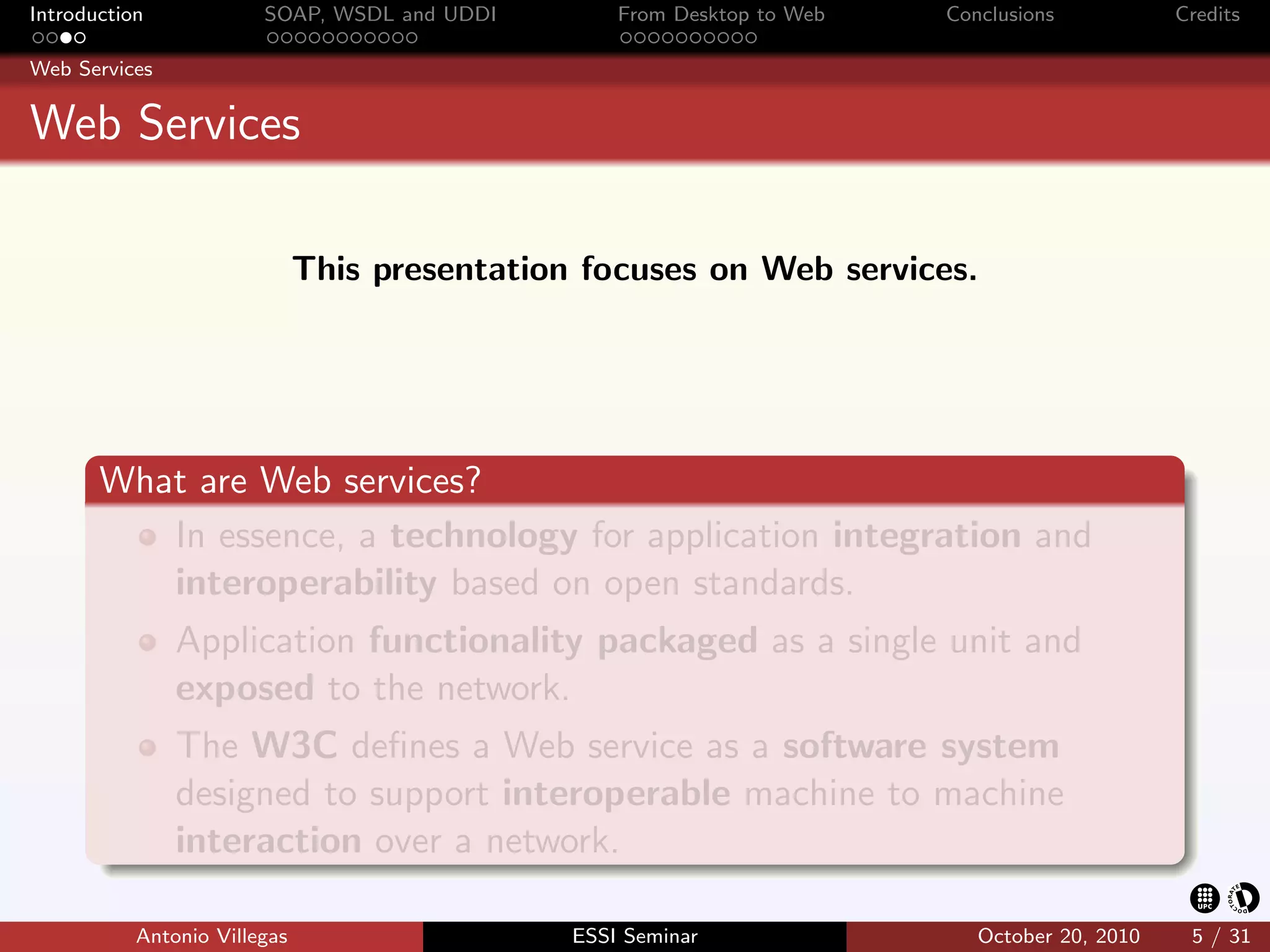

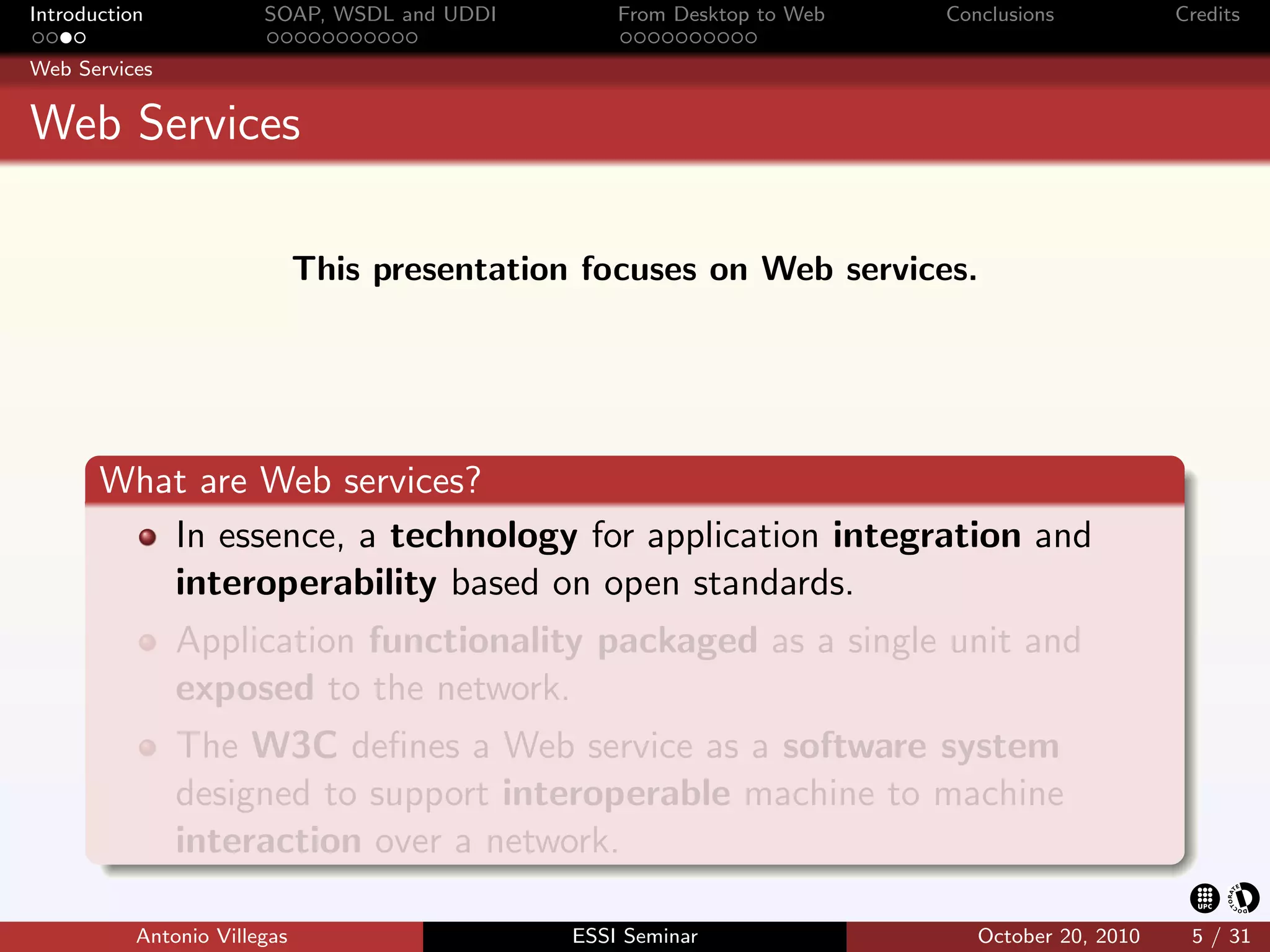

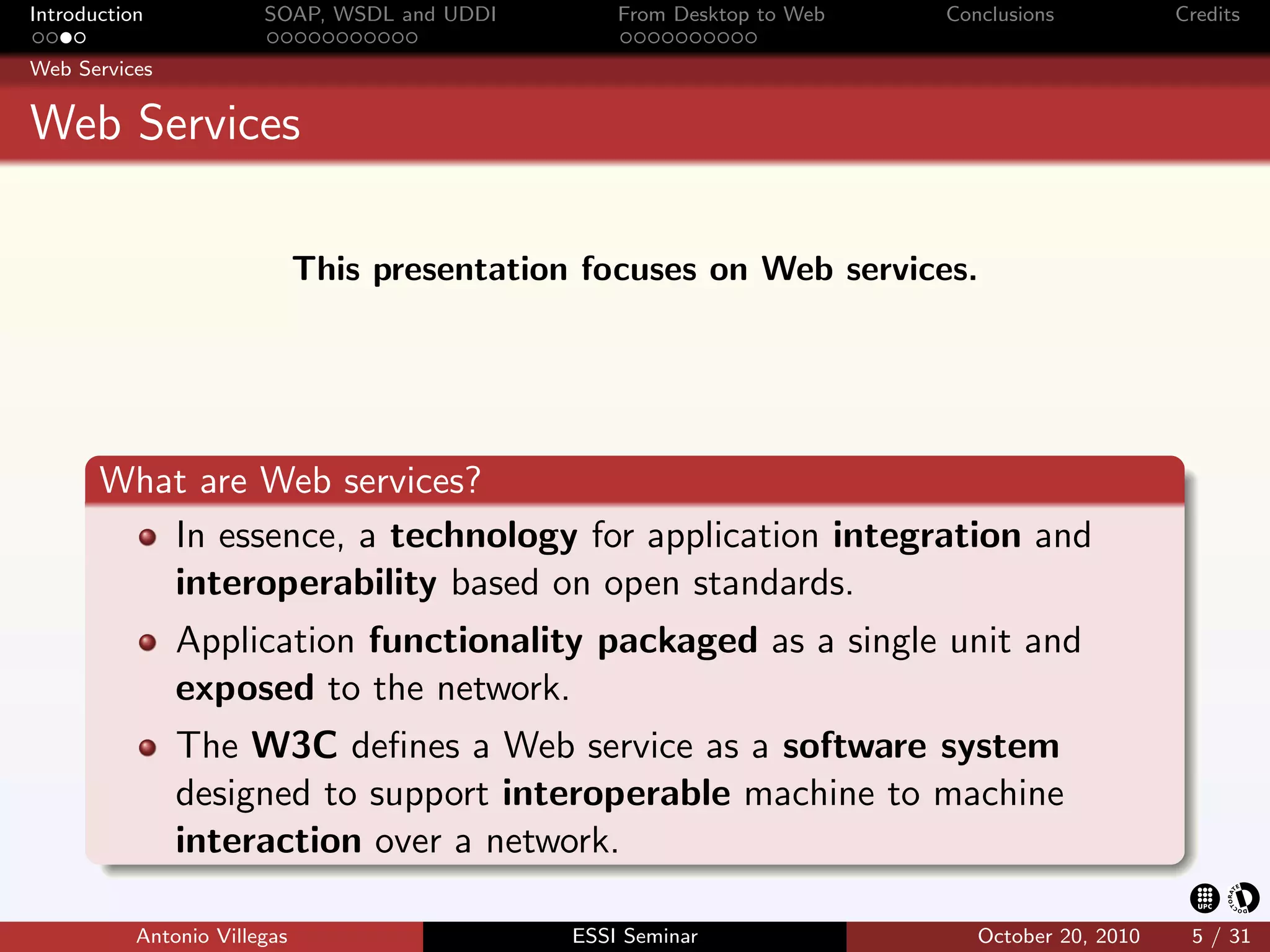

Introduction SOAP, WSDL and UDDI From Desktop to Web Conclusions Credits Web Services Web Services This presentation focuses on Web services. What are Web services? In essence, a technology for application integration and interoperability based on open standards. Application functionality packaged as a single unit and exposed to the network. The W3C deﬁnes a Web service as a software system designed to support interoperable machine to machine interaction over a network. Antonio Villegas ESSI Seminar October 20, 2010 5 / 31

8.

9.

10.

11.

12.

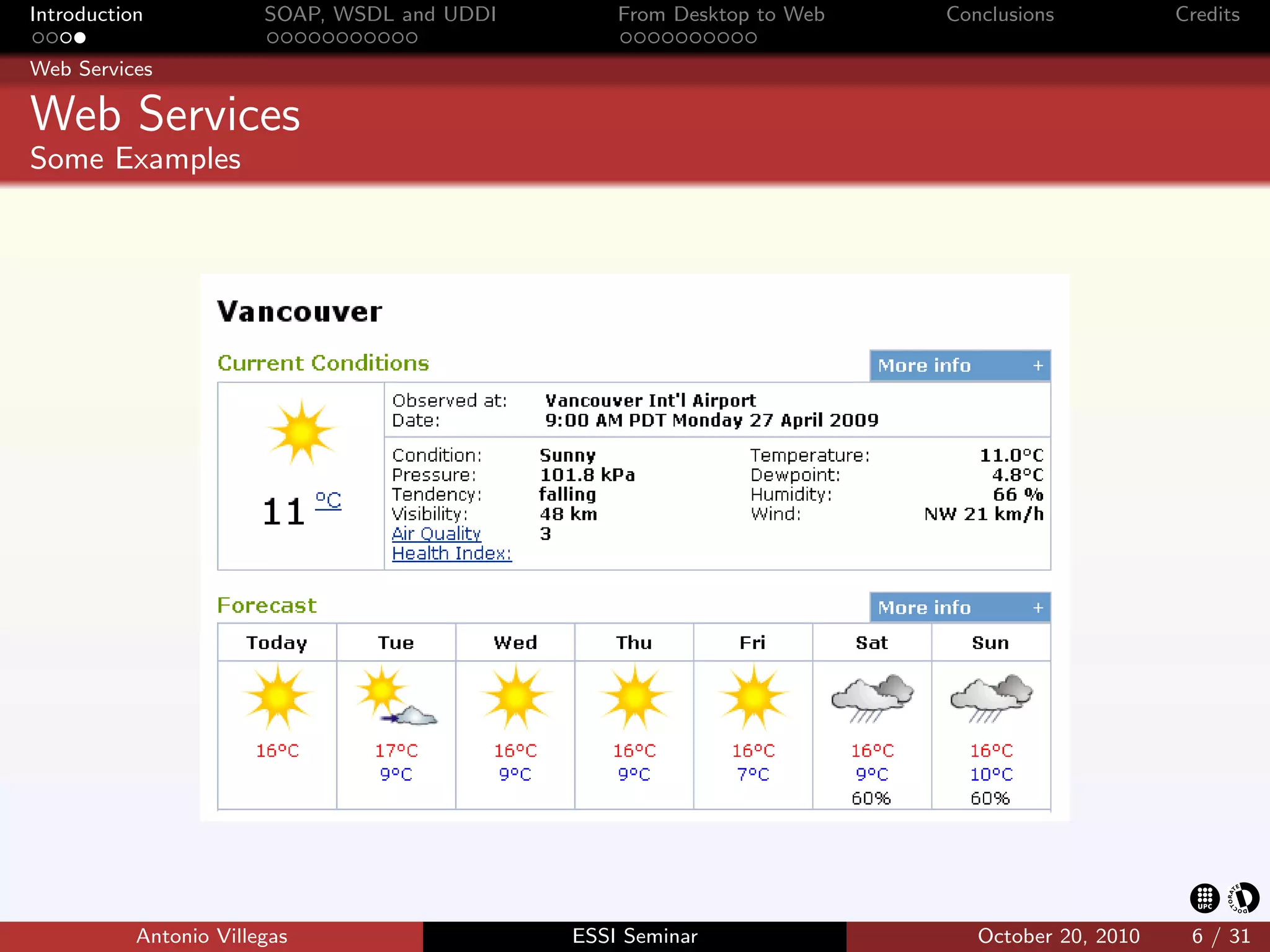

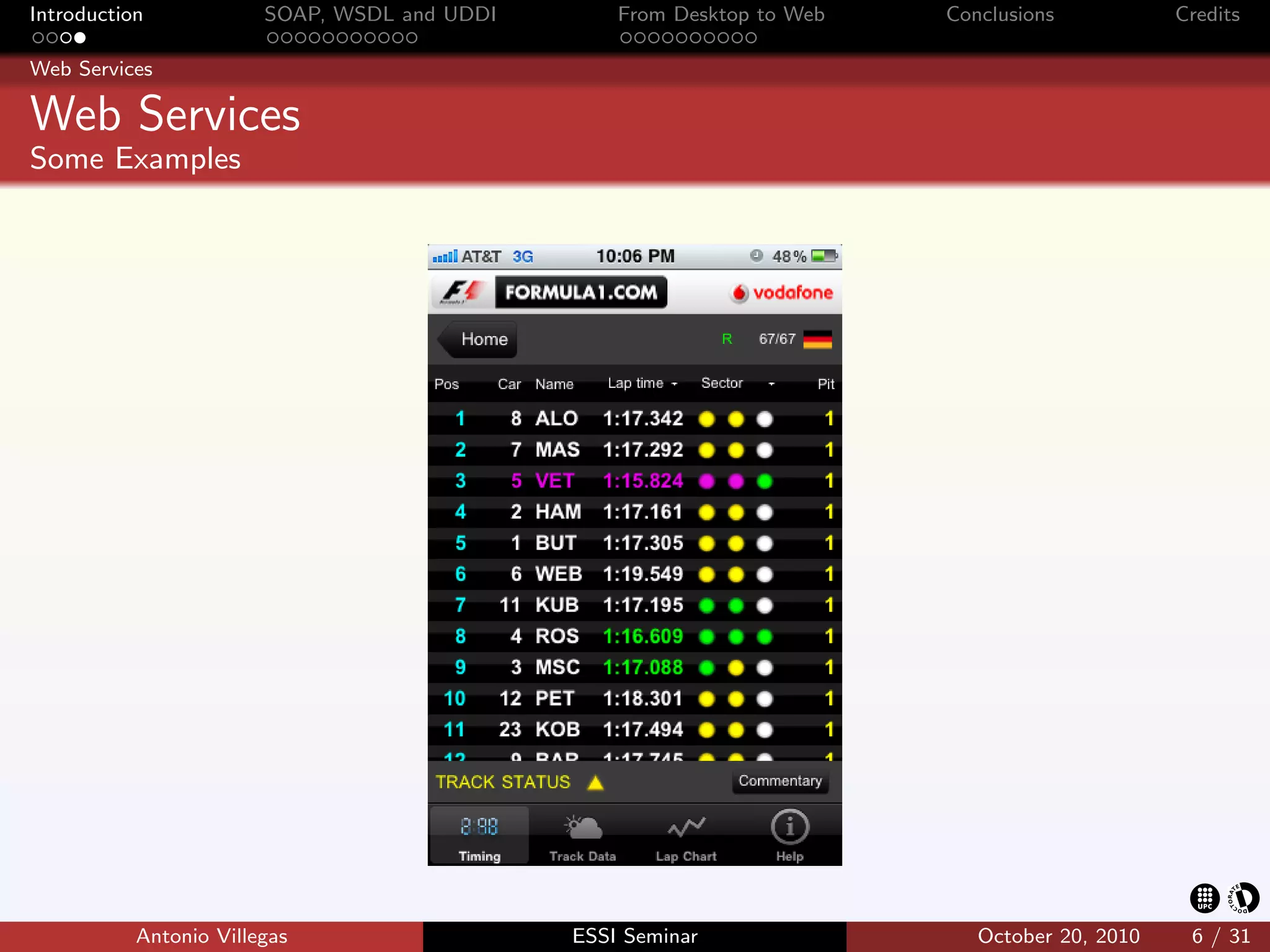

Introduction SOAP, WSDL and UDDI From Desktop to Web Conclusions Credits Web Services Web Services Some Examples Antonio Villegas ESSI Seminar October 20, 2010 6 / 31

13.

14.

15.

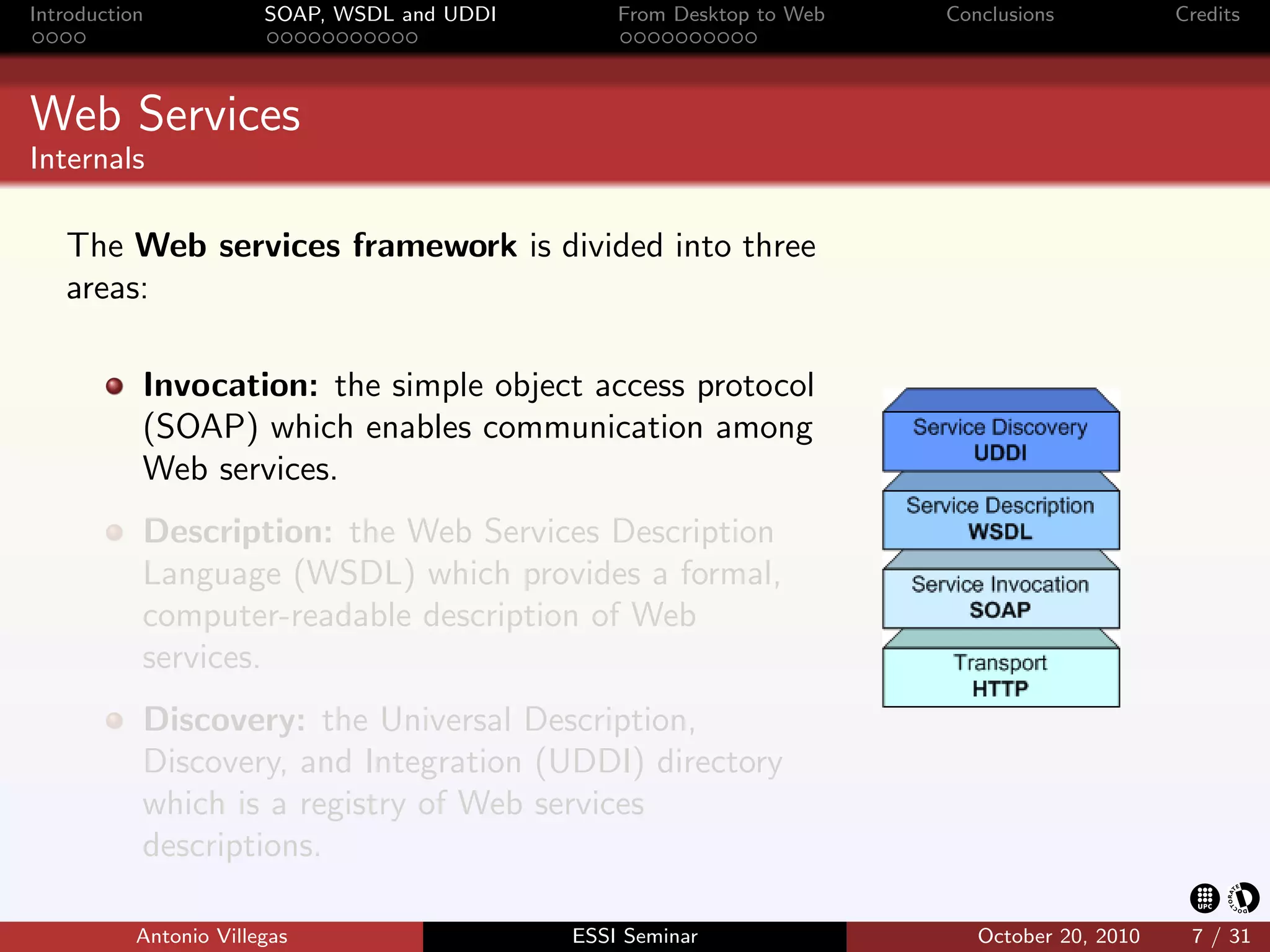

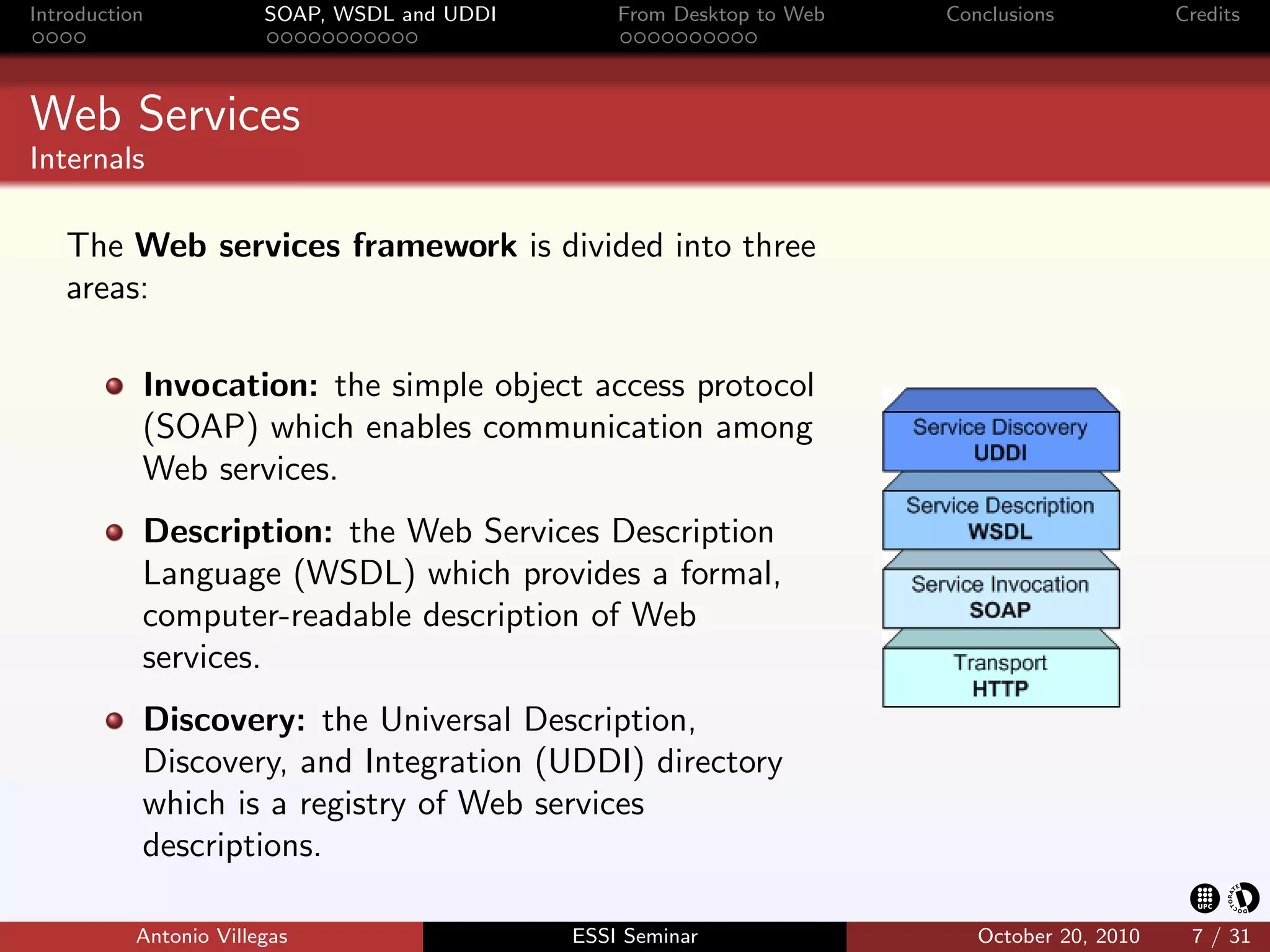

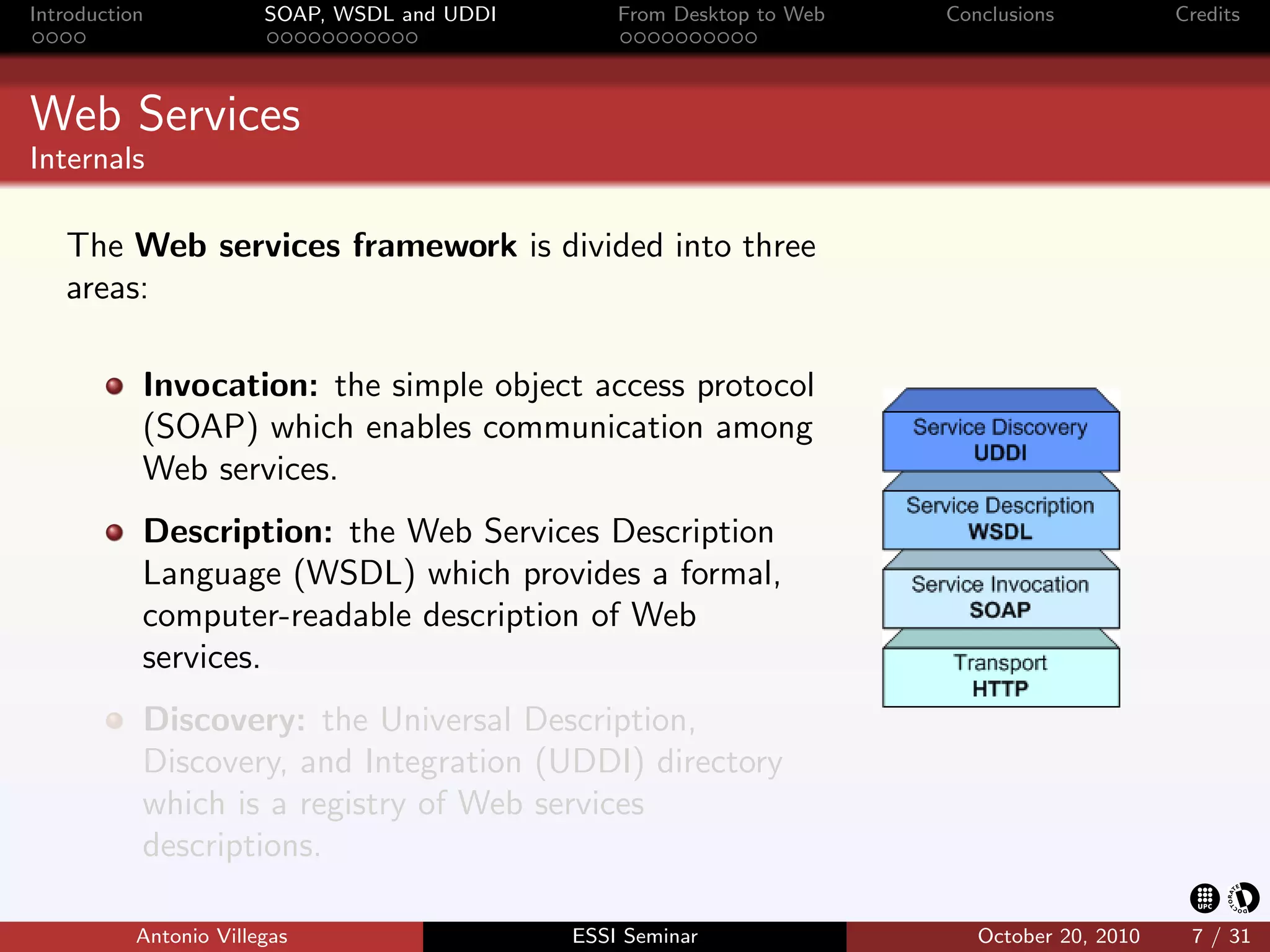

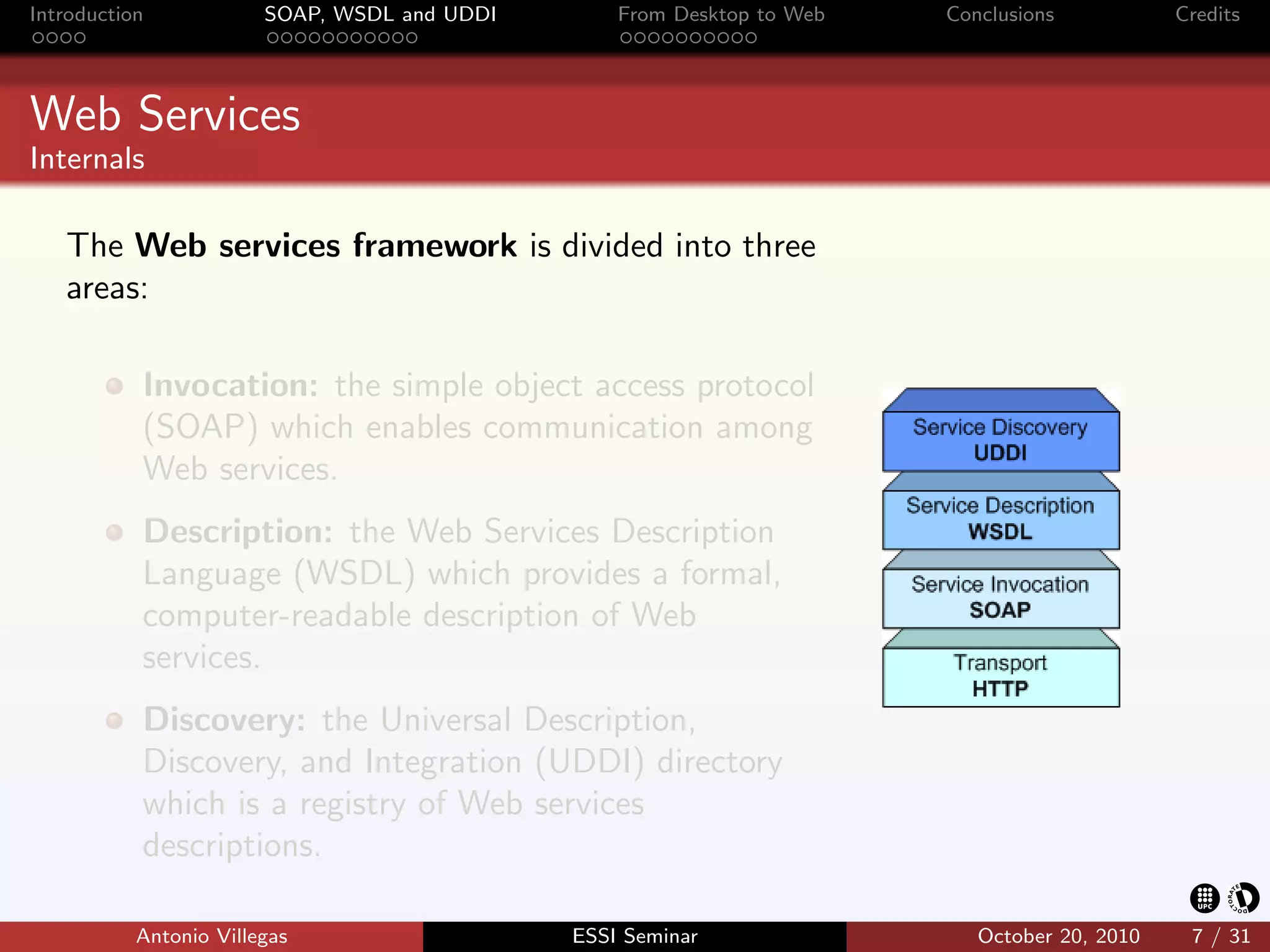

Introduction SOAP, WSDL and UDDI From Desktop to Web Conclusions Credits Web Services Internals The Web services framework is divided into three areas: Invocation: the simple object access protocol (SOAP) which enables communication among Web services. Description: the Web Services Description Language (WSDL) which provides a formal, computer-readable description of Web services. Discovery: the Universal Description, Discovery, and Integration (UDDI) directory which is a registry of Web services descriptions. Antonio Villegas ESSI Seminar October 20, 2010 7 / 31

16.

17.

18.

19.

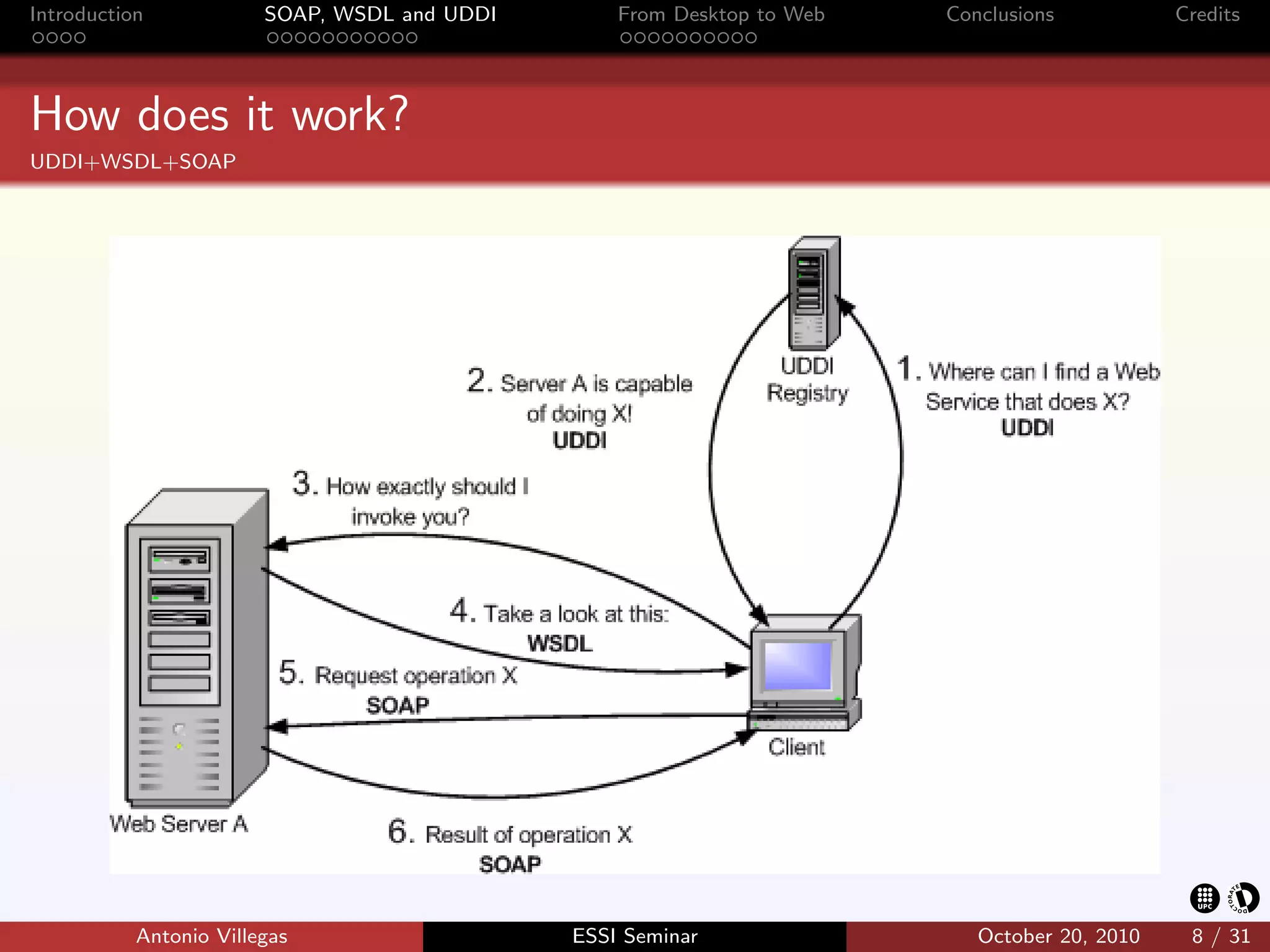

Introduction SOAP, WSDL and UDDI From Desktop to Web Conclusions Credits How does it work? UDDI+WSDL+SOAP Antonio Villegas ESSI Seminar October 20, 2010 8 / 31

20.

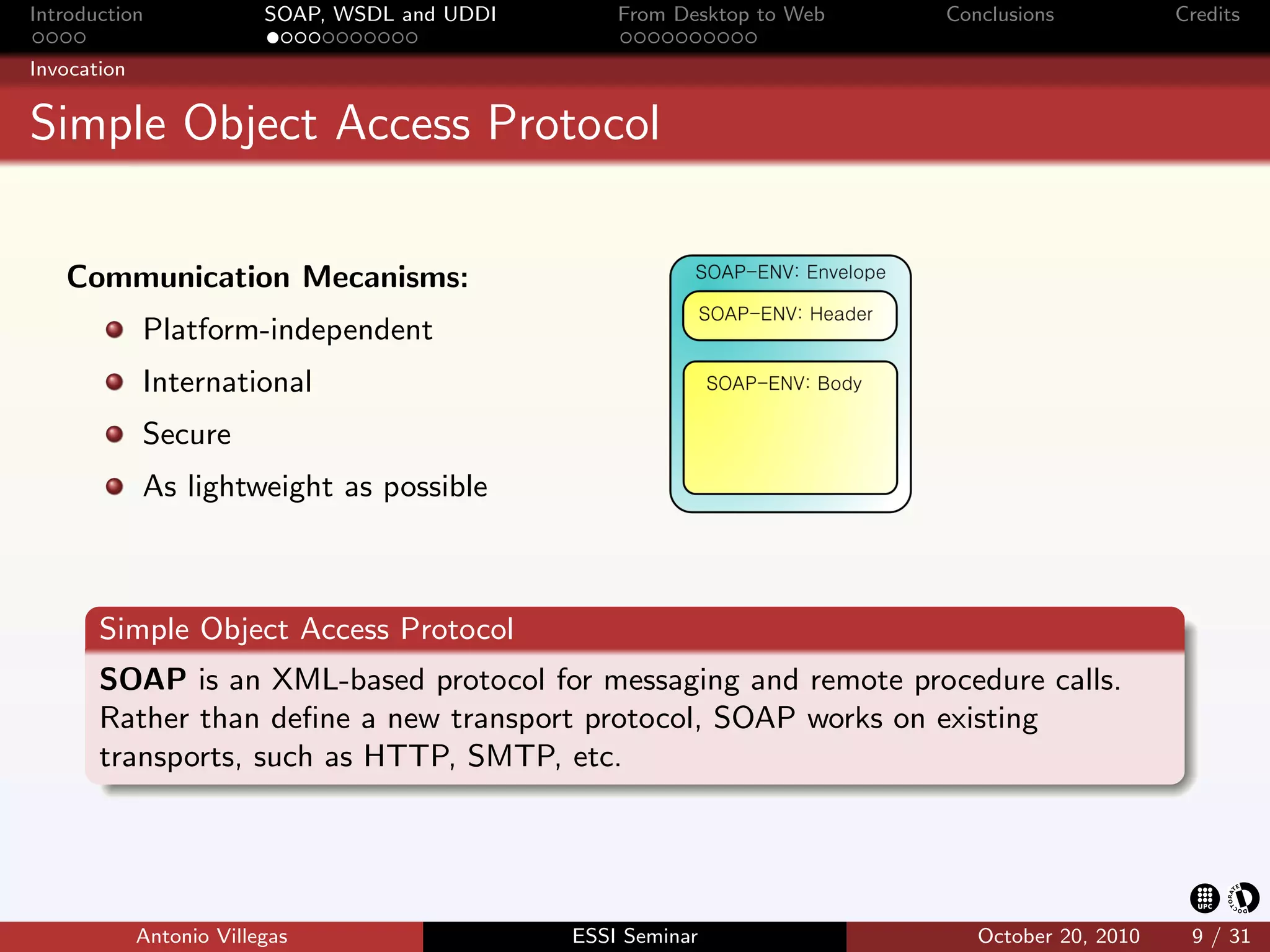

Introduction SOAP, WSDL and UDDI From Desktop to Web Conclusions Credits Invocation Simple Object Access Protocol Communication Mecanisms: Platform-independent International Secure As lightweight as possible Simple Object Access Protocol SOAP is an XML-based protocol for messaging and remote procedure calls. Rather than deﬁne a new transport protocol, SOAP works on existing transports, such as HTTP, SMTP, etc. Antonio Villegas ESSI Seminar October 20, 2010 9 / 31

21.
Introduction SOAP, WSDL and UDDI From Desktop to Web Conclusions Credits Invocation Simple Object Access Protocol Communication Mecanisms: Platform-independent International Secure As lightweight as possible Simple Object Access Protocol SOAP is an XML-based protocol for messaging and remote procedure calls. Rather than deﬁne a new transport protocol, SOAP works on existing transports, such as HTTP, SMTP, etc. Antonio Villegas ESSI Seminar October 20, 2010 9 / 31

22.

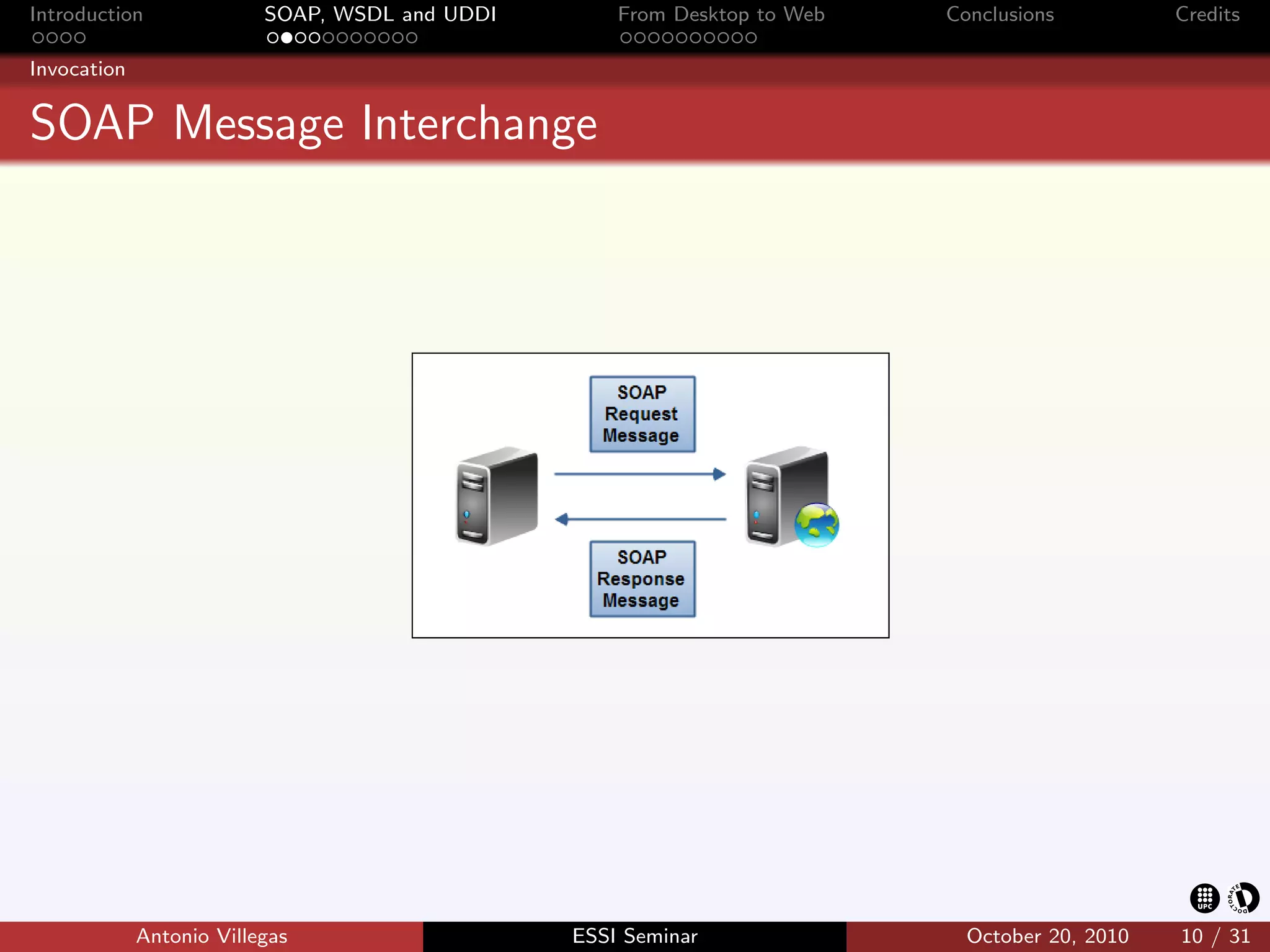

Introduction SOAP, WSDL and UDDI From Desktop to Web Conclusions Credits Invocation SOAP Message Interchange Antonio Villegas ESSI Seminar October 20, 2010 10 / 31

23.

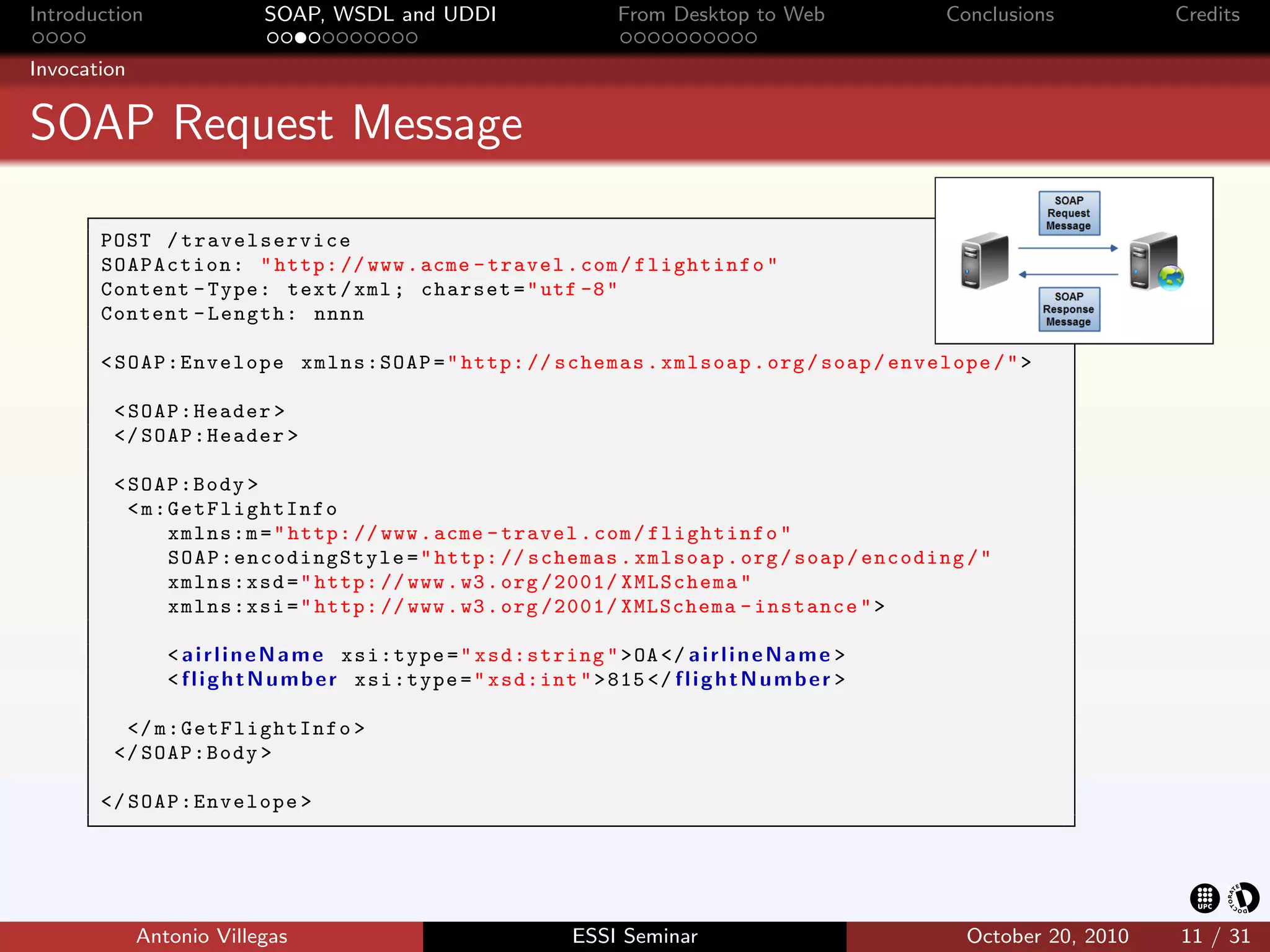

Introduction SOAP, WSDL and UDDI From Desktop to Web Conclusions Credits Invocation SOAP Request Message POST / travelservice SOAPAction: " http: // www . acme - travel . com / flightinfo " Content - Type: text / xml ; charset = " utf -8 " Content - Length: nnnn < SOAP:Envelope xmlns:SOAP = " http: // schemas . xmlsoap . org / soap / envelope / " > < SOAP:Header > </ SOAP:Header > < SOAP:Body > < m :G et FlightInfo xmlns:m = " http: // www . acme - travel . com / flightinfo " S O A P :e nc o di ng S ty l e = " http: // schemas . xmlsoap . org / soap / encoding / " xmlns:xsd = " http: // www . w3 . org /2001/ XMLSchema " xmlns:xsi = " http: // www . w3 . org /2001/ XMLSchema - instance " > < a i r l i n e N a m e xsi:type = " xsd:string " > OA </ a i r l i n e N a m e > < f l i g h t N u m b e r xsi:type = " xsd:int " > 815 </ f l i g h t N u m b e r > </ m :G e tFlightInfo > </ SOAP:Body > </ SOAP:Envelope > Antonio Villegas ESSI Seminar October 20, 2010 11 / 31

24.

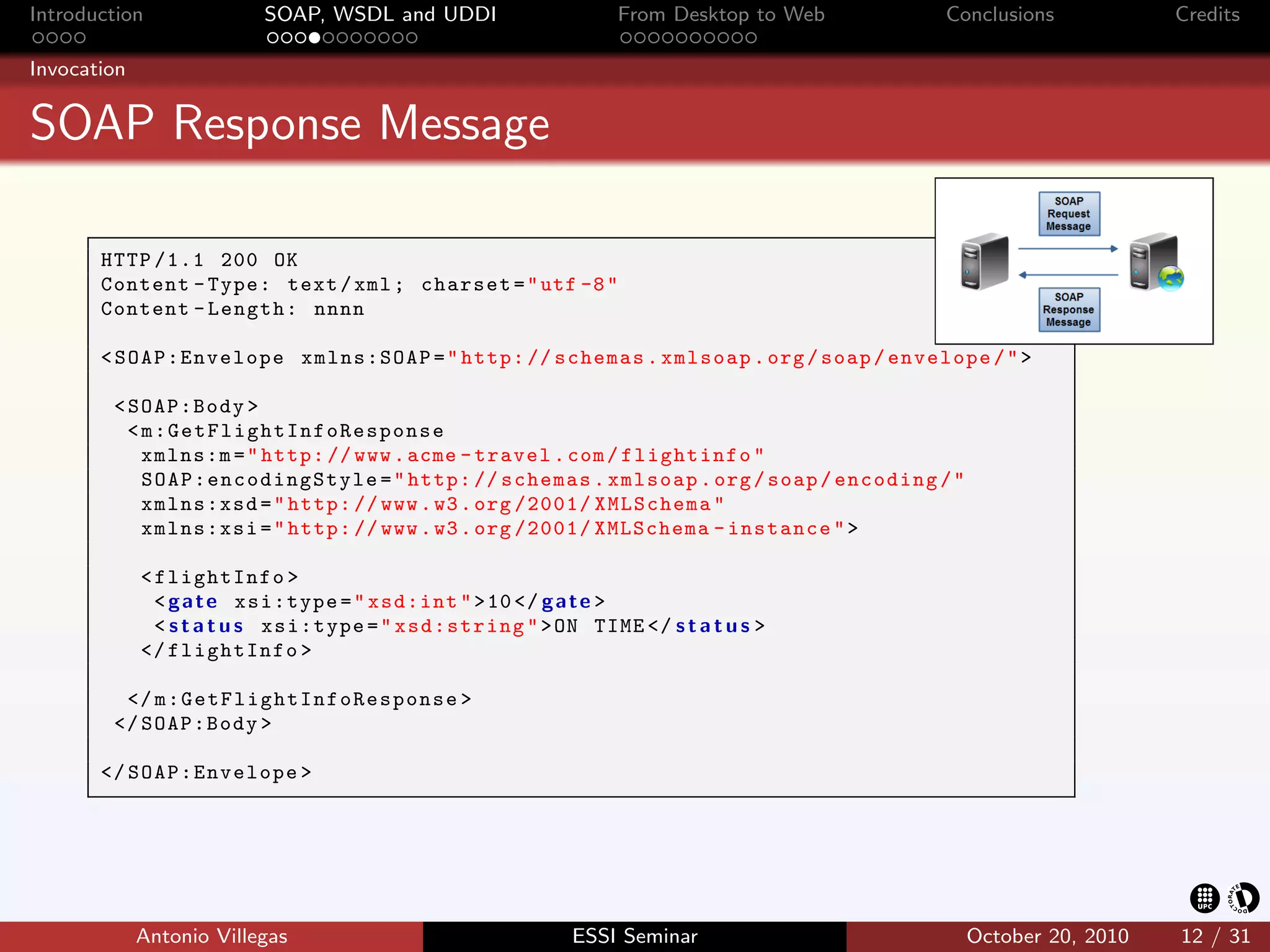

Introduction SOAP, WSDL and UDDI From Desktop to Web Conclusions Credits Invocation SOAP Response Message HTTP /1.1 200 OK Content - Type: text / xml ; charset = " utf -8 " Content - Length: nnnn < SOAP:Envelope xmlns:SOAP = " http: // schemas . xmlsoap . org / soap / envelope / " > < SOAP:Body > < m:GetFlightInfoResponse xmlns:m = " http: // www . acme - travel . com / flightinfo " S O A P : e nc o di ng S ty le = " http: // schemas . xmlsoap . org / soap / encoding / " xmlns:xsd = " http: // www . w3 . org /2001/ XMLSchema " xmlns:xsi = " http: // www . w3 . org /2001/ XMLSchema - instance " > < flightInfo > < g a t e xsi:type = " xsd:int " > 10 </ g a t e > < s t a t u s xsi:type = " xsd:string " > ON TIME </ s t a t u s > </ flightInfo > </ m : G e t F l i g h t I n f o R e s p o n s e > </ SOAP:Body > </ SOAP:Envelope > Antonio Villegas ESSI Seminar October 20, 2010 12 / 31

25.

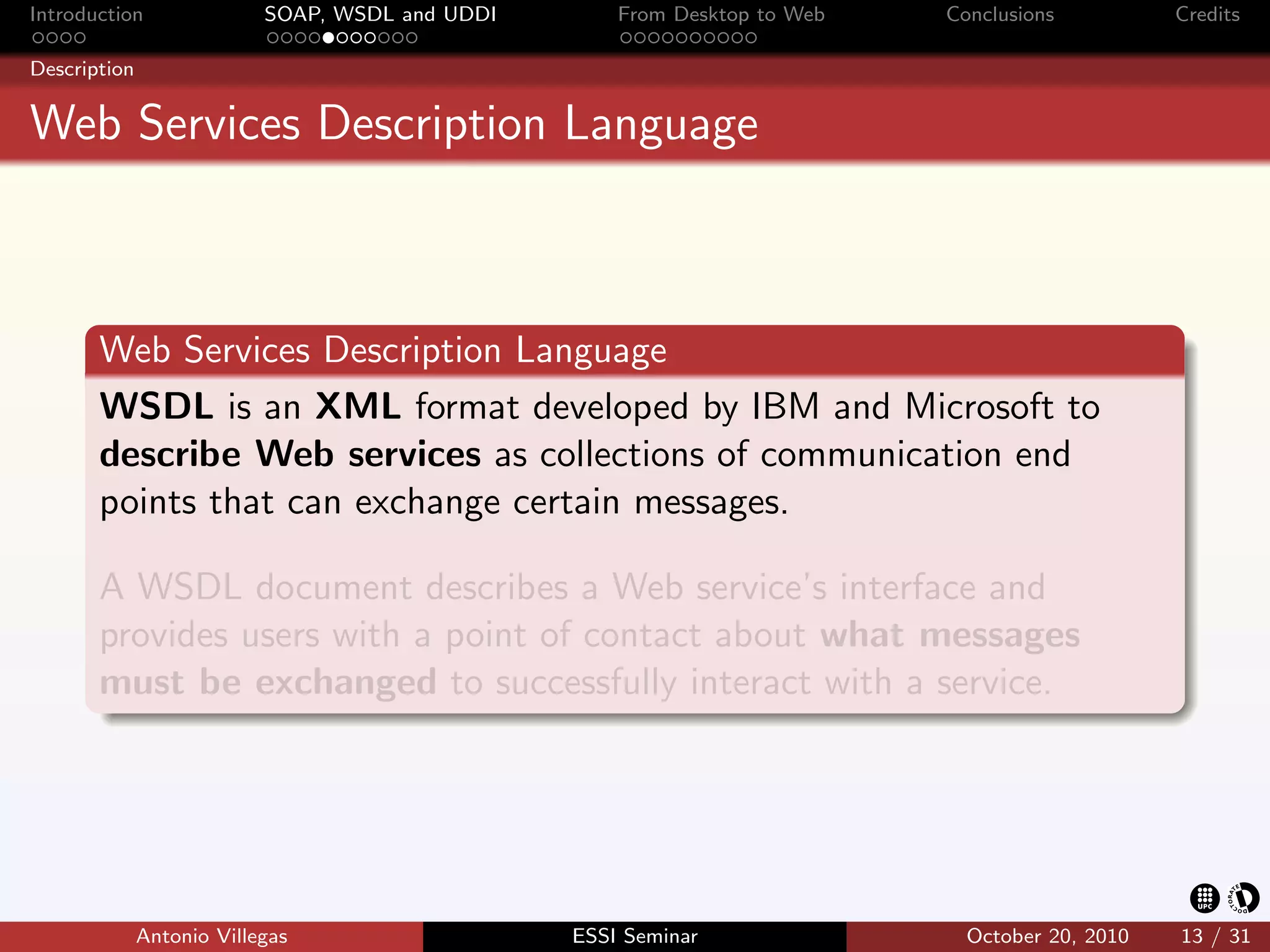

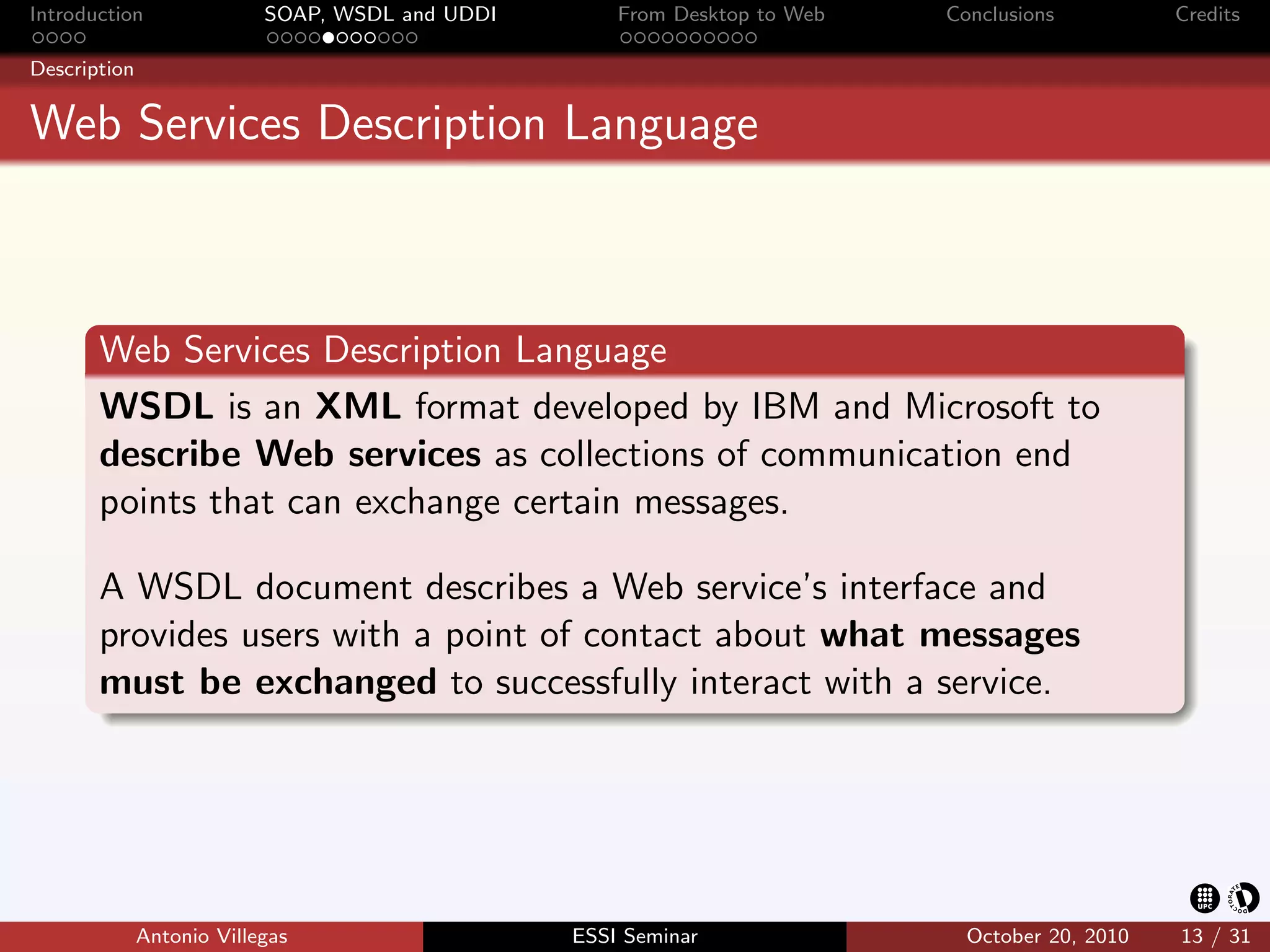

Introduction SOAP, WSDL and UDDI From Desktop to Web Conclusions Credits Description Web Services Description Language Web Services Description Language WSDL is an XML format developed by IBM and Microsoft to describe Web services as collections of communication end points that can exchange certain messages. A WSDL document describes a Web service’s interface and provides users with a point of contact about what messages must be exchanged to successfully interact with a service. Antonio Villegas ESSI Seminar October 20, 2010 13 / 31

26.
Introduction SOAP, WSDL and UDDI From Desktop to Web Conclusions Credits Description Web Services Description Language Web Services Description Language WSDL is an XML format developed by IBM and Microsoft to describe Web services as collections of communication end points that can exchange certain messages. A WSDL document describes a Web service’s interface and provides users with a point of contact about what messages must be exchanged to successfully interact with a service. Antonio Villegas ESSI Seminar October 20, 2010 13 / 31

27.

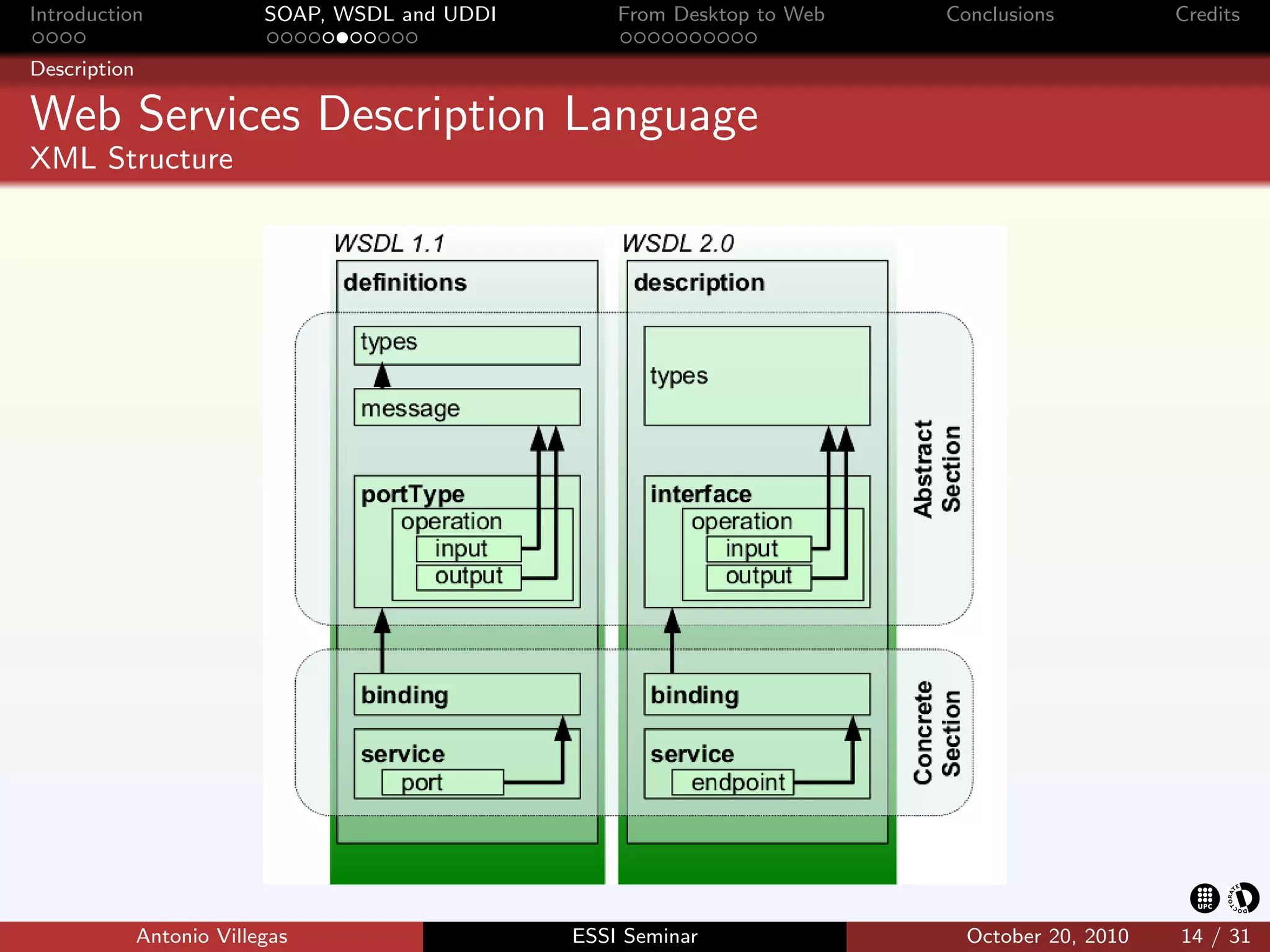

Introduction SOAP, WSDL and UDDI From Desktop to Web Conclusions Credits Description Web Services Description Language XML Structure Antonio Villegas ESSI Seminar October 20, 2010 14 / 31

28.

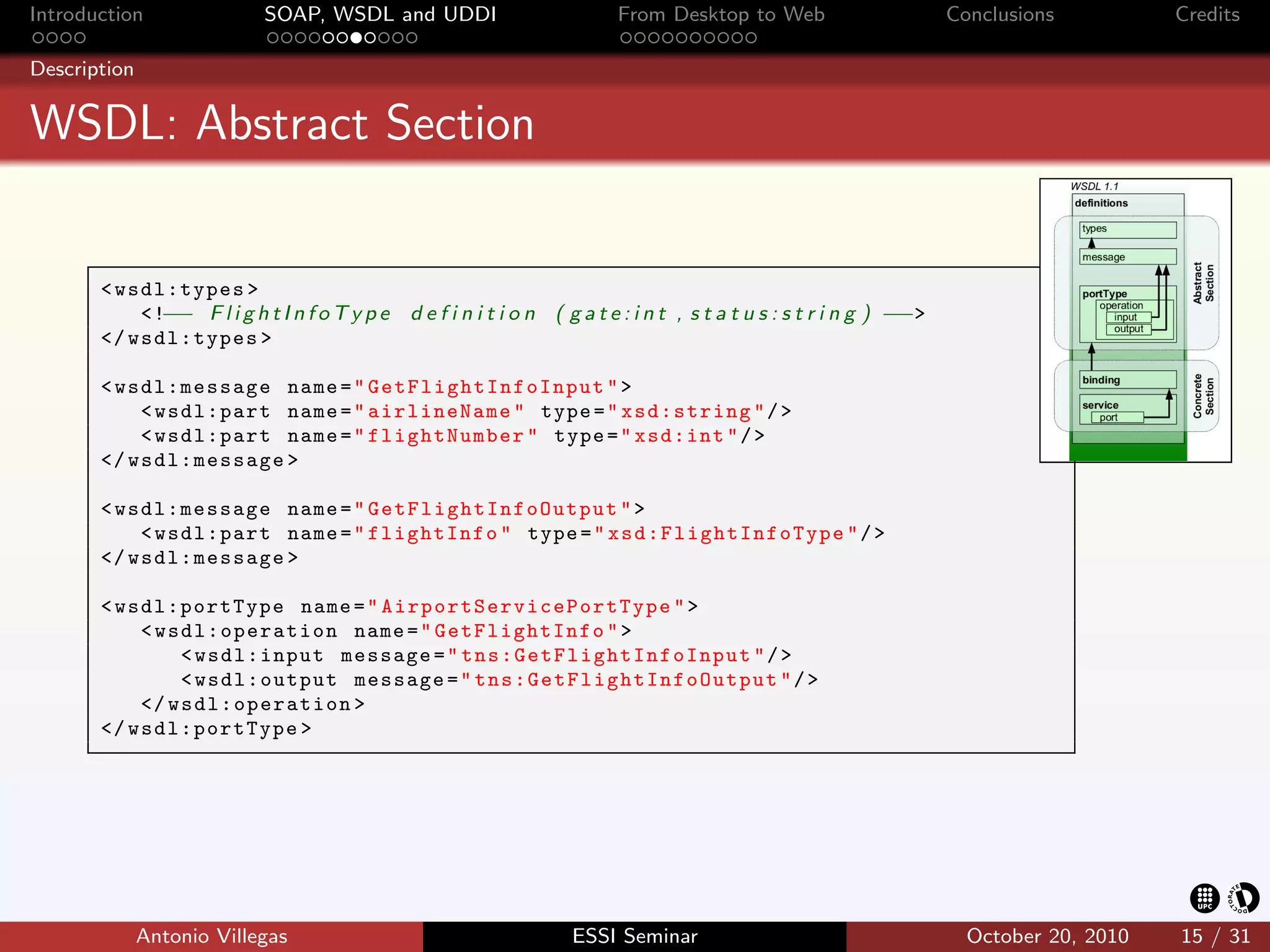

Introduction SOAP, WSDL and UDDI From Desktop to Web Conclusions Credits Description WSDL: Abstract Section < wsdl:types > <! − F l i g h t I n f o T y p e − definition ( gate:int , status:string ) −−> </ wsdl:types > < wsdl:message name = " G e tF li g ht I nf oI n pu t " > < wsdl:part name = " airlineName " type = " xsd:string " / > < wsdl:part name = " flightNumber " type = " xsd:int " / > </ wsdl:message > < wsdl:message name = " G et F l i g h t I n fo O u t p u t " > < wsdl:part name = " flightInfo " type = " x sd :F l ig h tI nf o Ty p e " / > </ wsdl:message > < wsdl:portType name = " A i r p o r t S e r v i c e P o r t T y p e " > < wsdl:operation name = " GetFlightInfo " > < wsdl:input message = " t n s : G e t F l i g h t I n f o I n p u t " / > < wsdl:output message = " t n s : G e t F l i g h t I n f o O u t p u t " / > </ wsdl:operation > </ wsdl:portType > Antonio Villegas ESSI Seminar October 20, 2010 15 / 31

29.

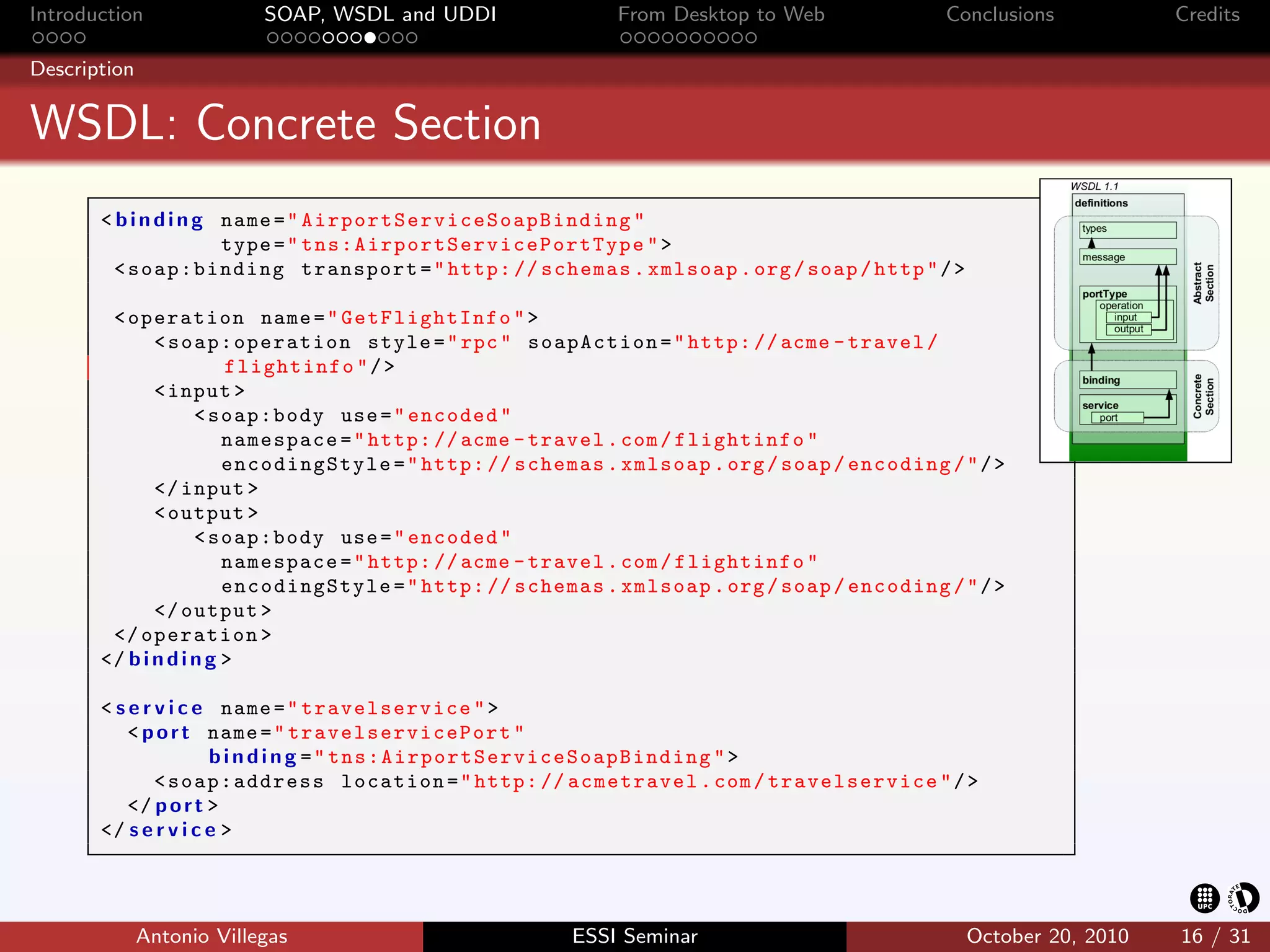

Introduction SOAP, WSDL and UDDI From Desktop to Web Conclusions Credits Description WSDL: Concrete Section < b i n d i n g name = " A i r p o r t S e r v i c e S o a p B i n d i n g " type = " t n s : A i r p o r t S e r v i c e P o r t T y p e " > < soap:binding transport = " http: // schemas . xmlsoap . org / soap / http " / > < operation name = " GetFlightInfo " > < soap:operation style = " rpc " soapAction = " http: // acme - travel / flightinfo " / > < input > < soap:body use = " encoded " namespace = " http: // acme - travel . com / flightinfo " encodingStyle = " http: // schemas . xmlsoap . org / soap / encoding / " / > </ input > < output > < soap:body use = " encoded " namespace = " http: // acme - travel . com / flightinfo " encodingStyle = " http: // schemas . xmlsoap . org / soap / encoding / " / > </ output > </ operation > </ b i n d i n g > < s e r v i c e name = " travelservice " > < p o r t name = " tra vels erv ice Por t " b i n d i n g =" tns:AirportServiceSoapBinding "> < soap:address location = " http: // acmetravel . com / travelservice " / > </ p o r t > </ s e r v i c e > Antonio Villegas ESSI Seminar October 20, 2010 16 / 31

30.

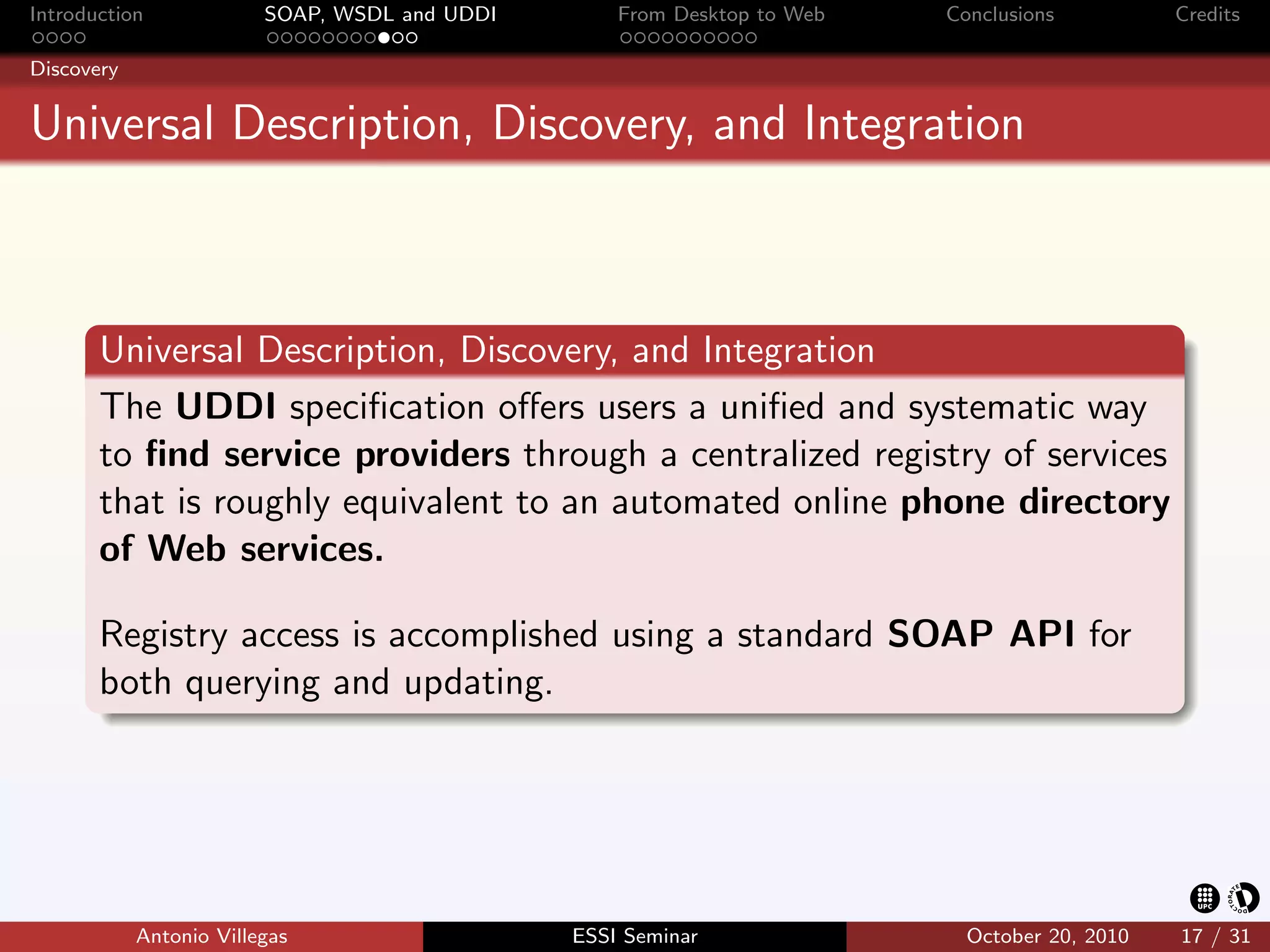

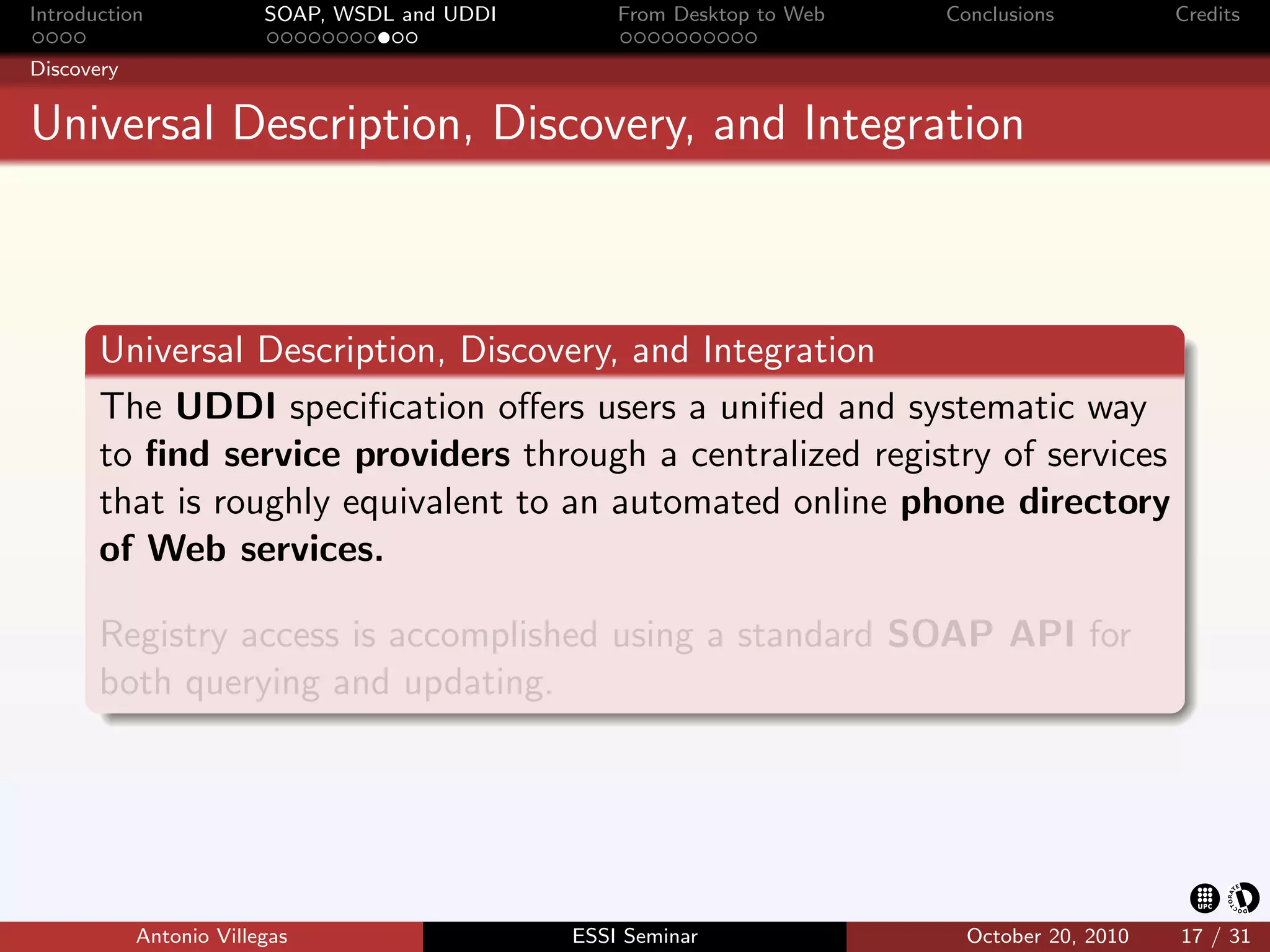

Introduction SOAP, WSDL and UDDI From Desktop to Web Conclusions Credits Discovery Universal Description, Discovery, and Integration Universal Description, Discovery, and Integration The UDDI specification offers users a unified and systematic way to find service providers through a centralized registry of services that is roughly equivalent to an automated online phone directory of Web services. Registry access is accomplished using a standard SOAP API for both querying and updating. Antonio Villegas ESSI Seminar October 20, 2010 17 / 31

31.
Introduction SOAP, WSDL and UDDI From Desktop to Web Conclusions Credits Discovery Universal Description, Discovery, and Integration Universal Description, Discovery, and Integration The UDDI specification offers users a unified and systematic way to find service providers through a centralized registry of services that is roughly equivalent to an automated online phone directory of Web services. Registry access is accomplished using a standard SOAP API for both querying and updating. Antonio Villegas ESSI Seminar October 20, 2010 17 / 31

32.

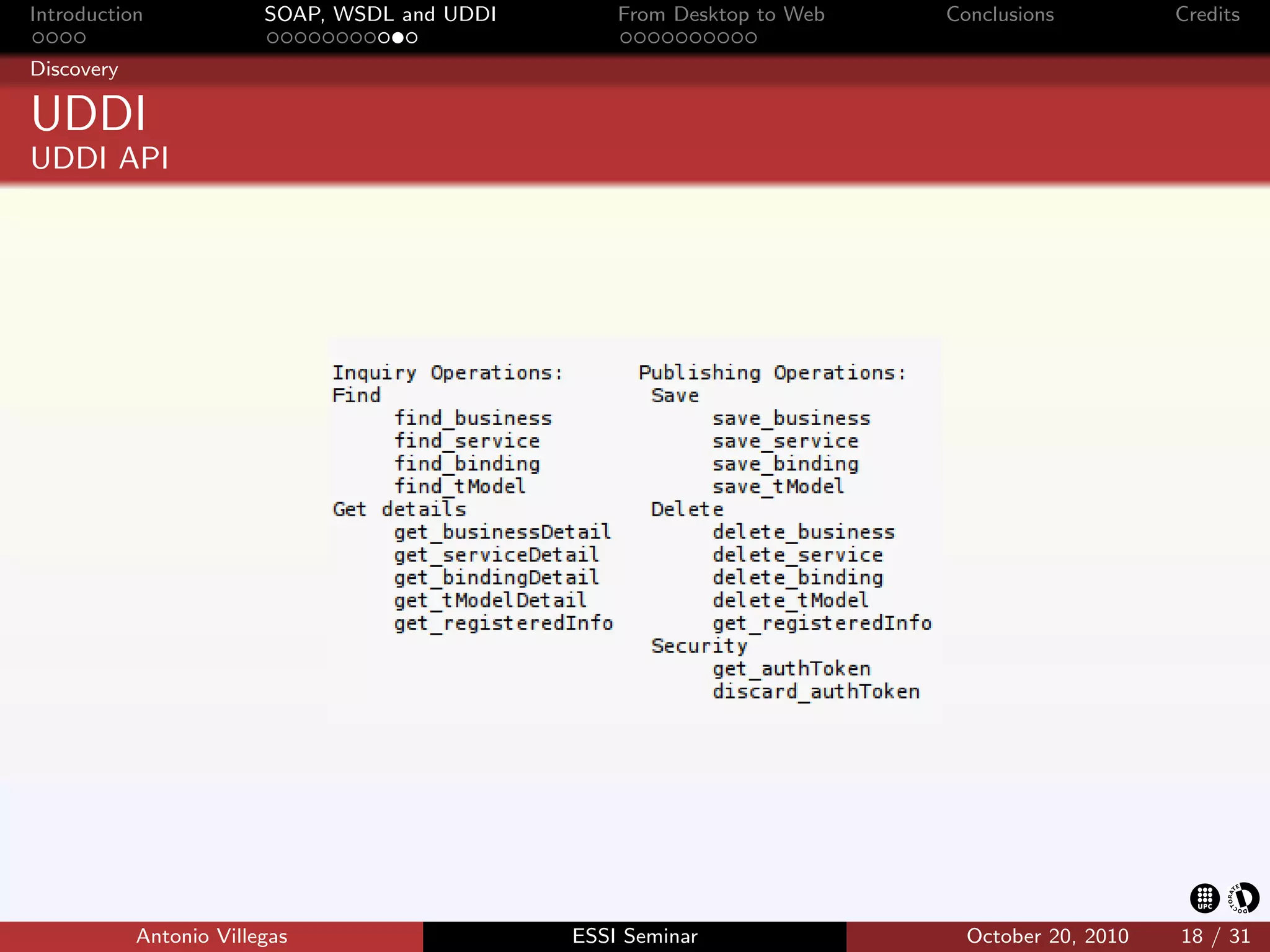

Introduction SOAP, WSDL and UDDI From Desktop to Web Conclusions Credits Discovery UDDI UDDI API Antonio Villegas ESSI Seminar October 20, 2010 18 / 31

33.

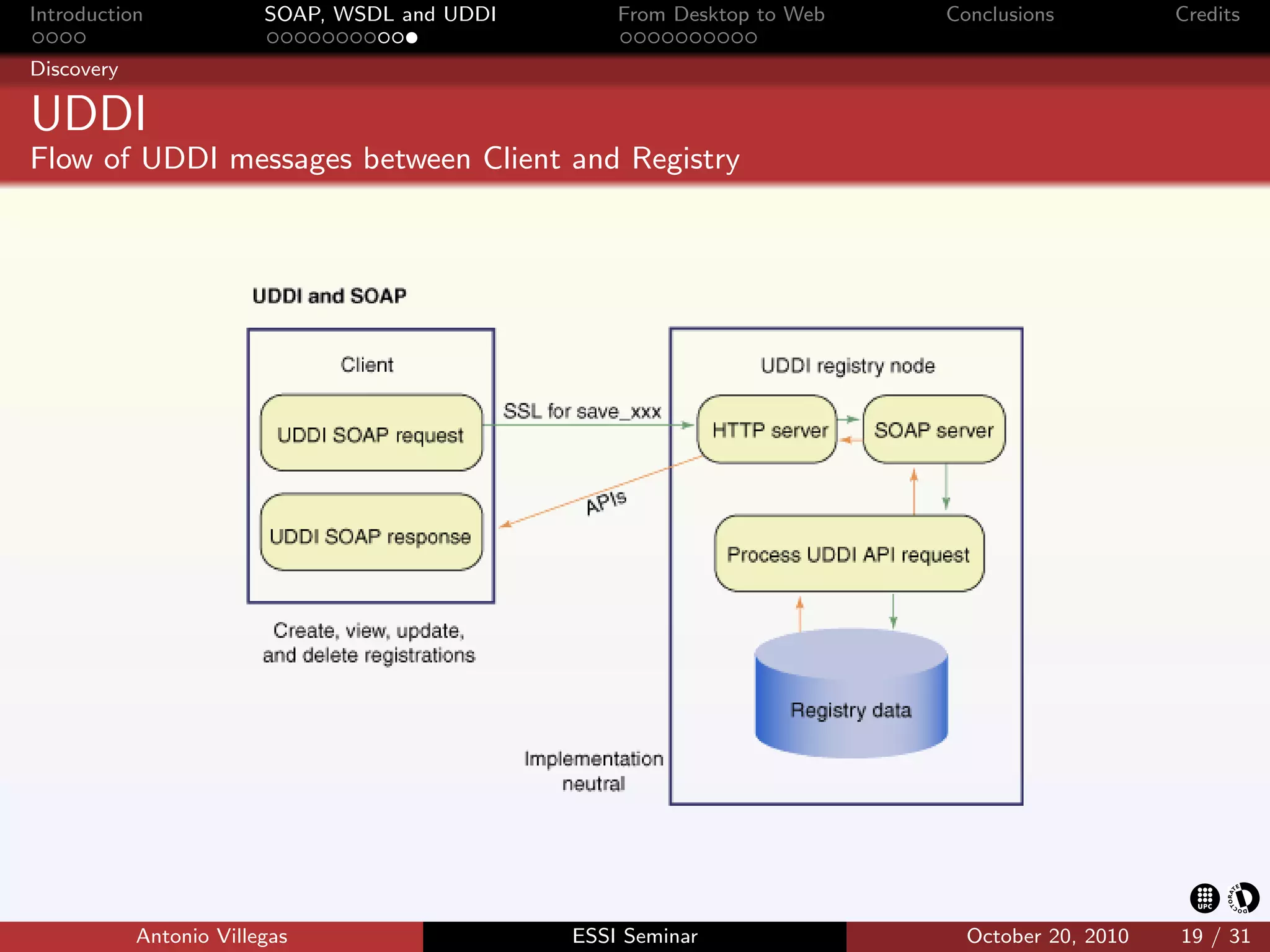

Introduction SOAP, WSDL and UDDI From Desktop to Web Conclusions Credits Discovery UDDI Flow of UDDI messages between Client and Registry Antonio Villegas ESSI Seminar October 20, 2010 19 / 31

34.

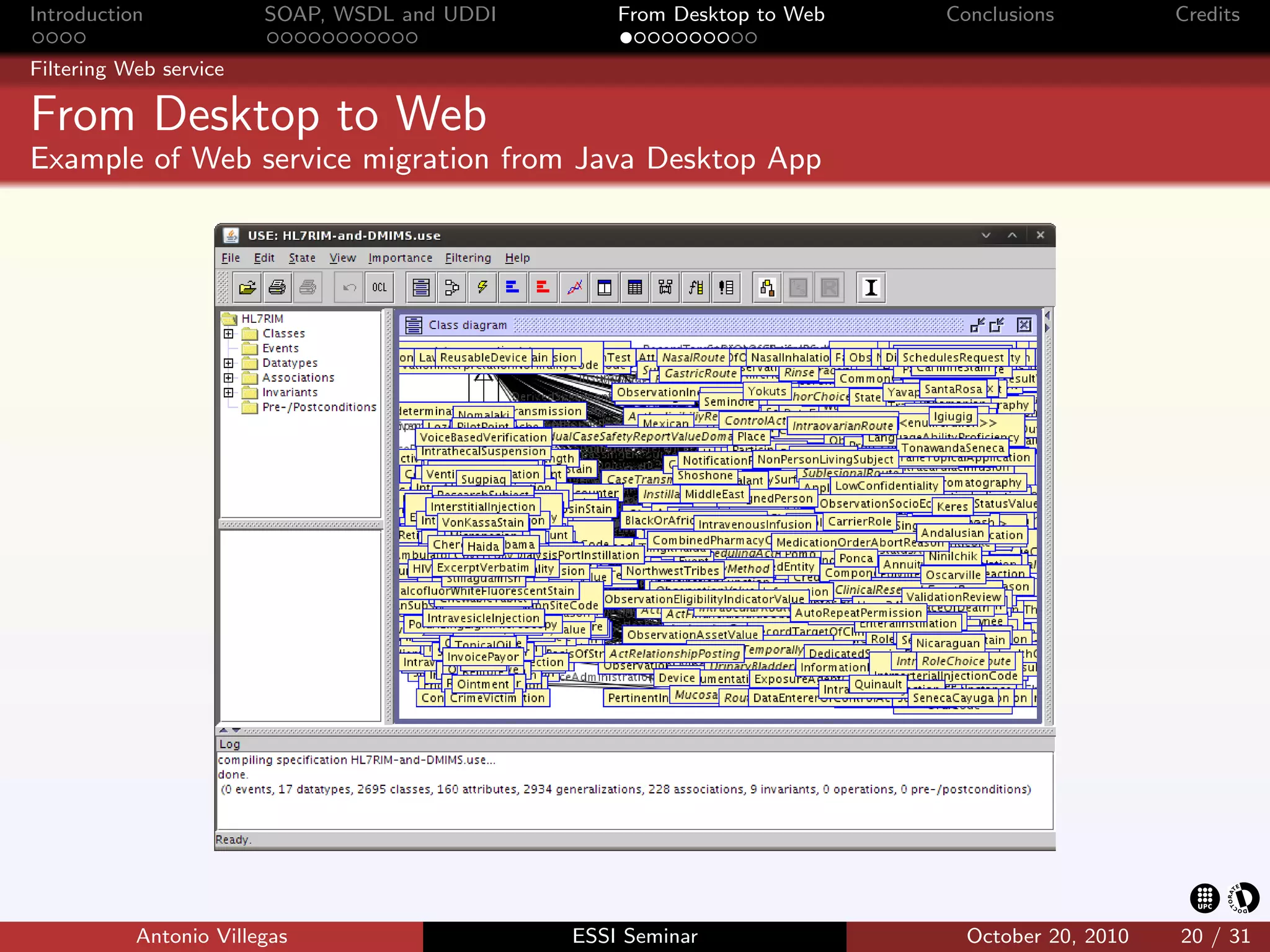

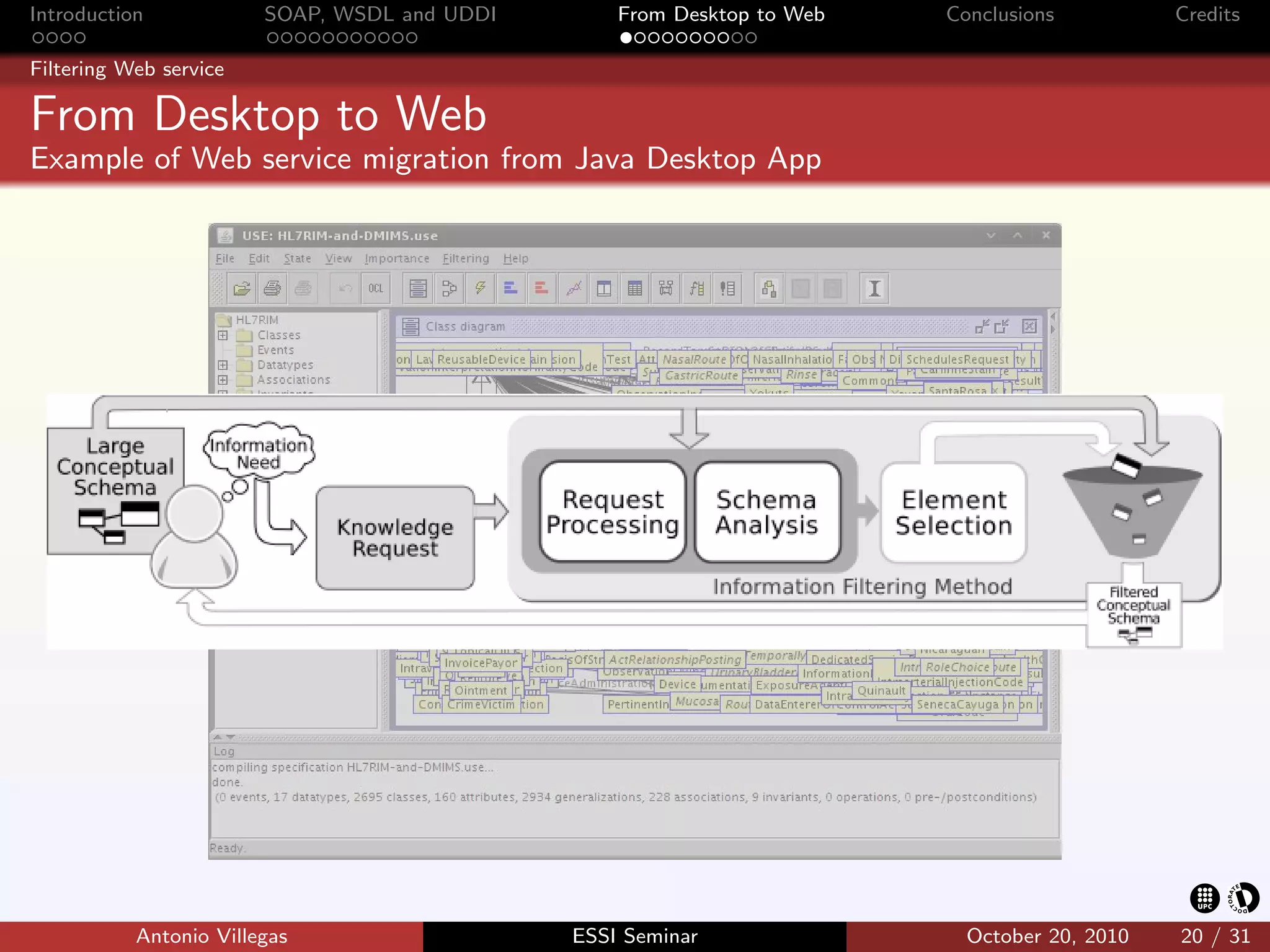

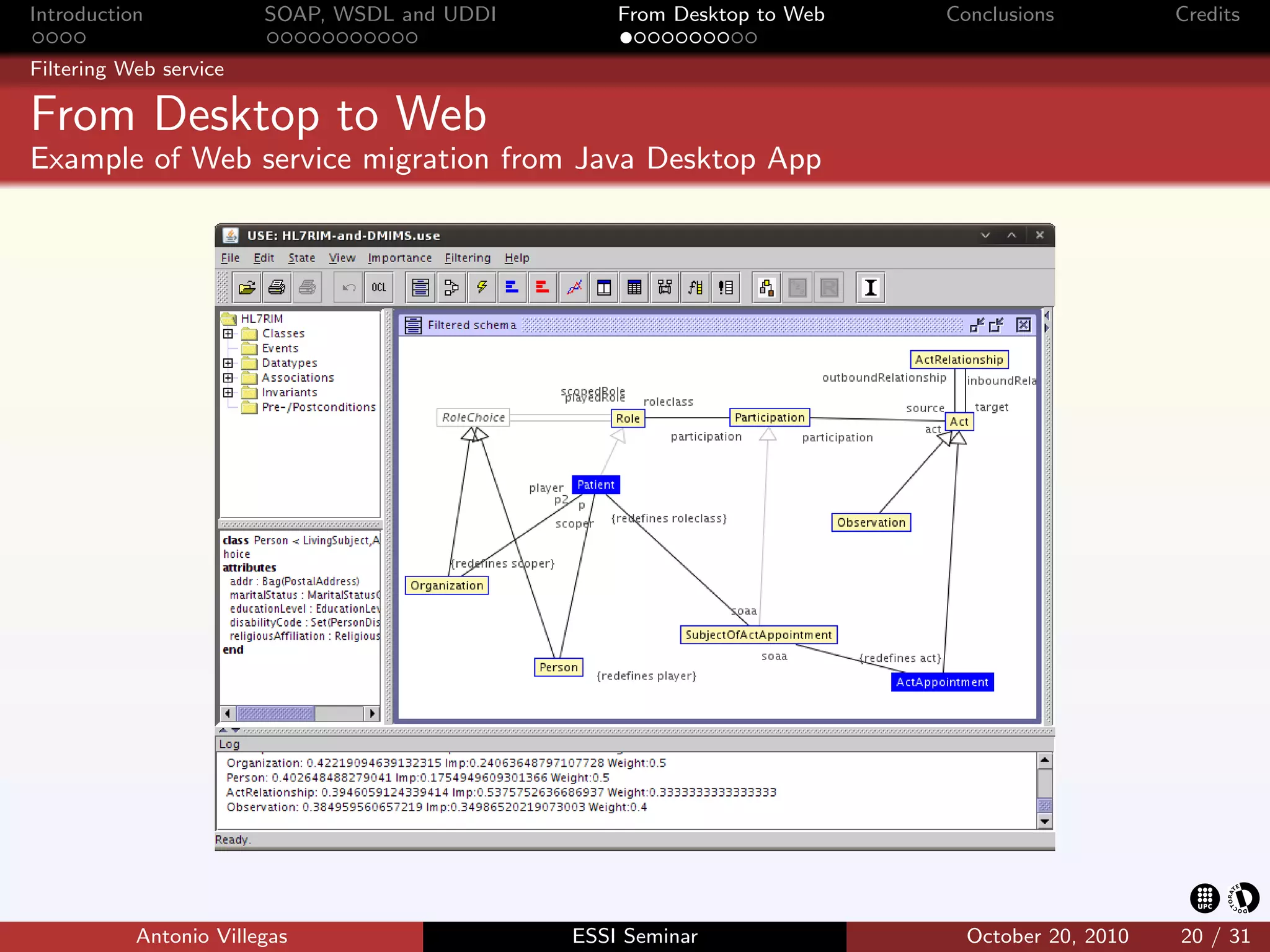

Introduction SOAP, WSDL and UDDI From Desktop to Web Conclusions Credits Filtering Web service From Desktop to Web Example of Web service migration from Java Desktop App Antonio Villegas ESSI Seminar October 20, 2010 20 / 31

35.

36.

37.

38.

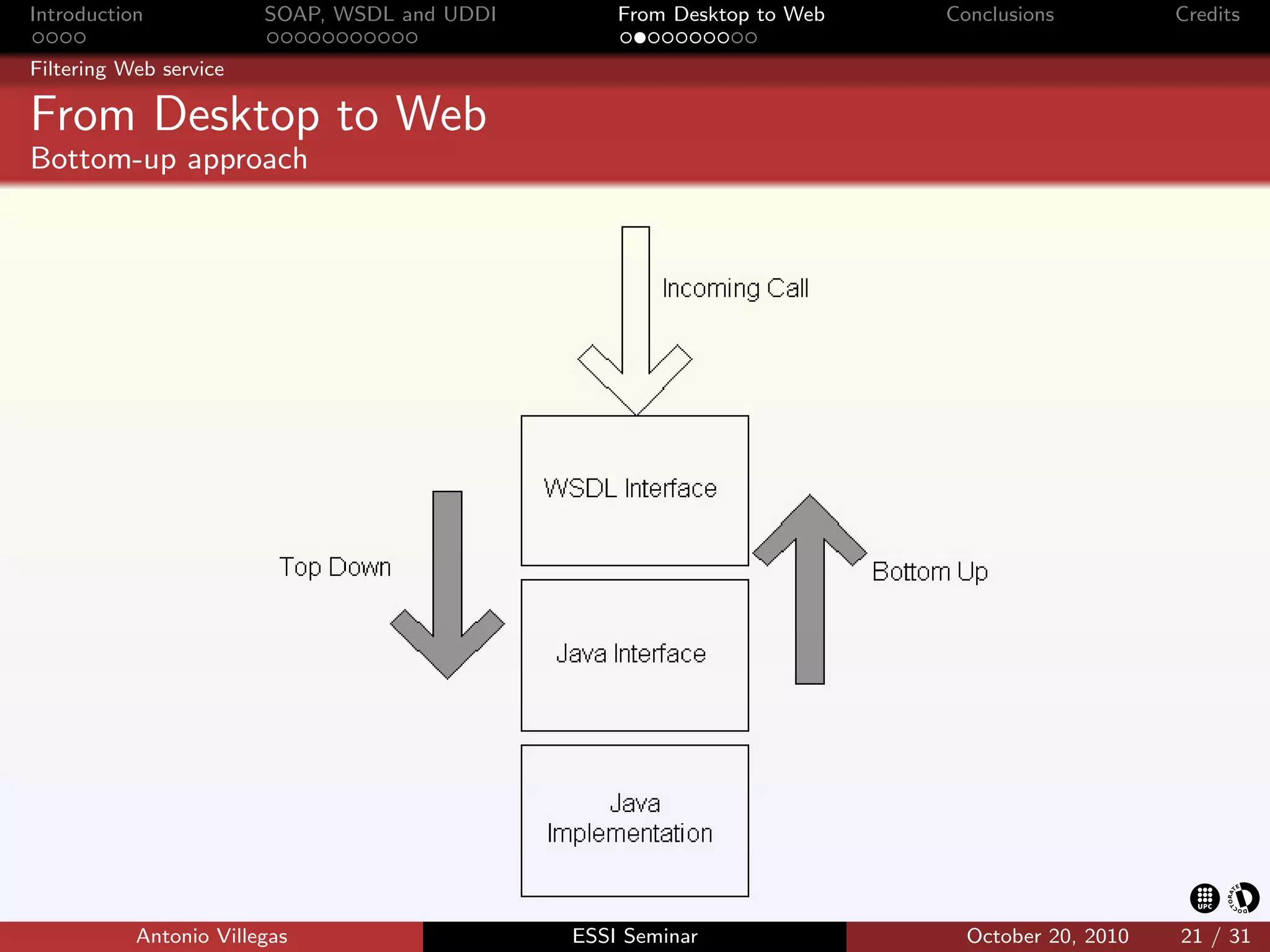

Introduction SOAP, WSDL and UDDI From Desktop to Web Conclusions Credits Filtering Web service From Desktop to Web Bottom-up approach Antonio Villegas ESSI Seminar October 20, 2010 21 / 31

39.

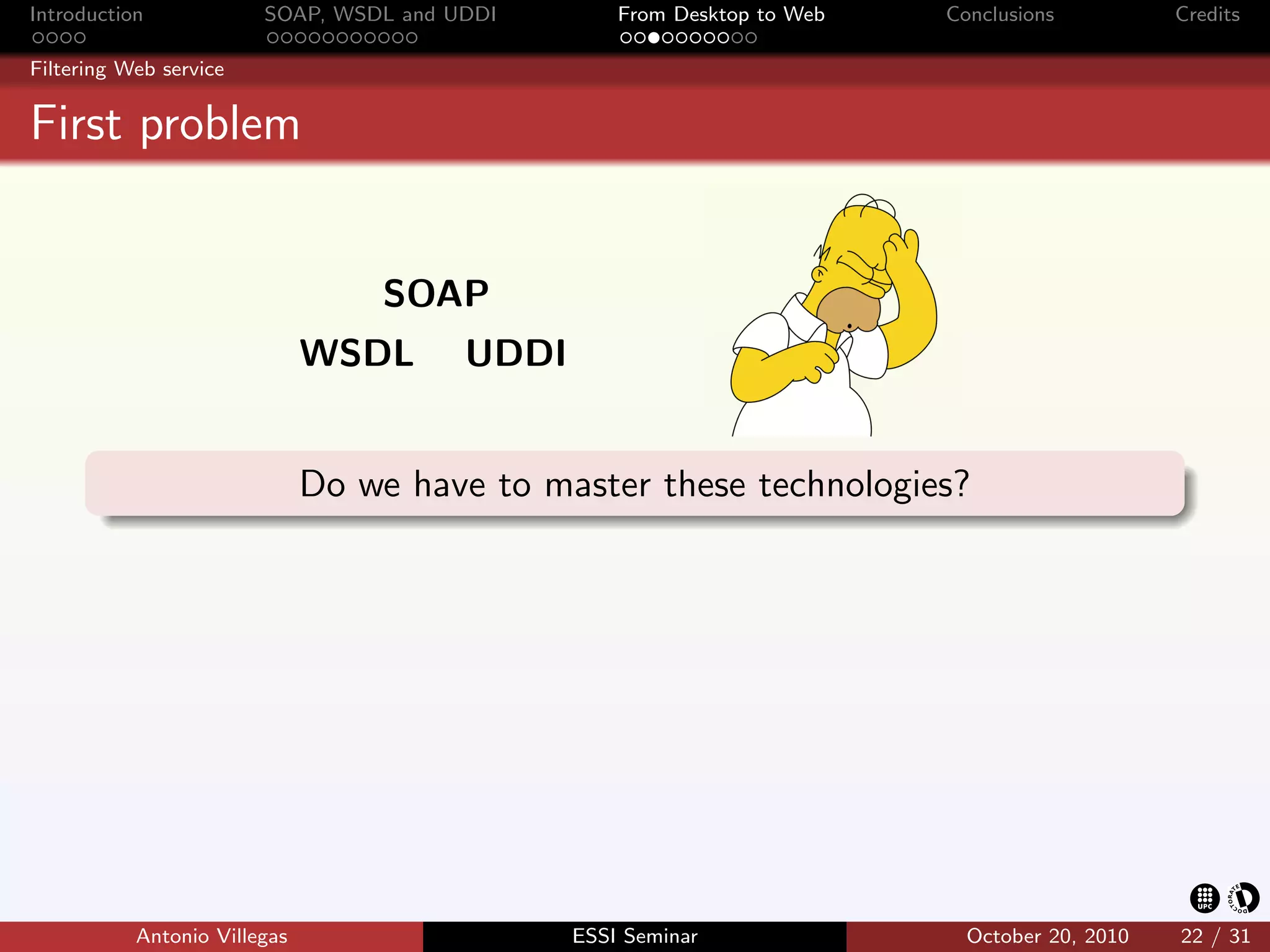

Introduction SOAP, WSDL and UDDI From Desktop to Web Conclusions Credits Filtering Web service First problem SOAP WSDL UDDI Do we have to master these technologies? Antonio Villegas ESSI Seminar October 20, 2010 22 / 31

40.
Introduction SOAP, WSDL and UDDI From Desktop to Web Conclusions Credits Filtering Web service First problem SOAP WSDL UDDI Do we have to master these technologies? Not at all! Eclipse WTP + AXIS2 + Tomcat = 1-click Web service generator Antonio Villegas ESSI Seminar October 20, 2010 22 / 31

41.

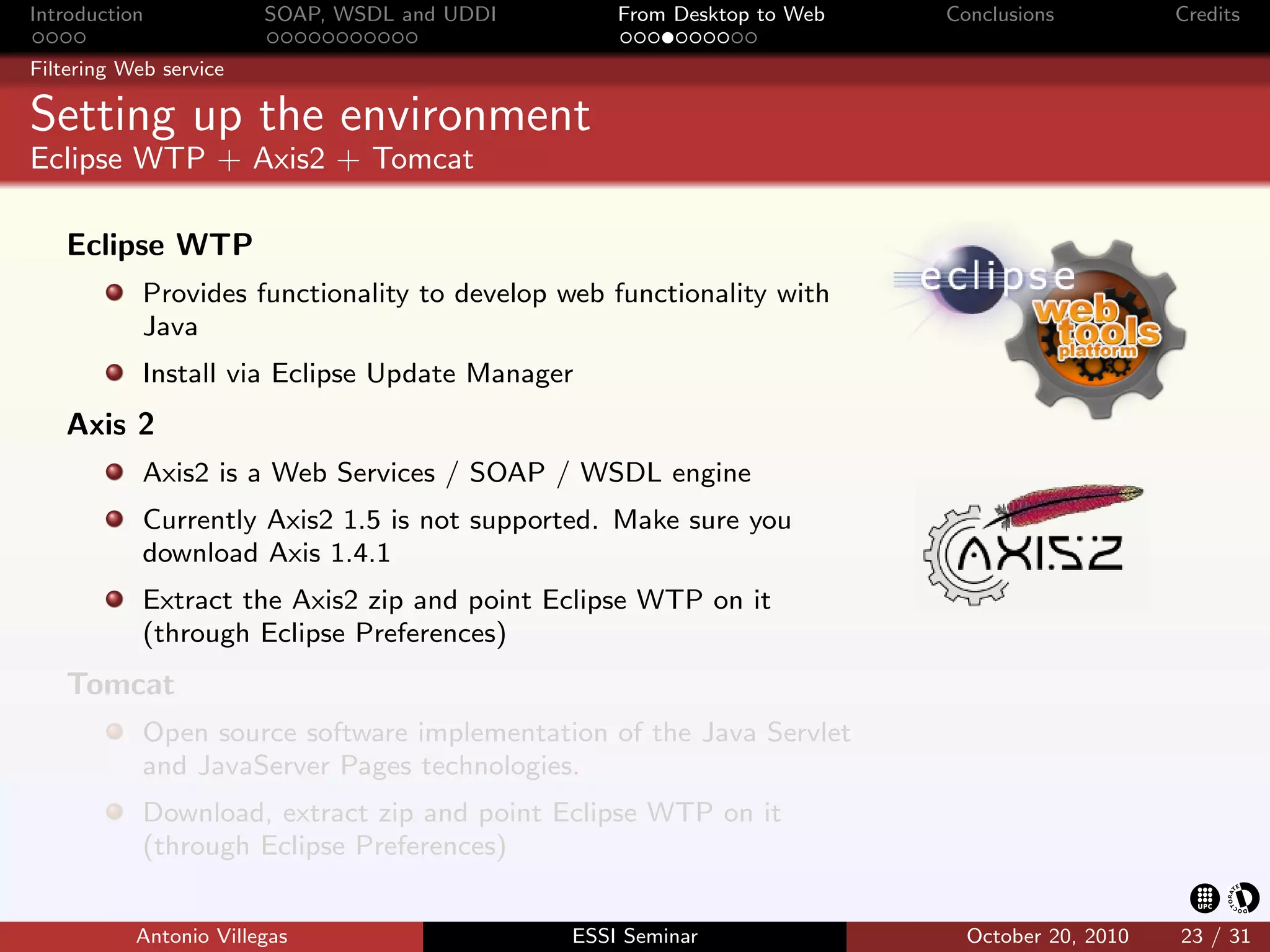

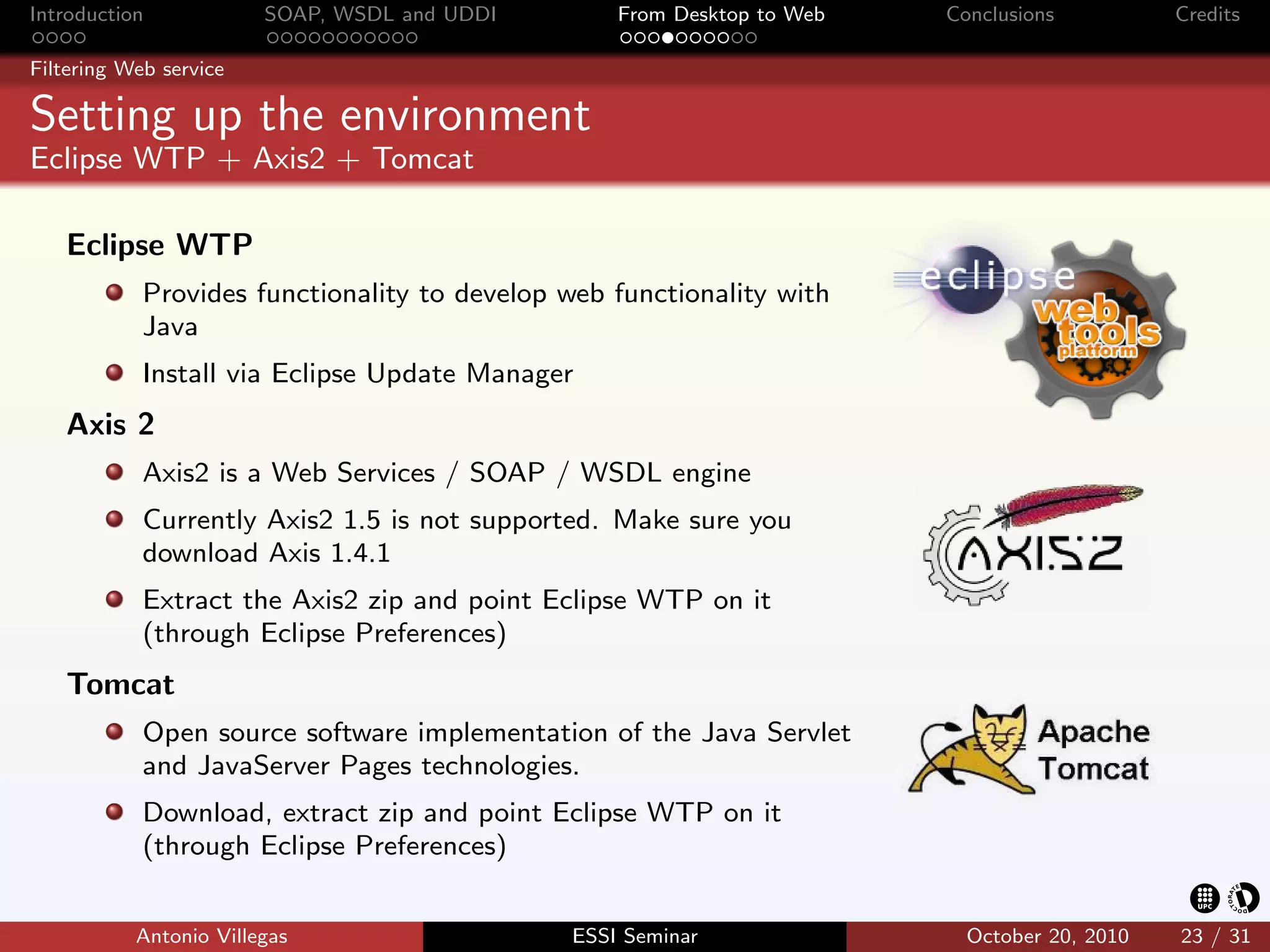

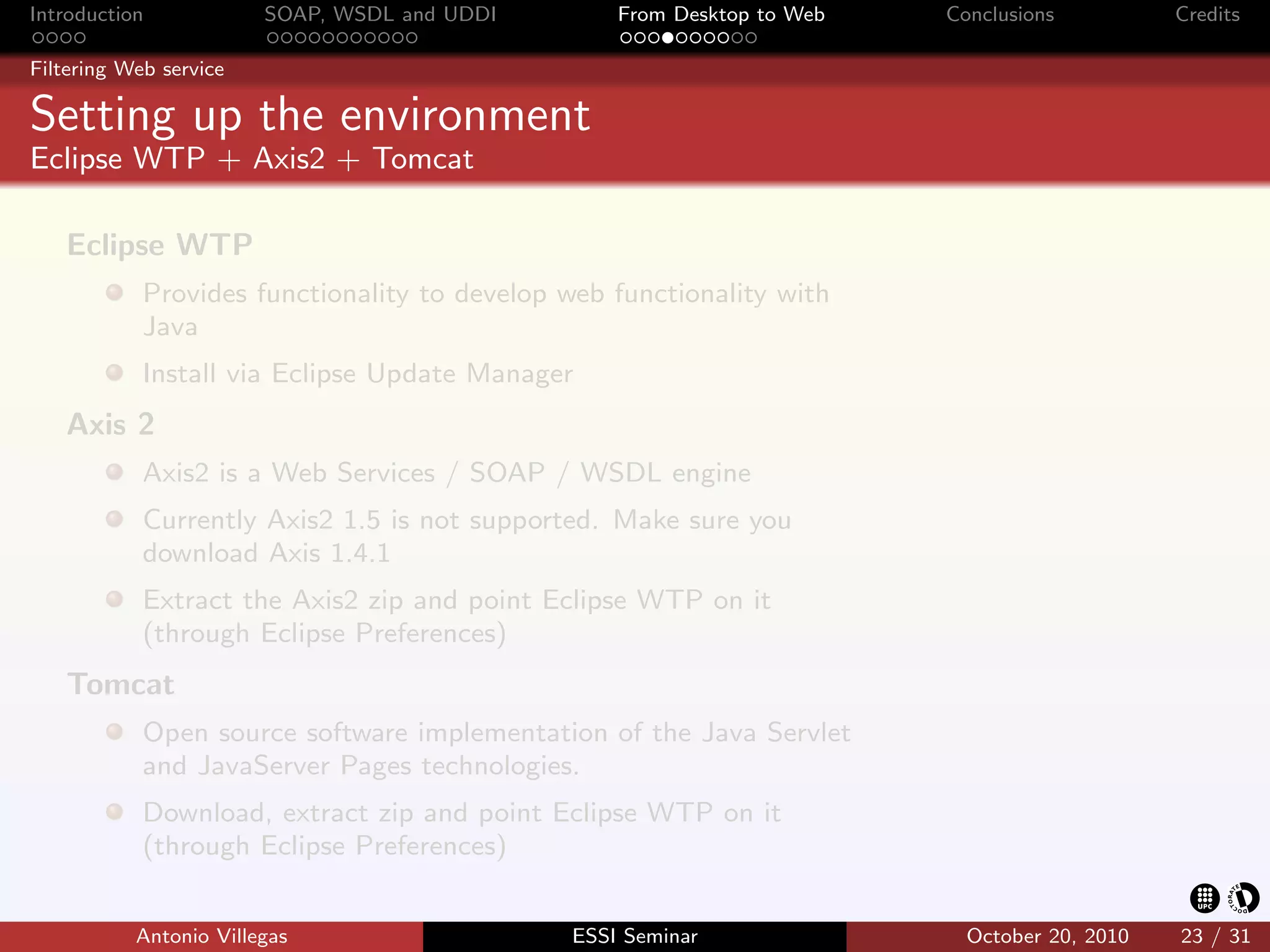

Introduction SOAP, WSDL and UDDI From Desktop to Web Conclusions Credits Filtering Web service Setting up the environment Eclipse WTP + Axis2 + Tomcat Eclipse WTP Provides functionality to develop web functionality with Java Install via Eclipse Update Manager Axis 2 Axis2 is a Web Services / SOAP / WSDL engine Currently Axis2 1.5 is not supported. Make sure you download Axis 1.4.1 Extract the Axis2 zip and point Eclipse WTP on it (through Eclipse Preferences) Tomcat Open source software implementation of the Java Servlet and JavaServer Pages technologies. Download, extract zip and point Eclipse WTP on it (through Eclipse Preferences) Antonio Villegas ESSI Seminar October 20, 2010 23 / 31

42.

43.

44.

45.

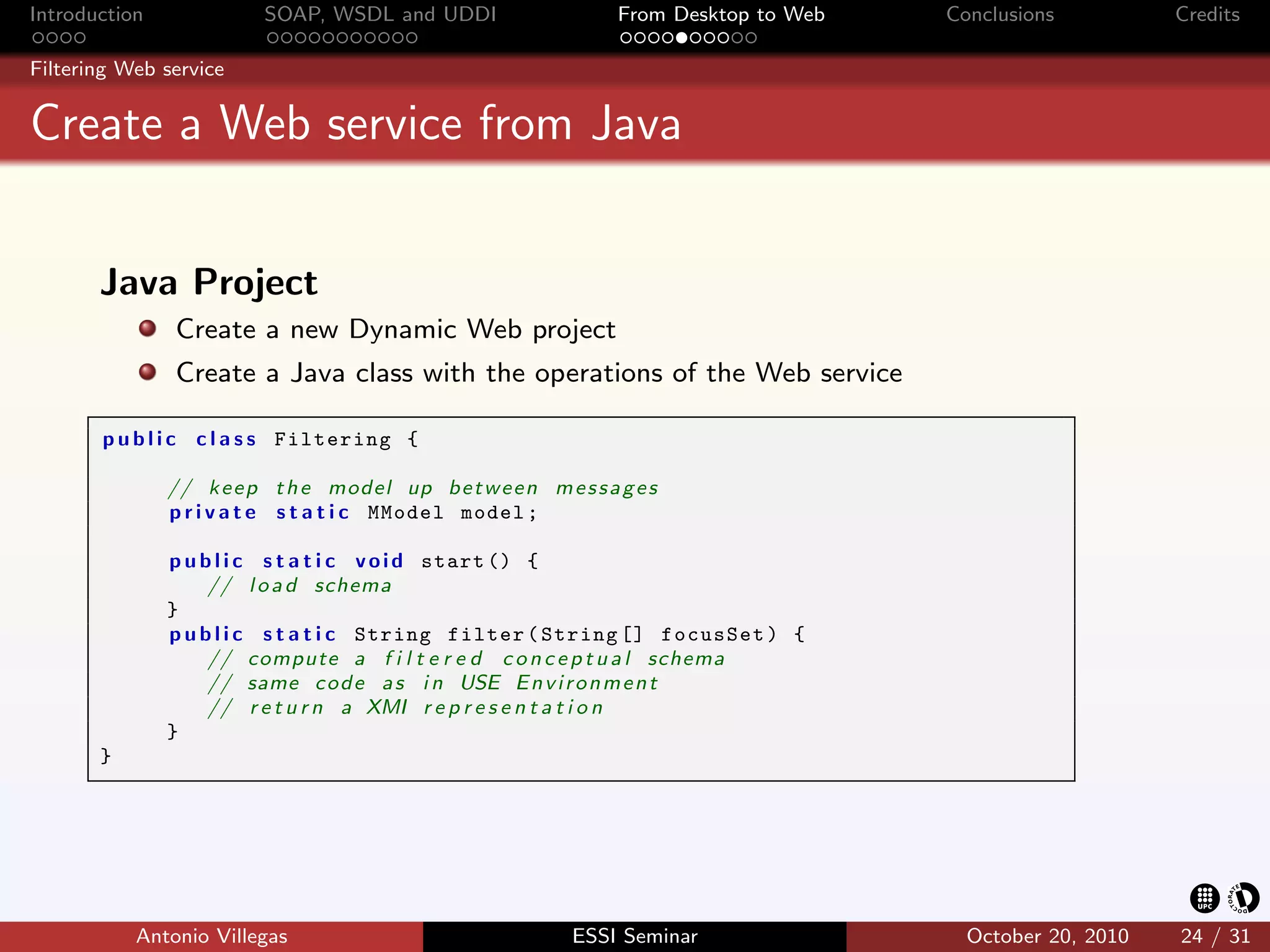

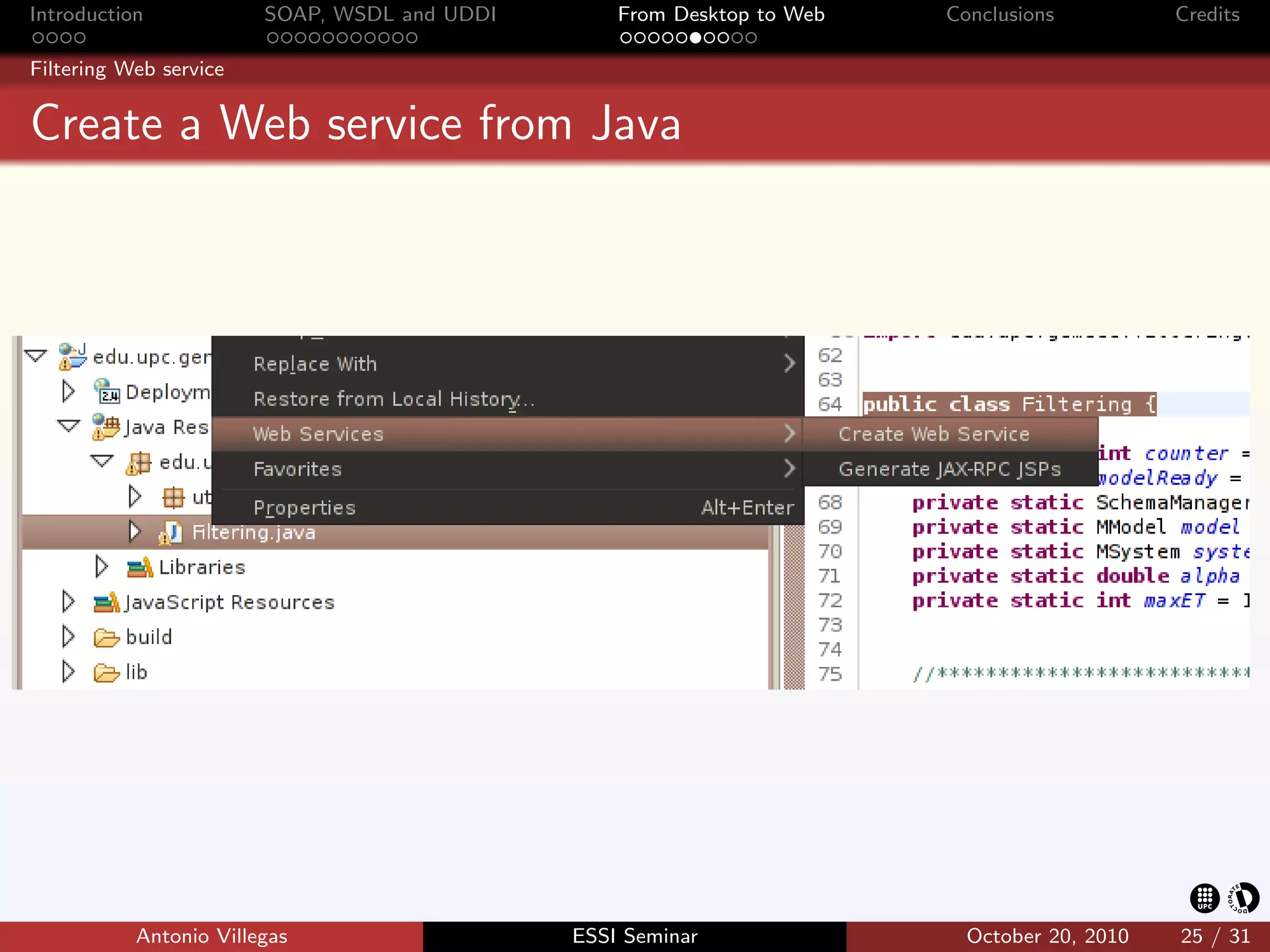

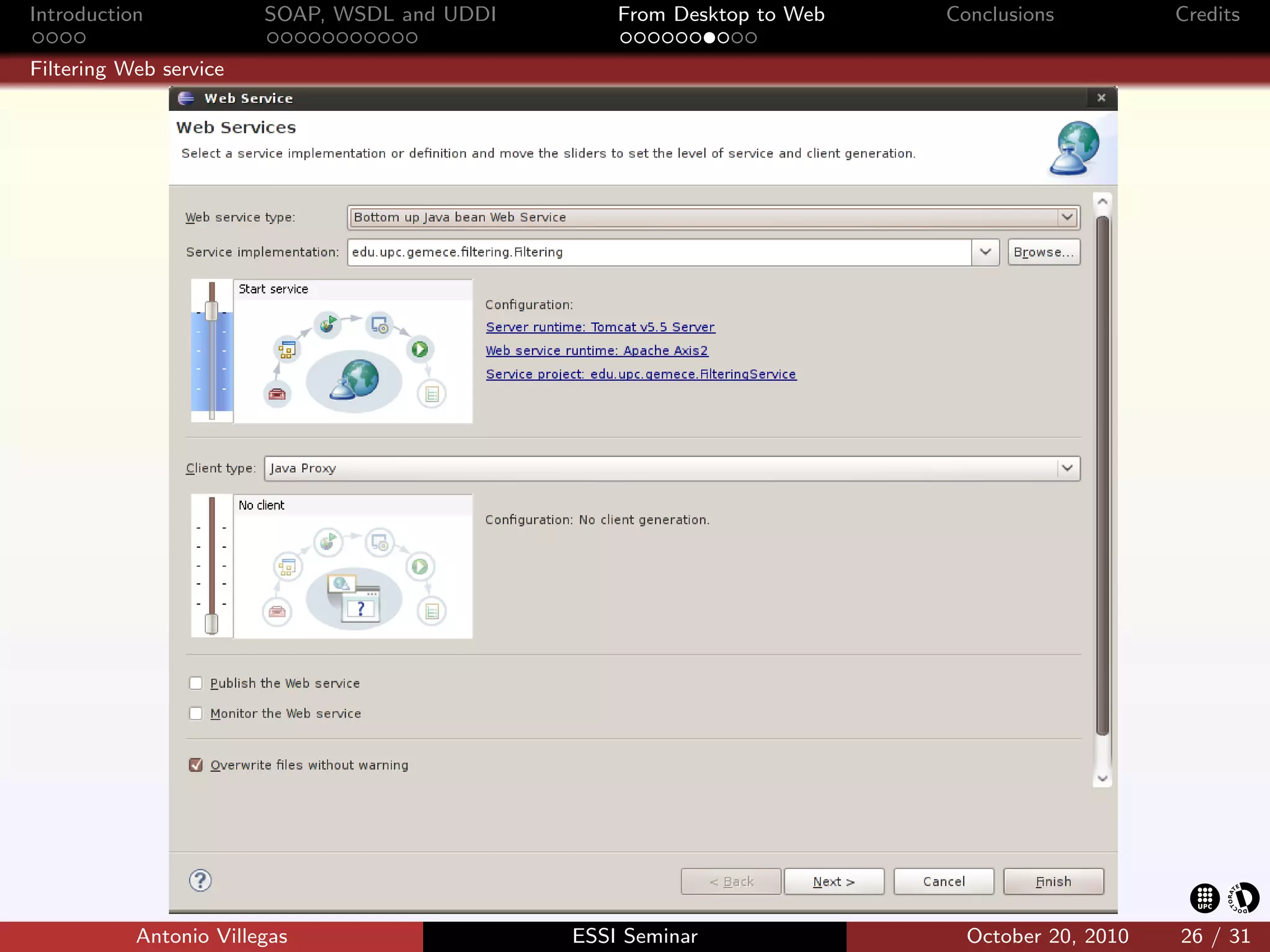

Introduction SOAP, WSDL and UDDI From Desktop to Web Conclusions Credits Filtering Web service Create a Web service from Java Java Project Create a new Dynamic Web project Create a Java class with the operations of the Web service p u b l i c c l a s s Filtering { // k e e p t h e model up b e t w e e n m e s s a g e s p r i v a t e s t a t i c MModel model ; p u b l i c s t a t i c v o i d start () { // l o a d schema } p u b l i c s t a t i c String filter ( String [] focusSet ) { // compute a f i l t e r e d c o n c e p t u a l schema // same c o d e a s i n USE E n v i r o n m e n t // r e t u r n a XMI r e p r e s e n t a t i o n } } Antonio Villegas ESSI Seminar October 20, 2010 24 / 31

46.
Introduction SOAP, WSDL and UDDI From Desktop to Web Conclusions Credits Filtering Web service Create a Web service from Java Antonio Villegas ESSI Seminar October 20, 2010 25 / 31

47.
Introduction SOAP, WSDL and UDDI From Desktop to Web Conclusions Credits Filtering Web service Antonio Villegas ESSI Seminar October 20, 2010 26 / 31

48.
Introduction SOAP, WSDL and UDDI From Desktop to Web Conclusions Credits Filtering Web service Antonio Villegas ESSI Seminar October 20, 2010 26 / 31

49.

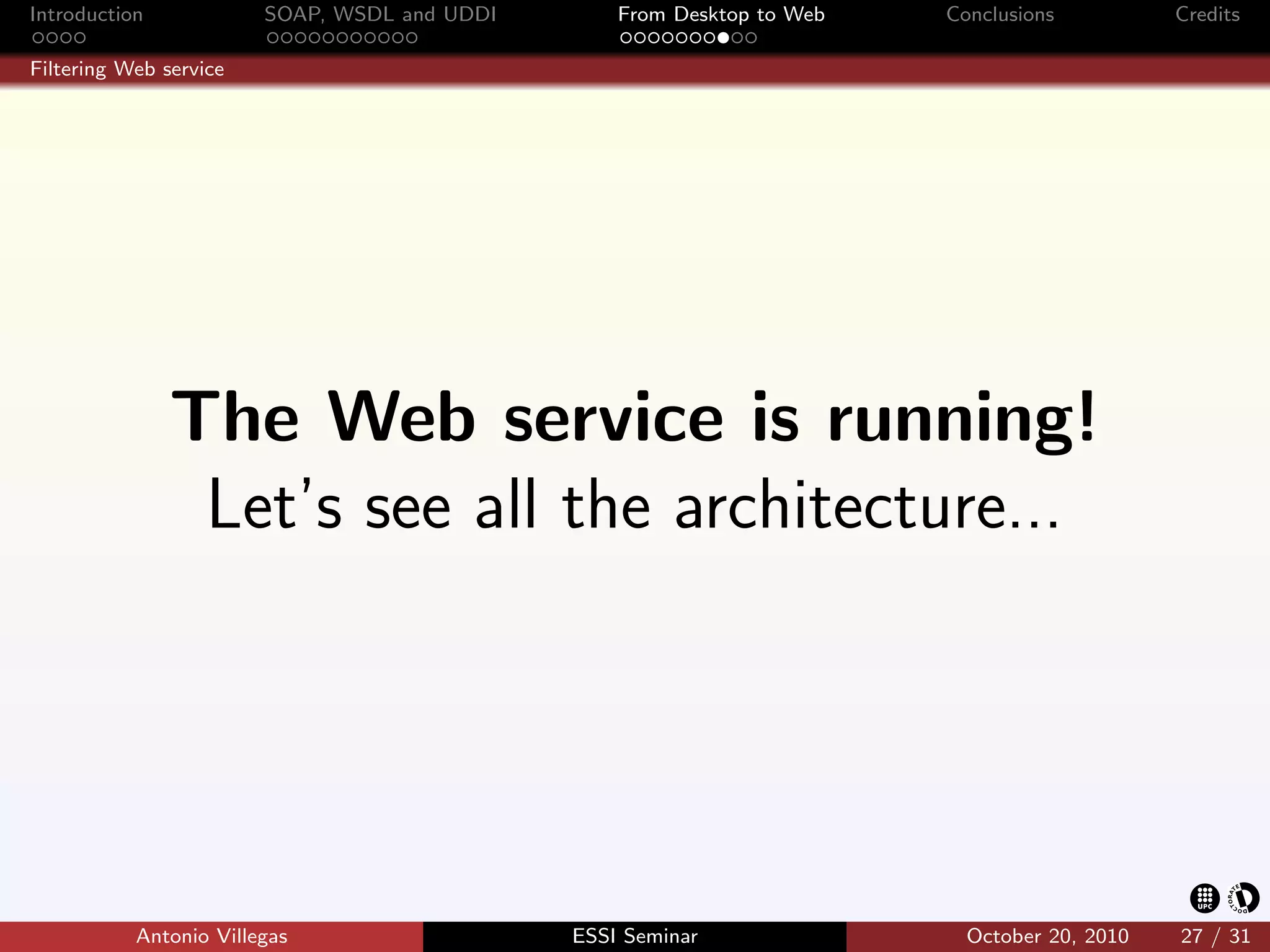

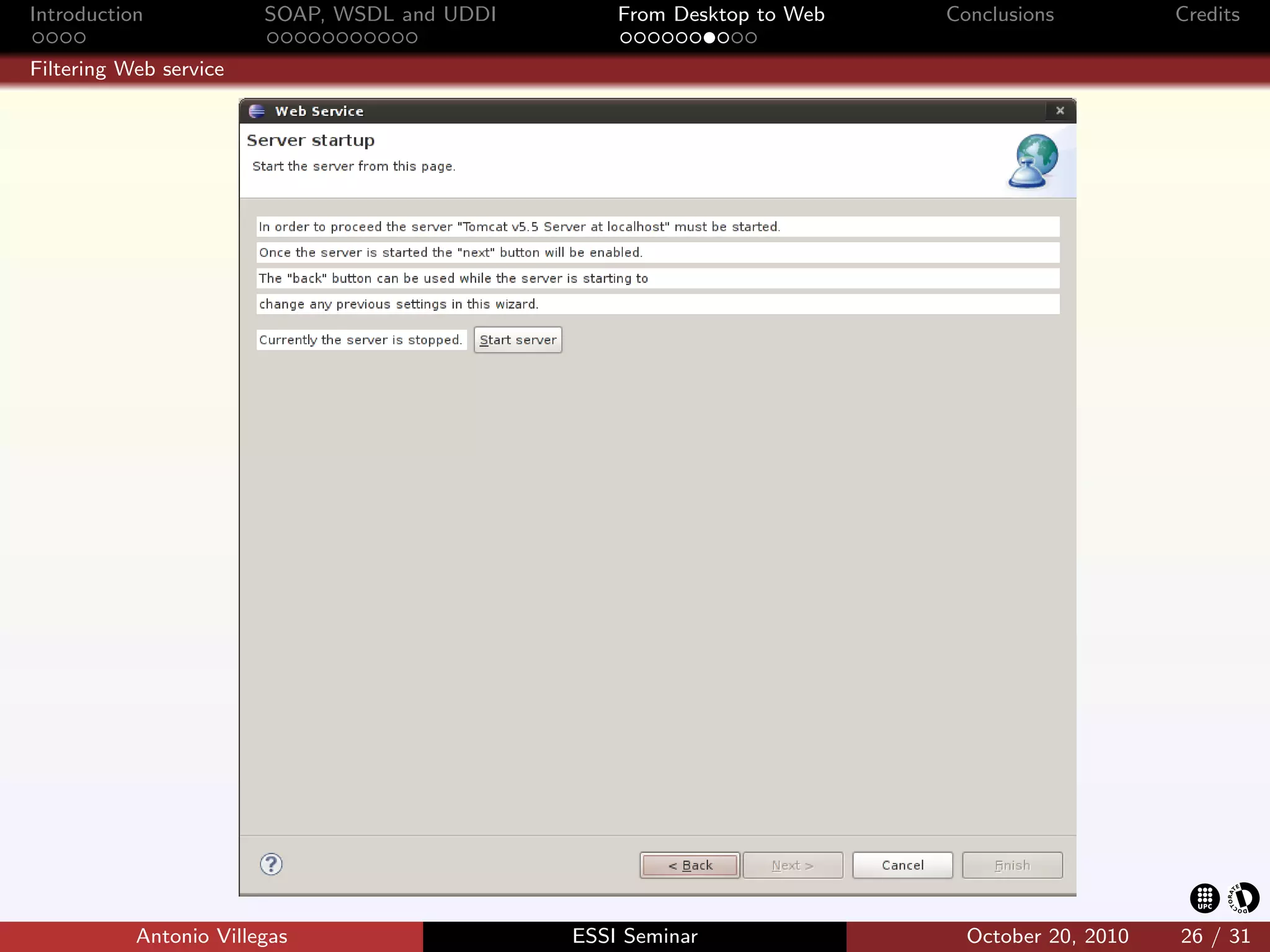

Introduction SOAP, WSDL and UDDI From Desktop to Web Conclusions Credits Filtering Web service The Web service is running! Let’s see all the architecture... Antonio Villegas ESSI Seminar October 20, 2010 27 / 31

50.

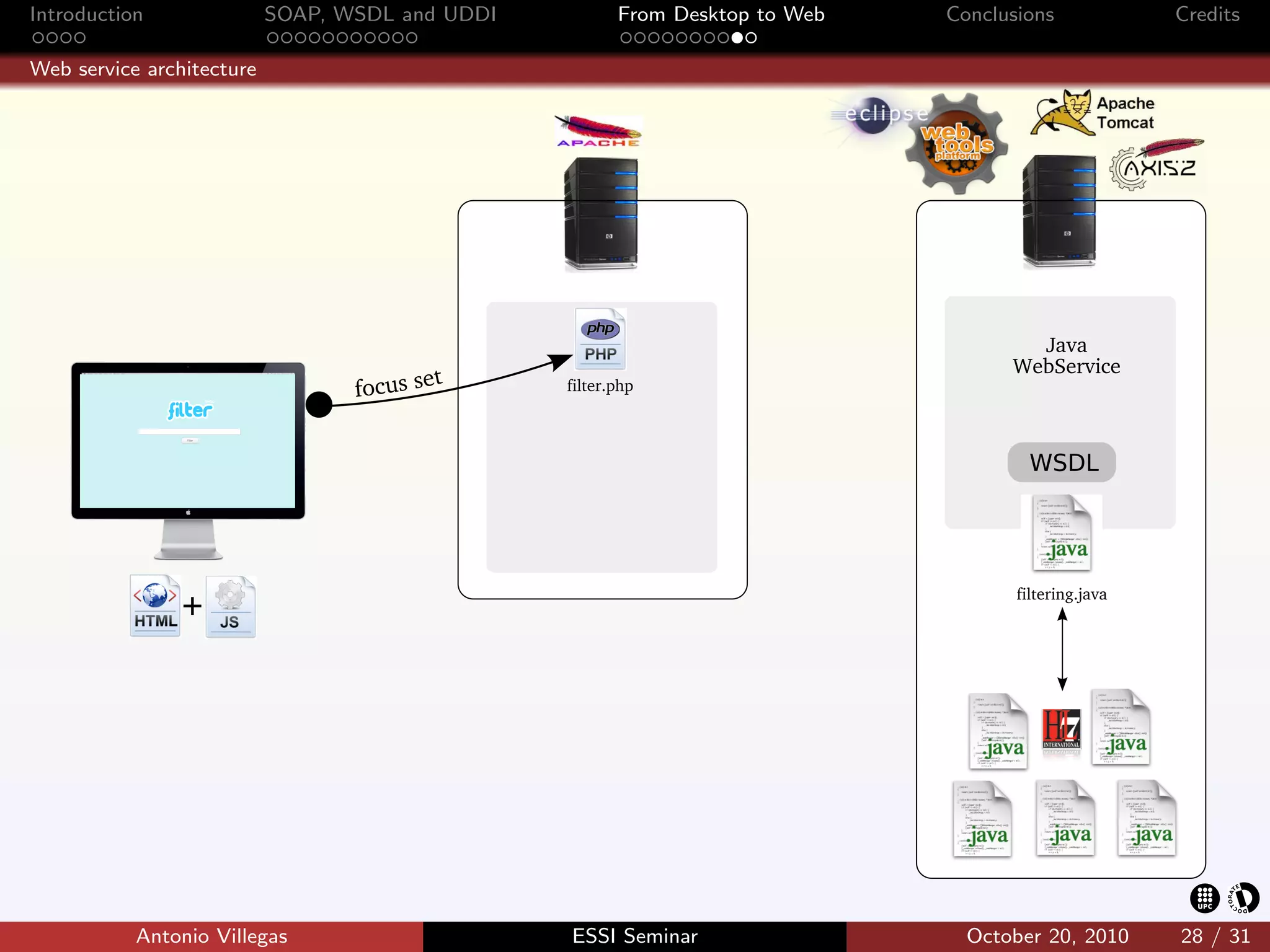

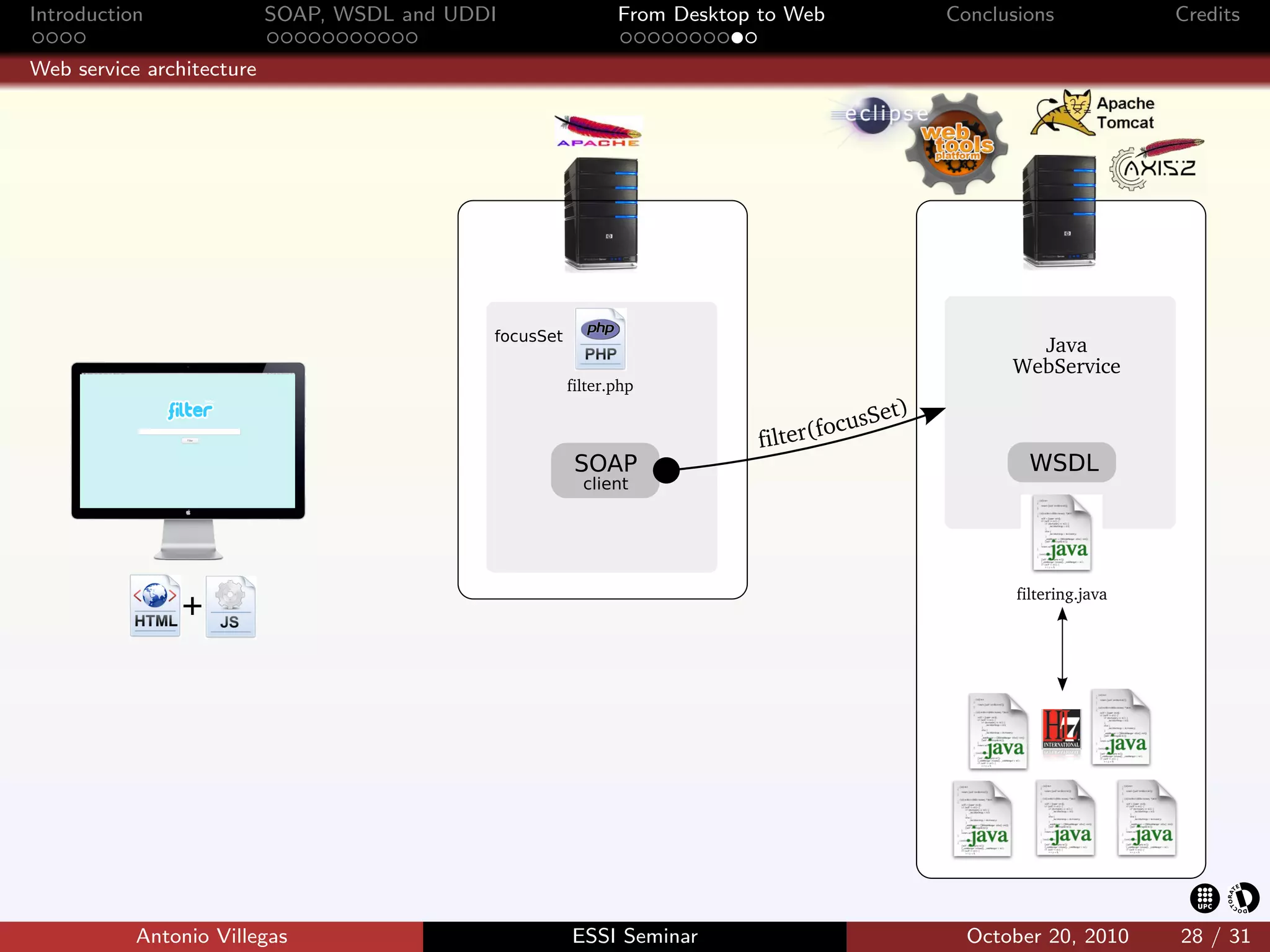

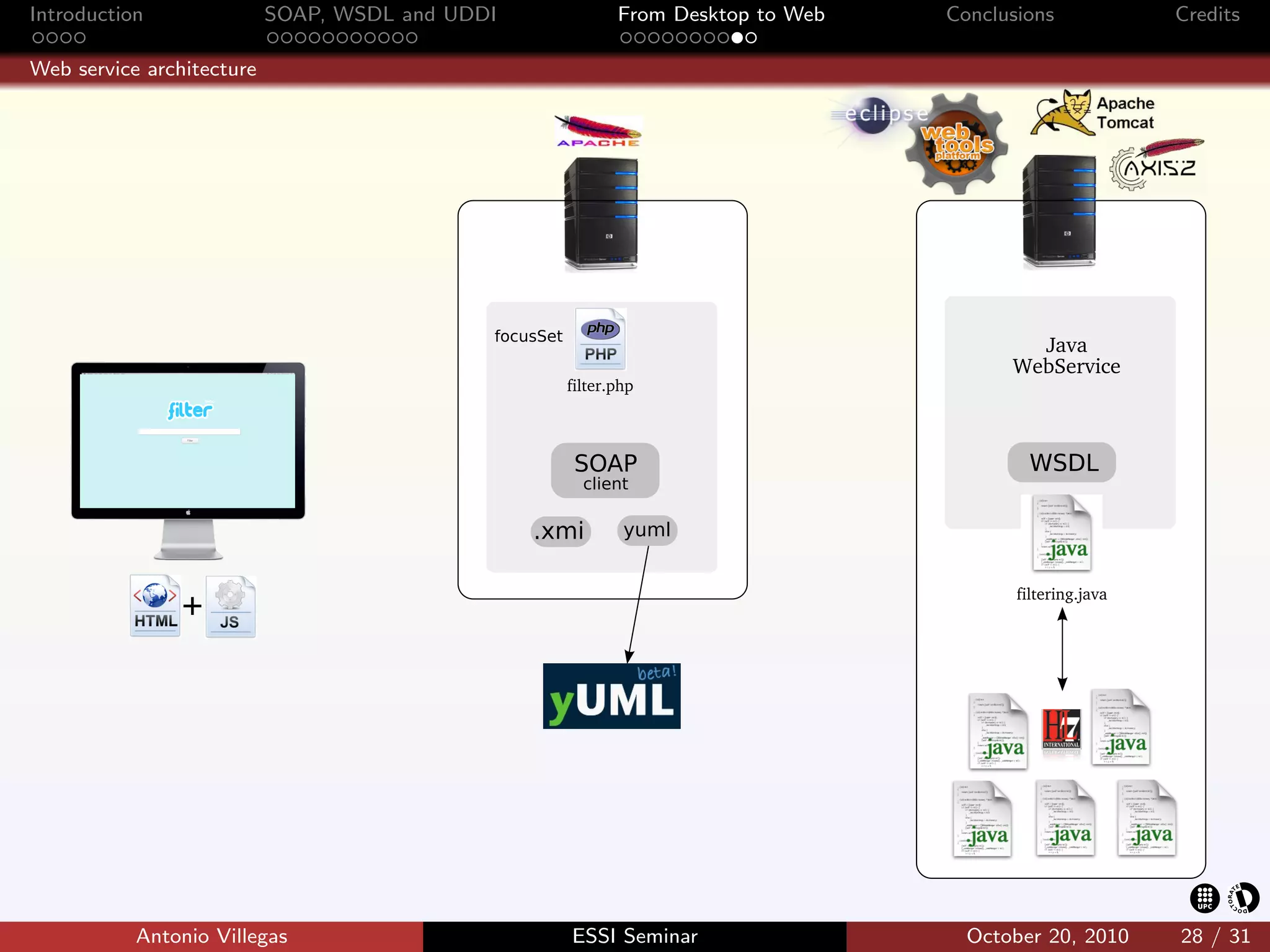

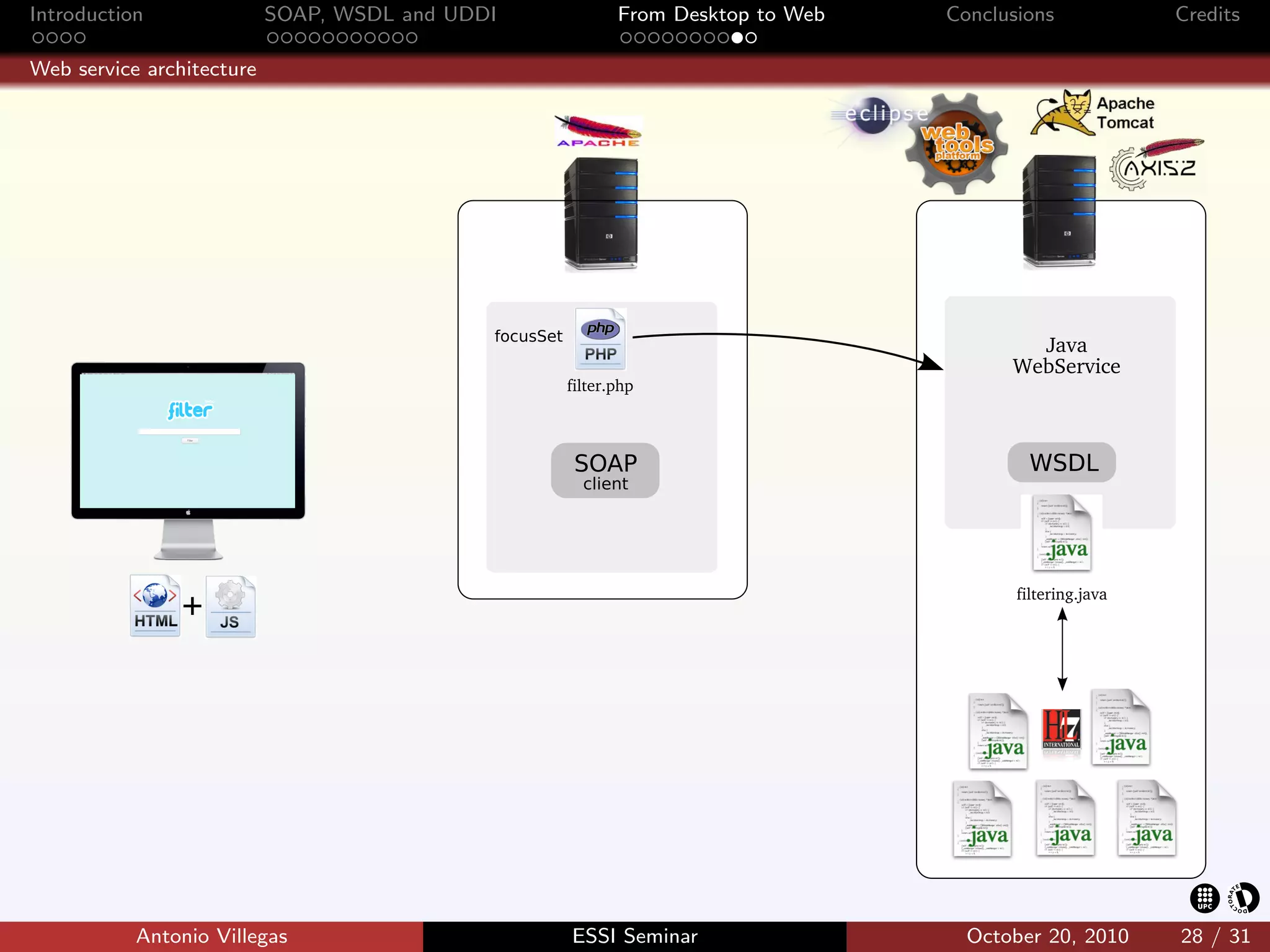

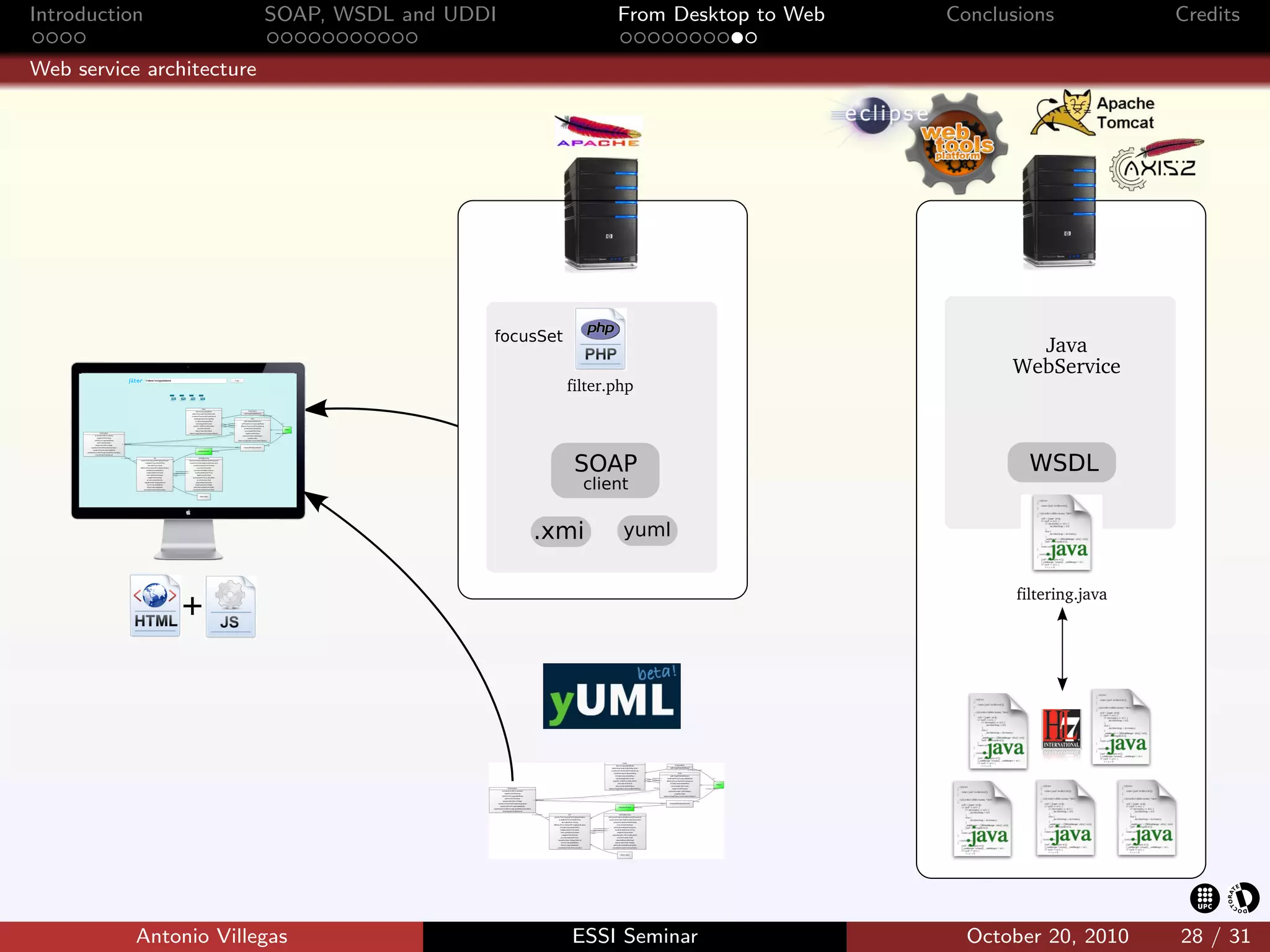

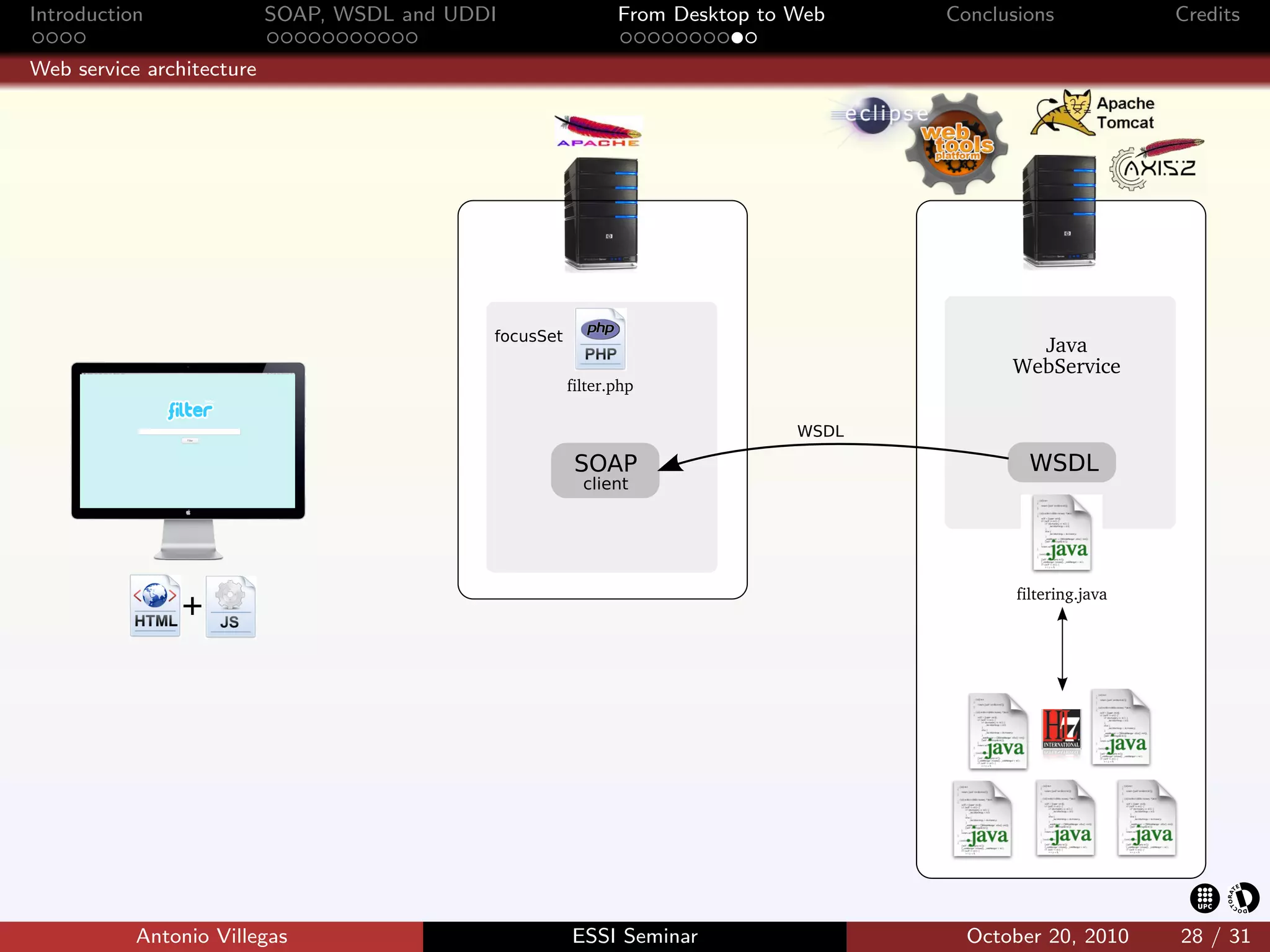

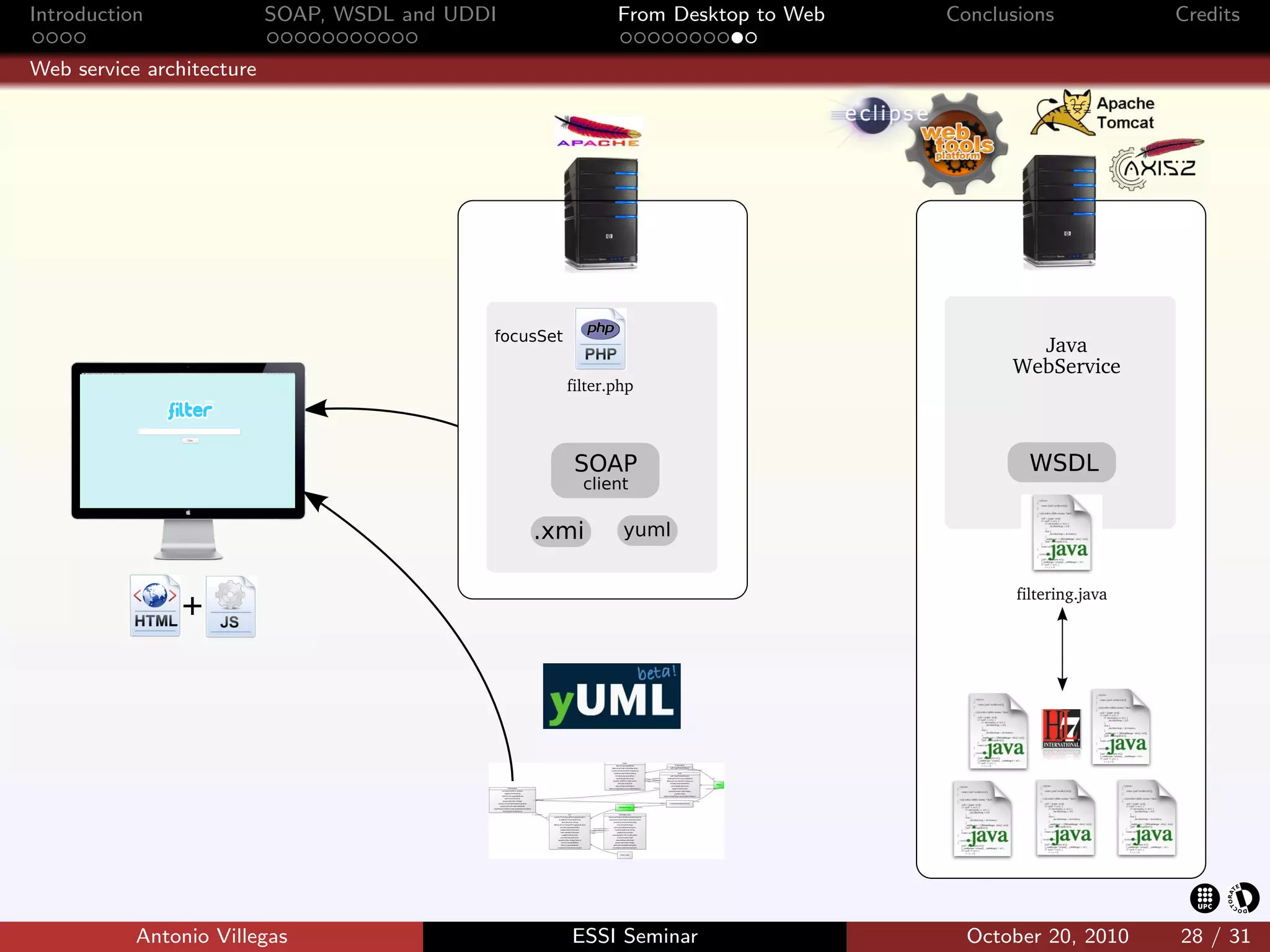

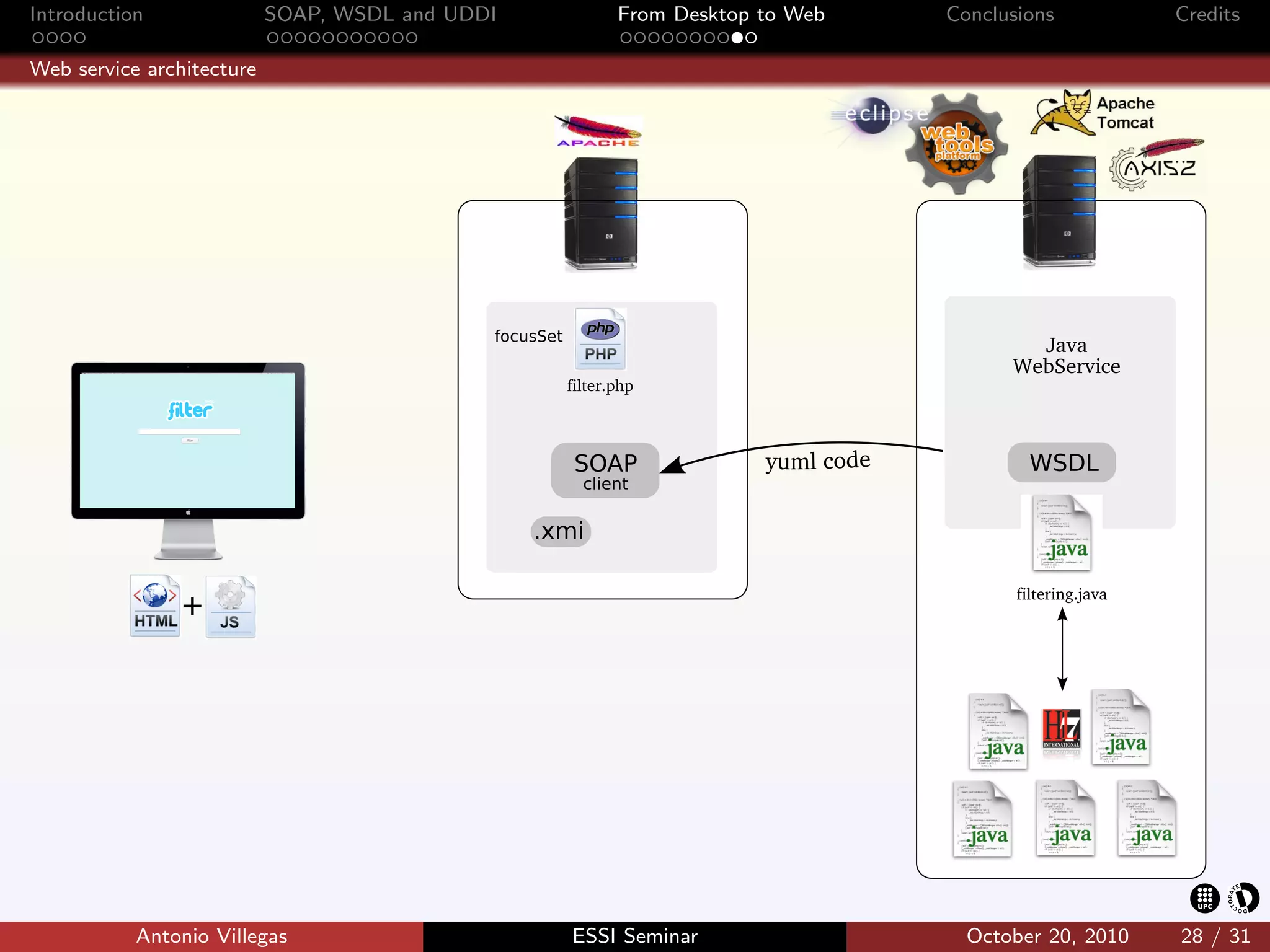

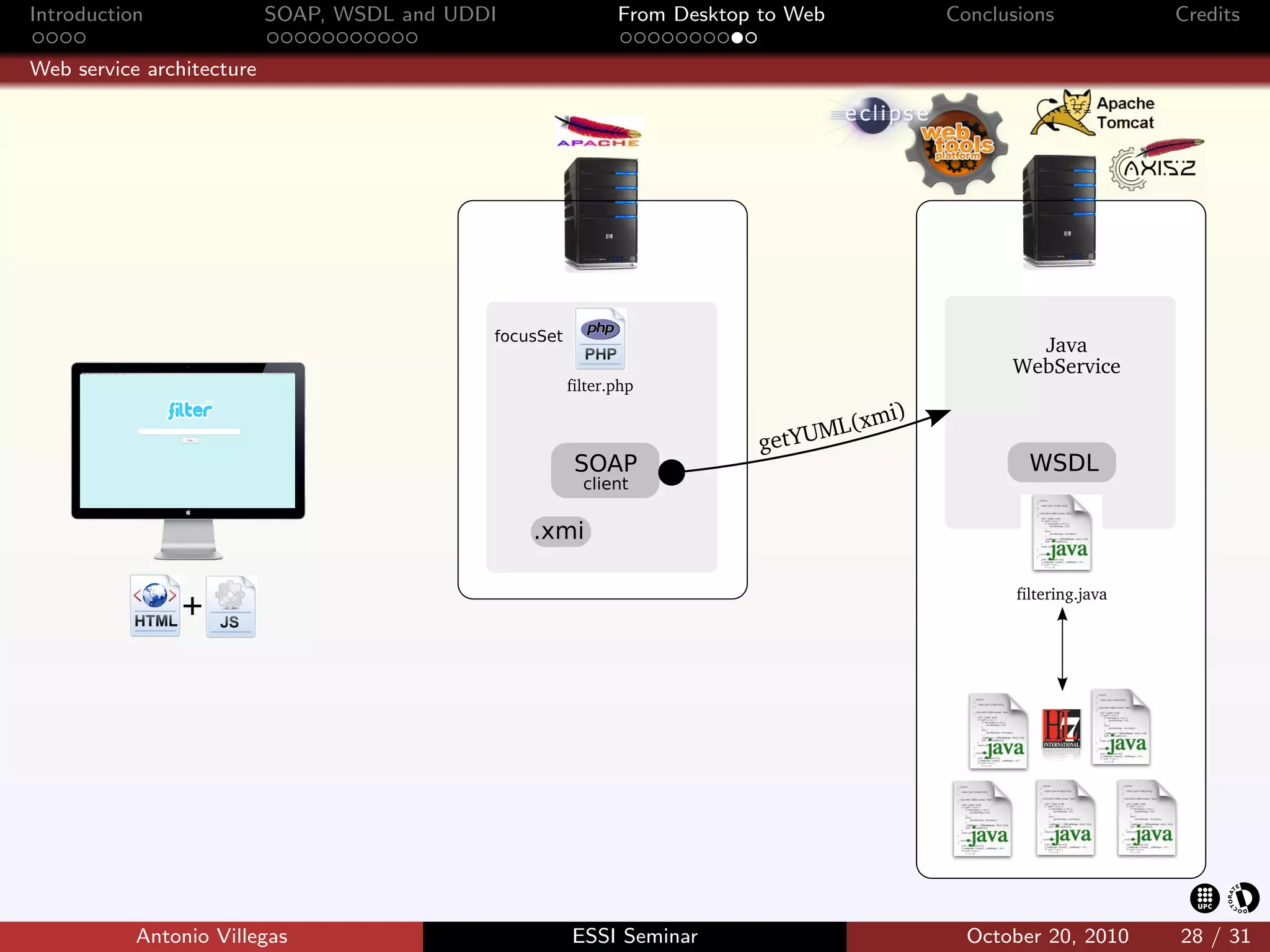

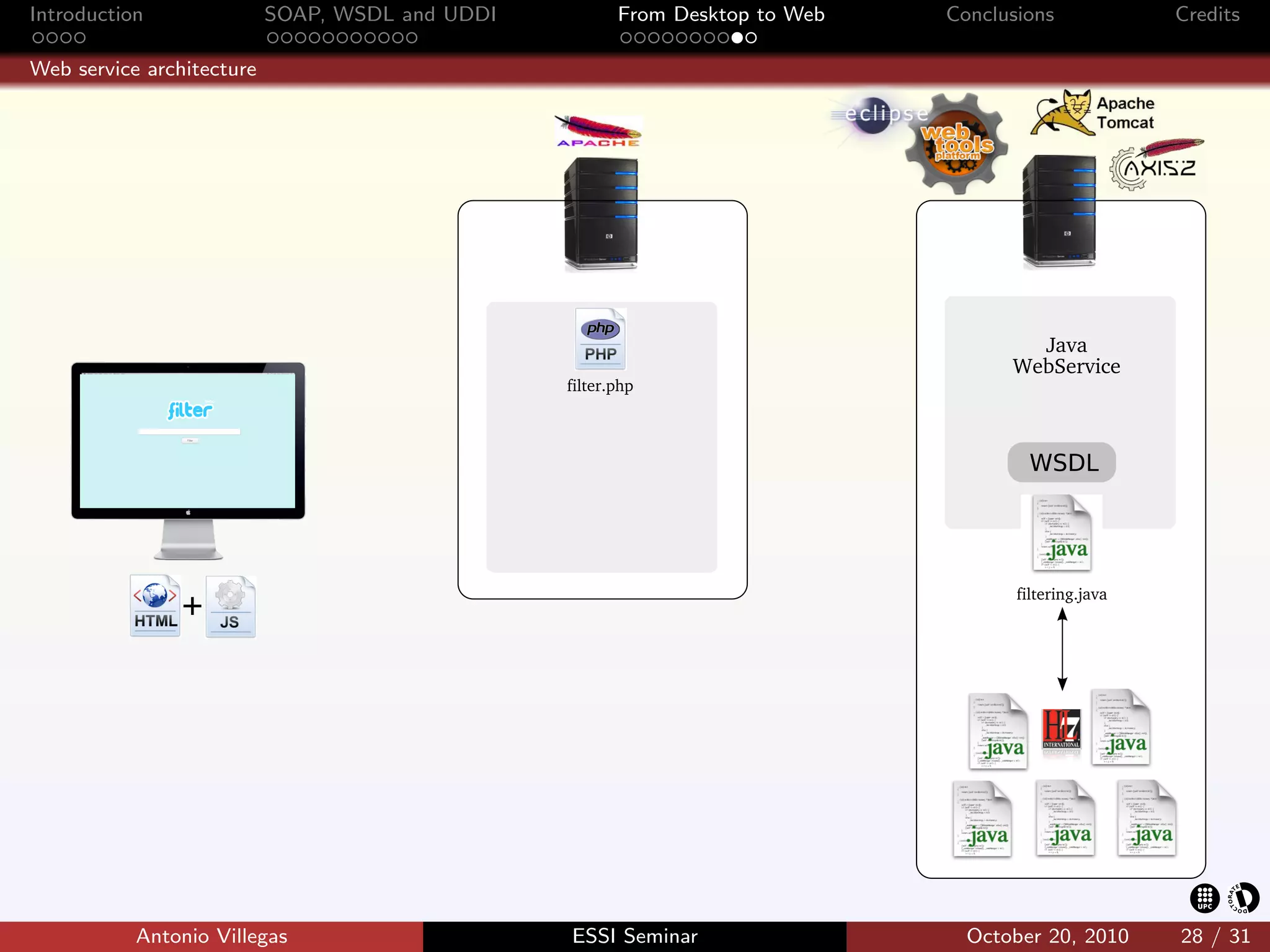

Introduction SOAP, WSDL and UDDI From Desktop to Web Conclusions Credits Web service architecture Antonio Villegas ESSI Seminar October 20, 2010 28 / 31

51.

52.

53.

54.

55.

56.

57.

58.

59.

60.

61.

62.
Introduction SOAP, WSDL and UDDI From Desktop to Web Conclusions Credits Web service architecture Demo Time Antonio Villegas ESSI Seminar October 20, 2010 29 / 31

63.

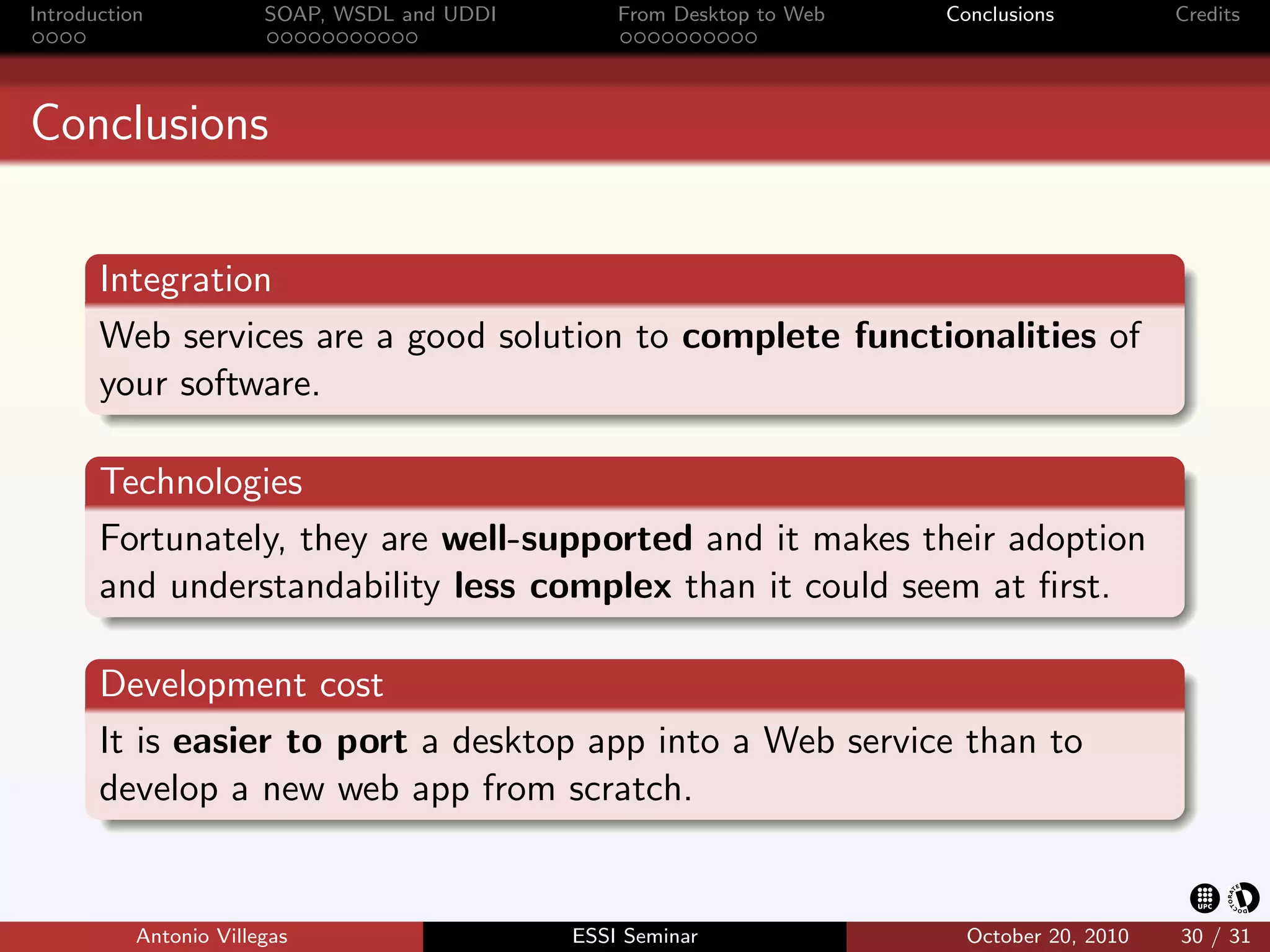

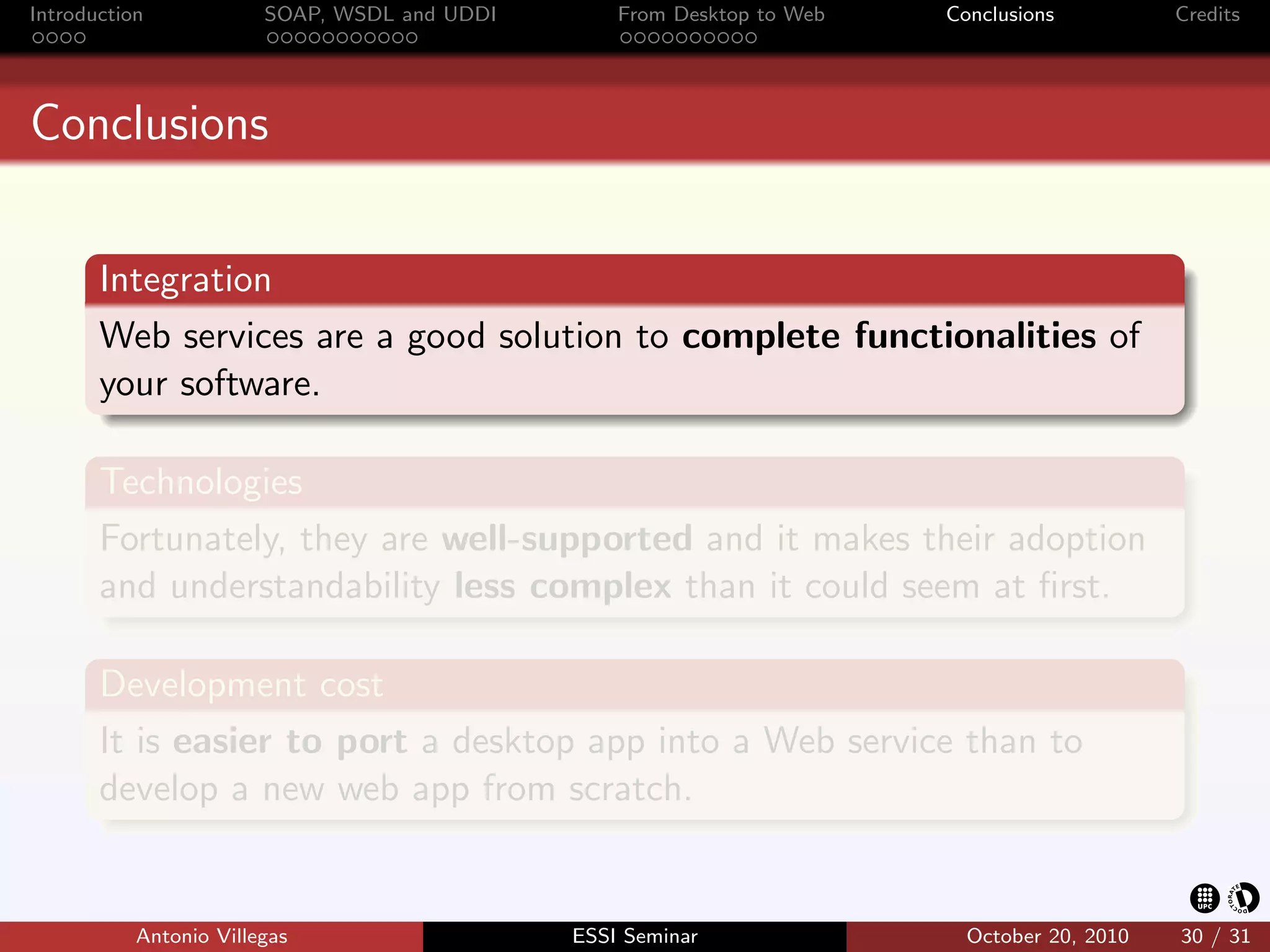

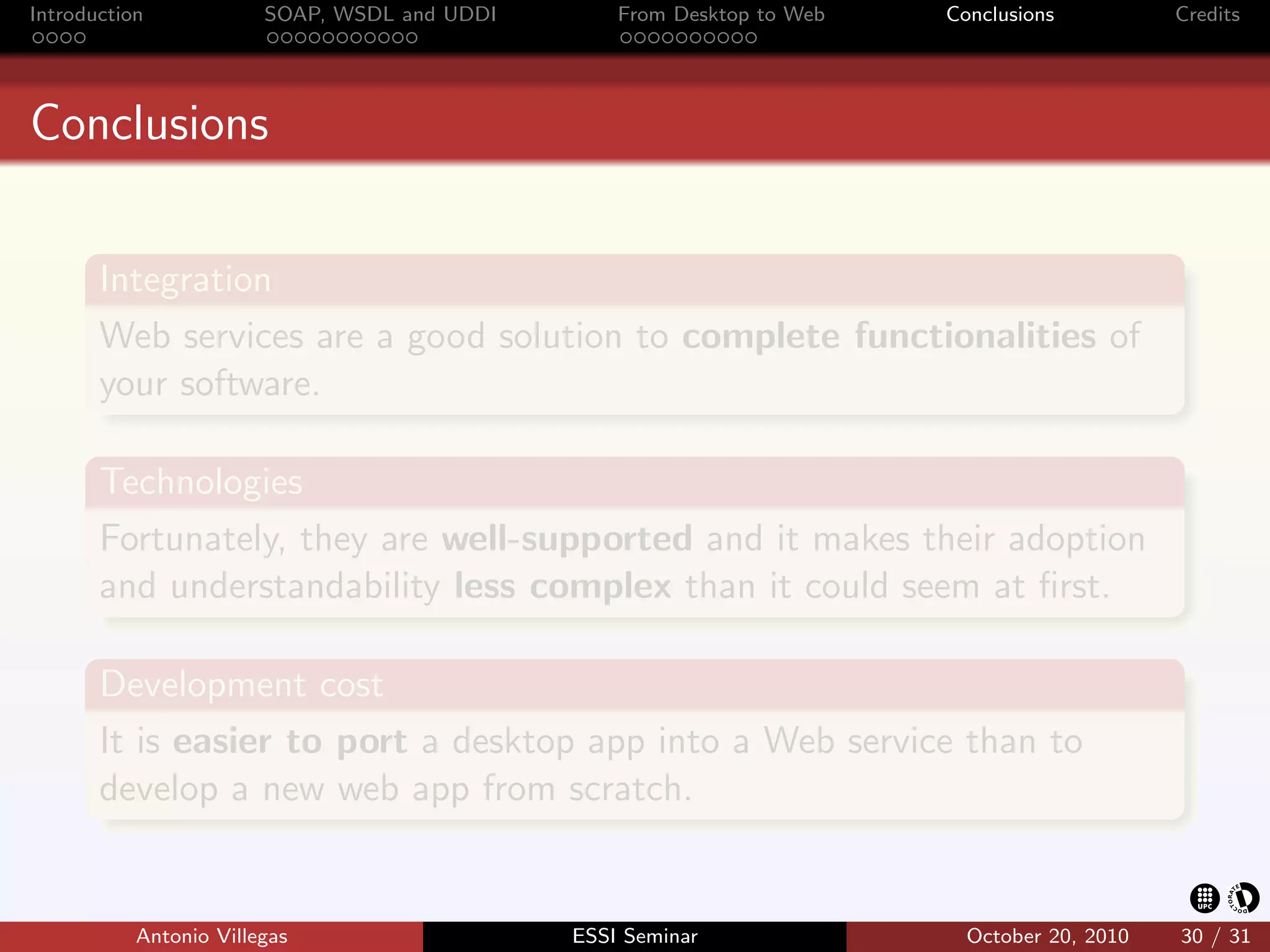

Introduction SOAP, WSDL and UDDI From Desktop to Web Conclusions Credits Conclusions Integration Web services are a good solution to complete functionalities of your software. Technologies Fortunately, they are well-supported and it makes their adoption and understandability less complex than it could seem at ﬁrst. Development cost It is easier to port a desktop app into a Web service than to develop a new web app from scratch. Antonio Villegas ESSI Seminar October 20, 2010 30 / 31

64.

65.

66.

67.

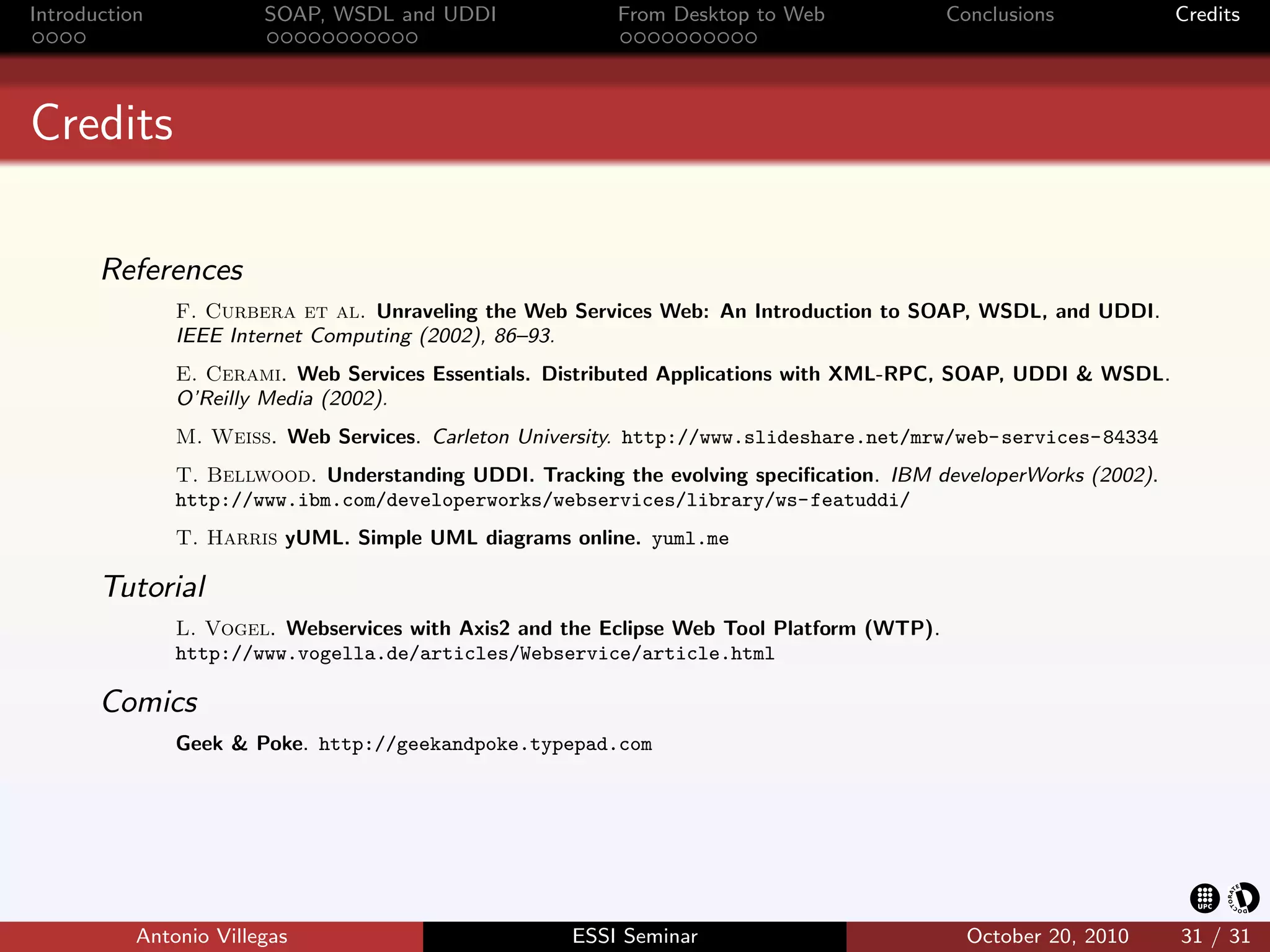

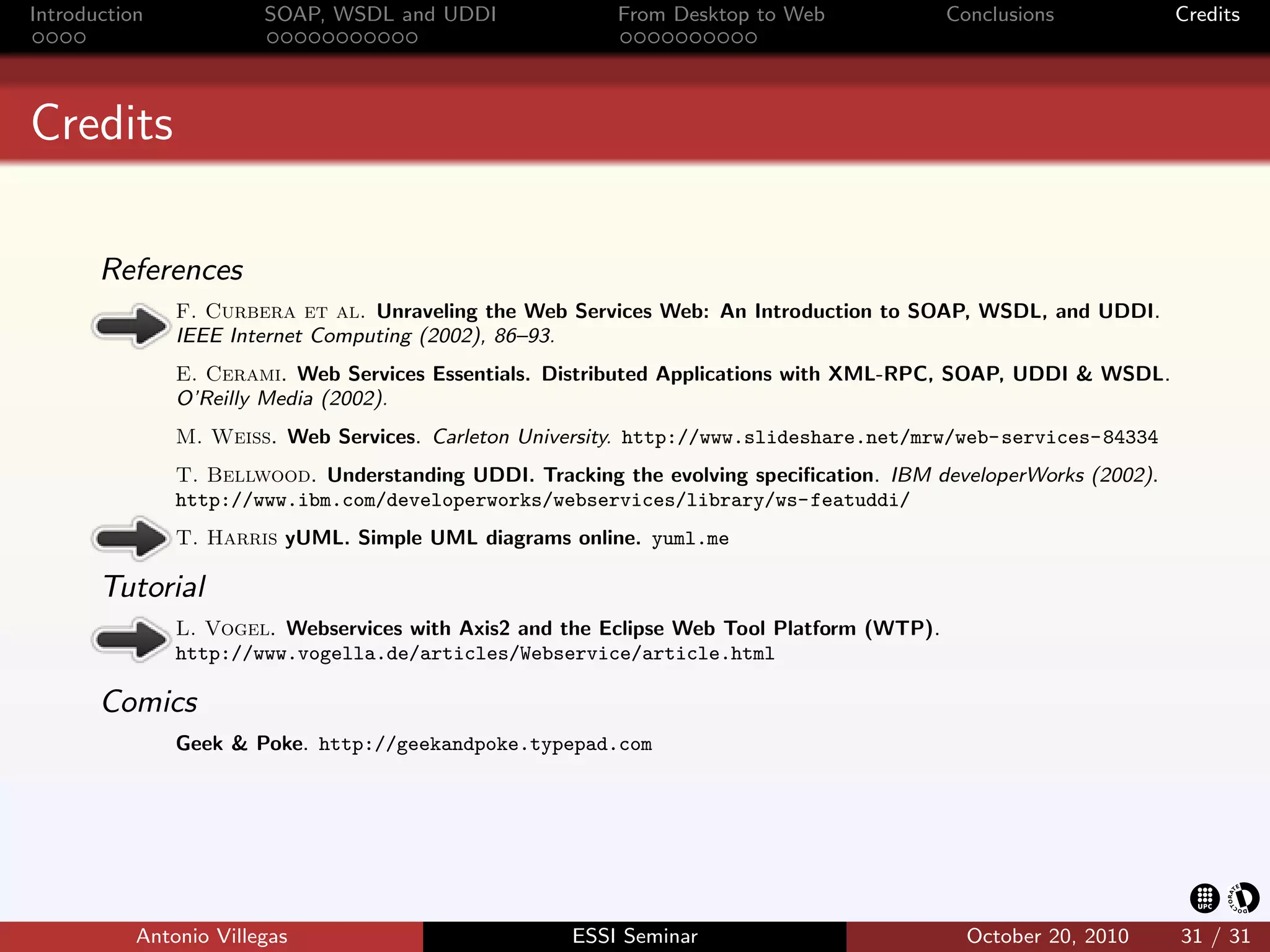

Introduction SOAP, WSDL and UDDI From Desktop to Web Conclusions Credits Credits References F. Curbera et al. Unraveling the Web Services Web: An Introduction to SOAP, WSDL, and UDDI. IEEE Internet Computing (2002), 86–93. E. Cerami. Web Services Essentials. Distributed Applications with XML-RPC, SOAP, UDDI & WSDL. O’Reilly Media (2002). M. Weiss. Web Services. Carleton University. http://www.slideshare.net/mrw/web-services-84334 T. Bellwood. Understanding UDDI. Tracking the evolving speciﬁcation. IBM developerWorks (2002). http://www.ibm.com/developerworks/webservices/library/ws-featuddi/ T. Harris yUML. Simple UML diagrams online. yuml.me Tutorial L. Vogel. Webservices with Axis2 and the Eclipse Web Tool Platform (WTP). http://www.vogella.de/articles/Webservice/article.html Comics Geek & Poke. http://geekandpoke.typepad.com Antonio Villegas ESSI Seminar October 20, 2010 31 / 31

68.
Introduction SOAP, WSDL and UDDI From Desktop to Web Conclusions Credits Credits References F. Curbera et al. Unraveling the Web Services Web: An Introduction to SOAP, WSDL, and UDDI. IEEE Internet Computing (2002), 86–93. E. Cerami. Web Services Essentials. Distributed Applications with XML-RPC, SOAP, UDDI & WSDL. O’Reilly Media (2002). M. Weiss. Web Services. Carleton University. http://www.slideshare.net/mrw/web-services-84334 T. Bellwood. Understanding UDDI. Tracking the evolving speciﬁcation. IBM developerWorks (2002). http://www.ibm.com/developerworks/webservices/library/ws-featuddi/ T. Harris yUML. Simple UML diagrams online. yuml.me Tutorial L. Vogel. Webservices with Axis2 and the Eclipse Web Tool Platform (WTP). http://www.vogella.de/articles/Webservice/article.html Comics Geek & Poke. http://geekandpoke.typepad.com Antonio Villegas ESSI Seminar October 20, 2010 31 / 31
