The document discusses ASP.NET web development. It covers ASP.NET's process model which uses its own managed thread pool to asynchronously handle requests. It also discusses ASP.NET's support for various programming languages and file extensions used. Finally, it describes ASP.NET's coding models including the use of code behind files to separate code and content and how runtime compilation works.

1. Copyright © 2005 newtelligence® AG. All rights reserved
Daniel Fisher
Software Engineer, newtelligence® AG
danielf@newtelligence.com
Web Development
IIS & ASP.NET Webservices

2. © 2005 newtelligence Aktiengesellschaft. All rights reserved

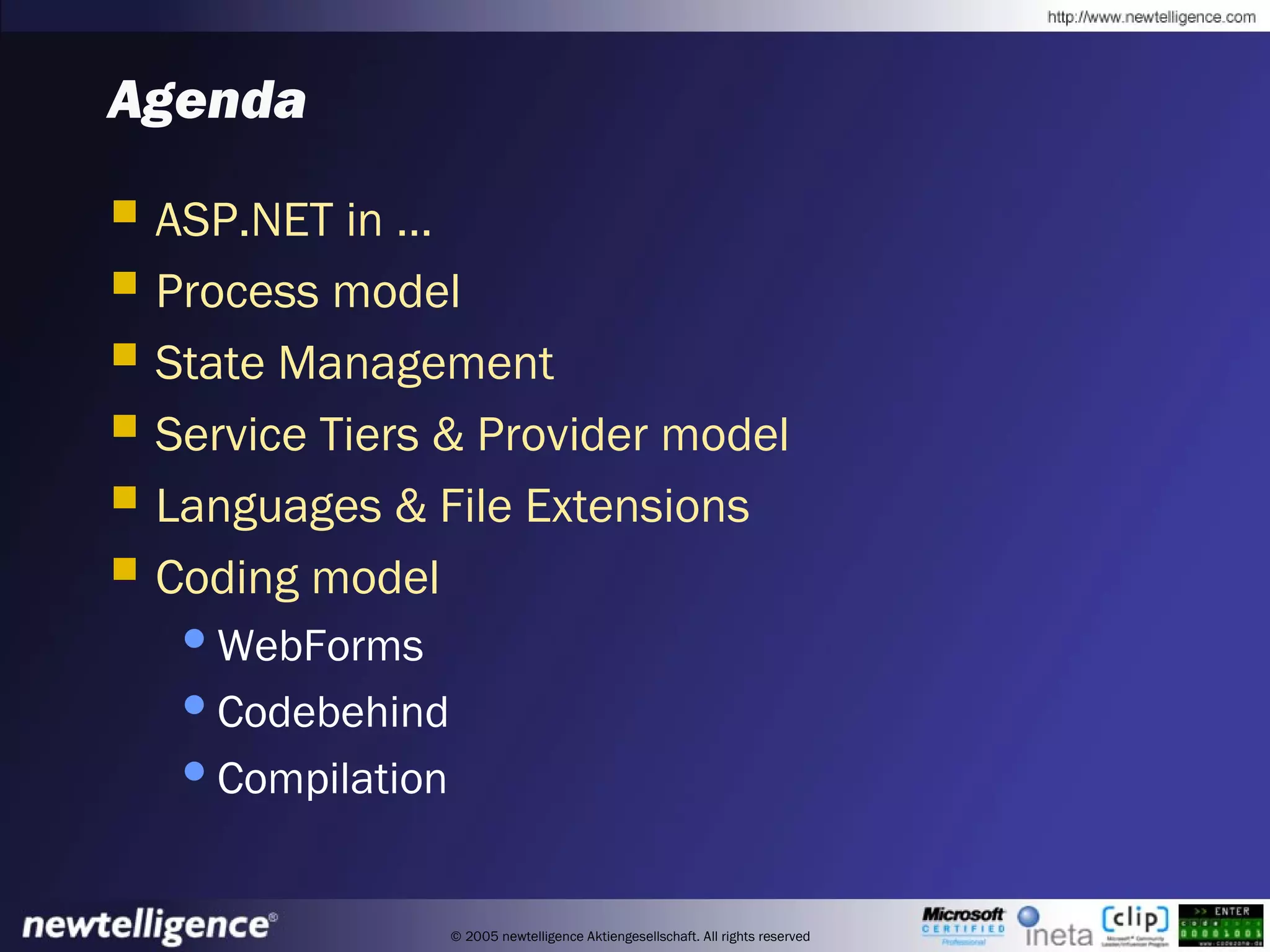

Agenda
 ASP.NET in …
 Process model
 State Management
 Service Tiers & Provider model
 Languages & File Extensions
 Coding model
•WebForms
•Codebehind
•Compilation

3. © 2005 newtelligence Aktiengesellschaft. All rights reserved

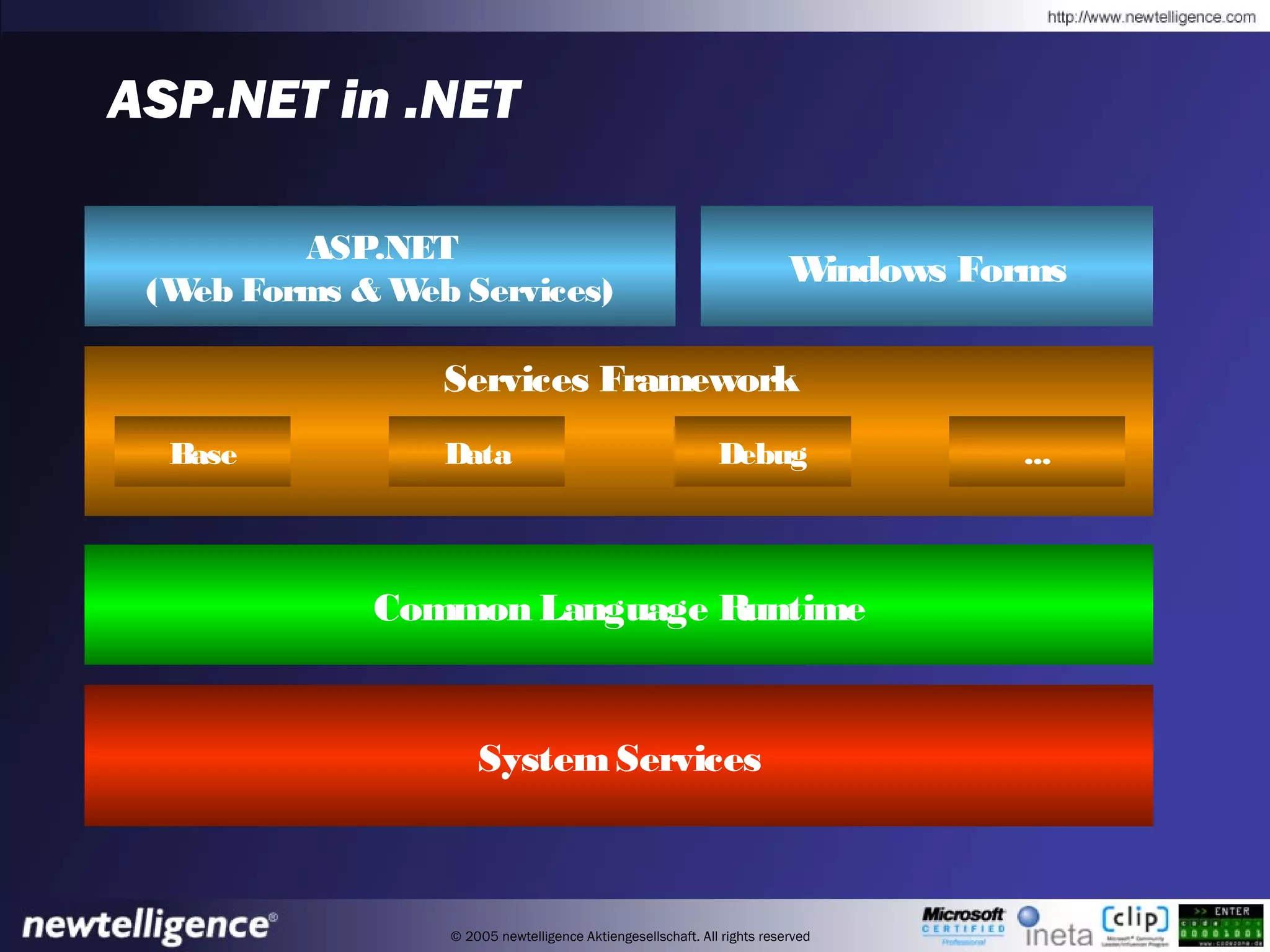

ASP.NET in .NET
SystemServices
Common Language Runtime
Services Framework
ASP.NET
(Web Forms & Web Services)
Windows Forms
Base Data Debug ...

4. © 2005 newtelligence Aktiengesellschaft. All rights reserved

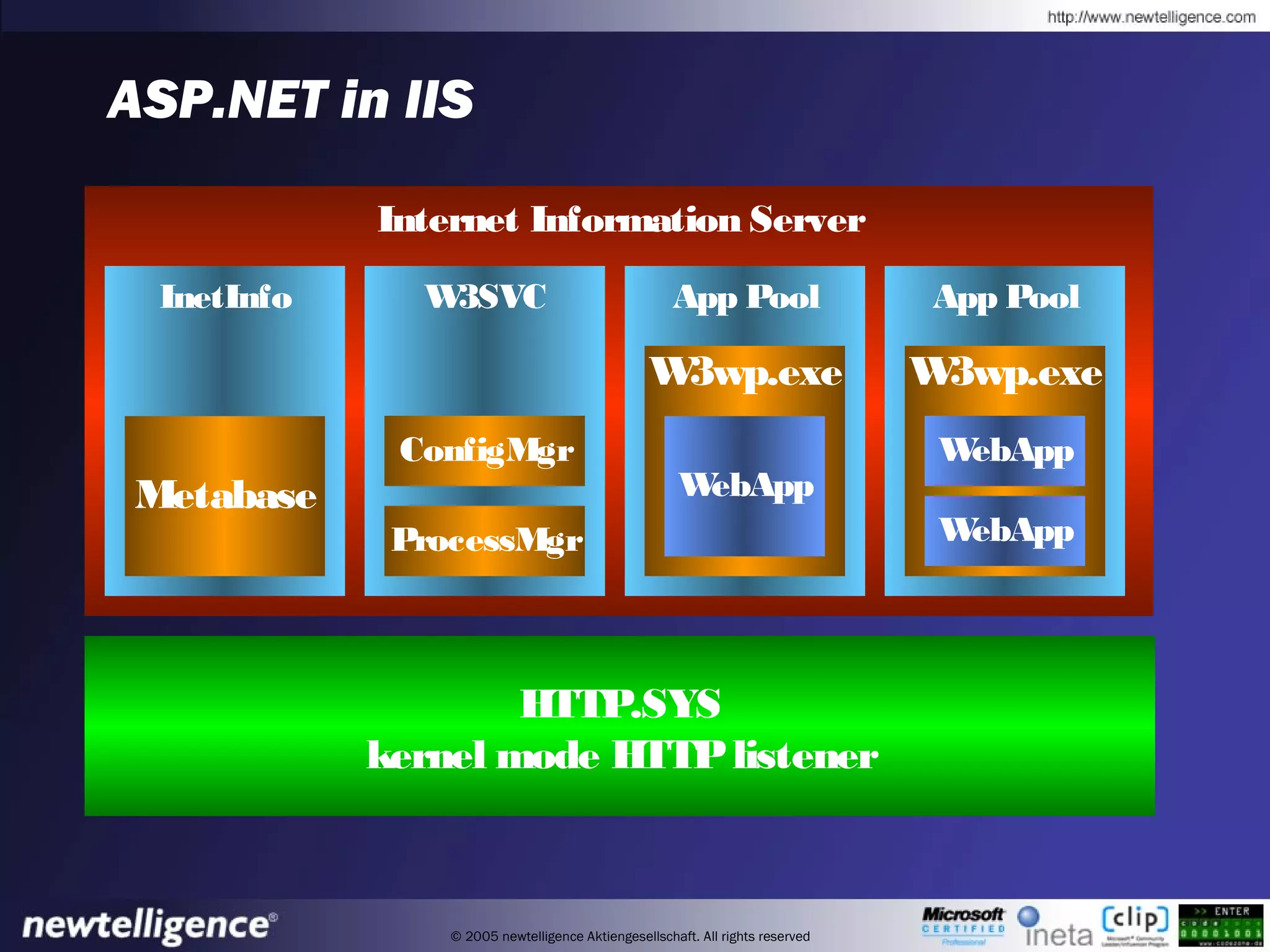

ASP.NET in IIS
Internet Information Server
InetInfo
HTTP.SYS
kernel mode HTTPlistener
W3SVC App Pool App Pool
Metabase
ConfigMgr
ProcessMgr
W3wp.exe
WebApp
W3wp.exe
WebApp
WebApp

5. © 2005 newtelligence Aktiengesellschaft. All rights reserved

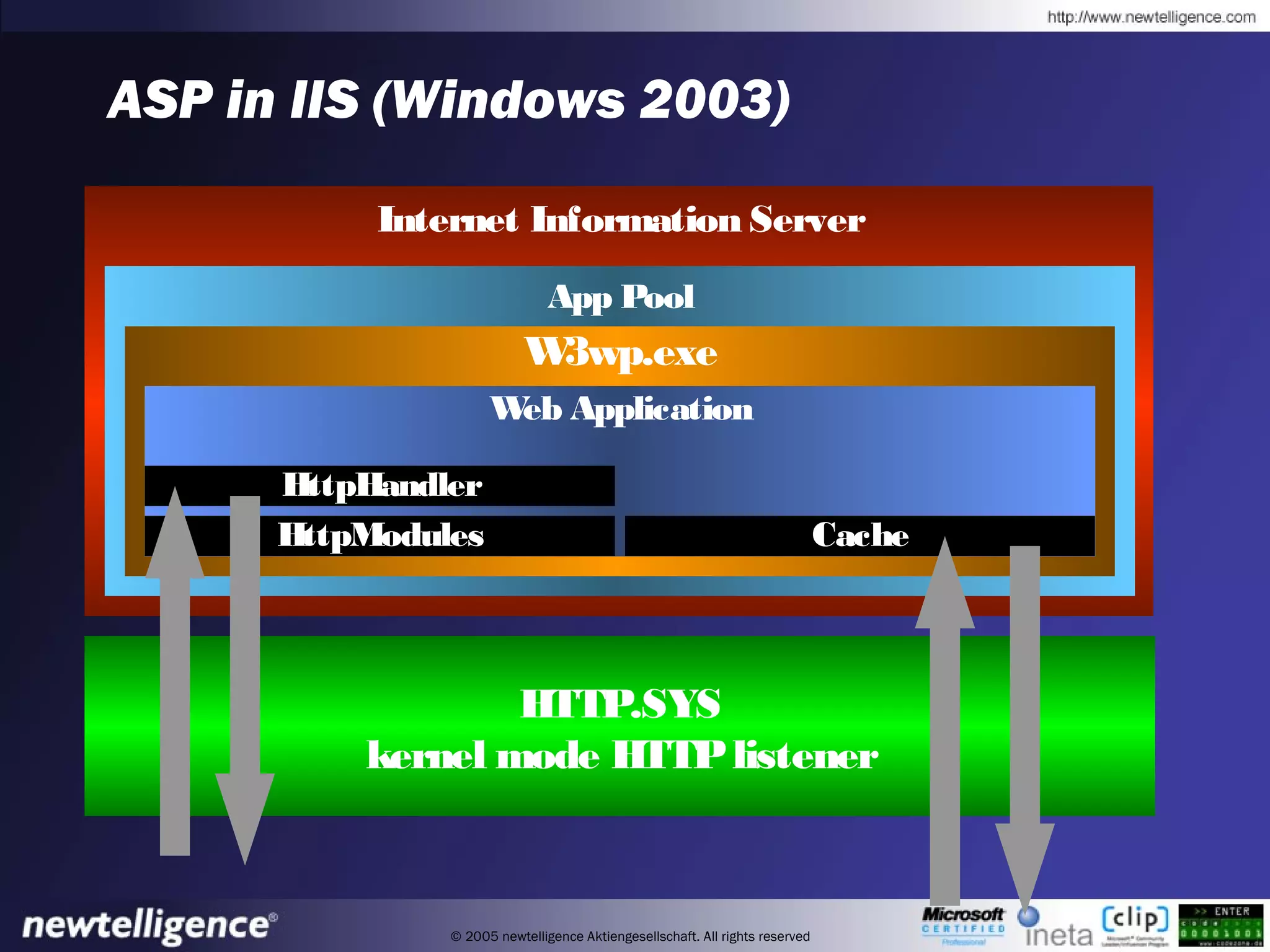

ASP in IIS (Windows 2003)
Internet Information Server
HTTP.SYS
kernel mode HTTPlistener
App Pool
W3wp.exe
Web Application
CacheHttpModules
HttpHandler

6. © 2005 newtelligence Aktiengesellschaft. All rights reserved

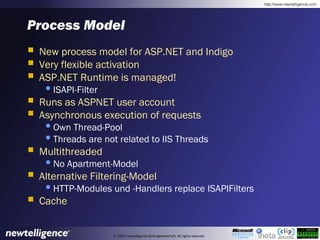

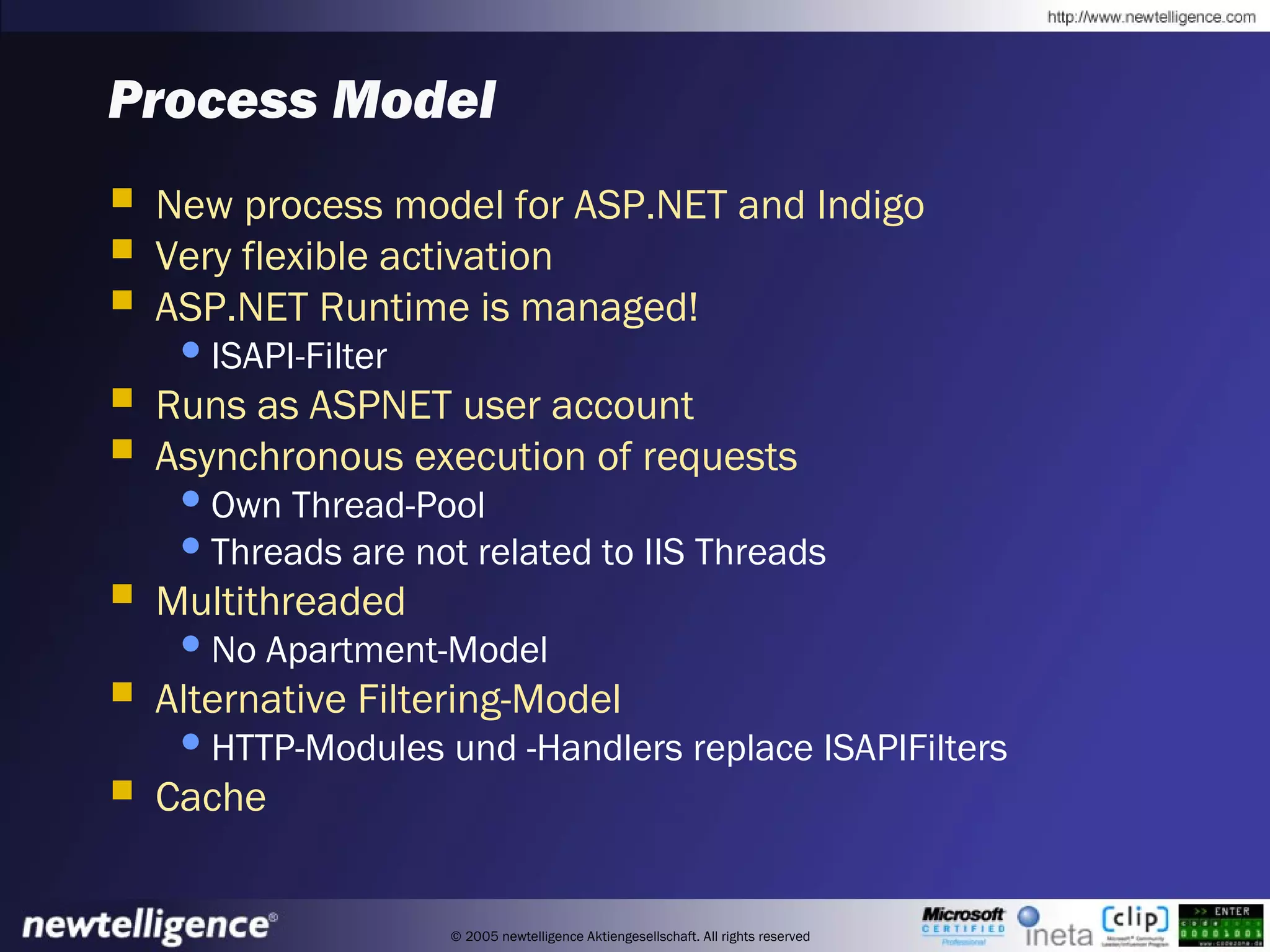

Process Model
 New process model for ASP.NET and Indigo
 Very flexible activation
 ASP.NET Runtime is managed!
•ISAPI-Filter
 Runs as ASPNET user account
 Asynchronous execution of requests
•Own Thread-Pool
•Threads are not related to IIS Threads
 Multithreaded
•No Apartment-Model
 Alternative Filtering-Model
•HTTP-Modules und -Handlers replace ISAPIFilters
 Cache

7. © 2005 newtelligence Aktiengesellschaft. All rights reserved

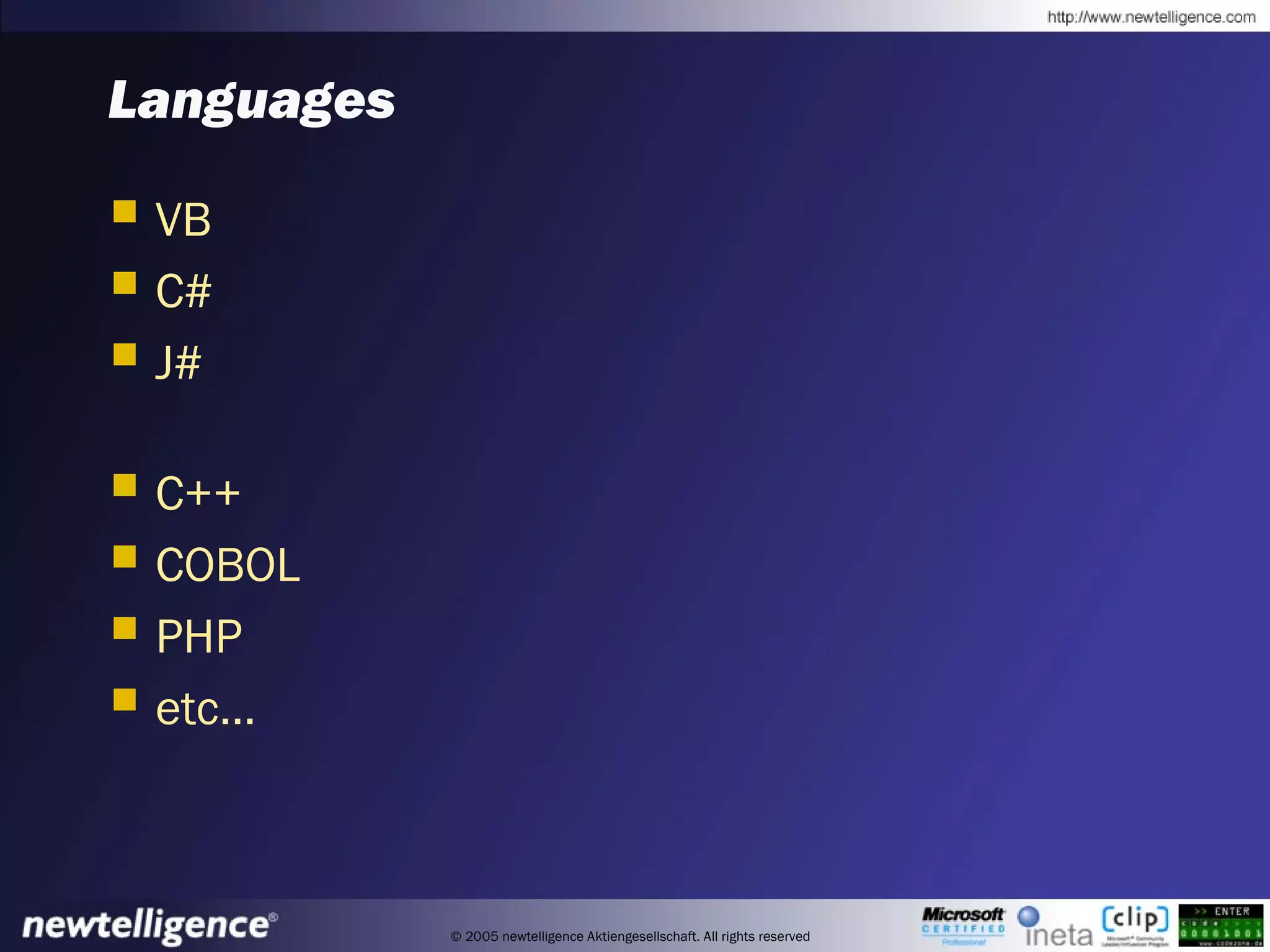

Languages
 VB
 C#
 J#
 C++
 COBOL
 PHP
 etc…

8. © 2005 newtelligence Aktiengesellschaft. All rights reserved

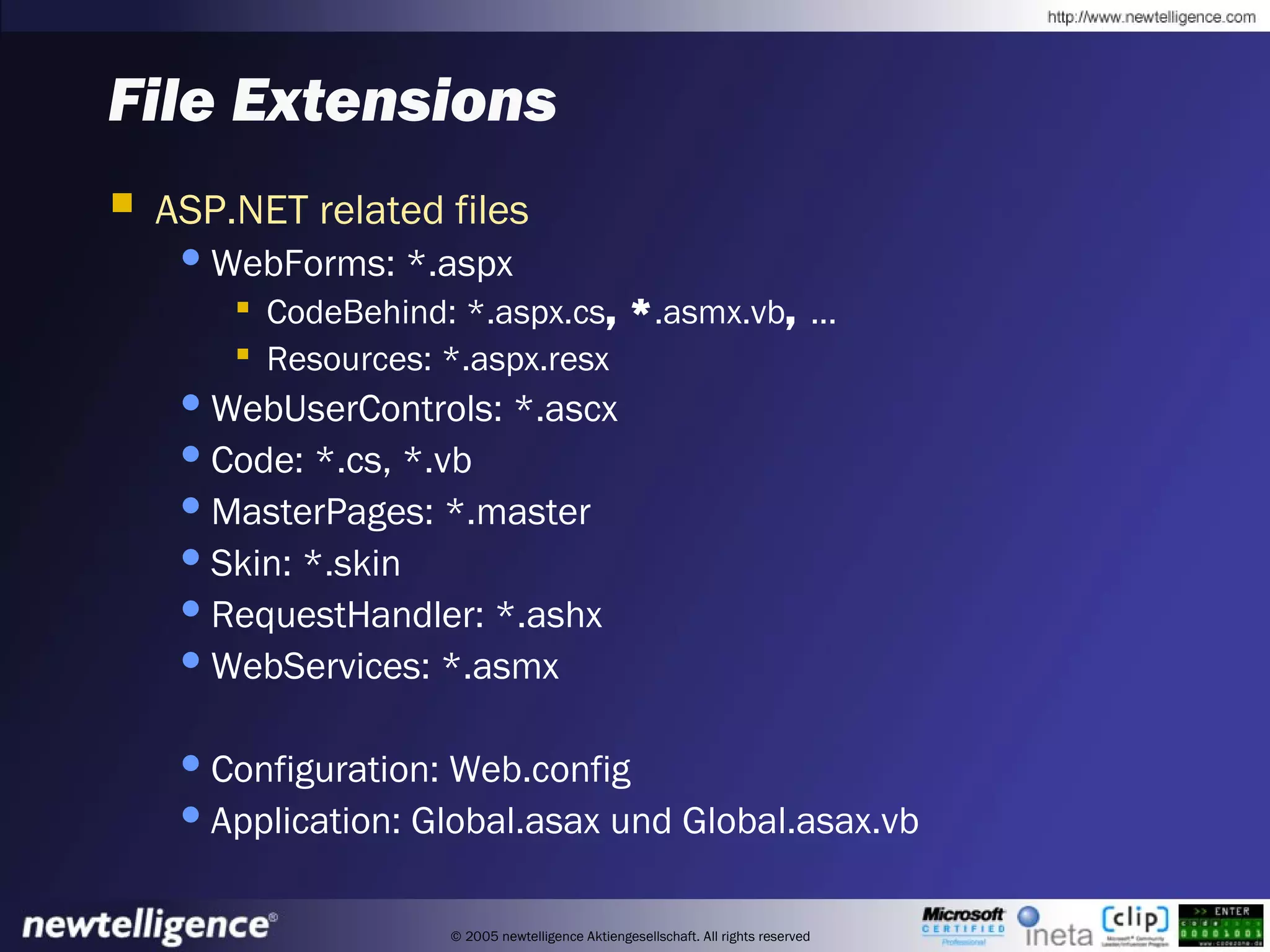

File Extensions
 ASP.NET related files
•WebForms: *.aspx
 CodeBehind: *.aspx.cs, *.asmx.vb, ...
 Resources: *.aspx.resx
•WebUserControls: *.ascx
•Code: *.cs, *.vb
•MasterPages: *.master
•Skin: *.skin
•RequestHandler: *.ashx
•WebServices: *.asmx
•Configuration: Web.config
•Application: Global.asax und Global.asax.vb

9. © 2005 newtelligence Aktiengesellschaft. All rights reserved

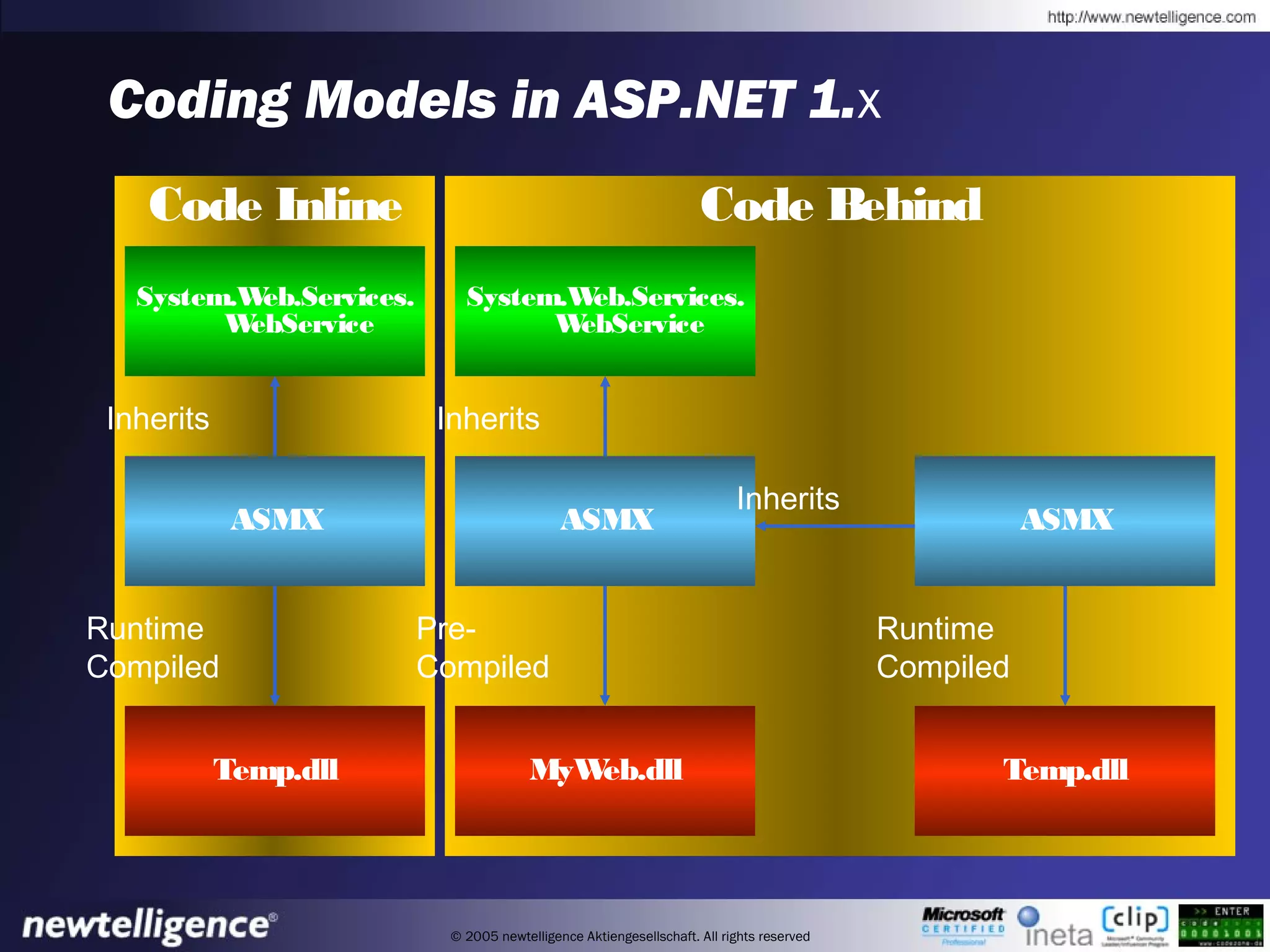

Coding Models in ASP.NET 1.x
Code Inline Code Behind
System.Web.Services.
WebService
System.Web.Services.
WebService
ASMX ASMX ASMX
Temp.dll Temp.dllMyWeb.dll
Inherits Inherits
Inherits
Runtime
Compiled
Runtime
Compiled
Pre-
Compiled

10. © 2005 newtelligence Aktiengesellschaft. All rights reserved

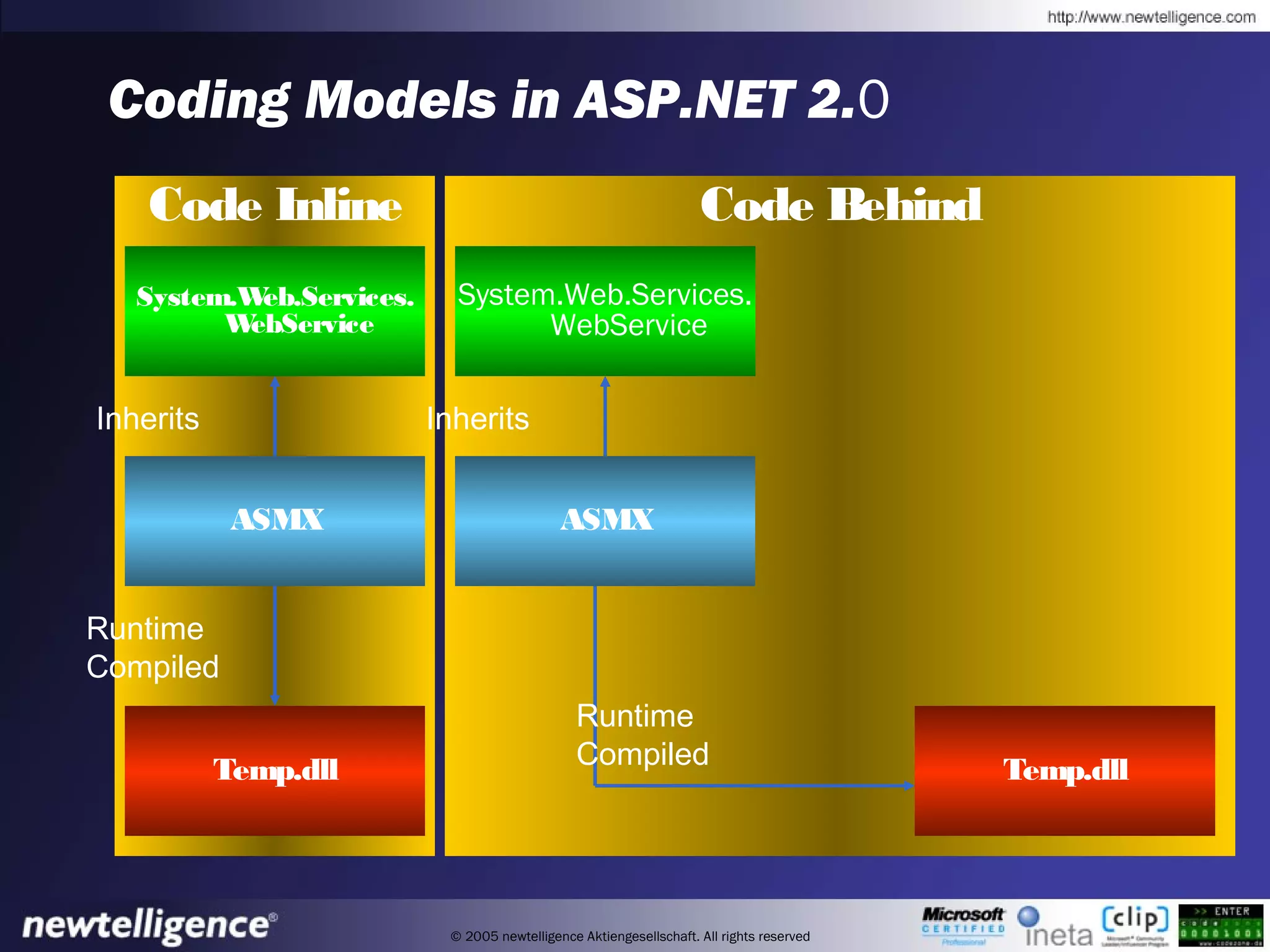

Coding Models in ASP.NET 2.0
Code Inline Code Behind
System.Web.Services.
WebService
System.Web.Services.
WebService
ASMX ASMX
Temp.dll Temp.dll
Inherits Inherits
Runtime
Compiled
Runtime
Compiled

11. © 2005 newtelligence Aktiengesellschaft. All rights reserved

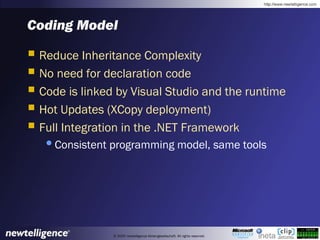

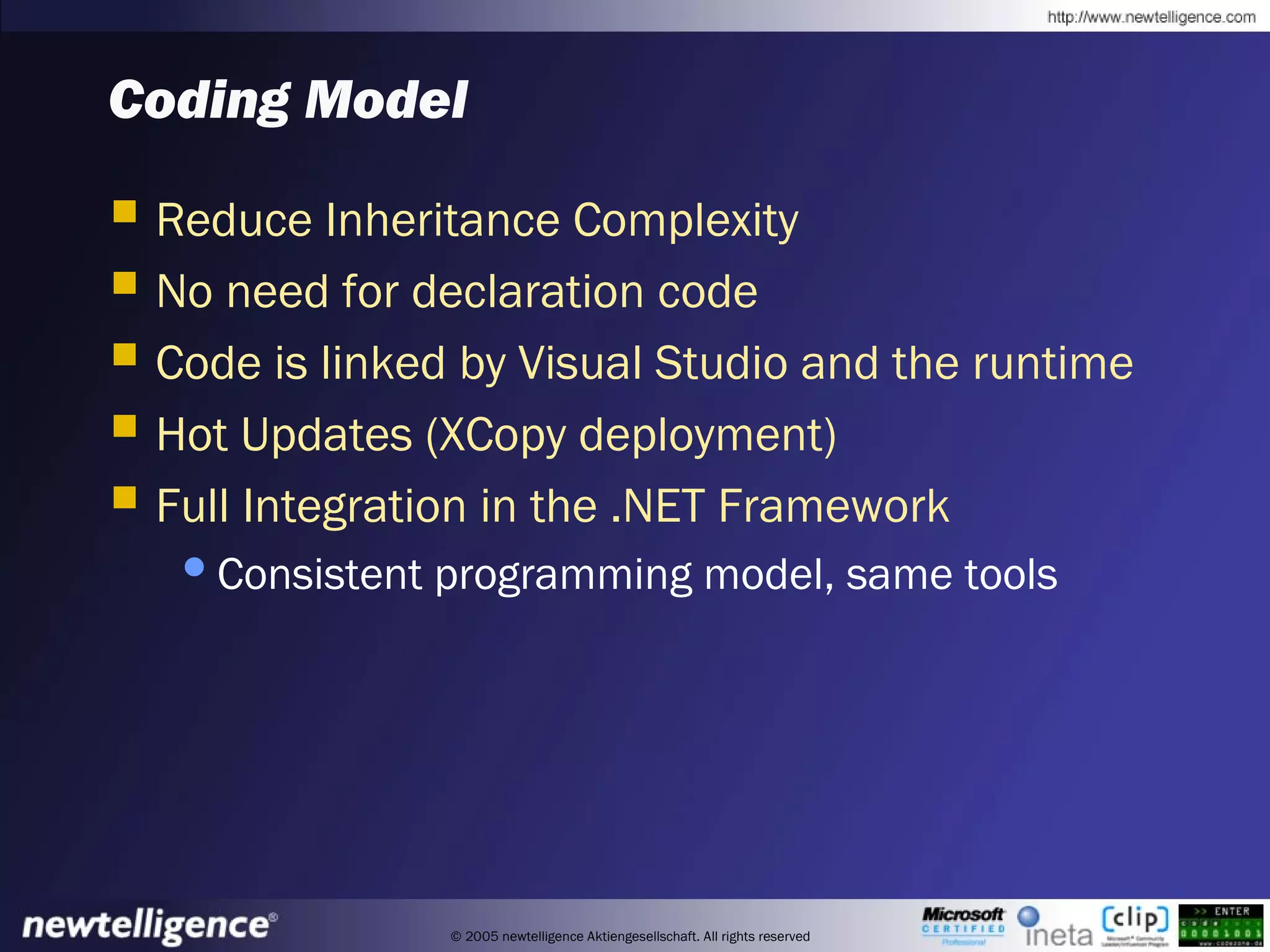

Coding Model
 Reduce Inheritance Complexity
 No need for declaration code
 Code is linked by Visual Studio and the runtime
 Hot Updates (XCopy deployment)
 Full Integration in the .NET Framework
•Consistent programming model, same tools

12. © 2005 newtelligence Aktiengesellschaft. All rights reserved

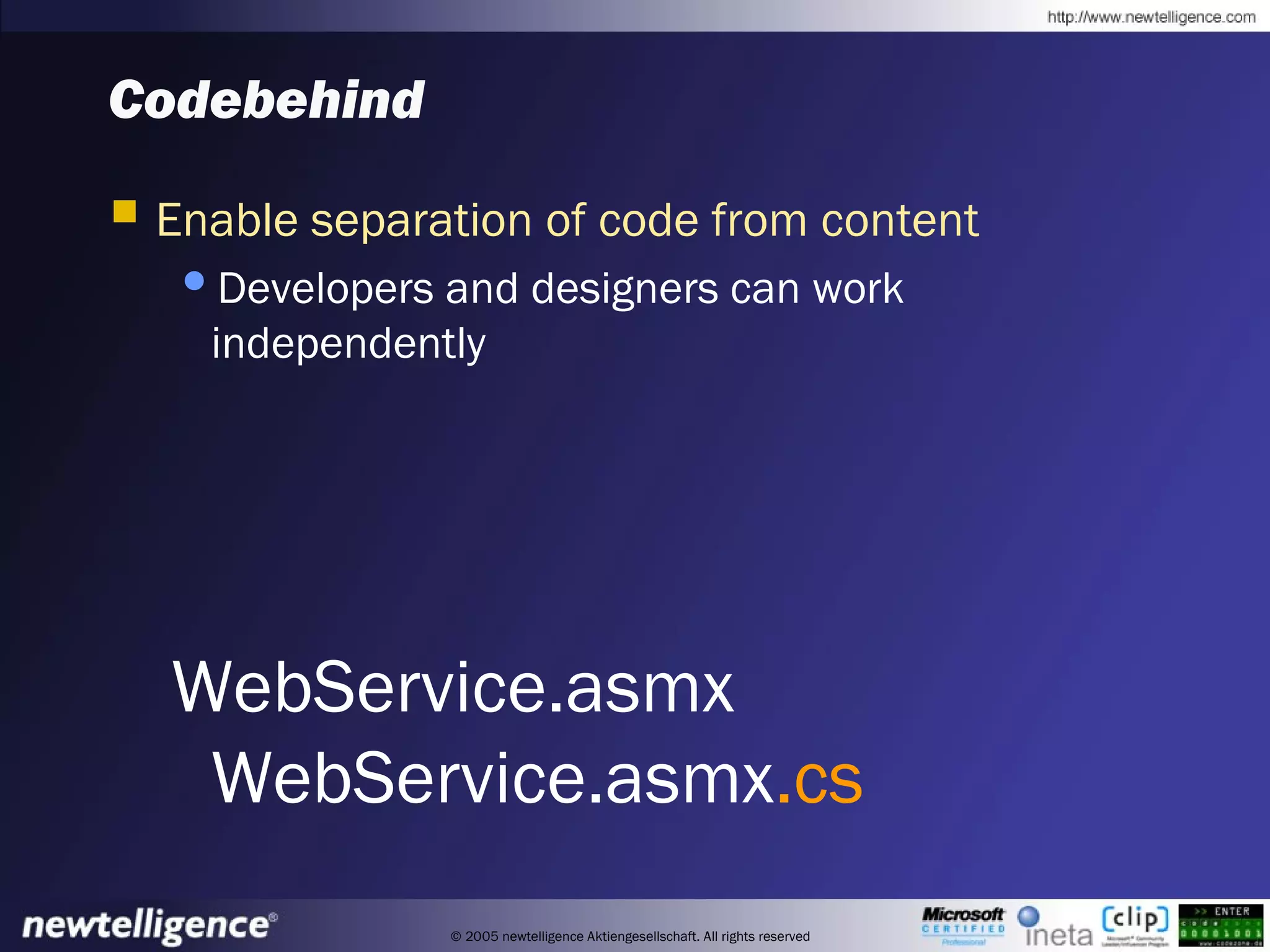

Codebehind
 Enable separation of code from content
•Developers and designers can work
independently
WebService.asmx
WebService.asmx.cs

13. © 2005 newtelligence Aktiengesellschaft. All rights reserved

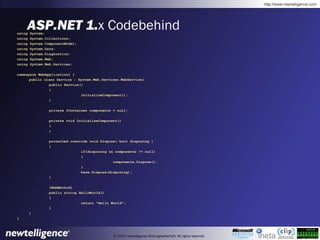

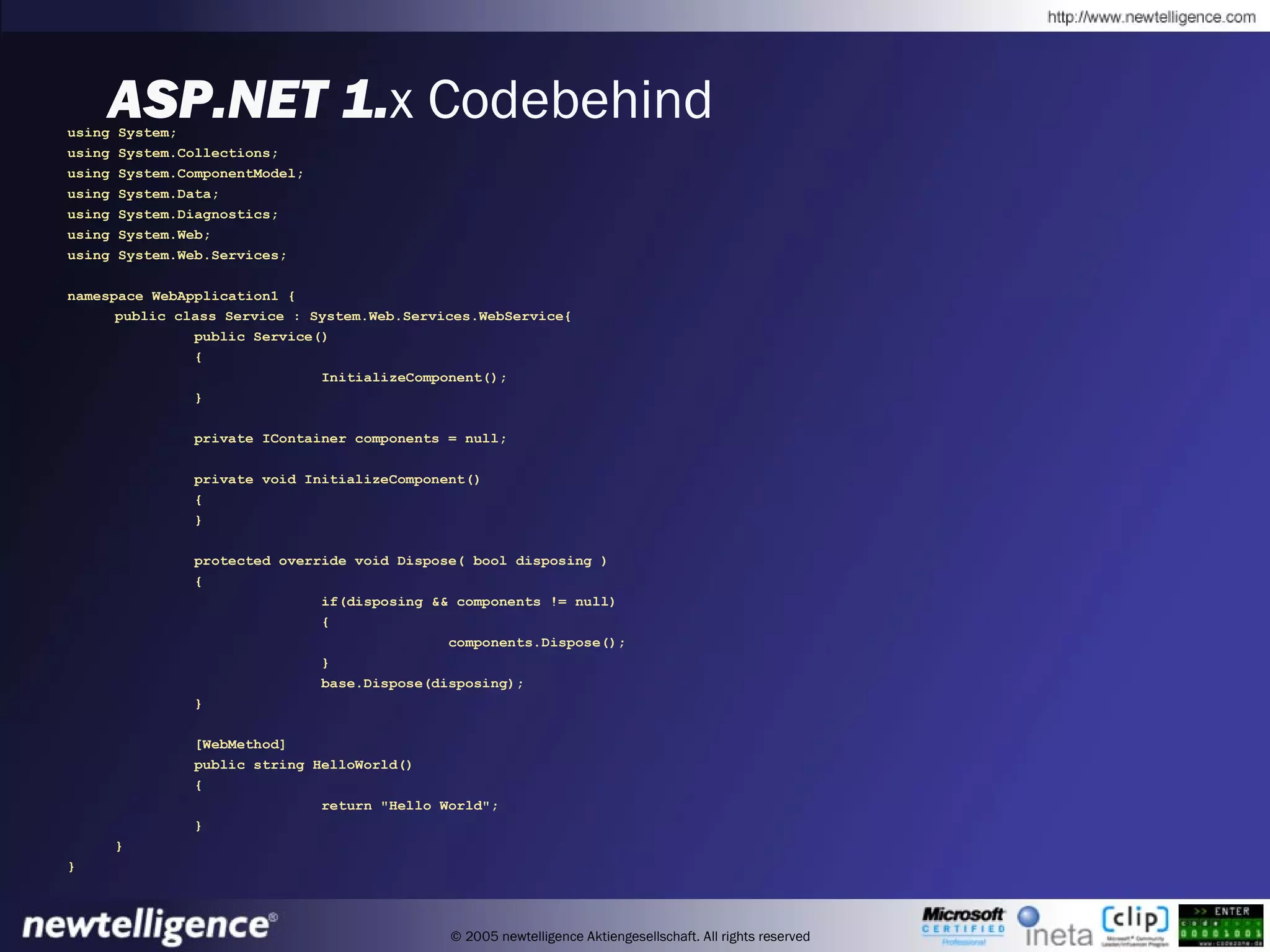

ASP.NET 1.x Codebehindusing System;
using System.Collections;
using System.ComponentModel;
using System.Data;
using System.Diagnostics;
using System.Web;
using System.Web.Services;
namespace WebApplication1 {
public class Service : System.Web.Services.WebService{
public Service()
{
InitializeComponent();
}
private IContainer components = null;
private void InitializeComponent()
{
}
protected override void Dispose( bool disposing )
{
if(disposing && components != null)
{
components.Dispose();
}
base.Dispose(disposing);
}
[WebMethod]
public string HelloWorld()
{
return "Hello World";
}
}
}

14. © 2005 newtelligence Aktiengesellschaft. All rights reserved

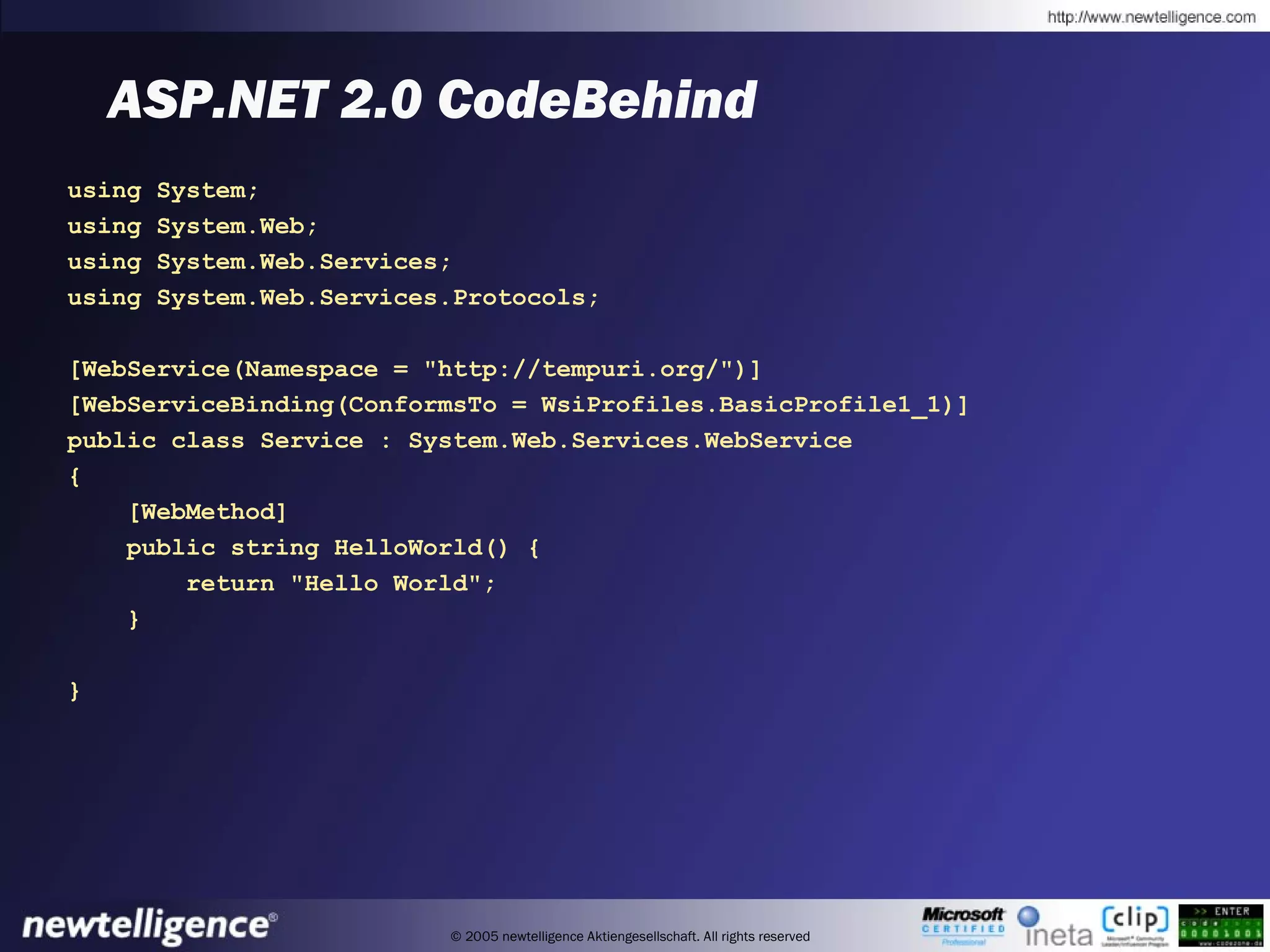

ASP.NET 2.0 CodeBehind
using System;
using System.Web;
using System.Web.Services;
using System.Web.Services.Protocols;
[WebService(Namespace = "http://tempuri.org/")]
[WebServiceBinding(ConformsTo = WsiProfiles.BasicProfile1_1)]
public class Service : System.Web.Services.WebService
{
[WebMethod]
public string HelloWorld() {
return "Hello World";
}
}

15. © 2005 newtelligence Aktiengesellschaft. All rights reserved

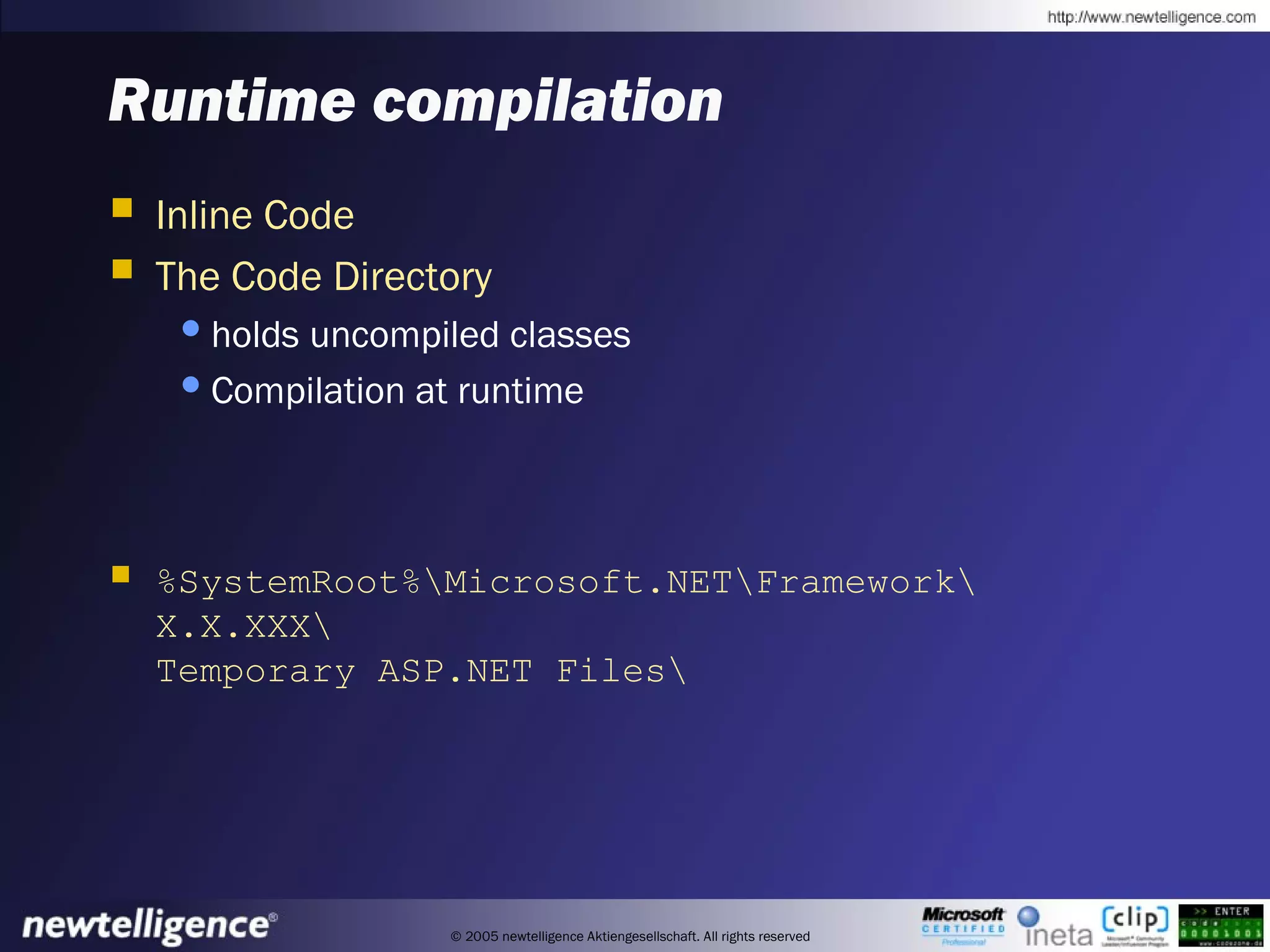

Runtime compilation
 Inline Code
 The Code Directory
•holds uncompiled classes
•Compilation at runtime
 %SystemRoot%Microsoft.NETFramework
X.X.XXX
Temporary ASP.NET Files

16. © 2005 newtelligence Aktiengesellschaft. All rights reserved

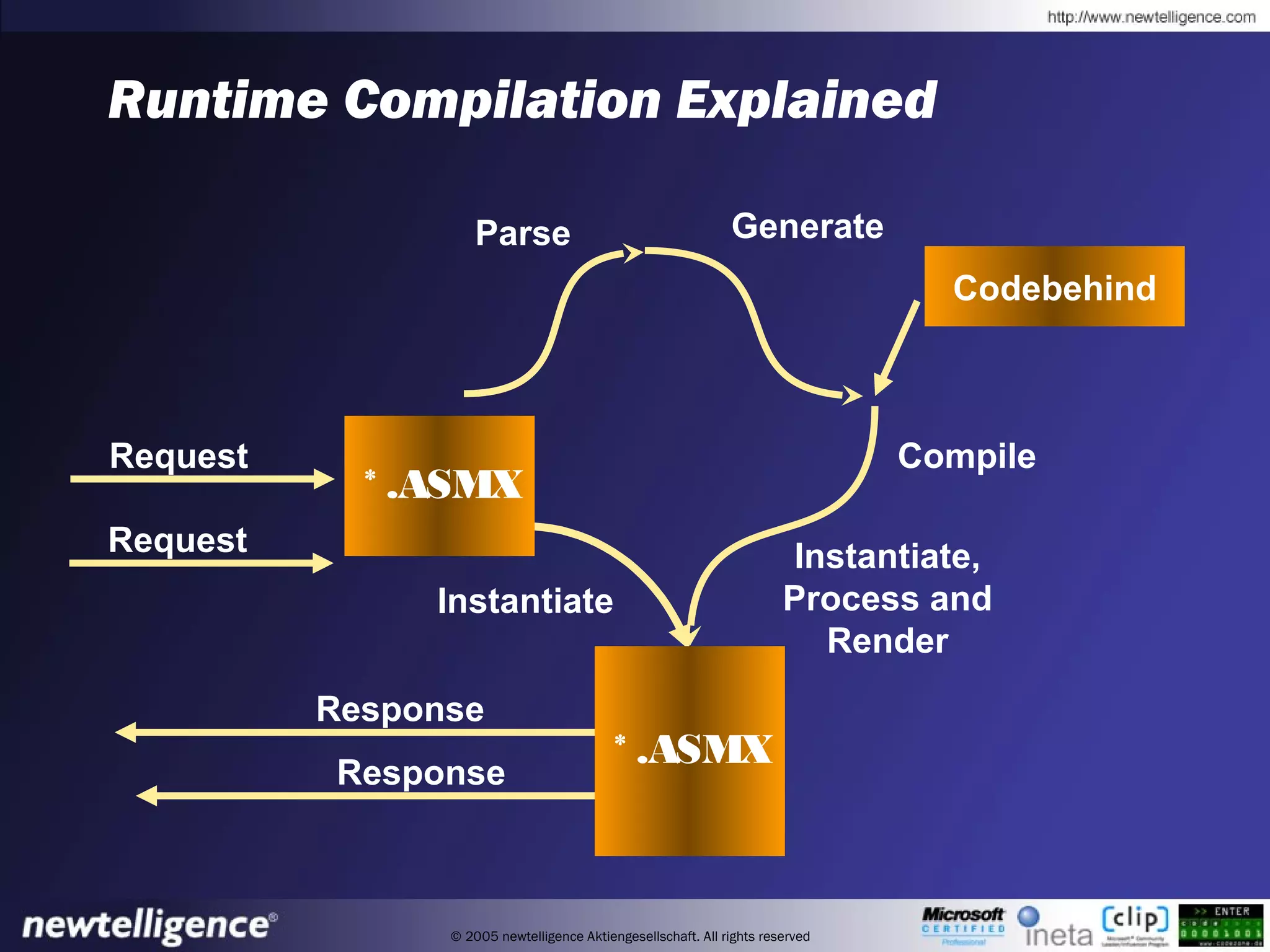

Runtime Compilation Explained
Request
Parse Generate
Response
Request
Instantiate
Response
Codebehind
Instantiate,
Process and
Render
Compile
* .ASMX
* .ASMX

17. © 2005 newtelligence Aktiengesellschaft. All rights reserved

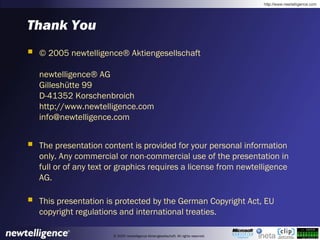

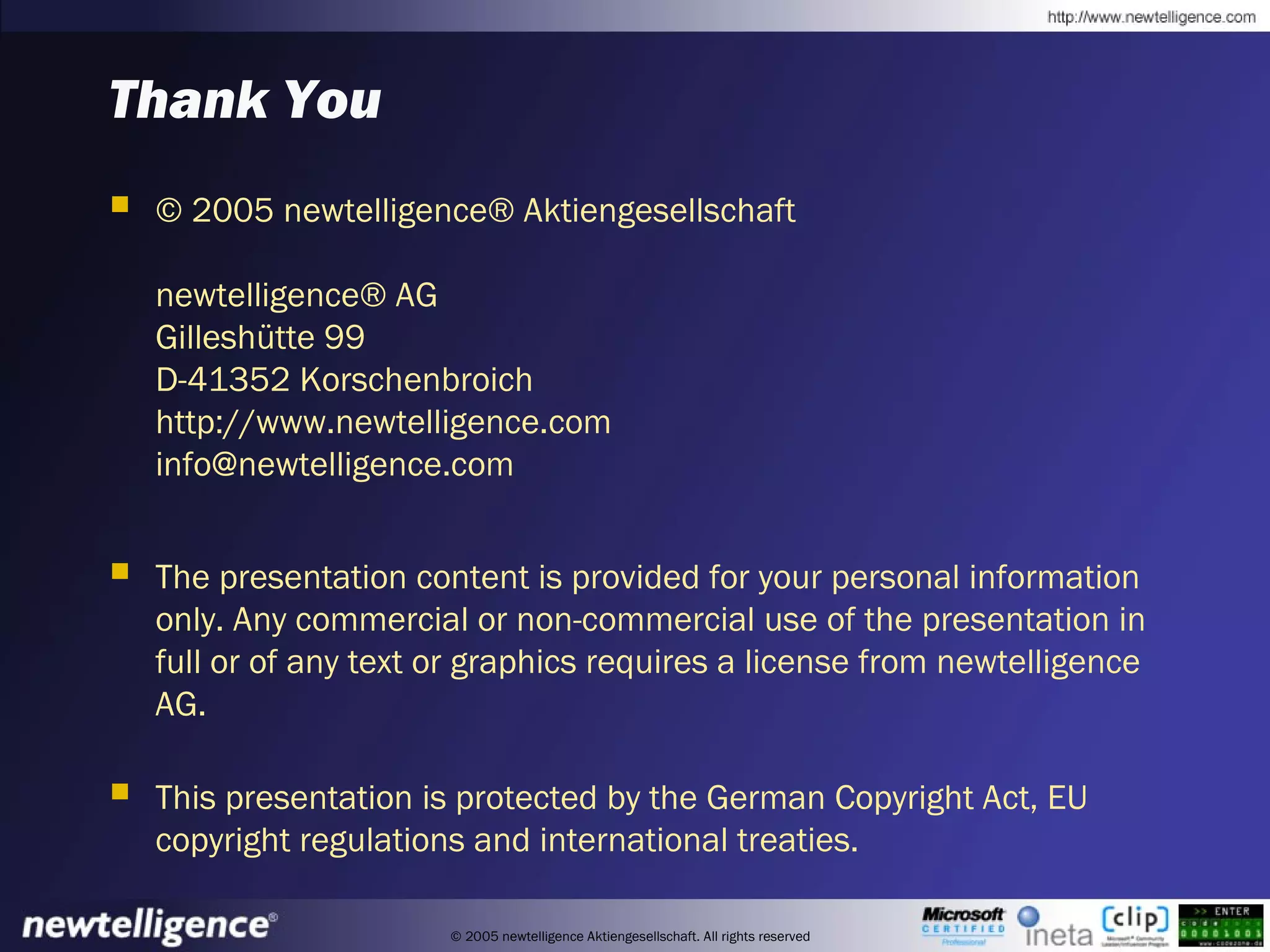

Thank You
 © 2005 newtelligence® Aktiengesellschaft
newtelligence® AG
Gilleshütte 99
D-41352 Korschenbroich
http://www.newtelligence.com
info@newtelligence.com
 The presentation content is provided for your personal information
only. Any commercial or non-commercial use of the presentation in
full or of any text or graphics requires a license from newtelligence
AG.
 This presentation is protected by the German Copyright Act, EU
copyright regulations and international treaties.
