1. How to Generate Code Coverage Reports in
Xcode
Allan Shih
JULY 28TH, 2017

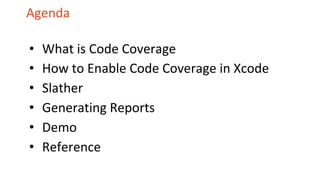

2. Agenda
• What is Code Coverage
• How to Enable Code Coverage in Xcode
• Slather
• Generating Reports
• Demo
• Reference

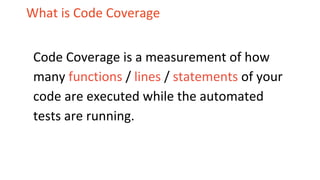

3. What is Code Coverage
Code Coverage is a measurement of how
many functions / lines / statements of your
code are executed while the automated
tests are running.

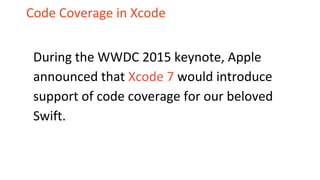

4. Code Coverage in Xcode
During the WWDC 2015 keynote, Apple
announced that Xcode 7 would introduce
support of code coverage for our beloved
Swift.

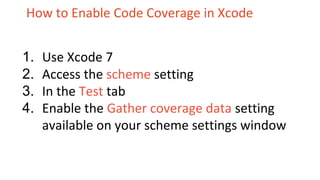

5. How to Enable Code Coverage in Xcode
1. Use Xcode 7
2. Access the scheme setting
3. In the Test tab
4. Enable the Gather coverage data setting
available on your scheme settings window

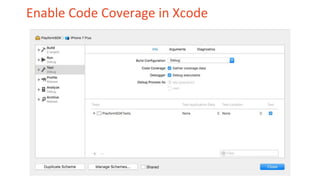

6. Enable Code Coverage in Xcode

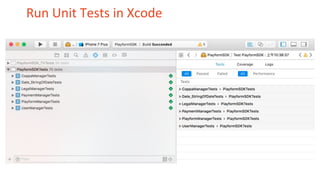

7. Run Unit Tests in Xcode

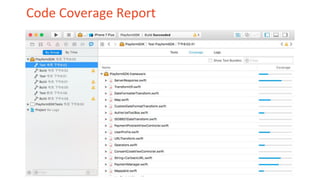

8. Code Coverage Report

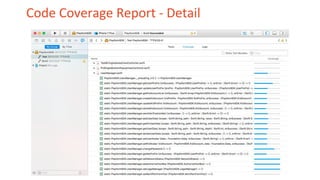

9. Code Coverage Report - Detail

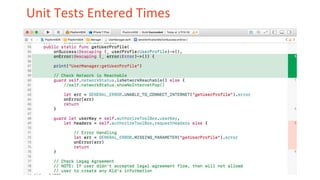

10. Unit Tests Entered Times

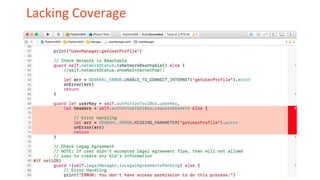

11. Lacking Coverage

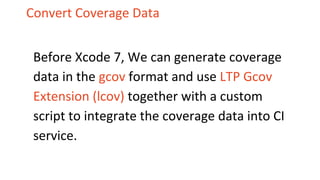

12. Convert Coverage Data
Before Xcode 7, We can generate coverage
data in the gcov format and use LTP Gcov
Extension (lcov) together with a custom
script to integrate the coverage data into CI
service.

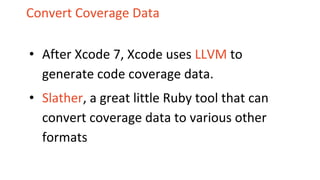

13. Convert Coverage Data
• After Xcode 7, Xcode uses LLVM to
generate code coverage data.
• Slather, a great little Ruby tool that can
convert coverage data to various other
formats

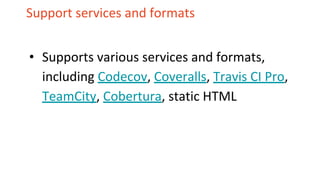

14. Support services and formats
• Supports various services and formats,
including Codecov, Coveralls, Travis CI Pro,
TeamCity, Cobertura, static HTML

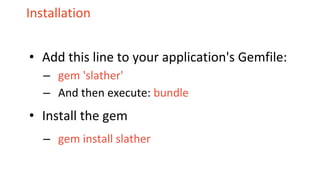

15. Installation
• Add this line to your application's Gemfile:
– gem 'slather'
– And then execute: bundle
• Install the gem
– gem install slather

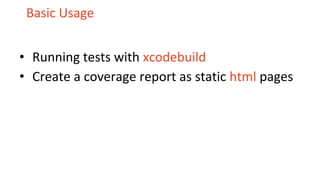

16. Basic Usage
• Running tests with xcodebuild
• Create a coverage report as static html pages

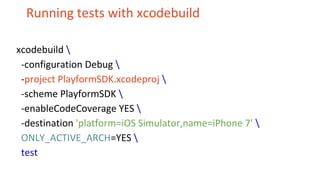

17. Running tests with xcodebuild
xcodebuild
-configuration Debug
-project PlayformSDK.xcodeproj
-scheme PlayformSDK
-enableCodeCoverage YES
-destination 'platform=iOS Simulator,name=iPhone 7'
ONLY_ACTIVE_ARCH=YES
test

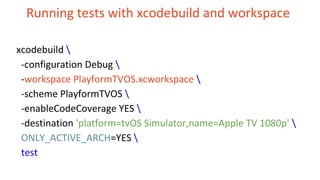

18. Running tests with xcodebuild and workspace
xcodebuild
-configuration Debug
-workspace PlayformTVOS.xcworkspace
-scheme PlayformTVOS
-enableCodeCoverage YES
-destination 'platform=tvOS Simulator,name=Apple TV 1080p'
ONLY_ACTIVE_ARCH=YES
test

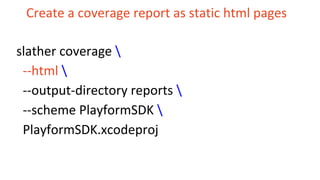

19. Create a coverage report as static html pages
slather coverage
--html
--output-directory reports
--scheme PlayformSDK
PlayformSDK.xcodeproj

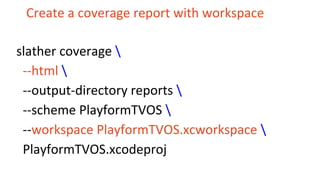

20. Create a coverage report with workspace
slather coverage
--html
--output-directory reports
--scheme PlayformTVOS
--workspace PlayformTVOS.xcworkspace
PlayformTVOS.xcodeproj

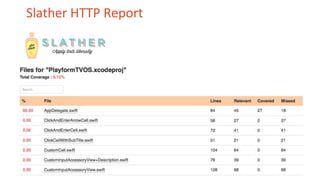

21. Slather HTTP Report

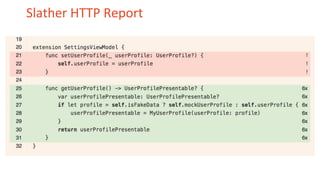

22. Slather HTTP Report

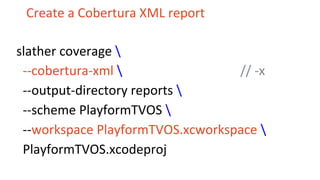

23. Create a Cobertura XML report
slather coverage
--cobertura-xml // -x
--output-directory reports
--scheme PlayformTVOS
--workspace PlayformTVOS.xcworkspace
PlayformTVOS.xcodeproj

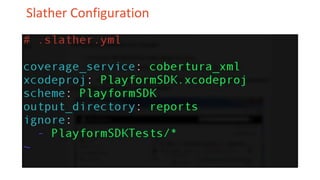

24. Slather Configuration

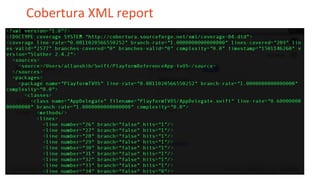

25. Cobertura XML report

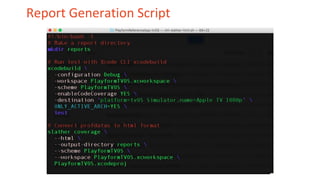

26. Report Generation Script

27. DEMO

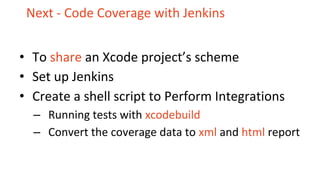

28. Next - Code Coverage with Jenkins
• To share an Xcode project’s scheme
• Set up Jenkins
• Create a shell script to Perform Integrations
– Running tests with xcodebuild
– Convert the coverage data to xml and html report

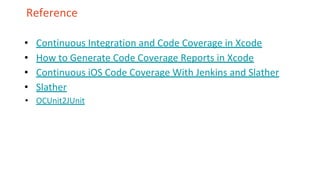

29. Reference
• Continuous Integration and Code Coverage in Xcode
• How to Generate Code Coverage Reports in Xcode
• Continuous iOS Code Coverage With Jenkins and Slather
• Slather
• OCUnit2JUnit
