The document discusses WDSI's WiFi carrier offloading and dashboard solution. It provides an overview of the mesh radio architecture and features like remote management, authentication integration, bandwidth management and user statistics. The dashboard allows monitoring of network health and performance through features like node tracking, usage reports, drill down to individual nodes, and customizable reports. It supports thousands of concurrent users across a wide coverage area through its mesh network design.

1. WDSI 3G Data Offloading
and Dashboard
Presentation
www.wdsiasia.com
andy.coney@wdsiasia.com

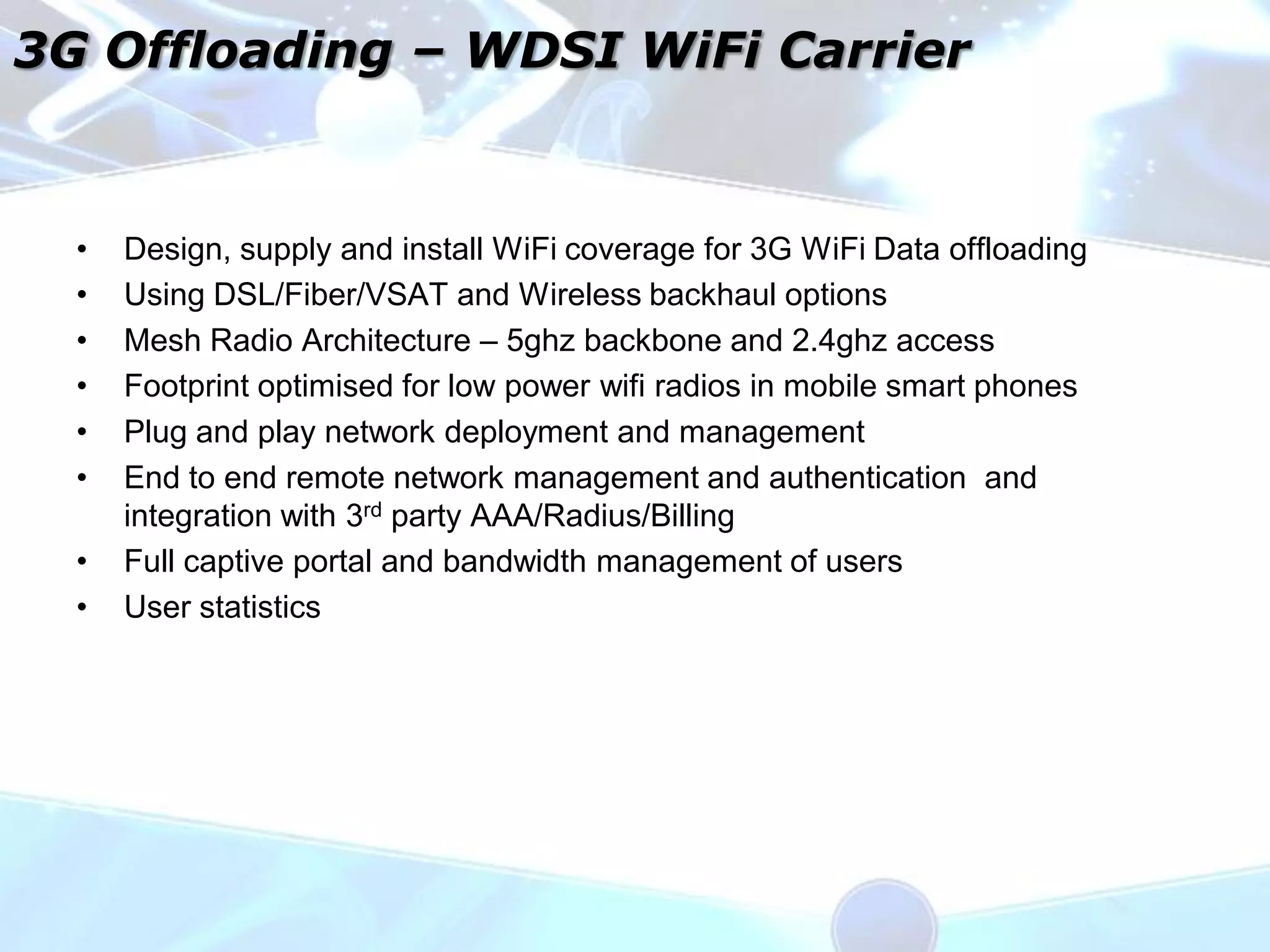

2. 3G Offloading – WDSI WiFi Carrier
• Design, supply and install WiFi coverage for 3G WiFi Data offloading
• Using DSL/Fiber/VSAT and Wireless backhaul options
• Mesh Radio Architecture – 5ghz backbone and 2.4ghz access
• Footprint optimised for low power wifi radios in mobile smart phones
• Plug and play network deployment and management
• End to end remote network management and authentication and
integration with 3rd party AAA/Radius/Billing
• Full captive portal and bandwidth management of users
• User statistics

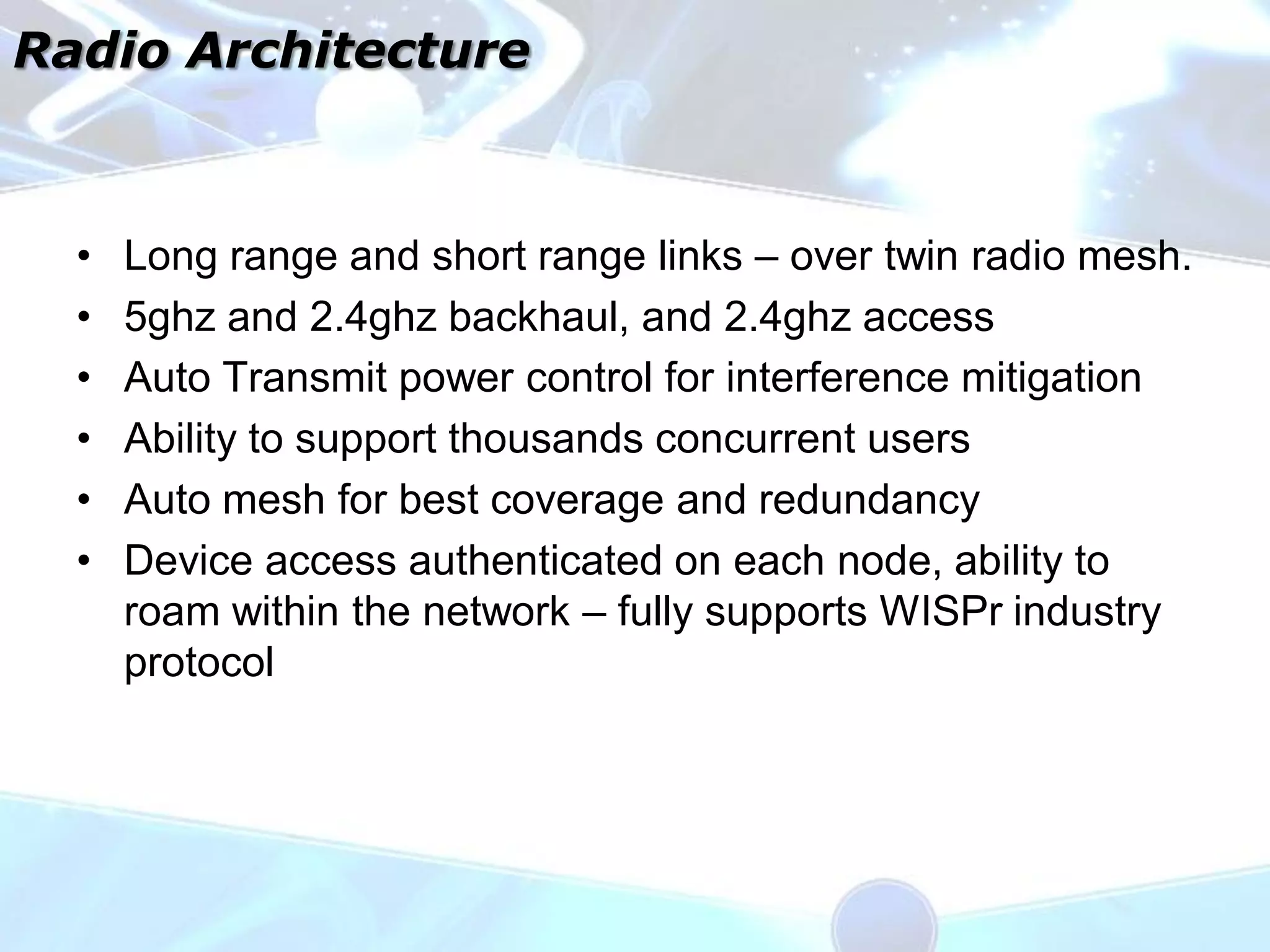

3. Radio Architecture
• Long range and short range links – over twin radio mesh.
• 5ghz and 2.4ghz backhaul, and 2.4ghz access
• Auto Transmit power control for interference mitigation
• Ability to support thousands concurrent users
• Auto mesh for best coverage and redundancy
• Device access authenticated on each node, ability to
roam within the network – fully supports WISPr industry
protocol

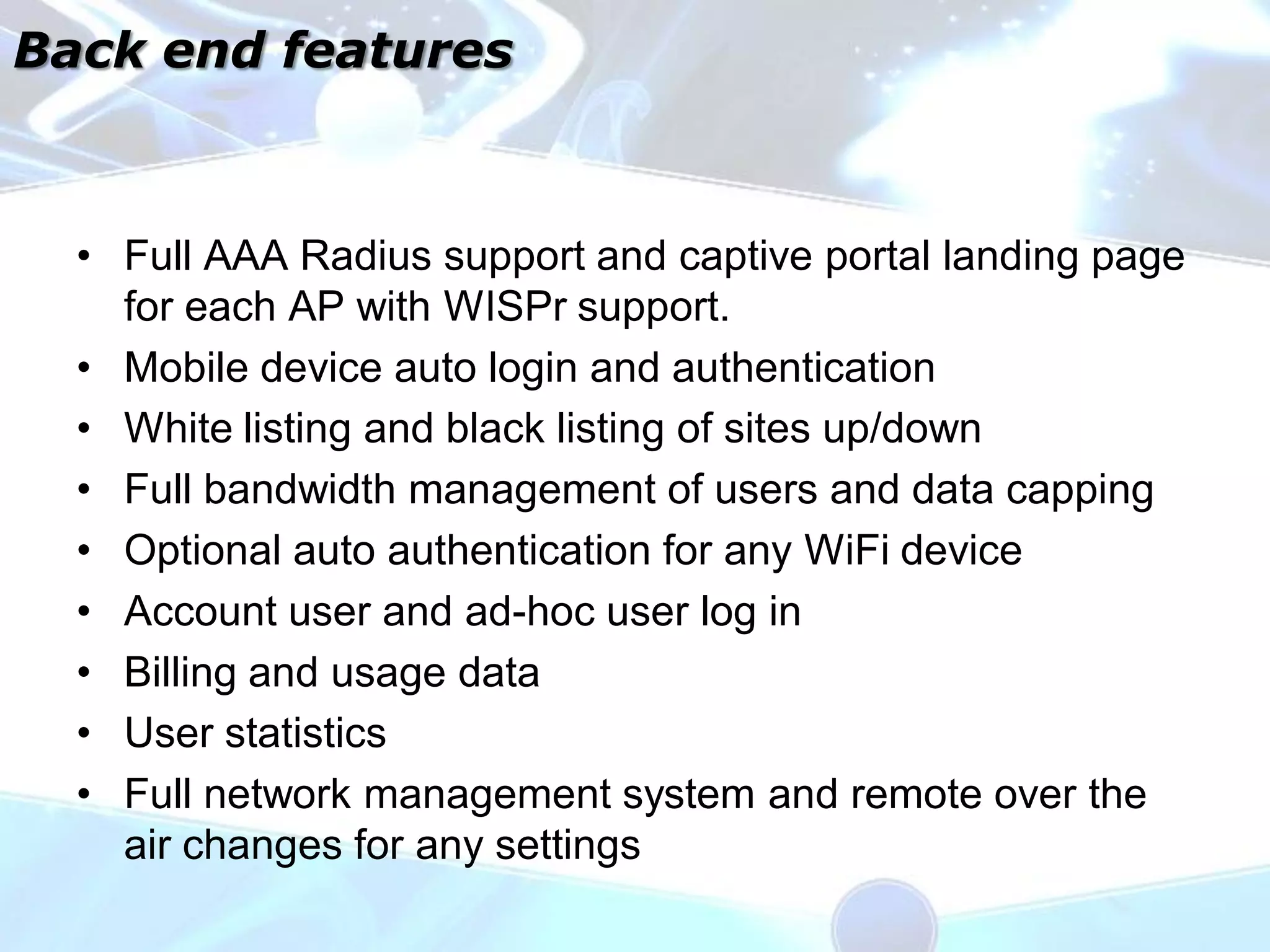

4. Back end features
• Full AAA Radius support and captive portal landing page
for each AP with WISPr support.
• Mobile device auto login and authentication
• White listing and black listing of sites up/down
• Full bandwidth management of users and data capping
• Optional auto authentication for any WiFi device
• Account user and ad-hoc user log in
• Billing and usage data
• User statistics
• Full network management system and remote over the
air changes for any settings

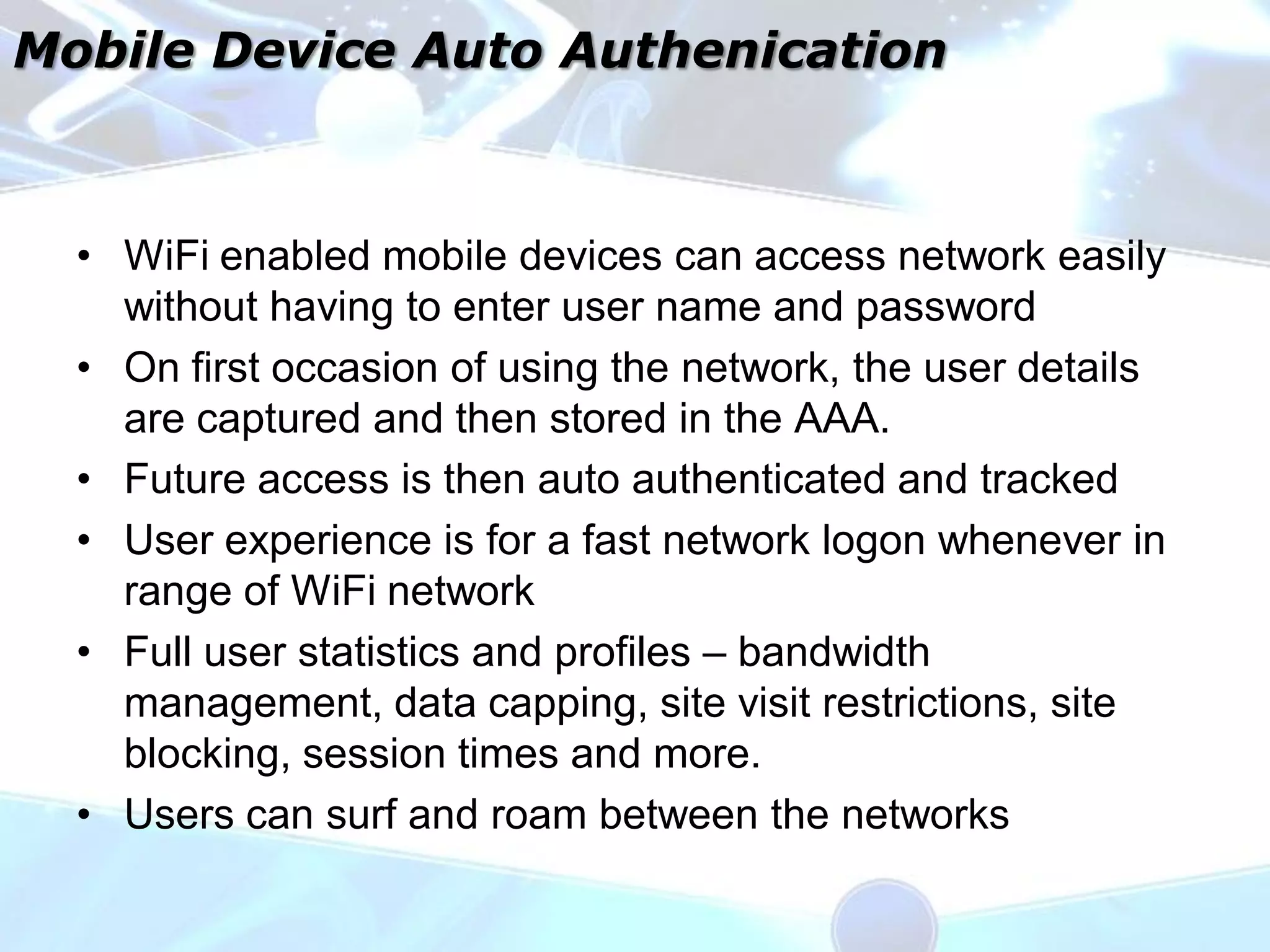

6. Mobile Device Auto Authenication
• WiFi enabled mobile devices can access network easily
without having to enter user name and password
• On first occasion of using the network, the user details
are captured and then stored in the AAA.
• Future access is then auto authenticated and tracked
• User experience is for a fast network logon whenever in
range of WiFi network
• Full user statistics and profiles – bandwidth
management, data capping, site visit restrictions, site
blocking, session times and more.
• Users can surf and roam between the networks

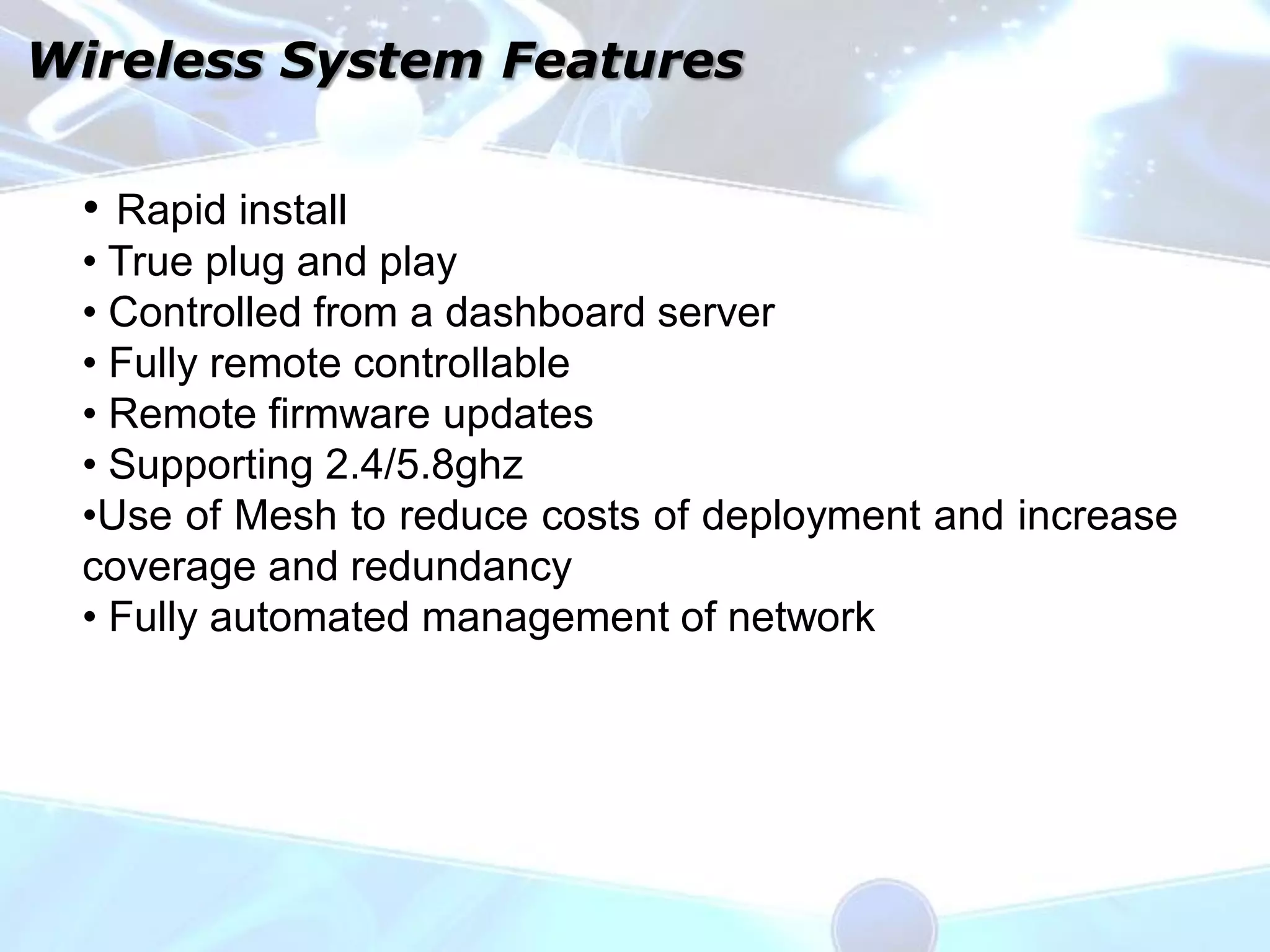

7. Wireless System Features
• Rapid install
• True plug and play
• Controlled from a dashboard server
• Fully remote controllable
• Remote firmware updates
• Supporting 2.4/5.8ghz
•Use of Mesh to reduce costs of deployment and increase
coverage and redundancy
• Fully automated management of network

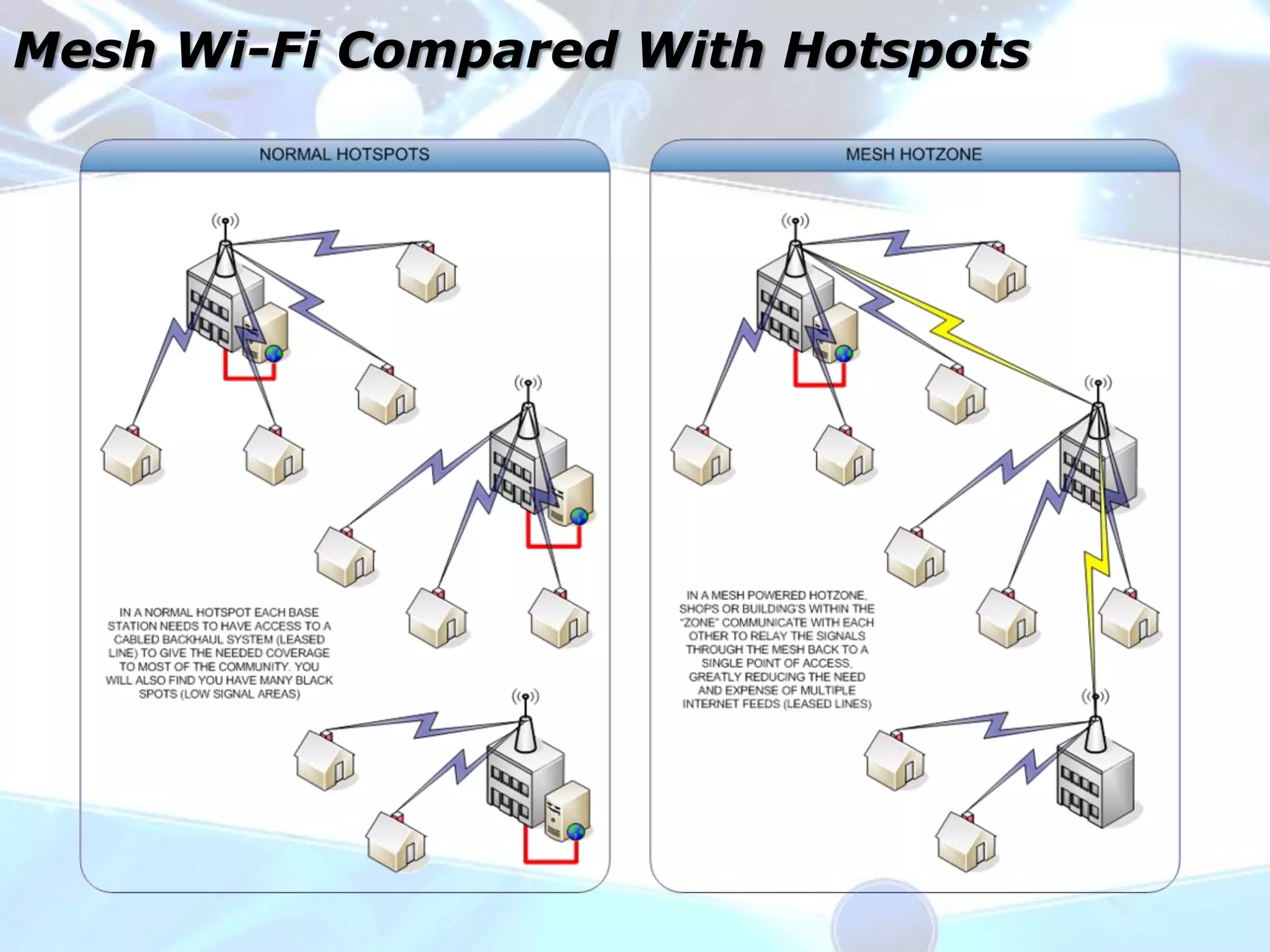

8. Mesh Wi-Fi Compared With Hotspots

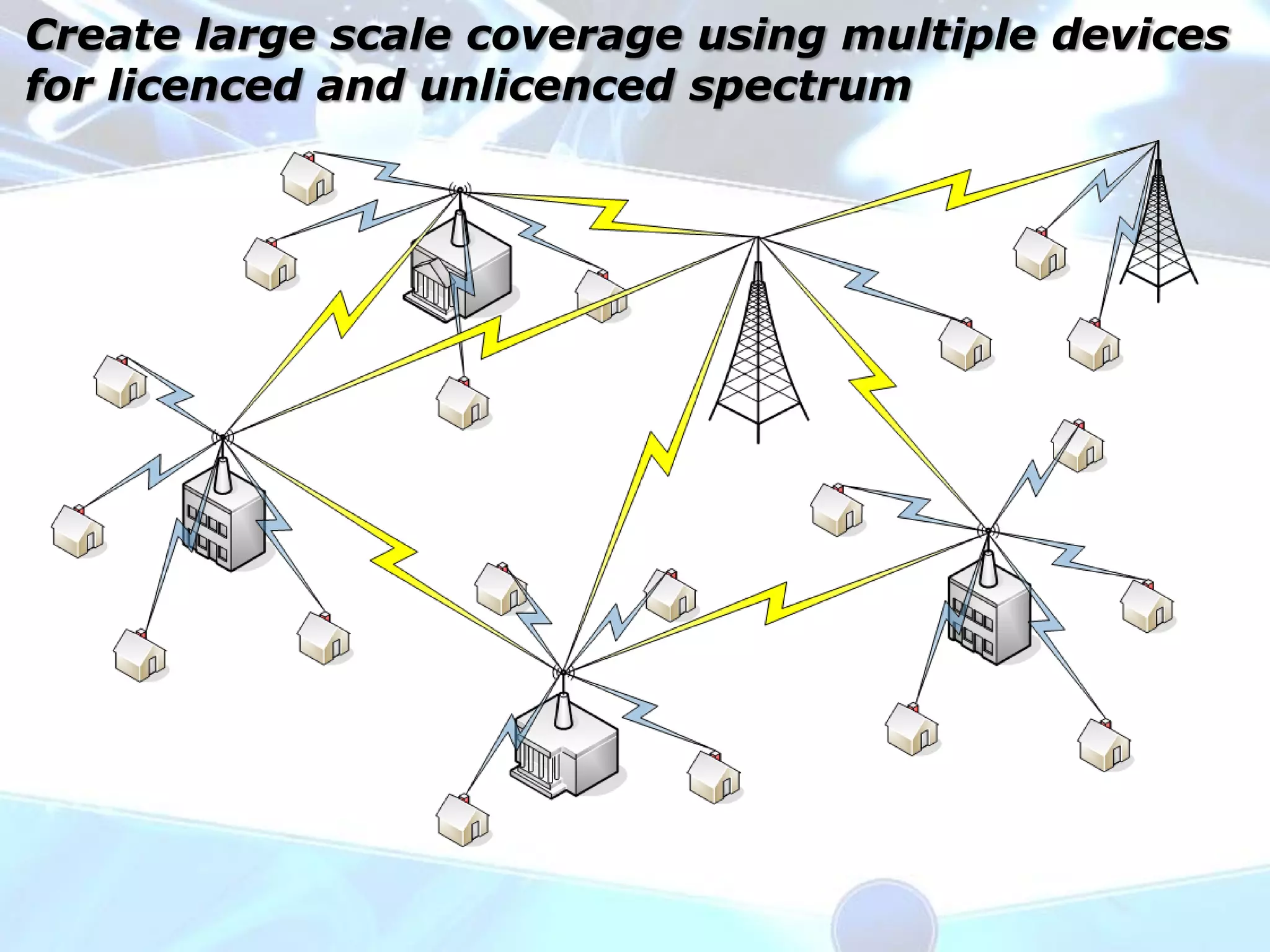

9. Create large scale coverage using multiple devices
for licenced and unlicenced spectrum

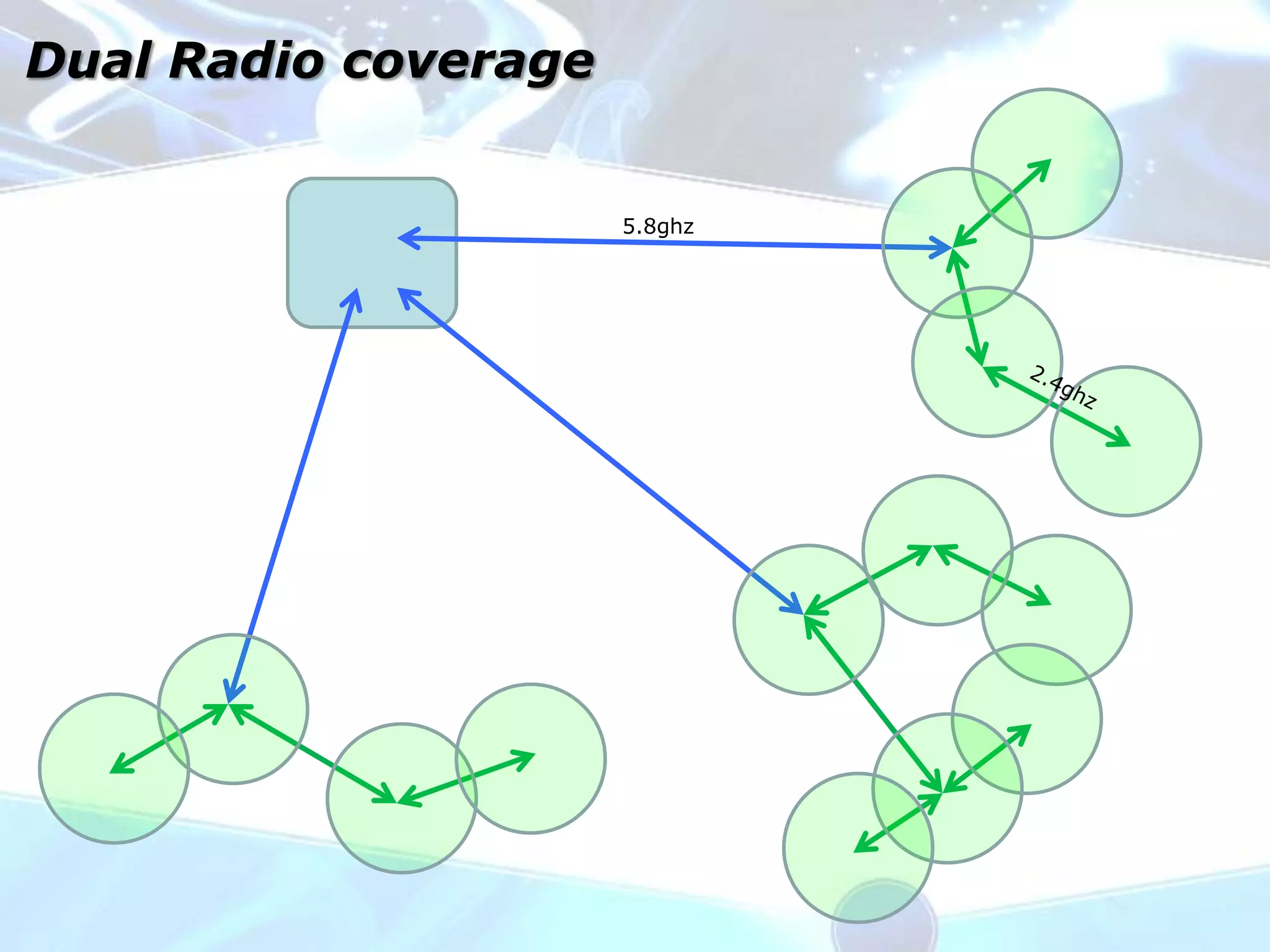

10. Dual Radio coverage
5.8ghz

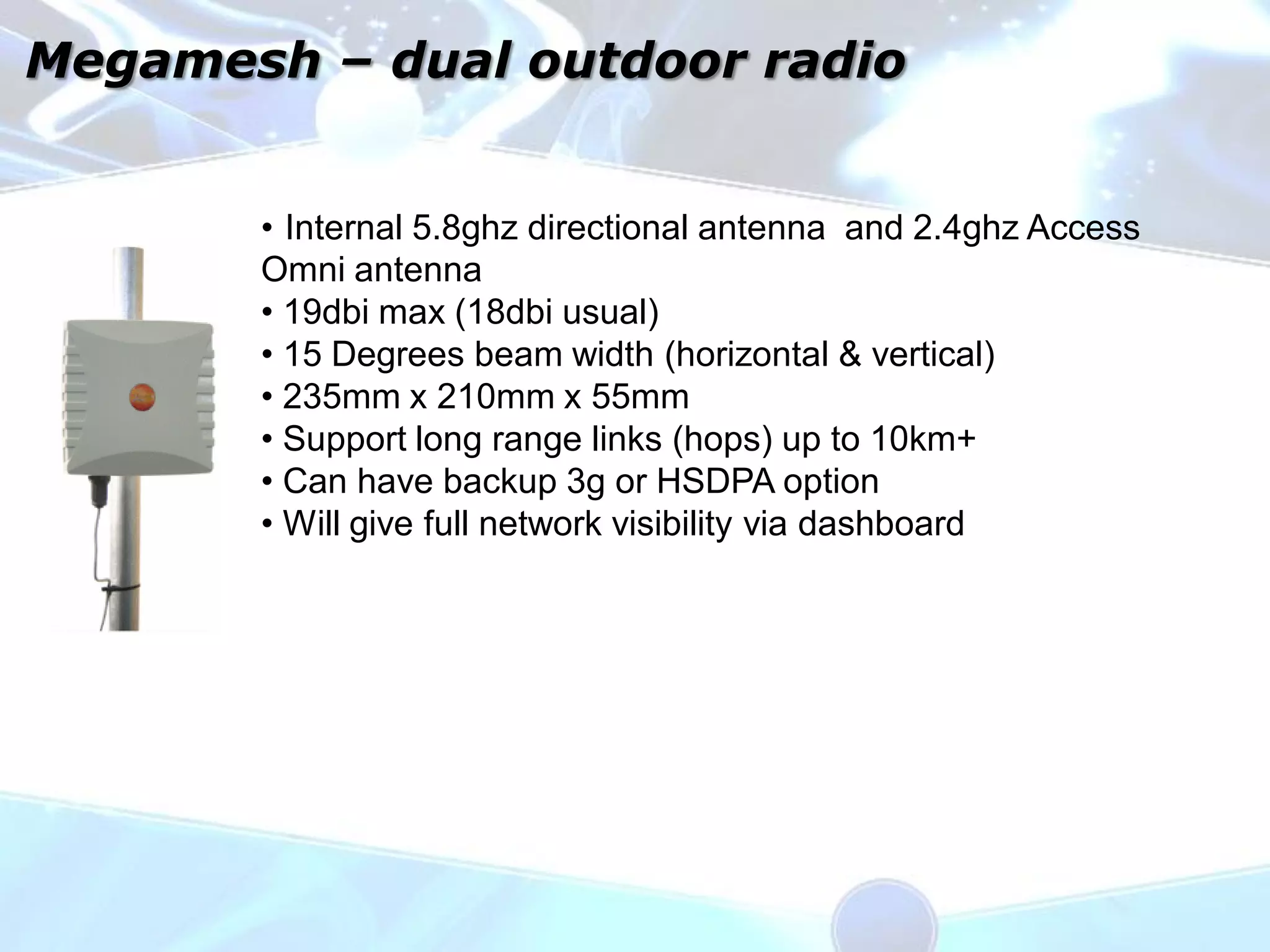

11. Megamesh – dual outdoor radio
• Internal 5.8ghz directional antenna and 2.4ghz Access
Omni antenna
• 19dbi max (18dbi usual)
• 15 Degrees beam width (horizontal & vertical)
• 235mm x 210mm x 55mm
• Support long range links (hops) up to 10km+
• Can have backup 3g or HSDPA option
• Will give full network visibility via dashboard

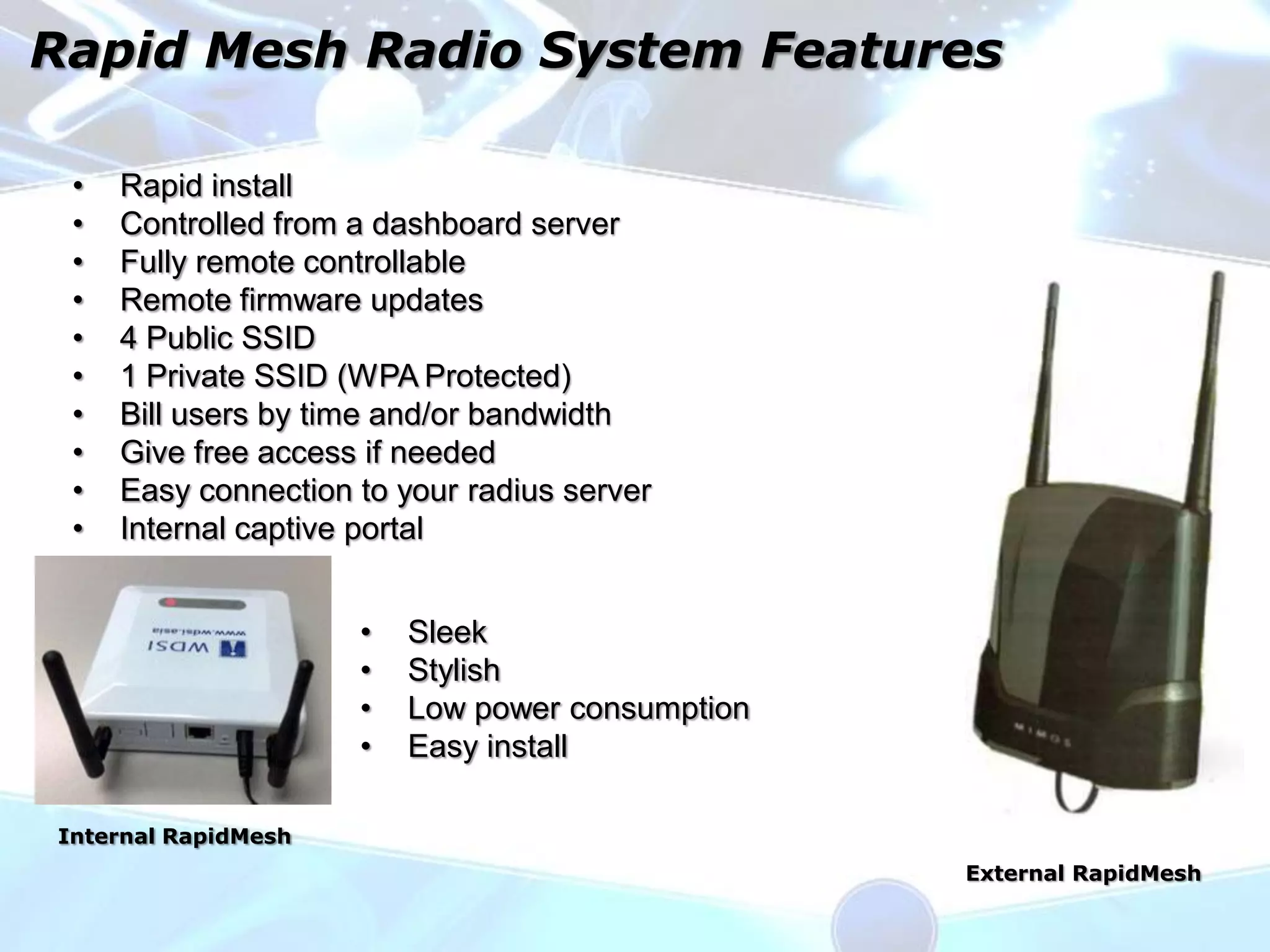

12. Rapid Mesh Radio System Features
• Rapid install
• Controlled from a dashboard server
• Fully remote controllable
• Remote firmware updates
• 4 Public SSID
• 1 Private SSID (WPA Protected)
• Bill users by time and/or bandwidth
• Give free access if needed
• Easy connection to your radius server
• Internal captive portal
• Sleek
• Stylish
• Low power consumption
• Easy install
Internal RapidMesh
External RapidMesh

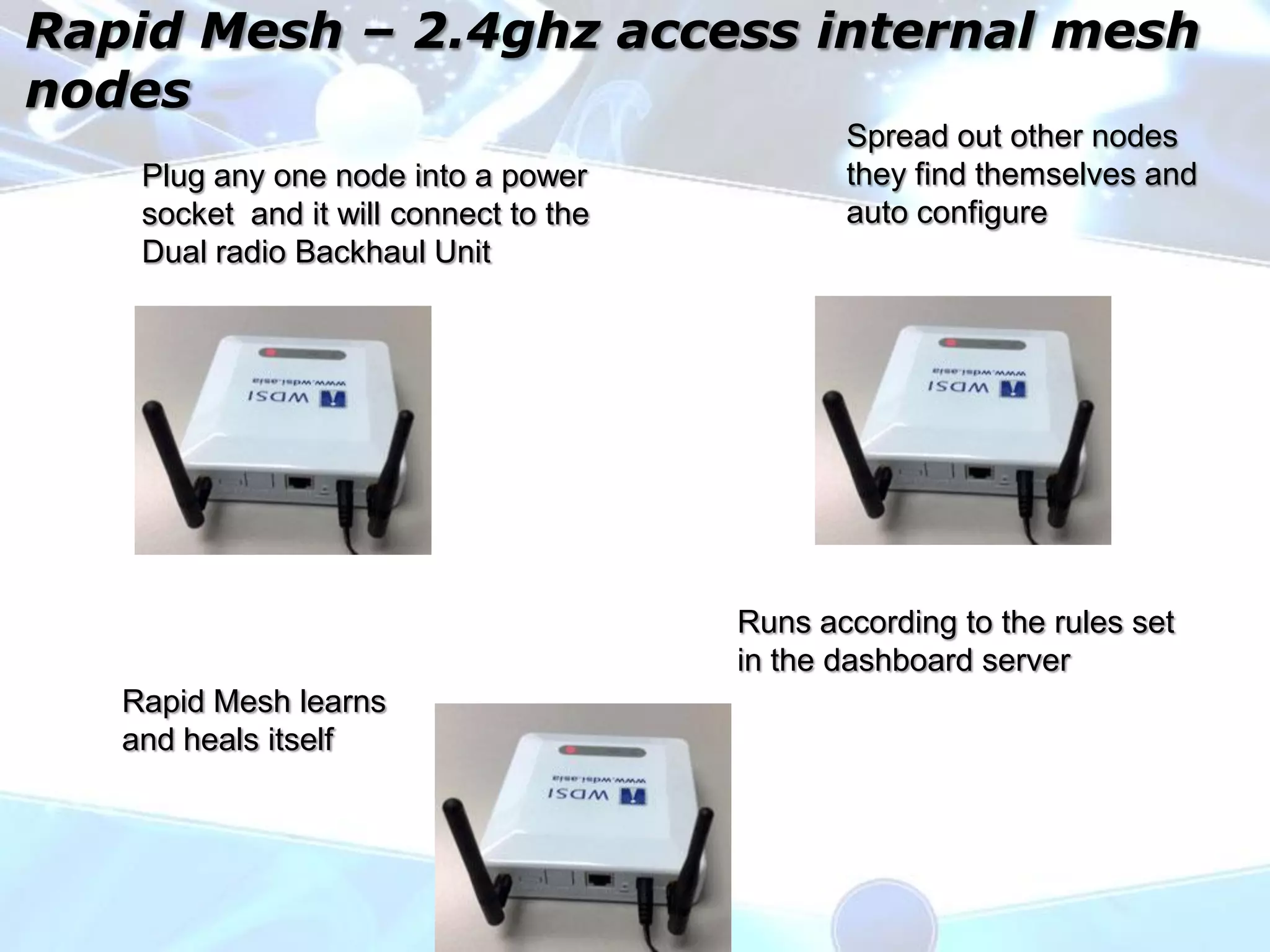

13. Rapid Mesh – 2.4ghz access internal mesh
nodes
Spread out other nodes
Plug any one node into a power they find themselves and
socket and it will connect to the auto configure
Dual radio Backhaul Unit
Runs according to the rules set
in the dashboard server
Rapid Mesh learns
and heals itself

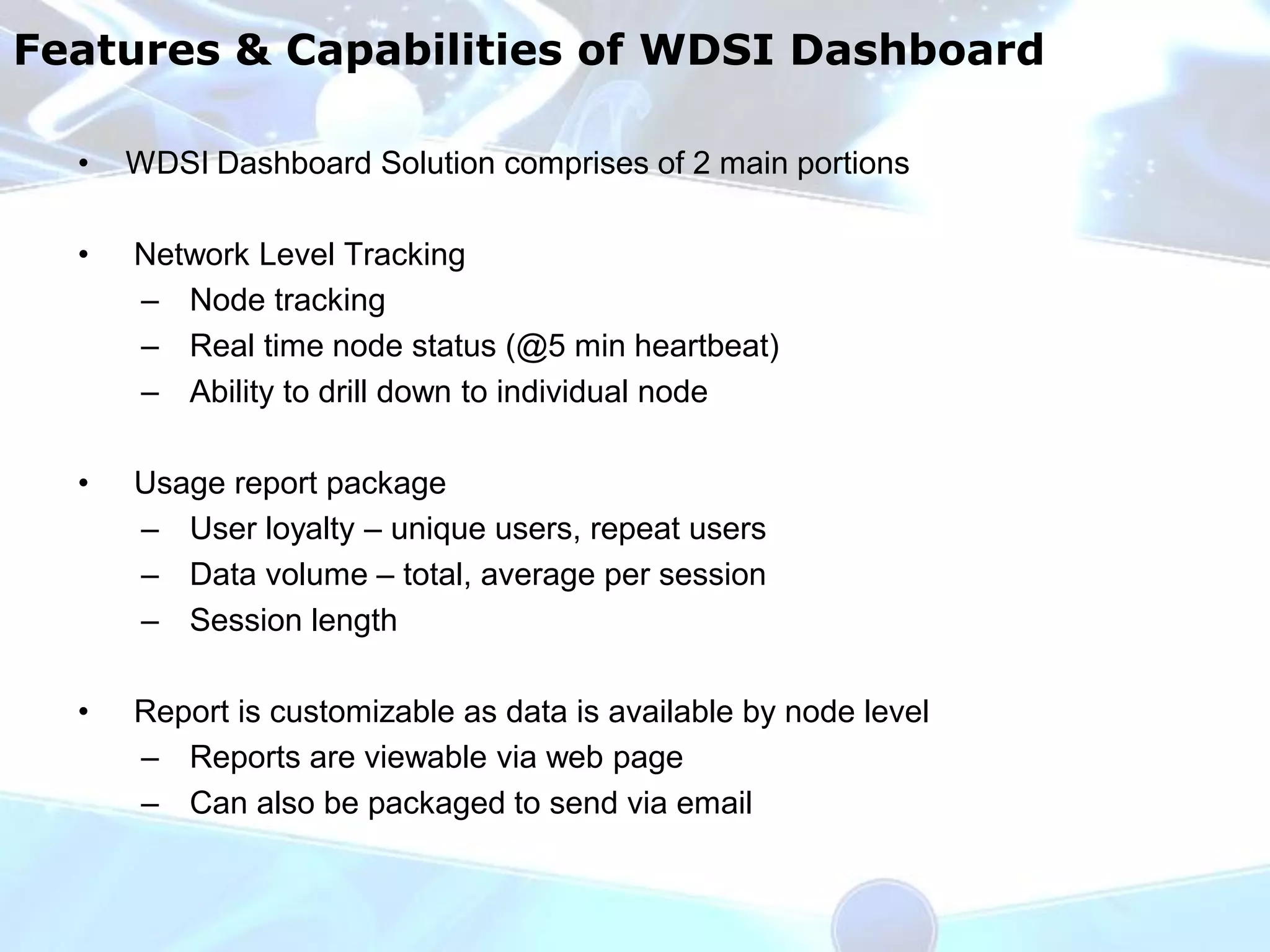

14. Features & Capabilities of WDSI Dashboard
• WDSI Dashboard Solution comprises of 2 main portions
• Network Level Tracking
– Node tracking
– Real time node status (@5 min heartbeat)
– Ability to drill down to individual node
• Usage report package
– User loyalty – unique users, repeat users
– Data volume – total, average per session
– Session length
• Report is customizable as data is available by node level
– Reports are viewable via web page
– Can also be packaged to send via email

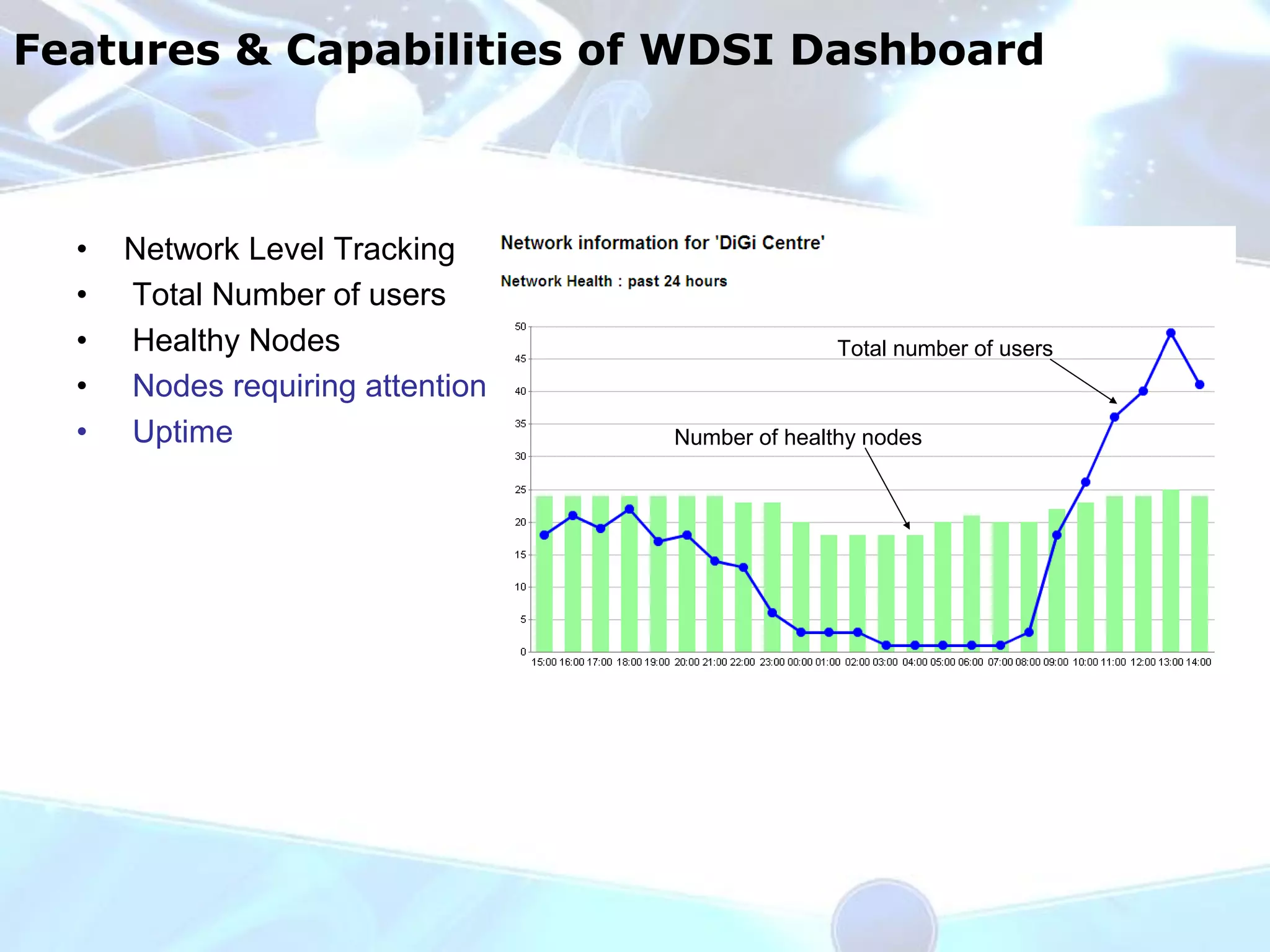

15. Features & Capabilities of WDSI Dashboard
• Network Level Tracking
• Total Number of users
• Healthy Nodes Total number of users
• Nodes requiring attention
• Uptime Number of healthy nodes

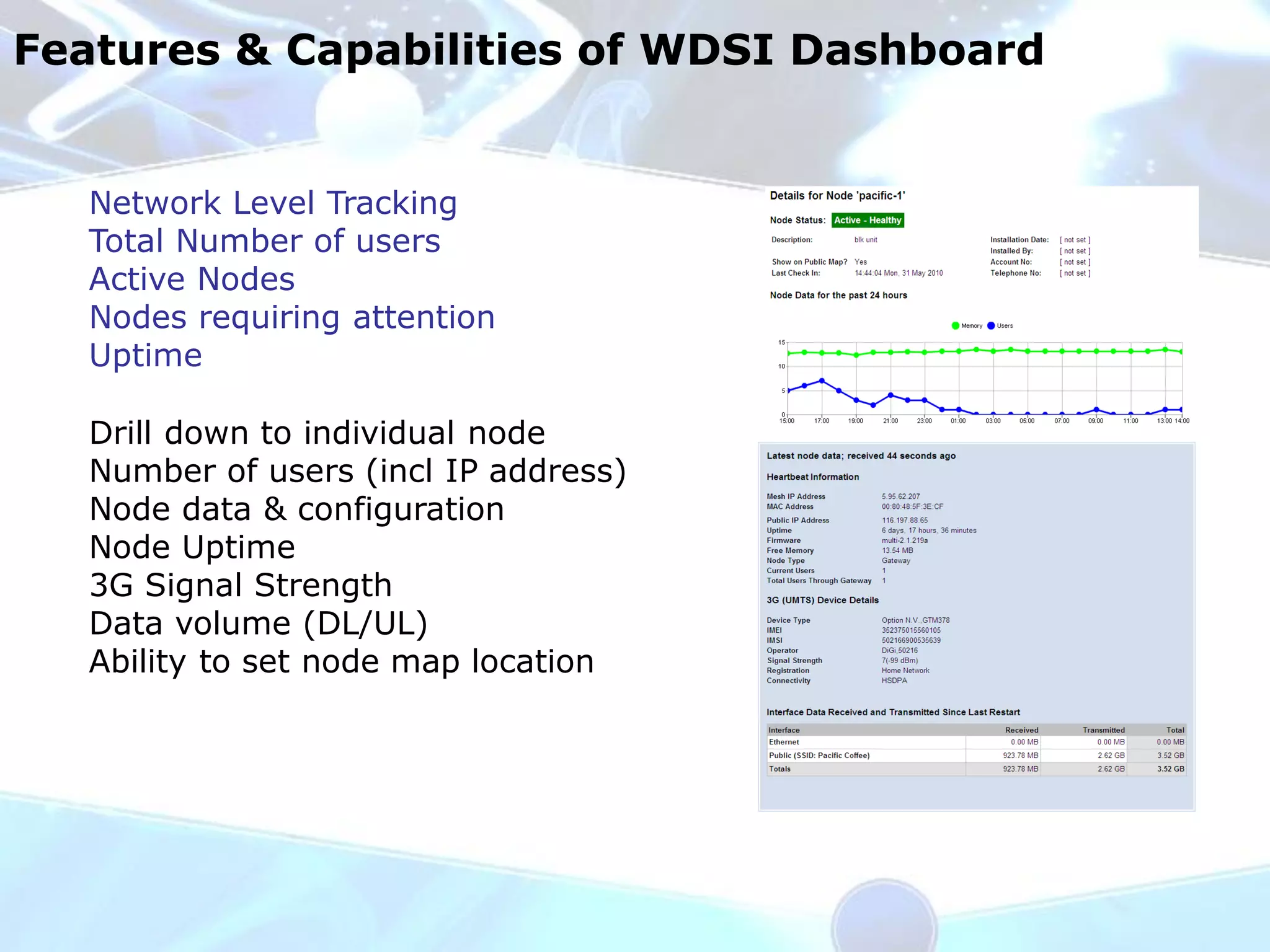

16. Features & Capabilities of WDSI Dashboard
Network Level Tracking
Total Number of users
Active Nodes
Nodes requiring attention
Uptime
Drill down to individual node
Number of users (incl IP address)
Node data & configuration
Node Uptime
3G Signal Strength
Data volume (DL/UL)
Ability to set node map location

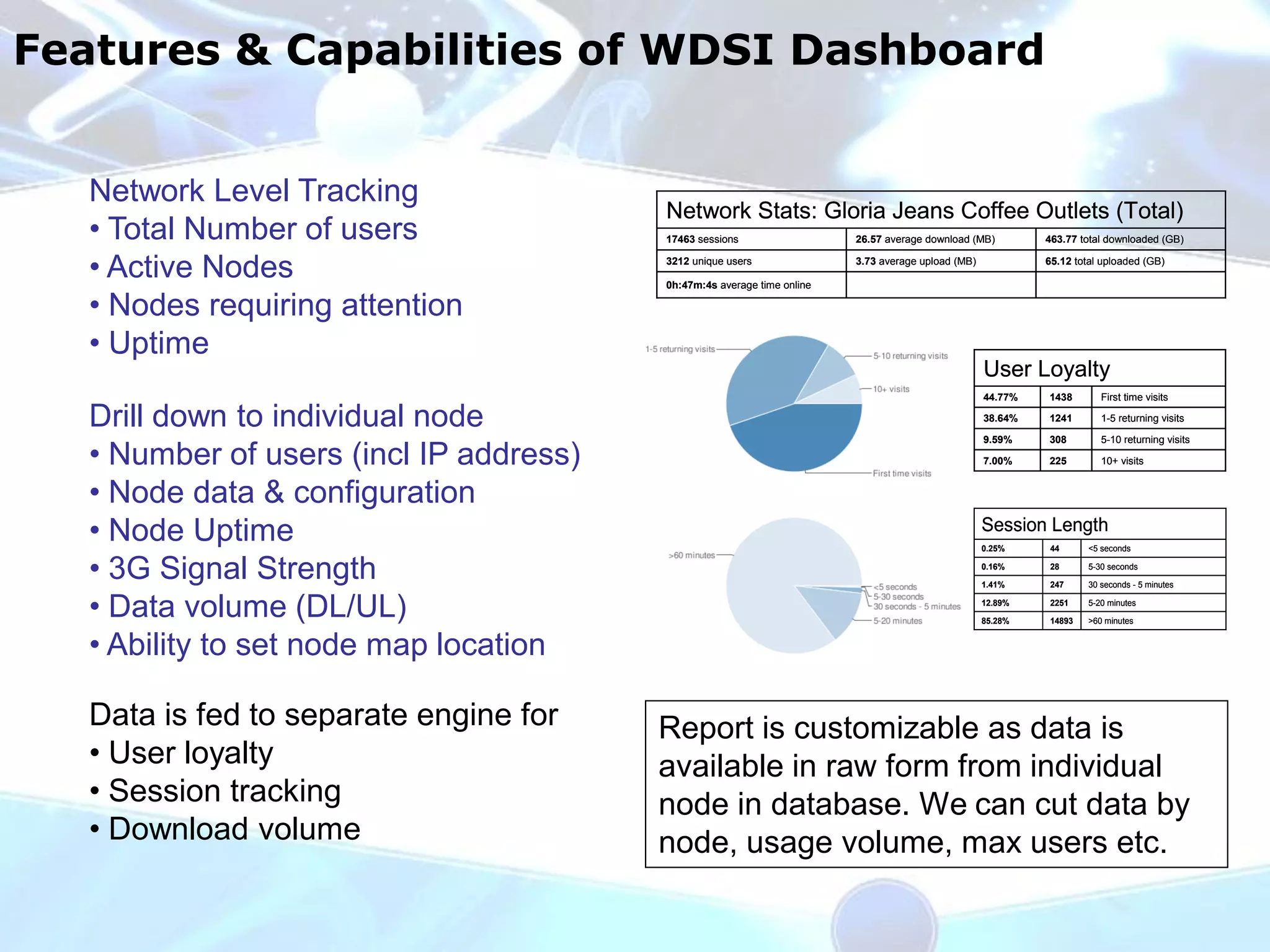

17. Features & Capabilities of WDSI Dashboard
Network Level Tracking
Network Stats: Gloria Jeans Coffee Outlets (Total)
• Total Number of users 17463 sessions 26.57 average download (MB) 463.77 total downloaded (GB)
• Active Nodes 3212 unique users
0h:47m:4s average time online
3.73 average upload (MB) 65.12 total uploaded (GB)
• Nodes requiring attention
• Uptime
User Loyalty
44.77% 1438 First time visits
Drill down to individual node 38.64% 1241 1-5 returning visits
9.59% 308 5-10 returning visits
• Number of users (incl IP address) 7.00% 225 10+ visits
• Node data & configuration
• Node Uptime Session Length
0.25% 44 <5 seconds
• 3G Signal Strength 0.16%
1.41%
28
247
5-30 seconds
30 seconds - 5 minutes
• Data volume (DL/UL) 12.89%
85.28%
2251
14893
5-20 minutes
>60 minutes
• Ability to set node map location
Data is fed to separate engine for Report is customizable as data is
• User loyalty available in raw form from individual
• Session tracking node in database. We can cut data by
• Download volume node, usage volume, max users etc.
