vRanger is an agentless backup and replication software that protects virtual, physical, and cloud environments. It uses an active block mapping technique to reduce backup data by 1/3. A virtual appliance architecture allows for concurrent backup, replication, and restore. The software also supports industry-leading deduplication devices, file-level recovery, one-click recovery, and physical Windows backup and recovery. Pricing is $769 per protected virtual host CPU socket and $300 per protected physical server.

1. vRanger Overview
Virtual + Physical + Cloud
© 2012 Quest Software Inc. All rights reserved.

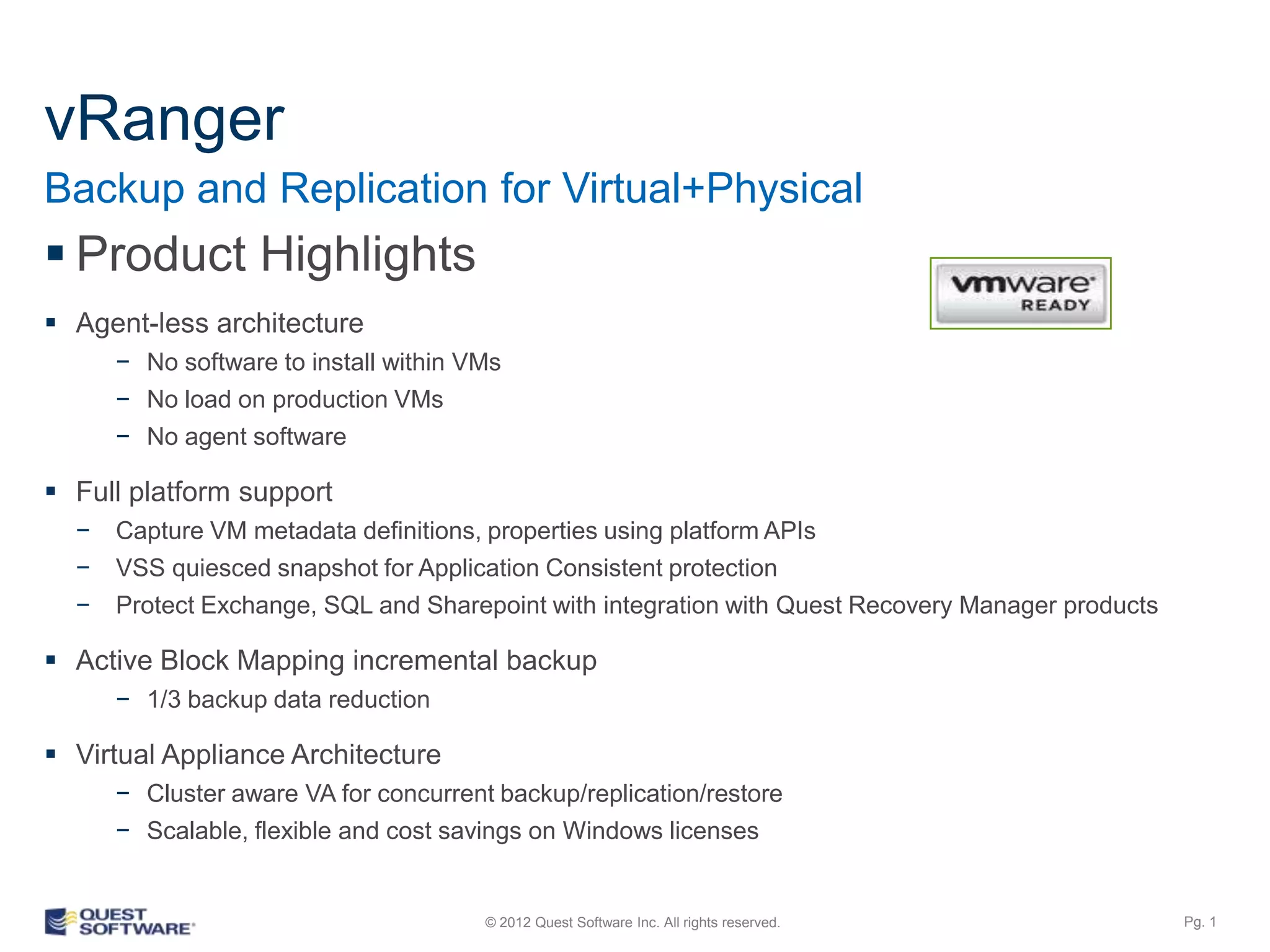

2. vRanger
Backup and Replication for Virtual+Physical
 Product Highlights
 Agent-less architecture
− No software to install within VMs
− No load on production VMs
− No agent software
 Full platform support
− Capture VM metadata definitions, properties using platform APIs
− VSS quiesced snapshot for Application Consistent protection
− Protect Exchange, SQL and Sharepoint with integration with Quest Recovery Manager products
 Active Block Mapping incremental backup
− 1/3 backup data reduction
 Virtual Appliance Architecture
− Cluster aware VA for concurrent backup/replication/restore
− Scalable, flexible and cost savings on Windows licenses
© 2012 Quest Software Inc. All rights reserved. Pg. 1

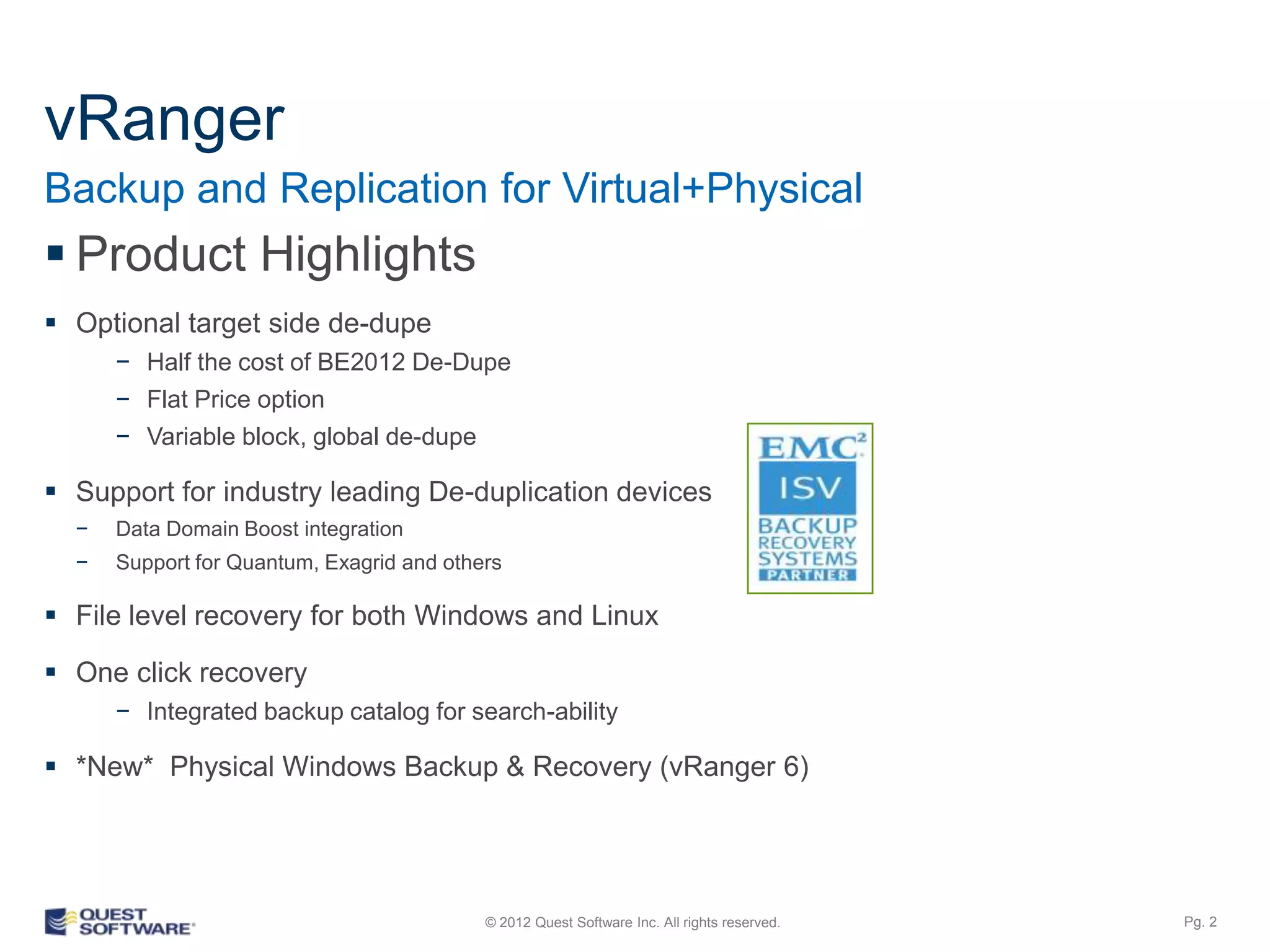

3. vRanger
Backup and Replication for Virtual+Physical
 Product Highlights
 Optional target side de-dupe
− Half the cost of BE2012 De-Dupe
− Flat Price option
− Variable block, global de-dupe
 Support for industry leading De-duplication devices
− Data Domain Boost integration
− Support for Quantum, Exagrid and others
 File level recovery for both Windows and Linux
 One click recovery
− Integrated backup catalog for search-ability
 *New* Physical Windows Backup & Recovery (vRanger 6)
 *New* Amazon Web Services Cloud integration (vRanger 6)
© 2012 Quest Software Inc. All rights reserved. Pg. 2

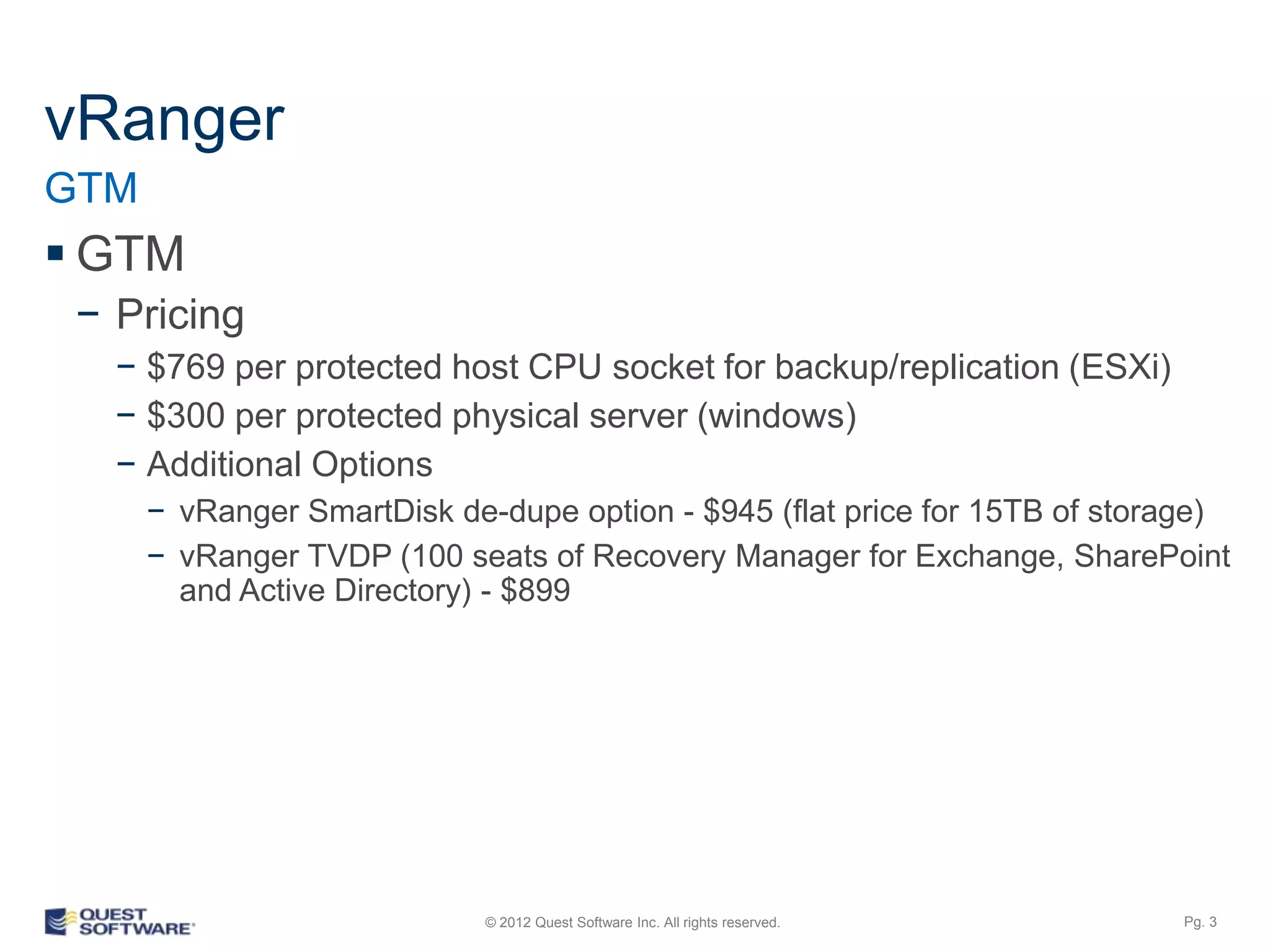

4. vRanger
GTM
 GTM
− Pricing
− $769 per protected host CPU socket for backup/replication (ESXi)
− $300 per protected physical server (windows)
− Additional Options
− vRanger SmartDisk de-dupe option - $945 (flat price for 15TB of storage)
− vRanger TVDP (100 seats of Recovery Manager for Exchange, SharePoint
and Active Directory) - $899
© 2012 Quest Software Inc. All rights reserved. Pg. 3

5. vRanger Customers
• Widely deployed in environments small and Large
© 2012 Quest Software Inc. All rights reserved. Pg. 4

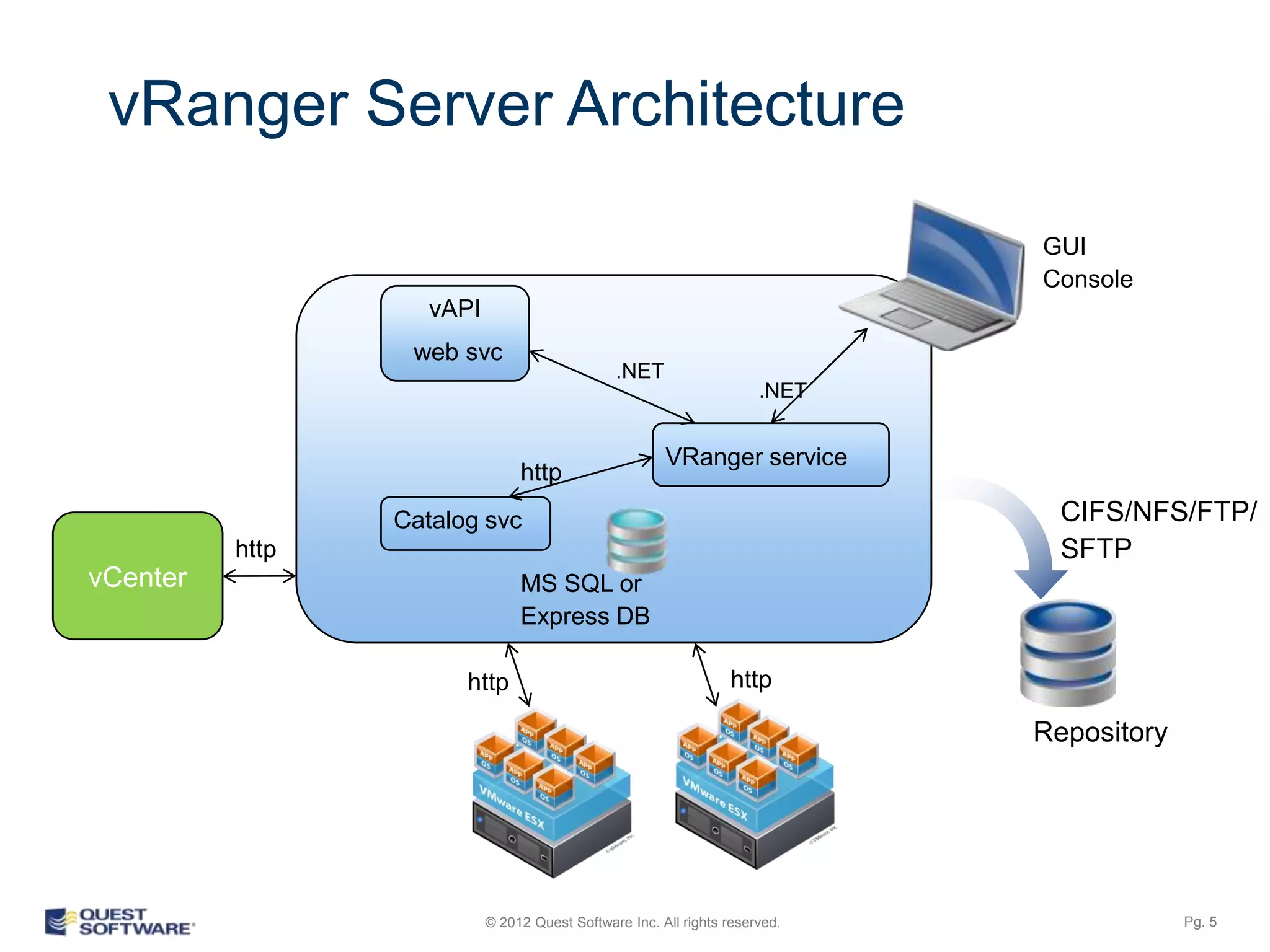

6. vRanger Server Architecture
GUI
Console
vAPI
web svc
.NET
.NET
VRanger service
http
Catalog svc CIFS/NFS/FTP/
http SFTP
vCenter MS SQL or
Express DB
http http
Repository
ESX/ESXi
© 2012 Quest Software Inc. All rights reserved. Pg. 5

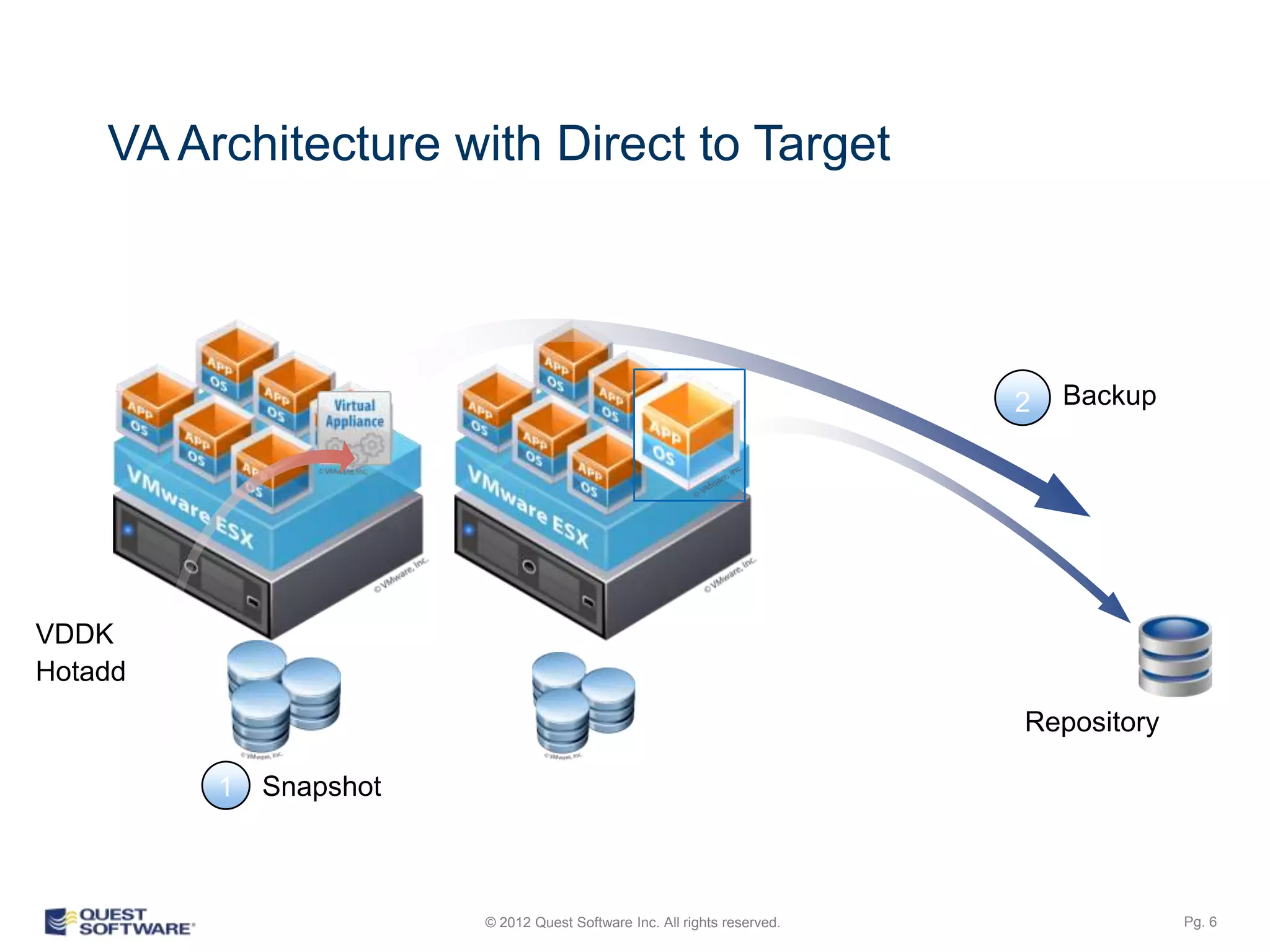

7. VA Architecture with Direct to Target
VRanger VM
2 Backup
VDDK
Hotadd
Repository
1 Snapshot
© 2012 Quest Software Inc. All rights reserved. Pg. 6

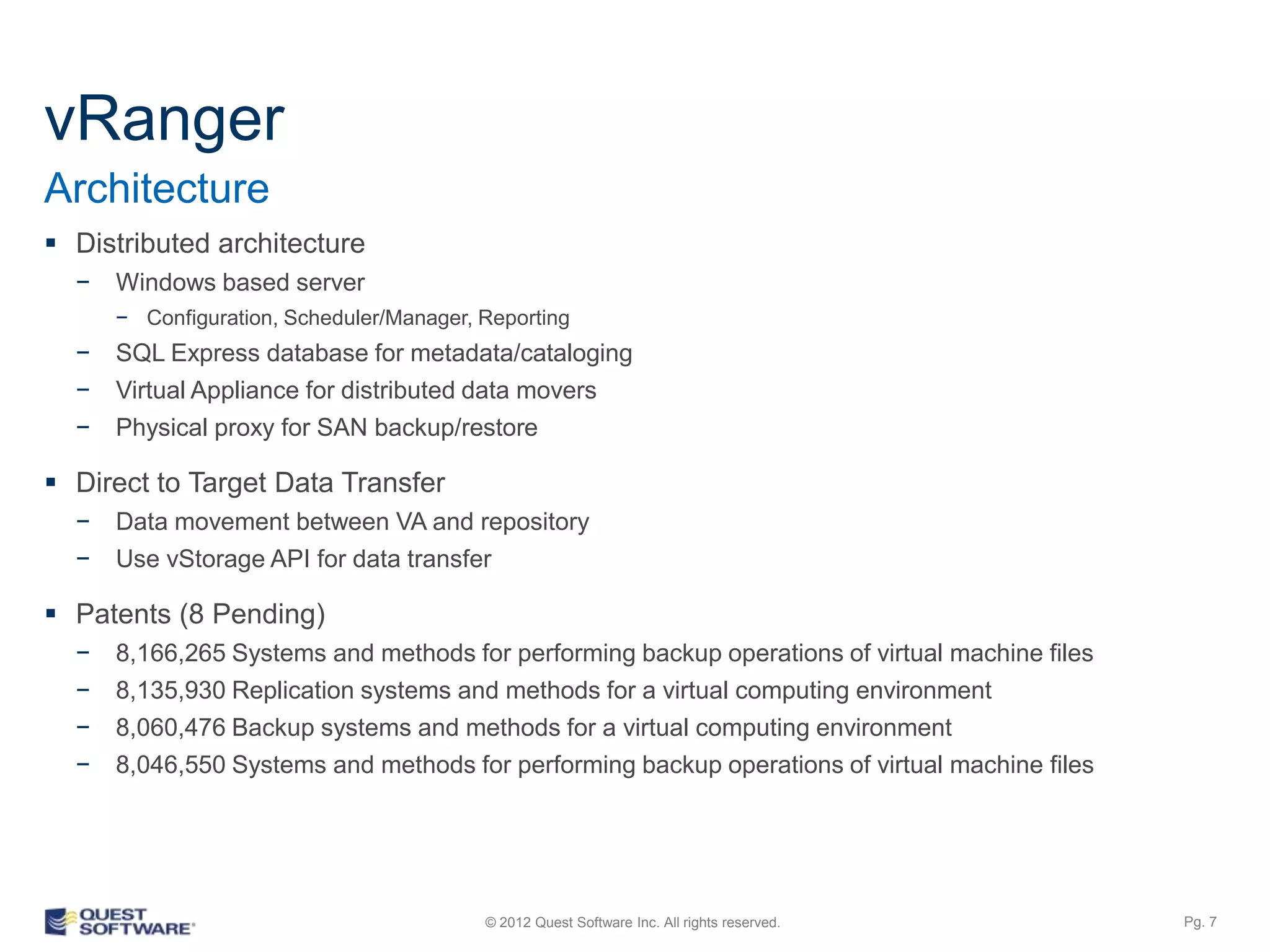

8. vRanger
Architecture
 Distributed architecture
− Windows based server
− Configuration, Scheduler/Manager, Reporting
− SQL Express database for metadata/cataloging
− Virtual Appliance for distributed data movers
− Physical proxy for SAN backup/restore
 Direct to Target Data Transfer
− Data movement between VA and repository
− Use vStorage API for data transfer
 Patents (8 Pending)
− 8,166,265 Systems and methods for performing backup operations of virtual machine files
− 8,135,930 Replication systems and methods for a virtual computing environment
− 8,060,476 Backup systems and methods for a virtual computing environment
− 8,046,550 Systems and methods for performing backup operations of virtual machine files
© 2012 Quest Software Inc. All rights reserved. Pg. 7

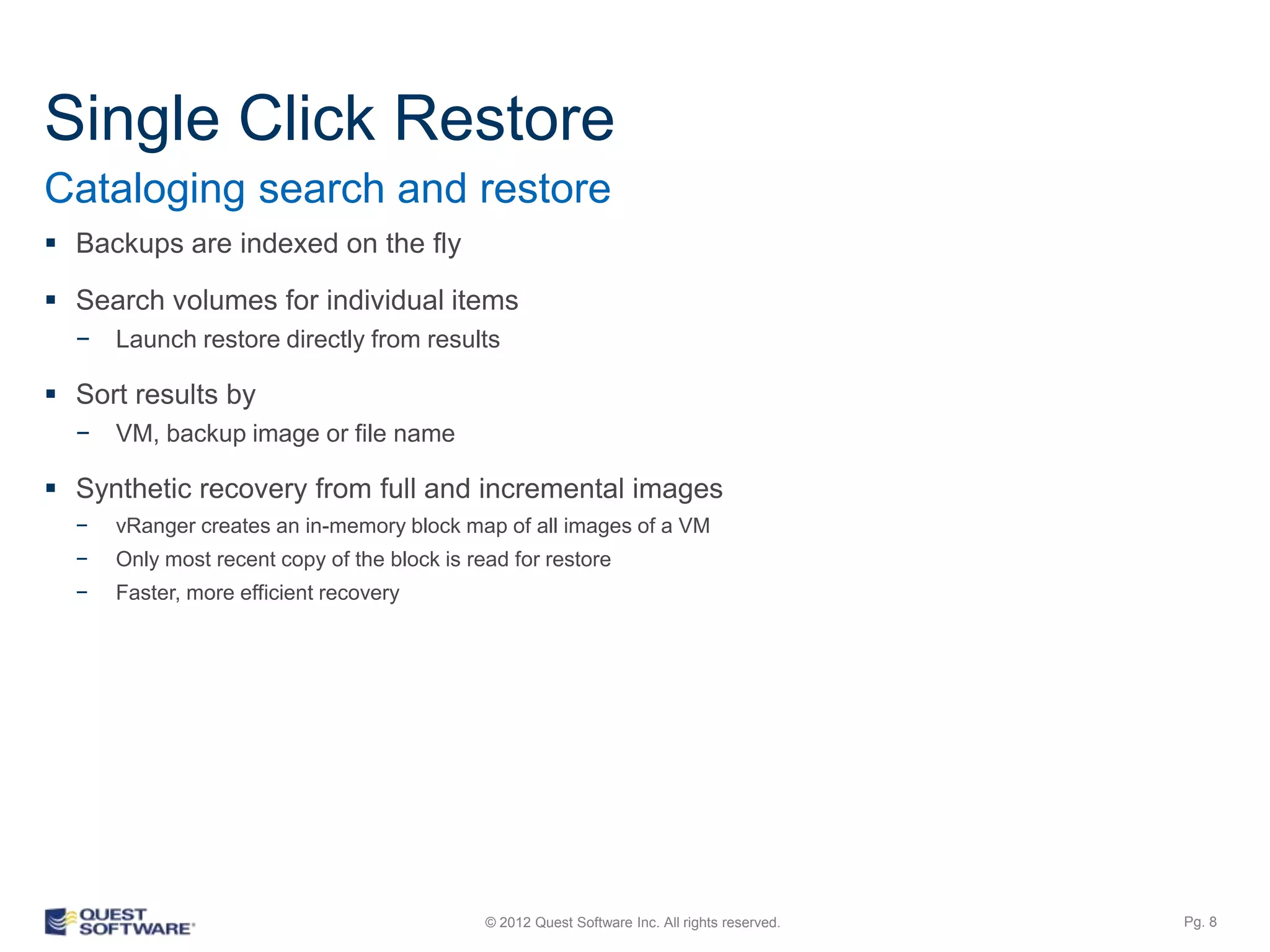

9. Single Click Restore
Cataloging search and restore
 Backups are indexed on the fly
 Search volumes for individual items
− Launch restore directly from results
 Sort results by
− Physical Windows Server, VM, backup image or file name
 Synthetic recovery from full and incremental images
− vRanger creates an in-memory block map of all images of a VM
− Only most recent copy of the block is read for restore
− Faster, more efficient recovery
© 2012 Quest Software Inc. All rights reserved. Pg. 8

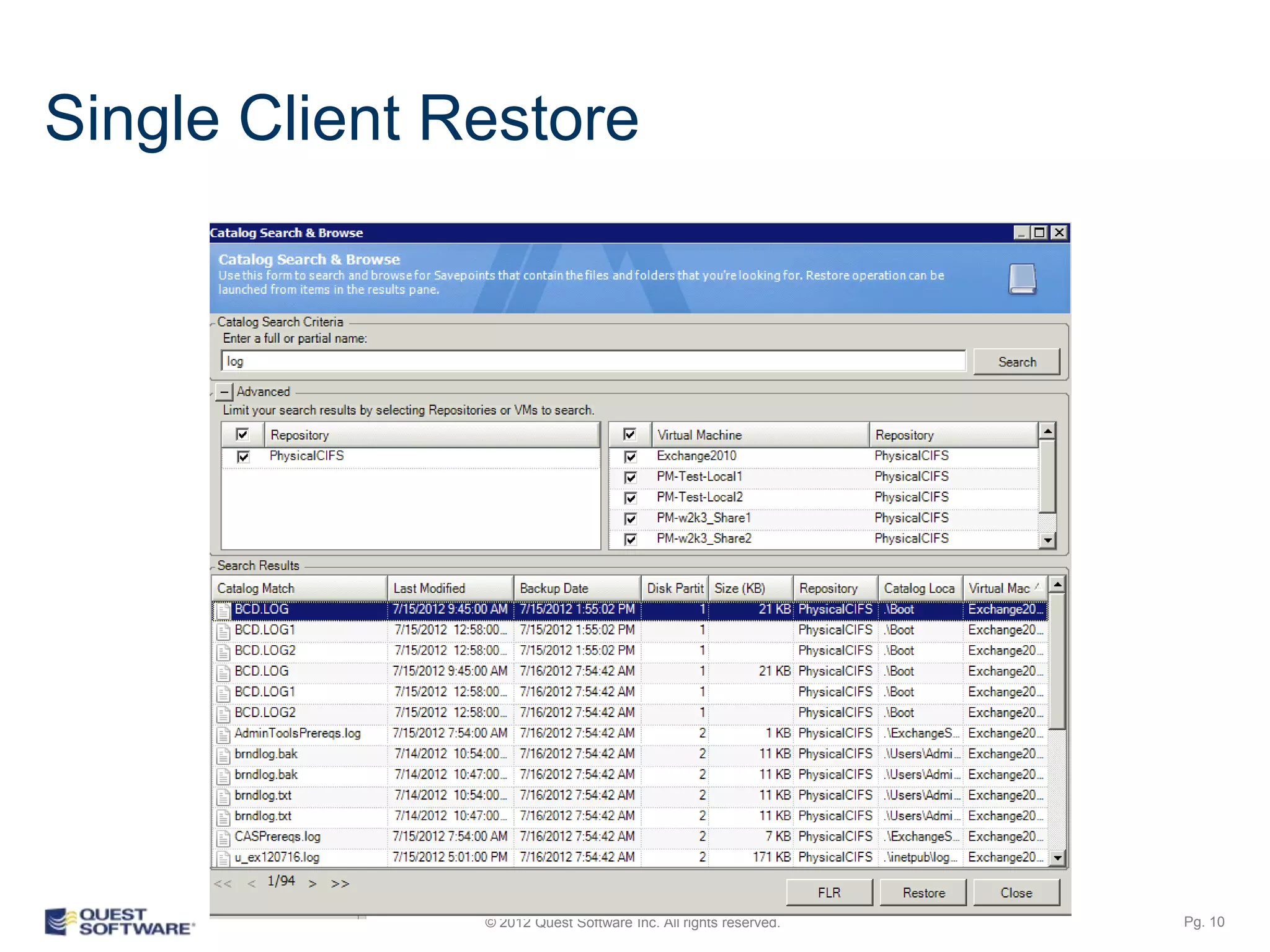

10. Single Click Restore
© 2012 Quest Software Inc. All rights reserved. Pg. 9

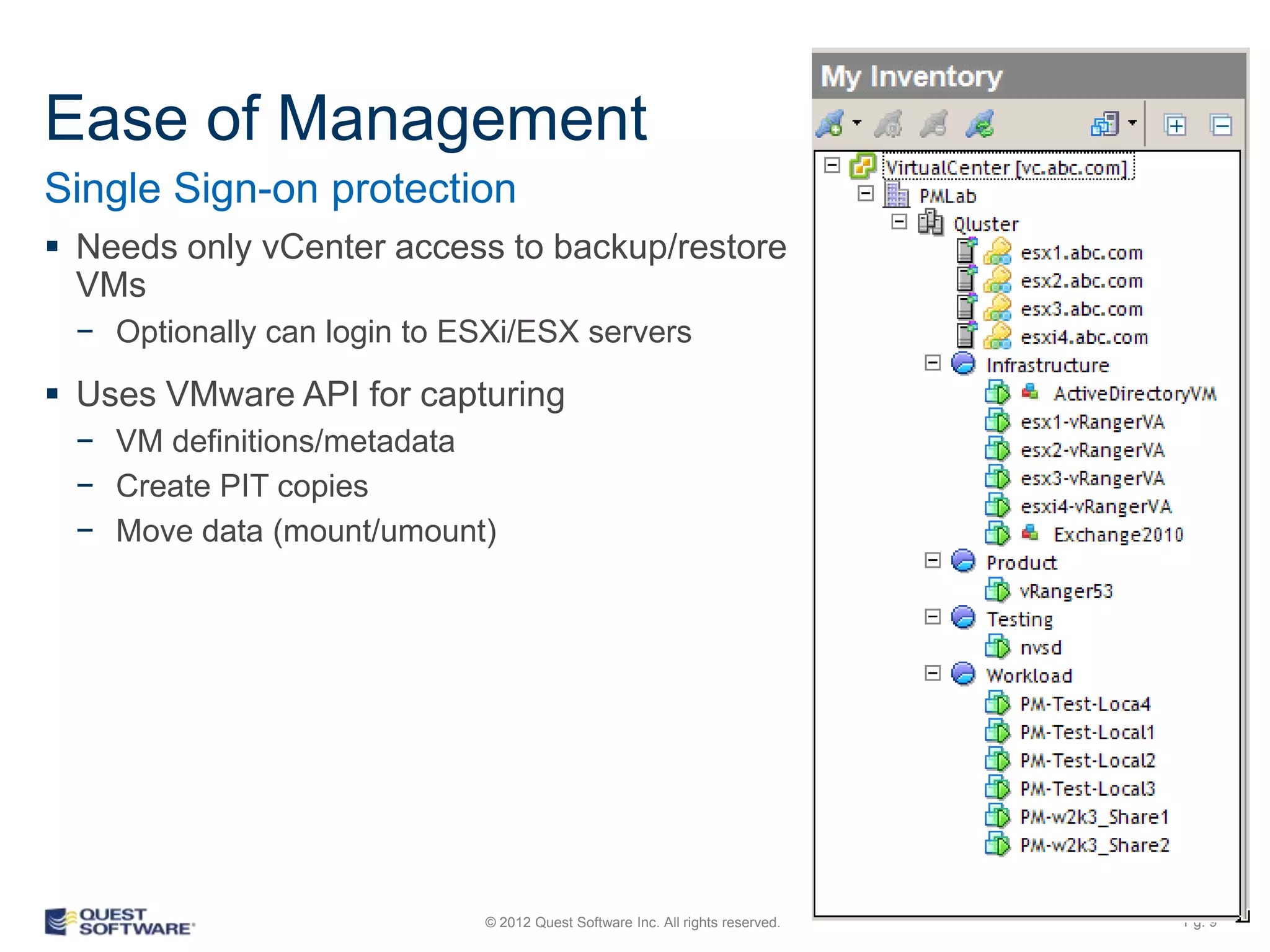

11. Ease of Management
Single Sign-on protection
 Needs only vCenter access to backup/restore
VMs
− Optionally can login to ESXi/ESX servers
 Uses VMware API for capturing
− VM definitions/metadata
− Create PIT copies
− Move data (mount/umount)
© 2012 Quest Software Inc. All rights reserved. Pg. 10

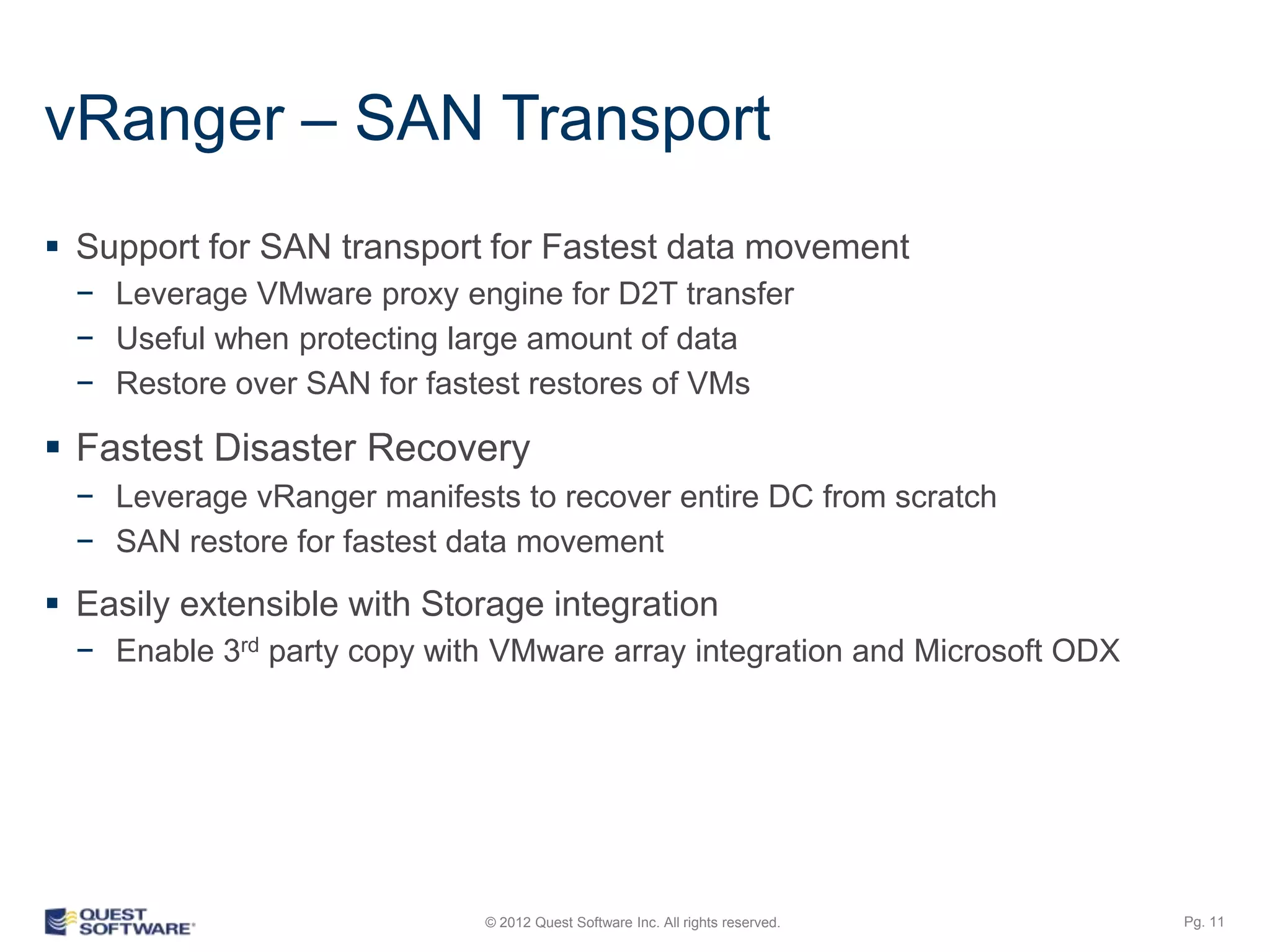

12. vRanger – SAN Transport
 Support for SAN transport for Fastest data movement
− Leverage VMware proxy engine for D2T transfer
− Useful when protecting large amount of data
− Restore over SAN for fastest restores of VMs
 Fastest Disaster Recovery
− Leverage vRanger manifests to recover entire DC from scratch
− SAN restore for fastest data movement
 Easily extensible with Storage integration
− Enable 3rd party copy with VMware array integration and Microsoft ODX
© 2012 Quest Software Inc. All rights reserved. Pg. 11

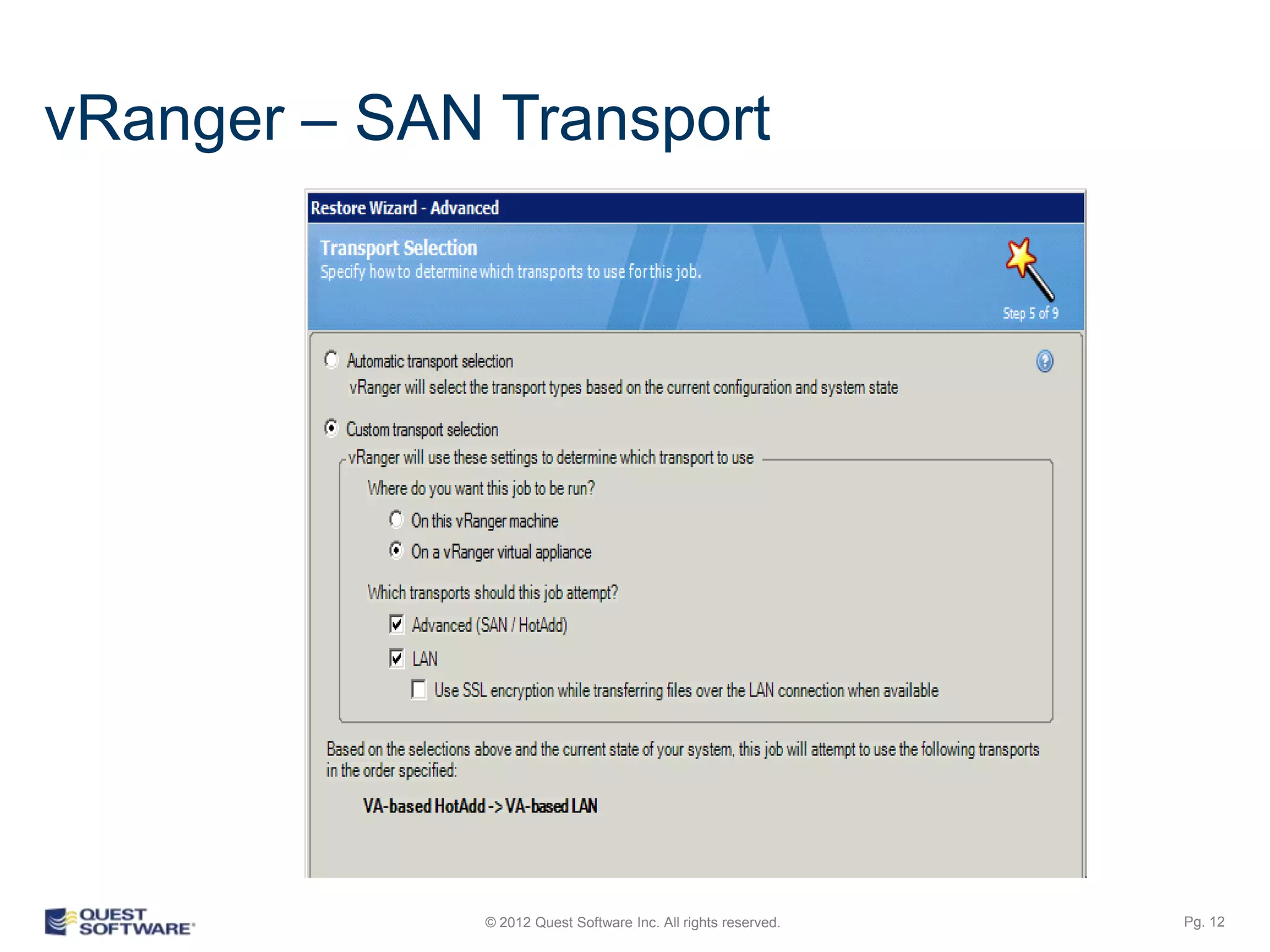

13. vRanger – SAN Transport
© 2012 Quest Software Inc. All rights reserved. Pg. 12

14. Thank You
© 2012 Quest Software Inc. All rights reserved. Pg. 13
