![Equality Comparator
12/03/2024
63
Check if each bit is equal (XNOR, aka equality gate)
1’s detect on bitwise equality
A = B
B[3]
A[3]
B[2]
A[2]
B[1]
A[1]
B[0]
A[0]](https://image.slidesharecdn.com/vlsiunit4ppt-241203163356-34e03cae/75/VLSI_UNIT_4-_PPT-pptx-53-2048.jpg)
VLSI_UNIT_4 _PPT.pptx
- 1. UNIT - IV SUBSYSTEMDESIGN VLSI 12/03/2024 1

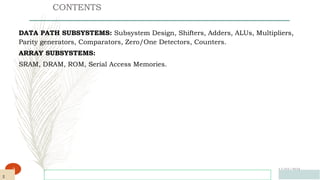

- 2. CONTENTS 12/03/2024 2 DATA PATH SUBSYSTEMS:Subsystem Design, Shifters, Adders, ALUs, Multipliers, Parity generators, Comparators, Zero/One Detectors, Counters. ARRAY SUBSYSTEMS: SRAM, DRAM, ROM, Serial Access Memories. 2

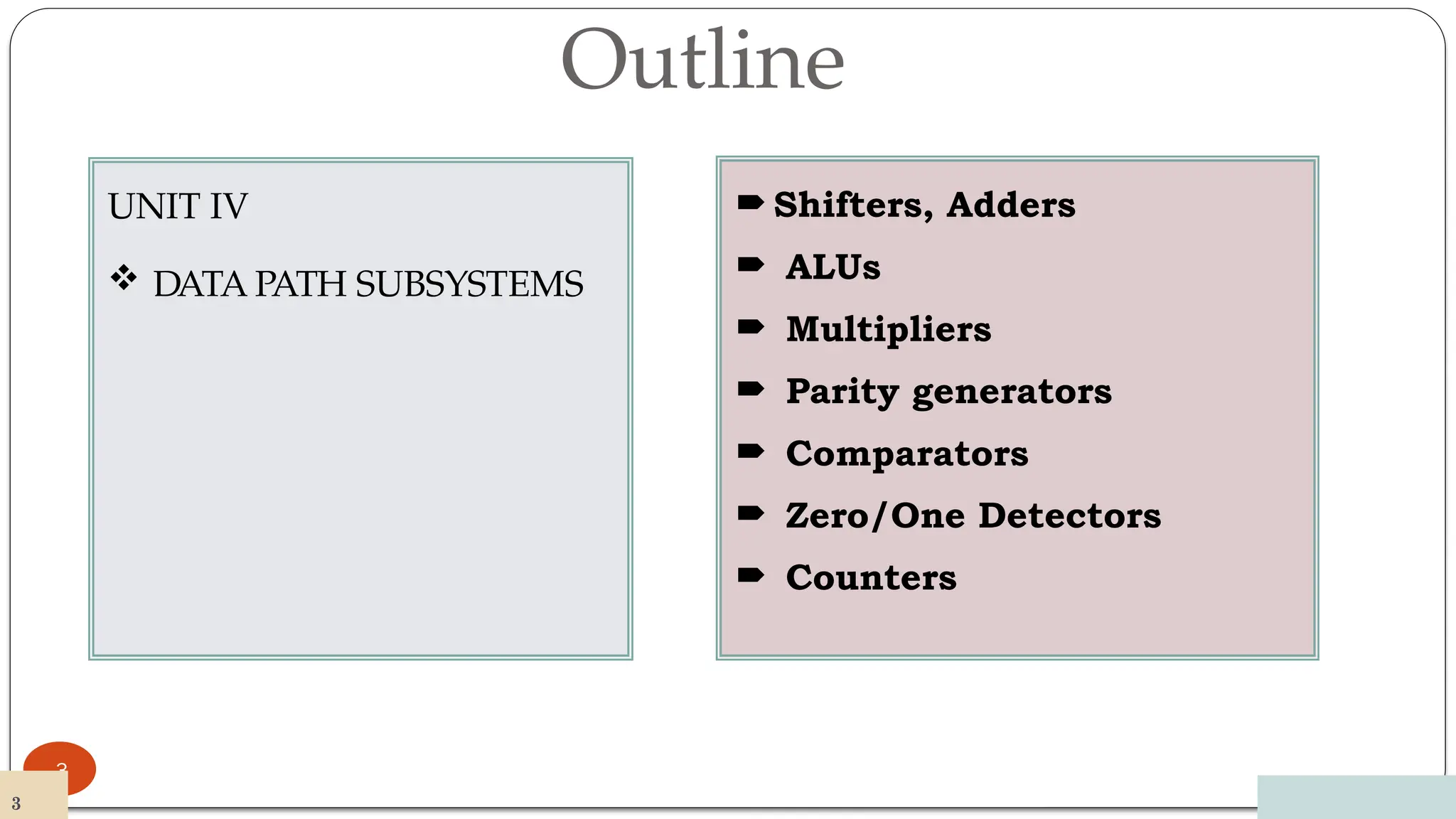

- 3. Outline 12/03/2024 3 UNIT IV DATAPATH SUBSYSTEMS Shifters, Adders ALUs Multipliers Parity generators Comparators Zero/One Detectors Counters 3

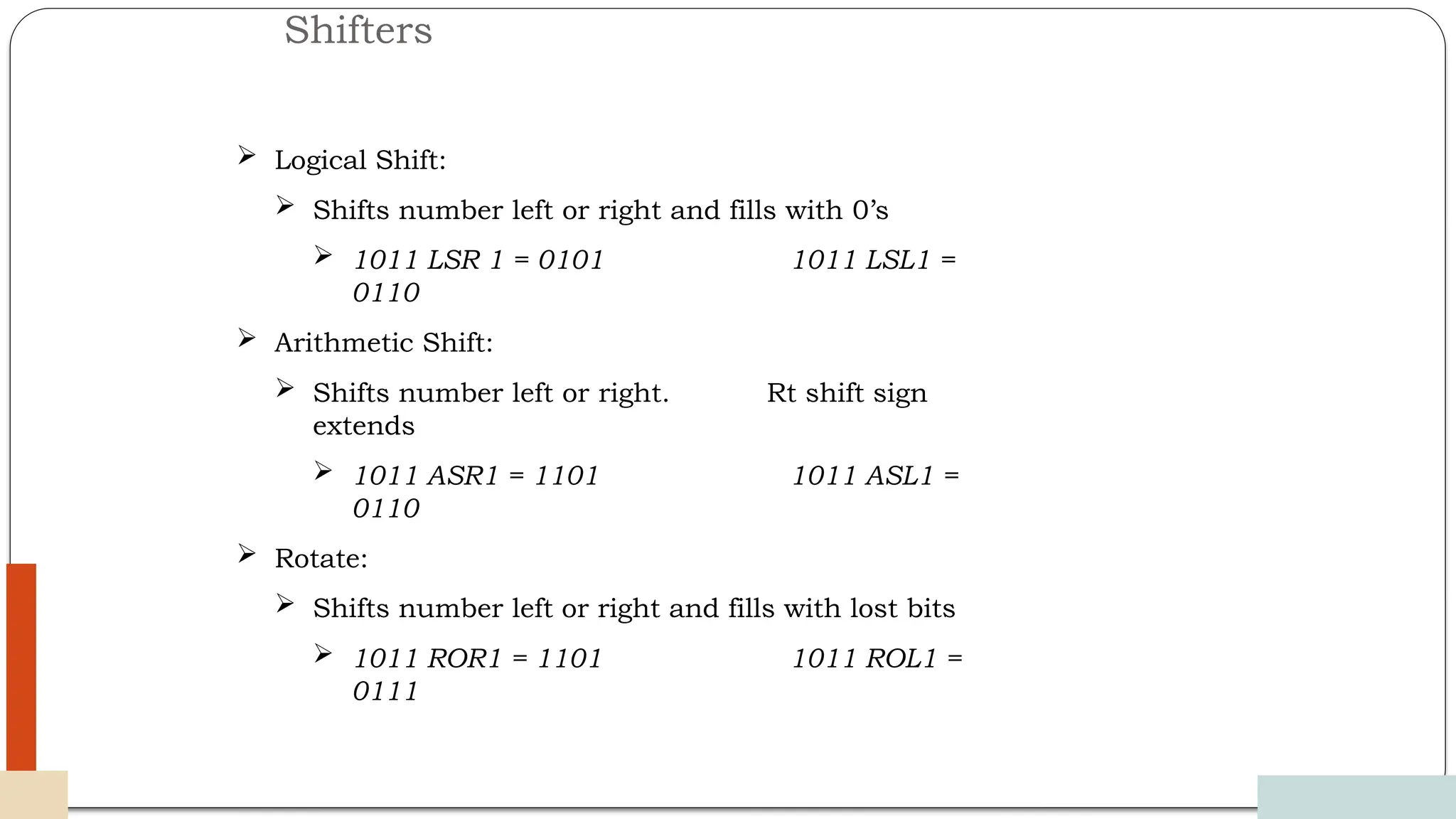

- 4. Shifters 12/03/2024 4 Logical Shift: Shifts number left or right and fills with 0’s 1011 LSR 1 = 0101 1011 LSL1 = 0110 Arithmetic Shift: Shifts number left or right. Rt shift sign extends 1011 ASR1 = 1101 1011 ASL1 = 0110 Rotate: Shifts number left or right and fills with lost bits 1011 ROR1 = 1101 1011 ROL1 = 0111

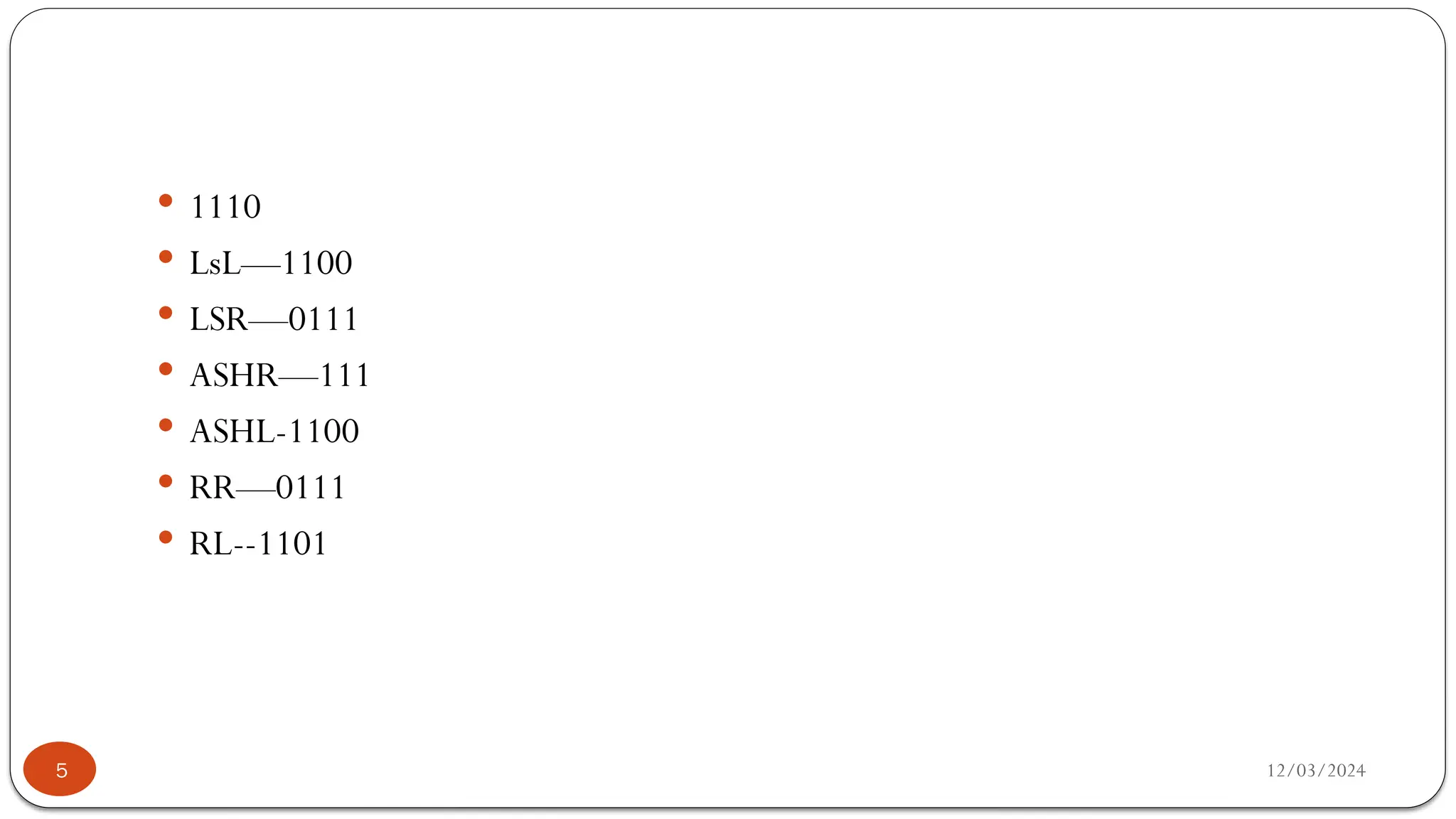

- 5. 12/03/2024 5 1110 LsL—1100 LSR—0111 ASHR—111 ASHL-1100 RR—0111 RL--1101

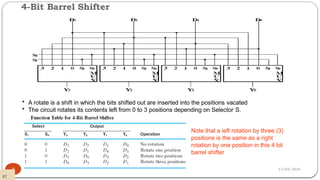

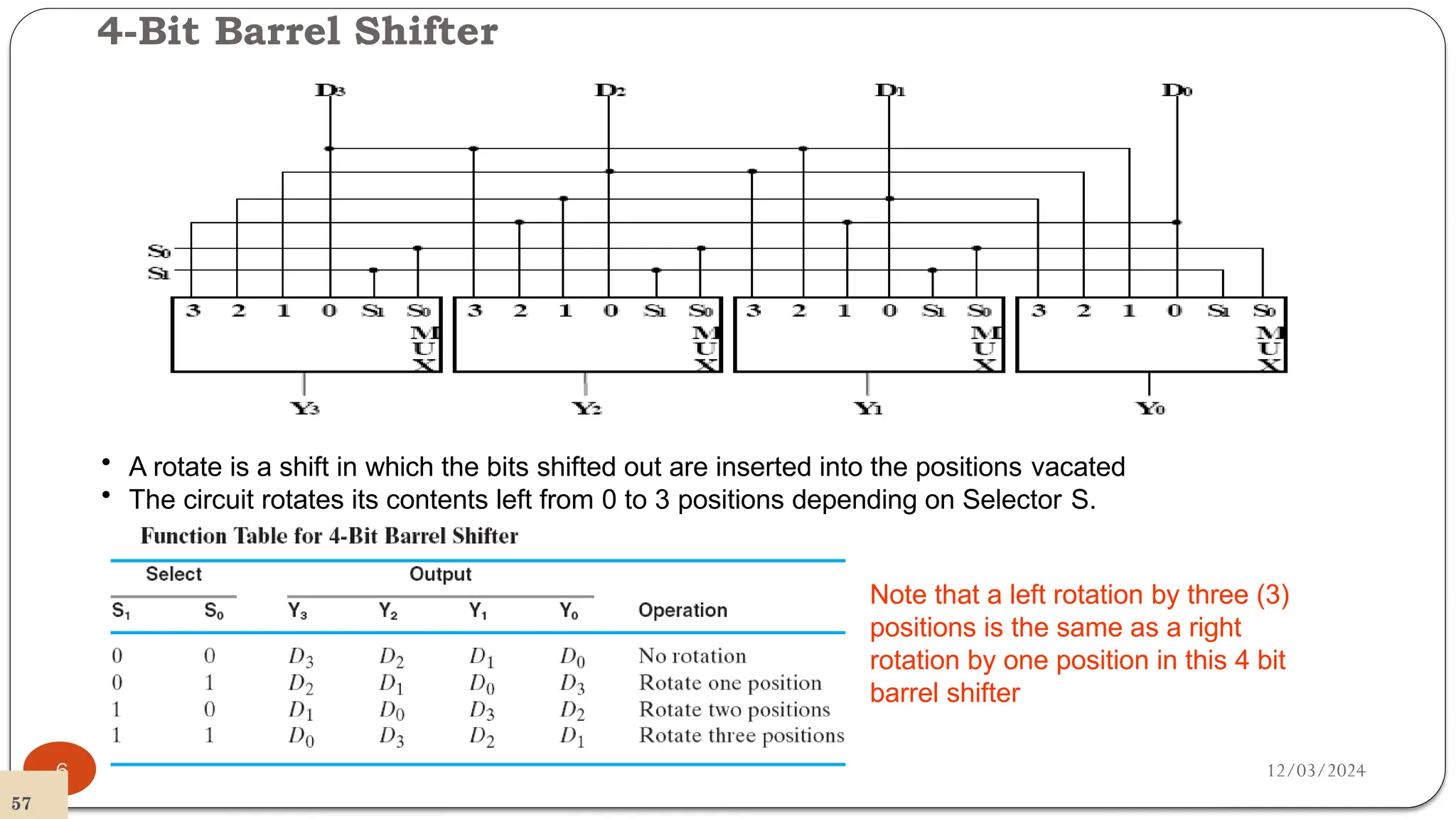

- 6. 4-Bit Barrel Shifter 12/03/2024 6 •A rotate is a shift in which the bits shifted out are inserted into the positions vacated • The circuit rotates its contents left from 0 to 3 positions depending on Selector S. Note that a left rotation by three (3) positions is the same as a right rotation by one position in this 4 bit barrel shifter 57
- 7.

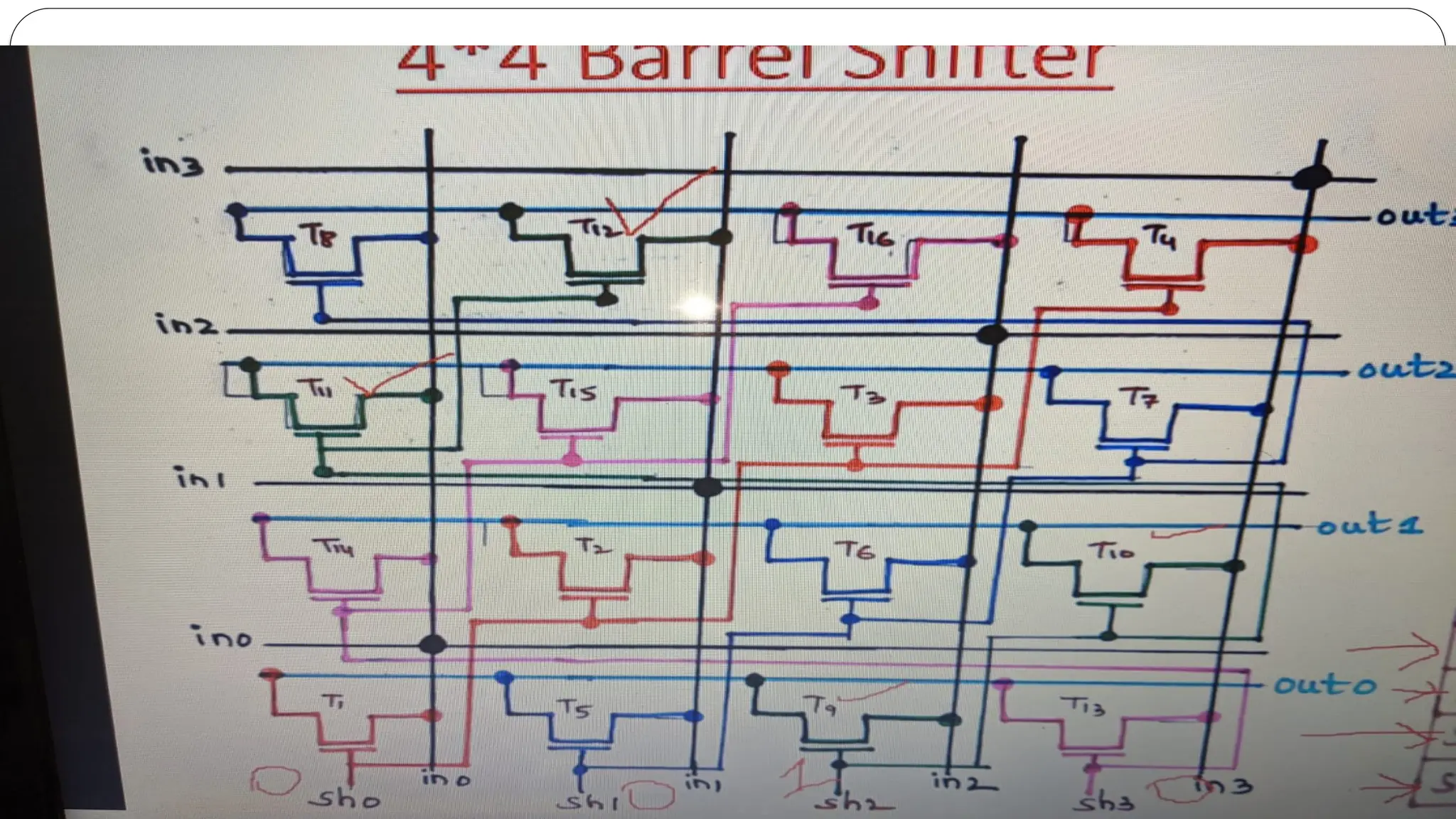

- 8.

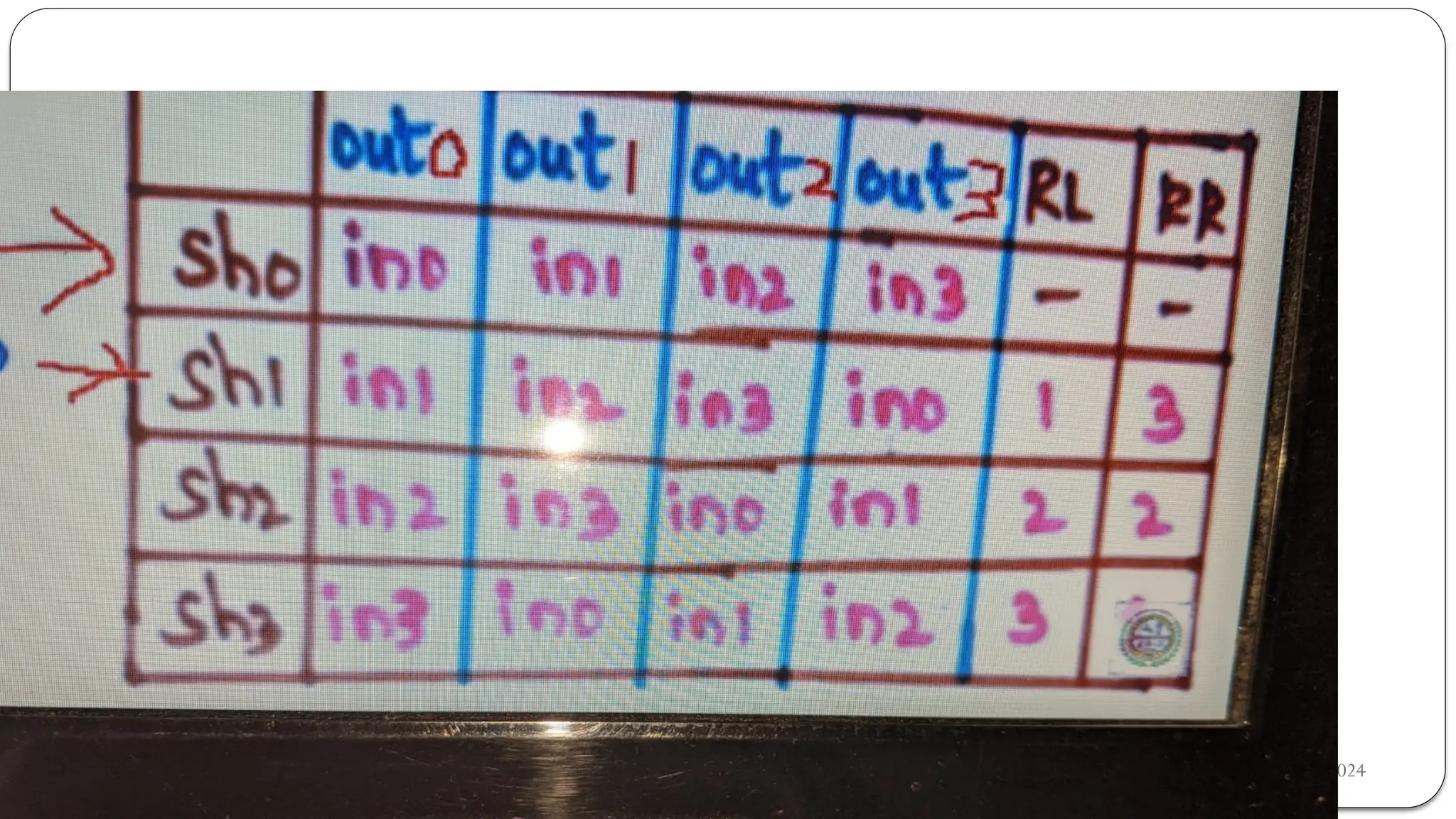

- 9.

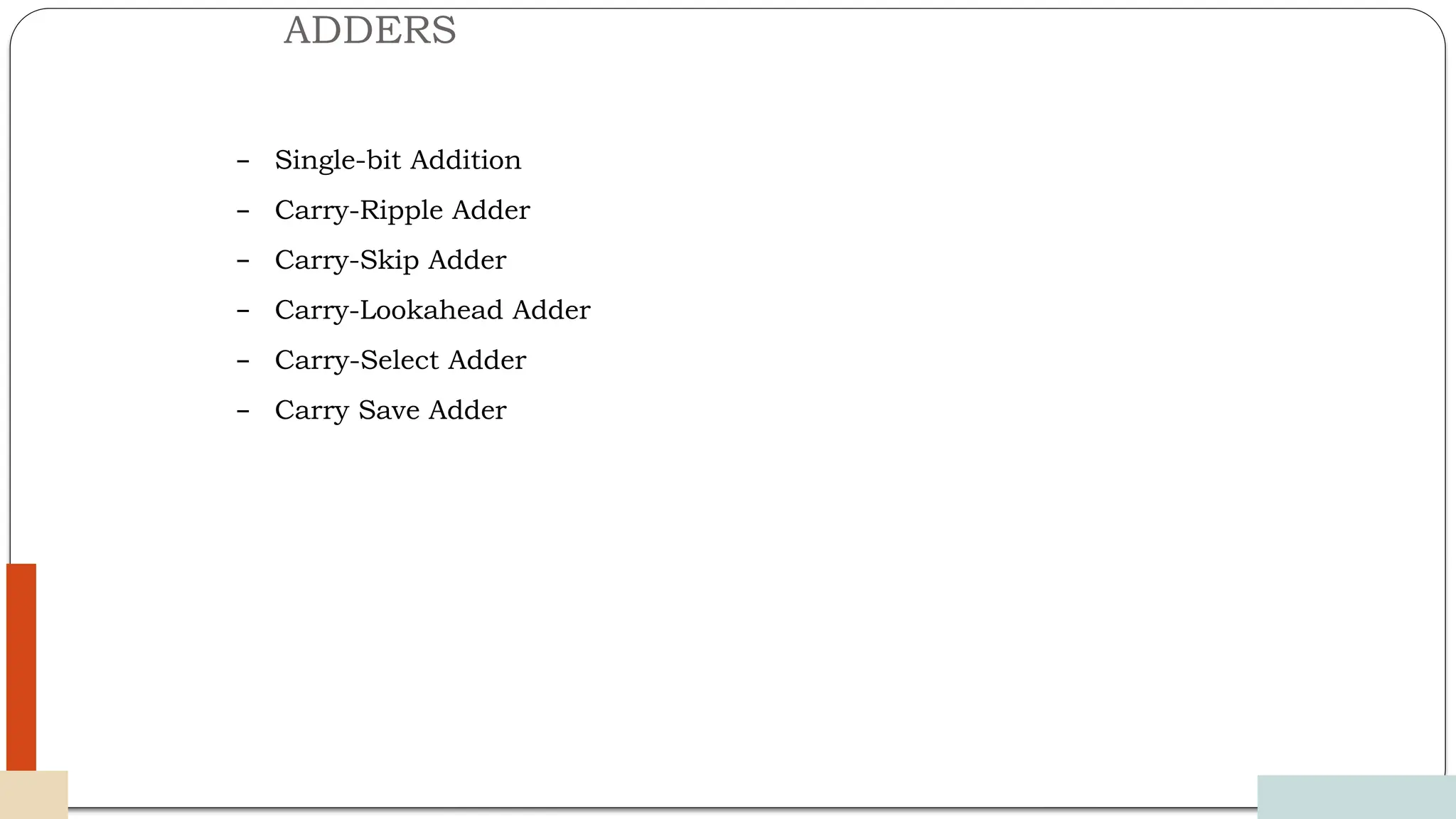

- 10. ADDERS 12/03/2024 10 – Single-bit Addition –Carry-Ripple Adder – Carry-Skip Adder – Carry-Lookahead Adder – Carry-Select Adder – Carry Save Adder

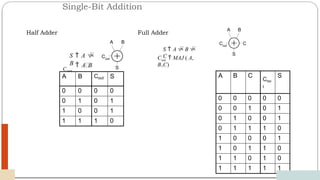

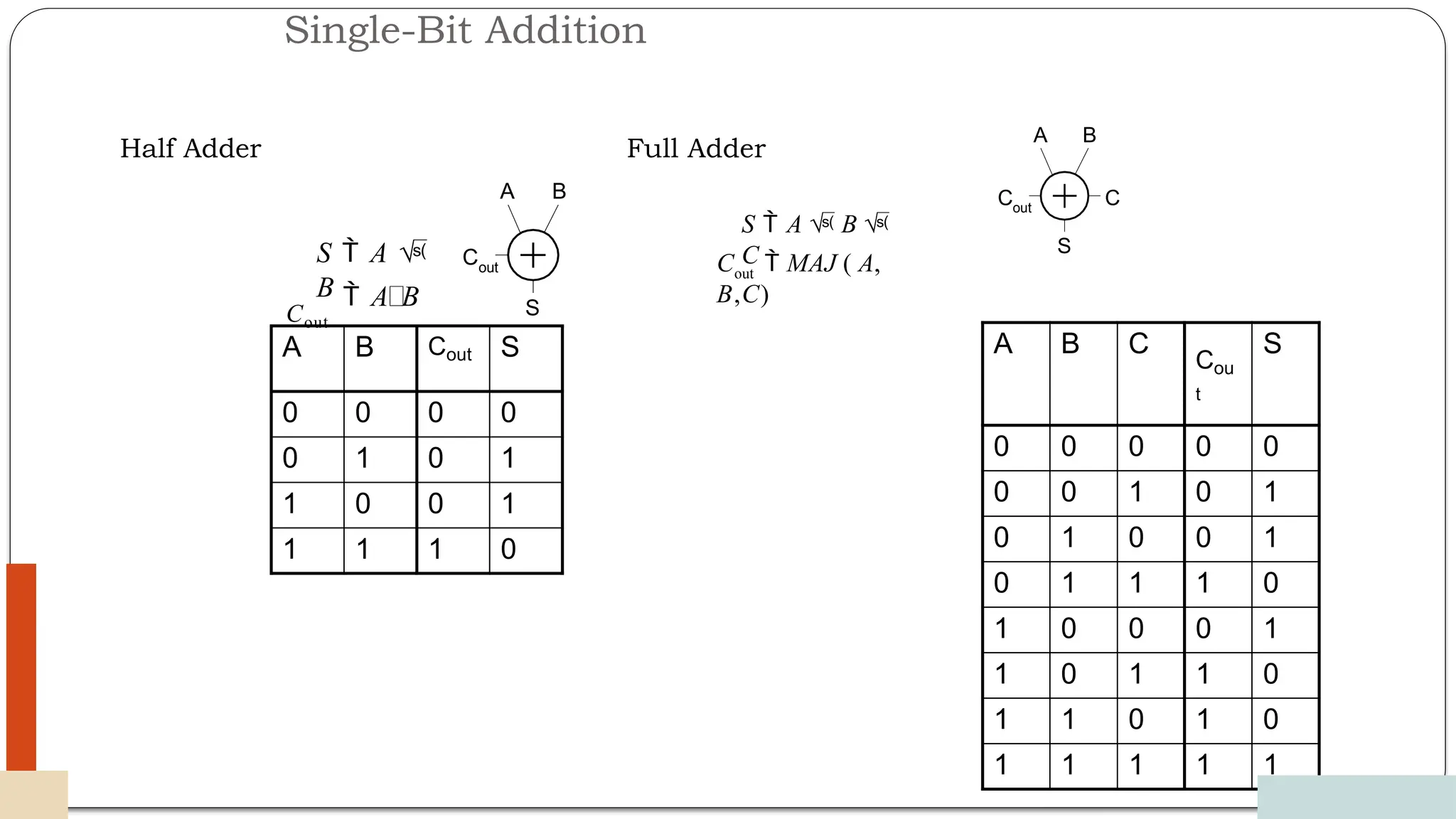

- 11. Single-Bit Addition 12/03/2024 11 Half AdderFull Adder A B Cout S 0 0 0 0 0 1 0 1 1 0 0 1 1 1 1 0 A B C Cou t S 0 0 0 0 0 0 0 1 0 1 0 1 0 0 1 0 1 1 1 0 1 0 0 0 1 1 0 1 1 0 1 1 0 1 0 1 1 1 1 1 A B S Cout A B C S Cout Cout S A B A B out S A B C C MAJ ( A, B,C)

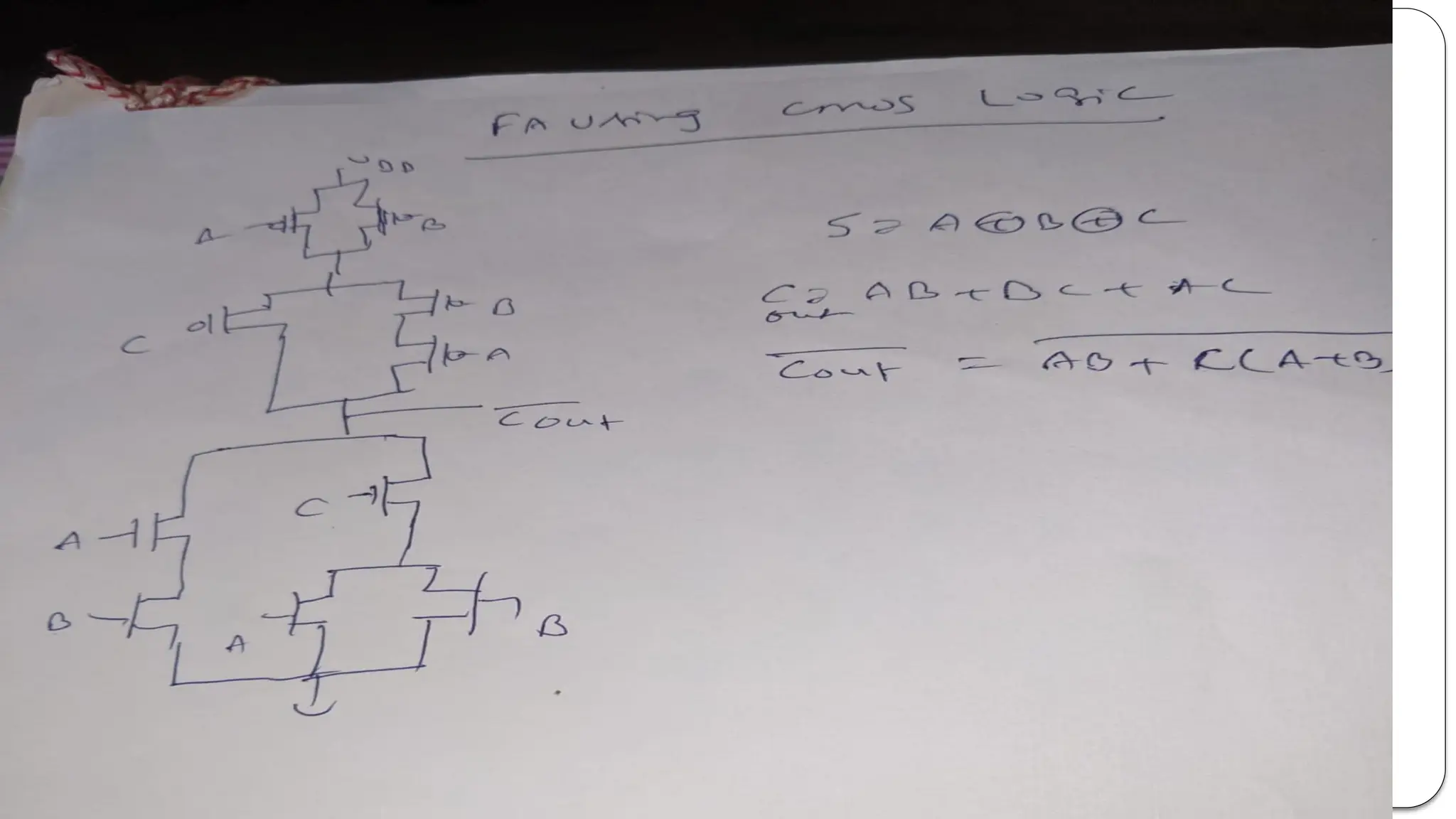

- 12.
- 13.

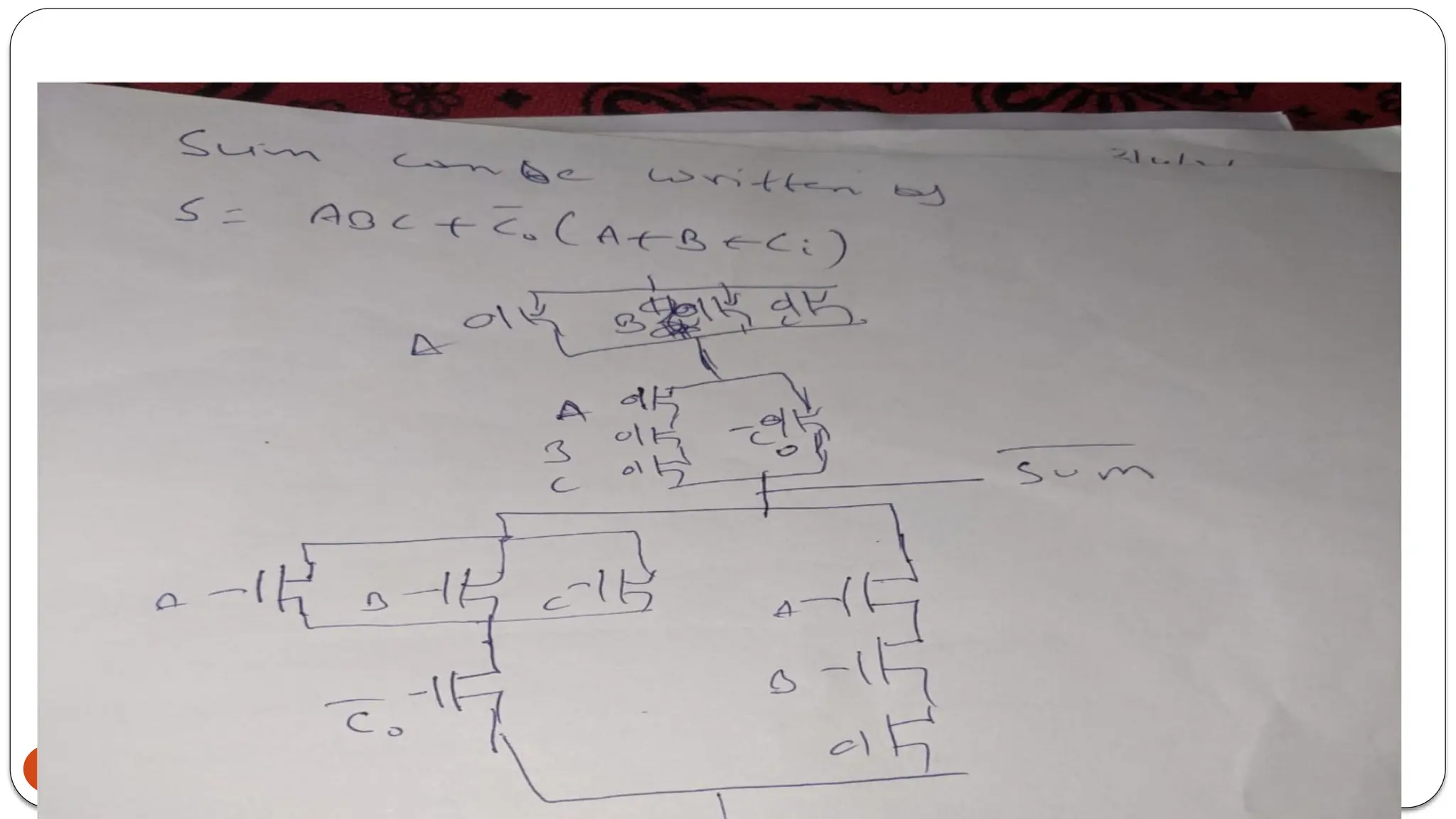

- 14.

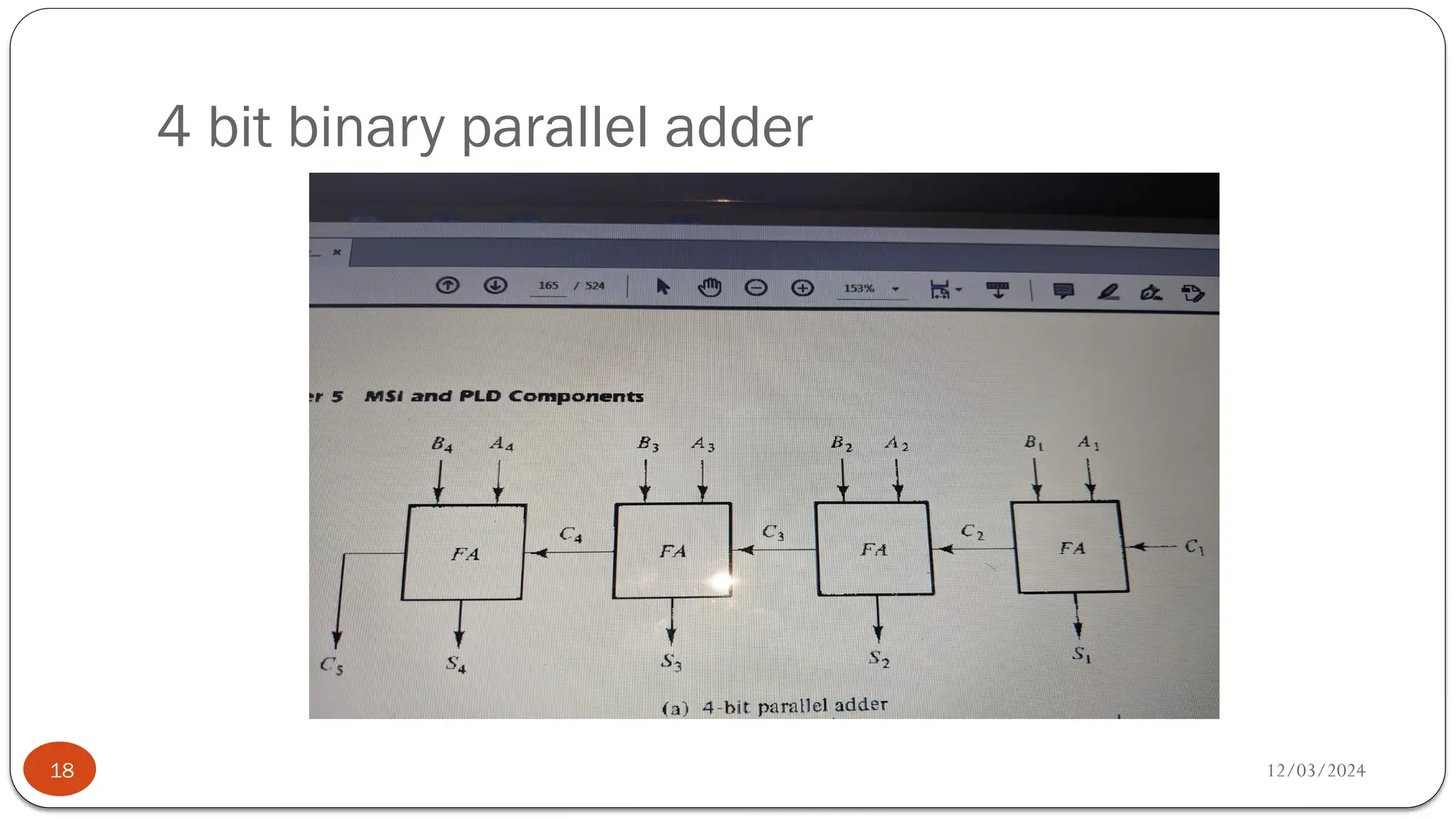

- 15. 4 bit binaryparallel adder 12/03/2024 18
- 16. Carry look aheadadder 12/03/2024 19

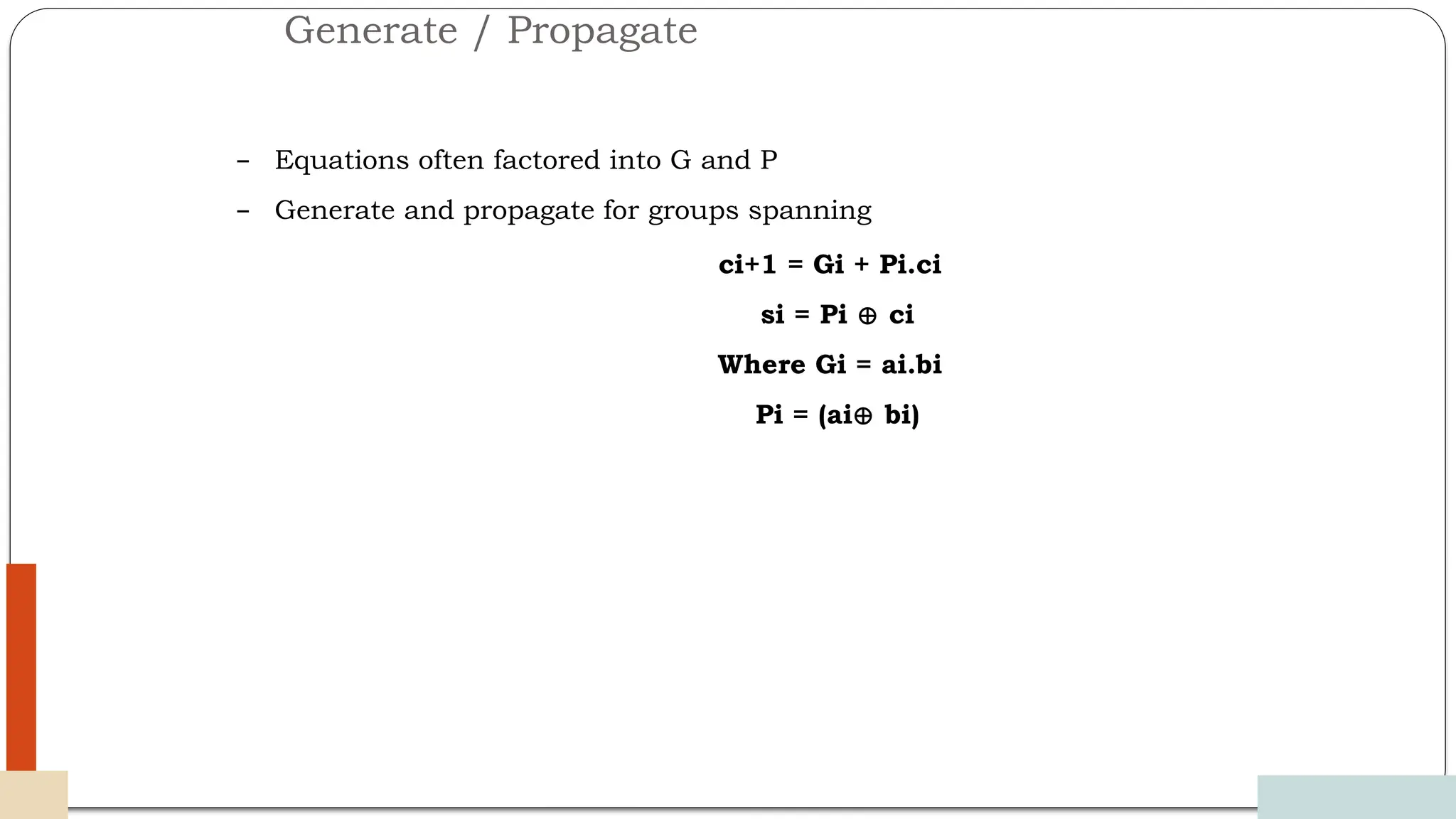

- 17. Generate / Propagate 12/03/2024 20 –Equations often factored into G and P – Generate and propagate for groups spanning ci+1 = Gi + Pi.ci si = Pi ⊕ ci Where Gi = ai.bi Pi = (ai⊕ bi)
- 18.

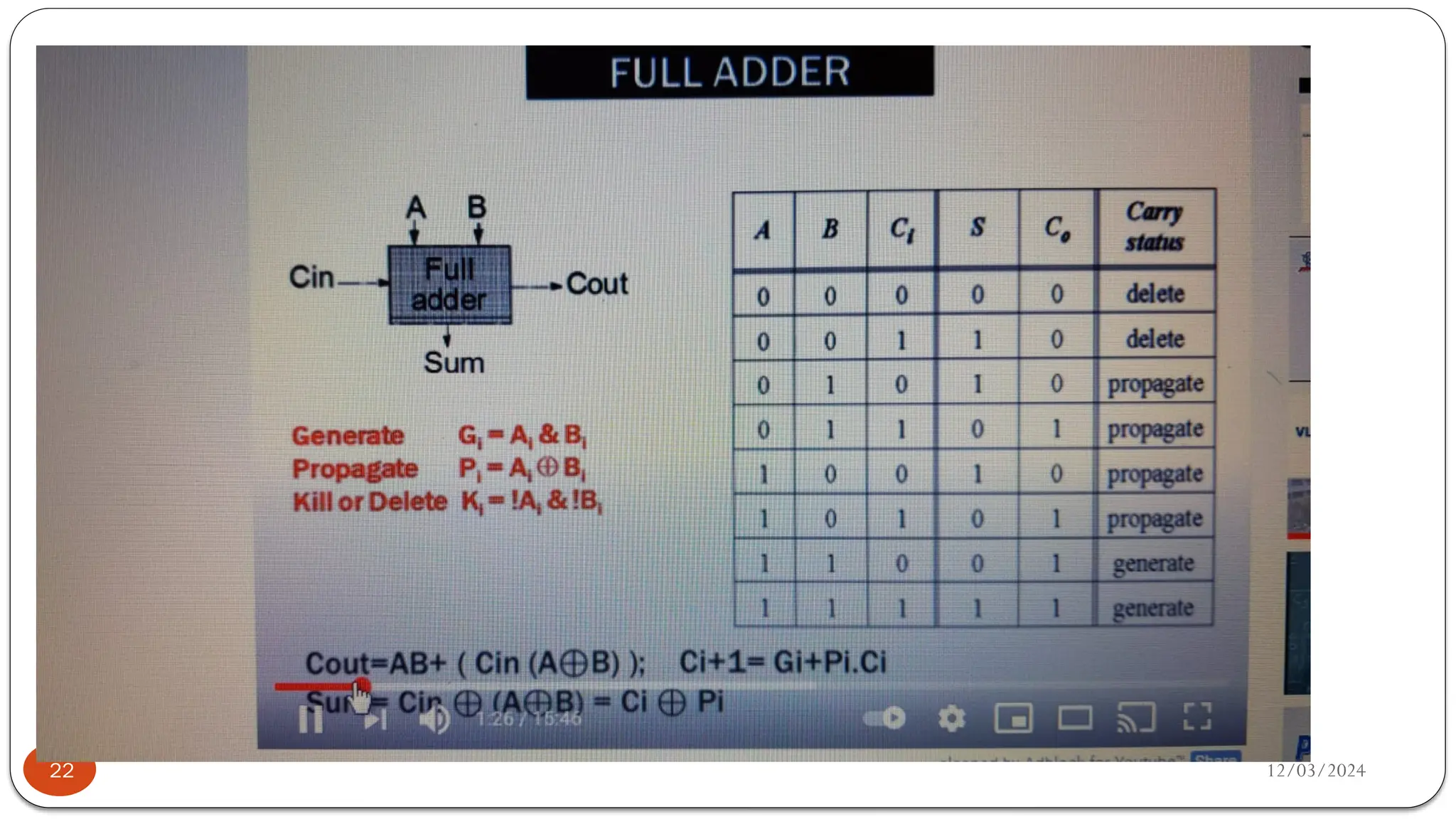

- 19.

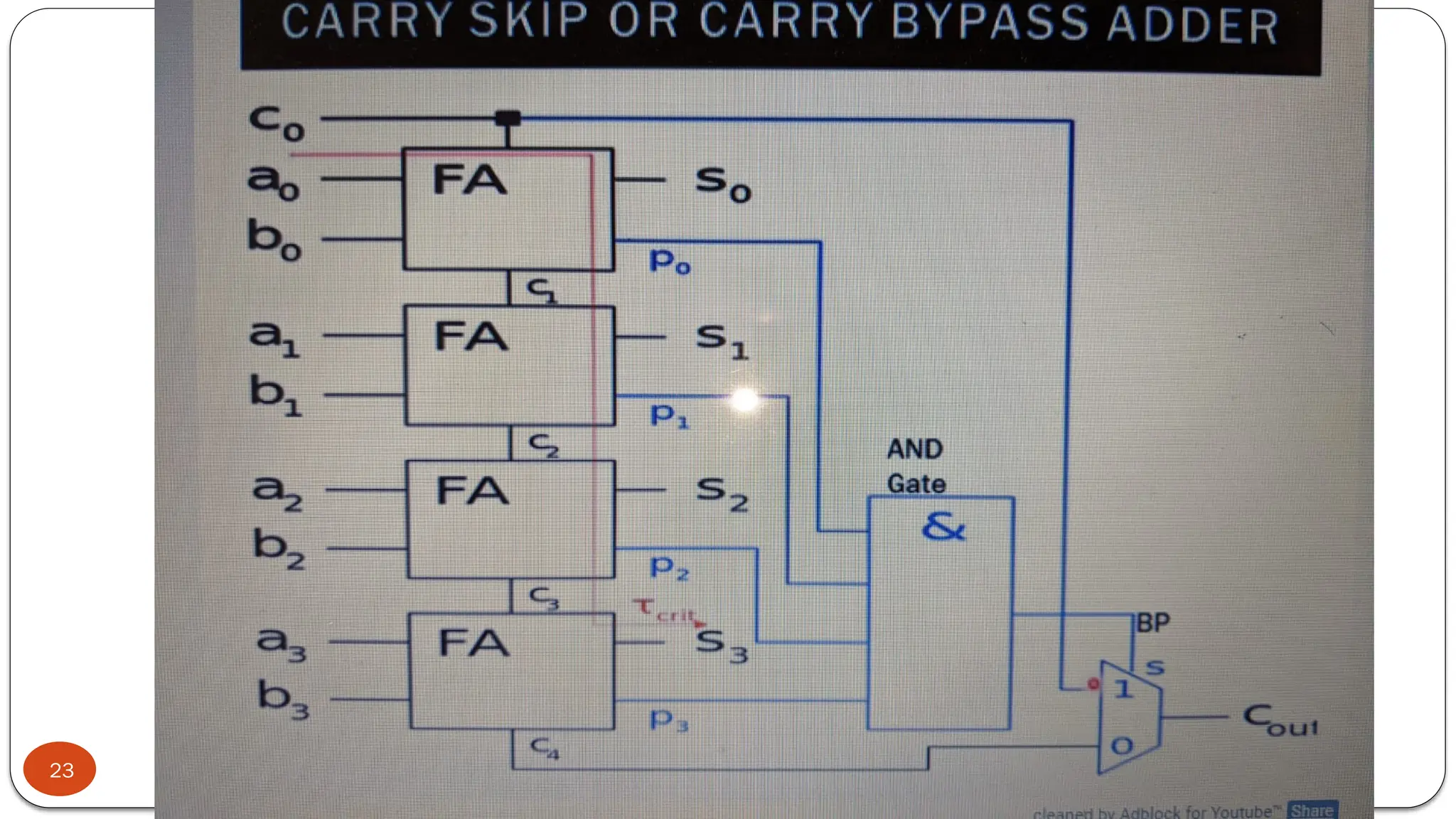

- 20.

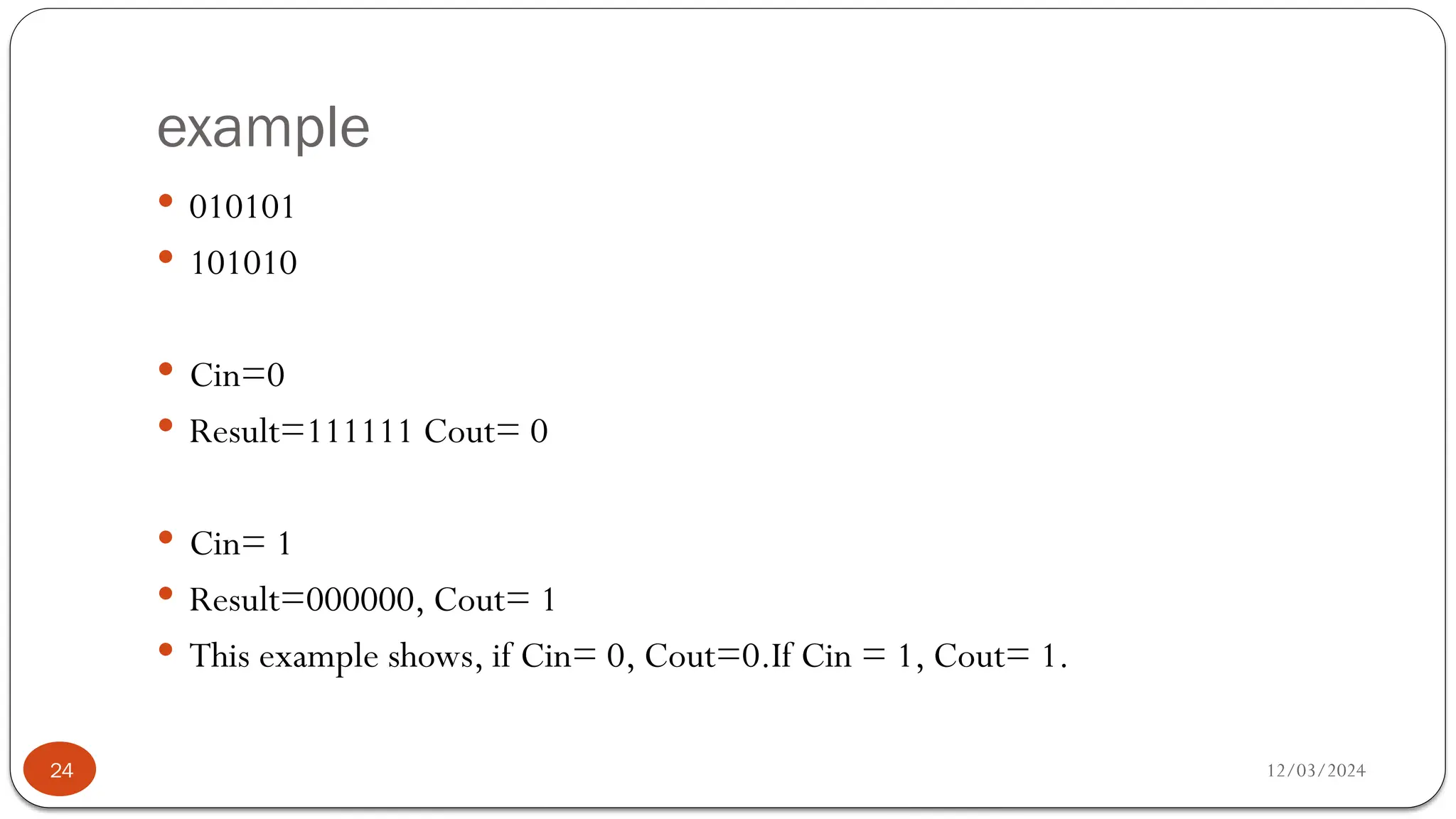

- 21. example 12/03/2024 24 010101 101010 Cin=0 Result=111111 Cout= 0 Cin= 1 Result=000000, Cout= 1 This example shows, if Cin= 0, Cout=0.If Cin = 1, Cout= 1.
- 22.

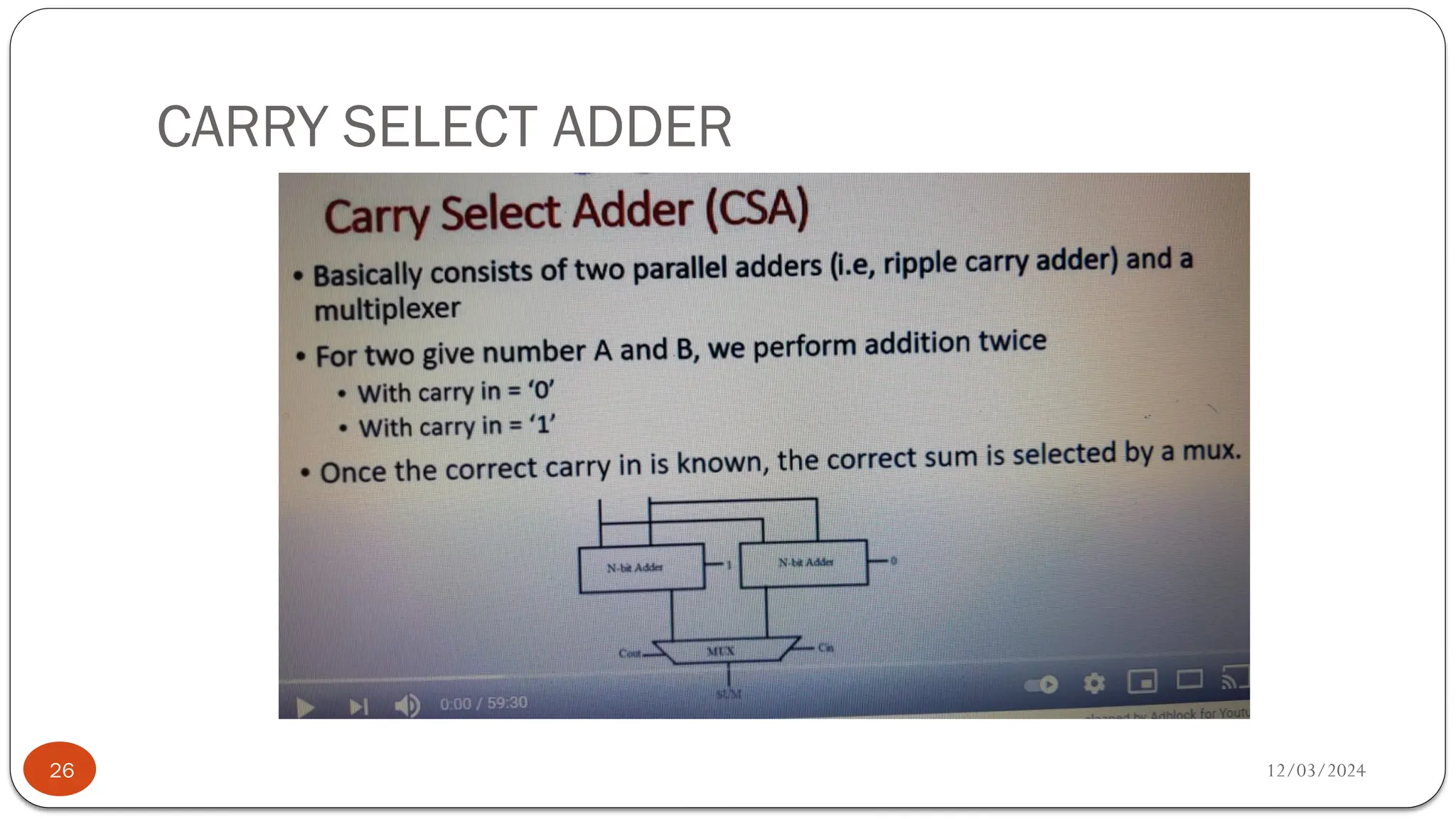

- 23.

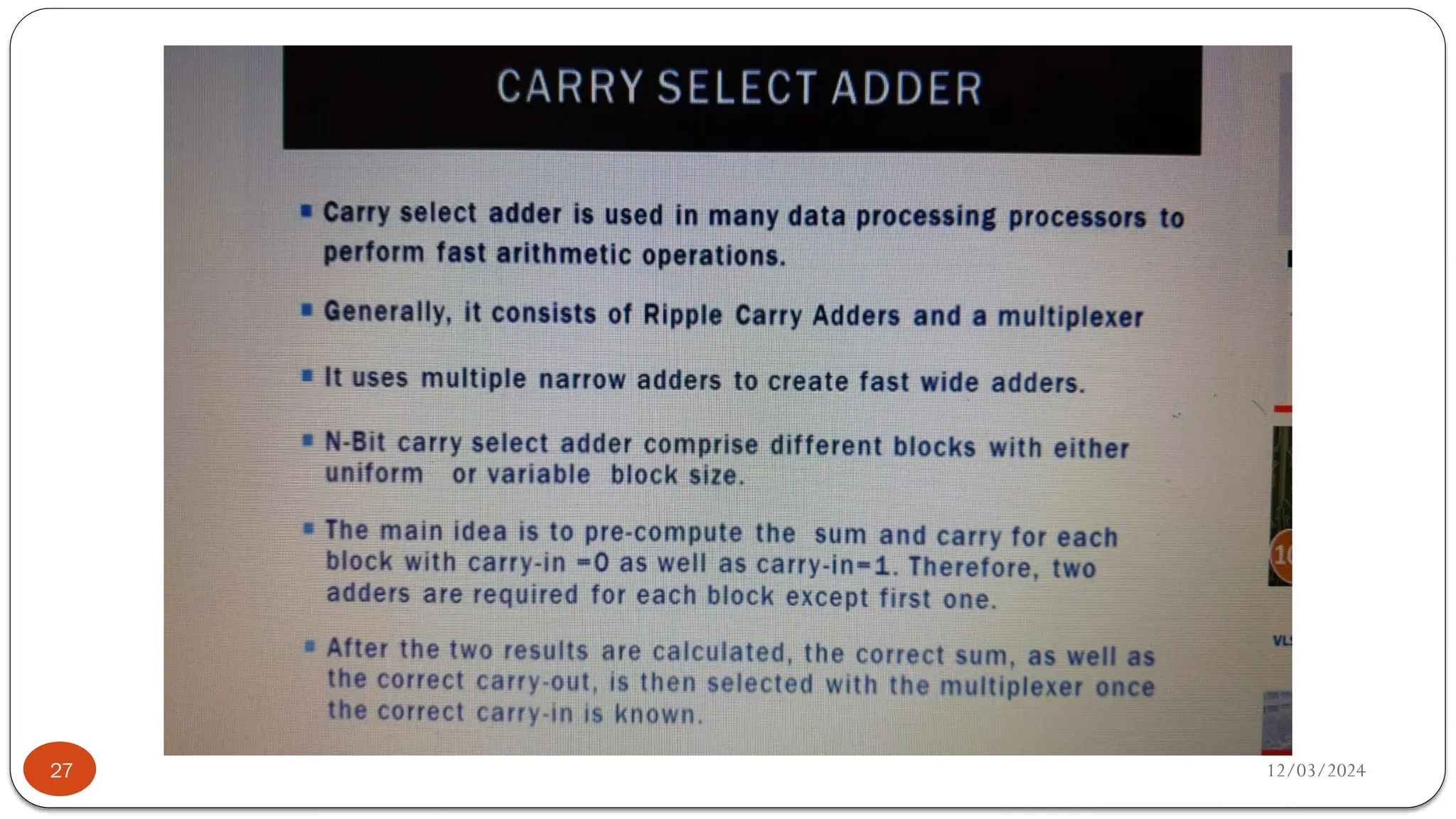

- 24.
- 25.

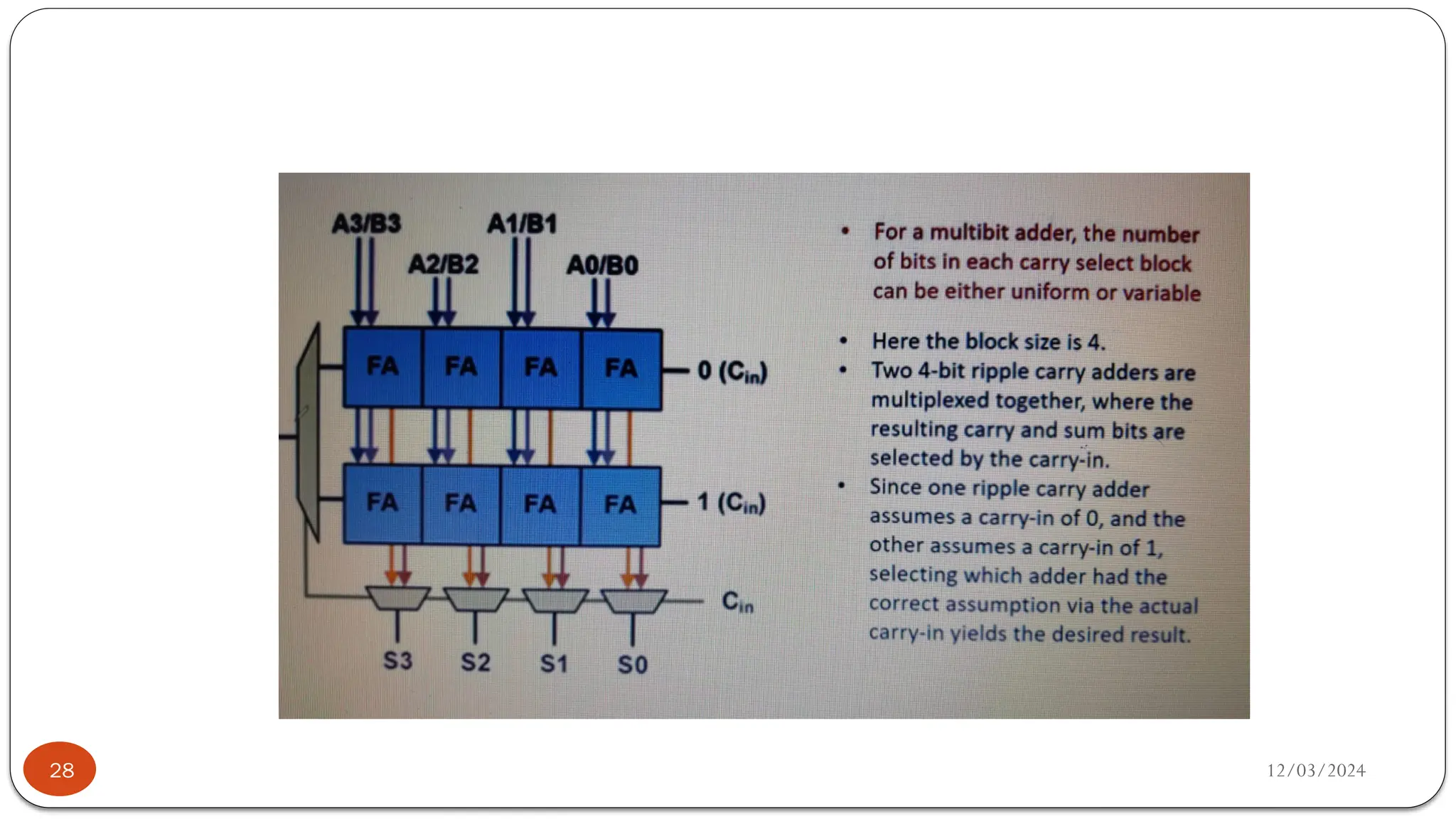

- 26.

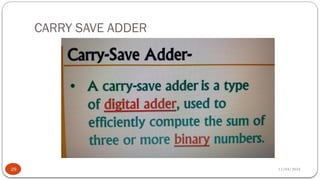

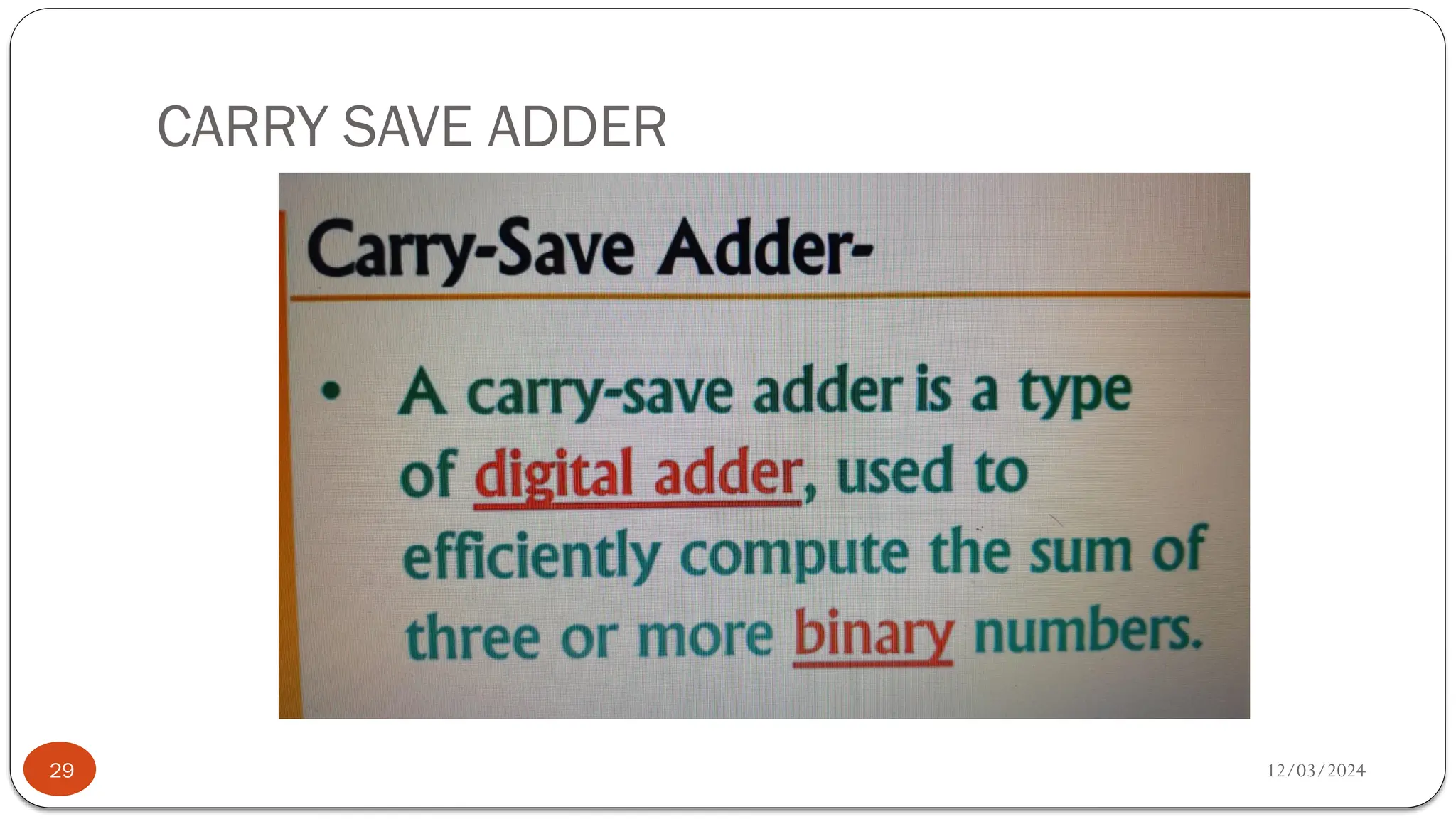

- 27.
- 28.
- 29.

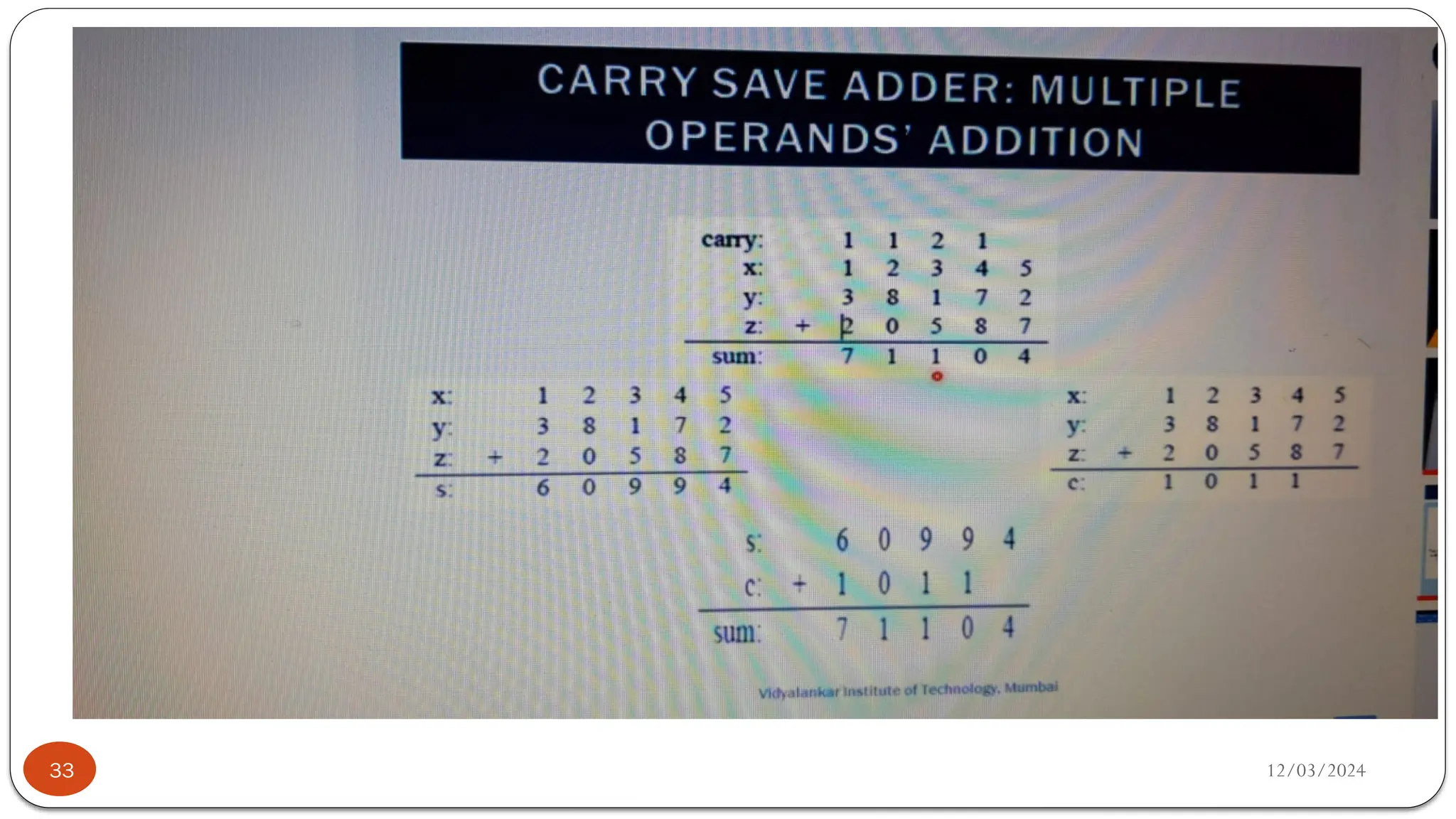

- 30.
- 31.
- 32.

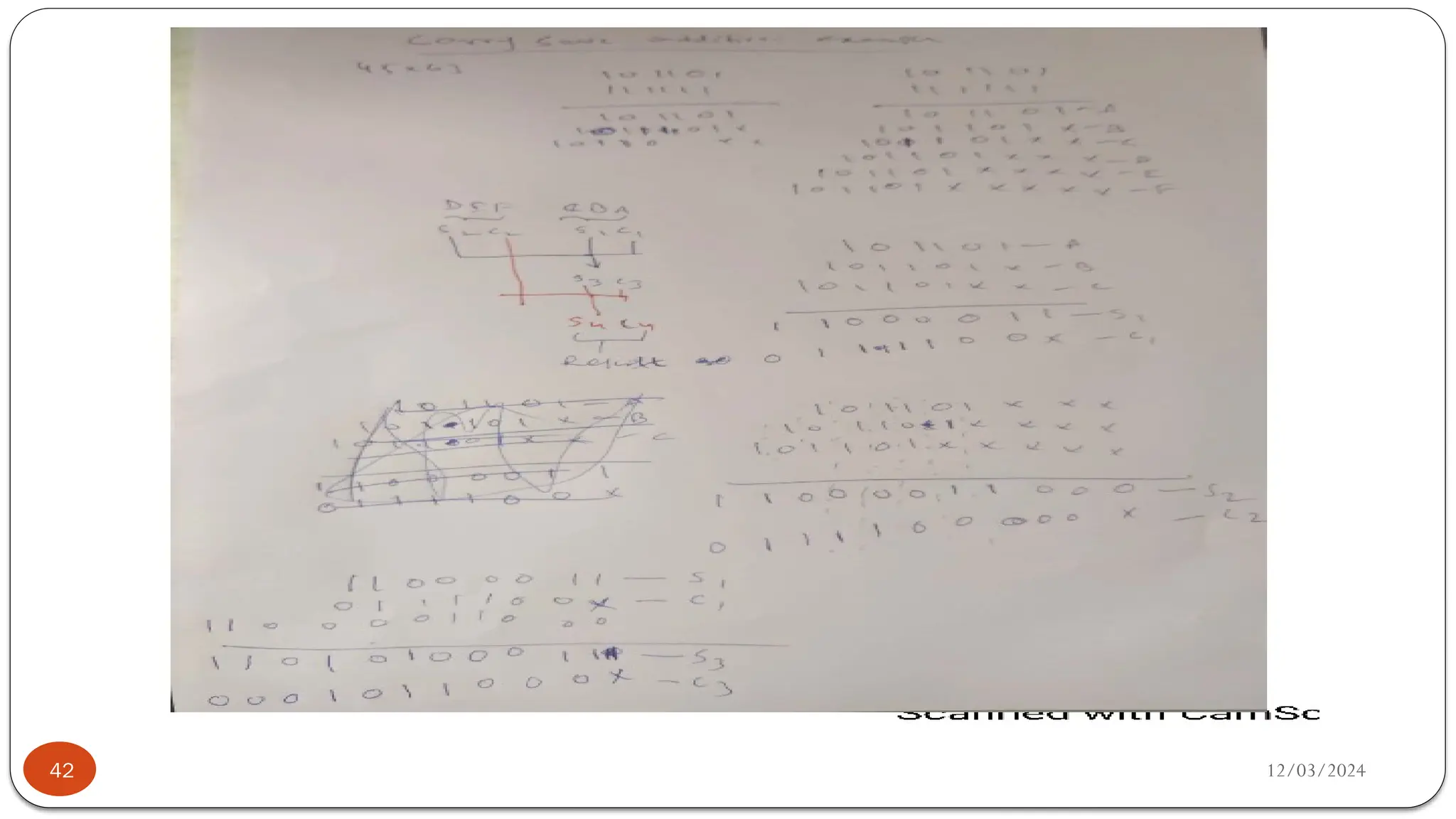

- 33.

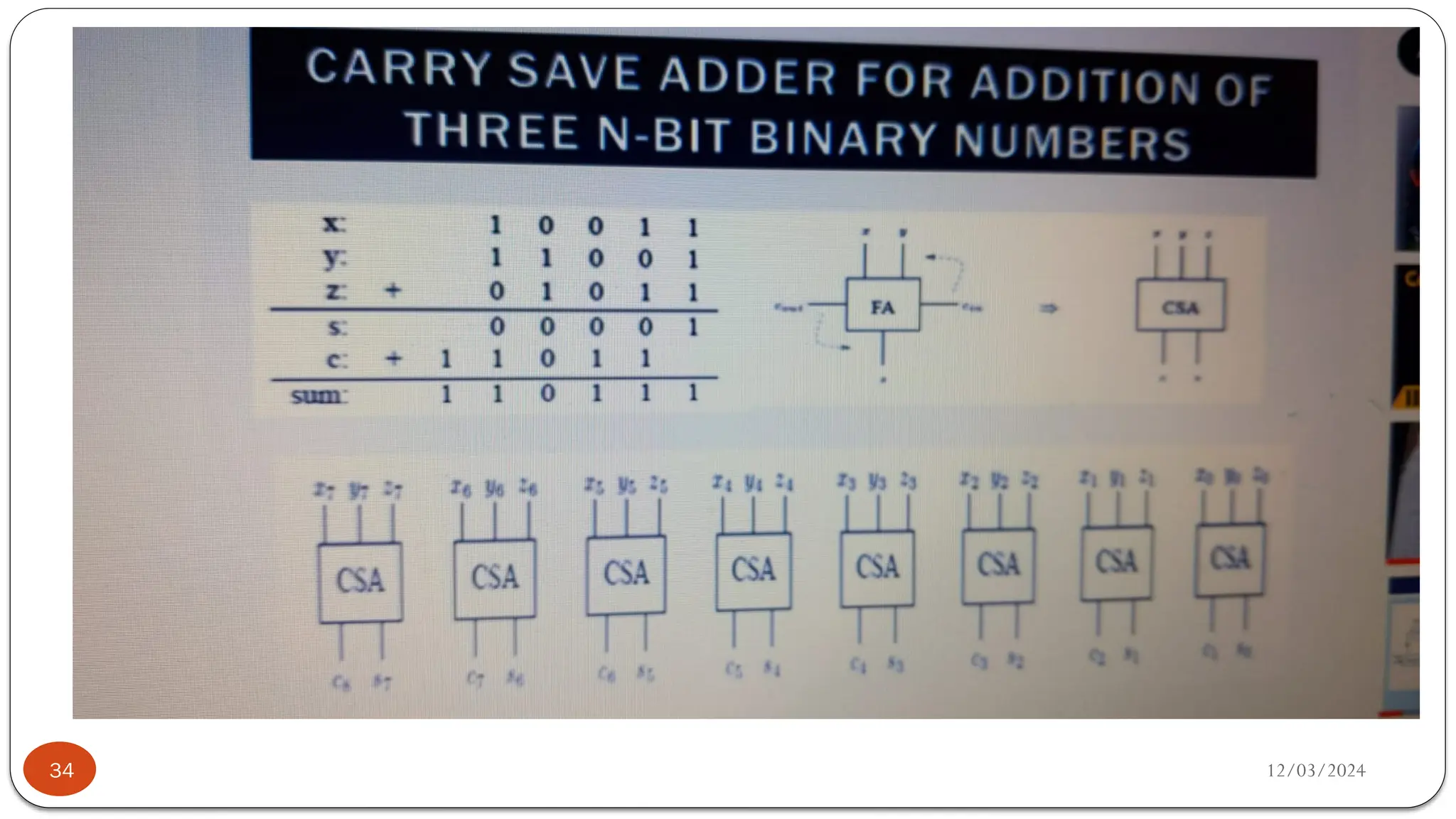

- 34.

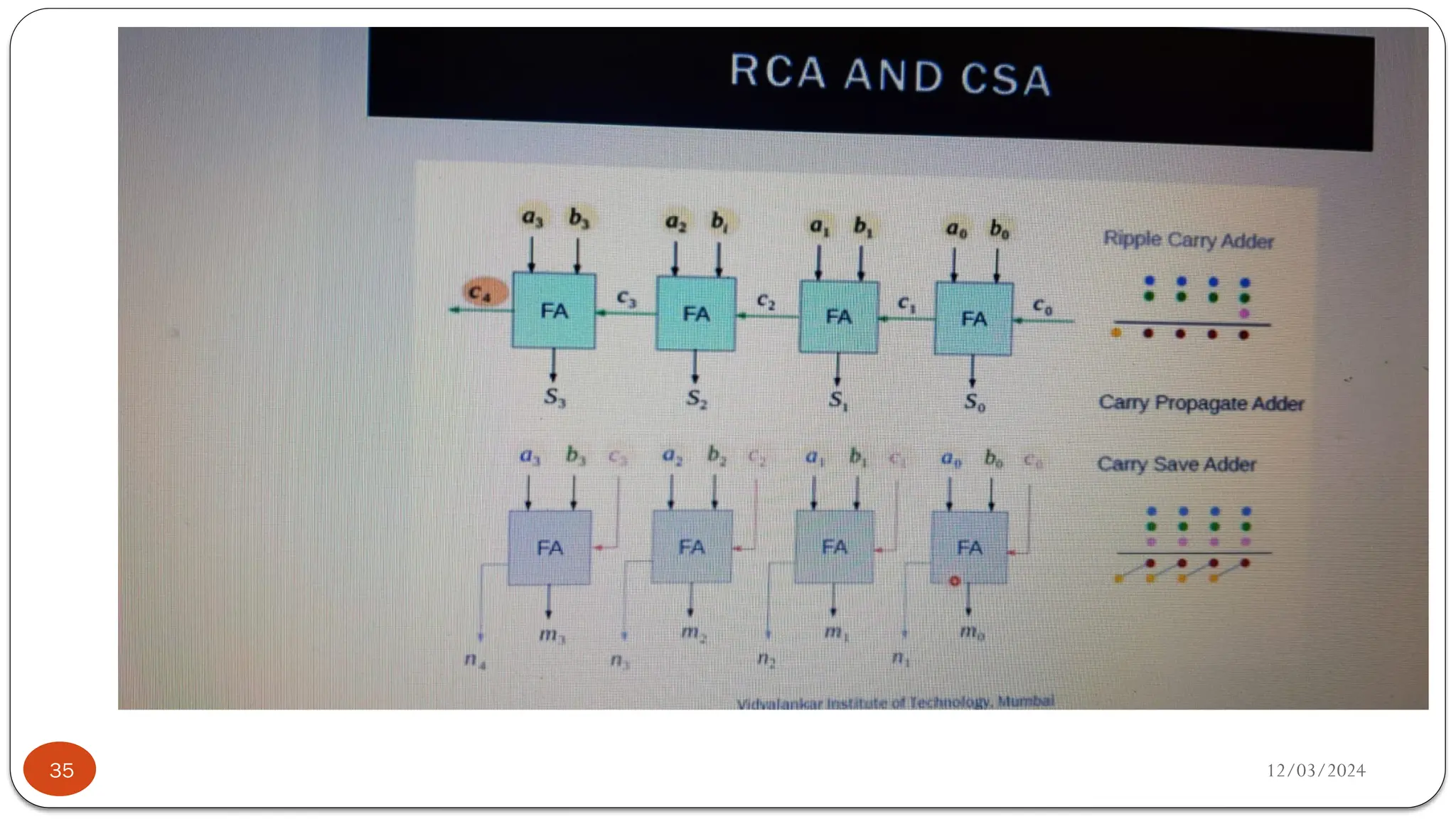

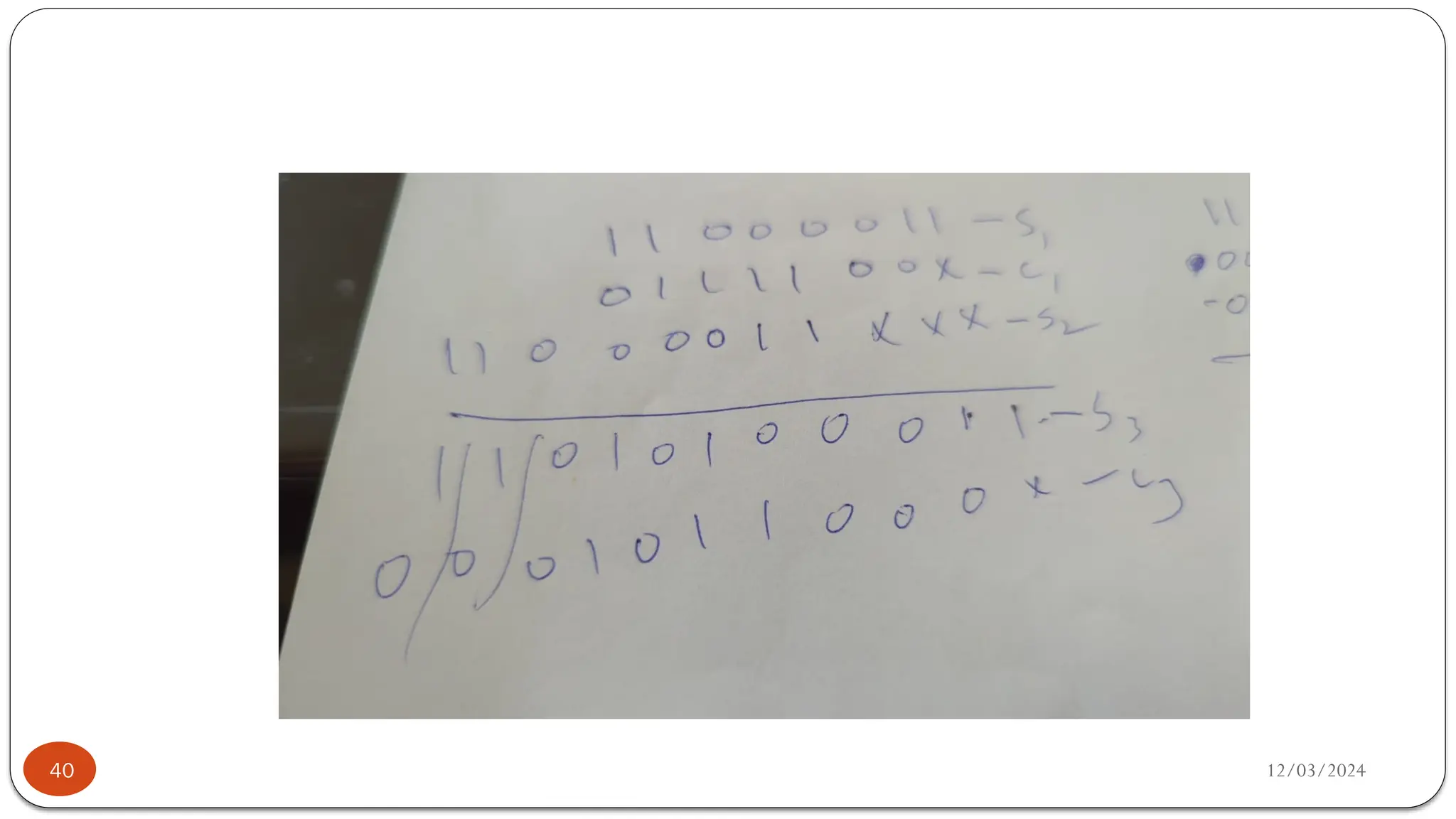

- 35.
- 36.
- 37.

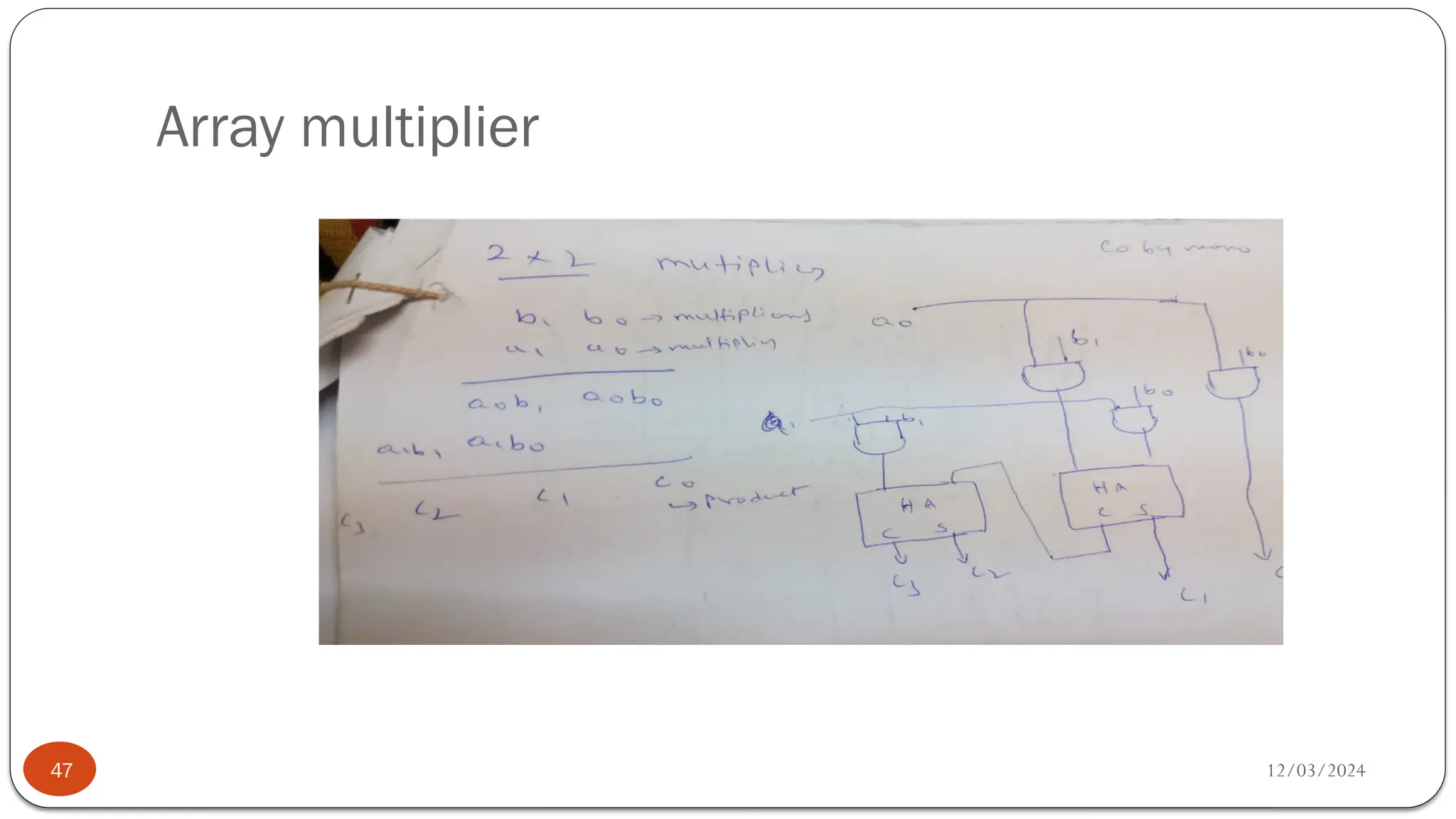

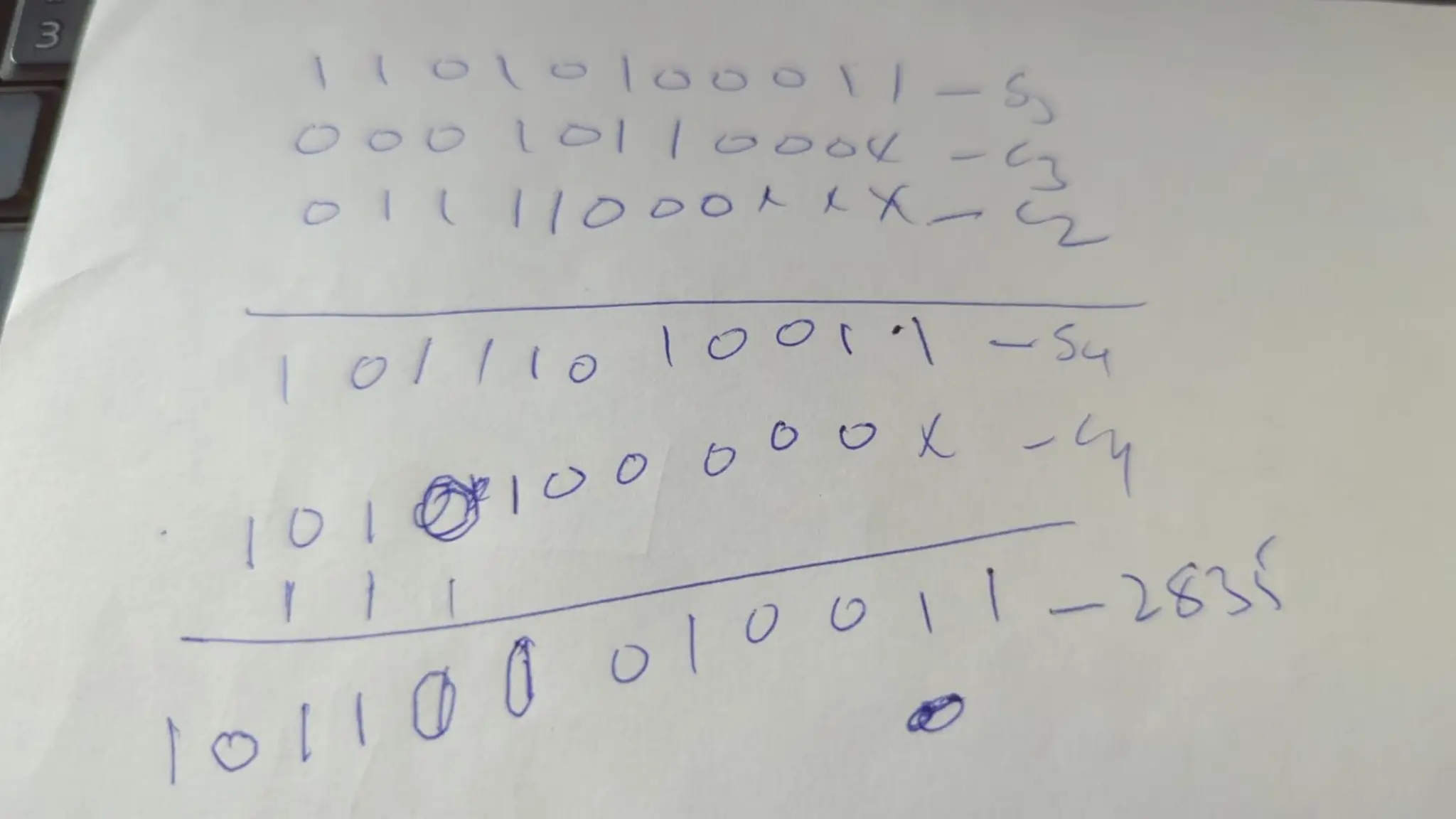

- 38.

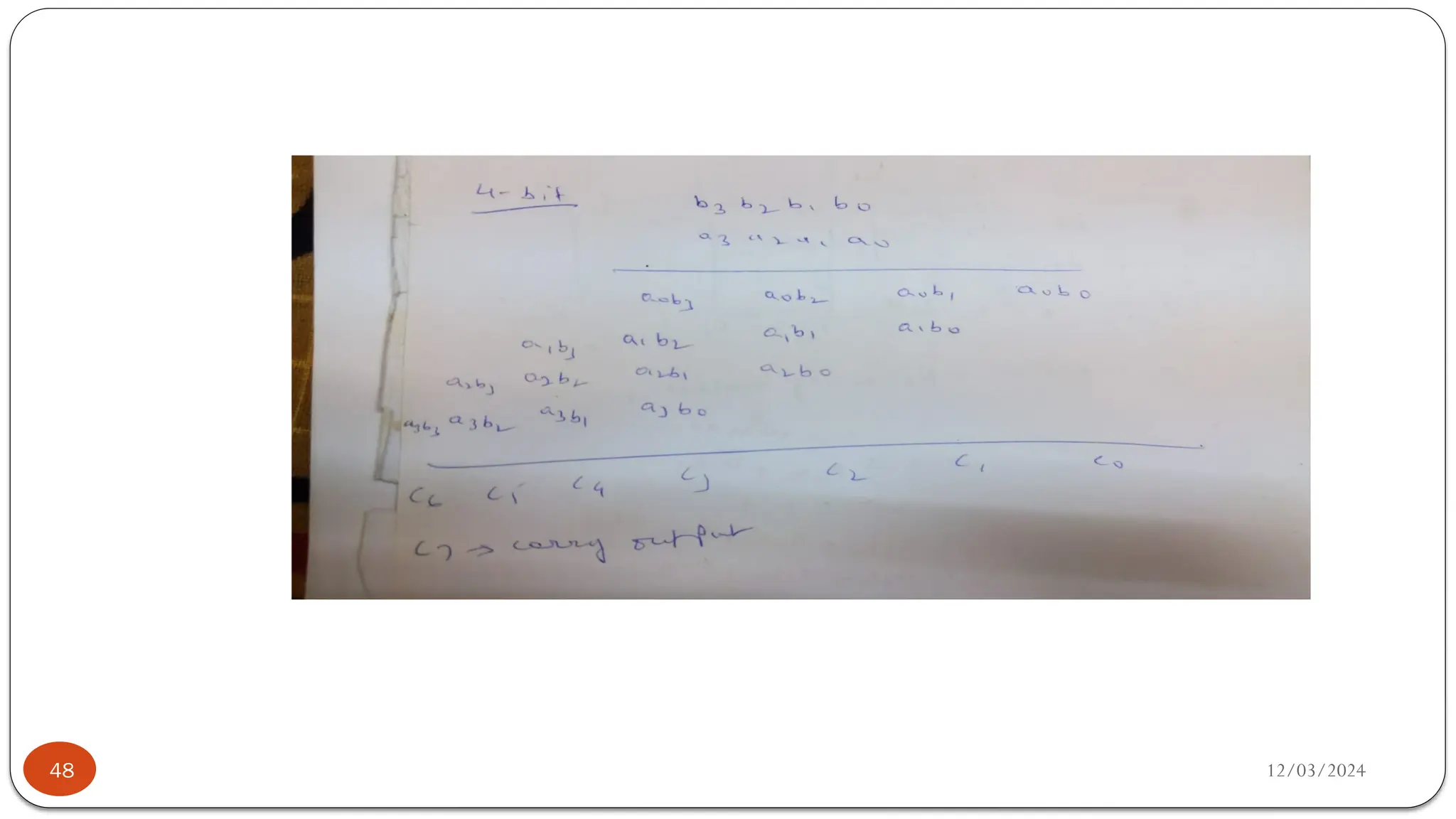

- 39.

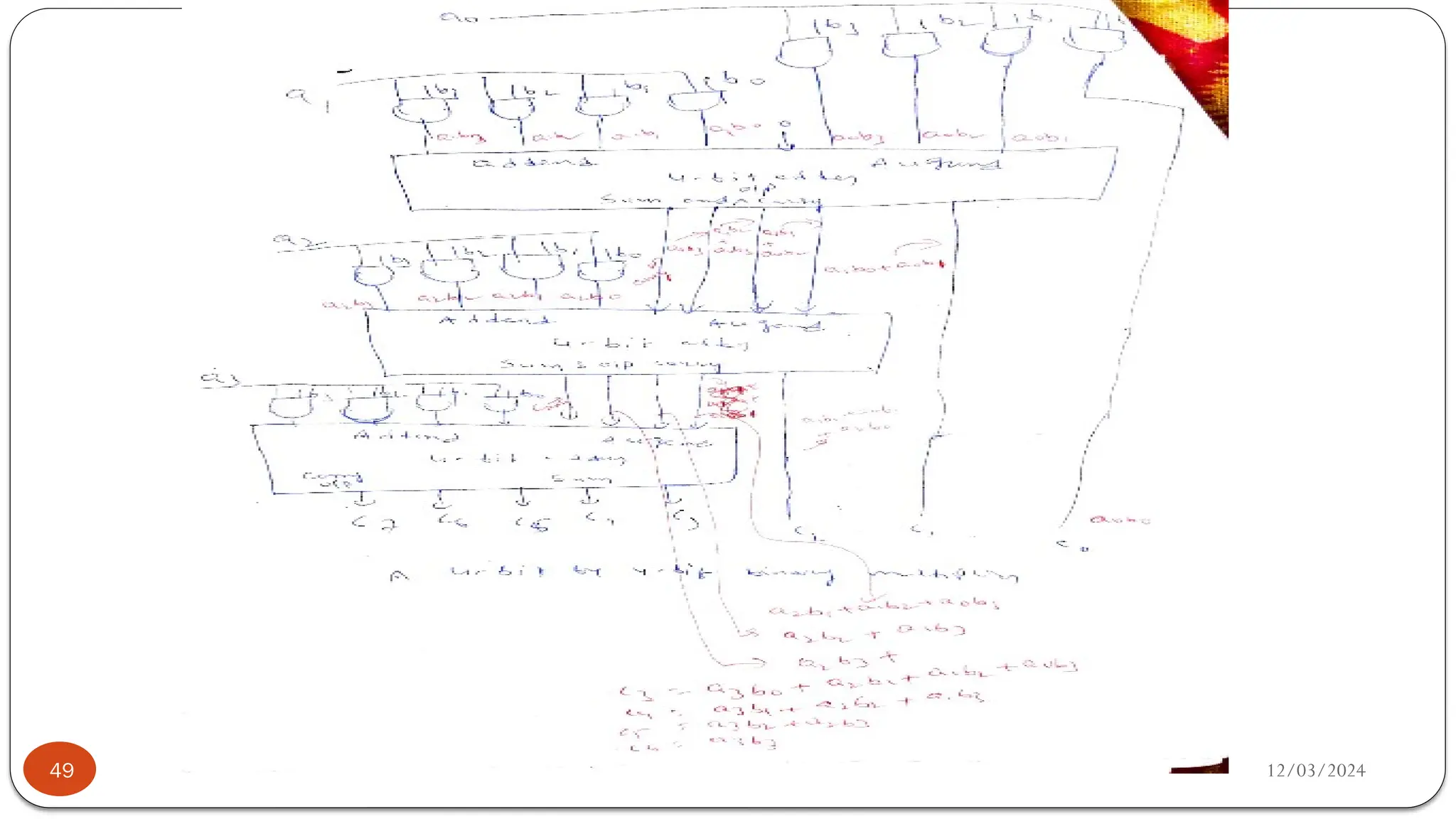

- 40.

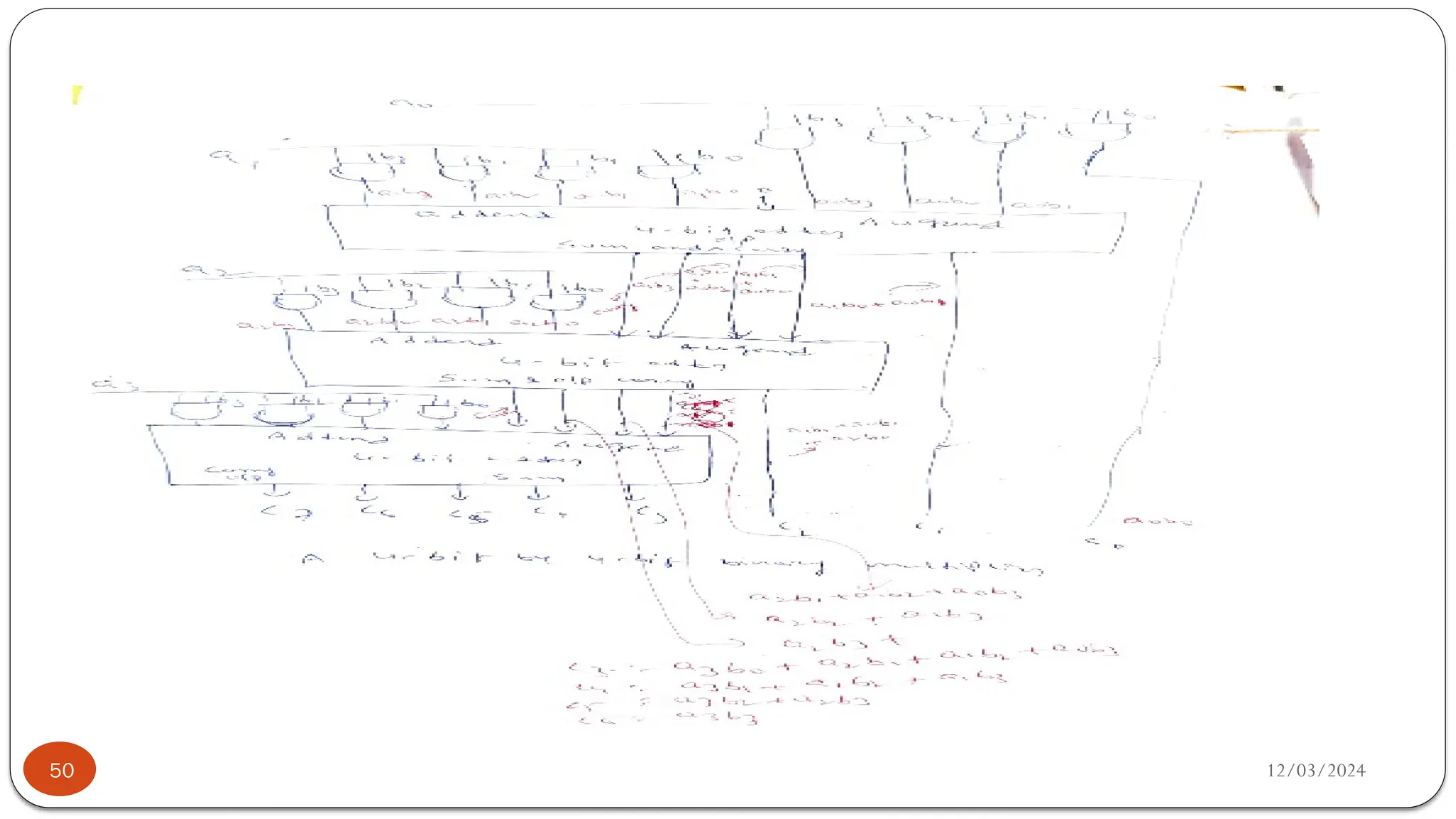

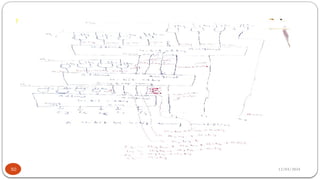

- 41.

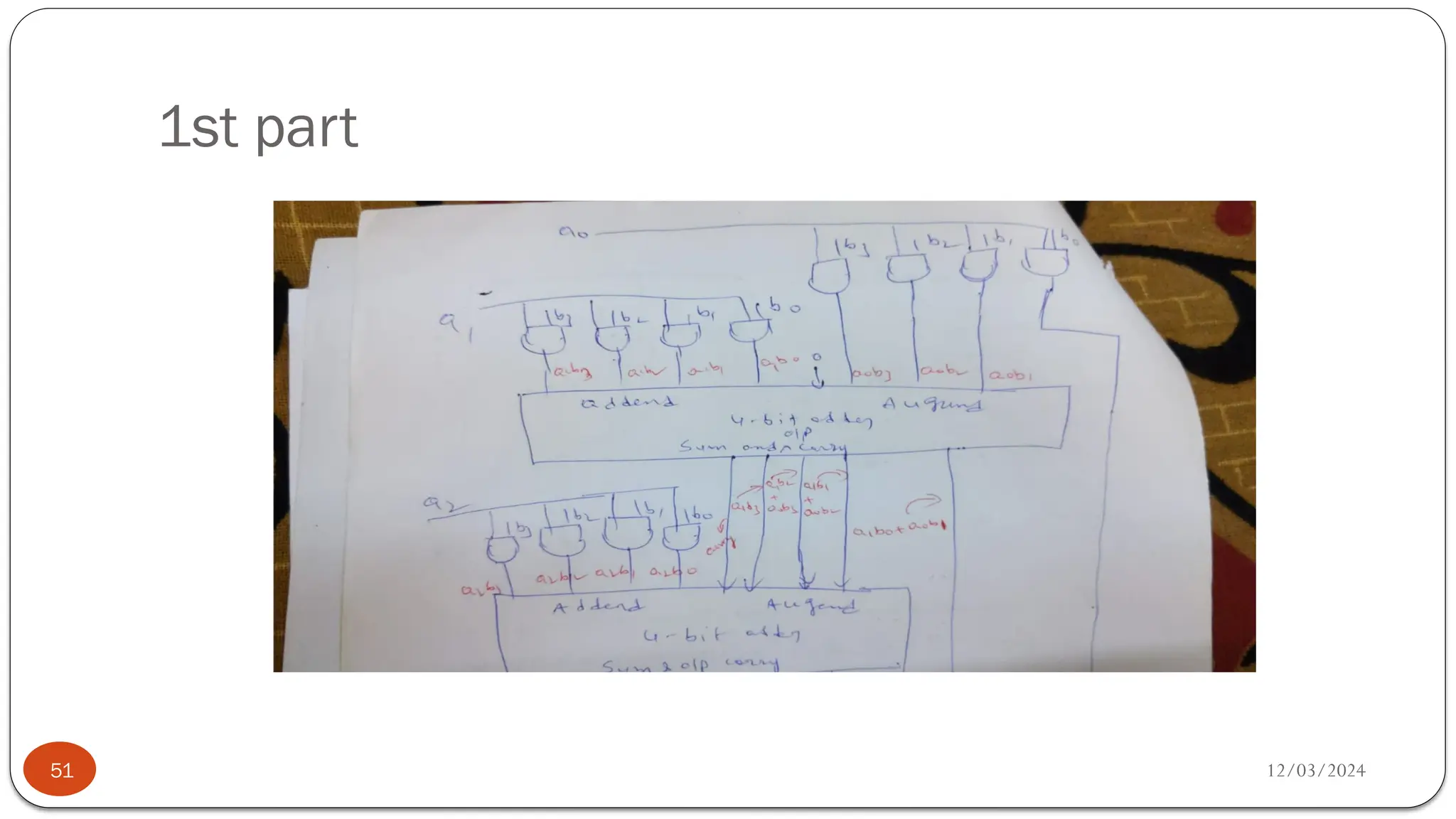

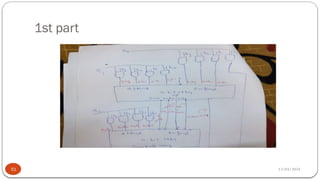

- 42.

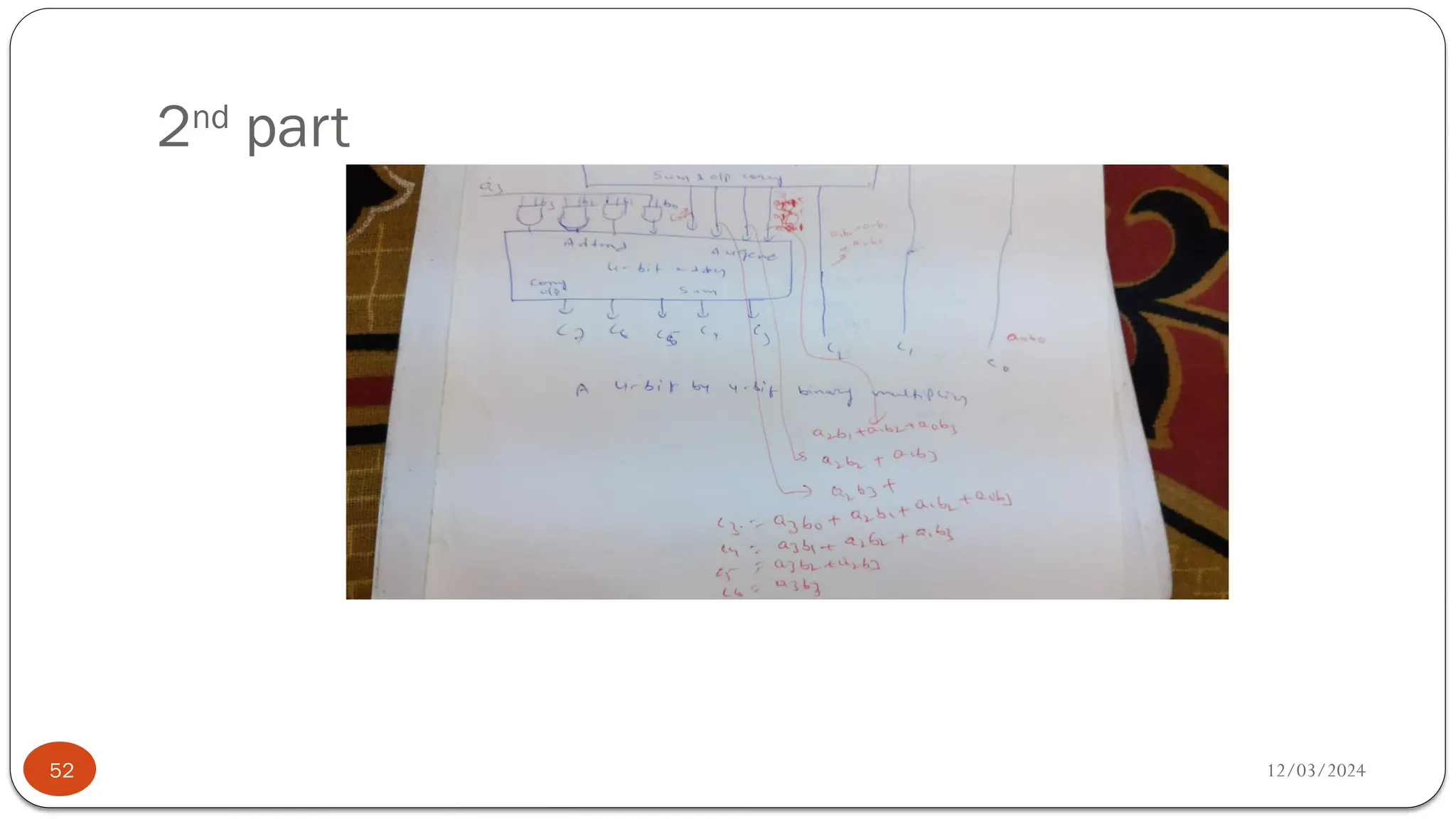

- 43.

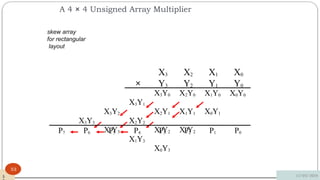

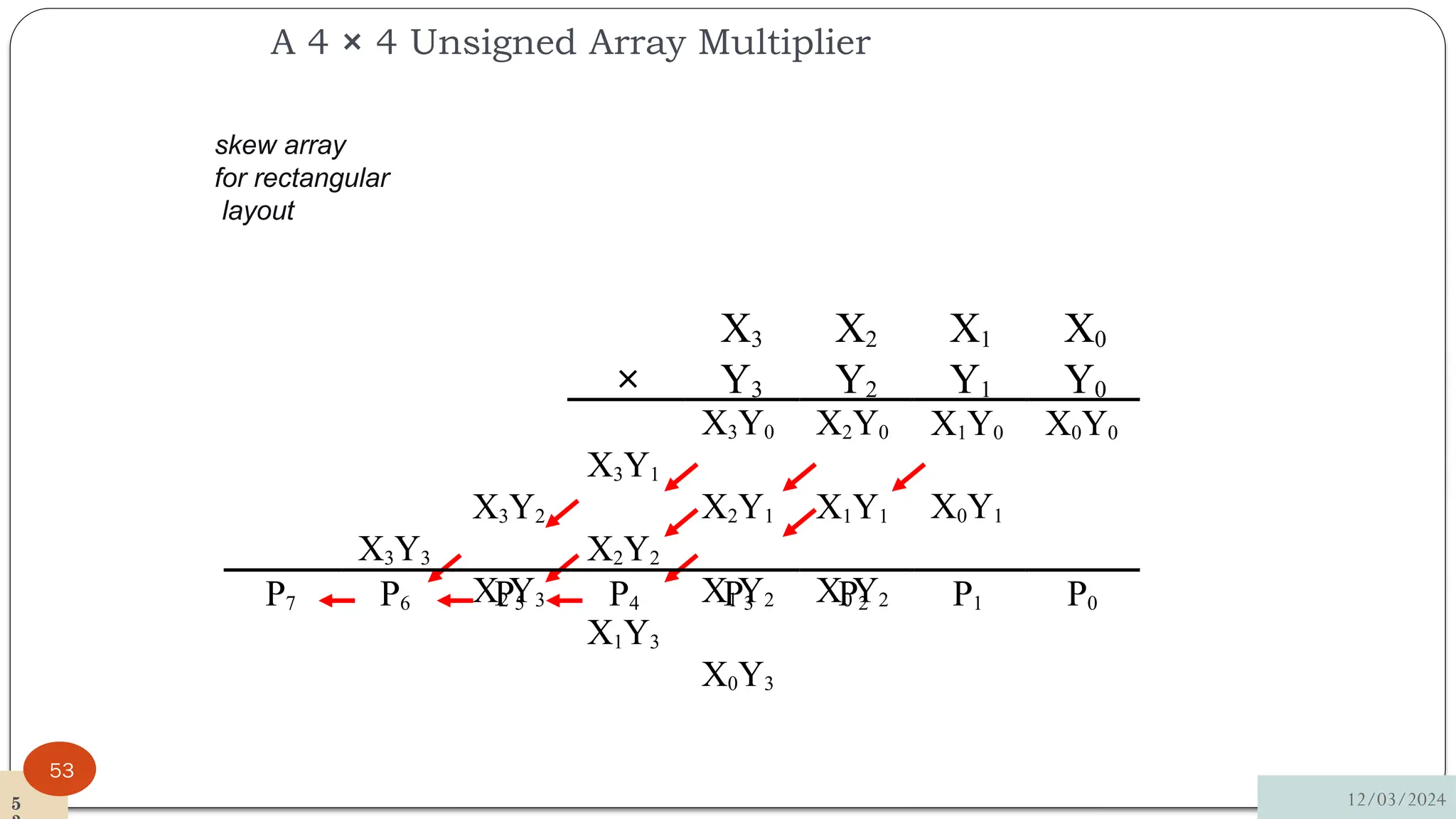

- 44. A 4 ×4 Unsigned Array Multiplier skew array for rectangular layout X3 X2 X1 X0 × Y3 Y2 Y1 Y0 X0Y0 X1Y0 X0Y1 X2Y0 X1Y1 X0Y2 X3Y3 X3Y2 X2Y3 X3Y1 X2Y2 X1Y3 X3Y0 X2Y1 X1Y2 X0Y3 P7 P6 P5 P4 P3 P2 P1 P0 12/03/2024 53 5
- 45.

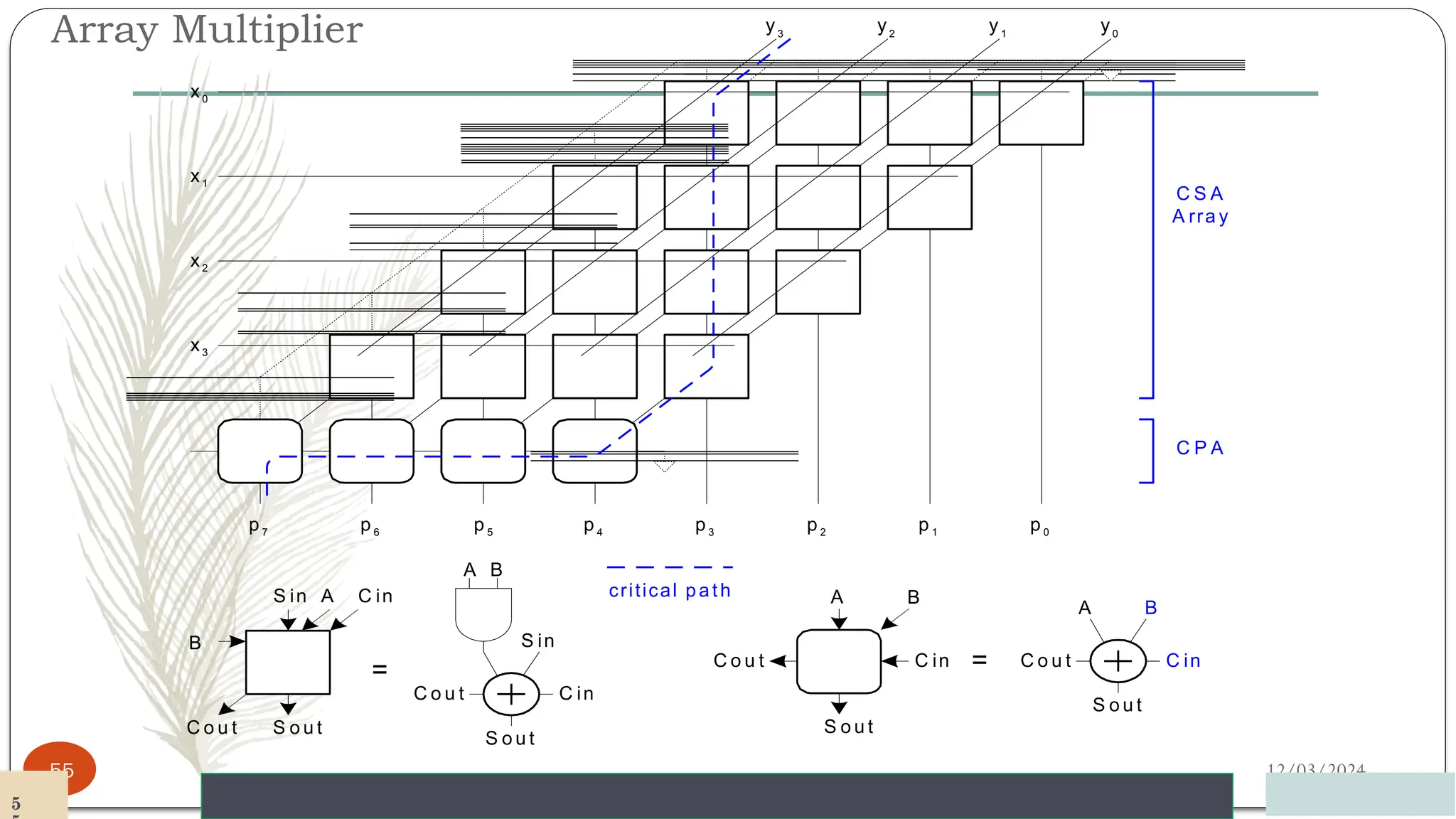

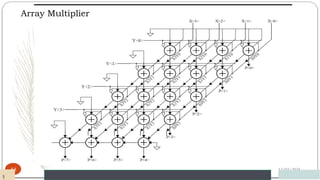

- 46. Array Multiplier 12/03/2024 55 y0 y1 y2 y3 x0 x1 x2 x3 p0 p1 p2 p3 p4 p6 p7 B S inA C in S o u t C o u t p5 A B C in C o u t S o u t S in = C S A A rra y C P A critical path B A S o u t C o u t C in C o u t S o u t = C in B A 5

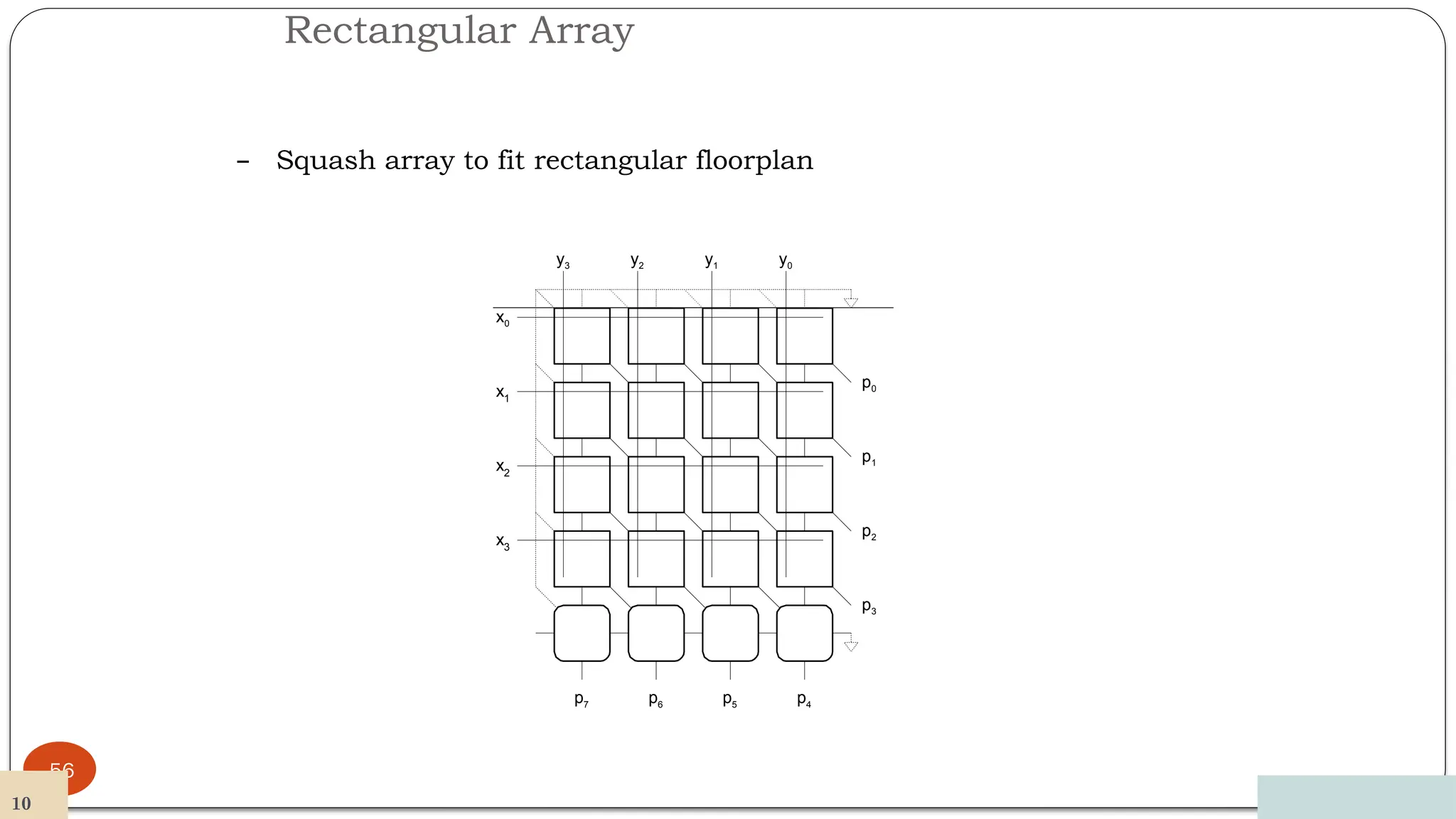

- 47. Rectangular Array 12/03/2024 56 – Squasharray to fit rectangular floorplan y0 y1 y2 y3 x0 x1 x2 x3 p0 p1 p2 p3 p4 p5 p6 p7 10

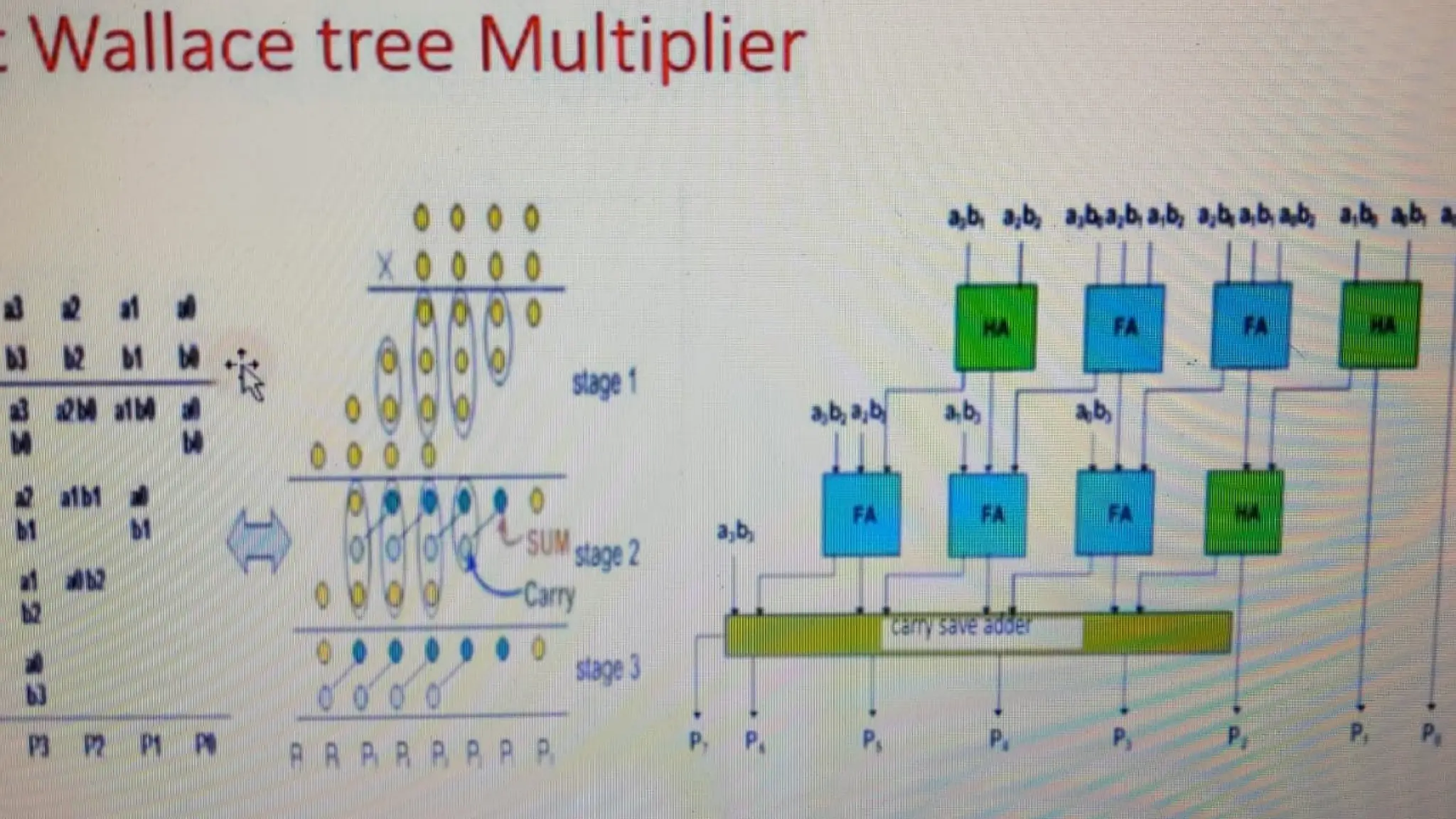

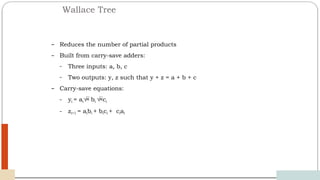

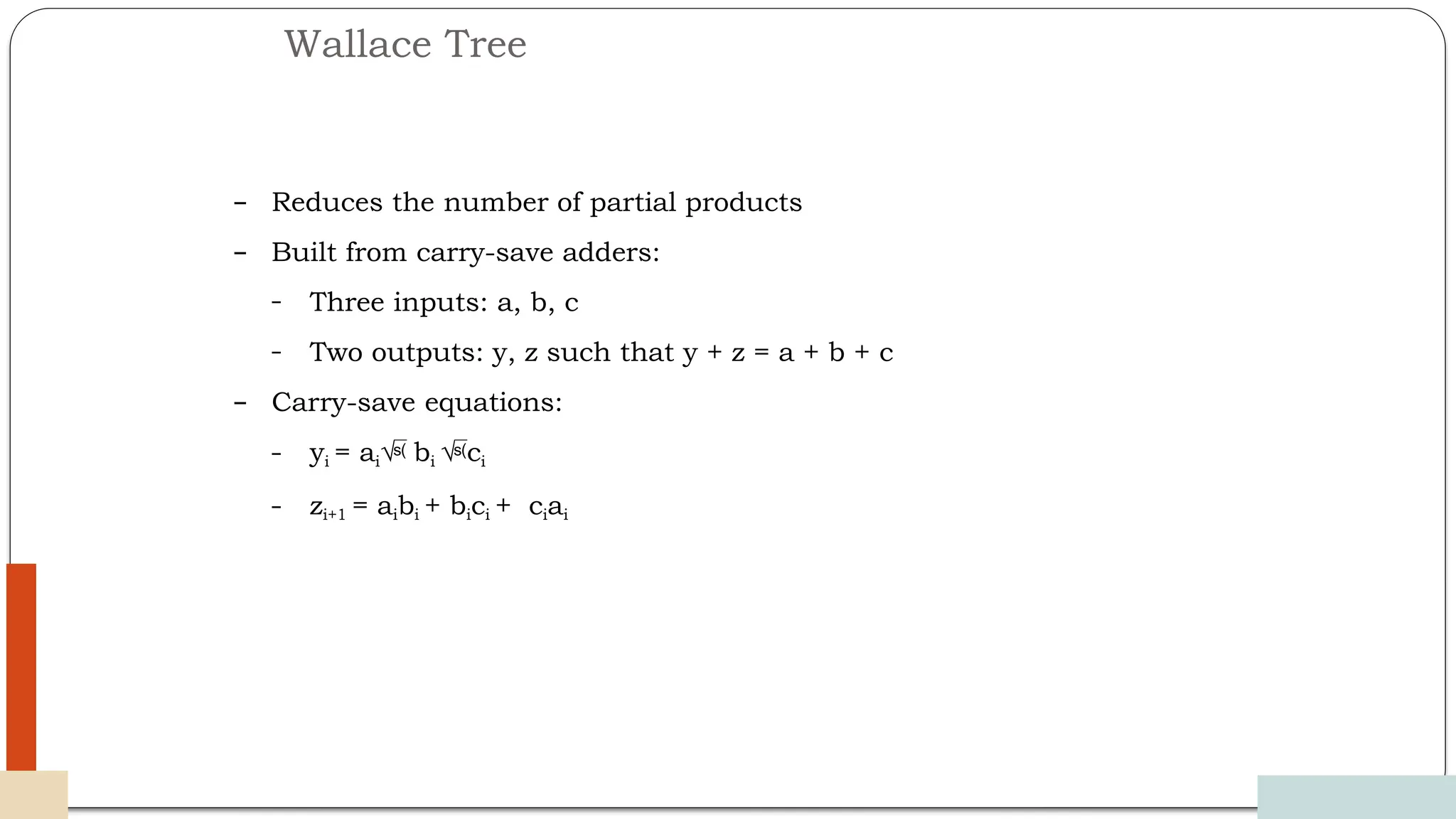

- 48. Wallace Tree 12/03/2024 58 – Reducesthe number of partial products – Built from carry-save adders: – Three inputs: a, b, c – Two outputs: y, z such that y + z = a + b + c – Carry-save equations: – yi = ai bi ci – zi+1 = aibi + bici + ciai

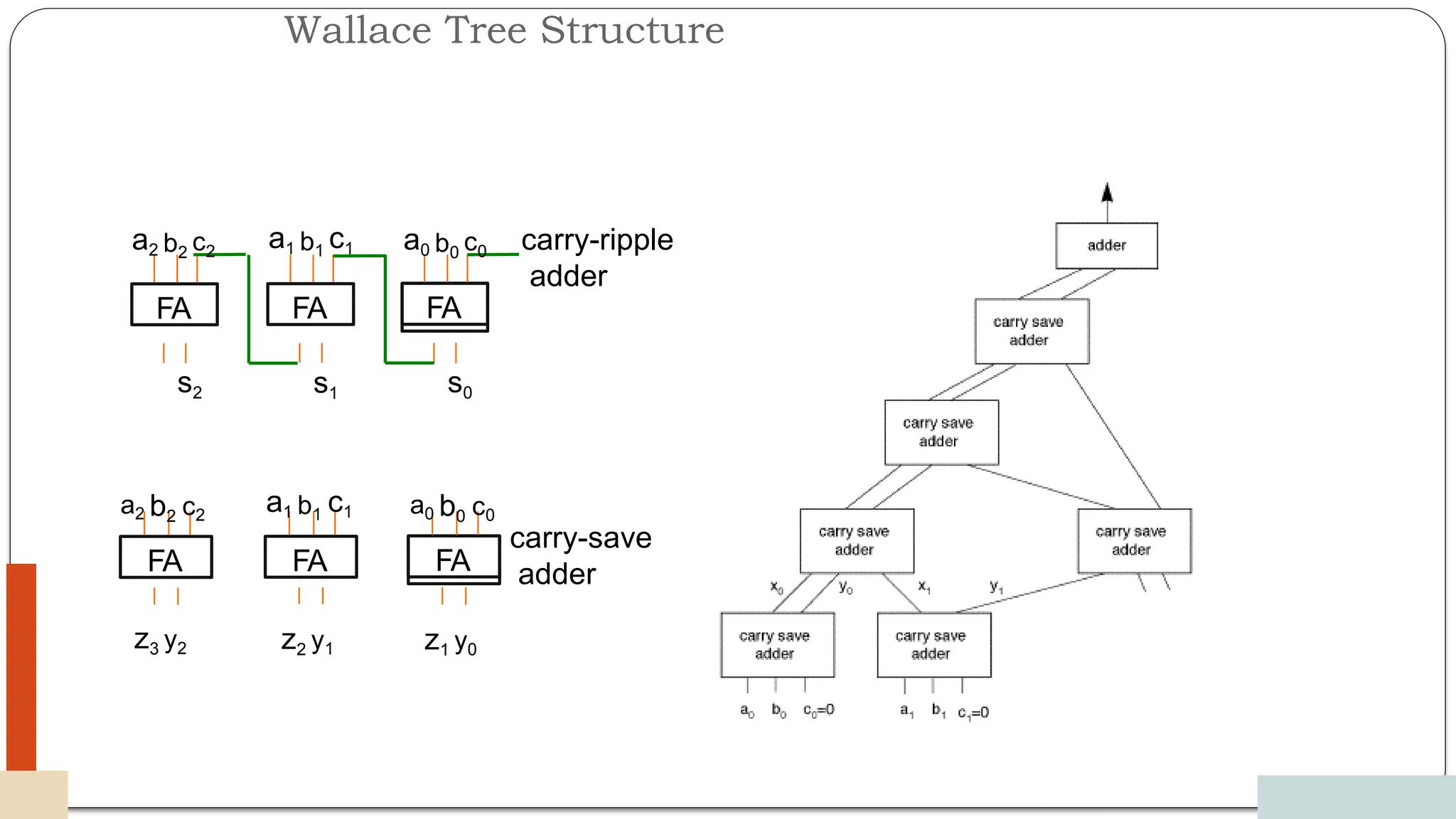

- 49. Wallace Tree Structure 12/03/2024 59 FAFA FA a2 b2 c2 a1 b1 c1 a0 b0 c0 s0 s1 s2 carry-ripple adder FA FA FA a2 b2 c2 a1 b1 c1 a0 b0 c0 carry-save adder z1 y0 z2 y1 z3 y2

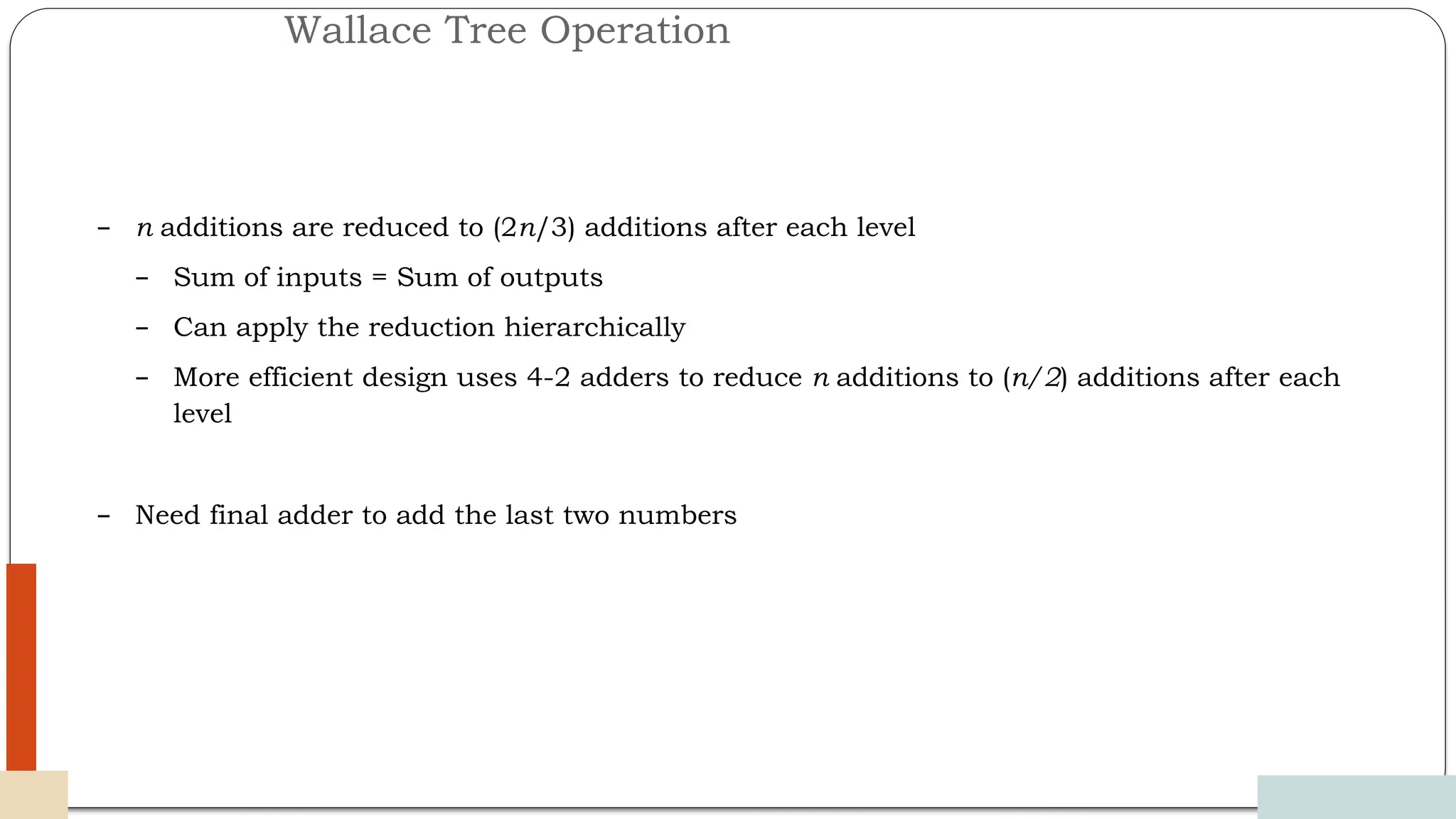

- 50. Wallace Tree Operation 12/03/2024 60 –n additions are reduced to (2n/3) additions after each level – Sum of inputs = Sum of outputs – Can apply the reduction hierarchically – More efficient design uses 4-2 adders to reduce n additions to (n/2) additions after each level – Need final adder to add the last two numbers

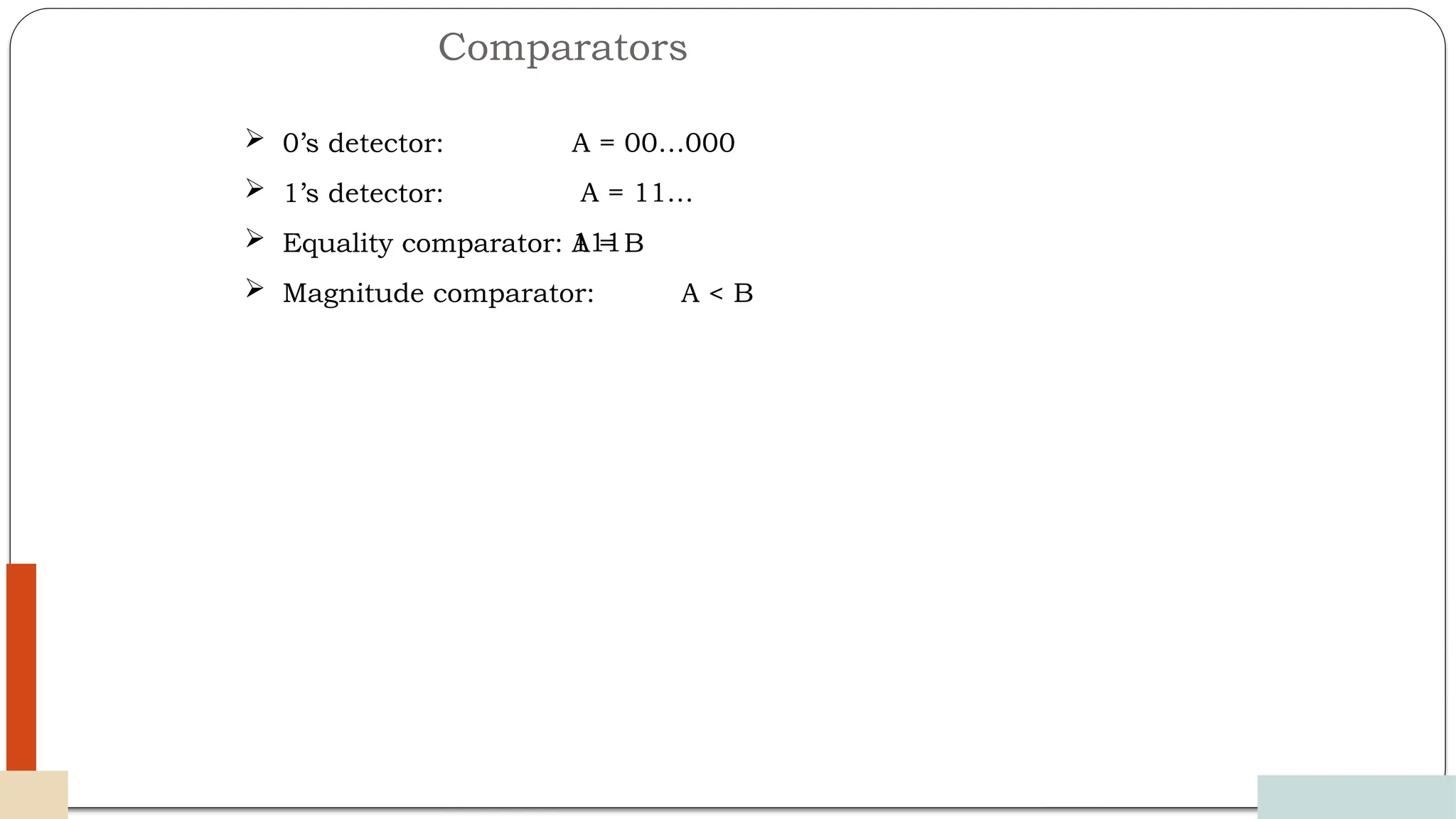

- 51. Comparators 12/03/2024 61 0’s detector: 1’s detector: A = 00…000 A = 11… 111 Equality comparator: A = B Magnitude comparator: A < B

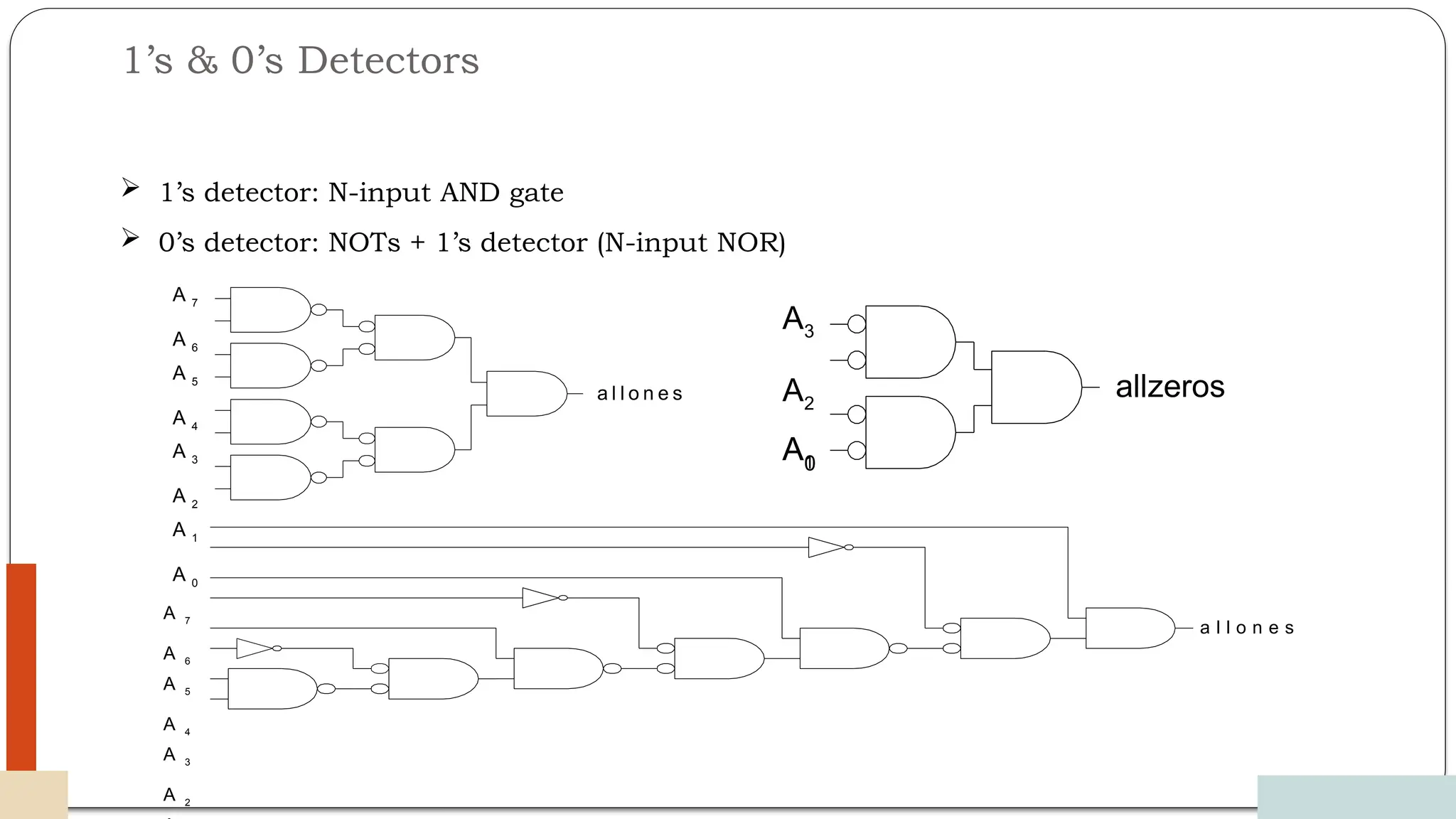

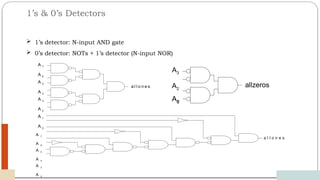

- 52. 1’s & 0’sDetectors 12/03/2024 62 1’s detector: N-input AND gate 0’s detector: NOTs + 1’s detector (N-input NOR) a l l o n e s A0 A3 A2 A1 allzeros a l l o n e s A 7 A 6 A 5 A 4 A 3 A 2 A 1 A 0 A 7 A 6 A 5 A 4 A 3 A 2

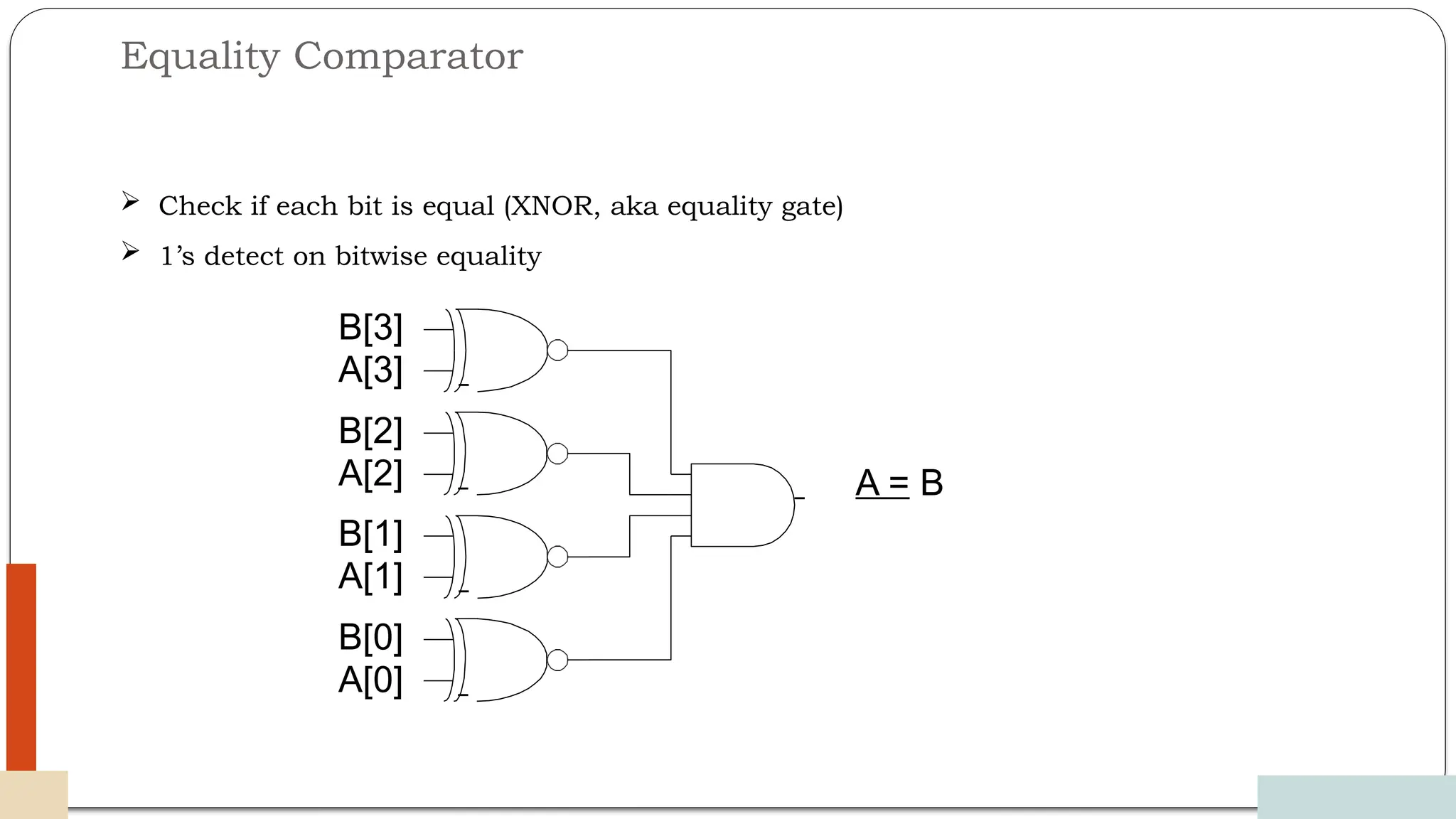

- 53. Equality Comparator 12/03/2024 63 Checkif each bit is equal (XNOR, aka equality gate) 1’s detect on bitwise equality A = B B[3] A[3] B[2] A[2] B[1] A[1] B[0] A[0]

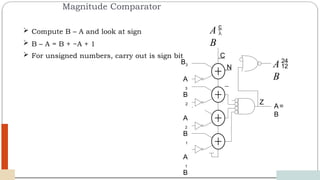

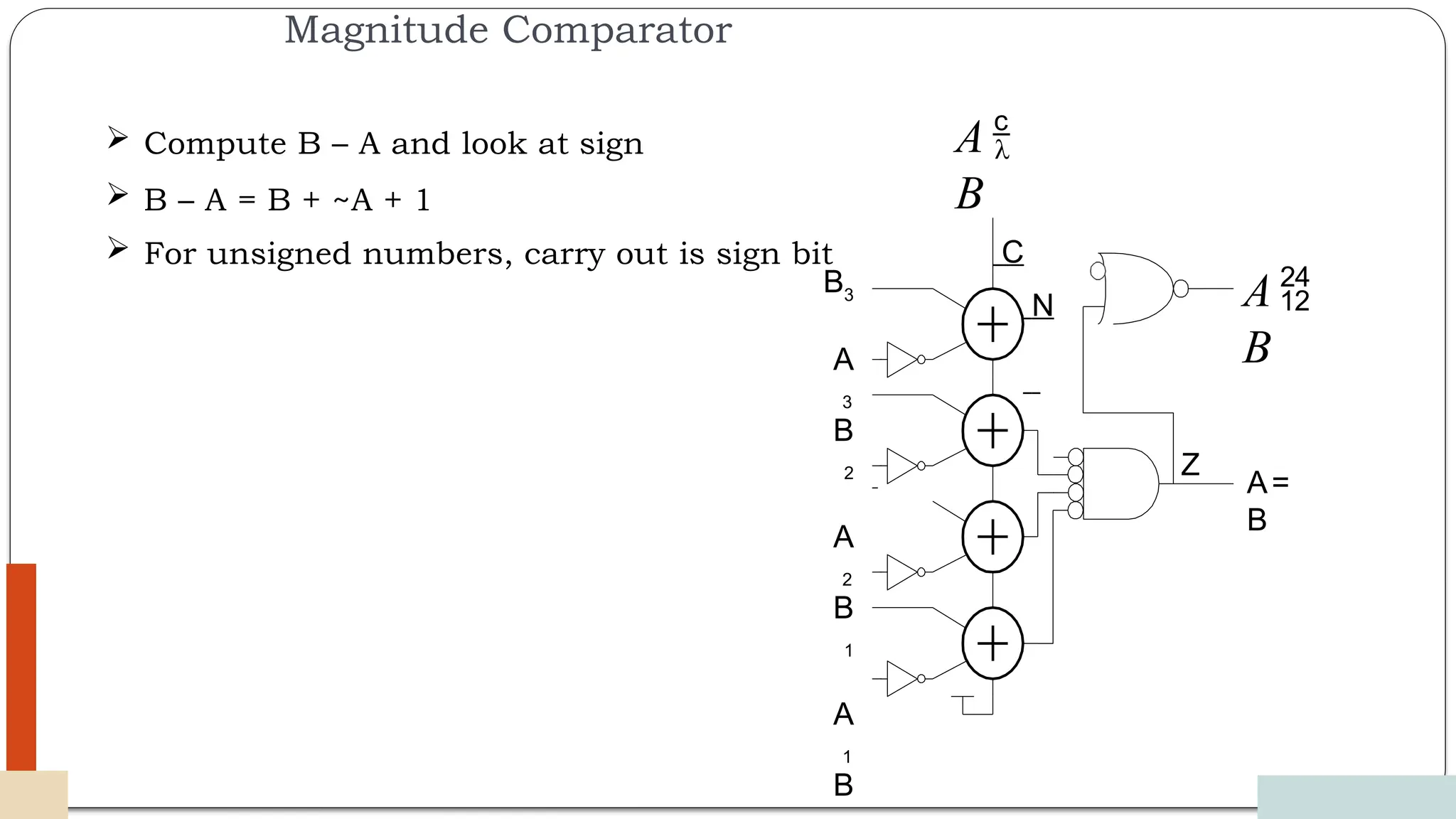

- 54. Magnitude Comparator ComputeB – A and look at sign B – A = B + ~A + 1 For unsigned numbers, carry out is sign bit B3 A 3 B 2 A 2 B 1 A 1 B A= B Z A B 12/03/2024 64 C N A B

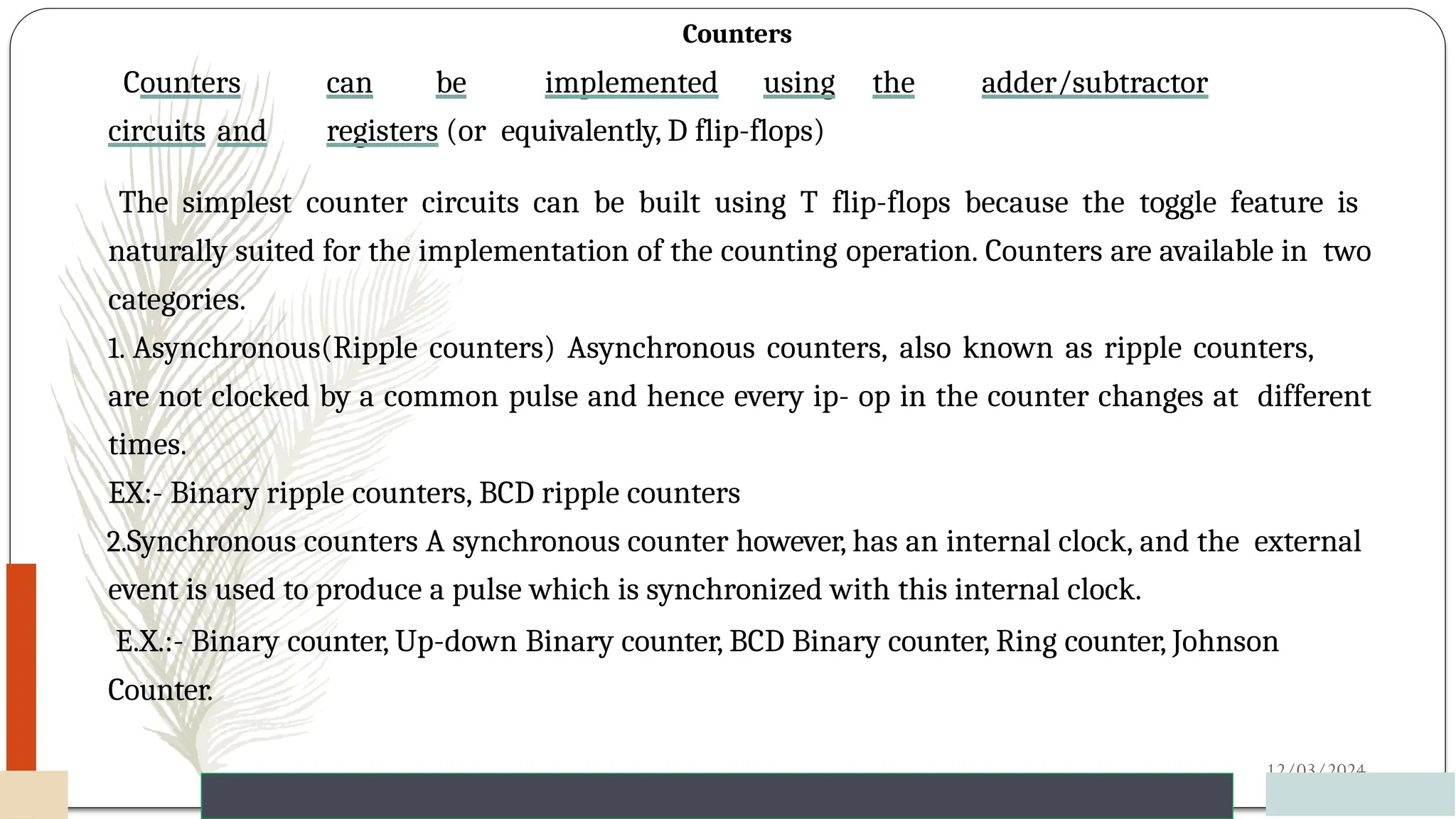

- 55. Counters Counters can beimplemented using the adder/subtractor circuits and registers (or equivalently, D flip-flops) 12/03/2024 65 The simplest counter circuits can be built using T flip-flops because the toggle feature is naturally suited for the implementation of the counting operation. Counters are available in two categories. 1. Asynchronous(Ripple counters) Asynchronous counters, also known as ripple counters, are not clocked by a common pulse and hence every ip- op in the counter changes at different times. EX:- Binary ripple counters, BCD ripple counters 2.Synchronous counters A synchronous counter however, has an internal clock, and the external event is used to produce a pulse which is synchronized with this internal clock. E.X.:- Binary counter, Up-down Binary counter, BCD Binary counter, Ring counter, Johnson Counter.

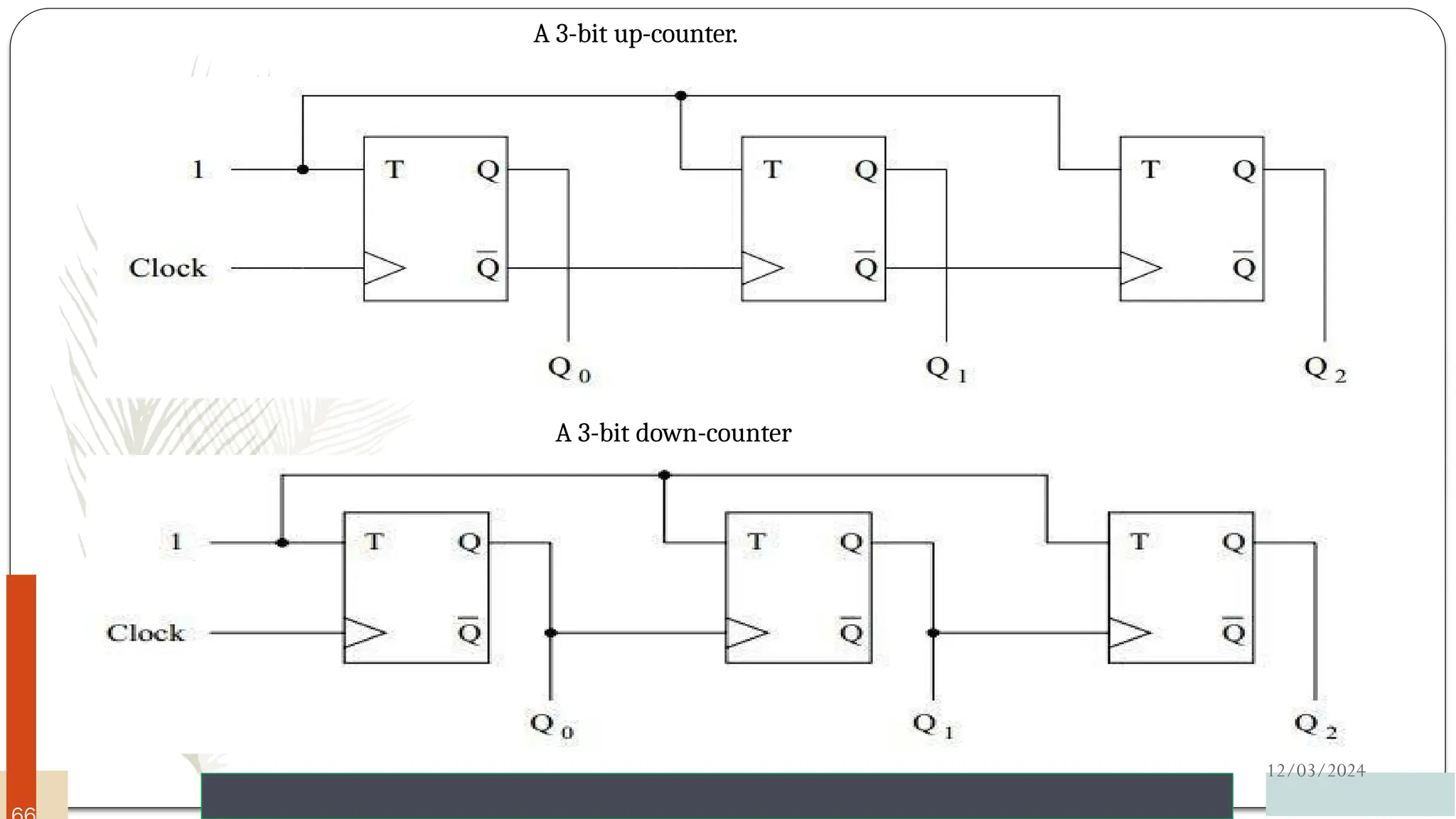

- 56. A 3-bit up-counter. 12/03/2024 A3-bit down-counter

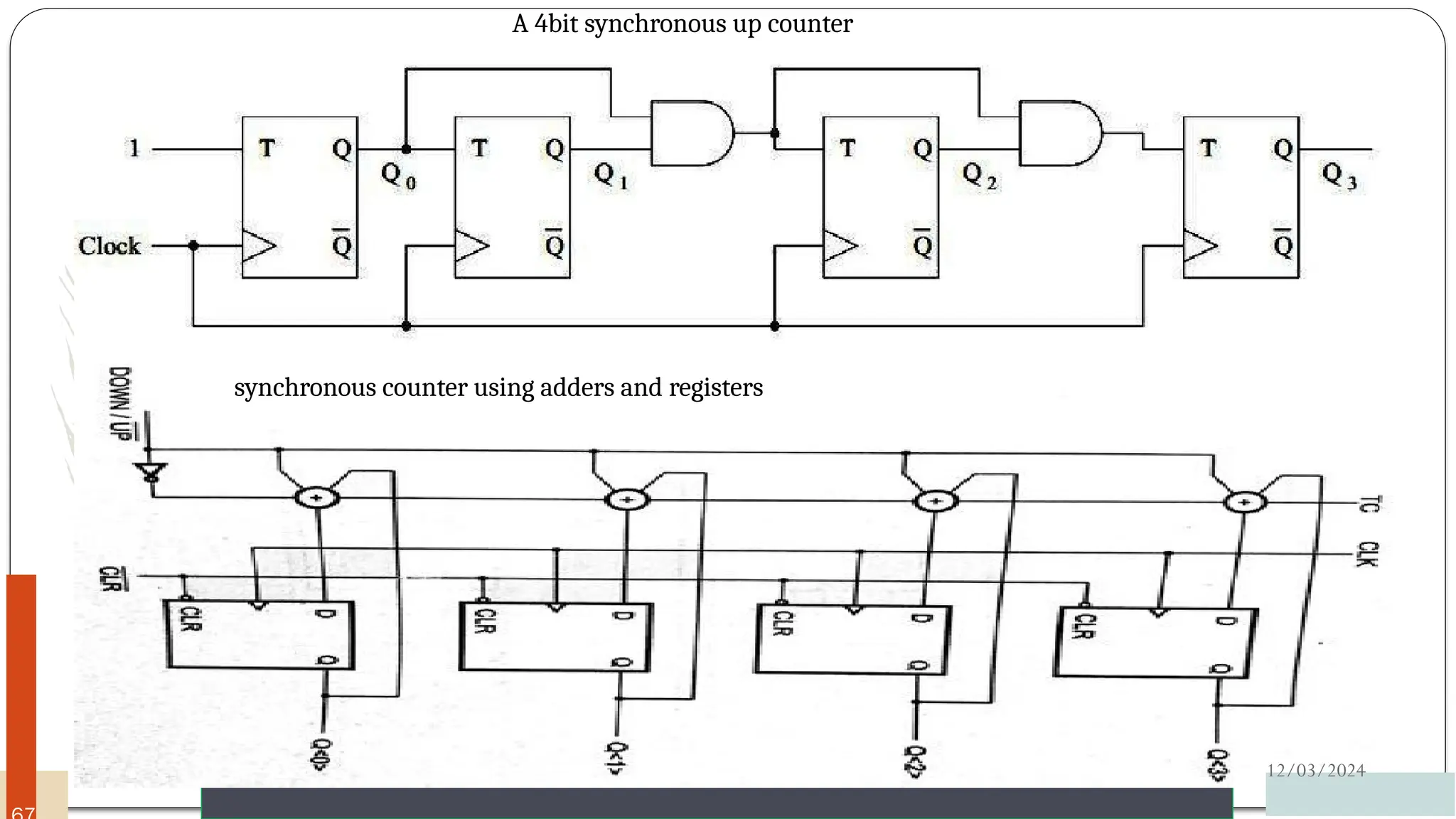

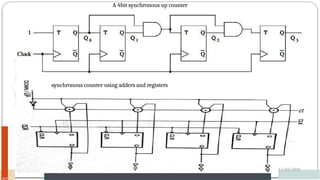

- 57. A 4bit synchronousup counter synchronous counter using adders and registers 12/03/2024

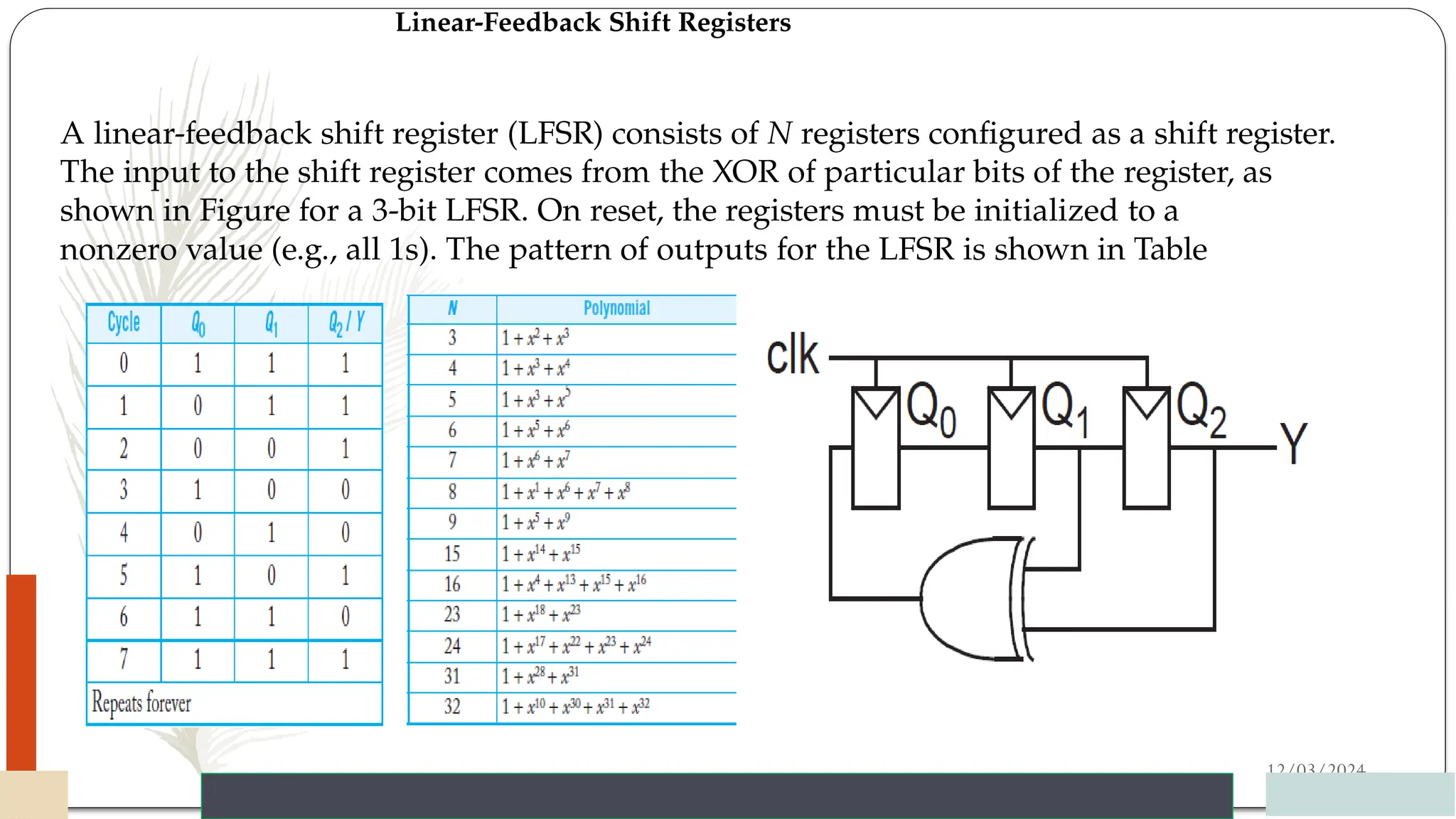

- 58. A linear-feedback shiftregister (LFSR) consists of N registers configured as a shift register. The input to the shift register comes from the XOR of particular bits of the register, as shown in Figure for a 3-bit LFSR. On reset, the registers must be initialized to a nonzero value (e.g., all 1s). The pattern of outputs for the LFSR is shown in Table 12/03/2024 Linear-Feedback Shift Registers

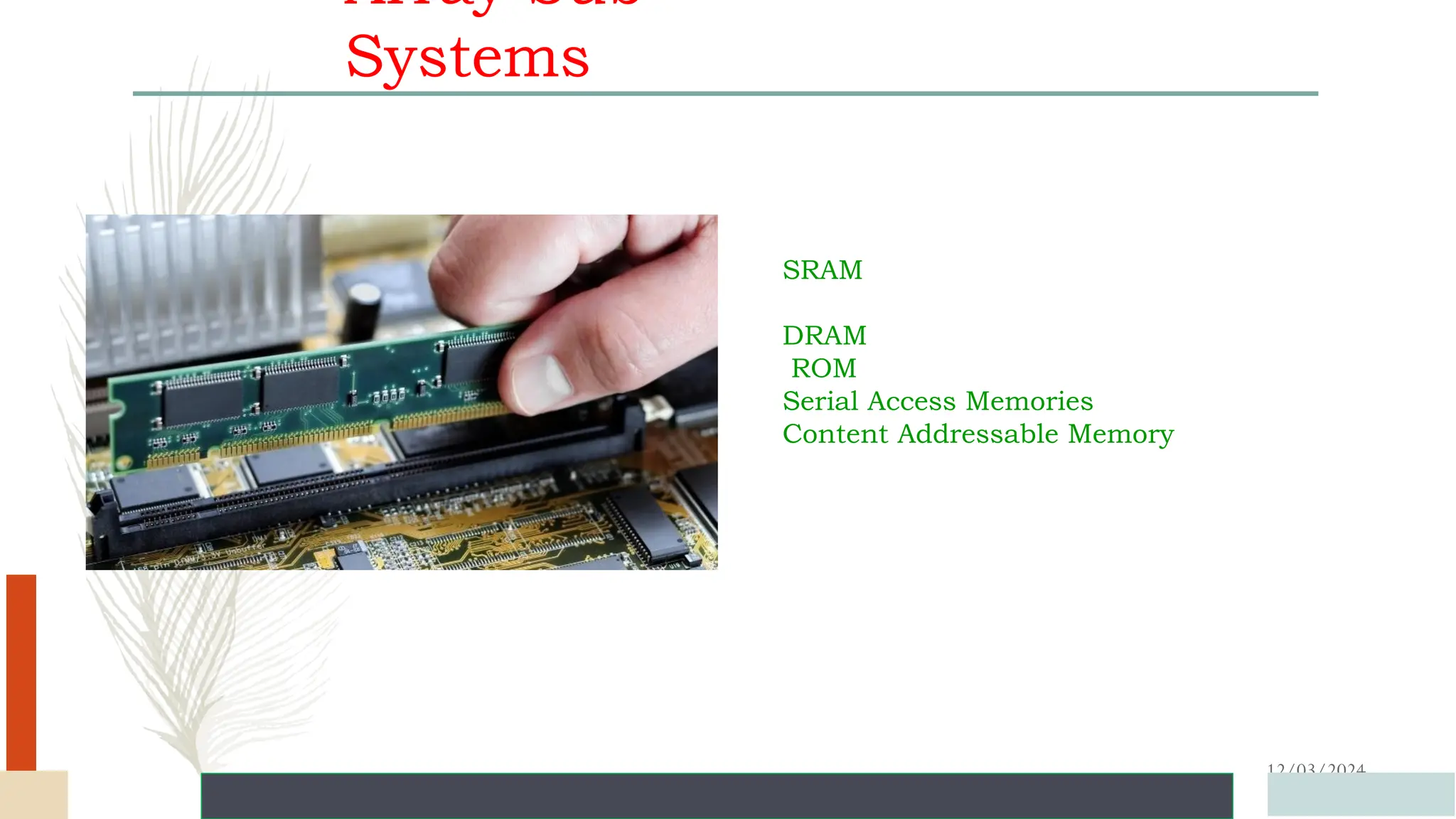

- 59. Array Sub Systems 12/03/2024 SRAM DRAM ROM Serial AccessMemories Content Addressable Memory

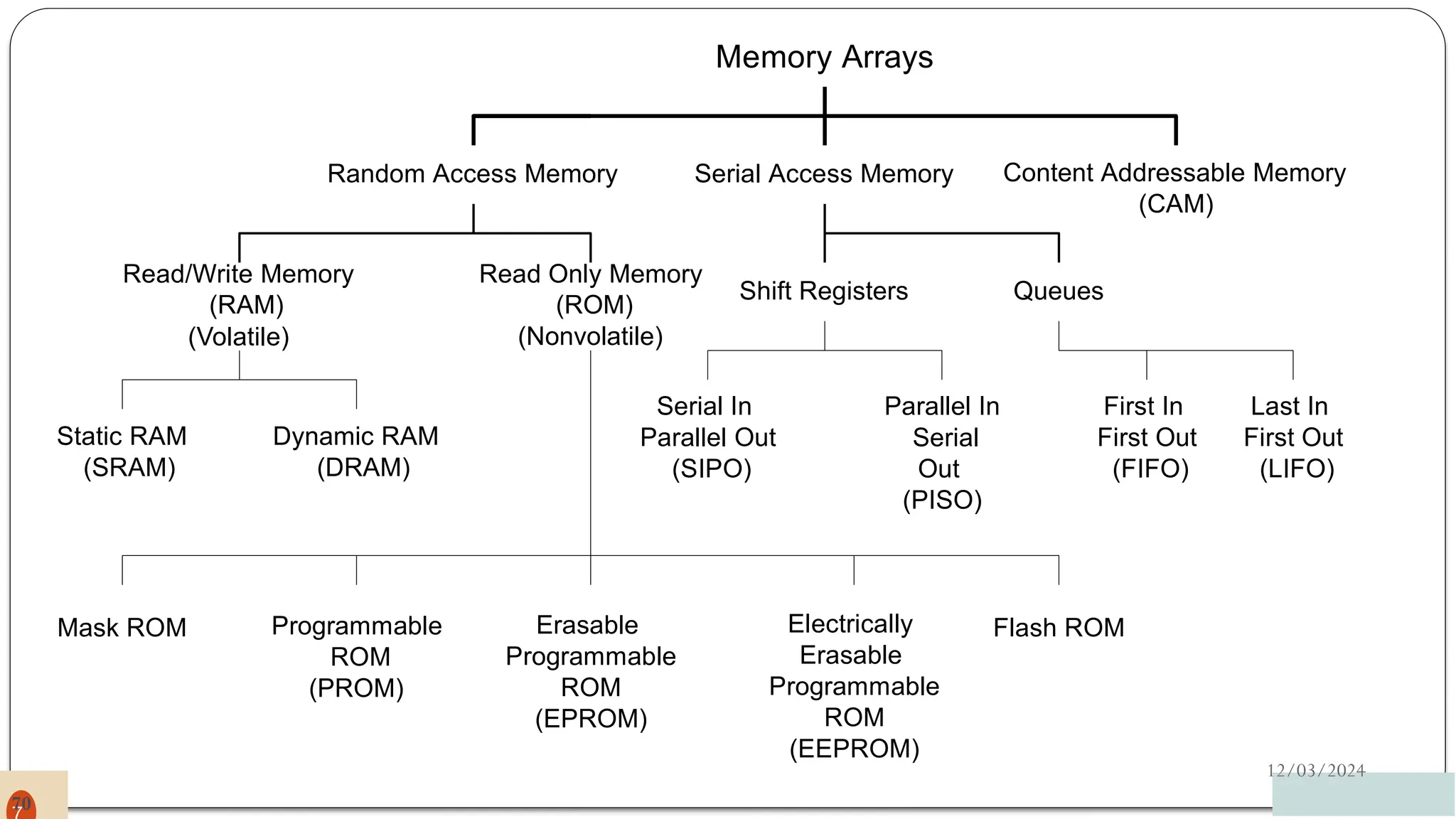

- 60. Memory Arrays 12/03/2024 Random AccessMemory Serial Access Memory Content Addressable Memory (CAM) Read/Write Memory (RAM) (Volatile) Read Only Memory (ROM) (Nonvolatile) Static RAM (SRAM) Dynamic RAM (DRAM) Shift Registers Queues First In First Out (FIFO) Last In First Out (LIFO) Serial In Parallel Out (SIPO) Parallel In Serial Out (PISO) Mask ROM Programmable ROM (PROM) Erasable Programmable ROM (EPROM) Electrically Erasable Programmable ROM (EEPROM) Flash ROM 70

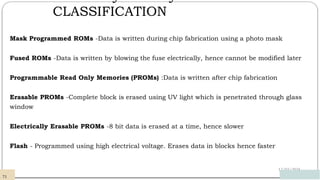

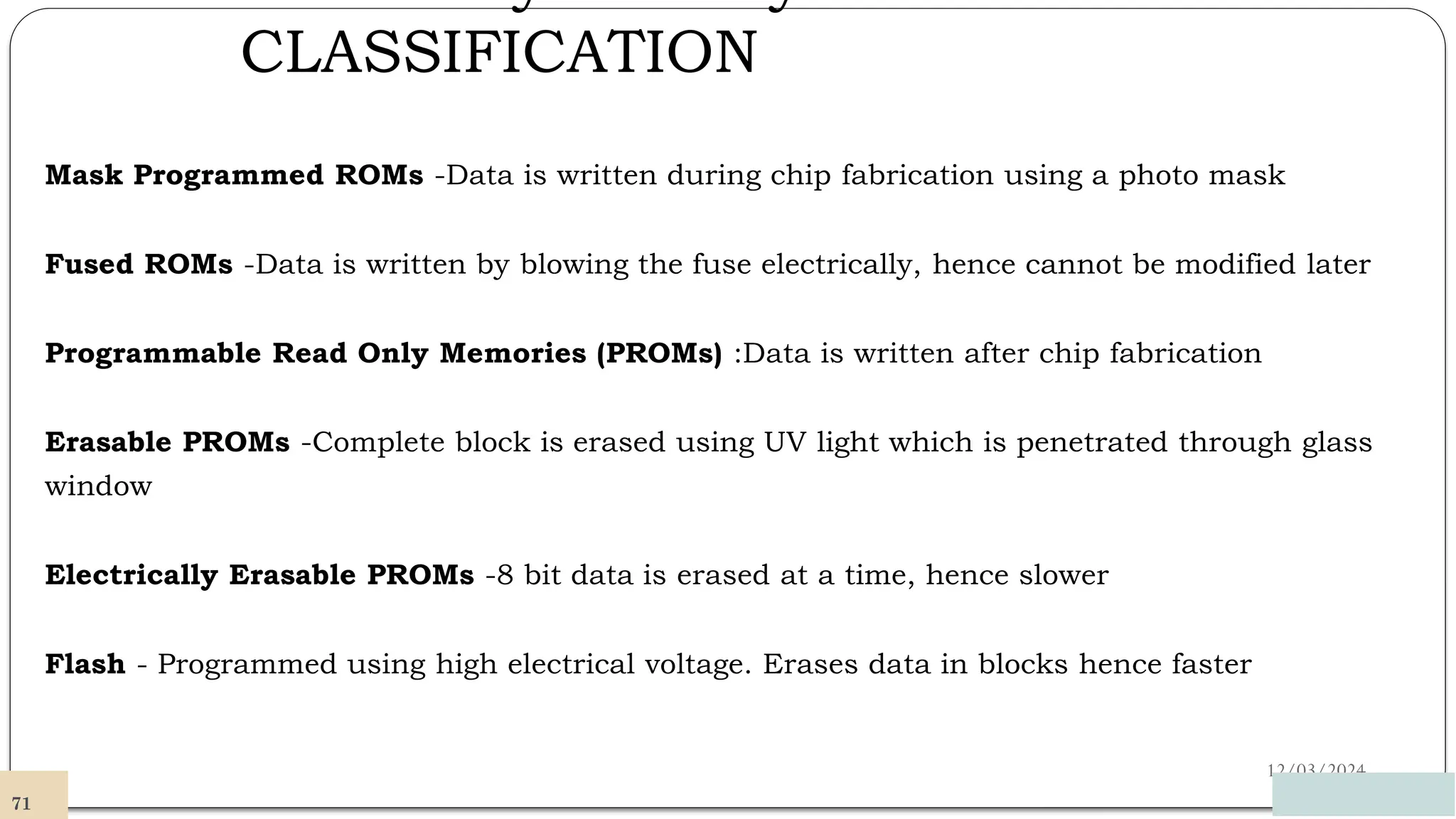

- 61. CLASSIFICATION 12/03/2024 Mask Programmed ROMs-Data is written during chip fabrication using a photo mask Fused ROMs -Data is written by blowing the fuse electrically, hence cannot be modified later Programmable Read Only Memories (PROMs) :Data is written after chip fabrication Erasable PROMs -Complete block is erased using UV light which is penetrated through glass window Electrically Erasable PROMs -8 bit data is erased at a time, hence slower Flash - Programmed using high electrical voltage. Erases data in blocks hence faster 71

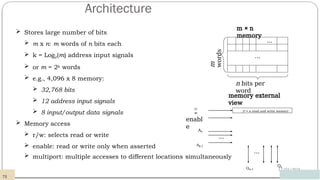

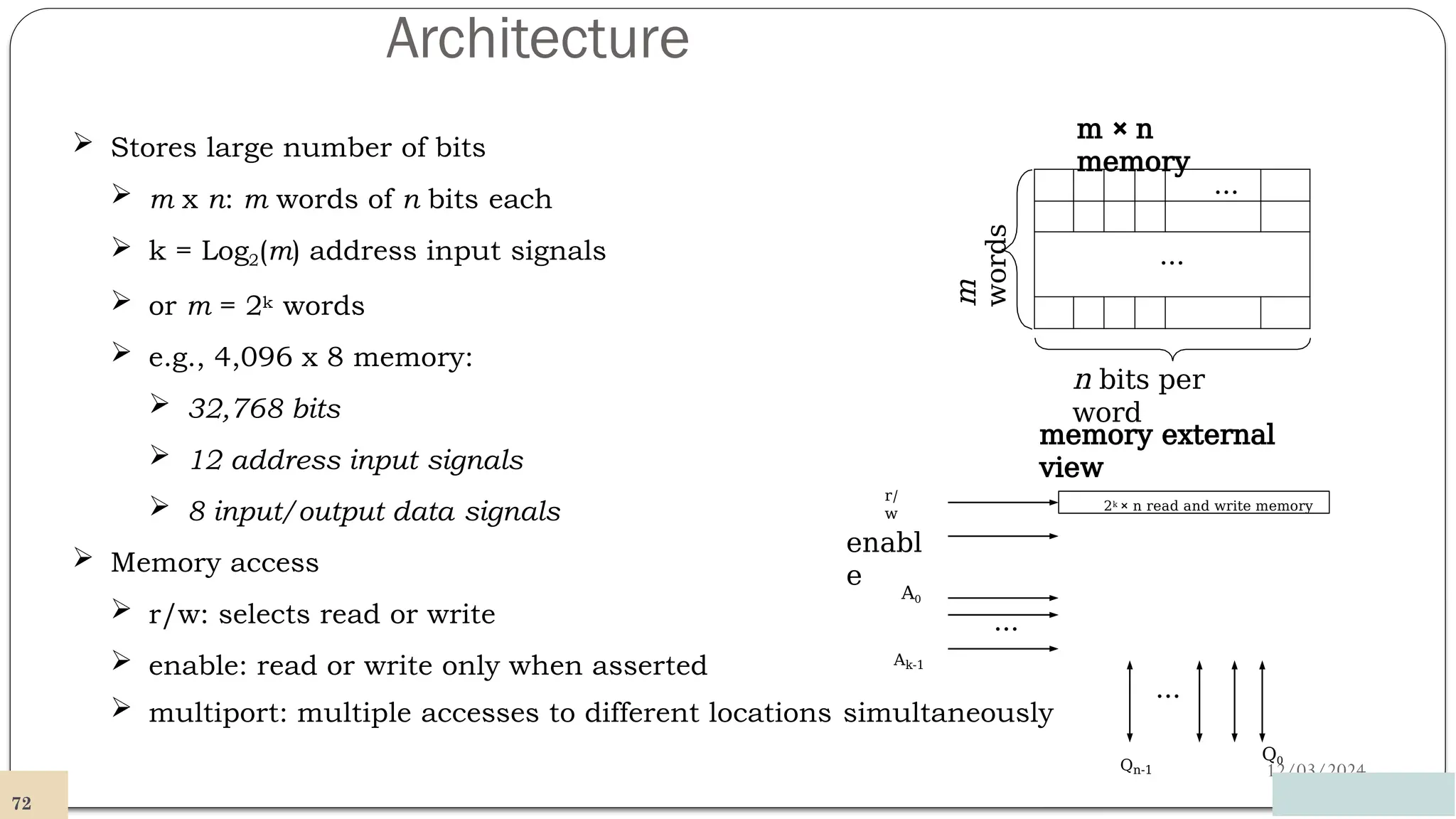

- 62. Architecture 12/03/2024 Stores largenumber of bits m x n: m words of n bits each k = Log2(m) address input signals or m = 2k words e.g., 4,096 x 8 memory: 32,768 bits 12 address input signals 8 input/output data signals Memory access r/w: selects read or write enable: read or write only when asserted multiport: multiple accesses to different locations simultaneously m × n memory … … n bits per word m words enabl e 2k × n read and write memory A0 … r/ w … Q0 Qn-1 Ak-1 72 memory external view

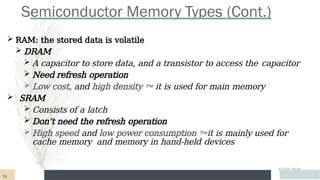

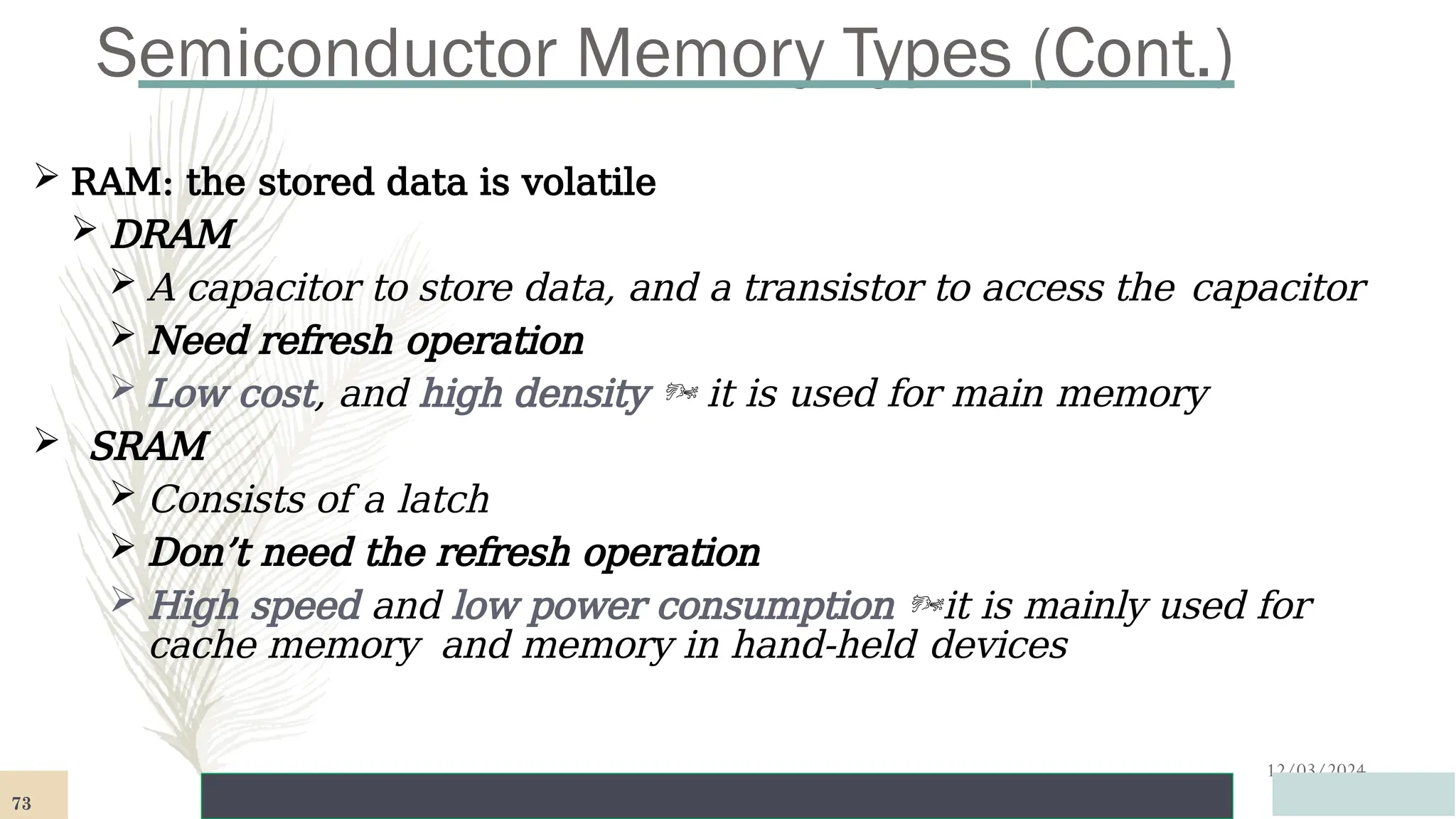

- 63. Semiconductor Memory Types(Cont.) 12/03/2024 RAM: the stored data is volatile DRAM A capacitor to store data, and a transistor to access the capacitor Need refresh operation Low cost, and high density it is used for main memory SRAM Consists of a latch Don’t need the refresh operation High speed and low power consumption it is mainly used for cache memory and memory in hand-held devices 73
- 64.
- 65.

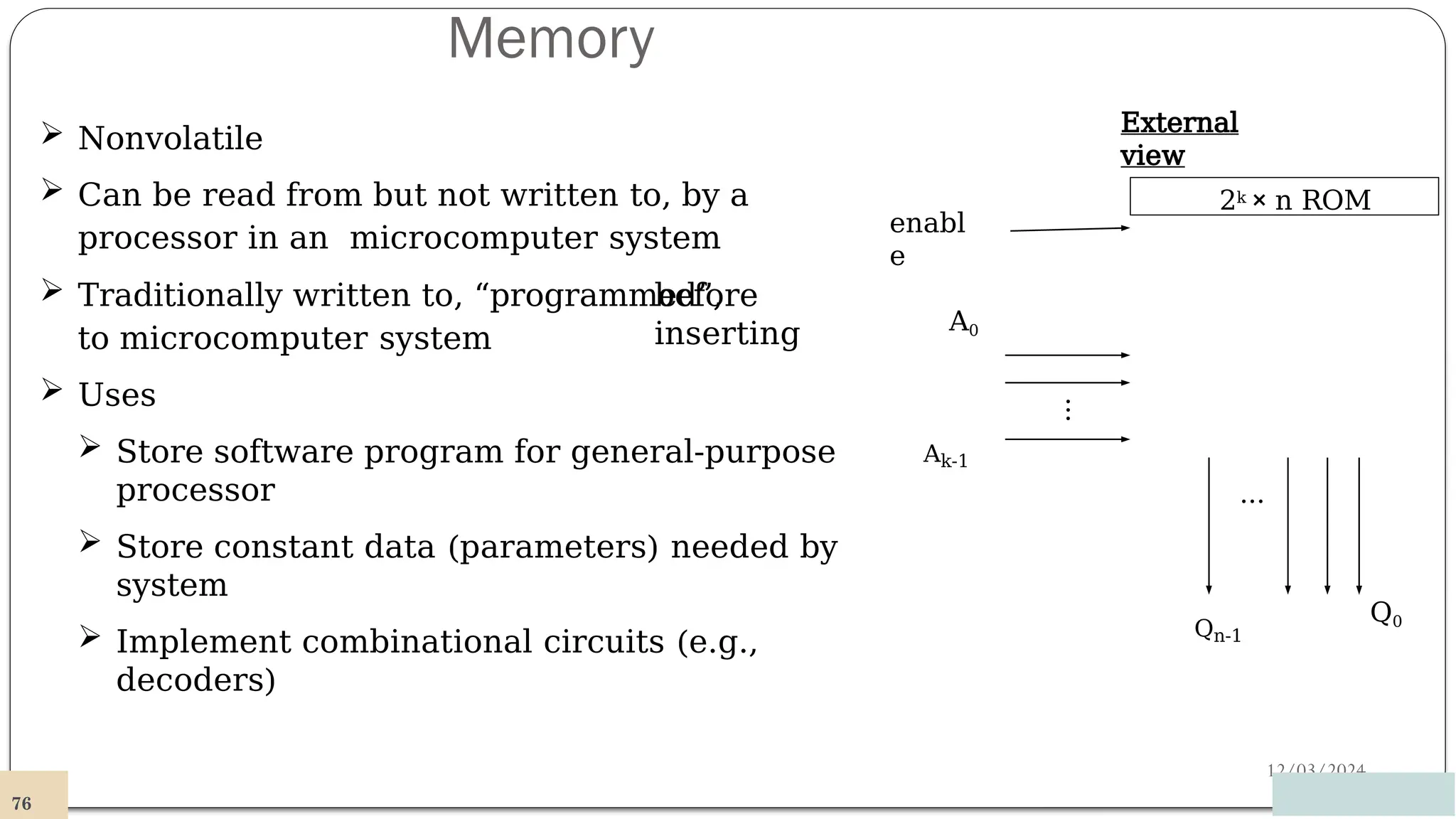

- 66. Memory 12/03/2024 Nonvolatile Canbe read from but not written to, by a processor in an microcomputer system before inserting Traditionally written to, “programmed”, to microcomputer system Uses Store software program for general-purpose processor Store constant data (parameters) needed by system Implement combinational circuits (e.g., decoders) 2k × n ROM … Q0 76 Qn-1 A0 … enabl e Ak-1 External view

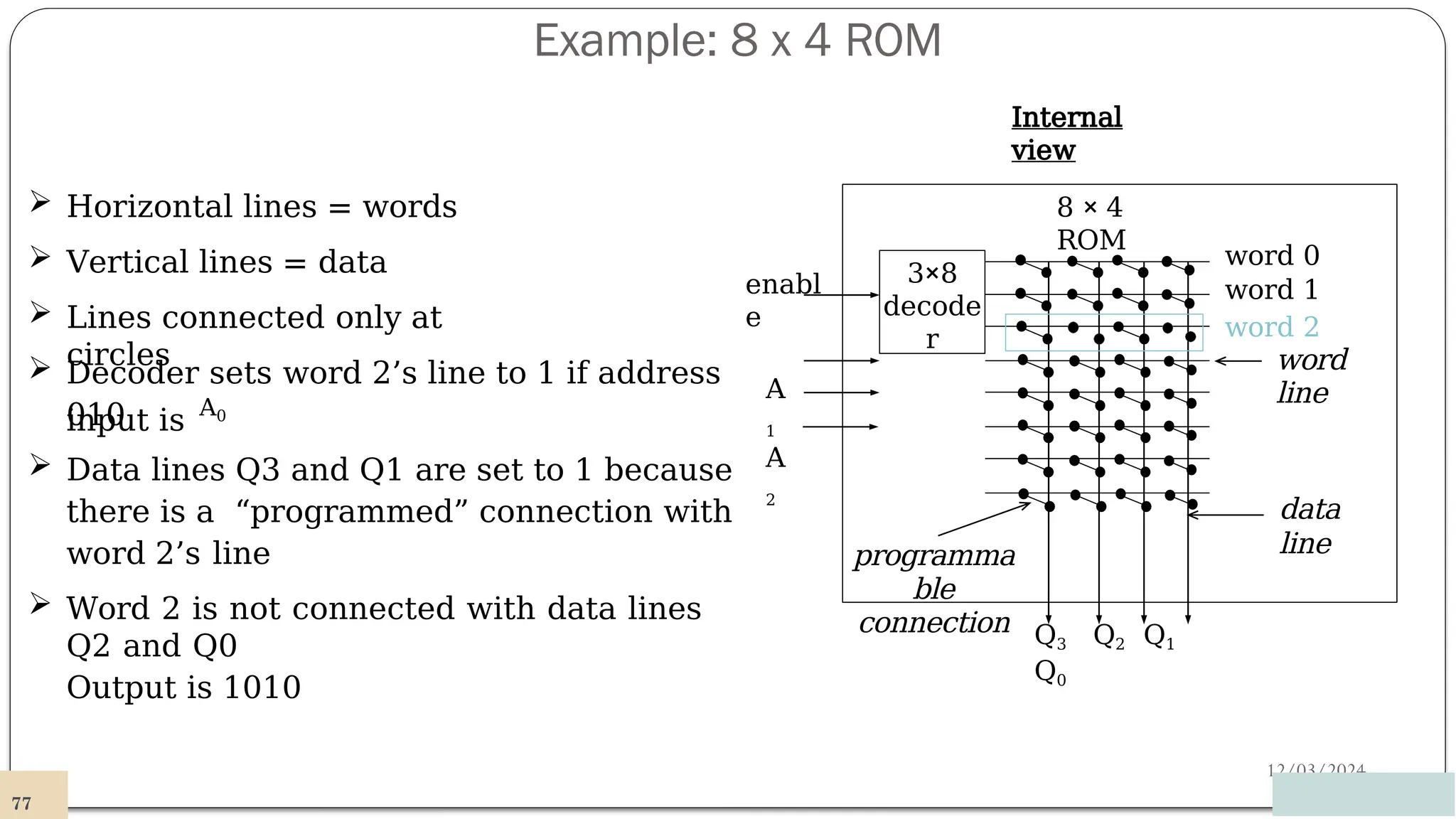

- 67. Example: 8 x4 ROM 12/03/2024 Horizontal lines = words Vertical lines = data Lines connected only at circles 010 Data lines Q3 and Q1 are set to 1 because there is a “programmed” connection with word 2’s line Word 2 is not connected with data lines Q2 and Q0 Output is 1010 8 × 4 ROM 3×8 decode r Decoder sets word 2’s line to 1 if address input is A0 enabl e A 1 A 2 Q3 Q2 Q1 Q0 programma ble connection data line word 0 word 1 word 2 word line Internal view 77

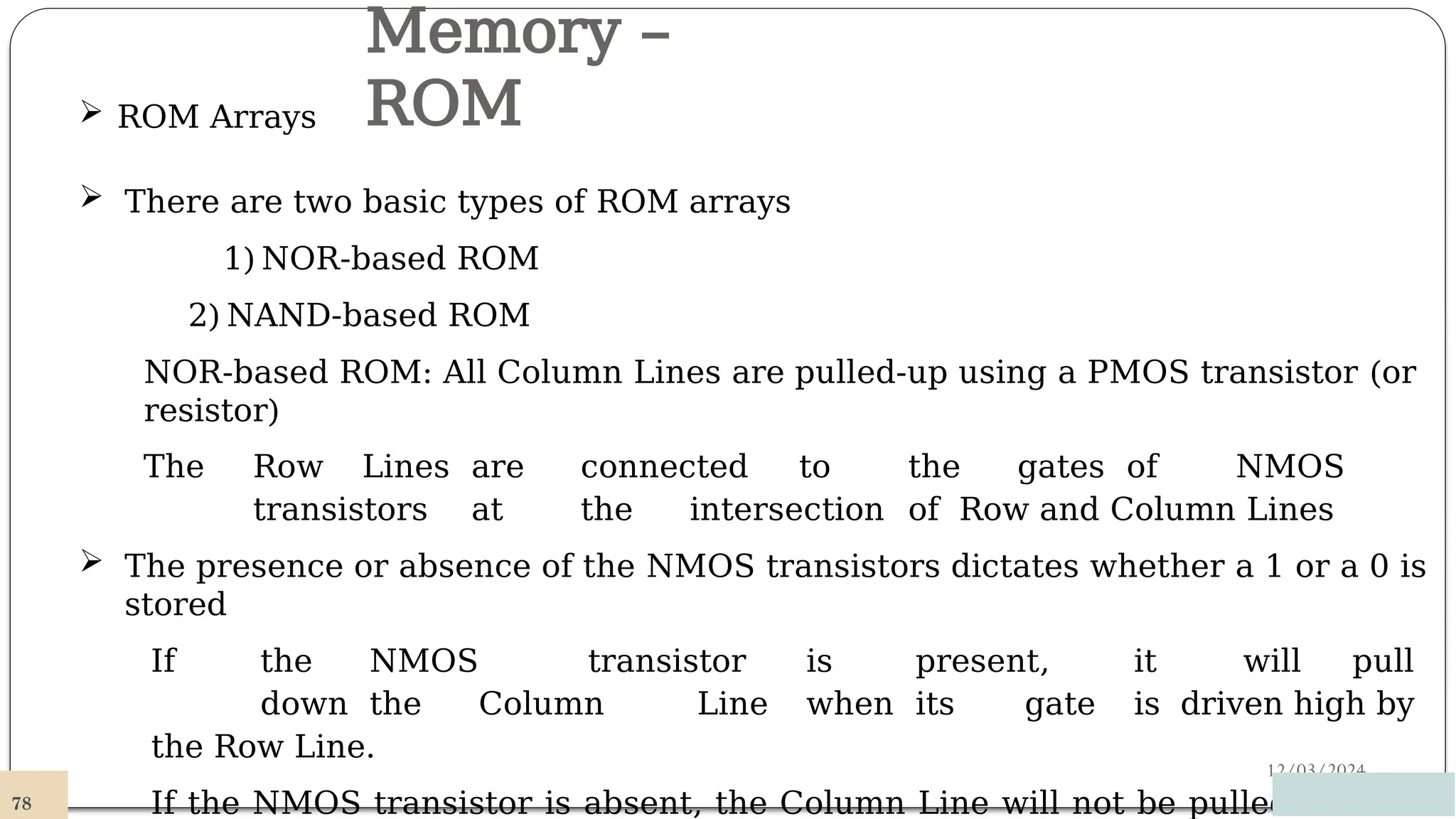

- 68. Memory – ROM 12/03/2024 ROMArrays There are two basic types of ROM arrays 1)NOR-based ROM 2) NAND-based ROM NOR-based ROM: All Column Lines are pulled-up using a PMOS transistor (or resistor) The Row Lines are connected to the gates of NMOS transistors at the intersection of Row and Column Lines The presence or absence of the NMOS transistors dictates whether a 1 or a 0 is stored If the NMOS transistor is present, it will pull down the Column Line when its gate is driven high by the Row Line. If the NMOS transistor is absent, the Column Line will not be pulled 78

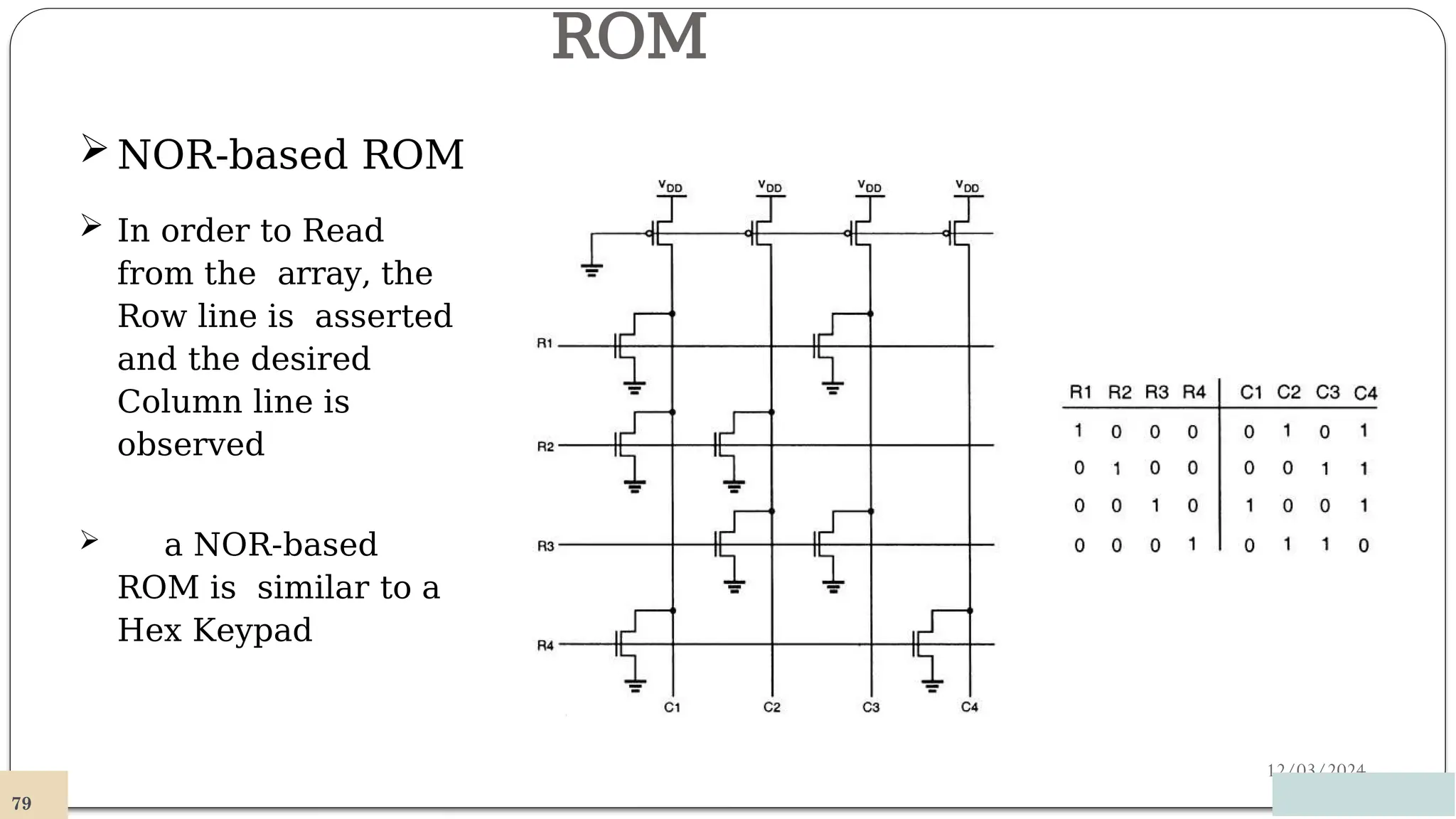

- 69. ROM 12/03/2024 NOR-based ROM In order to Read from the array, the Row line is asserted and the desired Column line is observed a NOR-based ROM is similar to a Hex Keypad 79

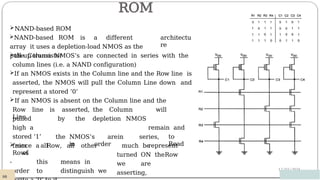

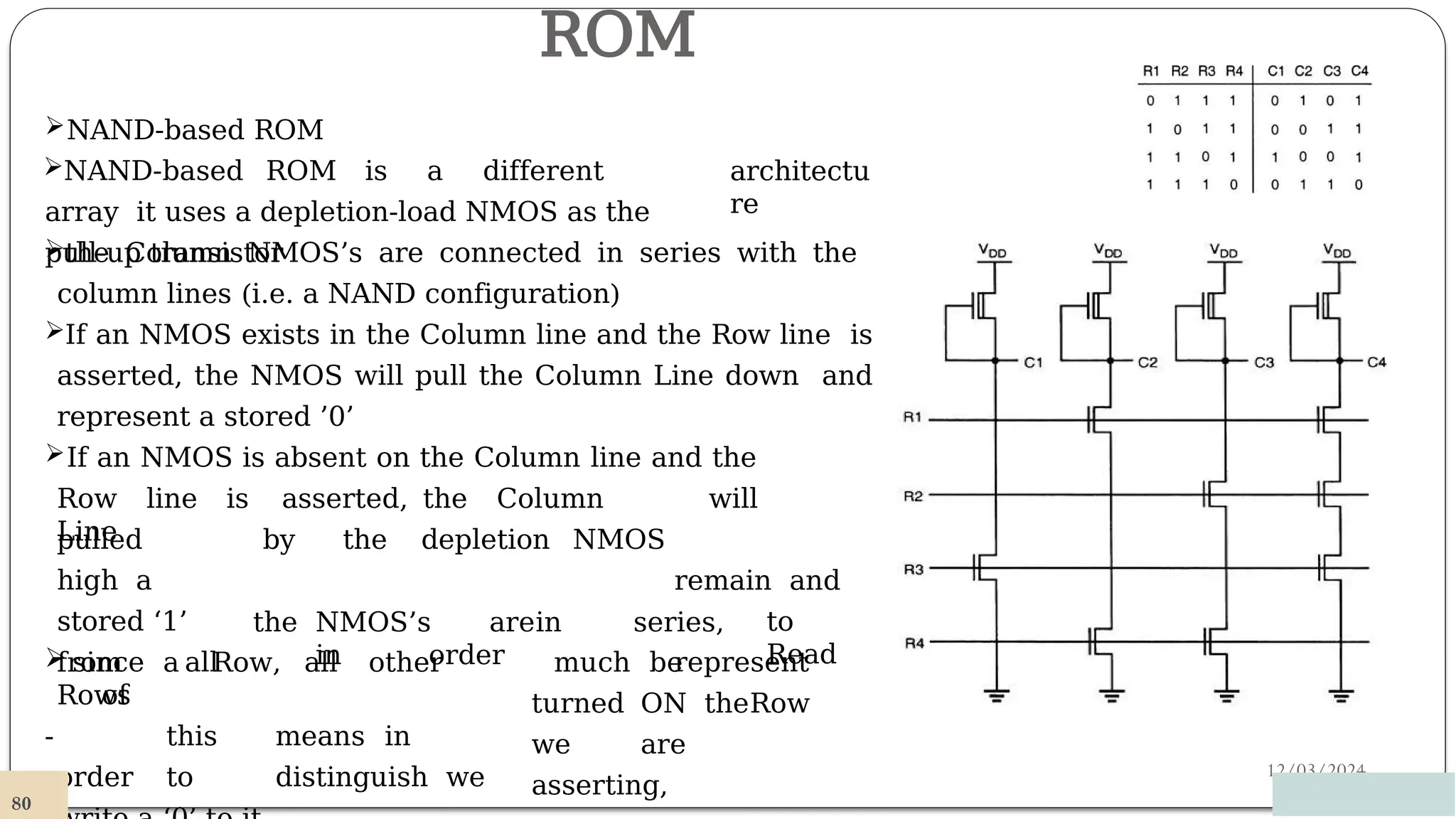

- 70. ROM 12/03/2024 architectu re NAND-based ROM NAND-based ROMis a different array it uses a depletion-load NMOS as the pull-up transistor the Column NMOS’s are connected in series with the column lines (i.e. a NAND configuration) If an NMOS exists in the Column line and the Row line is asserted, the NMOS will pull the Column Line down and represent a stored ’0’ If an NMOS is absent on the Column line and the Row line is asserted, the Column Line will remain and represent pulled high a stored ‘1’ since all of by the depletion NMOS the NMOS’s arein series, in order to Read much be turned ON theRow we are asserting, from a Row, all other Rows - this means in order to distinguish we 80

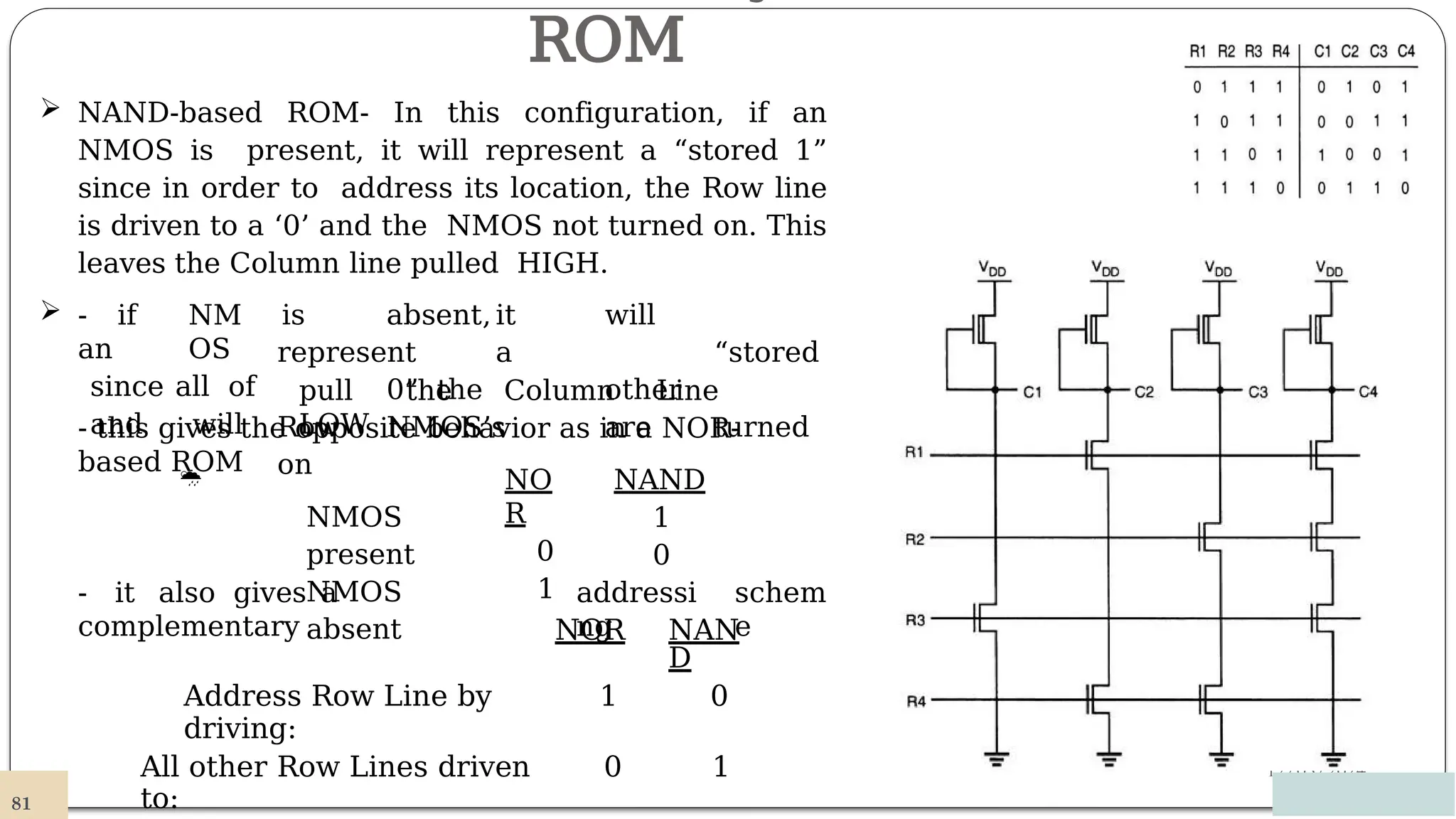

- 71. ROM 12/03/2024 NAND-based ROM-In this configuration, if an NMOS is present, it will represent a “stored 1” since in order to address its location, the Row line is driven to a ‘0’ and the NMOS not turned on. This leaves the Column line pulled HIGH. is absent, it will represent a “stored 0” the other Row NMOS’s are turned on - if an since and NM OS all of will pull the Column Line LOW - this gives the opposite behavior as in a NOR- based ROM NMOS present NMOS absent NO R 0 1 - it also gives a complementary NAND 1 0 addressi ng schem e NOR NAN D Address Row Line by driving: 1 0 All other Row Lines driven to: 0 1 81

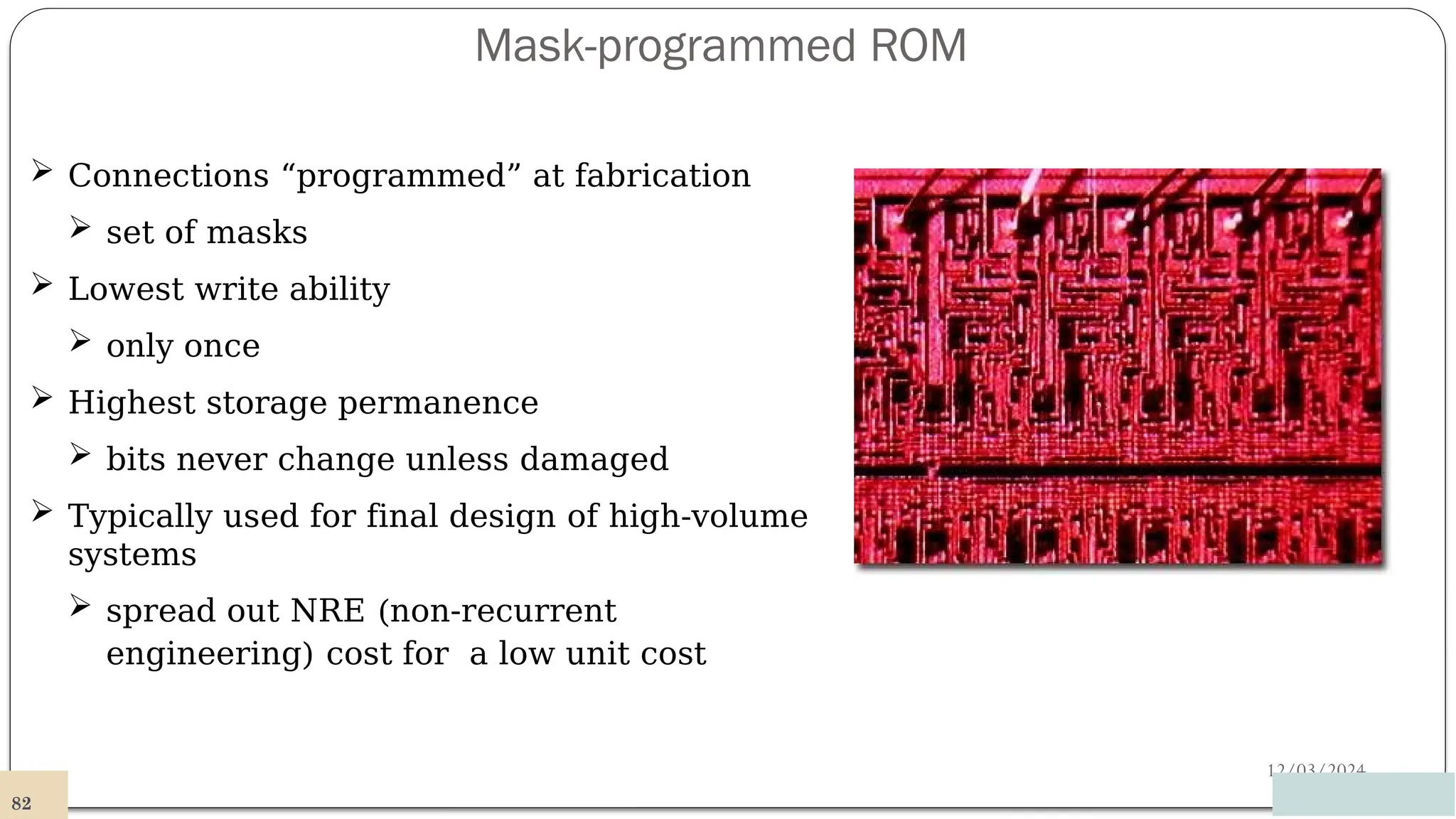

- 72. Mask-programmed ROM 12/03/2024 Connections“programmed” at fabrication set of masks Lowest write ability only once Highest storage permanence bits never change unless damaged Typically used for final design of high-volume systems spread out NRE (non-recurrent engineering) cost for a low unit cost 82

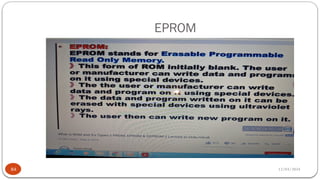

- 73.

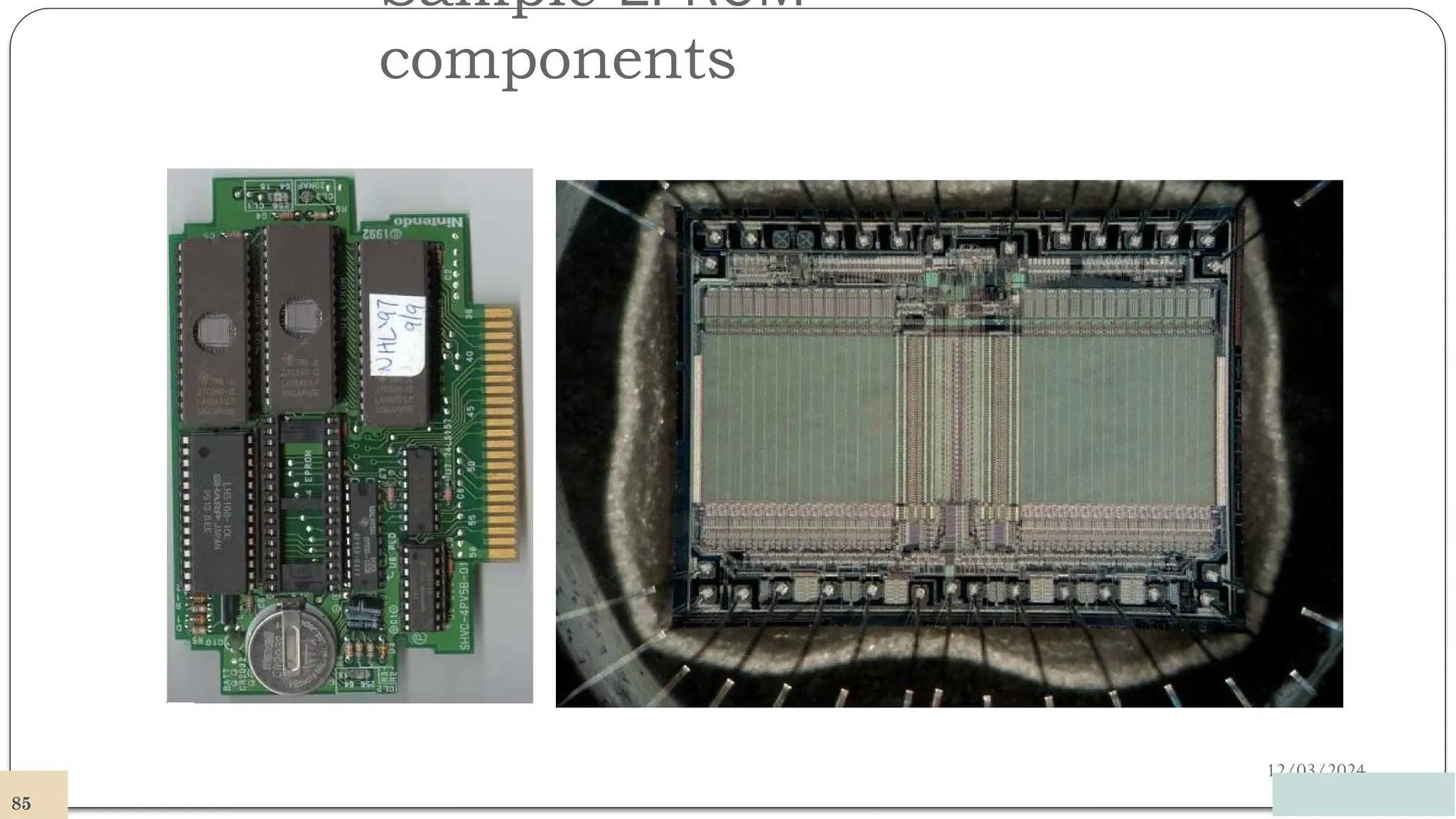

- 74.
- 75.

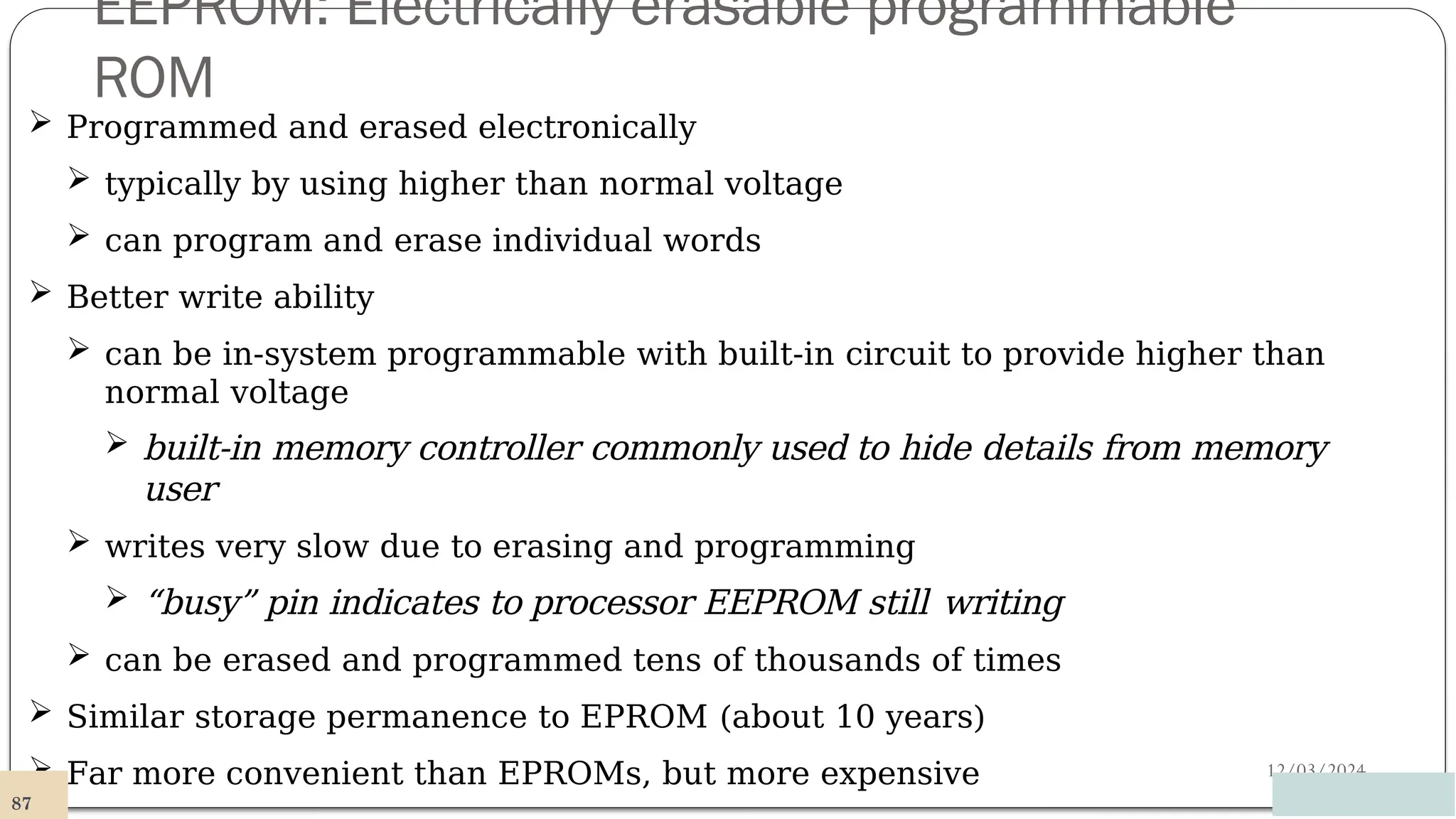

- 76. EEPROM: Electrically erasableprogrammable ROM 12/03/2024 Programmed and erased electronically typically by using higher than normal voltage can program and erase individual words Better write ability can be in-system programmable with built-in circuit to provide higher than normal voltage built-in memory controller commonly used to hide details from memory user writes very slow due to erasing and programming “busy” pin indicates to processor EEPROM still writing can be erased and programmed tens of thousands of times Similar storage permanence to EPROM (about 10 years) Far more convenient than EPROMs, but more expensive 87

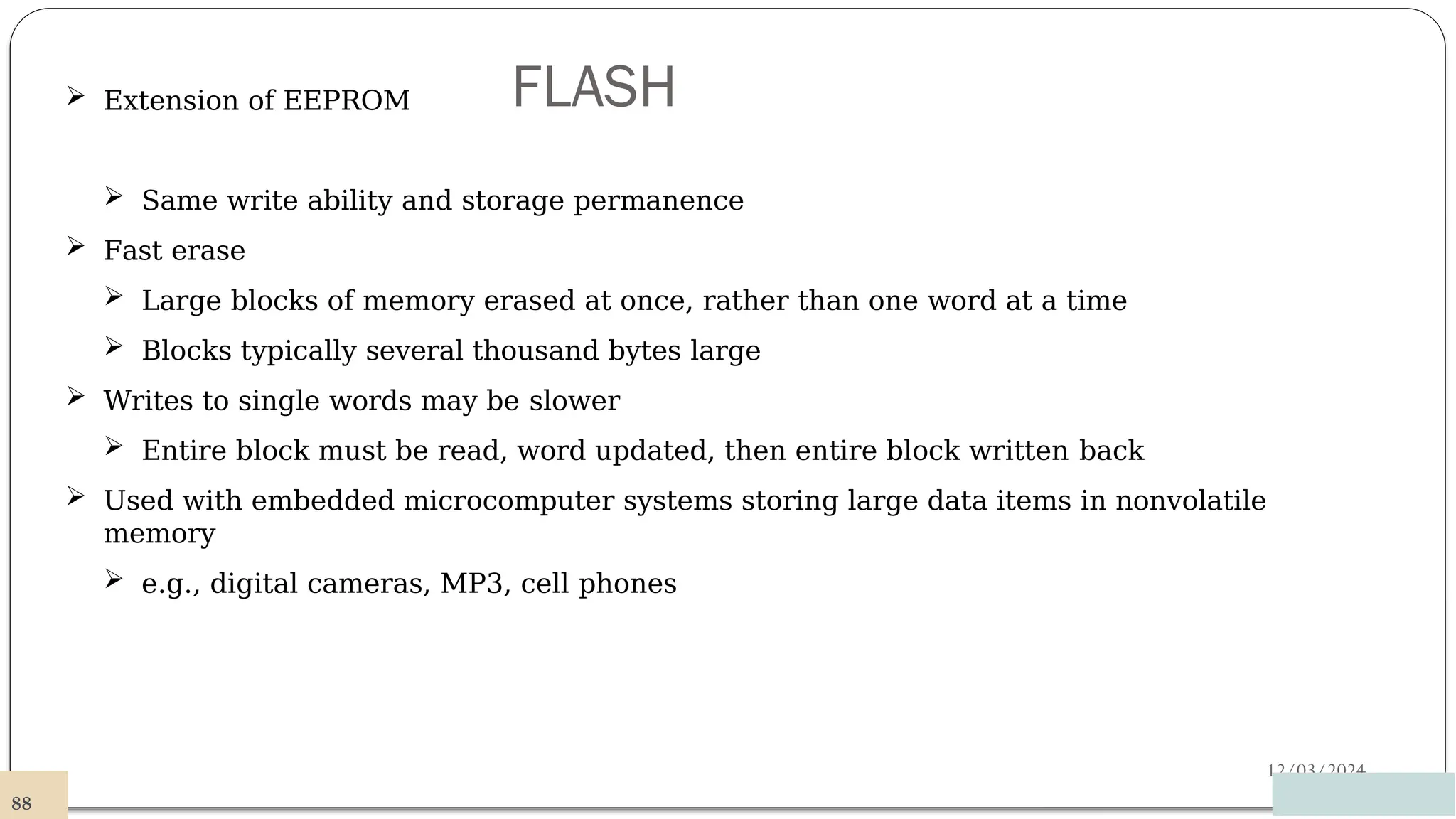

- 77. FLASH 12/03/2024 Extension ofEEPROM Same write ability and storage permanence Fast erase Large blocks of memory erased at once, rather than one word at a time Blocks typically several thousand bytes large Writes to single words may be slower Entire block must be read, word updated, then entire block written back Used with embedded microcomputer systems storing large data items in nonvolatile memory e.g., digital cameras, MP3, cell phones 88

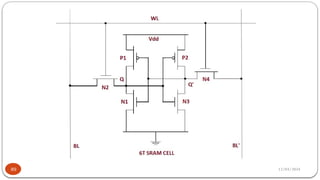

- 78.

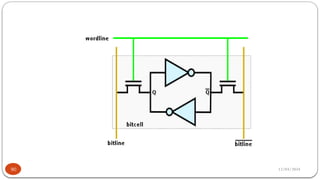

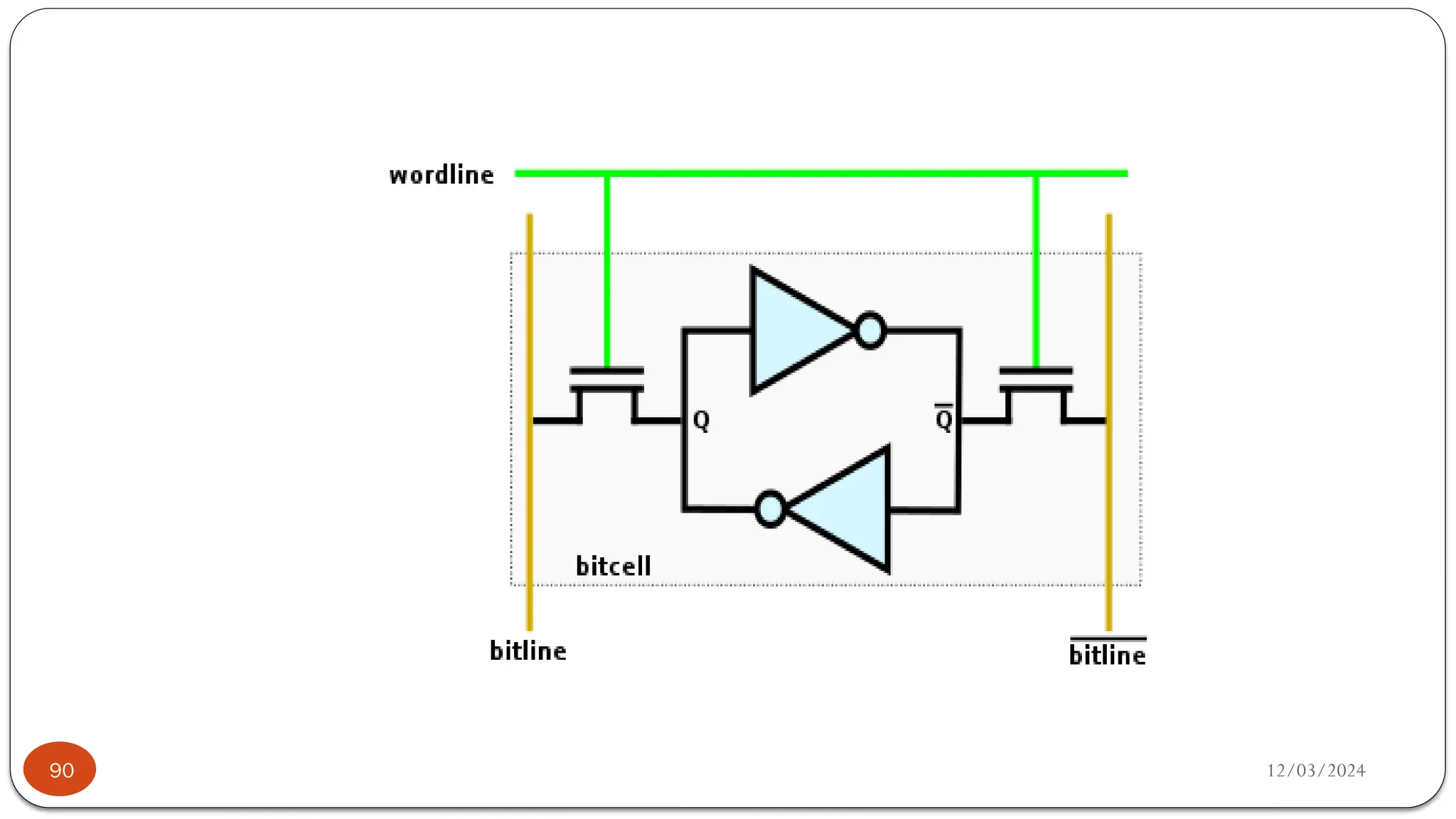

- 79.

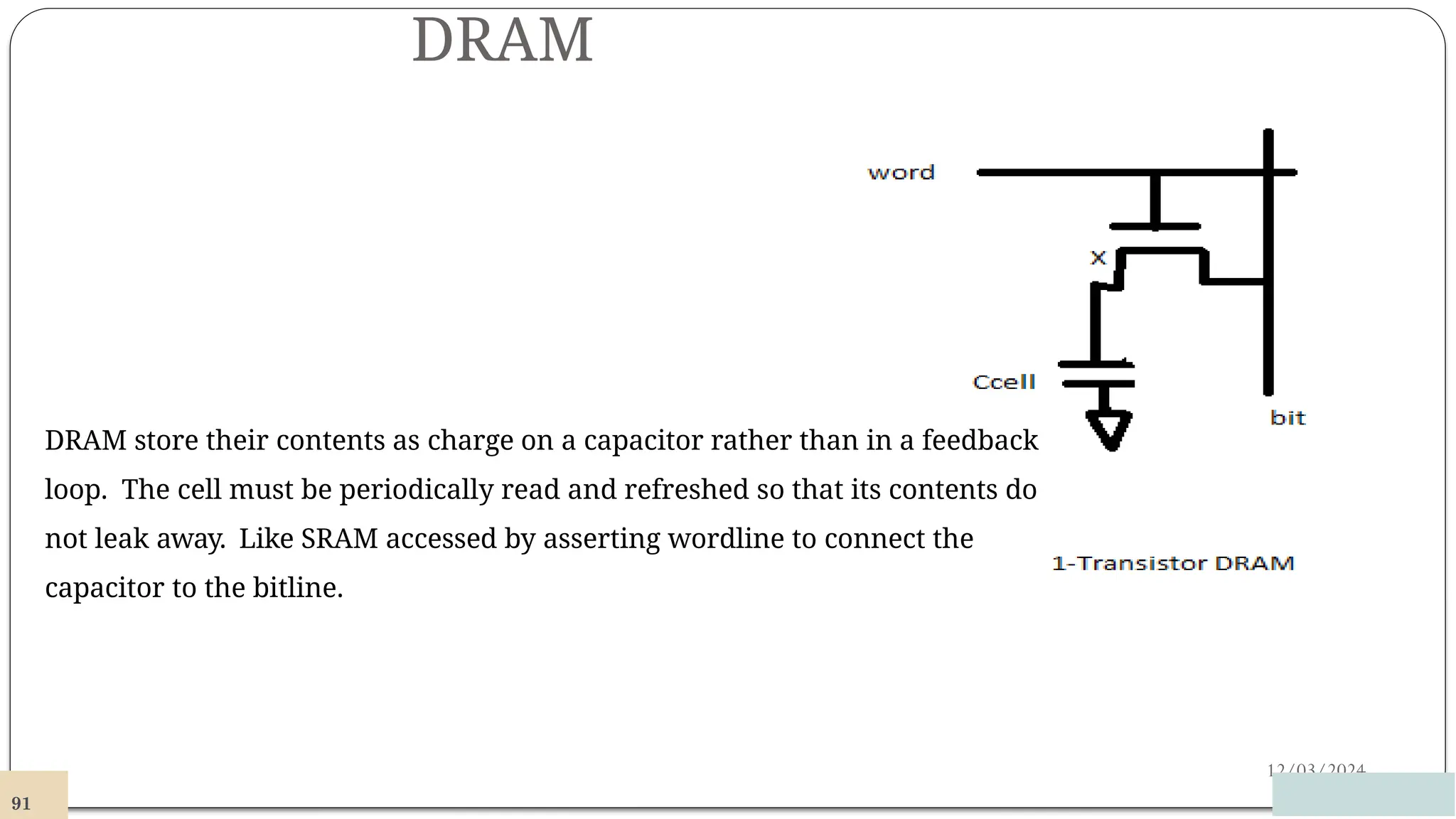

- 80. DRAM 12/03/2024 DRAM store theircontents as charge on a capacitor rather than in a feedback loop. The cell must be periodically read and refreshed so that its contents do not leak away. Like SRAM accessed by asserting wordline to connect the capacitor to the bitline. 91

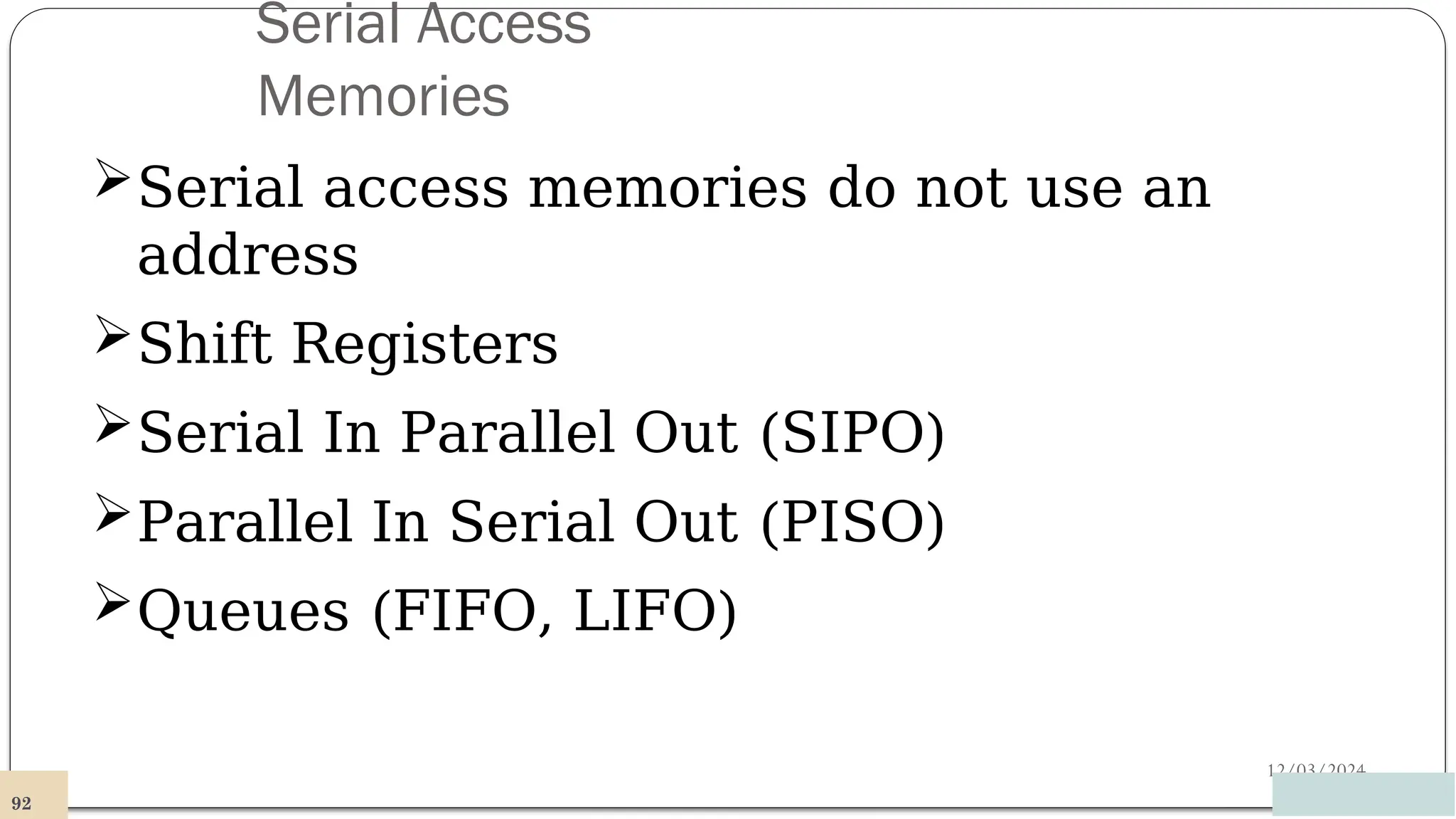

- 81. Serial Access Memories 12/03/2024 Serial accessmemories do not use an address Shift Registers Serial In Parallel Out (SIPO) Parallel In Serial Out (PISO) Queues (FIFO, LIFO) 92

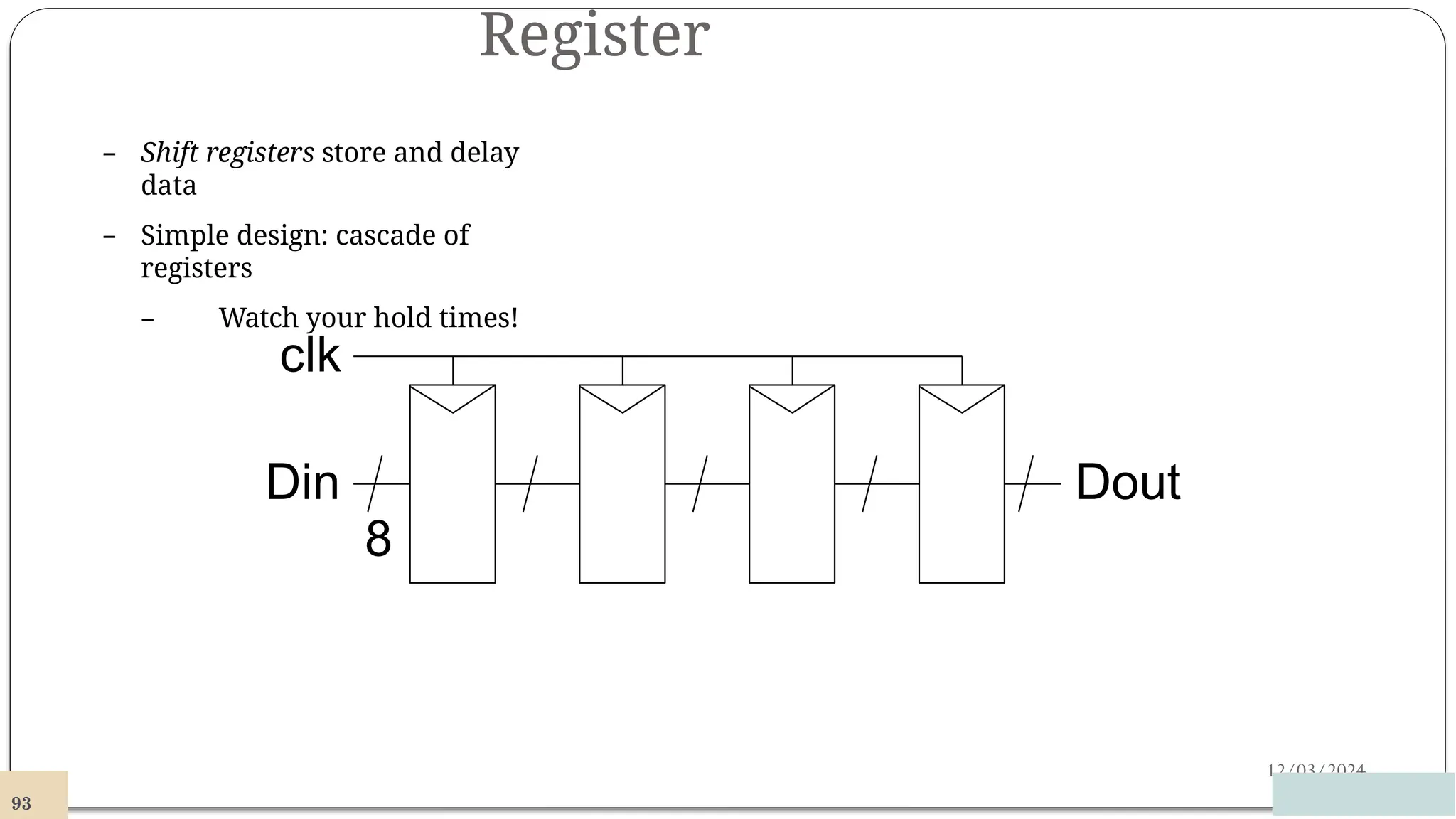

- 82. Register 12/03/2024 – Shift registersstore and delay data – Simple design: cascade of registers – Watch your hold times! clk Din Dout 8 93

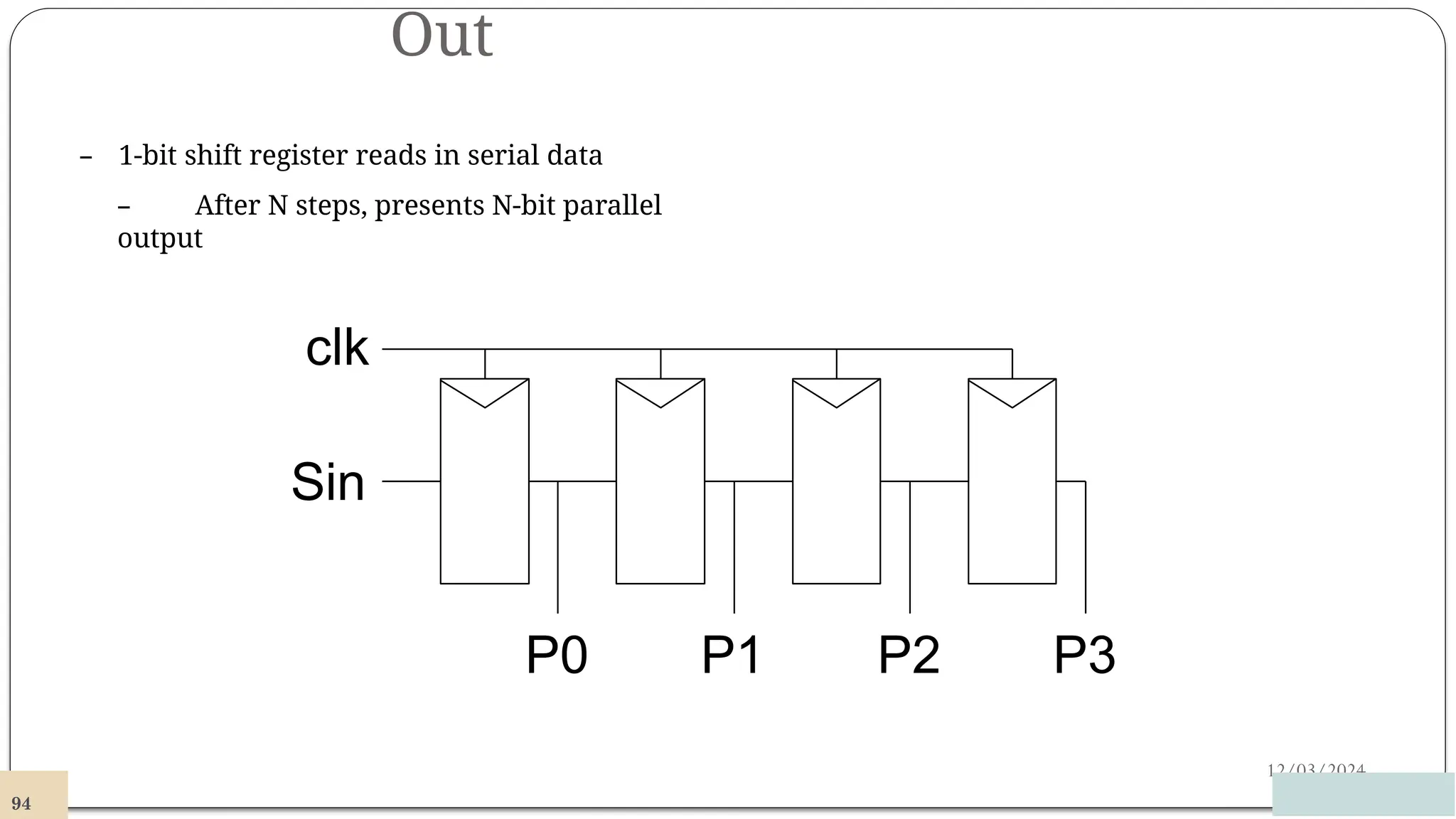

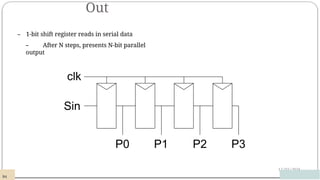

- 83. Out 12/03/2024 – 1-bit shiftregister reads in serial data – After N steps, presents N-bit parallel output P0 94 P1 P2 P3 clk Sin

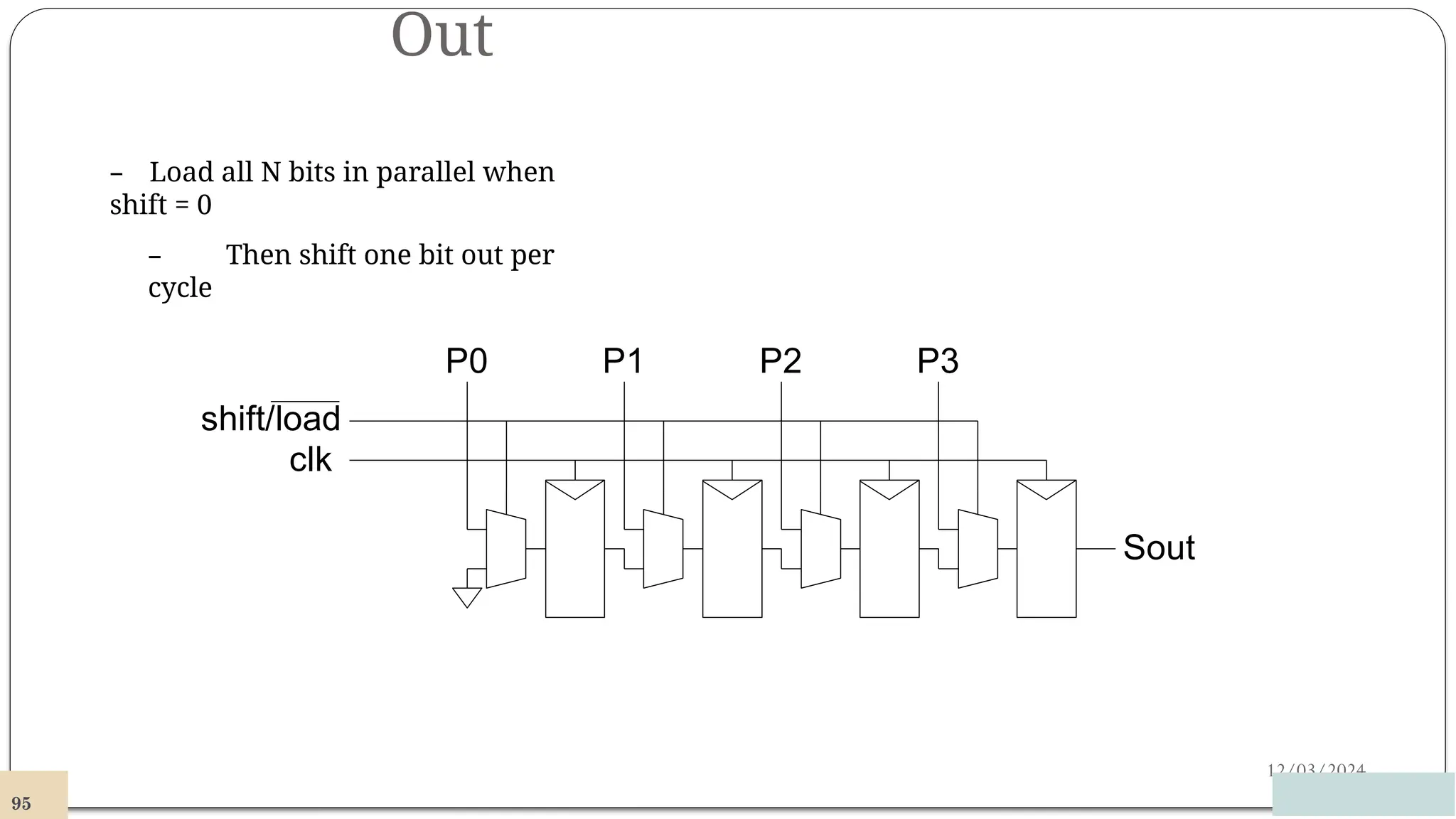

- 84. Out 12/03/2024 – Load allN bits in parallel when shift = 0 – Then shift one bit out per cycle shift/load clk P0 P1 P2 P3 Sout 95

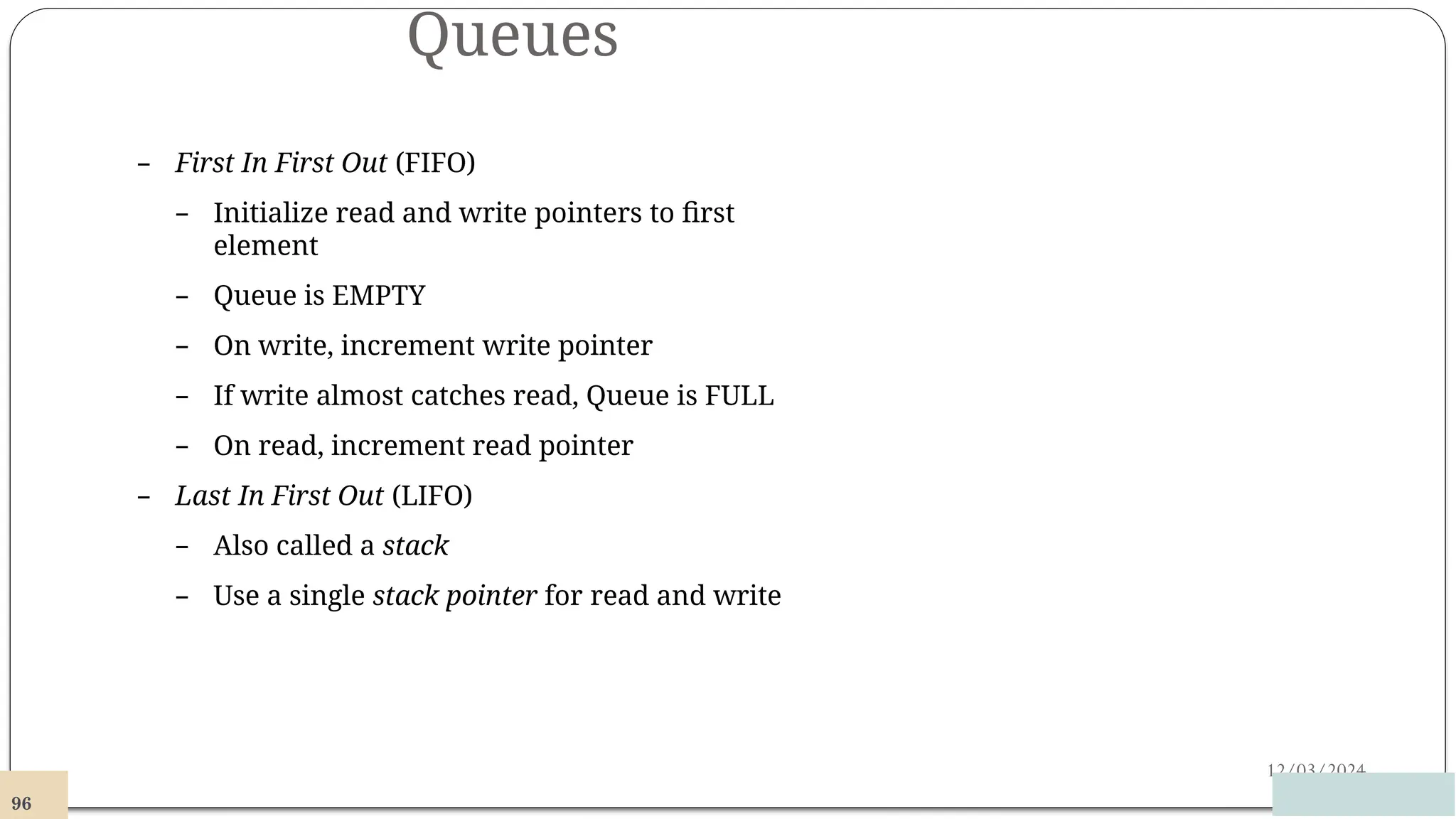

- 85. Queues 12/03/2024 – First InFirst Out (FIFO) – Initialize read and write pointers to first element – Queue is EMPTY – On write, increment write pointer – If write almost catches read, Queue is FULL – On read, increment read pointer – Last In First Out (LIFO) – Also called a stack – Use a single stack pointer for read and write 96

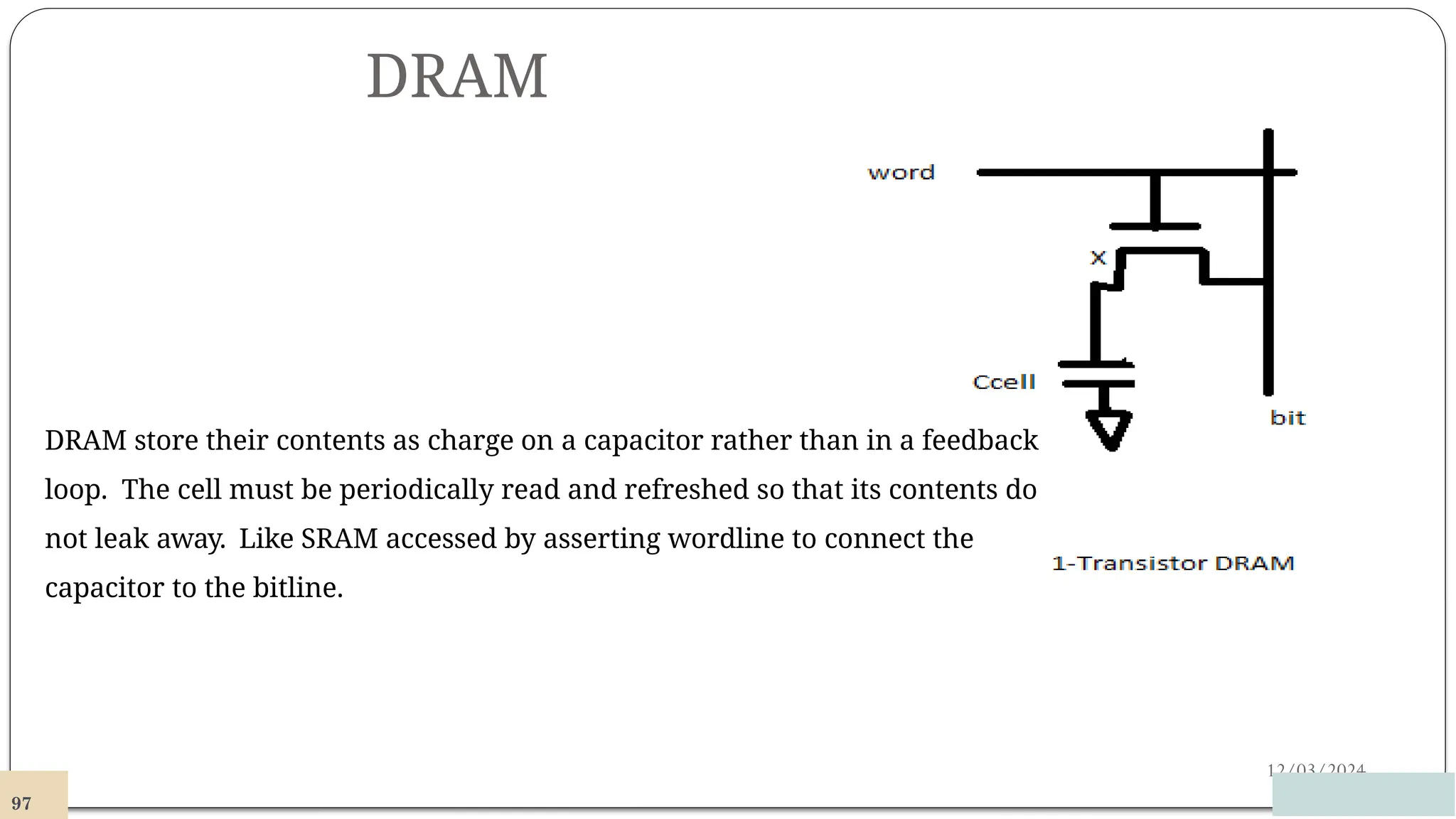

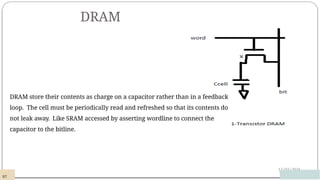

- 86. DRAM 12/03/2024 DRAM store theircontents as charge on a capacitor rather than in a feedback loop. The cell must be periodically read and refreshed so that its contents do not leak away. Like SRAM accessed by asserting wordline to connect the capacitor to the bitline. 97

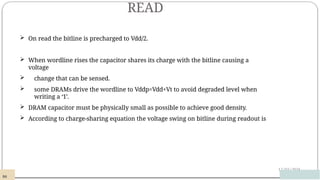

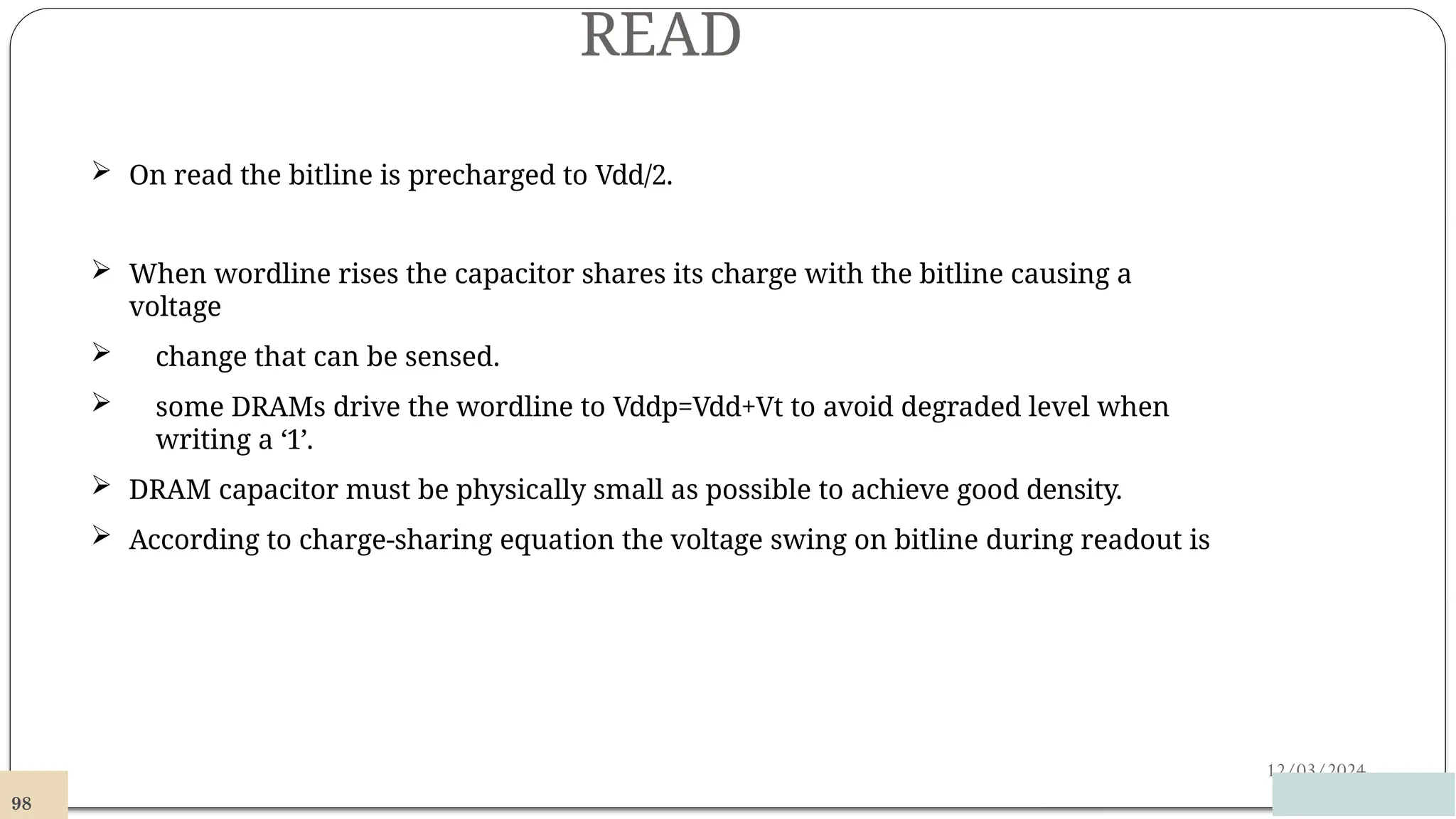

- 87. READ 12/03/2024 On readthe bitline is precharged to Vdd/2. When wordline rises the capacitor shares its charge with the bitline causing a voltage change that can be sensed. some DRAMs drive the wordline to Vddp=Vdd+Vt to avoid degraded level when writing a ‘1’. DRAM capacitor must be physically small as possible to achieve good density. According to charge-sharing equation the voltage swing on bitline during readout is 98
- 88.

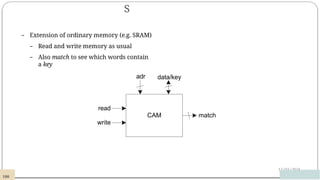

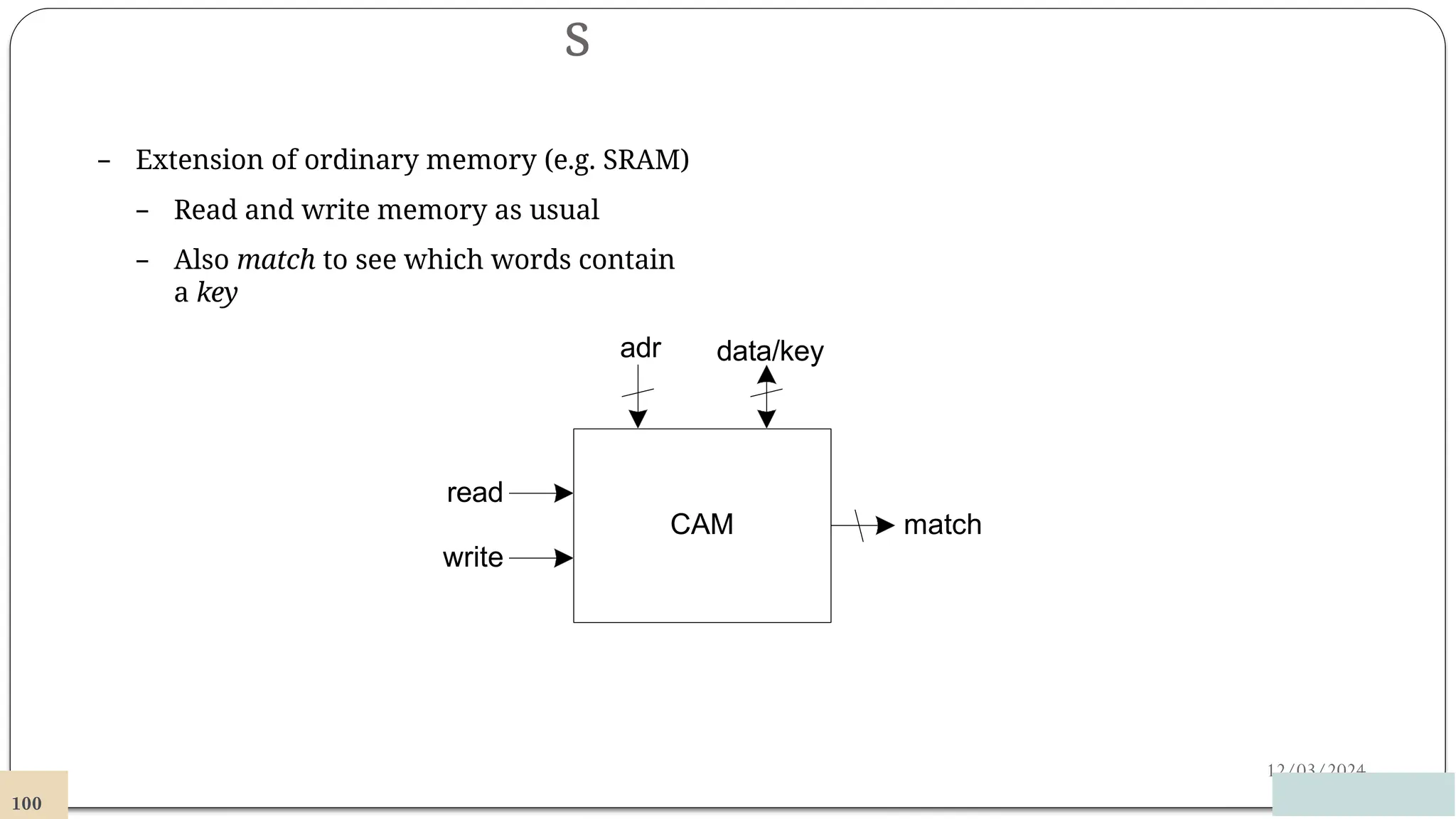

- 89. s 12/03/2024 – Extension ofordinary memory (e.g. SRAM) – Read and write memory as usual – Also match to see which words contain a key CAM adr data/key match read write 100

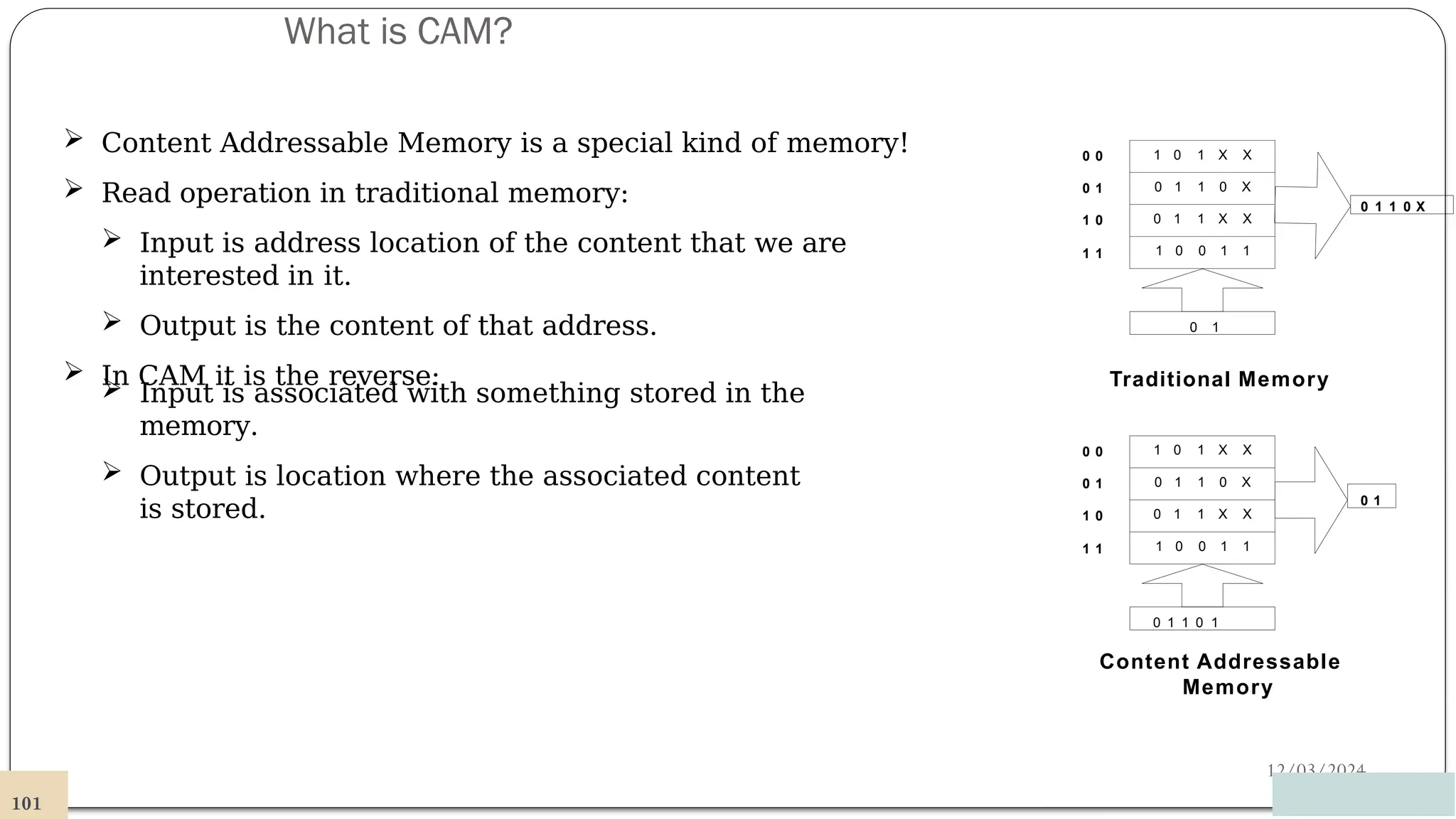

- 90. What is CAM? 12/03/2024 Content Addressable Memory is a special kind of memory! Read operation in traditional memory: Input is address location of the content that we are interested in it. Output is the content of that address. In CAM it is the reverse: Input is associated with something stored in the memory. Output is location where the associated content is stored. 1 0 1 X X 0 1 1 0 X 0 1 1 X X 1 0 0 1 1 0 1 1 0 1 0 0 0 1 1 0 1 1 0 1 Content Addressable Memory 1 0 1 X X 0 1 1 0 X 0 1 1 X X 1 0 0 1 1 0 1 0 0 0 1 1 0 1 1 0 1 1 0 X Traditional Memory 101

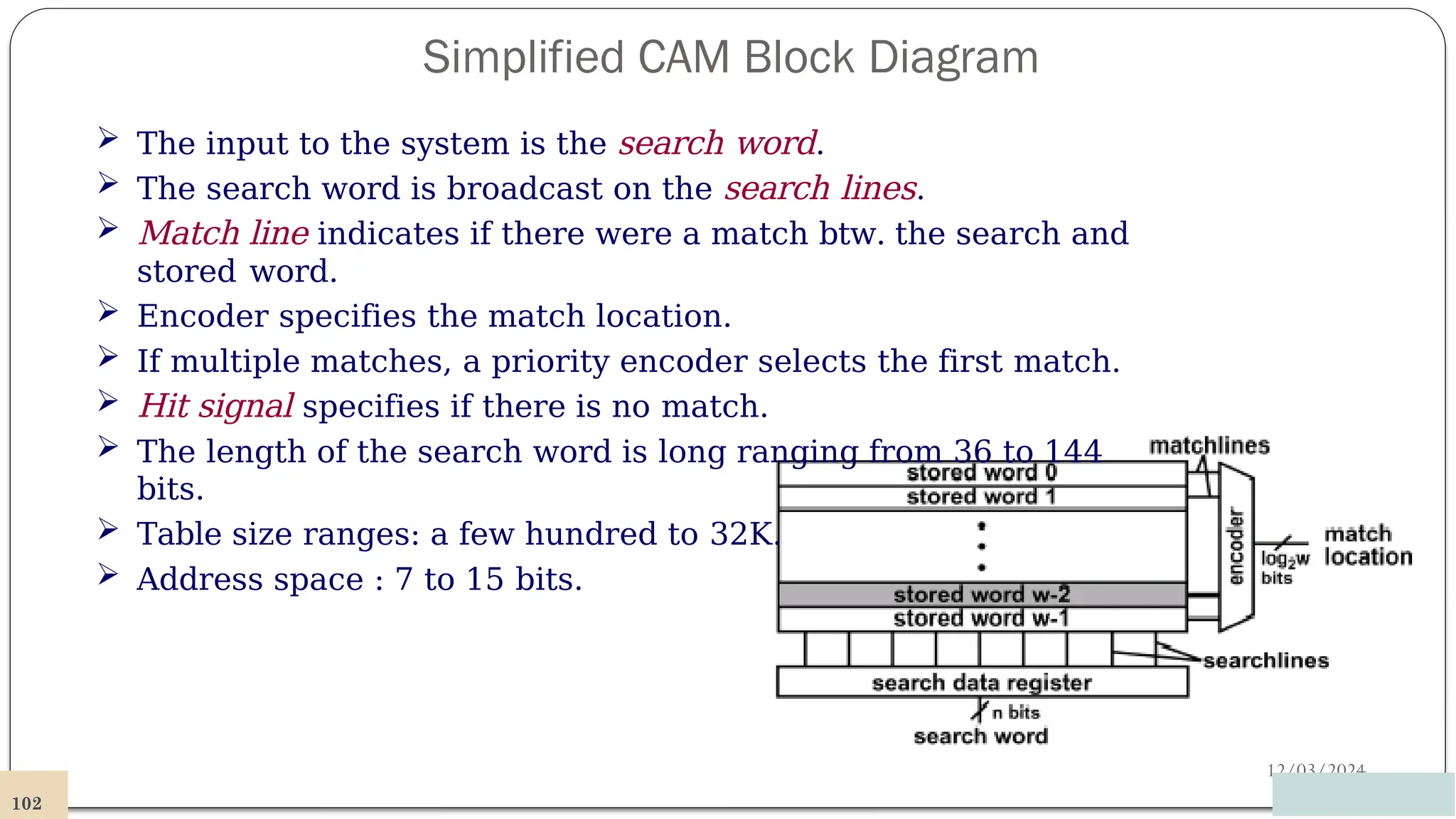

- 91. Simplified CAM BlockDiagram 12/03/2024 The input to the system is the search word. The search word is broadcast on the search lines. Match line indicates if there were a match btw. the search and stored word. Encoder specifies the match location. If multiple matches, a priority encoder selects the first match. Hit signal specifies if there is no match. The length of the search word is long ranging from 36 to 144 bits. Table size ranges: a few hundred to 32K. Address space : 7 to 15 bits. 102

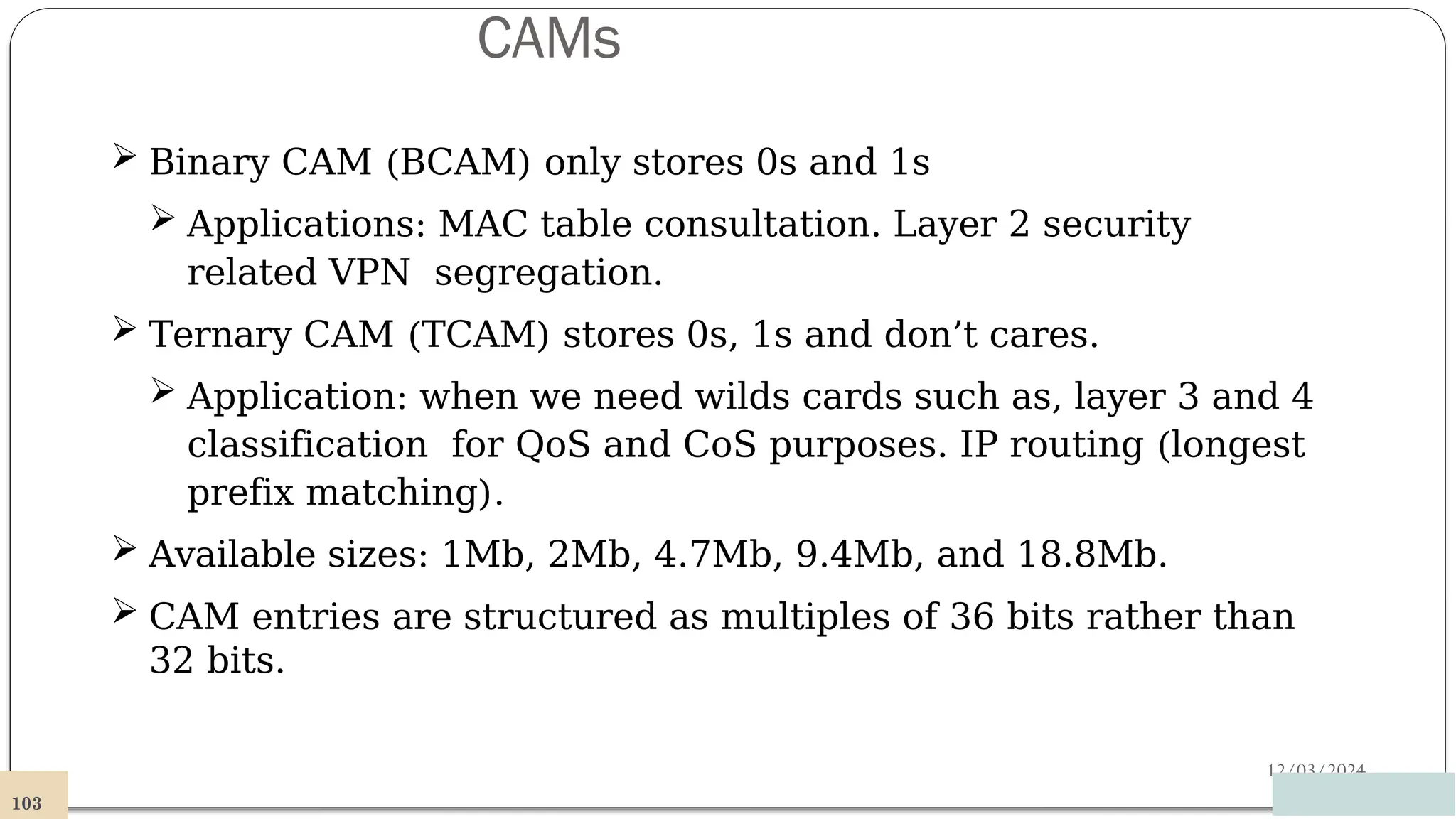

- 92. CAMs 12/03/2024 Binary CAM(BCAM) only stores 0s and 1s Applications: MAC table consultation. Layer 2 security related VPN segregation. Ternary CAM (TCAM) stores 0s, 1s and don’t cares. Application: when we need wilds cards such as, layer 3 and 4 classification for QoS and CoS purposes. IP routing (longest prefix matching). Available sizes: 1Mb, 2Mb, 4.7Mb, 9.4Mb, and 18.8Mb. CAM entries are structured as multiples of 36 bits rather than 32 bits. 103

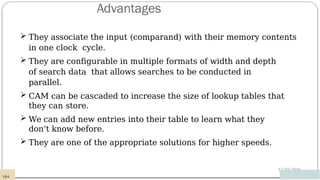

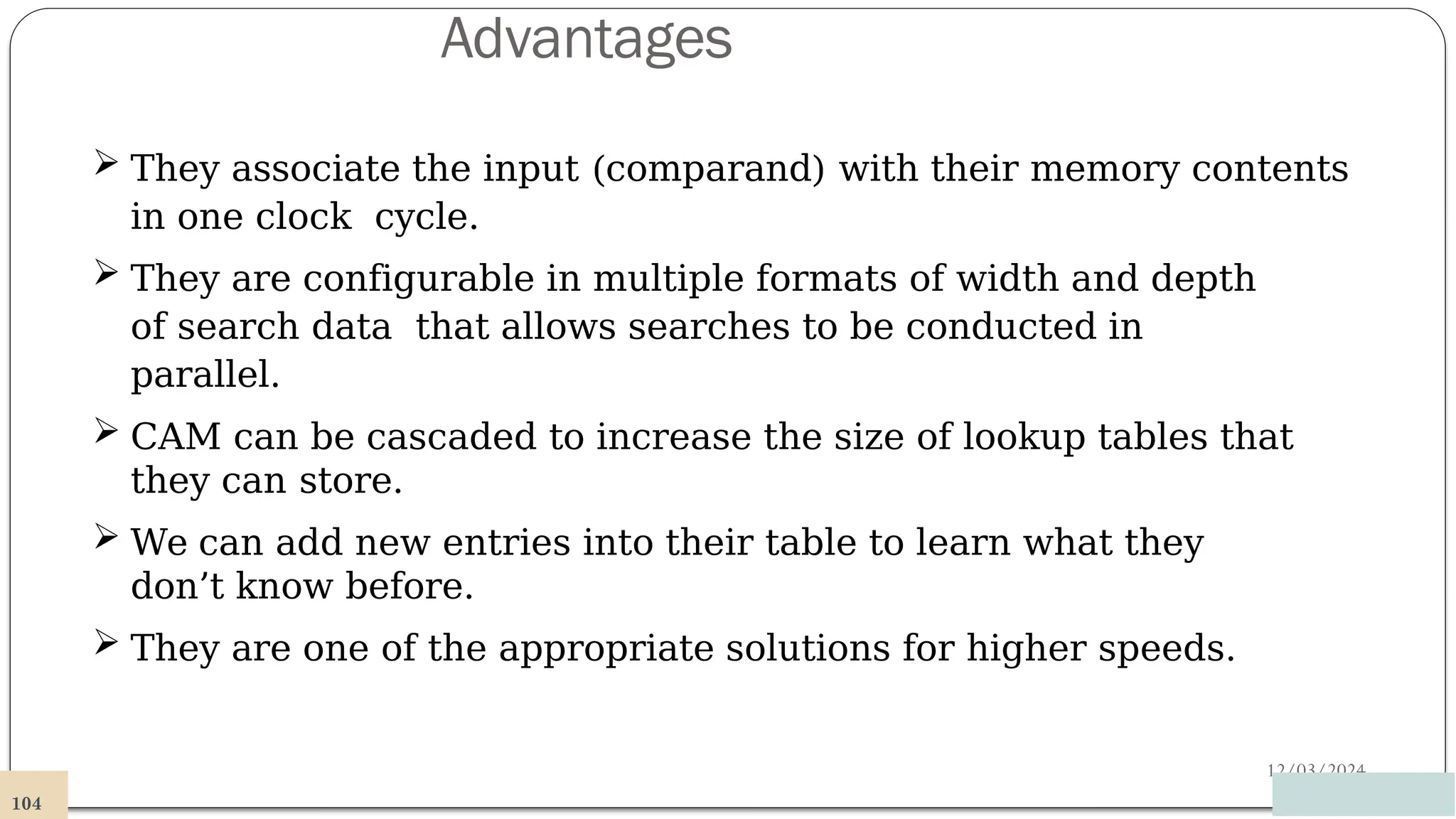

- 93. Advantages 12/03/2024 They associatethe input (comparand) with their memory contents in one clock cycle. They are configurable in multiple formats of width and depth of search data that allows searches to be conducted in parallel. CAM can be cascaded to increase the size of lookup tables that they can store. We can add new entries into their table to learn what they don’t know before. They are one of the appropriate solutions for higher speeds. 104

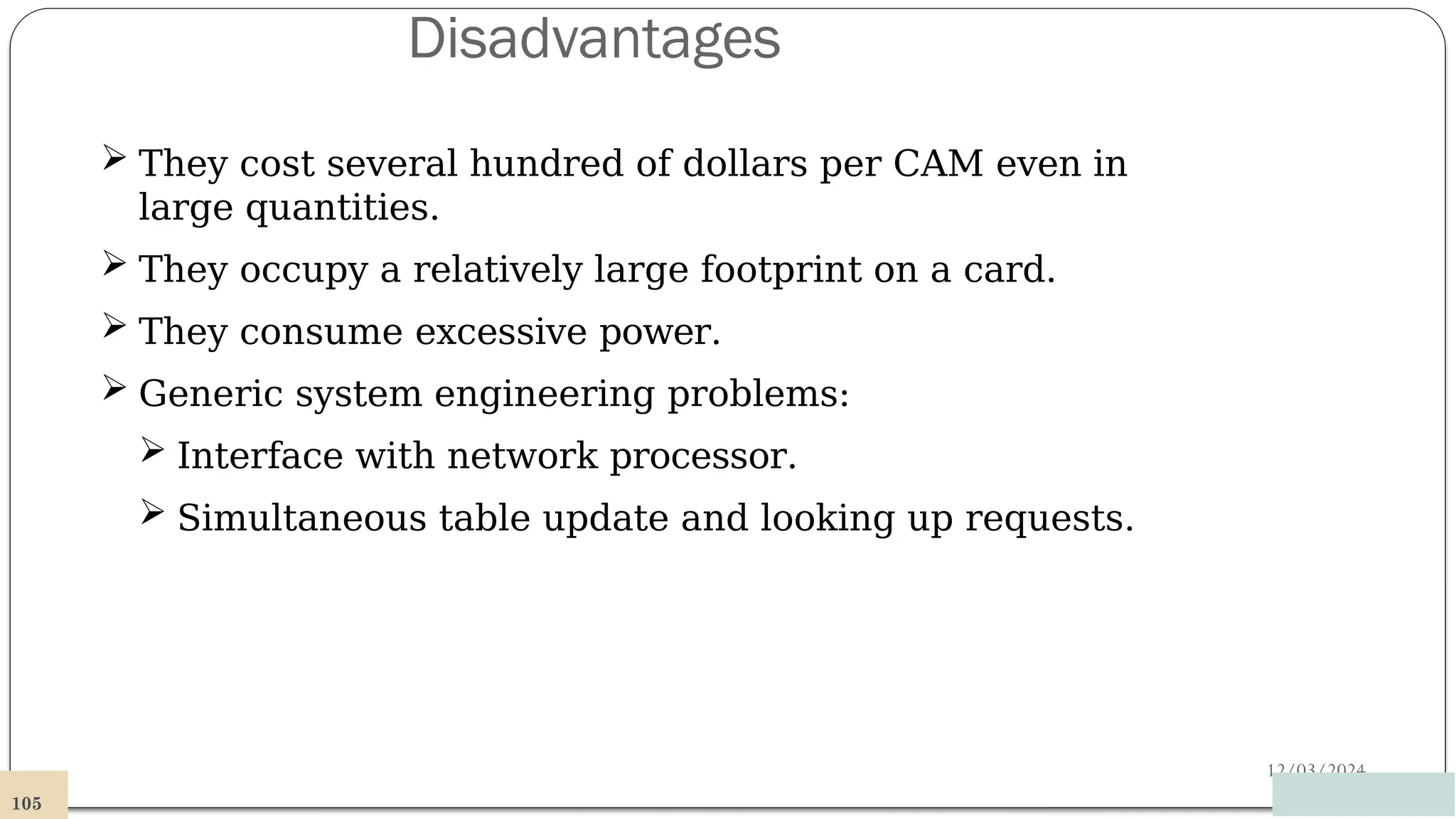

- 94. Disadvantages 12/03/2024 They costseveral hundred of dollars per CAM even in large quantities. They occupy a relatively large footprint on a card. They consume excessive power. Generic system engineering problems: Interface with network processor. Simultaneous table update and looking up requests. 105

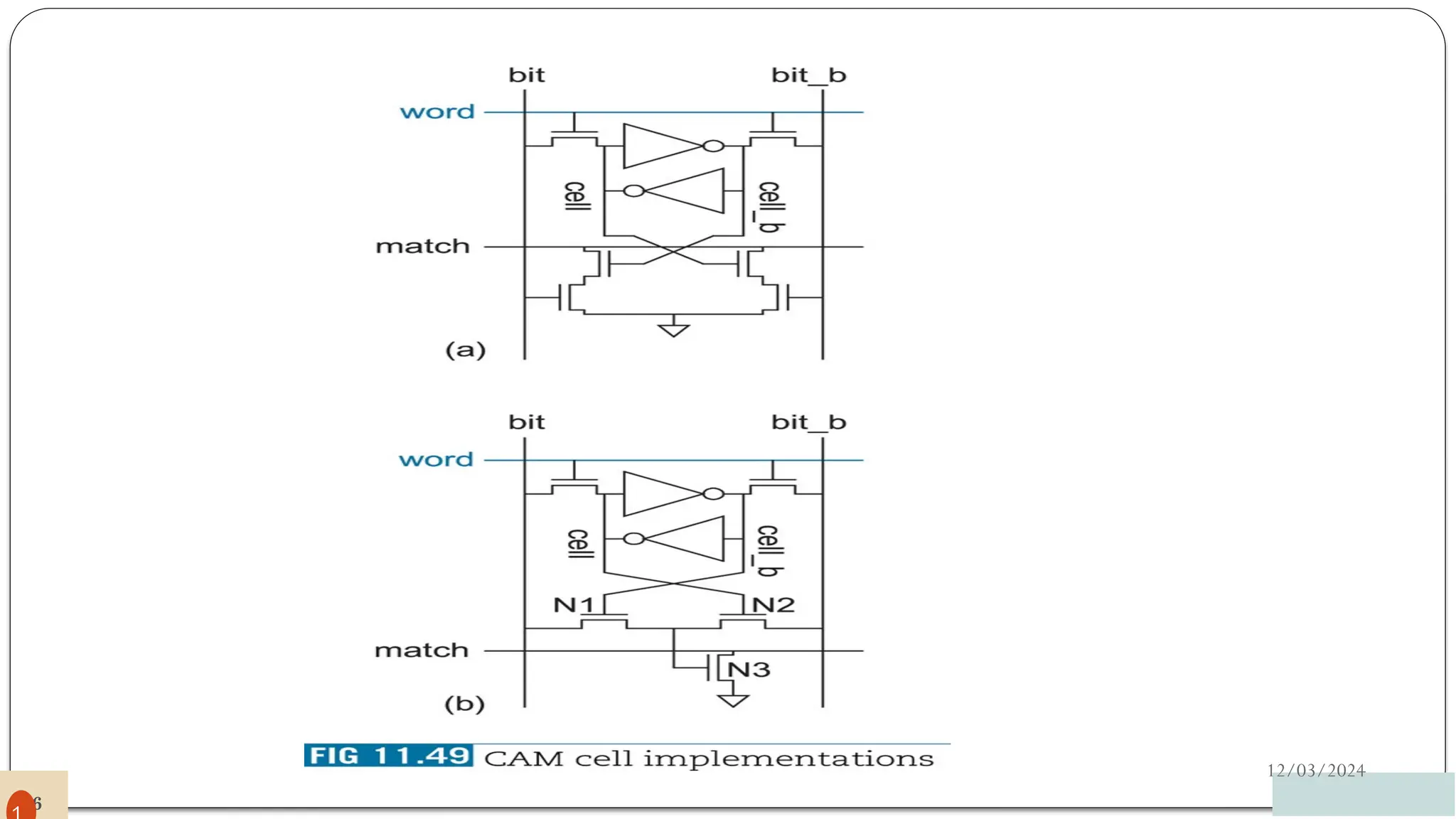

- 95.
- 96.

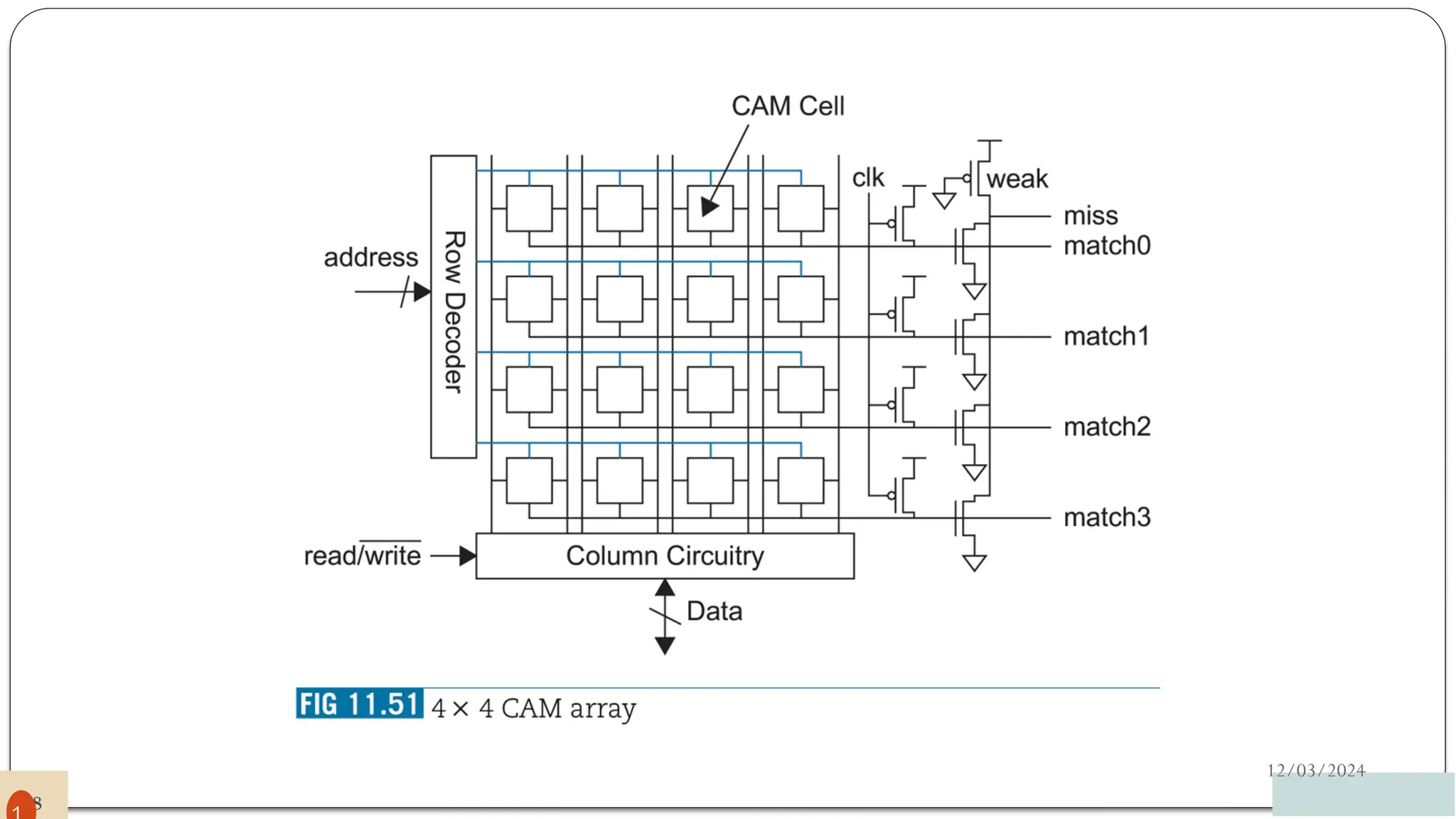

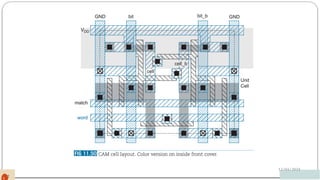

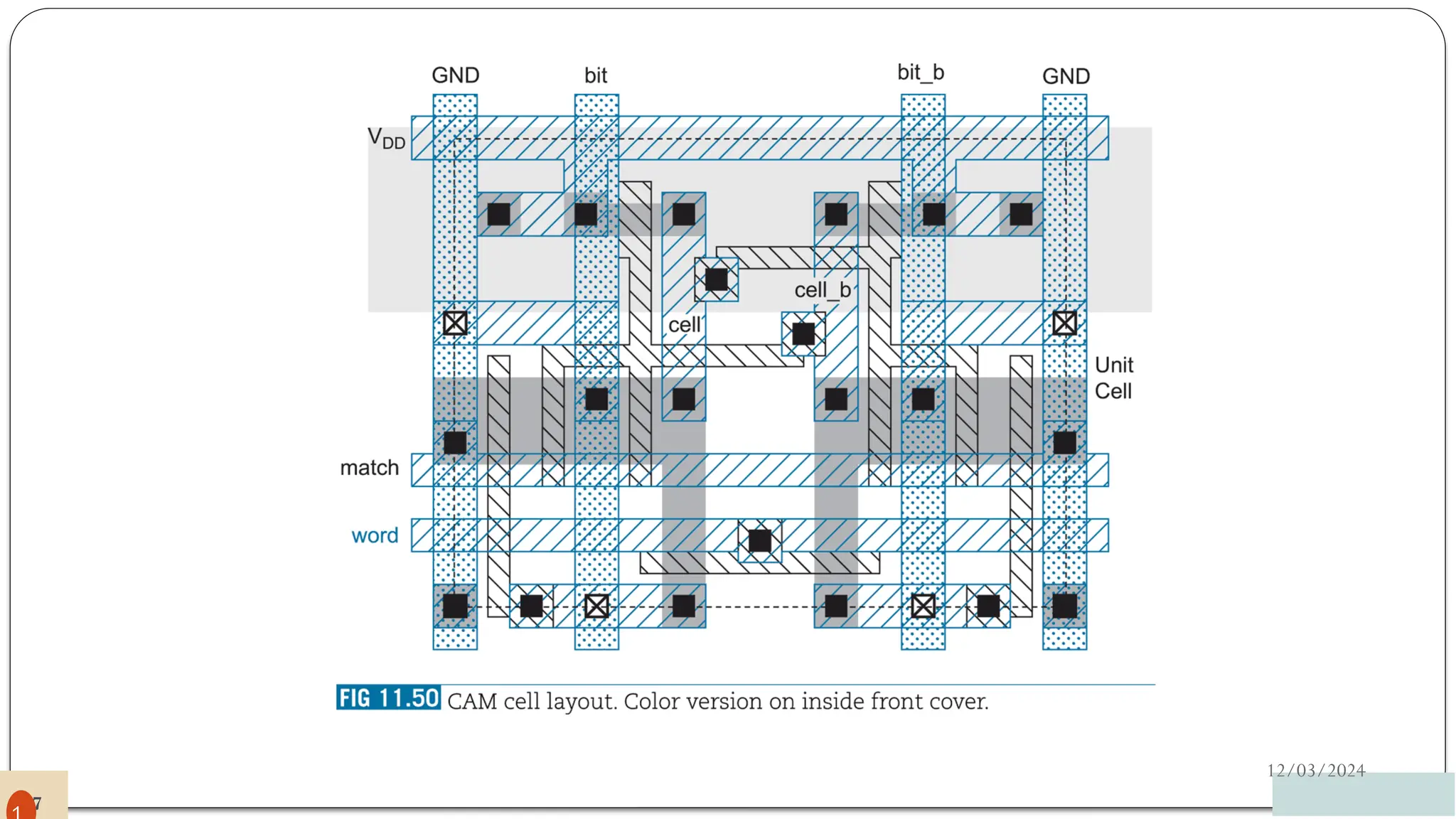

- 97.

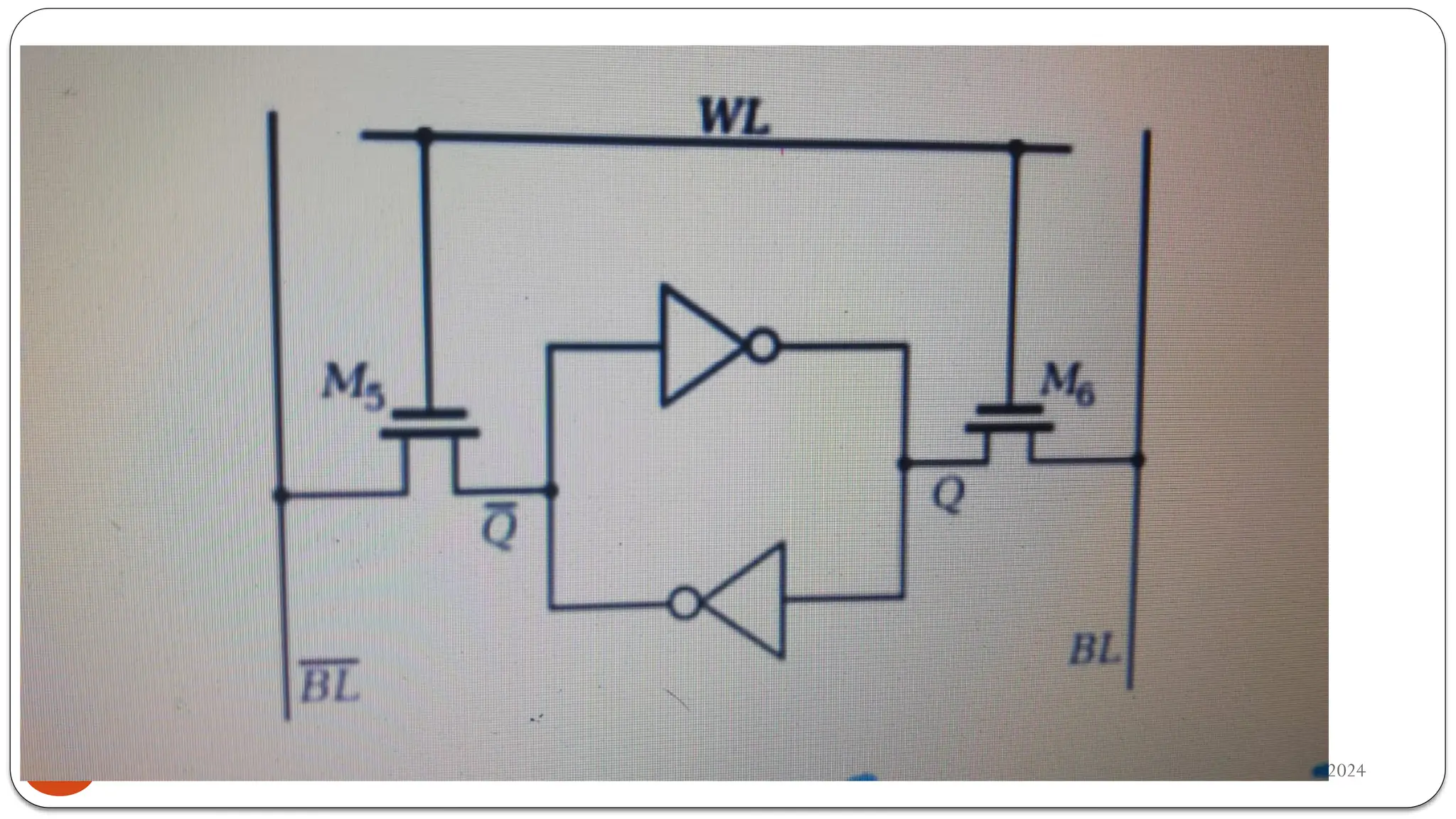

- 98.
- 99.

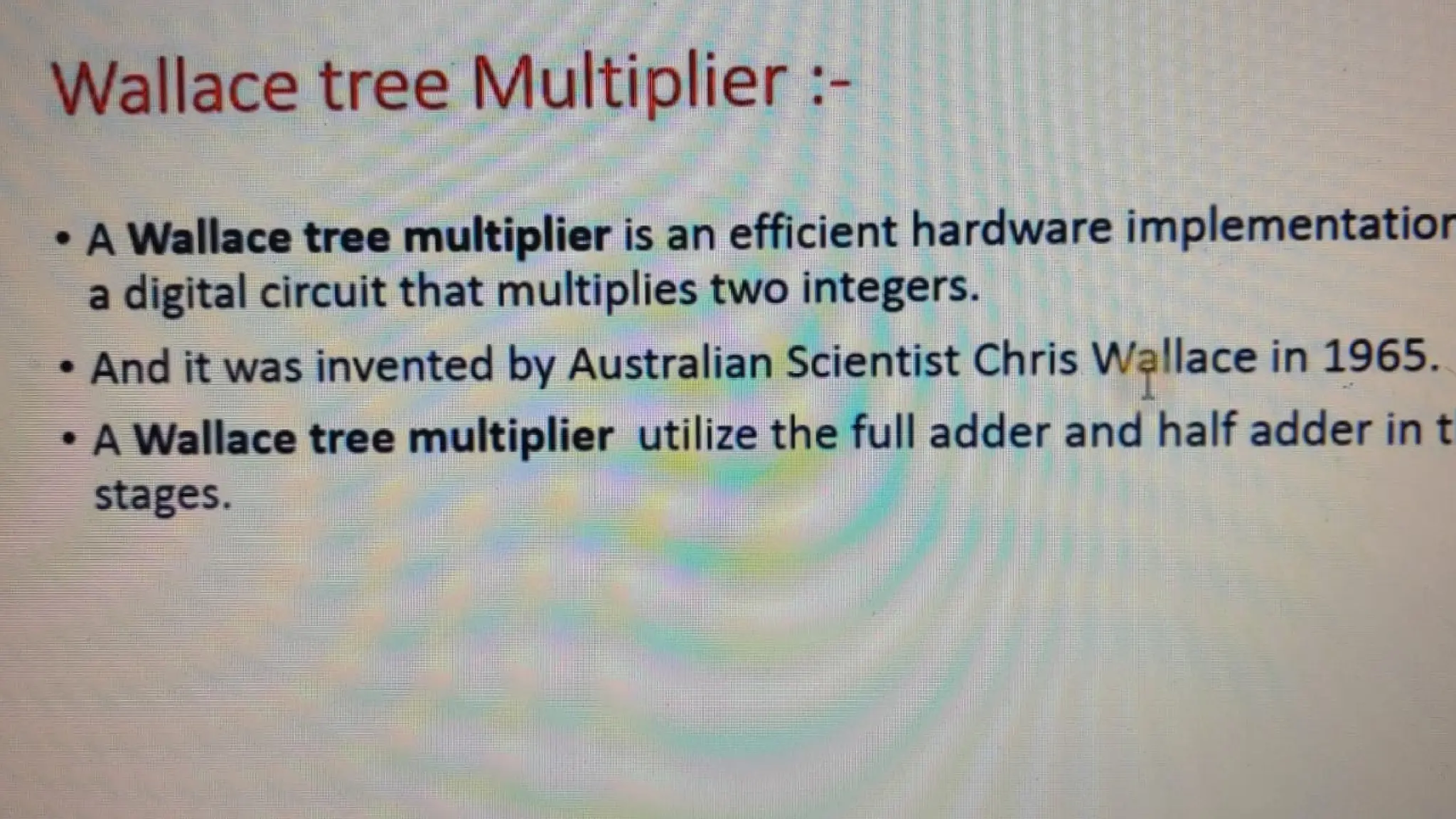

- 100.

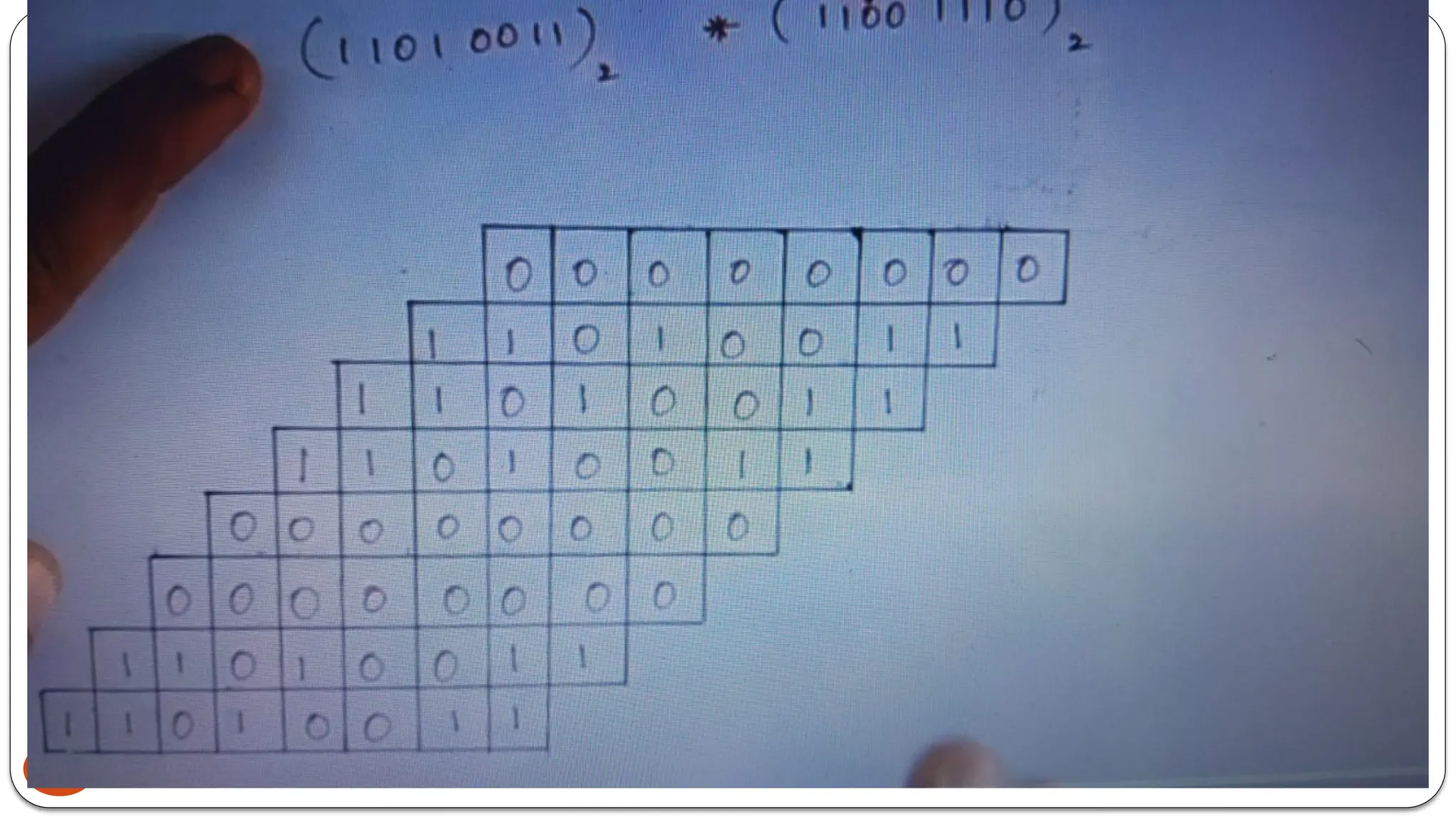

- 101.

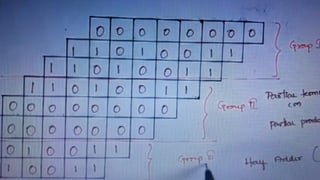

- 102.

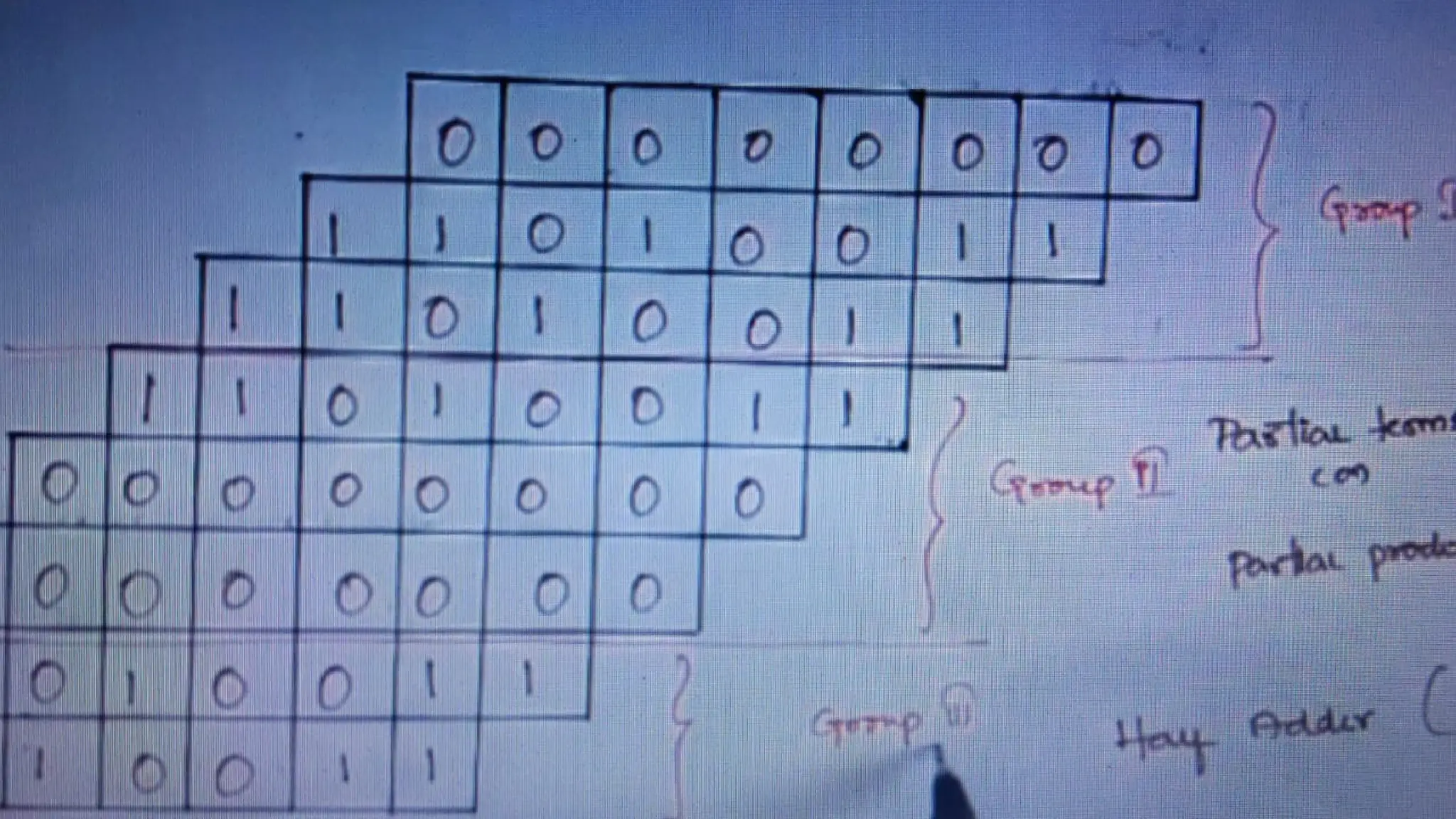

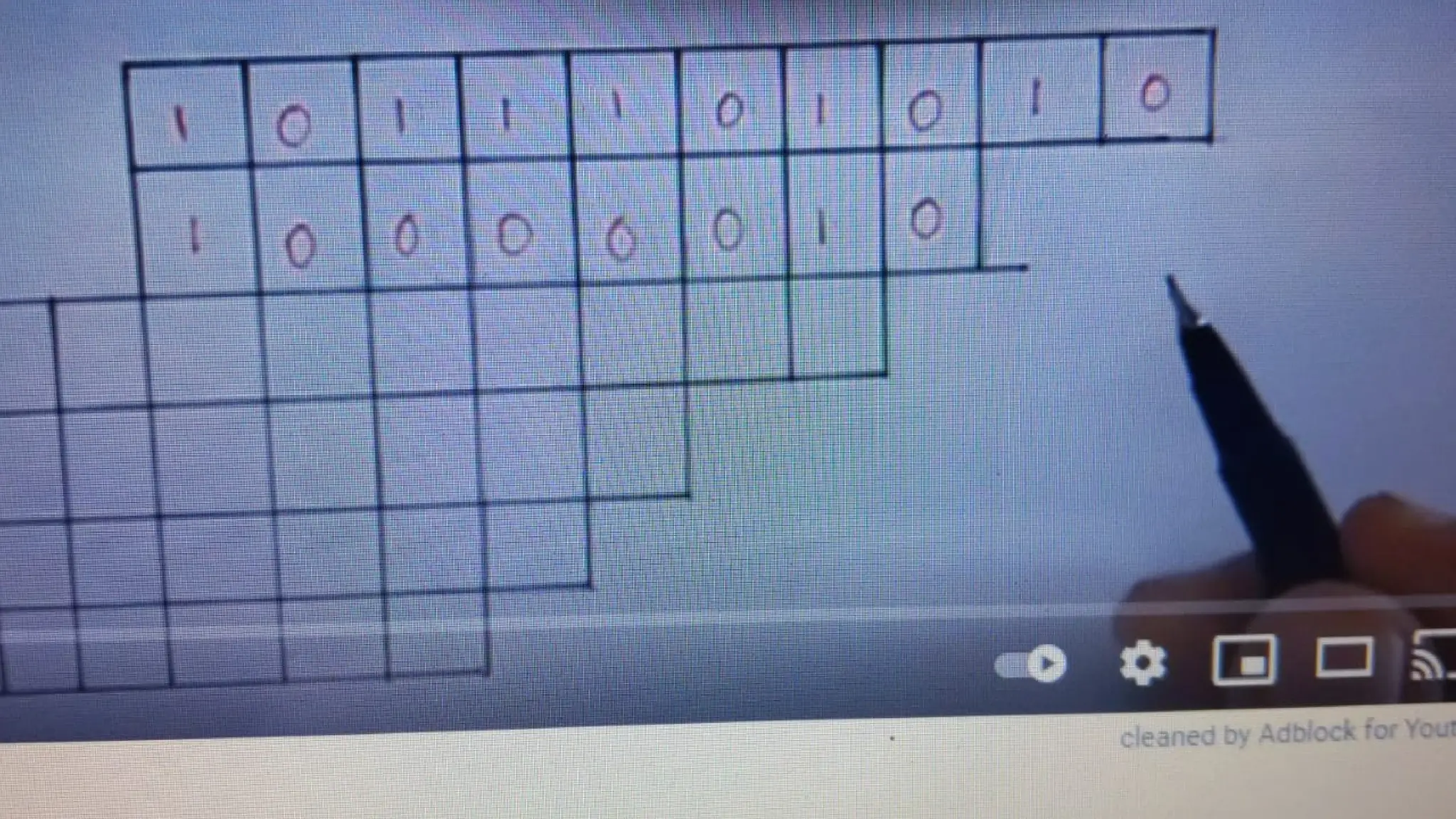

- 103.
- 104.

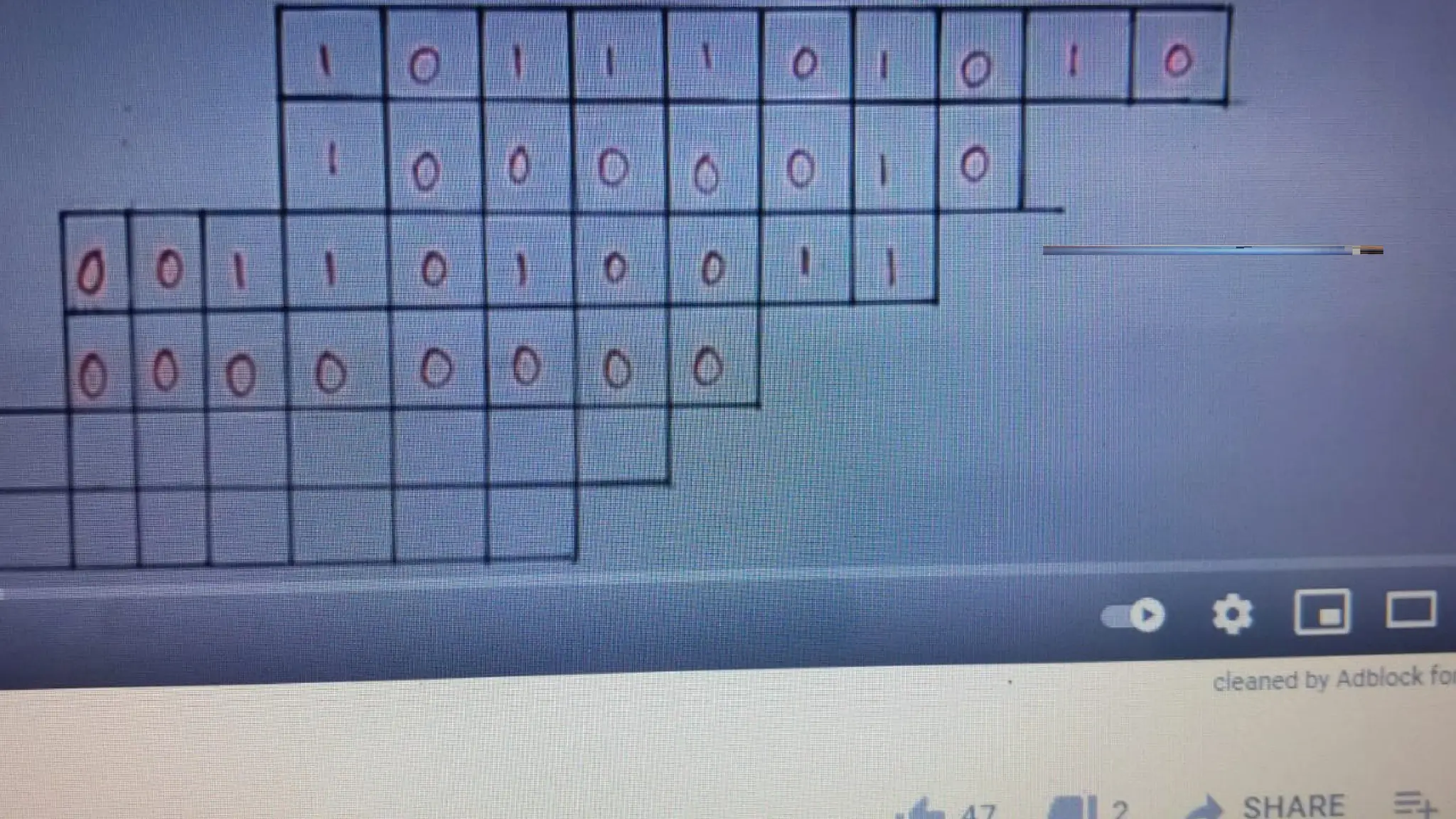

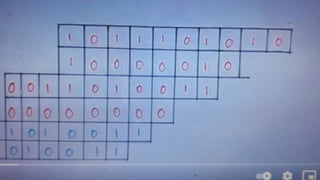

- 105.

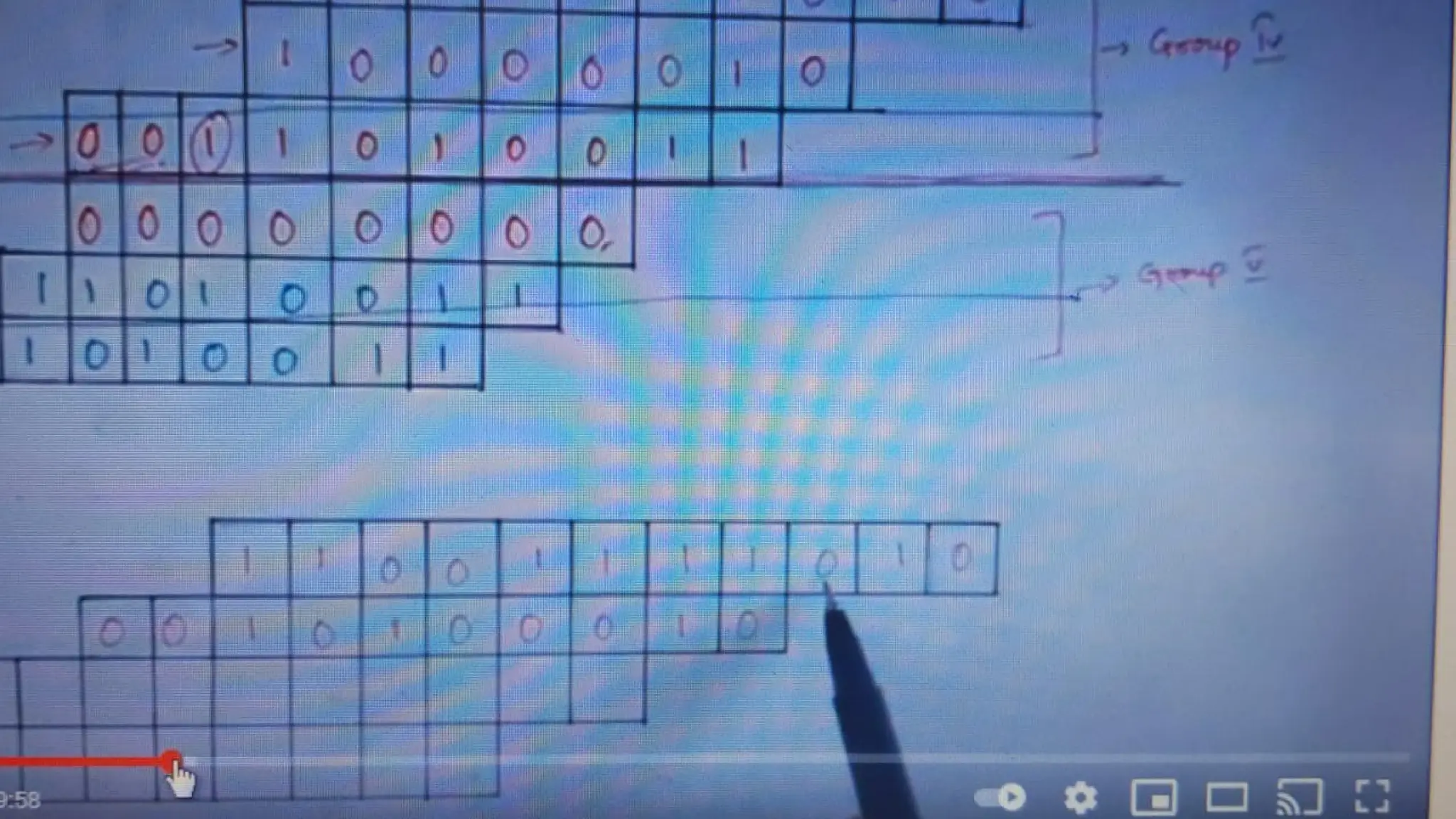

- 106.

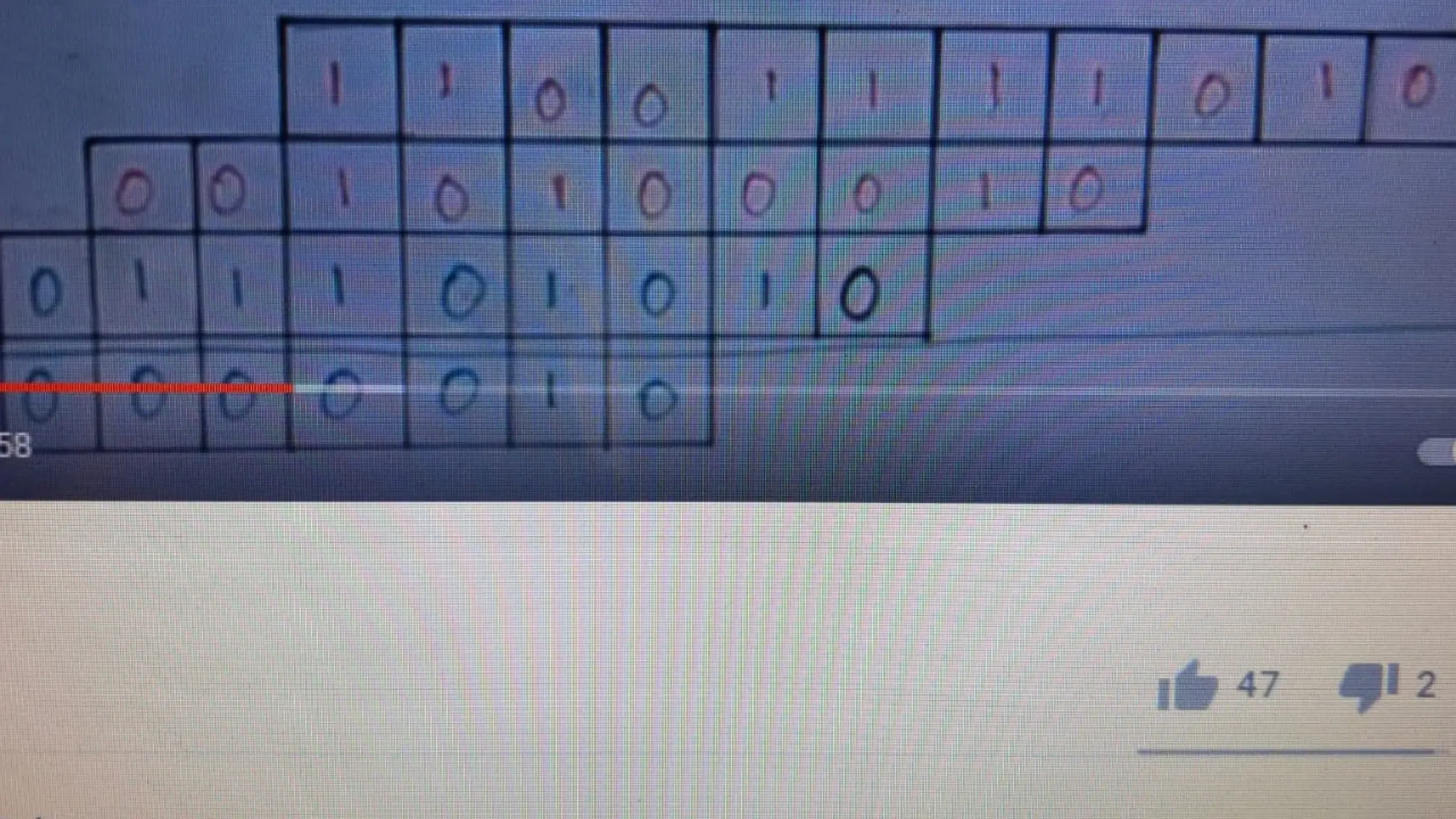

- 107.

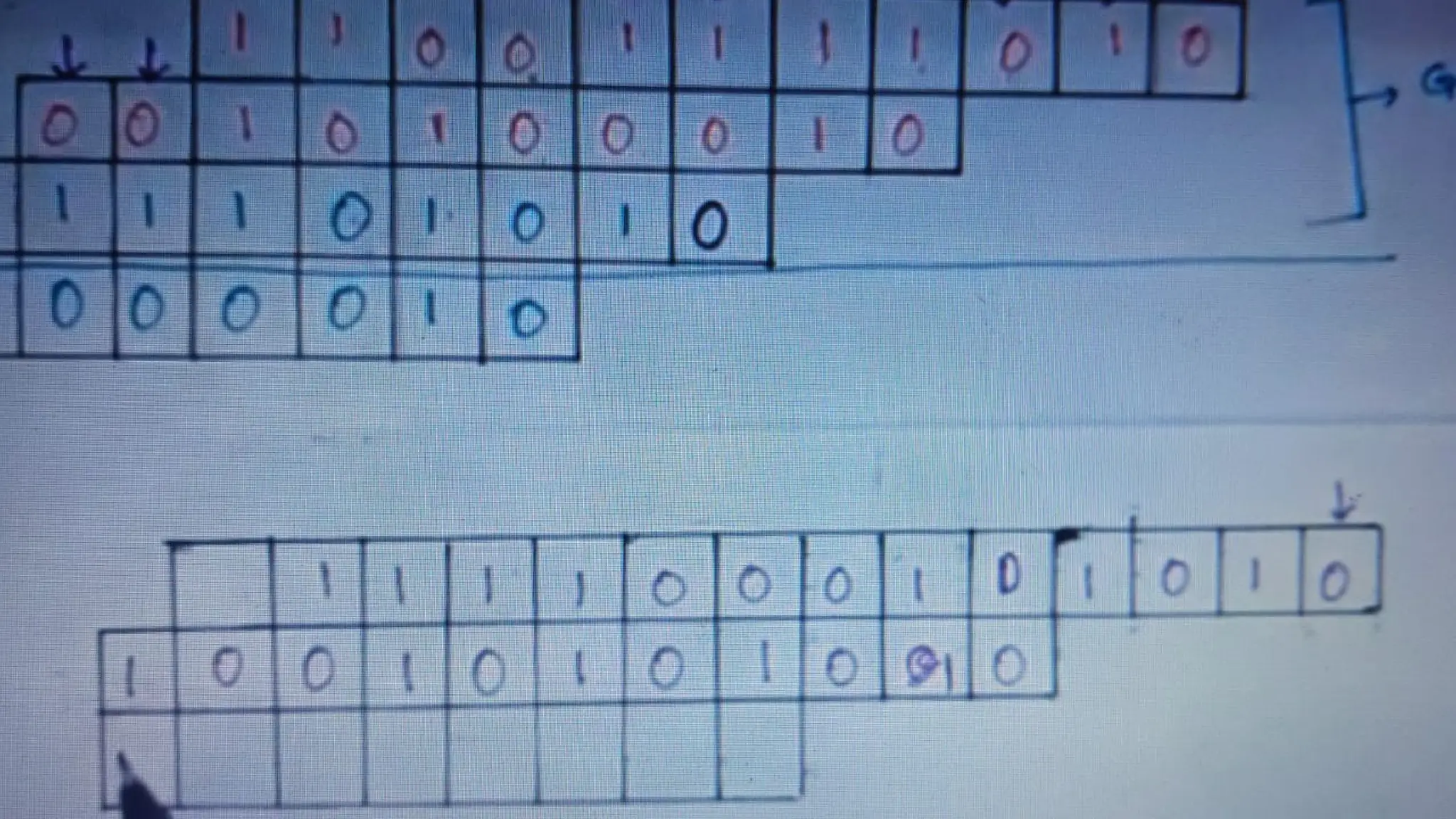

- 108.

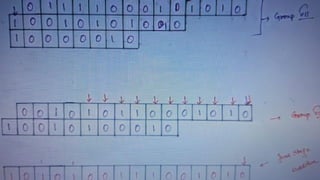

- 109.

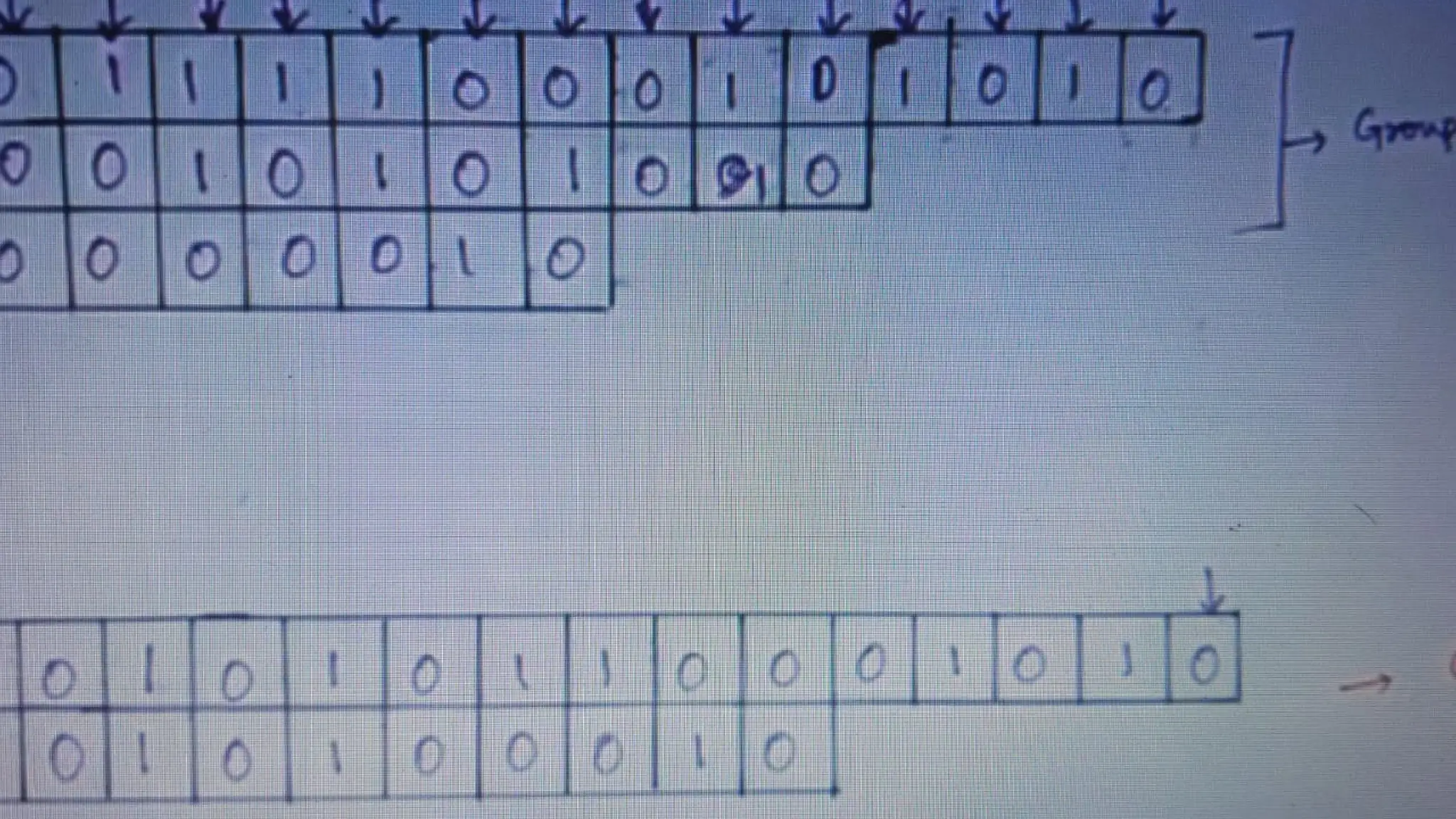

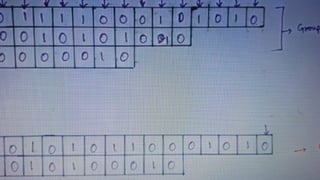

- 110.

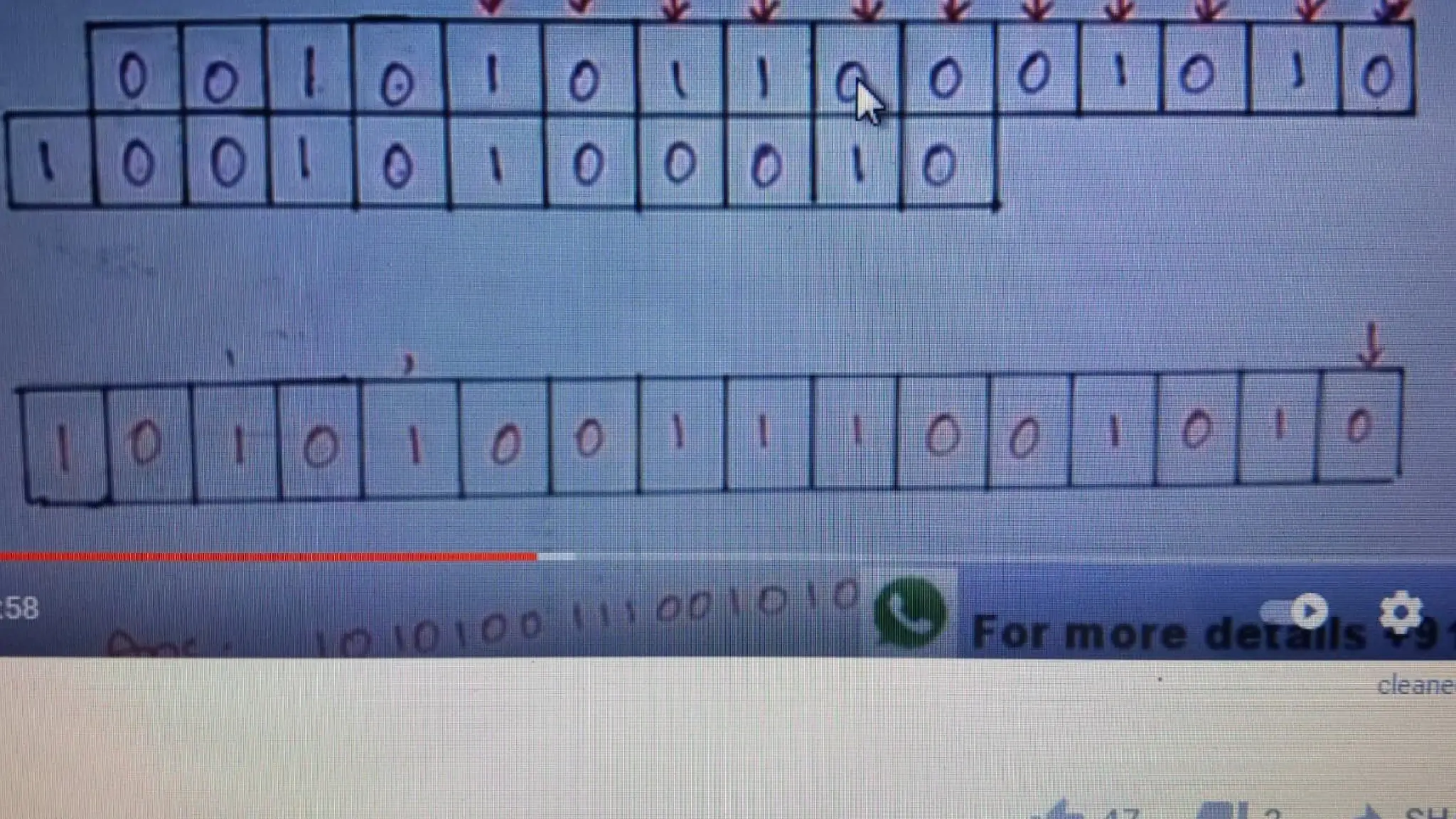

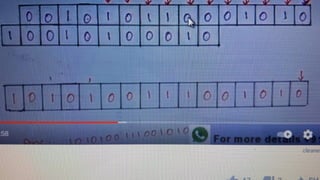

- 111.
- 112.

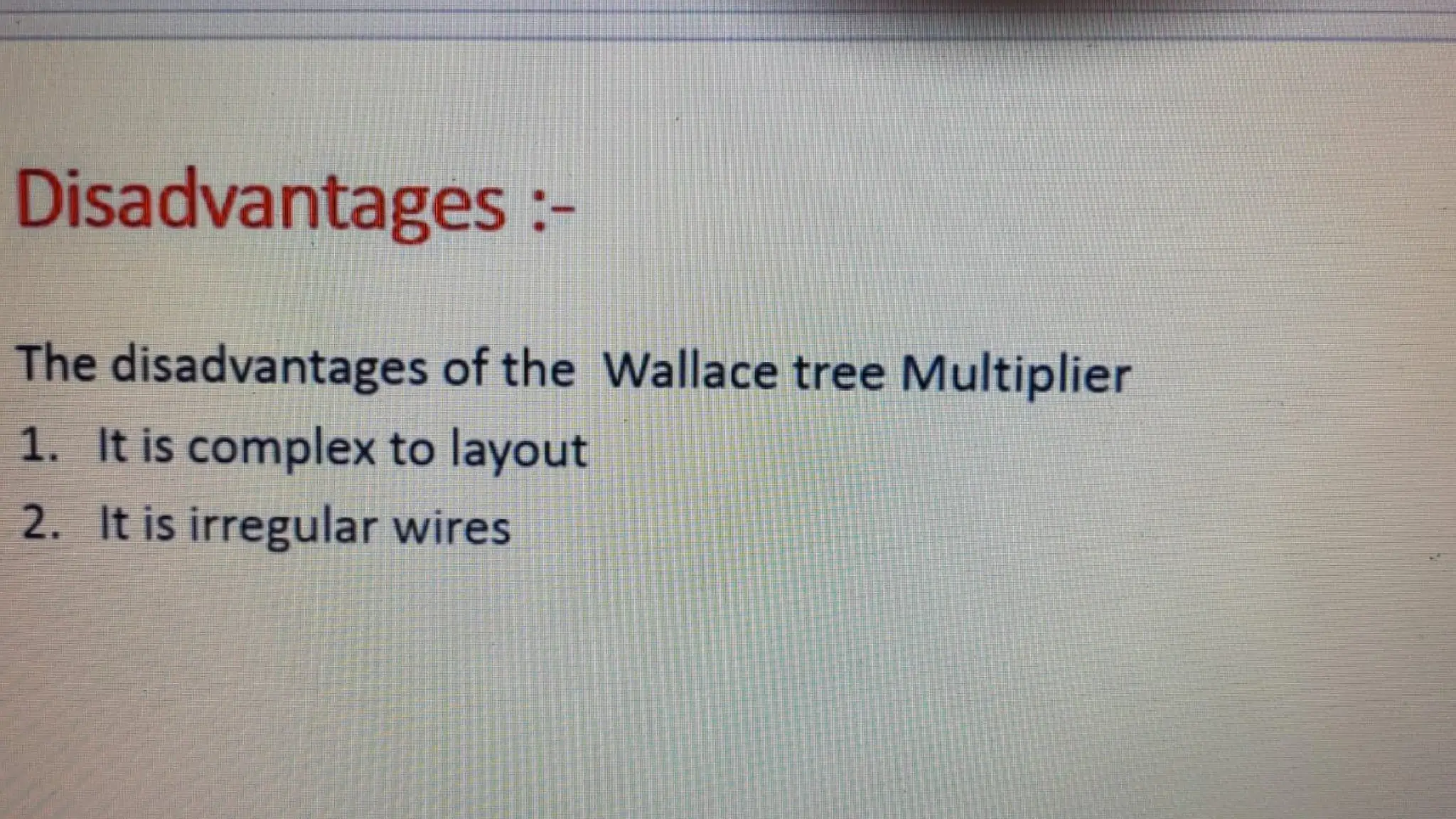

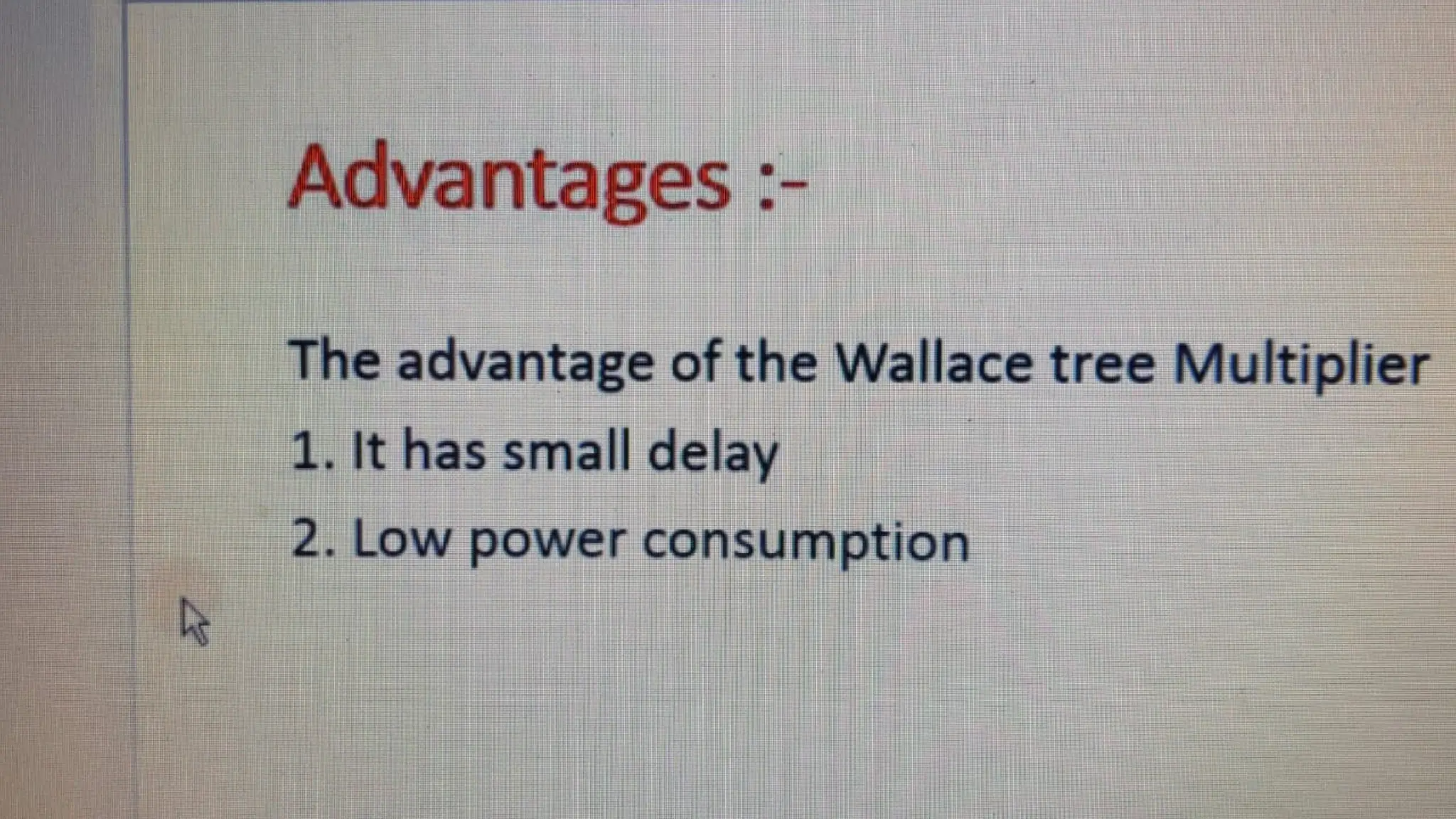

- 113.

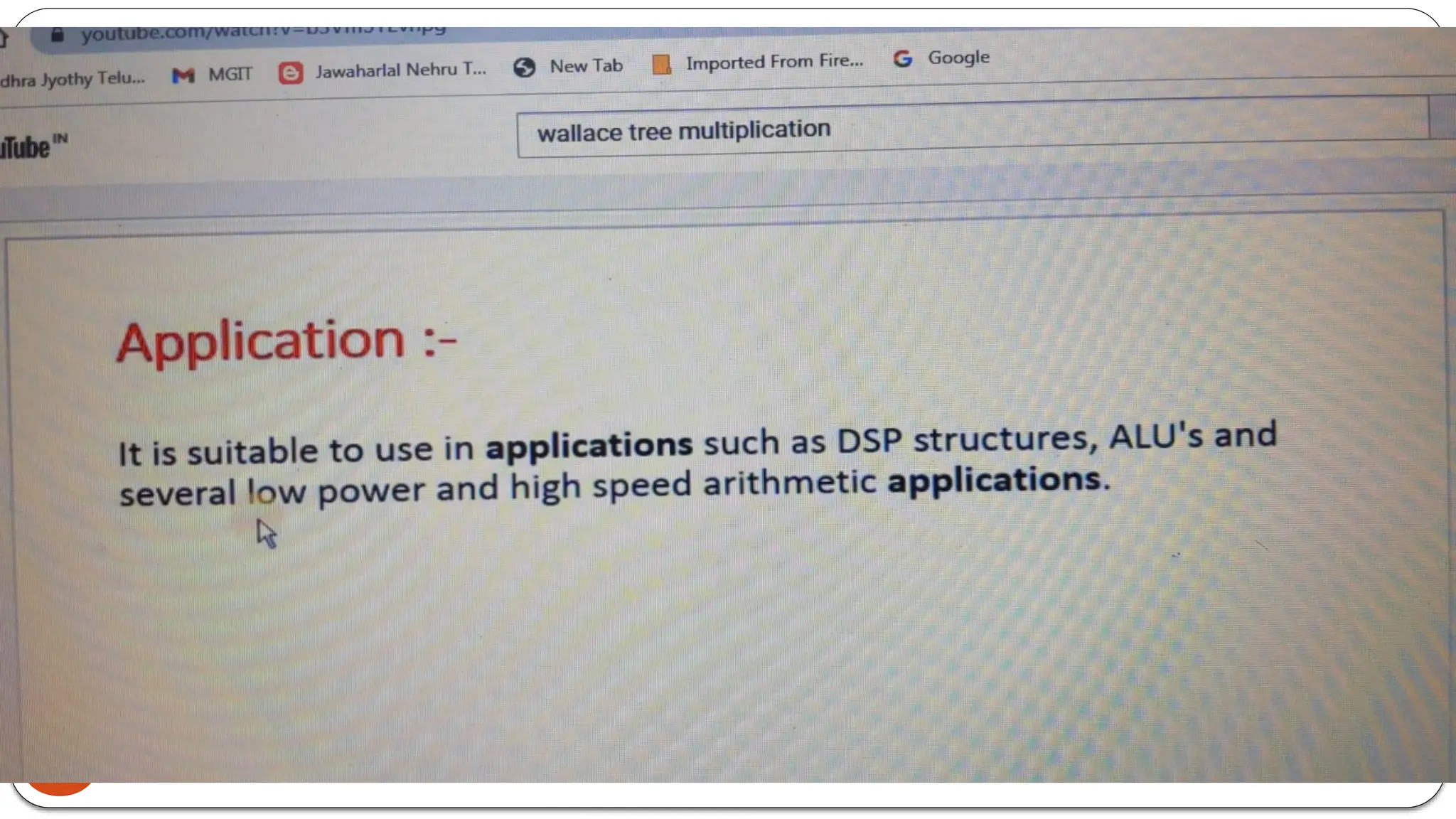

- 114.
- 115.
