This document discusses automating the process of collecting data on planned industrial areas in Flanders using FME. Previously, collecting this data was time-consuming and prone to errors due to manual processes. The new automated process uses FME to scrape data from various government websites and publications using transformers. This allows for daily updates of nearly complete data with no errors or need for interpretation, providing major improvements over the previous manual method.

1. Automating
spatial planning
screening
2019, May 23th

2. About myself:
FME dekstop experience level
Idris Peiren
AGENTSCHAP INNOVEREN & ONDERNEMEN
Dienst GIS
idris.peiren@vlaio.be
www.vlaio.be
FME facts VLAIO:
Since: 2016
Number of users 3
License Database edition

3. About VLAIO:
Promoting
entrepreneurship
(Incentivising)
environmental factors
E-counter
Cluster Working
Growth &
Innovation
European
Collaboration

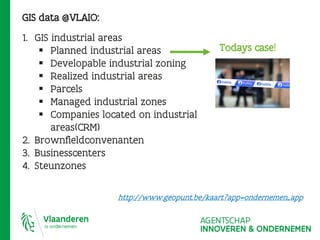

4. GIS data @VLAIO:
1. GIS industrial areas
 Planned industrial areas
 Developable industrial zoning
 Realized industrial areas
 Parcels
 Managed industrial zones
 Companies located on industrial
areas(CRM)
2. Brownfieldconvenanten
3. Businesscenters
4. Steunzones
Todays case!
http://www.geopunt.be/kaart?app=ondernemen_app

5. The Case

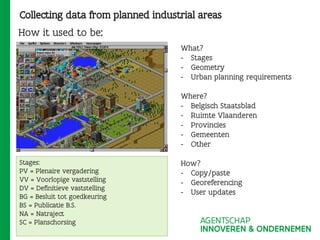

6. Collecting data from planned industrial areas
What?
- Stages
- Geometry
- Urban planning requirements
Where?
- Belgisch Staatsblad
- Ruimte Vlaanderen
- Provincies
- Gemeenten
- Other
How?
- Copy/paste
- Georeferencing
- User updates
How it used to be:
Stages:
PV = Plenaire vergadering
VV = Voorlopige vaststelling
DV = Definitieve vaststelling
BG = Besluit tot goedkeuring
BS = Publicatie B.S.
NA = Natraject
SC = Planschorsing

7. Collecting data from planned industrial areas
- Time consuming
- Low efficiency
- Incomplete
- Time gaps
- Room for errors
- Hard to trace conversions
- Interpretation
Disadvantages

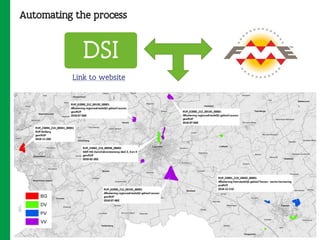

8. Automating the process
DSI
Link to website

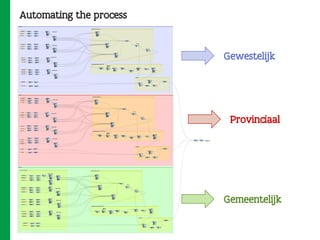

9. Automating the process
Gewestelijk
Provinciaal
Gemeentelijk

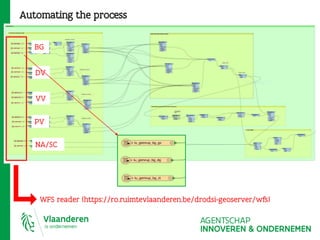

10. Automating the process
WFS reader (https://ro.ruimtevlaanderen.be/drodsi-geoserver/wfs)
PV
NA/SC
BG
DV
VV

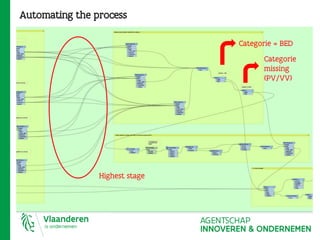

11. Automating the process
Highest stage
Categorie = BED
Categorie
missing
(PV/VV)

12. Automating the process
https://hub.safe.com/transformers/pdf2textreader
Credits to GIM!

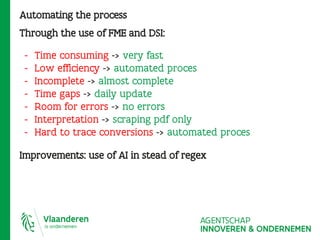

13. Automating the process
- Time consuming -> very fast
- Low efficiency -> automated proces
- Incomplete -> almost complete
- Time gaps -> daily update
- Room for errors -> no errors
- Interpretation -> scraping pdf only
- Hard to trace conversions -> automated proces
Through the use of FME and DSI:
Improvements: use of AI in stead of regex

14. What I like the most about FME
Transformers are named after what they actually do
Multiple output ports Feature count/inspect

15. Thanks to:
- Departement omgeving
- GIM
